The Scalable Solid-State Synthesis of a Ni5P4/Ni2P–FeNi Alloy Encapsulated into a Hierarchical Porous Carbon Framework for Efficient Oxygen Evolution Reactions

by
Xiangyun Tian
1,
Peng Yi
1,
Junwei Sun
2,
Caiyun Li
1,
Rongzhan Liu
1,3,* and
Jian-Kun Sun
2,*
1
College of Textiles and Clothing, Qingdao University, Qingdao 266071, China
2
College of Chemistry and Chemical Engineering, Qingdao University, Qingdao 266071, China
3
Collaborative Innovation Center for Eco-Textiles of Shandong Province and the Ministry of Education, Qingdao University, Qingdao 266071, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(11), 1848; https://doi.org/10.3390/nano12111848
Submission received: 5 May 2022 / Revised: 24 May 2022 / Accepted: 25 May 2022 / Published: 28 May 2022
(This article belongs to the Topic Catalytic Applications of Transition Metals)
Browse Figures
Review Reports Versions Notes

Abstract

:
The exploration of high-performance and low-cost electrocatalysts towards the oxygen evolution reaction (OER) is essential for large-scale water/seawater splitting. Herein, we develop a strategy involving the in situ generation of a template and pore-former to encapsulate a Ni5P4/Ni2P heterojunction and dispersive FeNi alloy hybrid particles into a three-dimensional hierarchical porous graphitic carbon framework (labeled as Ni5P4/Ni2P–FeNi@C) via a room-temperature solid-state grinding and sodium-carbonate-assisted pyrolysis method. The synergistic effect of the components and the architecture provides a large surface area with a sufficient number of active sites and a hierarchical porous pathway for efficient electron transfer and mass diffusion. Furthermore, a graphitic carbon coating layer restrains the corrosion of alloy particles to boost the long-term durability of the catalyst. Consequently, the Ni5P4/Ni2P–FeNi@C catalyst exhibits extraordinary OER activity with a low overpotential of 242 mV (10 mA cm−2), outperforming the commercial RuO2 catalyst in 1 M KOH. Meanwhile, a scale-up of the Ni5P4/Ni2P–FeNi@C catalyst created by a ball-milling method displays a similar level of activity to the above grinding method. In 1 M KOH + seawater electrolyte, Ni5P4/Ni2P–FeNi@C also displays excellent stability; it can continuously operate for 160 h with a negligible potential increase of 2 mV. This work may provide a new avenue for facile mass production of an efficient electrocatalyst for water/seawater splitting and diverse other applications.

Graphical Abstract

1. Introduction

Developing eco-friendly and sustainable energy technologies is urgent due to the need to address global environmental issues and energy depletion; nevertheless, it remains a challenge [1]. Hydrogen energy is considered to be a promising alternative to conventional fossil fuels [2]. Electrochemical water splitting presents an effective and economical approach to producing clean hydrogen, but the sluggish kinetics of the oxygen evolution reaction (OER) on anodes require a large overpotential to undergo a four-electron transfer process, which severely impedes the overall efficiency of water splitting [3,4]. At present, Ir/Ru-based catalysts are considered the most advanced catalysts for the OER, but their scarcity and high cost hinder the expansion of large-scale industrial applications [5]. Therefore, much effort has been devoted to developing highly active, cost-effective and earth-abundant non-precious-metal electrocatalysts [6]. Recently, a tremendous amount of research has been focused on 3D transition-metal-based non-noble catalysts [7], including transition metal oxides/hydroxides, sulfides, selenides, alloys, phosphates, nitrides, phosphides and so on [8].
Among them, transition metal phosphide (TMP) electrocatalysts have attracted widespread attention due to their tunable structure, unique physicochemical properties and high intrinsic catalytic activity [9]. In particular, the phosphorus and metal sites in TMPs can serve as acceptors for protons and hydrides, respectively, which may enhance the intrinsic OER catalytic activity. Several research studies reported that a TMP heterostructure displayed superior performance compared to a single-phase metal phosphide during the phosphorization process [10]. Meanwhile, the formation of a TMP heterojunction interface can effectively lower the chemisorption free energies of H*/OH* and accelerate the separation of intermediates [11], contributing to a superior OER electrocatalytic performance. For instance, a heterostructure interface made of metallic phosphides usually provides abundant active sites and synergistically promotes the kinetics of proton and electron transport, accelerating the OER process [12]. Ren et al. reported that heterogeneous Ni2P–Fe2P microsheets on nickel foam produced by a growth-ion exchange and phosphidation method exhibit excellent catalytic activity [13]. Hou et al. reported that Ni/Ni2P hetero-nanoparticles on N-doped carbon nanofiber catalysts displayed good OER activity, with an overpotential of 285 mV (10 mA cm−2) in a 1 M KOH solution [14]. In addition, TMP catalysts usually exhibit surface reconstruction under OER conditions; this generates amorphous or metal (oxy)hydroxide species that are recognized as the real active sites and are responsible for enhanced levels of activity. For example, hollow nanostructured Ni5P2/FeP4 nanoboxes undergo deep reconstruction to NiOOH/FeOOH nanosheets, which exhibit superior OER activity and stability [15]. Although well-defined heterostructured catalysts usually exhibit superior electrocatalytic activity, TMPs demonstrate thermodynamic instability at high oxidation potentials due to the dissolution of the phosphorus in the electrolyte [16]. Furthermore, TMP catalysts with a well-defined heterostructure usually require tedious synthesis procedures, so feasible fabrication and the scale-up of production remain a challenge for practical applications.
In addition to TMPs, transition metal alloys have recently been studied as promising OER electrocatalysts [17]. A simple mechanical alloying process that involves the physical mixing of diverse elements is the common approach. The multiple components in transition metal alloys can synergistically regulate the electronic structure to promote conductivity and charge transfer [18]. However, bare alloy catalysts suffer from severe erosion and aggregation during electrochemical cycles; in particular, 3D transition metal alloys suffer serious instability in highly oxidative operating conditions and conditions with high levels of alkaline electrolytes, causing a drastic decline in catalytic performance [19]. The coupling/embedding of alloys with carbon-based substances seems an effective approach to enhancing the OER activity and stability [20] since carbon-based layers wrapped around the alloys prevent direct exposure to electrolytes and inhibit the agglomeration of adjacent metal particles [21]. Wei et al. prepared a catalyst of NiFe alloy nanoparticles encapsulated in nitrogen-doped carbon nanofibers (NiFe@NCNFs) using an electrospinning method; this catalyst exhibited enhanced OER activity and durability. Nevertheless, alloy particles are inclined to aggregate to large crystal sizes during the alloying process, which reduces the accessible surface area and number of catalytic sites [22].
Inspired by the above background, we herein develop a method for the facile and scalable synthesis of a Ni5P4/Ni2P heterojunction and FeNi alloy hybrid encapsulated by three-dimensional hierarchical porous carbon (denoted by Ni5P4/Ni2P–FeNi@C) via a room-temperature solid-state grinding and sodium-carbonate-assisted pyrolysis strategy [18]. Unlike the previous works [17,18,19,20,21,22], the sodium-carbonate-assisted pyrolysis strategy can simultaneously induce the in situ generation of a template and pore-former. The process can not only impart a 3D porous nanocrystal-assembled carbon skeleton but also restrain the excessive coalescence of alloy particles and assist in implanting the FeNi alloy into the carbon framework [23]. After phosphorization treatment, the integrated electrocatalyst comprises a Ni5P4/Ni2P heterojunction and FeNi alloy encapsulated into a carbon shell, dispersedly interspersed into the interconnected carbon framework. The components and architectures create synergistic effects between the Ni5P4/Ni2P hetero-interfaces and the FeNi alloy; these effects, as well as the hierarchical porous carbon, regulate the electronic structure and provide a large surface area with a sufficient number of available active sites, contributing to efficient electron transfer and mass diffusion. Consequently, the Ni5P4/Ni2P–FeNi@C catalyst displays superior OER activity compared to commercial RuO2, with an overpotential of 242 mV (10 mA cm−2) and long-term stability in a 1 M KOH electrolyte solution. Furthermore, the Ni5P4/Ni2P–FeNi@C catalyst also shows promising potential for application in seawater electrolysis, requiring an overpotential of 445 mV to deliver 500 mA cm−2 in alkaline natural seawater at 25 °C. Ni5P4/Ni2P–FeNi@C also retains an extraordinary long-term stability; it lasts for 160 h with a negligible potential increase of 2 mV in a 1 M KOH + seawater medium.

2. Materials and Methods

2.1. Reagents and Chemicals

The reagents used included nickel chloride hexahydrate (NiCl2 6H2O), nickel nitrate hexahydrate (Ni(NO3)2 6H2O), ferric chloride hexahydrate (FeCl3 6H2O), ferric nitrate hexahydrate (Fe(NO3)3 6H2O), anhydrous sodium carbonate (Na2CO3), sodium bicarbonate (NaHCO3), chitosan ((C6H11NO4)n), potassium hydroxide (KOH, 98%), absolute ethanol (C2H5OH) and sodium chloride (NaCl). All of the above were analytical grade (AR) and were purchased from Sinopharm Group. Nafion (C5HF17O5S, 5%) and ruthenium oxide (RuO2) were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China).

2.2. Preparation of the Ni–FeNi@C and FeNi3@AC Catalysts

Appropriate amounts of FeCl3·6H2O (0.625 mmol), NiCl2·6H2O (1.876 mmol), Na2CO3 (4.717 mmol) and chitosan (1 g) were vigorously ground in an agate mortar to a homogenous mixture. Then, these powders were annealed at 700 °C for 2 h in an argon atmosphere. Subsequently, the product was rinsed repeatedly with de-ionized water and ethanol, followed by drying at 60 °C for 2 h. The carbonized sample was named Ni–FeNi@C. The contrast samples were prepared without the addition of sodium carbonate and are denoted as FeNi3@AC.

2.3. Preparation of the Ni5P4/Ni2P–FeNi@C and Ni5P4/Ni2P–Fe–FeNi3@AC Catalysts

For a typical preparation of Ni5P4/Ni2P–FeNi@C, 1 g NaH2PO2 on a quartz boat was placed on the upstream side of the tube furnace, while 100 mg of Ni–FeNi@C was placed on the downstream side. Then, the furnace was kept at 350 °C for 2 h at 5 °C min−1 in an argon atmosphere. The final black products were denoted as Ni5P4/Ni2P–FeNi@C. When the precursor was FeNi3@AC, the phosphating sample was labeled as Ni5P4/Ni2P–Fe–FeNi3@AC.

2.4. Characterization

Morphological features were evaluated by SEM (JSM-7001F, JEOL, Tokyo, Japan) and TEM (Tecnai G2F30, Hillsboro, OR, USA). XPS was performed on an ESCALAB 250Xi X-ray photoelectron spectrometer (Thermo Scientific, Waltham, MA, USA). XRD patterns were tested on DX2700 equipment (Dandong, China). The Nitrogen adsorption–desorption measurement was performed by a physical adsorption apparatus (ASAP 2020, micromeritics). Raman spectra analyses were performed on LabRAM Aramis (Raman, HORIBA, Ltd., Kyoto, Japan) using a 532 nm excitation laser.

2.5. Electrochemical Measurements

All electrochemical tests were carried out using an electrochemical workstation (VSP-300, BioLogic, Seyssinet-Pariset, France). An EIS test was performed at an amplitude of 5 mV and at frequencies ranging from 106 to 0.01 Hz. All potentials against Hg/HgO (EHg/HgO) were converted into the reversible hydrogen electrode (RHE) using the following equation:
ERHE = EHg/HgO + 0.0592 × pH + 0.098
Catalyst ink was prepared by dispersing 5 mg catalyst in a 500 µL solution containing 490 µL of ethanol/water (the volume ratio was 1:1) and 10 µL of 5 wt% Nafion. The working areas of GCE and carbon cloth were 0.07065 and 0.25 cm−2, respectively. Quantities of 5 μL and 17.7 μL catalyst ink were dropped on the GCE and carbon cloth substrates, respectively.

3. Results and Discussion

3.1. Schematic Diagram of the Synthesis Process

As schematically illustrated in Figure 1, the catalysts were prepared via a solid grinding method followed by a carbonization pyrolysis and phosphorization process. Briefly, a homogenous solid mixture of hydrated metal chloride (including FeCl3·6H2O and NiCl2·6H2O), Na2CO3 and chitosan was obtained by vigorously grinding in an agate mortar. Here, chitosan serves as a carbon source. This product was labeled as Ni–FeNi@C, and the product without the addition of Na2CO3 was labeled as FeNi3@AC. Then, the mixture was calcined at 700 °C in an argon atmosphere. Subsequently, the pyrolysis product was rinsed repeatedly with de-ionized water and ethanol. Finally, the pyrolysis sample underwent a phosphorization process with NaH2PO2 as its phosphorous source. The phosphatized samples from the initial mixture with or without Na2CO3 were labeled as Ni5P4/Ni2P–FeNi@C or Ni5P4/Ni2P–Fe–FeNi3@AC, respectively. More experimental details were presented in the Experimental Section and Supplementary Materials.

3.2. Structural Analysis

X-ray diffraction (XRD) measurement was employed to study the composition of the samples obtained by Na2CO3-assisted pyrolysis. As the XRD patterns of the pyrolysis products show in Figure 2a, the diffraction peak at 26.3° is well indexed to the (002) plane of graphitic carbon (JCPDS No.41-1487); the diffraction peaks at 44.3°, 51.6° and 76° are ascribed to the (111), (200) and (220) planes, respectively, of metal Ni (JCPDS No.97-007-6667). In addition, the peaks at 43.5°, 50.7° and 74.5° are ascribed to the (111), (200) and (220) planes, respectively, of FeNi alloys (JCPDS No.97-063-2933). The results indicate that the metal Ni and FeNi hybrid alloys, as well as the graphitic carbon matrix (denoted by Ni–FeNi@C), are obtained by the Na2CO3-assisted pyrolysis. The XRD pattern in Figure 2b reveals the appearance of several new diffraction peaks, but the original peaks of graphitic carbon and the metal NiFe alloy, as well as the new diffraction peaks, are well indexed to Ni5P4 (JCPDS No.89-2588) and Ni2P (JCPDS No.74-1385). These results suggest the metal Ni in the Ni–FeNi@C sample converts into a Ni5P4 and Ni2P hybrid, while the FeNi alloy and graphitic carbon are well preserved; the result is labeled as Ni5P4/Ni2P–FeNi@C.
For comparison, a similar pyrolysis and phosphorization route was repeated based on the same solid-state mixture except without Na2CO3. The XRD pattern in Figure 2c shows the peaks that are assigned to the FeNi3 alloy (JCPDS No.65-3244); the broad bulge at 20–30° is ascribed to the amorphous carbon, indicating that the sample obtained by carbonization pyrolysis without the addition of the Na2CO3 precursor is composed of the FeNi3 alloy and amorphous carbon (denoted by FeNi3@AC). Meanwhile, the XRD pattern of the phosphating product in Figure 2d detects Ni5P4 (JCPDS No.89-2588), Ni2P (JCPDS No.74-1385), the FeNi3 alloy (JCPDS No.65-3244) and even metal Fe (JCPDS No.97-004-4862), but not amorphous carbon, indicating that FeNi3@AC undergoes Fe-leaching together with the phosphorization of Ni metal during the phosphorization process; the result is labeled as Ni5P4/Ni2P–Fe–FeNi3@AC.
These controlled experiments reveal that Na2CO3 plays a vital role in establishing the composition and phase state of the carbonization pyrolysis product, and that it has an effect on the phosphatized sample [24]. To determine the effect of Na2CO3, the initial solid-state grinding mixture was evaluated by XRD. As shown in Figure S1a, the diffraction peaks of NaCl (JCPDS No.99-0059) and NaHCO3 (JCPDS No.15-0700) are detected in the ground mixture that includes the Na2CO3 precursor, while only the original metal chloride diffraction peaks are found in the mixture without the addition of Na2CO3 (Figure S1b), indicating that NaCl and NaHCO3 are formed in situ during the physical grinding of Na2CO3 and hydrated metal chloride. The sodium ion (Na+) captures chloride ions (Cl−) in metal salt to form NaCl; meanwhile, the excess Na2CO3 reacts with H2O molecules from hydrated metal chloride to gradually generate NaHCO3. Thus, the difference observed for Na2CO3-assisted pyrolysis can be ascribed to the synergetic effect of NaCl and NaHCO3. Therefore, it can be concluded that NaCl and NaHCO3 command the Ni–Fe-based alloy phase and the carbonization of chiston. NaCl and NaHCO3 impel the precursors to form the stable FeNi alloy with the residual Ni metal and well aligned graphitic carbon [25]. In contrast, the metal chloride and chitosan precursor is inclined to generate the FeNi3 alloy and amorphous carbon without the addition of Na2CO3. In the subsequent phosphorization process, the residual Ni metal in the Ni–FeNi@C sample converts into Ni5P4/Ni2P while the FeNi alloy is well preserved, whereas the FeNi3 alloy in the FeNi3@AC sample results in Ni5P4/Ni2P and the occurrence of Fe-leaching [26].
The morphology and structure of the as-fabricated samples were investigated by scanning electron microscope (SEM) and transmission electron microscope (TEM). A typical SEM image of FeNi3@AC (Figure 3a) exhibits vast agglomerated alloy particles of micron size, which are irregularly dispersed in the caked carbon matrix. A zoomed-in image (Figure 3b) displays these alloy particles are, on the whole, suspended and not in close contact with the carbon substrate. After the phosphorization treatment, the particles in Ni5P4/Ni2P–Fe–FeNi3@AC (Figure 3c) explode, and a magnified image in Figure 3d shows that the smooth surface becomes rough and resembles the texture of pinecones. However, the samples created with the Na2CO3 precursor, Ni–FeNi@C, as shown in Figure 3e, present a porous granular morphology with nanoparticle clusters. A magnified image (Figure 3f) displays a mass of nanoparticle-assembled sheets interconnected to build a hierarchical porous carbon framework; metal/alloy particles of nanometer size are interspersed in the carbon framework. A detailed observation of the section of the image marked by a white gridline (Figure 3f) reveals that the carbon layer may wrap around the particle. Owing to the thermal decomposition of NaHCO3 as a pore-forming agent, the carbon framework becomes loose and porous, which enhances the specific surface area and accelerates electron transfer. Compared to Ni–FeNi@C, the Ni5P4/Ni2P–FeNi@C sample contains more dense particles but retains the porous carbon skeleton (Figure 3g,h).
In order to further reveal the role of Na2CO3, three groups of controlled trials were carried out. Briefly, sole NaCl, sole NaHCO3 and a mixture of NaCl and NaHCO3 were ground with hydrated metal nitrate (including Fe(NO3)3·6H2O and Ni(NO3)2·6H2O) and chitosan. These alternative sources of hydrated metal nitrate, as opposed to hydrated metal chloride, avoid the possible formation of NaCl. The process followed was consistent with the previous preparation conditions (See the Experimental Section). The final pyrolysis products were labeled as S-NaCl, S-NaHCO3 and M-NaCl/NaHCO3, respectively. As shown in Figure S2, the sole NaCl-assisted pyrolysis product is composed of a particle-assembled sheet, and the size of the particles is less than 100 nm (Figure S2a). In contrast, the SEM image of S-NaHCO3 in Figure S2b displays a loose and porous morphology, and metal particles of a large size (about 500 nm) are embedded in the porous framework. Therefore, it can be deduced that NaCl, as a template, leads to the formation of dispersive metal particles with a smaller size [26], whereas NaHCO3 plays the role of pore-former. More interestingly, M-NaCl/NaHCO3, as shown in Figure S2c, shows a similar morphology to that of Ni–FeNi@C, indicating that Na2CO3 plays a synergetic role with effects on NaCl and NaHCO3. The XRD test result in Figure S3 shows that the products of both the sole NaCl-assisted pyrolysis and the pyrolysis performed with the mixture of NaCl and NaHCO3 contain Ni metal, the FeNi alloy and graphitic carbon. In contrast, the sole NaHCO3-assisted pyrolysis product contains only the FeNi3 alloy and graphitic carbon. Therefore, it can be deduced that NaCl, as a template, impels the formation of the FeNi alloy phase. Based the above results, it can also be confirmed that Na2CO3 has synergetic effects as a template and pore-former. The in situ generated NaCl, when used as a template, conducts the formation of the FeNi alloy phase and inhibits the coarsening of the alloy particles, while NaHCO3, as a pore-former, imparts a loose and porous morphology that enhances the specific surface area.
TEM images show that the size of the particles in Ni–FeNi@C (Figure S4a) is far smaller than that of the particles in FeNi3@AC (Figure S4b), which is in accordance with the SEM results. It is reasonable to deduce that NaCl generated from the addition of Na2CO3 may act as a template to affect the formation of the alloy phase and inhibit the coarsening of the alloy particles [27]. Moreover, NaCl also affects the carbonization pyrolysis of chitosan, so the carbon substrate in FeNi3@AC is amorphous, and FeNi3 alloy particles are overlaid on the amorphous carbon substrate (Figure S5). However, the carbon layer in Ni–FeNi@C is graphitic and carbonaceous (Figure 4a); this is also verified by the XRD results (Figure 2a). High-resolution TEM (HRTEM) images of the Ni–FeNi@C sample, shown in Figure 4b,c, reveal that inter-planer spacings of 0.179 and 0.203 nm are assigned to the (200) plane of the FeNi alloy and the (111) plane of metal Ni, respectively, suggesting that both the Ni particles and the FeNi alloy particles are embedded in carbon layers [28]. After phosphorization, the architecture of Ni5P4/Ni2P–FeNi@C still maintains its initial microstructure, with the carbon coating wrapped around particles (Figure 4d,e). The HRTEM image in Figure 4f demonstrates that an inter-planar spacing of 0.207 nm is assigned to the (111) plane of the FeNi alloy. Furthermore, the coherent lattice fringe indicates that the crystal structure of the FeNi alloy is well preserved, without any surficial phosphatized reaction during the phosphorization procedure. In contrast, the metal Ni particles in Ni–FeNi@C sample undergo a conversion to Ni5P4/Ni2P heterojunction particles, which is evident in Figure 4g. Spacings of 0.248 and 0.221 nm can be assigned to the Ni5P4 (104) and Ni2P (111) planes, respectively. As seen in the phase boundary marked by the dashed line, Ni5P4 and Ni2P constitute well-defined hetero-interfaces, exposing more active sites for enhanced catalytic activity. The selective region electron diffraction (SAED) pattern in Figure 4h presents the (103) plane of Ni5P4, the (302) plane of Ni2P and the (111) plane of the FeNi alloy. The scanning TEM (STEM) image and the energy dispersive X-ray spectroscopy (EDS) elemental mapping images (Figure 4i) also show the elements Ni, Fe, P and C uniformly distributed throughout the selected region. In addition, the corresponding EDS spectra (Figure S6) and elemental contents (Table S1) also verify the elemental species and amounts in the Ni5P4/Ni2P–FeNi@C sample.
The specific surface area and pore structure were also investigated by the nitrogen adsorption/desorption isotherm method. In Figure 5a, all samples conform to the type-IV adsorption isotherm. When P/P0 ranges from 0.5 to 1.0, the four samples display a hysteresis curve along with a hysteresis loop, suggesting that all four samples have a certain mesoporous structure [29]. In addition, the BET surface areas of FeNi3@AC and Ni–FeNi@C are estimated to be 143.32 and 182.12 m2 g−1, respectively. The higher surface area of the Ni–FeNi@C sample is mainly caused by the pyrolysis of NaHCO3; furthermore, NaHCO3 affects the carbonization process of chitosan to increase the affinity for alloy particles. Thus, the pyrolytic carbon layer encapsulates the alloy to assist in the condensation process, followed by more dispersive particles and pore architecture, which are also verified by SEM. Meanwhile, the more porous structure facilitates the penetration of PH3 gas during the phosphating process to generate more phosphide-based active sites. For the corresponding phosphatized product, the BET surface areas of Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C are 12.12 and 82.13 m2 g−1, respectively. Compared with the carbonized samples, the surface area of the phosphatized product decreases. This occurs because PH3 gas from the NaH2PO4 precursor can penetrate into porous structures and react with FeNi3@AC and Ni–FeNi@C, which converts Ni to Ni5P4/Ni2P. The phosphating process can not only cause the expansion of suspended particles to consume the pore volume (Figure 3c,d) but also lead to the collapse and agglomeration of the pore architecture (Figure 3g,h), which, in turn, leads to a reduced surface area. The corresponding average pore sizes of Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C are 20.48 and 8.23 nm, respectively, in the Barrett–Joyner–Halenda (BJH) pore size distribution curves (Figure S7 and Table S2), but Ni5P4/Ni2P–FeNi@C displays a more uniformly porous nature. Although the phosphating process reduces the surface area, which may be ascribed to the fact that the expansion consumes the pore structure, Ni5P4/Ni2P–FeNi@C still presents a decent surface area and pore structure.
The Raman spectrum was used to illustrate the carbon structure of the Ni5P4/Ni2P–FeNi@C and Ni5P4/Ni2P–Fe–FeNi3@AC samples. As shown in Figure 5b, the D band (~1350 cm−1) and G band (~1576 cm−1) originate from disorder-induced carbon and graphitized sp2 hybrid carbon, respectively. The intensity ratio of the D to G bands (ID/IG) usually reveals the graphitic degree of carbon materials [13]. A larger ID/IG value indicates a lower degree of graphitization [29]. Ni5P4/Ni2P–FeNi@C exhibits a lower ID/IG value of 1.14 compared to Ni5P4/Ni2P–Fe–FeNi3@AC with a value of 1.36. This difference is due to the formation of NaCl, which improves the carbonization pyrolysis degree of carbonaceous materials [23]; this aligns well with the XRD results. As a result, Ni5P4/Ni2P–FeNi@C possesses a superior electrical transfer capacity and a graphitic carbon protective layer, contributing to superior catalytic activity and long-term durability.

3.3. Electrochemical Measurements

The OER performances of Ni5P4/Ni2P-FeNi@C electrocatalyst were evaluated by a glassy carbon electrode configuration in O2-saturated 1.0 M KOH electrolyte. To evaluate the effect of different precursor amounts and reaction conditions on the catalytic properties, the 85% iR-corrected linear sweep voltammetry curves (LSV) of Ni5P4/Ni2P-FeNi@C catalyst with different synthesis parameters. including the elemental ratio of nickel and iron precursors, the total amount of metals, the amount of Na2CO3 and the temperature of carbonization pyrolysis, were firstly investigated in 1.0 M KOH solution. As display in Figure S8, Ni5P4/Ni2P-FeNi@C catalyst prepared based on the ratio of Ni:Fe in the proportion 3:1, the pyrolysis temperature of 700 °C, the total amount of metals with 15% and 0.5 g Na2CO3, displays the excellent OER catalytic activity, thus the Ni5P4/Ni2P-FeNi@C catalyst with the above optimum synthesis conditions is used for the following studies.
We compared the OER performance of the sample Ni5P4/Ni2P–FeNi@C with FeNi3@AC, Ni–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC and commercial RuO2 catalysts. As shown in Figure 6a, Ni5P4/Ni2P–FeNi@C loaded on the glass carbon electrode (GCE) exhibited excellent OER catalytic activity, requiring the lowest observed overpotential of 242 mV to achieve 10 mA cm−2 in 1 M KOH (with 85% iR-correction), which significantly surpasses the performance of Ni5P4/Ni2P–Fe–FeNi3@AC (294 mV), Ni–FeNi@C (316 mV), FeNi3 @AC (345 mV) and RuO2 (272 mV). All overpotential results were obtained with 85% iR-correction unless otherwise specified. Figure 6b shows the detailed comparative overpotential values required to achieve 10 mA cm−2. Interestingly, the Ni5P4/Ni2P–FeNi@C catalyst obtained by the ball-milling method displayed a similar level of activity to the one created with the grinding method; as shown in Figure S9, the overpotential for the ball-milling sample was only 248 mV vs. 242 mV at 10 mA cm−2, which makes large-scale production possible.
To further evaluate the catalytic properties, the OER dynamics were evaluated by Tafel slope. Ni5P4/Ni2P–FeNi@C exhibited the lowest Tafel slope of 46 mV dec−1, as shown in Figure 6c, indicating that Ni5P4/Ni2P–FeNi@C has the most rapid kinetics for the OER process [30]. These results may be caused by the in situ formation of NaCl and NaHCO3. Specifically, NaCl as a template establishes the composition and size of the alloy/metal particles as well as the carbon matrix; meanwhile, NaHCO3 increases the porous architecture during the carbonization pyrolysis process. Thus, the phosphatized catalyst integrates the merits of having a sufficient number of active sites, thanks to the Ni5P4/Ni2P heterojunction, with an efficient electron/mass transfer capacity thanks to the hierarchically interlaced porous carbon scaffold and the alloy particles [24,31].
The electrochemical impedance spectroscopy (EIS) measurements demonstrate that Ni5P4/Ni2P–FeNi@C displays a smaller charge transfer resistance than the other as-prepared samples at 1.480 V vs. RHE. As seen in the fitting equivalent circuit model in Figure 6d, Ni5P4/Ni2P–FeNi@C has an extremely small Rct of 19.46 Ω, which is much lower than the values for Ni5P4/Ni2P–Fe–FeNi3@AC (66.42 Ω), Ni–FeNi@C (149.6 Ω) and FeNi3@AC (209.7 Ω). The results suggest that Ni5P4/Ni2P–FeNi@C contributes to a rapid charge transfer, accelerating OER dynamics. The electrochemically active surface area (ECSA) is normalized to obtain the electric double-layer capacitance (Cdl), which can reflect an important parameter of the electrochemical reaction kinetics and show the intrinsic activity of the catalyst. The charging current obtained at different scan rates is IC, and its relationship with the scan rate V and the double-layer capacitance Cdl is IC = V × Cdl. The electrochemically active area of the catalyst is calculated according to the following equation: ECSA = Cdl/CS (where CS is the specific capacitance of the corresponding smooth surface sample under the same conditions). Therefore, the double-layer capacitance (Cdl), determined by cyclic voltammograms versus scan rates (Figure S10), is calculated to evaluate the ECSA. As shown in Figure 6e, Ni5P4/Ni2P–FeNi@C presents a larger Cdl value (8.01 mF cm−2) than Ni5P4/Ni2P–Fe–FeNi3 @AC (4.54 mF cm−2), demonstrating an enhanced ECSA with more active sites, which may benefit from the hierarchical porous architecture caused by NaHCO3. Impressively, the OER catalytic activity of Ni5P4/Ni2P–FeNi@C in this work is comparable to and may even outperform recently reported alloy- and phosphide-composited catalysts (Figure 6f and Table 1) [14,19,22,29,30,32,33,34,35].
Additionally, Ni5P4/Ni2P–FeNi@C as an OER catalyst demonstrates superior catalytic stability in a 1 M KOH electrolyte. As shown in Figure 6g, the observed potential of the Ni5P4/Ni2P–FeNi@C catalyst can maintain an approximate constant at 20 mA cm−2, and the potential only increased 32 mV after 140 h of OER catalysis. For comparison, the observed potential increased 57 mV for Ni5P4/Ni2P–Fe–FeNi3@AC, without the graphitic carbon coating layer, after only a 40 h catalysis test; it increased 51 mV for the Ni5P4/Ni2P@C catalyst without alloy particles after a 100 h test. Both an SEM image (Figure S11) and a low-magnification TEM image (Figure S12a) show that the Ni5P4/Ni2P–FeNi@C catalyst, even after a long-term test, still maintained its initial microstructure, indicating good structural stability. Meanwhile, HRTEM images in Figure S12b,c suggest that the FeNi alloys are stable and can maintain their initial microstructures well due to the protection of carbon coating. We deduce that the outstanding stability of the Ni5P4/Ni2P–FeNi@C catalyst may be ascribed to the stable FeNi alloy phase and the graphitic carbon coating layer. The in situ sodium chloride serves as a template and manipulates the formation of the alloy phase, enhancing the crystallinity of the carbon materials during the pyrolysis process [36]. Consequently, the alloy particles, wrapped tightly by the graphitic carbon coating layer, are interspersed throughout the hierarchical porous carbon skeleton, which buffers against the harsh electrolysis environment and restrains the structural collapse, contributing to long-term stability.

3.4. XPS Survey Spectrum of Ni5P4/Ni2P–FeNi@C before and after OER Reaction

To obtain further insights into the highly active Ni5P4/Ni2P–FeNi@C catalyst, XRD and X-ray photoelectron spectroscopy (XPS) measurements were used to probe the differences in composition and surface valance state before and after the OER catalyst underwent a 140 h stability test at 20 mA cm−2. As the XRD pattern of the post-OER catalyst shows in Figure S13, the peaks at 43.5° and 50.7° are assigned to the (111) and (200) planes, respectively, of the FeNi alloys (JCPDS No.97-063-2933), and the diffraction peaks at 40.7°, 46.4° and 48.0° are well indexed for NiOOH (JCPDS No.97-016-5961). Due to the low amount of catalyst on the carbon cloth basement, the intensity of the diffraction peaks is weak, and several signals are even undetected. However, the above XRD result confirms the existence of NiOOH and the FeNi alloy after OER stability. The XPS survey spectra of the Ni5P4/Ni2P–FeNi@C catalyst before and after OER verifies the coexistence of the elements Ni, Fe, O, C and P (Figure S14), which corresponds well with the EDX data. The strong F signal detected on the post-OER catalyst is from the Nafion binder, which is used to adhere catalyst power to the carbon cloth basement.
In the high-resolution P 2p spectra (Figure 7a), the initial spectrum can be deconvolved into three peaks; the fitted peaks at 130.6 and 129.8 eV are assignable to P 2p1/2 and P 2p3/2, respectively, which are ascribed to Pδ− in Ni5P4 and Ni2P [12]. The peak at 134.5 eV is attributable to the P–O bond [13]. After the long-term OER test, the peaks of the M–P bond disappear, and the single peak at 133.8 eV corresponds to P–O. This phenomenon may be caused by massive P leaching and the rearrangement and oxidation of metal phosphide (Ni5P4-Ni2P) after the OER reaction [37]. For the spectrum of O 1s in Figure 7b, the initial peaks at 531.8 and 533.5 eV are assigned to O–H and C–O/C = O, respectively [38]. After the OER test, the emerging peaks at 532.7 and 535.4 eV are attributable to Ni–OOH and residual water molecules, respectively [15].
For Ni 2p (Figure 7c), the initial peaks at 855.6 and 872.9 eV correspond to Ni2+ 2p3/2 and Ni2+ 2p1/2, respectively [39], and the peaks located at 856.9 and 874.2 eV are ascribed to Ni3+ 2p3/2 and Ni3+ 2p1/2, respectively, which originate from oxidized and phosphatized nickel, respectively. The two satellite peaks (marked by Sat.) are at 861.7 and 879.2 eV; meanwhile, the two fitted peaks at 852.5 (2p1/2) and 869.8 eV (2p3/2) are ascribed to Ni0 that originate from the FeNi alloy [33]. After the OER reaction, the fitted peaks of Ni2+ 2p3/2 (854.6 eV), Ni3+ 2p3/2 (856.5 eV) and Ni0 2p3/2 (852.2 eV) are still detected, whereas the intensity ratio of Ni3+ rapidly increases, indicating the formation of NiOOH species [14]. In addition, the broad peaks at around 860.6 and 878.9 eV can be attributed to an Auger peak of F [38].
The XPS spectrum of Fe 2p (Figure 7d) can be deconvolved into a pair consisting of Fe 2p3/2 and Fe 2p1/2. Before OER, the peaks at 706.7 and 720.3 eV are attributed to the metallic state of iron (Fe0). The two fitted peaks at 710.2 and 723.8 eV correspond to Fe 2p1/2 and Fe 2p3/2 of Fe2+, respectively. In addition, the two peaks at 712.8 and 726.4 eV are assigned to Fe3+ from the oxidated iron. The peaks at 716.1 and 730.7 eV can be classified as satellite peaks. After the OER test, the fitted characteristic peaks in Figure 7d confirm that the Fe0, Fe2+ and Fe3+ species still exist, further confirming the existence of the zero-valent FeNi alloy.
All the above results clearly show that the Ni5P4/Ni2P in Ni5P4/Ni2P–FeNi@C undergoes a surface reconstruction to generate a NiOOH active layer accompanied by P leaching during the OER reaction, while the FeNi alloy is well preserved during the OER process. Therefore, the NiOOH and FeNi alloys synergistically serve as the real catalytic active sites. Furthermore, the FeNi alloy contributes ultra-high stability. The remarkable catalytic performance of the FeNi alloy can be attributed to it being wrapped in the graphitic carbon coating layer as well as its distribution throughout the carbon skeleton, thus restraining the corrosion of the alloy particles in the electrolyte and increasing the electron/mass transport capacity.

3.5. Electrolyzed Seawater Applications

Considering its excellent OER activity and long-term stability in a 1 M KOH electrolyte, we further investigated the catalytic activity of the Ni5P4/Ni2P–FeNi@C catalyst in alkaline simulated seawater and alkaline natural seawater electrolytes. As shown in Figure 8a,b, the Ni5P4/Ni2P–FeNi@C catalyst displayed outstanding OER catalytic activity in the above two electrolytes. In a 1 M KOH + 0.5 M NaCl medium, the Ni5P4/Ni2P–FeNi@C catalyst loaded on carbon cloth required overpotentials of 319 and 376 mV to afford 100 and 500 mA cm−2, respectively (with 85% iR-correction), which is close to its performance in 1 M KOH. In alkaline natural seawater from the Yellow Sea, the deleterious effects of the cation/anion ions, bacteria, micro-organisms and even particulate matter in natural seawater resulted in a certain decline in OER activity. Nevertheless, the Ni5P4/Ni2P–FeNi@C catalyst in 1 M KOH + seawater electrolyte still yielded 100 and 500 mA cm−2 current densities, requiring 382 and 445 mV, respectively (with 85% iR-correction); these results are below the 480 mV threshold for the chloride oxidation reaction, and thus the Ni5P4/Ni2P–FeNi@C catalyst showed a thermodynamic OER advantage over the undesired chloride oxidation reaction at a current density of less than 500 mA cm−2. Furthermore, the Ni5P4/Ni2P–FeNi@C catalyst displayed remarkable stability in the alkaline natural seawater electrolyte. As the chronopotentiometry curve shows in Figure 8c, the long-term OER process was able to operate for 160 h with a negligible potential increase of 2 mV at a 20 mA cm−2 current density in the alkaline natural seawater electrolyte, surpassing the overwhelming majority of reported seawater catalysts.
Finally, the ultra-high OER activity and durability of Ni5P4/Ni2P–FeNi@C can be attributed to the following causes: (1) the in situ formation of NaCl and NaHCO3 synergistically regulate the pyrolysis process of alkali metal salts and chitosan carbonaceous material [40]. As a result, the phosphatized product of Ni5P4/Ni2P–FeNi@C encapsulates the Ni5P4/Ni2P heterojunction and FeNi alloy hybrid into a 3D hierarchical porous graphitic carbon framework [41], which not only provides more active sites and facilitates electron/mass transfer [42], but also supplies a graphitic carbon protective layer to reduce the corrosion of alloy particles [43]. (2) Both the NiOOH active layer reconstructed on the surface of Ni5P4/Ni2P and the original FeNi alloy synergistically contribute to the real catalytic active sites. Additionally, the well-preserved and dispersive FeNi alloy particles supply ultra-high durability and electron transfer capacity [44].

4. Conclusions

In summary, we developed a facile and scalable strategy for the in situ generation of a template and pore-former using a room-temperature solid-state grinding and sodium-carbonate-assisted pyrolysis method. NaCl, as a template, manipulates the stable FeNi alloy phase and inhibits the excessive coalescence of alloy particles, while NaHCO3, as a pore-former, establishes a hierarchically porous carbon framework. After phosphorization treatment, the Ni5P4/Ni2P–FeNi@C catalyst integrates the merits of the Ni5P4/Ni2P heterojunction, the stable FeNi alloy phase and the hierarchical porous nanocrystal-assembled carbon skeleton, which combine to impart abundant active sites, an efficient electron/mass transfer ability, and durable corrosion resistance. Consequently, the Ni5P4/Ni2P–FeNi@C catalyst exhibits an ultra-low overpotential of 242 mV and a low Tafel slope of 46 mV dec−1 in 1 M KOH, which outperforms the commercial RuO2 (272 mV and 65 mV dec−1). Both the NiOOH reconstructed on the surface of Ni5P4/Ni2P and the original FeNi alloy synergistically act as the real catalytic active sites. The FeNi alloy is wrapped by the graphitic carbon layer and distributed throughout the carbon skeleton, which contributes ultra-high stability. The Ni5P4/Ni2P–FeNi@C catalyst also displays excellent OER activity in alkaline natural seawater, requiring a low overpotential of 382 mV to deliver 100 mA cm−2. More remarkably, the Ni5P4/Ni2P–FeNi@C catalyst exhibits extraordinary long-term stability and can operate for 160 h with a negligible potential increase of 2 mV in an alkaline natural seawater electrolyte. This work may provide a new avenue for high-performance, low-cost and large-scale OER catalysts by integrating a transition metal phosphide heterojunction and metal alloys.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12111848/s1, Figure S1: XRD patterns of the solid grinding product based on the precursors with Na2CO3 (a) or without Na2CO3 (b). Figure S2: SEM images of the pyrolysis product, (a) S-NaCl, (b) S-NaHCO3 and (c) M-NaCl/NaHCO3. Figure S3: XRD patterns of the pyrolysis product, (a) S-NaCl, (b) S-NaHCO3 and (c) M-NaCl/NaHCO3. Figure S4: Low-magnification TEM images of (a) Ni–FeNi@C and (b) FeNi3@AC samples. Figure S5: HRTEM image of a FeNi3@AC sample. Figure S6: EDS spectrum of Ni5P4/Ni2P–FeNi@C. Figure S7: Pore size distribution curves of FeNi3@AC, Ni–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C samples. Figure S8: The OER LSV curve of the Ni5P4/Ni2P-FeNi@C catalyst based on different synthesis conditions, (a) The ratio of nickel to iron, (b) The pyrolysis temperature, (c) The total amount of metal, (d) The amount of Na2CO3 added. Figure S9: (a) 85% iR-corrected OER LSV curves of FeNi3@AC, Ni–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C samples prepared by ball-milling methods in a 1 M KOH electrolyte, (b) The comparative overpotentials of different catalysts at a current density of 10 mA cm−2. Figure S10: CV curves versus scan rates for different electrode catalysts at scan rates ranging from 20 mV s−1 to 100 mV s−1 with an interval point of 20 mV s−1, (a) Ni5P4/Ni2P–FeNi@C, (b) Ni–FeNi@C, (c) Ni5P4/Ni2P–Fe–FeNi3@AC and (d) FeNi3@AC. Figure S11: SEM image of Ni5P4/Ni2P–FeNi@C after a 140 h stability test at 20 mA cm−2. Figure S12: (a) TEM and (b), (c) HRTEM images of a Ni5P4/Ni2P–FeNi@C sample after a 140 h stability test at 20 mA cm−2. Figure S13: XRD patterns of the initial and post-OER Ni5P4/Ni2P–FeNi@C sample. Figure S14: XPS survey spectra of the Ni5P4/Ni2P–FeNi@C sample before and after the OER process. Table S1: Elemental contents of the Ni5P4/Ni2P–FeNi@C sample. Table S2. Comparison of surface area properties of as-prepared catalysts.

Author Contributions

Conceptualization, X.T. and P.Y.; methodology, X.T. and J.S.; software, P.Y.; validation, C.L., J.S. and P.Y.; formal analysis, X.T. and J.-K.S.; investigation, X.T.; resources, R.L. and J.-K.S.; data curation, X.T. and J.-K.S.; writing—original draft preparation, X.T., J.S. and P.Y.; writing—review and editing, X.T. and J.-K.S.; visualization, X.T. and J.-K.S.; supervision, R.L. and J.-K.S.; project administration, R.L. and J.-K.S.; funding acquisition, R.L. and J.-K.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (No. 21905149), Major scientific and technological innovation projects of ShanDong Province (2019JZZY020301), China Postdoctoral Science Foundation (2020M671990) and Qingdao Postdoctoral Applied Research Project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding authors upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, Y.; Xie, Y.; Yu, Z.; Guo, S.; Yuan, M.; Yao, H.; Liang, Z.; Lu, Y.R.; Chan, T.-S.; Li, C.; et al. Self-supported NiFe-LDH@CoSX nanosheet arrays grown on nickel foam as efficient bifunctional electrocatalysts for overall water splitting. Chem. Eng. J. 2021, 419, 129512. [Google Scholar] [CrossRef]
  2. Zhao, J.; Zhang, J.J.; Li, Z.Y.; Bu, X.H. Recent Progress on NiFe-Based Electrocatalysts for the Oxygen Evolution Reaction. Small 2020, 16, 2003916. [Google Scholar] [CrossRef] [PubMed]
  3. Ding, H.; Liu, H.; Chu, W.; Wu, C.; Xie, Y. Structural Transformation of Heterogeneous Materials for Electrocatalytic Oxygen Evolution Reaction. Chem. Rev. 2021, 121, 13174–13212. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, G.; Zhu, Y.; Chen, H.M.; Hu, Z.; Hung, S.F.; Ma, N.; Dai, J.; Lin, H.J.; Chen, C.T.; Zhou, W.; et al. An Amorphous Nickel-Iron-Based Electrocatalyst with Unusual Local Structures for Ultrafast Oxygen Evolution Reaction. Adv. Mater. 2019, 31, 1900883. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, Q.; Zhang, Z.; Cai, C.; Wang, M.; Zhao, Z.L.; Li, M.; Huang, X.; Han, S.; Zhou, H.; Feng, Z.; et al. Single Iridium Atom Doped Ni2P Catalyst for Optimal Oxygen Evolution. J. Am. Chem. Soc. 2021, 143, 13605–13615. [Google Scholar] [CrossRef]
  6. Wu, Z.P.; Lu, X.F.; Zang, S.Q.; Lou, X.W. Non-Noble-Metal-Based Electrocatalysts toward the Oxygen Evolution Reaction. Adv. Funct. Mater. 2020, 30, 1910274. [Google Scholar] [CrossRef]
  7. Wu, D.; Hao, J.; Wang, W.; Yu, Y.; Fu, X.Z.; Luo, J.L. Energy-saving H2 Generation Coupled with Oxidative Alcohol Refining over Bimetallic Phosphide Ni2P-CoP Junction Bifunctional Electrocatalysts. ChemSusChem 2021, 14, 5450–5459. [Google Scholar] [CrossRef]
  8. Li, Y.; Dong, Z.; Jiao, L. Multifunctional Transition Metal-Based Phosphides in Energy-Related Electrocatalysis. Adv. Energy Mater. 2020, 10, 1902104. [Google Scholar] [CrossRef]
  9. Li, S.H.; Qi, M.Y.; Tang, Z.R.; Xu, Y.J. Nanostructured metal phosphides: From controllable synthesis to sustainable catalysis. Chem. Soc. Rev. 2021, 50, 7539–7586. [Google Scholar] [CrossRef]
  10. Liu, S.; Sankar, K.V.; Kundu, A.; Ma, M.; Kwon, J.Y.; Jun, S.C. Honeycomb-Like Interconnected Network of Nickel Phosphide Heteronanoparticles with Superior Electrochemical Performance for Supercapacitors. ACS Appl. Mater. Interfaces 2017, 9, 21829–21838. [Google Scholar] [CrossRef]
  11. Xu, S.; Du, Y.; Liu, X.; Yu, X.; Teng, C.; Cheng, X.; Chen, Y.; Wu, Q. Three-dimensional (3D) hierarchical coral-like Mn-doped Ni2P–Ni5P4/NF catalyst for efficient oxygen evolution. J. Alloy. Compd. 2020, 826, 154210. [Google Scholar] [CrossRef]
  12. Yan, Y.; Lin, J.; Bao, K.; Xu, T.; Qi, J.; Cao, J.; Zhong, Z.; Fei, W.; Feng, J. Free-standing porous Ni2P-Ni5P4 heterostructured arrays for efficient electrocatalytic water splitting. J. Colloid Interface Sci. 2019, 552, 332–336. [Google Scholar] [CrossRef] [PubMed]
  13. Wu, L.; Yu, L.; Zhang, F.; McElhenny, B.; Luo, D.; Karim, A.; Chen, S.; Ren, Z. Heterogeneous Bimetallic Phosphide Ni2P-Fe2P as an Efficient Bifunctional Catalyst for Water/Seawater Splitting. Adv. Funct. Mater. 2020, 31, 2006484. [Google Scholar] [CrossRef]
  14. Li, X.; Zhou, J.; Liu, C.; Xu, L.; Lu, C.; Yang, J.; Pang, H.; Hou, W. Encapsulation of Janus-structured Ni/Ni2P nanoparticles within hierarchical wrinkled N-doped carbon nanofibers: Interface engineering induces high-efficiency water oxidation. Appl. Catal. B Environ. 2021, 298, 120578. [Google Scholar] [CrossRef]
  15. Yan, P.; Liu, Q.; Zhang, H.; Qiu, L.; Wu, H.B.; Yu, X.-Y. Deeply reconstructed hierarchical and defective NiOOH/FeOOH nanoboxes with accelerated kinetics for the oxygen evolution reaction. J. Mater. Chem. A 2021, 9, 15586–15594. [Google Scholar] [CrossRef]
  16. Pu, Z.; Liu, T.; Amiinu, I.S.; Cheng, R.; Wang, P.; Zhang, C.; Ji, P.; Hu, W.; Liu, J.; Mu, S. Transition-Metal Phosphides: Activity Origin, Energy-Related Electrocatalysis Applications, and Synthetic Strategies. Adv. Funct. Mater. 2020, 30, 2004009. [Google Scholar] [CrossRef]
  17. Gao, X.; Yu, Y.; Liang, Q.; Pang, Y.; Miao, L.; Liu, X.; Kou, Z.; He, J.; Pennycook, S.J.; Mu, S.; et al. Surface nitridation of nickel-cobalt alloy nanocactoids raises the performance of water oxidation and splitting. Appl. Catal. B Environ. 2020, 270, 118889. [Google Scholar] [CrossRef]
  18. Wang, Q.; Ming, M.; Niu, S.; Zhang, Y.; Fan, G.; Hu, J.-S. Scalable Solid-State Synthesis of Highly Dispersed Uncapped Metal (Rh, Ru, Ir) Nanoparticles for Efficient Hydrogen Evolution. Adv. Energy Mater. 2018, 8, 1801698. [Google Scholar] [CrossRef]
  19. Yamada, N.; Kitano, S.; Yato, Y.; Kowalski, D.; Aoki, Y.; Habazaki, H. In Situ Activation of Anodized Ni–Fe Alloys for the Oxygen Evolution Reaction in Alkaline Media. ACS Appl. Energy Mater. 2020, 3, 12316–12326. [Google Scholar] [CrossRef]
  20. Wang, Z.; Ang, J.; Liu, J.; Ma, X.Y.D.; Kong, J.; Zhang, Y.; Yan, T.; Lu, X. FeNi alloys encapsulated in N-doped CNTs-tangled porous carbon fibers as highly efficient and durable bifunctional oxygen electrocatalyst for rechargeable zinc-air battery. Appl. Catal. B Environ. 2020, 263, 118344. [Google Scholar] [CrossRef]
  21. Wang, T.; Ola, O.; Dapaah, M.F.; Lu, Y.; Niu, Q.; Cheng, L.; Wang, N.; Zhu, Y. Preparation and Characterization of Multi-Doped Porous Carbon Nanofibers from Carbonization in Different Atmospheres and Their Oxygen Electrocatalytic Properties Research. Nanomaterials 2022, 12, 832. [Google Scholar] [CrossRef] [PubMed]
  22. Wei, P.; Sun, X.; Liang, Q.; Li, X.; He, Z.; Hu, X.; Zhang, J.; Wang, M.; Li, Q.; Yang, H.; et al. Enhanced Oxygen Evolution Reaction Activity by Encapsulating NiFe Alloy Nanoparticles in Nitrogen-Doped Carbon Nanofibers. ACS Appl. Mater. Interfaces 2020, 12, 31503–31513. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, L.; Xu, Z.; Peng, T.; Liu, M.; Zhang, L.; Zhang, J. Bifunctional Single-Atom Cobalt Electrocatalysts with Dense Active Sites Prepared via a Silica Xerogel Strategy for Rechargeable Zinc-Air Batteries. Nanomaterials 2022, 12, 381. [Google Scholar] [CrossRef]
  24. Singh, A.; Sharma, M.; Singh, R. NaCl-Assisted CVD Growth of Large-Area High-Quality Trilayer MoS2 and the Role of the Concentration Boundary Layer. Cryst. Growth Des. 2021, 21, 4940–4946. [Google Scholar] [CrossRef]
  25. Doustkhah, E.; Hassandoost, R.; Khataee, A.; Luque, R.; Assadi, M.H.N. Hard-templated metal-organic frameworks for advanced applications. Chem. Soc. Rev. 2021, 50, 2927–2953. [Google Scholar] [CrossRef]
  26. Zhou, Y.; Li, Y.; Zhang, L.; Zhang, L.; Li, L.; Tian, J.; Wang, M.; Xu, J.; Dai, B.; Li, Y. Fe-leaching induced surface reconstruction of Ni-Fe alloy on N-doped carbon to boost oxygen evolution reaction. Chem. Eng. J. 2020, 394, 124977. [Google Scholar] [CrossRef]
  27. Huan, Y.; Shi, J.; Zou, X.; Gong, Y.; Xie, C.; Yang, Z.; Zhang, Z.; Gao, Y.; Shi, Y.; Li, M.; et al. Scalable Production of Two-Dimensional Metallic Transition Metal Dichalcogenide Nanosheet Powders Using NaCl Templates toward Electrocatalytic Applications. J. Am. Chem. Soc. 2019, 141, 18694–18703. [Google Scholar] [CrossRef]
  28. Zhang, Y.; Liu, C.; Fan, G.; Yang, L.; Li, F. A robust core-shell nanostructured nickel-iron alloy@nitrogen-containing carbon catalyst for the highly efficient hydrogenation of nitroarenes. Dalton Trans. 2018, 47, 13668–13679. [Google Scholar] [CrossRef]
  29. Fan, A.; Qin, C.; Zhang, X.; Dai, X.; Dong, Z.; Luan, C.; Yu, L.; Ge, J.; Gao, F. Phosphorus-Doped FeNi Alloys/NiFe2O4 Imbedded in Carbon Network Hollow Bipyramid as Efficient Electrocatalysts for Oxygen Evolution Reaction. ACS Sustain. Chem. Eng. 2018, 7, 2285–2295. [Google Scholar] [CrossRef]
  30. Zhao, M.; Li, H.; Yuan, W.; Li, C.M. Tannic Acid-Mediated In Situ Controlled Assembly of NiFe Alloy Nanoparticles on Pristine Graphene as a Superior Oxygen Evolution Catalyst. ACS Appl. Energy Mater. 2020, 3, 3966–3977. [Google Scholar] [CrossRef]
  31. Chang, M.C.; Ho, P.H.; Tseng, M.F.; Lin, F.Y.; Hou, C.H.; Lin, I.K.; Wang, H.; Huang, P.P.; Chiang, C.H.; Yang, Y.C.; et al. Fast growth of large-grain and continuous MoS2 films through a self-capping vapor-liquid-solid method. Nat. Commun. 2020, 11, 3682. [Google Scholar] [CrossRef] [PubMed]
  32. Ding, J.; Sun, Q.; Zhong, L.; Wang, X.; Chai, L.; Li, Q.; Li, T.-T.; Hu, Y.; Qian, J.; Huang, S. Thermal conversion of hollow nickel-organic framework into bimetallic FeNi3 alloy embedded in carbon materials as efficient oer electrocatalyst. Electrochim. Acta 2020, 354, 136716. [Google Scholar] [CrossRef]
  33. Lim, D.; Oh, E.; Lim, C.; Shim, S.E.; Baeck, S.-H. Bimetallic NiFe alloys as highly efficient electrocatalysts for the oxygen evolution reaction. Catal. Today 2020, 352, 27–33. [Google Scholar] [CrossRef]
  34. Stern, L.-A.; Feng, L.; Song, F.; Hu, X. Ni2P as a Janus catalyst for water splitting: The oxygen evolution activity of Ni2P nanoparticles. Energy Environ. Sci. 2015, 8, 2347–2351. [Google Scholar] [CrossRef]
  35. Ma, Y.; Dai, X.; Liu, M.; Yong, J.; Qiao, H.; Jin, A.; Li, Z.; Huang, X.; Wang, H.; Zhang, X. Strongly Coupled FeNi Alloys/NiFe2O4@Carbonitride Layers-Assembled Microboxes for Enhanced Oxygen Evolution Reaction. ACS Appl. Mater. Interfaces 2016, 8, 34396–34404. [Google Scholar] [CrossRef] [PubMed]
  36. Feng, Q.; Zeng, L.; Xu, J.; Zhang, Z.; Zhiliang, z.; Wang, Y.; Yuan, X.-Z.; Li, H.; Wang, H. NaCl template-directed approach to ultrathin lamellar molybdenum phosphide-carbon hybrids for efficient hydrogen production. J. Power Sources 2019, 438, 227048. [Google Scholar] [CrossRef]
  37. Arunkumar, P.; Gayathri, S.; Han, J.H. A Complementary Co-Ni Phosphide/Bimetallic Alloy-Interspersed N-Doped Graphene Electrocatalyst for Overall Alkaline Water Splitting. ChemSusChem 2021, 14, 1921–1935. [Google Scholar] [CrossRef]
  38. Gao, X.; Chen, D.; Qi, J.; Li, F.; Song, Y.; Zhang, W.; Cao, R. NiFe Oxalate Nanomesh Array with Homogenous Doping of Fe for Electrocatalytic Water Oxidation. Small 2019, 15, 1904579. [Google Scholar] [CrossRef]
  39. Li, M.; Huang, Y.; Lin, J.; Li, M.; Jiang, M.; Ding, L.; Sun, D.; Huang, K.; Tang, Y. Carbon Nanotubes Interconnected NiCo Layered Double Hydroxide Rhombic Dodecahedral Nanocages for Efficient Oxygen Evolution Reaction. Nanomaterials 2022, 12, 1015. [Google Scholar] [CrossRef]
  40. Mukhiya, T.; Muthurasu, A.; Tiwari, A.P.; Chhetri, K.; Chae, S.H.; Kim, H.; Dahal, B.; Lee, B.M.; Kim, H.Y. Integrating the Essence of a Metal-Organic Framework with Electrospinning: A New Approach for Making a Metal Nanoparticle Confined N-Doped Carbon Nanotubes/Porous Carbon Nanofibrous Membrane for Energy Storage and Conversion. ACS Appl Mater. Interfaces 2021, 13, 23732–23742. [Google Scholar] [CrossRef]
  41. Ji, S.M.; Muthurasu, A.; Chhetri, K.; Yong Kim, H. Metal-organic framework assisted vanadium oxide nanorods as efficient electrode materials for water oxidation. J. Colloid Interface Sci. 2022, 618, 475–482. [Google Scholar] [CrossRef] [PubMed]
  42. Chhetri, K.; Muthurasu, A.; Dahal, B.; Kim, T.; Mukhiya, T.; Chae, S.H.; Ko, T.H.; Choi, Y.C.; Kim, H.Y. Engineering the abundant heterointerfaces of integrated bimetallic sulfide-coupled 2D MOF-derived mesoporous CoS2 nanoarray hybrids for electrocatalytic water splitting. Mater. Today Nano 2022, 17, 100146. [Google Scholar] [CrossRef]
  43. Thangasamy, P.; Nam, S.; Oh, S.; Randriamahazaka, H.; Oh, I.K. Boosting Oxygen Evolution Reaction on Metallocene-based Transition Metal Sulfides Integrated with N-doped Carbon Nanostructures. ChemSusChem 2021, 14, 5004–5020. [Google Scholar] [CrossRef] [PubMed]
  44. Acharya, J.; Ko, T.H.; Seo, M.K.; Khil, M.S.; Kim, H.Y.; Kim, B.S. Oxalic acid assisted rapid synthesis of mesoporous NiCo2O4 nanorods as electrode materials with higher energy density and cycle stability for high-performance asymmetric hybrid supercapacitor applications. J. Colloid Interface Sci. 2020, 564, 65–76. [Google Scholar] [CrossRef]
Nanomaterials 12 01848 g001 550
Figure 1. Schematic illustration of the synthesis process for Ni5P4/Ni2P–Fe–FeNi3@AC catalysts and Ni5P4/Ni2P–FeNi@C.
Figure 1. Schematic illustration of the synthesis process for Ni5P4/Ni2P–Fe–FeNi3@AC catalysts and Ni5P4/Ni2P–FeNi@C.
Nanomaterials 12 01848 g001
Nanomaterials 12 01848 g002 550
Figure 2. XRD patterns of (a) Ni–FeNi@C, (b) Ni5P4/Ni2P–FeNi@C, (c) FeNi3@AC and (d) Ni5P4/Ni2P–Fe–FeNi3@AC samples.
Figure 2. XRD patterns of (a) Ni–FeNi@C, (b) Ni5P4/Ni2P–FeNi@C, (c) FeNi3@AC and (d) Ni5P4/Ni2P–Fe–FeNi3@AC samples.
Nanomaterials 12 01848 g002
Nanomaterials 12 01848 g003 550
Figure 3. The morphology of the as-prepared samples. SEM images of FeNi3@AC (a,b), Ni5P4/Ni2P–Fe–FeNi3@AC (c,d), Ni–FeNi@C (e,f) and Ni5P4/Ni2P–FeNi@C (g,h) samples at different magnifications.
Figure 3. The morphology of the as-prepared samples. SEM images of FeNi3@AC (a,b), Ni5P4/Ni2P–Fe–FeNi3@AC (c,d), Ni–FeNi@C (e,f) and Ni5P4/Ni2P–FeNi@C (g,h) samples at different magnifications.
Nanomaterials 12 01848 g003
Nanomaterials 12 01848 g004 550
Figure 4. (a) TEM and (b,c) HRTEM images of Ni–FeNi@C. (d) TEM and (e–g) HRTEM images of Ni5P4/Ni2P–FeNi@C. (h) SAED and (i) STEM images and corresponding elemental mapping images of C, Ni, Fe and P for the Ni5P4/Ni2P–FeNi@C sample.
Figure 4. (a) TEM and (b,c) HRTEM images of Ni–FeNi@C. (d) TEM and (e–g) HRTEM images of Ni5P4/Ni2P–FeNi@C. (h) SAED and (i) STEM images and corresponding elemental mapping images of C, Ni, Fe and P for the Ni5P4/Ni2P–FeNi@C sample.
Nanomaterials 12 01848 g004
Nanomaterials 12 01848 g005 550
Figure 5. (a) N2 adsorption–desorption isotherm of all samples; (b) Raman spectrum of Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C.
Figure 5. (a) N2 adsorption–desorption isotherm of all samples; (b) Raman spectrum of Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C.
Nanomaterials 12 01848 g005
Nanomaterials 12 01848 g006 550
Figure 6. (a) OER LSV curves of FeNi3@AC, Ni–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC, Ni5P4/Ni2P–FeNi@C and the commercial RuO2 samples with 85% iR-correction in 1 M KOH. (b) The comparative overpotentials of catalysts at 10 mA cm−2. (c) Tafel plots derived from the polarization curves in (a). (d) Nyquist plots of the FeNi3@AC, Ni–NiFe@C, Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C catalysts at 1.480 V vs. RHE. (e) Double-layer capacitance (Cdl) plots. (f) Comparison of the overpotentials of Ni5P4/Ni2P–FeNi@C (this work) and the relevant OER electrocatalysts at 10 mA cm−2. (g) Chronopotentiometry curves of the Ni5P4/Ni2P–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P@C catalysts at 20 mA cm−2.
Figure 6. (a) OER LSV curves of FeNi3@AC, Ni–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC, Ni5P4/Ni2P–FeNi@C and the commercial RuO2 samples with 85% iR-correction in 1 M KOH. (b) The comparative overpotentials of catalysts at 10 mA cm−2. (c) Tafel plots derived from the polarization curves in (a). (d) Nyquist plots of the FeNi3@AC, Ni–NiFe@C, Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P–FeNi@C catalysts at 1.480 V vs. RHE. (e) Double-layer capacitance (Cdl) plots. (f) Comparison of the overpotentials of Ni5P4/Ni2P–FeNi@C (this work) and the relevant OER electrocatalysts at 10 mA cm−2. (g) Chronopotentiometry curves of the Ni5P4/Ni2P–FeNi@C, Ni5P4/Ni2P–Fe–FeNi3@AC and Ni5P4/Ni2P@C catalysts at 20 mA cm−2.
Nanomaterials 12 01848 g006
Nanomaterials 12 01848 g007 550

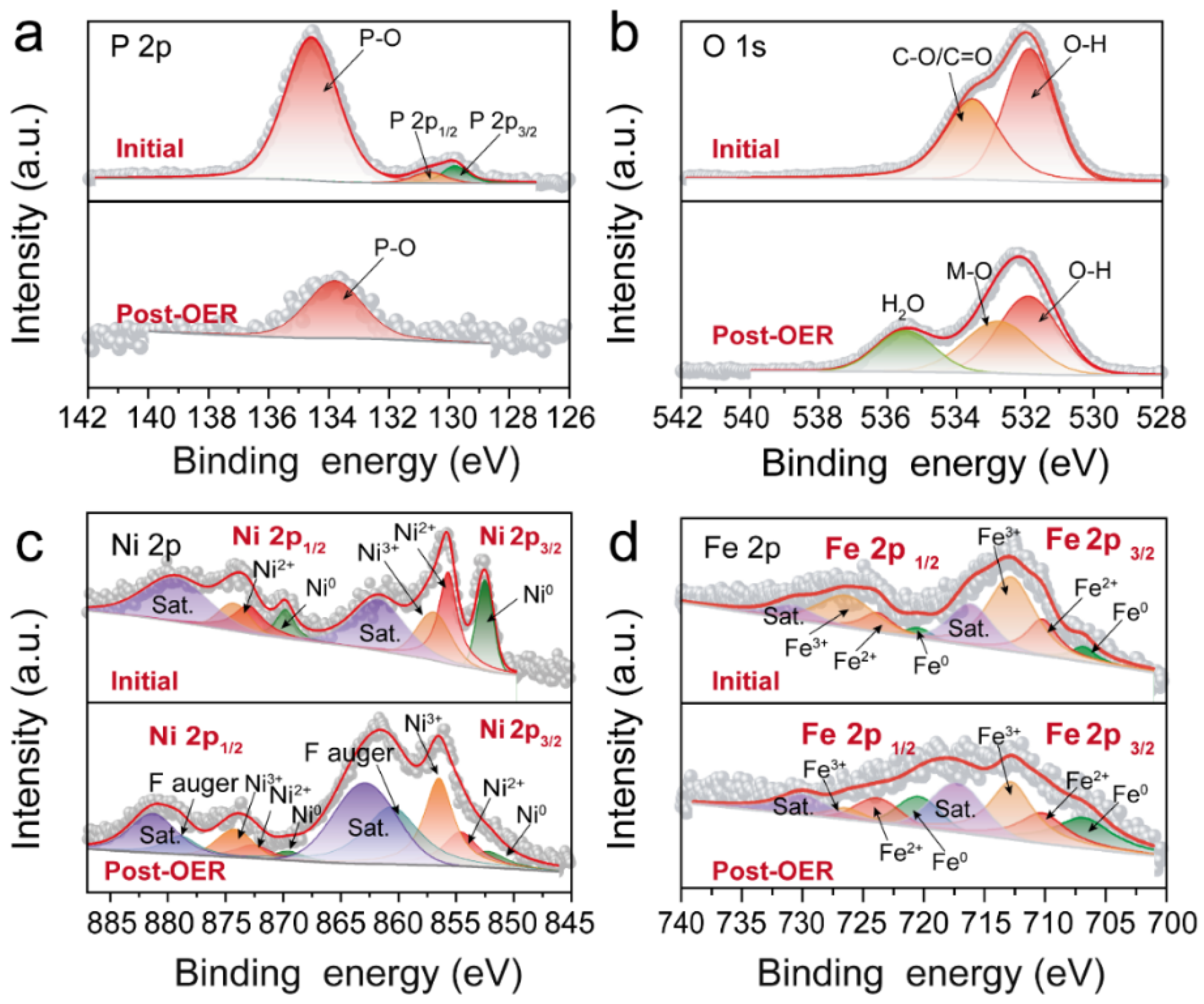

Figure 7. High-resolution XPS spectra of the Ni5P4/Ni2P–FeNi@C sample before and after the OER process. (a) P 2p, (b) O 1s, (c) Ni 2p and (d) Fe 2p.
Figure 7. High-resolution XPS spectra of the Ni5P4/Ni2P–FeNi@C sample before and after the OER process. (a) P 2p, (b) O 1s, (c) Ni 2p and (d) Fe 2p.
Nanomaterials 12 01848 g007
Nanomaterials 12 01848 g008 550

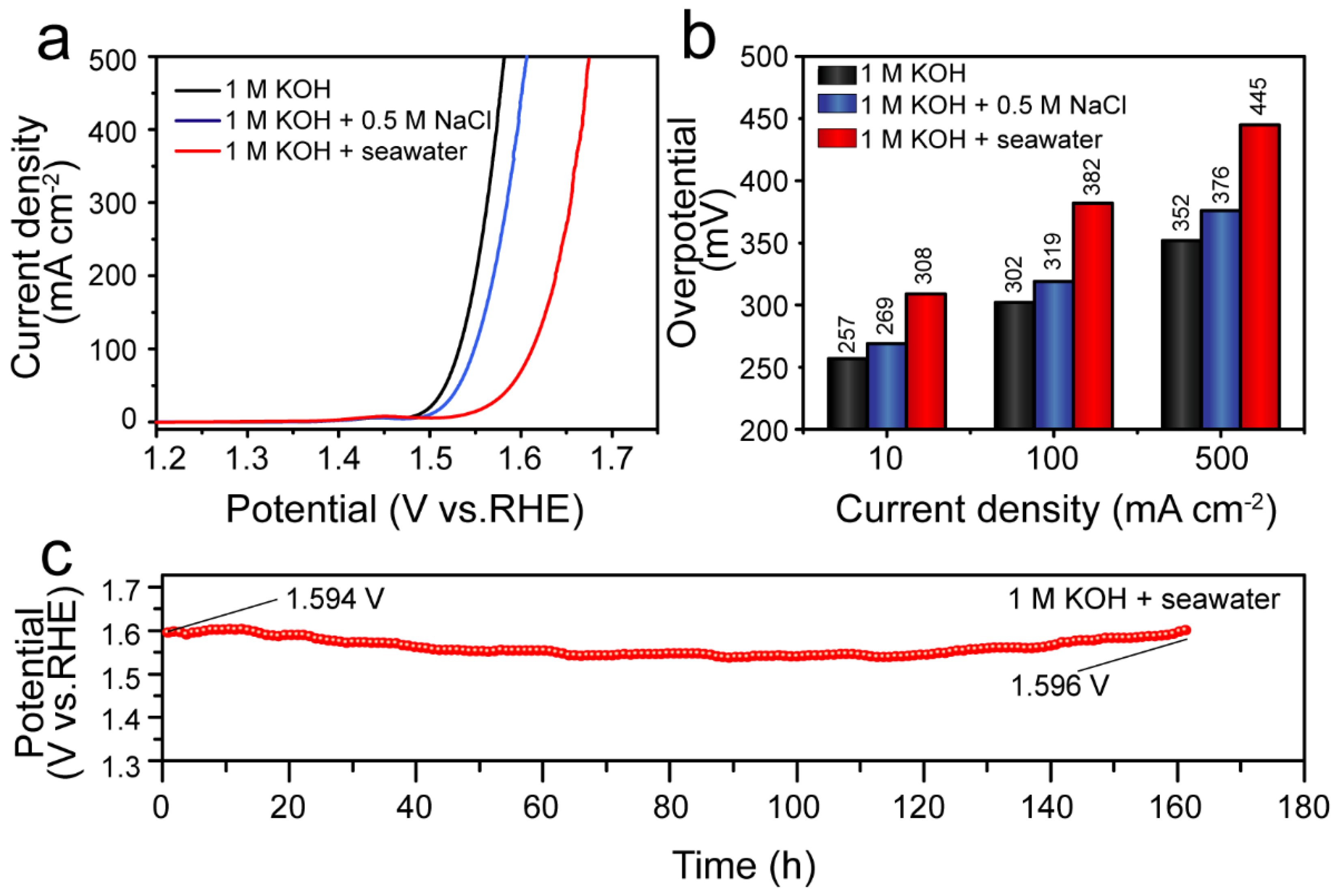

Figure 8. (a) LSV polarization curves of Ni5P4/Ni2P–FeNi@C with 85% iR-correction in different electrolytes. (b) The comparative overpotential values derived from the OER polarization curves at 20, 100 and 500 mA cm−2. (c) Chronopotentiometry curve of Ni5P4/Ni2P–FeNi@C at 20 mA cm−2 in a 1 M KOH + seawater electrolyte.
Figure 8. (a) LSV polarization curves of Ni5P4/Ni2P–FeNi@C with 85% iR-correction in different electrolytes. (b) The comparative overpotential values derived from the OER polarization curves at 20, 100 and 500 mA cm−2. (c) Chronopotentiometry curve of Ni5P4/Ni2P–FeNi@C at 20 mA cm−2 in a 1 M KOH + seawater electrolyte.
Nanomaterials 12 01848 g008
Table
Table 1. Comparison of OER activity of different electrocatalysts at 10 mA cm−2.
Table 1. Comparison of OER activity of different electrocatalysts at 10 mA cm−2.
CatalystSubstrateElectrolyteη (mV)
10 mA/cm2		Tafel Slope
(mV/Decade)		Reference
G@Ni9FeGCE 11.0 M KOH24646[30]
P–Ni0.5Fe@CGCE 11.0 M KOH25665[29]
F–NiFe alloysNi plate1.0 M KOH26053[19]
NiFeC-800-5GCE 11.0 M KOH26972[32]
Ni/Ni2P@N–CNFGCE 11.0 M KOH28545.2[14]
Ni2PNF 21.0 M KOH29047[34]
NiFe@NCNFsGCE 11.0 M KOH29452[22]
NiFe alloysGCE 11.0 M KOH29851.9[33]
NiFe/NiFe2O4@NCGCE 11.0 M KOH31660[35]
Ni5P4/Ni2P–FeNi@CGCE 11.0 M KOH24246This work
Commercial RuO2GCE 11.0 M KOH27265This work
1 GCE stands for glassy carbon electrode; 2 NF stands for nickel foam.
