Synthesis and Characterization of Boehmite Particles Obtained from Recycling: Water Disinfection Application

by
Dienifer F. L. Horsth
1,2,
Julia de O. Primo
1,2,
Nayara Balaba
1,
Jamille S. Correa
1,
Cristina M. Zanette
3,
Douglas K. Silva
1,
Carla Bittencourt
2,* and
Fauze J. Anaissi
1
1
Departamento de Química, Universidade Estadual do Centro-Oeste, Guarapuava 85040-167, Brazil
2
Chimie des Interactions Plasma-Surface (ChIPS), Research Institute for Materials Science and Engineering, University of Mons, 7000 Mons, Belgium
3
Departamento de Engenharia de Alimentos, Universidade Estadual do Centro-Oeste, Guarapuava 85040-080, Brazil
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(16), 2771; https://doi.org/10.3390/nano12162771
Submission received: 18 July 2022 / Revised: 9 August 2022 / Accepted: 9 August 2022 / Published: 12 August 2022
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
We report on the synthesis of boehmite aluminum oxide hydroxide particles with lamellar structure (γ-AlO(OH)) obtained from the recycling of metallic can seals, with the addition of silver nanoparticles (Ag-NPs) reduced by Aloe Vera extract. X-ray diffractometry (XRD) confirmed the γ-phase, and scanning electron microscopy (SEM) showed the presence of Ag-NPs on the boehmite particle surface, confirming the efficiency of the synthesis to obtain the composite material. The samples were used to treat lake water, according to the Standard Methods for the Examination of Water and Wastewater. The results indicated that the elimination of total coliforms and Escherichia coli occurred, with excellent efficiency for the Ag-boehmite sample. The tests show the possibility of reuse (5×) of the sample, as it maintained the efficiency of disinfection for E. coli. The preparation, use, and reuse of boehmite obtained from metallic waste is a case of a circular economy, focused on sustainability and green chemistry.

Graphical Abstract

1. Introduction

In the framework of environmental preservation, obtaining clean and potable water has become a challenge due to chemical and biological contaminations [1]. The access to drinking water is a right for all and is part of the sustainable development goals established by the United Nations [2,3]. However, around 40% of the global population still does not have access to clean water [4]. According to [3], untreated or inadequately treated water can cause diseases in humans due to the presence of microbial pathogens (bacteria, protozoan parasites, viruses, and others) [5]. The main pathogens found in water are bacteria (E. coli, Shigella, and V. cholera), viruses (Hepatitis A, Polio Virus, and Rota Virus), and parasites (E. histolytica, Giardia), responsible for diseases such as cholera, typhoid, paratyphoid, salmonella, cryptosporidiosis, giardiasis, etc. [6]. About 2.2 million annual deaths and threats to the lives of children worldwide are attributed to the ingestion of water contaminated by pathogens [7]. Therefore, the engineering of materials capable of disinfecting and sanitizing water is urgent [8]. The use of metal nanoparticles for disinfection and water sanitization have gained importance, and at the forefront are silver nanoparticles (Ag-NPs), due to their antimicrobial properties, potential for the elimination of heavy metals, and catalytic activity against azo dyes [9,10,11]. In its elemental form, silver (Ag) is toxic, though quite efficient in combating microorganisms. Nevertheless, the deposition of Ag-NPs on the surface of nanostructured oxides was reported to decrease their toxicity and to increase their bactericidal efficiency, as the surface area of nanoparticles dispersed on a nanostructured surface allows greater accessibility to microbes [9,10,12,13,14,15,16,17].
Considering the need for greener synthesis methods and the development of sustainable materials for the preservation of the environment, we report on the synthesis of Ag-NPs using Aloe Vera extract as a reduction agent, and their deposition on the surface of boehmite aluminum oxyhydroxide (γ-AlO(OH)) particles, obtained from aluminum recycling metal. The Ag-Boehmite nanoparticles were tested for lake water treatment. The lake water contamination arises from unauthorized water discharges from farms and houses in the neighborhood of the lake.
Research on materials has been focusing on green synthesis methods, aiming at the engineering of environmentally friendly materials [18,19,20]. The “greener synthesis” or “biosynthesis” of materials has become increasingly popular due to the current problems of toxicity and global pollution [21,22,23]. Green synthesis seeks to minimize waste, reduce pollution, use solvents and renewable resources, and to increase efficiency and environmental adaptability [24]. In this respect, the use of plant extracts such as Aloe Vera, in the synthesis of nanoparticles has been highlighted [25], because the plant extract can be used as a reducing agent and stabilizer of nanoparticles [16,26].
Aluminum is a nontoxic, resistant, malleable metal and, when oxidized, forms a protective layer on its surface. These properties make metallic aluminum ideal in several areas, such as the food, health, beauty, and automotive industries [27,28]. In this context, recycling aluminum cans has been of interest to companies around the world with direct investments to obtain sustainable and low-cost products [15]. In addition, recycling aluminum is a way to reduce the amount of byproducts linked to the production of primary aluminum discarded in the environment [27]. For every kilo of secondary (recycled) aluminum, about 5 kilos of bauxite are saved, and about 95% of the energy needed to produce the same amount of primary aluminum is saved [29]. The simplest recycling process consists of melting the metal [30]; however, chemical treatments can also be used to recycle aluminum [29]. The most used route to obtain aluminum oxide and hydroxide is the Bayer process, which explores the solubility of these compounds present in bauxite in a highly alkaline medium [31]. In this way, the possibility of transforming metallic aluminum into oxide or hydroxide is presented, exploring its solubility. The conditions of the precipitation of aluminum hydroxide (Al(OH)3) directly affect the hydroxide type formed, since it can exist in different crystalline forms, in addition to the amorphous phase, and this influences the characteristics of the product, and consequently its application. Crystalline hydroxides are divided into two classes, aluminum trihydroxides (Al(OH)3) and aluminum oxyhydroxides (AlO(OH)) [32]. A phase that stands out is boehmite (γ-AlO(OH)), as it has a lamellar structure, and can be obtained via a simple, low-cost method, using commercially available reagents, nontoxic in aqueous media, and without the need for an inert atmosphere [33]. Furthermore, due to its stable orthorhombic structure, it has properties such as insensitivity to variations in climatic conditions, high mechanical and thermal stability, high dispersity of active phases, nontoxicity, and easy surface modification [34,35].

2. Materials and Methods

2.1. Boehmite (γ-AlO(OH)) by Metallic Aluminum Acid Digestion

Aluminum can seals (10.0 g) were digested in an acid solution (1.1 mol L−1, 1000 mL) of hydrochloric acid (HCl, P.A., Synth) for about 24 h (Figure 1). The final solution containing the Al3+ ions had a pH 0.5 [29]. To obtain the boehmite phase, the pH was corrected by adding sodium hydroxide (NaOH, Vetec, 3.0 mol L−1) until the pH reached 8, causing a white solid to precipitate. The solid was vacuum filtered and oven-dried at 70 °C for 24 h [29].

2.2. Sample Purification

During the process of obtaining the boehmite phase (Section 2.1), the formation of sodium chloride (NaCl) occurred, which was not of interest to the final application. Therefore, it was necessary to purify the boehmite powder. Purification was performed by exploring the solubility of NaCl, which is different from boehmite. Thus, the boehmite powder was washed with hot water (90 °C) for the solubilization and removal of sodium chloride. After this step, the powder was filtered and dried at 70 °C [29].

2.3. Ag-NPs’ Preparation with Aloe Vera Extract

To obtain the Aloe Vera extract, the plant leaves were washed with water and cut into small pieces, and used as a whole (peel and gel). Then they were boiled in deionized water, in the proportion of 5.0 g of Aloe Vera for each 100 mL of water. After the first boiling, the cubes were compressed with the aid of a pestle and boiled again for an additional 5 min. The extract was filtered and stored under refrigeration (5 °C). Ag-NPs’ formation was obtained by the addition of silver nitrate (Ag(NO3)·6H2O, P.A.-ACS, Synth) to the Aloe Vera extract (50 mL). The extract/silver solution remained in mechanical agitation (500 rpm) for 20 h, and after this period, the solution showed a brown/black color, indicating that it had formed Ag-NPs [26].

2.4. Boehmite Decorated with Ag-NPs

The decoration of the boehmite surface was carried out by adding it to the solution containing the Ag-NPs and was agitated for 2 h (Figure 2). Then, the solution was filtered and washed five times with deionized water and oven-dried at 70 °C.

2.5. Characterization

The samples were characterized by X-ray diffraction (XRD), carried out in a Bruker D2 Phaser Diffractometer (Berlin, Germany), which uses a copper cathode with copper kα emission (λ = 1.5418 Å), equipped with a LynxEye high-performance detector, 300 W power. Scanning electron microscopy (SEM) images were obtained using a scanning electron microscope, SEM-TM3000, coupled with SwiftED 3000 (Energy Dispersive X-ray Spectrometer) and a Su8020 both from HITACH (Tokyo, Japan). Visible spectra were obtained in an Ocean Optics spectrophotometer (Tampa, FL, USA), model USB 2000, equipped with an optical fiber, tungsten-halogen source, and silicon (350–720 nm) and germanium (720–1050 nm) detectors. The measurement of the Zeta Potential (ζ) was performed in the ZETASIZER Malver equipment (London, UK), model NANO ZS90, DTS1070 acrylic cuvette. For measurements, 1 mg of sample was dispersed in 1 mL of water (pH 7.0), and the suspension was kept in an ultrasonic bath for 480 s. Measurements were performed in triplicate, with 10 scans, and an equilibrium time of 120 s. Aliquots of water after treatment were studied by Inductively Coupled Plasma Optical Emission spectroscopy (ICP-OES, Perkin Elmer Optima 7300 DV, (Waltham, MA, USA)) for evaluating the content of Al and Ag against simple standard solutions. For X-ray photoelectron spectroscopy (XPS), a VersaProbe PHI 5000 spectrometer from Physical Electronics (Chanhassen, MN, USA), equipped with a monochromatic Al Kα X-ray source, was used. During the measurements, a dual-beam charge neutralization with an electron gun (1 eV) and an Ar ion gun (≤10 eV) were used for charge compensation of the sample surface.

2.6. Lake Water Collection and Treatment

Water collection was performed from the lake of the Cedeteg Campus/UNICENTRO (Guarapuava, Parana, Brazil), using 100 mL sealed and sterilized bottles provided by the Water Analysis Laboratory, UNICENTRO. All samples were collected at the same point, at 2 m from the lake margin. Collection, treatment, and physical–chemical and microbiological analysis were performed on the same day.
The water treatment was carried out with the addition of 0.25 g of sample in100 mL of lake water. The boehmite and Ag-boehmite samples were tested separately to evaluate the performance before and after the surface decoration. The method used for disinfection was direct contact between the contaminated water and the samples for 15 min under constant agitation (500 rpm) at room temperature, followed by simple filtration, called the first aliquot (Figure 3).
The following aliquots (2nd, 3rd, 4th, and 5th) were carried out with the simple and direct filtration of lake water in the sample used in the 1st aliquot, to verify the possibility of reusing the powder samples. The treated water was collected in sealed and sterilized flasks for microbiological and physical–chemical analysis, according to the methodologies described in “Standard Methods for the Examination of Water and Wastewater” [36]. The evaluated parameters were total coliforms, pH, turbidity, and Escherichia coli, as shown in Table 1. The solid samples were oven-dried and characterized by Energy Dispersive X-ray Fluorescence (EDXRF) to analyze their composition after water treatment.

3. Results and Discussion

3.1. Scanning Electronic Microscopy with Energy Dispersive Spectroscopy (SEM/EDS)

The boehmite sample morphology (Figure 4a) presented irregular plates, as reported for products obtained using the same pH as this study [37]. To distinguish boehmite and Ag particles and to determine the Ag-NP density distribution, the Ag-loaded boehmite samples were visualized in the back scattered electron (BSE) mode of SEM (BSE-SEM) (Figure 4b,d). After the decoration with Ag-NPs (Figure 4c,d), the boehmite retained the same morphology; however, the Ag nanoparticles (bright contrast) were observed on the surface of the plates. The mean diameter of the silver particles was ~0.3 μm, corroborating the crystallinity data, and according to the histogram (Figure 5f), the mean particle size was about ~70 nm.
Table 2 shows the composition according to the energy dispersive spectroscopy, indicating the presence of aluminum, oxygen, and silver. Chlorine was a residue of the hydrochloric acid used for the digestion of the metallic can seal.

3.2. X-ray Diffractometry (XRD)

The X-ray diffraction (XRD) shown in Figure 5a confirmed the presence of the boehmite phase cubic spinel(γ-AlO(OH)), which was indexed according to the crystallographic chart [96-901-2249], using Match 3! software, and compared with the literature [38].
The XRD pattern of the synthesized silver nanoparticles is shown in Figure 5b; the presence of the Ag2O phase [96-101-0605] and metallic silver (Ag) [96-110-0137] were observed, indicating the reduction of silver ions. The XRD for boehmite decorated with Ag-NPs (Figure 5c) showed the presence of three crystallographic phases, with aluminum oxide-hydroxide as the majority phase [96-901-2249], the presence of the characteristic peaks of the AgAlO2 phase [96-150-9223], and Ag2O [96-101-0605].
The degree of crystallinity and particle size were calculated from the XRD patterns (Table 3). The boehmite had a degree of crystallinity of 60.4%, while the Ag-NPs had 19.6%. Decoration of boehmite with Ag-NPs promoted an increase in the crystalline Ag-Boehmite phase (80%), attributed to the presence of more crystalline oxides (AgAlO2 and Ag2O). The crystallite size was calculated for extreme form factors (k); the average size was 2.0–3.0 nm for boehmite, 21.0–31.0 nm for Ag-NPs, and the combination of boehmite with Ag-NPs resulted in an increase in crystallite size between 36 and 53 nm. The increase in crystallite size accompanied an increase in the degree of crystallinity, attributed to a strong structural interaction between the combined components, Ag-NPs, and boehmite.

3.3. Zeta Potential (ζ)

The boehmite (ζ = +1.58 mV) and Ag-boehmite (ζ = +1.67 mV) samples showed positive potential, confirming the tendency of aluminum oxide to be positively charged at a neutral pH [39]. On the other hand, the Ag-NPs had negative potential (ζ = −8.40 mV), thus suggesting that NPs were maintained by strong electrostatic interaction with the boehmite surface.

3.4. Water Treatment

The parameters presented in Table 3 were validated according to the Standard Methods for The Examination of Water and Wastewater—23th Edition—SMEWW [36]. According to this method, the limit of the microbiological parameters tolerated for total coliforms and Escherichia coli in the water is “<1 or absence”, and for the physicochemical parameters, the pH must be between 5.0 and 9.0, and the turbidity between null and 5.0.
The contaminated water was collected in a natural lake and presented a quantity superior to 2419.6 MPN of total coliforms. In addition, it showed the presence of 195.6 MPN of Escherichia coli. These microbes are strong indicators of the presence of feces in the water [40]. The boehmite sample was not able to eliminate the presence of total coliforms and Escherichia coli from the water; however, it reduced their presence by 77.4% (547.6 MPN) and 86.6% (26.2 MPN), respectively. The difficulty in eliminating E. coli lies in its cell wall characteristic, as the cell envelope contains several layers with unique compositions and structures, which combined form a multicomposite cell envelope structure resistant to environmental stresses [41]. However, the presence of Ag-NPs made the material capable of eliminating these bacteria, due to the antibacterial property of this metal [7]. Regarding the physical–chemical parameters, only the pH of the treated water samples was within the accepted limit.
Conversely, the Ag-Boehmite sample proved to be efficient in all parameters in the first aliquot (1st time), and in the reuses. it persisted within the limits only for Escherichia coli and pH, showing the possibility of using and reusing this material against this bacterium, since Ag+ ions are released to eliminate the pathogen, disrupting the cell walls of microorganisms, and inactivating the essential enzymes by damaging the DNA [42]. The boehmite sample proved to be very efficient in reducing the turbidity to acceptable levels (Table 4, Figure 6), and with the presence of Ag-NPs (Ag-Boehmite sample), it had permanent action against E. coli; however, it lost the ability to reduce total coliforms after the first use.
XPS was used to evaluate the chemical changes in the Ag-NPs sample after the water treatment. The results of the XPS analysis are shown in the supplement (Figure S1 and Table S1). After water treatment, there was an excess of carbon at the sample surface as expected. The FWHM of the Ag 3d core level slightly increased, which can be associated with a partial oxidation of the Ag nanoparticles.

3.5. Inductively Coupled Plasma–Optical Emission Spectrometry (ICP-OES)

The ICP-OES technique was used to monitor the amount of aluminum and silver in the water before and after disinfection (Table 5). The results indicated that there was no silver leaching into the water, with values below the detection limit, demonstrating that the synthesis of silver-decorated boehmite resulted in a stable material capable of disinfecting water without polluting [43], corroborating the zeta potential data.

3.6. Colorimetry (CIEL*a*b*)

The colorimetry of the samples was performed to obtain information about the color variation before and after the water treatment. In both samples the luminosity (L*) decreased, so the samples became less luminous after contact with contaminated water (Table 6). On the other hand, the samples showed a higher C* value, indicating that they became more saturated in color [44]. In comparison (∆E), for boehmite, there was a strong difference concerning its peer after water treatment and a very strong difference for Ag-boehmite [29].
All samples were positioned in the red/yellow color quadrant with positive a* and b* values (Figure 7). The trend towards yellow (a* more positive) observed in the materials is justified by the adsorption of the sulfur present in the water during the treatment [45].

4. Conclusions

The results show that the greener synthetic route used to obtain boehmite with a silver-modified surface was efficient. X-ray diffractometry (XRD) confirmed the phase (γ-AlO(OH)) and indicated that Ag deposition occurred on the boehmite surface, because there was no structural change observed, which was confirmed by scanning electron microscopy (SEM). The application as a disinfecting agent in the water was effective, as the treated water presented all the analyzed parameters within the established limits, emphasizing the absence of monitored microbes. In addition, there is the possibility of Ag-boehmite reuse, because even until the fifth reuse, it remained efficient against the gram-negative bacterium Escherichia coli.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12162771/s1; Table S1: Evaluation of surface chemical composition before and after (5th aliquot) water treatment; Figure S1: XPS 3d core level recorded on the Ag-NPs samples before and after water treatment.

Author Contributions

Conceptualization, D.F.L.H., F.J.A. and C.B.; methodology, D.F.L.H. and J.d.O.P.; validation, J.d.O.P. and D.F.L.H.; formal analysis, D.F.L.H., N.B., C.M.Z. and D.K.S.; investigation, D.F.L.H., J.S.C., N.B., F.J.A. and D.K.S.; resources, C.B. and F.J.A.; writing—original draft preparation, D.F.L.H., J.d.O.P. and C.B.; writing—review and editing, D.F.L.H., F.J.A. and C.B.; visualization, D.F.L.H. and C.B.; supervision, F.J.A. and C.B.; project administration, F.J.A. and C.B.; funding acquisition, F.J.A. and C.B. All authors have read and agreed to the published version of the manuscript.

Funding

D.F.L.H. and J.d.O.P. appreciate the Coordenação de Aperfeiçoamento de Pessoal de Nível SuperiorBrasil (CAPES)—Finance Code 001 for a graduate scholarship and the FNRS for mobility grant (2021/V6/5/003–JG/MF–726). C.B. is a Research Associate of FRS-FNRS, Belgium. C.B., D.F.L.H., and J.d.O.P. thank the Belgian Fund for Scientific Research under the FRFC contract EQP 40002995 (PHOTOFUN). F.J.A. is thankful for a CNPq Productivity grant (308625/2019-6) and the grants CNPq–427127/2018-1 and Fundação Araucária–CBPA-001/2016.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful to the Water Analysis Laboratory—Central de Análises/UNICENTRO for the analyses. We thank Adrien Chauvin for helping with the XPS measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bhardwaj, A.K.; Shukla, A.; Mishra, R.K.; Singh, S.C.; Mishra, V.; Uttam, K.N.; Singh, M.P.; Sharma, S.; Gopal, R. Power and Time Dependent Microwave Assisted Fabrication of Silver Nanoparticles Decorated Cotton (SNDC) Fibers for Bacterial Decontamination. Front. Microbiol. 2017, 8, 330. [Google Scholar] [CrossRef] [PubMed]
  2. Bayu, T.; Kim, H.; Oki, T. Water Governance Contribution to Water and Sanitation Access Equality in Developing Countries. Water Resour. Res. 2020, 56, e2019WR025330. [Google Scholar] [CrossRef]
  3. Fukuda, S.; Noda, K.; Oki, T. How Global Targets on Drinking Water Were Developed and Achieved. Nat. Sustain. 2019, 2, 429–434. [Google Scholar] [CrossRef]
  4. Ranjan, M.; Singh, P.K.; Srivastav, A.L. A Review of Bismuth-Based Sorptive Materials for the Removal of Major Contaminants from Drinking Water. Environ. Sci. Pollut. Res. 2020, 27, 17492–17504. [Google Scholar] [CrossRef] [PubMed]
  5. Srivastav, A.; Patel, N.; Chaudhary, V.K. Disinfection By-Products in Drinking Water: Occurrence, Toxicity and Abatement. Environ. Pollut. 2020, 267, 115474. [Google Scholar] [CrossRef] [PubMed]
  6. Setty, K.; Jiménez, A.; Willetts, J.; Leifels, M.; Bartram, J. Global Water, Sanitation and Hygiene Research Priorities and Learning Challenges under Sustainable Development Goal 6. Dev. Policy Rev. 2020, 38, 64–84. [Google Scholar] [CrossRef] [PubMed]
  7. Bhardwaj, A.K.; Sundaram, S.; Yadav, K.K.; Srivastav, A.L. An Overview of Silver Nano-Particles as Promising Materials for Water Disinfection. Environ. Technol. Innov. 2021, 23, 101721. [Google Scholar] [CrossRef]
  8. Gehrke, I.; Geiser, A.; Somborn-Schulz, A. Innovations in Nanotechnology for Water Treatment. Nanotechnol. Sci. Appl. 2015, 8. [Google Scholar] [CrossRef]
  9. Shaikh, S.; Nazam, N.; Rizvi, S.M.D.; Ahmad, K.; Baig, M.H.; Lee, E.J.; Choi, I. Mechanistic Insights into the Antimicrobial Actions of Metallic Nanoparticles and Their Implications for Multidrug Resistance. Int. J. Mol. Sci. 2019, 20, 2468. [Google Scholar] [CrossRef]
  10. Salleh, A.; Naomi, R.; Utami, N.D.; Mohammad, A.W.; Mahmoudi, E.; Mustafa, N.; Fauzi, M.B. The Potential of Silver Nanoparticles for Antiviral and Antibacterial Applications: A Mechanism of Action. Nanomaterials 2020, 10, 1556. [Google Scholar] [CrossRef]
  11. Yang, Y.; Chen, X.; Zhang, N.; Sun, B.; Wang, K.; Zhang, Y.; Zhu, L. Self-Defense Mechanisms of Microorganisms from the Antimicrobial Effect of Silver Nanoparticles: Highlight the Role of Extracellular Polymeric Substances. Water Res. 2022, 218, 118452. [Google Scholar] [CrossRef]
  12. Lara, H.H.; Ayala-Núñez, N.V.; del Turrent, L.C.I.; Padilla, C.R. Bactericidal Effect of Silver Nanoparticles against Multidrug-Resistant Bacteria. World, J. Microbiol. Biotechnol. 2010, 26, 615–621. [Google Scholar] [CrossRef]
  13. Fayaz, A.M.; Balaji, K.; Girilal, M.; Yadav, R.; Kalaichelvan, P.T.; Venketesan, R. Biogenic Synthesis of Silver Nanoparticles and Their Synergistic Effect with Antibiotics: A Study against Gram-Positive and Gram-Negative Bacteria. Nanomed. Nanotechnol. Biol. Med. 2010, 6, 103–109. [Google Scholar] [CrossRef]
  14. Guzman, M.; Dille, J.; Godet, S. Synthesis and Antibacterial Activity of Silver Nanoparticles against Gram-Positive and Gram-Negative Bacteria. Nanomed. Nanotechnol. Biol. Med. 2012, 8, 37–45. [Google Scholar] [CrossRef]
  15. Venkatadri, B.; Shanparvish, E.; Rameshkumar, M.R.; Arasu, M.V.; Al-Dhabi, N.A.; Ponnusamy, V.K.; Agastian, P. Green Synthesis of Silver Nanoparticles Using Aqueous Rhizome Extract of Zingiber Officinale and Curcuma Longa: In-Vitro Anti-Cancer Potential on Human Colon Carcinoma HT-29 Cells. Saudi J. Biol. Sci. 2020, 27, 2980–2986. [Google Scholar] [CrossRef]
  16. Primo, J.d.O.; Horsth, D.F.; Correa, J.d.S.; Das, A.; Bittencourt, C.; Umek, P.; Buzanich, A.G.; Radtke, M.; Yusenko, K.V.; Zanette, C.; et al. Synthesis and Characterization of Ag/ZnO Nanoparticles for Bacteria Disinfection in Water. Nanomaterials 2022, 12, 1764. [Google Scholar] [CrossRef]
  17. Sharma, R. Nanotechnology: An Approach for Water Purification-Review. IOP Conf. Ser. Mater. Sci. Eng. 2021, 1116, 012007. [Google Scholar] [CrossRef]
  18. Iravani, S. Green Synthesis of Metal Nanoparticles Using Plants. Green Chem. 2011, 13, 2638–2650. [Google Scholar] [CrossRef]
  19. Liu, H.; Miyamoto, N.; Nguyen, M.T.; Shirato, H.; Yonezawa, T. Green and Effective Synthesis of Gold Nanoparticles as an Injectable Fiducial Marker for Real-Time Image Gated Proton Therapy. Mater. Adv. 2022, 3, 5430. [Google Scholar] [CrossRef]
  20. Primo, J.d.O.; Bittencourt, C.; Acosta, S.; Sierra-Castillo, A.; Colomer, J.F.; Jaerger, S.; Teixeira, V.C.; Anaissi, F.J. Synthesis of Zinc Oxide Nanoparticles by Ecofriendly Routes: Adsorbent for Copper Removal from Wastewater. Front. Chem. 2020, 8, 571790. [Google Scholar] [CrossRef]
  21. Roopan, S. Current Scenario in Green Approaches for Metal/Metal Oxide Nanoparticles Synthesis: Synthesis, Characterization and Their Applications. In The Macabresque: Human Violation and Hate in Genocide, Mass Atrocity and Enemy-Making; Oxford University Press: Oxford, UK, 2018; pp. 467–512. ISBN 9781119418238. [Google Scholar]
  22. Achadu, O.J.; Elizur, G.L.; Boye, T.E.; Park, E.Y. Green Synthesis of Carbon Dots Using Expired Agar for a Label-Free Fluorescence Signal-Amplified Detection of Ferric Ion Utilizing Oxalate Functionalization. Mater. Adv. 2022, 3, 6307–6315. [Google Scholar] [CrossRef]
  23. Zhang, Y.; Zhang, X.; Silva, S.R.P.; Ding, B.; Zhang, P.; Shao, G. Lithium–Sulfur Batteries Meet Electrospinning: Recent Advances and the Key Parameters for High Gravimetric and Volume Energy Density. Adv. Sci. 2022, 9, 2103879. [Google Scholar] [CrossRef]
  24. Singh, J.; Dutta, T.; Kim, K.H.; Rawat, M.; Samddar, P.; Kumar, P. “Green” Synthesis of Metals and Their Oxide Nanoparticles: Applications for Environmental Remediation. J. Nanobiotechnol. 2018, 16, 84. [Google Scholar] [CrossRef]
  25. Sangeetha, G.; Rajeshwari, S.; Venckatesh, R. Green Synthesis of Zinc Oxide Nanoparticles by Aloe Barbadensis Miller Leaf Extract: Structure and Optical Properties. Mater. Res. Bull. 2011, 46, 2560–2566. [Google Scholar] [CrossRef]
  26. Anju, T.R.; Parvathy, S.; Valiya Veettil, M.; Rosemary, J.; Ansalna, T.H.; Shahzabanu, M.M.; Devika, S. Green Synthesis of Silver Nanoparticles from Aloe Vera Leaf Extract and Its Antimicrobial Activity. In Proceedings of the Materials Today: Proceedings; Elsevier: Amsterdam, The Netherlands, 2020; Volume 43, pp. 3956–3960. [Google Scholar]
  27. van den Eynde, S.; Bracquené, E.; Diaz-Romero, D.; Zaplana, I.; Engelen, B.; Duflou, J.R.; Peeters, J.R. Forecasting Global Aluminium Flows to Demonstrate the Need for Improved Sorting and Recycling Methods. Waste Manag. 2022, 137, 231–240. [Google Scholar] [CrossRef] [PubMed]
  28. Hou, R.; Zhang, S.; Zhang, Y.; Li, N.; Wang, S.; Ding, B.; Shao, G.; Zhang, P. A “Three-Region” Configuration for Enhanced Electrochemical Kinetics and High-Areal Capacity Lithium–Sulfur Batteries. Adv. Funct. Mater. 2022, 32, 2200302. [Google Scholar] [CrossRef]
  29. Horsth, D.F.L.; Primo, J.O.; Dalpasquale, M.; Bittencourt, C.; Anaissi, F.J. Colored Aluminates Pigments Obtained from Metallic Aluminum Waste, an Opportunity in the Circular Economy. Clean. Eng. Technol. 2021, 5, 100313. [Google Scholar] [CrossRef]
  30. Lomasso, A.L.; Rodrigo, B.; Fabiana, S.; Da, A.; Anjos, S.; Cristina De Andrade, J.; Aparecida, L.; Silva, D.; Rodrigues, Q.; Ana, S.; et al. Benefícios e Desafios Na Implementação Da Reciclagem: Um Estudo de Caso No Centro Mineiro de Referência Em Resíduos (CMRR). Revista Pensar Gestão e Administração 2015, 3, 1–20. [Google Scholar]
  31. Leopoldo Constantino, V.R.; Araki, K.; de Oliveira Silva Wanda de Oliveira, D. Preparação De Compostos De Alumínio A Partir Da Bauxita: Considerações Sobre Alguns Aspectos Envolvidos Em Um Experimento Didático. Química Nova 2002, 25, 490–495. [Google Scholar] [CrossRef]
  32. Damasceno, F.C. Estudo Da Adsorção de Íons Ortofosfato Em Hidróxido de Alumínio; Universidade Federal de Goiás: Goiânia, Brazil, 2009. [Google Scholar]
  33. Ghorbani-Choghamarani, A.; Mohammadi, M.; Hudson, R.H.E.; Tamoradi, T. Boehmite@tryptophan-Pd Nanoparticles: A New Catalyst for C–C Bond Formation. Appl. Organomet. Chem. 2019, 33, e4977. [Google Scholar] [CrossRef]
  34. Carbonell, E.; Delgado-Pinar, E.; Pitarch-Jarque, J.; Alarcón, J.; García-España, E. Boehmite Supported Pyrene Polyamine Systems as Probes for Iodide Recognition. J. Phys. Chem. C 2013, 117, 14325–14331. [Google Scholar] [CrossRef]
  35. Amjad, M.U.; Ahmed, B.A.; Ahmed, F.; Saeed, H.A. Development and Characterization of Silver-Doped Multi-Walled Carbon Nanotube Membranes for Water Purification Applications. Membranes 2022, 12, 179. [Google Scholar] [CrossRef]
  36. Clesceri, L.S.; Greenberg, A.E.; Eaton, A.D. Standard Methods for the Examination of Water and Wastewater the Nineteenth and Earlier Editions, 20th ed.; American Public Health Association, American Water Works Association, Eds.; American Public Health Association: Washington, DC, USA, 1999. [Google Scholar]
  37. Osmolovskaya, O.M.; Osmolowsky, M.G.; Petrov, M.P.; Voitylov, A.V.; Vojtylov, V.V. Theoretical and Experimental Approaches to the Electro-Optical Study of Boehmite Nanoparticles with given Morphology. Colloids Surf. A Physicochem. Eng. Asp. 2020, 586, 124095. [Google Scholar] [CrossRef]
  38. Lightfoot, P. Inorganic Materials; Bruce, D.W., O’Hare, D., Eds.; Wiley: Chichester, UK, 1992; Volume 4, ISBN 0471928895. [Google Scholar]
  39. Kawashita, M.; Kamitani, A.; Miyazaki, T.; Matsui, N.; Li, Z.; Kanetaka, H.; Hashimoto, M. Zeta Potential of Alumina Powders with Different Crystalline Phases in Simulated Body Fluids. Mater. Sci. Eng. C 2012, 32, 2617–2622. [Google Scholar] [CrossRef]
  40. Pedroso, C.R.; de Souza, J.B.; Kovalski, T.; Vidal, C.M.d.S.; Martins, K.G. Inactivation of Indicator Microorganisms of Faecal Contamination by Ultraviolet Radiation and Evaluation of Photoreactivation and Dark Repair Phenomena. Eng. Sanit. Ambient. 2018, 23, 987–994. [Google Scholar] [CrossRef]
  41. Pandur, Ž.; Dular, M.; Kostanjšek, R.; Stopar, D. Bacterial Cell Wall Material Properties Determine, E. Coli Resistance to Sonolysis. Ultrason. Sonochem. 2022, 83, 105919. [Google Scholar] [CrossRef]
  42. Chen, H.J.; Tian, W.J.; Ding, W.X. Preparation of Meso-Ag/Al2O3 and Synergistic Water Disinfection of Metallic Silver and ROS under Visible Light. Sol. Energy 2018, 173, 1065–1072. [Google Scholar] [CrossRef]
  43. Wei, W.J.; Yang, Y.; Li, X.Y.; Huang, P.; Wang, Q.; Yang, P.J. Cloud Point Extraction (CPE) Combined with Single Particle -Inductively Coupled Plasma-Mass Spectrometry (SP-ICP-MS) to Analyze and Characterize Nano-Silver Sulfide in Water Environment. Talanta 2022, 239, 123117. [Google Scholar] [CrossRef]
  44. Fan, Y.; Li, J.; Guo, Y.; Xie, L.; Zhang, G. Digital Image Colorimetry on Smartphone for Chemical Analysis: A Review. Meas. J. Int. Meas. Confed. 2021, 171, 108829. [Google Scholar] [CrossRef]
  45. Jankowska, A.; Kowalak, S. Synthesis of Ultramarine Analogs from Erionite. Microporous Mesoporous Mater.-Microporous Mesoporous Mat. 2008, 110, 570–578. [Google Scholar] [CrossRef]
Nanomaterials 12 02771 g001 550

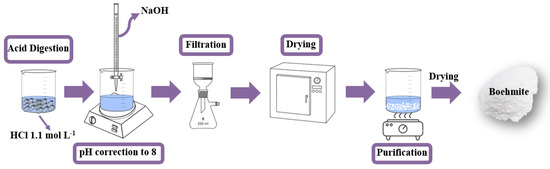

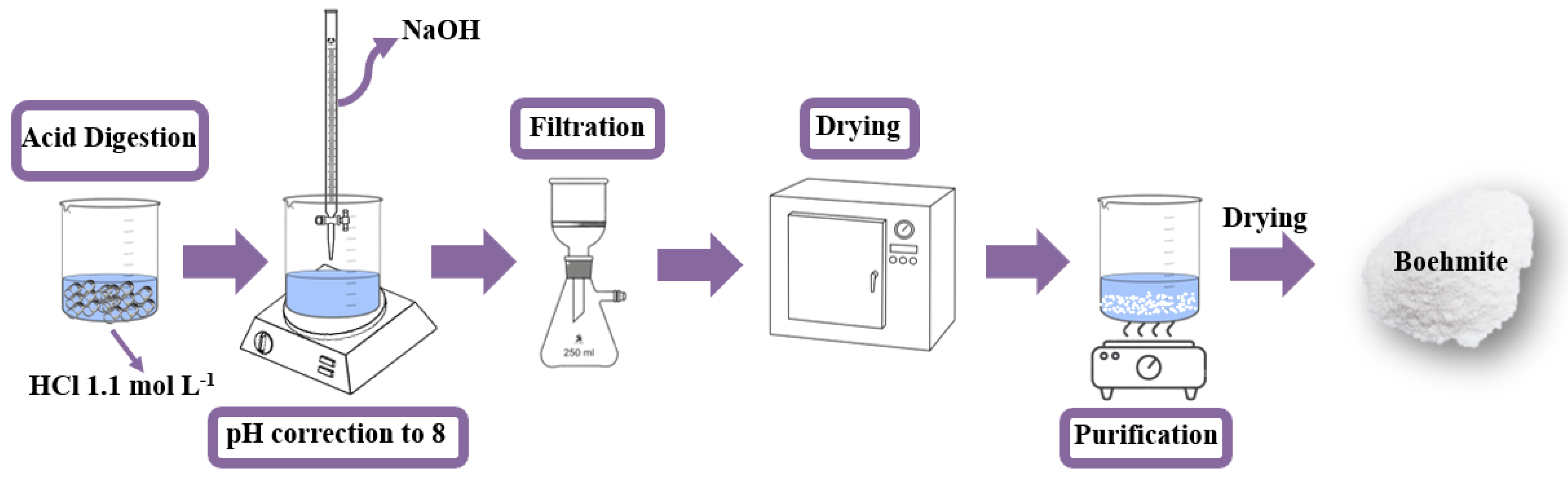

Figure 1. Schematic diagram of the synthesis route used to obtain the boehmite (γ-AlO(OH)).
Figure 1. Schematic diagram of the synthesis route used to obtain the boehmite (γ-AlO(OH)).
Nanomaterials 12 02771 g001
Nanomaterials 12 02771 g002 550

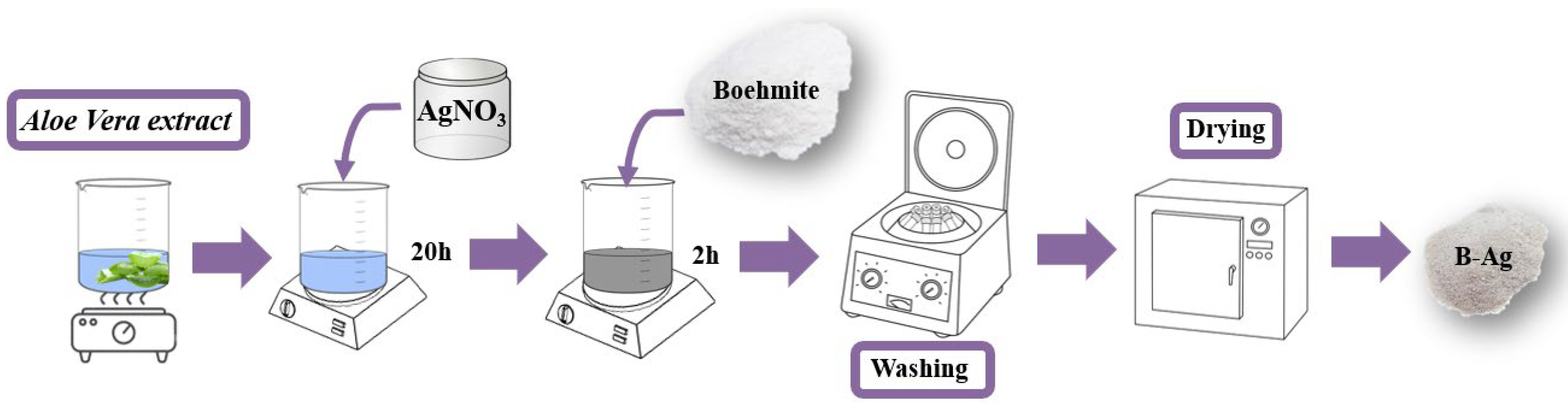

Figure 2. Schematic diagram of the synthesis route used to obtain Ag-boehmite (Ag-(γ-AlO(OH))).
Figure 2. Schematic diagram of the synthesis route used to obtain Ag-boehmite (Ag-(γ-AlO(OH))).
Nanomaterials 12 02771 g002
Nanomaterials 12 02771 g003 550

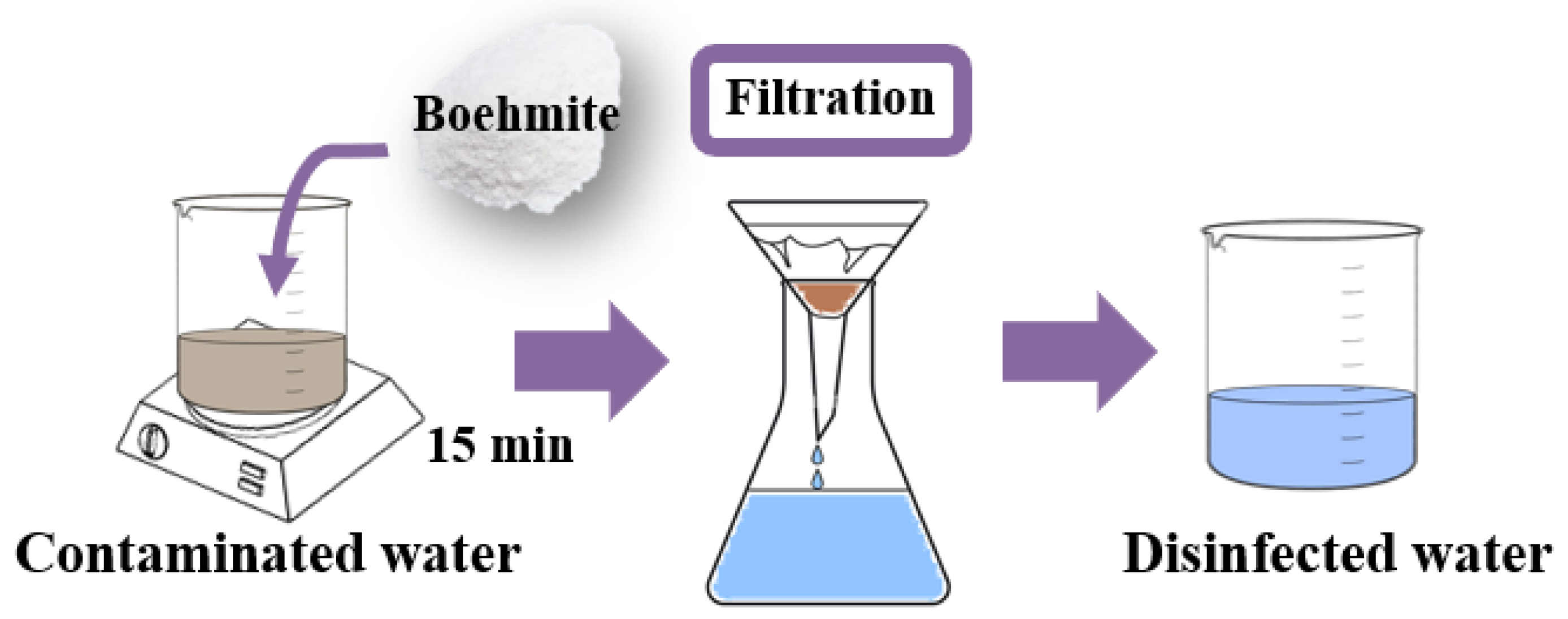

Figure 3. Schematic diagram used for lake water treatment.
Figure 3. Schematic diagram used for lake water treatment.
Nanomaterials 12 02771 g003
Nanomaterials 12 02771 g004 550
Figure 4. Scanning electron microscopy images of samples: (a) boehmite (LA detector), (b) boehmite (SE detector) (c) Ag-Boehmite (LA detector), (d) Ag-Boehmite (SE detector), (e) Ag-Boehmite (LA detector), the image is the magnification of the region inside the yellow rectangle in image (c), the bight nanostructures are Ag nanoparticles, and (f) histogram of Ag particle size distribution, the diameter of the Ag particles was measured on image (e).
Figure 4. Scanning electron microscopy images of samples: (a) boehmite (LA detector), (b) boehmite (SE detector) (c) Ag-Boehmite (LA detector), (d) Ag-Boehmite (SE detector), (e) Ag-Boehmite (LA detector), the image is the magnification of the region inside the yellow rectangle in image (c), the bight nanostructures are Ag nanoparticles, and (f) histogram of Ag particle size distribution, the diameter of the Ag particles was measured on image (e).
Nanomaterials 12 02771 g004
Nanomaterials 12 02771 g005 550

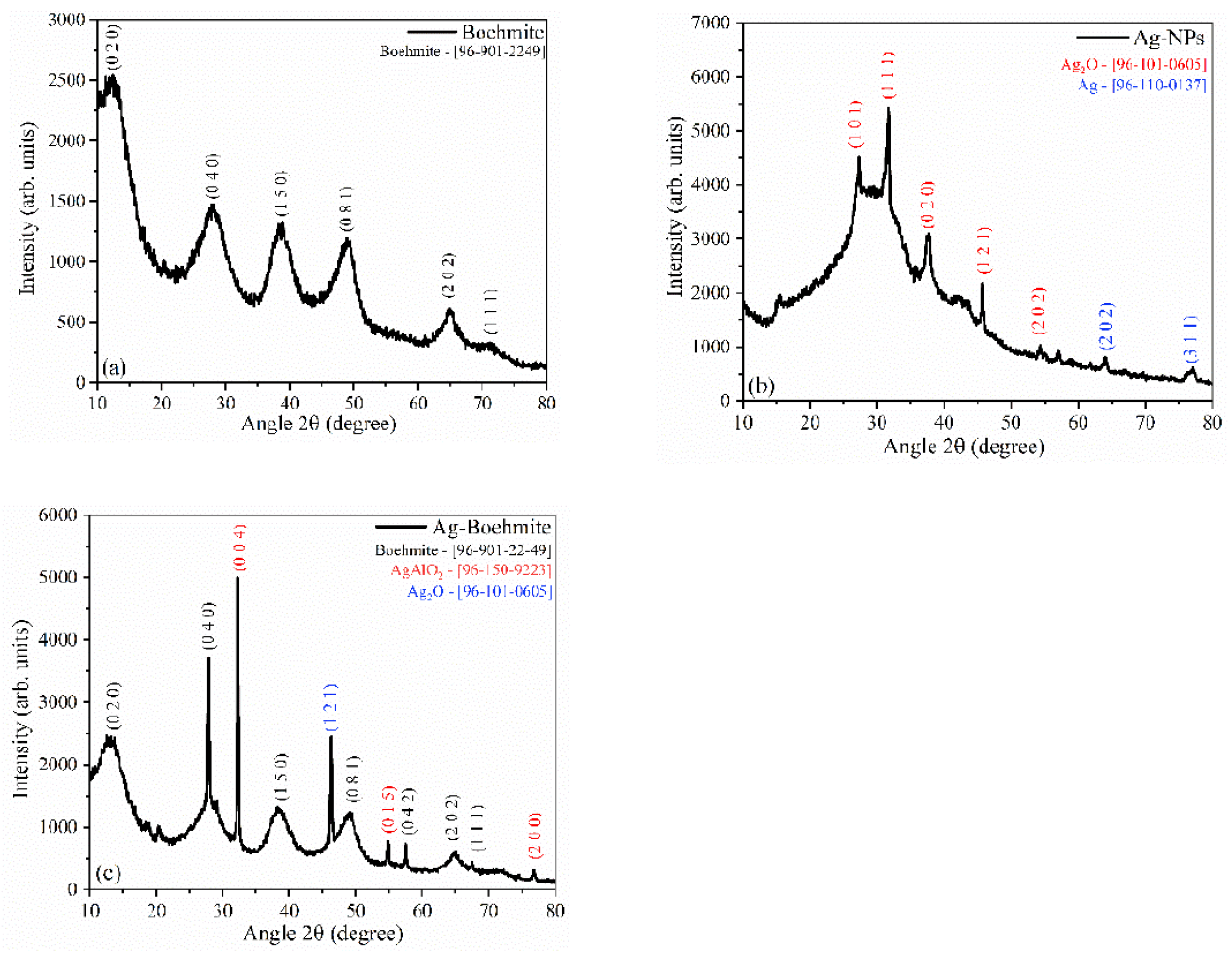

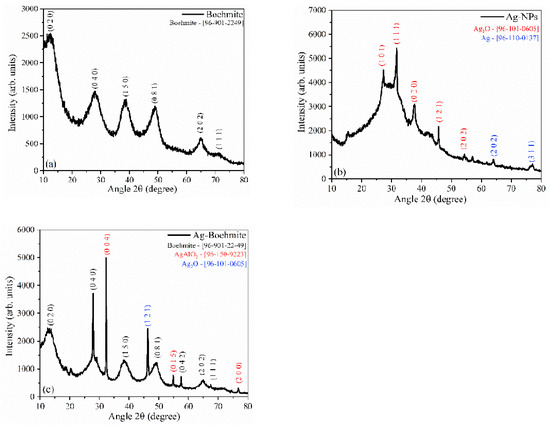

Figure 5. X-ray diffractograms of the samples: (a) boehmite; (b) Ag-NPs, and (c) Ag-Boehmite. The samples in powder form were placed directly in an appropriate sample holder for XRD analysis, scanning with an increment of 0.07°/s between 10° and 80° 2 theta.
Figure 5. X-ray diffractograms of the samples: (a) boehmite; (b) Ag-NPs, and (c) Ag-Boehmite. The samples in powder form were placed directly in an appropriate sample holder for XRD analysis, scanning with an increment of 0.07°/s between 10° and 80° 2 theta.
Nanomaterials 12 02771 g005
Nanomaterials 12 02771 g006 550
Figure 6. Digital photograph of flasks containing water treated with: (a) boehmite; and (b) Ag-Boehmite. First (left) flask not treated water, last flask water after 4th treatement.
Figure 6. Digital photograph of flasks containing water treated with: (a) boehmite; and (b) Ag-Boehmite. First (left) flask not treated water, last flask water after 4th treatement.
Nanomaterials 12 02771 g006
Nanomaterials 12 02771 g007 550

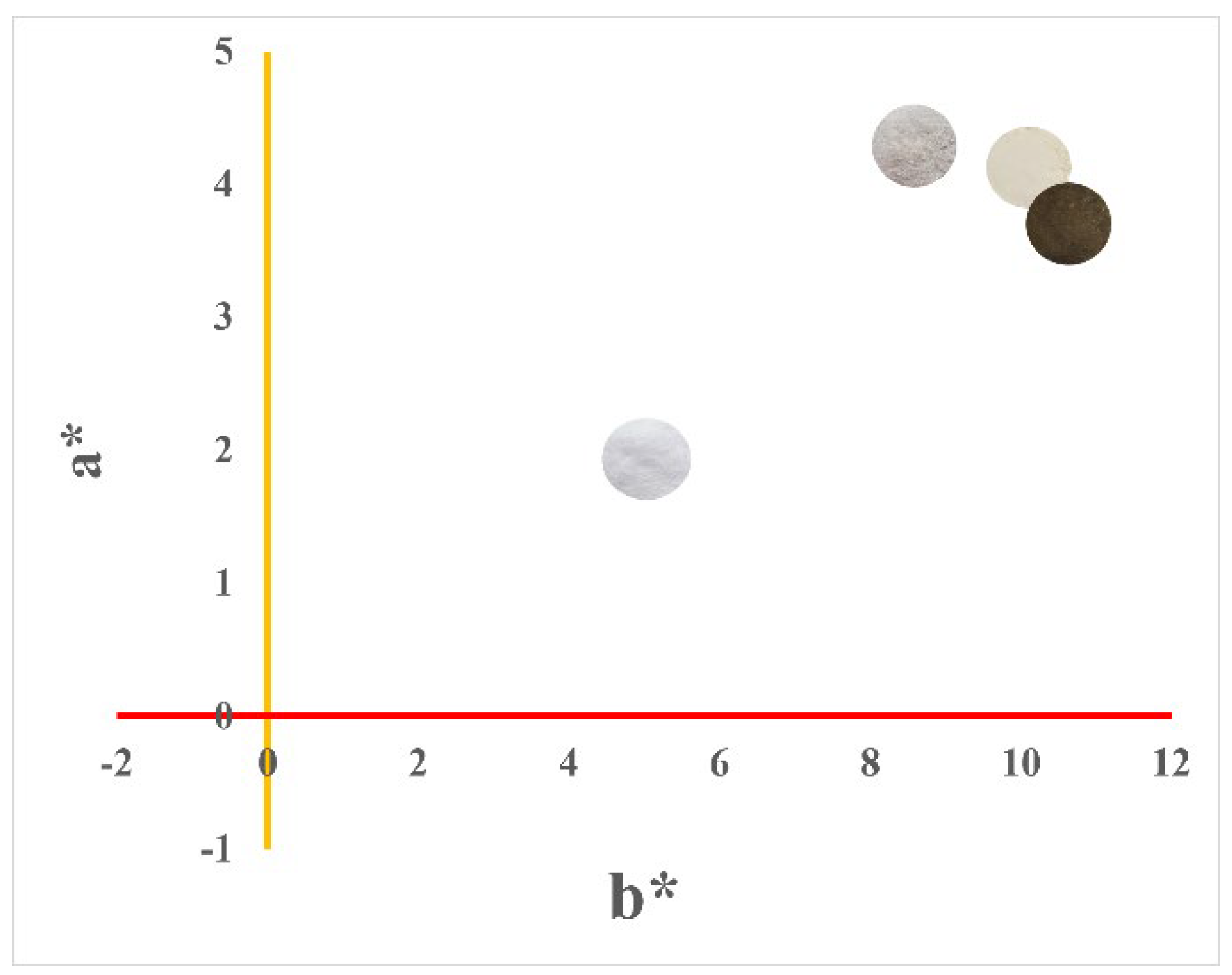

Figure 7. Graph of colorimetric parameters +a* (yellow) vs. +b* (red). Colorimetric measurements (L*a*b*) were performed on the respective samples in the form of powder.
Figure 7. Graph of colorimetric parameters +a* (yellow) vs. +b* (red). Colorimetric measurements (L*a*b*) were performed on the respective samples in the form of powder.
Nanomaterials 12 02771 g007
Table
Table 1. Methods used in the analysis of the treated water and the main parameters evaluated.
Table 1. Methods used in the analysis of the treated water and the main parameters evaluated.
Parameter AnalyzedMethod
Total coliformsSMEWW 9223 B- Enzymatic Substrate Coliform Test
Escherichia coliSMEWW 9223 B
pHSMEWW4500H + B—Electrometric Method
TurbiditySMEWW 2130 B—Nephelometric Method
Table
Table 2. Chemical composition of the samples according to EDS characterization.
Table 2. Chemical composition of the samples according to EDS characterization.
Sample% Weight
CAlOClAg
Boehmite2.837.453.56.3-
Ag-Boehmite1.557.133.24.63.6
Table
Table 3. Crystallinity parameters (percentage and size) calculated from XRD.
Table 3. Crystallinity parameters (percentage and size) calculated from XRD.
SampleCrystallinity (%)Crystallite Size (nm)
k = 0.9k = 1.3
Boehmite60.42.13.0
Ag-NPs17.921.230.7
Ag-Boehmite80.036.352.4
Table
Table 4. Microbiological and physicochemical analysis of the water before and after treatment.
Table 4. Microbiological and physicochemical analysis of the water before and after treatment.
SampleParameters
Total Coliforms
(MPN/100 mL)		Escherichia coli
(MPN/100 mL)		pHTurbidity
(NTU)
Lake Water (100 mL)>2419.6195.66.313.0
1st use Boehmite547.526.25.10.7
reuse BoehmitePresencePresence5.55.6
2nd reusePresencePresence5.85.7
3rd reusePresencePresence5.86.3
4th reusePresencePresence6.05.6
1st use Ag-Boehmite<1<16.04.8
reuse Ag-BoehmitePresence<16.15.8
2nd reusePresence<16.15.9
3rd reusePresence<16.15.2
4th reusePresence<16.25.5
Table
Table 5. Aluminum and silver concentration (ppm) in water after treatment.
Table 5. Aluminum and silver concentration (ppm) in water after treatment.
SampleConcentration (ppm)
AlAg
Contaminated water0.371 ± 0.0028−0.031 ± 0.0025
Boehmite3.299 ± 0.0138−0.025 ± 0.0019
Boehmite-Ag0.082 ± 0.0012−0.014 ± 0.0048
Table
Table 6. Colorimetric parameters of samples before and after water treatment.
Table 6. Colorimetric parameters of samples before and after water treatment.
SampleColorimetric Parameters
L*a*b*C∆E
Boehmite
Nanomaterials 12 02771 i001		89.401.945.005.376.54
Boehmite (after)
Nanomaterials 12 02771 i002		85.944.1210.1010.91
Ag-boehmite
Nanomaterials 12 02771 i003		63.284.288.589.5114.26
Ag-boehmite (after)
Nanomaterials 12 02771 i004		49.183.7010.6311.26
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Horsth, D.F.L.; Primo, J.d.O.; Balaba, N.; Correa, J.S.; Zanette, C.M.; Silva, D.K.; Bittencourt, C.; Anaissi, F.J. Synthesis and Characterization of Boehmite Particles Obtained from Recycling: Water Disinfection Application. Nanomaterials 2022, 12, 2771. https://doi.org/10.3390/nano12162771

AMA Style

Horsth DFL, Primo JdO, Balaba N, Correa JS, Zanette CM, Silva DK, Bittencourt C, Anaissi FJ. Synthesis and Characterization of Boehmite Particles Obtained from Recycling: Water Disinfection Application. Nanomaterials. 2022; 12(16):2771. https://doi.org/10.3390/nano12162771

Chicago/Turabian Style

Horsth, Dienifer F. L., Julia de O. Primo, Nayara Balaba, Jamille S. Correa, Cristina M. Zanette, Douglas K. Silva, Carla Bittencourt, and Fauze J. Anaissi. 2022. "Synthesis and Characterization of Boehmite Particles Obtained from Recycling: Water Disinfection Application" Nanomaterials 12, no. 16: 2771. https://doi.org/10.3390/nano12162771

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
