Article

Synthesis of Aluminum Phosphate-Coated Halloysite Nanotubes: Effects on Morphological, Mechanical, and Rheological Properties of PEO/PBAT Blends

by
Kui Wang
,
Xuefei Jin
,
Xiuhong He
,
Weijiang Huang
,
Qin Tian
,
Qiuping Fu
and
Wei Yan
*
School of Chemistry and Materials Engineering, Guiyang University, Guiyang 550005, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(17), 2896; https://doi.org/10.3390/nano12172896
Submission received: 10 June 2022 / Revised: 19 August 2022 / Accepted: 20 August 2022 / Published: 23 August 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Polymer blending has been widely used to fabricate polymeric films in the last decade due to its superior properties to a single component. In this study, an aluminum phosphate-coated halloysite nanotube (HNTs@AlPO4) was fabricated using a one-pot heterogeneous precipitation method, organically modified HNTs@AlPO4 (o-HNTs@AlPO4) was used to improve the performance of polyethylene oxide/poly(butylene adipate-co-terephthalate) (PEO/PBAT) blends, and the mechanical and rheological properties of the PEO/PBAT/o-HNTs@AlPO4 films were systematically discussed. According to our results, there is an optimal addition for adequate AlPO4 nanoparticle dispersion and coating on the surface of HNTs, and organic modification could improve the interfacial compatibility of HNTs@AlPO4 and the polymeric matrix. Moreover, o-HNTs@AlPO4 may serve as a compatibilizer between PEO and PBAT, and PEO/PBAT/o-HNTs@AlPO4 films have better mechanical and rheological properties than the PEO/PBAT blends without the o-HNTs@AlPO4 component.

1. Introduction

Polymeric films have been widely used in heavy and light industries, dentistry, petrochemical, and several other fields due to their unique optical, mechanical, electromagnetic, and gas-sensing properties [1,2,3,4]. However, the pollution of refractory polymeric films has become a pressing issue that must be addressed immediately. Recently, because of their sustainable, renewable, and biodegradable properties, research on biopolymer films has become a hotspot for addressing the environmental pollution caused by polymeric films [5,6]. Moreover, blending two polymers has become a strategy for fabricating polymeric films with better properties than single component films [7,8,9].
Polyethylene oxide (PEO) can be used to synthesize water-soluble films and textile pulp due to its low toxicity, bioadhesion, good water solubility, and easy processing and molding. In addition, PEO can form complexes with several organic low molecular compounds and inorganic electrolytes and can be used as a polymer solid electrolyte film for lithium-ion transfer [10,11,12,13]. However, pure PEO is a flexible chain and uncharged semicrystalline polymer with poor mechanical and rheological properties. Therefore, blending PEO with other polymers is one method to solve this problem. Poly(butylene adipate-co-terephthalate) (PBAT) has been frequently blended with other polymers because of its biodegradability, rubber-like behavior, deformability, and toughness [14,15,16,17,18,19,20]. PBAT can improve the comprehensive performance of the blend system. However, polymer compatibility is a major challenge in polymer blending, and further interfacial compatibility improvement is necessary. Currently, one of the main strategies to minimize the interfacial tension of polymeric blends is to use a compatibilizer.
Inorganic particles have been widely used as fillers to improve the interfacial compatibility of polymeric blends due to their strong interfacial interactions and good dispersion [21,22,23,24,25]. Among the various inorganic particles, nanoparticles are the most widely used because of their large specific surface area and unique nanoscale effects. In previous studies, numerous nanoparticles such as carbon-based nanoparticles, montmorillonite, halloysite nanotubes (HNTs), SiO2, and Al2O3 have been introduced into polymeric blends [26,27,28,29,30]. Dil et al. achieved a balance between toughness and stiffness by adding spherical nanoSiO2 particles into poly(lactic acid) (PLA)/PBAT blends, and discussed the effect of the interfacial assembly of nanosilica on the morphology, rheology, and mechanical properties of the polymeric blends [18]. Urquijo et al. blended PLA/PBAT with different carbon nanotube (CNT) contents and demonstrated that CNTs selectively located in the PBAT phase induced the coalescence of PBAT spherical particles [19]. Our previous work demonstrated that sepiolite (Sep) improved the toughness of PP/ABS, enhanced both the mechanical and thermal properties of PP/PA6, and functions as a nucleating agent and compatibilizer between polymers [31,32].
In this study, we designed and fabricated aluminum phosphate-coated halloysite nanotube (HNTs@AlPO4) composite first time by a simple one-pot heterogeneous precipitation strategy. The influence of the AlPO4 contents on the morphology of HNTs@AlPO4 was discussed to adjusting the dispersion of AlPO4 nanoparticles on the HNTs. Furthermore, in order to improve the poor mechanical and rheological properties of PEO, PBAT was blended into PEO given its good physicochemical properties as described above, and a silane coupling agent was used to modify HNTs@AlPO4 to improve the compatibility with the polymeric matrix, and its potential applications as fillers in PEO/PBAT were discussed. Scanning electron microscopy (SEM) was used to investigate the morphology of the HNTs@AlPO4 and PEO/PBAT/HNTs@AlPO4 films. X-ray powder diffraction (XRD) was used to determine the crystallinity of HNTs@AlPO4. Fourier transform infrared spectroscopy (FTIR) was used to investigate the modification of HNTs@AlPO4 by the silane coupling agent, CG-570. Thermogravimetric/derivative thermogravimetric analysis (TG/DTG) was used to investigate the thermal performance of the PEO/PBAT/HNTs@AlPO4 films. Differential scanning calorimetry (DSC) was used to investigate the crystallization behavior of the PEO/PBAT/HNTs@AlPO4 films. The rheological analysis was performed to investigate the dynamic rheological performance of the PEO/PBAT/HNTs@AlPO4 films.

2. Materials and Methods

2.1. Materials

PEO (Mw = 100,000 Da) was purchased from Shanghai Macklin Biochemical Co., Ltd., Shaghai, China. PBAT (Mn = 20,000 Da) was purchased from Shanxi Jinhui Zhaolong High-Tech Co., Ltd., Shanxi, China. Its mass density is 1.24 g/cm3 and its melt flow rate (MFR) at 190 °C is about 5 g/10 min with 2.16 kg. H3PO4 (≥85%) and Al(OH)3 (≥99%) were purchased from Sigma Aldrich. HNTs (Al2Si2O5(OH)4·nH2O) was obtained from Xi’an Mingchuangda Biotechnology Co., Ltd., Xi’an, China. The HNTs length was 0.2–2 μm, and the inner and outer diameters were 10–40 nm and 40–70 nm, respectively. Silane coupler γ-methacryloxypropyltrimethoxysilane (CG-570, 99.8%) with density of about 1.070 g/cm3 and refractive index of around 1.425 at 25 °C was purchased from Nanjing Chengong Silicone Material Co., Ltd., Nanjing, China. Dichloromethane (CH2Cl2, AR), ethanol (AR), hydrochloric acid (HCl, AR), and NH3·H2O (AR) were purchased from the Sinopharm Group Chemical Reagent Co., Ltd., Shanghai, China. All chemicals were used as received without any further purification.

2.2. Fabrication and Modification of HNTs@AlPO4

HNTs@AlPO4 was fabricated using a previously reported one-pot heterogeneous precipitation strategy [33]. First, we prepared 160-mL HNT aqueous dispersion (6 wt.%), adjusted the pH of the mixture to 2 using HCl, and labelled this dispersion as A. Second, we prepared a mixed aqueous solution of H3PO4 and Al(OH)3, and labelled this solution as B. For B solution, Al(OH)3 was mixed with H3PO4 in 10 mL deionized water, and stirred to obtain a homogeneous solution at room temperature. Then, we added B dropwise to A, and stirred the mixture at room temperature for 30 min. Afterward, we adjusted the pH of the reaction mixture to 4.8 using NH3·H2O (27%). Finally, HNTs@AlPO4 was obtained after centrifugation, washing, and drying. To improve the interfacial compatibility between inorganic particles and organic polymers, HNTs@AlPO4 was modified by a silane coupling agent, CG-570, to obtain organically modified HNTs@AlPO4 (o-HNTs@AlPO4) using our previously modified method [31]. The detailed procedure is as follows: 0.5 g silane coupling agent CG-570 was added into 60 mL ethanol/H2O (v/v 18:1) and the pH of the mixed solution was adjusted to 4–6 with formic acid. Then, the above CG-570 solution was added into 6.25 g HNTs@AlPO4 and stirred at 80 °C for 3 h. The final product was precipitated in ethanol by centrifugation at 5000 rpm for 3 min and dried at 60 °C for 24 h.
Table 1 shows the sample designation (I–IV behand HNTs@AlPO4 represents increased Al(OH)3/H3PO4 content) and corresponding content of each component, Figure 1 shows the preparation and modification progress, and all samples were synthesized via the same procedure.

2.3. Preparation of PEO/PBAT/o-HNTs@AlPO4 Films

The PEO/PBAT/o-HNTs@AlPO4 films were prepared using a traditional solution casting method. The detailed procedure is as follows: 2.8-g PEO and 1.2-g PBAT (PEO/PBAT: 70/30) were dissolved in 80 mL CH2Cl2 and stirred at room temperature until a homogeneous solution was obtained. Then, o-HNTs@AlPO4 was added with 1%, 3%, 5%, and 7%, respectively. The o-HNTs@AlPO4 was stirred vigorously until the inorganic particles were completely dispersed in the polymeric matrix. Afterward, the film-forming solutions were poured into a polytetrafluoroethylene (PTFE) dish, the solvent was evaporated completely at room temperature for 4 h, and the final dried films were kept in a desiccator at room temperature. Table 2 shows the sample designation and corresponding content of each component, and PEO/PBAT/o-HNTs@AlPO4x (x is the percentage of o-HNTs@AlPO4) was prepared via the same procedure.

2.4. Characterization

An FEI Quanta 250 FEG field-emission SEM (FEI Inc., Valley City, ND, USA) was conducted under high vacuum at a voltage of 20 kV to observe the morphologies of the HNTs@AlPO4 nanocomposites and PEO/PBAT films. XRD (D/MAX2500, Rigaku Corporation, Tokyo, Japan) was conducted with Cu Kα radiation (λ = 1.54 Å) over the range of 5°–45° with a scanning rate of 2°/min to investigate the structural characteristics of HNTs@AlPO4. FTIR spectroscopy (Nicolet IS50, Thermo Fisher Scientific Inc., Waltham, MA, USA) was conducted to characterize the HNTs and HNTs@AlPO4, with a resolution of 4 cm−1, range of 400–4000 cm−1, and scan number of 32. A TG 219 F3 thermal analyzer (Netzsch Instruments Co., Ltd., Selb, Germany) was conducted in a nitrogen atmosphere at a flow rate of 60 mL/min, and the PEO/PBAT films (approximately 5–10 mg) were heated from 50 to 700 °C at a scanning rate of 20 °C/min to evaluate the thermal stability. DSC 214 (Netzsch Instruments Co., Ltd., Hanau, Germany) was conducted at a heating rate of 10 °C/min to investigate the crystallization of the PEO/PBAT films. Under N2 protection, the temperature was increased from 25 °C to 230 °C for 2 min at a ramp rate of 10 °C/min, then lowered to 25 °C for 2 min heated to 230 °C. Model 3365 (Instron Corporation, Boston, MA, USA) was used to determine the tensile performance of the PEO/PBAT films (sample size: 120 × 10 × 0.1 mm). The stretching rate was 5 mm/min. HAAKE MARS III (PolyLab OS., Thermo Fisher Scientific Inc., Waltham, MA, USA) was used to investigate the dynamic rheological properties of the PEO/PBAT films. The size of the film was 20 × 20 × 0.1 mm and the test gap of 1 mm at a temperature of 190 °C. During the test, the strain was 0.5% and the range of frequency was 0.01–100 Hz.

3. Results and Discussions

3.1. Structural and Morphological Characterization of HNTs@AlPO4

In this section, AlPO4 was coated on the HNT surfaces to fabricate HNTs@AlPO4 using the heterogeneous precipitation method. We investigated the effect of the AlPO4 content on the morphology of HNTs@AlPO4 to obtain HNTs@AlPO4 with a sufficient coating amount and uniform aluminum phosphate dispersion. Figure 2 shows the SEM images of the pure HNTs and HNTs@AlPO4 nanocomposites. Figure 2a shows that the pure HNTs had a substantial amount of bulk structure in addition to the tubular structure, and the HNT surfaces were smooth and free of impurities. The HNT surfaces became rough after reacting with AlPO4, and the AlPO4 nanoparticles were uniformly precipitated on the HNT surfaces (Figure 2b,c). The amount of precipitation gradually increased as the addition of AlPO4 content increased, and Figure 2d shows the optimum encapsulation before agglomeration. Figure 2e shows the self-aggregation of the AlPO4 nanoparticles due to the limited surface area of the HNTs. In summary, these SEM results showed that AlPO4 precipitated on the surface of HNTs in the form of sphere-like nanoparticles and there is an optimal ratio for the reacting raw materials.
The XRD measurements were conducted to further investigate the morphological and structural information of the HNTs@AlPO4 composites, and Figure 3a shows the XRD curves of the pure HNTs and HNTs@AlPO4 composites. The XRD curves revealed that pure HNTs had peaks at 2θ = 12.06, 19.96, 21.90, and 26.58. A new peak appeared at 2θ = 18.34 after coating with AlPO4; as the molarity of AlPO4 increased, this peak became more obvious, and HNTs@AlPO4III had the highest peak, implying that HNTs@AlPO4III was the best sample. The HNTs@AlPO4 composite of HNTs is a silicate mineral with the corresponding molecular formula of Al2O3·2SiO2·4H2O [34,35]. We selected HNTs@AlPO4III for further experiments according to the SEM and XRD results, and still named it after HNTs@AlPO4. To improve the compatibility of HNTs@AlPO4 with the polymeric matrix, an organic modification was conducted using a silane coupling agent to obtain o-HNTs@AlPO4, and Figure 3b shows the IR curves of HNTs, HNTs@AlPO4, and o-HNTs@AlPO4. The absorption peaks at 3690 and 3620 cm−1 were attributed to the stretching vibrations of –OH in the HNTs, and the absorption bands in the range of 950–1093 cm−1 were attributed to the stretching vibrations of the Si–O groups in HNTs [36,37]. The absorption peaks at 2960 and 2855 cm−1 were attributed to the stretching vibrations of –CH3 and –CH2– in the silane coupling agent, CG-570, after organic modification.

3.2. Thermal Properties of PEO/PBAT/o-HNTs@AlPO4 Films

The TGA and DSC measurements are widely used to investigate the thermal stability and crystallization behavior of various materials, respectively. Figure 4 shows the TGA and DSC curves of the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films, and Table 3 lists the corresponding data. The TG and DTG curves showed that the samples had only one weight-loss stage, and their thermal degradation behavior mainly occurred between 350 °C and 450 °C. The corresponding data revealed that the initial decomposition temperature (T0) of PEO/PBAT was 307.59 °C, and as the o-HNTs@AlPO4 content increased, T0 increased first and then decreased, and the T0 of all of the PEO/PBAT/o-HNTs@AlPO4 films were higher than those of PEO/PBAT. Moreover, the carbon residue of PEO/PBAT was 6.18 wt.%, and as the o-HNTs@AlPO4 content increased, the carbon residue of the PEO/PBAT/o-HNTs@AlPO4 film became 9.45, 10.18, 11.80, and 13.07 wt.%, with only a minor change in the maximum decomposition temperature (Tmax). In summary, adding the appropriate o-HNTs@AlPO4 content could improve the thermal stability of the PEO/PBAT blends. The DSC results show that the melting temperature (Tm) and crystallization temperature (Tc) of PEO/PBAT were 61.29 °C and 36.24 °C, respectively; the addition of o-HNTs@AlPO4 had little effect and only marginally increased the Tm and Tc. When the o-HNTs@AlPO4 content was 7 wt.%, the Tc suddenly decreased to 34.32 °C. This phenomenon may be due to excess o-HNTs@AlPO4 in PEO/PBAT/o-HNTs@AlPO4 7, making o-HNTs@AlPO4 difficult to disperse and resulting in localized agglomeration. Thus, the corresponding thermal stability and crystallization performance decline. ΔHm in Table 3 represents the enthalpy of the melting process, and the corresponding values of PEO/PBAT/o-HNTs@AlPO4 films are listed. In conclusion, the TG and DSC results revealed that the o-HNTs@AlPO4 particles are compatible with PEO/PBAT, that the addition of o-HNTs@AlPO4 to polymeric blends increases the stability and crystallinity, and that there is an optimum o-HNTs@AlPO4 content.

3.3. Mechanical Properties of PEO/PBAT/o-HNTs@AlPO4 Films

Model 3365 (Instron Corporation, Boston, USA) was used to conduct the tensile performance measurements to investigate the effects of o-HNTs@AlPO4 on the mechanical properties of PEO/PBAT, and Table 4 lists the results of the tensile strength (MPa), flexural strength (MPa), and elongation at break (%) for the PEO/PBAT films with various o-HNTs@AlPO4 contents. The tensile strength, flexural strength, and elongation at break of pure PEO/PBAT films were 3.59 ± 0.08 MPa, 202.72 ± 6.81 MPa, and 49.23 ± 3.85%, respectively. When o-HNTs@AlPO4 was added to the blend, the strength and elongation both increased first and then decreased, and a certain o-HNTs@AlPO4 content could simultaneously improve the strength and toughness of the PEO/PBAT films. The tensile strength of the PEO/PBAT films improved by 25.91% when 3 wt.% o-HNTs@AlPO4 was added. The flexural strength and elongation at break were improved by 24.56% and 44.87%, respectively, when 5 wt.% o-HNTs@AlPO4 was added. However, the strength and toughness were simultaneously reduced when 7 wt.% o-HNTs@AlPO4 was added. In summary, the o-HNTs@AlPO4 particles are compatible with the PEO/PBAT blend and can improve the interfacial compatibility of PEO and PBAT. Moreover, excessive o-HNTs@AlPO4 particles prevent dispersion in the polymeric matrix, lowering the mechanical properties of the films [38]. This mechanical property result is consistent with the above TG and DSC results.

3.4. Cryofractured Surfaces of PEO/PBAT/o-HNTs@AlPO4 Films

Figure 5 shows the SEM results of the cryofractured surfaces of the PEO/PBAT blends with various o-HNTs@AlPO4 contents, and the inserted white dotted ellipses represent PBAT, and the inserted red dotted rectangles represent o-HNTs@AlPO4. The PEO/PBAT blends mainly displayed a matrix–dispersed phase morphology with PEO continuous and irregular or spherical PBAT-dispersed phases, and the short axis of the dispersed phase was almost less than 1 μm.
Figure 5a shows that the cross-section of pure PEO/PBAT was relatively rough with several ultrafine particles, PBAT was mainly dispersed in an irregular shape in the continuous phase, and there was an obvious phase separation at the two-phase interface. When o-HNTs@AlPO4 was added to PEO/PBAT, the irregular PBAT decreased and some spherical PBAT appeared, and the cross-section of PEO/PBAT/o-HNTs@AlPO4 became smooth (Figure 5b–d). Furthermore, the spherical-dispersed phase gradually merged with the continuous phase, and the rod-like o-HNTs@AlPO4 was primarily observed in the PEO continuous phase, with an almost aligned orientation. This arrangement may be due to the rapid volatilization of CH2Cl2 during the solution pouring process as well as the uniform distribution of o-HNTs@AlPO4 in the PEO matrix. The cryofractured surfaces became smoother and denser as the o-HNTs@AlPO4 content increased, and the spherical PBAT-dispersed phase gradually merged with the PEO continuous phase, resulting in the spherical structure decreasing or even disappearing in Figure 5c,d. Figure 5e shows the self-aggregation of o-HNTs@AlPO4, and the macroscopic phase separation between the inorganic particles and the polymeric matrix occurred due to the excessive addition of o-HNTs@AlPO4. In summary, the appropriate o-HNTs@AlPO4 content has good compatibility with the PEO/PBAT blend, and could further reduce the surface tension and improve the compatibility between PEO and PBAT, where o-HNTs@AlPO4 may serve as a compatibilizer in this blending system.

3.5. Rheological Properties of PEO/PBAT/o-HNTs@AlPO4 Films

The rheological behavior of polymeric blends is not only related to their microstructure and processability, but also plays a vital role in their interfacial interactions [39,40]. In this study, the localization of o-HNTs@AlPO4 particles with rough surfaces was observed to have good interfacial compatibility with PEO and PBAT. Figure 6 shows the effect of o-HNTs@AlPO4 on the storage and loss moduli of the PEO/PBAT blends. PEO/PBAT/o-HNTs@AlPO4 had a higher storage and loss moduli in both the low- and high-frequency regions than PEO/PBAT, demonstrating the melt reinforcement effect of inorganic particles. Moreover, with an increase in the o-HNTs@AlPO4 content, both the storage and loss moduli first increased and then decreased, and PEO/PBAT/o-HNTs@AlPO45 reached the maximum. The changes in G’ were more than G”, indicating that the elasticity was greater than the viscosity of PEO/PBAT/o-HNTs@AlPO4. These results revealed that with the increase in frequency, the viscoelastic behavior became better for all samples, and after the addition of o-HNTs@AlPO4, the viscoelastic behavior of PEO/PBAT/o-HNTs@AlPO4 were even better than that of the pure PEO/PBAT. It may be that the excessive content of o-HNTs@AlPO4 reduces the cross-linking reaction between PBAT and PEO and enhances the disentanglement ability between molecular chains. Inorganic particles with good dispersibility could improve the rheological properties of the polymer blends [41,42]. In this study, o-HNTs@AlPO4 was dispersed in the PEO/PBAT matrix in an oriented arrangement, increasing the interfacial area due to the good compatibility between o-HNTs@AlPO4 and PEO and PBAT, and this result is similar to the trend in the thermal and mechanical properties discussed above.
Figure 7 shows the relationship between the complex viscosity and angular frequency of the PEO/PBAT blends. The addition of o-HNTs@AlPO4 can increase the complex viscosity in all frequency regions compared with pure PEO/PBAT blends. PEO/PBAT/o-HNTs@AlPO45 also reached the maximum, and the excessive addition of o-HNTs@AlPO4 resulted in decreased compatibility and macroscopic phase separation. Furthermore, the complex viscosity curves of the PEO/PBAT/o-HNTs@AlPO4 films merged into one in the high-frequency region (~100 rad/s) because the higher shear rate destroyed the interfacial interaction force between o-HNTs@AlPO4, PEO, and PBAT.

4. Conclusions

In summary, aluminum phosphate-coated halloysite nanotubes (HNTs@AlPO4) were fabricated using a modified one-pot heterogeneous precipitation method, and the influence of various AlPO4 contents on the morphology of HNTs@AlPO4 was investigated. Furthermore, organically modified HNTs@AlPO4 (o-HNTs@AlPO4) was introduced into the PEO/PBAT blends, and the influence of o-HNTs@AlPO4 on the morphological, mechanical, and rheological properties of the PEO/PBAT/o-HNTs@AlPO4 films was systematically investigated. Our results indicate that o-HNTs@AlPO4 fillers act as a compatibilizer, improving not only the mechanical properties but also the rheological properties of PEO/PBAT. This study provides a new route for mechanically well-balanced PEO blends and promotes the application of PEO films.

Author Contributions

Conceptualization, K.W.; Formal analysis, Q.F.; Methodology, X.J. and X.H.; Project administration, K.W. and W.Y.; Resources, Q.T.; Validation, X.J. and W.H.; Visualization, Q.T.; Writing—original draft, K.W.; Writing—review and editing, W.H. and W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Natural Science Foundation of China (52063005), the Science and Technology Support Project of Guizhou Province (2021488), the Outstanding Young Science and Technology Talent Project of Guizhou Province (20215622), the Innovative talent project of Guizhou Province (202004), and the Innovation Group Project of Guizhou Provincial Department of Education (2020024).

Institutional Review Board Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Umoren, S.A.; Solomon, M.M. Protective polymeric films for industrial substrates: A critical review on past and recent applications with conducting polymers and polymer composites/nanocomposites. Prog. Mater. Sci. 2019, 104, 380–450. [Google Scholar]
  2. Mangaraj, S.; Yadav, A.; Bal, L.M.; Dash, S.K.; Mahanti, N.K. Application of biodegradable polymers in food packaging industry: A comprehensive review. J. Pack. Technol. Res. 2019, 3, 77–96. [Google Scholar] [CrossRef]
  3. Rokaya, D.; Srimaneepong, V.; Sapkota, J.; Qin, J.; Siraleartmukul, K.; Siriwongrungson, V. Polymeric materials and films in dentistry: An overview. J. Adv. Res. 2018, 14, 25–34. [Google Scholar] [CrossRef] [PubMed]
  4. Wolinsky, J.B.; Colson, Y.L.; Grinstaff, M.W. Local drug delivery strategies for cancer treatment: Gels, nanoparticles, polymeric films, rods, and wafers. J. Control. Release 2012, 159, 14–26. [Google Scholar] [CrossRef] [PubMed]
  5. Jamróz, E.; Kulawik, P.; Kopel, P. The effect of nanofillers on the functional properties of biopolymer-based films: A review. Polymers 2019, 11, 675. [Google Scholar] [CrossRef]
  6. Al-Tayyar, N.A.; Youssef, A.M.; Al-Hindi, R. Antimicrobial food packaging based on sustainable bio-based materials for reducing foodborne Pathogens: A review. Food Chem. 2020, 310, 125915. [Google Scholar]
  7. Qi, X.D.; Yang, J.H.; Zhang, N.; Huang, T.; Zhou, Z.W.; Kühnert, I.; Wang, Y. Selective localization of carbon nanotubes and its effect on the structure and properties of polymer blends. Prog. Polym. Sci. 2021, 123, 101471. [Google Scholar]
  8. Wang, L.; Okada, K.; Sodenaga, M.; Hikima, Y.; Ohshima, M.; Sekiguchi, T.; Yano, H. Effect of surface modification on the dispersion, rheological behavior, crystallization kinetics, and foaming ability of polypropylene/cellulose nanofiber nanocomposites. Compos. Sci. Technol. 2018, 168, 412–419. [Google Scholar] [CrossRef]
  9. Zhang, H.; Zuo, M.; Zhang, X.; Shi, X.; Yang, L.; Sun, S.; Zheng, Q. Effect of agglomeration on the selective distribution of nanoparticles in binary polymer blends. Compos. Part A Appl. Sci. Manuf. 2021, 149, 106590. [Google Scholar]
  10. Wang, L.; Chen, L.; Yan, Z.; Wang, H.; Peng, J. The influence of additives on the stability behavior of electrolyte, discharges and PEO films characteristics. J. Alloy. Comp. 2010, 493, 445–452. [Google Scholar] [CrossRef]
  11. Alsulami, Q.A.; Rajeh, A. Synthesis of the SWCNTs/TiO2 nanostructure and its effect study on the thermal, optical, and conductivity properties of the CMC/PEO blend. Results Phys. 2021, 28, 104675. [Google Scholar] [CrossRef]
  12. Zivanovic, S.; Li, J.; Michael Davidson, P.; Kit, K. Physical, mechanical, and antibacterial properties of chitosan/PEO blend films. Biomacromolecules 2007, 8, 1505–1510. [Google Scholar] [CrossRef] [PubMed]
  13. Soraya, W.; Autchara, P.; Napassorn, P.; Thananchai, P.; Wanvimol, P. Strengthened silk-fibroin/poly(ethylene oxide) nonwoven nanofibers: A dual green process using pure water for electrospinning and electron beam-assisted cross-linking. ACS Sustain. Chem. Eng. 2022, 10, 2653–2672. [Google Scholar]
  14. Ye, A.; Wang, S.; Zhao, Q.; Wang, Y.; Liu, C.; Shen, C. Poly(ethylene oxide)-promoted dispersion of graphene nanoplatelets and its effect on the properties of poly(lactic acid)/poly(butylene adipate-co-terephthalate) based nanocomposites. Mater. Lett. 2019, 253, 34–37. [Google Scholar] [CrossRef]
  15. Chen, W.; Qi, C.; Li, Y.; Tao, H. The degradation investigation of biodegradable PLA/PBAT blend: Thermal stability, mechanical properties and PALS analysis. Radiat. Phys. Chem. 2021, 180, 109239. [Google Scholar] [CrossRef]
  16. Xiang, S.; Feng, L.; Bian, X.; Li, G.; Chen, X. Evaluation of PLA content in PLA/PBAT blends using TGA. Polym. Test. 2020, 81, 106211. [Google Scholar] [CrossRef]
  17. Dil, E.J.; Carreau, P.J.; Favis, B.D. Morphology, miscibility and continuity development in poly(lactic acid)/poly(butylene adipate-co-terephthalate) blends. Polymer 2015, 68, 202–212. [Google Scholar]
  18. Dil, E.J.; Virgilio, N.; Favis, B.D. The effect of the interfacial assembly of nano-silica in poly(lactic acid)/poly(butylene adipate-co-terephthalate) blends on morphology, rheology and mechanical properties. Eur. Polym. J. 2016, 85, 6352–6646. [Google Scholar]
  19. Urquijoa, J.; Aranburua, N.; Dagréoub, S.; Guerrica-Echevarríaa, G.; Eguiazábal, J.I. CNT-induced morphology and its effect on properties in PLA/PBAT-based nanocomposites. Eur. Polym. J. 2017, 93, 545–555. [Google Scholar] [CrossRef]
  20. Taguet, A.; Cassagnau, P.; Lopez-Cuesta, J.-M. Structuration, selective dispersion and compatibilizing effect of (nano) fillers in polymer blends. Prog. Polym. Sci. 2014, 39, 1526–1563. [Google Scholar] [CrossRef]
  21. Mohammadi, M.; Heuzey, M.-C.; Carreau, P.J.; Taguet, A. Morphological and rheological properties of PLA, PBAT, and PLA/PBAT blend nanocomposites containing CNCs. Nanomaterials 2021, 11, 857. [Google Scholar] [CrossRef] [PubMed]
  22. Tan, X.; Wu, Y.; Tang, W.; Song, S.; Yao, J.; Wen, Z.; Lu, L.; Savilov, S.V.; Hu, N.; Molenda, J. Preparation of nanocomposite polymer electrolyte via in situ synthesis of SiO2 nanoparticles in PEO. Nanomaterials 2020, 10, 157. [Google Scholar] [CrossRef]
  23. Gao, M.; Yang, J.; Zhao, H.; He, H.; Hu, M.; Xie, S. Preparation methods of polypropylene/nano-silica/styrene-ethylene-butylene-styrene composite and its effect on electrical properties. Polymers 2019, 11, 797. [Google Scholar] [CrossRef] [PubMed]
  24. Mao, H.; He, B.; Guo, W.; Hua, L.; Yang, Q. Effects of nano-CaCO3 content on the crystallization, mechanical properties, and cell structure of PP nanocomposites in microcellular injection molding. Polymers 2018, 10, 1160. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, L.; Okada, K.; Hikima, Y.; Ohshima, M.; Sekiguchi, T.; Yano, H. Effect of cellulose nanofiber (CNF) surface treatment on cellular structures and mechanical properties of polypropylene/CNF nanocomposite foams via core-back foam injection molding. Polymers 2019, 11, 249. [Google Scholar] [CrossRef]
  26. Zhu, T.T.; Zhou, C.H.; Kabwe, F.B.; Wu, Q.Q.; Li, C.S.; Zhang, J.R. Exfoliation of montmorillonite and related properties of clay/polymer nanocomposites. Appl. Clay Sci. 2019, 169, 48–66. [Google Scholar] [CrossRef]
  27. Pavliňáková, V.; Fohlerová, Z.; Pavliňák, D.; Khunová, V.; Vojtová, L. Effect of halloysite nanotube structure on physical, chemical, structural and biological properties of elastic polycaprolactone/gelatin nanofibers for wound healing applications. Mater. Sci. Eng. C 2018, 91, 94–102. [Google Scholar] [CrossRef]
  28. Huang, S.; Bai, L.; Trifkovic, M.; Cheng, X.; Macosko, C.W. Controlling the morphology of immiscible cocontinuous polymer blends via silica nanoparticles jammed at the interface. Macromolecules 2016, 49, 3911–3918. [Google Scholar] [CrossRef]
  29. Liang, B.; Tang, S.; Jiang, Q.; Chen, C.; Chen, X.; Li, S.; Yan, X. Preparation and characterization of PEO-PMMA polymer composite electrolytes doped with nano-Al2O3. Electrochim. Acta 2015, 169, 334–341. [Google Scholar] [CrossRef]
  30. Essabir, H.; Raji, M.; Essassi, E.M.; Rodrigue, D.; Bouhfid, R. Morphological, thermal, mechanical, electrical and magnetic properties of ABS/PA6/SBR blends with Fe3O4 nano-particles. J. Mater. Sci.-Mater. Electron. 2017, 28, 17120–17130. [Google Scholar] [CrossRef]
  31. Wang, K.; Li, T.; Xie, S.; Wu, X.; Huang, W.; Tian, Q.; Tu, C.; Yan, W. Influence of organo-sepiolite on the morphological, mechanical, and rheological properties of PP/ABS blends. Polymers 2019, 11, 1493. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, K.; Xie, J.; Li, T.; Wu, X.; Huang, W.; Tian, Q.; Tu, C.; Yan, W. Surface modification of sepiolite: Effects on thermomechanical properties of PP/PA6 blends. J. Polym. Res. 2020, 27, 25. [Google Scholar] [CrossRef]
  33. Wang, K.; Xie, P.; Yang, Z.; Luo, G.; Huang, W.; Tian, Q.; Tu, C.; Zhang, C.; Yang, C.; Yan, W. Flame-retardant behaviors of aluminum phosphates coated sepiolite in epoxy resin. J. Fire Sci. 2021, 39, 3–18. [Google Scholar]
  34. Xing, W.; Ni, L.; Huo, P.; Lu, Z.; Liu, X.; Luo, Y.; Yan, Y. Preparation high photocatalytic activity of CdS/halloysite nanotubes (HNTs) nanocomposites with hydrothermal method. Appl. Surf. Sci. 2012, 259, 698–704. [Google Scholar] [CrossRef]
  35. Wang, R.J.; Jiang, G.H.; Ding, Y.W.; Wang, Y.; Sun, X.K.; Wang, X.H.; Chen, W.X. Photocatalytic activity of heterostructures based on TiO2 and halloysite nanotubes. Appl. Mater. Interfaces 2011, 3, 4154–4158. [Google Scholar] [CrossRef]
  36. Xie, Y.F.; Qian, D.Y.; Wu, D.L.; Ma, X.F. Magnetic halloysite nanotubes/iron oxide composites for the adsorptionof dyes. Chem. Eng. J. 2011, 168, 959–963. [Google Scholar] [CrossRef]
  37. Hou, B.; Wu, J. Halloysite nanotubes (HNTs)@ZIF-67 composites—a new type of heterogeneous catalyst for the Knoevenagel condensation reaction. Dalton Trans. 2020, 49, 17621–17628. [Google Scholar] [CrossRef]
  38. Manchanda, B.; Kakkarakkal Kottiyath, V.; Kapur, G.S.; Kant, S.; Choudhary, V. Morphological studies and thermo-mechanical behavior of polypropylene/sepiolite nanocomposites. Polym. Compos. 2017, 38, E285–E294. [Google Scholar] [CrossRef]
  39. Wu, Q.; Fang, J.; Zheng, M.; Luo, Y.; Wang, X.; Xu, L.; Zhang, C. Morphology evolution and rheological behaviors of PP/SR thermoplastic vulcanizate. Polymers 2019, 11, 175. [Google Scholar] [CrossRef]
  40. Liao, J.; Brosse, N.; Pizzi, A.; Hoppe, S.; Xi, X.; Zhou, X. Polypropylene blend with polyphenols through dynamic vulcanization: Mechanical, rheological, crystalline, thermal, and UV protective property. Polymers 2019, 11, 1108. [Google Scholar] [CrossRef]
  41. Zhang, M.; Sundararaj, U. Thermal, rheological, and mechanical behaviors of LLDPE/PEMA/clay nanocomposites: Effect of interaction between polymer, compatibilizer, and nanofiller. Macromol. Mater. Eng. 2006, 291, 697–706. [Google Scholar] [CrossRef]
  42. Rezanavaz, R.; Razavi Aghjeh, M.K.; Babaluo, A.A. Rheology, morphology, and thermal behavior of HDPE/clay nanocomposites. Polym. Compos. 2010, 31, 1028–1036. [Google Scholar] [CrossRef]
Nanomaterials 12 02896 g001 550

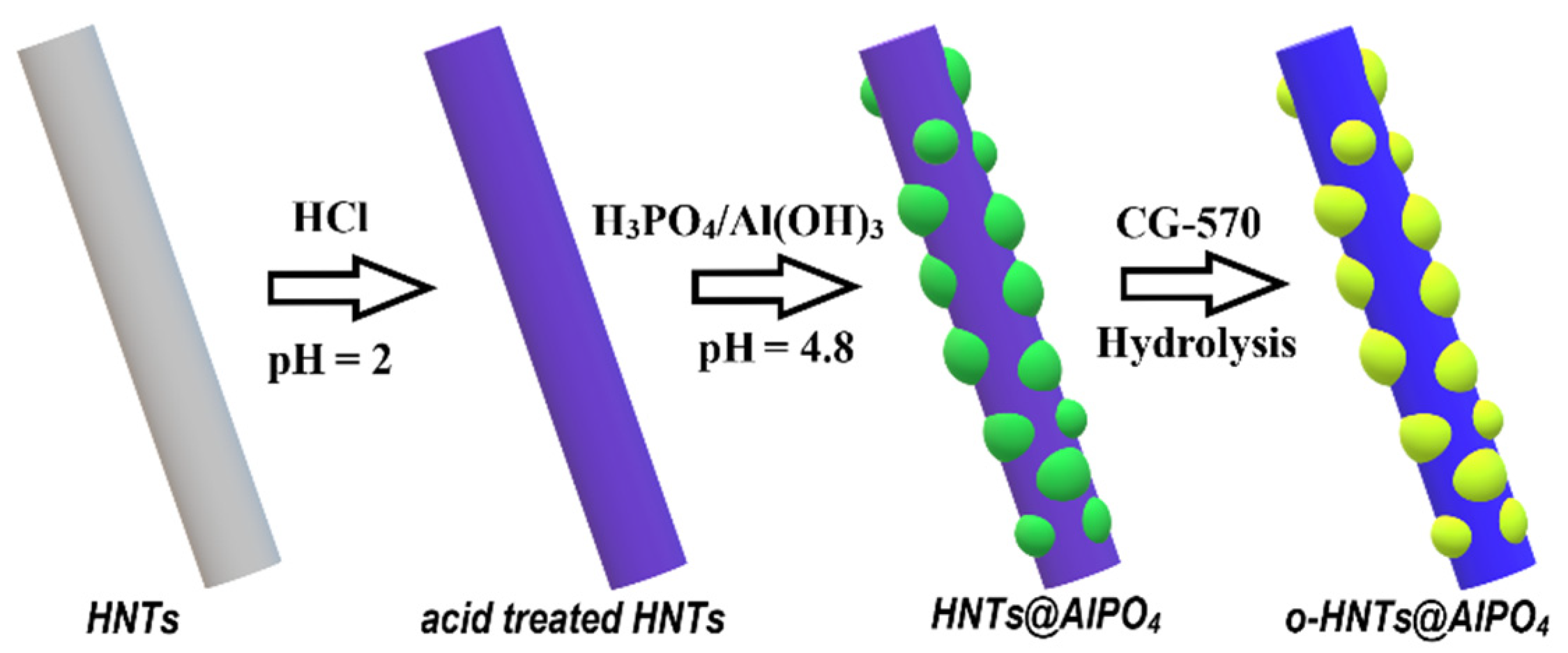

Figure 1. A schematic diagram of the preparation and modification of HNTS@AlPO4.
Figure 1. A schematic diagram of the preparation and modification of HNTS@AlPO4.
Nanomaterials 12 02896 g001
Nanomaterials 12 02896 g002 550

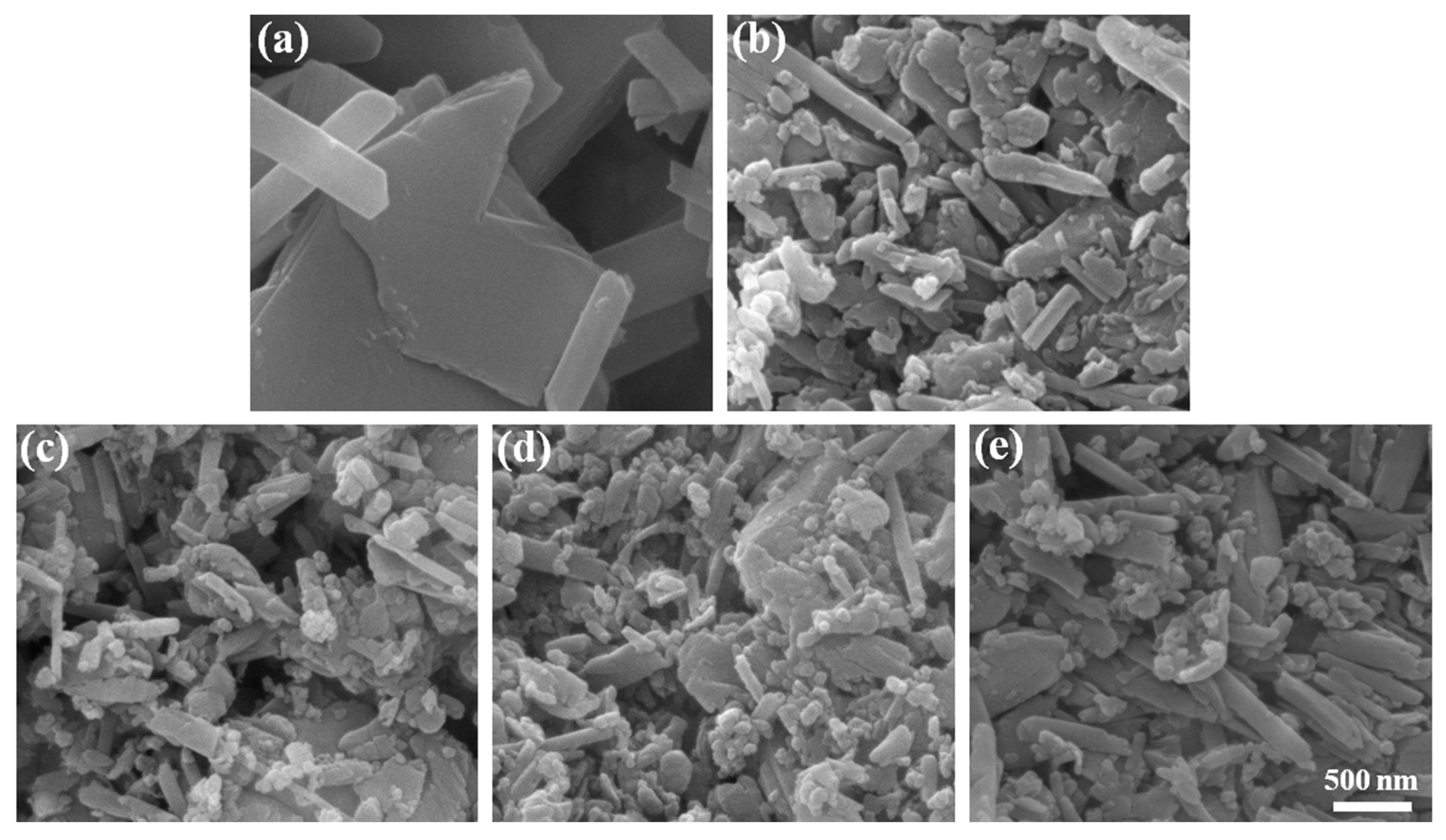

Figure 2. The SEM images of the pure HNTs and the HNTs@AlPO4 nanocomposites as synthesized. (a) HNTs, (b) HNTs@AlPO4I, (c) HNTs@AlPO4II, (d) HNTs@AlPO4III, and (e) HNTs@AlPO4IV. The scale bar in the last image can be applied to the other images.
Figure 2. The SEM images of the pure HNTs and the HNTs@AlPO4 nanocomposites as synthesized. (a) HNTs, (b) HNTs@AlPO4I, (c) HNTs@AlPO4II, (d) HNTs@AlPO4III, and (e) HNTs@AlPO4IV. The scale bar in the last image can be applied to the other images.
Nanomaterials 12 02896 g002
Nanomaterials 12 02896 g003 550

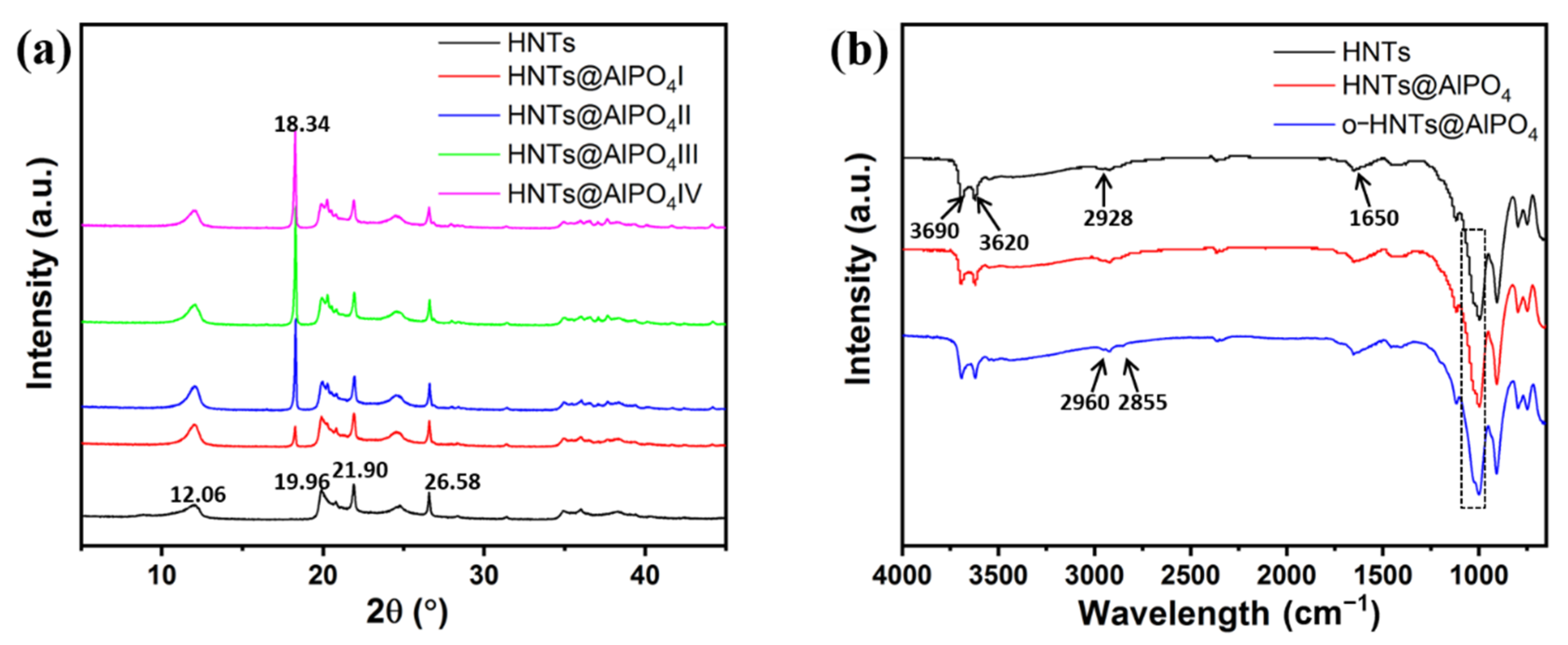

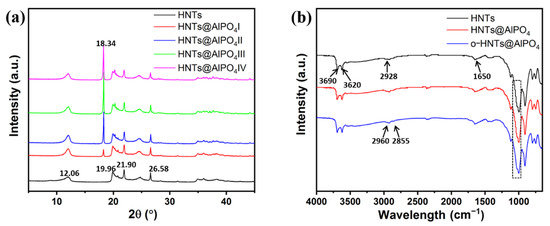

Figure 3. (a) The XRD curves of the pure HNTs and HNTs@AlPO4 composites and (b) IR curves of HNTs, HNTs@AlPO4, and o-HNTs@AlPO4.
Figure 3. (a) The XRD curves of the pure HNTs and HNTs@AlPO4 composites and (b) IR curves of HNTs, HNTs@AlPO4, and o-HNTs@AlPO4.
Nanomaterials 12 02896 g003
Nanomaterials 12 02896 g004 550

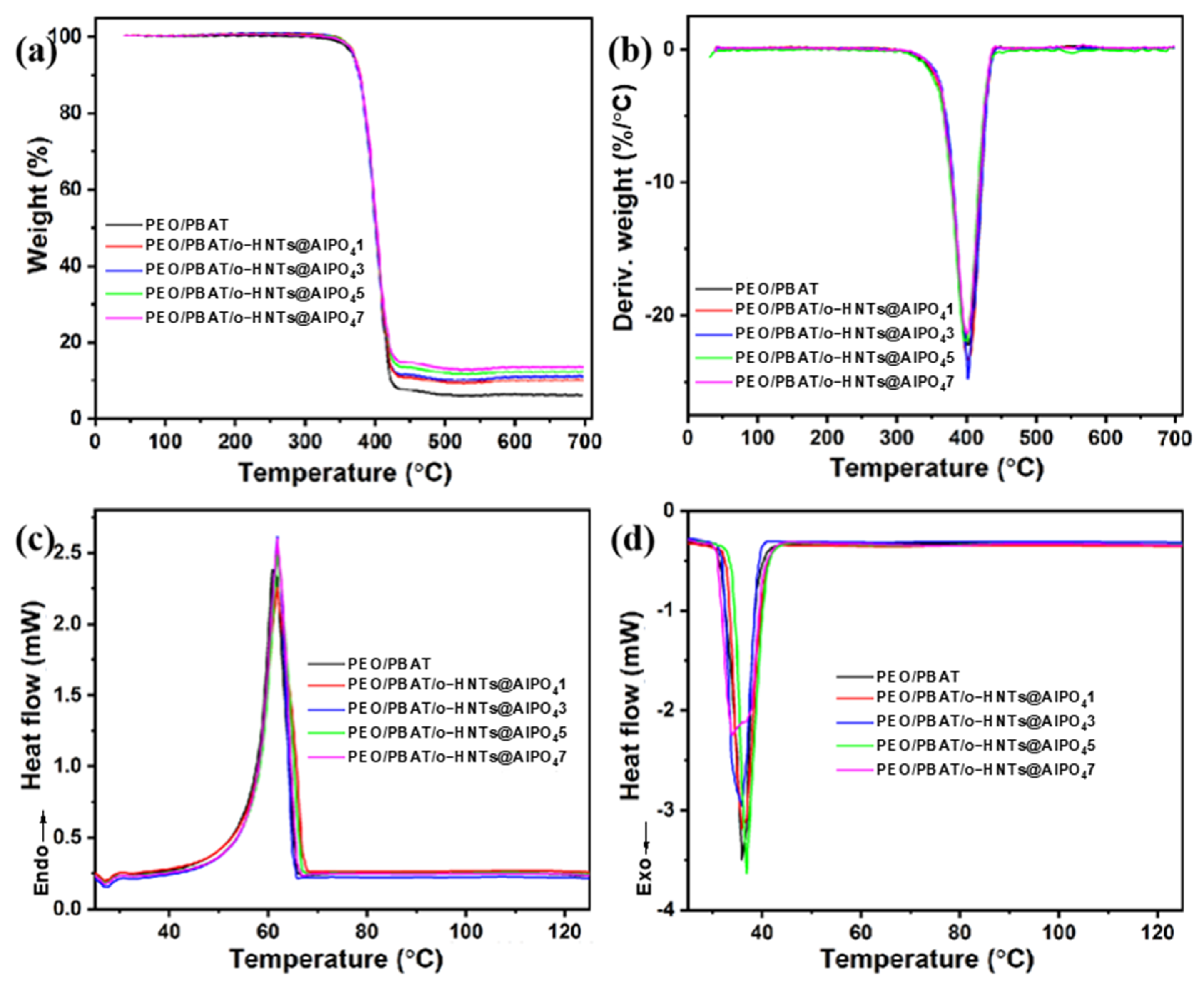

Figure 4. (a) The TG, (b) DTG, and (c,d) DSC curves of the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films, where (c,d) represent the heating and cooling processes, respectively.
Figure 4. (a) The TG, (b) DTG, and (c,d) DSC curves of the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films, where (c,d) represent the heating and cooling processes, respectively.
Nanomaterials 12 02896 g004
Nanomaterials 12 02896 g005 550

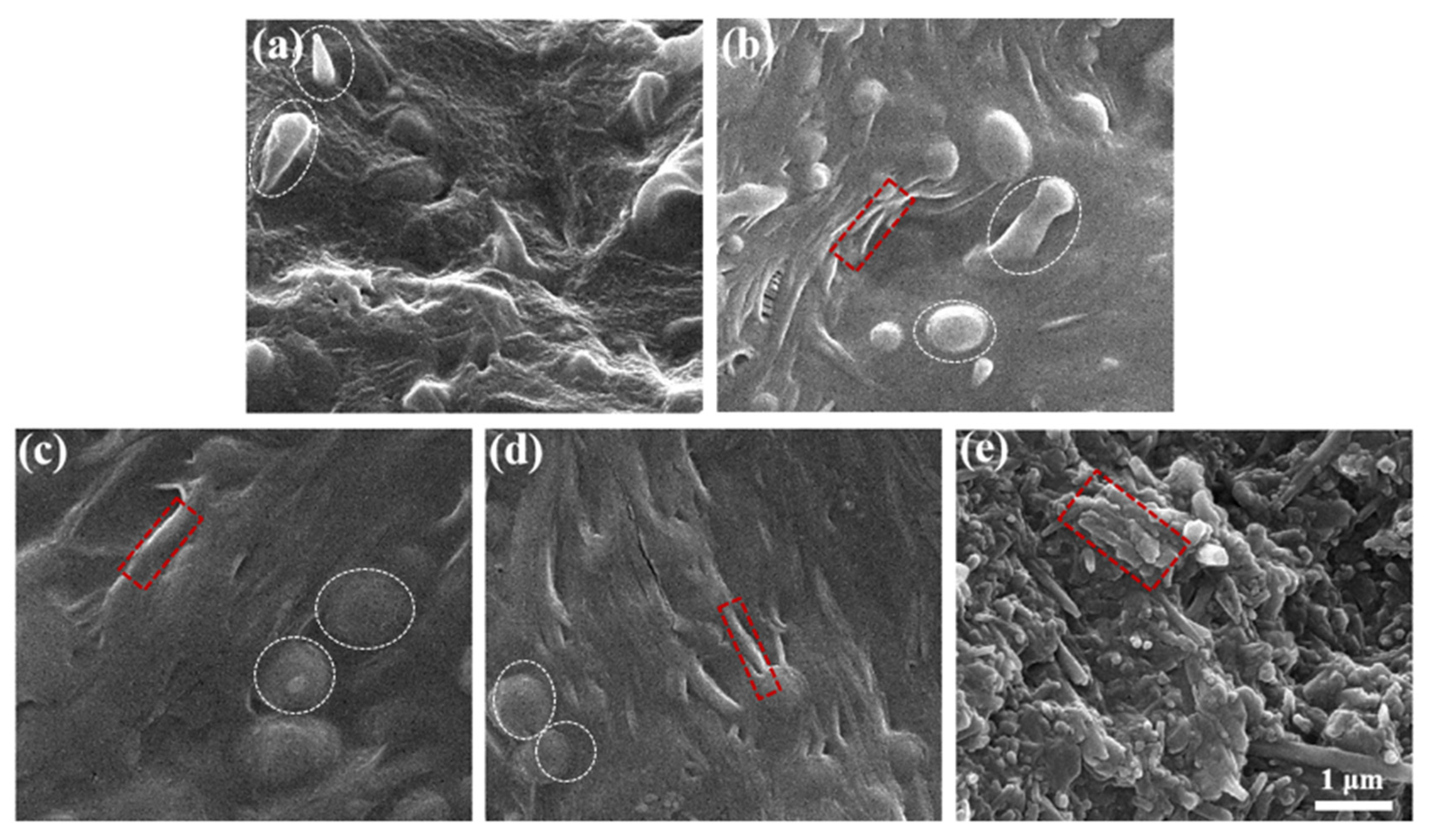

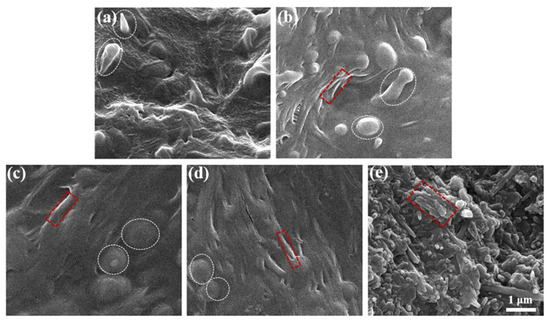

Figure 5. The SEM images of the cross-sections of the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films. (a) PEO/PBAT, (b) PEO/PBAT/o-HNTs@AlPO41, (c) PEO/PBAT/o-HNTs@AlPO43, (d) PEO/PBAT/o-HNTs@AlPO45, and (e) PEO/PBAT/o-HNTs@AlPO47. The scale bar in the last image can be applied to the other images, and the inserted white dotted ellipses represent PBAT, and the inserted red dotted rectangles represent o-HNTs@AlPO4.
Figure 5. The SEM images of the cross-sections of the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films. (a) PEO/PBAT, (b) PEO/PBAT/o-HNTs@AlPO41, (c) PEO/PBAT/o-HNTs@AlPO43, (d) PEO/PBAT/o-HNTs@AlPO45, and (e) PEO/PBAT/o-HNTs@AlPO47. The scale bar in the last image can be applied to the other images, and the inserted white dotted ellipses represent PBAT, and the inserted red dotted rectangles represent o-HNTs@AlPO4.
Nanomaterials 12 02896 g005
Nanomaterials 12 02896 g006 550

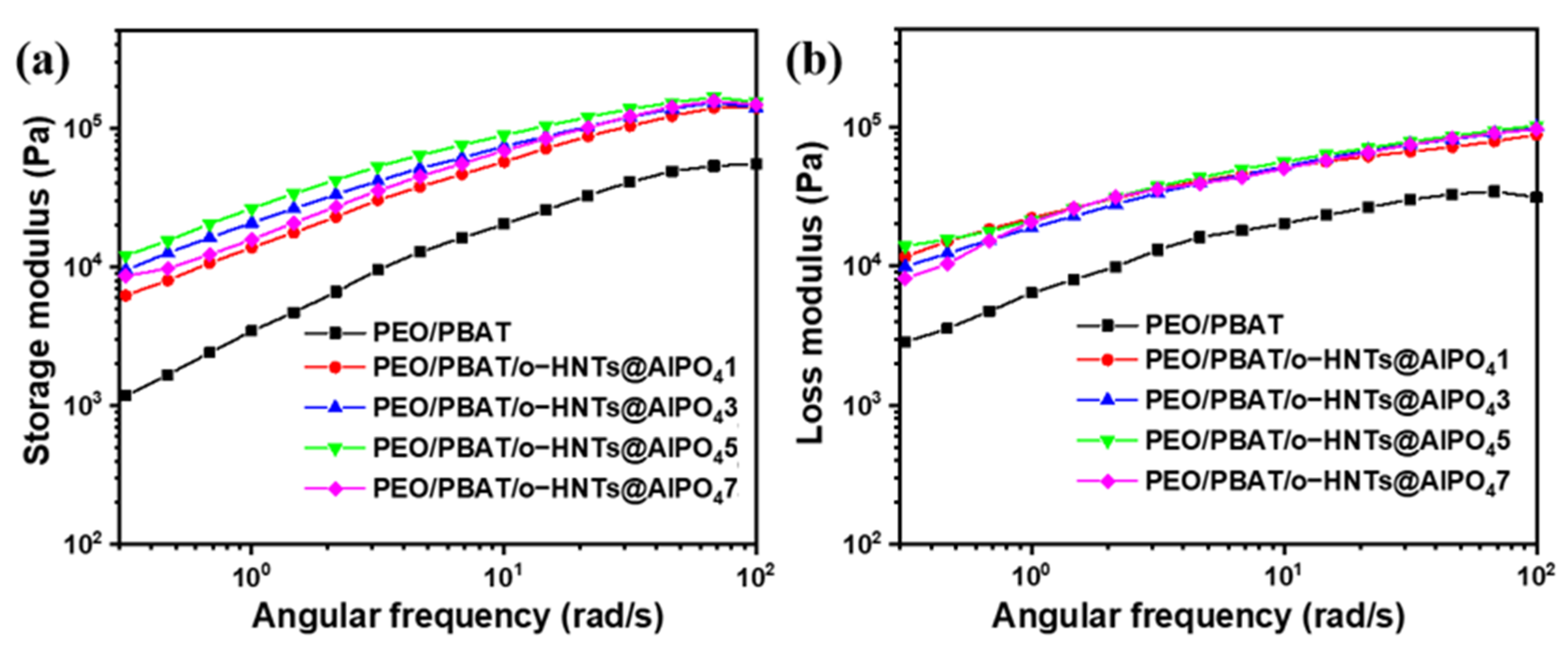

Figure 6. (a) The storage modulus and (b) loss modulus versus angular frequency for the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films at 190 °C.
Figure 6. (a) The storage modulus and (b) loss modulus versus angular frequency for the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films at 190 °C.
Nanomaterials 12 02896 g006
Nanomaterials 12 02896 g007 550

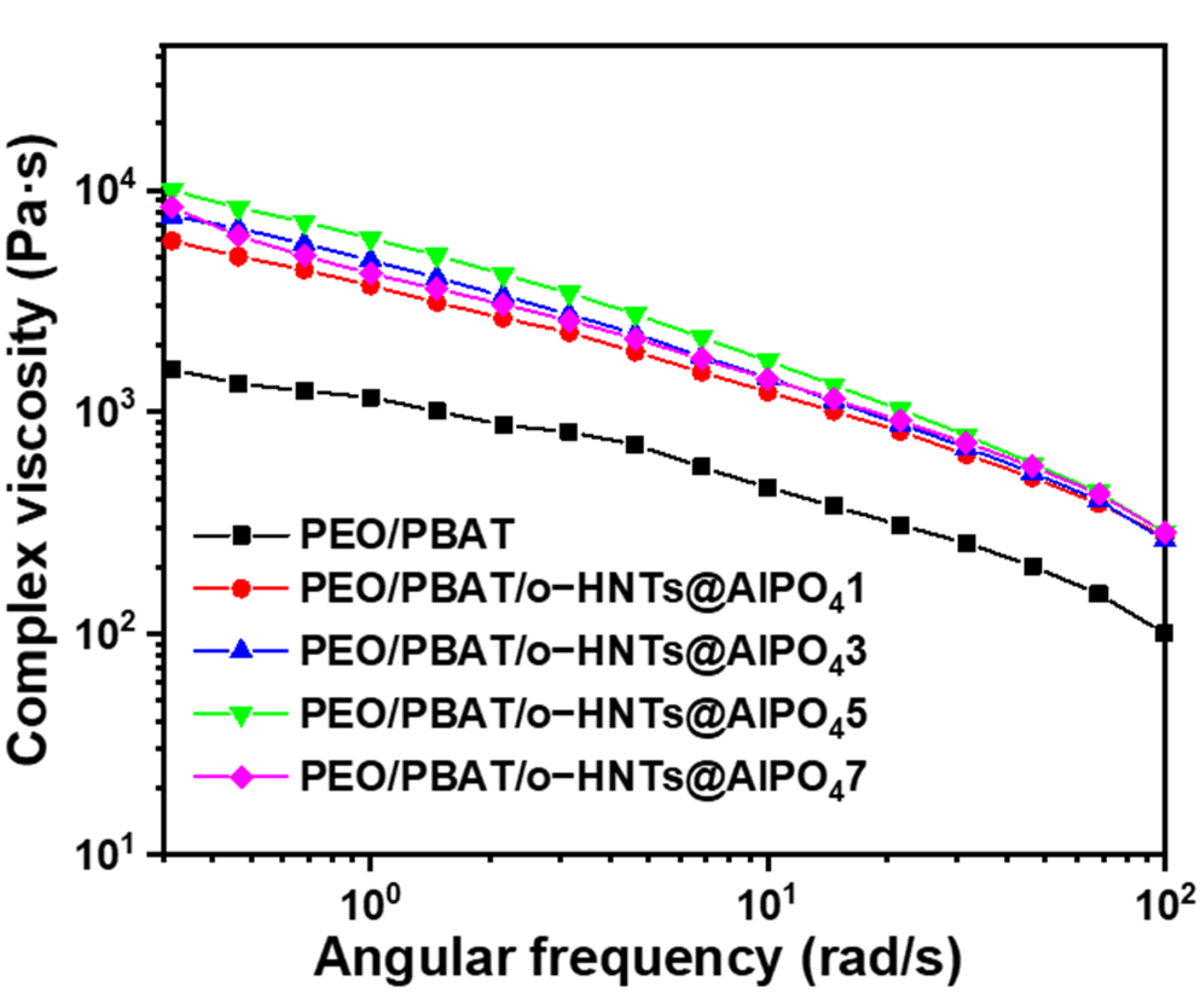

Figure 7. Plots of the complex viscosity versus angular frequency for the PEO/PBAT and PEO/PBAT/o-HNTs@AlPO4 films at 190 °C.
