Dynamic Fluid Flow Exacerbates the (Pro-)Inflammatory Effects of Aerosolised Engineered Nanomaterials In Vitro

by
Kirsty Meldrum
,
Joana A. Moura
,
Shareen H. Doak
and
Martin J. D. Clift
*
In Vitro Toxicology Group, Swansea University Medical School, Swansea University, Wales SA2 8PP, UK
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(19), 3431; https://doi.org/10.3390/nano12193431
Submission received: 2 August 2022 / Revised: 20 September 2022 / Accepted: 26 September 2022 / Published: 30 September 2022
(This article belongs to the Section Biology and Medicines)
Browse Figures
Versions Notes

Abstract

:
The majority of in vitro studies focusing upon particle–lung cell interactions use static models at an air–liquid interface (ALI). Advancing the physiological characteristics of such systems allows for closer resemblance of the human lung, in turn promoting 3R strategies. PATROLS (EU Horizon 2020 No. 760813) aimed to use a well-characterised in vitro model of the human alveolar epithelial barrier to determine how fluid-flow dynamics would impact the outputs of the model following particle exposure. Using the QuasiVivoTM (Kirkstall Ltd., York, UK) system, fluid-flow conditions were applied to an A549 + dTHP-1 cell co-culture model cultured at the ALI. DQ12 and TiO2 (JRCNM01005a) were used as model particles to assess the in vitro systems’ sensitivity. Using a quasi- and aerosol (VitroCell Cloud12, VitroCell Systems, Waldkirch, Germany) exposure approach, cell cultures were exposed over 24 h at IVIVE concentrations of 1 and 10 (DQ12) and 1.4 and 10.4 (TiO2) µg/cm2, respectively. We compared static and fluid flow conditions after both these exposure methods. The co-culture was subsequently assessed for its viability, membrane integrity and (pro-)inflammatory response (IL-8 and IL-6 production). The results suggested that the addition of fluid flow to this alveolar co-culture model can influence the viability, membrane integrity and inflammatory responses dependent on the particle type and exposure.

1. Introduction

Engineered nanoparticles (ENPs) are particles that can be defined as having a diameter > 100 nm [1,2,3]. These particles are small enough to enter the cell without assistance and potentially inhibit normal homeostatic processes within the cells [1]. The size of ENPs relates to a higher surface (area) to volume ratio when compared to the same particles with a diameter > 100 nm [4]. Both surface area and reactivity have the potential to cause an (pro-)inflammatory response in vivo and in vitro [5,6,7,8]. Further, specific individual properties of ENPs (e.g., size, particle diameter and polydispersity) have the potential to influence their cellular interaction [9]. Therefore, it is important to consider different types of particles and elucidate how the cellular responses may change when exposed to different particles with different physical and chemical characteristics.
A major route of exposure to humans of ENPs is inhalation, and therefore the lungs are vitally important in determining the various potential hazards of ENPs [10]. The alveolar region is of particular interest for ENPs as they are readily deposited within this region of the lung due to their aerodynamic size [11,12,13,14]. One of the most commonly used cell lines for this region in vitro is the A549 epithelial cell line [15]. Although it is known that this cell line does have its pitfalls [16], they have similar characteristics to the alveolar epithelial type II cells (ATII) [17,18]. ATII cells are also responsible for producing lung surfactants and are known to differentiate to type I epithelial cells in order to help facilitate repair to damage of the alveolar region [19], and therefore are a key epithelial cell in the homeostasis of the alveolar epithelium. As well as implementing the use of relevant epithelial cells to make an in vitro model, there also needs to be the addition of immune cells present within the region [17]. Macrophages are sentinel cells [20] and are an important part of the innate immune response within the lungs (i.e., they are the first cellular defence against inhaled xenobiotics) [21]. Commonly, these cells are co-cultured with epithelial cells to produce an alveolar model in vitro [22,23,24]. Models such as these have previously been used to assist investigations into the toxicokinetics of ENPs [25].
When using such in vitro systems, it is imperative to consider the physiological relevance of the model. It has been previously identified that the addition of differentiated THP-1 (dTHP-1) cells to the A549 culture has an enhancing effect [22,26,27], with increases in inflammatory mediators when compared to monoculture systems. Another consideration is how the cells are grown and acclimatised to this environment before being exposed to any potential test material. Most early in vitro based studies focusing upon lung cell cultures exposed to ENPs were performed under submerged conditions with the ENP added directly into the cell-culture medium [28,29,30]. However, the alveolar region is not a monolayer of cells under fluid, it is constructed of bio-fluid (e.g., surfactant) and cell layers exposed to air [31]. Lung surfactant has the potential to alter the effects of ENP exposed to the cells [30,31,32], therefore, it is important to implement cell types (e.g., A549) that are able to mimic this scenario when cultured at the air–liquid interface (ALI) in this environment [32,33,34,35,36,37]. It has also been identified that cellular properties (lipid composition, surface morphology and surface tension) change when cultured at the ALI [38]. Therefore, further emphasising the need to use in vitro lung cell studies at the ALI.
While a culture is at the ALI there are various exposure methods that can be utilised for toxicity testing of ENPs. These include the use of the quasi-ALI exposure method [39] and aerosol exposure (either wet [40] or dry aerosol exposure [41]). Careful consideration is required upon selection of these methods, due to the amount of material necessary and the availability for cellular endpoint testing.
A further component when developing a more physiologically relevant model [42,43,44] of the alveolar region for ENP toxicity testing is the addition of fluid flow on the basal side of the membrane to mimic vascular flow [45,46,47]. These components have been combined in very low throughput, high physiological relevance models, such as lung-on-a-chip devices that can combine multiple cell types under microfluids [48]. Thus, it is important to consider all these aspects to develop a model that considers the area of the lung of interest, the relevant exposure method and the addition of physiological aspects in order to produce a “next level” system that is capable of investigating the potential impact of inhaled ENPs.
Therefore, the aim of this study, was to develop further an established static in vitro model used to test ENP aerosol toxicology to incorporate fluid-flow dynamics. This was achieved by implementing the QuasiVivoTM (Kirkstall Ltd., York, UK) system with a characterised A459_dTHP-1 coculture exposed (e.g., Vitrocell Cloud12, VitroCell Systems, Waldkirch, Germany) to different particle samples at the ALI. It is hypothesised that the addition of fluid flow would increase the sensitivity of the model compared to the static environment, but the exposure method (i.e., quasi-ALI vs. aerosol exposure) would have no impact on the response to ENPs.

2. Materials and Methods

All chemicals and reagents were purchased from Sigma Aldrich (UK) unless otherwise stated.
  • Cell Cultures
A549 (ATCC® CCL-185™) cells were obtained from American Tissue Culture Collection (ATCC, Middlesex, UK) and were cultured at 37 °C in 5% CO2. A549 were cultivated in RPMI-1640 medium (Gibco, Paisley, UK) supplemented with 10% heat inactivated foetal bovine serum (FBS; Gibco, Paisley, UK), 2 mM L-Glutamine (Gibco, Paisley, UK), 100 U/mL penicillin and 100 µg/mL streptomycin (Gibco, Paisley, UK), cited as complete cell culture medium (CCM). Cells were passaged when ~80% confluent and used between passages 9–21 for all experimentation.
THP-1 (ATCC® TIB-202™) cells were obtained from American Tissue Culture Collection (ATCC, Middlesex, UK) and were cultured at 37 °C in 5% CO2. THP-1 were cultivated in the above CCM. Cells were maintained within cultures of 1 × 106 cells/mL and used between passages 5–12 for all experimentation.
A549 cells were seeded on the apical side of a Falcon cell culture insert (transparent PET membrane with 3 µm pores; Corning, Flintshire, UK, 12-well or 24-well size) at a density of 2.78 × 105 cells/cm2 in CCM (500 and 100 µL, respectively) with CCM in the basal compartment (1.5 mL and 500 µL, respectively). Specifically, 12-well transwell inserts were implemented for static conditions while 24-well transwell inserts were implemented for the fluid flow conditions (as they are the only ones that will fit within the QuasiVivoTM system). On the 4th day (i.e., 96 h) after cell seeding, the medium was changed and cells were switched to the air–liquid interface (ALI) with CCM in the basal compartment and apical compartment exposed to air (i.e., no medium on the apical layer) [49]. After switching to the ALI, epithelial cells were provided for 24 h to habituate to the new culture environment prior to ENP exposures [50,51,52].
In parallel, THP-1 cells were differentiated into a macrophage-like phenotype (dTHP-1) by incubating with 20 mM phorbol 12-myristate-13-acetate (PMA) for 48 h with a further 48 h of recovery in CCM. The medium was removed from the apical side of the epithelial culture and dTHP-1 cells were seeded onto the epithelial cells. The co-cultures were then incubated for 2 h (to allow for adherence of the macrophage cells to the epithelial cell layer) prior to the apical medium being removed (and the whole co-culture being switched to an ALI). The co-culture was then incubated at 37 °C for 24 h (included in the 48 h recovery phase of the dTHP-1 cells) before exposure.
  • Fluid Flow System
A QuasiVivo 600 system (Kirkstall Ltd., York, UK) was used, connected to a peristaltic pump (Parker pump model PF22X0103) with a flow rate of 0.32–0.4 mL/min. The system consists of three bioreactors and a media reservoir connected by tubes. The peristaltic pump circulates the media and was positioned after the media reservoir and before the bioreactors. Each bioreactor fits a 24-well transwell, where the co-culture is established. The three technical repeats are positioned in series, sharing the media. The total fluid circulating is 30 mL (note that this media is shared for the 3 technical repeats).
The three biological repeats (n = 3) are three independent experiments of the system described above.
  • Characterisation
The co-culture was grown until the switch to ALI before it was either placed in static conditions or fluid flow conditions. It was then characterised at ALI days one through to four to characterise any changes that the addition of fluidics to the model may induce. The same biochemical analyses were completed for characterisation as post ENP exposure. The monoculture was previously characterised as previously outlined Barosova, Meldrum [49].
  • ENP
TiO2 (JRCNM01005a) were supplied by the European Commission Joint Research Centre Nanomaterial Repository (https://ec.europa.eu/jrc/en/scientific-tool/jrc-nanomaterials-repository (accessed on 23 August 2021)). The specific physical and chemical characteristics have previously been reported by [53] (Table 1).
DQ12 particles [54] were kindly donated by the Institute of Occupational Medicine (IOM), Edinburgh, and previously characterised [54,55] (Table 1). A previous study was also completed to determine if activated DQ12 particles [25] would be more biologically reactive, however they were not, so historical particles were implemented within this study.
Table
Table 1. Summary of primary characterisation data [53,54,56].
Table 1. Summary of primary characterisation data [53,54,56].
Z-Average (nm)Polydispersity Index (PDI) BET Surface
m2/g
TiO2125.40.17146.175
DQ127200.5210.1
All particles were dispersed and sonicated based on “The NANOGENOTOX dispersion protocol” (https://www.anses.fr/fr/system/files/nanogenotox_deliverable_5.pdf, accessed on 23 August 2021). Particles were dispersed by sonication (Branson Sonifier 250, Ø 13 mm, 400 W output power, 20 kHz) in sterile water. A stock suspension of ENPs was prepared at a concentration of 2.56 mg/mL, which was diluted in sterile water [25] to the desired concentration. All exposure concentrations, previously determined via IVIVE approaches (https://www.patrols-h2020.eu/publications/sops/index.php and https://www.patrols-h2020.eu/publications/sops/SOP-library-pdfs/3105_PATROLS-Guidance-Document-for-ENMs-lung-dosing-consideration.pdf?m=1636040473&, accessed on 23 August 2021), have been previously found to induce significant inflammatory effects in vivo (0–5.2 and 0–1 µg/cm2).
  • Particle Exposures
Cells were exposed either via a quasi-ALI exposure technique formally described in (39) for the static conditions, or through an aerosol exposure (VitroCell Cloud12, VitroCell Systems, Waldkirch, Germany), they were then placed in either static conditions or under fluid flow conditions (QuasiVivoTM System (Kirkstall Ltd., York, UK)). Figure 1 outlines the various exposure approaches and conditions. For the quasi-ALI exposure method, this approach allows an accessible ALI exposure approach for when there are no aerosol exposure systems available [57]. This method entails exposing the cells apically to 100 µL of the particle suspension using a 6-well plate setup. In respect to aerosol exposures, co-cultures were exposed via the VitroCell Cloud12 (VitroCell Systems, Waldkirch, Germany) exposure system which entails exposing the cells apically to 200 µL of the particle suspension which is then nebulized and deposited. Real-time measurement of deposited particles is acquired via the use of a quartz microbalance (QCM) (40). For the higher concentrations, repeat exposures were required until the desired deposited concentration was reached. Vehicle controls (sterile water spiked with 1% NaCl) for both the low and high exposures (single and repeat controls) were completed as well as incubator negative and assay positive controls (specific to each biological assay kit and endpoint).
Post exposure, static conditions were obtained by placing the transwells from the aerosol exposure chamber back into the companion plates and then placed into the incubator. Fluid flow conditions were established using the QuasiVivoTM exposure system and pumping medium around (0.32–0.4 µL/min) the system with a reservoir volume of 30 mL. For each exposure implementing fluid flow conditions, three transwells were used due to the limitations in cell growth area (and therefore the number of cells for endpoint analysis).
Endpoint analyses were completed after 24 h of single exposures in both static and fluid flow conditions as well as after quasi-ALI and VitroCell exposures at 5% CO2 and 37 °C. With both systems, additional controls need to be considered to confirm that any effects identified within these studies are dependent on the particulate exposure and not the changes in humidity or temperature [58]. These controls included incubator controls (where the cells remained within the incubator instead of being placed into the VitroCell exposure chamber) and negative controls (including repeat exposures when the ENPs required multiple exposures to reach the required deposition concentration).
  • Biochemical Analysis
All samples from both exposure systems were processed for viability assessment (Trypan blue exclusion assay), whilst supernatants were collected and stored at −80 °C for future investigation of specific (pro-)inflammatory mediators.
For the comparison between fluid-flow and static, the differences in medium volume used were taken into consideration and corrected for as well as ensuring the cells on the different sizes of inserts were calculated in cells/cm2.
  • Trypan Blue Exclusion Assay
Cellular viability was determined using the trypan blue exclusion assay. Briefly, 10 µL of trypan blue dye (0.4%) was added to 10 µL of the cell suspension, before being counted with a haemocytometer and percentage viability calculated [49].
  • Blue Dextran—Membrane Integrity Analysis
The membrane integrity was analysed by measuring the translocation of Blue Dextran dye (Mw 200 kDa, Sigma Aldrich, Dorset, UK) from the apical to the basal compartment of the cultures after exposure to the particles. The translocation of Blue Dextran in an empty transwell (with no cells) was used as the negative control and results normalised against this. All medium was removed from the culture (leaving the cells on the membrane) before adding CCM to the basal side and 0.5% Blue Dextran (dissolved in PBS) added to the apical surface. The cultures were then incubated for 2 h at 37 °C before measuring the concentration of blue dextran in the basal compartment by measuring the absorbance values at 600 nm. This value was then shown as fold over the control value.
  • (Pro-)Inflammatory Response
The (pro-)inflammatory response of the cells following exposure to DQ12, and TiO2 was measured by quantifying the amount of the (pro-)inflammatory mediators released into the basal medium via Enzyme-Linked Immunosorbent Assay (ELISA). Lipopolysaccharide (LPS) (from Escherichia coli) was used as a positive (pro)-inflammatory control at 1 μg/mL on the basal side of the culture for 24 h. Cell culture supernatant was collected 24 h after exposure and analysed for cytokine levels of IL-8 (Cat no. DY208) and IL-6 (Cat no. DY206) using DuoSet kits from R&D systems (Bio-techne, Abingdon, UK) according to the manufacturer’s instructions. Samples were analysed in triplicate from three independent experiments (n = 3) and absorbance was assessed at 450 nm with background correction at 570 nm. Extrapolation of protein concentration was carried out from a standard curve of known concentrations (IL-8 (0–2000 pg/mL) and IL-6 (0–200 pg/mL)).
  • Statistical Analysis
All data are presented as the mean ± standard deviation (SD). All endpoints were assessed following three independent cell cultures (n = 3), except the static quasi-ALI exposures which were n = 5 after following the exposure protocol outlined previously [25]. Statistical analyses were performed using GraphPad Prism 8 (GraphPad Software Inc., San Diego, CA, USA) software. A two-way analysis of variance (ANOVA) with a subsequent Tukey’s multiple comparisons test was performed for each endpoint. Results were considered significant if p < 0.05.

3. Results

3.1. Model Characterisation

The addition of dynamic fluid flow to the model did significantly (p < 0.01) decrease the viability of the culture when compared to the static model (Figure 2A) on ALI days 1, 2, and 4, however, the viability of the model remained above 80% on every day analysed thereafter. For both IL-6 and IL-8 (Figure 2B,C), there was a significant decrease (p < 0.01) in the concentration in the fluid flow model when compared to the static culture. However, the IL-8 concentration does increase over the four-day period in the fluid flow model (though remained significantly decreased compared to the static model). The IL-6 concentration was not detectable in the A549_dTHP-1 co-culture under fluid flow conditions. The concentration of both IL-6 and IL-8 remained consistent (average within experimental variation) between ALI day 1 and day 4 analysed in the static model.

3.2. Quasi-ALI Exposure

  • Viability and Membrane Integrity
The lower concentration of both DQ12 and TiO2 (1 and 1.4 µg/cm2) caused no changes in either the viability or membrane integrity of the A549 + dTHP-1 co-culture in either the static or the fluid flow model 24 h after a quasi-ALI exposure, when compared to the negative control (Figure 3A,B). However, there was a significant decrease in the viability (p < 0.05) after exposure to 10 µg/cm2 of DQ12 when compared to the lower DQ12 concentration and a significant decrease in the viability (p < 0.05) after exposure to 10.4 µg/cm2 TiO2 in the fluid flow model compared to the medium control, the lower TiO2 concentration, and the static equivalent (Figure 3A).
  • (Pro-)Inflammatory Response
There was a significant increase (p < 0.05) in the concentration of IL-6 after exposure to both concentrations of TiO2 when compared to both the control and the static equivalent (Figure 4A). There was a slight increase (though not significant (p > 0.05)) in the IL-6 concentration after exposure to 10 µg/cm2 of DQ12 when compared to the negative control and the static equivalent. LPS exposure also did not cause significant increases in IL-6. There were no changes in the concentration of IL-8 after any of the exposures using the static model (Figure 4B). With the fluid flow model there was a significant increase (p < 0.01) in IL-8 after exposure to 10 µg/cm2 DQ12 when compared to the medium control, the lower DQ12 exposure and the static equivalent, as well as the exposure to LPS (p < 0.01).

3.3. Aerosol Exposure

  • Viability and Membrane Integrity
The introduction of the co-culture to the VitroCell exposure chamber did cause a decrease in the viability (~10% decrease) in both the single and repeat exposure controls (endpoints are measured at 24 h regardless) when compared to the incubator control, however, no significant changes (p > 0.05) in viability were noted (Figure 5A). There was a significant decrease (p < 0.05) in the viability of the co-culture after exposure to both DQ12 concentrations in the static model when compared to the appropriate control. Additionally, 10 µg/cm2 induced a significant decrease (p < 0.05) when compared to the fluid flow equivalent and the lowest DQ12 exposure. There was no change in the co-culture viability after TiO2 exposure in any of the physiological conditions (Figure 5A). There were no significant changes in the membrane integrity after any of the exposures when compared to the appropriate controls, however, there was a significant decrease in the membrane integrity induced by 10 µg/cm2 DQ12 exposure when comparing the fluid flow exposure to the static (Figure 5B).
  • (Pro-)inflammatory Response
There was a significant increase (p < 0.05) in the IL-6 concentration after both the higher concentrations of DQ12 and TiO2 (10 and 10.4 µg/cm2, respectively) when compared to the appropriate negative control, the lower concentration, and the static equivalent (Figure 6A). There was no change in the IL-6 concentration after any of the exposures in the static model. There was an increase in IL-8 concentration after TiO2 exposure (1.4 µg/cm2) in the fluid flow model when compared to the negative control, but this was not significant (Figure 6B). There were significant increases (p < 0.05) in the IL-8 concentration after exposure to both DQ12 and TiO2 (10 and 10.4 µg/cm2, respectively) when compared to the negative control.

4. Discussion

The aim of this study was to determine if the incorporation of dynamic fluid flow to an established static A549 + dTHP-1 co-culture model using both a quasi-ALI and wet aerosol exposure had the potential to increase the sensitivity of the model when compared to the static environment. After completing the characterisation of the co-culture it was indicated that the addition of fluid flow to the model system did not have detrimental effects (i.e., changes in viability and (pro-)inflammatory mediator release) to the static model (Table 2).

4.1. Addition of Dynamic Fluid Flow

The addition of fluid flow to the herein used in vitro lung cell model when applying the QuasiVivoTM (Kirkstall Ltd., York, UK) was a straightforward way of implementing a model that was more physiologically relevant than traditional static in vitro models. Previously, using cells of the blood–brain barrier (i.e., astrocytes, pericytes and endothelial cells) with the fluid flow system, a slight decrease in cellular viability was identified in the fluid flow model when compared to the static model [59]. This was also identified within the current study, though with different cells from a different organ (i.e., the lung). This indicates that the implementation of fluid flow influences cellular viability within the initial 24 h period. From previous studies using the fluid flow model using an intestinal epithelium, it was identified that using the fluid flow system increases the barrier integrity and permeability, more closely mimicking the in vivo models [60]. This has also been identified with airway epithelial cells where the addition of fluid flow to the model led to an increase in the TEER value measured [61], which corresponds to the membrane integrity measured within this study (Figure 3B and Figure 5B) with blue dextran which was either slightly increased or remained the same when adding fluid flow. Previous work has identified that the TEER values previously measured have not matched what is found within the literature, however, these have increased when the A549-based models have been switched to an ALI [49]. Taken together, this suggests that the addition of fluid flow to the model has the potential to decrease the viability of multiple cell types when compared to the static controls, but the viability of the models remains consistently high, enabling the implementation of these systems for (ENP) toxicology testing.
IL-8 is a neutrophil chemoattractant [62] with limited downstream effects, whereas IL-6 is a much more diverse cytokine and the continual production of IL-6 plays a role in chronic inflammation as well as tissue damage [63]. Both inflammatory mediators are produced by both epithelial and macrophage cells [64,65]. IL-6 links more so to chronic inflammation and lung epithelial damage. Due to the feedback loop of IL-6 [66], there is the potential that an initial release of this cytokine from the co-culture within the fluid flow system is then circulated around the system inducing the epithelial cells to further release IL-6, leading to the enhanced concentration found after both the quasi-ALI (Figure 3A) and the VitroCell (Figure 6A) exposures. In these exposures there is also a decrease in cellular viability which has been known to be linked to an increase in Il-6 production in specifically type II epithelial cells [67]. IL-6 has also been identified to protect A549 cultures from reactive oxygen species (ROS)-induced cell death [68], from our studies there is increased cytotoxicity after exposures paired with increased IL-6 production after the quasi-ALI exposures (Figure 3 and Figure 4A), this could potentially indicate that the cells are not dying due to ROS exposure, though future work is required to confirm this. This pattern is not identified in the VitroCell exposed cultures suggesting that this effect is relevant to the specific exposure method of ENPs to the in vitro cell culture.

4.2. Quasi-ALI and Aerosol Exposures

The comparison of quasi-ALI and aerosol exposures has been previously completed within the literature, however, the addition of fluidics is something that is significantly lacking within the literature. Using the same TiO2 ENPs, at a very similar concentration (10.3 µg/cm2) there was no change in viability, however, at higher concentrations (such as 20.6 and 41.2 µg/cm2) a significant decrease in viability was induced after submerged exposures. However, this is a significant decrease at a much lower concentration (1.14 µg/cm2) when using an aerosol exposure [69], agreeing with what has been identified in the current study. Cellular uptake of TiO2 was found to be higher in submerged cultures of lung epithelial cells when compared to the aerosol exposure [70]. A549 cells grown at an air–liquid interface were previously exposed to silica nanoparticles (~50 nm) using both an “ALI deposition system (ALIDA)” (which implemented an electrostatic field and had higher deposition efficiency compared to the VitroCell) and a submerged exposure. It was determined that the submerged exposure elicited a stronger concentration of IL-8 when compared to the deposited particles [71]. This was not identified in our study; in fact the IL-8 concentration was ~100 times higher in the VitroCell exposures (Figure 6B) when compared to the quasi-ALI exposures (Figure 4B) in the static model and ~150 times higher in the fluid flow exposures (Figure 4B and Figure 6B) after exposure to both the highest concentrations of DQ12 and TiO2. This has also been identified using ZnO ENPs (at 1 µg/cm2) and an aerosol and “traditional” exposures using A549 cells [72]. The same was also true for IL-6 concentrations after exposure to the higher concentrations of DQ12 and TiO2 there was a ~5 and ~3 times increase, respectively, after VitroCell exposure compared to quasi-ALI exposures. However, this pattern was identified in the IL-6 concentration for the lower concentrations of DQ12 and TiO2, where more cytokine was released after quasi-ALI exposure compared to VitroCell exposure (Figure 4A and Figure 6A). It has been previously hypothesised [25] that IL-6 has the potential to be a better marker of a (pro-)inflammatory response after ENP exposures. This difference may also be related to the monoculture use previously [71], when compared to the use of a co-culture in this study. Other studies using the same TiO2 at similar concentrations (~1 µg/cm2) identified a significant increase in the concentration of IL-6, IL-8 and TNF-α post aerosolization when compared to the submerged control groups [73]. It has been previously identified that different exposure methods do have the capability to elicit different responses at different time points [74]. With changes to the exposure time and fractionated doses also contributing to these differences [25], endpoints must also be carefully planned due to potential degradation of the samples to be analysed [75].
It is important to note that the present study highlights the notion that the incorporation of additional physiological components may impact upon the biological responses (i.e., only the cytotoxicity and (pro-)inflammatory) tested, based upon the particle type and concentration as well as the exposure approach used. Further investigation is necessary, and ongoing, to confirm that the implementation of this physiological characteristic encourages the ability for such alternative systems to have the potential to predict the human health hazard of ENP inhalation exposure in a reproducible manner.

5. Conclusions

Taken together, it is evident that the addition of the physiological advancement (fluid flow) enhances the sensitivity of this co-culture (A549_dTHP-1) model when exposed to the specific particles at the herein tested concentrations, which is then further increased by implementing a more physiologically relevant exposure method (i.e., aerosolization of the particles, compared to quasi-ALI). However, with all things, the additions of these methods need to be balanced with the potential for the model to be implemented within other laboratories (both experience and monetary costs) and for the models to be further used as a part of the battery of models used for standard toxicological testing in the future. In conclusion, all future experimental work needs to consider the addition of physiological enhancements as well as exposure time and duration.

Author Contributions

Conceptualisation, K.M. and M.J.D.C.; methodology, K.M. and M.J.D.C.; validation, K.M. and M.J.D.C.; formal analysis, K.M.; investigation, K.M.; resources, M.J.D.C. and S.H.D.; data curation, K.M., J.A.M., S.H.D. and M.J.D.C.; writing—original draft preparation, K.M. and M.J.D.C.; writing—review and editing, K.M., M.J.D.C., S.H.D. and J.A.M.; visualisation, K.M. and M.J.D.C.; supervision, M.J.D.C.; project administration, K.M., M.J.D.C. and S.H.D.; funding acquisition, S.H.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the PATROLS project, European Union’s Horizon 2020 Research and Innovation Programme under grant agreement No: 760813.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not yet publicly available.

Acknowledgments

This study was also supported by the In Vitro Toxicology Group at Swansea University Medical School.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Sambandam, B.; Palanisami, E.; Abbugounder, R.; Prakhya, B.; Thiyagarajan, D. Characterizations of coal fly ash nanoparticles and induced in vitro toxicity in cell lines. J. Nanoparticle Res. 2014, 16, 2217. [Google Scholar] [CrossRef]
  2. Horie, M.; Nishio, K.; Kato, H.; Fujita, K.; Endoh, S.; Nakamura, A.; Miyauchi, A.; Kinugasa, S.; Yamamoto, K.; Niki, E.; et al. Cellular responses induced by cerium oxide nanoparticles: Induction of intracellular calcium level and oxidative stress on culture cells. J. Biochem. 2011, 150, 461–471. [Google Scholar] [CrossRef] [PubMed]
  3. Vert, M.; Doi, Y.; Hellwich, K.-H.; Hess, M.; Hodge, P.; Kubisa, P.; Rinaudo, M.; Schué, F. Terminology for biorelated polymers and applications (IUPAC Recommendations 2012). Pure Appl. Chem. 2012, 84, 377–410. [Google Scholar] [CrossRef]
  4. Hackenberg, S.; Scherzed, A.; Technau, A.; Kessler, M.; Froelich, K.; Ginzkey, C.; Koehler, C.; Burghartz, M.; Hagen, R.; Kleinsasser, N. Cytotoxic, genotoxic and pro-inflammatory effects of zinc oxide nanoparticles in human nasal mucosa cells in vitro. Toxicol. Vitr. 2011, 25, 657–663. [Google Scholar] [CrossRef]
  5. Duffin, R.; Tran, L.; Brown, D.; Stone, V.; Donaldson, K. Proinflammogenic effects of low-toxicity and metal nanoparticles in vivo and in vitro: Highlighting the role of particle surface area and surface reactivity. Inhal. Toxicol. 2007, 19, 849–856. [Google Scholar] [CrossRef]
  6. Schmid, O.; Stoeger, T. Surface area is the biologically most effective dose metric for acute nanoparticle toxicity in the lung. J. Aerosol Sci. 2016, 99, 133–143. [Google Scholar] [CrossRef]
  7. Skuland, T.; Ovrevik, J.; Låg, M.; Refsnes, M. Role of size and surface area for pro-inflammatory responses to silica nanoparticles in epithelial lung cells: Importance of exposure conditions. Toxicol. Vitr. Int. J. Publ. Assoc. BIBRA 2014, 28, 146–155. [Google Scholar] [CrossRef] [PubMed]
  8. Noël, A.; Truchon, G.; Cloutier, Y.; Charbonneau, M.; Maghni, K.; Tardif, R. Mass or total surface area with aerosol size distribution as exposure metrics for inflammatory, cytotoxic and oxidative lung responses in rats exposed to titanium dioxide nanoparticles. Toxicol. Ind. Health 2016, 33, 351–364. [Google Scholar] [CrossRef]
  9. Kuhn, D.A.; Vanhecke, D.; Michen, B.; Blank, F.; Gehr, P.; Petri-Fink, A.; Rothen-Rutishauser, B. Different endocytotic uptake mechanisms for nanoparticles in epithelial cells and macrophages. Beilstein J. Nanotechnol. 2014, 5, 1625–1636. [Google Scholar] [CrossRef]
  10. Yokel, R.A.; MacPhail, R.C. Engineered nanomaterials: Exposures, hazards, and risk prevention. J. Occup. Med. Toxicol. 2011, 6, 7. [Google Scholar] [CrossRef] [Green Version]
  11. Chen, P.; Zhang, Z.; Gu, N.; Ji, M. Effect of the surface charge density of nanoparticles on their translocation across pulmonary surfactant monolayer: A molecular dynamics simulation. Mol. Simul. 2018, 44, 85–93. [Google Scholar] [CrossRef]
  12. Fulcher, M.L.; Randell, S.H. Human nasal and tracheo-bronchial respiratory epithelial cell culture. Methods Mol. Biol. 2013, 945, 109–121. [Google Scholar] [CrossRef]
  13. Ou, C.; Hang, J.; Deng, Q. Particle Deposition in Human Lung Airways: Effects of Airflow, Particle Size, and Mechanisms. Aerosol Air Qual. Res. 2020, 20, 2846–2858. [Google Scholar] [CrossRef]
  14. Tsuda, A.; Henry, F.S.; Butler, J.P. Particle transport and deposition: Basic physics of particle kinetics. Compr. Physiol. 2013, 3, 1437–1471. [Google Scholar]
  15. Ehrhardt, C.; Laue, M.; Kim, K.-J. In Vitro Models of the Alveolar Epithelial Barrier. In Drug Absorption Studies: In Situ, In vitro and In Silico Models; Ehrhardt, C., Kim, K.-J., Eds.; Springer: Boston, MA, USA, 2008; pp. 258–282. [Google Scholar] [CrossRef]
  16. Cooper, J.R.; Abdullatif, M.B.; Burnett, E.C.; Kempsell, K.E.; Conforti, F.; Tolley, H.; Collins, J.E.; Davies, D.E. Long Term Culture of the A549 Cancer Cell Line Promotes Multilamellar Body Formation and Differentiation towards an Alveolar Type II Pneumocyte Phenotype. PLoS ONE 2016, 11, e0164438. [Google Scholar] [CrossRef]
  17. Crapo, J.D.; Barry, B.E.; Gehr, P.; Bachofen, M.; Weibel, E.R. Cell number and cell characteristics of the normal human lung. Am. Rev. Respir. Dis. 1982, 126, 332–337. [Google Scholar]
  18. Stone, K.C.; Mercer, R.R.; Gehr, P.; Stockstill, B.; Crapo, J.D. Allometric relationships of cell numbers and size in the mammalian lung. Am. J. Respir. Cell Mol. Biol. 1992, 6, 235–243. [Google Scholar] [CrossRef]
  19. Chang, L.Y.; Crapo, J.D.; Gehr, P.; Rothen-Rutishauser, B.; Mühfeld, C.; Blank, F. 8.04—Alveolar Epithelium in Lung Toxicology. In Comprehensive Toxicology, 2nd ed.; McQueen, C.A., Ed.; Elsevier: Oxford, UK, 2010; pp. 59–91. [Google Scholar] [CrossRef]
  20. Franken, L.; Schiwon, M.; Kurts, C. Macrophages: Sentinels and regulators of the immune system. Cell. Microbiol. 2016, 18, 475–487. [Google Scholar] [CrossRef]
  21. Joshi, N.; Walter, J.M.; Misharin, A.V. Alveolar Macrophages. Cell. Immunol. 2018, 330, 86–90. [Google Scholar] [CrossRef]
  22. Holownia, A.; Wielgat, P.; Kwolek, A.; Jackowski, K.; Braszko, J.J. Crosstalk Between Co-cultured A549 Cells and THP1 Cells Exposed to Cigarette Smoke. Adv. Exp. Med. Biol. 2015, 858, 47–55. [Google Scholar] [CrossRef]
  23. Wang, G.; Zhang, X.; Liu, X.; Zheng, J. Co-culture of human alveolar epithelial (A549) and macrophage (THP-1) cells to study the potential toxicity of ambient PM(2.5): A comparison of growth under ALI and submerged conditions. Toxicol. Res. (Camb) 2020, 9, 636–651. [Google Scholar] [CrossRef]
  24. Meindl, C.; Öhlinger, K.; Zrim, V.; Steinkogler, T.; Fröhlich, E. Screening for Effects of Inhaled Nanoparticles in Cell Culture Models for Prolonged Exposure. Nanomaterials 2021, 11, 606. [Google Scholar] [CrossRef]
  25. Meldrum, K.; Evans, S.J.; Vogel, U.; Tran, L.; Doak, S.H.; Clift, M.J.D. The influence of exposure approaches to in vitro lung epithelial barrier models to assess engineered nanomaterial hazard. Nanotoxicology 2022, 16, 114–134. [Google Scholar] [CrossRef]
  26. Kasurinen, S.; Happo, M.S.; Rönkkö, T.; Orasche, J.; Jokiniemi, J.; Kortelainen, M.; Tissari, J.; Zimmermann, R.; Hirvonen, M.-R.; Jalava, P.I. Differences between co-cultures and monocultures in testing the toxicity of particulate matter derived from log wood and pellet combustion. PLoS ONE 2018, 13, e0192453. [Google Scholar] [CrossRef]
  27. Wang, Y.; Adamcakova-Dodd, A.; Steines, B.R.; Jing, X.; Salem, A.K.; Thorne, P.S. Comparison of in vitro toxicity of aerosolized engineered nanomaterials using air-liquid interface mono-culture and co-culture models. NanoImpact 2020, 18, 100215. [Google Scholar] [CrossRef]
  28. Clippinger, A.J.; Ahluwalia, A.; Allen, D.; Bonner, J.C.; Casey, W.; Castranova, V.; David, R.M.; Halappanavar, S.; Hotchkiss, J.A.; Jarabek, A.M.; et al. Expert consensus on an in vitro approach to assess pulmonary fibrogenic potential of aerosolized nanomaterials. Arch. Toxicol. 2016, 90, 1769–1783. [Google Scholar] [CrossRef]
  29. Vuong, N.Q.; Breznan, D.; Goegan, P.; O’Brien, J.S.; Williams, A.; Karthikeyan, S.; Kumarathasan, P.; Vincent, R. In vitro toxicoproteomic analysis of A549 human lung epithelial cells exposed to urban air particulate matter and its water-soluble and insoluble fractions. Part. Fibre Toxicol. 2017, 14, 39. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Darland, D.; He, Y.; Yang, L.; Dong, X.; Chang, Y. Reduction of Pm2.5 Toxicity on Human Alveolar Epithelial Cells A549 by Tea Polyphenols. J. Food Biochem. 2018, 42, e12496. [Google Scholar] [CrossRef]
  31. Griese, M. Pulmonary surfactant in health and human lung diseases: State of the art. Eur. Respir. J. 1999, 13, 1455–1476. [Google Scholar] [CrossRef]
  32. Blank, F.; Rothen-Rutishauser, B.M.; Schurch, S.; Gehr, P. An optimized in vitro model of the respiratory tract wall to study particle cell interactions. J. Aerosol Med. 2006, 19, 392–405. [Google Scholar] [CrossRef]
  33. Bruce, S.R.; Atkins, C.L.; Colasurdo, G.N.; Alcorn, J.L. Respiratory syncytial virus infection alters surfactant protein A expression in human pulmonary epithelial cells by reducing translation efficiency. Am. J. Physiol. Lung Cell. Mol. Physiol. 2009, 297, L559–L567. [Google Scholar] [CrossRef]
  34. Hiemstra, P.S.; Grootaers, G.; van der Does, A.M.; Krul, C.A.; Kooter, I.M. Human lung epithelial cell cultures for analysis of inhaled toxicants: Lessons learned and future directions. Toxicol. In Vitro 2018, 47, 137–146. [Google Scholar] [CrossRef]
  35. Lacroix, G.; Koch, W.; Ritter, D.; Gutleb, A.C.; Larsen, S.T.; Loret, T.; Zanetti, F.; Constant, S.; Chortarea, S.; Rothen-Rutishauser, B.; et al. Air–Liquid Interface In Vitro Models for Respiratory Toxicology Research: Consensus Workshop and Recommendations. Appl. In Vitro Toxicol. 2018, 4, 91–106. [Google Scholar] [CrossRef]
  36. Upadhyay, S.; Palmberg, L. Air-Liquid Interface: Relevant In Vitro Models for Investigating Air Pollutant-Induced Pulmonary Toxicity. Toxicol. Sci. 2018, 164, 21–30. [Google Scholar] [CrossRef]
  37. Romagnoli, S.; Roncalli, M.; Graziani, D.; Cassani, B.; Roz, E.; Bonavina, L.; Peracchia, A.; Bosari, S.; Coggi, G. Molecular alterations of Barrett’s esophagus on microdissected endoscopic biopsies. Lab. Investig. 2001, 81, 241–247. [Google Scholar] [CrossRef]
  38. Öhlinger, K.; Kolesnik, T.; Meindl, C.; Gallé, B.; Absenger-Novak, M.; Kolb-Lenz, D.; Fröhlich, E. Air-liquid interface culture changes surface properties of A549 cells. Toxicol. In Vitro 2019, 60, 369–382. [Google Scholar] [CrossRef]
  39. Endes, C.; Schmid, O.; Kinnear, C.; Mueller, S.; Camarero-Espinosa, S.; Vanhecke, D.; Foster, E.J.; Petri-Fink, A.; Rothen-Rutishauser, B.; Weder, C.; et al. An in vitro testing strategy towards mimicking the inhalation of high aspect ratio nanoparticles. Part. Fibre Toxicol. 2014, 11, 40. [Google Scholar] [CrossRef]
  40. Ding, Y.; Weindl, P.; Lenz, A.G.; Mayer, P.; Krebs, T.; Schmid, O. Quartz crystal microbalances (QCM) are suitable for real-time dosimetry in nanotoxicological studies using VITROCELL®Cloud cell exposure systems. Part. Fibre Toxicol. 2020, 17, 44. [Google Scholar] [CrossRef]
  41. Hein, S.; Bur, M.; Kolb, T.; Muellinger, B.; Schaefer, U.F.; Lehr, C.-M. The Pharmaceutical Aerosol Deposition Device on Cell Cultures (PADDOCC) In Vitro System: Design and Experimental Protocol. Altern. Lab. Anim. 2010, 38, 285–295. [Google Scholar] [CrossRef]
  42. Pasman, T.; Baptista, D.; van Riet, S.; Truckenmüller, R.; Hiemstra, P.; Rottier, R.; Hamelmann, N.; Paulusse, J.; Stamatialis, D.; Poot, A. Development of an In Vitro Airway Epithelial-Endothelial Cell Culture Model on a Flexible Porous Poly(Trimethylene Carbonate) Membrane Based on Calu-3 Airway Epithelial Cells and Lung Microvascular Endothelial Cells. Membranes 2021, 11, 197. [Google Scholar] [CrossRef]
  43. Nossa, R.; Costa, J.; Cacopardo, L.; Ahluwalia, A. Breathing in vitro: Designs and applications of engineered lung models. J. Tissue Eng. 2021, 12, 20417314211008696. [Google Scholar] [CrossRef]
  44. Cei, D.; Doryab, A.; Lenz, A.; Schröppel, A.; Mayer, P.; Burgstaller, G.; Nossa, R.; Ahluwalia, A.; Schmid, O. Development of a dynamic in vitro stretch model of the alveolar interface with aerosol delivery. Biotechnol. Bioeng. 2021, 118, 690–702. [Google Scholar] [CrossRef]
  45. Mattei, G.; Giusti, S.; Ahluwalia, A. Design Criteria for Generating Physiologically Relevant In Vitro Models in Bioreactors. Processes 2014, 2, 548–569. [Google Scholar] [CrossRef]
  46. Doryab, A.; Taskin, M.B.; Stahlhut, P.; Schröppel, A.; Orak, S.; Voss, C.; Ahluwalia, A.; Rehberg, M.; Hilgendorff, A.; Stöger, T.; et al. A Bioinspired in vitro Lung Model to Study Particokinetics of Nano-/Microparticles Under Cyclic Stretch and Air-Liquid Interface Conditions. Front. Bioeng. Biotechnol. 2021, 9, 616830. [Google Scholar] [CrossRef]
  47. Ferroni, M.; Giusti, S.; Nascimento, D.; Silva, A.; Boschetti, F.; Ahluwalia, A. Modeling the fluid-dynamics and oxygen consumption in a porous scaffold stimulated by cyclic squeeze pressure. Med. Eng. Phys. 2016, 38, 725–732. [Google Scholar] [CrossRef]
  48. Huh, D.D. A human breathing lung-on-a-chip. Ann. Am. Thorac. Soc. 2015, 12 (Suppl. 1), S42–S44. [Google Scholar] [CrossRef]
  49. Barosova, H.; Meldrum, K.; Karakocak, B.B.; Balog, S.; Doak, S.H.; Petri-Fink, A.; Clift, M.J.D.; Rothen-Rutishauser, B. Inter-laboratory variability of A549 epithelial cells grown under submerged and air-liquid interface conditions. Toxicol. In Vitro 2021, 75, 105178. [Google Scholar] [CrossRef]
  50. Herzog, F.; Loza, K.; Balog, S.; Clift, M.J.; Epple, M.; Gehr, P.; Petri-Fink, A.; Rothen-Rutishauser, B. Mimicking exposures to acute and lifetime concentrations of inhaled silver nanoparticles by two different in vitro approaches. Beilstein J. Nanotechnol. 2014, 5, 1357–1370. [Google Scholar] [CrossRef]
  51. Herzog, F.; Clift, M.J.D.; Piccapietra, F.; Behra, R.; Schmid, O.; Petri-Fink, A.; Rothen-Rutishauser, B. Exposure of silver-nanoparticles and silver-ions to lung cells in vitro at the air-liquid interface. Part. Fibre Toxicol. 2013, 10, 11. [Google Scholar] [CrossRef]
  52. Klein, S.G.; Serchi, T.; Hoffmann, L.; Blmeke, B.; Gutleb, A.C. An improved 3D tetraculture system mimicking the cellular organisation at the alveolar barrier to study the potential toxic effects of particles on the lung. Part. Fibre Toxicol. 2013, 10, 31. [Google Scholar] [CrossRef] [Green Version]
  53. Centre, J.R.; Health, I.f.; Protection, C.; Rasmussen, K.; Mast, J.; De Temmerman, P.; Verleysen, E.; Waegeneers, N.; Van Steen, F.; Pizzolon, J.; et al. Titanium Dioxide, NM-100, NM-101, NM-102, NM-103, NM-104, NM-105: Characterisation and Physico-Chemical Properties; Publications Office of the European Union: Luxembourg, 2014. [Google Scholar] [CrossRef]
  54. Clouter, A.; Brown, D.; Höhr, D.; Borm, P.; Donaldson, K. Inflammatory effects of respirable quartz collected in workplaces versus standard DQ12 quartz: Particle surface correlates. Toxicol. Sci. Off. J. Soc. Toxicol. 2001, 63, 90–98. [Google Scholar] [CrossRef]
  55. Robock, K. Standard quartz dq12 greater than 5 micro m for experimental pneumoconiosis research projects in the Federal Republic of Germany. Ann. Occup. Hyg. 1973, 16, 63–66. [Google Scholar] [CrossRef]
  56. Maciaszek, K.; Brown, D.M.; Stone, V. An in vitro assessment of the toxicity of two-dimensional synthetic and natural layered silicates. Toxicol. In vitro 2022, 78, 105273. [Google Scholar] [CrossRef]
  57. Geiser, M.; Kreyling, W.G. Deposition and biokinetics of inhaled nanoparticles. Part. Fibre Toxicol. 2010, 7, 2. [Google Scholar] [CrossRef]
  58. Zavala, J.; Greenan, R.; Krantz, Q.T.; DeMarini, D.M.; Higuchi, M.; Gilmour, M.I.; White, P.A. Regulating temperature and relative humidity in air-liquid interface in vitro systems eliminates cytotoxicity resulting from control air exposures. Toxicol. Res. (Camb) 2017, 6, 448–459. [Google Scholar] [CrossRef]
  59. Miranda-Azpiazu, P.; Panagiotou, S.; Jose, G.; Saha, S. A novel dynamic multicellular co-culture system for studying individual blood-brain barrier cell types in brain diseases and cytotoxicity testing. Sci. Rep. 2018, 8, 8784. [Google Scholar] [CrossRef]
  60. Giusti, S.; Sbrana, T.; La Marca, M.; Di Patria, V.; Martinucci, V.; Tirella, A.; Domenici, C.; Ahluwalia, A. A novel dual-flow bioreactor simulates increased fluorescein permeability in epithelial tissue barriers. Biotechnol. J. 2014, 9, 1175–1184. [Google Scholar] [CrossRef]
  61. Chandorkar, P.; Posch, W.; Zaderer, V.; Blatzer, M.; Steger, M.; Ammann, C.G.; Binder, U.; Hermann, M.; Hörtnagl, P.; Lass-Flörl, C.; et al. Fast-track development of an in vitro 3D lung/immune cell model to study Aspergillus infections. Sci. Rep. 2017, 7, 11644. [Google Scholar] [CrossRef]
  62. Bickel, M. The role of interleukin-8 in inflammation and mechanisms of regulation. J. Periodontol. 1993, 64, 456–460. [Google Scholar]
  63. Tanaka, T.; Narazaki, M.; Kishimoto, T. IL-6 in inflammation, immunity, and disease. Cold Spring Harb. Perspect. Biol. 2014, 6, a016295. [Google Scholar] [CrossRef]
  64. Rincon, M.; Irvin, C.G. Role of IL-6 in asthma and other inflammatory pulmonary diseases. Int. J. Biol. Sci. 2012, 8, 1281–1290. [Google Scholar] [CrossRef]
  65. Smith, K.R.; Veranth, J.M.; Hu, A.A.; Lighty, J.S.; Aust, A.E. Interleukin-8 levels in human lung epithelial cells are increased in response to coal fly ash and vary with the bioavailability of iron, as a function of particle size and source of coal. Chem. Res. Toxicol. 2000, 13, 118–125. [Google Scholar] [CrossRef]
  66. Hirano, T. IL-6 in inflammation, autoimmunity and cancer. Int. Immunol. 2021, 33, 127–148. [Google Scholar] [CrossRef]
  67. Petrache, I.; Serban, K. Lost in Trans-IL-6 Signaling: Alveolar Type II Cell Death in Emphysema. Am. J. Respir. Crit. Care Med. 2016, 194, 1441–1443. [Google Scholar] [CrossRef]
  68. Kida, H.; Yoshida, M.; Hoshino, S.; Inoue, K.; Yano, Y.; Yanagita, M.; Kumagai, T.; Osaki, T.; Tachibana, I.; Saeki, Y.; et al. Protective effect of IL-6 on alveolar epithelial cell death induced by hydrogen peroxide. Am. J. Physiol.-Lung Cell. Mol. Physiol. 2005, 288, L342–L349. [Google Scholar] [CrossRef]
  69. Diabate, S.; Armand, L.; Murugadoss, S.; Dilger, M.; Fritsch-Decker, S.; Schlager, C.; Beal, D.; Arnal, M.E.; Biola-Clier, M.; Ambrose, S.; et al. Air-Liquid Interface Exposure of Lung Epithelial Cells to Low Doses of Nanoparticles to Assess Pulmonary Adverse Effects. Nanomater 2020, 11, 65. [Google Scholar] [CrossRef]
  70. Medina-Reyes, E.I.; Delgado-Buenrostro, N.L.; Leseman, D.L.; Deciga-Alcaraz, A.; He, R.; Gremmer, E.R.; Fokkens, P.H.B.; Flores-Flores, J.O.; Cassee, F.R.; Chirino, Y.I. Differences in cytotoxicity of lung epithelial cells exposed to titanium dioxide nanofibers and nanoparticles: Comparison of air-liquid interface and submerged cell cultures. Toxicol. In Vitro 2020, 65, 104798. [Google Scholar] [CrossRef]
  71. Panas, A.; Comouth, A.; Saathoff, H.; Leisner, T.; Al-Rawi, M.; Simon, M.; Seemann, G.; Dössel, O.; Mülhopt, S.; Paur, H.-R.; et al. Silica nanoparticles are less toxic to human lung cells when deposited at the air-liquid interface compared to conventional submerged exposure. Beilstein J. Nanotechnol. 2014, 5, 1590–1602. [Google Scholar] [CrossRef]
  72. Loven, K.; Dobric, J.; Bolukbas, D.A.; Karedal, M.; Tas, S.; Rissler, J.; Wagner, D.E.; Isaxon, C. Toxicological effects of zinc oxide nanoparticle exposure: An in vitro comparison between dry aerosol air-liquid interface and submerged exposure systems. Nanotoxicology 2021, 15, 494–510. [Google Scholar] [CrossRef]
  73. Loret, T.; Peyret, E.; Dubreuil, M.; Aguerre-Chariol, O.; Bressot, C.; le Bihan, O.; Amodeo, T.; Trouiller, B.; Braun, A.; Egles, C.; et al. Air-liquid interface exposure to aerosols of poorly soluble nanomaterials induces different biological activation levels compared to exposure to suspensions. Part. Fibre Toxicol. 2016, 13, 58. [Google Scholar] [CrossRef] [Green Version]
  74. Raemy, D.O.; Grass, R.N.; Stark, W.J.; Schumacher, C.M.; Clift, M.J.; Gehr, P.; Rothen-Rutishauser, B. Effects of flame made zinc oxide particles in human lung cells—A comparison of aerosol and suspension exposures. Part. Fibre Toxicol. 2012, 9, 33. [Google Scholar] [CrossRef]
  75. Ozbey, G.; Gorczynski, R.; Erin, N. Stability of cytokines in supernatants of stimulated mouse immune cells. Eur. Cytokine Netw. 2014, 25, 30–34. [Google Scholar] [CrossRef]
Nanomaterials 12 03431 g001 550

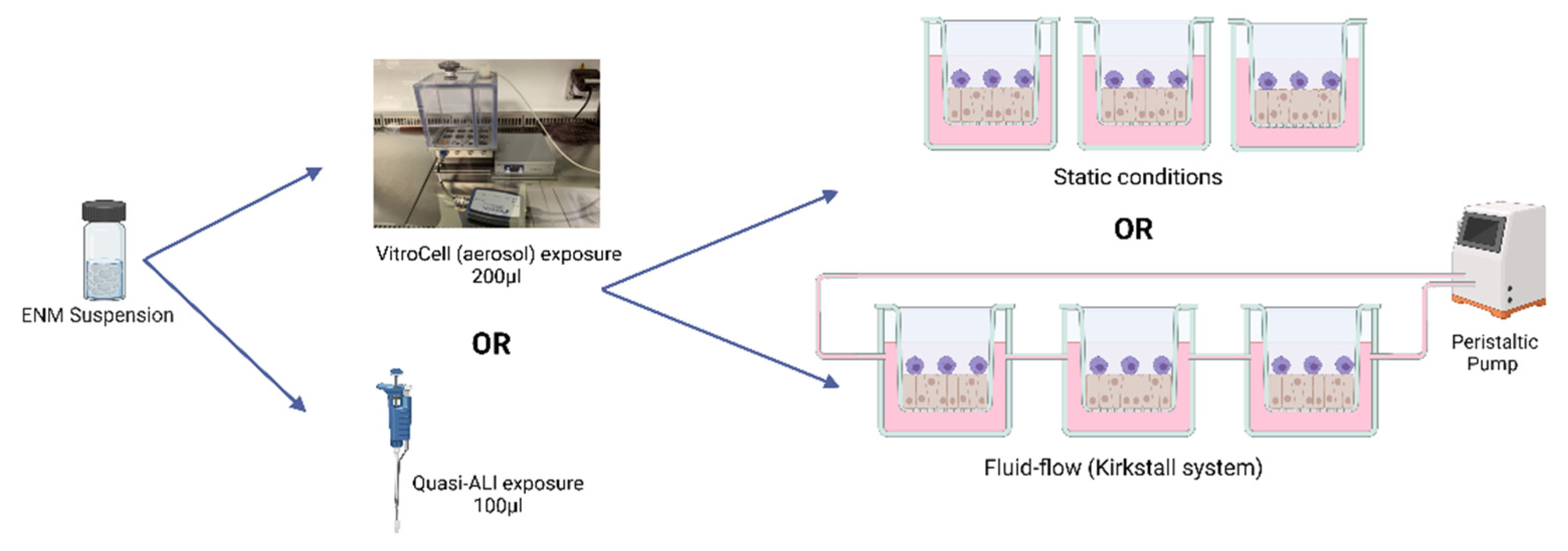

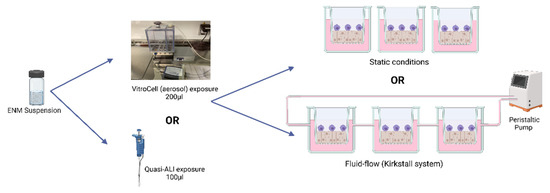

Figure 1. Exposure scenarios used. An exposure of an ENM is completed and analysed 24 h after exposure via either the quasi-ALI exposure or the VitroCell (aerosol) exposure method. Cultures are either in static conditions or under fluid-flow conditions using a peristaltic pump and the Kirkstall QuasiVivoTM exposure system. All exposures equate to the same deposited exposure concentration regardless of the exposure scenario chosen. Cells are maintained at 37 °C and 5% CO2. Created with BioRender.com (accessed on 20 July 2022).
Figure 1. Exposure scenarios used. An exposure of an ENM is completed and analysed 24 h after exposure via either the quasi-ALI exposure or the VitroCell (aerosol) exposure method. Cultures are either in static conditions or under fluid-flow conditions using a peristaltic pump and the Kirkstall QuasiVivoTM exposure system. All exposures equate to the same deposited exposure concentration regardless of the exposure scenario chosen. Cells are maintained at 37 °C and 5% CO2. Created with BioRender.com (accessed on 20 July 2022).
Nanomaterials 12 03431 g001
Nanomaterials 12 03431 g002 550

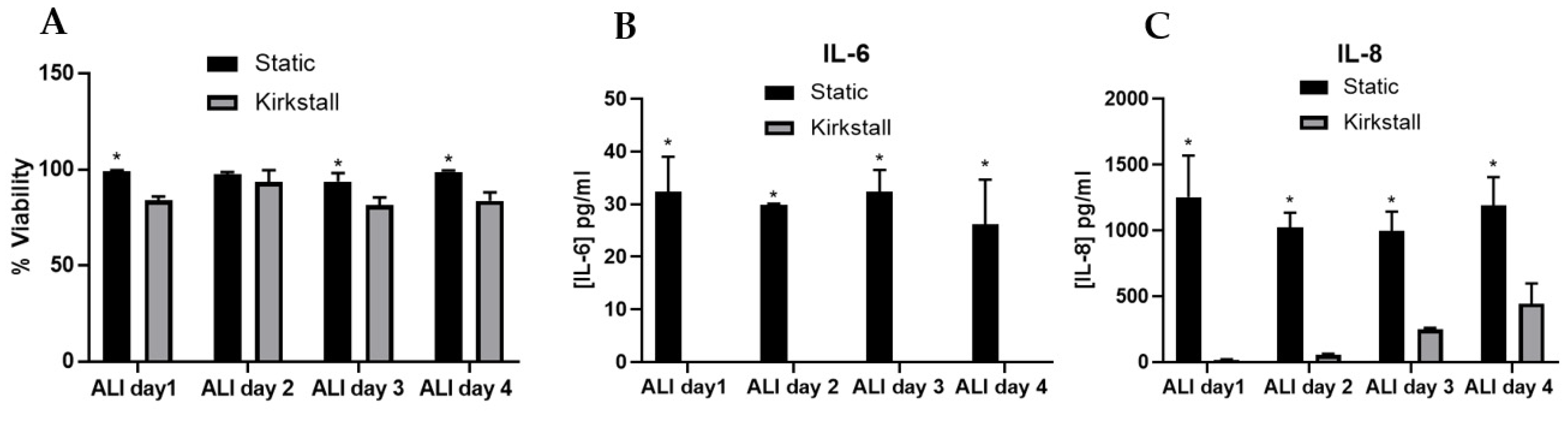

Figure 2. Characterisation of A549 + dTHP-1 co-cultures in both static (black bar) and under fluid flow conditions (grey bar). Cells were analysed at ALI days 1, 2, 3 and 4, focusing on cytotoxicity (A), IL-6 (B) and IL-8 (C) concentration. N = 3 with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the fluid-flow equivalent p < 0.01 (*).
Figure 2. Characterisation of A549 + dTHP-1 co-cultures in both static (black bar) and under fluid flow conditions (grey bar). Cells were analysed at ALI days 1, 2, 3 and 4, focusing on cytotoxicity (A), IL-6 (B) and IL-8 (C) concentration. N = 3 with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the fluid-flow equivalent p < 0.01 (*).
Nanomaterials 12 03431 g002
Nanomaterials 12 03431 g003 550

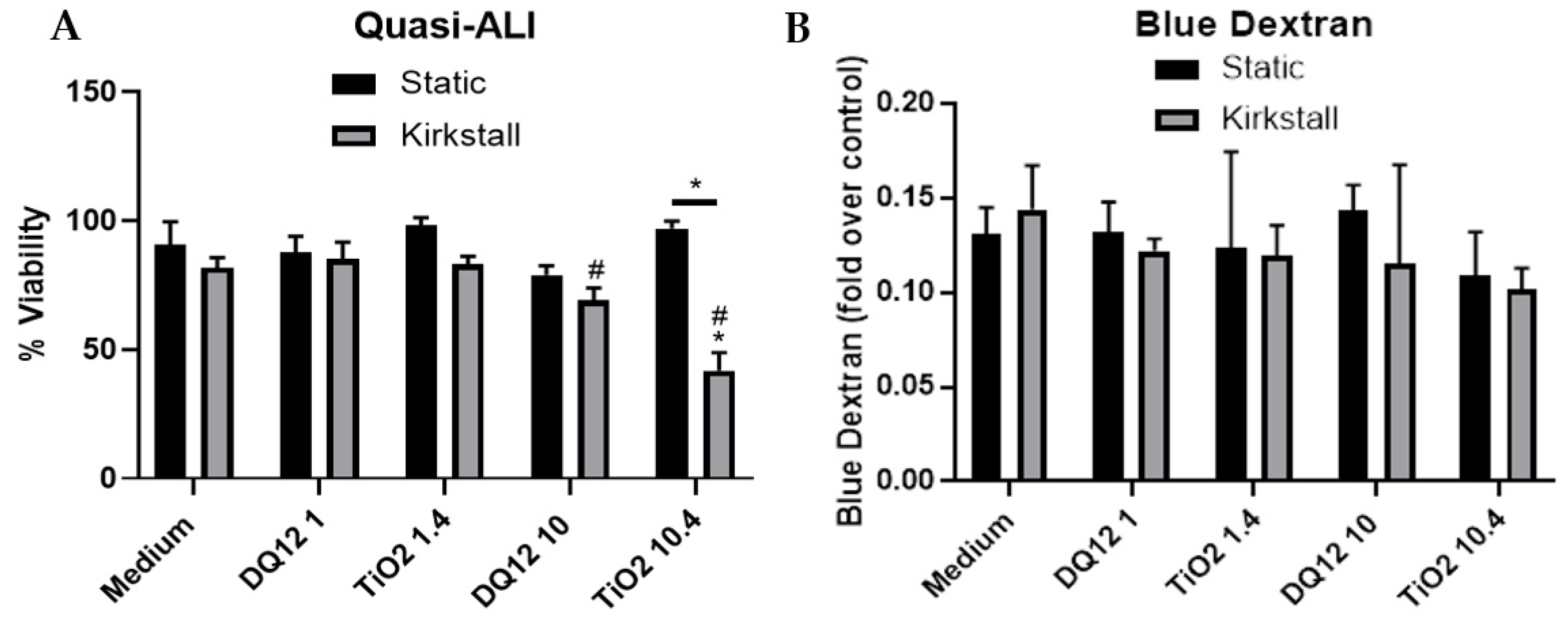

Figure 3. Viability and membrane integrity, 24 h post quasi-ALI exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the quasi-ALI method and incubated in either static or fluid flow conditions, before analysing cytotoxicity (A) and membrane integrity (blue dextran (B)). N = 3 for fluid flow and N = 5 for static with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the medium control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Figure 3. Viability and membrane integrity, 24 h post quasi-ALI exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the quasi-ALI method and incubated in either static or fluid flow conditions, before analysing cytotoxicity (A) and membrane integrity (blue dextran (B)). N = 3 for fluid flow and N = 5 for static with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the medium control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Nanomaterials 12 03431 g003
Nanomaterials 12 03431 g004 550

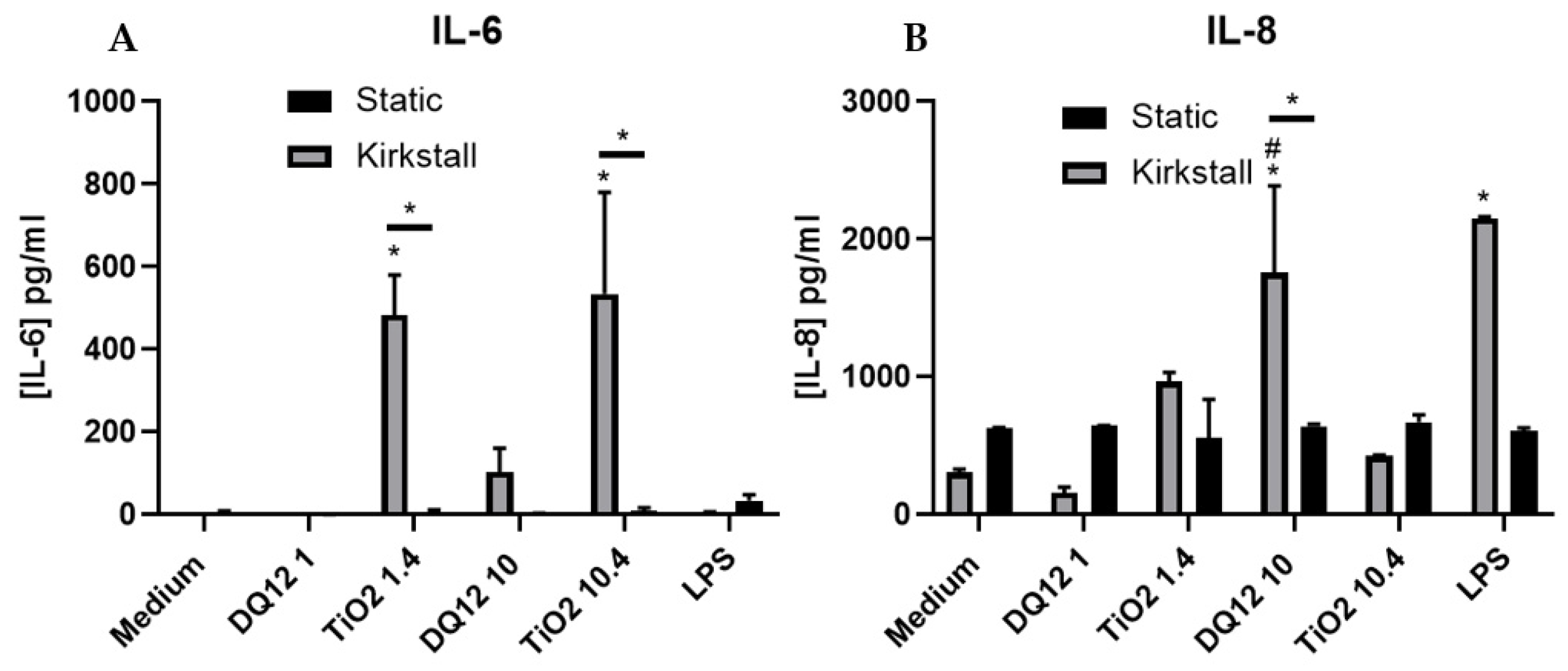

Figure 4. IL-6 and IL-8 basal concentration 24 h post quasi-ALI exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the quasi-ALI method and left to incubate in either static or fluid flow conditions, before analysing IL-6 (A) and IL-8 (B) concentrations in the basal compartment of the ALI culture after a single particle exposure (onto the apical side). N = 3 for fluid flow and N = 5 for static with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the medium control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Figure 4. IL-6 and IL-8 basal concentration 24 h post quasi-ALI exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the quasi-ALI method and left to incubate in either static or fluid flow conditions, before analysing IL-6 (A) and IL-8 (B) concentrations in the basal compartment of the ALI culture after a single particle exposure (onto the apical side). N = 3 for fluid flow and N = 5 for static with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the medium control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Nanomaterials 12 03431 g004
Nanomaterials 12 03431 g005 550

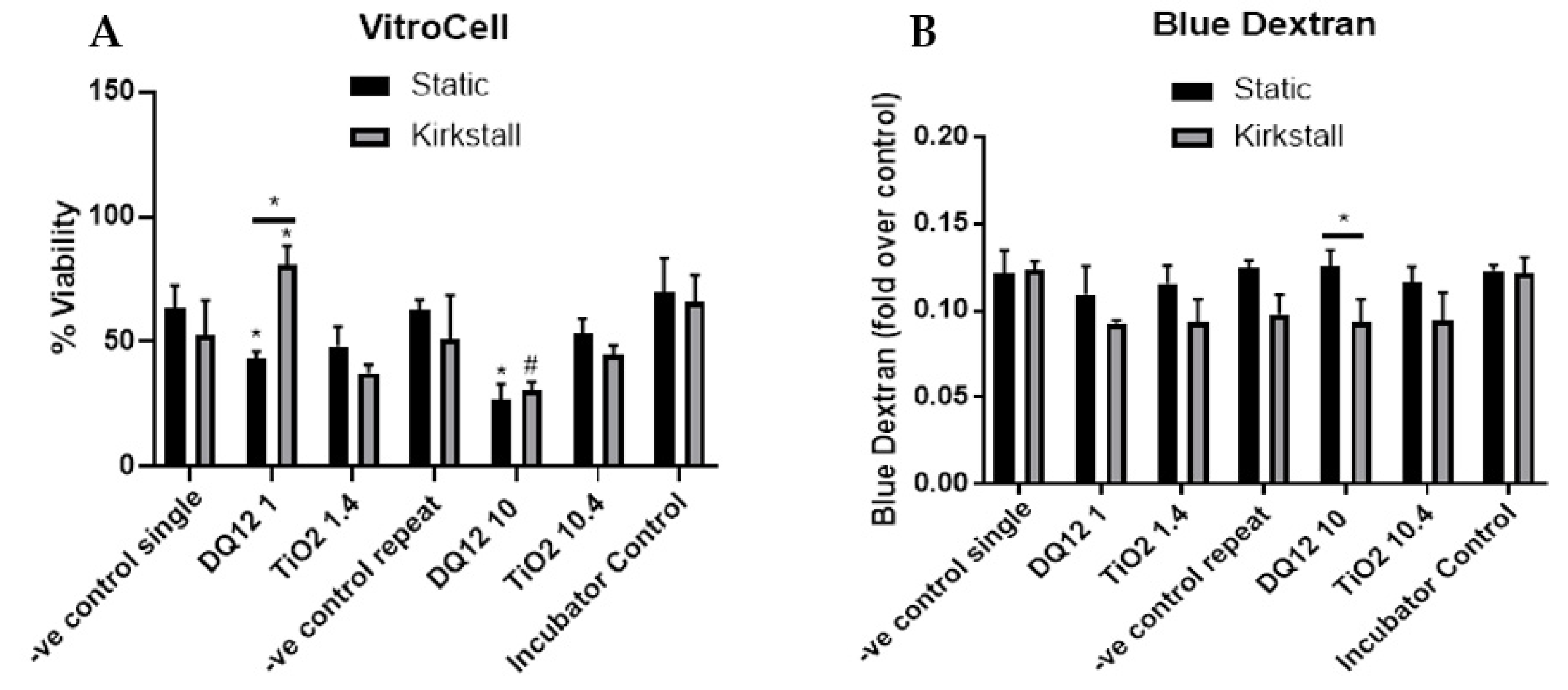

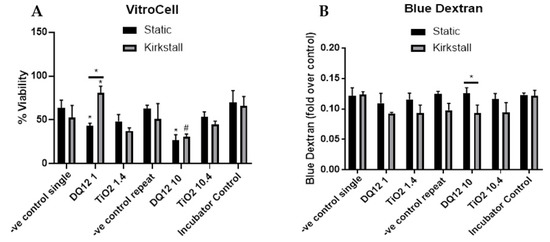

Figure 5. Viability and membrane integrity, 24 h post VitroCell exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the VitroCell method and incubated in either static or fluid-flow conditions, before analysing cytotoxicity (A) and membrane integrity (blue dextran) (B). N = 3 with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the negative control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Figure 5. Viability and membrane integrity, 24 h post VitroCell exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the VitroCell method and incubated in either static or fluid-flow conditions, before analysing cytotoxicity (A) and membrane integrity (blue dextran) (B). N = 3 with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the negative control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Nanomaterials 12 03431 g005
Nanomaterials 12 03431 g006 550

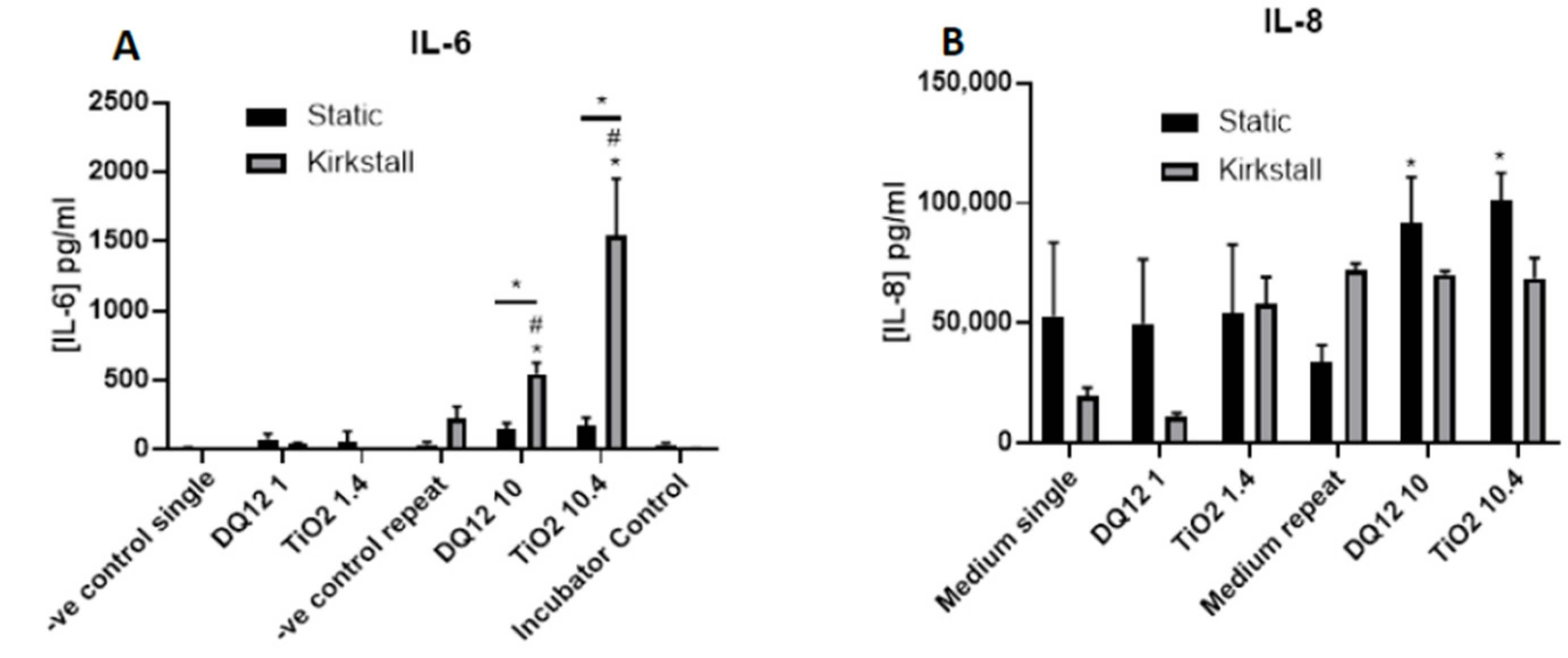

Figure 6. IL-6 and IL-8 basal concentration, 24 h post VitroCell exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the VitroCell method and left to incubate in either static or fluid-flow conditions, before analysing IL-6 (A) and IL-8 (B) concentrations in the basal compartment of the ALI culture after a single particle exposure (onto the apical side). N = 3 with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the medium control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Figure 6. IL-6 and IL-8 basal concentration, 24 h post VitroCell exposure of both DQ12 and TiO2 on A549 + dTHP-1 co-cultures. Cells were exposed for 24 h at an ALI using the VitroCell method and left to incubate in either static or fluid-flow conditions, before analysing IL-6 (A) and IL-8 (B) concentrations in the basal compartment of the ALI culture after a single particle exposure (onto the apical side). N = 3 with all assays performed in triplicate. The data is presented as the mean ± standard deviation. Significance is denoted as the following: compared to the medium control p < 0.01 (*); compared to the lower concentration p < 0.01 (#); line is comparing the two systems p < 0.01 (*).
Nanomaterials 12 03431 g006
Table
Table 2. Summary of data. Trend is indicated by arrow and significance is indicated by appropriate symbol.
Table 2. Summary of data. Trend is indicated by arrow and significance is indicated by appropriate symbol.
Quasi-ALIAerosol
StaticKirkstallStaticKirkstall
ViabilityIL-8IL-6ViabilityIL-8IL-6ViabilityIL-8IL-6ViabilityIL-8IL-6
DQ121↔↔↔↔↔↔↓*$↔↔↑↔↔
10↔↓*↔↔↑#$↑↓$↑$↓*↓#↔↑#$
TiO21.4↔↔↓*↓#↔↑$↓↔↔↓↑↔
10.4↑*↔↓*↓#$↔↑$↓↑$↓*↓↔↑#$
* compared to Kirkstall system at the same concentration with the same particles; # compared to lower concentration; $ compared to negative control.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Meldrum, K.; Moura, J.A.; Doak, S.H.; Clift, M.J.D. Dynamic Fluid Flow Exacerbates the (Pro-)Inflammatory Effects of Aerosolised Engineered Nanomaterials In Vitro. Nanomaterials 2022, 12, 3431. https://doi.org/10.3390/nano12193431

AMA Style

Meldrum K, Moura JA, Doak SH, Clift MJD. Dynamic Fluid Flow Exacerbates the (Pro-)Inflammatory Effects of Aerosolised Engineered Nanomaterials In Vitro. Nanomaterials. 2022; 12(19):3431. https://doi.org/10.3390/nano12193431

Chicago/Turabian Style

Meldrum, Kirsty, Joana A. Moura, Shareen H. Doak, and Martin J. D. Clift. 2022. "Dynamic Fluid Flow Exacerbates the (Pro-)Inflammatory Effects of Aerosolised Engineered Nanomaterials In Vitro" Nanomaterials 12, no. 19: 3431. https://doi.org/10.3390/nano12193431

APA Style

Meldrum, K., Moura, J. A., Doak, S. H., & Clift, M. J. D. (2022). Dynamic Fluid Flow Exacerbates the (Pro-)Inflammatory Effects of Aerosolised Engineered Nanomaterials In Vitro. Nanomaterials, 12(19), 3431. https://doi.org/10.3390/nano12193431

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
