Article

Photolysis of Fluorinated Graphites with Embedded Acetonitrile Using a White-Beam Synchrotron Radiation

by
Galina I. Semushkina
1,*,
Yuliya V. Fedoseeva
1,
Anna A. Makarova
2,
Dmitry A. Smirnov
3,
Igor P. Asanov
1,
Dmitry V. Pinakov
1,
Galina N. Chekhova
1,
Alexander V. Okotrub
1 and
Lyubov G. Bulusheva
1,*
1
Nikolaev Institute of Inorganic Chemistry SB RAS, 3, Acad. Lavrentiev Ave., 630090 Novosibirsk, Russia
2
Physikalische Chemie, Institut für Chemie und Biochemie, Freie Universität Berlin, 14195 Berlin, Germany
3
Institut für Festkörper- und Materialphysik, Technische Universität Dresden, 01069 Dresden, Germany
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(2), 231; https://doi.org/10.3390/nano12020231
Submission received: 30 November 2021 / Revised: 4 January 2022 / Accepted: 5 January 2022 / Published: 11 January 2022
(This article belongs to the Special Issue Fluorinated Nanocarbons and Their Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Fluorinated graphitic layers with good mechanical and chemical stability, polar C–F bonds, and tunable bandgap are attractive for a variety of applications. In this work, we investigated the photolysis of fluorinated graphites with interlayer embedded acetonitrile, which is the simplest representative of the acetonitrile-containing photosensitizing family. The samples were continuously illuminated in situ with high-brightness non-monochromatized synchrotron radiation. Changes in the compositions of the samples were monitored using X-ray photoelectron spectroscopy and near-edge X-ray absorption fine structure (NEXAFS) spectroscopy. The NEXAFS N K-edge spectra showed that acetonitrile dissociates to form HCN and N2 molecules after exposure to the white beam for 2 s, and the latter molecules completely disappear after exposure for 200 s. The original composition of fluorinated matrices CF0.3 and CF0.5 is changed to CF0.10 and GF0.17, respectively. The highly fluorinated layers lose fluorine atoms together with carbon neighbors, creating atomic vacancies. The edges of vacancies are terminated with the nitrogen atoms and form pyridinic and pyrrolic units. Our in situ studies show that the photolysis products of acetonitrile depend on the photon irradiation duration and composition of the initial CFx matrix. The obtained results evaluate the radiation damage of the acetonitrile-intercalated fluorinated graphites and the opportunities to synthesize nitrogen-doped graphene materials.

1. Introduction

Fluorinated graphites are layered carbon materials possessing a good chemical, mechanical, and thermal stability [1,2]. Fluorination of graphite using inorganic fluorides at room temperature produces compounds with a composition CFx, where x is usually below 0.5 [3,4]. The molecules from the reaction media fill the space between the fluorinated layers and they can be replaced by other inorganic or organic guests [5]. Since such compounds are stable at ambient conditions for a long time, the fluorinated graphites are considered as containers for the storage and transport of volatile and hazardous substances [6].
The distance between fluorinated layers varies from ~0.6 to ~1.5 nm depending on the size and packing of the guest molecules [7]. A very weak (if any) interaction between the layers causes a two-dimensional (2D) magnetic behavior of these materials [8]. Their exfoliation in appropriate solvents allows producing thin films of the fluorinated graphene layers [9], which are promising materials for gas sensors and energy applications [9,10]. Guest molecules affect the thermal stability of the fluorinated graphite compounds [5] and the structure of the exfoliated graphene-like materials, particularly, their specific surface area [11] and functional composition [12].
Fluorinated graphites CFx have a bandgap of about 2.5–3.0 eV, when x is between 0.4 and 0.5 [13,14]. They are transparent for visible light, however, the optical properties depend on the guest nature [15]. Due to a large energy gap, fluorinated graphites possess photoluminescence [16,17] and may have a perspective as optical elements, sensors, and for photo-chemotherapy. To clarify the feasibility of these applications, the photostability of the compounds should be studied.
The interlayer space of fluorinated graphite CFx (x ≤ 0.5) is easily occupied by acetonitrile [18,19]. This molecule contains an element (nitrogen) that is absent in CFx and therefore is a convenient probe for studying host-guest interactions under illumination. Photolysis of acetonitrile attracts attention because these molecules are present in interstellar medium [20] and understanding of the acetonitrile fragmentation by ionizing radiation can shed light on the early stages of stars formation [21]. A study of the photolysis of gaseous acetonitrile using synchrotron radiation (SR) in the 7–22 eV range revealed the formation of CN and CH species [22]. An increase of the photon energy to 42 eV allowed for additional registration of the signals from C2H2+, C2N+ ions and a weak signal from N2+ [20]. The ultraviolet (UV) irradiation of an H2O:CH3CN ice at 20 K yielded a large number of nitriles [23]. Experiments show that the mechanism of photolysis of acetonitrile depends on the energy and power of the exciting radiation as well as its chemical environment. A fluorinated graphite matrix may also affect the photo-induced decomposition of the guest molecules.
The radiation of synchrotron light sources covers a wide range of photon energies, and the photon beam is characterized by high intensity and small focus size. Changes in the composition and electronic state of a compound after exposure to SR can be immediately recorded using X-ray photoelectron spectroscopy (XPS) and near-edge X-ray fine structure (NEXAFS) spectroscopy. The use of tunable SR makes it possible to excite certain electron transitions and study the fragmentation of a compound depending on these states [24]. Non-monochromatized SR light includes a wide range of wavelengths from infrared to hard X-rays with very high intensities. The effect of this polychromatic light on a material determines the material’s resistance to wide-range irradiation, which is important for assessing its possible radiation damage. Illumination with non-monochromatized SR light is also effective for the synthesis of various nanomaterials, for example, gold nanoparticles [25] and the metastable form of carbon, carbyne [26]. It has been shown that this method is useful for tuning the functional composition of carbon nanotubes [27] and graphene materials [28].
This work is aimed at an in situ XPS and NEXAFS study of fluorinated graphites with embedded acetonitrile molecules after continuous illumination with a high-intensity polychromatic photon beam (zero-order light from the dipole beamline of the BESSY II synchrotron radiation facility). We investigated two samples differing in the content of fluorine and acetonitrile. Density functional theory (DFT) calculations of a fluorinated graphene fragment are used to interpret experimental data.

2. Materials and Methods

2.1. Materials

Purified natural graphite (the Zavalevskoe deposit, Ukraine) was used as a starting material. The typical size of graphite crystallites was 0.4 × 0.3 × 0.02 mm. First, graphite was activated in saturated Br2 vapor for 2 days and then the weighed samples were located in Teflon reactors over a liquid mixture of Br2 and BrF3. The reactors were hermetically closed and kept at room temperature. The synthesis products were washed with Br2 to remove residual BrF3 and then many times with acetonitrile. The acetonitrile treatment was completed when the washout became colorless, which meant that Br2 was removed from the fluorinated graphite interlayer space and replaced with CH3CN. Finally, the samples were dried in a N2 flow to their constant weights.
The content of carbon, fluorine, bromine, and nitrogen in the samples was determined from the analysis of products of high-temperature destruction of samples in an oxygen atmosphere [19]. According to the obtained data, the composition of the yellow sample (49 days with 13.89 wt% BrF3 in Br2) can be represented as CF0.5Br0.005 0.070CH3CN and the green-brown sample (87 days with 5.04 wt% BrF3 in Br2) as CF0.3Br0.005 0.054CH3CN. Bromine found in these compounds forms covalent bonds with carbon edges of graphite domains. Below, the studied samples will be denoted CH3CN@CF0.5 and CH3CN@CF0.3.

2.2. Measurements

XPS spectra of initial samples were measured on a Specs PHOIBOS 150 spectrometer (Specs GmbH, Berlin, Germany) using an Al Kα excitation radiation (1486.7 eV). The spot size of the photon beam was about 3 mm. The Casa XPS 2.3.15 software (Casa Software Ltd., Teignmouth, UK) was used for data processing. The C 1s, F 1s, and N 1s spectra were fitted by a product of Gaussian–Lorentzian (7:3) peaks after subtraction of a Shirley background. The binding energies were calibrated to the C(sp2) component energy at 284.5 eV.
Irradiations of samples by non-monochromatized SR light (white beam) and subsequent XPS and NEXAFS experiments were carried out at the Russian-German dipole beamline (RGBL Dipole, BESSY II, Berlin, Germany) operated by Helmholtz-Zentrum Berlin für Materialien und Energie. The total light intensity can be estimated as 50 mJ/cm2 [27]. The samples are non-conducting; therefore, they were deposited on copper substrates with a scratched surface (roughness ~100 μm) in the thinnest possible layers. The substrates were fixed on a holder and placed in a vacuum chamber providing a residual pressure of 10−10 mbar. After acquiring the NEXAFS spectra in total electron yield (TEY) mode, the samples were exposed to a non-monochromatized photon beam for a certain period, and XPS and NEXAFS spectra were recorded directly for the irradiated spots (~1 × 1 mm). The measurements of the spectra accompanied each step of the sample irradiations. The irradiation experiments were repeated at different spots of the samples, and they showed the same trend in the spectral modifications depending on the exposure time. XPS spectra were excited by a photon energy of 830 eV. The binding energies were aligned to the position of the Au 4f7/2 line at 84 eV recorded from a clean Au foil. Mass-spectra were registered upon an irradiation of CH3CN@CF0.3 in a scan mode for m/z (~30 scans during 4 s). The residual gas analyzer Extorr XT100M (Extorr Inc., New Kensington, PA, USA) was operated with an electron impact ionizer with an energy of 70 eV.

2.3. Calculations

DFT calculations were carried out using the three-parameter hybrid Becke and Lee-Yang-Parr exchange-correlation functional (B3LYP) [29,30] implemented in the program package Jaguar (Jaguar, version 10.3, Schrödinger, Inc., New York, NY, USA, 2019). Atomic orbitals were described by the 6-31G* basis set.
A graphene fragment of a C96 composition and D6h symmetry was taken to construct the fluorinated models. Saturation of dangling bond of an edge carbon atom by one fluorine atom yielded the C96F24 model. An attachment of fluorine atoms to both sides of the basal graphene plane, like in fluorographene [31], and bonding of an edge carbon atom with two fluorine atoms produced the C96F120 model. The geometries of the models were optimized by an analytic gradient method to default convergence criteria. Then, we removed 34 central fluorine atoms from the C96F120 fragment to form aromatic and polyene carbon areas in partially fluorinated graphene according to that observed experimentally [32]. The obtained partially fluorinated C96F86 model was optimized at fixed positions of the boundary atoms.
Theoretical NEXAFS C K- and F K-edge spectra were plotted using the results of DFT calculations of the fluorinated models, where a carbon atom or a fluorine atom was replaced by an atom of nitrogen or neon, respectively. This so-called (Z + 1) approximation accounts for the effect of the core level hole on spectral profile [33]. To compensate for an increase in the number of valence electrons, the system charge was +1. The (Z + 1) approximation was used for the selected carbon or fluorine atoms located in structurally non-equivalent positions. The geometries of the structures with a neon were not optimized to avoid detachment of the neon atom. Spectral intensities were calculated as the sum of the squares of the coefficients, with which the atomic orbitals of nitrogen or neon participate in the formation of unoccupied molecular orbitals (MOs). The calculated intensities were broadened by Lorentz functions with a variable width of 1.4–4.0 eV, increasing with the photon energy, the spectral background was described by an arctan function [34]. X-ray transition energies were determined as the difference between the Kohn-Sham energies of the virtual MOs of the models calculated within the (Z + 1) approximation and energy of the core levels of the selected carbon or fluorine atoms, taken from the calculation of the ground state of the fluorinated model. The spectrum for a central nitrogen atom in the C96F24 model calculated within the (Z + 1)-approximation (Figure S1, Supporting Information) was aligned to the experimental C K-edge spectrum of graphite by the position of π* and σ* peaks. The obtained scaling formula was used to calibrate the energy of other theoretical C K-edge spectra. The calibration of energy for theoretical F K-edge spectra was done from the comparison of the calculated spectrum for the C96F120 model and the experimental spectrum of fully fluorinated graphite (CF)n (Figure S1, Supporting Information).

3. Results

3.1. XPS C 1s and F 1s Spectra

XPS measurements were used to evaluate the changes in the composition of CH3CN@CF0.3 and CH3CN@CF0.5 samples before and after illumination with high-brilliance non-monochromatized SR light. The content of the elements was determined from the survey spectra (not shown) taking into account atomic subshell photoionization cross-sections of elements at a given excitation energy. Atomic concentrations of main elements are collected in Table 1. The content of fluorine and nitrogen in the two studied samples differs by a factor of two in line with the data of elemental analysis. The XPS-derived F/C ratio is 0.16 for CH3CN@CF0.3 and 0.37 for CH3CN@CF0.5. Since XPS is a surface-sensitive method, it detects the low content of fluorine in the upper surface layers of the samples as a result of their partial de-fluorination due to the contact with H2O present in laboratory atmosphere [35]. Higher oxygen content on the surface of CH3CN@CF0.3 than for CH3CN@CF0.5 may indicate an easier replacement of fluorine by oxygen in this sample. The weakness of C–F bonds in CH3CN@CF0.3 results in almost complete removal of surface fluorine under the photon irradiation. While the CH3CN@CF0.5 sample keeps about 3 at% of fluorine even after 200-s exposure to polychromatic synchrotron light. XPS also detects nitrogen from CH3CN molecules in both initial samples and after each step of the irradiation.
Figure 1 compares XPS C 1s and F 1s spectra of the samples. C 1s spectra of initial CH3CN@CF0.5 and CH3CN@CF0.3 are fitted by four components (Figure 1a,b). The binding energies and the relative areas of the components are listed in Table S1. A weak component at ~287 eV corresponds to carbon in guest acetonitrile molecules [36]. The low-energy component at 284.5 eV originates from sp2–carbon areas remaining in the fluorinated layers and its intensity is higher for the CF0.3 matrix than for CF0.5. The peaks at 288.7 and 286.1 eV in the CH3CN@CF0.5 spectrum characterize carbon atoms covalently bonded to fluorine (C–F) and located at CF groups (C–CF), respectively [37]. These peaks are downshifted by 0.7 eV for CH3CN@CF0.3 due to the weakening of C–F bonds [38,39]. The intensity of the C–F peak correlates with fluorine content in the samples (Table 1). The ratio of the C–F component to the total area of the C 1s spectrum gives matrix stoichiometry CF0.24 for the CH3CN@CF0.3 sample and CF0.43 for the CH3CN@CF0.5 sample. The C–CF/C–F ratio gives the average number of bare carbon atoms near CF groups. The ratio 1 for CH3CN@CF0.5 (Table 1) indicates an average of one bare carbon neighbor for a CF group. Such a ratio can be realized when CF chains alternate with bare carbon chains [40,41]. An increase in the ratio value for CH3CN@CF0.3 is associated with the shortening of CF chains and increase in numbers of two bare carbon neighbors for CF groups located at the edges of short CF chains.
The relative intensity of the C–F component decreases in the C 1s spectra of irradiated samples (Figure 1a,b) due to the removal of fluorine. The shift of the C–F and C–CF components to lower binding energies indicates the weakening of C–F bonds as compared to those in the initial samples. New components located at ~289.5 and ~292 eV are especially noticeable in the spectrum of CH3CN@CF0.5 after 200 s of the irradiation. They are assigned to carbon bonded with two (CF2) and three fluorine atoms (CF3) [42]. Thus, white beam partially destroys graphitic lattice. The detached carbon and fluorine atoms are combined with the CF2 and CF3 groups that bind to the edges of vacancies [43]. Analysis of the XPS C 1s spectra reveals that the composition of the CH3CN@CF0.5 and CH3CN@CF0.3 samples irradiated for 200 s is CF0.18 and CF0.10, respectively.
XPS F 1s spectra of initial CH3CN@CF0.5 and CH3CN@CF0.3 exhibit a single peak at 687.2 and 686.6 eV, respectively (Figure 1c,d). These binding energies correspond to fluorine covalently bonded with carbon [15,44]. The exposure of the samples to the non-monochromatized light leads to the emergence of fluorine states possessing higher binding energies. The F 1s components at 689.0 and 691.0 eV can be attributed to fluorine in CF2 and CF3 groups [45], or the atoms located in densely fluorinated regions [44] like in (CF)n. However, the C–CF/C–F ratio in the XPS C 1s spectra of the samples (Table 1) indicates that most CF groups have one or two bare carbon atoms as their neighbors, and this differs from the fluorine arrangement in (CF)n. Amounts of CF2 and CF3 groups are larger in the irradiated CH3CN@CF0.5 than in the irradiated CH3CN@CF0.3.

3.2. NEXAFS C K-Edge and F K-Edge Spectra

NEXAFS spectra measured before and after sequential irradiation of CH3CN@CF0.5 and CH3CN@CF0.3 for 20, 80, and 200 s are presented in Figure 2. The difference in the binding energies of the XPS F 1s peak and the C–F component of the XPS C 1s spectrum (Figure 1) is used for the energy alignment of NEXAFS C K- and F K-edge spectra of the particular sample.
NEXAFS C K-edge spectra of all samples exhibit π* and σ* resonances at 285.1 and 291.9 eV (Figure 2a,b) assigned to the electron transitions from C 1s levels onto unoccupied π-type and σ-type states for sp2-hybridized carbon, respectively [46,47,48]. The peaks, which appeared between these resonances at 287.8 and 288.8 eV and labeled C1 and C2, correspond to carbon bonded with fluorine [49,50]. In the spectrum of starting CH3CN@CF0.5, these peaks are more prominent, while the π* resonance has the lowest intensity (Figure 2a). The letter C denotes the position of σ*-edge for the fluorinated areas because it coincides with the last intense peak (labeled F) of the F K-edge spectra (Figure 2c,d). The shoulder F1 at 686.5 eV and the peak F2 at 687.4 eV align with peaks C1 and C2 of the C K-edge spectra and therefore they refer to the C–F bonds. The illumination of CH3CN@CF0.5 and CH3CN@CF0.3 samples with polychromatic synchrotron beam results in the suppression of C1 and C2 peaks in C K-edge spectra and F1 and F2 peaks in F K-edge spectra and the growth of relative intensity of π* resonance from sp2-carbon. The changes are stronger with increasing exposure time and correlate with the behavior observed in the XPS C 1s spectra of the samples (Figure 1).
To interpret NEXAFS C K-edge and F K-edge spectra in detail, NEXAFS spectra for structurally nonequivalent carbon and fluorine atoms present in the partially fluorinated graphitic monolayer are constructed (Figure 3). The spectra of the starting and irradiated for 200 s CH3CN@CF0.5 sample are chosen for the modeling (Figure 3a,b). The calculated fluorinated graphene fragment is shown in Figure 3c. Theoretical spectra are constructed for the carbon and fluorine atoms from CF groups surrounded by three (CF-3), two (CF-2), one (CF-1), and none (CF-0) fluorinated carbon atoms. We also calculate the C K-edge spectra for bare carbon atoms from polyene-like chain (C-ch) and aromatic naphthalene-like area (C-ar).
Comparison of the C K-edge spectrum of initial CH3CN@CF0.5 with the calculated spectra shows that energy of π* resonance corresponds to the position of the low-energy intense peak in the spectrum of C-ch (Figure 3a). This result indicates that most of the sp2-hybridized carbon atoms in the fluorinated CF0.5 layers form polyene-like chains, that is in agreement with the previous data [40,51]. Peak C1 originates from carbon in isolated CF groups (CF-0), while carbon atoms from CF-1 and CF-2 groups, where CF groups have one and two CF neighbors, respectively, contribute to the peak C2 in the experimental spectrum. Fluorine atoms from CF-1 and CF-2 groups are responsible for intense peaks F2 and F3 in the F K-edge spectrum of CH3CN@CF0.5 (Figure 3b). Shoulder F1 is assigned to fluorine from isolated CF-0 groups. Analysis of MOs calculated in the (Z + 1)-approximation reveals that spectral features F1, F2, and F3 correspond to C–F bonds of σ*-type (Figure S2, Supporting Information). The difference in energy is due to the different local distribution of electron density between this bond and the neighbors. The high-energy peak F is formed by an overlapping of F 2px,y orbitals with neighboring C–C σ-bonds.
The cumulative theoretical C K-edge spectrum obtained by summing the spectral intensity of carbon from C-ch, CF-0, CF-1, and CF-2 taken in a ratio of 1.8:1:1:1.8 perfectly repeats the shape of the experimental spectrum of initial CH3CN@CF0.5 (two upper curves in Figure 3a). The cumulative F K-edge spectrum being a sum of the theoretical spectra of fluorine from CF-0, CF-1, and CF-2 taken in a proportion of 1:1:1.8 also agrees well with the experimental spectrum of CH3CN@CF0.5 (two upper curves in Figure 3b). CF-3 groups with three CF neighbors are not necessary to define all spectral features; probably, they are hardly formed in the synthesis conditions used. Fluorine distribution in the layers of a CF0.5 composition is mainly realized as CF chains separated by polyene-like carbon chains.
Exposure of CH3CN@CF0.5 to white beam for 200 s causes an increase and broadening of π* resonance and a significant decrease in the intensity of C1 and C2 peaks of the C K-edge spectrum (Figure 3a). To describe this spectral profile, the spectra of CF-0, C-ch, C-ar, and central atom in the graphene model (Figure S1) are taken in a ratio of 1:1:2:2. The F K-edge spectrum of the irradiated CH3CN@CF0.5 shows mainly a decrease in the intensity of F2 peak (Figure 3b) and only isolated fluorine atoms from CF-0 groups are needed to simulate the experimental profile. These results indicate that long-term irradiation of the fluorinated graphitic layers leads to their strong defluorination. The remaining fluorine atoms are separated from each other. A significant removal of fluorine occurs after the first 20-s irradiation and it is more pronounced for the CH3CN@CF0.3 sample (Figure 2).

3.3. Electronic State of Nitrogen

Electronic state of nitrogen from acetonitrile molecules embedded between the fluorinated graphitic layers is revealed using XPS N 1s and NEXAFS N K-edge spectra. The XPS N 1s spectrum of initial CH3CN@CF0.5 exhibits a single symmetrical peak at ~399 eV (Figure 4a). The white beam illumination of the sample for 80 s causes the appearance of two new components located at ~398.1 and ~400.5 eV and assigned to pyridinic N and –NH– species in carbon rings (pyrrolic N), respectively [52]. The fraction of the pyrrolic N increases with the irradiation duration. This result indicates that CH3CN molecules are decomposed under photon-beam treatment and the released nitrogen and hydrogen atoms are incorporated into the surrounding CFx layers. Insertion of nitrogen into fluorinated graphitic layers was early observed for similar CH3CN@CFx samples heated at 250 °C in a vacuum [53].
NEXAFS measurements were performed to examine the initial stages of sample irradiation in more details, thus Figure 4b compares N K-edge spectra of starting CH3CN@CF0.5 and that after exposure to white beam during 2, 5, 20, 80, and 200 s. The irradiation of CH3CN@CF0.5 for 2 s already results in degradation of acetonitrile. The pre-edge peak C≡N located in the initial spectrum at ~399.9 eV shifts by 0.3 eV to the low-energy region, its intensity decreases, and new peak around 401.0 eV appears. Our DFT calculations show the shift of the C≡N peak can be attributed to the formation of HCN (Figure S3, Supporting Information). The peak at about 401.0 eV corresponds to pyrrolic N species [54] and N2 molecules [55]. The intensity of this peak strongly reduces in the N K-edge spectrum of CH3CN@CF0.5 (Figure 4b) and CH3CN@CF0.3 (Figure S3, Supporting Information) irradiated for 20 s.
NEXAFS N K-edge spectra of starting and irradiated CH3CN@CF0.3 sample measured in a range of 397.5–403.0 eV are shown with a purpose to study the pre-edge peaks in detail (Figure 4c). The resonance emerging around 401.0 eV is resolved into five peaks characteristic of vibrations of N2 molecules [56]. This proves the formation of N2 molecules as a result of the photolysis of CH3CN and the retention of these molecules between the fluorinated graphitic layers. The content of the trapped N2 molecules decreases with continuing irradiation and the molecules are not detected after 80-s irradiation. The peak at ~ 400.6 eV (Figure 4b,c) corresponding to pyrrolic N at the boundaries of vacancies in CFx layers is identified according to the DFT calculations (Figure S3, Supporting Information). Incorporation of pyridinic N occurs at the first stages of samples irradiation and raises the shoulder at 398.8 eV in the N K-edge spectra (Figure 4b,c).
Mass spectrum of ion species measured upon the irradiation of CH3CN@CF0.3 sample is presented in Figure 5. The background ion peaks from residual air and molecular ion peaks are highlighted in black and red, respectively. The signal of CO2+ ions (m/z = 44) arising from the sample surface is taken as ~100%. Note that the amplitude of background H+ and H2O+ ions is an order of magnitude larger than this signal. The spectrum detects the ions being the decomposition products of CH3CN molecules. They are CH3+/NH+ (m/z = 15), C2H2+/CN+ (m/z = 26), C2H3+/CHN+ (m/z = 27), N2+ (m/z = 28), CH2N+ (m/z = 28), CH2CN+ (m/z = 40), CH3CN+ (m/z = 41), and C2N2+ (m/z = 52). The ions FCNH+ (m/z = 47) CF+ (m/z = 50), and CF3+ (m/z = 69) contain the atoms from fluorinated graphitic layers. A combination of fluorine with carbon may indicate that fluorine is removed along with the lattice carbon.

4. Discussion

Fluorinated graphites of the composition CF0.5 and CF0.3 are insulators, and their XPS spectra are measured in a laboratory spectrometer where charging of sample under X-ray photon exposure is compensated. Analysis of XPS data indicates that C–F bonds are covalent and they are weaker in CF0.3 layers. These layers also contain larger fractions of aromatic areas and bare carbon atoms located nearby CF groups as compared to CF0.5 layers. The DFT modeling of NEXAFS C K- and F K-edge spectra of initial CF0.5 reveals that fluorine atoms in the layers preferably form CF chains, alternating with polyene-like carbon chains. The CF chains are shorter in CF0.3 layers.
NEXAFS C K- and F K-edge spectra of both studied samples exhibit a large decrease in the intensity of the peaks corresponding to the C–F bonds already after polychromatic photon beam exposure for 20 s (Figure 2). A probing depth of the spectra acquired in the TEY mode is a few nanometers [38], thus, we estimate that at least ten upper layers lose fluorine. The areas of C–F components in XPS C 1s spectra of both samples decrease by about 2.4 times after irradiation for 200 s (Table S1, Supporting Information). The shape of the F K-edge spectrum of the irradiated CF0.5 well corresponds to the electronic state of fluorine in isolated CF groups, i.e., not adjacent to other CF groups (Figure 3b).
A part of fluorine atoms removed from basal graphitic planes is attached to their edges as CF2 and CF3 groups and amounts of these groups are markedly larger for CF0.5 layers (Figure 1a,b). The formation of these groups means that a fluorine atom may leave a fluorinated graphitic layer together with the carbon neighbor. The CF+ and CF3+ ion signals detected in the mass spectrum upon the irradiation of CH3CN@CF0.3 sample (Figure 5) confirm this. According to our DFT calculations, fluorine atoms located in the center of CF chains have larger binding energies than fluorine atoms at the chain edges (Table S2, Figure S4, Supporting Information). Therefore, the C–F bonds in long CF chains that are present in CF0.5 layers are stronger than bonds between bare carbon atoms and fluorinated ones (C−CF). The latter C−CF bonds break more easily, producing vacancies in the carbon network. The edge C–F bonds, which are predominant in short CF chains of CF0.3 layers, dissociate under the radiation and this explains the less efficient destruction of C–C bonds observed for this sample.
NMR study of fluorinated graphites with embedded acetonitrile molecules revealed that interactions between the guests and matrices have van-der-Waals character [57]. Such weak interactions should not influence the radiation stability of the constituents. According to NEXAFS N K-edge spectra the CH3CN molecules located between fluorinated graphene layers dissociate under irradiation for 2 s (Figure 4b,c). The features detected in the spectra measured at various stages of the irradiation are assigned to HCN and N2 molecules, and pyridinic and pyrrolic nitrogen atoms at vacancies edges of CFx layers. The fractions of these nitrogen forms are determined from the decomposition of N K-edge spectra (Figure S5, Supporting Information).
The evolution of nitrogen forms in CH3CN@CF0.5 and CH3CN@CF0.3 with the exposure time is illustrated in Figure 6a,b. The main product of the CH3CN photolysis is HCN molecules. Their preferable formation according to the path CH3CN→ CH + H + HCN was previously observed under the action of UV light [23], electron beam [20], and photon beam [22]. The HCN concentration after the first stage of the irradiation for 2 s is ~64% for CH3CN@CF0.5 and ~57% for CH3CN@CF0.3, and it reduces to ~49% for CH3CN@CF0.5 and ~47% for CH3CN@CF0.3 after the 200-s exposure. Since the pyrrolic N is detected in the NEXAFS N K-edge spectra measured for the samples after the 80-s exposure, we suppose that decomposition of HCN with prolonged irradiation of samples contributes to the formation of this kind of nitrogen species.
The initial photolysis of CH3CN molecules yields also N2 molecules and pyridinic N atoms (Figure 6a,b). A weak signal of nitrogen ions was observed when gaseous CH3CN was photoionized by the monochromatic SR beam with a photon energy of 42 eV [20]. The CFx matrix probably facilitates the abstraction of the nitrogen atoms from acetonitrile molecules in our case. Mass spectrum of photo-induced ions detects the N2+ signal (Figure 5). The N2 molecule fraction is twice the fraction of pyridinic N developed in CFx layers. However, with an increase in the exposure time, N2 content decreases, which is accompanied by a growth of the content of pyridinic N. This behavior indicates photodissociation of N2 and incorporation of the produced nitrogen atoms in the surrounding defective CFx layers. The process is faster for the CH3CN@CF0.5 sample. The reason may be a larger amount of atomic vacancies in the layers as the XPS C 1s and F 1s spectra of the sample detect (Figure 1).
Figure 6c schematically presents changes that occurred for fluorinated graphene layers with acetonitrile guests under the influence of non-monochromatized SR light. The matrix layers lose a part of fluorine and acquire nitrogen atoms. These atoms are located at the boundaries of vacancies, produced when fluorine atoms are removed from the layer together with carbon. The photolysis of acetonitrile produces N2 and HCN molecules. DFT calculations show that these molecules are readily adsorbed on the nitrogen-doped CFx layer. Pyridinic N atoms and CF groups create the preferred positions for HCN and N2 molecules, respectively.

5. Conclusions

Fluorinated graphites with the composition of the layers CF0.3 and CF0.5 were synthesized using a fluorinating agent BrF3 at room temperature. DFT modeling of NEXAFS C K-edge and F K-edge spectra showed that fluorine atoms form the fluorinated carbon chains alternating with polyene-like carbon chains in CF0.5 layers. These chains were shorter in the CF0.3 layers, where the CF groups have two bare carbon neighbors on average. The interlayer space of the fluorinated graphites was filled by CH3CN. Photolysis of CH3CN@CF0.3 and CH3CN@CF0.5 was carried out using the zero-order light from the Russian-German dipole Beamline of the synchrotron source BESSY II. The photon irradiation led to a partial defluorination of the layers and the formation of vacancy defects. The XPS C 1s and F 1s spectra showed that the amount of vacancies is larger in the layers with an initial composition of CF0.5. C–F bonds in these layers were stronger than the bonds between the fluorinated carbon and bare carbon neighbor that caused the preferred breakage of the latter bonds. CH3CN molecules were completely decomposed during the first two seconds of the SR zero-order light exposure. The main products were HCN and N2 molecules and pyridinic N atoms, introduced into the CFx layers at the vacancy boundaries. Upon further irradiation, N2 molecules dissociated and the released nitrogen atoms gave mainly pyridinic N defects in the fluorinated graphene layers. This dissociation was faster in the CF0.5 layers. The products of HCN photolysis contributed to the formation of pyrrolic N species. The study shows that the products of the photolysis of CH3CN depend on the time of irradiation and the fluorine loading of the fluorographitic matrix. Our results can be crucial when using CH3CN@CFx systems in environments with intense light from UV to soft X-rays.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12020231/s1. Figure S1. Experimental and theoretical NEXAFS C K-edge spectra of graphite and F K-edge spectra of (CF)n. Table S1. The fitting data of the XPS C1s spectra. Figure S2. Unoccupied molecular orbitals responsible for main features in F K-edge spectra. Figure S3. Experimental NEXAFS N K-edge spectra of CH3CN@CF0.3 before and after irradiation. Figure S4. Optimized fluorinated graphene fragments. Table S2. Binding energies of fluorine atoms. Figure S5. Experimental NEXAFS N K-edge spectra of CH3CN@CF0.5 in comparison with the spectra calculated for CH3CN, HCN and nitrogen species in a fluorinated graphene layer. References [58,59] are cited in the supplementary materials.

Author Contributions

Conceptualization, A.V.O. and L.G.B.; material preparation, D.V.P. and G.N.C.; measurements, I.P.A., A.A.M. and D.A.S.; methodology and writing—original draft preparation, G.I.S. and Y.V.F.; writing—review and editing, L.G.B. All authors have read and agreed to the published version of the manuscript.

Funding

The work was funded by the Russian Foundation for Basic Research (Grant No. 18-29-19073) and the Ministry of Science and Higher Education of the Russian Federation, (project No. 121031700314-5). A.A.M. and D.A.S. acknowledge BMBF (grant no. 05K19KER and 0519ODR, respectively).

Institutional Review Board Statement

Not applicable.

Acknowledgments

The authors thank the Helmholtz-Zentrum Berlin für Materialien und Energie for allocation of beamtime and support within bilateral program “Russian-German Laboratory at BESSY II”.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data and their representation in the manuscript.

References

  1. Dubois, M.; Guérin, K.; Hamwi, A.; Vinogradov, A. Nature of C–F Bonds in Fluorinated Carbons. In New Fluorinated Carbons: Fundamentals and Applications; Boltalina, O.V., Nakajima, T., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 215–243. [Google Scholar]
  2. Nakajima, T. (Ed.) Fluorine-Carbon and Fluoride-Carbon Materials; CRC Press: Boca Raton, FL, USA, 1994; ISBN 9780429180811. [Google Scholar]
  3. Yoshida, K.; Sugawara, Y.; Saitoh, M.; Matsumoto, K.; Hagiwara, R.; Matsuo, Y.; Kuwabara, A.; Ukyo, Y.; Ikuhara, Y. Microscopic characterization of the C–F bonds in fluorine–graphite intercalation compounds. J. Power Sources 2020, 445, 227320. [Google Scholar] [CrossRef]
  4. Panich, A.M. Nuclear magnetic resonance study of fluorine–graphite intercalation compounds and graphite fluorides. Synth. Met. 1999, 100, 169–185. [Google Scholar] [CrossRef]
  5. Paasonen, V.M.; Nazarov, A.S. Thermal stability of graphite fluoride intercalation compounds. Inorg. Mater. 2001, 37, 452–455. [Google Scholar] [CrossRef]
  6. Makotchenko, V.G.; Nazarov, A.S.; Yakovlev, I.I. Dicarbon fluoride interclation compounds as new moleculea containers of volitale compounds. Dokl. Chem. 2001, 380, 252–254. [Google Scholar] [CrossRef]
  7. Makarova, T.L.; Zagaynova, V.S.; Inan, G.; Okotrub, A.V.; Chekhova, G.N.; Pinakov, D.V.; Bulusheva, L.G. Structural Evolution and Magnetic Properties of Underfluorinated C2F. J. Supercond. Nov. Magn. 2012, 25, 79–83. [Google Scholar] [CrossRef]
  8. Makarova, T.L.; Shelankov, A.L.; Shames, A.I.; Zyrianova, A.A.; Komlev, A.A.; Chekhova, G.N.; Pinakov, D.V.; Bulusheva, L.G.; Okotrub, A.V.; Lähderanta, E. Tabby graphene: Dimensional magnetic crossover in fluorinated graphite. Sci. Rep. 2017, 7, 16544. [Google Scholar] [CrossRef] [Green Version]
  9. Sysoev, V.I.; Bulavskiy, M.O.; Pinakov, D.V.; Chekhova, G.N.; Asanov, I.P.; Gevko, P.N.; Bulusheva, L.G.; Okotrub, A.V. Chemiresistive properties of imprinted fluorinated graphene films. Materials 2020, 13, 3538. [Google Scholar] [CrossRef] [PubMed]
  10. Pinakov, D.V.; Chekhova, G.N.; Okotrub, A.V.; Asanov, I.P.; Shubin, Y.V.; Fedorovskaya, E.O.; Plyusnin, P.E.; Bulusheva, L.G. Structure and supercapacitor properties of few-layer low-fluorinated graphene materials. J. Mater. Sci. 2018, 53, 13053–13066. [Google Scholar] [CrossRef]
  11. Makotchenko, V.G.; Grayfer, E.D.; Mikheev, A.N.; Arzhannikov, A.V.; Saprykin, A.I. Microwave exfoliation of organic-intercalated fluorogaphites. Chem. Commun. 2020, 56, 1895–1898. [Google Scholar] [CrossRef]
  12. Okotrub, A.V.; Fedorovskaya, E.O.; Senkovskiy, B.V.; Bulusheva, L.G. Nitrogen species in few-layer graphene produced by thermal exfoliation of fluorinated graphite intercalation compounds. Phys. Status Solidi B 2015, 252, 2444–2450. [Google Scholar] [CrossRef]
  13. Asanov, I.P.; Bulusheva, L.G.; Dubois, M.; Yudanov, N.F.; Alexeev, A.V.; Makarova, T.L.; Okotrub, A.V. Graphene nanochains and nanoislands in the layers of room-temperature fluorinated graphite. Carbon 2013, 59, 518–529. [Google Scholar] [CrossRef]
  14. Lee, J.H.; Koon, G.K.W.; Shin, D.W.; Fedorov, V.E.; Choi, J.-Y.; Yoo, J.-B.; Özyilmaz, B. Property control of graphene by employing “semi-ionic“ liquid fluorination. Adv. Funct. Mater. 2013, 23, 3329–3334. [Google Scholar] [CrossRef]
  15. Pinakov, D.V.; Makotchenko, V.G.; Semushkina, G.I.; Chekhova, G.N.; Prosvirin, I.P.; Asanov, I.P.; Fedoseeva, Y.V.; Makarova, A.A.; Shubin, Y.V.; Okotrub, A.V.; et al. Redox reactions between acetonitrile and nitrogen dioxide in the interlayer space of fluorinated graphite matrices. Phys. Chem. Chem. Phys. 2021, 23, 10580–10590. [Google Scholar] [CrossRef]
  16. Karlický, F.; Otyepka, M. Band gaps and optical spectra from single- and double-layer fluorographene to graphite fluoride: Many-body effects and excitonic states. Ann. Phys. 2014, 526, 408–414. [Google Scholar] [CrossRef] [Green Version]
  17. Gong, P.; Wang, J.; Sun, W.; Wu, D.; Wang, Z.; Fan, Z.; Wang, H.; Han, X.; Yang, S. Tunable photoluminescence and spectrum split from fluorinated to hydroxylated graphene. Nanoscale 2014, 6, 3316–3324. [Google Scholar] [CrossRef]
  18. Pinakov, D.V.; Logvinenko, V.A. The relationship between properties of fluorinated graphite intercalates and matrix composition. J. Therm. Anal. Calorim. 2006, 86, 173–178. [Google Scholar] [CrossRef] [Green Version]
  19. Chekhova, G.N.; Pinakov, D.V.; Shubin, Y.V.; Fadeeva, V.P.; Tikhova, V.D.; Okotrub, A.V.; Bulusheva, L.G. Room temperature synthesis of fluorinated graphite intercalation compounds with low fluorine loading of host matrix. J. Fluor. Chem. 2020, 232, 109482. [Google Scholar] [CrossRef]
  20. Parkes, M.A.; Douglas, K.M.; Price, S.D. Ionization of acetonitrile. Int. J. Mass Spectrom. 2019, 438, 97–106. [Google Scholar] [CrossRef] [Green Version]
  21. De Ribero, F.A.; Almeida, G.C.; Garcia-Basabe, Y.; Wolff, W.; Boechat-Roberty, H.M.; Rocco, M.L.M. Non-thermal ion desorption from an acetonitrile (CH3CN) astrophysical ice analogue studied by electron stimulated ion desorption. Phys. Chem. Chem. Phys. 2015, 17, 27473–27480. [Google Scholar] [CrossRef]
  22. Schwell, M.; Jochims, H.-W.; Baumgärtel, H.; Leach, S. VUV photophysics of acetonitrile: Fragmentation, fluorescence and ionization in the 7–22 eV region. Chem. Phys. 2008, 344, 164–175. [Google Scholar] [CrossRef]
  23. Bulak, M.; Paardekooper, D.M.; Fedoseev, G.; Linnartz, H. Photolysis of acetonitrile in a water-rich ice as a source of complex organic molecules: CH3CN and H2O:CH3CN ices. Astron. Astrophys. 2021, 647, A82. [Google Scholar] [CrossRef]
  24. Men, S.; Anderson, A.J.; Mayanovic, R.A. In situ Monitoring of Synchrotron X-Ray-Induced Radiolysis Effects on Chromium Species Using X-Ray Absorption Spectroscopy. J. Appl. Spectrosc. 2017, 84, 342–345. [Google Scholar] [CrossRef]
  25. Yang, Y.-C.; Wang, C.-H.; Hwu, Y.-K.; Je, J.-H. Synchrotron X-ray synthesis of colloidal gold particles for drug delivery. Mater. Chem. Phys. 2006, 100, 72–76. [Google Scholar] [CrossRef]
  26. Kaito, C.; Kimura, Y.; Hanamoto, K.; Sasaki, M.; Kimura, S.; Nakada, T.; Saito, Y.; Koike, C.; Nakayama, Y. Carbyne formation be synchrotron radiation. Nuclear Instrum. Methods Phys. Res. A 2001, 467–468, 1217–1220. [Google Scholar] [CrossRef]
  27. Sedelnikova, O.; Gurova, O.; Makarova, A.; Fedorenko, A.; Nikolenko, A.; Plyusnin, P.; Arenal, R.; Bulusheva, L.; Okotrub, A. Light-Induced Sulfur Transport inside Single-Walled Carbon Nanotubes. Nanomaterials 2020, 10, 818. [Google Scholar] [CrossRef]
  28. Prezioso, S.; Perrozzi, F.; Donarelli, M.; Stagnini, E.; Treossi, E.; Palermo, V.; Santucci, S.; Nardone, M.; Moras, P.; Ottaviano, L. Dose and wavelength dependent study of graphene oxide photoreduction with VUV Synchrotron radiation. Carbon 2014, 79, 478–485. [Google Scholar] [CrossRef]
  29. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  30. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Green Version]
  31. Leenaerts, O.; Peelaers, H.; Hernández-Nieves, A.D.; Partoens, B.; Peeters, F.M. First-principles investigation of graphene fluoride and graphane. Phys. Rev. B 2010, 82, 195436. [Google Scholar] [CrossRef] [Green Version]
  32. Makarova, T.L.; Shelankov, A.L.; Zyrianova, A.A.; Veinger, A.I.; Tisnek, T.V.; Lähderanta, E.; Shames, A.I.; Okotrub, A.V.; Bulusheva, L.G.; Chekhova, G.N.; et al. Edge state magnetism in zigzag-interfaced graphene via spin susceptibility measurements. Sci. Rep. 2015, 5, 13382. [Google Scholar] [CrossRef] [Green Version]
  33. Bulusheva, L.G.; Okotrub, A.V.; Shnitov, V.V.; Bryzgalov, V.V.; Boltalina, O.V.; Gol’dt, I.V.; Vyalikh, D.V. Electronic structure of C60F36 studied by quantum-chemical modeling of experimental photoemission and x-ray absorption spectra. J. Chem. Phys. 2009, 130, 014704. [Google Scholar] [CrossRef]
  34. Poe, B.; Seifert, F.; Sharp, T.; Wu, Z. ELNES spectroscopy of mixed Si coordination minerals. Phys. Chem. Miner. 1997, 24, 477–487. [Google Scholar] [CrossRef]
  35. Okotrub, A.V.; Asanov, I.P.; Yudanov, N.F.; Babin, K.S.; Gusel’nikov, A.V.; Nedoseikina, T.I.; Gevko, P.N.; Bulusheva, L.G.; Osváth, Z.; Biró, L.P. Development of graphene layers by reduction of graphite fluoride C2F surface. Phys. Status Solidi B 2009, 246, 2545–2548. [Google Scholar] [CrossRef]
  36. Aseeva, E.A.; Pinakov, D.V.; Oglezneva, I.M.; Chekhova, G.N.; Mazalov, L.N.; Shubin, Y.V. X-ray photoelectron spectroscopy study of intercalated compounds of fluorinated graphite C2FxBr0.01·yCH3CN. J. Struct. Chem. 2006, 47, 930–938. [Google Scholar] [CrossRef]
  37. Tressaud, A.; Moguet, F.; Flandrois, S.; Chambon, M.; Guimon, C.; Nanse, G.; Papirer, E.; Gupta, V.; Bahl, O.P. On the nature of C–F bonds in various fluorinated carbon materials: XPS and TEM investigations. J. Phys. Chem. Solids 1996, 57, 745–751. [Google Scholar] [CrossRef]
  38. Lavskaya, Y.V.; Bulusheva, L.G.; Okotrub, A.V.; Yudanov, N.F.; Vyalikh, D.V.; Fonseca, A. Comparative study of fluorinated single- and few-wall carbon nanotubes by X-ray photoelectron and X-ray absorption spectroscopy. Carbon 2009, 47, 1629–1636. [Google Scholar] [CrossRef]
  39. Bittencourt, C.; Van Lier, G.; Ke, X.; Suarez-Martinez, I.; Felten, A.; Ghijsen, J.; Van Tendeloo, G.; Ewels, C.P. Spectroscopy and defect identification for fluorinated carbon nanotubes. ChemPhysChem 2009, 10, 920–925. [Google Scholar] [CrossRef]
  40. Okotrub, A.V.; Yudanov, N.F.; Asanov, I.P.; Vyalikh, D.V.; Bulusheva, L.G. Anisotropy of chemical bonding in semifluorinated graphite C2F revealed with angle-resolved X-ray absorption spectroscopy. ACS Nano 2013, 7, 65–74. [Google Scholar] [CrossRef]
  41. Bulusheva, L.G.; Okotrub, A.V. Electronic Structure of Fluorinated Graphene. In New Fluorinated Carbons: Fundamentals and Applications; Boltalina, O.V., Nakajima, T., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 177–213. [Google Scholar]
  42. Bakharev, P.V.; Huang, M.; Saxena, M.; Lee, S.W.; Joo, S.H.; Park, S.O.; Dong, J.; Camacho-Mojica, D.C.; Jin, S.; Kwon, Y.; et al. Chemically induced transformation of chemical vapour deposition grown bilayer graphene into fluorinated single-layer diamond. Nat. Nanotechnol. 2020, 15, 59–66. [Google Scholar] [CrossRef] [Green Version]
  43. Herraiz, M.; Dubois, M.; Batisse, N.; Hajjar-Garreau, S.; Simon, L. Large-scale synthesis of fluorinated graphene by rapid thermal exfoliation of highly fluorinated graphite. Dalt. Trans. 2018, 47, 4596–4606. [Google Scholar] [CrossRef]
  44. Zhou, S.; Sherpa, S.D.; Hess, D.W.; Bongiorno, A. Chemical bonding of partially fluorinated graphene. J. Phys. Chem. C 2014, 118, 26402–26408. [Google Scholar] [CrossRef]
  45. Struzzi, C.; Scardamaglia, M.; Reckinger, N.; Sezen, H.; Amati, M.; Gregoratti, L.; Colomer, J.-F.; Ewels, C.; Snyders, R.; Bittencourt, C. Probing plasma fluorinated graphene via spectromicroscopy. Phys. Chem. Chem. Phys. 2017, 19, 31418–31428. [Google Scholar] [CrossRef]
  46. Fischer, D.A.; Wentzcovitch, R.M.; Carr, R.G.; Continenza, A.; Freeman, A.J. Graphitic interlayer states: A carbon K near-edge X-ray-absorption fine-structure study. Phys. Rev. B 1991, 44, 1427–1429. [Google Scholar] [CrossRef] [PubMed]
  47. Batson, P.E. Carbon 1 s near-edge-absorption fine structure in graphite. Phys. Rev. B 1993, 48, 2608–2610. [Google Scholar] [CrossRef]
  48. Brühwiler, P.A.; Maxwell, A.J.; Puglia, C.; Nilsson, A.; Andersson, S.; Mårtensson, N. π* and σ* excitons in C 1s absorption of graphite. Phys. Rev. Lett. 1995, 74, 614–617. [Google Scholar] [CrossRef] [PubMed]
  49. Liang, X.; Pan, D.; Lao, M.; Liang, S.; Huang, D.; Zhou, W.; Guo, J. Structural evolution of fluorinated graphene upon molten-alkali treatment probed by X-ray absorption near-edge structure spectroscopy. Appl. Surf. Sci. 2017, 404, 1–6. [Google Scholar] [CrossRef]
  50. Ahmad, Y.; Dubois, M.; Guérin, K.; Hamwi, A.; Fawal, Z.; Kharitonov, A.P.; Generalov, A.V.; Klyushin, A.Y.; Simonov, K.A.; Vinogradov, N.A.; et al. NMR and NEXAFS study of various graphite fluorides. J. Phys. Chem. C 2013, 117, 13564–13572. [Google Scholar] [CrossRef]
  51. Bulusheva, L.G.; Okotrub, A.V.; Yudanov, N.F. Atomic arrangement and electronic structure of graphite fluoride C2F. Phys. Low-Dimensional Struct. 2002, 7, 1–14. [Google Scholar]
  52. Kiuchi, H.; Kondo, T.; Sakurai, M.; Guo, D.; Nakamura, J.; Niwa, H.; Miyawaki, J.; Kawai, M.; Oshima, M.; Harada, Y. Characterization of nitrogen species incorporated into graphite using low energy nitrogen ion sputtering. Phys. Chem. Chem. Phys. 2016, 18, 458–465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Fedoseeva, Y.V.; Okotrub, A.V.; Asanov, I.P.; Pinakov, D.V.; Chekhova, G.N.; Tur, V.A.; Plyusnin, P.E.; Vyalikh, D.V.; Bulusheva, L.G. Nitrogen inserting in fluorinated graphene via annealing of acetonitrile intercalated graphite fluoride. Phys. Status Solidi B 2014, 251, 2530–2535. [Google Scholar] [CrossRef]
  54. Leinweber, P.; Kruse, J.; Walley, F.L.; Gillespie, A.; Eckhardt, K.-U.; Blyth, R.I.R.; Regier, T. Nitrogen K -edge XANES—An overview of reference compounds used to identify ‘unknown’ organic nitrogen in environmental samples. J. Synchrotron Radiat. 2007, 14, 500–511. [Google Scholar] [CrossRef]
  55. Bulusheva, L.G.; Okotrub, A.V.; Kudashov, A.G.; Shubin, Y.V.; Shlyakhova, E.V.; Yudanov, N.F.; Pazhetnov, E.M.; Boronin, A.I.; Vyalikh, D.V. Effect of Fe/Ni catalyst composition on nitrogen doping and field emission properties of carbon nanotubes. Carbon 2008, 46, 864–869. [Google Scholar] [CrossRef]
  56. Gillespie, A.W.; Walley, F.L.; Farrell, R.E.; Regier, T.Z.; Blyth, R.I.R. Calibration method at the N K -edge using interstitial nitrogen gas in solid-state nitrogen-containing inorganic compounds. J. Synchrotron Radiat. 2008, 15, 532–534. [Google Scholar] [CrossRef] [PubMed]
  57. Vyalikh, A.; Bulusheva, L.G.; Chekhova, G.N.; Pinakov, D.V.; Okotrub, A.V.; Scheler, U. Fluorine patterning in room-temperature fluorinated graphite determined by solid-state NMR and DFT. J. Phys. Chem. C 2013, 117, 7940–7948. [Google Scholar] [CrossRef]
  58. ADF 2020.1. SCM, Theoretical Chemistry; Vrije Universiteit: Amsterdam, The Netherlands, 2020. [Google Scholar]
  59. Hait, D.; Head-Gordon, M. Highly accurate prediction of core spectra of molecules at density functional theory cost: Attaining sub-electronvolt error from a restricted open-shell Kohn–Sham approach. J. Phys. Chem. Lett. 2020, 11, 775–786. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 12 00231 g001 550

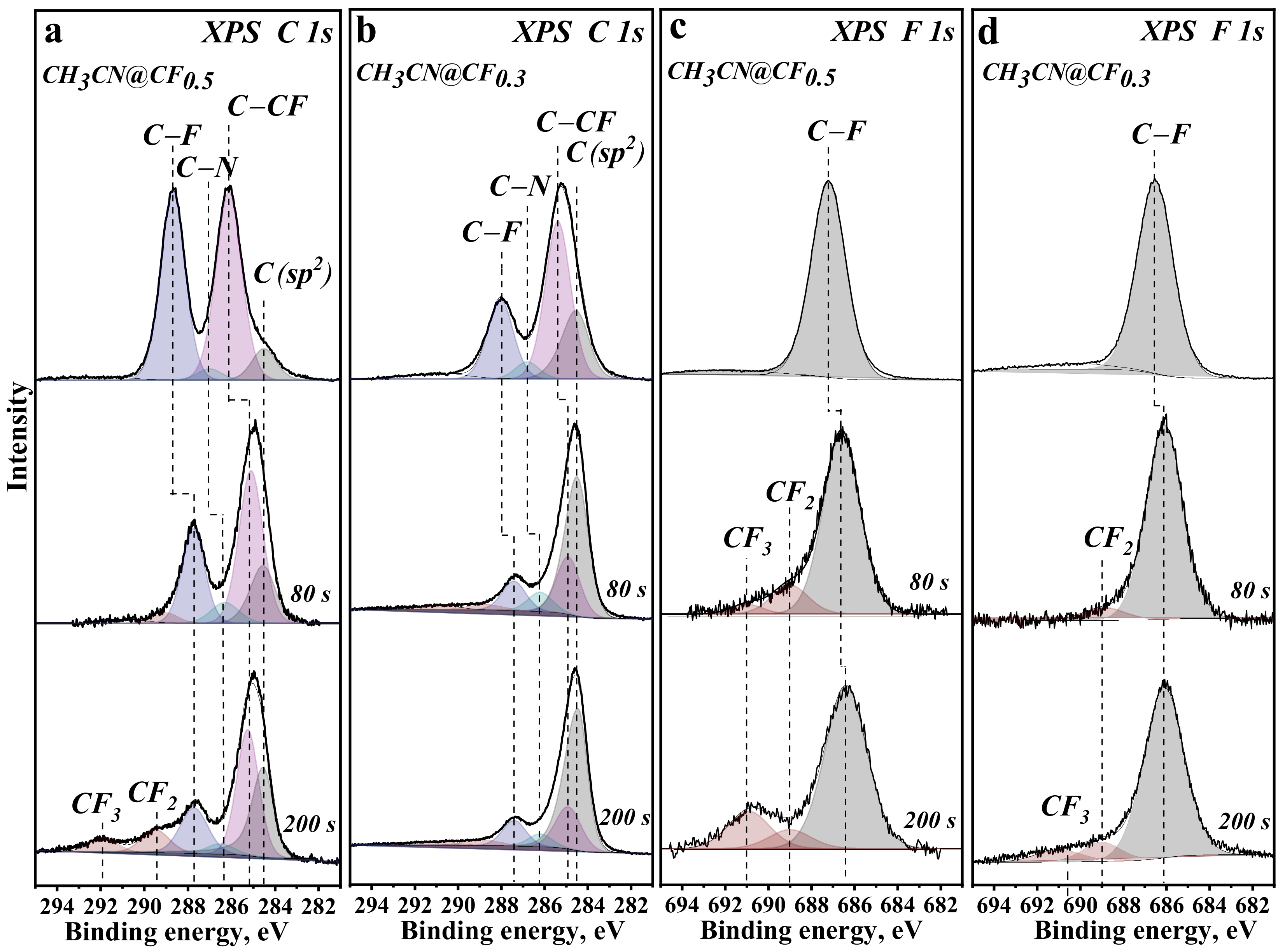

Figure 1. XPS C 1s spectra (a,b) and F 1s spectra (c,d) of CH3CN@CF0.5 (a,c) and CH3CN@CF0.3 (b,d) before and after white beam irradiation for 80 s and 200 s.
Figure 1. XPS C 1s spectra (a,b) and F 1s spectra (c,d) of CH3CN@CF0.5 (a,c) and CH3CN@CF0.3 (b,d) before and after white beam irradiation for 80 s and 200 s.
Nanomaterials 12 00231 g001
Nanomaterials 12 00231 g002 550

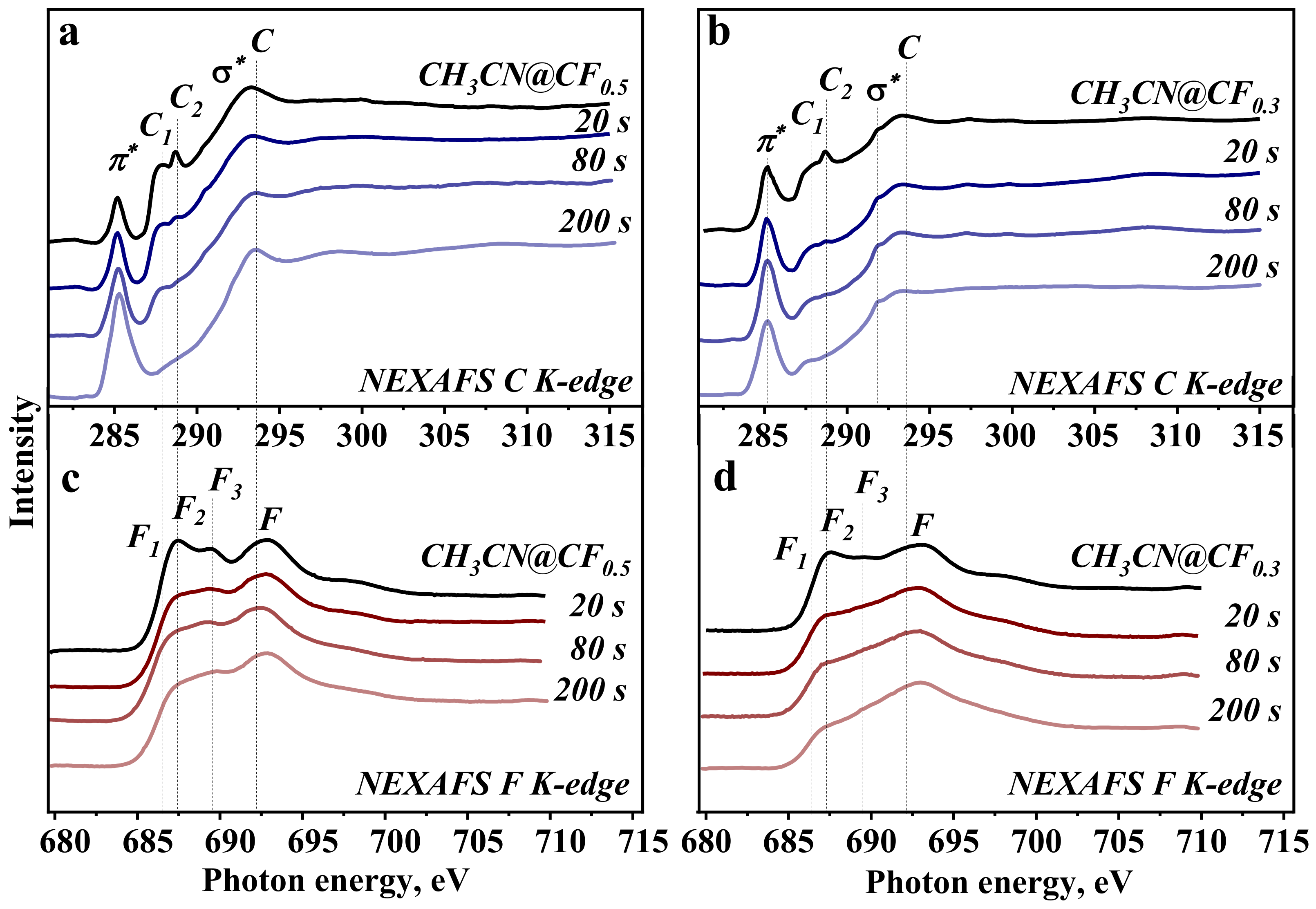

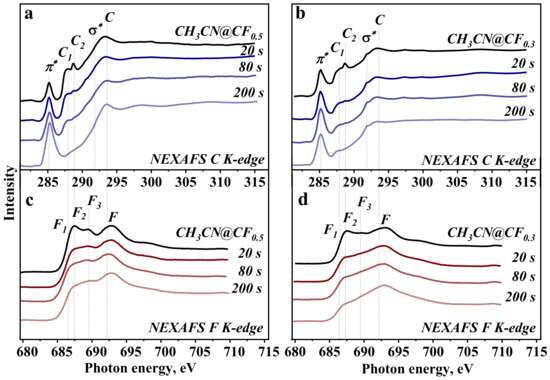

Figure 2. NEXAFS C K-edge (a,b) and F K-edge (c,d) spectra of CH3CN@CF0.5 (a,c) and CH3CN@CF0.3 (b,d) before (upper curves) and after irradiation by white beam for 20 s, 80 s, and 200 s.
Figure 2. NEXAFS C K-edge (a,b) and F K-edge (c,d) spectra of CH3CN@CF0.5 (a,c) and CH3CN@CF0.3 (b,d) before (upper curves) and after irradiation by white beam for 20 s, 80 s, and 200 s.
Nanomaterials 12 00231 g002
Nanomaterials 12 00231 g003 550

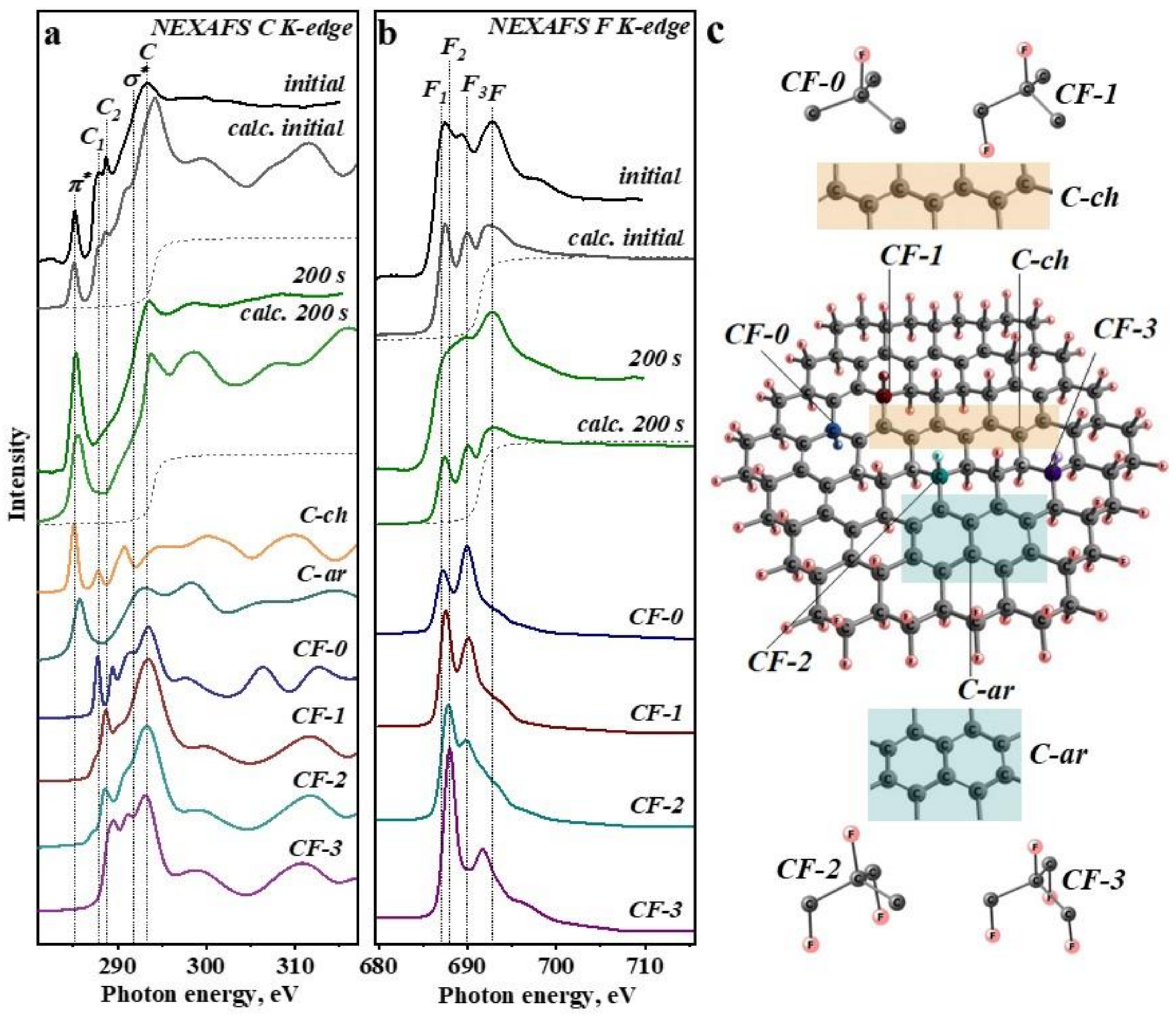

Figure 3. Experimental NEXAFS C K-edge (a) and F K-edge (b) spectra of CH3CN@CF0.5 before (black) and after white beam irradiation for 200 s (olive) in comparison with the theoretical spectra calculated for carbon (a) and fluorine (b) atoms from CF-0, CF-1, CF-2, and CF-3 groups and bare carbon atoms from polyene chain (C-ch) and aromatic area (C-ar) of the partially fluorinated graphene model (c).
Figure 3. Experimental NEXAFS C K-edge (a) and F K-edge (b) spectra of CH3CN@CF0.5 before (black) and after white beam irradiation for 200 s (olive) in comparison with the theoretical spectra calculated for carbon (a) and fluorine (b) atoms from CF-0, CF-1, CF-2, and CF-3 groups and bare carbon atoms from polyene chain (C-ch) and aromatic area (C-ar) of the partially fluorinated graphene model (c).
Nanomaterials 12 00231 g003
Nanomaterials 12 00231 g004 550

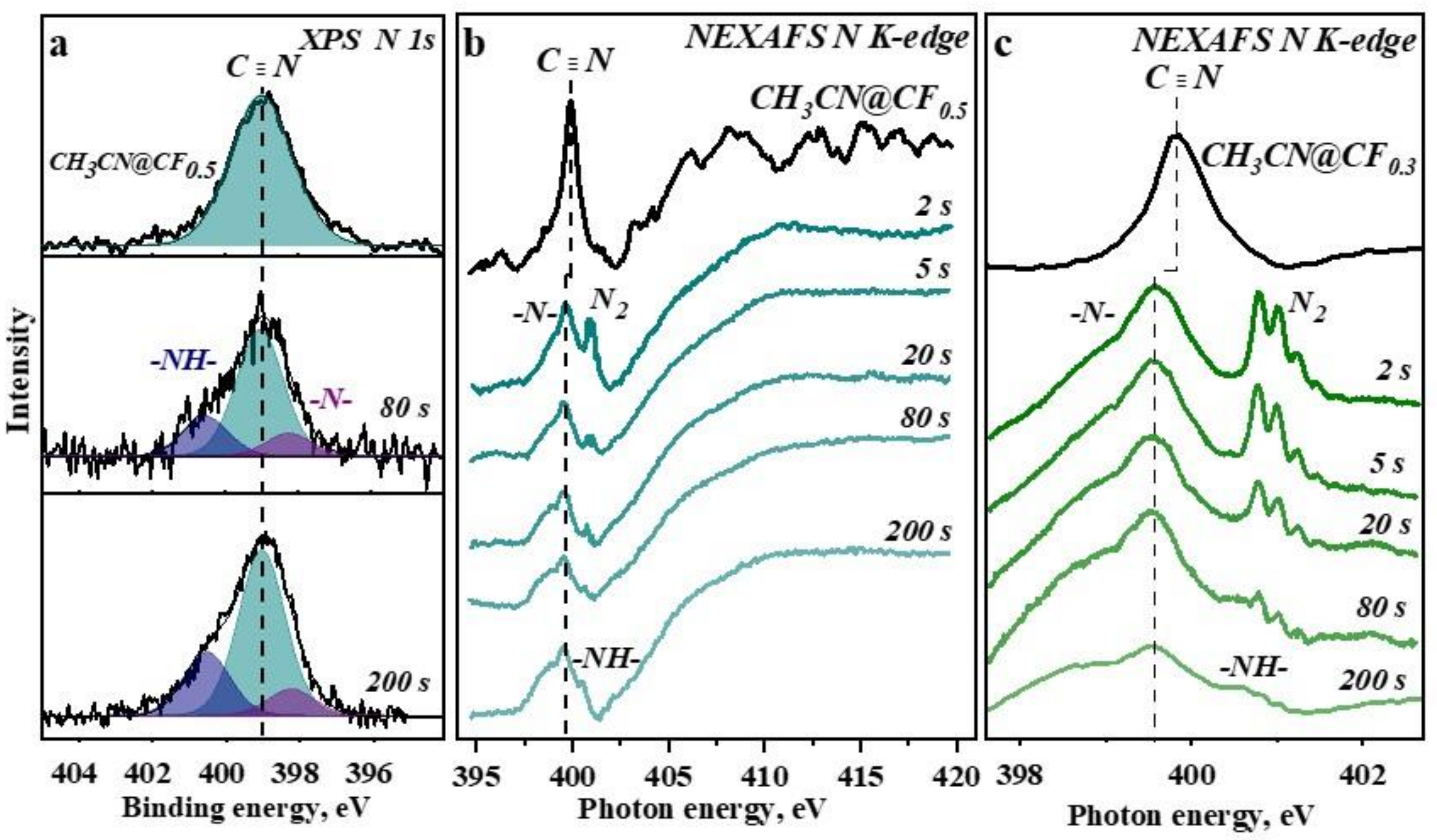

Figure 4. XPS N 1s spectra of initial CH3CN@CF0.5 and that irradiated for 80 s and 200 s (a). NEXAFS N K-spectra of CH3CN@CF0.5 (b) and CH3CN@CF0.3 (c) before and after white beam irradiation for 2 s, 5 s, 20 s, 80 s, and 200 s.
Figure 4. XPS N 1s spectra of initial CH3CN@CF0.5 and that irradiated for 80 s and 200 s (a). NEXAFS N K-spectra of CH3CN@CF0.5 (b) and CH3CN@CF0.3 (c) before and after white beam irradiation for 2 s, 5 s, 20 s, 80 s, and 200 s.
Nanomaterials 12 00231 g004
Nanomaterials 12 00231 g005 550

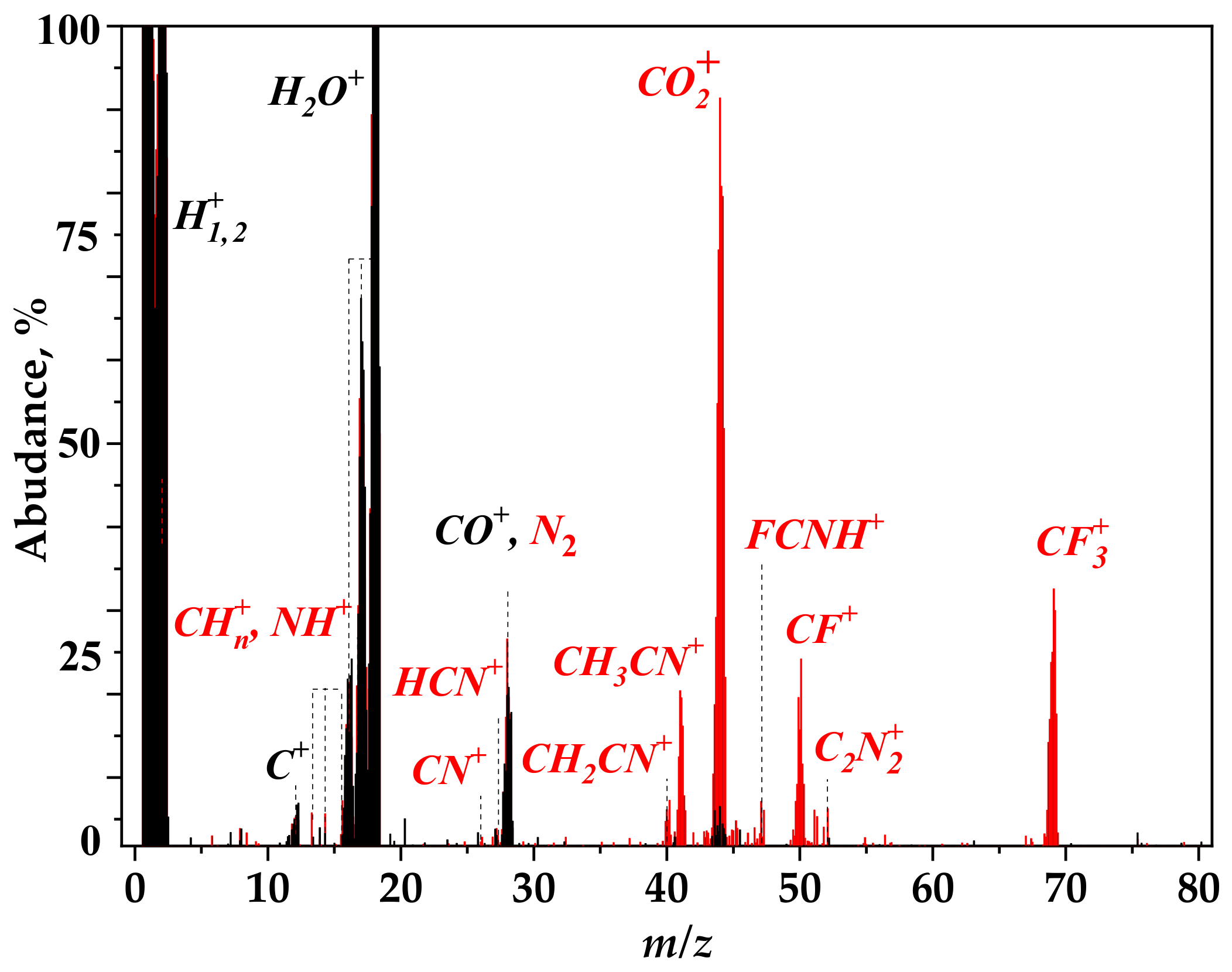

Figure 5. Mass spectrum registered upon white beam irradiation of CH3CN@CF0.3 sample.
Figure 5. Mass spectrum registered upon white beam irradiation of CH3CN@CF0.3 sample.
Nanomaterials 12 00231 g005
Nanomaterials 12 00231 g006 550

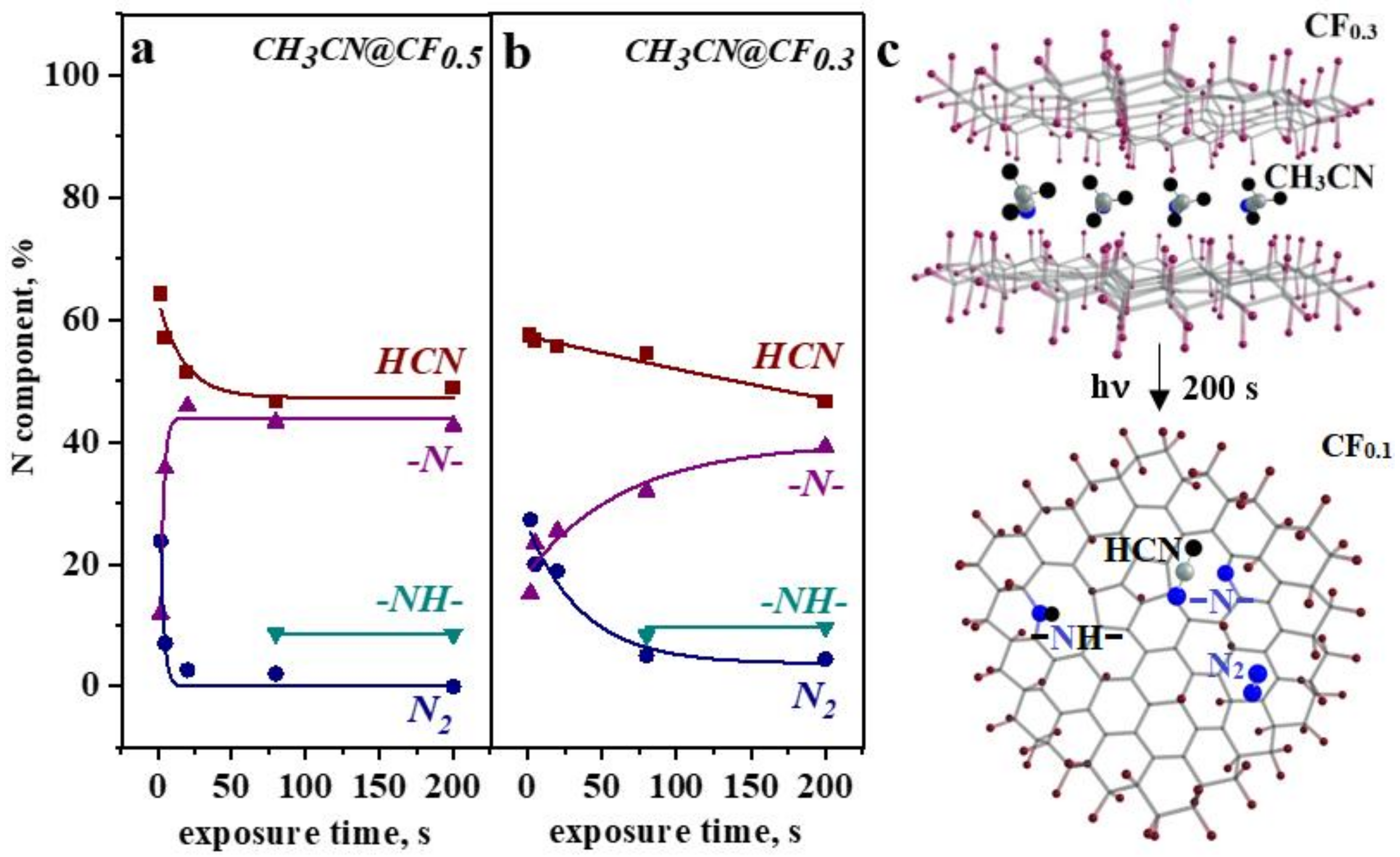

Figure 6. Dependence of the NEXAFS N K-edge components from HCN, N2, pyridinic N, and pyrrolic N on the time of exposure of CH3CN@CF0.5 (a) and CH3CN@CF0.3 (b) to white beam light. The model of evolution of CH3CN@CF0.3 structure and composition under the irradiation (c).
Figure 6. Dependence of the NEXAFS N K-edge components from HCN, N2, pyridinic N, and pyrrolic N on the time of exposure of CH3CN@CF0.5 (a) and CH3CN@CF0.3 (b) to white beam light. The model of evolution of CH3CN@CF0.3 structure and composition under the irradiation (c).
Nanomaterials 12 00231 g006
Table
Table 1. XPS determined content (at%) of main elements in CH3CN@CF0.3 and CH3CN@CF0.5 samples before and after exposure to polychromatic synchrotron light for 80 and 200 s. The ratio of the areas of the C–CF to C–F components in the XPS C 1s spectra (last column).
Table 1. XPS determined content (at%) of main elements in CH3CN@CF0.3 and CH3CN@CF0.5 samples before and after exposure to polychromatic synchrotron light for 80 and 200 s. The ratio of the areas of the C–CF to C–F components in the XPS C 1s spectra (last column).
Exposure Time, sCFNOC–CF/C–F
CH3CN@CF0.3
08313131.9
8098<1<1<11.8
20098<1<1<11.9
CH3CN@CF0.5
07126211.0
80906312.0
2009532<12.2
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Semushkina, G.I.; Fedoseeva, Y.V.; Makarova, A.A.; Smirnov, D.A.; Asanov, I.P.; Pinakov, D.V.; Chekhova, G.N.; Okotrub, A.V.; Bulusheva, L.G. Photolysis of Fluorinated Graphites with Embedded Acetonitrile Using a White-Beam Synchrotron Radiation. Nanomaterials 2022, 12, 231. https://doi.org/10.3390/nano12020231

AMA Style

Semushkina GI, Fedoseeva YV, Makarova AA, Smirnov DA, Asanov IP, Pinakov DV, Chekhova GN, Okotrub AV, Bulusheva LG. Photolysis of Fluorinated Graphites with Embedded Acetonitrile Using a White-Beam Synchrotron Radiation. Nanomaterials. 2022; 12(2):231. https://doi.org/10.3390/nano12020231

Chicago/Turabian Style

Semushkina, Galina I., Yuliya V. Fedoseeva, Anna A. Makarova, Dmitry A. Smirnov, Igor P. Asanov, Dmitry V. Pinakov, Galina N. Chekhova, Alexander V. Okotrub, and Lyubov G. Bulusheva. 2022. "Photolysis of Fluorinated Graphites with Embedded Acetonitrile Using a White-Beam Synchrotron Radiation" Nanomaterials 12, no. 2: 231. https://doi.org/10.3390/nano12020231

APA Style

Semushkina, G. I., Fedoseeva, Y. V., Makarova, A. A., Smirnov, D. A., Asanov, I. P., Pinakov, D. V., Chekhova, G. N., Okotrub, A. V., & Bulusheva, L. G. (2022). Photolysis of Fluorinated Graphites with Embedded Acetonitrile Using a White-Beam Synchrotron Radiation. Nanomaterials, 12(2), 231. https://doi.org/10.3390/nano12020231

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
