High-Performance Ternary NiCoMo Electrocatalyst with Three-Dimensional Nanosheets Array Structure

by
Zhihao Zhou
1,
Zhi Lu
1,2,*,
Shilin Li
1,
Yiting Li
1,
Gongliang Tan
1,
Yang Hao
1,
Yu Wang
1,
Yuzhao Huang
1,
Xuefeng Zhang
3,
Shuaifang Li
3,
Chong Chen
1 and
Guangxin Wang
1,3,*
1
School of Materials Science and Engineering, Henan University of Science and Technology, Luoyang 471003, China
2
Luoyang Key Laboratory of High Purity Materials and Sputtering Targets, Henan University of Science and Technology, Luoyang 471003, China
3
Fonlink Photoelectric (Luo Yang) Co., Ltd., Luoyang 471000, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(21), 3716; https://doi.org/10.3390/nano12213716
Submission received: 19 September 2022 / Revised: 16 October 2022 / Accepted: 17 October 2022 / Published: 22 October 2022
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Versions Notes

Abstract

:
Oxygen evolution reaction is a key process in hydrogen production from water splitting. The development of non-noble metal electrode materials with high efficiency and low cost has become the key factor for large-scale hydrogen production. Binary NiCo-layered double hydroxide (LDH) has been used as a non-noble metal electrocatalyst for OER, but its overpotential is still large. The microstructure of the catalyst is tuned by doping Mo ions into the NiCo-LDH/NF nanowires to form ternary NiCoMo-LDH/NF nanosheet catalysts for the purpose of enhancing the active sites and reducing the initial overpotential. Only 1.5 V (vs. reversible hydrogen electrode (RHE), ≈270 mV overpotential) is required to achieve a catalytic current density of 10 mA cm−2 and a small Tafel slope of 81.46 mV dec−1 in 1 M KOH solution, which manifests the best performance of NiCo-based catalysts reported up to now. Electrochemical analysis and micro-morphology show that the high catalytic activity of NiCoMo-LDH/NF is attributable to the change of the microstructure. The interconnected nanosheet arrays have the obvious advantages of electrolyte diffusion and ion migration. Thus, the active sites of catalysts are significantly increased, which facilitates the adsorption and desorption of intermediates. We conclude that NiCoMo-LDH/NF is a promising electrode material for its low cost and excellent electrocatalytic properties.

1. Introduction

With the rapid development of the economy and society, the excessive consumption of fossil fuels has aggravated global energy and ecological crises, so the demand for clean energy has become urgent [1,2,3]. As a clean and efficient energy carrier, hydrogen energy has been widely considered to be a most promising energy source to replace oil and gas [4,5]. The device for converting electrolytic water to hydrogen is simple, easy to operate and gives high-purity hydrogen, and thus a most promising technology for clean hydrogen production. Water splitting involves two half-reactions, the OER and the HER [6]. However, water splitting efficiency needs to be improved through electrocatalysts. At present, the noble metal catalysts, such as RuO2, IrO2 and Pt show high catalytic activity in OER and HER, but their high cost seriously hinders their large-scale application [7].
In recent years, transition-metal-layered double hydroxides (LDHs) have shown great potential in the field of electrocatalytic hydrogen and oxygen precipitation [8,9]. Transition metal catalysts have received more and more attention because of their high reserves, low prices, good catalytic activity and stability. The surface engineering treatment of LDH-based electrocatalysts, including heteroatom incorporation and construction defects, can effectively modify the electron distribution of adjacent catalytic atom centers, which contributes to improving the intrinsic catalytic activity of catalytic sites and the electrocatalytic performance of the catalyst [10,11,12].
At present, several layered double hydroxide catalysts have been reported, such as NiFe-LDH, NiCo-LDH and NiAl-LDH electrocatalysts [13,14,15,16,17]. Compared with binary alloys, ternary alloy nanoparticles show the best catalytic activity in HER and OER. Li et al. used a one-step hydrothermal method to prepare vanadium-doped three-component NiFeV-layered double hydroxides on nickel foam (NF). The electronic structure of the catalyst was adjusted, the band gap was shorted, making the electron transfer easier, the active sites were enriched and the efficiency of electrocatalytic oxygen evolution was improved. In 1 M KOH, the overpotential was 195 mV and the Tafel slope was 42 mV dec−1 [18]. Long et al. synthesized an LDH that contained three metals (Fe, Ni and Co) as an advanced electrocatalyst by controlling the proportion of trivalent ions. With increasing Co content, the thickness of the LDH decreased, and the FeNiCo LDHs showed improved OER activity. The number of active sites was increased, which was attributed to the addition of Co, which can modulate the electronic structure of the catalytic center [19]. Jiang et al. prepared a high-performance electrocatalytic hydrolysis electrode by growing NiCo-LDH nanosheet arrays on the surface of NF, and changing the total concentration of metal ions. Attributed to its inherent lamellar structure and unique redox characteristics, the potential overpotential in alkaline medium was as low as 290 mV, which can be compared to a RuO2 catalyst. It was also superior to a Pt/C catalyst due to the excellent OER activity [20]. Lin et al. found that the adsorption energy barrier of Co to H was low according to theoretical calculations. The electrochemical test results showed that after a long electrocatalytic cycle, the stability of the electrode catalyst became poor due to the dissolution of alloy and grain agglomeration [21,22]. Mo cations have excellent adsorption performance for hydrogen. The introduction of Mo6+ can effectively improve the hydrolysis process. The introduction of Mo cation into NiCo-LDH catalysts can obtain a bifunctional catalyst. As have been reported, that showed the best catalytic activity in HER and OER, but the mechanism was not clear [23,24,25]. In addition, the catalytic performance of transition-metal-based catalysts can be improved using 3D porous nanostructures such as nickel foam, carbon cloth and ordered nanostructures [26,27]. The 3D porous structure is applied to the electrode catalyst as the substrate material, and the combination of the primary pores of the substrate material and the secondary pores of the catalyst improves the active area of the electrocatalyst, which makes the electrolyte and the catalyst fully contact, and is beneficial to the improvement of the catalytic activity and the adsorption and desorption of intermediates.
Herein, we prepare a series of Mo-doped NiCo-LDH nanosheet catalysts on NF substrate via a one-step hydrothermal method for OER electrocatalysis. The NiCoMo-LDH nanosheets were grown in situ on NF with porous structure. The in situ synthesis can ensure the electrolyte and catalyst fully contact, which can improve the activity of the catalyst. The Mo-doped NiCo-LDH/NF shows excellent OER performance. Compared with noble metal catalysts, the NiCoMo-LDHs exhibit not only a higher electrocatalytic activity, but also a low cost. They are expected to show promising applications in hydrogen production.

2. Materials and Methods

2.1. Materials

Nickel foam (99.9% purity, thickness of 1.5 mm, porosity of 97%), Nickel(II) nitrate hexahydrate (Ni(NO3)2·6H2O, 98% purity), Cobalt(II) nitrate hexahydrate (Co(NO3)2·6H2O, 98% purity) and Sodium molybdate(VI) dihydrate (NaMoO4·2H2O, 99% purity) were purchased from Shanghai Aladdin Biochemical Technology Company. (Shanghai, China). Urea (CO(NH2)2) and potassium hydroxide (KOH) were purchased from Sinopharm group. (Shanghai, China). All chemicals were analytical grade and used directly without any further purification. The test water was deionized water.

2.2. Synthesis of Nickel-Cobalt-Molybdenum Layered Double Hydroxide Materials

The NiCoMo-LDH/NF electrode was synthesized by a one-step hydrothermal method, as shown in Figure 1. The NF (3 cm × 3 cm) was immersed in 3 M HCl solution for ultrasonic treatment for 15 min to remove the surface oxide, and then washed in ethanol and deionized water in turn several times and dried in a vacuum drying oven. In a typical process, 4 mmol Ni(NO3)2·6H2O, 4 mmol Co(NO3)2·6H2O and 2 mmol NaMoO4·2H2O were dissolved in 50 mL distilled water. Then, 12 mmol urea was added to the above solution with constant stirring. The mixture was transferred to a 100 mL Teflon-lined stainless steel autoclave and heated at 150 °C for 6 h. After cooling to room temperature, the as-synthesized samples were washed with ethanol and deionized water several times and dried at 60 °C overnight in a vacuum drying oven. In order to optimize the catalytic performance of electrode materials, the NiCoMo-LDH/NF catalyst was synthesized with several concentrations of molybdate sources (0 mmol, 1 mmol, 1.5 mmol, 2 mmol, 2.5 mmol and 3 mmol), and the corresponding samples were denoted as NiCo-LDH/NF, NiCoMo1-LDH/NF, NiCoMo1.5-LDH/NF, NiCoMo2-LDH/NF, NiCoMo2.5-LDH/NF and NiCoMo3-LDH/NF, respectively.

2.3. Characterization

X-ray diffractometer (Bruker-AXS D8 Advance, BRUKER, Ltd., Kyoto, Japan) and transmission electron microscopy (TEM, JEM-2100, JEOL Ltd., Tokyo, Japan) were used to characterize the phase structure and the crystal structure of NiCoMo-LDH/NF. The surface morphology and elemental analysis of NiCoMo-LDH/NF were observed by field emission electron microscopy and energy dispersive spectroscopy (FESEM, JSM-7800F, JEOL Ltd., Tokyo, Japan).

2.4. Electrochemical Measurements

The catalyst performance was tested in a standard three-electrode system by using a CHI660E electrochemical workstation (CH Instruments, Shanghai, China). The catalyst-loaded nickel foam was cut into a working electrode with a size of 0.5 cm × 1 cm, the counter electrode was a Pt plate (1 cm × 1 cm), and the reference electrode was an Ag/AgCl electrode filled with saturated KCl solution. All potential was converted to the reversible hydrogen electrode (RHE) scale according to the Nernst equation: ERHE = EAg/AgCl + 0.1989 V + 0.059 × pH. In order to ensure that the inside of the electrolyte reached oxygen saturation during the electrochemical test, it was necessary to degas the electrolyte with oxygen for 30 min before the test. Linear sweep voltammetry (LSV) curves of OER of electrocatalysts were measured in 1.0 M KOH solution (pH = 13.7) at a scan rate of 2 mV s−1. Before electrochemical testing, iR compensation was performed on all LSV curves to eliminate the test error between the reference electrode and the working electrode. The same three electrodes with AC impedance were used for electrochemical impedance spectroscopy (EIS) in the frequency range between 0.01 and 104 Hz. With multiple scan speeds ranging from 1 to 5 mV/s, CVs were used to determine the electrochemical surface area (ECSA). In this paper, overpotential is determined using the formula η(V) = ERHE − 1.23.

3. Results and Discussion

3.1. Structure and Morphology Characterization of NiCoMo-LDH/NF Catalyst

The crystal structure of the samples was studied by X-ray diffraction. As shown in Figure 2, there are obvious diffraction peaks in the sample of the supported catalyst, and the diffraction peaks correspond to Ni(OH)2 (JCPDF No.03-0177), NiMo4·xH2O (JCPDF No.13-0128) and CoMoO4 (JCPDF No.21-0868) [28,29], respectively. So, the NiCoMo-LDH catalyst was successfully prepared and loaded onto the NF substrate.
The low- and high-magnification SEM images of the NF surface before pretreatment are shown in Figure 3a–c. It shows that before pretreatment the surface of the NF is smooth and covered by a dense oxide layer. To the pretreated NF (Figure 3b), the acid washing destroyed the surface oxide layer and made the surface of the NF rougher, which is favorable to the growth of the catalyst. As shown in Figure 3c, the NF has a three-dimensional network and macroscopic porous structure. The surface of the NiCoMo-LDH catalyst-loaded NF grew uniformly on the NF substrate as shown in Figure 3d. The combination of the primary pores of nickel foam and the secondary pores of nanosheet are not only good for improving the charge transfer efficiency, but also for increasing the active surface area of the catalyst.
The morphologies of the as-prepared samples were observed through FESEM. The morphological characteristics of different Mo-doped electrocatalysts are shown in Figure 4. As shown in Figure 4a, NiCo-LDH/NF has a dense and fine nanowire structure. With increasing Mo content, the nanowires are gradually coarsened to form a NiCoMo1-LDH/NF nanorod structure (Figure 4b) and a NiCoMo1.5-LDH/NF lamellar linear structure (Figure 4c). NiCoMo2-LDH/NF, NiCoMo2.5-LDH/NF and NiCoMo3-LDH/NF show flower-like morphologies due to the continued increase of Mo (Figure 4d–f). Compared with the nanowire structure, the interlaced nanosheets form a three-dimensional network structure with larger sheet layer spacing, which is more conducive to the migration of electrons in the catalyst and the interlayer migration of hydroxide groups and water molecules during the OER process. As observed in the figure, the spacing of the nanosheets gradually decreased with the increase of Mo content. When Mo element is 20 wt%, the spacing of nanosheets decreased to about 1 μm, which is of benefit in increasing the active sites, and facilitates the adsorption and desorption of intermediates, which is good for improving the electrocatalytic hydrolysis process. As shown in Figure 4g, Ni, Co, Mo and O are uniformly distributed on the surface of the nanosheets, indicating that the surface composition of the NiCoMo2-LDH/NF electrocatalyst is relatively uniform, which ensures the stability of catalytic performance.
The structure of the NiCoMo2-LDH/NF nanosheets was further confirmed by the TEM analysis (Figure 5a). As shown in Figure 5a, the NiCoMo2-LDH/NF nanosheets can be observed clearly. The high-resolution TEM (HRTEM) image (Figure 5b) shows various kinds of lattice fringes with distances of 0.216, 0.244, 0.262 and 0.267 nm corresponding to the (222), (400) and (222) planes of CoMoO4 and (100) planes of Ni(OH)2, respectively. As shown in Figure 5c, the selected area electron diffraction (SAED) pattern shows (100) and (110) planes for Ni(OH)2, and (222) planes for CoMoO4, indexed according to the reported X-ray diffraction (XRD) data.

3.2. Oxygen Evolution Reaction Performance

OER performance of catalysts was studied in oxygen-saturated electrolytes by using different Mo-doped electrocatalysts as working electrodes. All catalysts were activated before testing to ensure stable catalyst performance. Electrochemical measurements of electrode catalysts with different Mo content are shown in Figure 6. Figure 6a shows the polarization curves of different Mo-doped electrocatalysts after iR-drop correction. The overpotential of NiCoMo2-LDH/NF nanosheets is 270 mV at a current density of 10 mA cm−2, which is significantly smaller than that of NiCo-LDH/NF (377.2 mV), NiCoMo1-LDH/NF (337.2 mV), NiCoMo1.5-LDH/NF (296.2 mV), NiCoMo2.5-LDH/NF (301.2 mV) and NiCoMo3-LDH/NF (303.2 mV) electrodes. Obviously, bimetallic NiCo-LDH/NF shows poorer OER activity than other ternary electrode materials. It can be seen that an appropriate amount of Mo doping can effectively reduce the overpotential and improve the OER performance.
In order to evaluate the OER kinetics of the catalyst, the Tafel slope is calculated according to the LSV curve from 1.0 to 1.7 V (Figure 6b). The linear regions of the Tafel plots are fitted to the Tafel equation: η = b log j + a, where η is the overpotential, b is the Tafel slope, and j is the current density. The Tafel slope of NiCoMo2-LDH/NF is 81.46 mV dec−1, which is much smaller than NiCo-LDH/NF 114.76 mV dec−1, NiCoMo1-LDH/NF 109.44 mV dec−1, NiCoMo1.5-LDH/NF 88.29 mV dec−1, NiCoMo2.5-LDH/NF 88.02 mV dec−1 and NiCoMo3-LDH/NF 90.18 mV dec−1. Obviously, among the electrocatalysts with different Mo-doped, NiCoMo2-LDH/NF shows a superior OER performance.
The electrochemical active surface area (ECSA) is directly proportional to the electrochemical double-layer capacitance (Cdl). More exposed active sites can be provided for the electrocatalytic reaction when there is a large ECSA. ECSA is calculated as ECSA = Cdl/Cs, where Cdl is the electrochemical double-layer capacitance, and Cs is the specific capacitance of the electrode material plane between 20–60 μF cmECSA−2 [30,31]. The scanning speed is 1–5 mV s−1. Cdl is measured by cyclic voltammetry (CV) in the range of 1.317 ~ 1.417 V vs. RHE. Figure 6c shows the plots of Cdl of electrocatalysts in current (∆ j/2 = (ja − jc)/2 at 1.3672 V vs. RHE) against the scan; the Cdl of NiCoMo2-LDH/NF is 689.5 mF cm−2, which is larger than that of NiCo-LDH/NF (63.63 mF cm−2), NiCoMo1-LDH/NF (262.27 mF cm−2), NiCoMo1.5-LDH/NF (632.49 mF cm−2), NiCoMo2.5-LDH/NF (609.75 mF cm−2) and NiCoMo3-LDH/NF (539.79 mF cm−2). Obviously, the high Cdl of NiCoMo2-LDH/NF is attributable to the exposure of more active sites in the layered structure, which significantly enhances the OER performance of the electrode catalyst.
EIS reflects the dynamics of electrode and electrolyte surfaces. The charge transfer characteristics in the OER process at 1.56 V vs. RHE were analyzed. The corresponding solution resistance (Rs) and charge transfer resistance (Rct) can be obtained by fitting the impedance diagram with the ZSimpWin software, where the Rct value is related to the size of the semicircle radius in the impedance diagram, and the smaller the Rct value the smaller the semicircle radius in the impedance diagram, and the faster the charge transfer rate at the electrocatalyst and electrolyte interface. EIS results are depicted in Figure 6d, accompanied by the equivalent circuit mode. The excellent OER performance of NiCoMo2-LDH/NF nanosheets is attributable to the rapid charge transfer, which can be seen in the smaller semicircle of the impedance diagram; the smaller the radius of the impedance diagram, the faster the charge transfer rate and the better the kinetic performance of the electrode catalyst. Fitting an equivalent circuit to the impedance plot shows that the solution resistance (Rs) values of all catalysts are similar and smaller than 2.3 Ω. NiCoMo2-LDH/NF exhibits a much smaller Rct (1.64 Ω) than NiCo-LDH/NF (4.50 Ω), NiCoMo1-LDH/NF (2.86 Ω), NiCoMo1.5-LDH/NF (2.08 Ω), NiCoMo2.5-LDH/NF (1.65 Ω) and NiCoMo3-LDH/NF (1.98 Ω). This indicates the faster electron transport kinetics of NiCoMo2-LDH/NF at the interface between electrodes.
The turnover frequency (TOF) of the catalyst can be used to reflect the intrinsic activity of the material. The TOF value can be calculated using the following equation: TOF = (jA)/(4Fm), where j is the current density measured by the LSV curve at overpotential of 300 mV, A is the area of the working electrode, F is the Faradic constant (96,485 C mol−1), and m is the number of active sites (mol) quantified by CV technique [32,33]. By measuring a series of CV curves within a potential range between 1.0072 to 1.8072 V vs. RHE, m can be obtained from the linear relationship between oxidation peak current and scan rate [33]. Meanwhile, it is assumed that under ideal conditions, all the surface active sites of the electrocatalyst are involved in the electrocatalytic reaction. Figure 7 shows TOF values of different Mo-doped electrocatalysts, the calculated TOF of NiCoMo2-LDH/NF is 0.03608 s−1 at an overpotential of 300 mV, which is higher than that of NiCo-LDH/NF (0.02051 s−1), NiCoMo1-LDH/NF (0.0318 s−1), NiCoMo1.5-LDH/NF (0.03397 s−1), NiCoMo2.5-LDH/NF (0.02061 s−1) and NiCoMo3-LDH/NF (0.02132 s−1). It is indicative that the intrinsic activity of NiCoMo2-LDH/NF electrocatalyst is higher than that of other samples, and the high electron conversion rate can quickly improve the OER reaction kinetics. More comparison of OER performance of different nickel- or cobalt-based electrocatalysts are shown in Table 1. As can be seen from Table 1, compared with monometallic catalysts, ion doping can significantly change the microscopic morphology of the catalysts, forming porous structures such as nanowires, nanosheets and hollow microcuboids in situ on the substrate surface, and the secondary pores grown in situ significantly increase the active surface area of the polymetallic catalysts, allowing the electrolyte and the catalyst to be in full contact, which is conducive to the electrocatalytic process and greatly reduces the overpotential of the system.
Long-term stability is an important index for evaluating the practical application of electrocatalysts. The chronopotentiometry, LSV and CV were utilized to evaluate the electrocatalytic durability of a NiCoMo2-LDH/NF electrocatalyst for OER in 1.0 M KOH. As shown in Figure 8a, the I-t curve shows that NiCoMo2-LDH/NF still maintains excellent OER stability after a 12 h stability test in alkaline solution. NiCoMo2-LDH/NF was treated firstly via CV in a potential range of 0 to 0.7 V with a scan rate of 0.1 V s−1 for 1000 cyclesl; the LSV curves were recorded before and after the CV test. According to the SEM image after the stability test in Figure 8b, after a 12 h stability test, the NiCoMo2-LDH/NF electrocatalyst still maintained its inherent morphology, which also proves its excellent stability.

4. Conclusions

In summary, we have successfully synthesized a Mo-doped NiCoMo-LDH/NF nanoscale catalyst on NF substrate by using a simple one-step hydrothermal method. The NiCoMo2-LDH/NF nanosheet catalyst has superior OER performance and stability. In addition, we have achieved an overpotential of 270 mV by using NiCoMo-LDH/NF as an OER catalyst at a current density of 10 mA cm−2, and its Tafel slope can reach 81.46 mV dec−1, which is significantly better than other reported OER catalysts. It is found that Mo doping result in the transformation of NiCo-LDH/NF electrode catalysts from nano linear to nanosheets. The transformation contributes to improving the catalytic sites on the surface of the electrode catalyst and is conducive to the rapid transfer of electrons and the adsorption and desorption of intermediates. NiCoMo-LDH/NF nanosheet catalyst shows excellent electrocatalytic activity and stability, rich materials and low cost. Therefore, it may have a promising application in alkaline electrolytic water.

Author Contributions

Conceptualization, Z.Z. and Z.L.; formal analysis, Z.Z. and Z.L.; funding acquisition, Z.L. and C.C.; investigation, Z.Z., S.L. (Shilin Li), Y.L., G.T., Y.H. (Yang Hao), Y.W., Y.H. (Yuzhao Huang), X.Z., S.L. (Shuaifang Li) and C.C.; methodology, Z.Z. and Z.L.; supervision, Z.L., C.C. and G.W.; validation, Z.Z., Z.L. and G.W.; visualization, Z.Z.; writing—original draft, Z.Z. and Z.L.; writing—review and editing, Z.L., C.C. and G.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 51901070), and the Student Research Train Program of Henan University of Science and Technology (No. 2022050).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zou, X.; Zhang, Y. Noble metal-free hydrogen evolution catalysts for water splitting. Chem. Soc. Rev. 2015, 44, 5148–5180. [Google Scholar] [CrossRef] [PubMed]
  2. Ren, X.; Ge, R.; Zhang, Y.; Liu, D.; Wu, D.; Sun, X.; Du, B.; Wei, Q. Cobalt–borate nanowire array as a high-performance catalyst for oxygen evolution reaction in near-neutral media. J. Mater. Chem. A 2017, 5, 7291–7294. [Google Scholar] [CrossRef]
  3. Thenuwara, A.C.; Shumlas, S.L.; Attanayake, N.H.; Aulin, Y.V.; McKendry, I.G.; Qiao, Q.; Zhu, Y.; Borguet, E.; Zdilla, M.J.; Strongin, D.R. Intercalation of Cobalt into the Interlayer of Birnessite Improves Oxygen Evolution Catalysis. ACS Catal. 2016, 6, 7739–7743. [Google Scholar] [CrossRef]
  4. Esswein, A.J.; Nocera, D.G. Hydrogen Production by Molecular Photocatalysis. Chem. Rev. 2007, 107, 4022–4047. [Google Scholar] [CrossRef]
  5. Veziroğlu, T.N.; Şahi, S. 21st Century’s energy: Hydrogen energy system. Energy Convers. Manag. 2008, 49, 1820–1831. [Google Scholar] [CrossRef]
  6. Masa, J.; Piontek, S.; Wilde, P.; Antoni, H.; Eckhard, T.; Chen, Y.-T.; Muhler, M.; Apfel, U.; Schuhmann, W. Ni-Metalloid (B, Si, P, As, and Te) Alloys as Water Oxidation Electrocatalysts. Adv. Energy Mater. 2019, 9, 1900796. [Google Scholar] [CrossRef]
  7. He, Q.; Xie, H.; Rehman, Z.U.; Wang, C.; Wan, P.; Jiang, H.; Chu, W.; Song, L. Highly defective Fe-based oxyhydroxides from electrochemical reconstruction for efficient oxygen evolution catalysis. ACS Energy Lett. 2018, 3, 861–868. [Google Scholar] [CrossRef]
  8. Song, F.; Hu, X. Ultrathin cobalt-manganese layered double hydroxide is an efficient oxygen evolution catalyst. J. Am. Chem. Soc. 2014, 136, 16481–16484. [Google Scholar] [CrossRef]
  9. Fan, K.; Chen, H.; Ji, Y.; Huang, H.; Claesson, H.H.P.M.; Daniel, Q.; Philippe, B.; Rensmo, B.P.H.; Li, F.; Luo, Y.; et al. Nickel-vanadium monolayer double hydroxide for efficient electrochemical water oxidation. Nat. Commun. 2016, 7, 11981. [Google Scholar] [CrossRef] [Green Version]
  10. Yang, Y.; Dang, L.; Shearer, M.J.; Sheng, H.; Li, W.; Chen, J.; Xiao, P.; Zhang, Y.; Hamers, R.J.; Jin, S. Highly Active Trimetallic NiFeCr Layered Double Hydroxide Electrocatalysts for Oxygen Evolution Reaction. Adv. Energy Mater. 2018, 8, 1703189. [Google Scholar] [CrossRef]
  11. Liu, H.; Wang, Y.; Lu, X.; Hu, Y.; Zhu, G.; Chen, R.; Ma, L.; Zhu, H.; Tie, Z.; Liu, J.; et al. The effects of Al substitution and partial dissolution on ultrathin NiFeAl trinary layered double hydroxide nanosheets for oxygen evolution reaction in alkaline solution. Nano Energy 2017, 35, 350–357. [Google Scholar] [CrossRef]
  12. Ma, F.; Wu, Q.; Liu, M.; Zheng, L.; Tong, F.; Wang, Z.; Wang, P.; Liu, Y.; Cheng, H.; Dai, Y.; et al. Surface Fluorination Engineering of NiFe Prussian Blue Analogue Derivatives for Highly Efficient Oxygen Evolution Reaction. ACS Appl. Mater. Interfaces 2021, 13, 5142–5152. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, Z.; Xu, W.; Zhu, W.; Yang, Q.; Lei, X.; Liu, J.; Li, Y.; Sun, X.; Duan, X. Three-dimensional NiFe layered double hydroxide film for high-efficiency oxygen evolution reaction. Chem. Commun. 2014, 50, 6479–6482. [Google Scholar] [CrossRef]
  14. Li, Z.; Shao, M.; An, H.; Wang, Z.; Xu, S.; Wei, M.; Evans, D.G.; Duan, X. Fast electrosynthesis of Fe-containing layered double hydroxide arrays toward highly efficient electrocatalytic oxidation reactions. Chem. Sci. 2015, 6, 6624–6631. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Luo, J.; Im, J.H.; Mayer, M.T.; Schreier, M.; Nazeeruddin, M.K.; Park, N.G.; Tilley, S.D.; Fan, H.J.; Grätzel, M. Water photolysis at 12.3% efficiency via perovskite photovoltaics and Earth-abundant catalysts. Science 2014, 345, 1593–1596. [Google Scholar] [CrossRef]
  16. Ye, C.; Zhang, L.; Yue, L.; Deng, B.; Cao, Y.; Liu, Q.; Luo, Y.; Lu, S.; Zheng, B.; Sun, X. A NiCo LDH nanosheet array on graphite felt: An efficient 3D electrocatalyst for the oxygen evolution reaction in alkaline media. Inorg. Chem. Front. 2021, 8, 3162–3166. [Google Scholar] [CrossRef]
  17. Feng, L.; Du, Y.; Huang, J.; Cao, L.; Feng, L.; Feng, Y.; Liu, Q.; Yang, D.; Kajiyoshi, K. Nanoporous NiAl-LDH nanosheet arrays with optimized Ni active sites for efficient electrocatalytic alkaline water splitting. Sustain. Energy Fuels 2020, 4, 2850–2858. [Google Scholar] [CrossRef]
  18. Li P, Duan X, Kuang Y, Li Y, Zhang G, Liu W, et al Tuning Electronic Structure of NiFe Layered Double Hydroxides with Vanadium Doping toward High Efficient Electrocatalytic Water Oxidation. Adv. Energy Mater. 2018, 8, 1703341. [Google Scholar] [CrossRef]
  19. Long, X.; Xiao, S.; Wang, Z.; Zheng, X.; Yang, S. Co intake mediated formation of ultrathin nanosheets of transition metal LDH-an advanced electrocatalyst for oxygen evolution reaction. Chem. Commun. 2015, 51, 1120–1123. [Google Scholar] [CrossRef]
  20. Yan, X.; Hu, Q.-T.; Liu, J.; Zhang, W.-D.; Gu, Z.-G. Ultrafine-grained NiCo layered double hydroxide nanosheets with abundant active edge sites for highly enhanced electro-oxidation of urea. Electrochim. Acta 2021, 368, 137648. [Google Scholar] [CrossRef]
  21. Lin, C.-H.; Chen, C.-L.; Wang, J.-H. Mechanistic Studies of Water–Gas-Shift Reaction on Transition Metals. J. Phys. Chem. C 2011, 115, 18582–18588. [Google Scholar] [CrossRef]
  22. Jiang, Y.-F.; Yuan, C.-Z.; Zhou, X.; Liu, Y.-N.; Zhao, Z.-W.; Zhao, S.-J.; Xu, A.-W. Selenium phosphorus co-doped cobalt oxide nanosheets anchored on Co foil: A self-supported and stable bifunctional electrode for efficient electrochemical water splitting. Electrochim. Acta 2018, 292, 247–255. [Google Scholar] [CrossRef]
  23. Wang, J.-W.; Wang, Y.-F.; Zhang, J.-G.; Yu, Y.-L.; Zhou, G.-G.; Cheng, L.; Wang, L.-S.; Fang, Z.Z. Optimization of electrocatalytic properties of NiMoCo foam electrode for water electrolysis by post-treatment processing. Rare Met. 2015, 34, 802–807. [Google Scholar] [CrossRef]
  24. Hu, K.; Wu, M.; Hinokuma, S.; Ohto, T.; Wakisaka, M.; Fujita, J.-I.; Ito, Y. Boosting electrochemical water splitting via ternary NiMoCo hybrid nanowire arrays. J. Mater. Chem. A 2019, 7, 2156–2164. [Google Scholar] [CrossRef]
  25. He, W.; Wei, W.; Wen, B.; Chen, D.; Zhang, J.; Jiang, Y.; Dong, G.; Meng, Y.; Zhou, G.; Liu, J.M.; et al. Lamellar NiMoCo@CuS enabling electrocatalytic activity and stability for hydrogen evolution. Chem. Commun. 2019, 55, 10555–10558. [Google Scholar] [CrossRef]
  26. Tiwari, A.P.; Lee, K.; Kim, K.; Kim, J.; Novak, T.G.; Jeon, S. Conformally Coated Nickel Phosphide on 3D, Ordered Nanoporous Nickel for Highly Active and Durable Hydrogen Evolution. ACS Sustain. Chem. Eng. 2019, 7, 11500–11510. [Google Scholar] [CrossRef]
  27. Bae, S.H.; Kim, J.E.; Randriamahazaka, H.; Moon, S.Y.; Park, J.Y.; Oh, I.K. Seamlessly conductive 3D nanoarchitecture of core–shell Ni-Co nanowire network for highly efficient oxygen evolution. Adv. Energy Mater. 2017, 7, 1601492. [Google Scholar] [CrossRef]
  28. Li, X.; Lin, S.-Y.; Zhang, M.; Jiang, G.; Gao, H. Construction of Hierarchical Ni(OH)2@CoMoO4 Nanoflake Composite for High-Performance Supercapacitors. Nano 2016, 11, 1650050. [Google Scholar] [CrossRef] [Green Version]
  29. Liu, H.; Zhao, D.; Liu, Y.; Tong, Y.; Wu, X.; Shen, G. NiMoCo layered double hydroxides for electrocatalyst and supercapacitor electrode. Sci. China Mater. 2020, 64, 581–591. [Google Scholar] [CrossRef]
  30. Yang, Y.; Zhang, W.; Xiao, Y.; Shi, Z.; Cao, X.; Tang, Y.; Gao, Q. CoNiSe2 heteronanorods decorated with layered-double-hydroxides for efficient hydrogen evolution. Appl. Catal. B Environ. 2018, 242, 132–139. [Google Scholar] [CrossRef]
  31. Liang, H.; Gandi, A.N.; Anjum, D.H.; Wang, X.; Schwingenschlogl, U.; Alshareef, H.N. Plasma-Assisted Synthesis of NiCoP for Efficient Overall Water Splitting. Nano Lett. 2016, 16, 7718–7725. [Google Scholar] [CrossRef] [PubMed]
  32. Pintado, S.; Goberna-Ferron, S.; Escudero-Adan, E.C.; Galan-Mascaros, J.R. Fast and persistent electrocatalytic water oxidation by Co-Fe Prussian blue coordination polymers. J. Am. Chem. Soc. 2013, 135, 13270–13273. [Google Scholar] [CrossRef] [PubMed]
  33. Ge, R.; Ren, X.; Ji, X.; Liu, Z.; Du, G.; Asiri, A.M.; Sun, X.; Chen, L. Benzoate Anion-Intercalated Layered Cobalt Hydroxide Nanoarray: An Efficient Electrocatalyst for the Oxygen Evolution Reaction. ChemSusChem 2017, 10, 4004–4008. [Google Scholar] [CrossRef] [PubMed]
  34. Zhou, X.; Xia, Z.; Zhang, Z.; Ma, Y.; Qu, Y. One-step synthesis of multi-walled carbon nanotubes/ultra-thin Ni(OH)2 nanoplate composite as efficient catalysts for water oxidation. J. Mater. Chem. A 2014, 2, 11799–11806. [Google Scholar] [CrossRef]
  35. Rovetta, A.A.; Browne, M.P.; Harvey, A.; Godwin, I.J.; Coleman, J.N.; Lyons, M.E. Cobalt hydroxide nanoflakes and their application as supercapacitors and oxygen evolution catalysts. Nanotechnology 2017, 28, 375401. [Google Scholar] [CrossRef]
  36. Ai, L.; Niu, Z.; Jiang, J. Mechanistic insight into oxygen evolution electrocatalysis of surface phosphate modified cobalt phosphide nanorod bundles and their superior performance for overall water splitting. Electrochim. Acta 2017, 242, 355–363. [Google Scholar] [CrossRef]
  37. Zhao, Z.; Wu, H.; He, H.; Xu, X.; Jin, Y. A High-Performance Binary Ni-Co Hydroxide-based Water Oxidation Electrode with Three-Dimensional Coaxial Nanotube Array Structure. Adv. Funct. Mater. 2014, 24, 4698–4705. [Google Scholar] [CrossRef]
  38. Liang, H.; Meng, F.; Cabán-Acevedo, M.; Li, L.; Forticaux, A.; Xiu, L.; Wang, Z.; Jin, S. Hydrothermal Continuous Flow Synthesis and Exfoliation of NiCo Layered Double Hydroxide Nanosheets for Enhanced Oxygen Evolution Catalysis. Nano Lett. 2015, 15, 1421–1427. [Google Scholar] [CrossRef]
  39. Song, F.; Hu, X. Exfoliation of layered double hydroxides for enhanced oxygen evolution catalysis. Nat. Commun. 2014, 5, 4477. [Google Scholar] [CrossRef] [Green Version]
  40. Gao, X.; Zhang, H.; Li, Q.; Yu, X.; Hong, Z.; Zhang, X.; Liang, C.; Lin, Z. Hierarchical NiCo2O4 Hollow Microcuboids as Bifunctional Electrocatalysts for Overall Water-Splitting. Angew. Chem. Int. Ed. Engl. 2016, 55, 6290–6294. [Google Scholar] [CrossRef]
  41. Liu, Q.; Jin, J.; Zhang, J. NiCo2S4@graphene as a bifunctional electrocatalyst for oxygen reduction and evolution reactions. ACS Appl. Mater. Interfaces 2013, 5, 5002–5008. [Google Scholar] [CrossRef] [PubMed]
  42. Shi, J.; Du, N.; Zheng, W.; Li, X.; Dai, Y.; He, G. Ultrathin Ni-Co double hydroxide nanosheets with conformal graphene coating for highly active oxygen evolution reaction and lithium ion battery anode materials. Chem. Eng. J. 2017, 327, 9–17. [Google Scholar] [CrossRef]
  43. Xu, J.; Zhao, Y.; Li, M.; Fan, G.; Yang, L.; Li, F. A strong coupled 2D metal-organic framework and ternary layered double hydroxide hierarchical nanocomposite as an excellent electrocatalyst for the oxygen evolution reaction. Electrochim. Acta 2019, 307, 275–284. [Google Scholar] [CrossRef]
  44. Shinde, D.V.; Trizio, L.D.; Dang, Z.; Prato, M.; Gaspari, R.; Manna, L. Hollow and Porous Nickel Cobalt Perselenide Nanostructured Microparticles for Enhanced Electrocatalytic Oxygen Evolution. Chem. Mater. 2017, 29, 7032–7041. [Google Scholar] [CrossRef]
  45. Jiang, J.; Zhang, A.; Li, L.; Ai, L. Nickel–cobalt layered double hydroxide nanosheets as high-performance electrocatalyst for oxygen evolution reaction. J. Power Source 2015, 278, 445–451. [Google Scholar] [CrossRef]
  46. Sayeed, M.A.; Herd, T.; O’Mullane, A.P. Direct electrochemical formation of nanostructured amorphous Co(OH)2 on gold electrodes with enhanced activity for the oxygen evolution reaction. J. Mater. Chem. A 2016, 4, 991–999. [Google Scholar] [CrossRef]
Nanomaterials 12 03716 g001 550

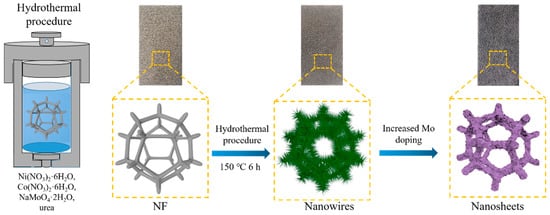

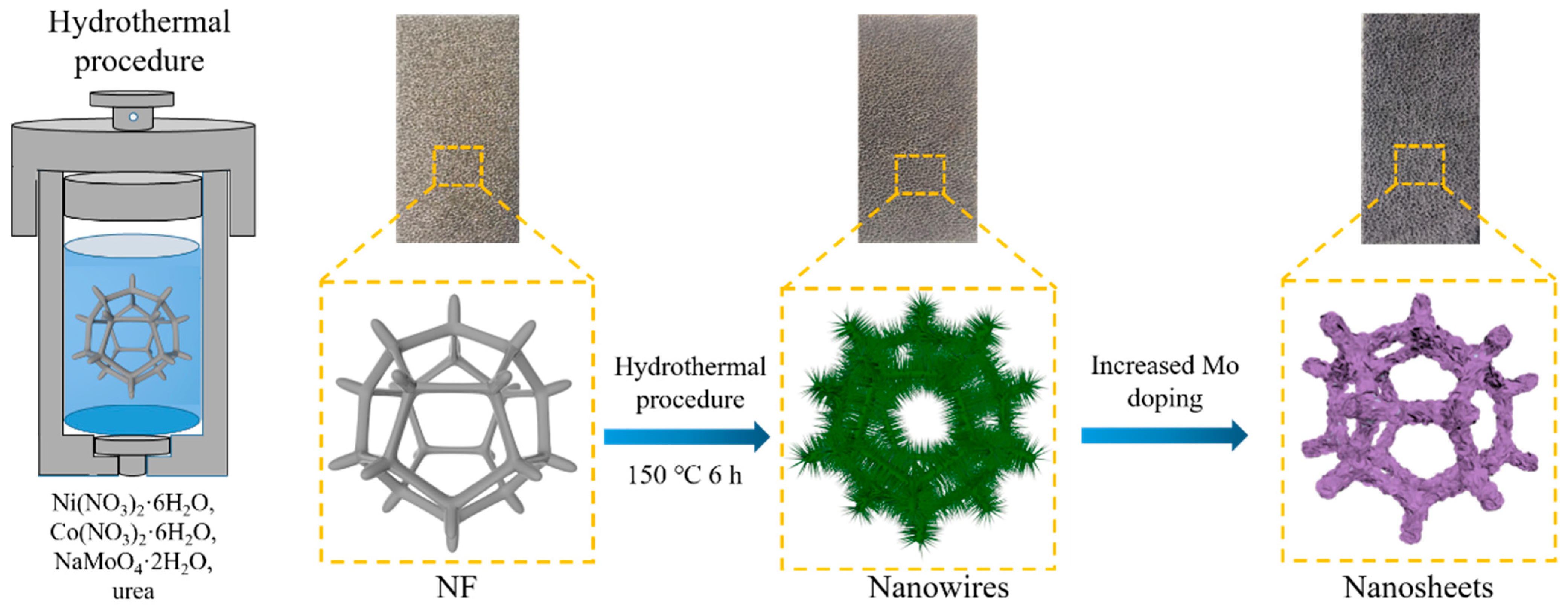

Figure 1. Schematic illustration for the one-step fabrication route of NiCoMo-LDH nanosheet arrays on NF.
Figure 1. Schematic illustration for the one-step fabrication route of NiCoMo-LDH nanosheet arrays on NF.
Nanomaterials 12 03716 g001
Nanomaterials 12 03716 g002 550

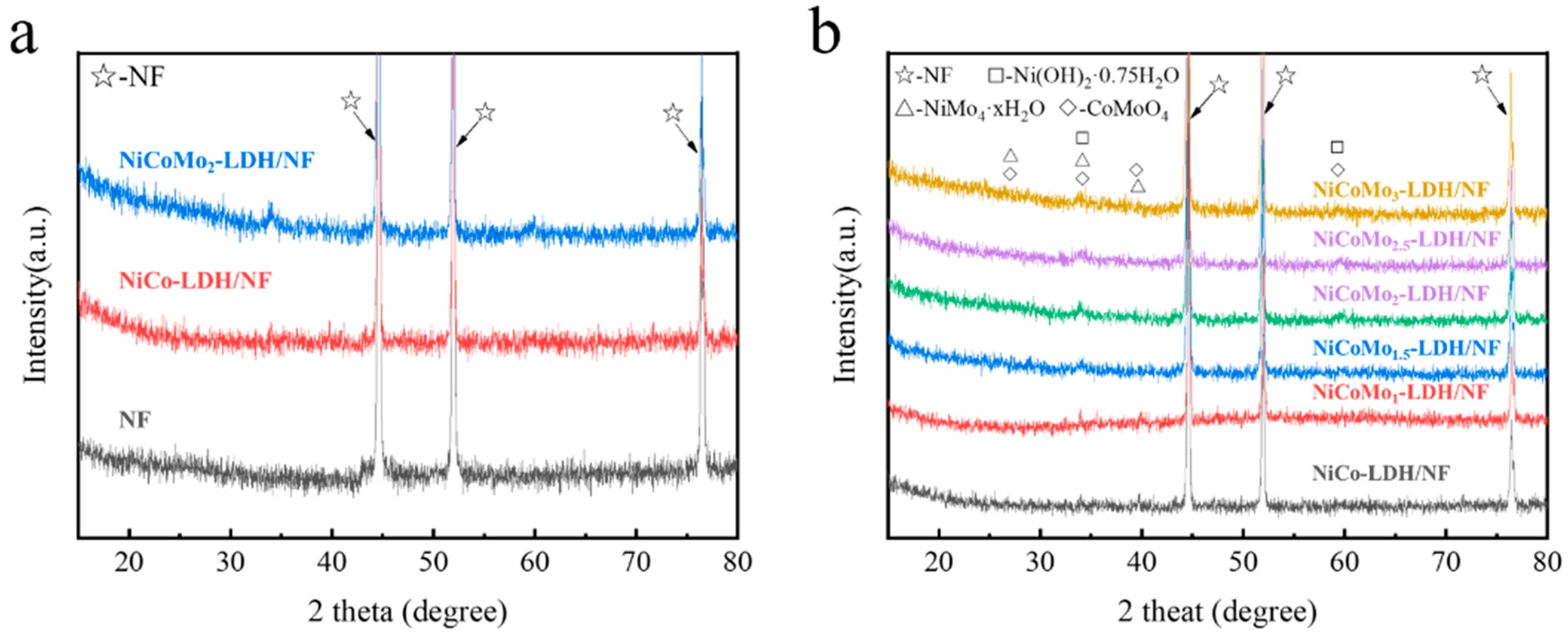

Figure 2. (a,b) XRD patterns of the as-prepared samples.
Figure 2. (a,b) XRD patterns of the as-prepared samples.
Nanomaterials 12 03716 g002
Nanomaterials 12 03716 g003 550

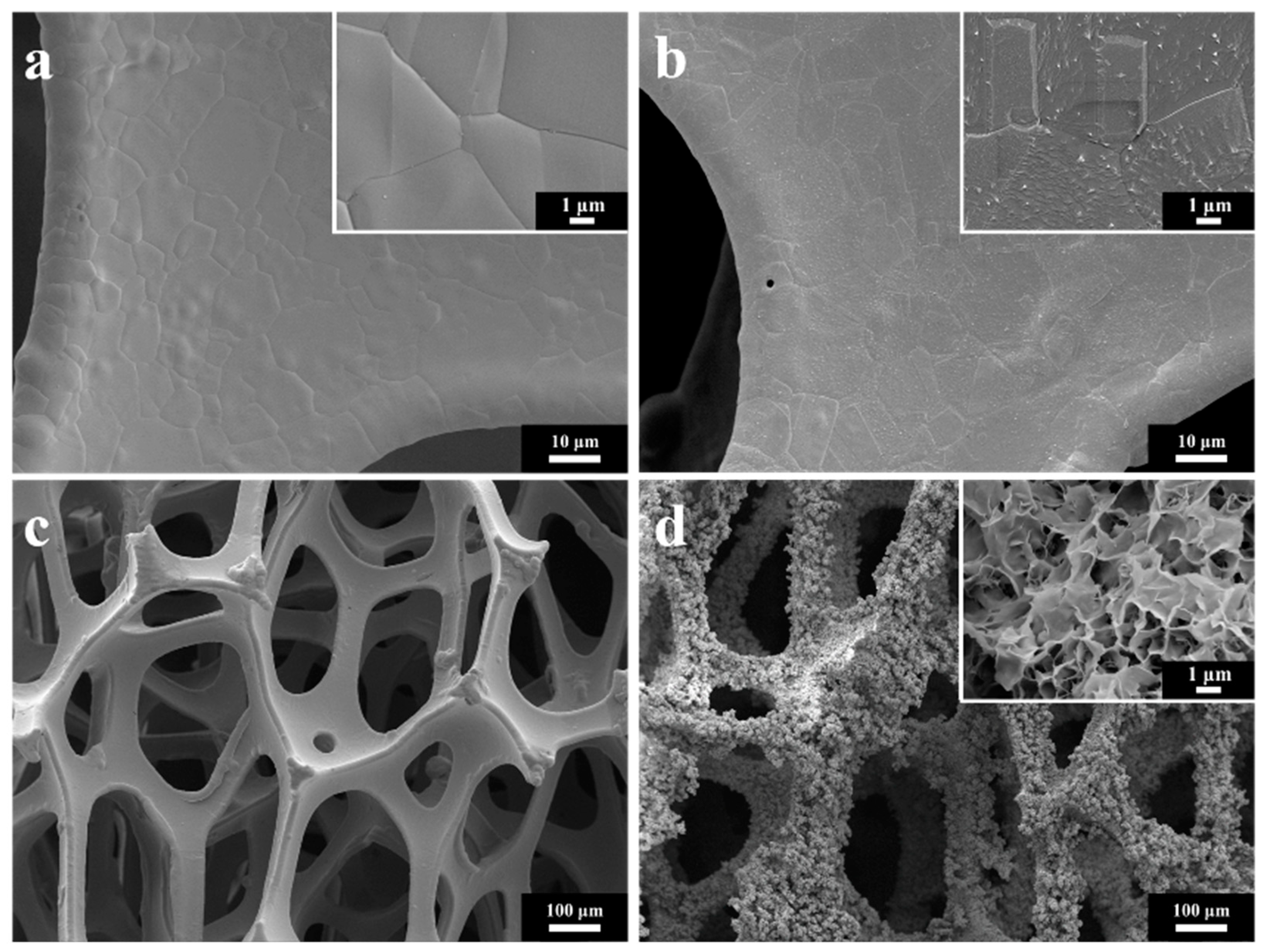

Figure 3. Low magnification and high magnification inset SEM images of (a) NF before pretreatment, (b) NF after pretreatment, (c) NF before hydrothermal treatment and (d) Low magnification and high magnification inset SEM images of NiCoMo2-LDH/NF after hydrothermal treatment.
Figure 3. Low magnification and high magnification inset SEM images of (a) NF before pretreatment, (b) NF after pretreatment, (c) NF before hydrothermal treatment and (d) Low magnification and high magnification inset SEM images of NiCoMo2-LDH/NF after hydrothermal treatment.
Nanomaterials 12 03716 g003
Nanomaterials 12 03716 g004 550

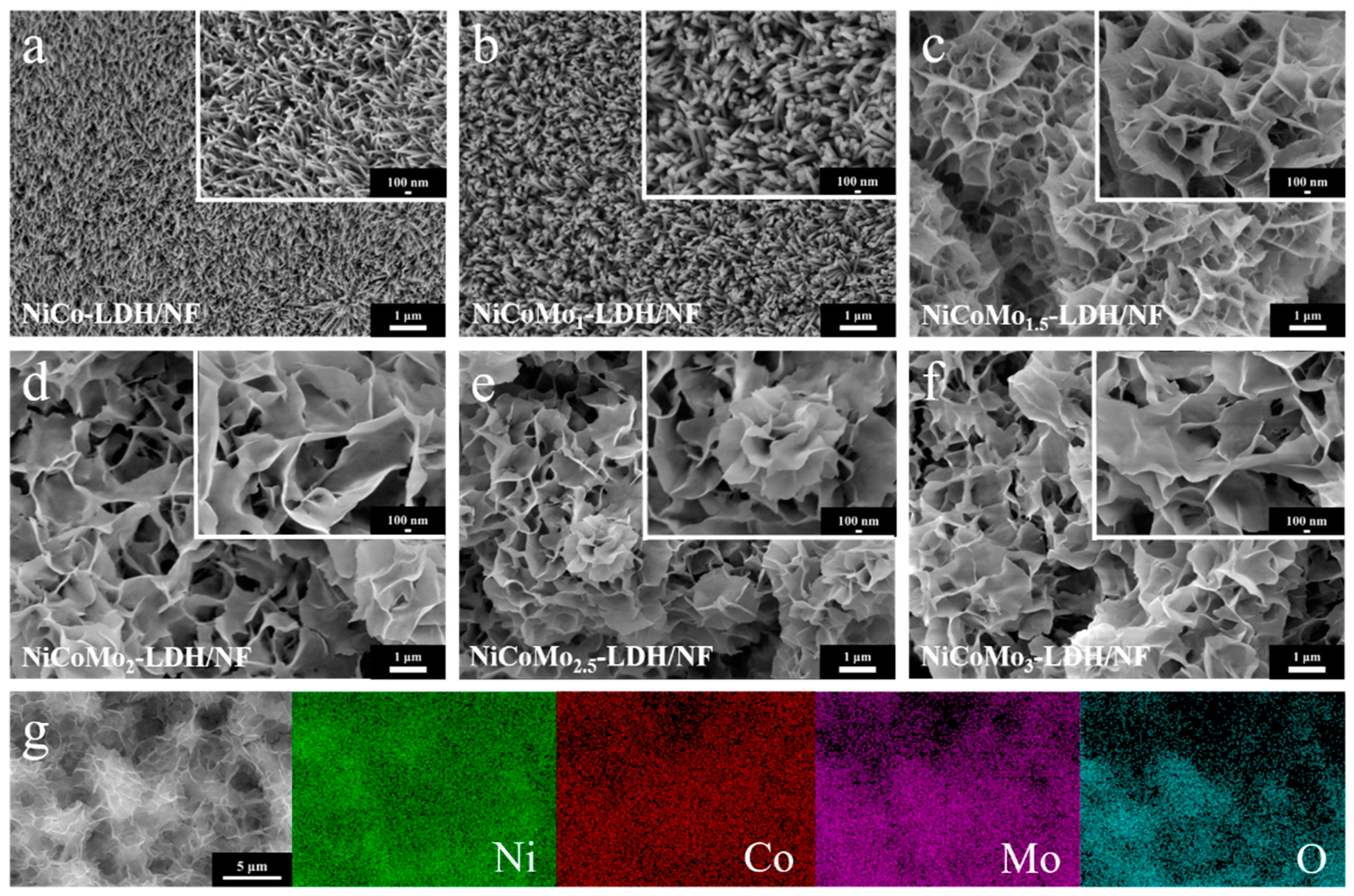

Figure 4. Low magnification and high magnification inset SEM images of (a–f) NiCo-LDH/NF, NiCoMo1-LDH/NF, NiCoMo1.5-LDH/NF, NiCoMo2-LDH/NF, NiCoMo2.5-LDH/NF and NiCoMo3-LDH/NF, respectively, and (g) EDS of NiCoMo2-LDH/NF nanosheets.
Figure 4. Low magnification and high magnification inset SEM images of (a–f) NiCo-LDH/NF, NiCoMo1-LDH/NF, NiCoMo1.5-LDH/NF, NiCoMo2-LDH/NF, NiCoMo2.5-LDH/NF and NiCoMo3-LDH/NF, respectively, and (g) EDS of NiCoMo2-LDH/NF nanosheets.
Nanomaterials 12 03716 g004
Nanomaterials 12 03716 g005 550

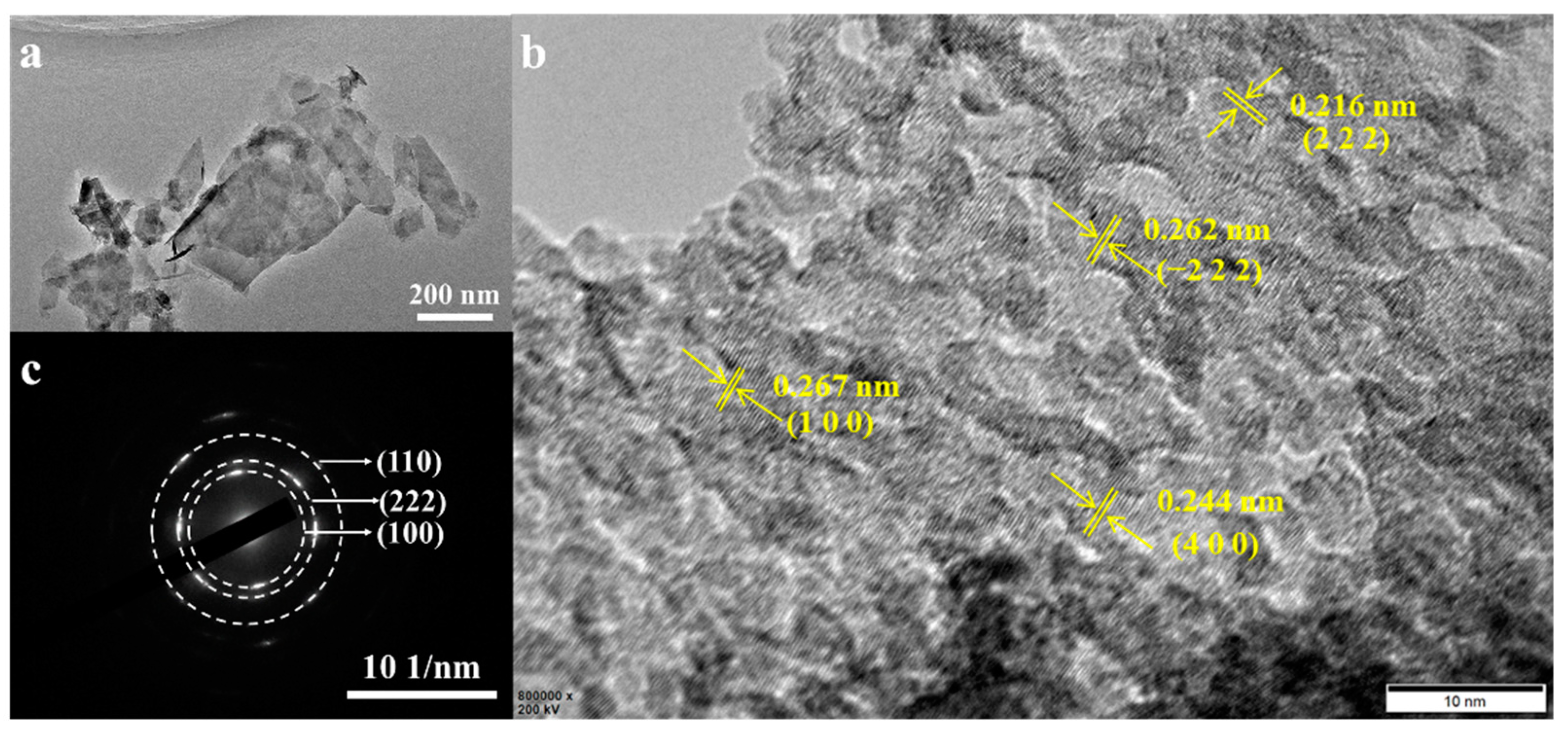

Figure 5. (a) TEM images, (b) HRTEM image and (c) SAED pattern of NiCoMo2-LDH/NF.
Figure 5. (a) TEM images, (b) HRTEM image and (c) SAED pattern of NiCoMo2-LDH/NF.
Nanomaterials 12 03716 g005
Nanomaterials 12 03716 g006 550

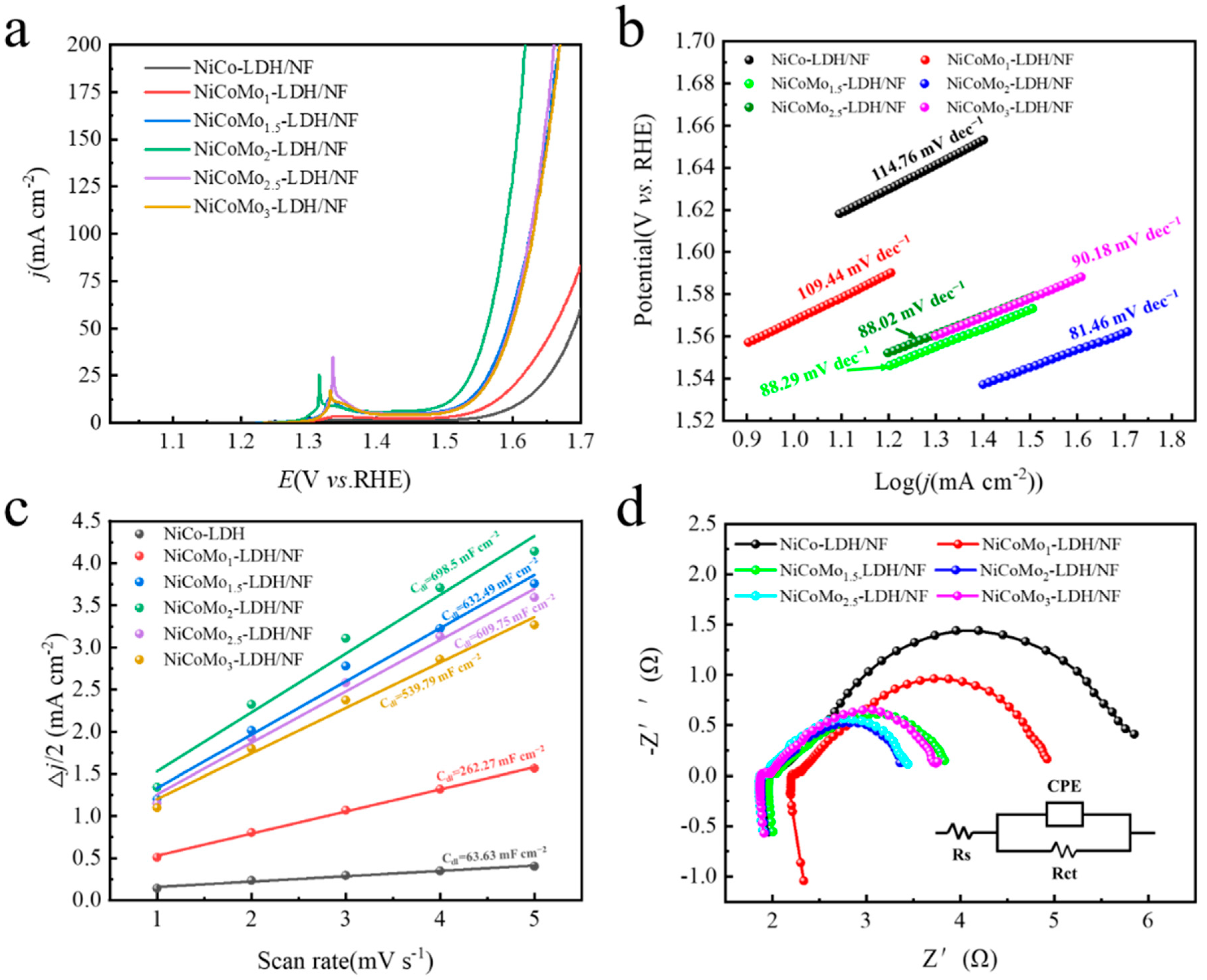

Figure 6. Polarization curves of Mo-doped electrode catalysts. (a) LSV curves of NiCoMo-LDH/NF in O2-saturated 1.0 M KOH solution at a scan rate of 5 mV s−1, (b) Tafel plot (overpotential vs. log current) derived from the corresponding polarization curves, (c) Plots showing the extraction of the double-layer capacitances allow the estimation of the electrochemically active surface area (ECSA), and (d) Nyquist plots recorded at overpotential of 1.56 V vs RHE.
Figure 6. Polarization curves of Mo-doped electrode catalysts. (a) LSV curves of NiCoMo-LDH/NF in O2-saturated 1.0 M KOH solution at a scan rate of 5 mV s−1, (b) Tafel plot (overpotential vs. log current) derived from the corresponding polarization curves, (c) Plots showing the extraction of the double-layer capacitances allow the estimation of the electrochemically active surface area (ECSA), and (d) Nyquist plots recorded at overpotential of 1.56 V vs RHE.
Nanomaterials 12 03716 g006
Nanomaterials 12 03716 g007 550

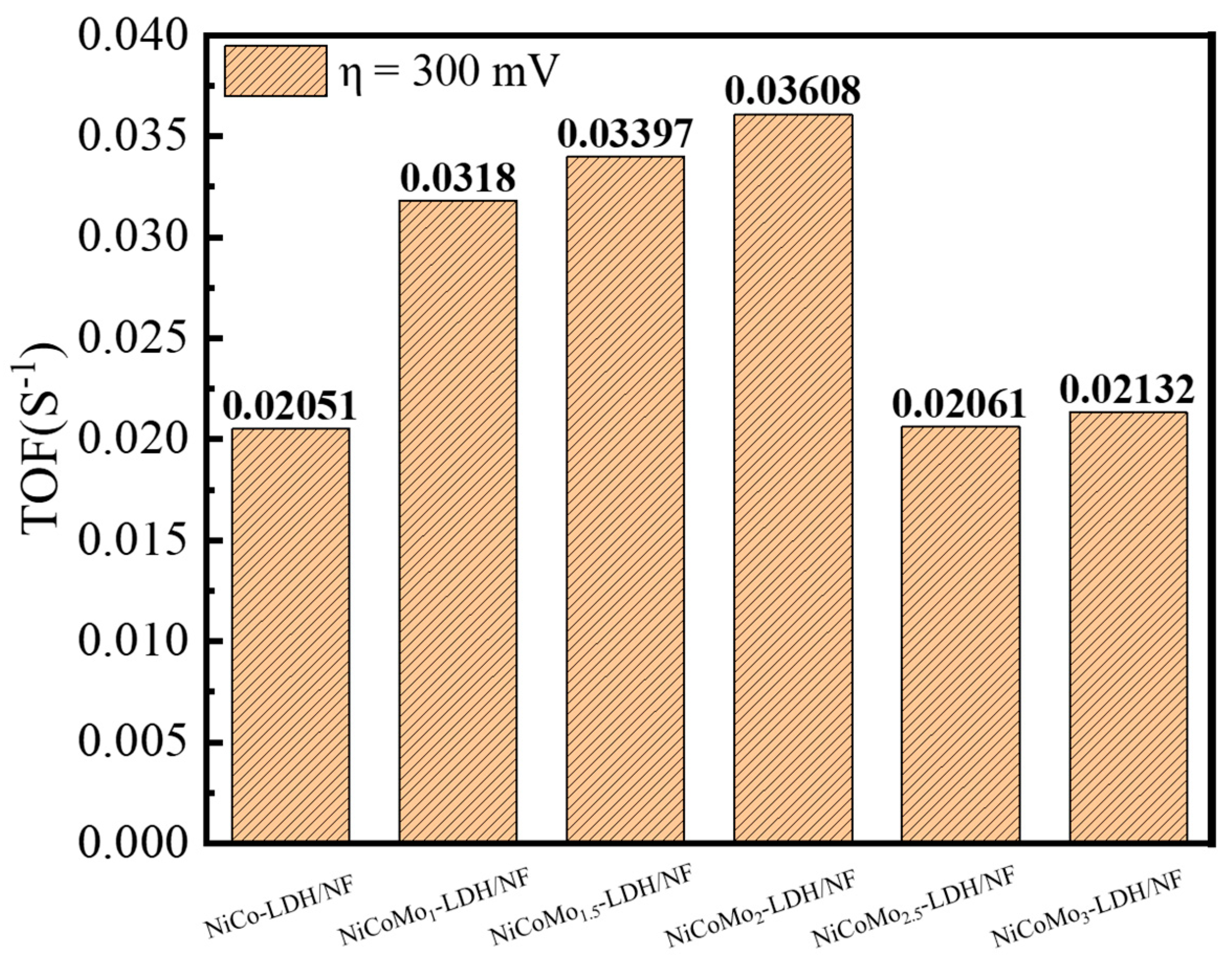

Figure 7. TOF values of different Mo-doped electrode catalysts at an overpotential of 300 mV.
Figure 7. TOF values of different Mo-doped electrode catalysts at an overpotential of 300 mV.
Nanomaterials 12 03716 g007
Nanomaterials 12 03716 g008 550

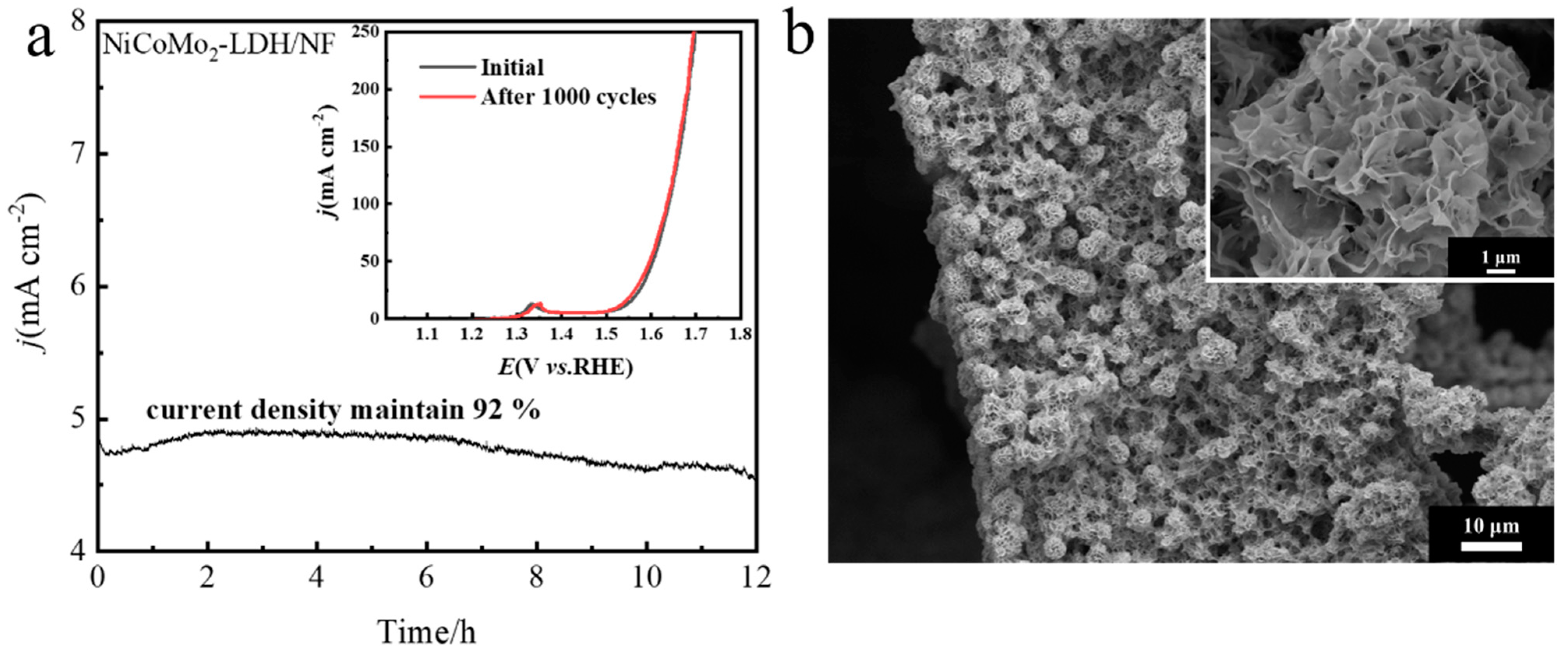

Figure 8. Stability test. (a) I-T curve of the NiCoMo2-LDH/NF electrocatalyst, initial LSV curve and LSV curve after 1000 CV cycles, and (b) Low magnification and high magnification inset SEM images after NiCoMo2-LDH/NF stability test.
Figure 8. Stability test. (a) I-T curve of the NiCoMo2-LDH/NF electrocatalyst, initial LSV curve and LSV curve after 1000 CV cycles, and (b) Low magnification and high magnification inset SEM images after NiCoMo2-LDH/NF stability test.
Nanomaterials 12 03716 g008
Table
Table 1. More comparison of OER performance of different nickel- or cobalt-based electrocatalysts (overpotentials η calculated by using the formula η = ERHE − 1.23 V).
Table 1. More comparison of OER performance of different nickel- or cobalt-based electrocatalysts (overpotentials η calculated by using the formula η = ERHE − 1.23 V).
CatalystCurrent Density
(mA cm−2)		Overpotential
(mV)		Reference
Ni(OH)210595[34]
Co(OH)2 nanoflake/Ni foam10280[35]
Co-Ni-B/NF10313[36]
NiCo hydroxide10460[37]
NiCo-LDH10367[38]
NiCo-NS10334[39]
NiCo2O4 hollow microcuboids10277[40]
NiCo2S4@graphene10470[41]
NixCo2x(OH)6x@eRG/NF10280[42]
ZIF-67/CoNiAl-LDH/NF10303[43]
(Ni1−xCo1+xSe4)MPs10320[44]
NiCo-LDH nanosheets10290[45]
Co(OH)210360[46]
NiCoMo2-LDH/NF10270This work
