High-Selective CO2 Capture in Amine-Decorated Al-MOFs

by
Yinji Wan
1,†,
Yefan Miao
1,†,
Ruiqin Zhong
1,* and
Ruqiang Zou
2,*
1
State Key Laboratory of Heavy Oil Processing, China University of Petroleum, No. 18 Fuxue Road, Changping District, Beijing 102249, China
2
Beijing Key Laboratory for Theory and Technology of Advanced Battery Materials, School of Materials Science and Engineering, Peking University, No. 5 Yiheyuan Road, Haidian District, Beijing 100871, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2022, 12(22), 4056; https://doi.org/10.3390/nano12224056
Submission received: 11 October 2022 / Revised: 10 November 2022 / Accepted: 14 November 2022 / Published: 17 November 2022
(This article belongs to the Section Inorganic Materials and Metal-Organic Frameworks)
Browse Figures
Versions Notes

Abstract

:
Amine-functionalized metal-organic framework (MOF) material is a promising CO2 captor in the post-combustion capture process owing to its large CO2 working capacity as well as high CO2 selectivity and easy regeneration. In this study, an ethylenediamine (ED)-decorated Al-based MOFs (named ED@MOF-520) with a high specific area and permanent porosity are prepared and evaluated to study the adsorption and separation of CO2 from N2. The results show that ED@MOF-520 adsorbent displays a superior CO2 capture performance with a CO2/N2 separation factor of 50 at 273 K, 185% times increase in the CO2/N2 separation efficiency in comparison with blank MOF-520. Furthermore, ED@MOF-520 exhibits a moderate-strength interaction with 29 kJ mol−1 adsorption heat for CO2 uptake, which not only meets the requirement of CO2 adsorption but also has good cycle stability. This work provides a promising adsorbent with a high CO2/N2 separation factor to deal with carbon peak and carbon neutrality.

Graphical Abstract

1. Introduction

Carbon capture and storage/sequestration (CCS) has been proposed as a commercially viable technology to abate CO2 emissions in the post-combustion capture process [1,2,3]. The core part of CCS is the development of highly efficient CO2 captors. Therefore, numerous research efforts have been devoted to the following aspects such as chemical absorption by amine solutions [4,5,6,7], the cryogenic separation distillation method [8], the membrane separation method [9,10,11,12], and the adsorption method using porous solid adsorbents [13,14,15,16,17,18,19,20,21,22,23,24]. It is widely believed that the adsorption and separation of CO2 by solid adsorbents has enormous potential such as activated carbon, Li-based ceramics, and MOFs, etc. due to environmental benignity, economic cost, and flexible operability [25,26].
Among them, metal-organic frameworks (MOFs), constructed by metal ions/clusters and organic linkers by coordination bonds are considered to be the most competitive candidates for CO2 capture and separation owing to their high surface area and tunable pore sizes and chemical environments of pore [27,28,29,30,31,32]. Unfortunately, CO2 is often physically adsorbed in channels of MOFs, thus leading to the low selectivity of CO2 capture in coexisting species (N2, CO, and H2O) [33,34,35]. One of the efficient solutions is to fabricate amine-functionalized MOFs materials with uncoordinated and electron-rich N atoms, which can act as the active adsorption sites of CO2 through Lewis acid−base chemistry between CO2 and amine, thereby realizing high-selectivity CO2 adsorption and separation [36,37,38]. The introduction of amine molecules into MOFs has been prepared by pre- and post-synthetic modification strategies [39,40,41]. For example, Zhong et al. [39] introduced tris(2-aminoethyl) amine (TAEA), ethylenediamine (ED), and triethylenediamine (TEDA) into open Cr sites of MIL-101(Cr) by the double-solvent method, respectively. The authors studied the effect of amine species grafted-MIL-101(Cr) on the adsorption and separation performance of CO2/CO. The experimental and theoretical results showed that the CO2/CO selectivity of TAEA@MIL-101was 103 times higher than that of unmodified MIL-101. In another work, a diamine-grafted into the ligands of IRMOF-74-III was designed and developed by Yaghi and coworkers for CO2 capture in the presence/absence of H2O, providing fundamental insights of CO2 adsorption in the framework chemistry of MOFs [42]. Mason et al. [43] found that amine-appended Mg2(dobpdc) displays an outstanding CO2 adsorption capacity with up to 4.2 mmol g−1 under high H2O partial pressure. McDonald et al. [44] further unveiled the adsorption mechanism of these amine-modified MOFs, firstly, the H transfer from the -NH2 and the nucleophilic attack of N on CO2 leads to the formation of ammonium carbamate species, which destabilizes the amine at the next metal site, thus inducing CO2 synergistic adsorption via chain reactions. Wan et al. [41] used a mixed ligands strategy to synthesize a series of amine-grafted Ti-MOFs (MIP-207-NH2) for trapping CO2 from N2, they found that the performance of CO2 capture of MIP-207-NH2 functions as the contents of the amino group. Among these adsorbents, the MIP-207-NH2-25% possessed a 3.96 mmol g−1 CO2 capture capacity with the highest CO2/N2 separation factor (77) at 273 K, which was about 21% and 33% higher than those of pure MIP-207. However, novel CO2 adsorbents with high selectivity and large CO2 adsorption capacity need to be further developed and explored. Up to now, there have not been studies on MOF-520 [Al8(μ-OH)8(HCOO)4(BTB)4, BTB = 1,3,5-benzenetribenzoate] for CO2 uptake and amine-modified MOF-520 is not reported yet.
MOF-520 was chosen as the porous material mainly considering the high specific surface area with large micropores (16.2 × 9.9 Å) [45], which could offer adequate space for the introduction of organic amine molecules and confine them in the channel via van der Waals force considering MOF-520 does not have strong binding sites (i.e., open metal sites). In addition, the introduction of organic amine can regulate the pore size of materials and improve the separation effect of molecular sieves to a certain extent, therefore, facilitating the selective adsorption of CO2. In this study, the MOF-520 and ED-decorated MOF-520 (ED@MOF-520) were prepared, characterized and evaluated to study the adsorption and separation of CO2 from N2. The features of MOF-520 can uptake mixed gas CO2/N2 according to the different molecule kinetic diameters. After incorporating ED into the channels of MOF-520 via a double solvent approach, the ED@MOF-520 composites displayed a superior CO2 capture performance with a CO2/N2 separation factor of 50, 185% times higher than that of unmodified MOF-520 at 273 K. The high selective enhancement mechanism relied on the introduction of electron donor amine which can preferentially trap CO2 from N2 through Lewis acid−base interactions between CO2 and amine.

2. Experimental Section

2.1. Synthesis of MOF-520

All the reagents were purchased from commercial sources and were used without further purification. MOF-520 was synthesized by hydrothermal reaction of Al(NO3)3·9H2O (90 mg), BTB (75 mg), deionized water (40 μL), DMF (13 mL), formic acid (1.9 mL), and anhydrous ethanol (24 mL) at 140 °C for 14 h according to the previous procedure [45]. After that, the solid was separated and washed with anhydrous acetone. Finally, the products were obtained by vacuum-drying at 120 °C for 8 h.

2.2. Synthesis of ED@MOF-520

The ED@MOF-520 was prepared by squeezing ED into the pores of activated MOF-520 (Figure 1). Firstly, the synthesized MOF-520 was activated at 120 °C for 8 h in a vacuum oven. The activated MOF-520 (150 mg) was added to n-hexane (20 mL) and dispersed by ultrasonic treatment for 20 min. Subsequently, 32 μL ED (the loading amount of ED accounts for 20% of the pore volume of MOF-520) was gradually added into the above-mentioned solution using the syringe pump under vigorous stirring. After that, the mixture was sealed and stirred for 4 h. Then, the vial was opened and stirred until the n-hexane was fully evaporated. Finally, the product was activated under vacuum conditions at 120 °C for 8 h to remove residual n-hexane and the external surface ED, and a yellow solid product was denoted as ED@MOF-520-20%.

2.3. Sample Characterization and Gas Adsorption Measurements

Powder X-ray diffraction (PXRD) patterns for the samples were performed on a Rigaku D/max 2400 X-ray diffractometer equipped with Cu Kα radiation (λ = 1.5406 Å). Thermogravimetric analyzes (TGA) were performed on an SDT Q600 analyzer (New Castle, DE, USA). The test of adsorption and desorption cyclic stability was carried out on SDT Q600analyzer. C, H, and N contents of samples were measured by elemental analysis (Elementar Vario EL CUBE (Langenselbold, Germany). Fourier-transform infrared spectroscopy (FTIR) spectra of all samples were collected by a Bruker Tensor 27 Fourier transform infrared spectrometer. Nitrogen adsorption isotherms at 77 K were performed within the pressure range 0–1 atm (Quantachrom Autosorb-IQ gas adsorption analyzer). The specific surface area was calculated with the Brunauer-Emmett-Teller (BET) model and pore size distribution was obtained by the non-local density functional theory (NLDFT) model. The N2 at 77 K on carbon (slit pore, NLDFT equilibrium model) was selected as the calculation model to obtain the pore size distribution profile. The details about the CO2 and N2 adsorption measurements can be found in our previous report [41].

3. Results and Discussion

3.1. Structural Analysis of Sample

As shown in Figure 2a, the characteristic diffraction peaks of MOF-520 at 2θ = 5°, 6.5°, and 7° can be observed after hydrothermal treatment at 140 °C for 14 h [45]. Compared with simulated MOF-520, the peak position and relative intensities are basically the same, illustrating that MOF-520 was successfully synthesized. It should be pointed out that the peak splitting at 6.5° may be associated with the presence of solvent molecules incorporating the micropores during the MOF-520 synthesis [46]. Figure 2a also exhibits that the structure of MOF-520 maintains well after the thermal activation temperature of 120 °C. From Figure 2b, the amount of loading ED has a great effect on the crystal structure of MOF-520, where the peak relative intensities of ED@MOF-520 gradually decrease with the amount of ED increasing, indicating that the crystallinity of MOF-520 gradually decreases. The crystal structure of MOF-520 is maintained in the ED@MOF-520 composites when the amount of ED added less than 30% (Figure S1). However, the main peaks of MOF-520 have completely disappeared when the amount of ED increases to 40%, and no obvious peaks can be observed in the ED@MOF-520-60% (Figure S1). Our findings lead us to conclude that the functional groups (–COOH) of ligands of MOF-520 can react with the -NH2 groups of ED, and the framework of MOF-520 can be damaged with the amount of ED over 40%.
TGA technology was used to trace the effect of ED on the thermal stability of the materials. As shown in Figure 3, the ED@MOF-520 composite showed a similar TGA curve trend as the pristine MOF-520, containing three-step weight loss, which was attributed to the removal of guest molecules (ED and solvents used), decomposition of organic ligand, and collapse of parent frameworks [39]. It can be seen that the difference in TGA curves of ED@MOF-520 and MOF-520 is mainly manifested in the first stage of weight loss (<230 °C). Compared with MOF-520 (~74.10%), the ED@MOF-520 lost weight to about 65.5% in the first step.
To figure out the changes in the functional groups and chemical bonds of modified MOF-520, FT-IR tests were performed on MOF-520 and ED@MOF-520 (Figure 4). Prior to the FT-IR measurements, all samples were treated by vacuum drying at 120 °C for 8 h to remove the H2O and surface ED molecules of materials. For MOF-520, the strong adsorption peak at 3462 cm−1 is attributed to the stretching vibration peak of −OH, and the characteristic peak at 1608 cm−1 is clearly observed, which is attributed to the stretching vibration of the C=O bond of carboxyl. The peak at 1552~1430 cm−1 is the characteristic peak of the benzene ring, and the peak at 1388 cm−1 is found owing to the existence of bending vibration of the C−H bond. The peaks at 850 and 790 cm−1 can be to the out-of-plane deformation vibration characteristic peaks of the C–H bond on the benzene ring of the ligand. Compared with MOF-520, ED-modified MOF-520 materials maintain the original characteristic peaks of MOF-520. Notably, a −C−N peak was found at 1125 cm−1 by magnification, and the peak intensities of C−H at 1388 cm−1 were strengthened, indicating that ED molecules were successfully squeezed into the MOF-520 channels. In addition, there was a red-shifted phenomenon about the peak at 1436 cm−1 of MOF-520, moving to 1418 cm−1. The possible reason was that a hydrogen bond was formed between the N atom in ED and the H atom on the benzene ring. As a result, the C−H of the benzene ring shifted to a lower wavenumber, which also confirmed the introduction of ED into the MOF-520 pore. To quantitatively analyze the percentages of C, H, and N elements, the ED@MOF-520 material elemental analysis was performed. As shown in Table 1, the N element was not detected in the parent MOF-520. With the addition of ED content, the content of both N and H elements increased, further indicating that ED has been appended to the framework of MOF-520. It should be pointed out that the loading content of N obtained by elemental analysis was less than the difference in weight loss between MOF-520 and ED@MOF-520, which may be associated with more solvent molecules.
The results of N2 physisorption isotherms measurements of samples are shown in Figure 5a and Table 1. According to the IUPAC classification, the N2 adsorption-desorption curves of materials belong to I-type with no hysteresis loops related to microporous characteristics. Additionally, the specific surface areas are determined by N2 adsorption curves using the Brunauer-Emmett-Teller (BET) model. Table 1 shows that the BET area of MOF-520 is 2699.46 m2 g−1 and BET areas of ED@MOF-520 decreased with the increase in ED loading. Based on the above results and PXRD analysis, the polar ED molecules have been successfully squeezed and retained into the pore of MOF-520 by the capillary enrichment effect and the van der Waals force. To accurately assess the influence of ED on the pore size of the material, the carbonaceous slit model of the NLDFT method was used to obtain the pore size distribution of both MOF-520 and ED@MOF-520 composites (Figure 5b). It can be seen that the pore diameter of 1.007 nm of MOF-520 gradually declines with ED loaded, and the two kinds of micropore with a pore diameter of 0.686 and 0.75 nm disappear after ED modification. These phenomena fully indicate the ED preferentially fills into the relatively large pores of MOF-520. Meanwhile, the pore size of ED@MOF-520 has moved from 0.57 to 0.52 nm, and a smaller pore size of less than 0.4 nm is produced.

3.2. Gas Adsorption Performance of Adsorbents

The CO2 and N2 adsorption performance at 273 and 298 K are shown in Figure 6a,b and Table 2. Apparently, The CO2 uptakes of ED@MOF-520 are lower than that of MOF-520 at 273 and 298 K, respectively. Combined with the pore sizes curve (Figure 6b), it can be seen that MOF-520 possesses an abundant microporous structure, hence behaving with an outstanding CO2 capture capacity. Although MOF-520 after ED grafting can increase the number of adsorption sites, the overall CO2 uptakes of ED-modified MOF-520 composites reduce, which is caused by the sharp decrease in the BET area (Table 1). With the addition of ED, the pores where CO2 molecules diffuse (pores with a pore diameter larger than the CO2 molecular dynamics diameter of 0.33 nm) gradually decrease. Therefore, the amount of CO2 absorbed by the material is affected by both the number of adsorption sites and the pore sizes.
In order to further study the adsorption separation performance of materials for CO2/N2, the typical Ideal Adsorption Solution Theory (IAST) method was used to calculate the separation factor of CO2/N2 of MOF-520 and ED@MOF-520 series materials at 273 K (Figure 6c and Figure S2c) [50]. It can be found that the separation performance of ED@MOF-520 is the best under 1 atm, and the separation factor reaches 50, which is nearly 50% higher than the separation factor (27) of MOF-520. There may be two reasons for the higher selectivity of ED@MOF-520. (i) the presence of amine groups increases the interaction between the ED@MOF-520 composite and CO2 molecules; (ii) as the pore size decreases in ED@MOF-520, there are smaller pores at 3.3, 4, and 5.2 Å, and the molecular sieving effect and confinement effect are enhanced [51,52], thereby promoting the selective adsorption of CO2. Besides, the adsorption separation performance of CO2 of ED@MOF-520-10% and 30% composites were further analyzed (supporting information), indicating that ED@MOF-520 adsorbents display a better CO2 capture performance. Additionally, ED@MOF-520 displays good adsorption and separation of CO2 performance among these reported amine-modified MOFs adsorbents (Table 2).
To quantitatively understand the CO2-MOF interactions, the isosteric heats of adsorption (Qst) (calculation details can be found in the supporting information) were calculated from the CO2 adsorption isotherms at 273 and 298 K (Figure 6d and Figure S2d). Initially, the Qst of ED@MOF-520 for CO2 is as high as 90 kJ mol−1, which is higher than that of pristine MOF-520 (75 kJ mol−1). It can be attributed to the strong bonding interaction between CO2 and the Lewis basic sites (i.e., uncoordinated and electron-rich N atoms) and the hydrogen bond of the ED@MOF-520 framework. With the increase in CO2 uptake, the Qst of CO2 by the adsorbents gradually decreases and tends to be stable. Finally, the Qst of ED@MOF-520 is stable at 29 kJ mol−1, indicating a moderate-strength interaction with CO2 [38].
The thermogravimetric analyzer was used to investigate the stability of CO2 adsorption-desorption of ED@MOF-520, First of all, the sample was kept at 35 °C for 1 h to fully adsorb CO2, and then it switched to N2 purge and raised the temperature to 180 °C for 2 h to desorb CO2 from the sample. As shown in Figure 7, the CO2 uptake of ED@MOF-520 in the eight cycles is not significantly reduced, which reveals good adsorption and desorption cycle stability.

4. Conclusions

In summary, the ED@MOF-520 composite was successfully synthesized by a double solvent method. The PXRD, FT-IR, and elemental analysis indicate the ED was deposited and confined onto the channels of MOF-520 physically. Although the incorporation of ED into MOF-520 could reduce the CO2 capture capacity, the generation of new adsorption sites of ED@MOF-520 leads to an improvement in the CO2/N2 separation performance. Additionally, the BET analysis displayed that the introduction of ED into host MOF-520 could induce a smaller pore size, which could enhance the molecular sieving effect of ED@MOF-520 and promote CO2 capture. This work confirms that the CO2 adsorption and separation performance is the result of the combination of adsorption sites and the BET area as well as the pore sizes of adsorbents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12224056/s1, Figure S1. PXRD patterns of MOF-520 and ED@MOF-520 with different ED loaded samples, Figure S2. CO2 and N2 adsorption and desorption isotherms of ED@MOF-520-10% and ED@MOF-520-30% at (a) 273 K and (b) 298K, (c) CO2/ N2 selectivity at 273 K, (d) CO2 adsorption enthalpy curves, Table S1. The summary of BET data and elements content of C, H, and N of ED@MOF-520-10% and ED@MOF-520-30%.

Author Contributions

Data curation, Y.W. and Y.M., formal analysis, Y.W. and Y.M.; funding acquisition, R.Z. (Ruiqin Zhong) and R.Z. (Ruqiang Zou); investigation, Y.W. and Y.M.; methodology, Y.M.; resources, R.Z. (Ruqiang Zou); supervision, R.Z. (Ruiqin Zhong); writing—original draft, Y.W.; writing—review and editing, R.Z. (Ruiqin Zhong) and R.Z. (Ruqiang Zou). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant numbers 51772329, 51972340, and 51825201.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kanniche, M.; Gros-Bonnivard, R.; Jaud, P.; Valle-Marcos, J.; Amann, J.M.; Bouallou, C. Pre-combustion, post-combustion and oxy-combustion in thermal power plant for CO2 capture. Appl. Therm. Eng. 2010, 30, 53–62. [Google Scholar] [CrossRef] [Green Version]
  2. Chen, Z.W.; Zhang, X.S.; Han, W.; Gao, L.; Li, S. A power generation system with integrated supercritical water gasification of coal and CO2 capture. Energy. 2018, 142, 723–730. [Google Scholar] [CrossRef]
  3. Younas, M.; Rezakazemi, M.; Daud, M.; Wazir, M.B.; Ahmad, S.; Ullah, N.; Inamuddin; Ramakrishna, S. Recent progress and remaining challenges in post-combustion CO2 capture using metal-organic frameworks (MOFs). Prog. Energy Combust. Sci. 2020, 80, 100849. [Google Scholar] [CrossRef]
  4. Ma, D.F.; Zhu, C.Y.; Fu, T.T.; Ma, Y.G.; Yuan, X.G. Synergistic effect of functionalized ionic liquid and alkanolamines mixed solution on enhancing the mass transfer of CO2 absorption in microchannel. Chem. Eng. J. 2021, 417, 9. [Google Scholar] [CrossRef]
  5. D’Alessandro, D.M.; Smit, B.; Long, J.R. Carbon dioxide capture: Prospects for new materials. Angew. Chem. Int. Ed. Engl. 2010, 49, 6058–6082. [Google Scholar] [CrossRef] [Green Version]
  6. Martins, C.F.; Neves, L.A.; Chagas, R.; Ferreira, L.M.; Afonso, C.A.M.; Coelhoso, I.M.; Crespo, J.G.; Mota, J.P. Modelling CO2 absorption in aqueous solutions of cholinium lysinate ionic liquid. Chem. Eng. J. 2021, 421, 14. [Google Scholar] [CrossRef]
  7. Zhang, F.; Fang, C.-G.; Wu, Y.-T.; Wang, Y.-T.; Li, A.-M.; Zhang, Z.-B. Absorption of CO2 in the aqueous solutions of functionalized ionic liquids and MDEA. Chem. Eng. J. 2010, 160, 691–697. [Google Scholar]
  8. Yousef, A.M.; El-Maghlany, W.M.; Eldrainy, Y.A.; Attia, A. New approach for biogas purification using cryogenic separation and distillation process for CO2 capture. Energy. 2018, 156, 328–351. [Google Scholar] [CrossRef]
  9. Xie, K.; Fu, Q.; Kim, J.; Lu, H.; He, Y.; Zhao, Q.; Scofield, J.; Webley, P.A.; Qiao, G.G. Increasing both selectivity and permeability of mixed-matrix membranes: Sealing the external surface of porous MOF nanoparticles. J. Membr. Sci. 2017, 535, 350–356. [Google Scholar] [CrossRef]
  10. Anjum, M.W.; Vermoortele, F.; Khan, A.L.; Bueken, B.; De Vos, D.E.; Vankelecom, I.F.J. Modulated UiO-66-Based Mixed-Matrix Membranes for CO2 Separation. ACS Appl. Mater. Interfaces. 2015, 7, 25193–25201. [Google Scholar] [CrossRef]
  11. Ding, R.; Zheng, W.; Yang, K.; Dai, Y.; Ruan, X.; Yan, X.; He, G. Amino-functional ZIF-8 nanocrystals by microemulsion based mixed linker strategy and the enhanced CO2/N2 separation. Sep. Purif. Technol. 2020, 236, 116209. [Google Scholar] [CrossRef]
  12. Seoane, B.; Coronas, J.; Gascon, I.; Etxeberria Benavides, M.; Karvan, O.; Caro, J.; Kapteijn, F.; Gascon, J. Metal-organic framework based mixed matrix membranes: A solution for highly efficient CO2 capture? Chem. Soc. Rev. 2015, 44, 2421–2454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Zhang, Z.J.; Xian, S.K.; Xia, Q.B.; Wang, H.H.; Li, Z.; Li, J. Enhancement of CO2 Adsorption and CO2/N2 Selectivity on ZIF-8 via Postsynthetic Modification. AlChE J. 2013, 59, 2195–2206. [Google Scholar] [CrossRef]
  14. Li, H.; Wang, K.; Feng, D.; Chen, Y.-P.; Verdegaal, W.; Zhou, H.-C. Incorporation of Alkylamine into Metal-Organic Frameworks through a Bronsted Acid-Base Reaction for CO2 Capture. ChemSusChem 2016, 9, 2832–2840. [Google Scholar] [CrossRef] [PubMed]
  15. Li, J.-R.; Ma, Y.; McCarthy, M.C.; Sculley, J.; Yu, J.; Jeong, H.-K.; Balbuena, P.B.; Zhou, H.-C. Carbon dioxide capture-related gas adsorption and separation in metal-organic frameworks. Coord. Chem. Rev. 2011, 255, 1791–1823. [Google Scholar] [CrossRef]
  16. Yang, K.; Yang, G.; Wu, J. Insights into the enhancement of CO2 adsorption on faujasite with a low Si/Al ratio: Understanding the formation sequence of adsorption complexes. Chem. Eng. J. 2021, 404, 127056. [Google Scholar] [CrossRef]
  17. Martinez, F.; Sanz, R.; Orcajo, G.; Briones, D.; Yangueez, V. Amino-impregnated MOF materials for CO2 capture at post-combustion conditions. Chem. Eng. Sci. 2016, 142, 55–61. [Google Scholar] [CrossRef]
  18. Frysali, M.G.; Klontzas, E.; Tylianakis, E.; Froudakis, G.E. Tuning the interaction strength and the adsorption of CO2 in metal organic frameworks by functionalization of the organic linkers. Microporous Mesoporous Mater. 2016, 227, 144–151. [Google Scholar] [CrossRef]
  19. McEwen, J.; Hayman, J.-D.; Yazaydin, A.O. A comparative study of CO2, CH4 and N2 adsorption in ZIF-8, Zeolite-13X and BPL activated carbon. Chem. Phys. 2013, 412, 72–76. [Google Scholar] [CrossRef]
  20. Ferey, G.; Serre, C.; Devic, T.; Maurin, G.; Jobic, H.; Llewellyn, P.L.; De Weireld, G.; Vimont, A.; Daturi, M.; Chang, J.-S. Why hybrid porous solids capture greenhouse gases? Chem. Soc. Rev. 2011, 40, 550–562. [Google Scholar] [CrossRef]
  21. Bae, Y.-S.; Snurr, R.Q. Development and Evaluation of Porous Materials for Carbon Dioxide Separation and Capture. Angew. Chem. Int. Ed. 2011, 50, 11586–11596. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, J.; Thallapally, P.K.; McGrail, B.P.; Brown, D.R.; Liu, J. Progress in adsorption-based CO2 capture by metal-organic frameworks. Chem. Soc. Rev. 2012, 41, 2308–2322. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, J.; Wei, Y.; Li, P.; Zhao, Y.; Zou, R. Selective H2S/CO2 Separation by Metal-Organic Frameworks Based on Chemical-Physical Adsorption. J. Phys. Chem. C. 2017, 121, 13249–13255. [Google Scholar] [CrossRef]
  24. Samanta, A.; Zhao, A.; Shimizu, G.K.H.; Sarkar, P.; Gupta, R. Post-Combustion CO2 Capture Using Solid Sorbents: A Review. Ind. Eng. Chem. Res. 2012, 51, 1438–1463. [Google Scholar] [CrossRef]
  25. Chao, C.; Deng, Y.M.; Dewil, R.; Baeyens, J.; Fan, X.F. Post-combustion carbon capture. Renew. Sustain. Energy Rev. 2021, 138, 19. [Google Scholar] [CrossRef]
  26. Mason, J.A.; Sumida, K.; Herm, Z.R.; Krishna, R.; Long, J.R. Evaluating metal-organic frameworks for post-combustion carbon dioxide capture via temperature swing adsorption. Energy Environ. Sci. 2011, 4, 3030–3040. [Google Scholar] [CrossRef]
  27. Wei, Y.S.; Zhang, M.; Zou, R.; Xu, Q. Metal-Organic Framework-Based Catalysts with Single Metal Sites. Chem. Rev. 2020, 120, 12089–12174. [Google Scholar] [CrossRef]
  28. Trickett, C.A.; Helal, A.; Al-Maythalony, B.A.; Yamani, Z.H.; Cordova, K.E.; Yaghi, O.M. The chemistry of metal-organic frameworks for CO2 capture, regeneration and conversion. Nat. Rev. Mater. 2017, 2, 17045. [Google Scholar] [CrossRef]
  29. Xiang, S.; He, Y.; Zhang, Z.; Wu, H.; Zhou, W.; Krishna, R.; Chen, B. Microporous metal-organic framework with potential for carbon dioxide capture at ambient conditions. Nat. Commun. 2012, 3, 954. [Google Scholar] [CrossRef] [Green Version]
  30. Tranchemontagne, D.J.; Mendoza-Cortes, J.L.; O’Keeffe, M.; Yaghi, O.M. Secondary building units, nets and bonding in the chemistry of metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1257–1283. [Google Scholar] [CrossRef] [Green Version]
  31. Zhong, R.; Liu, J.; Huang, X.; Yu, X.; Sun, C.; Chen, G.; Zou, R. Experimental and theoretical investigation of a stable zinc-based metal-organic framework for CO2 removal from syngas. CrystEngComm 2015, 17, 8221–8225. [Google Scholar] [CrossRef]
  32. Wang, S.; Wang, C.; Zhou, Q. Strong Foam-like Composites from Highly Mesoporous Wood and Metal-Organic Frameworks for Efficient CO2 Capture. ACS Appl. Mater. Interfaces 2021, 13, 29949–29959. [Google Scholar] [CrossRef] [PubMed]
  33. Meng, W.; Zeng, Y.; Liang, Z.; Guo, W.; Zhi, C.; Wu, Y.; Zhong, R.; Qu, C.; Zou, R. Tuning Expanded Pores in Metal-Organic Frameworks for Selective Capture and Catalytic Conversion of Carbon Dioxide. ChemSusChem 2018, 11, 3751–3757. [Google Scholar] [CrossRef] [PubMed]
  34. Zhong, R.; Xu, Z.; Bi, W.; Han, S.; Yu, X.; Zou, R. A charged metal-organic framework for CO2/CH4 and CO2/N2 separation. Inorg. Chim. Acta 2016, 443, 299–303. [Google Scholar] [CrossRef]
  35. Zou, R.; Li, P.-Z.; Zeng, Y.-F.; Liu, J.; Zhao, R.; Duan, H.; Luo, Z.; Wang, J.-G.; Zou, R.; Zhao, Y. Bimetallic Metal-Organic Frameworks: Probing the Lewis Acid Site for CO2 Conversion. Small 2016, 12, 2334–2343. [Google Scholar] [CrossRef]
  36. Zhang, Z.; Zhao, Y.; Gong, Q.; Li, Z.; Li, J. MOFs for CO2 capture and separation from flue gas mixtures: The effect of multifunctional sites on their adsorption capacity and selectivity. Chem. Commun. 2013, 49, 653–661. [Google Scholar] [CrossRef]
  37. Siegelman, R.L.; McDonald, T.M.; Gonzalez, M.I.; Martell, J.D.; Milner, P.J.; Mason, J.A.; Berger, A.H.; Bhown, A.S.; Long, J.R. Controlling Cooperative CO2 Adsorption in Diamine-Appended Mg2(dobpdc) Metal–Organic Frameworks. J. Am. Chem. Soc. 2017, 139, 10526–10538. [Google Scholar] [CrossRef]
  38. Demessence, A.; D’Alessandro, D.M.; Foo, M.L.; Long, J.R. Strong CO2 Binding in a Water-Stable, Triazolate-Bridged Metal−Organic Framework Functionalized with Ethylenediamine. J. Am. Chem. Soc. 2009, 131, 8784–8786. [Google Scholar] [CrossRef]
  39. Zhong, R.; Yu, X.; Meng, W.; Liu, J.; Zhi, C.; Zou, R. Amine-Grafted MIL-101(Cr) via Double-Solvent Incorporation for Synergistic Enhancement of CO2 Uptake and Selectivity. ACS Sustain. Chem. Eng. 2018, 6, 16493–16502. [Google Scholar] [CrossRef]
  40. Zhong, R.; Yu, X.; Meng, W.; Han, S.; Liu, J.; Ye, Y.; Sun, C.; Chen, G.; Zou, R. A solvent ‘squeezing’ strategy to graft ethylenediamine on Cu3(BTC)2 for highly efficient CO2/CO separation. Chem. Eng. Sci. 2018, 184, 85–92. [Google Scholar] [CrossRef]
  41. Wan, Y.; Miao, Y.; Qiu, T.; Kong, D.; Wu, Y.; Zhang, Q.; Shi, J.; Zhong, R.; Zou, R. Tailoring Amine-Functionalized Ti-MOFs via a Mixed Ligands Strategy for High-Efficiency CO2 Capture. Nanomaterials 2021, 11, 3348. [Google Scholar] [CrossRef] [PubMed]
  42. Flaig, R.W.; Osborn Popp, T.M.; Fracaroli, A.M.; Kapustin, E.A.; Kalmutzki, M.J.; Altamimi, R.M.; Fathieh, F.; Reimer, J.A.; Yaghi, O.M. The Chemistry of CO2 Capture in an Amine-Functionalized Metal–Organic Framework under Dry and Humid Conditions. J. Am. Chem. Soc. 2017, 139, 12125–12128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Mason, J.A.; McDonald, T.M.; Bae, T.-H.; Bachman, J.E.; Sumida, K.; Dutton, J.J.; Kaye, S.S.; Long, J.R. Application of a High-Throughput Analyzer in Evaluating Solid Adsorbents for Post-Combustion Carbon Capture via Multicomponent Adsorption of CO2, N2, and H2O. J. Am. Chem. Soc. 2015, 137, 4787–4803. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. McDonald, T.M.; Mason, J.A.; Kong, X.; Bloch, E.D.; Gygi, D.; Dani, A.; Crocellà, V.; Giordanino, F.; Odoh, S.O.; Drisdell, W.S.; et al. Cooperative insertion of CO2 in diamine-appended metal-organic frameworks. Nature 2015, 519, 303–308. [Google Scholar] [CrossRef] [Green Version]
  45. Gandara, F.; Furukawa, H.; Lee, S.; Yaghi, O.M. High methane storage capacity in aluminum metal-organic frameworks. J. Am. Chem. Soc. 2014, 136, 5271–5274. [Google Scholar] [CrossRef]
  46. Naghdi, S.; Cherevan, A.; Giesriegl, A.; Guillet-Nicolas, R.; Biswas, S.; Gupta, T.; Wang, J.; Haunold, T.; Bayer, B.C.; Rupprechter, G.; et al. Selective ligand removal to improve accessibility of active sites in hierarchical MOFs for heterogeneous photocatalysis. Nat. Commun. 2022, 13, 282. [Google Scholar] [CrossRef]
  47. Liu, L.; Zhang, J.; Fang, H.; Chen, L.; Su, C.-Y. Metal–Organic Gel Material Based on UiO-66-NH2 Nanoparticles for Improved Adsorption and Conversion of Carbon Dioxide. Chem. Asian J. 2016, 11, 2278–2283. [Google Scholar] [CrossRef]
  48. Han, G.; Qian, Q.; Mizrahi Rodriguez, K.; Smith, Z.P. Hydrothermal Synthesis of Sub-20 nm Amine-Functionalized MIL-101(Cr) Nanoparticles with High Surface Area and Enhanced CO2 Uptake. Ind. Eng. Chem. Res. 2020, 59, 7888–7900. [Google Scholar] [CrossRef] [Green Version]
  49. Zhang, F.; Zou, X.; Gao, X.; Fan, S.; Sun, F.; Ren, H.; Zhu, G. Hydrogen Selective NH2-MIL-53(Al) MOF Membranes with High Permeability. Adv. Funct. Mater. 2012, 22, 3583–3590. [Google Scholar] [CrossRef]
  50. Kong, L.; Zou, R.; Bi, W.; Zhong, R.; Mu, W.; Liu, J.; Han, R.P.S.; Zou, R. Selective adsorption of CO2/CH4 and CO2/N2 within a charged metal–organic framework. J. Mater. Chem. A 2014, 2, 17771–17778. [Google Scholar] [CrossRef]
  51. Bae, Y.S.; Farha, O.K.; Hupp, J.T.; Snurr, R.Q. Enhancement of CO2/N2 selectivity in a metal-organic framework by cavity modification. J. Mater. Chem. 2009, 19, 2131–2134. [Google Scholar] [CrossRef]
  52. Li, H.; Wang, K.; Sun, Y.; Lollar, C.T.; Li, J.; Zhou, H.-C. Recent advances in gas storage and separation using metal-organic frameworks. Mater. Today 2018, 21, 108–121. [Google Scholar] [CrossRef]
Nanomaterials 12 04056 g001 550

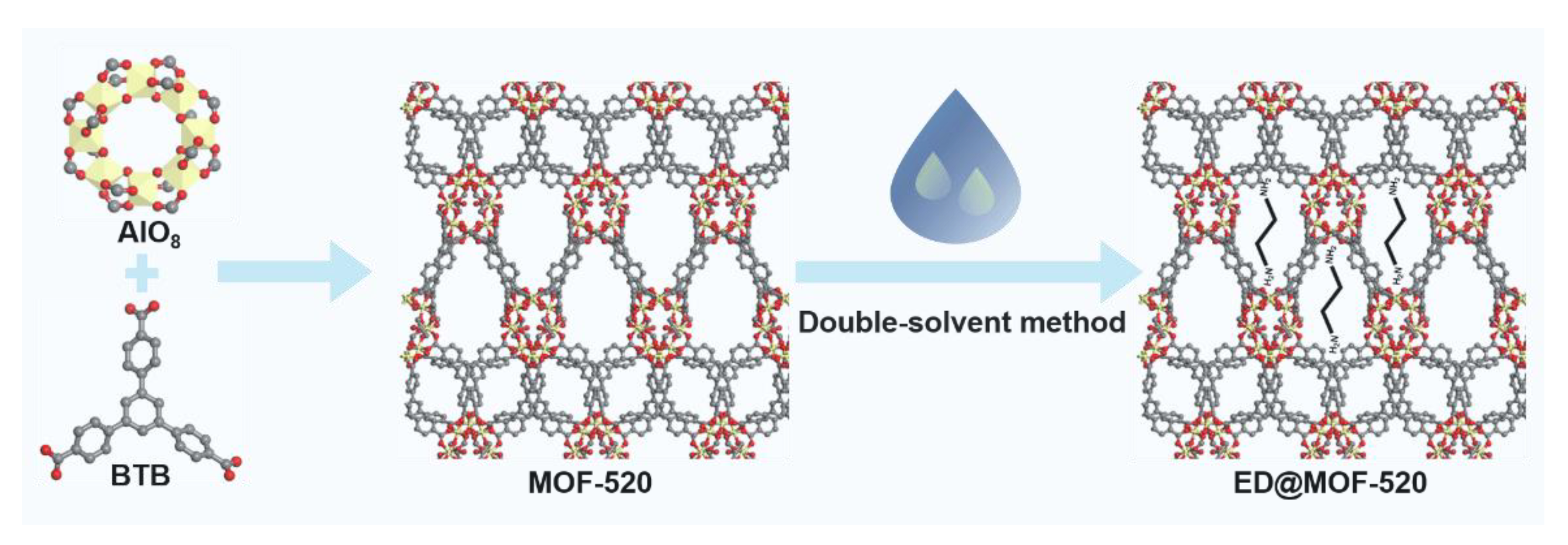

Figure 1. Synthesis schematic diagram of MOF-520 and ED@ MOF-520, where the yellow, red, and gray color represents Al, O, and C atom, respectively.
Figure 1. Synthesis schematic diagram of MOF-520 and ED@ MOF-520, where the yellow, red, and gray color represents Al, O, and C atom, respectively.
Nanomaterials 12 04056 g001
Nanomaterials 12 04056 g002 550

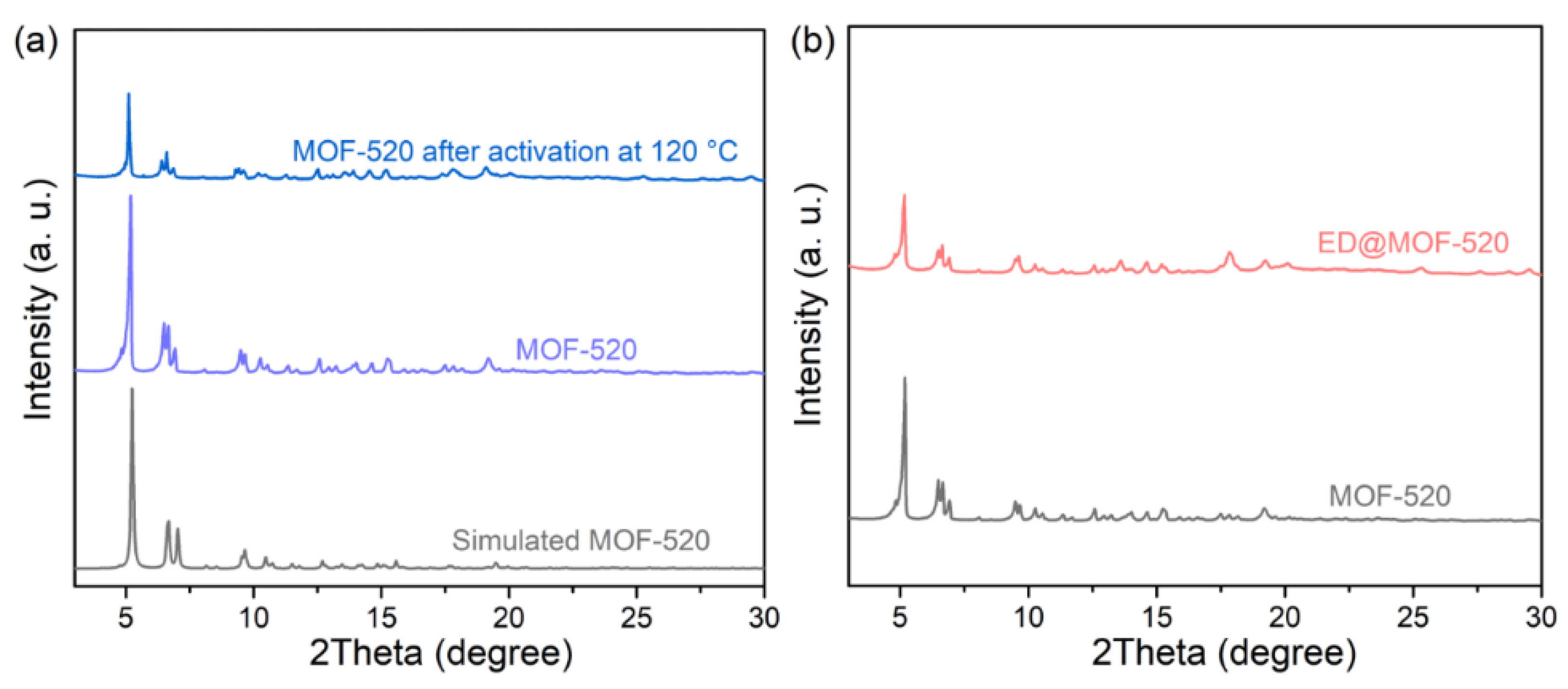

Figure 2. (a) PXRD patterns of MOF-520, MOF-520 after activation at 120 °C and simulated one from crystal structure data of MOF-520, (b) PXRD patterns of MOF-520 and all ED@MOF-520.
Figure 2. (a) PXRD patterns of MOF-520, MOF-520 after activation at 120 °C and simulated one from crystal structure data of MOF-520, (b) PXRD patterns of MOF-520 and all ED@MOF-520.
Nanomaterials 12 04056 g002
Nanomaterials 12 04056 g003 550

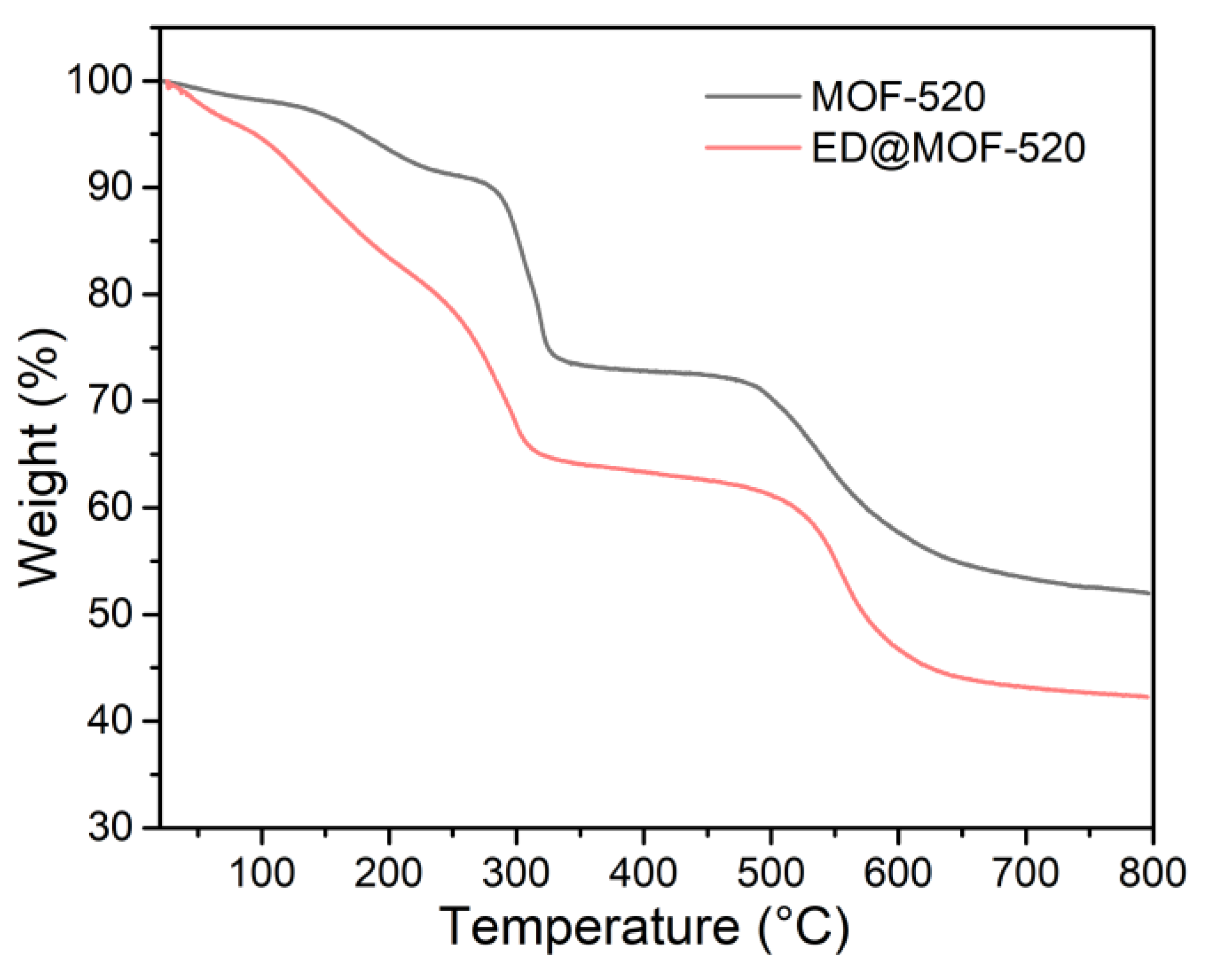

Figure 3. TGA curves of samples.
Figure 3. TGA curves of samples.
Nanomaterials 12 04056 g003
Nanomaterials 12 04056 g004 550

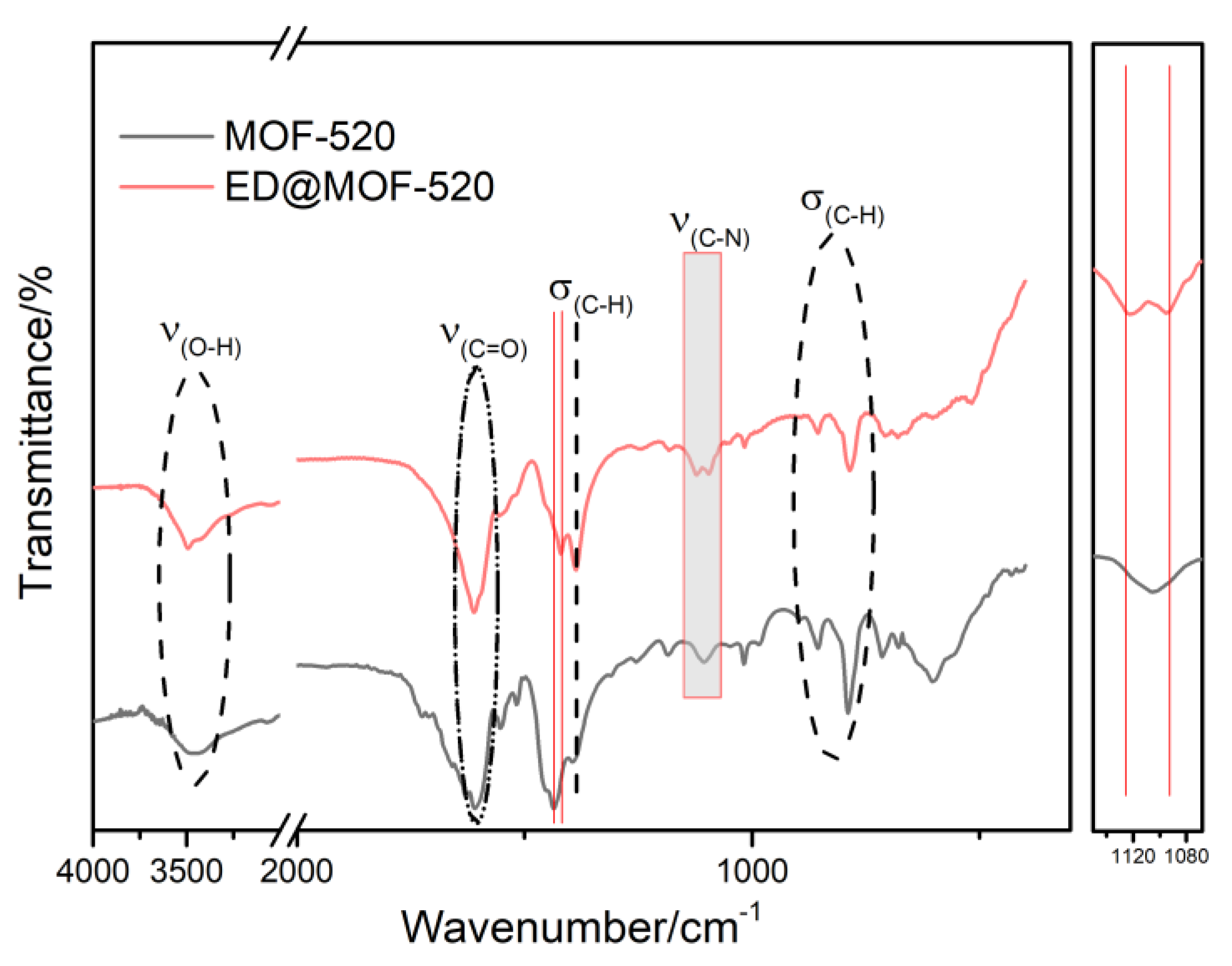

Figure 4. FT-IR results of samples.
Figure 4. FT-IR results of samples.
Nanomaterials 12 04056 g004
Nanomaterials 12 04056 g005 550
Figure 5. (a) N2 adsorption and desorption isotherms, (b) pore size distribution curves (Inset: pore distribution curves in the interval of 0 to 0.8 nm).
Figure 5. (a) N2 adsorption and desorption isotherms, (b) pore size distribution curves (Inset: pore distribution curves in the interval of 0 to 0.8 nm).
Nanomaterials 12 04056 g005
Nanomaterials 12 04056 g006 550

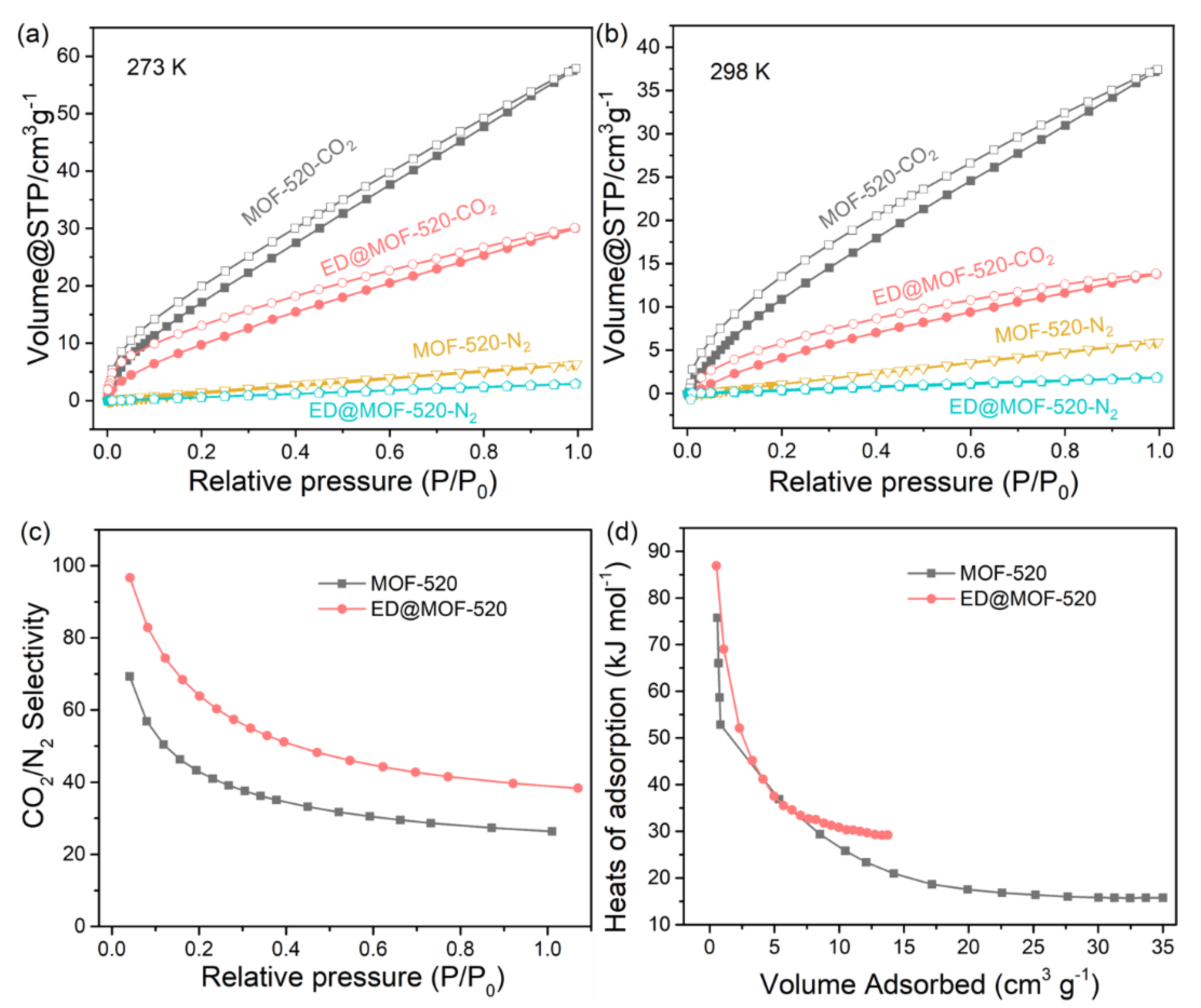

Figure 6. CO2 and N2 adsorption and desorption isotherms of ED@MOF-520 materials with different ED content at (a) 273 K and (b) 298 K, (c) CO2/N2 selectivity at 273 K, (d) CO2 adsorption enthalpy curves.
Figure 6. CO2 and N2 adsorption and desorption isotherms of ED@MOF-520 materials with different ED content at (a) 273 K and (b) 298 K, (c) CO2/N2 selectivity at 273 K, (d) CO2 adsorption enthalpy curves.
Nanomaterials 12 04056 g006
Nanomaterials 12 04056 g007 550

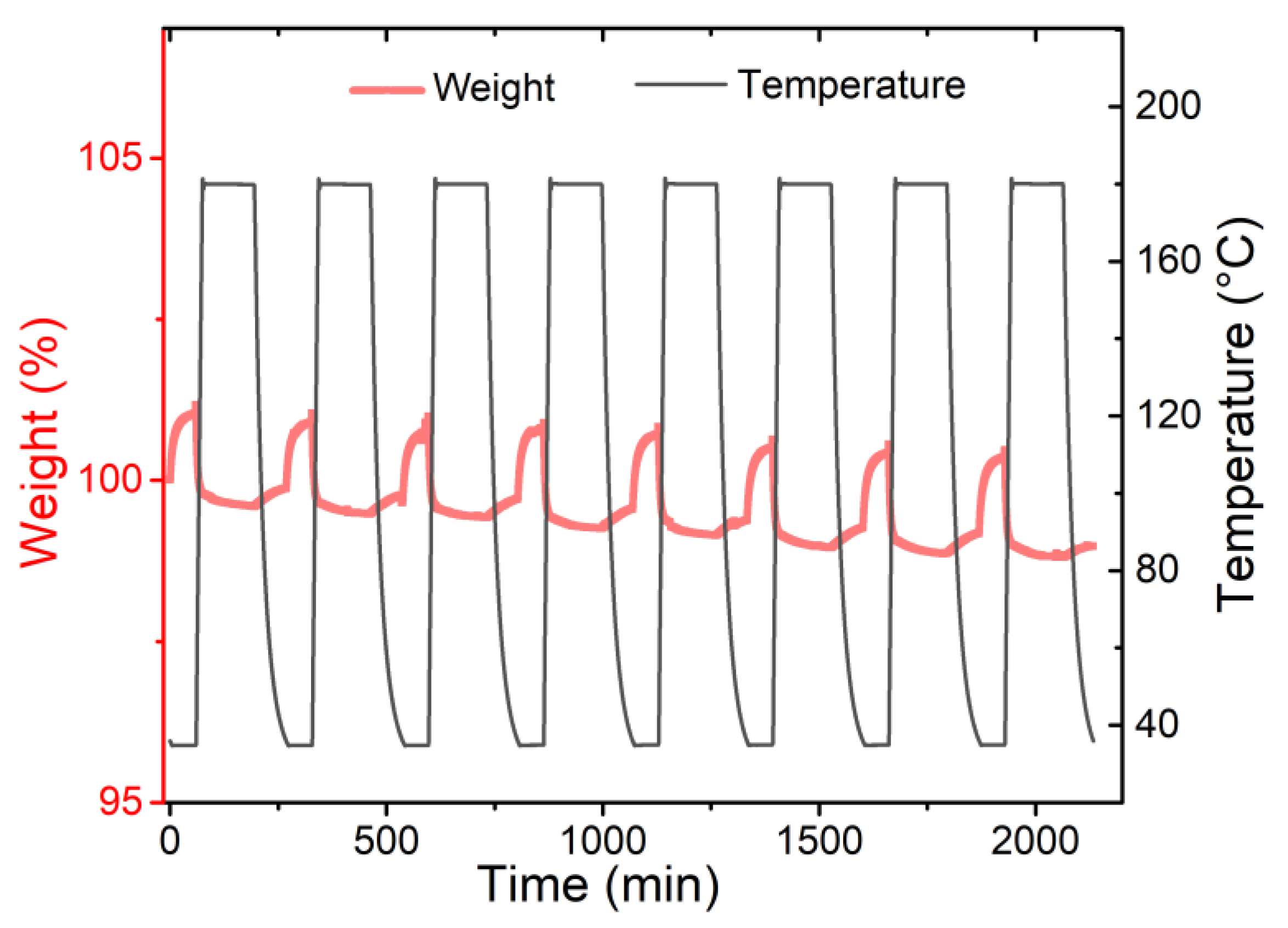

Figure 7. CO2 adsorption and desorption cycle curves of ED@MOF-520.
Figure 7. CO2 adsorption and desorption cycle curves of ED@MOF-520.
Nanomaterials 12 04056 g007
Table
Table 1. The summary of BET data and elements content of C, H, and N of samples.
Table 1. The summary of BET data and elements content of C, H, and N of samples.
SampleSurface Area
(m2 g−1)		Pore Volume
(cm3 g−1)		The Elements Content of C, H, and N (wt%)
CHN
MOF-5202699.461.0856.123.340
ED@MOF-520787.440.3945.534.123.39
Table
Table 2. The comparison of BET area and CO2 capture performance in this work and reported amine-functionalized MOFs.
Table 2. The comparison of BET area and CO2 capture performance in this work and reported amine-functionalized MOFs.
SamplesBET Area (m2 g−1)CO2 Capture Capacity @ Testing ConditionsCO2/N2 (CO) SelectivityQst (kJ mol−1)Ref
MOF-5202699.462.58/1.67 mmol g−1 @ 273/298 K &1 bar 27 This work
ED@MOF-520787.441.55/0.61 mmol g−1 @ 273/298 K &1 bar5029This work
ZrBDC-NH2-1:1-0.2930–10404.20/2.68 mmol g−1 @ 273/298 K &1 bar71.626.9[47]
MIP-2075633.28/2.03 mmol g−1@ 273/298 K &1 bar59–[41]
MIP-207-NH2 -25%7353.96/2.91 mmol g−1@ 273/298 K &1 bar7730–35[41]
ED@Cu3(BTC)2-14444.28/2.15 mmol g−1 @ 273/298 K &1 bar21.539[40]
ED@Cu3 (BTC)2-21631.03/0.54 mmol g−1 @ 273/298 K &1 bar2.68–[40]
ED@MIL-1011584.63.93/1.93 mmol g−1 @ 273/298 K &1 bar17.3–[39]
MIL-101(Cr)-NH2~28003.4 mmol g−1 @ 289 K and 1 bar26.554.6[48]
NH2-MIL-53–~1.5/~1.1 mmol g−1@ 273/298 K &1 bar–~56[49]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wan, Y.; Miao, Y.; Zhong, R.; Zou, R. High-Selective CO2 Capture in Amine-Decorated Al-MOFs. Nanomaterials 2022, 12, 4056. https://doi.org/10.3390/nano12224056

AMA Style

Wan Y, Miao Y, Zhong R, Zou R. High-Selective CO2 Capture in Amine-Decorated Al-MOFs. Nanomaterials. 2022; 12(22):4056. https://doi.org/10.3390/nano12224056

Chicago/Turabian Style

Wan, Yinji, Yefan Miao, Ruiqin Zhong, and Ruqiang Zou. 2022. "High-Selective CO2 Capture in Amine-Decorated Al-MOFs" Nanomaterials 12, no. 22: 4056. https://doi.org/10.3390/nano12224056

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
