Enhanced Adsorption Selectivity of Carbon Dioxide and Ethane on Porous Metal–Organic Framework Functionalized by a Sulfur-Rich Heterocycle

by
Vadim A. Dubskikh
1,
Konstantin A. Kovalenko
1,
Anton S. Nizovtsev
1,2,
Anna A. Lysova
1,
Denis G. Samsonenko
1,
Danil N. Dybtsev
1,* and
Vladimir P. Fedin
1
1
Nikolaev Institute of Inorganic Chemistry, Siberian Branch of Russian Academy of Sciences, 3 Acad. Lavrentiev Ave., Novosibirsk 630090, Russia
2
Novosibirsk State University, 2 Pirogov Street, Novosibirsk 630090, Russia
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(23), 4281; https://doi.org/10.3390/nano12234281
Submission received: 31 October 2022 / Revised: 28 November 2022 / Accepted: 28 November 2022 / Published: 1 December 2022
Browse Figures
Versions Notes

Abstract

:
Porous metal–organic framework [Zn2(ttdc)2(bpy)] (1) based on thieno [3,2-b]thiophenedicarboxylate (ttdc) was synthesized and characterized. The structure contains intersected zig-zag channels with an average aperture of 4 × 6 Å and a 49% (v/v) guest-accessible pore volume. Gas adsorption studies confirmed the microporous nature of 1 with a specific surface area (BET model) of 952 m2·g–1 and a pore volume of 0.37 cm3·g–1. Extensive CO2, N2, O2, CO, CH4, C2H2, C2H4 and C2H6 gas adsorption experiments at 273 K and 298 K were carried out, which revealed the great adsorption selectivity of C2H6 over CH4 (IAST selectivity factor 14.8 at 298 K). The sulfur-rich ligands and double framework interpenetration in 1 result in a dense decoration of the inner surface by thiophene heterocyclic moieties, which are known to be effective secondary adsorption sites for carbon dioxide. As a result, remarkable CO2 adsorption selectivities were obtained for CO2/CH4 (11.7) and CO2/N2 (27.2 for CO2:N2 = 1:1, 56.4 for CO2:N2 = 15:85 gas mixtures). The computational DFT calculations revealed the decisive role of the sulfur-containing heterocycle moieties in the adsorption of CO2 and C2H6. High CO2 adsorption selectivity values and a relatively low isosteric heat of CO2 adsorption (31.4 kJ·mol–1) make the porous material 1 a promising candidate for practical separation of biogas as well as for CO2 sequestration from flue gas or natural gas.

1. Introduction

Carbon dioxide is a major component of the anthropogenic pollution of the atmosphere, leading to global climate change. Extensive development of modern digital technologies, digitalization of daily life and electrification of vehicles require a continuous growth in the production of electricity, a significant part of which is generated by highly polluting coal power plants, even in developed countries [1]. Until a global transition to renewable energy, fossil fuels will need to be used for power production, that is why the decontamination of industrial flue gases from CO2 is an important measure to reduce irreversible damage to the environment. Adsorption technologies afford efficient solutions for separation of gases, such as CO2 and N2 (the main flue gas components), CO2 and CH4 (the main components of biogas), as well as many other industrially relevant mixtures [2]. Metal–organic frameworks (MOFs) are versatile porous materials with great adsorption characteristics [3,4,5]. Significant progress has been achieved in CO2 sequestration, particularly when strong Lewis acidic (uncoordinated metal cites) or Lewis basic centers (amine groups) are introduced into the porous structures [6,7,8]. Despite the obvious advantages, such porous materials usually suffer from high energy costs that are required for their reactivation. Recently, several groups have demonstrated that functionalization of porous MOFs with thiophene or selenophene heterocycles remarkably improves the selective adsorption of CO2 due to induced dipole interactions in the heteroatoms [9,10,11,12,13]. In particular, microporous MOFs assembled with 2,5-thiophenedicarboxylate linkers [Zn2(tdc)2(dabco)] (dabco = 1,4-diazabicyclo[2.2.2]octane) featured up to 50% greater CO2 adsorption uptake and adsorption selectivity compared with structurally similar [Zn2(bdc)2(dabco)], prepared using terephthalate linkers and containing no heteroatoms [9]. Importantly, such an improvement in the adsorption characteristics is not accompanied by an increase in the CO2 adsorption heat; thus, recycling of the porous materials could be done with minimal costs. Other than CO2, the selective separation of complex mixtures of hydrocarbons in natural gas and crude oil, as well as the separation of alkanes and olefines, are also very important problems for the chemical industry [14]. A number of MOFs, including those with thiophenedicarboxylate linkers, demonstrate a remarkable separation efficiency for ethane–ethylene or cyclohexane–benzene mixtures, which demonstrates the importance of further development in this direction [15,16,17,18,19,20,21]. By exploring the strategy of MOF functionalization by heterocycles, we prepared a new MOF based on the thieno[3,2-b]thiophenedicarboxylate (ttdc2–) organic linker which bears two thiophene moieties in its core. The adsorption of the porous material towards CO2 and various hydrocarbons was investigated both experimentally and theoretically. The enrichment of the microporous surface with polarizable sulfur atoms was indeed rewarded by remarkable results. In particular, quite impressive CO2 adsorption selectivities were obtained for CO2/CH4 and CO2/N2 gas mixtures, while the heat of CO2 adsorption for the new MOF was maintained at an appreciably low level. The computational DFT calculations confirm the decisive role of the sulfur-rich heterocycles in the adsorption of CO2 and C2H6. This study not only reports a new MOF with great adsorption properties, but validates and generalizes the approach of framework functionalization, yielding prominent porous materials suitable for the most challenging practical tasks in the separation of complex mixtures.

2. Materials and Methods

2.1. Instruments and Methods

Infrared spectra of solid samples as KBr pellets were recorded using an IR-Fourier spectrometer Scimitar FTS 2000 (4000–400 cm−1). The effective spectral resolution was 1 cm−1. The elemental analyses were obtained using an analyzer «Vario Micro-Cube». The thermogravimetric analyses were carried out in an Ar atmosphere using a NETZSCH TG 209 F1 thermoanalyzer with a heating rate of 10 deg·min–1 in the temperature range from 298 K to 873 K. The powder X-ray diffraction data were obtained on a «Shimadzu XRD 7000S» powder diffractometer (Cu-Kα irradiation, λ = 1.54178 Å) in the 2θ range from 5° to 30°. The porous structure was analyzed using the nitrogen adsorption technique on Quantochrome’s Autosorb iQ gas sorption analyzer at 77 K. The preliminary activation of 1 was done in the following way. The required amount of the MOF was immersed in 10 mL of acetone for 5 days. Each day the supernatant was decanted, and a new portion of acetone was added to the crystals. Then, the crystals were separated by decantation of the supernatant and dried under vacuum. The next step of activation was performed in a dynamic vacuum at 453 K for 6 h directly in the gas sorption analyzer. The nitrogen adsorption–desorption isotherms were measured within the range of relative pressures from 10−6 to 0.995. The specific surface area was calculated from the data obtained using the conventional BET, Langmuir and DFT models. Gas (CO2, CH4, N2, O2, CO, C2H2, C2H4 and C2H6) adsorption isotherm measurements at 273 and 298 K were carried out volumetrically on Quantochrome’s Autosorb iQ equipped with a thermostat TERMEX Cryo-VT-12 to adjust the temperature with 0.1 K accuracy. Adsorption–desorption isotherms were measured within the range of pressures from 1 to 800 torr. The database of the National Institute of Standards and Technology [22] was used as a source of p–V–T relations at experimental pressures and temperatures.

2.2. X-ray Crystallography

Diffraction data for single-crystal 1 were obtained at 150 K on a Bruker D8 Venture diffractometer equipped with a CMOS PHOTON III detector and IμS 3.0 source (λ(MoKα) = 0.71073 Å, φ- and ω-scans). Absorption corrections were applied using SADABS [23]. The structures were solved by a dual space algorithm (SHELXT [24]) and refined by the full-matrix least squares technique (SHELXL [25]) in the anisotropic approximation (except hydrogen atoms). Positions of hydrogen atoms in organic ligands were calculated geometrically and refined in the riding model. The crystallographic data and details of the structure refinements are summarized in Table S1. The structure contains a large void volume occupied with highly disordered DMA guest molecules, which could not be refined as a set of discrete atomic positions. The final composition of compound 1 was defined according to the PLATON/SQUEEZE procedure [26] (251 e− in 737 Å3) and the data from element (C, H, N, S) analyses. CCDC 2212135 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Center at https://www.ccdc.cam.ac.uk/structures/. The crystal data and structure refinement for 1 is also shown in Table S1.

2.3. Synthesis of [Zn2(ttdc)2(bpy)]·3DMA (1)

Zinc (II) nitrate hexahydrate (59.4 mg, 0.2 mmol), thieno[3,2-b]thiophene-2,5-dicarboxylic acid (H2ttdc, 45.6 mg, 0.2 mmol), 4,4′-bipyridine (bpy, 15.6 mg, 0.1 mmol) and 5 mL of N,N-dimethylacetamide (DMA) were placed in a glass vial with a screw cap. The reaction mixture was sonicated for 30 min and then heated at 383 K for 2 days. The resulting crystals were washed with DMA (3 × 5 mL) and dried in air. Yield 70.5 mg (70%). Anal. Calc. for [Zn2(ttdc)2(bpy)]·3DMA·H2O = C38H41N5O12S4Zn2 (%): C 44.8, H 4.0, N 6.7, S 12.6%. Found: C 44.7, H 3.8, N 6.7, S 12.7%. IR data (cm−1): 420 (w), 499 (w), 568 (w), 593 (w), 641 (m), 688 (w), 729 (w), 770 (m), 811 (m), 853 (w), 898 (w), 1016 (w), 1047 (w), 1071 (m), 1098 (w), 1191 (w), 1216 (w), 1265 (w), 1328 (s), 1381 (s), 1414 (s), 1485 (s), 1577 (s), 1611 (s), 2922 (w), 3093 (w), 3415 (w, broad).

2.4. Liquid Phase Separation Experiments

As-synthesized 1 (0.100 g) was placed in a closed vial containing 10 mL of a 1:1 (v/v) benzene–cyclohexane mixture for 5 days. Then, the crystals were very quickly filtered, washed with two 5 mL portions of methanol and transferred into a vial where 0.7 mL of d6-dimethyl sulfoxide (DMSO-d6) and several drops of concentrated HCl were added. The system was sonicated in an ultrasound bath for 10 min. The solution was transferred into a 5 mm NMR tube and an 1H NMR spectrum of a mixture was recorded. The ratio of benzene and cyclohexane in the mixture was determined from the ratio of the integrals of the peaks corresponding to benzene (7.3–7.4 ppm) and cyclohexane (1.4 ppm), taking into account the number of protons.

2.5. Computational Details

All density functional theory (DFT) calculations were carried out under periodic boundary conditions with the Vienna Ab initio Simulation Package (VASP 5.4.4) [27] using the projector-augmented wave (PAW) method [28]. We employed PBE PAW potentials (v. 5.4) for all elements and exchange–correlation functionals. The Zn, S, O, N and C atoms, and the 3d4p, 3s3p, 2s2p, 2s2p and 2s2p electrons were considered as valence electrons, while for the H atoms, the 1s electron was explicitly treated.
Structural relaxations were performed using the PBE functional [29] with D3(BJ) dispersion correction [30,31] and a plane-wave kinetic energy cutoff of 400 eV without any geometrical constraints. The final energies of species under study were calculated by the recently developed SCAN+rVV10 method [32], which shows outstanding performance in molecular adsorption studies, in combination with a plane-wave kinetic energy cutoff of 500 eV on top of PBE-D3(BJ) structures.
The electronic (ionic) convergence criterion was set to 10–6 (10–5) eV and Gaussian smearing with a smearing width of 0.05 eV was used throughout the computations. Only the Γ point was used for sampling the Brillouin zone during structural relaxations, whereas for single-point calculations the Brillouin zone was integrated using Γ-centered grids with a consistent spacing density employing a KSPACING parameter set to 0.5 Å–1.
The difference between the energy of adsorbed system (Eguest@host) and the sum of energies of the empty metal–organic framework (Ehost) and non-coordinated guest molecule (Eguest) was used to compute the adsorption energies (ΔE) according to expression:
ΔE = Eguest@host − (Eguest + Ehost).
Hirshfeld partial charges [33] were calculated at the PBE-MBD@rsSCS level of theory [34,35,36] using the same settings as for the SCAN+rVV10 single-point calculations.
To find preferential configurations of CO2 and C2H6 molecules inside the [Zn2(ttdc)2(bpy)] porous framework, a multiscale computational technique was used. In the first step, the noncovalent interaction (NCI)/iMTD algorithm in conformer–rotamer ensemble sampling tool (CREST) [37,38] coupled with force-field GFN-FF [39] and extended tight binding GFN2-xTB [40] methods (GFN2-xTB//GFN-FF approach; GFN-FF and GFN2-xTB calculations were performed with the xTB [41] package) were applied to a model system consisting of one guest molecule and a representative finite cluster, which was cut from the experimental [Zn2(ttdc)2(bpy)] structure. In the second step, a number of the most relevant structures obtained in the previous computational step were recomputed using periodic DFT calculations with a subsequent stability check using simulated annealing.

3. Results and Discussion

Single crystals of the studied compound [Zn2(ttdc)2(bpy)]·3DMA (1) were isolated in a high yield in a solvothermal reaction of Zn(II) nitrate, H2ttdc and bpy (2:2:1 molar ratio) in N,N-dimethylacetamide (DMA) at 110 °C (Scheme 1). The phase purity of the sample was confirmed by powder X-ray diffraction (Figure S1), its chemical composition was established by elemental analysis and additionally confirmed by FT-IR (Figure S2).
The compound 1 is based on a binuclear tetracarboxylate “paddle-wheel” complex {Zn2(COO)4N2}, where each Zn(II) cation adopts a square-pyramidal geometry of four O atoms of carboxylate groups, capped with the N atom of the bpy ligand (Figure 1a). Such complexes act as 6-connected building blocks with octahedron geometry. Every block is linked to four others blocks by the ttdc2– ligands, located around the equator of the octahedron, and to two blocks by the bpy ligands in the apical positions of the octahedron (Figure 1b). The overall connectivity of the metal–organic network in 1 is primitive cubic (pcu). The overall crystal structure of 1 is composed of two identical interpenetrated pcu nets related to each other via the inversion center (Figure 1c). Interestingly, there is a similar coordination compound [Zn2(ndc)2(bpy)], synthesized with a 2,6-naphthalenedicarboxylate linker [42,43], whose size and geometry are almost the same as for ttdc2–. While the activated compound [Zn2(ndc)2(bpy)] possesses dense, triply interpenetrated pcu nets with almost no guest-accessible open space, the double network interpenetration in 1 results in microporous zig-zag channels with an average aperture of 4 × 6 Å, intersected with smaller windows of ca. 4 Å in diameter. The internal surface of the microporous structure is lined with aromatic groups of the bpy ligands and thienothiophene moieties. The as-synthesized compound 1 contains solvent DMA molecules determined from the X-ray diffraction data and confirmed by other analyses. Assuming a solvent-free framework, the calculated guest-accessible volume of 1 is 49% (v/v); a rather substantial value taking the interpenetration into account. The pore structure of 1 is shown in Figure 1d.
While the interpenetration inevitably reduces the volume of the pores, it also improves the general stability and robustness of the framework as well as the gas adsorption at lower partial pressures. Being encouraged by the heterocycle-rich surface of the potentially porous structure [Zn2(ttdc)2(bpy)], we carried out an extensive investigation of the gas adsorption properties of the compound. Thermogravimetric analysis indicates that guest molecules evaporate from the pores up to 200 °C while an irreversible decomposition of the metal–organic framework takes place above 250 °C (Figure S3).

3.1. Adsorption Studies

Liquid phase adsorption experiments were carried out by immersing the crystals of 1 in a 1:1 (by volume) mixture of benzene and cyclohexane. The crystals were collected, rinsed and digested in DMSO with some amount of HCl. The composition of the organic guest molecules in the final solution was analyzed by 1H NMR, which reveals a C6H6:C6H12 = 14:1 relative molar ratio (Figure S4). The pronounced affinity of 1 to the aromatic benzene over the aliphatic cyclohexane could be expected considering the exclusively aromatic nature of the environment of the micropores formed by bpy and ttdc2– ligands. Nevertheless, the obtained high selectivity value (C6H6:C6H12 = 14:1) exceeds many of the literature data acquired under the same conditions as there are just a few porous MOFs with better or comparable performance [16,44,45,46,47]. The obtained results demonstrate promising perspectives of 1 in purification of the cyclohexane from benzene, which is a necessary step in the synthesis of caprolactam and production of important polyamide polymers and fibers, such as Nylon.
The activation of 1 was successfully carried out by DMA substitution by acetone, followed by a vacuum treatment at 180 °C for 6 h. The N2 adsorption data of the activated [Zn2(ttdc)2(bpy)] (1a) at T = 77 K reveal a typical type I reversible adsorption isotherm, characteristic of microporous materials (Figure 2), confirming the permanent porosity of the sample. The obtained pore volume Vpore = 0.37 cm3·g–1 (DFT, Table S2) coincides with the expected porosity (0.36 cm3·g–1) calculated from the guest-free volume and the crystal density of 1a, which proves the completeness of the activation and stability of the porous MOF. The specific surface area (BET model) is 952 m2·g–1 (Table S2). A pore size distribution plot (DFT method) shows the presence of narrow pores with a diameter of less than 1 nm, which is in an agreement with single-crystal X-ray diffraction data. The results of the adsorption of small “inorganic” gases (CO, CO2, O2, N2) as well as “organic” light hydrocarbons (CH4, C2H2, C2H4, C2H6) at 273 K and 298 K are presented in Figure 3 and Figures S5 and S6 and Table 1.
Among the others, the adsorption of gases with higher boiling points, such as CO2 and C2 hydrocarbons, is the most significant. Particularly, the 1 bar CO2 adsorption capacity of 1a is 22.3 cm3·g–1 (1 mmol·g–1) at 273 K and 12.1 cm3·g–1 (0.54 mmol·g–1) at 298 K. Such values are typical for other porous MOFs with no strong binding centers and comparable surface area, e.g., ZIF-71 [48]. The zero-coverage isosteric heat Qst(0) of the CO2 adsorption, calculated from the isotherm data, is 31.4 kJ·mol–1 (Table S4), supporting the absence of specific adsorption centers, such as open metal sites or amine groups. The adsorption capacities of the ethane, ethylene and acetylene are very comparable: 20.8–22.1 cm3·g–1 (ca. 0.95 mmol·g–1) at 273 K and 12.8–14.8 cm3·g–1 (ca. 0.6 mmol·g–1) at 298 K. The experimental Qst(0) values for C2H2 (36.2 kJ·mol–1) and C2H6 (35.3 kJ·mol–1) are noticeably higher than that for C2H4 (32.1 kJ·mol–1) (Table S4). Stronger adsorption interactions for acetylene at low surface coverage is likely attributed to the acidic nature of the C2H2 protons and possible hydrogen-bonding with the carboxylate groups of the framework. Since no specific interaction of the framework with π-electrons of C2H4 could be realized, the somewhat stronger affinity of 1a to ethane over ethylene could simply be explained by a greater number of hydrogen atoms and multidirectional interatomic contacts in the former.
The adsorption selectivity (Sads) for a binary gas mixture could be assessed by three commonly used approaches. The ratio of adsorption uptakes, V1/V2, at 1 bar better indicates the selectivity at ambient conditions, while a ratio of Henry’s constants relates to the selectivity at low pressure range. A more complex Ideal Adsorption Solution Theory (IAST) allows selectivity calculations at any molar ratio or pressure range. The corresponding data are summarized in Table 2. There is no meaningful selectivity between C2 hydrocarbons as the corresponding values are low no matter what criteria are used for the estimations. However, there are fairly good ethane adsorption selectivity values for an equimolar mixture of ethane and methane: Sads = 12.0 at 273 K and Sads = 14.8 at 298 K (IAST). Even better values could be expected for a C2H6/CH4 = 1:9 mixture, more relevant to the selective extraction of ethane from natural gas or shale gas, as the corresponding values are Sads = 28.4 at 273 K and Sads = 39.1 at 298 K. It should be mentioned that even a moderate adsorption selectivity of Sads = 8 is considered to be high enough for practical separation applications [49].
The separation of mixtures of methane and carbon dioxide is relevant to a number of practical applications, such as a separation of biogas (mainly CO2 and CH4) and purification of natural gas or shale gas from the corrosive components to prevent damage to gas pipeline infrastructure. Even though a typical concentration of CO2 in natural gas rarely exceeds 1%, in certain gas deposits the molar content of CO2 can reach up to 20% and must therefore be reduced before further processing. In this regard, porous materials with an as high as possible preferable adsorption of CO2 over CH4 are required. The IAST calculated CO2 adsorption selectivities of 1a for the equimolar mixture of CH4 and CO2 are Sads = 14.4 (273 K) and Sads = 11.7 (298 K). According to a very recent review, these values are among the top 15% of ca. 400 reported selectivity data for MOFs [50]. It must be mentioned that the majority of those top 15% of highly selective MOFs contain either strong Lewis acidic adsorption centers (unsaturated metal sites) or strong Lewis basic adsorption centers (lone electron pairs on nitrogen atoms) which improves their selective adsorption of CO2 due to strong chemical interactions with those centers. On the other hand, a respective amount of heat energy must be sacrificed to overcome the high adsorption enthalpy of CO2 to regenerate such materials in a repeating sequestration process (vide infra). The porous 1a does not have the above disadvantages yet demonstrates a competitively high CO2/CH4 adsorption selectivity. Moreover, much greater separation efficiency could be expected for the methane-rich mixtures mimicking the typical concentration of CO2 in natural gas CO2:CH4 = 1:9 (Sads = 29.1 at 298 K) and for CO2:CH4 = 1:99 (Sads = 93.7 at 298 K), promising a strong potential of the title compound in natural gas purification applications.
In the case of the CO2/N2 gas mixtures, the IAST calculations result in rather high adsorption selectivity performance. For an equimolar mixture of CO2/N2, the adsorption selectivity factors are Sads = 27.2 and 34.0 at 298 K and 273 K, respectively. In the case of CO2/N2 = 15:85, which is typical of the composition of flue gas in coal power plants, the adsorption selectivity factors reach even greater values, Sads = 56.4 at 298 K and 73.6 at 273 K. Those are very high numbers, rivaling the best data reported in the literature for MOFs with no strong CO2 adsorption centers [51,52,53,54,55,56,57]. As mentioned already, CO2 molecules readily interact with unsaturated metal sites or amine groups, but an introduction of such strong adsorption centers into a MOF structure does not necessarily lead to the desired outcome. For example, well-known MOFs mmen@[Mg2(dobpdc)] and mmen@[Cu3(bttri)2] (dobdc = 2,5-dioxido-1,4-benzenedicarboxylate; bttri = 1,3,5-tri(1H-1,2,3-triazol-4-yl)benzene), functionalized by N,N′-dimethylethylenediamine (mmen) possess remarkably high CO2/N2 selectivity values of Sads = 200 and 327, respectively [58,59]; however, substantial CO2 adsorption heats (71 and 96 kJ·mol–1, respectively) make practical utilization of such materials problematic. In this regard, a porous material with a less prominent, yet still high, CO2 selective adsorption and energy-friendly regeneration requirements, such as the studied compound 1a, could be a viable compromise, suitable for a practical separation of biogas as well as for CO2 sequestration from flue gas or natural gas.
It is interesting to compare the CO2 adsorption properties of the three porous compounds [Zn2(bdc)2(dabco)], [Zn2(tdc)2(dabco)] and [Zn2(ttdc)2(bpy)] (1a), which are based on identical {Zn2(RCOO)4N2} “paddle-wheel” units and share the same primitive-cubic topology in their frameworks. Despite some differences in general structural features and composition, these structures have more or less comparable volumetric pore volumes and surface areas (Table S7). On the other hand, the chemical environment of the channels is very different and primarily depends on the carboxylate linker. The first structure, [Zn2(bdc)2(dabco)], contains terephthalate anions and therefore has no aromatic heterocycles. The second structure, [Zn2(tdc)2(dabco)], contains thiophene rings with two thiophenedicarboxylate anionic linkers per formula unit, or one sulfur atom per 517 Å3 of the unit cell volume. The sulfur-rich thienothiophene moieties, as well as the framework interpenetration in 1a, apparently results in even denser lining of the heterocycles on the inner surface of 1a, as one S atom corresponds to 276 Å3 volume of the unit cell. It was demonstrated earlier that the sulfur-containing heterocycle serves as a secondary CO2 adsorption site via induced dipole interactions [9,10]. Even though such interactions are not as strong as dipole–dipole interactions existing between a CO2 molecule and a polar “paddle-wheel” unit, the incorporation of thiophene was proven to increase the CO2 adsorption capacity and CO2/N2 adsorption selectivity for [Zn2(tdc)2(dabco)] compared with those of [Zn2(bdc)2(dabco)]. In the case of 1a, the IAST adsorption selectivity (Sads = 27.2), calculated under ambient conditions (298 K, 1 bar, CO2:N2 = 1:1), greatly surpasses the corresponding data for [Zn2(tdc)2(dabco)] (Sads = 11.2) and [Zn2(bdc)2(dabco)] (Sads = 9.2). Albeit there are a number of differences between 1a and its prototypes [Zn2(tdc)2(dabco)]/[Zn2(bdc)2(dabco)] such as channel shape, degree of interpenetration, nature of the auxiliary N-donor linker, etc., the contribution of the sulfur-rich thiophene heterocycles to the enhanced adsorption selectivity of the porous material towards CO2 must not be ignored. The obtained experimental data fully confirm an earlier hypothesis regarding the feasibility of auxiliary interactions between the gas molecules and aromatic heterocycles in effective CO2 binding while maintaining low heat of the adsorption.

3.2. Theoretical Studies

To probe the nature of host–guest interactions, we have computationally studied the adsorption of CO2 and C2H6 molecules inside the porous framework [Zn2(ttdc)2(bpy)], which has demonstrated high affinity to these gases. By using a computational approach based on the dispersion-corrected density functional theory method combined with periodic boundary conditions (SCAN+rVV10//PBE-D3(BJ) level of theory [29,30,31,32]), we have found the lowest energy orientations of CO2 and C2H6 molecules physically adsorbed on the surface of [Zn2(ttdc)2(bpy)], shown in Figure 4. It turned out that the most preferential CO2 adsorption centers are located near the polar carboxylate groups of the “paddle-wheel” units (Figure 4a), which is consistent with a previous study [9]. The structural analysis (Figure S12) reveals that the CO2 molecules occupy the symmetrical corner position establishing two C(CO2)···O(COO) contacts between the positively charged C atom of carbon dioxide and negatively charged O atoms of two carboxylate moieties, respectively. The rather short C···O interatomic distances (r = 3.02–3.16 Å) are most favorable from an electrostatics perspective, although there are also some longer intermolecular contacts between CO2 and organic ligands. Depending on the particular orientation of CO2 around the “paddle-wheel”, the binding energies (ΔE) of this adsorption site vary between ca. 30 and 40 kJ·mol–1, which is very much consistent with the experimental Qst(0) adsorption heat value (31.4 kJ·mol–1). On the other hand, organic linkers provide a somewhat less effective, but a numerous and structurally diverse, secondary adsorption site (Figure 4b). Depending on its particular position in the channel of 1, the CO2 molecule interacts with one, two or three thienothiophene moieties and, in some cases, with the bpy linker (Figure S12). It should be pointed out that the number of the interatomic contacts of ttdc2– anions with the CO2 molecule at those secondary adsorption sites is considerably greater than the number of such contacts with bpy (ligand stoichiometry is considered), unambiguously suggesting that sulfur-rich heterocycles establish a quite effective environment for CO2 adsorption. The total CO2 binding energies of the secondary adsorption sites are relatively low, ΔE ≈ 20 ÷ 30 kJ·mol–1 (Figure 4b and Figure S12), yet exceed the CO2 vaporization heat (16.7 kJ·mol–1), which eventually drives the adsorption. Even though the induced dipole intermolecular interactions may not be as significant as the coulomb interactions between polar atoms, the high density of the thiophene groups in the micropores of 1 (vide supra) and numerous CO2⋅⋅⋅ttdc2– contacts ensures an apparent increase in the specific CO2 adsorption selectivity over non-polar gases such as N2 and CH4. Again, these results fully support the previous hypotheses that MOF functionalization by thiophene heterocycles favors CO2 adsorption at the same time as keeping the CO2 adsorption heat at a minimum, since weaker van-der-Waals interactions of the secondary adsorption sites do not contribute much to the total binding energy.
Interestingly, the opposite situation is observed in the case of ethane hydrocarbon adsorption, which prefers to bind with the organic linkers rather than with the polar “paddle-wheel” units. Such distinct adsorption behavior can be explained by the different polarity of the C–O and C–H bonds of guest molecules. Indeed, the C2H6 molecule in its adsorption centers tends to interact with less charged host atoms giving rise to several C–H···H (r = 2.73–2.89 Å), C–H···C (r = 2.90–3.06 Å) and C–H···S (r = 3.30–3.72 Å) contacts that are mainly stabilized by electrostatic and dispersion forces (Figure S13). It is necessary to note that the most energetically preferred CO2 and C2H6 positions on the framework’s surface are characterized by a number of favorable interatomic contacts between guests and sulfur atoms, highlighting the important role of sulfur-containing heterocycles in effective adsorption of such gases.
According to the calculated binding energy values, both carbon dioxide and ethane have comparable strengths of host–guest interactions, which is in line with the experimental findings. Although the CO2 molecule binds with the primary adsorption site more strongly than C2H6 (ΔΔE = –5.4 kJ·mol–1; Figure 4a,c), the strength of interaction between the CO2 molecule and the secondary adsorption site is weaker by 3.3 kJ·mol–1 when compared to C2H6 (Figure 4b,d). A moderate binding energy difference between primary and secondary adsorption sites suggests that studied guest molecules can interact effectively not only with polar “paddle-wheel” units of the porous [Zn2(ttdc)2(bpy)] framework but also with its heterocyclic organic moieties. Thus, the introduction of sulfur-containing linkers into the parent MOF structure enables guest molecules to form multiple C–O···S (in case of CO2) or C–H···S (in case of C2H6) stabilizing contacts that lead to an enhancement in adsorption uptake and selectivity observed experimentally.

4. Conclusions

A new microporous metal–organic framework with intersecting channels formed by thienothiophene bridging ligands has been synthesized and characterized. The compound demonstrates a selective adsorption of benzene over cyclohexane and ethane over methane, approaching the best reported values in the literature. Most interestingly, it possesses a highly desired—but quite rare combination—of a remarkable selectivity of adsorption of CO2 over non-polar gases (N2, CH4) and only a moderate CO2 adsorption heat. The theoretical DFT calculations validated the unique role of the thiophene-like heterocycle moieties in the specific binding of CO2 and C2H6, which emphasizes the feasibility of functionalization of porous materials by sulfur-rich heterocycles for an improvement in the adsorption characteristics.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12234281/s1, Figure S1: Powder X-ray diffraction patterns of as-synthesized 1 (black), activated 1a (blue) and theoretically modeled from the single-crystal X-ray diffraction data (red); Figure S2: IR spectrum of 1; Figure S3: TG curve for 1; Figure S4: 1H NMR spectrum of d6-dimethyl sulfoxide solution of the digested 1 after adsorption of benzene and cyclohexane from the liquid phase (1:1 v/v); Figure S5: Adsorption and desorption isotherms of N2, O2, CO and CO2 at 273 K (left) and 298 K (right) for 1a; Figure S6: Adsorption and desorption isotherms of CH4, C2H2, C2H4 and C2H6 at 273 K (left) and 298 K (right) for 1a; Figure S7: Fits of isotherms by virial equations; Figure S8: Isosteric heats of adsorption of N2, CH4, CO2, C2H2, C2H4 and C2H6 on 1a calculated by virial approach as a function of amount adsorbed; Figure S9: Fits of isotherms by appropriate models; Figure S10: Prediction of adsorption equilibrium by IAST (solid lines) and dependence of selectivity factors on gas phase composition (dashed lines) for binary gas mixtures (total pressure 1 bar): (a) CO2/N2; (b) CO2/CH4; (c) C2H6/C2H2; (d) C2H6/CH4; Figure S11: Dependence of selectivity factors on total gas pressure for equimolar binary gas mixtures: (a) CO2/N2; (b) CO2/CH4; (c) C2H6/C2H2; (d) C2H6/CH4; Figure S12: Calculated interatomic distances (Å) of the shortest Xguest···Yhost contacts (red dashed lines) and the corresponding Hirshfeld partial charges for CO2 molecule adsorbed at the most relevant sites I.A, I.B, I.C, and I.D inside [Zn2(ttdc)2(bpy)] pores. Adsorption energies (ΔE) are given in kJ·mol–1. Color code: Zn (green), S (yellow), O (red), N (blue), C (gray), H (light gray); Figure S13: Calculated interatomic distances (Å) of the shortest Xguest···Yhost contacts (red dashed lines) and the corresponding Hirshfeld partial charges for C2H6 molecule adsorbed at the most relevant sites II.A and II.B inside [Zn2(ttdc)2(bpy)] pores. Adsorption energies (ΔE) are given in kJ·mol–1. Color code: Zn (green), S (yellow), O (red), N (blue), C (gray), H (light gray); Table S1: Crystal data and structure refinement for 1; Table S2: The parameters of porous structure of 1a; Table S3: Virial coefficients Ai and Bj for gas adsorption isotherms at 273 K and 298 K on 1a; Table S4: Zero coverage heats of adsorption in kJ·mol–1; Table S5: Henry constants for gas adsorption on 1a in mmol·g−1·bar−1 at 273 K and 298 K obtained by virial approach; Table S6: Fitted parameters for adsorption isotherms on 1a at 273 K and 298 K and corresponding Henry constants; Table S7: The parameters of porous structure of [Zn2(bdc)2(dabco)], [Zn2(tdc)2(dabco)] [2] and [Zn2(ttdc)2(bpy)] (1a, this work). Reference [60] is cited in the supplementary materials.

Author Contributions

Conceptualization, D.N.D.; methodology, A.A.L.; data curation, D.G.S.; formal analysis, K.A.K., A.S.N.; investigation, V.A.D.; resources, V.P.F.; writing—original draft preparation, A.A.L.; writing—review and editing, D.N.D. and V.P.F.; supervision, D.N.D.; project administration, D.N.D.; funding acquisition, D.N.D. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by Russian Science Foundation, project № 18-13-00203, https://rscf.ru/project/18-13-00203. The analytical services and quantum chemical calculations were supported by the Ministry of Science and Higher Education of the Russian Federation (Projects 121031700321-3 and 121031700313-8).

Data Availability Statement

CCDC 2212135 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Center at https://www.ccdc.cam.ac.uk/structures/.

Acknowledgments

The Siberian Supercomputer Centre SB RAS is gratefully acknowledged for providing computational resources. The authors also thank Alexander S. Sukhih for providing the data collected at XRD Facility of NIIC SB RAS.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Reuters. Available online: https://www.reuters.com/business/energy/germanys-uniper-bring-coal-fired-power-plant-heyden-4-back-onto-electricity-2022-08-22/ (accessed on 25 October 2022).
  2. Zhu, X.; Xie, W.; Wu, J.; Miao, Y.; Xiang, C.; Chen, C.; Ge, B.; Gan, Z.; Yang, F.; Zhang, M.; et al. Recent advances in direct air capture by adsorption. Chem. Soc. Rev. 2022, 51, 6574–6651. [Google Scholar] [CrossRef] [PubMed]
  3. Amooghin, A.E.; Sanaeepur, H.; Luque, R.; Garcia, H.; Chen, B. Fluorinated metal—Organic frameworks for gas separation. Chem. Soc. Rev. 2022, 51, 7427–7508. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, X.; Maddock, J.; Nenoff, T.M.; Denecke, M.A.; Yang, S.; Schröder, M. Adsorption of iodine in metal–organic framework materials. Chem. Soc. Rev. 2022, 51, 3243–3262. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, K.; Mousavi, S.H.; Singh, R.; Snurr, R.Q.; Li, G.; Webley, P.A. Gating effect for gas adsorption in microporous materials—Mechanisms and applications. Chem. Soc. Rev. 2022, 51, 1139–1166. [Google Scholar] [CrossRef]
  6. Zhang, L.; Jiang, K.; Yang, Y.; Cui, Y.; Chen, B.; Qian, G. A novel Zn-based heterocycle metal-organic framework for high C2H2/C2H4, CO2/CH4 and CO2/N2 separations. J. Solid State Chem. 2017, 255, 102–107. [Google Scholar] [CrossRef]
  7. Chakraborty, G.; Das, P.; Mandal, S.K. Efficient and highly selective CO2 capture, separation, and chemical conversion under ambient conditions by a polar-group appended copper(II) metal–organic framework. Inorg. Chem. 2021, 60, 5071–5080. [Google Scholar] [CrossRef]
  8. Gandhi, S.; Das, P.; Mandal, S.K. A microporous, amino acid functionalized Zn(II)-organic framework nanoflower for selective CO2 capture and solvent encapsulation. Mater. Adv. 2020, 1, 1455–1463. [Google Scholar] [CrossRef]
  9. Bolotov, V.A.; Kovalenko, K.A.; Samsonenko, D.G.; Han, X.; Zhang, X.; Smith, G.L.; McCormick, L.J.; Teat, S.J.; Yang, S.; Lennox, M.J.; et al. Enhancement of CO2 uptake and selectivity in a metal–organic framework by the incorporation of thiophene functionality. Inorg. Chem. 2018, 57, 5074–5082. [Google Scholar] [CrossRef] [Green Version]
  10. Yoon, M.; Moon, D. New Zr (IV) based metal-organic framework comprising a sulfur-containing ligand: Enhancement of CO2 and H2 storage capacity. Microporous Mesoporous Mater. 2015, 215, 116–122. [Google Scholar] [CrossRef]
  11. Shi, Y.-X.; Li, W.-X.; Zhang, W.-H.; Lang, J.-P. Guest-induced switchable breathing behavior in a flexible metal–organic framework with pronounced negative gas pressure. Inorg. Chem. 2018, 57, 8627–8633. [Google Scholar] [CrossRef]
  12. Zhang, Z.; Xiang, S.; Chen, Y.-S.; Ma, S.; Lee, Y.; Phely-Bobin, T.; Chen, B.A. Robust highly interpenetrated metal-organic framework constructed from pentanuclear clusters for selective sorption of gas molecules. Inorg. Chem. 2010, 49, 8444–8448. [Google Scholar] [CrossRef] [PubMed]
  13. Demakov, P.A.; Volynkin, S.S.; Samsonenko, D.G.; Fedin, V.P.; Dybtsev, D.N. A selenophene-incorporated metal–organic framework for enhanced CO2 uptake and adsorption selectivity. Molecules 2020, 25, 4396. [Google Scholar] [CrossRef] [PubMed]
  14. Sholl, D.S.; Lively, R.P. Seven chemical separations to change the world. Nature 2016, 532, 435–438. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lysova, A.A.; Samsonenko, D.G.; Kovalenko, K.A.; Nizovtsev, A.S.; Dybtsev, D.N.; Fedin, V.P. A series of mesoporous metal-organic frameworks with tunable windows sizes and exceptionally high ethane over ethylene adsorption selectivity. Angew. Chem. Int. Ed. 2020, 59, 20561–20567. [Google Scholar] [CrossRef] [PubMed]
  16. Lysova, A.A.; Samsonenko, D.G.; Dorovatovskii, P.V.; Lazarenko, V.A.; Khrustalev, V.N.; Kovalenko, K.A.; Dybtsev, D.N.; Fedin, V.P. Tuning the molecular and cationic affinity in a series of multifunctional metal–organic frameworks based on dodecanuclear Zn(II) carboxylate wheels. J. Am. Chem. Soc. 2019, 141, 17260–17269. [Google Scholar] [CrossRef] [PubMed]
  17. Liao, P.-Q.; Zhang, W.-X.; Zhang, J.-P.; Chen, X.-M. Efficient purification of ethene by an ethane-trapping metal-organic framework. Nat. Commun. 2015, 6, e8697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Li, L.; Lin, R.-B.; Krishna, R.; Li, H.; Xiang, S.; Wu, H.; Li, J.; Zhou, W.; Chen, B. Ethane/ethylene separation in a metal-organic framework with iron-peroxo sites. Science 2018, 362, 443–446. [Google Scholar] [CrossRef] [Green Version]
  19. Shimomura, S.; Horike, S.; Matsuda, R.; Kitagawa, S. Guest-specific function of a flexible undulating channel in a 7,7,8,8-tetracyano-p-quinodimethane dimer-based porous coordination polymer. J. Am. Chem. Soc. 2007, 129, 10990–10991. [Google Scholar] [CrossRef]
  20. Shimomura, S.; Matsuda, R.; Kitagawa, S. Flexibility of porous coordination polymers strongly linked to selective sorption mechanism. Chem. Mater. 2010, 22, 4129–4131. [Google Scholar] [CrossRef]
  21. Hijikata, Y.; Horike, S.; Sugimoto, M.; Sato, H.; Matsuda, R.; Kitagawa, S. Relationship between Channel and Sorption Properties in Coordination Polymers with Interdigitated Structures. Chem. Eur. J. 2011, 17, 5138–5144. [Google Scholar] [CrossRef]
  22. Thermophysical Properties of Fluid Systems, Database of National Institute of Standards and Technology, NIST. Available online: http://webbook.nist.gov/chemistry/fluid/ (accessed on 29 October 2022).
  23. Bruker Apex3 Software Suite: Apex3, SADABS-2016/2 and SAINT; Version 2018.7-2; Bruker AXS Inc.: Madison, WI, USA, 2017.
  24. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Spek, A.L. PLATON SQUEEZE: A tool for the calculation of the disordered solvent contribution to the calculated structure factors. Acta Crystallogr. Sect. C 2015, 71, 9–18. [Google Scholar] [CrossRef] [Green Version]
  27. Kresse, G.; Furthmuller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef] [PubMed]
  28. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758–1775. [Google Scholar] [CrossRef]
  29. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, e154104. [Google Scholar] [CrossRef] [Green Version]
  31. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456–1465. [Google Scholar] [CrossRef]
  32. Peng, H.; Yang, Z.-H.; Perdew, J.P.; Sun, J. Versatile van der Waals density functional based on a meta-generalized gradient approximation. Phys. Rev. X 2016, 6, e041005. [Google Scholar] [CrossRef] [Green Version]
  33. Bultinck, P.; Van Alsenoy, C.; Ayers, P.W.; Carbó Dorca, R. Critical analysis and extension of the Hirshfeld atoms in molecules. J. Chem. Phys. 2007, 126, e144111. [Google Scholar] [CrossRef]
  34. Tkatchenko, A.; DiStasio, R.A.; Car, R.; Scheffler, M. Accurate and efficient method for many-body van der Waals interactions. Phys. Rev. Lett. 2012, 108, e236402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Ambrosetti, A.; Reilly, A.M.; DiStasio Jr, R.A.; Tkatchenko, A. Long-range correlation energy calculated from coupled atomic response functions. J. Chem. Phys. 2014, 140, 018A508. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Bucko, T.; Lebègue, S.; Gould, T.; Ángyán, J.G. Many-body dispersion corrections for periodic systems: An efficient reciprocal space implementation. J. Phys. Condens. Matter. 2016, 28, e045201. [Google Scholar] [CrossRef] [PubMed]
  37. Pracht, P.; Bohle, F.; Grimme, S. Automated exploration of the low-energy chemical space with fast quantum chemical methods. Phys. Chem. Chem. Phys. 2020, 22, 7169–7192. [Google Scholar] [CrossRef] [PubMed]
  38. Grimme, S. Exploration of chemical compound, conformer, and reaction space with meta-dynamics simulations based on tight-binding quantum chemical calculations. J. Chem. Theory Comput. 2019, 15, 2847–2862. [Google Scholar] [CrossRef] [PubMed]
  39. Spicher, S.; Grimme, S. Robust atomistic modeling of materials, organometallic, and biochemical systems. Angew. Chem. Int. Ed. 2020, 59, 15665–15673. [Google Scholar] [CrossRef]
  40. Bannwarth, C.; Ehlert, S.; Grimme, S. GFN2-xTB—An accurate and broadly parametrized Self-consistent tight-binding quantum chemical method with multipole electrostatics and density-dependent dispersion contributions. J. Chem. Theory Comput. 2019, 15, 1652–1671. [Google Scholar] [CrossRef] [Green Version]
  41. Bannwarth, C.; Caldeweyher, E.; Ehlert, S.; Hansen, A.; Pracht, P.; Seibert, J.; Spicher, S.; Grimme, S. Extended tight-binding quantum chemistry methods. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2020, 11, e01493. [Google Scholar] [CrossRef]
  42. Chun, H.; Dybtsev, D.N.; Kim, H.; Kim, K. Synthesis, X-ray crystal structures, and gas sorption properties of pillared square grid nets based on paddle-wheel motifs: Implications for hydrogen storage in porous materials. Chem. Eur. J. 2005, 11, 3521–3529. [Google Scholar] [CrossRef]
  43. Liu, H.; Zhao, Y.; Zhang, Z.; Nijem, N.; Chabal, Y.J.; Zeng, H.; Li, J. The effect of methyl functionalization on microporous metal-organic frameworks’ capacity and binding energy for carbon dioxide adsorption. Adv. Funct. Mater. 2011, 21, 4754–4762. [Google Scholar] [CrossRef]
  44. Li, G.; Zhu, C.; Xi, X.; Cui, Y. Selective binding and removal of organic molecules in a flexible polymeric material with stretchable metallosalen chains. Chem. Commun. 2009, 2118–2120. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, J.-H.; Luo, D.; Li, M.; Li, D. Local deprotonation enables cation exchange, porosity modulation and tunable adsorption selectivity in a metal-organic framework. Cryst. Growth Des. 2017, 6, 3387–3394. [Google Scholar] [CrossRef]
  46. Sapianik, A.A.; Kovalenko, K.A.; Samsonenko, D.G.; Barsukova, M.O.; Dybtsev, D.N.; Fedin, V.P. Exceptionally effective benzene/cyclohexane separation using a nitro-decorated metal–organic framework. Chem. Commun. 2020, 56, 8241–8244. [Google Scholar] [CrossRef] [PubMed]
  47. Poryvaev, A.S.; Yazikova, A.A.; Polyukhov, D.M.; Fedin, M.V. Ultrahigh selectivity of benzene/cyclohexane separation by ZIF-8 framework: Insights from spin-probe EPR spectroscopy. Microporous Mesoporous Mater. 2022, 330, 111564. [Google Scholar] [CrossRef]
  48. Morris, W.; Leung, B.; Furukawa, H.; Yaghi, O.K.; He, N.; Hayashi, H.; Houndonougbo, Y.; Asta, M.; Laird, B.B.; Yaghi, O.M. A combined experimental–computational investigation of carbon dioxide capture in a series of isoreticular zeolitici frameworks. J. Am. Chem. Soc. 2010, 132, 11006–11008. [Google Scholar] [CrossRef]
  49. Duan, J.; Higuchi, M.; Krishna, R.; Kiyonaga, T.; Tsutsumi, Y.; Sato, Y.; Kubota, Y.; Takata, M.; Kitagawa, S. High CO2/N2/O2/CO separation in a chemically robust porous coordination polymer with low binding energy. Chem. Sci. 2014, 5, 660–666. [Google Scholar] [CrossRef] [Green Version]
  50. Sahoo, R.; Mondal, S.; Mukherjee, D.; Das, M.C. Metal–Organic Frameworks for CO2 Separation from Flue and Biogas Mixtures. Adv. Funct. Mater. 2022, 32, 2207197. [Google Scholar] [CrossRef]
  51. Chen, D.-M.; Zhang, X.-P.; Shi, W.; Cheng, P. Microporous metal–organic framework based on a bifunctional linker for selective sorption of CO2 over N2 and CH4. Inorg. Chem. 2015, 54, 5512–5518. [Google Scholar] [CrossRef]
  52. Zhang, R.; Huang, J.-H.; Meng, D.-X.; Ge, F.-Y.; Wang, L.-F.; Xu, Y.-K.; Liu, X.-G.; Meng, M.-M.; Lu, Z.-Z.; Zheng, H.-G.; et al. Three metal–organic framework isomers of different pore sizes for selective CO2 adsorption and isomerization studies. Dalton Trans. 2020, 49, 5618–5624. [Google Scholar] [CrossRef]
  53. Nandi, S.; Collins, S.; Chakraborty, D.; Banerjee, D.; Thallapally, P.K.; Woo, T.K.; Vaidhyanathan, R. Ultralow parasitic energy for postcombustion CO2 capture realized in a nickel isonicotinate metal–organic framework with excellent moistures. J. Am. Chem. Soc. 2017, 139, 1734–1737. [Google Scholar] [CrossRef]
  54. Pal, A.; Chand, S.; Madden, D.G.; Franz, D.; Ritter, L.; Johnson, A.; Space, B.; Curtin, T.; Das, M.C. A Microporous Co-MOF for Highly Selective CO2 Sorption in High Loadings Involving Aryl C–H···O=C=O Interactions: Combined Simulation and Breakthrough Studies. Inorg. Chem. 2019, 58, 11553–11560. [Google Scholar] [CrossRef] [PubMed]
  55. Xiang, S.; He, Y.; Zhang, Z.; Wu, H.; Zhou, W.; Krishna, R.; Chen, B. Microporous metal-organic framework with potential for carbon dioxide capture at ambient conditions. Nat. Comm. 2012, 3, 954. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Sun, X.; Li, X.; Yao, S.; Krishna, R.; Gu, J.; Li, G.; Liu, Y. A multifunctional double walled zirconium metal–organic framework: High performance for CO2 adsorption and separation and detecting explosives in the aqueous phase. J. Mater. Chem. A 2020, 8, 17106–17112. [Google Scholar] [CrossRef]
  57. Chen, C.; Zhang, W.; Zhang, M.; Bai, J. Solvents-Dependent Formation of Three MOFs from the Fe3O Cluster and 3,3′,5,5′-Diphenyltetracarboxylic Acid and Their Selective CO2 Adsorption. Inorg. Chem. 2019, 58, 13836–13842. [Google Scholar] [CrossRef]
  58. McDonald, T.M.; Lee, W.R.; Mason, J.A.; Wiers, B.M.; Hong, C.S.; Long, J.R. Capture of Carbon Dioxide from Air and Flue Gas in the Alkylamine-Appended Metal–Organic Framework mmen-Mg2(dobpdc). J. Am. Chem. Soc. 2012, 134, 7056–7065. [Google Scholar] [CrossRef]
  59. McDonald, T.M.; D’Alessandro, D.M.; Krishna, R.; Long, J.R. Enhanced carbon dioxide capture upon incorporation of N,N′-dimethylethylenediamine in the metal–organic framework CuBTTri. Chem. Sci. 2011, 2, 2022–2028. [Google Scholar] [CrossRef]
  60. Myers, A.L.; Prausnitz, J.M. Thermodynamics of mixed-gas adsorption. AIChE J. 1965, 11, 121–127. [Google Scholar] [CrossRef]
Nanomaterials 12 04281 sch001 550

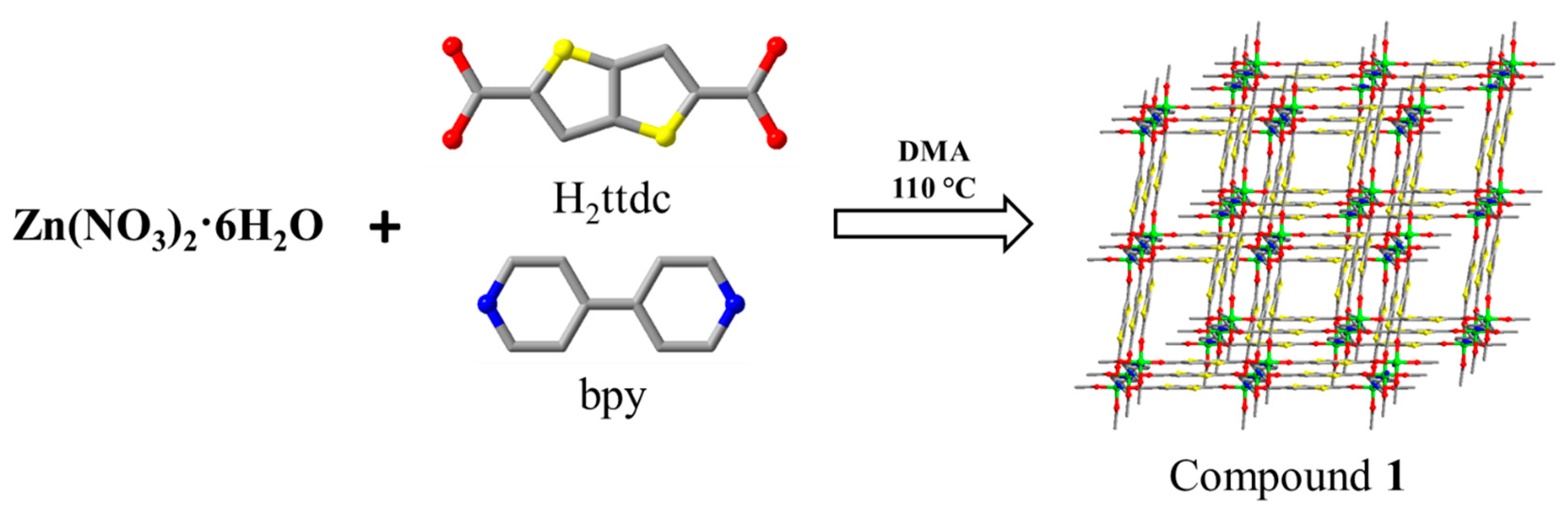

Scheme 1. Scheme of the synthesis of 1.
Scheme 1. Scheme of the synthesis of 1.
Nanomaterials 12 04281 sch001
Nanomaterials 12 04281 g001 550

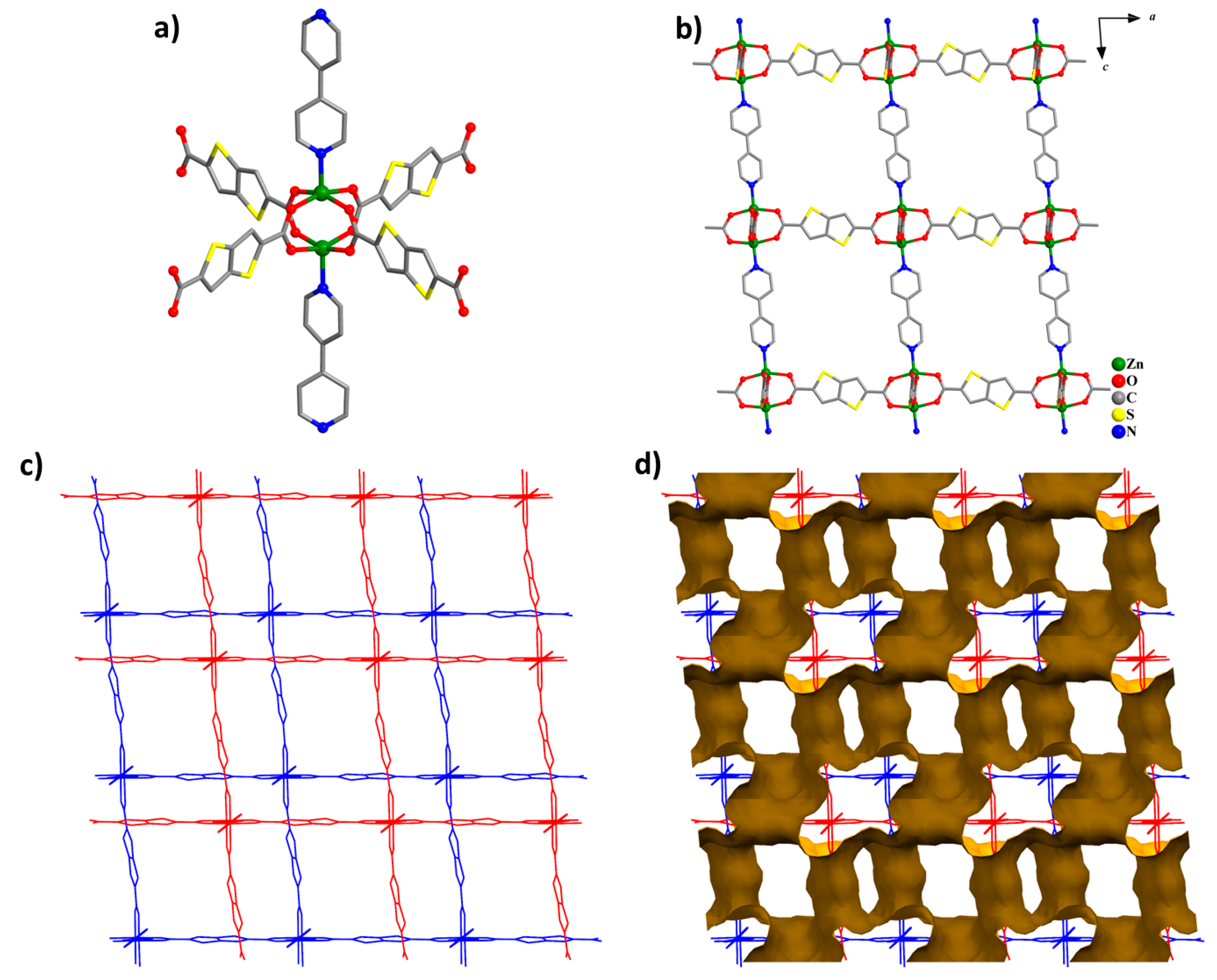

Figure 1. (a) {Zn2(COO)4N2} “paddle-wheel” complex in 1; (b) the framework structure of 1 in the ac plane; (c) two interpenetrated networks in 1 in the ab plane; (d) pore structure of 1 in the ab plane.
Figure 1. (a) {Zn2(COO)4N2} “paddle-wheel” complex in 1; (b) the framework structure of 1 in the ac plane; (c) two interpenetrated networks in 1 in the ab plane; (d) pore structure of 1 in the ab plane.
Nanomaterials 12 04281 g001
Nanomaterials 12 04281 g002 550

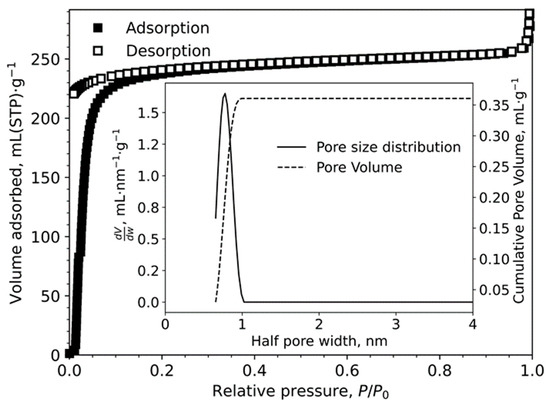

Figure 2. Nitrogen adsorption–desorption isotherms at 77 K and pore volume distribution (insert).
Figure 2. Nitrogen adsorption–desorption isotherms at 77 K and pore volume distribution (insert).
Nanomaterials 12 04281 g002
Nanomaterials 12 04281 g003 550

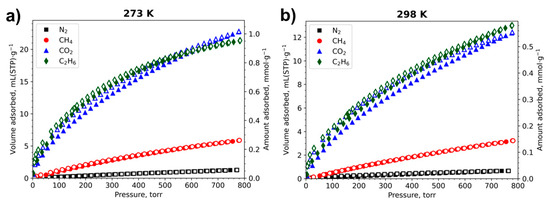

Figure 3. Adsorption and desorption isotherms of N2, CH4, CO2 and C2H6 at 273 K (a) and 298 K (b) for 1a.
Figure 3. Adsorption and desorption isotherms of N2, CH4, CO2 and C2H6 at 273 K (a) and 298 K (b) for 1a.
Nanomaterials 12 04281 g003
Nanomaterials 12 04281 g004 550

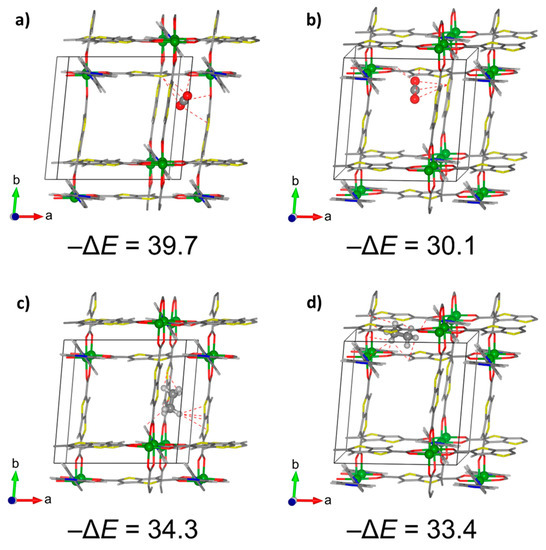

Figure 4. Calculated structures and adsorption energies (ΔE, kJ·mol–1) of CO2 (a,b) and C2H6 (c,d) molecules at the most relevant adsorption sites inside [Zn2(ttdc)2(bpy)] pores. Short host–guest interatomic contacts are indicated by red dashed lines (a single guest molecule is shown). Color code: Zn (green), S (yellow), O (red), N (blue), C (gray), H (light gray).
Figure 4. Calculated structures and adsorption energies (ΔE, kJ·mol–1) of CO2 (a,b) and C2H6 (c,d) molecules at the most relevant adsorption sites inside [Zn2(ttdc)2(bpy)] pores. Short host–guest interatomic contacts are indicated by red dashed lines (a single guest molecule is shown). Color code: Zn (green), S (yellow), O (red), N (blue), C (gray), H (light gray).
Nanomaterials 12 04281 g004
Table
Table 1. Gas uptakes in 1a at 273 K and 298 K.
Table 1. Gas uptakes in 1a at 273 K and 298 K.
Gas273 K298 K
cm3 (STP)·g–1mmol·g–1wt. %cm3 (STP)·g–1mmol·g–1wt. %
CO222.30.994.212.10.542.3
CH45.70.250.43.10.140.2
N21.30.060.20.70.030.1
C2H222.10.992.514.80.661.7
C2H420.80.932.513.30.591.6
C2H621.10.942.712.80.571.7
CO2.40.110.31.50.070.2
O21.70.070.21.10.050.2
Table
Table 2. Selectivity factors for 1 for separation of equimolar binary gas mixtures evaluated by different approaches.
Table 2. Selectivity factors for 1 for separation of equimolar binary gas mixtures evaluated by different approaches.
Gas Mixtures273 K298 K
V1/V2KH1/KH2IASTV1/V2KH1/KH2IAST
CO2/N217.293.834.0 (73.6 a)17.358.827.2 (56.4 a)
CO2/CH43.915.814.4 (38.3 b, 143.9 c)3.910.611.7 (29.1 b, 93.7 c)
C2H2/C2H41.061.481.121.111.271.12
C2H6/C2H20.951.092.080.861.133.50
C2H6/CH43.730.512.0 (28.4 b)4.117.614.8 (39.1 b)
a for ratio of 15:85; b for ratio of 1:9; c for ratio 1:99.
