Hybrid Polyethylene Glycol/Sodium Metaphosphate Composites Prepared via Coacervation

Abstract

We report on the fabrication and characterization of homogeneous, monophasic sodium metaphosphate and polyethylene glycol hybrid composites achieved via coacervation in aqueous solution. After separation and drying, an amorphous plastic solid is formed, composed mostly of hydrated sodium phosphate moieties amalgamated with polyethylene glycol chains. These composites are largely X-ray amorphous and can contain up to 8 weight percent of polymer. Impedance spectroscopic measurements reveal DC conductivity values of 12 μS/m at room temperature, an enhancement of three orders of magnitude when compared to glassy sodium metaphosphate, and the presence of the polyethylene glycol is reflected in the equivalent circuit and ionic hopping analyses.

1. Introduction

Composite polymer–ceramic materials are widely studied options for the realization of solid-state electrolytes for lithium [1,2,3] and sodium ion batteries [4,5], and they are typically prepared via slurry casting or spraying. While these processes allow for high compositional flexibility, achieving the final, multiphasic composites requires the evaporation of organic solvents or in situ polymerization [6]. Alternatively, coacervation is a type of liquid–liquid phase separation that can happen in polymer solutions, producing a more dense phase, the coacervate, and a less dense phase, the supernatant [7]. The coacervation process in aqueous solutions is traditionally categorized either as simple coacervation, where the phase separation is triggered by the addition of a desolvation agent (also called coacervation or inducing agent) which changes the solubility equilibrium of the system, or as complex coacervation, where the electrostatic forces between charged molecules and polymers determine the phase separation behavior [8,9]. Pioneering studies on the coacervation of alkali phosphate aqueous solutions utilized the addition of alkaline earth halides to trigger the phase separation [10,11] where the electrostatic interactions between the polyphosphate chains and the polyvalent cations induced the coacervate formation [12,13,14,15,16]. The addition of polar organic solvents such as methanol [10] and ethanol [17] has also been observed to provoke coacervation in phosphate aqueous solutions. This behavior has been hypothesized to be based on the decrease in the solution’s static dielectric constant with increasing organic solvent concentration, leading to a decreased solubility of the phosphate molecules [18], similar to the so-called salting-out effect observed in ternary water–polymer–electrolyte solutions [19]. More recently, several authors have used pyrophosphate coacervates precipitated from aqueous solutions by the addition of ethanol as precursor materials in the fabrication of glasses for optical and biological applications [18,20,21,22]. Likewise, aqueous solutions of polyethylene glycol (PEG) usually display immiscibily gaps [23] and this behavior is also observed in water–PEG–salt solutions [24,25]; such aqueous biphasic systems—with the addition of salts—have been widely studied and found many biological and pharmaceutical applications [26,27,28]. In this paper, we report on the on hybridization of sodium metaphosphate glasses with PEG via combination of precursor aqueous solutions, coacervation, and controlled drying of the coacervate, enabling the preparation of homogeneous organic–inorganic composites which cannot be formed via traditional melt-quenching or slurry processing techniques.

2. Materials and Methods

2.1. Coacervate Formation

Precursor solutions of $4\mathrm{mol}{\mathrm{L}}^{-1}$ ${\mathrm{NaPO}}_3$ (NP) were prepared by mixing the appropriate proportions of deionized water and ${\mathrm{NaPO}}_3$ glass powder (synthesis method previously described [29]). Liquid coacervation agents (ethanol (99.8%, Carl Roth GmbH, Karlsruhe, Germany), ethylene glycol (VEB Laborchemie Apolda, Apolda, Germany—EG), and polyethylene glycol (average ${\mathrm{M}}_{\mathrm{n}}$ = 190–210 $\mathrm{g}{\mathrm{mol}}^{-1}$, Sigma-Aldrich 807483, Merck KGaA, Darmstadt, Germany—PEG200) were gradually added to the parent NP solution until it turned from transparent to milky, and the added volume noted. Then, water was added to the milky solution until it turned clear again, the volume noted and the procedure repeated several times.

The static dielectric constant ${\epsilon }_0$ of the solutions was estimated using Oster’s rule for the polarization of fluid mixtures $p_{mix}$,

$$p_{mix}=\frac{{\sum }_{i=1}^n{x}_i{v}_i{p}_i}{{\sum }_{i=1}^n{x}_i{v}_i},$$

(1)

where $x_i$, $v_i$, and $p_i$ are the molar fraction, molar volume, and polarization of each component i, respectively. This quantity is directly related to ${\epsilon }_0$ by

$$p=\frac{({\epsilon }_0-1)(2{\epsilon }_0+1)}{9{\epsilon }_0}.$$

(2)

For the coacervation agents and water, the polarization was calculated directly from literature values of the dielectric constant. For the sodium metaphosphate solution, its ${\epsilon }_0$ was estimated with

$${\epsilon }_0=\frac{{\epsilon }_{0,sol}}{1+{\sum }_i{A}_i{x}_{i}ln(1+B_i\sqrt{I_X})},$$

(3)

where ${\epsilon }_{0,sol}$ is the dielectric constant of the solvent (in this case, water), $I_X$ is the solution’s ionic strength, and $A_i$ and $B_i$ are constants for each of the i ions present [30]. Wang and Anderko report $A_{N{a}^{+}}=0.523741$ at 25 °C, and $B_i$ = 1,027,541 was found to give good results for a wide variety of ionic species in aqueous solution [30]. $A_{P{O}_3^{-}}=0.53496$ was estimated using published literature data [31].

Table 1. Parameters used in the calculation of the static dielectric constants.

	$\mathit{\rho }$ (g/${\mathbf{cm}}^3$)	${\mathbf{V}}_{\mathbf{M}}$ (${\mathbf{cm}}^3/\mathbf{mol}$)	${\mathit{\epsilon }}_0$	p
NP	$1.20\pm 0.01$	19.72	50.4 £	11.1
Water	0.997 †	18.02	80.1 †	17.69
Ethanol	0.789 †	58.39	25.3 †	5.51
EG	1.106 ‡	56.11	41.2 ¶	9.04
PEG200	1.120 §	178.57	22.1 ¶	4.79

£ Calculated with Equation (3); † Reference [32]; ‡ Reference [33]; ¶ Reference [34]; § Reference [35].

summarizes the data used to estimate the ${\epsilon }_0$ of the sodium metaphosphate solution–water–coacervation agent ternary solutions following Equation (1), with the values for the polarization of each component estimated from their dielectric constant via Equation (2).

2.2. Dried Coacervate Sample Preparation

Precursor solutions of $4\mathrm{mol}{\mathrm{L}}^{-1}$ ${\mathrm{NaPO}}_3$ and $0.4\mathrm{mol}{\mathrm{L}}^{-1}$ PEG1000 were prepared by mixing the appropriate proportions of deionized water, ${\mathrm{NaPO}}_3$ glass powders and polyethylene glycol (average ${\mathrm{M}}_{\mathrm{n}}$ = 950–1050 $\mathrm{g}{\mathrm{mol}}^{-1}$, Sigma Aldrich P3515, Merck KGaA, Darmstadt, Germany—PEG1000). An aqueous solution of PEG1000 was chosen as coacervation agent for the dried samples to exacerbate the desolvation effect observed in the coacervate formation studies. A total of 32 mL of the PEG1000 solution was added to a beaker, and the ${\mathrm{NaPO}}_3$ solution was slowly combined under continuous stirring until the solution turned from clear to milky, which happened after the addition of 15 mL NaPO₃ solution. This was taken as the onset of phase separation, and the solution was then allowed to settle for 24 h. After precipitation, 1 mL aliquots of the supernatant and the coacervate were pipetted out of the mother solution, put in small open sample holders, transferred to a vacuum oven, and dried for 67 h at 35 °C and 50 kPa absolute (Figure 1 summarizes the sample preparation process). Sample drying was followed with the pressure gauge of the vacuum oven; prior to 62 h, the vacuum pump had to be regularly activated to maintain the set pressure, then after confirming the vacuum was holding without further pumping for 5 h, the samples were considered “dry” and taken out of the oven. After drying, the supernatant turns into a transparent, fragile solid, while the coacervate becomes a translucent and considerably plastic solid.

2.3. Sample Characterization

Raman spectra of the dried coacervate and supernatant samples were measured with a Renishaw inVia Raman microscope at 20× magnification with an excitation wavelength of 633 nm over the range of 110 to 1325 cm⁻¹. Each spectra is averaged over 20 measurements, and is corrected for baseline and thermal population [36] and normalized via standard normal variate (SNV) [37] procedure.

Simultaneous differential scanning calorimetry and thermogravimetric analysis coupled with mass spectroscopy (DSC-TGA coupled MS) measurements of the dried coacervate were performed with a Netzsch 449 F1 coupled to a Netzsch Aeolos 403D mass spectrometer. A total of 25 mg samples were put in aluminum crucibles, stabilized at 40 °C, and then heated to 550 °C with a heating rate of 10 °C min⁻¹. The mass spectra were measured by a CH-Tron detector with 1100 V SEM voltage and mass window of 16 to 50 u.

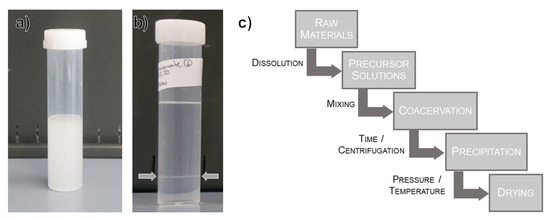

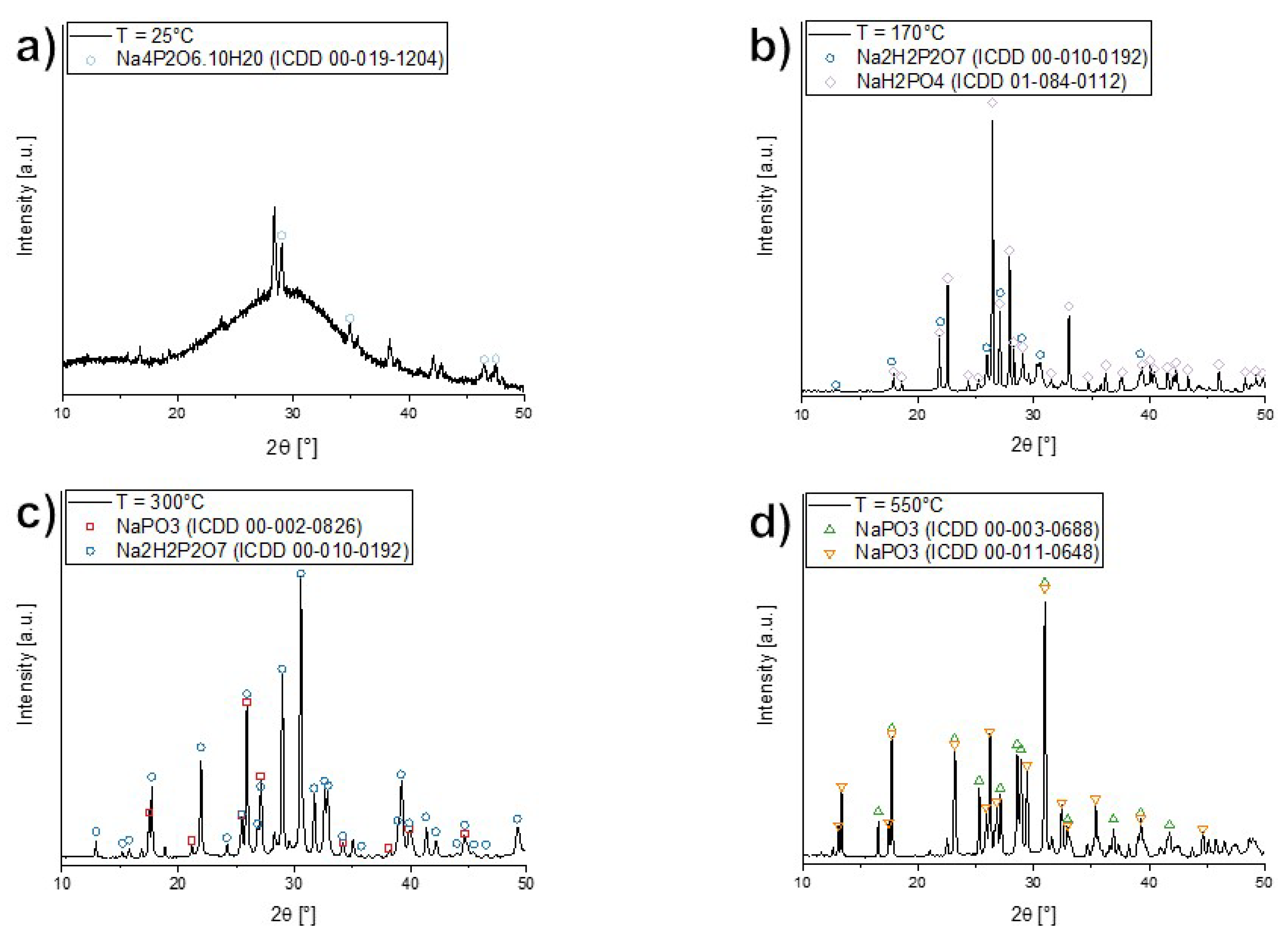

X-ray diffraction patterns of pristine and heat-treated samples (heating rate of 10 °C min⁻¹ up to 170, 300 and 550 °C) were measured with a bench-top Rigaku Miniflex 300/600, using a Cu-Kα X-ray source at 40 kV and 15 mA, a D/teX Ultra silicon strip detector, scanning the range of 3 to 90° 2θ with a scan speed of 1° min⁻¹ and step width of 0.02°.

Ionic conductivity was measured with square samples placed between steel electrodes in a Novocontrol Alpha-A Analyser with a Novotherm Temperature Control System in the frequency range of 0.1 Hz to 10 MHz and temperatures between 25 and 50 °C in 5 °C steps. The real part of conductivity ${\sigma }^{\prime }$ is calculated from complex impedance as ${\sigma }^{\prime }=Z^{\prime }/({Z\prime }^2+{Z″}^2)·(l/A)$, where $Z^{\prime }$ and $Z^{″}$ are the real and imaginary part of complex impedance, l is the sample thickness and A is the sample area. The impedance response of each sample was modeled with a parallel R-CPE equivalent circuit, with the following fitting parameters: the resistance R, the frequency-independent CPE parameter Q and the constant phase $0\le \alpha \le 1$ [38]. The crossover frequency $f^{\ast }$ between the DC and AC conductivity regimes is defined as the frequency that fulfills the relation ${\sigma }^{\prime }\left(f^{\ast }\right)=2{\sigma }_{\mathrm{DC}}$ [39].

3. Results

3.1. Phase Separation and Coacervate Formation

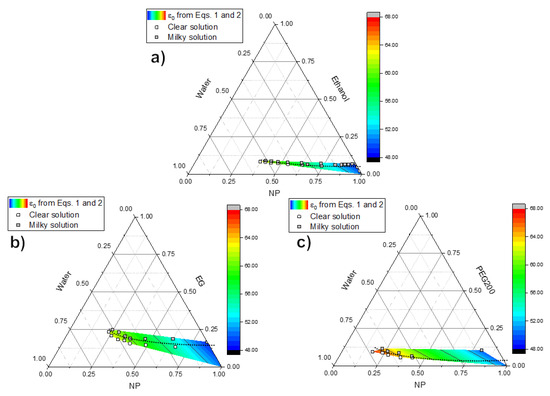

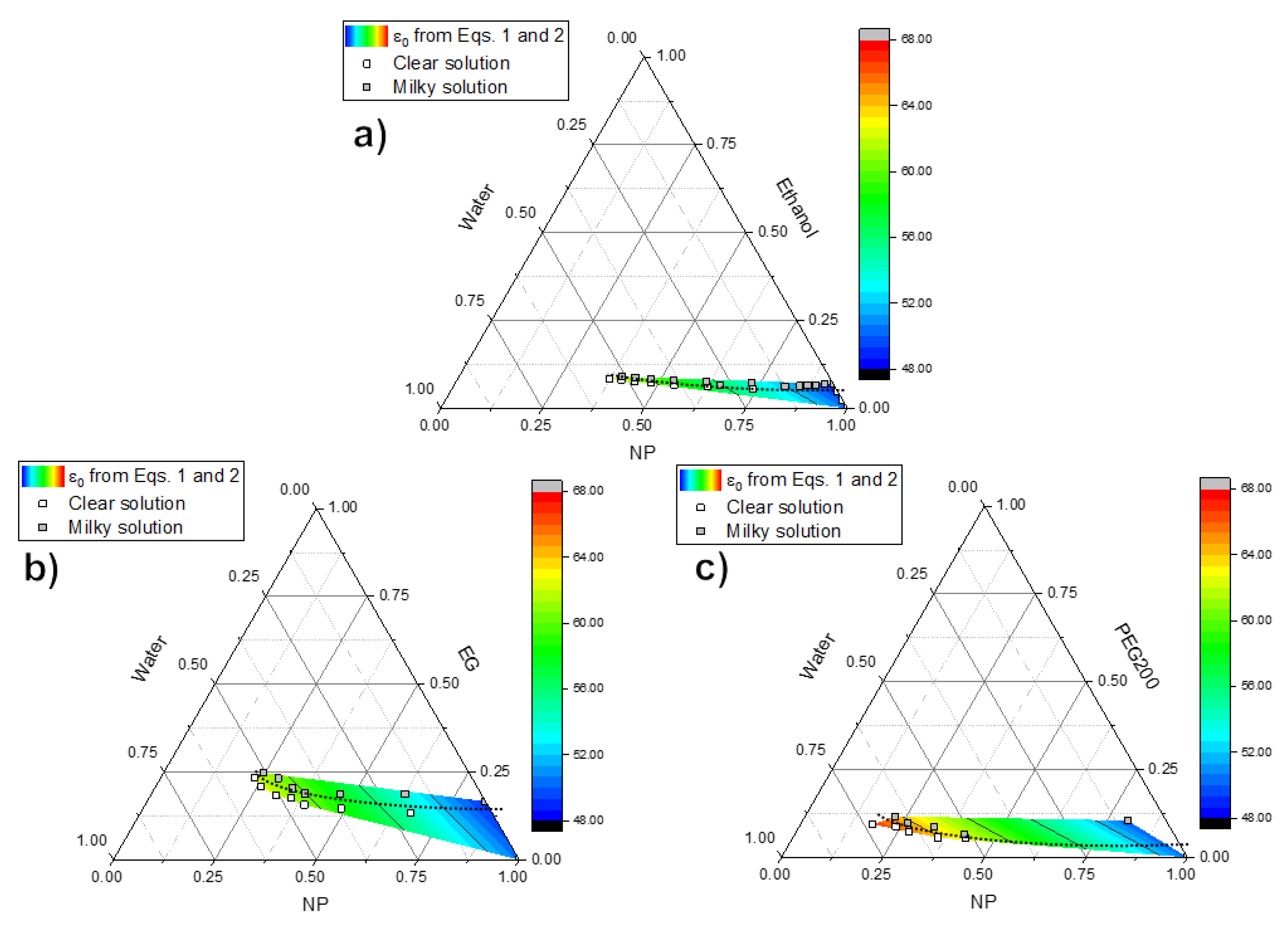

Figure 2 summarizes our phase separation experiments in the estimated phase diagrams for the NP–water–(ethanol, ethylene glycol, and polyethylene glycol 200) systems with spinodal decomposition boundary and values for the solution’s static dielectric constant calculated from Equation (1). The phase separation boundary was found to be practically parallel to the NP axis in the ternary graphs (see Figure 2), while the dielectric constant strongly increases with increasing water content. Starting with the NP solution, the addition of any coacervation agent decreases the solution’s dielectric constant and triggers the phase separation, in line with previously reported results [18]. The subsequent addition of water reverts the phase separation and greatly increases solution’s the dielectric constant. Further rounds of alternated coacervation agent and water additions replicate the pattern of triggering and reverting the phase separation, but the values of the dielectric constant never reach the same lower limit achieved after the first coacervation agent addition. As more water is required to revert the phase separation than coacervation agent is needed to trigger it, a steady increase in ${\epsilon }_0$ is observed along the phase separation boundary, and no critical threshold value of the solution’s static dielectric constant could be determined.

3.2. Raman Spectra

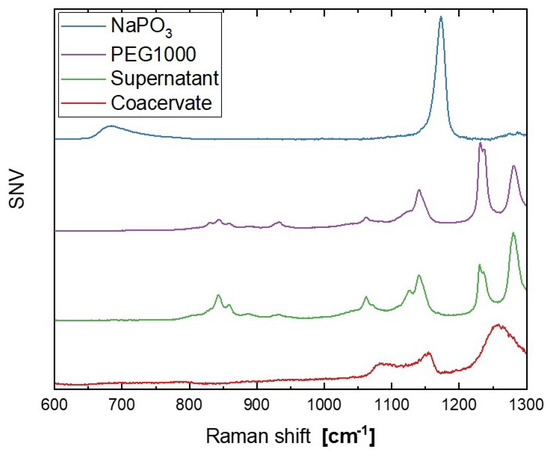

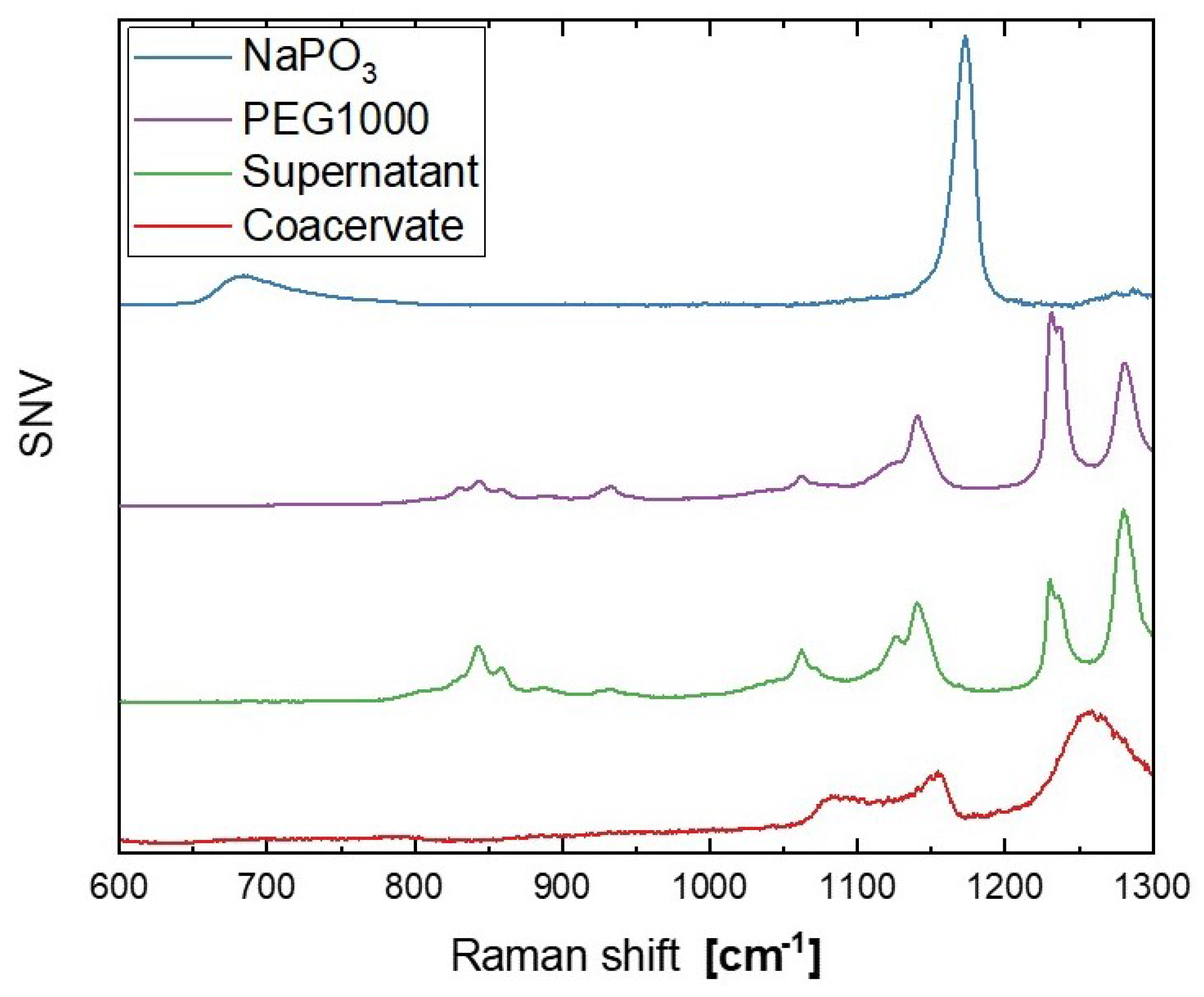

A comparison between the Raman spectra of the original sodium metaphosphate ${\mathrm{NaPO}}_3$ glass, neat PEG1000, and the resulting dry supernatant and coacervate is shown in Figure 3. The ${\mathrm{NaPO}}_3$ spectra exhibits the expected strong features at approximately $680{\mathrm{cm}}^{-1}$ and $1170{\mathrm{cm}}^{-1}$, associated with the ${(\mathrm{P}-\mathrm{O}-\mathrm{P})}_{\mathrm{sym}}$ and ${\left({\mathrm{PO}}_2\right)}_{\mathrm{sym}}$ vibrations, and the broader, weaker signal at approximately $1280{\mathrm{cm}}^{-1}$ of the ${\left({\mathrm{PO}}_2\right)}_{\mathrm{asym}}$ stretching modes of the ${\mathrm{Q}}^2$ species (where n in ${\mathrm{Q}}^{\mathrm{n}}$ denotes the number of bridging oxygen species in a $\left({\mathrm{PO}}_4\right)$ tetrahedra) [40]. The Raman spectrum of PEG1000 contains three band envelopes: two related to different motions of the ${\mathrm{CH}}_2$ species (rocking between 800 and $950{\mathrm{cm}}^{-1}$ and twisting between 1220 and $1300{\mathrm{cm}}^{-1}$) and one related to the $\mathrm{C}-\mathrm{O},\mathrm{C}-\mathrm{C}$ stretching at $1130{\mathrm{cm}}^{-1}$ [41]. The Raman spectra of the dried supernatant essentially mirrors the original PEG1000 spectra, with the changing peak intensities likely related to shifting chain configurations [41,42]. On the other hand, the dried coacervate shows only two features: a broad envelope between two weak peaks at 1080 and $1150{\mathrm{cm}}^{-1}$ and a broad peak centered at $1260{\mathrm{cm}}^{-1}$.

3.3. Thermal Analyses

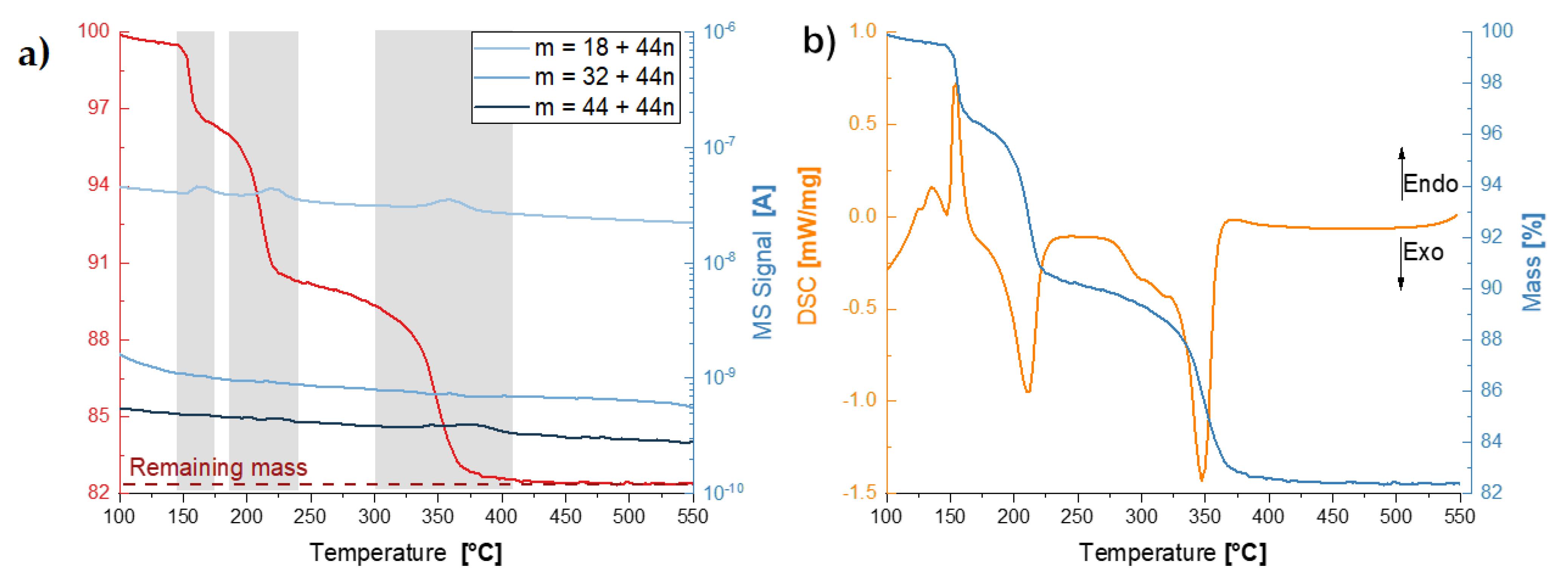

Figure 4 depicts the thermogravimetric coupled with mass spectroscopy and differential scanning calorimetry scans of the dried coacervate in the temperature range of 100 to 550 °C. The TGA shows three distinct weight loss events roughly at 160, 210, and 350 °C and the coupled MS signals for the channels corresponding to water ($18\mathrm{Da}$), and the main series of polytheylene glycol pyrolyzates in inert atmospheres: dihydroxyl ($18+44n\mathrm{Da}$), methyl ether ($32+44n\mathrm{Da}$) and vinyl ether ($44+44n\mathrm{Da}$) [43]. The DSC scan shows that the first weight loss event at 160 °C coincides with an endothermic peak, while the two other weight loss events are associated with exothermic peaks. The weight loss stabilizes at approximately 18% above 400 °C. The TGA results show the dried coacervate to be composed of approximately 82 wt.% sodium phosphate, with water content between 10 and 18 wt.% and PEG content between 0 and 8 wt.% (Figure 4). The weight loss events at 160, 210 °C are due to water following the MS signal for 18 Da, and the 350 °C weight loss is a combination of further water evolution and the pyrolysis of PEG [44,45]—the MS signals for water and the dihydroxyl pyrolizates overlap. This series of water loss events is corroborated by the X-ray diffraction experiments (Figure 5), where the progression from highly hydrated phosphates to anhydrous but depolymerized phosphates and to fully polymerized phosphates is clearly observed. Our results are consistent with the dehydration of sodium phosphates as reported by de Jager and Prinsloo [46]. From X-ray diffraction patterns taken from pristine and heat-treated samples at 170, 300, and 550 °C (after each DSC peak), the following structural evolution is observed (see Figure 5): the dried coacervate is predominantly X-ray amorphous while also having some crystalline peaks characteristic of heavily hydrated phosphate ${\mathrm{Na}}_4{\mathrm{P}}_2{\mathrm{O}}_6.10{\mathrm{H}}_2\mathrm{O}$, after the first weight loss event accompanied by the endothermic DSC peak, the amorphous halo and the hydrated phosphate disappear while reflexes from sodium dihydrogen phosphate ${\mathrm{NaH}}_2{\mathrm{PO}}_4$ and disodium dihydrogen diphosphate ${\mathrm{Na}}_2{\mathrm{H}}_2{\mathrm{P}}_2{\mathrm{O}}_7$ (anhydrous phases with structural water) appear; at 300 °C, after the second weight loss event and the first exothermic peak, all sodium dihydrogen phosphate has disappeared while the disodium dihydrogen diphosphate begin to convert to sodium metaphosphate, losing its structural water; and finally, at 550 °C, only crystalline sodium metaphosphate remains.

3.4. Complex Impedance Spectroscopy

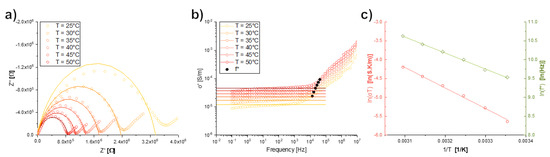

Figure 6 shows the experimental complex impedance data for the dried coacervate. The fitting parameters of the best-fit parallel R-CPE equivalent circuits shown in the Nyquist plot are summarized in

Table 2. Parameters of the R-CPE equivalent circuits (Resistance R, CPE constant Q, phase $\alpha$) fitted to the experimental impedance data, circuit DC conductivity ${\sigma }_{\mathrm{DC}}$, and crossover frequency $f^{\ast }$ as a function of temperature.

Temperature (°C)	R (MΩ)	Q (p$\mathbf{S}.{\mathbf{s}}^{\mathit{\alpha }}$)	$\mathit{\alpha }$	${\mathit{\sigma }}_{\mathbf{DC}}$ (μS/m)	${\mathit{f}}^{\ast }$ (kHz)
25	3.4 ± 0.5	60 ± 10	0.82 ± 0.01	11.90 ± 0.05	13.8
30	2.4 ± 0.3	100 ± 10	0.80 ± 0.01	16.83 ± 0.06	16.8
35	1.8 ± 0.3	110 ± 10	0.797 ± 0.009	22.82 ± 0.09	22.0
40	1.4 ± 0.2	120 ± 10	0.797 ± 0.007	29.2 ± 0.1	27.1
45	1.1 ± 0.2	140 ± 10	0.799 ± 0.006	36.9 ± 0.1	33.1
50	0.9 ± 0.1	140 ± 10	0.804 ± 0.006	46.4 ± 0.1	41.1

together with the circuit’s calculated DC conductivity and crossover frequency. The Bode plot shows good agreement between the experimental conductivity with the DC conductivity from the equivalent circuit. The AC to DC crossover frequency $f^{\ast }$ is also shown, which is related to the ionic hopping frequency [47]. From the DC conductivity’s Arrhenius plot, a conductivity activation energy of $46\pm 1$ kJ/mol and pre-exponential term ${\sigma }_0=(400\pm 200)$ kS/m are determined. Additionally, an activation energy of $35.3\pm 0.6$ kJ/mol and pre-exponential term $f_0=(21\pm 5)$ GHz are found for the crossover frequency.

4. Discussion

Our initial results from the phase separation behavior of our studied system, summarized in Figure 2, seem to indicate that the mechanism of coacervation of sodium metaphosphates is intermediate between the simple and complex coacervation cases. As in complex coacervation, the inter-molecular electrostatic forces play an important role [17,18] as the phase separation boundary lies between a high and low dielectric constant values. However, the addition of water causes both the reversal of the phase separation and a strong increase in ${\epsilon }_0$, thus no singular threshold value of the dielectric constant could be assigned to trigger the phase separation. This can be interpreted as the effect of differential solubility as in simple coacervation, where the addition of the coacervation agent effectively “pulls” water from the around the sodium and phosphate ions, causing them to rebind (which is facilitated due to the lower dielectric constant of the solution) and precipitate. This is consistent with studies on the hydration of ethanol (2 to 3 water molecules) [48] and polyethylene glycols (4 to 6 water molecules per monomer for molecules above 1500 Da, down to a minimum of 2 per monomer with decreasing molecular weight) [49,50,51,52].

The addition of PEG1000 to the phosphate network via coacervation is reflected in the Raman spectra of the dried coacervate (Figure 3), which does not display the characteristic peaks of either component but shows great similarity to the Raman spectra of molten PEG1000 [42]. Due to differing Raman scattering cross-sections [53,54], the organic polymer contribution seems to overshadow the inorganic phosphate signals. This resulted in an increase in ionic conductivity of three orders of magnitude at room temperature when compared to glassy NaPO₃ (12 μS/m versus 45 nS/m) [29], with the coacervate conductivity even approaching the reported values of polyethylene oxide–sodium ionic liquid mixtures (approximately 1 mS/m) [55]. The effect of water and polyethylene glycol in the sodium metaphosphate structure is apparent in the ionic hopping frequencies: for diffusive motion, the base hopping attempt frequency is expected to be equal to the atomic vibrational frequency $f_0$ [56], but in the coacervate the base attempt frequency is 21 GHz, much lower than the 6.4 THz measured for sodium ions in glassy sodium metaphosphate [57]. When the ionic motion is controlled by relatively large energetic barriers separating clusters of low-energy sites, the difference in timescales between inter- and intra-cluster hopping has to be taken into account as an entropic term which decreases the effective hopping frequency [58]. Following Garcia-Belmonte and Bisquert’s approach [56], the cluster size in the dried coacervates is estimated to be 33 nm, which is roughly the length of four PEG1000 molecules (polymerization degree of approximately 23 and 0.35 nm per monomer [59]). The presence of clusters is also supported by the depressed semicircles seen in the Nyquist plots (Figure 6), as divergence from ideal RC equivalent circuit behavior ($\alpha \approx 0.8$, equivalent to a 72° phase angle) may originate from correlated back–forward ionic jumps [60] and the resulting distribution of diffusion timescales [38,61]. The energy barriers between clusters are also much lower in the coacervate than in glassy ${\mathrm{NaPO}}_3$ (35 and 70 kJ/mol, respectively), as the elastic moduli of the coacervate are much lower than the glass, therefore the inter-cluster ion hopping requires less elastic energy to be expended to deform the glassy matrix [62,63].

5. Conclusions

In this paper, we report on a novel method for preparing homogeneous organic–inorganic composites using coacervation. From aqueous solutions of sodium metaphosphate and polyethylene glycol, a coacervate was formed, dried, and characterized. The samples are composed mostly of sodium phosphate, with water and PEG as secondary components. The coacervates are predominantly X-ray amorphous after drying and recrystallize sodium metaphosphate when heat-treated. The room-temperature ionic conductivity of sodium metaphosphate is greatly enhanced via coacervation, due to the presence of low-activation-energy clusters around the polyethylene glycol chains.
