Flexible Cu3(HHTP)2 MOF Membranes for Gas Sensing Application at Room Temperature

by
Ashraf Ali
1,
Husam H. D. AlTakroori
1,
Yaser E. Greish
2,3,
Ahmed Alzamly
2,
Lamia A. Siddig
2,
Naser Qamhieh
1 and
Saleh T. Mahmoud
1,*
1
Department of Physics, United Arab Emirates University, Al-Ain 15551, United Arab Emirates
2
Department of Chemistry, United Arab Emirates University, Al-Ain 15551, United Arab Emirates
3
Department of Ceramics, National Research Centre, Cairo 68824, Egypt
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(6), 913; https://doi.org/10.3390/nano12060913
Submission received: 15 February 2022 / Revised: 7 March 2022 / Accepted: 8 March 2022 / Published: 10 March 2022
(This article belongs to the Special Issue Advances in Nanomaterials for Optoelectronics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mixed matrix membranes (MMMs), possessing high porosity, have received extensive attention for gas sensing applications. However, those with high flexibility and significant sensitivity are rare. In this work, we report on the fabrication of a novel membrane, using Cu3(HHTP)2 MOF (Cu-MOF) embedded in a polymer matrix. A solution comprising a homogenous suspension of poly-vinyl alcohol (PVA) and ionic liquid (IL), and Cu-MOF solid particles, was cast onto a petri dish to obtain a flexible membrane (215 μm in thickness). The sensor membrane (Cu-MOF/PVA/IL), characterized for its structure and morphology, was assessed for its performance in sensing against various test gases. A detection limit of 1 ppm at 23 °C (room temperature) for H2S was achieved, with a response time of 12 s. Moreover, (Cu-MOF/PVA/IL) sensor exhibited excellent repeatability, long-term stability, and selectivity towards H2S gas. The other characteristics of the (Cu-MOF/PVA/IL) sensor include high flexibility, low cost, low-power consumption, and easy fabrication technique, which nominate this sensor as a potential candidate for use in practical industrial applications.

1. Introduction

Chemical gases that are released into the atmosphere pose a grave threat to society at large. Monitoring these threats in real time is considered as an area of research that requires constant update, in terms of the materials involved. Materials that possess designable structures, high porosity, high surface area and desirable physicochemical properties, such as Metal–Organic Frameworks (MOFs), have been attracting appreciable attention, with a plethora of applications [1,2,3], including gas sensing [4,5,6]. The gases that are being released, as a result of direct and/or indirect human actions [7,8,9,10,11,12], result in non-lethal effects to humans, whereas others, when exposed to even a few parts per million (ppm), result in various effects, drifting from respiratory problems to inescapable death [12,13].
Among lethal gases, hydrogen sulfide (H2S), being flammable, colorless, extremely toxic and highly corrosive, poses a grave threat to the environment. It should be mentioned that small doses, ca 500–1000 ppm, have been shown to be lethal [14]. Humans can detect concentrations as low as 0.1 ppm, whereas the sewage air usually has up to 28 ppm of H2S [15]. H2S is also known to be heavier than air, which allows it to settle in enclosed spaces, making them a dangerous environment. The requirement of developing reliable sensors to monitor these threats in real time has always been an area of continuous research and development.
A recent review by Chen et al. [16] outlines the advances in the materials for the detection of diverse gases that pose a threat. Among these materials, MOFs that can be synthesized using a bottom-up approach, have been deployed as chemical sensors [17,18,19]. This is attributed to their unique properties that can be tailored based on the requisite application. Another appreciable property of MOF materials is the high surface area to volume ratio, which heightens the chances of interaction between the sensor materials and the test gas molecules, leading to high sensitivity [20]. This property is also important to decrease the amount of material used to fabricate the membrane, which also helps to reduce the thickness of the flexible sensing layer [21,22,23]. Another vital property is the stability of the sensing layer and its selectivity to detect the target gas, among other vapor phase materials. Usually, changes in the sensor’s mechanical, photophysical or electrical properties are monitored. The magnitude of these changes depends on the concentration of the analyte, its electrical properties, such as the ability of accepting or donating electrons, and the mechanical changes induced that are due to the stress or strain developed during the sensing process. Various sensors have been developed based on these characteristics. However, it has been shown that there is always a chance for continuous improvement of the overall sensor performance.
Campbell et al. demonstrated that conductive Cu-MOF can be deployed for a sub-ppm level of ammonia vapor detection [24]. Successively, the same group demonstrated that Cu-MOF could discriminate between an array of volatile organic compounds (VOCs) based on their functional groups [25]. Smith M K et al. supported the previous work by fabricating Cu-MOF films onto graphitic electrodes, patterned on polymer films for the detection of ammonia at sub-ppm level [26]. Other gases, such as acetone vapor and NO2, have also been investigated for sensing, using MOF materials [27,28]. Cu-MOF has also been used as photocatalysts [29] and supercapacitors [30] for a wider range of applications. There have been a variety of device fabrication methods employed, such as coating MOF on electrodes, using solvated “paste” [31], drop-casting [24,25], solvent-free mechanical abrasion [25], and in-situ film growth [26].
To the best of our knowledge, a composite membrane, in which Cu-MOF microparticles are blended with a polymer matrix, has not been utilized for gas detection, so far. Furthermore, blending CuO nanoparticles with a PVA mixed matrix membrane was shown to detect as low as 10 ppm of H2S gas at 80 °C [32]. The incorporation of the MOF particles into the polymer matrix has enhanced its sensing capability towards H2S gas. Hence, in this study, a flexible membrane is fabricated by incorporating various concentrations of Cu-MOF microparticles into a conducting polymer matrix, comprising PVA and IL (glycerol), denoted by Cu-MOF/PVA/IL. The results presented in this work are for the optimum concentration of the Cu-MOF blended with the PVA/IL matrix membrane that supports a detection limit of 1 ppm for H2S gas at 23 °C (RT).

2. Materials and Methods

2.1. Materials

Chemicals used in this study included copper (II) nitrate trihydrate (Cu(NO3)2·3H2O), ethanol (EtOH), aqueous ammonia (NH4OH), 2,3,6,7,10,11-hexahydroxytriphenylene hydrate (H6hhtp). All chemicals were purchased from Sigma-Aldrich and were used without purification. Distilled water (DW) used throughout the study was produced in the lab using the Milli-Q system (Elix Technology, Billerica, MA, USA).

2.2. Synthesis of Cu3(HHTP)2 MOF

Cu3(HHTP)2 MOF was prepared following a previously reported procedure [23]. In a Pyrex tube, 2,3,6,7,10,11-hexahydroxytriphenylene hydrate (0.30 mmol, 1 eq.) was added to 8.4 mL of DW (solution A). In a separate beaker Cu(NO3)2·3H2O (0.53 mmol, 1.75 eq.) was dissolved in 2 mL of DW and 30 eq. of conc. NH4OH (solution B). Solution B was added in a dropwise manner to solution A and placed in an oven at 80 °C for 24 h. The resultant black powder was collected using centrifugation and was washed twice with ethanol. Finally, the obtained Cu3(HHTP)2 was soaked in ethanol for 24 h and was dried in a vacuum oven at 80 °C for 24 h.

2.3. Fabrication of the Cu3(HHTP)2–MOF/PVA/IL Membranes

A PVA stock solution was prepared by dissolving 5 g of PVA granules in 100 mL of DW and placed on a stirrer at 70 °C at 800 rpm until a clear and homogenous solution was obtained [32,33,34]. A pre-calculated weight of 1.25 × 10−3 g of Cu-MOF was suspended in each ml of DW and was stirred for 15 min at 1100 rpm to attain a homogenous dispersion. The polymer membrane serves as a host for the MOF microparticles. The electrical conductivity of a PVA membrane can be controlled by doping with a suitable ionic liquid such as sorbitol, 1-methyl-3-n-decyl-imidazolium bromide, and glycerol [35,36,37]. Ionic liquids (ILs) are well known for their good ionic conductivity that is attained at room temperature. Mainly, ILs serve as electrolytes and diffusion barriers, and they have low values of vapor pressure and low toxicity. Moreover, ILs are suitable to be used for the fabrication of electrochemical sensors as they are environmentally friendly [32,33]. It has been shown that glycerol-IL can be used effectively to control the conductivity of PVA membranes [37,38], thus, it will be utilized in this work. A volume of 5 vol% of IL (glycerol) was mixed in a 20 mL of the PVA stock solution, which was also doped with Cu-MOF that was suspended in 2.5 mL of DW at 70 °C. The mixture was then taken and casted onto a petri dish and was dried in an oven at 70 °C for 16 h. The resultant membrane was found to be flexible, as shown in Figure 1, with a thickness of 215 μm.

2.4. Characterization

Cu3(HHTP)2 MOF powder was analyzed for its structural and morphological characteristics. A Rigaku, MiniFlex 600-C instrument, Austin, TX, USA, with a Cu Kα X-ray at a scan rate of 1°/min and a scan range of 2–60° was used for powder X-ray diffraction (PXRD) studies. A Thermo Scientific Quattro S—SEM instrument (Waltham, MA, USA) was used at an operating voltage of 15 kV for morphological studies of the Cu3(HHTP)2 MOF powders, as well as the composite membranes. Fourier transform infrared (FT-IR) spectra were recorded using a Thermo Nicolet, NEXUS, 470 FT-IR instrument, Ramsey, MN, USA. A KBr disk method was used and a scan range of 400–4000 cm−1 was employed. TGA plots were recorded using a TGA-Q500 instrument (TA Instruments, New Castle, DE, USA) within a temperature range of 30–800 °C with the ramp rate of 20 °C/min.

2.5. Sensor Fabrication and H2S Gas Sensing Tests

The device fabrication was accomplished by sandwiching a 1 × 1 cm2 piece of the membrane between Cu metal plate and stainless steel mesh (H2S resistant) with a mesh size of 200 μm as outlined in our previous study [38]. Bronkhorst mass flow controllers (MFC) were employed to dilute the test gas using synthetic air and deploying the mixture into the test chamber. A non-humid atmosphere was maintained in the test chamber at room temperature (23 °C) inside a fume hood. The gas sensing response was recorded using a Keithley Instruments source measurement unit (KI236) applying a constant bias voltage of 2.5 V between the electrodes. Labview software was used to interface and record the response of the sensor, which was recorded by measuring the electrical current signal as a function of time and different gas concentrations.

3. Results and Discussion

3.1. Structural and Morphological Characterization of Cu-MOF and Cu-MOF/PVA/IL Membrane

Figure 2A shows a comparison of the powder XRD pattern of the Cu-MOF powder with the simulated pattern, using the lattice parameters from previously reported studies [39]. The pattern was simulated using the highscore plus software package, using the said lattice parameters. The Cu-MOF pattern matches well with that reported in the literature, where peaks denoting the XRD diffraction of the 200, 210, 220, 420 and 303 planes were observed. The structural orientation of the Cu-MOF, indicating the linkages between the Cu2+ oxo clusters and the HHTP linker molecules, is shown in Figure 2B. The Cu-MOF exhibits the hierarchical graphene-like 2D structure, which was previously supported by the work of Hoppe et al. [23]. These morphological characteristics of the Cu-MOF crystallites were further confirmed in Figure 3. Cu-MOF crystallites appear as 2D platelets and flakes, with an average thickness of 150 nm. The selected area of the Energy-Dispersive X-ray spectroscopy (EDX) pattern of the Cu-MOF crystallites, shown in Figure 3B, indicates the phase purity of the as-prepared Cu-MOF crystallites. Figure 3C shows the N2-isotherm of the as-prepared Cu-MOF crystallites, where a type-IV adsorption was observed, denoting the presence of mesoporous structures, which can be attributed to the highly porous 2D morphology of the Cu-MOF platelets. It should be mentioned that the Brunauer-Emmett-Teller (BET) surface area was calculated to be 279.997 m2/g, which confirms the high porosity of the 2D platelets of the as-prepared Cu-MOF crystallites.
The TGA thermograms of the composite membrane and the Cu-MOF-free PVA-IL matrix were recorded from room temperature up to 800 °C, as shown in Figure 4A, where several thermal events were observed. An initial weight loss was observed around 81.6 °C in both materials, and is attributed to the evaporation of physically adsorbed water of humidity. This was followed by a second two-step event, with a first peak at 188.9 °C in both samples, while the second peak was observed at 225.5 °C for the MOF-free matrix and 215.1 °C for the composite membrane. These peaks showed a similar extent of weight loss and denote the evaporation of the remaining organic solvents [40]. The third thermal event was more pronounced and was observed at 276.5 °C for the MOF-free film, and is related to the breakdown of the PVA polymeric chains. The presence of the Cu-MOF in the composite membrane resulted in a delay in this event, where it was observed at 337.9 °C. This is attributed to the extensive removal of the organic content of the composite membrane (MOF linkers; pyromellitic acid, and PVA/IL matrix) [41]. Moreover, the shift in this event could also be used to indicate a chemical stabilization of the polymeric matrix, through extensive H-bonding formation between the highly functionalized Cu-MOF and the PVA/IL matrix. This has been further confirmed by the presence of a multi-peak thermal event of the MOF-free matrix and the presence of a single event for the composite membrane, as shown in the fourth thermal event. The multi-step weight loss could be related to the successive degradation of the polymeric chains in the MOF-free matrix. On the other hand, the absence of these multi-steps in the thermogram of the composite membrane confirms the stabilization of the matrix by the MOF particles, hence, their degradation takes place as a single thermal event. A final thermal event was observed as a plateau, at a temperature above 550 °C, where there was no appreciable weight loss denoting the formation of stable inorganic phases [41]. The profile of the recorded TGA matches well with the literature for Cu-MOF [28,29], also confirming the incorporation of Cu-MOF in the membrane. The FT-IR spectra of the pure Cu-MOF, the PVA/IL matrix and the composite membrane are shown in Figure 4B, where all bands are identified. The similarity between the FT-IR spectra of the PVA/IL matrix and the composite membrane is attributed to the presence of a small proportion of the Cu-MOF, which is below the detection limit of FT-IR as a technique [41].
Figure 5A,B shows the SEM micrograph and EDX elemental analysis pattern of the Cu-MOF/PVA/IL composite membrane. A uniform distribution of the Cu-MOF 2D platelets was observed in the SEM micrograph of the composite membrane. The weak absorption of Cu in the EDX pattern of the composite membrane could be attributed to the coverage of the Cu-MOF platelets within the polymeric matrix, in addition to the presence of Cu-MOF in a small proportion, as compared with the PVA/IL matrix.

3.2. Gas Sensing Performance

Figure 6A records the response of the fabricated Cu3(HHTP)2 sensor at RT to H2S gas exposure, at various concentrations, with respect to time. Figure 6B shows the plot of the recorded currents as a function of gas concentration. No response was observed to the gas in the absence of the Cu-MOF and it can be inferred that the recorded response is due to the incorporation of the Cu-MOF into the polymer matrix.
The data show an increase in the measured current signal when the gas concentration increased. The chamber was flushed with synthetic air to exfoliate the adsorbed gas molecules from the sensing membrane before exposures to the next cycle of target gas. It was noted that the current values gradually decreased to their initial readings, demonstrating the reversibility of the sensor. The plot shows a current response in the micro ampere region for 1 ppm and, by extrapolating the plot, it can be simulated that the sensor can detect at sub-ppm levels as well. The response of the sensor has been compared to that available in the literature and is summarized in Table 1.
The sensor response (S%) is measured as the difference between the resistance of the sensor in synthetic air (Ra) and resistance measured in target gases (Rg), as shown in Equation (1).
S   ( % ) = R a R g × 100
An amount of 100 ppm of H2S gas was flown to evaluate the reproducibility and long-term stability of the sensor. The test gas was introduced into the chamber for five cycles, with synthetic air flushing between each cycle. Figure 7A displays the repeatability of the sensor, showing excellent response for 100 ppm of gas. Figure 7B shows the stability over a period of 21 days, and it can be seen that the response of the sensor is in the region of 96–99%, with negligible error bars.
The sensor was further investigated for its selectivity by exposing it to 100 ppm of H2S, H2, CO and C2H4 gases. Figure 8 records the sensor response to the 100 ppm of the gases at room temperature. It can be observed that the sensor exhibits relativity low response to H2, CO and C2H4 gases in comparison to H2S gas. Another notable parameter is the sensor’s response time, which is defined as the time taken by the sensor to reach 90% of its detection efficiency. The response time of the sensor was averaged at 12 s for 100 ppm H2S, with the detection response of ~96–99%.

3.3. Gas Sensing Mechanism

The polymeric matrix of the Cu-MOF/PVA/IL membrane is hydrophilic in nature, with –OH groups aligned along the chains. The IL is hydrophilic in nature with 3–OH groups along each IL molecule. In the presence of the Cu–MOF2D crystallites, the hydrophilic endings of the HHTP ionized linker contribute to the formation of a network, with an extensive H-bonding along all participating molecules, as illustrated in Figure 9. Upon exposure to the highly acidic H2S molecules, they contribute to the H-bonded network of molecules, through the attraction of the H2S–H atoms to the high electron density, along all involved O atoms of the PVA, IL and the Cu-MOF molecules. Hence, the transfer of charged ions, protons, along the composite membrane is facilitated. Moreover, the highly conjugated H6hhtph linker, shown in Figure 9, enhances the conductivity among various molecules within the composite membrane. In addition, the Cu–MOF, used in the current study, is a highly porous graphene-like structure, with an average porosity of 1.55 nm [23]. Compared with an average size of a typical H2S molecule of 0.36 nm, the diffusion and transportation of the H2S molecules within the MOF molecules are, therefore, highly enhanced. It is, therefore, the synergistic effect of the highly connected molecules of the proposed nanocomposite membrane that explains its high efficiency and sensitivity toward H2S gas. The high porosity of the MOF component of the composite membrane was previously proven to contribute to the passage of H2S molecules within the composite membrane [38]. The current findings support the contribution of the highly porous MOF structures in the construction of a gas sensor assembly. Moreover, it is believed that the homogeneous distribution of the graphene-like 2D Cu–MOF crystallites within the composite membrane explains the enhanced sensitivity towards H2S molecules, as compared with PVA/IL membranes.

4. Conclusions

In Summary, MOF–Polymer mixed matrix flexible membranes were successfully prepared from Cu3(HHTP)2 microparticles and PVA polymer, blended with an ionic liquid for H2S gas sensing application. The as-synthesized Cu–MOF exhibits a highly porous graphene-like structure, with high interconnected porosity, on blending with the PVA/IL matrix. They serve as diffusion and transportation pathways for the H2S gas molecules within the sensing membranes, exhibiting high detection ability towards H2S, among other test gases. The results revealed high sensitivity and selectivity of the sensor towards H2S gas, in addition to excellent reproducibility and long-term stability. Furthermore, the sensor operates at room temperature and does not require any heating element, which significantly reduces the power consumption and fabrication costs. The sensor, with its detection capability of 1 ppm and fast response time of 12 s, has proficient industrial applications for air quality control applications.

Author Contributions

A.A. (Ashraf Ali): Investigation, Data curation, Formal analysis, Validation, Visualization; Roles/Writing—original draft; Writing—review and editing; H.H.D.A.: Data curation, Investigation, Formal analysis, Roles/Writing—original draft; Y.E.G.: Supervision; Validation; Visualization, Writing—review and editing and mechanism postulations; A.A. (Ahmed Alzamly): Conceptualization, Methodology, Supervision, Writing—review and editing; L.A.S.: Investigation; Methodology; N.Q.: Formal analysis, Supervision, Validation, Writing—review and editing. S.T.M.: Conceptualization, Funding acquisition, Project administration, Supervision, Writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The authors gratefully acknowledge the financial support from United Arab Emirates University, through Grant Code-USRP-G00003232, with fund code 31R238-R238M4, and Grant Code-G00003453, with fund code 12R003-ZCHS-3-2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, C.; Liu, D.; Lin, W. Metal-organic Frameworks as A Tunable Platform for Designing Functional Molecular Materials. J. Am. Chem. Soc. 2013, 135, 13222–13234. [Google Scholar] [CrossRef] [Green Version]
  2. Hu, M.; Yin, L.; Low, N.; Ji, D.; Liu, Y.; Yao, J.; Zhong, Z.; Xing, W. Zeolitic-imidazolate-framework filled hierarchical porous nanofiber membrane for air cleaning. J. Membr. Sci. 2020, 594, 117467. [Google Scholar] [CrossRef]
  3. Long, J.R.; Yaghi, O.M. The pervasive chemistry of metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1213–1214. [Google Scholar] [CrossRef]
  4. Janiak, C.; Vieth, J.K. MOFs, MILs and more: Concepts, properties and applications for porous coordination networks (PCNs). New J. Chem. 2010, 34, 2366–2388. [Google Scholar] [CrossRef]
  5. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef] [PubMed]
  6. Férey, G. Hybrid porous solids: Past, present, future. Chem. Soc. Rev. 2008, 37, 191–214. [Google Scholar] [CrossRef]
  7. Petit, C.; Mendoza, B.; Bandosz, T.J. Hydrogen Sulfide Adsorption on MOFs and MOF/Graphite Oxide Composites. ChemPhysChem 2010, 11, 3678–3684. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, Q.; Townsend, T.; Bitton, G. Inhibition of hydrogen sulfide generation from disposed gypsum drywall using chemical inhibitors. J. Hazard. Mater. 2011, 191, 204–211. [Google Scholar] [CrossRef]
  9. Xu, Q.; Townsend, T. Factors affecting temporal H2S emission at construction and demolition (C&D) debris landfills. Chemosphere 2014, 96, 105–111. [Google Scholar] [CrossRef]
  10. Panza, D.; Belgiorno, V. Hydrogen sulphide removal from landfill gas. Process Saf. Environ. Prot. 2010, 88, 420–424. [Google Scholar] [CrossRef]
  11. Eun, S.; Reinhart, D.R.; Cooper, C.D.; Townsend, T.G.; Faour, A. Hydrogen sulfide flux measurements from construction and demolition debris (C&D) landfills. Waste Manag. 2007, 27, 220–227. [Google Scholar] [CrossRef] [PubMed]
  12. Cheng, Z.; Sun, Z.; Zhu, S.; Lou, Z.; Zhu, N.; Feng, L. The identification and health risk assessment of odor emissions from waste landfilling and composting. Sci. Total Environ. 2019, 649, 1038–1044. [Google Scholar] [CrossRef] [PubMed]
  13. Dockery, D.; Schwartz, J.; Spengler, J.D. Air pollution and daily mortality: Associations with particulates and acid aerosols. Environ. Res. 1992, 59, 362–373. [Google Scholar] [CrossRef]
  14. Doujaiji, B.; Al-Tawfiq, J.A. Hydrogen sulfide exposure in an adult male. Ann. Saudi Med. 2010, 30, 76–80. [Google Scholar] [CrossRef] [PubMed]
  15. Koe, L.C.C.; Tan, N.C. Field Performance of Activated Carbon Adsorption for Sewage Air. J. Environ. Eng. 1990, 116, 721–734. [Google Scholar] [CrossRef]
  16. Chen, X.; Behboodian, R.; Bagnall, D.; Taheri, M.; Nasiri, N. Metal-Organic-Frameworks: Low Temperature Gas Sensing and Air Quality Monitoring. Chemosensors 2021, 9, 316. [Google Scholar] [CrossRef]
  17. Yi, F.-Y.; Chen, D.; Wu, M.-K.; Han, L.; Jiang, H.-L. Chemical Sensors Based on Metal-Organic Frameworks. ChemPlusChem 2016, 81, 675–690. [Google Scholar] [CrossRef]
  18. Wales, D.J.; Grand, J.; Ting, V.P.; Burke, R.D.; Edler, K.J.; Bowen, C.R.; Mintova, S.; Burrows, A.D. Gas sensing using porous materials for automotive applications. Chem. Soc. Rev. 2015, 44, 4290–4321. [Google Scholar] [CrossRef] [Green Version]
  19. Kreno, L.E.; Leong, K.; Farha, O.K.; Allendorf, M.; Van Duyne, R.P.; Hupp, J.T. Metal-Organic Framework Materials as Chemical Sensors. Chem. Rev. 2012, 112, 1105–1125. [Google Scholar] [CrossRef]
  20. Pohle, R.; Tawil, A.; Davydovskaya, P.; Fleischer, M. Metal Organic Frameworks as Promising High Surface Area Material for Work Function Gas Sensors. Procedia Eng. 2011, 25, 108–111. [Google Scholar] [CrossRef] [Green Version]
  21. Yao, M.; Zheng, J.; Wu, A.; Xu, G.; Nagarkar, S.S.; Zhang, G.; Tsujimoto, M.; Sakaki, S.; Horike, S.; Otake, K.-I.; et al. A Dual-Ligand Porous Coordination Polymer Chemiresistor with Modulated Conductivity and Porosity. Angew. Chem. Int. Ed. 2020, 59, 172–176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Park, C.; Kim, I.-D. Bimetallic Nanoparticles-Stabilized Conductive Metal-Organic Frameworks for Superior Chemiresistors. In ECS Meeting Abstracts; IOP Publishing: Bristol, UK, 2020; p. 2431. [Google Scholar]
  23. Hoppe, B.; Hindricks, K.D.J.; Warwas, D.P.; Schulze, H.A.; Mohmeyer, A.; Pinkvos, T.J.; Zailskas, S.; Krey, M.R.; Belke, C.; König, S.; et al. Graphene-like metal-organic frameworks: Morphology control, optimization of thin film electrical conductivity and fast sensing applications. CrystEngComm 2018, 20, 6458–6471. [Google Scholar] [CrossRef] [Green Version]
  24. Campbell, M.G.; Sheberla, D.; Liu, S.F.; Swager, T.M.; Dincă, M. Cu3(hexaiminotriphenylene)2: An electrically conductive 2D metal-organic framework for chemiresistive sensing. Angew. Chem. Int. Ed. 2015, 54, 4349–4352. [Google Scholar] [CrossRef] [PubMed]
  25. Campbell, M.G.; Liu, S.F.; Swager, T.M.; Dincă, M. Chemiresistive sensor arrays from conductive 2D metal-organic frameworks. J. Am. Chem. Soc. 2015, 137, 13780–13783. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Smith, M.K.; Jensen, K.E.; Pivak, P.A.; Mirica, K.A. Direct Self-Assembly of Conductive Nanorods of Metal–Organic Frameworks into Chemiresistive Devices on Shrinkable Polymer Films. Chem. Mater. 2016, 28, 5264–5268. [Google Scholar] [CrossRef]
  27. Yao, M.-S.; Lv, X.-J.; Fu, Z.-H.; Li, W.-H.; Deng, W.-H.; Wu, G.-D.; Xu, G. Layer-by-Layer Assembled Conductive Metal-Organic Framework Nanofilms for Room-Temperature Chemiresistive Sensing. Angew. Chem. 2017, 129, 16737–16741. [Google Scholar] [CrossRef]
  28. Arul, C.; Moulaee, K.; Donato, N.; Iannazzo, D.; Lavanya, N.; Neri, G.; Sekar, C. Temperature modulated Cu-MOF based gas sensor with dual selectivity to acetone and NO2 at low operating temperatures. Sens. Actuators B Chem. 2021, 329, 129053. [Google Scholar] [CrossRef]
  29. Liu, G.; Wang, Y.; Xue, Q.; Wen, Y.; Hong, X.; Ullah, K. TiO2/Cu-MOF/PPy composite as a novel photocatalyst for decomposition of organic dyes. J. Mater. Sci. Mater. Electron. 2021, 32, 4097–4109. [Google Scholar] [CrossRef]
  30. Zhao, W.; Chen, T.; Wang, W.; Bi, S.; Jiang, M.; Zhang, K.Y.; Liu, S.; Huang, W.; Zhao, Q. Layer-by-Layer 2D Ultrathin Conductive Cu3(HHTP)2 Film for High-Performance Flexible Transparent Supercapacitors. Adv. Mater. Interfaces 2021, 8, 2100308. [Google Scholar] [CrossRef]
  31. Chen, E.-X.; Yang, H.; Zhang, J. Zeolitic Imidazolate Framework as Formaldehyde Gas Sensor. Inorg. Chem. 2014, 53, 5411–5413. [Google Scholar] [CrossRef]
  32. Ayesh, A.I.; Abu-Hani, A.F.; Mahmoud, S.T.; Haik, Y. Selective H2S sensor based on CuO nanoparticles embedded in organic membranes. Sens. Actuators B Chem. 2016, 231, 593–600. [Google Scholar] [CrossRef]
  33. Abu-Hani, A.F.; Awwad, F.; Greish, Y.E.; Ayesh, A.; Mahmoud, S.T. Design, fabrication, and characterization of low-power gas sensors based on organic-inorganic nano-composite. Org. Electron. 2017, 42, 284–292. [Google Scholar] [CrossRef]
  34. Haik, Y.; Ayesh, A.I.; Mohsin, M.A. Semiconducting Polymer. U.S. Patent US8796673B2, 5 August 2014. [Google Scholar]
  35. Josh, V.; Haik, M.Y.; Ayesh, A.I.; Mohsin, M.A.; Haik, Y. Electrical properties of sorbitol-doped poly(vinyl alcohol)-poly(acrylamide-co-acrylic acid) polymer membranes. J. Appl. Polym. Sci. 2013, 128, 3861–3869. [Google Scholar] [CrossRef]
  36. Ayesh, A.I.; Mohsin, M.A.; Haik, M.Y.; Haik, Y. Investigations on electrical properties of poly(vinyl alcohol) doped with 1-methyl-3-n-decyl-imidazolium bromide ionic liquid. Curr. Appl. Phys. 2012, 12, 1223–1228. [Google Scholar] [CrossRef]
  37. Allam, M.; Ayesh, A.I.; Mohsin, M.A.; Haik, Y. Physical properties of PVA doped with algal glycerol. J. Appl. Polym. Sci. 2013, 130, 4482–4489. [Google Scholar] [CrossRef]
  38. Ali, A.; Alzamly, A.; E Greish, Y.; Bakiro, M.; Nguyen, H.L.; Mahmoud, S.T. A Highly Sensitive and Flexible Metal–Organic Framework Polymer-Based H2S Gas Sensor. ACS Omega 2021, 6, 17690–17697. [Google Scholar] [CrossRef] [PubMed]
  39. Nam, K.W.; Park, S.S.; Dos Reis, R.; Dravid, V.P.; Kim, H.; Mirkin, C.A.; Stoddart, J.F. Conductive 2D metal-organic framework for high-performance cathodes in aqueous rechargeable zinc batteries. Nat. Commun. 2019, 10, 4948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kumar, R.S.; Kumar, S.S.; Kulandainathan, M.A. Efficient electrosynthesis of highly active Cu3(BTC)2-MOF and its catalytic application to chemical reduction. Microporous Mesoporous Mater. 2013, 168, 57–64. [Google Scholar] [CrossRef]
  41. Rawool, C.R.; Srivastava, A.K. A dual template imprinted polymer modified electrochemical sensor based on Cu metal organic framework/mesoporous carbon for highly sensitive and selective recognition of rifampicin and isoniazid. Sens. Actuators B Chem. 2019, 288, 493–506. [Google Scholar] [CrossRef]
  42. Koo, W.; Kim, S.; Jang, J.-S.; Kim, D.; Kim, I. Catalytic Metal Nanoparticles Embedded in Conductive Metal-Organic Frameworks for Chemiresistors: Highly Active and Conductive Porous Materials. Adv. Sci. 2019, 6, 1900250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Nanomaterials 12 00913 g001 550

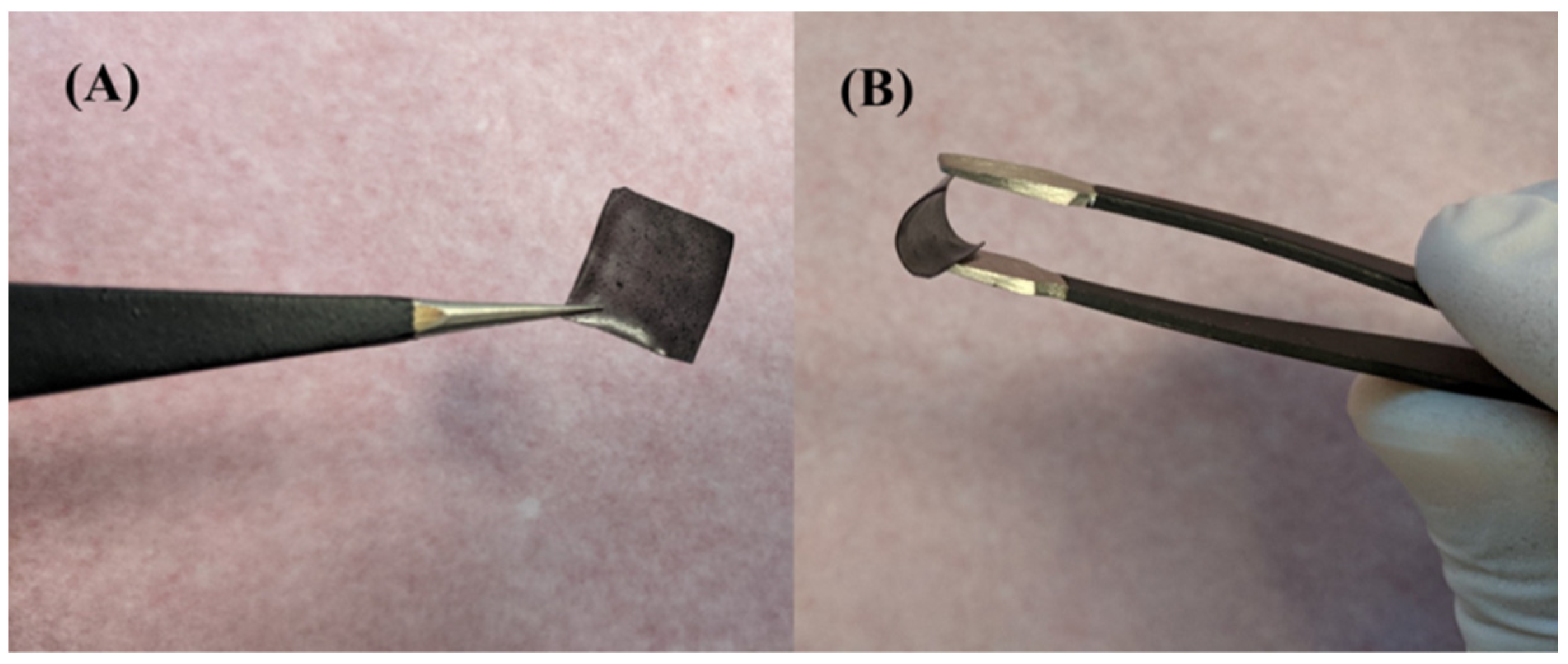

Figure 1. (A) A typical 1 × 1 cm2 Cu-MOF/PVA/IL membrane, (B) A demonstration of the high-flexibility of the membrane.
Figure 1. (A) A typical 1 × 1 cm2 Cu-MOF/PVA/IL membrane, (B) A demonstration of the high-flexibility of the membrane.
Nanomaterials 12 00913 g001
Nanomaterials 12 00913 g002 550

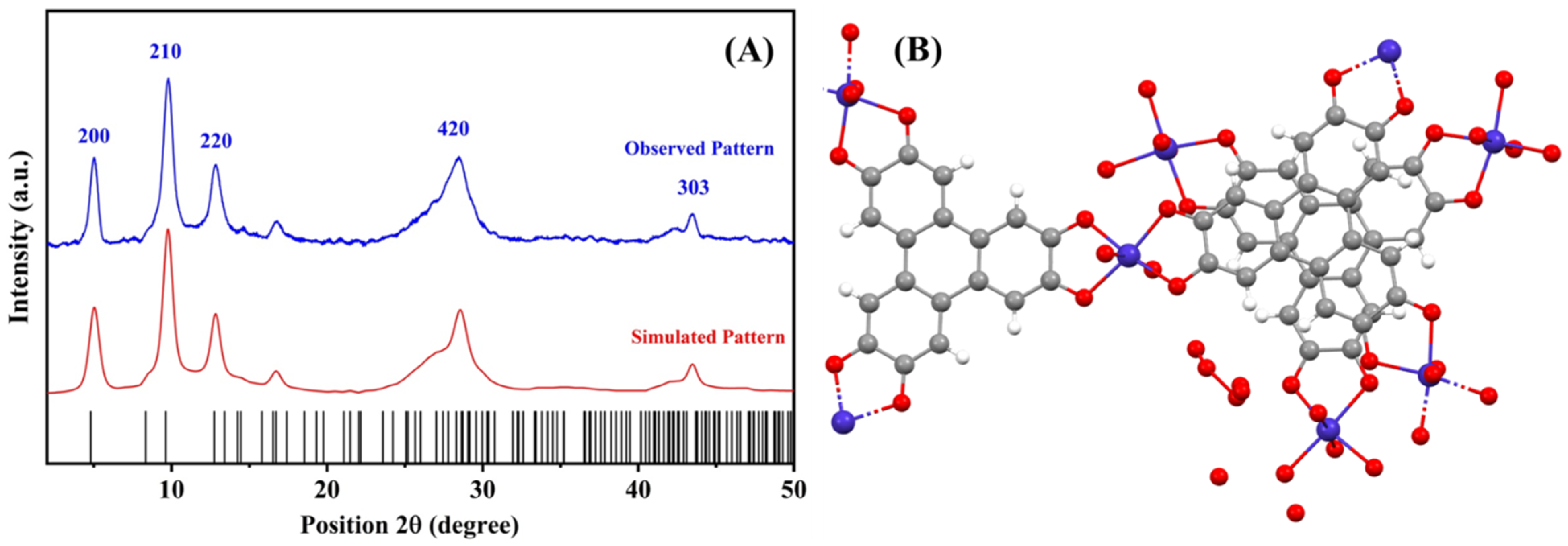

Figure 2. (A) PXRD pattern of the observed and simulated Cu-MOF powder, (B) Structural information of the 2D Cu-MOF.
Figure 2. (A) PXRD pattern of the observed and simulated Cu-MOF powder, (B) Structural information of the 2D Cu-MOF.
Nanomaterials 12 00913 g002
Nanomaterials 12 00913 g003 550

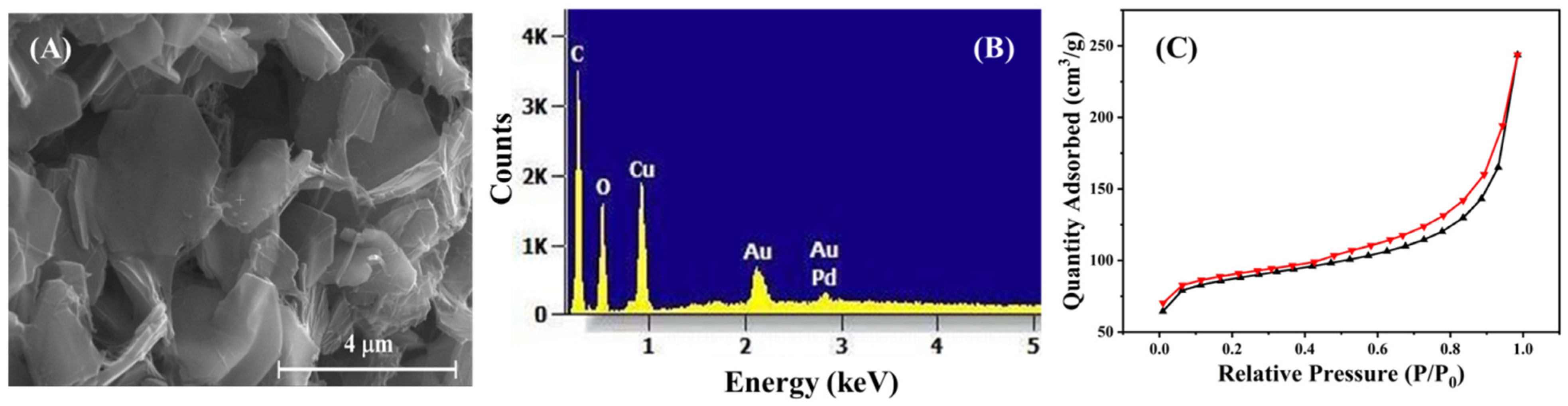

Figure 3. (A) SEM micrograph, (B) EDX elemental analysis pattern (C) N2-adsorption hysteresis of the as-prepared Cu-MOF powder.
Figure 3. (A) SEM micrograph, (B) EDX elemental analysis pattern (C) N2-adsorption hysteresis of the as-prepared Cu-MOF powder.
Nanomaterials 12 00913 g003
Nanomaterials 12 00913 g004 550
Figure 4. (A) TGA thermograms of PVA/IL and Cu-MOF/PVA/IL membranes (B) FTIR spectra of the as-prepared Cu-MOF powder, fabricated PVA/IL, and Cu-MOF/PVA/IL membranes.
Figure 4. (A) TGA thermograms of PVA/IL and Cu-MOF/PVA/IL membranes (B) FTIR spectra of the as-prepared Cu-MOF powder, fabricated PVA/IL, and Cu-MOF/PVA/IL membranes.
Nanomaterials 12 00913 g004
Nanomaterials 12 00913 g005 550

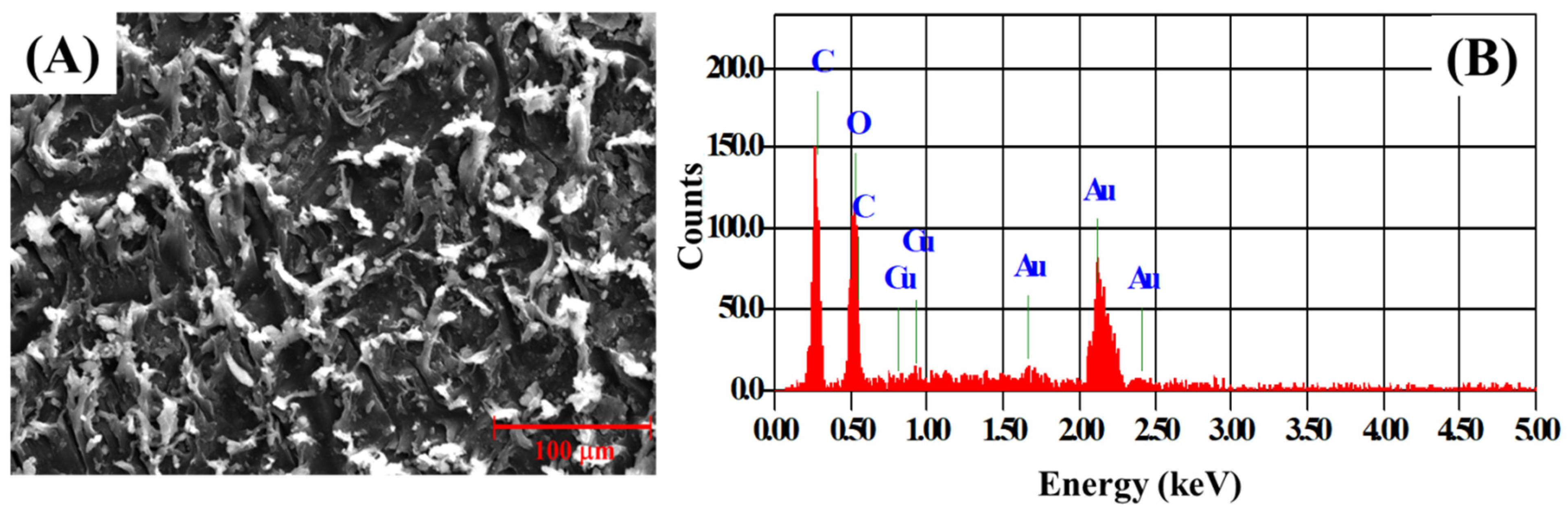

Figure 5. (A) SEM micrograph and (B) EDX pattern of the Cu-MOF/PVA/IL membrane.
Figure 5. (A) SEM micrograph and (B) EDX pattern of the Cu-MOF/PVA/IL membrane.
Nanomaterials 12 00913 g005
Nanomaterials 12 00913 g006 550

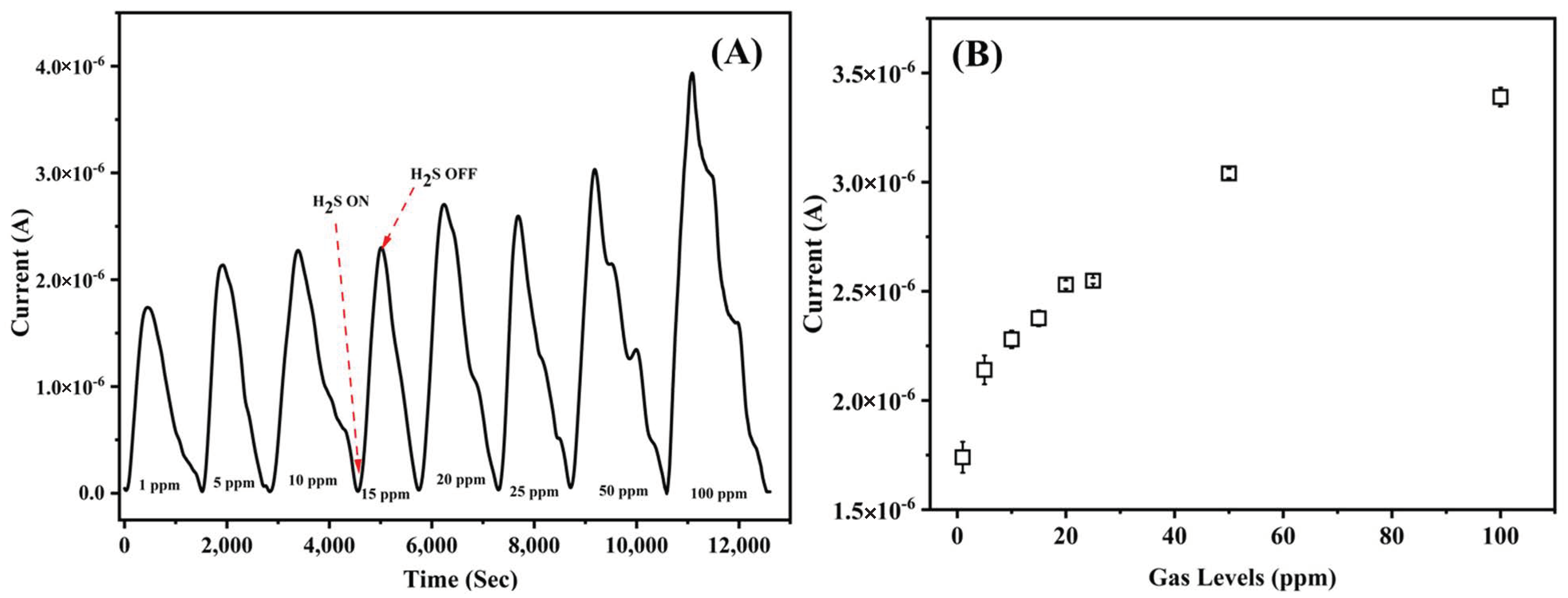

Figure 6. (A) Current response of the Cu-MOF/PVA/IL membrane with respect to time and H2S concentration measured at room temperature. (B) Response of the sensor for corresponding gas concentrations.
Figure 6. (A) Current response of the Cu-MOF/PVA/IL membrane with respect to time and H2S concentration measured at room temperature. (B) Response of the sensor for corresponding gas concentrations.
Nanomaterials 12 00913 g006
Nanomaterials 12 00913 g007 550

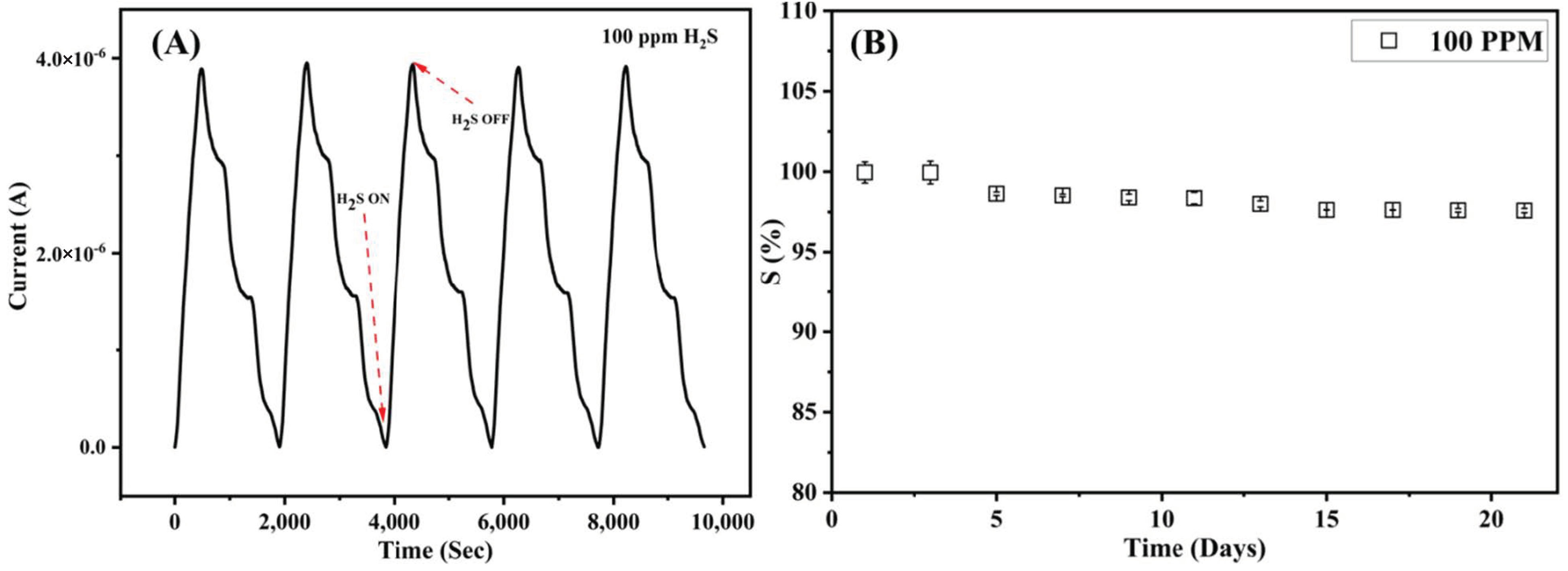

Figure 7. (A) Reproducibility of the Cu-MOF/PVA/IL membrane at RT. (B) Long-term stability performance of the Cu-MOF/PVA/IL sensor at RT for 21 days.
Figure 7. (A) Reproducibility of the Cu-MOF/PVA/IL membrane at RT. (B) Long-term stability performance of the Cu-MOF/PVA/IL sensor at RT for 21 days.
Nanomaterials 12 00913 g007
Nanomaterials 12 00913 g008 550

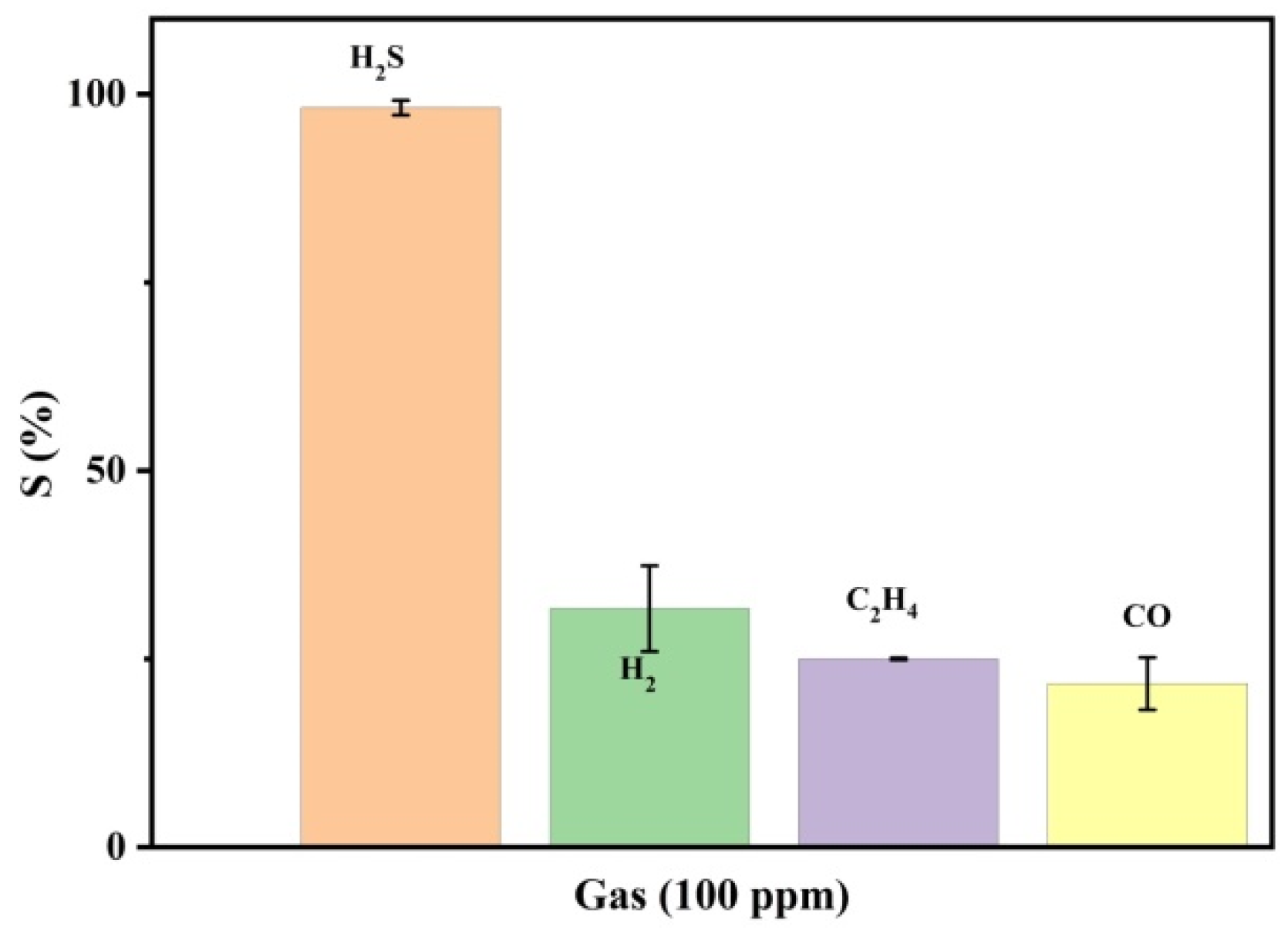

Figure 8. Selectivity of the Cu-MOF/PVA/IL membrane to H2S in comparison to H2, C2H4, CO gases at 100 ppm at room temperature.
Figure 8. Selectivity of the Cu-MOF/PVA/IL membrane to H2S in comparison to H2, C2H4, CO gases at 100 ppm at room temperature.
Nanomaterials 12 00913 g008
Nanomaterials 12 00913 g009 550

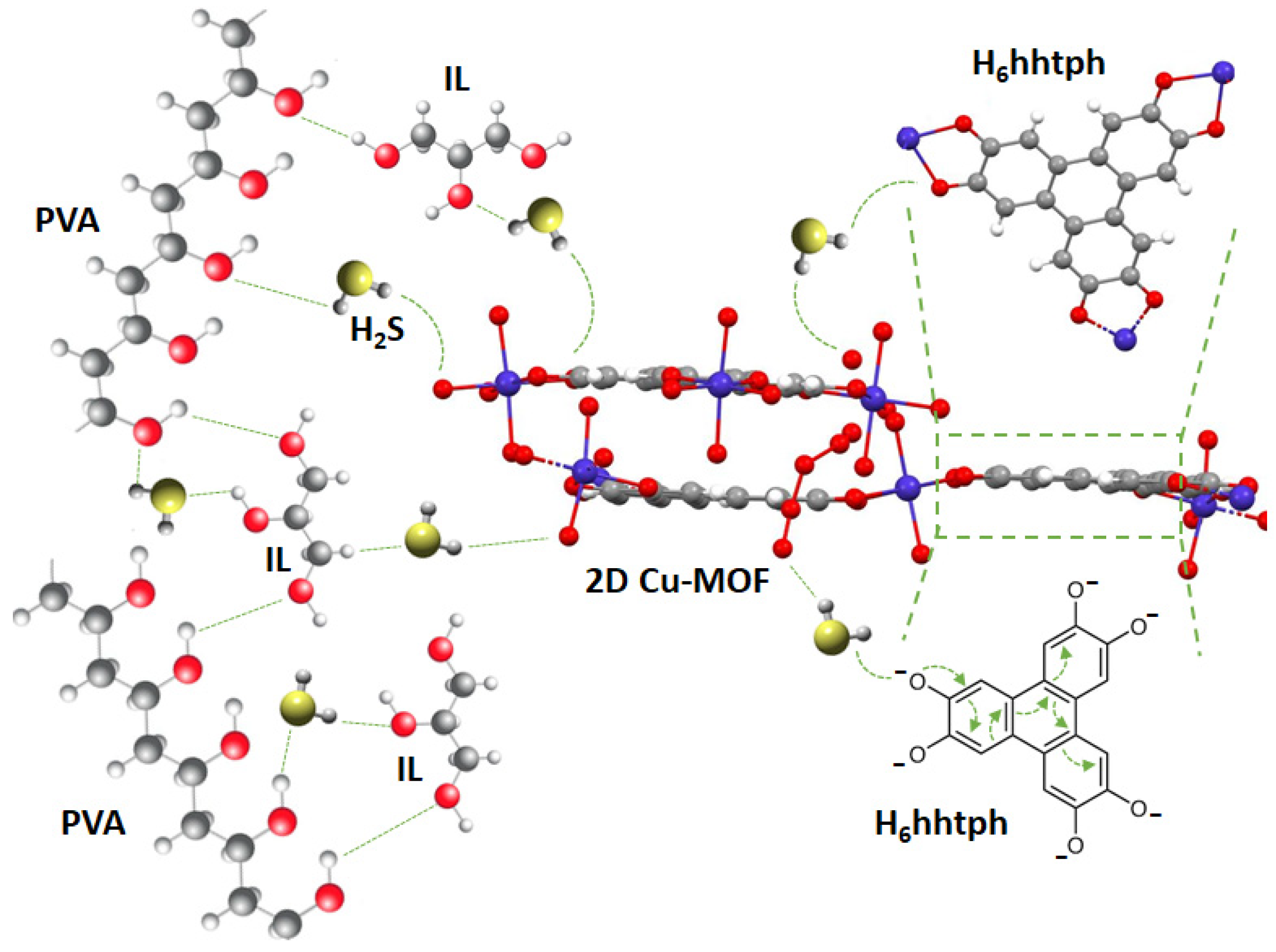

Figure 9. Illustration of the suggested H2S gas sensing mechanism. All atoms are color-coded; Cu: purple, O: red, C: grey, H: white, S: yellow.
Figure 9. Illustration of the suggested H2S gas sensing mechanism. All atoms are color-coded; Cu: purple, O: red, C: grey, H: white, S: yellow.
Nanomaterials 12 00913 g009
Table
Table 1. Sensor performance comparison with literature-reported values.
Table 1. Sensor performance comparison with literature-reported values.
Sensor/MaterialOptimum Operating Temperature (°C)GasDetection LimitRefs.
Cu3(HHTP)2/PVA/IL23 °CH2S1 ppmThis Work
Cu/Ni (HHTP)RTH2S/NO40–80 ppm[26]
Cu3(HHTP)2250 °CAcetone50 ppm[28]
H2/CO20 ppm
CO2/NH3200 ppm
CH4500 ppm
NO21 ppm
PVA-Semiconducting
nanoparticles (CuO, ZnFe2O4,
CuFe2O4, and WO3) based
sensors		80 °CH2S10 ppm[32,33]
Pd and Pt NPs doped Cu3(HHTP)2RTNO21 ppm[42]
