Article

Influence of Graphene Oxide Nanoparticles on Bond-Slip Reponses between Fiber and Geopolymer Mortar

by
Darrakorn Intarabut
1,
Piti Sukontasukkul
1,*,
Tanakorn Phoo-ngernkham
2,
Hexin Zhang
3,
Doo-Yeol Yoo
4,
Suchart Limkatanyu
5 and
Prinya Chindaprasirt
6,7
1
Construction and Building Materials Research Center, Department of Civil Engineering, Faculty of Engineering, King Mongkut’s University of Technology North Bangkok, Bangkok 10800, Thailand
2
Sustainable Construction Material Technology Research Unit, Department of Civil Engineering, Faculty of Engineering and Architecture, Rajamangala University of Technology Isan, Nakhon Ratchasima 30000, Thailand
3
School of Engineering and the Built Environment, Edinburgh Napier University, Edinburgh EH14 1DJ, UK
4
Department of Architectural Engineering, Hanyang University, Seongdong-gu, Seoul 04763, Korea
5
Department of Civil Engineering, Faculty of Engineering, Hat Yai Campus, Prince of Songkla University, Songkla 90110, Thailand
6
Sustainable Infrastructure Research and Development Center, Department of Civil Engineering, Faculty of Engineering, Khon Kaen University, Khon Kaen 40002, Thailand
7
Academy of Science, Royal Society of Thailand, Dusit, Bangkok 10210, Thailand
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(6), 943; https://doi.org/10.3390/nano12060943
Submission received: 22 February 2022 / Revised: 7 March 2022 / Accepted: 9 March 2022 / Published: 13 March 2022
Browse Figures
Versions Notes

Abstract

:
In this study, the influence of graphene oxide nanoparticles on the bond-slip behavior of fiber and fly-ash-based geopolymer paste was examined. Geopolymer paste incorporating a graphene oxide nanoparticle solution was cast in half briquetted specimens and embedded with a fiber. Three types of fiber were used: steel, polypropylene, and basalt. The pullout test was performed at two distinct speeds: 1 mm/s and 3 mm/s. The results showed that the addition of graphene oxide increased the compressive strength of the geopolymer by about 7%. The bond-slip responses of fibers embedded in the geopolymer mixed with graphene oxide exhibited higher peak stress and toughness compared to those embedded in a normal geopolymer. Each fiber type also showed a different mode of failure. Both steel and polypropylene fibers showed full bond-slip responses due to their high ductility. Basalt fiber, on the other hand, because of its brittleness, failed by fiber fracture mode and showed no slip in pullout responses. Both bond strength and toughness were found to be rate-sensitive. The sensitivity was higher in the graphene oxide/geopolymer than in the conventional geopolymer.

1. Introduction

Geopolymers are a type of cementitious material synthesized from raw materials containing a high content of aluminum and silicon [1,2,3,4,5,6,7,8,9]. Since the chemical reaction occurs in the polymerization process, it is usually called a geopolymer. The production of geopolymers requires no Portland cement, and the raw materials are often byproducts or waste materials that normally, if not being utilized, would find their way to landfill. Therefore, the production of geopolymers is not only sustainable in terms of reducing Portland cement usage but also in diverting waste from landfill.
Hardened geopolymer is known to have mechanical properties similar to hardened concrete produced from Portland cement. It usually exhibits excellent compressive strength but poor tensile strength, and to improve the brittleness, short fibers are randomly mixed with the geopolymer [10,11,12,13,14,15]. The effectiveness of fiber comes from its ability to bridge across cracks to prohibit or slow down crack propagation, which allows materials to carry load beyond the first cracking [16,17,18,19].
For fiber-reinforced cementitious material (FRC), the performance depends on factors such as fiber type, geometry, orientation, and volume fraction [20,21,22,23,24]. Additionally, the mechanical properties of the cementitious matrix also play a key role in the performance of FRC, whereby the improvement in mechanical properties of the matrix also has a positive effect on the mechanical properties of FRC [24,25]. In practice, the properties of a cementitious matrix can be enhanced using property enhancement additives. For example, phase change materials can be used to improve thermal storage [25,26,27,28,29,30,31], crumb rubber to improve energy absorption [32,33,34,35], or nanomaterials to improve mechanical properties [36,37,38,39,40], etc.
According to the aforementioned literature review, there are a large number of investigations on the effect of graphene oxide on properties of cement- and fiber-reinforced cementitious materials. However, not many studies have investigated the effect of graphene oxide on geopolymer, especially fiber-reinforced geopolymer. In this study, the effect of a nanomaterial, graphene oxide type, on the mechanical properties of fiber-reinforced geopolymer (FRG) was investigated. In general, the performance of FRC and FRG can be assessed through standardized tests such as ASTM C1609 [41], ASTM C1399 [42], or JSCE SF4 [43], which are based mainly on flexural testing. However, to investigate the fiber–matrix interaction, a so-called single fiber pullout test is more appropriate [40,44,45]. The graphene oxide (GO) solution was produced at a concentration of 10 mg/mL, and the incorporation rate of GO was 0.05% by weight of the binder. The specimens were prepared in a half-briquette form and two loading rates of 1 and 3 mm/s were carried out. The failure pattern, bond-slip response, strength, and toughness of the obtained results were discussed.

2. Experimental Process

2.1. Materials

The following materials were used to develop the FRG: binder, fine aggregate, alkaline activator, GO, and various fibers. The binder was a Class C fly ash (FA), according to ASTM C168, with a specific gravity of 2.61 and chemical composition as shown in Table 1. The fine aggregate was river sand (RS) with a specific gravity of 2.85 and particle size between sieve no. 4 and 16. The alkaline activator was used as a liquid solution of sodium hydroxide (SH, NaOH) and sodium silicate (SS, Na2SiO3). The concentration of SH was set constant at 12 Molars. The concentration of SS dissolved in water was 34.2%. The GO solution was dispersed in water at a concentration of 10 mg/mL; a modified Hummers technique was used to prepare the GO [46,47], and its properties are given in Table 2. The fibers used were steel (SF), polypropylene (PF), and basalt (BF) microfibers. Table 3 summarizes the properties of these fibers.

2.2. Preparation of Specimen

Specimens were produced in the shape of a half briquette with dimensions as given in Figure 1a. For the control geopolymer mortar (GM), sand to binder (s/b) ratio of 1.25, liquid to binder (l/b) ratio of 0.40, and SS/SH ratio of 1.0 were used. The mixing process began by dry mixing FA and RS for about 2 min. Then, SH solution was added and mixed for 1 min. After that, SS solution was added and then mixed for another minute. In the case of the graphene-modified geopolymer mortar (GOGM) sample, a similar process was employed, and the graphene oxide solution (GO) at 0.05% by weight of FA was mixed with SH prior to the beginning of the mixing process. In order to ensure the uniform distribution of GO, the GO solution was dispersed in the SH solution and blended for 20–30 s until the GO was fully distributed in the solution. The SH+GO solution was then poured into a dry base (sand and fly ash) and mixed for 1 min. The SS solution was subsequently added, and the mixing continued for 1 min. The mix proportions and corresponding compressive strengths are given in Table 4.
The specimens were prepared in half briquette form using a piece of Styrofoam to block half of the briquette mold and to hold a fiber at the center, as shown in Figure 1b. Before casting, one end of the fiber was inserted through a hole in the middle of the foam to be embedded in the geopolymer mortar. The other end, with a length of 20 mm, was exposed on the empty side. The mortar was then poured into the mold and consolidated on a vibrating table for 10 s. The cast specimens were covered with a plastic sheet to prevent moisture loss. After 24 h, the specimens were demolded, wrapped in a plastic sheet, and kept in a controlled temperature room at 25 °C until the date of the test (28 days). Three different fibers and two different mortar types were used to produce the specimens, as listed in Table 5.

2.3. Experimental Program

The compressive strength of geopolymer mortar (both GM and GOGM) was tested after 7 and 28 days, in accordance with ASTM C109 [48]. The single fiber pullout test was carried out using a 10 kN UTM machine (Instron (Thailand) Co., Ltd., Bangkok, Thailand), as illustrated in Figure 2. The effect of the loading rate was examined using two different loading rates (i.e., 1 and 3 mm/s). An average of three samples were used to represent the test results.
Using the results from the single fiber pullout test (i.e., axial force and slipping distance), the axial tensile stress of fiber (σf), average interfacial bond stress (τav), and energy absorption (E, toughness) can be calculated using Equations (1)–(3) as follows:
σ f = P A f ,
τ a v = P π d f L ,
E = ∫ 0 δ P d δ ,
where P = pullout force (N), Af = cross sectional area of the fiber (mm2), L = embedded length (mm), df = fiber diameter (mm), and δ = fiber slipping distance (mm).

3. Result and Discussion

3.1. Compressive Strength

The compressive strength results of the GM and GOGM after 7 and 28 days are shown in Figure 3. The results after 7 days yielded strengths about 70–75% of those after 28 days. The GO added at the 0.05 wt% of FA dosage insignificantly affected the 7-day compressive strength. However, it slightly increased the 28-day strength by about 8% due to the effect of GO promoting geopolymerization. Similar findings have also been reported, for example, by Xu et al. [49], who showed that GO improved the polymerization degree of FA geopolymer. Ranjbar et al. [50] found that the addition of GO increased energy absorption during pullout, which led to an improvement in toughness. Saafi et al. [51] stated that GO changed the morphology of geopolymers from a porous nature to a considerably pore-filled morphology, which led to an increase in compressive strength. The addition of nanoparticles such as GO can reduce the porosity of the geopolymer with an increase in geopolymer gel [52].

3.2. Energy Dispersive X-ray Spectroscopy (EDS)

The EDS performed on both the GM and GOGM samples are given in Table 6. Energy-dispersive X-ray spectroscopy (EDS, EDX, EDXS or XEDS), sometimes called energy-dispersive X-ray analysis (EDXA or EDAX) or energy-dispersive X-ray microanalysis (EDXMA), is an analytical technique used for the elemental analysis or chemical characterization of a sample. The increase in carbon content (C) from 1.19 to 2.18% indicated the existence of GO in the geopolymer. The geopolymerization reactions that formed N-A-S-H and Si-O-Al products were also promoted by the addition of GO, as seen by the increasing weight of Si from 13.51 to 14.72% and Na from 12.00 to 13.41% [52,53].

3.3. Fiber Pullout

3.3.1. Failure Pattern

Two failure patterns were observed in this study, i.e., fiber slipping and fiber fracture. The failure mode depended on the fiber tensile strength and bond stress between the fiber and matrix. If the fiber tensile strength was greater than the applied bond stress, the fiber slipped and was completely pulled out from the mortar without fiber fracture or breakage. This was found in the case of SF and PF (Figure 4a,b). In contrast to fiber slipping, when the bond strength was greater than the fiber tensile strength, fibers were broken before being completely pulled out from the mortar. This failure mode is known as fiber fracture, which was observed in the BF fiber (Figure 4c).
Figure 4 illustrates the failure mode of each fiber type at the microscopic level. For SF, the deformed (hooked) part at the fiber’s end (deformed end) appeared to be straightened before being pulled out entirely from the mortar, but no major damage to the fiber end was seen (see Figure 4a). For PF, the fiber’s surface appeared to have been scraped against the interface between the mortar and fiber during the pullout process, as seen by the occurrence of microfiber strands being scraped out along the surface. At the end of the PF fiber, severe damage was observed, with large amounts of fiber strands accumulating there (Figure 4b). It was noted that, although the hooked end of SF greatly increased bond strength via mechanical anchorage, its tensile strength was much greater than the bond stress. Although the PF tensile strength was considerably lower than that of SF, it had no deformed part to create mechanical bond stress; therefore, its bonding to mortar was even less. Hence, both SF and PF slipped without breaking.
For BF, since it is a twisted bundle-type fiber with a coating material, partial debonding of the coating material throughout the fiber length could be noticed during the pullout process (Figure 4c). Additionally, for a bundle-type fiber, the small spaces between each fiber strand cause the fiber to have high absorption. This allows the geopolymer paste to be absorbed along the fiber surface, which significantly improves the interfacial bonding between the fiber and matrix. In the case of BF, the improvement in interfacial bonding was up to the point where the interfacial bond stress became higher than the fiber strength and caused the fiber to fail in fracture mode (Figure 4c). At the tip of the fiber end, uneven tearing and end splitting of small BF fiber strands were observed, which indicated that the fiber suffered great stress during the pullout process. Similar findings were reported by Chindaprasirt et al. [40], where bundle-type glass fiber was found to exhibit better bonding and a strong interfacial bond.

3.3.2. Single Fiber Pullout Response

Figure 5 schematically illustrates the typical bond-slip behaviors of the single fiber pullout test. The fiber pullout behavior can be categorized into pre-peak and post-peak. Initially, the entire embedded fiber is bonded or adhered to the mortar. When a fiber is subject to a pullout load, the load is transmitted to the mortar through adhesion force. During the initial linear response, the adhesion force developed corresponding to the applied load to keep the fiber in resting condition. Once the load reaches its peak, the fiber either fractures or begins to lose adhesion and slip.
In the case where the ultimate strength of the fiber is greater than the peak stress, the fiber is not fractured but starts to slip out of the mortar (Figure 5a). As the fiber slips, two main forces, i.e., friction force (taking place as fiber moves against mortar) and anchorage force (obtained from any mechanical anchorage and fiber geometry), govern the load carried in the post-peak response.
In the case where the ultimate strength of the fiber is lower than the peak stress, as soon as the pullout load reaches the peak, the fiber begins to fracture, and the load quickly drops to zero simultaneously (Figure 5b).

Effect of Graphene Oxide

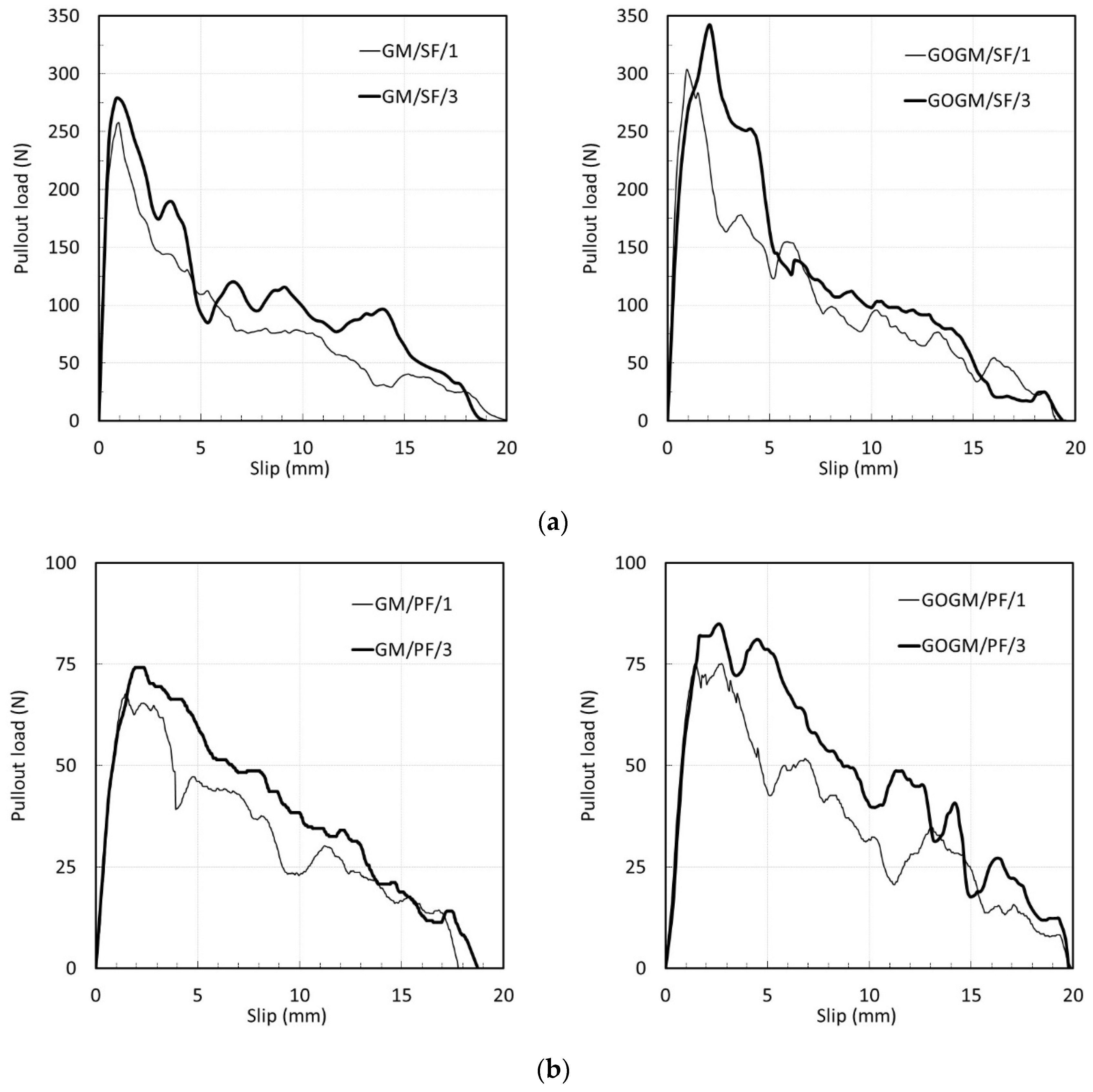

Figure 6a–c demonstrate the effect of GO on the bond-slip response of SF, PF, and BF subjected to 1 and 3 mm/s loading rates. The bond-slip responses of SF embedded in GM and GOGM are shown in Figure 6a. Prior to the peak, a linear bond-slip response was observed. The deformation of the steel fibers increased linearly with the increasing applied load. Once the load reached its peak, the fiber began to slip, followed by a large drop in load. Due to the smooth and hard surface of the steel fiber, the interface bond was not particularly strong. However, as the fiber slipped out, the rate the load was dropping began to slow down. The slow descending post-peak response can be mainly attributed to the deformed shape (hooked end) at end of the fiber. As the fiber began to be pulled out of its resting place, the hooked end provided resistance to the pulling force. Once the hook was forced to be straightened, the fiber was pulled out easily, and the load then decreased to zero. The addition of GO appeared to increase the peak pulling load. In addition to the anchorage force, the stronger geopolymer matrix provided additional resistance to the pullout force. The increase in peak load in the case of SF was observed at around 7% and 12% for a loading rate of 1 and 3 mm/s, respectively (Table 7 and Table 8).
Figure 6b shows the bond-slip behavior of PF. Similar to the case with SF, the load increased linearly with the fiber deformation prior to the peak load. However, because of the highly elastic and low strength characteristics of the PF, larger deformations at the peak load and smaller peak loads were observed compared to SF. Beyond peak load, a gradual decrease in pullout load was partly due to the friction bond between the fiber surface and geopolymer matrix. Another possible factor could have been the accumulation of scraped tiny fiber strands along the surface and at the fiber end, which provided resistance to the pulling load and helped to slow the rate of load drop. The post-peak response of PF varied from SF in that there was no large drop of load after the load reached its peak. This indicated that PF did bond better to the geopolymer paste than SF due to its rough and wavy surface. Immediately after the peak load, the load gradually decreased to zero. As seen in Figure 6b, the SEM image of a completely pulled out PF showed evidence of scraped fiber strands accumulating at the fiber tip. GO seemed to influence the peak pulling force of PF in the range of 11 to 14% for loading rates 1 and 3 mm/s, respectively (Table 7 and Table 8).
Figure 6c shows the bond-slip responses of BF. In the case where fiber fracture occurred, the responses were short and brittle. As soon as the load reached its peak, fiber fracture occurred, and the load fell instantaneously. The effect of GO caused the peak load to increase from 13.8 to 19.7%—the highest among the three fibers (Table 7 and Table 8). This is partly because of the improvement in bond strength of the BF due to its high absorbability.
It must be noted here that even though the BF failed in fiber fracture mode, the axial tensile stress at peak load was lower than the fiber tensile strength capacity (900 MPa) (Table 7 and Table 8). This can be explained as follows. Since the BF are a twisted bundle-type fiber, this means that the small fiber strands are, in fact, embedded in the paste at a slightly inclined angle. This can lead to an increase in bridging force, which creates higher stresses in the fiber due to both bending and axial forces [54,55]. Choi et al. [56] reported that the tensile strength of BF decreased with an increase in the inclined angle of the fiber.

Effect of Loading Rate on Bond-Slip Response

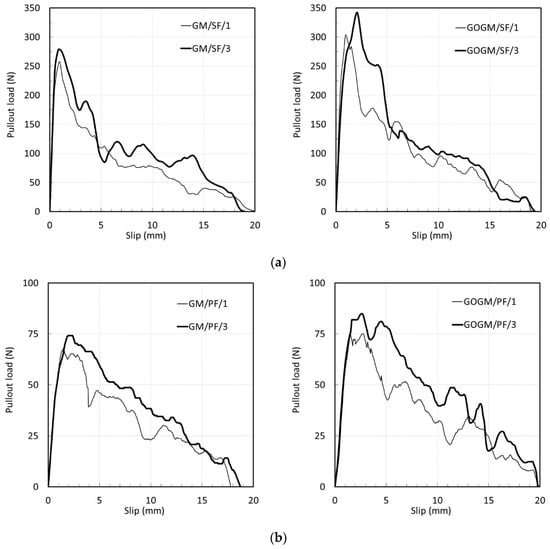

Figure 7a–c show the effect of loading rate on the bond-slip responses. Regardless of fiber and mortar type, the increase in loading rate caused the peak load to increase. The results given in Table 7 and Table 8 indicate an increase of about 8.0, 9.6, and 4.8% in GM/SF, GM/PF, and GM/BF, respectively. Theoretically, the mechanical properties of composite materials such as fiber-reinforced cementitious materials are known to be sensitive to the loading rate, meaning that they increase as the rate of loading increases [57,58,59,60,61,62,63,64]. This is also the case for the single-pullout test. Babafemi [65] reported an increase in the pullout load of macro synthetic fiber with the increasing rate of loading and embedment length. Bindiganavile [66] found an increase in peak pullout load and a change in the mode of failure as the load scheme changed from quasi-static to impact pullout load. Comparing the three fibers, BF is less sensitive than both SF and PF, which is perhaps due to the fracture mode failure of BF.
In the case of GOGM, increases of about 12.7, 12.9, and 10.2% were observed for GOGM/SF, GOGM/PF, and GOGM/BF, respectively. The GOGM appears to be more sensitive to loading rate than GM, as seen by the higher increasing percentage. This contributes mainly to the higher compressive strength of GOGM due to the addition of GO. Kim et al. [67] similarly reported the increase in rate sensitivity of fiber embedded in cement material with higher compressive strength.

3.3.3. Mechanical Properties

The results of peak pullout load, strength, and bond strength are given in Table 7 and Table 8, and the pullout energy (toughness) is shown in Figure 8. Both peak pullout stress and bond strength in GOGM (SF/GOGM, PF/GOGM, and BF/GOGM) were higher than in GM (SF/GM, PF/GM, and BF/GM). They were increased by 11–17% for a loading rate of 1 mm/s and 14–23% for a loading rate of 3 mm/s.
For bond-slip toughness, the SF provided the highest toughness among the fibers (around 1620–2382 N-mm) due to its high strength and ductility. The PF, which has relatively lower strength, produced lesser toughness (around 599–914 N-mm). Even though BF has higher tensile strength than PF, its brittleness and twisted bundle alignment caused the fracture failure to occur prior to slipping. This cut short its bond-slip responses and prevented a post-peak response from occurring. Thus, BF yielded the lowest toughness (around 207–682 N-mm). Regarding the effect of GO, the toughness was found to increase at different angles depending on the fiber type.

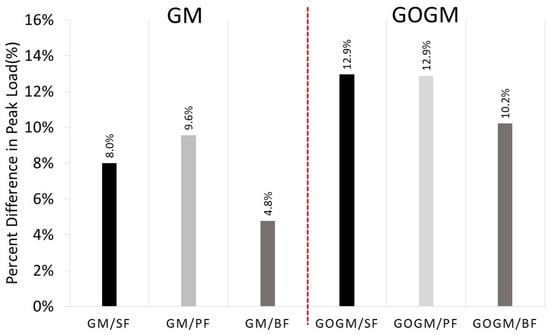

Comparing GM and GOGM, the percentage difference in peak load at two different rates of loading is shown in Figure 9. For GM, the increase in peak load was found at around 8, 9.6, and 4.8% for GM/SF, GM/PF, and GM/BF, respectively. For GOGM, the increase in peak load was observed at around 12.9, 12.9, and 11.2% for GOGM/SF, GOGM/PF, and GOGM/BF, respectively. This indicated that the GOGM is more sensitive to the rate of loading than GO. This perhaps has to do with the increase in matrix strength, which provided more resistance to the pull force.

4. Conclusions

The addition of graphene oxide at a dosage of 0.05% weight of binder (fly ash) increased the compressive strength of GM by about 7.3%.
From the single fiber pullout test, the failure mode of SF and PF was fiber slipping mode, whereas for BF, it was fiber fracture mode. The SEM revealed that the surface of PF was being scraped against the matrix, which caused the accumulation of tiny fiber strands at the fiber tip. For BF, the fracture of individual fibers was observed. There were signs of fiber being tortured and fractured unevenly.
For the pullout response, because of their high ductility, both SF and PF showed full bond-slip responses. The effect of GO increased the bond strength and toughness of both fibers, though at different degrees depending on fiber type. For BF, the response was brittle, and there was no fiber slip because the fiber fractured before slipping out from the matrix. The effect of GO also yielded higher peak bond stress and toughness.
For the effect of the loading rate, both bond strength and toughness were found to be dependent on the loading rate. Increasing the loading rate from 1 to 3 mm/s caused the peak bond stress to increase by about 5–10% for GM and 10–12% for GOGM and the toughness to increase by 6–116% for GM and 19–46% for GOGM.

Author Contributions

Conceptualization, P.S.; Supervision, P.S., P.C., and T.P.-n.; Funding acquisition, P.S. and S.L.; Validation, D.-Y.Y., S.L., and H.Z.; Investigation, D.I.; Formal analysis, D.I.; Writing, review and editing, P.S., P.C., H.Z. and D.-Y.Y.; All authors have read and agreed to the published version of the manuscript.

Funding

This research is funded by the National Research Council of Thailand (NRCT), and the National Science, Research and Innovation Fund (NSRF) and King Mongkut’s University of Technology North Bangkok (KMUTNB) under contract no. KMUTNB-FF-66-02. The authors would like to acknowledge the PhD scholarship from King Mongkut’s University of Technology North Bangkok (KMUTNB) under contract no. KMUTNB-PHD-62-06 and Thailand Research Fund under contract no. RTA6280012.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Special thanks to Ruth Saint for proofreading the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Duxson, P.; Fernández-Jiménez, A.; Provis, J.L.; Lukey, G.C.; Palomo, A.; van Deventer, J.S.J. Geopolymer technology: The current state of the art. J. Mater. Sci. 2007, 42, 2917–2933. [Google Scholar] [CrossRef]
  2. Sukontasukkul, P.; Chindaprasirt, P.; Pongsopha, P.; Phoo-Ngernkham, T.; Tangchirapat, W.; Banthia, N. Effect of fly ash/silica fume ratio and curing condition on mechanical properties of fiber-reinforced geopolymer. J. Sustain. Cem. Based Mater. 2020, 9, 218–232. [Google Scholar] [CrossRef]
  3. Wang, H.; Li, H.; Yan, F. Synthesis and mechanical properties of metakaolinite-based geopolymer. Colloids Surf. A Physicochem. Eng. Asp. 2005, 268, 1–6. [Google Scholar] [CrossRef]
  4. Wongsa, A.; Siriwattanakarn, A.; Nuaklong, P.; Sata, V.; Sukontasukkul, P.; Chindaprasirt, P. Use of recycled aggregates in pressed fly ash geopolymer concrete. Environ. Prog. Sustain. Energy 2020, 39, e13327. [Google Scholar] [CrossRef]
  5. Lloyd, N.; Rangan, B. Geopolymer Concrete with Fly Ash. In Second International Conference on Sustainable Construction Materials and Technologies, Ancona, Italy, 28–30 June 2010; Zachar, J., Claisse, P., Naik, T., Ganjian, G., Eds.; UWM Center for By-Products Utilization: Milwaukee, WI, USA, 2010; Volume 3, pp. 1493–1504. [Google Scholar]
  6. Suksiripattanapong, C.; Krosoongnern, K.; Thumrongvut, J.; Sukontasukkul, P.; Horpibulsuk, S.; Chindaprasirt, P. Properties of cellular lightweight high calcium bottom ash-portland cement geopolymer mortar. Case Stud. Constr. Mater. 2020, 12, e00337. [Google Scholar] [CrossRef]
  7. Hanjitsuwan, S.; Injorhor, B.; Phoo-Ngernkham, T.; Damrongwiriyanupap, N.; Li, L.; Sukontasukkul, P.; Chindaprasirt, P. Drying shrinkage, strength and microstructure of alkali-activated high-calcium fly ash using FGD-gypsum and dolomite as expansive additive. Cem. Concr. Compos. 2020, 114, 103760. [Google Scholar] [CrossRef]
  8. Liu, D.; Liu, H.; Wu, Y.; Zhang, W.; Wang, Y.; Santosh, M. Characterization of geo-material parameters: Gene concept and big data approach in geotechnical engineering. Geosyst. Geoenviron. 2022, 1, 100003. [Google Scholar] [CrossRef]
  9. Wu, L.P.; Huang, G.P.; Liu, W.V. Performance evaluation of nano-silica and silica fume on enhancing acid resistance of cement-based composites for underground structures. J. Cent. South Univ. 2020, 27, 3821–3838. [Google Scholar] [CrossRef]
  10. Midhun, M.S.; Rao, T.D.G.; Srikrishna, T.C. Mechanical and fracture properties of glass fiber reinforced geopolymer concrete. Adv. Concr. Constr. 2018, 6, 29–45. [Google Scholar] [CrossRef]
  11. Sukontasukkul, P.; Pongsopha, P.; Chindaprasirt, P.; Songpiriyakij, S. Flexural performance and toughness of hybrid steel and polypropylene fibre reinforced geopolymer. Constr. Build. Mater. 2018, 161, 37–44. [Google Scholar] [CrossRef]
  12. Noushini, A.; Hastings, M.; Castel, A.; Aslani, F. Mechanical and flexural performance of synthetic fibre reinforced geopolymer concrete. Constr. Build. Mater. 2018, 186, 454–475. [Google Scholar] [CrossRef]
  13. Nuaklong, P.; Wongsa, A.; Boonserm, K.; Ngohpok, C.; Jongvivatsakul, P.; Sata, V.; Chindaprasirt, P. Enhancement of mechanical properties of fly ash geopolymer containing fine recycled concrete aggregate with micro carbon fiber. J. Build. Eng. 2021, 41, 102403. [Google Scholar] [CrossRef]
  14. Wongruk, R.; Songpiriyakij, S.; Sukontasukkul, P.; Chindaprasirt, P. Properties of steel fiber reinforced geopolymer. Key Eng. Mater. 2015, 659, 143–148. [Google Scholar] [CrossRef]
  15. Wang, Z.B.; Han, S.; Sun, P.; Liu, W.K.; Wang, Q. Mechanical properties of polyvinyl alcohol-basalt hybrid fiber engineered cementitious composites with impact of elevated temperatures. J. Cent. South Univ. 2021, 28, 1459–1475. [Google Scholar] [CrossRef]
  16. Wongprachum, W.; Sappakittipakorn, M.; Sukontasukkul, P.; Chindaprasirt, P.; Banthia, N. Resistance to sulfate attack and underwater abrasion of fiber reinforced cement mortar. Constr. Build. Mater. 2018, 189, 686–694. [Google Scholar] [CrossRef]
  17. Sukontasukkul, P. Tensile behaviour of hybrid fibre-reinforced concrete. Adv. Cem. Res. 2004, 16, 115–122. [Google Scholar] [CrossRef]
  18. Sukontasukkul, P.; Mindess, S. The shear fracture of concrete under impact loading using end confined beams. Mater. Struct. 2003, 36, 372–378. [Google Scholar] [CrossRef]
  19. Sukontasukkul, P.; Chaisakulkiet, U.; Jamsawang, P.; Horpibulsuk, S.; Jaturapitakkul, C.; Chindaprasirt, P. Case investigation on application of steel fibers in roller compacted concrete pavement in thailand. Case Stud. Constr. Mater. 2019, 11, e00271. [Google Scholar] [CrossRef]
  20. Soroushian, P.; Bayasi, Z. Fiber Type Effects on the Performance of Steel Fiber Reinforced Concrete. Mater. J. 1991, 88, 129–134. [Google Scholar]
  21. Yao, W.; Li, J.; Wu, K. Mechanical properties of hybrid fiber-reinforced concrete at low fiber volume fraction. Cem. Concr. Res. 2003, 33, 27–30. [Google Scholar] [CrossRef]
  22. Sukontasukkul, P.; Jamnam, S.; Sappakittipakorn, M.; Fujikake, K.; Chindaprasirt, P. Residual flexural behavior of fiber reinforced concrete after heating. Mater. Struct. 2018, 51, 98. [Google Scholar] [CrossRef]
  23. Soroushian, P.; Lee, C.D. Distribution and Orientation of Fibers in Steel Fiber Reinforced Concrete. Mater. J. 1990, 87, 433–439. [Google Scholar]
  24. Lee, J.H.; Cho, B.S.; Choi, E.S. Flexural capacity of fiber reinforced concrete with a consideration of concrete strength and fiber content. Constr. Build. Mater. 2017, 138, 222–231. [Google Scholar] [CrossRef]
  25. Song, P.S.; Hwang, S. Mechanical properties of high-strength steel fiber-reinforced concrete. Constr. Build. Mater. 2004, 18, 669–673. [Google Scholar] [CrossRef]
  26. Sukontasukkul, P.; Nontiyutsirikul, N.; Songpiriyakij, S.; Sakai, K.; Chindaprasirt, P. Use of phase change material to improve thermal properties of lightweight geopolymer panel. Mater. Struct. 2016, 49, 4637–4645. [Google Scholar] [CrossRef]
  27. Sukontasukkul, P.; Sutthiphasilp, T.; Chalodhorn, W.; Chindaprasirt, P. Improving thermal properties of exterior plastering mortars with phase change materials with different melting temperatures: Paraffin and polyethylene glycol. Adv. Build. Energy Res. 2019, 13, 220–240. [Google Scholar] [CrossRef]
  28. Sukontasukkul, P.; Intawong, E.; Preemanoch, P.; Chindaprasirt, P. Use of paraffin impregnated lightweight aggregates to improve thermal properties of concrete panels. Mater. Struct. 2016, 49, 1793–1803. [Google Scholar] [CrossRef]
  29. Sukontasukkul, P.; Uthaichotirat, P.; Sangpet, T.; Sisomphon, K.; Newlands, M.; Siripanichgorn, A.; Chindaprasirt, P. Thermal properties of lightweight concrete incorporating high contents of phase change materials. Constr. Build. Mater. 2019, 207, 431–439. [Google Scholar] [CrossRef] [Green Version]
  30. Uthaichotirat, P.; Sukontasukkul, P.; Jitsangiam, P.; Suksiripattanapong, C.; Sata, V.; Chindaprasirt, P. Thermal and sound properties of concrete mixed with high porous aggregates from manufacturing waste impregnated with phase change material. J. Build. Eng. 2020, 29, 101111. [Google Scholar] [CrossRef]
  31. Sukontasukkul, P.; Sangpet, T.; Newlands, M.; Yoo, D.; Tangchirapat, W.; Limkatanyu, S.; Chindaprasirt, P. Thermal storage properties of lightweight concrete incorporating phase change materials with different fusion points in hybrid form for high temperature applications. Heliyon 2020, 6, e04863. [Google Scholar] [CrossRef]
  32. Chaikaew, C.; Sukontasukkul, P.; Chaisakulkiet, U.; Sata, V.; Chindaprasirt, P. Properties of concrete pedestrian blocks containing crumb rubber from recycle waste tyres reinforced with steel fibres. Case Stud. Constr. Mater. 2019, 11, e00304. [Google Scholar] [CrossRef]
  33. Hasanzadeh, M.; Rezaifar, O.; Gholhaki, M.; Kazem Sharbatdar, M. Performance optimization of ground rubberized green concrete with metakaolin. Structures 2021, 34, 433–448. [Google Scholar] [CrossRef]
  34. Maho, B.; Sukontasukkul, P.; Jamnam, S.; Yamaguchi, E.; Fujikake, K.; Banthia, N. Effect of rubber insertion on impact behavior of multilayer steel fiber reinforced concrete bulletproof panel. Constr. Build. Mater. 2019, 216, 476–484. [Google Scholar] [CrossRef]
  35. Pongsopha, P.; Sukontasukkul, P.; Maho, B.; Intarabut, D.; Phoo-Ngernkham, T.; Hanjitsuwan, S.; Limkatanyu, S. Sustainable rubberized concrete mixed with surface treated PCM lightweight aggregates subjected to high temperature cycle. Constr. Build. Mater. 2021, 303, 124535. [Google Scholar] [CrossRef]
  36. Said, A.M.; Zeidan, M.S.; Bassuoni, M.T.; Tian, Y. Properties of concrete incorporating nano-silica. Constr. Build. Mater. 2012, 36, 838–844. [Google Scholar] [CrossRef]
  37. Nuaklong, P.; Boonchoo, N.; Jongvivatsakul, P.; Charinpanitkul, T.; Sukontasukkul, P. Hybrid effect of carbon nanotubes and polypropylene fibers on mechanical properties and fire resistance of cement mortar. Constr. Build. Mater. 2021, 275, 122189. [Google Scholar] [CrossRef]
  38. Tontiwattanakul, K.; Sanguansin, J.; Ratanavaraha, V.; Sata, V.; Limkatanyu, S.; Sukontasukkul, P. Effect of viscoelastic polymer on damping properties of precast concrete panel. Heliyon 2021, 7, e06967. [Google Scholar] [CrossRef] [PubMed]
  39. Li, W.; Huang, Z.; Cao, F.; Sun, Z.; Shah, S.P. Effects of nano-silica and nano-limestone on flowability and mechanical properties of ultra-high-performance concrete matrix. Constr. Build. Mater. 2015, 95, 366–374. [Google Scholar] [CrossRef]
  40. Chindaprasirt, P.; Sukontasukkul, P.; Techaphatthanakon, A.; Kongtun, S.; Ruttanapun, C.; Yoo, D.-Y.; Banthia, N. Effect of graphene oxide on single fiber pullout behavior. Constr. Build. Mater. 2021, 280, 122539. [Google Scholar] [CrossRef]
  41. ASTM C1609/C1609M-19a; Standard Test Method for Flexural Performance of Fiber-Reinforced Concrete (Using Beam with Third-Point Loading). ASTM International: West Conshohocken, PA, USA, 2019.
  42. ASTM C1399/C1399M-10; Standard Test Method for Obtaining Average Residual-Strength of Fiber-Reinforced Concrete. ASTM International: West Conshohocken, PA, USA, 2015.
  43. JSCE AF4; Method of Test for Flexural Strength and Flexural Toughness. JSCE: Tokyo, Japan, 1984.
  44. Yoo, D.Y.; Park, J.J.; Kim, S.W. Fiber pullout behavior of HPFRCC: Effects of matrix strength and fiber type. Compos. Struct. 2017, 174, 263–276. [Google Scholar] [CrossRef]
  45. Yoo, D.Y.; Je, J.H.; Choi, H.J.; Sukontasukkul, P. Influence of embedment length on the pullout behavior of steel fibers from ultra-high-performance concrete. Mater. Lett. 2020, 276, 128233. [Google Scholar] [CrossRef]
  46. Phrompet, C.; Sriwong, C.; Srepusharawoot, P.; Maensiri, S.; Chindaprasirt, P.; Ruttanapun, C. Effect of free oxygen radical anions and free electrons in a Ca12Al14O33 cement structure on its optical, electronic and antibacterial properties. Heliyon 2019, 5, e01808. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Phrompet, C.; Sriwong, C.; Ruttanapun, C. Mechanical, dielectric, thermal and antibacterial properties of reduced graphene oxide (rGO)-nanosized C3AH6 cement nanocomposites for smart cement-based materials. Compos. Part B Eng. 2019, 175, 107128. [Google Scholar] [CrossRef]
  48. ASTM C109/C109M; Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube Specimens). ASTM International: West Conshohocken, PA, USA, 2013.
  49. Xu, G.; Zhong, J.; Shi, X. Influence of graphene oxide in a chemically activated fly ash. Fuel 2018, 226, 644–657. [Google Scholar] [CrossRef]
  50. Ranjbar, N.; Mehrali, M.; Mehrali, M.; Alengaram, U.J.; Jumaat, M.Z. Graphene nanoplatelet-fly ash based geopolymer composites. Cem. Concr. Res. 2015, 76, 222–231. [Google Scholar] [CrossRef]
  51. Saafi, M.; Tang, L.; Fung, J.; Rahman, M.; Liggat, J. Enhanced properties of graphene/fly ash geopolymeric composite cement. Cem. Concr. Res. 2015, 67, 292–299. [Google Scholar] [CrossRef] [Green Version]
  52. Liu, X.; Wu, Y.; Li, M.; Jiang, J.; Guo, L.; Wang, W.; Duan, P. Effects of graphene oxide on microstructure and mechanical properties of graphene oxide-geopolymer composites. Constr. Build. Mater. 2020, 247, 118544. [Google Scholar] [CrossRef]
  53. Jittabut, P.; Horpibulsuk, S. Physical and microstructure properties of geopolymer nanocomposite reinforced with carbon nanotubes. Mater. Today Proc. 2019, 17, 1682–1692. [Google Scholar] [CrossRef]
  54. Katz, A.; Li, V.C. Inclination angle effect of carbon fibers in cementitious composites. J. Eng. Mech. 1995, 121, 1340–1348. [Google Scholar] [CrossRef] [Green Version]
  55. Zhang, J.; Li, V.C. Effect of inclination angle on fiber rupture load in fiber reinforced cementitious composites. Compos. Sci. Technol. 2002, 62, 775–781. [Google Scholar] [CrossRef]
  56. Choi, J.I.; Lee, B.Y. Bonding properties of basalt fiber and strength reduction according to fiber orientation. Materials 2015, 8, 6719–6727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Bentur, A.; Mindess, S.; Banthia, N. The behaviour of concrete under impact loading: Experimental procedures and method of analysis. Mater. Struct. 1986, 19, 371–378. [Google Scholar] [CrossRef]
  58. Sukontasukkul, P.; Nimityongskul, P.; Mindess, S. Effect of loading rate on damage of concrete. Cem. Concr. Res. 2004, 34, 2127–2134. [Google Scholar] [CrossRef]
  59. Bindiganavile, V.; Banthia, N. Polymer and steel fiber-reinforced cementitious composites under impact loading—Part 2: Flexural toughness. Mater. J. 2001, 98, 17–24. [Google Scholar]
  60. Sukontasukkul, P.; Mindess, S.; Banthia, N. Properties of confined fibre-reinforced concrete under uniaxial compressive impact. Cem. Concr. Res. 2005, 35, 11–18. [Google Scholar] [CrossRef]
  61. Lee, S.-Y.; Oh, T.; Chun, B.; Chu, S.-H.; Sukontasukkul, P.; Yoo, D.-Y. Surface refinement of steel fiber using nanosilica and silver and its effect on static and dynamic pullout resistance of reactive powder concrete. J. Build. Eng. 2022, 51, 104269. [Google Scholar] [CrossRef]
  62. Sukontasukkul, P.; Lam, F.; Mindess, S. Fracture of parallel strand lumber (PSL) under impact loading. Mater. Struct. 2000, 33, 445–449. [Google Scholar] [CrossRef]
  63. Limkatanyu, S.; Sae-Long, W.; Mohammad-Sedighi, H.; Rungamornrat, J.; Sukontasukkul, P.; Prachasaree, W.; Imjai, T. Strain-Gradient Bar-Elastic Substrate Model with Surface-Energy Effect: Virtual-Force Approach. Nanomaterials 2022, 12, 375. [Google Scholar] [CrossRef]
  64. Sukontasukkul, P.; Mindess, S.; Banthia, N.; Mikami, T. Impact resistance of laterally confined fibre reinforced concrete plates. Mater. Struct. 2001, 34, 612–618. [Google Scholar] [CrossRef]
  65. Babafemi, A.J.; Boshoff, W.P. Pull-out response of macro synthetic fibre from concrete matrix: Effect of loading rate and embedment length. Constr. Build. Mater. 2017, 135, 590–599. [Google Scholar] [CrossRef]
  66. Bindiganavile, V.; Banthia, N. Polymer and steel fiber-reinforced cementitious composites under impact loading—Part 1: Bond-slip response. Mater. J. 2001, 98, 10–16. [Google Scholar]
  67. Kim, D.J.; El-Tawil, S.; Naaman, A.E. Loading rate effect on pullout behavior of deformed steel fibers. ACI Mater. J. 2008, 105, 576–584. [Google Scholar]
Nanomaterials 12 00943 g001 550

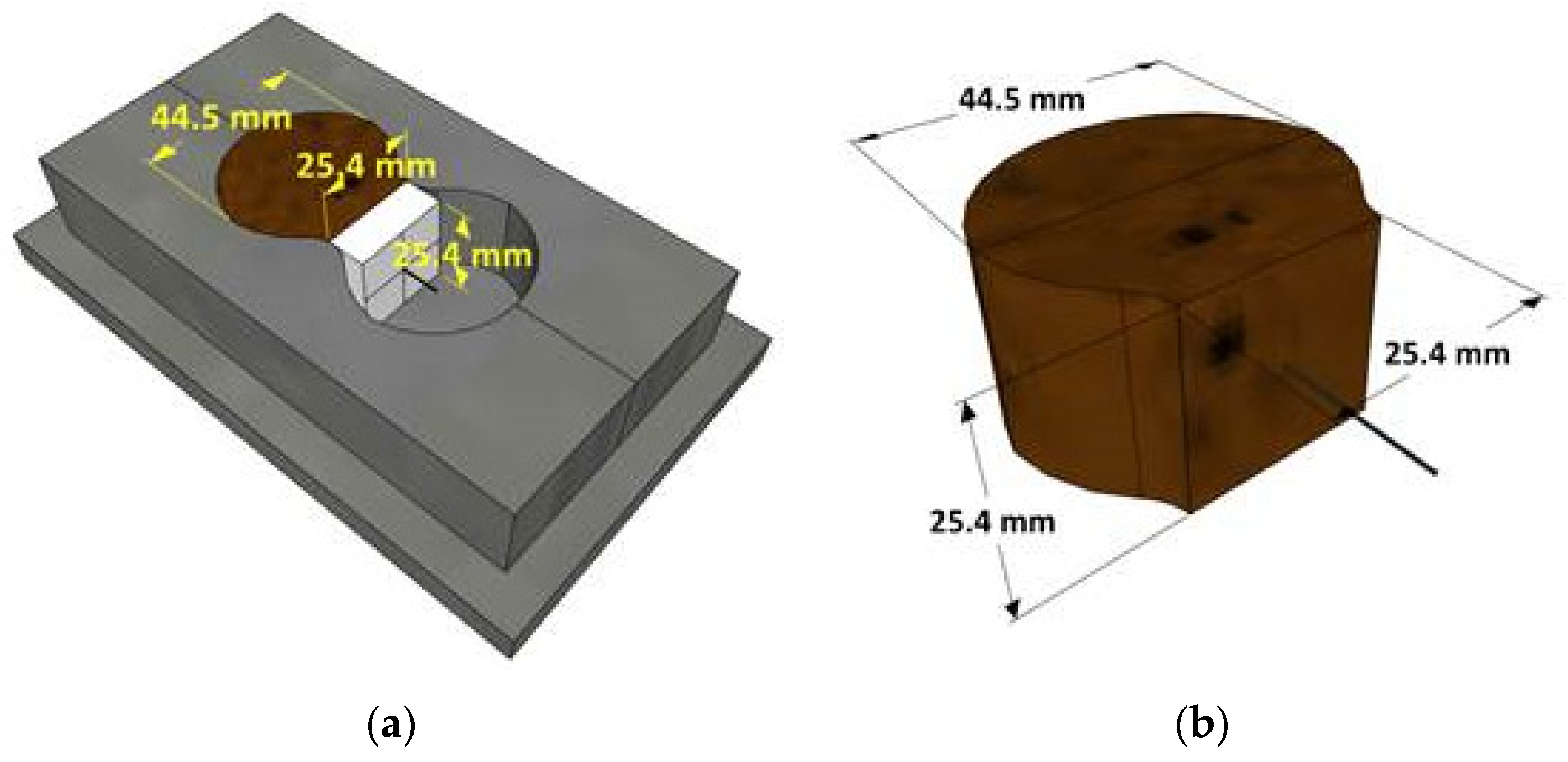

Figure 1. Specimen preparation (a) mold setup and (b) specimen after being demolded.
Figure 1. Specimen preparation (a) mold setup and (b) specimen after being demolded.
Nanomaterials 12 00943 g001
Nanomaterials 12 00943 g002 550

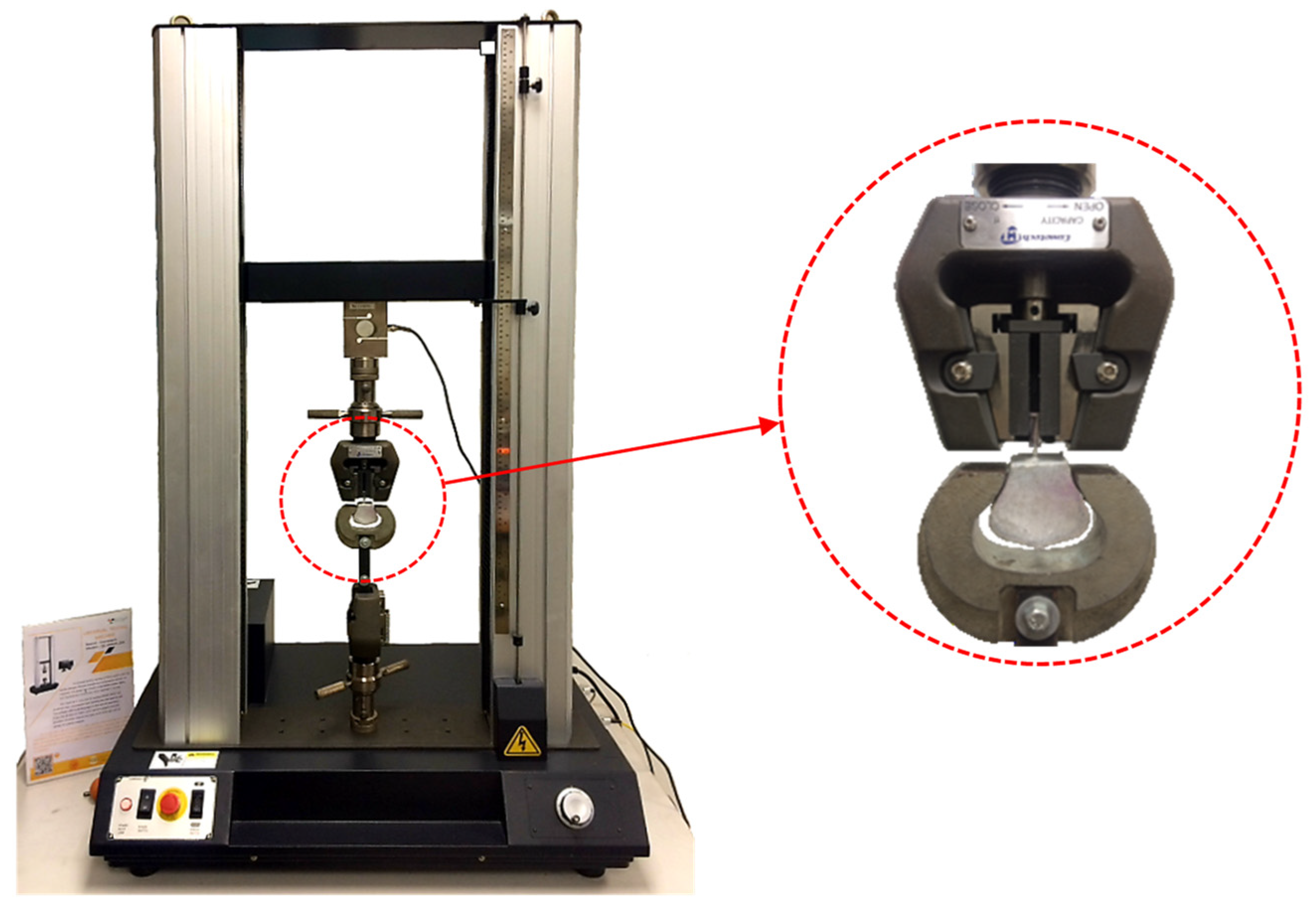

Figure 2. Single fiber pullout test setup.
Figure 2. Single fiber pullout test setup.
Nanomaterials 12 00943 g002
Nanomaterials 12 00943 g003 550

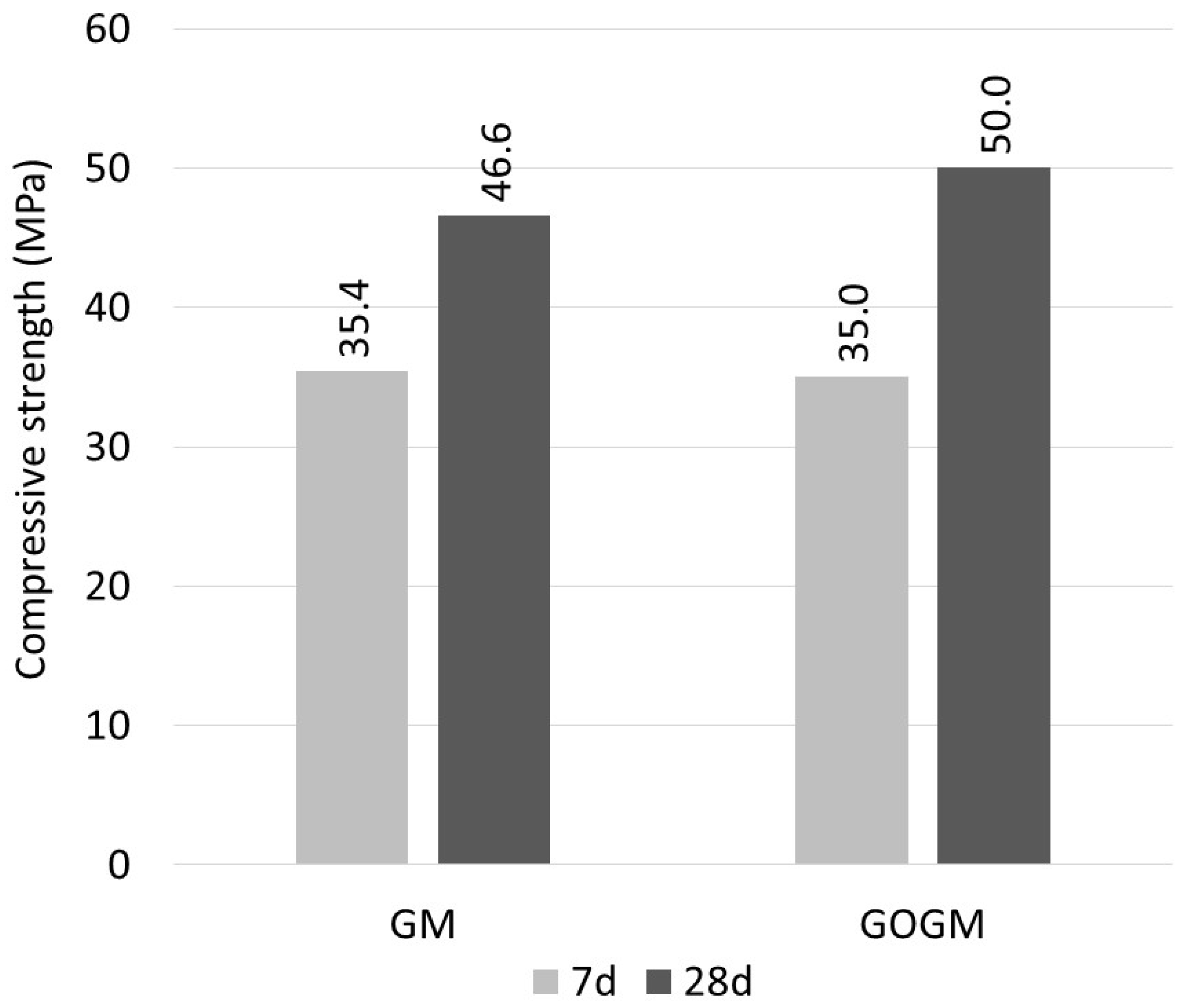

Figure 3. Compressive strength of geopolymer mortar.
Figure 3. Compressive strength of geopolymer mortar.
Nanomaterials 12 00943 g003
Nanomaterials 12 00943 g004a 550Nanomaterials 12 00943 g004b 550

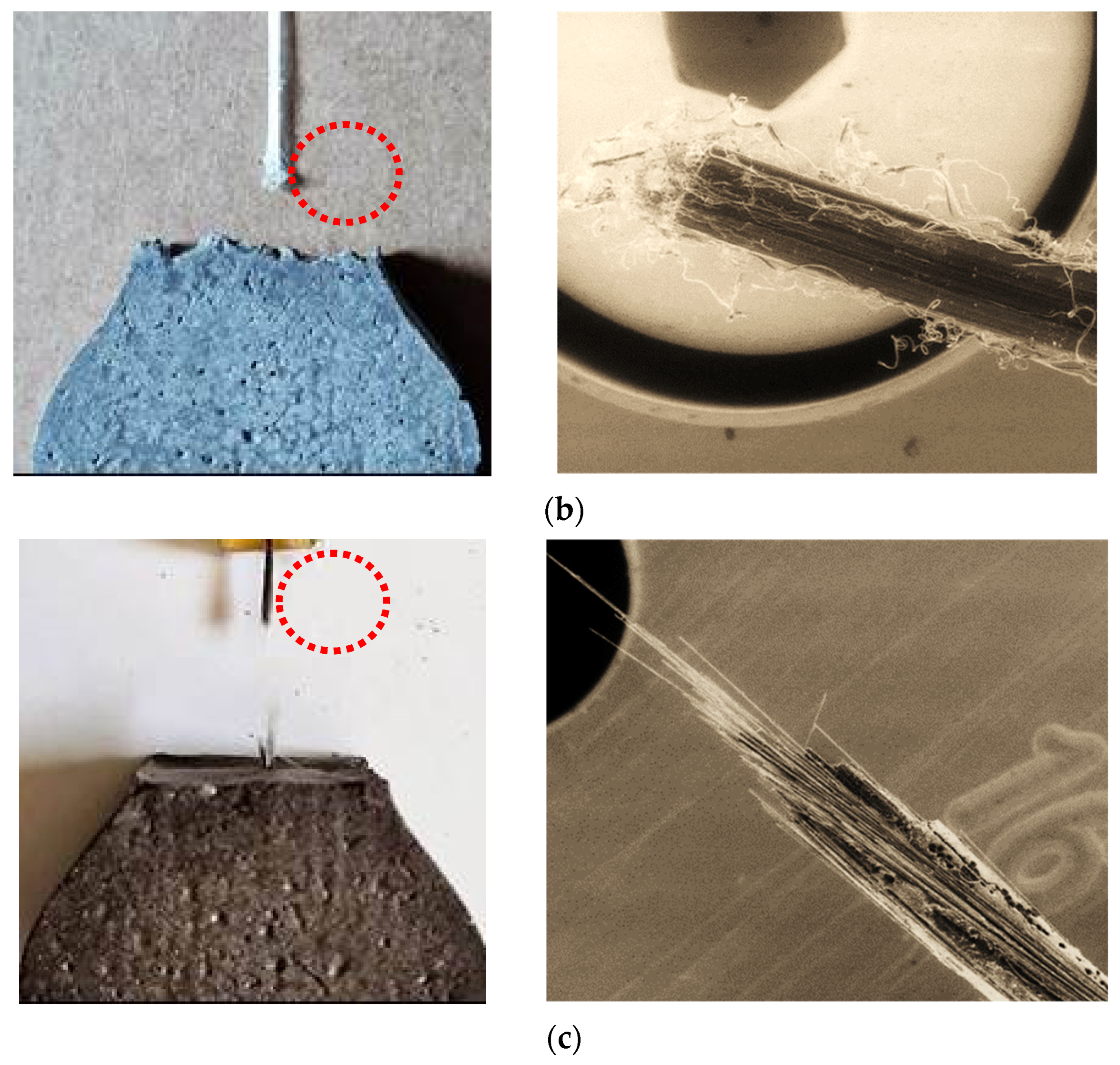

Figure 4. SEM images of fiber after being pulled out: (a) SF, (b) PF, and (c) BF.
Figure 4. SEM images of fiber after being pulled out: (a) SF, (b) PF, and (c) BF.
Nanomaterials 12 00943 g004aNanomaterials 12 00943 g004b
Nanomaterials 12 00943 g005 550

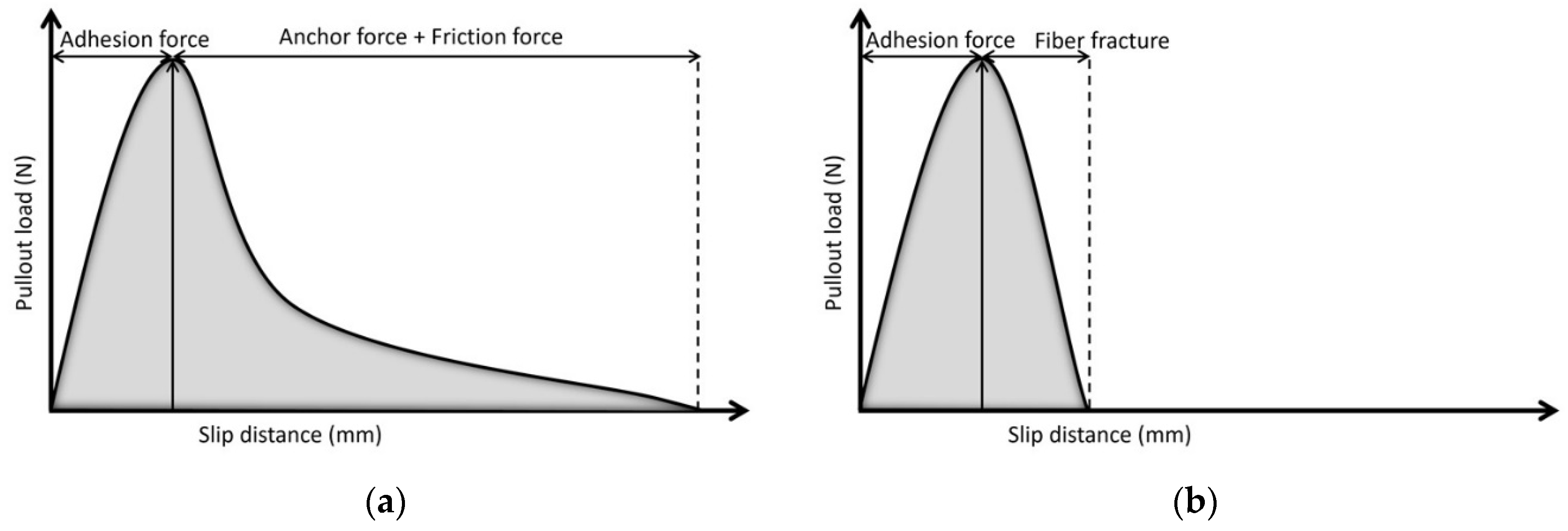

Figure 5. Typical bond-slip response of: (a) fiber pullout and (b) fiber fracture.
Figure 5. Typical bond-slip response of: (a) fiber pullout and (b) fiber fracture.
Nanomaterials 12 00943 g005
Nanomaterials 12 00943 g006 550

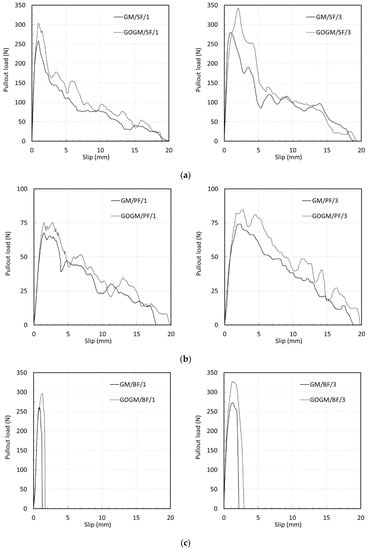

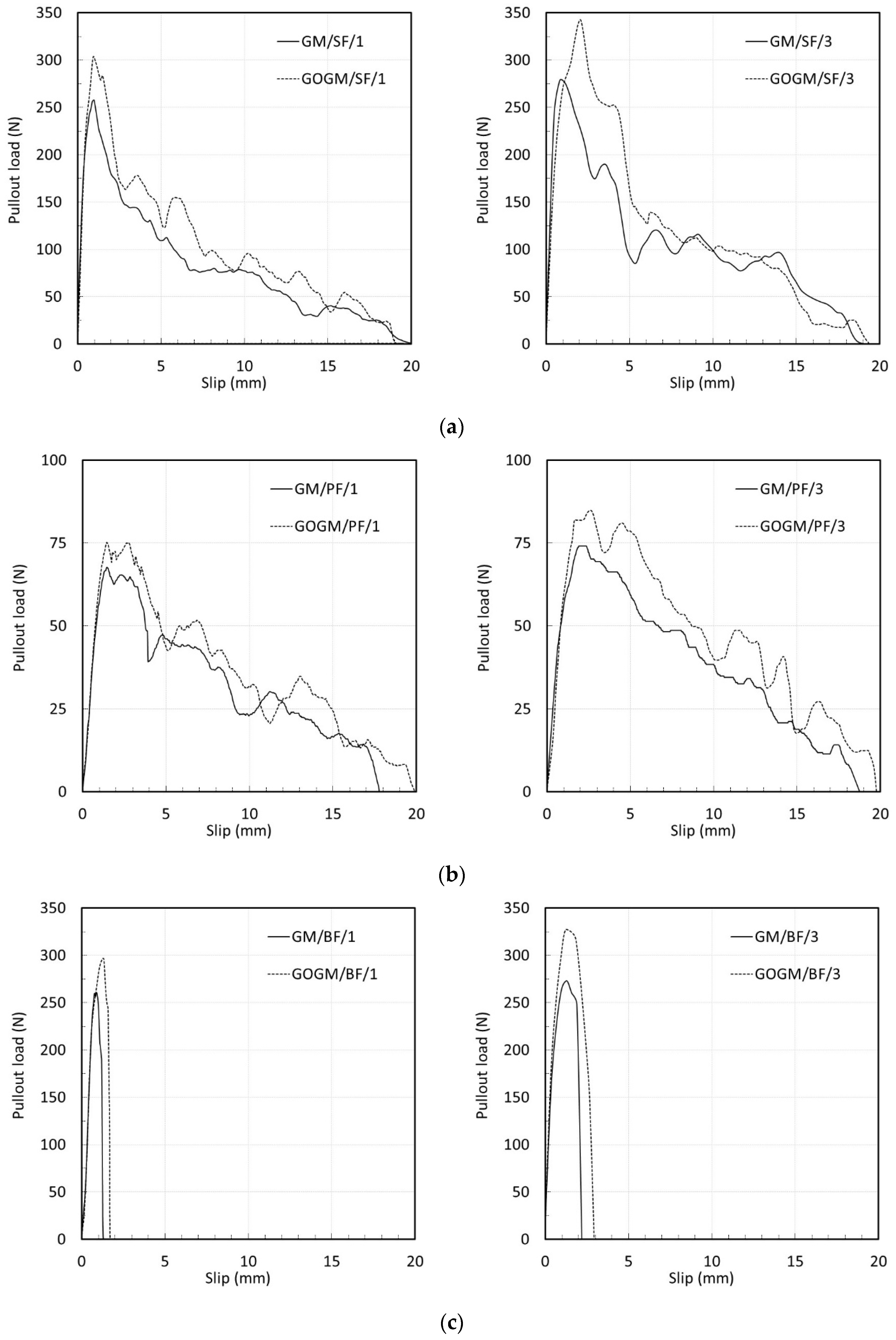

Figure 6. Effect of graphene oxide on bond-slip responses of: (a) SF, (b) PF, and (c) BF.
Figure 6. Effect of graphene oxide on bond-slip responses of: (a) SF, (b) PF, and (c) BF.
Nanomaterials 12 00943 g006
Nanomaterials 12 00943 g007a 550Nanomaterials 12 00943 g007b 550

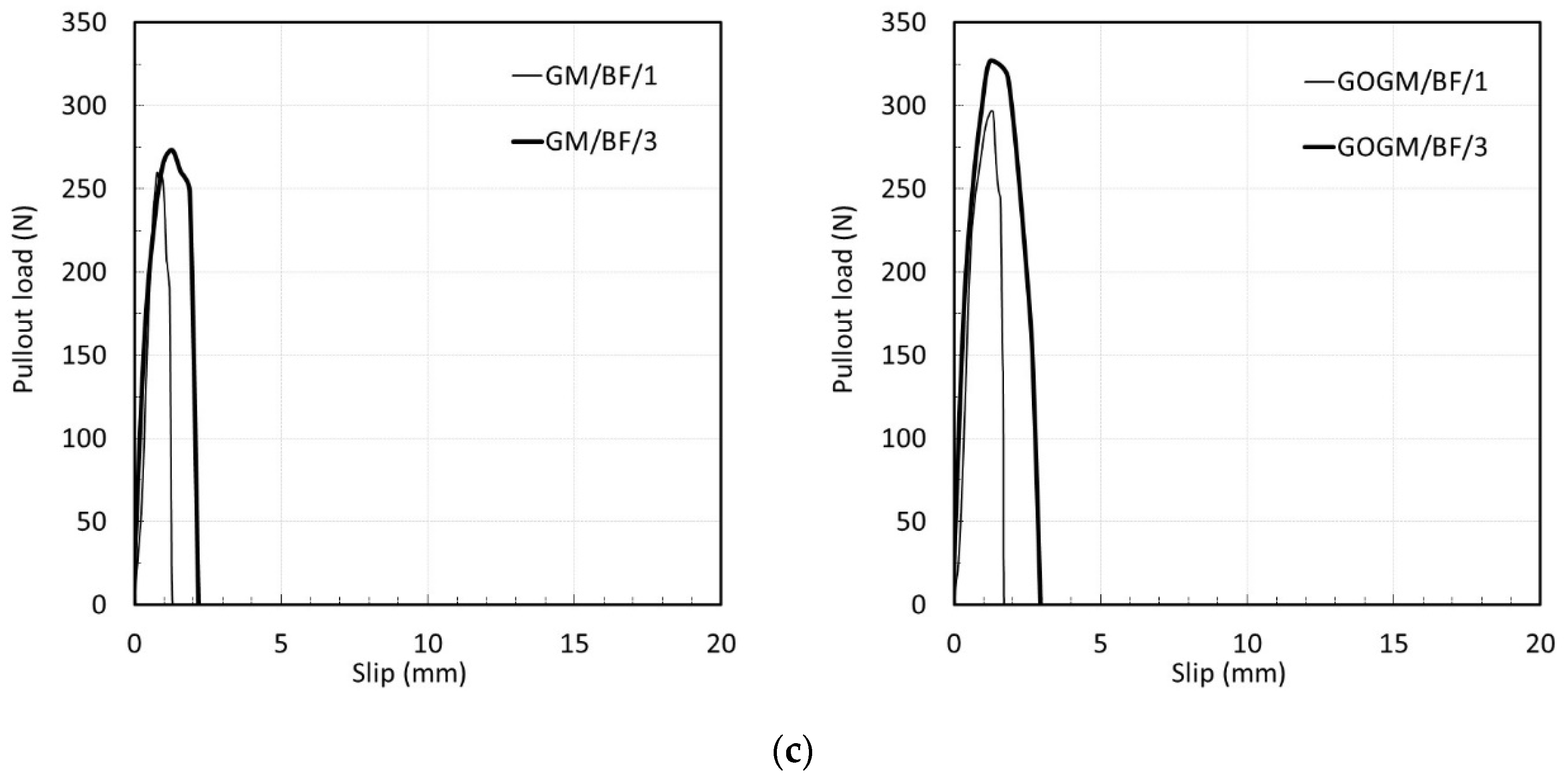

Figure 7. Effect of loading rate on bond-slip responses of: (a) SF, (b) PF, and (c) BF.
Figure 7. Effect of loading rate on bond-slip responses of: (a) SF, (b) PF, and (c) BF.
Nanomaterials 12 00943 g007aNanomaterials 12 00943 g007b
Nanomaterials 12 00943 g008 550

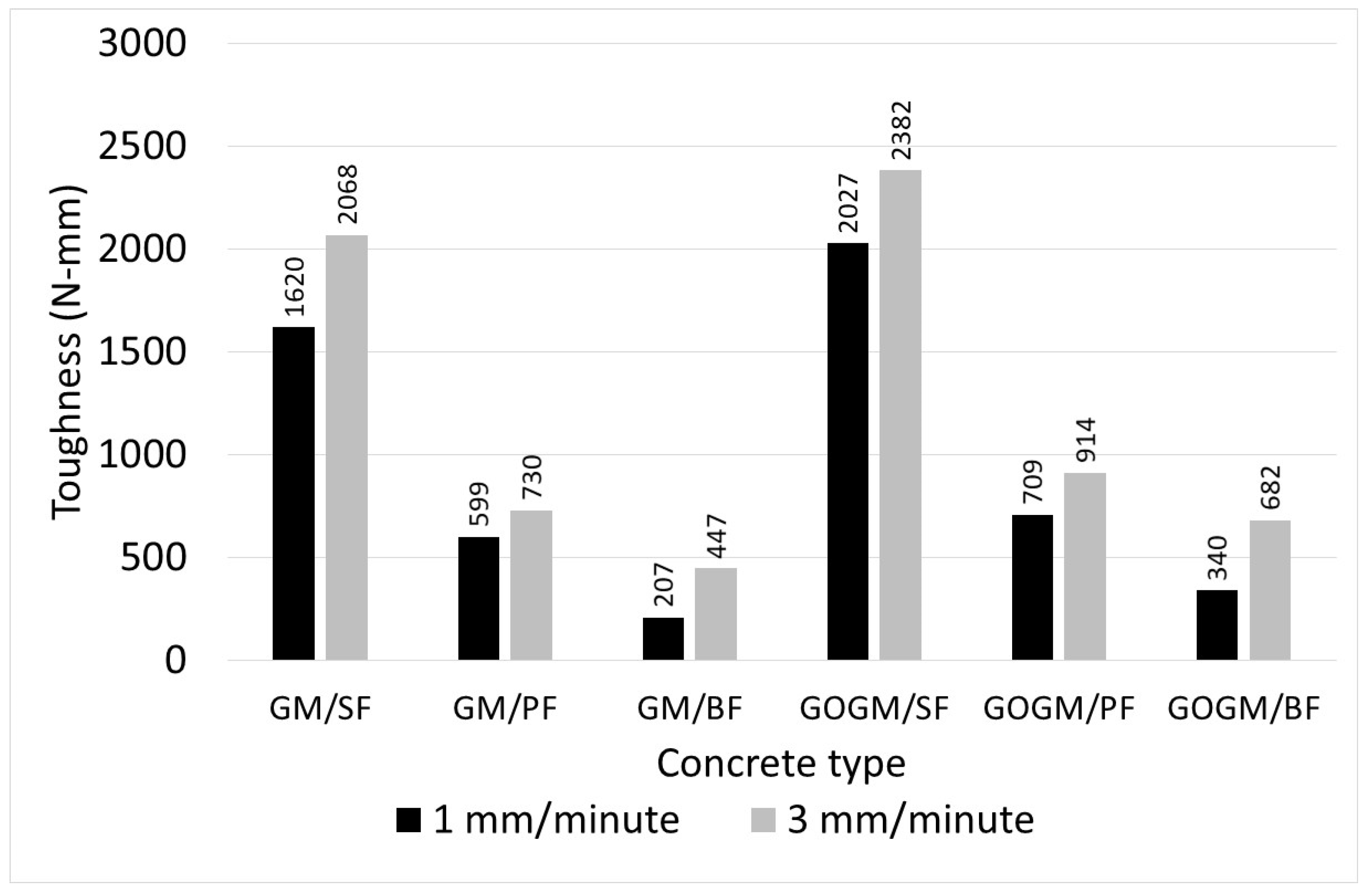

Figure 8. Pullout energy or toughness.
Figure 8. Pullout energy or toughness.
Nanomaterials 12 00943 g008
Nanomaterials 12 00943 g009 550
Figure 9. Percentage difference in peak load due to increasing loading rate comparing between GM and GOGM.
Figure 9. Percentage difference in peak load due to increasing loading rate comparing between GM and GOGM.
Nanomaterials 12 00943 g009
Table
Table 1. Chemical compositions of fly ash.
Table 1. Chemical compositions of fly ash.
MaterialsSiO2Al2O3Fe2O3CaOMgONa2OK2OSO3LOI
FA (%)31.8515.8914.0726.763.661.951.952.450.17
Table
Table 2. Properties of graphene oxide solution.
Table 2. Properties of graphene oxide solution.
Graphene Oxide Solution (GO)
AppearanceBrown/Black
SolventDispersion
Concentration (mg/mL)10
Table
Table 3. Properties of fibers.
Table 3. Properties of fibers.
CategorySFPFBF
ShapeHooked endCrimpedTwisted bundle
Length (mm)355543
Diameter (mm)0.550.850.72
Tensile strength (MPa)1345365900
Nanomaterials 12 00943 i001 Nanomaterials 12 00943 i002 Nanomaterials 12 00943 i003
Table
Table 4. Mix proportion and compressive strength.
Table 4. Mix proportion and compressive strength.
No.SymbolsFA
(kg/m3)		RS
(kg/m3)		SS
(kg/m3)		SH
(kg/m3)		GO
(%w/w of FA)
1GM87910991761760
2GOGM87910991761760.05%
Table
Table 5. Casting schedule.
Table 5. Casting schedule.
SymbolTypeFiberNumber of Specimen per Loading Rate
1 mm/s3 mm/s
GM/SFGeopolymer mortar
(GM)		Steel33
GM/PFPolypropylene33
GM/BFBasalt33
GOGM/SFGeopolymer mortar with graphene oxide
(GOGM)		Steel33
GOGM/PFPolypropylene33
GOGM/BFBasalt33
Table
Table 6. Elemental analysis with EDS.
Table 6. Elemental analysis with EDS.
ElementWeight (%)Atomic (%)
GMGOGMGMGOGM
C1.192.181.973.66
O53.4451.0366.6164.07
Na12.0013.1410.4111.54
Mg1.041.020.890.83
Al5.736.594.244.88
Si13.5114.729.609.41
S2.021.591.261.00
Ca11.1012.765.576.48
Fe3.513.231.331.19
Table
Table 7. Peak load and strength of fiber subjected 1 mm/s loading rate.
Table 7. Peak load and strength of fiber subjected 1 mm/s loading rate.
Specimen TypePeak Load (N)Slip at Peak Load (mm)Tensile Strength (MPa)Avg. Bond Strength (MPa)S.D. (MPa)
GM/SF/12581.0010857.460.07
GM/PF/1681.471191.270.04
GM/BF/12610.886415.770.08
GOGM/SF/13030.9412768.770.13
GOGM/PF/1751.461321.410.03
GOGM/BF/12971.307296.560.10
Table
Table 8. Peak load and strength of fiber subjected 3 mm/s loading rate.
Table 8. Peak load and strength of fiber subjected 3 mm/s loading rate.
Specimen TypePeak Load (N)Slip at Peak Load (mm)Tensile Strength (MPa)Avg. Bond Strength (MPa)S.D. (MPa)
GM/SF/32780.8311718.050.09
GM/PF/3741.921311.390.04
GM/BF/32731.286716.040.08
GOGM/SF/33422.0614419.910.09
GOGM/PF/3852.551491.590.09
GOGM/BF/33271.238037.230.11
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Intarabut, D.; Sukontasukkul, P.; Phoo-ngernkham, T.; Zhang, H.; Yoo, D.-Y.; Limkatanyu, S.; Chindaprasirt, P. Influence of Graphene Oxide Nanoparticles on Bond-Slip Reponses between Fiber and Geopolymer Mortar. Nanomaterials 2022, 12, 943. https://doi.org/10.3390/nano12060943

AMA Style

Intarabut D, Sukontasukkul P, Phoo-ngernkham T, Zhang H, Yoo D-Y, Limkatanyu S, Chindaprasirt P. Influence of Graphene Oxide Nanoparticles on Bond-Slip Reponses between Fiber and Geopolymer Mortar. Nanomaterials. 2022; 12(6):943. https://doi.org/10.3390/nano12060943

Chicago/Turabian Style

Intarabut, Darrakorn, Piti Sukontasukkul, Tanakorn Phoo-ngernkham, Hexin Zhang, Doo-Yeol Yoo, Suchart Limkatanyu, and Prinya Chindaprasirt. 2022. "Influence of Graphene Oxide Nanoparticles on Bond-Slip Reponses between Fiber and Geopolymer Mortar" Nanomaterials 12, no. 6: 943. https://doi.org/10.3390/nano12060943

APA Style

Intarabut, D., Sukontasukkul, P., Phoo-ngernkham, T., Zhang, H., Yoo, D.-Y., Limkatanyu, S., & Chindaprasirt, P. (2022). Influence of Graphene Oxide Nanoparticles on Bond-Slip Reponses between Fiber and Geopolymer Mortar. Nanomaterials, 12(6), 943. https://doi.org/10.3390/nano12060943

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
