Article

Antibacterial Activity of Silver and Gold Particles Formed on Titania Thin Films

by
Mantas Sriubas
1,
Kristina Bockute
1,*,
Paulius Palevicius
2,
Marius Kaminskas
1,
Zilvinas Rinkevicius
3,
Minvydas Ragulskis
2,
Sandrita Simonyte
4,5,
Modestas Ruzauskas
4,6 and
Giedrius Laukaitis
1
1
Physics Department, Kaunas University of Technology, Studentu Str. 50, LT-51368 Kaunas, Lithuania
2
Department of Mathematical Modeling, Kaunas University of Technology, Studentu Str. 50, LT-51368 Kaunas, Lithuania
3
Division of Theoretical Chemistry & Biology, KTH Royal Institute of Technology, School of Biotechnology, 109 61 Stockholm, Sweden
4
Institute of Microbiology and Virology, Faculty of Veterinary Medicine, Veterinary Academy, Lithuanian University of Health Sciences, Tilzes Str. 18, LT-47181 Kaunas, Lithuania
5
Institute of Cardiology, Medical Academy, Lithuanian University of Health Sciences, Sukileliu Ave. 15, LT-50162 Kaunas, Lithuania
6
Department of Anatomy and Physiology, Lithuanian University of Health Sciences, Tilzes Str. 18, LT-47181 Kaunas, Lithuania
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(7), 1190; https://doi.org/10.3390/nano12071190
Submission received: 9 March 2022 / Revised: 29 March 2022 / Accepted: 31 March 2022 / Published: 2 April 2022
(This article belongs to the Topic Synthesis and Applications of Nanostructured Metals and Metal Oxides)
Browse Figures
Versions Notes

Abstract

:
Metal-based nanoparticles with antimicrobial activity are gaining a lot of attention in recent years due to the increased antibiotics resistance. The development and the pathogenesis of oral diseases are usually associated with the formation of bacteria biofilms on the surfaces; therefore, it is crucial to investigate the materials and their properties that would reduce bacterial attachment and biofilm formation. This work provides a systematic investigation of the physical-chemical properties and the antibacterial activity of TiO2 thin films decorated by Ag and Au nanoparticles (NP) against Veillonella parvula and Neisseria sicca species associated with oral diseases. TiO2 thin films were formed using reactive magnetron sputtering by obtaining as-deposited amorphous and crystalline TiO2 thin films after annealing. Au and Ag NP were formed using a two-step process: magnetron sputtering of thin metal films and solid-state dewetting. The surface properties and crystallographic nature of TiO2/NP structures were investigated by SEM, XPS, XRD, and optical microscopy. It was found that the higher thickness of Au and Ag thin films results in the formation of the enlarged NPs and increased distance between them, influencing the antibacterial activity of the formed structures. TiO2 surface with AgNP exhibited higher antibacterial efficiency than Au nanostructured titania surfaces and effectively reduced the concentration of the bacteria. The process of the observation and identification of the presence of bacteria using the deep learning technique was realized.

1. Introduction

A majority of bacteria live in communities that are associated with surfaces, and this property is considered as the most essential of bacteria attachment and colonization in different environments [1]. An organized bacterial community attached to the surface exists in biofilms, which by different bacterial species are associated with many human illnesses and infections, such as oral diseases [2]. Bacteria have a self-produced extracellular matrix that is detected in almost all biofilms [3,4]. The majority of cariogenic oral biofilm matrixes contain exopolysaccharides (EPS) as the main components, and they are considered as virulence factors in the development and pathogenesis of oral diseases, such as caries, gingivitis, and periodontitis [5]. EPS provides protection from mechanical damage and shear caused by fluid flow but also protects bacteria from the host immune system and antimicrobial agents [1,6].
Oral diseases related to cariogenic oral biofilms, such as dental caries, affect people of all ages worldwide [5]. Human dental plaque is a well-recognized example of a natural biofilm that plays an important role in the pathogenesis of oral diseases. Studies have shown that oral bacteria that are involved in the development of the periodontal disease can move into the bloodstream and increase the risk of cardiovascular disease [7,8]. It is known that oral biofilms often exhibit resistance to antimicrobial treatment and host immune responses, thus becoming persistent colonizers or sources of chronic infections [1,9]. The Veillonella species, along with the Neisseria species, were found to be consistently resistant to tetracycline, penicillin, and ampicillin. The genus Veillonella and Neisseria consist of small, non-spore-forming, Gram-negative diplococci [10]. As strictly anaerobic Veillonella is a regular component of supragingival dental plaque and normal microbiota of the tongue, while obligate aerobe Neisseria colonizes human mucosal epithelia; however, at different sites in the body. The species of Veillonella and Neisseria genera have cellular-surface molecules, including membrane proteins such as pili, capsule, and lipooligosaccharide involved in the formation of biofilm [9]. It is known that Neisseria motility is enabled by pili which also mediates an attachment to host cells, colonization, and biofilm formation [11].
Bacterial cell surface properties and physical-chemical properties of the surface such as topography, roughness, and surface charge are essential for bacteria attachment and biofilm formation [12]. Previous research has established the influence of the different surface topography and roughness on microbial adhesion and bacteria attachment inhibition by reducing the contact area between bacteria cells and the surface [13,14,15,16,17]. It has been observed that the surface roughness can increase the surface area and therefore decrease bacteria attachment and colonization at a micrometer scale [18,19,20], and the increased surface roughness can decrease the number of adhesion points and reduce attachment area between the cells and the material at a nanometer scale [15,16,17].
Titanium (Ti) and its alloys are the most commonly used materials for orthopedic and dental implants due to their good mechanical properties, corrosion resistance, and biocompatibility [21]. Additionally, titanium dioxide is a well-known nontoxic photocatalytic material that can perform as an antimicrobial agent due to the photocatalytic processes occurring on the surface of TiO2 when irradiated with UV light [22,23]. However, biofilm formation remains a critical factor for implant-associated infections which are the leading cause of implant failure [24,25]. Implants coated with antimicrobial agents such as antibiotics prevent bacteria attachment and biofilm formation, but this approach is usually effective in short-term applications as prolonged use may cause drug resistance [26,27]. As an alternative, nanoparticles, such as silver (Ag), gold (Au), and copper (Cu) have been demonstrated to have a broad-spectrum bactericidal or bacteriostatic activity at low concentrations without producing resistant bacteria [28,29,30]. Studies have shown that Ti and TiO2 surface modifications and thin films with metal nanoparticles have a similar effect as antibiotics on bacterial adhesion, colonization, and biofilm formation [12,20,31,32,33]. Although the use of nanomaterials decreased with the prevalence of antibiotics, compared to organic agents they have chemical stability and thermal resistance thus used to create unique surfaces with altered physical and chemical characteristics [34,35]. A number of different antibacterial mechanisms of action for nanoparticles as an antibacterial agent are described [36,37,38]. For example, it has been observed that AgNPs inhibit DNA replication, damage the cell membrane, and inactivate proteins. They also affect the purine metabolite pathway, make penetration through cell membrane easier, cooperate with intracellular materials, and allow cell destruction. While AuNPs are not limited to reactive oxygen species (ROS) activity. They can target the energy metabolism, transcription process of bacteria, and cross the bacterial surface to form an abnormal subcellular spherical cytoplasmic structure called an inclusion body of gold nanoparticles (IB-AuNPs), leading to disruption of the bacterial cell membrane and the death of bacteria [39,40]. However, the key antimicrobial efficiency points are related to adhesion to the cell membrane, intracellular penetration, generation of reactive oxygen species (ROS), and toxic effects on intracellular processes [41]. Therefore, the additional incorporation of an inorganic antimicrobial agent of Ti surface that would allow having various molecular mechanisms of antimicrobial activity could be used as an effective approach for preventing biofilm formation and biomaterial-associated infections, but also to fight the growing number of multi-resistant bacteria. However, not all studies found antimicrobial efficiency of nanomaterials in comparison to untreated titanium, thus there is still a need for further studies to design better antibacterial biomaterials.
E-beam lithography [42], nanoimprint lithography [43], and chemical synthesis [44] are extensively used for the fabrication of metal nanostructures. However, these methods are time-consuming, expensive, and have a low fabrication yield [4]. One of the simplest and fastest methods for the formation of nanoparticles (NP) is a solid-state dewetting of thin metallic films. The as-deposited films are metastable or unstable and transform into smaller structures such as islands, droplets, or particles following the surface energy minimization at high enough temperatures below the melting temperature [45]. Pre-existing defects, such as holes, grain boundaries, and thin film edges, are common in thin films and act as the initiation sites for the dewetting process. The process is composed of several steps including edge retraction, pinch-off, fingering, and Rayleigh instability [46]. Thin films start to form a rim at the grain boundaries or edge of the film when they are heated, then the mass diffuses from the triple point, creating a hole and the rim on the film surface (edge retraction). The holes expand and a thickened surface at the edge of the hole develops. Simultaneously, the valley behind the rim forms. As the rim gets thicker, the edge retraction slows down. The rising rim becomes unstable and decomposes resulting in the appearance of two outcomes called pinch-off and fingering instability. The valley behind the rim reaches the surface of the substrate and wire-shaped structure forms, during the pinch-off. Meanwhile, in the fingering process, the rim starts to form finger-like structures of the film. The last part of this evolution is Rayleigh instability which causes the fingers or wire-like structure to decompose into nanoparticles. The properties of NP strongly depend on the annealing temperature, annealing time, the thickness of metallic films, and environment [47]. The modification of NP properties could significantly increase the bactericidal effect similar to topographical features, thus can be used to induce bacterial cell lysis [34,35,48,49]. Therefore, Ti or TiO2 thin films with nanostructures could be a good alternative to antibiotics and a new tool to fight a growing issue of antibiotic-resistant bacteria [25,30,50,51,52,53].
Given the importance of biofilm formation in the development and pathogenesis of oral diseases, it is topical to better understand and improve the antimicrobial and anti-biofilm properties of the TiO2 thin films decorated with metal nanoparticles. Thus, there is a need for further studies to design better antibacterial biomaterials for long-term applications.
In this study, the deep learning technique for the observation and identification of the presence of bacteria on the surfaces of TiO2 coated with nanosilver (Ag) and nanogold (Au) was proposed. This technique enables one to obtain the precise identification and localization of bacteria despite their different sizes, densities, and quality of optical microscope images. The objective of this study is to demonstrate the possibilities of the proposed deep learning technique and to characterize the formed nanoparticles by assessing their antibacterial activity against Veillonella parvula (V. parvula) and Neisseria sicca (N. sicca) species. The species were selected according to their possibility to cause dental infections with endocarditis, septicemia, and other severe complications [10,54] as well as because of different respiratory mechanisms (aerobic and anaerobic) which may have unequal resistance properties to nanoparticles. The antibacterial activity of AgNP-coated TiO2 showed its potential of reducing the concentration of the bacteria. Such surfaces could be a promising approach for the development of alternative measures used as antimicrobial agents on the surface of implants ensuring a higher and prolonged success rate after implantation procedures.

2. Materials and Methods

2.1. Formation and Investigation of NP/TiO2 Composites

The reactive dual magnetron sputtering method (PVD75 sputtering system, Kurt J. Lesker Company, Pittsburg, PA, USA) and a thermal annealing process (SNOL7/1300LV furnace, Umega, Utena, Lithuania) were used for the preparation of amorphous (Ti20) and crystalline (Ti500) TiO2 thin films (Figure 1). The sputtering process was conducted under high vacuum conditions (6.6 × 10−1 Pa) in Ar/O2 environment. The ratio of the Ar/O2 gas mixture was maintained at 8/2. A growth rate of 0.027 nm/s was achieved using two high purity (99.995% purity) Ti targets of 2″ diameter (Kurt J. Lesker Company, Pittsburg, PA, USA) and a constant DC power of 250 W. TiO2 thin films (~100 nm) were deposited on rotating (8 RPM) SiO2 substrates at room temperature. Obtained thin films were amorphous (Ti20). In order to obtain a crystalline structure (Ti500) and different surface morphology, thin films were annealed at 500 °C temperature in air. The annealing process was composed of heating, temperature holding (soaking), and cooling. Heating and cooling rates were 4 and 2.5 °C/min, respectively, while the soaking time was 10 h. AuNP and AgNP were formed on TiO2 thin films of two different types of structures, one of them being amorphous (Ti20) and another one, crystalline (Ti500).

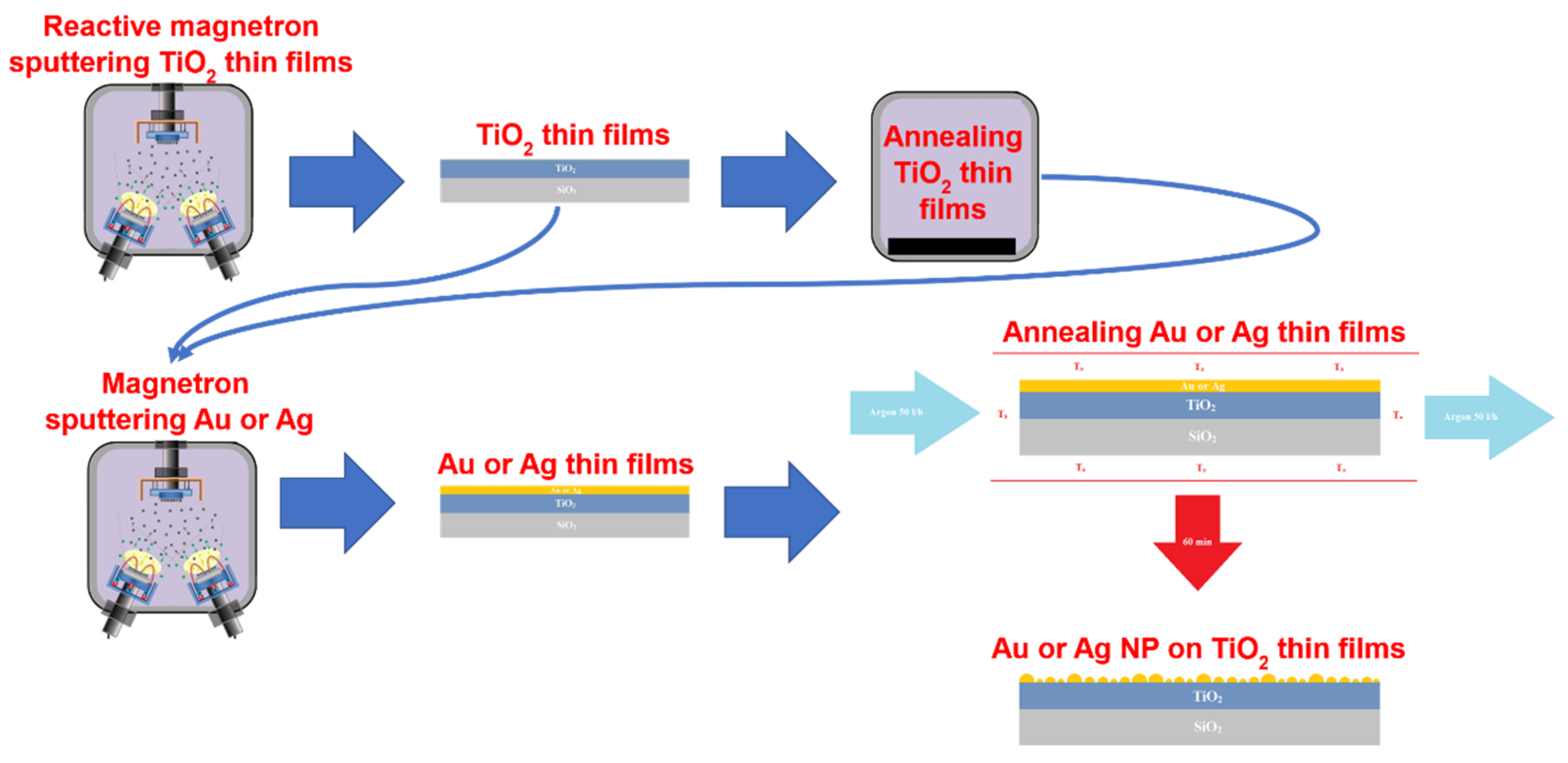

The formation of NP was a two-step process (Figure 1). In the first step, thin Au or Ag film was deposited on the surface of TiO2 thin films using 8 RPM rotation speed. The deposition was conducted using the magnetron sputtering technique. Au and Ag were sputtered under high vacuum conditions (2.0 × 10−1 Pa) in an Ar gas environment. High-purity (99.995% purity) Au and Ag targets (Kurt J. Lesker Company, Pittsburg, PA, USA) of 2″ diameter were used for the deposition process. The deposition rates of Au and Ag were 0.161 and 0.133 nm/s, respectively, using constant RF power of 50 W. The thicknesses of the nanocrystalline Au and Ag thin films were determined using 5, 7.5, and 10 nm. In the second step which resulted in the formation of the Au and Ag NPs, Au and Ag thin films were annealed at 500 and 400 °C, respectively, in an Ar atmosphere (50 L/h flow rate) for 60 min.
An X-ray diffractometer (XRD) Brucker D8 Discover (Bruker, Billerica, MA, USA) was used to obtain XRD patterns of deposited thin films and nanostructures. The measurements were carried out over the 2θ angle range of 20–70° using CuKα (λ = 0.154059 nm) radiation, 0.01° step, and Lynx eye PSD detector. The peaks in XRD patterns were identified by EVA Search–Match software (Bruker, Billerica, MA, USA) and PDF-2 database. Later on, the crystallite size was calculated using TOPAS 6.0 software (Bruker, Billerica, MA, USA), i.e., the XRD patterns were fitted using the Pawley method and the crystallite size was calculated using the Scherrer equation [55]. The surface topography images were obtained by scanning electron microscope (SEM) Hitachi 132S–3400N (Hitachi High-Technologies Corporation, Tokyo, Japan). Chemical analysis was carried out using an X-ray photoelectron spectrometer (XPS) PHI Versaprobe 5000 (ULVAC-PHI, Chigasaki, Kanagawa, Japan). The following parameters were used: Al Kα (1486.6 eV) radiation, 19.1 W power, 100 μm beam size, 45° measurement angle, 23.50 eV pass energy, and 0.1 eV resolution for detailed chemical analysis. Localized surface plasmon resonance (LSPR) was calculated from absorbance spectra which were measured by the USB4000 spectrophotometer (Ocean Optics Inc., Rochester, NY, USA) in 500–850 nm wavelength range using 0.2 nm step size. Optical microscope (OM) images were taken by a NIKON Eclipse LV100D microscope (Nikon Metrology Inc., Brighton, MI, USA) using 10× magnification. The images of OM were taken in six different places of each sample.

2.2. Biofilm Formation Assay

TiO2 surfaces coated with Ag or Au nanoparticles were cleaned with Milli-Q water and sterilized with absolute ethanol (Sigma-Aldrich, Burlington, MA, USA). The sterilized surfaces were vertically placed in sterile glass containers filled with 100 mL of Brain Heart Infusion Broth (BHIB, Thermo Fisher, Basingstoke, UK) enriched with 0.5% (w/v) sucrose (Sigma-Aldrich, Burlington, MA, USA). Cultures of bacterial strains Gram-negative V. parvula ATCC® 10790™ and N. sicca ATCC® 29256™ were reactivated on Columbia Agar with 5% sheep blood (Thermo Fisher, Basingstoke, UK) at 37 °C under anaerobic (V. parvula) and aerobic (N. sicca) conditions for 24 h. The concentration of V. parvula and N. sicca suspension was adjusted to ~1 × 106 colony forming units (CFU)/mL based on the McFarland standard in BHIB and 200 μL of each suspension was added to separate containers containing medium and micro slides coated with Ti surfaces. The containers were incubated at 37 °C aerobically for N. sicca and in an anaerobic jar for V. parvula for up to 96 h depending on the species ability to form biofilms on TiO2 surfaces. Then, bacterial biofilms were fixed using 2.5% (w/v) glutaraldehyde in 0.05 M sodium cacodylate buffer (Sigma-Aldrich, Burlington, MA, USA) at 4 °C for 2 h followed by fixing with 1% of osmium tetroxide in cacodylate buffer (Sigma-Aldrich, Burlington, MA, USA) for 1 h at 4 °C. The fixed samples were prepared for microscopy by dehydration using ethanol solutions of 25% (v/v), 50%, 70%, 95%, and 100% for 10 min each.

2.3. Observation of Bacteria in an Experimental Optical Microscope (OM) Images

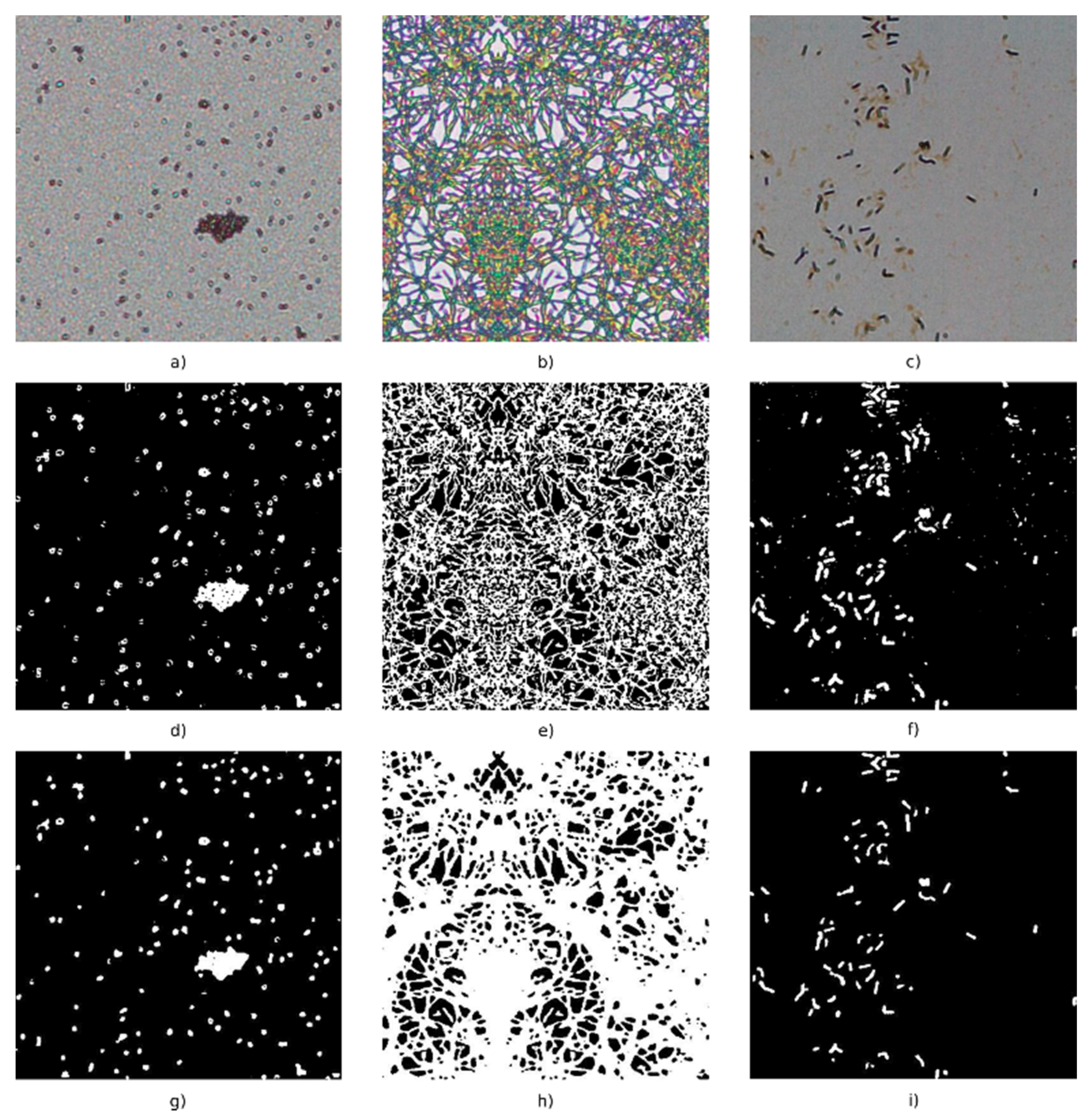

The process of the observation and identification of the presence of bacteria in the acquired experimental OM images was performed in the following steps. Initially, the experimental OM images were preprocessed. Later, training and validation datasets were prepared, and data augmentation techniques were applied to the experimental images. The convolutional neural network (CNN) model was implemented and trained in the following step. Next, the model was used to segment the experimental OM images and to extract bacteria from the background. Finally, the localization of bacteria from the segmented binary representations of experimental OM images was performed and followed by the necessary statistical analysis.
The resolution of the acquired experimental OM images was 2560 × 1920. Such images cannot be processed directly as a single dataset due to the large resolution and limited memory on the graphics processing units (GPUs). As a solution to this problem, the original images were padded by 196 and 34 pixels for x- and y-axes, respectively, using the mirrored pixels of the original image to fill in the missing context. The applied padding procedure allowed us to extract multiple 512 × 512 patches for each experimental OM image, and to employ the overlap-tile strategy for the seamless stitching. These extracted patches were further used for the training, validation steps, and the final segmentation of the experimental OM images. The seamless stitching was employed due to the poor results on the border region obtained with a simple concatenation of the output patches without overlapping. Furthermore, data augmentation (by applying elastic deformations to the patches of experimental OM images) was used to reduce the amount of training data and to allow the network to develop the invariance to deformations [56]. Shear with a range of 0.5, rotation within a range of 180 degrees, zoom with a range of 0.5, and scale with a range of 0.2 were used as the deformation operations. The U-Net [57] deep learning architecture (Figure 2) was used to perform the extraction of images of bacteria from the experimental OM images.

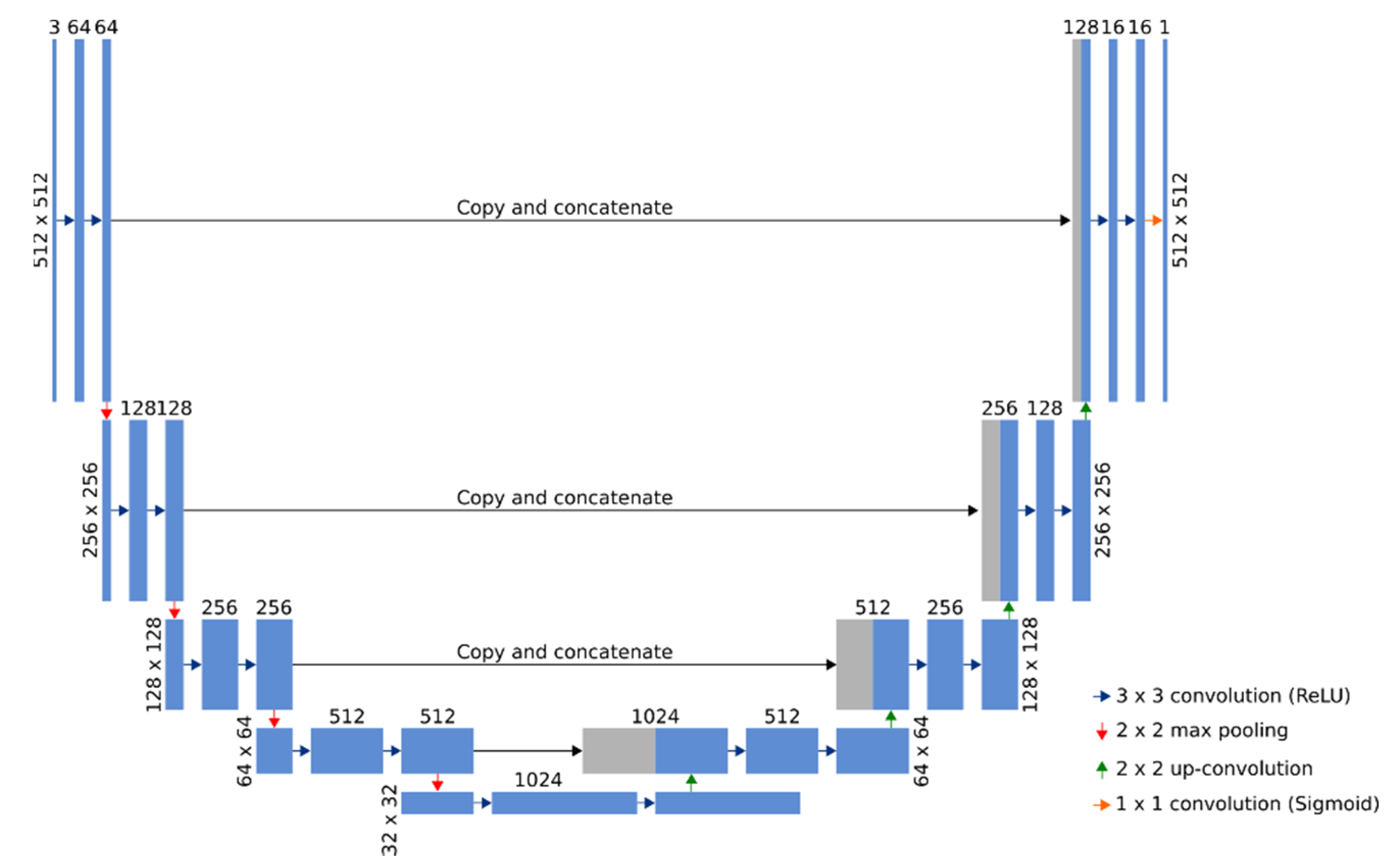

Adam optimization, a stochastic gradient descent method that is based on adaptive estimation of the first-order and the second-order moments, with the learning rate of 1 × 10−4 was used to optimize the model. As only two label classes (background and bacteria) were used, a binary cross-entropy loss function was employed for the computation of the cross-entropy loss between true labels and predicted labels. The loss value of the binary cross-entropy function of the training set was minimized to 0.0516, while the loss value of the validation set was minimized to 0.0568. The model accuracy values of the training set and the validation set were, respectively, equal to 0.9790 and 0.9470. The comparison of ground truth and predicted images showed that most differences between the background and foreground segments appeared on the diffuse borders of the bacterium. The results of the localization of bacteria in experimental OM images are shown in Figure 3. The acquired experimental images are shown in Figure 3a–c parts and their binary representations performed by a straightforward threshold and a fully convolutional neural network are, respectively, shown in parts Figure 3d–f, and Figure 3g–i. The presented results clearly indicate that the applied U-Net model has large advantages over a straightforward threshold operation—the proposed approach is robust to uneven lightning and background noise. That results in more precise identification and localization of bacteria. Furthermore, the results show that this approach is also robust to different sizes, densities, and intensities of bacteria images.
The connected component labeling algorithm [58] was further used to extract and separate individual clusters of bacteria later used for the statistical analysis.

3. Results

3.1. Surface Characterization

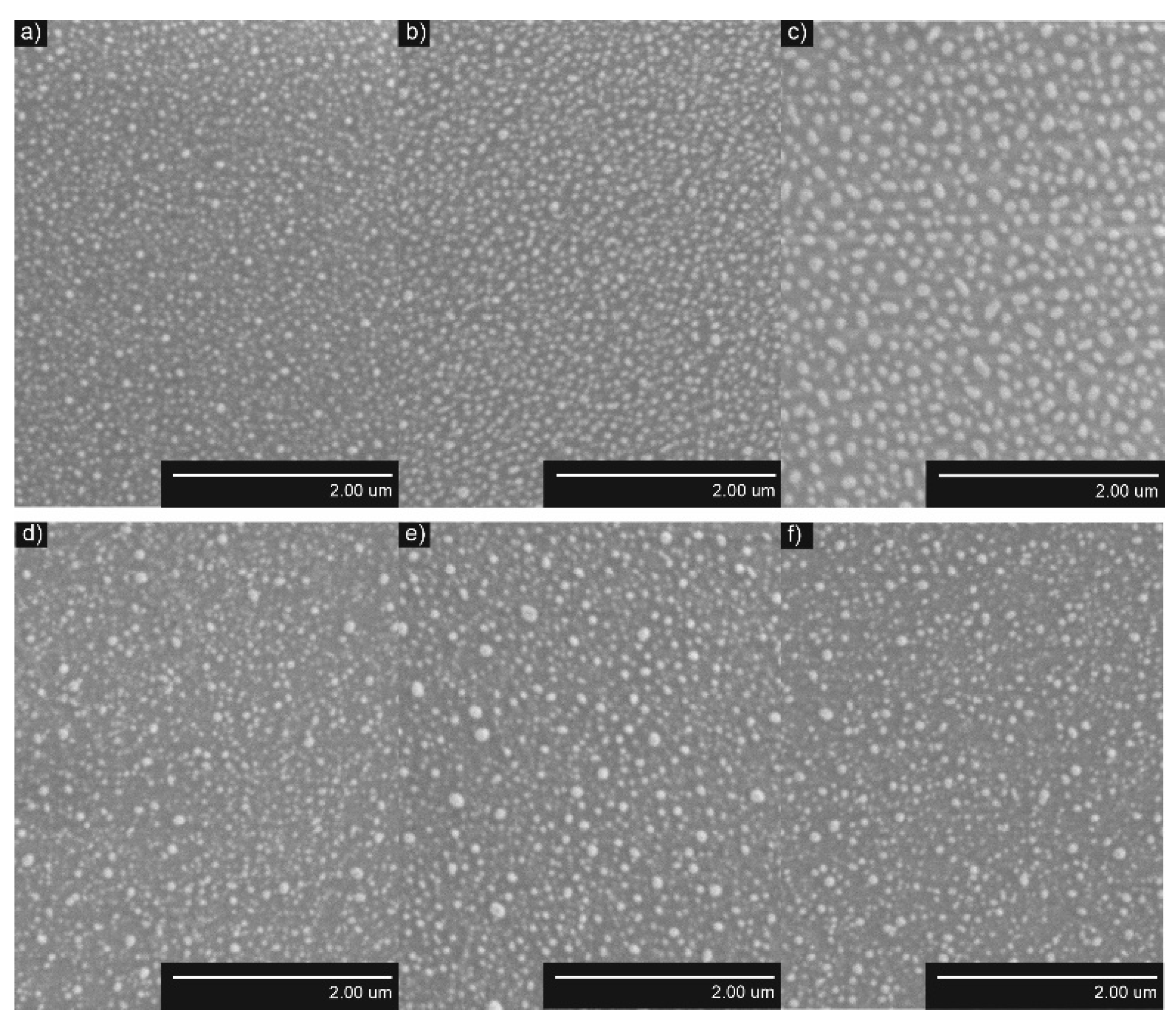

The formed AuNP and AgNP were distributed uniformly on the surfaces of TiO2 thin films (Figure 4 and Figure 5, respectively). The obtained NP were larger when annealing thicker, thin films, while the density and distance between nearest neighbors were smaller. The structure of TiO2 thin films had a minor influence on the density of AuNP and AgNP. The density of AuNP was lower and the density of AgNP was slightly higher in the Ti500 sample group (Table 1).
The quantitative parameters given in Table 1 support SEM images and their interpretation. Dmean of AuNP increased from 33.3 nm to 59.8 nm for Ti20 group samples and from 37.2 nm to 52.8 nm for the Ti500 group samples when annealing thicker Au films. The same dependence was observed for distances between-NP (border-to-border) to all of their neighbors (NNDavg) of AuNP. It increased from 12.0 nm to 27.5 nm for the Ti20 group samples and from 13.7 nm to 19.3 nm for the Ti500 group samples. The density of AuNP decreased from 316.4 μm−2 to 82.8 µm−2 for the Ti20 group samples and from 258.8 µm−2 to 114.9 µm−2 for the Ti500 group samples when annealing thicker Au films. However, the relative area (SAR) of AuNP was changing nonlinearly. SAR was ~0.30 for the Ti20 group and ~0.32 for the Ti500 group.
Similar results were obtained for AgNP. Dmean of AgNP increased from 45.2 nm to 86.0 nm for the Ti20 group samples and from 47.7 nm to 50.4 nm for the Ti500 group samples when annealing thicker Ag films. The same dependence was observed for NNDavg of AgNP. It increased from 31.4 nm to 38.3 nm for the Ti20 group and from 33.7 nm to 37.8 nm for the Ti500 group. The density of AgNP decreased from 85.8 μm−2 to 39.2 µm−2 for the Ti20 group and from 62.8 µm−2 to 54.9 µm−2 for the Ti500 group when annealing thicker Ag films. However, the RSA of AgNP was changing nonlinearly. SAR was ~0.17 for the Ti20 group and ~0.20 for the Ti500 group.
Most of the NPs were crystalline (Figure 6) and did not experience any phase changes. The crystallite sizes varied from 25 nm to 53 nm for AuNP formed on the Ti20 group thin films and from 27 nm to 84 nm for AuNP formed on Ti500 group thin films. On the other hand, AgNPs were mostly amorphous with the exception of the nanostructures obtained from 10 nm Ag films on Ti500 group thin films. On average, their crystallite size was 60 nm. Moreover, after the dewetting procedure, TiO2 thin films belonging to the Ti20 group became polycrystalline with the crystallite size ~110 nm, whereas TiO2 thin films belonging to the Ti500 group had the crystallite size of ~129 nm.

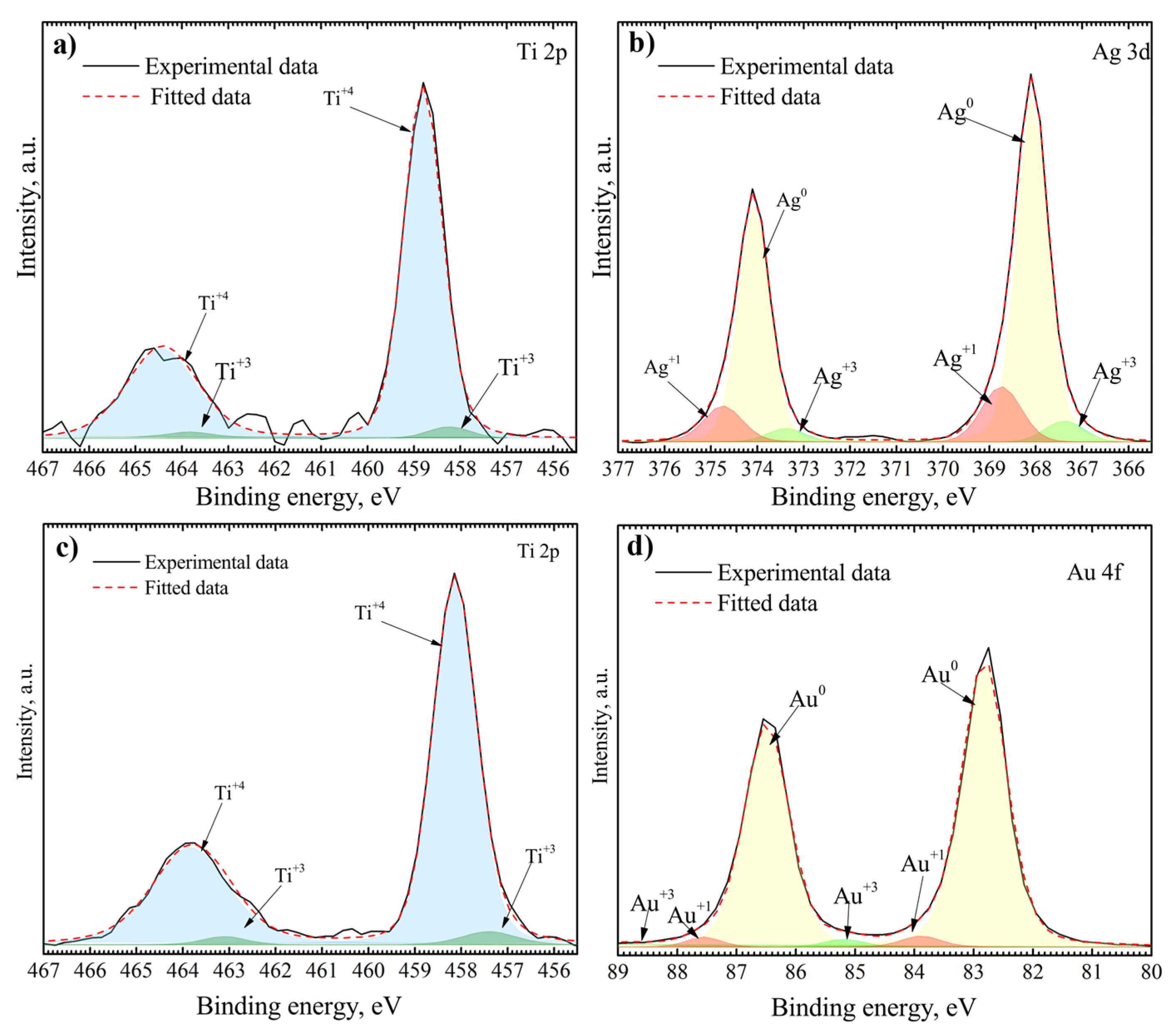

To better understand surface chemistry, XPS measurements were carried out (Figure 7). The Ti 2p, Ag 3d, and Au 4f spectra were analyzed. The fitting procedure showed that Ti 2p spectra consist of two doublets belonging to Ti+4 and Ti+3 oxidation states (Figure 7a,c). Ti 2p 3/2 and Ti 2p 1/2 peaks centered at 458.14 eV and 463.84 eV represent Ti+4 oxidation state and peaks centered at 457.40 eV and 463.10 eV represent Ti+3 oxidation state [59,60,61]. Au0, Au+1, and Au+3 oxidation states were found after the fitting procedure of Au 4f spectrum (Figure 7d). Peaks of Au 4f 7/2 and Au 4f 5/2 components were found at 82.82 and 86.49 eV for Au0, 83.89 and 87.56 eV for Au+1, and 85.19 and 88.86 eV for Au+3 [62]. The Au0 oxidation state is the main one with an atomic percentage of ~94%, showing a low amount of gold oxides. The Ag 3d spectrum of AgNP consists of three sets of Ag 3d 5/2 and Ag 3d 3/2 components belonging to Ag0, Ag+1, and Ag+3 oxidation states (Figure 7b). The component positions are 368.07 and 374.07 eV for Ag0, 368.74 and 374.74 eV for Ag+1, and 367.38 and 373.38 eV for Ag+3 [63]. The existence of Ag+1 and Ag+3 oxidation states shows the presence of various silver oxides on the surface of NP. The calculated atomic percentage of these states is ~17%.

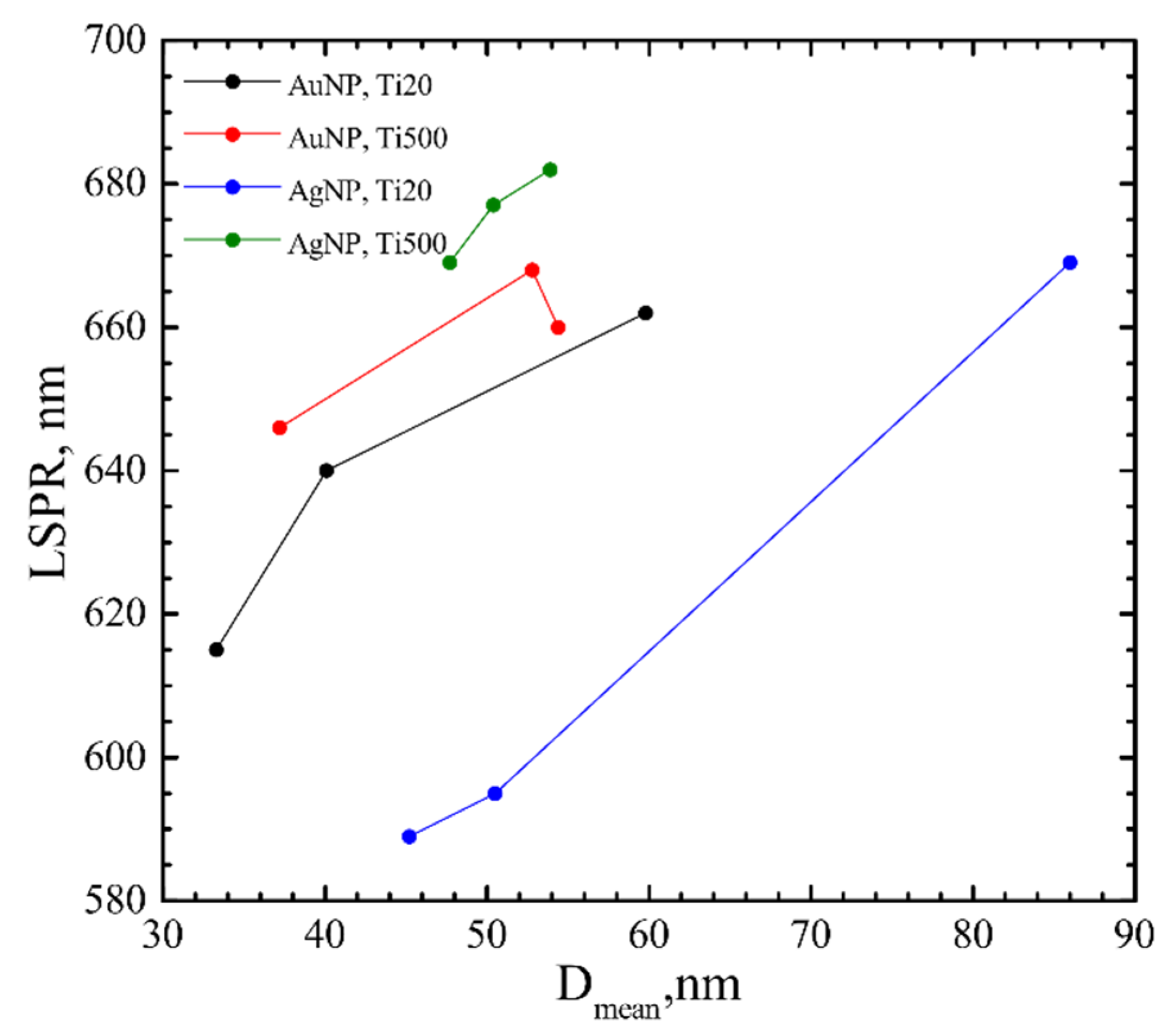

The optical properties were also investigated. LSPR was calculated from the maximum observed in absorbance peak (Figure 8). The LSPR correlated with Dmean, i.e., shifted to longer wavelengths by increasing Dmean. It shifted from 615 nm to 662 nm and from 646 nm to 660 nm for AuNP on Ti20 and Ti500 group samples, respectively, and are similar to other authors’ results [64,65]. Whereas LSPR for AgNP shifted from 589 nm to 669 nm and from 669 nm to 682 nm for Ti20 and Ti500 group samples, respectively. It is shifted to longer wavelengths than found in the literature [66], although the shift could be related to shape effects [67]. Moreover, the LSPR was larger for Ti500 group samples.

3.2. Antibacterial Effect

The antibacterial properties of SiO2, TiO2 thin films, and AgNP and AuNP on TiO2 surfaces were evaluated using bacterial strains of V. parvula and N. sicca. First, the growth of bacterial cells was investigated on SiO2 (optical glass) and TiO2 surfaces to obtain reference samples (Figure 9). A significant difference was found between SiO2 and TiO2 samples. It was observed that the average size of Neisseria cells and their biofilm mass (AS) and surface coverage (SC) are much higher on the SiO2 surface than on the TiO2 surface: SC is 88.5%, and AS is 347.0 µm for SiO2, and SC is 2.7% and AS is 0.9 µm for TiO2. Conversely, action on V. parvula was different. The bacteria optically looked slightly larger on the SiO2 surface than on the TiO2 surface (Figure 9b,d). However, the calculations revealed that the AS and SC are almost identical for SiO2 and TiO2 surfaces (Table 2).

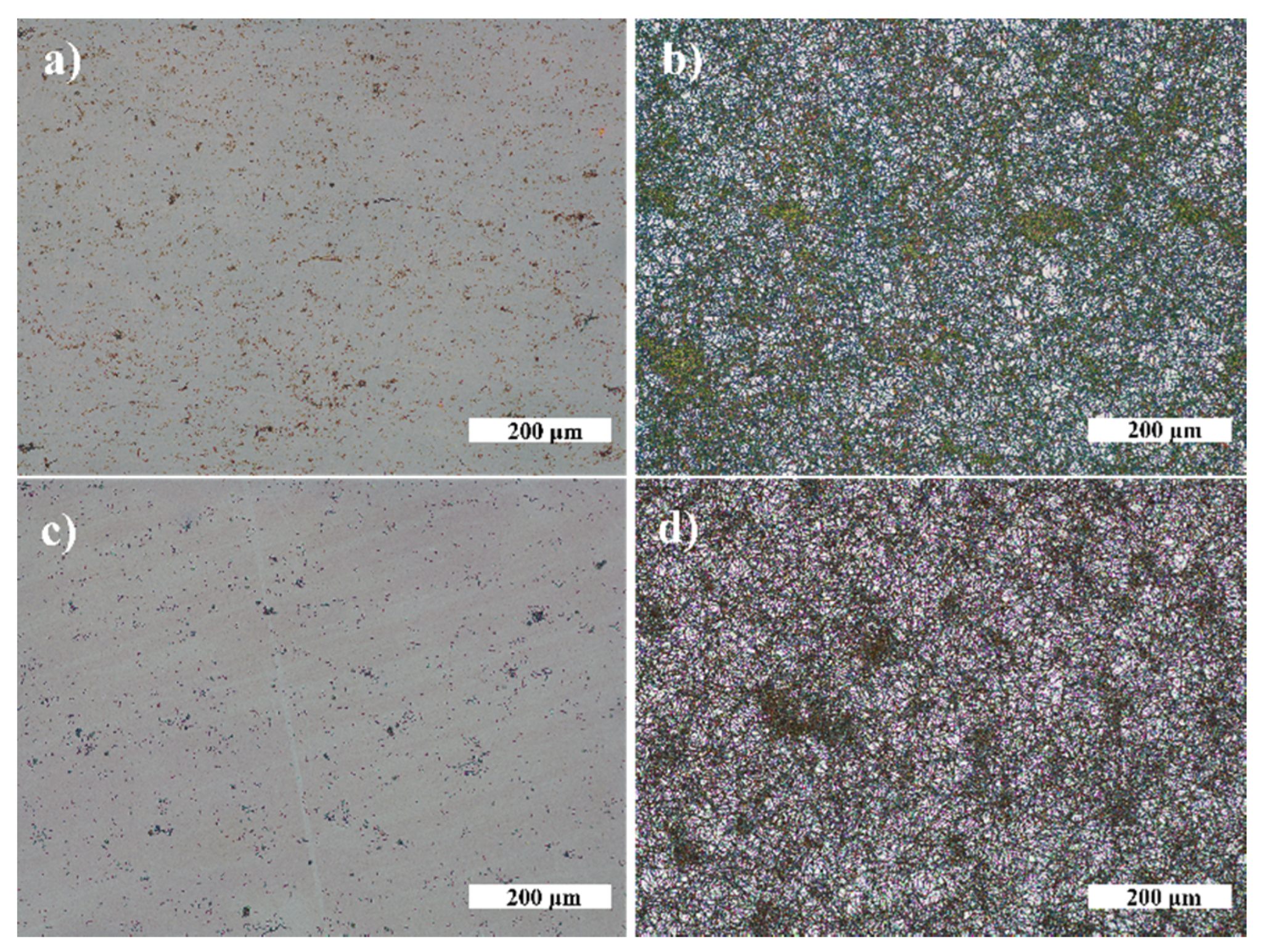

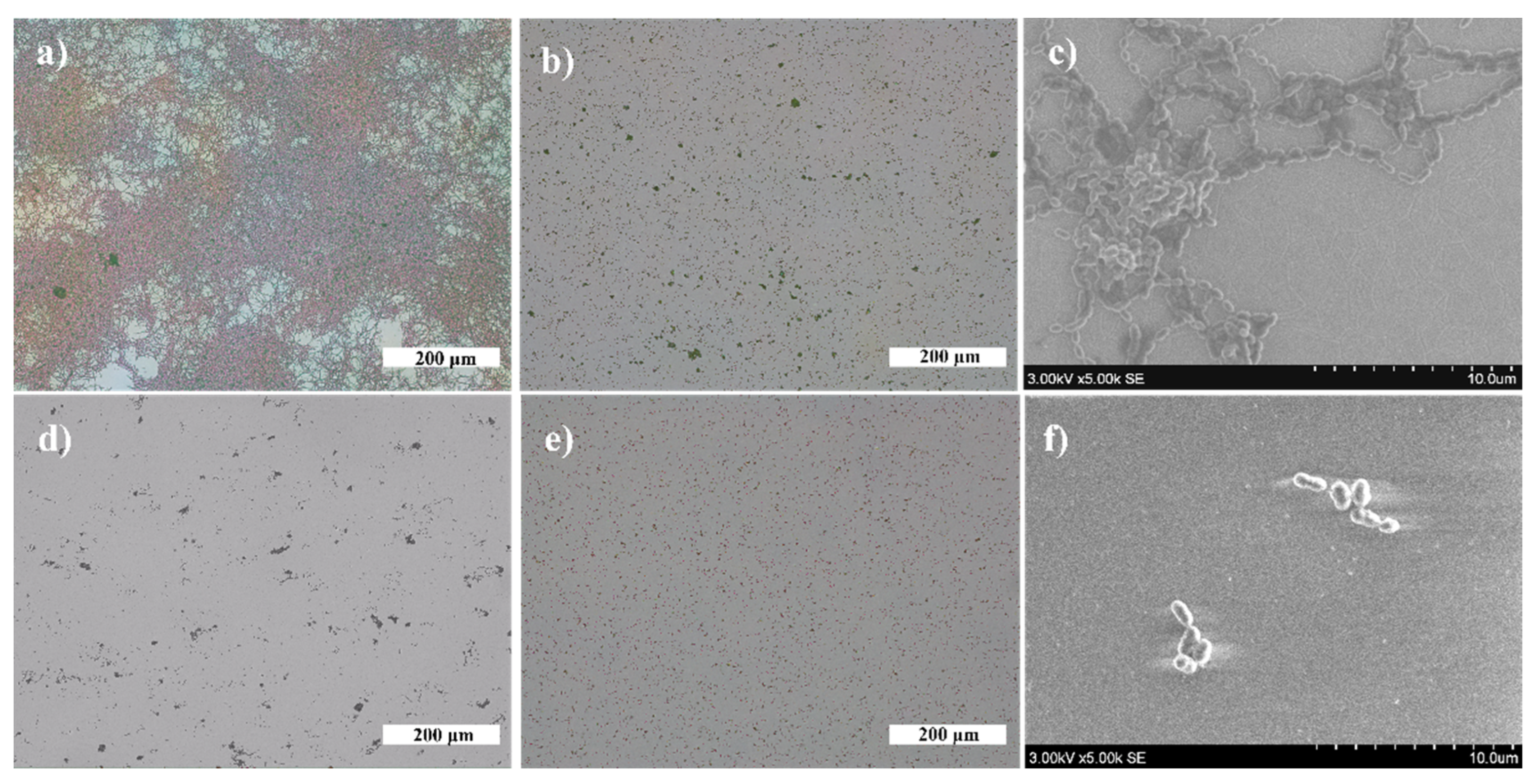

Next, the antibacterial effect of NP was investigated. Exemplary photos of N. sicca colonies on AuNP and AgNP are given in Figure 10. It is obvious that AuNP suppressed the antibacterial effect of TiO2. The AS and SC by N. sicca on AuNP were similar to SiO2 samples (Figure 11a). Bacteria covered 66.6% to 83.4% surface of the sample (Table 2, Figure 12a). On the contrary, the AgNP suppressed the growth of N. sicca, and the effect was similar to TiO2 thin films (Table 2, Figure 12a). Bacteria covered up to 4.1% surface of the sample. As observed, the bacterial cells on the samples with AgNP are slightly smaller than on bare TiO2 thin films. The difference is from 0.1 µm to 0.4 µm. However, the density of the bacteria increased when AS decreased (Table 2). The results demonstrate that the best antibacterial properties against N. sicca are shown by the samples with AgNP. The best antibacterial properties were observed for the sample having 85.8 µm−2 (Ti20 group) density of AgNP. All bacteria describing parameters (SC, nB, AS, CV) had lower values than the group’s average for these samples.
The growth of V. parvula on AuNP was significantly different as it was for N. sicca bacteria (Figure 11). The AuNP clearly suppressed the growth of V. parvula. The SC was up to 9.4% for the Ti20 group of samples, and up to 13.4% for the Ti500 group of samples (Figure 11b and Table 2). The AS was ~0.7 µm for all samples with AuNP (Figure 13b and Table 2). The density of V. parvula cells was from 20,251 mm−2 to 126,620 mm−2 for the Ti20 group and from 59,728 mm−2 to 190,816 mm−2 for the Ti500 group of samples.
Similar results were obtained for AgNP. The SC was up to 10.8% for the Ti20 group of samples, and up to 16.7% for the Ti500 group of samples (Figure 12b and Table 2). The size of V. parvula cells varied between 0.5 µm and 0.9 µm for the Ti20 group of samples, and from 0.5 µm to 1.2 µm for the Ti500 group of samples (Figure 13b and Table 2). The density of V. parvula colonies was from 23508 mm−2 to 132,131 mm−2 for the Ti20 group and from 66,667 mm−2 to 141,514 mm−2 for the Ti500 group of samples.
The best antibacterial properties are for the samples having 82.8 µm−2 density of AuNP and 64.6 µm−2 density of AgNP. In comparison, the antibacterial properties describing parameters were very close for 85.8 µm−2 density of AgNP sample (Table 2).
In this study, we had demonstrated that TiO2 thin films without the NPs on the surface exhibit antibacterial properties against N. sicca and V. parvula bacteria. The untreated Ti20 thin films exhibit a better antibacterial efficiency than the thin films annealed at 500 °C. Our previous research [68] supports such results. It is known that surface morphology is a very important factor determining the bacteria adhesion to the surface [69]. The previous research showed that the untreated TiO2 thin films were of hydrophobic nature with a wetting angle of 90° that resulted in the reduced adhesion of the N. sicca and V. parvula bacteria, while the annealed TiO2 thin films had a wetting angle of 30° and facilitated the bacteria adhesion. On the other hand, Ti500 thin films had a slightly higher roughness, which did not allow the formation of the colonies of the bacteria and allowed only single-bacteria distributions on the surface of thin films. The decoration of TiO2 surface by AuNP significantly reduces antibacterial properties of TiO2 thin films against N. sicca bacteria. On the other hand, decoration by AgNP made no significant difference for antibacterial properties of TiO2 thin films although the sample from the Ti20 group with 85.8 µm−2 density of AgNP showed slightly better antibacterial properties than bare TiO2 thin films. Both Ti20 and Ti500 groups showed antibacterial effect against V. parvula bacteria. The effect was similar independently on the type of NP. The best antibacterial properties were found for the samples having ~80 µm−2 density of NP from the Ti20 group.

4. Discussion

4.1. Influence of the Underlying Substrate and Film Thickness on the NP Formation

During the dewetting process, the development of NPs depends on several parameters, e.g., the metal film thickness, annealing temperature, thermodynamic driving force, strain in a thin metallic film, nature and the number of defects, and crystallographic features, etc. [47] In this study, the relation between the film thickness and the size of the formed NP was established. As seen in Figure 4 and Figure 5, after annealing, larger NPs are formed for thicker metallic films. Such kind of dependence appeared due to two reasons [70]. First, a different number of holes formed during the annealing process of thin metallic films depending on their thickness. The number of formed holes is inversely proportional to the thickness. Moreover, very thin films are discontinued and naturally have holes [71]. On the other hand, in the later stages of dewetting, rims break down into wire-like strands through pinch-off or fingering processes. The radii of these strands depend on the thickness of thin films also being larger when thicker films are annealed. The lower number of holes and bigger radii of strands result in the formation of enlarged NPs followed by the lower density of NP and larger distances between NP. Such dependencies correlate with collected data from different studies (Table 3).
As it is seen from Table 3, the underlying substrate, its structure, composition, and surface properties also affect the formation and related parameters of NP. The shape and morphology slightly differ for the NP formed on the different types of substrates. Amorphous substrate Ti20 provides a faster process of dewetting due to the higher interface energy of the Au (Ag)/Ti20 interface. These results are consistent with Nsimama’s findings [80]. AuNPs were crystalline and AgNPs were amorphous in almost all samples. Moreover, amorphous TiO2 changed its phase to anatase after the formation of NP, because 400 °C temperature is sufficient for amorphous to anatase transition to occur [81].
The investigation of absorbance spectra revealed the plasmonic nature of Au and Ag NP on TiO2 thin films. LSPR values are 615–662 nm for Au NP and 589–682 for Ag NP. It gives the opportunity to use these composite thin films in the biomedical application as antibacterial coatings [82,83].
The release of metal ions and the direct interaction between the surface of NPs and bacteria are among the most investigated antibacterial mechanisms of NPs [84,85]. Therefore, the valence states of the NPs providing the information about the ratio between metallic and oxidized states of the nanoparticles and their influence on the antibacterial effect are usually investigated. The XPS measurements determined Au0, Au+1, and Au+3 oxidation states for gold NP and Ag0, Ag+1, and Ag+3 oxidation states for silver NP. The binding energies of Au and Ag shifted to a lower binding energy state with a decrease in the size of NP and together with the Au+1, Au+3, Ag+1, and Ag+3 oxidation states, indicating the presence of Au and Ag oxides at the surface of NPs [63,86]. However, Au0 and Ag0 are the main oxidation states, indicating a high percentage of metallic gold (94%) and silver (83%) at the surface of NPs. Metallic NPs containing the oxidized states could have beneficial antibacterial effects by combining the metal ion release mechanisms together with the induction of reactive oxygen species (ROS) and possibly other mechanisms which could lead to the enhancement of antibacterial effect [87].

4.2. Evaluation of the Antibacterial Activity of the Films Containing Either Au or Ag Nanoparticles

Ag and Au display a well-known broad spectrum of antimicrobial activity, antiseptic effects, and low risk of bacterial resistance [30,88]. Nanoparticles of these elements enhance the antibacterial efficiency due to the size of particles, charge, surface morphology, and structure [89]. Upon interaction with bacteria, NPs bond to the membrane of the bacteria by electrostatic attractions, Van der Walls forces, hydrophobic or receptor–ligand interactions [90]. The size of the nanoparticles allows them to get transferred through the membranes and provokes changes in the membrane’s shape and function by interfering with the metabolic pathways and inhibiting enzymes, deactivating proteins, inducing oxidative stress and electrolyte imbalance, and modifying gene expression levels [90] that consequently result to the death of bacteria. The antibacterial mechanism usually is a consequence of complex and integral mechanisms acting on the bacteria.
Data show that the concentration of oral bacteria species, especially Gram-positive cocci, such as Streptococcus mutans and Streptococcus oralis, was significantly decreased due to contact with Ag-coated surfaces [91,92]. A similar effect was also detected with some Gram-negative bacteria [93,94] and other types of nanoparticles, such as Au, Cu, and Zn [89]. However, our data suggest a different antibacterial behavior for Gram-negative species of cocci including N. sicca and V. parvula. The different antibacterial activity may occur due to the bacterial structure of those bacteria and different intrinsic resistance mechanisms. As it is known that N. sicca is an oxidase-positive and aerobic species and V. parvula is strictly anaerobic bacteria [95,96,97,98], it may be assumed that the mechanism of respiration is not associated with resistance factors against metal nanoparticles and other mechanisms and should be further investigated. It looks as if the metal itself is also an important factor for antibacterial action. Moreover, the data obtained in this study proved that the type of nanoparticles had a substantial influence on the antibacterial efficiency, especially for N. sicca bacteria. N. sicca tends to form a biofilm when is cultivated on the surface with AuNP and displays a significant decrease in biofilm formation when it is cultivated on the surface with AgNP. A similar tendency is observed for V. parvula bacteria as well. The surfaces with AgNPs provide a better antibacterial efficiency compared to the surfaces with AuNPs. Several factors could explain this finding. First, the possible mechanisms of antibacterial activity of Ag and Au nanoparticles differ or depend on the type of bacterium tested, as well on the structure and composition of the bacterial wall [41,94]. AgNPs are known for the antibacterial activity of metallic silver nanoparticles but also the possible release of the biocidal AgNP ions appeared from the nanoparticle surface in an oxygen-containing environment, which later stimulate the oxidative stress and the production of ROS that eventually cause the bacteria cell damage [28,30,99,100]. Yet, the most dominating antibacterial mechanism for AuNPs is related to the simple interaction between the surfaces of NP and bacteria by electrostatic attraction as Au is less reactive than Ag, especially with respect to the oxidation in an oxygen-containing environment, therefore resulting in lower levels of ROS generation [40,101]. Our XPS data confirm the mentioned assumptions and show a higher level of silver ions in Ag+1, and Ag+3 oxidation states and a higher generation of ROS that is the leading factor of AgNP antibacterial activity compared to the AuNP. Second, the size of the nanoparticles has a supplementary impact on the antibacterial effect. The inhibition effect and stronger antibacterial efficacy on the TiO2 surfaces were detected with an increasing density of AuNP and decreasing size of the nanoparticles. It could be explained that higher antimicrobial efficiency correlates with the larger surface area of NP [102].

5. Conclusions

A deep learning technique to observe and identify the presence of the bacteria on the surfaces was realized by analyzing the behavior of Gram-negative cocci Veillonella parvula and Neisseria sicca on TiO2 thin films coated with Ag and Au nanoparticles. In addition, the AuNP and AgNP were successfully formed on amorphous and crystalline TiO2 thin films by depositing a thin film of silver and gold and annealing it. It was found that the TiO2 surface with AgNP exhibited higher antibacterial efficiency and stronger antibacterial activity than Au nanostructured titanium oxide surfaces and effectively reduced the concentration of the bacteria. Additionally, the inhibition effect and stronger antibacterial efficacy on the TiO2 surfaces were detected with an increasing density of AuNP. The current study demonstrates the suitability of the deep learning technique as a potential tool to localize the bacteria on the surfaces despite their size and distribution. Moreover, TiO2 surfaces coated with AgNP have the potential to be used as a new antibacterial agent against Veillonella parvula and Neisseria sicca.

Author Contributions

Conceptualization, Z.R., M.R. (Minvydas Ragulskis) and G.L.; methodology, M.S., P.P., S.S. and M.R. (Modestas Ruzauskas); software, M.K. and P.P.; validation, M.K., P.P., M.S., S.S. and M.R. (Modestas Ruzauskas); formal analysis, M.S., K.B., P.P., M.K., Z.R., M.R. (Minvydas Ragulskis), S.S., M.R. (Modestas Ruzauskas) and G.L.; investigation, M.S., K.B., P.P., M.K., S.S. and M.R. (Modestas Ruzauskas); writing—original draft preparation, M.S., K.B., P.P., M.K., Z.R., M.R. (Minvydas Ragulskis), S.S., M.R. (Modestas Ruzauskas) and G.L.; writing—review and editing, M.S., K.B., P.P., M.K., S.S., M.R. (Modestas Ruzauskas) and G.L.; visualization, M.S. and P.P.; supervision, Z.R., M.R. (Minvydas Ragulskis) and G.L.; funding acquisition, Z.R. All authors have read and agreed to the published version of the manuscript.

Funding

This project has received funding from European Social Fund (project No 09.3.3-LMT-K-712-01-0162) under grant agreement with the Research Council of Lithuania (LMTLT).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tuson, H.H.; Weibel, D.B. Bacteria–surface interactions. Soft Matter 2013, 9, 4368–4380. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Xiao, J.; Klein, M.I.; Falsetta, M.L.; Lu, B.; Delahunty, C.M.; Yates, J.R.; Heydorn, A.; Koo, H. The Exopolysaccharide Matrix Modulates the Interaction between 3D Architecture and Virulence of a Mixed-Species Oral Biofilm. PLoS Pathog. 2012, 8, e1002623. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Flemming, H.C.; Wingender, J. The biofilm matrix. Nat. Rev. Microbiol. 2010 89 2010, 8, 623–633. [Google Scholar] [CrossRef] [PubMed]
  4. Feng, G.; Cheng, Y.; Wang, S.Y.; Borca-Tasciuc, D.A.; Worobo, R.W.; Moraru, C.I. Bacterial attachment and biofilm formation on surfaces are reduced by small-diameter nanoscale pores: How small is small enough? NPJ Biofilms Microbiomes 2015, 1, 1–9. [Google Scholar] [CrossRef]
  5. Bowen, W.H.; Koo, H. Biology of Streptococcus mutans-Derived Glucosyltransferases: Role in Extracellular Matrix Formation of Cariogenic Biofilms. Caries Res. 2011, 45, 69–86. [Google Scholar] [CrossRef] [PubMed]
  6. Peterson, B.W.; He, Y.; Ren, Y.; Zerdoum, A.; Libera, M.R.; Sharma, P.K.; van Winkelhoff, A.J.; Neut, D.; Stoodley, P.; van der Mei, H.C.; et al. Viscoelasticity of biofilms and their recalcitrance to mechanical and chemical challenges. FEMS Microbiol. Rev. 2015, 39, 234–245. [Google Scholar] [CrossRef] [Green Version]
  7. Kotronia, E.; Brown, H.; Papacosta, A.O.; Lennon, L.T.; Weyant, R.J.; Whincup, P.H.; Wannamethee, S.G.; Ramsay, S.E. Oral health and all-cause, cardiovascular disease, and respiratory mortality in older people in the UK and USA. Sci. Rep. 2021, 11, 16452. [Google Scholar] [CrossRef] [PubMed]
  8. Kotronia, E.; Wannamethee, S.G.; Papacosta, A.O.; Whincup, P.H.; Lennon, L.T.; Visser, M.; Kapila, Y.L.; Weyant, R.J.; Ramsay, S.E. Poor Oral Health and Inflammatory, Hemostatic, and Cardiac Biomarkers in Older Age: Results From Two Studies in the UK and USA. J. Gerontol. Ser. A 2021, 76, 346–351. [Google Scholar] [CrossRef] [PubMed]
  9. Yi, K.; Rasmussen, A.W.; Gudlavalleti, S.K.; Stephens, D.S.; Stojiljkovic, I. Biofilm formation by Neisseria meningitidis. Infect. Immun. 2004, 72, 6132–6138. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Mashima, I.; Nakazawa, F. Interaction between Streptococcus spp. and Veillonella tobetsuensis in the early stages of oral biofilm formation. J. Bacteriol. 2015, 197, 2104–2111. [Google Scholar] [CrossRef] [Green Version]
  11. Eriksson, J.; Eriksson, O.S.; Maudsdotter, L.; Palm, O.; Engman, J.; Sarkissian, T.; Aro, H.; Wallin, M.; Jonsson, A.B. Characterization of motility and piliation in pathogenic Neisseria Microbial biochemistry, physiology and metabolism. BMC Microbiol. 2015, 15, 92. [Google Scholar] [CrossRef] [Green Version]
  12. Feng, G.; Cheng, Y.; Wang, S.Y.; Hsu, L.C.; Feliz, Y.; Borca-Tasciuc, D.A.; Worobo, R.W.; Moraru, C.I. Alumina surfaces with nanoscale topography reduce attachment and biofilm formation by Escherichia coli and Listeria spp. Biofouling 2014, 30, 1253–1268. [Google Scholar] [CrossRef]
  13. Mauclaire, L.; Brombacher, E.; Bünger, J.D.; Zinn, M. Factors controlling bacterial attachment and biofilm formation on medium-chain-length polyhydroxyalkanoates (mcl-PHAs). Colloids Surf. B Biointerfaces 2010, 76, 104–111. [Google Scholar] [CrossRef] [PubMed]
  14. Singh, A.V.; Vyas, V.; Patil, R.; Sharma, V.; Scopelliti, P.E.; Bongiorno, G.; Podestà, A.; Lenardi, C.; Gade, W.N.; Milani, P. Quantitative Characterization of the Influence of the Nanoscale Morphology of Nanostructured Surfaces on Bacterial Adhesion and Biofilm Formation. PLoS ONE 2011, 6, e25029. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lüdecke, C.; Roth, M.; Yu, W.; Horn, U.; Bossert, J.; Jandt, K.D. Nanorough titanium surfaces reduce adhesion of Escherichia coli and Staphylococcus aureus via nano adhesion points. Colloids Surf. B Biointerfaces 2016, 145, 617–625. [Google Scholar] [CrossRef]
  16. Dewald, C.; Lüdecke, C.; Firkowska-Boden, I.; Roth, M.; Bossert, J.; Jandt, K.D. Gold nanoparticle contact point density controls microbial adhesion on gold surfaces. Colloids Surf. B Biointerfaces 2018, 163, 201–208. [Google Scholar] [CrossRef]
  17. Dauben, T.J.; Dewald, C.; Firkowska-Boden, I.; Helbing, C.; Peisker, H.; Roth, M.; Bossert, J.; Jandt, K.D. Quantifying the relationship between surfaces’ nano-contact point density and adhesion force of Candida albicans. Colloids Surf. B Biointerfaces 2020, 194, 111177. [Google Scholar] [CrossRef] [PubMed]
  18. Quirynen, M.; Bollen, C.M.L.; Schotte, A.; Marechal, M.; van Steenberghe, D.; van der Mei, H.C.; Doornbusch, G.I.; Busscher, H.J.; Naert, I. An in vivo Study of the Influence of the Surface Roughness of Implants on the Microbiology of Supra- and Subgingival Plaque. J. Dent. Res. 1993, 72, 1304–1309. [Google Scholar] [CrossRef] [PubMed]
  19. Größner-Schreiber, B.; Griepentrog, M.; Haustein, I.; Müller, W.D.; Lange, K.P.; Briedigkeit, H.; Göbel, U.B. Plaque formation on surface modified dental implants. Clin. Oral Implants Res. 2001, 12, 543–551. [Google Scholar] [CrossRef] [PubMed]
  20. Pita, P.P.C.; Rodrigues, J.A.; Ota-Tsuzuki, C.; Miato, T.F.; Zenobio, E.G.; Giro, G.; Figueiredo, L.C.; Gonçalves, C.; Gehrke, S.A.; Cassoni, A.; et al. Oral streptococci biofilm formation on different implant surface topographies. Biomed Res. Int. 2015, 2015, 159625. [Google Scholar] [CrossRef]
  21. Liu, X.; Chu, P.K.; Ding, C. Surface modification of titanium, titanium alloys, and related materials for biomedical applications. Mater. Sci. Eng. R Rep. 2004, 47, 49–121. [Google Scholar] [CrossRef] [Green Version]
  22. Page, K.; Palgrave, R.G.; Parkin, I.P.; Wilson, M.; Savin, S.L.P.; Chadwick, A.V. Titania and silver–titania composite films on glass—potent antimicrobial coatings. J. Mater. Chem. 2006, 17, 95–104. [Google Scholar] [CrossRef]
  23. Mills, A.; Le Hunte, S. An overview of semiconductor photocatalysis. J. Photochem. Photobiol. A Chem. 1997, 108, 1–35. [Google Scholar] [CrossRef]
  24. Chouirfa, H.; Bouloussa, H.; Migonney, V.; Falentin-Daudré, C. Review of titanium surface modification techniques and coatings for antibacterial applications. Acta Biomater. 2019, 83, 37–54. [Google Scholar] [CrossRef]
  25. Kleszcz, K.; Hebda, M.; Kyzioł, A.; Krawiec, H.; Kyzioł, K. Towards prevention of biofilm formation: Ti6Al7Nb modified with nanocomposite layers of chitosan and Ag/Au nanoparticles. Appl. Surf. Sci. 2021, 557, 149795. [Google Scholar] [CrossRef]
  26. Otto, M. Staphylococcus epidermidis—the “accidental” pathogen. Nat. Rev. Microbiol. 2009, 7, 555–567. [Google Scholar] [CrossRef] [Green Version]
  27. Svensson, S.; Forsberg, M.; Hulander, M.; Vazirisani, F.; Palmquist, A.; Lausmaa, J.; Thomsen, P.; Trobos, M. Role of nanostructured gold surfaces on monocyte activation and Staphylococcus epidermidis biofilm formation. Int. J. Nanomed. 2014, 9, 775. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. You, C.; Han, C.; Wang, X.; Zheng, Y.; Li, Q.; Hu, X.; Sun, H. The progress of silver nanoparticles in the antibacterial mechanism, clinical application and cytotoxicity. Mol. Biol. Rep. 2012, 39, 9193–9201. [Google Scholar] [CrossRef] [PubMed]
  29. Swathy, J.R.; Sankar, M.U.; Chaudhary, A.; Aigal, S.; Anshup; Pradeep, T. Antimicrobial silver: An unprecedented anion effect. Sci. Rep. 2014, 4, 7161. [Google Scholar] [CrossRef] [Green Version]
  30. Shimabukuro, M. Antibacterial Property and Biocompatibility of Silver, Copper, and Zinc in Titanium Dioxide Layers Incorporated by One-Step Micro-Arc Oxidation: A Review. Antibiotics 2020, 9, 716. [Google Scholar] [CrossRef]
  31. Arciola, C.R.; Campoccia, D.; Speziale, P.; Montanaro, L.; Costerton, J.W. Biofilm formation in Staphylococcus implant infections. A review of molecular mechanisms and implications for biofilm-resistant materials. Biomaterials 2012, 33, 5967–5982. [Google Scholar] [CrossRef] [PubMed]
  32. Yao, X.; Zhang, X.; Wu, H.; Tian, L.; Ma, Y.; Tang, B. Microstructure and antibacterial properties of Cu-doped TiO2 coating on titanium by micro-arc oxidation. Appl. Surf. Sci. 2014, 292, 944–947. [Google Scholar] [CrossRef]
  33. Qin, H.; Cao, H.; Zhao, Y.; Zhu, C.; Cheng, T.; Wang, Q.; Peng, X.; Cheng, M.; Wang, J.; Jin, G.; et al. In vitro and in vivo anti-biofilm effects of silver nanoparticles immobilized on titanium. Biomaterials 2014, 35, 9114–9125. [Google Scholar] [CrossRef]
  34. Huang, Y.; Zha, G.; Luo, Q.; Zhang, J.; Zhang, F.; Li, X.; Zhao, S.; Zhu, W.; Li, X. The construction of hierarchical structure on Ti substrate with superior osteogenic activity and intrinsic antibacterial capability. Sci. Rep. 2014, 4, 6172. [Google Scholar] [CrossRef] [Green Version]
  35. Narendrakumar, K.; Kulkarni, M.; Addison, O.; Mazare, A.; Junkar, I.; Schmuki, P.; Sammons, R.; Iglič, A. Adherence of oral streptococci to nanostructured titanium surfaces. Dent. Mater. 2015, 31, 1460–1468. [Google Scholar] [CrossRef]
  36. Yan, X.; He, B.; Liu, L.; Qu, G.; Shi, J.; Hu, L.; Jiang, G. Antibacterial mechanism of silver nanoparticles in Pseudomonas aeruginosa: Proteomics approach. Metallomics 2018, 10, 557–564. [Google Scholar] [CrossRef] [PubMed]
  37. Khan, S.U.; Saleh, T.A.; Wahab, A.; Khan, M.H.U.; Khan, D.; Khan, W.U.; Rahim, A.; Kamal, S.; Khan, F.U.; Fahad, S. Nanosilver: New ageless and versatile biomedical therapeutic scaffold. Int. J. Nanomed. 2018, 13, 733. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Lee, S.H.; Jun, B.H. Silver Nanoparticles: Synthesis and Application for Nanomedicine. Int. J. Mol. Sci. 2019, 20, 865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Mobed, A.; Hasanzadeh, M.; Seidi, F. Anti-bacterial activity of gold nanocomposites as a new nanomaterial weapon to combat photogenic agents: Recent advances and challenges. RSC Adv. 2021, 11, 34688–34698. [Google Scholar] [CrossRef]
  40. Ortiz-Benítez, E.A.; Velázquez-Guadarrama, N.; Durán Figueroa, N.V.; Quezada, H.; De Jesús Olivares-Trejo, J. Antibacterial mechanism of gold nanoparticles on Streptococcus pneumoniae. Metallomics 2019, 11, 1265–1276. [Google Scholar] [CrossRef]
  41. Joshi, A.S.; Singh, P.; Mijakovic, I. Interactions of Gold and Silver Nanoparticles with Bacterial Biofilms: Molecular Interactions behind Inhibition and Resistance. Int. J. Mol. Sci. 2020, 21, 7658. [Google Scholar] [CrossRef]
  42. Yue, W.; Wang, Z.; Yang, Y.; Chen, L.; Syed, A.; Wong, K.; Wang, X. Electron-beam lithography of gold nanostructures for surface-enhanced Raman scattering. J. Micromech. Microeng. 2012, 22, 125007. [Google Scholar] [CrossRef]
  43. Lopatynskyi, A.M.; Lytvyn, V.K.; Nazarenko, V.I.; Guo, L.J.; Lucas, B.D.; Chegel, V.I. Au nanostructure arrays for plasmonic applications: Annealed island films versus nanoimprint lithography. Nanoscale Res. Lett. 2015, 10, 1–9. [Google Scholar] [CrossRef] [Green Version]
  44. Wiley, B.; Sun, Y.; Mayers, B.; Xia, Y. Shape-Controlled Synthesis of Metal Nanostructures: The Case of Silver. Chem.—Eur. J. 2005, 11, 454–463. [Google Scholar] [CrossRef]
  45. Niekiel, F.; Schweizer, P.; Kraschewski, S.M.; Butz, B.; Spiecker, E. The process of solid-state dewetting of Au thin films studied by in situ scanning transmission electron microscopy. Acta Mater. 2015, 90, 118–132. [Google Scholar] [CrossRef]
  46. Ye, J.; Zuev, D.; Makarov, S. Dewetting mechanisms and their exploitation for the large-scale fabrication of advanced nanophotonic systems. Int. Mater. Rev. 2018, 64, 439–477. [Google Scholar] [CrossRef]
  47. Altomare, M.; Nguyen, N.T.; Schmuki, P. Templated dewetting: Designing entirely self-organized platforms for photocatalysis. Chem. Sci. 2016, 7, 6865–6886. [Google Scholar] [CrossRef] [Green Version]
  48. Song, D.H.; Uhm, S.H.; Kim, S.E.; Kwon, J.S.; Han, J.G.; Kim, K.N. Synthesis of titanium oxide thin films containing antibacterial silver nanoparticles by a reactive magnetron co-sputtering system for application in biomedical implants. Mater. Res. Bull. 2012, 47, 2994–2998. [Google Scholar] [CrossRef]
  49. Jin, G.; Cao, H.; Qiao, Y.; Meng, F.; Zhu, H.; Liu, X. Osteogenic activity and antibacterial effect of zinc ion implanted titanium. Colloids Surf. B Biointerfaces 2014, 117, 158–165. [Google Scholar] [CrossRef] [PubMed]
  50. Ahmed, F.Y.; Aly, U.F.; Abd El-Baky, R.M.; Waly, N.G.F.M. Comparative Study of Antibacterial Effects of Titanium Dioxide Nanoparticles Alone and in Combination with Antibiotics on MDR Pseudomonas aeruginosa Strains. Int. J. Nanomed. 2020, 15, 3393–3404. [Google Scholar] [CrossRef]
  51. Soo, J.Z.; Chai, L.C.; Ang, B.C.; Ong, B.H. Enhancing the Antibacterial Performance of Titanium Dioxide Nanofibers by Coating with Silver Nanoparticles. ACS Appl. Nano Mater. 2020, 3, 5743–5751. [Google Scholar] [CrossRef]
  52. Azizi-Lalabadi, M.; Ehsani, A.; Divband, B.; Alizadeh-Sani, M. Antimicrobial activity of Titanium dioxide and Zinc oxide nanoparticles supported in 4A zeolite and evaluation the morphological characteristic. Sci. Rep. 2019, 9, 17439. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Liu, J.; Liu, J.; Attarilar, S.; Wang, C.; Tamaddon, M.; Yang, C.; Xie, K.; Yao, J.; Wang, L.; Liu, C.; et al. Nano-Modified Titanium Implant Materials: A Way Toward Improved Antibacterial Properties. Front. Bioeng. Biotechnol. 2020, 8, 1314. [Google Scholar] [CrossRef] [PubMed]
  54. Humbert, M.V.; Christodoulides, M. Atypical, Yet Not Infrequent, Infections with Neisseria Species. Pathog. 2019, 9, 10. [Google Scholar] [CrossRef] [Green Version]
  55. Dinnebier, R.E.; Billinge, S.J.L. Chapter 1: Principles of Powder Diffraction. Powder Diffr. 2008, 1–19. [Google Scholar] [CrossRef]
  56. Dosovitskiy, A.; Springenberg, J.T.; Riedmiller, M.; Brox, T. Discriminative Unsupervised Feature Learning with Convolutional Neural Networks. arXiv. 2014, arXiv:1406.6909. [Google Scholar] [CrossRef] [Green Version]
  57. Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation. Lect. Notes Comput. Sci. 2015, 9351, 234–241. [Google Scholar] [CrossRef] [Green Version]
  58. Wu, K.; Otoo, E.; Shoshani, A. Optimizing connected component labeling algorithms. Proc. SPIE Conf. Med. Imag. 2005, 5747, 1965–1976. [Google Scholar] [CrossRef] [Green Version]
  59. Tan, H.; Zhao, Z.; Niu, M.; Mao, C.; Cao, D.; Cheng, D.; Feng, P.; Sun, Z. A facile and versatile method for preparation of colored TiO2 with enhanced solar-driven photocatalytic activity. Nanoscale 2014, 6, 10216–10223. [Google Scholar] [CrossRef]
  60. NIST X-ray Photoelectron Spectroscopy (XPS) Database. Available online: https://srdata.nist.gov/xps/citation.aspx (accessed on 15 December 2021).
  61. Atuchin, V.V.; Kesler, V.G.; Pervukhina, N.V.; Zhang, Z. Ti 2p and O 1s core levels and chemical bonding in titanium-bearing oxides. J. Electron Spectros. Relat. Phenom. 2006, 152, 18–24. [Google Scholar] [CrossRef]
  62. Sylvestre, J.P.; Poulin, S.; Kabashin, A.V.; Sacher, E.; Meunier, M.; Luong, J.H.T. Surface chemistry of gold nanoparticles produced by laser ablation in aqueous media. J. Phys. Chem. B 2004, 108, 16864–16869. [Google Scholar] [CrossRef]
  63. Ferraria, A.M.; Carapeto, A.P.; Botelho Do Rego, A.M. X-ray photoelectron spectroscopy: Silver salts revisited. Vacuum 2012, 86, 1988–1991. [Google Scholar] [CrossRef]
  64. Ghidelli, M.; Mascaretti, L.; Bricchi, B.R.; Brognara, A.; Afifi, T.A.; Russo, V.; Casari, C.S.; Bassi, A.L. Light management in TiO2 thin films integrated with Au plasmonic nanoparticles. Semicond. Sci. Technol. 2020, 35, 035016. [Google Scholar] [CrossRef]
  65. Kang, M.; Park, S.G.; Jeong, K.H. Repeated Solid-state Dewetting of Thin Gold Films for Nanogap-rich Plasmonic Nanoislands. Sci. Rep. 2015, 5, 14790. [Google Scholar] [CrossRef]
  66. Abdolvand, A.; Hoffmann, M.; Wackerow, S.; Zolotovskaya, S.A. High performance SERS platforms via parametric optimization of the laser-assisted photodeposition of silver and gold nanoparticles. Opt. Mater. Express 2021, 11, 3079–3098. [Google Scholar] [CrossRef]
  67. Kelly, K.L.; Coronado, E.; Zhao, L.L.; Schatz, G.C. The Optical Properties of Metal Nanoparticles:  The Influence of Size, Shape, and Dielectric Environment. J. Phys. Chem. B 2002, 107, 668–677. [Google Scholar] [CrossRef]
  68. Sriubas, M.; Kavaliūnas, V.; Bočkutė, K.; Palevičius, P.; Kaminskas, M.; Rinkevičius, Ž.; Ragulskis, M.; Laukaitis, G. Formation of Au nanostructures on the surfaces of annealed TiO2 thin films. Surf. Interfaces 2021, 25, 101239. [Google Scholar] [CrossRef]
  69. Li, W.; Thian, E.S.; Wang, M.; Wang, Z.; Ren, L. Surface Design for Antibacterial Materials: From Fundamentals to Advanced Strategies. Adv. Sci. 2021, 8, 2100368. [Google Scholar] [CrossRef]
  70. Thompson, C.V. Solid-State Dewetting of Thin Films. Annu. Rev. Mater. Sci. 2012, 42, 399–434. [Google Scholar] [CrossRef]
  71. Ding, S.; Wang, X.; Chen, D.J.; Wang, Q.Q.; Ricard, D.; Roussignol, P.; Flytzanis, C.; Liao, H.B.; Xiao, R.F.; Fu, J.S.; et al. Optical percolation and nonlinearity of sputtered Ag island films. Opt. Express 2006, 14, 1541–1546. [Google Scholar] [CrossRef] [PubMed]
  72. Farzinpour, P.; Sundar, A.; Gilroy, K.D.; Eskin, E.Z.; Hughes, A.R.; Neretina, S. Altering the dewetting characteristics of ultrathin gold and silver films using a sacrificial antimony layer. Nanotechnology 2012, 23, 495604. [Google Scholar] [CrossRef] [PubMed]
  73. Sreenivasan, M.G.; Malik, S.; Thigulla, S.; Mehta, B.R. Dependence of plasmonic properties of silver island films on nanoparticle size and substrate coverage. J. Nanomater. 2013, 2013, 1–8. [Google Scholar] [CrossRef]
  74. Ginsburg, A.; Priel, M.; Barad, H.N.; Keller, D.A.; Borvick, E.; Rietwyk, K.; Kama, A.; Meir, S.; Anderson, A.Y.; Zaban, A. Solid state ITO|Au-NPs|TiO2 plasmonic based solar cells. Sol. Energy Mater. Sol. Cells 2018, 179, 254–259. [Google Scholar] [CrossRef]
  75. Kunwar, S.; Sui, M.; Zhang, Q.; Pandey, P.; Li, M.Y.; Lee, J. Various silver nanostructures on sapphire using plasmon self- assembly and dewetting of thin films. Nano-Micro Lett. 2017, 9, 17. [Google Scholar] [CrossRef] [Green Version]
  76. Hwang, C.S.H.; Ahn, M.S.; Lee, Y.; Chung, T.; Jeong, K.H. Ag/Au Alloyed Nanoislands for Wafer-Level Plasmonic Color Filter Arrays. Sci. Rep. 2019, 9, 9082. [Google Scholar] [CrossRef] [PubMed]
  77. Can Günendi, M.; Tanyeli, İ.; Akgüç, G.B.; Bek, A.; Turan, R.; Gülseren, O.; Atwater, H.A.; Polman, A.; Kelly, K.L.; Coronado, E.; et al. Understanding the plasmonic properties of dewetting formed Ag nanoparticles for large area solar cell applications. Opt. Express 2013, 21, 18344–18353. [Google Scholar] [CrossRef] [Green Version]
  78. Pandey, P.; Kunwar, S.; Shin, K.H.; Seo, M.K.; Yoon, J.; Hong, W.K.; Sohn, J.I. Plasmonic Core–Shell–Satellites with Abundant Electromagnetic Hotspots for Highly Sensitive and Reproducible SERS Detection. Int. J. Mol. Sci. 2021, 22, 12191. [Google Scholar] [CrossRef]
  79. Quan, J.; Zhang, J.; Qi, X.; Li, J.; Wang, N.; Zhu, Y. A study on the correlation between the dewetting temperature of Ag film and SERS intensity. Sci. Rep. 2017, 7, 14771. [Google Scholar] [CrossRef] [Green Version]
  80. Nsimama, P.D.; Herz, A.; Wang, D.; Schaaf, P. Influence of the substrate on the morphological evolution of gold thin films during solid-state dewetting. Appl. Surf. Sci. 2016, 388, 475–482. [Google Scholar] [CrossRef]
  81. Bakri, A.S.; Sahdan, M.Z.; Adriyanto, F. Effect of annealing temperature of titanium dioxide thin films on structural and electrical properties. In Proceedings of the International Conference on Engineering, Science and Nanotechnology 2016, Solo, Indonesia, 3–5 August 2017; Volume 1788, p. 30030. [Google Scholar] [CrossRef] [Green Version]
  82. Zhang, J.; Suo, X.; Zhang, J.; Han, B.; Li, P.; Xue, Y.; Shi, H. One-pot synthesis of Au/TiO2 heteronanostructure composites with SPR effect and its antibacterial activity. Mater. Lett. 2016, 162, 235–237. [Google Scholar] [CrossRef]
  83. Tiwari, A.; Shukla, A.; Tiwari, D.; Choi, S.S.; Shin, H.G.; Lee, S.M. Titanium Dioxide Nanomaterials and its Derivatives in the Remediation of Water: Past, Present and Future. Appl. Chem. Eng. 2019, 30, 261–279. [Google Scholar] [CrossRef]
  84. Yougbaré, S.; Mutalik, C.; Okoro, G.; Lin, I.H.; Krisnawati, D.I.; Jazidie, A.; Nuh, M.; Chang, C.C.; Kuo, T.R. Emerging Trends in Nanomaterials for Antibacterial Applications. Int. J. Nanomed. 2021, 16, 5831–5867. [Google Scholar] [CrossRef]
  85. Slavin, Y.N.; Asnis, J.; Häfeli, U.O.; Bach, H. Metal nanoparticles: Understanding the mechanisms behind antibacterial activity. J. Nanobiotechnol. 2017, 15, 65. [Google Scholar] [CrossRef]
  86. Villa, A.; Dimitratos, N.; Chan-Thaw, C.E.; Hammond, C.; Veith, G.M.; Wang, D.; Manzoli, M.; Prati, L.; Hutchings, G.J. Characterisation of gold catalysts. Chem. Soc. Rev. 2016, 45, 4953–4994. [Google Scholar] [CrossRef] [Green Version]
  87. Fan, X.; Yahia, L.; Sacher, E. Antimicrobial Properties of the Ag, Cu Nanoparticle System. Biology 2021, 10, 137. [Google Scholar] [CrossRef]
  88. Sawant, S.N.; Selvaraj, V.; Prabhawathi, V.; Doble, M. Antibiofilm Properties of Silver and Gold Incorporated PU, PCLm, PC and PMMA Nanocomposites under Two Shear Conditions. PLoS ONE 2013, 8, e63311. [Google Scholar] [CrossRef] [Green Version]
  89. Godoy-Gallardo, M.; Eckhard, U.; Delgado, L.M.; de Roo Puente, Y.J.D.; Hoyos-Nogués, M.; Gil, F.J.; Perez, R.A. Antibacterial approaches in tissue engineering using metal ions and nanoparticles: From mechanisms to applications. Bioact. Mater. 2021, 6, 4470–4490. [Google Scholar] [CrossRef]
  90. Shaikh, S.; Nazam, N.; Rizvi, S.M.D.; Ahmad, K.; Baig, M.H.; Lee, E.J.; Choi, I. Mechanistic Insights into the Antimicrobial Actions of Metallic Nanoparticles and Their Implications for Multidrug Resistance. Int. J. Mol. Sci. 2019, 20, 2468. [Google Scholar] [CrossRef] [Green Version]
  91. Campoccia, D.; Montanaro, L.; Arciola, C.R. A review of the biomaterials technologies for infection-resistant surfaces. Biomaterials 2013, 34, 8533–8554. [Google Scholar] [CrossRef]
  92. Cochis, A.; Azzimonti, B.; Della Valle, C.; Chiesa, R.; Arciola, C.R.; Rimondini, L. Biofilm formation on titanium implants counteracted by grafting gallium and silver ions. J. Biomed. Mater. Res. Part A 2015, 103, 1176–1187. [Google Scholar] [CrossRef]
  93. Li, M.; Wang, Y.; Gao, L.; Sun, Y.; Wang, J.; Qu, S.; Duan, K.; Weng, J.; Feng, B. Porous titanium scaffold surfaces modified with silver loaded gelatin microspheres and their antibacterial behavior. Surf. Coatings Technol. 2016, 286, 140–147. [Google Scholar] [CrossRef]
  94. Gouyau, J.; Duval, R.E.; Boudier, A.; Lamouroux, E.; Gouyau, J.; Duval, R.E.; Boudier, A.; Lamouroux, E.; Banti, C.N.; Rossos, A.K. Investigation of Nanoparticle Metallic Core Antibacterial Activity: Gold and Silver Nanoparticles against Escherichia coli and Staphylococcus aureus. Int. J. Mol. Sci 2021, 22, 1905. [Google Scholar] [CrossRef] [PubMed]
  95. Megrian, D.; Taib, N.; Witwinowski, J.; Beloin, C.; Gribaldo, S. One or two membranes? Diderm Firmicutes challenge the Gram-positive/Gram-negative divide. Mol. Microbiol. 2020, 113, 659–671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Gronow, S.; Welnitz, S.; Lapidus, A.; Nolan, M.; Ivanova, N.; del Rio, T.G.; Copeland, A.; Chen, F.; Tice, H.; Pitluck, S.; et al. Complete genome sequence of Veillonella parvula type strain (Te3 T). Stand. Genomic Sci. 2010, 2, 57–65. [Google Scholar] [CrossRef] [Green Version]
  97. Brook, I. Anaerobic bacteria. Infect. Dis. 2010, 2, 1757–1776. [Google Scholar] [CrossRef]
  98. Van Putten, J.; Tønjum, T. Neisseria. Infect. Dis. 2010, 2, 1676–1689. [Google Scholar] [CrossRef]
  99. Choi, O.; Deng, K.K.; Kim, N.J.; Ross, L.; Surampalli, R.Y.; Hu, Z. The inhibitory effects of silver nanoparticles, silver ions, and silver chloride colloids on microbial growth. Water Res. 2008, 42, 3066–3074. [Google Scholar] [CrossRef]
  100. Kędziora, A.; Speruda, M.; Krzyżewska, E.; Rybka, J.; Łukowiak, A.; Bugla-Płoskońska, G. Similarities and Differences between Silver Ions and Silver in Nanoforms as Antibacterial Agents. Int. J. Mol. Sci. 2018, 19, 444. [Google Scholar] [CrossRef] [Green Version]
  101. Zhang, Y.; Shareena Dasari, T.P.; Deng, H.; Yu, H. Antimicrobial Activity of Gold Nanoparticles and Ionic Gold. J. Environ. Sci. Health Part C 2015, 33, 286–327. [Google Scholar] [CrossRef]
  102. Sukhanova, A.; Bozrova, S.; Sokolov, P.; Berestovoy, M.; Karaulov, A.; Nabiev, I. Dependence of Nanoparticle Toxicity on Their Physical and Chemical Properties. Nanoscale Res. Lett. 2018, 13, 44. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 12 01190 g001 550
Figure 1. Formation of NP/TiO2 structures.
Figure 1. Formation of NP/TiO2 structures.
Nanomaterials 12 01190 g001
Nanomaterials 12 01190 g002 550
Figure 2. The architecture of a fully convolutional neural network model based on U-Net [57]. Multi-channel feature maps are represented by blue rectangles with dimensions and the number of channels shown on the left and top sides of the rectangle, respectively. The copied feature maps from the contracting path are represented by gray rectangles. The map on the left is the 3-channel patch of the experimental OM image and the map on the right is the binary mask prediction.
Figure 2. The architecture of a fully convolutional neural network model based on U-Net [57]. Multi-channel feature maps are represented by blue rectangles with dimensions and the number of channels shown on the left and top sides of the rectangle, respectively. The copied feature maps from the contracting path are represented by gray rectangles. The map on the left is the 3-channel patch of the experimental OM image and the map on the right is the binary mask prediction.
Nanomaterials 12 01190 g002
Nanomaterials 12 01190 g003 550
Figure 3. Localization of bacteria attachment and biofilm formation by N. sicca in experimental OM images. Acquired experimental images are shown in parts (a–c). The results of the application of a straightforward binary threshold operation are shown in parts (d–f). Finally, the results of the application of the fully convolutional neural network model are shown in parts (g–i).
Figure 3. Localization of bacteria attachment and biofilm formation by N. sicca in experimental OM images. Acquired experimental images are shown in parts (a–c). The results of the application of a straightforward binary threshold operation are shown in parts (d–f). Finally, the results of the application of the fully convolutional neural network model are shown in parts (g–i).
Nanomaterials 12 01190 g003
Nanomaterials 12 01190 g004 550
Figure 4. SEM images of AuNP after annealing (Ta = 500 °C) of Au/TiO2 thin films system: (a) h = 5 nm, as-deposited TiO2; (b) h = 7.5 nm, as-deposited TiO2; (c) h = 10 nm, as-deposited TiO2; (d) h = 5 nm, TTiO2 = 500 °C; (e) h = 7.5 nm, TTiO2 = 500 °C; (f) h = 10 nm, TTiO2 = 500 °C.
Figure 4. SEM images of AuNP after annealing (Ta = 500 °C) of Au/TiO2 thin films system: (a) h = 5 nm, as-deposited TiO2; (b) h = 7.5 nm, as-deposited TiO2; (c) h = 10 nm, as-deposited TiO2; (d) h = 5 nm, TTiO2 = 500 °C; (e) h = 7.5 nm, TTiO2 = 500 °C; (f) h = 10 nm, TTiO2 = 500 °C.
Nanomaterials 12 01190 g004
Nanomaterials 12 01190 g005 550
Figure 5. SEM images of AgNP after annealing (Ta = 400 °C) of Ag/TiO2 thin films system: (a) h = 5 nm, as-deposited TiO2; (b) h = 7.5 nm, as-deposited TiO2; (c) h = 10 nm, as-deposited TiO2; (d) h = 5 nm, TTiO2 = 500 °C; (e) h = 7.5 nm, TTiO2 = 500 °C; (f) h = 10 nm, TTiO2 = 500 °C.
Figure 5. SEM images of AgNP after annealing (Ta = 400 °C) of Ag/TiO2 thin films system: (a) h = 5 nm, as-deposited TiO2; (b) h = 7.5 nm, as-deposited TiO2; (c) h = 10 nm, as-deposited TiO2; (d) h = 5 nm, TTiO2 = 500 °C; (e) h = 7.5 nm, TTiO2 = 500 °C; (f) h = 10 nm, TTiO2 = 500 °C.
Nanomaterials 12 01190 g005
Nanomaterials 12 01190 g006 550
Figure 6. XRD data of AgNP/TiO2 and AuNP/TiO2 thin film systems.
Figure 6. XRD data of AgNP/TiO2 and AuNP/TiO2 thin film systems.
Nanomaterials 12 01190 g006
Nanomaterials 12 01190 g007 550
Figure 7. XPS of NP/TiO2 system: (a) Ti 2p in AgNP/TiO2 system, (b) Ag 3d in AgNP/TiO2 system, (c) Ti 2p in AuNP/TiO2 system, and (d) Au 4f in AuNP/TiO2 system.
Figure 7. XPS of NP/TiO2 system: (a) Ti 2p in AgNP/TiO2 system, (b) Ag 3d in AgNP/TiO2 system, (c) Ti 2p in AuNP/TiO2 system, and (d) Au 4f in AuNP/TiO2 system.
Nanomaterials 12 01190 g007
Nanomaterials 12 01190 g008 550
Figure 8. LSPR dependence on mean diameter (Dmean) of AuNP and AgNP on TiO2 thin films.
Figure 8. LSPR dependence on mean diameter (Dmean) of AuNP and AgNP on TiO2 thin films.
Nanomaterials 12 01190 g008
Nanomaterials 12 01190 g009 550
Figure 9. Adherence of bacterial cells on different surfaces (magnification of OM images ×10): (a) N. sicca on SiO2, (b) V. parvula on SiO2, (c) SEM image of N. sicca on SiO2, (d) N. sicca on TiO2, (e) V. parvula on TiO2, and (f) SEM image of V. parvula on SiO2.
Figure 9. Adherence of bacterial cells on different surfaces (magnification of OM images ×10): (a) N. sicca on SiO2, (b) V. parvula on SiO2, (c) SEM image of N. sicca on SiO2, (d) N. sicca on TiO2, (e) V. parvula on TiO2, and (f) SEM image of V. parvula on SiO2.
Nanomaterials 12 01190 g009
Nanomaterials 12 01190 g010 550
Figure 10. N. sicca biofilms on NP (magnification ×10): (a) TiO2—20 °C, AgNP; (b) TiO2—20 °C, AuNP; (c) TiO2—500 °C, AgNP; and (d) TiO2—500 °C, AuNP.
Figure 10. N. sicca biofilms on NP (magnification ×10): (a) TiO2—20 °C, AgNP; (b) TiO2—20 °C, AuNP; (c) TiO2—500 °C, AgNP; and (d) TiO2—500 °C, AuNP.
Nanomaterials 12 01190 g010
Nanomaterials 12 01190 g011 550
Figure 11. Surface coverage of NP/TiO2 system by bacteria: (a) N. sicca, (b) V. parvula.
Figure 11. Surface coverage of NP/TiO2 system by bacteria: (a) N. sicca, (b) V. parvula.
Nanomaterials 12 01190 g011
Nanomaterials 12 01190 g012 550

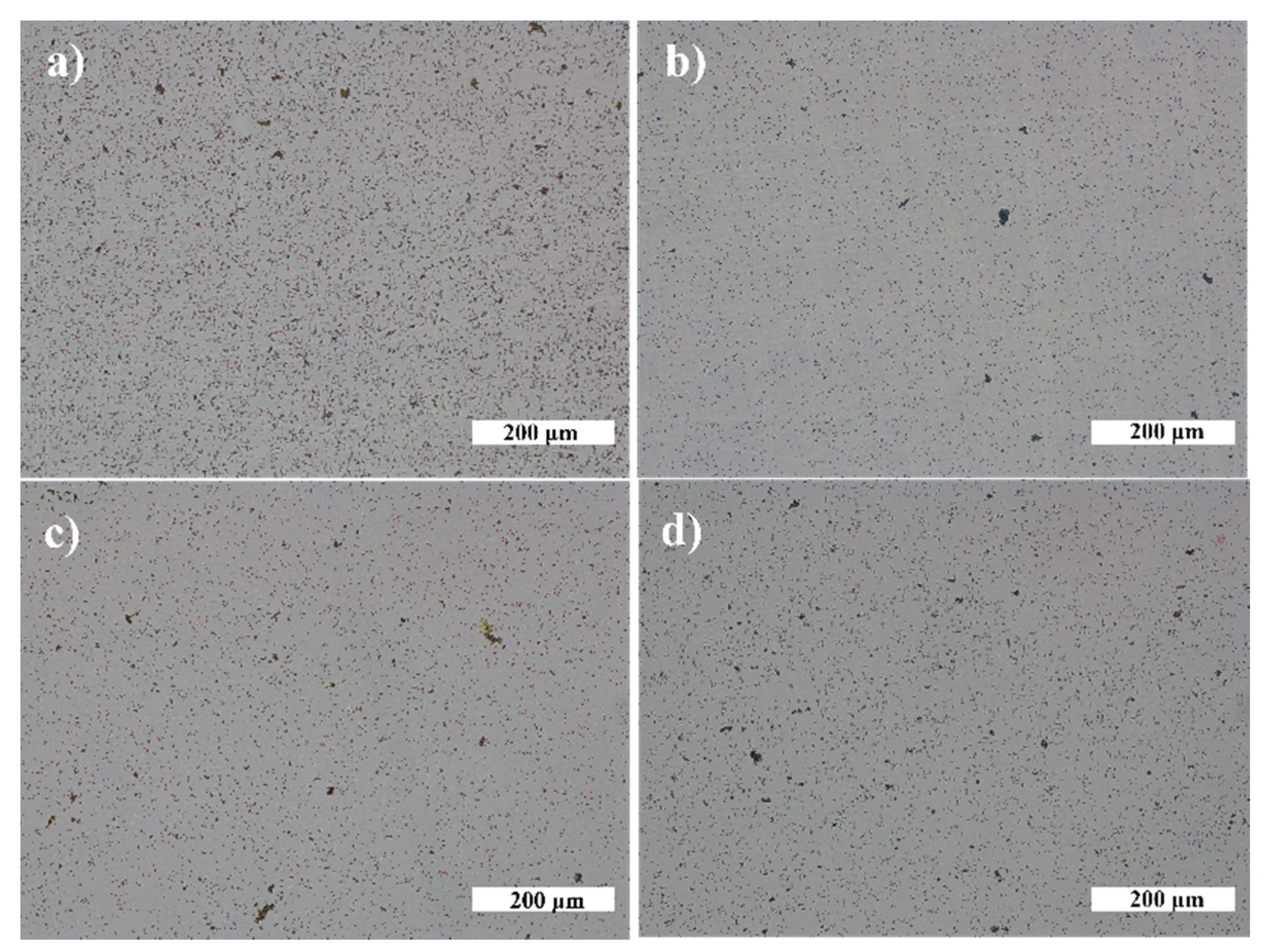

Figure 12. V. parvula biofilms on NP (magnification ×10): (a) TiO2—20 °C, AgNP; (b) TiO2—20 °C, AuNP; (c) TiO2—500 °C, AgNP; and (d) TiO2—500 °C, AuNP.
Figure 12. V. parvula biofilms on NP (magnification ×10): (a) TiO2—20 °C, AgNP; (b) TiO2—20 °C, AuNP; (c) TiO2—500 °C, AgNP; and (d) TiO2—500 °C, AuNP.
Nanomaterials 12 01190 g012
Nanomaterials 12 01190 g013 550
Figure 13. Average size of bacteria colonies: (a) N. sicca and (b) V. parvula.
Figure 13. Average size of bacteria colonies: (a) N. sicca and (b) V. parvula.
Nanomaterials 12 01190 g013
Table
Table 1. Characteristics of AuNP and AgNP after annealing metal/TiO2 thin films systems: surface area ratio (SAR), density of NP (nNP), mean diameter of NP (Dmean), and distances between-NP (border-to-border) to all their neighbors (NNDavg).
Table 1. Characteristics of AuNP and AgNP after annealing metal/TiO2 thin films systems: surface area ratio (SAR), density of NP (nNP), mean diameter of NP (Dmean), and distances between-NP (border-to-border) to all their neighbors (NNDavg).
h, nmTTiO2, °CAuNPAgNP
SARnNP, μm−2Dmean, nmNNDavg, nmSARnNP, μm−2Dmean, nmNNDavg, nm
1020
(Ti20)		0.2882.859.827.50.2739.286.038.3
7.50.31218.140.114.70.1764.650.540.9
50.31316.433.312.00.1785.845.231.4
10500 (Ti500)0.32114.952.819.30.1454.950.437.8
7.50.34129.554.416.50.2171.853.929.8
50.31258.837.213.70.1562.847.733.7
Table
Table 2. Parameters describing the growth of N. sicca and V. parvula bacteria: nNP—density of NP; SC—surface coverage; nB—density of bacteria cells; AS—average size of bacteria colonies; and CV—coefficient of variation of clusters size.
Table 2. Parameters describing the growth of N. sicca and V. parvula bacteria: nNP—density of NP; SC—surface coverage; nB—density of bacteria cells; AS—average size of bacteria colonies; and CV—coefficient of variation of clusters size.
TTiO2, °CNPnNP, μm−2N. siccaV. parvula
SC, %nB, mm−2AS, µmCVSC, %nB, mm−2AS, µmCV
20
(Ti20)		Au01.723,4170.72.2242,6860.50.9
82.866.68017164.020.41.120,2510.60.8
218.181.42375429.211.89.4126,6200.71.5
316.483.48101187.16.92.755,1340.52.1
500 (Ti500)02.730,5490.92.04.175,9680.51.2
114.977.71503600.29.44.259,7280.71.3
129.579.71789567.310.213.4190,8160.74.6
258.879.41321687.18.96.389,7930.71.1
20
(Ti20)		Ag01.723,4170.72.2242,6860.50.9
39.22.549,5770.64.810.8132,1310.92.2
64.62.343,8010.63.01.223,5080.50.8
85.80.914,6780.72.31.625,8640.61.3
500 (Ti500)02.730,5490.92.04.175,9680.51.2
54.92.424,8741.01.23.666,6670.51.4
62.84.188,3240.63.016.7141,5141.22.4
71.82.345,5230.72.56.287,4960.71.5
Optical glass-88.5159347.01.45.596,1380.60.2
Table
Table 3. Characteristics found in the literature of AuNP and AgNP after annealing metal thin films: surface area ratio (SAR), density of NP (nNP), mean diameter of NP (Dmean), and distances between-NP (border-to-border) to all their neighbors (NNDavg).
Table 3. Characteristics found in the literature of AuNP and AgNP after annealing metal thin films: surface area ratio (SAR), density of NP (nNP), mean diameter of NP (Dmean), and distances between-NP (border-to-border) to all their neighbors (NNDavg).
AuNPAgNP
h, nmTa, °CSubstrateSARnNP, μm−2Dmean, nmNNDavg, nmRef.h, nmTa, °CSubstrateSARnNP, μm−2Dmean, nmNNDavg, nmRef.
4900Sapphire (0001)-9002436[72]5200Si0.41 6793[73]
4400TiO20.23-36-[74]6550Sapphire (0001)- 25-[75]
5500Quartz glass0.65-25-[66]10500SiO2- 33-[76]
7400TiO20.21-74-[74]10550Sapphire (0001)- 50-[75]
8900Sapphire (0001)-906398[72]12400SiO2- 120-[77]
10500Quartz glass0.10-55-[66]15600SiO2- 321-[78]
12900Sapphire (0001)-50100150[72]20400SiO2- 180140[79]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sriubas, M.; Bockute, K.; Palevicius, P.; Kaminskas, M.; Rinkevicius, Z.; Ragulskis, M.; Simonyte, S.; Ruzauskas, M.; Laukaitis, G. Antibacterial Activity of Silver and Gold Particles Formed on Titania Thin Films. Nanomaterials 2022, 12, 1190. https://doi.org/10.3390/nano12071190

AMA Style

Sriubas M, Bockute K, Palevicius P, Kaminskas M, Rinkevicius Z, Ragulskis M, Simonyte S, Ruzauskas M, Laukaitis G. Antibacterial Activity of Silver and Gold Particles Formed on Titania Thin Films. Nanomaterials. 2022; 12(7):1190. https://doi.org/10.3390/nano12071190

Chicago/Turabian Style

Sriubas, Mantas, Kristina Bockute, Paulius Palevicius, Marius Kaminskas, Zilvinas Rinkevicius, Minvydas Ragulskis, Sandrita Simonyte, Modestas Ruzauskas, and Giedrius Laukaitis. 2022. "Antibacterial Activity of Silver and Gold Particles Formed on Titania Thin Films" Nanomaterials 12, no. 7: 1190. https://doi.org/10.3390/nano12071190

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
