A New CuSe-TiO2-GO Ternary Nanocomposite: Realizing a High Capacitance and Voltage for an Advanced Hybrid Supercapacitor

by
Muhammad Sajjad
1,
Abdul Jabbar Khan
2,
Sayed M. Eldin
3,
Asma A. Alothman
4,
Mohamed Ouladsmane
4,
Patrizia Bocchetta
5,
Waqas Ul Arifeen
6,
Muhammad Sufyan Javed
7,* and
Zhiyu Mao
1,*
1
College of Chemistry and Life Sciences, Zhejiang Normal University, Jinhua 321004, China
2
College of Chemistry and Chemical Engineering, Huanggang Normal University, Huangggang 438000, China
3
Faculty of Engineering and Technology, Future University in Egypt, New Cairo 11835, Egypt
4
Department of Chemistry, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
5
Dipartimento di Ingegneria dell’Innovazione, Università del Salento, Via Monteroni, 73100 Lecce, Italy
6
School of Mechanical Engineering, Yeungnam University, Daehak-ro, Gyeongsan-si 38541, Gyeongbuk-do, Republic of Korea
7
School of Physical Science and Technology, Lanzhou University, Lanzhou 730000, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(1), 123; https://doi.org/10.3390/nano13010123
Submission received: 28 November 2022 / Revised: 8 December 2022 / Accepted: 21 December 2022 / Published: 26 December 2022
(This article belongs to the Special Issue Synthesis and Application of Nanostructured Materials for Energy-Related Fields)
Browse Figures
Versions Notes

Abstract

:
A high capacitance and widened voltage frames for an aqueous supercapacitor system are challenging to realize simultaneously in an aqueous medium. The severe water splitting seriously restricts the narrow voltage of the aqueous electrolyte beyond 2 V. To overcome this limitation, herein, we proposed the facile wet-chemical synthesis of a new CuSe-TiO2-GO ternary nanocomposite for hybrid supercapacitors, thus boosting the specific energy up to some maximum extent. The capacitive charge storage mechanism of the CuSe-TiO2-GO ternary nanocomposite electrode was tested in an aqueous solution with 3 M KOH as the electrolyte in a three-cell mode assembly. The voltammogram analysis manifests good reversibility and a remarkable capacitive response at various currents and sweep rates, with a durable rate capability. At the same time, the discharge/charge platforms realize the most significant capacitance and a capacity of 920 F/g (153 mAh/g), supported by the impedance analysis with minimal resistances, ensuring the supply of electrolyte ion diffusion to the active host electrode interface. The built 2 V CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor accomplished a significant capacitance of 175 F/g, high specific energy of 36 Wh/kg, superior specific power of 4781 W/kg, and extraordinary stability of 91.3% retention relative to the stable cycling performance. These merits pave a new way to build other ternary nanocomposites to achieve superior performance for energy storage devices.

1. Introduction

With the development of modern civilization, massive industrialization gives birth to huge carbon dioxide emissions, which cause serious environmental problems, such as global warming, air pollution, and the emission of toxic chemicals into the environment [1,2,3]. The poor energy density of supercapacitors can be optimized in two ways: either by increasing the capacitance or expanding the voltage frame of the symmetric/asymmetric/hybrid supercapacitors, as energy is related to the following expression [4,5]: E = ½ C × V2. The schematic, as given in Figure 1, presents the illustration of the expansion of the voltage gap in this work by the theoretical model. The electrolysis process paves a pivotal role in an aqueous supercapacitor. The voltage frame is limited due to the severe water splitting at 1.23 V2 [6,7,8], which can be boosted by optimizing the hydrogen evolution reaction (HER) that occurs on the positive electrode and the oxygen evolution reaction (OER) on the negative electrode in the KOH aqueous solution. This further realizes the optimized electrolyte/electrolyte interface. It is therefore expected that controlling the H+/OH− generation effectively contributed to enhancing the final voltage limit of the potential electrodes [1,9], as given in Figure 1.
Graphene oxide (GO) anticipated a favorable position in the electrochemical energy domain due to its excellent chemical, optical, and mechanical properties [4,10,11]. The theoretical capacitance is ~550 F/g [12], and the performance in the supercapacitor is still far behind due to the severe agglomeration/restacking of different layers in applications coupled with the synthesis procedure. Mixing GO with metal oxides/selenides has been a hot topic for decades and has contributed substantially to defining the final charge storage performance of the obtained product material. Titanium dioxide, denoted as TiO2, is also utilized as an electrode for supercapacitors. Still, the free-standing electrode shows unsatisfactory charge storage abilities, such as low capacitance and determined conductivity during the charge storage process [13,14,15,16]. So far, metal oxide (V2O5, Co3O4, SnO2, MnO2, CdO, and Fe2O3)/GO [8,17,18,19,20,21] composites have been researched and reported to solve the stability of active electrodes and hydrophilicity-related drawbacks. Meanwhile, metal sulfides (FeS2, NiCo2S4, VS2, SnS2, WS2, MoS2, NiS, Ni3S2, CuS, and ZnS) [22,23,24,25,26,27,28,29] are also promising active materials for supercapacitors due to their high conductivity, suitable redox activities owing to multiple oxidation states, semiconducting behavior, and lower electronegativity. The main obstacles are the poor cycling lifespan due to the insulating behavior of sulfur, the thermodynamic instability, the volatility, and the expansion of sulfides-GO-based metal sulfide composites displayed an enhanced lifespan of pure metal sulfides owing to the synergistic effect. The capacitance and upper voltage limit have not been significantly enhanced so far; for instance, the rGO/TiO2/rGO ternary composite (114.5 F/g), with a potential of 0 to 0.8 V [30], GO/TiO2, with a capacitance of 73.43 mF/cm2 at a potential of 0–1 V [31], rGO-TiO2 composites 225 F/g at the current of 0.025 A/g [32], and a sandwich of a TiO2/rGO/TiO2 composite with 83.7 F/g [33] manifest that the performance needs to be further enhanced. To optimize the performance of the GO and TiO2 system, combining copper selenides (CuSe) [34,35,36] has recently been the hotspot and has substantial importance in selenide-based electrodes for electrochemical energy domains owing to their high conductivity, high theoretical capacity, several metallic states, and better energy storage performance in aqueous electrolytes (CuSe/CuSe2@GO with 192.8 F/g, with excellent stability until 10,000 cycles [37], the binderless electrode of CuSe2/Cu (1037 F/g with supreme power and energy densities) [38], and CuSe/NiSe [39] (1478/990 from 1 to 8 A/g) via the hydrothermal method) [40]. CuSe/Ni (OH)2 showed high stability and significant capacitance when utilized as an effective electrode for flexible supercapacitor applications [39]. Recently, our previous work demonstrated a heterostructured CuSe@TiO2 for a hybrid supercapacitor that boosts the low capacitance of CuSe to as high as 370 F/g from 225 F/g at a low current rate in an aqueous solution [34]. There is another report on the TiO2@CuSe nanocomposites from our group, with varying contents of CuSe and TiO2 in which the optimal electrode ZT-3 delivers a capacitance of 184 F/g and 135 at the currents of 2 to 9 A/g due to the synergy between the metal Ti and Cu elements, forming solid structural integrity and sustainability [41]. Inspired by these results and strategies, we follow the same materials, make a new CuSe-TiO2-GO ternary composite, and probe its electrochemical charge storage performance in a KOH solution. As stated above, we expected an excellent energy storage performance from this special heterostructure based on our previous experience.
This paper mainly provided insight into developing a new CuSe-TiO2-GO ternary composite for hybrid supercapacitor applications. The electrochemical properties reveal the prepared nanocomposite’s remarkable reversibility and redox activity in a KOH solution in the three-electrode assembly. A 36 Wh/kg specific energy was realized at 875 W/kg specific power, which expanded to its maximum value of 4781 W/kg after adding an optimized voltage of 2 V by constructing a CuSe-TiO2-GO||AC-GO|KOH hybrid supercapacitor.

2. Preparation of the Nanomaterials

2.1. Synthesis of CuSe

To prepare the selenium alkaline aqueous solution, 4 g of elemental selenium (BDH) was dissolved in 12 M NaOH (Fisher Scientific, Beijing, China). As soon as the elemental selenium dissolved, the solution’s color changed to orange-red. After the elemental selenium was dissolved entirely, a Cu2+ solution made from CuCl2·2H2O (Fisher Scientific) was added drop by drop to the selenium alkaline aqueous solution and rapidly stirred. The produced black precipitate was centrifuged and rinsed with distilled water to remove the surplus alkaline solution. The powder precipitation was subsequently dried for 24 h in an oven at 343 K, as shown in Figure 2.

2.2. TiO2 Synthesis

The hydrothermal approach synthesized TiO2 nano-powders using titanium tetraisopropoxide, distilled water, ethyl alcohol, and citric acid as the starting ingredients. Under continuous magnetic stirring, titanium isopropoxide (TTIP) was added drop by drop to distilled water, ethyl alcohol, and citric acid. The mixture was stirred for another 2 h before being transferred to the stainless-steel autoclave with a Teflon lining. The sealed autoclave was heat-treated for three hours at 150 °C. The autoclave was withdrawn from the oven and cooled naturally to room temperature. The finished product was filtered and dried in an open environment, as depicted in Figure 2.

2.3. Preparation of GO

GO was prepared according to the modified Hummer method [18,22]. In further detail, 108 mL of H2SO4, 12 mL of H3PO4, 5 g of graphite, 2.5 g of NaNO3, and 12 mL of H3PO4 were combined and agitated in an ice bath for 10 min. Afterward, 15 g of KMnO4 was added slowly while ensuring that the mixture’s temperature was maintained below 5 °C. The suspension was then stirred for 60 min and reacted for 2 h in an ice bath before being stirred once more for 60 min in a 40 °C water bath. The mixture was heated to a constant 98 °C for 60 min while water was continuously added. Additional deionized water was added until the suspension reached 400 mL in it. After 5 min, 15 mL of H2O2 was added. The result of the reaction was centrifuged and repeatedly rinsed with deionized water and a 5% HCl solution. At 60 °C, the material was finally dried.

2.4. Preparation of the CuSe-TiO2-GO Ternary Nanocomposite

By varying the wt.% ratios of TiO2 sheets and CuSe nanoparticles, CuSe-TiO2 nanocomposites were synthesized. Briefly, sonication was used to scatter 25% weight ratios of TiO2 (relative to CuSe) and CuSe nanoparticles in 40 mL methanol. This mixture was stirred for approximately thirty minutes before being thoroughly rinsed with DI water and ethanol. The product was subsequently dried at 60 °C; using the same process for CuSe-TiO2-GO nanocomposites, 50% weight ratios of CuSe-TiO2 and GO were achieved (relative to GO).

2.5. Characterization and Electrode Preparation

FESEM first examined the morphology and elemental analysis of the ternary nanocomposite with the TESCAN model MAIA-3 (Islamabad, Pakistan). The Raman spectroscopy is measured to the symmetry of different bonds in the CuSe-TiO2 and GO ternary composite by Model, Dongwoo Optron Co. Ltd (Islamabad, Pakistan). The crystal structure, facile preparation, and phase purity of the sample were detected by utilizing X-ray diffraction examination with the model number EQUINOX-3000 (Thermo Scientific, Islamabad, Pakistan), Cu K α irradiation with a wavelength of 1.54 nm, and a step size of 0.01 at a 10 to 90º theta range.
Three- and two-cell modes were employed to probe the electrochemical properties of the novel CuSe-TiO2-GO ternary nanocomposite in an aqueous solution. Several electrochemical techniques were tested for functional electrochemistry studies at various scans and currents, such as impedance, charge/discharge platforms, and the cyclic voltammogram. A hybrid supercapacitor was assembled with AC-GO as an anode and CuSe-TiO2-GO ternary nanocomposite as the anode in a sandwich configuration using aqueous KOH as the electrolyte.

3. Results and Discussion

The surface overview of the composite was verified by field emission scanning electron microscopy (FESEM) analysis, and the related image is provided in Figure 3a–c with different scale bars. The FESEM diagram reveals that the CuSe is composed of a snow-crystal-like morphological appearance that provides sufficient pathways for the immobilization of ions during electrochemical activities. The CuSe is attached to the TiO2 and wrapped with GO. The good overlapping of the CuSe and TiO2 reduced the volume variation after inserting K-ions into the host matrix. It enhanced the overall capacitance due to its excellent conductivity. Moreover, the GO offers conductive pathways for charge kinetics. The collective contribution of different metal cations and carbon materials boosts the final performance of the electrode, which can be validated from the electrochemical performance. Additionally, no other impurity residues were absent on the surface of the CuSe-TiO2-GO ternary nanocomposite, revealing the high purity of the sample. This can be further verified by EDX analysis, as given in Figure 3d. As shown in Figure 3d, only respective elements can be distinguished in the spectrum, e.g., O, Cu, Se, Ti, and C peaks were detected, proving the samples’ high purity, which coincides with the FESEM and X-ray diffraction investigations.
The CuSe-TiO2-GO ternary nanocomposite phase purity, adequate formation, and crystallinity were confirmed by X-ray diffraction analysis, and the results are given in Figure 4a. The X-ray diffraction pattern of the CuSe-TiO2-GO nanocomposite showed a collective appearance of CuSe, TiO2, and GO in the final product, showing the appropriate synthesis of the product—more specifically, the TiO2 tetragonal anatase crystal phase with the JCPDS No: 01-084-1285 relative to the 2θ values at 25.30°, 38.5°, 48.03°, 53.8°, 55°, 62.69°, 68.76°, 70.2°, 75.05°, and 82.76° assigned to (101), (112), (200), (1050, (211), (204), (116), (220), (215), and (224) planes, as depicted in Figure 4a. Additionally, the CuSe sample also showed a signature in the X-ray diffractogram with a peak at 26.2, 31.7°, 32.6°, 45.5°, 53.3°, 57.1°, and 65.2°, related to the miller indices of (100), (001), (120), (110), (200), (111), (002), and (208), which could be oriented as a hexagonal crystal structure, which coincides nicely with the JCPDS#00-027-0185. Moreover, the GO peaks at a 2θ value of 10.4°, corresponding to (001) and 43.4° (111) crystalline plane values. After that, no other impurities/byproducts/residues were absent during the formation process of the samples, marking the high purity, and the sharp peaks indicate the product’s excellent crystallinity.
The low-temperature Raman analysis can further validate this, and their corresponding graph is schematically shown in Figure 4b. Raman shifts at 150 cm−1 (Eg), 410 cm−1 (A1g), 520 cm−1 (B1g), and 620 cm−1 (Eg) are the vibrational modes of the TiO2. Additionally, the CuSe sample displayed three vibrational modes at 209.3 cm−1 (A1g), 256.4 cm−1, and 492.7 cm−1 (Eg), which could be assigned to the vibrational stretching mode (A1g) due to the Cu-Se bond. Two new peaks are established at 1353 cm−1 due to the D and G bands around 1627 cm−1 of the GO, as shown in the zoomed region in the inset in Figure 4b. The Raman analysis is also consistent with the X-ray diffraction results, which leads to the successful formation of the potential CuSe-TiO2-GO ternary nanocomposite.
The electrochemical properties of the CuSe-TiO2-GO ternary nanocomposite electrode were carefully judged by several electrochemical testing techniques utilizing an aqueous conductive medium. Generally, a three-electrode setup was operated to determine the host electrode’s capacitive charge storage signature, reversible/irreversible reactions, and rate capability. Convincingly, the cyclic voltammogram of the CuSe-TiO2-GO ternary nanocomposite electrode is displayed in Figure 5a between 0.0 and 0.6 V as the potential range with various scans. It was seen that a mirror voltammogram was well sustained from the low scan speed to higher scans, demonstrating the increased accessibility of the ions during the electrochemical process. The enclosed loop area expands with changing scan speeds, indicating the excellent reversibility and rate capability of the CuSe-TiO2-GO ternary nanocomposite electrode. Due to the high resistance and polarization phenomena, more negative-to-positive potentials were effectively seen in the voltammograms [34,42]. The discharge/charge platforms of the CuSe-TiO2-GO ternary nanocomposite electrode were performed utilizing various currents. Their corresponding plot is depicted in Figure 5b. The discharge platforms consist of three parts, a sudden voltage drop due to the internal resistance, a curved region denoting the faradaic reactions due to the pseudocapacitive nature of the CuSe and TiO2, and, lastly, the double-layer contribution from GO. The well-defined shape analogy from minor to more effective current rates sounds towards the high speed and reversibility of the composite electrode. Due to the distinguished voltage plateaus, the discharge/charge platforms demonstrated the pseudocapacitive response. Based on Equation (1), the capacitance at the desired currents is further calculated, and the results are plotted against different current rates in Figure 5c.
C = I × t/V × m
V, m, and t specify the potential, the mass loading on the current collector, and the discharge time, while I denotes the current enclosed by the CV.
A high 920 F/g (153 mAh/g) is calculated for the CuSe-TiO2-GO ternary nanocomposite electrode at 1 A/g, which is much larger than that in the previous literature, such as 543.9 F/g for CuSe@FeOOH [35], 370 F/g (CuSe@TiO2) [34], 165 F/g (graphene@TiO2) [43], 837.7 F/g for Poly (methyl methacrylate, PMMA)/GO/IrO2 [44], 895 F/g for Cr2O3/GO/polyaniline (PANI), 280 F/g for PANI-H2SO4, TiO2 [45], NiS/GO (800 F/g) [46], 743 F/g for the GO/PANI/Ni(OH)2 nanocomposite [47], indium tin oxide (ITO)/GO/VO composite of 949.6 F/g [48], 773 F/g for MnS/GO/PANI [49], 251 F/g for GO@ multiwalled carbon nanotubes (MWCNTs) [50], 707 F/g for MWCNT/GO/NiCo2O4 hybrid composite [51], and 355.2 F/g for the PANI-GO [52] composite, respectively, as shown in Figure 5c. Table 1 illustrates the capacitance values of the CuSe-TiO2-GO ternary nanocomposite at the desired current rates. The only outer surface interaction was observed at the electrode/electrolyte interface for the CuSe-TiO2-GO ternary nanocomposite electrode at more significant current rates; hence, a continuous decay in capacitance was seen. Coulombic efficiency is also calculated, as tabulated in Table 1. It was attractive to note that the coulombic efficiency first decreased due to a low discharge time and then increased and sustained. The poor coulombic efficiency is due to the parasitic reaction during discharge cycles, leading to the poor Coulombic efficiency of the active electrode. The impedance spectroscopy (IS) further deeply analyzes the charge transport kinetics in an aqueous medium regarding charge transfer and solvent resistance, as shown in Figure 5d. Generally, the IS shines a light on the kinetics of the charge transfer process in an electrochemical system. The steep vertical line denotes the diffusion resistance of the electrolyte, the intersection at the real axis defines the solution resistance, and the half-circle with its diameter signifies the charge transfer resistance of the host electrodes. Herein, our work manifests the smallest values of the resistances (see Figure 5d), supporting the high conductivity of the CuSe-TiO2-GO nanocomposite electrode, which confirms the prompt supply of the ions to the inner and outer surfaces of the electrode. Additionally, the multicomponent in the composite matrix brings synergy, which promotes effective utilization, and structural integration is sustained during repeated electrochemical discharge and charge processes.
The electric charge storage performance of the CuSe-TiO2-GO ternary nanocomposite was progressively assessed in a 3 M KOH aqueous solution as a conducting medium for K-ion migration in an electrolyte towards the negative electrode and OH− ions to the cathode during the charging process. An electron from the external circuit moves toward the anode to maintain charge neutrality. Theoretically, the approximate upper cutoff voltage is expected to be as high as 2 V (adding the positive and negative voltages). The CV diagram of the fabricated CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor is shown in Figure 6a from 0 to 2 V, utilizing the CuSe-TiO2-GO nanocomposite and the activated carbon with GO (AC-GO) as the cathode and anode electrodes, respectively. The CV diagram was taken at disparate scans ranging from 10 to 50, 100, 150, and 200 mV/s (see Figure 6b). No apparent change in the enclosed loops and analog shape was sustained in all the scanning, revealing the excellent rate capability and superior power delivery with good reversibility. The CV diagram displayed a non-rectangular shape owing to the pseudocapacitive charge storage mechanism of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor. The absence of a CV tail towards the maximum voltage cutoff signifies not much electrolyte decomposition, possibly due to the expansion of OER/HER activities. Meanwhile, this further confirms that the chosen voltage is the stable and suitable voltage limit for the as-built CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor. To support our results more convincingly, continuous discharge/charge platforms were performed at different currents, as depicted in Figure 6c. It is noted that the upper voltage cutoff (herein, 2 V) is preserved at numerous current rates. The discharge time equates to the charging time, indicating the tremendous coulombic efficiency of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor. The shape of the discharge curves is unchanged, as designated by the high-rate performance of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor. According to Equation (1), the capacitance for the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor was determined, as displayed in Figure 6c. It was worth noting that a significantly large capacitance of 175 F/g and 96 F/g was maintained when the current prolonged from 1 to 10 A/g, indicating a high capability (54.8%) of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor, as depicted in Figure 6d. The acquired capacitance of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor surpasses previous literature reports: 103.4 F/g GO-Ppy-Ag//AC [53], 152 C/g CoMoO4@r-GO||AC [54], 189 F/g for Fe2O3@GO//Ni3(PO4)2@GO [55], 115.15 F/g for Poly(3,4-ethylenedioxythiophene, PEDOT) PEDOT/GO||AC [56], 152 F/g for PPy/Ni2P/GO//AC [49], and 100 F/g for Cr2O3/GO/Ppy||AC [57]. The distinct and detailed capacitance values at each current are listed in Table 2.
The two critical factors in estimating practical performance validation are specific energy and power. The following equations are utilized to obtain extraordinary specific energy/power [58].
Specific energy (S.E) = 1/7.2 CV2
Specific power (S.P) = 3600 E/t
V, C, and t specify the CV and discharge platform voltage, capacitance, and discharge time.
According to Equation (2), a calculated specific energy of 36 Wh/kg was determined and reached its lowest point of 15 Wh/kg after 10 times increase in the current rates. The specific power of 4781 W/kg (Equation (3)) is displayed in Figure 7a. These values are comparable to or even higher than several literature reports, as summarized in Table 3. The specific power and energy at the designated current rates are schematically listed in Table 2. These high values of specific energy and power delivery confirmed the high conductivity of the heterostructured CuSe-TiO2-GO due to the synergistic impact of each component contributing to the enhanced performance of the ternary electrode material. Moreover, long-cycling stability is desirable for supercapacitors in real-life applications, and the related graph is shown in Figure 7b.
The longevity measurements are taken for 5000 cycles at the highest current rate to guarantee the synergy between multi-components (Figure 7b). A secure and stable longevity performance due to the high conductivity of the CuSe-TiO2-GO ternary composite was noticed, alleviating the volume change and accessing more accessible intercalation pathways for K-ions into the host electrode, resulting in a stable cycling performance of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor. A slight decline was observed until 5000 cycles, which can be attributed to the structural degradation and morphological failure during fast discharge/charge cycles at an upsurge current. Overall, the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor achieved stable stability, with only 91.3% capacitance retained at such a considerable current, proving its promising feature for advanced energy storage devices.

4. Conclusions

This paper presents a simplistic and wet-chemical-assisted preparation of the CuSe-TiO2-GO ternary composite for the energy storage domain. The formation of the CuSe-TiO2-GO ternary composite was confirmed by the FESEM/EDX for morphological and elemental analysis, x-ray diffraction, and Raman investigations for structural and phase confirmation. At the same time, the charge storage performance was analyzed by electrochemical studies, such as impedance analysis, discharge/charge platforms, and CV analysis, respectively, in great detail. A high capacitance was executed due to the synergistic effect of the multi-component in the composite structure, which attained a high conductive backbone and supported fast charge kinetics. Notably, a voltage of 2 V was realized by the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor in an aqueous solution due to the expansion of HER/OER activities during electrolysis. Interestingly, a good specific energy of 36 Wh/kg was attained due to the high voltage and capacitance. A highly stable structural stability of 91.3% was realized during successive stability tests at an ultra-high current rate. Thus, our work recognizes the optimal voltage and capacitance, which enlarged the energy density of hybrid supercapacitors.

Author Contributions

Conceptualization, methodology, and software, writing—original draft preparation, writing—review and editing, M.S: validation, P.B., A.J.K.; S.M.E. and W.U.A.; validation, project administration.; funding acquisition, A.A.A.; formal analysis, M.O., P.B. and W.U.A.; investigation, and resources, data curation: M.S.J; writing—review, and editing; M.S.J., W.U.A. and Z.M.; supervision. All authors have read and agreed to the published version of the manuscript.

Funding

All authors thank the Researchers Supporting Project Number (RSP2023R243) at King Saud University, Riyadh, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was financially supported by the Research Fund for International Scientists (52250410342), the Scientific Research start-up grant for Youth Researchers at Lanzhou University, and the Supercomputing Center of Lanzhou University. This work was funded by the Researchers Supporting Project Number (RSP2023R243) at King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, J.-C.; Huang, Z.-H.; Ma, T.-Y. Aqueous supercapacitor with ultrahigh voltage window beyond 2.0 volts. Small Struct. 2020, 1, 2000020. [Google Scholar] [CrossRef]
  2. Sajjad, M.; Khan, M.I.; Cheng, F.; Lu, W. A review on selection criteria of aqueous electrolytes performance evaluation for advanced asymmetric supercapacitors. J. Energy Storage 2021, 40, 102729. [Google Scholar] [CrossRef]
  3. Zhang, L.; Hu, X.; Wang, Z.; Sun, F.; Dorrell, D.G. A review of supercapacitor modeling, estimation, and applications: A control/management perspective. Renew. Sustain. Energy Rev. 2018, 81, 1868–1878. [Google Scholar] [CrossRef]
  4. Zhao, X.; Sajjad, M.; Zheng, Y.; Zhao, M.; Li, Z.; Wu, Z.; Kang, K.; Qiu, L. Covalent organic framework templated ordered nanoporous C60 as durable energy efficient supercapacitor electrode material. Carbon 2021, 182, 144–154. [Google Scholar] [CrossRef]
  5. Javed, M.S.; Zhang, X.; Ali, S.; Mateen, A.; Idrees, M.; Sajjad, M.; Batool, S.; Ahmad, A.; Imran, M.; Najam, T. Heterostructured bimetallic–sulfide@layered Ti3C2Tx–MXene as a synergistic electrode to realize high-energy-density aqueous hybrid-supercapacitor. Nano Energy 2022, 101, 107624. [Google Scholar] [CrossRef]
  6. Sajjad, M.; Khan, Y.; Lu, W. One-pot synthesis of 2D SnS2 nanorods with high energy density and long-term stability for high-performance hybrid supercapacitor. J. Energy Storage 2021, 35, 102336. [Google Scholar] [CrossRef]
  7. Sajjad, M. Recent advances in SiO2-based composite electrodes for supercapacitor applications. J. Inorg. Organomet. Polym. Mater. 2021, 31, 3221–3239. [Google Scholar] [CrossRef]
  8. Sajjad, M.; Lu, W. Regulating high specific capacitance NCS/α-MnO2 cathode and a wide potential window α-Fe2O3/rGO anode to construct 2.7 V for high performance aqueous asymmetric supercapacitors. J. Energy Storage 2021, 44, 103343. [Google Scholar] [CrossRef]
  9. Sajjad, M.; Asif, S.U.; Guan, L.; Jiao, Y.; Jiang, Y.; Zhang, L.; Wen, J.; Zhang, S.; Lin, Y.; Zhang, S. Bismuth Yttrium Oxide (Bi3YO6), A New Electrode Material For Asymmetric Aqueous Supercapacitors. J. Inorg. Organomet. Polym. Mater. 2021, 31, 1260–1270. [Google Scholar] [CrossRef]
  10. Frackowiak, E. Carbon materials for supercapacitor application. Phys. Chem. Chem. Phys. 2007, 9, 1774–1785. [Google Scholar] [CrossRef]
  11. Wang, J.; Zhang, X.; Li, Z.; Ma, Y.; Ma, L. Recent progress of biomass-derived carbon materials for supercapacitors. J. Power Sources 2020, 451, 227794. [Google Scholar] [CrossRef]
  12. Down, M.P.; Rowley-Neale, S.J.; Smith, G.C.; Banks, C.E. Fabrication of graphene oxide supercapacitor devices. ACS Appl. Energy Mater. 2018, 1, 707–714. [Google Scholar] [CrossRef] [Green Version]
  13. Pazhamalai, P.; Krishnamoorthy, K.; Mariappan, V.K.; Kim, S.-J. Blue TiO2 nanosheets as a high-performance electrode material for supercapacitors. J. Colloid Interface Sci. 2019, 536, 62–70. [Google Scholar] [CrossRef]
  14. Park, S.; Shin, D.; Yeo, T.; Seo, B.; Hwang, H.; Lee, J.; Choi, W. Combustion-driven synthesis route for tunable TiO2/RuO2 hybrid composites as high-performance electrode materials for supercapacitors. Chem. Eng. J. 2020, 384, 123269. [Google Scholar] [CrossRef]
  15. Raj, C.C.; Prasanth, R. advent of TiO2 nanotubes as supercapacitor electrode. J. Electrochem. Soc. 2018, 165, E345. [Google Scholar] [CrossRef]
  16. Lu, X.; Wang, G.; Zhai, T.; Yu, M.; Gan, J.; Tong, Y.; Li, Y. Hydrogenated TiO2 nanotube arrays for supercapacitors. Nano Lett. 2012, 12, 1690–1696. [Google Scholar] [CrossRef]
  17. Hu, B.; Xiang, Q.; Cen, Y.; Li, S.; Liu, L.; Yu, D.; Chen, C. In situ constructing flexible V2O5@GO composite thin film electrode for superior electrochemical energy storage. J. Electrochem. Soc. 2018, 165, A3738. [Google Scholar] [CrossRef]
  18. Obodo, R.M.; Onah, E.O.; Nsude, H.E.; Agbogu, A.; Nwanya, A.C.; Ahmad, I.; Zhao, T.; Ejikeme, P.M.; Maaza, M.; Ezema, F.I. Performance evaluation of graphene oxide based Co3O4@GO, MnO2@GO and Co3O4/MnO2@GO electrodes for supercapacitors. Electroanalysis 2020, 32, 2786–2794. [Google Scholar] [CrossRef]
  19. Ahmed, A.F.; Yaseen, W.I.; Abbas, Q.A.; Mutlak, F.A. Plasma treatment effect on SnO2–GO nano-heterojunction: Fabrication, characterization and optoelectronic applications. Appl. Phys. A 2021, 127, 746. [Google Scholar] [CrossRef]
  20. Pawar, S.A.; Patil, D.S.; Shin, J.C. Transition of hexagonal to square sheets of Co3O4 in a triple heterostructure of Co3O4/MnO2/GO for high performance supercapacitor electrode. Curr. Appl. Phys. 2019, 19, 794–803. [Google Scholar] [CrossRef]
  21. Ahmad, J.; Majid, K. Enhanced visible light driven photocatalytic activity of CdO–graphene oxide heterostructures for the degradation of organic pollutants. New J. Chem. 2018, 42, 3246–3259. [Google Scholar] [CrossRef]
  22. Venkateshalu, S.; Kumar, P.G.; Kollu, P.; Jeong, S.K.; Grace, A.N. Solvothermal synthesis and electrochemical properties of phase pure pyrite FeS2 for supercapacitor applications. Electrochim. Acta 2018, 290, 378–389. [Google Scholar] [CrossRef]
  23. Chen, T.; Wei, S.; Wang, Z. NiCo2S4-based composite materials for supercapacitors. ChemPlusChem 2020, 85, 43–56. [Google Scholar] [CrossRef] [Green Version]
  24. Haider, W.A.; Tahir, M.; He, L.; Yang, W.; Minhas-khan, A.; Owusu, K.A.; Chen, Y.; Hong, X.; Mai, L. Integration of VS2 nanosheets into carbon for high energy density micro-supercapacitor. J. Alloys Compd. 2020, 823, 151769. [Google Scholar] [CrossRef]
  25. Wang, B.; Hu, R.; Zhang, J.; Huang, Z.; Qiao, H.; Gong, L.; Qi, X. 2D/2D SnS2/MoS2 layered heterojunction for enhanced supercapacitor performance. J. Am. Ceram. Soc. 2020, 103, 1088–1096. [Google Scholar] [CrossRef]
  26. Ray, S.K.; Pant, B.; Park, M.; Hur, J.; Lee, S.W. Cavity-like hierarchical architecture of WS2/α-NiMoO4 electrodes for supercapacitor application. Ceram. Int. 2020, 46, 19022–19027. [Google Scholar] [CrossRef]
  27. Chen, J.S.; Guan, C.; Gui, Y.; Blackwood, D.J. Rational design of self-supported Ni3S2 nanosheets array for advanced asymmetric supercapacitor with a superior energy density. ACS Appl. Mater. Interfaces 2017, 9, 496–504. [Google Scholar] [CrossRef]
  28. Sabeeh, H.; Aadil, M.; Zulfiqar, S.; Ayeman, I.; Shakir, I.; Agboola, P.O.; Haider, S.; Warsi, M.F. Self-supporting design of NiS/CNTs nanohybrid for advanced electrochemical energy storage applications. J. Clust. Sci. 2022, 33, 2113–2121. [Google Scholar] [CrossRef]
  29. Ahmad, S.A.; Shah, M.Z.U.; ur Rahman, S.; Arif, M.; Lu, J.; Huang, T.; Ahmad, A.; Al-Kahtani, A.A.; Tighezza, A.M.; Sajjad, M. Facile synthesis of hierarchical ZnS@FeSe2 nanostructures as new energy-efficient cathode material for advanced asymmetric supercapacitors. J. Sci. Adv. Mater. Devices 2022, 7, 100489. [Google Scholar] [CrossRef]
  30. Ramadoss, A.; Kim, G.-S.; Kim, S.J. Fabrication of reduced graphene oxide/TiO2 nanorod/reduced graphene oxide hybrid nanostructures as electrode materials for supercapacitor applications. CrystEngComm 2013, 15, 10222–10229. [Google Scholar] [CrossRef]
  31. Rani, P.; Ghorai, A.; Roy, S.; Goswami, D.K.; Midya, A.; Ray, S.K. Mesoporous GO-TiO2 nanocomposites for flexible solid-state supercapacitor applications. Mater. Res. Express 2020, 6, 125546. [Google Scholar] [CrossRef]
  32. Xiang, C.; Li, M.; Zhi, M.; Manivannan, A.; Wu, N. Reduced graphene oxide/titanium dioxide composites for supercapacitor electrodes: Shape and coupling effects. J. Mater. Chem. 2012, 22, 19161–19167. [Google Scholar] [CrossRef]
  33. Agharezaei, P.; Abdizadeh, H.; Golobostanfard, M.R. Flexible supercapacitor electrodes based on TiO2/rGO/TiO2 sandwich type hybrids. Ceram. Int. 2018, 44, 4132–4141. [Google Scholar] [CrossRef]
  34. Sajjad, M.; Shah, M.Z.U.; Javed, M.S.; Shah, M.S.; Shah, A.; Lu, W.; Mao, Z. A novel high-performance all-solid-state asymmetric supercapacitor based on CuSe nanoflakes wrapped on vertically aligned TiO2 nanoplates nanocomposite synthesized via a wet-chemical method. J. Energy Storage 2022, 55, 105304. [Google Scholar] [CrossRef]
  35. Li, J.-C.; Gong, J.; Zhang, X.; Lu, L.; Liu, F.; Dai, Z.; Wang, Q.; Hong, X.; Pang, H.; Han, M. Alternate integration of vertically oriented CuSe@FeOOH and CuSe@MnOOH hybrid nanosheets frameworks for flexible in-plane asymmetric micro-supercapacitors. ACS Appl. Energy Mater. 2020, 3, 3692–3703. [Google Scholar] [CrossRef]
  36. Gong, J.; Tian, Y.; Yang, Z.; Wang, Q.; Hong, X.; Ding, Q. High-performance flexible all-solid-state asymmetric supercapacitors based on vertically aligned CuSe@Co(OH)2 nanosheet arrays. J. Phys. Chem. C 2018, 122, 2002–2011. [Google Scholar] [CrossRef] [Green Version]
  37. Karuppasamy, K.; Vikraman, D.; Hussain, S.; Veerasubramani, G.K.; Santhoshkumar, P.; Lee, S.-H.; Bose, R.; Kathalingam, A.; Kim, H.-S. Unveiling a binary metal selenide composite of CuSe polyhedrons/CoSe2 nanorods decorated graphene oxide as an active electrode material for high-performance hybrid supercapacitors. Chem. Eng. J. 2022, 427, 131535. [Google Scholar] [CrossRef]
  38. Pazhamalai, P.; Krishnamoorthy, K.; Kim, S.J. Hierarchical copper selenide nanoneedles grown on copper foil as a binder free electrode for supercapacitors. Int. J. Hydrogen Energy 2016, 41, 14830–14835. [Google Scholar] [CrossRef]
  39. Gong, J.; Li, J.-C.; Yang, J.; Zhao, S.; Yang, Z.; Zhang, K.; Bao, J.; Pang, H.; Han, M. High-performance flexible in-plane micro-supercapacitors based on vertically aligned CuSe@Ni(OH)2 hybrid nanosheet films. ACS Appl. Mater. Interfaces 2018, 10, 38341–38349. [Google Scholar] [CrossRef]
  40. Deng, Y.-f.; Chen, Y.; Zhang, X.-l.; Zhang, Q.; Wei, Z.-j.; Wang, D. One-step synthesis of 2D vertically-aligned hybrid CuSe@NiSe nanosheets for high performance flexible supercapacitors. J. Alloys Compd. 2022, 892, 162159. [Google Scholar] [CrossRef]
  41. Shah, M.Z.U.; Javed, M.S.; Sajjad, M.; Shah, A.; Shah, M.S.; ur Rahman, S.; Mahmood, A.; Ahmad, M.; Assiri, M.A.; Hou, H. A novel TiO2/CuSe based nanocomposite for high-voltage asymmetric supercapacitors. J. Sci. Adv. Mater. Devices 2022, 7, 100418. [Google Scholar] [CrossRef]
  42. Sajjad, M.; Javed, M.S.; Imran, M.; Mao, Z. CuCo2O4 nanoparticles wrapped in a rGO aerogel composite as an anode for a fast and stable Li-ion capacitor with ultra-high specific energy. New J. Chem. 2021, 45, 20751–20764. [Google Scholar] [CrossRef]
  43. Ramadoss, A.; Kim, S.J. Improved activity of a graphene–TiO2 hybrid electrode in an electrochemical supercapacitor. Carbon 2013, 63, 434–445. [Google Scholar] [CrossRef]
  44. Korkmaz, S.; Tezel, F.M.; Kariper, İ. Synthesis and characterization of GO/IrO2 thin film supercapacitor. J. Alloys Compd. 2018, 754, 14–25. [Google Scholar] [CrossRef]
  45. Singu, B.S.; Male, U.; Srinivasan, P.; Pabba, S. Use of surfactant in aniline polymerization with TiO2 to PANI-TiO2 for supercapacitor performance. J. Solid State Electrochem. 2014, 18, 1995–2003. [Google Scholar] [CrossRef]
  46. Wang, A.; Wang, H.; Zhang, S.; Mao, C.; Song, J.; Niu, H.; Jin, B.; Tian, Y. Controlled synthesis of nickel sulfide/graphene oxide nanocomposite for high-performance supercapacitor. Appl. Surf. Sci. 2013, 282, 704–708. [Google Scholar] [CrossRef]
  47. Ma, L.; Su, L.; Zhang, J.; Zhao, D.; Qin, C.; Jin, Z.; Zhao, K. A controllable morphology GO/PANI/metal hydroxide composite for supercapacitor. J. Electroanal. Chem. 2016, 777, 75–84. [Google Scholar] [CrossRef]
  48. Korkmaz, S.; Tezel, F.M.; Kariper, I. Synthesis and characterization of GO/V2O5 thin film supercapacitor. Synth. Met. 2018, 242, 37–48. [Google Scholar] [CrossRef]
  49. Liu, S.; Luo, C.; Chai, L.; Ren, J. Ball-milling fabrication of PPy/Ni2P/GO composites for high-performance supercapacitor electrodes. J. Solid State Electrochem. 2021, 25, 1975–1985. [Google Scholar] [CrossRef]
  50. Aboutalebi, S.H.; Chidembo, A.T.; Salari, M.; Konstantinov, K.; Wexler, D.; Liu, H.K.; Dou, S.X. Comparison of GO, GO/MWCNTs composite and MWCNTs as potential electrode materials for supercapacitors. Energy Environ. Sci. 2011, 4, 1855–1865. [Google Scholar] [CrossRef]
  51. Ramesh, S.; Vikraman, D.; Kim, H.-S.; Kim, H.S.; Kim, J.-H. Electrochemical performance of MWCNT/GO/NiCo2O4 decorated hybrid nanocomposite for supercapacitor electrode materials. J. Alloys Compd. 2018, 765, 369–379. [Google Scholar] [CrossRef]
  52. Gui, D.; Liu, C.; Chen, F.; Liu, J. Preparation of polyaniline/graphene oxide nanocomposite for the application of supercapacitor. Appl. Surf. Sci. 2014, 307, 172–177. [Google Scholar] [CrossRef]
  53. Singu, B.S.; Yoon, K.R. Highly exfoliated GO-PPy-Ag ternary nanocomposite for electrochemical supercapacitor. Electrochim. Acta 2018, 268, 304–315. [Google Scholar] [CrossRef]
  54. Prabhu, S.; Gowdhaman, A.; Harish, S.; Navaneetham, M.; Ramesh, R. Synthesis of petal-like CoMoO4/r-GO composites for high performances hybrid supercapacitor. Mater. Lett. 2021, 295, 129821. [Google Scholar] [CrossRef]
  55. Li, J.-J.; Liu, M.-C.; Kong, L.-B.; Wang, D.; Hu, Y.-M.; Han, W.; Kang, L. Advanced asymmetric supercapacitors based on Ni3(PO4)2@GO and Fe2O3@GO electrodes with high specific capacitance and high energy density. RSC Adv. 2015, 5, 41721–41728. [Google Scholar] [CrossRef]
  56. Azman, N.H.N.; Lim, H.N.; Sulaiman, Y. Effect of electropolymerization potential on the preparation of PEDOT/graphene oxide hybrid material for supercapacitor application. Electrochim. Acta 2016, 188, 785–792. [Google Scholar] [CrossRef]
  57. Asen, P.; Shahrokhian, S. Ternary nanostructures of Cr2O3/graphene oxide/conducting polymers for supercapacitor application. J. Electroanal. Chem. 2018, 823, 505–516. [Google Scholar] [CrossRef]
  58. Sajjad, M.; Jiang, Y.; Guan, L.; Chen, X.; Iqbal, A.; Zhang, S.; Ren, Y.; Zhou, X.; Liu, Z. NiCo2S4 nanosheet grafted SiO2@C core-shelled spheres as a novel electrode for high performance supercapacitors. Nanotechnology 2019, 31, 045403. [Google Scholar] [CrossRef]
  59. Malavekar, D.; Bulakhe, R.; Kale, S.; Patil, U.; In, I.; Lokhande, C. Synthesis of layered copper selenide on reduced graphene oxide sheets via SILAR method for flexible asymmetric solid-state supercapacitor. J. Alloys Compd. 2021, 869, 159198. [Google Scholar] [CrossRef]
  60. Kim, H.; Cho, M.Y.; Kim, M.H.; Park, K.Y.; Gwon, H.; Lee, Y.; Roh, K.C.; Kang, K. A novel high-energy hybrid supercapacitor with an anatase TiO2–reduced graphene oxide anode and an activated carbon cathode. Adv. Energy Mater. 2013, 3, 1500–1506. [Google Scholar] [CrossRef]
  61. De, B.; Kuila, T.; Kim, N.H.; Lee, J.H. Carbon dot stabilized copper sulphide nanoparticles decorated graphene oxide hydrogel for high performance asymmetric supercapacitor. Carbon 2017, 122, 247–257. [Google Scholar] [CrossRef]
  62. Li, S.; Shi, C.; Pan, Y.; Wang, Y. 2D/2D NiCo-MOFs/GO hybrid nanosheets for high-performance asymmetrical supercapacitor. Diam. Relat. Mater. 2021, 115, 108358. [Google Scholar] [CrossRef]
  63. Zhang, L.; Guo, H.; Xue, R.; Yue, L.; Li, Q.; Liu, H.; Yang, W.; Wang, X.; Yang, W. In-situ facile synthesis of flower shaped NiS2@ regenerative graphene oxide derived from waste dry battery nano-composites for high-performance supercapacitors. J. Energy Storage 2020, 31, 101630. [Google Scholar] [CrossRef]
  64. Ismail, J.; Sajjad, M.; Shah, M.Z.U.; Hussain, R.; Khan, B.A.; Maryam, R.; Shah, A.; Mahmood, A.; ur Rahman, S. Comparative capacitive performance of MnSe encapsulated GO based nanocomposites for advanced electrochemical capacitor with rapid charge transport channels. Mater. Chem. Phys. 2022, 284, 126059. [Google Scholar] [CrossRef]
  65. Sajjad, M.; Ismail, J.; Shah, A.; Mahmood, A.; Shah, M.Z.U.; ur Rahman, S.; Lu, W. Fabrication of 1.6 V hybrid supercapacitor developed using MnSe2/rGO positive electrode and phosphine based covalent organic frameworks as a negative electrode enables superb stability up to 28,000 cycles. J. Energy Storage 2021, 44, 103318. [Google Scholar] [CrossRef]
Nanomaterials 13 00123 g001 550

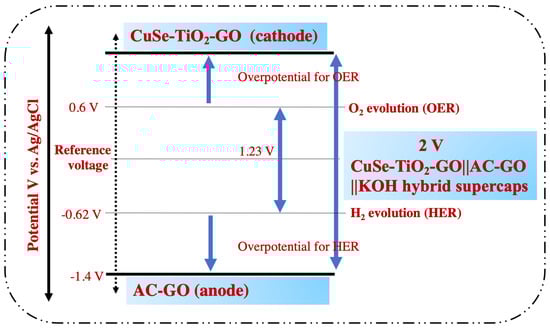

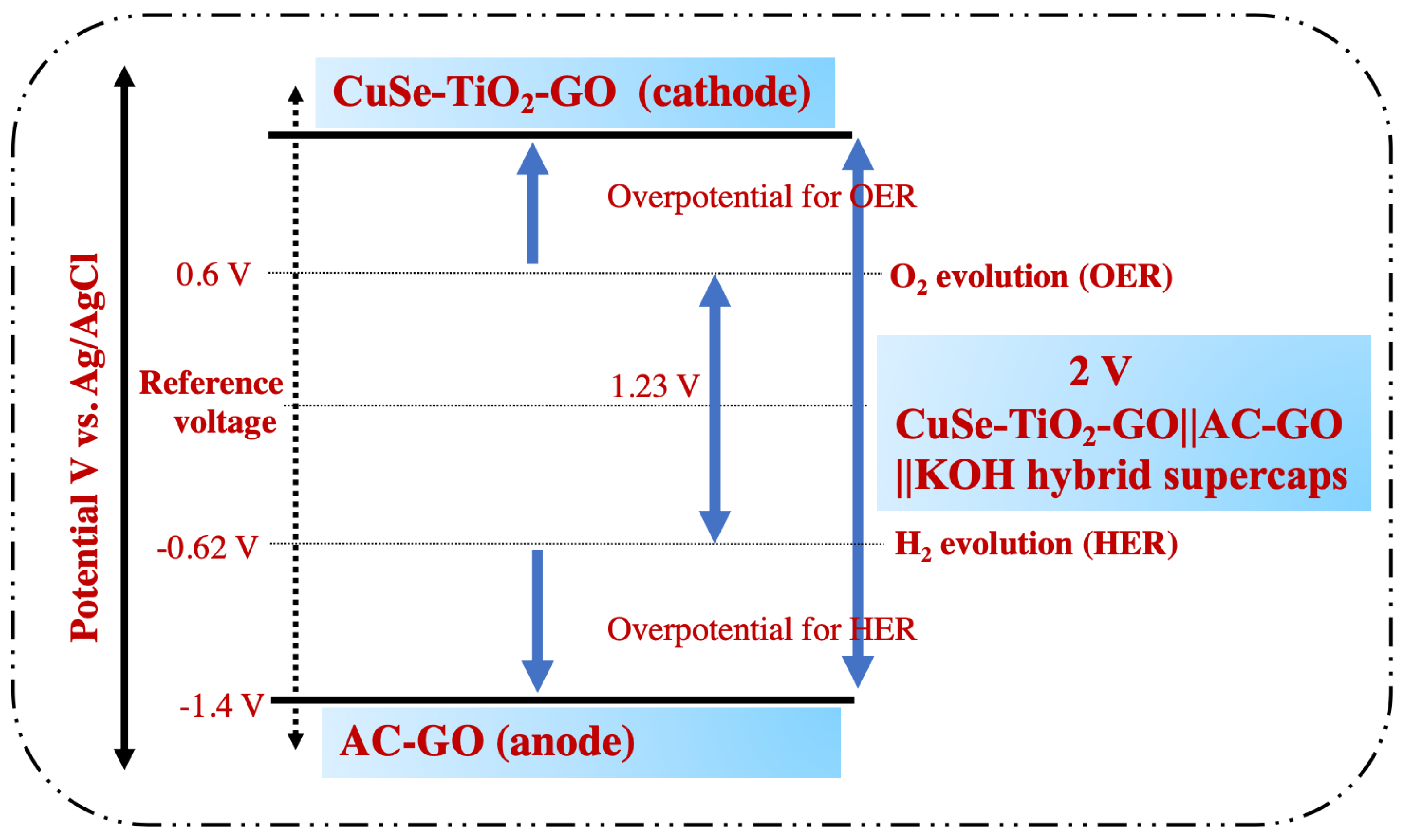

Figure 1. Schematic showing the expansion of the voltage region of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor in an aqueous KOH electrolyte.
Figure 1. Schematic showing the expansion of the voltage region of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor in an aqueous KOH electrolyte.
Nanomaterials 13 00123 g001
Nanomaterials 13 00123 g002 550

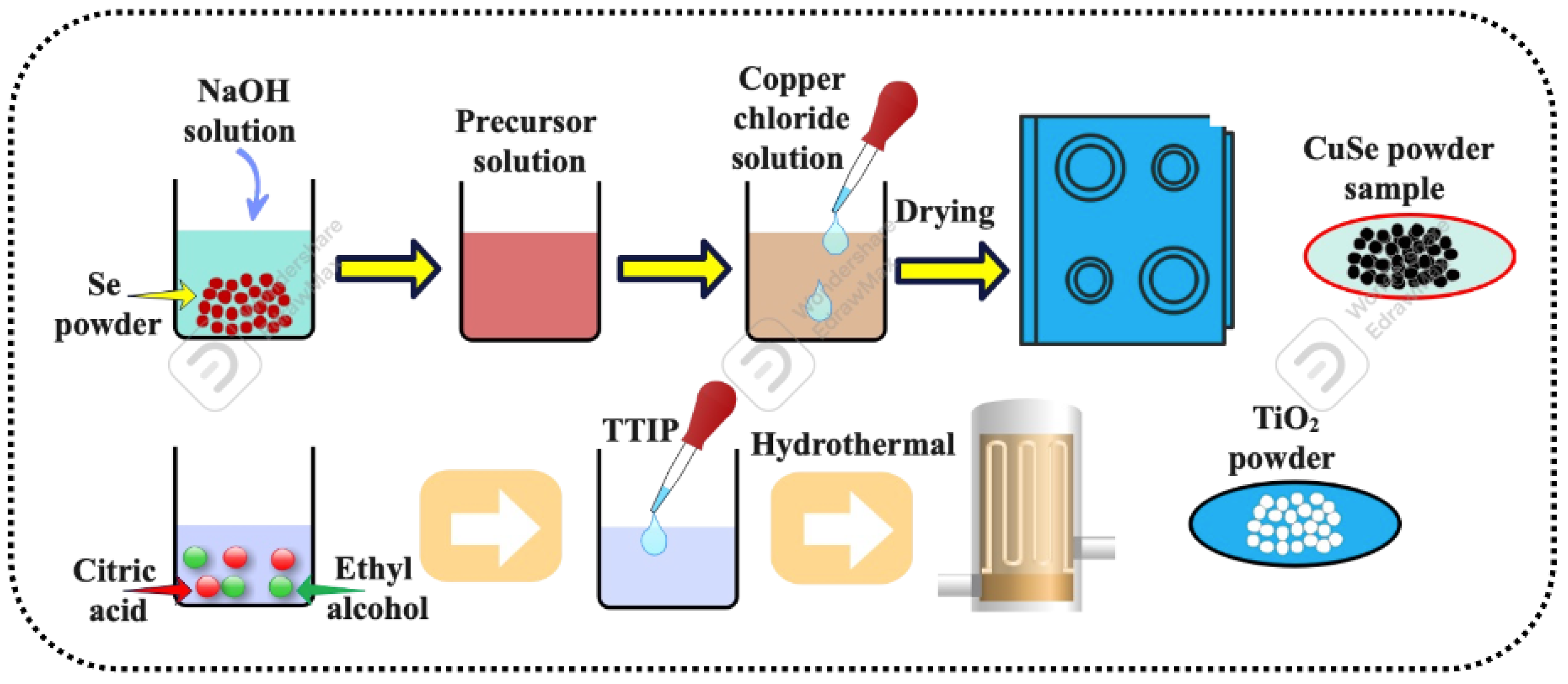

Figure 2. Illustration of the synthesis of the CuSe-TiO2 matrix.
Figure 2. Illustration of the synthesis of the CuSe-TiO2 matrix.
Nanomaterials 13 00123 g002
Nanomaterials 13 00123 g003 550

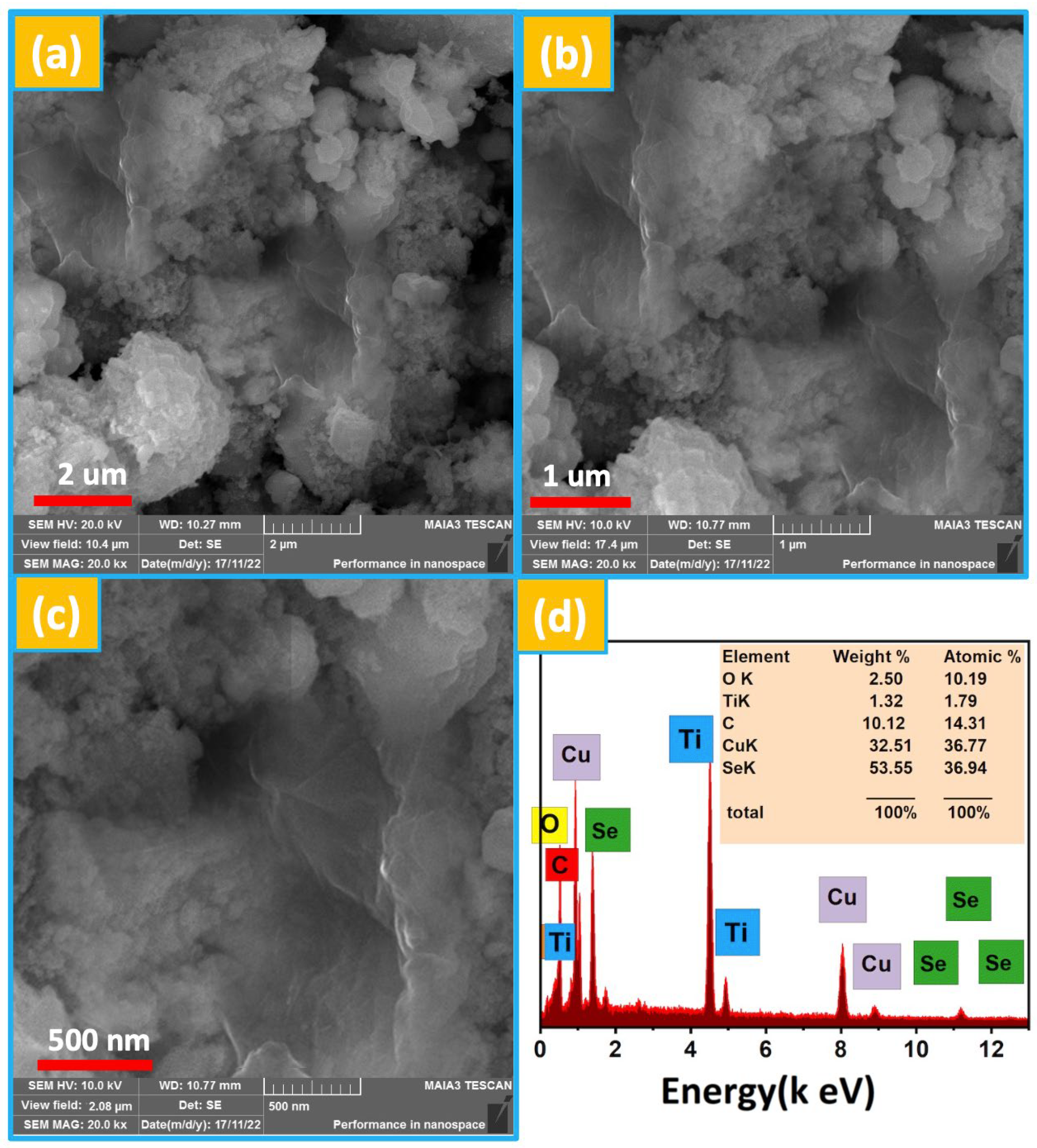

Figure 3. (a–c) Morphological analysis of the sample by the FESEM diagram at different scale bars, (d) EDX spectrum of the CuSe-TiO2-GO nanocomposite.
Figure 3. (a–c) Morphological analysis of the sample by the FESEM diagram at different scale bars, (d) EDX spectrum of the CuSe-TiO2-GO nanocomposite.
Nanomaterials 13 00123 g003
Nanomaterials 13 00123 g004 550

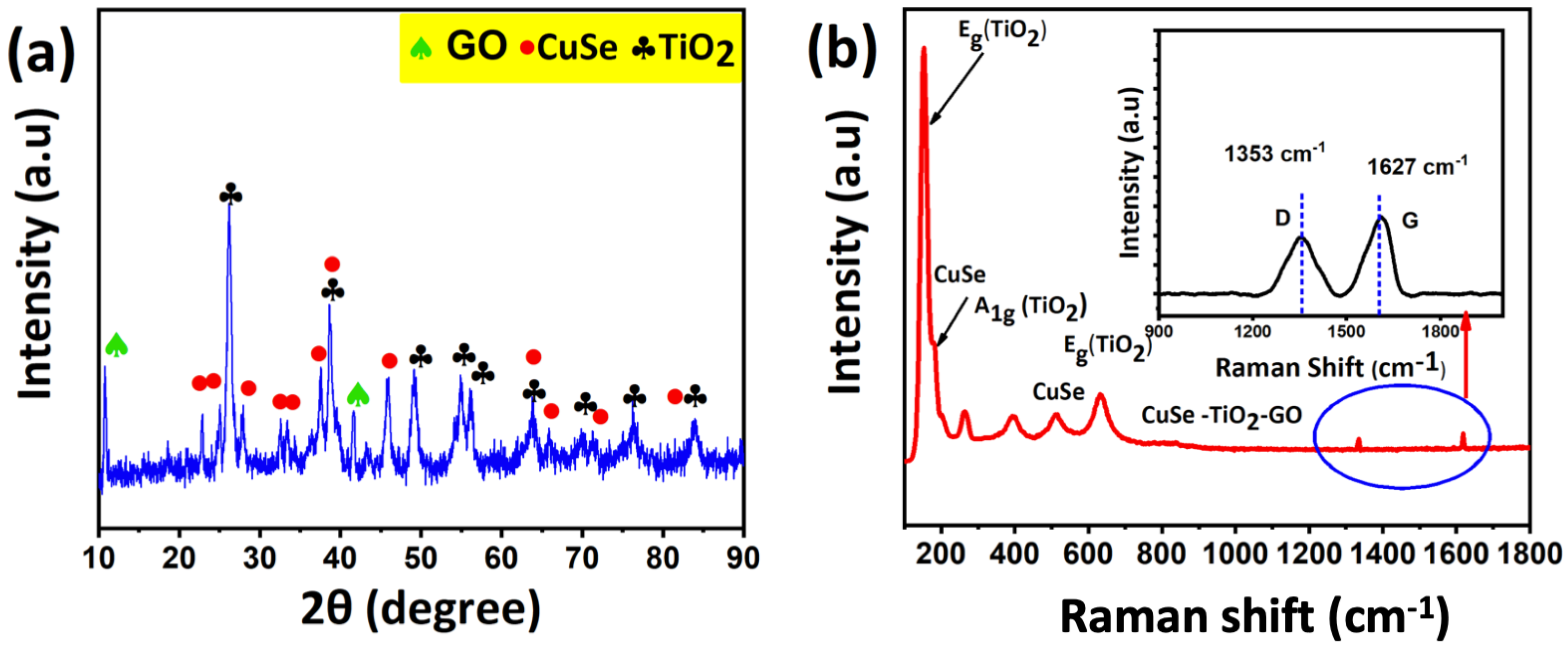

Figure 4. (a) X-ray diffraction pattern and (b) Raman analysis. The inset is the magnified view of the D and G bands of GO in the CuSe-TiO2-GO nanocomposite.
Figure 4. (a) X-ray diffraction pattern and (b) Raman analysis. The inset is the magnified view of the D and G bands of GO in the CuSe-TiO2-GO nanocomposite.
Nanomaterials 13 00123 g004
Nanomaterials 13 00123 g005 550

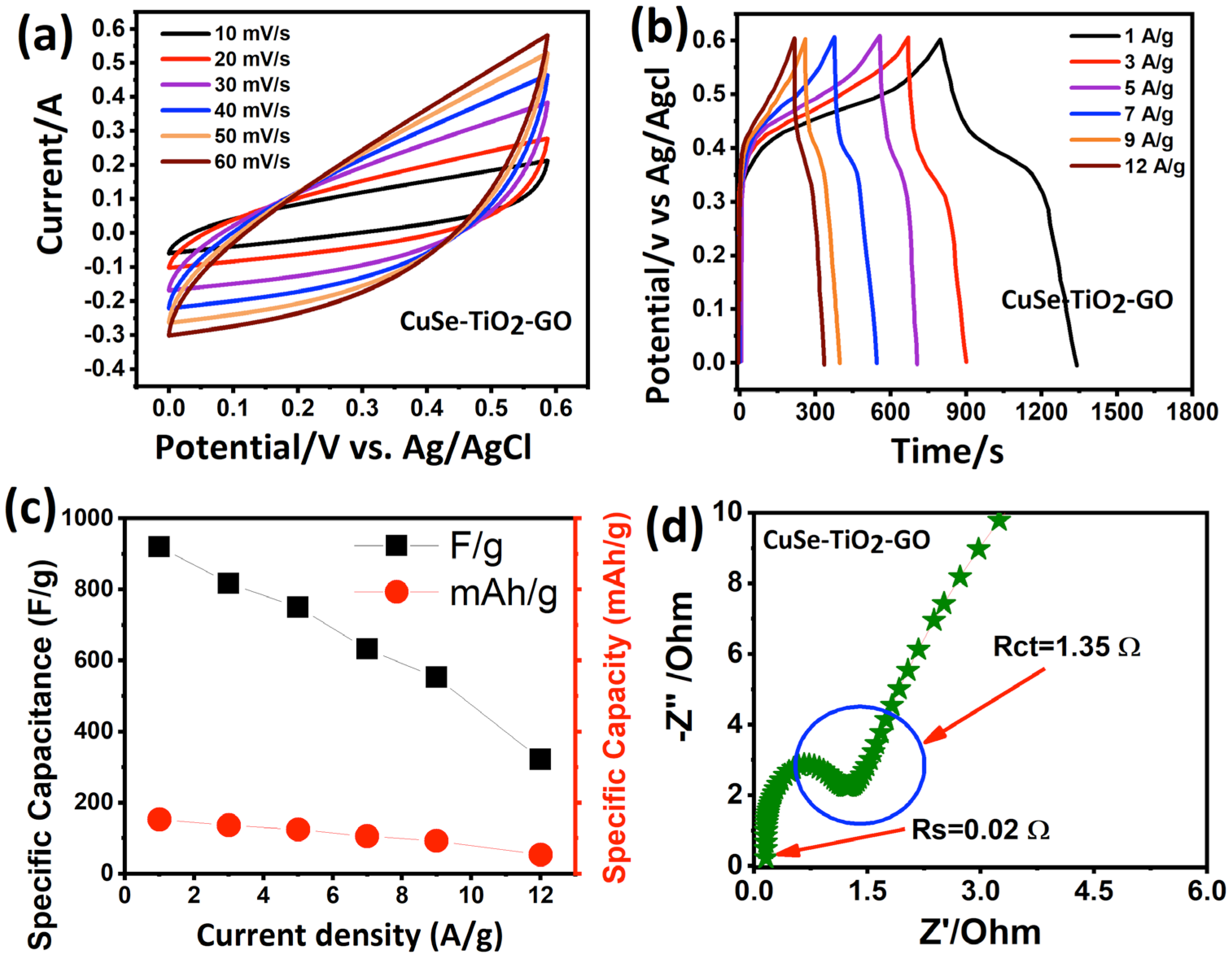

Figure 5. The CuSe-TiO2-GO nanocomposite and its capacitive performance analysis, (a) CV profile, (b) discharge/charge platforms, (c) variation in capacitance with current rates, (d) impedance plot.
Figure 5. The CuSe-TiO2-GO nanocomposite and its capacitive performance analysis, (a) CV profile, (b) discharge/charge platforms, (c) variation in capacitance with current rates, (d) impedance plot.
Nanomaterials 13 00123 g005
Nanomaterials 13 00123 g006 550

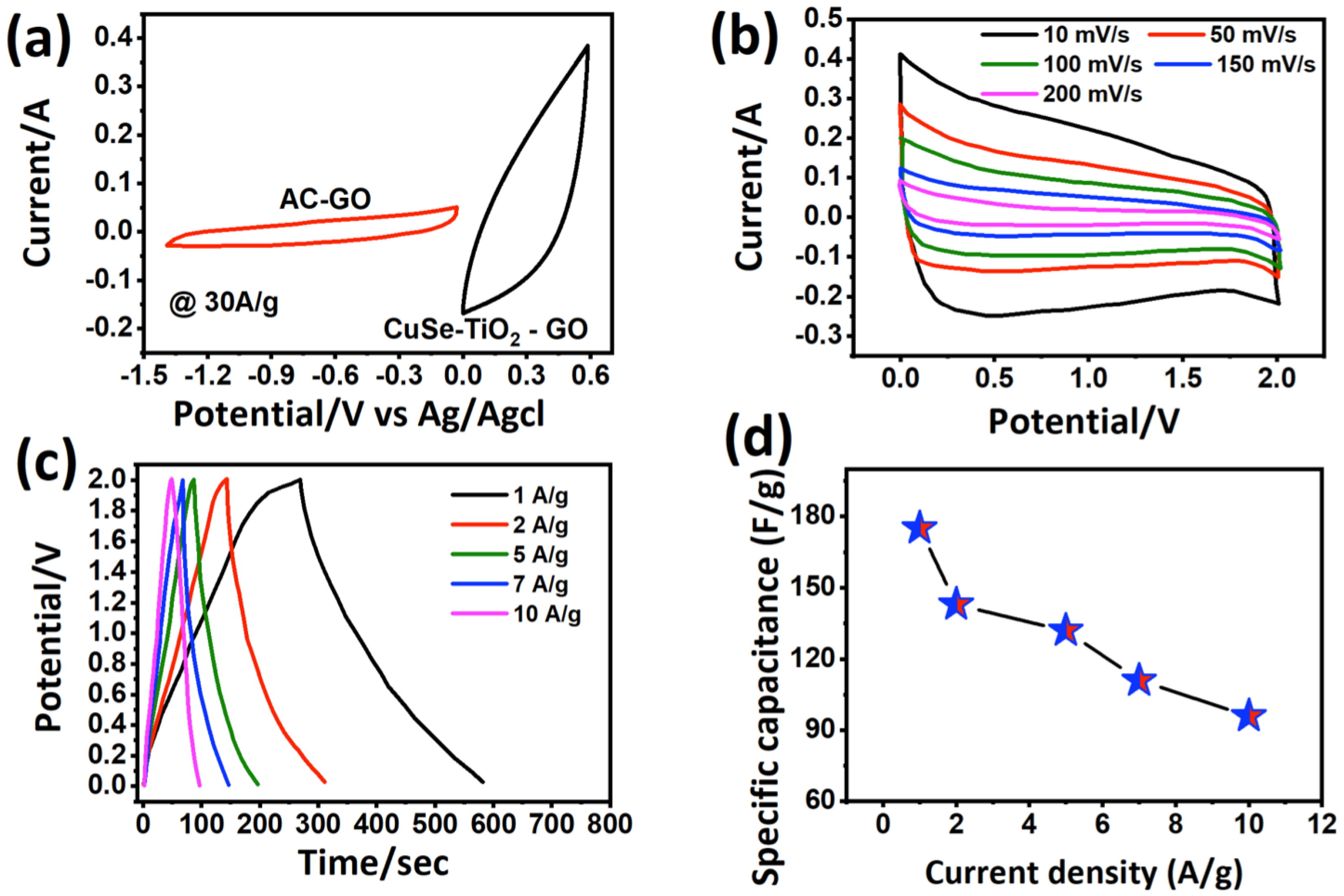

Figure 6. The energy storage performance of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor, (a) CV profile from 0 to 2 V with several scans, (b) discharge/charge platforms, (c) variation in capacitance with the current rate, (d) specific capacitance versus current density.
Figure 6. The energy storage performance of the CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor, (a) CV profile from 0 to 2 V with several scans, (b) discharge/charge platforms, (c) variation in capacitance with the current rate, (d) specific capacitance versus current density.
Nanomaterials 13 00123 g006
Nanomaterials 13 00123 g007 550

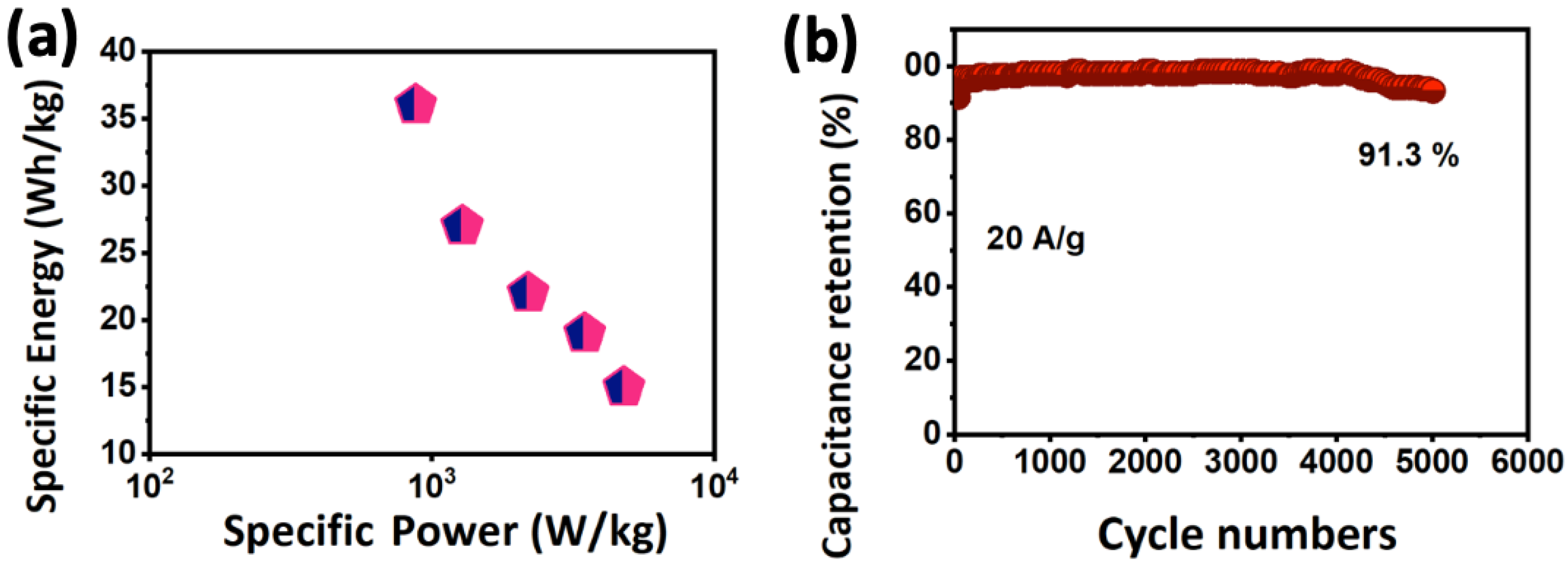

Figure 7. (a) Ragone plot, (b) cycling test in an aqueous solution.
Figure 7. (a) Ragone plot, (b) cycling test in an aqueous solution.
Nanomaterials 13 00123 g007
Table
Table 1. The current discharge rates and the capacitance values of the CuSe-TiO2-GO nanocomposite.
Table 1. The current discharge rates and the capacitance values of the CuSe-TiO2-GO nanocomposite.
Current Density (A/g) 1357912
Specific Capacitance (F/g)920817750633553321
Specific Capacity (mAh/g)1531361251059353
Coulombic Efficiency (%)695854777373
Table
Table 2. The capacitance and specific energy/power values at different current rates.
Table 2. The capacitance and specific energy/power values at different current rates.
Current Density (A/g) 125710
Specific Capacitance (F/g)17514313211196
Specific Energy (Wh/kg)3627221915
Specific Power (W/kg)8751281219334774781
Table
Table 3. CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor performance comparison with literature reports based on GO, CuSe, and TiO2 hybrid/asymmetric supercapacitors.
Table 3. CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor performance comparison with literature reports based on GO, CuSe, and TiO2 hybrid/asymmetric supercapacitors.
Electrode Material Voltage (V)Capacitance (F/g)Specific Energy (Wh/kg)Specific Power (W/kg)Stability (%)Ref.
CoSe2/CuSe hybrid SC1.6 192.854.6700 82.5@10k[37]
CuSe@TiO2||AC ASC1.87031.5450099.6@10k[34]
CuSe2/rGO||CuS ASC1.5 10428.3153886.5@5k[59]
TiO2/rGO||AC ASC3894280080@10k[60]
Fe2O3@GO//Ni3(PO4)2@GO ASC1.618967.21276.388@1k[55]
PEDOT/graphene oxide supercapacitor1.2115.1513.60139.09-[56]
CuS@carbon dot ASC1.4 1032870090@5k[61]
2D/2D NiCo-MOF/GO ASC1.6162 C/g36.83374.99-[62]
Re-GO@NiS2 ASC1.68028.3180083.34@10k[63]
MnSe/GO//AC1.656.2531.256779.2086.3@5k[64]
MnSe2/rGO//AC1.6-16.6720099@10k[65]
CuSe-TiO2-GO||AC-GO||KOH hybrid supercapacitor217536478191.3@5kThis work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sajjad, M.; Khan, A.J.; Eldin, S.M.; Alothman, A.A.; Ouladsmane, M.; Bocchetta, P.; Arifeen, W.U.; Javed, M.S.; Mao, Z. A New CuSe-TiO2-GO Ternary Nanocomposite: Realizing a High Capacitance and Voltage for an Advanced Hybrid Supercapacitor. Nanomaterials 2023, 13, 123. https://doi.org/10.3390/nano13010123

AMA Style

Sajjad M, Khan AJ, Eldin SM, Alothman AA, Ouladsmane M, Bocchetta P, Arifeen WU, Javed MS, Mao Z. A New CuSe-TiO2-GO Ternary Nanocomposite: Realizing a High Capacitance and Voltage for an Advanced Hybrid Supercapacitor. Nanomaterials. 2023; 13(1):123. https://doi.org/10.3390/nano13010123

Chicago/Turabian Style

Sajjad, Muhammad, Abdul Jabbar Khan, Sayed M. Eldin, Asma A. Alothman, Mohamed Ouladsmane, Patrizia Bocchetta, Waqas Ul Arifeen, Muhammad Sufyan Javed, and Zhiyu Mao. 2023. "A New CuSe-TiO2-GO Ternary Nanocomposite: Realizing a High Capacitance and Voltage for an Advanced Hybrid Supercapacitor" Nanomaterials 13, no. 1: 123. https://doi.org/10.3390/nano13010123

APA Style

Sajjad, M., Khan, A. J., Eldin, S. M., Alothman, A. A., Ouladsmane, M., Bocchetta, P., Arifeen, W. U., Javed, M. S., & Mao, Z. (2023). A New CuSe-TiO2-GO Ternary Nanocomposite: Realizing a High Capacitance and Voltage for an Advanced Hybrid Supercapacitor. Nanomaterials, 13(1), 123. https://doi.org/10.3390/nano13010123

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
