Article

Uniformity of HfO2 Thin Films Prepared on Trench Structures via Plasma-Enhanced Atomic Layer Deposition

by
Boyun Choi
1,
Hyeong-U Kim
2 and
Nari Jeon
1,*
1
Department of Materials Science and Engineering, Chungnam National University, Daejeon 34134, Republic of Korea
2
Department of Plasma Engineering, Korea Institute of Machinery & Materials (KIMM), Daejeon 34103, Republic of Korea
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(1), 161; https://doi.org/10.3390/nano13010161
Submission received: 2 December 2022 / Revised: 21 December 2022 / Accepted: 27 December 2022 / Published: 29 December 2022
(This article belongs to the Special Issue Synthesis of Functionalized Carbon Nanostructures and Their Electrochemical Applications)
Browse Figures
Versions Notes

Abstract

:
In this study, we assessed the physical and chemical properties of HfO2 thin films deposited by plasma-enhanced atomic layer deposition (PEALD). We confirmed the self-limiting nature of the surface reactions involved in the HfO2 thin film’s growth by tracing the changes in the growth rate and refractive index with respect to the different dose times of the Hf precursor and O2 plasma. The PEALD conditions were optimized with consideration of the lowest surface roughness of the films, which was measured by atomic force microscopy (AFM). High-resolution X-ray photoelectron spectroscopy (XPS) was utilized to characterize the chemical compositions, and the local chemical environments of the HfO2 thin films were characterized based on their surface roughness and chemical compositions. The surface roughness and chemical bonding states were significantly influenced by the flow rate and plasma power of the O2 plasma. We also examined the uniformity of the films on an 8″ Si wafer and analyzed the step coverage on a trench structure of 1:13 aspect ratio. In addition, the crystallinity and crystalline phases of the thin films prepared under different annealing conditions and underlying layers were analyzed.

1. Introduction

Research on the deposition and characterization of HfO2 thin films has gained significant attention in the past 20 years because they are one of the major candidate materials for high-K dielectrics [1,2,3,4]. Related research has rapidly increased since the early 2000s, when intriguing ferroelectric properties were observed in HfO2 thin films with a thickness of a few nanometers [5,6,7]. Atomic layer deposition (ALD) and plasma-enhanced ALD (PEALD) have been largely employed for the deposition of HfO2 thin films, because ALD-based techniques have unique advantages, such as control over the film thickness at an Angstrom level and the high conformality of the film on the surfaces of complicated structures [8,9]. PEALD can offer additional advantages compared to thermal ALD in terms of an increased growth rate, decreased deposition temperature, and greater degree of freedom in the selection of ALD precursors [10,11]. Most previous HfO2 studies related to ALD and PEALD have focused on the optimization of the processing parameters, such as the deposition conditions, annealing conditions, and doping, to enhance the ferroelectric properties, such as the remnant polarization values and cycling stability [12,13,14]. In addition, DFT-based theoretical studies have been performed to understand the interplay between growth techniques and properties in HfO2 [15,16,17] and similar metal oxide systems [18,19]. Previously, the wafer-scale growth of thin films for various materials has been demonstrated via different growth techniques (e.g., ALD, molecular beam epitaxy, sputtering, and vapor transfer) [20,21,22,23,24]. However, only a few recent studies have focused on the large-scale uniformity and conformality of HfO2 films prepared by PEALD [25]. Our work shows the importance of the optimization of the PEALD conditions, not only for the film’s uniformity at a large wafer scale but also for the conformality at a nanometer scale. The experimental data set presented in this work can be well correlated with the simulations dealing with precursor flows both on a reactor scale and nanometer scale within the trench structures. Application fields of the ferroelectric HfO2 thin films include ferroelectric random-access memory and a ferroelectric field-effect transistor [26,27,28]. Surface roughness, film uniformity, and dielectric constants are important factors that determine the quality of thin films, which ultimately governs the properties of devices with thin films, such as leakage currents, capacitance, and operating voltage. Therefore, the smooth surface and good thickness uniformity of the HfO2 thin film can help to improve the performance aspects of the device, such as leakage current and capacitance; it is thus necessary to achieve a smooth surface and good conformality in the HfO2 thin film [29,30].
The main purpose of this work was to evaluate the uniformity and conformality of the HfO2 thin film deposited on a trench structure of an 8’’ wafer through PEALD. We characterized the HfO2 thin films deposited by PEALD in terms of growth per cycle (GPC), refractive index, surface roughness, average chemical composition, and local chemical environment, which were influenced by the O2 plasma conditions. Additionally, the effects of the annealing conditions and types of underlying layers on the crystallinity and crystalline phase of the thin films were studied.

2. Materials and Methods

Si wafers of 8’’ diameter (p-type, 1–10 Ωcm) were washed via sonication, by immersing them in ethanol for 15 min and then in isopropyl alcohol for 15 min. To prepare the TiN-coated samples, a ~100-nm-thick TiN layer was deposited on the Si wafer by sputtering (ENDURA-550, AMAT Inc., Santa Clara, CA, USA). ITO/glass (ITO glass, 10 Ω/sq, 1.1 T, OMNISCIENCE, Yongin-si, Gyeonggi-do, Korea) substrates were used after undergoing the same cleaning step. PEALD was performed using a custom-built reactor in a cross-flow system that could employ wafers up to 8″ in size. The reactor was equipped with a vacuum pump (W2V80, WSA Co., Ltd., Gunpo-si, Gyeonggi-do, Korea) at an ultimate pressure of ~50 mTorr. Inductively coupled remote plasma was employed in the system, with a plasma showerhead located 89 mm away from the sample plate. The plasma sensor probe (Wise Probe, P&A Solutions, Seoul, Korea) was located immediately below the plasma showerhead, with the probe positioned at the center of the chamber. Tetrakis(dimethylamido)hafnium(IV) (TDMAHf, EG Chem Co., Ltd., Gongju-si, Chungcheongnam-do, Korea) was utilized as the Hf precursor, and its canister was maintained at 70–80 °C. The growth temperature (substrate temperature) was maintained at 250 °C. The temperatures of the gas lines, gas shower head, and pumping lines were maintained at 150 °C. Ar flow as the carrier gas was maintained at 10, 20, and 50 sccm and at 15 and 50 sccm along the direction of the Hf precursor flow (cross-flow direction) and along the direction of O2 plasma (vertical flow through the plasma gas shower). A schematic of the reactor chamber is provided in the Supplementary Materials (Figure S1). The dose times of the TDMAHf and O2 plasma were the primary variables, and the purge times for both TDMAHf and O2 plasma were maintained at 90 s. The purge times were selected such that the chamber pressure returned to the base pressure within the stipulated times (Figure S2). A custom-built rapid thermal processor (JMON. Co., Daejeon, Korea) was utilized to anneal the thin films at different temperatures (500 and 600 °C) for 30 s, with a temperature ramp-up rate of 100 °C/min and constant N2 flow of 50 sccm.
The thickness and refractive index of the deposited thin film were characterized using a spectroscopic ellipsometer (M-2000, J. A. Wollam Co., Lincoln, NE, USA) in the wavelength range of 370.74 –998.89 nm at reflection angles of 65°, 70°, and 75°. The uniformity of the 8″ wafer scale was measured at intervals of 2.0 cm. The SE data were analyzed using the Cauchy model, where the extinction coefficient is assumed to be zero. An example of SE analysis is given in Supplementary Materials (Figure S3). X-ray photoelectron spectroscopy (K-alpha, Thermo Fisher Scientific Inc., Waltham, MA, USA) was performed with an Al K-alpha source of 1 keV after surface etching by Ar+ ions for 5 s. Cross-sectional scanning electron microscopy (Verios 5 UC, Thermo Fisher Scientific Inc., Waltham, MA, USA) was performed on the trench structures of 1:13 aspect ratio. Grazing-incidence angle X-ray diffraction (GIXRD) was performed (D8 DISCOVER, Bruker AXS, GmbH, Karlsruhe, Germany) with a two-theta scan mode at a scan speed of 5 s/step and scan step of 0.03°.

3. Results

Figure 1 shows the growth per cycle (GPC) and refractive index (n) of the deposited HfO2 thin film as a function of the TDMAHf dose time (0.1, 0.5, 2, and 4 s) and O2 plasma dose time (3, 5, 10, 30, 60, and 120 s). In each growth condition, the number of ALD cycles was maintained at 100. Three samples were measured at the middle position of the precursor inlet and outlet. The measured GPC value appeared to be saturated to ~2.4 Å/cy at a ~0.5 s TDMAHf dose under an O2 plasma dose time of 60 s. The GPC value in this study was similar to or slightly greater than those reported by other groups [11,25,31,32]. The refractive index was well saturated to ~1.9 at the same TDMAHf dose time of 2 s, which is similar to the values obtained in well-densified HfO2 thin films [25,31]. We also varied the dose time of O2 plasma with that of TDMAHf maintained at 2 s. While the n values were almost constant regardless of the plasma time, GPC tended to gradually increase from 1.9 Å/cy to 2.4 Å/cy with an increase in the O2 plasma time. The gradual increase in GPC with increasing O2 plasma time can be related to the surface roughening and larger surface density of reactive sites induced by prolonged plasma exposure [33,34,35].
We further optimized the PEALD conditions in terms of the O2 flow rate and plasma power, while keeping the dose times for TDMAHf and O2 plasma constant (TDMAHf:2 s, O2 plasma:60 s). Figure 2a shows the atomic force microscopy (AFM) images of the four samples prepared under different O2 flow (10 sccm vs. 50 sccm) and plasma power (20 W, 300 W) conditions. During these experiments, the flow rate of the Ar carrier gas was kept constant; therefore, the chamber pressure was varied according to the variation in the O2 flow rate. For all samples, the surface roughness was in the range of a few Å to a few nm depending on the experimental conditions. To obtain smoother films, a low O2 flow rate (10 sccm) with high plasma power (300 W) or a high O2 flow rate (50 sccm) with low plasma power (20 W) was preferred. The optimized surface roughness values obtained in our work were considerably lower than those reported in the literature, including both the thermal ALD and PEALD processes with the same Hf precursor. Table 1 summarizes the ion density, ion flux, and electron temperature as a function of the O2 flow rate and plasma power. All three parameters were sensitive to changes in the plasma power rather than the O2 flow rate.
The chemical composition and local chemical environment of each constituent element of the four films were characterized using X-ray photoelectron spectroscopy. As shown in Table 2, all four samples were slightly rich in oxygen (Hf:O ≈ 1:2.4), with an N impurity concentration of ~5 at. %. The O-rich nature may have arisen from the native SiO2 layer of ~2 nm because the thickness of the film was ~13 nm. The samples prepared with low O2 flow had a lower C impurity concentration than those prepared with high O2 flow. The detected C and N impurity levels are similar to those reported in the literature [9,25,41,42]. Figure 3 shows the Hf 4f HRXPS and O 1s HRXPS spectra of the four different films. Hf 4f HRXPS are well deconvoluted into two peaks of Hf 4f 5/2 and Hf 4f 7/2 of symmetrical shape, located at ~18.8 eV and ~17.2 eV, respectively. The Hf 4f HRXPS spectrum could be deconvoluted into four peaks; however, in the four-peak analysis, the BEs of the two adjacent peaks were too close (0.1~0.5 eV), as shown in Figure S4. The O 1s HRXPS spectra were deconvoluted into two peaks, Hf-O (~530.3 eV) and Hf-OH (~531.7 eV). A higher BE peak may also include the contribution of oxygen vacancies. However, PEALD processes are known to produce HfO2 thin films with a lower concentration of oxygen vacancies compared to thermal ALD processes [43]. The Hf-OH components are commonly found in HfO2 thin films deposited by both ALD and PEALD [9,44,45]. The ratio of the Hf-O component to the Hf–OH component is sensitive to the oxygen flow rate. The relative contribution of the Hf-O component can be improved by increasing the oxygen flow. This trend is observed because a higher O2 flow rate increases the partial pressure of oxygen. The relative contributions of the Hf-OH vs. Hf-O components are less sensitive to the plasma power.
The film conformality was tested on a patterned wafer containing trench structures with an aspect ratio of 1:13. For the preparation of this sample, the optimized PEALD conditions (TDMAHf dose: 2 s, O2 plasma dose: 60 s, O2 flow: 50 sccm, and plasma power: 20 W) were used. As shown in Figure 4a, the film thickness varied depending on the location of the trench structures, which was likely related to the distribution of the reactive species in the plasma. The step coverage of the as-deposited film, calculated by comparing the thicknesses at the top and bottom surfaces, was ~64%. The film thickness on the sidewall was lower than that on the bottom surface, indicating the critical role of the isotropic nature of the reactive species in the plasma. Conformality was also measured after rapid thermal annealing (RTA). The film thickness was slightly decreased at all locations by ~4.3–8.2% due to film densification. After the RTA, the step coverage was measured to be ~69%. There was no correlation between the degree of densification and the location within the trench.
The film uniformity at the 8″ wafer scale was tested under the optimized PEALD conditions. As shown in Figure 5a, the GPC value tended to increase along the direction from the precursor inlet to the precursor outlet, with a large uniform area near the center and precursor inlet location. The non-perfect uniformity in GPC at a large scale is not likely related to the insufficient dosage of the TDMAHf precursor because well-saturated behavior was observed at the TDMAHf dose time of > 2 s. Although the GPC distribution resembled the direction of the TDMAHf precursor flow, we instead hypothesized that the non-uniformity may have arisen from the non-uniform distribution of plasma species. This is because the GPC value was not completely saturated as a function of the O2 plasma time (Figure 1b) in the ALD reactor. The GPC values measured at the 8″ wafer scale were lower than those measured from samples ~1 cm in size (Figure 1). The discrepancy in the GPC values may have arisen from differences in the size and number of samples used, as well as the type of sample platter. However, an 8″ Al sample platter was fully covered by the 8″ Si wafer in the wafer-scale experiment, and much of the Al platter surface was exposed in the GPC saturation experiment. Although the specific effects of the exposed Al surface of the sample platter could not be identified, it may have varied the distribution of reactive species in the plasma. Furthermore, the presence of the plasma sensor probe appeared to influence the plasma distribution because the GPC distribution resembled the location of the probe, as depicted by the black dashed line in Figure 5a. Despite the non-perfect uniformity of the film, the overall variation in the refractive index was insignificant, with a standard deviation of 0.02. Similar effects were also observed in the presence of the plasma probe. Moreover, as shown in Figure 5b, the refractive index may vary depending on the density of the thin films, the inclusion of functional groups such as –OH, and impurities. Future work will focus on evaluating the distribution of GPC and the refractive index with different positions of the plasma probe.
Finally, we evaluated the crystallinity of the PEALD HfO2 films deposited on different underlying layers (Si, TiN, and ITO) and under different RTA conditions (Figure 6). The film thicknesses of the tested samples were ~61 nm. The crystallinity of the film was enhanced with the TiN or ITO underlying layer, compared to a bare substrate, regardless of the RTA temperature. For the ITO samples, orthorhombic ( o ) and/or tetragonal ( t ) phases were identified by the peak at ~30.4° in the as-deposited states. The distinction between the o and t phases was not clear at this point because the two phases presented a peak at very similar locations: o (Pnma) at 30.3° (ICDD PDF card 01-087-2106), o (Pca21) at 30.4° [46], o (Pbca) at 30.4° (ICDD PDF card 01-081-0028), and t at 30.3° (ICDD PDF card 01-078-5756). The o / t phase was further enhanced by RTA at 500 °C, and the monoclinic ( m ) phase became more dominant than the other phases by RTA at 600 °C. A rather broad peak at ~32° in the ITO samples annealed at 600 °C may imply the presence of the o (Pnma) phase along with an m phase. In the set of ITO samples, a dominant peak at ~35.4° was consistently observed, mainly due to the o (002)/ t (110) phase, although there could be a minor contribution of the cubic ( c ) phase of (002), with its peak expected to appear at ~35.2° (ICDD PDF card 00-053-0560). Interestingly, the TiN sample with 500 °C RTA exhibited better crystallinity than the sample with 600 °C RTA, with a small contribution from the cubic ( c ) phase at ~35.2°. It is interesting to note that the ITO sample had a higher portion of o / t phase compared to the TiN samples for the same RTA temperature of 500 °C. The crystallinity and crystalline phases of the HfO2 thin films evolved after RTA depend on the types of underlying layers (TiN, ITO, or SiO2), implying the presence of an interplay between the thermal stability/thermal stress of the as-grown HfO2 thin films and the RTA process [47,48,49,50]. The transition from the o / t phase to the m phase is correlated to the presence of a critical grain size above which the m phase becomes favorable [12]. Considering that the ITO and TiN samples had identical film thicknesses, it was possible that the underlying ITO layer tended to retard grain growth. Furthermore, previous works reported that HfO2 thin films, predominantly exhibiting o / t phases, had a thickness typically of the order of a few nanometers. This can also be understood in terms of the presence of a critical grain size because the average grain size tends to increase with the film thickness. In this context, our results showing the predominant o /t phase at a ~61 nm film thickness without any doping imply that the process range for obtaining the o/t phase can be further widened with the appropriate choice of the underlying layer.

4. Conclusions

In this work, we studied the physical and chemical properties of HfO2 films deposited by PEALD, with an emphasis on the plasma conditions. While GPC showed well-saturated behavior as a function of the TDMAHf dose time, it tended to gradually increase with the increasing O2 plasma time. The O2 flow rate and plasma power in the O2 plasma half-cycle were optimized to obtain smooth films with Å-level surface roughness. HRXPS analysis of the deposited films under different plasma conditions showed primarily Hf-O bonding signals, with a minor contribution of –OH components and C and N impurities below ~4 and ~6 at. %, respectively. The 8″-scale SE mapping showed that the GPC varied within ~±25%, whereas the variation in the refractive index was only ~3%. The developed PEALD process resulted in step coverage of ~69%, measured from trench structures with an aspect ratio of 1:13. Finally, the crystallinity of the HfO2 PEALD film showed a strong dependency on the RTA conditions and types of underlying layers.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13010161/s1, Figure S1: A schematic of the PEALD reactor chamber.; Figure S2: The pressure log of a supercycle consisting of TDMAHf half cycle (TDMAHf dose–purge) and O2 plasma half cycle (O2 plasma dose–purge).; Figure S3: An example of SE data analyzed using Cauchy equation.; Figure S4: The Hf 4f HRXPS spectra deconvoluted into four peaks of the HfO2 films deposited at different O2 plasma conditions. (Top panel: O2 flow rate 10 sccm, lower panel: O2 flow rate 50 sccm, left panel: O2 plasma power 20 W, right panel: O2 plasma power 300 W).

Author Contributions

Conceptualization, B.C. and N.J.; methodology, B.C.; software, B.C.; writing—original draft preparation, B.C.; writing—review and editing, H.-U.K.; supervision, N.J.; funding acquisition, N.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by BK21 FOUR Program by Chungnam National University Research Grant, 2022. This research was supported by the Nano and Material Technology Development Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT and Future Planning (NRF- 2022M3H4A6A01018639). This work was supported by KIMM institutional program (NK236F) and NST/KIMM.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cho, Y.J.; Nguyen, N.; Richter, C.; Ehrstein, J.; Lee, B.H.; Lee, J.C. Spectroscopic ellipsometry characterization of high-k dielectric HfO2 thin films and the high-temperature annealing effects on their optical properties. Appl. Phys. Lett. 2002, 80, 1249–1251. [Google Scholar] [CrossRef] [Green Version]
  2. Jones, M.; Kwon, Y.; Norton, D. Dielectric constant and current transport for HfO2 thin films on ITO. Appl. Phys. A 2005, 81, 285–288. [Google Scholar] [CrossRef]
  3. Suzuki, K.; Kato, K. Sol–gel synthesis of high-k HfO2 thin films. J. Am. Ceram. Soc. 2009, 92, S162–S164. [Google Scholar] [CrossRef]
  4. Tirmali, P.; Khairnar, A.G.; Joshi, B.N.; Mahajan, A.M. Structural and electrical characteristics of RF-sputtered HfO2 high-k based MOS capacitors. Solid-State Electron. 2011, 62, 44–47. [Google Scholar] [CrossRef]
  5. Polakowski, P.; Müller, J. Ferroelectricity in undoped hafnium oxide. Appl. Phys. Lett. 2015, 106, 232905. [Google Scholar] [CrossRef]
  6. Sang, X.; Grimley, E.D.; Schenk, T.; Schroeder, U.; LeBeau, J.M. On the structural origins of ferroelectricity in HfO2 thin films. Appl. Phys. Lett. 2015, 106, 162905. [Google Scholar] [CrossRef]
  7. Mueller, S.; Muller, J.; Schroeder, U.; Mikolajick, T. Reliability Characteristics of Ferroelectric Si:HfO2 Thin Films for Memory Applications. IEEE Trans. Device Mater. Reliab. 2012, 13, 93–97. [Google Scholar] [CrossRef]
  8. Choi, S.-N.; Moon, S.-E.; Yoon, S.-M. Film thickness-dependent ferroelectric polarization switching dynamics of undoped HfO2 thin films prepared by atomic layer deposition. Ceram. Int. 2019, 45, 22642–22648. [Google Scholar] [CrossRef]
  9. Hackley, J.C.; Gougousi, T. Properties of atomic layer deposited HfO2 thin films. Thin Solid Films 2009, 517, 6576–6583. [Google Scholar] [CrossRef]
  10. Hur, J.; Tasneem, N.; Choe, G.; Wang, P.; Wang, Z.; Khan, A.I.; Yu, S. Direct comparison of ferroelectric properties in Hf0.5Zr0.5O2 between thermal and plasma-enhanced atomic layer deposition. Nanotechnology 2020, 31, 505707. [Google Scholar] [CrossRef]
  11. Nigro, R.L.; Schilirò, E.; Mannino, G.; Di Franco, S.; Roccaforte, F. Comparison between thermal and plasma enhanced atomic layer deposition processes for the growth of HfO2 dielectric layers. J. Cryst. Growth 2020, 539, 125624. [Google Scholar] [CrossRef]
  12. Kim, K.; Park, M.; Kim, H.; Kim, Y.; Moon, T.; Lee, Y.; Hyun, S.; Gwon, T.; Hwang, C. Ferroelectricity in undoped-HfO2 thin films induced by deposition temperature control during atomic layer deposition. J. Mater. Chem. C 2016, 4, 6864–6872. [Google Scholar] [CrossRef]
  13. Lomenzo, P.D.; Takmeel, Q.; Moghaddam, S.; Nishida, T. Annealing behavior of ferroelectric Si-doped HfO2 thin films. Thin Solid Films 2016, 615, 139–144. [Google Scholar] [CrossRef]
  14. Park, M.H.; Schenk, T.; Schroeder, U. Dopants in atomic layer deposited HfO2 thin films. In Ferroelectricity in Doped Hafnium Oxide: Materials, Properties and Devices; Uwe, S., Cheol Seong, H., Hiroshi, F., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 49–74. [Google Scholar] [CrossRef]
  15. Cortez-Valadez, M.; Fierro, C.; Farias-Mancilla, J.; Vargas-Ortiz, A.; Flores-Acosta, M.; Ramírez-Bon, R.; Enriquez-Carrejo, J.; Soubervielle-Montalvo, C.; Mani-Gonzalez, P. Comparison of HfCl4, HfI4, TEMA-Hf, and TDMA-Hf as precursors in early growing stages of HfO2 films deposited by ALD: A DFT study. Chem. Phys. 2016, 472, 81–88. [Google Scholar] [CrossRef]
  16. Huan, T.D.; Sharma, V.; Rossetti, G.A., Jr.; Ramprasad, R. Pathways towards ferroelectricity in hafnia. Phys. Rev. B 2014, 90, 064111. [Google Scholar] [CrossRef] [Green Version]
  17. Oh, I.-K.; Park, B.-E.; Seo, S.; Yeo, B.C.; Tanskanen, J.; Kim, W.-H.; Kim, H. Comparative study of the growth characteristics and electrical properties of atomic-layer-deposited HfO2 films obtained from metal halide and amide precursors. J. Mater. Chem. C 2018, 6, 7367–7376. [Google Scholar] [CrossRef]
  18. Kakanakova-Georgieva, A.; Giannazzo, F.; Nicotra, G.; Cora, I.; Gueorguiev, G.K.; Persson, P.O.; Pécz, B. Material proposal for 2D indium oxide. Appl. Surf. Sci. 2021, 548, 149275. [Google Scholar] [CrossRef]
  19. Dos Santos, R.B.; Rivelino, R.; Gueorguiev, G.K.; Kakanakova-Georgieva, A. Exploring 2D structures of indium oxide of different stoichiometry. CrystEngComm 2021, 23, 6661–6667. [Google Scholar] [CrossRef]
  20. Pyeon, J.J.; Kim, S.H.; Jeong, D.S.; Baek, S.-H.; Kang, C.-Y.; Kim, J.-S.; Kim, S.K. Wafer-scale growth of MoS2 thin films by atomic layer deposition. Nanoscale 2016, 8, 10792–10798. [Google Scholar] [CrossRef]
  21. Zhang, H.-T.; Zhang, L.; Mukherjee, D.; Zheng, Y.-X.; Haislmaier, R.C.; Alem, N.; Engel-Herbert, R. Wafer-scale growth of VO2 thin films using a combinatorial approach. Nat. Commun. 2015, 6, 8475. [Google Scholar] [CrossRef] [Green Version]
  22. Kim, H.-S.; Patel, M.; Kim, J.; Jeong, M.S. Growth of wafer-scale standing layers of WS2 for self-biased high-speed UV–visible–NIR optoelectronic devices. ACS Appl. Mater. Interfaces 2018, 10, 3964–3974. [Google Scholar] [CrossRef] [PubMed]
  23. Patel, M.; Kim, H.-S.; Kim, J. Wafer-scale production of vertical SnS multilayers for high-performing photoelectric devices. Nanoscale 2017, 9, 15804–15812. [Google Scholar] [CrossRef] [PubMed]
  24. Patel, M.; Nguyen, T.T.; Kumar, M.; Ban, D.-K.; Won, D.; Zhao, M.; Kim, J.; Kim, Y.K.; Yang, H.; Wong, C.-P. 2D layer-embedded transparent photovoltaics. Nano Energy 2020, 68, 104328. [Google Scholar] [CrossRef]
  25. Lapteva, M.; Beladiya, V.; Riese, S.; Hanke, P.; Otto, F.; Fritz, T.; Schmitt, P.; Stenzel, O.; Tünnermann, A.; Szeghalmi, A. Influence of temperature and plasma parameters on the properties of PEALD HfO2. Opt. Mater. Express 2021, 11, 1918–1942. [Google Scholar] [CrossRef]
  26. Schroeder, U.; Park, M.H.; Mikolajick, T.; Hwang, C.S. The fundamentals and applications of ferroelectric HfO2. Nat. Rev. Mater. 2022, 7, 653–669. [Google Scholar] [CrossRef]
  27. Park, M.H.; Lee, Y.H.; Mikolajick, T.; Schroeder, U.; Hwang, C.S. Review and perspective on ferroelectric HfO2-based thin films for memory applications. Mrs Commun. 2018, 8, 795–808. [Google Scholar] [CrossRef] [Green Version]
  28. Choi, S.-N.; Moon, S.-E.; Yoon, S.-M. Impact of oxide gate electrode for ferroelectric field-effect transistors with metal-ferroelectric-metal-insulator-semiconductor gate stack using undoped HfO2 thin films prepared by atomic layer deposition. Nanotechnology 2020, 32, 085709. [Google Scholar] [CrossRef]
  29. Zhang, W.; Zhou, D.; Sun, N.; Wang, J.; Li, S. Effect of Bias Voltage on Substrate for the Structure and Electrical Properties of Y: HfO2 Thin Films Deposited by Reactive Magnetron Co-Sputtering. Adv. Electron. Mater. 2021, 7, 2100488. [Google Scholar] [CrossRef]
  30. Cremers, V.; Puurunen, R.L.; Dendooven, J. Conformality in atomic layer deposition: Current status overview of analysis and modelling. Appl. Phys. Rev. 2019, 6, 021302. [Google Scholar] [CrossRef]
  31. Melo, L.; Burton, G.; Kubik, P.; Wild, P. Long period gratings coated with hafnium oxide by plasma-enhanced atomic layer deposition for refractive index measurements. Opt. Express 2016, 24, 7654–7669. [Google Scholar] [CrossRef]
  32. Provine, J.; Schindler, P.; Torgersen, J.; Kim, H.J.; Karnthaler, H.-P.; Prinz, F.B. Atomic layer deposition by reaction of molecular oxygen with tetrakisdimethylamido-metal precursors. J. Vac. Sci. Technol. A Vac. Surf. Film. 2016, 34, 01A138. [Google Scholar] [CrossRef] [Green Version]
  33. Alam, A.; Howlader, M.; Deen, M. The effects of oxygen plasma and humidity on surface roughness, water contact angle and hardness of silicon, silicon dioxide and glass. J. Micromech. Microeng. 2014, 24, 035010. [Google Scholar] [CrossRef] [Green Version]
  34. Heo, J.H.; Ryu, H.; Lee, W.-J. Effect of O2 plasma pretreatment on structural and optical properties of ZnO films on PES substrate by atomic layer deposition. J. Ind. Eng. Chem. 2013, 19, 1638–1641. [Google Scholar] [CrossRef]
  35. Zhu, Z.; Sippola, P.; Lipsanen, H.; Savin, H.; Merdes, S. Influence of plasma parameters on the properties of ultrathin Al2O3 films prepared by plasma enhanced atomic layer deposition below 100 °C for moisture barrier applications. Jpn. J. Appl. Phys. 2018, 57, 125502. [Google Scholar] [CrossRef] [Green Version]
  36. Afshar, A. Materials Characterization and Growth Mechanisms of ZnO, ZrO2, and HfO2 Deposited by Atomic Layer Deposition. Ph.D. Thesis, University of Alberta, Alberta, AB, Canada, 2014. [Google Scholar] [CrossRef]
  37. Blaschke, D.; Munnik, F.; Grenzer, J.; Rebohle, L.; Schmidt, H.; Zahn, P.; Gemming, S. A correlation study of layer growth rate, thickness uniformity, stoichiometry, and hydrogen impurity level in HfO2 thin films grown by ALD between 100 °C and 350 °C. Appl. Surf. Sci. 2020, 506, 144188. [Google Scholar] [CrossRef]
  38. Kolanek, K.; Tallarida, M.; Michling, M.; Schmeisser, D. In situ study of the atomic layer deposition of HfO2 on Si. J. Vac. Sci. Technol. A Vac. Surf. Film. 2012, 30, 01A143. [Google Scholar] [CrossRef]
  39. Singh, R.; Panigrahi, J.; Singh, P. Plasma assisted atomic layer deposited hafnium oxide films for silicon surface passivation. RSC Adv. 2016, 6, 97720–97727. [Google Scholar] [CrossRef]
  40. Li, S.; Zhang, Y.; Yang, D.; Yang, W.; Chen, X.; Zhao, H.; Hou, J.; Yang, P. Structure and optical properties of HfO2 films on Si (100) substrates prepared by ALD at different temperatures. Phys. B Condens. Matter 2020, 584, 412065. [Google Scholar] [CrossRef]
  41. Foroughi Abari, A. Atomic Layer Deposition of Metal Oxide Thin Films on Metallic Substrates. Ph.D. Thesis, University of Alberta, Alberta, AB, Canada, 2012. [Google Scholar] [CrossRef]
  42. Kukli, K.; Pilvi, T.; Ritala, M.; Sajavaara, T.; Lu, J.; Leskelä, M. Atomic layer deposition of hafnium dioxide thin films from hafnium tetrakis (dimethylamide) and water. Thin Solid Films 2005, 491, 328–338. [Google Scholar] [CrossRef]
  43. Martínez-Puente, M.; Horley, P.; Aguirre-Tostado, F.; López-Medina, J.; Borbón-Nuñez, H.; Tiznado, H.; Susarrey-Arce, A.; Martínez-Guerra, E. ALD and PEALD deposition of HfO2 and its effects on the nature of oxygen vacancies. Mater. Sci. Eng. B 2022, 285, 115964. [Google Scholar] [CrossRef]
  44. Triyoso, D.; Liu, R.; Roan, D.; Ramon, M.; Edwards, N.; Gregory, R.; Werho, D.; Kulik, J.; Tam, G.; Irwin, E. Impact of deposition and annealing temperature on material and electrical characteristics of ALD HfO2. J. Electrochem. Soc. 2004, 151, F220. [Google Scholar] [CrossRef]
  45. Zanders, D.; Ciftyurek, E.; Subaşı, E.; Huster, N.; Bock, C.; Kostka, A.; Rogalla, D.; Schierbaum, K.; Devi, A. PEALD of HfO2 thin films: Precursor tuning and a new near-ambient-pressure XPS approach to in situ examination of thin-film surfaces exposed to reactive gases. ACS Appl. Mater. Interfaces 2019, 11, 28407–28422. [Google Scholar] [CrossRef] [PubMed]
  46. Miakonkikh, A.; Lomov, A.; Rogozhin, A.; Rudenko, K.; Lukichev, V.; Kiselev, D.; Tikhonenlo, F.; Antonov, V.; Popov, V. Phase transformation in ALD hafnia based layers for silicon-on-ferroelectric devices. In Proceedings of the 2020 Joint International EUROSOI Workshop and International Conference on Ultimate Integration on Silicon (EUROSOI-ULIS), Caen, France, 1–30 September 2020; pp. 1–4. [Google Scholar]
  47. Cho, M.-H.; Roh, Y.; Whang, C.; Jeong, K.; Nahm, S.; Ko, D.-H.; Lee, J.H.; Lee, N.; Fujihara, K. Thermal stability and structural characteristics of HfO2 films on Si (100) grown by atomic-layer deposition. Appl. Phys. Lett. 2002, 81, 472–474. [Google Scholar] [CrossRef]
  48. Kim, S.; Kim, J.; Choi, J.; Kang, H.; Jeon, H.; Bae, C. Characteristics of HfO2 thin films deposited by plasma-enhanced atomic layer deposition using O2 plasma and N2O plasma. J. Vac. Sci. Technol. B Microelectron. Nanometer Struct. Process. Meas. Phenom. 2006, 24, 1088–1093. [Google Scholar] [CrossRef]
  49. Nie, X.; Ma, D.; Ma, F.; Xu, K. Thermal stability, structural and electrical characteristics of the modulated HfO2/Al2O3 films fabricated by atomic layer deposition. J. Mater. Sci. 2017, 52, 11524–11536. [Google Scholar] [CrossRef]
  50. Wan, J.; Chen, X.; Ji, L.; Tu, Z.; Wu, H.; Liu, C. Ferroelectricity of Hf0.5Zr0.5O2 Thin Films Free from the Influence of Electrodes by Using Al2O3 Capping Layers. IEEE Trans. Electron Devices 2022, 69, 1805–1810. [Google Scholar] [CrossRef]
Nanomaterials 13 00161 g001 550

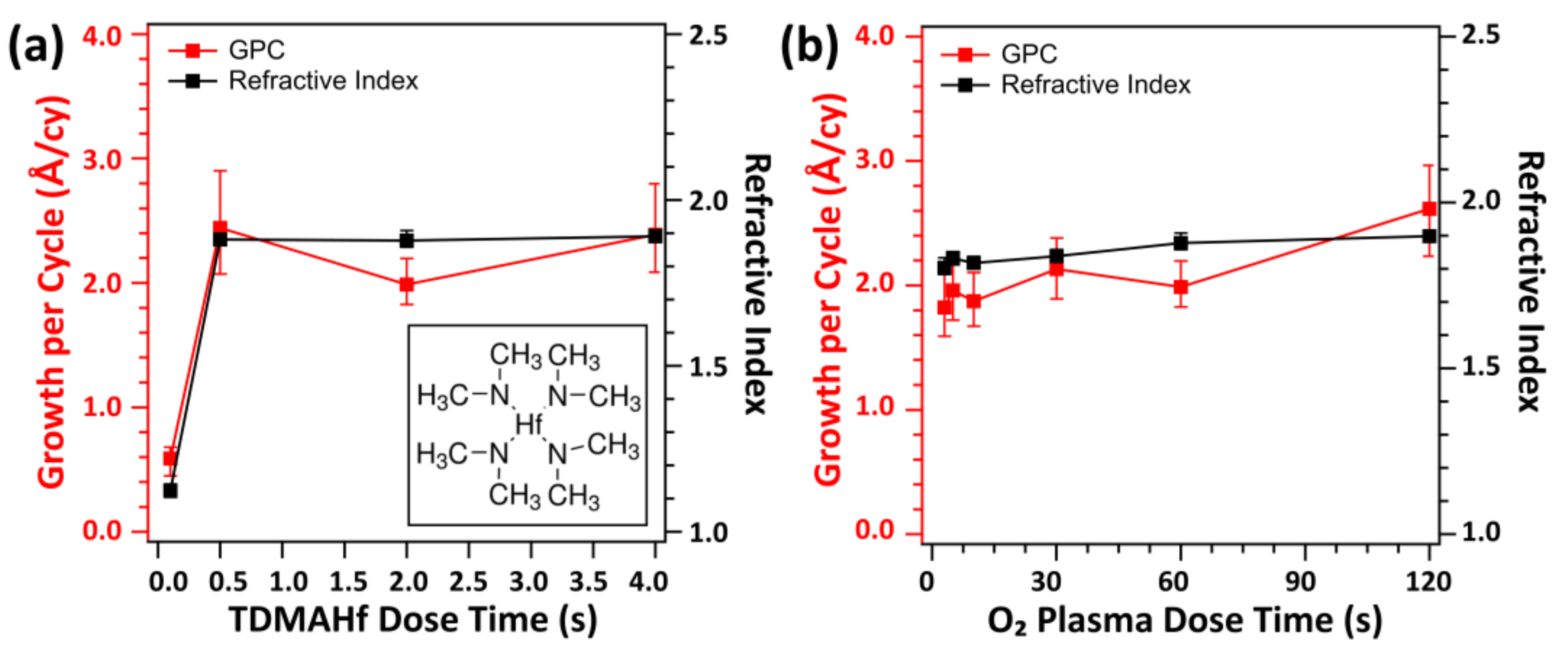

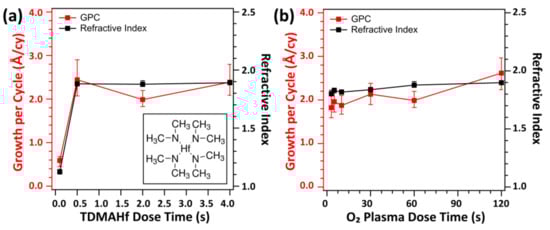

Figure 1. GPC and refractive index of HfO2 films deposited at different conditions of (a) TDMAHf (inset: molecular structure of TDMAHf) and (b) O2 plasma doses. For the experiment shown in (a), O2 plasma condition was maintained as follows: O2 gas flow of 50 sccm and O2 plasma power of 20 W. For the experiment shown in (b), TDMAHf dose time was kept at 2 s.
Figure 1. GPC and refractive index of HfO2 films deposited at different conditions of (a) TDMAHf (inset: molecular structure of TDMAHf) and (b) O2 plasma doses. For the experiment shown in (a), O2 plasma condition was maintained as follows: O2 gas flow of 50 sccm and O2 plasma power of 20 W. For the experiment shown in (b), TDMAHf dose time was kept at 2 s.
Nanomaterials 13 00161 g001
Nanomaterials 13 00161 g002 550

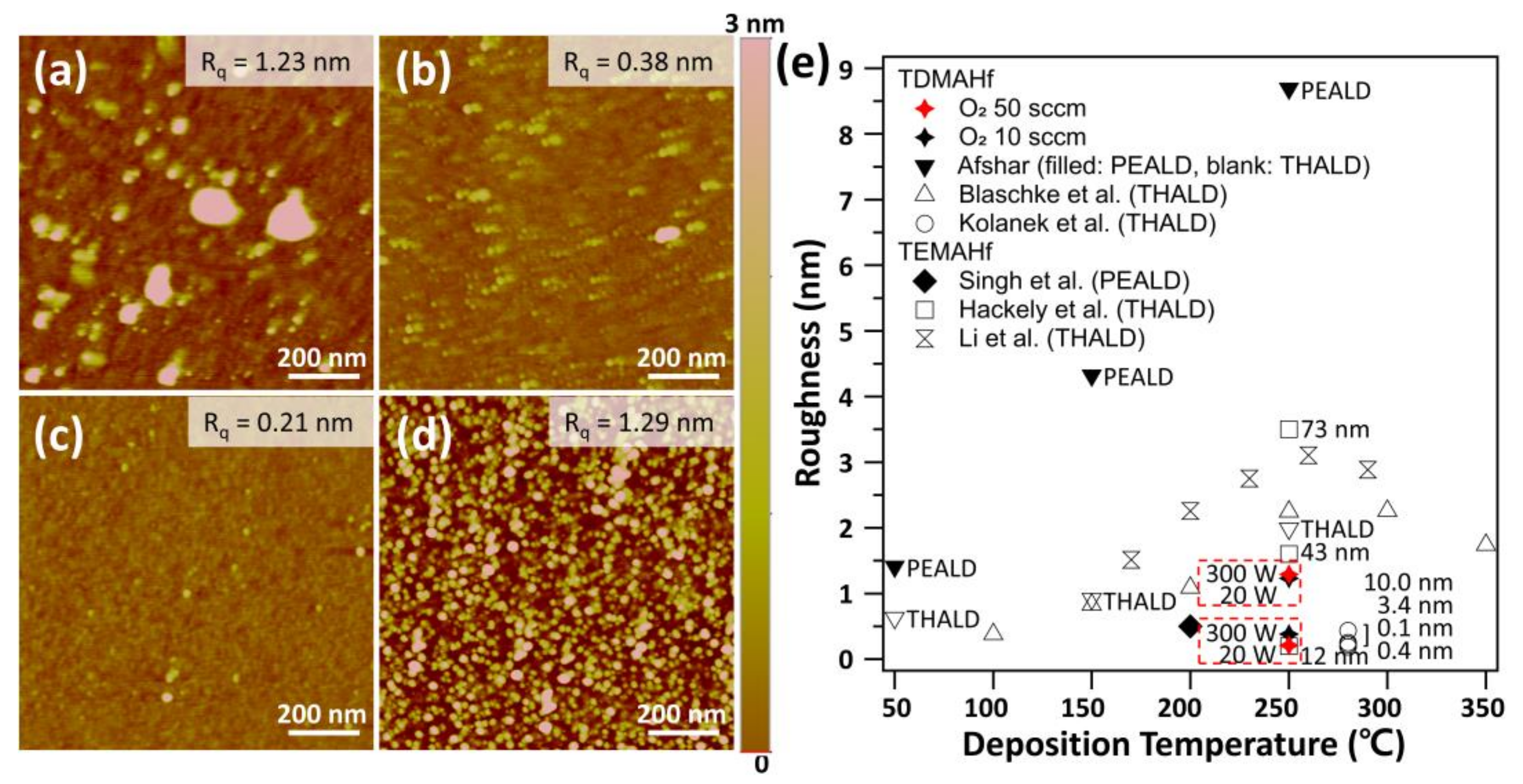

Figure 2. Surface roughness of the HfO2 films deposited at different flow rates and plasma power of O2: (a) 10 sccm and 20 W, (b) 10 sccm and 300 W, (c) 50 sccm and 20 W, and (d) 50 sccm and 300 W. (e) Comparisons of surface roughness of HfO2 films in our work and those reported by other research groups [9,36,37,38,39,40].
Figure 2. Surface roughness of the HfO2 films deposited at different flow rates and plasma power of O2: (a) 10 sccm and 20 W, (b) 10 sccm and 300 W, (c) 50 sccm and 20 W, and (d) 50 sccm and 300 W. (e) Comparisons of surface roughness of HfO2 films in our work and those reported by other research groups [9,36,37,38,39,40].
Nanomaterials 13 00161 g002
Nanomaterials 13 00161 g003 550

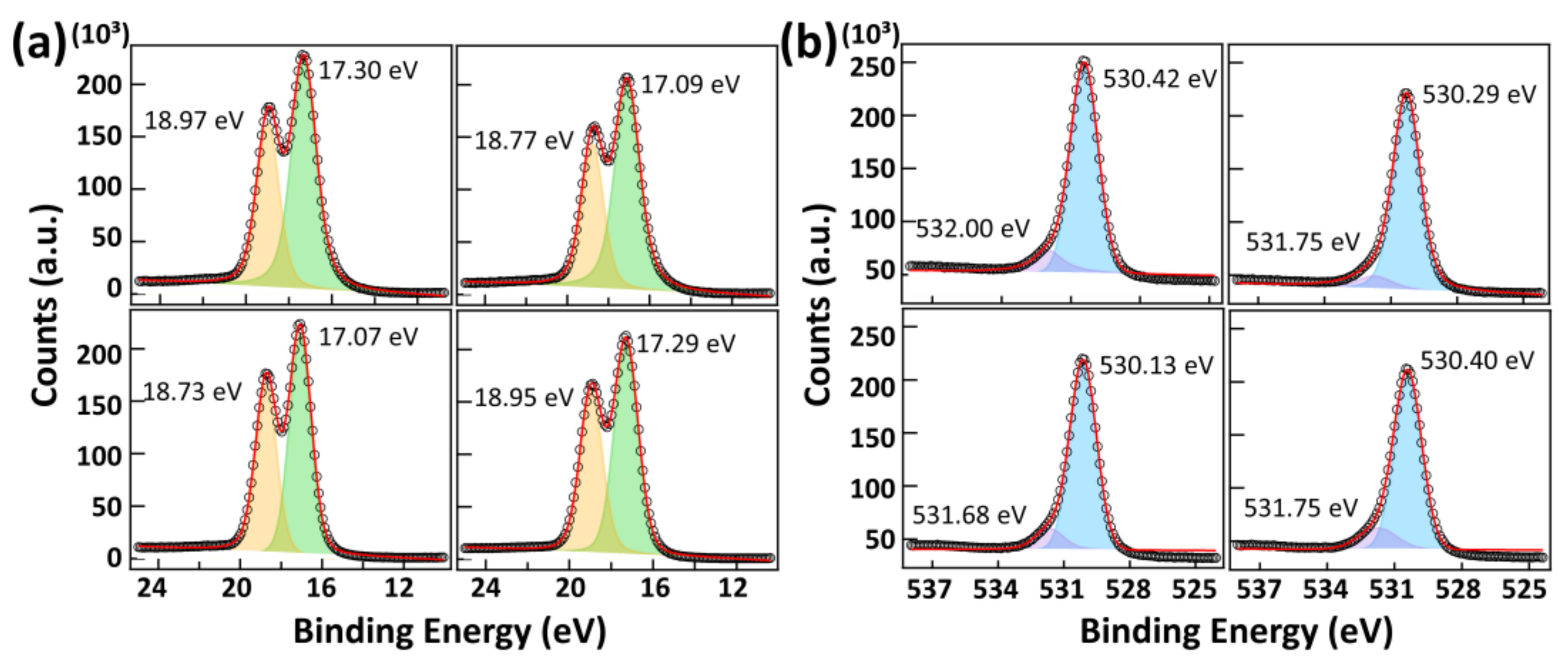

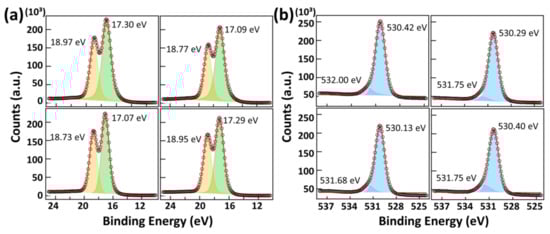

Figure 3. HRXPS spectra of the HfO2 films deposited at different O2 flow rates and O2 plasma power: (a) the Hf 4f XPS spectra, (b) the O 1s XPS spectra of the as-deposited HfO2 films. (Top panel: O2 flow rate 10 sccm, lower panel: O2 flow rate 50 sccm, left side panel: O2 plasma power 20 W, right side panel: O2 plasma power 300 W).
Figure 3. HRXPS spectra of the HfO2 films deposited at different O2 flow rates and O2 plasma power: (a) the Hf 4f XPS spectra, (b) the O 1s XPS spectra of the as-deposited HfO2 films. (Top panel: O2 flow rate 10 sccm, lower panel: O2 flow rate 50 sccm, left side panel: O2 plasma power 20 W, right side panel: O2 plasma power 300 W).
Nanomaterials 13 00161 g003
Nanomaterials 13 00161 g004 550

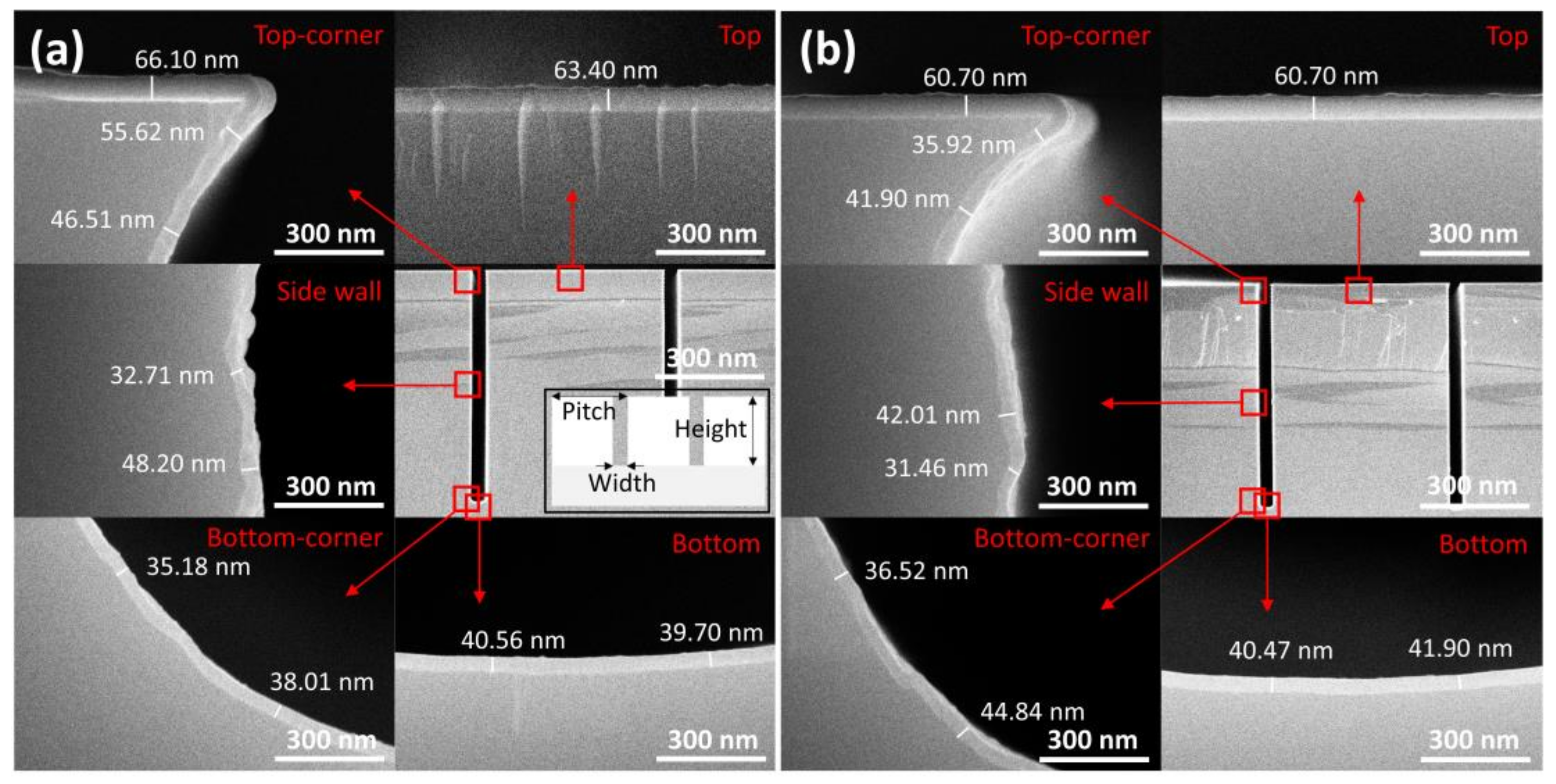

Figure 4. UHR FE-SEM images of (a) as-deposited and (b) annealed HfO2 films at different locations in the trench. The locations where higher-magnification SEM images were captured are highlighted by red boxes and arrows. The inset of (a) shows the schematic of a trench patterned wafer. (Trench width: 5.0 μm, height: 65.0 μm, pitch: 52.5 μm).
Figure 4. UHR FE-SEM images of (a) as-deposited and (b) annealed HfO2 films at different locations in the trench. The locations where higher-magnification SEM images were captured are highlighted by red boxes and arrows. The inset of (a) shows the schematic of a trench patterned wafer. (Trench width: 5.0 μm, height: 65.0 μm, pitch: 52.5 μm).
Nanomaterials 13 00161 g004
Nanomaterials 13 00161 g005 550

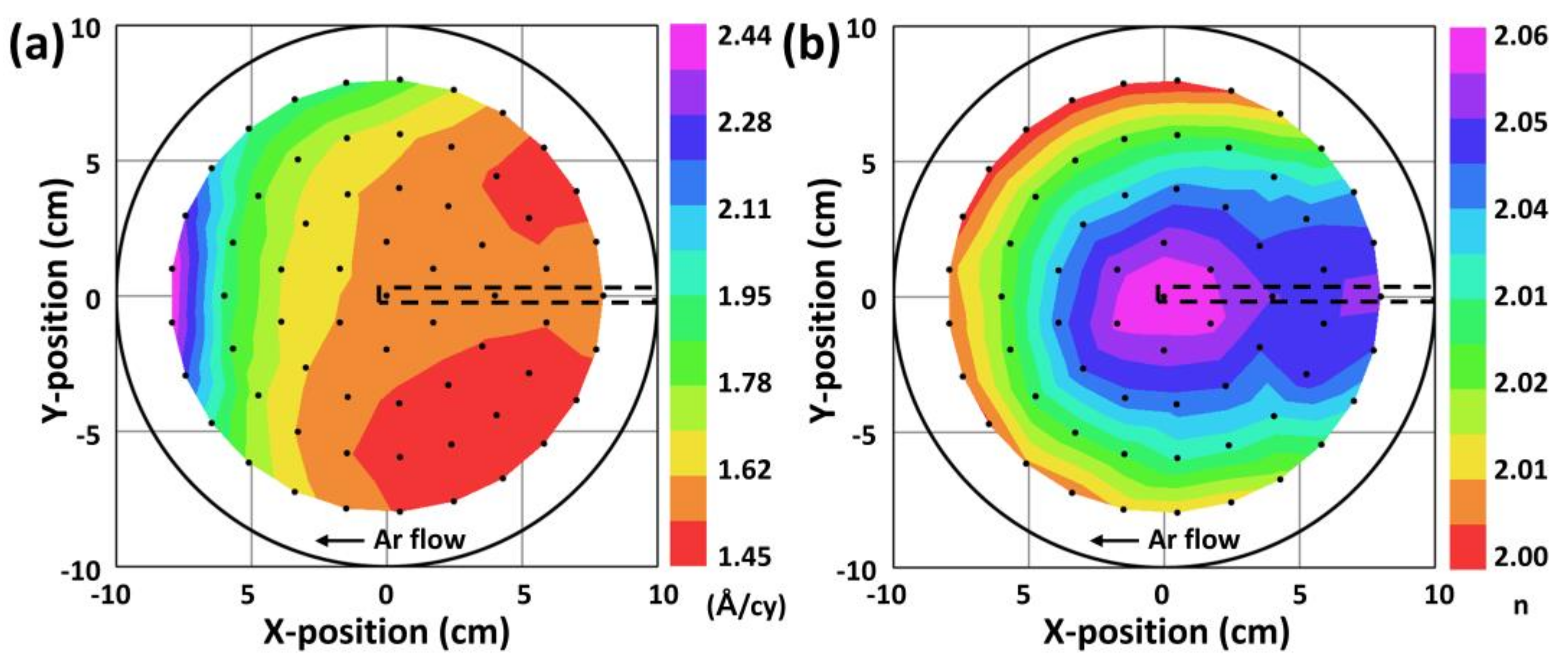

Figure 5. Uniformity of (a) GPC and (b) refractive index at the 8″ wafer-scale measured by SE. The dots represent the locations at which SE data were collected.
Figure 5. Uniformity of (a) GPC and (b) refractive index at the 8″ wafer-scale measured by SE. The dots represent the locations at which SE data were collected.
Nanomaterials 13 00161 g005
Nanomaterials 13 00161 g006 550

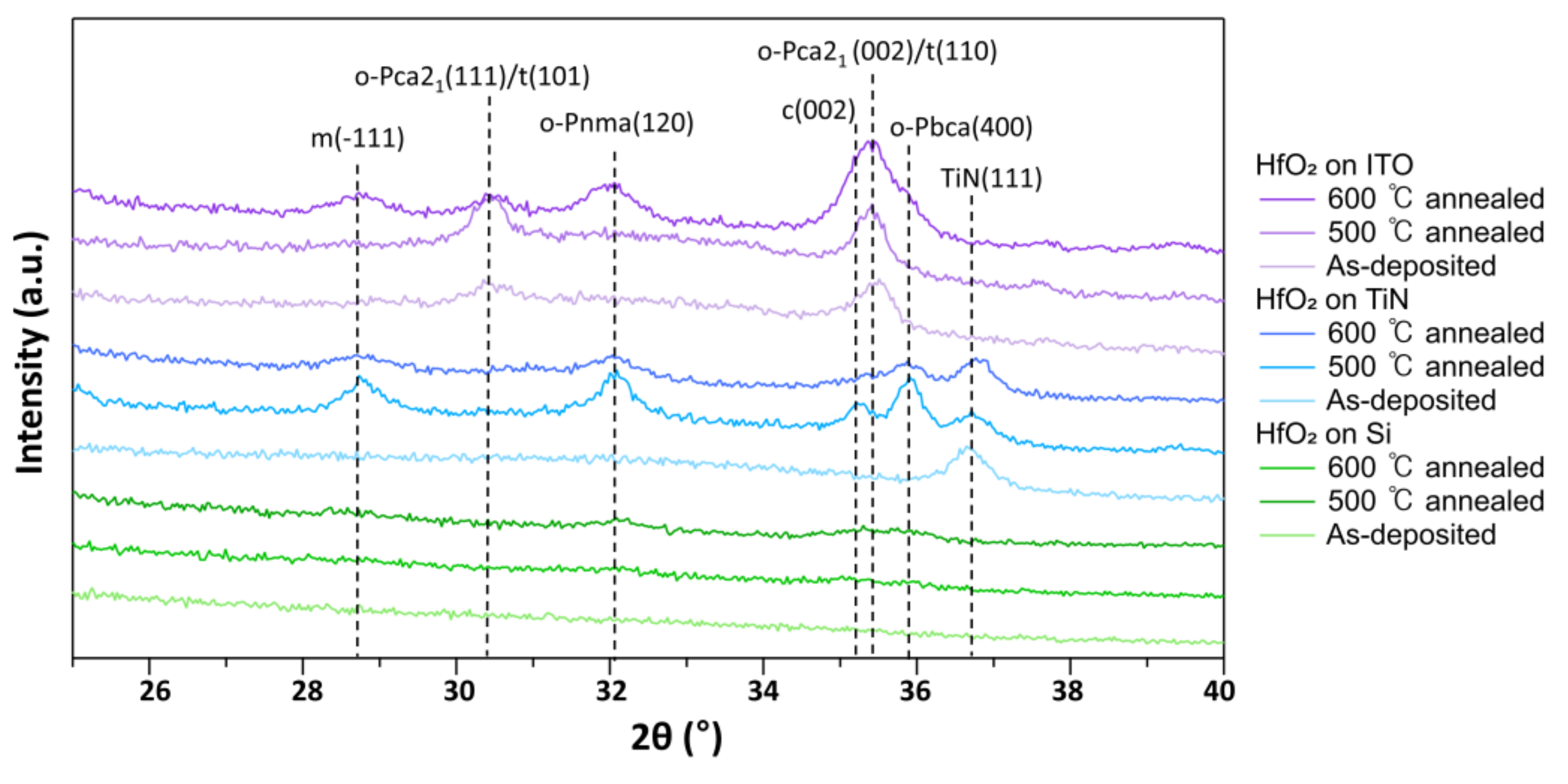

Figure 6. GIXRD of HfO2 film of as-deposited state and annealed state on Si, TiN, and ITO.
