H2 Production by Methane Oxy-Reforming: Effect of Catalyst Pretreatment on the Properties and Activity of Rh-Ce0.5Zr0.5O2 Synthetized by Microemulsion

by
Jacopo De Maron
1,2,
Rodolfo Mafessanti
1,
Pio Gramazio
1,2,
Elisabetta Orfei
1,2,
Andrea Fasolini
1,2,* and
Francesco Basile
1,2,*
1
“Toso Montanari” Industrial Chemistry Department, Alma Mater Studiorum, Università di Bologna, 40136 Bologna, Italy
2
Center for Chemical Catalysis—C3, Alma Mater Studiorum, Università di Bologna, 40136 Bologna, Italy
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(1), 53; https://doi.org/10.3390/nano13010053
Submission received: 25 November 2022 / Revised: 15 December 2022 / Accepted: 19 December 2022 / Published: 22 December 2022
(This article belongs to the Special Issue Nanomaterials for Catalytic Hydrogen Production)
Browse Figures
Versions Notes

Abstract

:
Green hydrogen introduction in hard-to-abate processes is held back by the cost of substituting steam reforming plants with electrolyzers. However, green hydrogen can be integrated in properly modified reforming processes. The process proposed here involves the substitution of steam reforming with oxy-reforming, which is the coupling of the former with catalytic partial oxidation (CPO), exploiting the pure oxygen coproduced during electrolysis to feed CPO, which allows for better heat exchange thanks to its exothermic nature. With the aim of developing tailored catalysts for the oxy-reforming process, Ce0.5Zr0.5O2 was synthetized by microemulsion and impregnated with Rh. The Ce-based supports were calcined at different temperatures (750 and 900 °C) and the catalysts were reduced at 750 °C or 500 °C. Tuning the calcination temperature allowed for an increase in the support surface area, resulting in well-dispersed Rh species that provided a high reducibility for both the metal active phase and the Ce-based support. This allowed for an increase in methane conversion under different conditions of contact time and pressure and the outperformance of the other catalysts. The higher activity was related to well-dispersed Rh species interacting with the support that provided a high concentration of surface OH* on the Ce-based support and increased methane dissociation. This anticipated the occurrence and the extent of steam reforming over the catalytic bed, producing a smoother thermal profile.

1. Introduction

The urgent need to shift the present energy production system toward a renewable one based on hydrogen has already been pointed out by several organizations [1,2]. Renewable hydrogen exploitation should start from those processes that already utilize it, such as ammonia production or chemical upgrading. However, using hydrogen obtained from renewable resources (green hydrogen, 3.6–7.0 €/kg) is still more expensive than employing H2 produced from natural gas steam reforming (1.5–3.7 €/kg) (Equation (1)) [3]. Thus, processes that require hydrogen are usually integrated with an on-site hydrogen production system by steam reforming of methane [4]. A greener alternative to methane reforming would be found in electrolysis (Equation (4)), which is a mature technology but one that still requires a high amount of energy to break water molecules to produce hydrogen and oxygen [5]. Moreover, large-scale reforming plants are highly integrated, which makes the introduction of only relative amounts of green hydrogen possible without loss of capital investment [6]. Furthermore, the major cost of hydrogen production relies on the investment cost of the hydrogen production plant [7]. For this reason, immediately replacing steam reforming plants with electrolyzers fed with renewable energy is not a market-driven process and may be opposed by industries because the high investment cost must be compensated with years of operation to generate a return [7]. The introduction of an electrolyzer that is temporarily responsible for only a smaller part of hydrogen production (green hydrogen) and the implementation of carbon capture and storage systems (CCSs) for CO2 co-produced from methane (blue hydrogen) can be a stepping stone to the introduction of renewables in hydrogen production processes and abate CO2 release. This would help to exploit the present relatively low availability of renewable energy while gaining knowledge of the potentialities and optimization of electrolyzers, removing the barriers that may be perceived by investors [8].
In a further integrated vision, the oxygen produced from electrolysis can be used to feed the reformer and increase its energy efficiency by carrying out an exothermic reaction [9,10]. Hydrogen can also be produced by catalytic partial oxidation (CPO) (Equation (2)), an exothermic process in which methane is reacted with oxygen to give hydrogen and carbon monoxide.
Steam Reforming (SR), CH4 + 3 H2O ⇆ 3 H2 + CO, ΔH° = +206 kJ/mol
Catalytic Partial Oxidation (CPO), CH4 + 0.5 O2 ⇆ 2 H2 + CO, ΔH° = −36 kJ/mol
Water Gas Shift (WGS), CO + H2O ⇆ H2 + CO2, ΔH° = −41 kJ/mol
Electrolysis, H2O ⇆ H2 + 0.5 O2
Great hurdles to industrial CPO are the cost of oxygen purification from air and the high exothermicity of the reaction. The first can be avoided by using pure O2 produced from water electrolysis, the latter by coupling exothermic CPO with endothermic steam reforming. Steam reforming and CPO are subjected to highly endothermic or exothermic temperature profiles when run alone. Smaller temperature differences occur when the two processes are coupled using sub-stoichiometric O2 in the so-called oxy-reforming process, where the endothermic steam reforming is fed by the exothermic oxidation [11]. Recent studies have shown that the integration of steam reforming and CPO at low temperatures allows for reduced oxygen consumption (O2/C below 0.3) compared to classical CPO while increasing the energy efficiency of the whole process [12]. Thus, oxy-reforming can operate at lower temperatures than steam reforming (e.g., 750 °C), and with steam to carbon ratios (S/C) and O2/C ratios as low as 0.7 and 0.2, respectively, the cost of water evaporation and the amount of natural gas needed to heat the process are reduced [9,10,13]. Oxy-reforming is thus suitable for the integration of green hydrogen from electrolysis, as it allows the exploitation of the reforming infrastructure while taking advantage of the inexpensive pure oxygen stream and increasing the heat development and recovery.
Thus, for the best integration of hydrogen production by reforming/CPO and electrolysis, the moderate hydrogen and oxygen production of the latter should be considered, for the reasons explained above.
However, reaction conditions and catalyst design are key factors in oxy-reforming success. The present work focuses on this topic, with the aim of providing guidelines for catalyst design and development in the frame of hydrogen production. The overall oxy-reforming process is a complex combination of different reactions, mass transfer oxidation reactions occurring mainly in the first part of the reactor and endothermic reforming reactions along the whole bed, with a thermal profile resulting from their occurrence. The low content of oxygen with respect to classical CPO was chosen on the basis of previous work to limit the sharp increase in temperature at the beginning of the bed and the formation of hot spots [11,14,15,16,17,18]. Ni-based catalysts are mostly employed in reforming due to their relatively low costs [11,19,20,21,22,23]; however, compared to noble metals, they display lower steam reforming activity and are subjected to faster deactivation caused by sintering and carbon formation [11]. Rh has been also considered as an active phase for oxy-reforming [9,10,24,25,26,27,28] and its high activity in both CPO and steam reforming may fulfil the desired aim of increasing the coupling of the two reactions. In addition, increased steam reforming activity and high stability with respect to carbon formation were observed using Ce-based supports thanks to the oxygen-storage capacity of Ce and its action as a water dissociation site [9,19,29,30,31,32,33,34]. Thus, Ce-based materials have also been used as supports in reforming processes [32,35,36,37,38].
For this reason, Rh-based catalysts supported on Ce0.5Zr0.5O2 supports synthesized by microemulsion [9] were applied to oxy-reforming, and the effects of calcination temperature (750 °C or 900 °C) and reduction temperature (500 °C or 750 °C) on catalyst properties and activities were studied. Steam reforming activity was also investigated by carrying out low-temperature steam reforming (LTSR) tests (350–500 °C).

2. Materials and Methods

2.1. Synthesis of the Rh/Ce0,5Zr0,5O2 Catalysts

The Ce-Zr oxide supports were synthesized by microemulsion synthesis, as reported previously [9,33]. A 0.5 M aqueous solution of ZrO(NO3)2 × 6 H2O (99.00%, Sigma-Aldrich, St. Louis, MO, USA) and Ce(NO3)3 × 6 H2O (99.99%, Sigma-Aldrich, St. Louis, MO, USA) in a 1:1 molar ratio was prepared. Then, a water-in-oil inverse microemulsion was created by mixing 8 wt% of this aqueous solution with 58 wt% of n-heptane (solvent, 99.00%, Sigma-Aldrich, St. Louis, USA), 15 wt% of 1–hexanol (co-surfactant, 99.00%, Sigma-Aldrich) and 19 wt% of a non-ionic surfactant (Triton X−100, 99.00%, Sigma-Aldrich, St. Louis, MO, USA). This was mixed under stirring with another emulsion, where the Ce and Zr precursors were substituted by a base, namely, 1.5 M tetramethylammonium hydroxide pentahydrate (TMAH = (CH3)4NOH × 5 H2O, 97.00%, Sigma-Aldrich, St. Louis, MO, USA). The resulting mixture was aged at room temperature for 4 h, then filtered and washed with methanol. The fine powders obtained by microemulsion were thermally treated to obtain the Ce-Zr oxides. These were then calcined at 750 °C and 900 °C at 2 °C/min for 5 h. Incipient wetness impregnation (IWI) was used to deposit an amount of 2.7% of Rh (weight of metal over weight of support), as previously reported [9]. Rh (III) nitrate solution: ~10 wt% Rh in >5 wt% in HNO3 (Sigma Aldrich) was used as a precursor. The deposition was completed by drying at 120 °C for 2 h and calcination at 500 °C (ramp rate of 2 °C/min) for 5 h.
Pellets in the range of 14–20 mesh were obtained from the calcined powders by crushing over sieves.

2.2. Catalyst Characterizations

A Philips PW1050/81 diffractometer equipped with a graphite monochromator in the diffracted beam and controlled by a PW1710 unit (Cu Kα, λ = 0.15418 nm) was used for X-ray diffraction (XRD) analysis, which ranged between 20° and 80° (2θ) at 0.2°/s. Average crystallite size (CS) was assessed using Equation (5) (Scherrer equation).
CS = (Kλ)/(βcosθ); [K = shape factor = 0.9; βINST = 0.07; β = (βexp − βINST)]
An ASAP 2020 Micromeritics sorptiometer was used for nitrogen adsorption–desorption isotherms. The data were analyzed using software with standard BET and BJH methods. The nitrogen gas purity was 99.999%. The samples were pre-treated at 150 °C and 30 mmHg for 30 min and then heated up to 250 °C for 30 min.
Temperature-programmed reduction–oxidation (TPRO) cycles were performed to study the redox properties of the catalysts with the Micromeritics Autochem 2920 instrument. All the samples (0.06–0.1 g) were pre-treated with flowing He (30 mL/min) while being heated to 150 °C. Then, the samples were cooled down to 50 °C and TPR/O/R cycles were carried out by fluxing 5% H2/Ar (30 mL/min) while being heated from 60 °C to 950 °C at a rate of 10 °C/min. An isotherm at this final temperature of 30 min was performed. He was sent, the temperature was lowered to reach 50 °C and TPR was followed by temperature-programmed oxidation (TPO). In this case, 5% O2/He (30 mL/min) was used and the same temperature cycle of TPR was performed. After TPO, another TPR was performed.
TEM analyses were carried out using a TEM/STEM FEI TECNAI F20 microscope combined with energy dispersive X–ray spectrometry (EDS) at 200 keV. A small amount of sample was suspended in ethanol and treated with ultrasound for 15 min. The suspension was deposited on a “multifoil-carbon film” sustained by a Cu grid, then dried at 100 °C. EDS was used to evaluate the elementary analysis of the samples.

2.3. Experimental Set-Up and Description of the Catalytic Tests

The catalysts were tested in a fixed-bed reactor which consisted of a tubular INCOLOY 800HT reactor (length, 500 mm; internal diameter, 10 mm) placed in a programmable furnace. A sliding thermocouple was used to control the catalytic bed temperature. Volumes of 0.5 cm3 of catalyst (14–20 mesh) were charged and the reduction to metallic rhodium was performed by fluxing a 500 mL flow of a H2/N2 (10:90 v/v) gas mixture at 750 °C for 12 h. A JASCO HPLC pump was used to feed deionized water which was fully vaporized before mixing with preheated oxygen. The effluent wet gaseous mixture passed through a condenser at about 0 °C to remove water vapor before the GC analysis. The dry gas (DG) was analyzed using an Agilent 490 microgas chromatograph equipped with two different columns. A 20 m long MS5A column (carrier: N2) separated hydrogen, while a COx 1 m long column (carrier: He) was used for CH4, CO and CO2. Both modules were furnished with a TCD detector.
The feed composition was set to obtain a reagent mixture with a sub-stoichiometric ratio of H2O and O2, namely, an O2/C ratio of 0.21 and a S/C ratio of 0.70.
The equilibrium compositions and conversions were calculated with CEA-NASA software.
An average catalytic bed temperature was used for the calculations.
The conditions employed in the catalytic tests are reported in Table 1.
CH4 conversion was taken as a reference to evaluate the activities of the tested catalysts and was compared with that calculated at the thermodynamic equilibrium.
Experimental methane conversions were calculated based on the vol. % of products and unreacted methane obtained from GC analysis and were expressed according to Equation (6):
X = (% CO(OUT) + % CO2 (OUT))/(% CH4 (OUT) + % CO(OUT) + % CO2 (OUT)) × 100
Carbon balances over 95% were obtained in most of the tests.

3. Results and Discussion

3.1. Catalyst Characterization

3.1.1. X-ray Diffraction Analysis

The CeZr supports obtained by microemulsion were analyzed using XRD analysis. The XRD characterization of the CeZr oxide was reported in a previous work, where it was demonstrated that the microemulsion synthesis provided effective catalyst support for the oxy-reforming reaction [9]. Therein, we reported that a homogeneous Ce0.5Zr0.5O2 (CZO) phase was obtained after calcination, which is difficult to obtain with other techniques [9]. This is an advantage of employing microemulsion synthesis. The samples calcined at different temperatures all showed the presence of a mixed oxide phase related to the formation of Ce0.5Zr0.5O2 (Figure 1 and Figure S1). Increasing calcination temperature also increased the crystallinity of the synthesized samples (Figure S1). Crystallite average sizes increased from 4 nm at 500 °C (Figure S1) to 8 nm at 750 °C to 14 nm at 900 °C, as calculated using Equation 5. Further increasing calcination temperature led to segregation, with the sample calcined at 1000 °C showing an enlargement of the reflection caused by the presence of two superimposed peaks and two different phases at 1100 °C (one enriched in Ce and one enriched in Zr). Following these results, the samples calcined at 750 °C and 900 °C were selected for the catalytic application. In fact, a calcination at 500 °C would have provoked a structural change in the catalytic tests that were carried out at 750 °C, while at temperatures higher than 1000 °C the segregation of the phases would have led to a less homogeneous catalyst. XRD analysis was carried out, also, after the impregnation of the Rh nitrate precursor, followed by calcination at 500 °C (Figure 1).
In this case, only the Ce0.5Zr0.5O2 phase was again displayed, while no phase related to Rh species was shown, as the produced Rh oxide particles were well dispersed and present in low wt. %. Nevertheless, the average crystallite dimension increased for Rh-CZOm900 from 14 to 20 nm, while it did not change for Rh-CZO-750. This slight enlargement could be related to the second calcination treatment carried out after Rh impregnation.

3.1.2. Nitrogen Physisorption Analysis

The morphological properties of the samples were analyzed through nitrogen physisorption analysis (Table 2).
CZOm750 was characterized by a surface area of 54.1 m2/g, which decreased to 14.5 m2/g when the calcination temperature was raised to 900 °C, due to sintering of the oxide particles. Isothermal linear plots (Figure S2) of the bare sample show a type IV curve, indicative of mesoporous materials and a higher amount of adsorbed nitrogen for the CZOm750 sample, thanks to its surface area. The two samples show different hysteresis patterns in the adsorption plots, suggesting different porosities. In fact, the pore distribution graph (Figure S3) displays a pore distribution centered around 5 nm for CZOm750 and one around 20 nm for CZOm900. The analysis was also carried out on the impregnated catalysts before reduction, i.e., on the catalysts in the form in which they are charged in the reactor. Even in this case, surface area decreased from 34.6 m2/g to 11.5 m2/g for the samples calcined at 750 °C and 900 °C, respectively. The isothermal linear plots (Figure S4) were similar to those of the bare supports, indicating that meso-porosity was kept and that pore distribution was also close to the bare supports (Figure S5). However, impregnation decreased total surface area due to slight sintering of the nanoparticles, as shown by XRD and caused by the calcination carried out after impregnation.

3.1.3. Temperature-Programmed Reduction–Oxidation

Temperature-programmed reductions and oxidations were carried out on both bare supports and impregnated catalysts, results are reported in Table 3. Bare CZOm750 displayed a broad peak centered at 680 °C, while CZOm900 displayed one centered at 780 °C (Figure 2), suggesting that the redox properties of the support increased at lower calcination temperatures. The presence of only one broad peak for Ce0.5Zr0.5O2 has been previously reported in the literature and has been related to high oxygen mobility in the bulks for such oxides [39]. The higher surface area (Table 2) makes Ce atoms more available for reduction by gaseous hydrogen in the case of CZOm750. After an oxidation cycle (TPO), similar reduction behavior was observed, and the maxima of the reduction peaks increased as the samples were submitted to high temperatures (950 °C) during the reduction–oxidation cycles. This led to sintering of the oxide with a concurrent decrease in redox properties due to less contact with hydrogen.
The oxidation peaks obtained after the first reduction are shown in Figure 3. Again, CZOm750 shows an oxidation peak at a lower temperature that indicates better redox properties due to the higher surface area of this sample. In this case, the difference is smaller, as oxidation is a fast process favored on both supports. However, the support calcined at the lower temperature was more easily reduced and oxidized, indicating a higher reactivity.

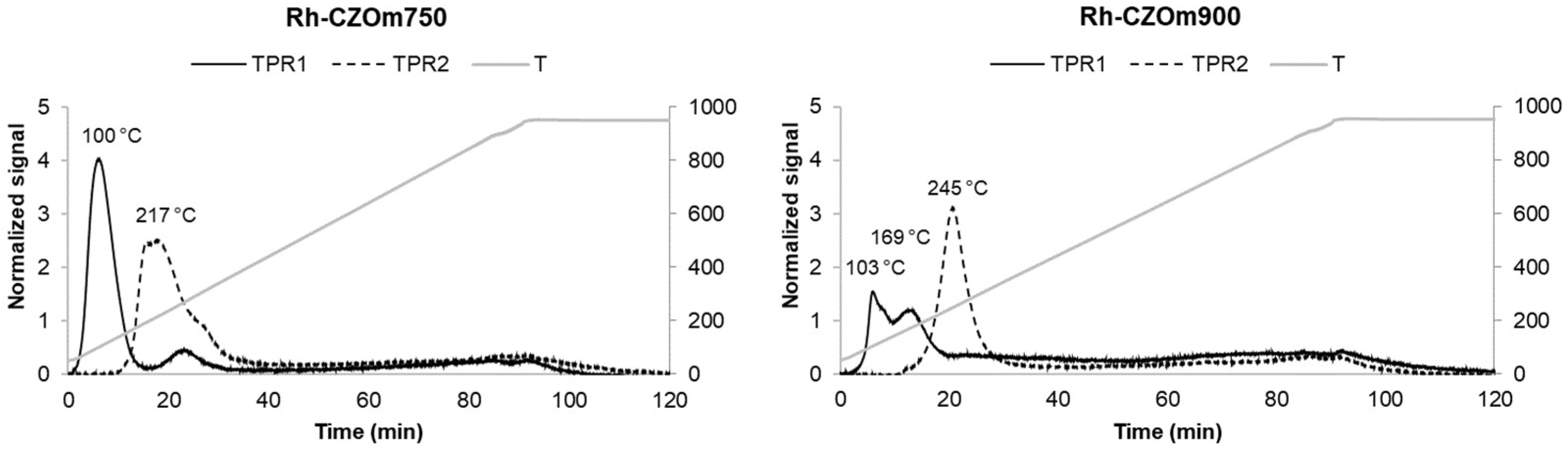

After impregnation of Rh over the two supports, TPOR was carried out again (Figure 4). The presence of the noble metal strongly decreased the reduction temperature of Ce thanks to the high reducibility of Rh and to the spillover effect of by this metal, which favors Ce reduction [40,41,42]. Rh-loaded Ce0.5Zr0.5O2 was reported elsewhere to display three reduction peaks at 150 °C, 350 °C and 730 °C, attributed, respectively, to the reduction of the metal precursor, reduction of the surface/bulk Ce and further reduction of the bulk Ce [41]. Here, no peak was found at high temperatures, indicating that bulk Ce was already reduced at lower ones, together with Rh, suggesting a positive interaction between the metal and the support. This could be attributed to the homogeneous phase and morphology and the small particle size of the microemulsion-synthetized Ce0.5Zr0.5O2 and a homogeneous metal dispersion over the small crystals of the support. In general, the calcination temperature and the morphology obtained affected the nature of the Rh species that were deposited on the support surface. Rh-CZOm750 produced one broad peak centered at 100 °C as a result of the homogeneous reduction of Rh oxide, and Ce produced a much smaller one around 250 °C due to Ce’s being less reducible. With increasing calcination temperature, Rh-CZOm900 yielded an intense peak at 160 °C and a smaller one at 169 °C, indicating a less homogeneous reduction of the Rh-Ce system. The better reducibility of the catalyst calcined at a lower temperature could have been caused by: (i) the higher surface area and (ii) the low particle size of the CZOm750 support that provided a higher number of surface Ce sites and (iii) an increased dispersion of Rh oxide favored by the higher surface area that allowed for more interactions between the Rh species and the surface of the Ce-based oxide. On the other hand, the sample calcined at 900 °C was characterized by a lower surface area and bigger crystals that produced a less homogeneous Rh dispersion (as will be discussed in the TEM section) and thus had a lower reducibility.
Both samples displayed only one broader peak in the TPR carried out after a TPO cycle. This suggests that a more homogeneous catalyst was obtained after oxidation, where all components were reduced together. Again, the reducibility was higher in the case of the sample calcined at 750 °C, which gave a peak at a lower temperature (215 °C).
Quantification of the consumed hydrogen showed that the reducibility of the Ce support depended on the support calcination temperature. Bare supports showed similar values, suggesting that surface area was not a determining factor in hydrogen consumption but influenced mostly the reduction temperature, as CZOm750 is reduced earlier. In general, the addition of Rh increases hydrogen consumption as it causes hydrogen spillover from the metallic particle to the support.
However, the hydrogen consumption increased, decreasing the calcination temperature, which was related to the more homogeneous Rh dispersion and the small and defective CZO crystals. Not only is Rh-CZOm750 reduced at a lower temperature, it also consumes more hydrogen, reducing a higher amount of Ce. This indicates that a higher amount of oxygen is available for reduction and that its reduction is kinetically faster thanks to (i) a better Rh dispersion (as will be discussed in the TEM session), (ii) the presence of smaller CZO crystals and (iii) the higher surface area, and hence defectivity, of the CZOm750 support. In the reduction of the Ce-based support, the slow step was the reduction of bulk Ce, which was more limited for the sample calcined at 900 °C due to its larger CZO crystals [39].
The TPO graphs of the impregnated samples shown in Figure 5 are very similar to those of the bare sample, as both Rh and Ce are easily oxidized at low temperatures. The catalysts showed only one main peak and a small shoulder, which suggests that both the support and the metal were mainly oxidized together, while the bulk Ce may have needed more energy to be oxidized.

3.1.4. Transmission Electron Microscopy

The catalysts obtained after calcination at 750 °C or 900 °C were reduced in H2/N2 flux and analyzed by TEM. The morphologies, Rh particle dimensions, and size distributions of the catalysts treated at different calcination temperatures (Rh-CZOm750R750 and Rh-CZOm900R750) and reduction temperatures (Rh-CZOm750R750 and Rh-CZOm750R500) are shown in Figure 6.
All the samples showed the presence of small Rh particles (as confirmed by STEM, reported in Figure S6) well dispersed on CeZr nanospheres, whose shapes were templated through the microemulsion synthesis [9,33,43,44,45]. When the catalyst was calcined at 750 °C, narrow Rh size distributions were obtained, centered at 1–1.5 nm. It is worth noting that particles below 0.5 nm are not detected by the TEM used in this work, though they may be present. Higher calcination temperatures (Rh-CZOm900R750) produced a size increase in oxide particles due to sintering of the CeZr phase and slightly larger metal particles, with a broader distribution centered around 2–2.5 nm. The smaller particle size and higher surface area of the CZOm750 samples allowed for better dispersion of the rhodium nitrate precursor during the impregnation, resulting in smaller metal particles. Lowering the reduction temperature (500 °C) does not produce a particular change in the dimension of metal particles. EDS analysis conducted on the samples also confirmed the support composition to be Ce0.5Zr0.5O2 (Table S1).

3.2. Catalytic Tests

The synthesized catalysts were tested under different reaction conditions to analyze the effects of the different treatments on the catalytic performances. At first, the effect of calcination temperature was studied in oxy-reforming at 750 °C and low-temperature steam reforming (T = 350–500 °C). Then, the effect of reduction temperature was investigated.

3.2.1. Effect of Calcination Temperature

The effect of the calcination temperature was investigated by comparing, in oxy-reforming and LTSR, the Rh-CZO samples calcined at 750 °C and 900 °C and reduced at 750 °C (Rh-CZOm750-R750 and Rh-CZOm900-R750, respectively).

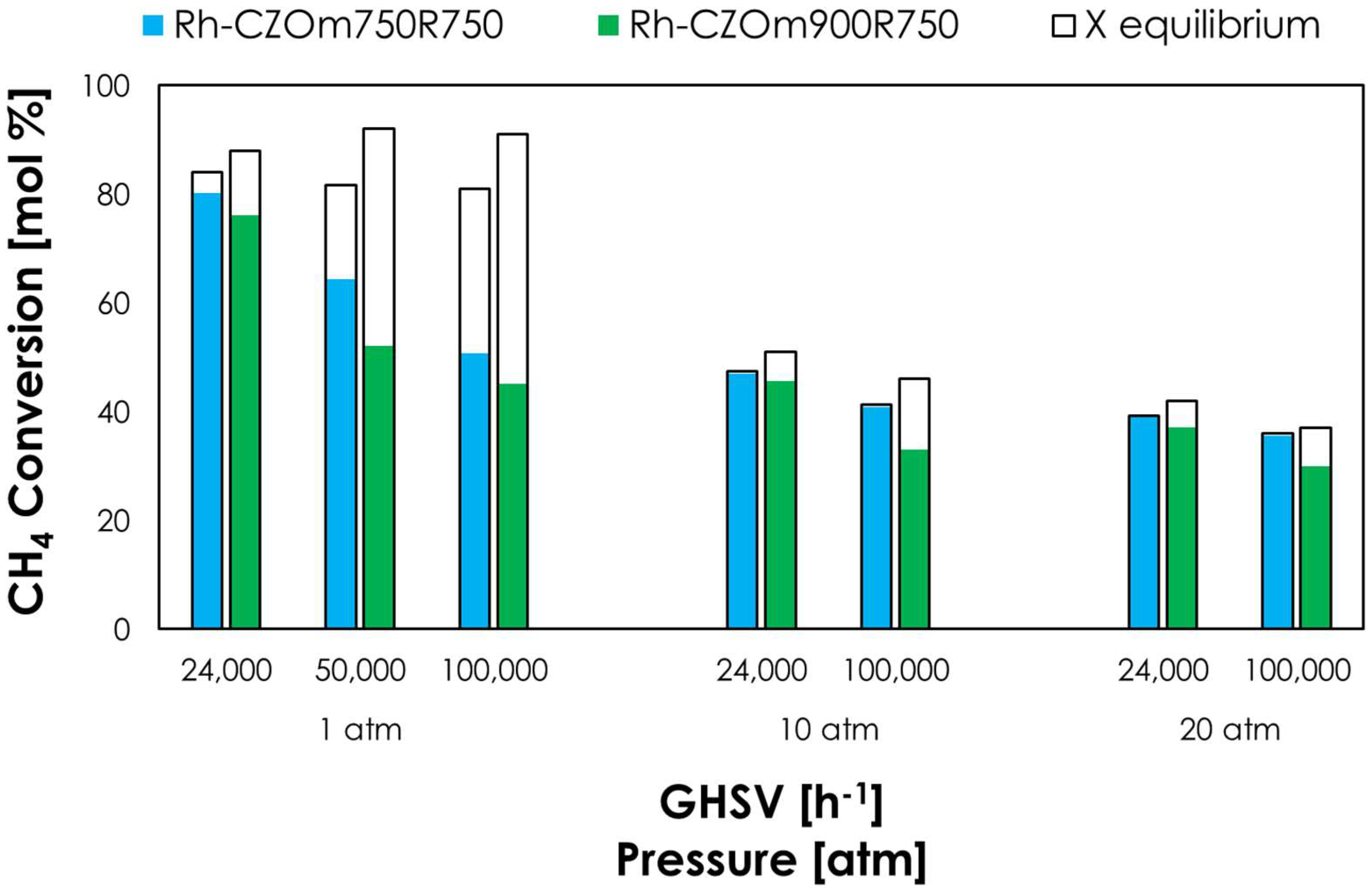

In oxy-reforming, O2 is fed in a sub-stoichiometric ratio, and its total consumption by CPO occurs in the first part of the catalytic bed, followed by the conversion of the remaining methane by steam reforming. This helps to produce a smoother thermal profile than the two separate processes, as will be discussed in a following chapter. The results of the oxy-reforming tests are shown in Figure 7.
At 1 atm and 2400 h−1, Rh-CZOm750 provided a high methane conversion of 80%, which was close to the equilibrium value even under these kinetic-controlled conditions, and outperformed the sample calcined at 900 °C (76%). Increasing the GHSV lowered the conversion, though Rh-CZOm750 showed a higher activity even under these unfavorable conditions. Here, the equilibrium conversion of Rh-CZOm900 was higher due to the development of hot spots on the catalytic bed, as will be discussed in a dedicated paragraph. With increasing pressure, the equilibrium conversion dropped, as both reforming and CPO are favored at low pressures, though the difference between the performances of the two catalysts was lesser. Nevertheless, a lower calcination temperature allowed equilibrium to be reached at 10 and 20 atm, at both low and high GHSVs.

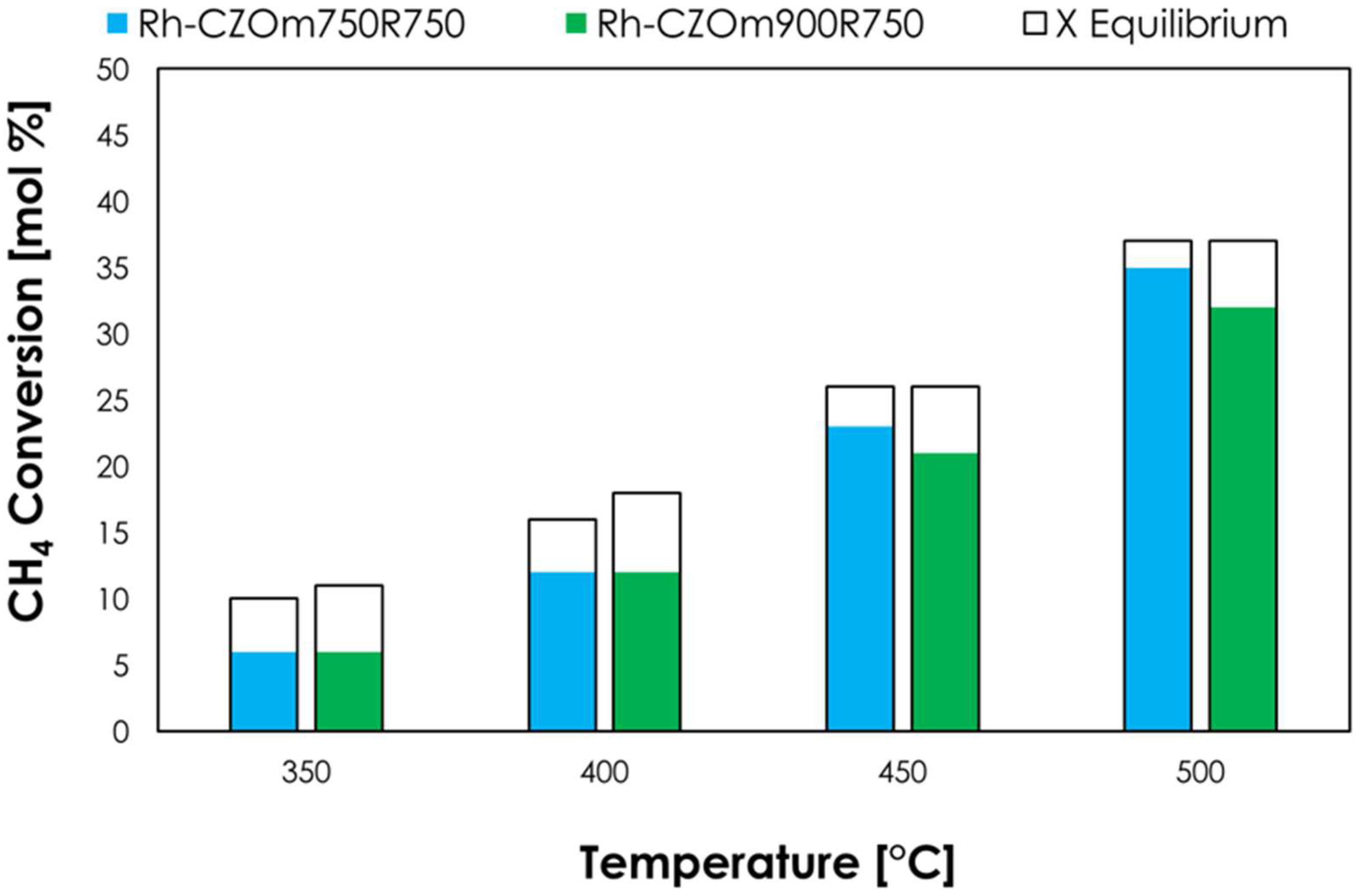

In low-temperature steam reforming (Figure 8), the two catalysts gave similar conversions at 350 and 400 °C, but Rh-CZOm750 provided higher conversions at both 450 °C (23% and 21% for Rh-CZOm750 and Rh-CZOm900, respectively) and 500 °C (35% and 32%). The better performances of Rh-CZOm750-R750 are correlated with its smaller crystal size and higher surface area (Table 2) and catalyst reducibility, which resulted in a higher Rh dispersion, as shown by TPR (where a higher amount of hydrogen was consumed and a lower reduction temperature was recorded). In particular, Ce acted as a water-dissociation site, increasing the concentration of surface OH*, which helped to increase the reaction rate in both LTSR and oxy-reforming [11,46].

3.2.2. Effect of Reduction Temperature

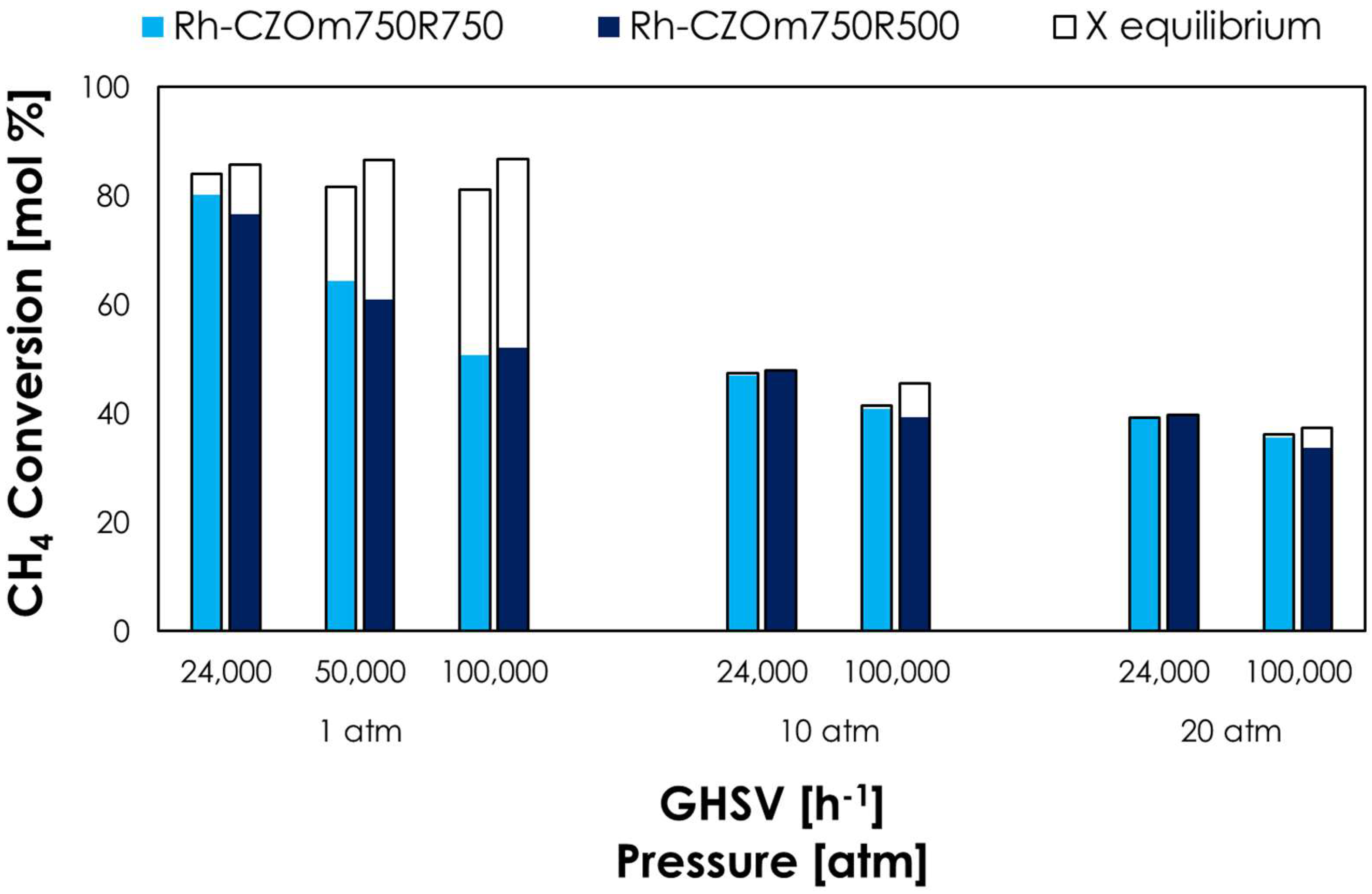

Given the results highlighting the positive effect of lower calcination temperatures on catalytic activity, Rh-CZOm750 was reduced also at 500 °C. The results of the oxy-reforming tests carried out at 750 °C obtained at different pressures and space velocities (GHSVs) are reported in Figure 9. The highest methane conversion (76% for Rh-CZOm750-R500 and 80% for Rh-CZOm750-R750) was given at 2400 h−1 and 1 atm, thanks to the favorable thermodynamic and kinetic conditions. When the GHSV was raised, a drop in conversion was observed for both catalysts, far from the equilibrium value, and the catalyst performances were similar under these conditions. Increasing pressure led to a further decrease in the conversion. Under these conditions, the two catalysts reached equilibrium, showing similar performances at low GHSVs. However, when the space velocity was raised at high pressure, producing kinetic-controlled conditions, the catalyst was able to reach the equilibrium value. In general, the reduction at the higher temperature provided a slightly more active catalyst under the oxy-reforming conditions.

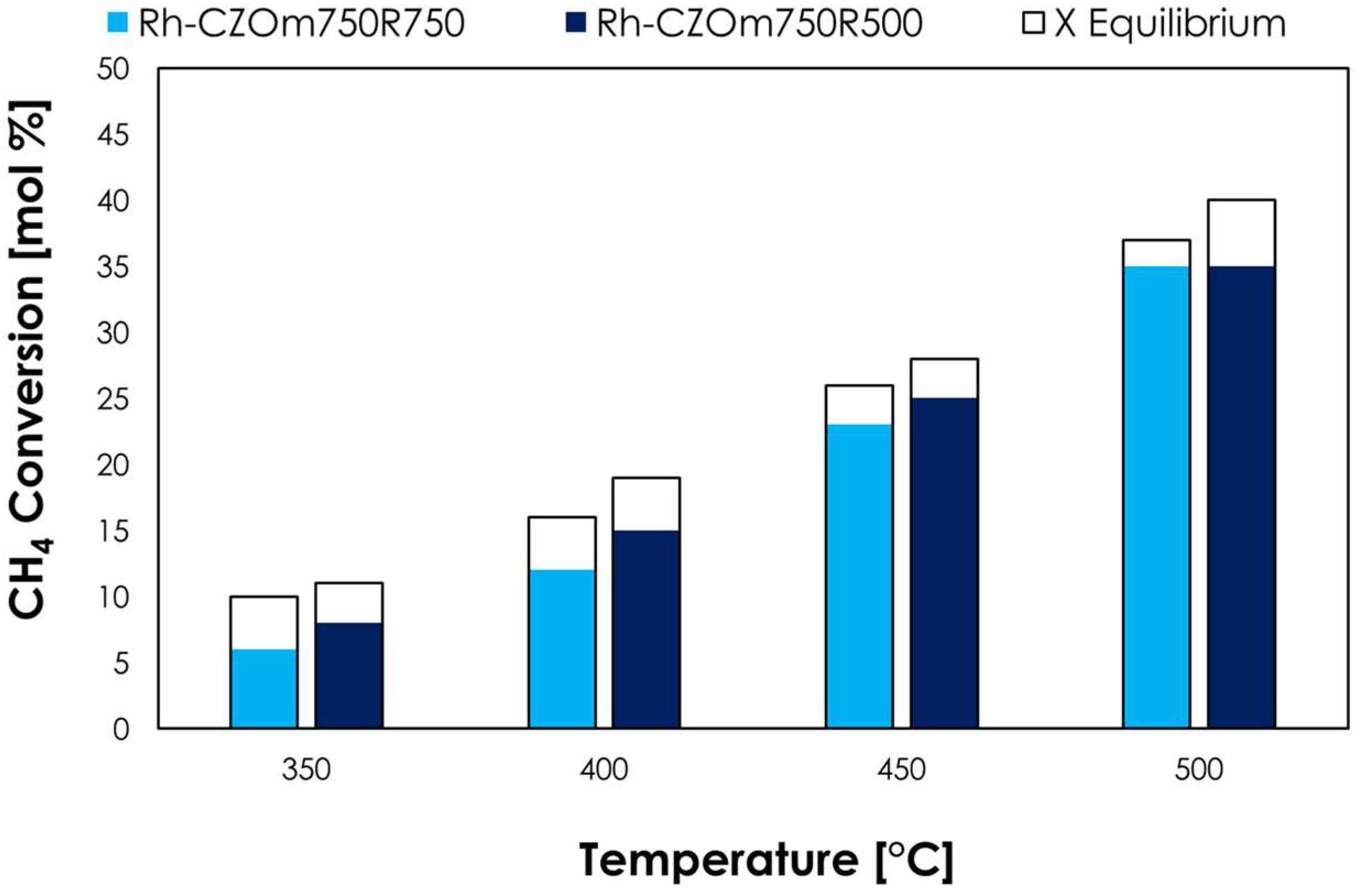

The catalysts were also tested in low-temperature steam reforming at 1 atm, 24,000 h−1, S/C = 3 and different temperatures (Figure 10). In this case, the performances of the catalysts were similar at 750 °C, while a slightly higher methane conversion was observed below 400 °C for the catalyst reduced at a lower temperature. In general, the two catalytic systems showed similar performances in methane conversion to syngas.
The similar behavior of the two catalysts is related to the similar Rh particle size and distribution observed by TEM. The slight differences observed are ascribable to small variations that arise when catalysts are submitted to oxy-reforming reaction conditions. In fact, the sample reduced at a lower temperature was submitted to a hydrogen-rich atmosphere when the reaction produced H2 at 750 °C, which may have led to a slight transformation of the catalyst. On the other hand, the sample reduced at a higher temperature was more stable under these conditions, as the reduction had been already conducted at 750 °C.

3.2.3. Oxy-Reforming Temperature Profile

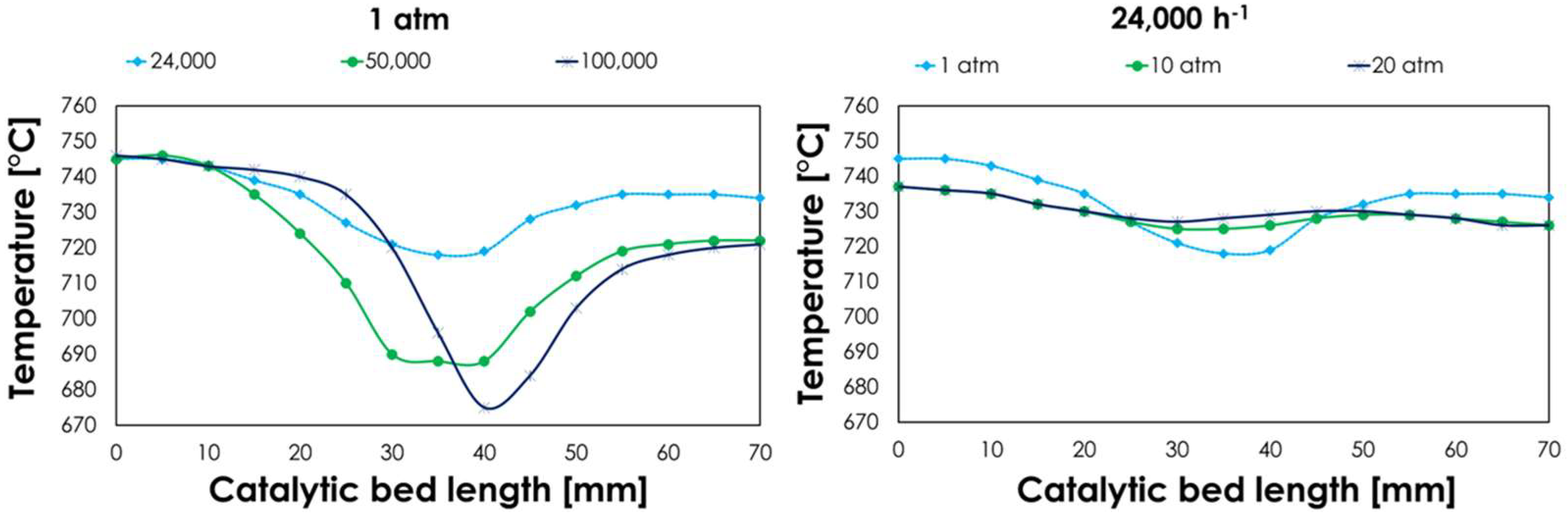

In hydrogen production by classical steam reforming or catalytic partial oxidation, the development of important endothermic or exothermic profiles inside the reactor affect catalytic performance in terms of activity, stability, and equilibrium conversion [47,48,49]. For instance, a very active steam reforming catalyst would consume a high amount of methane and thus a high amount of heat, causing a sharp decrease in temperature over the catalytic bed. Hence, it would reduce the equilibrium conversion and catalyst activity, as steam reforming is favored at high temperatures. This makes catalyst comparison difficult when different conversions are involved due to more or less active samples. The same concept applies to exothermic profiles developed during CPO. This process follows a direct or indirect route [50]. In the case of Rh/CeO2-ZrO2, an indirect route has been reported that involves fast and exothermic oxidation of methane in the first part of the catalytic bed, which produces CO2 and H2O [51]. These then consume methane through dry or steam reforming, giving H2 and CO in the second part of the catalytic bed. The oxy-reforming process studied here allows for the mitigation of the temperature increases or decreases that characterize the distinct processes by coupling them, exploiting the heat developed in the oxidation reactions to feed the endothermic steam reforming. This can be pursued with fine-tuning of reaction conditions and catalyst properties. For instance, Maestri et al. observed a negligible change in the temperature profile when they carried out CPO with a high amount of oxygen (O/C = 1) and the addition of steam [52]. However, they added more oxygen and a slightly lower amount of steam compared to this work (S/C = 0.5) and performed the tests on a Rh/Al2O3 catalyst. Under these conditions, oxidation was favored over the first part of the bed, where methane dissociation was the limiting step, and the oxygen mass transfer governed the formation of the main oxidizer *OH. Here, oxygen consumption was very fast and resulted in hot spots in the first part of the catalytic bed, then was followed by a decrease in reaction temperature in the second part of the catalytic bed caused by steam reforming [53]. The results obtained in the present work show that feeding an optimized amount of steam and oxygen (S/C = 0.7 and O2/C = 0.2) allows the ΔT of the process to be reduced. Here, a temperature drop of only 20 °C was observed over the catalytic bed for Rh/CZOm750R750 at 2400 h−1 and 1 atm (Figure 11).
Moreover, no exothermic peak was shown, indicating that the consumption of oxygen by oxidative exothermic processes was compensated by the occurrence of the endothermic steam reforming. This not only permitted an increase in the energy efficiency of the process but also made catalyst comparison more reliable and less dependent on the developed temperature profile. Nevertheless, the temperature profile was dependent on the amount of converted methane, which was affected by the operative conditions and the thermal exchange properties of the catalyst. Increasing GHSV lowered the percentage conversion but increased the methane flux, and hence the total consumed methane, resulting in a sharper drop in temperature over the catalytic bed and a downward shift of the peak, which is in line with the reported effect of flow rate on the temperature of the gas phase [53,54]. On the other hand, experimental and equilibrium methane conversions decreased at high pressures, smoothening the profile.

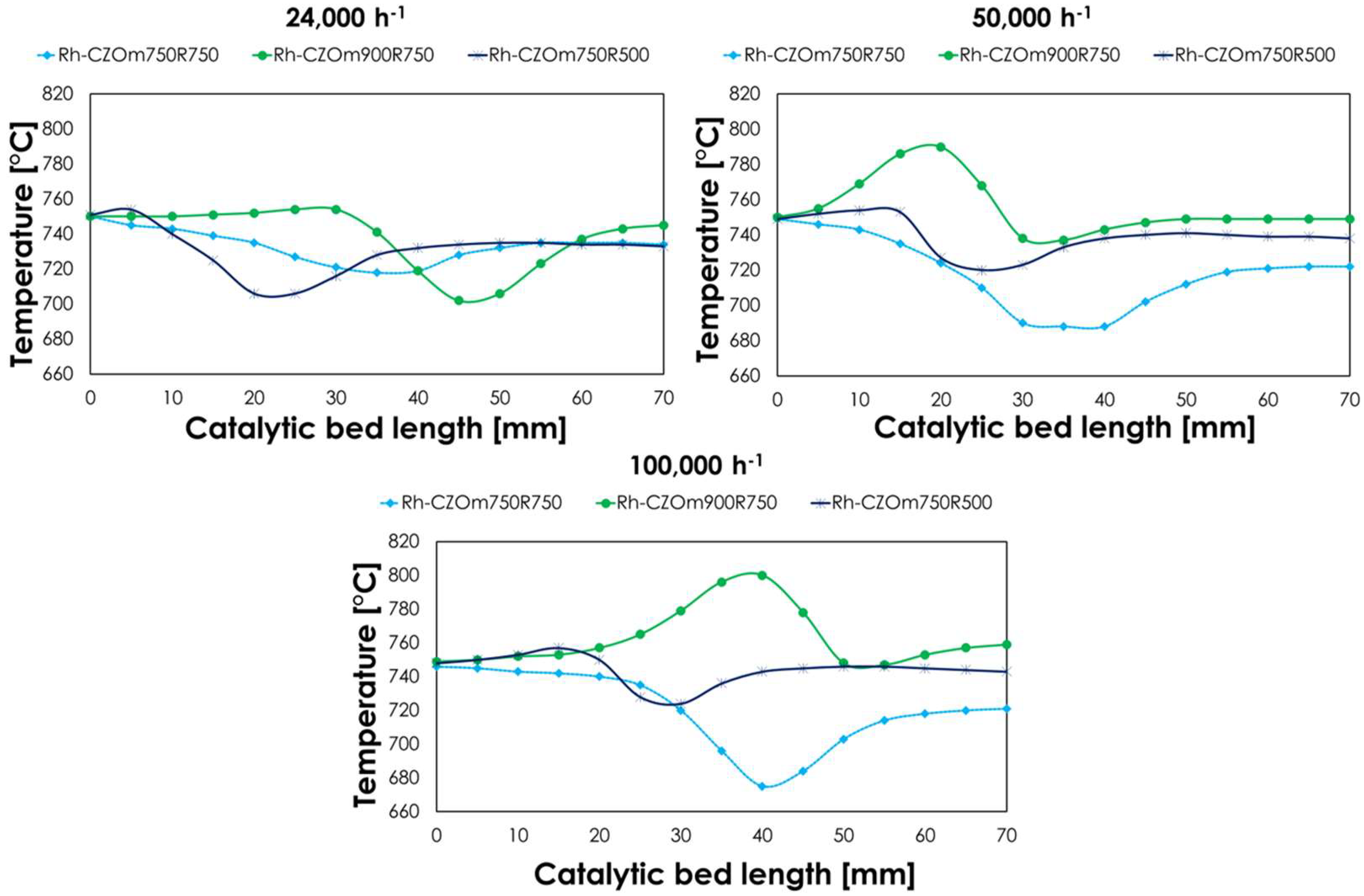

The temperature profile is also dependent on the catalyst’s properties. Comparing the investigated catalysts, the biggest differences arose at 1 atm and different GHSVs, as shown in Figure 12.
Interestingly, Rh-CZOm750R750, the most active catalyst under these conditions, provided the lower ΔT at a low space velocity. At higher GHSVs, it showed the lowest recorded temperature, while exothermic peaks arose in the first part of the catalytic bed for the other catalysts, followed by endothermic ones that were due to the distinct occurrences of the fast oxidations in the first part of the catalytic bed, followed by steam reforming, as characteristics for the processes dominated by methane oxidation reactions [11,52,53,55]. On the other hand, the profile recorded for Rh/CZOm750R750 suggests that oxidation and reforming reactions occur concurrently, enhancing local thermal exchange, and giving low ΔT, regardless of the higher activity, with a lower temperature at the outlet. This is indicative of a higher promotion of steam reforming, confirmed also by the high conversion provided in the low-temperature steam reforming tests with this catalyst, which anticipated methane consumption by this process to a part of the catalytic bed where oxidation predominantly occurs. The heat released by oxidation is unaffected by the surface oxidation rate because oxygen consumption is governed by oxygen external mass transfer [53]. On the other hand, heat consumption is greatly affected by the local promotion of steam reforming. In general, an interesting feature of oxy-reforming compared to sole SR or CPO is that higher conversions are matched with better heat exchange and less pronounced thermal profiles, which allows better heat exchange and more reliable comparison of active catalysts.

3.2.4. Catalyst Stability

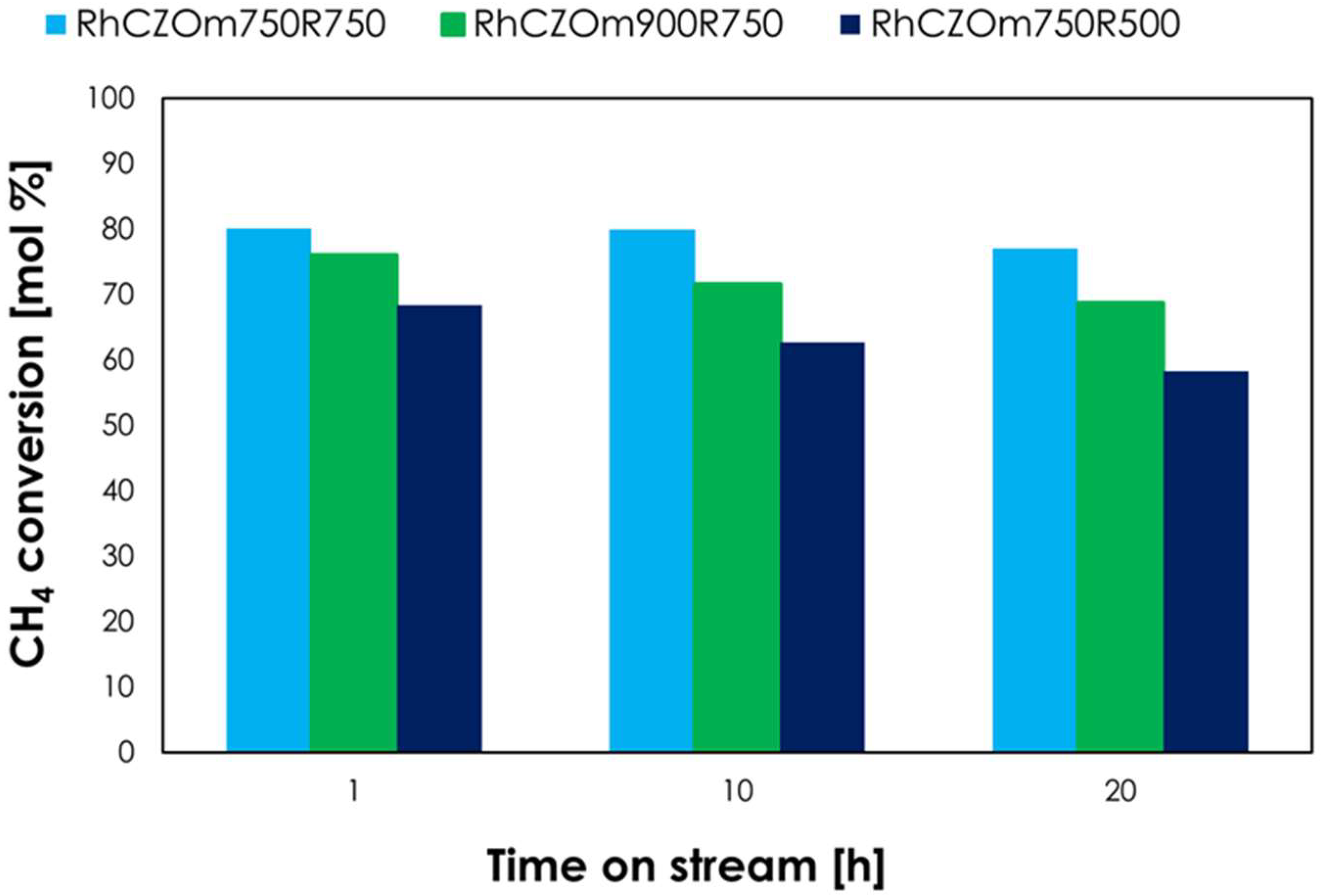

In order to assess the catalyst stability, “return” tests were carried out periodically after the screening of different conditions (Figure 13). These consisted of the repetition of the first test and allowed us to evaluate catalyst deactivation by comparing the obtained methane conversion with that obtained with the as-prepared catalyst. For catalysts reduced at 750 °C, only a slight conversion drop was observed after many hours of operation. In particular, the best performances were given by Rh-CZOm750-R750, which showed a conversion decrease of only 3% after 20 h of operation. The sample calcined at 750 °C and reduced at 750 °C lost 4% of conversion after just 10 h and 7% after 20 h of operation. Decreasing the reduction temperature provided a lower stability, as Rh-CZOm750-R500 lost 10% of conversion after 22 h, though this catalyst was outperformed by its analogues reduced at 750 °C, regardless of the interesting methane conversions displayed in the tests under different reaction conditions. The good performances of Rh-CZOm750-R750 are linked to the homogenous Rh dispersion and high surface area provided by the high reduction and low calcination temperatures, respectively. In particular, these resulted in better interactions of Rh with the small Ce nanoparticles in this sample, as highlighted by TPR, where a higher percentage of Ce was reduced and the reduction temperature was lower. Carbon formation on the catalyst surface was avoided thanks to the oxygen-storage capacity and mobility of the support, which is able to oxidize the carbon that is eventually formed, slowing down deactivation. To shed further light on the catalysts’ stabilities, the samples were analyzed after the reaction (denoted as “’spent’ samples”).

3.2.5. Characterization of the Spent Catalysts

The catalysts were characterized after the reactivity tests investigating their morphological properties and the presence of carbon deposited on the surface by XRD, nitrogen physisorption and Raman analyses.
The diffraction pattern of the Ce0.5Zr0.5O2 mixed oxide phase was observed in the XRD of the used catalysts, indicating that no phase segregation occurred during the reactivity test (Figure 14). In the case of the sample calcined at 900 °C, the presence of carbon was observed by the reflection at 26° 2θ, which was formed as a sub-product during the reactivity tests [56]. When the average crystallite size of the samples was calculated with the Scherrer equation, all the samples showed similar dimensions of crystallites for Rh-CZOm750-R750 and Rh-CZOm900-R750 (11 and 20 nm) compared to the fresh samples (Rh-CZOm750 8 nm; CZOm900 20 nm). On the other hand, the crystallite average size doubled to 16 nm for Rh-CZOm750-R500. This shows that sintering of the support particles had occurred during the harsh reaction conditions in the latter case, which is consistent with the lower activity and stability of this catalyst.

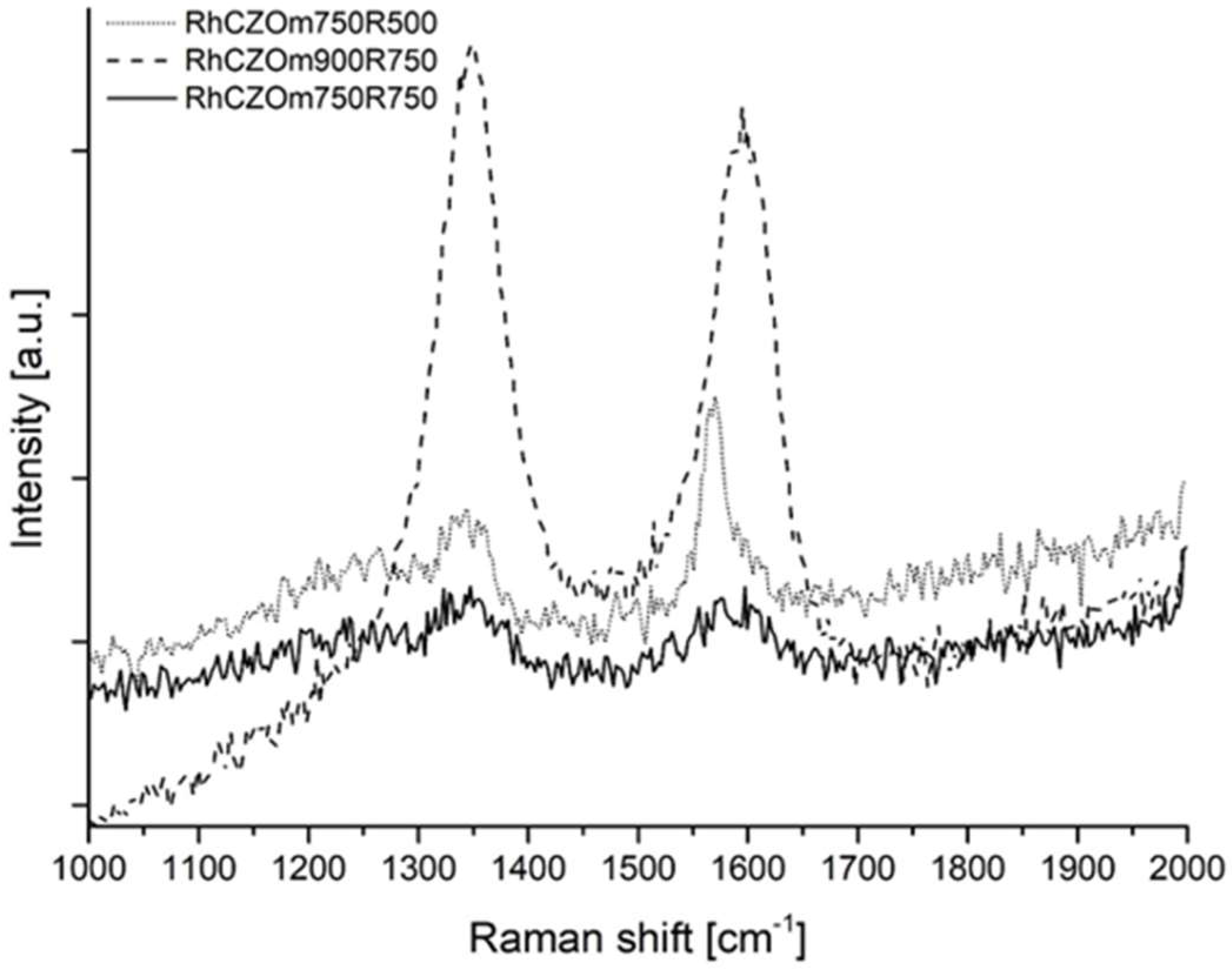

Catalyst stability can also be hindered by the formation of carbon over the catalytic surface, a side reaction that is favored under oxy-reforming conditions [9]. When carbon is formed, it covers the surface of the catalyst, leading to removal of the active phase from the reaction environment, resulting in deactivation. The presence of carbon over the catalyst, already detected by XRD for the sample calcined at a higher temperature, was further investigated by Raman analysis, in which two bands related to carbon were easily detected at 1350 and 1580 cm−1. These bands are called D-bands and G-bands. G-bands are related to the stretching of sp2 carbon bonds in ordered graphite, while D-bands are due to the vibrations of disordered carbon atoms. Figure 15 shows the Raman analysis carried out on the used samples.
Carbon presence was evident on the Rh-CZOm750-R500 sample, and its occurrence can be addressed, together with the sintering of the support, for the lower stability of this catalyst. Carbon was also formed on the catalyst calcined at 900 °C but was barely observable on Rh-CZOm750-R500 (being detected in only one of the multiple Raman analyses conducted on this sample, the one shown in Figure 15).
This is consistent with the results of the stability tests that demonstrated a high stability for this sample. This phenomenon can be attributed to the high metal dispersion and interaction between Ce and Rh, also demonstrated by the higher hydrogen consumption in TPR for this catalyst. The higher interaction and the high metal dispersion on a larger surface area favored the exchange of mobile oxygen from the reducible Ce-based support to the Rh active phase where carbon was produced, oxidizing it efficiently and preserving catalytic activity.

4. Conclusions

Different Rh-based catalysts were synthesized by impregnation of the metal over a Ce0.5Zr0.5O2 support obtained by inverse microemulsion synthesis. The supports were calcined at 750 °C or 900 °C and the catalysts were reduced at 750 °C or 500 °C and fully characterized by means of XRD, nitrogen physisorption, TPR and TEM. Calcination at 900 °C provided a lower surface area and consequently lower reducibility. On the other hand, calcining the support at 750 °C obtained well-dispersed Rh particles with higher reducibility and hydrogen consumption during TPR. The catalysts were tested in methane oxy-reforming at 750 °C, feeding sub-stoichiometric oxygen and steam together with methane. In an integrated vision, the oxygen needed for the oxy-reforming process comes from an electrolyzer, where it is produced together with green hydrogen. The catalyst calcined at 750 °C and reduced at the same temperature provided not only high methane conversion, but also the best stability thanks to a good Rh-CeZr oxide interaction that disfavored carbon formation. It also displayed the smoothest thermal profile, thanks to the anticipation of the steam reforming given by high reducibility of the Rh-CeZr oxide system which increased methane dissociation and the concentration of surface OH* and allowed the process to run with less sharp temperature gradients over the catalytic bed.

Supplementary Materials

The following supporting information can be downloaded at: www.mdpi.com/article/10.3390/nano13010053/s1, Figure S1: XRD of the samples calcined at different temperatures (500–1100 °C); Figure S2: Isothermal linear plots of bare supports; Figure S3: Pore size distribution of bare supports; Figure S4: Isothermal linear plot of Rh-CZO catalysts; Figure S5: Pore size distribution of Rh-CZO catalysts; Figure S6: STEM electron image of Rh nanoparticles; Table S1: Ce and Zr atomic percentages in CZO and Rh-CZO catalysts measured by EDS microanalysis.

Author Contributions

Conceptualization, J.D.M., R.M., A.F. and F.B.; Data curation, J.D.M., R.M., P.G., E.O. and A.F.; Formal analysis, R.M., P.G., E.O. and A.F.; Funding acquisition, F.B.; Investigation, J.D.M., R.M. and A.F.; Methodology, R.M., P.G., E.O., A.F. and F.B.; Project administration, F.B.; Resources, F.B.; Supervision, A.F. and F.B.; Validation, J.D.M., R.M., A.F. and F.B.; Visualization, J.D.M. and A.F.; Writing—original draft, A.F.; Writing—review and editing, J.D.M., P.G., E.O., A.F. and F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial or not-for-profit sectors.

Data Availability Statement

The data used in this study are contained within the article or the Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Van Renssen, S. The Hydrogen Solution? Nat. Clim. Chang. 2020, 10, 799–801. [Google Scholar] [CrossRef]
  2. Dean, N.; Gallagher, J.; Zhang, C. Hydrogen on the Rise. Nat. Energy 2016, 1, 16127. [Google Scholar] [CrossRef] [Green Version]
  3. Yukesh Kannah, R.; Kavitha, S.; Preethi; Parthiba Karthikeyan, O.; Kumar, G.; Dai-Viet, N.V.; Rajesh Banu, J. Techno-Economic Assessment of Various Hydrogen Production Methods—A Review. Bioresour. Technol. 2021, 319, 124175. [Google Scholar] [CrossRef] [PubMed]
  4. Bartels, J. A Feasibility Study of Implementing an Ammonia Economy. Master’s Thesis, Iowa State University, Ames, IA, USA, January 2008. [Google Scholar] [CrossRef]
  5. Saxe, M.; Alvfors, P. Advantages of Integration with Industry for Electrolytic Hydrogen Production. Energy 2007, 32, 42–50. [Google Scholar] [CrossRef]
  6. Dolci, F.; European Commission; Joint Research Centre. Green Hydrogen Opportunities in Selected Industrial Processes; Workshop Summary Report; Centre Albert Borschette: Brussels, Belgium, 2018; ISBN 978-92-79-99135-6. [Google Scholar]
  7. Lange, J.-P. Fuels and Chemicals Manufacturing; Guidelines for Understanding and Minimizing the Production Costs. Cattech 2001, 5, 82–95. [Google Scholar] [CrossRef]
  8. Dickel, R. Blue Hydrogen as an Enabler of Green Hydrogen: The Case of Germany; Oxford Institute for Energy Studies: Oxford, UK, 2020; ISBN 978-1-78467-159-4. [Google Scholar]
  9. Basile, F.; Mafessanti, R.; Fasolini, A.; Fornasari, G.; Lombardi, E.; Vaccari, A. Effect of Synthetic Method on CeZr Support and Catalytic Activity of Related Rh Catalyst in the Oxidative Reforming Reaction. J. Eur. Ceram. Soc. 2019, 39, 41–52. [Google Scholar] [CrossRef]
  10. Fasolini, A.; Abate, S.; Barbera, D.; Centi, G.; Basile, F. Pure H2 Production by Methane Oxy-Reforming over Rh-Mg-Al Hydrotalcite-Derived Catalysts Coupled with a Pd Membrane. Appl. Catal. Gen. 2019, 581, 91–102. [Google Scholar] [CrossRef]
  11. Mosinska, M.; Szynkowska, M.I.; Mierczynski, P. Oxy-Steam Reforming of Natural Gas on Ni Catalysts—A Minireview. Catalysts 2020, 10, 896. [Google Scholar] [CrossRef]
  12. Iaquaniello, G.; Salladini, A.; Palo, E.; Centi, G. Catalytic Partial Oxidation Coupled with Membrane Purification to Improve Resource and Energy Efficiency in Syngas Production. ChemSusChem 2015, 8, 717–725. [Google Scholar] [CrossRef]
  13. Gondolini, A.; Fasolini, A.; Mercadelli, E.; Basile, F.; Sanson, A. Freeze Cast Porous Membrane Catalyst for Hydrogen Production via Oxy-Reforming. Fuel Process. Technol. 2021, 213, 106658. [Google Scholar] [CrossRef]
  14. Schiaroli, N.; Lucarelli, C.; Sanghez de Luna, G.; Fornasari, G.; Vaccari, A. Ni-Based Catalysts to Produce Synthesis Gas by Combined Reforming of Clean Biogas. Appl. Catal. Gen. 2019, 582, 117087. [Google Scholar] [CrossRef]
  15. Parsland, C.; Ho, P.H.; Benito, P.; Larsson, A.-C.; Fornasari, G.; Brandin, J. Ba-Ni-Hexaaluminate as a New Catalyst in the Steam Reforming of 1-Methyl Naphthalene and Methane. Catal. Lett. 2020, 150, 1605–1617. [Google Scholar] [CrossRef] [Green Version]
  16. Chitsazan, S.; Sepehri, S.; Garbarino, G.; Carnasciali, M.M.; Busca, G. Steam Reforming of Biomass-Derived Organics: Interactions of Different Mixture Components on Ni/Al2O3 Based Catalysts. Appl. Catal. B Environ. 2016, 187, 386–398. [Google Scholar] [CrossRef]
  17. Sepehri, S.; Rezaei, M.; Garbarino, G.; Busca, G. Facile Synthesis of a Mesoporous Alumina and Its Application as a Support of Ni-Based Autothermal Reforming Catalysts. Int. J. Hydrogen Energy 2016, 41, 3456–3464. [Google Scholar] [CrossRef]
  18. Sepehri, S.; Rezaei, M.; Garbarino, G.; Busca, G. Preparation and Characterization of Mesoporous Nanocrystalline La-, Ce-, Zr-, Sr-Containing NiAl2O3 Methane Autothermal Reforming Catalysts. Int. J. Hydrogen Energy 2016, 41, 8855–8862. [Google Scholar] [CrossRef]
  19. Dong, W.-S.; Roh, H.-S.; Jun, K.-W.; Park, S.-E.; Oh, Y.-S. Methane Reforming over Ni/Ce-ZrO2 Catalysts: Effect of Nickel Content. Appl. Catal. Gen. 2002, 226, 63–72. [Google Scholar] [CrossRef]
  20. Sadykov, V.; Mezentseva, N.; Fedorova, Y.; Lukashevich, A.; Pelipenko, V.; Kuzmin, V.; Simonov, M.; Ishchenko, A.; Vostrikov, Z.; Bobrova, L.; et al. Structured Catalysts for Steam/Autothermal Reforming of Biofuels on Heat-Conducting Substrates: Design and Performance. Catal. Today 2015, 251, 19–27. [Google Scholar] [CrossRef]
  21. Dekkar, S.; Tezkratt, S.; Sellam, D.; Ikkour, K.; Parkhomenko, K.; Martinez-Martin, A.; Roger, A.C. Dry Reforming of Methane over Ni–Al2O3 and Ni–SiO2 Catalysts: Role of Preparation Methods. Catal. Lett. 2020, 150, 2180–2199. [Google Scholar] [CrossRef]
  22. Sadykov, V.; Mezentseva, N.; Alikina, G.; Bunina, R.; Rogov, V.; Krieger, T.; Belochapkine, S.; Ross, J. Composite Catalytic Materials for Steam Reforming of Methane and Oxygenates: Combinatorial Synthesis, Characterization and Performance. Catal. Today 2009, 145, 127–137. [Google Scholar] [CrossRef]
  23. Kim, B.-J.; Seo, J.-C.; Kim, D.-H.; Lee, Y.-L.; Lee, K.; Roh, H.-S. Oxygen Defective Bimodal Porous Ni-CeO2−x-MgO-Al2O3 Catalyst with Multi-Void Spherical Structure for CO2 Reforming of CH4. J. CO2 Util. 2022, 58, 101917. [Google Scholar] [CrossRef]
  24. Jiménez-González, C.; Gil-Calvo, M.; de Rivas, B.; González-Velasco, J.R.; Gutiérrez-Ortiz, J.I.; López-Fonseca, R. Oxidative Steam Reforming and Steam Reforming of Methane, Isooctane, and N-Tetradecane over an Alumina Supported Spinel-Derived Nickel Catalyst. Ind. Eng. Chem. Res. 2016, 55, 3920–3929. [Google Scholar] [CrossRef]
  25. Vita, A.; Cristiano, G.; Italiano, C.; Pino, L.; Specchia, S. Syngas Production by Methane Oxy-Steam Reforming on Me/CeO2 (Me=Rh, Pt, Ni) Catalyst Lined on Cordierite Monoliths. Appl. Catal. B Environ. 2015, 162, 551–563. [Google Scholar] [CrossRef]
  26. Ho, P.H.; Ospitali, F.; Sanghez de Luna, G.; Fornasari, G.; Vaccari, A.; Benito, P. Coating of Rh/Mg/Al Hydrotalcite-Like Materials on FeCrAl Fibers by Electrodeposition and Application for Syngas Production. Energy Technol. 2020, 8, 1901018. [Google Scholar] [CrossRef]
  27. Tarifa, P.; Schiaroli, N.; Ho, P.H.; Cañaza, F.; Ospitali, F.; Sanghez de Luna, G.; Lucarelli, C.; Fornasari, G.; Vaccari, A.; Monzon, A.; et al. Steam Reforming of Clean Biogas over Rh and Ru Open-Cell Metallic Foam Structured Catalysts. Catal. Today 2022, 383, 74–83. [Google Scholar] [CrossRef]
  28. Schiaroli, N.; Lucarelli, C.; Iapalucci, M.C.; Fornasari, G.; Crimaldi, A.; Vaccari, A. Combined Reforming of Clean Biogas over Nanosized Ni–Rh Bimetallic Clusters. Catalysts 2020, 10, 1345. [Google Scholar] [CrossRef]
  29. Men, Y.; Gnaser, H.; Zapf, R.; Hessel, V.; Ziegler, C. Parallel Screening of Cu/CeO2/γ-Al2O3 Catalysts for Steam Reforming of Methanol in a 10-Channel Micro-Structured Reactor. Catal. Commun. 2004, 5, 671–675. [Google Scholar] [CrossRef]
  30. Roh, H.-S.; Jun, K.-W.; Dong, W.-S.; Park, S.-E.; Baek, Y.-S. Highly Stable Ni Catalyst Supported on Ce–ZrO2 for Oxy-Steam Reforming of Methane. Catal. Lett. 2001, 74, 31–36. [Google Scholar] [CrossRef]
  31. Halabi, M.H.; de Croon, M.H.J.M.; van der Schaaf, J.; Cobden, P.D.; Schouten, J.C. Low Temperature Catalytic Methane Steam Reforming over Ceria–Zirconia Supported Rhodium. Appl. Catal. Gen. 2010, 389, 68–79. [Google Scholar] [CrossRef]
  32. Auxéméry, A.; Frias, B.B.; Smal, E.; Dziadek, K.; Philippot, G.; Legutko, P.; Simonov, M.; Thomas, S.; Adamski, A.; Sadykov, V.; et al. Continuous Supercritical Solvothermal Preparation of Nanostructured Ceria-Zirconia as Supports for Dry Methane Reforming Catalysts. J. Supercrit. Fluids 2020, 162, 104855. [Google Scholar] [CrossRef]
  33. Fasolini, A.; Ruggieri, S.; Femoni, C.; Basile, F. Highly Active Catalysts Based on the Rh4(CO)12 Cluster Supported on Ce0.5Zr0.5 and Zr Oxides for Low-Temperature Methane Steam Reforming. Catalysts 2019, 9, 800. [Google Scholar] [CrossRef] [Green Version]
  34. Waldvogel, A.; Fasolini, A.; Basile, F.; Thomas, S.; Roger, A.-C. Effect of the Support Synthetic Method on the Activity of Ni/CeZrPr Mixed Oxide in the Co-Methanation of CO2/CO Mixtures for Application in Power-to-Gas with Co-Electrolysis. Energy Fuels 2021, 35, 13304–13314. [Google Scholar] [CrossRef]
  35. Moretti, E.; Storaro, L.; Talon, A.; Chitsazan, S.; Garbarino, G.; Busca, G.; Finocchio, E. Ceria–Zirconia Based Catalysts for Ethanol Steam Reforming. Fuel 2015, 153, 166–175. [Google Scholar] [CrossRef]
  36. Teh, L.P.; Setiabudi, H.D.; Timmiati, S.N.; Aziz, M.A.A.; Annuar, N.H.R.; Ruslan, N.N. Recent Progress in Ceria-Based Catalysts for the Dry Reforming of Methane: A Review. Chem. Eng. Sci. 2021, 242, 116606. [Google Scholar] [CrossRef]
  37. Montini, T.; Melchionna, M.; Monai, M.; Fornasiero, P. Fundamentals and Catalytic Applications of CeO2-Based Materials. Chem. Rev. 2016, 116, 5987–6041. [Google Scholar] [CrossRef] [PubMed]
  38. Melchionna, M.; Fornasiero, P. The Role of Ceria-Based Nanostructured Materials in Energy Applications. Mater. Today 2014, 17, 349–357. [Google Scholar] [CrossRef]
  39. Fornasiero, P.; Kašpar, J.; Graziani, M. On the Rate Determining Step in the Reduction of CeO2–ZrO2 Mixed Oxides. Appl. Catal. B Environ. 1999, 22, L11–L14. [Google Scholar] [CrossRef]
  40. Gatica, J.M.; Baker, R.T.; Fornasiero, P.; Bernal, S.; Blanco, G.; Kašpar, J. Rhodium Dispersion in a Rh/Ce0.68Zr0.32O2 Catalyst Investigated by HRTEM and H2 Chemisorption. J. Phys. Chem. B 2000, 104, 4667–4672. [Google Scholar] [CrossRef]
  41. Fornasiero, P.; Kašpar, J.; Sergo, V.; Graziani, M. Redox Behavior of High-Surface-Area Rh-, Pt-, and Pd-Loaded Ce0.5Zr0.5O2 Mixed Oxide. J. Catal. 1999, 182, 56–69. [Google Scholar] [CrossRef]
  42. Fornasiero, P.; Kašpar, J.; Graziani, M. Redox Behavior of High Surface Area Rh-Loaded Ce0.5Zr0.5O2Mixed Oxide. J. Catal. 1997, 167, 576–580. [Google Scholar] [CrossRef]
  43. Maslova, V.; Quadrelli, E.A.; Gaval, P.; Fasolini, A.; Albonetti, S.; Basile, F. Highly-Dispersed Ultrafine Pt Nanoparticles on Microemulsion-Mediated TiO2 for Production of Hydrogen and Valuable Chemicals via Oxidative Photo-Dehydrogenation of Glycerol. J. Environ. Chem. Eng. 2021, 9, 105070. [Google Scholar] [CrossRef]
  44. Maslova, V.; Fasolini, A.; Offidani, M.; Albonetti, S.; Basile, F. Solar-Driven Valorization of Glycerol towards Production of Chemicals and Hydrogen. Catal. Today 2021, 380, 147–155. [Google Scholar] [CrossRef]
  45. Fasolini, A.; Lombardi, E.; Tabanelli, T.; Basile, F. Microemulsion Derived Titania Nanospheres: An Improved Pt Supported Catalyst for Glycerol Aqueous Phase Reforming. Nanomaterials 2021, 11, 1175. [Google Scholar] [CrossRef] [PubMed]
  46. Delgado, K.H.; Maier, L.; Tischer, S.; Zellner, A.; Stotz, H.; Deutschmann, O. Surface Reaction Kinetics of Steam- and CO2-Reforming as Well as Oxidation of Methane over Nickel-Based Catalysts. Catalysts 2015, 5, 871–904. [Google Scholar] [CrossRef] [Green Version]
  47. Rostrup-Nielsen, J.R. Production of Synthesis Gas. Catal. Today 1993, 18, 305–324. [Google Scholar] [CrossRef]
  48. Korup, O.; Goldsmith, C.F.; Weinberg, G.; Geske, M.; Kandemir, T.; Schlögl, R.; Horn, R. Catalytic Partial Oxidation of Methane on Platinum Investigated by Spatial Reactor Profiles, Spatially Resolved Spectroscopy, and Microkinetic Modeling. J. Catal. 2013, 297, 1–16. [Google Scholar] [CrossRef] [Green Version]
  49. Basile, F.; Fornasari, G.; Trifirò, F.; Vaccari, A. Partial Oxidation of Methane: Effect of Reaction Parameters and Catalyst Composition on the Thermal Profile and Heat Distribution. Catal. Today 2001, 64, 21–30. [Google Scholar] [CrossRef]
  50. Silva, F.D.A.; Ruiz, J.A.C.; de Souza, K.R.; Bueno, J.M.C.; Mattos, L.V.; Noronha, F.B.; Hori, C.E. Partial Oxidation of Methane on Pt Catalysts: Effect of the Presence of Ceria–Zirconia Mixed Oxide and of Metal Content. Appl. Catal. Gen. 2009, 364, 122–129. [Google Scholar] [CrossRef]
  51. Eriksson, S.; Rojas, S.; Boutonnet, M.; Fierro, J.L.G. Effect of Ce-Doping on Rh/ZrO2 Catalysts for Partial Oxidation of Methane. Appl. Catal. Gen. 2007, 326, 8–16. [Google Scholar] [CrossRef]
  52. Maestri, M.; Livio, D.; Beretta, A.; Groppi, G. Hierarchical Refinement of Microkinetic Models: Assessment of the Role of the WGS and r-WGS Pathways in CH4 Partial Oxidation on Rh. Ind. Eng. Chem. Res. 2014, 53, 10914–10928. [Google Scholar] [CrossRef]
  53. Beretta, A.; Groppi, G.; Lualdi, M.; Tavazzi, I.; Forzatti, P. Experimental and Modeling Analysis of Methane Partial Oxidation: Transient and Steady-State Behavior of Rh-Coated Honeycomb Monoliths. Ind. Eng. Chem. Res. 2009, 48, 3825–3836. [Google Scholar] [CrossRef]
  54. Ramaswamy, R.C.; Ramachandran, P.A.; Dudukovic, M.P. Modeling Catalytic Partial Oxidation of Methane to Syngas in Short-Contact-Time Packed-Bed Reactors. Ind. Eng. Chem. Res. 2007, 46, 8638–8651. [Google Scholar] [CrossRef]
  55. Li, B.; Maruyama, K.; Nurunnabi, M.; Kunimori, K.; Tomishige, K. Temperature Profiles of Alumina-Supported Noble Metal Catalysts in Autothermal Reforming of Methane. Appl. Catal. Gen. 2004, 275, 157–172. [Google Scholar] [CrossRef]
  56. Saenger, K.L.; Tsang, J.C.; Bol, A.A.; Chu, J.O.; Grill, A.; Lavoie, C. In Situ X-ray Diffraction Study of Graphitic Carbon Formed during Heating and Cooling of Amorphous-C/Ni Bilayers. Appl. Phys. Lett. 2010, 96, 153105. [Google Scholar] [CrossRef]
Nanomaterials 13 00053 g001 550

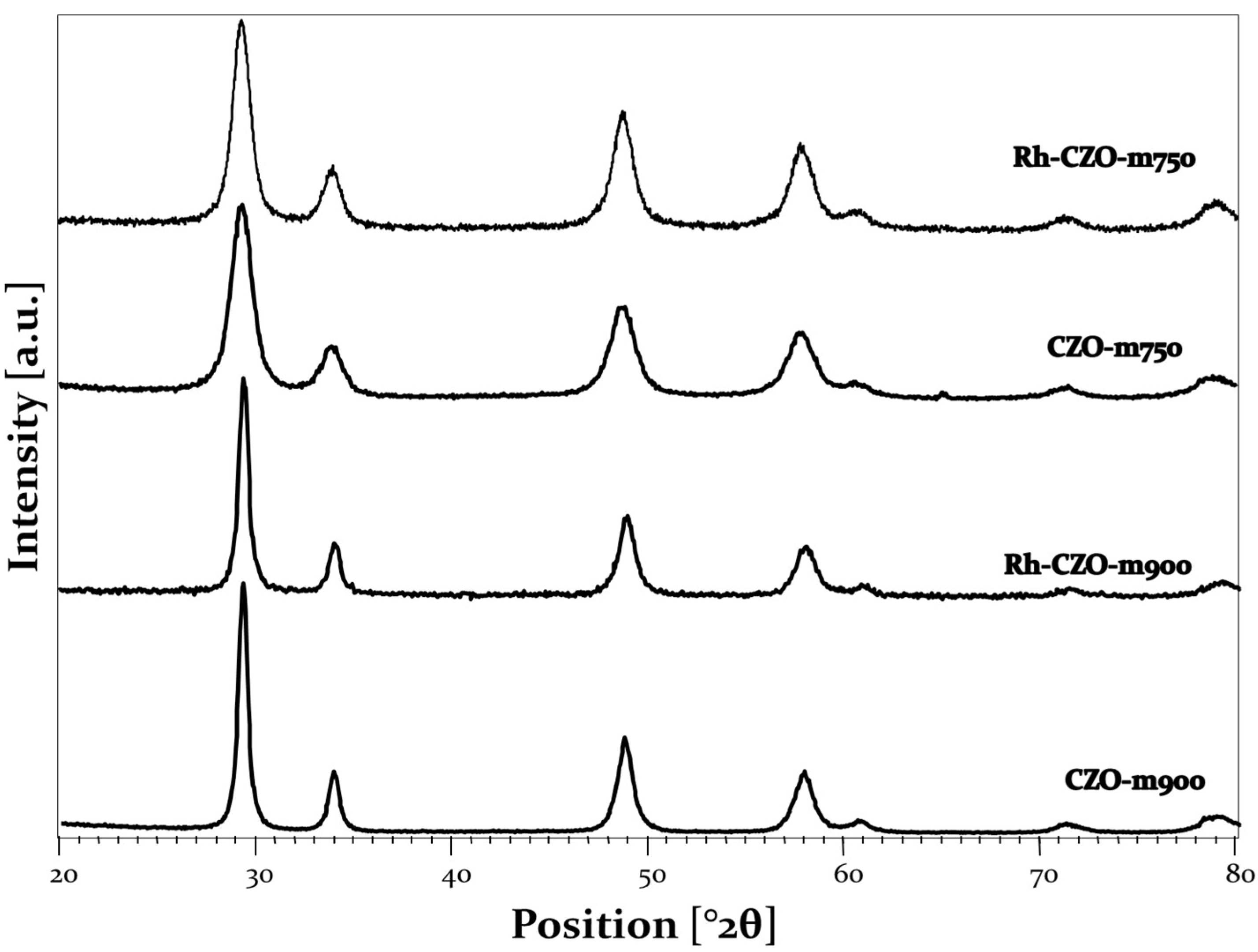

Figure 1. XRD analysis of (from top to bottom) Rh-CZO-m750, CZO-m750, Rh-CZO-m900 and CZO-m900.
Figure 1. XRD analysis of (from top to bottom) Rh-CZO-m750, CZO-m750, Rh-CZO-m900 and CZO-m900.
Nanomaterials 13 00053 g001
Nanomaterials 13 00053 g002 550
Figure 2. Temperature-programmed reduction of CZOm750 and CZOm900 samples. The dotted line represents the temperature-programmed reduction carried out after temperature-programmed oxidation.
Figure 2. Temperature-programmed reduction of CZOm750 and CZOm900 samples. The dotted line represents the temperature-programmed reduction carried out after temperature-programmed oxidation.
Nanomaterials 13 00053 g002
Nanomaterials 13 00053 g003 550

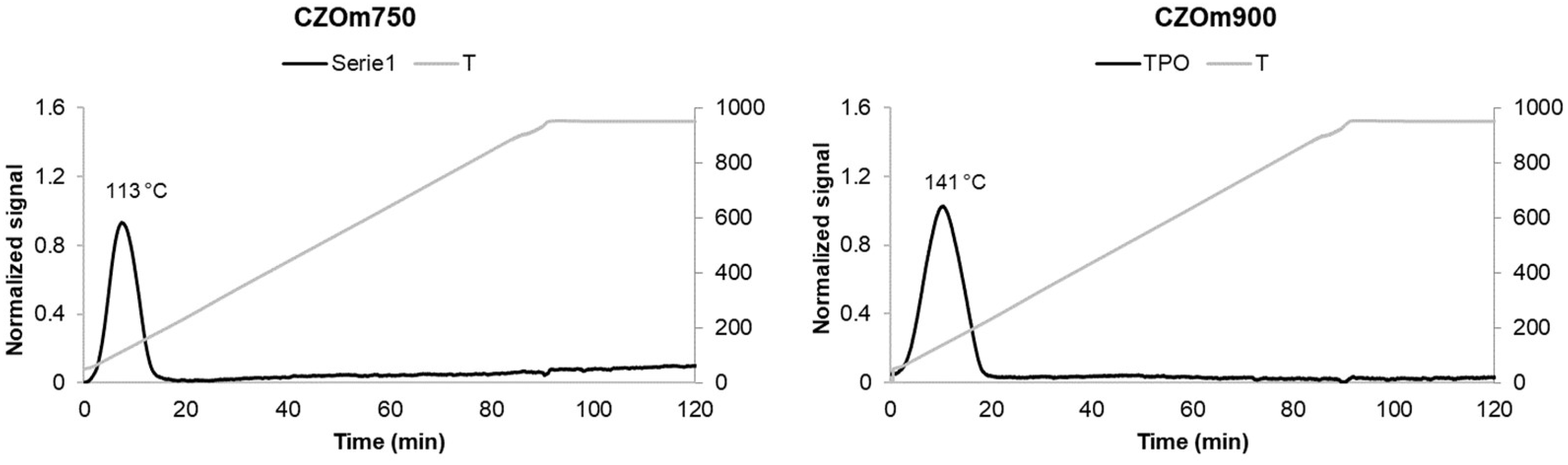

Figure 3. Temperature-programmed oxidation of CZOm750 and CZOm900 samples.
Figure 3. Temperature-programmed oxidation of CZOm750 and CZOm900 samples.
Nanomaterials 13 00053 g003
Nanomaterials 13 00053 g004 550
Figure 4. Temperature-programmed reduction of Rh-CZOm900 and Rh-CZOm750. The dotted line represents the temperature-programmed reduction carried out after temperature-programmed oxidation.
Figure 4. Temperature-programmed reduction of Rh-CZOm900 and Rh-CZOm750. The dotted line represents the temperature-programmed reduction carried out after temperature-programmed oxidation.
Nanomaterials 13 00053 g004
Nanomaterials 13 00053 g005 550
Figure 5. Temperature-programmed oxidation of Rh-CZOm750 and CZOm900 samples.
Figure 5. Temperature-programmed oxidation of Rh-CZOm750 and CZOm900 samples.
Nanomaterials 13 00053 g005
Nanomaterials 13 00053 g006 550
Figure 6. TEM images and particle size distributions of the catalysts calcined and reduced at different temperatures (Rh-CZOm750R750, Rh-CZOm900R750 and Rh-CZOm750R500).
Figure 6. TEM images and particle size distributions of the catalysts calcined and reduced at different temperatures (Rh-CZOm750R750, Rh-CZOm900R750 and Rh-CZOm750R500).
Nanomaterials 13 00053 g006
Nanomaterials 13 00053 g007 550
Figure 7. Methane conversion (colored bars) and equilibrium conversion (transparent bars) at 750 °C, S/C = 0.7, O/C = 0.2 and different pressures and GHSVs for Rh-CZOm750-R750 and Rh-CZOm900-R750.
Figure 7. Methane conversion (colored bars) and equilibrium conversion (transparent bars) at 750 °C, S/C = 0.7, O/C = 0.2 and different pressures and GHSVs for Rh-CZOm750-R750 and Rh-CZOm900-R750.
Nanomaterials 13 00053 g007
Nanomaterials 13 00053 g008 550
Figure 8. Methane conversion (colored bars) and equilibrium conversion (transparent bars) for LTSR at 1 atm, S/C = 3 and 24,000 h−1 for Rh-CZOm750-R750 and Rh-CZOm900-R750.
Figure 8. Methane conversion (colored bars) and equilibrium conversion (transparent bars) for LTSR at 1 atm, S/C = 3 and 24,000 h−1 for Rh-CZOm750-R750 and Rh-CZOm900-R750.
Nanomaterials 13 00053 g008
Nanomaterials 13 00053 g009 550
Figure 9. Methane conversion (colored bars) and equilibrium conversion (transparent bars) at 750 °C, S/C = 0.7, O/C = 0.2 and different pressures and GHSVs for Rh-CZOm750-R500 and Rh-CZOm750-R750.
Figure 9. Methane conversion (colored bars) and equilibrium conversion (transparent bars) at 750 °C, S/C = 0.7, O/C = 0.2 and different pressures and GHSVs for Rh-CZOm750-R500 and Rh-CZOm750-R750.
Nanomaterials 13 00053 g009
Nanomaterials 13 00053 g010 550
Figure 10. Methane conversion (colored bars) and equilibrium conversion (transparent bars) for LTSR at 1 atm, S/C = 3 and 24,000 h−1 for Rh-CZOm750-R500 and Rh-CZOm750-R750.
Figure 10. Methane conversion (colored bars) and equilibrium conversion (transparent bars) for LTSR at 1 atm, S/C = 3 and 24,000 h−1 for Rh-CZOm750-R500 and Rh-CZOm750-R750.
Nanomaterials 13 00053 g010
Nanomaterials 13 00053 g011 550
Figure 11. Temperature profile of the catalytic bed for Rh-CZOm750R750 at different pressures (left) and GHSVs (right) obtained with a sliding thermocouple.
Figure 11. Temperature profile of the catalytic bed for Rh-CZOm750R750 at different pressures (left) and GHSVs (right) obtained with a sliding thermocouple.
Nanomaterials 13 00053 g011
Nanomaterials 13 00053 g012 550
Figure 12. Temperature profile of the catalytic bed of the investigated catalysts at Toven = 750 °C, 1 atm, S/C = 0.7, O2/C = 0.2 and 24,000 h−1 (left), 50,000 h−1 (center) or 100,000 h−1 (right) obtained with a sliding thermocouple.
Figure 12. Temperature profile of the catalytic bed of the investigated catalysts at Toven = 750 °C, 1 atm, S/C = 0.7, O2/C = 0.2 and 24,000 h−1 (left), 50,000 h−1 (center) or 100,000 h−1 (right) obtained with a sliding thermocouple.
Nanomaterials 13 00053 g012
Nanomaterials 13 00053 g013 550
Figure 13. Methane conversion over time on stream in repeated tests carried out at 750 °C, 24,000 h−1 and 1 bar for the investigated catalysts.
Figure 13. Methane conversion over time on stream in repeated tests carried out at 750 °C, 24,000 h−1 and 1 bar for the investigated catalysts.
Nanomaterials 13 00053 g013
Nanomaterials 13 00053 g014 550
Figure 14. XRD analysis of the spent catalysts (from top to bottom) Rh-CZO-m750R500, CZO-m750R750 and Rh-CZO-m900R750.
Figure 14. XRD analysis of the spent catalysts (from top to bottom) Rh-CZO-m750R500, CZO-m750R750 and Rh-CZO-m900R750.
Nanomaterials 13 00053 g014
Nanomaterials 13 00053 g015 550
Figure 15. Raman analysis of the spent catalysts Rh-CZO-m750R500, CZO-m750R750 and Rh-CZO-m900R750.
Figure 15. Raman analysis of the spent catalysts Rh-CZO-m750R500, CZO-m750R750 and Rh-CZO-m900R750.
Nanomaterials 13 00053 g015
Table
Table 1. Operative conditions employed in this work.
Table 1. Operative conditions employed in this work.
Operative ParameterLow-Temperature Steam ReformingOxy-Reforming
Temperature (°C)500; 450; 400; 350750
Pressure (atm)11; 10; 20
GHSV (h−1)24,00024,000; 50,000; 100,000
Gas feed composition (vol. %) (CH4, O2, H2O)25; 75; 052.04; 11.20; 36.75
Steam-to-carbon ratio (S/C)30.71
Oxygen-to-carbon ratio (O2/C)00.21
Table
Table 2. Surface area, pore volume and average pore diameter of the CZO samples calcined at 900 (CZOm900) and 750 °C (CZOm750).
Table 2. Surface area, pore volume and average pore diameter of the CZO samples calcined at 900 (CZOm900) and 750 °C (CZOm750).
CatalystSurface Area (m2/g)Pores Volume (cm3/g)Avg. Pore Diameter (nm)
CZOm75054.10.094.8
CZOm90014.50.0819.3
Rh-CZOm75034.60.075.6
Rh-CZOm90011.50.0619.7
Table
Table 3. Hydrogen consumption during temperature-programmed reduction for bare supports and impregnated samples.
Table 3. Hydrogen consumption during temperature-programmed reduction for bare supports and impregnated samples.
CatalystH2 cons. in TPR1 (mmol/g)% Ce
Reduced		H2 cons. in TPR2 (mmol/g)% Ce
Reduced
CZOm7501.49551.4856
CZOm9001.41601.4459
Rh-CZOm7501.91822.0389
Rh-CZOm9001.76741.6769
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

De Maron, J.; Mafessanti, R.; Gramazio, P.; Orfei, E.; Fasolini, A.; Basile, F. H2 Production by Methane Oxy-Reforming: Effect of Catalyst Pretreatment on the Properties and Activity of Rh-Ce0.5Zr0.5O2 Synthetized by Microemulsion. Nanomaterials 2023, 13, 53. https://doi.org/10.3390/nano13010053

AMA Style

De Maron J, Mafessanti R, Gramazio P, Orfei E, Fasolini A, Basile F. H2 Production by Methane Oxy-Reforming: Effect of Catalyst Pretreatment on the Properties and Activity of Rh-Ce0.5Zr0.5O2 Synthetized by Microemulsion. Nanomaterials. 2023; 13(1):53. https://doi.org/10.3390/nano13010053

Chicago/Turabian Style

De Maron, Jacopo, Rodolfo Mafessanti, Pio Gramazio, Elisabetta Orfei, Andrea Fasolini, and Francesco Basile. 2023. "H2 Production by Methane Oxy-Reforming: Effect of Catalyst Pretreatment on the Properties and Activity of Rh-Ce0.5Zr0.5O2 Synthetized by Microemulsion" Nanomaterials 13, no. 1: 53. https://doi.org/10.3390/nano13010053

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
