Adsorptive Elimination of Heavy Metals from Aqueous Solution Using Magnetic Chitosan/Cellulose-Fe(III) Composite as a Bio-Sorbent

by
Aina Mardhia Khalid
1,
Md. Sohrab Hossain
2,3,*,
Nor Afifah Khalil
4,
Muzafar Zulkifli
4,
Md. Azharul Arafath
5,
Maizatul Shima Shaharun
6,
Rashid Ayub
7,
Ahmad Naim Ahmad Yahaya
4,* and
Norli Ismail
1,*
1
School of Industrial Technology, Universiti Sains Malaysia (USM), George Town 11800, Malaysia
2
Department of Fundamental and Applied Sciences, Faculty of Science and Information Technology, Universiti Teknologi PETRONAS, Seri Iskandar 32610, Malaysia
3
HICoE-Centre for Biofuel and Biochemical Research, Institute of Self-Sustainable Building, Universiti Teknologi PETRONAS, Seri Iskandar 32610, Malaysia
4
Universiti Kuala Lumpur, Branch Campus Malaysian Institute of Chemical and BioEngineering Technology, Alor Gajah 78000, Malaysia
5
Department of Chemistry, Shahjalal University of Science and Technology, Sylhet 3114, Bangladesh
6
Institute of Contaminant Management, Centre for Contaminant Control & Utilization (CenCoU), Department of Fundamental and Applied Sciences, Universiti Teknologi PETRONAS, Seri Iskandar 32610, Malaysia
7
Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(10), 1595; https://doi.org/10.3390/nano13101595
Submission received: 24 March 2023 / Revised: 13 April 2023 / Accepted: 3 May 2023 / Published: 10 May 2023
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
Magnetic chitosan/cellulose nanofiber-Fe(III) [M-Ch/CNF-Fe(III)] composites were isolated for the elimination of Cr(VI), Cu(II), and Pb(II) from aqueous solution. Various analytical methods, such as field emission scanning electron microscopy (FE-SEM), transmission electron microscopy (TEM), Fourier-transform infrared spectroscopy (FT-IR), X-ray diffraction analysis (XRD), and thermogravimetric analysis (TGA) were employed to determine the morphological, physicochemical, and thermal properties of the isolated M-Ch/CNF-Fe(III) composites. It was found that the M-Ch/CNF-Fe(III) composites were porous materials, and they have the potential to be implemented as an adsorbent for heavy metals removal. The adsorption efficiency of M-Ch/CNF-Fe(III) composites was determined for Cr(VI), Cu(II), and Pb(II) elimination with changing pH (pH 1.0–8.0), adsorbent doses (0.05–1.0 g), time (15–90 min), and temperature (28–80 °C). In addition, isothermal and kinetics studies were conducted to assess the adsorption behavior and mass transfer phenomena of M-Ch/CNF-Fe(III) composites as an adsorbent for Cr(VI), Cu(II) and Pb(II) elimination from aqueous solution. The outcomes of the present study reveal that the M-Ch/CNF-Fe(III) composites could be utilized as an adsorbent for the Cr(VI), Cu(II), and Pb(II) elimination from industrial effluents.

1. Introduction

There is increasing concern regarding the safety of discharging industrial effluents into aquatic ecosystems due to the presence of toxic heavy metals [1]. The presence of heavy metals in an aquatic ecosystem may be detrimental to aquatic life and human health because of their accumulation tendency within living organisms via the food web and their non-degradable nature in the environment [1,2]. Untreated or partially treated industrial effluent discharge is the main reason for heavy metals contamination of aquatic environments [1,3]. Cr(VI), Cu(II), and Pb(II) are the most abundant elements found in aquatic ecosystems because of discharged effluents from various industrial activities, including pigment synthesis, rubber manufacturing, steel manufacturing, the leather industry, tanning, chromite mining, textiles, and the electroplating industry [4,5]. Cr(VI) is considered as a group A contaminant and one of the 14 toxic chemicals potentially threatening human health, even at a trace level of contamination [6]. Cu(II) is a destructive toxic element, and its presence in water may cause severe and fatal diseases to aquatic life and humans, including insomnia, Wilson disease, leukemia, and osteoporosis [7,8]. Pb(II) is reported as one of the most toxic heavy metals for human health and aquatic organisms [9]. The presence of Pb(II) in water, even at a low concentration, may cause detrimental effects to human health and to other organisms [9]. Therefore, various environmental protection agencies have suggested allowable concentrations of heavy metals in treated effluents for safe discharge in the aquatic environment. For instance, the Department of Environment (DoE) of Malaysia has set the permitted Cr(VI), Cu(II), and Pb(II) concentrations in treated industrial effluents to 0.05 mg/L, 0.2–1.0 mg/L, and 0.1–0.5 mg/L, respectively [10].
Various technologies have been implemented for eliminating heavy metals from industrial effluents. Some of these technologies include electro-flotation [11,12], ion exchange [13], electro-coagulation [14], coagulation–flocculation [15], precipitation [16], membrane filtration [17], and solvent extraction [18]. Although these technologies minimize the residual metal ion concentration in the treated effluent, the high operational cost, materials cost, and low heavy metal uptake efficiency have limited their application in large-scale operations [14,17,19]. Numerous studies have reported that the implementation of a low-cost adsorbent for adsorptive heavy metals elimination from industrial effluents would be an effective alternative to the conventional methods of industrial effluent treatment [8,9,19]. Over the years, various natural bio-polymers, chelating materials, activated carbon, and clay have been utilized as adsorbents for the adsorptive elimination of heavy metals from industrial effluents [8,19,20,21]. For the effective adsorptive elimination of heavy metals, the adsorbent must be biocompatible, economical, and easily separable after adsorption [4,9,19]. The adsorptive elimination of heavy metals from industrial effluents using natural bio-polymers as adsorbents has been viewed as promising technology because of its simplicity in operation, low operating cost, and environmentally friendly nature [4,20,21]. Among the various natural bio-polymers, cellulosic nanofiber (CNF) and chitosan have been widely utilized as adsorbents for the elimination of heavy metal ions from industrial effluents [4,9,19,21].
Cellulose is the most abundant natural bio-polymer. CNF obtained from lignocellulosic fiber is a promising bio-sorbent for the adsorptive elimination of heavy metals from industrial effluents because of its renewability, biodegradability, environmentally friendliness, and large surface area, as well as the fact that its carbon chain contains highly reactive primary and secondary hydroxyl groups for binding metal ions [4,22,23]. However, the fragile mechanical strength, poor chemical resistance, poor adsorption efficiency, and low separation efficiency of CNF-based adsorbents after adsorption are the main barrier of utilizing CNF as an adsorbent for the adsorptive elimination of heavy metals from industrial effluents [4]. Chitosan, on the other hand, is the second most abundant natural bio-polymer. Generally, chitosan is a linear polysaccharide, and its carbon chain contains an amino functional group, making chitosan an ideal adsorbent for heavy metals elimination from various effluents [23,24]. However, the poor mechanical strength of chitosan limits its adsorption efficiency of heavy metals. To overcome the prevailing limitations of CNF and chitosan as adsorbents, researchers have suggested the engineered conversion of CNF and chitosan in a magnetic field [4,22,25].
In recent years, magnetic adsorbents have gained extensive interest in the adsorptive elimination of heavy metals from industrial effluents because of their numerous advantages as adsorbents, such as thermo-mechanical strength, chemical resistance, elimination efficiency, regeneration, and environmentally friendly nature [22,25]. Thus, the engineered conversion of chitosan and CNF in a magnetic field would be of considerable interest for effective heavy metals elimination from industrial effluents. In the present study, a chitosan and CNF blend (1:1) was coated with Fe3O4 to isolate magnetic chitosan/CNF-Fe(III) [M-Ch/CNF-Fe(III)] bio-composite. The M-Ch/CNF-Fe(III) composite was utilized as a bio-sorbent for the adsorption of Pb(II), Cr(VI), and Cu(II) and their elimination from aqueous solution. Various analytical methods were employed to determine the physicochemical, morphological, and thermal properties of the M-Ch/CNF-Fe(III) composite. In addition, the isothermal behavior of the M-Ch/CNF-Fe(III) composite was studied for the adsorptive Cr(VI), Cu(II), and Pb(II) elimination from aqueous solution.

2. Materials and Methods

2.1. Sample Collection and Preparation

The CNF was isolated from empty oil palm empty fruit bunch fibers following a method discussed elsewhere [4]. FeCl3·6H2O (purity ≥ 98%) and the ionic liquid 1-butyl-3-methylimidazolim chloride (purity ≥ 99%) were acquired from Sigma Aldrich, St. Louis, MO, USA. K2Cr2O7 (purity ≥ 99%), CuSO4·5H2O (purity ≥ 98%), and Pb(NO3)2 were purchased from Merck Chemicals, Selangor, Malaysia. All other chemicals used in the present study were of analytical grade.

2.2. Synthesis M-Ch/CNF-Fe(III) Bio-Composite

The preparation of the Fe3O4 powder was conducted using the sol-gel method as discussed elsewhere [4]. Approximately 8 g of sodium acetate and 2 g of FeCl3·6H2O were mixed with 80 mL of ethylene glycol (C2H6O2). The mixture was then mixed vigorously until the mixture became clear. Subsequently, the mixture was heated for 20 h at 100 °C to obtain a dark brown gel. The obtained gel was washed with C2H5OH and deionized H2O, followed by centrifuging at 5000 rpm for 20 min. The precipitate (Fe3O4) was collected and dried in a furnace at 300 °C for 15 min. Subsequently, the dried Fe3O4 was grinned to produce Fe3O4 powder. Approximately 5 g of chitosan and cellulose blend (1:1) was mixed with 5 mL of 1-butyl-3-methylimidazolium chloride and 2 g of Fe3O4 powder. The mixture was mixed vigorously for 15 min. Subsequently, the mixture was emulsified by adding Tween 80 (4 mL) and vacuum pump oil (80 mL) at a temperature of 100 °C and a stirring speed of 1000 rpm. The emulsified mixture was then cooled and washed with deionized water and ethanol to remove the residuals. Finally, the synthesized M-Ch/CNF-Fe(III) composite was dried in a vacuum oven and stored at 4 °C prior to characterization and utilization.

2.3. Characterization of M-Ch/CNF-Fe(III) Bio-Composite

The surface morphology of CNF, Fe3O4, chitosan, and the isolated M-Ch/CNF-Fe(III) bio-composite were determined using SEM (model: Quanta FEG 650, FEI, Hilsboro, OR, USA). In addition, the dimensions and image of CNF isolated from OP-EFB fibers were determined using transmission electron microscopy (TEM) at an accelerating voltage of 80 kV. The functional groups and chemical bonding of CNF, chitosan, and the M-Ch/CNF-Fe(III) composite were determined using Fourier transform infrared (FTIR) spectroscopy within the frequency range of 4000–400/cm. The crystallinity indexes of Fe3O4, CNF, chitosan, and the M-Ch/CNF-Fe(III) bio-composite were determined by X-ray diffraction (XRD) at 40 kv and 40 mA. The percentage crystallinity indexes (CrI %) of Fe3O4, CNF, chitosan, and the M-Ch/CNF-Fe(III) composite were calculated using Equation (1).
C r I ( % ) = I 200 − I a m I 200 × 100
where I200 is the intensity of the crystalline and amorphous regions, and Iam is the intensity of the amorphous region. The thermal stabilities of Fe3O4, chitosan, CNF, and the isolated M-Ch/CNF-Fe(III) composite were determined using thermal gravimetric analysis (TGA). Approximately 10 mg of the sample was heated under a nitrogen atmosphere at a heating rate of 10 °C/min within a heating range from 30 °C to 700 °C.

2.4. Adsorption of Cr(VI), Cu(II), and Pb(II)

The adsorptive Cr(VI), Cu(II), and Pb(II) elimination was conducted using M-Ch/CNF-Fe(III) as an adsorbent with varying adsorbent doses (0.05–1.0 g), times (15–90 min), pH values (pH 1.0–8.0), and temperatures (28–80 °C). The aqueous solution containing Cr(VI), Cu(II), and Pb(II) at concentrations of 100 mg/L, 200 mg/L, and 50 mg/L, respectively, was prepared by dissolving calculated amounts of K2Cr2O7, CuSO4·5H2O, and Pb(NO3) in deionized water, respectively. A certain amount of M-Ch/CNF-Fe(III) and 50 mL of aqueous solution were placed in a 100 mL conical flask, and the mixture was mixed vigorously using a magnetic stirrer. Concentrated NaOH and H2SO4 solutions were utilized to regulate the pH. The eluent was separated after adsorption using filter paper, and the metal ions’ concentrations in the eluent were determined using atomic adsorption spectroscopy. The percentage adsorptive Cr(VI), Pb(II), and Cu(II) elimination from the aqueous solution using the M-Ch/CNF-Fe(III) composite as an adsorbent was computed as shown in Equation (2).
Re m o v a l = C i - C t C i × 100
where Ci and Ct are the Cr(VI), Cu(II), and Pb(II) concentrations (mg/L) initially and at time ‘t’, respectively. In addition, the maximum metal ion elimination efficiency (qe) was computed using Equation (3).
q e = C i - C e M × V
where M is the mass of the M-Ch/CNF-Fe(III) composite being used as an adsorbent, V is the volume (L) of the aqueous solution, and Ce is the Cr(VI), Pb(II), and Cu(II) concentration (mg/L) at equilibrium. The experiments were conducted in triplicate, and the results are presented in this study as mean values ± standard deviation.

2.5. Adsorption Isotherm

The Langmuir and Freundlich isotherm models were employed to determine the isothermal behavior for the adsorptive Cr(VI), Cu(II), and Pb(II) elimination from an aqueous solution using the M-Ch/CNF-Fe(III) composite. The adsorption experiments were performed at ambient temperature and pH 5.0 while varying the M-Ch/CNF-Fe(III) composite doses from 0.05 g to 0.5 g as a function of adsorption time from 5 min to 90 min. The best-fitting isotherm model for the adsorptive Cr(VI), Cu(II), and Pb(II) elimination using the M-Ch/CNF-Fe(III) composite was predicted based on the regression coefficient (R2) values of Langmuir and Freundlich isotherm models. The linear forms of the Langmuir and Freundlich isotherm model equations can be written as shown in Equation (4) and Equation (5), respectively [26].
1 q e = 1 a b C e + 1 b  
log q e = log K f + 1 n log C e
where a refers to the Langmuir constant, b expresses the maximum adsorption value, Kf (L/mg) denotes to the Freundlich affinity constant, and n is the Freundlich exponential constant.

2.6. Adsorption Kinetics

The kinetic behavior for the Cu(II), Cr(VI), and Pb(II) elimination from aqueous solution was determined using pseudo-1st-order and pseudo-2nd-order kinetics model equations. The experiments were performed at varying temperatures from ambient temperature (28 ± 1 °C) to 70 °C as a function of time from 5 min to 60 min at pH 5.0 and adsorbent doses of 0.25 mg. The suitability of the best-fitting kinetics model equation was assessed by comparing the qe and R2 values. The linear forms of the pseudo-1st- and 2nd-order kinetics equations are presented in Equation (6) and Equation (7), respectively [26].
ln ( q e − q t ) = ln q e − k 1 t       
t q e = 1 k 2 q e 2 + t q e  
where qe and qt represent the adsorption efficiency at equilibrium and at adsorption time ‘t’, respectively. In addition, k1 and k2 denote the adsorption rate constant of the psuedo-1st-order and pseudo-2nd-order kinetics model equations for Cr(VI), Cu(II), and Pb(II) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent.

2.7. Desorption Studies

The reusability of the M-Ch/CNF-Fe(III) composite was determined via adsorption/desorption of Cr(VI) from aqueous solution for 6 cycles. The adsorption experiments were conducted for the elimination of Cr(VI) using the M-Ch/CNF-Fe(III) composite at a Cr(VI) concentration of 100 mg/L and adsorbent doses of 0.5 g/L, with the pH being 4.0 and at ambient temperature for an adsorption time of 30 min. After adsorption, the adsorbent was separated using a magnet, and the separated adsorbent was placed in 50 mL of 0.5 M HCl solution for the desorption of the adsorbed Cr(VI). The mixture was then vigorously stirred using a magnetic stirrer for 30 min. Subsequently, the adsorbent was separated and washed with deionized water prior to reuse for the subsequent adsorption/desorption experiments.

3. Results

3.1. Characterization of M-Ch/CNF-Fe(III) Composite

Figure 1 shows scanning electron microscopy (SEM) images of CNF (Figure 1a), magnetite (Figure 1b), chitosan (Figure 1c), and the isolated M-Ch/CNF-Fe(III) composite (Figure 1d), as well as a TEM image of CNF (Figure 1e). Figure 1a shows that the surface morphology of the CNF was smooth, with little agglomeration. The obtained smooth surface of CNF reveals that the soda pulping, bleaching, and acid hydrolysis process effectively removed the lignin, hemicellulose, and extractives from OP-EFB fibers. The fiber agglomeration obtained might be due to the surface ionic charge between H+ and SO42− during the acid hydrolysis process using sulfuric acid [27,28]. The diameter of the isolated CNF was determined to be 8–15 nm. Similarly, Fatah et al. [28] reported a diameter of 5–10 nm of CNF isolated from OP-EFB using chemo-mechanical methods. The SEM image of Fe3O4 shows a rough surface with a diameter of 100–200 nm. However, the SEM image of the M-Ch/CNF-Fe(III) composite shows the surface morphology of the isolated M-Ch/CNF-Fe(III) composite was porous and rough, with irregular shapes (Figure 2d). The rough surface of the isolated M-Ch/CNF-Fe(III) composite was obtained because of the aggregation among the particles of CNF, chitosan, and Fe3O4 [9,29]. Studies have reported that porous materials with a high surface area are promising adsorbents for the adsorptive elimination of heavy metals [30]. Therefore, the isolated porous M-Ch/CNF-Fe(III) composite has the desired properties to be utilized as an adsorbent for adsorptive heavy metals removal, including of Cr(VI), Cu(II), and Pb(II).
Figure 2 shows the FT-IR spectra of Fe3O4 particles, chitosan, CNF, and the isolated M-Ch/CNF-Fe(III) composite. The broad absorption peaks obtained for chitosan and CNF approximately at 3420/cm correspond to N-H and O-H bonds, respectively [31]. The absorption peak at 2900/cm is attributed to C-H stretching. The adsorption peaks on the chitosan and M-Ch/CNF-Fe(III) composite spectra at 1630/cm are attributed to the bending vibrations of H-O-H for adsorbed water [32,33]. However, the characteristic peak at 1500/cm is assigned to the C=O bonds present on the surface of chitosan and the M-Ch/CNF-Fe(III) composite [33]. Ge and Hua [23] obtained FTIR spectra for poly(maleic acid)-grafted crosslinked chitosan nanoparticles and observed that the major bands were an O-H stretching band at 3506/cm, an N-H stretching band at 3294/cm, a C-H stretching band at 2874/cm, and a C-O stretching band at 1048/cm. However, the absence of adsorption peaks at 1740/cm and 460/cm on the CNF spectra reveals that the CNF isolation processes, such as pulping, bleaching, and acid hydrolysis, effectively removed hemicellulose and lignin from the OP-EFB fiber [4]. However, the presence of a tiny adsorption band on the Fe3O4 spectrum at 3420/cm reveals the existence of O-H bond. The presence of an O-H bond on the Fe3O4 spectrum was due to the presence of ethylene glycol, which was utilized in the formation of Fe3O4 from FeCl3·4H2O. The existence of the adsorption peak at 595/cm on the spectra of Fe3O4 and the M-Ch/CNF-Fe(III) composite reveals the formation of Fe-O bonds on the surface of the M-Ch/CNF-Fe(III) composite [24]. Similarly, Khalid et al. [4] identified an O-H stretching vibration band at 3420/cm on the surface of an OP-EFB nanofiber and a magnetic OP-EFB nanofiber composite.
X-ray diffraction (XRD) patterns of Fe3O4, chitosan, CNF, and the M-Ch/CNF-Fe(III) composite are presented in Figure 3. Two peak intensities were observed at 16° and 22° on the XRD patterns of CNF, which indicates that the isolated CNF was of the cellulose I type [28]. The crystalline index (%) of CNF was calculated to be 69%. Generally, the XRD of chitosan reveals peaks at 9–10° and 19–20°. In the present study, the chitosan peak was found at 19.5°, which is similar to studies reported by Karimi [22] and Rahimi et al. [25]. The XRD pattern of Fe3O4, which is isolated from FeCl3·4H2O, shows peaks at 30.1°, 35.5°, 47.4°, and 53.2°. Similar peaks observed in the isolated M-Ch/CNF-Fe(III) composite, revealing that the Fe3O4 was successfully introduced to the isolated M-Ch/CNF-Fe(III) composite. Similar observations were reported by Rahimi et al. [25] and Ge and Hua [23].
Figure 4 shows the TGA analyses of chitosan, Fe3O4, CNF, and the M-Ch/CNF-Fe(III) composite. It was observed that the thermal decomposition of the M-Ch/CNF-Fe(III) composite, CNF, and chitosan occurred at two stages. The first stage of decomposing occurred at a temperature from 28–173 °C, 28–257 °C, and 28–239 °C for the CNF, chitosan, and M-Ch/CNF-Fe(III) composite, respectively. The second stage of decomposition occurred at a temperature from 173–408 °C, 257–362 °C, and 239–328 °C for CNF, chitosan, and the M-Ch/CNF-Fe(III) composite, respectively. The onset temperature (Tonset) and the maximum degradation temperature (Tmax) for chitosan, Fe3O4, CNF, and the M-Ch/CNF-Fe(III) composite are shown in Table 1. It was found that the Tonset of the M-Ch/CNF-Fe(III) composite was lower than that of chitosan, but it was higher than that of CNF, revealing the successful incorporation of Fe3O4 particles into the M-Ch/CNF-Fe(III) composite [9]. However, the Tmax for the M-Ch/CNF-Fe(III) composite was lower than those of chitosan and CNF. The weak intermolecular and intramolecular hydrogen bonding between the matrices in the M-Ch/CNF-Fe(III) composite might lessen the maximum degradation temperature. Similarly, Zhu et al. [34] further reported that the lesser Tmax of the M-Ch/CNF-Fe(III) composite does not influence the adsorptive elimination of metal ions, as most of the adsorptive elimination of heavy metals and other contaminants is conducted at ambient temperature. The percentage weight loss of the M-Ch/CNF-Fe(III) composite was determined to be 50%, which is lower than the weight loss values of chitosan and cellulose, indicating that Fe3O4 was successfully incorporated with CNF and chitosan during the formation of the M-Ch/CNF-Fe(III) composite.

3.2. Adsorption of Cr(VI), Cu(II), and Pb(II) Using M-Ch/CNF-Fe(III) Composite

The adsorptive elimination of Cr(VI), Cu(II), and Pb(II) using the M-Ch/CNF-Fe(III) composite as an adsorbent was carried out with varying pH values, adsorbent doses, adsorption times, and temperatures, as shown in Figure 5. The influence of pH on the Cr(VI), Cu(II), and Pb(II) elimination was examined with varying pH values (pH 1.0 to pH 8.0) at an adsorption dose of 0.25 g, with an adsorption time of 30 min and at ambient temperature (28 ± 1 °C). It was observed that the percentage of adsorptive Cr(VI), Cu(II), and Pb(II) elimination increased with increasing pH from pH 1.0 to pH 4.0 for Cr(VI) and Pb(II) removal, and pH 1.0 to pH 6.0 for Cu(II) elimination (Figure 5a). However, the adsorptive Cr(VI) and Pb(II) elimination decreased with increasing pH over pH 4.0, and the percentage elimination of Cu(II) decreased with increasing pH over pH 5.0. The highest Cu(II) elimination obtained was about 86% at pH 6.0, with an adsorption time of 30 min and adsorption doses of 0.25 g at ambient temperature. The Cr(VI) and Pb(II) elimination values obtained were about 76% and 99%, respectively, at pH 4.0 and ambient temperature with an adsorption time of 30 min and adsorption doses of 0.25 g. Generally, pH is the most influential variable in the adsorptive elimination of contaminants from wastewater [13,35]. The reactive functional groups on the surface of the adsorbent modify with the alteration of pH, which substantially influences the adsorptive elimination of contaminants [36]. The more abundant H+ in aqueous solution at a lower pH competes with metal ions to bind to the surface of the M-Ch/CNF-Fe(III) composite, resulting in minimized Cu(II), Pb(II), and Cr(VI) removal. However, the amount of H+ decreases with increasing pH, which substantially increases deprotonation of the reactive functional groups on the surface of the M-Ch/CNF-Fe(III) composite and therefore increases the Cu(II), Pb(II), and Cr(VI) removal. However, the decreases of Pb(II) and Cr(VI) elimination over pH 4.0 and Cu(II) elimination over 6.0 can be accredited to the electrostatic repulsion between the reactive functional groups on the surface of the M-Ch/CNF-Fe(III) composite and metal ions due to the increased protonation at higher pH. The present study’s findings agree with the studies reported by Dong et al. [37] and Mohamed et al. [35].
The influence of adsorbent doses on the Cu(II), Cr(VI), and Pb(II) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent was determined by varying the adsorbent doses from 0.05 g to 1.0 g at pH 4.0 and ambient temperature, using an adsorption time of 30 min, as shown in Figure 5b. The results show that the percentages of Cu(II), Cr(VI), and Pb(II) elimination improved with increasing M-Ch/CNF-Fe(III) composite doses from 0.05 g to 0.5 g, and declined with increases of the M-Ch/CNF-Fe(III) composite doses over 0.5 g. The maximum values of about 86%, 100%, and 88% for Cr(VI), Pb(II), and Cu(II) removal, respectively, were obtained at adsorbent doses of 0.5 g, with an adsorption time of 30 min and at pH 4.0. The escalation of the Cu(II), Cr(VI), and Pb(II) elimination with increasing M-Ch/CNF-Fe(III) composite doses can be referred to as the increase of the reactive group for binding metal ions [35]. The decrease of Cu(II), Cr(VI), and Pb(II) elimination with M-Ch/CNF-Fe(III) composite doses over 0.5 g was due to the saturation of the Cu(II), Cr(VI), and Pb(II) concentrations with reactive groups on the surface of the M-Ch/CNF-Fe(III) composite [35,38]. In addition, the particle aggregation of M-the Ch/CNF-Fe(III) composite with higher amounts of adsorbent doses over 0.5 g could be another reason for the declining increase of Cu(II), Cr(VI), and Pb(II) adsorption [38].
Adsorptive Cr(VI), Cu(II), and Pb(II) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent was assessed with varying treatment times from 5–90 min at pH 4.0, using adsorbent doses of 0.5 g at room temperature, as presented in Figure 5c. The percentages of Cr(VI), Cu(II), and Pb(II) elimination increased with increasing adsorption time and reached their maximum values at 30 min; thereafter, the percentages of Cr(VI), Cu(II), and Pb(II) elimination were found to be negligible with the further increase of adsorption time over 30 min. The highest values of about 86%, 99%, and 88% for Cr(VI), Pb(II), and Cu(II) elimination were obtained at an adsorption time of 30 min at pH 4.0, with adsorbent doses of 0.5 g at ambient temperature. The negligible increase of Cr(VI), Pb(II), and Cu(II) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent over 30 min of adsorption time could be attributed to the saturation of active functional groups on the surface of the adsorbent with metal ions. The observations were found to be similar, to those reported by Vishnu et al. [39] and Mat Yasin et al. [40]. Vishnu et al. [39] obtained the maximum Cu(II), Cr(VI), and Pb(II) elimination at an adsorption time of 45 min using magnetic microspheres of Muraya koenigii extract.
The effects of temperature on Cr(VI), Cu(II), and Pb(II) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent were evaluated by varying the temperature from ambient temperature to 80 °C at pH 4.0, with an adsorption time of 30 min and adsorbent doses of 0.5 g, as shown in Figure 5d. As can be seen in Figure 5d, the Cr(VI) adsorption was slightly increased with increasing temperature up to 50 °C, and thereafter the Cr(VI) adsorption was found to decrease with increasing temperature. Similar adsorption behavior was found for Cu(II) removal. Cu(II) adsorption increased with increasing the temperature from ambient temperature to 60 °C and decreased after that. In the case of Pb(II) adsorption, the increase in temperature did not influence the Pb(II) elimination up to 50 °C. However, the Pb(II) adsorption was decreased with increasing temperature over 50 °C. The increases of Cr(VI) and Cu(II) elimination with increasing temperature was occurred might be due to the increasing reactive groups on the surface of the M-Ch/CNF-Fe(III) composite with increasing temperature. However, the decreases of Cr(VI) and Pb(II) elimination was found with elevated temperature over 50 °C were due to the weakened chemical bonding within the matrices of the M-Ch/CNF-Fe(III) composite, which lessened the affinity of binding metal ions and therefore decreased the Cr(VI) and Pb(II) removal. Similarly, Fan et al. [41] observed that the adsorptive elimination of Pb(II), Zn(II), and Cd(II) increased with increasing temperature because of increasing active functional groups on the surface of Penicillium simplicissimum.

3.3. Adsorption Equilibrium Isotherm for Cr(VI), Cu(II), and Pb(II) Elimination

The evaluation of the adsorption equilibrium is essential to assess the adsorption behavior for adsorptive heavy metals removal. Over the years, various isotherm model equations have been used to determine the adsorption behavior for the elimination of heavy metals [37,41], dyes [27], and other organic and inorganic contaminants [40] from various types of wastewater. The Langmuir and Freundlich isotherm models were implemented in the present study to determine the adsorption behavior for Cr(VI), Cu(II), and Pb(II) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent. The Langmuir isotherm model expresses that the adsorptive contaminant elimination occurs on the surface of the adsorbent in a monolayer formation and with a uniform distribution [35]. Conversely, the Freundlich isotherm model states that the adsorptive elimination ensues on the heterogenous surface of the adsorbent in a multilayer formation and with a non-uniform distribution. However, the Freundlich isotherm model does not limit the uniform distribution of the contaminant on the surface of the adsorbent during the adsorptive contaminant elimination [41].
The isothermal behavior for adsorptive Cr(VI), Cu(II), and Pb(II) elimination from aqueous solution using the M-Ch/CNF-Fe(III) composite as an adsorbent was determined as shown in Figure 6. The Freundlich exponential constant (n), Langmuir constant (a), Freundlich affinity constant (Kf), maximum adsorption (b), and correlation coefficient (R2) values were calculated for Cr(VI), Cu(II), and Pb(II) elimination from aqueous solution using the M-Ch/CNF-Fe(III) composite as an adsorbent and are shown in Table 2. It was found that the positive Langmuir constant (a) and maximum adsorption (b) values reveal the applicability of the M-Ch/CNF-Fe(III) composite as an adsorbent for the elimination of Cr(VI), Cu(II), and Pb(II) from aqueous solution. The maximum adsorption values were determined to be 1.7655 mg/mg, 0.5412 mg/mg, and 0.4232 mg/mg for the elimination of Cu(II), Cr(VI), and Pb(II), respectively.
The correlation coefficient (R2) values were utilized to determine the suitable isotherm models for assessing the adsorption behavior of the M-Ch/CNF-Fe(III) composite for Cr(VI), Cu(II), and Pb(II) removal. It was found that the R2 values for the elimination of Cu(II) and Cr(VI) were 0.8228 and 0.9677 for the Langmuir isotherm model, respectively, and 0.9378 and 0.9825 for the Freundlich isotherm model, respectively. The higher R2 values for the Freundlich isotherm model reveal that the Freundlich isotherm model is the best-fitting isotherm model for the elimination of Cu(II) and Cr(VI) using the M-Ch/CNF-Fe(III) composite as an adsorbent. The R2 values for Pb(II) elimination were determined to be 0.9967 and 0.9668 for the Langmuir and Freundlich isotherm models, respectively. Based on the R2 values, it can be postulated that both the Langmuir and Freundlich isotherm models can describe the adsorption behavior of Pb(II) using the M-Ch/CNF-Fe(III) composite because the R2 value is ˃0.96 for both isotherm models. However, the Langmuir isotherm model would be the best-fitting isotherm model for the adsorptive Pb(II) elimination because of the higher R2 value. The findings are in agreement with those reported by Razak et al. [8] and Lian et al. [9]. Razak et al. [8] reported the Freundlich isotherm model was the best-fitting isotherm model for Cu(II) elimination from industrial wastewater effluent using chemically modified kenaf fiber as an adsorbent. Lian et al. [9] observed that the Langmuir isotherm model was the most suitable model for describing the adsorption behavior of Pb(II) using EDTA-functionalized magnetic chitosan oligosaccharides as an adsorbent.

3.4. Adsorption Kinetics for Cr(VI), Cu(II), and Pb(II) Elimination

The mass transfer phenomena and adsorption mechanisms of the M-Ch/CNF-Fe(III) composite as an adsorbent for the elimination of Pb(II), Cu(II), and Cr(VI) were determined using pseudo-first-order and pseudo-second-order kinetics model equations, as depicted in Table 3. It was noticed that the experimental adsorption efficiency (qe (exp)) values increased with increasing adsorption temperature from room temperature (28 ± 1 °C) to 70 °C, revealing that the exterior energy influenced the adsorption efficiency of the M-Ch/CNF-Fe(III) composite for Pb(II), Cu(II), and Cr(VI) elimination from aqueous solution [26,42]. The comparison of the R2 values and the difference between the qe (exp) and qe (theoretical) values obtained from the pseudo-first-order and pseudo-second-order kinetics model equations showed that the pseudo-second-order model was the best-fitting kinetics equation to describe the mass transfer phenomena for the elimination of Pb(II), Cr(VI), and Cu(II) using the M-Ch/CNF-Fe(III) composite as an adsorbent. Thus it can be postulated that chemisorption is a possible mechanism for the elimination of Cu(II), Pb(II), and Cr(VI) from an aqueous solution using the M-Ch/CNF-Fe(III) composite as an adsorbent. Similarly, Sun et al. [42] and Liu et al. [43] found that the pseudo-second-order kinetic equation was the best-fitting kinetics model for Cr(VI) elimination using an amino-functionalized magnetic CNF composite and magnetic S-doped Fe-Cu-La trimetallic oxide as magnetic adsorbents, respectively.

3.5. Reusability of M-Ch/CNF-Fe(III) Composite

The reusability of the M-Ch/CNF-Fe(III) composite was determined via the adsorption and desorption of Cr(VI) from an aqueous solution, as shown in Figure 7. It was observed that the Cr(VI) adsorption efficiency slightly reduced from cycle 1 to cycle 2, and sharply reduced thereafter. Approximately 86% of the Cr(VI) elimination was obtained during cycle 1. However, the percentage of Cr(VI) adsorption was reduced to about 83% in cycle 2, and it was substantially reduced to about 59% in cycle 6. The decrease of the Cr(VI) adsorption efficiency with an increasing number of adsorption/desorption cycles could be attributed to the breakdown of the structure of the M-Ch/CNF-Fe(III) composite and the loss of active functional groups on the surface of the M-Ch/CNF-Fe(III) composite [43,44]. Thus, the fabricated M-Ch/CNF-Fe(III) composite has the potential to be recycled and reused for the elimination of metal ions from aqueous solution. Similarly, Daneshfozoun et al. [44] observed that the magnetic cellulosic nanofiber can be recycled and reused for the elimination of heavy metal ions. Anush and Vishalakshi [45] reported that magnetic nanoparticles incorporated with chitosan gel had the potential to be recovered and reused for the elimination of Cr(VI) and Cr(II) from aqueous solution.
Table 4 shows the metal ion uptake efficiency of various magnetic adsorbents from aqueous solution. Based on the findings of the present study, it can be postulated that the isolated M-Ch/CNF-Fe(III) composite has the potential to be utilized as an absorbent for the elimination of heavy metal ions from aqueous solution, including Cu(II), Cr(VI), and Pb(II). The highest metal ion uptake efficiency values of the M-Ch/CNF-Fe(III) composite obtained were 391.21 mg/g, 185.21 mg/g, and 99.86 mg/g for the elimination of Cu(II), Cr(VI), and Pb(II), respectively. Zhang et al. [46] obtained a Cr(VI) uptake efficiency of about 280 mg/g using a polyethyleneimine-functionalized Fe3O4/steam-exploded rice straw composite as an adsorbent. In addition, Touihri et al. [47] obtained maximum Cr(VI) and Cu(II) elimination efficiencies of 212.22 mg/g and 68.64 mg/g, respectively, using magnetic pinecone gel beads as an adsorbent. However, the fabricated M-Ch/CNF-Fe(III) composite showed better adsorption efficiency of heavy metal ions than silica-coated amino-functionalized magnetic Muraya koenigii extracts [39], magnetic nanoparticles incorporated with chitosan gel [45], magnetically activated carbon nanoparticles [48], and magnetically modified alkali-conditioned anaerobically digested sludge [49].

4. Conclusions

The present study isolated an M-Ch/CNF-Fe(III) composite as an effective adsorbent for Pb(II), Cu(II), and Cr(VI) elimination from aqueous solution. Surface morphology analyses reveal that the isolated M-Ch/CNF-Fe(III) composite is porous and rough, with irregular shapes. FT-IR, XRD, and TEM analyses showed that chitosan, CNF, and Fe3O4 were successfully incorporated during the formation of the M-Ch/CNF-Fe(III) composite. The pH, adsorbent doses, and adsorption time potentially influenced the adsorptive Pb(II), Cu(II), and Cr(VI) elimination using the M-Ch/CNF-Fe(III) composite as an adsorbent. Maximum values of about 86%, 100%, and 88% for Cr(VI), Pb(II), and Cu(II) elimination, respectively, were obtained at adsorbent doses of 0.5 g, pH 4.0, an adsorption time of 30 min, and ambient temperature. Isothermal studies showed that the Freundlich isotherm model was the best-fitting isotherm model for adsorptive Cu(II) and Cr(VI) elimination. The Langmuir isotherm model was the best-fitting isotherm model for removing Pb(II) from aqueous solution. Kinetics studies showed that chemisorption was the mass transfer mechanism of the M-Ch/CNF-Fe(III) composite as an adsorbent for Pb(II), Cu(II), and Cr(VI) elimination from aqueous solution. Based on the present study’s findings, it can be postulated that the isolated M-Ch/CNF-Fe(III) composite can be implemented to remove heavy metals and other contaminants from industrial effluents.

Author Contributions

Conceptualization, M.S.H., A.N.A.Y. and N.I.; methodology, A.M.K.; validation, M.S.H., N.I. and M.S.S.; formal analysis, M.Z.; investigation, M.A.A.; resources, N.A.K.; data curation, R.A.; writing—original draft preparation, M.S.H.; writing—review and editing, M.S.H. and A.N.A.Y.; visualization, A.M.K.; supervision, M.S.H., N.A.K. and N.I.; project administration, M.S.S.; funding acquisition, A.N.A.Y. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to acknowledge the Ministry of Higher Education (MoHE) of Malaysia for providing the Fundamental Research Grant Scheme (FRGS), Grant No- FRGS/1/2018/STG07/UNIKL/03/1, as financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to acknowledge the Ministry of Higher Education (MoHE) of Malaysia for providing the Fundamental Research Grant Scheme (FRGS), Grant No- FRGS/1/2018/STG07/UNIKL/03/1, as financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rathi, B.S.; Kumar, P.S.; Vo, D.-V.N. Critical review on hazardous pollutants in water environment: Occurrence, monitoring, fate, elimination technologies and risk assessment. Sci. Total Environ. 2021, 797, 149134. [Google Scholar] [CrossRef] [PubMed]
  2. Khalid, N.; Aqeel, M.; Noman, A.; Khan, S.M.; Akhter, N. Interactions and effects of microplastics with heavy metals in aquatic and terrestrial environments. Environ. Pollut. 2021, 290, 118104. [Google Scholar] [PubMed]
  3. Hossain, M.S.; Rashdi, S.A.; Hamed, Y.; Al-Gheethi, A.; Omar, F.M.; Zulkifli, M.; Ahmad Yahaya, A.N. Implementation of FeSO4·H2O as an Eco-Friendly Coagulant for the Elimination of Organic Pollutants from Tertiary Palm Oil Mill Effluent: Process Optimization, Kinetics, and Thermodynamics Studies. Water 2022, 14, 3602. [Google Scholar] [CrossRef]
  4. Khalid, A.M.; Hossain, M.S.; Ismail, N.; Khalil, N.A.; Balakrishnan, V.; Zulkifli, M.; Yahaya, A.N.A. Isolation and Characterization of Magnetic Oil Palm Empty Fruits Bunch Cellulose Nanofiber Composite as a Bio-Sorbent for Cu(II) and Cr(VI) Removal. Polymers 2021, 13, 112. [Google Scholar] [CrossRef]
  5. Tumolo, M.; Ancona, V.; De Paola, D.; Losacco, D.; Campanale, C.; Massarelli, C.; Uricchio, V.F. Chromium Pollution in European Water, Sources, Health Risk, and Remediation Strategies: An Overview. Int. J. Environ. Res. Public Health 2020, 17, 5438. [Google Scholar]
  6. Karimi-Maleh, H.; Ayati, A.; Ghanbari, S.; Orooji, Y.; Tanhaei, B.; Karimi, F.; Alizadeh, M.; Rouhi, J.; Fu, L.; Sillanpää, M. Recent advances in removal techniques of Cr(VI) toxic ion from aqueous solution: A comprehensive review. J. Mol. Liq. 2021, 329, 115062. [Google Scholar] [CrossRef]
  7. Shabbir, Z.; Sardar, A.; Shabbir, A.; Abbas, G.; Shamshad, S.; Khalid, S.; Natasha; Murtaza, G.; Dumat, C.; Shahid, M. Copper uptake, essentiality, toxicity, detoxification and risk assessment in soil-plant environment. Chemosphere 2020, 259, 127436. [Google Scholar] [CrossRef] [PubMed]
  8. Razak, M.R.; Yusof, N.A.; Aris, A.Z.; Nasir, H.M.; Haron, M.J.; Ibrahim, N.A.; Johari, I.S.; Kamaruzaman, S. Phosphoric acid modified kenaf fiber (K-PA) as green adsorbent for the removal of copper (II) ions towards industrial waste water effluents. React. Funct. Polym. 2020, 147, 104466. [Google Scholar] [CrossRef]
  9. Lian, Z.; Li, Y.; Xian, H.; Ouyang, X.-k.; Lu, Y.; Peng, X.; Hu, D. EDTA-functionalized magnetic chitosan oligosaccharide and carboxymethyl cellulose nanocomposite: Synthesis, characterization, and Pb(II) adsorption performance. Int. J. Biol. Macromol. 2020, 165, 591–600. [Google Scholar]
  10. Department of Environment (DoE). Environmental Quality (Industrial Effluent) Regulation; Department of Environment (DoE): Kuala Lumpur, Malaysia, 2009.
  11. Shadi, A.M.H.; Kamaruddin, M.A.; Niza, N.M.; Emmanuel, M.I.; Hossain, M.S.; Ismail, N. Electroflotation treatment of stabilized landfill leachate using titanium-based electrode. Int. J. Environ. Sci. Technol. 2021, 18, 2425–2440. [Google Scholar]
  12. Ali, I.; Tatiana, K.k.; Zaw Htay, T.; Thu Aung, H.; Ekaterina, M.; Nahid Siddiqui, M.; Almalki, A.S.A.; Alhadhrami, A.; Alsubaie, A.; Hameed, A.M.; et al. Economic and fast electro-flotation extraction of heavy metals from wastewater. Environ. Technol. 2022, 43, 4019–4028. [Google Scholar] [CrossRef] [PubMed]
  13. Bashir, A.; Malik, L.A.; Ahad, S.; Manzoor, T.; Bhat, M.A.; Dar, G.N.; Pandith, A.H. Removal of heavy metal ions from aqueous system by ion-exchange and biosorption methods. Environ. Chem. Lett. 2019, 17, 729–754. [Google Scholar] [CrossRef]
  14. Jain, A.; Rai, S.; Srinivas, R.; Al-Raoush, R.I. Bioinspired modeling and biogeography-based optimization of electrocoagulation parameters for enhanced heavy metal removal. J. Clean. Prod. 2022, 338, 130622. [Google Scholar] [CrossRef]
  15. Zhang, Q.; Ye, X.; Li, H.; Chen, D.; Xiao, W.; Zhao, S.; Xiong, R.; Li, J. Cumulative effects of pyrolysis temperature and process on properties, chemical speciation, and environmental risks of heavy metals in magnetic biochar derived from coagulation-flocculation sludge of swine wastewater. J. Environ. Chem. Eng. 2020, 8, 104472. [Google Scholar] [CrossRef]
  16. Balladares, E.; Jerez, O.; Parada, F.; Baltierra, L.; Hernández, C.; Araneda, E.; Parra, V. Neutralization and co-precipitation of heavy metals by lime addition to effluent from acid plant in a copper smelter. Miner. Eng. 2018, 122, 122–129. [Google Scholar] [CrossRef]
  17. Almasian, A.; Giahi, M.; Chizari Fard, G.; Dehdast, S.A.; Maleknia, L. Removal of heavy metal ions by modified PAN/PANI-nylon core-shell nanofibers membrane: Filtration performance, antifouling and regeneration behavior. Chem. Eng. J. 2018, 351, 1166–1178. [Google Scholar] [CrossRef]
  18. Bari, M.F.; Hossain, M.S.; Mujtaba, I.M.; Jamaluddin, S.B.; Hussin, K. Simultaneous extraction and separation of Cu(II), Zn(II), Fe(III) and Ni(II) by polystyrene microcapsules coated with Cyanex 272. Hydrometallurgy 2009, 95, 308–315. [Google Scholar] [CrossRef]
  19. Mohamed, S.H.; Hossain, M.S.; Kassim, M.H.M.; Balakrishnan, V.; Habila, M.A.; Zulkharnain, A.; Zulkifli, M.; Yahaya, A.N.A. Biosorption of Cr(VI) Using Cellulose Nanocrystals Isolated from the Waterless Pulping of Waste Cotton Cloths with Supercritical CO2: Isothermal, Kinetics, and Thermodynamics Studies. Polymers 2022, 14, 887. [Google Scholar] [CrossRef]
  20. Lee, S.-Y.; Choi, H.-J. Persimmon leaf bio-waste for adsorptive removal of heavy metals from aqueous solution. J. Environ. Manag. 2018, 209, 382–392. [Google Scholar] [CrossRef]
  21. Nguyen, T.C.; Loganathan, P.; Nguyen, T.V.; Kandasamy, J.; Naidu, R.; Vigneswaran, S. Adsorptive removal of five heavy metals from water using blast furnace slag and fly ash. Environ. Sci. Pollut. Res. 2018, 25, 20430–20438. [Google Scholar] [CrossRef]
  22. Karimi, M.H.; Mahdavinia, G.R.; Massoumi, B.; Baghban, A.; Saraei, M. Ionically crosslinked magnetic chitosan/κ-carrageenan bioadsorbents for removal of anionic eriochrome black-T. Int. J. Biol. Macromol. 2018, 113, 361–375. [Google Scholar] [CrossRef] [PubMed]
  23. Ge, H.; Hua, T. Synthesis and characterization of poly(maleic acid)-grafted crosslinked chitosan nanomaterial with high uptake and selectivity for Hg(II) sorption. Carbohydr. Polym. 2016, 153, 246–252. [Google Scholar] [CrossRef] [PubMed]
  24. Kuang, S.-P.; Wang, Z.-Z.; Liu, J.; Wu, Z.-C. Preparation of triethylene-tetramine grafted magnetic chitosan for adsorption of Pb(II) ion from aqueous solutions. J. Hazard. Mater. 2013, 260, 210–219. [Google Scholar] [CrossRef] [PubMed]
  25. Rahmi; Ishmaturrahmi; Mustafa, I. Methylene blue removal from water using H2SO4 crosslinked magnetic chitosan nanocomposite beads. Microchem. J. 2019, 144, 397–402. [Google Scholar] [CrossRef]
  26. Afifah Khalil, N.; Syafiqah Abdul Rahman, A.; Mubin Abu Huraira, A.; Nur Dalillah Fattin Janurin, S.; Noor Syimir Fizal, A.; Ahmad, N.; Zulkifli, M.; Sohrab Hossain, M.; Naim Ahmad Yahaya, A. Magnetic chitosan hydrogel beads as adsorbent for copper removal from aqueous solution. Materials Today: Proceedings 2023, 74, 499–503. [Google Scholar] [CrossRef]
  27. Oyewo, O.A.; Elemike, E.E.; Onwudiwe, D.C.; Onyango, M.S. Metal oxide-cellulose nanocomposites for the removal of toxic metals and dyes from wastewater. Int. J. Biol. Macromol. 2020, 164, 2477–2496. [Google Scholar] [CrossRef]
  28. Fatah, I.Y.A.; Khalil, H.P.S.A.; Hossain, M.S.; Aziz, A.A.; Davoudpour, Y.; Dungani, R.; Bhat, A. Exploration of a Chemo-Mechanical Technique for the Isolation of Nanofibrillated Cellulosic Fiber from Oil Palm Empty Fruit Bunch as a Reinforcing Agent in Composites Materials. Polymers 2014, 6, 2611–2624. [Google Scholar] [CrossRef]
  29. Hu, D.; Huang, H.; Jiang, R.; Wang, N.; Xu, H.; Wang, Y.-G.; Ouyang, X.-k. Adsorption of diclofenac sodium on bilayer amino-functionalized cellulose nanocrystals/chitosan composite. J. Hazard. Mater. 2019, 369, 483–493. [Google Scholar] [CrossRef]
  30. Mondol, M.M.H.; Jhung, S.H. Adsorptive removal of pesticides from water with metal–organic framework-based materials. Chem. Eng. J. 2021, 421, 129688. [Google Scholar] [CrossRef]
  31. Wu, M.; Deng, W.; Zhang, Y.; Chen, C.; Liu, Z.; Fatehi, P.; Li, B. Facile Fabrication of Cellulose Nanofibrils/Chitosan Beads as the Potential pH-Sensitive Drug Carriers. Polymers 2022, 14, 2286. [Google Scholar] [CrossRef]
  32. Bassyouni, M.; Zoromba, M.S.; Abdel-Aziz, M.H.; Mosly, I. Extraction of Nanocellulose for Eco-Friendly Biocomposite Adsorbent for Wastewater Treatment. Polymers 2022, 14, 1852. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, S.; Li, M.; Gao, H.; Yin, Z.; Chen, C.; Yang, H.; Fang, L.; Jagadeesha Angadi, V.; Yi, Z.; Li, D. Construction of CeO2/YMnO3 and CeO2/MgAl2O4/YMnO3 photocatalysts and adsorption of dyes and photocatalytic oxidation of antibiotics: Performance prediction, degradation pathway and mechanism insight. Appl. Surf. Sci. 2023, 608, 154977. [Google Scholar] [CrossRef]
  34. Zhu, H.Y.; Fu, Y.Q.; Jiang, R.; Jiang, J.H.; Xiao, L.; Zeng, G.M.; Zhao, S.L.; Wang, Y. Adsorption removal of congo red onto magnetic cellulose/Fe3O4/activated carbon composite: Equilibrium, kinetic and thermodynamic studies. Chem. Eng. J. 2011, 173, 494–502. [Google Scholar] [CrossRef]
  35. Mohamed, S.H.; Hossain, M.S.; Mohamad Kassim, M.H.; Ahmad, M.I.; Omar, F.M.; Balakrishnan, V.; Zulkifli, M.; Yahaya, A.N.A. Recycling Waste Cotton Cloths for the Isolation of Cellulose Nanocrystals: A Sustainable Approach. Polymers 2021, 13, 626. [Google Scholar] [CrossRef]
  36. Gupta, K.; Joshi, P.; Gusain, R.; Khatri, O.P. Recent advances in adsorptive removal of heavy metal and metalloid ions by metal oxide-based nanomaterials. Coord. Chem. Rev. 2021, 445, 214100. [Google Scholar] [CrossRef]
  37. Dong, J.; Du, Y.; Duyu, R.; Shang, Y.; Zhang, S.; Han, R. Adsorption of copper ion from solution by polyethylenimine modified wheat straw. Bioresour. Technol. Rep. 2019, 6, 96–102. [Google Scholar] [CrossRef]
  38. Einollahi Peer, F.; Bahramifar, N.; Younesi, H. Removal of Cd (II), Pb (II) and Cu (II) ions from aqueous solution by polyamidoamine dendrimer grafted magnetic graphene oxide nanosheets. J. Taiwan Inst. Chem. Eng. 2018, 87, 225–240. [Google Scholar] [CrossRef]
  39. Vishnu, D.; Dhandapani, B. The symbiotic effect of integrated Muraya koenigii extract and surface-modified magnetic microspheres–a green biosorbent for the removal of Cu(II) and Cr(VI) ions from aqueous solutions. Chem. Eng. Commun. 2021, 208, 851–862. [Google Scholar] [CrossRef]
  40. Mat Yasin, N.M.F.; Hossain, M.S.; Abdul Khalil, H.P.S.; Zulkifli, M.; Al-Gheethi, A.; Asis, A.J.; Yahaya, A.N.A. Treatment of Palm Oil Refinery Effluent Using Tannin as a Polymeric Coagulant: Isotherm, Kinetics, and Thermodynamics Analyses. Polymers 2020, 12, 2353. [Google Scholar] [CrossRef]
  41. Fan, T.; Liu, Y.; Feng, B.; Zeng, G.; Yang, C.; Zhou, M.; Zhou, H.; Tan, Z.; Wang, X. Biosorption of cadmium(II), zinc(II) and lead(II) by Penicillium simplicissimum: Isotherms, kinetics and thermodynamics. J. Hazard. Mater. 2008, 160, 655–661. [Google Scholar] [CrossRef]
  42. Sun, X.; Yang, L.; Li, Q.; Zhao, J.; Li, X.; Wang, X.; Liu, H. Amino-functionalized magnetic cellulose nanocomposite as adsorbent for removal of Cr(VI): Synthesis and adsorption studies. Chem. Eng. J. 2014, 241, 175–183. [Google Scholar] [CrossRef]
  43. Liu, B.; Chen, C.; Li, W.; Liu, H.; Liu, L.; Deng, S.; Li, Y. Effective removal of Cr(VI) from aqueous solution through adsorption and reduction by magnetic S-doped Fe-Cu-La trimetallic oxides. J. Environ. Chem. Eng. 2022, 10, 107433. [Google Scholar] [CrossRef]
  44. Daneshfozoun, S.; Abdullah, M.A.; Abdullah, B. Preparation and characterization of magnetic biosorbent based on oil palm empty fruit bunch fibers, cellulose and Ceiba pentandra for heavy metal ions removal. Ind. Crops Prod. 2017, 105, 93–103. [Google Scholar] [CrossRef]
  45. Anush, S.M.; Vishalakshi, B. Modified chitosan gel incorporated with magnetic nanoparticle for removal of Cu(II) and Cr(VI) from aqueous solution. Int. J. Biol. Macromol. 2019, 133, 1051–1062. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, S.; Wang, Z.; Chen, H.; Kai, C.; Jiang, M.; Wang, Q.; Zhou, Z. Polyethylenimine functionalized Fe3O4/steam-exploded rice straw composite as an efficient adsorbent for Cr(VI) removal. Appl. Surf. Sci. 2018, 440, 1277–1285. [Google Scholar] [CrossRef]
  47. Touihri, M.; Guesmi, F.; Hannachi, C.; Hamrouni, B.; Sellaoui, L.; Badawi, M.; Poch, J.; Fiol, N. Single and simultaneous adsorption of Cr(VI) and Cu (II) on a novel Fe3O4/pine cones gel beads nanocomposite: Experiments, characterization and isotherms modeling. Chem. Eng. J. 2021, 416, 129101. [Google Scholar] [CrossRef]
  48. Jain, M.; Yadav, M.; Kohout, T.; Lahtinen, M.; Garg, V.K.; Sillanpää, M. Development of iron oxide/activated carbon nanoparticle composite for the removal of Cr(VI), Cu(II) and Cd(II) ions from aqueous solution. Water Resour. Ind. 2018, 20, 54–74. [Google Scholar] [CrossRef]
  49. Sasidharan, R.; Kumar, A. Response surface methodology for optimization of heavy metal removal by magnetic biosorbent made from anaerobic sludge. J. Indian Chem. Soc. 2022, 99, 100638. [Google Scholar] [CrossRef]
  50. Ragheb, E.; Shamsipur, M.; Jalali, F.; Mousavi, F. Modified magnetic-metal organic framework as a green and efficient adsorbent for removal of heavy metals. J. Environ. Chem. Eng. 2022, 10, 107297. [Google Scholar] [CrossRef]
  51. Yang, Y.; Zhang, Y.; Zheng, H.; Zhang, B.; Zuo, Q.; Fan, K. Functionalized dual modification of covalent organic framework for efficient and rapid trace heavy metals removal from drinking water. Chemosphere 2022, 290, 133215. [Google Scholar] [CrossRef]
Nanomaterials 13 01595 g001 550
Figure 1. Scanning electron microscope image of CNF (a), Fe3O4 (b), chitosan (c), and M-Ch/CNF-Fe(III) composite (d), and TEM image of CNF (e).
Figure 1. Scanning electron microscope image of CNF (a), Fe3O4 (b), chitosan (c), and M-Ch/CNF-Fe(III) composite (d), and TEM image of CNF (e).
Nanomaterials 13 01595 g001
Nanomaterials 13 01595 g002 550

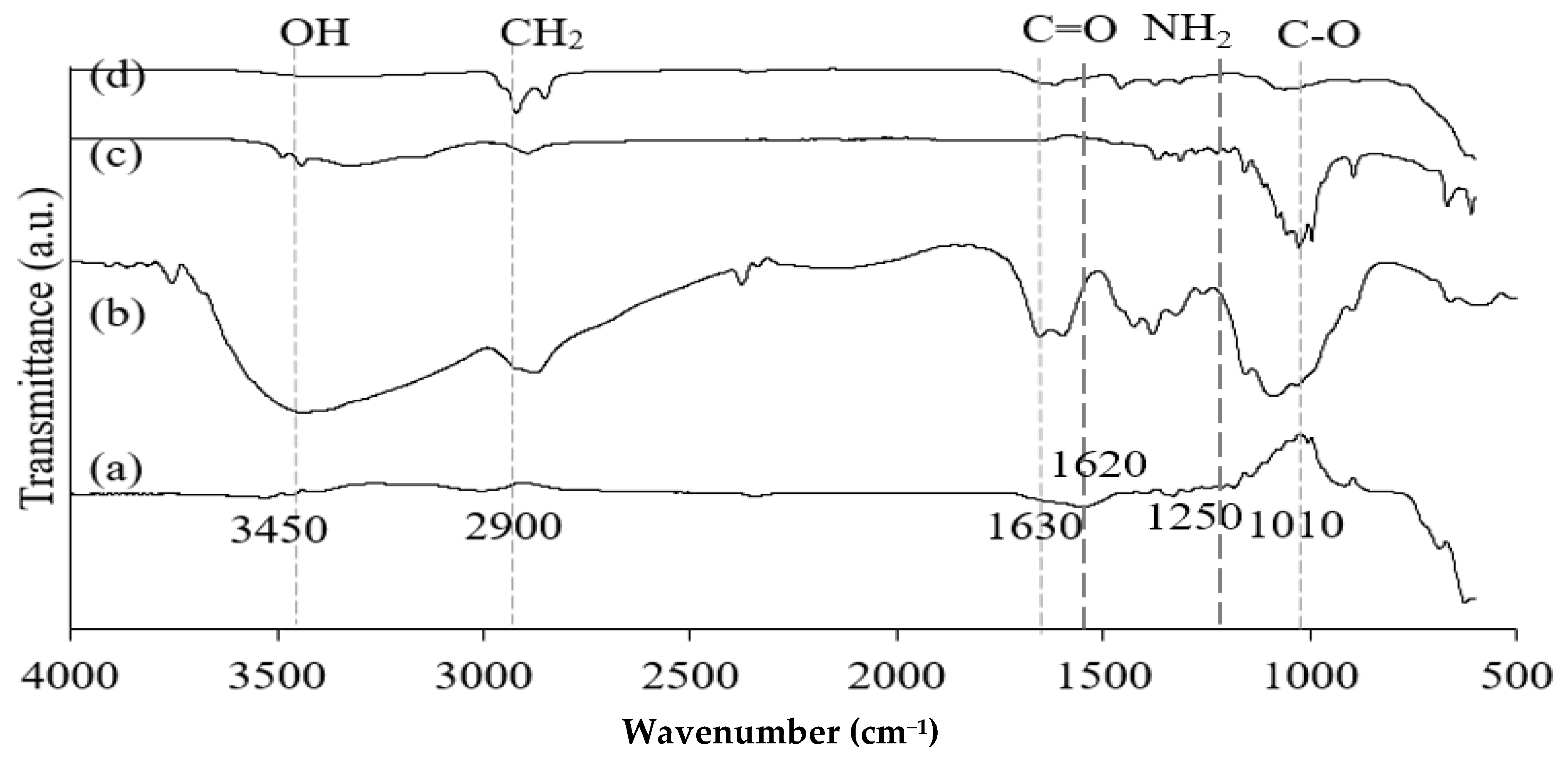

Figure 2. FT-IR spectra of Fe3O4 (a), chitosan (b), CNF (c), and M-Ch/CNF-Fe(III) composite (d).
Figure 2. FT-IR spectra of Fe3O4 (a), chitosan (b), CNF (c), and M-Ch/CNF-Fe(III) composite (d).
Nanomaterials 13 01595 g002
Nanomaterials 13 01595 g003 550

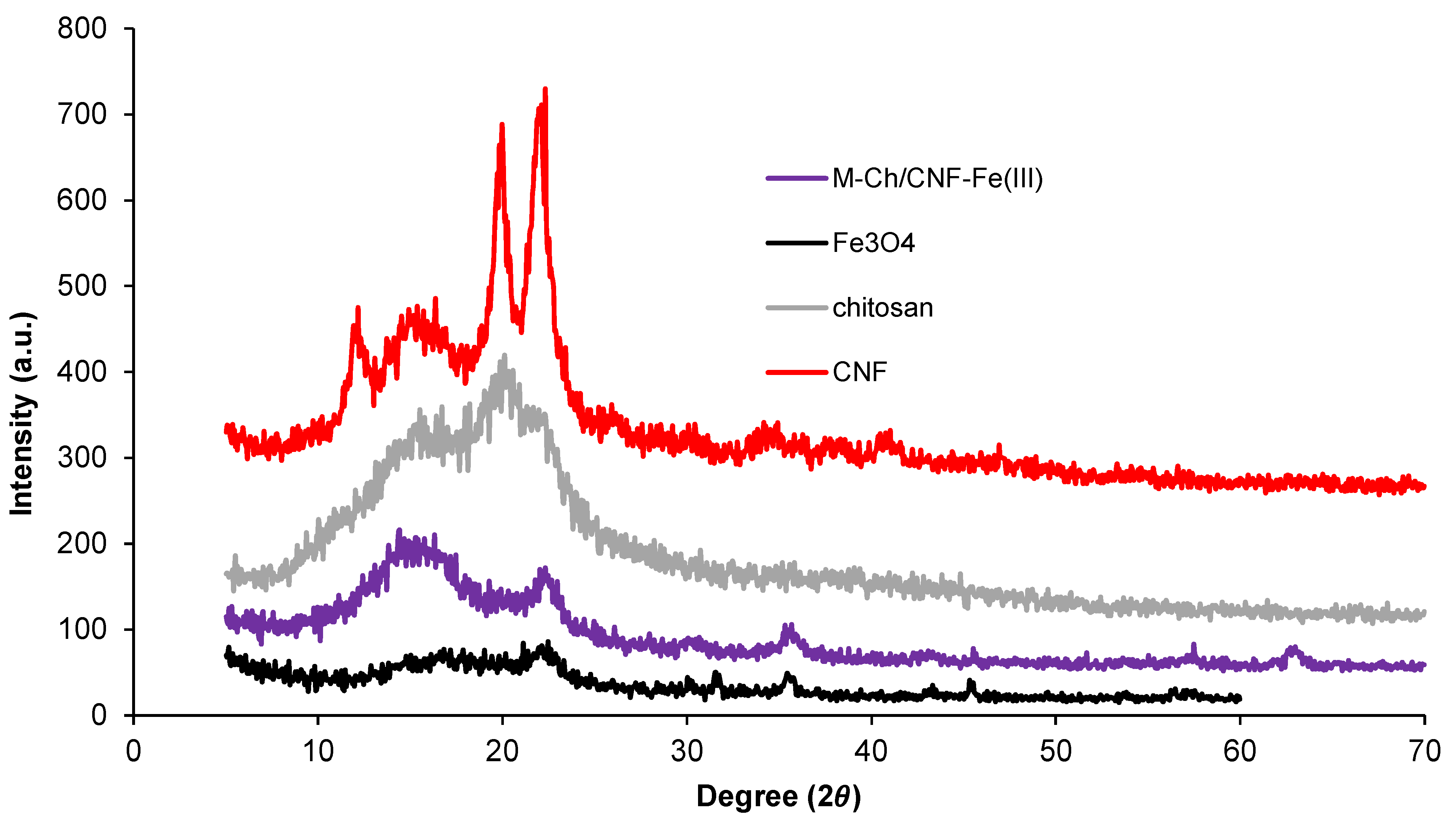

Figure 3. Crystallinity index using XRD analyses of Fe3O4, chitosan, CNF, and M-Ch/CNF-Fe(III) composite.
Figure 3. Crystallinity index using XRD analyses of Fe3O4, chitosan, CNF, and M-Ch/CNF-Fe(III) composite.
Nanomaterials 13 01595 g003
Nanomaterials 13 01595 g004 550

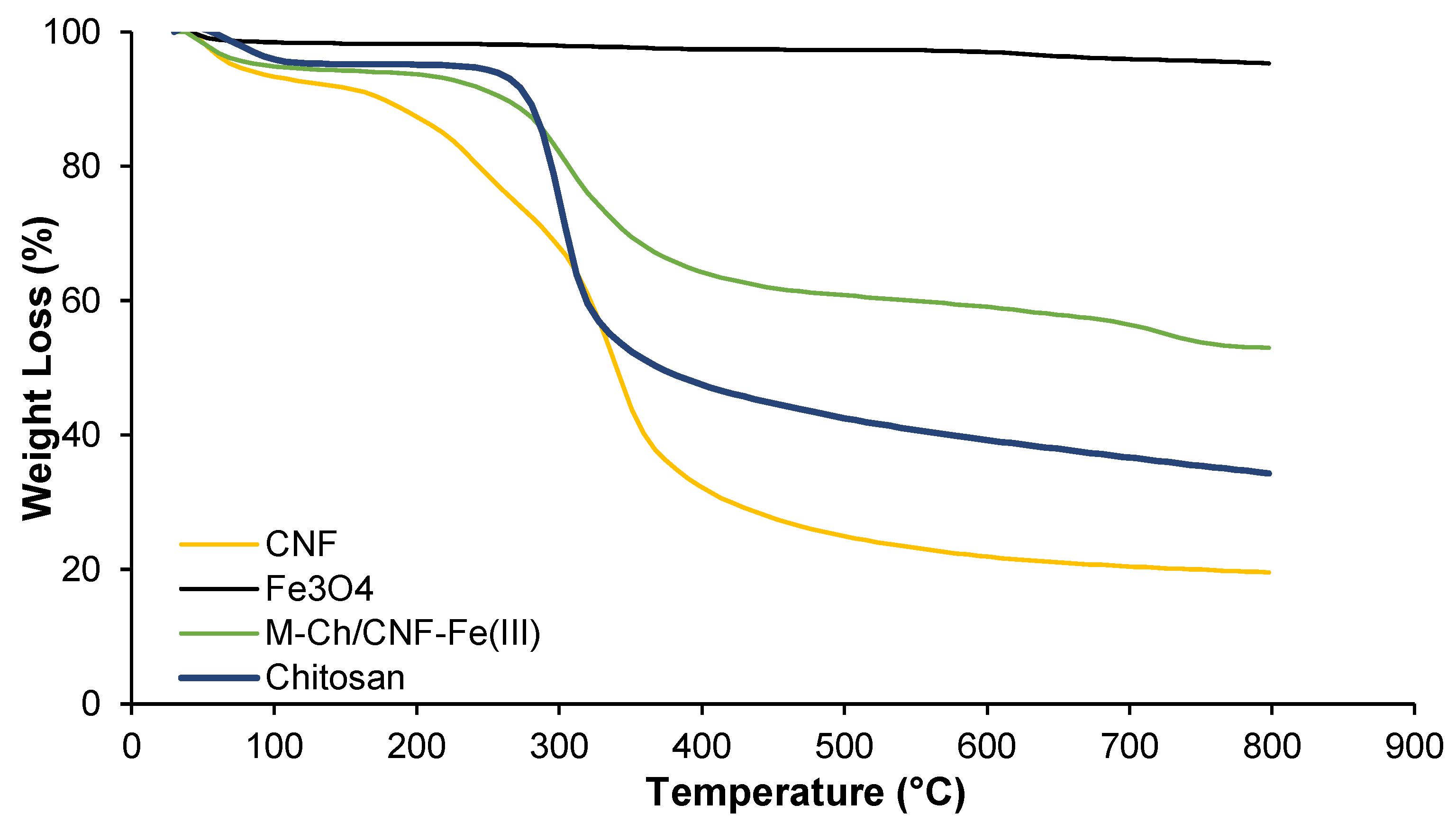

Figure 4. TGA analyses of Fe3O4, chitosan, CNF, and M-Ch/CNF-Fe(III) composite.
Figure 4. TGA analyses of Fe3O4, chitosan, CNF, and M-Ch/CNF-Fe(III) composite.
Nanomaterials 13 01595 g004
Nanomaterials 13 01595 g005 550

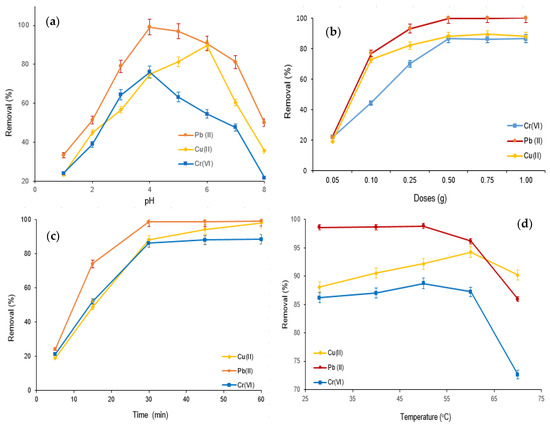

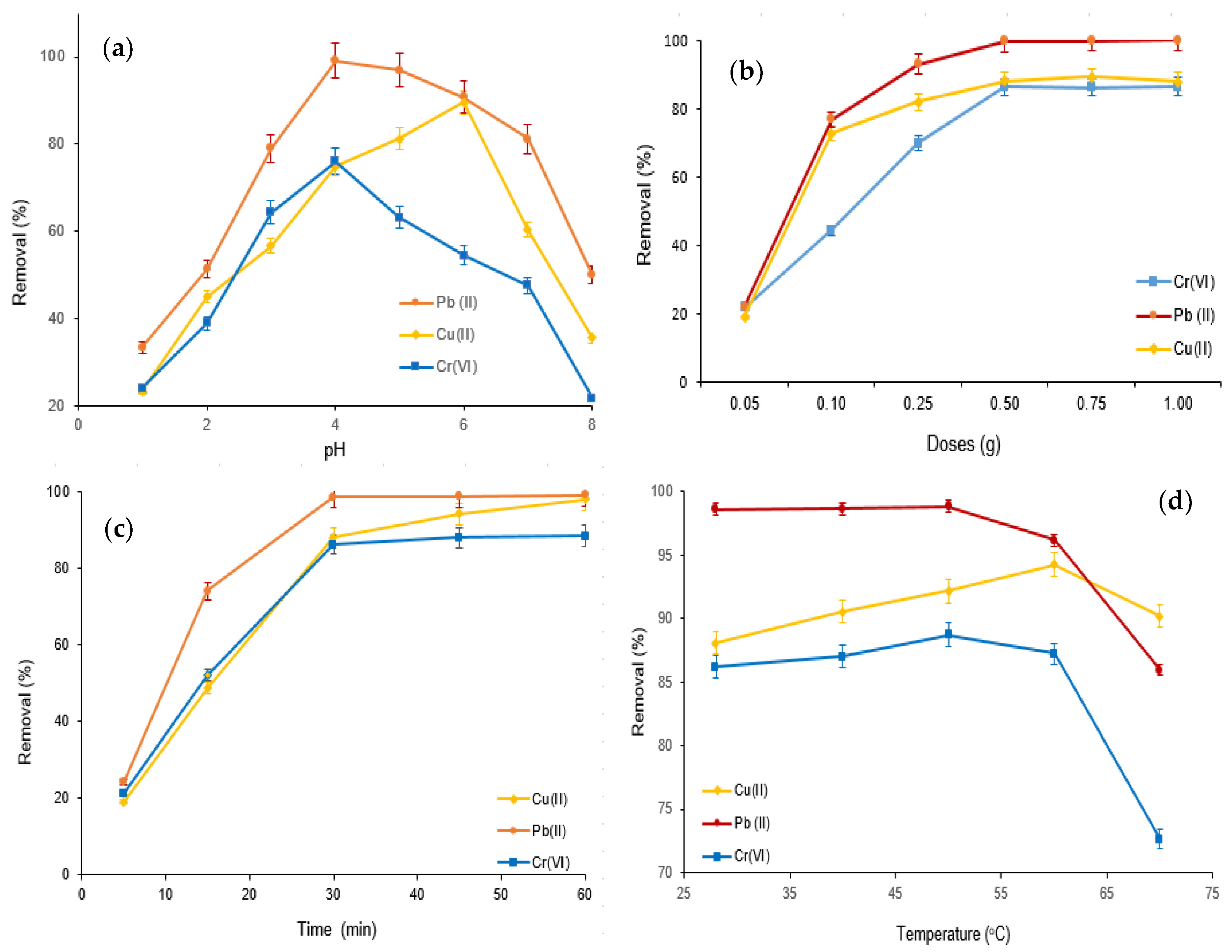

Figure 5. Adsorptive elimination of Cr(VI), Cu(II), and Pb(II) from aqueous solution using M-Ch/CNF-Fe(III) composite as an adsorbent. (a) Effect of pH, (b) effect of adsorbent doses, (c) effect of adsorption time, and (d) effect of temperature.
Figure 5. Adsorptive elimination of Cr(VI), Cu(II), and Pb(II) from aqueous solution using M-Ch/CNF-Fe(III) composite as an adsorbent. (a) Effect of pH, (b) effect of adsorbent doses, (c) effect of adsorption time, and (d) effect of temperature.
Nanomaterials 13 01595 g005
Nanomaterials 13 01595 g006 550

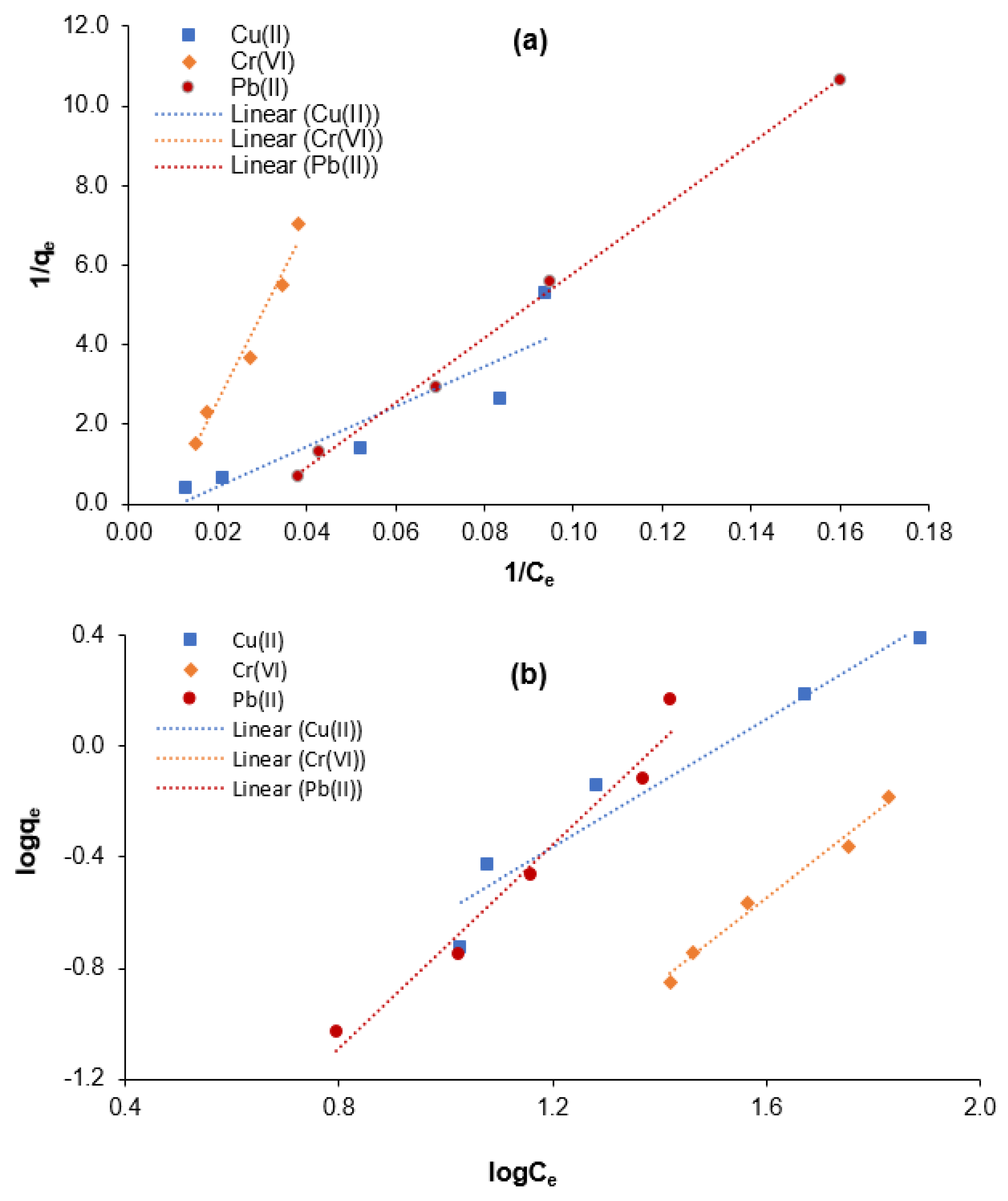

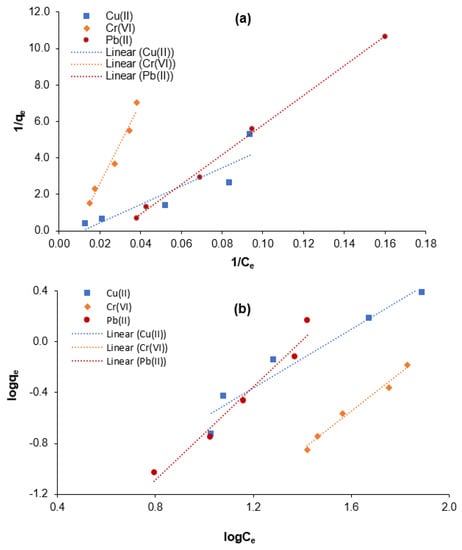

Figure 6. Isotherm modeling for the adsorptive elimination of Cr(VI), Cu(II), and Pb(II) using M-Ch/CNF-Fe(III) composite as an adsorbent. (a) Langmuir isotherm model and (b) Freundlich isotherm model.
Figure 6. Isotherm modeling for the adsorptive elimination of Cr(VI), Cu(II), and Pb(II) using M-Ch/CNF-Fe(III) composite as an adsorbent. (a) Langmuir isotherm model and (b) Freundlich isotherm model.
Nanomaterials 13 01595 g006
Nanomaterials 13 01595 g007 550

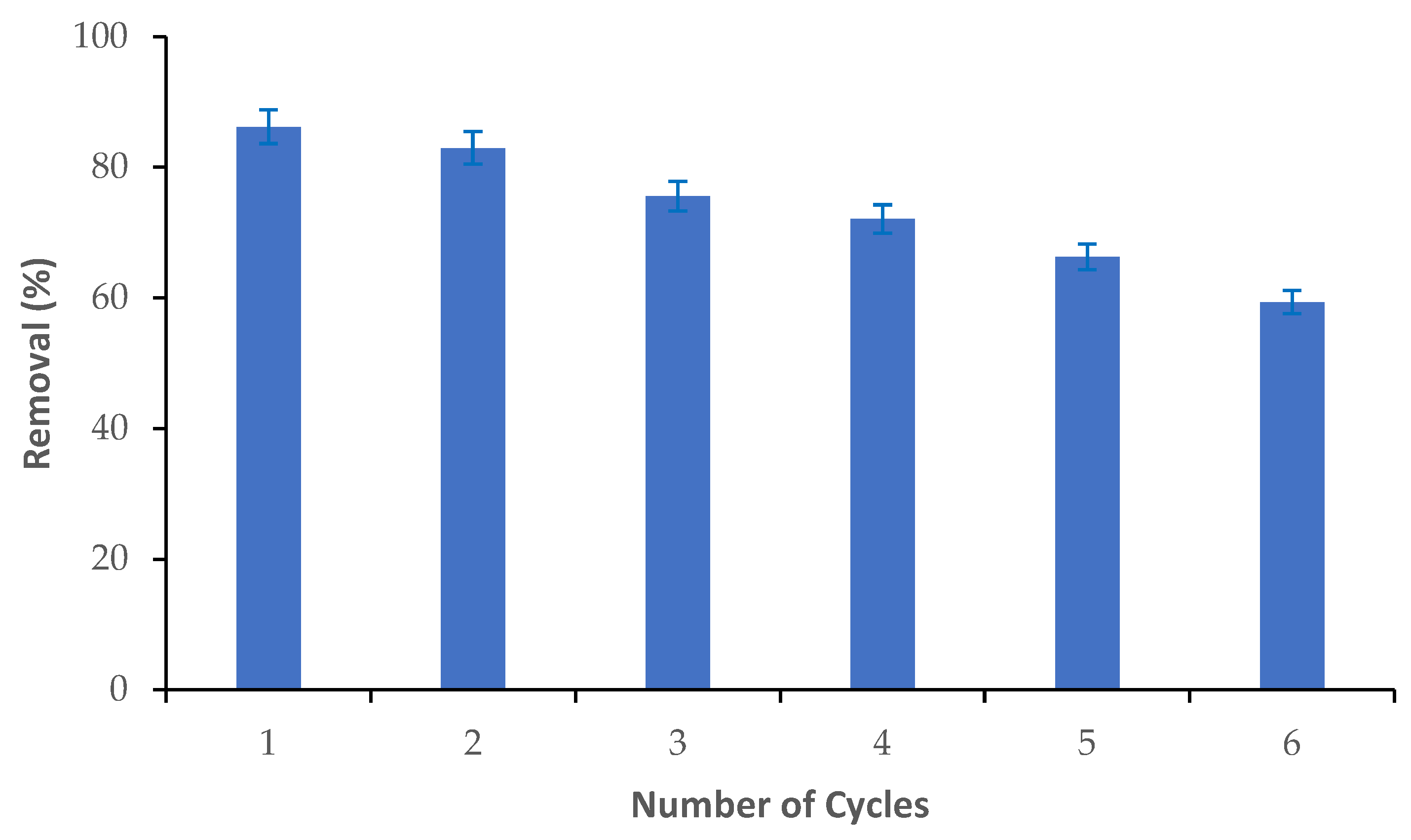

Figure 7. Reusability of M-Ch/CNF-Fe(III) composite for the elimination of Cr(VI) from aqueous solution.
Figure 7. Reusability of M-Ch/CNF-Fe(III) composite for the elimination of Cr(VI) from aqueous solution.
Nanomaterials 13 01595 g007
Table
Table 1. Thermal properties of Fe3O4, chitosan, CNF, and M-Ch/CNF-Fe(III) composite.
Table 1. Thermal properties of Fe3O4, chitosan, CNF, and M-Ch/CNF-Fe(III) composite.
Materials Tonset (°C)Tmax (°C)Weight Loss (%)
Fe3O47007505
Chitosan25736266
CNF17340881
M-Ch/CNF-Fe(III)23932850
Table
Table 2. Adsorption isotherm modeling for the elimination of Cu(II), Cr(VI), and Pb(II) from aqueous solution using M-Chi-CNF composite as an adsorbent.
Table 2. Adsorption isotherm modeling for the elimination of Cu(II), Cr(VI), and Pb(II) from aqueous solution using M-Chi-CNF composite as an adsorbent.
Langmuir IsothermFreundlich Isotherm
R2a (L/mg)b (mg/mg)R2kf (L/mg)n
Cu(II)0.82280.01131.76550.93780.01790.8670
Cr(VI)0.96770.00840.54120.98250.00110.6628
Pb(II)0.99670.00010.42320.96680.00280.5453
Table
Table 3. Kinetics modeling for Cr(VI), Cu(II), and Pb(II) elimination from aqueous solution using M-Ch/CNF-Fe(III) composite as an adsorbent.
Table 3. Kinetics modeling for Cr(VI), Cu(II), and Pb(II) elimination from aqueous solution using M-Ch/CNF-Fe(III) composite as an adsorbent.
Metal IonsTemperature
(°C)		 Pseudo-1st-OrderPseudo-2nd-Order
qe (exp)
(mg/mg)		qe
(mg/mg)		K1
(1/min)		R2qe (mg/mg)K2
(mg/mg.min)		R2
Cu(II)282.6693.7820.0560.94822.8690.0730.9985
402.7153.7490.0610.98962.9140.0980.9999
502.7343.6850.0720.99712.9890.1980.9998
602.7843.4020.0790.99823.0290.2070.9999
702.8153.3090.0760.98653.1960.2180.9999
Cr(VI)284.4965.4350.0240.97264.9970.0920.9996
404.4985.1020.0140.98965.0890.1060.9901
505.0844.2530.0420.90695.1720.1330.9864
605.1064.2560.0480.96485.2810.1470.9984
705.1093.8310.0490.99075.3280.1490.9995
Pb(II)285.5906.4240.0420.92425.4750.0160.9996
405.5965.5570.0430.98915.5730.0750.9979
505.6045.3420.0580.95565.5850.1320.9993
605.6195.0460.0680.99795.5930.2950.9998
705.6274.4430.0960.96635.5940.3060.9999
Table
Table 4. Reported studies for the elimination of heavy metals ion from aqueous solution using magnetic adsorbent.
Table 4. Reported studies for the elimination of heavy metals ion from aqueous solution using magnetic adsorbent.
Magnetic AdsorbentMetals IonRemoval Capacity (mg/g)References
Silica-coated amino-functionalized magnetic Muraya koenigii extracts Cr(VI)
Cu(II)		71.12
73.71		[39]
Magnetic nanoparticles incorporated with chitosan gel Cr(VI)
Cu(II)		83.33
90.90		[45]
Magnetic pinecone gel beads Cr(VI)
Cu(II)		212.22
68.64		[47]
Magnetically activated carbon nanoparticles Cr(VI)
Cu(II)
Pb(II)		2.38
0.74
0.25		[48]
Polyethylenimine-functionalized Fe3O4/steam-exploded rice straw composite Cr(VI)280.11[46]
Magnetically modified alkali-conditioned anaerobically digested sludge Cu(II)
Cd(II)
Pb(II)		29.72
28.55
28.60		[49]
Modified magnetic metal–organic framework Hg(II)
Cd(II)
Pb(II)		431
393
397		[50]
Functionalized double-modified covalent organic framework Pb(II)14.22[51]
M-Ch/CNF-Fe(III) compositeCu(II)
Cr(VI)
Pb(II)		391.21
185.22
99.86		Present study
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khalid, A.M.; Hossain, M.S.; Khalil, N.A.; Zulkifli, M.; Arafath, M.A.; Shaharun, M.S.; Ayub, R.; Ahmad Yahaya, A.N.; Ismail, N. Adsorptive Elimination of Heavy Metals from Aqueous Solution Using Magnetic Chitosan/Cellulose-Fe(III) Composite as a Bio-Sorbent. Nanomaterials 2023, 13, 1595. https://doi.org/10.3390/nano13101595

AMA Style

Khalid AM, Hossain MS, Khalil NA, Zulkifli M, Arafath MA, Shaharun MS, Ayub R, Ahmad Yahaya AN, Ismail N. Adsorptive Elimination of Heavy Metals from Aqueous Solution Using Magnetic Chitosan/Cellulose-Fe(III) Composite as a Bio-Sorbent. Nanomaterials. 2023; 13(10):1595. https://doi.org/10.3390/nano13101595

Chicago/Turabian Style

Khalid, Aina Mardhia, Md. Sohrab Hossain, Nor Afifah Khalil, Muzafar Zulkifli, Md. Azharul Arafath, Maizatul Shima Shaharun, Rashid Ayub, Ahmad Naim Ahmad Yahaya, and Norli Ismail. 2023. "Adsorptive Elimination of Heavy Metals from Aqueous Solution Using Magnetic Chitosan/Cellulose-Fe(III) Composite as a Bio-Sorbent" Nanomaterials 13, no. 10: 1595. https://doi.org/10.3390/nano13101595

APA Style

Khalid, A. M., Hossain, M. S., Khalil, N. A., Zulkifli, M., Arafath, M. A., Shaharun, M. S., Ayub, R., Ahmad Yahaya, A. N., & Ismail, N. (2023). Adsorptive Elimination of Heavy Metals from Aqueous Solution Using Magnetic Chitosan/Cellulose-Fe(III) Composite as a Bio-Sorbent. Nanomaterials, 13(10), 1595. https://doi.org/10.3390/nano13101595

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
