Effect of Electrolyte Concentration on the Electrochemical Performance of Spray Deposited LiFePO4

by
Christina Floraki
1,*,
Maria Androulidaki
2,
Emmanuel Spanakis
3 and
Dimitra Vernardou
1,4,*
1
Department of Electrical and Computer Engineering, School of Engineering, Hellenic Mediterranean University, 71410 Heraklion, Greece
2
Institute of Electronic Structure and Laser (IESL), Foundation for Research and Technology Hellas (FORTH), 70013 Heraklion, Greece
3
Department of Materials Science and Technology, University of Crete, 70013 Heraklion, Greece
4
Institute of Emerging Technologies, Hellenic Mediterranean University Center, 71410 Heraklion, Greece
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(12), 1850; https://doi.org/10.3390/nano13121850
Submission received: 10 May 2023 / Revised: 4 June 2023 / Accepted: 6 June 2023 / Published: 13 June 2023

Abstract

:
LiFePO4 is a common electrode cathode material that still needs some improvements regarding its electronic conductivity and the synthesis process in order to be easily scalable. In this work, a simple, multiple-pass deposition technique was utilized in which the spray-gun was moved across the substrate creating a “wet film”, in which—after thermal annealing at very mild temperatures (i.e., 65 °C)—a LiFePO4 cathode was formed on graphite. The growth of the LiFePO4 layer was confirmed via X-ray diffraction, Raman spectroscopy and X-ray photoelectron spectroscopy. The layer was thick, consisting of agglomerated non-uniform flake-like particles with an average diameter of 1.5 to 3 μm. The cathode was tested in different LiOH concentrations of 0.5 M, 1 M, and 2 M, indicating an quasi-rectangular and nearly symmetric shape ascribed to non-faradaic charging processes, with the highest ion transfer for 2 M LiOH (i.e., 6.2 × 10−9 cm2/cm). Nevertheless, the 1 M aqueous LiOH electrolyte presented both satisfactory ion storage and stability. In particular, the diffusion coefficient was estimated to be 5.46 × 10−9 cm2/s, with 12 mAh/g and a 99% capacity retention rate after 100 cycles.

1. Introduction

Aqueous metal-ion (Li, Zn, Na, K, Mg, Ca, etc.) batteries and ammonium-ion batteries have exhibited extraordinary qualities for applications in energy storage, owing to their quality of security and the different electrode materials that can be utilized [1,2]. Lithium iron phosphate (LiFePO4) is an excellent cathode material for Li-ion batteries (LIBs) because it is extremely safe, thermally stable, and low cost [1,2]. Nevertheless, the electronic conductivity is poor, and the diffusion coefficient is slow, which limit the development for high power devices [3]. Hence, there is a lot of space for research to explore ways to improve the material’s performance. There is an increasing interest in the optimization of the synthesis route (doping modification, morphological regulation, nanosized particles) [4,5,6], the coating with electron-conducting layer and orientation control [7], and computational research on the understanding of the ionic dynamic properties of LiFePO4 [8]. However, there is not sufficient information on the investigation of LiFePO4 thin films as cathodes. Thin film manufacturing processes have significant advantages because the cost of scalable roll-to-roll processes is reduced. In addition, the thickness of the cathode can be altered to a value such that the deficient electronic conductivity does not affect the electrochemical performance of the electrode [9].
There are several reports on the growth of LiFePO4 film deposition, including pulsed laser deposition [10], radio frequency magnetron sputtering [11,12,13,14,15,16], sol–gel [17,18], and drop casting [19]. The majority of these methods require high processing costs and annealing temperatures (i.e., ≥500 °C). In this paper, a simple, multiple-pass deposition technique will be utilized in which the spray-gun will be moved across the substrate, creating a “wet film”, which—after thermal annealing at very mild temperatures (i.e., 65 °C)—will form a cathode material on the carbon component. The carbon component (1 × 1 cm2) is chosen as a substrate because it is expected to act as a support for uniformly anchoring the LiFePO4 film. In that perspective, graphite is a suitable material because of its mixed electron-ion conductivity and structural stability [20].
Most researchers have focused on the electrochemical performance of LiFePO4 in non-aqueous electrolytes, since they possess wide electrochemical stability windows that enable the working voltage ranges of the cathode and anode materials [21,22,23,24]. However, issues such as flammability, cost (i.e., LiPF6 in carbonate solvent [25]), toxicity, and safety are still unresolved. On the other hand, aqueous electrolytes have advantages including low cost, high safety, elevated conductivity, which reduces the equivalent series resistance and improves power distribution, and environmental friendliness [26,27]. Thus, the current investigation seeks to identify the appropriate electrolyte concentration of lithium hydroxide (LiOH) with affordable properties related with the cycling stability and the specific capacity. Our choice is based on the use of LiOH to both synthesize and electrochemically test LiFePO4 electrodes.
Regarding the film manufacturing process, spray deposition will be our approach because it combines the advantages of low cost, low-complexity environments (i.e., in ambient air, low temperature processing, binder- and surfactant-free materials) and high throughput [28,29,30]. In particular, a water-based solution will be prepared via a simple method of mixing the main precursors. A spray technique will then be demonstrated to prepare the LiFePO4 coating on the graphite substrate as a thin film electrode at 65 °C. The best performing combination of electrode–electrolyte will be evaluated through the selective use of aqueous electrolyte at different concentrations (i.e., 0.5 M, 1 M, 2 M).

2. Materials and Methods

2.1. Raw Materials

The materials used for the synthesis of LiFePO4 were lithium hydroxide (LiOH) powder (reagent grade, ≥98%), phosphoric acid (H3PO4, ≥97%), and iron(II) sulphate heptahydrate (FeSO4), all supplied by Sigma Aldrich (Merck SA 41-45 Kifisias av. (Building B) 15123 Marousi Athens, Greece). Regarding the electrolyte, LiOH was also utilized along with deionized water.

2.2. Spray Deposited LiFePO4

The solution was prepared by dissolving the correct amount of LiOH, iron sulphate (FeSO4), and phosphoric acid (H3PO4) in distilled water in a stoichiometric ratio of 1:1:1. Following this procedure, LiOH was initially mixed with FeSO4, with the final addition of H3PO4. The concentrations of Li+, Fe2+, and PO43+ were all 0.01 M and the volume of the final solution reached 60 mL. Then, 10 mL of the prepared solution were placed in the spray gun for the LiFePO4 deposition on the graphite substrate (Figure 1). The graphite substrate, with a size of 1 × 1 cm2, was placed on a hot plate at 65 °C. The distance between the spray gun and the substrate was kept at 13 cm, moving the spray gun (to the right and left) across the substrate for the deposition to take place. For each spray, 10 s was allowed to elapse for the solution to dry, and the subsequent spray was continued. After the completion of the spraying process, the LiFePO4/graphite remained on the hotplate for 15 more minutes.

2.3. Basic Characterization

X-ray diffraction (XRD) analysis was performed to study the structure of LiFePO4 using SmartLab® SE (by Rigaku Europe SE- Hugenottenallee 167 Neu-Isenburg 63263, Germany) for processing parameters: power 46 kV, 50 mA, and speed time 8 min. Confocal micro-Raman measurements at room temperature were acquired with a system of Thermo Fisher Scientific model DXRxi. We used a 532 nm laser as the excitation beam with 20 mW power, exposure time 0.1 s, and objective lens long distance ×10. In addition, a monochromated Al-Kα source was utilized for X-ray photoelectron spectroscopy (XPS) measurements in FlexMod (SPECS- SPECS Surface Nano Analysis GmbH Voltastrasse 5, 13355 Berlin, Germany) with X-ray source XR-50 and 15 kV/200 W. Finally, field-emission scanning electron microscopy (FE-SEM) was used to analyze the morphology of the as-grown LiFePO4 in JSM-IT700HR InTouchScope™ Field Emission SEM (by Thermo Fisher Scientific- Neuhofstrasse 11, 4153 Reinach TechCenter, 4153 Basel, Switzerland) for processing parameters: 20 kV power, 10 μm width.

2.4. Electrochemical Evaluation of LiFePO4

For the electrochemical evaluation of LiFePO4 film cathodes, a three-electrode electrochemical cell was utilized [31,32]. The working electrode was the LiFePO4 film on graphite, the counter electrode was the graphite, and the reference electrode was Ag/AgCl. The measurements were performed in 0.5 M, 1 M, and 2 M aqueous solutions of LiOH with a scan rate of 50 mV/s and potential range of −0.7 V to +0.7 V. Measurements were also carried out at different scan rates of 10, 20, 30, 40, 50, and 100 mV/s. Finally, galvanostatic charge/discharge tests of LiFePO4 were performed at specific current 1.2 mA and ambient temperature (25 ± 1 °C). The electrochemical measurements took place in Autolab PGSTAT101 by Metrohm AG.

3. Results

3.1. Structure and Morphology Evaluation

Figure 2a presents the XRD pattern of spray deposited LiFePO4 film on graphite, revealing the simultaneous presence of LiFePO4 and substrate peaks. In particular, two low intensity peaks are indicated at 24.28° and 53.02° with Miller indices (011) and (222), respectively, for LiFePO4 [33], in contrast with the strong signals from graphite (i.e., at 26.6° and 54.5° corresponding to (002) and (004) Miller indices) [34]. This behavior is due to the background intensities caused by the scattering from the substrate. Figure 2b shows the Raman spectra of the graphite substrate and LiFePO4 film on graphite. The graphite spectrum is highly ordered, since it shows one in-plane vibration of the graphite lattice (G band) at 1575 cm−1 and a disorder band caused by the graphite edges at 1355 cm−1 [35]. Regarding the LiFePO4 [36,37], two peaks can be identified at 1005 cm−1 and 1092 cm−1, indicating the non-distorted PO43− tetrahedral in the pristine LiFePO4. The mode at 425 cm−1 is assigned to O-P-O bending internal to the PO43− anion. Finally, the mode at approximately 215 cm−1 is due to Fe-O vibrations.
Figure 3a shows the O 1s spectrum with two deconvoluted peaks at 531.5 eV and 534.1 eV, attributed to oxygen atoms of the PO43− phosphate groups in LiFePO4 [38], and oxygenated species adsorbed on the electrode surface deriving possibly from electrolyte degradation [39], respectively. In P 2p spectrum (Figure 3b), two peaks are observed at 132.3 eV and 133.4 eV, which are fitted to 2p3/2 and 2p1/2 components, respectively, due to PO43− phosphate group indicating that this is the only phosphorus environment [40,41]. Li 1s spectrum (Figure 3c) shows one deconvoluted peak at 54.4 eV assigned to LiFePO4 [42]. Finally, the Fe 2p spectrum (Figure 3d) shows two peaks at 710.5 eV and 722.4 eV, which correspond to 2p3/2 and 2p1/2 for Fe3+ [43]. There is one additional peak at 714.7 eV, which is characteristic of Fe2+ with a weaker signal than Fe3+ [42,44]. The presence of this impurity may be due to the air exposure of the LiFePO4 material. All the above analysis, including XRD and Raman spectroscopy, confirm the presence of LiFePO4.
The surface morphology of the LiFePO4 film grown on graphite is presented in Figure 3e. Figure 3e indicates a thick LiFePO4 film consisting of FePO4 flake-like particles with large size distribution (200 nm to 1 μm) observed [44]. A similar microstructure was also indicated for LiFePO4 prepared by a high-energy balling system [45] and chemical fabrication [46]. This type of morphology is expected to positively affect the electrochemical performance of the material under investigation because of the high contact area between the electrolyte and the cathode favoring the Li+ diffusion.

3.2. Electrochemical Analysis

In order to find the appropriate electrolyte concentration, the cyclic voltammetry (CV) curves were evaluated in 0.5 M, 1 M, and 2 M LiOH electrolytes (Figure 4a–c). The curves exhibit an almost rectangular shape, with two inconspicuous peaks in the redox processes (i.e., at approximately −0.5 V (cathode) and +0.3 V (anode)) indicating a non-faradaic charging process [47]. This process is based on the formation of a double layer at the electrode–electrolyte interface during the adsorption of Li+ on LiFePO4 film surface, as proposed in Equation (1) [47,48,49].
LiFePO4 + Li+ + e <-> (LiFePO4-Li+)surface
In that case, the charge is mainly stored in the electrolyte and the electrolyte concentration is therefore expected to affect the cathode’s performance [50]. The effect of LiOH concentration was studied, keeping the scan rate (i.e., 50 mV/s) and the potential window (i.e., −0.7 V to +0.7 V) constant for different scan numbers. In aqueous electrolytes with high salt concentration (2 M), the ion transfer is larger, resulting in higher specific current as confirmed in Figure 4c. The ionic conductivity of LiOH for different concentrations is illustrated in Figure 3f, indicating that the enhanced electrochemical performance in 2 M LiOH is attributed to the high conductivity [51]. However, the stability of the cathode in highly concentrated LiOH electrolyte is poor after 100 scans, as one can observe from Figure 4c, which is also confirmed from the peeling of the sample in the electrochemical cell. In order to substantiate this performance, the specific capacity for each scan number was calculated from the cyclic voltammograms using Equation (2) [52]
C = ∫Idv/(2 × 3.6 × m × v)
where ∫Idv is the area of the CV curve, m is the mass of the active material in g, and v is the scan rate in V/s. In addition, the percentage change of specific capacity was estimated from Equation (3) where final is the specific capacity at 100 scans and initial is the respective value for the first scan.
% change = final initial initial × 100 %
The % change was found to be 16% (0.5 M LiOH), 11% (1 M LiOH), and 45% (2 M LiOH), verifying the enhanced stability of LiFePO4 film tested in 1 M LiOH aqueous electrolyte. The ion mobility reduction with time under strong alkaline conditions is not in agreement with the results reported by Luo et al., who suggest that LiFePO4 can be used over a range from 7 to 14 in aqueous solutions [53]. In that perspective, we could consider for future work the pH adjustment, the elimination of O2 (placing the electrochemical cell in a glove box), and the coating (e.g., TiO2) on the top of LiFePO4 as a protective layer.
The performance of the LiFePO4 film was also studied for scan rates of 10, 20, 30, 40, 50, and 100 mV/s in the different LiOH electrolyte concentrations (Figure 4d–f). All curves indicate the almost rectangular shape. In all cases, the specific current increases with the scan rate and the shape of the curves remains unchanged, demonstrating an excellent behavior for the LiFePO4 film electrode. Figure 4g–i present the variation of specific capacity as estimated from Equation (2), with scan rate for the different electrolyte concentration investigated showing a decreasing trend for higher scan rates. This is due to the fact that the fast scan rates do not give sufficient time to the ions to intercalate into the LiFePO4 film, resulting in lower specific capacities [54,55,56].
Based on Randles–Sevcik Equations (4) and (5) [55]
I p = D 1 / 2 2.72 × 10 5 n 3 / 2 A C ν 1 / 2
D 1 / 2 = a 2.72 × 10 5 n 3 / 2 A C
where Ip is the peak current in A, n is the number of electrons involved in the process, A is the area of the cathode in cm2, D is the diffusion coefficient in cm2/s, c is the concentration in mol cm−3, v is the scan rate in V s−1, and a is the slope as obtained in Figure 5 (left). To estimate the diffusion coefficient of the sample, the plot of the peak current as a function with the square root of the scan rate (υ1/2) (Figure 5 (right)) is initially obtained for the determination of the slope in each LiOH concentration. Following this procedure, the values are substituted on Equation (5) for the calculation of the diffusion coefficient. The highest value was 6.2 × 10−9 cm2/s for the 2 M LiOH, which can be attributed to the highest ionic conductivity facilitating electron transfer within the cathode material and contributing to its overall enhanced performance [57,58]. Based on Table 1, one can also realize that it is one of the highest values reported in the literature, possibly due to the appropriate combination of electrode–electrolyte characteristics. Since LiOH is an electrolyte that has not been studied extensively for LiFePO4, it is worth investigating it further through the careful addition of other salts, such as Li2SO4 [59], acting as conductive additives to optimize its conductivity.
The power law model can be used to estimate the charge storage mechanism. The peak current and the scan rate follow the power law as shown in Equations (6) and (7) [56]
i = avb
log(i) = blog(v) + log(a)
Figure 5 (right) presents the variation of log (peak current) as a function with log(scan rate) and the fitted lines of LiFePO4 studied in 1 M and 2 M LiOH aqueous electrolyte. The data obtained from the 0.5 M electrolyte were not further studied due to the general low performance. The slope of the fitted line is the b-value. If it is equal to 0.5, the process is diffusion-controlled, while for the case of 1.0, the surface-induced capacitive process is valid [60,61,62]. In this work, the b-value was estimated to be 0.67 for both cases, which is very close to 1.0, exhibiting a domination of non-faradaic process (i.e., Li+ adsorption on the surface of LiFePO4 film).
Figure 6 presents the galvanostatic charge/discharge tests in the absolute potential range between −0.7 V to +0.7 V (vs. Ag/AgCl) using graphite as a counter electrode in 0.5 M, 1 M, and 2 M LiOH aqueous electrolytes. The highest specific capacity of the cathode studied in 2 M LiOH is expected, as discussed above, due to the higher conductivity of the electrolyte. One can observe plateaus during the discharging process, which may be due to the electrochemical properties of the cathode rising between a combination of Li+ intercalation/deintercalation into the LiFePO4 and the adsorption on the cathode surface as supported from power law. The cathode evaluated in 1 M LiOH aqueous electrolyte presented a specific capacity of 12 mAh/g with a capacity retention rate of 99% after 100 cycles, as estimated from the difference between the specific capacity at 100 scans and the first scan divided by the specific capacity at the first scan. The curves after 100 cycles are not included since they coincide with those of the first scan.
Additionally, in Figure 6, a FE-SEM of spray deposited LiFePO4 film on graphite utilizing 10 mL spraying solution after cycling is shown. It presents the flake-like behavior, along with particle agglomerations and some cracks [63,64]. This is probably due to the volume changes taking place during the cycling process.
Regarding the Raman spectra of LiFePO4 after cycling, there are FePO4 Raman modes, which are similar to LiFePO4. However, delithiation of LiFePO4 or lithiation of FePO4 leads to changes in both peaks’ amplitude and position [34]. Specifically, the G, D bands peaks are in lower wavenumbers (i.e., 1346 cm−1, 1588 cm−1) as those presented in Figure 2. There are three peaks at 946 cm−1, 1025 cm−1, 1061 cm−1 corresponding to asymmetric stretching of PO43−, which appears due to the formation of FePO4 after the delithiation process. The lower peaks at 164 cm−1 and 387 cm−1 indicate the Fe-O and O-P-O bonds, as before cycling. From the above results it is confirmed that lithium ions insert in LiFePO4 during the lithiation process and that FePO4 is the second phase that is present on the delithiation from LiFePO4. The extraction of lithium ion from LiFePO4 to charge the cathode is presented as reaction (8), and the insertion of lithium into FePO4 on discharge as reaction (9) [65,66].
LiFePO4 + → xFePO4 + (1 − x)LiFePO4 + xLi+ + xe
FePO4 + xLi+ + xe → xLiFePO4 + (1 − x)FePO4
The specific capacity of the cathode reported in this work is higher than the solid-state reaction process [54] and hydrothermal growth [60], while it is lower (one order of magnitude) than the direct recovery of scrapped LiFePO4 [4], the commercial powder [48], the mechanochemical activation of LiFePO4 [59], along with sol–gel [63] and spray-drying of LiFePO4/C [62] (Table 2). Overall, the growth methods utilized for the deposition of LiFePO4 are not practically feasible on a large scale for commercial applications. In that perspective, the combination of liquid-based chemistry with spray-coating can result in high quality films at a low temperature of approximately 65 °C, as indicated from the cathode characterization. In particular, it combines the advantages of low cost and low-complexity environments (i.e., in ambient air, low temperature processing, binder- and surfactant-free materials). Nevertheless, there is space for future work, including the involvement of a conductive material as a suspension in the spraying solution of LiFePO4 to enhance the cathode’s conductivity and as a consequence the overall electrochemical performance.
Last but not least, restrictions for scaling-up results can be overcome through computational fluid dynamics (CFD) studies of the spray-gun process as a prospective work. Theoretical predictions of the lab-scale experimental process will be directly compared with experimental measurements to validate the developed computational model. Upon its validation, the model will be applicable for experimental set-ups and conditions corresponding to the scaled-up process.

4. Conclusions

A simple, multiple-pass deposition technique was utilized after thermal annealing at very mild temperatures (i.e., 65 °C) for the growth of a LiFePO4 layer on graphite as a cathode. The growth of the LiFePO4 layer was successfully confirmed via XRD, Raman spectroscopy, and XPS. When the cathode was tested in different LiOH concentrations, the highest electrolyte concentration resulted in an enhanced electrochemical performance due to its high conductivity, with, however, poor stability strengthening the importance of 1 M LiOH. The behavior of the LiFePO4 film was evaluated for different scan rates ranging from 10 mV/s to 100 mV/s, showing an excellent performance of the cathode with an almost rectangular shape of the CV curves and an increasing specific current with the scan rate. The specific capacity decreased with increasing scan rate, demonstrating that fast scan rates do not give sufficient time for the ions to intercalate into the LiFePO4 film, resulting in lower specific capacities. Overall, the cathode electrode studied in an aqueous solution of 1 M LiOH showed a specific capacity of 12 mAh/g with a capacity retention rate of 99% after 100 cycles and a diffusion coefficient of 5.46 × 10−9 cm2/s. This work gives a good basis and promising results for the future, focusing on the increase in the specific capacity of the cathode through pH adjustment (i.e., electrolyte solution), coating of a protective layer on the top of LiFePO4, and a controlled environment for the electrochemical evaluation to avoid the changes that may occur to the electrolytes, such as the possible conversion of LiOH to Li2CO3. From that perspective, further cycles need to be carried out along with structural/morphological analysis to understand the Li+ intercalation mechanisms.

Author Contributions

Conceptualization, D.V.; methodology, D.V.; software, E.S.; validation, E.S. and M.A.; formal analysis, M.A.; investigation, C.F., M.A. and E.S.; resources, C.F.; data curation, C.F.; writing—original draft preparation, C.F.; writing—review and editing, C.F.; supervision, D.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank The Sunlight Group for the supply of consumables and the Chemistry Department of University of Crete for the full access to Raman facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wen, X.; Luo, J.; Xiang, K.; Zhou, W.; Zhang, C.; Chen, H. High-performance monoclinic WO3 nanospheres with the novel NH4+ diffusion behaviors for aqueous ammonium-ion batteries. Chem. Eng. J. 2023, 458, 141381. [Google Scholar] [CrossRef]
  2. Zhou, W.; Zeng, G.; Jin, H.; Jiang, S.; Huang, M.; Zhang, C.; Chen, H. Bio-Template Synthesis of V2O3@Carbonized Dictyophora Composites of Advanced Aqueous Zinc-Ion Batteries. Molecules 2023, 28, 2147. [Google Scholar] [CrossRef]
  3. Zhou, S.; Du, J.; Xiong, X.; Liu, L.; Wang, J.; Fu, L.; Ye, J.; Chen, Y.; Wu, Y. Direct recovery of scrapped LiFePO4 by a green and low-cost electrochemical re-lithiation method. Green Chem. 2022, 24, 6278–6286. [Google Scholar] [CrossRef]
  4. Kumar, S.; Chand, P.; Kumar, A.; Anand, H. Effect of different aqueous electrolytes on electrochemical behavior of LiFePO4 as a cathode material: Lithium ion battery and renewable energy nexus. Energy Nexus 2021, 1, 100005. [Google Scholar] [CrossRef]
  5. Zhou, N.; Liu, Y.; Li, J.; Uchaker, E.; Liu, S.; Huang, K.; Cao, G. Synthesis and characterization of high power LiFePO4/C nano-plate thin films. J. Power Sources 2012, 213, 100–105. [Google Scholar] [CrossRef]
  6. Vernardou, D. Recent report on the hydrothermal growth of LiFePO4 as a cathode material. Coatings 2022, 12, 1543. [Google Scholar] [CrossRef]
  7. Satyavani, T.V.S.L.; Kumar, A.S.; Rao, P.S.V.S. Methods of synthesis and performance improvement of lithium iron phosphate for high Li-ion batteries: A review. Eng. Sci. Technol. Int. J. 2016, 19, 178–188. [Google Scholar] [CrossRef] [Green Version]
  8. Chen, S.-P.; Lv, D.; Chen, J.; Zhang, Y.-H.; Shi, F.-N. Review on defects and modification methods of LiFePO4 cathode material for lithium-ion batteries. Energy Fuels 2022, 36, 1232–1251. [Google Scholar] [CrossRef]
  9. Li, Z.; Yang, J.; Guang, T.; Fan, B.; Zhu, K.; Wang, X. Controlled hydrothermal/Solvothermal synthesis of high-performance LiFePO4 for Li-ion batteries. Small Methods 2021, 5, 2100193. [Google Scholar] [CrossRef]
  10. Wu, J.; Cai, W.; Shang, G. Electrochemical behaviour of LiFePO4 thin films prepared by rf magnetron sputtering in Li2SO4 aqueous electrolyte. Int. J. Nanosci. 2015, 14, 1460027. [Google Scholar] [CrossRef]
  11. Zhao, Q.-F.; Zhang, S.-Q.; Hu, M.-Y.; Wang, C.; Jiang, G.-H. Recent advances in LiFePO4 cathode materials for Li-ion batteries. First-principles research. Int. J. Electrochem. Sci. 2021, 16, 211226. [Google Scholar] [CrossRef]
  12. Kucinskis, G. Kinetic behaviour of LiFePO4/C thin film cathode material for lithium-ion batteries. Environ. Clim. Technol. 2010, 4, 53–57. [Google Scholar]
  13. Pat, S.; Yudar, H.H.; Korkmaz, Ş.; Özen, S.; Pat, Z. LiFePO4 thin deposition onto Ag coated glass by rf magnetron sputtering. Mater. Res. Express 2018, 5, 116401. [Google Scholar] [CrossRef]
  14. Hong, J.; Wang, C.; Dudney, N.J.; Lance, M.J. Characterization and performance of LiFePO4 thin-film cathodes prepared with radio-frequency magnetron-sputter deposition. J. Electrochem. Soc. 2007, 154, A805–A807. [Google Scholar] [CrossRef]
  15. Zhu, X.-J.; Cheng, L.-B.; Wang, C.-G.; Guo, Z.-P.; Zhang, P.; Du, G.-D.; Liu, H.-K. Preparation and characteristics of LiFePO4 thin film by radio frequency magnetron sputtering for lithium microbatteries. J. Phys. Chem. C 2009, 113, 14518–14522. [Google Scholar] [CrossRef]
  16. Sugiawati, V.A.; Vacandio, F.; Perrin-Pellegrino, C.; Galeyeva, A.; Kurbato, A.P.; Djenizian, T. Sputtered porous Li-Fe-P-O film cathodes prepared by radio frequency sputtering for Li-ion microbatteries. Sci. Rep. 2019, 9, 11172. [Google Scholar] [CrossRef] [Green Version]
  17. Mosa, J.; Aparicio, M.; Durán, A.; Laberty-Robert, C.; Sanchez, C. Nanocrystalline mesoporous LiFePO4 thin-films as cathodes for Li-ion microbatteries. J. Mater. Chem. A 2014, 2, 3038–3046. [Google Scholar] [CrossRef]
  18. Balakrishnan, T.; Sankarasubramanian, N.; Kathalingam, A. Studies on structural and optical properties of LiFePO4 thin films. Dig. J. Nanomater. Biostruct. 2017, 12, 659–667. [Google Scholar]
  19. Ramasubramanian, B.; Sundarrajan, S.; Chellappan, V.; Reddy, M.V.; Ramakrishna, S.; Zaghib, K. Recent development in carbon-LiFePO4 cathodes for Lithium-ion batteries: A Mini Review. Batteries 2022, 8, 133. [Google Scholar] [CrossRef]
  20. Nariyama, H.; Ito, S.; Okada, Y.; Inatomi, Y.; Ichikawa, K.; Masumoto, Y.; Fujimoto, M. High energy density 3V-class redox flow battery using LiFePO4 and graphite with organic bifunctional redox mediators. Electrochim. Acta 2022, 409, 139915. [Google Scholar] [CrossRef]
  21. Liao, Y.; Li, G.; Xu, N.; Chen, T.; Wang, X.; Li, W. Synergistic effect of electrolyte additives on the improvement in interfacial stability between ionic liquid based gel electrolyte and LiFePO4 cathode. Solid State Ion. 2019, 329, 31–39. [Google Scholar] [CrossRef]
  22. Zhang, Q.; Sha, Z.; Cui, X.; Qiu, S.; He, C.; Zhang, J.; Wang, X.; Yang, Y. Incorporation of redox-active polyimide binder into LiFePO4 cathode for high-rate electrochemical energy storage. Nanotechnol. Rev. 2020, 9, 1350–1358. [Google Scholar] [CrossRef]
  23. Yusuf, A.; Avvaru, V.S.; De la Vega, J.; Zhang, M.; Molleja, J.G.; Wang, D.-Y. Unveiling the structure, chemistry, and formation mechanism of an in-situ phosphazene flame retardant-derived interphase layer in LiFePO4 cathode. Chem. Eng. J. 2023, 455, 140678. [Google Scholar] [CrossRef]
  24. Pasta, M.; Wessels, C.D.; Huggins, R.A.; Cui, Y. A high-rate and long cycle life aqueous electrolyte battery for grid-scale energy storage. Nat. Commun. 2012, 3, 1149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Sajjad, M.; Khan, M.I.; Cheng, F.; Lu, W. A review on selection criteria of aqueous electrolytes performance evaluation for advanced asymmetric supercapacitors. J. Energy Storage 2021, 40, 102729. [Google Scholar] [CrossRef]
  26. Zhang, A.; Yang, X.; Yang, F.; Zhang, C.; Zhang, Q.; Duan, G.; Jiang, S. Research Progress of the Ion Avtivity Coefficient of Polyelectrolytes: A Review. Molecules 2023, 28, 2042. [Google Scholar] [CrossRef]
  27. Mouratis, K.; Tudose, V.; Romanitan, C.; Pachiu, C.; Tutunaru, O.; Suchea, M.; Couris, S.; Vernardou, D.; Koudoumas, E. Electrochromic performance of V2O5 thin films grown by spray pyrolysis. Materials 2020, 13, 3859. [Google Scholar] [CrossRef]
  28. Oluwatosin Abegunde, O.; Titilayo Akinlabi, E.; Philip Oladijo, O.; Akinlabi, S.; Uchenna Ude, A. Overview of thin film deposition techniques. AIMS Mater. Sci. 2019, 6, 174–199. [Google Scholar] [CrossRef]
  29. Ikeda, S.; Fujikawa, S.; Harada, T.; Nguyen, T.H.; Nakanishi, S.; Takayama, T.; Iwase, A.; Kudo, A. Photocathode characteristics of a spray-deposited Cu2ZnGeS4 thin film for CO2 reduction in a CO2-saturated aqueous solution. ACS Appl. Energy Mater. 2019, 2, 6911–6918. [Google Scholar] [CrossRef]
  30. Vernardou, D.; Drosos, H.; Spanakis, E.; Koudoumas, E.; Katsarakis, N.; Pemble, M.E. Electrochemical properties of amorphous WO3 coatings grown on polycarbonate by aerosol-assisted CVD. Electrochim. Acta 2012, 65, 185–189. [Google Scholar] [CrossRef]
  31. Vernardou, D.; Apostolopoulou, M.; Louloudakis, D.; Katsarakis, N.; Koudoumas, E. Hydrothermally grown β-V2O5 electrode at 95 °C. J. Colloid Interface Sci. 2014, 424, 1–6. [Google Scholar] [PubMed]
  32. Liu, S.; Yan, P.; Li, H.; Zhang, X.; Sun, W. One-step microwave synthesis of micro/nanoscale performance for lithium-ion batteries. Front. Chem. 2020, 8, 104. [Google Scholar] [CrossRef]
  33. Tul Ain, Q.; Hyder Haq, S.; Alshammari, A.; Abdullah Al-Mutlaq, M.; Naeem Anjum, M. The synergetic effect of PEG-nGO-induced oxidative stree in vivo in a rodent model. Beilstein J. Nanotechnol. 2019, 10, 901–911. [Google Scholar]
  34. Wu, J.; Phani Dathar, G.K.; Sun, C.; Theivanayagam, M.G.; Applestone, D.; Dylla, A.G.; Manthiram, A.; Henkelman, G.; Goodenough, J.B.; Stevenson, K.J. In situ raman spectroscopy of LiFePO4: Size and morphology dependence during charge and self-discharge. Nanotechnology 2013, 24, 424009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Liu, R.; Chen, J.; Li, Z.; Ding, Q.; An, X.; Pan, Y.; Zheng, Z.; Yang, M.; Fu, D. Preparation of LiFePO4/C cathode materials via a green synthesis route for lithium-ion battery applications. Materials 2018, 11, 2251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Castro, L.; Dedryvère, R.; Ledeuil, J.-B.; Bréger, J.; Tessier, C.; Gonbeau, D. Aging mechanisms of LiFePO4//Graphite cells studied by XPS: Redox reaction and electrode/electrolyte interfaces. J. Electrochem. Soc. 2012, 159, A357–A363. [Google Scholar] [CrossRef]
  37. Schulz, N.; Hausbrand, R.; Dimesso, L.; Jaegermann, W. XPS surface analysis of SEI layers on Li-ion cathodes: Part I. Investigation of Initial Surface Chemistry. J. Electrochem. Soc. 2018, 165, A819–A832. [Google Scholar] [CrossRef]
  38. Gao, C.; Zhou, J.; Liu, G.; Wang, L. Lithium-ions diffusion kinetic in LiFePO4/carbon nanoparticles synthesized by microwave plasma chemical vapor deposition for lithium-ion batteries. Appl. Surf. Sci. 2018, 433, 35–44. [Google Scholar]
  39. Xiong, W.; Hu, Q.; Liu, S.A. A novel and accurate analytical method based on X-ray photoelectron spectroscopy for the quantitative detection of the lithium content in LiFePO4. Anal. Methods 2014, 6, 5708–5711. [Google Scholar]
  40. Castro, L.; Dedryvère, R.; El Khalifi, M.; Lippens, P.-E.; Bréger, J.; Tessier, C.; Gonbeau, D. The spin-polarized electronic structure of LiFePO4 and FePO4 evidenced by in-Lab XPS. J. Phys. Chem. C 2010, 114, 17995–18000. [Google Scholar] [CrossRef]
  41. Jin, Y.; Tang, X.; Wang, Y.; Dang, W.; Huang, J.; Fang, X. High-tap density LiFePO4 microsphere developed by comined computational and experimental approaches. R. Soc. Chem. 2018, 20, 6695–6703. [Google Scholar]
  42. Kumar, A.; Thomas, R.; Karan, N.K.; Saavedra-Arias, J.J.; Singh, M.K.; Majumder, S.B.; Tomar, M.S.; Katiyar, R.S. Structural and Electrochemical Characterization of Pure LiFePO4 and Nanocomposite C-LiFePO4 Cathodes for Lithium Ion Rechargeable Batteries. J. Nanotechnol. 2009, 2009, 176517. [Google Scholar] [CrossRef] [Green Version]
  43. Béléké, A.B.; Faure, C.; Röder, M.; Hovington, P.; Posset, U.; Guerfi, A.; Zaghib, K. Chemically fabricated LiFePO4 thin film electrode for transparent batteries and electrochromic devices. Mater. Sci. Eng. B 2016, 214, 81–86. [Google Scholar] [CrossRef]
  44. Karade, S.S.; Dubal, D.P.; Sankapal, B.R. MoS2 ultrathin nanoflakes for high performance supercpacitors: Room temperature chemical bath deposition (CBD). RSC Adv. 2016, 6, 39159–39165. [Google Scholar] [CrossRef] [Green Version]
  45. Jiang, Y.; Liu, J. Definitions of pseudocapacitive materials: A Brief Review. Energy Environ. Mater. 2019, 2, 30–37. [Google Scholar] [CrossRef] [Green Version]
  46. Soon, J.M.; Loh, K.P. Electrochemical double-layer capacitance of MoS2 nanowall films. Electrochem. Solid-State Lett. 2007, 10, A250–A254. [Google Scholar] [CrossRef]
  47. Lee, S.; Jang, J.; Lee, D.; Kim, J.; Mun, J. Synergetic effect of aqueous electrolyte and ultra-thick millimeter-scale LiFePO4 cathode in aqueous lithium-ion batteries. Int. J. Energy Res. 2022, 46, 6480–6486. [Google Scholar] [CrossRef]
  48. Palanisamy, R.; Karuppiah, D.; Venkatesan, S.; Mani, S.; Kuppusamy, M.; Marimuthu, S.; Karuppanan, A.; Govindaraju, R.; Marimuthu, S.; Rengapillai, S.; et al. High-performance asymmetric supercapacitor fabricated with a novel MoS2/Fe2O3/Graphene composite electrode. Colloid Interface Sci. Commun. 2022, 46, 100573. [Google Scholar] [CrossRef]
  49. Luo, J.-Y.; Cui, W.-J.; He, P.; Xia, Y.-Y. Raising the cycling stability of aqueous lithium-ion batteries by eliminating oxygen in the electrolyte. Nat. Chem. 2010, 2, 760–765. [Google Scholar] [CrossRef]
  50. Majumder, M.; Thakur, A.K.; Bhushan, M.; Mohapatra, D. Polyaniline integration and interrogation on carbon nano-onions empowered supercapacitors. Electrochim. Acta 2021, 370, 137659. [Google Scholar] [CrossRef]
  51. Waseem, S.; Dubey, P.; Singh, M.; Sundriyal, S.; Maheshwari, P.H. Chemically oxidized carbon paper as a free-standing electrode for supercapacitor: An insight into surface and diffusion contribution. Chem. Sel. 2023, 8, e202204377. [Google Scholar] [CrossRef]
  52. Kurzweil, P. Gaston plante and his invention of the lead-acid battery-the genesis of the first practical rechargeable battery. J. Power Sources 2010, 195, 4424–4434. [Google Scholar] [CrossRef]
  53. Hu, Y.; Zhang, W.; Zhang, Y.; Lu, G. Highly conductive SiO2@PEDOT:PSS/LiFePO4 composite cathode for lithium-ion batteries. J. Power Sources 2015, 274, 1010–1015. [Google Scholar]
  54. Zhou, J.; Guo, X.; Liu, L.; Yang, Y. Enhanced conductivity of LiFePO4 cathode by coating with polyanailine for high-performance lithium-ion batteries. Electrochim. Acta 2013, 102, 62–67. [Google Scholar]
  55. Noerochim, L.; Yurwendra, A.O.; Susanti, D. Effect of carbon coating on the electrochemical performance of LiFePO4/C as cathode materials for aqueous electrolyte lithium-ion battery. Ionics 2016, 22, 341–346. [Google Scholar] [CrossRef]
  56. Wang, X.; Lee, P.S. Titanium doped niobium oxide for stable pseudocapacitive lithium ion storage and its application in 3 V non-aqueous supercapacitors. J. Mater. Chem. A 2015, 3, 21706–21712. [Google Scholar] [CrossRef]
  57. Wang, X.; Shen, G. Intercalation pseudo-capacitive TiNb2O7@carbon electrode for high performance lithium ion hybrid electrochemical supercapacitors with ultrahigh energy density. Nano Energy 2015, 15, 104–115. [Google Scholar] [CrossRef]
  58. Vujković, M.; Stojković, I.; Cvjetićanin, N.; Mentus, S. Gel-combustion synthesis of LiFePO4/C composite with improved capacity retention in aerated aqueous electrolyte solution. Electrochim. Acta 2013, 92, 248–256. [Google Scholar]
  59. Yin, Y.; Wen, Y.-H.; Lu, Y.-I.; Cheng, J.; Cao, G.-P.; Yang, Y.-S. Electrochemical performance and fading at different pH aqueous electrolyte solutions. Chin. J. Chem. Phys. 2015, 28, 315–322. [Google Scholar] [CrossRef] [Green Version]
  60. Mi, C.H.; Zhang, X.G.; Li, H.L. Electrochemical behaviors of solid LiFePO4 and Li0.99Nb0.01FePO4 in Li2SO4 aqueous electrolyte. J. Electroanal. Chem. 2007, 602, 245–254. [Google Scholar] [CrossRef]
  61. Zeng, X.; Liu, Q.; Chen, M.; Leng, L.; Shu, T.; Du, L.; Song, H. Electrochemical behavior of spherical LiFePO4/C nanomaterial in aqueous electrolyte, and novel aqueous rechargeable lithium battery with LiFePO4/C anode. Electrochim. Acta 2015, 177, 277–282. [Google Scholar] [CrossRef]
  62. He, P.; Liu, J.-L.; Cui, W.-J.; Luo, J.-Y.; Xia, Y.-Y. Investigation on capacity fading of LiFePO4 in aqueous electrolytes. Electrochim. Acta 2011, 56, 2351–2357. [Google Scholar] [CrossRef]
  63. Zhang, Y.; Xin, P.; Yao, Q. Electrochemical performance of LiFePO4/C synthesized by sol-gel method as cathode for aqueous lithium ion batteries. J. Alloys Compd. 2018, 741, 404–408. [Google Scholar] [CrossRef]
  64. Sun, J.; Ren, X.; Li, Z.; Wang, L.; Liang, G. Synthesis and electrochemical performance of LiFePO4/C composite based on xylitol-polyvinyl alcohol complex carbon sources. Ionics 2018, 4, 1567–1575. [Google Scholar] [CrossRef]
  65. Shen, F.; Liu, Y. LiFePO4 cathode material modification and its recycling research based on the development status of lithium-ion batteries. Acad. J. Environ. Earth Sci. 2021, 3, 4–8. [Google Scholar]
  66. Minaskhi, M. Lithium intercalation into amorphous FePO4 cathode in aqueous solutions. Electrochim. Acta 2010, 55, 9174–9178. [Google Scholar]

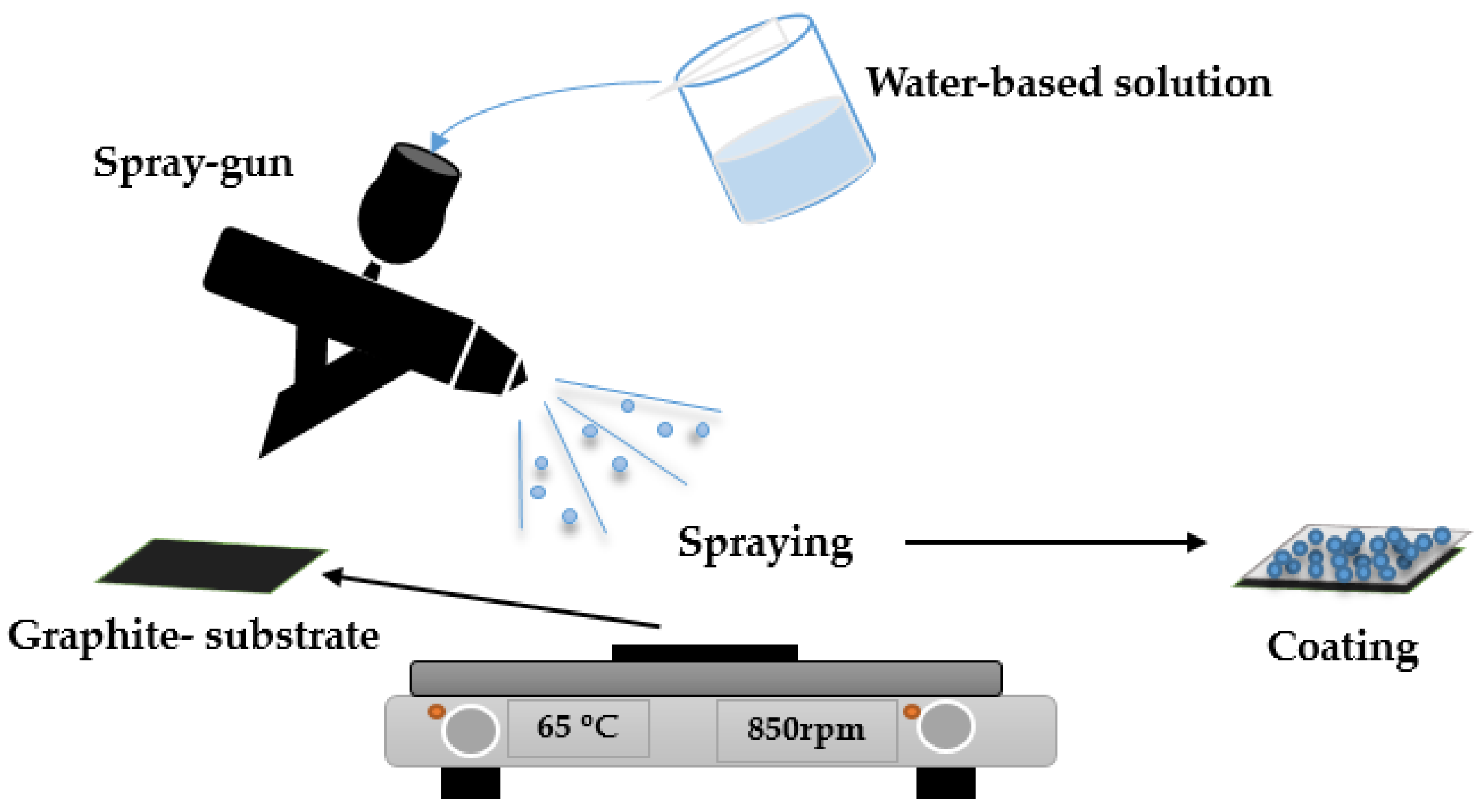

Figure 1. Schematic presentation of the spray deposition process.
Figure 1. Schematic presentation of the spray deposition process.
Nanomaterials 13 01850 g001

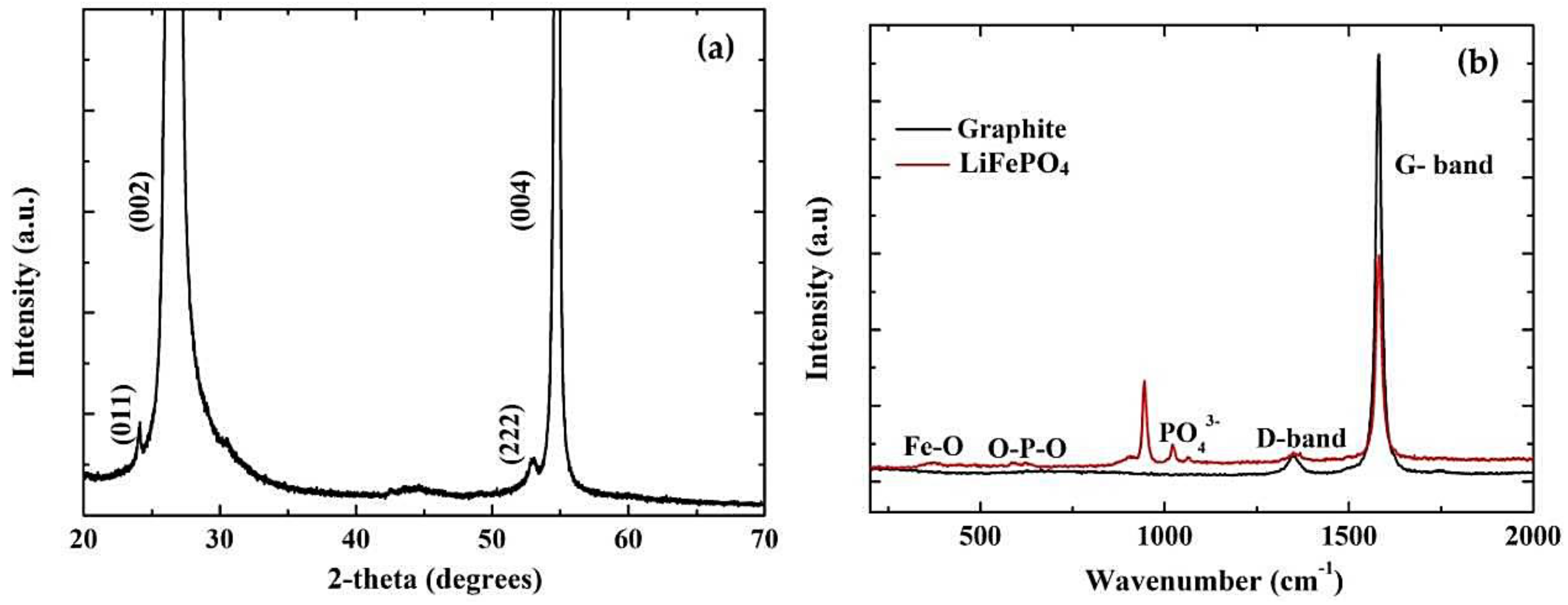

Figure 2. XRD of as-deposited LiFePO4 film on graphite (a) and Raman spectra of LiFePO4 film on graphite and graphite substrate (b).
Figure 2. XRD of as-deposited LiFePO4 film on graphite (a) and Raman spectra of LiFePO4 film on graphite and graphite substrate (b).
Nanomaterials 13 01850 g002

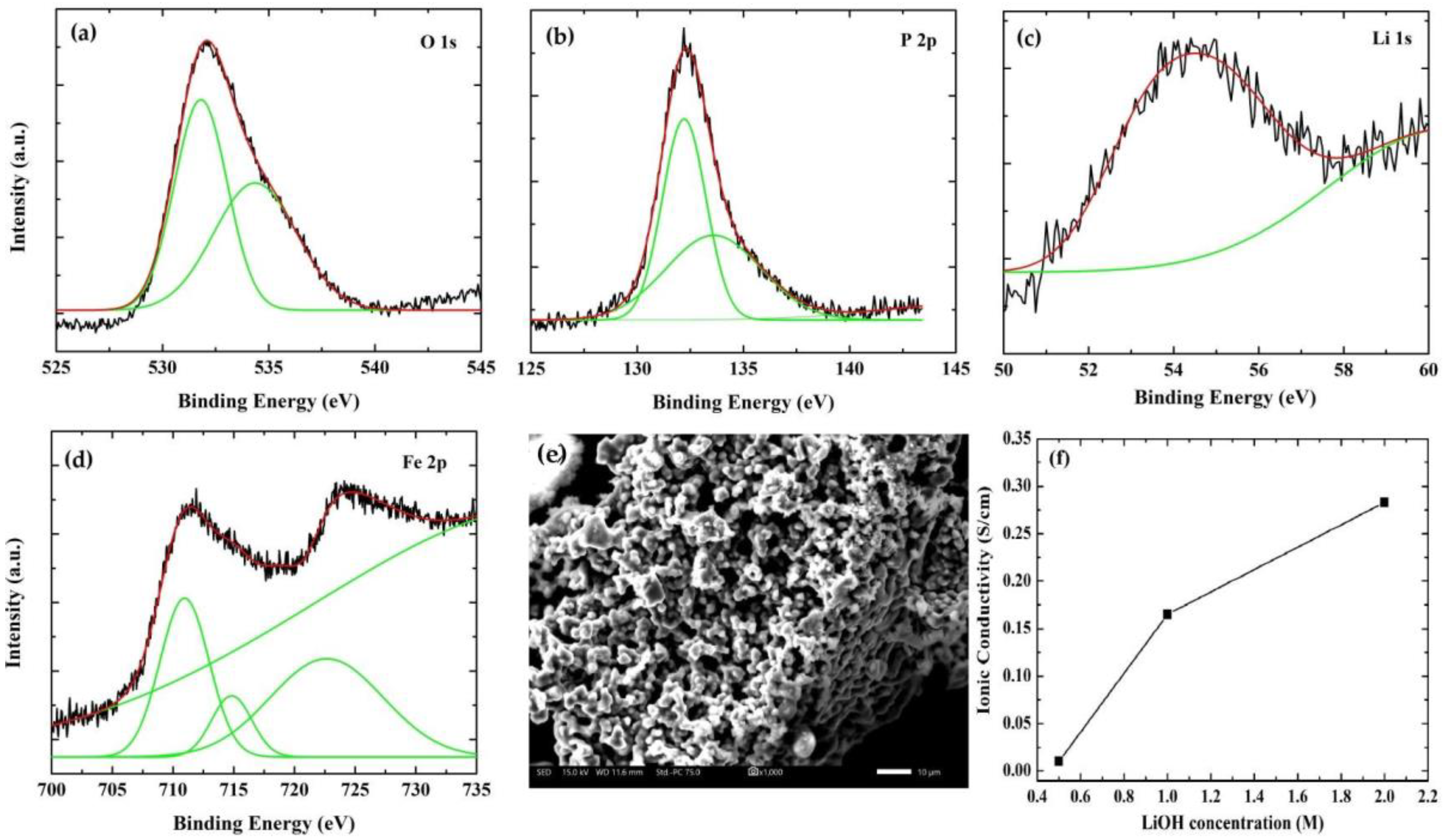

Figure 3. XPS spectra of O 1s (a), P 2p (b), Li 1s (c), Fe 2p (d) and FE-SEM of spray deposited LiFePO4 film on graphite utilizing 10 mL spraying solution (the bar is equal to 10 μm) (e), Ionic conductivity of LiOH different concentrations (f).
Figure 3. XPS spectra of O 1s (a), P 2p (b), Li 1s (c), Fe 2p (d) and FE-SEM of spray deposited LiFePO4 film on graphite utilizing 10 mL spraying solution (the bar is equal to 10 μm) (e), Ionic conductivity of LiOH different concentrations (f).
Nanomaterials 13 01850 g003

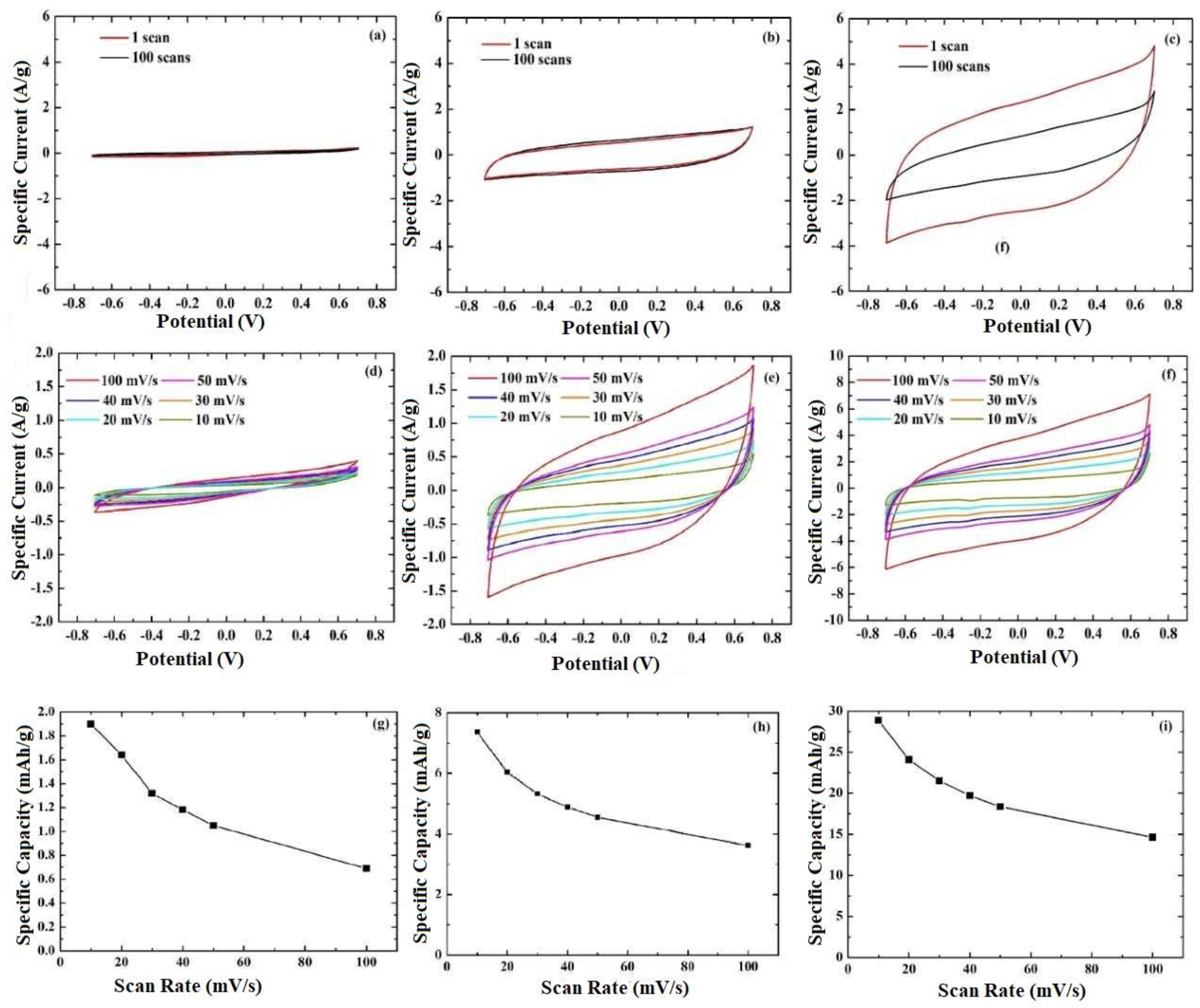

Figure 4. Cyclic voltammograms of the spray deposited LiFePO4 on graphite utilizing 10 mL spraying solution for scan rate 50 mV/s in 0.5 M (a), 1 M (b) and 2 M (c) LiOH aqueous electrolyte. Cyclic voltammograms of the same sample for different scan rates 10 mV/s, 20 mV/s, 30 mV/s, 40 mV/s, 50 mV/s and 100 mV/s varying the electrolyte concentration (df). Variation of specific capacity with the scan rate for each electrolyte concentration studied (gi).
Figure 4. Cyclic voltammograms of the spray deposited LiFePO4 on graphite utilizing 10 mL spraying solution for scan rate 50 mV/s in 0.5 M (a), 1 M (b) and 2 M (c) LiOH aqueous electrolyte. Cyclic voltammograms of the same sample for different scan rates 10 mV/s, 20 mV/s, 30 mV/s, 40 mV/s, 50 mV/s and 100 mV/s varying the electrolyte concentration (df). Variation of specific capacity with the scan rate for each electrolyte concentration studied (gi).
Nanomaterials 13 01850 g004

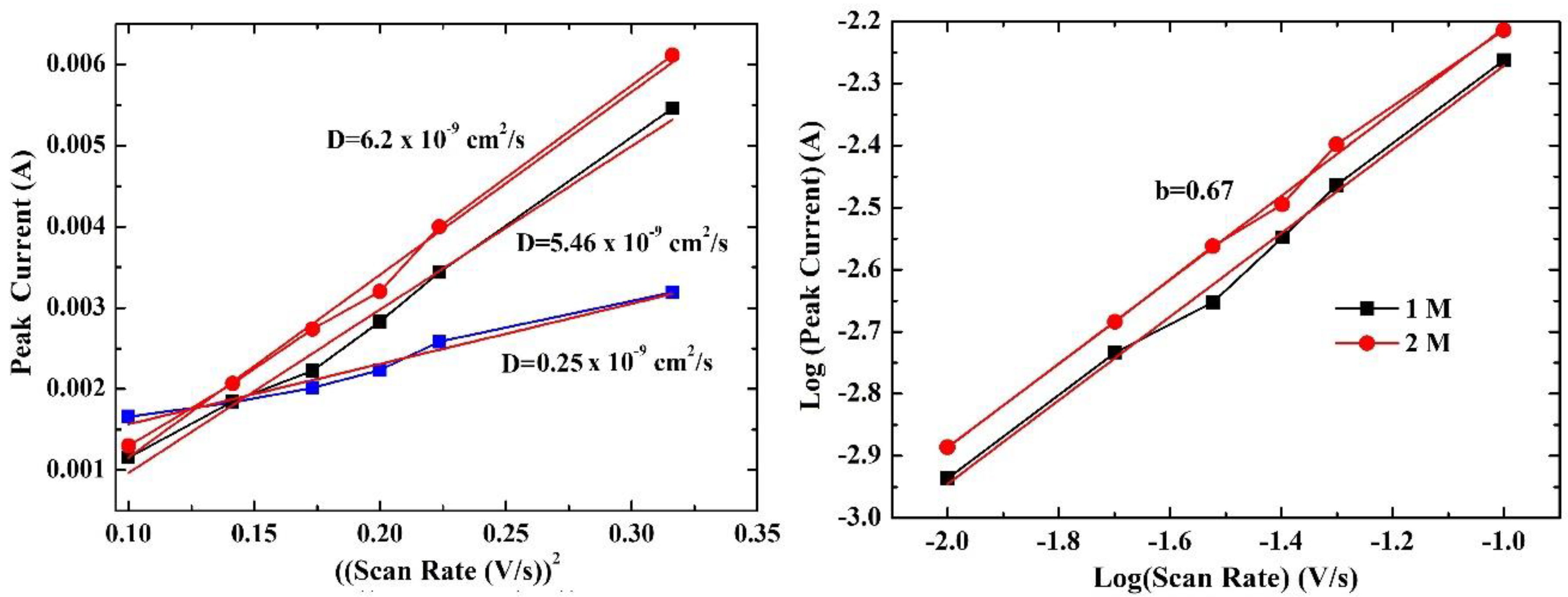

Figure 5. Variation of peak current with square root of scan rate for the LiFePO4 cathode studied in 0.5 M (blue line), 1 M (black line), and 2 M (red line) LiOH aqueous electrolyte for the estimation of diffusion coefficient (left). Variation of log(peak current) with log(scan rate) for the calculation of b-value for the cathode studied in 1 M and 2 M LiOH aqueous electrolyte (right).
Figure 5. Variation of peak current with square root of scan rate for the LiFePO4 cathode studied in 0.5 M (blue line), 1 M (black line), and 2 M (red line) LiOH aqueous electrolyte for the estimation of diffusion coefficient (left). Variation of log(peak current) with log(scan rate) for the calculation of b-value for the cathode studied in 1 M and 2 M LiOH aqueous electrolyte (right).
Nanomaterials 13 01850 g005

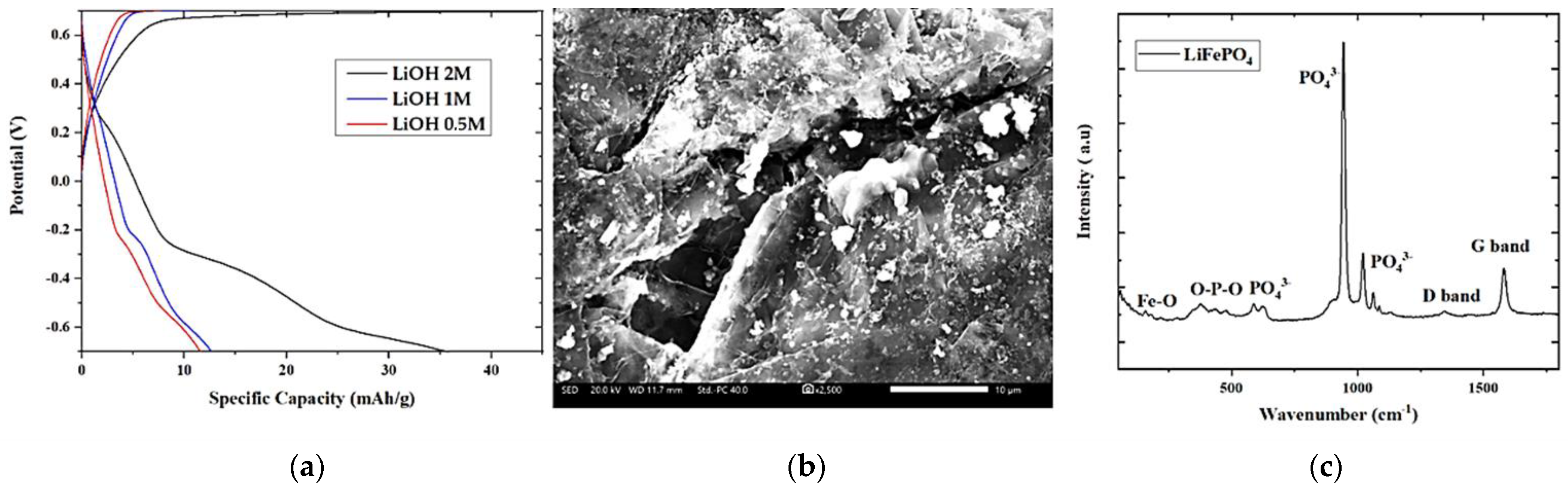

Figure 6. Charge/discharge curves of LiFePO4 in 0.5 M, 1 M and 2 M LiOH aqueous electrolytes for a potential range of −0.7 V to +0.7 V at 1.3 A/g. (a) FE-SEM of spray deposited LiFePO4 film on graphite utilizing 10 mL spraying solution after CV (b) and Raman spectra of LiFePO4 film on graphite and graphite substrate after CV measurements (c).
Figure 6. Charge/discharge curves of LiFePO4 in 0.5 M, 1 M and 2 M LiOH aqueous electrolytes for a potential range of −0.7 V to +0.7 V at 1.3 A/g. (a) FE-SEM of spray deposited LiFePO4 film on graphite utilizing 10 mL spraying solution after CV (b) and Raman spectra of LiFePO4 film on graphite and graphite substrate after CV measurements (c).
Nanomaterials 13 01850 g006
Table 1. Diffusion coefficient values of LiFePO4 reported in the literature and this work as studied in aqueous electrolytes.
Table 1. Diffusion coefficient values of LiFePO4 reported in the literature and this work as studied in aqueous electrolytes.
CathodeDiffusion Coefficient (cm2/s)Aqueous Electrolytes
LiFePO4/C (gel-combustion synthesis) [59]0.8 × 10−14Saturated LiNO3
LiFePO4 (commercial powder) [60]2.020 × 10−9Saturated LiNO3
LiFePO4 (in situ synthesis technique) [61]1.5 × 10−111 M Li2SO4
LiFePO4/C (spraying drying process) [62]1.22 × 10−140.5 M Li2SO4
LiFePO4 on Graphite0.25 × 10−90.5 M LiOH This work
LiFePO4 on Graphite5.46 × 10−91 M LiOH This work
LiFePO4 on Graphite6.20 × 10−92 M LiOH This work
Table 2. Specific capacity values of LiFePO4 cathode materials in aqueous electrolytes.
Table 2. Specific capacity values of LiFePO4 cathode materials in aqueous electrolytes.
CathodeSpecific Capacity (mAh/g)Aqueous Electrolytes
LiFePO4 (solid-state reaction process) [54]13.3 1 M Li2SO4
LiFePO4 (hydrothermal growth) [60]2.8
1.75
1 M KOH
2 M NaOH
LiFePO4 (direct recovery of scrapped LiFePO4) [4]1341 M Li2SO4
LiFePO4 (commercial powder) [48]1102 M Li2SO4
LiFePO4 (mechanochemical activation) [59]1300.5 M Li2SO4
LiFePO4/C (sol–gel) [63]163.51 M Li2SO4
LiFePO4/C (spray-drying) [62]1400.5 M Li2SO4
LiFePO4 (spraying deposition)362 M LiOH This work
LiFePO4 (solution method) [64]651 M LiOH
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Floraki, C.; Androulidaki, M.; Spanakis, E.; Vernardou, D. Effect of Electrolyte Concentration on the Electrochemical Performance of Spray Deposited LiFePO4. Nanomaterials 2023, 13, 1850. https://doi.org/10.3390/nano13121850

AMA Style

Floraki C, Androulidaki M, Spanakis E, Vernardou D. Effect of Electrolyte Concentration on the Electrochemical Performance of Spray Deposited LiFePO4. Nanomaterials. 2023; 13(12):1850. https://doi.org/10.3390/nano13121850

Chicago/Turabian Style

Floraki, Christina, Maria Androulidaki, Emmanuel Spanakis, and Dimitra Vernardou. 2023. "Effect of Electrolyte Concentration on the Electrochemical Performance of Spray Deposited LiFePO4" Nanomaterials 13, no. 12: 1850. https://doi.org/10.3390/nano13121850

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
