Revealing the Adsorption Mechanisms of Methanol on Lithium-Doped Porous Carbon through Experimental and Theoretical Calculations

by
Yiting Luo
1,
Muaoer Fang
2,
Hanqing Wang
3,
Xiangrong Dai
4,
Rongkui Su
3,4,* and
Xiancheng Ma
2,*
1
Hunan First Normal University, Changsha 410114, China
2
College of Mechanical and Electrical Engineering, Central South University of Forestry and Technology, Changsha 410004, China
3
College of Environmental Science and Engineering, Central South University of Forestry and Technology, Changsha 410004, China
4
PowerChina Zhongnan Engineering Corporation Limited, Changsha 410004, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(18), 2564; https://doi.org/10.3390/nano13182564
Submission received: 22 August 2023 / Revised: 7 September 2023 / Accepted: 12 September 2023 / Published: 15 September 2023
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
Previous reports have shown that it is difficult to improve the methanol adsorption performance of nitrogen and oxygen groups due to their low polarity. Here, we first prepared porous carbon with a high specific surface area and large pore volume using benzimidazole as a carbon precursor and KOH as an activating agent. Then, we improved the surface polarity of the porous carbon by doping with Lithium (Li) to enhance the methanol adsorption performance. The results showed that the methanol adsorption capacity of Li-doped porous carbon reached 35.4 mmol g−1, which increased by 57% compared to undoped porous carbon. Molecular simulation results showed that Li doping not only improved the methanol adsorption performance at low pressure, but also at relatively high pressure. This is mainly because Li-modified porous carbon has higher surface polarity than nitrogen and oxygen-modified surfaces, which can generate stronger electrostatic interactions. Furthermore, through density functional theory (DFT) calculations, we determined the adsorption energy, adsorption distance, and charge transfer between Li atom and methanol. Our results demonstrate that Li doping enhances the adsorption energy, reduces the adsorption distance, and increases the charge transfer in porous carbon. The mechanism of methanol adsorption by Li groups was revealed through experimental and theoretical calculations, providing a theoretical basis for the design and preparation of methanol adsorbents.

1. Introduction

The excessive release of volatile organic compounds (VOCs) poses significant hazards to both human health and the environment [1,2]. These compounds, including benzene, formaldehyde, and xylene, readily evaporate at room temperature. VOCs react with nitrogen oxides in the air to form ozone, which can irritate the respiratory system. Prolonged exposure to VOCs can lead to respiratory diseases and immune system abnormalities [3,4]. Methanol, consisting of CH3 and OH groups, is a significant industrial raw material and reagent. It is one of the most common VOCs gases in the atmosphere, and contributes to the formation of photochemical smog and poses a threat to the human nervous system [5,6]. Consequently, it is crucial to investigate efficient methanol adsorbents to enhance their extensive utilization in industrial processes.
Adsorption technology is considered one of the most mature and effective methanol control technologies [7,8]. The key to adsorption technology lies in the development of high-performance adsorbents. Commonly used adsorbents, such as porous carbon [9,10,11], metal-organic frameworks (MOFs) [12,13], mesoporous silica [14], and zeolites [15], have been used as adsorbents to reduce VOCs in polluted media. Porous carbon, with advantages such as easy surface modification, high specific surface area, tunable pore structure, and low cost, is considered to be a promising adsorbent [9,16,17]. For porous carbon, surface chemistry and pore structure are two important factors determining its methanol adsorption performance [18,19,20]. Previous studies have shown that nitrogen and oxygen doping has been found to enhance methanol adsorption at low pressure, while the total pore volume determines the adsorption performance at high pressure. For example, Ma et al. [10] conducted experiments on biomass-based porous carbons to evaluate their methanol adsorption performance. The results showed that oxygen groups could increase the adsorption capacity of methanol at relatively low pressures, while at relatively high pressures the adsorption capacity of methanol varied consistently with the total pore volume of the porous carbon, without a significant relationship with the oxygen groups. This is mainly because oxygen groups have low polarity, making it difficult to improve the methanol adsorption performance at relatively high pressure. Recently, alkali metal doping has been found to provide higher surface polarity compared to nitrogen, oxygen, and sulfur doping, improving gas adsorption [21,22]. For example, Ma et al. [22] demonstrated that the incorporation of alkali metals into porous carbon significantly enhances its CO2 absorption capacity, reaching values of 8.43–12.46 mmol g−1. This represents a 3–4-fold increase compared to undoped porous carbon and a 2–3-fold increase compared to nitrogen/oxygen-doped porous carbon. However, to date, there is a lack of research investigating the potential of alkali metal-doped porous carbon for methanol adsorption.
Benzimidazole is a cost-effective and commercially viable nitrogen-rich organic compound, which serves as a suitable single-source precursor for the synthesis of heteroatom-doped porous carbons. For instance, Wu et al. [23] prepared porous carbon materials using benzimidazole as a carbon source, which exhibited a specific surface area of 3000 m2 g−1, a total pore volume of 2.8 cm3 g−1, an oxygen content of 5.6 at%, and a nitrogen content of 1.7 at%. In this study, we first prepared porous carbon with high specific surface area and pore volume using benzimidazole as a carbon precursor and KOH as an activating agent. Then, Li doping was employed to enhance the surface polarity of the carbon-based materials and improve the methanol adsorption performance. Finally, the isothermal adsorption curve of methanol on the Li-doped slit pore model was calculated using grand canonical Monte Carlo (GCMC) simulation, and the impact of Li groups and pore size on the methanol adsorption performance was analyzed. Density functional theory (DFT) was used to calculate the adsorption energy, electron transfer and adsorption distance between Li group and methanol molecules. The synergistic adsorption of methanol by Li doping and pore size was studied based on the results of GCMC and DFT calculations, and the adsorption mechanism was revealed.

2. Experimental Section

2.1. Material Synthesis

Preparation of Porous Carbon: Using benzimidazole as carbon precursor and KOH as activator, porous carbons with well-developed pores were prepared with the chemical activation method. The specific procedure is as follows: Firstly, KOH and benzimidazole were mixed in a ratio of 3:1 and thoroughly ground. The mixture was then transferred into a quartz boat and placed in a tube furnace. The composite material was placed in a tubular furnace and purged with nitrogen gas for 30 min to remove the air inside the furnace. Then, the temperature was increased at a rate of 5 °C min−1 under a nitrogen gas atmosphere until reaching 800 °C, and held for 1 h. After that, the temperature was decreased at a rate of 5 °C min−1 until reaching room temperature. The obtained product was placed in a 5 wt% HCl solution and stirred with a magnetic stirrer for 1 h to remove excess potassium salts. Finally, the sample was washed with deionized water and filtered, followed by drying in a 120 °C drying oven for 6 h. The resulting sample was denoted as PC.
Preparation of Li-doped porous carbon: A solution of LiOH (20 mg mL−1) was taken in volumes of 5 mL, 10 mL, and 25 mL, and mixed thoroughly with 0.1 g of PC. After drying, the mixture was subjected to a second carbonization process in a tube furnace. The temperature was gradually elevated at a rate of 5 degrees Celsius per minute until it reached the pinnacle of 600 degrees Celsius, and then maintained for 1 h. Subsequently, the temperature was lowered to room temperature. The resulting samples were washed in water with a magnetic stirrer at room temperature for 10 h, followed by drying at 105 °C for 8 h. These samples were named LiPC-1 (5 mL), LiPC-2 (10 mL), and LiPC-3 (25 mL) according to the volume of LiOH solution used.

2.2. Material Characterization and Computational Methodology

The Supplementary Information (Text S1) provides detailed information on the characterization of materials and computational methodology. The L-J potential parameters and atomic partial charges of the gas molecule are shown in Table 1.

3. Results and Discussion

3.1. Chemical and Structural Properties of Porous Carbon

The morphology of the LiPC-3 was presented using SEM images. Figure 1a displays the surface of the LiPC-3 with honeycomb-like features when the magnification scale was set to 2 μm. Figure 1b shows the randomly distributed sheet-like disordered microstructures of LiPC-3 when the magnification scale was set to 500 nm. X-ray diffraction analysis was performed on the LiPC-1, LiPC-2, and LiPC-3 samples, as shown in Figure 2. It can be observed that the common feature for different amounts of alkali metal Li doping is the broad peak at 2θ = 23°, which represents the (002) diffraction plane and indicates a partial graphitization degree of the porous carbon [24]. Additionally, the peaks of Li derivatives in the XRD pattern were not very prominent, indicating a good dispersion of Li in the porous carbon.
Figure 3 displays the N2 adsorption–desorption isotherms of all samples at 77 K. The N2 adsorption isotherm of the PC sample sharply increased with a relative pressure of P/P0 = 0.01, indicating the presence of micropores. It is worth noting that the isotherm of PC shows an increasing N2 adsorption with increasing relative pressure in the range of P/P0 = 0.01–0.5, along with a small hysteresis loop, indicating the presence of mesopores. After Li doping, there was no significant change in the N2 adsorption isotherm. As shown in Figure 3b, the pore size distribution mainly fell within two similar ranges: 1–2 nm and 2–5 nm. With the introduction of Li, the peak at 1–2 nm increased and the peak at 2–5 nm shifted to the right, indicating that Li doping could enhance the micropore volume and reduce the size of narrow mesopores in the porous carbon. As shown in Table 2, PC exhibited a high specific surface area and total pore volume of 2268 m2 g−1 and 1.716 cm3 g−1, respectively. The specific surface area of Li-doped porous carbon increased from 2268 m2 g−1 to 2678 m2 g−1, representing a 14% increase. However, the total pore volume decreased from 1.716 cm3 g−1 to 1.688 cm3 g−1. This is mainly due to the fact that LiPC-3 showed the highest micropore volume of 0.535 cm3 g−1, which was a 32% increase compared to PC. These results were mainly attributed to the activation of porous carbon by LiOH, leading to an increase in micropore volume, while the activation or pyrolysis process caused the collapse of mesopores, resulting in a decrease in mesopores.
The types and quantities of elements in the samples were measured using X-ray photoelectron spectroscopy (XPS). The spectrum of LiPC-3 only showed four main peaks, corresponding to C 1s, N 1s, O 1s and Li 1s (Figure 4a). As shown in Figure 4b, the N1s peak was divided into pyridinic-N (398.4 ± 0.2), pyrrolic-N (399.8 ± 0.2), and graphitic-N (400.7 ± 0.2). Pyrrolic-N was the main nitrogen functional group in all samples [25,26]. As shown in Figure 4c, the C 1s peak was divided into C-C/C=C (286.2 eV), C-O/C-N (287.4 eV), and C=O/C=N (289.0 eV) [27]. Figure 3d shows the O 1s peak divided into five peaks at 532.1 eV (COOH), 531.9 eV (C=O), 532.8 eV (C-O), 533.4 eV (OH), and 535 eV (H2O adsorption) [8,28]. With the increase in Li proportion, the nitrogen content decreased while the oxygen content increased (Table 2).

3.2. Methanol Adsorption

The excellent pore structure and high surface area make high-performance porous carbon a promising adsorbent material. As shown in Figure 5, it can be seen that PC exhibits excellent methanol adsorption performance, with an adsorption capacity of 22.5 mmol g−1. In order to further increase the methanol adsorption performance, we doped Li to increase the surface polarity of the porous carbon and improve the affinity between the porous carbon and methanol. Li doping increased the methanol adsorption performance of the porous carbon. For example, LiPC-3 showed the highest methanol adsorption performance, with a capacity of 35.4 mmol g−1. Compared to PC, the methanol adsorption amount of LiPC-3 increased by 57%. Previous works in the literature have shown that the methanol adsorption capacity of porous carbon is mainly determined by the specific surface area and total pore volume [10,29]. The specific surface area of LiPC-3 increased by 18% compared to PC, while the total pore volume decreased. Therefore, the highest methanol adsorption capacity of LiPC-3 was mainly due to the introduction of Li into the porous carbon, which increased the surface polarity and improved the affinity between the porous carbon and methanol. Moreover, Li-doped porous carbon exhibited a superior adsorption capacity for methanol compared to other adsorbents, including porous carbons [29,30], MOFs [8,31,32,33], and metal oxide/carbon composites [34] (Table 3). This advantageous adsorption capability holds significant promise for future environmental applications.

3.3. Methanol Adsorption Mechanism

The effect of pore size and nitrogen/oxygen groups on methanol adsorption at 25 °C, as simulated by GCMC, is showed in Figure 6. As shown in Figure 6a, the methanol adsorption isotherm was similar to the water adsorption isotherm on porous carbon [40]. At 15 kPa, compared to the pore size range of 0.8–2 nm, there was a slight decrease in methanol adsorption in the pore size range of 0.6–0.7 nm. This was mainly because methanol molecules adsorbed as a monolayer in the 0.6–0.7 nm slit pore model, while there was multilayer filling adsorption in the 0.8–2 nm range. When the pore size exceeded 2 nm, the methanol adsorption sharply decreased at 15 kPa. It is worth noting that the adsorption capacity of the 6 nm pore size can be neglected compared to the 0.6 nm pore size. This could be attributed to inadequate methanol–methanol interactions in the slit pore model, which cannot support the adsorption of methanol molecules in wider pores [10,41]. To gain a better understanding of the impact of the slit pore model on methanol adsorption at low pressures, a threshold pressure was introduced. This threshold pressure represents the pressure at which the adsorbate begins to be adsorbed by the adsorbent. As the pore size increased from 0.7 nm to 6 nm, the threshold pressure increased from 0.8 kPa to 5 kPa. Additionally, the saturated adsorption capacities at 1 kPa for pores of 0.6 nm and 0.7 nm were 16 mmol g−1 and 14 mmol g−1, respectively. For pores of 0.8–2 nm, the threshold pressure to reach the saturated adsorption capacity was 3–10 kPa. However, for pores of 3–6 nm, the saturated adsorption capacity was not reached even at 15 kPa. This indicates that smaller pore sizes are advantageous for adsorbing methanol at low pressures. As shown in Figure 6b, Li doping can reduce the threshold pressure of methanol. This is primarily attributed to the increased polarity of the carbon framework surface due to the doping of Li atoms, which enables strong interactions with the OH groups in methanol. At 15 kPa, compared to pure graphite (2 nm), the pore size for filling adsorption in the slit pore model increased to 3 nm after Li doping, and the adsorption capacity in the 4–6 nm pores was also improved. In addition, at 15 kPa, the methanol adsorption capacity was also increased by 10–20%. Therefore, Li doping not only improved the adsorption performance of methanol at low pressures, but also at relatively high pressures, which was different from the results of nitrogen- and oxygen-doped porous carbons in previous works in the literature.
To better explain the electrostatic interactions between Li and methanol molecules, the charge distribution of atoms on the graphene sheet doped with Li was calculated using the Mulliken charge method. As shown in Figure 7, the Li atom in the Li-doped graphene sheet carried a strong positive charge of 0.615 e, while the oxygen atom connected to the Li atom carried a strong negative charge of −0.562 e. Therefore, Li doping led to a strong electronegativity/electropositivity on the carbon surface, which could provide effective adsorption sites for methanol and enhance its adsorption performance.
Furthermore, GCMC simulations were performed with and without electrostatic interactions between the carbon framework and methanol molecules. The adsorption capacity of porous carbon with and without electrostatic interactions for methanol is shown in Figure 8a. As shown in Figure 8, electrostatic interactions could lower the threshold pressure for methanol adsorption in the slit pore model, thereby providing a larger adsorption capacity at relatively low pressures. At relatively high pressures, electrostatic interactions could also increase the adsorption performance of methanol, increasing it by about 15% in the slit pores around 0.6 and 1.5 nm. In the 3 nm slit pore, the electrostatic effect generated by the Li-doped slit hole model increased the adsorption capacity of methanol by 357% compared with the undoped one. Additionally, we examined the influence of Li-doped porous carbon on methanol adsorption properties by estimating the electrostatic contribution using Equation (1).
Electrostatic   contribution = S with − S without S with × 100 %
The adsorption amounts of methanol molecules on Li-doped graphite sheets with and without electrostatic interactions were denoted as Swith and Swithout, respectively. The electrostatic contribution of graphite sheets to methanol absorption at 25 °C is shown in Figure 6b. The doping of Li enhanced the electrostatic contribution of the 0.6 nm pore to 99% at 0.5 kPa, which decreased to 30% as the pressure increased to 1 kPa, and then gradually decreased to 10% at 15 kPa. Additionally, the introduction of Li atoms resulted in electrostatic contributions of over 95% for the 1.5 nm and 3 nm pores at pressures ranging from 0 to 7 kPa. As the adsorption pressure increased to 15 kPa, the electrostatic contributions of the 1.5 nm and 3 nm pores decreased to 10% and 75%, respectively. This indicates that electrostatic interactions played a more significant role in methanol absorption at low pressures compared to high pressures. In this process, alkali metals exhibited stronger electrostatic interactions due to their higher electron accepting/donating density, thereby enhancing the capture of methanol. Furthermore, the electrostatic interactions of methanol adsorption were stronger in the slit pore model as the pore size increased. For example, the electrostatic contribution of methanol adsorption decreased to 30% at 1.5 kPa for a pore size of 0.6 nm, while the electrostatic contributions of pore sizes 1.5 nm and 3 nm still remained at 99%. Additionally, at 15 kPa, the electrostatic contributions of pore sizes 0.6 nm and 1.5 nm were only around 13%, while the electrostatic contribution of the 3 nm pore size remained at 80%.
The isotherm effects of lithium-, nitrogen-, and oxygen-doped narrow pores on methanol adsorption are illustrated in Figure 9. At relatively low pressure, nitrogen and oxygen doping could reduce the threshold pressure for methanol adsorption and increase the adsorption capacity of methanol, while the saturated adsorption capacity of methanol showed no significant difference. The adsorption capacity of methanol at 15 kPa ranged from 21.9 to 22.9 mmol g−1, which was 3.8–8.5% higher than that of undoped methanol (21.1 mmol g−1). This indicates that nitrogen and oxygen groups have limited influence on the adsorption capacity of methanol under relatively high pressure, but can enhance the adsorption capacity of methanol under relatively low pressure. The lithium-doped slit pores reached saturation at 1 kPa, while the saturation pressures for nitrogen and oxygen doping were both above 2.5 kPa, which mainly meant that the slit pore models produced by lithium doping had stronger surface polarity than those of doped nitrogen and oxygen. Additionally, the saturated adsorption amount of lithium-doped narrow pores increased by approximately 10–25% compared to nitrogen and oxygen doping. This was mainly due to the higher surface polarity of the lithium-modified porous carbon compared to nitrogen and oxygen modifications.
The optimal adsorption sites of methanol on graphite are illustrated in Figure 10. As shown in Figure 10, the adsorption energy of methanol on graphite was only −14.03 kJ mol−1, while the adsorption energy of methanol on lithium-modified graphite reached −90.27 kJ mol−1, significantly higher than that of the unmodified graphite. We calculated the adsorption distance between functional groups and methanol molecules and found that the adsorption distance between lithium atoms in porous carbon and oxygen atoms in methanol is 1.91 Å, lower than the distance between hydrogen in graphite and oxygen in methanol (2.41 Å). In addition, the charge transfer during the adsorption process was also calculated. Hydrogen atoms in graphite transferred 0.03 electrons to oxygen atoms in methanol, while lithium-doped graphite transferred 0.33 electrons to oxygen atoms in methanol, significantly higher than the undoped graphite. These DFT calculation results reveal the mechanism of improved methanol adsorption on lithium-doped porous carbon and are consistent with the previous conclusions.

4. Conclusions

In summary, porous carbon with a high specific surface area and large pore volume was prepared using benzimidazole as a carbon precursor and KOH as an activating agent. Then, lithium doping was employed to improve the surface polarity of the porous carbon and enhance its methanol adsorption performance. The results showed that lithium doping could increase the micropore volume and decrease the mesopore size of the porous carbon, resulting in a methanol adsorption capacity of 35.4 mmol g−1, which was 57% higher than that of the undoped porous carbon. Molecular simulation results indicated that lithium doping could lower the threshold pressure of methanol adsorption, mainly due to the increased polarity of the carbon framework caused by lithium doping, which could form strong interactions with the OH groups in methanol. At 15 kPa, compared to pure graphite (2 nm), the pore size of the filled adsorption in the lithium-doped narrow pore model increased to 3 nm, and the adsorption capacity of the 4–6 nm pores also increased. DFT calculations revealed that the adsorption energy of lithium-modified graphite for methanol (−90.27 kJ mol−1) was much higher than that of unmodified graphite; the adsorption distance between lithium atoms and methanol molecules was 1.91 Å, lower than the distance between hydrogen and oxygen in graphite (2.41 Å). Additionally, lithium-doped graphite transferred 0.33 e of electrons to the oxygen atoms in methanol, significantly higher than the undoped case (0.03 e). The mechanism of methanol adsorption by lithium groups was revealed through experimental and theoretical calculations, providing a theoretical basis for the design and preparation of methanol adsorbents. In addition, Li-doped porous carbon can improve the surface polarity of the carbon surface, and can improve the adsorption and separation performance of CO2 and the separation of light hydrocarbon gases.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13182564/s1. References [42,43,44,45,46,47] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, Y.L. and X.M.; methodology, M.F. and R.S.; formal analysis, Y.L. and M.F.; investigation, Y.L. and R.S.; resources, R.S.; data curation, Y.L. and R.S.; writing—original draft preparation, Y.L. and M.F.; writing—review and editing, X.M., X.D. and H.W. and R.S; supervision, X.D. and H.W.; Validation, X.D. and H.W.; project administration, R.S. and X.M.; funding acquisition, R.S., Y.L. and X.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Major Program Natural Science Foundation of Hunan Province of China (2021JC0001), the National Nature Science Foundation of China (52000183), the Hunan Provincial Natural Science Foundation of China (2023JJ31010), the National Local Joint Engineering Research Center of Heavy Metals Pollutants Control and Resource Utilization Open Fund (ES202380056), a research project funded by the Education Department of Hunan Province (22B0883), the Scientific Research Foundation for Talented Scholars of CSUFT University (2019YJ019, 2020YJ010), the Excellent Youth Fund Project of Hunan Provincial Education Department (21B0248), and the Natural Science Foundation of Changsha (kq220815).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, L.; Shen, D.; Luo, K.H. A critical review on VOCs adsorption by different porous materials: Species, mechanisms and modification methods. J. Hazard. Mater. 2020, 389, 122102. [Google Scholar] [CrossRef] [PubMed]
  2. Chakraborty, R.; Vilya, K.; Pradhan, M.; Nayak, A.K. Recent advancement of biomass-derived porous carbon based materials for energy and environmental remediation applications. J. Mater. Chem. A 2022, 10, 6965–7005. [Google Scholar] [CrossRef]
  3. Bos, L.D.; Sterk, P.J.; Fowler, S.J. Breathomics in the setting of asthma and chronic obstructive pulmonary disease. J. Allergy Clin. Immun. 2016, 138, 970–976. [Google Scholar] [CrossRef]
  4. Ibrahim, W.; Carr, L.; Cordell, R.; Wilde, M.J.; Salman, D.; Monks, P.S.; Thomas, P.; Brightling, C.E.; Siddiqui, S.; Greening, N.J. Breathomics for the clinician: The use of volatile organic compounds in respiratory diseases. Thorax 2021, 76, 514–521. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, Z.; Kai, Z.; Ying, W.; Xi, H. New functionalized IRMOF-10 with strong affinity for methanol: A simulation study. Appl. Surf. Sci. 2018, 440, 351–358. [Google Scholar] [CrossRef]
  6. Liu, Z.; Kai, Z.; Ying, W.; Xi, H. Effective enhancement on methanol adsorption in Cu-BTC by combination of lithium-doping and nitrogen-doping functionalization. J. Mater. Sci. 2018, 53, 6080–6093. [Google Scholar] [CrossRef]
  7. Li, X.; Zhang, L.; Yang, Z.; Wang, P.; Yan, Y.; Ran, J. Adsorption materials for volatile organic compounds (VOCs) and the key factors for VOCs adsorption process: A review. Sep. Purif. Technol. 2020, 235, 116213. [Google Scholar] [CrossRef]
  8. Jeremias, F.; Frohlich, D.; Janiak, C.; Henninger, S.K. Water and methanol adsorption on MOFs for cycling heat transformation processes. New J. Chem. 2014, 38, 1846–1852. [Google Scholar] [CrossRef]
  9. Li, Y.; Zhang, T.; Wang, Y.; Wang, B. Transformation of waste cornstalk into versatile porous carbon adsorbent for selective CO2 capture and efficient methanol adsorption. J. Environ. Chem. Eng. 2021, 9, 106149. [Google Scholar] [CrossRef]
  10. Ma, X.; Liu, B.; Che, M.; Wu, Q.; Chen, R.; Su, C.; Xu, X.; Zeng, Z.; Li, L. Biomass-based hierarchical porous carbon with ultrahigh surface area for super-efficient adsorption and separation of acetone and methanol. Sep. Purif. Technol. 2021, 269, 118690. [Google Scholar] [CrossRef]
  11. Zhang, W.; Li, G.; Yin, H.; Zhao, K.; Zhao, H.; An, T. Adsorption and desorption mechanism of aromatic VOCs onto porous carbon adsorbents for emission control and resource recovery: Recent progress and challenges. Environ. Sci. Nano 2022, 9, 81–104. [Google Scholar] [CrossRef]
  12. Andrés, M.A.; Fontaine, P.; Goldmann, M.; Serre, C.; Roubeau, O.; Gascón, I. Solvent-exchange process in MOF ultrathin films and its effect on CO2 and methanol adsorption. J. Colloid Interface Sci. 2021, 590, 72–81. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, B.; Ji, Y.; Xue, M.; Fronczek, F.R.; Hurtado, E.J.; Mondal, J.U.; Liang, C.; Dai, S. Metal–organic framework with rationally tuned micropores for selective adsorption of water over methanol. Inorg. Chem. 2008, 47, 5543–5545. [Google Scholar] [CrossRef] [PubMed]
  14. Gordeeva, L.G.; Aristov, Y.I. Composite sorbent of methanol “LiCl in mesoporous silica gel” for adsorption cooling: Dynamic optimization. Energy 2011, 36, 1273–1279. [Google Scholar] [CrossRef]
  15. Li, Z.; Rieg, C.; Beurer, A.-K.; Benz, M.; Bender, J.; Schneck, C.; Traa, Y.; Dyballa, M.; Hunger, M. Effect of aluminum and sodium on the sorption of water and methanol in microporous MFI-type zeolites and mesoporous SBA-15 materials. Adsorption 2021, 27, 49–68. [Google Scholar] [CrossRef]
  16. Ma, X.; Xu, W.; Su, R.; Shao, L.; Zeng, Z.; Li, L.; Wang, H. Insights into CO2 capture in porous carbons from machine learning, experiments and molecular simulation. Sep. Purif. Technol. 2023, 306, 122521. [Google Scholar] [CrossRef]
  17. Sun, L.; Gong, Y.; Li, D.; Pan, C. Biomass-derived porous carbon materials: Synthesis, designing, and applications for supercapacitors. Green Chem. 2022, 24, 3864–3894. [Google Scholar] [CrossRef]
  18. Li, D.; Su, R.; Ma, X.; Zeng, Z.; Li, L.; Wang, H. Porous carbon for oxygenated and aromatic VOCs adsorption by molecular simulation and experimental study: Effect pore structure and functional groups. Appl. Surf. Sci. 2022, 605, 154708. [Google Scholar] [CrossRef]
  19. Fang, M.; Wu, K.; Ma, X.; Yao, X.; Guo, Y.; Yu, L.; Wu, Q.; Zeng, Z.; Li, L. Alkali metals modified porous carbon for enhanced methanol and acetone selective adsorption: A theoretical study. Appl. Surf. Sci. 2022, 602, 154271. [Google Scholar] [CrossRef]
  20. Shen, Y. Biomass-derived porous carbons for sorption of Volatile organic compounds (VOCs). Fuel 2022, 336, 126801. [Google Scholar] [CrossRef]
  21. Olsson, E.; Chai, G.; Dove, M.; Cai, Q. Adsorption and migration of alkali metals (Li, Na, and K) on pristine and defective graphene surfaces. Nanoscale 2019, 11, 5274–5284. [Google Scholar] [CrossRef]
  22. Ma, X.; Li, L.; Chen, R.; Wang, C.; Zhou, K.; Li, H. Doping of alkali metals in carbon frameworks for enhancing CO2 capture: A theoretical study. Fuel 2019, 236, 942–948. [Google Scholar] [CrossRef]
  23. Wu, Y.; Guo, Y.; Su, R.; Ma, X.; Wu, Q.; Zeng, Z.; Li, L.; Yao, X.; Wang, S. Hierarchical porous carbon with an ultrahigh surface area for high-efficient iodine capture: Insights into adsorption mechanisms through experiments, simulations and modeling. Sep. Purif. Technol. 2022, 303, 122237. [Google Scholar] [CrossRef]
  24. Wu, L.; Cai, Y.; Wang, S.; Li, Z. Doping of nitrogen into biomass-derived porous carbon with large surface area using N2 non-thermal plasma technique for high-performance supercapacitor. Int. J. Hydrogen Energy 2021, 46, 2432–2444. [Google Scholar] [CrossRef]
  25. Ren, X.; Li, H.; Chen, J.; Wei, L.; Modak, A.; Yang, H.; Yang, Q. N-doped porous carbons with exceptionally high CO2 selectivity for CO2 capture. Carbon 2017, 114, 473–481. [Google Scholar] [CrossRef]
  26. Yang, C.; Zhao, T.; Pan, H.; Liu, F.; Cao, J.; Lin, Q. Facile preparation of N-doped porous carbon from chitosan and NaNH2 for CO2 adsorption and conversion. Chem. Eng. J. 2022, 432, 134347. [Google Scholar] [CrossRef]
  27. Jalilov, A.S.; Li, Y.; Tian, J.; Tour, J.M. Ultra-High Surface Area Activated Porous Asphalt for CO2 Capture through Competitive Adsorption at High Pressures. Adv. Energy Mater. 2017, 7, 1600693. [Google Scholar] [CrossRef]
  28. Ma, X.; Yang, Y.; Wu, Q.; Liu, B.; Li, D.; Chen, R.; Wang, C.; Li, H.; Zeng, Z.; Li, L. Underlying mechanism of CO2 uptake onto biomass-based porous carbons: Do adsorbents capture CO2 chiefly through narrow micropores? Fuel 2020, 282, 118727. [Google Scholar] [CrossRef]
  29. Li, Y.; Wang, Y.; Chen, B.; Wang, L.; Yang, J.; Wang, B. Nitrogen-doped hierarchically constructed interconnected porous carbon nanofibers derived from polyaniline (PANI) for highly selective CO2 capture and effective methanol adsorption. J. Environ. Chem. Eng. 2022, 10, 108847. [Google Scholar] [CrossRef]
  30. Xu, F.; Tang, Z.; Huang, S.; Chen, L.; Liang, Y.; Mai, W.; Zhong, H.; Fu, R.; Wu, D. Facile synthesis of ultrahigh-surface-area hollow carbon nanospheres for enhanced adsorption and energy storage. Nat. Commun. 2015, 6, 7221. [Google Scholar] [CrossRef]
  31. Ren, H.; Ben, T.; Sun, F.; Guo, M.; Jing, X.; Ma, H.; Cai, K.; Qiu, S.; Zhu, G. Synthesis of a porous aromatic framework for adsorbing organic pollutants application. J. Mater. Chem. 2011, 21, 10348–10353. [Google Scholar] [CrossRef]
  32. Yan, Z.; Ren, H.; Ma, H.; Yuan, R.; Yuan, Y.; Zou, X.; Sun, F.; Zhu, G. Construction and sorption properties of pyrene-based porous aromatic frameworks. Microporous Mesoporous Mater. 2013, 173, 92–98. [Google Scholar] [CrossRef]
  33. Wu, Y.; Liu, D.; Chen, H.; Qian, Y.; Xi, H.; Xia, Q. Enhancement effect of lithium-doping functionalization on methanol adsorption in copper-based metal-organic framework. Chem. Eng. Sci. 2015, 123, 1–10. [Google Scholar] [CrossRef]
  34. Zhou, K.; Ma, W.; Zeng, Z.; Ma, X.; Xu, X.; Guo, Y.; Li, H.; Li, L. Experimental and DFT study on the adsorption of VOCs on activated carbon/metal oxides composites. Chem. Eng. J. 2019, 372, 1122–1133. [Google Scholar] [CrossRef]
  35. Zeng, Y.; Prasetyo, L.; Nguyen, V.T.; Horikawa, T.; Do, D.D.; Nicholson, D. Characterization of oxygen functional groups on carbon surfaces with water and methanol adsorption. Carbon 2015, 81, 447–457. [Google Scholar] [CrossRef]
  36. Liang, Y.; Wu, D.; Fu, R. Carbon Microfibers with Hierarchical Porous Structure from Electrospun Fiber-Like Natural Biopolymer. Sci. Rep. 2013, 3, 1119. [Google Scholar] [CrossRef] [PubMed]
  37. Jing, X.; Sun, F.; Ren, H.; Tian, Y.; Guo, M.; Li, L.; Zhu, G. Targeted synthesis of micro–mesoporous hybrid material derived from octaphenylsilsesquioxane building units. Microporous Mesoporous Mater. 2013, 165, 92–98. [Google Scholar] [CrossRef]
  38. Wu, D.; Nese, A.; Pietrasik, J.; Liang, Y.; He, H.; Kruk, M.; Huang, L.; Kowalewski, T.; Matyjaszewski, K. Preparation of polymeric nanoscale networks from cylindrical molecular bottlebrushes. ACS Nano 2012, 6, 6208–6214. [Google Scholar] [CrossRef] [PubMed]
  39. Yuan, Y.; Sun, F.; Ren, H.; Jing, X.; Wang, W.; Ma, H.; Zhao, H.; Zhu, G. Targeted synthesis of a porous aromatic framework with a high adsorption capacity for organic molecules. J. Mater. Chem. 2011, 21, 13498–13502. [Google Scholar] [CrossRef]
  40. Jorge, M.; Schumacher, C.; Seaton, N.A. Simulation study of the effect of the chemical heterogeneity of activated carbon on water adsorption. Langmuir 2002, 18, 9296–9306. [Google Scholar] [CrossRef]
  41. Ma, X.; Qi, T.; Chen, R.; Su, R.; Zeng, Z.; Li, L.; Wang, S. Experimental and theoretical calculations insight into acetone adsorption by porous carbon at different pressures: Effects of pore structure and oxygen groups. J. Colloid Interface Sci. 2023, 646, 67–77. [Google Scholar] [CrossRef] [PubMed]
  42. Yang, L.; Jing, L.; Ming, C.; Zheng, C. Theoretical studies of CO2 adsorption mechanism on linkers of metal–organic frameworks. Fuel 2012, 95, 521–527. [Google Scholar]
  43. Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comput. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef] [PubMed]
  44. Lim, G.; Lee, K.B.; Ham, H.C. Effect of N-Containing Functional Groups on CO2 Adsorption of Carbonaceous Materials: A Density Functional Theory Approach. J. Phys. Chem. C 2016, 120, 8087–8095. [Google Scholar] [CrossRef]
  45. Wang, X.; Liu, Y.; Ma, X.; Das, S.K.; Ostwal, M.; Gadwal, I.; Yao, K.; Dong, X.; Han, Y.; Pinnau, I. Soluble Polymers with Intrinsic Porosity for Flue Gas Purification and Natural Gas Upgrading. Adv. Mater. 2017, 29, 1605826. [Google Scholar] [CrossRef]
  46. Liu, Y.; Liu, J.; Chang, M.; Zheng, C. Effect of Functionalized Linker on CO2 Binding in Zeolitic Imidazolate Frameworks: Density Functional Theory Study. J. Phys. Chem. C 2012, 116, 16985–16991. [Google Scholar] [CrossRef]
  47. Gupta, A.; Chempath, S.; Sanborn, M.J.; Clark, L.A.; Snurr, R.Q. Object-oriented programming paradigms for molecular modeling. Mol. Simul. 2003, 29, 29–46. [Google Scholar] [CrossRef]
Nanomaterials 13 02564 g001
Figure 1. SEM images of LiPC-3, (a) 2 μm and (b) 500 nm.
Figure 1. SEM images of LiPC-3, (a) 2 μm and (b) 500 nm.
Nanomaterials 13 02564 g001
Nanomaterials 13 02564 g002

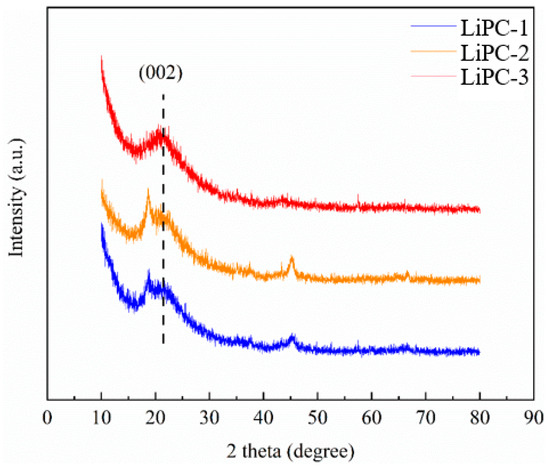

Figure 2. XRD pattern of Li-doped porous carbon.
Figure 2. XRD pattern of Li-doped porous carbon.
Nanomaterials 13 02564 g002
Nanomaterials 13 02564 g003

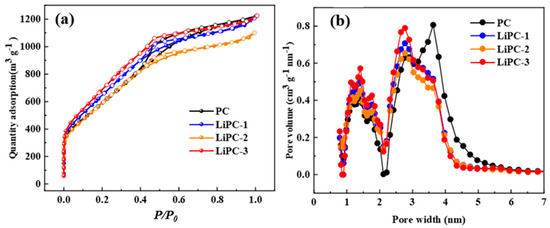

Figure 3. (a) N2 sorption–desorption isotherms and (b) pore size distributions calculated with NLDFT of porous carbon.
Figure 3. (a) N2 sorption–desorption isotherms and (b) pore size distributions calculated with NLDFT of porous carbon.
Nanomaterials 13 02564 g003
Nanomaterials 13 02564 g004

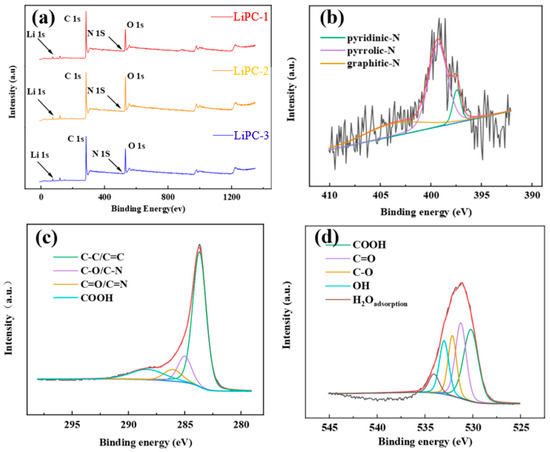

Figure 4. XPS spectra of the LiPC-3: (a) survey spectrum, (b) N 1s, (c) C 1s, and (d) O 1s.
Figure 4. XPS spectra of the LiPC-3: (a) survey spectrum, (b) N 1s, (c) C 1s, and (d) O 1s.
Nanomaterials 13 02564 g004
Nanomaterials 13 02564 g005

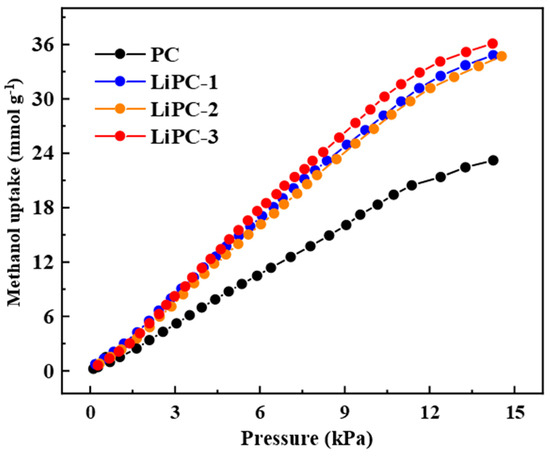

Figure 5. The adsorption isotherms of methanol on porous carbon at 25 °C.
Figure 5. The adsorption isotherms of methanol on porous carbon at 25 °C.
Nanomaterials 13 02564 g005
Nanomaterials 13 02564 g006

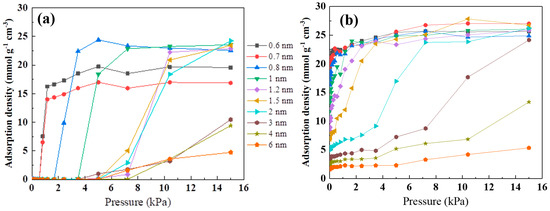

Figure 6. Adsorption density of the slit pore model (a) and Li-doped slit pore model (b) on methanol.
Figure 6. Adsorption density of the slit pore model (a) and Li-doped slit pore model (b) on methanol.
Nanomaterials 13 02564 g006
Nanomaterials 13 02564 g007

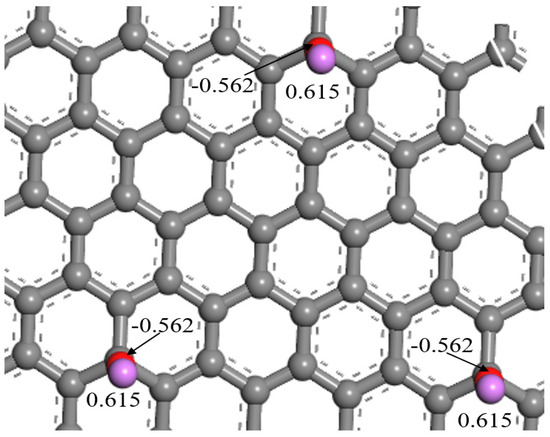

Figure 7. Partial charge distribution of Li-doped slit pore model surface atoms.
Figure 7. Partial charge distribution of Li-doped slit pore model surface atoms.
Nanomaterials 13 02564 g007
Nanomaterials 13 02564 g008

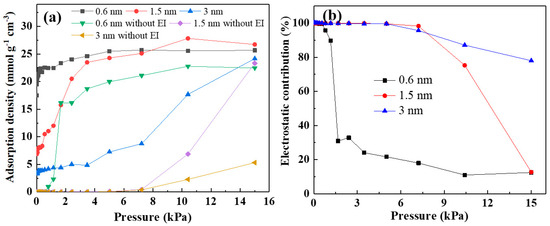

Figure 8. (a) Adsorption density of Li-doped slit pore model with EI and without EI; (b) electrostatic contribution of Li-doped slit pore model on methanol.
Figure 8. (a) Adsorption density of Li-doped slit pore model with EI and without EI; (b) electrostatic contribution of Li-doped slit pore model on methanol.
Nanomaterials 13 02564 g008
Nanomaterials 13 02564 g009

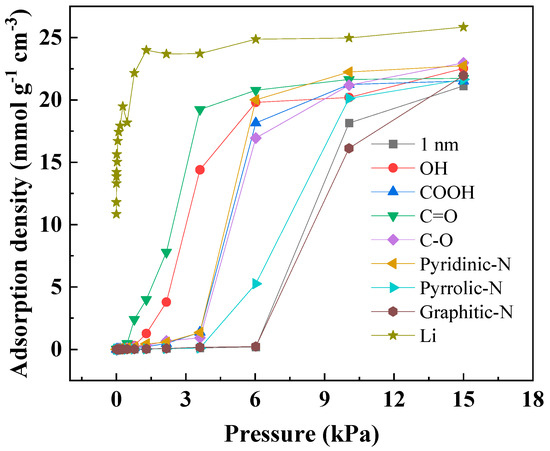

Figure 9. Adsorption density of O-, N-, and Li-doped slit pore model on methanol.
Figure 9. Adsorption density of O-, N-, and Li-doped slit pore model on methanol.
Nanomaterials 13 02564 g009
Nanomaterials 13 02564 g010

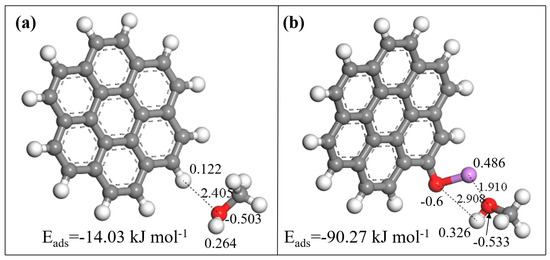

Figure 10. Adsorption energies of perfect graphene (a) and Li-doped graphene (b).
Figure 10. Adsorption energies of perfect graphene (a) and Li-doped graphene (b).
Nanomaterials 13 02564 g010
Table 1. Lennard-Jones parameters used in calculation of force field.
Table 1. Lennard-Jones parameters used in calculation of force field.
Atomε (K)σ (Å)q (e)
C (acetone)403.820.424
O (acetone)793.05−0.424
CH3 (acetone)983.750.000
H (methanol)--0.435
O (methanol)933.02−0.700
CH3 (methanol)983.750.265
C (surface)47.863.47Calc.
O (surface)48.163.03Calc.
H (surface)7.652.85Calc.
Li (surface)12.582.45Calc.
Table 2. Textural properties and surface chemistry of PC samples.
Table 2. Textural properties and surface chemistry of PC samples.
SampleSBET/m2 g−1Vt/cm3 g−1Vmicro/cm3 g−1Vmes + Vmar/cm3 g−1O/at. %N/at. %Li/at. %
PC22681.7160.4061.319.351.640
LiPC-125111.6640.4891.3713.351.478.8
LiPC-223001.5080.4431.06516.391.4311.04
LiPC-326781.6880.5351.15311.671.4212.99
Table 3. Equilibrium amount of methanol adsorbed on various adsorbents.
Table 3. Equilibrium amount of methanol adsorbed on various adsorbents.
AdsorbentsQe
(mmol g−1)		Temperature
(°C)		Pressure or Inlet ConcentrationReferences
AC (YP-50)16.62515 kPa[30]
CN95013.22515 kPa[29]
A53.82516 kPa[35]
HPCMF.7.62515 kPa[36]
PAF-129.02516 kPa[37]
OMP13.72515 kPa[38]
PAF-529.22516 kPa[31]
PAF-2019.02516 kPa[32]
PAF-1120.42516 kPa[39]
AC/ZnO composite15.025200 g m−3[34]
AC/MgO composite12.325200 g m−3[34]
AC/CuO composite11.025200 g m−3[34]
AC/ZrO composite13.925200 g m−3[34]
HKUST-117.82517.5 kPa[8]
MIL-101Cr35.92513 kPa[8]
Cu-BTC20.12512 kPa[33]
LiPC-335.42515 kPaPresent work
