Novel Mitochondria-Targeted Amphiphilic Aminophosphonium Salts and Lipids Nanoparticles: Synthesis, Antitumor Activity and Toxicity

Abstract

The creation of mitochondria-targeted vector systems is a new tool for the treatment of socially significant diseases. Phosphonium groups provide targeted delivery of drugs through biological barriers to organelles. For this purpose, a new class of alkyl(diethylAmino)(Phenyl) Phosphonium halides (APPs) containing one, two, or three diethylamino groups was obtained by the reaction of alkyl iodides (bromides) with (diethylamino)(phenyl)phosphines under mild conditions (20 °C) and high yields (93–98%). The structure of APP was established by NMR and XRD. A high in vitro cytotoxicity of APPs against M-HeLa, HuTu 80, PC3, DU-145, PANC-1, and MCF-7 lines was found. The selectivity index is in the range of 0.06–4.0 μM (SI 17-277) for the most active APPs. The effect of APPs on cancer cells is characterized by hyperproduction of ROS and depolarization of the mitochondrial membrane. APPs induce apoptosis, proceeding along the mitochondrial pathway. Incorporation of APPs into lipid systems (liposomes and solid lipid nanoparticles) improves cytotoxicity toward tumor cells and decrease toxicity against normal cell lines. The IC₅₀s of lipid systems are lower than for the reference drug DOX, with a high SI (30–56) toward MCF-7 and DU-145. APPs exhibit high selective activity against Gram-positive bacteria S. aureus 209P and B. segeus 8035, including methicillin-resistant S. aureus (MRSA-1, MRSA-2), comparable to the activity of the fluoroquinolone antibiotic norfloxacin. A moderate in vivo toxicity in CD-1 mice was established for the lead APP.

1. Introduction

To date, cardiovascular, neurodegenerative, and tumor diseases, as well as chronic inflammation, occupy leading positions as causes of death for people around the world. The occurrence of these pathologies and their progression are largely associated with mitochondrial dysfunctions [1,2,3,4,5,6,7,8,9]. Mitochondria, being one of the most important organelles of eukaryotic cells, are involved in the transformation of energy-rich molecules, such as carbohydrates, lipids, and amino acids, into a macroergic ATP molecule through oxidative phosphorylation (OXPHOS) [10]. They play a key role in many metabolic processes, such as the tricarboxylic acid cycle, oxidative decarboxylation of pyruvate by the pyruvate dehydrogenase complex [11], the biosynthesis of iron-sulfur enzymes [12], and steroids [13]. Reactive oxygen (ROS) and nitrogen (RNS) species arising during oxidative phosphorylation play a major role in redox cell signaling under hypoxia, cell differentiation, and innate immunity [14,15]. Mitochondria participate in the ornithine cycle (urea cycle) [16] and are responsible for calcium homeostasis [17]. The mitochondrial permeability transition (mPT) is a sensor of stress and damage, and mitochondria play a central role in cell death—apoptosis [18,19], ferroptosis [20,21,22], and necrosis [23,24]. The key role of mitochondria is the regulation of cell life and death. Taking this into account, a mitochondria-based approach for the treatment of metabolic and degenerative diseases has emerged in recent decades. This involves the use of molecules containing mitochondria-specific compounds capable of selectively accumulating in mitochondria and is being intensively studied [25]. For this purpose, delocalized lipophilic triphenylphosphonium (TPP) cations used to deliver a wide range of drugs, diagnostic cargos, and analytical probes into mitochondria are particularly effective [26,27,28]. The penetration of such cations through the hydrophobic layer of lipid membranes is often the limiting stage of their accumulation in cells and mitochondria. In tumor cells characterized by hyperpolarized (in comparison with normal cells) mitochondrial membrane (Ψ_IM~−220 mV) [29], in the presence of sufficient oxygen, stable aerobic glycolysis (Warburg effect) is observed [30,31]. The difference in transmembrane mitochondrial potentials in tumor and normal cells (ΔΨ about 60 mV) leads to multiple (up to 1 × 10³ times) accumulations of lipophilic cations in tumor cells, thereby conferring the property of selectivity [32]. It is also known that some lipophilic cations cause a strong decoupling of respiration and oxidative phosphorylation, depolarizing the mitochondria of tumor cells and thereby initiating apoptosis [33].

In TPP-conjugates, the combination of a therapeutic or diagnostic load with a phosphonic group is carried out, as a rule, by means of a covalent bond through a linker, the nature of which is given great attention. Thus, data on the influence of the linker nature were presented in many works [34,35,36,37,38,39,40,41]. There is a report on the effect of the R substituent in R–P⁺Ph₃ salts on their biological properties [42]. At the same time, there are a few publications in which the nature of substituents in aryl fragments of lipophilic R–P⁺Ar₃ cations themselves has been demonstrated to have a great influence on their biological, including cytostatic properties [43,44,45,46]. Thus, structural modification of the phenyl rings of TPP⁺ by reducing the electron density on the phosphorus atom can lead to the disappearance of uncoupling activity compared with the original TPP⁺ fragment [43]. However, a change in the structure of the aryl substituent in the Ar₃P⁺–R cation does not have a negative effect on the delivery of cargo to the mitochondria [45].

Numerous studies were conducted to elucidate the role of charge delocalization of lipophilic cations in the efficiency of their penetration through lipid membranes. Thus, cyclohexyl and aryl moieties are not necessary for effective penetration [47,48]. The presence of halide or methyl substituents on the phenyl ring of the triphenylphosphonium cation can accelerate the penetration of such hydrophobic cations through lipid membranes. Thus, their effect is enhanced in biological systems where penetration is the limiting step. An increase in hydrophobicity of some analogues correlates with an increase in the penetration rate constant, but there is no full agreement for this [49].

The creation of nanotherapeutic drugs aimed at certain cellular organelles is based on the advantages of nanomedicine [50]: (i) molecular therapy; (ii) an increased ratio of nanoparticle surface area to their volume that allows to increase efficiency and safety of administration at lower doses; (iii) a possibility of functionalization of NPS surface to avoid an immune response; (iv) effective accumulation of NPS through the vascular network. These advantages create prospects for future cancer therapy [51,52,53,54]. Organelle-directed delivery systems will be able to solve major problems as a high toxicity of antitumor drugs and multiple drug resistance. In addition, colloidal carriers are able to improve the solubility of medicinal substances, prevent degradation, prolong their action, and, i.e., generally increase their effectiveness. Natural and biodegradable nanomaterials are the most promising for clinical use [55,56,57]. The successful application of lipid nanoparticles for cancer therapy has been reported [58,59,60,61,62]. From a wide range of mitochondrial-directed NPS, the attention of our group is attracted by the lipid nanosystems functionalized with triphenylphosphonium fragments [63,64].

Ar₃P⁺–R salts, despite their high efficiency in targeted delivery to tumor cells, often show high toxicity in vitro with respect to normal cells and do not undergo biodegradation. It can become a problem for elimination from the body. In this regard, the search for effective phosphorus-containing vector systems is currently intensively underway. Moreover, the question remains open about the effect of the positive charge delocalization degree in triaryl-phosphonium cations on its ability to penetrate mitochondrial membranes and on subsequent biological properties. Heteroatoms more effectively stabilize the positive charge on carbenium ions by donating a lone pair of electrons (LPE) to the corresponding vacant orbital of electron-deficient carbon [65].

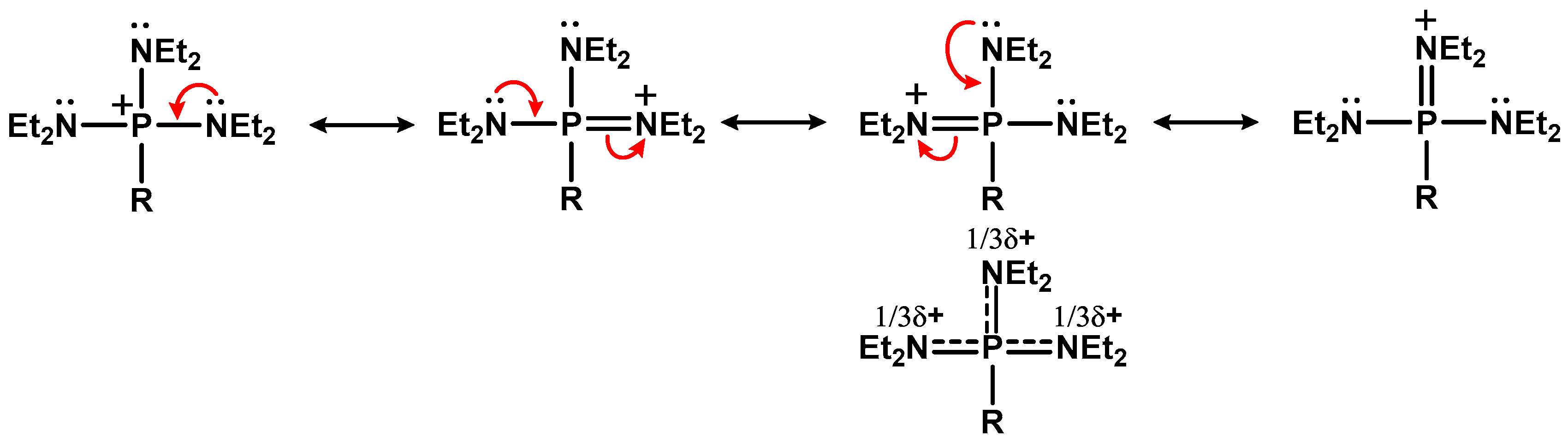

It was of great interest to find out how the introduction of the heteroatoms with LPE to the phosphorus atom would affect the transport and biological properties of the phosphonium cation. That should more effectively extinguish a positive charge on the phosphorus atom than aryl groups with substituents of any nature. Phosphonium salts containing at least one heteroatomic substituent with LPE are classified as quasi-phosphonium compounds with very high reactivity [66]. Among them, quasi-phosphonium salts with dialkylamine substituents have the greatest stability. It is important to note that dialkylamine substituents are more hydrophilic, and the corresponding amino-quasi-phosphonium salts with a methyl group at the phosphorus atom are even soluble in water [67]. Furthermore, the amine substituent contributes to the effective delocalization of the positive charge in phosphonium salts due to the p_π–d_π-conjugation of the nitrogen LPE with the d-orbitals of the phosphorus atom [68,69,70] (Scheme 1).

In the present work, we synthesized various amphiphilic salts of phosphonium bearing a diethylamine substituent, evaluated their cytotoxicity in vitro and toxicity in vivo, and developed nanotherapeutic forms for their delivery.

2. Materials and Methods

2.1. General

The NMR spectra were recorded at 25 °C using a Bruker Avance-400 NMR spectrometer (Bruker, Bremen, Germany) (400.0 MHz, ¹H; 100.6 MHz, ¹³C; 162.0 MHz, ³¹P), a Bruker Avance-500 NMR spectrometer (Bruker, Bremen, Germany) (500.0 MHz, ¹H; 125.8 MHz, ¹³C; 202.4 MHz, ³¹P), and a Bruker Avance-600 NMR spectrometer (Bruker, Bremen, Germany) (600.0 MHz, ¹H; 150.9 MHz, ¹³C; 242.94 MHz, ³¹P). The chemical shifts were measured on the δ scale relative to TMS, using residual protons or carbon signals of CDCl₃ or another solvent (¹H and ¹³C) as an internal standard or H₃PO₄ as an external standard. Coupling constant (J) values are given in Hz. The ESI MS measurements were performed using an Amazon X ion trap mass spectrometer (Bruker Daltonic GmbH, Bremen, Germany) in positive mode in the mass range of 70–3000. The capillary voltage was −3500 V, nitrogen drying gas—10 L·min^–1, desolvation temperature—250 °C. Data processing was performed by Data Analysis 4.0 SP4 software (Bruker Daltonik GmbH, Germany). Melting points were determined on a Melting Point Apparatus Stuart SMP10. Elemental analysis was accomplished with an automated EuroVector EA3000 CHNS-O elemental analyzer (Euro-Vector, Pavia, Italy). The reactions course was monitored by the ³¹P-{¹H} NMR spectra of the reaction mixtures. The solvents were purified and dried according to standard protocols. Starting P(III) derivatives were synthesized in accordance with literature data [71] (compound 1, δ_P 119.0 ppm, MeCN), [72] (compound 2, δ_P 99.4 ppm, Et₂O), [73] (compound 3, δ_P 62.9 ppm, CH₂Cl₂). Compound 7 was obtained in acetonitrile according to the data for triethyl(octyl)ammonium bromide [74]. The interpretation of its ¹³C NMR spectrum was made taking into account the data from the work [75]. The interpretation of the ¹³C NMR spectrum of compound 8 was made taking into account the data for octyltriphenylphosphonium bromide [40].

XRD of 6a was performed on a Bruker D8 QUEST automatic three-circle diffractometer at 130 (graphite monochromator, λMoK_α = 0.71073Å, ω- and φ-scan with a step of 0.5°) at the Distributed Spectral-Analytical Center of Shared Facilities for Study of Structure, Composition, and Properties of Substances and Materials of FRC Kazan Scientific Center of RAS. Single crystals of a suitable size were glued to the top of a glass fiber in a random orientation. The preliminary unit cell parameters were determined using three runs at different φ angle positions with 12 frames per run (φ-scan technique). The X-ray diffraction data were collected and indexed, and the unit cell parameters were determined and refined using the APEX2 software package [76]. The empirical absorption correction based on the crystal shape and an additional spherical correction were applied, and systematic errors were corrected using the SADABS software [77]. The structure was solved by the direct method using the SHELXT-2014/5 program [78] and refined by the full-matrix least-squares method based on F² using the SHELXL-2018/3 program [79] as implemented in WinGX-2020.1 [80]. Non-hydrogen atoms were refined with anisotropic displacement parameters. Hydrogen atoms at carbon atoms were positioned geometrically and refined using a riding model. Intermolecular interactions were analyzed, and the figures were generated with the PLATON [81] and Mercury 2020.3 [82] programs, respectively. Crystallographic data for the structures of 6a were deposited with the Cambridge Crystallographic Data Centre (No. CCDC 2293515). The X-ray diffraction data collection and structure refinement statistics are given in

Table 1. Principal crystallographic parameters of compound 6a based on X-ray diffraction data.

Parameter	6a	Parameter	6a
Molecular formula	C22H33NP, I	Ranges of indices
Sum Formula	C22H33INP	h	–13 ≤ h ≤ 13
Molecular weight	469.36	k	–14 ≤ k ≤ 14
Crystal system	triclinic	l	–20 ≤ l ≤ 20
Space group	P-1 (No. 2)	Number of total reflections	119,684
Z	2	Independent reflections	7633
Unit cell parameters		Rint	0.069
a/Å	9.3261(5)	Completeness up to θ = 28.0°	0.994
b/Å	9.9546(5)	Tmax/min	0.7456/0.5131
c/Å	13.5060(7)	Number of observed reflections (I > 2σ(I))	7098
α	69.106(2)	Number of reflections/of contraints/number of parameters	7633/0/229
β/deg	71.494(2)	GOOF	1.068
γ	80.251(2)	R [I > 2σ(I)]
V/Å3	1108.61(10)	R1	0.0213
dcalc/g cm–3	1.406	wR2	0.0553
Absorption coefficient, μ/mm–1	1.521	R (based on all reflections)
F(000)	480	R1 and wR2	0.0237 and 0.0561
Θ (min, max)/deg	2.2, 32.0	Residual electron density (ρmax/ρmin)/e Å–3	1.14/–0.50

.

2.2. Chemistry

General Procedure for the Synthesis of Alkyl Diethylaminophoshonium Derivatives 4a–e, 5a–d, 6a–e, 7

Equmolar amounts of the corresponding P(III)-derivatives 1, 2 or 3 (4.0 mmol) and alkyl iodide (4.0 mmol) in 5 mL of anhydrous acetonitrile were stirred at the room temperature under a dry argon atmosphere. After the disappearance of the signal of the phosphorus (III) atom in the ³¹P NMR spectra of in the reaction mixtures the solvent was evaporated under reduced pressure. The residue was washed with dry diethyl ether (5 × 5 mL) (4a–d, 5a–d, 6a–d) or with hexane (5 × 5 mL) (4e, 6e). Furthermore, the resulting oil dried under reduced pressure (0.01 mmHg) at 40–50 °C for 1–2 h. Compound 6a crystallized upon keeping it at room temperature. Its structure was confirmed by single crystal X-ray diffraction.

Tris(diethylamino)(hexyl)phosphonium iodide 4a, light yellow oil, yield was 1.80 g (98%). Anal. C, 47.36; H, 9.71; N, 8.92; P, 6.93%, calcd for C₁₈H₄₃IN₃P, C, 47.06; H, 9.43; N, 9.15; P, 6.74%. ESI-MS, m/z: 332.29 [M–I]⁺; calcd for C₁₈H₄₃N₃P⁺ 332.32. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 3.18 dq (NCH₂, 12H, ³J_PNCH 10.6, ³J_HH 7.1), 2.55 m (C¹H₂, 2H), 1.56 m (C²H₂, C³H₂, 4H), 1.32–1,33 m (C⁴H₂, C⁵H₂, 4H), 1.24 t (NCCH₃, 18H, ³J_HH 7.1), 0.90 t (C⁶H₃, 3H, ³J_HH 7.0). ¹³C-{¹H} NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 39.43 d (NCH₂, ²J_PNC 3.8), 30.99 s (C⁴), 30.27 d (C², ²J_PCC 18.0), 25.74 d (C¹, ¹J_PC 104.6), 22.21 d (C³, ³J_PCCC 4.3), 22.03 s (C⁵), 13.71 s (C⁶), 13.24 d (NCCH₃, 3H, ³J_PNCC 2.8). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 59.2 ppm.

Tris(diethylamino)(octyl)phosphonium iodide 4b, light yellow oil, yield was 1.87 g (96%). Anal. C, 49.52; H, 9.81; N, 8.55; P, 6.73%, calcd for C₂₀H₄₇IN₃P, C, 49.28; H, 9.72; N, 8.62; P, 6.35%. ESI-MS, m/z: 360.34 [M–I]⁺; calcd for C₂₀H₄₇N₃P⁺ 360.35. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 3.19 dq (NCH₂, 12H, ³J_PNCH 10.5, ³J_HH 7.1), 2.57 m (C¹H₂, 2H), 1.56 m (C²H₂, C³H₂, 4H), 1.29 m (C⁴H₂, C⁵H₂, C⁶H₂, C⁷H₂, 8H), 1.25 t (NCCH₃, 18H, ³J_HH 7.1), 0.89 t (C⁸H₃, 3H, ³J_HH 7.1). ¹³C-{¹H} NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 30.70 d (NCH₂, ²J_PNC 3.7), 31.64 s (C⁶), 30.87 d (C², ²J_PCC 18.0), 29.13 d (C⁴, ⁴J_PCCCC 1.7), 28.90 s (C⁵), 26.02 d (C¹, ¹J_PC 104.5), 22.54 s (C⁷), 14.04 s (C⁸), 13.50 d (NCCH₃, ³J_PNCC 2.9). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 58.9 ppm.

Tris(diethylamino)(nonyl)phosphonium iodide 4c, light yellow oil, yield was 1.94 g (97%). Anal. C, 50.08; H, 9.57; N, 8.54; P, 6.39%, calcd for C₂₁H₄₉IN₃P, C, 50.30; H, 9.78; N, 8.38; P, 6.18%. ESI-MS, m/z: 374.37 [M–I]⁺; calcd for C₂₁H₄₉N₃P⁺ 374.37. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 2.93 m (NCH₂, 12H, ³J_PNCH 10.6, ³J_HH 7.1), 2.67 m (C¹H₂, 2H), 1.31 m (C²H₂, C³H₂, 4H), 0.99–1.03 m (C⁴H₂, C⁵H₂, C⁶H₂, C⁷H₂, C⁸H₂, 10H, NCCH₃, 18H, ³J_HH 7.1), 0.63 t (C⁹H₃, 3H, ³J_HH 7.0). ¹³C-{¹H} NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 39.65 d (NCH₂, ²J_PNC 3.3), 31.68 s (C⁷), 30.81 d (C², ²J_PCC 18.0), 29.13 s (C⁵, C⁶), 22.06 br. s (C⁴), 25.96 d (C¹, ¹J_PC 104.6), 22.71 s (C⁸), 14.04 s (C⁸), 22.48 d (C³, ³J_PCCC 4.4), 14.0 s (C⁹), 13.44 d (NCCH₃, ³J_PNCC 2.4). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 58.8 ppm.

Decyltris(diethylamino)phosphonium iodide 4d, light yellow oil, yield was 1.96 g (95%). Anal. C, 50.93; H, 9.67; N, 7.92; P, 6.25%, calcd for C₂₂H₅₁IN₃P, C, 51.25; H, 9.97; N, 8.15; P, 6.01%. ESI-MS, m/z: 388.37 [M–I]⁺; calcd for C₂₁H₄₉N₃P⁺ 388.38. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 3.16 dq (NCH₂, 12H, ³J_PNCH 10.6, ³J_HH 7.1), 2.52 m (C¹H₂, 2H), 1.52 m (C²H₂, C³H₂, 4H), 1.22–1.24 m (C⁴H₂, C⁵H₂, C⁶H₂, C⁷H₂, C⁸H₂, C⁹H₂, 12H), 1.22 t (NCCH₃, 18H, ³J_HH 7.1), 0.86 t (C¹⁰H₃, 3H, ³J_HH 7.1). ¹³C-{¹H} NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 39.48 d (NCH₂, ²J_PNC 3.4), 31.58 s (C⁸), 30.67 d (C², ²J_PCC 17.9), 22.37 d (C³, ³J_PCCC 3.7), 29.22 s (C⁵), 29.04 s and 29.00 s (C⁶, C⁷), 28.97 br. s (C⁴), 25.80 d (C¹, ¹J_PC 104.5), 22.31 s (C⁹), 13.90 s (C¹⁰), 13.30 d (NCCH₃, ³J_PNCC 2.3). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 58.7 ppm.

Tris(diethylamino)(tetradecyl)phosphonium bromide 4e, light yellow oil, yield was 1.91 g (91%). Anal. C, 59.81; H, 11.47; N, 8.29; P, 6.22%, calcd for C₂₆H₅₉BrN₃P, C, 59.52; H, 11.33; N, 8.01; P, 5.90%. ESI-MS, m/z: 444.38 [M–Br]⁺; calcd for C₂₆H₅₉N₃P⁺ 444.44. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 3.15 dq (NCH₂, 12H, ³J_PNCH 10.6, ³J_HH 7.1), 2.54 m (C¹H₂, 2H), 1.51 m (C²H₂, C³H₂, 4H), 1.23 m and 0.85 t (C⁴H₂-C¹³H₂, NCCH₃, 38H), 0.85 t (C¹⁴H₃, 3H, ³J_HH 7.0). ¹H NMR spectrum (500.0 MHz, CD₃CN, δ ppm, J Hz): 2.95 dq (NCH₂, 12H, ³J_PNCH 10.7, ³J_HH 7.0), 2.31 m (C¹H₂, 2H), 1.32 m (C²H₂, C³H₂, 4H), 1.07–1.09 m, 1.03 br.m, 1.02 t (C⁴H₂-C¹³H₂, NCCH₃, 38H), 0.66 t (C¹⁴H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (125.8 MHz, CDCl₃, δ_C ppm, J Hz) (here and further, the signal type in the ¹³C-{¹H} NMR spectrum is shown in parentheses): 39.30 tqd (d) (NCH₂, ¹J_HC 137.9, ²J_PNC 3.5, ²J_HCC 4.0), 31.43 tm (s) (C¹², ¹J_HC 130.3,), 30.47 tdm (d) (C², ¹J_HC 124.7, ²J_PCC 19.7), 29.18 tm (s) (C⁶, ¹J_HC 125.2), 29.15 tm (s) (C⁷ and C⁸, ¹J_HC 125.2), 29.13 tm (s) (C⁹, ¹J_HC 125.2), 29.04 tm (s) (C¹⁰, ¹J_HC 125.0–126.0,), 28.85 tm (br. s) (C⁵, C¹¹, ¹J_HC 127.5–128.0), 28.75 tm (d) (C⁴, ¹J_HC 127.0–128.0, ⁴J_PCCCC 1.5), 25.0 tdm (d) (C¹, ¹J_HC 128.6, ¹J_PC 104.4, ²J_HCC 4.0, ³J_HCCC 2.6), 22.19 tm (s) (C¹³, ¹J_HC 128.1), 22.17, tm (d) (C³, ¹J_HC 127.0–128.0, ³J_PNCC 2.6, ³J_PCCC 4.5). ³¹P-{¹H} NMR spectrum (162.0 MHz, CH₃CN): δ_P 60.4 ppm. ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 59.9 ppm.

Bis(diethylamino)(hexyl)(phenyl)phosphonium iodide 5a, light yellow oil, yield was 1.80 g (97%). Anal. C, 51.93; H, 7.90; N, 5.89; P, 6.45%, calcd for C₂₀H₃₈IN₂P, C, 51.72; H, 8.25; N, 6.03; P, 6.67%. ESI-MS, m/z: 337.17 [M–I]⁺; calcd for C₂₀H₃₈N₂P⁺ 337.28. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.39–7.42 m (H^o, H^m, H^p, 5H), 2.92 m (NCH₂, 8H, ³J_PNCH 10.3, ³J_HH 7.1), 2.45 m (C¹H₂, 2H), 1.11 m (C²H₂, C³H₂, 4H), 0.87–0.88 two m, 0.87 and 0.88 two t (C⁴H₂, C⁵H₂, NCCH₃, 16H, ³J_HH 7.1), 0.46 br. m (C⁶H₃, 3H). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.45 dtd (d) (C^p, ¹J_HC 162.6, ³J_HCCC 7.0, ⁴J_PCCCC 2.8), 132.11 dddd (d) (C^o, ¹J_HC 162.9, ²J_PCC 10.5, ³J_HCCC 6.6–6.8, ³J_HCCC 6.6), 129.93 ddd (d) (C^m, ¹J_HC 165.8, ³J_PCCC 13.1, ³J_HCCC 6.6), 120.72 dt (d) (Cⁱ, ¹J_PC 122.9, ³J_HCCC 7.3), 40.20 tqd (d) (NCH₂, ¹J_HC 137.9, ²J_HCC 3.7, ²J_PNC 2.6), 30.63 tm (s) (C⁴, ¹J_HC 122.0–124.0), 29.58 tdm (d) (C², ¹J_HC 125.0–126.0, ²J_PCC 17.1), 24.54 tdm (d) (C¹, ¹J_HC 129.8, ¹J_PC 81.9, ³J_HCCC 3.6–3.7, ²J_HCC 3.6–3.7), 21.81 tm (d) (C³, ¹J_HC 126.0–128.0, ²J_HCC 3.7–4.0, ³J_PCCC 3.4), 21.69 tm (s) (C⁵, ¹J_HC 126.0–127.0), 13.44 qm (s) (C⁶, ¹J_HC 124.0–125.0), 13.38 qdt (d) (NCCH₃, ¹J_HC 126.9, ³J_PNCC 3.0, ²J_HCC 2.8–3.0). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 58.9 ppm.

Bis(diethylamino)(octyl)(phenyl)phosphonium iodide 5b, light yellow oil, yield was 1.87 g (95%). Anal. C, 53.93; H, 8.70; P, 6.55%, calcd for C₂₂H₄₂IN₂P, C, 53.66; H, 8.60; N, 5.69; P, 6.29%. ESI-MS, m/z: 365.28 [M–I]⁺; calcd for C₂₂H₄₂N₂P⁺ 365.31. ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 59.4 ppm. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.54–7.60 m (H^o, H^m, H^p, 5H), 3.10 m (NCH₂, 8H, ³J_PNCH 10.5, ³J_HH 7.1), 2.63 m (C¹H₂, 2H), 1.20–1.29 m (C²H₂, C³H₂, 4H), 1.06–1.01 t and br. m (NCCH₃, 12H, ³J_HH 7.1, C⁴H₂-C⁷H₂, 8H), 0.63 t (C⁸H₃, 3H, ³J_HH 7.0). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.44 dtd (d) (C^p, ¹J_HC 164.2, ³J_HCCC 7.0, ⁴J_PCCCC 2.9), 132.15 dddd (d) (C^o, ¹J_HC 162.7, ²J_PCC 10.5, ³J_HCCC 7.3, ³J_HCCC 7.1), 129.94 ddd (d) (C^m, ¹J_HC 165.6, ³J_PCCC 13.1, ³J_HCCC 7.1), 120.88 dt (d) (Cⁱ, ¹J_PC 122.5, ³J_HCCC 6.6), 40.32 tqd (d) (NCH₂, ¹J_HC 138.0, ²J_HCC 4.0, ²J_PNC 2.9), 31.07 tm (s) (C⁶, ¹J_HC 126.5), 29.92 tdm (d) (C², ¹J_HC 125.0–126.0, ²J_PCC 16.9), 28.47 tm (d) (C⁴, ¹J_HC 122.0, ¹J_HC 126.0, ⁴J_PCCCC 1.3, ³J_HCCC 3.4, ²J_HCC 3.4), 28.28 tm (s) (C⁵, ¹J_HC 126.3) 24.69 tdm (d) (C¹, ¹J_HC 129.8, ¹J_PC 81.7, ³J_HCCC 4.0–4.1, ²J_HCC 3.4–3.7,), 21.99 tm (s) (C⁷, ¹J_HC 124.4), 21.92 tm (d) (C³, ¹J_HC 126.0–128.0, ³J_PCCC 3.6), 13.51 qm (s) (C⁸, ¹J_HC 124.4, 128.0, ³J_HCCC 2.8–2.9, ²J_HCC 2.8–2.9), 13.41 qdt (d) (NCCH₃, ¹J_HC 127.0, ³J_PNCC 3.0, ²J_HCC 2.9–3.0).

Bis(diethylamino)(nonyl)(phenyl)phosphonium iodide 5c, light yellow oil, yield was 1.94 g (96%). C, 54.79; H, 8.90; P, 5.85%, calcd for C₂₃H₄₄IN₂P, C, 54.54; H, 8.70; N, 5.53; P, 6.12%. ESI-MS, m/z: 379.30 [M–I]⁺; calcd for C₂₃H₄₄N₂P⁺ 379.32. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.68–7.78 m (H^o, H^m, H^p, 5H), 3.27 m, (NCH₂, 8H, ³J_PNCH 10.5, ³J_HH 7.2), 2.84 m (C¹H₂, 2H), 1.37–1.46 m (C²H₂, C³H₂, 4H), 1.23 and 1.18 two br. m (C⁴H₂-C⁸H₂, 10 H), 1.23 t (NCCH₃, 12H, ³J_HH 7.2), 0.82 t (C⁹H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.33 dtd (d) (C^p, ¹J_HC 163.7, ³J_HCCC 7.3, ⁴J_PCCCC 2.9), 132.07 dddd (d) (C^o, ¹J_HC 162.8, ²J_PCC 10.5, ³J_HCCC 7.1, ³J_HCCC 6.8), 129.85 ddd (d) (C^m, ¹J_HC 165.2, ³J_PCCC 13.1, ³J_HCCC 7.0), 120.78 dt (d) (Cⁱ, ¹J_PC 122.5, ³J_HCCC 7.7), 40.23 tdq (d) (NCH₂, ¹J_HC 137.8, ²J_HCC 4.0, ²J_PNC 2.8), 31.10 tm (s) (C⁷, ¹J_HC 126.8), 29.82 tdm (d) (C³, ¹J_HC 125.0–126.0, ³J_PCCC 16.9), 28.49 tm (br. s) (C⁴, ¹J_HC 122.0–124.0, 28.44 tm (s) (C⁵, C⁶, ¹J_HC 124.0–125.0), 24.0 tdm (d) (C¹, ¹J_HC 130.0, ¹J_PC 81.7), 21.92 tm (s) (C⁸, ¹J_HC 124.0), 21.87 tm (d) (C³, ¹J_HC 126.0–128.0, ³J_PCCC 3.3), 13.45 tm (s) (C⁹, ¹J_HC 124.7, ³J_HCCC 3.0, ²J_HCC 3.0), 13.33 qdt (d) (NCCH₃, ¹J_HC 127.2, ³J_PNCC 3.1, ²J_HCC 2.8). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 59.4 ppm.

Decylbis(diethylamino)(phenyl)phosphonium iodide 5d, light yellow oil, yield was 1.98 g (95%). Anal. C, 55.65; H, 8.99; N, 5.02; P, 6.24%, calcd for C₂₄H₄₆IN₂P, C, 55.38; H, 8.91; N, 5.38; P, 5.95%. ESI-MS, m/z: 393.31 [M–I]⁺; calcd for C₂₄H₄₆N₂P⁺ 393.34. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.59–7.65 m (H^o, H^m, H^p, 5H), 3.15 m, (NCH₂, 8H, ³J_PNCH 10.8, ³J_HH 7.1), 2.70 m (C¹H₂, 2H), 1.29–1.32 m (C²H₂, C³H₂, 4H), 1.11 t (NCCH₃, 12H, ³J_HH 7.1), 1.11 and 1.06 two m (C⁴H₂-C⁹H₂, 12H), 0.71 t (C²H₂ and 1.18 two br. m (C⁴H₂-C⁸H₂, 10 H), 1.23 t (NCH₃, 12H, ³J_HH 7.2), 0.71 t (C¹⁰H₃, 3H, ³J_HH 7.0). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.48 dtd (d) (C^p, ¹J_HC 163.4, ³J_HCCC 6.3, ⁴J_PCCCC 2.9), 132.20 dddd (d) (C^o, ¹J_HC 162.1, ²J_PCC 10.6, ³J_HCCC 7.2, ³J_HCCC 7.1), 129.98 ddd (d) (C^m, ¹J_HC 165.4, ³J_PCCC 13.1, ³J_HCCC 7.0), 120.93 dt (d) (Cⁱ, ¹J_PC 122.5, ³J_HCCC 7.5), 40.37 tqd (d) (NCH₂, ¹J_HC 127.9, ²J_HCC 4.0, ²J_PNC 2.9), 31.29 tm (s) (C⁸, ¹J_HC 124.4, ³J_HCCC 3.2–3.5, ²J_HCC 3.5–4.0), 29.97 tdm (d) (C², ¹J_HC 126.0–127.0, ²J_PCC 16.8), 28.89 tm (s) (C⁵, ¹J_HC 126.0–127.0), 28.68 (C⁶, C⁷, ¹J_HC 127.0–1280), 28.38 tm (d) (C⁴, ¹J_HC 127.0–128.0, ⁴J_PCCCC 1.2), 24.75 tm (d) (C¹, ¹J_HC 129.2, ¹J_PC 81.7), 22.10 tm (s) (C⁹, ¹J_HC 124.4, ³J_HCCC 3.7, ²J_HCC 3.7), 21.98 tdm (d) (C³, ¹J_HC 128.0, ³J_PCCC 3.5), 13.60 qm (C¹⁰, ¹J_HC 124.3, ³J_HCCC 3.3–3.4, ²J_HCC 3.5–4.0), 13.45 qdt (NCCH₃, ¹J_HC 127.1, ³J_PNCC 3.0, ²J_HCC 3.0). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 59.2 ppm.

(Diethylamino)(hexyl)diphenylphosphonium iodide 6a, colorless crystals, yield was 1.84 g (98%), mp 91–93 °C. Anal. C, 56.55; H, 6.89; N, 3.21; P, 6.44%, calcd for C₂₂H₃₃INP, C, 56.29; H, 7.09; N, 2.98; P, 6.60%. ESI-MS, m/z: 342.13 [M–I]⁺; calcd for C₂₂H₃₃NP⁺ 342.24. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.85 m and 7.81 m (H^o, H^p, 6H, ³J_PCCHo 12.4, ³J_HoHm 7.7, ³J_HmHp 7.7, ⁵J_PCCCCHp 1.5, ⁴J_HmCCCHp 1.4), 7.73 m (H^m, 4H, ³J_HpHm 7.7, ³J_HoHm 7.7, ⁴J_PCCCHm 3.5), 3.31 dq and 3.30 m (NCH₂, C¹H₂, 6H), 1.50–1.54 m (C²H₂, C³H₂, 4H), 1.21–1.23 m (C⁴H₂, C⁵H₂, 4H), 1.14 t (NCCH₃, 6H), 0.81 br. t (C⁶H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.33 dtd (d) (C^p, ¹J_HC 163.3, ³J_HCCC 7.4, ⁴J_PCCCC 2.6), 132.14 dddd (d) (C^o, ¹J_HC 163.5, ³J_HCCC 7.4, ²J_PCC 10.4), 129.61 ddd (d) (C^m, ¹J_HC 165.6, ³J_PCCC 12.6, ³J_HCCC 7.3), 119.40 dt (d) (Cⁱ, ¹J_PC 96.4, ³J_HCCC 7.4), 40.95 tqd (d) (NCH₂, ¹J_HC 138.3, ²J_HCC 4.1, ²J_PNC 2.3), 30.24 tm (s) (C⁴, ¹J_HC 124.7), 29.22 tdm (d) (C², ¹J_HC 127.0–128.0, ²J_PCC 16.0), 23.71 tdm (d) (C¹, ¹J_HC 130.6, ¹J_PC 63.1, ³J_HCCC 3.0–4.0, ²J_HCC 3.0–4.0), 21.47 tm (d) (C³, ¹J_HC 124.3, ²J_HCC 3.7–4.0, ³J_HCCC 3.7–4.0, ³J_PCCC 3.5), 21.31 tm (s) (C⁵, ¹J_HC 125.3), 13.12 qdt (d) (NCCH₃, ¹J_HC 127.1, ³J_PNCC 2.4, ²J_HCC 2.7), 13.08 qm (s) (C⁶, ¹J_HC 124.5, ³J_HCCC 3.7–4.0, ²J_HCC 3.7–4.0). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 52.0 ppm.

(Diethylamino)(octyl)diphenylphosphonium iodide 6b, light yellow oil, yield was 1.91 g (96%). Anal. C, 58.35; H, 7.19; N, 3.03; P, 6.44%, calcd for C₂₄H₃₇INP, C, 57.95; H, 7.50; N, 2.82; P, 6.24%. ESI-MS, m/z: 370.22 [M–I]⁺. calcd for C₂₄H₃₇NP⁺ 370.27. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.78–7.83 m and 7.79 m (H^o, H^p, 6H, ³J_PCCHo 12.4, ³J_HoHm 7.7, ³J_HmHp 7.7, ⁵J_PCCCCHp 1.5, ⁴J_HmCCCHp 1.4), 7.70 m (H^m, 4H, ³J_HpHm 7.7, ³J_HoHm 7.7, ⁴J_PCCCHm 3.5), 3.27 dk and 3.23 m (NCH₂, C¹H₂, 6H, ³J_PNCH 11.3, ³J_HH 7.1), 1.45–1.48 m (C²H₂, C³H₂, 4H), 1.14–1.18 m and 1.10 t (C⁴H₂, C⁵H₂, C⁶H₂, C⁷H₂, NCCH₃, 14H, ³J_HH 7.1), 0.77 t (C⁸H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.68 dtd (d) (C^p, ¹J_HC 163.3, ³J_HCCC 7.1, ⁴J_PCCCC 2.8), 132.48 dddd (d) (C^o, ¹J_HC 163.6, ³J_HCCC 7.0, ²J_PCC 10.4), 129.96 ddd (d) (C^m, ¹J_HC 165.8, ³J_PCCC 12.6, ³J_HCCC 7.4), 119.77 dt (d) (Cⁱ, ¹J_PC 96.4, ³J_HCCC 7.2), 41.31 tdq (d) (NCH₂, ¹J_HC 138.5, ²J_HCC 4.2, ²J_PNC 2.3), 31.07 tm (s) (C⁶, ¹J_HC 126.5), 29.92 tdm (d) (C², ¹J_HC 125.0–126.0, ²J_PCC 16.0), 28.46 tm (br. s) (C⁴, ¹J_HC 124.0–126.0), 28.25 tm (s) (C⁶, ¹J_HC 126.4), 24.09 tdm (d) (C¹, ¹J_HC 131.2, ¹J_PC 63.0, ³J_HCCC 3.0–4.0, ²J_HCC 3.0–4.0), 21.98 tm (s) (C⁷, ¹J_HC 124.5), 21.87 tm (d) (C³, ¹J_HC 126.0–128.0, ³J_PCCC 3.5), 13.51 qm (s) (C⁸, ¹J_HC 124.4, ³J_HCCC 3.1–3.6, ²J_HCC 3.1–3.6), 13.44 qdt (d) (NCCH₃, ¹J_HC 127.3, ³J_PNCC 2.6, ²J_HCC 2.8). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 51.9 ppm.

(Diethylamino)(nonyl)diphenylphosphonium iodide 6c, light yellow oil, yield was 1.94 g (95%). Anal. C, 58.45; H, 7.89; N, 2.96; P, 5.84%, calcd for C₂₅H₃₉INP, C, 58.71; H, 7.69; N, 2.74; P, 6.07%. ESI-MS, m/z: 384.18 [M–I]⁺; calcd for C₂₅H₃₉NP⁺ 384.28. ³¹P-{¹H} NMR spectrum (162.0 MHz, CH₃CN): δ_P 52.2 ppm. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.70 m and 7.68 m (H^o, H^p, 6H, ³J_PCCHo 12.4, ³J_HoHm 7.7, ³J_HmHp 7.7, ⁵J_PCCCCHp 1.5, ⁴J_HmCCCHp 1.4), 7.60 m (H^m, 4H, ³J_HpHm 7.7, ³J_HoHm 7.7, ⁴J_PCCCHm 3.5), 3.16 dq (NCH₂, 4H, ³J_PNCH 11.3, ³J_HH 7.1), 3.10 m (C¹H₂, 2H), 1.35–1.38 m (C²H₂, C³H₂, 4H), 1.05–1.08 m and 1.04 br. m (C⁴H₂, C⁵H₂, C⁶H₂, C⁷H₂, C⁸H₂, 10H), 1.0 t (NCCH₃, 6H, ³J_HH 7.1), 0.67 t (C⁹H₃, 3H, ³J_HH 7.1).¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 134.79 dtd (d) (C^p, ¹J_HC 164.2, ³J_HCCC 7.1, ⁴J_PCCCC 2.9), 132.59 dddd (d) (C^o, ¹J_HC 163.6, ³J_HCCC 7.4, ²J_PCC 10.6), 130.07 ddd (d) (C^m, ¹J_HC 165.8, ³J_PCCC 12.6, ³J_HCCC 7.3), 119.88 dt (d) (Cⁱ, ¹J_PC 96.4, ³J_HCCC 8.4), 41.42 tqd (d) (NCH₂, ¹J_HC 138.4, ²J_HCC 4.0, ²J_PNC 3.0), 31.31 tm (s) (C⁷, ¹J_HC 125.0–126.0), 30.04 tdm (d) (C², ¹J_HC 125.0–126.0, ²J_PCC 16.0), 28.68 and 28.66 two tm (two s) (C⁵, C⁶, ¹J_HC 124.0–125.0), 28.64 tm (br. s) (C⁴, ¹J_HC 122.0–124.0), 24.23 tdm (d) (C¹, ¹J_HC 131.1, ¹J_PC 63.0), 22.14 tm (s) (C⁸, ¹J_HC 124.2), 21.99 tm (d) (C³, ¹J_HC 126.0–128.0, ³J_PCCC 3.7), 13.66 qm (s) (C⁹, ¹J_HC 124.5, ³J_HCCC 3.5–4.0, ²J_HCC 3.5–4.0), 13.55 qdt (d) (NCCH₃, ¹J_HC 127.3, ³J_PNCC 2.6, ²J_HCC 2.7). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 52.0 ppm.

Decyl(diethylamino)diphenylphosphonium iodide 6d, light yellow oil, yield was 1.97 g (94%). Anal. C, 59.65; H, 8.18; N, 2.83; P, 6.14%, calcd for C₂₆H₄₁INP, C, 59.43; H, 7.86; N, 2.67; P, 5.90%. ESI-MS, m/z: 398.27 [M–I]⁺; calcd for C₂₆H₄₁NP⁺ 398.30. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.79 m and 7.76 m (H^o, H^p, 6H, ³J_PCCHo 12.4, ³J_HoHm 7.7, ³J_HmHp 7.7, ⁵J_PCCCCHp 1.4, ⁴J_HmCCCHp 1.3), 7.68 m (H^m, 4H, ³J_HpHm 7.7, ³J_HoHm 7.7, ⁴J_PCCCHm 3.5), 3.25 dq (NCH₂, 4H, ³J_PNCH 11.3, ³J_HH 7.1), 3.20 m (C¹H₂, 2H), 1.44–1.48 m (C²H₂, C³H₂, 4H), 1.15–1.17 m and 1.12 br. m (C⁴H₂, C⁵H₂, C⁶H₂, C⁷H₂, C⁸H₂, C⁹H₂, 12H), 1.08 t (NCCH₃, 6H, ³J_HH 7.1), 0.77 t (C¹⁰H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 135.07 dtd (d) (C^p, ¹J_HC 163.3, ³J_HCCC 7.3, ⁴J_PCCCC 2.9), 132.90 dddd (d) (C^o, ¹J_HC 163.5, ³J_HCCC 7.1, ²J_PCC 10.5), 130.34 ddd (d) (C^m, ¹J_HC 165.8, ³J_PCCC 12.6, ³J_HCCC 7.4), 120.33 dt (d) (Cⁱ, ¹J_PC 96.6, ³J_HCCC 7.4), 41.73 tqd (d) (NCH₂, ¹J_HC 139.5, ²J_HCC 4.2, ²J_PNC 2.7), 31.67 tm (s) (C⁸, ¹J_HC 126.0–127.0), 30.36 tdm (d) (C², ¹J_HC 125.0–126.0, ²J_PCC 16.0), 29.28 tm (s) (C⁷, ¹J_HC 127.1), 29.07 and 29.04 two tm (two s) (C⁵, C⁶, ¹J_HC 124.0–125.0), 28.97 tm (br. s) (C⁴, ¹J_HC 122.0–124.0), 24.55 tdm (d) (C¹, ¹J_HC 132.1, ¹J_PC 62.9), 22.48 tm (s) (C⁹, ¹J_HC 124.0–125.0), 22.31 tm (d) (C³, ¹J_HC 126.0–128.0, ³J_PCCC 3.5), 13.96 qm (s) (C¹⁰, ¹J_HC 125.1), 13.82 qdt (d) (NCCH₃, ¹J_HC 127.4, ³J_PNCC 2.6, ²J_HCC 2.8). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 51.1 ppm.

(Diethylamino)diphenyl(tetradecyl)phosphonium bromide 6e, light yellow oil, yield was 1.99 g (93%). Anal. C, 67.19; H, 8.89; N, 2.73; P, 6.14%, calcd for C₃₀H₄₉BrNP, C, 67.40; H, 9.24; N, 2.62; P, 5.80%. ESI-MS, m/z: 454.35 [M–Br]⁺; calcd for C₃₀H₄₉NP⁺ 454.36. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.85 m (H^o, 4H, ³J_PCCHo 12.3–13.4, ³J_HoHm 7.7, ⁴J_HoHp 1.4), 7.79 m (H^p, 2H, ³J_HpHm 7.7, ⁴J_HpHo 1.4, ⁵J_PHp 1.6), 7.70 m (H^m, 4H, ³J_HmHo 7.7, ³J_HH 7.7, ⁴J_PH 3.5), 3.37 m (C¹H₂, 2H), 3.30 dq (d) (NCH₂, 4H, ³J_PNCH 11.3, ³J_HH 7.1), 1.48–1.49 m (C²H₂, C³H₂, 4H), 1.21 and 1.16 two br. m (C⁴H₂-C¹³H₂, 20H), 1.12 t (NCCH₃, 6H, ³J_HH 7.1), 0.84 t (C¹⁴H₃, 3H, ³J_HH 7.1). ¹H NMR spectrum (500.0 MHz, CDCl₃, δ ppm, J Hz): 7.54 m (H^o, 4H, ³J_PHo 12.4, ³J_HoHm 7.7), 7.47 m (H^p, 2H, ³J_HpHm 7.1), 7.40 m (H^m, 4H, ³J_HmHo 7.7, ³J_HH 7.7, ⁴J_PH 3.5), 2.97–3.00 m (NCH₂, C¹H₂, 6H, ³J_PNCH 11.3, ³J_HH 7.1), 1.16–1.17 m (C²H₂, C³H₂, 4H), 0.86–0.88 m, 0.83 br. m, 0.79 t (C⁴H₂-C¹³H₂, NCCH₃, 26H, ³J_HH 7.1), 0.48 t (C¹⁴H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (125.8 MHz, CDCl₃, δ_C ppm, J Hz): 134.24 dtd (d) (C^p, ¹J_HC 163.7, ³J_HCCC 7.5, ⁴J_PCCCC 2.5), 132.12 dddd (d) (C^o, ¹J_HC 164.1, ²J_PCC 10.4, ³J_HCCC 7.2, ³J_HCCC 6.9), 129.53 ddd (d) (C^m, ¹J_HC 166.0, ³J_PCCC 12.6, ³J_HCCC 7.4), 119.54 dt (d) (Cⁱ, ¹J_PC 96.3, ³J_HCCC 8.2), 40.78 tqd (d) (NCH₂, ¹J_HC 139.3, ²J_HCC 4.0, ²J_PNC 1.9), 30.95 tm (s) (C¹², ¹J_HC 126.0), 29.55 tdm (d) (C², ¹J_HC 124.0–125.0, ²J_PCC 16.0), 28.70 tm (s) (C⁶, ¹J_HC 124.0–125.0), 28.67 tm (s) (C⁷, C⁸, ¹J_HC 124.0–125.0), 28.63 tm (br. s) (C⁴, ¹J_HC 124.0–125.0), 28.54 tm (s) (C¹⁰, ¹J_HC 124.0–125.0), 28.37 tm (s) (C¹¹, ¹J_HC 124.0–125.0), 28.26 tm (s) (C⁵, ¹J_HC 124.0–125.0), 28.17 tm (br. s) (C⁴, ¹J_HC 124.0–125.0), 23.42 tdm (d) (C¹, ¹J_HC 130.9, ¹J_PC 62.8, ³J_HCCC 3.0–4.0), 21.72 tm (s) (C¹³, ¹J_HC 126.5), 21.52 tm (d) (C³, ¹J_HC 128–129.0, ³J_PCCC 3.4), 13.22 qm (s) (C¹⁴, ¹J_HC 124.5, ³J_HCCC 3.3–4.0), 12.97 qdt (d) (NCCH₃, ¹J_HC 127.3, ²J_HCC 2.7, ³J_PNCC 2.2). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 52.0 ppm. ³¹P-{¹H} NMR spectrum (162.0 MHz, CH₃CN): δ_P 51.9 ppm.

Triethyloctylammonium iodide 7. The mixture of triethylamine (3 g, 29.7 mmol) and octyl iodide (6.42 g, 26.8 mmol) in 5 mL of dry acetonitrile was refluxed for 1 h. Acetonitrile was removed in vacuo, the remaining powder was washed with diethyl ether (3 × 4 mL) and was dried in vacuo. Yield was 8.66 g (95%), mp 122–123 °C. (Lit. 94–97 °C [83]). Anal. C, 49.58; H, 9.55; N, 4.39%, calcd for C₁₄H₃₂IN, C, 49.27; H, 9.45, N, 4.10%. ESI-MS, m/z: 214.22 [M–I]⁺; calcd for C₁₄H₃₂N⁺ 214.25. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 3.47 q (NCH₂, 6H, ³J_HH 7.3), 3.26 m (C¹H₂, 2H), 1.68 m (C²H₂, 2H), 1.34–1.36 m and 1.38 t (C³H₂, C⁴H₂, NCCH₃, 13H), 1.25–1.27 (C⁵H₂, C⁶H₂, C⁷H₂, 6H), 0.87 t (C⁸H₃, 3H, ³J_HH 7.1). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 56.74 br. t (s) (C¹, ¹J_HC 142.0), 52.81 br. t (s) (NCH₂, ¹J_HC 133.5), 30.54 tm (s) (C⁶, ¹J_HC 125.2), 28.66 tm (s) (C⁴, ¹J_HC 128.3), 28.61 tm (s) (C⁵, ¹J_HC 128.3), 25.38 (C³, ¹J_HC 125.1), 21.49 (C², ¹J_HC 124.7), 21.17 (C⁷, ¹J_HC 127.6), 13.07 (C⁸, ¹J_HC 124.6), 7.43 (NCCH₃, ¹J_HC 128.7, ²J_HCC 3.5).

Octyltriphenylphosphonium iodide 8. The mixture of triphenylphosphine (1.09 g, 4.16 mmol) and octyl iodide (1 g, 4.17 mmol) in 5 mL of dry acetonitrile was refluxed for 1 h. Acetonitrile was removed under reduced pressure, and the obtained oil was washed with diethyl ether (4 × 5 mL) and was dried in vacuo. Yield was 2 g (96%). Anal. C, 61.89; H, 6.03; P, 5.89%, calcd for C₂₆H₃₂IP, C, 62.16; H, 6.42; P, 6.17%. ESI-MS, m/z: 375.25 [M–I]⁺; calcd for C₂₆H₃₂P⁺ 375.22. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 7.76–7.78 m (H^o, H^p, 9H), 7.69 m (H^m, 6H, ³J_HH 7.4, ³J_HH 7.4, ⁴J_PCCCH 3.5), 3.55 br. m (PCH₂, 2H), 1.59 m (C²H₂, C³H₂, 4H), 1.16–1.21 m (C⁴H₂-C⁷H₂, 8H), 0.79 t (C⁸H₃, 3H, ³J_HH 7.0). ¹³C NMR spectrum (here and further, the signal type in the ¹³C-{¹H} NMR spectrum is shown in parentheses) (125.8 MHz, CDCl₃, δ ppm, J Hz): 134.71 dtd (d) (C^p, ¹J_HC 163.8, ³J_HCCC 7.4, ⁴J_PCCCC 2.4), 133.07 dddd (d) (C^o, ¹J_HC 163.5, ²J_PCC 9.8, ³J_HCCC 7.7, ³J_HCCC 7.6), 130.13 ddd (d) (C^m, ¹J_HC 166.1, ³J_PCCC 12.3, ³J_HCCC 7.2), 117.45 dt (d) (Cⁱ, ¹J_PC 85.8, ³J_HCCC 8.8), 31.05 tm (s) (C⁶, ¹J_HC 128.2), 29.88 tdm (d) (C², ¹J_HC 128.0–129.0, ²J_PCC 15.7), 28.45 tm (br. s) (C⁴, ¹J_HC 124.7), 28.43 tm (s) (C⁵, ¹J_HC 124.0–125.0), 22.60 tdm (d) (C¹, ¹J_HC 131.1, ¹J_PC 49.3), 21.95 tm (s) (C⁷, ¹J_HC 124.0–125.0), 21.96 tm (d) (C³, ¹J_HC 124.0–125.0, ²J_PCC 4.0–5.0), 13.50 qm (s) (C⁸, ¹J_HC 124.1). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 24.9 ppm.

1,6-Hexanediyl-bis(hexaethyltriaminophosphonium)dibromide 9. The mixture of hexaethyltriaminophosphine (1.98 g, 8 mmol) and 1,6-dibromohexane (0.98 g, 4 mmol) in 7 mL of anhydrous acetonitrile was stirred for 10 h. Acetonitrile was removed under reduced pressure, and the obtained oil was washed with diethyl ether (4 × 5 mL) and was dried in vacuo. Light yellow oil, yield was 2.83 g (96%). Anal. C, 49.03; H, 9.55; N, 11.02; P, 8.79%, calcd for C₃₀H₇₂Br₂N₆P₂, C, 48.78; H, 9.82; N, 11.38; P, 8.40%. ESI-MS, m/z: 289.12 [M–2Br]²⁺; calcd for C₃₀H₇₂N₆P²⁺ 289.26. ¹H NMR spectrum (400.0 MHz, CDCl₃, δ ppm, J Hz): 2.66 br. m (NCH₂, 24H, ³J_PNCH 8.1, ³J_HH 6.5), 2.46 br. m (C¹H_B, 2H), 2.18 br. m (C¹H_A, 2H), 1.15–1,16 m (C²H₂, 4H), 0.88 m (C³H₂, 4H), 0.73 br. t (NCCH₃, 36H). ¹³C NMR spectrum (100.6 MHz, CDCl₃, δ_C ppm, J Hz): 38.42 tdq (d) (NCH₂, ¹J_HC 138.0, ²J_PNC 3.8, ²J_HCC 4.0), 28.62 tdm (d) (C², ¹J_HC 128.5, ²J_PCC 18.7), 24.32 tdm (d) (C¹, ¹J_HC 129.6, ¹J_PC 104.1, ³J_HCCC 2.0, ²J_HCC 1.8–2.0,), 21.15 tm (d) (C³, ¹J_HC 134.4, ³J_PCCC 4.0), 12.29 qdt (d) (NCCH₃, ¹J_HC 127.0, ³J_PNCC 2.6, ²J_HCC 2.7). ³¹P-{¹H} NMR spectrum (162.0 MHz, CDCl₃): δ_P 60.3 ppm.

2.3. Preparation and Characterization of Lipid Nanoparticles

2.3.1. Chemicals

L-α-phosphatidylcholine (PC) (Soy, 95%, Avanti polar lipids), Precirol^® ATO 5 (glyceryl palmitostearate) was a gift from Gattefossé (St-Priest, France), Kolliphor P 188 (Lutrol^® F68, Poloxamer 188) (oxyethylene, 79.9–83.7%, Sigma-Aldrich, St. Luis, MO, USA), Rhodamine B (99%, ACROS Organics, Morris Plains, NJ, USA), Curcumine (Sigma-Aldrich, Chengdu, China), Ultra-purified water (18.2 MΩcm resistivity at 25 °C) was produced from Direct-Q 5 UV equipment (Millipore S.A.S. 67120 Molsheim, France). All reagents were used without further treatment.

2.3.2. Preparation of Liposomes Modified by Aminophosphonium Salts

L-α-phosphatidylcholine (PC) (5% w/w) and compounds 4, 5, 7, and 8 were dissolved in 1 mL of ethanol. The homogeneous solution was kept in a water bath at 60 °C until complete alcohol evaporation to obtain a thin lipid film. Ultra-purified water was pre-heated to 60 °C and added to rehydrate the lipids at 60 °C in the absence. The solution was stirred under magnetic stirring (750 rpm) (Ika, Staufen, Germany) for 30 min at the same temperature. Furthermore, the solution was kept for 1.5 h in a water bath at 37 °C. The multilamellar liposome systems were extruded 15 times by passage through a polycarbonate membrane of 100 nm pore size (Mini-Extruder Extrusion Technique, Avanti Polar Lipids, Inc., Alabaster, AL, USA). The same method was used for rhodamine B (0.05% w/w)-labeled liposomes.

2.3.3. Preparation of SLN Modified by Aminophosphonium Salts

Briefly, Precirol^® ATO 5 (1.5% w/w) was melted at 70 °C, and compound 5 (0.01% w/w) was added to the melted lipid and dissolved. A pre-emulsion was formed after dispersing the hot lipid phase in a Poloxamer 188 surfactant solution (1% w/w) using Ultra-Turrax^® (IKA, T18, Germany) at 8000 rpm for 5 min. The obtained pre-emulsion was passed through a high-pressure homogenizer (Avestin Emulsiflex C5, Avestin, Ottawa, ON, Canada) at 70 °C, applying a pressure of 1200 bar for 15 min. The obtained aqueous dispersions were filled in glass vials, which were immediately sealed and stored at room temperature (20 °C). The total volume is 50 mL. The same method was used for curcumine-labeled SLN and TPP-SLN by adding 50 μL curcumin (C = 0.01 M) in methanol to the melted lipid and keeping it until the evaporation of methanol and the dissolution of curcumine.

2.3.4. Characterization by DLS

The mean particle size, zeta potential, and polydispersity index were determined by dynamic light scattering (DLS), using a Malvern Instrument Zetasizer Nano (Malvern, Worcestershire, UK). The size (hydrodynamic diameter, nm) was calculated according to the Einstein–Stokes relationship D = k_BT/3πηx, where D is the diffusion coefficient, k_B is the Boltzmann’s constant, T is the absolute temperature, η is the viscosity, and x is the hydrodynamic diameter of nanoparticles. The diffusion coefficient was determined at least in triplicate for each sample. The average error of measurements was approximately 10%. All lipid samples were diluted with ultra-purified water to a suitable concentration (2.5 mg/mL) and analyzed in triplicate.

2.3.5. In Vitro Rhodamine B Release Profile

The monitoring of rhodamine B release from liposomes was performed using the dialysis bag diffusion method. Dialysis bags retain liposomes and allow the released rhodamine B to diffuse into the medium. The bags were soaked in Milli-Q water for 12 h before use. Furthermore, 0.5 mL of liposomes were poured into the dialysis bag. The two bag ends were sealed with clamps. The bags were then placed in a vessel containing 100 mL of 0.025 M sodium phosphate buffer, pH 7.4, for the receiving phase. The vessel was placed in a thermostatic shaker at 37 °C with a stirring rate of 150 rpm. At predetermined time intervals, 0.5 mL of samples were withdrawn, and their absorbance at 554 nm was measured using Perkin Elmer λ35 (PerkinElmer Instruments, Norwalk, CT, USA). All samples were analyzed in triplicate. The extinction coefficient of rhodamine B is 106,089 M^–1 cm^–1 at pH = 7.4.

2.4. Biological Study

2.4.1. Cells and Materials

For experiments, we used tumor cell cultures M-HeLa clone 11, a human epithelioid carcinoma of the cervix (subline HeLa., clone M-HeLa); T 98G, a human glioblastoma; Hep G2, a human liver carcinoma; PANC-1, a human pancreatic carcinoma; HuTu 80, a human duodenal adenocarcinoma; MCF7, a human breast adenocarcinoma (pleural fluid); A549, a human lung carcinoma; WI38, VA 13 subline 2RA, a human embryonic lung from the collection of the Institute of Cytology (Russian Academy of Sciences, St. Petersburg, Russia); PC3, a human prostate adenocarcinoma cell line from ATCC (American Type Cell Culture Collection, Manassas, VA, USA; CRL 1435); human liver cells (Chang liver) from the collection Research Institute of Virology (Russian Academy of Medical Sciences, Moscow, Russia); SK-OV-3, a human ovarian adenocarcinoma; and DU-145, a human prostate carcinoma from the CLS Cell Lines Service cell repository. The cell lines presented above were cultured in a standard Eagle’s nutrient medium manufactured at the Chumakov Institute of Poliomyelitis and Virus Encephalitis (PanEco company, Moscow, Russia) and supplemented with 10% fetal calf serum and 1% nonessential amino acids. SK-OV-3, a human ovarian adenocarcinoma from the CLS Cell Lines Service cell repository, was cultured in DMEM/F-12 nutrient medium manufactured at the Chumakov Institute of Poliomyelitis and Virus Encephalitis (PanEco company) and supplemented with 2 mM L-glutamine and 5% FBS.

2.4.2. Cell Toxicity Assay (MTT-Test)

The cytotoxic effect on cells was determined using the colorimetric method of cell proliferation—the MTT test. Cells were seeded onto a 96-well Nunc plate at a concentration of 5 × 10³ cells per well in a volume of 100 μL of medium and cultured in a CO₂ incubator at 37 °C until a monolayer formed for approximately 24 h. Then the nutrient medium was removed, and the cells were washed with PBS. Dilutions of the test compounds, prepared directly in the culture medium with the addition of DMSO (5% by volume) to improve solubility, were added in 100 μL to each well of a 96-well plate. DMSO (5% v/v) was also added to control wells. This concentration did not inhibit cell viability. After 48-h incubation of cells with test compounds, the culture medium was removed from the dishes, and 100 μL of serum-free culture medium containing MTT at a concentration of 0.5 mg/mL was added and incubated for 4 h at 37 °C. 100 μL of DMSO was added to each well to form formazan crystals. Absorbance was recorded at a wavelength of 540 nm on an InvitroLogic microplate reader (Medico-Biological Union, Novosibirsk, Russia). Experiments for all compounds were repeated three times.

2.4.3. Induction of Apoptotic Effects by Test Compounds and Flow Cytometry Assay

Cell Culture

HuTu 80 cells at a rate of 1 × 10⁶ cells/well were seeded into six-well plates and incubated until a monolayer formed for approximately 24 h. After 48 h of incubation, various concentrations of compounds 4b, 5b, 6a, and 8 were added to the wells.

Cell Apoptosis Assay

Cells were detached with a trypsin-versene solution (1:3), suspended in PBS, and collected at 2000 rpm for 5 min. Cells were then washed twice with ice-cold PBS, followed by resuspension in binding buffer. Next, the samples were incubated with 5 μL of Annexin V Alexa Fluor 647 (Sigma-Aldrich, St. Louis, MO, USA) and 5 μL of propidium iodide for 15 min at room temperature in the dark. Finally, the cells were analyzed by flow cytometry in the Red-R (661/15 nm)—annexin and Near IR-B (785/70 nm)—PI channels on a Guava easyCyte flow cytometer (Merck Millipore, Burlington, MA, USA) for 1 h. The experiments were repeated three times.

Mitochondrial Membrane Potential

The cells are prepared as in the Cell Apoptosis Assay section. Cells were detached with trypsin/versene solution (1:3), suspended in PBS, collected at 2000 rpm for 5 min, then washed twice with ice-cold PBS, followed by resuspension in JC-10 (10 μg/mL) and incubation at 37 °C for 10 min. The cells were then washed three times and suspended in PBS, and JC-10 fluorescence was observed by flow cytometry (Guava Easy Cyte).

Detection of Intracellular ROS

HuTu 80 cells were incubated with compounds 4b, 5b, 6a, and 8 at IC₅₀/2 and IC₅₀ concentrations for 48 h. ROS generation was investigated using a flow cytometry assay and the CellROX^® Deep Red flow cytometry kit. For this, HuTu 80 cells were harvested at 2000 rpm for 5 min and then washed twice with ice-cold PBS, followed by resuspension in 0.1 mL of medium without FBS, to which was added 0.2 μL of CellROX^® Deep Red and incubated at 37 °C for 30 min. After three washes, cells were suspended in PBS, and the cell production of ROS was immediately monitored using a flow cytometer (Guava easy Cyte).

ELISA Assay

HuTu 80 cells were incubated for 48 h with 4b, 5b, 6a, and 8 at IC₅₀/2 and IC₅₀ concentrations. In vitro quantitative measurement of caspase-9 and caspase-8 was performed using ELISA kits (ELISA Kit for Caspase 9 and ELISA Kit for Caspase 8, Human Cloud-Clone Corp., Wuhan, China). The analysis was carried out according to the manufacturer’s instructions. Samples were standardized for total protein content (1 mg/mL). Protein concentration was determined with Coomassie-based assays using Bredford Dye Reagent (Bio-Rad, Hercules, CA, USA). The absorbance was measured using a microplate reader, EPOCH (BioTek Instruments, Inc., Winooski, VT, USA), at a wavelength of 450 ± 10 nm. Lysates of untreated HuTu 80 cells were used as controls.

Cell Cycle Analysis

The DNA content and cell-cycle distribution after compounds 4b, 5b, 6a, and 8 IC₅₀ concentrations were estimated by flow cytometry. After washing with PBS, treated cells were suspended in 150 μL of PBS, then 0.5 mL of phosphate-citrate buffer (0.05 M, pH 4.0) was added, and the suspension was incubated at room temperature for 5 min to facilitate the extraction of low-molecular-weight DNA. Following centrifugation, the cells were resuspended in 150 μL DNA staining solution (20 μg/mL propidium iodide, 200 μg/mL DNase (RNase-free)) and incubated in the CO₂ incubator (37 °C for 30 min). The distribution of the cell cycle was determined by fluorescence analysis of HuTu 80 cells stained with propidium iodide using Guava easyCyte (Guava easyCyte) [65].

Hemolytic Assay

The hemolytic activity of Aminophosphonium Salts was assessed by comparing the optical density of a solution containing the test compound with the optical density of blood at 100% hemolysis. Healthy human volunteer donor erythrocytes were used as the object of the study. Red blood cells with EDTA (1.8 mg/mL) were washed three times with saline (0.9% NaCl), centrifuged for 10 min at 800× g rpm, and resuspended in saline (0.9% NaCl) to a concentration of 10%. The tested concentrations (0.1–100 μM) were prepared in physiological solution (0.9% NaCl) (with the addition of 5% DMSO). Compounds at the appropriate dilution (450 μL) were added to 50 μL of a 10% red blood cell suspension. Samples were incubated for 1 h at 37 °C and centrifuged for 10 min at 2000 rpm. The release of hemoglobin was controlled by measuring the optical density of the supernatant on an InvitroLogic microplate reader at λ = 540 nm. A control sample corresponding to zero hemolysis (blank experiment) was prepared by adding 50 μL of a 10% red blood cell suspension to 450 μL of saline (0.9% NaCl). A control sample corresponding to 100% hemolysis was prepared by adding 50 μL of a 10% red blood cell suspension to 450 μL of distilled water [84]. Blood was taken at the Clinic of the Federal Research Center “Kazan Scientific Center of the Russian Academy of Sciences” from healthy donors with their personal consent.

Cellular Uptake Study

HuTu80 cells in the number of 1 × 10⁵ cells/well in a final volume of 500 mL were sown in 24-well plates (Eppendorf). Cells were cultured until a monolayer formed (approximately 24 h). Then the nutrient medium was taken, the cells were washed with PBS, and solutions of PC-liposomes and PC/5d-liposomes at a concentration of IC₅₀/2 were added to the wells and incubated for 1 h, 6 h, and 24 h in a CO₂ incubator. PC-liposomes and PC/5d-liposomes contained RdB and coumarin as fluorescent probes. Next, the cells were detached with a trypsin/versene solution (1:3), suspended in PBS, and detected using a flow cytometer (Guava easyCyte). Flow cytometry was used to set up statistics on the uptake of drugs by cancer cells. Untreated cells were used as a negative control.

Fluorescence Microscopy

HuTu80 cells at 1 × 10⁶ cells/well in a final volume of 2 mL were seeded in 6-well plates at the bottom of each well. Cells were cultured until a monolayer formed (about 24 h). Then the nutrient medium was taken, the cells were washed with PBS, and solutions of PC-liposomes and PC/5d-liposomes at a concentration of IC₅₀/2 were added to the wells and incubated for 1, 6, and 24 h in a CO₂ incubator. PC liposomes and PC/5d liposomes contained RdB and coumarin as fluorescent probes. The fluorescent dye Hoechst 33342 (blue) was used to stain the nuclei of HuTu80 cells. Research has been carried out using a Nikon Eclipse Ci-S fluorescence microscope (Nikon, Tokyo, Japan) at 400× g and 1000× g magnification.

Antimicrobial Activity

The antimicrobial activity of test compounds was determined by serial microdilutions in 96-well plates using Mueller-Hinton broth for bacterial culture and Sabouraud broth for yeast culture. Cultures of Gram-positive bacteria were used in the experiment: Staphylococcus aureus ATCC 6538 P FDA 209P, Bacillus cereus ATCC 10702 NCTC 8035, Enterococcus faecalis ATCC 29212; Gram-negative bacteria: Escherichia coli ATCC 25922, Pseudomonas aeruginosa ATCC 9027; and yeast: Candida albicans ATCC 10231, purchased from the State Collection of Pathogenic Microorganisms and Cell Cultures “SCPM-Obolensk” (Obolensk, Russia). Methicillin-resistant strains of S. aureus (MRSA) were isolated from patients with chronic tonsillitis (MRSA-1) and sinusitis (MRSA-2) in the bacteriological laboratory of the Republican Clinical Hospital (Kazan, Russia). The experiments were carried out in triplicate.

Statistical Analysis

The IC₅₀ values were calculated using the MLA—Quest Graph™ IC₅₀ Calculator (AAT Bioquest, Inc., Pleasanton, CA, USA). Statistical analysis was performed using the Mann-Whitney test (p < 0.05). Tabular and graphical data contain averages and standard errors.

In Vivo Study of Acute Toxicity of Aminophosphonic Salts

The study of acute toxicity was performed on males of outbred white mice of the CD-1 line at the age of 2–3 months, weighing 20–30 g. The total number of mice participating in the experiment was 300. Mice were obtained from the Research and Production Enterprise Laboratory Animal Farm based at the Branch of Shemyakin and Ovchinnikov Institute of Bioorganic Chemistry of the Russian Academy of Sciences (Pushchino, Russia). The animals were kept in accordance with [85,86,87] in standard conditions in a vivarium with 12 h of daylight and free access to food and water. The animals were fed complete feed made according to specifications (protein 22%, fiber 4% max., fat 5% max, ash 9% max, humidity 13.5% max, caloric value 295 kcal/100 g). The studies were conducted with a single parenteral–intraperitoneal (intra-peritoneal) injection, according to the method [87].

The substances were introduced in a sterile saline DMSO (40% vol.) solution. Solutions of the substances were prepared immediately before administration. The total volume of the injected liquid was 0.1 mL/10 g of animal weight. As a control, a group of mice was administered under similar conditions an equivalent amount (0.1 mL/10 g, or 10 mL/kg) of a solvent—40% DMSO on sterile saline solution. The substances were administered in doses ranging from 1 to 100 mg/kg; there were six animals in each group. To assess acute toxicity, the animals were monitored 14 days after administration of the substance, assessing their general condition and recording deaths.

All animal experiments and protocols were approved by the Local Ethics Committee of Kazan Federal University (Protocol No. 4 dated 18 May 2017).

3. Results and Discussion

3.1. Chemistry

3.1.1. Synthesis of Alkyl Diethylaminophoshonium Salts

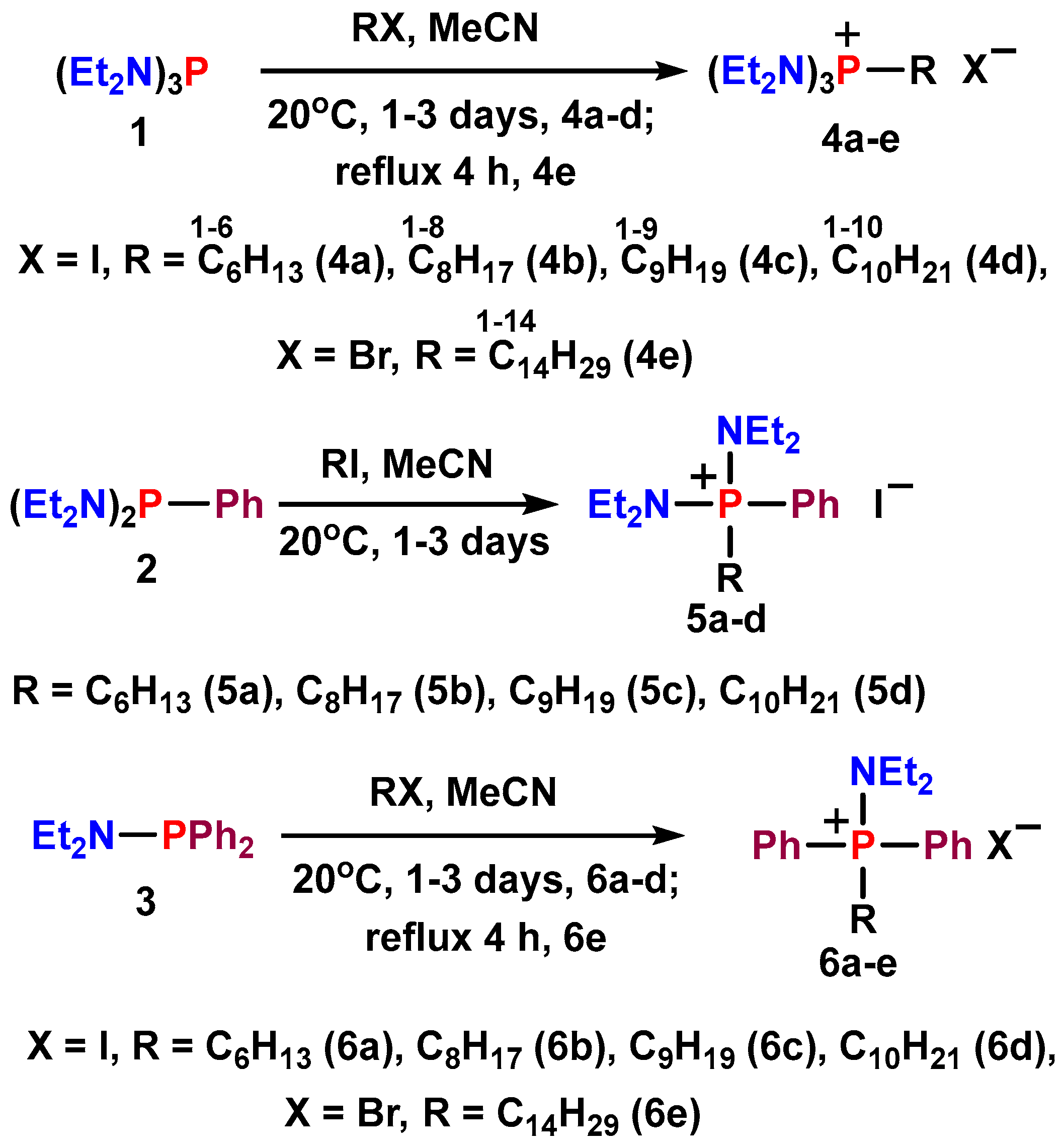

Aminophosphonium salts (APP) containing three, two, or one diethylamine group were synthesized using hexaethyltriaminophosphine 1, bis(tetraethyldiamino) phenylphosphine 2, and diethylaminodiphenylphosphine 3 in the reactions with alkyl halides (C₆, C₈, C₉, C₁₀, and C₁₄). In works [88,89], the reaction of alkyl bromides C₆–C₂₂ with the analog of compound 1—hexamethyltriaminophosphine—was carried out in the absence of solvent at 140–150 °C. Furthermore, reactions of aminophosphin-1 with decyl chloride and a mixture of C₁₆-C₁₈ bromides were carried out under hard conditions (130 °C) [90]. Meanwhile, the reaction of aminophosphine 1 with methyliodide [67] can proceed at room temperature. Using ³¹P NMR, we experimentally determined that reactions of 1–3 with alkyl iodides can be carried out at room temperature in a polar solvent; we used acetonitrile (Scheme 2). The heating is required for tetradecyl bromide using this solvent. Quasi-phosphonium salts 4–6, light yellow thick oils, were obtained with yields close to quantitative (see Section 2.2 and Supplementary Materials). Only compound 6a was obtained in crystalline form.

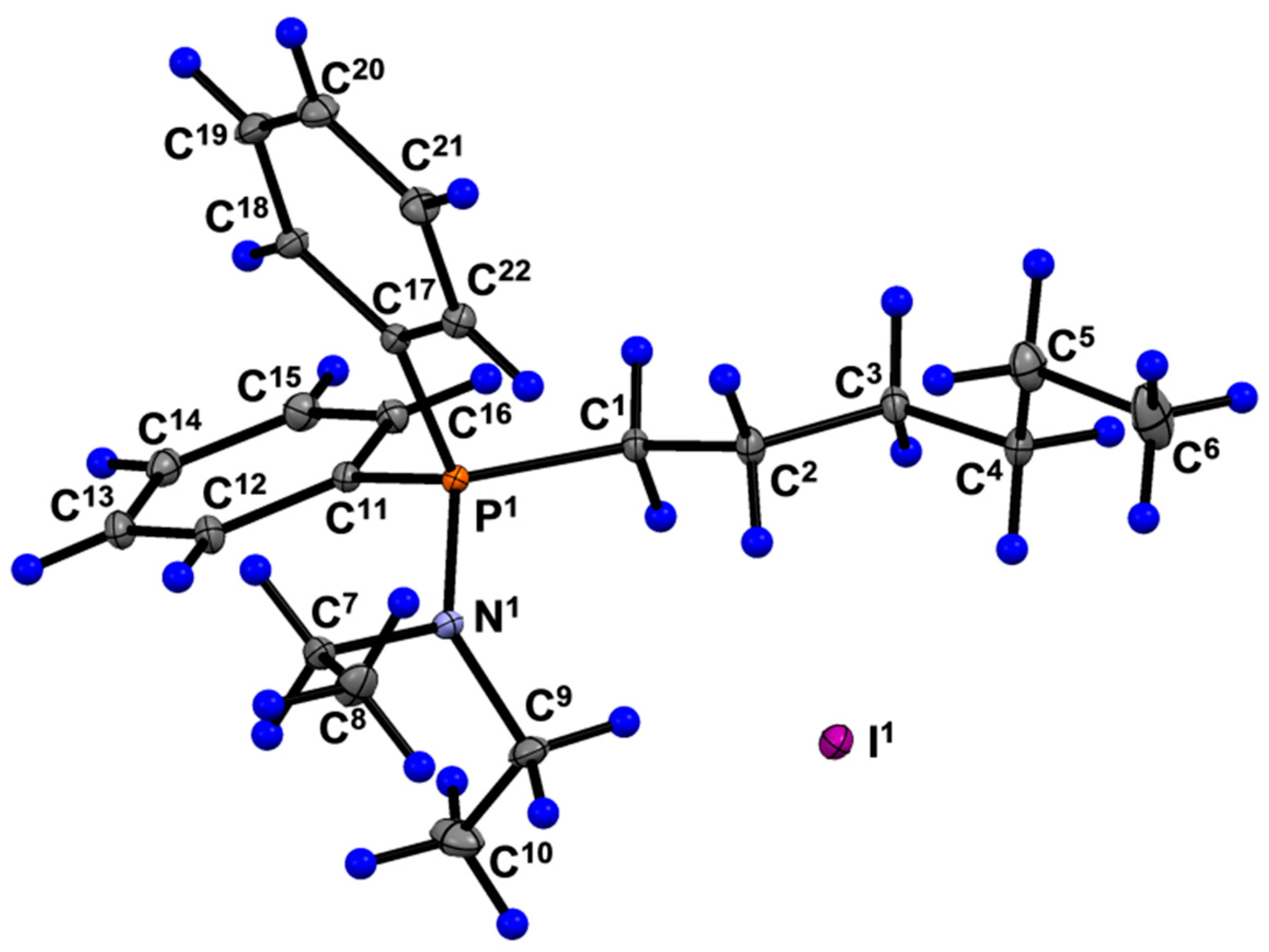

The structure of all the compounds obtained was determined by ¹H, ¹³C, ¹³C-{¹H}, ¹³C-{¹H}-dept, ³¹P-{¹H} NMR, and the composition was confirmed by ESI mass spectroscopy and elemental analysis. The most characteristic for quasi-phosphonium structures 4–6 are chemical shifts in the ³¹P-{¹H} NMR spectra. Depending on the number of amine groups, they are in two intervals—δ_P 58–59 ppm (4, 5) and 51–52 ppm (6). In the NMR spectra of ¹³C-{¹H} quasi-phosphonium salts 5, 6 containing phenyl groups, the most characteristic is the position of the carbon resonance Cⁱ (δ_C 119–123 ppm), and the values of the constants ¹J_PCi are sensitive to the number of amino groups at the phosphonium center—122–123 Hz (for 5) and ~96.4 Hz (for 6). It is interesting to note that the values of the constants ¹J_PC1 are also very sensitive to the number of amino groups: they are ~104.5 Hz (for 4), 81–82 Hz (for 5), and ~63.0 Hz (for 6). The structure of 6a was proved by the XRD. Figure 1 shows the geometry of the molecule in a crystal. The phosphorus atom has a slightly distorted tetrahedral coordination; the valent angles near it vary from 106.76 (6) to 115.35 (6)°. The nitrogen atom has a strongly flattened pyramidal coordination; the sum of the valent angles near it is 356.0 (1)°. The basic geometric parameters of the molecules (bond lengths and valent angles) are ordinary. A fragment of a hexyl substituent with a phosphorus atom P¹–C¹–C²–C³ (up to the C⁴ atom) has a flat zigzag conformation (corresponding torsion angle –175.86(9)°), typical for paraffin crystals. Then a reversal occurs around the C³–C⁴ bond: the torsion angle C²–C³–C⁴–C⁵ is –67.4(2)°, and then the fragment C³–C⁴–C⁵–C⁶ is also in a flat zigzag conformation (the corresponding torsion angle is 178.7(1)°).

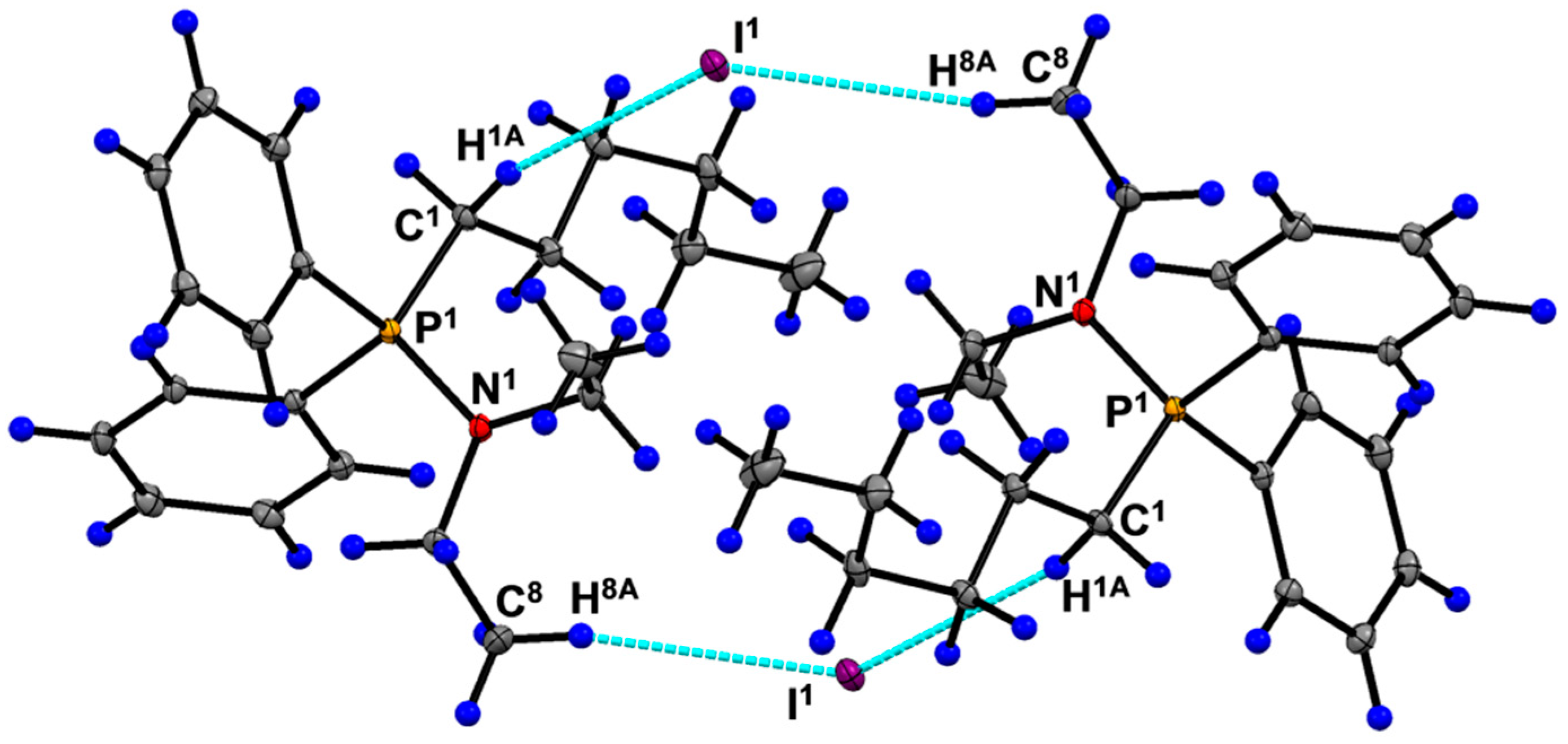

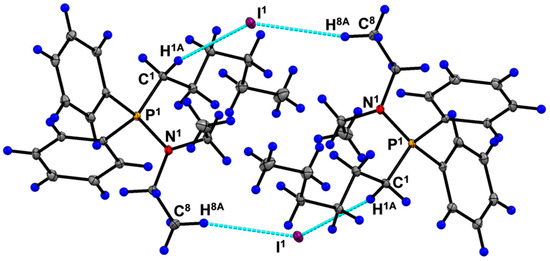

In the crystal, the iodide anion has short C–H⋯I-type contacts with two neighboring phosphonium cations (Figure 2), and at the same time, a hexyl substituent approaches one of the phenyl substituents of the neighboring molecule. Apparently, the non-planar conformation of the hexyl substituent is determined by steric reasons.

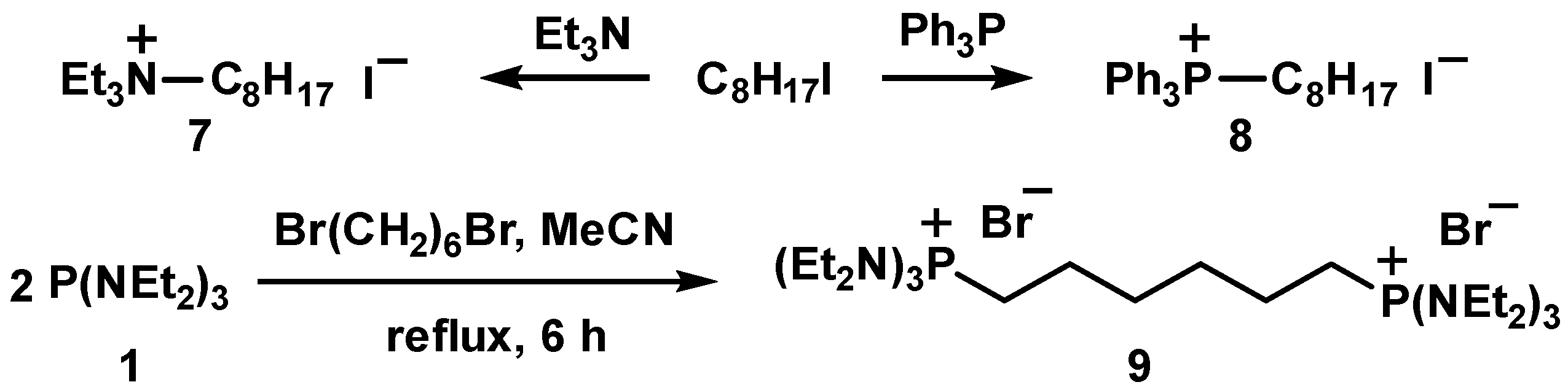

For comparison of biological activity of 4–6, triethylammonium salt 7, triphenylphosphonium salt 8 and 1,6-hexanediyl bis(hexaethyltriaminophosphonium)dibromide 9 (Scheme 3) were obtained. The structures of 7–9 were proven by NMR. It is interesting that the reaction of triphenylphosphine with octyl iodide in MeCN proceeds already at room temperature and without heating (95 h, reagent concentration ~0.25 mol/l, and conversion 71%). However, to accelerate the process, the reaction mass was heated for 1 h. We also carried out a competitive reaction of hexaethyltriaminophosphine 1 and triphenylphosphine with iodoctane in MeCN at room temperature. The ratio of phosphonium salts 4b and 8 after 24 h of keeping the reaction mixture is 85:15, i.e., phosphine 1 has a higher reactivity. Since the rate-determining stage in the Arbuzov reaction is the nucleophilic attack of the P(III) atom on the electrophilic carbon atom of alkyl halide. Thus, aminophosphine, despite having more electro-negative nitrogen atoms, is a strong nucleophile compared with triphenylphosphine.

3.1.2. Aminophosphonium Salt Decorated Liposomes and Solid Lipid Nanoparticles

Lipid nanosystems (liposomes and solid lipid nanoparticles) decorated by APP were obtained using widely used methods, including the lipid film hydration method and high-pressure hot homogenization. The physicochemical characteristics are presented in

Table 2. Characteristics of lipid systems PC-liposomes and solid lipid nanoparticles (SLN), average particle size (Z_average, nm), polydispersity index (PDI), Zeta potential (ξ, mV), 25 °C.

Composition	Ratio, (% w/w)	Zaverage, nm	PDI	ξ, mV
PC [75,76]	100	119 ± 2	0.12 ± 0.02	−7.0 ± 2
PC/4a	99.8/0.2	121 ± 0.5	0.09 ± 0.01	−5.1 ± 0.2
PC/4b	99.8/0.2	124 ± 1	0.07 ± 0.01	+4.3 ± 0.4
PC/4c	99.8/0.2	125 ± 1	0.14 ± 0.02	+9.3 ± 0.3
PC/4d	99.8/0.2	134 ± 1	0.14 ± 0.01	+13.9 ± 0.4
PC/4e	99.8/0.2	115 ± 1	0.12 ± 0.01	+26.8 ± 3
PC/5b	99.8/0.2	129 ± 1	0.14 ± 0.01	+3.2 ± 0.3
PC/5c	99.8/0.2	116 ± 2	0.11 ± 0.01	+7.1 ± 0.2
PC/5d	99.8/0.2	126 ± 0.5	0.14 ± 0.02	+13.3 ± 0.5
PC/4d-Rhod	99.8/0.2	122 ± 0.2	0.11 ± 0.01	+19.0 ± 1.7
PC/5b-Rhod	99.8/0.2	116 ± 0.5	0.10 ± 0.02	+7.9 ± 0.2
PC/5c-Rhod	99.8/0.2	118 ± 0.3	0.09 ± 0.03	+2.6 ± 0.3
PC/5d-Rhod	99.8/0.2	117 ± 0.4	0.1 ± 0.01	+14.2 ± 0.6
PC/5d-Rhod *	99.8/0.2	115 ± 0.2	0.1 ± 0.01	−8.4 ± 0.6
PC/8	99.8/0.2	117 ± 0.5	0.12 ± 0.02	+16.3 ± 2.5
PC/7	99.8/0.2	124 ± 0.1	0.15 ± 0.01	−11.7 ± 1.6
SLN [65]	100	104 ± 1	0.24 ± 0.01	−17.2 ± 1
SLN/4b	99.3/0.7	108 ± 0.3	0.31 ± 0.04	−15.6 ± 0.5
SLN/5b	99.3/0.7	114 ± 1	0.24 ± 0.01	−15.8 ± 0.7
SLN/5c	99.3/0.7	132 ± 2	0.32 ± 0.03	−7.7 ± 0.5
SLN/5d	99.3/0.7	147 ± 2	0.47 ± 0.02	−3.6 ± 0.1
SLN-Cur	100	125 ± 1	0.2 ± 0.01	−28.0 ± 1
SLN/5d-Cur	99.8/0.2	123 ± 1	0.21 ± 0.01	−18.5 ± 1

* 6-month storage at 4 °C.

. Previously, we found the optimal PC/cationic amphiphile ratio = 99.8/0.2 for obtaining liposomal nanosystems with a positively charged surface [91,92] and SLN [65].

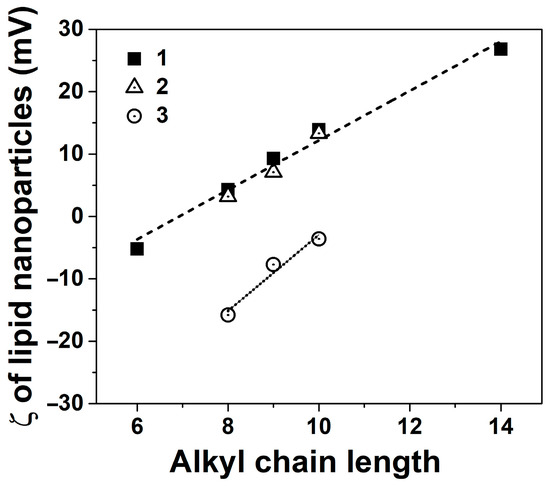

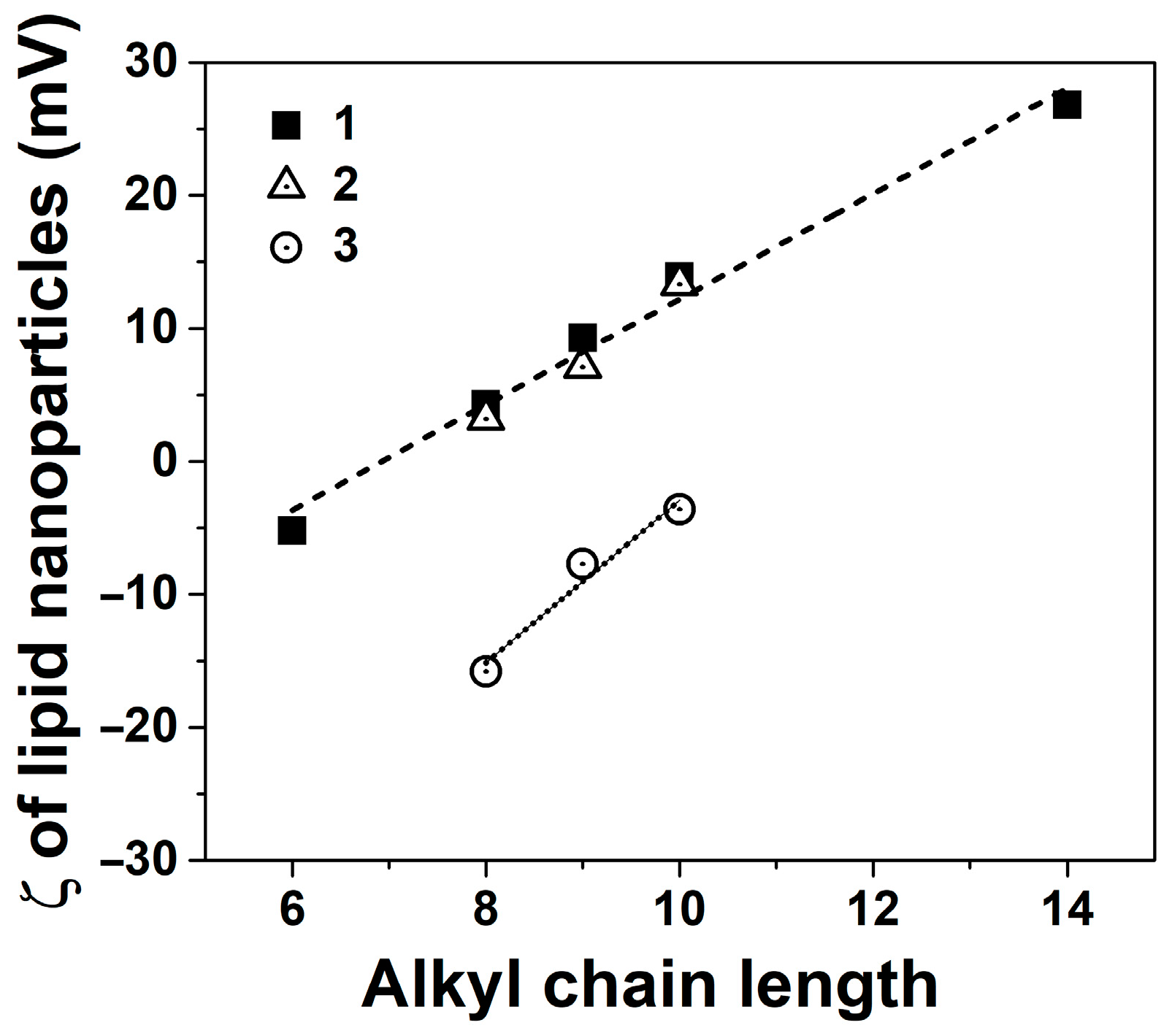

The size of lipid nanoparticles is close to 100 nm. The polydispersity index is not higher than 0.15 for liposomal systems. Detailed DLS data on particle size distribution using the intensity and number parameters are presented in Supplementary Materials (Figures S166–S170). The zeta potential (ζ) of liposomal systems decorated with aminophosphonium salts 4 and 5 varies from neutral to positive values (Figure 3). This indicates a modification of the nanoparticle surface. Linearity (r² = 0.995 and r² = 0.991) of ζ change is observed with increasing length of the alkyl chain of aminophosphonium salts (n) from n = 6 to n = 14 for 4 and from n = 6 to n = 10 for 5. This tendency does not depend on substituents at the phosphorus atom of amino-phosphonium salts (monoaminophosphonium and diaminophosphonium derivatives). The same tendency is observed for SLN/5. The surface charge of SLN changes from negative to positive values with linearity r² = 0.983 (Figure 3). This indicates the modification of nanoparticles with phosphonium salts. An increase in the polydispersity index and the formation of smaller nanoparticles close to 20 nm occur with an increase in the alkyl chain for SLN/5. SLN/4c and SLN/4d systems showed that these systems were not stable at the pre-emulsion preparation stage. Therefore, only SLN/4b and SLN/5b were used for in vitro studies.

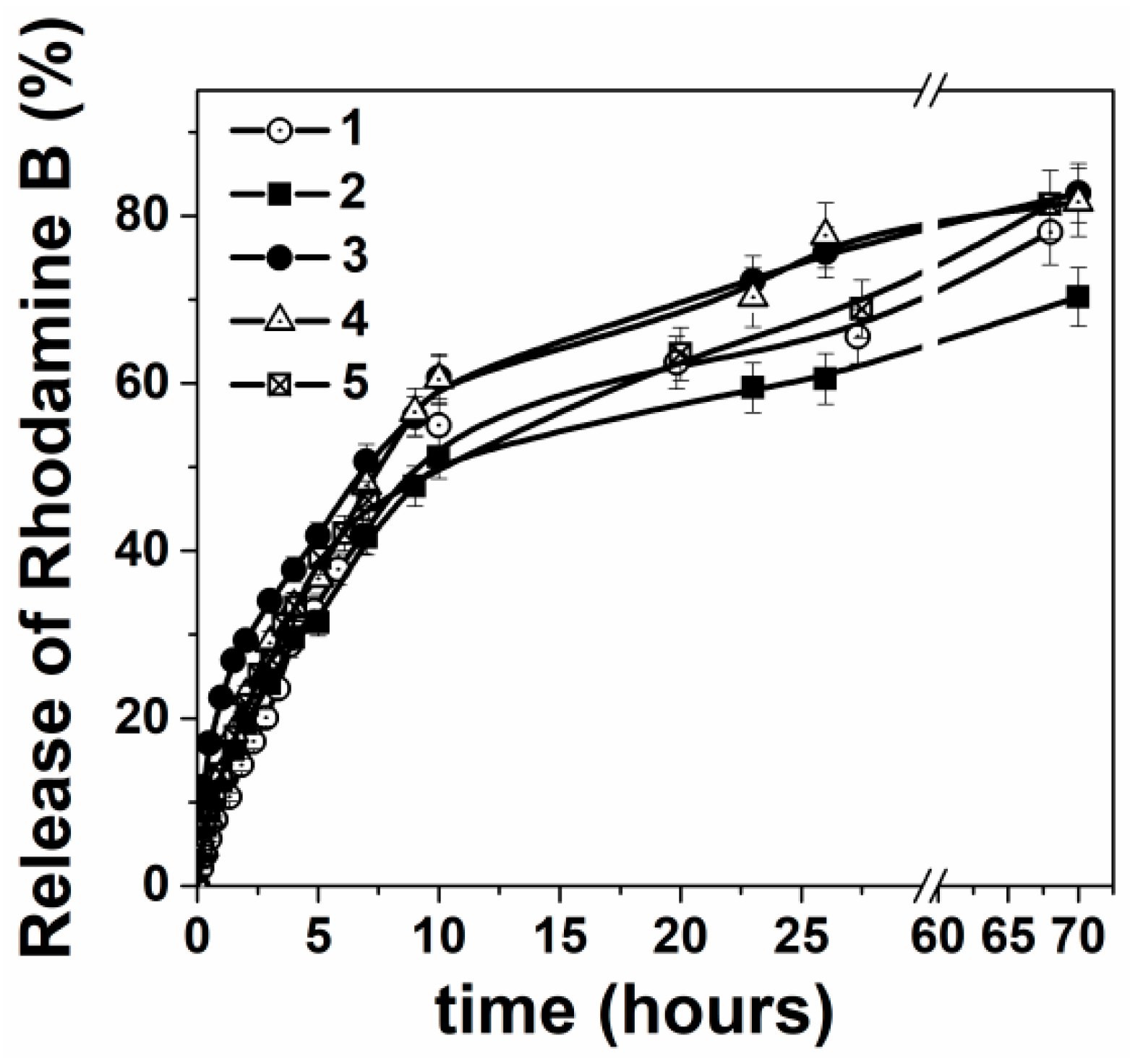

The release of the water-soluble dye rhodamine B from liposomes was studied to evaluate the release time of encapsulated drugs from liposomes and the rigidity of the phospholipid membrane. The release of rhodamine B from PC liposomes and liposomes modified with aminophosphonium salts is shown in Figure 4. Modification of liposomes with aminophosphonium salts does not affect the release of dye from liposomal systems. 50% of rhodamine B is released within 8 h, and complete release occurs within more than 70 h.

3.2. Biology

3.2.1. Cytotoxic Effects of Aminophosphonium Salts

In primary studies, in vitro cell models of cancer and normal cell lines are widely used to evaluate the direct cytotoxic effect of the new chemical compounds proposed as potential drugs.

Table 3. Cytotoxic Effects (IC₅₀, μM) and selectivity index values (SI) of aminophosphonium salts and their lipid formulations (liposomes and SLN) (MTT assay, 48 h).

Test Compounds	Cancer Cell Lines										Normal Cell Lines
	M-HeLa	MCF-7	HuTu 80	PANC-1	A549	PC3	T98G	Hep G2	SK-OV-3	DU-145	WI38	Chang Liver
4a	52.4 ± 3.7 (ns)	26.0 ± 1.8 (ns)	11.4 ± 0.9 (1.6 b)	16.1 ± 1.3 (1.1 b)	64.1 ± 4.5 (ns)	44.0 ± 3.1 (ns)	57.4 ± 4.0 (ns)	46.6 ± 3.3 (ns)	46.6 ± 3.5 (ns)	26.2 ± 1.9 (ns)	7.6 ± 0.6	17.7 ± 1.5
PC/4a	60 ± 12 (ns)	28.3 ± 2.0 (ns)	26.1 ± 1.8 (ns)	24.6 ± 1.6 (ns)	29.2 ± 1.9 (ns)	15.5 ± 1.2 (ns)	37.3 ± 2.8 (ns)	29.1 ± 2.3 (ns)	35.5 ± 2.5 (ns)	68.5 ± 4.1 (ns)	17.2 ± 2.4	6.5 ± 0.8
4b	1.8 ± 0.1 (2.2 b)	2.9 ± 0.2 (1.4 b)	3.2 ± 0.2 (1.3 b)	2.3 ± 0.1 (1.7 b)	15.4 ± 1.2 (ns)	11.6 ± 0.9 (ns)	5.9 ± 0.4 (ns)	2.9 ± 0.2 (1.4 b)	26.3 ± 1.8 (ns)	4.2 ± 0.3 (ns)	0.8 ± 0.06	4.0 ± 0.3
PC/4b	4.5 ± 0.3 (2.8 b)	4.1 ± 0.3 (3.1 b)	0.7 ± 0.06 (18 b)	0.9 ± 0.08 (14 b)	9.5 ± 0.8 (1.3 b)	3.5 ± 0.4 (3.6 b)	2.2 ± 0.1 (5.7 b)	5.0 ± 0.4 (2.5 b)	83.0 ± 5.8 (ns)	1.6 ± 0.1 (8.0 b)	2.6 ± 0.1	12.6 ± 1.2
SLN/4b	0.42 ± 0.04 (26 b)	0.21 ± 0.02 (53 b)	0.42 ± 0.04 (26 b)	1.1 ± 0.1 (10 b)	1.5 ± 0.1 (7.4 b)	0.3 ± 0.03 (37 b)	0.6 ± 0.06 (19 b)	0.3 ± 0.03 (37 b)	75 ± 6 (ns)	0.2 ± 0.01 (56 b)	2.1 ± 0.2	11.1 ± 1.2
4c	1.7 ± 0.1 (2.8 b)	1.9 ± 0.1 (2.5 b)	2.6 ± 0.2 (1.8 b)	1.7 ± 0.1 (2.8 b)	21.1 ± 1.5 (ns)	1.8 ± 0.1 (2.7 b)	3.2 ± 0.2 (1.5 b)	2.4 ± 0.1 (2.0 b)	12.1 ± 1.1 (ns)	1.3 ± 0.1 (ns)	0.8 ± 0.07	4.8 ± 0.4
PC/4c	1.1 ± 0.09 (ns)	0.3 ± 0.02 (30 b)	0.6 ± 0.05 (15.6 b)	0.7 ± 0.06 (13 b)	4.2 ± 0.3 (2.2 b)	1.1 ± 0.08 (8.3 b)	1.9 ± 0.1 (4.8 b)	1.1 ± 0.08 (8.3 b)	99 ± 7 (ns)	0.4 ± 0.03 (22.8 b)	2.6 ± 0.2	9.1 ± 0.8
4d	1.7 ± 0.1 (7.1 b)	2.1 ± 0.2 (5.7 b)	2.8 ± 0.2 (4.3 b)	1.6 ± 0.1 (7.5 b)	18.4 ± 1.3 (ns)	7.3 ± 0.6 (1.6 b)	1.8 ± 0.2 (6.7 b)	2.3 ± 0.1 (5.2 b)	10.0 ± 0.9 (1.2 b)	1.2 ± 0.1 (10 b)	0.9 ± 0.08	12.0 ± 0.9
PC/4d	0.7 ± 0.06 (2.6 a)	0.4 ± 0.03 (4.5 a)	0.24 ± 0.02 (7.5 a)	0.26 ± 0.02 (7.0 a)	3.7 ± 0.3 (ns)	0.9 ± 0.08 (2.0 a)	0.9 ± 0.07 (2.0 a)	0.6 ± 0.05 (3.0 a)	69.4 ± 4.9 (ns)	0.15 ± 0.01 (12 a)	1.8 ± 0.1	0.7 ± 0.06
4e	0.4 ± 0.03 (4.3 b)	0.9 ± 0.07 (1.9 b)	0.06 ± 0.005 (28 b)	0.4 ± 0.03 (4.3 b)	1.7 ± 0.1 (1.0 b)	1.7 ± 0.1 (1.0 b)	1.0 ± 0.09 (1.7 b)	1.5 ± 0.1 (1.1 b)	1.7 ± 0.1 (1.0 b)	0.4 ± 0.03 (4.3 b)	1.2 ± 0.1	1.7 ± 0.1
PC/4e	62 ± 5.3 (ns)	1.5 ± 0.8 (24 b)	29.7 ± 2.4 (1.2 b)	2.5 ± 0.3 (14 b)	2.3 ± 0.1 (16 b)	3.8 ± 0.3 (9.5 b)	3.2 ± 0.2 (11 b)	7.9 ± 0.6 (4.5 b)	35.5 ± 2.8 (1 b)	38.5 ± 3.2 (ns)	7.1 ± 0.7	36.0 ± 2.9
5a	23.0 ± 1.6 (2.7 a)	17.1 ± 1.3 (3.7 a)	0.3 ± 0.02 (210 a)	17.8 ± 1.4 (3.5 a)	17.0 ± 1.3 (3.7 a)	4.9 ± 0.4 (13 a)	30.3 ± 2.1 (3.7 a)	16.5 ± 1.3 (3.8 a)	20.0 ± 1.6 (3.2 a)	6.3 ± 0.5 (10 a)	63.0 ± 4.4	22.6 ± 1.6
5b	1.8 ± 0.1 (2.2 b)	2.6 ± 0.2 (1.5 b)	4.0 ± 0.3 (1.0 b)	1.2 ± 0.1 (3.3 b)	20.0 ± 1.6 (ns)	11.4 ± 0.9 (ns)	4.3 ± 0.3 (1.0 b)	2.9 ± 0.3 (1.4 b)	25.6 ± 1.8 (ns)	2.0 ± 0.1 (2.0 b)	0.5 ± 0.4	4.0 ± 0.3
PC/5b	1.1 ± 0.08 (5.5 a)	0.7 ± 0.06 (8.6 a)	0.22 ± 0.01 (5.5 a)	0.7 ± 0.06 (8.6 a)	3.0 ± 0.2 (2.0 a)	1.4 ± 0.1 (4.3 a)	3.4 ± 0.2 (1.8 a)	1.0 ± 0.09 (6.0 a)	1.8 ± 0.1 (3.3 a)	0.4 ± 0.03 (15 a)	6.0 ± 0.5	4.6 ± 0.4
SLP/5b	2.0 ± 0.1 (1.8 a)	1.3 ± 0.1 (2.8 a)	0.9 ± 0.07 (4.0 a)	1.2 ± 0.1 (3.0 a)	2.5 ± 0.2 (1.4 a)	1.6 ± 0.1 (2.3 a)	5.0 ± 0.4 (ns)	10.0 ± 0.9 (ns)	1.7 ± 0.1 (2.1 a)	1.1 ± 0.09 (3.3 a)	3.6 ± 0.2	1.3 ± 0.1
5c	1.7 ± 0.1 (2.4 b)	3.1 ± 0.2 (1.3 b)	2.8 ± 0.3 (1.5 b)	2.8 ± 0.2 (1.5 b)	8.7 ± 0.7 (ns)	10.0 ± 0.9 (ns)	2.7 ± 0.3 (1.5 b)	2.3 ± 0.1 (1.8 b)	14.8 ± 1.2 (ns)	0.9 ± 0.07 (4.6 b)	0.5 ± 0.4	4.1 ± 0.3
PC/5c	0.7 ± 0.06 (3.3 b)	0.5 ± 0.04 (4.6 b)	0.4 ± 0.03 (5.8 b)	0.8 ± 0.06 (2.9 b)	1.6 ± 0.1 (1.4 b)	0.6 ± 0.05 (3.8 b)	2.7 ± 0.2 (ns)	0.6 ± 0.05 (3.8 b)	83.1 ± 5.8 (ns)	0.2 ± 0.01 (12 b)	1.9 ± 0.1	2.3 ± 0.1
5d	1.5 ± 0.1 (ns)	0.7 ± 0.06 (1.9 b)	2.5 ± 0.1 (ns)	1.4 ± 0.1 (ns)	8.9 ± 0.7 (ns)	0.8 ± 0.06 (1.6 b)	0.7 ± 0.05 (1.9 b)	1.1 ± 0.09 (1.2 b)	10.0 ± 0.8 (ns)	0.45 ± 0.03 (2.9 b)	0.3 ± 0.02	1.3 ± 0.1
PC/5d	0.8 ± 0.07 (1.9 a)	0.7 ± 0.06 (2.1 a)	0.4 ± 0.02 (3.8 a)	0.5 ± 0.04 (3.0 a)	2.6 ± 0.2 (ns)	0.6 ± 0.05 (2.5 a)	2.5 ± 0.2 (ns)	2.7 ± 0.2 (ns)	92.4 ± 6.5 (ns)	0.3 ± 0.02 (5.0 a)	1.5 ± 0.1	0.23 ± 0.01
6a	5.8 ± 0.4 (4.8 a)	17.0 ± 1.3 (1.6 a)	0.1 ± 0.007 (277 a)	5.5 ± 0.4 (5.0 a)	48.2 ± 3.4 (ns)	4.0 ± 0.3 (6.9 a)	18.4 ± 1.5 (1.5 a)	34.4 ± 2.4 (ns)	36.8 ± 2.6 (ns)	2.6 ± 0.3 (11 a)	27.7 ± 1.9	15.2 ± 1.3
6b	0.95 ± 0.08 (17 a)	9.5 ± 0.8 (1.7 a)	0.2 ± 0.01 (81 a)	1.3 ± 0.1 (12 a)	13.0 ± 1.1 (1.2 a)	0.85 ± 0.07 (19 a)	3.4 ± 0.2 (5.0 a)	11.6 ± 0.9 (1.4 a)	17.6 ± 1.4 (ns)	0.8 ± 0.07 (20 a)	16.1 ± 1.2	0.42 ± 0.03
6c	0.9 ± 0.07 (1.6 a)	4.2 ± 0.3 (2.0 a)	0.2 ± 0.01 (42 a)	1.3 ± 0.1 (6.4 a)	11.4 ± 0.9 (ns)	1.0 ± 0.08 (8.3 a)	2.4 ± 0.1 (3.5 a)	6.2 ± 0.5 (1.3 a)	12.7 ± 1.1 (ns)	1.3 ± 0.1 (6.4 a)	8.3 ± 0.7	0.5 ± 0.04
6d	0.24 ± 0.02 (1.6 a)	1.6 ± 0.1 (ns)	0.35 ± 0.02 (1.1 a)	0.4 ± 0.03 (1.0 a)	8.2 ± 0.7 (ns)	1.4 ± 0.1 (ns)	0.6 ± 0.05 (ns)	1.3 ± 0.1 (ns)	3.9 ± 0.4 (ns)	0.43 ± 0.03 (1.0 a)	0.4 ± 0.03	0.3 ± 0.02
6e	0.4 ± 0.03 (7.0 a)	1.2 ± 0.1 (2.3 a)	0.07 ± 0.005 (40 a)	0.3 ± 0.02 (9.3 a)	2.1 ± 0.1 (1.3 a)	1.5 ± 0.1 (1.9 a)	1.1 ± 0.09 (2.5 a)	1.4 ± 0.1 (2.0 a)	1.6 ± 0.1 (1.8 a)	0.4 ± 0.02 (7.0 a)	2.8 ± 0.2	2.5 ± 0.2
7	16.1 ± 1.3 (3.0 a)	29.1 ± 2.0 (1.7 a)	1.9 ± 0.2 (26 a)	44.6 ± 3.1 (1.1 a)	>100 (ns)	32.7 ± 2.3 (1.5 a)	>100 (ns)	>100 (ns)	69.0 ± 4.8 (ns)	58.0 ± 4.1 (ns)	49.0 ± 3.4	34.0 ± 2.4
PC/7	148 ± 12 (ns)	67 ± 5.4 (ns)	54.3 ± 3.8 (ns)	134.2 ± 10 (ns)	>100 (ns)	41.7 ± (ns)	>100 (ns)	>100 (ns)	>100 (ns)	99.2 ± (ns)	12.6 ± 1.3	0.3 ± 0.02
8	0.45 ± 0.04 (20 a)	4.2 ± 0.3 (2.2 a)	0.09 ± 0.006 (102 a)	0.3 ± 0.02 (31 a)	8.7 ± 0.7 (1.1 a)	0.4 ± 0.03 (23 a)	0.6 ± 0.05 (15 a)	1.6 ± 0.1 (5.8 a)	9.8 ± 0.7 (ns)	0.4 ± 0.03 (23 a)	9.2 ± 0.8	3.0 ± 0.2
PC/8	17.0 ± 1.5 (1.7 b)	11.2 ± 0.9 (2.6 b)	6.2 ± 0.5 (4.7 b)	18.2 ± 1.4 (1.6 b)	0.8 ± 0.06 (36 b)	35.6 ± 2.2 (ns)	1.2 ± 0.1 (24 b)	37.2 ± 2.5 (ns)	67.0 ± 4.7 (ns)	2.5 ± 0.1 (12 b)	28.0 ± 1.8	29.0 ± 2.0
9	31.1 ± 3.9 (1.5 a)	37.8 ± 4.8 (1.2 a)	13.1 ± 1.7 (3.5 a)	39.6 ± 5.1 (1.2 a)	>100	34.9 ± 4.5 (1.3 a)	>100	53.9 ± 6.9 (ns)	36.4 ± 4.7 (1.3 a)	50.5 ± 6.4 (ns)	45.8 ± 5.9	37.2 ± 4.8
doxorubicin	2.1 ± 0.1 (ns)	0.4 ± 0.03 (1.3 b)	0.2 ± 0.01 (2.5 b)	2.2 ± 0.1 (ns)	0.7 ± 0.06 (ns)	1.4 ± 0.1 (ns)	1.0 ± 0.09 (ns)	0.2 ± 0.01 (2.5 b)	6.7 ± 0.5 (ns)	0.3 ± 0.02 (1.7 b)	0.4 ± 0.03	0.5 ± 0.03

The experiments were performed in triplicate. Data for the most active compounds and lead compounds are highlighted in color and depth. Results are expressed as the mean ± standard deviation (SD); ns—no selectivity. ^a The selectivity index was calculated relative to the cell line WI38. ^b The selectivity index was calculated relative to the cell line Chang liver.

presents the cytotoxicity of aminophosphonium salts tested against a wide panel of human cancer and normal cell lines. The results are characterized by the values of half-inhibiting concentrations (IC₅₀) as well as the selectivity index (SI). SI is calculated as the ratio between the IC₅₀ for normal cells and IC₅₀ for cancer cells. Most of the compounds displayed high and moderate activity toward the entire spectrum of used cell lines. In some cases, the cytotoxicity of tested compounds against normal cells was lower compared with cancer cells. At the same time, the selectivity index of the studied compounds was SI ≥ 10. This value of SI indicates high selectivity [93].

Most of the studied compounds generally exhibit high cytotoxicity against the M-HeLa cell line. Thus, for compounds 4b–e, 5b–d, 6b–e, the IC₅₀ values are in the range 0.24–1.8 μM (SI 1.6–17). At the same time, compounds 4d (SI 7.1), 6a (SI 4.8), and 6b (SI 17) are distinguished by the SI indicator, with compound 6b being a leader, whose IC₅₀ is two times lower than that of doxorubicin.

On the HuTu 80 cell line, a pronounced dependence of SI on the aminophosphonium cation is observed: at a rather low IC₅₀ value of 0.06–4.0 μM for compounds 4–6 (for compounds 4e and 6e, IC₅₀ is 3 times lower than for doxorubicin), the selectivity index increases in a row 4 < 5 < 6. Thus, the maximum SI (SI 28) is observed for 4e among triaminophosphonium salts, SI 210 for 5a among diaminophosphonium salts, and SI 277 for 6a among monoaminophosphonium salts. 6b (SI 81) and 6c (SI 42) indicate high selectivity properties. A similar activity is observed for the PC3 cells. Their growth is rather selectively inhibited by 6b, 6c, and 6a, indicating IC₅₀ (μM) and SI: 0.085 ± 0.07 (19), 1.0 ± 0.08 (8.3), and 4.0 ± 0.3 (6.9), respectively. Among diaminophosphonium compounds, only salt 5a (4.9 ± 0.4 μM, SI 13) exhibits selectivity, whereas in the series of derivatives 4, there are no compounds with high SI values.

Monoaminophosphonium compounds 6a–c, e showed higher efficiency for the Du-145 cell line compared with 4 and 6 with the following IC₅₀ (μM) and SI: 6b, 0.8 ± 0.07 (20); 6a, 2.6 ± 0.3 (11); 6e, 0.4 ± 0.02 (7.0); 6c, 1.3 ± 0.1 (6.4). Among tri- and diaminophosphonium compounds, 4d, 4c, and 5c with IC₅₀ (μM) and SI can be noted: 1.2 ± 0.1 (10), 0.4 ± 0.03 (4.3), and 0.9 ± 0.07 (4.6). The same trends are observed in the PANC-1 cell line. The most effective compounds are 6b, 6e, 6c, 6a, 4e, and 4c with the following IC₅₀ (μM) and SI (given in order of decreasing SI): 6b, 1.3 ± 0.1 (12); 6e, 0.3 ± 0.02 (9.3); 4d, 1.6 ± 0.1 (7.5); 6c, 1.3 ± 0.1 (6.4); 6a, 5.5 ± 0.4 (5.50); and 4e, 0.4 ± 0.03 (4.3).

The studied compounds showed moderate or high cytotoxicity on the MCF-7 cell line. In a series of compounds with three amino groups at the phosphorus atom, compound 4e showed the highest cytotoxicity (IC₅₀ 0.9 ± 0.07 μM, SI 1.7). 4d (IC₅₀ 2.1 ± 0.2 μM) showed a high selectivity index (SI 5.7). The replacement of one or two amino groups with a phenyl substituent in compounds 5b–d, 6c–e, did not lead to an increase in cytotoxicity with respect to MCF-7 cell line, which was 0.7–4.2 μM (SI 2). The IC₅₀ and SI of octyltriphenylphosphonium iodide 8 (4.2 ± 0.3, 2.2) were comparable with the activity of 6c.

For the A549 cell line, only the activity of compound 5a can be noted. 5a has lower efficiency (IC₅₀ 17.0 ± 0.3 μM, SI 3.7), and it is 157 times less toxic toward the normal WI38 cell line compared with doxorubicin (IC₅₀ 0.7 ± 0.06 μM, ns).

The analysis of IC₅₀ and SI allows a preliminary conclusion about the more pronounced cytotoxicity and higher SI values of monoaminophosphonium derivatives 6 compared with tri- and diaminophosphonium salts 4 and 5 on HuTu 80, PC3, and Du-145 cell lines. The effect of alkyl chain length in aminophosphonium derivatives is expressed in an increase in cytotoxicity towards cancer cells from derivatives with a smaller alkyl chain to larger ones. This is most clearly noticeable from C₆ to C₈ [IC₅₀ 4b > 4a (ΔIC₅₀ 50.6 μM for M-HeLa), 5b > 5a (ΔIC₅₀ 21.2 μM for M-HeLa), 6b > 6a (ΔIC₅₀ 4.9 μM for M-HeLa)].

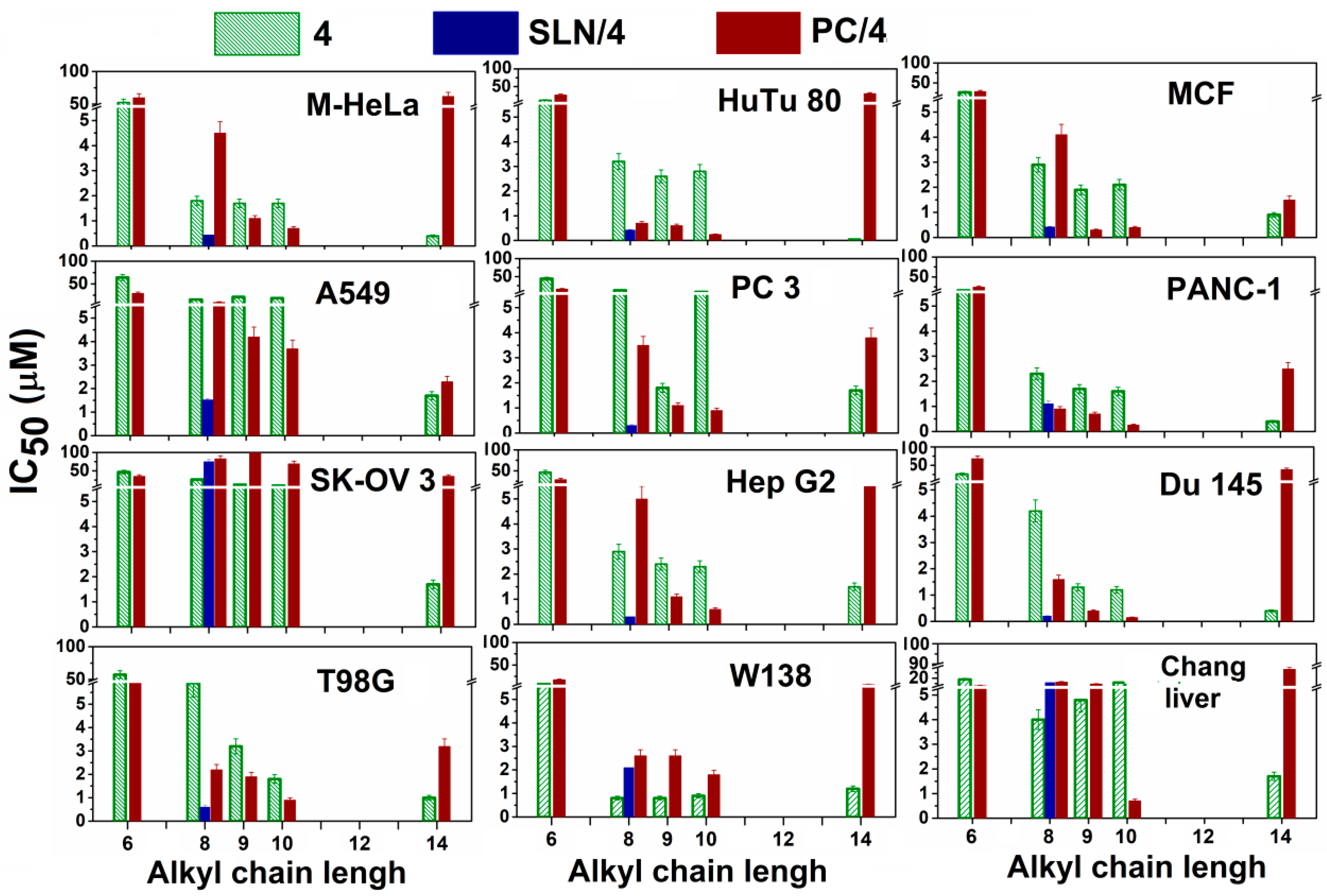

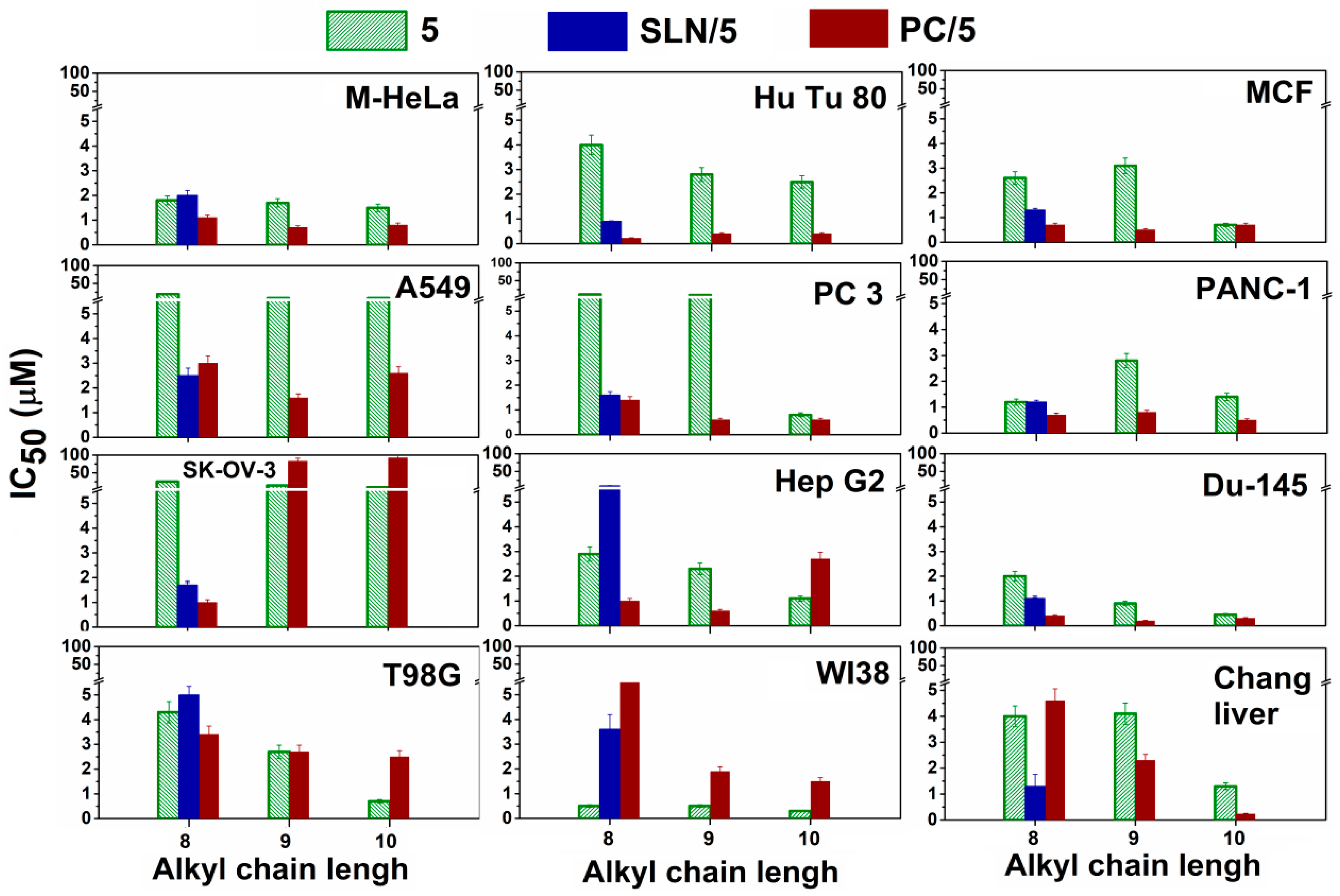

In vitro cytotoxicity was studied for nanotherapeutic forms (liposomes and SLN) of compounds 4, 5b–5d, 7, and 8. Lipid systems for 4b–d and 5b–d exhibit improved cytotoxic activity against tumor cells (except SK-OV-3) compared with individual compounds (Figure 5 and Figure 6). The maximum difference is observed for SLN/4b, where the cytotoxicity is 4 times (M-HeLa) and 40 times (PC3) better than for 4b. The IC₅₀ for the lipid systems PC/4c, PC/4d, PC/5b, PC/5c, PC/5d, and SLN/4b is lower than for the reference drug DOX. At the same time, all lipid nanoforms are less toxic to normal cell lines. Maximum selectivity SI 53 and SI 56 are achieved in the case of SLN/4b against the cell lines MCF-7 and DU-145, respectively. The maximum SI is observed for PC/4c and PC/4e; the SI values are SI 30 and 24 for the MCF-7 cell line and SI 22.8 for DU-145, as well as PC/8, where SI 36 and 24 against cell lines A549 and T98G.

It should be noted that the activity of PC/4 improves with an increase in alkyl chain length from the hexyl to the decyl derivatives in the range of 8÷456 times, in contrast to PC/5. There is no change in activity depending on the length of the alkyl chain for the PC/5. Interestingly, the surface charge of both PC/4 and PC/5 liposomes changes linearly with increasing length of the alkyl chain (Figure 3) and does not depend on the substituent at the phosphorus atom. Consequently, biological activity is not linearly related to the charge of liposomal systems but depends mainly on the nature of the substituent at the phosphorus atom. In addition, SLN/4b exhibits improved biological activity compared with both SLN/5b and PC/4b liposomal systems, which also indicates the influence of the nature of the substituent at the phosphorus atom.

3.2.2. Cellular Uptake of Liposomes and SLN Modified by Aminophosphonium Salts

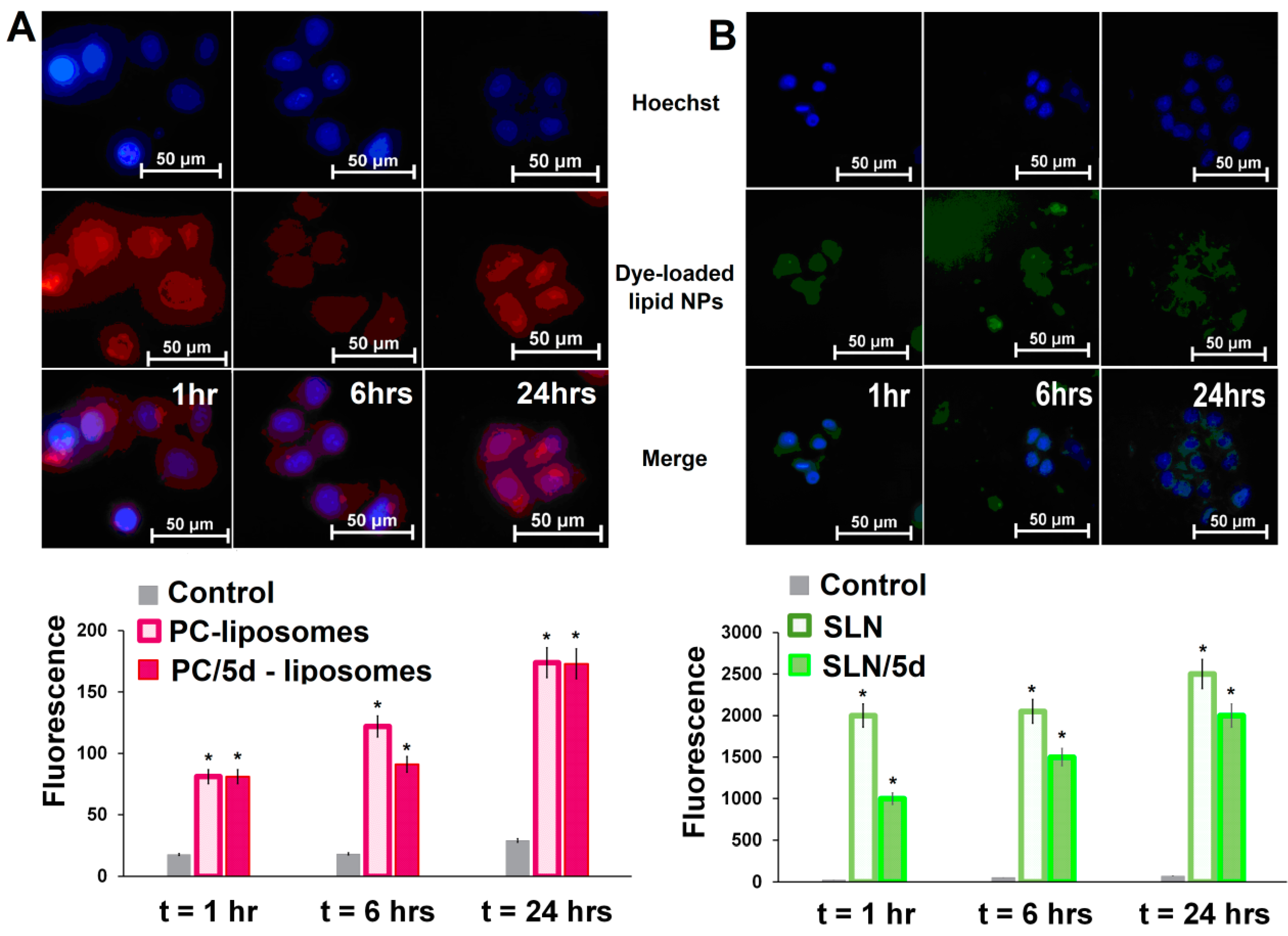

Dye-labeled (rhodamine and curcumin) liposomes and SLN, respectively, were prepared to visualize P⁺-lipid nanoparticles and confirm their internalization by cells. The characteristics are presented in Table 2 and Supplementary Material (Figure S168). The monitoring colloid stability of Rhodamine-loaded PC/5d liposomes at 4 °C showed that the size almost did not change, but zeta-potential decreased from +14 mV to –8 mV, which is typical for cationic liposomes [91,92]. As we see in Figure 7, rhodamine-labeled liposomes and curcumin-labeled SLN were located in the cytoplasm after 1 h of incubation with cells. This indicates that the nanoparticles were internalized by tumor cells.

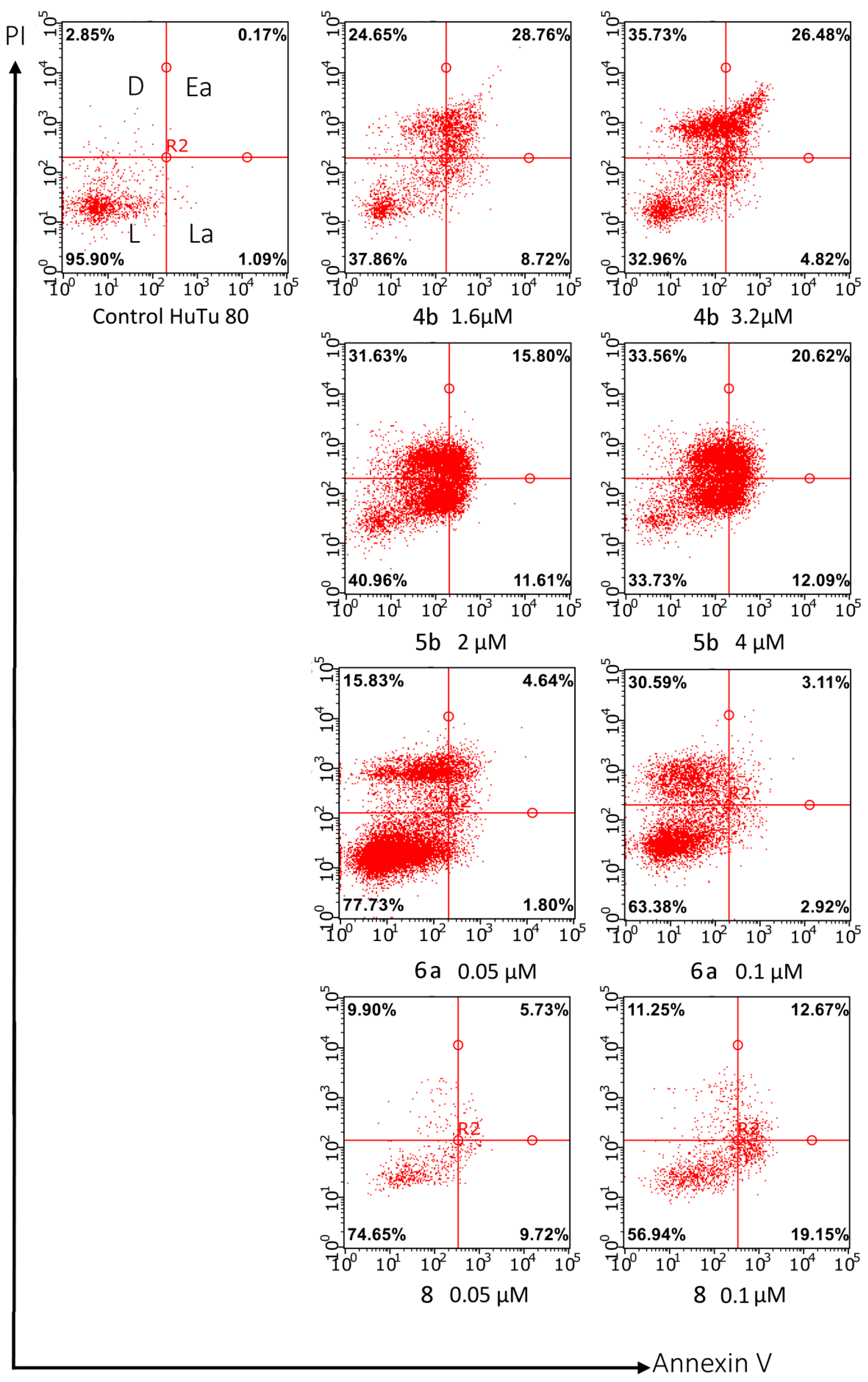

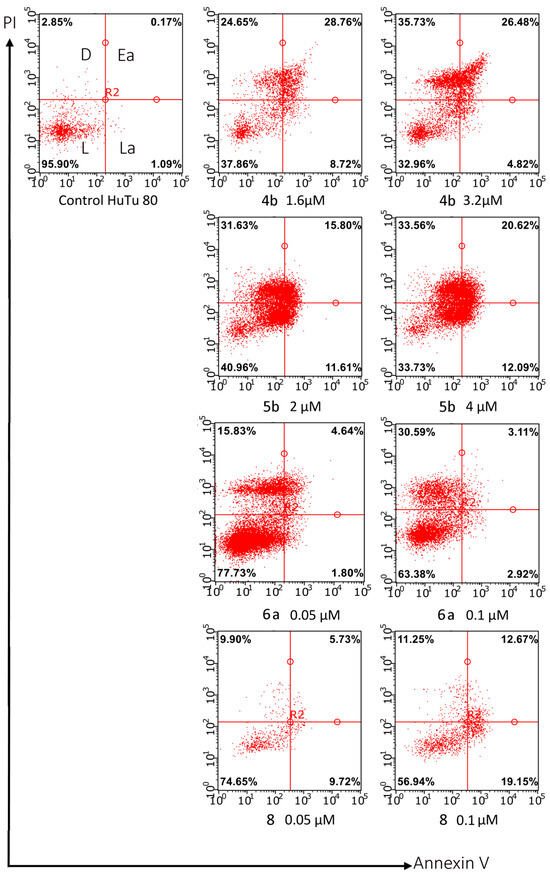

3.2.3. Apoptosis Assay

One important property of cancer cells is their ability to avoid drug-induced apoptosis [94,95]. At the same time, the resistance of cancer cells increases both to conventional antitumor therapy (chemotherapy, radiation therapy) and to alternative therapeutic drugs [96]. Overcoming resistance by reactivating apoptosis is the main direction of the search for promising cancer treatment methods [97,98]. Effective induction of apoptosis using new therapeutic drugs may be an important strategy for preventing cancer recurrence and metastases [99]. The creation of drugs in this field is a difficult task since the process of apoptosis is complicated by various resistance mechanisms and a multifaceted connection with cross-molecular pathways [100]. The main directions of development in recent decades have included the design and synthesis of compounds inhibiting anti-apoptotic and activating pro-apoptotic pathways [101]. For the successful introduction of new molecules, it is necessary to study the fundamental molecular mechanisms of apoptosis and carefully design innovative drugs. In this regard, the apoptosis-inducing properties of various representatives of aminophosphonium salts 4b, 5b, 6a, and 8 with high cytotoxicity and selectivity against the HuTu 80 cancer cell line were investigated. The experiments were carried out by flow cytometry at concentrations of IC₅₀/2 and IC₅₀ (Figure 8). It can be seen that in HuTu 80 cells, after 48-h incubation in the presence of compounds 4b and 5b, dose-dependent apoptosis was observed, with a predominance of apoptotic effects in the late stage. For monoaminophosphonium salt 6a, the number of necrotic cells prevailed at both concentrations, while for triarylphosphonium salt 8, the apoptosis-inducing effect was more active in the early stage of apoptosis. The results we obtained indicate the influence of structural modifications of aminophosphonium salts on the process of apoptosis in HuTu 80 cells.

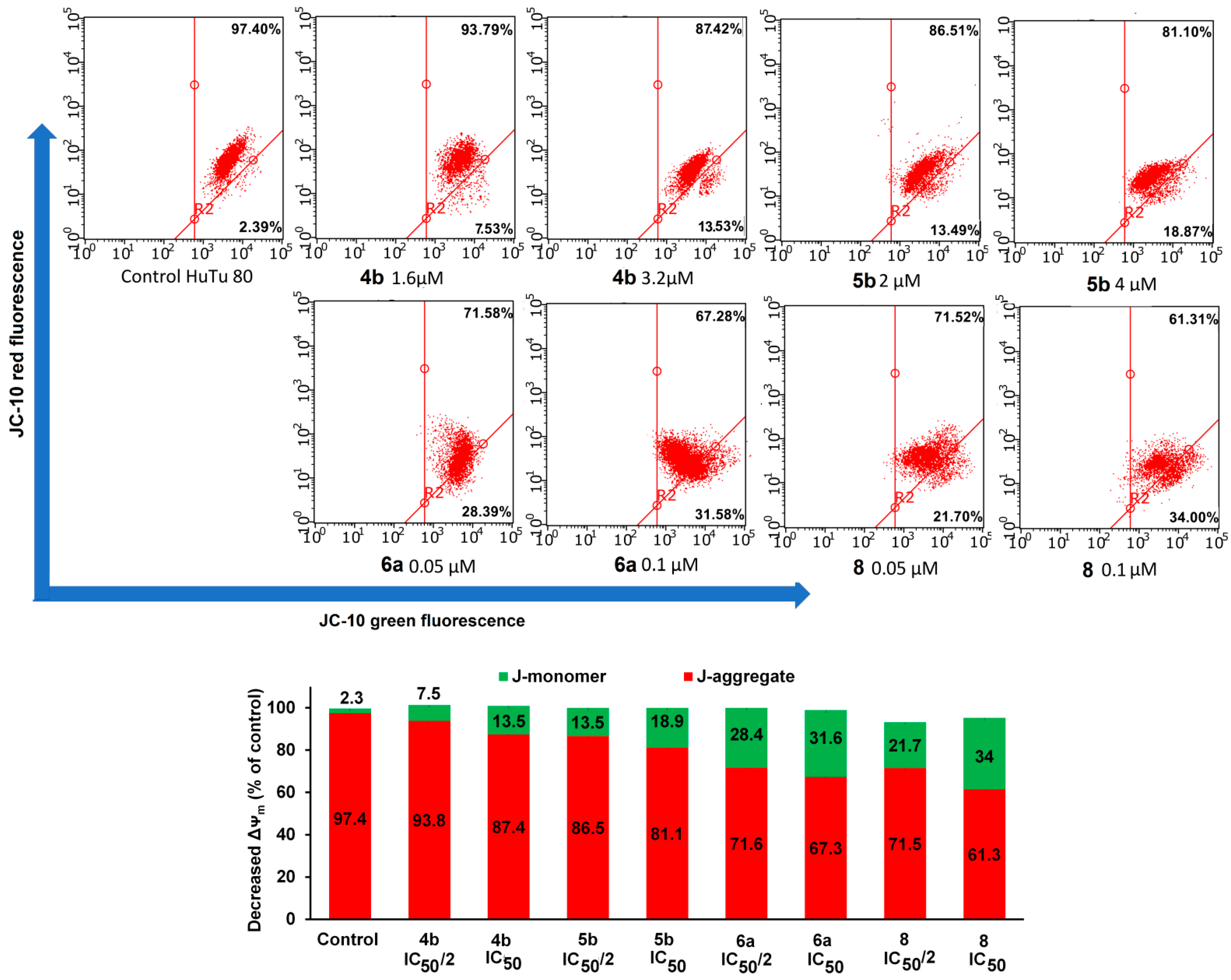

3.2.4. Effect of Aminophosphonium Salts on Mitochondrial Potential

Most forms of apoptosis in mammals are realized not through cell death receptors but through the mitochondrial pathway. In this case, the outer membrane of the mitochondria breaks, and soluble proteins of the intermembrane space enter the cytoplasm. The permeability of the outer membrane of mitochondria is a finely regulated process, and its increase is a key event in triggering apoptosis. Induction of apoptosis by compounds 4b, 5b, 6a, and 8 at concentrations of IC₅₀/2 and IC₅₀ via the mitochondrial pathway on the HuTu 80 cell line was studied by flow cytometry using the fluorescent dye JC-10 from the Mitochondria Membrane Potential Kit [64].

JC-10 accumulates in the mitochondrial matrix and forms aggregates (J-aggregates) with red fluorescence in normal cells with a high mitochondrial membrane potential. A decrease in the mitochondrial membrane potential of HuTu 80 cells was observed after 48-h treatment with compounds 4b, 5b, 6a, and 8 (Figure 9). Compounds 6a and 8 have been shown to cause a more significant decrease in the mitochondrial membrane potential in HuTu 80 cells compared with 4b and 5b. For all compounds, the effect of membrane depolarization is noticeably enhanced at IC₅₀. Thus, the mechanism of cytotoxic action of 4b, 5b, 6a, and 8 may proceed along the internal mitochondrial apoptotic pathway.

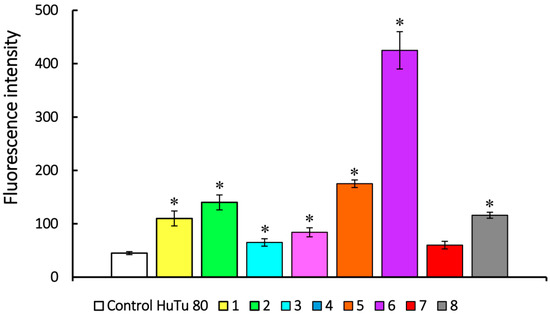

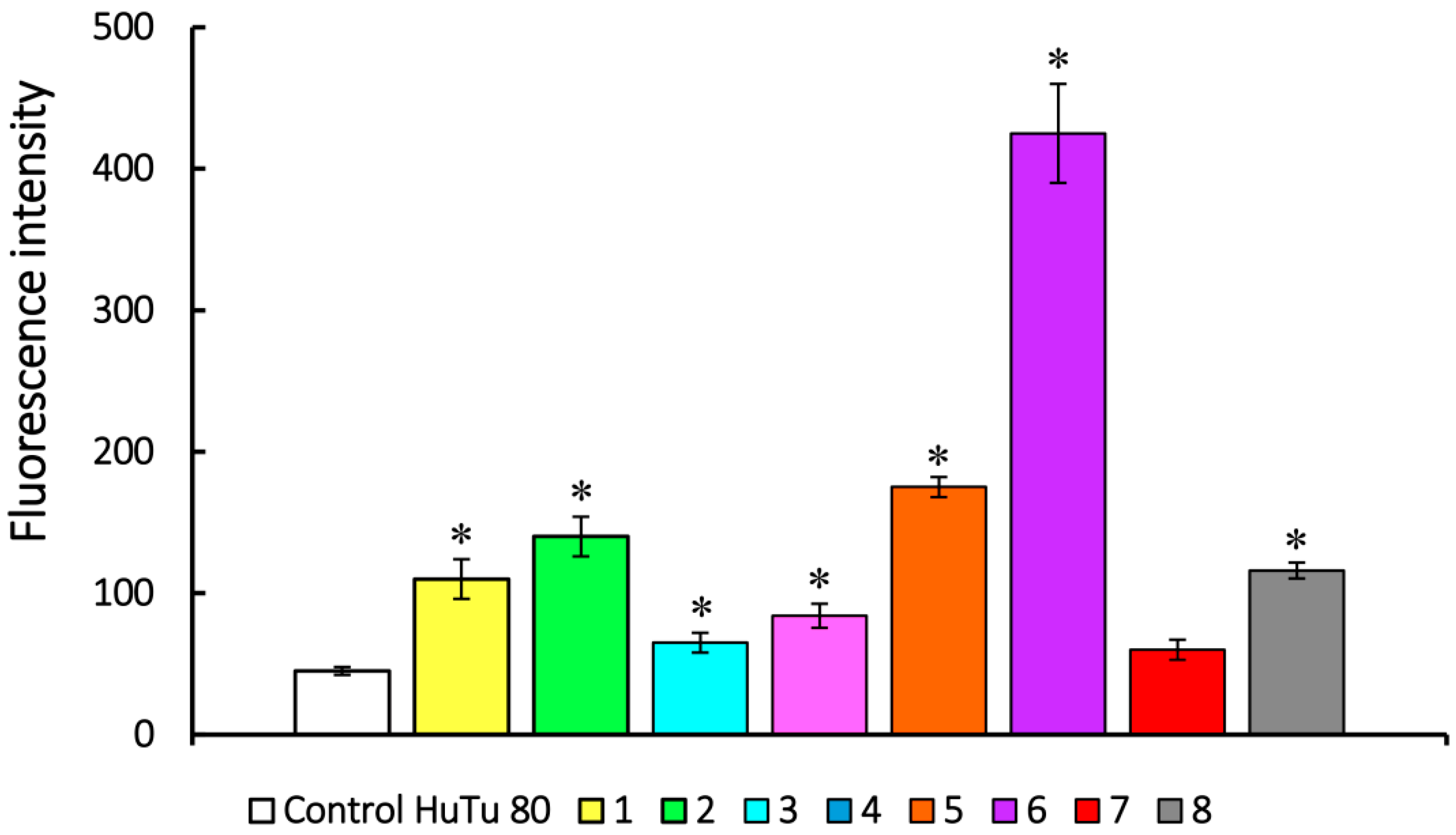

3.2.5. Effect of Aminophosphonium Salts on ROS Level in Cancer Cells

The evaluation of the production of reactive oxygen species (ROS) by the tested compounds complements the data on their effect on the mitochondrial membrane potential. This also illustrates the induction of apoptosis along the mitochondrial pathway. An increase in ROS production leads to mitochondrial dysfunction and, subsequently, cell death. In this regard, the effect of compounds 4b, 5b, 6a and 8 at IC₅₀/2 and IC₅₀ on ROS production in HuTu 80 cells was investigated using flow cytometry analysis and the CellROX ^® Deep Red flow cytometry kit. The data presented in Figure 10 show an increase in the fluorescence intensity of CellROX ^® Deep Red after treatment with compounds 4b, 5b, 6a, and 8 at IC₅₀/2 and IC₅₀ compared with the control (uncolored cells). It can be seen that HuTu 80 cells begin to produce ROS most actively in the presence of 4b and 6a. Compounds 5b and 8 enhance the generation of ROS, mainly in the concentration of IC₅₀.

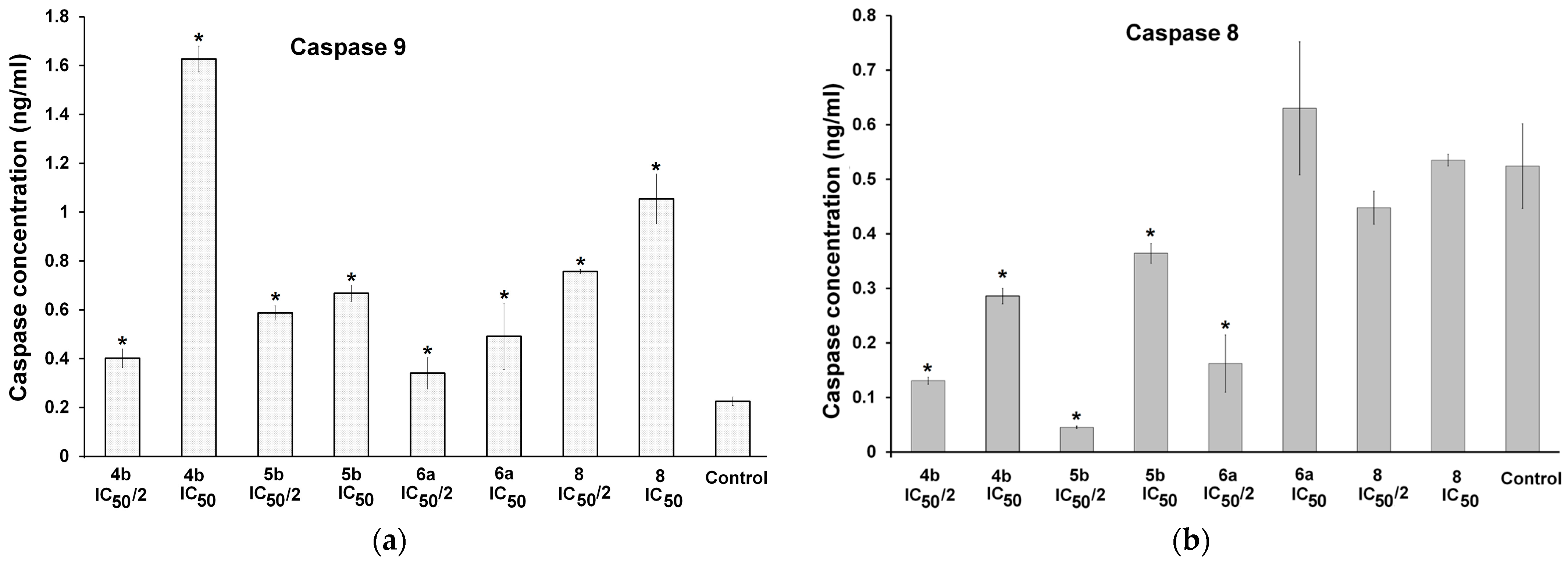

3.2.6. Measurements of Caspase-9 and Caspase-8 by ELISA

To confirm that apoptosis induced by compounds 4b, 5b, 6a, and 8 proceeds along the internal (mitochondrial) pathway, studies were conducted to determine the enzymatic activity of the early apoptosis key markers—caspase 9 and caspase 8 using ELISA kits. The kits are sandwich enzyme immunoassays for in vitro quantitative measurement of Caspase 8 and Caspase 9 in cell lysates, rat tissue homogenates, and other biological fluids. Caspase 9 plays a key role in the mitochondrial signaling pathway of apoptosis induction. The activation of caspase 8 characterizes the external (receptor-dependent) pathway of apoptosis. HuTu 80 cells not treated with the tested compounds were used as a control.

We calculated the concentration of caspase 9 and caspase 8 in ng/mL in experimental and control samples. The results are shown in Figure 11. The concentration of caspase 9 in samples treated with compounds 4b, 5b, 6a, and 8 at IC₅₀/2 and IC₅₀ (Figure 11A) significantly increased compared with the control. The lowest concentration of caspase 9 is shown for compound 6a, which is consistent with the data on the assessment of apoptosis by flow cytometry (Figure 8). The concentration of caspase 8 significantly decreased relative to the control after treatment with substances 4b and 5b (Figure 11B). Thus, the studied compounds have a cytotoxic effect due to the induction of apoptosis proceeding along the mitochondrial pathway.

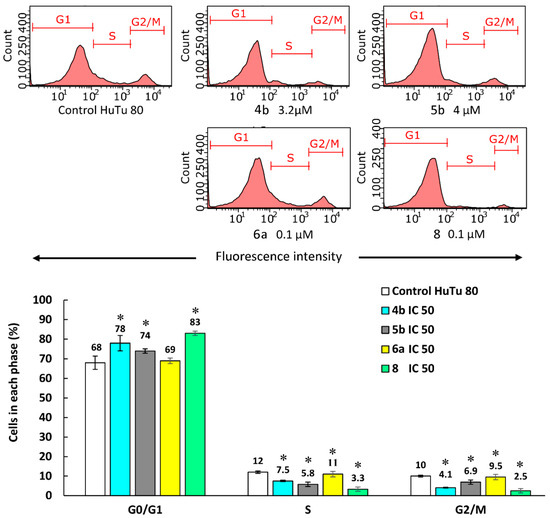

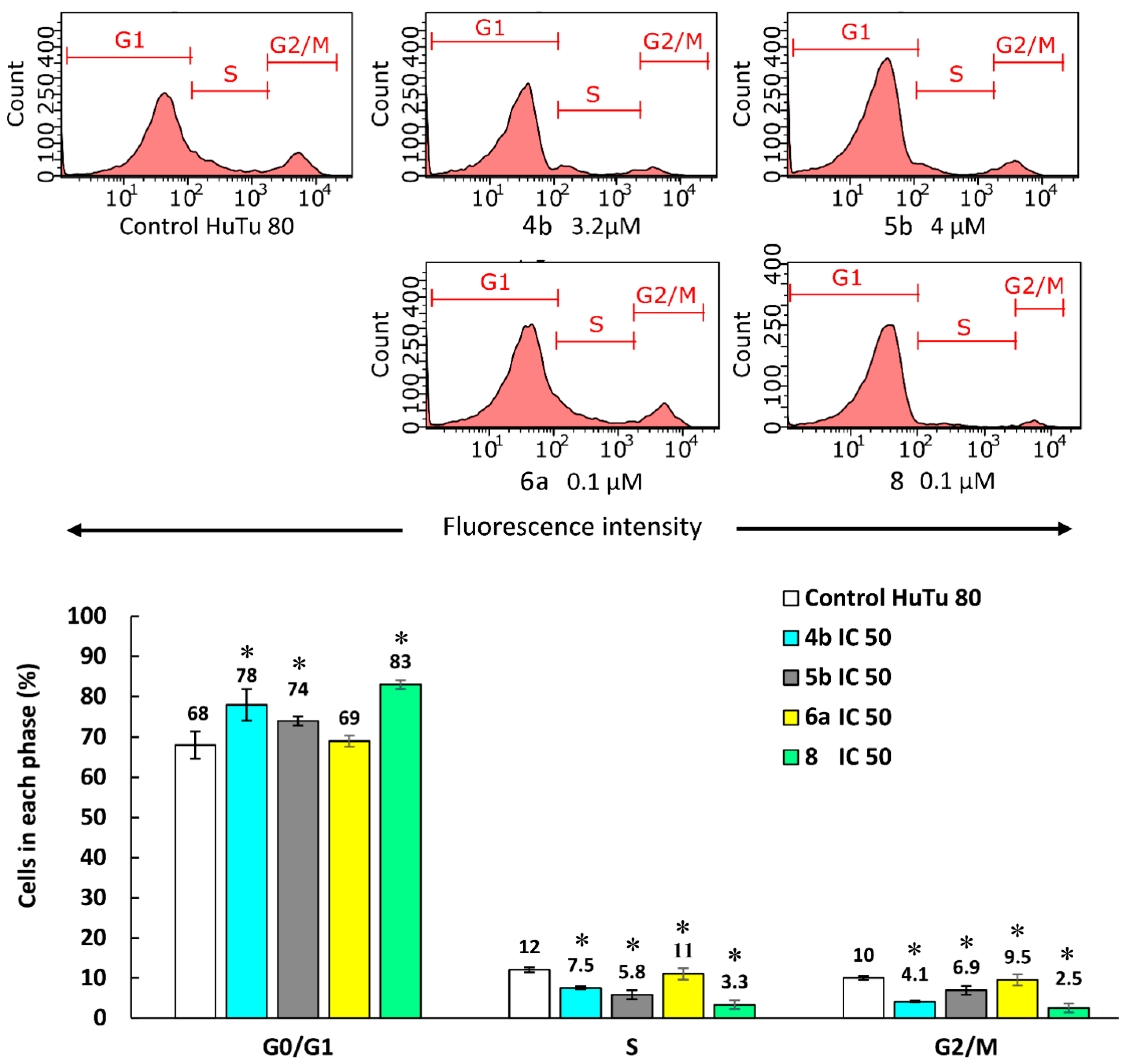

3.2.7. Effect of Aminophosphonium Salts on Cell Cycle in Cancer Cells

The drugs that induce ROS and mitochondrial apoptosis in cancer cells cause disruption of cell cycle phases and proliferation [102,103]. Therefore, the effect of 4b, 5b, 6a, and 8 on the passage of HuTu 80 cells through the cell cycle was investigated using the classical fluorescent method, which allows determining at which phase the cell cycle was stopped. The studies were carried out using a fluorescent dye, propidium iodide, which binds in proportion to the amount of DNA present in the cell. The diagram in Figure 12 shows the number of cells in each phase of the cell cycle. Analysis of the HuTu 80 cell cycle after treatment with compounds at IC₅₀ for 48 h revealed a significant delay of cells in the G0/G1 phase for 4b, 5b, and 8 compared with the control. Compound 6a caused a slight change in the cell cycle.

3.2.8. Antibacterial Activity of Aminophosphonium Salts

Drugs with both antitumor and antimicrobial effects are currently actively used for malignant tumors of various origins [104]. In this regard, we studied the antibacterial and antifungal activity of the newly obtained compounds, including against resistant strains of microorganisms that pose a serious threat to human health around the world.

The synthesized compounds were tested for antibacterial (bacteriostatic and bactericidal) activity against a number of Gram-positive Staphiloccus aureus 209P (Sa), Bacillus cereus 8035 (Bc), and Gram-negative bacteria Echerishia coli F-50 (Ec), and Pseudomonas aeruginosa 9027 (Pa), including against methicillin-resistant strains of S. aureus (MRSA-1, MRSA-2). Antifungal activity was studied on a culture of Candida albicans 10231 (Ca). The data are presented in

Table 4. Antimicrobial activity of aminophosphonium salts 4–6.

Compounds	Minimum Inhibitory Concentration (MIC), μM
	Gram-Positive Bacteria					Gram-Negative Bacteria		Yeast
	Sa	Bc	Ef	MRSA-1	MRSA-2	Ec	Pa	Ca
4a	62.5 ± 5.2	62.5 ± 5.3	250 ± 21	125 ± 10	125 ± 11	–	–	–
4b	15.6 ± 1.3	7.8 ± 0.7	250 ± 19	15.6 ± 0.3	15.6 ± 1.2	–	–	–
4c	3.9 ± 0.3	3.9 ± 0.3	62.5 ± 5.2	3.9 ± 0.4	7.8 ± 0.6	500 ± 48	–	–
4d	1.9 ± 0.1	0.9 ± 0.07	15.6 ± 1.3	0.9 ± 0.07	1.9 ± 0.1	125 ± 9	500 ± 47	125 ± 11
4e	0.25 ± 0.01	0.5 ± 0.04	0.5 ± 0.04	0.5 ± 0.04	0.25 ± 0.02	15.6 ± 1.3	7.8 ± 0.6	1.9 ± 0.1
9	34.3 ± 5.4	274 ± 48	–	137 ± 19	34.3 ± 5.3	–	–	–
5b	7.8 ± 0.6	7.8 ± 0.6	125 ± 11	15.6 ± 1.2	15.6 ± 1.2	–	500 ± 46	–
5c	3.9 ± 0.3	3.9 ± 0.3	31.3 ± 2.2	3.9 ± 0.3	3.9 ± 0.4	250 ± 19	–	–
5d	0.9 ± 0.07	0.9 ± 0.08	15.6 ± 1.2	0.9 ± 0.08	0.9 ± 0.08	62.5 ± 5.4	500 ± 48	250 ± 21
6a	62.5 ± 5.5	31.3 ± 2.3	125 ± 11	62.5 ± 5.3	62.5 ± 5.6	–	–	–
6b	7.8 ± 0.6	3.9 ± 0.4	62.5 ± 5.5	7.8 ± 0.6	7.8 ± 0.6	–	–	–
6c	3.9 ± 0.3	1.9 ± 0.1	31.3 ± 5.4	3.9 ± 0.3	3.9 ± 0.4	500 ± 46	250 ± 21	500 ± 47
6d	0.9 ± 0.08	0.9 ± 0.08	3.9 ± 0.3	0.5 ± 0.03	0.5 ± 0.03	62.5 ± 5.3	125 ± 10	62.5 ± 5.4
6e	0.5 ± 0.04	0.9 ± 0.08	0.5 ± 0.03	0.5 ± 0.04	0.5 ± 0.03	31.3 ± 2.4	3.9 ± 0.3	1.9 ± 0.1
8	0.9 ± 0.07	0.9 ± 0.07	15.6 ± 1.2	1.9 ± 0.1	3.9 ± 0.3	500 ± 47	–	–
7	250 ± 20	500 ± 47	–	250 ± 19	250 ± 20	–	–	–
Norfloxacin	7.5 ± 0.5	24.4 ± 2.1	24.4 ± 2.2	–	7.5 ± 0.5	4.7 ± 0.02	12.1 ± 1.1	–
Ketoconazole	–	–	–	–	–	–	–	7.3 ± 0.5
Minimum bactericidal and fungicidal concentrations (MBC, MFC), μM
4a	250 ± 20	–	500 ± 46	–	125 ± 10	–	–	–
4b	31.3 ± 2.3	–	–	500 ± 47	125 ± 9	–	–	–
4c	250 ± 18	>500	500 ± 48	125 ± 10	250 ± 20	500 ± 48	–	–
4d	31.3 ± 2.5	250 ± 22	>500	62.5 ± 5.4	250 ± 18	250 ± 19	500 ± 48	250 ± 18
4e	0.9 ± 0.07	7.8 ± 0.6	1.9 ± 0.1	0.5 ± 0.04	0.25 ± 0.02	62.5 ± 5.2	7.8 ± 0.6	7.8 ± 0.6
9	137 ± 21	–	–	137 ± 18	137 ± 21	–	–	–
5b	250 ± 20	–	–	500 ± 48	250 ± 20	500 ± 49	–	–
5c	125 ± 10	500 ± 48	500 ± 48	62.5 ± 5.5	62.5 ± 5.4	500 ± 48	>500	–
5d	125 ± 9	500 ± 47	125 ± 9	125 ± 11	62.5 ± 5.2	62.5 ± 5.3	500 ± 47	–
6a	125 ± 10	500 ± 46	–	500 ± 47	62.5 ± 5.6	–	–	–
6b	125 ± 11	–	–	31.3 ± 2.6	31.3 ± 2.5	–	–	–
6c	125 ± 11	>500	–	62.5 ± 5.4	7.8 ± 0.7	500 ± 47	250 ± 21	–
6d	62.5 ± 5.4	250 ± 21	250 ± 19	0.9 ± 0.07	0.9 ± 0.08	62.5 ± 5.5	125 ± 9	250 ± 19
6e	0.5 ± 0.04	31.3 ± 2.5	0.9 ± 0.1	1.9 ± 0.1	0.5 ± 0.04	125 ± 11	3.9 ± 0.4	15.6 ± 1.2
8	62.5 ± 5.3	500 ± 47	–	15.6 ± 1.2	15.6 ± 1.3	–	–	–
7	–	–	–	–	500 ± 47	–	–	–
Norfloxacin	7.5 ± 0.6	24.4 ± 2.1	24.4 ± 1.9	–	7.5 ± 0.6	24.4 ± 2.3	49.0 ± 4.2
Ketoconazole								7.3 ± 0.5

Average of three values measured; ± standard deviation (SD); – means non-active. Data for the most active compounds are highlighted in green color.

.

The tested compounds showed selective activity against all Gram-positive bacteria, including MRSA strains. Most aminophosphonium salts showed antimicrobial action at the level of the fluoroquinolone antibiotic norfloxacin, and in some cases, they even significantly exceeded the activity of this comparison drug. The highest antimicrobial activity against all Gram-positive and Gram-negative bacteria and against Candida albicans 10231 was found for compound 4e. Moreover, it acted bactericidal and fungicidal, i.e., MIC and MBC differ from each other by no more than 4 times.

3.2.9. Hemolytic Action of Test Compounds

The hemolytic activity of chemical compounds can be used as a means for their toxicological assessment. In this regard, a concentration (HC₅₀, μM) was determined for compounds 4b, 5b, and 6a, causing hemolysis in 50% of erythrocytes. Data on the hemolytic activity of compounds 4b, 5b, and 6a are given in

Table 5. Hemolytic activity of Aminophosphonium salts *.

Test Compound	HC50 (μM)
4b	>100
5b	>100
6b	>100
Gramicidin S	9.4 ± 0.8

*—The experiments were repeated for three times. The results are expressed as the mean ± standard deviation (SD).

. The HC₅₀ values of these compounds are > 100 μM. Gramicidin C was used as a comparison drug. Results indicate the high selectivity of the tested compounds with respect to bacterial cells and low toxicity with respect to human blood cells, which may be of interest for further studies on living objects.

3.2.10. In Vivo Study of Acute Toxicity of Aminophosphonic Salts

The study of the acute toxicity parameters of six aminophosphonium salts 4a, 4b, 4d, 5a, 5b, and 6b was performed on male outbreed white mice of the CD-1 line. Acute toxicity was determined with a single parenteral (intraperitoneal) administration in sterile saline/DMSO (40% vol.) solution at doses from 1 to 100 mg/kg. To assess acute toxicity, the animals were monitored for 14 days after the introduction of substances, assessing their general condition and recording deaths. Next, lethal doses LD₅₀, LD₀, LD₁₆, LD₈₄, and LD₁₀₀ were calculated using the Probit analysis method. Calculated LD₅₀ values are reported in

Table 6. Acute toxicity of compounds 4a, 4b, 4d, 5a, 5b and 6b.

Compound	LD50, mg/kg
4a	31.7 (28.3÷35.8)
4b	43.4 (41.8÷44.8)
4d	5.9 (3.7÷7.6)
5a	44.7 (43.0÷46.3)
5b	27.9 (26.9÷29.9)
6b	102.5 (98.7÷105.8)

. LD₀, LD₁₆, LD_84, and LD₁₀₀ are given in Supplementary Material (Table S1).

In the control group of animals that were injected with a solvent (sterile saline/DMSO (40% vol.) in an amount of 0.1 mL/10 g (10 mL/kg), there was no death or signs of depression in the animals. Among the studied substances, 4d (LD₅₀ 6.9 mg/kg) has the highest toxicity. According to the classification [105], 4d belongs to the class of highly toxic compounds. LD₅₀ of 4a, 4b, 5a, 5b, and 6b are in the range of 37.5 to 106.5 mg/kg. They can be classified as moderately toxic compounds. It should be noted the similarity in the manifestation of the toxic effect for 4a, 4b, 4d, 5a, and 5b, namely, the rapid onset of animal death within 1–2 h after administration in doses of LD₁₀₀. 6b administration at a dose of 150 mg/kg causes 100% death in animals. Deaths were observed a day after administration. Administration of 6b at higher doses of 200 and 400 mg/kg caused death within 10 min. Deaths of animals were observed after 1–12 days at lower doses (LD16-50). Observed symptoms as convulsions, rapid heartbeat, heavy breathing indicate effects on central and peripheral nervous systems.

4. Conclusions

In this work, the synthesis of various amphiphilic phosphonium salts containing a diethylamino-groups was carried out by the interaction of hexaethyltriaminophosphine 1, bis(tetraethyldiamino)phenylphosphine 2, and diethylaminodiphenylphosphine 3 with alkyl iodides and tetradecyl bromide under mild conditions in acetonitrile. The structure of the obtained salts was proved by NMR and XRD for (diethylamino)(octyl)diphenylphosphonium iodide 6a. In vitro cytotoxicity and in vivo toxicity were evaluated. Nanotherapeutic forms based on lipids (liposomes and solid lipid nanoparticles) and amphiphilic phosphonium salts were developed. The zeta potential of lipid nanosystems decorated by amphiphilic aminophosphonic compounds shifted to positive values. An increase in the size (from 100 to 150 nm) and polydispersity index (from 0.24 to 0.47) of solid lipid nanoparticles were observed. The internalization of dye-labeled liposomes and solid lipid nanoparticles by tumor cells within 1 h was shown by flow cytometry. Most of the compounds exhibited high cytotoxicity towards the M-HeLa cell lines: the IC₅₀ is in the range of 0.24–1.8 μM with a selectivity index (SI) of 1.6–17. The highest SI was found for 4d (SI 7.1), 6a (SI 4.8), and 6b (SI 17). Among them, 6b is a leader with a two-fold lower IC₅₀ than the reference drug doxorubicin. A pronounced dependence of increasing SI on the nature of aminophosphonium cation was observed: 4 < 5 < 6 at a rather low IC₅₀ of 0.06–4.0 μM for 4–6 on the HuTu 80 cell lines. The highest SI was for 4e (SI 28), 5a (SI 210), and 6a (SI 277). A similar behavior was found for PC3, Du-145, and PANC-1 cell lines, where monoaminophosphonium compounds are the most effective with IC₅₀ (SI) values in the range 0.3–5.5 μM (6.4–20). Monoaminophosphonium derivatives 6 are more cytotoxic with a higher SI compared with tri- and diaminophosphonium salts 4 and 5. Cytotoxicity increases with the length of the R substituent at the phosphorus atom in the HuTu 80, PC3, and Du-145 cell lines. The lipid systems with aminophosphonium salts provide an improvement in cytotoxic activity against tumor cells compared with their individual compounds and a decrease in toxicity against normal cell lines. The IC₅₀ of PC/4c, PC/4d, PC/5b, PC/5c, PC/5d, and SLN/4b lipid systems are lower than for the reference drug DOX, with high SI 53 and 56 and SI 30 for the SLN/4b and PC/4c toward MCF-7 and DU-145. The mechanism of cytotoxicity of 4b, 5b, 6a, and 8 appears to involve the intrinsic mitochondrial apoptotic pathway. This is also consistent with the data on the production of ROS and the enzymatic activity of early apoptosis key markers—caspase 9 and caspase 8—as well as the effect on the phases of cell cycle and proliferation. Synthesized aminophosphonium salts exhibit high selective activity against Gram-positive bacteria S. aureus 209P, B. segeus 8035, including methicillin-resistant strains of S. aureus (MRSA-1, MRSA-2), comparable to the reference fluoroquinolone antibiotic norfloxacin. A leader tetradecyl-tris(diethylamino)phosphonium bromide 4e shows the highest antimicrobial activity against all studied Gram-positive and Gram-negative bacteria, as well as against Candida albicans 10231 fungi. 4b, 5b, and 6a, with their high cytotoxicity, demonstrated their low toxicity to human blood cells. A moderate in vivo toxicity in CD-1 mice was established for the lead compounds. This indicates the interest of these compounds for further research on cellular organelles.
