1. Introduction
Nanoparticles (NPs) are widespread in the environment due to their broad range of applications. They have unique general properties (particle size, shape, charge, surface area, and surface reactivity) relative to their bulk or dissolved counterparts. These characteristics enable a wide range of uses, including medical, pharmaceutical, cosmetic, electrical, and agricultural utilisation; therefore, a significant number of products contain or require nanoparticles for their production [
1,
2].
Carbon-based nanomaterials include fullerenes, carbon nanotubes, graphene and its derivatives such as graphene oxide, nanodiamonds, carbon-based quantum dots, and amorphous carbon NPs. Due to their unique structural dimensions and excellent mechanical, electrical, thermal, optical, and chemical properties, these materials have attracted significant interest in diverse areas [
3]. Graphene has garnered attention in the field of electromagnetics due to its dynamic tunability. The valence bands and conduction of this two-dimensional honeycomb carbon material converge at the Dirac point, thus rendering graphene a semiconductor with a distinctive zero-band-gap structure. Graphene-based absorbers can be flexibly regulated in practical applications, which provides new possibilities for the development of many fields, such as detection and communication. Changes in the top structure parameters have an influence on the absorption performance. Tunable absorbers possess the capability to adapt to different electromagnetic environments [
4].
Graphene exhibits a fast full-spectrum response to terahertz waves and strong surface plasmon resonance due to its extremely high conductivity and carrier mobility [
5]. These characteristics empower graphene-based materials to achieve multiple perfect absorption peaks in the terahertz range with improved spacing between resonant frequencies and modulation bandwidth [
6]. At specific resonant frequencies, graphene-based absorbers can achieve perfect absorption [
7]. Tang et al. [
5] proposed graphene-based metasurfaces that have potential applications in mid-infrared optoelectronic devices, such as optical switches, modulators, and slow-light devices. A multi-frequency broadband absorber structure based on graphene’s surface plasmon resonance was proposed by Chen et al. [
8], which has potential value for application in terahertz photoelectric detection, filtering, and electromagnetic shielding.
Graphene oxide (GO), a hydrophilic, oxidised derivative of graphene, is used in biotechnology and medicine for cancer treatment, drug delivery, and cellular imaging. GO’s characteristics make it attractive in other areas such as sensors [
9] and even energy storage [
10]. GO and its composites hold great promise for their versatile applications in energy storage and conversion and environment protection, including as hydrogen storage materials, photocatalysts for water splitting, materials for removal of air pollutants and water purification, as well as electrode materials for various lithium batteries and supercapacitors [
11].
With their widespread application, their presence in the environment, and the risk of potentially adverse effects in natural systems, exposure to GO has also increased across populations [
12]. GO nanoparticles (nGOs) detected in air, soil, and water go through a range of physical, chemical, and biological transformations, which will affect their biological effects. Various environmental factors can induce changes in the morphology, microstructure, and surface properties of GO NPs, as well as alter their toxicity through processes such as aggregation, adsorption, REDOX reaction, phototransformation, microbial reduction, and other biotransformation mechanisms [
13]. Consequently, the toxicity of graphene oxide NPs depends on their concentration and physicochemical properties (size, zeta potential, surface chemistry, morphology, and sedimentation). Even the type of environmental media (seawater, soil, and airborne fine particulate) may affect the toxicity of NPs [
14], but their ecological and health risks are still not fully known and are still being studied.
The effects of graphene oxide nanoparticles on different test organisms from various trophic levels have been reported. The ecotoxicity of nGOs and their derivatives have been investigated in different test systems, including microbes (bacteria, fungi, and algae), planktonic crustaceans, plants, earthworms, fish, and mice [
15,
16]. The results and outcomes of these studies demonstrate high uncertainties regarding the ecotoxicological effects of GOs; however, the harmful effects of nGOs have been demonstrated. The toxicity of nGOs has been examined in human cells, where enhanced oxidative stress and cyto- and genotoxicity effects were observed [
16]. Graphene-based nanomaterials can potentially disrupt the growth of microbial communities and their structure, activity, and diversity. As microbial communities represent the basis of every ecosystem’s health, these adverse effects may have serious environmental consequences [
17].
The toxicity of nGOs is size-dependent and is influenced by the properties of the initial graphite. Smaller graphene oxide nanoparticles have more toxic effects than larger ones. The size of nGO sheets depends on the oxidation degree of the initial graphite, which can be modified during the nGO production by modulating the quantity of oxidants and the duration of oxidation, resulting in nGO sheets with various electrical conductivity and size [
18].
To assess and characterise the risk of chemicals, the predicted environmental concentrations (PECs) are compared to the predicted no-effect concentrations (PNECs) as proposed by the EU Technical Guidance Document (TGD) [
19]. However, this methodology and approach has its own range of applicability and restrictions. It is often used for the first (preliminary) assessment of the environmental risk described in the EU TGD [
19]. The predicted environmental concentration (PEC) of various types of nanoparticles differs because their production and utilization levels differ. There is no PEC information for nGOs in all environmental compartments; thus, further modelling investigations are needed [
20]. There is some information about the PEC value of carbon-based nanomaterials (e.g., CNTs), which is supposedly similar to nGO concentrations, although the total input production volume of graphene is reported to be 6–7 times higher than of CNTs [
21]. The PEC values of CNTs in surface water range between 2 × 10
−5 and 1.82 ng/L, while in sediments, the values range between 1 × 10
−4 and 2.66 × 10
−2 mg/kg [
20]. These concentrations are the lowest among the PEC values of TiO
2, Ag, CuO, and CNT nanoparticles, which is consistent with the lowest production volume among the four NMs [
21].
Strong aggregation and sedimentation can be induced by the high surface hydrophobicity of CNTs [
22], which is possibly another reason for the low PECs in surface water. The PEC values of NMs in seawater are generally lower than those in freshwater; thus, PECs in seawater sediments are lower than those in freshwater sediments. In sediments, PECs for all the NMs are 2–4 orders of magnitude higher than those in soils [
20].
In summary, an analysis of the available ecotoxicity results demonstrated that the ecotoxicity assessments conducted among various nGOs are based mainly on single-species lab tests, while their effects at the community level are understudied. It has also been revealed that despite their widespread detection in different environmental compartments, there is a knowledge gap in the characterisation of the potential environmental risk of nGOs. Moreover, the mechanisms underlying graphene-based nanomaterial-induced toxicity are influenced by the type and characteristics of a given GO nanoparticle.
However, there is a knowledge gap in ecotoxicology and environmental risk assessment with regard to graphene-based nanomaterials’ environmental impacts. It is recommended to evaluate the effects of these materials in more relevant environmental conditions, such as via multispecies exposure in micro- and mesocosm studies [
23].
The objective of this study was twofold. First, this study aimed to examine the toxicity of two distinct forms of nGOs on various test organisms from diverse trophic levels in aquatic environments, including microorganisms, microbial communities, protozoa, nematodes, and plants.
Secondly, this study compared the impacts of both types of nGOs and established the effective concentration values for each test organism, aiming to develop the initial PNEC values that aid in the primary risk characterisation of the tested nGOs. We hypothesised that the safety limit determined based on the results of the complex ecotoxicity assessment would indicate that the tested GO derivatives did not pose any risk to the environment.
3. Results
3.1. Toxicity of nGOs on Aliivibrio fischeri

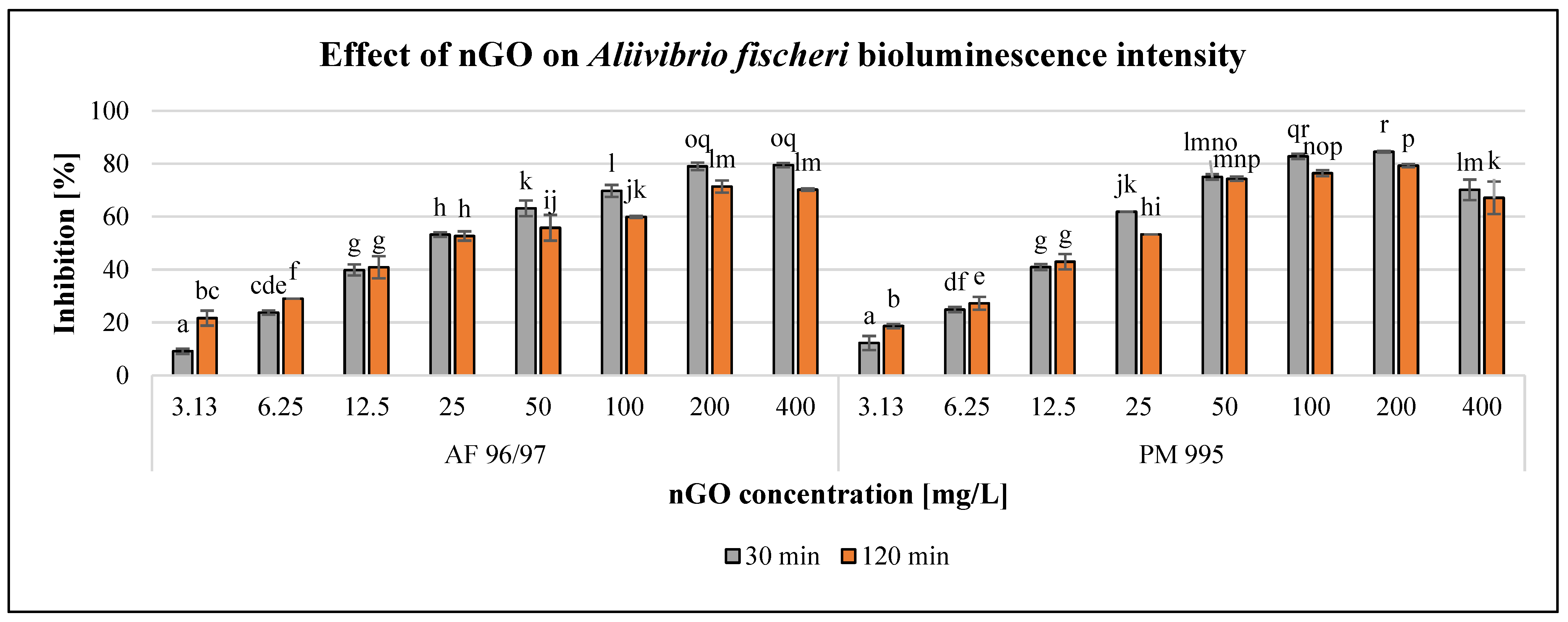

The observed effect of the investigated nGO nanoparticles on
Aliivibrio fischeri bioluminescence intensity is presented in
Figure 2.
The results showed a concentration-dependent negative effect of both nGO types in the investigated concentration range; however, 400 mg/L nGO PM 995 resulted in a slight decrease in the inhibition rate.
Figure 2 also illustrates that incubation time has considerable influence on the effect. Within the low concentration range (3.13–6.25 mg/L), the inhibition rate was higher at 120 min exposure time than at 30 min, but even the lowest applied concentration (3.13 mg/L) of both nGO types already had a significant effect after 30 min of exposure compared to the control. At 12.5–25 mg/L nGO concentration, the differences were not significant (in the case of AF 96/97 at different exposure times), while applying higher nGO doses (>50 mg/L), the inhibition rates were smaller with longer exposure time and significant in most cases compared to the 30 min inhibition rates. The highest inhibition rates were observed after 30 min of incubation time (79.5% at 400 mg/L nGO AF 96/97, and 84.5% at 200 mg/L nGO PM 995, respectively). The EC
20 values (
Table 2) after 30 min also indicated that nGO PM 995 was more toxic than nGO AF 96/97 because the EC
20 value was 5.01 mg/L in the case of PM 995, whilst for AF 96/97, it was 5.86 mg/L. However, after 120 min of exposure time, the EC
20 value of nGO PM 995 was higher (4.40 mg/L), than that of AF 96/97 (4.01 mg/L); thus, it was not evident whether PM 995 would be more toxic than AF 96/97. Therefore, we could assume that nGO PM 995 had a higher toxic effect during the early stage of the experiment (30 min) because most of the
A. fischeri cells died. Thus, at a later time (120 min), the remaining living bacterial cells could have been affected by an even higher nGO PM 995 concentration than during the early stage of the test.

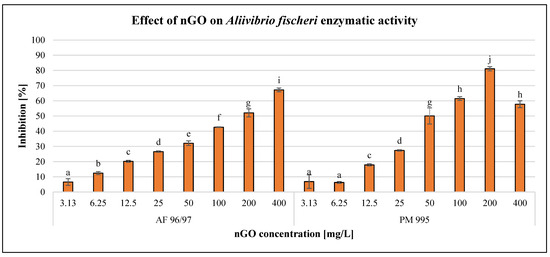

After 120 min of exposure time, the enzymatic activity of the bacterial cells was investigated using the resazurin reagent. The results are illustrated in
Figure 3.
The results showed a concentration-dependent negative effect on the enzymatic activity of A. fischeri, although there was a decrease at 400 mg/L nGO PM 995. On the other hand, 3.13 mg/L nGO concentration caused significant inhibition for both nGO types. At lower nGO concentrations (3.13–25 mg/L), the effect was very similar for both types, but at higher doses, PM 995 had a greater inhibitory effect, except at 400 mg/L. This was confirmed by the statistical analysis, which indicated significant differences in the treatments. The highest negative effect was 81%, which was observed at 200 mg/L nGO PM 995, while in the case of AF 96/97, it was 67% at 400 mg/L.
On the other hand, the inhibition rate was lower in every case compared to the bioluminescence intensity measurements. This indicates that bioluminescence intensity detection is a more sensitive endpoint than enzymatic activity measurement. The EC
20 values (
Table 2) of AF 96/97 and PM 995 (22.86 mg/L and 16.13 mg/L, respectively) supported the above statement. Both EC
20 values were higher than the EC
20 values calculated based on bioluminescence intensity. These results suggest that nGO PM 995 is more toxic to
A. fischeri than AF 995.
3.2. Toxicity of nGOs to Escherichia coli
The effect of GO nanoparticles on Escherichia coli proliferation was examined by means of OD measurement using a DIALAB ELISA EL800 microplate reader. This method did not provide reliable results since the colour of the GO NPs influenced the measured values in the wells of the microplate. This way, only the enzymatic activity investigation based on the resazurin method was applicable to this test organism since it was based on measuring fluorescence intensity.
The results of the ROS production test did not show an increase (ROS activity enhancement) but a decrease that was proportional to the GO concentration (
Table S3). This suggests that the tested GO suspension does not trigger any oxidative stress reaction, but it has a cytotoxic effect through a different mechanism of action.
The effects of the GO nanoparticles on

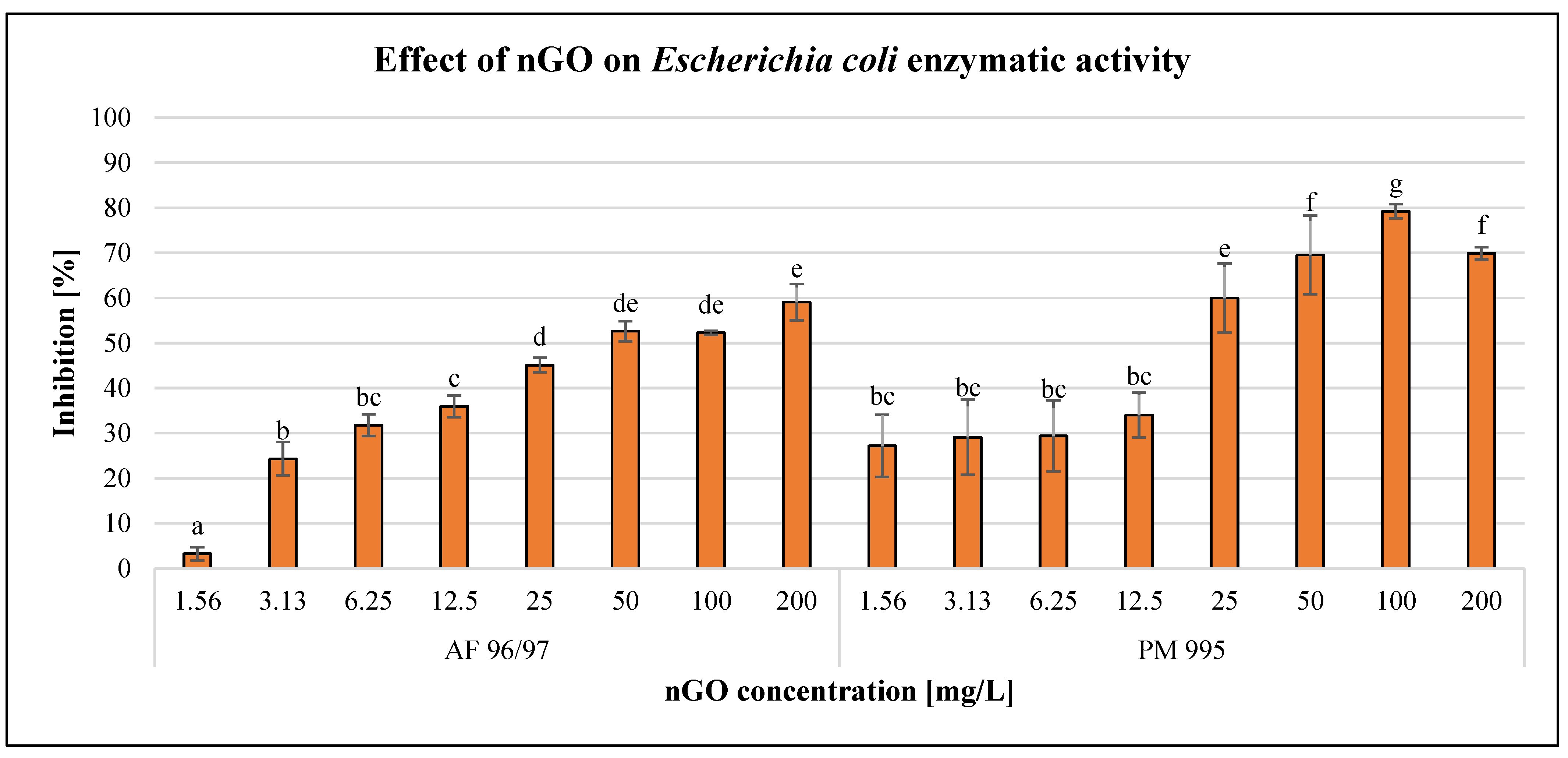

Escherichia coli enzymatic activity are illustrated in
Figure 4.
The GO nanoparticles had a dose-dependent negative effect on
E. coli enzymatic activity in the case of every treatment. PM 995 at the low concentration (1.56–12.5 mg/L) treatments showed no significant differences, since the effects were very similar. On the other hand, when applying higher concentrations (25–200 mg/L), PM 995 had a greater inhibitory effect on enzymatic activity compared to AF 96/97. The highest inhibition rate was 79% at 100 mg/L nGO PM 995, while in the case of AF 96/97, it was only 59% at 200 mg/L. The higher negative effect of PM 995 was confirmed by the statistical analysis, which showed that AF 96/97 had a significant effect at 3.13 mg/L, while PM 995 had a significant effect even at 1.56 mg/L concentration. The calculated EC
20 values (
Table 2) also indicated that PM 995 was more toxic since its EC
20 value was 2.57 mg/L, while in the case of AF 96/97, it was 3.97 mg/L.
3.3. Genotoxicity of nGOs as Determined Using SOS Chromotest
The analysis of the genotoxic activity of the tested materials was carried out visually and quantitatively using photometric instrumentation. During the evaluation of genotoxicity, the turbidity and colour of the samples caused problems at 1×, 2×, and 4× sample dilutions (500–2000 mg/L concentration range). At 8× sample dilution, this interference was no longer significant, and we did not detect any genotoxic effects. According to these results of the SOS chromotest, none of the tested samples were genotoxic at 250 mg/L concentration since the induction factors (IF) were lower than 1.5.
3.4. Toxicity of nGOs to Tetrahymena pyriformis
The effect of GO nanoparticles on

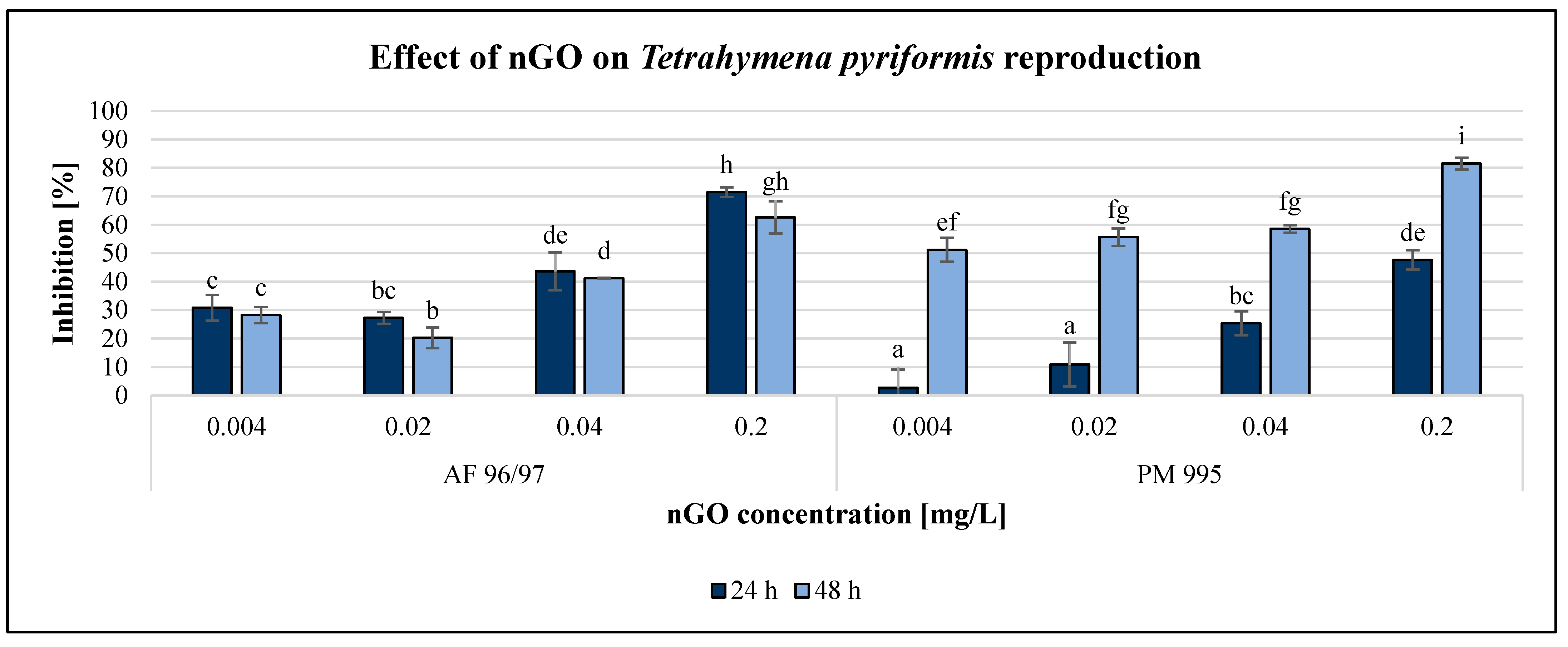

Tetrahymena pyriformis was investigated using various methods and endpoints. The OD measurement obtained using a DIALAB ELISA EL800 microplate reader was not acceptable since the colour of the GO NPs influenced the measured values. The enzymatic activity measurement based on the MTT assay was also unreliable. However, the resazurin method based on fluorescence intensity was reliably applicable for the evaluation. Furthermore, determination of the reproduction rate by counting the number of cells using a microscope was the most reliable method to evaluate the effect of GO nanoparticles. The results of the reproduction rate are illustrated in

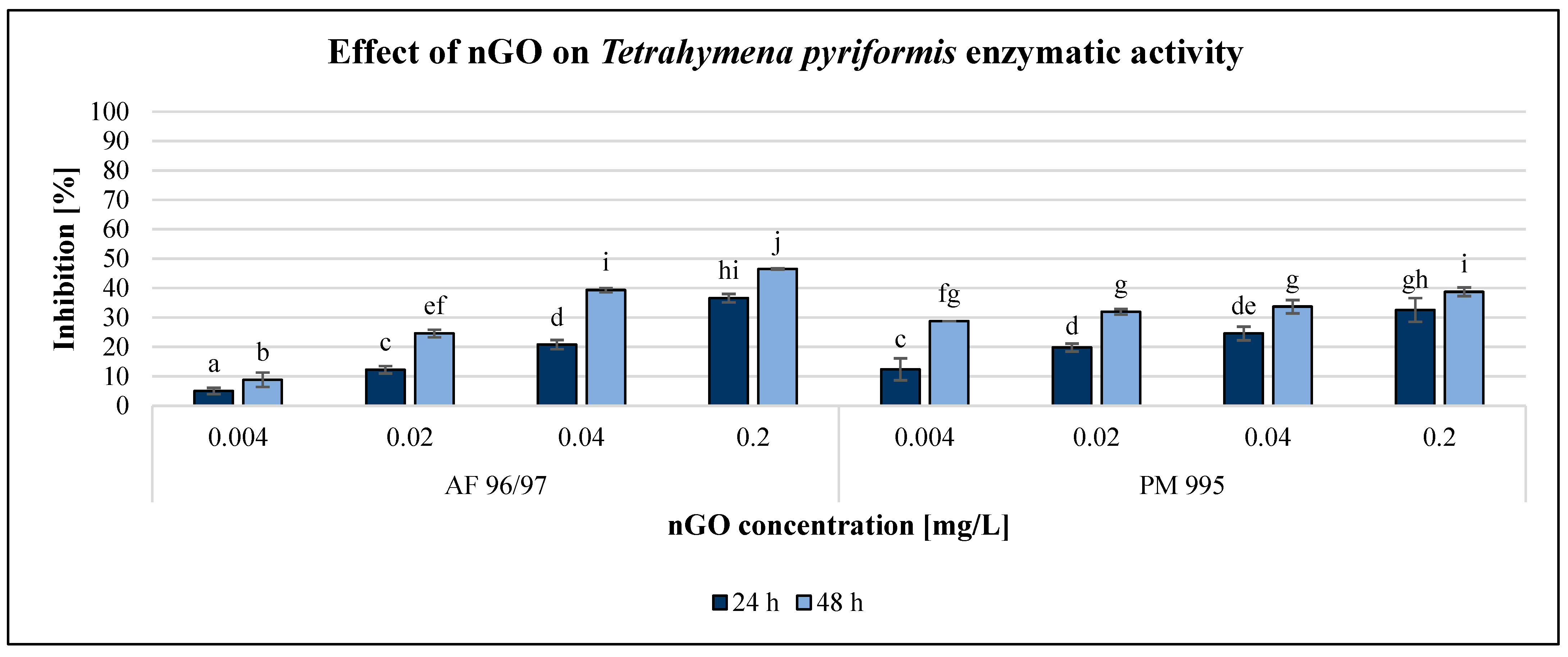

Figure 5, while the enzymatic activity is shown in
Figure 6.
Both GO nanoparticles had a dose-dependent decreasing effect on the reproduction rate of T. pyriformis. The exposure time had a high impact on this endpoint, especially in the case of PM 995. For AF 96/97, the inhibition rate was similar after 24 and 48 h of incubation, with a slight decrease after 48 h. The inhibitory effect of PM 995 was much higher after 48 h compared to after 24 h of exposure, especially at lower concentrations. It was confirmed by the statistical analysis, which showed that after 24 h of exposure, nGO AF 96/97 had a significant effect even at 0.004 mg/L, while for PM 995, it was only at 0.02 mg/L. After 48 h, both types caused significant inhibition compared to the control even at the lowest tested nGO concentration, 0.004 mg/L. The highest observed negative effect was 81% at 0.2 mg/L nGO PM 995 after 48 h of incubation, while in the case of AF 96/97, the highest inhibition rate was 71% after 24 h at the same concentration.
The results of the enzymatic activity test showed similar pattern to the reproduction values, albeit in the case of this endpoint, the inhibition rate was always higher after 48 h than after 24 h of incubation time. Similar to the results of the A. fischeri test, the T. pyriformis enzymatic activity measurement was less sensitive than the reproduction measurement since every treatment had a lower effect on enzymatic activity than on reproduction, although the statistical analysis showed that both nGO types had a significant effect at 0.004 mg/L compared to the control even after 24 h.
However, PM 995 had significant effect on the reproduction rate only at 0.02 mg/L nGO concentration. The highest inhibition of enzymatic activity was 46% at 0.2 mg/L nGO AF 96/97 after 48 h, while in the case of PM 995, it was 39% under the same conditions. The EC
20 values were lower in the reproduction rate investigations than in the enzymatic activity measurements at the same incubation time, except for PM 995 after 24 h of exposure (
Table 2). On the other hand, the lowest EC
20 values (0.004 mg/L) were observed for PM 995 after 48 h, both in the reproduction rate and enzymatic activity experiments.
3.5. Toxicity of nGOs to Panagrellus redivivus
The effect of GO nanoparticles was examined using

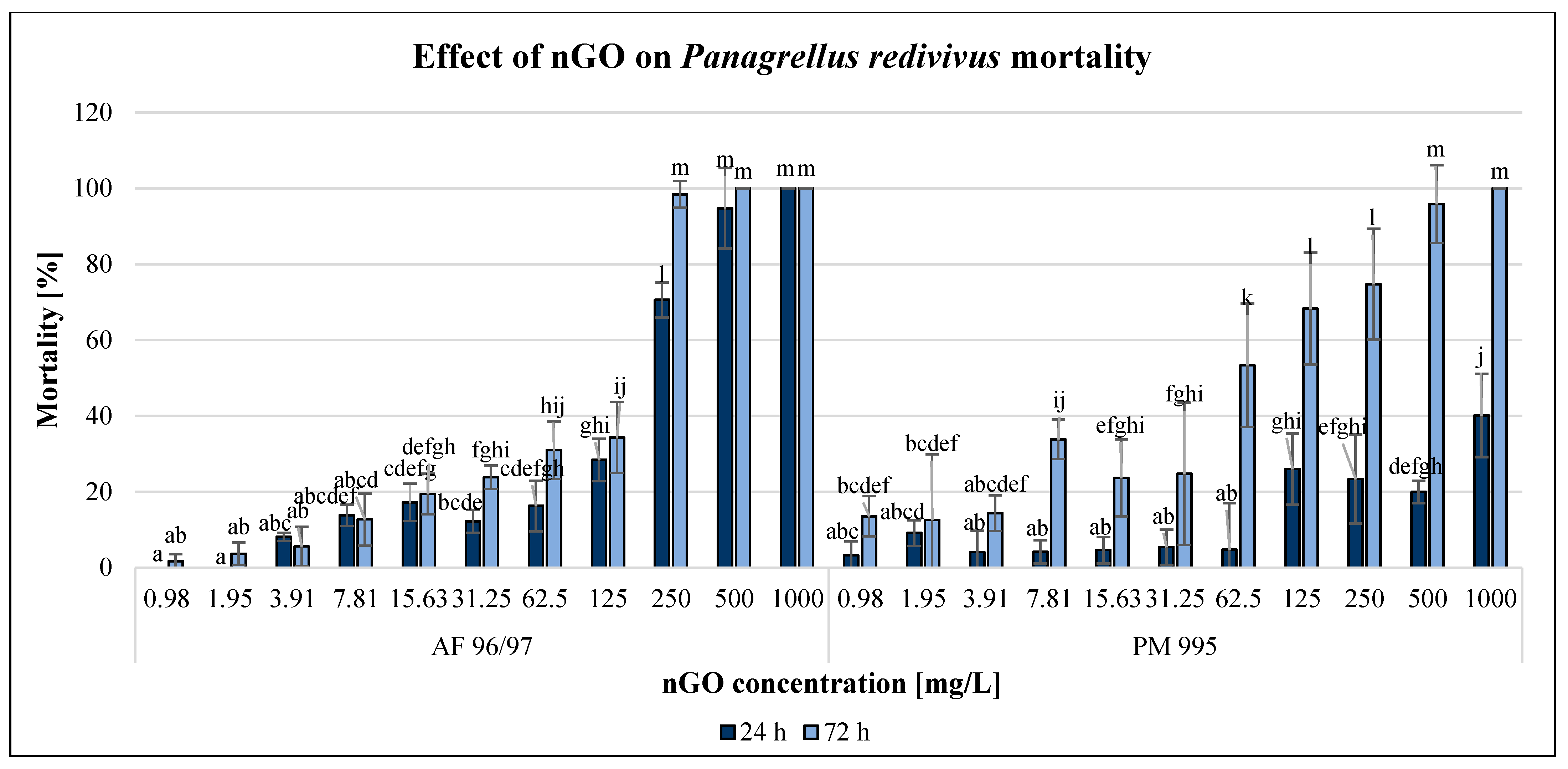

P. redivivus mortality test. The results are illustrated in
Figure 7.
Both types of GO nanoparticles had concentration- and time-dependent effects on this test organism, although there were some outliers. After applying 1000 mg/L nGOs, the mortality was 100% for both types of nGOs after 72 h; however, in the case of AF 96/97, mortality occurred even after 24 h. This type had a stronger negative effect mainly after 24 h of exposure at high concentrations (>250 mg/L), but after 72 h, the inhibition was 98% at 250 mg/L, while in the case of PM 995, it was 74% at the same concentration. On the other hand, when applying lower concentrations (<125 mg/L), the effect was higher in the case of PM 995. The lowest significant negative effects were observed in the case of AF 96/97 and PM 995 after 24 h at 7.81 and 125 mg/L nGO concentrations, while after 48 h of exposure, this was observed at 15.63 and 0.98 mg/L, respectively. Therefore, the EC
20 values (
Table 2) also indicated that after 24 h, the effect was lower in the case of AF 96/97 (79.74 mg/L), while after 72 h exposure, the EC
20 value of PM 995 was lower (11.33 mg/L).
3.6. Toxicity of nGOs to Sinapis alba and Triticum aestivum

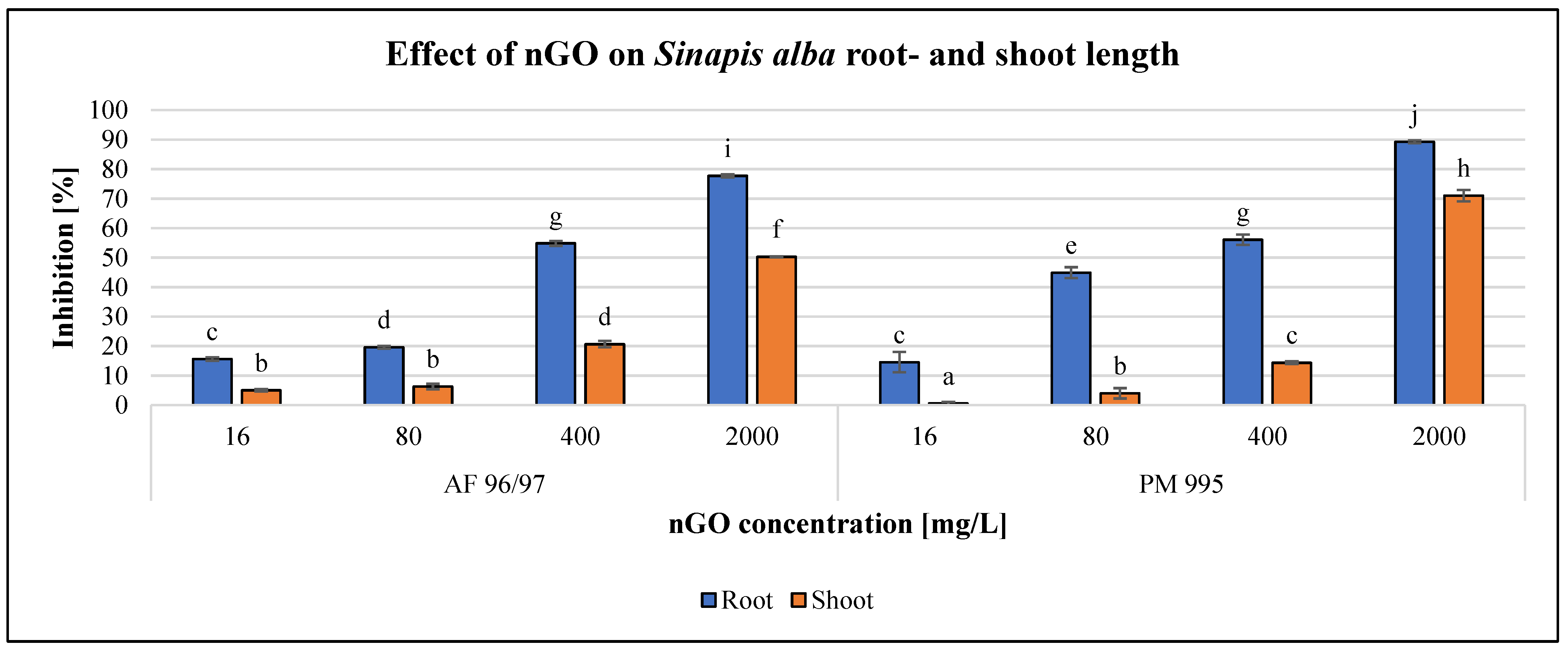

The effects of the applied nGO particles on
S. alba and
T. aestivum are shown in
Figure 8 and
Figure 9. These nanoparticles inhibited root and shoot growth in every treatment in both plant species, and the negative effect was concentration-dependent.
For S. alba, the inhibition effect was higher on root growth than on shoot growth for both types of nGOs. Both types had a significant effect at 16 mg/L concentration on both measured endpoints, and the highest negative effect was observed at 2000 mg/L nGO PM 995 (89% root growth inhibition). The greatest shoot growth inhibition was 70% for the same treatment.
The highest observed inhibition values for nGO AF 96/97 were 78 and 50% in root- and shoot growth at 2000 mg/L, respectively. These results indicated that root length measurement was more sensitive than shoot length measurement. The EC
20 values confirmed this statement, since based on the root measurement, the EC
20 was 76.71 and 40.73 mg/L in the case of AF 96/97 and PM 995, respectively, while based on the shoot length investigation, the estimated EC
20 of AF 96/97 and PM 995 was 380.13 and 554.01 mg/L, respectively (
Table 2).

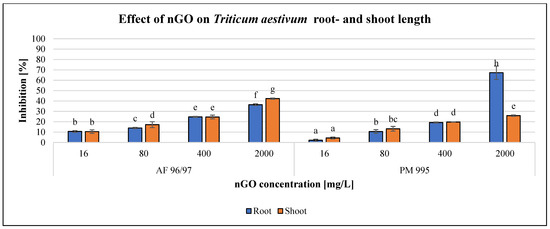

The effect of the investigated NPs on
T. aestivum was also concentration-dependent (
Figure 9), similarly to
S. alba, but the effect was almost the same for both measured endpoints, except in the case of the highest observed inhibition of 67% at 2000 mg/L nGO PM 995, while the effect on shoot length was only 26% with the same treatment. Additionally, the inhibition rates were higher in the case of AF 96/97 compared to PM 995 at every examined nGO concentration, and the highest effect on shoot length inhibition was 42% at 2000 mg/L nGO AF 96/97. These results were in accordance with the statistical analysis, which showed that AF 96/97 had a significant effect on both measured endpoints at 16 mg/L compared to the control, while 16 mg/L PM 995 had an effect on shoot length, but the root growth was inhibited only at 80 mg/L.
The EC
20 values of
T. aestivum shoot- and root length (224.78 and 223.98 mg/L) (
Table 2) also indicated that AF 96/97 had a similar effect on root- and shoot length. On the other hand, PM 995 had a higher effect on
T. aestivum shoot length than root length since the EC
20 values were 203.49 and 392.53 mg/L, respectively.
3.7. Toxicity of nGOs to the Microbial Community of Lake Balaton
The effect of the obtained GO nanoparticles on freshwater microbial community was investigated to determine how these NPs influenced microbial activity. Community-level physiological profiling was performed using Biolog EcoPlateTM, and different endpoints were calculated to describe the effect of nGOs on microbial activity.

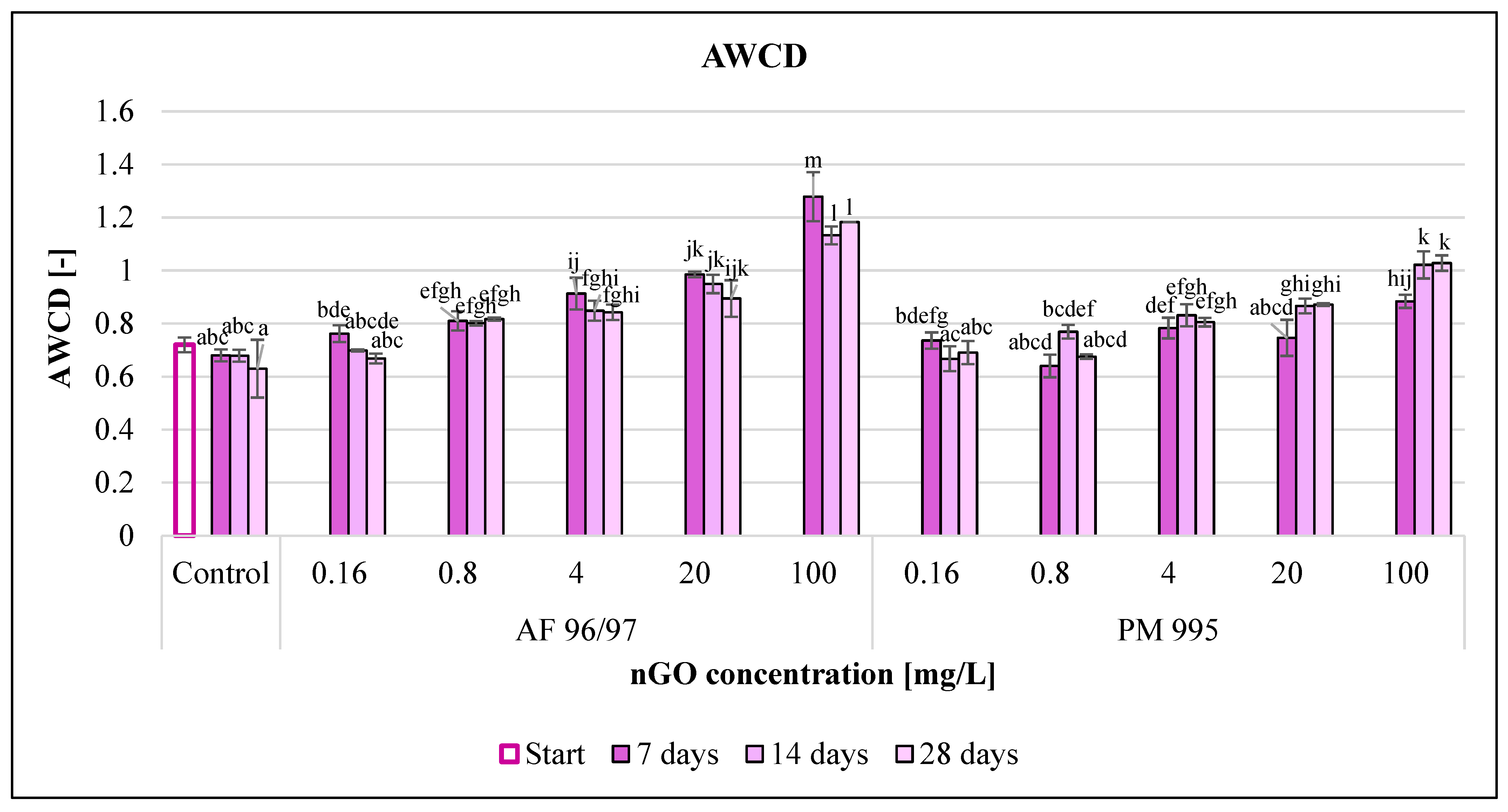

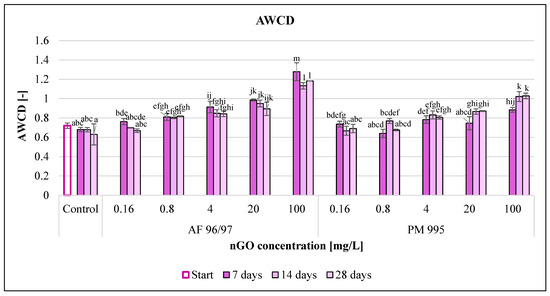

The average well colour development (AWCD) values (
Figure 10) increased with incremental nGO concentrations. In the case of AF 96/97, the AWCD values increased compared to the control in every treatment, while PM 995 had a slightly negative effect at 0.16 and 0.8 mg/L after 14 and 7 days of incubation, but in the other cases, it also enhanced the AWCD values. PM 995 also had a smaller effect in every treatment compared to the other nGO type; the highest AWCD value was 1.02 at 100 mg/L after 14 and 28 days, while the AWCD value for the AF 96/97 treatment at the same concentration and after 7 days of incubation was 1.28.
The incubation time also had an impact on the AWCD values, but the results were mixed since the control and the nGO AF 96/97 treatments resulted in lower AWCD values, whilst the AWCD values of the nGO PM 995 treatments increased (except at 0.16 mg/L) with the passing of the incubation time. On the other hand, the lowest concentration showing a significant difference compared to the control was the same at every measured time points for both nGO types (0.8 and 4 mg/L for AF 96/97 and PM 995, respectively).
The measured AWCD values indicated that both nGO types significantly enhanced the microbial activity.
The results regarding substrate richness (SR) (
Figure S4) had a similar pattern to the observed AWCD values. Both types of nGOs increased the number of the utilised substrates compared to the control. AF 96/97 had a higher effect at lower concentrations than PM 995. The highest SR value was 27 at 100 mg/L nGO PM 995 after 28 days of exposure time.
As the incubation time elapsed, the number of the utilised substrates was less in the case of AF 96/97 and higher with PM 995 treatments, as opposed to the AWCD values. The observed SR values also indicated an enhanced microbial activity in accordance with the AWCD values.

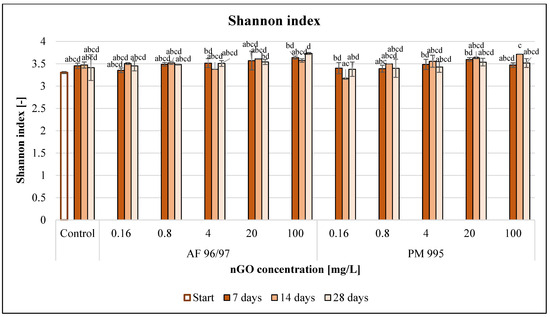

The Shannon index values (
Figure 11) also increased for both nGO types with an increase in the applied nGO concentrations. However, a treatment of 0.16 mg/L nGO PM 995 resulted in a slight decrease at every sampling time compared to the control.
In the case of PM 995, the Shannon index values were lower than those of AF 96/97 at equal concentrations, but there were no significant differences across the treatments. Moreover, there were no observed significant effects compared to the control at any treatment concentration and time point.
There were notable differences between the McIntosh index values (
Figure S5). Every treatment had an enhancing effect on this endpoint with an increase in the applied concentration. Both nGO types had a significant effect compared to the control after 7 days of incubation at 0.16 mg/L concentration, while after 28 days of incubation time, 0.16 mg/L nGO AF 96/97 treatment also had a significant influence, but PM 995 had a significant effect only at 4 mg/L. The highest McIntosh index value was 8.18 after 7 days at 100 mg/L nGO AF 96/97, and 6.42 after 28 days at the same concentration of PM 995.

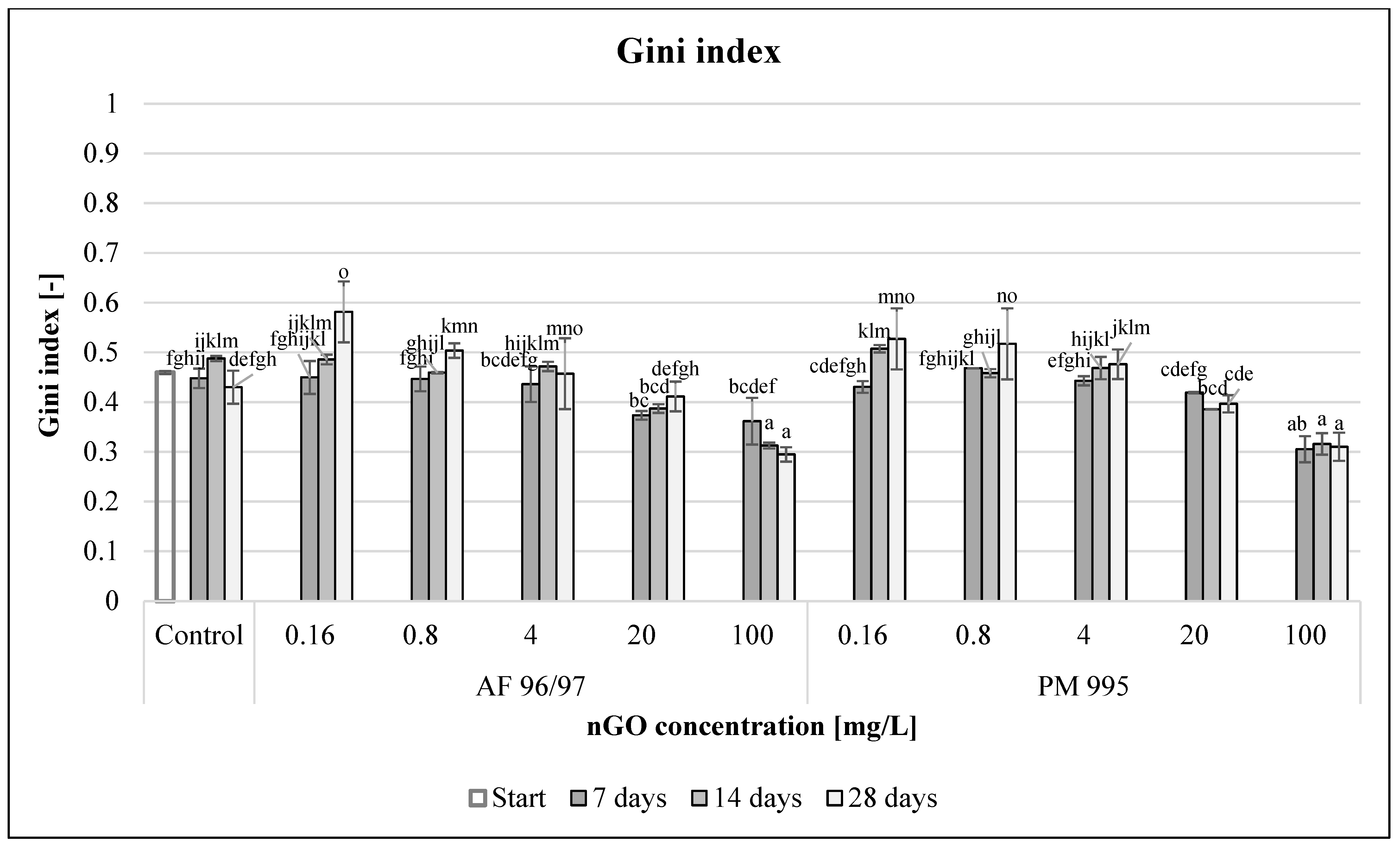

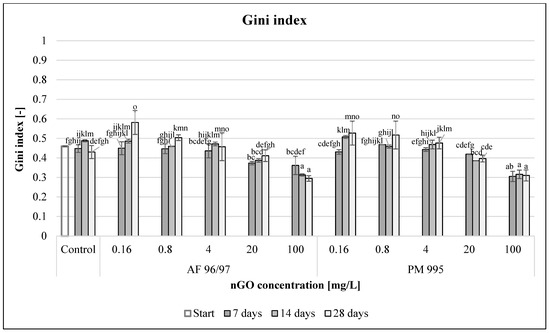

To evaluate functional diversity, Gini index values were calculated (
Figure 12). With incremental nGO concentrations, the Gini coefficient values decreased for both nGO types. In the 0.16–4 mg/L concentration range, there were significantly higher values, while at 20–100 mg/L concentrations (significantly in the latter case), the values were lower compared to the control after 28 days of incubation time. The highest Gini index values for nGO AF 96/97 and PM 995 at 0.16 mg/L concentration were 0.58 and 0.53, respectively, whilst the lowest Gini index values at 100 mg/L nGO AF 96/97 and PM 995 were 0.29 and 0.31, respectively.
These values also indicated that the obtained nGOs at high concentrations (20–100 mg/L) enhanced the functional activity of the microbial community because low Gini coefficient values indicated high functional diversity, although the high values suggested that these nGOs had a negative effect at lower (0.16–4 mg/L) concentrations.
Substrate average well colour development (SAWCD) values represent the usage rate of carbon sources (
Figure S6), assuming that the total utilisation of the six substrate groups was 100%. Although there were not significant differences among the treatments, our results showed that at high nGO concentrations (100 mg/L), the metabolisation of polymers was degraded, especially in the case of PM 995, and the exposure time also had an impact because the ratio decreased with time. On the other hand, the ratio of amine usage increased slightly.
3.8. Determination of the Effective Concentration and PNEC Values for the Tested GO Suspensions
The ecotoxicological effect on producers and consumers was estimated using acute tests. Our results demonstrated that short-term exposure to GO suspensions could be toxic at the three trophic levels.
To determine the effective concentration (EC) values, sigmoidal curves were fitted to the inhibition percentage values calculated using the measurement data and compared to the control sample data. The nGO concentrations that caused 20% inhibition of the measured endpoint (EC20) were determined using the Origin® 2018 software by applying logistic function fitting.
Table 2 summarises the EC
20 values for both GO suspensions in all the applied test systems and endpoints at different contact times.
Thus, we could compare the sensitivity of the test organisms to the obtained GO NPs, and the effect of exposure time.
According to the EC
20 values in
Table 2, more toxic effects are indicated in red (and its shades), while green and its shades show lower ecotoxicity. The lower the EC
20 value, the more toxic the nGOs.
Table 2.
EC20 values [mg/L] of the applied graphene oxide suspensions in the examined test organisms. The more toxic effects are indicated in red (and its shades), while green and its shades show lower ecotoxicity. The lower the EC20 value, the more toxic is the nGO.
Table 2.
EC20 values [mg/L] of the applied graphene oxide suspensions in the examined test organisms. The more toxic effects are indicated in red (and its shades), while green and its shades show lower ecotoxicity. The lower the EC20 value, the more toxic is the nGO.
Examined Endpoint of the Test Organisms | Incubation Time | AF 96/97 | PM 995 |
---|
EC20 [mg/L] | EC20 [mg/L] |
---|
Escherichia coli enzymatic activity | 24 h | 3.97 | 2.57 |
Aliivibrio fischeri bioluminescence intensity | 30 min | 5.86 | 5.06 |
120 min | 4.01 | 4.40 |
Aliivibrio fischeri enzymatic activity | 120 min | 22.86 | 16.13 |
Tetrahymena pyriformis reproduction | 24 h | 0.008 | 0.033 |
48 h | 0.011 | 0.004 |
Tetrahymena pyriformis enzymatic activity | 24 h | 0.038 | 0.020 |
48 h | 0.014 | 0.004 |
Panagrellus redivivus mortality | 24 h | 79.74 | 217.56 |
72 h | 56.09 | 11.33 |
Sinapis alba root length | 72 h | 76.71 | 40.73 |
Sinapis alba shoot length | 72 h | 380.13 | 554.01 |
Triticum aestivum root length | 72 h | 224.78 | 392.53 |
Triticum aestivum shoot length | 72 h | 223.98 | 203.49 |
The predicted no-effect concentrations (PNECs) were determined from the effective concentration values (EC
20) and were used to calculate the risk characterisation ratios for aquatic ecosystems. This simple approach was applied to the two types of nGOs to obtain the first risk characterisation. The so-called assessment factor scheme [
19] was applied to determine the PNEC
AF96/97 and PNEC
PM995 that were used uniformly for calculating PNECs in aquatic habitats. Based on our results obtained from the acute toxicity tests using test organisms from three trophic levels, the applied assessment factor (AF) was 1000. The PNEC
AF96/97 = 8 ng/L and PNEC
PM995 = 4 ng/L were determined by selecting the lowest effective concentration values (SC) and applying 1000 as an assessment safety factor (SC/AF).
The level of potential environmental risk (RCR) can be characterised by the risk characterisation ratio (RCR), which is the quotient (RCR = PEC/PNEC) of the predicted environmental concentration (PEC) and the predicted no-effect concentration (PNEC), which probably does not affect the ecosystem adversely. To determine the PEC value, the environmental concentrations reported in the literature were considered. According to the worst-case scenario approach, the highest value was used in the calculations (1.82 ng/L [
20] (PEC = 1.82 ng/L)). Thus, taking this into account, the PEC/PNEC ratio for AF 96/97 nGO was 0.23 (RCR
AF96/97 = 0.23), while for PM 995 nGO, it was 0.46 (RCR
PM995 = 0.46). Both values are less than 1, indicating that the tested GO nanomaterials (GO AF 96/97 and GO PM 995) do not pose any risk even when assuming the worst case.
4. Discussion
The toxicity of two distinct forms of nGOs (AF 96/97 and PM 995) to various test organisms from diverse trophic levels (bacteria, protozoon, freshwater microbial community, plants, and invertebrate animals) in aquatic environments was examined and compared. When comparing the results of the concentration data and the effect assessment, we found correlation in most cases; higher nGO concentrations resulted in stronger negative effects. Based on the complex ecotoxicity assessment, the impact of both nGO types was characterised by calculating the effective concentration values for each test organism and the derived initial PNEC values. Finally, to characterise the potential environmental risk using a worst-case approach and conventional risk assessment, the predicted environmental concentration (PEC) was compared with the predicted no-effect concentration (PNEC).
The toxicity level of the tested GO NPs was dependent on the type and concentration of these GOs, the exposure time, and the test systems. Regarding the ecotoxicity tests, the results differed according to the test organisms, the selected endpoints, and the exposure time.

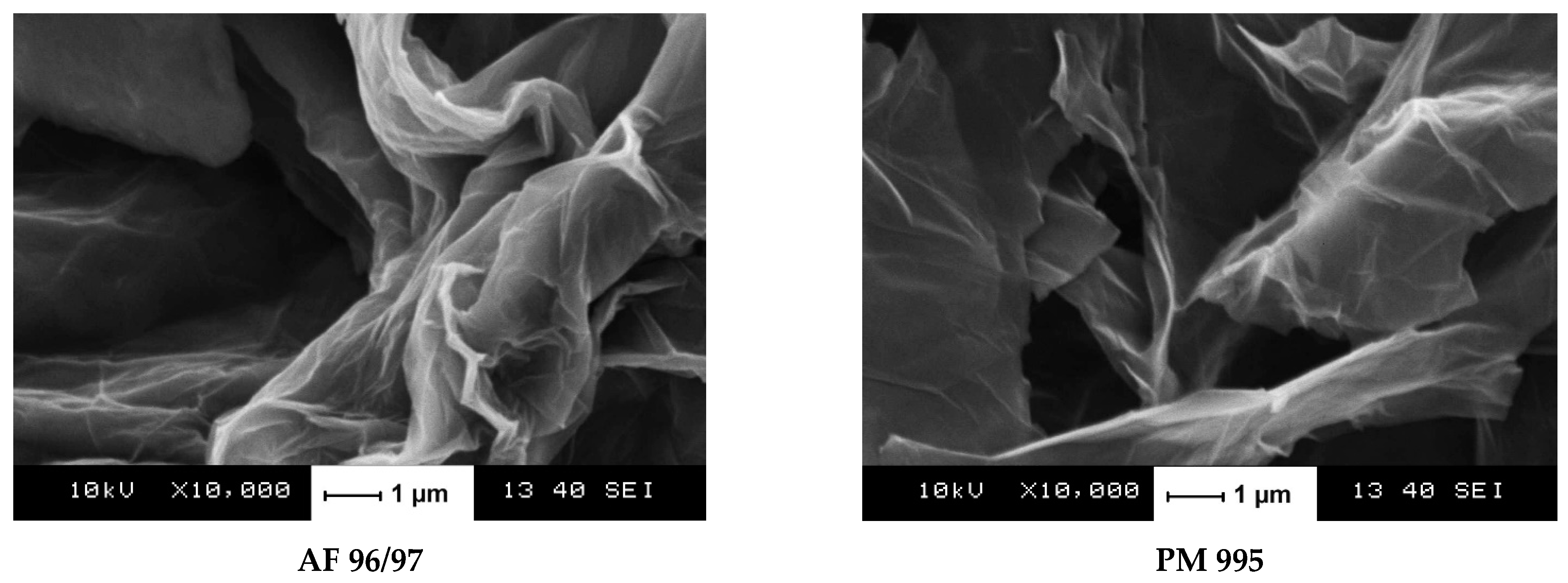

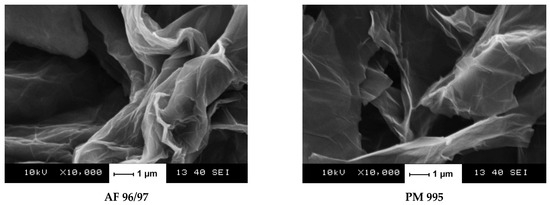

We found only small differences in terms of physicochemical properties of the tested GO nano-suspensions. The main difference was that AF 96/97 had a smaller particle size and higher specific surface area (BET: 84 m2/g) than PM 995 (BET: 40 m2/g). Thus, in some cases (e.g., in bacterial test systems), there were only minor differences in the degree of ecotoxicity between the two nGOs. However, in the case of some other applied ecotoxicological test organisms (such as Tetrahymena pyriformis and Panagrellus redivivus), the slight differences in physicochemical characteristics of the two nGOs resulted in substantial differences, both in the extent of their ecotoxicity and their temporal behaviour. Overall, it could be concluded that no clear structure–activity relationship was detected in terms of the differences in physicochemical characteristics of the tested graphene oxides and the exerted ecotoxicity, which highlighted that the test system characteristics and the interactions between the nGOs and the complex matrices significantly influenced these effects.
The outcomes of the complex ecotoxicity assessment showed that the spectrum of test organisms applied in the test batteries should encompass different trophic levels. The sensitivity of these test systems based on the EC20 values is as follows:
Sinapis alba shoot length < Triticum aestivum root length < Triticum aestivum shoot length < Sinapis alba root length < Panagrellus redivivus mortality < Aliivibrio fischeri enzymatic activity < Aliivibrio fischeri bioluminescence intensity < Escherichia coli enzymatic activity < Tetrahymena pyriformis enzymatic activity < Tetrahymena pyriformis reproduction
We found that ecotoxicity increased with exposure time in the most sensitive test systems, which indicated that the transformation of nGOs in these test systems could enhance their harmful effects on these representatives of the trophic chains.
The plant tests exhibited the lowest sensitivity. When comparing the effect of the two nGO types on S. alba and T. aestivum, S. alba proves to be more sensitive than T. aestivum, and root length measurement is recommended because it shows considerable sensitivity compared to shoot length measurement. Although the root EC20 values suggested that nGO PM 995 was more toxic than AF 96/97, the shoot EC20 values did not follow this finding. Both tests are suitable for the evaluation of the effect of nGOs (at high concentration levels); however, root length measurement is more suitable for use because it can detect the effect even at lower NP concentrations. Our results indicate that S. alba root and T. aestivum shoot growth measurements are moderately sensitive endpoints.
Our results are in accordance with Begum et al.’s findings [
35]. These authors investigated graphene phytotoxicity to cabbage, tomato, lettuce, and spinach within the 500–2000 mg/L concentration range, and their results showed that root- and shoot growth was highly inhibited. Wang et al. [
36] also found that graphene family nanomaterials (GFNs) caused a delay in seed germination and changes in plant morphology through physical, physiological, and biochemical effects (shading, mechanical injury, ROS enhancement, and modifying antioxidant enzyme activities). Zhang et al. [
37] examined the effect of graphene on
Triticum aestivum root- and shoot length within the 250–1500 mg/L concentration range, and in contrast to our results, they found improved root elongation, although there was considerable decrease in root hair production. Ren et al. [
38] also reported an enhancing effect of nGOs, wherein wheat seedlings’ root growth was promoted at 100 mg/L, although inhibition was observed at higher concentrations. Liu et al. [
39] described delayed germination rates of rice seeds caused by nGOs, whose effect was concentration-dependent (50 µg/mL and above), and radicle and plumule growth was inhibited. Wang et al. [
40] and Zhao et al. [
41] described that
Arabidopsis thaliana seedlings accumulated nGOs in the root system but not in leaf cells after 2 weeks of exposure. Chen et al. [
42] also found that GOs inhibited the germination of wheat, and at high concentrations, GOs accumulated in the root system, inducing oxidative stress. The effect of nGO-based materials on
S. alba was studied by Roupcová et al. [
43]. They found that the germination of
S. alba seeds was inhibited when cultivated on nGO foils, but outside the foils, it was enhanced. However, the effect of nGOs was the lowest compared to other graphene-based nanomaterials. To summarise our results and the reported results in the literature, nGOs may benefit plant growth, but there are contradictory findings on this issue. For example, the effects on seed germination were explained as being due to decreased water uptake in one study [
36], whilst another study reported increased seed water content [
44], although both studies described enhanced ROS generation. Overall, regarding our results, we do not recommend contact between seeds and nGOs.
The Panagrellus redivivus mortality test also showed moderate but concentration-dependent sensitivity according to the percentage inhibition and EC20 values (ranging between 11.3 and 217.6 mg/L). This test organism (nematode) was representative of the animal (consumer) trophic level for ecotoxicological tests; however, the literature analysis revealed that nematode species are rarely used in ecotoxicological research on GOs.
According to the results obtained in this experiment, the performance of the two GO nanomaterials showed significant differences over time, which might be related to the behaviour of the two GO nanomaterials in the medium. The PM 995 nanomaterial resulted in higher mortality after a longer contact time (48 h) based on the EC
20 values, while GO AF 96/97 showed a higher significant inhibitory effect after 24 h. The effect of GO nanomaterials on the organism
Panagrellus redivivus in aquatic systems had not been studied before, so our research fills the gap from this point of view. However, the effects of zinc oxide nanoparticles (nZnO) on
Panagrellus redivivus had been studied [
45], showing that nZnO caused concentration-dependent mortality in the tested nematode species.
The ecotoxicity assessments using invertebrate animals had mainly been conducted on crustaceans (e.g.,
Daphnia magna) exposed to graphene oxide [
46]. In these studies, the survival and reproduction rates were mainly investigated, while the moulting rate, enzyme activities, and gene expression were less often investigated. Fekete-Kertész et al. [
47] tested more sensitive, sublethal endpoints (heartbeat rate, feeding activity, and reactive oxygen species (ROS) production) besides the conventional ecotoxicological endpoints (lethality and immobilisation). Their research demonstrated that nGOs affected
Daphnia magna physiology, behaviour, and oxidative stress reactions.
The most sensitive endpoint was ROS production (EC20 = 4.78 mg/L.); thus, a key potential mechanism of the tested GOs was supposed to be via oxidative stress with reactive oxygen species, while the 20 ± 7% lethality and 10 ± 5% immobilisation effects were caused by 50 mg/L GOs. This result indicated a higher sensitivity of Daphnia magna to GOs than the nematode Panagrellus redivivus.
Regarding bacteria, most of the studies assessed the effects of NMs in terms of bacterial growth, enzymatic activity, metabolism (e.g., denitrification, nitrification, and respiration), and gene expression [
46]. We investigated how the applied nGOs affected bacterial growth, enzymatic activity, and gene expression in two bacterial test systems by measuring
Aliivibrio fischeri bioluminescence intensity and
Escherichia coli growth and enzymatic activity. Lee et al. [
48] examined the effect of nGOs on different species and found that there was no antimicrobial effect on
Vibrio species. Domi et al. [
49] studied the effect of GO nanoparticles on the luminescence of
Vibrio fischeri. They concluded that 160 mg/L nGO concentration had no significant luminescence inhibition, but 800 mg/L nGO concentration induced 100% luminescence inhibition after 10 min of exposure. In contrast to this, our results showed that already at 3.13 mg/L, both types of nGOs had a significant effect after 30 min of exposure. The highest level of inhibition was only 84.5% at 200 mg/L concentration in the case of PM 995. Moreover, not only bioluminescence but also enzymatic activity of
Aliivibrio fischeri was inhibited.
Liu et al. [
50] found that GOs (and reduced GOs) had a high antibacterial activity against
E. coli, with 40 μg/mL GO concentration causing 69.3% loss in
E. coli viability, while reduced GOs resulted in 45.9% in bacterial inactivation percentage. Qiang et al. [
51] found that nGOs had a strong cytotoxic effect on
E. coli, inhibiting its growth and reproduction in a concentration-dependent manner. Our results also showed a dose-dependent negative effect on enzymatic activity, although the applied concentration range was higher and the highest inhibition was 79% at 100 mg/L nGO PM 995.
Besides the investigations using bacterial test organisms, the effect of nGOs was tested on
Tetrahymena pyriformis, a protozoon, whose reproduction rate and enzymatic activity are great measurement endpoints in ecotoxicological experiments. Pan et al. [
52] tested silver nanoparticles in the 0–10 mg/L concentration range and found that they elicited strong growth-inhibiting effects on
Tetrahymena thermophila, mainly due to the high reactive oxygen species levels, which led to lipid peroxidation and mitochondrial dysfunction. Guo et al. [
53] came to the conclusion that nanoparticles affected bacterial ingestion in
Tetrahymena thermophila by inhibiting ATP synthesis and downregulating phagocytosis-related genes. Liao et al. [
54] investigated the effects of graphene oxide on the growth, enzymatic activity, and oxidative stress of
Tetrahymena thermophila and found that concentrations higher than 32 mg/L significantly inhibited the growth of this protozoon. Incremental GO concentrations initially increased the levels of reactive oxygen species and superoxide dismutase, but then decreased their levels, while acetylcholinesterase activity decreased. Contrary to this finding, our results showed that 0.004 mg/L nGO concentration already had a significant negative effect on the growth and enzymatic activity of
Tetrahymena pyriformis after 24 h. Therefore, the smallest EC
20 values were calculated for this test organism, which indicated that
T. pyriformis was the most sensitive of the applied test organisms.
It has been demonstrated that graphene oxide-based nanoparticles adversely interfere with the normal physiology of phagocytic aquatic organisms, such as T. pyriformis. This high-sensitivity protozoon may be applicable for early warning and for conservative testing of the worst-case scenario.
The growing number of studies investigating the effects of GFMs on microbial communities in different environmental compartments showcases the emergence of this topic. Microbial communities from surface water bodies (rivers, lakes, estuaries, and aquariums) have been used to investigate the potential adverse effects of GFMs in small-scale batch incubation systems; however, the effects of GFMs on water bodies are still understudied [
17]. In summary, the existing studies generally indicated the negative impacts of these nanomaterials on the growth of microbial communities, mostly due to oxidative stress.
Our study revealed that GO nanoparticles affected the activity and diversity of microbial community, although the effect depended on the applied concentration and nGO type. These results indicated that nGOs enhanced the microbial activity even at low concentrations, since we demonstrated that 0.16 mg/L nGO concentration could have significant effects on the examined endpoints. According to our results, nGO promoted microbial activity and functional diversity, whose effect was concentration-dependent. At low (0.16–0.8 mg/L) concentrations, we observed negative effects on the AWCD and Shannon index values in the case of PM 995. The Gini coefficient also indicated harmful effects in the case of both nGO types. On the other hand, substrate richness and McIntosh index values demonstrated a beneficial impact of these GO NPs on microbial community, even at low concentrations. Based on the SAWCD values, there were no significant differences in the utilisation rates of substrates among the treatments.
These results are in accordance with the findings of Németh et al. [
34], who stated that titanium dioxide nanoparticles (nTiO
2) did not have considerable influence on the metabolisation rate of various carbon groups, whilst zinc oxide nanoparticles (nZnO) strongly affected the utilisation rate of some substrate categories, especially polymers, amines, and phenolic compounds. Although they found that nZnO degraded the utilisation rate of these groups, our results suggested that nGOs reduced the metabolic activity of polymers but enhanced the metabolism of amines. On the other hand, nZnO had a negative effect on the microbial community, as demonstrated by other indices (AWCD, SR, Shannon, McIntosh, and Gini index values), while nGOs did not show these drawback effects; rather, they boosted the microbial activity.
Even though graphene oxide-based nanomaterials hold great promise for numerous applications, there is still a substantial knowledge gap regarding their potential environmental impacts based on environmental risk assessments [
15], as environmental compartments and factors have a great influence on their fate and toxicity.
The strengths of the present study include the fact that the toxicological effects of two types of graphene oxide were evaluated using test organisms from different trophic levels. Amongst the applied ecotoxicological tests, there were single- and multispecies test systems, which provided a comprehensive evaluation of the short- and mid-term responses of the environment. On the other hand, we propose the use of simple, fast, and cheap test methods in the future to evaluate the effect of new GO (and other) nanoparticles within a low concentration range.
The novelty of our study consists of the estimation of the predicted no-effect concentration (PNEC) values for graphene oxides associated with the worst-case scenario by applying a wide range of ecotoxicological test systems, including bacteria, protozoa, nematodes, invertebrates, plants, and freshwater microbial communities. Our results are noteworthy; even when based on an environmental risk assessment with a conservative approach (the worst-case scenario approach), the tested GO suspensions do not pose any risk to the environment.
