Article

Unraveling the Structural and Compositional Peculiarities in CTAB-Templated CeO2-ZrO2-MnOx Catalysts for Soot and CO Oxidation

by
Maria V. Grabchenko
1,
Natalia N. Mikheeva
2,
Grigory V. Mamontov
2,
Vicente Cortés Corberán
3,
Kseniya A. Litvintseva
4,5,
Valery A. Svetlichnyi
6,
Olga V. Vodyankina
2 and
Mikhail A. Salaev
1,*
1
Laboratory of Catalytic Research, Tomsk State University, 634050 Tomsk, Russia
2
Research Laboratory of Porous Materials and Sorption, Tomsk State University, 634050 Tomsk, Russia
3
Instituto de Catálisis y Petroleoquímica (ICP), Consejo Superior de Investigaciones Científicas (CSIC), 28049 Madrid, Spain
4
Boreskov Institute of Catalysis SB RAS (BIC SB RAS), 630090 Novosibirsk, Russia
5
Department of Physics, Novosibirsk State University, 630090 Novosibirsk, Russia
6
Laboratory of Advanced Materials and Technology, Siberian Physical Technical Institute, Tomsk State University, 634050 Tomsk, Russia
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(24), 3108; https://doi.org/10.3390/nano13243108
Submission received: 10 November 2023 / Revised: 2 December 2023 / Accepted: 5 December 2023 / Published: 9 December 2023
(This article belongs to the Special Issue Application of Porous Nanomaterials in Energy Storage and Catalysis)

Abstract

:
Structure–performance relationships in functional catalysts allow for controlling their performance in a wide range of reaction conditions. Here, the structural and compositional peculiarities in CTAB-templated CeO2-ZrO2-MnOx catalysts prepared by co-precipitation of precursors and their catalytic behavior in CO oxidation and soot combustion are discussed. A complex of physical–chemical methods (low-temperature N2 sorption, XRD, TPR-H2, Raman, HR TEM, XPS) is used to elucidate the features of the formation of interphase boundaries, joint phases, and defects in multicomponent oxide systems. The addition of Mn and/or Zr dopant to ceria is shown to improve its performance in both reactions. Binary Ce-Mn catalysts demonstrate enhanced performance closely followed by the ternary oxide catalysts, which is due the formation of several types of active sites, namely, highly dispersed MnOx species, oxide–oxide interfaces, and oxygen vacancies that can act individually and/or synergistically.

1. Introduction

Catalytic technologies are widely implemented in both large-scale chemical manufacturing and solving environmental challenges. The latter is linked to the reduction of the impact of various hazardous substances (CO, particulate matter, VOCs) on human health and the environment [1,2]. Over the last decades, a number of catalyst formulations have been introduced for the oxidation of CO and soot, and such catalysts are mostly based on noble metals and transition metal oxides. The noble metal-based supported catalysts utilizing Rh, Pt, or Pd were widely studied due to their high activity in total oxidation reactions [3,4,5,6]. However, CO was found strongly adsorbed on such metals, resulting in a significant reduction in active oxygen content that suppressed the low-temperature oxidation activity and the need to apply elevated temperatures [7]. Moreover, these metals feature rather high costs and limited availability. This motivated a search for alternative less expensive and abundant catalyst components that demonstrate similar or superior performance in said reactions.
A promising alternative comprises the catalysts based on oxides of transition metals (pristine and mixed oxides [8,9], spinels [10,11,12]). These materials combine a number of advantages, including availability, thermal stability, improved service period, resistance to catalytic poisons, etc. Among such materials, ceria brings about high research interest [13] since it demonstrates enhanced abilities to accumulate and release oxygen, and features rather low costs. To further boost CeO2 performance in terms of improved oxygen mobility and capacity as well as mechanical characteristics, the interactions of ceria with other oxides, i.e., ZrO2, MnOx, SnO2, are considered in binary and ternary formulations [14,15,16,17,18,19,20]. In a number of cases, the ternary mixed oxide systems exhibited rather high performance, while the reasons for such a behavior remain under debate.
Templating methods allow for creating oxide-based catalysts with improved structural and performance properties [21]. A key focus to create porous oxide catalysts using template methods is a high specific surface area that ensures effective mass transfer and diffusion of reagents to the active sites of the catalyst. The size, shape, and distribution of pores in the catalyst can be controlled by choosing the type of template and synthesis conditions [22,23,24]. Among the templates to synthesize the oxide catalysts [25,26], the cationic surfactant cetyltrimethylammonium bromide (CTAB) is actively used [27,28] due to the formation of micelles that help the precipitation of the oxides in the form of nanoparticles. The CTAB also allows for stabilizing the nanoparticles, preventing them from agglomeration.
Recently, several attempts were undertaken to show the effects of template-based preparation methods on the structure of ternary CeO2-ZrO2-MnOx oxides and their performance in the complete oxidation of CO and soot. Thus, the CeO2-ZrO2 prepared with a sawdust template showed improved performance in CO oxidation, which was attributed to higher structural defectiveness [29]. The soot combustion activity was rather low, while the CTAB-templated sample showed the opposite behavior. In Ref. [30], for the sample prepared using the evaporation-induced self-assembly method, the Mn2+/Mn3+ ions were incorporated into the CeO2-ZrO2 lattice to form the MnOx particles evenly distributed over the surface and bulk of the sample. The activity of such a sample was lower as compared to the one prepared by the MnOx impregnation over the mixed oxide support, where only local surface areas contained the MnOx species to ensure additional adsorption sites. With that, it is not clear how the performance of such ternary catalysts can change if the Mn-related component is introduced simultaneously with other catalyst components.
To the best of our knowledge, there have been no attempts to prepare ternary CeO2-ZrO2-MnOx catalysts using CTAB-templated synthesis when the precursor of the MnOx component is introduced not by impregnation of the CeO2-ZrO2 support, but simultaneously with other oxide precursors. Despite thorough investigation, there are open questions related to the nature and function of the surface defects. A landscape of catalyst formulations that can demonstrate the synergistic action reflected in the enhanced catalyst performance can also be widened.
The present work is focused on the structural and compositional peculiarities in CTAB-templated CeO2-ZrO2-MnOx catalyst and its catalytic behavior in both CO oxidation and soot combustion. A complex of physical–chemical methods (low-temperature N2 sorption, XRD, TPR-H2, Raman, XPS) is used to elucidate the features of the formation of interphase boundaries in multicomponent oxide systems and the defects formed.

2. Materials and Methods

2.1. Synthesis of CeO2-ZrO2-MnOx Oxide Systems

To prepare the oxide-based systems, a hydrothermal synthesis with CTAB as a structure-forming additive was used [31]. The oxide precursors (Ce(NO3)3·6H2O, Mn(NO3)2·nH2O, ZrO(NO3)2·nH2O) were dissolved in water, and the CTAB was added to the obtained solution with a molar ratio of CTAB to oxides of 1:3. Then, the mixture was put into an autoclave at a temperature of 100 °C for 24 h. After filtering, the samples were dried at 80 °C for 16 h and then calcined at 600 °C for 2 h. The Ce/Mn and Ce/Zr ratios were selected to be no less than 4 and 1.5, respectively, based on the literature data [32,33]. The sample designations show the nominal chemical composition (Table 1).

2.2. Materials Characterization

A complex of physical–chemical methods was used to characterize the prepared samples to provide comprehensive information about their composition, structure, and properties.
The catalysts were characterized by low-temperature nitrogen adsorption to measure specific surface area, porosity, and pore size distribution (“3Flex”, Micromeritics, Norcross, GA, USA). The samples were previously degassed under vacuum (200 °C, 2 h). The surface area and pore size distributions were determined using the BET and BJH methods, respectively.
X-ray fluorescence analysis (XRF) was used to determine the elemental composition of the obtained samples (XRF-1800, Shimadzu, Tokyo, Japan). The applied voltage, current, and diaphragm were 40 kV, 95 mA, and 10 mm, respectively. The Rh-based anode was used as a source.
X-ray phase analysis (XRD) was used to study the phase composition of samples, estimate the size of crystallites of components, and calculate the structural parameters (XRD-7000, Shimadzu, Tokyo, Japan). The range of 2θ was 10–70. CuKα radiation was used. The crystalline phase composition was established using the PDF database. The POWDER CELL 2.5 software package was used to determine the crystal cell indexing, starting from powder diffraction data with the Lorentz simulation. The crystal size and microstrains were calculated using the Williamson–Hall method.
Temperature-programmed reduction in hydrogen (TPR-H2) was used to study the features of the reduction of active components in synthesized samples (“Autochem 2950”, Micromeritics, Tokyo, Japan). The temperature range was 25–900 °C. The device was equipped with a thermal conductivity detector. A mixture of 10 %vol. H2 in argon was used. The absence of water in the gas mixture was controlled by a trap with a mixture of isopropanol and liquid nitrogen with temperature of −86 °C. The heating rate and gas flow rate were 10 °C/min and 20 mL/min, respectively. The air pretreatment in the temperature-programmed oxidation mode (20 mL/min) was carried out at temperatures up to 500 °C with an exposure time of 20 min.
Raman spectroscopy was used to confirm the defective structure of as-prepared samples (InVia confocal Raman dispersive spectrometer, Renishaw, Wharton, UK). The Leica microspore (50× objective) was employed. The excitation was ensured by a solid-state Nd:YAG laser. The wavelength, radiation power, and spectral resolution were 532 nm, 100 mW, and 2 cm−1, respectively. The powder samples were analyzed.
X-ray photoelectron spectroscopy (XPS) was used to determine the chemical state of active components (SPECS Surface Nano Analysis GmbH, Berlin, Germany). The PHOIBOS-150-MCD-9 hemispherical analyzer and the UXC 1000 X-ray source with a double Al/Mg anode were applied. Non-monochromatized Al Kα radiation was used. The charging effect was accounted for by the u‴ peak with a binding energy of 916.7 eV in the Ce3d spectrum. The relative concentrations of elements in the analysis zone were determined from the integral intensities of the XPS spectra to take the photoionization cross-section into account. To subtract the background, the Shirley method was used. The data were processed using CasaXPS software. The peak approximation involved the asymmetric LF function for the Mn2p spectrum and a symmetric function summing the Gauss and Lorentz functions for other elements.

2.3. Catalytic Tests in Oxidation CO and Soot

CO oxidation tests were carried out in a tubular U-shaped quartz reactor (i.d. = 6 mm) at atmospheric pressure in the temperature-programmed heating mode (“AutoChem”, Micromeritics, Norcross, GA, USA). The concentrations of CO (m/z = 28), CO2 (m/z = 44), and O2 (m/z = 32) were controlled using the gas mass spectrometer UGA-300 (Stanford Research Systems, Sunnyvale, CA, USA). The sample pretreatment was carried out using a H2 flow (up to 300 °C, 1 h). The particle fraction was 0.25–0.5 mm. The reaction mixture comprised 1 vol% CO, 5 vol% O2, and 94 vol% He. The sample mass, the flow rate, and the heating rate were 0.1 g, 100 mL/min, and 10 °C/min, respectively.
Soot combustion activity was estimated using synchronous thermal analysis (STA 449F1 thermogravimeter, NETZSCH, Selb, Germany). Carbon black (Micromeritics, Norcross, GA, USA) was used, and 5 wt% soot was mixed with the catalyst. Tight contact mode was ensured by mixing the components in an agate mortar for 10 min. The temperature range was 100–800 °C. The heating rate was 10 °C/min in an air flow.

3. Results

3.1. Chemical Composition

Real catalyst compositions were determined using the XRF method. The values obtained were similar to the nominal ones. No other impurity elements were detected either by XRF or XPS.
The analysis of the Ce/Mn and Ce/Zr ratios determined based on the XRF and XPS data (Table 1) shows that the Ce/Mn (XPS) ratio for Ce0.9Mn0.1O2 and Ce0.5Mn0.2Zr0.3 samples are lower than those determined by XRF, indicating a surface enrichment in Mn. The contrary is observed in Ce0.5Mn0.3Zr0.2O2, whose surface is impoverished in Mn, probably due to the effect of the surface Zr. The Ce/Zr (XPS) ratio is lower for Ce0.6Zr0.4O2 and Ce0.5Mn0.2Zr0.3O2 samples, implying a surface enrichment with Zr. This can be linked to the effect of calcination temperature [34].

3.2. Low-Temperature Nitrogen Adsorption

Table 2 shows the specific surface areas (SSAs), average pore sizes, and pore volumes measured by N2 adsorption–desorption. The isotherm for CeO2 (Figure 1a) is characterized by a hysteresis loop with the H3 type, which indicates the formation of lamellar particles [35]. A wide pore size distribution is observed. For the ZrO2 sample, the H2 type hysteresis loop is observed (Figure 1c), which indicates a relatively wide size distribution of pore cavities compared to the one of the necks. The pore size distribution is fairly narrow. For the MnOx sample, the H3 type hysteresis loop is observed [35], with a rather low SSA and a small pore volume being observed. Due to these characteristics, the pore size is rather difficult to determine for this sample.
Binary oxide systems consisting of CeMnOx are characterized by a hysteresis loop similar in shape to the one for CeO2 (Figure 1a,b), as well as a fairly wide distribution of pore sizes and a mean-specific surface area. The Ce0.9Mn0.1Ox sample is characterized by a pore size distribution with small and large pores with sizes of 2–4 nm and 5–50 nm, respectively (Figure 1d). The Ce0.6Zr0.4O2 sample is characterized by a hysteresis loop similar in shape to the one for zirconium oxide.
Ternary oxide systems are characterized by an adsorption–desorption isotherm with the H2 type hysteresis loop (Figure 1c). A narrow distribution of pore diameters (3–20 nm, except for the Ce0.65Mn0.2Zr0.15O2 sample featuring distribution of 3–50 nm) is observed with a slight shift in the maximum of the pore size distribution (up to 9 nm) and a significant decrease in the pore volume (Figure 1d) [34]. It is noteworthy that the maximum of the distribution of the above samples is similar to the one for the Ce0.6Zr0.4O2 sample. This fact may indicate a strong interaction of oxides at the preparation stage with the preservation of the CeO2-ZrO2 structure during the incorporation of Mnn+ ions into the porous space of CeO2-ZrO2. In the case of the Ce0.65Mn0.2Zr0.15O2 sample (which the Mn/Ce+Zr ratio is the same as in the Ce0.5Mn0.2Zr0.3O2 sample but has a lower Zr/Ce ratio), the maximum of the pore size distribution is shifted to 18 nm. This may indicate that a low Zr/Ce ratio does not allow Mn to be uniformly distributed in the CeO2 and CeO2-ZrO2 structures.

3.3. X-ray Phase Analysis (XRD)

The phase composition of the obtained samples was studied by the XRD and analyzed by Rietveld refinement using the POWDER CELL 2.5 package program. The goodness of the fit was controlled using the low Rp and Rwp values. The lattice parameters (a, b, and c), microstrain value (∆d/d), and crystalline size (DXRD) were calculated using the Williamson–Hall method [36] (Table 3). Figure 2 shows the XRD patterns.
The synthesized manganese oxide is characterized by the Mn2O3 cubic bixbyite phase (ICSD #76087), with a particle size of 43 nm (Figure 2, Table 3). The pristine ceria is formed by the fluorite CeO2 phase (ICSD #28753) with a crystallite size of 28 nm. The individual ZrO2 is characterized by the reflections related to both monoclinic (ICSD #18190) (59%) and tetragonal phases (ICSD #51051) (41%), both with the crystallite size of 15 nm.
Binary systems consisting of cerium and manganese oxides are characterized by the presence of reflections of cubic cerium oxide (Figure 2a). However, the reflections shift to higher angles with an increase in the content of manganese oxide, which indicates the substitution of Ce4+ ions (i.r. = 0.88 Å) by those of manganese Mnn+ (i.r. 0.81 Å, 0.72 Å, and 0.52 Å for Mn2+, Mn3+, and Mn4+, respectively) in the CeO2 network with the formation of a solid solution with a fluorite-type (F-type) structure. According to the Vegard’s law, the compositions of the solid solutions were calculated as Ce0.94Mn0.06O2−δ, Ce0.9Mn0.1O2−δ, and Ce0.89Mn0.11O2−δ for Ce0.9Mn0.1O2, Ce0.8Mn0.2O2, and Ce0.67Mn0.33O2, respectively. These calculated compositions of the solid solutions indicate that only a small part of manganese is included into the structure, and the rest is segregated in the form of highly dispersed Mn2O3 and/or Mn3O4.
The Ce0.6Zr0.4O2 sample is characterized by the presence of reflections from the CeO2 phase and a shoulder from the cubic zirconia phase (ICSD #53998) (Figure 2b). The Rietveld refinement of the Ce0.6Zr0.4O2 powder pattern reveals defective Ce1−xZrxO2−δ (47%) and CexZr1−xO2−δ (53%) solid solutions with a cubic structure. However, the formation of the CexZr1−xO2 solid solution with a tetragonal structure cannot be ruled out due to the comparable Rp and Rwp values. The solid solution compositions evaluated according to Vegard’s law are Ce0.92Zr0.08O2−δ (F-type) and Ce0.41Zr0.59O2−δ (F-type) or Ce0.18 Zr0.82O2−δ (tetragonal type). For CexZr1−xO2 with 0.3 ≤ x ≤ 0.65, the formation of the most stable tetragonal phase was shown (see Ref. [37] and references within).
Ternary oxide systems are characterized by the reflections of the cubic ceria with a broad shoulder at ~30° and a small one at 32.9°, which can be associated with the contribution of the zirconia phase and partial segregation of the α-Mn2O3 (ICSD #9090) on the surface, respectively (Figure 2b,c). The significant decrease in the lattice parameter of the CeO2 phase for the CeO2-ZrO2-MnOx ternary systems relative to the reference samples of CeO2, CeO2-MnOx, and CeO2-ZrO2 (See Figure 3a) is due to the introduction of smaller Mn3+ and Mn4+ ions (i.r. are 0.70 and 0.52 Å, respectively) and Zr4+ (i.r. is 0.82 Å) compared to the Ce4+ ion (i.r. is 0.88 Å) to form the solid solutions. The Ce0.5Mn0.2Zr0.3O2 sample is characterized by the lowest lattice parameter (5.331 Å), which can indicate the highest amount of Mn and Zr ions incorporated into the CeO2 structure.

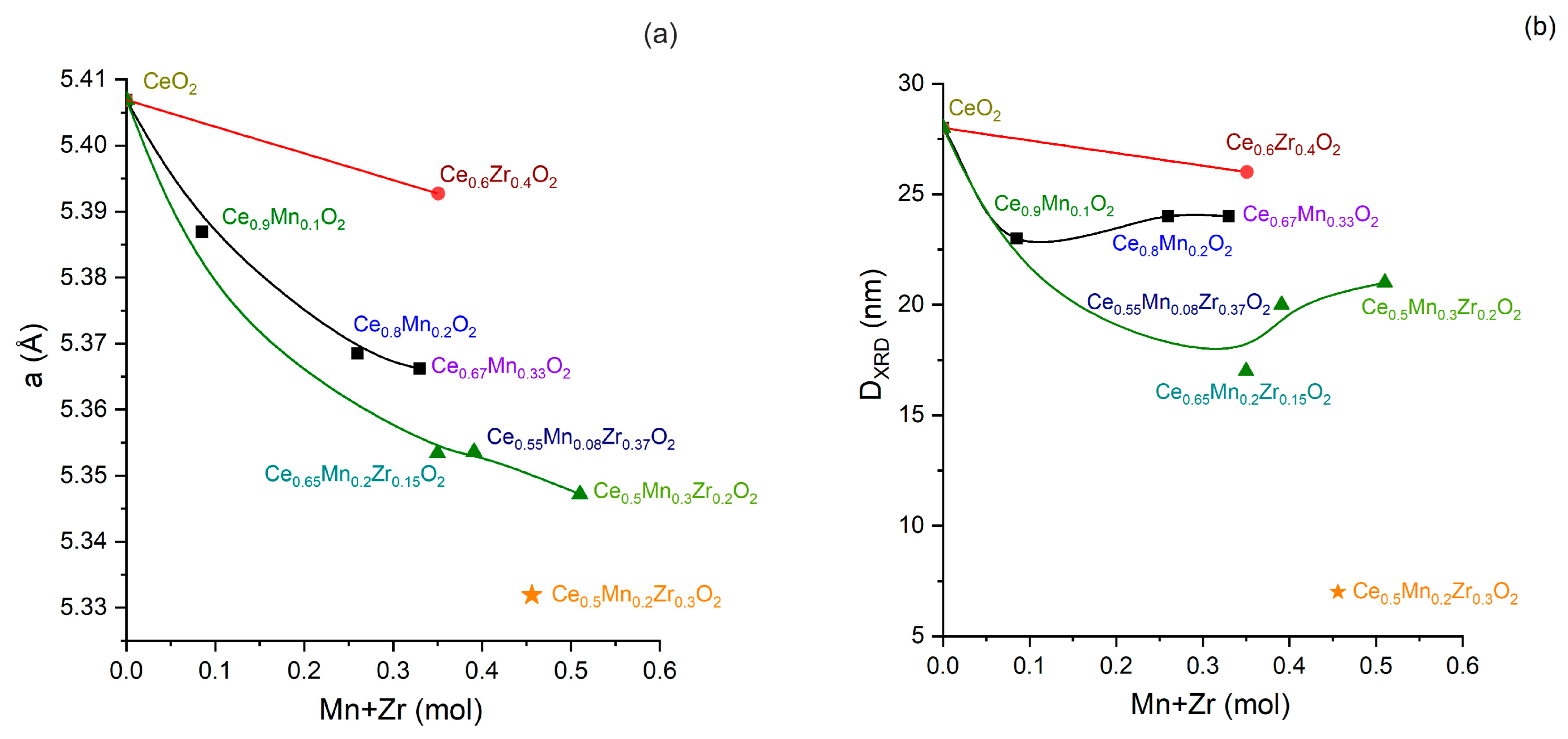

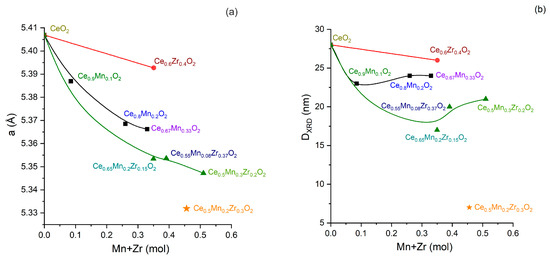

The Ce4+ substitution hinders the crystallite growth for the CeO2-ZrO2-MnOx samples (in the range of 7–21 nm), and this results in a microstrain increase (Δd/d = 0.0043–0.0094) due to the additional number of oxygen-anion vacancies formed in the Ce1−(x+y)ZrxMnyO2−δ solid solutions. When Mn dopant is added to CeO2, the crystallite size decreases slightly (see Figure 3b). Moreover, upon further increase in the Mn/Ce ratio, the crystallite size remains practically unchanged. When Zr dopant is added to CeO2, a slight decrease in the crystallite size is observed (from 28 nm to up to 26 nm). The simultaneous addition of Mn and Zr dopants to CeO2 leads to a significant reduction in the crystallite sizes. It is worth noting the significant reduction in the crystallite size (up to 7 nm) for the Ce0.5Mn0.2Zr0.3O2 sample, which is also characterized by the most significant decrease in the ceria lattice parameter.

3.4. Raman Spectroscopy

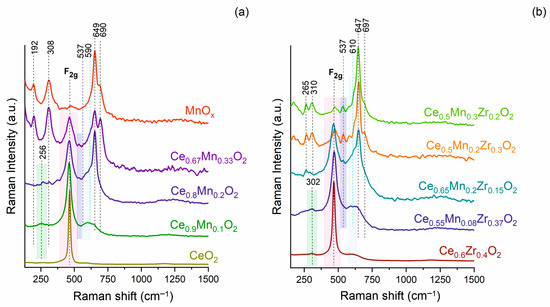

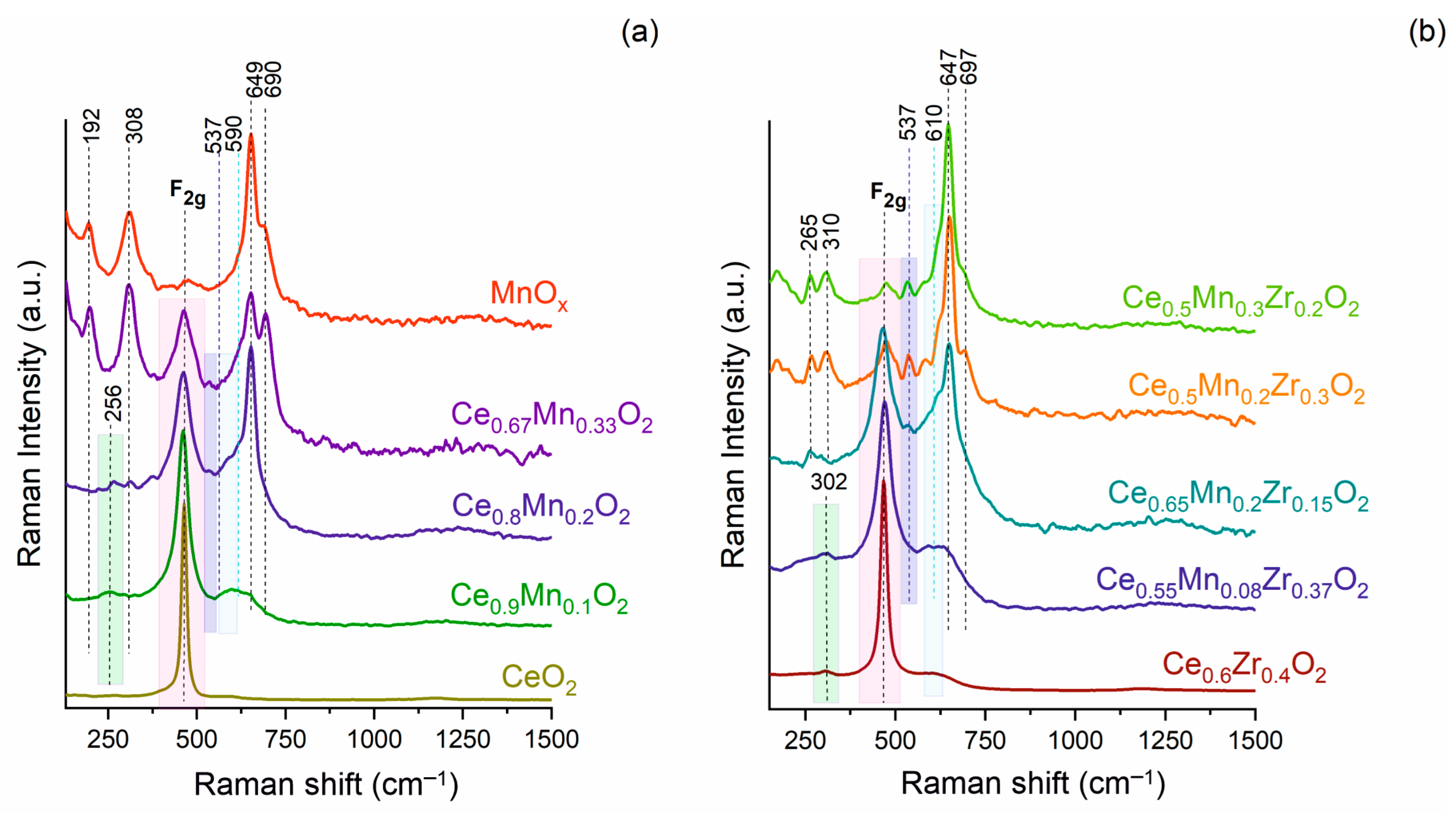

The Raman spectrum for the CeO2 sample taken under laser irradiation at 532 nm (Figure 4a) is characterized by a strong Raman band at 464 cm−1, which is assigned to the F2g vibrational active mode in the fluorite-type CeO2 structure. A weaker band at 1150 cm−1 is an overtone of the F2g mode [38]. A band at ~594 cm−1 can be assigned to the presence of oxygen vacancies. For the MnOx sample, the vibrations are related to both Mn3O4 and Mn2O3 [39].
When Mn is added to CeO2, the F2g band position in the spectra for CeMnOx samples slightly shifts towards the lower wavenumber from 464 to 460 cm−1, and as the Mn content gradually increases, the F2g band decreases in intensity and becomes broader. The shifts and broadening of the F2g band are connected with the presence of surface oxygen vacancies, a loss of regularity in the crystalline network, and the ∆d/d microstrain effect [40,41,42].
For the Ce0.9Mn0.1O2 sample, the appearance of a broad band at ~256 cm−1 is observed, which can be attributed to the displacement of atoms from the ideal positions of the fluorite lattice [43,44]. A broad asymmetric band in the range of 540–718 cm−1 can be deconvoluted into the 590 cm−1 band attributed to defect areas involving the Mnn+ cation in an 8-fold O2− coordination, without any vacancies [45,46], and/or O2− interstitial oxygen defects of the Frenkel type in CeO2 [47,48,49,50]. The bands at 649 and 690 cm−1 can be attributed to the presence of α-Mn2O3 [51,52].
For the Ce0.8Mn0.2O2 and Ce0.67Mn0.33O2 samples, the bands at 192, 308, 649, and 690 cm−1 become more intense, and they are associated with the Mn–O vibrations in the α-Mn2O3 [53]. The appearance of weak bands at 310 and 366 cm−1 along with a strong band at 649 cm−1, which is clearly overlapped with one of the bands related to α-Mn2O3, is associated with the vibrational stretching of the Mn-O bond towards Mn2+ ions in the spinel structure of Mn3O4 [53]. In addition, the appearance of the band at 537 cm−1, which is associated with defect areas including O2− vacancies and is observed when the dopant cations in a M3+ state are introduced into the CeO2 lattice [45,54], and as mentioned above, the shoulder at 590 cm−1, are associated with the defect areas in the 8-fold coordination of O2−. Thus, for the CeMnOx samples, the introduction of Mn ions, mainly Mn3+, into the CeO2 lattice is observed, while the formation of α-Mn2O3 and Mn3O4 cannot be excluded, which is consistent with the XRD data.
The spectrum for the binary oxide Ce0.6Zr0.4O2 (Figure 4b) features the F2g band and the broad weak bands at 300 and 612 cm−1 associated with the tetragonal substitution of oxygen atoms from the ideal fluorite lattice after the Zr introduction and the formation of oxygen vacancies, respectively [37,55].
For ternary oxide samples, the F2g band is shifted towards the higher wavenumber from 464 to 476 cm−1. For ternary samples, the bands related to Mn3O4 and Mn2O3 appear. The asymmetry of the band at 649 cm−1 and the presence of a band at 310 cm−1 may be a consequence of the overlapping of the bands of MnOx species and the presence of oxygen vacancy defects in CeO2. A shoulder at 590 cm−1 is shifted to ~610 cm−1. According to Ref. [45], the band at ~560 cm−1 related to the presence of oxygen vacancies can be due to the different oxidation state of the dopant compared to that of Ce4+. The band at ~600 cm−1 is because of the different ionic radius of the dopant ions compared to that of Ce4+. The bands above 650 cm−1 can be assigned to the extrinsic defects in ceria as well as aliovalent defects caused by the presence of Mn-related phases where Mn exists in higher oxidation states [56,57]. It is noteworthy that the increase in the Mn + Zr fraction in the series of samples Ce0.65Mn0.2Zr0.15—Ce0.5Mn0.3Zr0.2—Ce0.5Mn0.2Zr0.3 increased the intensity of the bands at 536, 584, and 616 cm−1. Thus, the increase in the amount of substituting metals in the CeO2 structure results in an increase in the concentration of internal and external defects.

3.5. Temperature-Programmed Reduction in Hydrogen (TPR-H2)

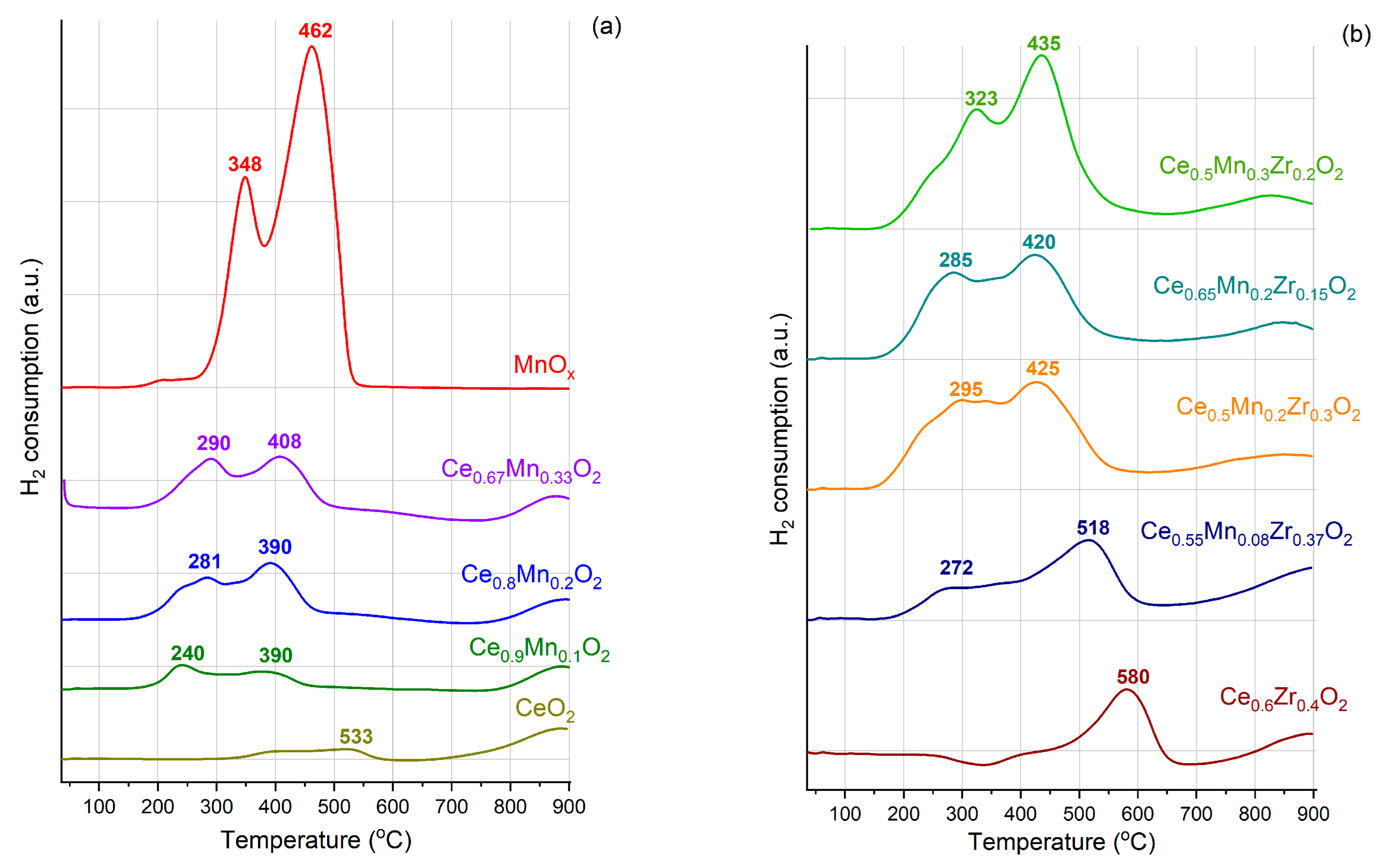

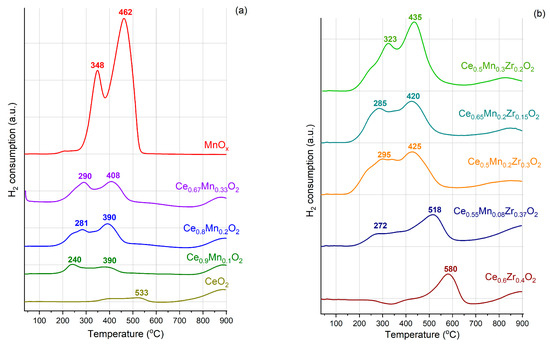

The reduction profile for the MnOx sample is represented by a peak centered at 348 °C (Figure 5), which corresponds to the Mn2O3 reduction to Mn3O4, and a peak at 463 °C that corresponds to the Mn3O4 reduction to MnO [58,59]. The reduction profile for CeO2 is characterized by the presence of two temperature regions of hydrogen consumption, namely, the consumption peak in the temperature region of 300–600 °C, at which the surface of ceria nanoparticles is reduced, and at temperatures above 700 °C, at which the bulk of ceria nanoparticles is reduced [60,61]. The main reduction process for ZrO2 occurs above 1000 °C (not shown for clarity) [62].
The profiles for the CeMnOx composites are characterized by two regions associated with the reduction of the highly dispersed Mn2O3 species (200–350 °C) and the reduction of Mn3O4 particles along with the surface CeO2 (350–650 °C) [63,64]. Both peak maxima are shifted progressively to lower temperatures with the increase in the Ce content and a decrease in the Mn content, indicating a progressively stronger interaction between the two oxides. It is noteworthy that the intensity ratio between the two peaks differs when the manganese to cerium content varies. This is due to both different phase ratios of Mn2O3/Mn3O4 and the strength of the MnOx interaction with CeO2.
The Zr-containing catalysts (Ce0.6Zr0.4O2 and CeMnZrOx) are reduced more easily due to the simultaneous reduction of the surface and bulk ceria caused by the introduction of Zr and/or Mn. The progressive substitution of Ce by Zr shifts the maxima towards higher temperatures, i.e., decreases reducibility. This can be because the CeO2-ZrO2 interaction reduces the CeO2-MnOx interactions.
Table 4 presents data on the amount of H2 consumed. For binary and ternary oxide systems, there is an increase in the amount of consumed hydrogen, which indicates an increase in the reactivity for these systems. The increase in both total H2 consumption (column Σ) and hydrogen consumption at low temperatures (150–500 °C) due to the simultaneous reduction of highly dispersed MnOx particles and the surface of ceria particles indicates a positive effect of both Mn and Zr on reducibility of the CeO2 phase.

3.6. XPS

To study the states of elements on the sample surfaces, the XPS method was employed. Figure 6 and Table 5 show the XPS Ce3d, Mn2p, Zr3d, and O1s spectra and the relative concentrations (atomic ratios) of elements in the subsurface layer, respectively. The normalization of spectra to the total integral intensity (for the Ce3d, Mn2p, and Zr3d spectra) of the corresponding spectra for supports was carried out. The analysis of the spectra is based on their deconvolution.

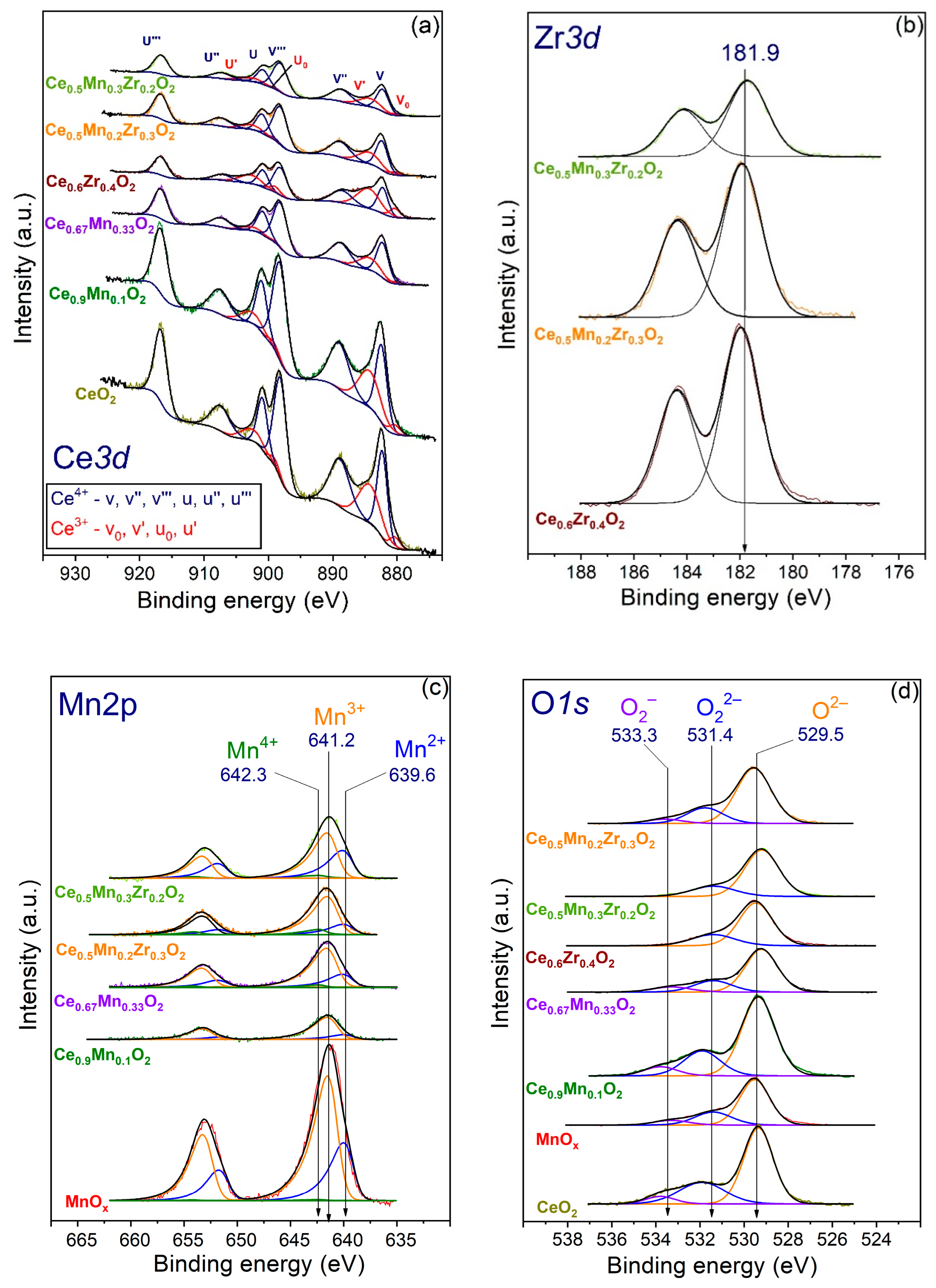

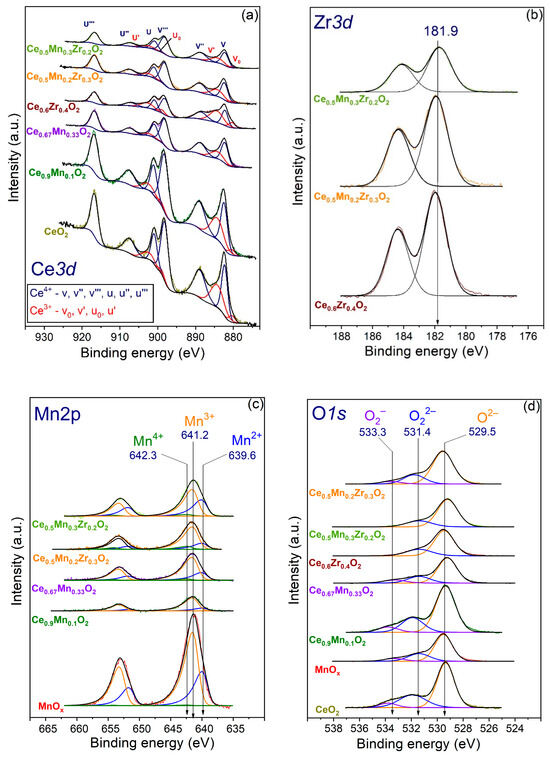

The XPS Ce3d spectrum (Figure 6a) shows the presence of Ce3+ and Ce4+ states, and the splitting into sublevels Ce3d5/2 and Ce3d3/2 occurs due to the spin–orbit interaction. Three lines at v/u, v″/u″, and v‴/u‴ and two lines at v′/u′ and v0/u0 are related to CeO2 and Ce2O3, respectively [41]. The Ce3+ and Ce4+ states are characterized by the peaks at v0, v′, u0, and v′ and v, v″, v‴, u, u″, and u‴, respectively. The Zr3d spectra (Figure 6b) feature the Zr3d5/2 binding energy of 181.9 eV related to the Zr4+ state. The Mn2p spectra (Figure 6c) contain Mn2p3/2–Mn2p1/2 doublets, where peaks at 639.7, 641.2, and 642.2 eV correspond to Mn2+, Mn3+, and Mn4+ states, respectively [65] that can be attributed to MnO, Mn2O3, and MnO2 [66,67], respectively. The deconvolution of O1s spectra (Figure 6d) contain three peaks with the binding energies of 533.8, 531.7, and 529.4 eV. These peaks are attributed to O2, O22−, and O2− states that correspond to adsorbed water, active surface O species/surface hydroxyls, and lattice oxygen [68].
The Ce3+ fraction increases as the Mn content decreases in the series of samples MnOx—Ce0.67Mn0.33O2—Ce0.5Mn0.3Zr0.2O2—Ce0.5Mn0.2Zr0.3O2—Ce0.9Mn0.1O2—CeO2. The Ce0.67Mn0.33O2 sample features the lowest value. The samples feature rather low fractions of the Mn4+ state, the fraction of the Mn3+ state increases and the one of the Mn2+ state decreases, with the highest Mn3+ and lowest Mn2+ fractions being reached over Ce0.9Mn0.1O2, which also features the highest fraction of active oxygen. The lowest fraction of active oxygen is shown by the Ce0.5Mn0.3Zr0.2O2 sample. A higher fraction of the Mn3+ state in the samples is usually related to a lower fraction of the O2− state.

3.7. TEM

Figure 7 shows the TEM images for the synthesized CeO2, binary, and ternary oxides. The CeO2 sample is characterized by the presence of well-crystallized particles with a size of 10–40 nm, which is consistent with the XRD data. Such a structure is caused by the hydrothermal treatment of the oxide during the preparation. The structure of binary Ce0.9Mn0.1O2 oxide is significantly different from the one of the CeO2 sample. Loose aggregates of particles with the size of a few nanometers are observed. Thus, the addition of even small amounts of Mn into the CeO2 leads to significant changes in the sample structure. The ternary Ce0.5Mn0.3Zr0.2O2 oxide is also characterized by the presence of loose aggregates of small particles. The TEM images show that the surface of the samples is determined by the surface of the primary particles, and the growth of the specific surface area for binary and ternary oxides is a result of the decrease in the particle size. Additionally, the porous structure of the sample is represented by the interparticle space and the mesoporous structure of the sample can be well observed in the presented TEM images.
To determine the distribution of elements in the binary and ternary oxides, HR TEM and EDX analysis were applied. For both Ce0.9Mn0.1O2 and Ce0.5Mn0.3Zr0.2O2, only the CeO2 phase is determined, while the interlayer distances for the ZrO2 or MnOx phases are not identified. Figure 8a shows the HR-STEM image for the Ce0.9Mn0.1O2 sample, and well-crystallized particles with sizes of 4–10 nm and the interlayer distance of the CeO2 phase may be observed. The maps of Ce and Mn distribution (Figure 8b) show the uniform Mn distribution in the sample. Mn can be stabilized as highly dispersed species on the CeO2 surface and/or as Mn ions incorporated into the CeO2 structure. Separated MnOx particles are not observed, which is consistent with the XRD data.
Figure 8c shows the distribution of metals for ternary Ce0.5Mn0.3Zr0.2O2 oxide. The Ce and Zr distributions demonstrate that the Ce-rich and Zr-rich areas can be highlighted. This is consistent with the XRD results because two Ce1−xZrxO2 and CexZr1−xO2 phases are observed for the Ce0.6Zr0.4O2 sample and ternary CeO2-ZrO2-MnOx samples. The Ce-rich phase is predominant, and it is also consistent with the XRD data. The Mn distribution is relatively uniform, and the stabilization of the MnOx clusters on the surface and its incorporation into both Ce-rich and Zr-rich mixed oxide cannot be excluded. The Mn-related species seem to be localized mostly near the areas rich in ceria and less near the Zr-rich areas.

3.8. Catalytic Activity in CO and Soot Oxidation

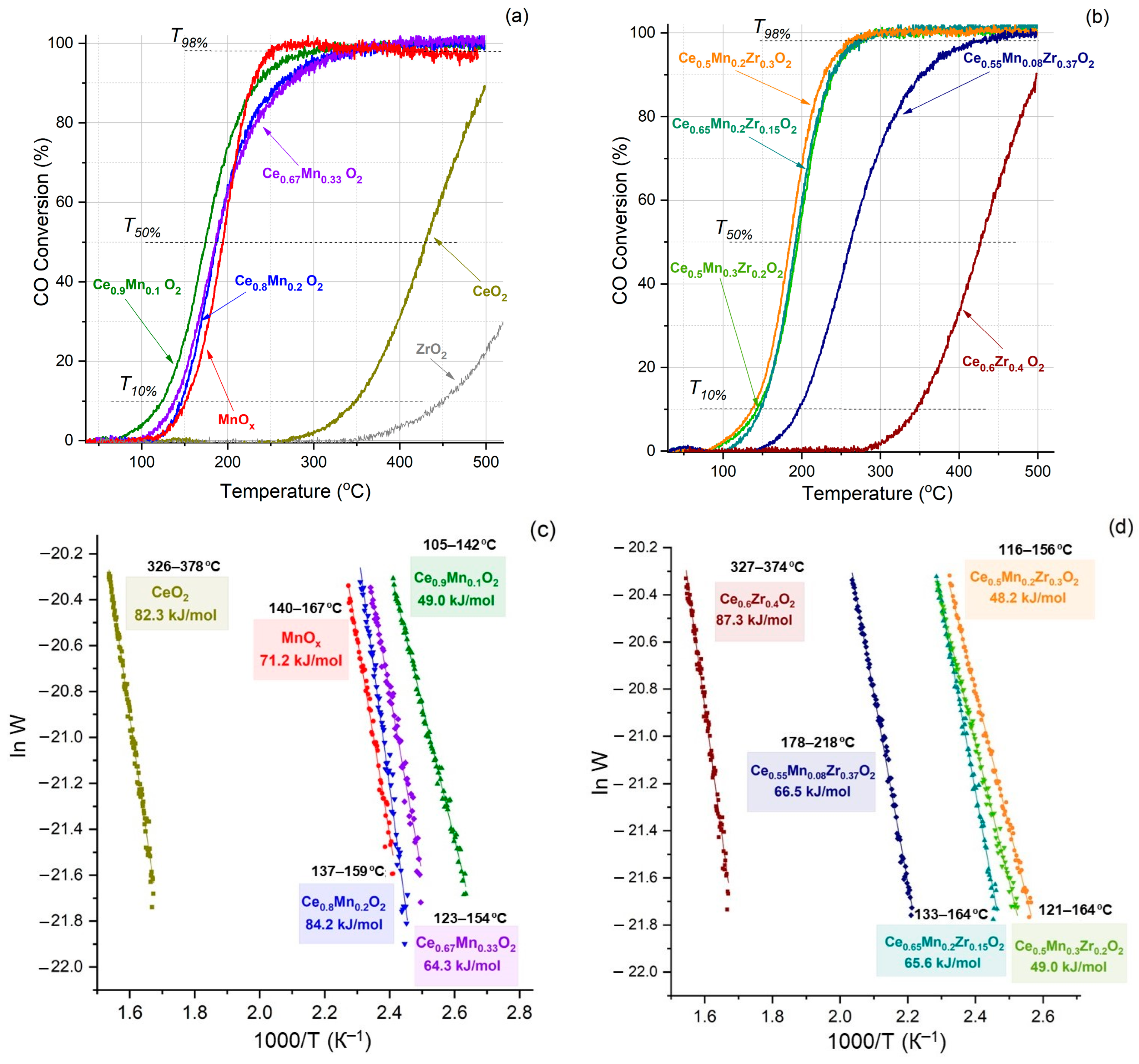

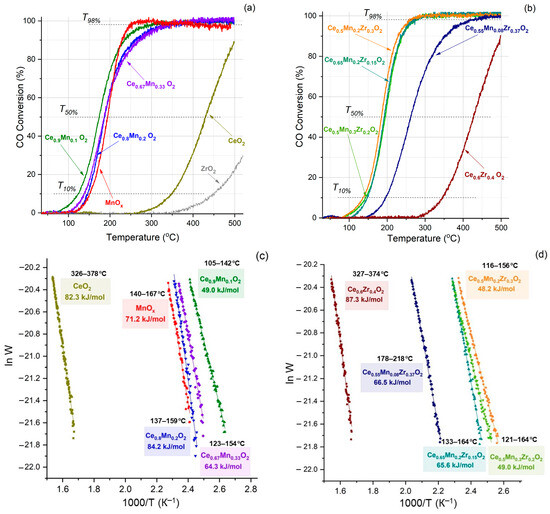

The catalytic activity of the obtained samples in CO oxidation was studied (Figure 9). For all samples, with the exception of cerium and zirconium oxides, 100% conversion was achieved at temperatures below 450 °C. Binary systems comprising cerium and manganese oxides are characterized by the onset of conversion at ~100 °C. As the manganese content increases in these samples, a decrease in the catalytic activity is observed. The most active is Ce0.9Mn0.1O2, for which 50% and 98% conversion is achieved at temperatures of 174 °C and 298 °C, respectively, with an activation energy of 49.0 kJ/mol (Figure 9c). Ternary oxide systems typically begin conversion also at ~100 °C. The Ce0.55Mn0.08Zr0.37O2 sample is the least active: 50% and 98% conversions are achieved at 261 °C and 414 °C, respectively. The Ce0.5Mn0.2Zr0.3O2 sample shows the highest activity: T50% and T98% are 184 °C and 260 °C, respectively, and the activation energy is 48.2 kJ/mol (Figure 9d).

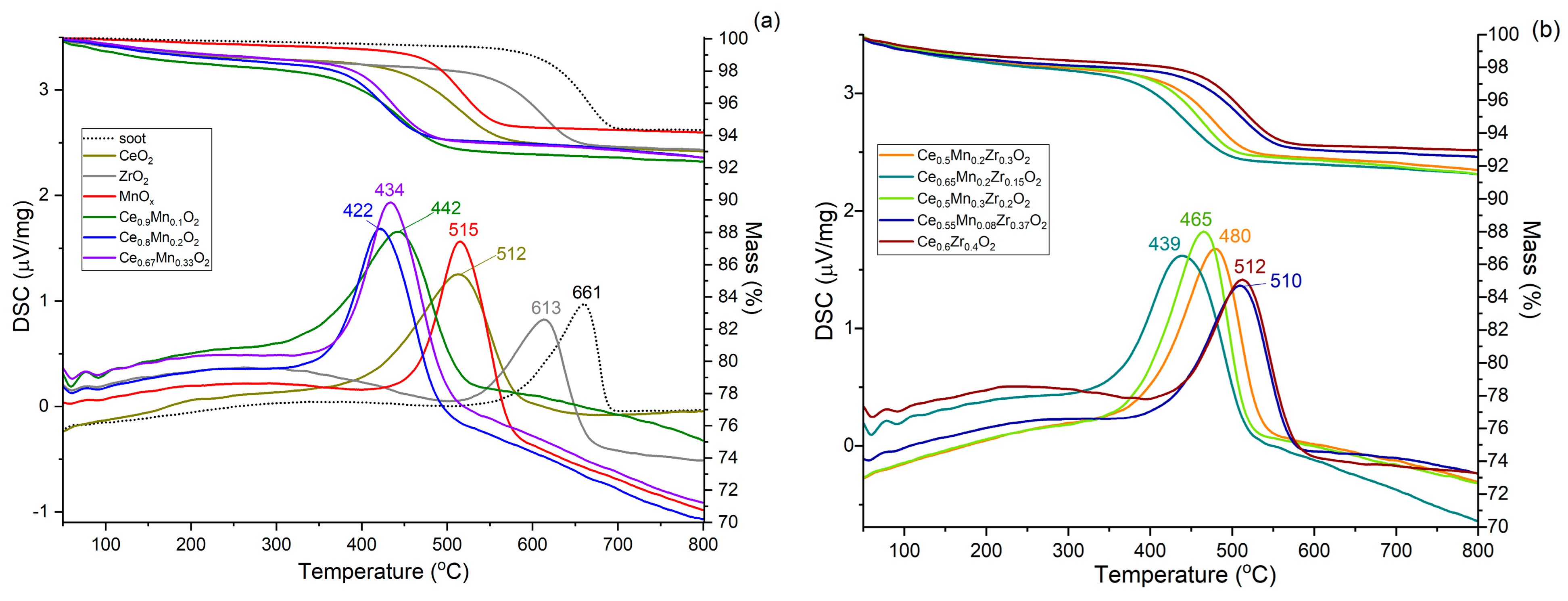

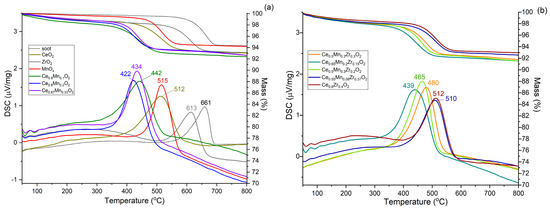

Simultaneous thermal analysis was used to determine the catalytic activity of oxide catalysts in soot oxidation. Figure 10 shows the TG and DSC curves obtained from soot oxidation simulations using the resulting catalysts. Non-catalytic soot oxidation is observed in the temperature range 550–700 °C with Tmax at 661 °C. The presence of ZrO2 leads to a slight increase in soot oxidation activity (Tmax = 613 °C) (not shown). The presence of cerium and manganese oxides decreases the maximum temperature to 512 °C and 515 °C, respectively. The presence of binary and ternary oxide systems shifts the reaction temperature range to 350–600 °C (i.e., it decreases the reaction temperature range by 100–170 °C). Samples Ce0.8Mn0.2O2 and Ce0.65Mn0.2Zr0.15O2 showed the highest activity: the maximum conversion temperatures for these samples were 422 and 439 °C, respectively. Comparisons of soot combustion and CO oxidation performances of the prepared samples and counterparts presented in the literature are presented in Tables S1 and S2 (Supplementary materials). The materials obtained show comparable activity.

4. Discussion

The results of the catalytic studies show that the binary Ce-Mn catalysts demonstrate higher performance in both CO oxidation (Ce0.9Mn0.1O2) and soot combustion (Ce0.8Mn0.2O2) reactions, which are closely followed by the ternary oxide catalysts. The key features of the Ce0.9Mn0.1O2 sample, which also shows a rather low Tmax value in soot combustion, include the following: (1) the presence of both small (2–4 nm) and large (5–50 nm) pores; (2) the formation of Ce0.94Mn0.06O2−δ solid solution where the Mn component can both be included into the ceria structure and form several highly dispersed surface species related to Mn oxides; (3) the lowest value of H2 consumption in the temperature range of 150–500 °C (related to the reduction of dispersed MnOx and surface CeO2) and the highest one at temperatures above 650 °C (related to bulk CeO2); (4) the highest fractions of Mn3+ state and active oxygen; and (5) the predominant presence of intrinsic and Frenkel-type oxygen vacancies. Sample Ce0.8Mn0.2O2 features include the following: (1) high pore volume (0.290 cm3/g, the largest in the whole series) and large pore sizes (24.4 nm), with the latter being predominantly formed; (2) the presence of the solid solution with the estimated composition of Ce0.9Mn0.1O2−δ where the content of highly dispersed surface Mn oxides species is even higher as compared to Ce0.9Mn0.1O2; (3) higher impact of microstrains as compared to Ce0.9Mn0.1O2; and (4) higher concentration of extrinsic MnOx-related defects (Raman spectrum). The interplays of the mentioned features can be the reasons for the observed activity.
The ternary Ce0.5Mn0.2Zr0.3O2 features a higher specific surface and narrower particle size distribution as compared to the mentioned binary samples. The sample shows high H2 consumption in the temperature ranges below 500 °C and above 650 °C. The sample is characterized by a higher fraction of high oxidation states of Mn (i.e., 3+, 4+). The formation of solid solutions with different compositions, say, Ce1−xMnxO2 and Ce1−xZrxO2, and their interplay on the surface can also be the reason for the observed performance.
The mentioned features imply that the surface of the binary Ce-Mn samples with low Mn content is represented by a “cocktail” of active sites (e.g., oxygen vacancies, highly dispersed MnOx species with various compositions, CeO2-MnOx interfaces, etc.) that coexist, acting separately and/or synergistically and allowing the samples to exhibit high activity in conversion of both CO and soot. The observed differences in performance can be attributed to the effect of Mn loading, where lower Mn content ensures the formation of a balanced mixture of MnOx species, while higher Mn content probably results in the formation of the Mn-related species that partially block other active sites to reduce overall performance. The formation of interfaces between various Mn-related species that are less catalytically active in said reactions cannot be excluded.

5. Conclusions

In the present work, a series of CTAB-templated CeO2-ZrO2-MnOx catalysts was prepared by coprecipitation of the corresponding precursors. The addition of Mn and/or Zr dopant to ceria improved its performance in both CO oxidation and soot combustion. A complex of physical–chemical methods (low-temperature N2 sorption, XRD, TPR-H2, Raman, HR TEM, XPS) allowed revealing the structural and compositional peculiarities of the catalysts that caused the observed performance. Binary Ce-Mn catalysts demonstrated higher performance, and were closely followed by the ternary oxide catalysts. The reason was linked with the formation of several types of active sites, namely, highly dispersed MnOx species, interfaces, and oxygen vacancies that can act individually and/or synergistically to allow said samples to be active in both reactions. Future work can include revealing the intrinsic activity and mechanisms of action of such species in environmental catalytic reactions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13243108/s1. Table S1. A comparison of soot combustion activity for the prepared samples and a selection of counterparts. Table S2. A comparison of CO oxidation activity for the prepared samples and a selection of counterparts. References [69,70,71,72] were also cited in the supplementary materials.

Author Contributions

Conceptualization, G.V.M., G.V.M. and M.A.S.; methodology, G.V.M. and N.N.M.; formal analysis, M.V.G., V.A.S. and V.C.C.; investigation, N.N.M., V.A.S. and K.A.L.; resources, M.A.S.; writing—original draft preparation, M.V.G., N.N.M. and M.A.S.; writing—review and editing, O.V.V. and V.C.C.; project administration, M.A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 23-73-00109, https://rscf.ru/project/23-73-00109/ (accessed on 1 December 2023).

Data Availability Statement

Data are contained within the article and Supplementary materials.

Acknowledgments

The studies (low-temperature N2 adsorption, XRF, XRD, TPR-H2, Raman, TG-DSC, UV-vis) were carried out with the equipment of Tomsk Regional Core Shared Research Facilities Center of National Research Tomsk State University. The studies (XPS, STEM) were carried out with the equipment of Collective use center “National Center for Research of Catalysts”. The authors thank T.A. Bugrova (TSU) for thermal analysis studies as well as E.Yu. Gerasimov (Boreskov Institute of Catalysis) for TEM studies.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yashnik, S.A. Catalytic Diesel Exhaust Systems: Modern Problems and Technological Solutions for Modernization of the Oxidation Catalyst. Catal. Ind. 2022, 14, 283–297. [Google Scholar] [CrossRef]
  2. Salaev, M.A.; Salaeva, A.A.; Kharlamova, T.S.; Mamontov, G.V. Pt–CeO2-based composites in environmental catalysis: A review. Appl. Catal. B Environ. 2021, 295, 120286. [Google Scholar] [CrossRef]
  3. Stadnichenko, A.I.; Simanenko, A.A.; Slavinskaya, E.M.; Fedorova, E.A.; Stonkus, O.A.; Romanenko, A.V.; Boronin, A.I. Study of Pt/Ce-Mn-Ox catalysts for the low-temperature co oxidation reaction. J. Struct. Chem. 2022, 63, 1199–1214. [Google Scholar] [CrossRef]
  4. Stadnichenko, A.I.; Slavinskaya, E.M.; Fedorova, E.A.; Goncharova, D.A.; Zaikovskii, V.I.; Kardash, T.Y.; Svetlichnyi, V.A.; Boronin, A.I. Activation of Au–CeO2 composites prepared by pulsed laser ablation in the reaction of low-temperature co oxidation. J. Struct. Chem. 2021, 62, 1918–1934. [Google Scholar] [CrossRef]
  5. Shilov, V.A.; Rogozhnikov, V.N.; Potemkin, D.I.; Snytnikov, P.V. Regeneration of Rh/Ce0.75Zr0.25O2–δ/θ-Al2O3/FeCrAl Catalyst after Autothermal Reforming of Diesel Fuel. Kinet. Catal. 2023, 64, 215–220. [Google Scholar] [CrossRef]
  6. Yashnik, S.A.; Ismagilov, Z.R. Diesel Oxidation Catalyst Pt–Pd/MnOx–Al2O3 for Soot Emission Control: Effect of NO and Water Vapor on Soot Oxidation. Top. Catal. 2023, 66, 860–874. [Google Scholar] [CrossRef]
  7. Topsøe, H. Developments in operando studies and in situ characterization of heterogeneous catalysts. J. Catal. 2003, 216, 155–164. [Google Scholar] [CrossRef]
  8. Bulavchenko, O.A.; Konovalova, V.P.; Saraev, A.A.; Kremneva, A.M.; Rogov, V.A.; Gerasimov, E.Y.; Afonasenko, T.N. The Catalytic Performance of CO Oxidation over MnOx-ZrO2 Catalysts: The Role of Synthetic Routes. Catalysts 2023, 13, 57. [Google Scholar] [CrossRef]
  9. Gu, Z.; Sang, X.; Wang, H.; Li, K. Structure and catalytic property of CeO2-ZrO2-Fe2O3 mixed oxide catalysts for diesel soot combustion: Effect of preparation method. J. Rare Earths. 2014, 32, 817–823. [Google Scholar] [CrossRef]
  10. Romanova, E.V.; Nam, A.V.; Kharlamova, T.S. Peculiarities of the Active Component Formation in Alumina-Supported Copper Molybdate Catalysts for Soot Combustion. Kinet. Catal. 2021, 62, 675–687. [Google Scholar] [CrossRef]
  11. Liu, H.; Dai, X.; Wang, K.; Yan, Z.; Qian, L. Highly efficient catalysts of Mn1−xAgxCo2O4 spinel oxide for soot combustion. Catal. Commun. 2017, 101, 134–137. [Google Scholar] [CrossRef]
  12. Prasad, R.; Singh, S.V. Catalytic abatement of CO, HCs and soot emissions over spinel-based catalysts from diesel engines: An overview. J. Environ. Chem. Eng. 2020, 8, 103627. [Google Scholar]
  13. Montini, T.; Melchionna, M.; Monai, M.; Fornasiero, P. Fundamentals and catalytic applications of CeO2-based materials. Chem. Rev. 2016, 116, 5987–6041. [Google Scholar] [CrossRef]
  14. Afonasenko, T.N.; Glyzdova, D.V.; Yurpalov, V.L.; Konovalova, V.P.; Rogov, V.A.; Gerasimov, E.Y.; Bulavchenko, O.A. The Study of Thermal Stability of Mn-Zr-Ce, Mn-Ce and Mn-Zr Oxide Catalysts for CO Oxidation. Materials 2022, 15, 7553. [Google Scholar] [CrossRef]
  15. Kaplin, I.Y.; Lokteva, E.S.; Tikhonov, A.V.; Zhilyaev, K.A.; Golubina, E.V.; Maslakov, K.I.; Kamaev, A.O.; Isaikina, O.Y. Templated Synthesis of Copper Modified Tin-Doped Ceria for Catalytic CO Oxidation. Top. Catal. 2020, 63, 86–98. [Google Scholar] [CrossRef]
  16. Liao, Y.; Liu, P.; Zhang, J.; Wang, C.; Chen, L.; Yan, D.; Ren, Q.; Liang, X.; Fu, M.; Steven, L.S.; et al. Electrospun Ce–Mn oxide as an efficient catalyst for soot combustion: Ce–Mn synergy, soot-catalyst contact, and catalytic oxidation mechanism. Chemosphere 2023, 334, 138995. [Google Scholar] [CrossRef]
  17. Ye, Z.; Liu, Y.; Nikiforov, A.; Ji, J.; Zhao, B.; Wang, J. The research on CO oxidation over Ce–Mn oxides: The preparation method effects and oxidation mechanism. Chemosphere 2023, 336, 139130. [Google Scholar] [CrossRef]
  18. Greca, E.L.; Kharlamova, T.S.; Grabchenko, M.V.; Svetlichnyi, V.A.; Pantaleo, G.; Consentino, L.; Stonkus, O.A.; Vodyankina, O.V.; Liotta, L.F. Influence of Y Doping on Catalytic Activity of CeO2, MnOx, and CeMnOx Catalysts for Selective Catalytic Reduction of NO by NH3. Catalysts 2023, 13, 901. [Google Scholar] [CrossRef]
  19. Wang, M.; Zhang, Y.; Yu, Y.; Shan, W.; He, H. Surface oxygen species essential for the catalytic activity of Ce-M-Sn (M = Mn or Fe) in soot oxidation. Catal. Sci. Technol. 2021, 11, 895–903. [Google Scholar] [CrossRef]
  20. Martín-Martín, J.A.; González-Marcos, M.P.; Aranzabal, A.; González-Velasco, J.R. Effect of interaction degree between Mn and Ce of MnOX-CeO2 formulation on NO reduction and o-DCB oxidation performed simultaneously. J. Environ. Chem. Eng. 2023, 11, 110200. [Google Scholar] [CrossRef]
  21. Chupradit, S.; Kavitha, M.; Suksatan, W.; Ansari, M.J.; Al Mashhadani, Z.I.; Kadhim, M.M.; Mustafa, Y.F.; Shafik, S.S.; Kianfar, E. Morphological Control: Properties and Applications of Metal Nanostructures. Adv. Mater. Sci. Eng. 2022, 2022, 1971891. [Google Scholar] [CrossRef]
  22. Zhu, Y.; Li, C.; Liang, C.; Li, S.; Liu, X.; Du, X.; Yang, K.; Zhao, J.; Yu, Q.; Zhai, Y.; et al. Regulating CeO2 morphologies on the catalytic oxidation of toluene at lower temperature: A study of the structure–activity relationship. J. Catal. 2023, 418, 151–162. [Google Scholar] [CrossRef]
  23. Kaplin, I.Y.; Lokteva, E.S.; Golubina, E.V.; Lunin, V.V. Template synthesis of porous ceria-based catalysts for environmental application. Molecules 2020, 25, 4244. [Google Scholar] [CrossRef]
  24. Mehdizadeh, P.; Jamdar, M.; Mahdi, M.A.; Abdulsahib, W.K.; Jasim, L.S.; Raheleh Yousefi, S.; Salavati-Niasari, M. Rapid microwave fabrication of new nanocomposites based on Tb-Co-O nanostructures and their application as photocatalysts under UV/Visible light for removal of organic pollutants in water. Arab. J. Chem. 2023, 16, 104579. [Google Scholar] [CrossRef]
  25. Zhu, M.; Zhao, C.; Liu, X.; Wang, X.; Zhou, F.; Wang, J.; Hu, Y.; Zhao, Y.; Yao, T.; Yang, L.-M.; et al. Single Atomic Cerium Sites with a High Coordination Number for Efficient Oxygen Reduction in Proton-Exchange Membrane Fuel Cells. ACS Catal. 2021, 11, 3923–3929. [Google Scholar] [CrossRef]
  26. Yousefi, S.R.; Alshamsi, H.A.; Amiri, O.; Salavati-Niasari, M. Synthesis, characterization and application of Co/Co3O4 nanocomposites as an effective photocatalyst for discoloration of organic dye contaminants in wastewater and antibacterial properties. J. Mol. Liq. 2021, 337, 116405. [Google Scholar] [CrossRef]
  27. Li, H.; Pan, Q.; Liu, J.; Liu, W.; Li, Q.; Wang, L.; Wang, Z. Synthesis and catalytic properties of praseodymium oxide (Pr6O11) nanorods for diesel soot oxidation. J. Environ. Chem. Eng. 2023, 11, 109152. [Google Scholar] [CrossRef]
  28. Zhu, H.; Xu, J.; Yichuan, Y.; Wang, Z.; Gao, Y.; Liu, W.; Yin, H. Catalytic oxidation of soot on mesoporous ceria-based mixed oxides with cetyltrimethyl ammonium bromide (CTAB)-assisted synthesis. J. Colloid Interface Sci. 2017, 508, 1–13. [Google Scholar] [CrossRef]
  29. Kaplin, I.Y.; Lokteva, E.S.; Bataeva, S.V.; Maslakov, K.I.; Fionov, A.V.; Shumyantsev, A.V.; Isaikina, O.Y.; Kamaev, A.O.; Golubina, E.V. Effect of MnOx modification and template type on the catalytic performance of ceria-zirconia in CO and soot oxidation. Pure Appl. Chem. 2021, 93, 447–462. [Google Scholar] [CrossRef]
  30. Kaplin, I.Y.; Lokteva, E.S.; Golubina, E.V.; Shishova, V.V.; Maslakov, K.I.; Fionov, A.V.; Isaikina, O.Y.; Lunin, V.V. Efficiency of manganese modified CTAB-templated ceria-zirconia catalysts in total CO oxidation. Appl. Surf. Sci. 2019, 485, 432–440. [Google Scholar] [CrossRef]
  31. Pan, C.; Zhang, D.; Shi, L. CTAB assisted hydrothermal synthesis, controlled conversion and CO oxidation properties of CeO2 nanoplates, nanotubes, and nanorods. J. Solid-State Chem. 2008, 181, 1298–1306. [Google Scholar] [CrossRef]
  32. Gao, Y.; Wu, X.; Liu, S.; Weng, D.; Ran, R. MnOx–CeO2 mixed oxides for diesel soot oxidation: A review. Catal. Surv. Asia 2018, 22, 230–240. [Google Scholar] [CrossRef]
  33. Xiong, J.; Wei, Y.; Zhang, Y.; Mei, X.; Wu, Q.; Zhao, Z.; Liu, J.; Wu, D.; Li, J. Facile synthesis of 3D ordered macro-mesoporous Ce1-xZrxO2 catalysts with enhanced catalytic activity for soot oxidation. Catal. Today 2020, 355, 587–595. [Google Scholar] [CrossRef]
  34. Afonasenko, T.N.; Glyzdova, D.V.; Konovalov, V.P.; Saraev, A.A.; Aydakov, E.E.; Bulavchenko, O.A. Effect of Calcination Temperature on the Properties of Mn–Zr–Ce Catalysts in the Oxidation of Carbon Monoxide. Kinet. Catal. 2022, 63, 431–439. [Google Scholar] [CrossRef]
  35. Cychosz, K.A.; Guillet-Nicolas, R.; García-Martínez, J.; Thommes, M. Recent advances in the textural characterization of hierarchically structured nanoporous materials. Chem. Soc. Rev. 2017, 46, 389–414. [Google Scholar] [CrossRef]
  36. Williamson, G.K.; Hall, W.H. X-ray line broadening from filed aluminium and wolfram. Acta Metall. 1953, 1, 22–31. [Google Scholar] [CrossRef]
  37. Martínez, L.M.; Araque, M.; Centeno, M.A.; Roger, A.C. Role of ruthenium on the catalytic properties of CeZr and CeZrCo mixed oxides for glycerol steam reforming reaction toward H2 production. Catal. Today 2015, 242, 80–90. [Google Scholar] [CrossRef]
  38. Agarwal, S.; Zhu, X.; Hensen, E.J.M.; Leferts, L.; Mojet, B.L. Defect chemistry of ceria nanorods. J. Phys. Chem. C 2014, 118, 4131–4142. [Google Scholar] [CrossRef]
  39. Radinger, H.; Connor, P.; Stark, R.; Jaegermann, W.; Kaiser, B. Manganese Oxide as an Inorganic Catalyst for the Oxygen Evolution Reaction Studied by X-ray Photoelectron and Operando Raman Spectroscopy. ChemCatChem 2021, 13, 1175–1185. [Google Scholar] [CrossRef]
  40. Zhang, Y.; Zhu, W.; Lu, J.; Liao, W.; Qi, N.; Luo, Y.; Dionysiou, D.D. Induced synthesis of CeO2 with abundant crystal boundary for promoting catalytic oxidation of gaseous styrene. Appl. Catal. B. Environ. 2024, 342, 123461. [Google Scholar] [CrossRef]
  41. Krishna, K.; Bueno-López, A.; Makkee, M.; Moulijn, J.A. Potential rare earth modified CeO2 catalysts for soot oxidation: I. Characterisation and catalytic activity with O2. Appl. Catal. B Environ. 2007, 75, 189–200. [Google Scholar] [CrossRef]
  42. Lin, X.; Li, S.; He, H.; Wu, Z.; Wu, J.; Chen, L.; Fu, M. Evolution of oxygen vacancies in MnOx-CeO2 mixed oxides for soot oxidation. Appl. Catal. B Environ. 2018, 223, 91–102. [Google Scholar] [CrossRef]
  43. Reddy, B.M.; Reddy, G.K.; Katta, L. Structural characterization and dehydration activity of CeO2–SiO2 and CeO2–ZrO2 mixed oxides prepared by a rapid microwave-assisted combustion synthesis method. J. Mol. Catal. A Chem. 2010, 319, 52–57. [Google Scholar] [CrossRef]
  44. Derevyannikova, E.A.; Kardash, T.Y.; Stadnichenko, A.I.; Stonkus, O.A.; Slavinskaya, E.M.; Svetlichnyi, V.A.; Boronin, A.I. Structural Insight into Strong Pt–CeO2 Interaction: From Single Pt Atoms to PtOx Clusters. J. Phys. Chem. C 2019, 123, 1320–1334. [Google Scholar] [CrossRef]
  45. Li, L.; Chen, F.; Lu, J.-Q.; Luo, M.-F. Study of defect sites in Ce1−xMxO2−δ (x = 0.2) solid solutions using Raman spectroscopy. J. Phys. Chem. A 2011, 115, 7972–7977. [Google Scholar] [CrossRef] [PubMed]
  46. Vinodkumar, T.; Rao, B.G.; Reddy, B.M. Infuence of isovalent and aliovalent dopants on the reactivity of cerium oxide for catalytic applications. Catal. Today 2015, 253, 57–64. [Google Scholar] [CrossRef]
  47. Wu, Z.; Li, M.; Howe, J.; Meyer, H.M.; Overbury, S.H. Probing defect sites on CeO2 nanocrystals with well-defned surface planes by Raman spectroscopy and O2 adsorption. Langmuir 2010, 26, 16595–16606. [Google Scholar] [CrossRef]
  48. Sartoretti, E.; Novara, C.; Giorgis, F.; Piumetti, M.; Bensaid, S.; Russo, N.; Fino, D. In situ Raman analyses of the soot oxidation reaction over nanostructured ceria-based catalysts. Sci. Rep. 2019, 9, 3875. [Google Scholar] [CrossRef]
  49. Jiang, Y.; Gao, J.; Zhang, Q.; Liu, Z.; Fu, M.; Wu, J.; Hu, Y.; Ye, D. Enhanced oxygen vacancies to improve ethyl acetate oxidation over MnOx-CeO2 catalyst derived from MOF template. Chem. Eng. J. 2019, 371, 78–87. [Google Scholar] [CrossRef]
  50. Wu, L.; Wang, J.; Yang, C.; Gao, X.; Fang, Y.; Wang, X.; Duo Wu, W.; Wu, Z. Understanding the catalytic ozonation process on ceria nanorods: Efficacy, Frenkel-type oxygen vacancy as a key descriptor and mechanism insight. Appl. Catal. B Environ. 2023, 323, 122152. [Google Scholar] [CrossRef]
  51. Julien, C.M.; Massot, M.; Poinsignon, C. Lattice vibrations of manganese oxides: Part I. Periodic structures. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2004, 60, 689–700. [Google Scholar] [CrossRef] [PubMed]
  52. Naeem, R.; Ali Ehsan, M.; Yahya, R.; Sohail, M.; Khaledi, H.; Mazhar, M. Fabrication of Pristine Mn2O3 and Ag–Mn2O3 Composite Thin Films by AACVD for Photoelectrochemical Water Splitting. Dalton Trans. 2016, 45, 14928. [Google Scholar] [CrossRef]
  53. Bernardini, S.; Bellatreccia, F.; Casanova Municchia, A.; Della Ventura, G.; Sodo, A. Raman spectra of natural manganese oxides. J. Raman Spectrosc. 2019, 50, 873–888. [Google Scholar] [CrossRef]
  54. Nakajima, A.; Yoshihara, A.; Ishigame, M. Defect-induced Raman spectra in doped CeO2. Phys. Rev. B 1994, 50, 13297. [Google Scholar] [CrossRef]
  55. Cao, L.; Pan, L.; Ni, C.; Yuan, Z.; Wang, S. Autothermal reforming of methane over Rh/Ce0.5Zr0.5O2 catalyst: Effects of the crystal structure of the supports. Fuel Process. Technol. 2010, 91, 306–312. [Google Scholar] [CrossRef]
  56. Zhang, F.; Zhang, H.; Wu, D. Performance of an Aliovalent-Doping MnCeOx/Cordierite Monolithic Catalyst Derived from MOFs for o-Xylene Oxidation. Catal. Lett. 2023. [Google Scholar] [CrossRef]
  57. Feng, Y.; Wu, J.; Chi, Q.; Li, W.; Yu, Y.; Fei, W. Defects and Aliovalent Doping Engineering in Electroceramics. Chem. Rev. 2020, 120, 1710–1787. [Google Scholar] [CrossRef]
  58. Andreoli, S.; Deorsola, F.A.; Galletti, C.; Pirone, R. Nanostructured MnOx catalysts for low-temperature NOx SCR. Chem. Eng. J. 2015, 278, 174–182. [Google Scholar] [CrossRef]
  59. Chen, L.; Liu, G.; Feng, N.; Yu, J.; Meng, J.; Fang, F.; Guan, G. Effect of calcination temperature on structural properties and catalytic soot combustion activity of MnOx/wire-mesh monoliths. Appl. Surf. Sci. 2019, 467, 1088–1103. [Google Scholar] [CrossRef]
  60. Trovarelli, A. Catalytic properties of ceria and CeO2-containing materials. Catal. Rev. 1996, 38, 439–520. [Google Scholar] [CrossRef]
  61. Watanabe, S.; Ma, X.; Song, C. Characterization of structural and surface properties of nanocrystalline TiO2−CeO2 mixed oxides by XRD, XPS, TPR, and TPD. J. Phys. Chem. C 2009, 113, 14249–14257. [Google Scholar] [CrossRef]
  62. Atribak, I.; Bueno-López, A.; García-García, A. Combined removal of diesel soot particulates and NOx over CeO2–ZrO2 mixed oxides. J. Catal. 2008, 259, 123–132. [Google Scholar] [CrossRef]
  63. Wangcheng, Z.H.A.N.; ZHANG, X.; Yanglong, G.U.O.; Li, W.A.N.G.; Yun, G.U.O.; Guanzhong, L.U. Synthesis of mesoporous CeO2-MnOx binary oxides and their catalytic performances for CO oxidation. J. Rare Earths 2014, 32, 146–152. [Google Scholar] [CrossRef]
  64. Zou, Z.Q.; Meng, M.; Zha, Y.Q. Surfactant-assisted synthesis, characterizations, and catalytic oxidation mechanisms of the mesoporous MnOx−CeO2 and Pd/MnOx−CeO2 catalysts used for CO and C3H8 oxidation. J. Phys. Chem. C 2010, 114, 468–477. [Google Scholar] [CrossRef]
  65. Afonasenko, T.N.; Yurpalova, D.V.; Vinokurov, Z.S.; Saraev, A.A.; Aidakov, E.E.; Konovalova, V.P.; Rogov, V.A.; Bulavchenko, O.A. The Formation of Mn-Ce-Zr Oxide Catalysts for CO and Propane Oxidation: The Role of Element Content Ratio. Catalysts 2023, 13, 211. [Google Scholar] [CrossRef]
  66. Tholkappiyan, R.; Nirmalesh Naveen, A.; Vishista, K.; Fathalla, H. Investigation on the electrochemical performance of hausmannite Mn3O4 nanoparticles by ultrasonic irradiation assisted co-precipitation method for supercapacitor electrodes. J. Taibah Uni. Sci. 2018, 12, 669–677. [Google Scholar] [CrossRef]
  67. Bulavchenko, O.; Vinokurov, Z.; Afonasenko, T.; Tsyrul’Nikov, P.; Tsybulya, S.; Saraev, A.; Kaichev, V. Reduction of mixed Mn–Zr oxides: In situ XPS and XRD studies. Dalton Trans. 2015, 44, 15499–15507. [Google Scholar] [CrossRef]
  68. Liberman, E.Y.; Kleusov, B.S.; Naumkin, A.V.; Zagaynov, I.V.; Konkova, T.V.; Simakina, E.A.; Izotova, A.O. Thermal Stability and Catalytic Activity of the MnOx–CeO2 and the MnOx–ZrO2–CeO2 Highly Dispersed Materials in the Carbon Monoxide Oxidation Reaction. Inorg. Mater. Appl. Res. 2021, 2, 468–476. [Google Scholar] [CrossRef]
  69. Grabchenko, M.V.; Mamontov, G.V.; Chernykh, M.V.; Vodyankina, O.V.; Salaev, M.A. Synergistic effect in ternary CeO2-ZrO2-MnOx catalysts for CO oxidation and soot combustion. Chem. Eng. Sci. 2023, 9593. [Google Scholar] [CrossRef]
  70. Sacco, N.A.; Bortolozzi, J.P.; Milt, V.G.; Miró, E.E.; Banús, E.D. One step citric acid-assisted synthesis of Mn-Ce mixed oxides and their application to diesel soot combustion. Fuel 2022, 332, 124201. [Google Scholar] [CrossRef]
  71. Yao, P.; He, J.; Jiang, X.; Jiao, Y.; Wang, J.; Chen, Y. Factors determining gasoline soot abatement over CeO2–ZrO2-MnOx catalysts under low oxygen concentration condition. J. Energy Inst. 2020, 93, 774–783. [Google Scholar] [CrossRef]
  72. Kibis, L.S. Interface Interactions And CO Oxidation Activity of Ag/CeO2 Catalysts: A New Approach Using Model Catalytic Systems. Appl. Catal. A Gen. 2019, 570, 51–61. [Google Scholar] [CrossRef]

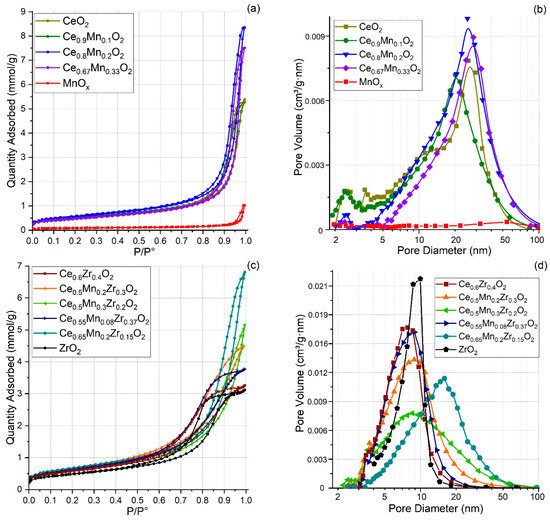

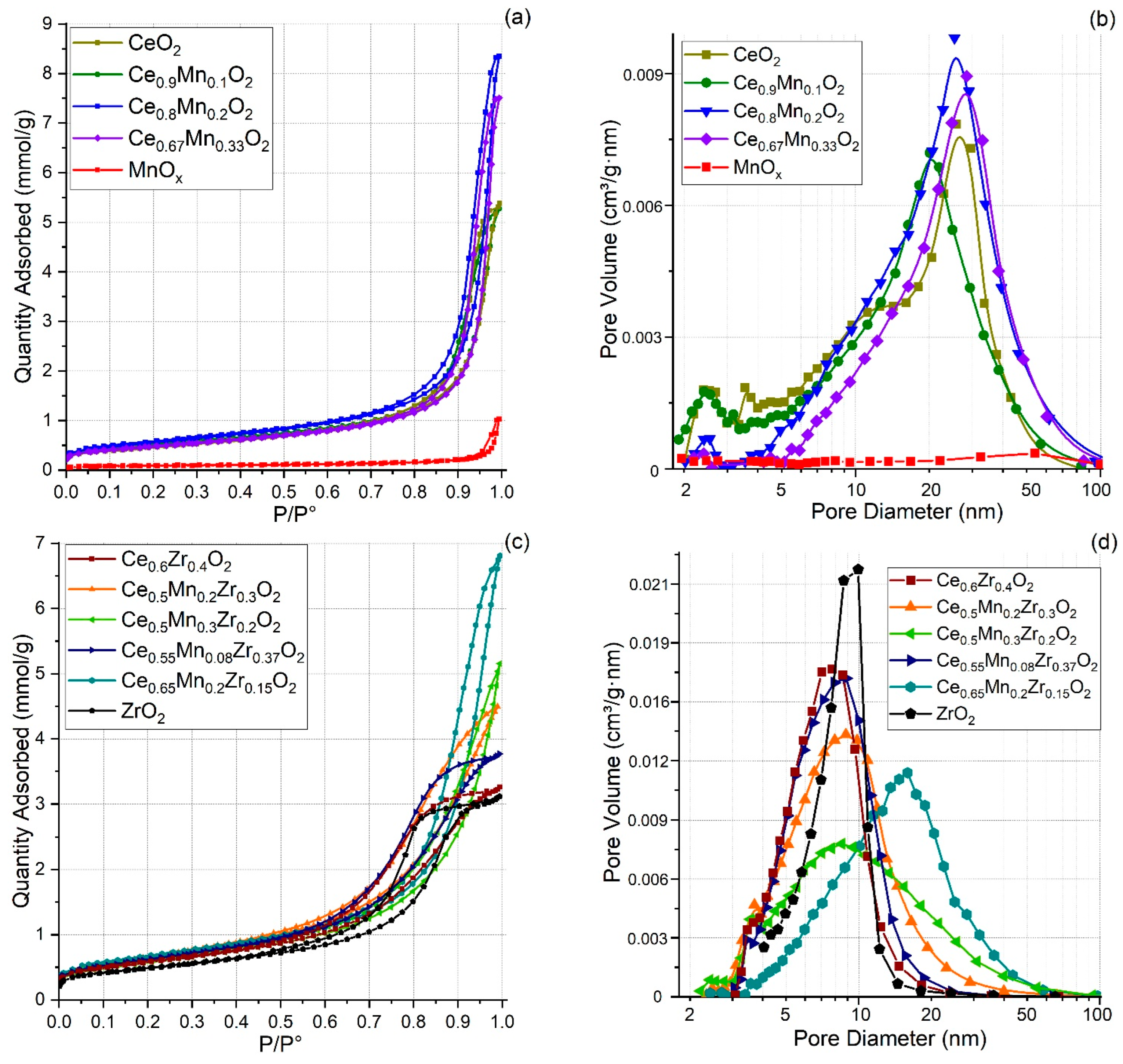

Figure 1. (a,c) Isotherms of N2 adsorption–desorption for the obtained samples; (b,d) Pore size distributions.
Figure 1. (a,c) Isotherms of N2 adsorption–desorption for the obtained samples; (b,d) Pore size distributions.
Nanomaterials 13 03108 g001

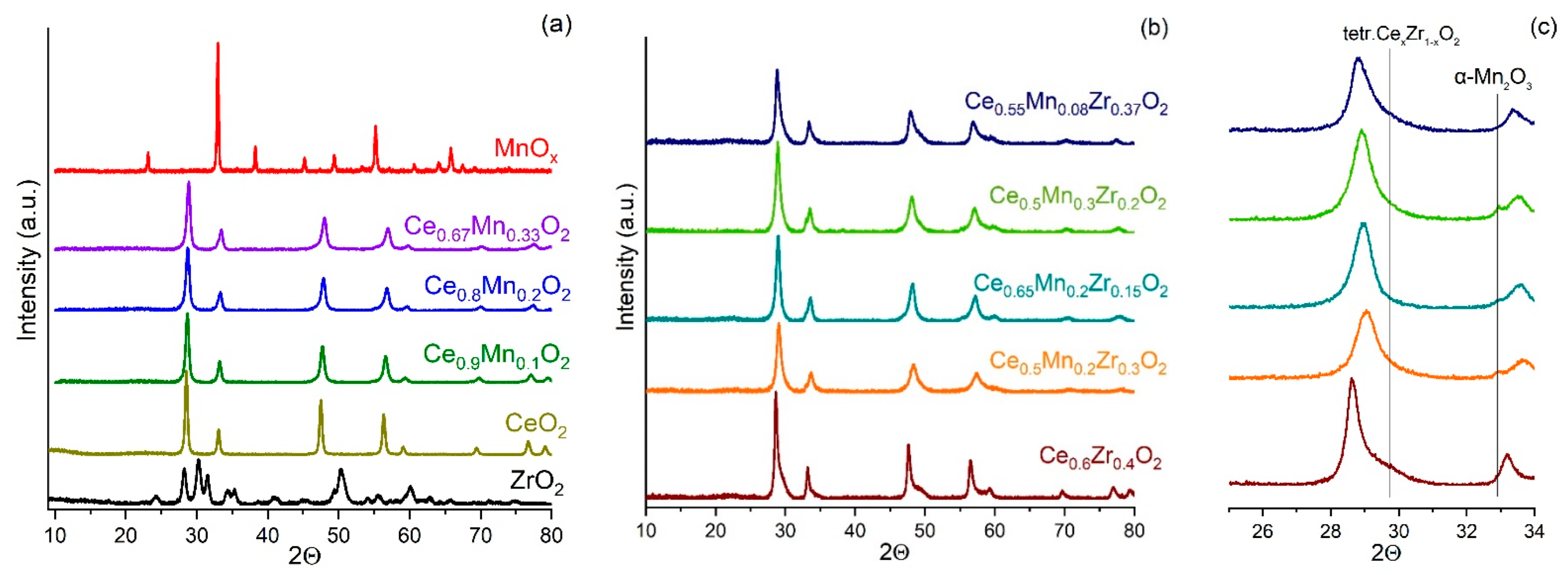

Figure 2. XRD patterns for the prepared samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides, (c) excerpt from patterns (b).
Figure 2. XRD patterns for the prepared samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides, (c) excerpt from patterns (b).
Nanomaterials 13 03108 g002
Figure 3. Relationships between cell parameter of CeO2 (a) and crystallite size (b) and fraction of substitution metals.
Figure 3. Relationships between cell parameter of CeO2 (a) and crystallite size (b) and fraction of substitution metals.
Nanomaterials 13 03108 g003
Figure 4. Raman spectra for the prepared samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides.
Figure 4. Raman spectra for the prepared samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides.
Nanomaterials 13 03108 g004
Figure 5. TPR profiles for the obtained samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides.
Figure 5. TPR profiles for the obtained samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides.
Nanomaterials 13 03108 g005
Figure 6. The core-level XPS spectra for individual, binary, and ternary oxide in the CeO2-ZrO2-MnOx system: (a) Ce3d; (b) Zr3d; (c) Mn2p; (d) O1s.
Figure 6. The core-level XPS spectra for individual, binary, and ternary oxide in the CeO2-ZrO2-MnOx system: (a) Ce3d; (b) Zr3d; (c) Mn2p; (d) O1s.
Nanomaterials 13 03108 g006
Figure 7. TEM images of (a) CeO2; (b) Ce0.9Mn0.1O2; (c) Ce0.5Mn0.3Zr0.2O2.
Figure 7. TEM images of (a) CeO2; (b) Ce0.9Mn0.1O2; (c) Ce0.5Mn0.3Zr0.2O2.
Nanomaterials 13 03108 g007
Figure 8. STEM-HR image for (a) Ce0.9Mn0.1O2 sample. HAADF-STEM and Ce and Mn maps for (b) Ce0.9Mn0.1O2; (c) Ce0.5Mn0.3Zr0.2O2.
Figure 8. STEM-HR image for (a) Ce0.9Mn0.1O2 sample. HAADF-STEM and Ce and Mn maps for (b) Ce0.9Mn0.1O2; (c) Ce0.5Mn0.3Zr0.2O2.
Nanomaterials 13 03108 g008
Figure 9. Catalytic properties of prepared systems in CO oxidation: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides; (c,d) corresponding activation energies.
Figure 9. Catalytic properties of prepared systems in CO oxidation: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides; (c,d) corresponding activation energies.
Nanomaterials 13 03108 g009
Figure 10. Soot combustion activity of prepared samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides.
Figure 10. Soot combustion activity of prepared samples: (a) individual and Ce-Mn oxides, (b) Ce-Zr and ternary oxides.
Nanomaterials 13 03108 g010
Table 1. Chemical composition (XRF) (*) and Ce/Zr, Ce/Mn, and Zr/Mn ratios (XRF and XPS).
Table 1. Chemical composition (XRF) (*) and Ce/Zr, Ce/Mn, and Zr/Mn ratios (XRF and XPS).
Samplen(Ce)/
n(Sum)
n(Mn)/
n(Sum)
n(Zr)/
n(Sum)
Ce/ZrCe/MnZr/Mn
XRFXPSXRFXPSXRFXPS
Ce0.9Mn0.1O20.9150.08510.769.20
Ce0.8Mn0.2O20.7380.2622.82
Ce0.67Mn0.33O20.6860.3142.182.41
Ce0.6Zr0.4O20.6480.3512.061.43
Ce0.5Mn0.2Zr0.3O20.5440.1840.2722.000.933.091.591.481.71
Ce0.65Mn0.2Zr0.15O20.6920.1760.1325.24n.d.3.93n.d.0.75n.d.
Ce0.5Mn0.3Zr0.2O20.4590.3820.1582.902.981.201.370.410.46
Ce0.55Mn0.08Zr0.37O20.6090.0450.3461.76n.d.13.53n.d.7.69n.d.
(*) expressed as atomic ratio of metal to total of metals (sum).
Table 2. Textural properties of samples according to low-temperature nitrogen adsorption data.
Table 2. Textural properties of samples according to low-temperature nitrogen adsorption data.
SampleSSA, m2/gV, cm3/gPore Size, nm
MnOx60.0337
ZrO2390.118
CeO2370.1819
Ce0.9Mn0.1O2400.1819
Ce0.8Mn0.2O2450.2924
Ce0.67Mn0.33O2380.2627
Ce0.6Zr0.4O2460.118
Ce0.5Mn0.2Zr0.3O2520.1610
Ce0.5Mn0.3Zr0.2O2460.1814
Ce0.55Mn0.08Zr0.37O2500.138
Ce0.65Mn0.2Zr0.15O2520.2417
Table 3. Phase composition of samples and structural parameters, microstrains, and crystallite sizes of the crystalline phases identified from XRD data.
Table 3. Phase composition of samples and structural parameters, microstrains, and crystallite sizes of the crystalline phases identified from XRD data.
SamplePhaseStructural Parameters
a, Åb, Åc, Å∆d/d
× 10−3
DXRD, nm
CeO2cub. CeO25.407--0.9928
MnOxcub. Mn2O39.404--0.9143
ZrO2mon. ZrO25.1475.20325.3133.6915
tetr. ZrO23.597-5.1771.9215
Ce0.9Mn0.1O2cub. Ce1−xMnxO2−δ5.387--2.1623
Ce0.8Mn0.2O2cub. Ce1−xMnxO2−δ5.369--3.7624
Ce0.67Mn0.33O2cub. Ce1−xMnxO2−δ5.366--5.3124
Ce0.6Zr0.4O2cub. Ce1−xZrxO2−δ5.393--7.3226
cub. CexZr1−xO2−δ/
tetr. CexZr1−xO2−δ
5.229/
3.624
--/
5.277
1.368
Ce0.5Mn0.2Zr0.3O2cub. Ce1−xZrxO2−δ5.331--5.907
tetr. CexZr1−xO2−δ3.701-5.3399.25
cub. Mn2O3n.a.--n.a.n.a.
Ce0.65Mn0.2Zr0.15O2cub. Ce1−xZrxO2−δ5.343--4.3517
cub. Mn2O3n.a.--n.a.n.a.
Ce0.5Mn0.3Zr0.2O2cub. Ce1−xZrxO2−δ5.347--9.3821
tetr. CexZr1−xO2−δ3.696-5.2779.44
cub. Mn2O3n.a.--n.a.n.a.
Ce0.55Mn0.08Zr0.37O2cub. Ce1−xZrxO2−δ5.354--7.5620
tetr. CexZr1−xO2−δ3.696-5.2774.27
Table 4. The H2 consumption in TPR for the prepared catalysts.
Table 4. The H2 consumption in TPR for the prepared catalysts.
SampleH2 Consumption (mmol/mol Catalyst)
150–350 °C350–650 °C600–900 °CΣ
CeO2-0.024
(surface CeO2)
0.057 (bulk CeO2)0.081
MnOx 0.215
(dispersed MnOx)
0.472
(reduction of MnOx)
-0.687
Ce0.6Zr0.4O2-0.0310.0160.047
Catalysts150–500 °C (Dispersed MnOx and Surface CeO2)500–650 °C (Surface CeO2)650–900 °C
(Bulk CeO2)
Σ
Ce0.9Mn0.1O20.0600.0020.0380.669
Ce0.8Mn0.2O20.1300.0010.0371.296
Ce0.67Mn0.33O20.1460.0010.0321.426
Ce0.5Mn0.2Zr0.3O20.1200.0050.0271.233
Ce0.65Mn0.2Zr0.15O20.1100.0030.0151.112
Ce0.5Mn0.3Zr0.2O20.1730.0150.0331.702
Ce0.55Mn0.08Zr0.37O20.0650.0200.0250.675
Table 5. Relative concentrations of elements in the near-surface layer of the samples.
Table 5. Relative concentrations of elements in the near-surface layer of the samples.
SampleCe4+, %Mn2+, %Mn3+, %Mn4+, %(O22− + O2)/Ot 1O2−, %O22−, %O2, %
MnOx316910.3268248
Ce0.67Mn0.33O2 85247640.31692110
Ce0.5Mn0.3Zr0.2O2 84386250.2278220
Ce0.5Mn0.2Zr0.3O282197390.2773216
Ce0.9Mn0.1O2811783n.d.0.3268248
Ce0.6Zr0.4O2 650.2575250
CeO2800.3565296
1 Ot = O22− + O2 + O2−.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Grabchenko, M.V.; Mikheeva, N.N.; Mamontov, G.V.; Cortés Corberán, V.; Litvintseva, K.A.; Svetlichnyi, V.A.; Vodyankina, O.V.; Salaev, M.A. Unraveling the Structural and Compositional Peculiarities in CTAB-Templated CeO2-ZrO2-MnOx Catalysts for Soot and CO Oxidation. Nanomaterials 2023, 13, 3108. https://doi.org/10.3390/nano13243108

AMA Style

Grabchenko MV, Mikheeva NN, Mamontov GV, Cortés Corberán V, Litvintseva KA, Svetlichnyi VA, Vodyankina OV, Salaev MA. Unraveling the Structural and Compositional Peculiarities in CTAB-Templated CeO2-ZrO2-MnOx Catalysts for Soot and CO Oxidation. Nanomaterials. 2023; 13(24):3108. https://doi.org/10.3390/nano13243108

Chicago/Turabian Style

Grabchenko, Maria V., Natalia N. Mikheeva, Grigory V. Mamontov, Vicente Cortés Corberán, Kseniya A. Litvintseva, Valery A. Svetlichnyi, Olga V. Vodyankina, and Mikhail A. Salaev. 2023. "Unraveling the Structural and Compositional Peculiarities in CTAB-Templated CeO2-ZrO2-MnOx Catalysts for Soot and CO Oxidation" Nanomaterials 13, no. 24: 3108. https://doi.org/10.3390/nano13243108

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
