Zinc Oxide-Loaded Cellulose-Based Carbon Gas Sensor for Selective Detection of Ammonia

by
Hao Xu
,
Zhu-Xiang Gong
,
Li-Zhu Huo
,
Chao-Fei Guo
,
Xue-Juan Yang
,
Yu-Xuan Wang
* and
Xi-Ping Luo
*
Zhejiang Provincial Key Laboratory of Chemical Utilization of Forestry Biomass, College of Chemistry and Materials Engineering, Zhejiang A&F University, Hangzhou 311300, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(24), 3151; https://doi.org/10.3390/nano13243151
Submission received: 12 November 2023 / Revised: 6 December 2023 / Accepted: 12 December 2023 / Published: 15 December 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
Cellulose-based carbon (CBC) is widely known for its porous structure and high specific surface area and is liable to adsorb gas molecules and macromolecular pollutants. However, the application of CBC in gas sensing has been little studied. In this paper, a ZnO/CBC heterojunction was formed by means of simple co-precipitation and high-temperature carbonization. As a new ammonia sensor, the prepared ZnO/CBC sensor can detect ammonia that the previous pure ZnO ammonia sensor cannot at room temperature. It has a great gas sensing response, stability, and selectivity to an ammonia concentration of 200 ppm. This study provides a new idea for the design and synthesis of biomass carbon–metal oxide composites.

1. Introduction

Ammonia is a colorless, toxic, and corrosive substance with a strong odor and a choking effect. Excess ammonia can pose a huge threat to human health and cause environmental pollution. Different from other toxic gases, ammonia has a low boiling point of −33.5 °C, a low melting point of −77.75 °C, a low density of 0.771 g·L−1, a refractive index of 1.33, and a dipole moment of 1.42 d. These characteristics make ammonia an excellent gas sensor, and its sensors can be used in a variety of applications, such as environmental monitoring, agriculture, medical diagnostics, and dealing with industrial waste [1,2].
Recently, metal oxide semiconductors (MOSs), such as ZnO [3], MoO3 [4], TiO2 [5], WO3 [6], NiO [7], and V2O5 [8], etc., have been widely used in the field of gas sensing due to their excellent physical and chemical properties. A gas sensor based on a TiO2/Ti3C2Tx bilayer film was fabricated by Tai et al. which can operate at room temperature but is only 3.1% responsive to a concentration of 10 ppm ammonia [5]. Chou et al. fabricated a NiO thin-film ammonia sensor using a radio frequency sputtering process. This ammonia sensor showed a good sensing performance to 1000 ppm ammonia; however, this sensor needs to be at 250 °C to achieve the optimal gas sensing performance [7]. Zinc oxide is a metal oxide semiconductor material with a wide band gap (3.37 eV), high bonding strength, and large exciton binding energy (60 meV) at room temperature. Based on these properties, it is often used in gas sensors, chemical sensors, biosensors, cosmetics, energy storage, optical and electronic devices, and other products [9,10,11,12,13]. The existing zinc oxide gas sensors show great gas sensing performance for carbon dioxide, ammonia, and ethanol. A resistive gas sensor based on ZnO nanosheets was prepared by Srinivasulu et al. which has a large surface area and can quickly and highly detect carbon dioxide in the air [14]. The ZnO nanoflowers prepared by Yu et al. have great gas sensing properties for low concentrations of ammonia [3]. However, the original zinc oxide still has some shortcomings, such as poor gas sensitivity, slow response and recovery time, and poor selectivity. Therefore, many researchers have used methods such as doping with other elements or mixing zinc oxide with other metal oxides to prepare composite materials to improve the gas sensing performance [15,16,17,18,19].
An effective way to improve the gas sensing performance of the sensor is by introducing carbon material into the gas sensing material based on zinc oxide. Using activated carbon fiber as a template, Chao et al. synthesized ZnO/C nanoporous fibers using a hydrothermal method. The materials showed a great gas sensing performance for low concentrations of ethanol and acetone at the optimum operating temperature [20]. The heterojunction ZnO/hollow porous carbon microtubule (CMT) prepared by Sun et al. from simple carbonized buttonwood fluff fibers showed a great gas sensing response to trace ammonia molecules [21]. Hu et al. prepared composite materials by generating zinc oxide particles on nitrogen-doped carbon sheets, and the heterogeneous structure improved the gas sensing ability of the composite materials to ppb grade NO2 [22]. Cellulose, as a natural polymer material abundant on the earth, has a large number of hydroxyl functional groups, excellent biodegradability, and stable physical and chemical properties [23]. Compared with other carbon sources, cellulose is more available in nature, which can reduce the cost of producing carbon materials significantly. In recent years, there have been many reports on the application of cellulose-based carbon (CBC) as a carbon material in the field of supercapacitors and photocatalytic degradation by taking advantage of its excellent properties, such as its porous structure, huge specific surface area, and ability to adsorb gas molecules and macromolecular pollutants [24,25,26,27,28]. However, there is little research on carbonizing cellulose into biomass carbon materials into ZnO-based gas sensors.
In this work, zinc oxide was prepared using a simple chemical precipitation method, and then it was carbonized with microcrystalline cellulose at a high temperature, and ZnO/CBC was prepared for ammonia detection. Compared with the original ZnO-based ammonia sensor, due to the construction of the heterogeneous structure between ZnO and CBC, the composite has a great gas sensing response to a certain concentration of ammonia at room temperature and has a better ammonia selectivity. The use of cellulose as the precursor of biomass carbon materials combined with metal oxides to form composite materials provides a new reference in the field of gas detection.

2. Materials and Methods

2.1. Materials

Zinc acetate dihydrate (Zn(CH3COO)2·2H2O, 98%) was obtained from Anneji (Shanghai) Pharmaceutical Chemical Co., Ltd. (Shanghai, China). Ammonia liquor (NH3·H2O, 26–28%) was purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Microcrystalline cellulose (50 μm) was obtained from Aladdin Reagent (Shanghai) Co., Ltd. (Shanghai, China). Deionized water was prepared in the laboratory.

2.2. Synthesis of ZnO/CBC

ZnO was prepared using a simple chemical deposition method. Typically, 0.25 g zinc acetate dihydrate and 0.5 g microcrystalline cellulose were added into 30 mL DI water with magnetic stirring for 15 min. Then, a certain amount of ammonia (to make the molar ratio of Zn2+ to OH− 1:15) was added to the above solution, with magnetic stirring in an oil bath at 90 °C for 1 h. After the reaction, the obtained white solution was washed and centrifuged several times until the pH was neutral and then dried in a vacuum drying oven at 60 °C to obtain a white powder. The white powder was placed in a tube furnace at 600 °C and calcined by N2 for 2 h. The resulting product was marked as ZnO/CBC-60%. According to the above experimental method, ZnO/CBC-33%, ZnO/CBC-50%, ZnO/CBC-66%, ZnO/CBC-71%, and CBC were synthesized by changing the mass ratio of zinc acetate dihydrate and microcrystalline cellulose.

2.3. Characterization

The morphology and size of the samples were characterized with field-emission scanning electron microscopy (SEM, ZEISS Sigma 300, Germany) and transmission electron microscopy (TEM, FEI Tecnai F30, USA). The crystal structure of the sample was characterized with X-ray diffraction (XRD, Bruker D2 PHASER, Germany) of copper target radiation at ambient temperatures with 2θ values of 10 to 80 degrees and scanning rates of 5°/min. The chemical composition and elements of the samples were characterized with X-ray photoelectron spectroscopy (XPS, Thermo Scientific K-Alpha, USA). Raman spectra were recorded using a Raman spectrometer (Raman, Horiba LabRAM HR Evolution, Japan) with a laser wavelength of 532 nm. In situ DRIFT spectroscopy was performed using a VERTEX 80v (Bruker, Germany) infrared spectrometer. ZnO/CBC-60% was exposed to ammonia and pure nitrogen at room temperature. The Mott–Schottky curves of the samples were measured with an electrochemical workstation (Chinstruments, CHI660E model, China); 0.5 M sodium sulfate solution was configured, Ag/AgCl was the reference electrode, and the platinum plate was the counter electrode.

2.4. Fabrication of Gas Sensing Device

In order to measure the electrical and sensing performance, a certain amount of sample was placed on an agate mortar, and a small amount of deionized water was added to grind the sample to a sticky state. The grinding liquid was evenly coated on the interdigital electrode of the ceramic substrate and dried in a drying oven at 100 °C. Gas sensing measurements are carried out using the self-made device shown in Figure 1. The static liquid–gas distribution method was used to generate ammonia gas environments with different concentrations. The calculation formula is as follows [29,30]:
C = 22.4 × ∅ × ρ × p × V 1 M × V 2 × 1000
where C (ppm) stands for the target gas concentration, Ø stands for the required gas volume fraction, ρ (g mL−1) stands for the density of the liquid, p stands for the purity of the liquid, V1 (μL) stands for the volume of liquid, V2 (L) stands for the volume of the chamber, and M (g mol−1) stands for the molecular weight of the liquid.
The change in resistance of the sensor was measured with a multimeter. The response of the sensor was defined as follows:
S = R g − R a R a × 100 %
where Ra is the resistance of the sensor in the air, and Rg is the resistance of the sensor after it passes into the target gas.

3. Results

3.1. Characterization of ZnO/CBC

The XRD patterns of ZnO/CBC and CBC with different ZnO precursor contents are shown in Figure 2. ZnO/CBC showed sharp diffraction peaks at 2θ = 31.8°, 34.4°, 36.3°, 47.5°, 56.6°, 62.9°, 66.4°, 67.9°, 69.1°, 72.6°, and 77.0°, which were by the (100), (002), (101), (102), (110), (103), (200), (112), (201), (004), and (202) crystal planes, respectively. The strongest peak occurred on the (101) crystal plane. All diffraction peaks correspond to the standard hexagonal wurtzite structure (JCPDS-99-0111) [31,32]. No diffraction peaks from other phases or impurities were observed. These results indicated that pure ZnO structures were formed through precipitation. Since the amorphous carbon was prepared and its crystallinity is low, wide peaks with low signal strength appeared near 22° and 42° [33,34,35]. The diffraction peak strength was weaker than ZnO, but this could not be shown in the XRD pattern of ZnO/CBC.
Figure 3 shows the SEM images of ZnO/CBC and pure carbon with different ZnO precursor contents. It can be seen from Figure 3b–e that ZnO has been successfully loaded on CBC. ZnO exhibited a flower-like structure when the precursor content was small. With the ZnO precursor content increasing, ZnO gradually changed into a rod-like structure; meanwhile, the aspect ratio also became larger. This was due to the increase in ammonia solution, which promoted oxidation. Zinc preferentially grew on the C axis [36]. Figure 3a shows that the surface of CBC was relatively smooth after high-temperature carbonization. However, after loading ZnO, the surface of CBC becomes rough. EDS was used to conduct an elemental analysis of ZnO/CBC-60%. It can be seen from Figure S1 that C, O, and Zn have been evenly distributed on ZnO/CBC-60%, and the atomic ratios of C, O, and Zn were 77.50%, 11.84%, and 10.66%, respectively. Since aluminum foil was used as the substrate, the Al signal appeared.
In order to further understand the structure of ZnO/CBC-60%, TEM characterization was performed. As shown in Figure 4a,b, it was found that there were different lattice fringes at the boundary of CBC and ZnO. The lattice fringes near 0.136 and 0.282 nm correspond to the (201) and (100) crystal faces of ZnO, respectively [16,37]. The lattice fringes near 0.202 and 0.350 nm correspond to the (101) and (002) crystal faces of graphite, respectively [38]. The lattice fringes of ZnO and CBC were interwoven, which also confirmed the construction of heterojunctions between ZnO and CBC.
As shown in the Raman spectrum in Figure 5a, it can be observed that peak D and peak G of typical carbon materials were located at 1340 cm−1 and 1584 cm−1, respectively, where peak D represents the sp3 hybrid carbon of disordered or defective carbon, while peak G corresponds to the sp2 hybrid carbon of the graphite structure [39]. The relative strength ratio (ID/IG) of peak D and peak G indicates the degree of graphitization of the material. The ID/IG values of pure carbon and ZnO/CBC-60% were 0.90 and 0.79, respectively, which were much higher than the ID/IG values of typical graphite, indicating that the prepared carbon materials were not highly crystalline and disordered materials exist. This was consistent with the observation with XRD. Moreover, the addition of ZnO improved the degree of disorder and defects in the structure of carbon materials [40]. The peaks at 80 cm−1 and 427 cm−1 in ZnO/CBC-60% correspond to E 2 l o w and E 2 h i g h , respectively. E 2 l o w was affected by the Zn2+ gap defect, and E 2 h i g h was affected by O2− vacancy [41]. The simultaneous appearance of characteristic peaks of ZnO and carbon materials confirmed the successful preparation of ZnO/CBC. At the same time, it can be observed from Figure 6b that the D peaks and G peaks of ZnO/CBC-60% had a certain wave number displacement relative to pure carbon materials. It can be concluded that the heterojunction constructed by ZnO and cellulose-based carbon induces charge transfer between them [22].
In order to verify the elemental composition and surface chemical information of ZnO/CBC-60%, the materials were characterized with XPS. Figure 6a shows that ZnO/CBC-60% was mainly composed of Zn, C, and O elements. Figure 6b was the high-resolution spectrum of Zn2p. In the figure, the peaks of Zn2p1/2 and Zn2p3/2 were 1044.0 eV and 1021.1 eV, respectively, and the binding energy distance before the two peaks was 22.9 eV, which proved the existence of divalent zinc ions [42]. Figure 6c shows the high-resolution spectrum of O 1 s. O 1 s can be deconvolved into three peaks centered on 529.5 eV, 531.2 eV, and 532.2 eV. The peak at 529.5 eV is attributed to the O2− ion in the Zn–O bond in the ZnO wurtzite structure, and the peak at 531.2 eV is attributed to the Zn–O–C bond and the adsorbed hydroxyl group or water. The peak at 532.2 eV is attributed to the carbonate (C–O/C=O) species [43]. As shown in Figure 6d, three peaks appeared at 283.6 eV, 285.7 eV, and 288.3 eV which belonged to the Zn-C bond, Zn–O–C bond, and C=O bond, respectively, indicating that the performance of ZnO/CBC-60% was different from that of pure ZnO [44].
Mott–Schottky curves were used to determine the semiconductor type of the material to better explain the sensing mechanism of the material. Figure S2 shows the Mott–Schottky curves of CBC and ZnO/CBC-60% at different frequencies measured at room temperature. It can be seen from the figure that the slopes of all curves are negative, indicating that CBC was a p-type semiconductor, and the prepared ZnO/CBC-60% also exhibited p-type semiconductor properties.

3.2. Results of Sensing Tests

Firstly, the gas sensing response of ZnO/CBC with different contents of CBC and ZnO precursors to 200 ppm ammonia at room temperature and 60% relative humidity were tested. When the sensor was in an air environment, the resistance of the sensor was at a stable value (Ra). When exposed to ammonia, the resistance of the sensor increased and reached a maximum value (Rg). When the sensor was exposed to air again, the resistance of the sensor gradually returned to the initial value (Ra). The resistance of CBC and ZnO/CBC increased gradually in the ammonia environment and decreased gradually in air, which shows p-type semiconductor behavior. After testing the sensor, Figure 7a shows that when the ZnO precursor content was 60%, the sensor’s gas sensing response to 200 ppm ammonia was the highest, reaching 27%. Therefore, zinc acetate/cellulose (wt%) = 150 wt% was selected as the optimal ratio for preparing the required sensing material. The raw CBC also showed a certain gas sensing response to an ammonia concentration of 200 ppm. After the high-temperature carbonization of microcrystalline cellulose, the CBC is a p-type semiconductor, which also has a good effect on ammonia sensing. This result is consistent with previously reported [39] biomass-based carbon sensing of ammonia. ZnO and CBC formed a p-n heterojunction after compounding, in which CBC plays a dominant role.
In addition, the ZnO/CBC-60% sensor was placed in the environment of methanol, isopropyl alcohol, ethanol, and formaldehyde at 200 ppm at room temperature to test the gas sensing performance of the sensor to these gases, to verify the selectivity of the sensor to ammonia. It can be seen from Figure 7b that the gas sensing response of the sensor to ammonia is dozens of times that of other gases, indicating that the prepared ZnO/CBC-60% sensor has good selectivity to ammonia. This may be attributed to the fact that the p-n heterostructure constructed between ZnO and CBC provided more active sites for the selective adsorption of ammonia molecules. Good selectivity improves the ZnO/CB-60% sensor’s anti-interference ability, allowing it to accurately and quickly detect ammonia concentration in an environment where multiple gases exist.
In order to further test the gas sensing performance of ZnO/CBC-60% for ammonia, the sensor was put in the ammonia environment with five concentrations of 25 ppm, 50 ppm, 100 ppm, 150 ppm, and 200 ppm at room temperature for the gas sensing test. The gas sensing response of the sensor to ammonia with a concentration of 25–200 ppm at room temperature is shown in Figure 8a. As the ammonia concentration increased, the gas sensing response of the sensor increased, which was in line with the expected goals of this experiment. Stability is one of the key parameters of gas sensing. We tested the stability of the ZnO/CBC-60% sensor by placing the sensor in a 200 ppm ammonia environment for five rounds of gas sensing tests. As shown in Figure 8b, after five sensing cycles, the gas sensing performance of the ZnO/CBC-60% sensor had not weakened, indicating that the sensor had good repeatability.
The relative humidity is an important factor affecting the performance of the gas sensor [45]. As shown in Figure 9a, with the increase in relative humidity, the gas sensitivity of the ZnO/CBC-60% sensor to ammonia was correspondingly weakened, which may be due to the fact that H2O molecules in the test environment preempted the active sites so that NH3 molecules could not fully react with the materials, resulting in the decrease in the gas sensing response [23].
Stability is one of the important indicators of a gas sensor, which reflects whether the gas sensing capability of the gas sensor can maintain stability over a period of time to extend the service life of the equipment. The ZnO/CBC-60% sensor was put in an ammonia concentration environment of 200 ppm for one week. As can be seen from Figure 9b, the gas sensing response of the sensor to ammonia had not changed greatly, which indicated that the sensor had good stability.
The sensing performance of the as-developed ZnO/CBC and most of the previously reported ZnO-, WS2-, or TiO2-based ammonia gas sensors are summarized in Table 1. Compared with previous ammonia sensors, the ammonia sensor constructed with ZnO and CBC can detect ammonia at room temperature. At the same time, the gas sensing response has been enhanced to a certain extent, which can mainly be ascribed to the unique chemical properties of the two substances and the formation of a p-n heterojunction. However, the response and recovery ability should be further enhanced.

4. Discussion

In order to prove that the gas sensing response of ZnO/CBC-60% was the result of the reaction with NH3 molecules, the material was analyzed with in situ DRIFT spectroscopy. As shown in Figure 10a, after introducing the mixed gas of NH3 and N2, it can be observed that adsorption peaks of coordinated NH3 species corresponding to Lewis sites appeared near 929, 964, 1619, and 3334 cm−1 [49,50,51], and these peaks gradually became stronger with the increase in adsorption time. Figure 10b shows that the peak value was obviously weakened after N2 purging. These phenomena show that the adsorption and desorption of ammonia occurred on the surface of ZnO/CBC-60%, which explained the gas sensing response of ZnO/CBC-60% to ammonia.
In the existing literature, the surface charge control model is often used to explain the sensing mechanism of resistive gas sensors. When the ZnO/CBC-60% sensor was exposed to air, oxygen molecules in the air stuck to the surface of the material and trapped electrons to generate O 2 − , which was revealed by Formulas (3) and (4). During this process, a depletion layer was formed on the surface of the ZnO/CBC-60%. At the same time, it can be seen from the Mott–Schottky curve that CBC is a p-type semiconductor, while ZnO is a typical n-type semiconductor. As illuminated in Figure 11, the combination of the two creates a p-n heterojunction. Due to the difference in the concentration of electrons and holes in the two materials, the free electrons from the ZnO conduction band will diffuse to CBC, and the holes in CBC will diffuse to ZnO until the Fermi level reaches a new equilibrium [52,53]. This process makes the energy band bend, forming a narrow depletion layer, an electron accumulation layer on the CBC side, and a hole accumulation layer on the ZnO side. As shown in Formulas (5) and (6), when the ZnO/CBC sensor was exposed to ammonia, ammonia molecules reacted with adsorbed oxygen, releasing electrons that neutralize holes and further expand the depletion layer on the CBC side, leading to a significant increase [54] in the resistance of the sensor, which was consistent with the phenomenon in the gas sensing test.
O 2 i n   a i r   →   O 2 a d s
O 2 a d s + e −   →   O 2 − a d s
N H 3 i n   a i r   →   N H 3 a d s
4 N H 3 a d s + 3 O 2 −   →   2 N 2 + 6 H 2 O + 3 e −

5. Conclusions

In this experiment, ZnO was loaded on CBC, and the gas sensing response of ZnO/CBC loaded with different ZnO contents to ammonia at room temperature was studied with various contents of ZnO precursors. The composites were characterized with SEM, TEM, XRD, Raman, and XPS. The results showed that ZnO had been successfully loaded on CBC. Subsequently, the gas sensing performance showed that the ZnO/CBC with 60% ZnO precursor content had a better gas sensing response to 200 ppm ammonia at room temperature, reaching 27%. In addition, through five consecutive rounds of gas sensing response tests in a 200 ppm ammonia environment, it was found that ZnO/CBC-60% exhibited good stability. At the same time, by comparing the gas sensing performance of several VOC gases, it was found that the material had good selectivity for ammonia. In situ DRIFT spectroscopy proved that the sensing material did react with ammonia, and the ZnO/CBC-60% could provide more active sites for ammonia molecules because of the construction of a heterojunction between ZnO and CBC. Therefore, compared with previous ammonia sensors, ZnO/CBC ammonia sensors have improved the gas sensing performance to a certain extent and overcome the problem that pure ZnO ammonia sensors cannot sense ammonia at room temperature, reducing energy consumption. This study provides a new idea for the design and synthesis of biomass carbon–metal oxide composites.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13243151/s1, Figure S1: (a–e) SEM images of the ZnO/CBC-60% and corresponding mapping images of C, O, and Zn and (f) the EDS analysis of the prepared ZnO/CBC-60%; Figure S2: Mott–Schottky curves of (a) CBC and (b) ZnO/CBC-60%.

Author Contributions

Conceptualization, H.X., X.-P.L. and Y.-X.W.; methodology, H.X. and Z.-X.G.; software, H.X. and C.-F.G.; validation, H.X. and Z.-X.G.; formal analysis, L.-Z.H.; investigation, H.X.; resources, H.X., X.-P.L. and Y.-X.W.; data curation, H.X. and Z.-X.G.; writing—original draft preparation, H.X.; writing—review and editing, H.X., X.-J.Y., X.-P.L. and Y.-X.W.; visualization, H.X.; supervision, L.-Z.H.; project administration, H.X., Y.-X.W. and X.-P.L.; funding acquisition, X.-P.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Central Financial Funds for the Forestry Science and Technology Promotion Application Project in China (2023TS01), Zhejiang A & F University Scientific Research and Development Fund Project grant number 2020RC032, the “Pioneer” and “Leading Goose” R&D Program of Zhejiang (2022C02023).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Danasa, A.S.; Soesilo, T.E.B.; Martono, D.N.; Sodri, A.; Hadi, A.S.; Chandrasa, G.T. The ammonia release hazard and risk assessment: A case study of urea fertilizer industry in Indonesia. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2019; p. 012087. [Google Scholar] [CrossRef]
  2. Aarya, S.; Kumar, Y.; Chahota, R.K. Recent Advances in Materials, Parameters, Performance and Technology in Ammonia Sensors: A Review. J. Inorg. Organomet. Polym. Mater. 2020, 30, 269–290. [Google Scholar] [CrossRef]
  3. Zhang, Y.; Liu, T.; Hao, J.; Lin, L.; Zeng, W.; Peng, X.; Wang, Z. Enhancement of NH3 sensing performance in flower-like ZnO nanostructures and their growth mechanism. Appl. Surf. Sci. 2015, 357, 31–36. [Google Scholar] [CrossRef]
  4. Chua, W.H.; Yaacob, M.H.; Tan, C.Y.; Ong, B.H. Chemical bath deposition of h-MoO3 on optical fibre as room-temperature ammonia gas sensor. Ceram. Int. 2021, 47, 32828–32836. [Google Scholar] [CrossRef]
  5. Tai, H.; Duan, Z.; He, Z.; Li, X.; Xu, J.; Liu, B.; Jiang, Y. Enhanced ammonia response of Ti3C2Tx nanosheets supported by TiO2 nanoparticles at room temperature. Sens. Actuators B-Chem. 2019, 298, 126874. [Google Scholar] [CrossRef]
  6. Büyükköse, S. Highly selective and sensitive WO3 nanoflakes based ammonia sensor. Mater. Sci. Semicond. Process. 2020, 110, 104969. [Google Scholar] [CrossRef]
  7. Chou, P.C.; Chen, H.I.; Liu, I.P.; Chen, C.C.; Liou, J.K.; Hsu, K.S.; Liu, W.C. On the ammonia gas sensing performance of a RF sputtered NiO thin-film sensor. IEEE Sens. J. 2015, 15, 3711–3715. [Google Scholar] [CrossRef]
  8. Van Duy, L.; Nguyet, T.T.; Le, D.T.T.; Van Duy, N.; Nguyen, H.; Biasioli, F.; Tonezzer, M.; Di Natale, C.; Hoa, N.D. Room temperature ammonia gas sensor based on p-type-like V2O5 nanosheets towards food spoilage monitoring. Nanomaterials 2022, 13, 146. [Google Scholar] [CrossRef]
  9. Si, X.; Wei, Y.; Wang, C.; Li, L.; Ding, Y. A sensitive electrochemical sensor for ofloxacin based on a graphene/zinc oxide composite film. Anal. Methods 2018, 10, 1961–1967. [Google Scholar] [CrossRef]
  10. Dai, H.; Feng, N.; Li, J.; Zhang, J.; Li, W. Chemiresistive humidity sensor based on chitosan/zinc oxide/single-walled carbon nanotube composite film. Sens. Actuators B-Chem. 2019, 283, 786–792. [Google Scholar] [CrossRef]
  11. Young, S.J.; Liu, Y.H.; Shiblee, M.N.I.; Ahmed, K.; Lai, L.T.; Nagahara, L.; Thundat, T.; Yoshida, T.; Arya, S.; Furukawa, H. Flexible ultraviolet photodetectors based on one-dimensional gallium-doped zinc oxide nanostructures. ACS Appl. Electron. Mater. 2020, 2, 3522–3529. [Google Scholar] [CrossRef]
  12. Yu, S.; Chen, C.; Zhang, H.; Zhang, J.; Liu, J. Design of high sensitivity graphite carbon nitride/zinc oxide humidity sensor for breath detection. Sens. Actuators B-Chem. 2021, 332, 129536. [Google Scholar] [CrossRef]
  13. Chauhan, R.; Kumar, A.; Tripathi, R.; Kumar, A. Advancing of zinc oxide nanoparticles for cosmetic applications. In Handbook of Consumer Nanoproducts; Springer: Singapore, 2022; pp. 1–16. [Google Scholar] [CrossRef]
  14. Kanaparthi, S.; Singh, S.G. Chemiresistive sensor based on zinc oxide nanoflakes for CO2 detection. ACS Appl. Nano Mater. 2019, 2, 700–706. [Google Scholar] [CrossRef]
  15. Ganesh, R.S.; Durgadevi, E.; Navaneethan, M.; Patil, V.; Ponnusamy, S.; Muthamizhchelvan, C.; Kawasaki, S.; Patil, P.; Hayakawa, Y. Low temperature ammonia gas sensor based on Mn-doped ZnO nanoparticle decorated microspheres. J. Alloys Compd. 2017, 721, 182–190. [Google Scholar] [CrossRef]
  16. Adimule, V.; Revaigh, M.; Adarsha, H. Synthesis and fabrication of Y-doped ZnO nanoparticles and their application as a gas sensor for the detection of ammonia. J. Mater. Eng. Perform. 2020, 29, 4586–4596. [Google Scholar] [CrossRef]
  17. Zhao, Z.; Yang, H.; Wei, Z.; Xue, Y.; Sun, Y.; Zhang, W.; Li, P.; Gong, W.; Zhuiykov, S.; Hu, J. NH3 sensor based on 3D hierarchical flower-shaped n-ZnO/p-NiO heterostructures yields outstanding sensing capabilities at ppb level. Sensors 2020, 20, 4754. [Google Scholar] [CrossRef]
  18. Abdulsattar, M.A.; Jabbar, R.H.; Abed, H.H.; Abduljalil, H.M. The sensitivity of pristine and Pt doped ZnO nanoclusters to NH3 gas: A transition state theory study. Optik 2021, 242, 167158. [Google Scholar] [CrossRef]
  19. Ramesh, A.; Gavaskar, D.; Nagaraju, P.; Duvvuri, S.; Vanjari, S.R.K.; Subrahmanyam, C. Mn-doped ZnO microspheres prepared by solution combustion synthesis for room temperature NH3 sensing. Appl. Surf. Sci. Adv. 2022, 12, 100349. [Google Scholar] [CrossRef]
  20. Chao, J.; Chen, Y.; Xing, S.; Zhang, D.; Shen, W. Facile fabrication of ZnO/C nanoporous fibers and ZnO hollow spheres for high performance gas sensor. Sens. Actuators B-Chem. 2019, 298, 126927. [Google Scholar] [CrossRef]
  21. Sun, Q.; Wu, Z.; Zhang, M.; Qin, Z.; Cao, S.; Zhong, F.; Li, S.; Duan, H.M.; Zhang, J. Improved Gas-Sensitive Properties by a Heterojunction of Hollow Porous Carbon Microtubes Derived from Sycamore Fibers. ACS Sustain. Chem. Eng. 2021, 43, 9. [Google Scholar] [CrossRef]
  22. Hu, J.; Yin, C.; Cheng, M.; Wei, T.; Liu, Q.; Li, W.; Ling, Y.; Zhang, Y.; Liu, B. Facile synthesis of N-doped carbon sheets-ZnO hybrids for NO2 sensing at ppb level. J. Alloys Compd. 2022, 892, 162243. [Google Scholar] [CrossRef]
  23. Tu, H.; Zhu, M.; Duan, B.; Zhang, L. Recent progress in high-strength and robust regenerated cellulose materials. Adv. Mater. 2021, 33, 2000682. [Google Scholar] [CrossRef] [PubMed]
  24. Shao, H.; Wu, Y.-C.; Lin, Z.; Taberna, P.-L.; Simon, P. Nanoporous carbon for electrochemical capacitive energy storage. Chem. Soc. Rev. 2020, 49, 3005–3039. [Google Scholar] [CrossRef] [PubMed]
  25. Gan, L.; Geng, A.; Song, C.; Xu, L.; Wang, L.; Fang, X.; Han, S.; Cui, J.; Mei, C. Simultaneous removal of rhodamine B and Cr (VI) from water using cellulose carbon nanofiber incorporated with bismuth oxybromide: The effect of cellulose pyrolysis temperature on photocatalytic performance. Environ. Res. 2020, 185, 109414. [Google Scholar] [CrossRef] [PubMed]
  26. Dou, T.; Zang, L.; Zhang, Y.; Sun, Z.; Sun, L.; Wang, C. Hybrid g-C3N4 nanosheet/carbon paper membranes for the photocatalytic degradation of methylene blue. Mater. Lett. 2019, 244, 151–154. [Google Scholar] [CrossRef]
  27. Habibi, S.; Jamshidi, M. Sol–gel synthesis of carbon-doped TiO2 nanoparticles based on microcrystalline cellulose for efficient photocatalytic degradation of methylene blue under visible light. Environ. Technol. 2019, 41, 3233–3247. [Google Scholar] [CrossRef] [PubMed]
  28. Gan, L.; Geng, A.; Xu, L.; Chen, M.; Wang, L.; Liu, J.; Han, S.; Mei, C.; Zhong, Q. The fabrication of bio-renewable and recyclable cellulose based carbon microspheres incorporated by CoFe2O4 and the photocatalytic properties. J. Clean. Prod. 2018, 196, 594–603. [Google Scholar] [CrossRef]
  29. John, R.A.B.; Shruthi, J.; Reddy, M.R.; Kumar, A.R. Manganese doped nickel oxide as room temperature gas sensor for formaldehyde detection. Ceram. Int. 2022, 48, 17654–17667. [Google Scholar] [CrossRef]
  30. Chen, Q.; Ma, S.; Xu, X.; Jiao, H.; Zhang, G.; Liu, L.; Wang, P.; Gengzang, D.; Yao, H. Optimization ethanol detection performance manifested by gas sensor based on In2O3/ZnS rough microspheres. Sens. Actuators B-Chem. 2018, 264, 263–278. [Google Scholar] [CrossRef]
  31. Mohan, S.; Vellakkat, M.; Aravind, A.; Reka, U. Hydrothermal synthesis and characterization of Zinc Oxide nanoparticles of various shapes under different reaction conditions. Nano Express 2020, 1, 030028. [Google Scholar] [CrossRef]
  32. Bagheri, F.; Haratizadeh, H. UV-activated CO2 sensor based on ZnO nanoparticles at low temperatures. Mater. Sci. Semicond. Process. 2022, 141, 106422. [Google Scholar] [CrossRef]
  33. Liu, Y.; Lu, Y.X.; Xu, Y.S.; Meng, Q.S.; Gao, J.C.; Sun, Y.G.; Hu, Y.S.; Chang, B.B.; Liu, C.T.; Cao, A.M. Pitch-derived soft carbon as stable anode material for potassium ion batteries. Adv. Mater. 2020, 32, 2000505. [Google Scholar] [CrossRef] [PubMed]
  34. Li, K.; Liu, Q.; Cheng, H.; Hu, M.; Zhang, S. Classification and carbon structural transformation from anthracite to natural coaly graphite by XRD, Raman spectroscopy, and HRTEM. Spectrochim. Acta A 2021, 249, 119286. [Google Scholar] [CrossRef] [PubMed]
  35. Dong, Y.; Zhu, X.; Pan, F.; Deng, B.; Liu, Z.; Zhang, X.; Huang, C.; Xiang, Z.; Lu, W. Mace-like carbon fiber/ZnO nanorod composite derived from Typha orientalis for lightweight and high-efficient electromagnetic wave absorber. Adv. Compos. Hybrid Mater. 2021, 4, 1002–1014. [Google Scholar] [CrossRef]
  36. Xu, H.; Wang, H.; Zhang, Y.; He, W.; Zhu, M.; Wang, B.; Yan, H. Hydrothermal synthesis of zinc oxide powders with controllable morphology. Ceram. Int. 2004, 30, 93–97. [Google Scholar] [CrossRef]
  37. Chang, X.; Li, K.; Qiao, X.; Xiong, Y.; Xia, F.; Xue, Q. ZIF-8 derived ZnO polyhedrons decorated with biomass derived nitrogen-doped porous carbon for enhanced acetone sensing. Sens. Actuators B Chem. 2021, 330, 129366. [Google Scholar] [CrossRef]
  38. Chen, J.; Lv, H.; Bai, X.; Liu, Z.; He, L.; Wang, J.; Zhang, Y.; Sun, B.; Kan, K.; Shi, K. Synthesis of hierarchically porous Co3O4/Biomass carbon composites derived from MOFs and their highly NO2 gas sensing performance. Microporous Mesoporous Mater. 2021, 321, 111108. [Google Scholar] [CrossRef]
  39. Qin, Z.; Wu, Z.; Sun, Q.; Sun, J.; Zhang, M.; Shaymurat, T.; Lv, C.; Duan, H. Biomimetic gas sensor derived from disposable bamboo chopsticks for highly sensitive and selective detection of NH3. Chem. Eng. J. 2023, 462, 142203. [Google Scholar] [CrossRef]
  40. Nada, A.A.; Orimolade, B.O.; El-Maghrabi, H.H.; Koiki, B.A.; Rivallin, M.; Bekheet, M.F.; Viter, R.; Damberga, D.; Lesage, G.; Iatsunskyi, I. Photoelectrocatalysis of paracetamol on Pd–ZnO/N-doped carbon nanofibers electrode. Appl. Mater. Today 2021, 24, 101129. [Google Scholar] [CrossRef]
  41. de Sousa e Silva, R.L.; Franco, A., Jr. Raman spectroscopy study of structural disorder degree of ZnO ceramics. Mater. Sci. Semicond. Process. 2020, 119, 105227. [Google Scholar] [CrossRef]
  42. Hussain, M.Z.; Pawar, G.S.; Huang, Z.; Tahir, A.A.; Fischer, R.A.; Zhu, Y.; Xia, Y. Porous ZnO/Carbon nanocomposites derived from metal organic frameworks for highly efficient photocatalytic applications: A correlational study. Carbon 2019, 146, 348–363. [Google Scholar] [CrossRef]
  43. Hu, C.; Hu, X.; Li, R.; Xing, Y. MOF derived ZnO/C nanocomposite with enhanced adsorption capacity and photocatalytic performance under sunlight. J. Hazard. Mater. 2020, 385, 121599. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, H.; Pan, Q.; Cai, W.; Shi, X.; Yang, D.-P.; Lin, H.; Qiu, E. C-doped ZnO Nanocomposites Molecularly Imprinted Photoelectrochemical Sensor for Ultrasensitive and Selective Detection of Oxytetracycline in Milk. Food Chem. 2023, 426, 136535. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, C.; Duan, Z.; Zhang, B.; Zhao, Y.; Yuan, Z.; Zhang, Y.; Wu, Y.; Jiang, Y.; Tai, H. Local Gaussian process regression with small sample data for temperature and humidity compensation of polyaniline-cerium dioxide NH3 sensor. Sens. Actuators B Chem. 2023, 378, 133113. [Google Scholar] [CrossRef]
  46. Qin, Z.; Zeng, D.; Zhang, J.; Wu, C.; Wen, Y.; Shan, B.; Xie, C. Effect of layer number on recovery rate of WS2 nanosheets for ammonia detection at room temperature. Appl. Surf. Sci. 2017, 414, 244–250. [Google Scholar] [CrossRef]
  47. Kanaparthi, S.; Singh, S.G. Highly sensitive and ultra-fast responsive ammonia gas sensor based on 2D ZnO nanoflakes. Mater. Sci. Energy Technol. 2020, 3, 91–96. [Google Scholar] [CrossRef]
  48. Tai, H.; Yuan, Z.; Zheng, W.; Ye, Z.; Liu, C.; Du, X. ZnO Nanoparticles/Reduced Graphene Oxide Bilayer Thin Films for Improved NH3-Sensing Performances at Room Temperature. Nanoscale Res. Lett. 2016, 11, 130. [Google Scholar] [CrossRef] [PubMed]
  49. Fu, Y.; Wang, T.; Wang, X.; Li, X.; Zhao, Y.; Li, F.; Zhao, G.; Xu, X. Investigation of pn sensing transition and related highly sensitive NH3 gas sensing behavior of SnPx/rGO composites. Chem. Eng. J. 2023, 471, 144499. [Google Scholar] [CrossRef]
  50. Li, Q.; Hou, Y.; Wang, J.; Liu, Y.; Xiang, N.; Huang, Z. Superiority of raw biomass and potassium hydroxide in preparation of ultrahigh nitrogen doping of carbon for NH3-SCR reaction. ACS Sustain. Chem. Eng. 2020, 8, 11308–11316. [Google Scholar] [CrossRef]
  51. Wang, J.; Yan, Z.; Liu, L.; Zhang, Y.; Zhang, Z.; Wang, X. Low-temperature SCR of NO with NH3 over activated semi-coke composite-supported rare earth oxides. Appl. Surf. Sci. 2014, 309, 1–10. [Google Scholar] [CrossRef]
  52. Liu, J.; Zhu, B.; Zhang, L.; Fan, J.; Yu, J. 0D/2D CdS/ZnO composite with nn heterojunction for efficient detection of triethylamine. J. Colloid Interface Sci. 2021, 600, 898–909. [Google Scholar] [CrossRef]
  53. Qin, S.; Tang, P.; Feng, Y.; Li, D. Novel ultrathin mesoporous ZnO-SnO2 nn heterojunction nanosheets with high sensitivity to ethanol. Sens. Actuators B Chem. 2020, 309, 127801. [Google Scholar] [CrossRef]
  54. Tian, X.; Cui, X.; Xiao, Y.; Chen, T.; Xiao, X.; Wang, Y. Pt/MoS2/Polyaniline Nanocomposite as a Highly Effective Room Temperature Flexible Gas Sensor for Ammonia Detection. ACS Appl. Mater. Interfaces 2023, 15, 9604–9617. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 13 03151 g001

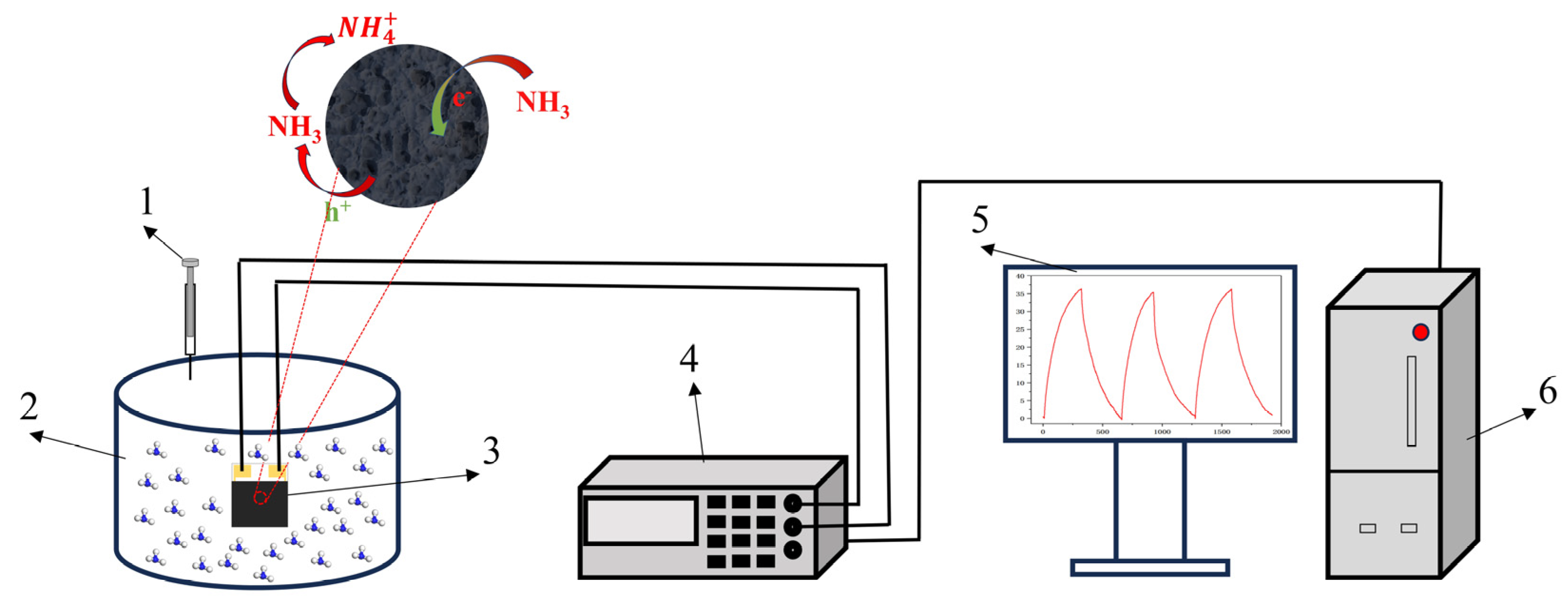

Figure 1. Schematic diagram of gas detection. (1) Syringe, (2) reaction chamber, (3) interdigital electrode, (4) Victor 8145C TRMS digit multimeter, (5) display screen, and (6) mainframe computer.
Figure 1. Schematic diagram of gas detection. (1) Syringe, (2) reaction chamber, (3) interdigital electrode, (4) Victor 8145C TRMS digit multimeter, (5) display screen, and (6) mainframe computer.
Nanomaterials 13 03151 g001
Nanomaterials 13 03151 g002

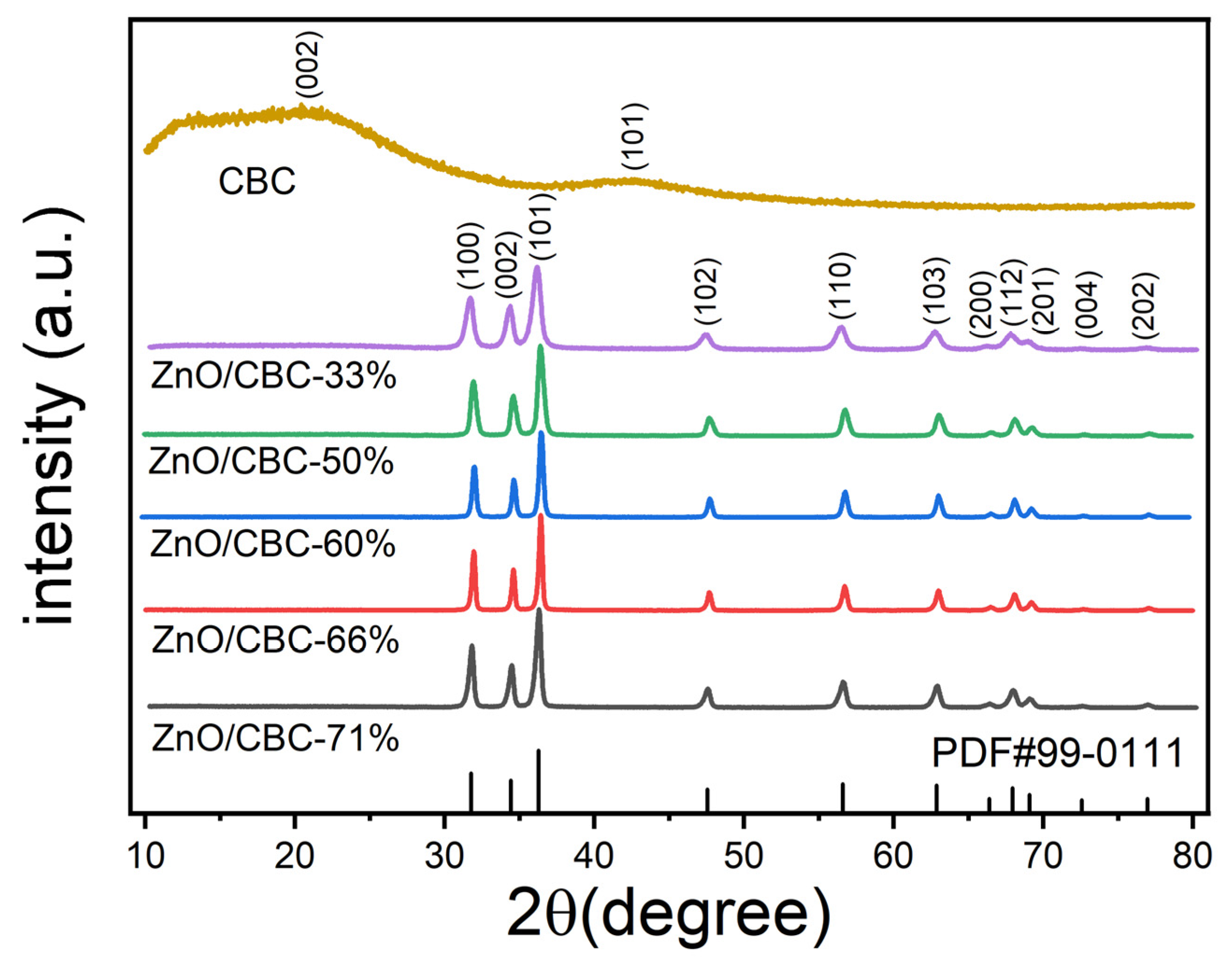

Figure 2. XRD patterns of ZnO/CBC with different ZnO contents and CBC.
Figure 2. XRD patterns of ZnO/CBC with different ZnO contents and CBC.
Nanomaterials 13 03151 g002
Nanomaterials 13 03151 g003
Figure 3. SEM image of (a) CBC, (b) ZnO/CBC-33%, (c) ZnO/CBC-50%, (d) ZnO/CBC-60%, (e) ZnO/CBC-66%, and (f) ZnO/CBC-71%.
Figure 3. SEM image of (a) CBC, (b) ZnO/CBC-33%, (c) ZnO/CBC-50%, (d) ZnO/CBC-60%, (e) ZnO/CBC-66%, and (f) ZnO/CBC-71%.
Nanomaterials 13 03151 g003
Nanomaterials 13 03151 g004
Figure 4. TEM images of ZnO/CBC-60%. (a) The (201) and (100) crystal faces of ZnO, (b) The (101) and (002) crystal faces of graphite.
Figure 4. TEM images of ZnO/CBC-60%. (a) The (201) and (100) crystal faces of ZnO, (b) The (101) and (002) crystal faces of graphite.
Nanomaterials 13 03151 g004
Nanomaterials 13 03151 g005

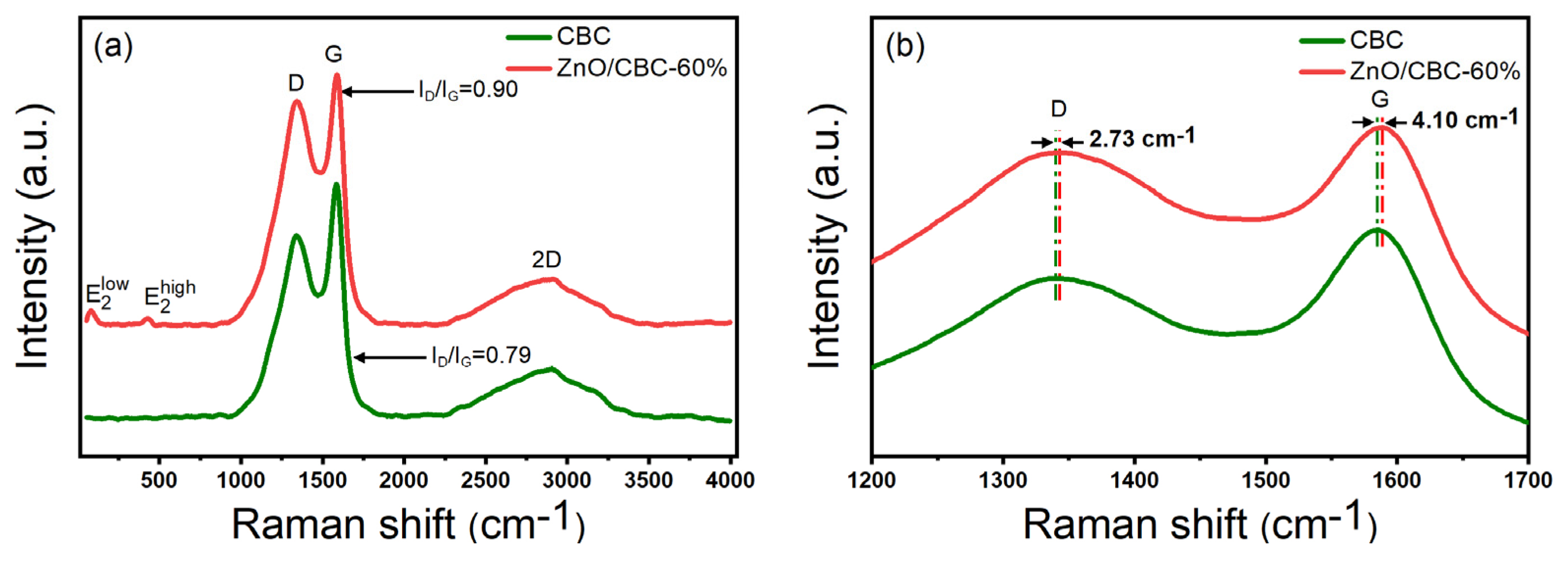

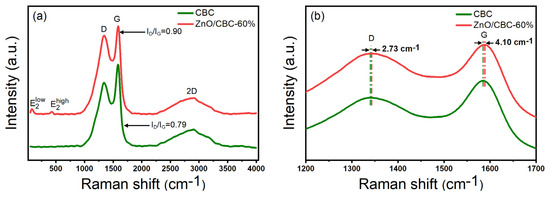

Figure 5. (a) Raman spectra of ZnO/CBC-60% and CBC; (b) partial enlarged Raman spectra of ZnO/CBC-60% and CBC.
Figure 5. (a) Raman spectra of ZnO/CBC-60% and CBC; (b) partial enlarged Raman spectra of ZnO/CBC-60% and CBC.
Nanomaterials 13 03151 g005
Nanomaterials 13 03151 g006

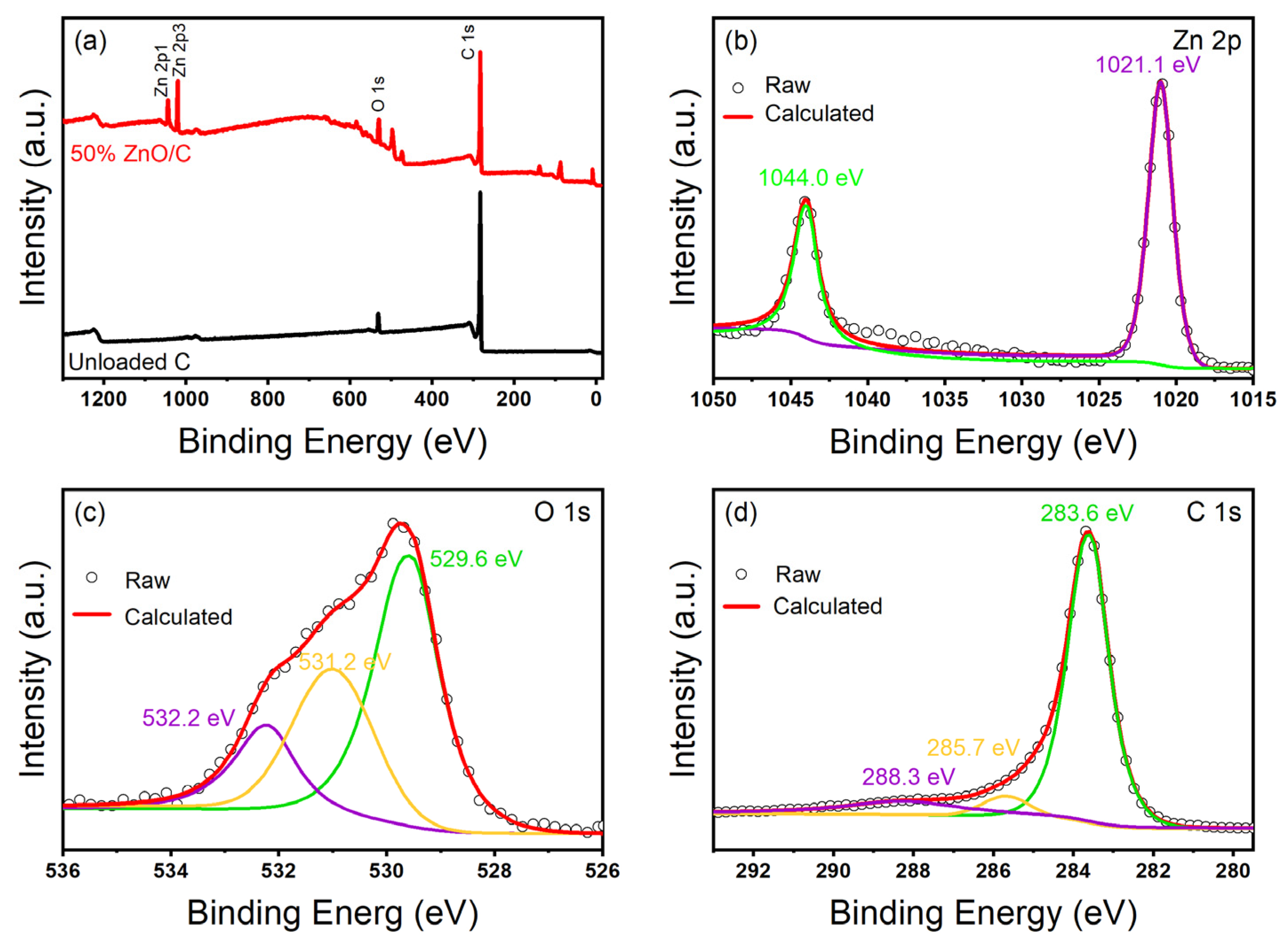

Figure 6. XPS patterns of ZnO/C-60% and CBC. (a) Full spectrum of sample, (b) Zn 2p XPS spectra of ZnO/CBC-60%, (c) C 1s XPS spectra of ZnO/CBC-60%, and (d) O 1s XPS spectra of ZnO/CBC-60%.
Figure 6. XPS patterns of ZnO/C-60% and CBC. (a) Full spectrum of sample, (b) Zn 2p XPS spectra of ZnO/CBC-60%, (c) C 1s XPS spectra of ZnO/CBC-60%, and (d) O 1s XPS spectra of ZnO/CBC-60%.
Nanomaterials 13 03151 g006
Nanomaterials 13 03151 g007

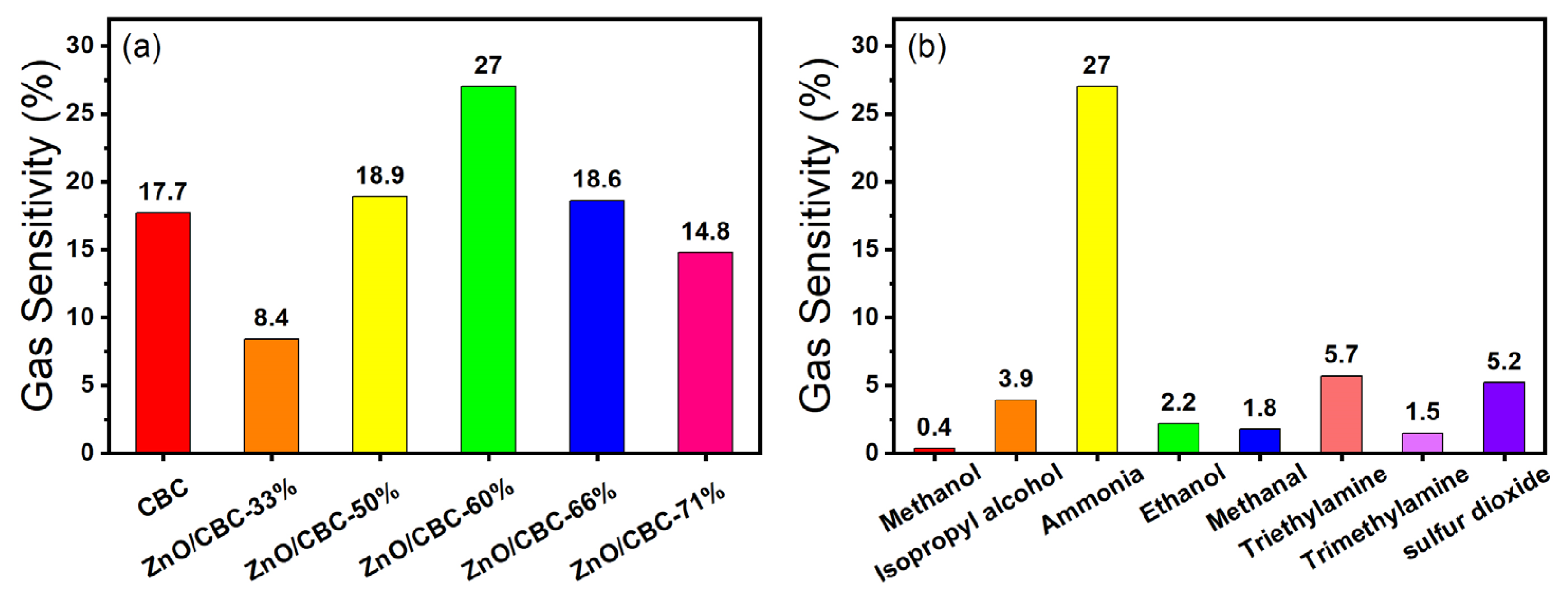

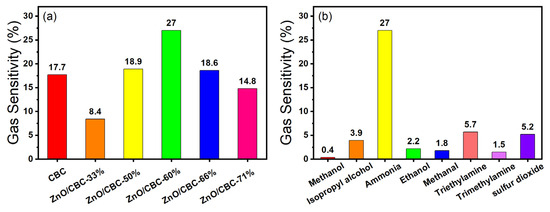

Figure 7. (a) Response of different amounts of zinc oxide and CBC to ammonia at 200 ppm concentration; (b) selectivity of ZnO/CBC-60% for ammonia.
Figure 7. (a) Response of different amounts of zinc oxide and CBC to ammonia at 200 ppm concentration; (b) selectivity of ZnO/CBC-60% for ammonia.
Nanomaterials 13 03151 g007
Nanomaterials 13 03151 g008

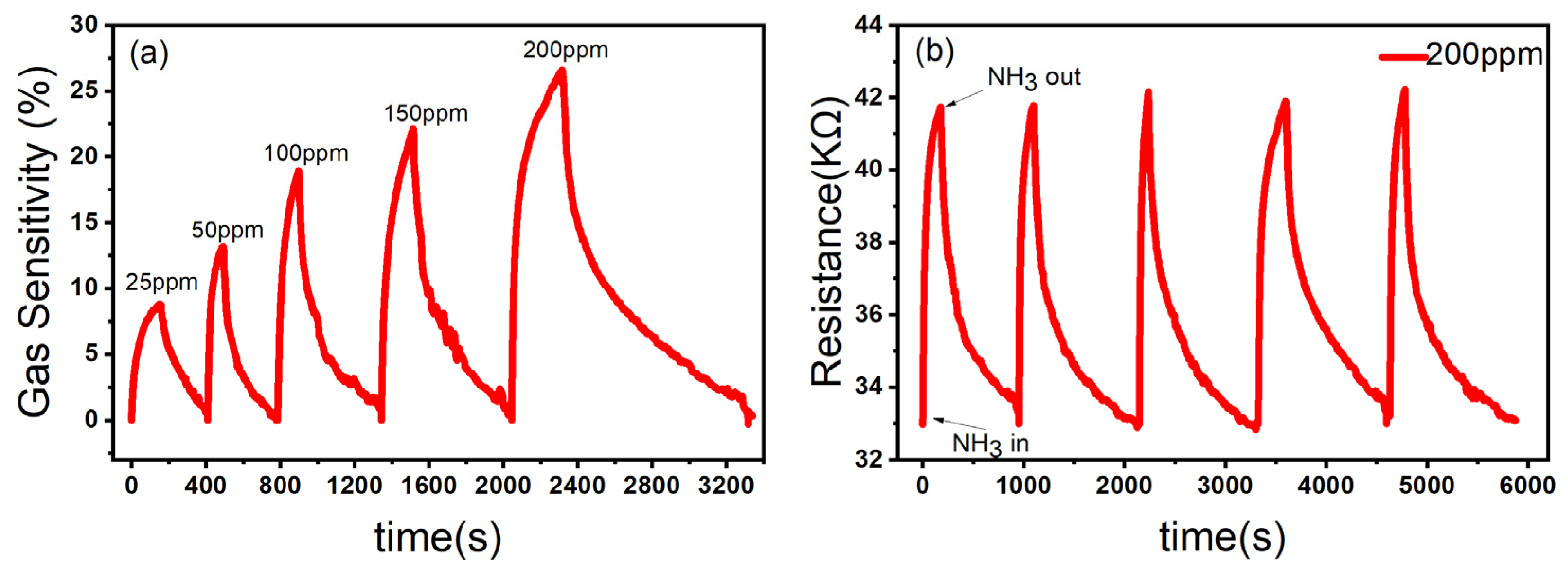

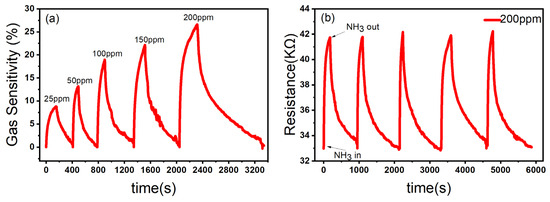

Figure 8. (a) Response of ZnO/CBC-60% to ammonia with concentration of 25–200 ppm; (b) repeatability evaluation of ZnO/CBC-60% for 200 ppm ammonia at RT.
Figure 8. (a) Response of ZnO/CBC-60% to ammonia with concentration of 25–200 ppm; (b) repeatability evaluation of ZnO/CBC-60% for 200 ppm ammonia at RT.
Nanomaterials 13 03151 g008
Nanomaterials 13 03151 g009

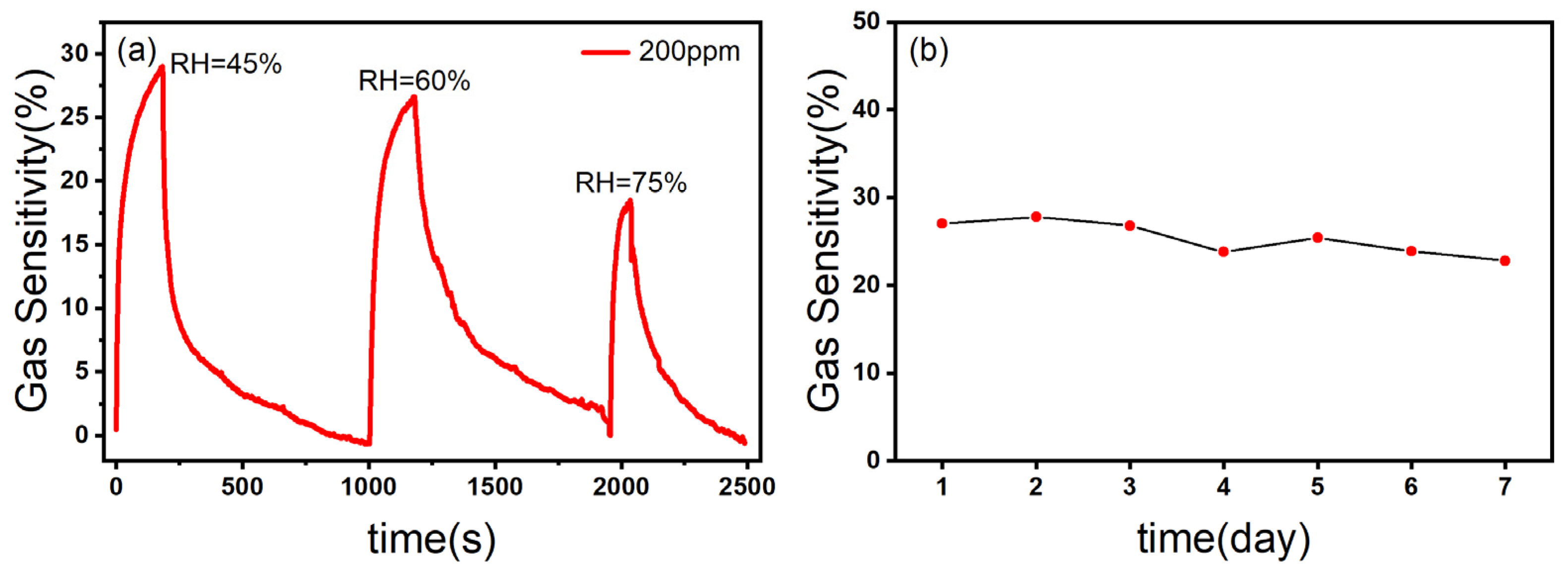

Figure 9. (a) The response curves of ZnO/CBC-60% towards 200 ppm ammonia at different RHs; (b) stability test of ZnO/CBC-60% for 200 ppm ammonia within one week at RT.
Figure 9. (a) The response curves of ZnO/CBC-60% towards 200 ppm ammonia at different RHs; (b) stability test of ZnO/CBC-60% for 200 ppm ammonia within one week at RT.
Nanomaterials 13 03151 g009
Nanomaterials 13 03151 g010

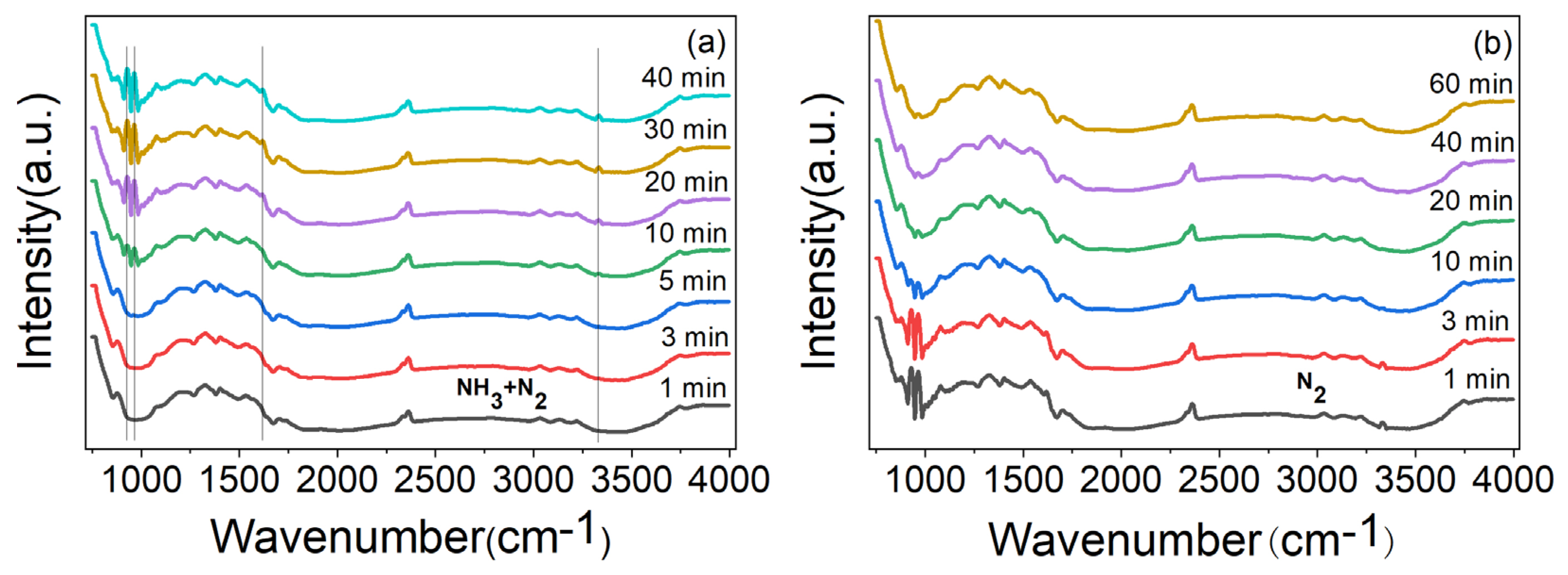

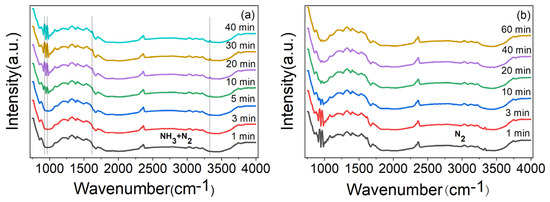

Figure 10. (a) In situ DRIFT spectroscopy of ZnO/CBC-60% by passing NH3 + N2 mixture gases at RT for 40 min and (b) purged by N2 at RT.
Figure 10. (a) In situ DRIFT spectroscopy of ZnO/CBC-60% by passing NH3 + N2 mixture gases at RT for 40 min and (b) purged by N2 at RT.
Nanomaterials 13 03151 g010
Nanomaterials 13 03151 g011

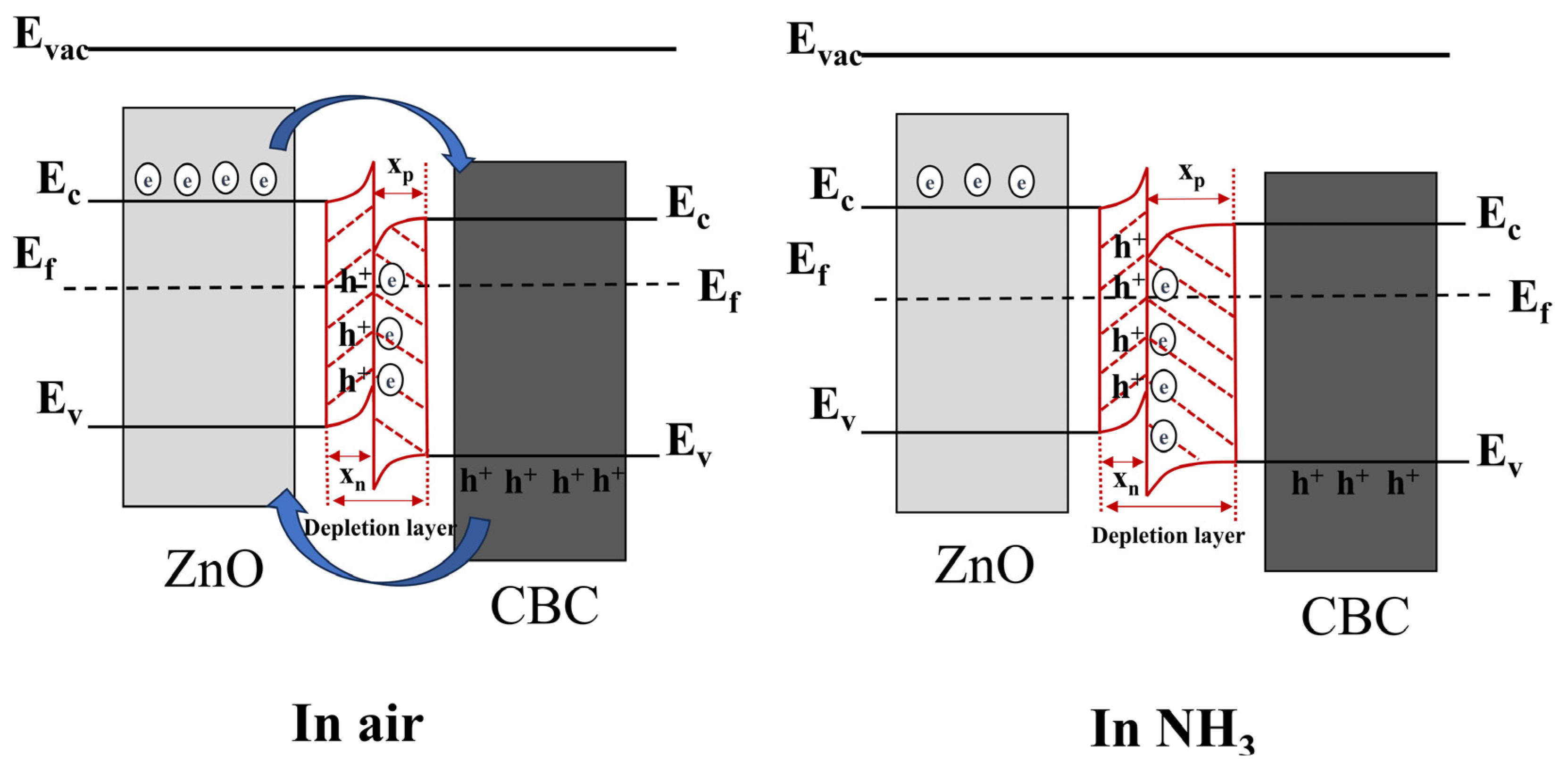

Figure 11. The energy band structure diagram of n-type ZnO/p-type CBC hetero-contact. The diffusion process of free electrons and holes is represented by blue arrows. The formation of heterojunctions is represented by red lines.
Figure 11. The energy band structure diagram of n-type ZnO/p-type CBC hetero-contact. The diffusion process of free electrons and holes is represented by blue arrows. The formation of heterojunctions is represented by red lines.
Nanomaterials 13 03151 g011
Table 1. Comparison of the sensing performance of various gas sensors toward NH3.
Table 1. Comparison of the sensing performance of various gas sensors toward NH3.
MaterialConc.Res. aRes./Rec. Time (s)Temp. (°C)Ref.
TiO2/Ti3C2Tx10 ppm3.1%33/277RT[5]
WS2250 ppm2.5%200/412RT[46]
ZnO3 ppm44%15/14250[47]
ZnO/rGO10 ppm1.2%78/84RT[48]
Mn-ZnO20 ppm7%4/10150[15]
Y-doped ZnO150 ppm66%58/87250[16]
ZnO/CBC25 ppm9.2%154/254RTThis work
a Response defined as (Rgas − Rair)/Rair × 100%.
