Article

Competitive Coordination-Oriented Monodispersed Cobalt Sites on a N-Rich Porous Carbon Microsphere Catalyst for High-Performance Zn−Air Batteries

by
Mengxia Shen
1,2,*,†,
Hao Yang
1,†,
Qingqing Liu
1,†,
Qianyu Wang
1,
Jun Liu
1,
Jiale Qi
1,
Xinyu Xu
1,
Jiahua Zhu
2,
Lilong Zhang
2 and
Yonghao Ni
3,4,*
1
College of Bioresources Chemical and Materials Engineering, Key Laboratory of Auxiliary Chemistry and Technology for Chemical Industry, Ministry of Education, Shaanxi Collaborative Innovation Center of Industrial Auxiliary Chemistry and Technology, Shaanxi University of Science and Technology, Xi’an 710021, China
2
State Key Laboratory of Material-Oriented Chemical Engineering, College of Chemical Engineering, Nanjing Tech University, Nanjing 211816, China
3
Department of Chemical Engineering, University of New Brunswick, Fredericton, NB E3B 5A3, Canada
4
Department of Chemical and Biomedical Engineering, University of Maine, Orono, ME 04469, USA
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2023, 13(8), 1330; https://doi.org/10.3390/nano13081330
Submission received: 14 March 2023 / Revised: 5 April 2023 / Accepted: 6 April 2023 / Published: 10 April 2023
(This article belongs to the Special Issue Nanomaterials and Nanotechnology for Energy Conversion and Storage)
Browse Figures
Review Reports Versions Notes

Abstract

:
Metal/nitrogen-doped carbon single-atom catalysts (M−N−C SACs) show excellent catalytic performance with a maximum atom utilization and customizable tunable electronic structure. However, precisely modulating the M−Nx coordination in M−N−C SACs remains a grand challenge. Here, we used a N-rich nucleobase coordination self-assembly strategy to precisely regulate the dispersion of metal atoms by controlling the metal ratio. Meanwhile, the elimination of Zn during pyrolysis produced porous carbon microspheres with a specific surface area of up to 1151 m2 g−1, allowing maximum exposure of Co−N4 sites and facilitating charge transport in the oxygen reduction reaction (ORR) process. Thereby, the monodispersed cobalt sites (Co−N4) in N-rich (18.49 at%) porous carbon microspheres (CoSA/N−PCMS) displayed excellent ORR activity under alkaline conditions. Simultaneously, the Zn−air battery (ZAB) assembled with CoSA/N−PCMS outperformed Pt/C+RuO2-based ZABs in terms of power density and capacity, proving that they have good prospects for practical application.

Graphical Abstract

1. Introduction

Developing efficient oxygen reduction reaction (ORR) electrocatalysts is the leading research direction for electrochemical energy devices, including fuel cells and metal-air batteries [1,2,3,4,5]. Currently, platinum-based materials have been widely used as ORR catalysts, but their instability and prohibitive cost inevitably hinder large-scale applications [6,7,8]. Metal/nitrogen-doped carbon (M−N−C) catalysts have attracted increasing interest as a promising substitute for noble-metal-based catalysts, ascribed to their advanced catalytic performance, facile synthesis and low cost [9,10,11,12]. However, M−N−C catalysts are affected by the aggregation of active components during intense pyrolysis, resulting in poor utilization of the M−Nx sites [13,14].
M−N−C single-atom catalysts (M−N−C SACs) have been proposed to substantially advance the number of available M−Nx sites and realize the maximum atomic utilization [15,16,17,18,19]. Simultaneously, achieving a rational catalyst design at the atomic scale can additionally boost the intrinsic activity of M−Nx by modulating its electronic configuration [20]. In most cases, M−N−C SACs are usually prepared by pyrolysis of metal salts, carbon supports and precursors comprising nitrogeN−Containing small molecules [21,22]. To avoid the uncontrolled formation of metal crystals confined in the carbon substrate, post-treatment with highly corrosive acids (e.g., nitric acid and hydrochloric acid) under extremely rigorous conditions is required [23]. However, slight changes in the manipulation strategy may gravely disrupt the electronic structure and coordination of the M−Nx sites, which is also undesirable for large-scale production [24].
The well-defined metal-organic frameworks (MOFs) and other supramolecular coordination composites can potentially be used as desirable precursors for SACs by altering the metal nodes and organic ligands [25,26]. For example, by regulating the molar ratio of Zn and Co in ZIF-8, the competitive interaction of the Zn ions with the N atoms in the framework effectively widens the spatial separation between the two Co atoms to prevent their aggregation, while the sublimation of Zn above 907 °C contributes to the porous structure [27,28,29,30]. Nevertheless, the ligand (2-methylimidazole) of ZIF-8 contains a limited nitrogen content, usually leading to insufficient generation of M−Nx sites. Therefore, incorporating additional nitrogen-rich sources (melamine, urea, ammonia, etc.) into the synthetic approach has been widely reported, but is considered a relatively cumbersome solution, which probably leads to buried M−Nx sites in the SACs [31,32,33].
In this study, adenine−Zn/Co supramolecular coordination microspheres (Ad−Zn/Co SCMS) were successfully prepared by a competitive coordination strategy. Adenine, as a nitrogen-rich (51.8 wt%) ligand, provides a large amount of reaction sites for metal ions. The creation of monodispersed cobalt sites (Co−N4) on N-rich porous carbon microspheres (CoSA/N−PCMS) after pyrolysis was ensured by rationally adjusting the Zn/Co−N coordination and Zn/Co ratio in the Ad−Zn/Co SCMS precursor. Meanwhile, the elimination of Zn during pyrolysis produced porous carbon microspheres with a specific surface area up to 1151 m2 g−1, allowing maximum exposure of Co−N4 sites and facilitating charge transport for the ORR process. The ultra-high N doping (18.49 at%) promoted the efficient utilization of Co single atoms, which could significantly improve the activity of ORR [34,35,36,37,38]. The onset potential (Eonset) and half-wave (E1/2) potential of CoSA/N−PCMS under alkaline conditions are 0.99 V and 0.87 V, respectively. Furthermore, CoSA/N−PCMS as a cathode material for Zn-air batteries (ZAB) exxhibits high opeN−Circuit voltage, power density, specific capacity, and charge/discharge cycle stability.

2. Experimental Section

2.1. Chemicals

Adenine was received from Sigma-Aldrich (Darmstadt, Germany). Pt/C (20 wt%) and RuO2 were purchased from Alfa Aesar (Shanghai, China). N, N-dimethylformamide (DMF), Co(NO3)2·6H2O, and Zn(NO3)2·6H2O were obtained from Macklin (Shanghai, China). Nafion solution (5%) was obtained from Macklin.

2.2. Preparation of Ad−Zn/Co SCMS Precursor and CoSA/N−PCMS Catalysts

Adenine (1.08 g) was dissolved in 400 mL DMF at 140 °C. Zn(NO3)2·6H2O (3.996 mmol) and Co(NO3)2·6H2O (0.004 mmol) were added to the adenine solution, which was stirred continuously for 4 h. After the reaction, Ad−Zn/Co SCMS was collected by centrifugation and then dried in an oven. CoSA/N−PCMS was obtained by directly calcining Ad−Zn/Co SCMS in a tube furnace at 1000 °C for 2 h under an Ar atmosphere (ramping rate of 5 °C min−1).
For comparison, the preparation method of Ad−Zn SCMS and Ad−Co SCMS is similar to that of Ad−Zn/Co SCMS, with the exception that only 0.4 mmol of Co(NO3)2·6H2O or Zn(NO3)2·6H2O needs to be added. The calcined products of Ad−Co SCMS and Ad−Zn SCMS are denoted as Co/N−PCMS and N−PCMS, respectively.

2.3. Characterization

Scanning electron microscopy (SEM, SU8100, HITACHI, Tokyo, Japan) and transmission electron microscopy (TEM, FEI Tecnai G2 F20 S-TWIN, FEI, Hillsboro, OR, USA) were applied to observe the morphology of the samples. The images of annular bright-field scanning transmission electron microscopy (ABF-STEM) and aberratioN−Corrected high-angle dark-field scanning transmission electron microscopy (HAADF-STEM) of CoSA/N−PCMS were collected on a JEM-GRAND ARM300F (JEOL, Tokyo, Japan). X−ray diffraction (XRD) spectroscopy of samples was performed on a Bruker D8 Advance A25 diffractometer (Bruker, Karlsruhe, Germany). The surface valence state and elemental composition of the catalyst were obtained by XPS (AXIS Supra, Kratos, Manchester, UK). The Brunauer-Emmett-Teller (BET) specific surface area and pore size distribution were acquired on a gas analyzer ASAP 2460 (Micromeritics, Norcross, GA, USA). A Raman spectrometer (DXRxi, Thermo-Fisher, Waltham, MA, USA) was used to determine the extent of defects of the catalysts. X−ray absorption spectroscopy (XAS) of the catalysts was performed on the 1W1B beamline at BSRF (Beijing Synchrotron Radiation Facility, Beijing, China).

2.4. Electrochemical Measurements

ORR electrocatalytic tests were performed in a three-electrode system with platinum foil and Ag/AgCl as the counter and reference electrodes, respectively. All tests were performed on a CHI 760E electrochemical workstation. The catalyst sample (5 mg), Nafion (5%, 10 μL), and ethanol (490 μL) were mixed, then sonicated for more than 1 h to obtain a homogeneous ink. Then, 8 μL or 10 μL of ink was dipped onto the rotating disk electrode (RDE, geometric area ≈ 0.20 cm2) or rotating ring disk electrode (RRDE, geometric area ≈ 0.25 cm2) surface with a loading of 0.4 mg cm−2. Linear scanning voltammetry (LSV) and cyclic voltammetry (CV) were carried out in O2-saturated 0.1 M KOH solution at a scanning rate of 10 mV s−1. In addition, for the accelerated durability test (ADT), the RDE was subjected to potential cycling. Specifically, the electrode was scanned from −0.4 to 0 V at a rate of 100 mV s−1. CV and ORR curves were recorded at each set of 1000 (1 k) cycles.
The potential measured by Ag/AgCl can be converted to the potential of the reversible hydrogen electrode (RHE) by the following equation:
ERHE = EAg/AgCl + 0.059 pH + 0.197
The kinetic current density (Jk) and electron transfer number (n) were calculated from the Koutecky-Levich (K-L) equation:
1 J = 1 J k + 1 J d = 1 J k + 1 B ω 1 / 2
B = 0.2 n F C 0 D 2 / 3 ν − 1 / 6
in which ω is the electrode rotation rate, Jk is the kinetic current density, Jd is the diffusion-limiting current density, J is the measured current density, B is the inverse of the slope of K-L equation, F is the Faraday constant, C0 is the oxygen concentration in 0.1 M KOH solution, D is the diffusion coefficient of O2, and ν is the kinematic viscosity of the electrolyte.
The kinetic current was calculated using the following equation:
J k = J × J d J d − J
The hydrogen peroxide yield (H2O2%) and the number of electron transfers (n) were calculated using the following equations:
H 2 O 2 % = 200 × I r / N I d + I r / N
n = 4 × I d I d + I r / N
where Ir is the ring current, Id is the disk current, and N = 0.37 is the collection efficiency.

2.5. Fabrication and Measurements of Zn−Air Battery

In the Zn−air battery test, a polished Zn sheet (8 cm × 3.2 cm) was used as the anode, a carbon cloth coated with CoSA/N−PCMS or Pt/C+RuO2 (loading: 2 mg cm−2) was used as the cathode (air electrode), and the electrolyte consisted of a mixture of 6 M KOH/0.2 M zinc acetate. The battery was tested using a CHI 760E electrochemical workstation.

3. Results and Discussion

The synthetic route for CoSA/N−PCMS is illustrated in Figure 1a. As one of the nucleobases that is present in nucleic acids, adenine (N content up to 51.8 wt%) contains a lone pair of electrons at the nitrogen atom and strongly coordinates with 3D metals (Zn(II) and Co(II)), which triggers the self-assembly of adenine−Zn/Co supramolecular coordination microspheres (Ad−Zn/Co SCMS) [39,40]. By rationally adjusting the Zn/Co ratio, excess incorporated Zn ions occupy most of the coordination nodes in the Ad−Zn/Co building blocks, which guarantees the isolation of atomically dispersed Co sites in the pyrolyzed products. As reflected in the SEM image (Figure 1b), Ad−Zn/Co SCMS shows monodisperse micro-spherical features with an average diameter of about 1 μm. With the aid of an elemental mapping analysis (Figure 1c), both Co and Zn were determined to be uniformly distributed throughout the microspheres. As controls, Ad−Zn SCMS and Ad−Co SCMS were synthesized by employing Zn(II) or Co(II), respectively, as the sole metal source (Figure S1). The red shift in the UV-vis absorption peaks of Ad−Zn/Co, Ad−Zn, and Ad−Co SCMS with respect to adenine indicates the coordination between Ad and the metal ions (Figure S2a). From the FTIR spectra analyses (Figure S2b), the adenine molecule has the characteristic stretching and bending vibrations of an imidazole N at 1120 cm−1 and the stretching vibrations of an amine (-NH2) in the band range of 3300−3100 cm−1, which are noticeably attenuated in the assembled Ad−Zn/Co SCMS, Ad−Zn SCMS, and Ad−Co SCMS.
Furthermore, XAS was used to characterize the chemical states and local structure of Co and Zn in Ad−Zn/Co SCMS. From the X−ray absorption near-edge structure (XANES) spectra (Figure S3a,b), the near-edge absorption energy of Co or Zn moves towards the high-energy region, indicating that Co or Zn exists in an oxidized state. More structural information about Co and Zn can be obtained from the extended X−ray absorption fine structure (EXAFS). The Co K-edge Fourier transform (FT) EXAFS spectrum (Figure 1d) of Ad−Zn/Co SCMS exhibits similar Co−N coordination with a peak located at ~1.41Å. Meanwhile, the Zn K-edge FT-EXAFS spectrum (Figure 1e) of Ad−Zn/Co SCMS displays a main peak at ~1.56 Å, corresponding to the Zn−N scattering path [40,41,42,43]. Therefore, both Co and Zn coordinate with N on adenine, confirming the feasibility of achieving Co atomic dispersion by precisely regulating the metal ratio.
CoSA/N−PCMS exhibits regular microspheres with uniform distribution of C, N, and Co (Figure 2a and Figure S4). Benefitting from the use of N-rich adenine as the ligand, the nitrogen atom loading content in CoSA/N−PCMS was as high as 18.49 at% (Table S1). To further investigate the microstructure of the catalyst, high-resolution TEM (HRTEM) was used, and rough surface and edge defects on the CoSA/N−PCMS can be clearly seen in the image (Figure 2b). Meanwhile, the ring-like selected area electron diffraction (SAED, illustration of Figure 2b) pattern indicates that the CoSA/N− PCMS catalyst has no metallic Co. Furthermore, only amorphous carbon and lattice deformation were observed in the ABF-STEM image (Figure 2c), further confirming the absence of Co aggregation. In comparison, large, aggregated Co nanoparticles were found in the Co/N−PCMS without Zn addition (Figure S5), confirming that the precise modulation of metals in Ad−Zn/Co SCMS precursors is a decisive factor in achieving the dispersion of Co atoms. The crystal structures of the catalysts were further investigated by XRD. There are only broad typical diffraction peaks in the (101) and (002) planes of amorphous carbon in N−PCMS and CoSA/N−PCMS (Figure 2d), while Co/N−PCMS has distinct Co metal peaks (Figure S6) [41]. All of the above results confirm that the high dispersion of Co species was confined in CoSA/N−PCMS. Raman spectra (Figure 2e) were measured to characterize the carbon structure in the catalysts. Compared with N−PCMS and Co/N−PCMS, CoSA/N−PCMS has the largest ID/IG ratio, related to the promotion of defects by Co doping and Zn volatilization. Then, the porosity character of the CoSA/N−PCMS was investigated using N2 physisorption measurements (Figure 2f) [42]. The amount of absorbed N2 increases dramatically at relatively low pressures of 0−0.005, which can be ascribed to the generation of many micropores by volatilization of Zn during the pyrolysis process. CoSA/N−PCMS possesses a high specific surface area of 1151 m2 g−1, surpassing that of Co/N−PCMS (98 m2 g−1). According to the pore size distribution curves (Figure S7), CoSA/N−PCMS has an abundance of micropores [43]. The micropore-dominated structure and large specific surface area could not only host a high density of active sites but also provide sufficient channels to sufficiently boost the mass transport in electrocatalysis [44,45].
To further reveal the spatial location of Co atoms in CoSA/N−PCMS, HAADF-STEM was conducted. As shown in Figure 3a, the atomic bright spots are circled in yellow, confirming that the atoms of Co are dispersed in CoSA/N−PCMS [46]. Then, XPS was used to elucidate the chemical composition of CoSA/N−PCMS, in which Co, C, N, and O elements all exist (Figure S8). The N 1 s spectrum of CoSA/N−PCMS (Figure 3b) was assigned to pyridine nitrogen (398.4 eV), pyrrole nitrogen (399.5 eV), graphitic nitrogen (401.0 eV), and oxidized nitrogen (402.4 eV) with the Casaxps software analysis. The presence of pyrrole and pyridine nitrogens provides sufficient anchoring points for the single metal sites in the M−N−C catalyst, which also indicates the successful coordination of N−Co in the catalyst for facilitating the ORR performance [47,48,49,50,51]. The Co K-edge XANES spectra of different cobalt-containing samples are shown in Figure 3c. The Co near-edge absorption position of CoSA/N−PCMS is located between the Co foil and CoPc, indicating that the Co atoms are positively charged [52]. In contrast, the pre-edge peak of Co/N−PCMS is similar to that of Co foil, confirming the possible generation of metallic Co. As reflected in Figure 3d, a dominant peak at 2.18 Å attributed to Co−Co binding in Co/N−PCMS further confirms the existence of metallic Co. The FT-EXAFS curve (Figure 3d) for CoSA/N−PCMS only shows a major peak at 1.41 Å, originating from the Co−N configuration. Meanwhile, no obvious Co−Co peaks were found, indicating that Co is dispersed atomically in CoSA/N−PCMS [53]. These observations agree with the conclusions of XRD, SAED, and HAADF-STEM. The detailed quantitative parameters of CoSA/N−PCMS were obtained by EXAFS fitting (Figure S9 and Table S2), and the Co−N coordination number is 4, with a bond length of 1.89 Å. The above results indicate that Co atoms in CoSA/N−PCMS exist in the form of Co−N4 [53,54,55]. Nucleobase-engaged competitive coordination self-assembly is also applicable to other transition metals, such as Fe, indicating the universality of this approach (Figure S10). As a result, CoSA/N−PCMS with regular microspheres, atomically dispersed Co−N4 sites, a high content of N, and a porous structure was prepared by precise regulation. These features will assist in enhancing the performance of the ORR [56,57].
The cyclic voltammetry (CV) curves under alkaline conditions are shown in Figure 4a. All four samples showed significant ORR peaks, with CoSA/N−PCMS having the highest peak potential (0.90 V), surpassing Pt/C (0.84 V), N−PCMS (0.84 V), and Co/N−PCMS (0.80 V). The linear sweep voltammetry (LSV) curve of CoSA/N−PCMS (Figure 4b) exhibited the highest catalytic activity compared to Pt/C, N−PCMS, and Co/N−PCMS, owing to the remarkably high onset potential (Eonset = 0.99 V) and half-wave potential (E1/2 = 0.87 V). Table S3 summarizes the Eonset and E1/2 of the four samples [58]. Then, the Tafel slopes obtained from LSVs revealed that CoSA/N−PCMS (74 mV dec−1) was superior to Pt/C (81 mV dec−1), indicating excellent reaction kinetics. To further evaluate the ORR of CoSA/N−PCMS, Koutecky-Levich (K-L) curves (Figure S11) were obtained by performing RDE measurements at varied rotation speeds. The electron transfer number calculated from the K-L plots is about 3.92, indicating a four-electron oxygen reduction process [59]. As shown in Figure 4d, the hydrogen peroxide yield and electron transfer number of CoSA/N−PCMS are similar to those of Pt/C, which is comparable to the values calculated by the K-L equation. The accelerated durability test (ADT) and chronoamperometric response (i−t) were conducted to evaluate the durability of CoSA/N−PCMS [60]. The ADT results (Figure 4e,f) show that after 5000 consecutive cycles, the E1/2 of CoSA/N−PCMS has a negative shift of only 9 mV, significantly better than Pt/C (35 mV). After ADT testing, CoSA/N−PCMS was analyzed by XRD to investigate whether metal aggregation occurred. As shown in Figure S12, there were only two broad peaks attributed to carbon before and after the CoSA/N−PCMS test, indicating that no metal aggregation occurred. The chronoamperometric response (i−t) curves for CoSA/N−PCMS and Pt/C at 0.6 V are shown in Figure S13. The current density for CoSA/N−PCMS remains 91.7% for about 15 h, while the Pt/C catalyst only has 80.5% retention. In conclusion, the ORR performance of CoSA/N−PCMS in 0.1 M KOH exceeds that of Pt/C. CoSA/N−PCMS has a large amount of atomically dispersed Co−N4 active sites compared to N−PCMS, and possesses a considerably larger specific surface area and abundant micropores in contrast to Co/N−PCMS, thus exhibiting excellent ORR performance. Moreover, CoSA/N−PCMS also has superior catalytic activity compared to those of recently reported Co SACs with less N doping (Table S4).
To verify the viability of CoSA/N−PCMS in practical applications, a Zn−air battery (ZAB) was assembled (Figure 5a). CoSA/N−PCMS was used as the air cathode, polished zinc flakes were used as the anode, and 6 M KOH and 0.2 M zinc acetate were used as the electrolyte [61]. As displayed in Figure 5b, the CoSA/N−PCMS-assembled ZAB has a higher and more stable OCV of 1.47 V than the ZAB based on Pt/C + RuO2 (1.40 V). The ZAB with a CoSA/N−PCMS air cathode exhibits a maximum power density of 168.7 mW cm−2, which is better than the ZAB assembled with Pt/C+RuO2 (146.3 mW cm−2) (Figure 5c). Moreover, its discharge capacity of 796 mA h g−1 outperforms that of Pt/C+RuO2 (698 mA h g−1) at a current density of 10 mA cm−2 (Figure 5d). As shown in Figure 5e, static discharge tests were performed on ZABs assembled with CoSA/N−PCMS with the current density of 0−40 mA cm−2. The rate performance of ZAB under varied current densities all show very stable voltages, proving the excellent discharge rate performance of the CoSA/N−PCMS-based ZAB. In addition, constant-current charging and discharging were performed to further investigate the stability of the ZAB (Figure 5f). The initial discharge potential of the CoSA/N−PCMS ZAB was 1.17 V and the charging potential was 2.08 V, with a charge−discharge voltage gap of 0.91 V. After 90 h of cycling, the ZAB based on CoSA/N−PCMS maintained a negligible voltage gap change. However, the stability performance of the Pt/C+RuO2-based ZAB decreased sharply after 50 h. The above results demonstrate the viability of the practical application of CoSA/N−PCMS in ZABs.

4. Conclusions

In summary, highly active Co monoatomic catalysts with a high nitrogen content were successfully prepared by a N-rich nucleobase-engaged competitive coordination self-assembly strategy. The N originating from Ad−Zn/Co SCMS promotes the coordination of Co during pyrolysis. The large specific surface area, abundant micropores, and the wealth of atomically dispersed Co−N4 sites result in CoSA/N−PCMS exhibiting excellent ORR properties (Eonset = 0.99 V, E1/2 = 0.87 V). In particular, a ZAB based on CoSA/N−PCMS exhibits a maximum power density of 168.7 mW cm−2, an impressive specific capacity of 796 mA h g−1, and excellent cycling durability over 90 h. This work aims to regulate the coordination environment of metal atoms by using a nitrogen-rich molecule to improve the catalytic activity of the M−N−C SACs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13081330/s1, Figure S1: (a) SEM image of Ad−Zn SCMS. (b) SEM image of Ad−Co SCMS, Figure S2: (a) UV-vis absorption of Adenine, Ad−Co SCMS, Ad−Zn SCMS and Ad−Zn/Co SCMS. (b) FTIR spectra of Adenine, Ad−Co SCMS, Ad−Zn SCMS and Ad−Zn/Co SCMS, Figure S3: (a) Co K-edge XANES spectra of Co foil, CoPc and Ad−Zn/Co SCMS. (b) Zn K-edge XANES spectra of Zn foil and Ad−Zn/Co SCMS, Figure S4: SEM image of CoSA/N−PCMS, Figure S5: TEM image of Co/N−PCMS, Figure S6: XRD pattern of Co/N−PCMS, Figure S7: Pore size distribution curves of CoSA/N−PCMS and Co/N−PCMS, Figure S8: XPS full scan of CoSA/N−PCMS, Figure S9: Co K-edge EXAFS fitting analysis of CoSA/N−PCMS in R space, Figure S10: (a) TEM image of FeSA−N PCMS. (b) HAADF-STEM image of FeSA−N PCMS with partially atomically dispersed Fe atoms circled. Figure S11: (a) LSV curves at different rotating rates of CoSA/N−PCMS. (b) the Koutecky-Levich plots, Figure S12: XRD patterns of CoSA/N−PCMS before and after ADT testing, Figure S13: Chronoamperometry (i-t) measurement of CoSA/N−PCMS and Pt/C with a rotation rate of 1600 rpm in O2-saturated 0.1 M KOH, Figure S14: (a) CV curves of CoSA/N−PCMS, Co/N−PCMS, N−PCMS and Pt/C in O2-saturated 0.1 M HClO4 with a sweep rate of 10 mV s−1. (b) LSV curves of CoSA/N−PCMS, Co/N−PCMS, N−PCMS and Pt/C in O2-saturated 0.1 M HClO4 with a sweep rate of 10 mV s−1 and 1600 rpm, Figure S15: Chronoamperometry (i-t) measurement of CoSA/N−PCMS and Pt/C with a rotation rate of 1600 rpm in O2-saturated 0.1 M HClO4; Table S1: eZAF Smart Quant Results of CoSA/N−PCMS, Table S2: EXAFS fitting parameters at the Co K-edge (S02=0.76), Table S3: Summary of ORR activity of different catalysts in this work under alkaline condition, Table S4: CoSA/N−PCMS compared with recently reported Co SACs. References [34,62,63,64,65,66] are cited in Supplementary Materials.

Author Contributions

Conceptualization, funding acquisition and methodology, M.S.; writing—original draft preparation, formal analysis, H.Y.; writing—review and editing, formal analysis, Q.L.; investigation, validation, Q.W.; visualization, software, J.L.; project administration, J.Q.; software, X.X.; resources, J.Z.; resources, L.Z.; resources, supervision, Y.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (no. 22108164), the Natural Science Foundation of Shaanxi Province (no. 2021JQ-542), the Foundation of State Key Laboratory of Material-Oriented Chemical Engineering (no. KL21-03), the Open Foundation of Key Laboratory of Auxiliary Chemistry and Technology for Chemical Industry, Ministry of Education, Shaanxi University of Science and Technology (no. KFKT2021-13), and the Shaanxi Collaborative Innovation Center of Industrial Auxiliary Chemistry and Technology, Shaanxi University of Science and Technology (no. KFKT2021-13).

Data Availability Statement

Data will be made available on request.

Acknowledgments

The authors would like to acknowledge Yuyao Zhang from Shiyanjia Lab (www.shiyanjia.com, accessed on 18 September 2022.) for the XPS analyses, and Beijing Kemeibo Technology Service Co., LTD (http://www.bjkmb.cn, accessed on 24 December 2021.) for providing the XAS analysis.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Liang, L.H.; Jin, H.H.; Zhou, H.; Liu, B.S.; Hu, C.X.; Chen, D.; Wang, Z.; Hu, Z.Y.; Zhao, Y.F.; Li, H.W.; et al. Cobalt single atom site isolated Pt nanoparticles for efficient ORR and HER in acid media. Nano Energy 2021, 88, 106221. [Google Scholar] [CrossRef]
  2. Xiong, C.Y.; Yang, Q.; Dang, W.H.; Zhou, Q.S.; Jiang, X.; Sun, X.H.; Wang, Z.Q.; An, M.; Ni, Y.H. A multifunctional paper-based supercapacitor with excellent temperature adaptability, plasticity, tensile strength, self-healing, and high thermoelectric effects. J. Mater. Chem. A 2023, 11, 4769–4779. [Google Scholar] [CrossRef]
  3. Yan, X.; Jia, Y.; Yao, X. Defects on carbons for electrocatalytic oxygen reduction. Chem. Soc. Rev. 2018, 47, 7628–7658. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Hossen, M.M.; Hasan, M.S.; Sardar, M.R.I.; Haider, J.b.; Mottakin; Tammeveski, K.; Atanassov, P. State-of-the-art and developmental trends in platinum group metal-free cathode catalyst for anion exchange membrane fuel cell (AEMFC). Appl. Catal. B-Environ. 2023, 325, 121733. [Google Scholar] [CrossRef]
  5. Kumar, Y.; Mooste, M.; Tammeveski, K. Recent progress of transition metal-based bifunctional electrocatalysts for rechargeable zinc-air battery application. Curr. Opin. Electroche. 2023, 38, 101229. [Google Scholar] [CrossRef]
  6. Lv, X.H.; Xiao, Z.X.; Wang, H.Y.; Wang, X.L.; Shan, L.L.; Wang, F.L.; Wei, C.Y.; Tang, X.J.; Chen, Y.L. In situ construction of Co/N/C-based heterojunction on biomass-derived hierarchical porous carbon with stable active sites using a Co-N protective strategy for high-efficiency ORR, OER and HER trifunctional electrocatalysts. J. Energy Chem. 2021, 54, 626–638. [Google Scholar] [CrossRef]
  7. Hu, C.G.; Dai, Q.B.; Dai, L.M. Multifunctional carbon-based metal-free catalysts for advanced energy conversion and storage. Cell Rep. Phys. Sci. 2021, 2, 1801526. [Google Scholar] [CrossRef]
  8. Chen, Y.J.; Gao, R.; Ji, S.F.; Li, H.J.; Tang, K.; Jiang, P.; Hu, H.B.; Zhang, Z.D.; Hao, H.G.; Qu, Q.Y.; et al. Atomic-level modulation of electronic density at cobalt single-atom sites derived from metal-organic frameworks: Enhanced oxygen reduction performance. Angew. Chem. Int. Ed. 2021, 60, 3212–3221. [Google Scholar] [CrossRef]
  9. Xiong, C.Y.; Zhang, Y.K.; Ni, Y.H. Recent progress on development of electrolyte and aerogel electrodes applied in supercapacitors. J. Power. Sources 2023, 560, 232698. [Google Scholar] [CrossRef]
  10. Zhang, H.B.; Cheng, W.R.; Luan, D.Y.; Lou, X.W. Atomically dispersed reactive centers for electrocatalytic CO2 reduction and water splitting. Angew. Chem. Int. Ed. 2021, 60, 13177–13196. [Google Scholar] [CrossRef]
  11. Peng, W.; Yang, X.X.; Mao, L.C.; Jin, J.H.; Yang, S.L.; Zhang, J.J.; Li, G. ZIF-67-derived Co nanoparticles anchored in N doped hollow carbon nanofibers as bifunctional oxygen electrocatalysts. Chem. Eng. J. 2021, 407, 127157. [Google Scholar] [CrossRef]
  12. Sarapuu, A.; Kibena-Põldsepp, E.; Borghei, M.; Tammeveski, K. Electrocatalysis of oxygen reduction on heteroatom-doped nanocarbons and transition metal-nitrogen-carbon catalysts for alkaline membrane fuel cells. J. Mater. Chem. A 2018, 6, 776–804. [Google Scholar] [CrossRef]
  13. Miao, Z.; Wang, X.; Tsai, M.-C.; Jin, Q.; Liang, J.; Ma, F.; Wang, T.; Zheng, S.; Hwang, B.-J.; Huang, Y.; et al. Atomically dispersed Fe-Nx/C electrocatalyst boosts oxygen catalysis via a new metal-organic polymer supramolecule strategy. Adv. Energy Mater. 2018, 8, 1801226. [Google Scholar] [CrossRef]
  14. Iwase, K.; Nakanishi, S.; Miyayama, M.; Kamiya, K. Rational molecular design of electrocatalysts based on single-atom modified covalent organic frameworks for efficient oxygen reduction reaction. ACS Appl. Energy Mater. 2020, 3, 1644–1652. [Google Scholar] [CrossRef]
  15. Zhao, M.Q.; Liu, H.R.; Zhang, H.W.; Chen, W.; Sun, H.Q.; Wang, Z.H.; Zhang, B.; Song, L.; Yang, Y.; Ma, C.; et al. A pH-universal ORR catalyst with single-atom iron sites derived from a double-layer MOF for superior flexible quasi-solid-state rechargeable Zn-air batteries. Energy Environ. Sci. 2021, 14, 6455–6463. [Google Scholar] [CrossRef]
  16. Lilloja, J.; Mooste, M.; Kibena-Poldsepp, E.; Sarapuu, A.; Kikas, A.; Kisand, V.; Kaarik, M.; Kozlova, J.; Treshchalov, A.; Paiste, P.; et al. Cobalt-, iron- and nitrogeN-Containing ordered mesoporous carbon-based catalysts for anion-exchange membrane fuel cell cathode. Electrochim. Acta 2023, 439, 141676. [Google Scholar] [CrossRef]
  17. Akula, S.; Mooste, M.; Zulevi, B.; McKinney, S.; Kikas, A.; Piirsoo, H.M.; Rahn, M.; Tamm, A.; Kisand, V.; Serov, A.; et al. Mesoporous textured Fe-N-C electrocatalysts as highly efficient cathodes for proton exchange membrane fuel cells. J. Power. Sources 2022, 520, 230819. [Google Scholar] [CrossRef]
  18. Lilloja, J.; Mooste, M.; Kibena-Poldsepp, E.; Sarapuu, A.; Zulevi, B.; Kikas, A.; Piirsoo, H.M.; Tamm, A.; Kisand, V.; Holdcroft, S.; et al. Mesoporous iron-nitrogen co-doped carbon material as cathode catalyst for the anion exchange membrane fuel cell. J. Power Sources Adv. 2021, 8, 100052. [Google Scholar] [CrossRef]
  19. Muuli, K.; Lyu, X.; Mooste, M.; Käärik, M.; Zulevi, B.; Leis, J.; Yu, H.; Cullen, D.A.; Serov, A.; Tammeveski, K. Outstanding platinum group metal-free bifunctional catalysts for rechargeable zinc-air batteries. Electrochim. Acta 2023, 446, 142126. [Google Scholar] [CrossRef]
  20. Zhu, X.F.; Zhang, D.T.; Chen, C.J.; Zhang, Q.R.; Liu, R.S.; Xia, Z.H.; Dai, L.M.; Amal, R.; Lu, X.Y. Harnessing the interplay of Fe-Ni atom pairs embedded in nitrogen-doped carbon for bifunctional oxygen electrocatalysis. Nano Energy 2020, 71, 104597. [Google Scholar] [CrossRef]
  21. Xiong, C.Y.; Wang, T.X.; Zhao, Z.Y.; Ni, Y.H. Recent progress in the development of smart supercapacitors. Smartmat 2023, 4, e1158. [Google Scholar] [CrossRef]
  22. Zong, L.B.; Fan, K.C.; Wu, W.C.; Cui, L.X.; Zhang, L.L.; Johannessen, B.; Qi, D.C.; Yin, H.J.; Wang, Y.; Liu, P.R.; et al. Anchoring single copper atoms to microporous carbon spheres as high-performance electrocatalyst for oxygen reduction reaction. Adv. Funct. Mater. 2021, 31, 2104864. [Google Scholar] [CrossRef]
  23. Cheng, Q.; Yang, L.; Zou, L.; Zou, Z.; Chen, C.; Hu, Z.; Yang, H. Single cobalt atom and n codoped carbon nanofibers as highly durable electrocatalyst for oxygen reduction reaction. ACS Catal. 2017, 7, 6864–6871. [Google Scholar] [CrossRef]
  24. Liu, M.J.; Lee, J.Y.; Yang, T.C.; Zheng, F.Y.; Zhao, J.; Yang, C.M.; Lee, L.Y.S. Synergies of Fe single atoms and clusters on n-doped carbon electrocatalyst for pH-universal oxygen reduction. Small Methods 2021, 5, 2001165. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, X.P.; Han, X.K.; Wei, Y.Y.; Wang, X.X.; Zhang, N.; Bao, J.J.; He, G.H. Single-atom Co-N-C catalyst for efficient Hg-0 oxidation at low temperature. Chem. Eng. J. 2022, 428, 132660. [Google Scholar] [CrossRef]
  26. Na, J.; Zheng, D.H.; Kim, J.; Gao, M.Y.; Azhar, A.; Lin, J.J.; Yamauchi, Y. Material nanoarchitectonics of functional polymers and inorganic nanomaterials for smart supercapacitors. Small 2022, 18, 2102397. [Google Scholar] [CrossRef]
  27. Zhong, J.; Sun, M.; Xiang, S.; Fan, Y.; Waqas, M.; Huang, K.; Tang, Y.; Chen, W.; Yang, J. Sulfonated cobalt phthalocyanine-derived Co-N-S tridoped carbon nanotubes as platinum catalyst supports for highly efficient methanol electrooxidation. Appl. Surf. Sci. 2020, 511, 145519. [Google Scholar] [CrossRef]
  28. Hai, X.; Zhao, X.X.; Guo, N.; Yao, C.H.; Chen, C.; Liu, W.; Du, Y.H.; Yan, H.; Li, J.; Chen, Z.X.; et al. Engineering local and global structures of single Co atoms for a superior oxygen reduction reaction. ACS Catal. 2020, 10, 5862–5870. [Google Scholar] [CrossRef]
  29. Bayatsarmadi, B.; Zheng, Y.; Vasileff, A.; Qiao, S.Z. Recent advances in atomic metal doping of carbon-based nanomaterials for energy conversion. Small 2017, 13, 1700191. [Google Scholar] [CrossRef]
  30. Borghei, M.; Lehtonen, J.; Liu, L.; Rojas, O.J. Advanced biomass-derived electrocatalysts for the oxygen reduction reaction. Adv. Mater. 2018, 30, 1703691. [Google Scholar] [CrossRef]
  31. Zhang, W.M.; Yao, X.Y.; Zhou, S.N.; Li, X.W.; Li, L.; Yu, Z.; Gu, L. ZIF-8/ZIF-67-derived Co-N-x-embedded 1D porous carbon nanofibers with graphitic carbon-encased Co nanoparticles as an efficient bifunctional electrocatalyst. Small 2018, 14, 1800423. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, M.D.; Dai, Q.B.; Zheng, H.G.; Chen, M.D.; Dai, L.M. Novel MOF-derived Co@N-C bifunctional catalysts for highly efficient Zn-air batteries and water splitting. Adv. Mater. 2018, 30, 1705431. [Google Scholar] [CrossRef] [PubMed]
  33. Wei, L.H.; Wang, J.M.; Zhao, Z.; Yang, X.; Jiao, S.C.; Cao, F.; Tang, S.; Zhang, X.F.; Qin, G.W.; Liang, Q.H.; et al. Co/Co3O4 nanoparticles embedded into thin O-doped graphitic layer as bifunctional oxygen electrocatalysts for Zn-air batteries. Chem. Eng. J. 2022, 427, 130931. [Google Scholar] [CrossRef]
  34. Wang, L.J.; Xu, Z.X.; Peng, T.Y.; Liu, M.S.; Zhang, L.; Zhang, J.M. Bifunctional Single-Atom Cobalt Electrocatalysts with Dense Active Sites Prepared via a Silica Xerogel Strategy for Rechargeable Zinc-Air Batteries. Nanomaterials 2022, 12, 381. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, X.D.; Wang, N.; Shen, K.; Xie, Y.K.; Tan, Y.P.; Li, Y.W. MOF-Derived Isolated Fe Atoms Implanted in N -Doped 3D Hierarchical Carbon as an Efficient ORR Electrocatalyst in Both Alkaline and Acidic Media. ACS Appl. Mater. Interfaces 2019, 11, 25976–25985. [Google Scholar] [CrossRef]
  36. Eissa, A.A.; Kim, N.H.; Lee, J.H. Rational design of a highly mesoporous Fe-N-C/Fe3C/C-S-C nanohybrid with dense active sites for superb electrocatalysis of oxygen reduction. J. Mater. Chem. A 2020, 8, 23436–23454. [Google Scholar] [CrossRef]
  37. Jia, Y.; Xiong, X.; Wang, D.; Duan, X.; Sun, K.; Li, Y.; Zheng, L.; Lin, W.; Dong, M.; Zhang, G.; et al. Atomically Dispersed Fe-N(4) Modified with Precisely Located S for Highly Efficient Oxygen Reduction. Nano-Micro Lett. 2020, 12, 116. [Google Scholar] [CrossRef]
  38. Chen, Y.; Li, X.; Liao, W.; Qiu, L.; Yang, H.; Yao, L.; Deng, L. High efficiency nitrogen doping and single atom cobalt anchoring via supermolecules for oxygen reduction electrocatalysis. J. Mater. Chem. A 2021, 9, 3398–3408. [Google Scholar] [CrossRef]
  39. Shen, M.X.; Zheng, L.R.; He, W.H.; Ruan, C.P.; Jiang, C.H.; Ai, K.L.; Lu, L.H. High-performance oxygen reduction electrocatalysts derived from uniform cobalt-adenine assemblies. Nano Energy 2015, 17, 120–130. [Google Scholar] [CrossRef]
  40. Tan, H.L.; Liu, B.X.; Chen, Y. Lanthanide coordination polymer nanoparticles for sensing of Mercury(II) by photoinduced electron transfer. ACS Nano 2012, 6, 10505–10511. [Google Scholar] [CrossRef]
  41. Zhou, L.; Zhou, P.; Zhang, Y.L.; Liu, B.Y.; Gao, P.; Guo, S.J. 3D star-like atypical hybrid MOF derived single-atom catalyst boosts oxygen reduction catalysis. J. Energy Chem. 2021, 55, 355–360. [Google Scholar] [CrossRef]
  42. Shi, C.W.; Liu, Y.H.; Qi, R.Y.; Li, J.T.; Zhu, J.X.; Yu, R.H.; Li, S.D.; Hong, X.F.; Wu, J.S.; Xi, S.B.; et al. Hierarchical N-doped carbon spheres anchored with cobalt nanocrystals and single atoms for oxygen reduction reaction. Nano Energy 2021, 87, 106153. [Google Scholar] [CrossRef]
  43. Zhang, L.; Liu, T.; Chen, N.; Jia, Y.; Cai, R.; Theis, W.; Yang, X.; Xia, Y.; Yang, D.; Yao, X. Scalable and controllable synthesis of atomic metal electrocatalysts assisted by an egg-box in alginate. J. Mater. Chem. A 2018, 6, 18417–18425. [Google Scholar] [CrossRef] [Green Version]
  44. Wan, X.J.; Wu, R.; Deng, J.H.; Nie, Y.; Chen, S.G.; Ding, W.; Huang, X.; Wei, Z.D. A metal-organic framework derived 3D hierarchical Co/N-doped carbon nanotube/nanoparticle composite as an active electrocatalyst for oxygen reduction in alkaline electrolyte. J. Mater. Chem. A 2018, 6, 3386–3390. [Google Scholar] [CrossRef]
  45. Niu, Q.J.; Chen, B.L.; Guo, J.X.; Nie, J.; Guo, X.D.; Ma, G.P. Flexible, porous, and metal-heteroatom-doped carbon nanofibers as efficient ORR electrocatalysts for Zn-air battery. Nano-Micro Lett. 2019, 11, 8. [Google Scholar] [CrossRef] [Green Version]
  46. Song, P.; Luo, M.; Liu, X.; Xing, W.; Xu, W.; Jiang, Z.; Gu, L. Zn single atom catalyst for highly efficient oxygen reduction reaction. Adv. Funct. Mater. 2017, 27, 1700802. [Google Scholar] [CrossRef]
  47. Zhong, L.; Jiang, C.; Zheng, M.; Peng, X.; Liu, T.; Xi, S.; Chi, X.; Zhang, Q.; Gu, L.; Zhang, S.; et al. Wood carbon based single-atom catalyst for rechargeable Zn-air batteries. ACS Energy Lett. 2021, 6, 3624–3633. [Google Scholar] [CrossRef]
  48. Liu, Q.; Shen, M.; Duan, C.; Zhang, L.; Zhu, J.; Ni, Y. 3D hierarchical porous carbon aerogel electrocatalysts based on cellulose/aramid nanofibers and application in high-performance Zn-air batteries. ACS Appl. Energy Mater. 2022, 5, 15146–15154. [Google Scholar] [CrossRef]
  49. Zheng, L.; Yu, S.; Lu, X.; Fan, W.; Chi, B.; Ye, Y.; Shi, X.; Zeng, J.; Li, X.; Liao, S. Two-dimensional bimetallic Zn/Fe-metal-organic framework (MOF)-derived porous carbon nanosheets with a high density of single/paired Fe atoms as high-performance oxygen reduction catalysts. ACS Appl. Mater. Interfaces 2020, 12, 13878–13887. [Google Scholar] [CrossRef]
  50. Gao, K.; Shen, M.; Duan, C.; Xiong, C.; Dai, L.; Zhao, W.; Lu, W.; Ding, S.; Ni, Y. Co-N-doped directional multichannel PAN/CA-based electrospun carbon nanofibers as high-efficiency bifunctional oxygen electrocatalysts for Zn-air batteries. ACS Sustain. Chem. Eng. 2021, 9, 17068–17077. [Google Scholar] [CrossRef]
  51. Shen, M.; Liu, J.; Duan, C.; Xiong, C.; Ding, S.; Tong, S.; Ni, Y. Nanofibrillated cellulose-derived nanofibrous Co@N-C as oxygen reduction reaction catalysts in Zn-air batteries. ACS Appl. Nano Mater. 2022, 5, 6438–6446. [Google Scholar] [CrossRef]
  52. Quilez-Bermejo, J.; Garcia-Dali, S.; Daouli, A.; Zitolo, A.; Canevesi, R.L.S.; Emo, M.; Izquierdo, M.T.; Badawi, M.; Celzard, A.; Fierro, V. Advanced Design of Metal Nanoclusters and Single Atoms Embedded in C1N1-Derived Carbon Materials for ORR, HER, and OER. Adv. Funct. Mater. 2023, 2300405. [Google Scholar] [CrossRef]
  53. Jiang, M.; Wang, F.; Yang, F.; He, H.; Yang, J.; Zhang, W.; Luo, J.Y.; Zhang, J.; Fu, C.P. Rationalization on high-loading iron and cobalt dual metal single atoms and mechanistic insight into the oxygen reduction reaction. Nano Energy 2022, 93, 106793. [Google Scholar] [CrossRef]
  54. Bisen, O.Y.; Nandan, R.; Yadav, A.K.; Pavithra, B.; Nanda, K.K. In situ self-organization of uniformly dispersed Co-N-C centers at moderate temperature without a sacrificial subsidiary metal. Green Chem. 2021, 23, 3115–3126. [Google Scholar] [CrossRef]
  55. Zhang, J.Q.; Zhao, Y.F.; Chen, C.; Huang, Y.C.; Dong, C.L.; Chen, C.J.; Liu, R.S.; Wang, C.Y.; Yan, K.; Li, Y.D.; et al. Tuning the coordination environment in single-atom catalysts to achieve highly efficient oxygen reduction reactions. J. Am. Chem. Soc. 2019, 141, 20118–20126. [Google Scholar] [CrossRef] [PubMed]
  56. Zhang, M.; Li, H.; Chen, J.; Ma, F.X.; Zhen, L.; Wen, Z.; Xu, C.Y. Transition Metal (Co, Ni, Fe, Cu) Single-Atom Catalysts Anchored on 3D Nitrogen-Doped Porous Carbon Nanosheets as Efficient Oxygen Reduction Electrocatalysts for Zn-Air Battery. Small 2022, 18, e2202476. [Google Scholar] [CrossRef]
  57. Li, N.; Li, L.; Xia, J.W.; Arif, M.; Zhou, S.L.; Yin, F.X.; He, G.Y.; Chen, H.Q. Single-atom Co-N 4 catalytic sites anchored on N-doped ordered mesoporous carbon for excellent Zn-air batteries. J. Mater. Sci. Technol. 2023, 139, 224–231. [Google Scholar] [CrossRef]
  58. Bouleau, L.; Perez-Rodriguez, S.; Quilez-Bermejo, J.; Izquierdo, M.T.; Xu, F.; Fierro, V.; Celzard, A. Best practices for ORR performance evaluation of metal-free porous carbon electrocatalysts. Carbon 2022, 189, 349–361. [Google Scholar] [CrossRef]
  59. Shen, M.; Gao, K.; Xiang, F.; Wang, B.; Dai, L.; Zheng, L.; Baker, F.; Duan, C.; Zhang, Y.; Sun, S.; et al. Nanocellulose-assisted synthesis of ultrafine Co nanoparticles-loaded bimodal micro-mesoporous N-rich carbon as bifunctional oxygen electrode for Zn-air batteries. J. Power Sources 2020, 450, 227640. [Google Scholar] [CrossRef]
  60. Shen, M.; Qi, J.; Gao, K.; Duan, C.; Liu, J.; Liu, Q.; Yang, H.; Ni, Y. Chemical vapor deposition strategy for inserting atomic FeN4 sites into 3D porous honeycomb carbon aerogels as oxygen reduction reaction catalysts in high-performance Zn-air batteries. Chem. Eng. J. 2023, 464, 142719. [Google Scholar] [CrossRef]
  61. Shen, M.; Hu, W.; Duan, C.; Li, J.; Ding, S.; Zhang, L.; Zhu, J.; Ni, Y. Cellulose nanofibers carbon aerogel based single-cobalt-atom catalyst for high-efficiency oxygen reduction and zinc-air battery. J. Colloid Interface Sci. 2023, 629, 778–785. [Google Scholar] [CrossRef] [PubMed]
  62. Shen, T.; Huang, X.X.; Xi, S.B.; Li, W.; Sun, S.N.; Hou, Y.L. The ORR electron transfer kinetics control via Co-N-x and graphitic N sites in cobalt single atom catalysts in alkaline and acidic media. J. Energy Chem. 2022, 68, 184–194. [Google Scholar] [CrossRef]
  63. Dilpazir, S.; He, H.; Li, Z.; Wang, M.; Lu, P.; Liu, R.; Xie, Z.; Gao, D.; Zhang, G. Cobalt Single Atoms Immobilized N-Doped Carbon Nanotubes for Enhanced Bifunctional Catalysis toward Oxygen Reduction and Oxygen Evolution Reactions. ACS Appl. Energy Mater. 2018, 1, 3283–3291. [Google Scholar] [CrossRef]
  64. Wang, X.X.; Cullen, D.A.; Pan, Y.T.; Hwang, S.; Wang, M.; Feng, Z.; Wang, J.; Engelhard, M.H.; Zhang, H.; He, Y.; et al. NitrogeN-Coordinated Single Cobalt Atom Catalysts for Oxygen Reduction in Proton Exchange Membrane Fuel Cells. Adv Mater 2018, 30, 1706758. [Google Scholar] [CrossRef] [PubMed]
  65. Chao, S.; Bai, Z.; Cui, Q.; Yan, H.; Wang, K.; Yang, L. Hollowed-out octahedral Co/N-Codoped carbon as a highly efficient noN-Precious metal catalyst for oxygen reduction reaction. Carbon 2015, 82, 77–86. [Google Scholar] [CrossRef]
  66. Zhu, C.; Shi, Q.; Xu, B.Z.; Fu, S.; Wan, G.; Yang, C.; Yao, S.; Song, J.; Zhou, H.; Du, D.; et al. Hierarchically Porous M-N-C (M = Co and Fe) Single-Atom Electrocatalysts with Robust MNx Active Moieties Enable Enhanced ORR Performance. Adv. Energy Mater. 2018, 8, 1801956. [Google Scholar] [CrossRef]
Nanomaterials 13 01330 g001 550

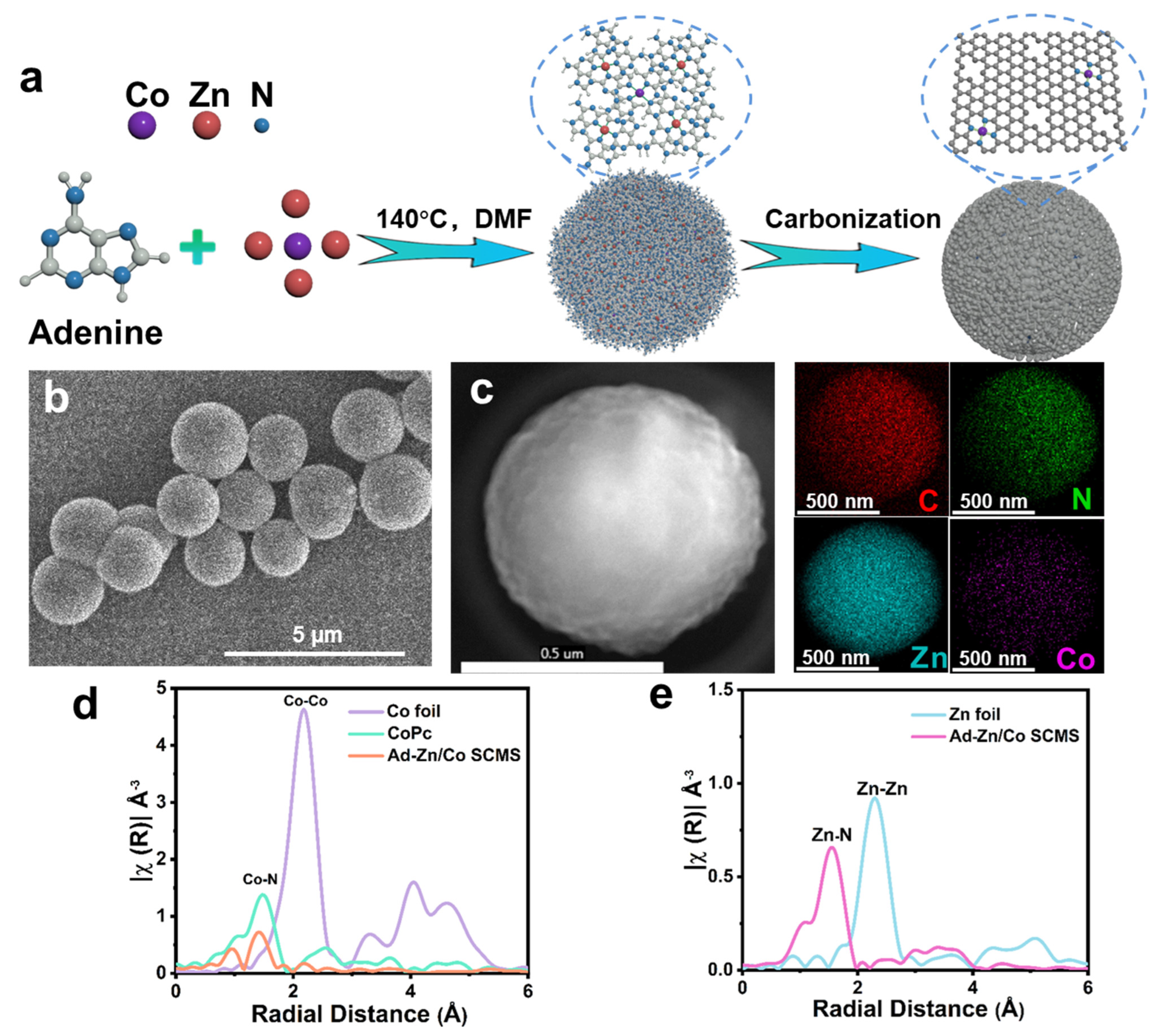

Figure 1. (a) Schematic diagram for synthesizing Ad−Zn/Co SCMS and CoSA/N−PCMS. (b) SEM image of Ad−Zn/Co SCMS. (c) Elemental mapping images of Ad−Zn/Co SCMS. (d) Co K-edge and (e) Zn K-edge FT-EXAFS spectra of Ad−Zn/Co SCMS and reference samples.
Figure 1. (a) Schematic diagram for synthesizing Ad−Zn/Co SCMS and CoSA/N−PCMS. (b) SEM image of Ad−Zn/Co SCMS. (c) Elemental mapping images of Ad−Zn/Co SCMS. (d) Co K-edge and (e) Zn K-edge FT-EXAFS spectra of Ad−Zn/Co SCMS and reference samples.
Nanomaterials 13 01330 g001
Nanomaterials 13 01330 g002 550

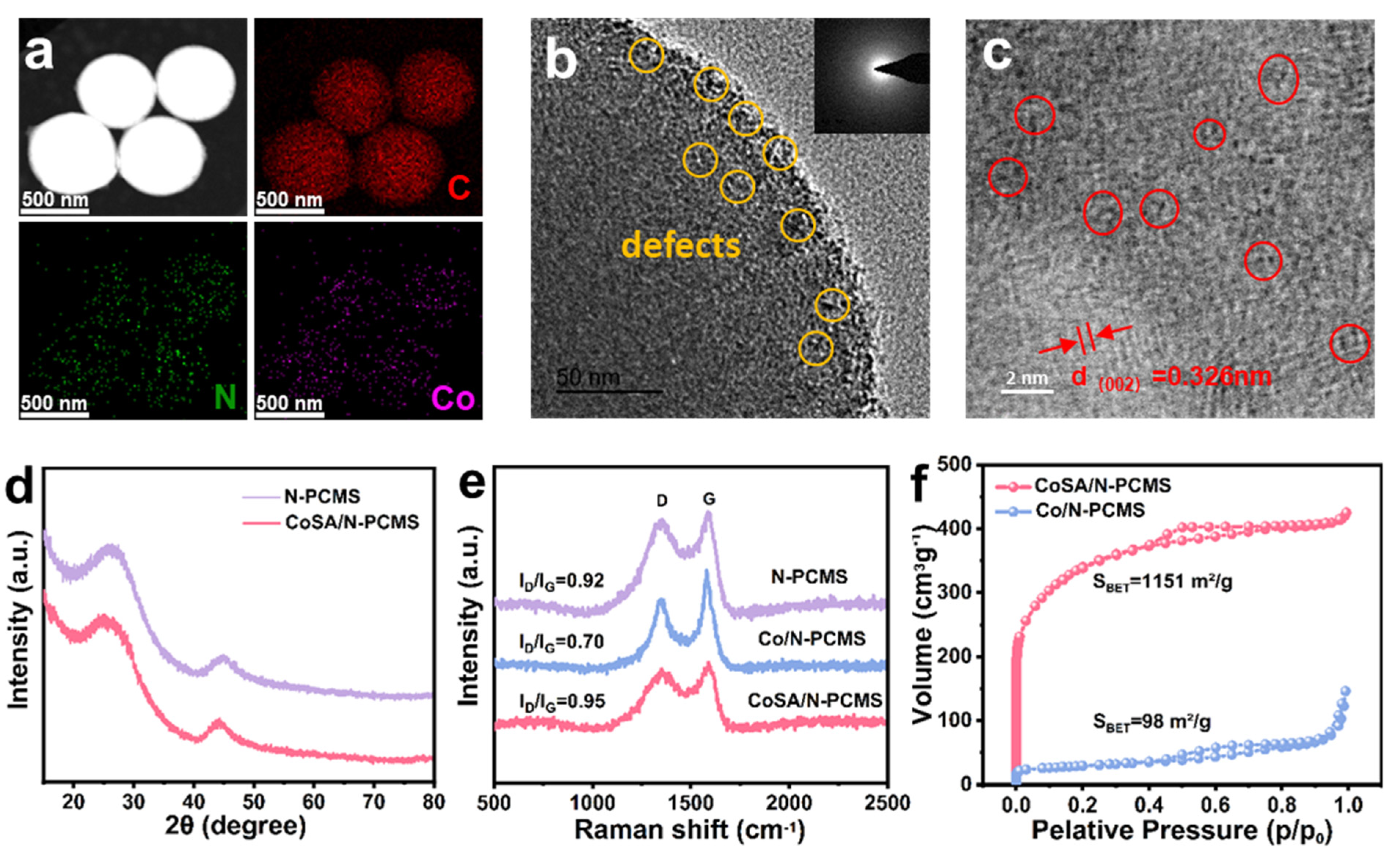

Figure 2. (a) Elemental mapping images of CoSA/N−PCMS. (b) HRTEM image of CoSA/N−PCMS (inset: corresponding SAED pattern). (c) ABF-STEM image of CoSA/N−PCMS. (d) XRD patterns and (e) Raman spectra of CoSA/N−PCMS and reference samples. (f) N2 adsorption-desorption isotherms of CoSA/N−PCMS and Co/N−PCMS.
Figure 2. (a) Elemental mapping images of CoSA/N−PCMS. (b) HRTEM image of CoSA/N−PCMS (inset: corresponding SAED pattern). (c) ABF-STEM image of CoSA/N−PCMS. (d) XRD patterns and (e) Raman spectra of CoSA/N−PCMS and reference samples. (f) N2 adsorption-desorption isotherms of CoSA/N−PCMS and Co/N−PCMS.
Nanomaterials 13 01330 g002
Nanomaterials 13 01330 g003 550
Figure 3. (a) HAADF-STEM image of CoSA/N−PCMS with atomically dispersed Co atoms partially circled. (b) N 1 s XPS high-resolution spectrum of CoSA/N−PCMS. (c) XANES spectra and (d) FT-EXAFS spectra of CoSA/N−PCMS and reference samples at the Co K-edge.
Figure 3. (a) HAADF-STEM image of CoSA/N−PCMS with atomically dispersed Co atoms partially circled. (b) N 1 s XPS high-resolution spectrum of CoSA/N−PCMS. (c) XANES spectra and (d) FT-EXAFS spectra of CoSA/N−PCMS and reference samples at the Co K-edge.
Nanomaterials 13 01330 g003
Nanomaterials 13 01330 g004 550
Figure 4. (a) CV curves and (b) LSV curves of CoSA/N−PCMS, N−PCMS, Co/N−PCMS, and Pt/C. (c) Tafel plots and (d) electron transfer number (n) and H2O2 yield of CoSA/N−PCMS and Pt/C. ADT test of (e) CoSA/N−PCMS and (f) Pt/C for 5000 cycles.
Figure 4. (a) CV curves and (b) LSV curves of CoSA/N−PCMS, N−PCMS, Co/N−PCMS, and Pt/C. (c) Tafel plots and (d) electron transfer number (n) and H2O2 yield of CoSA/N−PCMS and Pt/C. ADT test of (e) CoSA/N−PCMS and (f) Pt/C for 5000 cycles.
Nanomaterials 13 01330 g004
Nanomaterials 13 01330 g005 550

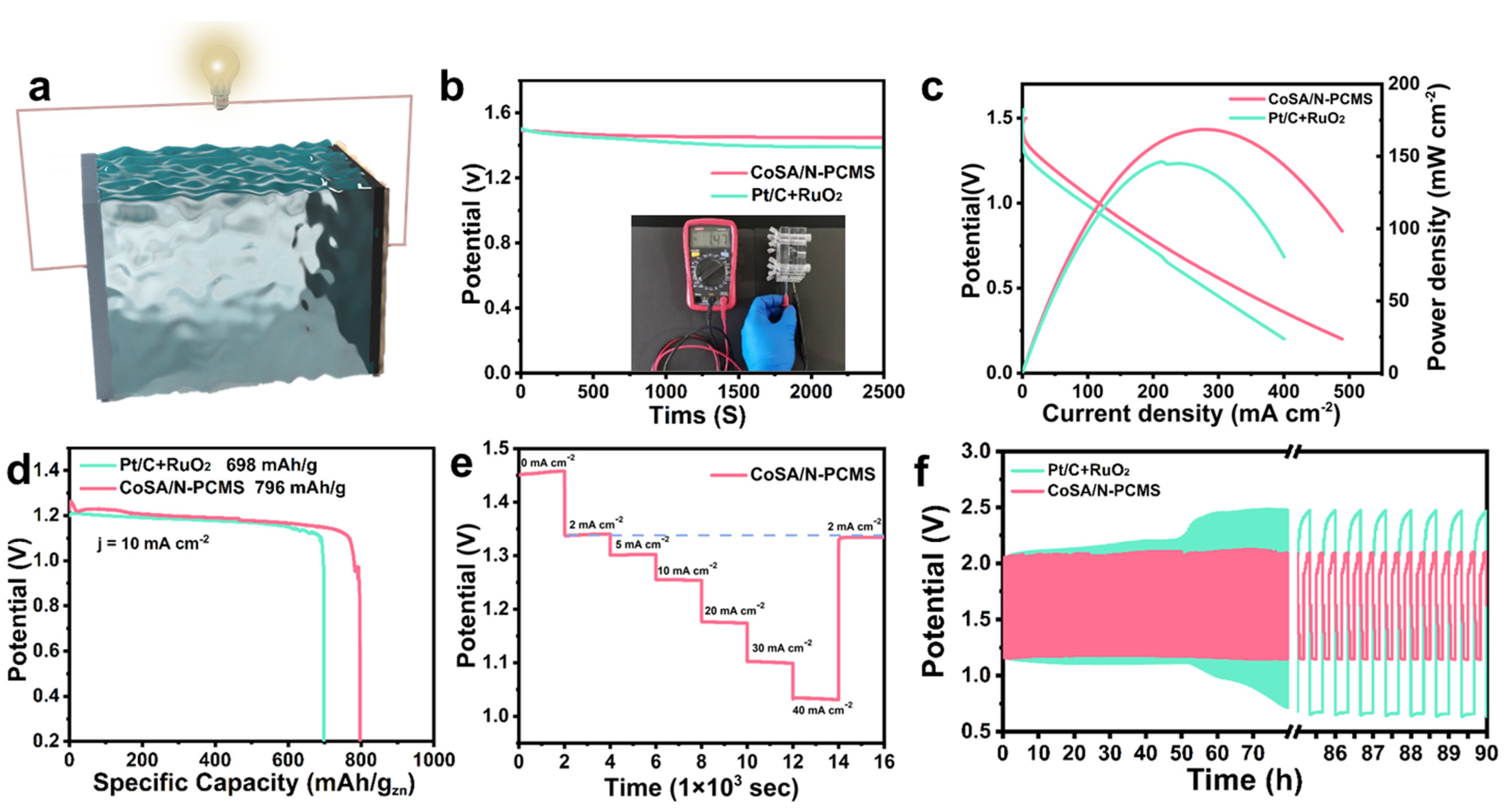

Figure 5. (a) Schematic diagram of the aqueous ZAB using CoSA/N−PCMS as an air cathode. (b) OpeN−Circuit voltage (OCV) measurements of assembled ZABs with CoSA/N−PCMS and Pt/C+RuO2. (c) The polarization and power density results for ZABs with CoSA/N−PCMS and Pt/C+RuO2. (d) The discharge curves of ZABs based on CoSA/N−PCMS and Pt/C+RuO2 at 10 mA/cm2. (e) Discharge curves of the ZAB assembled with CoSA/N−PCMS at varied current densities. (f) Discharge/charge cycling performance of ZABs based on CoSA/N−PCMS and Pt/C+RuO2 at 10 mA/cm2.
