Charge Transfer in n-FeO and p-α-Fe2O3 Nanoparticles for Efficient Hydrogen and Oxygen Evolution Reaction

by
Amir Humayun
,
Nandapriya Manivelan
and
Kandasamy Prabakar
*
Advanced Sustainable Energy Laboratory, Department of Electrical and Electronics Engineering, Pusan National University, 2 Busandaehak-ro 63beon-gil, Geumjeong-Gu, Busan 46241, Republic of Korea
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(18), 1515; https://doi.org/10.3390/nano14181515
Submission received: 7 August 2024 / Revised: 9 September 2024 / Accepted: 17 September 2024 / Published: 18 September 2024
(This article belongs to the Special Issue Nanoscale Materials as Catalysts for the Hydrogen Evolution Reaction)
Browse Figures
Versions Notes

Abstract

:
This study aims to explore the n-FeO and p-α-Fe2O3 semiconductor nanoparticles in hydrogen (HER) and oxygen (OER) evolution reactions and a combined full cell electrocatalyst system to electrolyze the water. We have observed a distinct electrocatalytic performance for both HER and OER by tuning the interplay between iron oxidation states Fe2+ and Fe3+ and utilizing phase-transformed iron oxide nanoparticles (NPs). The Fe2+ rich n-FeO NPs exhibited superior HER performance compared to p-α-Fe2O3 and Fe(OH)x NPs, which is attributed to the enhancement in n-type semiconducting nature under HER potential, facilitating the electron transfer for the reduction in H+ ions. In contrast, p-α-Fe2O3 NPs demonstrated excellent OER activity. An H-cell constructed using n-FeO||p-α-Fe2O3 NPs as cathode and anode achieved a cell voltage of 1.87 V at a current density of 50 mA/cm2. The cell exhibited remarkable stability after 30 h of activation and maintained the high current density of 100 mA/cm2 for 80 h with a negligible increase in cell voltage. This work highlights the semiconducting properties of n-FeO and p-α-Fe2O3 for the electrochemical water splitting system using the band bending phenomenon under the applied potential.

1. Introduction

Hydrogen is considered the energy of the future due to its high energy density and sustainability. It is expected to be an alternative energy source to fossil fuels with low carbon footprints. Its large-scale production could significantly impact transportation, electricity generation, and industrial processes by creating a cleaner and more secure energy future [1,2,3]. Moreover, hydrogen production through electrochemical water splitting (EWS) is environmentally friendly if renewable energy sources generate electricity. Even though the EWS system is totally dependent on surface kinetics, the higher charge-transfer resistance and low adsorption energy of H* and OH* reaction intermediates demand a higher overpotential for hydrogen and oxygen evolution reactions (HER and OER) [4,5]. Therefore, developing an efficient electrocatalyst is essential to overcome the barriers (overpotential) and accelerate these surface kinetics [6,7,8].
In recent years, earth-abundant nanostructured materials have attracted significant attention as catalysts and in energy conversion applications since they could improve the charge transfer and electrochemical reaction mechanisms [9,10,11,12,13,14,15]. The iron oxides, particularly those containing oxygen vacancies, have garnered significant attention as potential electrocatalysts for both HER and OER due to their abundance, low cost, and environmental friendliness [16,17,18,19]. The unique electronic structure of iron oxides, coupled with the presence of oxygen vacancies, offers a fertile ground for tuning catalytic properties and enhancing the overall efficiency of water splitting. Moreover, the fundamental principles underlying the HER process demand a supply of electrons for the reduction, whereas OER demands the extraction of electrons for the oxidation to occur at the electrolyte. Therefore, developing a highly active OER catalyst requires high work function, whereas HER demands low work function materials for effective electrolysis. Hence, a single material may not be used for both the dual functional HER and OER applications [20,21,22].
Moreover, it is reported that the oxygen vacancy engineering in metal oxide nanoparticles can enhance HER activity and stability by creating more active sites and promoting charge transfer [23]. The oxygen vacancies create new electronic states within the bandgap of iron oxide, leading to enhanced hydrogen adsorption and faster reaction kinetics [24]. On the other hand, α-Fe2O3 (hematite) has been used as an OER electrocatalysis due to its suitable bandgap, chemical stability, and photo-corrosion resistance [25,26,27]. However, its poor electrical conductivity and slow charge transfer kinetics often limit its OER activity. Earlier studies have shown that oxygen vacancies in α-Fe2O3 can significantly enhance OER performance. For instance, incorporating Co2+ into the Fe3+ crystal lattice of FeO(x) enhances the electrocatalytic properties of Co sites and boosts the OER performance in alkaline conditions [28]. Similarly, it has been reported that adding Fe3+ into the electrolyte reduces the overpotential and Tafel slope in CoO(x) catalysts toward OER [29]. The Fe2O3@NiO heterojunctions with enriched oxygen vacancies in Fe2O3 NPs lead to enhanced OER activity [30].
Though many studies have reported the individual HER and OER properties of n-FeO and p-α-Fe2O3, there has been limited research on their combined performance for overall water-splitting applications. This work aims to bridge this gap by exploring the properties of n-FeO and p-α-Fe2O3 in a single full cell electrocatalyst system. By tuning the interplay between iron oxidation states Fe2+ and Fe3+ and utilizing the phase-transformed iron oxide nanoparticles (NPs), we aim to achieve distinct electrocatalytic performances for both HER and OER. We hypothesize that n-FeO NPs, enriched in Fe2+, will excel in HER due to their potent redox mediation capabilities, while p-α-Fe2O3 NPs, enriched with Fe3+, will demonstrate superior OER activity. This study will provide valuable insights into designing and developing efficient and stable iron oxide-based electrocatalysts for overall water splitting and might pave the way for sustainable hydrogen production.

2. Experimental Section

2.1. Materials

Ferric chloride hexahydrate (FeCl3·6H2O), ruthenium (IV) oxide (RuO2), ammonia solution, sodium hydroxide (NaOH), potassium hydroxide (KOH), carbon black (acetylene, 100%; compressed, 99.9%), N-methyl-2-pyrrolidone (NMP, ≥99.5%), and polyvinylidene fluoride (PVDF) were purchased from Sigma-Aldrich (Busan, Republic of Korea). Nickel foam (NF) was purchased from 4Science, Suwon, Republic of Korea. The H-cell, Nafion (Model: N115, Thickness: 127 mM), and film were obtained from NARA-Cell Tech Corporation, Seoul, Republic of Korea.

2.2. Synthesis of n-FeO

The n-FeO (Fe2+) nanoparticles (NPs) were synthesized using FeCl3·6H2O as a precursor. At room temperature, 4.75 g of FeCl3·6H2O was dissolved in 50 mL of deionized (DI) water under magnetic stirring. A 40 mL aqueous ammonia solution was then added dropwise to the solution. The resulting mixture was stirred continuously for 24 h, and a green precipitate was formed. The precipitate was then filtered and thoroughly washed with DI water and ethanol. Furthermore, the green residue was dried at 80 °C for 12 h in a hot air oven and subsequently annealed at 500 °C for 5 h (N2 atmosphere) to obtain the final n-FeO NPs (Scheme 1).

2.3. Synthesis of p-α-Fe2O3

The previously synthesized n-FeO NPs powder was the starting material for p-α-Fe2O3 nanoparticle synthesis. A 500 mg of n-FeO NPs was mixed with 5 g of NaOH pellets dissolved in 100 mL DI water at room temperature. The mixture was stirred until a clear solution was formed. The reaction between n-FeO and hydroxide ions (OH−) in the solution resulted in Fe(OH)x formation. After 60 min, the settled precipitate was filtered and dried in a hot oven at 80 °C for 12 h. The dried brown particles were washed several times with DI water until the pH approached 7.0. Finally, the residue was annealed at 400 °C for 8 h and cooled slowly to room temperature. During this process, the Fe(OH)x reacted with oxygen (O2) to form the final p-α-Fe2O3 NPs (Scheme 1).

2.4. Electrode Preparation

The NF (1 × 1 cm2 geometrical area) electrode was cleaned using ethanol sonication and dried in an oven. Afterward, 80% (4 mg) of n-FeO and p-α-Fe2O3 NPs were blended individually using 10% carbon black and 10% PVDF and grained. Subsequently, a few drops of NMP solvent were added and grained in mortar to prepare a slurry. Then, the slurry mixture was loaded on an NF electrode and dried overnight at 60 °C in an oven (Scheme 1). After drying, the n-FeO, Fe(OH)x, and p-α-Fe2O3 loaded electrodes were used in electrochemical catalytic studies.

2.5. H-Cell Fabrication

The H-cell electrochemical analyzer was used for the overall water-splitting process (Scheme S1). The cell was designed with two compartments containing 25 mL of 1 M KOH electrolyte solution. A Nafion membrane, pre-treated by sequential sonication and washing in 3% H2O2, 0.5 M H2SO4, ethanol−water mixture, and finally deionized water, was used to separate the anode and cathode compartments. In this alkaline environment, the sulfonic acid groups in the Nafion membrane are deprotonated, allowing for the passage of hydroxide ions (OH−) while hindering the transport of other ions, effectively acting as an anion exchange membrane. The n-FeO NPs serve as the cathode for the HER, while p-α-Fe2O3 NPs act as the anode for the OER. The n-FeO||p-α-Fe2O3/NF electrode was used for the overall water splitting.

2.6. Electrochemical Measurements

The electrochemical measurements were performed using a Biologic SP-150 Potentiostat in a three-electrode system. Hg/HgO, graphite rod, and iron oxide (FeOx) NPs deposited on NF were employed as reference, counter, and working electrodes. The experiment was performed in 1 M KOH alkaline media, and N2 gas was purged for 20 min before the experiment. The linear sweep voltammetry (LSV) was carried out at a scan rate of 1 mV/s with 100% iR correction. The iR correction was made before LSV measurements to avoid ohmic loss (iR loss) using E = E(RHE) − iR, where E is the iR corrected potential concerning the RHE, i is the measured current, and R is the uncompensated resistance calculated from Electrochemical Impedance Spectroscopy (EIS). The LSV was obtained at a low scan rate to minimize the pull current.

3. Results and Discussion

The synthesized FeOx NPs and their crystalline properties were analyzed using X-ray diffraction (XRD). The n-FeO NPs exhibited a monoclinic crystal structure with lattice parameters a = 4.94 Å, b = 5.40 Å, and c = 7.46 Å, as confirmed by the XRD data and is matched with ICSD card #98-018-4766 (Figure 1a). The observed 2θ values were found at 24.00°, 30.05°, 32.96°, 35.49°, 40.67°, 42.98°, 49.35°, 54.07°, 56.86°, 62.51°, and 63.75° and their corresponding hkl indices ((0 1 2), (0 2 2), (1 0 4), (1 1 0), (1 1 3), (2 0 2), (0 2 4), (1 1 6), (2 1 1), (2 1 4), and (0 3 0)), respectively [31]. This structure features the iron atoms occupying the corner and face positions, whereas O atoms occupy the unit cell’s edge and central positions (Figure 1b). The uniform distribution of Fe and O atoms throughout the crystal lattice minimizes defects and promotes structural stability, which is crucial for long-term performance [32]. The reaction between n-FeO and OH− resulted in the formation of Fe(OH)x during the synthesis of p-α-Fe2O3 NPs, and its structural analysis is shown in Figure 1c. The observed 2θ values (31.45°, 33.18°, 35.59°, 40.65°, 45.13°, 49.26°, 53.75°, 56.96°, 62.25°, 63.74°, and 74.88°) and their corresponding hkl indices ((1 0 2), (1 0 4), (1 1 0), (1 1 3), (2 0 2), (1 1 6), (2 1 1), (2 1 -2), (3 0 0), (2 1 -3), and (2 2 0)), respectively are consistent with ICSD card #96-101-1241, confirming the formation of Fe(OH)x NPs in the hexagonal crystal structure where Fe-O-H are arranged in the hexagonal unit cell [33]. The p-α-Fe2O3 NPs were prepared by calcining the Fe(OH)x NPs, which adopted a rhombohedral crystal structure, as shown in Figure 1d. The observed 2θ values (24.12°, 33.18°, 35.66°, 40.88°, 49.33°, 54.01°, 57.44°, 62.40°, 64.02°, 72.10°, and 75.50°) and their corresponding hkl indices ((0 1 2), (1 0 4), (1 1 3), (0 0 4), (1 3 3), (2 2 4), (1 1 5), (0 4 4), (1 3 5), (3 3 5), and (2 2 6)), respectively matched with ICSD card #98-008-22349 [34]. The grain size was 59.8 nm in p-α-Fe2O3 NPs and is highly crystalline compared to n-FeO and Fe(OH)x NPs.
The FE-SEM images (Figure 2a,e,i) reveal that the n-FeO and p-α-Fe2O3 NPs have nanocubic crystal morphology and agree with the XRD observation. This is likely because the Fe(OH)x NPs are partially amorphous due to the presence of OH-, which promote aggregation during synthesis [35]. The calcination process converts the Fe(OH)x NPs to p-α-Fe2O3, resulting in a more crystalline structure due to the removal of water molecules. The EDX analysis (Figure 2d,h,l) and elemental mappings (Figure 2b,c,f,g,j,k) confirm the presence of only iron (Fe) and oxygen (O) on the surface of the NPs, indicating the purity of the prepared NPs.
The XPS analysis (Figure 3a) reveals the surface elemental composition and oxidation states of n-FeO, Fe(OH)x, and p-α-Fe2O3 NPs. The survey spectrum confirms the presence of iron (Fe), oxygen (O), and adventitious carbon (C) in both samples. The high-resolution Fe 2p core-level spectra (Figure 3b) provide more detailed information about the Fe oxidation states. In all three samples, the Fe 2p spectrum exhibits peaks corresponding to both Fe2+ (at binding energies of 710.9 eV and 724.3 eV) and Fe3+ (at 712.9 eV and 726.3 eV), arising from the 2p3/2 and 2p1/2 spin-orbit splitting. Notably, the n-FeO NPs show a higher intensity for the Fe2+ peaks than the Fe3+ peaks. In contrast, the p-α-Fe2O3 and Fe(OH)x NPs exhibit a more pronounced Fe3+ signal, indicating a higher concentration of the Fe3+ oxidation state in these materials [36]. The O 1s core-level spectra (Figure 3c) provide insights into the oxygen bonding environment within the materials. The peaks observed at 530.3 eV and 530.5 eV correspond to the metal-oxygen (Fe-O) bonds in the iron oxide NPs, while the peaks at 532.1 eV and 532.4 eV are attributed to oxygen vacancies (Ovac) in these NPs [36,37]. The presence of oxygen vacancies can influence the electronic structure of iron oxides, potentially leading to enhanced catalytic activity for the OER [24]. Additionally, the peaks observed at 531.3 eV and 536.56 eV in Fe(OH)ₓ NPs are assigned to C-O and M-OH bonds, respectively. These peaks confirm the presence of hydroxide species in the samples. The C-O peak likely originates from surface contaminants, potentially arising from the organic compounds used during synthesis. The C 1s core-level spectra of both n-FeO and p-α-Fe2O3 (Figure 3d) show peaks around 284.6 eV and 288.5 eV, respectively, corresponding to adventitious carbon (C=C) and hydroxyl groups (C-OH). The C-OH bonds likely originate from organic molecules used during the synthesis of the nanoparticles.
The semiconducting nature of the synthesized iron oxide nanoparticles was investigated by the Hall effect measurements and Mott−Schottky analysis. The Hall effect measurements, conducted at room temperature under a 0.5 T magnetic field, confirmed the p-type nature of α-Fe2O3 (p-α-Fe2O3) and the n-type nature of FeO (n-FeO), with carrier concentrations of p = 1.78 × 1010 cm−2 and n = −1.760 × 1013 cm−2, respectively. Moreover, the Mott−Schottky plots [38] (Figure S1) obtained at 3 kHz exhibited negative slopes for p-α-Fe2O3 and Fe(OH)x, indicating the p-type behavior, while n-FeO displayed a positive slope, confirming its n-type nature [39,40,41].

3.1. Oxygen Evolution Reaction (OER)

The electrocatalytic performance of the prepared catalysts was measured using a three-electrode system in 1 M KOH electrolyte. All polarization curves were 100% iR-corrected. Figure 4a shows the LSV curves for the OER. The bare NF electrode exhibited onset potentials of 1.66 V and 1.71 V vs. RHE at current densities of 50 mA/cm2 and 100 mA/cm2, respectively. The p-α-Fe2O3/NF electrode demonstrated the lowest onset potentials of 1.35 V and 1.39 V vs. RHE at 50 mA/cm2 and 100 mA/cm2, respectively, outperforming the commercially available RuO2/NF electrode (onset potential: 1.51 V, Figure S2). The Fe(OH)x/NF electrode showed onset potentials of 1.79 V and 1.91 V vs. RHE at the same current densities. The n-FeO/NF electrode exhibited the lowest OER activity, possibly attributed to surface defects in the n-FeO NPs [42]. The overpotentials at different current densities are given in Figure 4b. The overpotentials for p-α-Fe2O3/NF and Fe(OH)x/NF electrodes to reach the current densities of 50 and 100 mA/cm2 were 420 and 460 mV and 860 and 980 mV, respectively. The p-α-Fe2O3 NPs oxygen vacancies help to adsorb and desorb the intermediates at the metal sites. Further, the delocalized electrons from the O- go to the metal center and increase the metal’s electron density, reducing the electronegativity and the bond length between metal sites and intermediates and increasing the O2 evolution rate [43]. The Tafel slope in Figure 4c reflects the rate at which the current density changes with the applied potential. A lower Tafel slope indicates faster OER kinetics [44]. In this case, the p-α-Fe2O3/NF electrode demonstrates a significantly lower Tafel slope (~39 mV dec−1) compared to the other electrodes (65 mV/dec, and 79 mV/dec for Fe(OH)x/NF and bare NF, respectively). The lower Tafel slope in p-α-Fe2O3/NF suggests a faster and more favorable kinetic process for OER on this electrode. Moreover, p-α-Fe2O3 is a p-type semiconductor measured from the Hall effect measurement setup. Under OER conditions, the band bends upwards due to the p-type character, forming a positive surface charge region (enrichment layer), leaving behind a region depleted with negative charges. This band bending and positive charge region is very helpful in attracting electrons from the electrolytes and converting the OH− ions into OH* intermediates, enhancing the oxidizing ability and facilitating the multi-step OER process. Further, the exact pathway for OER on p-α-Fe2O3 is still under debate, but it is generally believed that a series of single-electron transfer steps involve lattice oxygen and OH− ions [45,46]. A simplified representation is given below [47].
Step 1: OH− adsorbs onto a surface Fe site (denoted as *): OH− + * -> *OH
Steps 2: Subsequent single electron transfers and water molecule interactions lead to the formation of an O-O bond and the release of a water molecule:
*OH -> *O + H2O, *O + *OH -> *OOH + *, *OOH -> O2 + * + H⁺
The OER mechanism at the interface between p-α-Fe2O3 and KOH electrolyte is a complex interplay between its semiconducting properties, mobile charge carriers (holes and OH−), and material characteristics like crystallinity and morphology. The electrochemical double-layer capacitance (Cdl) measurements were performed in the non-Faradaic region at various scan rates (10 to 50 mV/s) to assess the electrochemical surface-active area (ECSA) of the electrodes, which reflects the number of active sites involved in OER (Figure 4d and Figure S3). The p-α-Fe2O3/NF electrode exhibits the highest Cdl value of 2.2 mF/cm2, indicating a higher active surface area compared to Fe(OH)x/NF (1.4 mF/cm2) electrode. The higher turn-over frequency (TOF) value (0.041 S−1) further confirms the superior OER activity of the p-α-Fe2O3/NF electrode at an overpotential of 420 mV @50 mA/cm2.
The Nyquist plots in Figure 4e depict the EIS used to probe the charge transfer processes at the electrode/electrolyte interface. The size of the semicircle in these plots is directly related to the charge transfer resistance (Rct) at the interface. The p-α-Fe2O3/NF electrode exhibits a significantly lower Rct value of 1.7 Ω lower than Fe(OH)x/NF and n-FeO/NF electrodes, indicating a faster and more efficient transfer of electrons between the electrode and the electrolyte during OER and this observation aligns well with the lower Tafel slope observed in Figure 4c [48]. The EIS measurements at positive potentials (Figure S4) further reduce the Rct value in p-α-Fe2O3 and Fe(OH)x. This suggests that a positive bias enhances the charge transfer kinetics at the electrode surface, improving OER activity at higher operating potentials. In contrast, the Rct value increases for the n-FeO/NF electrode under positive potential. This indicates that the n-FeO electrode becomes even less favorable for OER due to a rise in the charge transfer resistance. The strong correlation between the EIS measurements (Rct) and the OER activities observed in Figure 4 highlights the critical role of fast charge transfer kinetics at the electrode/electrolyte interface for efficient OER electrocatalysis.
The chronopotentiometry method was employed to assess the repeatability of the p-α-Fe2O3/NF electrode (Figure 4f) under varying current densities (10 mA/cm2, 50 mA/cm2, and 100 mA/cm2) over a three-hour interval between the current densities. Despite the changes in the current densities, the potentiometry curve remained unchanged, indicating the high stability and repeatability of the p-α-Fe2O3/NF electrode in the KOH electrolyte.

3.2. Hydrogen Evolution Reaction (HER)

The HER performance of n-FeO/NF, p-α-Fe2O3/NF, Fe(OH)x/NF, and bare NF electrodes was evaluated using LSV, as shown in Figure 5a. A low scan rate of 1 mV/s and a potential window of 0 to −1 V vs. RHE were employed in 1 M KOH electrolyte. The inset of Figure 5a demonstrates that p-α-Fe2O3/NF and Fe(OH)x/NF electrodes exhibit poor HER activity, likely due to the presence of OH− ions within their structures, which can interact with the KOH electrolyte and promote charge storage behavior via K⁺ adsorption instead of facilitating the HER. In contrast, the n-FeO/NF electrode displays superior HER performance with lower onset potentials of −0.24 V and −0.33 V at current densities of 50 mA/cm2 and 100 mA/cm2, respectively. n-FeO/NF outperforms the even commercially available Pt/NF electrode (onset potential: −1.12 V, Figure S5), while the bare NF electrode exhibits an onset potential of −0.60 V at 50 mA/cm2. The overpotentials at current densities of −50 and −100 mA/cm2 are given in Figure 5b. The n-FeO/NF electrode shows small overpotentials of 250 mV and 340 mV at a −50 mA/cm2 and −100 mA/cm2 current density. The Tafel slope in Figure 5c further confirms the faster HER kinetics on the n-FeO/NF electrode. A lower Tafel slope indicates a more favorable reaction pathway. In this case, the n-FeO/NF electrode exhibits a Tafel slope of ~173 mV dec−1, considerably lower than the bare NF electrode (~233 mV dec−1). The Hall effect measurements confirm that n-FeO is an n-type semiconductor. Its bands bend downwards at the surface due to low work function, forming an electron enrichment layer when a negative potential is applied. Thus, the band banding uplifts the n-type behavior and feasibly transfers the electron to the electrolyte to reduce H+ ions [49,50].
The Cdl measurements were performed in the non-Faradaic region at various scan rates (10 to 50 mV/s) to assess the ECSA of the electrodes (Figure 5d and Figure S6). The n-FeO/NF electrode exhibits the Cdl value of 5.6 mF/cm2. The TOF value 0.034 S−1 observed for n-FeO NPs at an overpotential of 250 mV further validates its superior catalytic behavior for HER. Due to oxygen vacancy, the positive H+ ions get easily attracted in the trap and boost the reduction rate, thus reflected in increased surface area. Overall, the LSV results, overpotential, Tafel slopes, and TOF values support the n-FeO/NF as a promising HER electrode material due to its faster reaction kinetics and higher activity compared to p-α-Fe2O3/NF, Fe(OH)x/NF, and bare NF electrodes. Figure 5e shows the Nyquist plots in which the n-FeO NPs electrode exhibits a significantly lower Rct value of 0.7 Ω than p-α-Fe2O3/NF and Fe(OH)x/NF electrodes, indicating a faster and more efficient transfer of electrons between the electrode and the electrolyte during HER. The EIS measurements at various potentials (Figure S7) reveal that the n-FeO/NF electrode’s Rct value decreases as the applied potential becomes more negative. This suggests that n-FeO becomes more active for HER as the negative potential increases. In contrast to n-FeO/NF, the Rct values for p-α-Fe2O3/NF and Fe(OH)x electrodes increase with increasing negative potential. Thus, the Fe-O structure improves the charge transfer reaction within the crystal structure by facilitating the diffusion of electrolyte ions and water molecules toward the active sites, leading to efficient mass transport during the HER process. The EIS measurements (Rct) correlate well with the HER activities observed in Figure 5a. These findings agree with the lower Tafel slope and higher HER activity observed for n-FeO compared to p-α-Fe2O3/NF and Fe(OH)x electrodes.
The chronopotentiometry method was employed to assess the stability and repeatability of the n-FeO/NF electrode (Figure 5f) under varying current densities (10 mA/cm2, 50 mA/cm2, and 100 mA/cm2) over a three-hour interval between different current densities. The potentiometric curve remained unchanged, indicating the high stability and repeatability of the n-FeO/NF electrode in the KOH electrolyte.

3.3. Overall Water Splitting

The assembled full cell (H-cell; Scheme S1) employed n-FeO||p-α-Fe2O3 as the electrodes for overall water splitting in 1 M KOH electrolyte. The full cell n-FeO||p-α-Fe2O3 electrodes show superior performance by exhibiting a cell voltage of 1.87 V to attain a 50 mA/cm2 current density (Figure 6a). Figure 6b presents the chronopotentiometric stability test of the n-FeO||p-α-Fe2O3 electrode under a constant current density of 100 mA/cm2. Initially, during the first 28 h of operation, a gradual increase in cell voltage from 1.87 V to 1.93 V was observed due to the electrochemical activation process, where the n-FeO cathode and p-α-Fe2O3 anode undergo surface modifications and interfacial restructuring upon interaction with the KOH electrolyte [51]. Subsequently, the cell voltage stabilizes at 1.93 V for the remaining 52 h, demonstrating the excellent long-term stability and robust electrocatalytic performance of the n-FeO||p-α-Fe2O3 electrode for water splitting. After the stability test, the cell voltage slightly increased from 1.87 V to 1.96 V@ 50 mA/cm2 (Figure 6c) due to the increased Rct value from 58 Ω to 61 Ω as observed in the EIS analysis.
The stability-tested n-FeO and p-α-Fe2O3 electrodes were further investigated for their structural and surface analyses. The SEM images in Figure S8 show that the n-FeO electrode exhibits minimal morphological changes after the stability test, whereas the p-α-Fe2O3 (Figure S9) electrode shows significant morphological changes. This suggests that the observed morphological changes in p-α-Fe2O3 may be caused by the absorption of OH− ions at the surface, which can lead to the performance degradation of the p-α-Fe2O3 electrode. This is supported by the EDX analysis, which shows a change in the Fe:O ratio after the stability test. The O content increases due to the interaction with OH− ions. The stability-tested samples’ XRD results in Figure S10 imply that the n-FeO electrode structure remains unchanged, whereas the p-α-Fe2O3 electrode exhibits a peak shift in its XRD pattern. The changes in the interatomic distances may cause this shift due to the interaction with OH− ions. Therefore, it is inferred from these observations that the surface of the p-α-Fe2O3 electrode should be protected, or a heterostructure can be used to extend the electrodes’ stability.
The Raman analysis of the as-deposited and stability-tested n-FeO/NF (Figure S11a) electrodes reveal three broad bands around 219, 288, and 395 cm−1, characteristic of n-FeO lattice vibrations. The metal-oxide bond, initially observed around 600 cm−1, shifts to a lower wavenumber (585 cm−1) with reduced intensity after the stability test. This suggests minor structural changes in the n-FeO lattice, likely due to interaction with the KOH electrolyte. However, the overall stability of the n-FeO Raman peaks indicates its good structural integrity during electrochemical operation. In contrast, the Raman spectrum of the p-α-Fe2O3/NF electrode after the stability test (Figure S11b) shows the emergence of a new peak around 983 cm−1. This peak is indicative of the magnetite (α-Fe3O4) phase, which undergoes partial transformation to hematite p-α-Fe2O3 upon prolonged exposure to the KOH electrolyte [52]. This transformation could be attributed to changes in the oxidation state from Fe3+ to Fe2+ under the operating conditions.

4. Conclusions

We have successfully synthesized n-FeO and p-α-Fe2O3 NPs and investigated their electrocatalytic activity for HER and OER in 1 M KOH electrolyte. The n-FeO NPs demonstrate promising HER performance with a low onset potential, high current density, and favorable Tafel slope. The n-type semiconducting nature of n-FeO promotes efficient electron transfer for HER. In contrast, p-α-Fe2O3 NPs exhibit superior OER activity due to their semiconducting properties, fast charge transfer kinetics, and abundant surface hydroxyl groups. The assembled n-FeO||p-α-Fe2O3 NPs-based water splitting device achieved a current density of 100 mA/cm2 at a cell voltage of 1.93 V and maintained stable operation for over 80 h. This work has broader implications for sustainable energy research as cost-effective water-splitting electrocatalysts. Our findings underscore the critical role of understanding the iron oxidation states, oxygen vacancies, and semiconducting behavior in the design of high-performance electrocatalysts. This knowledge can guide the development of novel materials for water splitting and various energy conversion and storage applications. By leveraging earth-abundant materials like iron oxides, we can reduce our reliance on precious metal catalysts, making sustainable energy technologies more accessible and economically viable. This study represents a significant step toward the future of renewable energy sources.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14181515/s1, Scheme S1: H-cell fabrication; Figure S1: Mott-Schottky analysis for (a) p-α-Fe2O3/NF and Fe(OH)x/NF and (b) n-FeO/NF electrodes; Figure S2: OER electrochemical studies for p-α-Fe2O3/NF with commercial RuO2/NF LSV curve; Figure S3: Double-layer capacitance measurements for determining the electrochemically active surface area for the (a) p-α-Fe2O3/NF and (b) Fe(OH)x/NF electrodes in 1 M KOH, CV were measured in the non-faradaic region scan rates, varying from 10 to 50 mV/s; Figure S4: EIS measurement for (a) p-α-Fe2O3/NF, (b) Fe(OH)x/NF, and (c) n-FeO/NF. All are performed by positive potential regions; Figure S5: HER electrochemical studies for n-FeO/NF with commercial Pt/NF LSV curve; Figure S6: Double-layer capacitance measurements determined the electrochemically active surface area for the n-FeO/NF electrode in 1 M KOH. CV was measured in the non-faradaic region scan rates, varying from 10 to 50 mV/s; Figure S7: EIS measurement for (a) n-FeO/NF, (b) p-α-Fe2O3/NF, and (c) Fe(OH)x/NF. All are performed by negative potential regions; Figure S8: Post characterization FE-SEM and EDX analysis of n-FeO/NF electrode. (a and b) before stability, and (c and d) after stability; Figure S9: Post characterization FE-SEM and EDX analysis of p-α-Fe2O3/NF electrode. (a and b) before stability, and (c and d) after stability; Figure S10: Post-characterization XRD analysis of (a and b) n-FeO/NF and (c and d) p-α-Fe2O3/NF electrodes; Figure S11: Post-characterization RAMAN analysis of (a) n-FeO/NF and (b) p-α-Fe2O3/NF electrodes; Table S1: Iron Oxide NPs based catalysts for OER and HER activity. References [53,54,55,56,57,58] are included in the supplementary materials.

Author Contributions

Conceptualization, methodology, and writing—original draft preparation, A.H.; investigation and validation, N.M.; Conceptualization, supervision, review, and editing, K.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research work was supported by the two years research grant of Pusan National University (2023–2025).

Data Availability Statement

Data are contained within the article.

Acknowledgments

This research work was supported by the two years research grant of Pusan National University (2023–2025)

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhai, P.; Zhang, Y.; Wu, Y.; Gao, J.; Zhang, B.; Cao, S.; Zhang, Y.; Li, Z.; Sun, L.; Hou, J. Engineering Active Sites on Hierarchical Transition Bimetal Oxides/Sulfides Heterostructure Array Enabling Robust Overall Water Splitting. Nat. Commun. 2020, 11, 5462. [Google Scholar] [CrossRef] [PubMed]
  2. Li, G.; Han, G.; Wang, L.; Cui, X.; Moehring, N.K.; Kidambi, P.R.; Jiang, D.; Sun, Y. Dual Hydrogen Production from Electrocatalytic Water Reduction Coupled with Formaldehyde Oxidation via a Copper-Silver Electrocatalyst. Nat. Commun. 2023, 14, 525. [Google Scholar] [CrossRef] [PubMed]
  3. Wu, D.; Kusada, K.; Yoshioka, S.; Yamamoto, T.; Toriyama, T.; Matsumura, S.; Chen, Y.; Seo, O.; Kim, J.; Song, C.; et al. Efficient Overall Water Splitting in Acid with Anisotropic Metal Nanosheets. Nat. Commun. 2021, 12, 1145. [Google Scholar] [CrossRef] [PubMed]
  4. Abdelghafar, F.; Xu, X.; Jiang, S.P.; Shao, Z. Designing Single-Atom Catalysts toward Improved Alkaline Hydrogen Evolution Reaction. Mater. Rep. Energy 2022, 2, 100144. [Google Scholar] [CrossRef]
  5. Abdelghafar, F.; Xu, X.; Guan, D.; Lin, Z.; Hu, Z.; Ni, M.; Huang, H.; Bhatelia, T.; Jiang, S.P.; Shao, Z. New Nanocomposites Derived from Cation-Nonstoichiometric Bax (Co, Fe, Zr, Y) O3−δ as Efficient Electrocatalysts for Water Oxidation in Alkaline Solution. ACS Mater. Lett. 2024, 6, 2985–2994. [Google Scholar] [CrossRef]
  6. Sun, H.; Xu, X.; Kim, H.; Jung, W.; Zhou, W.; Shao, Z. Electrochemical Water Splitting: Bridging the Gaps Between Fundamental Research and Industrial Applications. Energy Environ. Mater. 2023, 6, e12441. [Google Scholar] [CrossRef]
  7. Manivelan, N.; Soundharrajan, V.; Kim, J.; Prabakar, K. Pentlandite Compound-Anchored CuSCN as a Stable Electrocatalyst in Highly Alkaline Solutions. ACS Sustain. Chem. Eng. 2024, 12, 48–58. [Google Scholar] [CrossRef]
  8. Duraivel, M.; Nagappan, S.; Mohanraj, K.; Prabakar, K. Pyrite Copper Nickel Sulfide for Stable Hydrogen Evolution Reaction in Alkaline Media. Int. J. Hydrogen Energy 2024, 54, 1040–1046. [Google Scholar] [CrossRef]
  9. Zhao, L.; Yang, Z.; Cao, Q.; Yang, L.; Zhang, X.; Jia, J.; Sang, Y.; Wu, H.-J.; Zhou, W.; Liu, H. An Earth-Abundant and Multifunctional Ni Nanosheets Array as Electrocatalysts and Heat Absorption Layer Integrated Thermoelectric Device for Overall Water Splitting. Nano Energy 2019, 56, 563–570. [Google Scholar] [CrossRef]
  10. Roger, I.; Shipman, M.A.; Symes, M.D. Earth-Abundant Catalysts for Electrochemical and Photoelectrochemical Water Splitting. Nat. Rev. Chem. 2017, 1, 1–3. [Google Scholar] [CrossRef]
  11. Liu, K.; Cao, P.; Chen, W.; Ezeh, C.I.; Chen, Z.; Luo, Y.; Liu, Q.; Zhao, H.; Rui, Z.; Gao, S.; et al. Electrocatalysis Enabled Transformation of Earth-Abundant Water, Nitrogen and Carbon Dioxide for a Sustainable Future. Mater. Adv. 2022, 3, 1359–1400. [Google Scholar] [CrossRef]
  12. Li, J.; Zheng, G. One-Dimensional Earth-Abundant Nanomaterials for Water-Splitting Electrocatalysts. Adv. Sci. 2017, 4, 1600380. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, X.; Zhong, Y.; Wajrak, M.; Bhatelia, T.; Jiang, S.P.; Shao, Z. Grain Boundary Engineering: An Emerging Pathway toward Efficient Electrocatalysis. InfoMat 2024, 6, e12608. [Google Scholar] [CrossRef]
  14. Ju, M.; Zhou, Y.; Dong, F.; Guo, Z.; Wang, J.; Yang, S. Two-Dimensional OER Catalysts: Is There a Win-Win. Solution for Their Activity and Stability? ACS Mater. Lett. 2024, 6, 3602–3624. [Google Scholar] [CrossRef]
  15. Koolen, C.D.; Luo, W.; Züttel, A. From Single Crystal to Single Atom Catalysts: Structural Factors Influencing the Performance of Metal Catalysts for CO2 Electroreduction. ACS Catal. 2023, 13, 948–973. [Google Scholar] [CrossRef]
  16. Zhang, F.; Liu, M.; Chen, D.; Zhang, X.; Wang, Y.; Wang, Y. Enhanced Electrocatalytic Performance on FeOCl/CeO2 via Synergy of Oxygen Vacancy and Relative Content of Ce3+. Surf. Interfaces 2022, 35, 102437. [Google Scholar] [CrossRef]
  17. Bai, Q.; Liu, D.; Yan, X.; Guo, P.; Ding, X.; Xiang, K.; Tu, X.; Guo, Y.; Wu, R. Oxygen Vacancy-Enriched Amorphous Transition Metal Ternary Oxides toward Highly Efficient Oxygen Evolution Reaction. ACS Mater. Lett. 2024, 6, 2948–2956. [Google Scholar] [CrossRef]
  18. Zhang, Y.; Zhang, W.; Lei, Y.; Huang, J.; Lin, Z.; Lai, Y. Iron-Optimized Oxygen Vacancy Concentration to Strengthen the Electrocatalytic Ability of the Urea Oxidation Reaction. Chem. Commun. 2023, 59, 14395–14398. [Google Scholar] [CrossRef]
  19. Zhu, K.; Shi, F.; Zhu, X.; Yang, W. The Roles of Oxygen Vacancies in Electrocatalytic Oxygen Evolution Reaction. Nano Energy 2020, 73, 104761. [Google Scholar] [CrossRef]
  20. Zhou, Y.; Sun, Y.; Su, W.; Zhou, L. Experimental Studies on the FeO/Fe3O4 Cycle Complemented with Carbon Gasification for Producing Hydrogen. Energy Fuels 2013, 27, 4071–4076. [Google Scholar] [CrossRef]
  21. Huang, J.; Su, Y.; Zhang, Y.; Wu, W.; Wu, C.; Sun, Y.; Lu, R.; Zou, G.; Li, Y.; Xiong, J. FeOx/FeP Hybrid Nanorods Neutral Hydrogen Evolution Electrocatalysis: Insight into Interface. J. Mater. Chem. A 2018, 6, 9467–9472. [Google Scholar] [CrossRef]
  22. Ahmed, A.T.A.; Ansari, A.S.; Pawar, S.M.; Shong, B.; Kim, H.; Im, H. Anti–Corrosive FeO Decorated CuCo2S4 as an Efficient and Durable Electrocatalyst for Hydrogen Evolution Reaction. Appl. Surf. Sci. 2021, 539, 148229. [Google Scholar] [CrossRef]
  23. Wu, Z.; Shi, Y.; Wei, Y.; Chen, Z.; Zhan, T.; Lai, J.; Wang, L. Early Transition Metal Oxides with Oxygen Vacancies as New Thermodynamically Stable Materials for Electrocatalysis. Appl. Catal. B Environ. Energy 2024, 358, 124368. [Google Scholar] [CrossRef]
  24. Karmakar, A.; Karthick, K.; Kumaravel, S.; Sankar, S.S.; Kundu, S. Enabling and Inducing Oxygen Vacancies in Cobalt Iron Layer Double Hydroxide via Selenization as Precatalysts for Electrocatalytic Hydrogen and Oxygen Evolution Reactions. Inorg. Chem. 2021, 60, 2023–2036. [Google Scholar] [CrossRef] [PubMed]
  25. Samanta, A.; Das, S.; Jana, S. Doping of Ni in α-Fe2O3 Nanoclews to Boost Oxygen Evolution Electrocatalysis. ACS Sustain. Chem. Eng. 2019, 7, 12117–12124. [Google Scholar] [CrossRef]
  26. Xu, Q.-Q.; Huo, W.; Li, S.-S.; Fang, J.-H.; Li, L.; Zhang, B.-Y.; Zhang, F.; Zhang, Y.-X.; Li, S.-W. Crystal Phase Determined Fe Active Sites on Fe2O3 (γ- and α-Fe2O3) Yolk-Shell Microspheres and Their Phase Dependent Electrocatalytic Oxygen Evolution Reaction. Appl. Surf. Sci. 2020, 533, 147368. [Google Scholar] [CrossRef]
  27. Vignesh, S.; Nam, S.; Kim, H. Interfacial Engineering of α-Fe2O3 Coupled Co3O4 Heterostructures Anchored on g-C3N4 Structure for Enhanced Electrocatalytic Performance in Alkaline Oxygen Evolution Reaction. Int. J. Hydrogen Energy 2024, 53, 1445–1456. [Google Scholar] [CrossRef]
  28. Pham, T.H.M.; Shen, T.-H.; Ko, Y.; Zhong, L.; Lombardo, L.; Luo, W.; Horike, S.; Tileli, V.; Zuttel, A. Elucidating the Mechanism of Fe Incorporation in In Situ Synthesized Co–Fe Oxygen-Evolving Nanocatalysts. J. Am. Chem. Soc. 2023, 145, 23691–23701. [Google Scholar] [CrossRef]
  29. Gong, L.; Chng, X.Y.E.; Du, Y.; Xi, S.; Yeo, B.S. Enhanced Catalysis of the Electrochemical Oxygen Evolution Reaction by Iron(III) Ions Adsorbed on Amorphous Cobalt Oxide. ACS Catal. 2018, 8, 807–814. [Google Scholar] [CrossRef]
  30. Sang, Y.; Cao, X.; Ding, G.; Guo, Z.; Xue, Y.; Li, G.; Yu, R. Constructing Oxygen Vacancy-Enriched Fe2O3@NiO Heterojunctions for Highly Efficient Electrocatalytic Alkaline Water Splitting. CrystEngComm 2022, 24, 199–207. [Google Scholar] [CrossRef]
  31. Liu, P.; Cai, W.; Zeng, H. Fabrication and Size-Dependent Optical Properties of FeO Nanoparticles Induced by Laser Ablation in a Liquid Medium. J. Phys. Chem. C 2008, 112, 3261–3266. [Google Scholar] [CrossRef]
  32. Dobrosavljevic, V.V.; Zhang, D.; Sturhahn, W.; Chariton, S.; Prakapenka, V.B.; Zhao, J.; Toellner, T.S.; Pardo, O.S.; Jackson, J.M. Melting and Defect Transitions in FeO up to Pressures of Earth’s Core-Mantle Boundary. Nat. Commun. 2023, 14, 7336. [Google Scholar] [CrossRef] [PubMed]
  33. Tian, K.; Wang, X.-X.; Yu, Z.-Y.; Li, H.-Y.; Guo, X. Hierarchical and Hollow Fe2O3 Nanoboxes Derived from Metal–Organic Frameworks with Excellent Sensitivity to H2S. ACS Appl. Mater. Interfaces 2017, 9, 29669–29676. [Google Scholar] [CrossRef] [PubMed]
  34. Ma, J.; Lian, J.; Duan, X.; Liu, X.; Zheng, W. α-Fe2O3: Hydrothermal Synthesis, Magnetic and Electrochemical Properties. J. Phys. Chem. C 2010, 114, 10671–10676. [Google Scholar] [CrossRef]
  35. Swathi Pon Sakthi Sri, V.; Manikandan, A.; Mathankumar, M.; Tamizhselvi, R.; George, M.; Murugaiah, K.; Kashmery, H.A.; Al-Zahrani, S.A.; Puttegowda, M.; Khan, A.; et al. Unveiling the Photosensitive and Magnetic Properties of Amorphous Iron Nanoparticles with Its Application towards Decontamination of Water and Cancer Treatment. J. Mater. Res. Technol. 2021, 15, 99–118. [Google Scholar] [CrossRef]
  36. Li, S.-S.; Li, W.-J.; Jiang, T.-J.; Liu, Z.-G.; Chen, X.; Cong, H.-P.; Liu, J.-H.; Huang, Y.-Y.; Li, L.-N.; Huang, X.-J. Iron Oxide with Different Crystal Phases (α- and γ-Fe2O3) in Electroanalysis and Ultrasensitive and Selective Detection of Lead(II): An Advancing Approach Using XPS and EXAFS. Anal. Chem. 2016, 88, 906–914. [Google Scholar] [CrossRef]
  37. Jacinto, M.J.; Souto, R.S.; Silva, V.C.P.; Prescilio, I.C.; Kauffmann, A.C.; Soares, M.A.; de Souza, J.R.; Bakuzis, A.F.; Fontana, L.C. Biosynthesis of Cube-Shaped Fe3O4 Nanoparticles for Removal of Dyes Using Fenton Process. Water Air Soil Pollut. 2021, 232, 270. [Google Scholar] [CrossRef]
  38. Wang, Q.; Zhang, L.; Li, B.; Zhu, H.; Shi, J. 3D Interconnected Nanoporous Ta3N5 Films for Photoelectrochemical Water Splitting: Thickness-Controlled Synthesis and Insights into Stability. Sci. China Mater. 2021, 64, 1876–1888. [Google Scholar] [CrossRef]
  39. Xia, W.; Sun, J.; Zeng, X.; Wang, P.; Luo, M.; Dong, J.; Yu, H. FeO-Based Hierarchical Structures on FTO Substrates and Their Photocurrent. ACS Omega 2020, 5, 2205–2213. [Google Scholar] [CrossRef]
  40. Yu-Chen, L.; Yu-Lun, C.; Chin-Hua, H.; Mu-Tung, C.; Li-Jen, C.; Zhong Lin, W.; Yann-Wen, L.; Chii-Dong, C.; Hiroki, K.; Seiji, I. p-Type α-Fe2O3 Nanowires and their n-Type Transition in a Reductive Ambient. Small 2007, 3, 1356–1361. [Google Scholar]
  41. Sekizawa, K.; Oh-ishi, K.; Kataoka, K.; Arai, T.; Suzuki, T.M.; Morikawa, T. Stoichiometric Water Splitting Using a P-Type Fe2O3 Based Photocathode with the Aid of a Multi-Heterojunction. J. Mater. Chem. A 2017, 5, 6483–6493. [Google Scholar] [CrossRef]
  42. Han, J.; Niu, X.; Guan, J. Unveiling the Role of Defects in Iron Oxyhydroxide for Oxygen Evolution. J. Colloid Interface Sci. 2023, 635, 167–175. [Google Scholar] [CrossRef] [PubMed]
  43. Chen, S.; Liang, X.; Hu, S.; Li, X.; Zhang, G.; Wang, S.; Ma, L.; Wu, C.-M.L.; Zhi, C.; Zapien, J.A. Inducing Fe 3d Electron Delocalization and Spin-State Transition of FeN4 Species Boosts Oxygen Reduction Reaction for Wearable Zinc–Air Battery. Nanomicro Lett. 2023, 15, 47. [Google Scholar] [CrossRef] [PubMed]
  44. Shinagawa, T.; Garcia-Esparza, A.T.; Takanabe, K. Insight on Tafel Slopes from a Microkinetic Analysis of Aqueous Electrocatalysis for Energy Conversion. Sci. Rep. 2015, 5, 13801. [Google Scholar] [CrossRef]
  45. Ma, J.; Wang, Q.; Li, L.; Zong, X.; Sun, H.; Tao, R.; Fan, X. Fe2O3 Nanorods/CuO Nanoparticles p-n Heterojunction Photoanode: Effective Charge Separation and Enhanced Photoelectrochemical Properties. J. Colloid Interface Sci. 2021, 602, 32–42. [Google Scholar] [CrossRef]
  46. Chen, X.; Kong, Y.; Yin, H.; Yang, X.; Zhao, Q.; Xiao, D.; Wang, Z.; Zhang, Y.; Xue, Q. Unveiling the Enhancement of Electrocatalytic Oxygen Evolution Activity in Ru-Fe2O3/CoS Heterojunction Catalysts. Small 2024, 2403427. [Google Scholar] [CrossRef]
  47. Xin, S.; Tang, Y.; Jia, B.; Zhang, Z.; Li, C.; Bao, R.; Li, C.; Yi, J.; Wang, J.; Ma, T. Coupling Adsorbed Evolution and Lattice Oxygen Mechanism in Fe-Co(OH)2/Fe2O3 Heterostructure for Enhanced Electrochemical Water Oxidation. Adv. Funct. Mater. 2023, 33, 2305243. [Google Scholar] [CrossRef]
  48. Negahdar, L.; Zeng, F.; Palkovits, S.; Broicher, C.; Palkovits, R. Mechanistic Aspects of the Electrocatalytic Oxygen Evolution Reaction over Ni−Co Oxides. ChemElectroChem 2019, 6, 5588–5595. [Google Scholar] [CrossRef]
  49. Heymann, L.; Weber, M.L.; Wohlgemuth, M.; Risch, M.; Dittmann, R.; Baeumer, C.; Gunkel, F. Separating the Effects of Band Bending and Covalency in Hybrid Perovskite Oxide Electrocatalyst Bilayers for Water Electrolysis. ACS Appl. Mater. Interfaces 2022, 14, 14129–14136. [Google Scholar] [CrossRef]
  50. Beasley, C.; Kumaran Gnanamani, M.; Santillan-Jimenez, E.; Martinelli, M.; Shafer, W.D.; Hopps, S.D.; Wanninayake, N.; Kim, D. Effect of Metal Work Function on Hydrogen Production from Photocatalytic Water Splitting with MTiO2 Catalysts. ChemistrySelect 2020, 5, 1013–1019. [Google Scholar] [CrossRef]
  51. Feng, C.; Wang, F.; Liu, Z.; Nakabayashi, M.; Xiao, Y.; Zeng, Q.; Fu, J.; Wu, Q.; Cui, C.; Han, Y.; et al. A Self-Healing Catalyst for Electrocatalytic and Photoelectrochemical Oxygen Evolution in Highly Alkaline Conditions. Nat. Commun. 2021, 12, 5980. [Google Scholar] [CrossRef] [PubMed]
  52. Song, K.; Lee, Y.; Jo, M.R.; Nam, K.M.; Kang, Y.-M. Comprehensive design of carbon-encapsulated Fe3O4 nanocrystals and their lithium storage properties. Nanotechnology 2012, 23, 505401. [Google Scholar] [CrossRef] [PubMed]
  53. Zhu, Q.; Yang, G.; Tang, L.; Mi, H.; Sun, L.; Zhang, Q.; Deng, L.; Zhang, P.; Ren, X.; Li, Y. Enhanced Electrocatalytic Performance for Oxygen Evolution Reaction via Active Interfaces of Co3O4 Arrays@Feox/Carbon Cloth Heterostructure by Plasma-Enhanced Atomic Layer Deposition. Nanotechnology 2023, 34, 225703. [Google Scholar] [CrossRef] [PubMed]
  54. Jing, T.; Zhang, N.; Zhang, C.; Mourdikoudis, S.; Sofer, Z.; Li, W.; Li, P.; Li, T.; Zuo, Y.; Rao, D. Improving C−N−FeOx Oxygen Evolution Electrocatalysts through hydroxyl-Modulated Local Coordination Environment. ACS Catal. 2022, 12, 7443–7452. [Google Scholar] [CrossRef]
  55. Zhuang, Z.; Giles, S.A.; Jenness, G.R.; Abbasi, R.; Chen, X.; Wang, B.; Vlachos, D.G.; Yan, Y. Oxygen Evolution on Iron Oxide Nanoparticles: The Impact of Crystallinity and Size on the Overpotential. J. Electrochem. Soc. 2021, 168, 034518. [Google Scholar] [CrossRef]
  56. Martinez, J.; Mazarío, J.; Olloqui-Sariego, J.L.; Calvente, J.J.; Darawsheh, M.D.; Mínguez-Espallargas, G.; Domine, M.E.; Oña-Burgos, P. Bimetallic Intersection in PdFe@FeOx-C Nanomaterial for enhanced Water Splitting Electrocatalysis. Adv. Sustain. Syst. 2022, 6, 2200096. [Google Scholar] [CrossRef]
  57. Liu, Y.; Ying, Y.; Fei, L.; Liu, Y.; Hu, Q.; Zhang, G.; Pang, S.Y.; Lu, W.; Mak, C.L.; Luo, X.; et al. Valence Engineering via Selective Atomic Substitution on Tetrahedral Sites in Spinel Oxide for Highly Enhanced Oxygen Evolution Catalysis. J. Am. Chem. Soc. 2019, 141, 8136–8145. [Google Scholar] [CrossRef]
  58. Qayum, A.; Peng, X.; Yuan, J.; Qu, Y.; Zhou, J.; Huang, Z.; Xia, H.; Liu, Z.; Tan, D.Q.; Chu, P.K.; et al. Highly Durable and Efficient Ni-FeOx/FeNi3 Electrocatalysts Synthesized by a Facile In Situ Combustion-Based Method for Overall Water Splitting with Large Current Densities. ACS Appl. Mater. Interfaces 2022, 14, 27842–27853. [Google Scholar] [CrossRef]
Nanomaterials 14 01515 sch001
Scheme 1. Schematic illustration of the synthesis of n-FeO, Fe(OH)x, and p-α-Fe2O3 nanoparticles and the electrode fabrication.
Scheme 1. Schematic illustration of the synthesis of n-FeO, Fe(OH)x, and p-α-Fe2O3 nanoparticles and the electrode fabrication.
Nanomaterials 14 01515 sch001
Nanomaterials 14 01515 g001

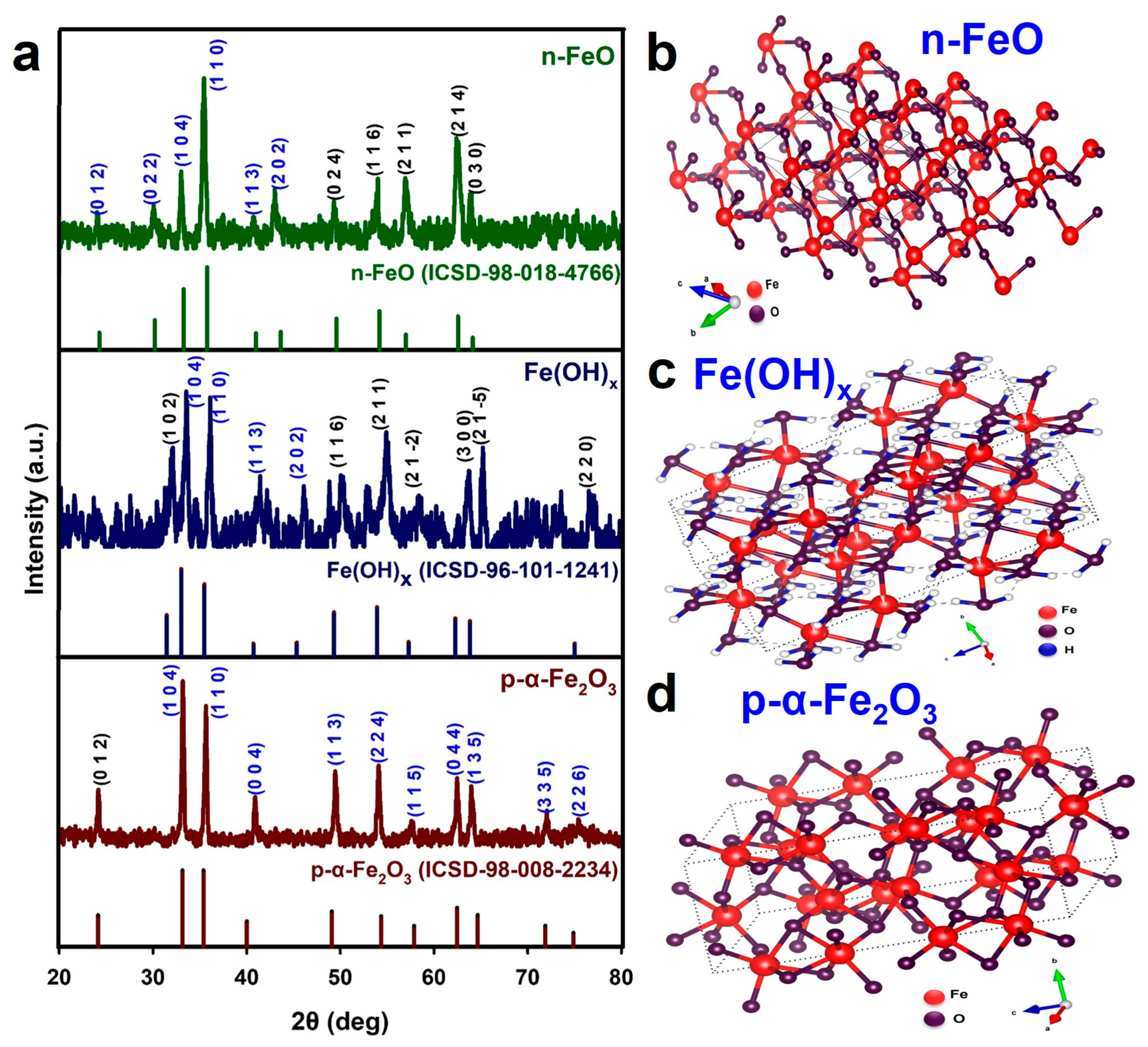

Figure 1. (a) XRD diffraction patterns of n-FeO, Fe(OH)x, and p-α-Fe2O3 nanoparticles. The crystal structures of (b) n-FeO, (c) Fe(OH)x, and (d) p-α-Fe2O3 were drawn using VESTA software 3.5.8 @2022.
Figure 1. (a) XRD diffraction patterns of n-FeO, Fe(OH)x, and p-α-Fe2O3 nanoparticles. The crystal structures of (b) n-FeO, (c) Fe(OH)x, and (d) p-α-Fe2O3 were drawn using VESTA software 3.5.8 @2022.
Nanomaterials 14 01515 g001
Nanomaterials 14 01515 g002
Figure 2. FE-SEM morphologies of (a) n-FeO, (e) Fe(OH)x, and (i) p-α-Fe2O3 NPs; Elemental mapping of Fe and O elements in (b,c) n-FeO, (f,g) Fe(OH)x, and (j,k) p-α-Fe2O3 NPs; EDX analysis for (d) n-FeO, (h) Fe(OH)x, and (l) p-α-Fe2O3 NPs.
Figure 2. FE-SEM morphologies of (a) n-FeO, (e) Fe(OH)x, and (i) p-α-Fe2O3 NPs; Elemental mapping of Fe and O elements in (b,c) n-FeO, (f,g) Fe(OH)x, and (j,k) p-α-Fe2O3 NPs; EDX analysis for (d) n-FeO, (h) Fe(OH)x, and (l) p-α-Fe2O3 NPs.
Nanomaterials 14 01515 g002
Nanomaterials 14 01515 g003

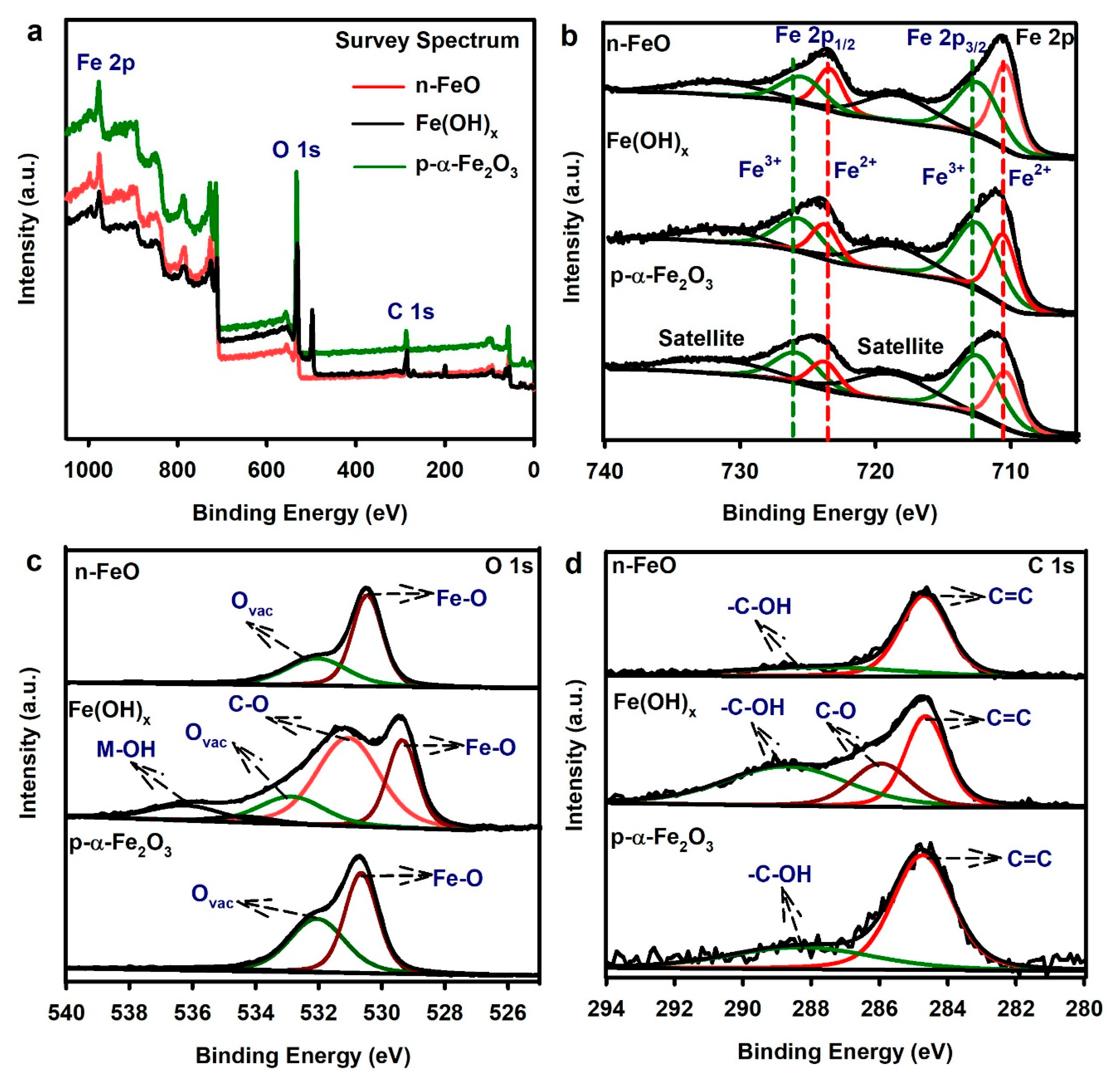

Figure 3. XPS analysis of n-FeO, Fe(OH)x, and p-α-Fe2O3 NPs, (a) survey spectrum, (b) core-level XPS spectra of Fe 2p, (c) core-level XPS spectra of O 1s, and (d) core-level XPS spectra of C 1s.
Figure 3. XPS analysis of n-FeO, Fe(OH)x, and p-α-Fe2O3 NPs, (a) survey spectrum, (b) core-level XPS spectra of Fe 2p, (c) core-level XPS spectra of O 1s, and (d) core-level XPS spectra of C 1s.
Nanomaterials 14 01515 g003
Nanomaterials 14 01515 g004

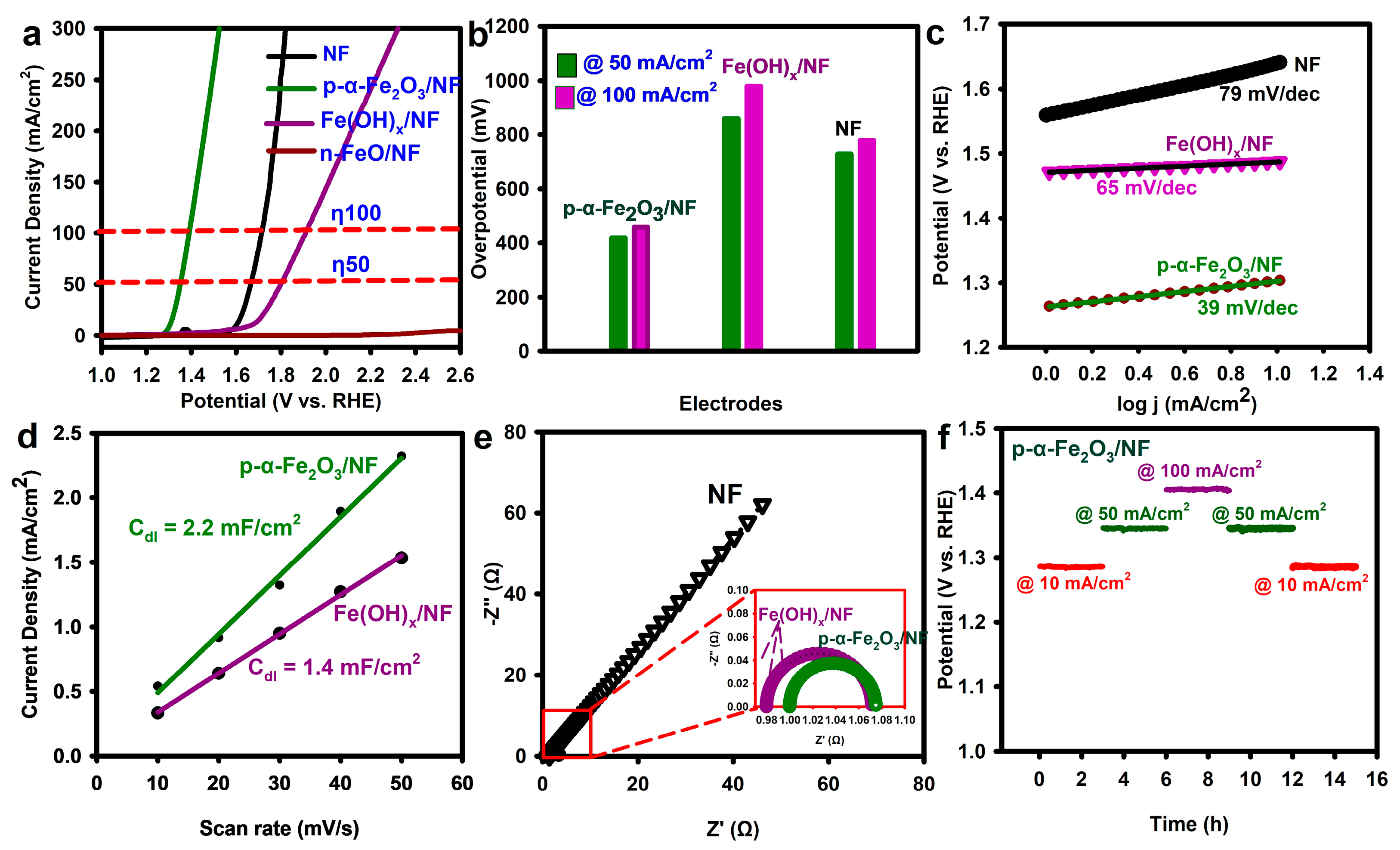

Figure 4. OER electrochemical studies. (a) LSV polarization curve, (b) OER overpotential, (c) OER Tafel slope, (d) Double-layer capacitance (Cdl) slope, (e) EIS Nyquist plot, (f) Chronopotentiometry test.
Figure 4. OER electrochemical studies. (a) LSV polarization curve, (b) OER overpotential, (c) OER Tafel slope, (d) Double-layer capacitance (Cdl) slope, (e) EIS Nyquist plot, (f) Chronopotentiometry test.
Nanomaterials 14 01515 g004
Nanomaterials 14 01515 g005
Figure 5. HER electrochemical studies. (a) LSV polarization curve, (b) HER overpotential, (c) HER Tafel slope, (d) Double-layer capacitance (Cdl) slope, (e) EIS Nyquist plot, (f) Chronopotentiometry test.
Figure 5. HER electrochemical studies. (a) LSV polarization curve, (b) HER overpotential, (c) HER Tafel slope, (d) Double-layer capacitance (Cdl) slope, (e) EIS Nyquist plot, (f) Chronopotentiometry test.
Nanomaterials 14 01515 g005
Nanomaterials 14 01515 g006

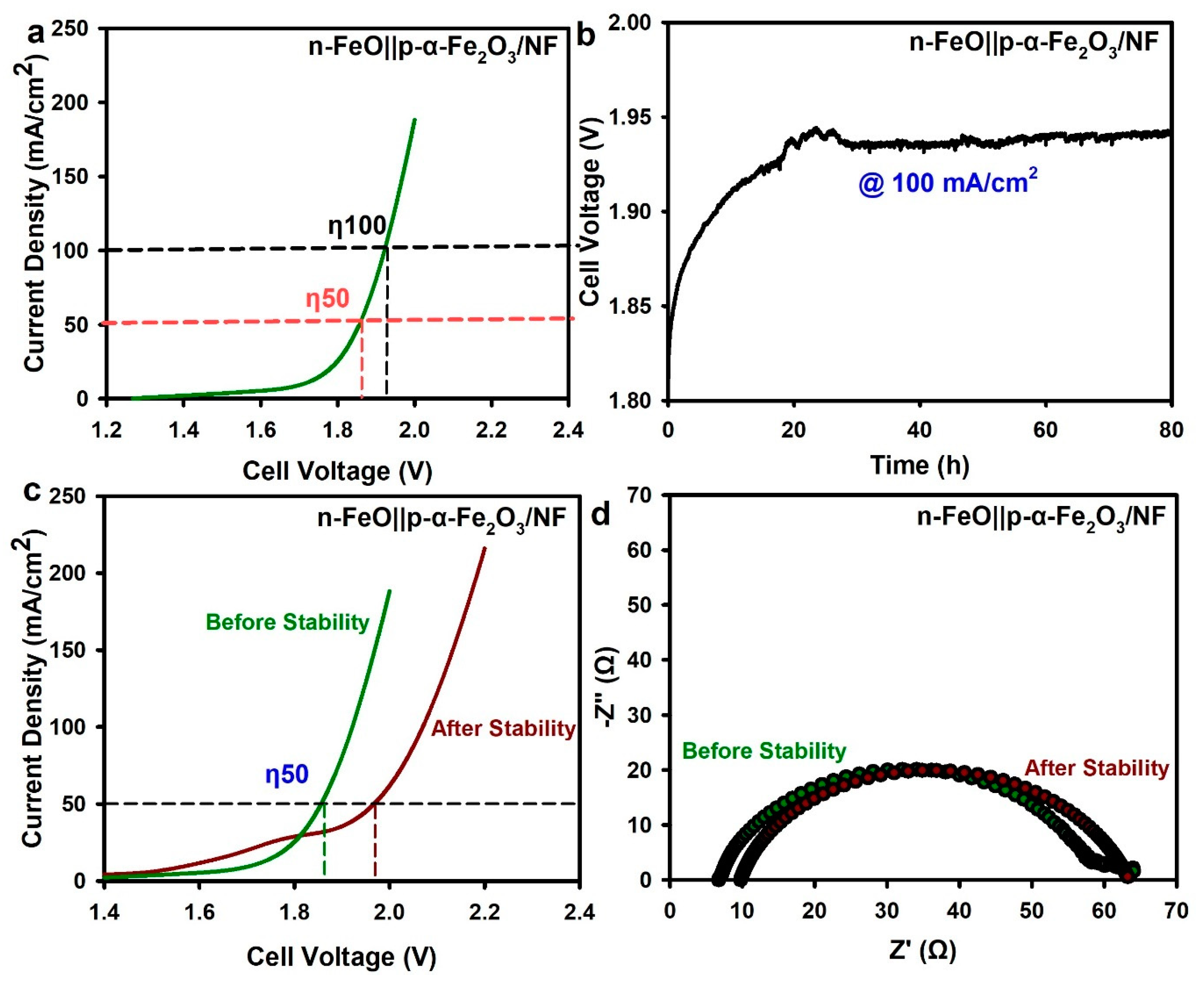

Figure 6. (a) Overall water splitting polarization curve, (b) Chronopotentiometry stability measurement for n-FeO||p-α-Fe2O3/NF electrode at 100 mA/cm2, (c) polarization curve before and after 80 h of stability testing, and (d) EIS measurement before and after 80 h of stability testing.
Figure 6. (a) Overall water splitting polarization curve, (b) Chronopotentiometry stability measurement for n-FeO||p-α-Fe2O3/NF electrode at 100 mA/cm2, (c) polarization curve before and after 80 h of stability testing, and (d) EIS measurement before and after 80 h of stability testing.
Nanomaterials 14 01515 g006
