Hierarchical Heterojunctions of Metal Sulfide WS2 Nanosheets/Metal Oxide In2O3 Nanofibers for an Efficient Detection of Formaldehyde

by
Lei Zhu
1,2,
Jiaxin Zhang
1,
Jianan Wang
1,*,
Jianwei Liu
1,3 and
Wei Yan
1,*
1
Xi’an Key Laboratory of Solid Waste Resource Regeneration and Recycling, State Key Laboratory of Multiphase Flow Engineering, School of Energy and Power Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
School of Physics and Electrical Engineering, Weinan Normal University, Chaoyang Street, Weinan 714099, China
3
School of Chemistry and Chemical Engineering, Xi’an University of Science & Technology, Xi’an 710054, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2024, 14(21), 1702; https://doi.org/10.3390/nano14211702
Submission received: 30 September 2024 / Revised: 22 October 2024 / Accepted: 22 October 2024 / Published: 24 October 2024
(This article belongs to the Special Issue Nanomaterials in Flexible Sensing and Devices)
Browse Figures
Versions Notes

Abstract

:
The construction of transition metal dichalcogenides (TMDs) heterojunctions for high-performance gas sensors has garnered significant attention due to their capacity to operate at low temperatures. Herein, we realize two-dimensional (2D) WS2 nanosheets in situ grown on one-dimensional (1D) In2O3 nanofibers to form heterostructures for formaldehyde (HCHO) gas sensors. Capitalizing on the p-n heterojunctions formed between WS2 and In2O3, coupled with the high surface-to-volume ratio characteristic of 1D nanostructures, the WS2/In2O3 NFs sensor demonstrated an elevated gas response of 12.6 toward 100 ppm HCHO at 140 °C, surpassing the performance of the pristine In2O3 sensor by a factor of two. Meanwhile, the sensor presents remarkable repeatability, rapid response/recovery speed, and good long-term stability. The superior sensing capabilities of WS2/In2O3 NFs heterojunction are attributed to the combined impact of the increased charge transfer and the presence of more sites for gas adsorption. The research endows a potent approach for fabricating TMD heterojunctions to significantly enhance the gas sensing properties of gas sensors at relatively low temperatures.

1. Introduction

Formaldehyde (HCHO), is a harmful gas that adversely affects human respiratory health and the quality of the environment, and it mainly comes from building materials, furniture, artificial plates, and various adhesive coatings [1,2,3]. Prolonged exposure to indoor environments with elevated levels of HCHO can result in chronic health issues, including leukemia, and potentially cancer [4]. In light of these risks, the World Health Organization (WHO) has delineated a permissible safety threshold for HCHO exposure at 81 parts per billion (ppb) [5]. Consequently, it is crucial to develop a sensor for the recognition of HCHO vapors with high response values and sustained stability for indoor environmental monitoring.
Gas sensors based on metal oxide semiconductors (MOS) have garnered significant interest in the detection of HCHO [6,7,8]. Zhang et al. [9] prepared single-atom Ru-SnO2 nanoparticles for HCHO detection. Analyses of gas sensing performance have demonstrated that the SnO2/Ru sensor exhibits a high response value of 36.3 toward 20 ppm HCHO at 250 °C. Lu et al. [7] fabricated an HCHO gas sensor based on Pt1-In2O3 and the sensor enabled high sensitivity toward HCHO at 200 °C. Although the HCHO gas sensors prepared by the above methods have achieved certain results, and all of them show high sensitivity to HCHO gas, the traditional thermally excited MOS-based gas sensors are still required to be operated at temperatures exceeding 200 °C and have high power consumption [10,11], which can adversely impact the sensor’s service life and long-term stability. Hence, there exists demand for the advancement of HCHO gas sensors capable of functioning with low power consumption, which is conducive to the portability and miniaturization of the devices.
Two-dimensional (2D) TMDs have garnered considerable attention as potential candidates for use in gas sensing applications, owing to their enhanced specific surface area and elevated surface reactivity [12,13]. The gas sensing mechanism of TMDs relies on the charge transfer occurring on the surface of the material, i.e., the target gas molecules to be measured undergo charge transfer with the surface of the metal sulfide material through electrostatic action resulting in modifications in the sensor’s total electrical conductivity [14,15]. Since TMDs have a narrow bandgap, gas molecules can undergo adsorption and desorption reactions on the surface of the material at low or even room temperatures [16]. Among distinctive monolayer TMDs, tungsten sulfide (WS2) has unique properties including good thermal stability, cost-effectiveness, and adjustable energy band structure. Numerous investigations have been conducted on the utilization of WS2 for gas detection at low or room temperatures [17,18,19,20]. Despite these efforts, there remains a necessity for further enhancements in the areas of accelerating the response and recovery times, and in improving the long-term stability of WS2 gas sensors. To address the above problems, the hybridization of MOS with WS2 has been proposed for regulating the Fermi energy levels within the gas sensing materials and altering their inherent charge transport mechanisms, thereby significantly enhancing the overall performance of the gas sensing [21,22,23]. For example, Qin et al. [21] reported the improved sensing performance of TiO2 quantum dots (QDs) decorated WS2 nanohybrids in detecting NH3 at room temperature due to the effective electron transfer between the WS2 and the TiO2 QDs through S-O-Ti bonding. Kim et al. [24] found that the WS2-ZnO heterojunction sensor exhibited the highest response to reducing gas under a low applied voltage of 4.2 eV.
In this work, one-dimensional (1D) In2O3 nanofibers (NFs) were selected as the foundational phase for the in situ growing of 2D WS2 nanosheets, thereby constructing a heterojunction structure. These heterojunctions offer a close contact surface and robust chemical bonds, which in turn boosts the carrier density and facilitates charge transfer. The WS2/In2O3 heterostructures sensor enables a notable response value of 12.6 exposure to 100 ppm HCHO at 140 °C, along with rapid response/recovery time (30/43 s). In addition to these characteristics, the device has shown satisfactory repeatability and sustained stability over time. To further elucidate the enhanced sensing mechanism for HCHO detection, a thorough analysis of the experimental data has been conducted on the WS2/In2O3 sensor.

2. Experimental Section

2.1. Synthesis of Pristine In2O3 Nanofibers (NFs)

The synthesis of pristine indium oxide nanofibers (In2O3 NFs) was achieved through a process involving electrospinning followed by a subsequent annealing procedure. Typically, 1.0 g In(NO3)3·4.5H2O was introduced into a blend consisting of 10 mL N, N-dimethylformamide, and 4 mL ethanol and stirred for 2 h. Then, 1.0 g polyvinylpyrrolidone (PVP) was uniformly dispersed into the mixture and stirred continuously for an additional 4 h. The resulting homogeneous electrospinning solution was subsequently loaded into a 5 mL syringe. The spinning process was then carried out under the influence of an electrostatic field with a voltage of approximately 14 kV. Following this, the precursor fibers underwent calcination at a temperature of 600 °C with a controlled heating rate of 5 °C·min−1 for 3 h in air, leading to the formation of the pristine In2O3 NFs.

2.2. Synthesis of WS2/In2O3 Nanofibers (NFs)

The sensing materials of the WS2/In2O3 NFs were synthesized by a hydrothermal approach, utilizing sodium tungstate dihydrate (Na2WO4·2H2O) and thioacetamide (TAA) as precursors for tungsten and sulfur, respectively, as depicted in Figure 1. Specifically, 0.032 g Na2WO4·2H2O and 0.0751 g TAA were thoroughly mixed with deionized water (30 mL) with magnetic stirring for 30 min. Next, 0.02 g oxalic acid and 0.05 g as-prepared In2O3 NFs were introduced into the solution, which was then stirred continuously for an additional hour to ensure homogeneity. The resulting solution was then transferred into a 50 mL Teflon reactor and maintained at a temperature of 180 °C for 12 h. After the centrifugation process, the precipitate was carefully collected and thoroughly washed using ethanol to ensure purity. Subsequently, the resulting WS2/In2O3 nanofibers (NFs) were subjected to a drying process at 60 °C overnight. For comparison, WS2 nanosheets (NTs) were also synthesized via an identical procedure, except for the In2O3 NFs addition.

2.3. Characterizations

Morphological data of the samples were obtained using SEM (GeminiSEM 500, China) and TEM (JEOL JEM2100, Tokyo, Japan). The crystallographic information of samples was determined using X-ray diffraction (XRD) analysis (PANalytical X’pert MPDPro system, Almelo, The Netherlands) with Cu Kα radiation source operating at 40 kV and 40 mA. For the acquisition of X-ray photoelectron spectroscopy (XPS) data, the AXIS ULtrabld (UK) instrument was employed. This device used a monochromatic Al Kα radiation source with settings of 15 kV and an energy of 1486.6 electron volts. The structure and chemical bonds were determined using Fourier-transform Infrared Spectroscopy (Bruker Tensor 37 spectrometer, Billerica, MA, USA). The Raman scattering analysis was performed using an HR800 Raman spectrometer (France). For the excitation process in this analysis, a laser light with a wavelength of 532 nanometers was utilized. The surface area and pore size were measured using a Brunauer–Emmett–Teller (BET) analyzer (SSA-4300, China). The measurements were conducted at a temperature maintained by liquid nitrogen (77 K). Thermogravimetric analysis (TGA) was performed on a TGDTG-60FTIR apparatus (China) under an air atmosphere with a heating rate of 10 °C min−1 from room temperature to 600 °C.

2.4. Device Fabrication and Gas Sensing Property Tests

The prepared sample powder was thoroughly combined with deionized water and then ground to a fine paste using an agate mortar. Next, the finely ground paste was evenly coated on the ceramic tube that had been fitted with Au electrodes and then subjected to an annealing process at 120 °C for 5 h to obtain the sensor. The performance characteristics of the sensors were assessed using a WS-30A analytical instrument. The detailed procedure is shown in the Supplementary Materials Text S1. A technique involving the static distribution of liquids was employed to generate gases of varying concentrations for testing. The evaporation apparatus is designed to ensure that a specific volume, denoted as Q, of injected liquid is rapidly transformed into the gaseous phase. The volume Q can be calculated using the formula provided (referred to as Equation (S1)). This method ensures precise control over the gas concentrations used in the experiments, which is crucial for accurate sensor performance evaluation. The sensor response to HCHO is quantified as the ratio of its electrical resistance in ambient air (denoted as Ra) to that in test gas (denoted as Rg), expressed as S = Ra/Rg.

3. Results and Discussion

3.1. Morphology Characterization and Phase Composition

The schematic illustration of the WS2/In2O3 NFs is illustrated in Figure 1. The microstructure and morphology of pristine In2O3 NFs, WS2 NTs, and WS2/In2O3 NFs were explored using SEM, as shown in Figure 2a–c. The pristine In2O3 NFs present a disordered fiber stacking morphology (Figure 2a). The high magnification SEM image shows that the individual fibers of In2O3 NFs are constituted by abundant uniformly sized nanoparticles (inset in Figure 2a). Figure 2b presents that the layered structure of WS2 is visible, appearing as a stacked nanosheet-like structure. After loading the WS2 on the surface of In2O3 NFs, the as-prepared WS2/In2O3 sample still maintains a continuous fiber morphology (Figure 2c). In addition, as shown in Figure 2c, contrasting with the pristine In2O3 nanofibers that possess a smooth surface, the surface of WS2/In2O3 is wrinkled due to the stacking of WS2 nanosheets. The average diameter of WS2/In2O3 NFs is increased to 0.51 μm attributed to the loading of WS2 NTs compared with the pristine In2O3 NFs (84.8 nm) (Figure 2c).
The intricate morphological and crystal characteristics of the WS2/In2O3 NFs were examined through the TEM and HRTEM. Figure 2d,e presents that the surface of In2O3 NFs is completely covered by WS2 NTs. In addition, the WS2/In2O3 NFs have a clear contrast between the dark interior and bright surface, confirming the WS2/In2O3 heterostructures. The representative HRTEM image (Figure 2f) reveals that the lattice fringe with a measured distance of 0.62 nm corresponds to the (002) planes of WS2 [25]. Since the WS2 nanosheets completely cover the surface of the In2O3 NFs and form a thick film, it is difficult to obtain the lattice fringes of the inner In2O3. The EDS elemental mappings analysis of WS2/In2O3 NFs in Figure 2g shows that In, O, S, and W elements are evenly distributed. Furthermore, Figure 2h presents the EDS spectrum of WS2/In2O3 NFs, in which all the elemental constituents including In, O, S, and W can be observed.
The crystal structure and phase composition for pristine In2O3 and WS2/In2O3 NFs were investigated using XRD (Figure 3a). The peaks of pristine In2O3 correspond to the cubic In2O3 planes (JCPDS No. 06-0416) [26,27]. As for WS2/In2O3 heterojunctions, the typical peaks for WS2 at 14.39, 23.9, 28.15, and 44.94° are well indexed to WS2 (JCPDS No. 87-2417) [28], and peaks for In2S3 at 28.66, 33.22, 41.01, and 47.7 are indexed to In2S3 (JCPDS No. 25-0390) [29], can be observed alongside the prominent peaks attributed to In2O3, suggesting the successful formation of WS2/In2O3 heterojunctions. Furthermore, we have calculated the structural parameters of grain size and dislocation density for pristine In2O3 and WS2/In2O3 NFs, as shown in Table S1.
The FT-IR measurement was used to further explore the surface chemical information and vibrational modes of the chemical bonds in the pristine In2O3, WS2, and WS2/In2O3 composite (Figure 3b). The spectrum of pristine In2O3 with distinctive intense bands at 424.1533.1, 564.9, and 605.3 cm−1 were related to the In-O bond vibrations [30]. The band observed at 2980.4 cm−1 in WS2 is attributed to the bending vibrations of W-S bonds. Additionally, the vibrational band at 3125.6 cm−1 is associated with -OH, whereas the bands at 1098.0 and 623.7 cm−1 correspond to the vibrations of S-S and W-S bonds, respectively [17]. The characteristic peaks of WS2/In2O3 composite exhibit three vibrational peaks of In2O3 at 440.3, 533.1, and 601.8 cm−1, and three main peaks of WS2 at 2898.6, 1012.4, and 646.3 cm−1, suggesting the successful binding of In2O3 and WS2.
Figure 3c shows the Raman spectra of pristine In2O3, WS2, and WS2/In2O3 composite. In the case of the pristine In2O3, the Raman spectrum displays characteristic peaks at 306, 494, and 629 cm−1. These peaks correspond to the δ (InO6), In-O-In, and υ(InO6) of indium oxide structure, respectively [31]. The peaks of WS2 at 350 and 414 cm−1 corresponded to the E2g and A1g modes of WS2, respectively [32]. The Raman spectra of the WS2/In2O3 composite exhibited the distinctive peaks of both In2O3 and WS2, with no additional peaks observed, suggesting that the composite is made up exclusively of these two components. In addition, the characteristic peaks in the WS2/In2O3 composite show a noticeable red-shift compared to those of the pristine In2O3 and WS2, indicating the presence of lattice distortion or residual structural stress within the WS2/In2O3 [33].
XPS analysis facilitates a deeper understanding of the elemental composition present in the prepared samples. The full range spectra of pristine In2O3 and WS2/In2O3 are plotted in Figure 3d. The XPS survey spectrum of WS2/In2O3 presents the presence of main elements including In, O, S, W, and C. For In2O3, only binding energy peaks of In, O, and C can be observed. In Figure 3e, the XPS spectrum of In 3d for In2O3 exhibits two distinct peaks, one at a binding energy of 444.9 eV and another at 452.4 eV. These peaks are, respectively, ascribed to the In 3d5/2 and In 3d3/2, verifying the presence of In3+ [34,35]. Compared to In2O3, the In 3d peaks in WS2/In2O3 move to a lower binding energy (~0.6 eV), suggesting the presence of heterojunction, which significantly influences the chemical environment at the interface between In2O3 and WS2 [36,37]. The high-resolution O 1s spectra, as depicted in Figure 3f, can be deconvoluted into lattice oxygen (OL), oxygen vacancies (OV), and chemisorbed oxygen (OC) [29,38]. The area ratios of the oxygen fractions of samples are further listed in Table S2. The contents of OV in pristine In2O3 and WS2/In2O3 NFs are 40.8% and 48.4%, respectively. The increase in OV content of WS2/In2O3 NFs is likely a result of the lattice distortions due to the creation of heterojunctions. The S 2p spectrum of WS2/In2O3 heterojunctions is depicted in Figure 3g. Characteristic peaks observed at 162.4 and 161.3 eV in the XPS spectrum are specifically attributed to the binding energies associated with the S 2p1/2 and S 2p3/2, respectively [39,40]. The spectrum W 4f of WS2/In2O3 in Figure 3h can be fitted into two components and the peaks located at 35.6 and 37.8 eV were indexed with W 4f5/2 and W 4f7/2. Both peaks comprise W4+ (1T) and W4+ (2H), suggesting that tungsten is present in the +4 oxidation state [41,42].
The nitrogen adsorption–desorption isotherms, along with the pore size distribution curves for the pristine In2O3 and the WS2/In2O3 composite, are depicted in Figure S1 and Figure 3i. For the pristine In2O3 and WS2/In2O3 NFs, the N2 adsorption/desorption isotherms exhibit the characteristic type IV isotherm, accompanied by a H3 hysteretic loop, suggesting the presence of mesoporous structure within both samples. The pore size for pristine In2O3 and WS2/In2O3 NFs (inset in Figure S1 and Figure 3i) are about 2.7 and 3.5 nm, respectively. And the pore volumes of WS2/In2O3 NFs are higher than those of pristine In2O3 NFs. Meanwhile, the WS2/In2O3 NFs possess a significantly larger specific surface area of 84.9 m2 g−1. This value is markedly superior to that of the pristine In2O3, which has a specific surface area of only 9.6 m2 g−1. The integration of WS2 NTs onto the surface of In2O3 NFs has led to a notable increase in the specific surface area and a corresponding rise in the pore volume. This structural modification is advantageous, as it promotes the diffusion and adsorption processes of O2 and HCHO molecules within the sensing material, thereby enhancing the material’s sensitivity in detecting the target gases [7].

3.2. Gas Sensing Performance

For the optimization of the sensor operating condition, the operating temperature is considered an essential factor. The corresponding responses of pristine In2O3 and WS2/In2O3 sensors exposed to 100 ppm HCHO were recorded at different operating temperatures, as displayed in Figure 4a. Within the temperature interval from 100 to 140 °C, there was a positive correlation between the operating temperature and the sensor responses for both sensors. Upon reaching an operating temperature of 140 °C, the responses of the sensors reached the maximum values of 6.2 (In2O3) and 12.6 (WS2/In2O3), respectively. Beyond this temperature, a decline in the responses was observed. Thus, the optimal operating temperature of the pristine In2O3 and WS2/In2O3 sensors is 140 °C and all further gas sensing investigations were performed at 140 °C. In addition, thermal gravimetric (TG) analysis was conducted to understand the thermal decomposition behavior of In2O3 and WS2/In2O3 NFs (Figure S2). The results show that the In2O3 and WS2/In2O3 NFs had good thermal stability. Figure 4b presents the baseline resistance (Ra) of the sensors measured in ambient air across a range of operating temperatures from 100 to 140 °C. The experimental findings indicate a decrease in the electrical resistance (Ra) for both sensors as the temperature elevates. This phenomenon can be ascribed to the inherent properties of metal oxide semiconductors [43].
The response and recovery curves to 100 ppm HCHO of both sensors at 140 °C were depicted in Figure 4c and Figure S3. The response/recovery times (τres./τrec.) of pristine In2O3 and WS2/In2O3 sensors were calculated to be 23/50 s and 30/43 s, respectively. The recovery times were longer than that of the response time, which is attributed to the relatively slower desorption kinetics of the by-products involved in the process [18].
The responses comparison for the pristine In2O3 and WS2/In2O3 sensors to different concentrations (1–100 ppm) of HCHO at 140 °C is shown in Figure 4d. With the rise in concentration, the response correspondingly increases. The response values of pristine In2O3 sensor to 1, 5, 10, 20, 50, and 100 ppm HCHO are 1.2, 1.4, 1.9, 2.6, 4.1, and 6.2, respectively, whereas the WS2/In2O3 sensor’s response values are 1.7, 1.9, 2.3, 4.5, 6.7, and 12.6 for the same HCHO concentrations, indicating a notable improvement in the response of the sensor. Additionally, Figure 4e presents the linear calibration curves associated with the sensor’s response. The response values of both sensors demonstrate a good linear correlation with gas concentration [5].
The ability to selectively identify target gases is paramount in establishing the sensing properties of a gas sensor for effective performance within a complex atmosphere [6]. Figure 4f shows the selectivity of pristine In2O3 and WS2/In2O3 sensors for nine different gases at a concentration of 100 ppm. The obtained results indicated that the WS2/In2O3 sensor were more sensitive and selective toward HCHO compared to other potential interfering gases. The bond dissociation energy of the target gas molecules is a critical factor that influences the sensor’s selectivity. As detailed in Table S3, the bond dissociation energy for the HCHO molecule (364 kJ/mol) is lower than that of other gases, demonstrating that HCHO is more likely to react with adsorbed oxygen molecules than other gas molecules. Consequently, the WS2/In2O3 sensor exhibits a higher sensitivity to HCHO in comparison to other gases that possess higher bond dissociation energies. In addition, the response of the WS2/In2O3 sensor is higher than that of the pristine In2O3 sensor, demonstrating its excellent selectivity toward HCHO.
Additionally, the impact of humidity on the sensing performance of the WS2/In2O3 sensor was assessed under varying water vapor conditions, ranging from 33% to 97% relative humidity (RH) in Figure 4g. As the relative humidity rises to 85% RH, the WS2/In2O3 sensor’s response value experiences a minor reduction, amounting to 18%. When the humidity reaches 97% RH, the response value drops to 7.1. This reduction is caused by the competition for active surface sites on the sensing material, where water molecules take up spaces that are crucial for interaction with the target gas [14].
Figure 4h presents the cyclic response and recovery curves of the WS2/In2O3 sensor when exposed to 100 ppm of HCHO at an operating temperature of 140 °C. The sensor demonstrates five consecutive cycles with only minor fluctuations in the response value, and the response and recovery times remain consistent. This consistency indicates the sensor’s excellent reproducibility. Furthermore, Figure 4i exhibits the long-term stability assessment of the WS2/In2O3 sensor over 30 days. The response value shows minimal variation throughout this duration, indicating the sensor’s remarkable stability over an extended period. Additionally, a comparative analysis of the sensing capabilities of the WS2/In2O3 sensor against those of other HCHO sensors is detailed in Table S4. The high sensitivity and low operating temperature of the WS2/In2O3 sensor greatly enhance the competitiveness of this research in the field of gas sensing technology.

3.3. Gas Sensing Mechanism

As a classic n-type In2O3, when it is exposed to an air environment, oxygen molecules will adhere to the surface of the In2O3. Subsequently, the interaction with these molecules leads to the capture of electrons from the conduction band, which in turn results in the formation of various species of oxygen anions (O2−, O−, and O2−) at different operating temperatures (150 °C or less, between 150 and 400 °C, or more than 400 °C). Simultaneously, the formation of an electron depletion layer on the In2O3 surface leads to a consequent rise in electrical resistance (Ra) [44]. In our study, the optimal operating temperature determined for the sensor is 140 °C. At this temperature, the adsorbed oxygen species on the sensor’s surface predominantly exist in the form of oxygen ions with a charge of O2− (Equation (2)). Furthermore, upon exposure to reducing HCHO gas, the HCHO molecules interact with O2−, transferring electrons to the conduction band of In2O3. This electron transfer effectively reduces the sensor’s resistance (Rg) [45]. The interactions involving adsorbed oxygen and HCHO are detailed in the subsequent Equations (1) and (3) [46,47]:
O2 (gas) → O2 (ads)
O2 (ads) + e− → 2O2− (ads)
HCHO (gas) + 2O2− (ads) → CO2 (gas)+ H2O (gas) +2e−
The schematic sensing mechanism of WS2/In2O3 NFs is shown in Figure 5. The improved gas sensing performance of WS2/In2O3 compared to the pristine In2O3 NFs sensor is predominantly attributed to the following two key factors:
Firstly, the p-n heterojunction between WS2 and In2O3. Figure 5a,b present the energy band diagrams of the WS2/In2O3. When the p-type properties of WS2 are in close contact with the n-type properties of In2O3, the Fermi levels should be equal, which will lead to the transfer of electrons from In2O3 to WS2, while the holes move in the opposite direction [19,48,49]. In Figure 5a, the electron depletion layers (EDL) and the electron accumulation layer (EAL) form at the interface of In2O3 and WS2 in an air environment, respectively. In Figure 5b, upon exposure to HCHO gas, the HCHO molecules chemically interact with the O2− that are adsorbed on the surface. This interaction breaks the equilibrium state of the intrinsic electric field under air conditions. As a result, the trapped electrons are released back to the In2O3, leading to an enhancement of electron density on In2O3 and a decrease in the electrical resistance of the sensor [50]. Consequently, the sensitivity of the WS2/In2O3 heterojunction to HCHO gas is significantly amplified.
Secondly, the increased content of OV offers a greater quantity of reactive sites for gs adsorption and contributes to the enhanced response of the WS2/In2O3 sensor. Throughout the gas detection process, oxygen vacancies (OV) frequently serve as sites for the adsorption and reaction of gases, as they possess a lower binding energy [51,52]. In this study, XPS analysis reveals that the WS2/In2O3 heterojunction contains a higher concentration of OV compared to the pristine In2O3. This increased OV content leads to greater adsorption of oxygen and HCHO on the WS2/In2O3 surface, which in turn facilitates the gas sensing reactions.
Accordingly, the improved sensing performance of WS2/In2O3 heterojunction is because of the synergistic effect of the increased charge transfer and the presence of more sites for adsorption.

4. Conclusions

In conclusion, 2D/1D heterostructure WS2/In2O3 NFs were fabricated via the electrospinning process, followed by hydrothermal treatment. The WS2/In2O3 NFs sensor shows an excellent response of 12.6 toward HCHO (100 ppm) at 140 °C along with a short response/recovery time (30/43 s). Furthermore, the sensor possesses exceptional selectivity and long-term stability. The improved detection capabilities for HCHO gas can be ascribed to the enhanced charge transfer at the WS2/In2O3 heterojunctions interfaces as well as the increased adsorption sites. The combination of 2D WS2 nanosheets with the 1D In2O3 nanofibers has been validated as a potent approach for the synthesis of sensitive material for efficient HCHO detection.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14211702/s1, Text S1; Figure S1: N2 adsorption-desorption isotherms and pore-size distributions of pristine In2O3; Figure S2: TGA analysis of (a) In2O3 and (b) WS2/In2O3 NFs; Figure S3: Response and recovery characteristics of sensors exposure to HCHO (100 ppm); Table S1: Structural parameters for pristine In2O3 and WS2/In2O3 NFs by considering the crystal plane from their XRD patterns; Table S2: The relative percentages of three different oxygen species for pristine In2O3, and WS2/In2O3 NFs; Table S3: The molecular structure and the bond dissociation energies of various gases molecules; Table S4: Comparison of HCHO gas sensing performance with other gas sensors. References [53,54,55,56,57,58,59] are cited in the supplementary materials.

Author Contributions

Conceptualization, L.Z. and W.Y.; methodology, L.Z. and J.Z.; validation, L.Z., J.L. and W.Y.; formal analysis, L.Z., J.W. and J.Z.; investigation, L.Z. and J.Z.; resources, J.L. and W.Y.; data curation, J.W. and J.Z.; writing—original draft preparation, L.Z.; writing—review and editing, L.Z., J.W. and W.Y.; visualization, L.Z. and J.L.; supervision, J.W. and W.Y.; project administration, J.W. and W.Y.; funding acquisition, L.Z. and W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (52302198), the Natural Science Foundation of Shaanxi Province (2023-JC-QN-0494), the China Postdoctoral Science Foundation (2023M742788), and the Shaanxi Province Postdoctoral Science Foundation (2023BSHEDZZ30).

Data Availability Statement

The data that have been used are confidential.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gu, D.; Li, X.; Wang, H.; Li, M.; Xi, Y.; Chen, Y.; Wang, J.; Rumyntseva, M.N.; Gaskov, A.M. Light enhanced VOCs sensing of WS2 microflakes based chemiresistive sensors powered by triboelectronic nangenerators. Sens. Actuators B 2018, 256, 992–1000. [Google Scholar] [CrossRef]
  2. Zhang, W.; Wang, X.; Wu, J.; Wang, X.; Lv, X.; Liu, G.; Li, B.; Zhou, J.; Xie, E.; Zhang, Z. Electrospun Nb-doped CeO2 nanofibers for humidity independent acetone sensing. Appl. Surf. Sci. 2022, 602, 154303. [Google Scholar] [CrossRef]
  3. Zhao, Z.; Lv, Z.; Chen, Z.; Zhou, B.; Shao, Z. α-Fe2O3/TiO2/Ti3C2Tx Nanocomposites for Enhanced Acetone Gas Sensors. Sensors 2024, 24, 2604. [Google Scholar] [CrossRef] [PubMed]
  4. Zhai, J.; Wang, D.; Peng, L.; Lin, Y.; Li, X.; Xie, T. Visible-light-induced photoelectric gas sensing to formaldehyde based on CdS nanoparticles/ZnO heterostructures. Sens. Actuators B 2010, 147, 234–240. [Google Scholar] [CrossRef]
  5. Souri, M.; Salar Amoli, H.; Yamini, Y. Three-dimensionally ordered porous In-doped SmFeO3 perovskite gas sensor for highly sensitive and selective detection of formaldehyde. Sens. Actuators B 2024, 404, 135213. [Google Scholar] [CrossRef]
  6. Lee, J.; Kim, Y.J.; Lee, W. Synergetic crystal phases of SnO2/NiO heterostructure in an interconnected morphology for chemiresistive formaldehyde sensors. Sens. Actuators B 2024, 404, 135257. [Google Scholar] [CrossRef]
  7. Bu, W.; Liu, N.; Zhang, Y.; Han, W.; Chuai, X.; Zhou, Z.; Hu, C.; Lu, G. Atomically dispersed Pt on MOF-derived In2O3 for chemiresistive formaldehyde gas sensing. Sens. Actuators B 2024, 404, 135260. [Google Scholar] [CrossRef]
  8. Kong, D.L.; Wu, W.J.; Hong, B.; Xu, J.C.; Peng, X.L.; Ge, H.L.; Li, J.; Zeng, Y.X.; Wang, X.Q. MIL-68 derived In2O3 microtubes and Co3O4/In2O3 heterostructures for high sensitive formaldehyde gas sensors. Ceram. Int. 2024, 50, 6995–7005. [Google Scholar] [CrossRef]
  9. Zhou, L.; Chang, X.; Zheng, W.; Liu, X.; Zhang, J. Single atom Rh-sensitized SnO2 via atomic layer deposition for efficient formaldehyde detection. Chem. Eng. J. 2023, 475, 146300. [Google Scholar] [CrossRef]
  10. Zhang, Y.; Xu, D.; Zhou, T.; Song, Z.; Deng, Z.; Zi, B.; Zhang, J.; Zhao, J.; Liu, Q.; Hu, G. Nonstoichiometric Doping of La0.9FexSn1–xO3 Hollow Microspheres for an Ultrasensitive Formaldehyde Sensor. ACS Sens. 2023, 8, 4334–4343. [Google Scholar] [CrossRef]
  11. Park, J.; Lee, J.; Choi, M.S.; Huh, J.-S. Formaldehyde Gas Sensing Characteristics of ZnO-TiO2 Gas Sensors. Chemosensors 2023, 11, 140. [Google Scholar] [CrossRef]
  12. Li, Y.; DiStefano, J.G.; Murthy, A.A.; Cain, J.D.; Hanson, E.D.; Li, Q.; Castro, F.C.; Chen, X.; Dravid, V.P. Superior Plasmonic Photodetectors Based on Au@MoS2 Core-Shell Heterostructures. ACS Nano 2017, 11, 10321–10329. [Google Scholar] [CrossRef]
  13. Suh, J.M.; Kwon, K.C.; Lee, T.H.; Kim, C.; Lee, C.W.; Song, Y.G.; Choi, M.-J.; Choi, S.; Cho, S.H.; Kim, S.; et al. Edge-exposed WS2 on 1D nanostructures for highly selective NO2 sensor at room temperature. Sens. Actuators B 2021, 333, 129566. [Google Scholar] [CrossRef]
  14. Wei, C.; Zhu, M.; Zhou, Z.; Zhao, S.; Mao, J.; Yin, D.; Li, J.; Wang, Y.; Hao, J. Two-dimensional Bi2O2S based high-sensitivity and rapid-response humidity sensor for respiratory monitoring and Human-Machine Interaction. Chem. Eng. J. 2024, 485, 149805. [Google Scholar] [CrossRef]
  15. Wu, R.; Mao, J.; Li, H.; Yang, Y.; Hao, W.; Wang, Y.; Hao, J. Revealing the relationship of NO2 sensing with energy level in 2D van der Waals SnS1−xSex alloys. Chem. Eng. J. 2023, 469, 144018. [Google Scholar] [CrossRef]
  16. Kim, Y.; Sohn, I.; Shin, D.; Yoo, J.; Lee, S.; Yoon, H.; Park, J.; Chung, S.-m.; Kim, H. Recent Advances in Functionalization and Hybridization of Two-Dimensional Transition Metal Dichalcogenide for Gas Sensor. Adv. Eng. Mater. 2023, 26, 2301063. [Google Scholar] [CrossRef]
  17. Sonwal, S.; Ranjith, K.S.; Han, S.; Han, Y.-K.; Oh, M.-H.; Huh, Y.S. Live-tracking of beef freshness by sub-ppb level ammonia detection using WS2/rGO nanoflakes incorporating edge site-enriched acidic sulfur. J. Mater. Chem. A 2024, 12, 11004–11019. [Google Scholar] [CrossRef]
  18. Sun, Y.; Wang, B.; Liu, S.; Zhao, Z.; Zhang, W.; Zhang, W.; Suematsu, K.; Hu, J. WS2 quantum dots modified In2O3 hollow hexagonal prisms for conductometric NO2 sensing at room-temperature. Sens. Actuators B 2023, 380, 133341. [Google Scholar] [CrossRef]
  19. Minezaki, T.; Krüger, P.; Annanouch, F.E.; Casanova-Cháfer, J.; Alagh, A.; Villar-Garcia, I.J.; Pérez-Dieste, V.; Llobet, E.; Bittencourt, C. Hydrogen Sensing Mechanism of WS2 Gas Sensors Analyzed with DFT and NAP-XPS. Sensors 2023, 23, 4623. [Google Scholar] [CrossRef]
  20. Cui, Z.; Wang, H.; Yang, K.; Shen, Y.; Qin, K.; Yuan, P.; Li, E. Highly Sensitive and Selective Defect WS2 Chemical Sensor for Detecting HCHO Toxic Gases. Sensors 2024, 24, 762. [Google Scholar] [CrossRef]
  21. Qin, Z.; Ouyang, C.; Zhang, J.; Wan, L.; Wang, S.; Xie, C.; Zeng, D. 2D WS2 nanosheets with TiO2 quantum dots decoration for high-performance ammonia gas sensing at room temperature. Sens. Actuators B 2017, 253, 1034–1042. [Google Scholar] [CrossRef]
  22. Cui, S.; Wen, Z.; Huang, X.; Chang, J.; Chen, J. Stabilizing MoS2 Nanosheets through SnO2 Nanocrystal Decoration for High-Performance Gas Sensing in Air. Small 2015, 11, 2305–2313. [Google Scholar] [CrossRef] [PubMed]
  23. Khan, M.; Ferlazzo, A.; Hussain, M.; Fazio, E.; Corsaro, C.; Mezzasalma, A.M.; Neri, G. Ethanol-Gas-Sensing Performances of Built-in ZrO2/Co3O4 Hybrid Nanostructures. Sensors 2023, 23, 9578. [Google Scholar] [CrossRef] [PubMed]
  24. Kim, J.-Y.; Mirzaei, A.; Kim, J.-H. Effect of ZnO thickness on gas sensing behavior of WS2-ZnO p-n heterojunction nanosheets towards reducing gases. J. Alloys Compd. 2024, 984, 173967. [Google Scholar] [CrossRef]
  25. Zhang, D.Z.; Cao, Y.H.; Yang, Z.M.; Wu, J.F. Nanoheterostructure construction and DFT study of Ni-doped In2O3 nanocubes/WS2 hexagon nanosheets for formaldehyde sensing at room temperature. ACS Appl. Mater. Interfaces 2020, 12, 11979–11989. [Google Scholar] [CrossRef]
  26. Zhu, L.; Wang, J.; Liu, J.; Wang, Z.; Sun, S.; Li, M.; Yan, W. ZIF-L(Co) derived cobalt doped In2O3 hollow nanofibers with high surface activity for efficient formaldehyde gas sensing. Sens. Actuators B 2024, 403, 135129. [Google Scholar] [CrossRef]
  27. Wang, Z.H.; Hou, C.L.; De, Q.M.; Gu, F.B.; Han, D.M. One-step synthesis of Co-doped In2O3 nanorods for high response of formaldehyde sensor at low temperature. ACS Sens. 2018, 3, 468–475. [Google Scholar] [CrossRef]
  28. Scarfiello, R.; Mazzotta, E.; Altamura, D.; Nobile, C.; Mastria, R.; Rella, S.; Giannini, C.; Cozzoli, P.D.; Rizzo, A.; Malitesta, C. An Insight into Chemistry and Structure of Colloidal 2D-WS2 Nanoflakes: Combined XPS and XRD Study. Nanomaterials 2021, 11, 1969. [Google Scholar] [CrossRef]
  29. Wang, S.K.; Wang, A.C.; Zhang, C.Y.; Liu, Q.Y.; Cheng, J.D.; Wang, Y.C.; Gao, X.P.; Xie, Q.F.; Zhang, Z.X.; Sun, G.Z.; et al. Sandwich-Structured In2S3/In2O3/In2S3 Hollow Nanofibers as Sensing Materials for Ethanol Detection. ACS Appl. Nano Mater. 2023, 6, 2625–2635. [Google Scholar] [CrossRef]
  30. Zhao, F.; Lu, Q.; Liu, S.; Wang, C. In2O3/ZnO heterostructured nanotubes: Electrospinning fabrication, characterization, and highly enhanced photocatalytic properties. J. Sol-Gel Sci. Technol. 2014, 72, 137–143. [Google Scholar] [CrossRef]
  31. Elouali, S.; Bloor, L.G.; Binions, R.; Parkin, I.P.; Carmalt, C.J.; Darr, J.A. Gas sensing with nano-indium oxides (In2O3) prepared via continuous hydrothermal flow synthesis. Langmuir 2012, 28, 1879–1885. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, J.; Zhang, M.; Wang, S.; Wu, Z.; Zhang, Z. Moisture-Resistant and Highly Selective NH3 Sensor Based on CdS/WS2 Composite Heterojunction. Langmuir 2023, 39, 10352–10366. [Google Scholar] [CrossRef] [PubMed]
  33. Ma, Z.; Yang, B.; Song, Y.; Song, Y.; Sun, J. Highly conductive ZIF-67 derived La-doped hollow structure for H2S detection. Sens. Actuators B 2023, 379, 133139. [Google Scholar] [CrossRef]
  34. Wang, M.; Wang, X.; Wang, M.; Han, J. Mesoporous In2O3 nanorods/In2S3 nanosheets hierarchical heterojunctions toward highly efficient visible light photocatalysis. J. Alloys Compd. 2022, 921, 165973. [Google Scholar] [CrossRef]
  35. Peng, Z.; Kobayashi, H.; Lu, N.; Zhang, J.; Sui, J.; Yan, X. Direct Z-Scheme In2O3/In2S3 Heterojunction for Oxygen-Mediated Photocatalytic Hydrogen Production. Energy Fuels 2022, 36, 15100–15111. [Google Scholar] [CrossRef]
  36. Liu, M.; Li, P.; Wang, S.; Liu, Y.; Zhang, J.; Chen, L.; Wang, J.; Liu, Y.; Shen, Q.; Qu, P.; et al. Hierarchically porous hydrangea-like In2S3/In2O3 heterostructures for enhanced photocatalytic hydrogen evolution. J. Colloid Interface Sci. 2021, 587, 876–882. [Google Scholar] [CrossRef]
  37. Xu, H.; Wang, Y.; Dong, X.; Zheng, N.; Ma, H.; Zhang, X. Fabrication of In2O3/In2S3 microsphere heterostructures for efficient and stable photocatalytic nitrogen fixation. Appl. Catal. B 2019, 257, 117932. [Google Scholar] [CrossRef]
  38. Liu, W.; Xie, Y.; Chen, T.; Lu, Q.; Ur Rehman, S.; Zhu, L. Rationally designed mesoporous In2O3 nanofibers functionalized Pt catalysts for high-performance acetone gas sensors. Sens. Actuators B 2019, 298, 126871. [Google Scholar] [CrossRef]
  39. Zhou, M.; Xie, X.; Liu, Q.; Zhang, M.; Peng, C.; Li, F.; Liu, Q.; Song, Y.; Wu, J.; Qiao, Z. Spherical In2S3 anchored on g-C3N4 nanosheets for efficient elemental mercury removal in the wide temperature range. Chem. Eng. J. 2022, 430, 132857. [Google Scholar] [CrossRef]
  40. Verma, A.; Yadav, B.C. 2D/2D Nanostructured System Based on WO3/WS2 for Acetone Sensor and Breath Analyzer. ACS Appl. Nano Mater. 2023, 6, 5493–5507. [Google Scholar] [CrossRef]
  41. Yang, D.-H.; Kim, J.-H.; Mirzaei, A.; Woo Kim, H.; Sub Kim, S. Co-decoration of WS2 nanosheets with both Au and In2O3-nanoparticles for attaining the CO sensing in self-heating mode. Appl. Surf. Sci. 2023, 635, 157790. [Google Scholar] [CrossRef]
  42. Liang, Z.; Yang, S.; Wang, X.; Cui, H.; Wang, X.; Tian, J. The metallic 1T-phase WS2 nanosheets as cocatalysts for enhancing the photocatalytic hydrogen evolution of g-C3N4 nanotubes. Appl. Catal. B 2020, 274, 119114. [Google Scholar] [CrossRef]
  43. Sui, C.; Zhang, M.; Li, Y.; Wang, Y.; Liu, Y.; Liu, Z.; Bai, J.; Liu, F.; Lu, G. Pd@Pt Core–Shell Nanocrystal-Decorated ZnO Nanosheets for ppt-Level NO2 Detection. ACS Sens. 2024, 9, 1967–1977. [Google Scholar] [CrossRef]
  44. Wang, B.-R.; Liu, L.-Y.; Guo, G.-C.; Bai, Y.-J.; Tu, J.-C.; Wang, R.-Z. Interface enhancement effect of hierarchical In2S3/In2O3 nanoflower heterostructures on NO2 gas sensitivity. Appl. Surf. Sci. 2022, 584, 152669. [Google Scholar] [CrossRef]
  45. Wang, P.; Tang, C.; Song, H.; Zhang, L.; Lu, Y.; Huang, F. 1D/2D Heterostructured WS2@PANI Composite for Highly Sensitive, Flexible, and Room Temperature Ammonia Gas Sensor. ACS Appl. Mater. Interfaces 2024, 16, 14082–14092. [Google Scholar] [CrossRef]
  46. Zhu, L.; Wang, J.; Liu, J.; Chen, X.; Xu, Z.; Ma, Q.; Wang, Z.; Liang, J.; Li, S.; Yan, W. Designing highly sensitive formaldehyde sensors via A-site cation deficiency in LaFeO3 hollow nanofibers. Appl. Surf. Sci. 2022, 590, 153085. [Google Scholar] [CrossRef]
  47. Zhu, L.; Wang, J.N.; Liu, J.W.; Nasir, M.S.; Zhu, J.W.; Li, S.S.; Liang, J.D.; Yan, W. Smart formaldehyde detection enabled by metal organic framework-derived doped electrospun hollow nanofibers. Sens. Actuators B 2021, 326, 128819. [Google Scholar] [CrossRef]
  48. Liu, X.; Xu, J.; Cheng, Z.; Yang, J.; Li, Y. A Sensitive Acetone Sensor Based on WS2/WO3 Nanosheets with p-n Heterojunctions. ACS Appl. Nano Mater. 2022, 5, 12592–12599. [Google Scholar] [CrossRef]
  49. Jiang, L.; Zhang, R.; Zhang, W.; Yang, J.; Jiang, H.; Hu, Z.; Zhang, Y. High response to formaldehyde gas and ppb-level detectability of nanoparticle Cr2O3/porous cubic ZnSnO3 composites p-n heterojunction gas sensor. Ceram. Int. 2024, 50, 6950–6960. [Google Scholar] [CrossRef]
  50. Han, Y.; Liu, Y.; Su, C.; Chen, X.; Li, B.; Jiang, W.; Zeng, M.; Hu, N.; Su, Y.; Zhou, Z.; et al. Hierarchical WS2–WO3 Nanohybrids with P–N Heterojunctions for NO2 Detection. ACS Appl. Nano Mater. 2021, 4, 1626–1634. [Google Scholar] [CrossRef]
  51. Mao, J.; Yin, D.; Lu, W.; Wang, Y.; Zhou, Z.; Hao, W.; Chen, X.; Hao, J. SnSe2/Ag2Se heterostructures with an accumulation layer for rapid and sensitive detection of NO2. New J. Chem. 2023, 47, 15631–15637. [Google Scholar] [CrossRef]
  52. Zhao, Q.; Liu, Z.; Xu, Z.; Li, B.; Yang, S. rGO/In2O3 heterostructures based gas sensor for efficient ppb-level n-butanol detection. J. Alloys Compd. 2024, 986, 174154. [Google Scholar] [CrossRef]
  53. Xavier, J.R. Evaluation of reduced graphene oxide/WO3/WS2 hybrids for high performance supercapacitor electrode. J. Alloys Compd. 2023, 947, 169483. [Google Scholar] [CrossRef]
  54. Singh, A.K.; Yen, C.-C.; Wuu, D.-S. Structural and photodetector characteristics of Zn and Al incorporated ZnGa2O4 films via co-sputtering. Results Phys. 2022, 33, 105206. [Google Scholar] [CrossRef]
  55. Lou, C.; Huang, Q.; Li, Z.; Lei, G.; Liu, X.; Zhang, J. Fe2O3-sensitized SnO2 nanosheets via atomic layer deposition for sensitive formaldehyde detection. Sens. Actuators B 2021, 345, 130429. [Google Scholar] [CrossRef]
  56. Sun, J.; Sun, L.; Bai, S.; Fu, H.; Guo, J.; Feng, Y.; Luo, R.; Li, D.; Chen, A. Pyrolyzing Co/Zn bimetallic organic framework to form p-n heterojunction of Co3O4/ZnO for detection of formaldehyde. Sens. Actuators B 2019, 285, 291–301. [Google Scholar] [CrossRef]
  57. Zhang, S.; Song, P.; Li, J.; Zhang, J.; Yang, Z.; Wang, Q. Facile approach to prepare hierarchical Au-loaded In2O3 porous nanocubes and their enhanced sensing performance towards formaldehyde. Sens. Actuators B 2017, 241, 1130–1138. [Google Scholar] [CrossRef]
  58. Gao, X.; Li, F.; Wang, R.; Zhang, T. A formaldehyde sensor: Significant role of p-n heterojunction in gas-sensitive core-shell nanofibers. Sens. Actuators B 2018, 258, 1230–1241. [Google Scholar] [CrossRef]
  59. Zhou, W.; Wu, Y.P.; Zhao, J.; Dong, W.W.; Qiao, X.Q.; Hou, D.F.; Bu, X.; Li, D.S. Efficient Gas-Sensing for Formaldehyde with 3D Hierarchical Co3O4 Derived from Co5-Based MOF Microcrystals. Inorg. Chem. 2017, 56, 14111–14117. [Google Scholar] [CrossRef]
Nanomaterials 14 01702 g001

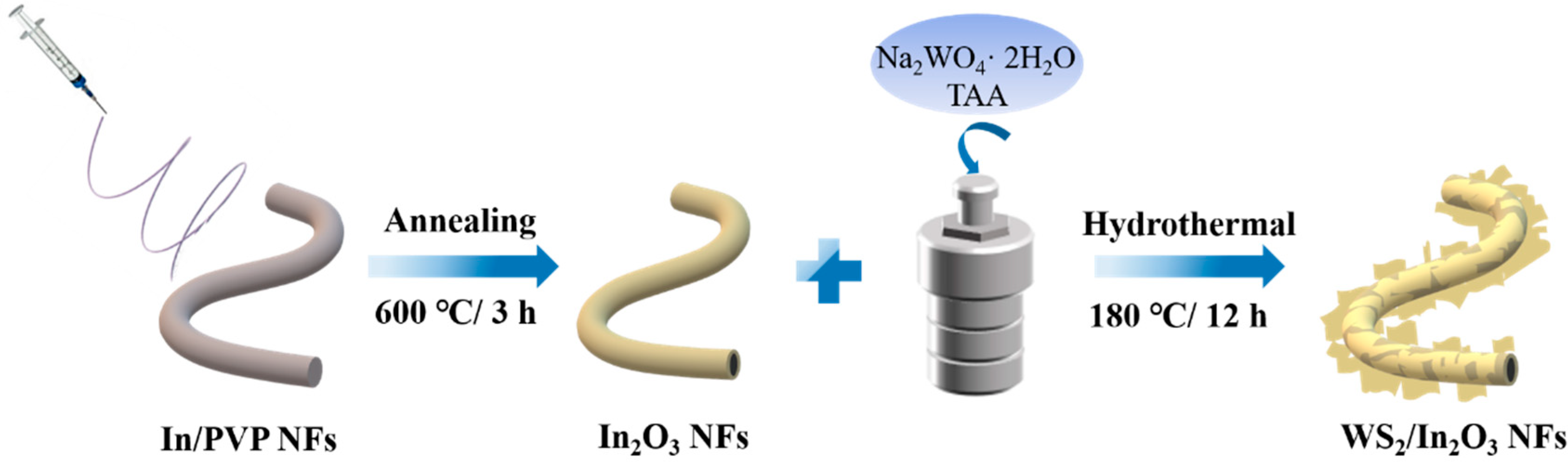

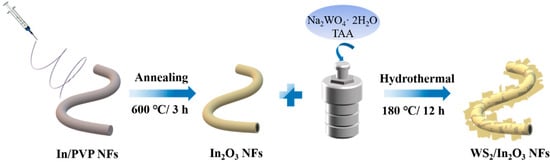

Figure 1. Schematic illustrations of the fabrication of WS2/In2O3 composite nanofibers.
Figure 1. Schematic illustrations of the fabrication of WS2/In2O3 composite nanofibers.
Nanomaterials 14 01702 g001
Nanomaterials 14 01702 g002

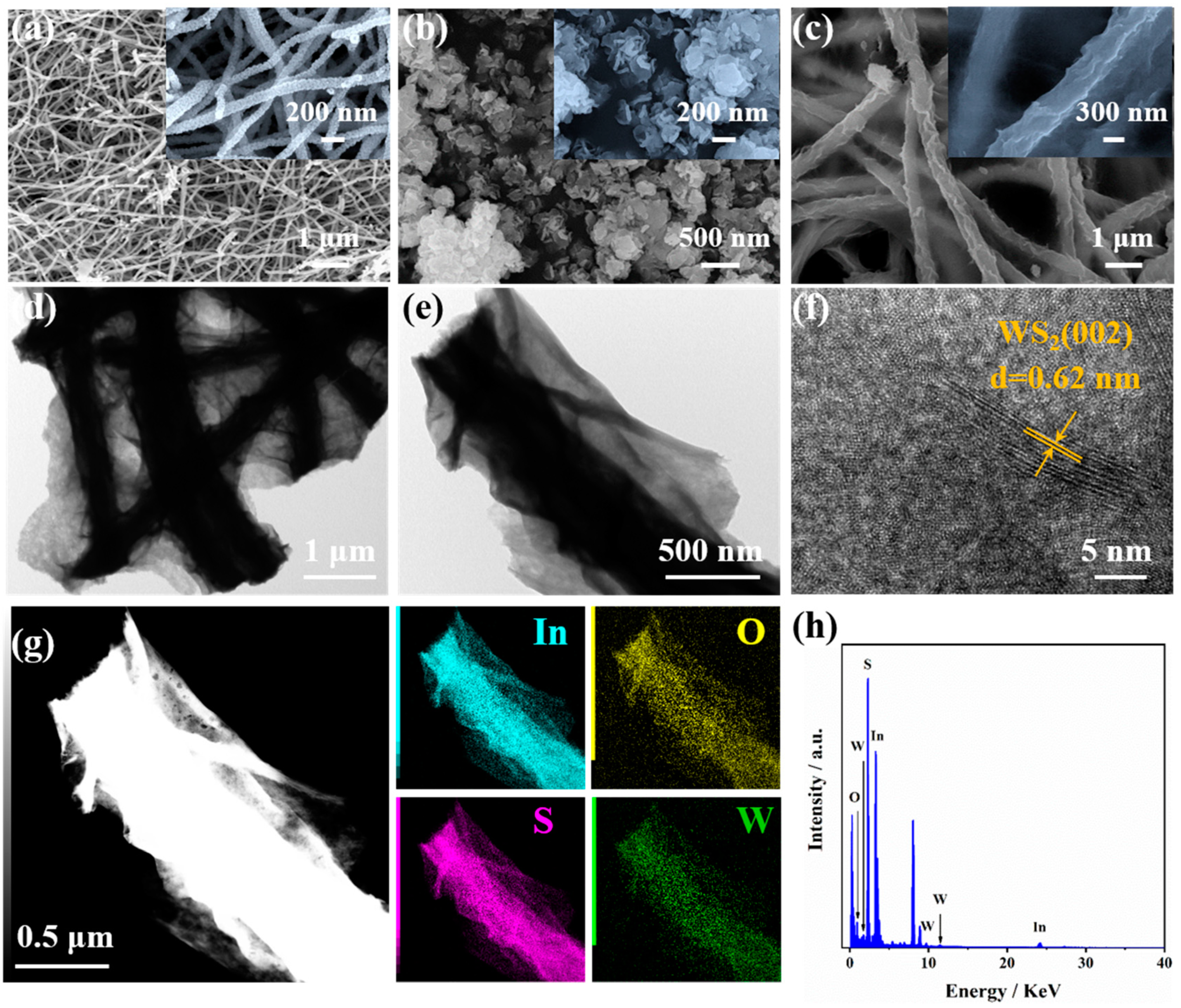

Figure 2. SEM images of (a) pristine In2O3 NFs, (b) WS2, and (c) WS2/In2O3 NFs; (d,e) TEM images, (f) HRTEM image, (g) EDS element mapping, and (h) EDS spectrum of WS2/In2O3 NFs.
Figure 2. SEM images of (a) pristine In2O3 NFs, (b) WS2, and (c) WS2/In2O3 NFs; (d,e) TEM images, (f) HRTEM image, (g) EDS element mapping, and (h) EDS spectrum of WS2/In2O3 NFs.
Nanomaterials 14 01702 g002
Nanomaterials 14 01702 g003

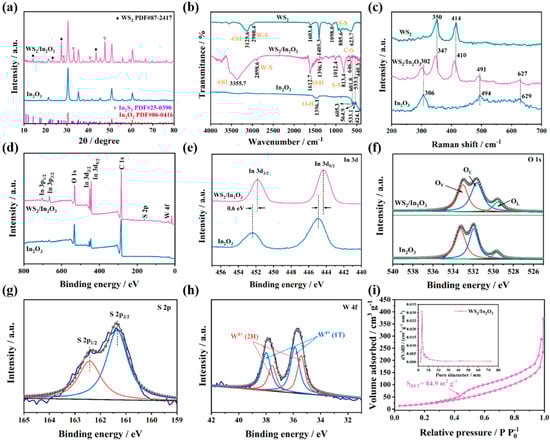

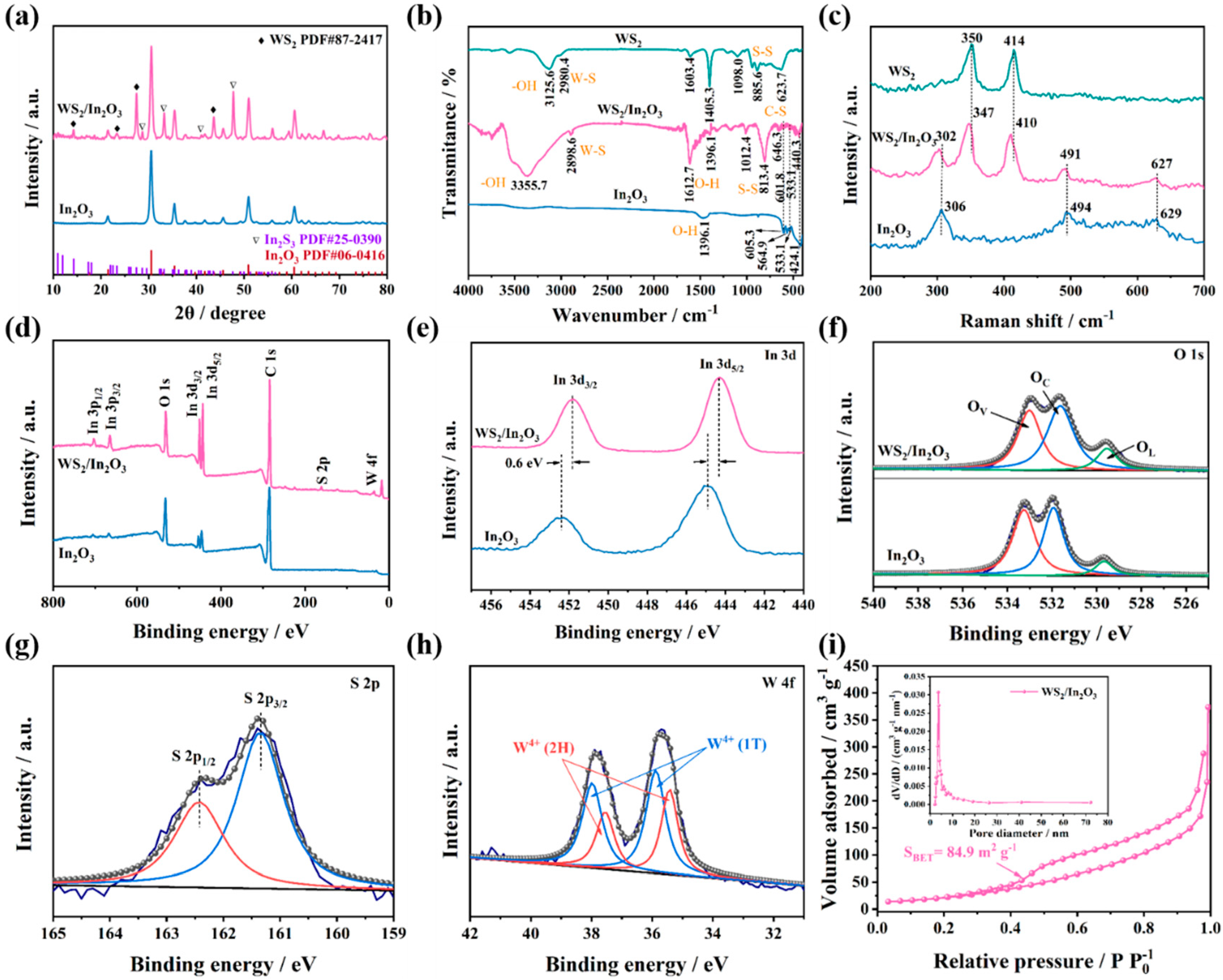

Figure 3. (a) XRD patterns of In2O3 and WS2/In2O3 NFs. (b) FT-IR spectra and (c) Raman spectra of pristine In2O3, WS2, and WS2/In2O3 NFs. XPS spectra of (d) survey, (e) In 3d, and (f) O 1s of In2O3 and WS2/In2O3 NFs; (g) S 2p, and (h) W 4f of WS2/In2O3 NFs. (i) N2 adsorption–desorption isotherms and pore-size distributions of WS2/In2O3 NFs.
Figure 3. (a) XRD patterns of In2O3 and WS2/In2O3 NFs. (b) FT-IR spectra and (c) Raman spectra of pristine In2O3, WS2, and WS2/In2O3 NFs. XPS spectra of (d) survey, (e) In 3d, and (f) O 1s of In2O3 and WS2/In2O3 NFs; (g) S 2p, and (h) W 4f of WS2/In2O3 NFs. (i) N2 adsorption–desorption isotherms and pore-size distributions of WS2/In2O3 NFs.
Nanomaterials 14 01702 g003
Nanomaterials 14 01702 g004

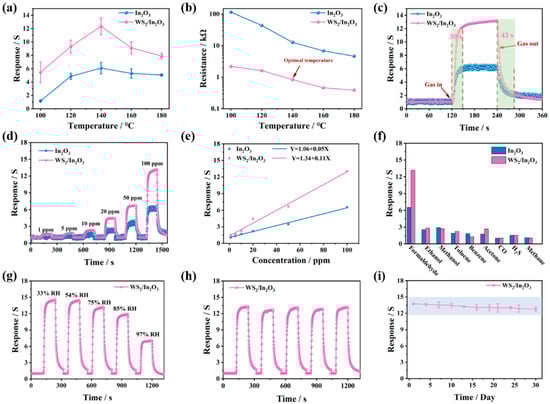

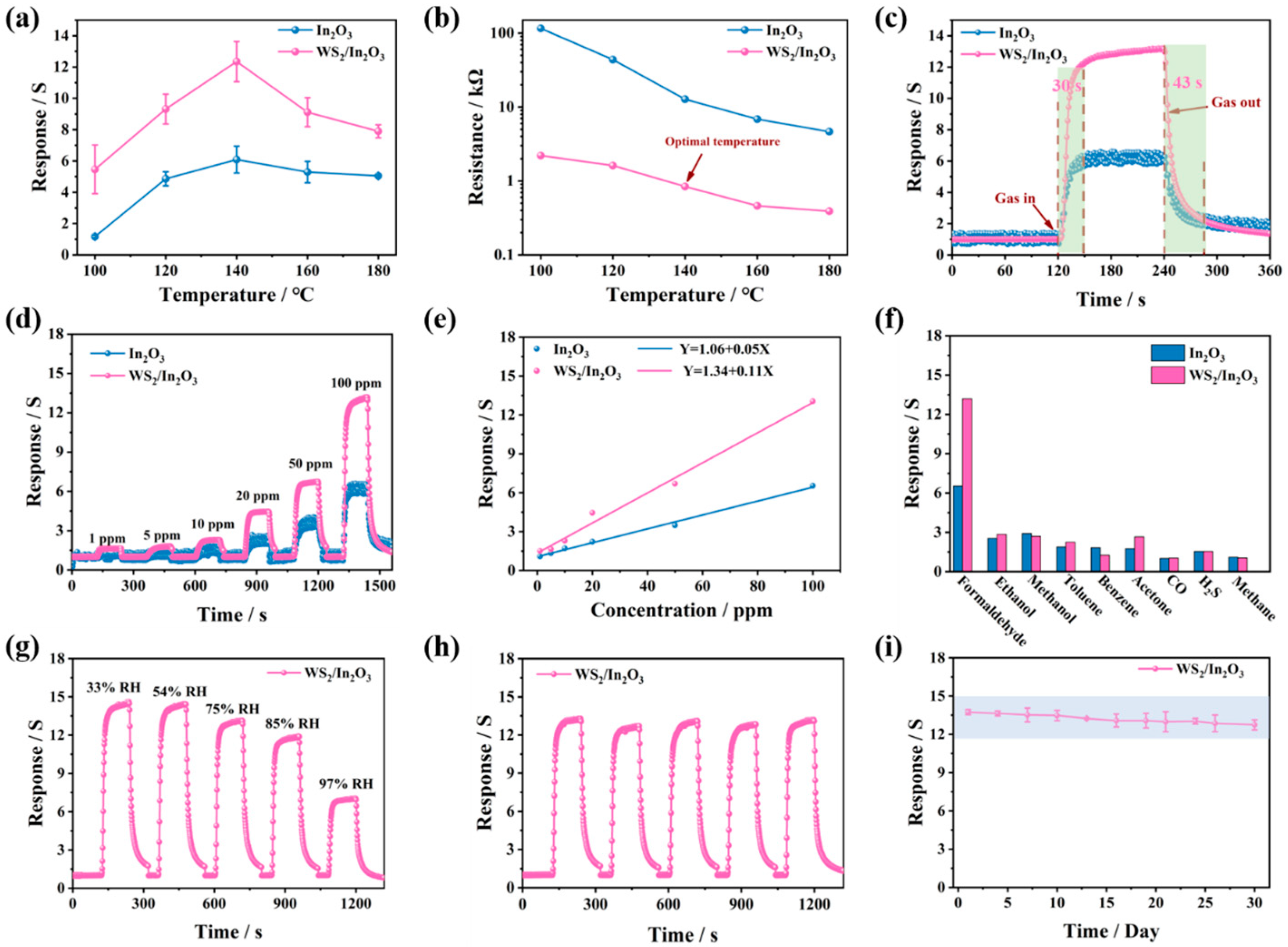

Figure 4. Sensing properties measurements for pristine In2O3 and WS2/In2O3 sensors at 140 °C. (a) Responses toward HCHO (100 ppm) under operating temperatures from 100 to 180 °C; (b) base resistance in air of the two sensors at varied operating temperatures; (c) the dynamic sensing transients to 100 ppm HCHO; (d) the dynamic response and recovery curves of sensors to different concentrations of HCHO; (e) fitting linearity curves of the concentration of sensors vs. the response value; (f) cross-responses of two sensors for detecting 100 ppm of various gases; (g) dynamic response curves of the WS2/In2O3 sensor to 100 ppm HCHO in different humid conditions; (h) the reproducibility of the WS2/In2O3 sensor toward 100 ppm HCHO; (i) response stable characteristics of the WS2/In2O3 sensor to 100 ppm HCHO.
Figure 4. Sensing properties measurements for pristine In2O3 and WS2/In2O3 sensors at 140 °C. (a) Responses toward HCHO (100 ppm) under operating temperatures from 100 to 180 °C; (b) base resistance in air of the two sensors at varied operating temperatures; (c) the dynamic sensing transients to 100 ppm HCHO; (d) the dynamic response and recovery curves of sensors to different concentrations of HCHO; (e) fitting linearity curves of the concentration of sensors vs. the response value; (f) cross-responses of two sensors for detecting 100 ppm of various gases; (g) dynamic response curves of the WS2/In2O3 sensor to 100 ppm HCHO in different humid conditions; (h) the reproducibility of the WS2/In2O3 sensor toward 100 ppm HCHO; (i) response stable characteristics of the WS2/In2O3 sensor to 100 ppm HCHO.
Nanomaterials 14 01702 g004
Nanomaterials 14 01702 g005

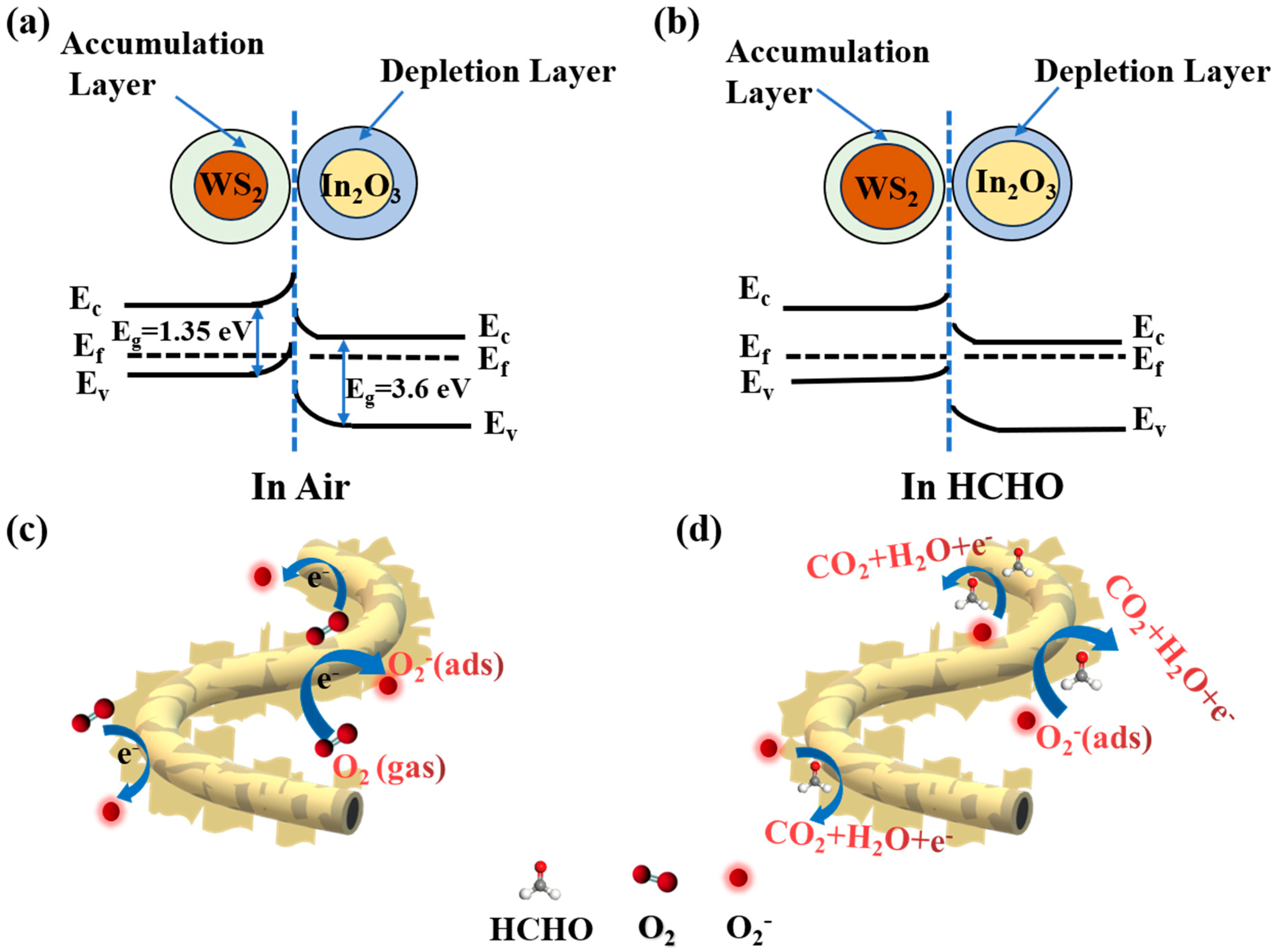

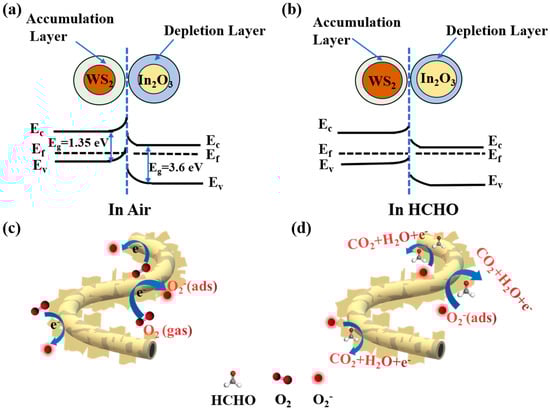

Figure 5. (a,b) The energy band diagram and (c,d) the schematic of the gas sensing mechanism of WS2/In2O3 NFs.
