Fabrication of Low-Temperature ppb-Level Ethanol Gas Sensor Based on Hierarchical NiO-SnO2 Nanoflowers Under Hydrothermal Conditions

by
Liming Song
1,
Xiaoxin Dou
1,
Jianmei Shao
1,
Yuanzheng Luo
1,
Fumiao Liu
1,
Chengyong Li
2,*,
Lijuan Yan
1,
Chuhong Wang
1,
Yuting Li
1,
Yuqing Cai
1,
Jinsheng He
1,
Zhenqing Dai
2,
Ruikun Sun
2 and
Qin Xie
1,*
1
School of Electronics and Information Engineering, Guangdong Ocean University, Zhanjiang 524088, China
2
Analyzing and Testing Center, Guandong Ocean University, Zhanjiang 524088, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2025, 15(19), 1471; https://doi.org/10.3390/nano15191471
Submission received: 29 August 2025 / Revised: 14 September 2025 / Accepted: 18 September 2025 / Published: 25 September 2025
(This article belongs to the Special Issue Nanomaterials for Micro/Nano Sensing and Detecting Applications)
Browse Figures
Versions Notes

Abstract

Hierarchical NiO-SnO2 nanoflowers were prepared via a one-step hydrothermal method. The morphology, structure and components of the hierarchical NiO-SnO2 nanoflowers were examined via scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray powder diffraction (XRD) and X-ray photoelectron spectroscopy (XPS), respectively. The ethanol gas-sensing performance was systematically analyzed between pure hierarchical SnO2 nanoflowers and the hierarchical NiO-SnO2 nanoflowers. The results indicated that the hierarchical NiO-SnO2 nanoflowers showed better gas-sensing properties than the pure hierarchical SnO2 nanoflowers at 164 °C. The enhanced gas-sensing performance was ascribed to the formation of p-n heterojunctions between p-type NiO and n-type SnO2. Additionally, NiO has a catalytic role. Therefore, hierarchical NiO-SnO2 nanoflowers could be a potential gas-sensing material for the fabrication of high-quality ethanol gas sensors.

1. Introduction

Nowadays, with developments in science and technology, atmospheric pollution is becoming an extensive and highly concerning problem all over the world. In order to resolve this problem, gas sensors based on metal oxide semiconductors have attracted widespread attention in applications such as human health [1,2], environmental safety [3,4], gas leakage [5,6] and air quality detection [7,8] owing to their ease of fabrication, low cost and energy consumption and excellent gas-sensing performance regarding various harmful gases. Among them, tin oxide (SnO2), an important wide-band-gap n-type semiconductor (Eg = 3.6 eV) with good chemical and physical properties [9,10]. It has been extensively applied in many areas, including photocatalysts [11,12], dye-sensitized solar cells [13,14], quantum dots [15,16], lithium-ion batteries [17,18] and gas sensors [19,20]. However, gas sensors based on pure SnO2 sensing materials usually work at extremely high temperatures and show low gas sensitivity [21,22], which limits the application of this type of gas sensor. Therefore, an increasing number of researchers are seeking methods to improve the gas-sensing performance. For example, they have designed hierarchical structures [23,24], doped noble and rare earth metals [25,26], synthesized porous structures [27,28], fabricated composite heterojunctions [29,30] and so on. Owing to the synergistic effects of the composite configuration, it has been found that the fabrication of composite heterojunction materials renders the sensor highly sensitive and selective [31,32]. For example, Shi et al. fabricated a p-n heterojunction consisting of two-dimensional MoS2 nanoflakes vertically grown on one-dimensional SnO2 nanotubes via electrospinning and a subsequent hydrothermal route. The results indicated that the MoS2/SnO2 composites showed high sensitivity to NO2 compared to pure SnO2 nanotubes at room temperature [33]. Qin et al. synthesized SnO2/Co3O4 nanocomposites via a straightforward pyrolytic bimetallic organic framework method. A heterojunction was obtained via a simple hydrothermal method. The formed SnO2/Co3O4 nanocomposite sensor exhibited greater sensitivity and selectivity to H2 than pure SnO2 nanoparticles in mixed gas environments at 325 °C [34]. Lu et al. prepared SnO2-CuO core–shell nanowires with a precisely controlled shell thickness through a sequential process combining a solution process and atomic layer deposition. The sensor based on SnO2-CuO core–shell nanowires presented higher gas sensitivity to formaldehyde than pure SnO2 at 250 °C [35]. Although these works have effectively improved the gas-sensing performance of pure SnO2 nanomaterials, SnO2 gas sensors still require more accurate responses to target gases, and their selectivity in identifying target gases in the presence of other gases at low working temperatures must be enhanced. Therefore, it is extremely important to find a suitable additive to construct a heterostructure with SnO2.
Nickel oxide (NiO) is an important p-type semiconductor for fabricating functional layers with unique properties such as high chemical and thermal stabilities [36,37]. Those properties make the NiO layer an appropriate material for various applications, including a catalyst [38,39], fuel cell electrode [40,41], electrochemical supercapacitor [42,43], magnetic material [44,45], gas sensor [46,47] and so on. Currently, researchers focused on p-type MOS gas sensors are heavily outnumbered by those working on n-type oxide semiconductors. This is because the carrier mobility of p-type oxide semiconductors is comparatively lower than that of n-type oxide semiconductors [48,49], leading to inferior gas-sensing performance. For example, Zhang et al. obtained NiO core-like nanochains by calcining Ni2C2O4 nanorods and employed them as methane sensing materials. The results show that the sensor based on NiO coral-like nanochains exhibited 3.6% gas sensitivity towards 100 ppm CH4 at an operating temperature of 320 °C [50]. Nakate et al. prepared two-dimensional nanocrystalline NiO nanoparticles using a chemical route. The results indicate that the response of the NiO nanoparticle sensor to 100 ppm acetaldehyde is 108% at 250 °C [51]. Singh et al. synthesized nanocrystalline NiO thin films via RF magnetron sputtering. And the results show that the NiO thin film sensor displayed the highest response of 28.8 for 200 ppm H2S at 400 °C [52]. Although both experiments and theory indicate that NiO gas sensors suffer from low sensitivity and high working temperature, which limits their practical application, NiO has advantages of volatile organic compound (VOC) catalytic activity and oxygen adsorption characteristic, which makes it can be a suitable addictive to fabricate composites with other metal oxide semiconductor sensing materials and enhance gas sensing performance.
In this study, the hierarchical NiO-SnO2 nanoflowers heterojunction has been fabricated through the hydrothermal method and employed as an ethanol gas sensor. The intimate p-n junction formed at the NiO-SnO2 interface effectively modulates interfacial charge transport, leading to markedly enhanced sensing performance. The gas sensing examinations clearly indicate that the hierarchical NiO-SnO2 nanoflowers heterojunction displayed better gas sensing properties towards ethanol compared to pure hierarchical SnO2 nanoflowers, including short response and recovery time and high selectivity at 164 °C. Notably, the limit of detection (LOD) to ethanol of the obtained hierarchical NiO-SnO2 nanoflowers heterojunction gas sensor reaches 500 ppb, representing a substantial improvement in the sensing capability of the gas sensor based on SnO2 materials.

2. Materials and Methods

2.1. Preparation of Hierarchical NiO-SnO2 Nanoflowers

The pure hierarchical SnO2 nanoflowers were prepared in our previous work [53]. Based on this work, the hierarchical NiO-SnO2 nanoflowers heterojunction was prepared by a hydrothermal method after calcination. Initially, 2.2167 g of stannous chloride dihydrate and 0.0286 g of nickel nitrate hexahydrate were successively dissolved in 35 mL of deionized water under vigorous stirring for 1 h to yield a homogeneous solution. Subsequently, 1.6034 g sodium hydroxide and 0.7288 g CTAB were added to the above solution, respectively. Then the mixed solution was transferred into a 50 mL Teflon-lined stainless autoclave after stirring for 5 h, and kept at 180 °C for five hours in a furnace. After the autoclave was cooled down naturally, the product was collected by centrifugation and washed with distilled water several times before drying an oven at 70 °C for 1 h. Finally, the as-obtained products were annealed in a muffle furnace at 400 °C for 3 h to obtain 0.45% NiO-doped SnO2 nanoflowers. All the above reagents employed in the preparation of hierarchical NiO-SnO2 nanoflowers were analytical reagent grade and used without further purification. Stannous chloride dihydrate (SnCl2·2H2O, 99.9%, Sigma-Aldrich, Shanghai, China), Nickel nitrate hexahydrate (Ni (NO3)2·6H2O, 99.99%, Aladdin, Shanghai, China), Metyltrimethyl ammonium bromide (CTAB, 99.9%, Sigma-Aldrich, Shanghai, China), Sodium hydroxide (NaOH, 99.9%, Sigma-Aldrich, Shanghai, China).

2.2. Characterizations

The crystalline and phase structure of the samples was characterized by X-ray diffraction (XRD, ADX-2700D X-ray, MA, USA), ADX-2700D X-ray Powder Diffraction Instrument with CuKα radiation (λ = 1.15406 Å) in the range of 5° and 90°. The chemical composition and surface properties of the products were investigated by X-ray photoelectron spectra (XPS, Thermo Fisher ESCALAB 250Xi, EG, UK). The morphology and microstructure of the samples were observed by scanning electron microscopy (SEM, Shimadzu SSX-550, Kyoto, Japan) and transmission electron microscopy (TEM, JEOLJEM-200FS, Tokyo, Japan), respectively. The gas-sensing properties of the samples were measured by a CGS-8 intelligent gas-sensing analysis system (Beijing Elite Tech Co., Ltd., Beijing, China). The gas sensing analysis system was evaluated under a static gas distribution method. Firstly, aged gas sensors were inserted into the test sockets and covered with a closed organic glass mask. Then, the test instrument with ten sensor sockets was turned on to record the ambient temperature and humidity, while the operating currents were adjusted to regulate the heating temperature. Subsequently, a specific volume of liquid target gas was drawn up with a syringe, and the gaseous target gas was injected into the 1 L glass bottle. The sensor was removed from the glass bottle when the resistance of the sensor remained stable. Finally, the resistance variation in the sensor in the presence of the target gas can be continuously monitored, and the response of the gas sensor for the target gas was calculated.

2.3. Fabrication and Measurement of Gas Sensor

The fabrication of the gas sensor is described as follows: the as-prepared hierarchical NiO-SnO2 nanoflowers and pure hierarchical SnO2 nanoflowers were dissolved with a little deionized water to form a paste, respectively. After that, the as-obtained pastes were coated uniformly onto an alumina ceramic tube with a pair of gold electrodes and four Pt wires. Then, a Ni-Cr alloy wire coil that was utilized as a heater was inserted into a ceramic tube to control the operating temperature by adjusting the electrical current. Finally, the tube was welded to the sensor pedestal. The response of the sensor is defined as the ratio of the resistance in air (Ra) and the resistance in target gas (Rg) [54,55]. The gas testing system and schematic structure of the hierarchical NiO-SnO2 nanoflowers gas sensor are shown in Figure 1. All gas sensing measurements of hierarchical NiO-SnO2 nanoflowers gas sensor were carried out under an ambient relative humidity of 45%.

3. Results and Discussion

The phase and crystal structure of hierarchical NiO-SnO2 nanoflowers were confirmed by XRD measurement, as shown in Figure 2. From this picture, it can be clearly seen that most of the diffraction peaks can be well assigned to the SnO2 and NiO, which demonstrates that the as-obtained product was made up of SnO2 and NiO. And all diffraction peaks of NiO and SnO2 were in good agreement with the standard SnO2 (JCPDS: No. 41-1445) and NiO (JCPDS: No. 47-1049) card without any other impurity peaks in this composite [56]. Additionally, the diffraction peaks of hierarchical NiO-SnO2 are sharp and strong, which indicates that the as-obtained products have high purity and good crystallinity.
Figure 3a–c show the SEM images of the hierarchical NiO/SnO2 nanoflowers. The micrographs reveal that the as-prepared NiO/SnO2 nanocomposite possesses a well-defined hierarchical flower-like architecture and exhibits excellent morphological uniformity. To further elucidate the microscopic structure of the hierarchical NiO/SnO2 nanoflowers, TEM measurements were performed, as presented in Figure 3d–f. Figure 3e,f indicate that the crystallites within the sample are polycrystalline, highly crystalline, and essentially free of observable defects. The lattice fringes of 0.20 nm, 0.23 nm, 0.33 nm, 0.29 nm, and 0.34 nm in Figure 3e correspond to the interplanar spacings of the (111) plane of NiO and the (210), (221), (220), and (112) planes of SnO2, respectively. Notably, adjacent n-type SnO2 crystallites are in intimate contact with p-type NiO crystallites, thereby forming p–n heterojunctions at the interfaces and significantly enhancing the gas-sensing performance of the material.
The XPS measurement was performed to further investigate the surface compositions and chemical state of hierarchical NiO-SnO2 nanoflowers. The full range spectrum of the as-obtained product was presented in Figure 4a. From Figure 4a, it is clearly seen that the hierarchical NiO-SnO2 nanoflowers were composed of Sn, O, Ni. And the high-resolution XPS spectra for Sn 3d and Ni 2p were shown in Figure 4b,c. As shown in Figure 4b, the peaks located at 495.32 eV and 486.88 eV are ascribed to the Sn 3d3/2 and Sn 3d5/2, respectively, which indicates that the Sn element exists as Sn4+ in the as-obtained sample. From Figure 4c, the peaks centered at 837.16 eV and 857.11 eV are attributed to the Ni 2p1/2 and Ni 2p3/2, respectively, which demonstrates the existence of Ni in the hierarchical nanoflowers. Additionally, the spectrum of O 1s can be deconvoluted into two peaks centered at 530.70 eV and 531.57 eV, which are ascribed to the lattice oxygen and adsorbed oxygen, respectively. Based on these results, it is very clearly indicated that the as-obtained product is composed of NiO and SnO2 nanomaterials.

4. Gas Sensing Characteristics

To investigate the effect of NiO doping on hierarchical SnO2 nanoflowers gas sensing performance, pure hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers gas sensors were designed, and the gas sensing properties to ethanol were examined. It is well known that the operating temperature has an important influence on the gas sensing behavior of the sensors. And the relationship between the gas response and the operating temperature has been studied to explore the optimal operating temperature, as displayed in Figure 5. As shown in Figure 5, it is obvious that the responses to ethanol for both sensors increase firstly and then decrease when the operating temperature is increased. This phenomenon is attributed to the kinetics and thermodynamics of gas adsorption and desorption on the sensing material surface [57]. The rate of reaction between ethanol and surface-adsorbed oxygen species will be increased when the operating temperature is increased. But when the operating temperature is more than the optimal operating temperature, the response of the sensor will show a decrease tendency, which is attributed to the ethanol adsorption active site decreasing caused by the desorption rate is faster than the adsorption rate. Meanwhile, the catalytic role of NiO also promotes the hierarchical NiO-SnO2 nanoflower heterojunction gas sensor owns good gas sensing response and low working temperature [58]. Therefore, the optimal operating temperature for both sensors based on the hierarchical pure SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers is determined to be 164 °C.
In order to deeply investigate the gas sensing characteristic of the sensor, the response and recovery performance of hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers were comparatively measured in the ethanol gas ranging from 1 ppm to 50 ppm and 500 ppb to 50 ppm at 164 °C, as shown in Figure 6. From this picture, it can be clearly observed that the gas sensor based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers both showed good gas sensing properties towards ethanol gas. Their response increases rapidly and then returns to the original value after the ethanol is removed. The hierarchical NiO-SnO2 nanoflowers gas sensor shows much better gas sensitivity than the hierarchical SnO2 nanoflowers gas sensor. Moreover, the hierarchical NiO-SnO2 nanoflowers have a 500 ppb (1 ppm) low detection limit at 164 °C, and the response value is 1.2 (2.86). And the response and recovery times are 4 s (3 s) and 6 s (4 s). The above results demonstrate that the as-prepared hierarchical NiO-SnO2 nanoflowers gas sensor owns outstanding gas sensing properties and will be a good candidate for an ethanol gas sensor. And in Table 1, several reported SnO2-based ethanol gas sensors are listed for comparison. Compared to other SnO2-based ethanol gas sensors, the hierarchical NiO-SnO2 nanoflowers gas sensor in our work exhibits better gas sensing performance for ethanol gas molecules at a relative low working temperature.
Figure 7 presents the dynamic response curves of the hierarchical SnO2 nanoflower sensor and the hierarchical NiO-SnO2 nanoflower sensor to ethanol at 164 °C. The responses of both hierarchical SnO2 nannoflowers and hierarchical NiO-SnO2 nanoflower sensors rise sharply with increasing ethanol concentration, but the increase slows markedly once the concentration of ethanol is more than a fix value and, finally, the response of two sensors increased very slow and then keep stable, which could be explained by the theory that surface adsorptions gradually saturated with the increasing concentration [63,64]. More importantly, the response of the hierarchical NiO-SnO2 nanoflowers sensor exhibits a higher response value than that of the hierarchical SnO2 nanoflowers sensor towards different ethanol concentrations ranging from 1 ppm to 50 ppm. The hierarchical NiO-SnO2 nanoflowers sensor can also detect ethanol gas with a response of 1.2 when the concentration of ethanol is 500 ppb. The above results demonstrate that NiO doped into SnO2 can efficiently improve the gas sensing properties, and this hierarchical NiO-SnO2 nanoflowers gas sensor is suitable for the detection of ethanol at a low concentration.
The reproducibility and stability are important index to evaluate gas sensing properties of the as-obtained gas sensors [65]. Figure 8a displayed the response and recovery curves with four cycles of hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers. As shown in this picture, there is no clear change in the response value after four cycles of gas sensing examination to 100 ppm ethanol at 164 °C, which illustrates that the hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers sensors have reproducibility. Meanwhile, the stability of the two sensors has been measured in Figure 8b. From this picture, it can be clearly seen that the sensors almost show a similar response value after 35 days, which demonstrates that the sensors made of hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers sensors exhibit long-term stability.
The sensor can display different adsorption and catalytic performance to different kinds of gases, which makes it show different response values towards them and detects a specific gas among them [66]. And this kind of ability is defined as selectivity. Figure 9 depicts the response of hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers sensors to various kinds of target gases, including 100 ppm ethanol, acetone, methanol, formaldehyde, ammonia, and paraxylene at 164 °C. And the response was 243 (36), 59 (31), 46 (29), 32 (4), 6 (2), and 4 (1), respectively. The sensor possesses different response values to various target gas is ascribed to the different values of the lowest unoccupied molecule orbit energy for the gas, and the surface structure and electronic characteristics have a big effect on its interaction with different kinds of target gas molecules [67]. Clearly, the sensor based on the hierarchical NiO-SnO2 nanoflowers exhibited a much greater gas response to target gas as compared to hierarchical SnO2 nanoflowers and displayed the highest response and selectivity to ethanol at 164 °C, which demonstrates the gas sensor made of the hierarchical NiO-SnO2 nanoflowers can be a good candidate for detecting ethanol among the above target gases and further confirms that the gas sensing performance of hierarchical SnO2 nanoflowers has been efficiently improved by doping NiO.

5. Gas Sensing Mechanism

It is well known that the gas sensing mechanism for metal oxide semiconductor can be described by the surface-depletion model in which chemisorbed oxygen plays a considerable role. When the hierarchical SnO2 nanoflowers sensor is exposed to the ambient air, the oxygen from the air will be absorbed on the surface of hierarchical SnO2 nanoflowers and trap electrons from the conduction band of hierarchical SnO2 nanoflowers to form absorbed oxygen species [68,69], as illustrated in Equations (1)–(3).
O 2 g a s → O 2 a d s
O 2 a d s + e − → O 2 − a d s
O 2 − a d s + e − → 2 O − a d s
Then, a thick electron-depletion layer will form on the surface of hierarchical SnO2 nanoflowers, and the resistance of the material will increase. When the sensor is exposed to reductive ethanol, the ethanol molecules will react with the absorbed oxygen species and release the trapped electrons to the conduction band, which leads to the decreased resistance of the sensor. The stable oxygen species on the surface of the sensing material are present when the working temperature of the sensor is less than three hundred degrees [70,71]. The reaction process between oxygen species and ethanol gas can be explained as follows:
C H 3 C H 2 O H + 6 O − a d s → 2 C O 2 + 3 H 2 O + 6 e −
However, the gas sensing mechanism of the hierarchical NiO-SnO2 nanoflowers is very different of the pure hierarchical SnO2 nanoflowers. Obviously, the hierarchical NiO-SnO2 nanoflower enhanced the gas sensing performance compared with the pure hierarchical SnO2 nanoflowers, which can be ascribed to the formation of a p-n heterojunction structure between the p-type NiO semiconductor and n-type SnO2 semiconductor by adding the NiO material. It is well known that SnO2 and NiO are a kind of n-type semiconductor with a lot of electrons and a p-type semiconductor with holes, respectively. When the n-type SnO2 semiconductor contacts with the p-type NiO semiconductor, the electrons will move from n-type SnO2 to p-type NiO, and holes will move from p-type NiO to n-type SnO2 to keep the equalization of the Fermi levels, results in the formation of a self-built electric field at the interface region. Therefore, the depletion layer is generated at the heterojunction interface, and a potential barrier at the p-n heterojunction with band bending is also formed [72,73]. When the hierarchical NiO-SnO2 nanoflowers were exposed to air, a depletion layer formed on the surface of the hierarchical NiO-SnO2 nanoflowers. And the depletion region at the hierarchical NiO-SnO2 structure interface will make the resistance of the hierarchical NiO-SnO2 nanoflowers in air higher than that hierarchical SnO2 nanoflowers. Once the hierarchical NiO-SnO2 is exposed to the ethanol gas, the ethanol gas will react with oxygen species and release the electrons to the conduction band and causing the resistance to decrease. In addition, electrons are released from ethanol molecules, and then combine with holes in p-type NiO, leading to a reduction in the concentration gradient on both sides of the p-n heterojunction. Thus, the formation of p-n heterojunction enormously increases the resistance of the hierarchical NiO-SnO2 nanoflowers gas sensor in ambient air and decreases the resistance in ethanol molecules, which extremely improves the gas sensing performance of the hierarchical NiO-SnO2 nanoflowers sensor.
In addition, NiO nanomaterials exhibit catalytic activity, significantly enhancing the chemisorptions of oxygen species and the chemical reactions on the NiO-SnO2 surface [74,75]. Meanwhile, the hierarchical NiO-SnO2 structure is also good for gas diffusion and transport, chemisorptions, and surface reactions. Combining the above results, the hierarchical NiO-SnO2 nanoflowers sensor shows outstanding gas sensing properties. The mechanism diagram and energy band structure diagram of hierarchical NiO-SnO2 nanoflowers are shown in Figure 10.

6. Conclusions

In summary, the hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers have been fabricated by a low-cost and environmental friendly hydrothermal method. Compared with pure hierarchical SnO2 nanoflowers, the as-obtained hierarchical NiO-SnO2 nanoflowers exhibited superior gas sensing behavior and good selectivity toward ethanol at 164 °C. Moreover, the hierarchical NiO-SnO2 nanoflowers achieve an ethanol detection limit as low as 500 ppb with a response of 1.2. And the response and recover times are 4 s and 5 s, respectively. The improvement of ethanol response and selectivity may be ascribed to the formation of a better p-n heterojunction between NiO and SnO2 and the catalysis of NiO.

Author Contributions

Analyzed the results and wrote the final version of the paper, L.S.; organized the experiment and discussed the results of the manuscript, X.D., J.S., Y.L. (Yuanzheng Luo), L.Y., C.W., Q.X., C.L., and L.S.; carried out BET and SEM measurement, Y.C. and Y.L. (Yuting Li); carried out XPS measurement, R.S. and Z.D.; analysis the XRD studies, J.H. and F.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Guangdong Basic and Applied Basic Research Foundation, grant number 2023A1515012286.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author(s).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhao, J.; Zheng, J.; Wang, S.; Li, X.; Wang, H.; Song, Y.-Y.; Song, P.; Gao, Z.; Zhao, C. Accelerating Carrier Transfer in Dual p–n Heterojunctions by Mo–N Coupling to Gain an Ultrahigh-Sensitive NO2 Sensing at Room Temperature for Asthma Diagnosis. ACS Sens. 2025, 10, 3681–3691. [Google Scholar] [CrossRef]
  2. Zhang, Z.; Zheng, Z.; He, X.; Liu, K.; Debliquy, M.; Zhou, Y.; Zhang, C. Electronic nose based on metal oxide semiconductor sensors for medical diagnosis. Prog. Nat. Sci. Mater. Int. 2024, 34, 74–88. [Google Scholar] [CrossRef]
  3. Chesler, P.; Hornoiu, C. MOX-based resistive gas sensors with different types of sensitive materials (powders, pellets, films), used in environmental chemistry. Chemosensors 2023, 11, 95. [Google Scholar] [CrossRef]
  4. Fahad, H.M.; Shiraki, H.; Amani, M.; Zhang, C.; Hebbar, V.S.; Gao, W.; Ota, H.; Hettick, M.; Kiriya, D.; Chen, Y.-Z. Room temperature multiplexed gas sensing using chemical-sensitive 3.5-nm-thin silicon transistors. Sci. Adv. 2017, 3, e1602557. [Google Scholar] [CrossRef] [PubMed]
  5. Ma, Q.; Cao, S.; Wang, H.; Tang, Y.; Liu, L.; Xue, E.; Le, Z.; Feng, X.; Wang, C.; Sun, L.; et al. Autonomous and Ultrasensitive Low-Power Metal Oxide Nanofiber Gas Sensor for Source Tracking and Localization. ACS Sens. 2025, 10, 2938–2947. [Google Scholar] [CrossRef]
  6. Wang, C.; Chen, Z.; Chan, C.L.J.; Wan, Z.A.; Ye, W.; Tang, W.; Ma, Z.; Ren, B.; Zhang, D.; Song, Z.; et al. Biomimetic olfactory chips based on large-scale monolithically integrated nanotube sensor arrays. Nat. Electron. 2024, 7, 157–167. [Google Scholar] [CrossRef]
  7. Gong, X.; Li, Z.; Zhao, L.; Wang, T.; Jin, R.; Yan, X.; Liu, F.; Sun, P.; Lu, G. Indoor Air Quality Monitoring System with High Accuracy of Gas Classification and Concentration Prediction via Selective Mechanism Research. ACS Sens. 2024, 9, 5828–5838. [Google Scholar] [CrossRef]
  8. Zhu, H.; Yuan, Z.; Shen, Y.; Gao, H.; Meng, F. Highly Selective and ppb-Level Butanone Sensors Based on SnO2/NiO Heterojunction-Modified ZnO Nanosheets with Electron Polarity Transport Properties. ACS Sens. 2023, 8, 2635–2645. [Google Scholar] [CrossRef]
  9. Zhang, X.; Sun, J.; Tang, K.; Wang, H.; Chen, T.; Jiang, K.; Zhou, T.; Quan, H.; Guo, R. Ultralow detection limit and ultrafast response/recovery of the H2 gas sensor based on Pd-doped rGO/ZnO-SnO2 from hydrothermal synthesis. Microsyst. Nanoeng. 2022, 8, 67. [Google Scholar] [CrossRef]
  10. Zhang, A.; Zhang, Y.; Cheng, W.; Li, X.; Chen, K.; Li, F.; Yang, D. Dual-gas sensing via SnO2-TiO2 heterojunction on MXene: Machine learning-enhanced selectivity and sensitivity for hydrogen and ammonia detection. Sens. Actuators B Chem. 2025, 429, 137340. [Google Scholar] [CrossRef]
  11. Ahmed, A.; Naseem Siddique, M.; Alam, U.; Ali, T.; Tripathi, P. Improved photocatalytic activity of Sr doped SnO2 nanoparticles: A role of oxygen vacancy. Appl. Surf. Sci. 2019, 463, 976–985. [Google Scholar] [CrossRef]
  12. Tasisa, Y.E.; Sarma, T.K.; Sahu, T.K.; Krishnaraj, R. Phytosynthesis and characterization of tin-oxide nanoparticles (SnO2-NPs) from Croton macrostachyus leaf extract and its application under visible light photocatalytic activities. Sci. Rep. 2024, 14, 10780. [Google Scholar] [CrossRef] [PubMed]
  13. Putra, S.D.H.; Halim, D.A.; Yogiswara, C.W.; Aziizudin, A.; Purnomo, A. Electrochemical Characterization Techniques for Performance Optimization in Dye-sensitized Solar Cells: A Narrative Review. Motiv. J. Mech. Electr. Ind. Eng. 2024, 6, 313–328. [Google Scholar]
  14. Qazi, N.U.S.; Iqbal, M.; Farooq, M.U.; Rehman, W.; Thebo, K.H.; Kazi, M.; Ibrar, A. Synthesis and characterization of Mo-doped SnO2 nanostructure-based photoanodes for efficient dye-sensitized solar cells. J. Mol. Struct. 2025, 1341, 142456. [Google Scholar] [CrossRef]
  15. Liu, J.; Zhang, Q.; Tian, X.; Hong, Y.; Nie, Y.; Su, N.; Jin, G.; Zhai, Z.; Fu, C. Highly efficient photocatalytic degradation of oil pollutants by oxygen deficient SnO2 quantum dots for water remediation. Chem. Eng. J. 2021, 404, 127146. [Google Scholar] [CrossRef]
  16. Chen, Z.; Chen, S. Efficient and Stable Quantum-Dot Light-Emitting Diodes Enabled by Tin Oxide Multifunctional Electron Transport Layer. Adv. Opt. Mater. 2022, 10, 2102404. [Google Scholar] [CrossRef]
  17. Xin, Y.; Pan, S.; Hu, X.; Miao, C.; Nie, S.; Mou, H.; Xiao, W. Engineering amorphous SnO2 nanoparticles integrated into porous N-doped carbon matrix as high-performance anode for lithium-ion batteries. J. Colloid Interface Sci. 2023, 639, 133–144. [Google Scholar] [CrossRef]
  18. Min, X.; Sun, B.; Chen, S.; Fang, M.; Wu, X.; Liu, Y.G.; Abdelkader, A.; Huang, Z.; Liu, T.; Xi, K.; et al. A textile-based SnO2 ultra-flexible electrode for lithium-ion batteries. Energy Storage Mater. 2019, 16, 597–606. [Google Scholar] [CrossRef]
  19. Masuda, Y. Recent advances in SnO2 nanostructure based gas sensors. Sens. Actuators B Chem. 2022, 364, 131876. [Google Scholar] [CrossRef]
  20. Kim, J.-H.; Kim, J.-Y.; Lee, J.-H.; Mirzaei, A.; Kim, H.W.; Hishita, S.; Kim, S.S. Indium-implantation-induced enhancement of gas sensing behaviors of SnO2 nanowires by the formation of homo-core–shell structure. Sens. Actuators B Chem. 2020, 321, 128475. [Google Scholar] [CrossRef]
  21. Sharma, A.; Ahmed, A.; Singh, A.; Oruganti, S.K.; Khosla, A.; Arya, S. Review—Recent Advances in Tin Oxide Nanomaterials as Electrochemical/Chemiresistive Sensors. J. Electrochem. Soc. 2021, 168, 027505. [Google Scholar] [CrossRef]
  22. Lee, K.; Sahu, M.; Hajra, S.; Mohanta, K.; Kim, H.J. Effect of sintering temperature on the electrical and gas sensing properties of tin oxide powders. Ceram. Int. 2021, 47, 22794–22800. [Google Scholar] [CrossRef]
  23. Qu, Y.; Zheng, H.; Lei, Y.; Ding, Z.; Li, S.; Liu, S.; Ji, W. Room Temperature NH3 Selective Gas Sensors Based on Double-Shell Hierarchical SnO2@polyaniline Composites. Sensors 2024, 24, 1824. [Google Scholar] [CrossRef]
  24. Bi, W.; Zhu, J.; Zheng, B.; Liu, S.; Zhang, L. Synthesis of Pd-Doped SnO2 and Flower-like Hierarchical Structures for Efficient and Rapid Detection of Ethanolamine. Molecules 2024, 29, 3650. [Google Scholar] [CrossRef]
  25. Fan, H.; Zheng, X.; Shen, Q.; Wang, W.; Dong, W. Hydrothermal synthesis and their ethanol gas sensing performance of 3-dimensional hierarchical nano Pt/SnO2. J. Alloys Compd. 2022, 909, 164693. [Google Scholar] [CrossRef]
  26. Xu, H.; Li, J.; Li, P.; Shi, J.; Gao, X. Effect of rare earth doping on electronic and gas-sensing properties of SnO2 nanostructures. J. Alloys Compd. 2022, 909, 164687. [Google Scholar] [CrossRef]
  27. Li, X.; Wang, Y.; Liu, X.; Li, J.; Wu, J.; Zeng, M.; Yang, J.; Hu, N.; Zhu, H.; Xu, L.; et al. Trace Detection of Nitrogen Dioxide via Porous Tin Dioxide Nanopods with High Specific Surface Area and Enhanced Charge Transfer. ACS Sens. 2025, 10, 4383–4390. [Google Scholar] [CrossRef] [PubMed]
  28. Zhou, L.; Hu, Z.; Li, H.-Y.; Liu, J.; Zeng, Y.; Wang, J.; Huang, Y.; Miao, L.; Zhang, G.; Huang, Y.; et al. Template-Free Construction of Tin Oxide Porous Hollow Microspheres for Room-Temperature Gas Sensors. ACS Appl. Mater. Interfaces 2021, 13, 25111–25120. [Google Scholar] [CrossRef] [PubMed]
  29. Zhu, J.; Chen, L.; Ni, W.; Cheng, W.; Yang, Z.; Xu, S.; Wang, T.; Zhang, B.; Xuan, F. NiO/ZnO Nanocomposites for Multimodal Intelligent MEMS Gas Sensors. ACS Sens. 2025, 10, 2531–2541. [Google Scholar] [CrossRef]
  30. Zhou, Y.; Gu, Q.; Qiu, T.; He, X.; Chen, J.; Qi, R.; Huang, R.; Zheng, T.; Tian, Y. Ultrasensitive Sensing of Volatile Organic Compounds Using a Cu-Doped SnO2-NiO p-n Heterostructure That Shows Significant Raman Enhancement. Angew. Chem. 2021, 133, 26464–26471. [Google Scholar] [CrossRef]
  31. Li, G.; Li, X.; Zhang, L.; Zhou, Z.; Li, Y.; Li, H.; Ning, K.; Chen, X. Ultra-high response and selectivity of triethylamine sensor based on NiO/Pd/SnO2 multiple heterojunctions composite. Sens. Actuators B Chem. 2025, 435, 137652. [Google Scholar] [CrossRef]
  32. Pradyumn; Barman, P.B.; Sil, A.; Hazra, S.K. Recent advancement in selective gas sensors and role of machine learning. J. Alloys Compd. 2025, 1030, 180757. [Google Scholar] [CrossRef]
  33. Bai, X.; Lv, H.; Liu, Z.; Chen, J.; Wang, J.; Sun, B.; Zhang, Y.; Wang, R.; Shi, K. Thin-layered MoS2 nanoflakes vertically grown on SnO2 nanotubes as highly effective room-temperature NO2 gas sensor. J. Hazard. Mater. 2021, 416, 125830. [Google Scholar] [CrossRef]
  34. Qin, Y.; Zhang, Y.; Qiu, P.; Lei, S. SnO2-Co3O4 nanocomposite sensor: Achieving ultra-selective hydrogen detection in mixed gas environments. Sens. Actuators B Chem. 2025, 422, 136521. [Google Scholar] [CrossRef]
  35. Zhu, L.-Y.; Yuan, K.; Yang, J.-G.; Ma, H.-P.; Wang, T.; Ji, X.-M.; Feng, J.-J.; Devi, A.; Lu, H.-L. Fabrication of heterostructured p-CuO/n-SnO2 core-shell nanowires for enhanced sensitive and selective formaldehyde detection. Sens. Actuators B Chem. 2019, 290, 233–241. [Google Scholar] [CrossRef]
  36. Ahmed, S.; Sinha, S.K. Studies on nanomaterial-based p-type semiconductor gas sensors. Environ. Sci. Pollut. Res. 2022, 30, 24975–24986. [Google Scholar] [CrossRef]
  37. Simion, C.E.; Ghica, C.; Mihalcea, C.G.; Ghica, D.; Mercioniu, I.; Somacescu, S.; Florea, O.G.; Stanoiu, A. Insights about CO Gas-Sensing Mechanism with NiO-Based Gas Sensors—The Influence of Humidity. Chemosensors 2021, 9, 244. [Google Scholar] [CrossRef]
  38. Wang, T.; Duan, X.; Bai, R.; Li, H.; Qin, C.; Zhang, J.; Duan, Z.; Chen, K.J.; Pan, F. Ni-Electrocatalytic CO2 Reduction Toward Ethanol. Adv. Mater. 2024, 36, 2410125. [Google Scholar] [CrossRef]
  39. Song, Z.; Shen, T.; Wu, Z.; Hu, Y.; Liu, G.; Yu, T.; Song, Y.-F. Highly Exposed Low-Valence Ni Sites of NiO(111) for Efficient Electrocatalytic Biomass Upgrading. ACS Catal. 2025, 15, 1727–1738. [Google Scholar] [CrossRef]
  40. Budania, Y.; Chauhan, M.; Mishra, S.; Singh, S. N/NiO-ornated graphitic fiber-engrained micro-carbon beads: Innovative packed bed type capacitive electrodes for microbial fuel cells. Chem. Eng. J. 2024, 499, 156018. [Google Scholar] [CrossRef]
  41. Jang, I.; Kelsall, G.H. Fabrication of 3D NiO-YSZ structures for enhanced performance of solid oxide fuel cells and electrolysers. Electrochem. Commun. 2022, 137, 107260. [Google Scholar] [CrossRef]
  42. Zhao, J.; Wang, S.; Gao, L.; Zhang, D.; Guo, Y.; Xu, R. NiO Nanoparticles Anchored on N-Doped Laser-Induced Graphene for Flexible Planar Micro-Supercapacitors. ACS Appl. Nano Mater. 2022, 5, 11314–11323. [Google Scholar] [CrossRef]
  43. Xin, G.; Liu, F.; Ju, T.; Cheng, Y.; Bao, J.; Sun, W.; Song, J.; Bulin, C. In-situ generation of Ni component through interface engineering of NiO/graphene composite for high-performance supercapacitor. Chem. Eng. J. 2025, 513, 162863. [Google Scholar] [CrossRef]
  44. Kang, H.; Zhang, M.; Zhong, M.; Shi, Z.; Zhang, J.; Su, B.; Lei, Z. Biomass-Templated Preparation of Multifunctional Ni/NiO@C Hollow-Fiber Hierarchical Composite Materials. Energy Fuels 2025, 39, 14812–14820. [Google Scholar] [CrossRef]
  45. Popkov, S.I.; Krasikov, A.A.; Velikanov, D.A.; Kirillov, V.L.; Martyanov, O.N.; Balaev, D.A. Formation of the magnetic subsystems in antiferromagnetic NiO nanoparticles using the data of magnetic measurements in fields up to 250 kOe. J. Magn. Magn. Mater. 2019, 483, 21–26. [Google Scholar] [CrossRef]
  46. Raza, M.H.; Movlaee, K.; Leonardi, S.G.; Barsan, N.; Neri, G.; Pinna, N. Gas Sensing of NiO-SCCNT Core–Shell Heterostructures. Adv. Funct. Mater. 2020, 30, 1906874. [Google Scholar] [CrossRef]
  47. Shuai, Y.; Peng, R.; He, Y.; Liu, X.; Wang, X.; Guo, W. NiO/BiVO4 p-n heterojunction microspheres for conductometric triethylamine gas sensors. Sens. Actuators B Chem. 2023, 384, 133625. [Google Scholar] [CrossRef]
  48. Wang, X.; Wang, X.; Sui, X.; Zhang, W.; Jiang, H.; Liu, G.; Li, B.; Zhou, J.; Sheng, Y.; Xie, E.; et al. ZnO nanowire/NiO foam 3D nanostructures for high-performance ethylene glycol sensing. Sens. Actuators B Chem. 2024, 400, 134918. [Google Scholar] [CrossRef]
  49. Yang, S.; Li, Q.; Li, C.; Cao, T.; Wang, T.; Fan, F.; Zhang, X.; Fu, Y. Enhancing the Hydrogen-Sensing Performance of p-Type PdO by Modulating the Conduction Model. ACS Appl. Mater. Interfaces 2021, 13, 52754–52764. [Google Scholar] [CrossRef]
  50. Zhang, S.; Zhang, B.; Zhang, B.; Wang, Y.; Bala, H.; Zhang, Z. Structural evolution of NiO from porous nanorods to coral-like nanochains with enhanced methane sensing performance. Sens. Actuators B Chem. 2021, 334, 129645. [Google Scholar] [CrossRef]
  51. Patil, P.; Nakate, Y.T.; Ambare, R.C.; Ingole, R.S.; Kadam, S.L.; Nakate, U.T. 2-D NiO nanostructured material for high response acetaldehyde sensing application. Mater. Lett. 2021, 293, 129757. [Google Scholar] [CrossRef]
  52. Srivastava, S.; Gangwar, A.K.; Kumar, A.; Gupta, G.; Singh, P. Room temperature RF magnetron sputtered nanocrystalline NiO thin films for highly responsive and selective H2S gas sensing at low ppm concentrations. Mater. Res. Bull. 2023, 165, 112330. [Google Scholar] [CrossRef]
  53. Song, L.; Lukianov, A.; Butenko, D.; Li, H.; Zhang, J.; Feng, M.; Liu, L.; Chen, D.; Klyui, N. Facile synthesis of hierarchical tin oxide nanoflowers with ultra-high methanol gas sensing at low working temperature. Nanoscale Res. Lett. 2019, 14, 84. [Google Scholar] [CrossRef]
  54. Xu, H.; Zhong, H.; Hu, J.; Rong, X.; Zhang, W.; Wang, Y.; Li, S.; Li, G.; Wang, D. Facile engineering of metal–organic framework derived SnO2@NiO core–shell nanocomposites based gas sensor toward superior VOCs sensing performance. Chem. Eng. J. 2024, 501, 157692. [Google Scholar] [CrossRef]
  55. Das, S.; Kumar, A.; Singh, J.; Kumar, M. Fabrication and modeling of laser ablated NiO nanoparticles decorated SnO2 based formaldehyde sensor. Sens. Actuators B Chem. 2023, 387, 133824. [Google Scholar] [CrossRef]
  56. Budak, B.; Demirel, S. Synthesis and characterization of PANI and PANI/nanometal oxides, photocatalytic and adsorbent applications. Turk. J. Chem. 2023, 47, 346–363. [Google Scholar] [CrossRef]
  57. Tian, K.; Fu, Y.; Haq, I.; Kuang, S.; Xiong, G.; Zhao, Z.; Zhou, T.; Weng, J.; Peng, X.; Xiong, L. Fabrication of MOF-derived porous Au@ Co-ZnO nanostructures with excellent C2H5OH sensing performance. Microstructures 2025, 5, 2025041. [Google Scholar] [CrossRef]
  58. Meng, D.; Liu, D.; Wang, G.; Shen, Y.; San, X.; Li, M.; Meng, F. Low-temperature formaldehyde gas sensors based on NiO-SnO2 heterojunction microflowers assembled by thin porous nanosheets. Sens. Actuators B Chem. 2018, 273, 418–428. [Google Scholar] [CrossRef]
  59. Dong, J.; Guo, J.; Shao, T.; Kou, H.; Cheng, Y.; Zhang, F.; Liu, X.; Tian, S. Enhanced ethanol gas sensing performance of Ag/SnO2 composites. Sens. Actuators B Chem. 2025, 423, 136721. [Google Scholar] [CrossRef]
  60. Xu, K.; Kan, Z.; Zhang, F.; Qu, Y.; Li, S.; Liu, S. Hollow multi-shelled structural SnO2 with multiple spatial confinement for ethanol gas sensing. Mater. Lett. 2023, 338, 134070. [Google Scholar] [CrossRef]
  61. Xu, X.; Liu, W.; Wang, S.; Wang, X.; Chen, Y.; Zhang, G.; Ma, S.; Pei, S. Design of high-sensitivity ethanol sensor based on Pr-doped SnO2 hollow beaded tubular nanostructure. Vacuum 2021, 189, 110244. [Google Scholar] [CrossRef]
  62. Jiang, B.; Zhou, T.; Zhang, L.; Yang, J.; Han, W.; Sun, Y.; Liu, F.; Sun, P.; Zhang, H.; Lu, G. Separated detection of ethanol and acetone based on SnO2-ZnO gas sensor with improved humidity tolerance. Sens. Actuators B Chem. 2023, 393, 134257. [Google Scholar] [CrossRef]
  63. Yan, W.; Liu, Y.; Shao, G.; Zhu, K.; Cui, S.; Wang, W.; Shen, X. Chemical Surface Adsorption and Trace Detection of Alcohol Gas in Graphene Oxide-Based Acid-Etched SnO2 Aerogels. ACS Appl. Mater. Interfaces 2021, 13, 20467–20478. [Google Scholar] [CrossRef]
  64. Shooshtari, M. Gold-decorated vertically aligned carbon nanofibers for high-performance room-temperature ethanol sensing. Microchim. Acta 2025, 192, 517. [Google Scholar] [CrossRef]
  65. Panžić, I.; Bafti, A.; Radovanović-Perić, F.; Gašparić, D.; Shi, Z.; Borenstein, A.; Mandić, V. Advancements in Nanostructured Functional Constituent Materials for Gas Sensing Applications: A Comprehensive Review. Appl. Sci. 2025, 15, 2522. [Google Scholar] [CrossRef]
  66. Lv, S.; Pu, Q.; Wang, B.; Sun, P.; Wang, J.; Li, Q.; Zhu, L.; Wang, L.; Liu, F.; Lu, G. Discriminative Detection for Multiple Volatile Organic Compounds via Dynamic Temperature Modulation Based on Mixed Potential Gas Sensor. ACS Sens. 2025, 10, 3638–3646. [Google Scholar] [CrossRef] [PubMed]
  67. Cao, Z.; Gao, X.; Zhang, Z.; Wang, W.; Sheng, J.; Li, J.; Sun, Y.; Dong, F. Gas discrimination and concentration prediction based on sensing features deriving from molecular interfacial interactions. Sens. Actuators B Chem. 2024, 409, 135518. [Google Scholar] [CrossRef]
  68. Kumar, S.; Gowthaman, P.; Deenathayalan, J. Preparation of Nanostructured SnO2-NiO Composite Semiconductor for Gas Sensor Applications. Int. J. Adv. Res. Sci. Commun. Technol. 2021, 11, 2581–9429. [Google Scholar] [CrossRef]
  69. Ciftyurek, E.; Li, Z.; Schierbaum, K. Adsorbed Oxygen Ions and Oxygen Vacancies: Their Concentration and Distribution in Metal Oxide Chemical Sensors and Influencing Role in Sensitivity and Sensing Mechanisms. Sensors 2022, 23, 29. [Google Scholar] [CrossRef]
  70. Shooshtari, M.; Salehi, A.; Vollebregt, S. Effect of temperature and humidity on the sensing performance of TiO2 nanowire-based ethanol vapor sensors. Nanotechnology 2021, 32, 325501. [Google Scholar] [CrossRef]
  71. Yang, X.-Y.; Shi, Y.-T.; Xie, K.-F.; Wang, J.-Y.; Wang, Y.-F.; Zheng, Y.; Fang, S.-M.; Zhang, Y.-H. Engineering of in-plane SnO2-Sn3O4 hierarchical nanoflower heterojunctions for enhanced formaldehyde sensing. Appl. Surf. Sci. 2023, 614, 156110. [Google Scholar] [CrossRef]
  72. Thi Thanh Le, D.; Manh Hung, C. Facile synthesis and electrical characteristics of n-SnO2/p-NiO nanowire heterojunctions. Commun. Phys. 2019, 29, 77. [Google Scholar] [CrossRef]
  73. Yang, Y.; Yang, W.; Wang, Y.; Zeng, X.; Hu, Y. A mechanically induced artificial potential barrier and its tuning mechanism on performance of piezoelectric PN junctions. Nano Energy 2022, 92, 106741. [Google Scholar] [CrossRef]
  74. Nath, V.G.; Tomar, S.; Rao, N.N.; Kovilakath, M.S.N.; John, N.S.; Bhattacharjee, S.; Lee, S.C.; Subramanian, A. Unraveling the Synergy of Interfacial Engineering in In Situ Prepared NiO/NdNiO3 for ppb-Level SO2 Sensing: Mechanistic and First-Principles Insights. Small 2025, 21, e2502192. [Google Scholar] [CrossRef]
  75. Zhang, Z.; Liu, M.; Ge, B.; Yang, T.; Wang, S.; Liu, Y.; Gao, S. In-situ reconstructed Cu/NiO nanosheets synergistically boosting nitrate electroreduction to ammonia. Chin. Chem. Lett. 2025, 36, 110657. [Google Scholar] [CrossRef]
Nanomaterials 15 01471 g001

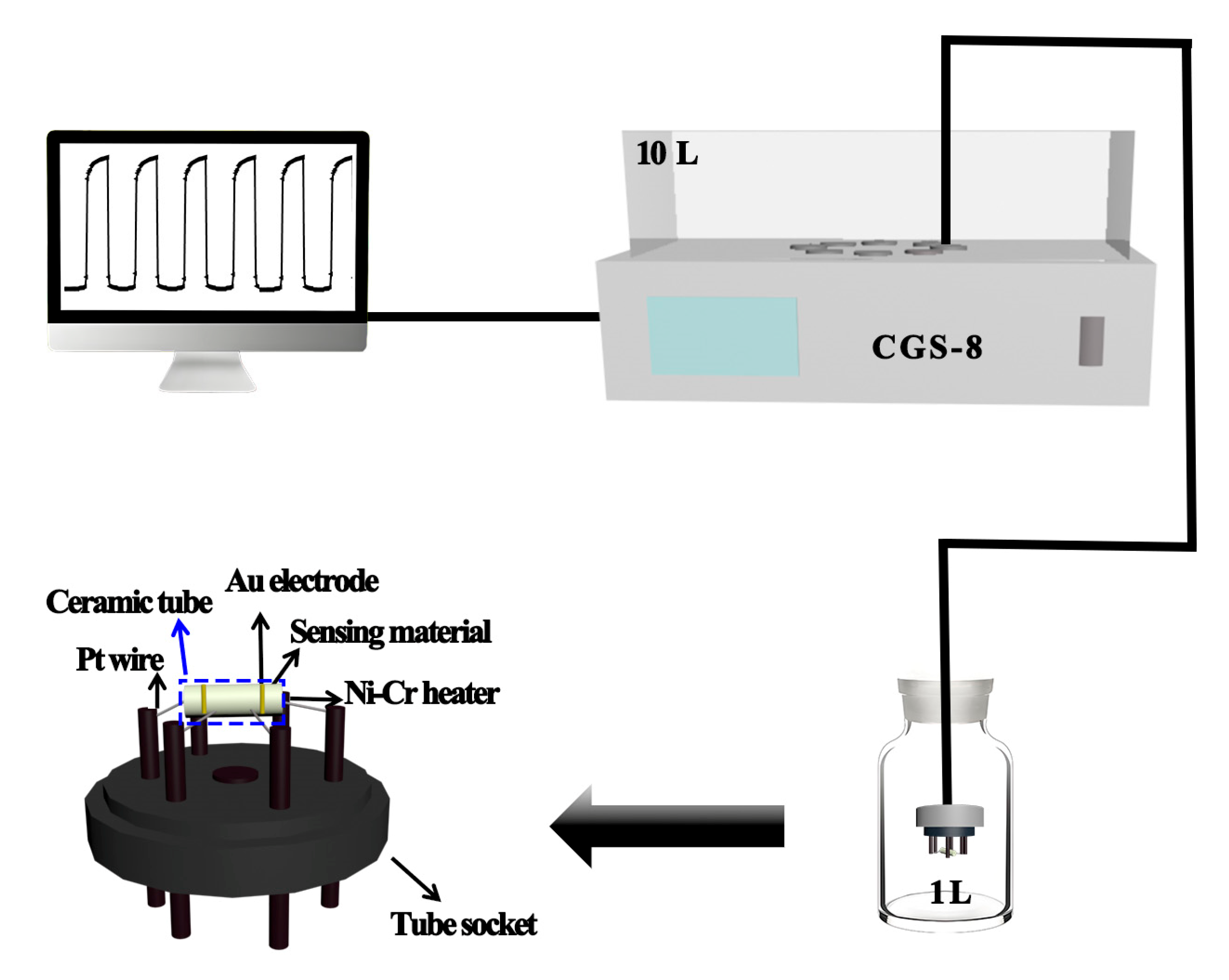

Figure 1. The gas testing system and schematic structure of the hierarchical NiO-SnO2 gas sensor.
Figure 1. The gas testing system and schematic structure of the hierarchical NiO-SnO2 gas sensor.
Nanomaterials 15 01471 g001
Nanomaterials 15 01471 g002

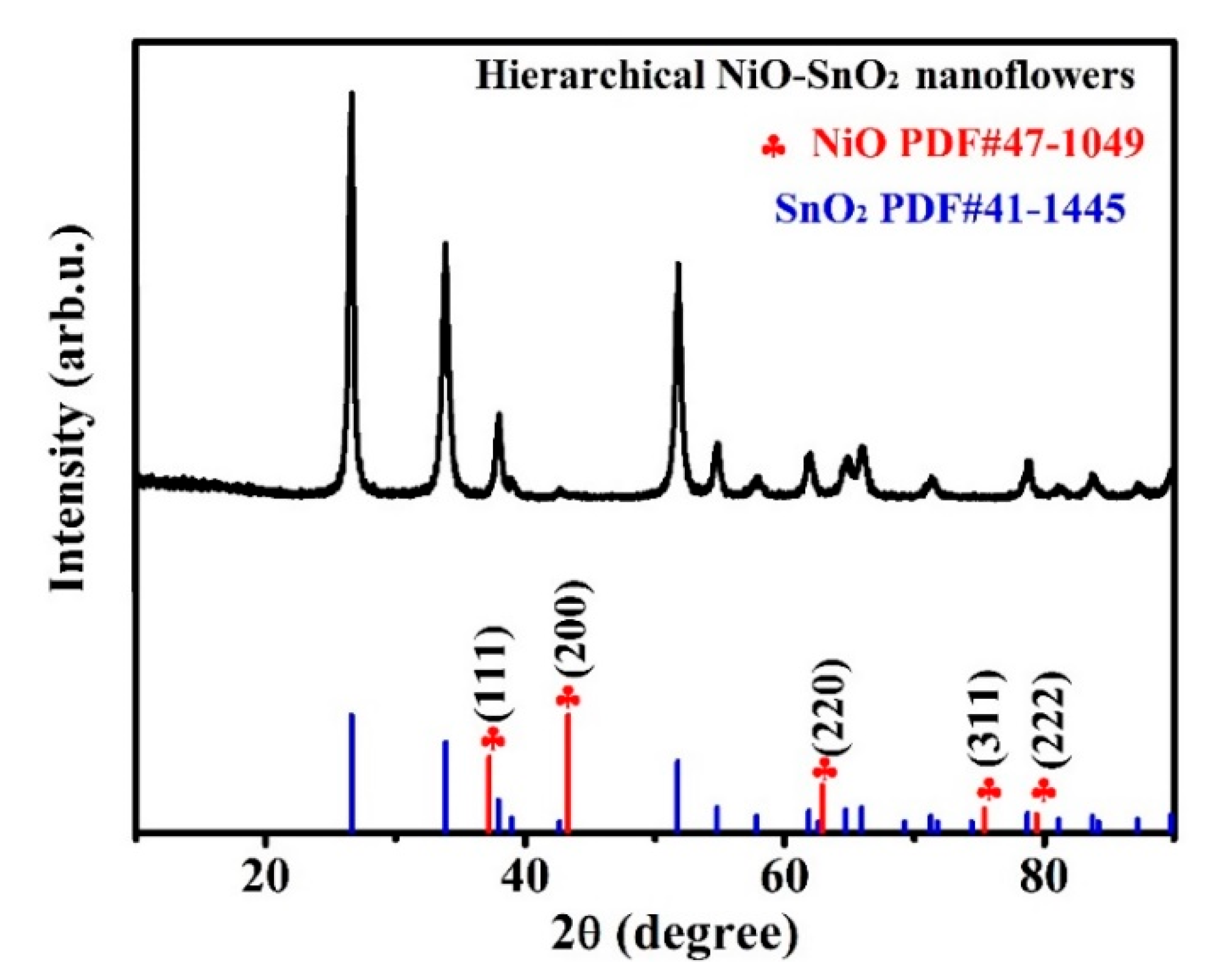

Figure 2. XRD patterns of as-prepared hierarchical NiO-SnO2 nanoflowers.
Figure 2. XRD patterns of as-prepared hierarchical NiO-SnO2 nanoflowers.
Nanomaterials 15 01471 g002
Nanomaterials 15 01471 g003
Figure 3. (a–c) SEM images; (d) TEM image; (e) HRTEM image, and (f) the corresponding SAED pattern of the as-synthesized hierarchical NiO-SnO2 nanoflowers.
Figure 3. (a–c) SEM images; (d) TEM image; (e) HRTEM image, and (f) the corresponding SAED pattern of the as-synthesized hierarchical NiO-SnO2 nanoflowers.
Nanomaterials 15 01471 g003
Nanomaterials 15 01471 g004

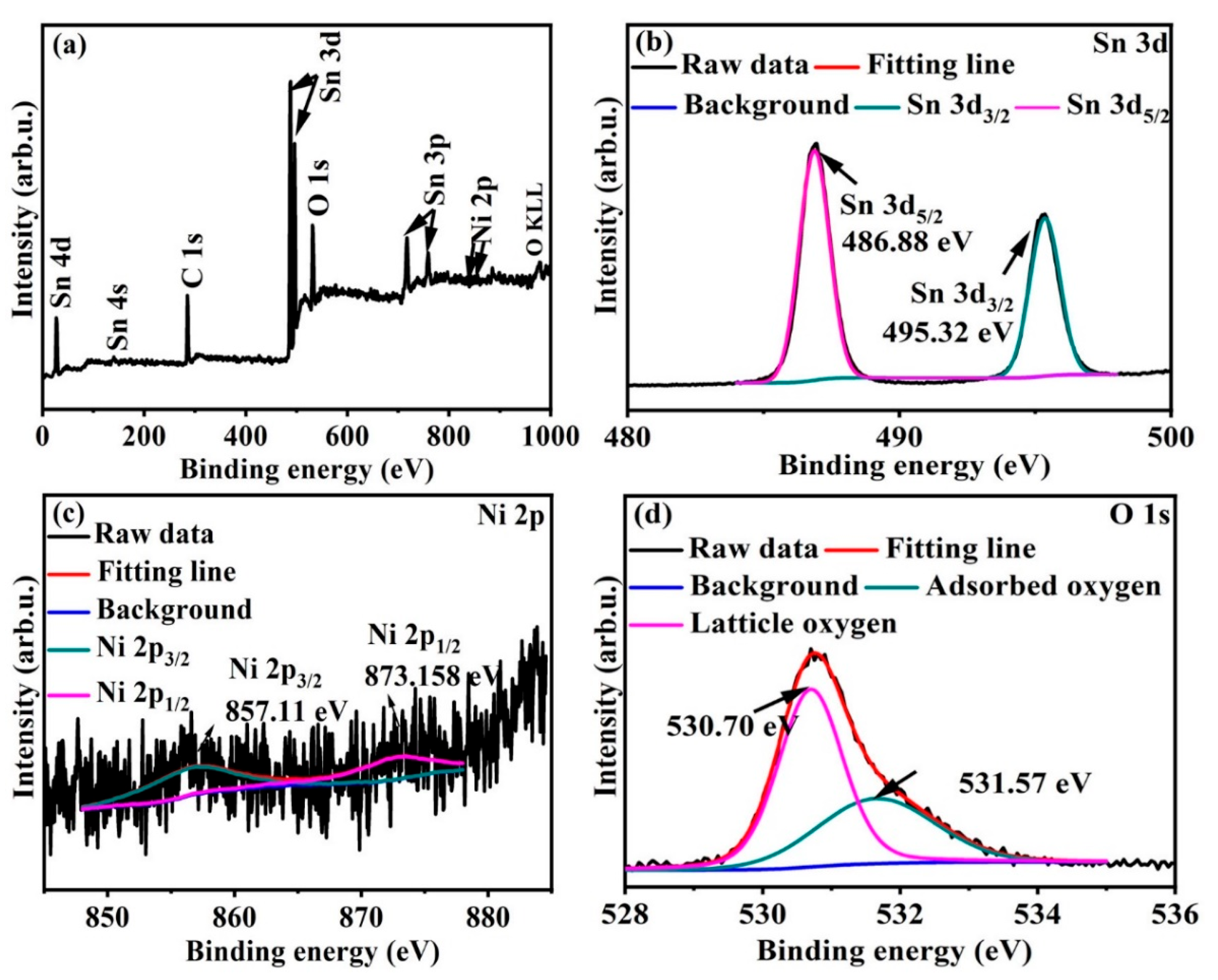

Figure 4. X-ray photoelectron spectroscopy measurement of hierarchical NiO-SnO2 nanoflowers. (a) The full rang XPS spectrum; (b) Sn 3d; (c) Ni 2p; (d) O 1s.
Figure 4. X-ray photoelectron spectroscopy measurement of hierarchical NiO-SnO2 nanoflowers. (a) The full rang XPS spectrum; (b) Sn 3d; (c) Ni 2p; (d) O 1s.
Nanomaterials 15 01471 g004
Nanomaterials 15 01471 g005

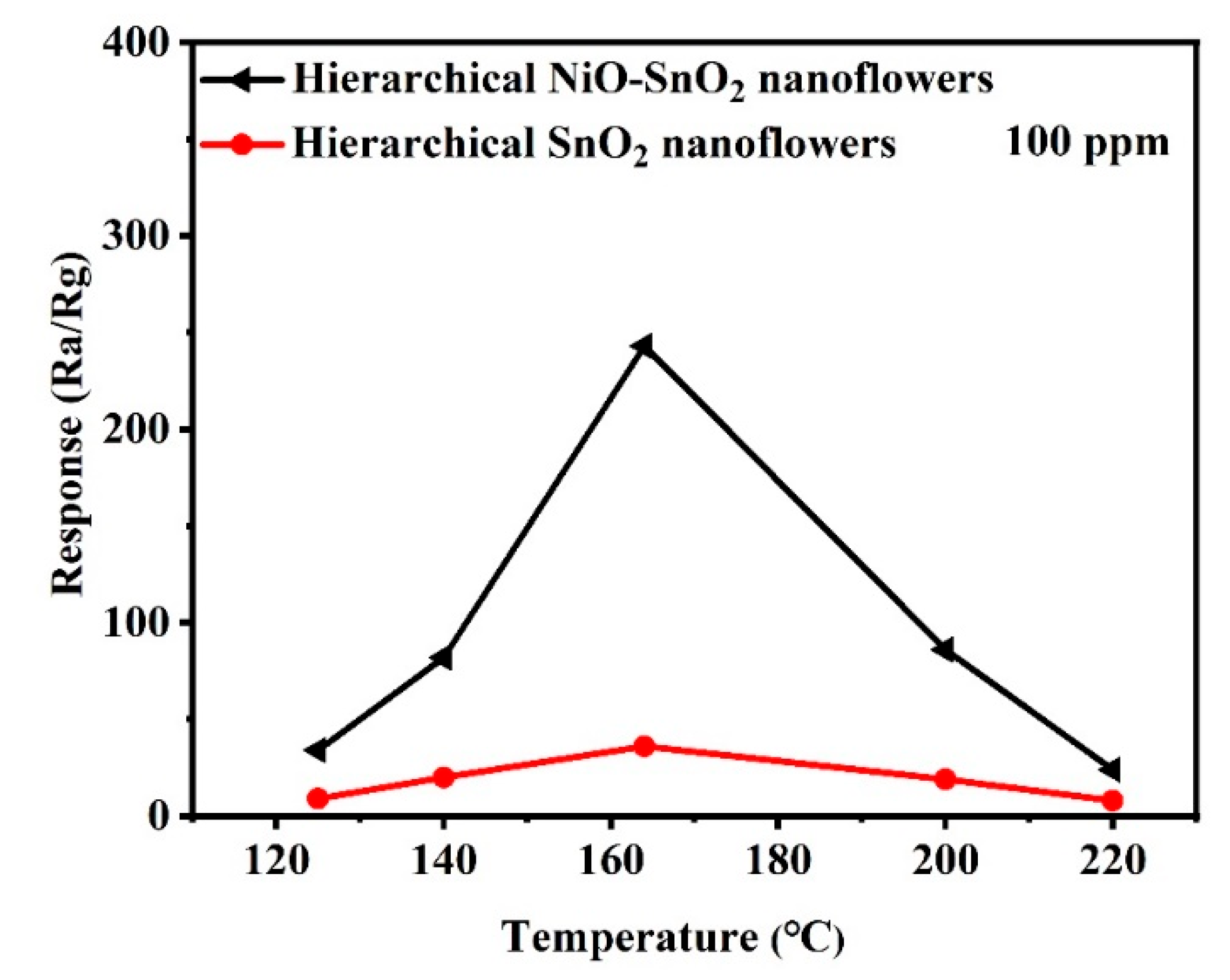

Figure 5. Gas response of the sensor based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers to 100 ppm ethanol gas at different operating temperatures.
Figure 5. Gas response of the sensor based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers to 100 ppm ethanol gas at different operating temperatures.
Nanomaterials 15 01471 g005
Nanomaterials 15 01471 g006

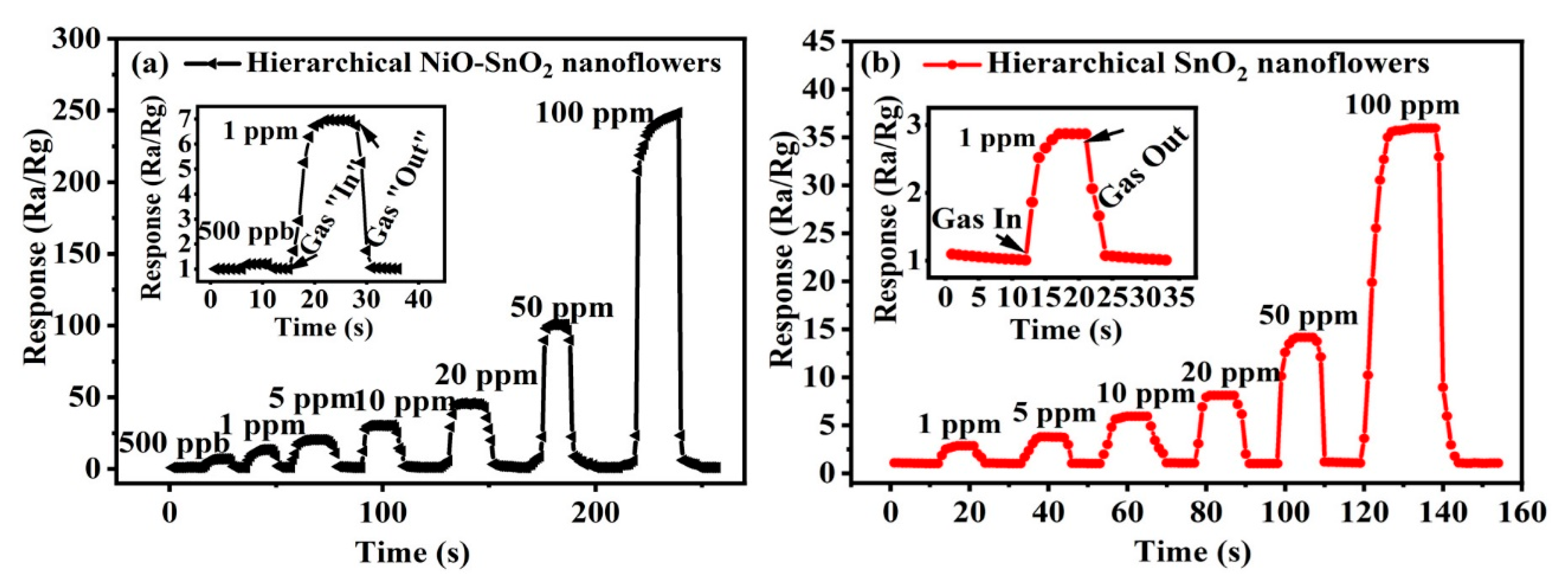

Figure 6. Dynamic gas sensing response and recovery curve of the sensor based on the hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers sensors to 1 ppm–50 ppm (a) and 500 ppb-50 ppm (b), respectively.
Figure 6. Dynamic gas sensing response and recovery curve of the sensor based on the hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers sensors to 1 ppm–50 ppm (a) and 500 ppb-50 ppm (b), respectively.
Nanomaterials 15 01471 g006
Nanomaterials 15 01471 g007

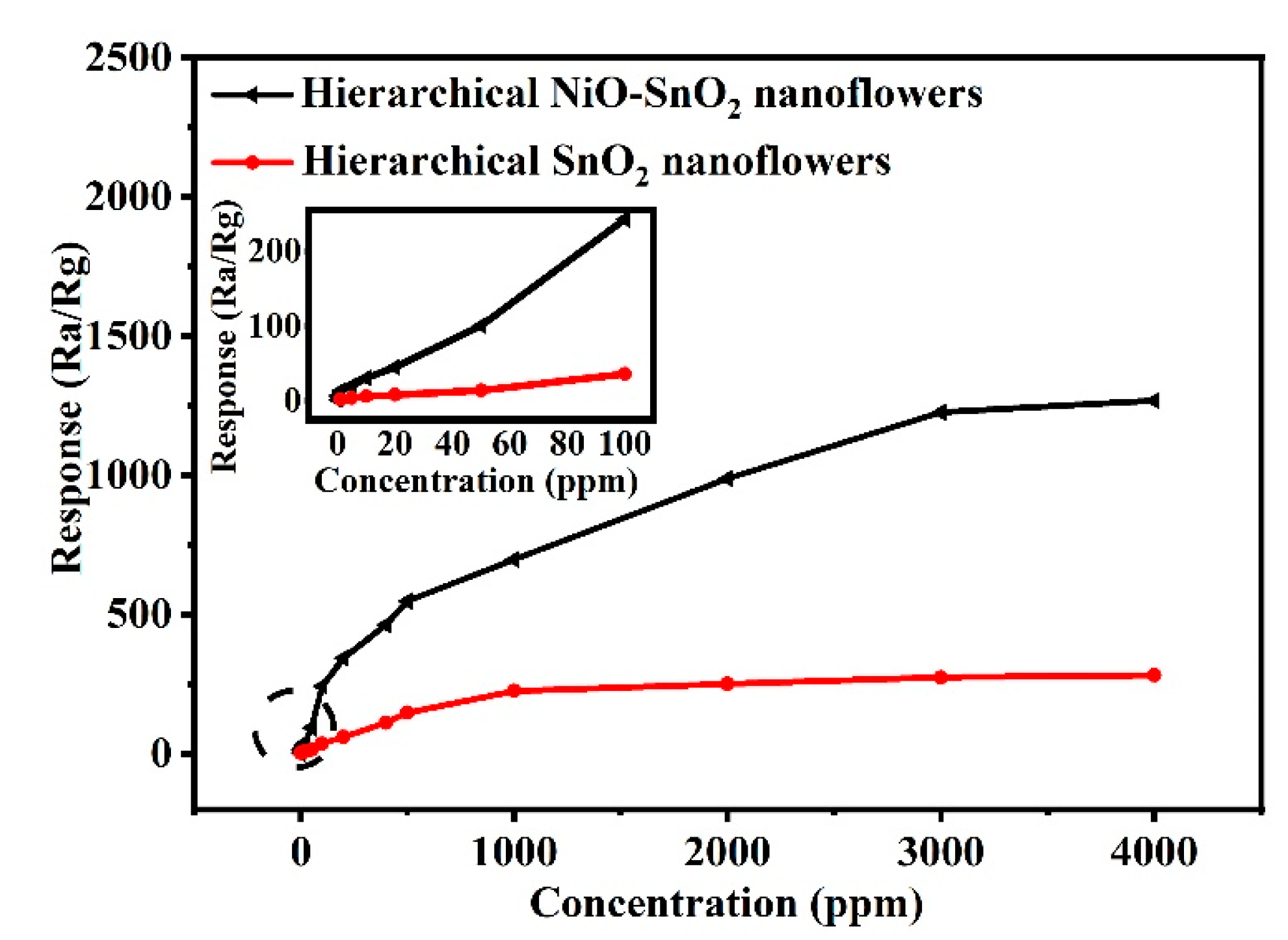

Figure 7. The responses of sensors based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers towards different concentrations of ethanol gas at 164 °C.
Figure 7. The responses of sensors based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers towards different concentrations of ethanol gas at 164 °C.
Nanomaterials 15 01471 g007
Nanomaterials 15 01471 g008

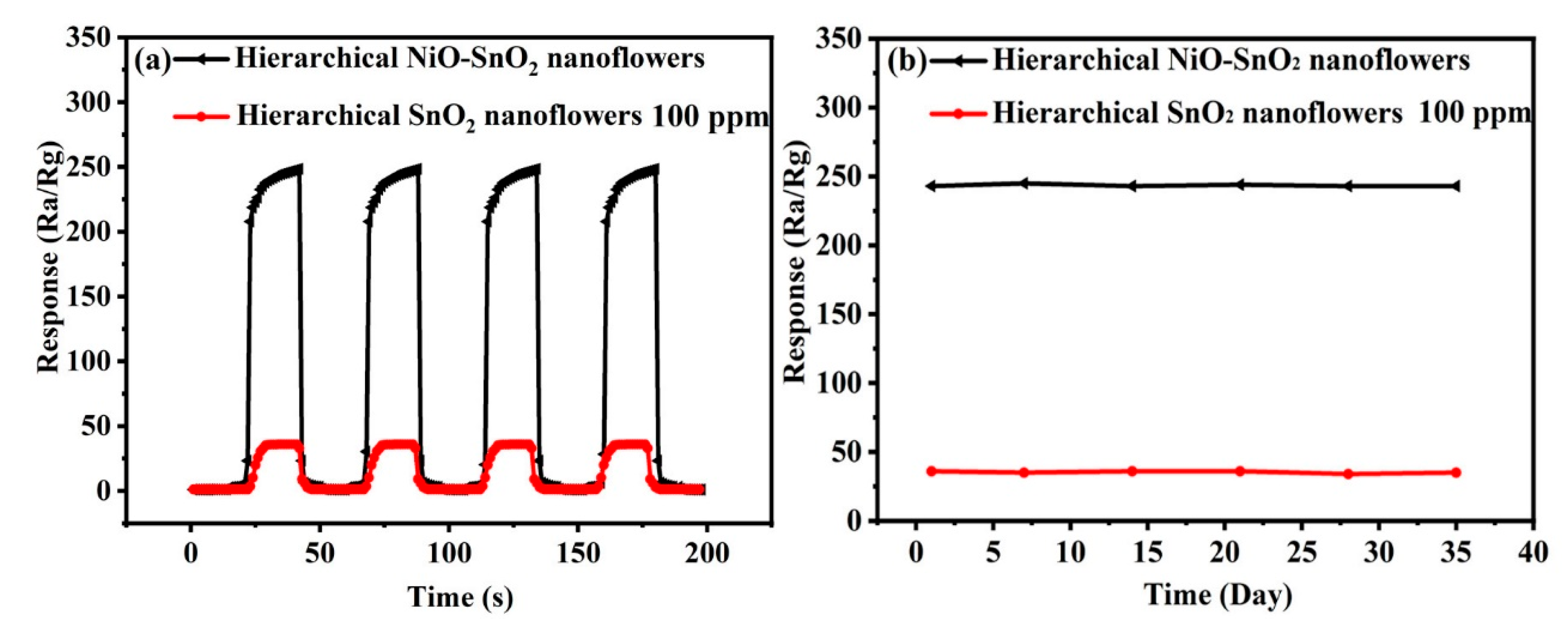

Figure 8. (a) Reproducibility and (b) stability of the sensor based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers to 100 ppm ethanol at 164 °C.
Figure 8. (a) Reproducibility and (b) stability of the sensor based on hierarchical SnO2 nanoflowers and hierarchical NiO-SnO2 nanoflowers to 100 ppm ethanol at 164 °C.
Nanomaterials 15 01471 g008
Nanomaterials 15 01471 g009

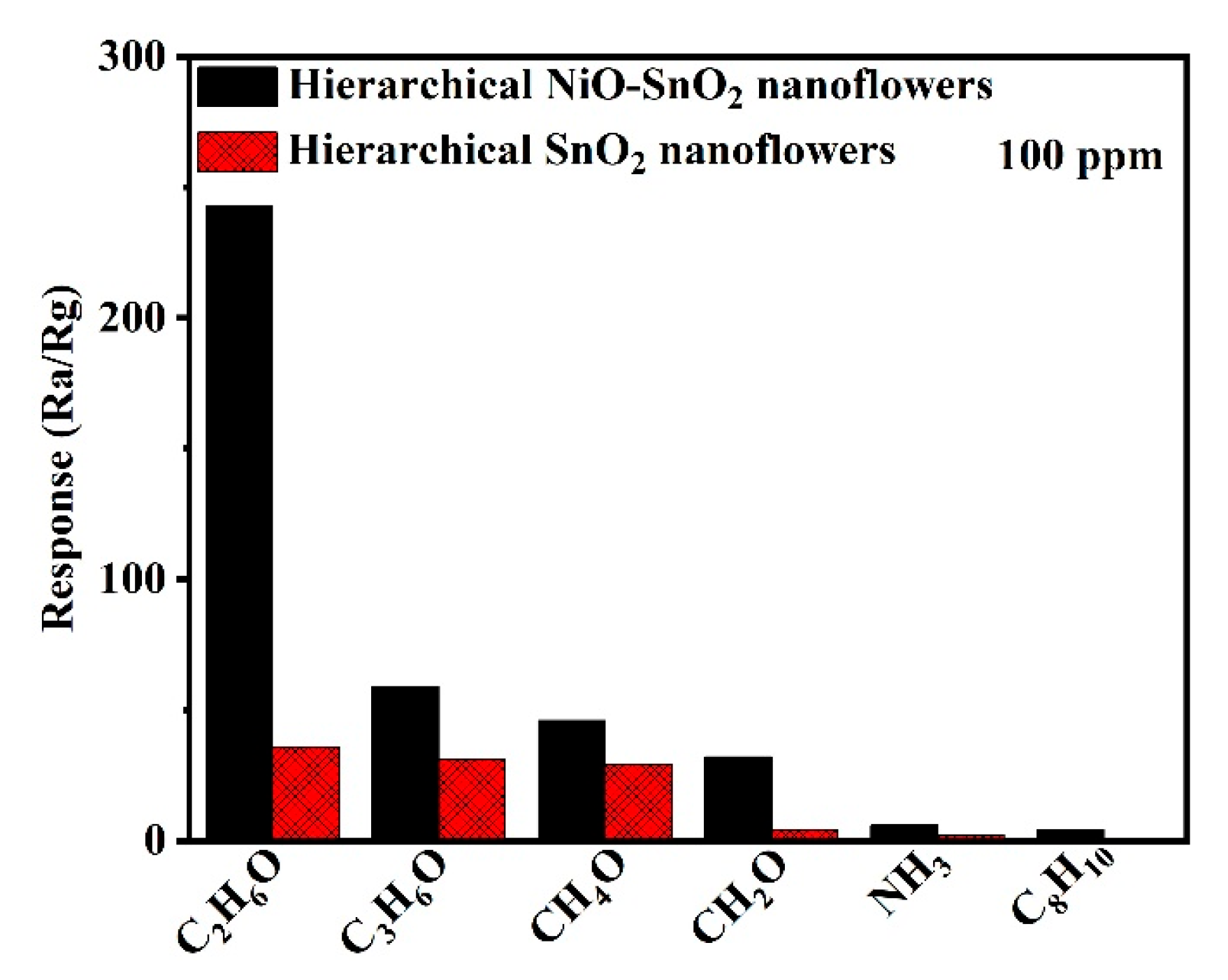

Figure 9. Response of hierarchical NiO-SnO2 nanoflowers and hierarchical SnO2 nanoflowers towards 100 ppm ethanol, acetone, methanol, formaldehyde, ammonia, and paraxylene gas molecules at 164 °C.
Figure 9. Response of hierarchical NiO-SnO2 nanoflowers and hierarchical SnO2 nanoflowers towards 100 ppm ethanol, acetone, methanol, formaldehyde, ammonia, and paraxylene gas molecules at 164 °C.
Nanomaterials 15 01471 g009
Nanomaterials 15 01471 g010

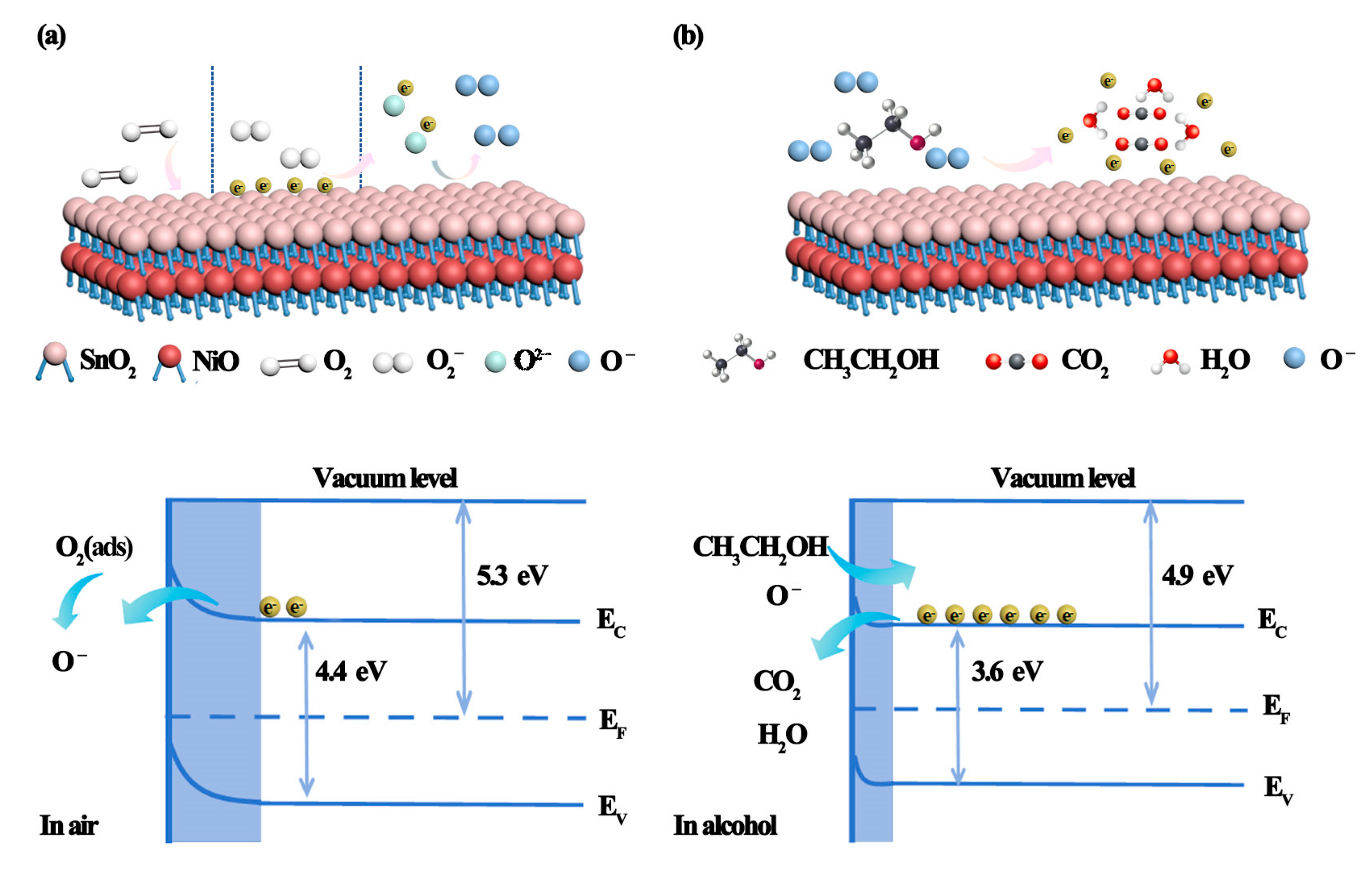

Figure 10. The mechanism diagram (a) and energy band structure diagram (b) of hierarchical NiO-SnO2 nanoflowers for ethanol gas molecules.
Figure 10. The mechanism diagram (a) and energy band structure diagram (b) of hierarchical NiO-SnO2 nanoflowers for ethanol gas molecules.
Nanomaterials 15 01471 g010
Table 1. Ethanol gas sensing performance comparison of different SnO2-based gas sensors.
Table 1. Ethanol gas sensing performance comparison of different SnO2-based gas sensors.
MaterialsLOD (ppb)Response Time (s)Temperature (°C)Reference
Ag/SnO2 composites2 × 10580300[59]
SnO21 × 1053300[60]
Pr-doped SnO22 × 10312200[61]
SnO2-ZnO 2 × 1023250[62]
NiO-SnO25 × 1021.2164This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Song, L.; Dou, X.; Shao, J.; Luo, Y.; Liu, F.; Li, C.; Yan, L.; Wang, C.; Li, Y.; Cai, Y.; et al. Fabrication of Low-Temperature ppb-Level Ethanol Gas Sensor Based on Hierarchical NiO-SnO2 Nanoflowers Under Hydrothermal Conditions. Nanomaterials 2025, 15, 1471. https://doi.org/10.3390/nano15191471

AMA Style

Song L, Dou X, Shao J, Luo Y, Liu F, Li C, Yan L, Wang C, Li Y, Cai Y, et al. Fabrication of Low-Temperature ppb-Level Ethanol Gas Sensor Based on Hierarchical NiO-SnO2 Nanoflowers Under Hydrothermal Conditions. Nanomaterials. 2025; 15(19):1471. https://doi.org/10.3390/nano15191471

Chicago/Turabian Style

Song, Liming, Xiaoxin Dou, Jianmei Shao, Yuanzheng Luo, Fumiao Liu, Chengyong Li, Lijuan Yan, Chuhong Wang, Yuting Li, Yuqing Cai, and et al. 2025. "Fabrication of Low-Temperature ppb-Level Ethanol Gas Sensor Based on Hierarchical NiO-SnO2 Nanoflowers Under Hydrothermal Conditions" Nanomaterials 15, no. 19: 1471. https://doi.org/10.3390/nano15191471

APA Style

Song, L., Dou, X., Shao, J., Luo, Y., Liu, F., Li, C., Yan, L., Wang, C., Li, Y., Cai, Y., He, J., Dai, Z., Sun, R., & Xie, Q. (2025). Fabrication of Low-Temperature ppb-Level Ethanol Gas Sensor Based on Hierarchical NiO-SnO2 Nanoflowers Under Hydrothermal Conditions. Nanomaterials, 15(19), 1471. https://doi.org/10.3390/nano15191471

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
