Article

Synthesis of Electrocatalytic Tungsten Carbide Nanoparticles by High-Pressure and High-Temperature Treatment of Organotungsten Compounds

by
Taijiro Tadokoro
1,
Sota Sato
2,
Ichiro Yamane
1,
Hiroki Waizumi
1,2,
Seiya Yokokura
1,2 and
Toshihiro Shimada
1,2,*
1
Graduate School of Chemical Science and Engineering, Hokkaido University, Kita 13 Nishi 8, Kita-ku, Sapporo 060-8628, Japan
2
Division of Applied Chemistry, Faculty of Engineering, Hokkaido University, Kita 13 Nishi 8, Kita-ku, Sapporo 060-8628, Japan
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(3), 170; https://doi.org/10.3390/nano15030170
Submission received: 20 December 2024 / Revised: 14 January 2025 / Accepted: 18 January 2025 / Published: 23 January 2025
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Versions Notes

Abstract

:
Metal–organic framework (MOF)-derived carbon, which contains metal nanoparticles embedded in a carbon matrix, is becoming an important group of catalysts. We report the synthesis of tungsten carbide–carbon nanocomposites using a similar concept, i.e., by pyrolysis of organotungsten compounds under high-temperature and high-pressure conditions. We characterized the product using various analytical techniques and examined its electrocatalytic activity. Two precursors, Bis(cyclopentadienyl)tungsten (IV) dichloride (Cp2WCl2) and Bis(cyclopentadienyl)tungsten (IV) dihydride (Cp2WH2) were pyrolyzed at 4.5 GPa and 600 °C. Tungsten carbide (β-WC1−x) crystals with a size of 2 nm embedded in graphitic carbon were formed from Cp2WH2-derived samples. Electrochemical measurements showed that all samples were active in the oxygen reduction reaction (ORR), with the Cp2WH2-derived sample having the best catalytic performance.

1. Introduction

With the escalation of climate change and the growing need for clean and sustainable energy production to address it, improving the performance of related catalysts is attracting increasing attention. In particular, precious metals such as Pt, Pd, and Rh have been widely used as energy-related catalysts. These metals exist in limited quantities on the upper crust and are extremely expensive [1,2,3]. This is one of the reasons that hindered the widespread use of the new processes on a large scale.
Among them, there is a growing demand for electrocatalysts for oxygen reduction reactions (ORRs) in fuel cells and metal–air batteries, as well as water-splitting, which play an essential role in clean energy technologies [4,5,6]. There is an urgent need to develop high-performance ORR catalysts using more affordable and abundant materials than precious-metal-based catalysts.
Transition metal carbides, especially tungsten carbides, have received considerable attention as an alternative electrocatalyst, co-catalyst, or support material for precious metals [7,8,9]. They are characterized by high catalytic activity, low cost, and excellent electrochemical corrosion resistance [10,11,12,13]. However, the synthesis of transition metal carbides generally requires high temperatures, which leads to particle aggregation and a decrease in specific surface area [14,15]. If it is possible to prepare nanoparticles of transition metal carbides, we can expect the improvement of catalytic activities due to the electronic structures modified by quantum size effects [16,17,18] and isomeric surface atomic arrangement [19,20] as well as the increased surface area of catalysts.
Metal–organic frameworks (MOFs) have gathered attention for catalyst applications [21,22,23]. Also, MOF-derived carbon is synthesized by pyrolysis of MOFs and is now becoming an important group of catalytic materials with metal nanoparticles embedded in a carbon matrix [24,25]. The authors have reported synthesizing single-nanometer-scale copper particles on carbon supports by high pressure and high temperature (HPHT) treatment of MOFs [26,27]. However, MOFs containing only tungsten as a metal element are rarely found in the literature.
High-pressure synthesis has been used to explore new materials because it can provide compounds that are difficult to synthesize at ambient conditions [28,29,30], including catalysts [31,32,33,34,35,36,37]. Under high pressures, the lattice diffusion of atoms is inhibited due to the increased activation energy of diffusion [38,39]. This feature prevents the aggregation of metal atoms during heat treatment, which is beneficial for synthesizing metal carbide nanocomposites. Searching for appropriate precursors and conditions to improve the catalytic activity remains to be explored.
In this paper, we employed organotungsten compounds to synthesize nanostructure-controlled tungsten carbide catalysts using a high-pressure, high-temperature (HPHT) treatment. Since carbon-capsulated iron carbide can be synthesized by pyrolysis of ferrocene [40], it is expected that carbon-supported heterogeneous catalysts consisting of tungsten carbide can be synthesized by pyrolysis of organotungsten compounds. The analysis of the products is of interest since the tungsten carbides have several different species (WC, W2C, and β-WC1−x), and their activity as catalyst support is different [7,8,9]. We report on the structural analysis of tungsten carbides in the HPHT products and their electrocatalytic performance for oxygen-related reactions in alkaline media.

2. Materials and Methods

Samples were synthesized from pellets of organotungsten compounds by high-temperature, high-pressure processing using a DIA-type cubic anvil high-pressure apparatus (CT-factory, Tokyo, Japan). The schematics of HPHT treatment are illustrated in Figure 1a. The precursors were Bis(cyclopentadienyl)tungsten (IV) dichloride (Cp2WCl2, Figure 1b) and Bis(cyclopentadienyl) tungsten (IV) dihydride (Cp2WH2, Figure 1c), purchased from FUJIFILM Wako Chemicals (Tokyo, Japan). The powder of each molecule was crushed and solidified in a vise in an Ar atmosphere in a glove box. It was enclosed in an aluminum pan with an outer diameter of 6 mm and taken out into the air to put it in the cell assembly. It was compressed to the target pressure (4.5 GPa) at room temperature, and the sample temperature, measured by a thermocouple within the cell assembly, was increased from room temperature to the target temperature in about 10 min and was kept for 20 min. The heating was then quenched to room temperature by turning off the power to the heating system and returning to ambient pressure. The obtained samples were finely crushed under ambient conditions using a pestle and used for characterization and electrochemical measurements.
Powder X-ray diffraction (XRD) was measured using MiniFlex-600 (Rigaku, Cu Kα (λ = 1.5405 Å)). Transmission electron microscopy (TEM) and scanning TEM (STEM) observations were performed using a JEM-2010 (JEOL, Akishima, Japan) and Titan G2 60-300 (FEI, Hillsboro, USA). X-ray photoelectron spectroscopy (XPS) was measured using a JPS-9200 (JEOL, Akishima, Japan, using Mg Kα X-rays). Raman spectra were obtained using a Renishaw Invia (Ranishaw, Wotton-under-Edge, UK) with 532 nm laser excitation. The specific surface area of the samples was evaluated by N2-sorption measurements. (Belsorp, Microtrac-BEL,Osaka, Japan).
Electrochemical measurements were performed in a 0.1 M KOH solution at room temperature using a rotating disk electrode system (BAS, RRDE-3A, Tokyo, Japan) and potentiostat (Meiden Hokuto, HSV-110, Tokyo, Japan). The working electrode (WE), reference electrode (RE), and counter electrode (CE) for this study were a glassy carbon (GC) rotating disk electrode (0.4 cm diameter), a Hg/HgO reference electrode, and a Pt coil electrode, respectively.
Catalyst inks were prepared as follows: Sample powder (4 mg) was added to a mixture of 60 μL of Nafion 5 wt% solution (Sigma-Aldrich, Burlington, NJ, USA) and 540 μL of 99.5% ethanol (Japan Alcohol Trading, Tokyo, Japan), followed by sonication for 30 min to obtain a uniform ink. The prepared ink (6 μL) was dropped onto a GC disc WE and dried for 30 min. The potential relative to the reversible hydrogen electrode (RHE) was calculated using the following equation: [41].
ERHE = E Hg⁄HgO + 0.098 + 0.059 × (pH of the electrolyte) (in Volt),
where ERHE and EHg/HgO are the potentials relative to the RHE and Hg/HgO reference electrodes, respectively.

3. Results and Discussion

Figure 2 shows the XRD patterns of the Cp2WH2-derived and Cp2WCl2-derived samples pyrolyzed under HPHT conditions (4.5 GPa, 600 °C). For both samples, a diffraction peak attributed to graphite was observed at 26.5°, and no diffraction peak corresponding to the tungsten oxides was observed. Diffraction peaks at 36.9°, 42.8°, 62.2°, and 74.6° attributed to β-WC1−x [42,43] were observed in both samples, with the Cp2WH2-derived sample having a broader peak, suggesting that these crystal particles are smaller than those in the Cp2WCl2-derived sample. Diffraction peaks attributed to W2C [42,43] were observed at 34.4°, 38°, 39.5°, 52.2°, 61.7°, 69.6°, and 75.8° only in the Cp2WCl2-derived sample. Diffraction peaks corresponding to hexagonal WC were not observed. In addition, no tungsten chlorides were formed in the Cp2WCl2-derived sample. The β-WC1−x:W2C ratio in the Cp2WCl2-derived sample was analyzed from the simulated diffraction intensity, which resulted in 0.51:1 [44]. It was impossible to analyze the Cp2WH2-derived sample similarly because the peaks are too broad, but the main component is surely β-WC1−x. The mechanism of formation of β-WC1−x is due to the quenching of the sample, as reported in Refs. [43,44]. We quenched the sample by shutting down the heater immediately after the designated heating period in this experiment.
Figure 3 shows the C 1s and W 4f XPS spectra of the Cp2WH2- and Cp2WCl2-derived samples. In C 1s of both samples, the peak at 284.2 eV corresponding to graphite was the strongest (Figure 3a,c). The 283 eV signal corresponding to carbide did not appear in the Cp2WCl2-derived sample before the Ar+ etching of the sample surface. Still, it was observed after the etching (estimated removal of 180–400 nm thickness). The etching also shifted the main peak of C 1s to the lower energy side by about 0.2 eV. On the other hand, the Cp2WH2-derived sample showed a slight signal corresponding to carbides before and after etching. In contrast, both samples showed similar W 4f spectra, with a stronger signal at around 32 eV corresponding to carbides after the etching (Figure 3b,d). These results suggest that tungsten carbide was synthesized, but the sample surface was oxidized. We consider it to be due to the exposure of the sample to air after HPHT treatment (typically 3 h). The role of oxygen species on the ORR catalyst surface is important [45], and we note the existence of adsorped oxygens on the tungsten carbide surfaces, which can be identified as WO2.
The samples were investigated by STEM. A typical particle in the Cp2WH2-derived sample is shown in Figure 4. HAADF contrast (Figure 4b) and EDS (Figure 4c) analysis of the particles identified the particle consists of W and C. The result of the quantification in the rectangular region of Figure 4c is shown in Table 1. Comparing the atomic fractions, the ratio of tungsten to carbon was 1:12 after the HPHT synthesis, which is close to the ratio in the precursor (1:10). Electron diffraction analysis was performed on these particles, and diffraction images (Figure 4d) corresponding to β-WC1−x and graphite were obtained. This suggests that the particles shown in Figure 4 contain β-WC1−x and graphite. This is consistent with the XRD results.
The area marked by a square in Figure 4a was further magnified (Figure 5). Several single nanoscale stripes were shown, and the HAADF-STEM contrast revealed both carbon- and W-derived particles (Figure 5a,b). A magnified view of the carbon-derived particles is shown in Figure 5c, showing a fringe spacing of about 3.4 Å, corresponding to 3.42 Å on the (0 0 2) lattice plane of graphite. A magnified view of the tungsten-derived particles is shown in Figure 5d, which shows a fringe spacing of about 2.4 Å, corresponding to a (1 1 1) lattice plane of 2.43 Å for β-WC1−x. The size of β-WC1−x was about 2 nm. These results are consistent with XRD, electron diffraction patterns, and EDS results.
Raman spectra are shown in Figure 6. Broad peaks around 1340–50 cm−1 and 1580–95 cm−1 correspond to D and G bands of carbon [46]. In the case of bulk crystalline graphite, the peaks are sharper, and the intensity of the D-band peak is smaller. In the case of Cp2WH2-derived samples, the STEM results show the synthesis of nano-sized graphite, and this small crystallite size is considered to be responsible for the observed spectra. The presence of graphite in the Cp2WCl2-derived sample is also consistent with the XRD and electron diffraction images. In addition, bands associated with the W-C stretching mode [43,46] are located at about 801 and 810 cm−1 for the Cp2WCl2- and Cp2WH2-derived samples, respectively. In addition, bands attributed to the initial oxidation of WC (WC-O)/WC [47,48] are located at about 700 and 690 cm−1, respectively. The Raman spectra thus confirm the synthesis of tungsten carbides.
The specific surface areas of the samples were evaluated by using N2 adsorption–desorption isotherms (Figure 7a,c). Both isotherms have similar hysteresis and show a type II isotherm characteristic of materials with no pores or macro-sized pores. Brunauer–Emmett–Teller (BET) plots were made based on these isotherms (Figure 7b,d). The specific surface area calculated from the BET plot was 10.8 m2 g−1 and 46.8 m2 g−1 for the Cp2WH2-derived and the Cp2WCl2-derived samples, respectively.
To investigate the electrocatalytic activity against ORR, cyclic voltammetry (CV) curves were measured in N2-saturated and O2-saturated 0.1 M KOH solutions, as shown in Figure 8. Both samples exhibited cathodic peaks in the range of 0.5–0.8 V vs. RHE only in the O2-saturated solution. This means that the reaction attributed to the cathodic peak is an O2-related reduction reaction.
Figure 9a shows linear sweep voltammetry (LSV) results measured using a rotating disk electrode (RDE) in an O2-saturated 0.1 M KOH aqueous solution, where the ORR activity was evaluated in detail. For comparison, commercial WC bulk and glassy carbon (GC) were measured without ink in addition to the HPHT-synthesized samples. The starting potentials of the Cp2WH2-derived samples, Cp2WCl2-derived samples, WC, and GC were 0.75, 0.67, 0.60, and 0.58 V vs. RHE, respectively. The synthesized samples performed better than the commercial hexagonal WC powder, and the Cp2WH2-derived sample showed the best performance. Since the XRD and STEM results showed a smaller crystallite size (2 nm) of tungsten carbide and dominance of the β-WC1−x, the electronic structure of nano-sized β-WC1−x is responsible for the high activity. It is noted that Pt nanoparticles supported by β-WC1−x showed better catalytic activity over those supported by other tungsten carbides [49], suggesting the importance of the electronic structure of the material. Tafel plots were generated from the LSV curves in Figure 9a to evaluate the reaction kinetics of ORR in detail (Figure 9b). The Tafel slope of the Cp2WH2-derived sample showed the steepest slope, meaning it has the most significant efficiency.
Electron transfer numbers in ORR were analyzed using Koutecký–Levich plots. As shown in Figure 9c, each plot drew a good straight line, and the reaction electron numbers n were calculated from the slope of each plot. The n values of the Cp2WH2-derived samples, Cp2WCl2-derived samples, WC, and GC, were 3.3, 2.7, 2.5, and 1.8, respectively. If the number of electrons is close to four, it indicates that the reaction proceeds mainly to produce H2O; if it is close to two, it suggests that the reaction proceeds primarily to produce hydrogen peroxide. Among these, the Cp2WH2-derived sample is closest to the reaction that produces H2O. The Cp2WH2-derived sample is the best catalyst among the synthesized samples because it has the largest Tafel gradient, the largest onset potential, and the reaction electron number closest to the widely applicable H2O-producing reaction.
Figure 10 shows the stability of the Cp2WH2-derived catalyst from the chronoamperometric measurement in O2-saturated 0.1 M KOH electrolyte at 0.60 V and 1600 rpm. It shows 83% performance after a 10,000 s operation, and the decrease rate slows down as the operation continues. Although it is necessary to improve lifetime before using this catalyst in practice, the lifetime performance is promising, considering the brittle nano-sized composite structure.
As shown above, our Cp2WH2-derived β-WC1−x nanoparticles showed the ORR onset potential of 0.75 V vs. RHE, which is 0.17 V less than that of Pt. We compare this performance with the tungsten carbide (WCx) catalysts synthesized by various methods. WCx prepared from solid state reaction [50], from combustion [51], and from pyrolyzing W-adsorbed polymer [52] showed 0.1–0.2 V inferior onset for ORR compared with the present results. However, hexagonal WC nanoparticles combined with nitrogen-doped carbon aerogel performed even better than Pt/C [53]. This can be compared with other co-catalysis systems with WCx studied to reduce the use of precious metals such as sub-monolayer Pt [49,54] and other metals or inorganic compounds, some of which showed good performance comparable to Pt/C.
It is difficult to discuss the detailed mechanism at this stage, but the exposure of specific crystal faces, novel atom arrangements, and electronic structure change from the quantum size effect are the candidates that are actively examined theoretically [55]. This is illustrated in Figure 11.

4. Conclusions

We synthesized tungsten carbide electrocatalysts by high-pressure and high-temperature treatment of organotungsten compounds: the Cp2WH2-derived sample contained only β-WC1−x, while the Cp2WCl2-derived sample contained both W2C and β-WC1−x carbides. STEM-HAADF analysis revealed that the Cp2WH2-derived sample was a composite from single nanoscale (~2 nm) graphite and β-WC1−x crystals. These single nanoscale crystals may have contributed to the better catalytic performance of the Cp2WH2-derived sample in the ORR than that of the Cp2WCl2-derived sample and bulk WC. We conclude that HPHT processing of organometallic compounds can be a new approach to synthesizing metal carbide catalysts [56].

Author Contributions

Conceptualization, T.S.; experiment and analysis T.T., S.S. and I.Y.; writing and editing H.W., S.Y. and T.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by “Advanced Research Infrastructure for Materials and Nanotechnology in Japan (ARIM)” of the Ministry of Education, Culture, Sports, Science and Technology (MEXT). Grant Number JPMXP12yyHK0029 (Hokkaido University).

Data Availability Statement

Data can be obtained from the contact author on request.

Acknowledgments

The authors are grateful for the excellent operation and guidance of STEM-HAADF and XPS experiments by R. Ota and K. Suzuki, respectively.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kunhiraman, A.K. Hydrogen evolution reaction catalyzed by platinum nanoislands decorated on three-dimensional nanocarbon hybrid. Ionics 2019, 25, 3787–3797. [Google Scholar] [CrossRef]
  2. Gómez-Marín, A.; Feliu, J.M.; Edson, T. Reaction Mechanism for Oxygen Reduction on Platinum: Existence of a Fast Initial Chemical Step and a Soluble Species Different from H2O2. ACS Catal. 2018, 8, 7931–7943. [Google Scholar] [CrossRef]
  3. Xia, W.; Mahmood, A.; Liang, Z.; Zou, R.; Guo, S. Earth-Abundant Nanomaterials for Oxygen Reduction. Angew. Chem. Int. Ed. Engl. 2016, 55, 2650–2676. [Google Scholar] [CrossRef] [PubMed]
  4. Xu, X.; Pan, L.; Zhang, X.; Wang, L.; Zou, J. Rational Design and Construction of Cocatalysts for Semiconductor-Based Photo-Electrochemical Oxygen Evolution: A Comprehensive Review. Adv. Sci. 2019, 6, 1801505. [Google Scholar] [CrossRef]
  5. Liu, M.; Zhao, Z.; Duan, X.; Huang, Y. Nanoscale Structure Design for High-Performance Pt-Based ORR Catalysts. Adv. Mater. 2019, 31, 1802234. [Google Scholar] [CrossRef]
  6. Xu, X.; Pan, Y.; Zhong, Y.; Ran, R.; Shao, Z. Ruddlesden–Popper perovskites in electrocatalysis. Mater. Horiz. 2020, 7, 2519–2565. [Google Scholar] [CrossRef]
  7. Levy, R.B.; Boudart, M. Platinum-Like Behavior of Tungsten Carbide in Surface Catalysis. Science 1973, 181, 547–549. [Google Scholar] [CrossRef]
  8. Ma, Y.; Guan, G.; Hao, X.; Cao, J.; Abudula, A. Molybdenum carbide as alternative catalyst for hydrogen production—A review. Renew. Sustain. Energy Rev. 2017, 75, 1101–1129. [Google Scholar] [CrossRef]
  9. Regmi, Y.N.; Waetzig, G.R.; Duffee, K.D.; Schmuecker, S.M.; Thode, J.M.; Leonard, B.M. Carbides of group IVA, VA and VIA transition metals as alternative HER and ORR catalysts and support materials. J. Mater. Chem. A 2015, 3, 10085–10091. [Google Scholar] [CrossRef]
  10. Oyama, S.T. Preparation and Catalytic Properties of Transition Metal Carbides and Nitrides. Catal. Today 1992, 15, 179–200. [Google Scholar] [CrossRef]
  11. Tackett, B.M.; Sheng, W.; Chen, J.G. Opportunities and Challenges in Utilizing Metal-Modified Transition Metal Carbides as Low-Cost Electrocatalysts. Joule 2017, 1, 253–263. [Google Scholar] [CrossRef]
  12. Weidman, M.C.; Esposito, D.V.; Hsu, Y.-C.; Chen, J.G. Comparison of electrochemical stability of transition metal carbides (WC, W2C, Mo2C) over a wide pH range. J. Power Sources 2012, 202, 11–17. [Google Scholar] [CrossRef]
  13. Kim, D.-W.; Li, O.L.; Pootawang, P.; Saito, N. Solution plasma synthesis process of tungsten carbide on N-doped carbon nanocomposite with enhanced catalytic ORR activity and durability. RSC Adv. 2014, 4, 16813–16819. [Google Scholar] [CrossRef]
  14. Huang, Y.; Chen, Y.; Xu, M.; Asset, T.; Tieu, P.; Gili, A.; Kulkarni, D.; De Andrade, V.; De Carlo, F.; Barnard, H.S.; et al. Catalysts by pyrolysis: Direct observation of chemical and morphological transformations leading to transition metal-nitrogen-carbon materials. Mater. Today 2021, 47, 53–68. [Google Scholar] [CrossRef]
  15. Shen, K.; Chen, X.; Chen, J.; Li, Y. Development of MOF-Derived Carbon-Based Nanomaterials for Efficient Catalysis. ACS Catal. 2016, 6, 5887–5903. [Google Scholar] [CrossRef]
  16. Nakibli, Y.; Mazal, Y.; Dubi, Y.; Wächtler, M.; Amirav, L. Size Matters: Cocatalyst Size Effect on Charge Transfer and Photocatalytic Activity. Nano Lett. 2018, 18, 357–364. [Google Scholar] [CrossRef]
  17. Lopez-Acevedo, O.; Kacprzak, K.A.; Akola, J.; Häkkinen, H. Quantum size effects in ambient CO oxidation catalysed by ligand-protected gold clusters. Nat. Chem. 2010, 2, 329–334. [Google Scholar] [CrossRef]
  18. Zhang, G.-R.; Xu, B.-Q. Nano-size effect of Au catalyst for electrochemical reduction of oxygen in alkaline electrolyte. Chin. J. Catal. 2013, 34, 942–948. [Google Scholar] [CrossRef]
  19. Tian, S.; Li, Y.-Z.; Li, M.-B.; Yuan, J.; Yang, J.; Wu, Z.; Jin, R. Structural isomerism in gold nanoparticles revealed by X-ray crystallography. Nat. Commun. 2015, 6, 8667. [Google Scholar] [CrossRef]
  20. Cuenya, B.R.; Behafarid, F. Nanocatalysis: Size- and shape-dependent chemisorption and catalytic reactivity. Surf. Sci. Rep. 2015, 70, 135–187. [Google Scholar] [CrossRef]
  21. Lee, J.; Farha, O.K.; Roberts, J.; Scheidt, K.A.; Nguyen, S.T.; Hupp, J.T. Metal–organic framework materials as catalysts. Chem. Soc. Rev. 2009, 38, 1450–1459. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, J.; Chen, L.; Cui, H.; Zhang, J.; Zhang, L.; Su, C.-Y. Applications of metal–organic frameworks in heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43, 6011–6061. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, X.; Sun, H.; Jiang, S.P.; Shao, Z. Modulating metal–organic frameworks for catalyzing acidic oxygen evolution for proton exchange membrane water electrolysis. Susmat 2021, 1, 460–481. [Google Scholar] [CrossRef]
  24. Wang, Q.; Astruc, D. State of the Art and Prospects in Metal–Organic Framework (MOF)-Based and MOF-Derived Nanocatalysis. Chem. Rev. 2020, 120, 1438–1511. [Google Scholar] [CrossRef] [PubMed]
  25. Xia, X.; Mahmood, A.; Zou, R.Q. Metal-organic frameworks and their derived nanostructures for electrochemical energy storage and conversion. Energy Environ. Sci. 2015, 8, 1837–1866. [Google Scholar] [CrossRef]
  26. Yamane, I.; Sato, K.; Otomo, R.; Yanase, T.; Miura, A.; Nagahama, T.; Kamiya, Y.; Shimada, T. Ultrahigh-Pressure Preparation and Catalytic Activity of MOF-Derived Cu Nanoparticles. Nanomaterials 2021, 11, 1040. [Google Scholar] [CrossRef]
  27. Yamane, I.; Sato, K.; Ando, T.; Tadokoro, T.; Yokokura, S.; Nagahama, T.; Kato, Y.; Takeguchi, T.; Shimada, T. Ultrahigh pressure-induced modification of morphology and performance of MOF-derived Cu@C electrocatalysts. Nanoscale Adv. 2022, 5, 493–502. [Google Scholar] [CrossRef]
  28. Riedel, R. High-pressure materials synthesis—A guideline for the discovery of advanced ceramic nitrides. Ceram. Int. 2023, 49, 24102–24111. [Google Scholar] [CrossRef]
  29. Bykov, M.; Fedotenko, T.; Chariton, S.; Laniel, D.; Glazyrin, K.; Hanfland, M.; Smith, J.S.; Prakapenka, V.B.; Mahmood, M.F.; Goncharov, A.F.; et al. High-Pressure Synthesis of Dirac Materials: Layered van der Waals Bonded BeN4 Polymorph. Phys. Rev. Lett. 2021, 126, 175501. [Google Scholar] [CrossRef]
  30. Xu, M.; Li, Y.; Ma, Y. Materials by design at high pressures. Chem. Sci. 2022, 13, 329–344. [Google Scholar] [CrossRef]
  31. Li, J.; Kuang, Y.; Meng, Y.; Tian, X.; Hung, W.-H.; Zhang, X.; Li, A.; Xu, M.; Zhou, W.; Ku, C.-S.; et al. Electroreduction of CO2 to Formate on a Copper-Based Electrocatalyst at High Pressures with High Energy Conversion Efficiency. J. Am. Chem. Soc. 2020, 142, 7276–7282. [Google Scholar] [CrossRef] [PubMed]
  32. Tian, R.; Zhao, S.; Li, J.; Chen, Z.; Peng, W.; He, Y.; Zhang, L.; Yan, S.; Wu, L.; Ahuja, R.; et al. Pressure-promoted highly-ordered Fe-doped-Ni2B for effective oxygen evolution reaction and overall water splitting. J. Mater. Chem. A 2021, 9, 6469–6475. [Google Scholar] [CrossRef]
  33. Xu, S.; Gao, X.; Deshmukh, A.; Zhou, J.; Chen, N.; Peng, W.; Gong, Y.; Yao, Z.; Finkelstein, K.D.; Wan, B.; et al. Pressure-promoted irregular CoMoP2 nanoparticles activated by surface reconstruction for oxygen evolution reaction electrocatalysts. J. Mater. Chem. A 2020, 8, 2001–2007. [Google Scholar] [CrossRef]
  34. Peng, W.; Lv, Z.; Zhou, W.; Yan, B.; Zhao, S.; Wu, L.; Zhou, J.; Gou, H. High-pressure synthesis of trimetal phosphide CFNP as highly efficient bifunctional catalyst for alkaline water splitting. Fuel 2025, 380, 133110. [Google Scholar] [CrossRef]
  35. Hu, Y.; Jia, G.; Ma, S.; Hu, J.; Zhu, P.; Cui, T.; Li, Z.; Zou, Z. Hydrogen evolution reaction of γ-Mo0.5W0.5C achieved by high pressure high temperature synthesis. Catalysts 2016, 6, 208. [Google Scholar] [CrossRef]
  36. Yamada, I.; Fujii, H.; Takamatsu, A.; Ikeno, H.; Wada, K.; Tsukasaki, H.; Kawaguchi, S.; Mori, S.; Yagi, S. Bifunctional Oxygen Reaction Catalysis of Quadruple Manganese Perovskites. Adv. Mater. 2017, 29, 1603004. [Google Scholar] [CrossRef]
  37. Zhao, W.; Xu, D.; Chen, Y.; Cheng, J.; You, C.; Wang, X.; Dong, S.; Tao, Q.; Zhu, P. Surface Modification towards Integral Bulk Catalysts of Transition Metal Borides for Hydrogen Evolution Reaction. Catalysts 2022, 12, 222. [Google Scholar] [CrossRef]
  38. Candland, C.T.; Decker, D.L.; Vanfleet, H.B. Interstitial Diffusion of Copper in Lead at Pressures up to 56 kbar. Phys. Rev. B 1972, 5, 2085–2094. [Google Scholar] [CrossRef]
  39. Wang, J.; Chen, B.; Williams, Q.; Manghnani, M.H. Short- and Intermediate-Range Structure and Dynamics of Fe-Ni-C Liquid Under Compression. Front. Earth Sci. 2019, 7, 258. [Google Scholar] [CrossRef]
  40. Sano, N.; Akazawa, H.; Kikuchi, T.; Kanki, T. Separated synthesis of iron-included carbon nanocapsules and nanotubes by pyrolysis of ferrocene in pure hydrogen. Carbon 2003, 41, 2159–2162. [Google Scholar] [CrossRef]
  41. Ge, X.; Sumboja, A.; Wuu, D.; An, T.; Li, B.; Goh, F.W.T.; Hor, T.S.A.; Zong, Y.; Liu, Z. Oxygen Reduction in Alkaline Media: From Mechanisms to Recent Advances of Catalysts. ACS Catal. 2015, 5, 4643–4667. [Google Scholar] [CrossRef]
  42. El Mrabet, S.; Abad, M.D.; López-Cartes, C.; Martínez-Martínez, D.; Sánchez-López, J.C. Thermal evolution of WC/C nanostructured coatings by raman and In Situ XRD analysis. Plasma Process. Polym. 2009, 6, S444–S449. [Google Scholar] [CrossRef]
  43. Prima, A.; Egorova, Y.; Pushkarev, A.; Matryenin, S. Modification of the WC-Co carbide surface with high-intensity pulsed ion beam. J. Physics Conf. Ser. 2020, 1588, 012045. [Google Scholar] [CrossRef]
  44. Guan, D.; Shi, C.; Xu, H.; Gu, Y.; Zhong, J.; Sha, Y.; Hu, Z.; Ni, M.; Shao, Z. Simultaneously mastering operando strain and reconstruction effects via phase-segregation strategy for enhanced oxygen-evolving electrocatalysis. J. Energy Chem. 2023, 82, 572–580. [Google Scholar] [CrossRef]
  45. Dai, J.; Zhu, Y.; Tahini, H.A.; Lin, Q.; Chen, Y.; Guan, D.; Zhou, C.; Hu, Z.; Lin, H.-J.; Chan, T.-S.; et al. Single-phase perovskite oxide with super-exchange induced atomic-scale synergistic active centers enables ultrafast hydrogen evolution. Nat. Commun. 2020, 11, 5657. [Google Scholar] [CrossRef]
  46. Tuinstra, F.; Koenig, J.L. Raman Spectrum of Graphite. J. Chem. Phys. 1970, 53, 1126–1130. [Google Scholar] [CrossRef]
  47. Dash, T.; Nayak, B. Preparation of Multi-phase Composite of Tungsten Carbide, Tungsten Boride and Carbon by Arc Plasma Melting: Characterization of Melt-cast Product. Ceram. Int. 2016, 42, 445–459. [Google Scholar] [CrossRef]
  48. Debus, J.; Schindler, J.J.; Waldkirch, P.; Goeke, S.; Brümmer, A.; Biermann, D.; Bayer, M. Indication of worn WC/C surface locations of a dry-running twin-screw rotor by the oxygen incorporation in tungsten-related Raman modes. Appl. Phys. Lett. 2016, 109, 171601. [Google Scholar] [CrossRef]
  49. Bott-Neto, J.L.; Beck, W., Jr.; Varanda, L.C.; Ticianelli, E.A. Electrocatalytic activity of platinum nanoparticles supported on different phases of tungsten carbides for the oxygen reduction reaction. Int. J. Hydrog. Energy 2017, 42, 20677–20688. [Google Scholar] [CrossRef]
  50. Huang, K.; Bi, K.; Xu, J.C.; Liang, C.; Lin, S.; Wang, W.J.; Yang, T.Z.; Du, Y.X.; Zhang, R.; Yang, H.J.; et al. Novel graphite-carbon encased tungsten carbide nanocomposites by solid-state reaction and their ORR electrocatalytic performance in alkaline medium. Electrochimica Acta 2015, 174, 172–177. [Google Scholar] [CrossRef]
  51. Gao, Y.; Cheng, J.; Chen, P.; Wei, B.; Gao, D.; Xu, D. Novel combustion-carbonization preparation of mesoporous tungsten carbide as a highly active catalyst for oxygen reduction. New J. Chem. 2020, 44, 4004. [Google Scholar] [CrossRef]
  52. Sohn, Y.; Jung, J.Y.; Kim, P. Facile synthesis of tungsten carbide-carbon composites for oxygen reduction reaction. Korean J. Chem. Eng. 2017, 34, 2162–2168. [Google Scholar] [CrossRef]
  53. Zhu, H.; Sun, Z.; Chen, M.; Cao, H.; Li, K.; Cai, Y.; Wang, F. Highly porous composite based on tungsten carbide and N-doped carbon aerogels for electrocatalyzing oxygen reduction reaction in acidic and alkaline media. Electrochim. Acta 2017, 236, 154–160. [Google Scholar] [CrossRef]
  54. Esposito, D.V.; Chen, J.G. Monolayer platinum supported on tungsten carbides as low-cost electrocatalysts: Opportunities and limitations. Energy Environ. Sci. 2011, 4, 3900–3912. [Google Scholar] [CrossRef]
  55. Zhu, X.; He, M.; Chen, X.; Zhou, Y.; Xu, C.; Li, X.; Luo, Q.; Yang, J. First-principles insights into tungsten semicarbide-based single-atom catalysts: Single-atom migration and mechanisms in oxygen reduction. J. Phys. Chem. Lett. 2024, 15, 2815–2824. [Google Scholar] [CrossRef]
  56. Bai, J.; Hao, M.; Han, X.; Zhou, P.; Yao, H.; Bian, L.; Yang, G.; Liang, J.; Laine, R.M.; Wang, F. Halloysite-derived hierarchical cobalt silicate hydroxide hollow nanorods assemble by nanosheets for highly efficient electrocatalytic oxygen evolution reaction. J. Mater. Sci. Technol. 2025, 216, 139–149. [Google Scholar] [CrossRef]
Nanomaterials 15 00170 g001

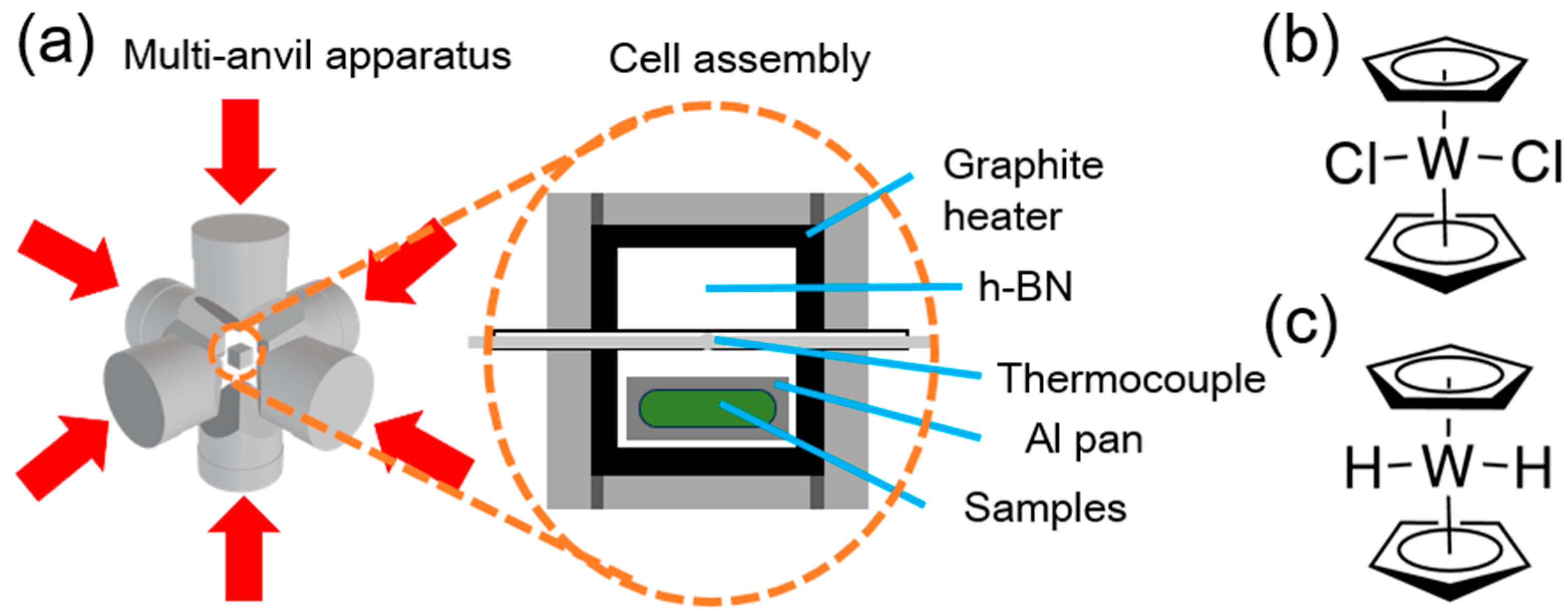

Figure 1. The schematics of (a) the cell assembly for HPHT experiments and molecules (b) Cp2WCl2 and (c) Cp2WH2.
Figure 1. The schematics of (a) the cell assembly for HPHT experiments and molecules (b) Cp2WCl2 and (c) Cp2WH2.
Nanomaterials 15 00170 g001
Nanomaterials 15 00170 g002

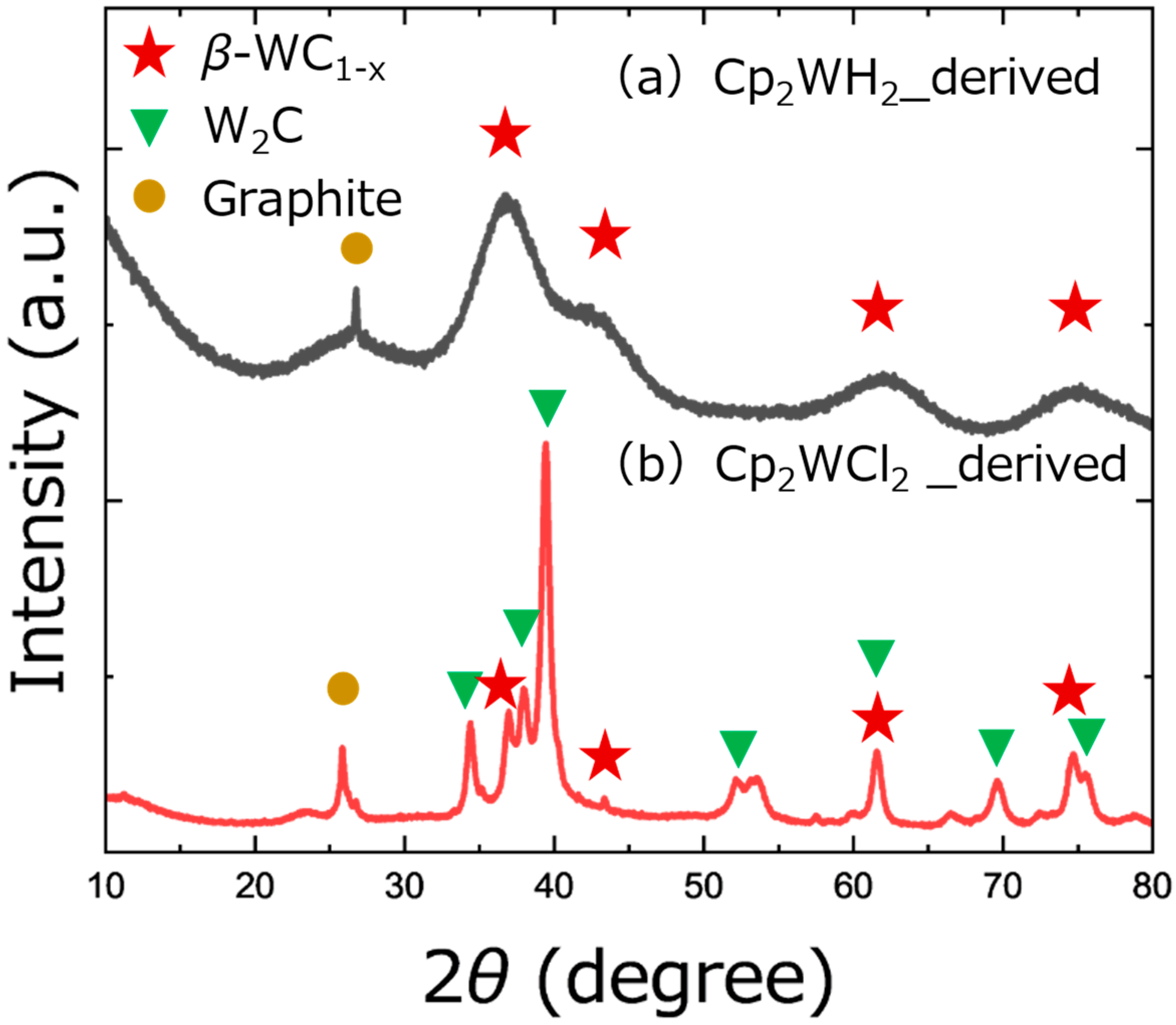

Figure 2. Powder XRD patterns of HPHT-processed samples. (a) Cp2WH2-derived samples. (b) Cp2WCl2-derived samples.
Figure 2. Powder XRD patterns of HPHT-processed samples. (a) Cp2WH2-derived samples. (b) Cp2WCl2-derived samples.
Nanomaterials 15 00170 g002
Nanomaterials 15 00170 g003

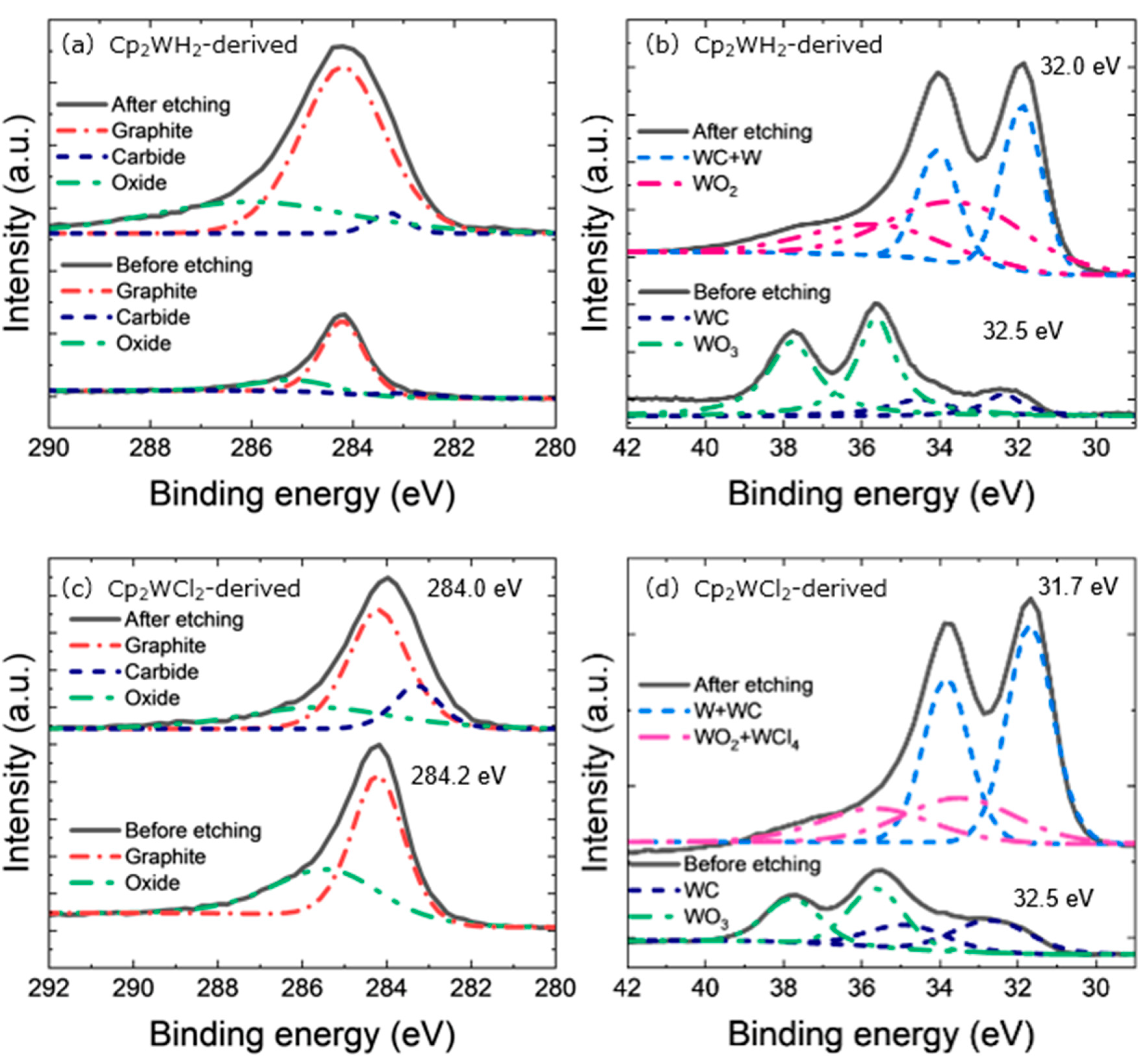

Figure 3. (a) C 1s XPS spectra and curve fitting of a Cp2WH2-derived sample. (b) W 4f XPS spectra and curve fitting of a Cp2WH2-derived sample. (c) C 1s XPS spectra and curve fitting of a Cp2WCl2-derived sample. (d) W 4f XPS spectra and curve fitting of a Cp2WCl2-derived sample. The red line corresponds to graphite, the dark blue line to carbides, the light blue line to carbides and elemental tungsten, the green and dark pink lines to oxides, and the light pink line to oxides and chlorides.
Figure 3. (a) C 1s XPS spectra and curve fitting of a Cp2WH2-derived sample. (b) W 4f XPS spectra and curve fitting of a Cp2WH2-derived sample. (c) C 1s XPS spectra and curve fitting of a Cp2WCl2-derived sample. (d) W 4f XPS spectra and curve fitting of a Cp2WCl2-derived sample. The red line corresponds to graphite, the dark blue line to carbides, the light blue line to carbides and elemental tungsten, the green and dark pink lines to oxides, and the light pink line to oxides and chlorides.
Nanomaterials 15 00170 g003
Nanomaterials 15 00170 g004

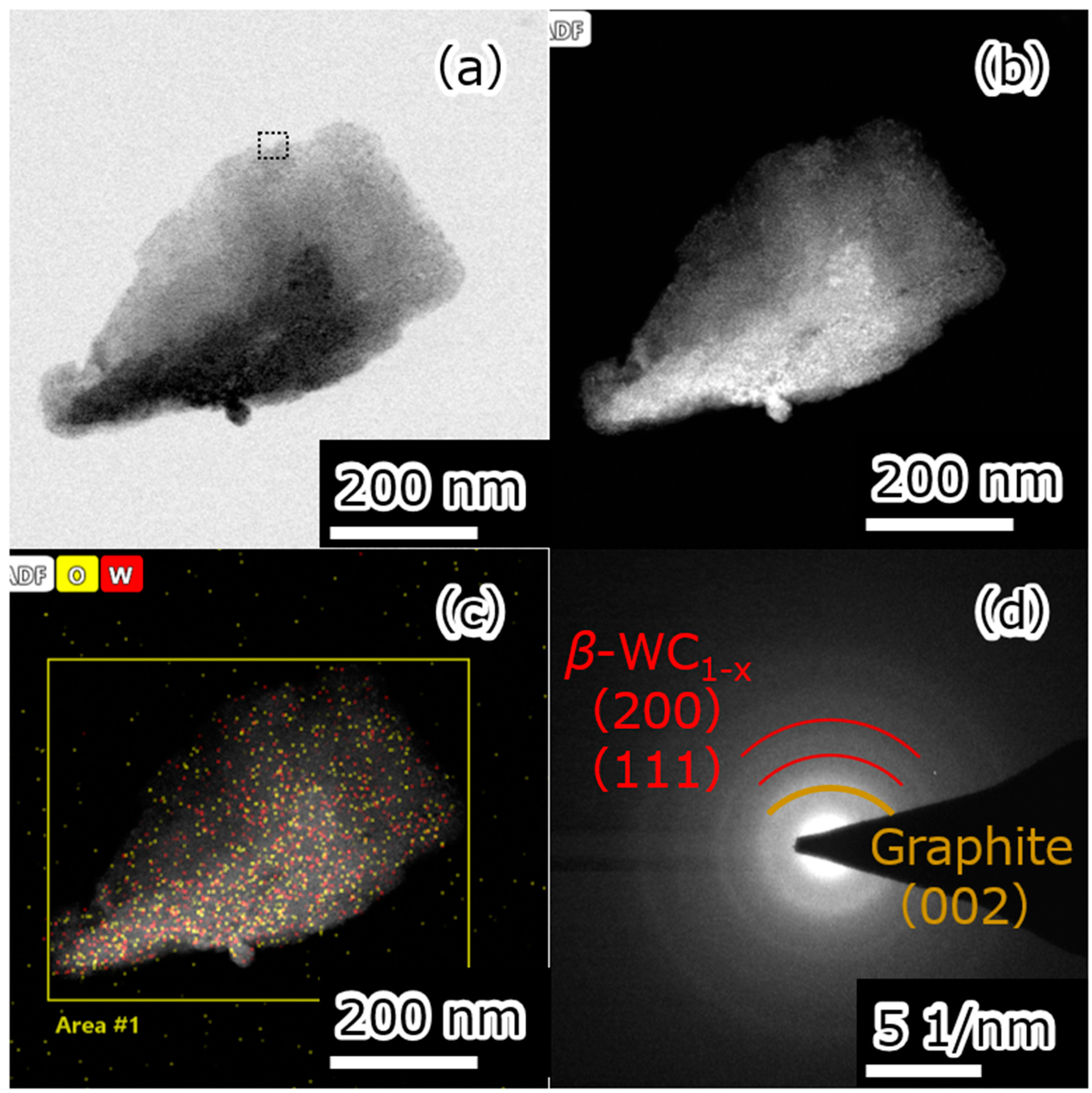

Figure 4. The images of (a) STEM, (b) HAADF, (c) EDS mapping of C and W, and (d) electron diffraction pattern in a Cp2WH2-derived sample particle. The square area enclosed by the dotted line corresponds to Figure 5.
Figure 4. The images of (a) STEM, (b) HAADF, (c) EDS mapping of C and W, and (d) electron diffraction pattern in a Cp2WH2-derived sample particle. The square area enclosed by the dotted line corresponds to Figure 5.
Nanomaterials 15 00170 g004
Nanomaterials 15 00170 g005

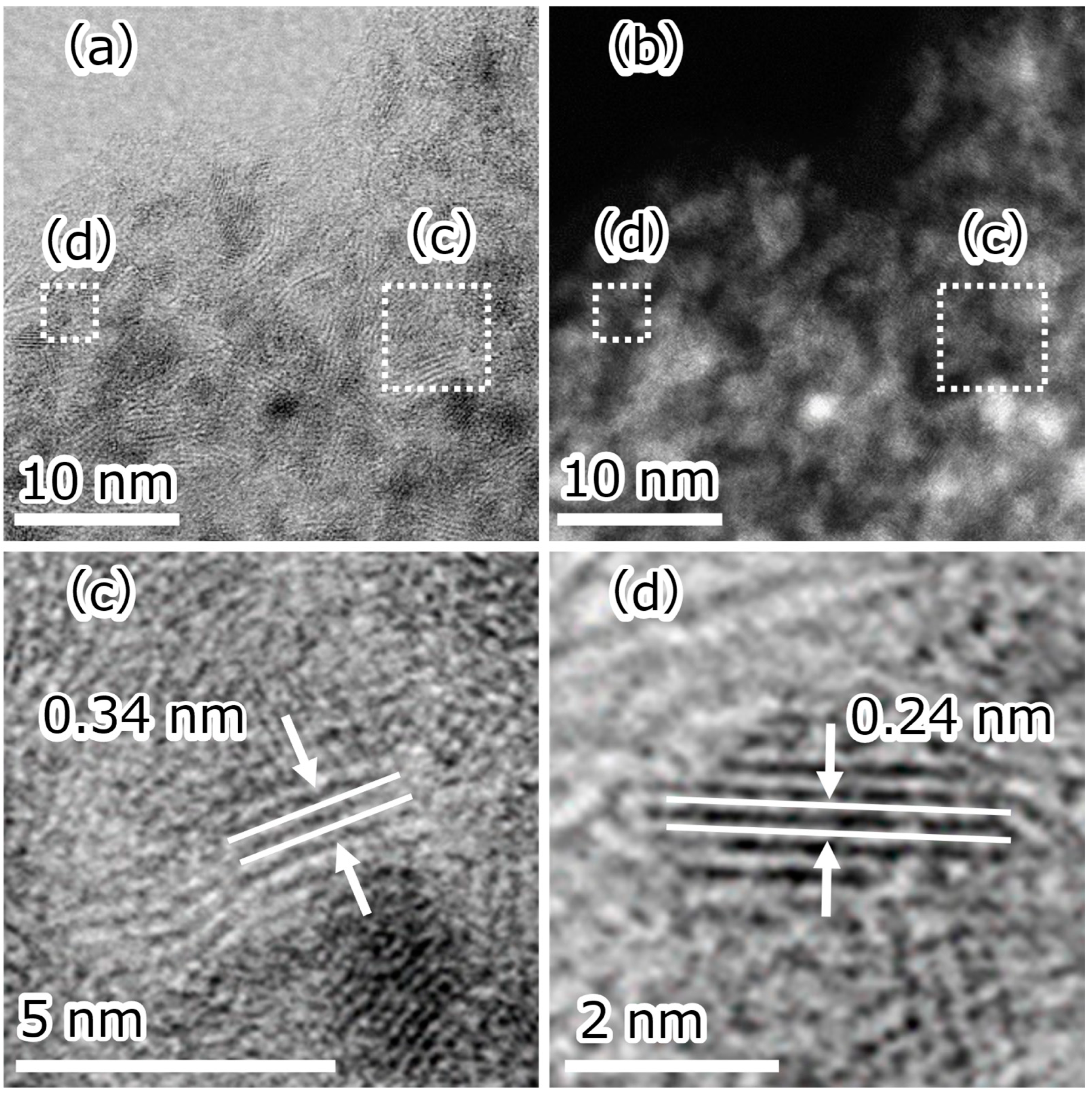

Figure 5. (a) STEM image. (b) HAADF image. (c,d) STEM images at high magnification of particles identified as (c) graphite and (d) β-WC1−x.
Figure 5. (a) STEM image. (b) HAADF image. (c,d) STEM images at high magnification of particles identified as (c) graphite and (d) β-WC1−x.
Nanomaterials 15 00170 g005
Nanomaterials 15 00170 g006

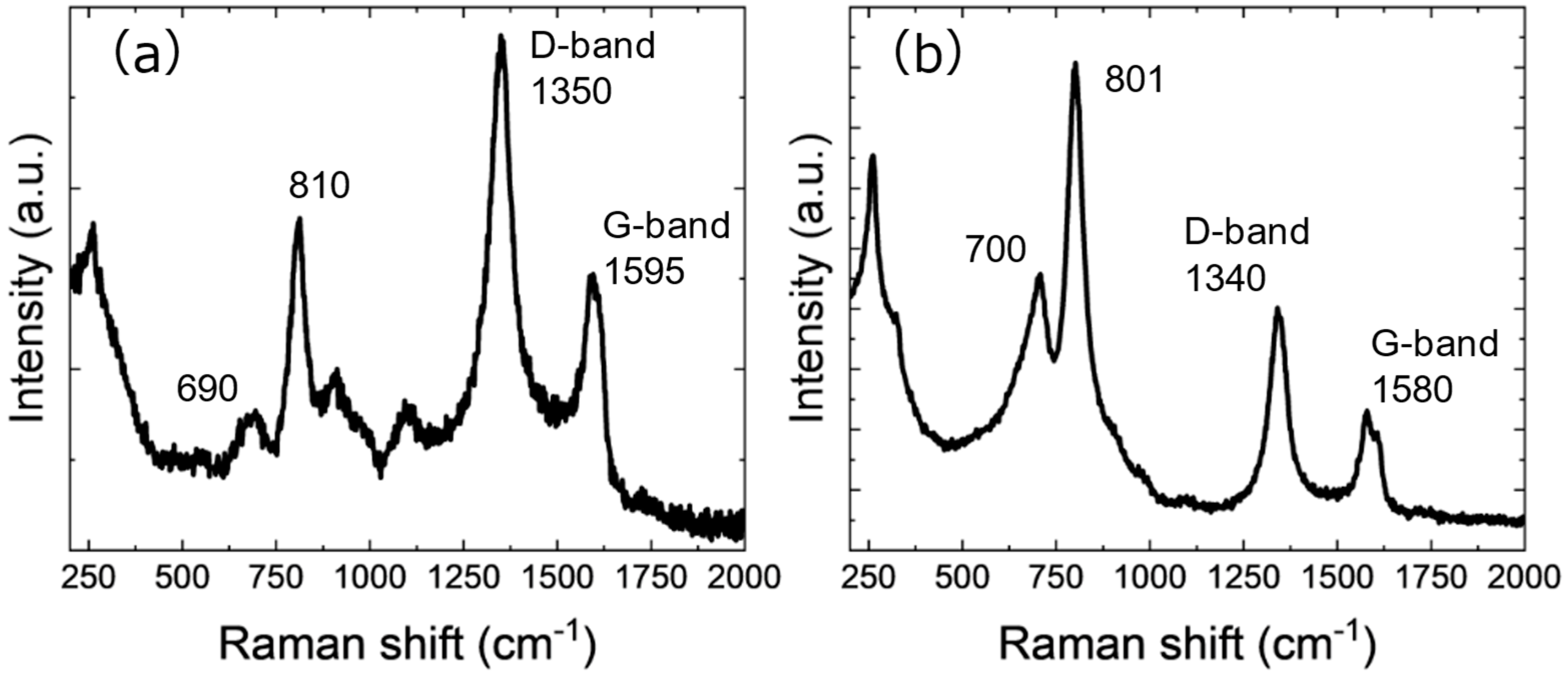

Figure 6. Raman spectra of (a) Cp2WH2-derived and (b) Cp2WCl2-derived samples excited by 532 nm laser.
Figure 6. Raman spectra of (a) Cp2WH2-derived and (b) Cp2WCl2-derived samples excited by 532 nm laser.
Nanomaterials 15 00170 g006
Nanomaterials 15 00170 g007

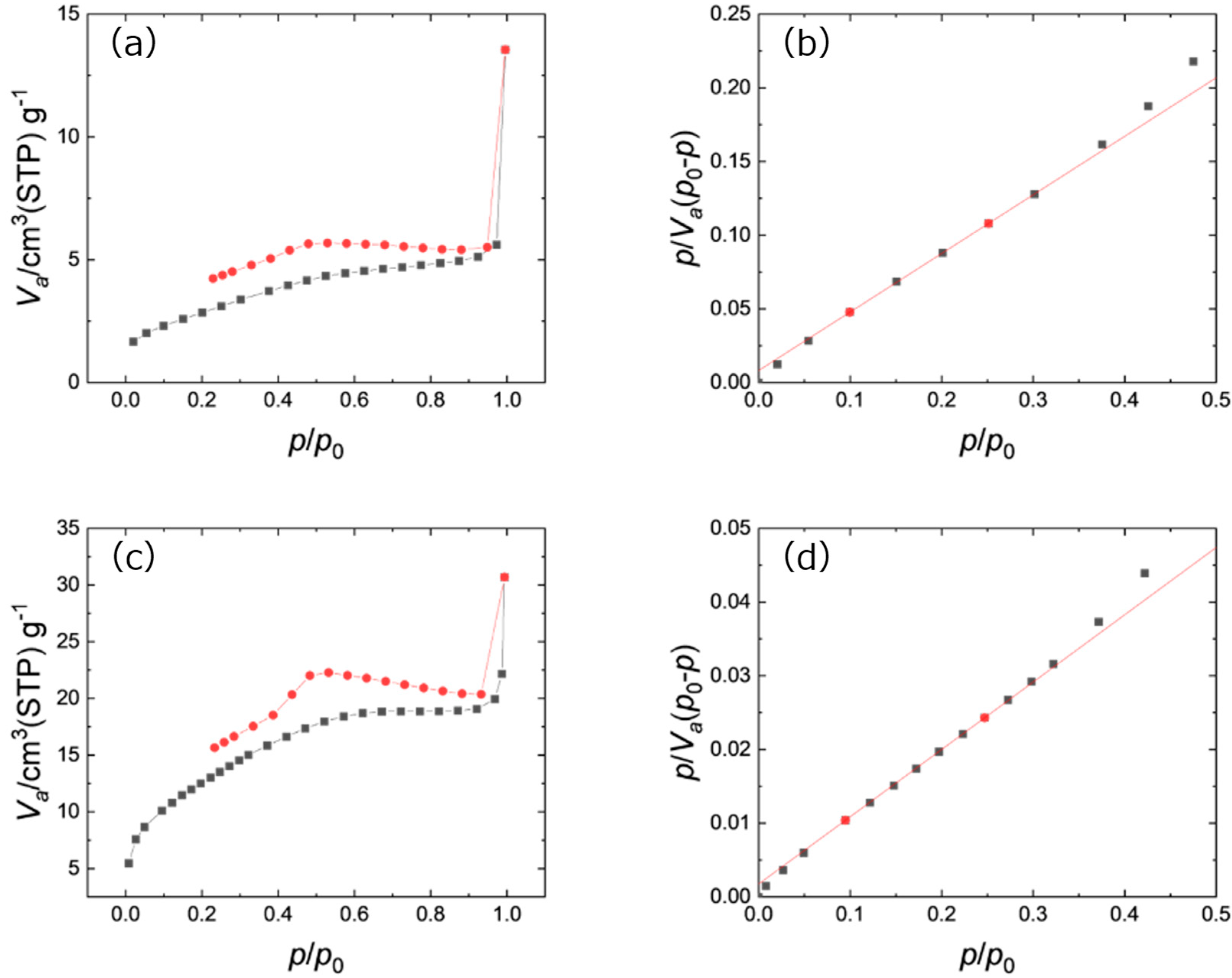

Figure 7. (a) Nitrogen adsorption(black)–desorption(red) isotherms and (b) BET plots of Cp2WH2-derived samples. Squares (black and red) are data from the experiment and the red line is the line intersecting two points indicated in red. (c) Nitrogen adsorption–desorption isotherms and (d) BET plots of Cp2WCl2-derived samples. The meaning of colors and shapes are the same as (b).
Figure 7. (a) Nitrogen adsorption(black)–desorption(red) isotherms and (b) BET plots of Cp2WH2-derived samples. Squares (black and red) are data from the experiment and the red line is the line intersecting two points indicated in red. (c) Nitrogen adsorption–desorption isotherms and (d) BET plots of Cp2WCl2-derived samples. The meaning of colors and shapes are the same as (b).
Nanomaterials 15 00170 g007
Nanomaterials 15 00170 g008
Figure 8. CV curves of (a) Cp2WH2-derived samples and (b) Cp2WCl2-derived samples at 10 mVs−1. The red and black curves are measured in N2-saturated and O2-saturated 0.1 M KOH aqueous solutions, respectively.
Figure 8. CV curves of (a) Cp2WH2-derived samples and (b) Cp2WCl2-derived samples at 10 mVs−1. The red and black curves are measured in N2-saturated and O2-saturated 0.1 M KOH aqueous solutions, respectively.
Nanomaterials 15 00170 g008
Nanomaterials 15 00170 g009

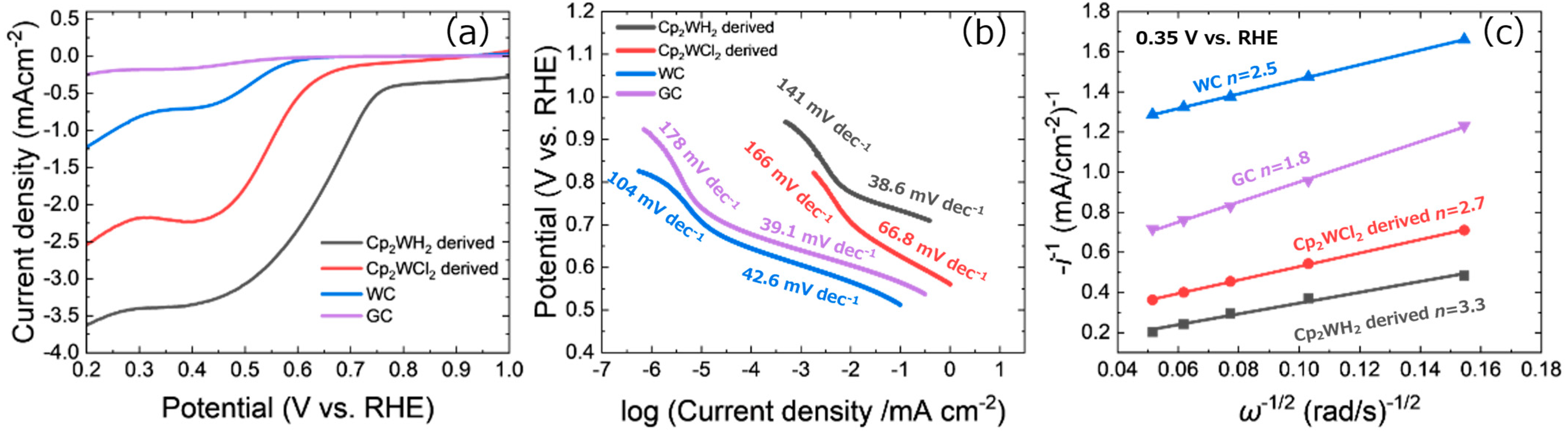

Figure 9. (a) LSV curves of the ORR for the products in O2-saturated 0.1 M KOH aqueous solution at rotation rates of 1600 rpm and scan rates of 10 mV s−1. (b) Tafel plots of the ORR for the products. The constant current was subtracted. (c) Koutecký–Levich plots of the products at 0.35 V vs. RHE, where i and ω are disk current density and disk rotating speed, respectively.
Figure 9. (a) LSV curves of the ORR for the products in O2-saturated 0.1 M KOH aqueous solution at rotation rates of 1600 rpm and scan rates of 10 mV s−1. (b) Tafel plots of the ORR for the products. The constant current was subtracted. (c) Koutecký–Levich plots of the products at 0.35 V vs. RHE, where i and ω are disk current density and disk rotating speed, respectively.
Nanomaterials 15 00170 g009
Nanomaterials 15 00170 g010

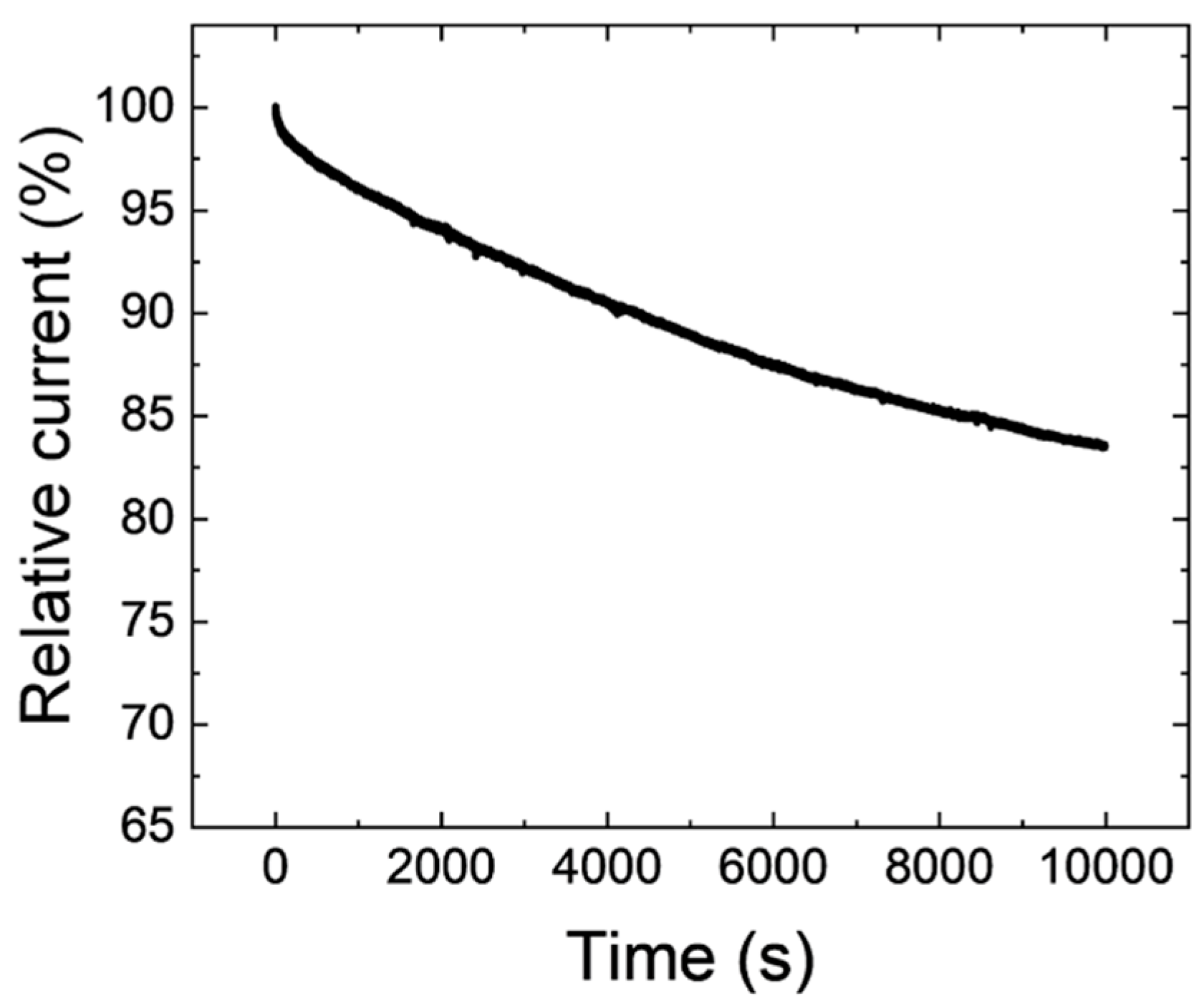

Figure 10. The chronoamperometric curves of Cp2WH2-derived samples in O2-saturated 0.1 M KOH electrolyte at 0.60 V and 1600 rpm. The first 10 s showing a large decrease were omitted as initial degradation.
Figure 10. The chronoamperometric curves of Cp2WH2-derived samples in O2-saturated 0.1 M KOH electrolyte at 0.60 V and 1600 rpm. The first 10 s showing a large decrease were omitted as initial degradation.
Nanomaterials 15 00170 g010
Nanomaterials 15 00170 g011

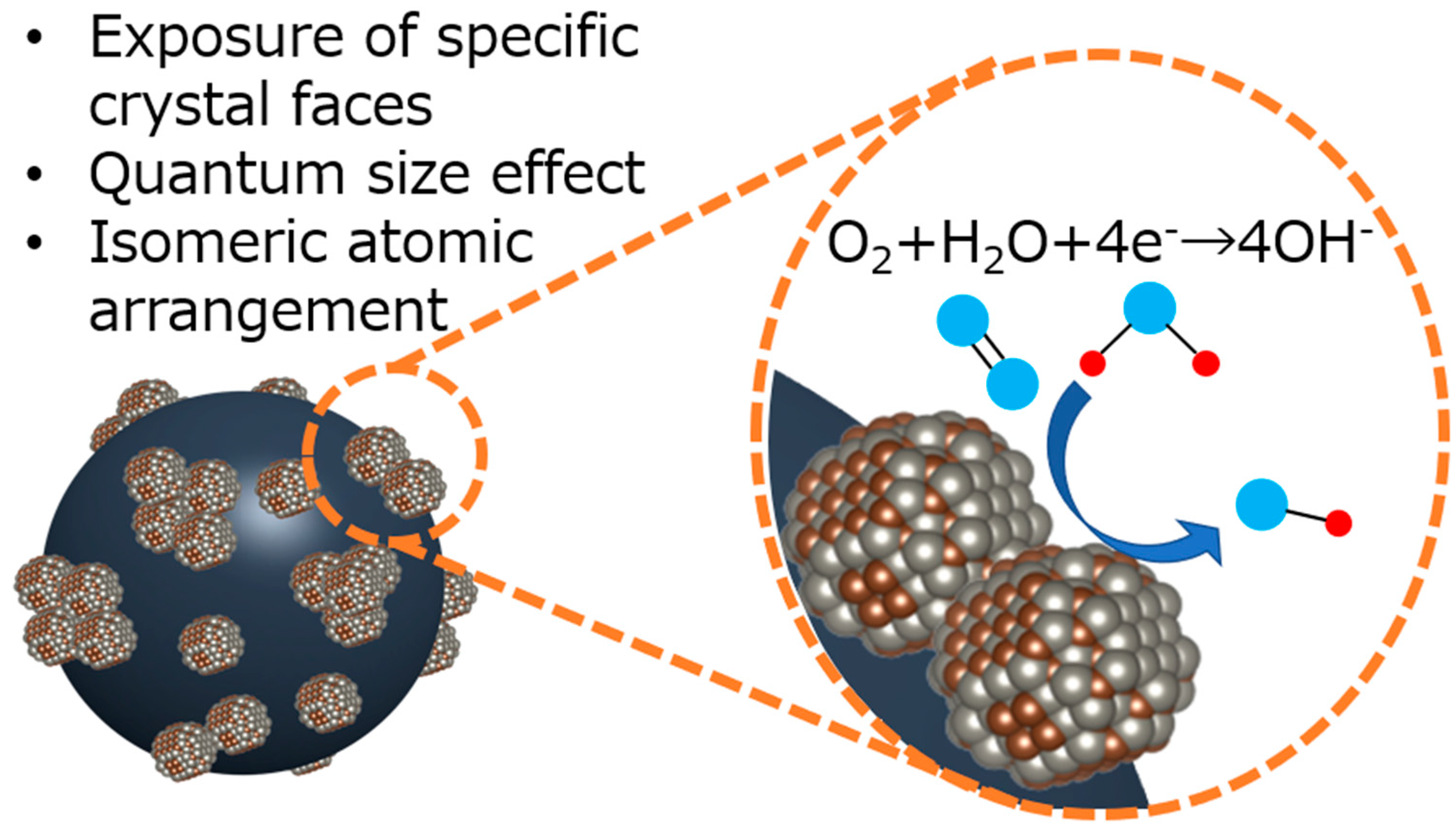

Figure 11. Possible mechanisms for improved catalytic performance of tungsten carbide nanoparticles.
Figure 11. Possible mechanisms for improved catalytic performance of tungsten carbide nanoparticles.
Nanomaterials 15 00170 g011
Table 1. EDS quantitation results.
Table 1. EDS quantitation results.
ElementAtomic Fraction/%
W5.57
C68.1
O21.5
Cu (from Cu TEM grid)4.84
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
