Enhanced Oxygen Reduction Reaction by In Situ Anchoring Fe2N Nanoparticles on Nitrogen-Doped Pomelo Peel-Derived Carbon

by
Yiqing Wang
1,
Mingyuan Zhu
1,
Gang Wang
1,2,3,
Bin Dai
1,
Feng Yu
1,*,
Zhiqun Tian
4,* and
Xuhong Guo
1,5,*
1
Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
2
Engineering Research Center of Materials-Oriented Chemical Engineering of Xinjiang Production and Construction Corps, Shihezi 832003, China
3
Key Laboratory of Materials-Oriented Chemical Engineering of Xinjiang Uygur Autonomous Region, Shihezi 832003, China
4
Collaborative Innovation Center of Renewable Energy Materials, Guangxi University, Nanning 530004, China
5
State Key Laboratory of Chemical Engineering, East China University of Science and Technology, Shanghai 200237, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2017, 7(11), 404; https://doi.org/10.3390/nano7110404
Submission received: 17 October 2017 / Revised: 14 November 2017 / Accepted: 17 November 2017 / Published: 22 November 2017
(This article belongs to the Special Issue Nanomaterials Based Fuel Cells and Supercapacitors)
Browse Figures
Versions Notes

Abstract

:
The development of effective oxygen electrode catalysts for renewable energy technologies such as metal-air batteries and fuel cells remains challenging. Here, we prepared a novel high-performance oxygen reduction reaction (ORR) catalyst comprised of Fe2N nanoparticles (NPs) in situ decorated over an N-doped porous carbon derived from pomelo peel (i.e., Fe2N/N-PPC). The decorated Fe2N NPs provided large quantities of Fe-N-C bonding catalytic sites. The as-obtained Fe2N/N-PPC showed superior onset and half-wave potentials (0.966 and 0.891 V, respectively) in alkaline media (0.1 M KOH) compared to commercial Pt/C through a direct four-electron reaction pathway. Fe2N/N-PPC also showed better stability and methanol tolerance than commercial Pt/C. The outstanding ORR performance of Fe2N/N-PPC was attributed to its high specific surface area and the synergistic effects of Fe2N NPs. The utilization of agricultural wastes as a precursor makes Fe2N/N-PPC an ideal non-precious metal catalyst for ORR applications.

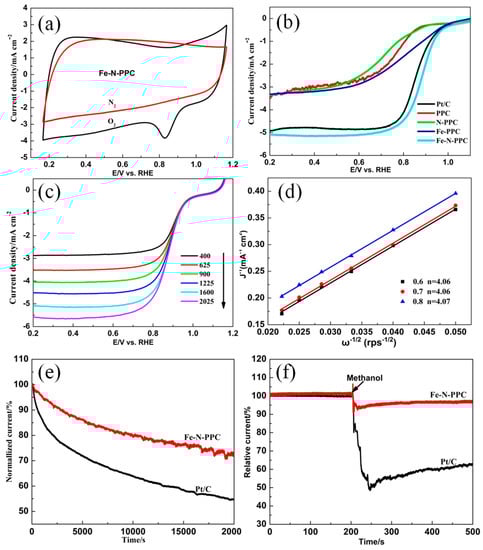

Graphical Abstract

1. Introduction

According to the United Nations, almost 140 billion metric tons of biomass is generated globally from agricultural wastes. Therefore, the valorization of biomass can potentially reduce the use of fossil fuels while mitigating greenhouse gas emissions [1]. Biomass wastes, such as bananas [2,3], tea leaves [4], poplar catkins [5], gingko leaves [6], coconut shells [1], eggshell membranes [7], and sodium alginate [8], have been increasingly used for fabricating carbon materials. Biomass raw materials can be used to synthesize carbon materials with a high surface area and porous structure. This approach possesses several advantages (e.g., low cost, environmental friendliness, and convenience) over other routes employing different raw materials. Thus, biomass represents a nearly limitless resource for preparing a variety of new materials with novel structures and properties. Biomass-derived carbons have been employed as environmental adsorption materials [9] and lithium-ion battery anodes [10], among other uses [11].
Pomelo is widely cultivated and generates large amounts pomelo peels as an environmental waste. It represents a sustainable, inexpensive, and abundant resource supplied by nature [12]. Pomelo peels have been used to prepare porous carbons for supercapacitor [13,14] or adsorption applications [15]. Pomelo peels have been successfully used as a raw material to prepare functional carbon materials with oxygen reduction reaction (ORR) properties. Thus, Yuan et al. synthesized waste pomelo peel-derived N-doped nanoporous carbons as metal-free ORR electrocatalysts [4]. Wang et al. synthesized ZIF-67-containing carbon catalysts derived from pomelo peels with high efficiency towards the ORR [16]. Ma et al. synthesized pomelo peel-derived porous Fe3C/tungsten carbide (WC)/graphitic carbon nanocomposites with high electrocatalytic activity [17]. Compared with other biomass residues, pomelo peel-derived carbon (PPC) materials show better developed porosities and higher specific surface area [16].
A large variety of ORR electrocatalysts are currently being investigated since this process is a key limiting factor for developing highly efficient fuel cells [18,19]. Pt is usually used as the ORR catalyst, although it suffers from several issues (e.g., high price, poor stability, susceptibility to methanol crossover, and carbon monoxide poisoning), which hinders practical application and commercialization of fuel cells [20]. The identification of cheap and environmentally friendly precursors and green synthesis routes leading to ORR catalysts at an industrial scale remains challenging. Therefore, economically viable, efficient, and durable alternative electrocatalysts, such as noble metal-free [21,22,23,24,25] or metal-free [26,27] materials, are highly desirable for fuel cells to penetrate the market owing to their low cost, easy preparation, and high catalytic activity [22,28]. Ternary Fe/N/C materials are one of the most promising candidates by virtue of their high ORR performance (resulting from the synergistic effect between N and Fe) and abundancy in the earth [4,29,30].
Herein, we developed a green and easy approach for preparing effective ORR catalysts with pomelo peel, ammonia and FeCl3·6H2O. We synthesized highly graphitic porous carbon from pomelo peel by carbonization. Subsequently, Fe-based nanoparticles (NPs) composed of Fe2N and other nanocrystalline phases were loaded onto N-doped pomelo peel-derived carbon (N-PPC) by calcining the PPC previously impregnated with a FeCl3·6H2O solution under NH3 atmosphere. The resultant Fe-N-PPC catalyst showed more positive onset and half-wave potentials (by 14 and 26 mV, respectively) versus a commercial Pt/C catalyst. The Fe-N-PPC catalyst also outperformed Pt/C in terms of stability and methanol tolerance under alkaline conditions.

2. Results and Discussion

With the aim of identifying the nanocrystalline phases present in the PPC, N-PPC, Fe-PPC, and Fe-N-PPC materials, X-ray diffraction (XRD) measurements were carried out (Figure 1). PPC and N-PPC only showed the two typical (002) and (100) peaks of graphitic carbon at 26.2 and 43.3°. Fe-PPC showed a minor amount of Fe (PDF#87-0721). The XRD patterns of Fe-PPC and Fe-N-PPC showed a broad peak at 23° a small shoulder peak at 43.3° assigned to the (002) (100) planes of graphite, respectively. A Fe2N crystalline phase (PDF#73-2102) was also detected in Fe-N-PPC. Moreover, the Fe-based NPs were accompanied by strong C signals, thereby demonstrating that these NPs were successfully loaded on the PPC material. The (002) diffraction peak shifted to lower angles (23°) for Fe-PPC and Fe-N-PPC as compared to PPC and N-PPC (26.2°), revealing an larger interplanar distance [31].
The ID/IG intensity ratio values obtained from the Raman spectra were 0.85, 0.89, 0.84, and 0.88 for the PPC, N-PPC, Fe-PPC, and Fe-N-PPC samples, respectively (Figure 2a). The D and G Raman bands are indicative of sp3 defect sites of the graphite layers and the E2g vibrational mode of sp2-bonded pairs, respectively. Thus, the ID/IG intensity ratio values obtained revealed that the introduction of Fe and N generated defects and disorderliness in the porous carbon material. These defects and disorder favored the formation of active sites on the surface of the catalysts. The intensity of the G-band increased upon addition of Fe3+. The ID/IG intensity ratio values remained nearly unchanged for all the samples, which resulted in excellent ORR activity.
XPS measurements were performed to analyze in detail elemental composition and chemical valence of PPC, N-PPC, N-PPC, and Fe-N-PPC. As shown in Figure 2b and Table 1, the XPS spectrum of Fe-N-PPC showed the presence of C (95.86%), N (1.60%), O (2.12%), and Fe (0.43%). The N 1s spectra was deconvoluted into five bands centered at 398.5, 399.2, 399.7, 400.9, and 405.8 eV (Figure 2c) assigned to pyridinic-N, N-Fe compounds, pyrrolic-N, graphitic-N, and oxidized-N, respectively [32]. PPC, N-PPC, and Fe-N-PPC showed pyridinic-N contents of 25.9 at. %, 31.9 at. %, and 32.2 at. %, respectively. Other N species contents are also listed in Table 2. Remarkably, the ORR active sites in the N-doped carbon nanomaterials were identified to involve carbon atoms with Lewis basicity and located in the vicinity of pyridinic-N [19]. Thus, the high content of pyridinic-N of the N-PPC and Fe-N-PPC sample is important in enhancing the ORR performance of these materials. The N-Fe compounds (9.0 at. %) showed the presence of iron nitride species. The Fe 2p spectra of Fe-N-PPC (Figure 2d) contained weak Fe 2p3/2 and Fe 2p1/2 doublet signals at 710.8 eV and at 724.9 eV, respectively, suggesting the presence of slightly metallic species [29,31,33,34,35,36].
The scanning electron microscopy (SEM) images of PPC are shown in Figure 3a,b. As indicated above, Fe-N-PPC was prepared from pomelo peel via a two-step carbonization process followed by calcination at 900 °C under an NH3 atmosphere. This calcination process resulted in Fe3+/PPC being converted into a Fe-N-PPC. As shown in Figure 4a,d, transmission electron microscopy (TEM) and high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) observations revealed the presence of Fe2N NPs distributed inside or anchored on the N-doped porous carbon with little agglomeration. The size of the Fe2N NPs was in the 20–30 nm range. Figure 3c shows the N2 physisorption isotherms of the PPC and Fe-N-PPC catalysts. Fe-N-PPC exhibited a typical type IV curve characteristic of mesoporous materials. The pore size distribution curves (Figure 3d) of PPC and Fe-N-PPC revealed average pore sizes 2.60 and 3.48 nm, respectively. As shown in Table 3, Fe-N-PPC exhibited higher Brunauer-Emmett-Teller (BET) surface area than PPC (1103.90 versus 353.05 m2·g−1). We concluded that increasing the temperature of the calcination treatment to 900 °C was effective in increasing the surface area of the materials by generating numerous defects. Larger BET surface area and accompanying defects are important in improving the ORR catalytic activity [5,34]. Thus, Fe-N-PPC showed superior ORR performance.
As revealed by energy-dispersive energy dispersive X-ray spectroscopy (EDS), the content of elemental Fe in the Fe-N-PPC varied significantly after the double carbonization treatment (Figure 4b,e) [29]. EDS mapping analysis of Fe-N-PPC indicate the presence of C, O, N, and Fe atoms. As shown by high resolution TEM (HRTEM) (Figure 4b), graphitized carbon protected these NPs from agglomerating and the thickness of the carbon layer is about 3 nm [29,37], thereby improving the ORR activity. The HRTEM image of Fe2N NPs revealed a fringe spacing of 0.21 nm, which corresponded to the (−1−11) plane of the Fe2N crystal phase (Figure 4c).
As shown in Figure 5a, Fe-N-PPC exhibited a noticeable reduction peak in the O2-saturated 0.1 M KOH solution, and this peak was absent in the N2-saturated 0.1 M KOH solution. These results are indicative of the high ORR electrocatalytic activity of Fe-N-PPC. RDE tests were performed to obtain the linear scan voltammetry (LSV) curves and further study the ORR performance of the samples. Fe-N-PPC displayed an onset potential of 0.966 V (Figure 5b), which was higher than those of PPC (0.89 V), N-PPC (0.899 V), Fe-PPC (0.940 V), and 20% Pt/C (0.952 V) catalysts. The prominent ORR activity of Fe-N-PPC was confirmed by its positive half-wave potential (0.891 V) and large current density (5.077 mA·cm−2). Pt/C showed a positive half-wave potential (0.865 V) and a large current density (4.92 mA·cm−2). Fe-N-PPC showed superior ORR activities as compared to other Fe2N-based catalysts reported in the literature. The large limited current density of Fe-N-PPC may result from its porous structure with anchored Fe2N particles and the broad diffusion pathways for solvated O2 [38]. The superior onset potential of Fe-PPC versus porous carbon and N-PPC was originated from the presence of Fe and Fe-based systems. The more positive potential of Fe-N-PPC was produced by the presence of Fe and N co-doping systems, which increased the number of ORR active sites of carbon-based electrocatalysts, as confirmed by the XRD and Raman data. Besides, assessment of preparation process of Fe-N-PPC is compared to recently reported Fe2N/C catalysts and pomelo peel-derived carbon materials for ORR. Table 4 reveals that Fe-N-PPC showed excellent electrochemical property and was prepared only with pomelo peels, ammonia and FeCl3·6H2O.
The K–L plots (Figure 5d) of Fe-N-PPC, obtained from the LSV experiments by varying the rotation rates and a scan rate of 10 mV/s (Figure 5c), exhibited a good linearity and allowed us to determine the n of this catalyst. Fe-N-PPC showed n values of 4.06, 4.06, and 4.07, suggesting that a four-electron (4e−) hybrid pathway prevailed from −0.6 to −0.8 V during the ORR process.
Durability tests were performed for the Fe-N-PPC and commercial Pt/C catalysts at −0.25 V vs. Ag/AgCl in an O2-saturated 0.1 M KOH aqueous solution at a rotation rate of 400 rpm (Figure 5e). After 20,000 s of reaction, the cathodic current decreased to 79.6% and 54.6% of the initial baseline value for Fe-N-PPC and Pt/C, respectively. Fe-N-PPC protected by a carbon shell on Fe2N nanoparticles, which can show the better stability [29]. The tolerance to methanol crossover effects was also tested for Fe-N-PPC and Pt/C (Figure 5f). After the addition of a 3 M methanol solution, commercial Pt/C instantaneously decreased its current as a result of the oxidation of methanol on the electrode surface. In contrast, Fe-N-PPC retained 97.2% of its initial baseline activity after methanol addition, revealing a good tolerance to methanol crossover.

3. Materials and Methods

3.1. Synthesis of Samples

Raw pomelo peel was air-dried and ground into a fine powder (80-mesh sieve). The powder was carbonized at 800 °C for 5 h under an Ar flow. The resulting porous carbon material was washed with deionized water and an HCl solution, and finally oven dried under air at 80 °C overnight to produce PPC. 1 g of PPC was subsequently dispersed under stirring in a saturated FeCl3 solution overnight to allow adsorption saturation. A small amount of FeCl3·6H2O was encapsulated in the pores of the carbon material. The FeCl3-saturated PPC material was collected by filtration and oven dried at 80 °C for 12 h and subsequently calcined by heating it from room temperature to 900 °C (5 °C·min−1) for 2 h under an NH3 atmosphere to finally produce Fe-N-PPC (i.e., Fe2N/N-PPC). For comparison, the porous carbon material was carbonized at similar conditions to obtain N-PPC. Fe-PPC was obtained by heating FeCl3-saturated porous carbon in an Ar atmosphere.

3.2. Characterization

A Hitachi SU8010 microscope (Hitachi, Tokyo, Japan) was used for the SEM observations. TEM, EDS and HRTEM images of the samples were obtained on JEM-2100 (JEOL, Tokyo, Japan) and Tecnai G2 F20 (FEI, Hillsboro, OR, USA) microscopes, respectively. XRD experiments were conducted on a Bruker D8 Advance X-ray diffractometer with Cu Kα radiation (λ = 1.5406 Å, Bruker, Karlsruhe, Germany). An AMICUS/ESCA 3400 device (Kratos, Manchester, UK) was used to collect the XPS data using Mg Kα (12 kV, 20 mA) radiation. The C1s line at 284.8 eV served as the reference. A Micromeritics ASAP 2020 N2 adsorption/desorption apparatus (Micromeritics, Atlanta, GA, USA) was used for performing the Barrett-Joyner-Halenda (BJH) pore structure analysis, and for measuring the BET specific surface area (SSA) at 77.35 K. Elemental mapping was conducted on a JEM-ARM 200F microscope operating at 200 kV (JEOL, Tokyo, Japan). The Raman spectra were obtained on a Renishaw instrument (Renishaw, London, UK) with an Ar ion laser (514.5 nm excitation wavelength).

3.3. Electrochemical Measurements

The ORR catalytic activity of the samples was evaluated on a CHI760D instrument (CH Instruments, Shanghai, China). The powder (5 mg) sample was mixed with a Nafion solution (5%) and ultrasonically mixed for 30 min before being loaded on a glassy carbon (GC) electrode (0.153 mg cm−2). The GC electrode containing a thin powder layer was fixed on a rotating disk electrode (RDE) that served as the working electrode (WE). Pt foil and Ag/AgCl served as counter and reference electrodes (CE and RE, respectively). A 0.1 M KOH aqueous solution served as the electrolyte, and the rotation speed varied from 400 to 2025 rpm. The potentials (versus Ag/AgCl) were converted to a RHE scale by the equation:
ERHE = E Ag/AgCl + 0.059 pH + 0.197
Koutecky-Levich (K–L) plots were subsequently obtained from the linear sweep voltammetry (LSV) data with the aim of measuring the electron transfer number (n) in the ORR process. The electron transfer number per O2 molecule in the ORR process can be calculated according to the following equations [39]:
B = 0.62nFCo (Do)2/3ν−1/6
1/J = 1/JL + 1/JK = 1/Bw1/2 + 1/JK
where F is the Faraday constant (96,485 C), Co is the oxygen bulk concentration (1.2 × 10−3 mol·cm−3), Do is the O2 diffusion coefficient (ca. 1.9 × 10−5 cm2·s−1), ν is the electrolyte kinematic viscosity (1.1 × 10−2 cm2·s−1), J is the measured current density, ω = 2πN with N being the linear rotation speed, JL is the diffusion-limiting current density, and JK is the kinetic current density.

4. Conclusions

In summary, N-doped highly graphitized porous carbon-supported Fe2N NPs (Fe-N-PPC) were successfully synthesized from pomelo peel, ammonia and FeCl3·6H2O via a two-step pyrolysis processes. The resulting Fe-N-PPC catalyst exhibited an outstanding ORR activity in alkaline media with onset and half-wave potentials of 0.966 and 0.891 V, respectively. These values were more positive than those of a commercial Pt/C catalyst. Fe-N-PPC also showed excellent electrochemical stability and methanol tolerance compared to Pt/C. These good characteristics resulted from the high specific surface area and the synergistic effect of Fe2N. In summary, the Fe-N-PPC catalyst represents a promising alternative to expensive commercial Pt/C catalysts for practical applications of alkaline fuel cells.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (U130329), the Program for Changjiang Scholars, Innovative Research Team in University (No. IRT_15R46) and the Program of Science and Technology Innovation Team in Bingtuan (No. 2015BD003).

Author Contributions

F.Y., Z.T. and X.G. designed the experiments. G.W., F.Y. and X.G. administered the experiments. Y.W. and M.Z. performed experiments. Y.W. and F.Y. collected data. B.D. and Z.T. gave conceptual advice. All authors analyzed, discussed the data and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Borghei, M.; Laocharoen, N.; Kibena-Põldsepp, E.; Johansson, L.S.; Campbell, J.; Kauppinen, E.; Tammeveski, K.; Rojas, O.J. Porous N,P-doped carbon from coconut shells with high electrocatalytic activity for oxygen reduction: Alternative to Pt-C for alkaline fuel cells. Appl. Catal. B Environ. 2017, 204, 394–402. [Google Scholar] [CrossRef]
  2. Wang, Y.; Zhu, M.; Li, Y.; Zhang, M.; Xue, X.; Shi, Y.; Dai, B.; Guo, X.; Yu, F. Heteroatom-doped porous carbon from methyl orange dye wastewater for oxygen reduction. Green Energy Environ. 2017. [Google Scholar] [CrossRef]
  3. Shi, L.; Wu, T.; Wang, Y.; Zhang, J.; Wang, G.; Zhang, J.; Dai, B.; Yu, F. Nitrogen-Doped Carbon Nanoparticles for Oxygen Reduction Prepared via a Crushing Method Involving a High Shear Mixer. Materials 2017, 10, 1030. [Google Scholar] [CrossRef] [PubMed]
  4. Guo, Z.; Xiao, Z.; Ren, G.; Xiao, G.; Zhu, Y.; Dai, L.; Jiang, L. Natural tea-leaf-derived, ternary-doped 3D porous carbon as a high-performance electrocatalyst for the oxygen reduction reaction. Nano Res. 2016, 9, 1244–1255. [Google Scholar] [CrossRef]
  5. Gao, S.; Li, X.; Li, L.; Wei, X. A versatile biomass derived carbon material for oxygen reduction reaction, supercapacitors and oil/water separation. Nano Energy 2017, 33, 334–342. [Google Scholar] [CrossRef]
  6. Gao, S.; Wei, X.; Fan, H.; Li, L.; Geng, K.; Wang, J. Nitrogen-doped carbon shell structure derived from natural leaves as a potential catalyst for oxygen reduction reaction. Nano Energy 2015, 13, 518–526. [Google Scholar] [CrossRef]
  7. Tong, J.; Wang, W.; Li, Q.; Liu, F.; Ma, W.; Li, W.; Su, B.; Lei, Z.; Bo, L. Composite of FeCo alloy embedded in biocarbon derived from eggshell membrane with high performance for oxygen reduction reaction and supercapacitor. Electrochim. Acta 2017, 248, 388–396. [Google Scholar] [CrossRef]
  8. Xuan, C.; Wu, Z.; Lei, W.; Wang, J.; Guo, J.; Wang, D. Nitrogen-Doped Hierarchical Porous Carbons Derived from Sodium Alginate as Efficient Oxygen Reduction Reaction Electrocatalysts. ChemCatChem 2017, 9, 809–815. [Google Scholar] [CrossRef]
  9. Li, Y.; Liu, J.; Yuan, Q.; Tang, H.; Yu, F.; Lv, X. A green adsorbent derived from banana peel for highly effective removal of heavy metal ions from water. RSC Adv. 2016, 6, 45041–45048. [Google Scholar] [CrossRef]
  10. Wang, C.; Xiong, Y.; Wang, H.; Jin, C.; Sun, Q. Naturally three-dimensional laminated porous carbon network structured short nano-chains bridging nanospheres for energy storage. J. Mater. Chem. A 2017, 5, 15759–15770. [Google Scholar] [CrossRef]
  11. Liu, B.; Zhang, L.; Qi, P.; Zhu, M.; Wang, G.; Ma, Y.; Guo, X.; Chen, H.; Zhang, B.; Zhao, Z.; et al. Nitrogen-Doped Banana Peel–Derived Porous Carbon Foam as Binder-Free Electrode for Supercapacitors. Nanomaterials 2016, 6, 18. [Google Scholar] [CrossRef] [PubMed]
  12. Yuan, W.; Feng, Y.; Xie, A.; Zhang, X.; Huang, F.; Li, S.; Zhang, X.; Shen, Y. Nitrogen-doped nanoporous carbon derived from waste pomelo peel as a metal-free electrocatalyst for the oxygen reduction reaction. Nanoscale 2016, 8, 8704–8711. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, D.; Tong, Y.; Yan, T.; Shi, L.; Zhang, D. N,P-Codoped Meso-/Microporous Carbon Derived from Biomass Materials via a Dual-Activation Strategy as High-Performance Electrodes for Deionization Capacitors. ACS Sustain. Chem. Eng. 2017, 5, 5810–5819. [Google Scholar] [CrossRef]
  14. Liang, Q.; Ye, L.; Huang, Z.-H.; Xu, Q.; Bai, Y.; Kang, F.; Yang, Q.-H. A honeycomb-like porous carbon derived from pomelo peel for use in high-performance supercapacitors. Nanoscale 2014, 6, 13831–13837. [Google Scholar] [CrossRef] [PubMed]
  15. Argun, M.E.; Güclü, D.; Karatas, M. Adsorption of Reactive Blue 114 dye by using a new adsorbent: Pomelo peel. J. Ind. Eng. Chem. 2014, 20, 1079–1084. [Google Scholar] [CrossRef]
  16. Wang, H.; Yin, F.-X.; Chen, B.-H.; He, X.-B.; Lv, P.-L.; Ye, C.-Y.; Liu, D.-J. ZIF-67 incorporated with carbon derived from pomelo peels: A highly efficient bifunctional catalyst for oxygen reduction/evolution reactions. Appl. Catal. B Environ. 2017, 205, 55–67. [Google Scholar] [CrossRef]
  17. Ma, M.; You, S.; Wang, W.; Liu, G.; Qi, D.; Chen, X.; Qu, J.; Ren, N. Biomass-Derived Porous Fe3C/Tungsten Carbide/Graphitic Carbon Nanocomposite for Efficient Electrocatalysis of Oxygen Reduction. ACS Appl. Mater. Interfaces 2016, 8, 32307–32316. [Google Scholar] [CrossRef] [PubMed]
  18. Shao, M.; Chang, Q.; Dodelet, J.-P.; Chenitz, R. Recent Advances in Electrocatalysts for Oxygen Reduction Reaction. Chem. Rev. 2016, 116, 3594–3657. [Google Scholar] [CrossRef] [PubMed]
  19. Guo, D.; Shibuya, R.; Akiba, C.; Saji, S.; Kondo, T.; Nakamura, J. Active sites of nitrogen-doped carbon materials for oxygen reduction reaction clarified using model catalysts. Science 2016, 351, 361–365. [Google Scholar] [CrossRef] [PubMed]
  20. Xiao, J.; Xu, Y.; Xia, Y.; Xi, J.; Wang, S. Ultra-small Fe2N nanocrystals embedded into mesoporous nitrogen-doped graphitic carbon spheres as a highly active, sTable, and methanol-tolerant electrocatalyst for the oxygen reduction reaction. Nano Energy 2016, 24, 121–129. [Google Scholar] [CrossRef]
  21. Fu, S.; Zhu, C.; Song, J.; Du, D.; Lin, Y. Metal-Organic Framework-Derived Non-Precious Metal Nanocatalysts for Oxygen Reduction Reaction. Adv. Energy Mater. 2017, 7, 1700363. [Google Scholar] [CrossRef]
  22. Wang, M.-Q.; Yang, W.-H.; Wang, H.-H.; Chen, C.; Zhou, Z.-Y.; Sun, S.-G. Pyrolyzed Fe–N–C Composite as an Efficient Non-precious Metal Catalyst for Oxygen Reduction Reaction in Acidic Medium. ACS Catal. 2014, 4, 3928–3936. [Google Scholar] [CrossRef]
  23. Xia, W.; Mahmood, A.; Liang, Z.; Zou, R.; Guo, S. Earth-Abundant Nanomaterials for Oxygen Reduction. Angew. Chem. Int. Ed. 2016, 55, 2650–2676. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, M.; Yang, Y.; Liu, X.; Pu, Z.; Kou, Z.; Zhu, P.; Mu, S. The role of iron nitrides in the Fe–N–C catalysis system towards the oxygen reduction reaction. Nanoscale 2017, 9, 7641–7649. [Google Scholar] [CrossRef] [PubMed]
  25. Yin, H.; Zhang, C.; Liu, F.; Hou, Y. Hybrid of Iron Nitride and Nitrogen-Doped Graphene Aerogel as Synergistic Catalyst for Oxygen Reduction Reaction. Adv. Funct. Mater. 2014, 24, 2930–2937. [Google Scholar] [CrossRef]
  26. Tang, C.; Zhang, Q. Nanocarbon for Oxygen Reduction Electrocatalysis: Dopants, Edges, and Defects. Adv. Mater. 2017, 29, 1604103. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, X.; Dai, L. Carbon-based metal-free catalysts. Nat. Rev. Mater. 2016, 1, 16064. [Google Scholar] [CrossRef]
  28. Wang, D.; Astruc, D. The recent development of efficient Earth-abundant transition-metal nanocatalysts. Chem. Soc. Rev. 2017, 46, 816–854. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, L.; Yang, X.; Ma, N.; Liu, H.; Xia, Y.; Chen, C.; Yang, D.; Yao, X. Scalable and Cost-Effective Synthesis of Highly Efficient Fe2N-Based Oxygen Reduction Catalyst Derived from Seaweed Biomass. Small 2016, 12, 1295–1301. [Google Scholar] [CrossRef] [PubMed]
  30. Zhou, M.; Wang, H.-L.; Guo, S. Towards high-efficiency nanoelectrocatalysts for oxygen reduction through engineering advanced carbon nanomaterials. Chem. Soc. Rev. 2016, 45, 1273–1307. [Google Scholar] [CrossRef] [PubMed]
  31. Liu, X.; Zou, S.; Chen, S. Ordered mesoporous carbons codoped with nitrogen and iron as effective catalysts for oxygen reduction reaction. Nanoscale 2016, 8, 19246–19255. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, J.-G.; Liu, H.; Liu, H.; Fu, Z.; Nan, D. Facile synthesis of microsized MnO/C composites with high tap density as high performance anodes for Li-ion batteries. Chem. Eng. J. 2017, 328, 591–598. [Google Scholar] [CrossRef]
  33. Huang, X.; Yang, Z.; Dong, B.; Wang, Y.; Tang, T.; Hou, Y. In situ Fe2N@N-doped porous carbon hybrids as superior catalysts for oxygen reduction reaction. Nanoscale 2017, 9, 8102–8106. [Google Scholar] [CrossRef] [PubMed]
  34. Cao, L.; Li, Z.-H.; Gu, Y.; Li, D.-H.; Su, K.-M.; Yang, D.-J.; Cheng, B.-W. Rational design of N-doped carbon nanobox-supported Fe/Fe2N/Fe3C nanoparticles as efficient oxygen reduction catalysts for Zn–air batteries. J. Mater. Chem. A 2017, 5, 11340–11347. [Google Scholar] [CrossRef]
  35. Jiang, W.-J.; Gu, L.; Li, L.; Zhang, Y.; Zhang, X.; Zhang, L.-J.; Wang, J.-Q.; Hu, J.-S.; Wei, Z.; Wan, L.-J. Understanding the High Activity of Fe-N-C Electrocatalysts in Oxygen Reduction: Fe/Fe3C Nanoparticles Boost the Activity of Fe-NX. J. Am. Chem. Soc. 2016, 138, 3570–3578. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, J.-G.; Zhang, Z.; Zhang, X.; Yin, X.; Li, X.; Liu, X.; Kang, F.; Wei, B. Cation exchange formation of prussian blue analogue submicroboxes for high-performance Na-ion hybrid supercapacitors. Nano Energy 2017, 39, 647–653. [Google Scholar] [CrossRef]
  37. Wang, L.; Yin, J.; Zhao, L.; Tian, C.; Yu, P.; Wang, J.; Fu, H. Ion-exchanged route synthesis of Fe2N-N-doped graphitic nanocarbons composite as advanced oxygen reduction electrocatalyst. Chem. Commun. 2013, 49, 3022–3024. [Google Scholar] [CrossRef] [PubMed]
  38. Jiang, H.; Li, C.; Shen, H.; Liu, Y.; Li, W.; Li, J. Supramolecular gel-assisted synthesis Co2P particles anchored in multielement co-doped graphene as efficient bifunctional electrocatalysts for oxygen reduction and evolution. Electrochim. Acta 2017, 231, 344–353. [Google Scholar] [CrossRef]
  39. An, L.; Zhu, M.; Dai, B.; Yu, F. Hollow palladium–copper bimetallic nanospheres with high oxygen reduction activity. Electrochim. Acta 2015, 176, 222–229. [Google Scholar] [CrossRef]
Nanomaterials 07 00404 g001 550

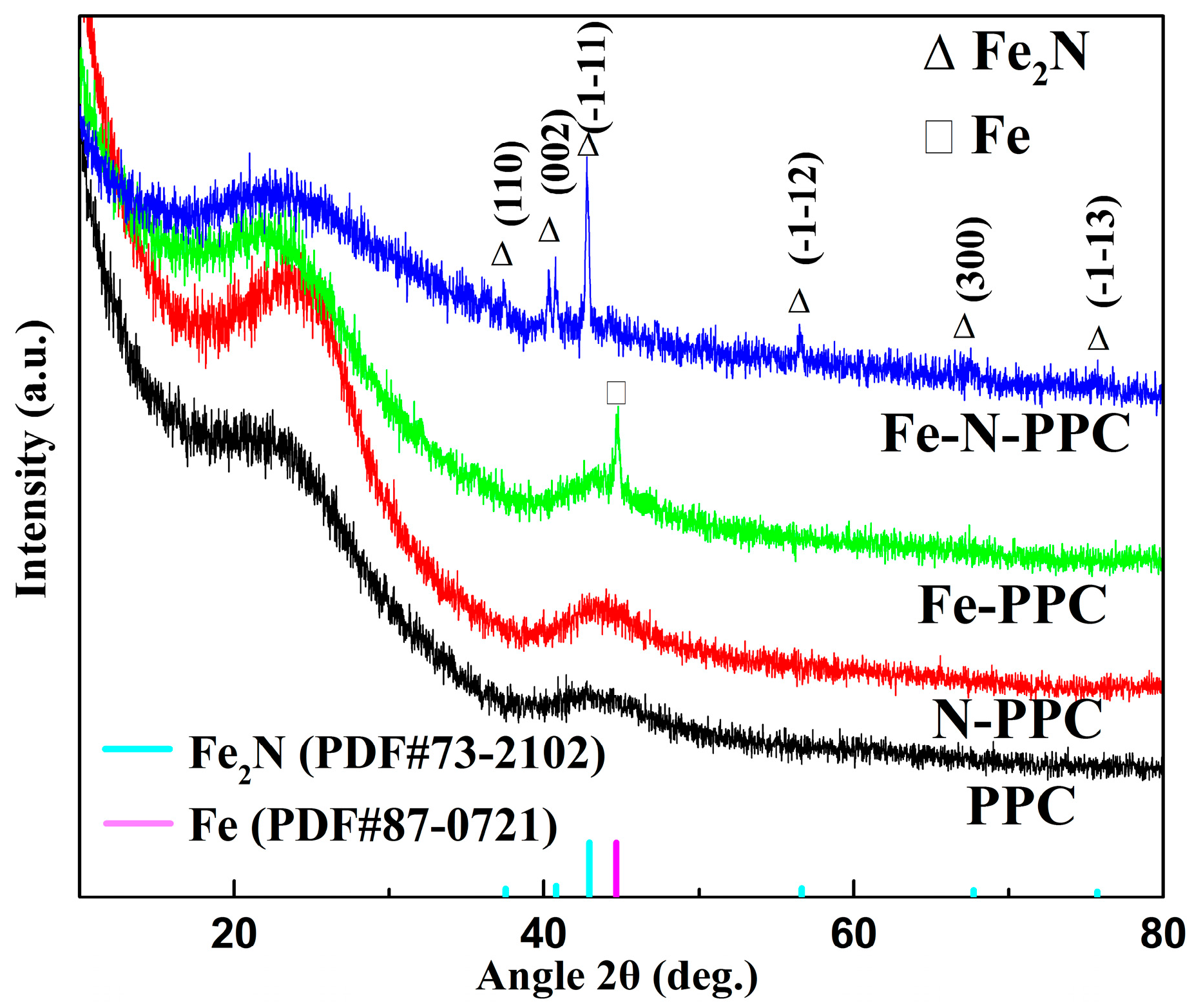

Figure 1. X-ray diffraction (XRD) patterns of PPC, N-PPC, Fe-PPC, and Fe-N-PPC carbonized at 900 °C.
Figure 1. X-ray diffraction (XRD) patterns of PPC, N-PPC, Fe-PPC, and Fe-N-PPC carbonized at 900 °C.
Nanomaterials 07 00404 g001
Nanomaterials 07 00404 g002 550

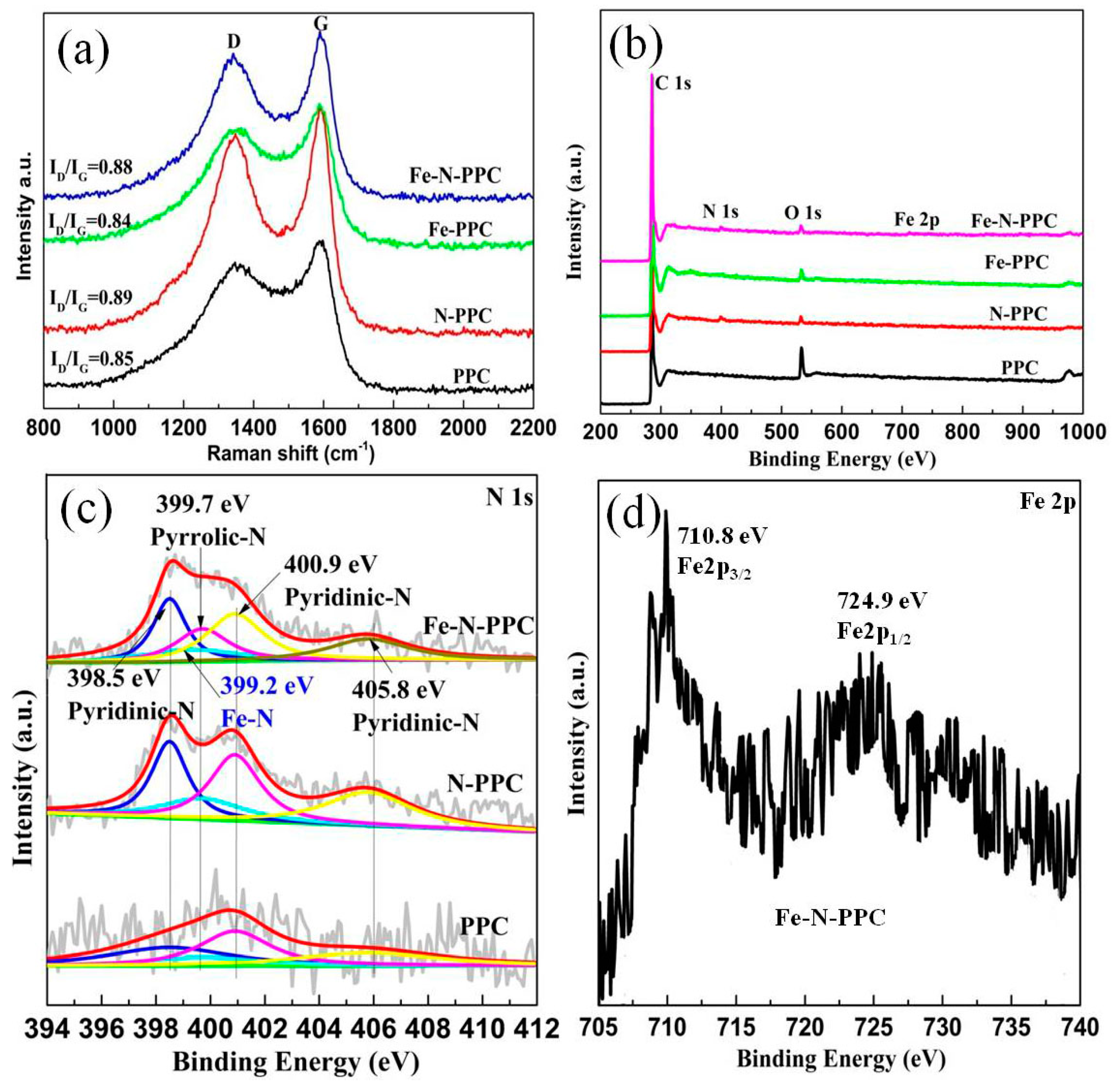

Figure 2. (a) Raman spectra and (b) High-resolution X-ray photoelectron spectroscopy (XPS) spectra of PPC, N-PPC, Fe-PPC, and Fe-N-PPC; (c) N 1s spectra of PPC, N-PPC and Fe-N-PPC; (d) Fe 2p spectra of Fe-N-PPC.
Figure 2. (a) Raman spectra and (b) High-resolution X-ray photoelectron spectroscopy (XPS) spectra of PPC, N-PPC, Fe-PPC, and Fe-N-PPC; (c) N 1s spectra of PPC, N-PPC and Fe-N-PPC; (d) Fe 2p spectra of Fe-N-PPC.
Nanomaterials 07 00404 g002
Nanomaterials 07 00404 g003 550

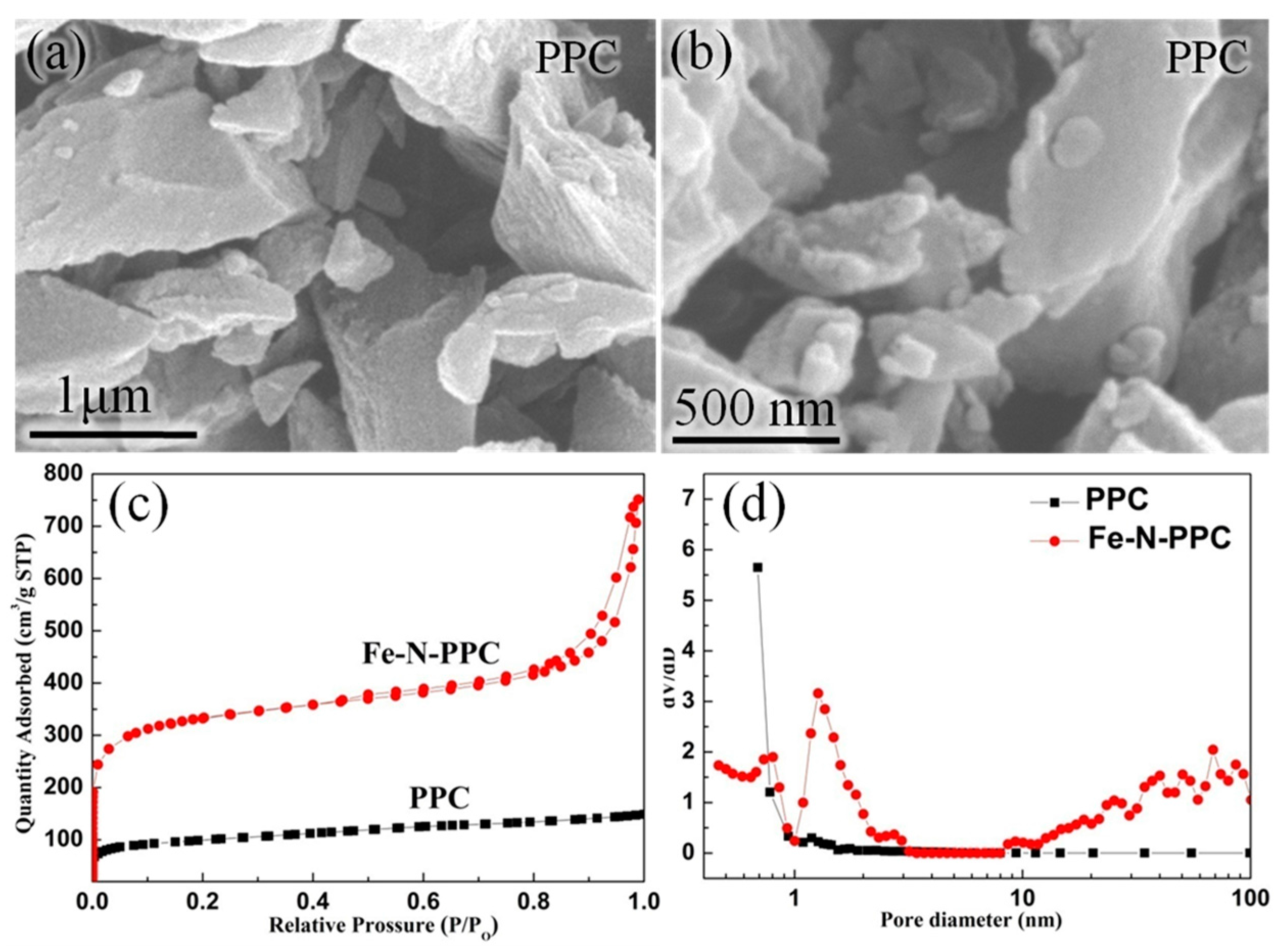

Figure 3. (a,b) Scanning electron microscopy (SEM) images of PPC; (c) N2 adsorption–desorption isotherms and (d) Pore size distributions of PPC and Fe-N-PPC respectively.
Figure 3. (a,b) Scanning electron microscopy (SEM) images of PPC; (c) N2 adsorption–desorption isotherms and (d) Pore size distributions of PPC and Fe-N-PPC respectively.
Nanomaterials 07 00404 g003
Nanomaterials 07 00404 g004 550

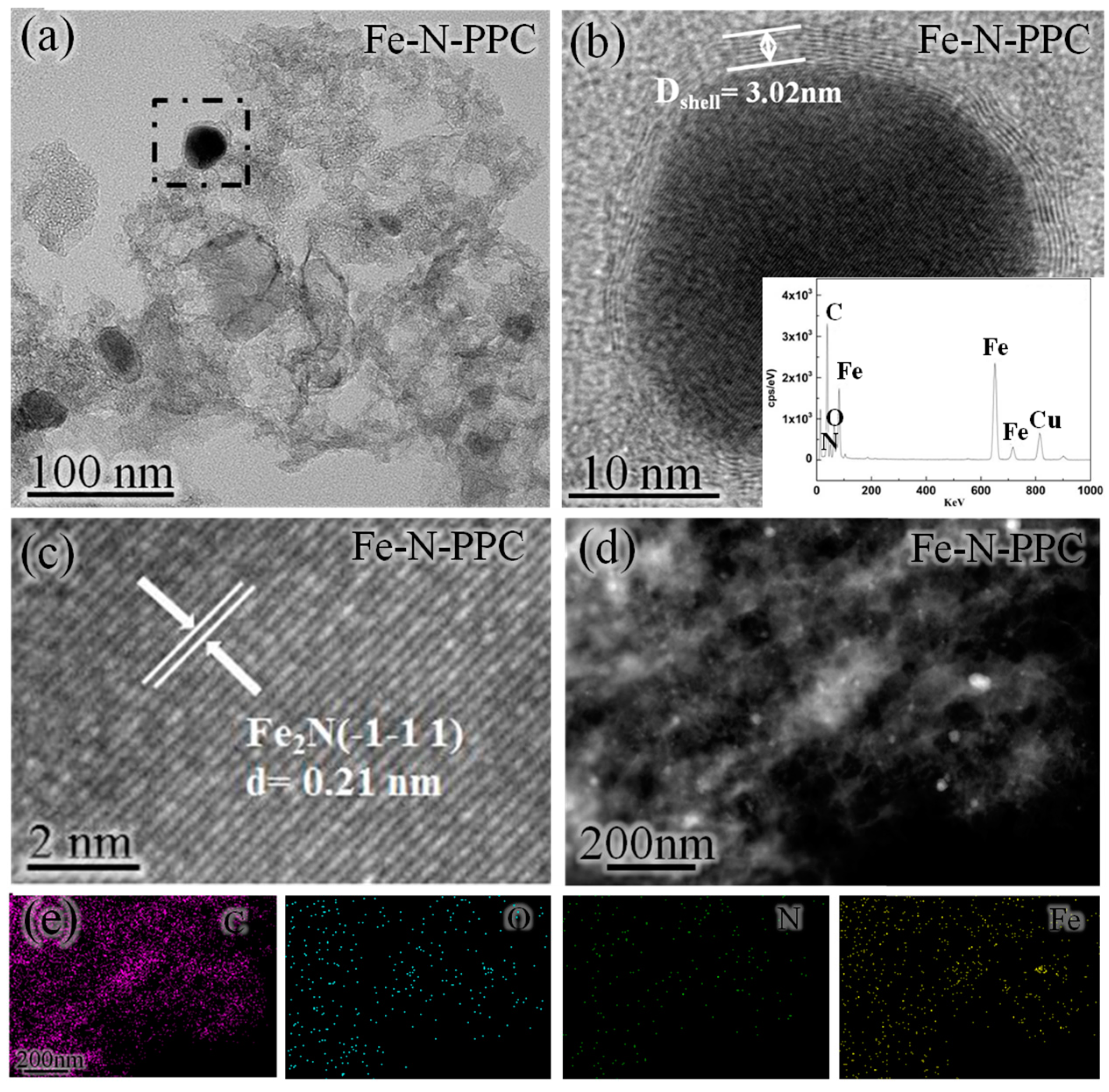

Figure 4. (a) Transmission electron microscopy (TEM) images; (b,c) energy dispersive X-ray spectroscopy (EDS) patterns and high resolution TEM (HRTEM) images of Fe-N-PPC; (d) high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image and (e) EDS elemental mapping images (C, O, N and Fe) of Fe-N-PPC.
Figure 4. (a) Transmission electron microscopy (TEM) images; (b,c) energy dispersive X-ray spectroscopy (EDS) patterns and high resolution TEM (HRTEM) images of Fe-N-PPC; (d) high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image and (e) EDS elemental mapping images (C, O, N and Fe) of Fe-N-PPC.
Nanomaterials 07 00404 g004
Nanomaterials 07 00404 g005 550

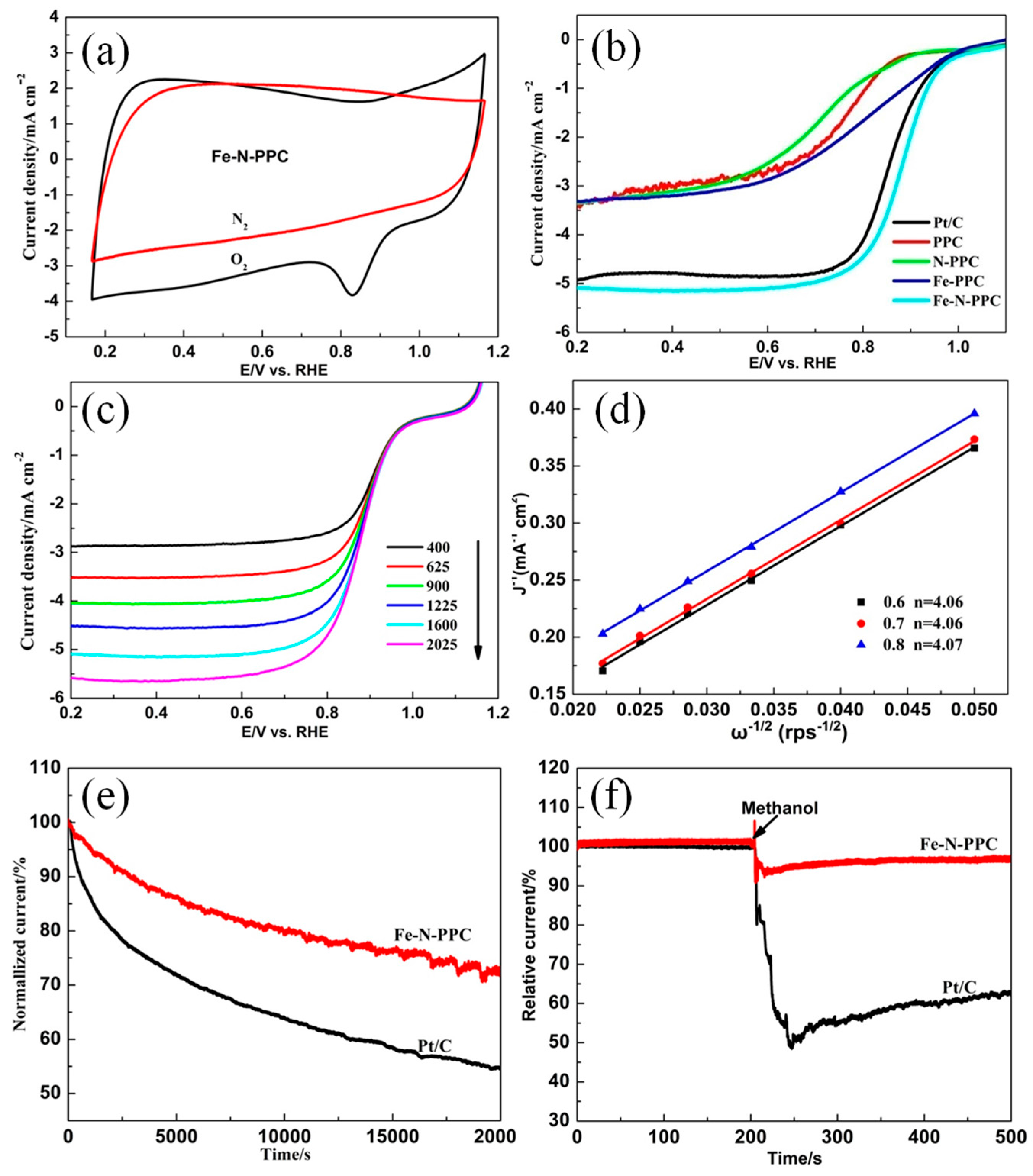

Figure 5. (a) The cyclic voltammetry (CV) curves of Fe-N-PPC at a scan of 50 mV/s; (b) LSV curves of PPC and other samples at a scan rate of 10 mV/s and an electrode rotation rate of 1600 rpm; (c) LSV curves of Fe-N-PPC at various rotation rates and a scan rate of 10 mV/s; (d) Corresponding K–L plots at different potentials; (e) Long-term stability test of Fe-N-PPC and 20% Pt/C in a 0.1 M KOH solution; (f) Methanol (3 M) crossover resistance test.
Figure 5. (a) The cyclic voltammetry (CV) curves of Fe-N-PPC at a scan of 50 mV/s; (b) LSV curves of PPC and other samples at a scan rate of 10 mV/s and an electrode rotation rate of 1600 rpm; (c) LSV curves of Fe-N-PPC at various rotation rates and a scan rate of 10 mV/s; (d) Corresponding K–L plots at different potentials; (e) Long-term stability test of Fe-N-PPC and 20% Pt/C in a 0.1 M KOH solution; (f) Methanol (3 M) crossover resistance test.
Nanomaterials 07 00404 g005
Table
Table 1. Atomic contents of the samples by X-ray photoelectron spectroscopy (XPS).
Table 1. Atomic contents of the samples by X-ray photoelectron spectroscopy (XPS).
SamplesCNOFe
PPC90.94≈09.06-
N-PPC96.391.612.01-
Fe-PPC96.21-3.270.53
Fe-N-PPC95.861.602.210.43
Table
Table 2. Atomic ratio of N species from deconvolution N 1s spectra.
Table 2. Atomic ratio of N species from deconvolution N 1s spectra.
SamplesPyridinicFe-NPyrrolicGraphiticOxidized
PPC25.9-15.034.524.6
N-PPC31.9-10.832.225.1
Fe-N-PPC32.29.012.833.612.4
Table
Table 3. BET surface area and Barrett–Joyner–Halenda (BJH) pore diameter of PPC and Fe-N-PPC.
Table 3. BET surface area and Barrett–Joyner–Halenda (BJH) pore diameter of PPC and Fe-N-PPC.
SampleSBET (m2·g−1)DBJH (nm)Pore Volume (cm3·g−1)
PPC353.052.600.23
Fe-N-PPC1103.903.480.96
Table
Table 4. Comparation of Fe-N-PC with Fe2N/C catalysts and pomelo peel-derived carbon materials for oxygen reduction reaction (ORR) reported recently. In the table, reversible hydrogen electrode was abbreviated as RHE. GO stands for graphene oxide.
Table 4. Comparation of Fe-N-PC with Fe2N/C catalysts and pomelo peel-derived carbon materials for oxygen reduction reaction (ORR) reported recently. In the table, reversible hydrogen electrode was abbreviated as RHE. GO stands for graphene oxide.
CatalystsRaw MaterialsOnset Potential (V vs. RHE)Half-Wave Potential (V vs. RHE)Stability Result (%)Methanol Tolerance Result (%)Reference
ZIF-67@NPC-2Pomelo peel, cobalt(II) acetate, methyl-imidazole0.890.8282.0 (6000 s)95.7 (3 M)[16]
Fe3C/WC/GCPomelo peel, K4Fe(CN)6, Na2WO4----[17]
Fe2N/MNGCSDopamine, NH3·H2O0.881-95.2 (60,000 s)70.7 (4 M)[20]
FeGH-ArNH3Fe3O4, histidine, Fe(NO3)3·9H2O, d-glucose0.80-94.4 (6000s)>Pt/C[24]
FexN/NGAGO, iron (II) phthalocyanine>Pt/C-91.0 (20,000 s)~100[25]
Fe2N/N-GAs-20FeCl3·6H2O, sodium alginate, graphene1.020.9390.0 (9 h)~100[29]
Fe2N@NPC-5001,3,5-benzenetricarboxlic acid, N,N-Dimethylformamide, Fe(NO3)3·3H2O0.930.7990.0 (25,000 s)~100[33]
Fe–N-CNBsFeCl3, fructose, magnesium powder, magnesium ribbon1.030.87583.0 (30,000 s)~100[34]
Fe2N/NGC-1000FeCl2, polyacrylic weak-acid cation-exchanged resin0.830.95--[37]
Fe-N-PPCPomelo peel, FeCl3·6H2O, ammonia0.9660.89179.6 (20,000 s)97.2 (3 M)This work
