Hydrothermal Synthesis of Co3O4/ZnO Hybrid Nanoparticles for Triethylamine Detection

by
Yanqiong Yang
1,
Xiaodong Wang
1,*,
Guiyun Yi
2,
Huimin Li
1,
Chuang Shi
1,
Guang Sun
1 and
Zhanying Zhang
1
1
School of Materials Science and Engineering, Henan Polytechnic University, Jiaozuo 454000, China
2
College of Chemistry and Chemical Engineering, Henan Polytechnic University, Jiaozuo 454000, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(11), 1599; https://doi.org/10.3390/nano9111599
Submission received: 22 October 2019 / Revised: 6 November 2019 / Accepted: 8 November 2019 / Published: 11 November 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
Development of high performances gas sensors to monitor and detect the volatile organic compound triethylamine is of paramount importance for health and environmental protection. The Co3O4-ZnO nanoparticles composite was successfully synthesized by the one-step hydrothermal route and annealing process in this work. The gas sensitivity test results show that the composite exhibits excellent triethylamine-sensing performance at a cobalt content of 1 at%, indicating potential application for triethylamine detection. The sensor based on the Co3O4-ZnO composite had higher sensitivity to triethylamine, better selectivity, and faster response recovery rate compared with pure ZnO sensor. Combined with the structural characteristics of the characterized Co3O4-ZnO nanocomposite, the optimized triethylamine sensing performances can be ascribed to the p-n heterojunction effect between Co3O4 and ZnO, as well as the catalytic and high oxygen adsorption properties of Co3O4.

1. Introduction

Volatile organic compounds (VOCs) in industrial production and residential life are potential threats to air pollution [1]. As a typical colorless transparent VOC, triethylamine (TEA) is widely used in organic solvents, catalysts, preservatives, and synthetic dyes [2,3]. However, TEA is toxic, flammable, and explosive, and its leakage poses a serious threat to human health and environmental safety [4,5]. Chromatography, colorimetry, conductive polymer sensors, and luminescent gas sensors are several reported detection methods that limit the practical application of TEA detection due to their high cost and time-consuming operation [6]. Therefore, there is an urgent need for a method that is easy to fabricate and convenient for monitoring and detecting TEA.
Metal oxide semiconductor (MOS)-based gas sensors have been used extensively to detect hazardous gases because of their low cost, small size, high preparation flexibility, and the ability to detect multiple gases [7,8]. The typical n-type semiconductor ZnO is considered to be an extremely beneficial gas-sensing material by reason of good chemical stability, non-toxicity, high surface-to-volume ratio, suitable doping, and low cost [9,10,11]. It is worth noting that the fabrication of heterostructure composite sensors can enhance gas-sensing performances and significantly improve the low sensitivity and poor selectivity of pure ZnO materials [12,13,14]. Kim et al. [15] reported the CuO-ZnO heterostructure nanorods sensor to enhance H2S gas response and repeatability over pure ZnO. Zou et al. [16] designed a TiO2/ZnO-based NO2 gas sensor that can improve the gas sensitivity of ZnO. Gholami et al. [17] showed an enhanced ethanol response by adding a small amount of In2O3 in ZnO to build an In2O3-ZnO nanostructured gas sensor. Xu et al. [18] reported that NiO-ZnO heterojunction nanotubes sensor exhibit better selectivity for H2S than pure ZnO.
Moreover, Co3O4 is a representative p-type MOS with catalytic and high oxygen adsorption properties and is an ideal composite material for ZnO [19,20,21]. Zhang et al. [22] reported that the mesoporous Co3O4-ZnO microspheres sensor has an ethanol response about five times that of pure ZnO. Park et al. [23] pointed out that the Co3O4-ZnO composite nanoparticles network sensor differs from pure ZnO in that it has the advantage of significantly enhanced NO2 gas-sensing performance. Xu et al. [24] reported that a flytrap-like Co3O4-ZnO composite sensor had an eight-fold higher response to 100 ppm ethanol than pure ZnO. However, it has rarely been reported that Co3O4-ZnO composites are effective for TEA gas-sensing.
Here, the Co3O4-ZnO nanoparticles composite was designed and synthesized by a simple hydrothermal method, and its gas-sensing properties were further studied. Attractively, the sensor based on the Co3O4-ZnO composite exhibits higher sensitivity, better selectivity, and faster response recovery rate to TEA gas than pure ZnO, indicating that the Co3O4-ZnO nanoparticles composite is a promising candidate for TEA detection. In addition, the possible sensitization mechanisms of the Co3O4-ZnO composite were also discussed.

2. Materials and Methods

2.1. Preparation of ZnO and Co3O4-ZnO Nanoparticles

The reagents involved in the experiment included zinc acetate dihydrate (Zn(CH3COO)2·2H2O, 99%), cobalt acetate tetrahydrate (Co(CH3COO)2·4H2O, 99.5%), polyvinylpyrollidone (PVP), ethanol (C2H5OH), and deionized water. This experimental protocol modified the reported method [25]. A total of 0.439 g Zn(CH3COO)2·2H2O and 0.5 g PVP was added to 70 mL C2H5OH. After magnetic stirring for 30 min, 0.005 g (1 at%) Co(CH3COO)2·4H2O was added, stirring was continued for 30 min and sonicated for 10 min. The resulting mixture was then shifted to the 100 mL reaction vessel and heated to 180 °C for 9 h. After the reaction was completed, it was centrifuged and washed alternately with C2H5OH and deionized water four times to obtain the precipitate. The above product, after drying in a 60 °C oven, was put in muffle furnace and treated at 600 °C for 2 h in an air atmosphere to obtain the stable sample. A series of samples were prepared by simply adjusting the content of Co, in which the molar ratio of Co/Zn was 0, 0.5, 1, 3 at%, respectively, and they were named ZnO, Co3O4/ZnO-1, Co3O4/ZnO-2, Co3O4/ZnO-3, respectively.

2.2. Characterizations

The study of the crystal structure of the sample was carried out on the powder X-ray diffraction (XRD, Bruker-AXS D8, Bruker, Madison, WI, USA) under Cu-Kα radiation (40 kV, 25 mA). Field emission scanning electron microscopy (FESEM, Quanta 250 FEG-SEM, FEI, Eindhoven, Netherlands) and transmission electron microscopy (TEM, JEOL JEM-2100, Tokyo, Japan) were used to investigate the morphology of the sample. In addition, the energy dispersion spectrum (EDS, INCAENERGY 250, FEI, Eindhoven, Netherlands) characterized the elemental composition. The Brunauer–Emmett–Teller (BET, Quantachrome, Boynton Beach, FL, USA) tested the specific surface area. X-ray photoelectron spectroscopy (XPS, ThermoFischer ESCALAB 250Xi, MA, USA) was further used to analyze the chemical valence of the sample, and C1s = 284.80 eV was its charge correction standard.

2.3. Construction of Gas Sensors

The paste obtained by mixing a small amount of sample and an appropriate amount of deionized water was brushed on the Ag-Pd electrode region of the purchased ceramic substrate (electrode line width 0.2 mm, pitch 1.0 mm; entire substrate 13.4 × 7 mm) (Beijing Elite Tech Co., Ltd., Beijing, China) to obtain a gas sensor (Figure 1), which was aged in a 60 °C oven for one night to improve stability. The manufactured sensors were placed on the CGS-4TPS intelligent sensing analysis system for sensitivity testing, and the relative humidity condition was basically maintained at 30%. The ratio of the resistance Ra in the air to the resistance Rg in the test gas was designated as the response value, and the time at which the sensor reached the maximum response of 90% and 10% was expressed as the response and recovery time, respectively. In particular, pairs of adjustable probes were in contact with and were attached to both ends of the fabricated sensor. The power supply, water circulation system, temperature control system, and data acquisition system were then turned on. Initially in the atmosphere, and when the resistance of the sensor collected on the display was relatively stable, the target gas was introduced into the test chamber after an interval of 20 s, after which the test chamber was quickly closed. In the data acquisition system, the relatively-stable resistance when the sensor is in the air was set to Ra; Rg is the resistance of the sensor collected by the system in the test gas, and Ra/Rg is selected in the sensor response curve type column. After the target gas stayed in the test chamber for about 240 s, the lid on the upper side of the test chamber was opened to release the test gas. When the sensor’s response value basically returned to 10% of the maximum response, it was clicked in order to stop collecting data and to save the data. In this way, the Ra/Rg value was directly recorded in the data acquisition system on the intelligent sensing analysis system, and finally exported by computer.

3. Results

3.1. Materials Characterizations

The XRD patterns of each sample are shown in Figure 2. In Figure 2a–d, almost all of the diffraction peaks match the hexagonal wurtzite structure ZnO (JCPDS no. 89-0511) with a lattice constant of a = b = 3.249 Å and c = 5.205 Å. The three strong peaks are matched with the (101), (100), and (002) crystal faces of ZnO in order of strength from strong to weak. Further, as shown in Figure 2, Figure 2f is an enlarged view of a shaded portion of yellow in Figure 2a–d. Figure 2e shows that, in the range of 2θ = 30°~40°, 2θ = 36.263° in Figure 2a is very close to the diffraction angle of 2θ = 36.26° corresponding to the (101) crystal plane of ZnO (JCPDS no. 89-0511). Moreover, the peak positions of Figure 2b–d are offset by 0.02°, 0.04°, 0.06°, respectively, compared to Figure 2a. This may be mainly due to the introduction of Co3O4 in the composite. However, the sample with a Co content of 3 at% in Figure 2d still has no obvious characteristic diffraction peak of Co3O4, which may be caused by the low content of Co in the composite sample.
Figure 3a,b shows SEM images of ZnO and Co3O4/ZnO-2 samples, respectively. As shown in Figure 3a, the ZnO sample consists of agglomerated nanoparticles lumps. With the introduction of Co in the sample, the Co3O4/ZnO-2 sample in Figure 3b shows nanoparticles lumps with smaller average size and denser distribution. It is further shown that the composite sample has a larger available surface area and is advantageous for adsorption of the target gas. Figure 3c,d shows TEM and HRTEM images of the Co3O4/ZnO-2 sample, respectively. It can be seen from Figure 3c that Co3O4/ZnO-2 has an average particle size of about 30 nm. The HRTEM image in Figure 3d has lattice fringes with different spacings of 0.26 and 0.23 nm, which are in good agreement with the (002) crystal plane of ZnO and the (222) crystal plane of Co3O4, respectively. The EDS of the Co3O4/ZnO-2 sample shown in Figure 3e–g contains Zn, O, and Co elements. It is indicated that the successful introduction of Co in the composite sample can also echo the HRTEM result.
The pore structures of ZnO and Co3O4/ZnO-2 were tested by N2 adsorption–desorption instrument. The type IV adsorption isotherm results in Figure 4a indicate that the two samples have the mesoporous structure. Figure 4b shows that the pores of the sample are mainly about 16 nm. The Co3O4/ZnO-2 sample still has pores in the range of 32 nm, and even the maximum pore diameter is about 36 nm. These larger pores are favorable for gas adsorption and diffusion. At the same time, the calculated BET surface areas of ZnO and Co3O4/ZnO-2 were 17.733 and 21.150 m2g−1, respectively. The larger specific surface area and pore size of Co3O4/ZnO-2 means that there are more available areas to facilitate gas adsorption and surface reaction, which will help its gas sensitivity.
In order to further analyze the structural surface state, the samples were subjected to XPS measurement. The full spectra analyses of ZnO and Co3O4/ZnO-2 are shown in Figure 5a. The peak positions of the two samples are basically the same and both have characteristic peaks of Zn and O elements, except that we can see that there is a weak Co peak in the Co3O4/ZnO-2. Figure 5b shows the narrow-area scan of Co 2p in the Co3O4/ZnO-2 sample, where the two main peaks at 780.57 and 796.75 eV are consistent with Co 2p3/2 and Co 2p1/2, respectively. Besides, there are two vibrating satellite peaks at 784.61 and 802.81 eV, which further confirm that the composite sample forms the Co3O4 crystal phase [25,26]. Figure 5c,d shows the high resolution spectra of O 1s in ZnO and Co3O4/ZnO-2 samples, respectively. Both samples were divided into three oxygen peaks, indicating the presence of three different oxygen species in each of the two samples. Figure 5c shows that the peaks of three different O 1s states in ZnO are located at the binding energies of 529.85, 530.83, and 531.93 eV, wherein the contents of lattice oxygen (OL), vacancy oxygen (OV), and chemisorbed oxygen (OC) species are 66.8%, 22.99%, and 10.21%, respectively. Figure 5d shows that the peaks of three different O 1s states in the Co3O4/ZnO-2 samples are at 529.97, 530.95, and 531.84 eV, with OL, OV, and OC contents of 66.6%, 16.75%, and 16.65%, respectively. Table 1 shows the states of OL, OV, and OC in ZnO and Co3O4/ZnO-2. The results show that the surface of the Co3O4/ZnO-2 composite sample has more chemisorbed oxygen, which may be closely related to the high oxygen adsorption characteristic of the Co3O4. More OC on the sensing material promotes redox reaction with the target gas, meaning the Co3O4/ZnO-2 sensor may have higher sensitivity than pure ZnO.

3.2. Gas-Sensing Performances

In view of the fact that the working temperature has a major impact on sensitive materials, 200 ppm TEA was initially tested at different temperatures. In Figure 6a, as the working temperature increases from 250 to 320 °C, the responses of all sensors display the similar upward convex shape and maximum response at 280 °C. The relationship between temperature and response of the sensor can be attributed to the kinetic and thermodynamic behavior of gas. When the working temperature is lower than 280 °C, there is not enough thermal energy to activate the TEA molecule to completely react with the oxygen ions, so the response of the sensor gradually increases as the temperature rises. When exceeds 280 °C, the gas behavior may be biased toward the desorption side, which reduces the utilization of the sensing material, resulting in a reduced response. At 280 °C, the TEA molecule has the highest oxidation rate and the sensor achieves the highest response. Therefore, 280 °C was determined to be optimum working temperature and applied to the following tests. In addition, Co3O4-ZnO composite sensors can show higher responses than pure ZnO sensor at different working temperatures, indicating that the ZnO sensor modified by Co3O4 can significantly improve the TEA sensing performance of pure ZnO. Meanwhile, the Co3O4/ZnO-2 sensor showed the highest response in three different composite sensors, indicating that the optimum Co-doping amount of the composite was 1 at%.
Concentration-response correlation tests were performed on two representative ZnO and Co3O4/ZnO-2 sensors. Figure 6b shows that the responses of both sensors are positively correlated with TEA concentration and the composite sensor has a higher response. Notably, the Co3O4/ZnO-2 response has a larger upward tilt angle in the lower TEA concentration range (10–200 ppm), which is more suitable for practical, low concentration TEA detection applications. As shown in Figure 6c, as the TEA concentration increased from 10 to 1000 ppm, the responses of sensors gradually increased. Figure 6d shows that the measured response/recovery times for ZnO and Co3O4/ZnO-2 are 76/45 and 25/36 s, respectively, indicating that the Co3O4/ZnO-2 sensor has a faster response–recovery rate.
Moreover, selectivity is also a key indicator for assessing the quality of gas sensors [27]. Figure 6e shows the selective testing of ZnO and Co3O4/ZnO-2 sensors for 200 ppm of different gases (TEA, formaldehyde, acetone, ethanol, and methanol). The experimental results show that the two sensors have the highest responses to TEA compared to other gases. The Co3O4/ZnO-2 sensor has a response (282.3) to 200 ppm TEA of approximately 12.8 times that of ZnO. In addition, the Co3O4/ZnO-2 composite sensor’s response to TEA is 20.3, 24.4, 20.5, and 49.7 times that of other gases, respectively, while ZnO is only 4, 6.5, 8.2, and 11.2 times. The excellent TEA selectivity of the Co3O4/ZnO-2 sensor may be due to the catalytic action of Co3O4 and the lower bond energy of the C–N in the TEA molecule compared with C=O, C–C, and O–H [26,28]. The results of TEA sensing properties studies for the different materials shown in Table 2 indicate that the Co3O4/ZnO-2 nanoparticles composite sensor constructed by this work has a lower working temperature and higher response.
The repeatability test for the Co3O4/ZnO-2 sensor is shown in Figure 6f. The result shows that the response of the Co3O4/ZnO-2 sensor during the repeated cycle test within 10 days only fluctuates within a very small range (the coefficient of variation of the responses is about 1.42%), further indicating that the Co3O4/ZnO-2 composite sensor prepared in this work has good durability for TEA detection.

3.3. Gas-Sensing Mechanisms

The sensing mechanism of n-type ZnO is mainly the regulation of the depletion layer [40,41,42,43]. The energy band diagrams of ZnO in air and TEA are shown in Figure 7a,b, respectively. In air, oxygen molecules are physically adsorbed on the surface of the material and become chemisorbed oxygen ions (O2−, O− and O2−) by trapping electrons in the ZnO conduction band. Thence, the formation of an electron depletion layer in the surface region of ZnO results in an increase in sensor resistance. After introduction of the TEA, the TEA is oxidized by the active oxygen ions adsorbed on the material to compensate for the carrier (electron) concentration of ZnO. In this way, the measured resistance of the sensor is reduced by the narrowing of the material electron depletion layer.
In Co3O4-ZnO composite nanostructures, ZnO has a higher Fermi level than Co3O4, electrons will transfer from ZnO to Co3O4, and holes will shift from the opposite direction until Fermi energy level of balance [44,45]. Finally, a barrier (p-n heterojunction) is formed in the interface region [46,47,48]. Figure 7c,d are the energy band diagrams of Co3O4-ZnO in air and TEA, respectively. In the air atmosphere, the exposed surfaces of ZnO and Co3O4 form the electrons depletion layer and the holes accumulation layer due to the adsorption of oxygen species, respectively, and greatly promote the electron transfer process. Thus, the composite material forms a thicker depletion layer, leading to a higher resistance state of the sensor. Once the sensor is in the TEA atmosphere, the electrons released by the surface reaction will replenish the electrons concentration and neutralize the holes. This not only thins the depletion layer of the Co3O4-ZnO composite but also lowers the barrier height at the interface. Thereby, the resistance of the Co3O4-ZnO sensor drops sharply.
Apart from the p-n heterojunction effect between Co3O4 and ZnO, the catalytic and high oxygen adsorption characteristics of Co3O4 are also the main role of the Co3O4-ZnO composite in enhancing gas sensitivity. On the one hand, the catalytic properties of Co3O4 reduce the activation energy of TEA and the oxygen ion reaction. On the other hand, the presence of Co2+, which is easily oxidized in the Co2+/Co3+ system of Co3O4, promotes the adsorption of oxygen molecules on Co3O4-ZnO. The results accelerate the reaction between active TEA and abundant chemisorbed oxygen ions. In addition, due to the introduction of Co3O4, the Co3O4-ZnO material forms a unique, porous, nanoparticle-dense lumps structure with a smaller average size, resulting in a larger available specific surface area, providing more adsorption sites to facilitate surface reactions. Combined with these factors, the resistance of the Co3O4-ZnO gas sensor in air is greatly increased compared with the pure ZnO gas sensor, and further reduced in the TEA gas, so that the Co3O4-ZnO significantly improves the TEA sensing performance.

4. Conclusions

In summary, the Co3O4-ZnO nanoparticles sensor was successfully fabricated by constructing a heterojunction composite using a simple hydrothermal route and annealing process. The ZnO sensor based on Co3O4 modification significantly improved the TEA sensing performance of the pure ZnO sensor. Specifically, when the Co content is 1 at%, the Co3O4-ZnO sensor has higher sensitivity, better selectivity, and faster response recovery speed compared to TEA. The composite sensor also has good repeatability and a low operating temperature, indicating the potential application prospect of the Co3O4-ZnO composite for TEA detection. In the next study, we will focus on developing other heterojunction composite high performance sensors for gas detection.

Author Contributions

Y.Y. designed the experiment and wrote the original draft of the article; X.W. provided suggestions for the content of the article; G.Y., H.L., C.S., G.S. and Z.Z. reviewed the article.

Funding

This work was funded by the National Natural Science Foundation of China (U1704255), the Program for Innovative Research Team of Henan Polytechnic University (T2019-1), and Department Science Foundation of Henan Province (19A530002).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chu, X.F.; Jiang, D.L.; Zheng, C.M. The preparation and gas-sensing properties of NiFe2O4 nanocubes and nanorods. Sens. Actuators B 2007, 123, 793–797. [Google Scholar]
  2. Gu, F.B.; Cui, Y.Z.; Han, D.M.; Hong, S.; Flytzani-Stephanopoulos, M.; Wang, Z.H. Atomically dispersed Pt (II) on WO3 for highly selective sensing and catalytic oxidation of triethylamine. Appl. Catal. B 2019, 256, 117809. [Google Scholar] [CrossRef]
  3. Zhai, C.B.; Zhu, M.M.; Jiang, L.N.; Yang, T.Y.; Zhao, Q.; Luo, Y.; Zhang, M.Z. Fast triethylamine gas sensing response properties of nanosheets assembled WO3 hollow microspheres. Appl. Surf. Sci. 2019, 463, 1078–1084. [Google Scholar] [CrossRef]
  4. Ma, Q.; Chu, S.S.; Liu, Y.; Chen, Y.; Song, J.C.; Li, H.; Wang, J.P.; Che, Q.D.; Wang, G.; Fang, Y. Construction of SnS2/ZIF-8 derived flower-like porous SnO2/ZnO heterostructures with enhanced triethylamine gas sensing performance. Mater. Lett. 2019, 263, 452–455. [Google Scholar] [CrossRef]
  5. Lv, Y.Z.; Li, C.R.; Guo, L.; Wang, F.C.; Xu, Y.; Chu, X.F. Triethylamine gas sensor based on ZnO nanorods prepared by a simple solution route. Sens. Actuators B 2009, 141, 85–88. [Google Scholar] [CrossRef]
  6. Zhang, Y.Y.; Ma, C.; Yang, X.Y.; Song, Y.; Liang, X.S.; Zhao, X.; Wang, Y.L.; Gao, Y.; Liu, F.M.; Liu, F.M.; et al. NASICON-based gas sensor utilizing MMnO3 (M: Gd, Sm, La) sensing electrode for triethylamine detection. Sens. Actuators B 2019, 295, 56–64. [Google Scholar] [CrossRef]
  7. Tian, H.L.; Fan, H.Q.; Ma, J.W.; Liu, Z.Y.; Ma, L.T.; Lei, S.H.; Fang, J.W.; Long, C.B. Pt-decorated zinc oxide nanorod arrays with graphitic carbon nitride nanosheets for highly efficient dual-functional gas sensing. J. Hazard. Mater. 2018, 341, 102–111. [Google Scholar] [CrossRef] [PubMed]
  8. Kaur, M.; Kailasaganapathi, S.; Ramgir, N.; Datta, N.; Kumar, S.; Debnath, A.K.; Aswal, D.K.; Gupta, S.K. Gas dependent sensing mechanism in ZnO nanobelt sensor. Appl. Surf. Sci. 2017, 394, 258–266. [Google Scholar] [CrossRef]
  9. Wetchakun, K.; Samerjai, T.; Tamaekong, N.; Liewhiran, C.; Siriwong, C.; Kruefu, V.; Wisitsoraat, A.; Tuantranont, A.; Phanichphant, S. Semiconducting metal oxides as sensors for environmentally hazardous gases. Sens. Actuators B 2011, 160, 580–591. [Google Scholar] [CrossRef]
  10. Ma, Q.; Fang, Y.; Liu, Y.; Song, J.C.; Fu, X.H.; Li, H.; Chu, S.S.; Chen, Y. Facile synthesis of ZnO morphological evolution with tunable growth habits: Achieving superior gas-sensing properties of hemispherical ZnO/Au heterostructures for triethylamine. Phys. E 2019, 106, 180–186. [Google Scholar] [CrossRef]
  11. Agarwal, S.; Rai, P.; Gatell, E.N.; Llobet, E.; Güell, F.; Kumar, M.; Awasthi, K. Gas sensing properties of ZnO nanostructures (flowers/rods) synthesized by hydrothermal method. Sens. Actuators B 2019, 292, 24–31. [Google Scholar] [CrossRef]
  12. Navale, Y.H.; Navale, S.T.; Stadler, F.J.; Ramgir, N.S.; Patil, V.B. Enhanced NO2 sensing aptness of ZnO nanowire/CuO nanoparticle heterostructure-based gas sensors. Ceram. Int. 2019, 45, 1513–1522. [Google Scholar] [CrossRef]
  13. Zhu, L.; Zeng, W.; Yang, J.D.; Li, Y.Q. One-step hydrothermal fabrication of nanosheet-assembled NiO/ZnO microflower and its ethanol sensing property. Ceram. Int. 2018, 44, 19825–19830. [Google Scholar] [CrossRef]
  14. Wang, L.L.; Lou, Z.; Zhang, R.; Zhou, T.T.; Deng, J.N.; Zhang, T. Hybrid Co3O4/SnO2 Core–Shell Nanospheres as Real-Time Rapid-Response Sensors for Ammonia Gas. ACS Appl. Mater. Interfaces 2016, 8, 6539–6545. [Google Scholar] [CrossRef] [PubMed]
  15. Kim, J.; Kim, W.; Yong, K. CuO/ZnO Heterostructured Nanorods: Photochemical Synthesis and the Mechanism of H2S Gas Sensing. J. Phys. Chem. 2012, 116, 15682–15691. [Google Scholar] [CrossRef]
  16. Zou, C.W.; Wang, J.; Xie, W. Synthesis and enhanced NO2 gas sensing properties of ZnO nanorods/TiO2 nanoparticles heterojunction composites. J. Colloid Interface Sci. 2016, 478, 22–28. [Google Scholar] [CrossRef] [PubMed]
  17. Gholami, M.; Khodadadi, A.A.; Firooz, A.A.; Mortazavi, Y. In2O3-ZnO nanocomposites: High sensor response and selectivity to ethanol. Sens. Actuators B 2015, 212, 395–403. [Google Scholar] [CrossRef]
  18. Xu, L.; Zheng, R.F.; Liu, S.H.; Song, J.; Chen, J.S.; Dong, B.; Song, H.W. NiO@ZnO Heterostructured Nanotubes: Coelectrospinning Fabrication, Characterization, and Highly Enhanced Gas Sensing Properties. Inorg. Chem. 2012, 51, 7733–7740. [Google Scholar] [CrossRef] [PubMed]
  19. Xiong, Y.; Xu, W.W.; Zhu, Z.Y.; Xue, Q.Z.; Lu, W.B.; Ding, D.G.; Zhu, L. ZIF-derived porous ZnO-Co3O4 hollow polyhedrons heterostructure with highly enhanced ethanol detection performance. Sens. Actuators B 2017, 253, 523–532. [Google Scholar] [CrossRef]
  20. Li, Y.Y.; Zhou, F.; Gao, L.; Duan, G.T. Co3O4 nanosheet-built hollow spheres containing ultrafine neck-connected grains templated by PS@Co-LDH and their ppb-level gas-sensing performance. Sens. Actuators B 2018, 261, 553–565. [Google Scholar] [CrossRef]
  21. Xu, J.M.; Cheng, J.P. The advances of Co3O4 as gas sensing materials: A review. J. Alloys Compd. 2016, 686, 753–768. [Google Scholar] [CrossRef]
  22. Zhang, L.; Jing, X.Y.; Liu, J.Y.; Wang, J.; Sun, Y.B. Facile synthesis of mesoporous ZnO/Co3O4 microspheres with enhanced gas-sensing for ethanol. Sens. Actuators B 2015, 221, 1492–1498. [Google Scholar] [CrossRef]
  23. Park, S.; Kim, S.; Kheel, H.; Lee, C. Oxidizing gas sensing properties of the n-ZnO/p-Co3O4 composite nanoparticle network sensor. Sens. Actuators B 2016, 222, 1193–1200. [Google Scholar] [CrossRef]
  24. Xu, K.; Yang, L.; Yang, Y.; Yuan, C.L. Improved ethanol gas sensing performances of a ZnO/Co3O4 composite induced by its flytrap-like structure. Phys. Chem. Chem. Phys. 2017, 19, 29601–29607. [Google Scholar] [CrossRef] [PubMed]
  25. Hu, J.; Gao, F.Q.; Zhao, Z.T.; Sang, S.B.; Li, P.W.; Zhang, W.D.; Zhou, X.T.; Chen, Y. Synthesis and characterization of Cobalt-doped ZnO microstructures for methane gas sensing. Appl. Surf. Sci. 2016, 363, 181–188. [Google Scholar] [CrossRef]
  26. Li, Y.W.; Luo, N.; Sun, G.; Zhang, B.; Jin, H.H.; Lin, L.; Bala, H.; Cao, J.L.; Zhang, Z.Y.; Wang, Y. Synthesis of porous nanosheets-assembled ZnO/ZnCo2O4 hierarchical structure for TEA detection. Sens. Actuators B 2019, 287, 199–208. [Google Scholar] [CrossRef]
  27. Zhang, S.S.; Sun, G.; Li, Y.W.; Zhang, B.; Wang, Y.; Zhang, Z.Y. Enhanced triethylamine gas sensing performance of the porous Zn2SnO4/SnO2 hierarchical microspheres. J. Alloys Compd. 2019, 785, 382–390. [Google Scholar] [CrossRef]
  28. Luo, N.; Sun, G.; Zhang, B.; Li, Y.W.; Jin, H.H.; Lin, L.; Bala, H.; Cao, J.L.; Zhang, Z.Y.; Wang, Y. Improved TEA sensing performance of ZnCo2O4 by structure evolution from porous nanorod to single-layer nanochain. Sens. Actuators B 2018, 277, 544–554. [Google Scholar] [CrossRef]
  29. Wang, D.; Chu, X.F.; Gong, M.L. Gas-sensing properties of sensors based on single-crystalline SnO2 nanorods prepared by a simple molten-salt method. Sens. Actuators B 2006, 117, 183–187. [Google Scholar] [CrossRef]
  30. Ju, D.X.; Xu, H.Y.; Qiu, Z.W.; Guo, J.; Zhang, J.; Cao, B.Q. Highly sensitive and selective triethylamine-sensing properties of nanosheets directly grown on ceramic tube by forming NiO/ZnO PN heterojunction. Sens. Actuators B 2014, 200, 288–296. [Google Scholar] [CrossRef]
  31. Chu, X.F.; Jiang, D.L.; Guo, Y.; Zheng, C.M. Ethanol gas sensor based on CoFe2O4 nano-crystallines prepared by hydrothermal method. Sens. Actuators B 2006, 120, 177–181. [Google Scholar]
  32. Sun, G.; Chen, H.L.; Li, Y.W.; Ma, G.Z.; Zhang, S.S.; Jia, T.K.; Cao, J.L.; Wang, X.D.; Bala, H.; Zhang, Z.Y. Synthesis and triethylamine sensing properties of mesoporous α-Fe2O3 microrods. Mater. Lett. 2016, 178, 213–216. [Google Scholar] [CrossRef]
  33. Xu, H.Y.; Ju, D.X.; Li, W.R.; Zhang, J.; Wang, J.Q.; Cao, B.Q. Superior triethylamine-sensing properties based on TiO2/SnO2 n-n heterojunction nanosheets directly grown on ceramic tubes. Sens. Actuators B 2016, 228, 634–642. [Google Scholar] [CrossRef]
  34. Yang, X.L.; Yu, Q.; Zhang, S.F.; Sun, P.; Lu, H.Y.; Yan, X.; Liu, F.M.; Zhou, X.; Liang, X.S.; Gao, Y.; et al. Highly sensitive and selective triethylamine gas sensor based on porous SnO2/Zn2SnO4 composites. Sens. Actuators B 2018, 266, 213–220. [Google Scholar] [CrossRef]
  35. Yang, H.Y.; Cheng, X.L.; Zhang, X.F.; Zheng, Z.K.; Tang, X.F.; Xu, Y.M.; Gao, S.; Zhao, H.; Huo, L.H. A novel sensor for fast detection of triethylamine based on rutile TiO2 nanorod arrays. Sens. Actuators B 2014, 205, 322–328. [Google Scholar] [CrossRef]
  36. Wu, M.Z.; Zhang, X.F.; Gao, S.; Cheng, X.L.; Rong, Z.M.; Xu, Y.M.; Zhao, H.; Huo, L.H. Construction of monodisperse vanadium pentoxide hollow spheres via a facile route and triethylamine sensing property. CrystEngComm 2013, 15, 10123–10131. [Google Scholar] [CrossRef]
  37. Li, W.R.; Xu, H.Y.; Zhai, T.; Yu, H.Q.; Chen, Z.R.; Qiu, Z.W.; Song, X.P.; Wang, J.Q.; Cao, B.Q. Enhanced triethylamine sensing properties by designing Au@SnO2/MoS2 nanostructure directly on alumina tubes. Sens. Actuators B 2017, 253, 97–107. [Google Scholar] [CrossRef]
  38. Zhai, T.; Xu, H.Y.; Li, W.R.; Yu, H.Q.; Chen, Z.R.; Wang, J.Q.; Cao, B.Q. Low-temperature in-situ growth of SnO2 nanosheets and its high triethylamine sensing response by constructing Au-loaded ZnO/SnO2 heterostructure. J. Alloys Compd. 2018, 737, 603–612. [Google Scholar] [CrossRef]
  39. Xue, D.P.; Wang, Y.; Cao, J.L.; Zhang, Z.Y. Hydrothermal Synthesis of CeO2-SnO2 Nanoflowers for Improving Triethylamine Gas Sensing Property. Nanomaterials 2018, 8, 1025. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Li, X.W.; Wang, C.; Guo, H.; Sun, P.; Liu, F.M.; Liang, X.S.; Lu, G.Y. Double-Shell Architectures of ZnFe2O4 Nanosheets on ZnO Hollow Spheres for High-Performance Gas Sensors. ACS Appl. Mater. Interfaces 2015, 7, 17811–17818. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, Y.; Meng, X.N.; Yao, M.X.; Sun, G.; Zhang, Z.Y. Enhanced CH4 sensing properties of Pd modified ZnO nanosheets. Ceram. Int. 2019, 45, 13150–13157. [Google Scholar] [CrossRef]
  42. Li, Y.J.; Wang, S.M.; Hao, P.; Tian, J.; Cui, H.Z.; Wang, X.Z. Soft-templated formation of double-shelled ZnO hollow microspheres for acetone gas sensing at low concentration/near room temperature. Sens. Actuators B 2018, 273, 751–759. [Google Scholar] [CrossRef]
  43. Zhang, D.Z.; Yang, Z.M.; Wu, Z.L.; Dong, G.K. Metal-organic frameworks-derived hollow zinc oxide/cobalt oxide nanoheterostructure for highly sensitive acetone sensing. Sens. Actuators B 2019, 283, 42–51. [Google Scholar] [CrossRef]
  44. Li, B.; Liu, J.Y.; Liu, Q.; Chen, R.R.; Zhang, H.S.; Yu, J.; Song, D.L.; Li, J.Q.; Zhang, M.L.; Wang, J. Core-shell structure of ZnO/Co3O4 composites derived from bimetallicorganic frameworks with superior sensing performance for ethanol gas. Appl. Surf. Sci. 2019, 475, 700–709. [Google Scholar] [CrossRef]
  45. Song, Z.H.; Chen, W.G.; Zhang, H.; Li, Y.Q.; Zeng, W.; Tang, S.R.; Zhu, C.Z. Highly sensitive and selective acetylene sensors based on p-n heterojunction of NiO nanoparticles on flower-like ZnO structures. Ceram. Int. 2019, 45, 19635–19643. [Google Scholar] [CrossRef]
  46. Liu, C.; Zhao, L.P.; Wang, B.Q.; Sun, P.; Wang, Q.J.; Gao, Y.; Liang, X.S.; Zhang, T.; Lu, G.Y. Acetone gas sensor based on NiO/ZnO hollow spheres: Fast response and recovery, and low (ppb) detection limit. J. Colloid Interface Sci. 2017, 495, 207–215. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, Y.B.; Yin, J.; Li, L.; Zhang, L.X.; Bie, L.J. Enhanced ethanol gas-sensing properties of flower-like p-CuO/n-ZnO heterojunction nanorods. Sens. Actuators B 2014, 202, 500–507. [Google Scholar] [CrossRef]
  48. Poloju, M.; Jayababu, N.; Ramana Reddy, M.V. Improved gas sensing performance of Al doped ZnO/CuO nanocomposite based ammonia gas sensor. Mater. Sci. Eng. B 2018, 227, 61–67. [Google Scholar] [CrossRef]
Nanomaterials 09 01599 g001 550

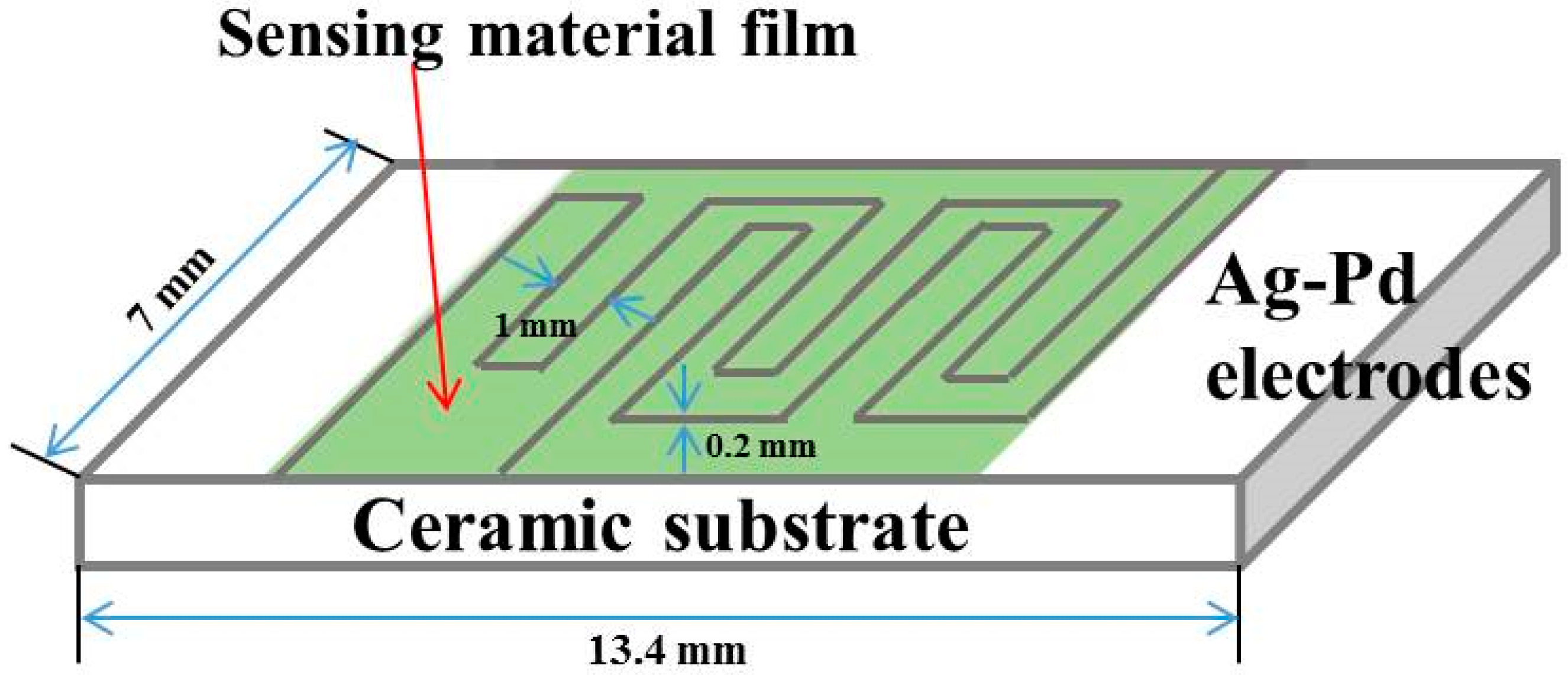

Figure 1. Schematic diagram of a gas sensor manufactured.
Figure 1. Schematic diagram of a gas sensor manufactured.
Nanomaterials 09 01599 g001
Nanomaterials 09 01599 g002 550

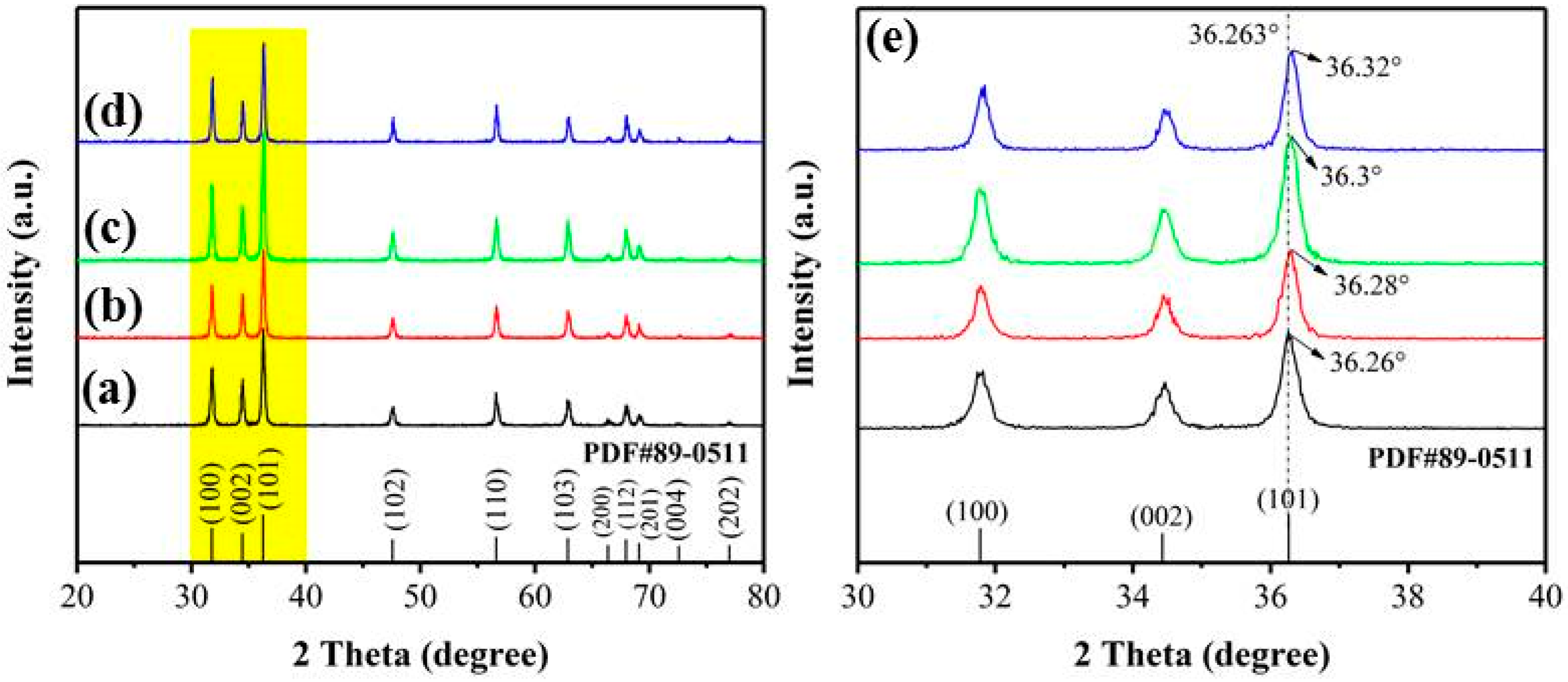

Figure 2. XRD patterns: (a) ZnO, (b) Co3O4/ZnO-1, (c) Co3O4/ZnO-2, and (d) Co3O4/ZnO-3; (e) the enlarged view of the shaded portion of yellow in (a–d).
Figure 2. XRD patterns: (a) ZnO, (b) Co3O4/ZnO-1, (c) Co3O4/ZnO-2, and (d) Co3O4/ZnO-3; (e) the enlarged view of the shaded portion of yellow in (a–d).
Nanomaterials 09 01599 g002
Nanomaterials 09 01599 g003 550

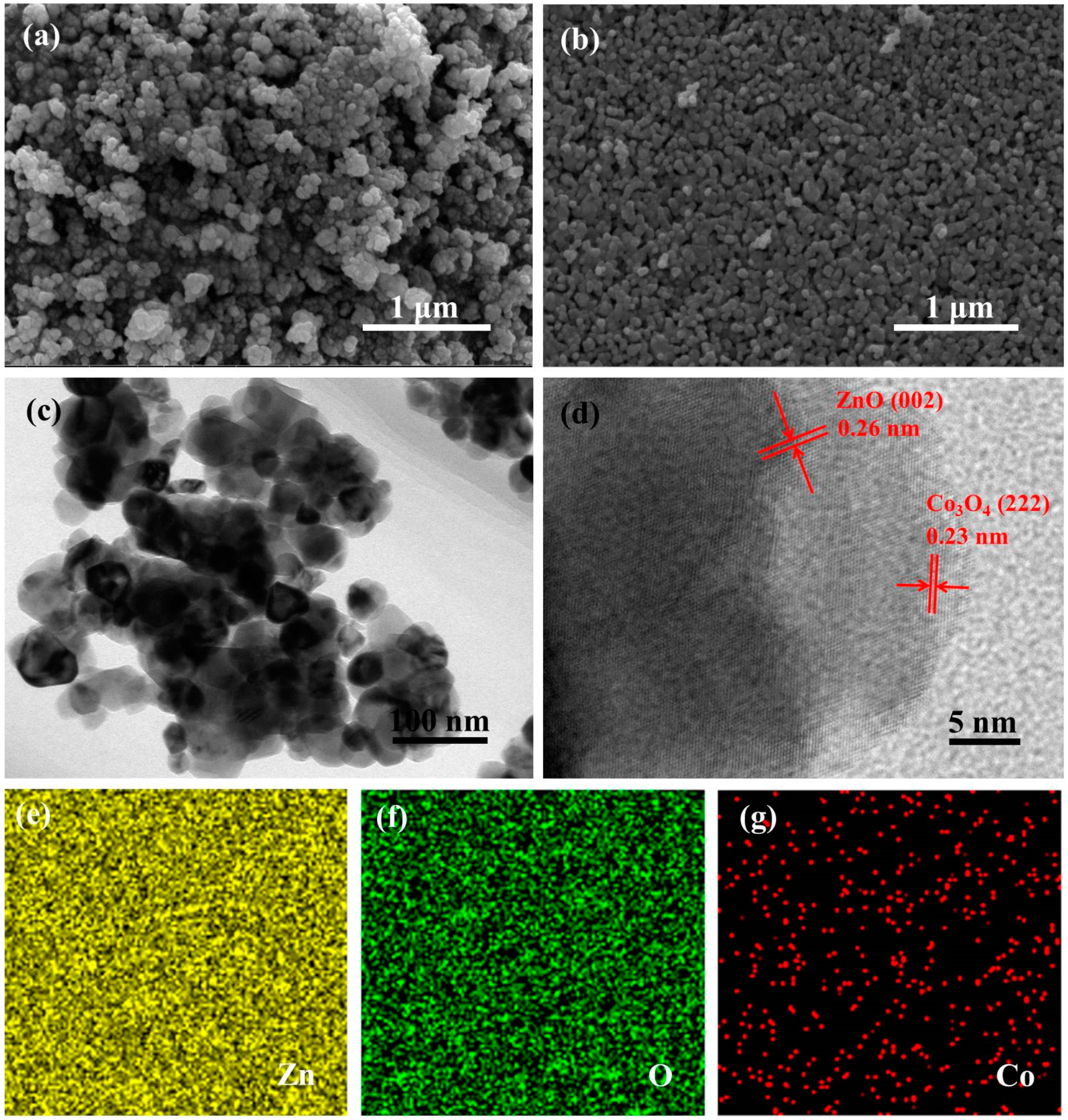

Figure 3. Field emission scanning electron microscopy images of (a) ZnO, (b) Co3O4/ZnO-2; (c,d) transmission electron microscopy and high resolution transmission electron microscope images of Co3O4/ZnO-2; (e–g) the energy dispersion spectrum of Co3O4/ZnO-2 (The two opposite arrows in Figure 3d were used to emphasize the spacing of the two parallel lines as the lattice spacing).
Figure 3. Field emission scanning electron microscopy images of (a) ZnO, (b) Co3O4/ZnO-2; (c,d) transmission electron microscopy and high resolution transmission electron microscope images of Co3O4/ZnO-2; (e–g) the energy dispersion spectrum of Co3O4/ZnO-2 (The two opposite arrows in Figure 3d were used to emphasize the spacing of the two parallel lines as the lattice spacing).
Nanomaterials 09 01599 g003
Nanomaterials 09 01599 g004 550
Figure 4. (a) N2 adsorption–desorption isotherms and (b) pore size distribution curves of the prepared ZnO and Co3O4/ZnO-2 samples.
Figure 4. (a) N2 adsorption–desorption isotherms and (b) pore size distribution curves of the prepared ZnO and Co3O4/ZnO-2 samples.
Nanomaterials 09 01599 g004
Nanomaterials 09 01599 g005 550

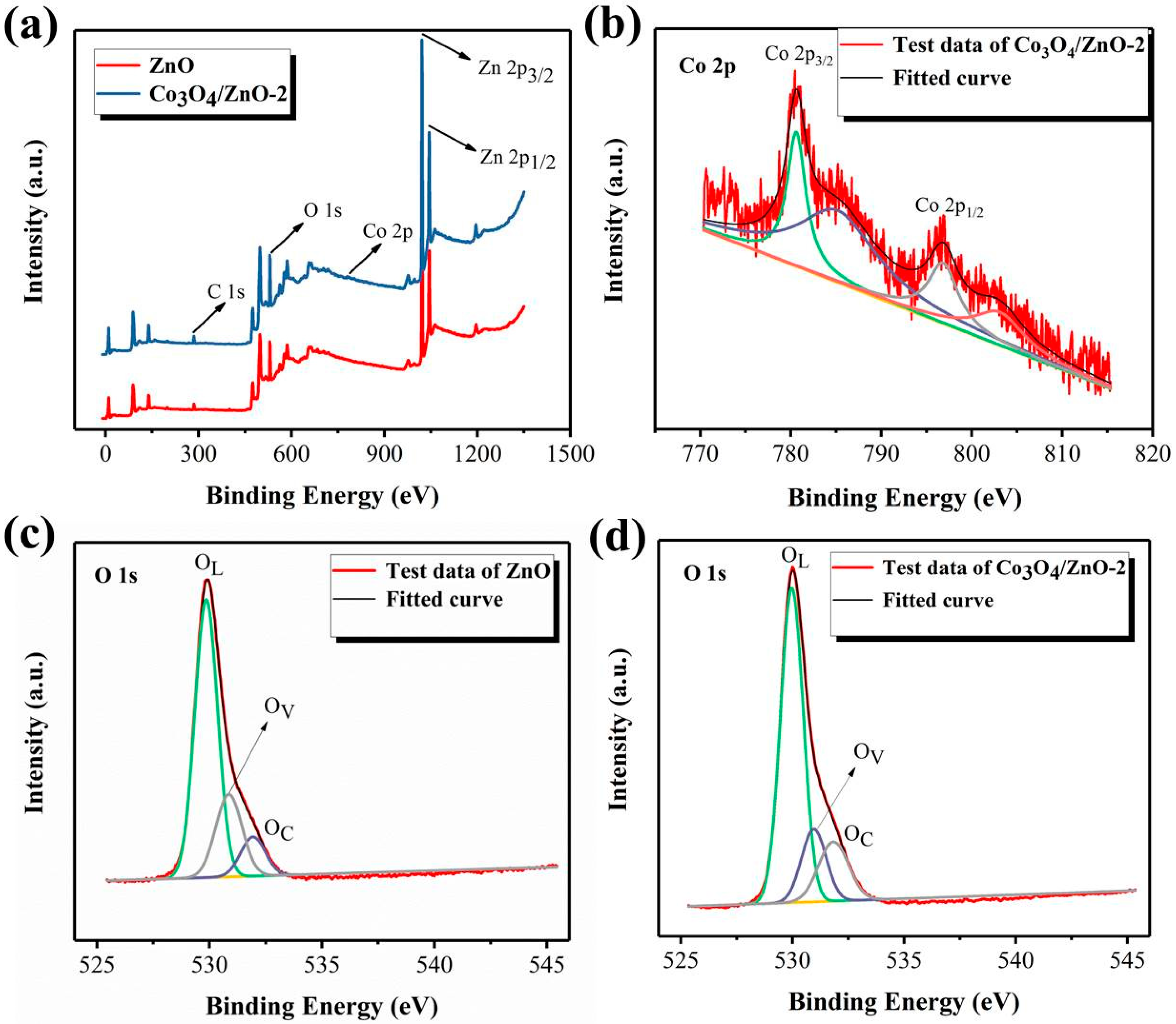

Figure 5. X-ray photoelectron spectroscopy spectra of ZnO and Co3O4/ZnO-2: (a) The full spectra, (b) Co 2p spectrum of Co3O4/ZnO-2, (c,d) O 1s spectra of the ZnO and Co3O4/ZnO-2.
Figure 5. X-ray photoelectron spectroscopy spectra of ZnO and Co3O4/ZnO-2: (a) The full spectra, (b) Co 2p spectrum of Co3O4/ZnO-2, (c,d) O 1s spectra of the ZnO and Co3O4/ZnO-2.
Nanomaterials 09 01599 g005
Nanomaterials 09 01599 g006 550

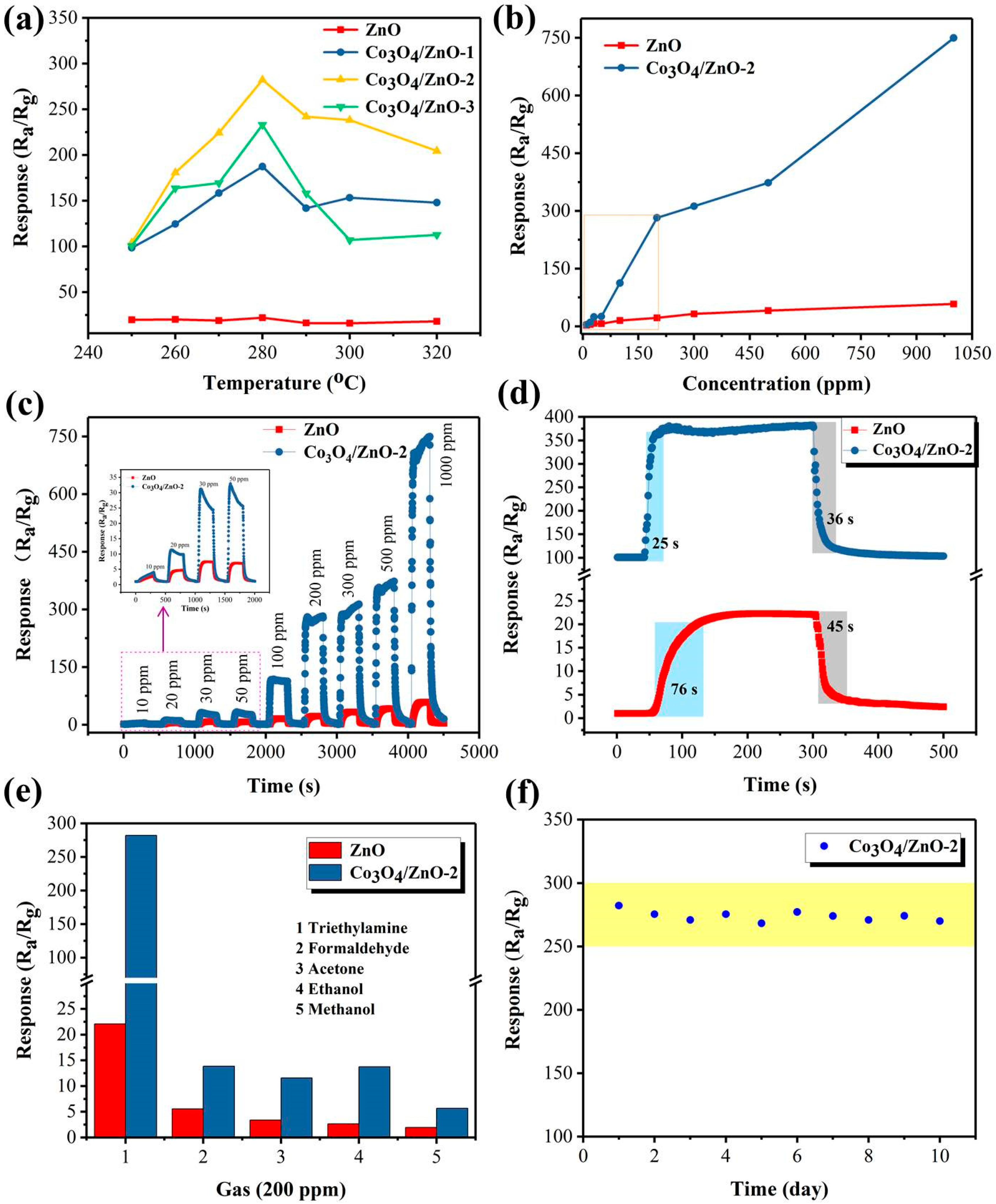

Figure 6. (a) Responses of the sensors to 200 ppm triethylamine (TEA) at different temperatures; (b) concentration-dependent responses of the sensors toward TEA at 280 °C; (c,d) dynamic and transient response–recover curves of the sensors toward TEA at 280 °C, where d is 200 ppm TEA; (e) the responses of the sensors to 200 ppm various gases at 280 °C; (f) stability research of the Co3O4/ZnO-2 sensor to 200 ppm TEA at 280 °C (define Ra/Rg as the response of the sensor).
Figure 6. (a) Responses of the sensors to 200 ppm triethylamine (TEA) at different temperatures; (b) concentration-dependent responses of the sensors toward TEA at 280 °C; (c,d) dynamic and transient response–recover curves of the sensors toward TEA at 280 °C, where d is 200 ppm TEA; (e) the responses of the sensors to 200 ppm various gases at 280 °C; (f) stability research of the Co3O4/ZnO-2 sensor to 200 ppm TEA at 280 °C (define Ra/Rg as the response of the sensor).
Nanomaterials 09 01599 g006
Nanomaterials 09 01599 g007 550
Figure 7. The energy band diagrams of (a,b) ZnO and (c,d) Co3O4-ZnO during exposure to air and TEA, respectively.
Figure 7. The energy band diagrams of (a,b) ZnO and (c,d) Co3O4-ZnO during exposure to air and TEA, respectively.
Nanomaterials 09 01599 g007
Table
Table 1. Comparison of the states of OL, OV, and OC in ZnO and Co3O4/ZnO-2 (Ene. OL/OV/OC—the binding energy of OL/OV/OC) (OL, OV, and OC are lattice oxygen, vacancy oxygen and chemisorbed oxygen, respectively).
Table 1. Comparison of the states of OL, OV, and OC in ZnO and Co3O4/ZnO-2 (Ene. OL/OV/OC—the binding energy of OL/OV/OC) (OL, OV, and OC are lattice oxygen, vacancy oxygen and chemisorbed oxygen, respectively).
MaterialsOL (%) OV (%)OC (%)Ene. OL (eV)Ene. OV (eV)Ene. OC (eV)
ZnO66.822.9910.21529.85530.83531.93
Co3O4/ZnO-2 66.616.7516.65529.97530.95531.84
Table
Table 2. TEA sensing properties of the sensors based on different materials (temperature, concentration, response, response time/recovery time; references were abbreviated as Tem, Con, Res, Tres/Trec, and Ref, respectively).
Table 2. TEA sensing properties of the sensors based on different materials (temperature, concentration, response, response time/recovery time; references were abbreviated as Tem, Con, Res, Tres/Trec, and Ref, respectively).
MaterialsTem. (°C)Con. (ppm)Res.Tres/Trec. (s)Ref.
SnO2 nanorods3505064.8-[29]
NiO-ZnO nanosheets320100300-[30]
Nano-CoFe2O4190102100/120[31]
α-Fe2O3 microrods27510011.8-[32]
TiO2-SnO2 nanosheets26010052.3-[33]
SnO2-Zn2SnO4 spheres25010048-[34]
TiO2 nanorods29010014.2-[35]
V2O5 hollow spheres3701007.220/96[36]
Au@SnO2/MoS23001009612/66[37]
Au@ZnO/SnO23001001157/30[38]
CeO2-SnO2 nanoflowers310200252.2-[39]
Co3O4-ZnO280100112.522/26This work
280200282.325/36
