Synthesis of Mesoporous TiO2-B Nanobelts with Highly Crystalized Walls toward Efficient H2 Evolution

1
Key Laboratory of Flexible Electronics (KLOFE) and Institute of Advanced Materials (IAM), Jiangsu National Synergetic Innovation Center for Advanced Materials (SICAM), Nanjing Tech University (NanjingTech), 30 South Puzhu Road, Nanjing 211800, China
2
Key Laboratory of Eco-chemical Engineering, College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology (QUST), Qingdao 266042, China
3
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 116024, China
4
Department of Chemistry, King Abdulaziz University, Jeddah, P.O. Box. 80203, Jeddah 21589, Saudi Arabia
5
School of Chemical Engineering and Australian Institute for Bioengineering and Nanotechnology (AIBN), The University of Queensland, Brisbane, QLD 4072, Australia
6
Department of Plant & Environmental New Resources, Kyung Hee University, 1732 Deogyeong-daero, Giheunggu, Yongin-si, Gyeonggi-do 446-701, Korea
7
International Center for Materials Nanoarchitectonics (WPI-MANA) and International Center for Young Scientists (ICYS), National Institute for Materials Science (NIMS), 1-1 Namiki, Tsukuba, Ibaraki 305-0044, Japan
8
Institute of Molecular Plus, Tianjin University, No. 11 Building, No. 92 Weijin Road, Nankai District, Tianjin 300072, China
9
Australian Institute for Innovative Materials (AIIM), University of Wollongong, Squires Way, North Wollongong, NSW 2500, Australia
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2019, 9(7), 919; https://doi.org/10.3390/nano9070919
Submission received: 20 March 2019 / Revised: 11 June 2019 / Accepted: 22 June 2019 / Published: 26 June 2019

Abstract

:
Mesoporous TiO2 is attracting increasing interest due to properties suiting a broad range of photocatalytic applications. Here we report the facile synthesis of mesoporous crystalline TiO2-B nanobelts possessing a surface area as high as 80.9 m2 g−1 and uniformly-sized pores of 6–8 nm. Firstly, P25 powders are dissolved in NaOH solution under hydrothermal conditions, forming sodium titanate (Na2Ti3O7) intermediate precursor phase. Then, H2Ti3O7 is successfully obtained by ion exchange through acid washing from Na2Ti3O7 via an alkaline hydrothermal treatment. After calcination at 450 °C, the H2Ti3O7 is converted to a TiO2-B phase. At 600 °C, another anatase phase coexists with TiO2-B, which completely converts into anatase when annealed at 750 °C. Mesoporous TiO2-B nanobelts obtained after annealing at 450 °C are uniform with up to a few micrometers in length, 50–120 nm in width, and 5–15 nm in thickness. The resulting mesoporous TiO2-B nanobelts exhibit efficient H2 evolution capability, which is almost three times that of anatase TiO2 nanobelts.

Graphical Abstract

1. Introduction

Mesoporous metal oxides are used in a wide range applications such as energy conversion and storage [1,2], catalysis [3,4], gas sensors [5], etc., because of their high specific surface area and mesoporous networks. In particular, mesoporous TiO2 with regular and interpenetrated porous networks have been demonstrated as an effective photocatalyst due to its low cost, environmental friendliness, good physical and chemical stability, large surface area, pore volume and tunable porous structure [6,7,8]. Many efforts have been devoted to developing diverse techniques towards the synthesis of mesoporous TiO2 [9,10,11,12,13,14,15,16,17,18]. In addition, the nanostructured framework can generally not sustain strong annealing processes, since crystallite growth and atomic diffusion rapidly jeopardize the delicate pore walls. The fabrication of mesoporous crystalline TiO2 via a simple method has therefore remained a great challenge.
TiO2 mainly has three well-known crystallographic polymorphs, anatase (tetragonal, space group I41/amd), rutile (tetragonal, space group P42/mnm), and brookite (orthorhombic, space group Pbca). TiO2-B (monoclinic, space group C2/m) in contrast, however, has gained less attention and fewer studies have been reported. TiO2-B, a metastable crystal structure (a = 1.21787 nm, b = 0.37412 nm, c = 0.65249 nm, and β = 107.054°) was first synthesized by Marchand et al. in 1980 [19]. Until now, the synthesis of various TiO2-B nanostructures, including 0D (nanoparticles [20,21]), 1D (nanowires [22,23], nanoribbons [24], nanotubes [25], nanorods [26] and nanobelts [27]), 2D (nanosheets [28,29,30]), and 3D (mesoporous microspheres [31] and mesoporous microflowers [32]) nanomaterials have been realized through different techniques, such as ion-exchange from layered titanate, hydrothermal or solvothermal treatments of titanium precursors, alkaline hydrothermal treatment of TiO2, etc. It is well known that the morphology and porosity of TiO2-B architectures strongly affect the physical and chemical properties. For instance, TiO2-B can be utilized as anode material for high-power lithium ion batteries (LIBs) due to its characteristic pseudocapacitive energy storage mechanism. Huang et al. demonstrated the use of graphene as a current collector to construct hybrid graphene/TiO2-B nanostructures to optimize the performance [27]. Such a hybrid mesoporous architecture can realize fast electron transport and acceleration of diffusion of lithium ions. Due to large surface area, nanoparticles have been used for solar cell applications. However, the electron trapping/scattering at the grain boundaries usually causes high charge recombination loss, resulting in lower efficiency in solar cells. Although 1D nanorods or nanotubes have gained attention due to enhanced charge mobility and strong light absorption, they suffer from lower surface area and poor crystallinity. It is, therefore, highly desirable to fabricate highly crystalline TiO2-B nanostructures with enhanced surface area for photocatalytic applications.
Herein, we demonstrate the successful design and facile synthesis of a new material, mesoporous crystalline TiO2-B nanobelts. The resultant mesoporous TiO2-B nanobelts are carefully characterized by XRD, SEM, TEM, and N2 adsorption-desorption isotherm. Finally, we investigate the performance of H2 evolution and compared with commercial anatase TiO2 powder (P25).

2. Materials and Methods

Preparation of anatase TiO2 and mesoporous TiO2-B nanobelts. Anatase TiO2 and mesoporous TiO2-B nanobelts were simply obtained via an alkaline hydrothermal procedure. It is well-known that the concentration and reaction time are key factors for controlling the nanostructures. To obtain our targeted mesoporous materials, we further modified the experimental process reported previously [33]. In detail, 0.5 g of P25 powder (Nippon Aerosil Co., Ltd., Tokyo, Japan) was dispersed in 20 mL of 10 M NaOH solution under magnetic stirring for 30 min at room temperature, before being transferred into a 25 mL Teflon-lined stainless-steel autoclave (Parr Instrument Company, Moline, IL, USA), and heated at 180 °C for 48 h. The product was washed with distilled water and 0.1 M HCl and collected by centrifugation three times, and finally dried at 80 °C overnight, yielding protonated titanate nanobelts (H2Ti3O7). The mesoporous TiO2-B nanobelts were obtained after further heat-treating the product at 450 °C for 2 h in air. For comparison, anatase TiO2 nanobelts were also prepared by annealing the H2Ti3O7 nanobelts at 600 °C and 750 °C for 2 h in air.
Characterizations. The crystalline phases of the as-synthesized products were measured and characterized with an X-ray diffractometer (XRD, SmartLab, Rigaku Corporation, Tokyo, Japan) using Cu Kα radiation. Field-emission scanning electron microscopy (FESEM, JSM-7001F, JEOL Ltd., Tokyo, Japan) and transmission electron microscopy (TEM, JEM-2100F, JEOL Ltd., Tokyo, Japan) were used to examine the morphology of the samples. A nitrogen adsorption apparatus (BELsorp-mini II, MicrotracBEL Corp., Osaka, Japan) was used to determine the Brunauer–Emmett–Teller (BET) surface areas (SBET). All the samples were degassed at 120 °C overnight before measurement.
Photocatalytic Test for H2 Evolution. Photocatalytic H2 evolution was evaluated via a well-known method using Pt as a co-catalyst and methanol as a sacrificial agent [34]. Because the H2 evolution from water occurs through two-electron reduction, co-catalysts accumulating excited electrons and sacrificial agents scavenging holes are necessary to promote charge separation. The photocatalytic test of anatase TiO2 and mesoporous TiO2-B nanobelts for H2 evolution was performed under AM 1.5 light irradiation (λ > 300 nm, 100 mW·cm−2). In-situ deposition of fine Pt nanoparticles on the catalysts were carried out by adding an appropriate amount H2PtCl6 solution [34]. 70 mg of the 0.5 wt % Pt-loaded nanobelts were dispersed into aqueous solution (220 mL of H2O and 50 mL of CH3OH) under magnetic stirring.

3. Results

In order to understand the formation process, X-ray diffraction (XRD) analysis and SEM observation were carried out to confirm the crystal structure and morphology of the starting P25 powder and the intermediate samples (Figure 1). As mentioned in the experimental section, firstly P25 powders (Figure 1a) were dissolved in NaOH solution under hydrothermal condition, forming an intermediate sodium titanate precursor (Na2Ti3O7) phase, as shown in Figure 1b. In the present study, H2Ti3O7 was obtained by ion exchange through acid washing from Na2Ti3O7 via an alkaline hydrothermal treatment (Figure 1c). The obtained intermediate product is similar to that of a layered H2Ti3O7 (JCPDS 41-0192), featuring a (200) reflection peak at 11°. “Dissolution-Recrystallization” process has been well-known as an important technique for crystal transformation [35]. In the present hydrothermal process, OH ions diffuse into the P25 powders, causing a gradual dissolution of the TiO2 crystals and forming sodium titanate intermediates without pores (Figure 1b3). After ion exchange (HCl solution), H2Ti3O7 nanobelts with pores are obtained (Figure 1c3).
After calcination at 450 °C, the well-defined peaks located at 2θ = 24.9°, 28.5°, 43.5°, 48.1° and 62.9° can be assigned to the (110), (002), (003), (020), (313) diffraction planes of a TiO2-B phase, respectively (JCPDS 074-1940, Figure 2a). At 600 °C, the newly formed anatase phase coexists with TiO2-B, which completely converts into anatase when annealed at 750 °C. We notice that the porosity in the nanobelt structure is maintained after treating at 600 °C, but is lost when heated beyond 750 °C (Figure 2b–d).
Figure 3a shows a typical low-magnification SEM image of the mesoporous TiO2-B nanobelts annealed at 450 °C. The nanobelts are uniform with up to a few micrometers in length, 50–120 nm in width, and 5–15 nm in thickness, as supported by the low-magnification TEM image (Figure 3b). Interestingly, it can also be seen from the TEM image that the surface of the nanobelts is nanoporous. The high resolution TEM (HRTEM) image (Figure 3c) shows a single mesoporous TiO2-B nanobelt with a fringe spacing of ~5.8 Å, which corresponds to the (200) interplanar distance of the TiO2-B phase. The clear lattice fringes indicate that this material is highly crystalline in nature. The electron diffraction (ED) pattern in Figure 3d exhibits diffraction spots corresponding to the [001] zone axis of the TiO2-B phase. The corresponding fast Fourier transform (FFT) confirms the presence of the (200), (1-10), (-1-10) crystallographic planes of the TiO2-B monoclinic C2/m crystal structure.
The morphology and porosity of the mesoporous TiO2-B nanobelts were further confirmed by electron microscopy characterization. The high magnification SEM image in Figure 4a highlights a single nanobelt, revealing a relatively rough surface with numerous pores, further supported by high-angle annular dark-field scanning transmission electron microscope (HAADF-STEM) (Figure 4b).
The HRTEM image (Figure 4c) shows a clear mesoporous structure, where the high contrast regions correspond to 6–8 nm pores (Figure 4d) uniformly dispersed on the surface. This is also confirmed through the Barrett-Joyner-Halenda (BJH) pore size analysis calculated from the nitrogen (N2) adsorption/desorption isotherms (Figure 4e). The isotherms show typical type IV curves with a sharp capillary condensation step at P/P0 = 0.8–0.9. At relatively high pressure, the curves exhibit a small hysteresis. The Brunauer-Emmett-Teller (BET) specific surface area is measured to be 80.9 m2 g−1.
TiO2 materials are promising candidates for photocatalysis [36], such as efficient water splitting into H2. This half-reaction of water splitting converts solar energy into chemical or electrical energy in an economical way. To evaluate the photocatalytic activities of the anatase TiO2 and mesoporous TiO2-B nanobelts, H2 evolution tests were carried out in the presence of methanol. Figure 5 compares photocatalytic water splitting tests of the mesoporous TiO2-B and anatase TiO2 nanobelts, both Pt-loaded (0.5 wt%), under the same conditions, i.e., with the same surface area (ca. 0.23 m2) and the same mass (70 mg).
As shown in Figure 5, mesoporous the TiO2-B nanobelts exhibit a superior photocatalytic activity with a H2 evolution rate of 656.10 µmol h−1, about three times that of anatase TiO2 nanobelts (282.06 µmol h−1). Commercially available P25 powders consisting of anatase and rutile crystalline phases cannot realize efficient H2 evolution, but after loading with Pt, the H2 evolution rate can be greatly enhanced up to 100 μmol h−1 (in case of 15 mg catalyst) [37]. Compared to anatase and rutile crystalline phases, TiO2-B phase is known to be more active towards H2 evolution. Cai et al. reported that pure TiO2-B nanobelts without Pt nanoparticles showed a H2 evolution rate of ~107 μmol h−1 [38]. In our study, the photocatalytic rate of our Pt-loaded mesoporous TiO2-B nanobelts greatly increases around 6 times higher than that of pure mesoporous TiO2-B nanobelts without Pt [38].

4. Conclusions

We have designed and fabricated for the first time highly crystallized mesoporous TiO2-B with high surface area (80.9 m2 g−1) and pore size of 6–8 nm. The obtained highly crystallized mesoporous TiO2-B was used as photocatalyst, showing efficient water splitting for H2 evolution (656.10 µmol h−1), almost three times that of anatase TiO2 nanobelts (282.06 µmol h−1). It opens a new strategy for the design for photocatalyst of H2 evolution reaction from H2O.

Author Contributions

Methodology, P.L. and Q.C.; Software, M.K., J.H. and L.L.; Formal analysis, Y.Y., Y.I., Y.B. and J.K.; Investigation, M.K., J.H. and L.L.; Resources, A.A.A., Y.G.A. and K.A.A.; Data curation, P.L. and Q.C.; Supervision, D.Z., V.M. and J.L.

Funding

This research received no external funding.

Acknowledgments

The project was supported by the National Natural Science Foundation of China (NSFC) (61604070, 21701096), the National Natural Science Foundation of Jiangsu Province (BK20161000), the Natural Science Foundation of Shandong Province (No. ZR2016BQ03), Talent Fund of Shandong Collaborative Innovation Center of Eco-Chemical Engineering (XTCXQN05), and the State Key Laboratory of Fine Chemicals (KF 1601). This project was also supported by the Deanship of Scientific Research (DSR) at King Abdulaziz University, Jeddah. The authors, therefore, acknowledge with thanks DSR for technical and financial supports.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tang, Y.; Zhang, Y.; Malyi, O.I.; Bucher, N.; Xia, H.; Xi, S.; Zhu, Z.; Lv, Z.; Li, W.; Wei, J.; et al. Identifying the Origin and Contribution of Surface Storage in TiO2(B) Nanotube Electrode by In Situ Dynamic Valence State Monitoring. Adv. Mater. 2018, 30, 1802200. [Google Scholar] [CrossRef] [PubMed]
  2. Guan, B.Y.; Yu, L.; Li, J.; Lou, X.W. A universal Cooperative Assembly-directed Method for Coating of Mesoporous TiO2 Nanoshells with Enhanced Lithium Storage Properties. Sci. Adv. 2016, 2, e1501554. [Google Scholar] [CrossRef] [PubMed]
  3. Li, L.; Yan, J.; Wang, T.; Zhao, Z.J.; Zhang, J.; Gong, J.; Guan, N. Sub-10 nm Rutile Titanium Dioxide Nanoparticles for Efficient Visible-Light-Driven Photocatalytic Hydrogen Production. Nat. Commun. 2015, 6, 5881. [Google Scholar] [CrossRef] [PubMed]
  4. Zhou, W.; Sun, F.; Pan, K.; Tian, G.; Jiang, B.; Ren, Z.; Tian, C.; Fu, H. Well-ordered Large-Pore Mesoporous Anatase TiO2 with Remarkably High Thermal Stability and Improved Crystallinity: Preparation, Characterization, and Photocatalytic Performance. Adv. Funct. Mater. 2011, 21, 1922–1930. [Google Scholar] [CrossRef]
  5. Li, X.; Chen, N.; Lin, S.; Wang, J.; Zhang, J. NiO-wrapped Mesoporous TiO2 Microspheres Based Selective Ammonia Sensor at Room Temperature. Sens. Actuators B 2015, 209, 729–734. [Google Scholar] [CrossRef]
  6. Crossland, E.J.W.; Noel, N.; Sivaram, V.; Leijtens, T.; Alexander-Webber, J.A.; Snaith, H.J. Mesoporous TiO2 Single Crystals Delivering Enhanced Mobility and Optoelectronic Device Performance. Nature 2013, 495, 215. [Google Scholar] [CrossRef]
  7. Gu, D.; Schüth, F. Synthesis of Non-siliceous Mesoporous Oxides. Chem. Soc. Rev. 2014, 43, 313–344. [Google Scholar] [CrossRef]
  8. Li, W.; Wu, Z.; Wang, J.; Elzatahry, A.A.; Zhao, D. A Perspective on Mesoporous TiO2 Materials. Chem. Mater. 2014, 26, 287–298. [Google Scholar] [CrossRef]
  9. Antonelli, D.M.; Ying, J.Y. Synthesis of Hexagonally Packed Mesoporous TiO2 by a Modified Sol-Gel Method. Angew. Chem. Int. Ed. Engl. 1995, 34, 2014–2017. [Google Scholar] [CrossRef]
  10. Bastakoti, B.P.; Ishihara, S.; Leo, S.Y.; Ariga, K.; Wu, K.C.W.; Yamauchi, Y. Polymeric Micelle Assembly for Preparation of Large-Sized Mesoporous Metal Oxides with Various Compositions. Langmuir 2014, 30, 651. [Google Scholar] [CrossRef]
  11. Yue, W.; Randorn, C.; Attidekou, P.S.; Su, Z.; Irvine, J.T.S.; Zhou, W. Syntheses, Li Insertion, and Photoactivity of Mesoporous Crystalline TiO2. Adv. Funct. Mater. 2009, 19, 2826–2833. [Google Scholar] [CrossRef]
  12. Sridhar, V.; Park, B.-W.; Sitti, M. Light-Driven Janus Hollow Mesoporous TiO2-Au Microswimmers. Adv. Funct. Mater. 2018, 28, 1704902. [Google Scholar] [CrossRef]
  13. Liu, Y.; Lan, K.; Bagabas, A.A.; Zhang, P.; Gao, W.; Wang, J.; Sun, Z.; Fan, J.; Elzatahry, A.A.; Zhao, D. Ordered Macro/Mesoporous TiO2 Hollow Microspheres with Highly Crystalline Thin Shells for High Efficiency Photoconversion. Small 2016, 12, 860–867. [Google Scholar] [CrossRef] [PubMed]
  14. Wei, H.; Rodriguez, E.F.; Hollenkamp, A.F.; Bhatt, A.I.; Chen, D.; Caruso, R.A. High Reversible Pseudocapacity in Mesoporous Yolk-Shell Anatase TiO2/TiO2(B) Microspheres Used as Anodes for Li-Ion Batteries. Adv. Funct. Mater. 2017, 27, 1703270. [Google Scholar] [CrossRef]
  15. Zhao, T.; Luo, W.; Deng, Y.; Luo, Y.; Xu, P.; Liu, Y.; Wang, L.; Ren, Y.; Jiang, W. Monodisperse Mesoporous TiO2 Microspheres for Dye Sensitized Solar Cells. Nano Energy 2016, 26, 16–25. [Google Scholar] [CrossRef]
  16. Liu, Y.; Elzatahry, A.A.; Luo, W.; Lan, K.; Zhang, P.; Fan, J.; Wei, Y.; Wang, C.; Deng, Y.; Zheng, G.; et al. Surfactant-templating Strategy for Ultrathin Mesoporous TiO2 Coating on Flexible Graphitized Carbon Supports for High-performance Lithium-ion Battery. Nano Energy 2016, 25, 80–90. [Google Scholar] [CrossRef]
  17. Liu, Y.; Lan, K.; Li, S.; Liu, Y.; Kong, B.; Wang, G.; Zhang, P.; Wang, R.; He, H.; Ling, Y.; et al. Constructing Three-Dimensional Mesoporous Bouquet-Posy-like TiO2 Superstructures with Radially Oriented Mesochannels and Single-Crystal Walls. J. Am. Chem. Soc. 2017, 139, 517–526. [Google Scholar] [CrossRef]
  18. Qiu, B.; Xing, M.; Zhang, J. Mesoporous TiO2 Nanocrystals Grown in Situ on Graphene Aerogels for High Photocatalysis and Lithium-ion Batteries. J. Am. Chem. Soc. 2014, 136, 5852–5855. [Google Scholar] [CrossRef]
  19. Riad, K.B.; Wood-Adams, P.M.; Wegner, K. Flame-made TiO2(B). Mater. Res. Bull. 2018, 106, 276–281. [Google Scholar] [CrossRef]
  20. Ren, Y.; Liu, Z.; Pourpoint, F.; Armstrong, A.R.; Grey, C.P.; Bruce, P.G. Nanoparticulate TiO2(B): An Anode for Lithium-ion Batteries. Angew. Chem. Int. Ed. 2012, 51, 2164–2167. [Google Scholar] [CrossRef]
  21. Wessel, C.; Zhao, L.; Urban, S.; Ostermann, R.; Djerdj, I.; Smarsly, B.M.; Chen, L.; Hu, Y.-S.; Sallard, S. Ionic-Liquid Synthesis Route of TiO2(B) Nanoparticles for Functionalized Materials. Chem.-Eur. J. 2011, 17, 775–779. [Google Scholar] [CrossRef]
  22. Armstrong, A.R.; Armstrong, G.; Canales, J.; García, R.; Bruce, P.G. Lithium-Ion Intercalation into TiO2-B Nanowires. Adv. Mater. 2005, 17, 862–865. [Google Scholar]
  23. Lan, T.; Dou, J.; Xie, F.; Xiong, P.; Wei, M. Ultrathin TiO2-B Nanowires with Enhanced Electrochemical Performance for Li-ion Batteries. J. Mater. Chem. A 2015, 3, 10038–10044. [Google Scholar] [CrossRef]
  24. Beuvier, T.; Richard-Plouet, M.; Granvalet, M.M.-L.; Brousse, T.; Crosnier, O.; Brohan, L. TiO2(B) Nanoribbons As Negative Electrode Material for Lithium Ion Batteries with High Rate Performance. Inorg. Chem. 2010, 49, 8457–8464. [Google Scholar] [CrossRef]
  25. Naoi, K.; Kurita, T.; Abe, M.; Furuhashi, T.; Abe, Y.; Okazaki, K.; Miyamoto, J.; Iwama, E.; Aoyagi, S.; Naoi, W.; et al. Ultrafast Nanocrystalline-TiO2(B)/Carbon Nanotube Hyperdispersion Prepared via Combined Ultracentrifugation and Hydrothermal Treatments for Hybrid Supercapacitors. Adv. Mater. 2016, 28, 6751–6757. [Google Scholar] [CrossRef] [PubMed]
  26. Aravindan, V.; Shubha, N.; Cheah, Y.L.; Prasanth, R.; Chuiling, W.; Prabhakar, R.R.; Madhavi, S. Extraordinary Long-term Cycleability of TiO2-B Nanorods as Anodes in Full-cell Assembly with Electrospun PVdF-HFP Membranes. J. Mater. Chem. A 2013, 1, 308–316. [Google Scholar] [CrossRef]
  27. Huang, H.; Fang, J.; Xia, Y.; Tao, X.; Gan, Y.; Du, J.; Zhua, W.; Zhang, W. Construction of Sheet-belt Hybrid Nanostructures from One-dimensional Mesoporous TiO2(B) Nanobelts and Graphene Sheets for Advanced Lithium-ion Batteries. J. Mater. Chem. A 2013, 1, 2495–2500. [Google Scholar] [CrossRef]
  28. Wu, Q.; Xu, J.; Yang, X.; Lu, F.; He, S.; Yang, J.; Fan, H.J.; Wu, M. Ultrathin Anatase TiO2 Nanosheets Embedded with TiO2-B Nanodomains for Lithium-ion Storage: Capacity Enhancement by Phase Boundaries. Adv. Energy Mater. 2015, 5, 1401756. [Google Scholar] [CrossRef]
  29. Li, X.; Wu, G.; Liu, X.; Li, W.; Li, M. Orderly Integration of Porous TiO2(B) Nanosheets into Bunchy Hierarchical Structure for High-rate and Ultralong-lifespan Lithium-ion Batteries. Nano Energy 2017, 31, 1–8. [Google Scholar] [CrossRef]
  30. Lan, K.; Liu, Y.; Zhang, W.; Liu, Y.; Elzatahry, A.; Wang, R.; Xia, Y.; Al-Dhayan, D.; Zheng, N.; Zhao, D. Uniform Ordered Two-Dimensional Mesoporous TiO2 Nanosheets from Hydrothermal-Induced Solvent-Confined Monomicelle Assembly. J. Am. Chem. Soc. 2018, 140, 4135–4143. [Google Scholar] [CrossRef] [PubMed]
  31. Liu, H.; Bi, Z.; Sun, X.-G.; Unocic, R.R.; Paranthaman, M.P.; Dai, S.; Brown, G.M. Mesoporous TiO2-B Microspheres with Superior Rate Performance for Lithium Ion Batteries. Adv. Mater. 2011, 23, 3450–3454. [Google Scholar] [CrossRef] [PubMed]
  32. Etacheri, V.; Kuo, Y.; van der Ven, A.; Bartlett, B.M. Mesoporous TiO2-B Microflowers Composed of (110) Facet-exposed Nanosheets for Fast Reversible Lithium-ion Storage. J. Mater. Chem. A 2013, 1, 12028–12032. [Google Scholar] [CrossRef]
  33. Zhang, Y.; Ding, Z.; Foster, C.W.; Banks, C.E.; Qiu, X.; Ji, X. Oxygen Vaccancies Evoked Blue TiO2(B) Nanobelts with Efficiency Enhancement in Sodium Storage Behaviors. Adv. Funct. Mater. 2017, 27, 1700856. [Google Scholar] [CrossRef]
  34. Amano, F.; Prieto-Mahaney, O.-O.; Terada, Y.; Yasumoto, T.; Shibayama, T.; Ohtani, B. Decahedral Single-Crystalline Particles of Anatase Titanium(IV) Oxide with High Photocatalytic Activity. Chem. Mater. 2009, 21, 2601–2603. [Google Scholar] [CrossRef]
  35. Ivanova, I.I.; Knyazeva, E.E. Micro-mesoporous Materials Obtained by Zeolite Recrystallization: Synthesis, Characterization and Catalytic Applications. Chem. Soc. Rev. 2013, 42, 3671–3688. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, G.; Zhao, Y.; Sun, C.; Li, F.; Lu, G.Q.; Cheng, H.-M. Synergistic Effects of B/N Doping on the Visible-Light Photocatalytic Activity of Mesoporous TiO2. Angew. Chem. Int. Ed. 2008, 47, 4516–4520. [Google Scholar] [CrossRef]
  37. Saito, K.; Tominaka, S.; Yoshihara, S.; Ohara, K.; Sugahara, Y.; Ide, Y. Room-Temperature Rutile TiO2 Nanoparticle Formation on Protonated Layered Titanate for High-Performance Heterojunction Creation. ACS Appl. Mater. Interfaces 2017, 9, 24538–24544. [Google Scholar] [CrossRef] [PubMed]
  38. Cai, J.; Wang, Y.; Zhu, Y.; Wu, M.; Zhang, H.; Li, X.; Jiang, Z.; Meng, M. In Situ Formation of Disorder-Engineered TiO2(B)-Anatase Heterophase Junction for Enhanced Photocatalytic Hydrogen Evolution. ACS Appl. Mater. Interfaces 2015, 7, 24987–24992. [Google Scholar] [CrossRef] [PubMed]

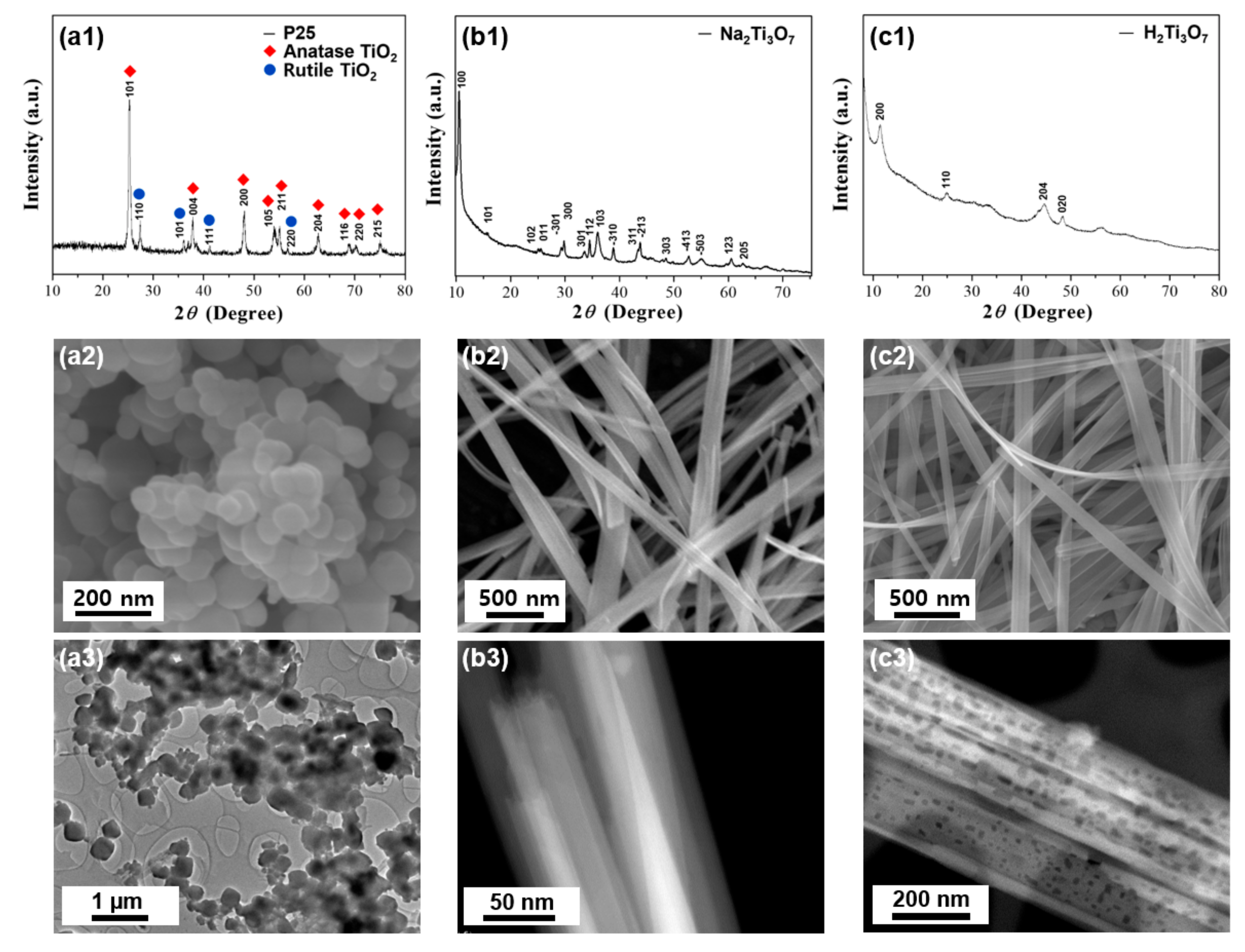

Figure 1. X-ray diffractometer (XRD) patterns, SEM images, and transmission electron microscopy (TEM) images of (a1-3) the starting P25 powders, (b1-3) Na2Ti3O7 nanobelts, and (c1-3) H2Ti3O7 nanobelts, respectively.
Figure 1. X-ray diffractometer (XRD) patterns, SEM images, and transmission electron microscopy (TEM) images of (a1-3) the starting P25 powders, (b1-3) Na2Ti3O7 nanobelts, and (c1-3) H2Ti3O7 nanobelts, respectively.
Nanomaterials 09 00919 g001

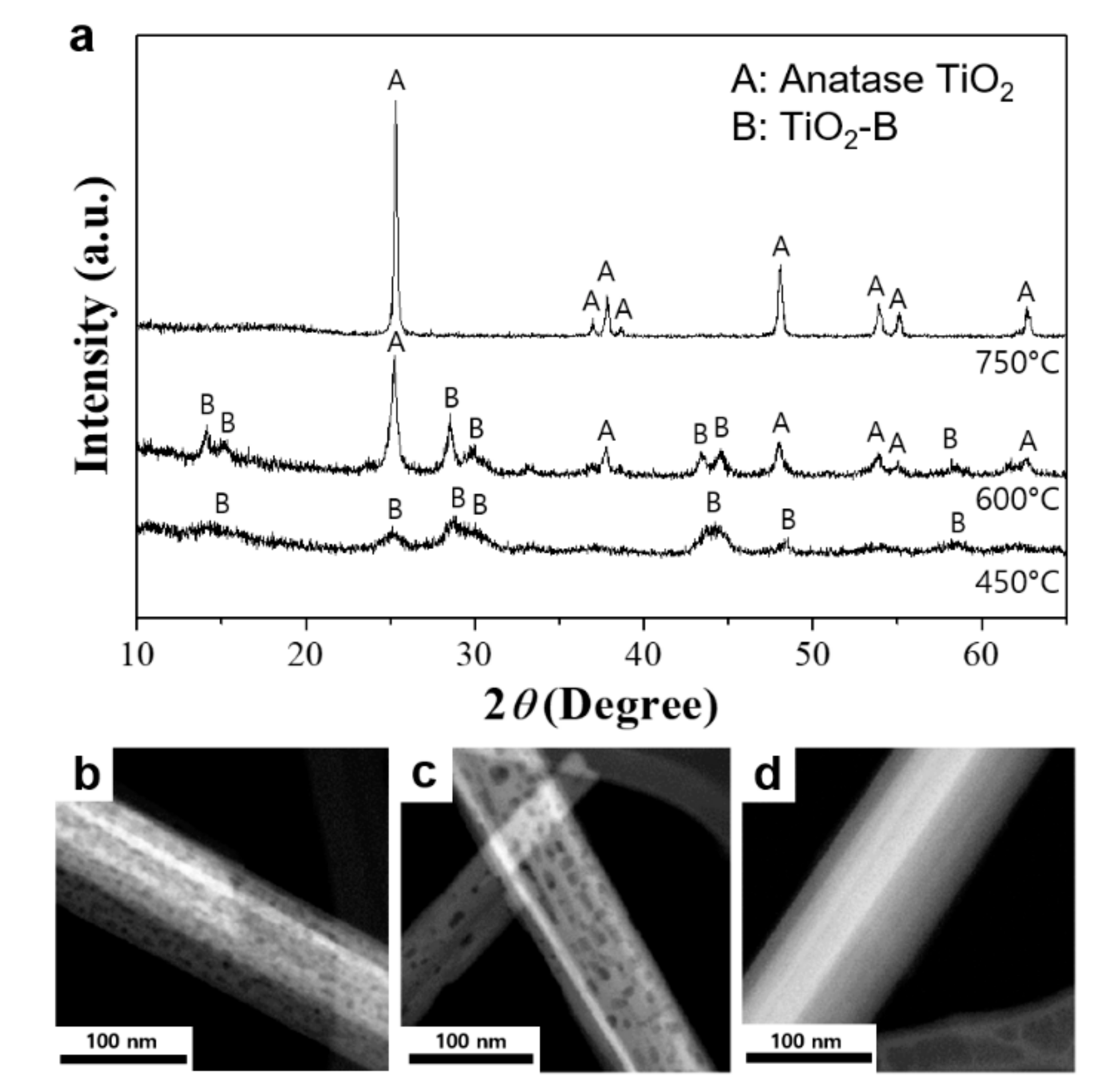

Figure 2. (a) XRD patterns of the TiO2 nanobelts obtained at different calcination temperatures, TEM images of TiO2 nanobelts obtained at (b) 450 °C, (c) 600 °C, and (d) 750 °C.
Figure 2. (a) XRD patterns of the TiO2 nanobelts obtained at different calcination temperatures, TEM images of TiO2 nanobelts obtained at (b) 450 °C, (c) 600 °C, and (d) 750 °C.
Nanomaterials 09 00919 g002

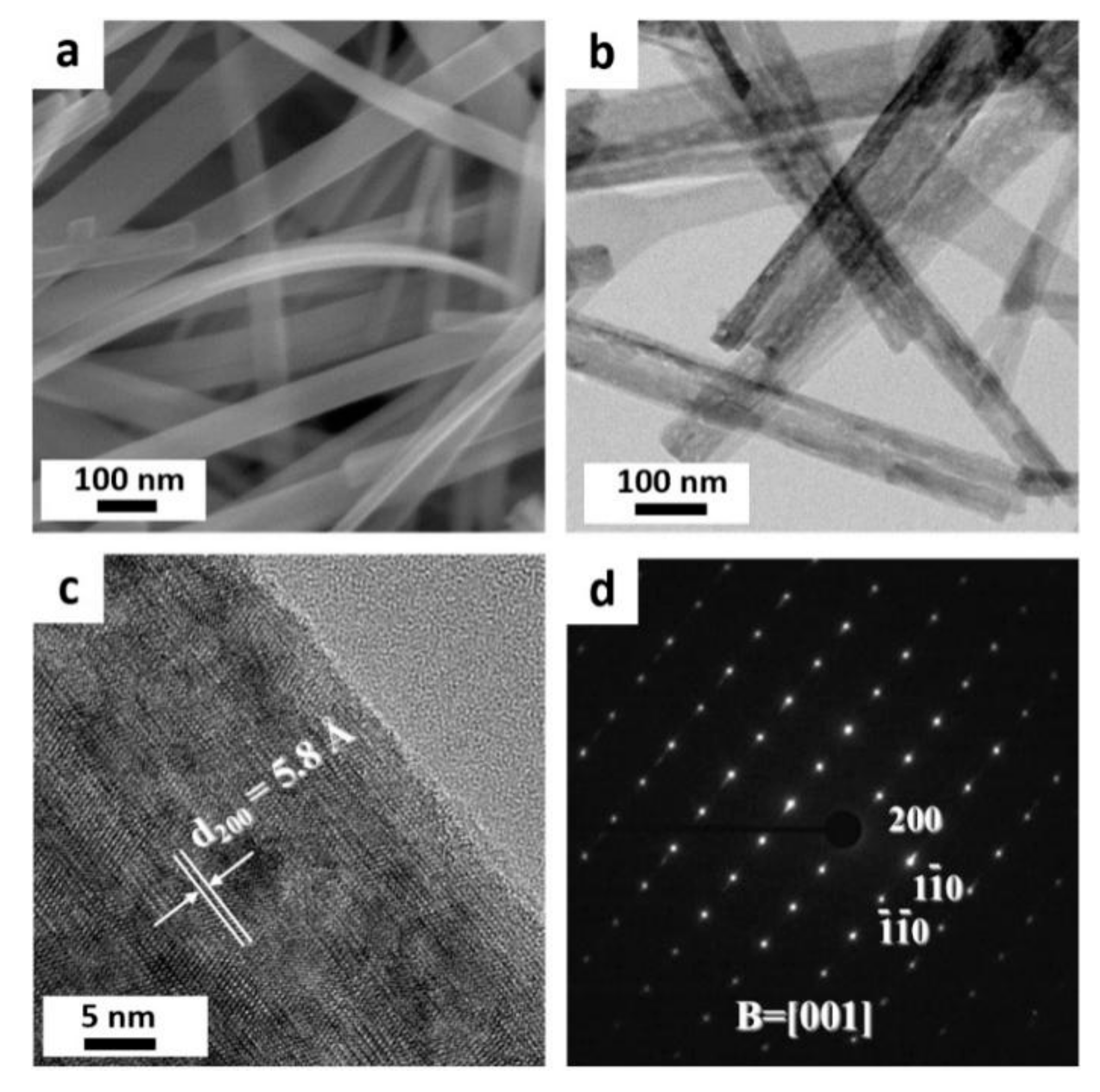

Figure 3. (a) Low magnification field-emission scanning electron microscopy (FESEM) and (b) TEM image of mesoporous TiO2-B nanobelts, (c) high resolution TEM (HRTEM) image of one single nanobelt, showing the fringe spacing of crystalline TiO2-B and (d) the corresponding electron diffraction (ED) patterns.
Figure 3. (a) Low magnification field-emission scanning electron microscopy (FESEM) and (b) TEM image of mesoporous TiO2-B nanobelts, (c) high resolution TEM (HRTEM) image of one single nanobelt, showing the fringe spacing of crystalline TiO2-B and (d) the corresponding electron diffraction (ED) patterns.
Nanomaterials 09 00919 g003
Figure 4. (a) High magnification SEM image, highlighting one single TiO2-B nanobelt with pores, (b) TEM image of mesoporous TiO2-B nanobelts, revealing homogeneous nanopores, (c) high-angle annular dark-field scanning transmission electron microscope (HAADF-STEM) image of single mesoporous TiO2-B nanobelt, (d) magnified pore image in (c), and (e) N2 adsorption-desorption isotherm of the mesoporous TiO2-B nanobelts. Inset: the corresponding pore size distribution calculated by the Barrett-Joyner-Halenda (BJH) method from the adsorption curve.
Figure 4. (a) High magnification SEM image, highlighting one single TiO2-B nanobelt with pores, (b) TEM image of mesoporous TiO2-B nanobelts, revealing homogeneous nanopores, (c) high-angle annular dark-field scanning transmission electron microscope (HAADF-STEM) image of single mesoporous TiO2-B nanobelt, (d) magnified pore image in (c), and (e) N2 adsorption-desorption isotherm of the mesoporous TiO2-B nanobelts. Inset: the corresponding pore size distribution calculated by the Barrett-Joyner-Halenda (BJH) method from the adsorption curve.
Nanomaterials 09 00919 g004
Figure 5. Comparison of photocatalytic water splitting tests of Pt-loaded (0.5%) H2Ti3O7, anatase TiO2 and mesoporous TiO2-B nanobelts samples with the same mass (70 mg) under UV-Visible light irradiation (λ > 300 nm).
Figure 5. Comparison of photocatalytic water splitting tests of Pt-loaded (0.5%) H2Ti3O7, anatase TiO2 and mesoporous TiO2-B nanobelts samples with the same mass (70 mg) under UV-Visible light irradiation (λ > 300 nm).
Nanomaterials 09 00919 g005
