Application of Nanoparticles and Nanomaterials in Thermal Ablation Therapy of Cancer

1
Environmental Science & Technology Group (ESTg), Chemical & Materials Engineering Department, Nazarbayev University, 53 Kabanbay batyr ave., 010000 Nur-Sultan, Kazakhstan
2
PI National Laboratory Astana, Nazarbayev University, 53 Kabanbay batyr ave., 010000 Nur-Sultan, Kazakhstan
3
Department of Pedagogical Sciences, Astana International University, 8 Kabanbay batyr ave., 010000 Nur-Sultan, Kazakhstan
4
Measurements and Biomedical Instrumentation Lab, Department of Engineering, Università Campus Bio-Medico di Roma, Via Alvaro del Portillo, 21-00128 Roma, Italy
5
Department of Mechanical Engineering, Politecnico di Milano, Via Giuseppe La Masa 1, 20156 Milano, Italy
6
The Environment & Resource Efficiency Cluster (EREC), Nazarbayev University, 53 Kabanbay batyr ave., 010000 Nur-Sultan, Kazakhstan
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(9), 1195; https://doi.org/10.3390/nano9091195
Submission received: 22 July 2019 / Revised: 14 August 2019 / Accepted: 16 August 2019 / Published: 24 August 2019

Abstract

:
Cancer is one of the major health issues with increasing incidence worldwide. In spite of the existing conventional cancer treatment techniques, the cases of cancer diagnosis and death rates are rising year by year. Thus, new approaches are required to advance the traditional ways of cancer therapy. Currently, nanomedicine, employing nanoparticles and nanocomposites, offers great promise and new opportunities to increase the efficacy of cancer treatment in combination with thermal therapy. Nanomaterials can generate and specifically enhance the heating capacity at the tumor region due to optical and magnetic properties. The mentioned unique properties of nanomaterials allow inducing the heat and destroying the cancerous cells. This paper provides an overview of the utilization of nanoparticles and nanomaterials such as magnetic iron oxide nanoparticles, nanorods, nanoshells, nanocomposites, carbon nanotubes, and other nanoparticles in the thermal ablation of tumors, demonstrating their advantages over the conventional heating methods.

Graphical Abstract

1. Introduction

Nowadays, cancer is the most serious health issue leading to the high rates of death worldwide. According to the statistics from the World Health Organization, the number of cancer cases in 2018 increased to 18.1 million new cases and 9.6 million deaths. The leading types of new cancer cases globally are lung, female breast, and colorectal cancers [1]. Therefore, the ability of early cancer detection and treatment is of utmost importance. There are several well-known standard techniques for cancer treatment such as surgery, radiation, and chemotherapy [2,3]. However, these methods cannot efficiently fulfill the need in cancer disease treatment due to the several limitations such as the hard-to-reach tumor position, the close location of other possible tumors, the patient’s opinion, and health conditions. Moreover, cancer tumors can create protection from numerous chemotherapeutic agents, causing additional obstacles for the treatment [4]. This review paper focuses on thermal ablation therapy to outline the recent advances in cancer treatment by use of radiofrequency, microwave, laser ablation, and photothermal ablation sources supplemented by various nanomaterials. Moreover, the advantages and properties of each nanomaterial, namely magnetic and gold nanoparticles, nanocomposites, nanoshells, nanorods, carbon nanotubes, and other types of nanoparticles are discussed. A schematic representation of several types of nanomaterials used is shown in Figure 1.
Thermal ablation is a technique used in cancer therapy to eliminate damaged cells or tissue by applying external electromagnetic waves and elevated heat. Thermal ablation techniques utilize radiofrequency, microwave frequency, and cryoablation, and is focused on ultrasound (US) and laser light [5,6]. The advantages of thermal ablation therapy over the conventional methods are the flexibility, low cost, and its minimal invasiveness [7]. However, the choice of a suitable heat delivery route to the tumor is a vital and challenging concern in thermal ablation [8]. Moreover, existing heating methods have difficulties in differentiation between tumors and surrounding healthy tissues, leading to the damage of the neighboring cells [9]. Therefore, the combination of nanotechnology and thermal therapy has attracted a lot of attention as a promising method to overcome the relevant limitations of conventional thermal therapies. A schematic representation of nanomaterials and external heat sources used is shown in Figure 2.
Nanotechnology is gaining great attention in the biomedical field due to the possible application in diagnostics and treatment techniques [10,11,12,13]. Nanomaterials, especially nanoparticles-assisted and nanocomposites-assisted thermal therapy, offer many advantages over conventional methods. Due to their magnetic and optical properties, nanomaterials can trigger heat increase in tumor regions by absorbing near-infrared light (NIR), electromagnetic, or radio frequency (RF) waves [14,15]. Moreover, surface-functionalized nanomaterials can specifically bind to the cancer cell and allow selective heat destruction of the tumor and also the multitasking possibility of cell separation and imaging [16,17]. As shown in Figure 3, the nanomaterials allow heat increase at the specific region and prevent the heat generation in the non-targeted region, improving the selectivity of the treatment.
A general procedure for the RF thermal ablation combined with nanomaterials consists of the following stages: the specific and selective attachment of nanoparticles with cancer, validation of binding, and heat administration to the specific area by applying an electromagnetic field [18]. However, in order to have safe tumor destruction, parameters such as the critical heat dose, application of proper magnetic material concentration, and its biodistribution are vital [19,20,21]. In addition, the further removal of the nanomaterial from the targeted area should be considered carefully in order to avoid the undesired heating of non-target tissue [20].
The size and shape of nanoparticles are critical factors that determine their performance: the ability to penetrate the blood vessel, reach the targeted region, affect the rate of macrophage uptake, and finally wash out from the body. For instance, nanoparticles larger than 10 nm will be too large to pull out from the normal capillaries [22,23]. In addition, the transport of smaller nanoparticles exhibits relatively higher diffusion rates, which allows them to move laterally in the blood vessel with greater ease. However, larger particles can penetrate the tumor through the gaps between the endothelial cells in leaky tumor vasculature and remain there for a long time. This phenomenon called the enhanced permeability and retention (EPR) effect. Mainly, the EPR effect is beneficial to deliver the nanoparticles loaded with the drug. The larger nanomaterials can permeate and accumulate at the tumor site for a long time, causing the effective treatment and avoiding the side effects that are due to failure to penetrate the normal tissue. The drawback of the EPR effect is the inhomogeneity of interstitial holes, which affects the uniform penetration and distribution of nanoparticles within the tumor [24,25]. Nanoparticles of different shapes have a different active fractional area, which results in variability in binding avidity, circulation in the blood, and the ability to bind to wall receptors (Figure 4). Thus, the nanoparticle shape affects the rate of tumor deposition and therapeutic efficacy [23].
Moreover, the surface-chemical properties of nanoparticles and their surface coating play a crucial role in further attachment to the cancer cells. Notably, the functional groups on the surface of the nanoparticle are considered as the defining factors of solubility, interaction, and attachment to the cell. Depending on the surface coating, nanoparticles can be defined as positively or negatively charged. Positively charged nanoparticles are the most beneficial in the passage of cell-membrane barriers, and concentrate in the cytosol or nucleus [26].
The control of heat delivery and dose to the cancerous cells is significant in order to meet the clinical requirements. The specific absorption rate (SAR) was found as the main factor to estimate the heating of the tissue generated by the magnetic induction. This parameter is proportional to temperature increase, which is defined as the electromagnetic energy absorption rate by a unit mass of biological material, and is defined as follows as in Equation (1), where λ—the thermal conductivity of the tissue, c—the concentration of nanoparticles, ∆T—the required temperature increase, and R—the radius of the spherical tumor [27,28].
S A R =   Δ   T × 3 λ c × R 2
Sapareto and Dewey [29] studied the thermal dosimetry of thermo-therapies, the effect of high temperature, and the duration of exposure in cancer cells. This model is now commonly used in electrical thermo-therapies such as Radiofrequency ablation (RFA) and Microwave ablation (MWA) [30]. Laser ablation studies are often performed on phantoms that mimic the absorption properties of lasers in the infrared [31]. Most phantoms are based on agar jelly with blackened colorants that are designed to match the absorption and anisotropy coefficients of human tissues [32]. Nowadays, colorimetric models are also used in RFA and MWA in order to have phantoms that are able to yield a different color as a function of the peak temperature achieved during rapid ablation phenomena. A recent work has been presented by Mikhail et al. [33], who reported a thermo-chromic phantom for RFA made of polymeric materials.
Beik et al. presented a review of breakthroughs in nanotechnology for hypothermia cancer therapy. The paper presented the results in nano-photothermal therapy, nano-radio-frequency ablation therapy, nano-US hypothermia therapy, and nano-magnetic hyperthermia therapy employing magnetic and gold nanoparticles [8]. The focus of Beik et al. was on radiation sources rather than nanoparticle types. Abadeer et al. [34] conducted a review on the recent progress in cancer thermal therapy using gold nanoparticles. This work included in vitro and in vivo studies and the recent advances of gold nanoparticle photothermal therapy toward clinical cancer treatment. The potential of RF hyperthermia using gold nanoparticles has been investigated and demonstrated as effective under certain conditions, and the treatment may merit further study. Many researchers have also demonstrated effective cancer treatment, at least in the lab, with photothermal therapy [34]. Day et al. reviewed the application of magnetic nanoparticles, nanoshells in near-infrared photothermal therapies, magnetic fluid hyperthermia, and RF ablation [9].
The major difference of this review paper compared to others is in the extended investigation of frequently used nanomaterials (magnetic nanoparticles, gold nanoparticles, CuS nanoparticles, nanorods, carbon nanotubes, nanoshells, and nanocomposites) applied in the cancer thermal therapy using radiofrequency (RF), microwave (MW), photothermal and laser therapy.

2. Magnetic Nanoparticles (MNP)

MNP is a widely used nanomaterial type in thermal therapy with a size range between 1–100 nm. MNPs comprise magnetic elements, such as cobalt, manganese, nickel, iron, chromium, calcium, and gadolinium. Among various MNPs, the iron oxide nanoparticles are widely used in thermal ablation therapy due to the high value of the magnetic moment density, which is 220 emu/g. Moreover, iron oxide MNPs are biocompatible compared to other MNPs, which are known as toxic and susceptible to oxidation [35]. Figure 5 shows that MNPs are mostly spherical in shape when analysed in Transmission Electron Microscopy (TEM) and Scanning Electron Microscopy (SEM).
Iron oxide nanoparticles according to their structure are classified as hematite (α-Fe2O3), maghemite (γ-Fe2O3), and magnetite (Fe3O4) nanoparticles (Figure 6). Nanoparticles made up of ferromagnetic materials and less than 10–20 nm in size display a unique type of magnetism, which is called superparamagnetic [36]. The phenomenon of superparamagnetism involves magnetization up to saturation magnetization when an external magnetic field is applied, and can return to a nonmagnetic state when the external magnet is removed. This property of nanoparticles occurs in single-domain magnetic particles and depends on the size, which should be as low as 10–30 nm [37].
Among iron oxide nanoparticles, Fe3O4 and γ-Fe2O3 exhibit ferrimagnetism at room temperature, leading to the possibility of application in magnetic thermal therapy [38]. The magnetite particle has an inverse spinel configuration with the tetrahedral A-sites and the octahedral B-sites. The A-sites of magnetite structure are occupied by Fe3+ ions, and the B-sites are occupied by Fe2+ and Fe3+ ions. This explains the idealized magnetic moment of Fe3O4, which is 4 μB per formula unit. The structure of MNPs is one of the key aspects that makes the extensive adaptation of magnetic thermal ablation possible [39].
MNPs can produce heat by four distinct mechanisms: eddy currents and hysteresis losses in particles with sizes greater than 1 micron, relaxation losses in superparamagnetic particles, and frictional losses in suspensions that are viscous [40,41]. Relaxation losses can be defined by two mechanisms: the Neel relaxation mechanism and the Brownian motion of the particles. The Neel relaxation mechanism is a rotation of the magnetic moment within a nanoparticle, which remains fixed. The dissipation of energy during the Neel relaxation occurs by rearranging of the atomic dipole moment in crystal. While in Brownian motion, the entire nanoparticle rotates within its surroundings, dissipating the thermal energy to the ambient media through shear stress (Figure 7). The dissipation of magnetic energy of nanoparticle into thermal energy is reasoned by the property of particles to change the orientation of the magnetic moment to align with the field and return to the equilibrium position when an alternating magnetic field (AMF) is applied [42,43,44].
The first groundbreaking research in the utilization of magnetic materials for the enhancement of the thermal therapy was done by Gilchrist et al. in 1957. They experimentally demonstrated on a dog’s lymph nodes that the field strength of 200 to 240 Oersteds with 5 mg of 20–100-nm sized Fe2O3 nanoparticles per gram of tissue could increase the temperature by 14 °C in three minutes by applying RF heating [45]. Later, in 1965, the same group obtained the elimination of metastasis at 50 °C temperature for 30 min in 15 dogs utilizing the ferrite magnetite nanoparticles that were between 20–100 nm µm [46]. After these studies, many investigations in these field have been done to optimize cancer treatment techniques.
MNPs can be produced by different chemical and physical synthesis techniques, which can influence the final parameters of the nanoparticles [47]. Notably, the method of nanoparticle synthesis affects the final size, shape, and/or surface charge of the final product. The size of MNPs is one of the significant parameters in the thermal therapy. As the size of nanoparticles decreases, the surface-to-volume ratio increases, offering a wide range of optical, electronic, chemical, and magnetic properties [48]. Furthermore, MNPs with small sizes and high surface areas are biocompatible, biodegradable, chemically stable, easy to synthesize, and cost-effective [49,50]. Superparamagnetic iron particles with core diameters less than 6 nm are not able to generate heating properties. Therefore, it is preferred to have particles with a size larger than 10 nm to reach the cytotoxic effects within target cells and the possibility of heat increase [51]. Moreover, Tong et al. in their study defined that MNPs with sizes larger than 15 nm have better heating efficiency. However, the size limits up to 40-nm MNPs, because at this point, the SAR value reaches the theoretical maximum of clinically significant AMF [52]. Many studies employed MNPs that were 10–20 nm to investigate the heat increase at the tumor site [20,51,53,54,55,56,57,58]. In the study of Hilger et al., three MNP samples with 10-nm and 220-nm sizes were employed in the thermal therapy; the maximum temperature of 73 °C was obtained by 10-nm MNPs, while the 220-nm MNPs could increase the heat up to only 50 °C [20].
MNPs found wide application in the treatment of breast, prostate, glioblastoma, kidney, etc. Most researchers concentrated their study on specific cell types. For instance, Hilger et al. focused mainly on the thermal ablation therapy of breast cancer employing magnetic nanoparticles, and demonstrated the possibility of electromagnetic heating of breast cancer tumors with volumes of approximately 300 mm3, utilizing 10 female immunodeficient mice and injecting intratumorally 50–100 µL of magnetite fluid at a flowrate of 50 µL/min. For the magnetic thermoablation of tumors, the mice were exposed to an AMF (frequency, 400 kHz; amplitude, 6.5 kA/m) for 242 s. Over the treatment, a mean temperature of 71 ± 8 °C and a maximum temperature of 79 °C were recorded [53]. In another in vivo study by the same group, the thermal ablation procedure of breast cancer using a greater number of mice—exactly 45 mice divided into three iron oxide MNP models by size—was conducted to observe the deposited heat dosage on cell death at different regions of the tumor. The experimental set up demonstrated the higher temperature increment at the center of the tumor (73 °C) compared to the periphery region (12 °C) when applying an alternating current at a frequency of 400 kHz and amplitude of 6.5 kA/m, leading to the conclusion that magnetite nanoparticles mostly concentrated at the tumor center [20]. Another in vitro study of breast cancer treatment using MNP was performed by Kettering et al., concentrating also on BT-474 cells [51].
Johannsen et al. conducted a broad investigation of the thermal ablation of prostate cancer tumor, specifically MatLyLu (the R3327 Dunning tumor cell) tumor model using MNPs [56,57,58]. In phase I clinical studies, Johannsen et al. demonstrated the increase of temperature up to 55 °C. However, in some patients, the temperature was recorded as 44 °C at the skin. This research showed the possible clinical challenges of thermal therapy using MNPs. The difficulties of prostate cancer treatment are explained by the high perfusion of this organ, restrained obtainable temperatures, and thermal homogeneity. Adding to these reasons, the prostate is concealed anteriorly by bone and fat and encompassed by hollow organs enclosing fluid and air. The various conductivities of these tissues to RF or US waves utilized for heating objectives can trigger unwanted reflection, scattering, or the absorption of thermal energy outside the target region in critical areas [57].
An in vivo study of thermal therapy of glioblastoma multiforme of rat glioma cells (RG-2 cells) using MNPs in 120 rat models was proposed by Jordan et al. Glioblastoma is mainly a brain tumor with high death and low survival rates [55]. The difficulties of brain tumor treatment caused by the several challenges: the location of tumor can be hard to reach, the brain has unique biological features being sensitive to neural mechanisms, and the tumor can be positioned behind the blood–brain barrier [59,60]. Another research group clinically investigated the efficacy of the thermal therapy in combination with radiotherapy in a phase II study of 66 patients with recurrent glioblastoma multiforme using 112 mg/mL of 12-nm amino-silane coated MNPs. The three-month post-treatment monitoring of patients showed an increase in the overall survival rate [61].
Bruners et al. conducted research on the computed tomography (CT)-guided magnetic thermoablation of animals with kidney tumors using a rabbit VX2 carcinoma model in vivo and colloidal superparamagnetic magnetite particles. Exposure to the electromagnetic field was maintained for 15 min with the value of frequency of 56 kHz, inducing an electromagnetic field with a strength of about 0.32 kA/m. The CT-guided injection of nanoparticles demonstrated the inhomogeneous distribution of the injected ferrofluids, and the optimal method of ferrofluid application is still under investigation [62].
Coating the surface of the nanoparticles by functional groups provides a great opportunity for the application of MNPs in biomedicine, namely in drug delivery, cell sorting, separation, tissue repair, and magnetic resonance imaging [51]. Depending on the cancer type, the nanoparticles can be functionalized with antibodies, DNA, polymers, proteins, liposomes, or other ligands to attach specifically and selectively to the tumor region. Moreover, the surface coating prevents the agglomeration of nanoparticles and allows reducing the toxicity of bare nanoparticles [63]. Hilger et al. conducted the research for the in situ and multi-focal treatment of breast cancer tumors to observe the cell death rate during thermal ablation when magnetites and maghemite coated with dextran were used. This research showed that an intratumoral application of MNPs with an iron concentration up to 107 pg/cell could raise the temperatures up to around 71 °C at the center of the tumor in 242 s at a frequency range of 400 kHz and 6.5 kA/m field amplitude. Moreover, the accumulation and attachment of dextran-coated nanoparticles to the breast cancer can be monitored by magnetorelaxometry or—in the case of an in vivo study—by magnetic resonance tomography. This research demonstrated that a multi-focal tumor causes higher complexity during thermal ablation and requires further investigation [54]. Kettering et al. utilized the MNPs with a starch coating to label with the adherent invasive ductal breast carcinoma cell line BT-474 cells at 0.32 mg Fe mL−1 concentration. The heat elevation in cells labeled with MNPs was checked by varying the following parameters: a various concentration of cells (0.5, 1, 2.5 and 5 × 107 BT-474 cells mL−1), different incubation times (1, 3, 6, 12, and 24 h) and varied concentrations of nanoparticles (0.16, 0.32 and 0.48 mg Fe, respectively, per mL of culture medium for 24 h). The MNP-labeled cells were exposed to an AMF with a frequency range of 400 kHz and an amplitude of 24.6 kA m−1. The highest temperature value of 28.2 ± 0.4 °C was observed when cells were labeled with 0.32 mg Fe mL−1 culture medium for 24 h and a concentration of 2.5 × 107 BT-474 cells mL−1. The research demonstrated the possibility of increasing the concentration of MNPs at the tumor region by labeling with cells through surface functionalization [51].
Jordan et al. performed the in vivo thermal therapy of 120 male rats with RG-2 glioma cells at a frequency of 100 kHz and a variable field strength of 0–18 kA/m using MNPs with two types of coatings—carboxydextran-coated and amino-silane coated—in order to observe the relevance of the surface coating on intratumoral temperature homogeneity. The nanoparticles with two types of coatings demonstrated different performances regarding their distribution within the specific region, leading to distinct temperatures for intratumor therapy. Amino-silane coated nanoparticles exhibited homogeneous distribution in the tumor area during heating procedures, and the intratumoral temperatures reached 43 °C and 47 °C by altering the magnetic field strength. The dextran-coated nanoparticles demonstrated an insignificant increase in temperature of only 2 °C [55]. Another study using amino-silane coated MNPs for the thermal therapy of glioblastoma multiforme also demonstrated positive results and a higher survival rate [61].
Johannsen et al. in 2005 proposed an in vivo study of the magnetic fluid thermal ablation of prostate cancer MatLyLu cells using magnetic ferrofluids with an average particle core size of 15 nm that were coated with an amino silane-type shell in water. Compared to previous studies, this research demonstrated an increase of temperature above 70 °C and a significant reduction of local tumor growth in the orthotopic MatLyLu tumor model of prostate cancer [58]. Later in 2007, the same group demonstrated the possibility to achieve thermoablative temperatures with 15-nm core and amino-silane coated MNPs in the prostates utilizing low magnetic field strengths. The nanoparticles with a concentration of 112 mg/m in aqueous liquid were injected transperineally and exposed to the AMF with the frequency range of 100 kHz, and field strength varied from 2.5 to 18.0 kA/m. This research defined an approach for a non-invasive temperature evaluation strategy using distributions of MNPs to predict the distribution of a three-dimensional intraprostatic temperature in each patient [56]. The further preclinical studies proposed the contactless, selective heating of superficial tumors on 10 patients with biopsy-proven, locally recurrent prostate cancer. The amino-silane-type shell-coated nanoparticles with an average core size of 15 nm were injected transperineally into the prostates. Six thermotherapy sessions were delivered at weekly intervals using an AMF with a frequency of 100 kHz and variable field strength (2.5–18 kA/m). The maximum temperatures reached 55 °C at 25–30% of the magnetic field strength available [64]. Balivada et al. demonstrated the antitumor potential of the modified bimagnetic core-shell of stealth-coated dopamine-labeled Fe/Fe3O4 nanoparticles with the size of 7.2 ± 2.8 nm intratumorally injected on murine B16-F10 melanoma with three short 10-minute AMF exposures in mice over 14 days. This study revealed a significant decrease in tumor weight using the Fe/Fe3O4 nanoparticles [65].
The distribution of nanoparticles within the tumor area is a crucial point in thermal therapy in order to obtain homogeneous heating. Richter et al. proposed the use of magnetorelaxometry (MRX) as an appropriate instrument to monitor the MNP distribution quantitatively with less contact. In another study, 200 µL of a 200-nm MNP suspension was injected into the tumor of female Severe Combined Immune-Deficient (SCID) mice. The quantification results by multichannel MRX show that 24 h after intratumoral MNP injection, all the administered MNPs were found in the tumor site. This research demonstrated the possibility of quantitative controlling the distribution of distribution within the tumor area during the magnetic ablation [66]. Finally, Andra et al. performed spatial temperature distribution by means of a mathematical simulation. This research demonstrated an experimental study satisfying the numerically simulated studies at 6.5 kA/m amplitude and 400-kHz frequency of the applied field. However, the results were restricted to small tumors [67].
Table 1 presents a summary of MNPs application in thermal ablation therapy, demonstrating the general ablation conditions, type of cancerous cells and the increase of temperature.

3. Gold Nanoparticles (AuNP)

In recent years, AuNPs are actively employed in biomedical applications. AuNPs are known as the most stable metal nanoparticles and can be easily synthesized in different shapes [68]. In addition, AuNPs have tunable optical properties, flexible surface chemistry, and a broad range of functionalization possibilities by antibodies, peptides, and polymers for application in various fields. Moreover, one of the main advantages of AuNPs is the ability to convert the light or RFs into heat, owing to the surface plasmon resonance phenomenon of gold, which enables their use in thermal ablation therapy [69,70,71]. A TEM image of spherical AuNP is presented in Figure 8.
AuNPs are mainly used in the thermal treatment of cancer, employing RF ablation and laser photothermal ablation. The distinction between conventional hyperthermia and photothermal therapy is that during photothermal heating, the increase of heat occurs around the AuNPs, leading to the rise of local temperatures to tens or hundreds of degrees above physiological temperature [9].
The size of AuNPs used for thermal ablation varied between 5–40 nm, depending on the type of ablation and cell line. Smaller AuNPs are preferred in cancer thermal therapy because light is absorbed by nanoparticles, which affects the valuable cell destruction when converted to heat [69]. Moreover, smaller particles have higher surface area-to-volume ratios, providing more opportunities for biological elements or proteins to attach to the particles’ surfaces. Finally, the smaller particles can be easily removed from the human vasculature. The shape, cell type, and surface coating along with the size are vital parameters for the cancer cells’ destruction using AuNPs. This review presents the use of AuNPs in the treatment of epithelial carcinoma, liver cancer with hepatocellular (HepG2 and Hep3B) cancer cell lines, and pancreatic cancer with a human pancreatic cancerous cells (Panc-1) and human pancreatic ductal adenocarcinoma cell line (Capan-1) [69,72,73,74,75,76].
Notably, the possibility of gold surface functionalization is beneficial to differentiate between cancerous and healthy cells to specifically attach the AuNPs to the desired tumor region. Furthermore, the coating of the AuNPs’ surface is important in order to make the nanopartciles selective to the specific cancer and effective in thermal treatment, and also to limit their toxicity level. One of the frequently used ligands to conjugate with AuNPs and employ further in thermal therapy is an anti-EGFR antibody (epidermal growth factor receptor), which is responsible for the cell transduction mechanisms in ordinary and cancer cells. The choice of anti-EGFR antibody conjugation for the labeling of cells with AuNPs is reasoned by EGFR overexpressing in most tumor cells [77]. In the study performed by El-Sayed et al., the laser photothermal therapy of the epithelial carcinoma HaCaT cells (human keratinocyte cell line) was carried out using an anti-EGFR antibody conjugated to AuNPs with the average particle size of 40 nm at 530-nm absorption maximum. The photothermal stability of AuNPs was investigated by exposing the cells to the different densities of the laser power such as 64, 57, 51, 45, 38, 32, 25, 19 and 13 W/cm2 at various points for 4 min. This research showed that the HaCaT cells after incubation with the anti-EGFR antibody-conjugated AuNPs can cause the complete destruction of the tumor at a laser density higher than 57 W/cm2 compared to control groups of two oral squamous carcinoma cell lines (HSC 313 (Hematopoietic stem cell) and HOC 3 (Cellosaurus cell line) ). The study demonstrated not only the importance of the nanomaterial surface functional groups, but also the value of the laser power density [72].
The research conducted by Huang et al. also demonstrated the beneficial selective kill of cancerous cells using AuNPs coated with anti-EGFR. The laser photothermal therapy of cancerous cells showed the death of cancerous cells at much lower laser powers than those needed for healthy cells—200 nW compared to 750 mW, respectively—and less dosage requirement. The study showed that a threshold temperature in the range of 70 to 80 °C is required to destroy cancerous as well as noncancerous cells, which complies with the data of previously conducted research studies [78]. Another study with 20-nm sized anti-EGFR functionalized AuNPs was performed by the group of Glazer et al. for the RF heating (13.56 MHz, 200 S, 10−15 kV/m, 5 min) of pancreatic cancer. The research investigated the importance of surface chemistry by comparing the cell lines overexpressing and not expressing the EGFR, which are Panc-1 and Cama-1, respectively. Finally, a 61% decrease in viability was observed for Panc-1 compared to the control Cama-1 cell line, which reached only 6.3% decrease [76].
A further clinical in vivo investigation of the thermal therapy of pancreatic cancer was done by the same group,where two human pancreatic carcinoma cell lines were exposed to the RF field, Panc-1 and Capan-1, utilizing PAM4 hemi-antibody conjugated and C225 antibody conjugated with 20-nm sized AuNPs. The hydrodynamic diameter of the C225-AuNP is 32.6 ± 0.7 nm, while it is 36.9 ± 1.5 nm for PAM4-AuNP. C225-conjugated AuNPs have been more efficient in destroying targeted tumors than PAM4-conjugated AuNPs. However, C225 as a targeting agent can have more negative clinical occurrences due to the increased absorption of AuNP in non-malignant tissues. PAM4 appears to be much more specific to pancreatic cancer, and only works as a pancreatic adenocarcinoma that targets an antibody without an intrinsic cytotoxicity or growth inhibition characteristics [75].
The cytotoxicity effects of AuNPs was also investigated by other research group on non-invasive RF ablation hepatocellular (Hep3B) and pancreatic cancerous cells (Panc-1) at 13.56 MHz employing 5-nm sized AuNPs with 67 µM/L concentration. The cytotoxicity parameter is vital for the further use of nanoparticles in clinical purposes. The authors reported the absence of the intrinsic cytotoxicity of AuNP, and the range of malignant cell destruction was 99.8 ± 3.1% for Hep3B cell death and 96.5 ± 8.4% for Panc-I cell death in 5-min exposure [74].
The significance of RF field power on thermal therapy was explored by Cardinal et al. This group studied the non-invasive RF ablation of liver cancer with HepG2 cancerous cells employing 13-nm citrate coated AuNPs. To determine the effect of RF field power on heating, solutions were exposed to the RF field at variable powers from 10 W to 100 W for 3 min. The obtained data demonstrated the ability of heat elevation for more than 50 °C by AuNP-containing solutions. Moreover, after 7 min of heat exposure, 80% of cell death occurred [73].
An overview of AuNP application and conditions in thermal therapy of cancer is presented in Table 2.

4. CuS Nanoparticles

Semiconductor copper sulfide (CuS) nanomaterials display good optical, electrical, and catalytic properties by absorbing the infrared light from energy band–band transitions. CuS nanoparticles found wide application in biological labeling, the detection of DNA, eye protection, monitoring the laser light, and the photodegradation of pollutants. CuS nanoparticles are promising due to their minimal cytoxicity effects, which is similar to the gold nanoparticles, and low cost [79]. The minimal cytotoxicity of CuS nanoparticles is explained by the slow rate of dissociation rate of Cu ions [80].
The CuS nanoparticles are mainly used in the photothermal therapy of cancer with the size range as low as 3 nm. Li et al. were the first to study the photothermal ablation of cancerous cells utilizing the heat generated by the interaction of CuS nanoparticles when NIR light was applied in 2010. The research was performed using 3-nm uniformly distributed thioglycolic acid-stabilized CuS nanoparticles with a density of 4.6 g/cm3 for the photothermal ablation (PTA) of Human cervix adenocarcinoma (HeLa) cells. The intensive absorption of the NIR by CuS nanoparticles enables their use in PTA therapy. When CuS particles with the concentration of 770 µM (approximately 1.42 × 1014 particles/mL) labeled cell lines were exposed to a laser beam at 808 nm with the output power of 24 W/cm2, the temperature increased by 12.7 °C and reached 37 °C in 5 min. No changes were observed when water was used at the same conditions. This research demonstrated the dependence of cell death on the nanoparticles concentration and the laser’s output power. Moreover, in comparison with nanostructures, CuS nanomaterials offer several advantages. First, CuS is cheaper than gold. Second, the absorption wavelength of CuS nanomaterials do not depend on the particle size, shape, or solvent due to the NIR absorption in CuS arising from the d–d transition of Cu2+ ions, while in AuNPs, the NIR absorption occurs from the surface plasmon resonance. Finally, the 3-nm CuS nanoparticles can offer the desired pharmacokinetic properties for targeted delivery. However, the properties of CuS nanoparticles are limited by the low efficacy of the photothermal conversion [79].
Near-infrared light-responsive inorganic nanoparticles can increase the efficiency of cancer photothermal ablation therapy. Moreover, CuS nanoparticles can be used in the combination of photothermal therapy with immunotherapy, as it was proposed in the study of Guo et al. [81]. The advantage of current research consists of the ability to utilize the chitosan-coated hollow copper sulfide nanoparticles (HCuSNPs) with a porous shell structure for the treatment of metastatic cancer. These nanoparticles were composed of small crystals with a diameter of 10 × 2 nm. This research demonstrated that the combination of photothermal therapy and immunotherapy was more efficient for the tumor treatment than when they were used separately. The results of this study were compared to previously published data, where regularly injected pegylated HCuSNPs were eradicated through both renal and hepatobiliary excretion. This study demonstrated a comparatively higher amount of Cu eradication, which is 47% from tumors. This was associated to photothermally activated disintegration of the original ∼85-nm HCuSNPs into ∼10-nm small CuS nanoparticles, providing faster clearance from the tumor [81].
Huang et al. in 2014 investigated the application of 3.8-nm sized hydrophobic copper sulfide nanoparticles with a phospholipid–PEG coating (CuS@DSPE-PEG NPs) for the treatment of cervical cancer with HeLa cells in mice, applying the photothermal ablation. The team incubated nanoparticles with several concentrations to damaged cells and exposed them to an 808-nm laser with a power density of 1.0 W cm2 for 8 min in order to investigate their influence on the death rate of cells. A total of 80% cell death appeared at a 400 mg/mL concentration of CuS@DSPE-PEG NPs. Further research was conducted to examine the in vivo photothermal effect of CuS@DSPE-PEG NPs employing the S180 tumor-bearing Kuming mice. A tumor surface temperature above 59.2 °C was achieved promptly within 5 min, while in the control group not containing nanoparticles, the temperature reached about 48 °C in mice [82]. Another study employing PEGylated CuS nanoparticles was conducted by Zhou et al. The research utilized the developed PEG-coated single radioactive copper sulfide (CuS) nanoparticle platform to enhance the efficacy of photothermal therapy (PTT) in a murine orthotopic model of anaplastic thyroid carcinoma (ATC). The investigation of temperature elevation induced by NIR light irradiation was carried out in the presence of PEG-CuS NPs using a continuous-wave fiber-coupled diode laser centered at 980 nm. Exposure to the NIR laser light at 2.5 W/cm2 elevated the temperature of the CuS NP solution with 400 mg/mL of 0.1-mm CuS NPs from 23 °C to 98 °C in 10 min. The temperature of pure water was elevated only from 23 °C to 32 °C during the same period. In addition, tissue distribution of polyethylene coated (PEG-[64Cu]) CuS NPs could be imaged and quantified by Positron Emission Tomography allowing dosimetry calculation and potential for the prediction of thermal dose [83].
Table 3 provides a summary of CuS NPs size, exposure conditions and temperature increase in the thermal therapy of cancer.

5. Nanorods

Gold nanorods are the unique class of metal nanostructures with two surface plasmon absorption long and short wavelength bands. The strong long wavelength band lies in the NIR region due to the longitudinal oscillation of the conduction band electrons, and the weak short wavelength band is around 520 nm because of the transverse electronic oscillation. The surface electric field enlarges because of the surface plasmon excitation, which facilitates strong absorption and the scattering of electromagnetic radiation by gold nanorods. Gold nanorods can be used in biomedicine due to their tunable optical absorption and scattering properties [84,85]. Gold nanorods gained attraction in photothermal therapy due to the possibility of their synthesis with various aspect ratios, which enable selective absorption in the NIR region [86,87]. A TEM image of gold nanorods is shown in Figure 9.
The most commonly used surface coating for nanorods is polyethylene glycol (PEG). The advantages of using PEG in its affinity to cell membranes, leading to a high tumor uptake rate [90]. In addition, PEG is available in different polymer lengths. The nanoparticles coated with PEG are stable, biocompatible, and nontoxic for in vitro application [24]. Von Maltzahn et al. developed long circulating PEG-coated gold nanorods and compared their effects with the efficacy of nanoshells. The authors simulated a therapeutic irradiation regimen based on heat transfer simulations, which are able to successfully plan the therapy to destroy tumors on mice injected with PEG-NRs using half the light intensity of previous nanoshell therapies [91].
Huang et al. investigated the effects of gold nanorods in prostate cancerous cells using a CW (continuous wave) laser emitting at 800 nm, 20 W/cm2, using different exposure times ranging from 4 min to 20 min. They found an acceptable agreement between the theoretically predicted results and experimental ones [92].
The theoretical investigation of the effect of the distribution of nanorods delivered to a skin tumor for the thermal ablation procedure was reported by Soni et al. Three distribution arrangements of gold nanorods with 5-nm diameters and 2.5-mm depth were considered: uniformly distributed within the tumor region, deposited in the tumor core, and accumulated at the tumor periphery area through intravenous injection. In the first case, the temperature increased up to 75 °C at the surface of a tumor. However, the lower temperature change was achieved at the tumor depth, comparatively, at 2.5 mm and 5 mm, for which the temperature was about 48–58 °C and 43–48 °C, respectively. For the second case, the top half-central region of the tumor reached a temperature of 50–65 °C, and the deeper tumor location remained at 37 °C. Finally, the concentration of gold nanorods at the periphery of the tumor area led to a uniform temperature distribution and demonstrated better heat release to the deeper tumor region, reaching the temperature of 48–52 °C. The photothermal irradiation intensity of 1.25 W/cm2 for 300 s at a volume fraction of 0.001% were determined as an optimal parameter to obtain the temperature value higher than 53 °C over the whole tumor region [93].
Cho et al. proposed the study of photothermal laser ablation using PEGylated gold nanorods conjugated with C-225, which is a recombinant, human/mouse chimeric monoclonal antibody to epidermal growth factor receptor (αEGFR). A fiber-coupled diode laser (DILAS) emitting at 808 nm was used in thermal ablation experiments. The spot size was approximately 5 mm2 and the cells were exposed at an irradiation time of 1 minute with varying laser power densities from 20 W/cm2 to 90 W/cm2 or at 20 W/cm2 with varying irradiation times from 30 s to 3 min. Upon reviewing the binding assay results for various Monomethoxy PEG thiol (mPEG-SH) concentrations, 4 mg/mL showed the most uniform fluorescence with the least agglomeration, and was used for the in vitro thermal ablation experiments. Moreover, in the control samples treated with C-225 only, no cell death was observed until the power density was increased to 90 W/cm2, which was the highest level used in these experiments. In contrast, samples treated with αEGFRAuNR showed clear trypan blue staining, indicating cell death, at a laser power level as low as 20 W/cm2 [94].
Mooney et al. in 2015 and 2017 investigated the effects of laser ablation enhanced by gold nanorods. Experiments were performed on mice. Firefly luciferase expressing MDA-MB-231 human breast cancerous cells were injected into the flank of the animals, and the ablation was performed on subcutaneous tumors (growth on the flank of each mouse). The tests were performed at different nanorod masses (0, 12.5, 25, and 50 μg per tumor), laser powers (1.4 and 2 W/cm2), and treatment times (0.5, 1, 2, and 5 min). The results showed that the higher the concentration, the higher the temperature increase during the laser ablation. For instance, at 2 W/cm2, the control group (without nanorods) showed a temperature increment of approximately 15 °C, while the group treated with 2 W/cm2 and 50 μg of nanorods experienced a temperature increment of approximately 23 °C. The temperature increment also influenced the effects of the laser ablation: in the control group, the laser ablation was not successful, while the group with 50 μg of nanorods experienced a full resorption of the tumor (Figure 10) [95,96].
Dickerson et al. proposed the study of photothermal therapy of HSC-3 human squamous carcinoma cells in mice by the intravenous injection of PEGylated gold nanorods with dimensions 12 nm in width and 50 nm in length (4.0 aspect ratio), with a longitudinal plasmon absorption maximum at 800 nm. Quick heating occurred upon exposure, followed by steady-state equilibrium, and more than 90% of the observed temperature rise happened within the first 3 min [97]. Jang et al. investigated photothermal ablation using different concentrations of PEG-coated gold nanorods. In each experimental set, the final particle concentration of I gold nanorods n the polyacrylamide phantom was 0.0, 0.1, 0.25, 0.5, 1.0, 2.0, or 5.0 nm. Each gold nanorod-suspended phantom was illuminated with light from an 810-nm diode laser. A relatively uniform distribution of temperature was observed in phantoms with a 5-nm concentration of gold nanorods. Non-uniform temperature distribution along the depth of a phantom was observed in phantoms comprising a higher concentration of GNRs. For instance, the temperature at the top part of the phantoms reached more than 60 °C, while 35 °C was recorded at a distance 6 mm from the surface of a phantom. The difference in temperature at 2-mm and 10-mm distances of illumination was comparatively small at low concentrations of gold nanorods (0.1, 0.25, and 0.5 nm), compared to high concentrations (1.0, 2.0, and 5.0 nm). The study concluded that time and power laser irradiation help to control the temperature in the deep region of a phantom [98].
Huff et al. investigated the effect of gold nanorods on adherent human KB cells (the cell line extracted from oral epithelium) thermal therapy by changing the titanium to a sapphire laser. KB cells treated with CTAB-coated nanorods were exposed to continuous wave irradiation for 30 s, at fluences ranging from 15 to 120 J/cm2. These cells were destroyed at 30 J/cm2 with the harsh bubbling of their membranes after 30 s of irradiation. This study demonstrated that nanorods can be induced at much lower power densities, and cells are not required to be internalized fully to provide photothermal damage [86].
The parameters and conditions of cancer thermal ablation using gold nanorods are summarized in Table 4.

6. Carbon Nanotubes (CNTs)

Single-walled CNTs are cylinders of nanometer size consisting of a single graphene sheet wrapped up to form a tube (Figure 10) [99,100]. CNTs can be differentaiated as single-walled nanotubes (SWNTs) and multi-walled nanotubes (MWNTs) (Figure 11), depending on the number of graphene layers from which the nanotubes are composed [101]. There are several known CNT synthesis techniques: carbon arc discharge, laser ablation of carbon, and chemical vapor deposition. Nanotube diameters range from 0.4 to 3 nm for SWNTs and from 1.4 to at least 100 nm for MWNTs [102]. CNTs are distinguished by their physical and chemical properties, and have been intensively explored for biological and biomedical applications in the past few years [103]. SWNTs have strong optical absorption properties in the near-infrared (NIR) range [101,104,105]. Single-walled carbon nanotubes generate significant amounts of heat upon excitation with near-infrared light at 700 to 1100-nm wavelengths, which is transparent to biological systems, including skins, and hardly absorbed by normal tissue [106]. CNTs have the opportunity to be employed not only in imaging but also for drug delivery and thermal ablation. This is mainly because of the characteristics of these materials, including their unique chemical, physical, and biological properties, nanoneedle shape, hollow monolithic structure, and their ability to obtain the desired functional groups on their outer layer [107,108].
CNTs can convert NIR laser radiation into heat that is reasoned by the photon–phonon and electron interactions [110]. This property of carbon nanotubes leads to the wide application of them in biomedical application, especially in thermal therapy for cancer. In order to achieve the specific tumor cell targeting, as well as improve the biocompatibility and cell-penetrating capability, the surface of carbon nanotubes need to be functionalized [111,112,113].
Gannon et al. discovered the ability of SWNTs to release heat in an RF field, which can be employed to yield the thermal cytotoxicity in tumors. The research was conducted to investigate the treatment of three cell lines such as HepG2 and Hep3B hepatocellular cancer cells and Panc-1 pancreatic adenocarcinoma cells. The cells were incubated at several concentrations (5 mg/L, 50 mg/L, 125 mg/L, 250 mg/L, and 500 mg/L) of biocompatible polymer functionalized SWNTs and exposed to RF ablation at a 13.56-MHz frequency and power value of 800 W for 1 or 2 min. Total (100%) cytotoxicity in all three cell lines was determined at high concentrations of SWNTs (500 mg/L) after 2 min of RF exposure, demonstrating the relevance of concentration [114].
The study on breast cancer treatment using carbon nanotubes coated with anti-Her2+ antibody was conducted by Marches et al. The research set out to determine the efficiency and selectivity of the NIR-mediated thermal ablation of Her2+ human breast carcinoma cancer cells. Cells were irradiated with 808-nm light at 9.5 W cm−2 for 4 min. The efficiency of cell killing increased, and was greater than 90% by 24 h. This study demonstrated that Her2+ cells internalized with CNTs were more sensitive to NIR-mediated photothermal destruction compared to the cells with CNTs on their surface [115].
The photothermal treatment of colon cancer employing the SWNTs was investigated by Hashida et al. For that purpose, SWNTs were combined with a (KFKA)7–peptide composite. The surface-functionalized samples at concentrations of 0.75 μg/mL for colon 26 and 2.5 μg/mL for HepG2 cells, respectively, underwent the NIR laser irradiation. The research demonstrated a high rate of cell death rate and temperature rise up to 43 °C in 30 s for both cell lines [116].
Fisher et al. investigated the capability of MWNTs coupled with laser irradiation to increase the tumor treatment temperature and destruction of cells. A human androgen-independent prostate cancer cell line (PC3) and murine renal cancer cell line (RENCA) were laser irritated at 15.3 W/cm2 and a 5-mm beam diameter for 1.5 and 5 min using 900-nm MWNTs. Larger temperature elevations were observed for both samples at 5 min of ablation, and reached 43 °C compared to the control sample without MWNTs, where the temperature increase was observed at 7 °C. However, the use of MWNTs caused differences in cell viability [117]. The study by Mocan et al. demonstrated the ex vivo laser-mediated ablation of selectively targeted pancreatic cancer Panc-1 cells using human albumin bound to MWCNTs. The ablation of the tumor was done for 30 min using a 5 W/cm2 808-nm continuous laser generator. The temperature changes in 20 min were recorded as 4.2 °C in the surrounding healthy tissue, 25.6 °C at the periphery of the tumor, and 29.3 °C in the central region of the tumor, showing that the temperature is higher in the center. The high value of temperature that was able to produce extensive tumor necrosis was achieved in 20 min [118]. Table 5 summarizes thermal ablation of cancer using carbon nanotubes.

7. Nanoshells/Nanocomposites

7.1. Nanoshells

Nanoshells are a class of nanoparticles with 1–20 nm thin coating over the core that can be fabricated of a different material. The properties of nanoshells are possible to adjust by varying the core-to-shell ratio [119,120], as in Figure 12a,b. By varying the thickness of the core and shell, nanoshells can be produced to have light absorbing or scattering properties at the desired wavelength across visible and NIR wavelengths. This explains their optical tunability and makes it possible to fabricate the nanoshells with a peak optical absorption in the NIR [121]. As a NIR absorber, nanoshells are optically very robust; their rigid structure and noble metal surface allow to have the stability to chemical and thermal denaturation and photobleaching effects than conventional NIR dyes [119]. Nanoshells can be accumulated at the tumor area, absorb the NIR light, and produce heat locally to destroy the cancer cells [9].
The most common type of nanoshell composition is silica–gold. The frequently used size of nanoshells are 100–150 nm for the shell and 8–10 nm for the core. The size of nanoshells is explained by the ability to absorb the light in the first and second NIR window. The first NIR window corresponds to 650–850 nm, while the second NIR window corresponds to 950–1350 nm. At these wavelength ranges, light can penetrate the normal cells and reach the nanoshells bound to the tumor [124]. The studies demonstrated that the mainly used wavelength range is 800 nm, because at this NIR window, the light can permeate the tissue securily [119,121,124,125].
Hirsh et al. have first proposed the study on the use of silica–gold nanoshells where the core diameter is 110 nm and the gold shell thickness is 10 nm. These nanoshells’ peak absorbance at 820 nm employed for an in vivo study in mice of photothermal carcinoma with breast cancer SK-BR-3 cells treatment under the 35 W/cm2 for 7-min laser exposure conditions. The research demonstrated an average temperature increase of 37.4 °C in 4–6 min at the laser dosages that were 10-fold to 25-fold less compared to previous studies [119]. O’Neal et al. proposed the research for the laser treatment of CT26.WT murine colon carcinoma tumor cells in mice using the PEGylated nanoshells with an 8–10-nm thick gold shell over the 110-nm silica core. Nanoshells with 805–810-nm peak optical absorption could increase the treatment temperature up to 50 °C in 30 s, administering 2.4 × 1011 nanoshells/mL solution in mice. Within 10 days, the complete resorption of the tumor was observed, while at 90 days post-treatment, all the mice remained healthy [121].
Another study on the thermal therapy of cancer cells using the silica–gold nanoshells was carried out by Stern et al. The experiments investigated the treatment of prostate tumors in mice using a 110-nm silica core and 10-nm gold-coated nanoshells by intravenous injection and the application of a NIR laser at 808 nm. Tumors were observed over 21 days and demonstrated 93% tumor necrosis and regression in a high-dose treated group. The temperature was increased up to 65.4 °C. However, limitations exist in quantifying the delivery of nanoshells [126].
Bernardi et al. proposed a method for the in vitro photothermal ablation of medulloblastoma and glioma cell lines using anti-HER2 and anti-IL13Ra2 antibody labeled nanoshells (core: 100-nm silica, shell: 10-nm gold) with peak light absorption at 800 nm in the NIR region. The results demonstrated that the implemented approach can selectively kill medulloblastoma cells that express HER2 without killing cells that do not express HER2. In addition, the research showed that the dual requirement for the presence of both nanoshells and laser light to induce cellular death is particularly promising for application in brain tumors [125]
The application of nanoshells in both imaging and therapy approach has shown promising results for specific cancerous cells. In their in vitro study, Loo et al. demonstrated first detecting by imaging and then thermally ablating human breast cancer cells that overexpress HER2 using immunotargeted nanoshells that have been designed to both scatter and absorb light within the NIR [127]. Schwartz et al. proposed an in vivo study of the minimally invasive treatment of canine prostate cancer in male dogs using 150 nm in diameter spherical gold-over-silica nanoshells with an absorption region that peaks near 800 nm. NIR radiation was provided by a 15-W gallium arsenide diode laser. The results demonstrated the possibility of ablative thermal lesions. Moreover, the study suggested that an optical fiber applicator can have precise tumor ablation [128]. Finally, Xu et al. conducted research on the application of graphitic carbon-coated ferromagnetic cobalt nanoparticles (C–Co-NPs) with diameters of around 7 nm with a 2.5 μg mL−1 concentration and cubic crystalline structures for the RF ablation of mammalian cervical cancer cells (HeLa cells). The study demonstrated the destruction of 63% of the cells within 10 min of RF ablation under the 350-kHz and 5-kW parameters [129].

7.2. Nanocomposites

The term nanocomposite describes a class of composites consisting of two or more materials, where one of the phases has at least a dimension less than 100 nanometers. Compared to nanoshells, nanocomposites can have micron-sized components (Figure 13).
Xu et al. conducted research on RF treatment of human cancer cell line Panc-1 using highly biocompatible luminescent superparamagnetic nanocomposites Fe3O4 nanoparticles coated with a silica shell, Fe3O4/SiO2 (IOS), and water-soluble CdSe-ZnS quantum dots (QDs). Panc-1 cells were cultured with various concentrations of nanocomposites and exposed to a frequency of 350 kHz. This study demonstrated the influence of nanocomposite concentration on the rate of cell death. Thus, 0.83 µg/mL nanocomposite could achieve 82.2–83.8% of total cells death, while at nanocomposite concentrations up to 1.66 µg/mL, the cell death value reached 98.7–99.2% in 10 min [131].
Shi et al. in his work developed a dual-nanostructure modified graphene-based nanocomposite by growing a layer of gold nanostructures on the synthesized iron oxide nanoparticles on top of graphine oxide (GO-IONP), obtaining a GO-IONP-Au nanocomposite (graphine oxide-iron oxide nanoparticle and gold nanocomposite), which was then functionalized with PEG. Female BALB/c mice bearing 4T1 tumors were intratumorally injected with 40 mL of 50 mg/mL Pegylated nanocomposite GO-IONP-Au-PEG and then subjected to the 808-nm laser irradiation at the power density of 0.75 W/cm2 for 5 min. The study showed that the surface temperature of the tumor injected with GO-IONP-Au-PEG rapidly increased to about 55 °C within 5 min of laser irradiation [132].
An overview of cancer thermal ablation using nanoshells and nanocomposites is presented in Table 6.

8. Conclusions

Despite a wide range of research conducted for the thermal therapy of cancer tumor, there are still existing limitations. It is hard to obtain a highly accurate method for temperature monitoring within the whole tumor due to the inhomogeneous distribution of MNPs. A key factor in the success of any nanoparticle-based therapy is the ability to understand and/or control nanoparticle accumulation within the tumor. Thus far, scientists have found many ways to destroy cancer cells in vitro and in vivo in mice, but the translation to commercial clinical use has not yet occurred. Nanomaterials offer a wide range of magnetic and optical properties that can be implemented in cancer therapy under different ablation sources (Table 7). All the studies described in this paper used different nanomaterials, but factors such as size, shape, surface coating, injected dose, animal model, and cancer model were all different, and can make a comparison between the studies a significant challenge. The importance of size on thermal therapy is well investigated and revealed that it is beneficial to use the particles that were between 10–40 nm. However, larger nanoparticles can also be administered into the tumor, but there are still some gaps in the research regarding the heterogeneity of endothelial cells gaps and the penetration of nanoparticles. Also, despite the demonstrations of scaled-up synthesis, nanomaterial synthesis is notorious for being irreproducible, and no two nanoparticle batches are the exact same. Variation in nanoparticle structure/composition may affect tumor-targeting ability and penetration along with photothermal heating efficiency. In addition, the toxicity of nanomaterials is not well understood, and could also vary with structure/composition [34]. Among the disadvantages and key challenges to employing thermal therapy using nanomaterials are the inhomogeneous distribution of nanoparticles, lack of noninvasive technique for biodistribution assessment, lack of treatment planning tools to predict temperature distributions, and increasing patient’s complexity due to the injection of nanoparticles. Therefore, further work and broad investigations are required in this field.

Author Contributions

Z.A. performed the writing, editing of the review paper, V.I. and D.T. conducted editing, and supervision, E.S. and P.S. reviewed and contributed in Nanorods section, D.B. performed the drawing, and contributed in Magnetic Nanoparticles section.

Funding

This work has been funded by ORAU program at Nazarbayev University, National Laboratory Astana (grant LIFESTART, PI: D.T.).

Acknowledgments

In this section, we acknowledge the Nanopartz Inc Company for granted permission to use the picture of gold nanoparticles in the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. International Agency for Research in Cancer. Latest Global Cancer Data, 2018; Press Release #263; World Health Organization: Geneva, Switzerland, 2018. [Google Scholar]
  2. Hergt, R.; Dutz, S.; Müller, R.; Zeisberger, M. Magnetic particle hyperthermia: Nanoparticle magnetism and materials development for cancer therapy. J. Phys. Condens. Matter 2006, 18, S2919–S2934. [Google Scholar] [CrossRef]
  3. Ren, Y.; Qi, H.; Chen, Q.; Ruan, L. Thermal dosage investigation for optimal temperature distribution in gold nanoparticle enhanced photothermal therapy. Int. J. Heat Mass Transf. 2017, 106, 212–221. [Google Scholar] [CrossRef]
  4. Gottesman, M.M.; Fojo, T.; Bates, S.E. Multidrug resistance in cancer: Role of ATP–dependent transporters. Nat. Rev. Cancer 2002, 2, 48–58. [Google Scholar] [CrossRef] [PubMed]
  5. Ahmed, M.; Brace, C.L.; Lee, F.T.; Goldberg, S.N. Principles of and Advances in Percutaneous Ablation. Radiology 2011, 258, 351–369. [Google Scholar] [CrossRef] [PubMed]
  6. Schena, E.; Saccomandi, P.; Fong, Y. Laser Ablation for Cancer: Past, Present and Future. J. Funct. Biomater. 2017, 8, 19. [Google Scholar] [CrossRef] [PubMed]
  7. Carrafiello, G.; Laganà, D.; Mangini, M.; Fontana, F.; Dionigi, G.; Boni, L.; Rovera, F.; Cuffari, S.; Fugazzola, C. Microwave tumors ablation: Principles, clinical applications and review of preliminary experiences. Int. J. Surg. 2008, 6 (Suppl. 1), 65–69. [Google Scholar] [CrossRef] [PubMed]
  8. Beik, J.; Abed, Z.; Ghoreishi, F.S.; Hosseini-Nami, S.; Mehrzadi, S.; Shakeri-Zadeh, A.; Kamrava, S.K. Nanotechnology in hyperthermia cancer therapy: From fundamental principles to advanced applications. J. Control. Release 2016, 235, 205–221. [Google Scholar] [CrossRef] [PubMed]
  9. Day, E.S.; Morton, J.G.; West, J.L. Nanoparticles for Thermal Cancer Therapy. J. Biomech. Eng. 2009, 131, 074001. [Google Scholar] [CrossRef] [PubMed]
  10. Mansoori, G.A.; Mohazzabi, P.; McCormack, P.; Jabbari, S. Nanotechnology in cancer prevention, detection and treatment: Bright future lies ahead. World Rev. Sci. Technol. Sustain. Dev. 2007, 4, 226. [Google Scholar] [CrossRef]
  11. Bañobre-López, M.; Teijeiro, A.; Rivas, J. Magnetic nanoparticle-based hyperthermia for cancer treatment. Rep. Pract. Oncol. Radiother. 2013, 18, 397–400. [Google Scholar] [CrossRef] [Green Version]
  12. Lu, B.Q.; Zhu, Y.J.; Ao, H.Y.; Qi, C.; Chen, F. Synthesis and characterization of magnetic iron oxide/calcium silicate mesoporous nanocomposites as a promising vehicle for drug delivery. ACS Appl. Mater. Interfaces 2012, 4, 6969–6974. [Google Scholar] [CrossRef] [PubMed]
  13. Fekrazad, R.; Naghdi, N.; Nokhbatolfoghahaei, H.; Bagheri, H. The combination of laser therapy and metal nanoparticles in cancer treatment originated from epithelial tissues: A literature review. J. Lasers Med. Sci. 2016, 7, 62–75. [Google Scholar] [CrossRef] [PubMed]
  14. Manthe, R.L.; Foy, S.P.; Krishnamurthy, N.; Sharma, B.; Labhasetwar, V. Tumor ablation and nanotechnology. Mol. Pharm. 2010, 7, 1880–1898. [Google Scholar] [CrossRef] [PubMed]
  15. Jordan, A.; Wust, P.; Fähling, H.; John, W.; Hinz, A.; Felix, R. Inductive heating of ferrimagnetic particles and magnetic fluids: Physical evaluation of their potential for hyperthermia. Int. J. Hyperth. 2009, 25, 499–511. [Google Scholar] [CrossRef] [PubMed]
  16. Letfullin, R.R.; Iversen, C.B.; George, T.F. Modeling nanophotothermal therapy: Kinetics of thermal ablation of healthy and cancerous cell organelles and gold nanoparticles. Nanomed. Nanotechnol. Biol. Med. 2011, 7, 137–145. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, C.; Irudayaraj, J. Multifunctional magnetic-optical nanoparticle probes for simultaneous detection, separation, and thermal ablation of multiple pathogens. Small 2010, 6, 283–289. [Google Scholar] [CrossRef] [PubMed]
  18. Burford, C.D.; Bhattacharyya, K.D.; Boriraksantikul, N.; Whiteside, P.J.D.; Robertson, B.P.; Peth, S.M.; Islam, N.E.; Viator, J.A. Nanoparticle mediated thermal ablation of breast cancer cells using a nanosecond pulsed electric field. IEEE Trans. Nanobiosci. 2013, 12, 112–118. [Google Scholar] [CrossRef]
  19. Dutz, S.; Hergt, R. Magnetic nanoparticle heating and heat transfer on a microscale: Basic principles, realities and physical limitations of hyperthermia for tumour therapy. Int. J. Hyperth. 2013, 29, 790–800. [Google Scholar] [CrossRef]
  20. Hilger, I.; Hiergeist, R.; Hergt, R.; Winnefeld, K.; Schubert, H.; Kaiser, W.A. Thermal ablation of tumors using magnetic nanoparticles: An in vivo feasibility study. Investig. Radiol. 2002, 37, 580–586. [Google Scholar] [CrossRef]
  21. Attar, M.M.; Haghpanahi, M.; Amanpour, S.; Mohaqeq, M. Analysis of bioheat transfer equation for hyperthermia cancer treatment. J. Mech. Sci. Technol. 2014, 28, 763–771. [Google Scholar] [CrossRef]
  22. Toy, R. The Effect of Particle Size and Shape on the In Vivo Journey of Nanoparticles. Ph.D. Thesis, Case Western Reserve University, Cleveland, OH, USA, 2014. [Google Scholar]
  23. Toy, R.; Peiris, P.M.; Ghaghada, K.B.; Karathanasis, E. Shaping cancer nanomedicine: The effect of particle shape on the in vivo journey of nanoparticles. Nanomedicine 2014, 9, 121–134. [Google Scholar] [CrossRef]
  24. Gui, C.; Cui, D.-X. Functionalized gold nanorods for tumor imaging and targeted therapy. Cancer Biol. Med. 2012, 9, 221–233. [Google Scholar] [PubMed]
  25. Gajbhiye, K.R.; Gajbhiye, J.M. EPR effect based nanocarriers targeting for treatment of cancer. Int. J. Drug Deliv. 2017, 8, 117–124. [Google Scholar] [CrossRef]
  26. Verma, A.; Stellacci, F. Effect of surface properties on nanoparticle-cell interactions. Small 2010, 6, 12–21. [Google Scholar] [CrossRef] [PubMed]
  27. García-Jimeno, S.; Ortega-Palacios, R.; Cepeda-Rubio, M.; Vera, A.; Leija, L.; Estelrich, J. Improved Thermal Ablation Efficacy Using Magnetic Nanoparticles: A Study in Tumor Phantoms. Prog. Electromagn. Res. 2012, 128, 229–248. [Google Scholar] [CrossRef]
  28. Dutz, S.; Hergt, R. Magnetic particle hyperthermia—A promising tumour therapy? Nanotechnology 2014, 25, 452001. [Google Scholar] [CrossRef]
  29. Sapareto, S.A.; Dewey, W.C. Original Contribution Thermal dose Determination in Cancer Therapy. Int. J. Radiat. Oncol. Biol. Phys. 1984, 10, 787–800. [Google Scholar] [CrossRef]
  30. Haemmerich, D.; Wood, B.J. Hepatic radiofrequency ablation at low frequencies preferentially heats tumour tissue. Int. J. Hyperth. 2006, 22, 563–574. [Google Scholar] [CrossRef]
  31. Gassino, R.; Liu, Y.; Konstantaki, M.; Vallan, A.; Pissadakis, S.; Perrone, G. A fiber optic probe for tumor laser ablation with integrated temperature measurement capability. J. Light. Technol. 2017, 35, 3447–3454. [Google Scholar] [CrossRef]
  32. Jacques, S.L. Erratum: Optical properties of biological tissues: A review (Physics in Medicine and Biology (2013) 58). Phys. Med. Biol. 2013, 58, 5007–5008. [Google Scholar] [CrossRef]
  33. Mathew, M.; Mikhail, A.S.; Wood, B.J.; Partanen, A.; Graham, C.; Negussie, A.H. Evaluation of a tissue-mimicking thermochromic phantom for radiofrequency ablation. Med. Phys. 2016, 43, 4304–4311. [Google Scholar]
  34. Abadeer, N.S.; Murphy, C.J. Recent Progress in Cancer Thermal Therapy Using Gold Nanoparticles. J. Phys. Chem. C 2016, 120, 4691–4716. [Google Scholar] [CrossRef]
  35. Akbarzadeh, A.; Samiei, M.; Davaran, S. Magnetic nanoparticles: Preparation, physical properties, and applications in biomedicine. Nanoscale Res. Lett. 2012, 7, 144. [Google Scholar] [CrossRef] [PubMed]
  36. Ali, A.; Zafar, H.; Zia, M.; Haq, I.; Phull, A.R.; Ali, J.S.; Hussain, H. Synthesis, characterization, applications, and challenges of iron oxide nanoparticles. Nanotechnol. Sci. Appl. 2016, 9, 49–67. [Google Scholar] [CrossRef] [PubMed]
  37. Vedernikova, I.A. Magnetic nanoparticles: Advantages of using, methods for preparation, characterization, application in pharmacy. Rev. J. Chem. 2015, 5, 256–280. [Google Scholar] [CrossRef]
  38. Wu, W.; Wu, Z.; Yu, T.; Jiang, C.; Kim, W.S. Recent progress on magnetic iron oxide nanoparticles: Synthesis, surface functional strategies and biomedical applications. Sci. Technol. Adv. Mater. 2015, 16, 23501. [Google Scholar] [CrossRef] [PubMed]
  39. Abenojar, E.C.; Wickramasinghe, S.; Bas-Concepcion, J.; Samia, A.C.S. Structural effects on the magnetic hyperthermia properties of iron oxide nanoparticles. Prog. Nat. Sci. Mater. Int. 2016, 26, 440–448. [Google Scholar] [CrossRef] [Green Version]
  40. Nedelcu, G. Magnetic nanoparticles impact on tumoral cells in the treatment by magnetic fluid hyperthermia. Dig. J. Nanomater. Biostruct. 2008, 3, 103–107. [Google Scholar]
  41. Deatsch, A.E.; Evans, B.A. Heating efficiency in magnetic nanoparticle hyperthermia. J. Magn. Magn. Mater. 2014, 354, 163–172. [Google Scholar] [CrossRef]
  42. Particles, F.; Hilger, I.; Hergt, R.; Andr, W.; Ambly, C.G.; Hilger, I. Physical Limits of Hyperthermia Using Magnetite Physical Limits of Hyperthermia Using Magnetite Fine Particles. IEEE Trans. Magn. 1998, 34, 3745–3754. [Google Scholar]
  43. Salloum, M.; Ma, R.H.; Weeks, D.; Zhu, L. Controlling nanoparticle delivery in magnetic nanoparticle hyperthermia for cancer treatment: Experimental study in agarose gel. Int. J. Hyperth. 2008, 24, 337–345. [Google Scholar] [CrossRef] [PubMed]
  44. Hergt, R.; Dutz, S.; Zeisberger, M. Validity limits of the Néel relaxation model of magnetic nanoparticles for hyperthermia. Nanotechnology 2010, 21, 015706. [Google Scholar] [CrossRef] [PubMed]
  45. Gilchrist, R.K.; Medal, R.; Shorey, W.D.; Hanselman, R.C.; Parrott, J.C.; Taylor, C.B. Selective inductive heating of lymph nodes. Ann. Surg. 1957, 146, 596–606. [Google Scholar] [CrossRef] [PubMed]
  46. Gilchrist, M.D.S.R.K. Effects of Electromagetic Heating on Internal Viscera: A Preliminary to the Treatment of Human Tumors. Ann. Surg. 1965, 161, 890–895. [Google Scholar] [CrossRef] [PubMed]
  47. Dürr, S.; Janko, C.; Lyer, S.; Tripal, P.; Schwarz, M.; Zaloga, J.; Tietze, R.; Alexiou, C. Magnetic nanoparticles for cancer therapy. Nanotechnol. Rev. 2013, 2, 395–409. [Google Scholar] [Green Version]
  48. Issa, B.; Obaidat, I.M.; Albiss, B.A.; Haik, Y. Magnetic nanoparticles: Surface effects and properties related to biomedicine applications. Int. J. Mol. Sci. 2013, 14, 21266–21305. [Google Scholar] [CrossRef] [PubMed]
  49. Wu, M.; Huang, S. Magnetic nanoparticles in cancer diagnosis, drug delivery and treatment (Review). Mol. Clin. Oncol. 2017, 7, 738–746. [Google Scholar] [CrossRef] [Green Version]
  50. Laurent, S.; Forge, D.; Port, M.; Roch, A.; Robic, C.; Elst, L.V.; Muller, R.N. Magnetic Iron Oxide Nanoparticles: Synthesis, Stabilization, Vectorization, Physicochemical Characterizations, and Biological Applications. Chem. Rev. 2008, 108, 2064–2110. [Google Scholar] [CrossRef]
  51. Kettering, M.; Winter, J.; Zeisberger, M.; Bremer-Streck, S.; Oehring, H.; Bergemann, C.; Alexiou, C.; Hergt, R.; Halbhuber, K.J.; Kaiser, W.A.; et al. Magnetic nanoparticles as bimodal tools in magnetically induced labelling and magnetic heating of tumour cells: An in vitro study. Nanotechnology 2007, 18, 175101. [Google Scholar] [CrossRef]
  52. Tong, S.; Quinto, C.A.; Zhang, L.; Mohindra, P.; Bao, G. Size-Dependent Heating of Magnetic Iron Oxide Nanoparticles. ACS Nano 2017, 11, 6808–6816. [Google Scholar] [CrossRef]
  53. Hilger, I.; Andrä, W.; Hergt, R.; Hiergeist, R.; Schubert, H.; Kaiser, W.A. Electromagnetic Heating of Breast Tumors in Interventional Radiology: In Vitro and in Vivo Studies in Human Cadavers and Mice. Radiology 2001, 218, 570–575. [Google Scholar] [CrossRef] [PubMed]
  54. Hilger, I.; Hergt, R.; Kaiser, W.A. Towards breast cancer treatment by magnetic heating. J. Magn. Magn. Mater. 2005, 293, 314–319. [Google Scholar] [CrossRef]
  55. Jordan, A.; Scholz, R.; Maier-Hauf, K.; Landeghem, F.K.H.; Waldoefner, N.; Teichgraeber, U.; Pinkernelle, J.; Bruhn, H.; Neumann, F.; Thiesen, B.; et al. The effect of thermotherapy using magnetic nanoparticles on rat malignant glioma. J. Neurooncol. 2006, 78, 7–14. [Google Scholar] [CrossRef]
  56. Johannsen, M.; Gneveckow, U.; Thiesen, B.; Taymoorian, K.; Cho, C.H.; Waldofner, N.; Scholz, R.; Jordan, A.; Loening, S.A.; Wust, P. Thermotherapy of Prostate Cancer Using Magnetic Nanoparticles: Feasibility, Imaging, and Three-Dimensional Temperature Distribution. Eur. Urol. 2007, 52, 1653–1662. [Google Scholar] [CrossRef] [PubMed]
  57. Johannsen, M.; Thiesen, B.; Wust, P.; Jordan, A. Magnetic nanoparticle hyperthermia for prostate cancer. Int. J. Hyperth. 2010, 26, 790–795. [Google Scholar] [CrossRef] [PubMed]
  58. Johannsen, M.; Thiesen, B.; Jordan, A.; Taymoorian, K.; Gneveckow, U.; Waldofner, N.; Scholz, R.; Koch, M.; Lein, M.; Jung, K.; et al. Magnetic fluid hyperthermia (MFH) reduces prostate cancer growth in the orthotopic Dunning R3327 rat model. Prostate 2005, 64, 283–292. [Google Scholar] [CrossRef]
  59. Rich, J.N.; Robinson, J.W.; Rowitch, D.H.; Sampson, J.H.; Taylor, M.D.; Workman, P.; Gilbertson, R.J. Statement brain tumours. Nat. Rev. Clin. Oncol. 2019, 16, 509–520. [Google Scholar]
  60. Bredlau, A.L.; McCrackin, M.A.; Motamarry, A.; Helke, K.; Chen, C.; Broomee, A.-M.; Haemmerich, D. Thermal Therapy Approaches for Treatment of Brain Tumors in Animals and Humans. Crit Rev Biomed Eng. 2016, 44, 443–457. [Google Scholar] [CrossRef]
  61. Maier-Hauff, K.; Ulrich, F.; Nestler, D.; Niehoff, H.; Wust, P.; Thiesen, B.; Orawa, H.; Budach, V.; Jordan, A. Efficacy and safety of intratumoral thermotherapy using magnetic iron-oxide nanoparticles combined with external beam radiotherapy on patients with recurrent glioblastoma multiforme. J. Neurooncol. 2011, 103, 317–324. [Google Scholar] [CrossRef]
  62. Bruners, P.; Braunschweig, T.; Hodenius, M.; Pietsch, H.; Penzkofer, T.; Baumann, M.; Gunter, R.W.; Schmitz-Rode, T.; Mahnken, A.H. Thermoablation of malignant kidney tumors using magnetic nanoparticles: An in vivo feasibility study in a rabbit model. Cardiovasc. Intervent. Radiol. 2010, 33, 127–134. [Google Scholar] [CrossRef]
  63. Xie, W.; Guo, Z.; Gao, F.; Gao, Q.; Wang, D.; Liaw, B.; Cai, Q.; Sun, X.; Wang, X.; Zhao, L. Shape-, size- and structure-controlled synthesis and biocompatibility of iron oxide nanoparticles for magnetic theranostics. Theranostics 2018, 8, 3284–3307. [Google Scholar] [CrossRef] [PubMed]
  64. Johannsen, M.; Gneveckow, U.; Taymoorian, K.; Thiesen, B.; Waldöfner, N.; Scholz, R.; Jung, K.; Jordan, A.; Wust, P.; Loening, S.A. Morbidity and quality of life during thermotherapy using magnetic nanoparticles in locally recurrent prostate cancer: Results of a prospective phase I trial. Int. J. Hyperth. 2007, 23, 315–323. [Google Scholar] [CrossRef] [PubMed]
  65. Balivada, S.; Rachakatla, R.S.; Wang, H.; Samarakoon, T.N.; Dani, R.K.; Pyle, M.; Kroh, F.O.; Walker, B.; Leaym, X.; Koper, O.B. A/C magnetic hyperthermia of melanoma mediated by iron(0)/iron oxide core/shell magnetic nanoparticles: A mouse study. BMC Cancer 2010, 10, 19. [Google Scholar] [CrossRef] [PubMed]
  66. Richter, H.; Wiekhorst, F.; Steinhoff, U.; Trahmz, L. Localization and quantification of magnetic nanoparticles by multichannel magnetorelaxometry for in vivo hyperthermia studies in carcinoma models. IFMBE Proc. 2009, 25, 302–305. [Google Scholar]
  67. Andrä, W.; D’Ambly, C.G.; Hergt, R.; Hilger, I.; Kaiser, W.A. Temperature distribution as function of time around a small spherical heat source of local magnetic hyperthermia. J. Magn. Magn. Mater. 1999, 194, 197–203. [Google Scholar] [CrossRef]
  68. Versiani, A.F.; Andrade, L.M.; Martins, E.M.N.; Scalzo, S.; Geraldo, J.M.; Chaves, C.R.; Ferreira, D.C.; Ladeira, M.; Guatimosim, S.; Ladeira, L.O.; et al. Gold nanoparticles and their applications in biomedicine. Futur Med. Virol. 2016, 11, 293–309. [Google Scholar] [CrossRef]
  69. Huang, X.; El-Sayed, M.A. Gold nanoparticles: Optical properties and implementations in cancer diagnosis and photothermal therapy. J. Adv. Res. 2010, 1, 13–28. [Google Scholar] [CrossRef] [Green Version]
  70. Huang, X.; Jain, P.K.; El-Sayed, I.H.; El-Sayed, M.A. Gold nanoparticles: Interesting optical properties and recent applications in cancer diagnostics and therapy. Nanomedicine 2007, 2, 681–693. [Google Scholar] [CrossRef]
  71. Yang, W.; Liang, H.; Ma, S.; Wang, D.; Huang, J. Gold nanoparticle based photothermal therapy: Development and application for effective cancer treatment. Sustain. Mater. Technol. 2019, 22, e00109. [Google Scholar] [CrossRef]
  72. El-Sayed, I.H.; Huang, X.; El-Sayed, M.A. Selective laser photo-thermal therapy of epithelial carcinoma using anti-EGFR antibody conjugated gold nanoparticles. Cancer Lett. 2006, 239, 129–135. [Google Scholar] [CrossRef]
  73. Cardinal, J.; Klune, J.R.; Chory, E.; Jeyabalan, G.; Kanzius, J.S.; Nalesnik, M.; Geller, D.A. Noninvasive radiofrequency ablation of cancer targeted by gold nanoparticles. Surgery 2008, 144, 125–132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Gannon, C.J.; Patra, C.R.; Bhattacharya, R.; Mukherjee, P.; Curley, S.A. Intracellular gold nanoparticles enhance non-invasive radiofrequency thermal destruction of human gastrointestinal cancer cells. J. Nanobiotechnol. 2008, 6, 1–9. [Google Scholar] [CrossRef] [PubMed]
  75. Glazer, E.S.; Zhu, C.; Massey, K.L.; Thompson, C.S.; Kaluarachchi, W.D.; Hamir, A.N.; Curley, S.A. Noninvasive radiofrequency field destruction of pancreatic adenocarcinoma xenografts treated with targeted gold nanoparticles. Clin. Cancer Res. 2010, 16, 5712–5721. [Google Scholar] [CrossRef] [PubMed]
  76. Glazer, E.S.; Curley, S.A. Radiofrequency field-induced thermal cytotoxicity in cancer cells treated with fluorescent nanoparticles. Cancer 2010, 116, 3285–3293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Martinelli, E.; de Palma, R.; Orditura, M.; de Vita, F.; Ciardiello, F. Anti-epidermal growth factor receptor monoclonal antibodies in cancer therapy. Clin. Exp. Immunol. 2009, 158, 1–9. [Google Scholar] [CrossRef] [PubMed]
  78. Huang, X.; Jain, P.K.; El-Sayed, I.H.; El-Sayed, M.A. Determination of the Minimum Temperature Required for Selective Photothermal Destruction of Cancer Cells with the Use of Immunotargeted Gold Nanoparticles. Photochem. Photobiol. 2006, 82, 412. [Google Scholar] [CrossRef] [PubMed]
  79. Li, Y.; Lu, W.; Huang, Q.; Li, C.; Chen, W. Copper sulfide nanoparticles for photothermal ablation of tumor cells. Nanomedicine 2010, 5, 1161–1171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Guo, L.; Panderi, I.; Yan, D.D.; Szulak, K.; Li, Y.; Chen, Y.; Ma, H.; Niesen, D.B.; Seeram, N.; Ahmed, A.; et al. A comparative study of hollow copper sulfide nanoparticles and hollow gold nanospheres on degradability and toxicity. ACS Nano 2013, 7, 8780–8793. [Google Scholar] [CrossRef] [PubMed]
  81. Guo, L.; Yan, D.D.; Yang, D.; Li, Y.; Wang, X.; Zalewski, O.; Yan, B.; Lu, W. Combinatorial photothermal and immuno cancer therapy using chitosan-coated hollow copper sulfide nanoparticles. ACS Nano 2014, 8, 5670–5681. [Google Scholar] [CrossRef]
  82. Huang, Y.; Lai, Y.; Shi, S.; Hao, S.; Wei, J.; Chen, X. Copper sulfide nanoparticles with phospholipid-PEG coating for in vivo near-infrared photothermal cancer therapy. Chem. Asian J. 2015, 10, 370–376. [Google Scholar] [CrossRef]
  83. Zhou, M.; Chen, Y.; Adachi, M.; Wen, X.; Erwin, B.; Mawlawi, O.; Lai, S.Y.; Li, C. Single agent nanoparticle for radiotherapy and radio-photothermal therapy in anaplastic thyroid cancer. Biomaterials 2015, 57, 41–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Huang, X.; El-Sayed, I.H.; Qian, W.; El-Sayed, M.A. Cancer cells assemble and align gold nanorods conjugated to antibodies to produce highly enhanced, sharp, and polarized surface Raman spectra: A potential cancer diagnostic marker. Nano Lett. 2007, 7, 1591–1597. [Google Scholar] [CrossRef] [PubMed]
  85. Wang, L.; Li, Y.; Zhou, L.; Liu, Y.; Meng, L.; Zhang, K.; Wu, X.; Zhang, L.; Li, B.; Chen, C. Characterization of gold nanorods in vivo by integrated analytical techniques: Their uptake, retention, and chemical forms. Anal. Bioanal. Chem. 2010, 396, 1105–1114. [Google Scholar] [CrossRef] [PubMed]
  86. Huff, T.B.; Tong, L.; Zhao, Y.; Hansen, M.N.; Cheng, J.X.; Wei, A. Hyperthermic effects of gold nanorods on tumor cells. Nanomedicine 2007, 2, 125–132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  87. Qiu, Y.; Liu, Y.; Wang, L.; Xu, L.; Bai, R.; Ji, Y.; Wu, X.; Zhao, Y.; Li, Y.; Chen, C. Surface chemistry and aspect ratio mediated cellular uptake of Au nanorods. Biomaterials 2010, 31, 7606–7619. [Google Scholar] [CrossRef] [PubMed]
  88. An, L.; Wang, Y.; Tian, Q.; Yang, S. Small gold nanorods: Recent advances in synthesis, biological imaging, and cancer therapy. Materials 2017, 10, 1372. [Google Scholar] [CrossRef] [PubMed]
  89. Jia, H.; Fang, C.; Zhu, X.M.; Ruan, Q.; Wang, Y.-X.J.; Wang, J. Synthesis of Absorption-Dominant Small Gold Nanorods and Their Plasmonic Properties. Langmuir 2015, 31, 7418–7426. [Google Scholar] [CrossRef] [PubMed]
  90. Vines, J.B.; Yoon, J.-H.; Ryu, N.-E.; Lim, D.-J.; Park, H. Gold Nanoparticles for Photothermal Cancer Therapy. Front. Chem. 2019, 7, 1–16. [Google Scholar] [CrossRef]
  91. von Maltzahn, G.; Park, J.; Agrawal, A.; Bandaru, N.K.; Das, S.K.; Sailor, M.J.; Bhatia, S.N. Computationally guided photothermal tumor therapy using long-circulating gold nanorod antennas. Cancer Res. 2009, 69, 3892–3900. [Google Scholar] [CrossRef]
  92. Huang, H.C.; Rege, K.; Heys, J.J. Spatiotemporal temperature distribution and cancer cell death in response to extracellular hyperthermia induced by gold nanorods. ACS Nano 2010, 4, 2892–2900. [Google Scholar] [CrossRef]
  93. Soni, S.; Tyagi, H.; Taylor, R.A.; Kumar, A. Investigation on nanoparticle distribution for thermal ablation of a tumour subjected to nanoparticle assisted thermal therapy. J. Therm. Biol. 2014, 43, 70–80. [Google Scholar] [CrossRef] [PubMed]
  94. Cho, S.K.; Emoto, K.; Su, L.J.; Yang, X.; Flaig, T.W.; Park, W. Functionalized gold nanorods for thermal ablation treatment of bladder cancer. J. Biomed. Nanotechnol. 2014, 10, 1267–1276. [Google Scholar] [CrossRef] [PubMed]
  95. Mooney, R.; Schena, E.; Zhumkhawala, A.; Aboody, K.S.; Berlin, J.M. Internal temperature increase during photothermal tumour ablation in mice using gold nanorods. Proc. Annu. Int. Conf. IEEE Eng. Med. Biol. Soc. 2015, 2015, 2563–2566. [Google Scholar]
  96. Mooney, R.; Schena, E.; Saccomandi, P.; Zhumkhawala, A.; Aboody, K.; Berlin, J.M. Gold nanorod-mediated near-infrared laser ablation: In vivo experiments on mice and theoretical analysis at different settings. Int. J. Hyperth. 2017, 33, 150–159. [Google Scholar] [CrossRef] [PubMed]
  97. Dickerson, E.B.; Dreaden, E.C.; Huang, X.; El-Sayed, I.H.; Chu, H.; Pushpanketh, S.; McDonald, J.F.; El-Sayed, M.A. Gold nanorod assisted near-infrared plasmonic photothermal therapy (PPTT) of squamous cell carcinoma in mice. Cancer Lett. 2008, 269, 57–66. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Jang, B.; Kim, Y.S.; Choi, Y. Effects of gold Nanorod concentration on the depth-related temperature increase during hyperthermic ablation. Small 2011, 7, 265–270. [Google Scholar] [CrossRef] [PubMed]
  99. Mceuen, P.L.; Fuhrer, M.S.; Park, H. Single-walled carbon nanotube electronics. IEEE Trans. Nanotechnol. 2002, 1, 78–85. [Google Scholar] [CrossRef] [Green Version]
  100. Elhissi, A.; Ahmed, W.; Dhanak, V.R.; Subramani, K. Carbon Nanotubes in Cancer Therapy and Drug Delivery, 1st ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2012. [Google Scholar]
  101. Liu, Z.; Tabakman, S.; Welsher, K.; Dai, H. Carbon nanotubes in biology and medicine: In vitro and in vivo detection, imaging and drug delivery. Nano Res. 2009, 2, 85–120. [Google Scholar] [CrossRef] [Green Version]
  102. Ding, R.G.; Lu, G.Q.; Yan, Z.F.; Wilson, M.A. Recent Advances in the Preparation and Utilization of Carbon Nanotubes for Hydrogen Storage. J. Nanosci. Nanotechnol. 2001, 1, 7–29. [Google Scholar] [CrossRef]
  103. Zhou, F.; Xing, D.; Ou, Z.; Wu, B.; Resasco, D.E.; Chen, W.R. Cancer photothermal therapy in the near-infrared region by using single-walled carbon nanotubes. J. Biomed. Opt. 2009, 14, 021009. [Google Scholar] [CrossRef]
  104. Iancu, C.; Mocan, L. Advances in cancer therapy through the use of carbon nanotube-mediated targeted hyperthermia. Int. J. Nanomed. 2011, 6, 1675–1684. [Google Scholar] [CrossRef] [PubMed]
  105. Murakami, T.; Nakatsuji, H.; Inada, M.; Matoba, Y.; Umeyama, T.; Tsujimoto, M.; Isoda, S.; Hashida, M.; Imahori, H. Photodynamic and photothermal effects of semiconducting and metallic-enriched single-walled carbon nanotubes. J. Am. Chem. Soc. 2012, 134, 17862–17865. [Google Scholar] [CrossRef] [PubMed]
  106. Kam, N.W.S.; O’Connell, M.; Wisdom, J.A.; Dai, H. Selective Cancer Cell Destruction Linked references are available on JSTOR for this article: Carbon nanotubes as multifunctional biological transporters and near-infrared agents for selective cancer cell destruction. Pnas 2005, 102, 1600–11605. [Google Scholar]
  107. Madani, S.Y.; Naderi, N.; Dissanayake, O.; Tan, A.; Seifalian, A.M. A new era of cancer treatment: carbon nanotubes as drug delivery tools. Int. J. Nanomed. 2011, 6, 2963–2979. [Google Scholar] [Green Version]
  108. Ji, S.R.; Liu, C.; Zhang, B.; Yang, F.; Xu, J.; Long, J.; Jin, C.; Fu, D.; Ni, Q.; Yu, X. Carbon nanotubes in cancer diagnosis and therapy. Biochim. Biophys. Acta Rev. Cancer 2010, 1806, 29–35. [Google Scholar] [CrossRef] [PubMed]
  109. Ribeiro, B.; Botelho, E.C.; Costa, M.L.; Bandeira, C.F. Carbon nanotube buckypaper reinforced polymer composites: A review. Polímeros 2017, 27, 247–255. [Google Scholar] [CrossRef]
  110. Mayr, E. American Association for the Advancement of Science Handbook. Science 1998, 266, 715–716. [Google Scholar] [CrossRef] [PubMed]
  111. Yu, X.; Munge, B.; Patel, V.; Jensen, G.; Bhirde, A.; Gong, J.D.; Kim, S.N.; Gillespie, J.; Gutkind, J.S.; Papadimitrakopoulos, F.; et al. Carbon nanotube amplification strategies for highly sensitive immunodetection of cancer biomarkers. J. Am. Chem. Soc. 2006, 128, 11199–11205. [Google Scholar] [CrossRef]
  112. Park, D.-W.; Kim, Y.-H.; Kim, B.S.; So, H.-M.; Won, K.; Lee, J.-O.; Kong, K.-J.; Chang, H. Detection of Tumor Markers Using Single-Walled Carbon Nanotube Field Effect Transistors. J. Nanosci. Nanotechnol. 2006, 6, 3499–3502. [Google Scholar] [CrossRef]
  113. Liu, X.; Tao, H.; Yang, K.; Zhang, S.; Lee, S.T.; Liu, Z. Optimization of surface chemistry on single-walled carbon nanotubes for in vivo photothermal ablation of tumors. Biomaterials 2011, 32, 144–151. [Google Scholar] [CrossRef]
  114. Gannon, C.J.; Cherukuri, P.; Yakobson, B.I.; Cognet, L.; Kanzius, J.S.; Kittrell, C.; Weisman, R.B.; Pasquali, M.; Schmidt, H.K.; Smalley, R.E.; et al. Carbon nanotube-enhanced thermal destruction of cancer cells in a noninvasive radiofrequency field. Cancer 2007, 110, 2654–2665. [Google Scholar] [CrossRef]
  115. Marches, R.; Mikoryak, C.; Wang, R.H.; Pantano, P.; Draper, R.K.; Vitetta, E.S. The importance of cellular internalization of antibody-targeted carbon nanotubes in the photothermal ablation of breast cancer cells. Nanotechnology 2011, 22, 095101. [Google Scholar] [CrossRef]
  116. Hashida, Y.; Tanaka, H.; Zhou, S.; Kawakami, S.; Yamashita, F.; Murakami, T.; Umeyama, T.; Imahori, H.; Hashida, M. Photothermal ablation of tumor cells using a single-walled carbon nanotube-peptide composite. J. Control. Release 2014, 173, 58–66. [Google Scholar] [CrossRef]
  117. Fisher, J.W.; Sarkar, S.; Buchanan, C.F.; Szot, C.S.; Whitney, J.; Hatcher, H.C.; Torti, S.V.; Rylander, C.G.; Rylander, M.N. Photothermal response of human and murine cancer cells to multiwalled carbon nanotubes after laser irradiation. Cancer Res. 2010, 70, 9855–9864. [Google Scholar] [CrossRef]
  118. Mocan, L.; Tabaran, F.A.; Mocan, T.; Bele, C.; Orza, A.I.; Lucan, C.; Stiufiuc, R.; Manaila, I.; Iulia, F.; Dana, I.; et al. Selective ex-vivo photothermal ablation of human pancreatic cancer with albumin functionalized multiwalled carbon nanotubes. Int. J. Nanomed. 2011, 6, 915–928. [Google Scholar] [Green Version]
  119. Hirsch, L.R.; Stafford, R.J.; Bankson, J.A.; Sershen, S.R.; Rivera, B.; Price, R.E.; Hazle, J.D.; Halas, N.J.; West, J.L. Nanoshell-mediated near-infrared thermal therapy of tumors under magnetic resonance guidance. Proc. Natl. Acad. Sci. USA 2003, 100, 13549–13554. [Google Scholar] [CrossRef] [Green Version]
  120. Lal, S.; Clare, S.E.; Halas, N.J. Photothermal Therapy: Impending Clinical Impact. Acc. Chem. Res. 2008, 41, 1842–1851. [Google Scholar] [CrossRef]
  121. O’Neal, D.P.; Hirsch, L.R.; Halas, N.J.; Payne, J.D.; West, J.L. Photo-thermal tumor ablation in mice using near infrared-absorbing nanoparticles. Cancer Lett. 2004, 209, 171–176. [Google Scholar] [CrossRef]
  122. Liu, A.; Wang, G.; Wang, F.; Zhang, Y. Gold nanostructures with near-infrared plasmonic resonance: Synthesis and surface functionalization. Coord. Chem. Rev. 2017, 336, 28–42. [Google Scholar] [CrossRef]
  123. Ke, H.; Wang, J.; Tong, S.; Jin, Y.; Wang, S.; Qu, E.; Bao, G.; Dai, Z. Gold nanoshelled liquid perfluorocarbon magnetic nanocapsules: A nanotheranostic platform for bimodal ultrasound/magnetic resonance imaging guided photothermal tumor ablation. Theranostics 2014, 4, 12–23. [Google Scholar] [CrossRef]
  124. Riley, R.S.; Day, E.S. Gold nanoparticle-mediated photothermal therapy: Applications and opportunities for multimodal cancer treatment. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2017, 9, e1449. [Google Scholar] [CrossRef]
  125. Bernardi, R.J.; Lowery, A.R.; Thompson, P.A.; Blaney, S.M.; West, J.L. Immunonanoshells for targeted photothermal ablation in medulloblastoma and glioma: An in vitro evaluation using human cell lines. J. Neurooncol. 2008, 86, 165–172. [Google Scholar] [CrossRef]
  126. Stern, J.M.; Stanfield, J.; Kabbani, W.; Hsieh, J.T.; Cadeddu, J.A. Selective prostate cancer thermal ablation with laser activated gold nanoshells. J. Urol. 2008, 179, 748–753. [Google Scholar] [CrossRef]
  127. Frémeaux, S.; Noël, C. Une analyse philosophique du management de la RSE: De la difficile conciliation entre l’ordre économique, l’ordre juridique et l’ordre moral. Manag. Avenir 2014, 73, 107. [Google Scholar] [CrossRef]
  128. Schwartz, J.A.; Price, R.E.; Gill-Sharp, K.L.; Sang, K.L.; Khorchani, J.; Goodwin, B.S.; Payne, J.D. Selective nanoparticle-directed ablation of the canine prostate. Lasers Surg. Med. 2011, 43, 213–220. [Google Scholar] [CrossRef]
  129. Xu, Y.; Mahmood, M.; Li, Z.; Dervishi, E.; Trigwell, S.; Zharov, V.P.; Ali, N.; Saini, V.; Biris, A.R.; Lupu, D.; et al. Cobalt nanoparticles coated with graphitic shells as localized radio frequency absorbers for cancer therapy. Nanotechnology 2008, 19, 435102. [Google Scholar] [CrossRef]
  130. Gyergyek, S.; Huskić, M.; Makovec, D.; Drofenik, M. Superparamagnetic nanocomposites of iron oxide in a polymethyl methacrylate matrix synthesized by in situ polymerization. Colloids Surf. A Physicochem. Eng. Asp. 2008, 317, 49–55. [Google Scholar] [CrossRef]
  131. Xu, Y.; Karmakar, A.; Wang, D.; Mahmood, M.W.; Watanabe, F.; Zhang, Y.; Fejleh, A.; Fejleh, P.; Li, Z.; Kannarpady, G.; et al. Multifunctional Fe3O4 cored magnetic-quantum dot fluorescent nanocomposites for RF nanohyperthermia of cancer cells. J. Phys. Chem. C 2010, 114, 5020–5026. [Google Scholar] [CrossRef]
  132. Shi, X.; Gong, H.; Li, Y.; Wang, C.; Cheng, L.; Liu, Z. Graphene-based magnetic plasmonic nanocomposite for dual bioimaging and photothermal therapy. Biomaterials 2013, 34, 4786–4793. [Google Scholar] [CrossRef]
Figure 1. Representation of different types of nanomaterials varied by a shape that can be used for biomedical applications and cancer tumor treatment.
Figure 1. Representation of different types of nanomaterials varied by a shape that can be used for biomedical applications and cancer tumor treatment.
Nanomaterials 09 01195 g001

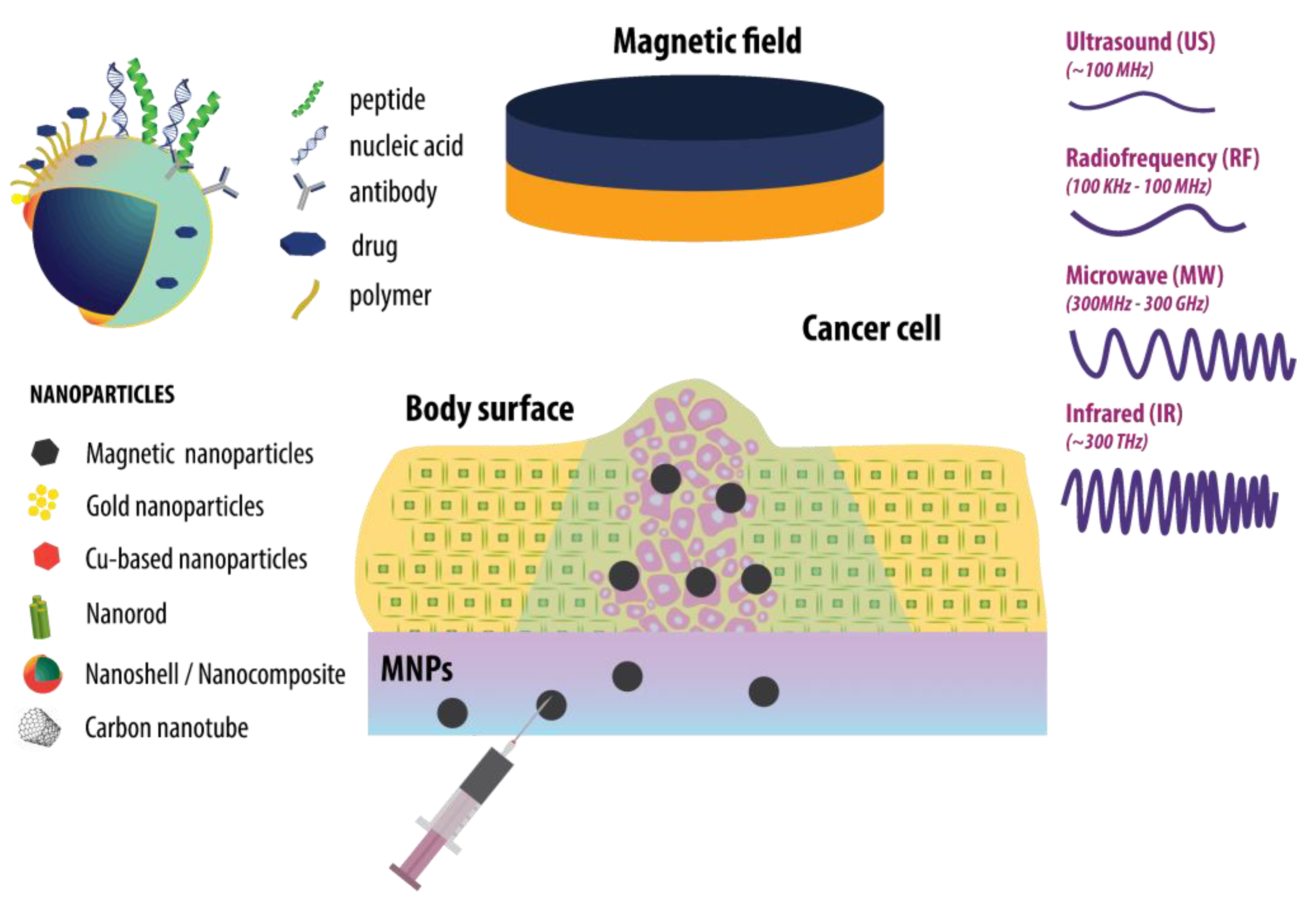

Figure 2. Schematic representation of cancer thermal therapy using the combination of nanomaterials with various surface functionalization possibilities and different external heat sources.
Figure 2. Schematic representation of cancer thermal therapy using the combination of nanomaterials with various surface functionalization possibilities and different external heat sources.
Nanomaterials 09 01195 g002

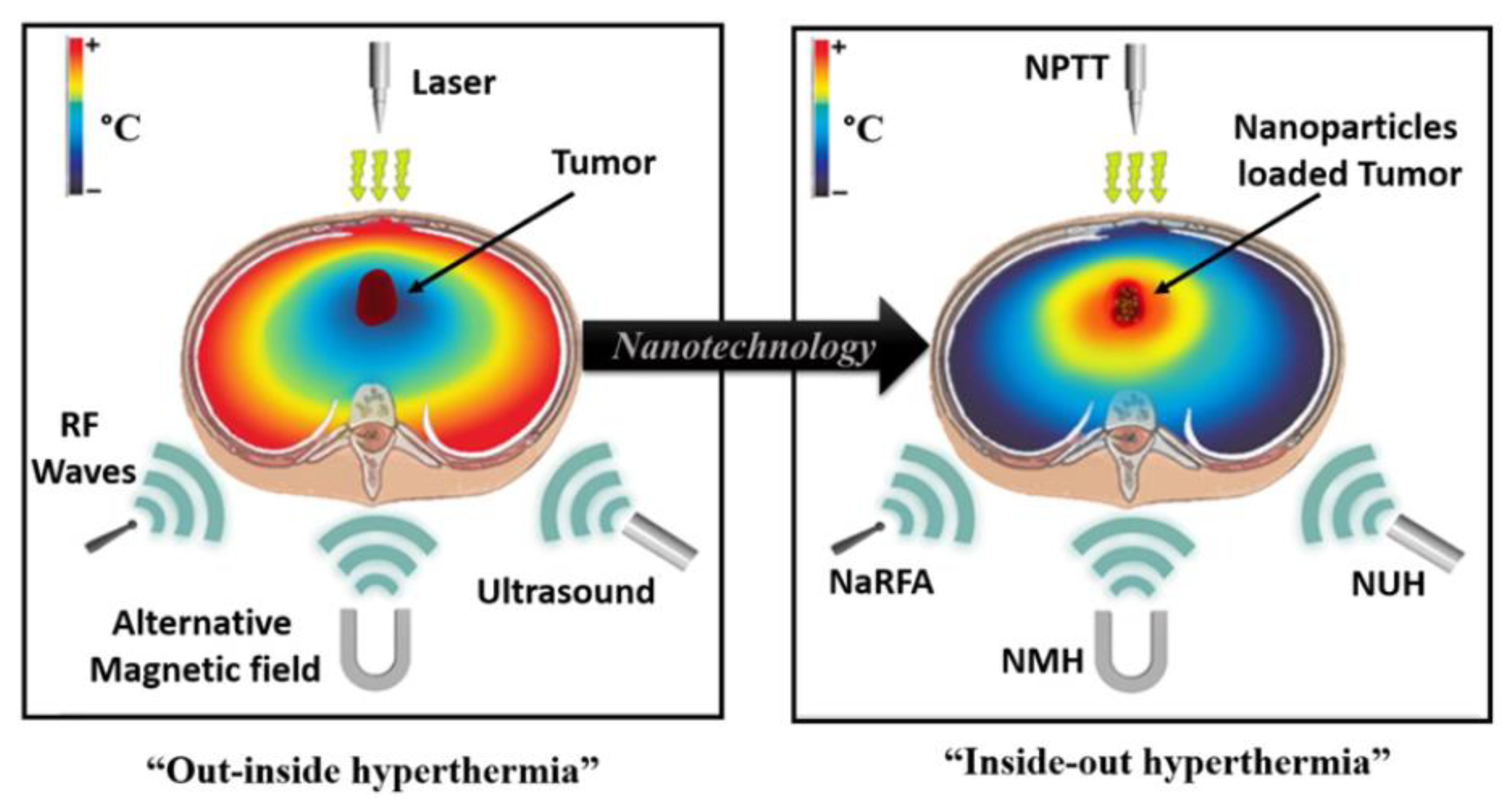

Figure 3. Thermal hypothermia of a tumor using nanoparticles enclosed inside of it absorbing the energy coming from different heat sources. NPTT—Nano-Photothermal Therapy, NMH—Nano-Magnetic Hyperthermia, NaRFA—Nano-Radio-Frequency Ablation, NUH—Nano-Ultrasound Hyperthermia [Reproduced from [8], with permission from Elsevier, Copyright 2016].
Figure 3. Thermal hypothermia of a tumor using nanoparticles enclosed inside of it absorbing the energy coming from different heat sources. NPTT—Nano-Photothermal Therapy, NMH—Nano-Magnetic Hyperthermia, NaRFA—Nano-Radio-Frequency Ablation, NUH—Nano-Ultrasound Hyperthermia [Reproduced from [8], with permission from Elsevier, Copyright 2016].
Nanomaterials 09 01195 g003

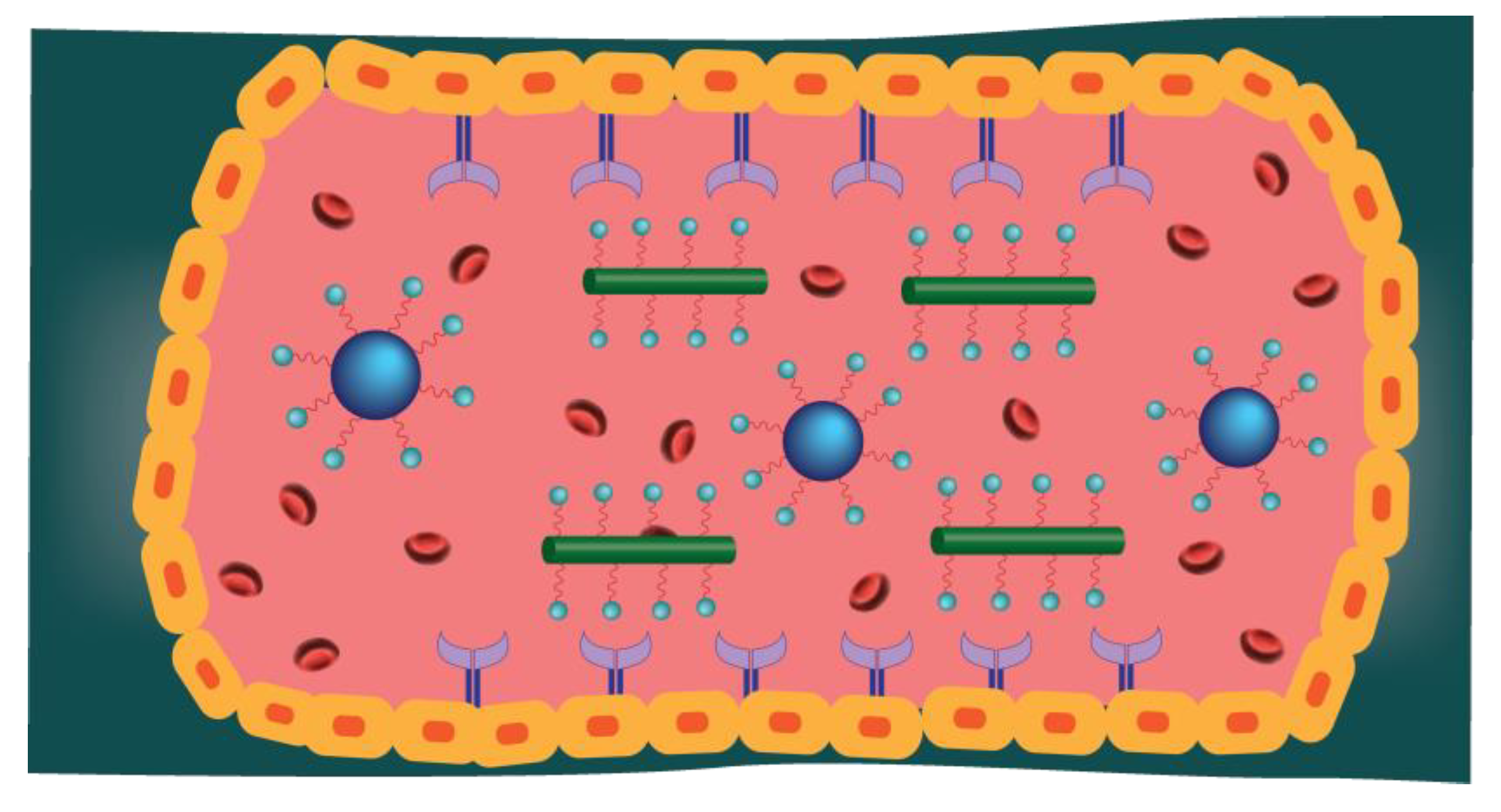

Figure 4. Effects of shape on nanoparticle flow. Spherical nanoparticles move toward the center of the flow, while the rod-shaped nanoparticles tend to attach to wall receptors due to the different forces and torques exerted on rods.
Figure 4. Effects of shape on nanoparticle flow. Spherical nanoparticles move toward the center of the flow, while the rod-shaped nanoparticles tend to attach to wall receptors due to the different forces and torques exerted on rods.
Nanomaterials 09 01195 g004

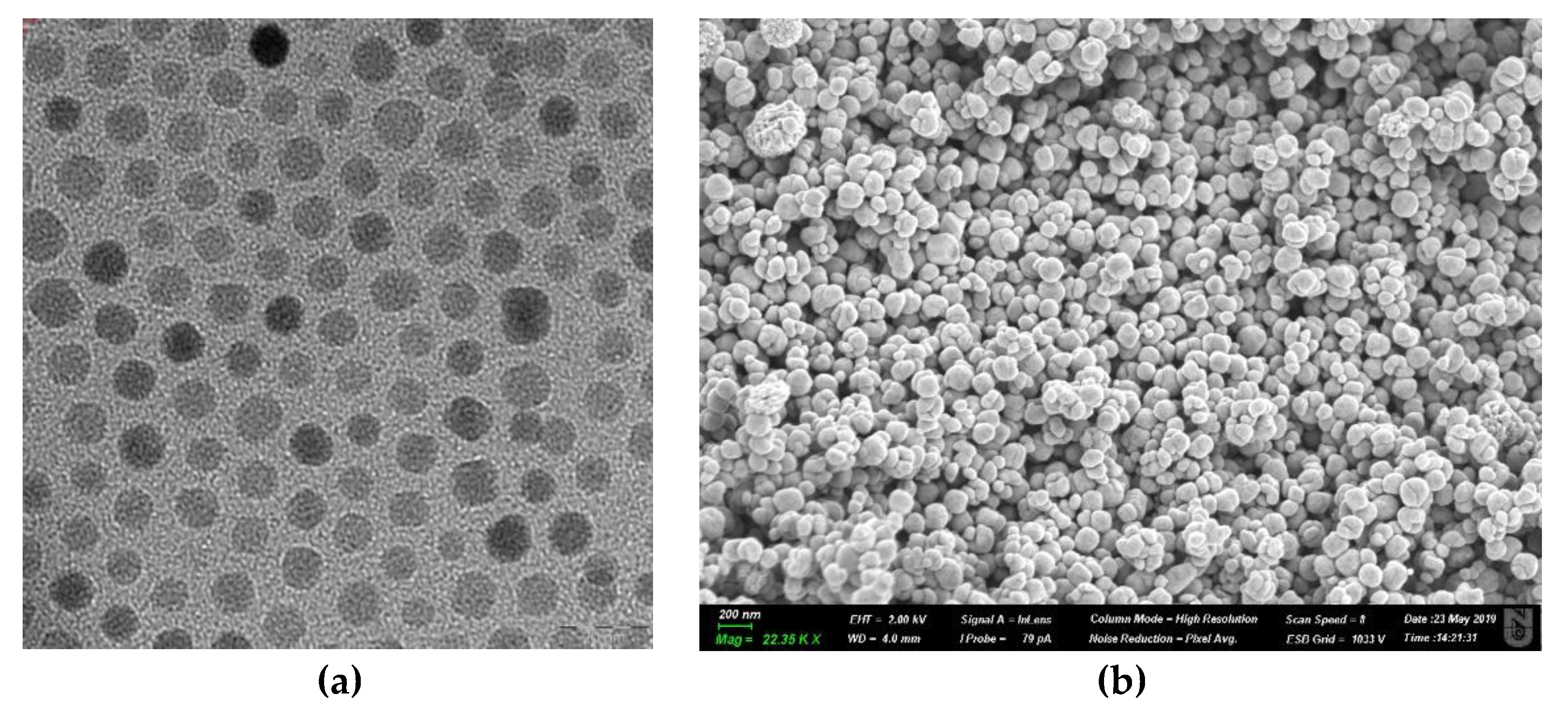

Figure 5. (a) The TEM image of iron oxide magnetic nanoparticles (MNPs) synthesized by the thermal decomposition method; (b) The SEM image of the iron oxide magnetic nanoparticles synthesized using a solvothermal method.
Figure 5. (a) The TEM image of iron oxide magnetic nanoparticles (MNPs) synthesized by the thermal decomposition method; (b) The SEM image of the iron oxide magnetic nanoparticles synthesized using a solvothermal method.
Nanomaterials 09 01195 g005

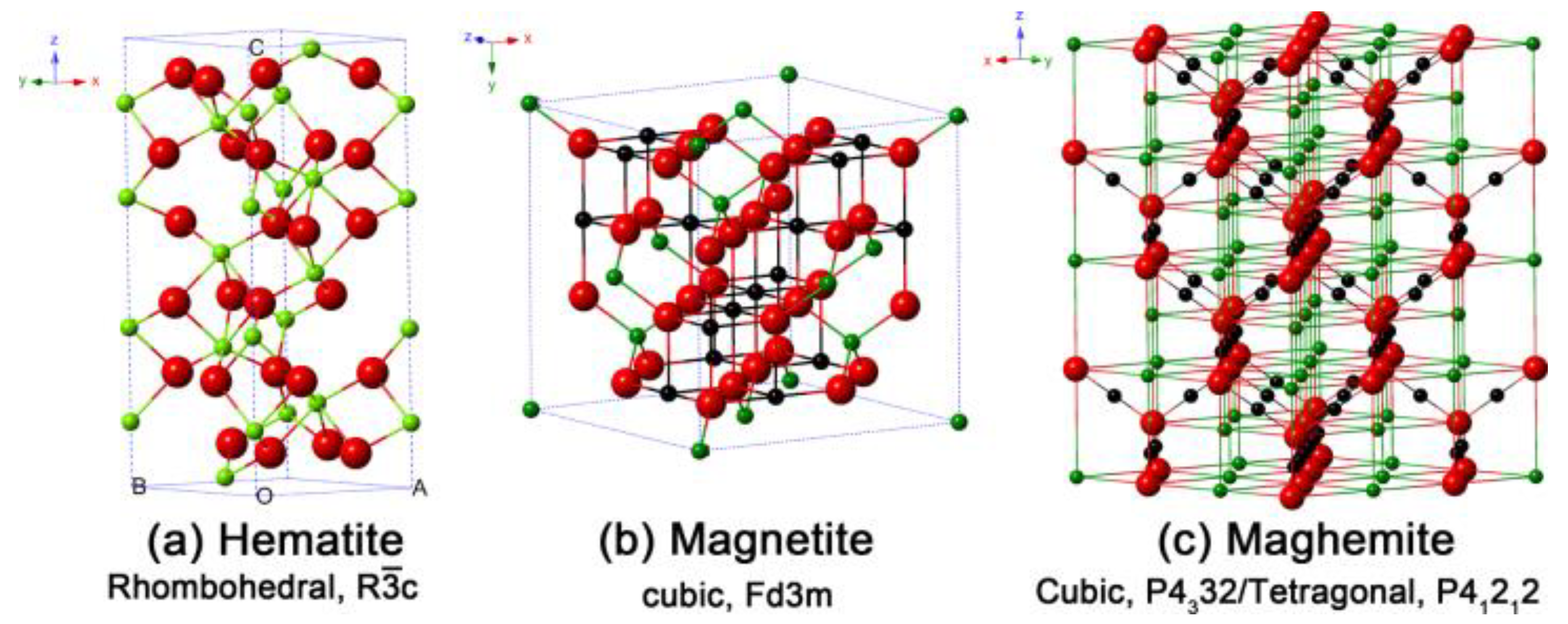

Figure 6. Crystal structure and crystallographic data of the hematite (a), magnetite (b), and maghemite (c) (the black ball is Fe2+, the green ball is Fe3+, and the red ball is O2). [Reproduced from [38], with permission by license CC BY 3.0, Copyright 2015].
Figure 6. Crystal structure and crystallographic data of the hematite (a), magnetite (b), and maghemite (c) (the black ball is Fe2+, the green ball is Fe3+, and the red ball is O2). [Reproduced from [38], with permission by license CC BY 3.0, Copyright 2015].
Nanomaterials 09 01195 g006

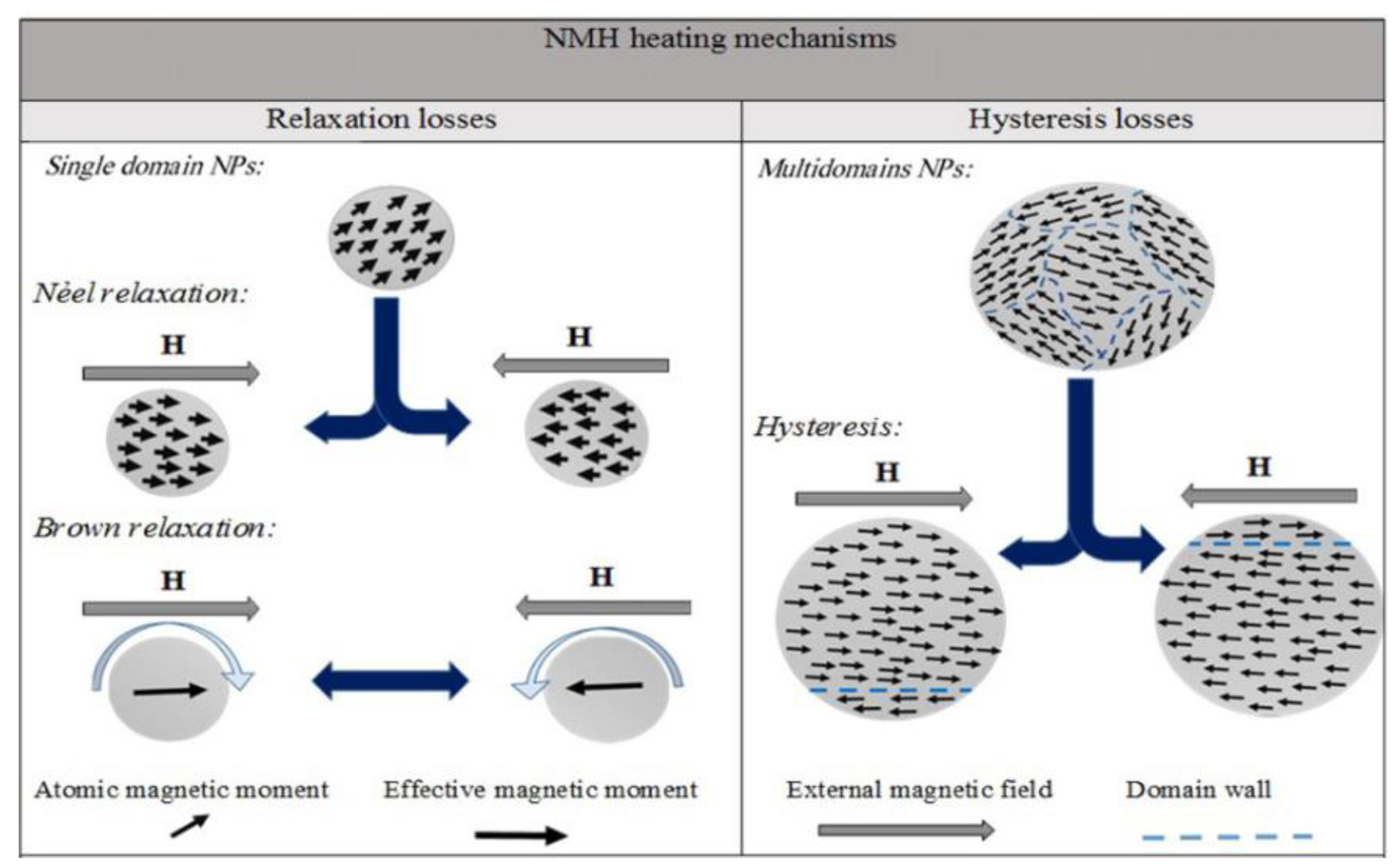

Figure 7. The Neel relaxation and Brownian mechanism representation of heat generation via MNPs under the atomic magnetic moment [Reproduced from [8], with permission from Elsevier, Copyright 2016].
Figure 7. The Neel relaxation and Brownian mechanism representation of heat generation via MNPs under the atomic magnetic moment [Reproduced from [8], with permission from Elsevier, Copyright 2016].
Nanomaterials 09 01195 g007

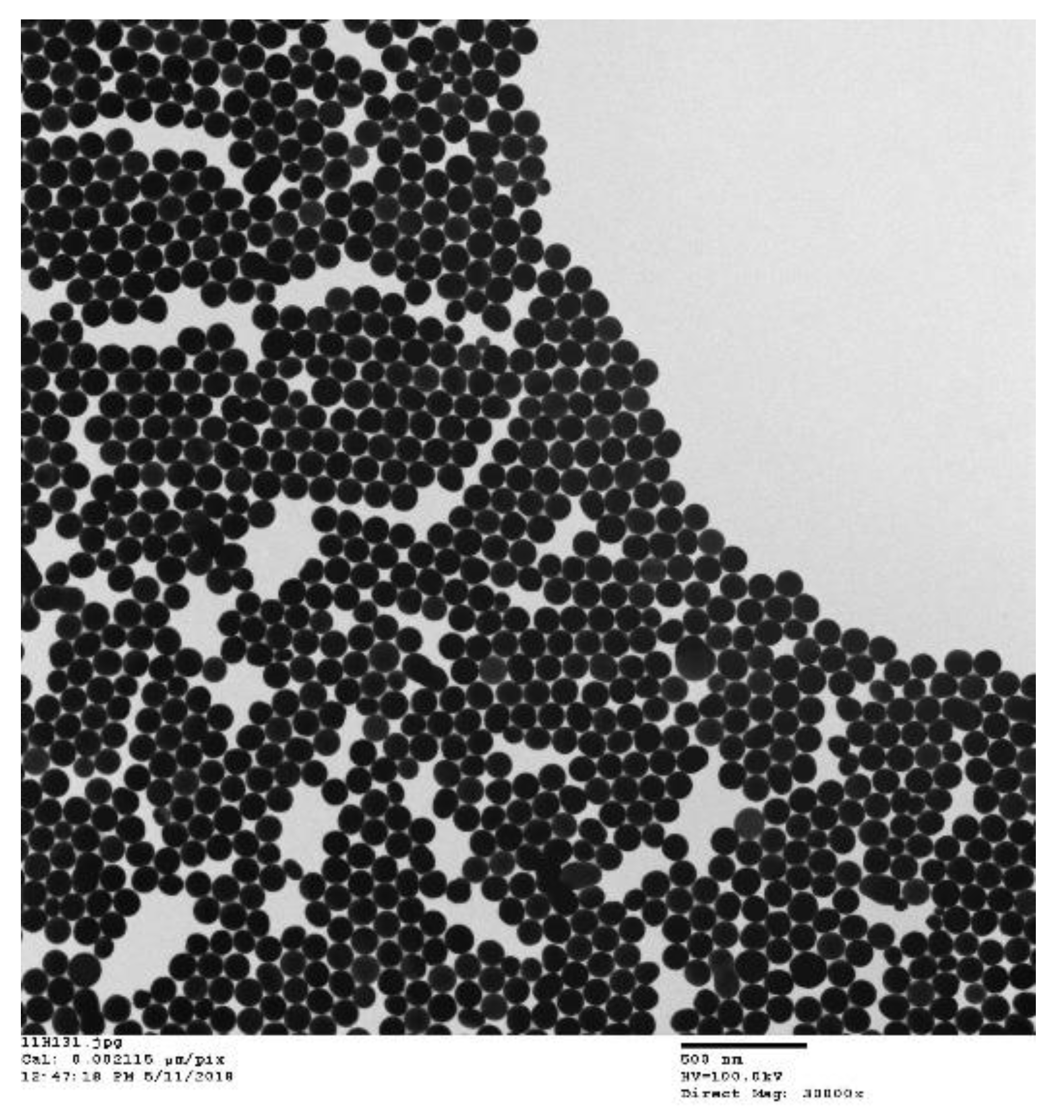

Figure 8. A TEM image of spherical gold nanoparticles (AuNPs), provided by Nanopartz Inc company.
Figure 8. A TEM image of spherical gold nanoparticles (AuNPs), provided by Nanopartz Inc company.
Nanomaterials 09 01195 g008
Figure 9. TEM images of gold nanorods samples (GmSn) differentiated by the molar ratio of seed-to-Au(III) in growth media. (AC) Gold nanorods were grown with cetyltripropylammonium bromide (CTPAB), and (DF) gold nanorods grown with CTAB [Reproduced from [88,89], with permission from Open Access Journal, under the license CC BY 4.0, Copyright 2017].
Figure 9. TEM images of gold nanorods samples (GmSn) differentiated by the molar ratio of seed-to-Au(III) in growth media. (AC) Gold nanorods were grown with cetyltripropylammonium bromide (CTPAB), and (DF) gold nanorods grown with CTAB [Reproduced from [88,89], with permission from Open Access Journal, under the license CC BY 4.0, Copyright 2017].
Nanomaterials 09 01195 g009
Figure 10. AuNRs-mediated LA in mice bearing MDA-MB-231 human breast cancer. Temperature evolutions measured inside the tumor during ablation performed at 2.1 W and 3 W. Xenogen images acquired two days after ablation [Reproduced from [96], with permission from Taylor & Francis, Copyright 2019].
Figure 10. AuNRs-mediated LA in mice bearing MDA-MB-231 human breast cancer. Temperature evolutions measured inside the tumor during ablation performed at 2.1 W and 3 W. Xenogen images acquired two days after ablation [Reproduced from [96], with permission from Taylor & Francis, Copyright 2019].
Nanomaterials 09 01195 g010

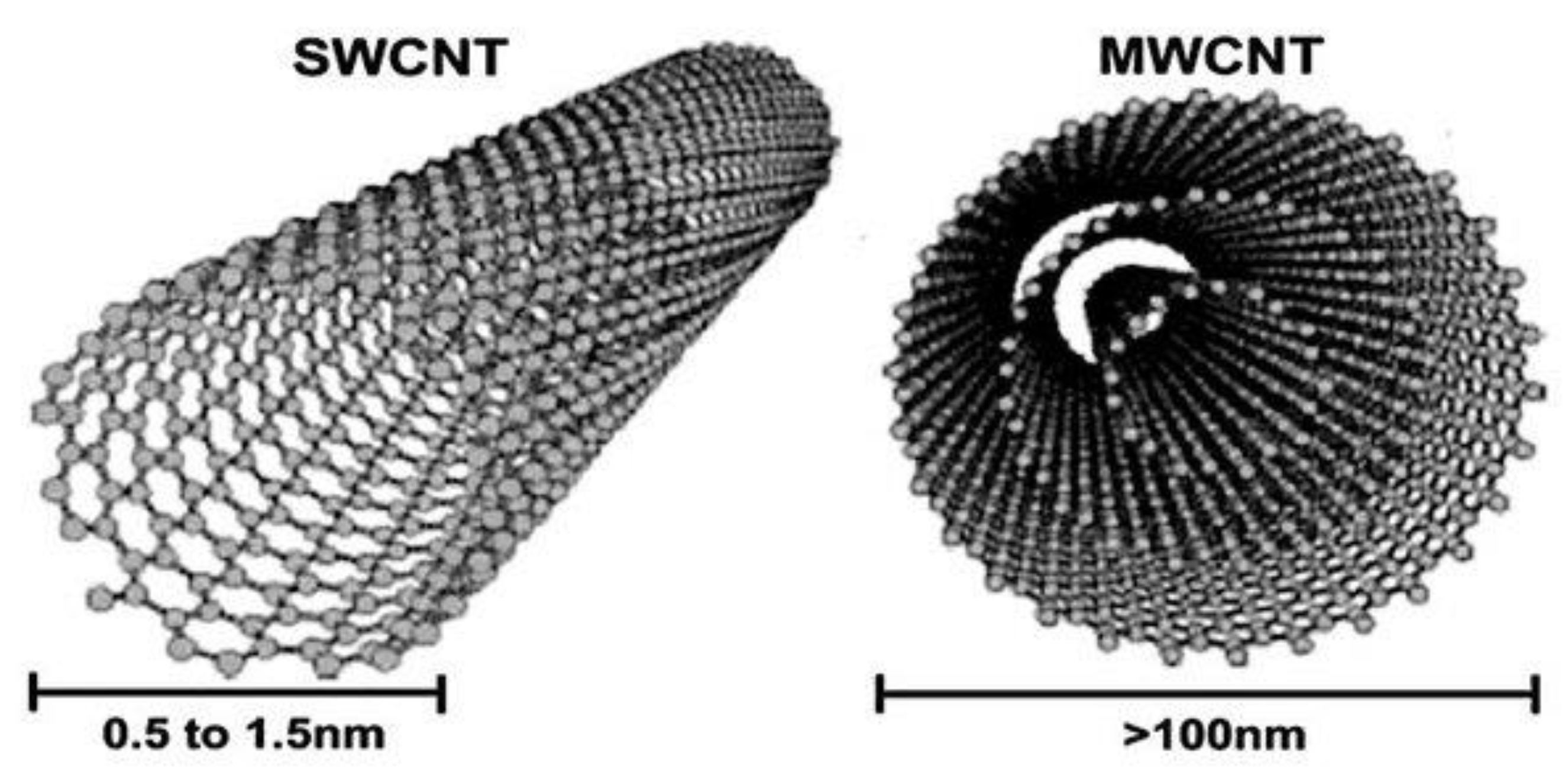

Figure 11. Schematic overview of single-walled nanotubes (SWNTs) and multi-walled nanotubes (MWNTs) [Reproduced from [109] with license CC BY 4.0, Copyright 2017].
Figure 11. Schematic overview of single-walled nanotubes (SWNTs) and multi-walled nanotubes (MWNTs) [Reproduced from [109] with license CC BY 4.0, Copyright 2017].
Nanomaterials 09 01195 g011

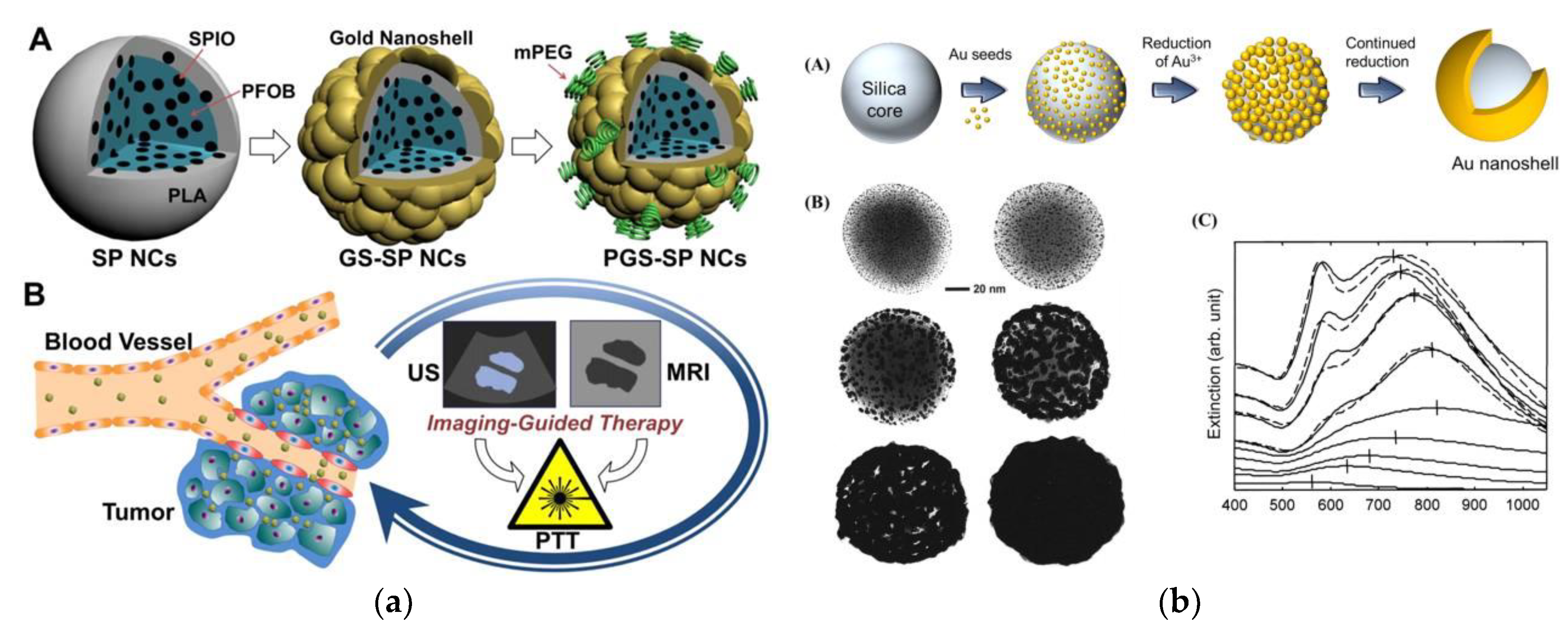

Figure 12. (a) Silica core–gold shell nanoshells [Reproduced from [122], with permission from Elsevier, Copyright 2017 ]. (b) Silica–gold nanoshells, silica–polymer nanoshells [Reproduced from [123], with permission from the open access journal under the terms of the Creative Commons License, Copyright 2014].
Figure 12. (a) Silica core–gold shell nanoshells [Reproduced from [122], with permission from Elsevier, Copyright 2017 ]. (b) Silica–gold nanoshells, silica–polymer nanoshells [Reproduced from [123], with permission from the open access journal under the terms of the Creative Commons License, Copyright 2014].
Nanomaterials 09 01195 g012

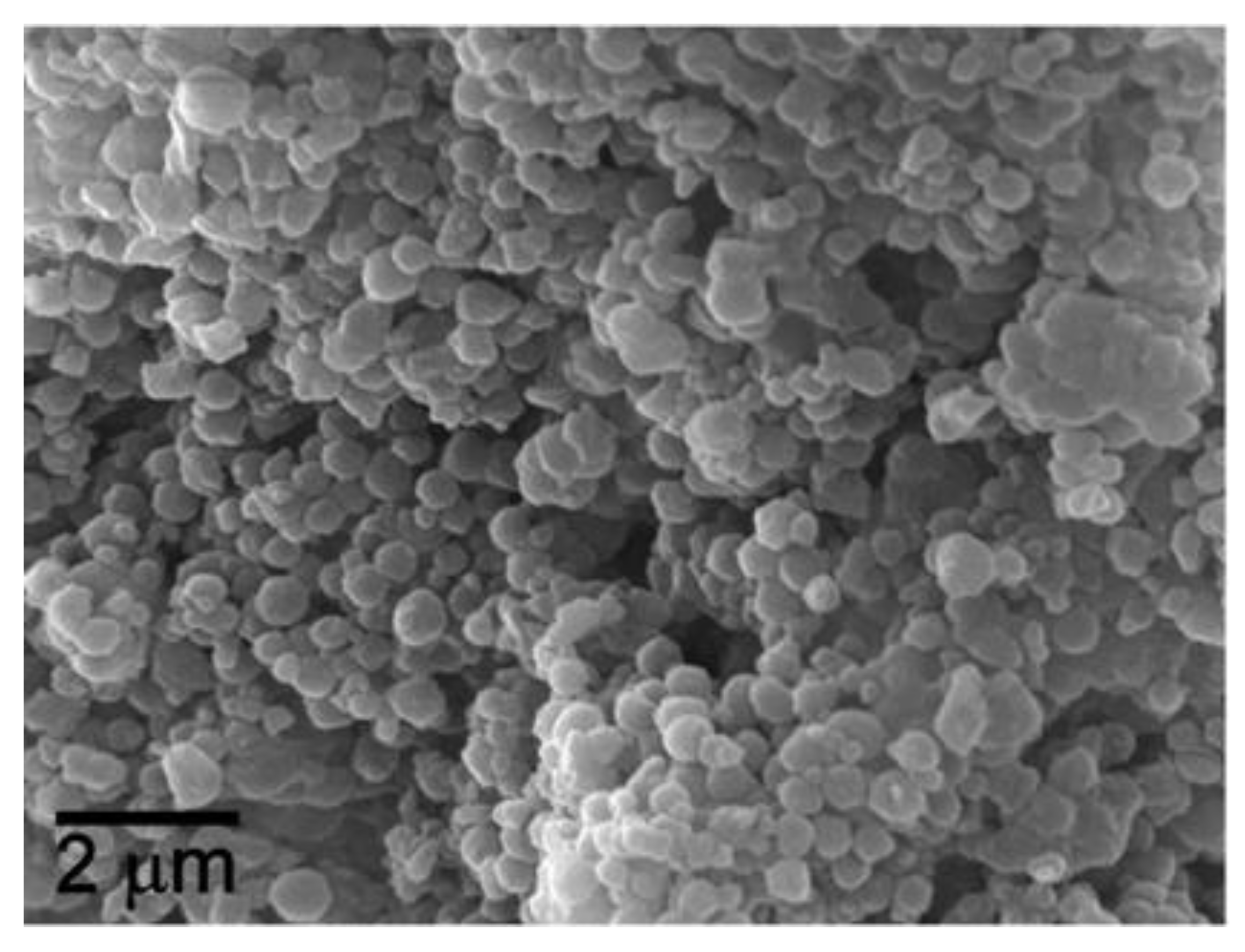

Figure 13. A SEM image morphology of polymer-coated iron oxide superparamagnetic nanocomposite [Reproduced from [130], with permission from Elsevier, Copyright 2008].
Figure 13. A SEM image morphology of polymer-coated iron oxide superparamagnetic nanocomposite [Reproduced from [130], with permission from Elsevier, Copyright 2008].
Nanomaterials 09 01195 g013
Table 1. Summary of MNPs application in thermal ablation of cancer.
Table 1. Summary of MNPs application in thermal ablation of cancer.
Type of MNP/MNP with a Surface CoatingNanoparticle
Size
Injection Dose/Nanoparticle ConcentrationInjection RouteExposure Conditions Thermal Ablation TypeType of TumorTemperature, °CCell DeathReference
Fe3O4 20–100 nm5 mg of Fe2O3 per gram of tissueintratumoral200 to 240 oersteds,
3 min
RF ablationdog’s lymph nodesmax 50 °CN/A[45]
Fe3O450–100 nm5 mg of Fe2O3 per gram of tissueintratumoral55,000 cycles/second,
500 oesterds, 30 min
RF ablationlymph node metastases bymax 50 °CN/A[46]
Fe3O410–20 nm21 mg ± 9 of magnetite
per 299 mm3 of tumor tissue
intratumoral 1.2–6.5 kA/m;
400 kHz, 242 s
AMFhuman breast tissuemax 79 °CN/A[53]
Fe3O410 nm5 ± 0.3 mg magnetite
per 100 mg of tumor tissue
intratumoral400 kHz,
6.5 kA/m, 4 min
AMF human breast adenocarcinoma cellsmax 73 °C at tumor center and 12 °C at tumor peripheryN/A[20]
Fe3O4—dextran coated10–20 nm107 pg/cellsintratumoral410 kHz,
10 kA/m, 242 s
AMF human breast adenocarcinoma cellsmax 71 °C at tumor centerN/A[54]
Fe3O4—starch coated11.4 nm ± 0.380.32 mg Fe mL−1
culture medium
intratumoral400 kHz, 24.6 kA m−1AMFbreast carcinoma cell line BT474to 28.2 ± 0.4 °CN/A[51]
Fe3O4—amino-silane coated15 nmN/Aintratumoral 100 kHz, 0–18 kA/mAMFRG-2 glioma cellsmax 43–47 °CN/A[55]
Fe3O420 nm11.4 mL per 100 mg of tumor tissueinterstitial100 kHz, 2.5–15 kA/mAMFprostate cancermax 55 °CN/A[57]
Fe3O4—amino-silane coated 15 nm112 mg/mLtransperineally 100 kHz,
2.5–18.0 kA/m, 60 min
AMFprostate cancermax 50 °CN/A[56]
Fe3O4—amino-silane coated15 nm200–400 µl of MNP
per 0.5 mL/cm3 tumor volume
and 120 mg/mL
intratumoral100 kHz, 18.0 kA/mAMFprostate cancermax 54.88 °C centrally and 41.28 °C—peripherallyN/A[58]
Table 2. Summary of AuNPs application in the thermal ablation of cancer (GFR: epidermal growth factor receptor).
Table 2. Summary of AuNPs application in the thermal ablation of cancer (GFR: epidermal growth factor receptor).
Type of NP/NP with a Surface CoatingNanoparticle SizeInjection Dose/Nanoparticle
Concentration
Injection RouteExposure ConditionsThermal Ablation TypeType of TumorTemperature, °CCell DeathReference
AuNP—anti-EGFR antibody coated40 nmN/Aintratumoral57 W/cm2,
514 nm, 4 min
Laser photothermal
therapy
Epithelial carcinoma HaCaT cellsN/A100%[72]
AuNP—citrate coated13 nmN/Aintratumoral10–100 W, 7 minRadiowave ablationHepG2 cancerous cells>50 °C80%[73]
AuNP5 nm67 µM/Lintratumoral13.56 MHz,
5 min
RF ablationHepatocellular (Hep3B) and Pancreatic cancerous cells (Panc-1)N/A99.8 ± 3.1
Hep3B
96.5 ± 8.4
Panc-1
[74]
AuNP—anti-EGFR coatedN/AN/Aintratumoral200 nWLaser photothermal
therapy
Cancerous cell70–80 °CN/A[69]
AuNP—anti-EGFR coated20 nmN/Aintratumoral13.56 MHz,
200 S, 10−15 kV/m
RF ablationPancreatic cancerous cell lineN/APanc-1 61% [76]
AuNP—PAM4
hemi-antibody coated
and AuNP—C225
antibody-coated
36.9 ± 1.5 nm
32.6 ± 0.7 nm
100 µg/mLinvivo600 W, 10 minRF ablationPanc-1 and Capan-1 pancreatic carcinoma cell linesN/AN/A[75]
Table 3. Summary of Cu-based nanoparticles application in the thermal ablation of cancer (CuSNPs: hollow copper sulfide nanoparticles).
Table 3. Summary of Cu-based nanoparticles application in the thermal ablation of cancer (CuSNPs: hollow copper sulfide nanoparticles).
Type of Nanoparticle/Nanoparticle with a Surface CoatingNanoparticle SizeInjection Dose/Nanoparticle
Concentration
Injection RouteExposure ConditionsThermal Ablation TypeType of TumorCell DeathTemperature, °CReference
Thioglycolic acid-stabilized
CuS NPs
3 nm4.6 g/cm3, 770 µMintratumoral24 W/cm2
for 5 min
photothermal
ablation
HeLa cells55.6 ± 5.8%Increased to
12.7 °C
[79]
Chitosan-coated HCuSNPs10 × 12 nm intratumoral photothermal
ablation
[81]
Phospholipid-PEG coated–
CuS NPs
3.8 nm400 mg/mL−1intratumoral1.0 W cm2,
8 min
Photothermal
ablation
HeLa cells>80%Max 59.2 °C[82]
PEG coated—CuS NPN/A400 mg/mL,
0.1 mm
intratumoral2.5 W/cm2Photothermal
ablation
Anaplastic
thyroid carcinoma
N/AMax 98 °C [83]
Table 4. Summary of nanorods application in the thermal ablation of cancer (PEG: polyethylene glycol).
Table 4. Summary of nanorods application in the thermal ablation of cancer (PEG: polyethylene glycol).
Type of Nanorods/Nanorods with a Surface CoatingNanorod Size/ConcentrationInjection Dose/Nanorods ConcentrationInjection RoteExposure ConditionsThermal Ablation TypeType of TumorCell DeathTemperature, °CReference
AuNP5 nm0.001% volume fractionintratumoral1.25 W/cm2, 300 sphotothermal therapySkin tumorTotal cell death 75 °C at tumor surface,
43–48 °C at tumor depth
[93]
PEGylated gold nanorods–
C225 antibody
3 mm4 mg/mLintratumoral20 W/cm2 to 90 W/cm2, from 30 s to 3 minphotothermal laser ablationHTB-9 cells N/AN/A[94]
PEGylated gold nanorodsdimensions 12 nm
in width
and 50 nm in length
N/Aintravenous3 minphotothermal therapyHSC-3 human squamous carcinoma cells>90%N/A[97]
PEG-coated gold nanorodsN/AN/Aintratumoral2 W cm–2,
5 min.
photothermal ablationCancer tumorN/A50–52 °C[98]
gold nanorodsN/AN/Aintratumoral30 J/cm2, 30 sphotothermal laser ablationhuman KB cellsN/AIncreased by 5 °C[86]
PEG-coated gold nanorodsN/A20 mg Au/kg in PBSintravenous2 W cm–2, 5 minphotothermal ablationMDA-MB-435 human cancerouscellsWithin 10 days all the irradiated, PEG-NR-targeted tumors completely disappearedover 70 °C[91]
gold nanorodsN/AN/Aintratumoral20 W/cm2, 4 to 20 minphotothermal ablationprostate cancerouscellsN/AN/A[92]
gold nanorodsN/AN/Aintratumoral1.4 and 2 W/cm2, and 0.5, 1, 2, and 5 min photothermal ablationMDA-MB-231 human breast cancerous cellsN/AAbout 55 °C[95,96]
Table 5. Summary of carbon nanotubes application in the thermal ablation of cancer.
Table 5. Summary of carbon nanotubes application in the thermal ablation of cancer.
Type of Carbon Nanotubes/Carbon Nanotubes with a Surface CoatingCarbon Nanotube SizeInjection Dose/Carbon Nanotube ConcentrationInjection RouteExposure ConditionsThermal Ablation TypeType of TumorCell DeathTemperature, °CReference
SWNT–polymer coatedN/A 50 mg/mLintratumoral600 W,
13.56 MHz
RF ablationhuman cancer cell lines
(HepG2, Hep3B and Panc-1
100%Increase by
1.6 °C
per second
[114]
Carbon nanotube—anti-Her2+
antibody coated
N/AN/Aintratumoral9.5 W cm−2,
4 min
laser ablationHer2+ human breast carcinoma cancer cells90%N/A[115]
Carbon nanotube—(KFKA)7
–peptide coated
N/A0.75 μg/mL
for colon26 cells
2.5 μg/mL
for HepG2 cells
intratumoral30 sphotothermal
therapy
Colon and HepG2 cellsN/A43 °C[116]
Multi-walled
carbon nanotube
900 nmN/Aintratumoral15.3 W/cm2,
5 min
laser ablation prostate cancer cell line (PC3) and murine renal cancer cell line (RENCA)N/A43 °C[117]
Carbon nanotube—
human
albumin protein coated
N/AN/AEx vivo5 W/cm2,
20 min
laser-mediated
ablation
pancreatic cancer Panc-1 cellsN/A29.3 °C at
tumor
centre
[118]
Table 6. Summary of gold nanoshells/nanocomposite application in thermal ablation of cancer (NIR: near infrared).
Table 6. Summary of gold nanoshells/nanocomposite application in thermal ablation of cancer (NIR: near infrared).
Type of Nanoshells/Nanocomposites (Core/Shell)Size and/or Core/Shell ThicknessInjection Dose/ConcertationInjection RouteExposure ConditionsThermal Ablation TypeType of TumorTemperature, °CCell DeathReference
Gold nanoshells
(silica/gold)
110 nm/10 nmN/Aintratumoral35 W/cm2,
7 min
photothermal therapybreast cancer SK-BR-3 cells>37.4 °CN/A[119]
Gold nanoshells
(gold/PEG)
110 nm/8–10 nm100 µL of
2.4 × 1011
nanoshells/mL
solution
intratumoral10 dayslaser ablationCT26.WT murine colon carcinoma
tumor cells
50 °C100%[121]
Gold nanoshells
(silica/gold)
110 ± 11 nm/10 nm8.5 µL/gm
body weight
intratumoral21 daysNIR laser ablationprostate cancer tumor65.4 °C93% [126]
anti-HER2—silica core nanoshell
anti-IL13Ra2
antibody—silica
core nanoshell
(silica/gold)
100 nm and 10 nm32.61 and
48.52 mg/g
intratumoralN/Aphotothermal ablationmedulloblastoma and glioma cell linesN/A100%[126]
Gold nanoshells
(silica/gold)
150 nmN/Aintratumoral3.5 W for
3 min
laser ablationcanine prostate cancerN/A100%[128]
Graphitic carbon coated
C–Co-NPs
7 nm20 μg mL−1intratumoral350 kHz,
5 kW, 10 min
RF ablationHeLa cellsN/A98%[129]
Fe3O4 nanoparticles–
silica shell
(silica/Fe3O4)
N/A1.66 µg/mLintratumoral350 kHz,
10 min
RF ablationPanc-1 cell lineN/A98.7–
99.2%
[131]
GO-IONP-Au-PEGN/A50 mg/mLintratumoral0.75 W/cm2,
5 min
Laser ablation4T1 tumor cellsMax
55 °C
N/A[132]
Table 7. Summary on types of nanoparticles and ablation techniques.
Table 7. Summary on types of nanoparticles and ablation techniques.
Type of Nanoparticles/Source of AblationRFMWLaser AblationPhotothermal Ablation
Magnetic nanoparticle
Gold nanoparticle
Cu-based nanoparticle
Nanorod
Carbon nanotubes
Nanoshell/Nanocomposite

Share and Cite

MDPI and ACS Style

Ashikbayeva, Z.; Tosi, D.; Balmassov, D.; Schena, E.; Saccomandi, P.; Inglezakis, V. Application of Nanoparticles and Nanomaterials in Thermal Ablation Therapy of Cancer. Nanomaterials 2019, 9, 1195. https://doi.org/10.3390/nano9091195

AMA Style

Ashikbayeva Z, Tosi D, Balmassov D, Schena E, Saccomandi P, Inglezakis V. Application of Nanoparticles and Nanomaterials in Thermal Ablation Therapy of Cancer. Nanomaterials. 2019; 9(9):1195. https://doi.org/10.3390/nano9091195

Chicago/Turabian Style

Ashikbayeva, Zhannat, Daniele Tosi, Damir Balmassov, Emiliano Schena, Paola Saccomandi, and Vassilis Inglezakis. 2019. "Application of Nanoparticles and Nanomaterials in Thermal Ablation Therapy of Cancer" Nanomaterials 9, no. 9: 1195. https://doi.org/10.3390/nano9091195

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
