Recent Achievements in Development of Chalcogenide Optical Fibers for Mid-IR Sensing

by
Vladimir S. Shiryaev
*,
Alexander P. Velmuzhov
,
Tatiana V. Kotereva
,
Elizaveta A. Tyurina
,
Maksim V. Sukhanov
and
Ella V. Karaksina
Devyatykh Institute of Chemistry of High-Purity Substances, Russian Academy of Sciences, 49 Tropinin Street, 603951 Nizhny Novgorod, Russia
*
Author to whom correspondence should be addressed.
Fibers 2023, 11(6), 54; https://doi.org/10.3390/fib11060054
Submission received: 17 April 2023 / Revised: 1 June 2023 / Accepted: 9 June 2023 / Published: 16 June 2023
(This article belongs to the Special Issue Fiber Laser Sources II)
Browse Figures
Versions Notes

Abstract

:
Recent results of research of passive and active optical waveguides made of high-purity chalcogenide glasses for middle infrared fiberoptic evanescent wave spectroscopy of liquid and gaseous substances are presented. On the basis of selenide and telluride glass fibers, novel types of highly sensitive fiber probes are developed. On the basis of Pr(3+)- and Tb(3+)-doped Ga(In)-Ge-As-Se and Ga-Ge-Sb-Se glass fibers, the 4.2–6 μm wavelength radiation sources are created for all-fiber sensor systems. Successful testing of chalcogenide glass fiber sensors for the analysis of some liquid and gaseous mixtures was carried out.

1. Introduction

Fiber optic evanescent wave spectroscopy (FEWS) of the middle infrared (mid-IR) range is a rapidly developing method of analysis. The FEWS method is based on recording the absorption spectrum of a fiber in contact with the analyzed liquid, powder, paste, gas, biological tissue, etc. Due to the partial exit of radiation beyond the boundaries of the fiber, selective absorption bands of analyte components appear in the spectrum. The first reports on the use of fibers as optical sensors date back to the 1980s [1,2,3]. The use of fibers for analytical purposes expands the possibilities of IR spectroscopy, since it makes it possible to study samples that, for some reason, cannot be placed in the measuring chamber of a spectral instrument. Waveguides significantly reduce the restrictions on the minimum size and shape of samples. Remote measurements with the help of optical fibers make it possible to analyze substances online directly in the system under study and without additional sampling.
Silica glass fiber sensors operating in spectral range up to 2.5 μm have insufficiently high sensitivity and selectivity, since, in the short-wavelength IR region, only weak overtones and combined absorption bands of molecular species are present. The fundamental absorption bands of most organic and inorganic functional groups (saturated, unsaturated, aromatic hydrocarbons, ketones, aldehydes, alkyl, carboxyl, carbonyl, amino groups, etc.) with large extinction coefficients are in the 3–15 μm spectral range. In the mid-IR, the absorption spectra of even structurally similar homologues of organic substances reliably differ from each other. This advantage provides a sensitive chemical analysis and allows us to determine a large number of substances in complex mixtures, including petroleum products and environmental and biological objects.
The main materials of commercial mid-IR FEWS sensors are polycrystalline materials based on silver halides [4,5,6] transparent in the 4–15 μm range. FEWS sensors based on chalcogenide fibers have recently competed with polycrystalline silver halides. They have significantly better chemical resistance and photostability, and, as a result, an increased service life [7,8,9,10]. These advantages are used for the analysis of aggressive media, such as concentrated organic solvents, dilute solutions of mineral acids, oil and products of its processing, waste water, etc. An important advantage of chalcogenide fibers is the great variability of the glass compositions which makes it possible to vary their properties over a wide range of values. Sulfide fibers are transparent in the 1–6 μm spectral range that is inaccessible to polycrystalline halide fibers. Selenide fibers are transparent in the 2–10 μm range; and fibers based on germanium tellurides are transparent in the 4–15 μm range [11,12]. An additional advantage of chalcogenide sensors is the ability to set a complex geometric shape and vary the detector element diameter (fiber tip) in a wide range (10–1000 µm), providing the required sensitivity and detection limit of analyzed object.
One of the first studies of single-index chalcogenide fiber for FEWS analysis of the curing kinetics of polyimide resin is presented in [13]. In the early 1990s, the authors of [14,15] used telluride fibers to measure the evanescent absorption spectra of water, methanol, ethanol, isopropanol, acetone, ethanoic acid, hexane, and chloroform. Scientists from the University of Rennes (France) observed the fermentation of alcohol using a chalcogenide fiber [16]. Since that time, a fairly large number of publications on the use of chalcogenide fibers for the analysis of the chemical composition of inorganic and organic liquids and biological tissues have appeared in the literature [17,18,19,20,21,22]. Chalcogenide fiber probes have been tested in biomedicine to determine the difference between healthy and damaged tissues and organs, and in medical diagnostics, including early cancer detection [21,22].
For preliminary tests, a chalcogenide fiber sensor element had a simple linear shape [15,23]. One of the ways to improve the sensitivity is to change the sensor geometry for increasing the path of radiation penetration into the analyzed sample [23]. For this purpose, the sensing element is made in the form of one or more loops [24,25,26], in the form of a tapered fiber [27,28], or in the form of a side-polished chalcogenide fiber [29,30].
Sensor systems with the use of laboratory IR spectrometers are rather bulky and expensive, which hinders their widespread use. To create compact sensor systems, laser diodes and quantum cascade lasers can be used as sources of mid-IR radiation. Recently, the idea of creating all-fiber sensor systems using active fibers as sources of IR laser radiation, broadband spontaneous (luminescent) radiation, and supercontinuum has been actively developed [31,32,33,34,35,36,37,38,39]. Rare-earth element (REE)-doped chalcogenide glass fibers are suitable materials for mid-IR sources because they exhibit intense broadband mid-IR luminescence [33,34] and lasing, which we recently demonstrated for the first time in the Tb(3+)-doped chalcogenide glass fiber at 5.38 μm wavelength [35]. The use of emission sources makes it possible to create an all–fiber sensor scheme for substance detection by studying the vibrational modes of some bonds (for example, C-H, C-O, S-H, C-S, N-O, C-Cl [25,36,37,38,39]) to identify chemical compounds. Fiber sensors based on REE-doped chalcogenide glasses were tested for detection of CO2 and chloroform [36,37,38,39].
We have presented some results for an all-fiber sensor for the identification and quantitative analysis of organic compounds in [25]. The advantages of such a sensor system using the mid-IR luminescent fiber source are high stability of optical parameters, selectivity, and low cost.
Previously, we carried out a theoretical assessment [23] of absorption pattern for evanescent waves in chalcogenide fiber placed in aqueous solutions of acetone and crude oil, using a rigorous electrodynamic model of a multimode optical fiber with an infinite absorbing cladding. It has been established that the functioning of the fiber-sensing element significantly depends on the mode composition of the radiation propagating through the fiber. Based on computer models [26,40,41], the basic characteristics of chalcogenide sensor were optimized in terms of the geometry of fiber-sensing elements to increase the sensitivity of the FEWS method.
The purpose of this paper is to present the recent experimental results on the development and testing of chalcogenide glass fibers for mid-IR FEWS. The presented results can be useful both for specialists in the field of IR optical materials and for the chemical analysis of industrial products and medicine.

2. Materials and Methods

2.1. Materials for Fiber Sensors

To develop mid-IR fiber sensors, a large number of chalcogenide glasses of various compositions were synthesized, as well as the fiber samples on the base of these glasses were drawn and studied [24,25,33,34,35,42]. The most important functional parameter of the optical fiber sensor is the low level of optical losses in the operating spectral range. To prepare the high-purity glass samples that provide low-loss fibers we developed special purification methods [25,42,43,44,45,46,47,48]. Particular attention in our work was paid to methods for removing limiting impurities (hydrogen, oxygen, carbon), since these impurities absorb radiation in the transparency range of glasses.
On the base of prepared high-purity glasses, single-index and core-clad fibers were drawn by crucible and double-crucible techniques.
To fabricate the single-index fibers for FEWS sensing elements, chalcogenide glasses of Ge20Se80, Ge20Se70Te10, Ge10As30Se38Te22, Ge28Sb12Se60, and Ga10Ge15Te73I2 compositions were chosen [23,24,25,26,42]. The choice is due to the wide range of transparency of these materials in the mid-IR range, their good stability against crystallization, and good mechanical strength.
To create mid-IR fiber sources, high-purity Ga(In)-Ge-As(Sb)-Se core glasses doped with various REE ions were prepared. For the cladding of step-index fibers, the Ge-As-S, As-S, Ge-As-Sb-S, or Ge-As-Se-S glasses, with compositions that provides close viscous and thermal properties, and the required numerical aperture were chosen. More detailed studies of these glasses are described in our papers [34,35,45,46,48,49].

2.2. Schemes and Functional Elements for Mid-IR FEWS Analysis

On the bases of prepared chalcogenide fibers, three types of sensor designs were proposed and used for FEWS analysis: (1) a fiber-sensing element in the form of an extended piece of a fiber (of linear form or curved ones (Figure 1)) connected to an IR Fourier spectrometer using lens systems (Figure 2); (2) a fiber sensor probe connected to an IR Fourier spectrometer through a probe attachment (Figure 3); (3) a fiber-sensing element combined with a luminescent source of mid-IR radiation from the REE-doped chalcogenide glass fibers or a lasing source from the same ones (Figure 4).
For the first and second types of sensor design, the single-index fibers based on high-purity Ge20Se80, Ge20Se70Te10, Ge10As30Se38Te22, Ge28Sb12Se60, and Ga10Ge15Te73I2 glasses were used. The fiber diameter varied in the range of 150–500 µm. The advantage of smaller diameter fibers of sensing elements is increased sensitivity due to the excitation of higher-order modes with greater penetrating power, as shown in our theoretical assessment mentioned above [26]. Fibers of 500 μm diameter make it possible to fabricate sensing elements with increased resistance to mechanical stress. The optical losses in the Ge20Se80 fiber did not exceed 0.5 dB/m in the 5.0–7.5 μm spectral range; the losses in the Ge26As17Se25Te32 fiber did not exceed 0.7 dB/m within 5.5–8.5 µm. The optical losses in the Ga10Ge15Te73I2 fiber were quite high (22 dB/m in the 10.5–13.5 μm spectral range; minimum value is 20 dB/m). For fibers made of glasses based on germanium and gallium tellurides, the losses in our fibers are among the lowest [50].
The all-fiber sensor probe (Figure 3) consists of a chalcogenide fiber-sensing element, a replaceable polyetheretherketone (PEEK) tip, and a pair of flexible supply multimode fibers for connecting with IR spectrometer.
Polycrystalline silver halide fibers or multimode arsenic selenide glass fibers were used as flexible supply ones. The As38Se62/As35Se65 fiber had optical losses lower than 500 dB/km in the 1.5–8.6 µm spectral range, and the minimum losses were 40 dB/km at 2.8 µm. Photo of the all–fiber probe with the tip and the special attachment for connection with FT-IR spectrometer is shown in Figure 3b. Such scheme makes it possible to carry out the FEWS analysis of substances for a short time under well-reproducible conditions [24,25].
For the third type of fiber sensor design, we used the REE-doped chalcogenide glass fibers emitting in the mid-IR (Figure 4). The peculiarity of this scheme (Figure 4) is the use of such fibers as a source of mid-IR broadband luminescence [33,34,35,36,37,45,46], as well as a source of mid–IR lasing, which we recently achieved [35,49,51]. REE-doped glass fiber materials make it possible to significantly expand the number of objects to be detected and also to simplify the analytical control procedure.

3. Results and Discussion

3.1. Testing the First Type of the Sensor Design

Chalcogenide fiber pieces of up to 70 cm length were used as sensing elements. The fiber-sensing elements had a linear form, a U-shaped form, or loop forms (Figure 1). To record IR absorption spectra, the sensing element was placed in the container with analyzed liquid (Figure 2). Globar source radiation was entered into one end of the fiber using lens systems, and the radiation from the other end was focused onto the HgCdTe/InSb detector of the IR-Fourier spectrometer. The absorption spectrum of the analyzed liquid was calculated by the equation:
A(λ) = −log(Is/Iref),
where A(λ) is absorption at wavelength λ; and Iref and Is are the intensity of idle radiation signal and the signal transmitted through the analyte, respectively.
Different kinds of sensing elements and various liquids were used for testing the sensor system. Figure 5 shows the absorption spectra of diesel fuel in the range of 2800–3000 cm−1, recorded using sensors with different geometries of the sensing zone. In the case of a double loop, the integrated intensity of the absorption bands of diesel fuel increases by an order of magnitude compared to the linear form of the sensing element because of the greater penetration of light waves into an external medium at a fiber bend and the increase in attenuation coefficients of the bent fiber modes, as was shown in [26], as well as due to the coupling between all propagating modes. When the fiber modes are excited by a long-focus lens, the lower-order modes have greater amplitudes, but at a fiber bend, they can exchange their energy with higher-order modes, which have greater penetration depth into an analyte, even in a straight fiber [52]. The bending is very efficient for increasing the light penetration depth in chalcogenide fibers with a large refractive index, resulting in the strong confinement of light. For a multimode single-index fiber, attenuation coefficients of lower-order modes can be increased up to one order of magnitude and attenuation coefficients of higher-order modes can increase up to two orders of magnitude at the fiber bend [26].
Using the Ge10As30Se38Te22 glass fiber-sensing element in the form of U-shaped loop, the method for FEWS determination of an antigel additive content in diesel fuel has been developed. The antigel additive, which reduces fuel viscosity, gives sufficiently intense absorption bands that do not overlap with the bands of the main substance (Figure 6a). These bands correspond to carboxyl groups (1749 cm−1), carboxylate anion (1636 cm−1), and esters (1240 and 1276 cm−1). The ester absorption bands were used to quantify the additive in diesel fuel. Figure 6b shows the dependence of the integral intensity of the absorption band centered at 1240 cm−1 on the concentration of the additive in the range of 0–1.0 vol.%. (The absorption bands of the additive are marked with arrows.) The detection limit of the additive in diesel fuel was 0.02 vol.%, whereas the 0.05–1.0 vol.% concentration values are recommended as a production process standard. The random error of additive determination was less than 10 % in the specified concentration range at a confidence level of 0.95.
Recently, we have observed an original result in the study of M-shape sensing zones with three multidirectional bends that were prepared based on (GeTe4)75(AgI)25 and GexSe100−x single-index fibers. This sensing element design provides the ability to adjust the sensitivity by changing the number of element bends that are immersed in the analyte. An additional advantage of this M-shaped element is the ability to measure the time-varying composition of liquids with a high adsorption of one of the components on the fiber surface. The overall sensitivity of the M-shaped element, according to the results of the determination of methanol in the oil mixture (Figure 7), exceeds the result for the linear fiber-sensing element by 8–10 times, which is comparable to the previously obtained results for the double loop [25].

3.2. Testing the Second Type of Sensor Design

Sensor probes with removable sensing elements with the following combinations of flexible supply fibers and sensitive tips are of interest: polycrystalline silver halides (AgX)/AgX; AgX/Ge20Se80; AgX/Ga5Ge15Te73I2; AgX/Ge28Sb12Se60; (As38Se62/As35Se65)/Ge20Se80. Previously [42], we have shown that chalcogenide glass tip probes are more sensitive than crystalline silver halide ones (Table 1). The instrumental sensitivity of probes with chalcogenide tips is 1.6–1.8 times higher than that of polycrystalline ones, due to the higher refractive index and smaller diameter of chalcogenide fibers. The tip of the Ge20Se80 fiber probe with a waist at the center of the U-shaped bend demonstrated the highest sensitivity. The advantage of the Ga5Ge15Te73I2 glass fiber as a sensing element is a wider transmission region (4–15 µm) compared to the Ge20Se80 fiber (2–10 µm). The fiber made of Ge28Sb12Se60 with a glass transition temperature of 285 °C is promising for FEWS analysis at elevated temperatures (study of exothermic reactions, quality control of engine motor oil, etc.). Due to the greater mechanical strength of the silver halide waveguides, the combined fiberoptic sensor consisting of polycrystalline silver halide (for connection to the spectrometer) and a chalcogenide fiber-sensitive element turned out to be the best probe design.
Besides organic substances, an important application of FEWS spectroscopy is the determination of the content of inorganic salts in aqueous solutions. The combined AgX/Ge20Se80 fiber sensor probe was used to determine the concentration of iron sulfate in water (Figure 8). In the sulfate ion concentration range of 0.16–16 g/L, a linear calibration function was obtained that provides a relative analysis error of 2–5% at a confidence level of 0.95.
An actual direction of application of the FEWS analysis is the determination of the ionic composition of sparingly soluble salts in the form of powders. This task is of particular importance for the oil industry because over time, oil pipelines become covered with a salt layer, which worsens their performance and can lead to breakdown of expensive equipment. Figure 9a shows the absorption spectra of calcium sulfate, sodium carbonate, and ammonium dihydrogen phosphate in the form of powders. Figure 9b gives the absorption spectra of the actual sediment from the inner surface of the oil pipeline recorded using a fiber-optic sensor (2) and a bulk attenuated total refection chalcogenide prism (1). The spectrum of the precipitate shows absorption bands of sulfate ions, carbonate ions, and water, apparently of a crystalline nature. The X-ray phase analysis, traditionally used to solve such problems, reliably detects only sodium chloride as the main component of the mixture in the analyzed precipitate. For FEWS analysis, this salt has no interfering effect, which makes it possible to reliably establish the presence of other salts.
In real production conditions, the most demanding task is to measure the chemical composition of liquids directly in the stream. To establish the fundamental possibility of such measurements with the help of the fiber probes, a pipeline layout was constructed, consisting of a system of soldered polypropylene pipes with valves to control the flow rate. The forced flow of the liquid mixture with a linear velocity of 0.5–1 m/s was set using a submersible pump. The fiberoptic sensor was hermetically integrated into the system using a threaded plug and a PTFE seal (Figure 10, inset). As the analyzed liquid, the “water-isopropyl alcohol” mixture with the alcohol concentration of 1–10 vol.% was used. High sensitivity, linearity of the analytical signal, and resistance to mechanical loads in the turbulent flow regime indicate the promise of such sensors for in-line measurements of the chemical composition of liquid mixtures in real production processes.

3.3. Testing the Third Type of the Sensor Design

Previously [25], we implemented a scheme for detecting acetonitrile using the Pr(3+)-doped glass fiber as a radiation source and determined the optimal configurations of the sensing element that make it possible to increase the measurement sensitivity. A distinctive feature and advantage of this scheme is the use of two fibers of different chemical compositions as the source and conductor of radiation. In the development of this work, we continued the search for the compositions of active glass matrices and the choice of rare earth additives in order to expand the range of substances to be detected.
Recent achievements in the development of Tb(3+)-doped glass fibers as the sources of spontaneous emission and laser generation in 4.2–5.5 μm wavelengths [34,35,49] make it possible to use these fibers for an all-fiber sensor scheme for determining the number of gas mixture components, which is extremely important for many industrial processes and environmental monitoring systems. The results of this approach are shown in Figure 11. Gaseous NO, N2O, and CO2 can be detected simultaneously, using the same active fiber. The absorption of the N2O molecule [53] “cuts out” a section in the 4.4–4.6 μm region in the luminescence band of the Tb(3+)-doped chalcogenide fiber (a,b). Using a 30-cm-long optical cell, the minimum detectable N2O concentration was about 10 ppmV. CO2 can be determined by absorption in the 4.2–4.4 µm region which manifests in the emission spectra (Figure 11b). The absorption bands of the NO molecule are in the range of 5.1–5.6 μm, which corresponds to the active fiber generation range (Figure 11c).
Laser generation in Tb(3+)-doped chalcogenide fibers, which we recently demonstrated [35,49,51], opens up new possibilities for using the same active fiber as a mid-IR radiation source for monitoring several components simultaneously, expanding the spectral range of detection. Work in this direction is promising and will continue.

4. Conclusions

High purity chalcogenide glass fibers for mid-IR fiber-sensing elements have been developed. Such fibers show promise in determining the chemical composition of liquids, powders, and gases using FEWS spectroscopy. Various designs of sensing elements have been proposed. On the bases of selenide and telluride glasses, optical fibers—transparent in the 2–15 μm range—have been prepared. Testing these fibers as sensing elements of various configurations for different types of analytes has shown their advantages over previously known sensor materials. First of all, chalcogenide FEWS sensors have high sensitivity and the ability to determine the qualitative and quantitative composition of several components simultaneously with a low detection limit directly “in situ”.
Glasses of the proposed compositions for fiber sensors are resistant to aggressive environments compared to commercially available polycrystalline silver halides and have better photostability. Thus, they show promise in the development of sensors for a wide range of analyzed objects and increase the service life of the sensor element. Combined AgX/Ge20Se80, AgX/Ga5Ge15Te73I2, AgX/Ge28Sb12Se60, and (As38Se62/As35Se65)/Ge20Se80 fibers turned out to be the most successful solution for the design of the sensor probe, which was tested for different analyzed objects.
On the base of the Pr(3+)- and Tb(3+)-doped Ga(In)-Ge-As-Se and Ga-Ge-Sb-Se glass fibers, all-fiber sensor schemes were developed for the detection of gas components at the level of units of ppmV concentration, which gives the better results, to our knowledge. The high emission characteristics of the proposed doped glass fibers, functioning as sources of spontaneous and laser radiation at 3–6 μm, open up new prospects for the development of analytical spectral methods and expand the range of detectable substances.

Author Contributions

Conceptualization, V.S.S. and A.P.V.; methodology, V.S.S.; validation, A.P.V. and T.V.K.; formal analysis, V.S.S., A.P.V. and E.V.K.; investigation, V.S.S., A.P.V., T.V.K., M.V.S., E.A.T. and E.V.K.; writing—original draft preparation, V.S.S.; writing—review and editing, A.P.V. and E.V.K.; supervision, V.S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation (Russia, Grant 21-13-00194).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. France, P.W.; Carter, S.F.; Moore, M.W.; Williams, J.R.; Day, C.R. Properties of Fluorozirconate Fibres for Applications in the 0.5 to 4.5 µm Region. In Infrared Optical Materials and Fibers V; SPIE: Cambridge, MA, USA, 1987; pp. 56–61. [Google Scholar] [CrossRef]
  2. Simhony, S.; Kosower, E.M.; Katzir, A. Fourier transform infrared spectra of aqueous protein mixtures using a novel attenuated total internal reflectance cell with infrared fibers. Biochem. Biophys. Res. Commun. 1987, 142, 1059–1063. [Google Scholar] [CrossRef] [PubMed]
  3. Compton, D.A.C.; Hill, S.L.; Wright, N.A.; Druy, M.A.; Piche, J.; Stevenson, W.A.; Vidrine, D.W. In Situ FT-IR Analysis of a Composite Curing Reaction Using a Mid-Infrared Transmitting Optical Fiber. Appl. Spectrosc. 1988, 42, 972–979. [Google Scholar] [CrossRef]
  4. Bogomolov, A.; Heßling, M.; Wenzel, U.; Princz, S.; Hellmuth, T.; Bernal, M.; Sakharova, T.; Usenov, I.; Artyushenko, V.; Meyer, H. Development and testing of mid-infrared sensors for in-line process monitoring in biotechnology. Sens. Actuators B Chem. 2015, 221, 1601–1610. [Google Scholar] [CrossRef]
  5. Bogomolov, A.; Ageev, V.; Zabarylo, U.; Usenov, I.; Schulte, F.; Kirsanov, D.; Belikova, V.; Minet, O.; Feliksberger, E.; Meshkovsky, I.; et al. LED-based near infrared sensor for cancer diagnostics. In Optical Diagnostics and Sensing XVI: Toward Point-of-Care Diagnostics; SPIE: Cambridge, MA, USA, 2016; p. 971510. [Google Scholar] [CrossRef]
  6. Artyushenko, V.; Bocharnikov, A.; Sakharova, T.; Usenov, I. Mid-infrared Fiber Optics for 1–18 µm Range: IR-fibers and waveguides for laser power delivery and spectral sensing. Opt. Photon. 2014, 4, 35–39. [Google Scholar] [CrossRef]
  7. Hocdé, S.; Bousard-Pledel, C.; Fonteneau, G.; Lucas, J. Chalcogen based glasses for IR fiber chemical sensor. Solid States Sci. 2001, 3, 279–284. [Google Scholar] [CrossRef]
  8. Lucas, P.; Wilhelm, A.A.; Videa, M.; Boussard-Plédel, C.; Bureau, B. Chemical stability of chalcogenide infrared glass fibers. Corrosion Sci. 2008, 7, 2047–2052. [Google Scholar] [CrossRef]
  9. Boussard-Pledel, C. Chalcogenide waveguides for infrared sensing. In Chalcogenide Glasses: Preparation, Properties and Applications; Adam, J.-L., Zhang, X., Eds.; Woodhead Publishing Series in Electronic and Optical Materials; Oxford Cambridge Philadelphia New Delhi: Oxford, UK, 2014; Volume 44, pp. 381–410. [Google Scholar] [CrossRef]
  10. Eytan, O.; Sela, B.-A.; Katzir, A. Fiber-optic evanescent-wave spectroscopy and neural networks: Application to chemical blood analysis. Appl. Opt. 2000, 39, 3357–3360. [Google Scholar] [CrossRef] [PubMed]
  11. Shiryaev, V.; Churbanov, M. Preparation of high-purity chalcogenide glasses. In Chalcogenide Glasses: Preparation, Properties and Application; Adam, J.-L., Zhang, X., Eds.; Woodhead Publishing Series in Electronic and Optical Materials; Oxford Cambridge Philadelphia New Delhi: Oxford, UK, 2014; Volume 44, pp. 3–35. [Google Scholar] [CrossRef]
  12. Cui, S.; Boussard-Plédel, C.; Lucas, J.; Bureau, B. Te-based glass fiber for far-infrared biochemical sensing up to 16 μm. Opt. Express 2014, 22, 21253–21262. [Google Scholar] [CrossRef]
  13. Druy, M.A.; Elandjian, L.; Stevenson, W.A. Composite Cure Monitoring With Infrared Transmitting Optical Fibers. In Optic Smart Structures and Skins; SPIE: Cambridge, MA, USA, 1989. [Google Scholar] [CrossRef]
  14. Heo, J.; Rodrigues, M.; Saggese, S.J.; Sigel, G.H., Jr. Remote fiber-optic chemical sensing using evanescent-wave interactions in chalcogenide glass fibers. Appl. Opt. 1991, 30, 3944–3951. [Google Scholar] [CrossRef]
  15. Sanghera, J.S.; Kung, F.H.; Pureza, P.C.; Nguyen, V.Q.; Miklos, R.E.; Aggarwal, I.D. Infrared evanescent-absorption spectroscopy with chalcogenide glass fibers. Appl. Opt. 1994, 33, 6315–6322. [Google Scholar] [CrossRef] [Green Version]
  16. Blanchetière, C.; LeFoulgoc, K.; Ma, H.L.; Zhang, X.H.; Lucas, J. Tellurium Halide Glass Fibers: Preparation and Applications. J. Non-Cryst. Solids 1995, 184, 200–203. [Google Scholar] [CrossRef]
  17. Katz, M.; Katzir, A.; Schnitzer, I.; Bornstein, A. Quantitative evaluation of chalcogenide glass fiber evanescent wave spectroscopy. Appl. Opt. 1994, 33, 5888–5894. [Google Scholar] [CrossRef] [PubMed]
  18. Jiang, X.; Jha, A. Engineering of a Ge–Te–Se glass fibre evanescent wave spectroscopic (FEWS) mid-IR chemical sensor for the analysis of food and pharmaceutical products. Sens. Actuators B Chem. 2015, 206, 159–169. [Google Scholar] [CrossRef]
  19. Raichlin, Y.; Katzir, A. Fiber-Optic Evanescent Wave Spectroscopy in the Middle Infrared. Appl. Spectrosc. 2008, 62, 55A–72A. [Google Scholar] [CrossRef]
  20. Sanghera, J.S.; Kung, F.H.; Busse, L.E.; Pureza, P.C.; Aggarwal, I.D. Infrared Evanescent Absorption Spectroscopy of Toxic Chemicals Using Chalcogenide Glass Fibers. J. Am. Cer. Soc. 1995, 78, 2198–2202. [Google Scholar] [CrossRef]
  21. Rigas, B.; Wong, P.T.T. Human colon adenocarcinoma cell lines display infrared spectroscopic features of malignant colon tissues. Cancer Res. 1992, 52, 84–88. [Google Scholar]
  22. Seddon, A.B. A prospective for New Mid-Infrared Medial Endoscopy Using Chalcogenide Glasses. Int. J. Appl. Glass Sci. 2011, 2, 177–191. [Google Scholar] [CrossRef]
  23. Romanova, E.; Korsakova, S.; Komanec, M.; Nemecek, T.; Velmuzhov, A.; Sukhanov, M.; Shiryaev, V. Multimode chalcogenide fibers for evanescent wave sensing in the mid-IR, Multimode chalcogenide fibers for evanescent wave sensing in the mid-IR. IEEE J. Sel. Top. Quantum Electron. 2017, 23, 289–295. [Google Scholar] [CrossRef]
  24. Velmuzhov, A.P.; Shiryaev, V.S.; Sukhanov, M.V.; Kotereva, T.V.; Churbanov, M.F.; Zernova, N.S.; Plekhovich, A.D. Fiber sensor on the base of Ge26As17Se25Te32 for FEWS analysis. Opt. Mater. 2018, 75, 525–532. [Google Scholar] [CrossRef]
  25. Velmuzhov, A.P.; Sukhanov, M.V.; Kotereva, T.V.; Zernova, N.S.; Shiryaev, V.S.; Karaksina, E.V.; Stepanov, B.S.; Churbanov, M.F. Optical fibers based on special pure Ge20Se80 and Ge26As17Se25Te32 glasses for FEWS. J. Non-Crysl. Solids 2019, 517, 70–75. [Google Scholar] [CrossRef]
  26. Romanova, E.A.; Korsakova, S.V.; Rozhnev, A.G.; Velmuzhov, A.P.; Kotereva, T.V.; Sukhanov, M.V.; Shiryaev, V.S. Chalcogenide fiber loop probe for the mid-IR spectroscopy of oil products. Opt. Express 2020, 28, 5267–5272. [Google Scholar] [CrossRef] [PubMed]
  27. Le Coq, D.; Michel, K.; Fonteneau, G.; Hocde, S.; Boussard-Pledel, C.; Lucas, J. Infrared chalcogen glasses: Chemical polishing and fibre remote spectroscopy. Int. J. Inorg. Mat. 2001, 3, 233–239. [Google Scholar] [CrossRef]
  28. Wang, M.; Yang, F.; Dai, S.; Cao, Z.; Su, J.; Ding, S.; Zhang, P. Effect of the Geometries of Ge-Sb-Se Chalcogenide Glass Tapered Fiber on the Sensitivity of Evanescent Wave Sensors. J. Lightwave Technol. 2021, 39, 4828–4836. [Google Scholar] [CrossRef]
  29. Monro, T.M.; Warren-Smith, S.; Schartner, E.P.; Francois, A.; Heng, S.; Ebendorff-Heidepriem, H.; Afshar, S. Sensing with suspended-core optical fibers. Opt. Fiber Technol. 2010, 16, 343–356. [Google Scholar] [CrossRef]
  30. Yang, Y.; Ge, K.; Tao, P.; Dai, S.; Wang, X.; Zhang, W.; Xu, T.; Wang, Y.; Lin, T.-J.; Zhang, P. Mid-infrared evanescent wave sensor based on side-polished chalcogenide fiber. Ceram. Int. 2023, 49, 1291–1297. [Google Scholar] [CrossRef]
  31. Petersen, C.R.; Israelsen, N.M.; Woyessa, G.; Kwarkye, K.; Hansen, R.E.; Markos, C.; Khodabakhsh, A.; Harren, F.J.M.; Rodrigo, P.; Tidemand-Lichtenberg, P.; et al. Supercontinuum based mid-infrared OCT, spectroscopy, and hyperspectral imaging. In Proceedings of the 2021 Conference on Lasers and Electro-Optics Europe and European Quantum Electronics Conference, Munich, Germany, 21–25 June 2021; IEEE: New York, NY, USA, 2021. [Google Scholar] [CrossRef]
  32. Dai, S.; Wang, Y.; Peng, X.; Zhang, P.; Wang, X.; Xu, Y. A Review of Mid-Infrared Supercontinuum Generation in Chalcogenide Glass Fibers. Appl. Sci. 2018, 8, 707. [Google Scholar] [CrossRef] [Green Version]
  33. Karaksina, E.V.; Kotereva, T.V.; Shiryaev, V.S. Luminescence properties of core-clad Pr(3+)-doped Ge-As-Se-Ga(In)-(I) glass fibers. J. Lumin. 2018, 204, 154–156. [Google Scholar] [CrossRef]
  34. Shiryaev, V.S.; Karaksina, E.V.; Kotereva, T.V.; Snopatin, G.E.; Velmuzhov, A.P.; Sukhanov, M.V.; Churbanov, M.F. Core-clad Pr(3+)-doped Ga(In)-Ge-As-Se Glass Fibers for Mid-IR Radiation Sources. J. Non-Cryst. Solids 2020, 537, 120026. [Google Scholar] [CrossRef]
  35. Shiryaev, V.S.; Sukhanov, M.V.; Velmuzhov, A.P.; Karaksina, E.V.; Kotereva, T.V.; Snopatin, G.E.; Denker, B.I.; Galagan, B.I.; Sverchkov, S.E.; Koltashev, V.V.; et al. Core-clad terbium doped chalcogenide glass fiber with laser action at 5.38 μm. J. Non-Cryst. Solids 2021, 567, 120939. [Google Scholar] [CrossRef]
  36. Starecki, F.; Charpentier, F.; Doualan, J.L.; Quetel, L.; Michel, K.; Chahal, R.; Troles, J.; Bureau, B.; Braud, A.; Camy, P.; et al. Mid-IR optical sensor for CO2 detection based on fluorescence absorbance of Dy3+: Ga5Ge20Sb10S65 fibers. Sens. Actuators B-Chem. 2015, 207, 518–525. [Google Scholar] [CrossRef]
  37. Pele, A.L.; Braud, A.; Doualan, J.L.; Starecki, F.; Nazabal, V.; Chahal, R.; Boussard-Plédel, C.; Bureau, B.; Moncorge, R.; Camy, P. Dy3+ doped GeGaSbS fluorescent fiber at 4.4 µm for optical gas sensing: Comparison of simulation and experiment. Opt. Mat. 2016, 61, 37–44. [Google Scholar] [CrossRef]
  38. Chahal, R.; Starecki, F.; Boussard-Plédel, C.; Doualan, J.-L.; Michel, K.; Brilland, L.; Braud, A.; Camy, P.; Bureau, B.; Nazabal, V. Fiber evanescent wave spectroscopy based on IR fluorescent chalcogenide fibers. Sens. Actuators B Chem. 2016, 229, 209–216. [Google Scholar] [CrossRef]
  39. Starecki, F.; Braud, A.; Doualan, J.-L.; Ari, J.; Boussard-Plédel, C.; Michel, K.; Nazabal, V.; Camy, P. All-optical carbon dioxide remote sensing using rare earth doped chalcogenide fibers. Opt. Lasers Eng. 2019, 122, 328–334. [Google Scholar] [CrossRef]
  40. Korsakova, S.V.; Romanova, E.A.; Velmuzhov, A.P.; Kotereva, T.V.; Sukhanov, M.V.; Shiryaev, V.S. Analysis of Characteristics of the Sensing Elements for the Fiber-Based Evanescent Wave Spectroscopy in the Mid-IR. Opt. Spectrosc. 2018, 125, 416–424. [Google Scholar] [CrossRef]
  41. Korsakova, S.V.; Vinogradova, E.A.; Romanova, E.A.; Shiryaev, V.S. Using higher-order modes of chalcogenide optical fibers for the optimization of evanescent wave mid-IR spectroscopy. Tech. Phys. Lett. 2019, 45, 17–21. [Google Scholar] [CrossRef]
  42. Velmuzhov, A.P.; Shiryaev, V.S.; Sukhanov, M.V.; Kotereva, T.V.; Stepanov, B.S.; Snopatin, G.E. Mid-IR fiber-optic sensors based on especially pure Ge20Se80 and Ga10Ge15Te73I2 glasses. J. Non-Cryst. Solids 2022, 579, 121374. [Google Scholar] [CrossRef]
  43. Velmuzhov, A.P.; Sukhanov, M.V.; Shiryaev, V.S.; Churbanov, M.F.; Kotereva, T.V.; Zernova, N.S.; Fadeeva, D.A. Preparation of Especially Pure Ge-Se Glasses via Germanium Monoselenide for Mid-IR Fiber Optics. Opt. Mater. 2018, 84, 888–892. [Google Scholar] [CrossRef]
  44. Velmuzhov, A.P.; Sukhanov, M.V.; Shiryaev, V.S.; Plekhovich, A.D. Preparation of high-purity germanium telluride based glasses with low oxygen impurity content. J. Non-Cryst. Solids 2021, 553, 120480. [Google Scholar] [CrossRef]
  45. Karaksina, E.V.; Shiryaev, V.S.; Kotereva, T.V.; Velmuzhov, A.P.; Ketkova, L.A.; Snopatin, G.E. Preparation of high-purity Pr(3+) doped Ge-As-Se-In-I glasses for active mid-infrared optics. J. Lumin. 2016, 177, 275–279. [Google Scholar] [CrossRef]
  46. Shiryaev, V.S.; Karaksina, E.V.; Kotereva, T.V.; Churbanov, M.F.; Velmuzhov, A.P.; Sukhanov, M.V.; Ketkova, L.A.; Zernova, N.S.; Plotnichenko, V.G.; Koltashev, V.V. Preparation and investigation of Pr3+-doped Ge-Sb-Se-In-I glasses as promising material for active mid-infrared optics. J. Lumin. 2017, 183, 129–134. [Google Scholar] [CrossRef]
  47. Velmuzhov, A.P.; Sukhanov, M.V.; Plotnichenko, V.G.; Plekhovich, A.D.; Shiryaev, V.S.; Churbanov, M.F. Preparation of REE-doped Ge-based chalcogenide glasses with low hydrogen impurity content. J. Non-Cryst. Solids 2019, 525, 119669–119674. [Google Scholar] [CrossRef]
  48. Sukhanov, M.V.; Velmuzhov, A.P.; Otopkova, P.A.; Ketkova, L.A.; Evdokimov, I.I.; Kurganova, A.E.; Plotnichenko, V.G.; Shiryaev, V.S. Rare earth elements as a source of impurities in doped chalcogenide glasses. J. Non-Cryst. Solids 2022, 593, 121793. [Google Scholar] [CrossRef]
  49. Denker, B.I.; Galagan, B.I.; Koltashev, V.V.; Plotnichenko, V.G.; Snopatin, G.E.; Sukhanov, M.V.; Sverchkov, S.E.; Velmuzhov, A.P. Continuous Tb-doped fiber laser emitting at ∼5.25 µm. Opt. Laser Technol. 2022, 154, 108355. [Google Scholar] [CrossRef]
  50. Lucas, P.; Boussard-Pledel, C.; Wilhelm, A.; Danto, S.; Zhang, X.; Houizot, P.; Maurugeon, S.; Conseil, C.; Bureau, B. The Development of Advanced Optical Fibers for Long-Wave Infrared Transmission. Fibers 2013, 1, 110–118. [Google Scholar] [CrossRef]
  51. Churbanov, M.F.; Denker, B.I.; Galagan, B.I.; Koltashev, V.V.; Plotnichenko, V.G.; Sukhanov, M.V.; Sverchkov, S.E.; Velmuzhov, A.P. Comparison of 4.5–6 μm luminescent and lasing properties of rare earth dopants in chalcogenide glasses. J. Lumin. 2022, 245, 118756. [Google Scholar] [CrossRef]
  52. Romanova, E.; Korsakova, S. Light waves interaction with an analyte in fiber-optic sensors for mid-IR spectroscopy. Opt. Quantum Electron. 2021, 53, 650. [Google Scholar] [CrossRef]
  53. Gordon, I.E.; Rothman, L.S.; Hargreaves, R.G.; Hashemi, R.; Karlovets, E.V.; Skinner, F.M.; Conway, E.K.; Hill, C.; Kochanov, R.V.; Tan, T.; et al. The HITRAN2020 molecular spectroscopic database. J. Quant. Spectrosc. Radiat. Transf. 2022, 277, 107949. [Google Scholar] [CrossRef]
Fibers 11 00054 g001 550

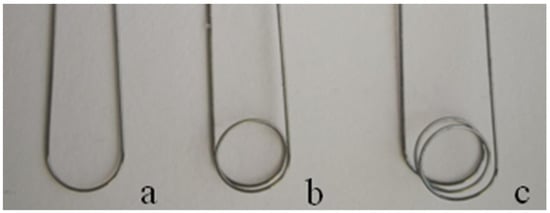

Figure 1. Different shapes of the probe sensing zone: (a) U-shaped; (b) one loop; (c) two loops.
Figure 1. Different shapes of the probe sensing zone: (a) U-shaped; (b) one loop; (c) two loops.
Fibers 11 00054 g001
Fibers 11 00054 g002 550

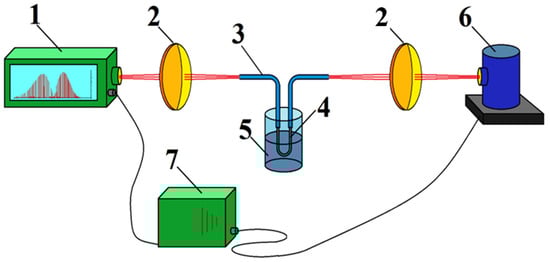

Figure 2. Setup for FEWS analysis: 1—IR Fourier spectrometer; 2—ZnSe focusing lenses; 3—chalcogenide fiber with polymer coating; 4—sensing part of the fiber without coating; 5—container with analyzed liquid; 6—HgCdTe detector; 7—amplifier.
Figure 2. Setup for FEWS analysis: 1—IR Fourier spectrometer; 2—ZnSe focusing lenses; 3—chalcogenide fiber with polymer coating; 4—sensing part of the fiber without coating; 5—container with analyzed liquid; 6—HgCdTe detector; 7—amplifier.
Fibers 11 00054 g002
Fibers 11 00054 g003 550
Figure 3. Scheme and photo of fiber probe: (a) sensor scheme: 1—U-shaped fiber-sensing element; 2—removable tip; 3—the area of the sensor docking with the inlet and outlet fibers; 4—protective PEEK polymer shaft; 5—inlet and outlet fibers in protective polymer tubes; 6—SMA 905 optical connectors. (b) Photo of the sensor probe connected with IR spectrometer using special attachment.
Figure 3. Scheme and photo of fiber probe: (a) sensor scheme: 1—U-shaped fiber-sensing element; 2—removable tip; 3—the area of the sensor docking with the inlet and outlet fibers; 4—protective PEEK polymer shaft; 5—inlet and outlet fibers in protective polymer tubes; 6—SMA 905 optical connectors. (b) Photo of the sensor probe connected with IR spectrometer using special attachment.
Fibers 11 00054 g003
Fibers 11 00054 g004 550
Figure 4. Setup for recording the spectra of gases that absorb in the emission range of REE ions: 1—pump laser with fiber output; 2—ZnSe focusing lens; 3—REE doped chalcogenide fiber; 4—container with analyzed gas; 5—optical filter; 6—HgCdTe/InSb detector; 7—IR Fourier spectrometer.
Figure 4. Setup for recording the spectra of gases that absorb in the emission range of REE ions: 1—pump laser with fiber output; 2—ZnSe focusing lens; 3—REE doped chalcogenide fiber; 4—container with analyzed gas; 5—optical filter; 6—HgCdTe/InSb detector; 7—IR Fourier spectrometer.
Fibers 11 00054 g004
Fibers 11 00054 g005 550

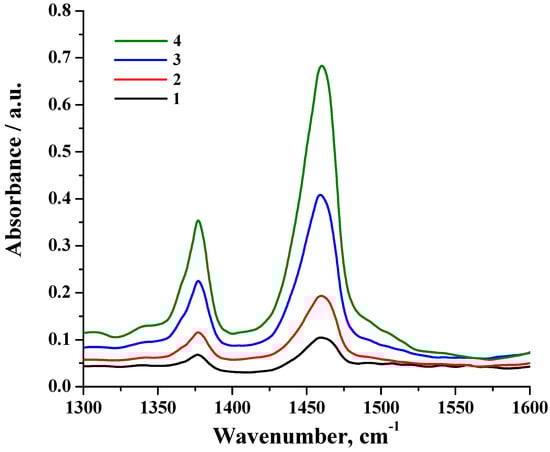

Figure 5. Diesel fuel absorption spectra (geometries of fiber sensitive zone are: 1—linear; 2—U-shaped; 3—two loops; 4—three loops).
Figure 5. Diesel fuel absorption spectra (geometries of fiber sensitive zone are: 1—linear; 2—U-shaped; 3—two loops; 4—three loops).
Fibers 11 00054 g005
Fibers 11 00054 g006 550

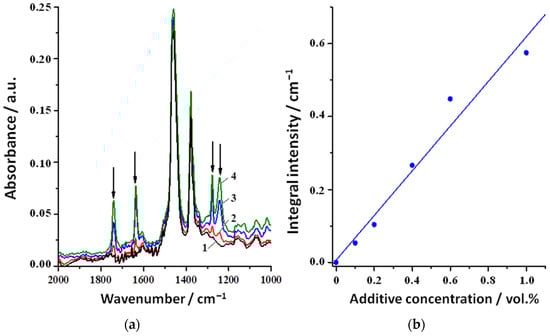

Figure 6. (a) Absorption spectra of diesel fuel with an antigel additive: 1—fuel without additive; 2—0.2 vol.% additive; 3—0.6 vol.%; 4—1 vol.%. (b) Dependence of absorption band intensity (1240 cm−1) on the additive concentration. Figure is adapted from [25].
Figure 6. (a) Absorption spectra of diesel fuel with an antigel additive: 1—fuel without additive; 2—0.2 vol.% additive; 3—0.6 vol.%; 4—1 vol.%. (b) Dependence of absorption band intensity (1240 cm−1) on the additive concentration. Figure is adapted from [25].
Fibers 11 00054 g006
Fibers 11 00054 g007 550

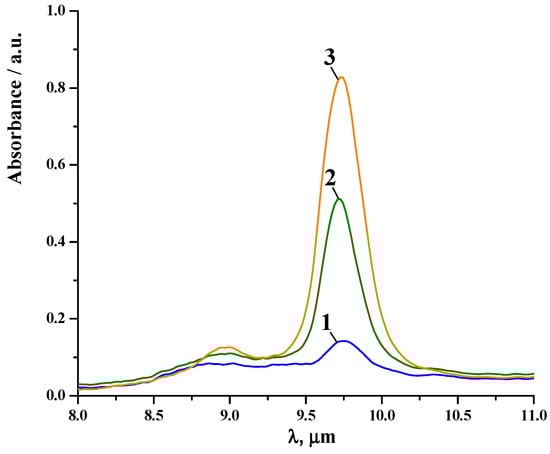

Figure 7. Absorption spectra of methanol in the oil mixture: a linear form of sensing element (1); a U-shaped loop form (2); a M-shaped loop form (3).
Figure 7. Absorption spectra of methanol in the oil mixture: a linear form of sensing element (1); a U-shaped loop form (2); a M-shaped loop form (3).
Fibers 11 00054 g007
Fibers 11 00054 g008 550

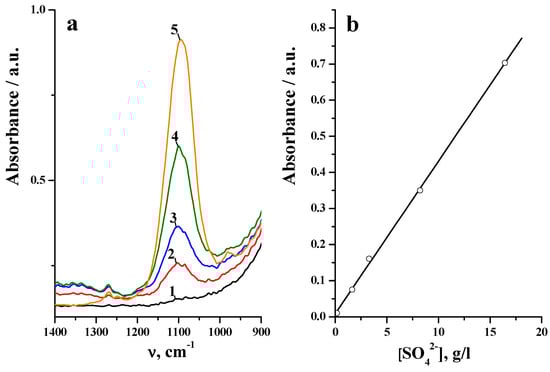

Figure 8. (a) Absorption spectra of SO42− ions: 1–0.16 g/L; 2—1.6 g/L; 3—3.2 g/L; 4—8.0 g/L; 5—16 g/L. (b) Dependence of absorption band intensity centered at 1080 cm−1 on the sulfate-ions concentration.
Figure 8. (a) Absorption spectra of SO42− ions: 1–0.16 g/L; 2—1.6 g/L; 3—3.2 g/L; 4—8.0 g/L; 5—16 g/L. (b) Dependence of absorption band intensity centered at 1080 cm−1 on the sulfate-ions concentration.
Fibers 11 00054 g008
Fibers 11 00054 g009 550

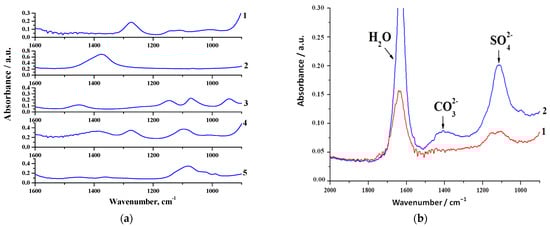

Figure 9. Absorption spectra of various anions: (a) model mixtures of salts (1—CaSO4; 2—Na2CO3; 3—NH4H2PO4; 4—CaSO4 + Na2CO3; 5—CaSO4 + Na2CO3 + NH4H2PO4); (b) actual sediment. The spectra were recorded using a fiber-optic sensor (spectrum 2b) and a bulk attenuated total refection chalcogenide prism (spectrum 1b).
Figure 9. Absorption spectra of various anions: (a) model mixtures of salts (1—CaSO4; 2—Na2CO3; 3—NH4H2PO4; 4—CaSO4 + Na2CO3; 5—CaSO4 + Na2CO3 + NH4H2PO4); (b) actual sediment. The spectra were recorded using a fiber-optic sensor (spectrum 2b) and a bulk attenuated total refection chalcogenide prism (spectrum 1b).
Fibers 11 00054 g009
Fibers 11 00054 g010 550

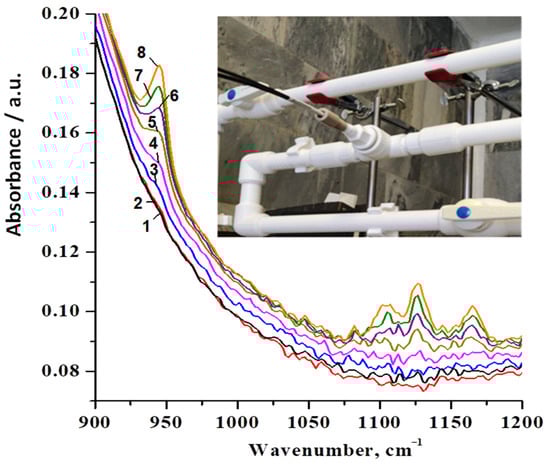

Figure 10. Photo of an experimental layout for testing the sensor “in situ”. Absorption spectra of isopropyl alcohol in a water/alcohol mixture: 1—pure water; 2—0.1% vol. isopropyl alcohol; 3—0.5% vol.; 4—1.0% vol.; 5—2.0% vol.; 6—3.0% vol.; 7—4.0% vol.; 8—5.0% vol.
Figure 10. Photo of an experimental layout for testing the sensor “in situ”. Absorption spectra of isopropyl alcohol in a water/alcohol mixture: 1—pure water; 2—0.1% vol. isopropyl alcohol; 3—0.5% vol.; 4—1.0% vol.; 5—2.0% vol.; 6—3.0% vol.; 7—4.0% vol.; 8—5.0% vol.
Fibers 11 00054 g010
Fibers 11 00054 g011 550

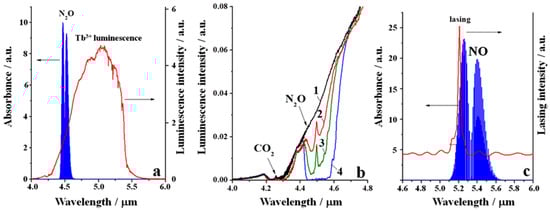

Figure 11. Emission spectrum of Tb(3+)-doped chalcogenide fiber and fragment of N2O absorption spectrum (a). Absorption bands of gas mixture in emission spectrum (b) (concentration of N2O: 1—0; 2—10 ppmV; 3—20 ppmV; 4—100 ppmV). Lasing spectra of Tb(3+)-doped chalcogenide fiber and fragment of NO absorption spectrum (c) ([53]).
Figure 11. Emission spectrum of Tb(3+)-doped chalcogenide fiber and fragment of N2O absorption spectrum (a). Absorption bands of gas mixture in emission spectrum (b) (concentration of N2O: 1—0; 2—10 ppmV; 3—20 ppmV; 4—100 ppmV). Lasing spectra of Tb(3+)-doped chalcogenide fiber and fragment of NO absorption spectrum (c) ([53]).
Fibers 11 00054 g011
Table
Table 1. Sensor performances in the determination of isopropyl alcohol [42].
Table 1. Sensor performances in the determination of isopropyl alcohol [42].
Material of Flexible Fiber
and Tip		Spectral Range, µmSensitivity ×103, cm−1/vol.%
(947 cm−1)		Signal Linearity (R2 × 102) 1Cmin, vol.% 2
AgX/AgX4–157.0 ± 0.299.630.2
AgX/Ge20Se804–1212.0 ± 0.299.960.5
AgX/Ge28Sb12Se604–1213.5 ± 0.299.950.5
AgX/Ge20Se80 with taper 4–1221.3 ± 0.299.930.3
AgX/Ga10Ge15Te73I24–1512.8 ± 0.299.680.5
As38Se62/Ge20Se802–1211.2 ± 0.299.880.5
1 R2 is the square of the approximation coefficient, 2 Cmin is the detection limit.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shiryaev, V.S.; Velmuzhov, A.P.; Kotereva, T.V.; Tyurina, E.A.; Sukhanov, M.V.; Karaksina, E.V. Recent Achievements in Development of Chalcogenide Optical Fibers for Mid-IR Sensing. Fibers 2023, 11, 54. https://doi.org/10.3390/fib11060054

AMA Style

Shiryaev VS, Velmuzhov AP, Kotereva TV, Tyurina EA, Sukhanov MV, Karaksina EV. Recent Achievements in Development of Chalcogenide Optical Fibers for Mid-IR Sensing. Fibers. 2023; 11(6):54. https://doi.org/10.3390/fib11060054

Chicago/Turabian Style

Shiryaev, Vladimir S., Alexander P. Velmuzhov, Tatiana V. Kotereva, Elizaveta A. Tyurina, Maksim V. Sukhanov, and Ella V. Karaksina. 2023. "Recent Achievements in Development of Chalcogenide Optical Fibers for Mid-IR Sensing" Fibers 11, no. 6: 54. https://doi.org/10.3390/fib11060054

APA Style

Shiryaev, V. S., Velmuzhov, A. P., Kotereva, T. V., Tyurina, E. A., Sukhanov, M. V., & Karaksina, E. V. (2023). Recent Achievements in Development of Chalcogenide Optical Fibers for Mid-IR Sensing. Fibers, 11(6), 54. https://doi.org/10.3390/fib11060054

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
