Hydrogeochemical Characterization as a Tool to Recognize “Masked Geothermal Waters” in Bahía Concepción, Mexico

by
Pablo Hernández-Morales
1,
Jobst Wurl
2,*,
Carlos Green-Ruiz
3,* and
Diego Morata
4
1
Posgrado en Ciencias Marinas y Costeras, Universidad Autónoma de Baja California Sur, Carretera al Sur km 5.5, La Paz 23080, Mexico
2
Departamento Académico de Ciencias Marinas y Costeras, Universidad Autónoma de Baja California Sur, UABCS, Carretera al Sur km 5.5, La Paz 23080, Mexico
3
Unidad Académica Mazatlán, Instituto de Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México, Av. Joel Montes Camarena s/n, Playa Sur, Mazatlán 82040, Mexico
4
Departamento de Geología y Centro de Excelencia en Geotermia de Los Andes (CEGA), Facultad de Ciencias Físicas y Matemáticas, Universidad de Chile, Plaza Ercilla 803, Santiago 8370450, Chile
*
Authors to whom correspondence should be addressed.
Resources 2021, 10(3), 23; https://doi.org/10.3390/resources10030023
Submission received: 1 January 2021 / Revised: 22 February 2021 / Accepted: 26 February 2021 / Published: 4 March 2021
Browse Figures
Versions Notes

Abstract

:
Geo-thermalism has been widely recognized on the Baja California Peninsula, especially during the last decade. The current research, carried out on Bahia Concepcion, evidences the existence of geothermal springs, which get recharged mainly by groundwater and seawater. The groundwater can be characterized as Na+-Cl− and Na+-HCO3− type, with a pH value close to neutrality. The slightly more acidic thermal sites presented temperatures between 32 °C and 59 °C at the surface. Based on the relationships of the Cl− and Br−, as well as the B/Cl−, and Br−/Cl− ratios, seawater was recognized as the main source of salinity. The spatial distribution is explained directly through marine intrusion, or via sprays and aerosols within the rainwater. Seawater ratios in thermal springs varied from 62% to 83%, corresponding mainly to shallow inflow, but seawater inputs into the deep thermal reservoir were also recognized. Temperatures in the geothermal deep reservoir were inferred from 114 to 209 °C, calculated through the SiO2 and Na+-K+ geothermometers. In addition to previously reported thermal sites at Bahía Concepción, and based on their elevated temperatures, two new sites were identified. Another five springs do not fulfill the commonly used definition, based on differential temperature, but show the typical hydrogeochemical signature of thermal water. A new approach to identify this low-temperature geothermal-influenced spring water by its hydrogeochemical composition is presented, for which the term “Masked Geothermal Waters” (MGW) is introduced. Our findings increase the area of the geothermal anomaly and, therefore, the potential of geothermal resources. The approach proposed in this research will also be useful to identify more MGW in other coastal areas.

1. Introduction

Due to hydrocarbon deposit depletion, the need to reduce CO2 release to the atmosphere, as well as international environmental agreements, renewable energies have largely escalated in importance in the world in becoming the future’s energy resources, [1,2]. The environmental importance of these alternative energy sources has been recognized [3,4]. Although geo-thermalism is a renewable resource with a significant global occurrence, its use is still incipient compared to other alternative energies. However, derived from scientific and technological advances, which allow the reduction of operating costs, its future promises to be interesting, competing with other sources of energy [5]. Based on their usefulness, the research on geothermal resources has focused mainly on the assessment of high-temperature geothermal fields, leaving those of medium and low temperature at a second level of importance. In recent years, interest has increased in medium and low-temperature geothermal sites, which can be used in small-scale power generation and other industrial activities that take direct advantage of the use of the geothermal fluid temperature [6].
Geothermal activity, manifested as low or high enthalpy thermal springs, is distributed throughout the world [7,8,9]. Due to its chemical characteristics, water from thermal springs has been used historically in balneology, balneotherapy, traditional medicine and more recently in the cosmetic or food industries [10,11,12]. However, several studies recognize the release of nutrients and potentially toxic elements from the discharge of thermal water into the environment [13,14,15,16,17,18].
The widely accepted definition for recognizing a water spring as thermal is based on its differential temperature values, compared with the average annual temperature in the respective area [19,20]. Groundwater chemical composition is an important aspect to understand the hydro-thermalism, as several springs do not show the mentioned differential, but their hydrogeochemical signature suggests a hydrothermal origin. Authors herein propose to define these kinds of waters as masked geothermal waters (MGW). In this context, the study of water mixtures of thermal fluids, groundwater and seawater [13,21,22,23,24,25] allows us to recognize origin of fluids, groundwater discharges, marine intrusion, movement of the saline interface, and coastal ecosystem relationship and vulnerability. Knowing these mechanisms allows for better resource management [22,25,26,27].
In Mexico, geothermal resources have been used as a source of energy production since the middle of the 20th century. In 2018, an estimated 5375 GWh were produced from high-enthalpy geothermal fields such as Los Azufres, Los Humeros, Cerro Prieto, and Las Tres Vírgenes (LTV), which represents 1.7% of electrical national production [28,29]. The last two of these fields are located on the Baja California Peninsula (BCP). As a result of recognizing the high potential and heat flow prevailing in this area, including in the Gulf of California [6,30,31], several low and medium-temperature geothermal manifestations have been located and related to volcanic activity or/and fractured areas (regional faults), but not fully characterized from a hydrogeochemical point of view. In particular, on the southern portion of the peninsula, corresponding to the Baja California Sur State, geothermal sites have been described [6,32,33,34,35,36,37,38]. These manifestations are located mainly on the eastern margin of the BCP, discharging into the Gulf, and Bahía Concepción is one of the most important [6,36,39,40,41].
The aim of this study was to describe geothermal manifestations in Bahia Concepcion and to identify their effects on groundwater geochemistry. Additionally, a new methodology based on hydrogeochemical signatures is proposed to recognize MGW. A hydrogeochemical characterization of the groundwater that discharges into the bay was performed to clarify the exchange and mixing of the fluid endmembers in the MGW. The information generated in this research contributes to an increase in knowledge on geothermal resources for their future use and management in a sustainable framework.

2. Study Area

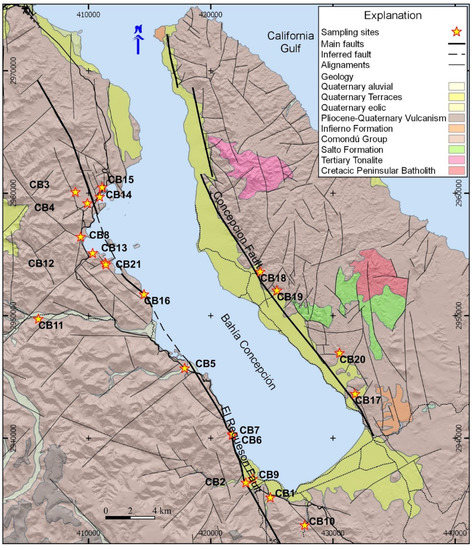

Bahía Concepción, located in the central-eastern portion of B. C. S. (Figure 1), is an area with a low population density. Its natural landscape’s beauty has made it a tourist destination, with future development projections, which implies the need for energy and water resources. The area has good accessibility and the most important settlements are: Santispac, El Burro, Rancho El Molino, Punta Arenas, El Coyote, La Posada, all on the west coast of the Bay (Figure 1).

2.1. Geological Units

The oldest unit outcropping on the Bahia Concepción region corresponds to cretaceous granitic rocks (Figure 2), with inclusions and pendants of schists, intruded by mafic, aplitic, and pegmatitic stocks and dikes [42,43]. The El Salto Formation (28.1 ± 09 Ma), discordant to that granitic basement, was formed by very fine to medium grain sandstones with cross-bedding stratification and tuffaceous intercalations [43].
It is transitionally overlaid by rocks of the Comondú Group [43,46,47] volcano-sedimentary sequence (Figure 2). Umhoefer et al. [47] proposed three divisions: (1) a lower clastic unit with sandstones and tuffaceous intercalations, (2) a middle unit with volcanic breccias and dacitic-andesitic lava flows and (3) an upper unit of lava flows. The Comondú Group was deposited ca. 30 Ma–12 Ma [46,47,48]. In a transitional to discordant contact with the Comondú Group, the Infierno Formation, is overlaid composed of andesitic conglomerates, sandstones, siltstones, mudstones, and coquina intercalations, with a characteristic chert layer [49,50]. The Infierno Formation from the Upper Pliocene is deposited in a beach environment with marine transgression [43,49]. Lava flows and volcanic deposits overlay the previous units, identified as andesitic-basaltic alkaline to rhyolitic-dacitic calco-alkaline post-Comondú [51,52,53]. Alluvial deposits fill the dry stream, sands and heterogeneous conglomerates compose terraces at different levels associated with the structural system, as well as dune deposits, which currently make up the geomorphology of the coastal zone in the area.

2.2. Structural Setting

The structural genesis of Bahía Concepción is closely related to the events that occurred at the initial spreading of the Gulf of California in the late Miocene [45,48,52,54]. During the Cenozoic, the processes of a convergent margin ceased, originating an arc, whose volcanism (sensu lato) produced the Comondú Group deposits [42,55]. After the subduction, a trans-tensional process began, which would merge the Baja California peninsula as part of the Pacific plate [48,56]. The current boundary between the Pacific Plate and the North American plate, along with the GC, corresponds to an oblique (20° NW) transform fault [54].
The major structures in Bahía Concepción correspond to normal faults with associated listric structures (Figure 2) with a preferential direction 25–30° NW–SE, while secondary alignments are perpendicular NE–SW (Figure 2). The Concepción Fault is the main structure on the Concepcion peninsula which exhibits a general dip of 45° to the west [43,52]. A second structure (NW–SE) is the El Requesón Fault (Figure 2), which delimits the western margin of the bay where intertidal and submarine hydrothermal springs occur [57]. These two structures formed a graben, which corresponds to Bahía Concepción bay. Faulting is considered to completely affect the volcano-sedimentary sequence, probably as well as the intrusive igneous basement which can be considered almost impermeable. As the structural system of the area is related to the opening of the California Gulf, the main faults and their associated structures allow a relatively high permeability. The intensive faulting can explain the existence of deep circulation in the aquifers, which has been described as the main source of the geothermal system.

2.3. Climate and Hydrogeology

The climate in Bahía Concepción is semi-arid. Based on data from three meteorological stations [12], the time series of monthly records for 25 years indicates that the average annual precipitation is 145 mm, less than the average precipitation of the State (222 mm) [58]. The annual average temperature is approximately 23 °C (Table 1).
The drainage pattern in the area is dendritic and subparallel. The main creeks at the western side of the bay are Cadeje, Armenta, El Frijol, La Enramada, and El Tordillo; while Los Pelones, El León, Cardoncito, Los Pintados, and El Mono-Santa Rosaliíta creeks drain to the east coast of the bay.
For Bahia Concepcion watershed, including the aquifer, the Mexican National Water Commission (CONAGUA) calculated an average annual recharge of 5.7 Mm3; in contrast, the average annual discharge reaches approximately 4.9 Mm3 [60]. These numbers include the San Nicolás watershed, which discharges directly towards the Gulf of California and not towards the bay, thus the discharge into the bay is assumed to be lower than calculated. CONAGUA indicated that the aquifer is formed by the volcano-sedimentary rocks in the area [60]. These rocks, mostly, belong to the Comondú Group, according to the geology of the area (Figure 2). In the aquifer, a transmissivity of 0.5 to 3.5 × 10−3 m2/s was estimated. The depth of the water table varies between 1 to 20 m, obtained from wells in dry streams and near to the coastline, which is defined as the discharge area of the aquifer. Regarding to elevation of the water table, this was measured up to 230 m.a.s.l., towards the mountainous area [60].

2.4. Geothermal Research in the Area

Former investigations, related to the geothermal system in Bahía Concepción, are mainly focused on the submarine discharges of thermal water and intertidal thermal springs, located near Santispac and Mapachitos [36]. Water composition of two intertidal thermal springs (Santispac and La Posada), as well as a submarine hot spring (Mapachitos), was described as a mixture of seawater and thermal fresh groundwater. These thermal springs are enriched in several elements, but depleted in Mg, with respect to seawater [32,36]. The temperature in the deep reservoir was calculated at about 200 °C [36]. A high heat flux (up to 200 mW/m2) is concentrated in this region [53]. The geothermal system was defined as controlled by deep normal faults, associated with the oblique extensional system of the Gulf of California [36,39,61].
Villanueva-Estrada et al. [41] used data from Prol-Ledesma et al. [36] and proposed a mixing model that explains the final fluid discharge. They concluded that the water source of the thermal system is meteoric water (80%) and the remaining 20% represents high saline fluids. Elements such as Mn, Ba, Hg, and Si occur in the areas of submarine thermal discharges, as well as at the intertidal springs. The elevated concentrations of As and Hg, among other potentially toxic elements, were related to the discharges of the intertidal hydrothermal spring of Santispac and Mapachitos; these elements are found to be assimilated by macroalgae [40,62]. Estradas-Romero et al. [63] and Melwani and Kim [64] related species richness of phytoplankton and benthic fauna to higher water temperature and the hydrogeochemical composition of thermal discharges.

3. Methods

In February 2018, seven groundwater (hand-dug shallow wells, called norias) and 13 spring water samples were collected from the coastal margins of Bahía Concepción, following the recommendations of Arnórsson and D’Amore [65]. The samples from wells were taken with a bailer, avoiding shaking and contamination. In the case of springs, the sample was taken directly from the emanation point. All samples were filtered with a 0.45 µm cellulose Millipore® filter (Merkmillipore, Burlington, MA, USA) and stored in new polyethylene bottles previously rinsed with distilled water, and again with water from the source to be sampled. Finally, the samples for cation analyses were acidified with HNO3 (pH < 2) (J.T. Baker®-Avantor, Center Valley, PA, USA), and all samples were stored at 4 °C until analysis.
At each site, three physicochemical parameters were measured: firstly, the temperature, using a pH/temperature meter (Hanna Instruments® HI9124; Woonsocket, RI, USA) with a resolution of 0.1 °C and an accuracy of 0.4 °C. The electrical conductivity (EC), as well as the total dissolved solid (TDS) were measured by a CE/TDS/temperature DiST® 6 m (Hanna Instruments® HI98312; Woonsocket, RI, USA) with temperature compensation, and detection ranges of up to 20,000 μS/cm and up to 10 ppt, respectively. The resolution and accuracy of this device are 10 μS/cm and ±2% for EC and 0.01 ppt and ±2% for TDS. For sites with high salinity, a portable refractometer was used to measure the percentage content of salts in UPS. The pH was also measured, using the Hanna Instruments® meter, HI9124 (Woonsocket, RI, USA), with resolution of 0.01 and an accuracy of ±0.01. It was previously calibrated, using Buffer solutions (4.01, 7.01, 10.01 Hanna®; Woonsocket, RI, USA). The main cations (Ca2+, Na+, K+, Mg2+) were determined with a Perkin Elmer® (Waltham, MA, USA) PinAAcle 900F Flame Atomic Absorption Spectrophotometer (recovery 101%, 102%, 96%, 102% and limits of detection -LOD- 0.02, 0.03, 0.12, 0.02 mg/L, respectively). The major anions (Cl−, SO42−, Br−) were analyzed in a Metrohm® (Herisau, Switzerland) Ion Chromatograph model 861 Advanced Compact IC (recovery of 95%, 107%, 104% and LOD 0.01, 0.03, 0.02 mg/L, respectively). These analyses were validated (±5%), calculating the charge balance of the major cations and anions for each sample. The elemental concentration of B (recovery 94%, LOD 0.07 μg/L) was determined by mass spectrometry using a Thermo Scientific® (Waltham, MA, USA) ICP-MS iCAP Q equipment. The concentration of HCO3− was determined by automatic titration with a Hanna® HI-902C (Woonsocket, RI, USA) equipment. SiO2 was analyzed with a Hanna® photometer (±0.03 mg/L) (Woonsocket, RI, USA). All the analyzes were validated using control reference solutions and NIST-1643f as certified reference material. For quality control, laboratory and field blanks were also analyzed and no chemical interferences (sample contamination) were found.
According to Vengosh [66], the Br−/Cl− and B/Cl− relationships allow the recognition of the mixing effects of thermal water with seawater, evaporated seawater, fresh groundwater, or agricultural return flow. Hernandez-Morales and Wurl [34] used the diagram proposed by Vengosh [66], to define typical positions of thermal water at the southern tip of the peninsula of Baja California Sur. The origin of the salinity in the study area is discussed based on Cl−, Br, and B relationships.
The temperature in the deep thermal reservoir was inferred using the silica geothermometer [67] with the SOLGeo software [68], which allows estimation of the uncertainties for the incorporated geothermometric equations.

4. Results

The physicochemical results measured in the field indicated that the water from the sampling sites had temperatures ranging from 22 °C (CB12) to almost 60 °C in the coastal thermal springs (CB14, CB15, and CB16, Figure 1). The sites CB2 (Cadejé) and CB3 (El Tordillo) showed a temperature above 32 °C and therefore fall into the definition of thermal water, considering the average temperature of the area (22.8 °C). The temperature was higher on the slope that discharges into the west of the bay. Temperature, electrical conductivity and pH had a greater variability on the western margin of the bay, due to the occurrence of geo-thermalism and a stronger seawater influence. The eastern margin (CB17, CB18, CB19, and CB20) showed electrical conductivities from 1082 to 2130 μS/cm, with a pH average of 6.9. The sampling sites on the western portion (Figure 1) showed high values of electrical conductivity for the sites near the coast, in contrast to the sites upstream of the hydrological watershed; a variation was found from 430 μS/cm (CB11) to greater than 20,000 μS/cm in coastal thermal springs (CB14, CB15, CB16). Regarding the pH of the coastal thermal springs, slightly more acidic values (pH 6.5) were found than the values registered in the samples of the other analyzed sites, which varied from a neutral pH to 8.7 (CB10). Detailed information is presented in Table 2 and Table 3.
Most of the analyzed samples indicate Cl− and HCO3− as dominant anions. Only for CB19 was the dominant anion SO42−. Regarding cations, a higher concentration of Na+ prevails in all samples. In addition, the results indicated high concentrations of Na+ and Cl−, with values up to 17,629 and 8150 mg/L, respectively, for the CB15 sample. On the contrary, the lowest concentration in Na+ and Cl− (53.6 and 44.5 mg/L) corresponded to the CB11 sample.

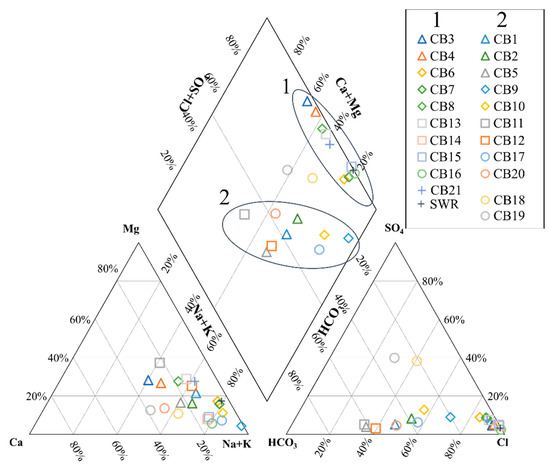

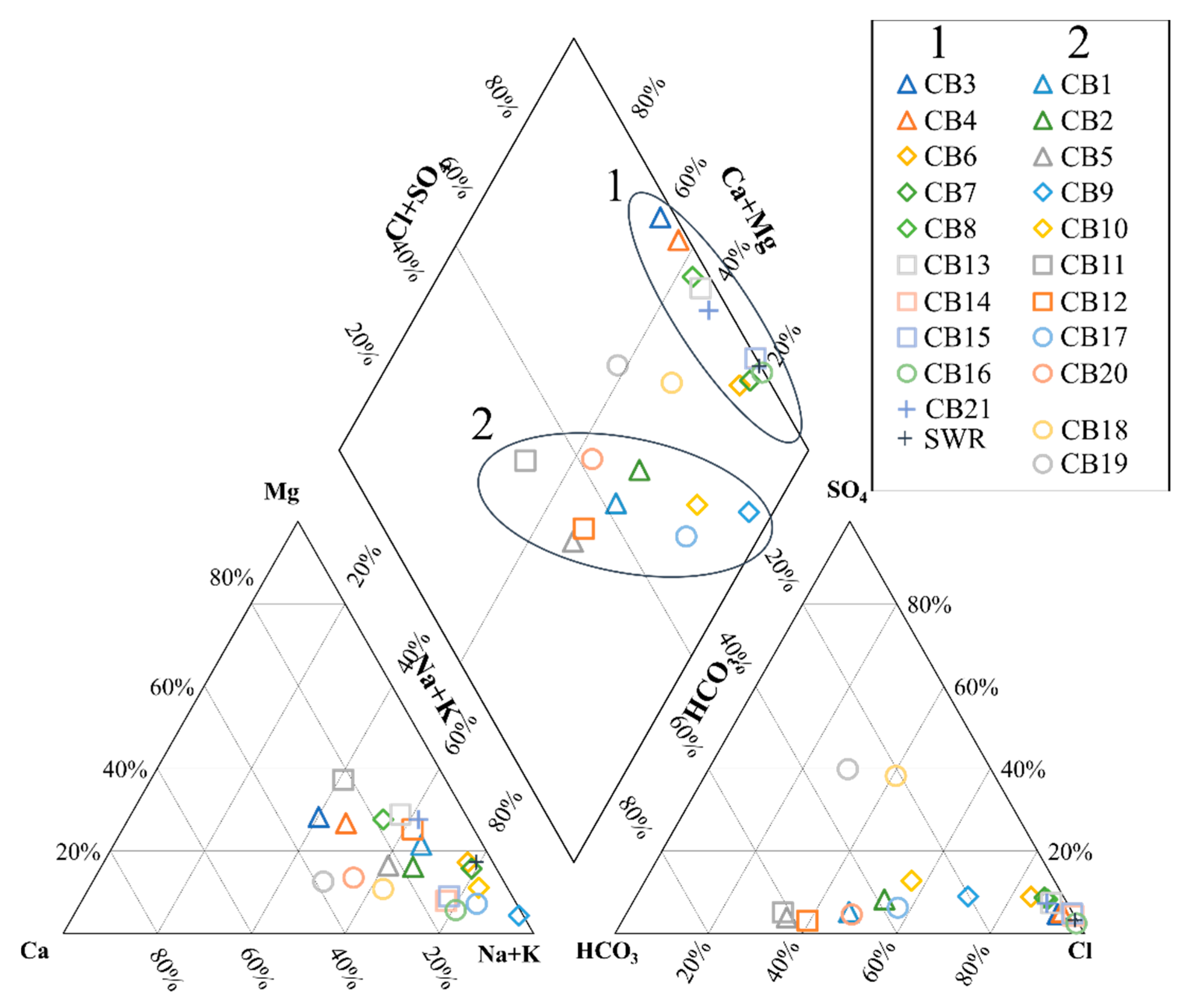

Based on the concentration of the major ions, hydrogeochemical facies can be generalized according to Piper’s diagram [69,70]. The hydrogeochemical classification of the analyzed sites in this work resulted in Na+-HCO3− type waters in the area with contribution mostly of fresh groundwater (CB1, CB2, CB5, CB10, CB11, CB12, CB17, CB20); while, in the sites near the coastal zone the type of water is Na+-Cl− (CB3, CB4, CB6, CB7, CB8, CB9, CB13, CB14, CB15, CB16, CB21). Sites CB18 and CB19, located on the central portion of the Concepción Peninsula, belong to a Na+-SO42− water type. The Piper diagram (Figure 3) exhibits two main groups of waters, group 1 that enclose samples related to seawater reference and group 2, in the central part of the rhomboid, with less mineralization and bicarbonate-sodium type. The average concentration of anions and cations for both groups, from highest to lowest, is as follows: (1) Cl− > SO42− > HCO3− > Br−; Na+ > Ca2+ > Mg2+ > K+. (2) HCO3− > Cl− > SO42− > Br−; Na+ > Ca2+ > Mg2+ > K+.

Hydrogeochemical Characterization

The Santispac, La Posada, and Agua Caliente (CB14, CB15, CB16) localities, with a salinity greater than 21 PSU and temperature up to 50 °C, correspond to intertidal thermal springs and have been described as mixtures of thermal water and seawater [36,41]. This is in agreement with our results (Table 1). The samples CB1, CB5, CB11, CB12, and those located on the Concepcion Peninsula, presented lower mineralization. The site CB11 (Cuevitas) has a similar hydrogeochemical signature as that described by Birkle et al. [71], as meteoric recharge water for the Las Tres Vírgenes geothermal field (ca. 100 km northwest). A slight SO42− enrichment was found in samples CB18 and CB19 respecting their other anions; this is probably added from a mineral alteration of a tertiary igneous intrusion [48] occurring in that area (Figure 2).
Most of the sites fall into the region of alkali dominance in the Piper diagram (Figure 3). This is in accordance with the occurrence of alkaline to calco-alkaline volcanic and volcanoclastic rocks from the Comondú Group (Figure 2) in the area [46,55], indicating a probable water–rock interaction process. Two groups of samples are recognized from the Piper diagram. Group (1) on the upper right, with high contents of chloride, is formed by sites located near the west coastline (Figure 4); they show a trend in the direction of the decrease or exchange of Na+ and this is associated with a mixture of seawater (SWR) and fresh groundwater. The second group on the central portion represents fresh groundwater and includes the site CB11, which shows an ionic composition commonly considered as recharge water. The sites belonging to this group are further from the coastline than those from group 1 (Figure 4), which could indicate a spatial evolution, as suggested Tomaszkiewicz et al. [72], based on the water mineralization from the recharge zone towards the coastline, where it acquires higher mineralization.

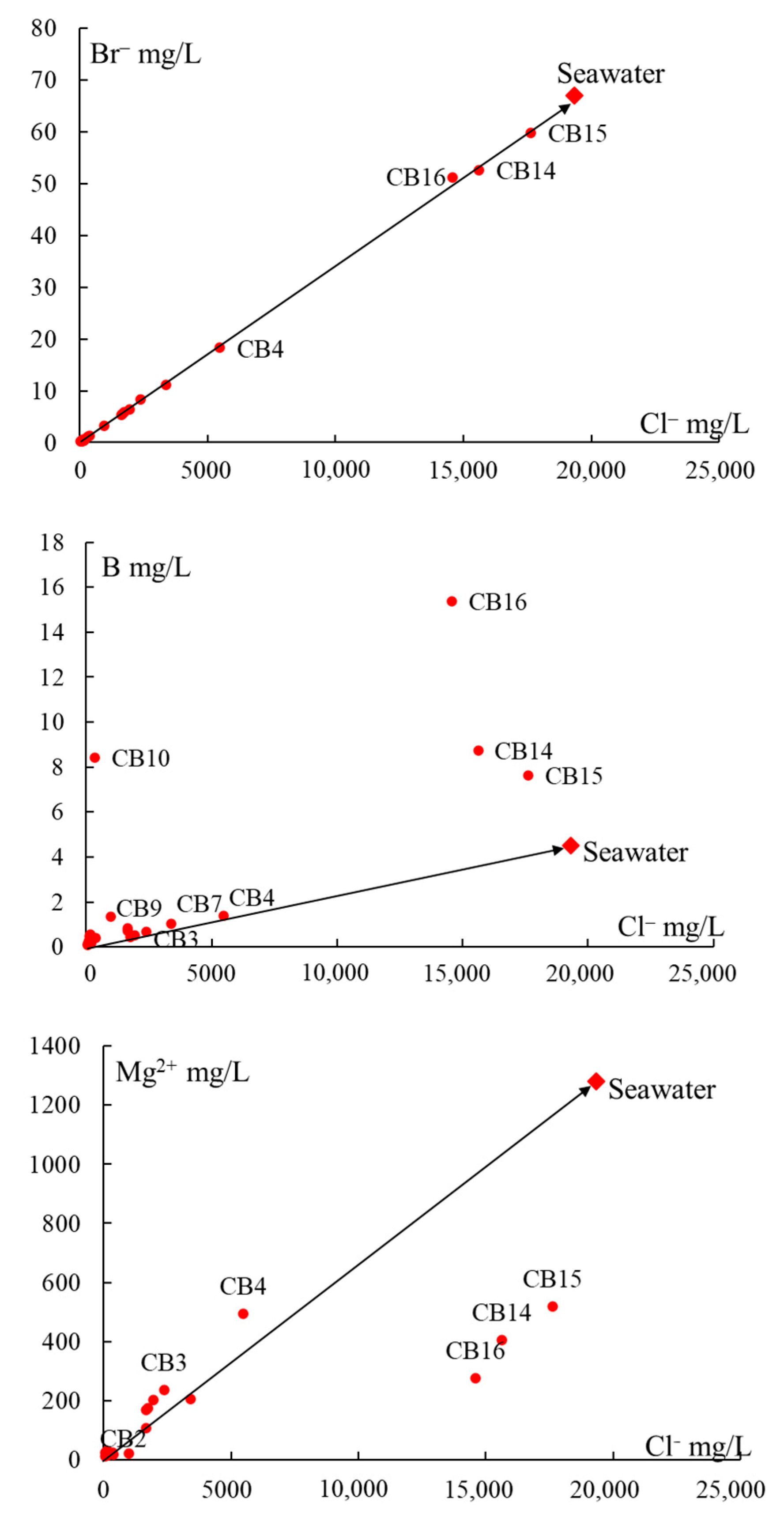

The Br−–Cl− relationship maintained as constant, and similar to the relation from the seawater reference; although, for some sites, the Cl− concentration is as low as that for meteoric water, following a common mixing pattern (Figure 5). Similarly, most of the samples maintain the seawater B–Cl− ratio, except the sites CB10, CB14, CB15, CB16, with elevated boron concentration (Figure 5). In addition, the last three sites also showed lower Mg2+ ratios than seawater.

5. Discussion

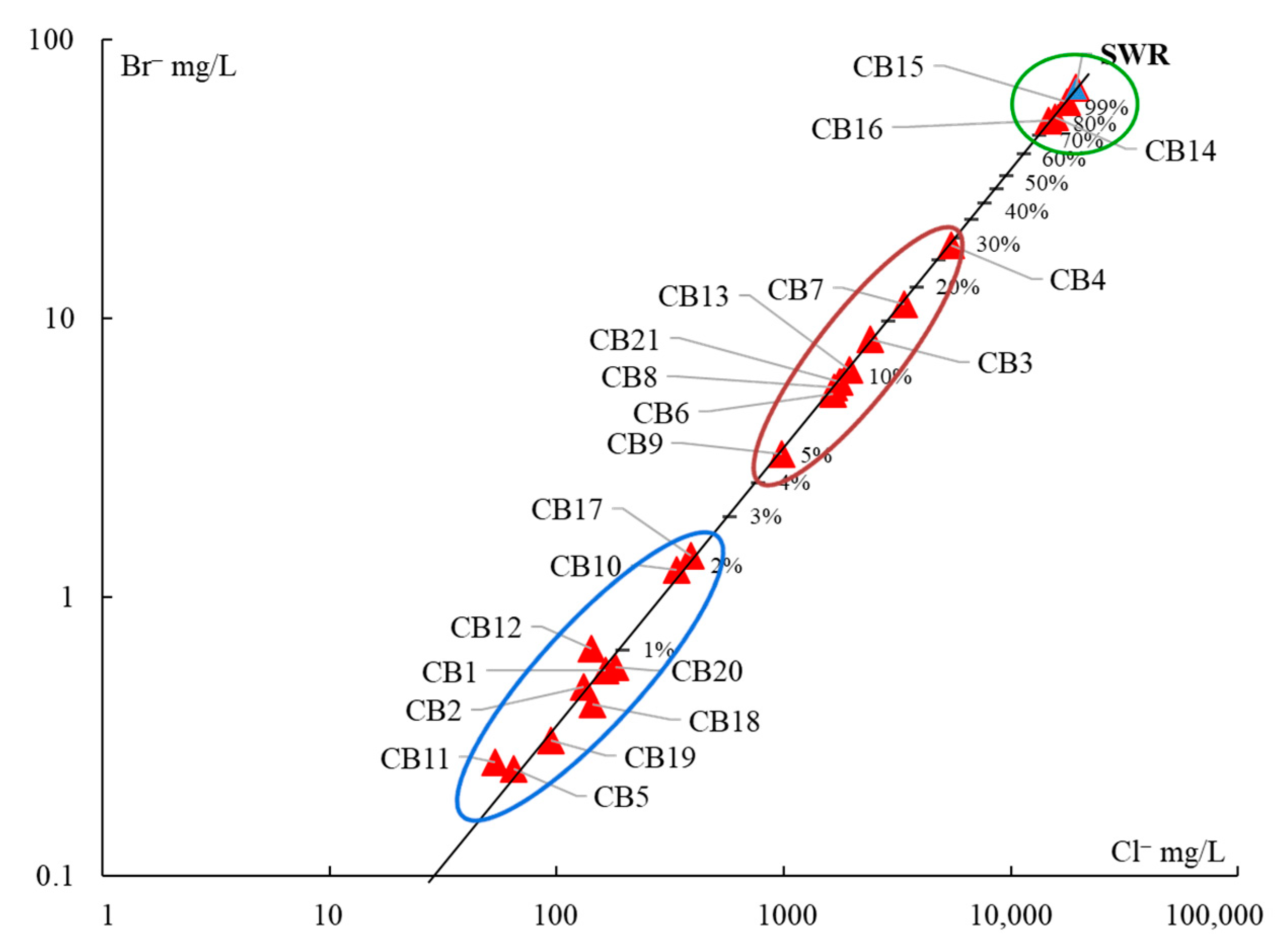

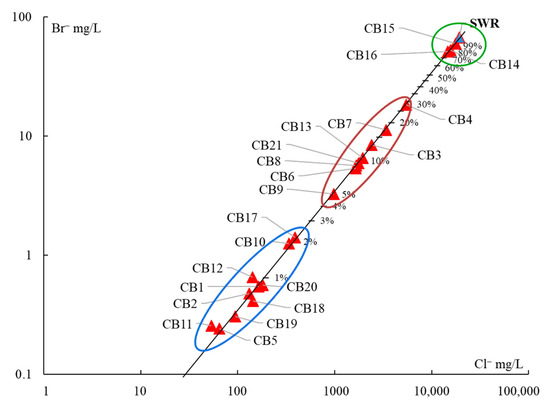

Based on the Br−–Cl− relationship (Figure 5), a theoretical dilution line (Figure 6) was modeled between the two end-members (recharge freshwater represented by CB11 and seawater SWR), using the PHREEQC software [74]. According to the percentage of SWR, three groups are well distinguished:
(1)
The samples CB14, CB15, and CB16, with more than 75% of seawater, correspond to the intertidal hydrothermal springs in La Posada, Santispac, and Agua Caliente (Figure 1).
(2)
Three sites, located within the intertidal area (CB6, CB7, CB13), and five sites, located within a distance of less than 3 km to the coastline (CB3, CB4, CB8, CB9, and CB21), presented a fraction of seawater ranging between 5% and 30%. This proportion of seawater results from either tidal pump or groundwater extraction.
(3)
The remaining sites, with less than 2% seawater, are located at distances of more than 3 km to the coastline.
The probable addition of the seawater signature respecting its Br−–Cl− relationship would be explained by aerosols and spray particles added in the recharge from meteoric rainwater as explained for thermal springs at the southern tip of BCP [34]. The low percentage of seawater fraction in those sites could be an indicator of this process (Figure 6). With no storms or hurricanes occurring, marine aerosols can be recognized up to 20 km inland. Conversely a higher transport of marine spray and aerosols is expected in the rainy season which are mixed with the recharge meteoric water [75,76,77]. At Bahía Concepción, the rains are associated with hurricanes and storms and represent the main source of recharge [78].

5.1. Origin of Water Salinity and Mixing of End Members

The hydrogeochemical compositions of four end-members were defined as follows: (a) seawater [73], (b) meteoric recharged groundwater (CB11), (c) thermal water with meteoric water recharge [34], and (d) thermal water from the geothermal field LTV (LV4) [79]. The proportion of each end-member in the water samples was evaluated, based on the elements Cl−, Br−, and B, which represent conservative ions [67,80]. According to Vengosh [66], the relationship between Br−/Cl− and B/Cl− ratios allows the recognition of mixtures of water. This relationship has been widely used in former studies on hydro-thermalism in several countries [9,34,81,82,83].
All data from samples from Bahia Concepcion, as well as those from the known end-members, were plotted in the modified Vengosh diagram (Figure 7). The sites, including the thermal intertidal ones, maintained a Br−/Cl− ratio similar to that from the seawater reference; however, the B/Cl− ratio remarkable varied among samples, oscillating from 0.0008 up to 0.08 (Figure 7). This can be explained by thermal water-rock interaction processes, providing a considerable increase in boron concentrations [84,85]. In the case of seawater evaporation, both ratios (Br−/Cl− and B/Cl−) vary systematically, indicated in Figure 7 by a blue arrow. This effect is notable in the Mapachitos site from Bahía Concepción (BC1) described by Prol-Ledesma et al. [36]; however, in this study this was not observed.
The black diagonal arrows, parallel to the blue arrow, correspond to the trend of the Br−/Cl− and B/Cl− ratios that has been described for hydrothermal manifestations of the Los Cabos Block [34], a mountain range in the center of the southern tip of the peninsula of Baja California. The thermal springs at El Chorro and Buenavista [34] are taken here as references (Figure 7).

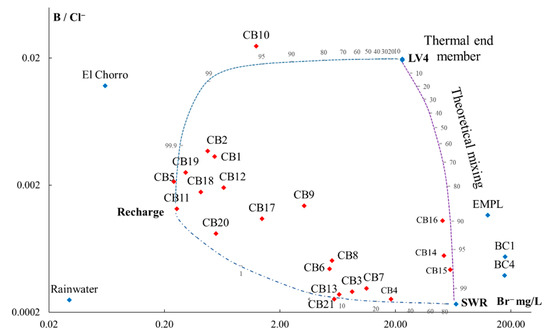

According to the Br−/Cl− and B/Cl− relationship (Figure 7), trend lines are projected in the same direction for evaporated seawater, as defined by Vengosh [66]. There is a contribution of marine waters from recharge, subsequently mixed either with a geothermal member or/and seawater. In the case of mixing with thermal water with meteoric recharge, samples tend to shift from the seawater Br−/Cl− ratio (dashed line, Figure 7), towards an increase of the Br−/Cl− and B/Cl− ratios as in the case of the LV4, El Chorro and BC1. The relationship between the conservative Br, and Cl− in the geothermal system of Bahia Concepcion maintains the common seawater molar ratio of 0.0015 [75,84,86], which rejects that the water in the aquifer has interaction with brines or strata with relict seawater, as has been indicated for sedimentary basins in China, U.S. and Poland [82,83,87,88]. B/Cl− ratio varies with respect to seawater. Elevated boron concentrations are common in thermal studies [66,87], since this element is adsorbed by oxides or clay minerals and can be released into the water due to changes in temperature. Stefánsson et al. [84] indicate that low temperature thermal waters increase their B/Cl− ratios, almost reaching the common ratio for basalts (0.017), upon progressive leaching processes during water–host rock interaction.
Birkle et al. [71] used a logarithmic scale to represent the Br− and Cl− relationship between the mixture of meteoric water and seawater (Figure 8). It is observed that the Las Tres Vírgenes thermal fluids are close to the relationship of seawater, inferring a direct mixture of marine water with groundwater recharge. In contrast, on the Br−/Cl− vs. B/Cl− diagram [66], the sample LV4 is located close to the field defined as thermal water. Birkle et al. [71] described meteoric recharge as the main source. For LV4, the Br−/Cl− ratio similar to that of seawater also probably results from meteoric recharge, as indicated for the Bahía Concepción thermal sites, and would not correspond to a mixture with seawater in-depth (Figure 8). All samples maintain the Br−/Cl− ratio of seawater (Figure 7 and Figure 8), however, the B/Cl− ratio above 0.007 is a strong indicator to recognize MGW, considering anthropogenic inputs of boron in the area are negligible.

5.2. Masked Geothermal Water (MGW)

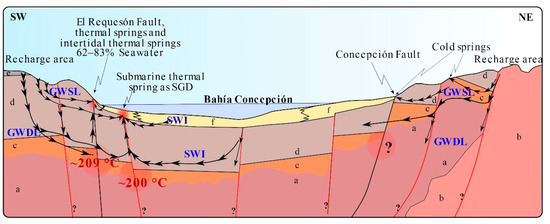

The temperatures of the intertidal thermal springs (CB14, CB15, and CB16) were measured at around 58 °C in February 2018, and similar temperatures were reported previously [36,40,41], indicating only little temporal variations. The temperature at the sites CB2, CB3, CB7, CB8, CB11, CB13, CB17, and CB21 (Table 1) varied from 29.4 to 36 °C (6 to 12 °C above the annual average for the area), which corresponds to the common definition of geothermal sites (according to the annual average temperature), but their hydrogeochemical composition also supports this finding, particularly B, Mg2+ and SiO2 (Table 1).
The thermal springs CB14, CB15, and CB16 are closely related to seawater (more than 90%) and to the thermal end-member (Figure 8). The second group of samples (CB3, CB4, CB6, CB7, CB8, CB13, and CB21) are in the mixing zone between SWR and recharge, indicated by a depletion in Br− from freshwater. The sites for CB3, CB6, CB7, and CB8 represent a subgroup, where an increase in B/Cl− ratio indicates mixing with thermal water. Recharge of meteoric water explains most of the salinity for the rest of the sites (CB1, CB2, CB5, CB9, CB12, CB18, and CB19), mixed with a very low portion of other fluids (seawater fraction, (Table 4) and/or with the thermal end-member). As indicated by the Br−/Cl−–B/Cl− diagram (Figure 7) and B/Cl−-Br− (Figure 9), recharge water is introduced to the aquifer with a proportion of seawater through aerosols. The sites CB2 and CB3 show a geothermal influence that has not been described before. These sites can be related to different mixing portions (Figure 6 and Figure 9), where CB2 is very close to the recharge water (Figure 9) and the thermal end-member, and El Tordillo CB3 results from mixing with seawater due to seawater intrusion and thermal water-freshwater. At both sites, the water temperature was above 32 °C (Table 1 and Table 2).
Regarding the eastern margin of the bay (Figure 1), thermal evidence was not observed from the expected differences between water-air temperature, neither from the chemical characteristics in the Br−/Cl− and B/Cl− relationship (Figure 7). However, it is notorious that there is a water–rock interaction (Figure 9) where the Br− vs. Cl− relationship increases due to the probable interaction of halides from volcanic rocks [78,84]; these samples correspond to those located in the Concepción Peninsula, which would also denote the water-rock interaction derived from the existence of a lower topographic slope from the upper part of the basin towards the discharge area, which delays the residence period of the water in the rock, as well as its distance between these. The foregoing allows the conclusion that the origin of the salinity is primarily of meteoric origin, with a signature of seawater in the aforementioned contexts, and the mixture of these with seawater intrusion and thermal water; therefore, it may be possible to determine that the analyzed samples present waters little altered by salinity from the thermal system, maintaining their signature of origin to a certain degree. This is in agreement with Villanueva-Estrada et al. [41] who defined a mixture of two-phase fluids, a primary mixture in the recharge and a secondary in the mixture with the thermal end member, for intertidal and submarine springs. Based on its relative temperatures, several sites would not fall into the category of thermal water, due to the arid climate of the Baja California Peninsula, although their hydro-chemical composition indicates clear influence through hydro-thermalism (the B/Cl− ratio was especially useful, as anthropogenic impact of boron in the study area can be negligible). This type of water can be named Masked Geothermal Water MGW and would correspond to the sites CB1, CB4, CB5, CB6, and CB19 with a B/Cl− ratio above 0.007.

5.3. Geothermal Water and Geothermometry

High salinity in thermal springs affects the calculation of reservoir temperatures through geothermometers [67,80]. Especially, the seawater fraction modifies not only the cation ratios, but also the SiO2 concentration; therefore, in this study, corrected reservoir temperatures were calculated without the seawater component (Table 4, Figure 10). For that purpose, a mixing model was constructed, based on four end-members (SWR [73], CB11, EMPL [34], and LV4 [79]), explaining the composition of the five thermal springs (CB2, CB3, CB14, CB15, CB16). As multiple combinations are possible, the chosen model seeks the simplest explanation, in agreement with the Br−/Cl− and B/Cl− diagram (Figure 7), which indicates the strong influence of seawater on CB14, CB15 and CB16. The model considers the concentration of Cl− as the main benchmark; furthermore, Na+, Mg2+, and SiO2 were taken into account to find the proportions of each member, respectively.
Original and corrected data were used to construct ternary Na+-K+-Mg2+ diagrams and a Cl−-SiO2 plot, as well as to employ a SiO2 geothermometer [67] to obtain the equilibrium reservoir temperatures in the Bahía Concepción region.

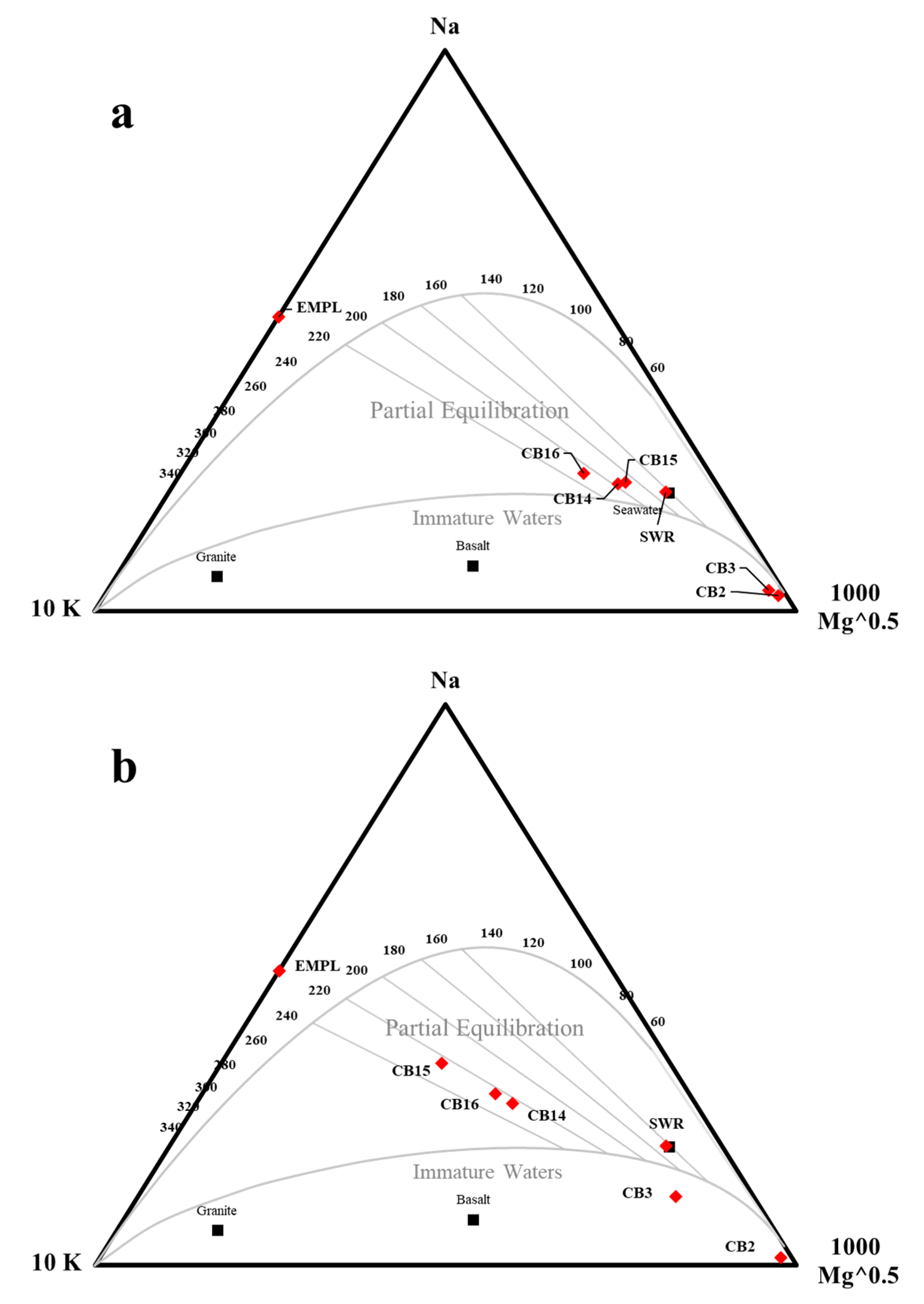

The ternary Na+-K+-Mg2+ diagram [70,89], with the influence of seawater (Figure 10a), shows that intertidal thermal springs fall into the partial equilibria field indicating an equilibrium temperature between 190 and 210 °C, while sites CB2 and CB3 correspond to immature water. In contrast, after the effect of seawater was removed (Figure 10b), intertidal thermal springs moved closer toward the equilibrium line, indicating a homogeneous temperature of 220 °C, which is equal to that calculated for the EMPL. CB3 shift closed to the partial equilibria field.

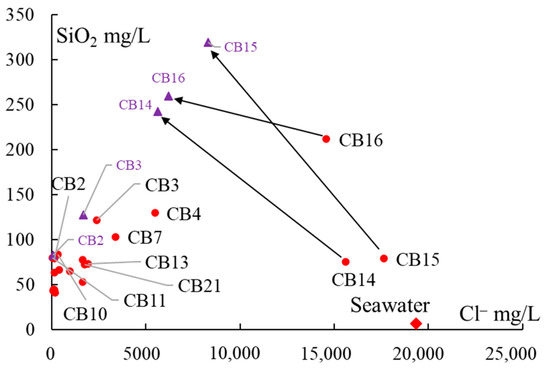

On the other hand, when seawater is removed, a substantial increase (up to six times) of the SiO2 concentration was observed (Figure 11). This fact led to a more reliable estimation of the equilibrium reservoir temperature, applying the SiO2 geothermometer.
According to the data from the SiO2 geothermometer (Table 5), two groups of geothermal sites can be distinguished. One group, formed by the intertidal thermal springs, showed a wider interval of temperature (108 to 175 °C) without the correction for seawater. Conversely, removing the seawater effect led to an increase (and a narrower range) in the calculated temperature (186 to 209 °C), which is close to the obtained temperature in the Na+-K+-Mg2+ diagram. The second group (CB2 and CB3) is little affected by seawater correction. Slightly lower temperatures (151–188 °C) were calculated by Prol-Ledesma et al. [36] for submarine thermal springs in Bahia Concepción. The obtained temperatures from SiO2 geothermometers are also similar to the results from different geothermal sites, such as Aysen, Chile [9] Doña Juana, Colombia [90], Java Island [91], South Island, New Zealand [92], and Simao, China [93].
Due to the small extension of the hydrological watershed and its geological-structural characteristics, it is assumed that at least two levels of groundwater flow occur (Figure 12): (a) a shallow flow system (Groundwater Shallow level (GWSL)) of rapid circulation in the porous aquifer, constituted by sedimentary deposits in streams and alluvial terraces, in which a short period of residence time between recharge and discharge towards the coastline is presumed [78]; (b) a deeper infiltrated flow system (Groundwater deep level (GWDL)), related to structural discontinuities that affect volcanic and volcanoclastic rocks, generating significant secondary permeability. The geothermal system in depth mainly receives seawater inflows [36]. This recharge occurs when the main faults cross the seabed, providing more seawater influence; Prol-Ledesma et al. [36] and Santos et al. [94] have evidenced a dilution of seawater in the submarine vents of the area. Heated seawater is considered a significant source of submarine groundwater discharges (SGD), involving relevant geochemical processes such as nutrients and pollutants transport [95,96]. Nevertheless, novel findings herein documented indicate the important role meteoric water plays in the recharge of the deep thermal reservoir.
The participation of a high saline thermal end-member in the geothermal system of Bahía Concepción was previously proposed by Villanueva-Estrada et al. [41]; however, the mixing relationships found in this study did not show any evidence for this. In contrast, the existence of a probable deep thermal freshwater end-member was inferred, in agreement with Prol-Ledesma et al. [36].

6. Conclusions

The results obtained explain important processes involved in the mixing of groundwater in contact with seawater, e.g., water–rock interaction, rainwater effects. The use of B/Cl− and Br−/Cl− relationships, coupled with hydro-geochemistry and geo-thermometry, allowed the recognition of five MGW in the coastal area of Bahía Concepción (sites CB1, CB4, CB5, CB6, and CB19). It is proposed to apply this methodology in other coastal areas with geo-thermalism of low enthalpy, in order to evaluate potential environmental impacts. Seawater represents the most common origin of salinity (up to 83%) in the coastal thermal spring of Bahía Concepción. Even, sites far from the coastline showed the common Br−/Cl− ratio of seawater, due to local rainfalls that incorporate aerosols and spray water droplets from the sea. Thermal springs in the study area are associated with the El Requesón fault, which is the main tectonic structure on the western margin. Geothermal springs related to the Concepción fault were not found; however, the occurrence of MGW indicates the presence of hydro-thermalism. The temperature in the deep geothermal reservoir varies from 114 to 209 °C. This research contributes to an increase in knowledge of geothermal resources, improving their future use and management in a sustainable framework.

Author Contributions

Conceptualization, P.H.-M. and J.W.; methodology, P.H.-M.; investigation, P.H.-M., J.W., C.G.-R.; resources, J.W., C.G.-R., D.M.; writing—original draft preparation, P.H.-M.; writing—review and editing, P.H.-M., J.W., C.G.-R., D.M.; funding acquisition, C.G.-R., D.M. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the resources granted for this research as a part of the projects DGAPA-UNAM-PAPIIT IN110716 and CEGA-FONDAP 15090013.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors acknowledge to CONACYT (Mexican science and technology national council) scholarship No. 593495, also the Chilean Agency for International Development Cooperation (AGCID) for the international scholarship granted and to the ANID-Fondap Project 15090013 “Centro de Excelencia en Geotermia de los Andes (CEGA)”. The work was also financed by the Programa de Apoyo a Proyectos de Investigación e Innovación Tecnológica from Universidad Nacional Autónoma de México (PAPIIT IN110716). Further, we would like to thank Verónica Rodríguez (CEGA-Laboratory). Thanks to Daniela Alvarado and Raquel Gutiérrez for assistance in fieldwork. Special thanks to the reviewers.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chepeliev, M.; Van der Mensbrugghe, D. Global fossil-fuel subsidy reform and Paris Agreement. Energy Econ. 2020, 85, 104598. [Google Scholar] [CrossRef]
  2. Sayed, E.T.; Wilberforce, T.; Elsaid, K.; Rabaia, M.K.H.; Abdelkareem, M.A.; Chae, K.J.; Olabi, A.G. A critical review on Environmental Impacts of Renewable Energy Systems and Mitigation Strategies: Wind, Hydro, Biomass and Geothermal. Sci. Total Environ. 2020, 766, 144505. [Google Scholar] [CrossRef] [PubMed]
  3. Boguniewicz-Zabłocka, J.; Łukasiewicz, E.; Guida, D. Analysis of the Sustainable Use of Geothermal Waters and Future Development Possibilities—A Case Study from the Opole Region, Poland. Sustainability 2019, 11, 6730. [Google Scholar] [CrossRef] [Green Version]
  4. Griebler, C.; Brielmann, H.; Haberer, C.M.; Kaschuba, S.; Kellermann, C.; Stumpp, C.; Hegler, F.; Kuntz, D.; Walker-Hertkorn, S.; Lueders, T. Potential impacts of geothermal energy use and storage of heat on groundwater quality, biodiversity, and ecosystem processes. Environ. Earth Sci. 2016, 75, 1391. [Google Scholar] [CrossRef]
  5. IRENA. Renewable Power Generation Costs in 2019; International Renewable Energy Agency: Abu Dhabi, United Arab Emirates; Available online: https://www.irena.org/publications/2020/Jun/Renewable-Power-Costs-in-2019?fbclid=IwAR3UsYNJqcZta8YxP_VrXkYIIkHmK8f7Xt-_yMOExI29RH9coTRvpksMwP0 (accessed on 2 August 2020).
  6. Arango-Galván, C.; Prol-Ledesma, R.M.; Torres-Vera, M.A. Geothermal prospects in the Baja California peninsula. Geothermics 2015, 55, 39–57. [Google Scholar] [CrossRef] [Green Version]
  7. Carbajal-Martínez, D.; Peiffer, L.; Hinojosa-Corona, A.; Trasviña-Castro, A.; Arregui-Ojeda, S.M.; Carranza-Chávez, F.J.; Flores-Luna, C.; Méndez-Alonzo, R.; Inguaggiato, I.; Casallas-Moreno, K.L. UAV-based thermal imaging and heat output estimation of a coastal geothermal resource: La Jolla beach, Baja California, Mexico. Renew. Energy 2021, 168, 1364–1376. [Google Scholar] [CrossRef]
  8. Liu, M.; Guo, Q.; Wu, G.; Guo, W.; She, W.; Yan, W. Boron geochemistry of the geothermal waters from two typical hydrothermal systems in Southern Tibet (China): Daggyai and Quzhuomu. Geothermics 2019, 82, 190–202. [Google Scholar] [CrossRef]
  9. Negri, A.; Daniele, L.; Aravena, D.; Muñoz, M.; Delgado, A.; Morata, D. Decoding fjord water contribution and geochemical processes in the Aysen thermal springs (Southern Patagonia, Chile). J. Geochem. Explor. 2018, 185, 1–13. [Google Scholar] [CrossRef]
  10. Lund, J.W.; Toth, A.N. Direct utilization of geothermal energy 2020 worldwide review. Geothermics 2021, 90, 101915. [Google Scholar] [CrossRef]
  11. Muffler, P.; Cataldi, R. Methods for regional assessment of geothermal resources. Geothermics 1978, 7, 53–89. [Google Scholar] [CrossRef] [Green Version]
  12. Towler, B.F. Geothermal energy. In The Future of Energy; Elsevier: Amsterdam, The Netherlands, 2014; p. 390. [Google Scholar] [CrossRef]
  13. Esteller, M.V.; Martínez-Florentino, A.K.; Morales-Reyes, G.P.; Cardona, A.; Expósito, J.L. Mixing processes between thermal waters and non-thermal waters: A case study in Mexico. Environ. Earth Sci. 2019, 78, 295. [Google Scholar] [CrossRef]
  14. Kaasalainen, H.; Stefánsson, A.; Giroud, N.; Arnórsson, S. The geochemistry of trace elements in geothermal fluids, Iceland. Appl. Geochem. 2015, 62, 207–223. [Google Scholar] [CrossRef]
  15. Navarro, A.; Font, X.; Viladevall, M. Geochemistry and groundwater contamination in the La Selva geothermal system (Girona, Northeast Spain). Geothermics 2011, 40, 275–285. [Google Scholar] [CrossRef]
  16. Tomaszewska, B.; Bundschuh, J.; Pająk, L.; Dendys, M.; Delgado-Quezada, V.; Bodzek, M.; Armienta, M.A.; Ormachea-Muñoz, M.; Kasztelewicz, A. Use of low enthalpy and waste geothermal energy sources to solve arsenic problems in freshwater production in selected regions of Latin America using a process membrane distillation—Research into model solutions. Sci. Total Environ. 2020, 714, 136853. [Google Scholar] [CrossRef]
  17. Wang, X.; Dan, Z.; Cui, X.; Zhang, R.; Zhou, S.; Wenga, T.; Yan, B.; Chen, G.; Zhang, Q.; Zhong, L. Contamination, ecological and health risks of trace elements in soil of landfill and geothermal sites in Tibet. Sci. Total Environ. 2020, 715, 136639. [Google Scholar] [CrossRef] [PubMed]
  18. Webster, J.G.; Nordstrom, D.K. Geothermal Arsenic. In Arsenic in Ground Water; Welch, A.H., Stollenwerk, K.G., Eds.; Springer: Boston, MA, USA, 2003; pp. 101–125. [Google Scholar] [CrossRef]
  19. D’Amore, F.; Arnórsson, S. Geothermal manifestations and hydrothermal alteration. In Isotopic and Chemical Techniques in Geothermal Exploration, Development and Use: Sampling Methods, Data Handling, Interpretation; Arnórsson, S., Ed.; IAEA: Vienna, Austria, 2000; pp. 73–83. Available online: https://www.iaea.org/publications/5733/isotopic-and-chemical-techniques-in-geothermal-exploration-development-and-use-sampling-methods-data-handling-interpretation-edited-by-stefan-arnorsson (accessed on 17 August 2019).
  20. Prol-Ledesma, R.M. El Calor de la Tierra, 3rd ed.; FCE: Mexico City, Mexico; SEP: Mexico City, Mexico; CONACyT: Mexico City, Mexico, 2002; p. 99. [Google Scholar]
  21. Afsin, M.; Allen, D.M.; Kirste, D.; Durukan, U.G.; Gurel; A. ; Oruc, O. Mixing processes in hydrothermal spring systems and implications for interpreting geochemical data: A case study in the Cappadocia region of Turkey. Hydrogeol. J. 2014, 22, 7–23. [Google Scholar] [CrossRef]
  22. Amiri, V.; Nakhaei, M.; Lak, R.; Kholghi, M. Assessment of seasonal groundwater quality and potential saltwater intrusion: A study case in Urmia coastal aquifer (NW Iran) using the groundwater quality index (GQI) and hydrochemical facies evolution diagram (HFE-D). Stoch. Environ. Res. Risk Assess. 2016, 30, 1473–1484. [Google Scholar] [CrossRef]
  23. Arnórsson, S. The use of mixing models and chemical geothermometers for estimating underground temperatures in geothermal systems. J. Volc. Geotherm. Res. 1985, 23, 299–335. [Google Scholar] [CrossRef]
  24. Arnorsson, S.; Stefansson, A.; Bjarnason, J.O. Fluid-Fluid Interactions in Geothermal Systems. Rev. Mineral. Geochem. 2007, 65, 259–312. [Google Scholar] [CrossRef]
  25. Besser, H.; Mokadem, N.; Redhaounia, B.; Hadji, R.; Hamad, A.; Hamed, Y. Groundwater mixing and geochemical assessment of low-enthalpy resources in the geothermal field of southwestern Tunisia. Euro-Mediterr. J. Environ. Integr. 2018, 3, 16. [Google Scholar] [CrossRef] [Green Version]
  26. Liu, Y.; Jiao, J.J.; Liang, W.; Kuang, X. Hydrogeochemical characteristics in coastal groundwater mixing zone. Appl. Geochem. 2017, 85, 49–60. [Google Scholar] [CrossRef]
  27. Trezzi, G.; Garcia-Orellana, J.; Rodellas, V.; Santos-Echeandia, J.; Tovar-Sánchez, A.; Garcia-Solsona, E.; Masqué, P. Submarine groundwater discharge: A significant source of dissolved trace metals to the North Western Mediterranean Sea. Mar. Chem. 2016, 186, 90–100. [Google Scholar] [CrossRef]
  28. Bertani, R. Geothermal power generation in the world 2010–2014 update report. Geothermics 2016, 60, 31–43. [Google Scholar] [CrossRef]
  29. Gutiérrez-Negrín, L.C.A.; Canchola-Félix, I.; Romo-Jones, J.M.; Quijano-León, J.L. Geothermal Energy in Mexico: Update and Perspectives. In Proceedings of the World Geothermal Congress 2020, Reykjavik, Iceland, 26 April–2 May 2020. [Google Scholar]
  30. Prol-Ledesma, R.M.; Torres-Vera, M.A.; Rodolfo-Metalpa, R.; Angeles, C.; Lechuga-Deveze, C.H.; Villanueva-Estrada, R.E.; Shumilin, E.; Robinson, C. High heat flow and ocean acidification at a nascent rift in the northern Gulf of California. Nat. Commun. 2013, 4, 1388. [Google Scholar] [CrossRef] [Green Version]
  31. Prol-Ledesma, R.M.; Moran-Centeno, D.J. Heat flow and geothermal provinces in Mexico. Geothermics 2019, 78, 183–200. [Google Scholar] [CrossRef]
  32. Leal-Acosta, M.L.; Prol-Ledesma, R.M. Caracterización geoquímica de las manifestaciones termales intermareales de Bahía Concepción en la Península de Baja California. Bol. Soc. Geol. Mex. 2016, 68, 395–407. [Google Scholar] [CrossRef]
  33. López-Sánchez, A.; Báncora-Alsina, C.; Prol-Ledesma, R.M.; Hiriart, G. A new geothermal resource in Los Cabos, Baja California Sur, México. In Proceedings of the 28th New Zealand Geothermal Workshop, Auckland, New Zealand, 16–17 November 2006; University of Auckland: Auckland, New Zealand, 2006; pp. S3–S6. Available online: https://www.geothermal-energy.org/pdf/IGAstandard/NZGW/2006/PDF/S3.pdf (accessed on 22 April 2019).
  34. Hernández-Morales, P.; Wurl, J. Hydrogeochemical characterization of the thermal springs in northeastern of Los Cabos Block, Baja California Sur, México. Environ. Sci. Pollut. Res. 2017, 24, 13184–13202. [Google Scholar] [CrossRef] [PubMed]
  35. Portugal, E.; Birkle, P.; Tello, E.; Tello, M. Hydrochemical–isotopic and hydrogeological conceptual model of the Las Tres Vírgenes geothermal field, Baja California Sur, México. J. Volcanol. Geotherm. Res. 2000, 101, 223–244. [Google Scholar] [CrossRef]
  36. Prol-Ledesma, R.M.; Canet, C.; Torres-Vera, M.A.; Forrest, M.J.; Armienta, M.A. Vent fluid chemistry in Bahía Concepción coastal submarine hydrothermal system, Baja California Sur, Mexico. J. Volcanol. Geotherm. Res. 2004, 137, 311–328. [Google Scholar] [CrossRef]
  37. Verma, S.P.; Pandarinath, K.; Santoyo, E.; González-Partida, E.; Torres-Alvarado, I.S.; Tello-Hinojosa, E. Fluid chemistry and temperaturas prior to exploitation at the Las Tres Vírgenes geothermal field, México. Geothermics 2006, 35, 156–180. [Google Scholar] [CrossRef]
  38. Wurl, J.; Rodríguez, L.M.; Cassassuce, F.; Gutiérrez, G.M.; Velázquez, E.R. Geothermal water in the San Juan Bautista Londó aquifer, BCS, Mexico. Procedia Earth Planet. Sci. 2013, 7, 900–903. [Google Scholar] [CrossRef] [Green Version]
  39. Canet, C.; Prol-Ledesma, R.M.; Proenza, J.A.; Rubio-Ramos, M.A.; Forrest, M.J.; Torres-Vera, M.A.; Rodríguez-Díaz, A.A. Mn-Ba-Hg mineralization at shallow submarine hydrothermal vents in Bahía Concepción, Baja California Sur, Mexico. Chem. Geol. 2005, 224, 96–112. [Google Scholar] [CrossRef]
  40. Leal-Acosta, M.L.; Shumilin, E.; Mirlean, N.; Lounejeva-Baturina, E.; Sánchez-Rodríguez, I.; Delgadillo-Hinojosa, F.; Borges-Souza, J. Intertidal geothermal hot springs as a source of trace elements to the coastal zone: A case study from Bahía Concepción, Gulf of California. Mar. Pollut. Bull. 2018, 128, 51–64. [Google Scholar] [CrossRef]
  41. Villanueva-Estrada, R.E.; Prol-Ledesma, R.M.; Rodríguez-Díaz, A.A.; Canet, C.; Torres-Alvarado, I.S.; González-Partida, E. Geochemical processes in an active shallow submarine hydrothermal system, Bahía Concepción, México: Mixing or boiling? Int. Geol. Rev. 2012, 54, 907–919. [Google Scholar] [CrossRef]
  42. Duque-Trujillo, J.; Ferrari, L.; Orozco-Esquivel, T.; López-Martínez, M.; Lonsdale, P.; Bryan, S.E.; Kluesner, J.; Piñero-Lajas, D.; Solari, L. Timing of rifting in the southern Gulf of California and its conjugate margins: Insights from the plutonic record. Geol. Soc. Am. Bull. 2015, 127, 702–736. [Google Scholar] [CrossRef]
  43. McFall, C.C. Reconnaissance Geology of the Concepcíon Bay Area, Baja California, Mexico; Stanford University Publications in Geological Sciences: Stanford, CA, USA, 1968; Volume 10, pp. 1–25. [Google Scholar]
  44. SGM. Carta Geológica-Minera y Geoquímica de Loreto G12-5, Escala 1:250000; Servicio Geológico Mexicano, Secretaria de Economia: Pachuca, Mexico, 2002. [Google Scholar]
  45. Ledesma-Vázquez, J.; Johnson, M.E. Miocene-Pleistocene Tectono-Sedimentary Evolution of Bahía Concepción Region, Baja California Sur (Mexico). Sediment. Geol. 2001, 144, 83–96. [Google Scholar] [CrossRef]
  46. Durán-Calderón, J.I. Estratigrafía regional y significado tectónico del Grupo Comondú en Baja California Sur, México. Tesis de Maestría, Universidad Nacional Autónoma de México, Mexico City, Mexico, 2016; p. 193. [Google Scholar]
  47. Umhoefer, P.; Dorsey, R.; Willsey, S.; Mayer, L.; Renne, P. Stratigraphy and geochronology of the Comondu group near Loreto, Baja California Sur, Mexico. Sediment. Geol. 2001, 144, 125–147. [Google Scholar] [CrossRef]
  48. Ferrari, L.; Orozco-Esquivel, T.; Bryan, S.E.; López-Martínez, M.; Silva-Fragoso, A. Cenozoic magmatism and extension in western Mexico: Linking the Sierra Madre Occidental silicic large igneous province and the Comondú Group with the Gulf of California rift. Earth Sci. Rev. 2018, 183, 115–152. [Google Scholar] [CrossRef]
  49. Johnson, M.E.; Ledesma-Vázquez, J.; Mayall, M.A.; Minch, J. Upper Pliocene stratigraphy and depositional systems: The Peninsula Concepción Basin in Baja California Sur, Mexico. In Pliocene Carbonates and Related Facies Flanking the Gulf of California, Mexico; Johnson, M.E., Ledesma-Vázquez, J., Eds.; Geological Society of America: Boulder, CO, USA, 1997; Volume 318, pp. 57–72. [Google Scholar] [CrossRef]
  50. Ledesma-Vázquez, J.; Johnson, M.E.; Gutiérrez-Sanchez, S. El Mono chert: A shallow-water chert from the Pliocene Infierno Formation, Baja California Sur, Mexico. In Pliocene Carbonates and Related Facies Flanking the Gulf of California, Mexico; Johnson, M.E., Ledesma-Vázquez, J., Eds.; Geological Society of America: Boulder, CO, USA, 1997; Volume 318, pp. 73–81. Available online: https://pubs.geoscienceworld.org/books/chapter-pdf/966928/i0-8137-2318-3-318-0-73.pdf (accessed on 7 June 2019).
  51. Hausback, B.P. Cenozoic volcanic and tectonic evolution of Baja California Sur, Mexico. In Geology of the Baja California Peninsula: Pacific Section; Frizzel, V.A., Jr., Ed.; Society Economic Paleontologist and Mineralogist: Tulsa, OK, USA, 1984; Volume 39, pp. 219–236. [Google Scholar]
  52. Martín-Barajas, A. Vulcanism and extension of the extensional province of the gulf of California. Bol. Soc. Geol. Mex. 2000, 53, 72–83. [Google Scholar] [CrossRef]
  53. Sawlan, M.G.; Smith, J.G. Petrologic characteristics, age and tectonic setting of Neogene volcanic rocks in northern Baja California Sur, Mexico. In Geology of the Baja California Peninsula; Pacific Section; Frizzell, A.V., Ed.; Society of Economic Paleontologists and Mineralogists: Tulsa, OK, USA, 1984; Volume 39, pp. 237–251. Available online: http://archives.datapages.com/data/pac_sepm/055/055001/pdfs/237.htm (accessed on 3 October 2018).
  54. Umhoefer, P.J.; Mayer, L.; Dorsey, R.J. Evolution of the margin of the Gulf of California near Loreto, Baja California Peninsula, Mexico. Geol. Soc. Am. Bull. 2002, 114, 849–868. [Google Scholar] [CrossRef] [Green Version]
  55. Drake, W.R.; Umhoefer, P.J.; Griffiths, A.; Vlad, A.; Peters, L.; McIntosh, W. Tectono-stratigraphic evolution of the Comondú Group from Bahía de La Paz to Loreto, Baja California Sur, Mexico. Tectonophysics 2017, 719–720, 107–134. [Google Scholar] [CrossRef]
  56. Sutherland, F.H.; Kent, G.M.; Harding, A.J.; Umhoefer, P.J.; Driscoll, N.W.; Lizarralde, D.; Fletcher, J.M.; Axen, G.J.; Holbrook, W.S.; González-Fernández, A.; et al. Middle Miocene to early Pliocene oblique extension in the southern Gulf of California. Geosphere 2012, 8, 752–770. [Google Scholar] [CrossRef]
  57. Forrest, M.J.; Ledesma-Vázquez, J.; Ussler, W., III; Kulongoski, J.T.; Hilton, D.R.; Greene, H.G. Gas geochemistry of a shallow submarine hydrothermal vent associated with El Requesón fault zone in Bahía Concepción, Baja California Sur, México. Chem. Geol. 2005, 224, 82–95. [Google Scholar] [CrossRef]
  58. CONAGUA. Estadísticas del Agua en México; Comisión Nacional del Agua: Mexico City, Mexico, 2018; p. 303. Available online: http://sina.conagua.gob.mx/publicaciones/EAM_2018.pdf (accessed on 19 December 2020).
  59. CLICOM. Daily Weather Data from SMN Through its Web Platform CICESE. Available online: http://clicom-mex.cicese.mx/ (accessed on 8 December 2017).
  60. CONAGUA. Actualización de la Disponibilidad de Agua en el Acuífero Bahía Concepción (0331), Estado de Baja California Sur; Reporte Técnico; Comisión Nacional del Agua: Mexico City, Mexico, 2020; p. 24. Available online: https://sigagis.conagua.gob.mx/gas1/Edos_Acuiferos_18/BajaCaliforniaSur/DR_0331.pdf (accessed on 12 December 2020).
  61. Camprubí, A.; Canet, C.; Rodríguez-Diaz, A.A.; Prol-Ledesma, R.M.; Blanco-Florido, D.; Villanueva, R.E.; López-Sánchez, A. Geology, ore deposits and hydrothermal venting in Bahia Concepcion, Baja California Sur, Mexico. Island Arc 2008, 17, 6–25. [Google Scholar] [CrossRef]
  62. Leal-Acosta, M.L.; Shumilin, E.; Mirlean, N.; Delgadillo-Hinojosa, F.; Sánchez- Rodríguez, I. The impact of marine shallow-water hydrothermal venting on arsenic and mercury accumulation by seaweeds Sargassum sinicola in Concepcion Bay, Gulf of California. Environ. Sci. Process Impacts 2013, 15, 470–477. [Google Scholar] [CrossRef]
  63. Estradas-Romero, A.; Prol-Ledesma, R.M.; Zamudio-Reséndiz, M.E. Relación de las características geoquímicas de fluidos hidrotermales con la abundancia y riqueza de especies del fitoplancton de Bahía Concepción, Baja California Sur, México. Bol. Soc. Geol. Mex. 2009, 61, 87–96. Available online: http://www.scielo.org.mx/scielo.php?script=sci_arttext&pid=S1405-33222009000100009&lng=es&nrm=iso (accessed on 22 September 2017). [CrossRef]
  64. Melwani, A.; Kim, S. Benthic infaunal distributions in shallow hydrothermal vent sediments. Acta Oecol. 2008, 33, 162–175. [Google Scholar] [CrossRef]
  65. Arnórsson, S.; D’Amore, F. Sampling of geothermal fluids: On-site measurements and sample treatment. In Isotopic and Chemical Techniques in Geothermal Exploration, Development and Use: Sampling Methods, Data Handling, Interpretation; Arnórsson, S., Ed.; IAEA: Vienna, Austria, 2000; pp. 84–142. Available online: https://www.iaea.org/publications/5733/isotopic-and-chemical-techniques-in-geothermal-exploration-development-and-use-sampling-methods-data-handling-interpretation-edited-by-stefan-arnorsson (accessed on 17 August 2019).
  66. Vengosh, A. Salinization and saline environments. In Treatise on Geochemistry; Holland, H.D., Turekian, K.K., Eds.; Elsevier Ltd.: Amsterdam, The Netherlands, 2003; Volume 9, pp. 333–365. [Google Scholar] [CrossRef]
  67. Arnórsson, S. Isotopic and Chemical Techniques in Geothermal Exploration, Development and Use: Sampling Methods, Data Handling, Interpretation; IAEA: Vienna, Austria, 2000; p. 351. Available online: https://www.iaea.org/publications/5733/isotopic-and-chemical-techniques-in-geothermal-exploration-development-and-use-sampling-methods-data-handling-interpretation-edited-by-stefan-arnorsson (accessed on 17 August 2019).
  68. Verma, S.P.; Pandarinath, K.; Santoyo, E. SolGeo: A new computer program for solute geothermometers and its application to Mexican geothermal fields. Geothermics 2008, 37, 597–621. [Google Scholar] [CrossRef]
  69. Piper, A.M. A graphic procedure in the geochemical interpretation of water-analyses. Eos Trans. Am. Geophys. Union 1944, 25, 914–928. [Google Scholar] [CrossRef]
  70. Powell, T.; Cumming, W. Spreadsheets for geothermal water and gas geochemistry. Proceedings of Thirty-Fifth Workshop on Geothermal Reservoir Engineering, Stanford, CA, USA, 1–3 February 2010; Available online: https://earthsciences.stanford.edu/ERE/pdf/IGAstandard/SGW/2010/powell.pdf (accessed on 5 January 2019).
  71. Birkle, P.; Portugal Marín, E.; Pinti, D.L.; Clara Castro, M. Origin and evolution of geothermal fluids from Las Tres Vírgenes and Cerro Prieto fields, Mexico—Co-genetic volcanic activity and paleoclimatic constraints. J. Appl. Geochem. 2016, 65, 36–53. [Google Scholar] [CrossRef]
  72. Tomaszkiewicz, M.; Abou Najm, M.; El-Fadel, M. Development of a groundwater quality index for seawater intrusion in coastal aquifers. Environ. Model. Softw. 2014, 57, 13–26. [Google Scholar] [CrossRef]
  73. Nozaki, Y. Elemental Distribution: Overview. In Encyclopedia of Ocean Sciences, 2nd ed.; Steele, J.H., Ed.; Elsevier: Amsterdam, The Netherlands, 2008; Volume 2, pp. 840–845. [Google Scholar] [CrossRef]
  74. Parkhurst, D.L.; Appelo, C.A.J. Chapter A43. In Description of Input and Examples for PHREEQC Version 3—A Computer Program for Speciation, Batch-Reaction, One-Dimensional Transport, and Inverse Geochemical Calculations: US Geological Survey Techniques and Methods; US Department of the Interior: Washington, DC, USA, 2013; p. 497. Available online: http://pubs.usgs.gov/tm/06/a43 (accessed on 14 November 2020).
  75. Custodio, E.; Herrera, C. Utilización de la relación Cl/Br como trazador hidrogeoquímico en hidrología subterránea. Bol. Geol. Min. 2000, 111, 49–67. [Google Scholar]
  76. Vengoechea, A.M.; Rojano, R.E.; Arregoces, H.A. Dispersion and Concentration of PM 10 Particles in a Caribbean Coastal City. Inf. Tecnol. 2018, 29, 123–130. [Google Scholar] [CrossRef] [Green Version]
  77. Alcalá, F.J.; Custodio, E. Using the Cl/Br ratio as a tracer to identify the origin of salinity in aquifers in Spain and Portugal. J. Hydrol. 2008, 359, 189–207. [Google Scholar] [CrossRef]
  78. Mendoza-Salgado, R.; Lechuga-Deveze, C.; Ortega-Rubio, A. First approach of a method to assess water quality for arid climate bay in the Gulf of California. Sci. Total Environ. 2005, 347, 208–216. [Google Scholar] [CrossRef] [PubMed]
  79. Tello-Hinojosa, E.; Verma, M.P.; González-Partida, E. Geochemical characteristics of reservoir fluids in the Las Tres Virgenes, BCS, Mexico. In Proceedings of the World Geothermal Congress 2005, Antalya, Turkey, 24–29 April 2005. [Google Scholar]
  80. Nicholson, K. Geothermal Fluids Chemistry and Exploration Techniques; Springer: Berlin/Heidelberg, Germany, 1993; p. 255. [Google Scholar] [CrossRef]
  81. Farhadian Babadi, M.; Mehrabi, B.; Tassi, F.; Cabassi, J.; Pecchioni, E.; Shakeri, A.; Vaselli, O. Geochemistry of fluids discharged from mud volcanoes in SE Caspian Sea (Gorgan Plain, Iran). Int. Geol. Rev. 2020, 1–16. [Google Scholar] [CrossRef]
  82. Engle, M.A.; Doolan, C.A.; Pitman, J.A.; Varonka, M.S.; Chenault, J.; Orem, W.H.; McMahon, P.B.; Jubb, A.M. Origin and geochemistry of formation waters from the lower Eagle Ford Group, Gulf Coast Basin, south central Texas. Chem. Geol. 2020, 550, 119754. [Google Scholar] [CrossRef]
  83. Lipiec, I.; Wątor, K.; Kmiecik, E. The application of selected hydrochemical indicators in the interpretation of hydrogeochemical data—A case study from Busko-Zdrój and Solec-Zdrój (Poland). Ecol. Indic. 2020, 117, 106460. [Google Scholar] [CrossRef]
  84. Stefánsson, A.; Arnórsson, S.; Sveinbjörnsdóttir, Á.E.; Heinemaier, J.; Kristmannsdóttir, H. Isotope (δd, δ18o, 3h, δ13c, 14c) and chemical (B, Cl) Constrains on water origin, mixing, water-rock interaction and age of low-temperature geothermal water. Appl. Geochem. 2019, 108, 104380. [Google Scholar] [CrossRef]
  85. Arnórsson, S.; Andrésdóttir, A. Processes controlling the distribution of boron and chlorine in natural waters in Iceland. GCA 1995, 59, 4125–4146. [Google Scholar] [CrossRef]
  86. Lgourna, Z.; Warner, N.; Bouchaou, L.; Boutaleb, S.; Hssaisoune, M.; Tagma, T.; Ettayfi, N.; Vengosh, A. Elucidating the sources and mechanisms of groundwater salinization in the Ziz Basin of southeastern Morocco. Environ. Earth Sci. 2014, 73, 77–93. [Google Scholar] [CrossRef]
  87. Hao, Y.; Pang, Z.; Kong, Y.; Tian, J.; Wang, Y.; Liao, D.; Fan, Y. Chemical and isotopic constraints on the origin of saline waters from a hot spring in the eastern coastal area of China. Hydrogeol. J. 2020, 28, 2457–2475. [Google Scholar] [CrossRef]
  88. Sekuła, K.; Rusiniak, P.; Wątor, K.; Kmiecik, E. Hydrogeochemistry and Related Processes Controlling the Formation of the Chemical Composition of Thermal Water in Podhale Trough, Poland. Energies 2020, 13, 5584. [Google Scholar] [CrossRef]
  89. Giggenbach, W.F. Chemical techniques in geothermal exploration. In Guidebook: Application of Geochemistry in Resources Development; UNITAR/UNDP: Geneva, Switzerland, 1991; pp. 119–144. [Google Scholar]
  90. Gómez Diaz, E.; Marín Cerón, M.I. Hydrogeochemical characteristics at Doña Juana Complex (SW Colombia): A new area for geothermal exploration in the Northern Andes region. Geothermics 2019, 101738. [Google Scholar] [CrossRef]
  91. Purnomo, B.J.; Pichler, T. Geothermal systems on the island of Java, Indonesia. J. Volcanol. Geotherm. 2014, 285, 47–59. [Google Scholar] [CrossRef]
  92. Reyes, A.G.; Christenson, B.W.; Faure, K. Sources of solutes and heat in low-enthalpy mineral waters and their relation to tectonic setting, New Zealand. J. Volcanol. Geotherm. 2010, 192, 117–141. [Google Scholar] [CrossRef]
  93. Zhang, Y.; Zhou, X.; Liu, H.; Yu, M.; Hai, K.; Tan, M.; Huo, D. Hydrogeochemistry, Geothermometry, and Genesis of the Hot Springs in the Simao Basin in Southwestern China. Geofluids 2019, 1–23. [Google Scholar] [CrossRef] [Green Version]
  94. Santos, I.R.; Lechuga-Deveze, C.; Peterson, R.; Burnett, W. Tracing submarine hydrothermal inputs into a coastal bay in Baja California using radon. Chem. Geol. 2011, 282, 1–10. [Google Scholar] [CrossRef]
  95. Burnett, W.C.; Taniguchi, M.; Oberdorfer, J. Measurement and significance of the direct discharge of groundwater into the coastal zone. J. Sea Res. 2001, 46, 109–116. [Google Scholar] [CrossRef]
  96. Dimova, N.; Ganguli, P.M.; Swarzenski, P.W.; Izbicki, J.A.; O’Leary, D. Hydrogeologic controls on chemical transport at Malibu Lagoon, CA: Implications for land to sea exchange in coastal lagoon systems. J. Hydrol. Reg. Stud. 2017, 11, 219–233. [Google Scholar] [CrossRef] [Green Version]
Resources 10 00023 g001 550
Figure 1. Study area at Bahía Concepción and sampling sites.
Figure 1. Study area at Bahía Concepción and sampling sites.
Resources 10 00023 g001
Resources 10 00023 g002 550
Figure 2. Geological and structural generalized map of Bahia Concepción area. Modified from McFall [43], SGM [44], Ledesma-Vázquez and Johnson [45].
Figure 2. Geological and structural generalized map of Bahia Concepción area. Modified from McFall [43], SGM [44], Ledesma-Vázquez and Johnson [45].
Resources 10 00023 g002
Resources 10 00023 g003 550
Figure 3. Classification of groundwater from Bahía Concepción, according to the Piper diagram.
Figure 3. Classification of groundwater from Bahía Concepción, according to the Piper diagram.
Resources 10 00023 g003
Resources 10 00023 g004 550

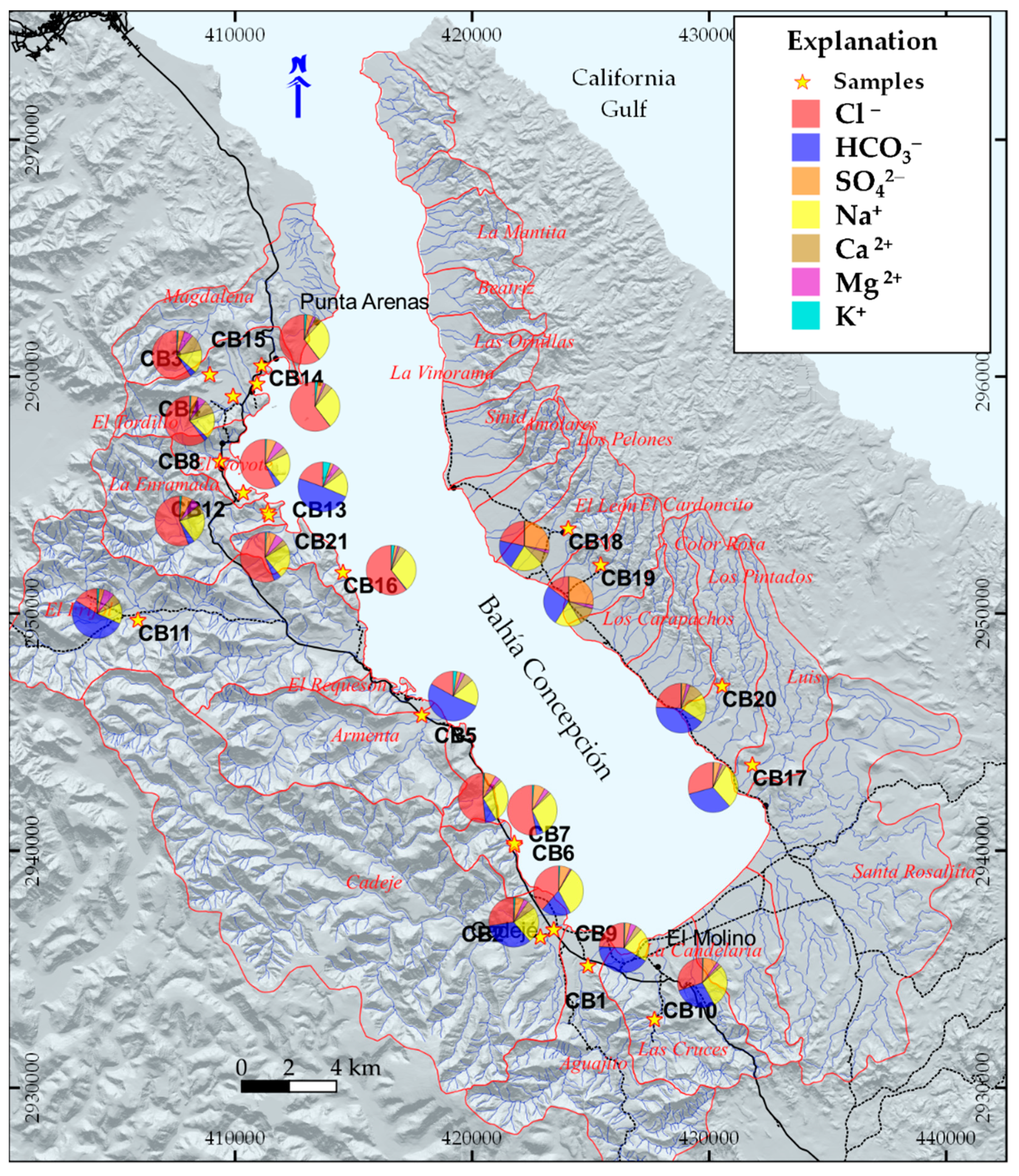

Figure 4. Spatial distribution of ionic concentration ratios.
Figure 4. Spatial distribution of ionic concentration ratios.
Resources 10 00023 g004
Resources 10 00023 g005 550
Figure 5. Relationships between Cl− vs. Br−, B and Mg2+ in groundwater from Bahía Concepcion watershed. Seawater data after Nozaki [73].
Figure 5. Relationships between Cl− vs. Br−, B and Mg2+ in groundwater from Bahía Concepcion watershed. Seawater data after Nozaki [73].
Resources 10 00023 g005
Resources 10 00023 g006 550
Figure 6. Cl− and Br− relationship with the samples analyzed, respecting the theoretical dilution line of seawater (SWR).
Figure 6. Cl− and Br− relationship with the samples analyzed, respecting the theoretical dilution line of seawater (SWR).
Resources 10 00023 g006
Resources 10 00023 g007 550

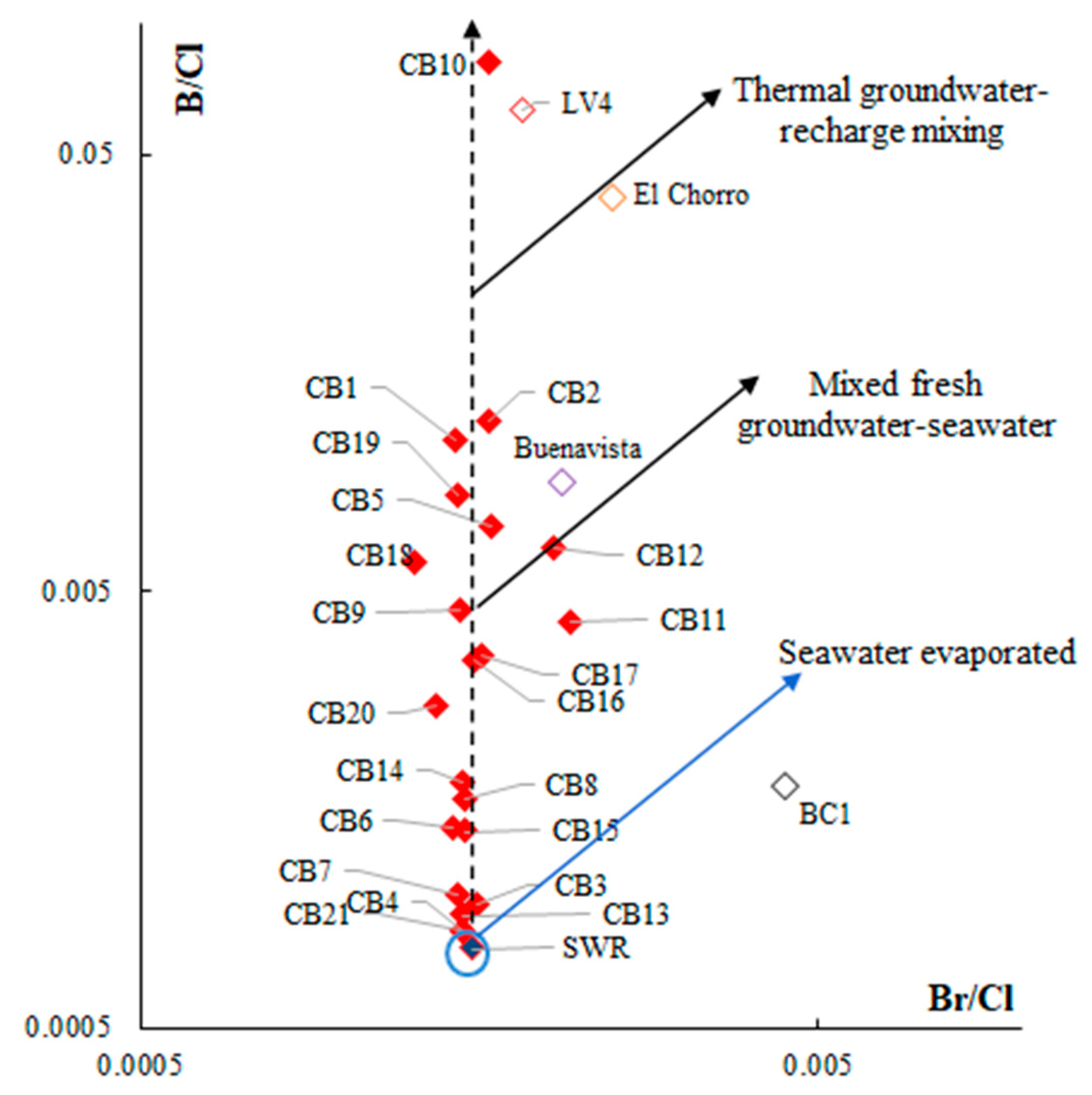

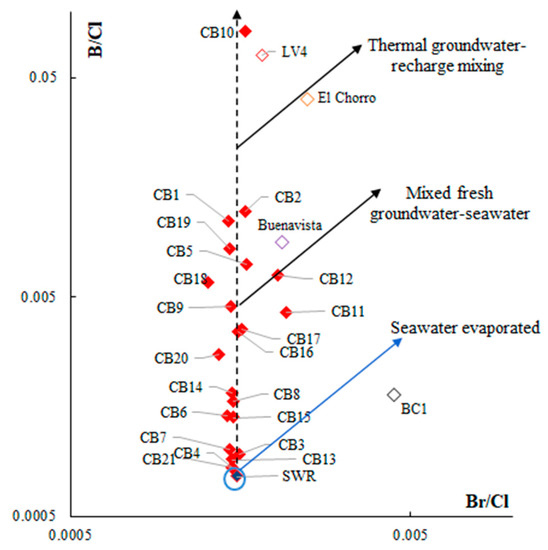

Figure 7. Br−/Cl− and B/Cl− relationship for samples and end-members Data for seawater, LV4 (LTV), Buenavista, El Chorro, and BC1 were taken from [34,36,66,79], respectively.
Figure 7. Br−/Cl− and B/Cl− relationship for samples and end-members Data for seawater, LV4 (LTV), Buenavista, El Chorro, and BC1 were taken from [34,36,66,79], respectively.
Resources 10 00023 g007
Resources 10 00023 g008 550

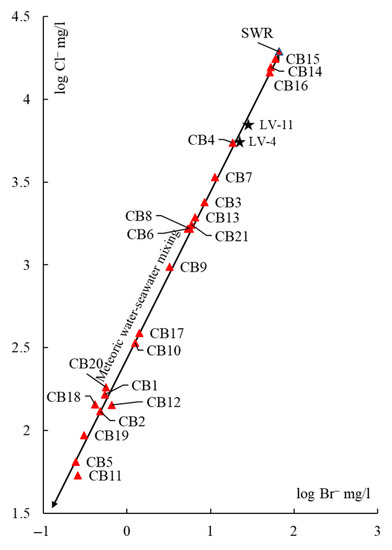

Figure 8. Diagram of log Cl− and log Br− showing samples from Bahía Concepción. LV-11 and LV-4 corresponding to the Las Tres Vírgenes (LTV) geothermal water in depth [71,79].
Figure 8. Diagram of log Cl− and log Br− showing samples from Bahía Concepción. LV-11 and LV-4 corresponding to the Las Tres Vírgenes (LTV) geothermal water in depth [71,79].
Resources 10 00023 g008
Resources 10 00023 g009 550

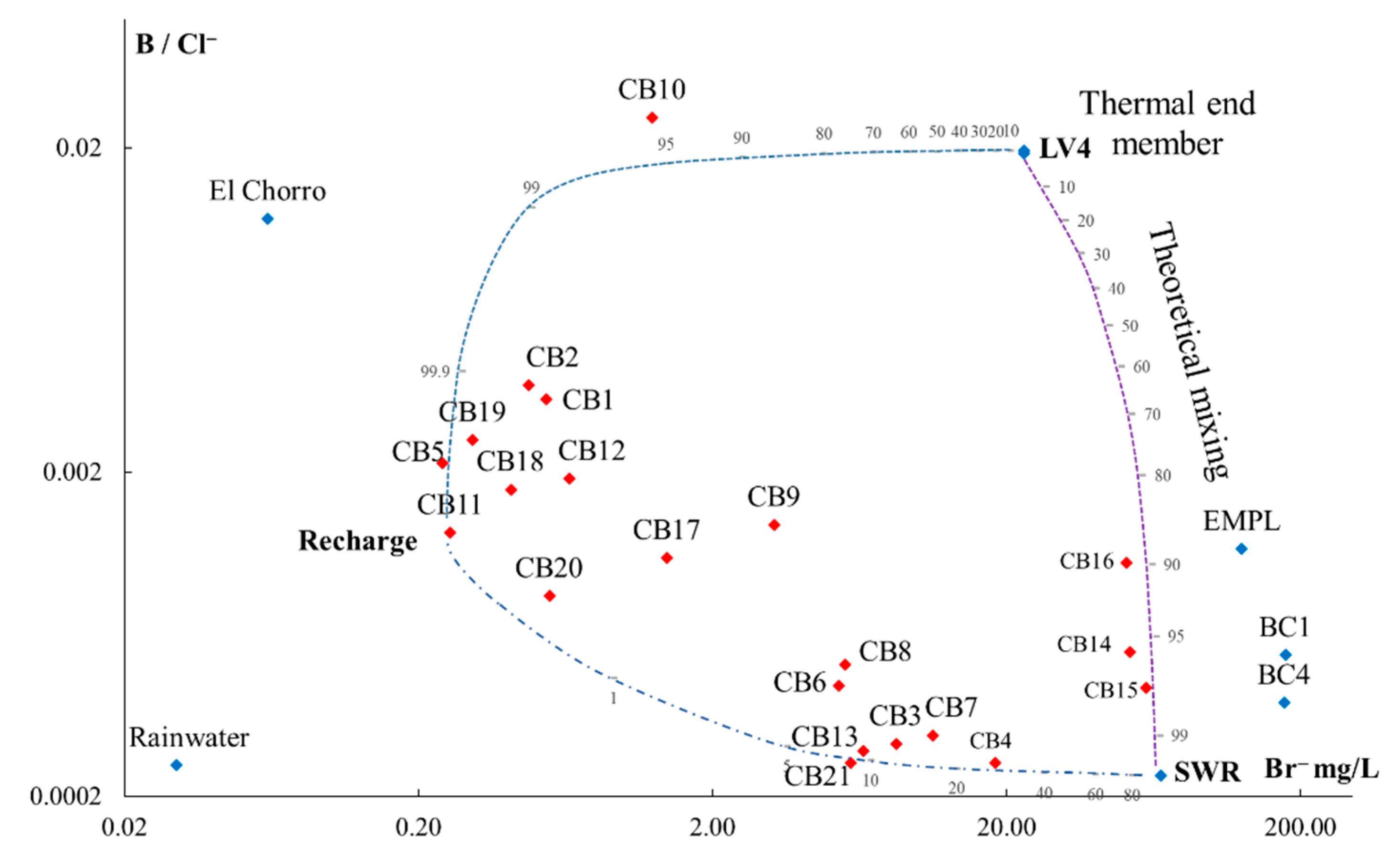

Figure 9. Br− and B/Cl− ratio for samples at Bahia Concepcion and their relationship with the end-members LV4 [79], seawater (SWR) [73], Recharge [34], theoretical end member (EMPL) [36].
Figure 9. Br− and B/Cl− ratio for samples at Bahia Concepcion and their relationship with the end-members LV4 [79], seawater (SWR) [73], Recharge [34], theoretical end member (EMPL) [36].
Resources 10 00023 g009
Resources 10 00023 g010 550
Figure 10. (a,b) Na+-K+-Mg2+ diagram [89] with the location of the thermal springs.
Figure 10. (a,b) Na+-K+-Mg2+ diagram [89] with the location of the thermal springs.
Resources 10 00023 g010
Resources 10 00023 g011 550
Figure 11. Relationships between Cl− vs. SiO2 in groundwater in the Bahía Concepcion watershed.
Figure 11. Relationships between Cl− vs. SiO2 in groundwater in the Bahía Concepcion watershed.
Resources 10 00023 g011
Resources 10 00023 g012 550
Figure 12. Schematic representation of hydrogeological and geothermal conceptualization at Bahia Concepción. The graphic has not been escalated. Black arrows indicate groundwater flow. Letters corresponding to: (a) Cretaceous granitic basement; (b) Tertiary granitic; (c) Tertiary El Salto Formation; (d) Tertiary Comondú Group; (e) Quaternary basaltic-andesite flows; (f) Quaternary alluvial and marine sediments. After [36,43,46].
Figure 12. Schematic representation of hydrogeological and geothermal conceptualization at Bahia Concepción. The graphic has not been escalated. Black arrows indicate groundwater flow. Letters corresponding to: (a) Cretaceous granitic basement; (b) Tertiary granitic; (c) Tertiary El Salto Formation; (d) Tertiary Comondú Group; (e) Quaternary basaltic-andesite flows; (f) Quaternary alluvial and marine sediments. After [36,43,46].
Resources 10 00023 g012
Table
Table 1. Annual averages of precipitation (mm) and temperature (°C) in Bahia Concepcion [59].
Table 1. Annual averages of precipitation (mm) and temperature (°C) in Bahia Concepcion [59].
ParameterMeteorological StationLocal Average in Bahia Concepción
San NicolásMulegéOjo de Agua
Annual precipitation average (1980–2015)142.3153.6141.8145.9
Annual temperature average (1980–2015)23.7322.3122.3722.80
Table
Table 2. Sampling sites code and physicochemical parameters.
Table 2. Sampling sites code and physicochemical parameters.
SampleLocalityElectric Conductivity (μS/cm)TDS (mg/L)Salinity (UPS)Temperature (°C)pH
Western margin
CB1Casa de Piedra981698--27.47.7
CB2Cadejé1160506--36.48.2
CB3El Tordillo83004069--32.77.7
CB4El Llanito15,7209133--28.86.5
CB5Armenta737384--25.87.2
CB6Pocitos 244463231--23.67.5
CB7Pocitos 381606440--30.37.3
CB8Predio Adelaido60703014--29.47.3
CB9Arroyo Cadejé40202571--277.3
CB10Las Cruces17791143--22.88.7
CB11Las Cuevitas490358--30.77.9
CB12La Enramada949741--22.28.1
CB13El Coyote46603442--31.67.2
CB14La Posada>20,00025,9422253.46.9
CB15Santispac>20,00029,3202542.17.8
CB16Agua Caliente >20,00024,2142158.66.5
CB21Santa Barbara49603167--30.47.2
Eastern margin
CB17El Mezquite21301338--29.86.7
CB18El Salto1135675--24.36.9
CB19McFall1082653--24.76.9
CB20La Pintada1161755--23.26.9
Table
Table 3. Hydrogeochemical composition of the samples collected in the Bahía Concepción area. Units are in mg/L.
Table 3. Hydrogeochemical composition of the samples collected in the Bahía Concepción area. Units are in mg/L.
SampleNa+K+Ca2+Mg2+Cl−SO42−HCO3−Br−BSiO2Electrical Balance Error (%)
Western margin
CB1148.03.626.226.1164.724.8285.00.50.642.3−1.2
CB2112.04.526.414.8130.927.6162.80.50.578.80.6
CB3615.032.4434.0235.52391.9166.2152.08.40.7121.6−3.8
CB41590.074.2807.0494.05472.6414.5231.018.41.4129.5−4.9
CB567.09.423.510.464.910.0197.80.20.143.0−1.1
CB6900.026.054.8108.01653.5237.6234.05.40.777.8−4.0
CB71900.068.9112.0204.63397.0460.4278.711.21.0103.0−1.6
CB8600.033.4180.4167.01659.6212.3122.95.60.853.0−4.0
CB9845.022.27.120.8977.1167.9482.93.21.364.6−1.5
CB10320.06.320.623.0338.9103.3312.71.38.483.1−0.9
CB1144.54.021.822.653.611.1170.90.30.180.0−1.2
CB12120.236.126.130.7142.315.1356.10.70.363.2−3.2
CB13735.030.3158.0200.81943.1216.6127.36.50.572.7−4.0
CB147225.0446.31229.5404.015,620.4946.870.452.68.775.1−4.7
CB158150.0455.41271.0519.017,629.51213.481.659.97.678.8−5.2
CB167100.0521.11092.5276.014,585.9495.0143.351.115.4211.7−3.0
CB21717.528.3110.0174.01757.3197.0150.95.90.472.0−4.6
Eastern margin
CB17395.04.834.518.0388.357.6428.31.40.466.42.9
CB18142.01.152.713.0143.8182.9127.90.40.344.2−1.2
CB19109.00.674.614.993.8170.7165.40.30.244.42.1
CB20140.02.370.618.4182.023.7307.40.60.240.61.6
Table
Table 4. Results from the mixing model and seawater exclusion. Ionic concentration in mg/L.
Table 4. Results from the mixing model and seawater exclusion. Ionic concentration in mg/L.
SampleEMPL 1 (%)LV4 2 (%)SWR 3 (%)CB11 4 (%)Original DataSeawater Excluded
Na+K+Mg2+SiO2Na+K+Mg2+SiO2
CB299.10.600.4112415796582283
CB384.40411.6615322361227176520128
CB1416.507211.5722544640475235721314243
CB156.5083.51081504555197934553139319
CB1620.5062.5177100521276212259523513259
EMPL 1----5543.3502.50.07 *463.3----
LV4 2----34846030.07484----
SWR 3----1078039912806----
CB11 4----44.5422.680----
* Mg2+ from Las Vírgenes geothermal field. 1 Deep thermal seawater, 2 Deep thermal freshwater, 3 Seawater reference, 4 Local recharge water.
Table
Table 5. Surface and equilibrium reservoir temperatures, based on a SiO2 geothermometer. After Arnórsson [67].
Table 5. Surface and equilibrium reservoir temperatures, based on a SiO2 geothermometer. After Arnórsson [67].
SiteSurface Temperature (°C) Equilibrium Reservoir Temperature
Original DataSeawater Excluded
CB236.4112114.1
CB332.7137140.3
CB1453.4108186.6
CB1542.1110209.9
CB1658.6175191.9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hernández-Morales, P.; Wurl, J.; Green-Ruiz, C.; Morata, D. Hydrogeochemical Characterization as a Tool to Recognize “Masked Geothermal Waters” in Bahía Concepción, Mexico. Resources 2021, 10, 23. https://doi.org/10.3390/resources10030023

AMA Style

Hernández-Morales P, Wurl J, Green-Ruiz C, Morata D. Hydrogeochemical Characterization as a Tool to Recognize “Masked Geothermal Waters” in Bahía Concepción, Mexico. Resources. 2021; 10(3):23. https://doi.org/10.3390/resources10030023

Chicago/Turabian Style

Hernández-Morales, Pablo, Jobst Wurl, Carlos Green-Ruiz, and Diego Morata. 2021. "Hydrogeochemical Characterization as a Tool to Recognize “Masked Geothermal Waters” in Bahía Concepción, Mexico" Resources 10, no. 3: 23. https://doi.org/10.3390/resources10030023

APA Style

Hernández-Morales, P., Wurl, J., Green-Ruiz, C., & Morata, D. (2021). Hydrogeochemical Characterization as a Tool to Recognize “Masked Geothermal Waters” in Bahía Concepción, Mexico. Resources, 10(3), 23. https://doi.org/10.3390/resources10030023

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
