Bibliometric Analysis of the Potential of Technologies in the Humanitarian Supply Chain

Abstract

This study presents a bibliometric analysis of research on technology in the humanitarian supply chain. The methodology includes performance analysis and science mapping to explore the application of technologies in humanitarian supply chains. This paper contributes to the literature by examining the most influential authors, trends, journals, countries, institutions, and the recent humanitarian supply chain collaboration. The information presented in this research was obtained with the Scopus database. The study identified 342 documents after applying filters to screen for duplicates and manuscripts unrelated to the topic. The articles were analyzed using MS Excel and VOSviewer. The research provides an overview of state of the art showing a high collaboration between the authors Ramesh A. and Kabra C, and the most relevant institutions were the Griffith Business School and the Delft University of Technology. Journal of Humanitarian Logistics and Supply Chain Management and Journal of Disaster Research were the most productive journals. The terms analysis shows that “disasters”, “disaster prevention”, “humanitarian logistics”, and “human” are the most used keywords. The study identifies future research lines related to the interaction between critical technologies to deliver real benefits to the humanitarian supply chain. As a result, it proposes integrating the significant contributions of new technologies, such as blockchain, big data, artificial intelligence, 3D printing, virtual and augmented reality, and the social media relief phase following the disaster. It also indicates gaps in knowledge in terms of research related to human-made disasters and health emergencies.

1. Introduction

A bibliometry is an analytical method used to obtain measurable results from a scientific production [1]. It is also considered a means to analyze publications that apply statistical methods, to learn about a specific topic, and to internally quantify the scientific process. The information and analysis obtained on scientific production can help discover the development of a particular subject, different research fields, and future research opportunities. It is also helpful for forecasting and decision-making.

Among the elements that are usually considered within a bibliometric analysis, there is institutional affiliation, dates of publication, journals, books, authors, citations, keywords, titles, and abstracts, among other sources of information included in the documents [2]. These elements are relevant to obtain the evidence of the results in a research field; thus, these will be used to achieve the purpose of this study.

Bibliometric analysis is considered a validated research technique in several fields, including business, technology, and infometrics [3]. In this study, a bibliometric review was performed in the humanitarian supply chain technologies to learn about the most outstanding publications and to review their evolution and the studies in progress.

According to global statistics, approximately 60,000 people die annually due to natural disasters (0.1% of deaths worldwide) [4]. The humanitarian supply chain participates in activities related to preparing and managing the resources required (including materials, information, and financing) during natural disaster relief efforts. The main actors are from different organizations (private organizations, agencies, and non-governmental organizations). The collaboration and cooperation of these actors are fundamental factors to guarantee the success of relief operations [5,6].

A feature of this century is the high frequency and intensity of phenomena such as hurricanes, droughts, floods, and tsunamis, among others, which are for the most part related to climate change in one way or another. At the same time, the planet is immersed in armed conflicts, wars, and terrorism, which produce human-made disasters. Consequently, every continent faces such humanitarian emergencies with millions of victims who find themselves dependent on external assistance, making humanitarian assistance a matter of international importance [7].

Humanitarian logistics is a modern concept that focuses on obtaining adequate resources for regions or areas that have suffered the impact of natural or human-made disasters. The principal objective is controlling the resources for the affected areas, extending the useful lives of the means necessary for survival, and ensuring the affected population’s safety. Humanitarian logistics have a crucial role in facilitating coordination between the various actors. They participate in disaster relief and offer additional assistance, such as food, medical care, water, and shelter. Based on these requirements, technologies have acquired significant importance for the effects of covering all types of emergencies and are currently used in a broad range of fields related to disaster management, enabling the use of smart/intelligent methods and efficient and effective logistics operations.

The humanitarian system presents important challenges. At the same time, new technologies, partners, and concepts enable humanitarian actors to understand and address problems quickly and effectively. This condition has generated increased interest in “humanitarian innovation” by organizations. A better understanding of the potential and purpose of the innovation cycle and an innovative mindset can bring significant benefits to the humanitarian system [8]. Another research study developed by the International Federation of Red Cross and Red Crescent Societies conducted a theory-driven, bottom-up innovation search process for the real-life humanitarian problem of recurring floods in Indonesia [9].

Some research related to applications in the Humanitarian Supply Chain (HSC) has been developed. A literature review of bigdata supporting the humanitarian supply chain strategies [10,11] identifies benefits related to humanitarian logistics, remote sensing, information security, and the use of social media during humanitarian operations. Another study presents a literature review of the communication challenges during a disaster that recognizes the importance of including radio operations in emergency operation plans [12]. These studies focus on applications such as big data and radio operations but do not consider all the technologies applied in the humanitarian supply chains.

This research also considers aspects related to the development of open innovation. The topic of humanitarian logistics can expand the funnel of knowledge and promote future studies. For example, technological applications, computational developments, and communications prove that it is possible to prevent and face unwanted events due to natural conditions, catastrophes, and conflicts. Development in the area generates significant benefits for human well-being [13].

In this context, this study was conducted to evaluate the available literature on the humanitarian supply chain that focused on the potential of technologies, and to establish the most influential authors, institutions, articles, countries, regions, and future studies. The bibliometric research includes scientific production and trends, principal authors, institutions, journals, articles, countries, regions, collaboration, analysis of citations, and future studies. The objectives of this study are (a) to present a literature review of the application of technologies in the humanitarian supply chain developed since 1983; (b) to identify the technologies applied and the future research lines; (c) to identify the main research clusters from the analysis of co-citations; (d) to identify the impact of the contribution of the technology’s applications in the innovation process within the humanitarian supply chain. This research also includes an insight into the open innovation related to technological applications, computational developments, and communications in the humanitarian supply chain.

The paper is organized as follows. Section 2 presents the applied methodology and the data collection procedure. Section 3 includes the results of the performance analysis and science mapping. The analysis and discussion of the scientific production, trends, authors, journals, institutions, countries, citations, and impact of the publications are also presented. Section 4 provides the conclusions, implications, and future research topics.

2. Materials and Methods

The proposed bibliometric analysis allows a review of the previous research and generates an overview of the technologies applied to humanitarian supply chains. This study also includes a network analysis applied to the dataset to identify collaboration networks between authors, countries, and territories. This approach incorporates the most influential research analysis based on the citations and the representative terms associated with humanitarian supply chains. The bibliometric analysis method was selected for the following reasons. First, this approach allows the revision of a large number of publications, comprehensive information, and metadata to show a performance analysis [14]. Second, the applied method analyzed collaborative networks, evolution over time, citations, and most used terms. Third, the visualization of the research results facilitates the understanding and analysis of information for readers [15].

This bibliometric analysis is based on the literature recorded in the Scopus related to the use of potential technologies in the humanitarian supply chains. The search strategy was established according to the bibliometric analysis developed by Reyes, et al. [16] and Meza-Peralta, et al. [17]. This approach included the relationships between authors, countries, institutions, keywords, and citations [18,19]. This database was selected because it is the largest database of peer-reviewed citations and abstracts of scientific literature, articles, and conferences [20]. This research seeks to answer the following questions. Which are the latest research areas? What are the major collaborative networks and contributions? Who are the leading researchers/experts? Is the full range of leading-edge research being discovered?

In the initial stage of the search, the keywords used were “humanitarian supply chain” and “technologies”. These terms were input into the Scopus database to obtain a first list of publications that contained these three keywords in their title, abstract, and keywords. The key terms for each keyword were identified, as illustrated in

Table 1. List of keywords used for the literature search.

Groups	Key Terms
Humanitarian supply chain	Humanitarian supply chain, humanitarian supply chain management, humanitarian logistics, humanitarian logistic, humanitarian logistics management, humanitarian inventory management, humanitarian relief logistics, humanitarian operations, HSCM, emergency operations, disaster relief operations, disaster operations.
Technologies	Technologies, technology, disruptive technologies, disruptive technology, digital technologies, digital technology, humanitarian aid networks, digital, technology adoption, technologies adoption.

.

Subsequently, a new search equation was defined, combining both groups of terms with the Boolean operator “AND” and between categories using “OR.” The study included scientific articles, books, reports, book chapters, and conferences. The publication date was not limited to a specific period. Lastly, the publications were screened to exclude articles unrelated to the topic, as illustrated in Figure 1. If the exact search is done for a different date, the results will change because the database is continuously updated, producing minor changes over time [21].

Five hundred sixty-nine publications were obtained using the equation referenced in

Table 2. Summary of the methodology used.

Sources	Relevant Articles, Books, and Conference Proceedings That the Content Was Related between “Humanitarian Supply Chain” and “Technologies”
Type of analysis	Qualitative and quantitative analysis
Period	1984–2020
Database	Scopus
Search terms	TITLE-ABS-KEY(“Humanitarian Supply Chain”) OR TITLE-ABS-KEY(“Humanitarian Supply Chain Management”) OR TITLE-ABS-KEY(“Humanitarian Logistics”) OR TITLE-ABS-KEY(“Humanitarian Logistic”) OR TITLE-ABS-KEY(“Humanitarian Logistics Management”) OR TITLE-ABS-KEY(“Humanitarian Inventory management”) OR TITLE-ABS-KEY(“Humanitarian relief logistics”) OR TITLE-ABS-KEY(“Humanitarian Operations”) OR TITLE-ABS-KEY(“HSCM”) OR TITLE-ABS-KEY(“Emergency Operations”) OR TITLE-ABS-KEY(“disaster relief operations”) OR TITLE-ABS-KEY(“Disaster operations”) AND TITLE-ABS-KEY(“Technologies”) OR TITLE-ABS-KEY(“Technology”) OR TITLE-ABS-KEY(“Disruptive Technologies”) OR TITLE-ABS-KEY(“Disruptive Technology”) OR TITLE-ABS-KEY(“Digital Technologies”) OR TITLE-ABS-KEY(“Digital Technology”) OR TITLE-ABS-KEY(“humanitarian aid networks”) OR TITLE-ABS-KEY(“digital”) OR TITLE-ABS-KEY(“technology adoption”) OR TITLE-ABS-KEY(“technologies adoption”)
Total-/documents	342

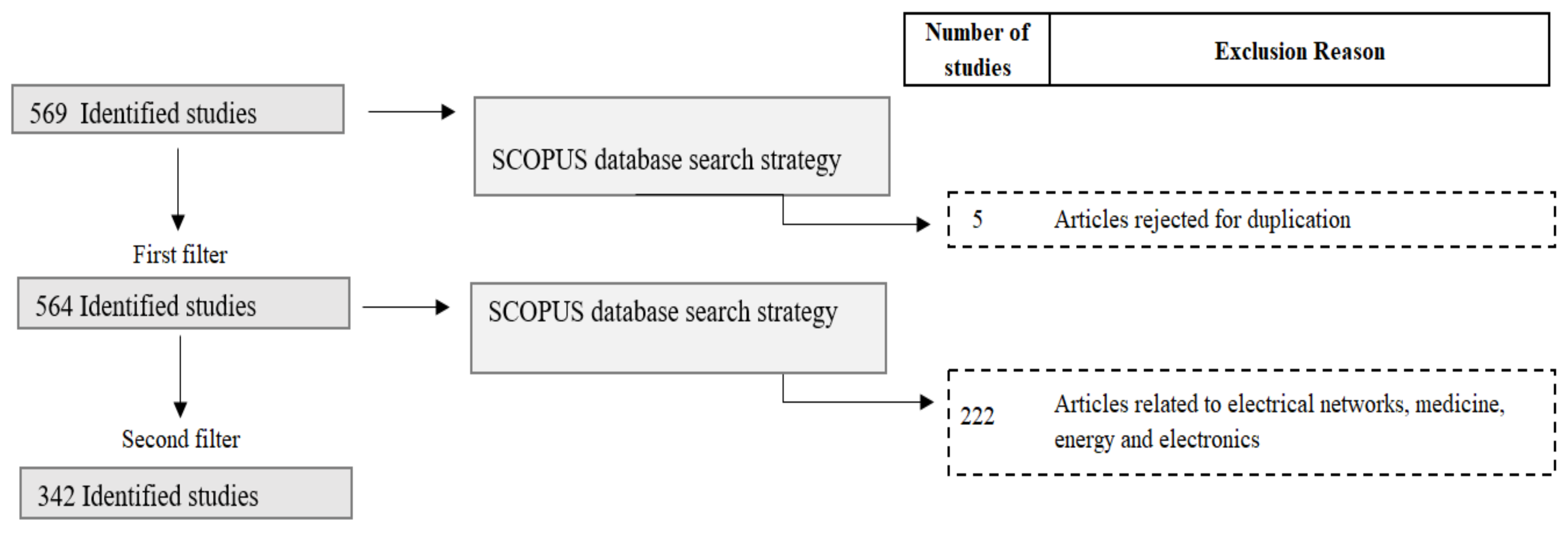

, and they were screened using various exclusion criteria. The first exclusion filter identified all duplicate articles (5 manuscripts). The second filter was for articles that were unrelated to the topic (222 articles). The articles that were excluded were related to electrical engineering, medicine, energy, and electronics that included terms such as “emergency operations” in the context of medicine or references to terms such as “digital” in articles on electronics and electricity. Other articles unrelated to the topic were identified by reading the title and the abstract of all the manuscripts after applying the first filter. The result of the number of publications that were included in this bibliometric study was 342 articles published between 1983 and 2021. All the search results were included in the study without exception. Figure 1 summarizes the search and screening process of the information related to the subject taken from Scopus. By type of document, the majority are conference papers and conference reviews (conference = 165), followed by 146 articles in journals. The other document types are books and book chapters.

Table 2 describes the variables and the methodology used, which were unit of measure, type (qualitative and quantitative), period (unlimited), database (Scopus), and search terms. The search results on Scopus Database contain information on the publication date, authors, affiliation, title, abstract, journals, and keywords, which were managed in an MS Excel spreadsheet. The network analysis was carried out using the VOSwierver software, which identifies relationships between authors, countries, co-citations, and terms. The analysis of this information allows mapping of the concurrency and distance/relationship between aspects. The maps are interpreted using clustering and assigning color codes, sizes, and distances between the assessed terms.

3. Results

Bibliometrics combines two main procedures, performance analysis and science mapping [22]. Performance analysis is used to study trends in scientific research based mainly on research centers, journals, or regions [23]. The study of these statistics enables viewing the trends in research, including the most influential authors and the most cited references [24]. In contrast, science mapping provides a spatial representation of how the various participants are related [25]. In this bibliometric study, the following aspects were reviewed, (1) scientific production and trends, (2) authors and their work, (3) journals of publication, (4) distribution by geography, institutions, and collaboration, (5) analysis of citations, (6) analysis of co-citations (networks), (7) theme categories, and (8) analysis of terms.

3.1. Scientific Production and Trends

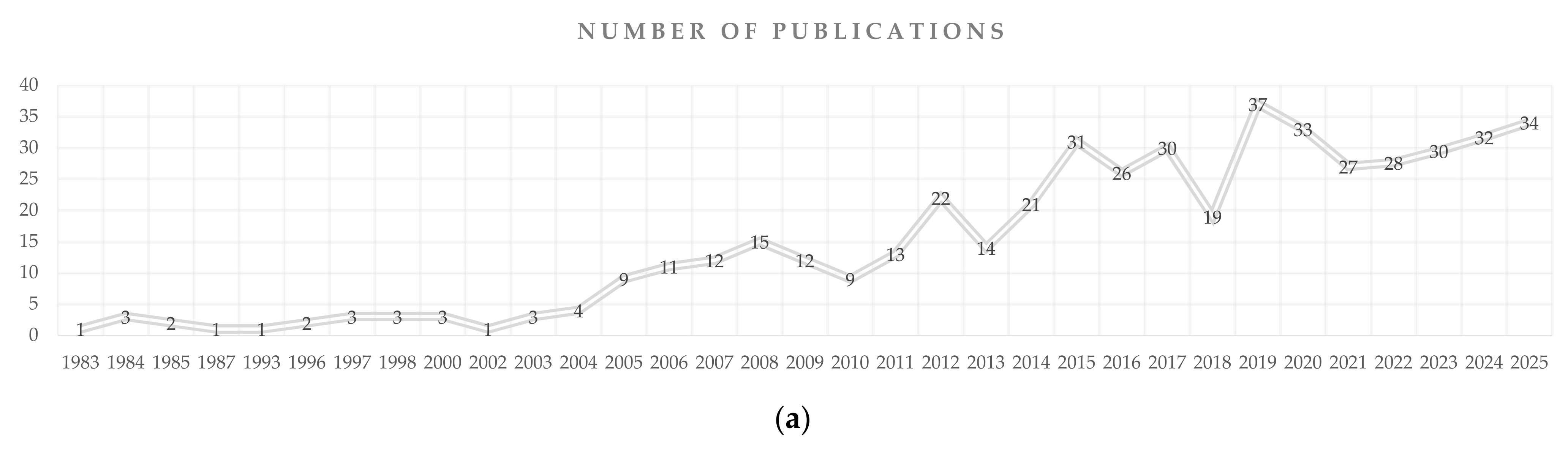

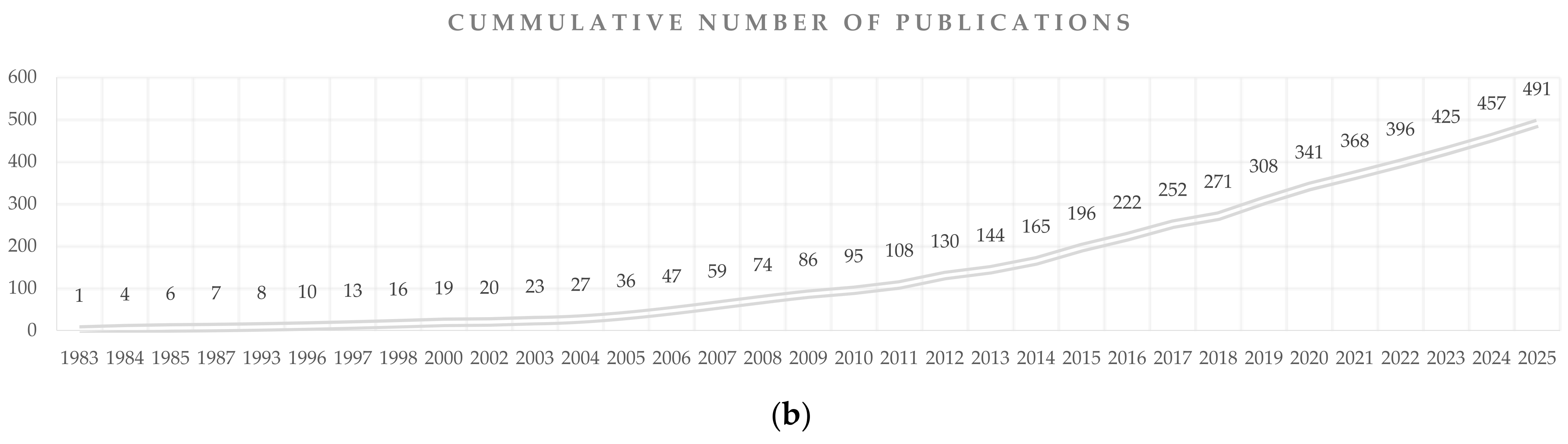

Evaluating the publications included in this bibliometric study allows knowing the progress, development, and research trends in the potential of technologies in the humanitarian supply chain. The first publication was in 1983. From 1983 to 2004, there were 27 publications, with an average of 2.3 publications per year (see Figure 2). The number of publications started to expand in 2003 (after the World Trade Center and the Tsunami in the Indian Ocean). Then, this natural disaster is directly correlated with the increase in publications produced in 2005, which was the year with the most publications on this topic.

In 2006, another peak was found in the number of publications, just a year after Hurricane Katrina. Other natural disasters in 2010 and 2011 (an earthquake in Haiti and a tsunami in Japan) also produced a peak in 2012, with 22 publications (the highest number of publications per year). The period from 2005 to 2012 is the one that presents the most significant exponential growth in the number of publications on the topic. In 2015, the number of publications also increased to 31 papers related to applications of the Internet of the Things (IoT), Geography Information Systems (GIS), social media, cyber security, and rescue robots. Another peak was identified in 2019, with 37 publications related to big data, social media, blockchain, and risk management applied to humanitarian disasters.

The publication trends of technologies in the humanitarian supply chain were analyzed using the exponential smoothing method. The results indicate that the number of publications in the next five years would be around 30 articles per year, equivalent to a cumulative total of 491 publications until 2025. Then, the current health emergency produced by COVID-19 has generated an increase in the number of publications. The socioeconomic consequences of the lock-down measures of recent months and the crisis itself have had significant effects on the operation of supply chains, whose effectiveness is now more necessary than ever. For this reason, the increase of publications evidences the growing interest of researchers.

3.2. Authors and Collaboration

One thousand thirty-five different authors developed the 342 manuscripts. A total of 94.5% of the authors are associated with a single publication on the subject; 5% are associated with two publications; 0.1% with three publications; 0.29% with four or more publications; 0.1% of the publications are conferences.

Table 3. Top ten most productive authors with publications on the subject. Source: Scopus (2020).

No.	Author	Country	Number of Publications	Total Cites	Average Citation Per Document	Number of Publications as the First Author
1	Ramesh, A.	India	6	99	16.5	0
2	Kabra, G.	India	5	87	17.4	5
3	Tatham, P.	Australia	5	57	11.4	5
4	Akhtar, P.	New Zealand	3	119	39.6	2
5	Wu Y.	Singapore	3	19	6.3	0
6	Prasanna, R.	Sri Lanka	3	32	10.66	1
7	Amditis A.	Australia	2	89	44.5	0
8	Cai G.	United States	2	94	47.0	0
9	Casoni M.	Italia	2	110	55.0	0
10	Chang C.-L.	United States	2	11	5.5	1

displays the top ten authors in terms of the number of publications on the subject, based on the total number of publications. Ramesh, A. is the author with the major number of publications (six publications) on humanitarian supply chain technologies, followed by Kabra, G. and Tatham, P. with five publications, Wu, Y., with three publications, and the remaining authors with two publications. The range of average citations by publication is between 0 and 55 citations. Kabra, G. and Tatham, P. are the authors with the most publications as first authors (5).

The average number of publications by the author is 1.1. A total of 12% of the publications are by one author, 24.3% have two authors, and 63.7% have more than three authors. A total of 85% of the publications have more than two authors, which implies that many publications are co-authored. There are close relations between authors, contributing to a greater collaboration in the future [26].

The authors with the highest number of publications are Ramesh A., and Kabra G. Their research focuses on humanitarian logistics, disaster relief, placement, and assignment. They studied the facilitators to improve information and communication technologies [27], speed and flexibility in the humanitarian supply chain [28], and the problems of information and communication technologies in the humanitarian supply chain [29,30,31]. Similarly, Tatham, P. studied humanitarian logistics, disaster relief [32], location-assignment [33,34], supply chain management, management research, 3D printing [35], spare parts [36], and manufacturing technology.

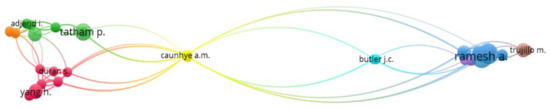

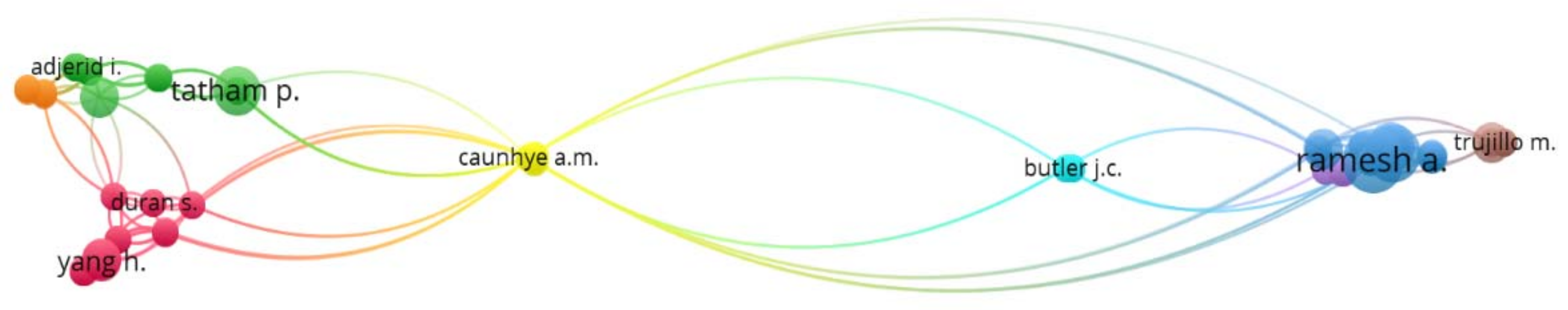

The cooperation network between authors was obtained using the VOSviewer software, and the result is shown in Figure 3. The connections represent the cooperation between the authors, and the color scales show the collaboration groups. According to this result, Caunhye, A.M is the author who shows the authors’ greatest cooperation. Ramesh, A. and Kabra, C. showed strong cooperation due to the affinity in the research themes (humanitarian logistics, disaster relief, location, and assignment) and the country of affiliation (India). Tatham, P. and Adjerid, I. show a close cooperative relationship, as do Yang, H. and Duran S.

3.3. Journals Publishing on Humanitarian Supply Chain Research

A total of 342 studies were published in 123 different journals. These publications indicate a high level of interest in the subject of journals with an SJR-2019 and H-Index-2019 (See

Table 4. Top five most active journals on the subject. Source: Scopus (2020).

No	Journal	Number of Documents	SJR-2020	H Index-2020	Subject Area and Category
1	Journal of Humanitarian Logistics and Supply Chain Management	15	0.7	25	business, management, and accounting management information systems decision sciences management science and operations research
2	Journal of Disaster Research	6	0.33	18	engineering engineering (miscellaneous) safety, risk, reliability, and quality
3	Proceedings of SPIE—The International Society for Optical Engineering	6	0.19	176	computer science computer science applications engineering electrical and electronic engineering materials science electronic, optical, and magnetic materials mathematics applied mathematics physics and astronomy condensed matter physics
4	Procedia Engineering	5	0.32	74	engineering engineering (miscellaneous)
5	Geo-Information for Disaster Management	2	0.11	2	earth and planetary sciences geotechnical engineering and engineering geology

). A total of 69.2% of the journals published a single article, 26.7% published two articles, 3.3% published between three and ten articles, and only one journal published more than ten articles on the subject. Table 4 shows the information on the top-five of the most active journals that publish on the subject. These five journals (1.5% of all journals) have published 10% of all publications.

The most influential journals in this field are the Journal of Humanitarian Logistics and Supply Chain Management, with 15 publications, followed by the Journal of Disaster Research and Proceedings of SPIE, and the International Society for Optical Engineering, with six publications.

The Journal of Humanitarian Logistics and Supply Chain Management was a journal created to publish articles related to “humanitarian logistics and supply chain management,” making it the most relevant journal in terms of the number of publications. In 2020, this journal won the “Emerald Literati Awards” to recognize its contributions to scientific knowledge. The award was granted to publish “Outsourcing of humanitarian logistics to commercial logistics service providers: An empirical investigation.” This study covers the gaps in the humanitarian literature related to the specific factors of the context for outsourcing humanitarian logistics through empirical research on this topic. It is one of the first studies to empirically assess the potential of outsourcing humanitarian logistics during the stages of a disaster. It is consequently highly correlated with the purpose of this bibliometric study, which leads to considering the Journal of Humanitarian Logistics and Supply Chain Management as the most productive journal of this subject. The performance shows promising results in average citations per document, with 332 citations from 81 documents published between 2016 and 2019.

3.4. Geographic, Institutional Distribution and Collaboration

3.4.1. Countries and Territories

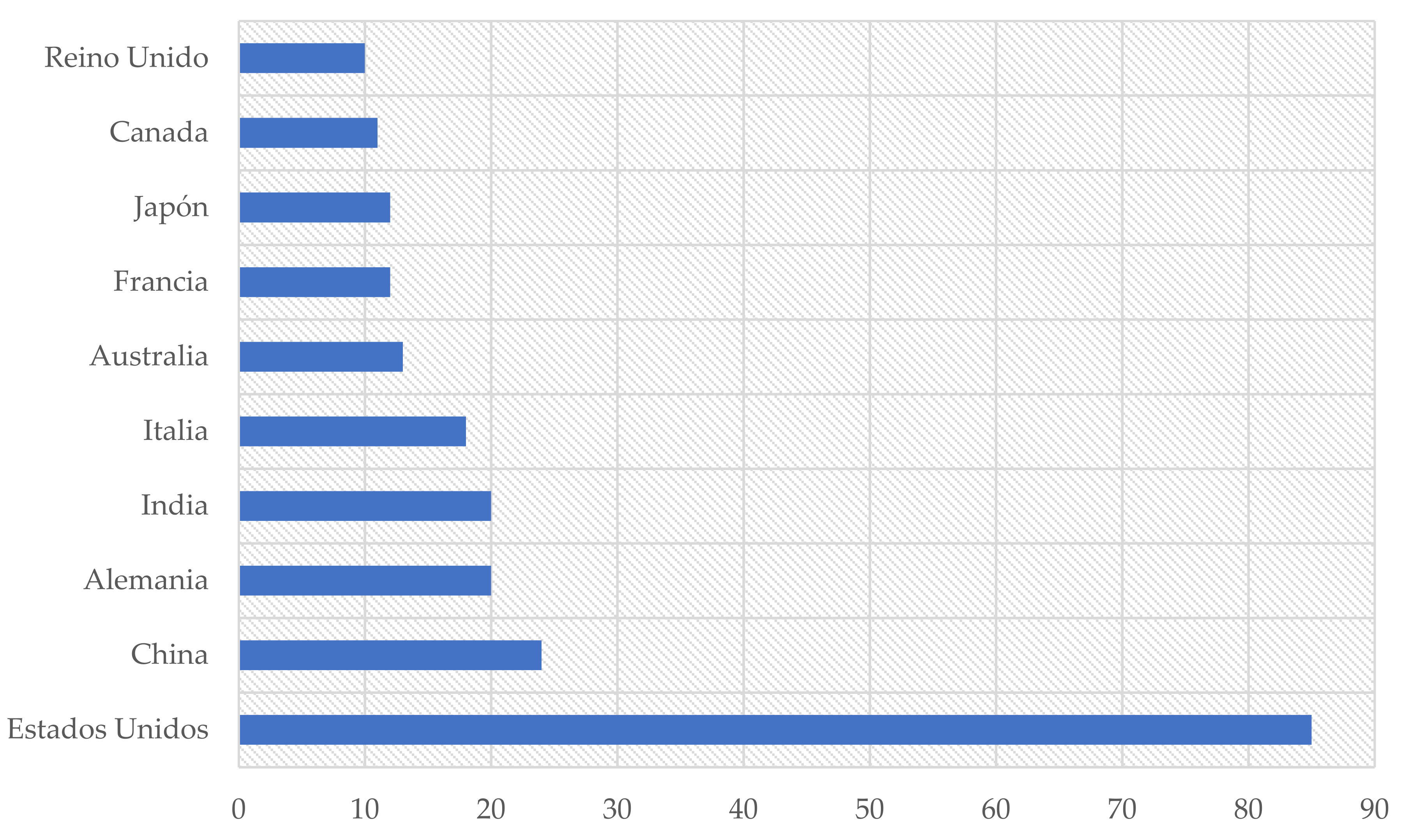

The publications related to technologies in the humanitarian supply chain are from 51 different countries. Of the total countries, 21 are in Europe, 20 in Asia, 5 in Africa, 5 in America, and 1 in Oceania. Of the total articles (342), Asia has the greatest number of publications at 31.5%, followed by Europe and America with 104 and 101 publications, respectively. The remaining publications are distributed among Oceania and Africa, which were the continents with the smallest number of publications.

Forty-one countries (80%) produced eight or less publications. Five countries (10%) produced between 10 and 13 publications, and five countries (10%) produced between 14 and 85 publications. The country with most publications on the subject is the United States (n = 85), followed by China (n = 24), Germany (n = 20), and India (n = 20). Figure 4 shows the top ten countries and regions with the greatest article production.

According to the World Intellectual Property Organization, the United States and the United Kingdom are ranked in third and fifth place, respectively, in the “2019 Global Innovation Index.” India and China have displayed substantial progress and have become leaders in their regions. The leading indicators assessed to calculate this index were associated with the development of applications for mobile phones and exports of high technology. According to the 2019 edition of the Global Innovation Index, except for Italy and Australia, the top 10 countries with the most significant contributions to technologies for the humanitarian supply chain, which are shown in Figure 4, are among the top 20 most innovative countries in the world [37].

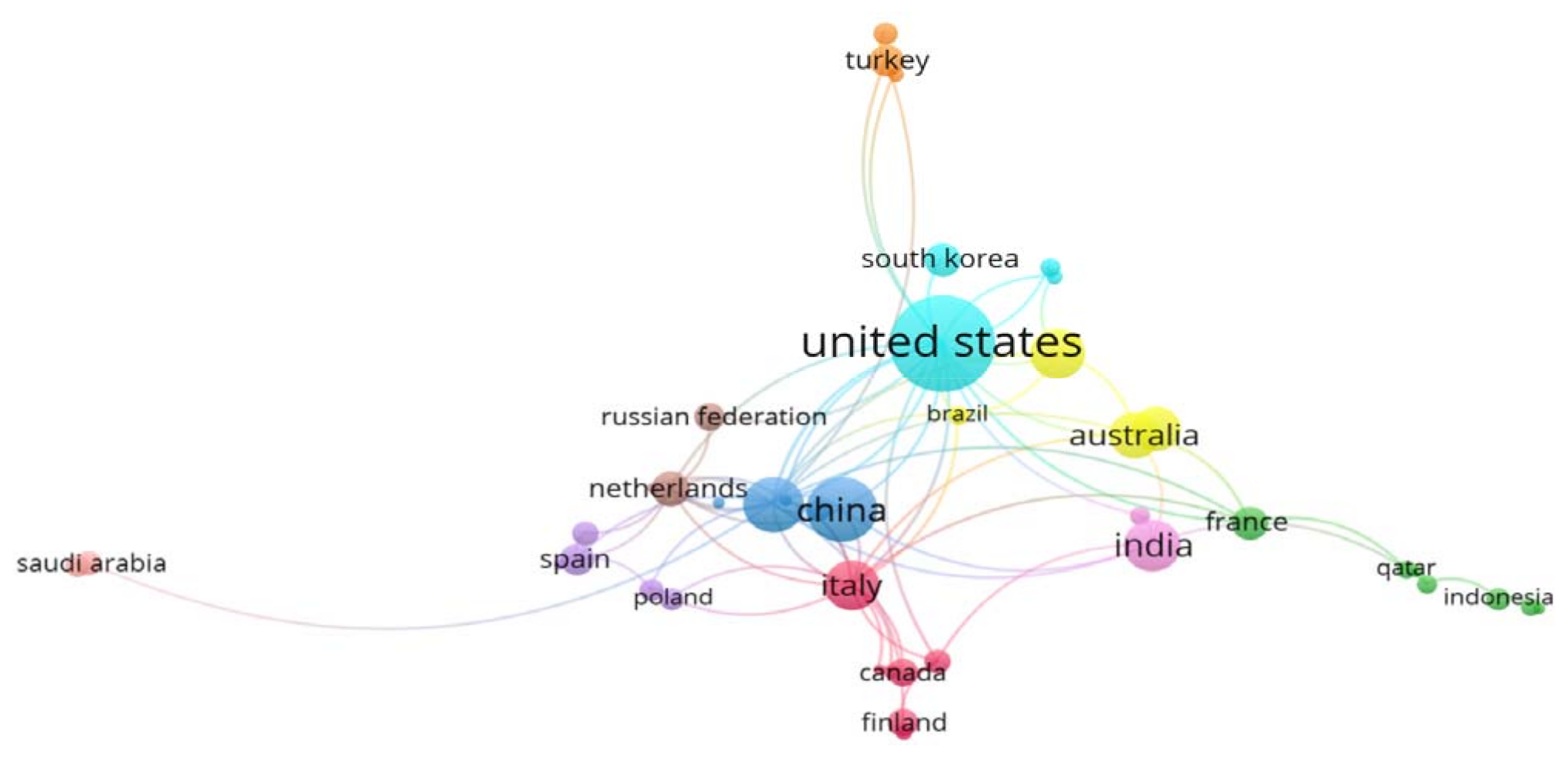

Figure 5 displays the co-authorship research networks between countries and regions. The network shows the countries and territories with more than one publication on the subject. The countries or regions that are not related to others were not included in the network. The size of the circles represents the number of publications, and the links indicate collaboration between authors from different countries.

The cluster colors display ten identifiable main groups. The first group relates to the United States and South Korea. They were followed by China and the United Kingdom (second group). The third comprises Germany, Brazil, and Australia. The fourth adds Russia and Netherlands. The fifth relates to Canada and Italy. In general, the absence of the countries in the world that are most prone to disasters and less developed countries face significant challenges in terms of governance, poverty, lack of disaster warning systems, infrastructure deficiencies, deficient healthcare systems, and lack of comprehensive disaster management plans.

The group linked to the United States has one Asian contributor, South Korea. The group from the Netherlands has substantial affinities with countries from the same European continent. Turkey, Iran, and Saudi Arabia are the most distant countries in terms of collaboration between authors.

3.4.2. Institutions

Table 5. Top 16 most productive institutions on the subject. Source: Scopus (2020).

No.	Institutions	Country	Number of Publications
1	Griffith Business School	Australia	5
2	Delft University of Technology	Netherlands	3
3	Loughborough University	United Kingdom	3
4	Massey University	New Zealand	3
5	National University of Singapore	Singapore	3
6	National Science and Technology Center for Disaster Reduction	Taiwan	3
7	Simon Fraser University	Canada	3
8	University of Modena and Reggio Emilia	Italy	3
9	University of Münster	Germany	3
10	Indian Institute of Technology Roorkee	India	2
11	Asian Institute of Technology	Thailand	2
12	Chung Shan Medical University	Taiwan	2
13	East Carolina University	USA	2
14	Graz University of Technology	Austria	2
15	Pennsylvania State University	USA	2
16	Tsinghua University	China	2

shows the classification of the 16 most relevant universities and institutions according to the Scopus database. Two hundred forty-eight research institutions participated in 273 publications, all of which have information on the authors’ affiliation. Of the total institutions, 94% had only one publication, 2.8% had two publications, 2.8% had three publications, whereas only one institution, 0.4%, had five publications on the subject. Table 5 provides information on the top 16 institutions with the most publications on the topic.

For the top institutions, the most recurrent countries are Australia, the Netherlands, the United Kingdom, Italy, Germany, India, and the United States, which are also among the top 10 with the most significant number of publications on the subject. Griffith Business School from Australia, with five publications, is the institution with the most publications. Most institutions are universities, but there are some research centers, such as the National Science and Technology Center for Disaster Reduction. Of the participating institutions by country, the most significant number of institutions are from the United States, which has 62 institutions that have published works on the subject, equivalent to about 25% of total institutions. The U.S. is followed by China (8%), India (7%), Germany (6%), and Italy (5%). Of the total institutions, over 50% are universities, 15% are institutions, and 7% are research centers, such as the European Research Center for Information Systems (ERCIS), National Science and Technology Center for Disaster Reduction, and Stanley Ho Big Data Decision Analytics Research Centre.

Griffith Business School is Australia’s most important public university that commercializes research services for companies, industries, and governments through Griffith Enterprise. Advanced Design and Prototyping Technologies (ADaPT) is a research institute that collaborates with industries to expand the limits of advanced personalized design, the quick creation of prototypes and new materials, and the next industrial revolution or Industry 4.0 and Supply Chain 4.0. This approach generates the most productive university in the development of supply chain technologies.

On the other hand, Delft University of Technology is one of the most prestigious universities in Europe and the world. According to the Times Higher Education, it is rated as the best university in the European Union and ranked 15th place worldwide in engineering and information technologies for humanitarian logistics.

3.5. Analysis of Citations

The analysis of citations indicates the number of times the publications on the subject have been cited in other publications in the Scopus database. In total, the 342 publications were cited 4839 times in other publications. A total of 32.7% of articles have not been cited; 12.3% have been cited once; 36% of the publications have between 2 and 10 citations, and 19% have more than ten citations. Currently, researchers have found that citations are highly related to visibility, which implies that publications with free access tend to be cited more often [38].

Table 6. Top 10 publications with most citations on the subject. Source: Scopus (2020).

No	Publication Title	Author(s)	Country of First Author	Institution	Journal-SJR (2019)–SNIP (2019)	Times Cited	Average Citations Per Year	Main Topic
1	Automated Planning: Theory and Practice	Ghallab M., Nau D., Traverso P. (2004) [40]	France	Instituto LAAS-CNRS, Toulouse	Book	1502	94	Task planning (robotics), technological planning for emergencies
2	Optimization Models in Emergency Logistics: A Literature Review	Caunhye A.M., Nie X., Pokharel S. (2012) [41]	Japan	Nanyang Technological University	Socioeconomic planning Sciences (1.318–2.218)	445	56	Humanitarian logistics, disaster relief, location-assignment
3	Pre-positioning of Emergency Items for CARE International	Duran S., Gutiérrez M.A., Keskinocak P. (2011) [42]	Turkey	Middle East Technical University	Interfaces (0.609–0.619)	186	21	Humanitarian logistics, disaster relief, location-assignment
4	Models, Solutions, and Enabling Technologies in Humanitarian Logistics	Özdamar L., Ertem M.A. (2015) [43]	Turkey	Yeditepe University	European Journal of Operations Research (0.618–0.715)	180	36	Humanitarian logistics, disaster relief, location-assignment
5	Developing Supply Chains in Disaster Relief Operations through Cross-sector Socially Oriented Collaborations: A Theoretical Model	Maon F., Lindgreen A., Vanhamme J. (2009) [44]	Belgium	Université Catholique de Louvain	Supply Chain Management (1.676–2.158)	125	11	humanitarian logistics, disaster relief, location-assignment
6	A Decade of Supply Chain Collaboration and Directions for Future Research	Soosay C.A., Hyland P. (2015) [45]	Australia	University of South Australia Business School	Supply Chain Management (1.676–2.158)	106	21	Collaboration in the supply chain, transportation management; vendor managed inventory
7	Speech-gesture Driven Multimodal Interfaces for Crisis Management	Sharma R., Yeasin M., Krahnstoever N., Rauschert I., Cai G., Brewer I., MacEachren A.M., Sengupta K. (2003) [11]	USA	State College	Proceedings of the IEEE (2.329–5.334)	80	5	Multimodal interaction, natural language interfaces, public speaking
8	Designing Gaming Simulations for the Assessment of Group Decision Support Systems in Emergency Response	Mendonça D., Beroggi G.E.G., van Gent D., Wallace W.A. (2006) [46]	USA	Instituto de Tecnología de Nueva Jersey	Safety Science (1.241–2.589)	65	5	Crisis management, fire service, commanders
9	Improving Humanitarian Operations through Technology-enabled Collaboration	Ergun O., Gui L., Heier Stamm J.L., Keskinocak P., Swann J. (2014) [47]	USA	Georgia Institute of Technology	Producción y Gestión de Operaciones (2.843–1.950)	57	10	Humanitarian logistics, disaster relief, location-assignment
10	Hybrid Zigbee RFID Sensor Network for Humanitarian Logistics Center Management	Yang H., Yang L., Yang S.-H. (2011) [48]	United Kingdom	Loughborough University	Journal of Network and Computer Applications (1.389–3.154)	55	6	Humanitarian logistics, disaster relief, location-assignment

lists the ten most-cited publications.

The study by Richards [39], “Space Technology Contributions to Emergency and Disaster Management,” is the oldest article on the subject and was published in 1983. The article with the most annual citations is “Automated Planning: Theory and Practice” by Ghallab M., Nau D., and Traverso P., (2004) [40] from the institute LAAS-CNRS, Toulouse (France). Since its publication in 2004, it has been cited 94 times a year. It is followed by the article by Caunhye A.M., Nie X., and Pokharel S. (2012), “Optimization models in emergency logistics: A literature review” [41] from Nanyang Technological University (Japan). Since its publication in 2012, it has had 56 citations per year. In the list of most cited publications, the United States is the most frequent country of origin of the first author, with a frequency of three, followed by Turkey with a frequency of two. Based on the central subject of the publications, eight of the articles cover topics on humanitarian logistics, disaster assistance, and placement and location.

The journals with the most citations are “Socio-economic Planning Sciences,” with 10% of total citations on the subject, followed by the Journal of Humanitarian Logistics and Supply Chain Management, Supply Chain Management, European Journal of Operational Research, Interfaces, Proceedings—IEEE Military Communications Conference MILCOM, which account for 20% of total citations. Of the top 10 published articles, the oldest was published in 2003 and has 80 cites, followed by the most cited article, which has been cited 1502 times since 2004. In contrast, the most recent article, from 2015, has 180 citations. All the top publications have been written in the last 17 years. The most cited article is 16 years old, followed by an 8-year-old article.

3.6. Analysis of Co-Citations

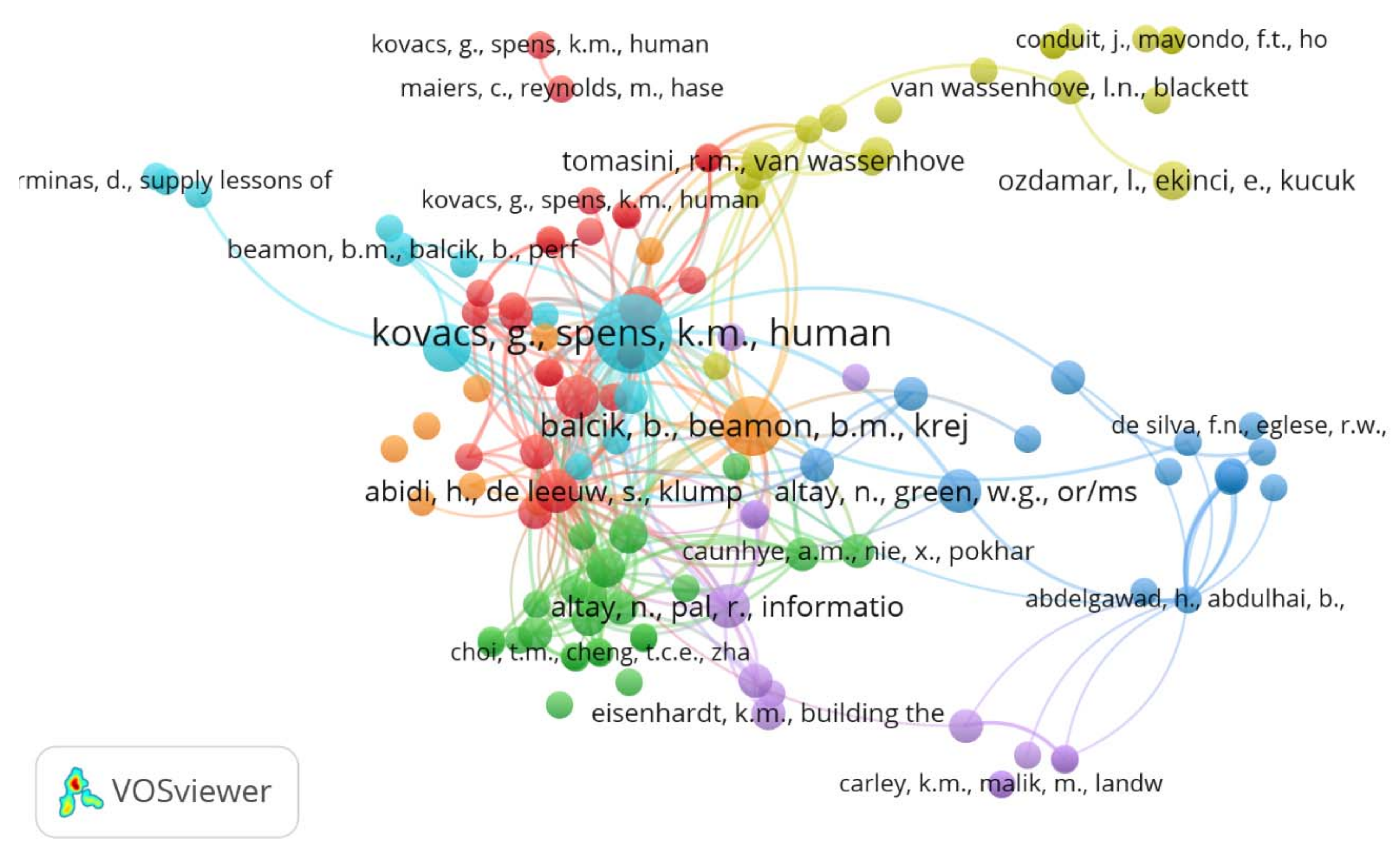

In this analysis of citations, we identify the number of references used by the 342 articles on the subject, to which end 8799 references were analyzed, equivalent to an average of 26 references per article. Figure 6 displays the networks of co-citations, while at the same time quantifying the relationships or links between the publications. In the 342 articles, 1035 authors were found, and it was decided to include those who appear more than twice in the network. Of the 8799 references, 1763 passed this threshold. In the network, the size of the circle represents a more significant number of citations in the publications about technologies in the humanitarian supply chain. The distance represents the closeness of relationships between two publications and their level of similarity. When publications are shaded in the same color, their subject has a high level of affinity. In the network, seven groups can be identified.

The blue (light) and red groups display more significant interaction with the others, while the yellow group is distant. The blue (light) cluster may be more closely related to its central author, Kovacs, G. Around the red cluster; there are topics related to information technology studies, flexibility, speed, and adaptability in humanitarian supply chain operations, as well as the assessment of the position of information technology and emergency management. The red cluster is more closely related to the authors Kabra, G., and Ramesh, A., who are the authors with the most significant number of publications on the subject. The yellow cluster highlights the models, solutions, and technologies available for the subject, headed by Ordenar, I. and Eterm, M.A. The purple and orange clusters have an affinity with topics related to technology in the coordination of emergency operations in rescue chains. Duba, R., Luo, Z., Gunasekaran, A., Akter, s., Hazen, B.T., and Douglas, M.A. of the orange cluster propose using big data analysis for predictions in the humanitarian logistics chain. The list of the most frequently co-cited articles includes: “Humanitarian Logistics in Disaster Relief Operations” (2007) [49], “Coordination in Humanitarian Relief Chains: Practices, Challenges and Opportunities” (2010) [50], “Humanitarian Supply Chain Performance Management: A Systematic Literature Review” (2014) [51], and “Identifying Challenges in Humanitarian Logistics” (2009) [52]. These publications have 171, 105, 88, and 76 citations, respectively.

3.7. Analysis of Subject Categories

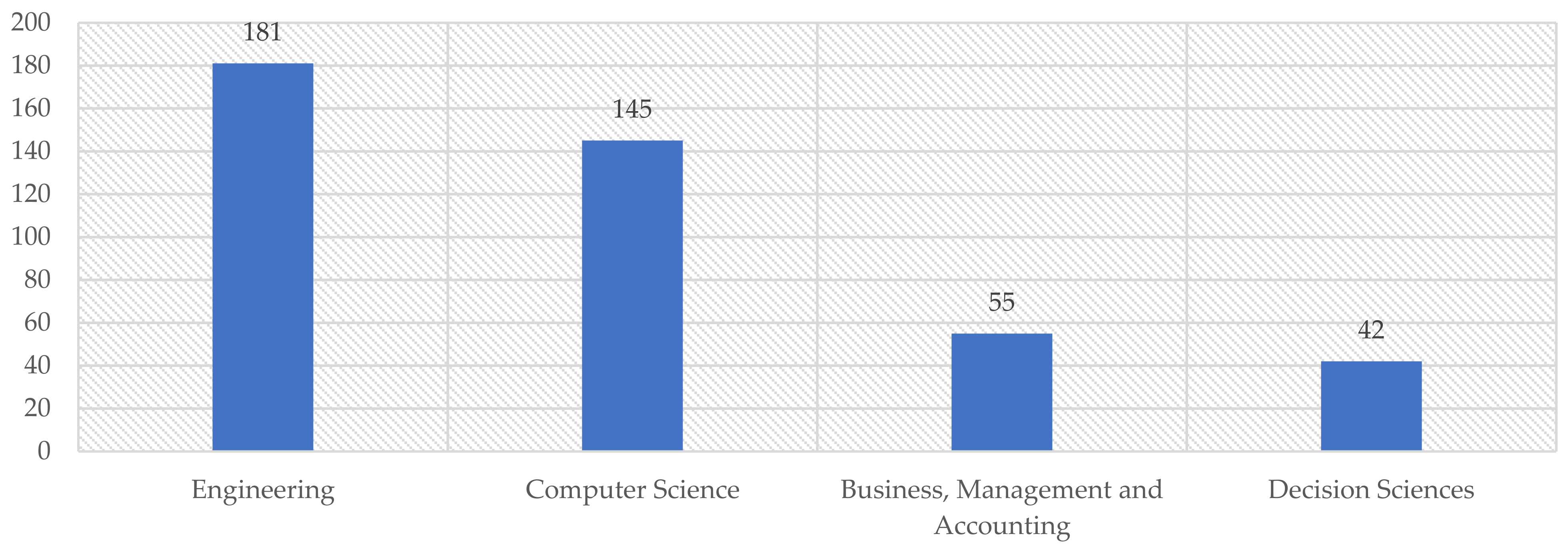

In Scopus, an analysis was carried out to identify the most common categories of research in the humanitarian supply chain. They can be divided into four main categories, which are described in Figure 7. The engineering category has the most significant number of research studies on this subject in the Scopus database, with 33.5% of total publications, followed by computer science with 26.9%. It should be noted that one publication may be listed under more than one category.

Technological progress and the growth of society have produced competitive advantages for the areas of engineering and computer science due to the multi-functionality of their contents, which enables them to interact with any environment and to contribute to understanding problems through the identification of root causes (engineering) and technological solutions (computer science), as a result of which there is a high level of correlation between these sub-topics in the subject of this bibliometric study.

3.8. Analysis of Terms

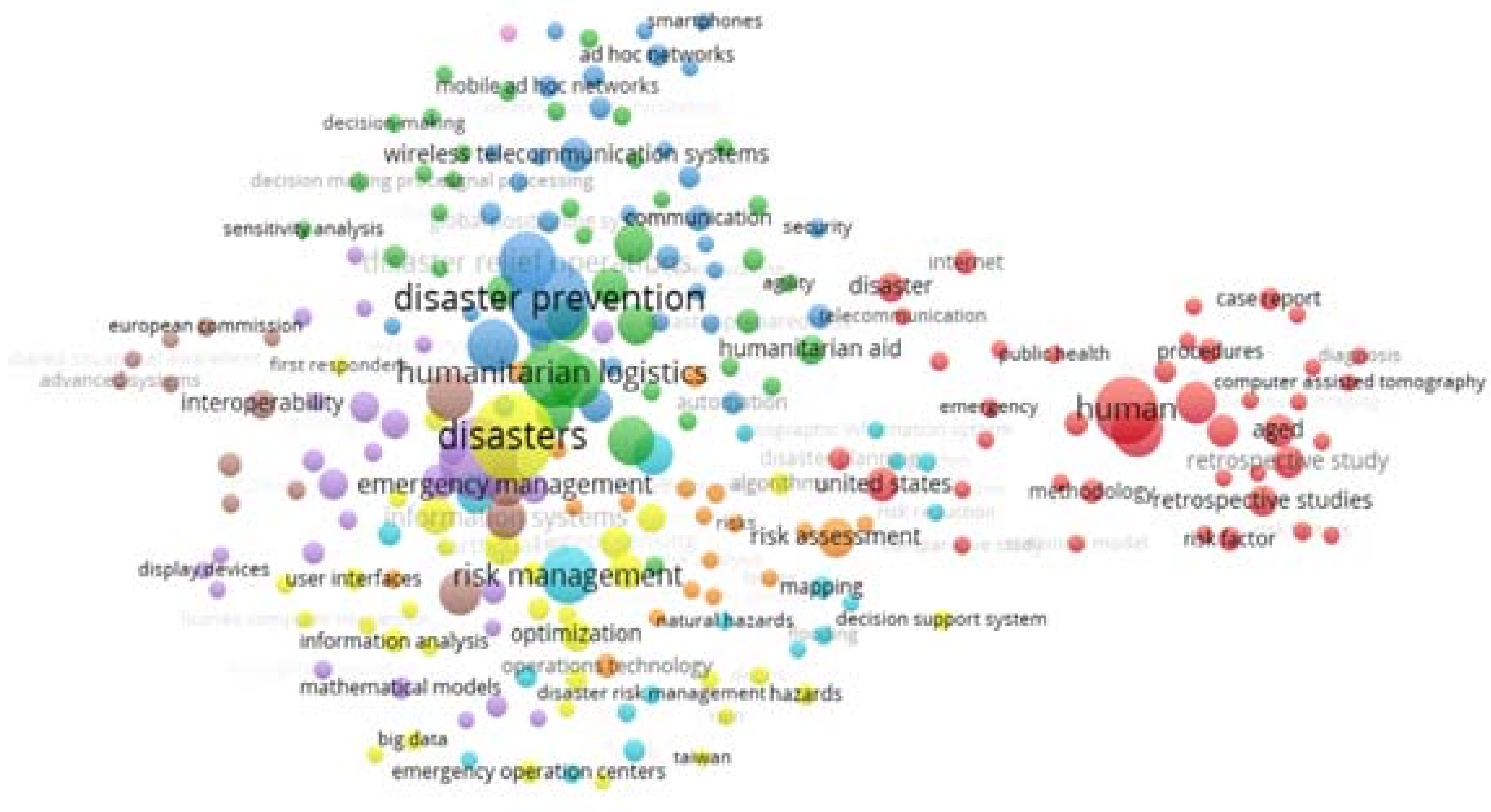

The analysis of the terms used in the titles and abstracts of the articles helps identify trends in new research on the subject (see Figure 8). This analysis was carried out using the VOSviewer software to visualize the network of terms. The analysis covered 342 articles and included only terms that appear at least in five publications. Two hundred thirty-one terms were included in the network, which is displayed in Figure 8. In the chart generated by the software, the circles symbolize the relevance of the terms, and the distance between them represents the relationships between them (a closer distance represents a more vital link). The connection between terms is based on the number of times they appear simultaneously in the title and abstract. As a result, nine colors are assigned to the clusters. Figure 8 highlights the most frequently used keywords in the publications. The three most frequent terms are Disaster, Humanitarian Logistics, Human. This situation shows the importance of logistics in the context of the humanitarian supply chain. Logistics account for around 80% of disaster relief operations [53]. All the keywords included in the top three positions illustrate the challenges currently faced by humanitarian organizations. They are expected to secure financing from donors, but they must also develop technological models, frameworks, and strategies to optimize their operations and resources to reach all those in need in several disaster sites worldwide.

The red cluster lists the most significant number of terms; these terms are closely related to strategic aspects in which humans are considered an essential objective when formulating the emergency humanitarian assistance plan (human(s), aged, human experiment, procedures, methodology, diagnosis, case report, risk factor, retrospective studies, education). The yellow group includes terms associated with technological tools in emergencies (artificial intelligence, big data, virtual reality, block-chain, user interfaces, human-computer interaction, information system, computer simulation model, remote sensing, internet of things). The blue cluster (top) lists the terms related to communication systems (communication, telecommunication, smartphones, wireless communications, wireless telecommunication systems, signal processing, global positioning systems, digital storage, automatization). The brown cluster lists organizations that manage and implement emergency response plans (civil defense, European Commission, civil protection). The green cluster covers the terms associated with the emergency assistance in the supply chain management (disaster management, inventory management, logistics, supply chain, humanitarian operations, information technology, humanitarian aid, humanitarian supply chain management, supply chain management). Other frequent terms are names of countries (United States, Taiwan, Japan) and terms related to the type of emergency, grouped under the blue (bottom) cluster (floods, storm, flooding, natural hazards).

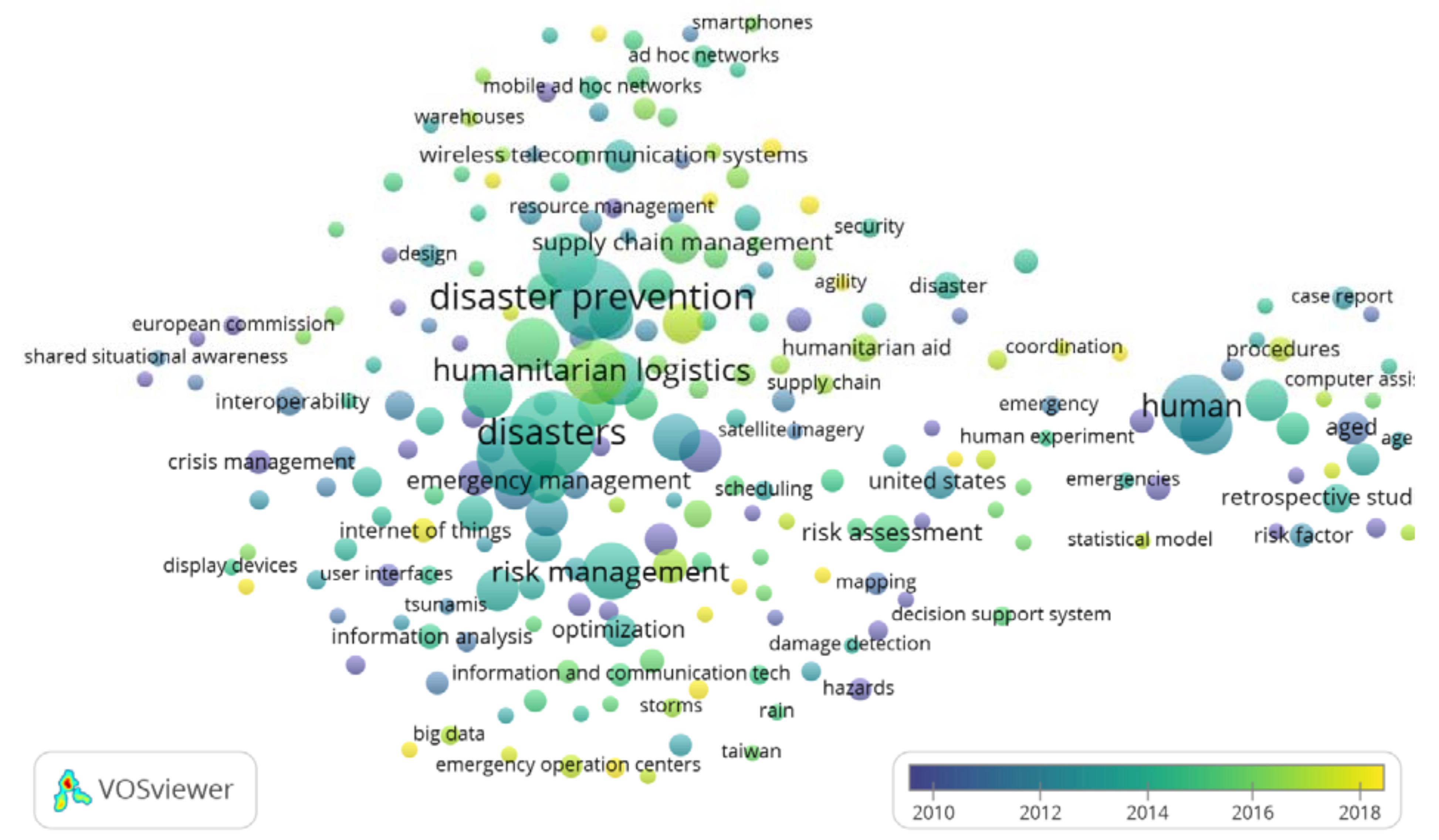

Figure 9 displays the terms of analysis over time, enabling the identification of future trends in research on the subject. The color of the terms signifies their average time of publication. This is determined as the average of all the publications containing the term in the title or abstract. The most frequently used terms were in the range from 2012 to 2016. The oldest terms tend to be bluer, whereas the newest terms tend to be yellower. Based on the color shades, the most recurrent terms are between 2012 and 2014, representing the trend in using keywords over the years (2010–2018). Concerning the trend, the initial approach towards supply chain technologies focused on communications, risk assessment, resource management, and administration, and since then, the terms have evolved towards technologies associated with Supply Chain 4.0 in the yellow cluster. These topics include organizational entrepreneurship leading culture for open innovation dynamics.

The technological tool cluster is the most contemporary throughout the subject (technology adoption, block-chain, big data, internet of things, information, and communication technology), considering the cost/benefits of their implementation. On the other hand, the cluster related to the emergency response in the supply chain management framework and strategic aspects include terms that tend to be older. Compared to the areas of study (Section 3.7 on sub-topics), this trend may be related to the increase in the number of studies on engineering and computer science regarding technological tools required for research these two areas.

3.9. Management Implications

The new information technologies (newIT) are tools that facilitate planning and collaboration between humanitarian logistics entities. In addition, they improve transaction processing, activity monitoring, and control, and they aid delivery coordination. The newIT facilitated a disaster response system in Zimbabwe. These applications guarantee the supply of medicines, the availability of products, and essential elements for the care and support of victims [54].

Another study developed an integrated logistic information system based on the web and smartphones for disaster response. In this case, government agencies, donors, and stakeholders can manage aid distribution to emergency areas as suddenly as possible [55]. Similarly, mobile cloud computing (MCC) showed the potential to improve communication and information management during emergency operations due to disasters. The key performance factors are the reliability of the connection, security, privacy, and management of the victims’ data [56]. Mobile technology improved the performance of humanitarian logistics by managing reliable information for delivering aid to refugees in sub-Saharan Africa, the refugee camps of Jordan, and Germany [57].

The research examined the technology adoption behavior of humanitarian organizations [27]. The modeling results show that performance expectation and effort expectation significantly affect the adoption of newIT. This situation generates the need to consolidate a learning culture with efforts to improve education and skills in IT and data mining as an integral part of its activities. The above shows that the use of newIT to support humanitarian logistics is a developing research area.

Humanitarian logistics must take advantage of the benefits offered by the advancement of big data analysis due to the amount of unstructured data generated during a disaster in a short time [10]. China’s Emergency Operations Center (EOC) developed a knowledge management system (KMS) based on large volumes of data to support decision-making processes [58]. The proposed system was intended to improve awareness and regulate human behaviors regarding emergencies.

On the other hand, applications of sensor networks, the Internet of Things (IoT), and smartphones for data capture will increase big data analysis [59]. These applications would reduce the impacts associated with disasters and improve the design of mitigation strategies (for example, the weather forecast and rainfall monitoring in real-time). Furthermore, disasters often cause the collapse of the information and communication technology (ICT) infrastructure, hampering the agility of humanitarian logistics. Therefore, big data satellite analysis on real-time weather information, such as geospatial data on a cloud computing platform can help better coordination and collaboration between rescue teams [60].

A Humanitarian Logistics Digital Business Ecosystem (HLDBE) was developed as a strategy to sustain operations and support through a hybrid humanitarian-business logistics system [61]. This strategy consolidates financial reserves and builds capacities to benefit stakeholders. Therefore, newIT and emerging technologies are critical factors for the digital transformation of humanitarian logistics.

Other emerging technologies used in humanitarian logistics include blockchain-based smart contracts, virtual reality, and 3D printing, among others. Blockchain technology can improve rescue operations’ transparency, guarantee an allocation of resources to victims, reduce transaction costs, and monitor supply chain operations [62]. Some researchers have recruited volunteers to carry out disaster relief operations and to deal with physical and mental problems. They use digital media in the logistics operation for the learning and awareness of the interested parties [63].

Some technologies such as artificial intelligence, blockchain, and 3D printing can reduce uncertainty related to information updating, budget execution, resource management, and efficiency of rescue operations in a humanitarian supply chain [64]. Moreover, a study proposed integrating multi-objective optimization algorithms, GIS, and emerging artificial intelligence technologies. This approach could solve multi-objective geospatial optimization problems in the future logistics management of urban emergencies [65].

Emerging technologies such as the Internet of Things (IoT), 3D/4D printing, AR/MR/VR, cyber-physical systems (CPS), robotics, new human-machine interfaces (HMI), artificial intelligence (AI), big data techniques, machine learning (ML), deep learning (DL), 5G/6G connectivity, and new computing paradigms, when oriented towards the Sustainable Development Goals (SDGs), will bring a wide range of disruptive solutions in multiple fields [66].

Finally, the agility of humanitarian relief operations can be increased by using big data analytics to improve the accuracy of the information, the planning of rescue operations, the performance of remote sensing monitoring, and information security [10,60]. In addition, operations in a humanitarian supply chain require information intelligence, big data analysis, knowledge of social vulnerabilities, and stakeholders [59].

4. Conclusions

The main objective of this study is to provide an overall view of the development of technologies in the humanitarian supply chain. A bibliometric analysis was performed to identify the contributions and interrelationships between technologies and the “Humanitarian Supply Chain” extracted from the Scopus database to achieve this objective. This analysis is based on a sample of 342 articles, which enabled the identification of global research trends on this subject from 1983 to 2020 and forecasting (using MS Excel) the number of articles expected by 2025. Research on this subject has displayed a growing trend, with a considerable increase in the last eight years, particularly in 2019, with the most significant number of publications. The leading science areas are engineering, understanding the causes and solutions for the problem; computer science; designing, developing, and implementing technological solutions; business to assess the costs and benefits of the investment. Engineering was found to be a central area of study. The Journal of Humanitarian Logistics and Supply Chain Management is considered the most closely focused journal on the subject. The most important institution in terms of contributions to the field by the number of documents is the Griffith Business School. In terms of total citations, the leading institution is LAAS-CNRS, Toulouse. In geographic terms, the most productive countries are the United States (in terms of the number of documents) and France (by citations).

The following are some of the most critical aspects of the bibliometric review.

The number of publications on the subject is directly correlated with the tsunami in the Indian Ocean (2004), Hurricane Katrina (2005), the earthquake in Haiti (2010), and the tsunami in Japan (2011). In these specific years, the number of publications increased. An increase in the number of publications is expected starting in 2020 due to the current health emergency caused by the COVID-19 virus, which has challenged the entire humanitarian supply chain’s effectiveness in supplying essential products, protection equipment, and healthcare materials not locally available.

A select group of authors (1%) made many contributions to publications related to the humanitarian supply chain. Ramesh and Kabra, the most productive authors, are from the same country and are affiliated with the Roorkee Institute of Technology in India. Both authors’ research focuses on humanitarian logistics, disaster relief, placement, and assignment. They show a high level of collaboration in the research subject of their interest, including humanitarian logistics, placement and assignment, supply chain management, and 3D printing.

Of the total journals on the subject, 97% have produced only one or two publications.

• The Journal of Humanitarian Logistics and Supply Chain Management is a magazine created to publish articles related to “all aspects of humanitarian logistics and supply chain management,” making it the most crucial journal on this subject. It recently was awarded (in 2020) the “Emerald Literati Awards” for its contribution to scientific knowledge on topics related to the humanitarian supply chain.
• The United States is the most productive country, but none of its authors are in the top five of the most productive authors. The United States, China, and India are among the top 20 most innovative countries in the world, according to the “2019 Global Innovation Index” of the Work Intellectual Property Organization. Additionally, an absence of publications on the subject was observed in the world’s most disaster-prone and least developed countries.
• A high proportion of the publications (33%) have not been cited by others, whereas a small number of publications (4%) have been cited more than 50 times.
• Engineering and computer science are the areas in which most research has been carried out in connection with this subject, with 33.5% and 26.9% of the total, respectively. The keywords associated with these areas include technology adoption, block-chain, big data, the Internet of Things, information, and communication technology, which are also the newest terms associated with expected future studies on the humanitarian supply chain.
• Caunhye, Nie, and Pokharel [41] developed the most cited article that presents a literature review related to optimization models in emergency logistics, including disaster operations such as evacuation, facility location, and transportation.
• The leading universities in terms of production on this subject are Griffith Business School (Australia), Delft University of Technology (Netherlands), and Loughborough University (United Kingdom). Griffith has its research institute (ADaPT), which focuses on quickly developing prototypes, new materials, and advanced personalized design associated with Industry 4.0 and Supply Chain 4.0.
• This bibliometric study shows a wide range of trends or concentrations of terms over time, scientific areas, research centers, journals, countries, and topics. These results could facilitate the planning, design, and publishing of future research on humanitarian supply chain technologies.

Some of the most important research studies include that by Rodríguez-Espíndola, Chowdhury, Beltagui, and Albores [64], who presented solutions based on disruptive technologies for the floods in Tabasco, Mexico to shorten delivery times, increasing the transparency, traceability, and accountability of the material and financial resources. In turn, Dubey, Gunasekaran, Bryde, Dwivedi, and Papadopoulos [62] proposed a theoretical model to understand how Blockchain can quickly influence transparency and trust in disaster relief in supply chain operations. Nagendra, Narayanamurthy, and Moser [60] proposed developing a big data analytics platform that was developed based on meteorological data in real-time and geo-spatial data to improve coordination and collaboration between humanitarian disaster relief teams in the case of floods in Kerala (India) in 2018. These solutions included technologies and knowledge to generate open innovation into the supply chain. Some technologies such as blockchain, big data, the Internet of Things, information, and communication technology generate dynamics capabilities to attend the global market and improve organizations’ productivity [67].

Four lines of future research are proposed, (1) development and implementation of emerging technologies for disaster relief. Considering the significant contributions of leading-edge technologies such as block-chain [68], big data [62,69], artificial intelligence [70,71], 3D printing, information security, and drones/robots [72], increasing the number of studies on these technologies applied to humanitarian logistics would be a significant contribution. (2) Explore the key challenges and benefits of integrating data from social media (Twitter, Facebook, Instagram) in local-level information systems in affected regions to improve decision-making and response times to the emergency. (3) The use of robots and drones to perform visual assessments of the regions affected by a disaster and facilitate the delivery of assistance and search and rescue missions. (4) Research on slow-occurrence and human-made disasters (wars, forced displacement, terrorism) and health emergencies (the most recent of which is COVID-19). From the perspective of situation factors, the study of the environmental outlook is also a field of study that is notoriously lagging.

This study also indicates that developed countries (United States, China, Japan, Germany) have the most relevant research on this subject published in the Scopus database. The most disaster-prone regions and less developed countries should also appear on this list. Future studies should broaden the reach of this study and improve its findings by incorporating additional sources, including other well-known databases such as Business Source Premier, Science Citation Index, Social Science Citation, and WoS.

Some limitations of this research are presented. First, this study included the results obtained from a literature search on Scopus Database. A comparison between the results of the different databases would be less exclusive. Second, the current health emergency produced by COVID-19 has generated much research related to the humanitarian supply chain, and it could increase the number of publications on the subject in the last few months. Future research may continue to examine the effect of the COVID-19 pandemic into research areas.
