Global Digital Convergence: Impact of Cybersecurity, Business Transparency, Economic Transformation, and AML Efficiency

1
Department of Applied Social Sciences, Faculty of Organization and Management, Silesian University of Technology, 41-800 Zabrze, Poland
2
The London Academy of Science and Business, London W1U 6TU, UK
3
Department of Financial Technologies and Entrepreneurship, Sumy State University, 40000 Sumy, Ukraine
4
Economic Cybernetics Department, Sumy State University, 40000 Sumy, Ukraine
5
JSofteris Company, 41-219 Sosnowiec, Poland
*
Author to whom correspondence should be addressed.
J. Open Innov. Technol. Mark. Complex. 2022, 8(4), 195; https://doi.org/10.3390/joitmc8040195
Submission received: 11 September 2022 / Revised: 22 October 2022 / Accepted: 24 October 2022 / Published: 28 October 2022

Abstract

:
The article substantiates the existence of convergence processes in the field of digitization of countries, taking into account the number of Internet users; people with advanced skills; and indicators of infrastructure (network coverage, population covered by at least a 3G mobile network, population covered by at least a 4G mobile network), access (access to ICT at home, active mobile broadband subscriptions, fixed broadband subscriptions), enablers (fixed broadband over 10 Mbps, mobile data and voice basket, high consumption) and barriers (improved broadband access from 256 kbps to 2 Mbps and from 2 Mbps to 10 Mbps mobile data and voice basket, low consumption) of digital development. The methodological basis for determining the sigma convergence of digitization processes is the coefficient of variation. The values of the coefficient of variation confirmed the high level of convergence between the studied countries in terms of the degree of use of the Internet for conducting digital transactions. The developed econometric model, which describes the influence of statistically significant integral indicators of the national cybersecurity level, ease of doing business, and the anti-money laundering index on the country’s digital development level, made it possible to determine the average trend of dependence on the level of digital development. One hundred four countries were considered for the analysis. The conducted study of the impact of digitalization on economic transformations based on developed quantile regressions made it possible to analyze exactly how the level of digital development for countries with a high level of digitalization and for countries with a low level of digitalization development depends on the value of the national cybersecurity indicator and the ease of doing business, and which countries have the least resistance to the risk factors of their involvement in fraudulent schemes for the purpose of legalizing criminal income.

1. Introduction

Financial and economic systems increasingly depend on many digital systems and big data. This upward trend allows socio-economic objects to exist. Understanding the key ideas of the global digital economy guarantees the stable functioning of the financial system [1]. In this regard, there are many problems and issues related to, firstly, the trust in digital systems; secondly, determining the strength of digital trust to combine business [2], politics, public, social, and personal information; and thirdly, determining the impact of key indicators on digital evolution [3], considering the global pandemic [4,5,6]. The purpose of the article is (1) to determine the sigma convergence for countries regarding the number of people who use Internet services and (2) to develop a multifactor regression model for describing the impact of key determinants that shape the level of risk of using financial instruments for money laundering and terrorist financing (Basel AML Index), business aspects (ease of getting electricity, ease of doing business), and national cybersecurity level (National Cyber Security Index) on the digital development level. The objectives of the article are the application of economic and mathematical techniques that allow the development of quantile regressions. The central objective is to determine how the values of national cybersecurity and ease of doing business for countries with high levels of digital development affect digital development and how the importance of national cybersecurity and ease of doing business for countries with low levels of digital development affect digital development.

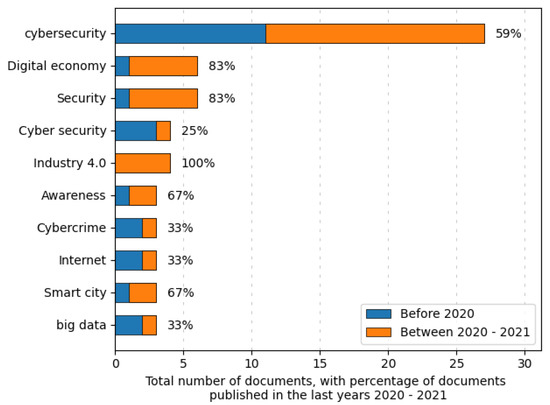

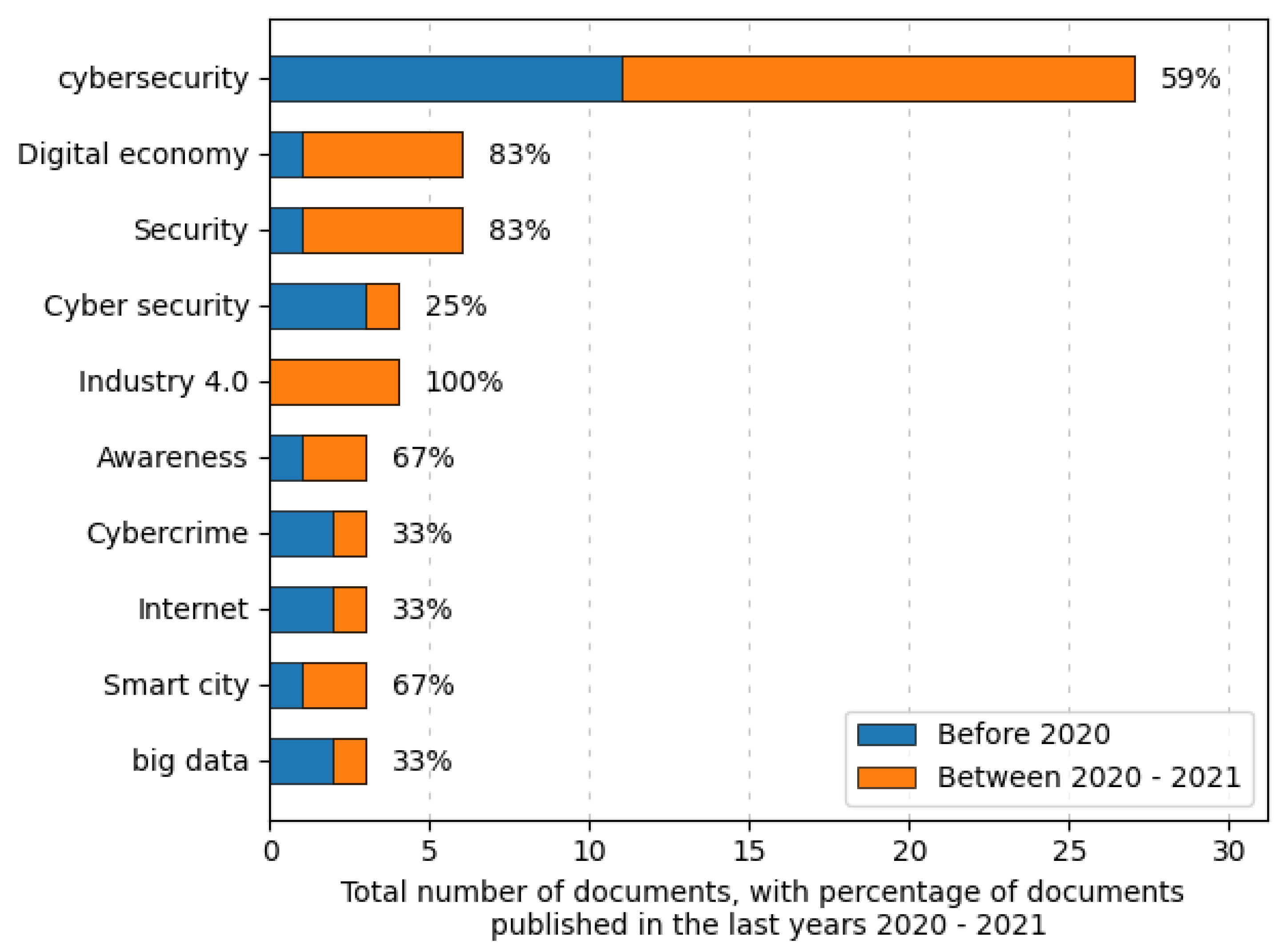

According to the results of the analysis of the world scientists’ publishing activity, based on articles indexed in the Scopus database, it is possible to conclude that the topic “digital development and cybersecurity” is of great interest. Thus, based on a sample of 89 publications generated by the Scopus database search engine over the past five years, a bibliometric analysis was conducted using ScientoPy software and Python. The study revealed the 10 most used keywords on “digital development and cybersecurity”, determined their percentage in the total number of publications (Figure 1), calculated the average growth rate (AGR) and the average annual number of publications (ADY) with relevant keywords and reflected the Hirsch index (Figure 2), and quantitatively compared scientific papers with the keywords found until 2020 and during 2020–2021.
Thus, during 2020–2021, the value of the keyword “fourth industrial revolution” (Industry 4.0) is 100%, i.e., scientists mentioned it in all 89 selected publications on “digital development and cybersecurity” (Figure 1). The use of the keywords “digital economy” and “security” is 83%; the keywords “awareness” and “smart city”, 67%; “cybersecurity” 59%; “cyber security”, 25%; and “big data”, “Internet”, and “cybercrime”, 33%.

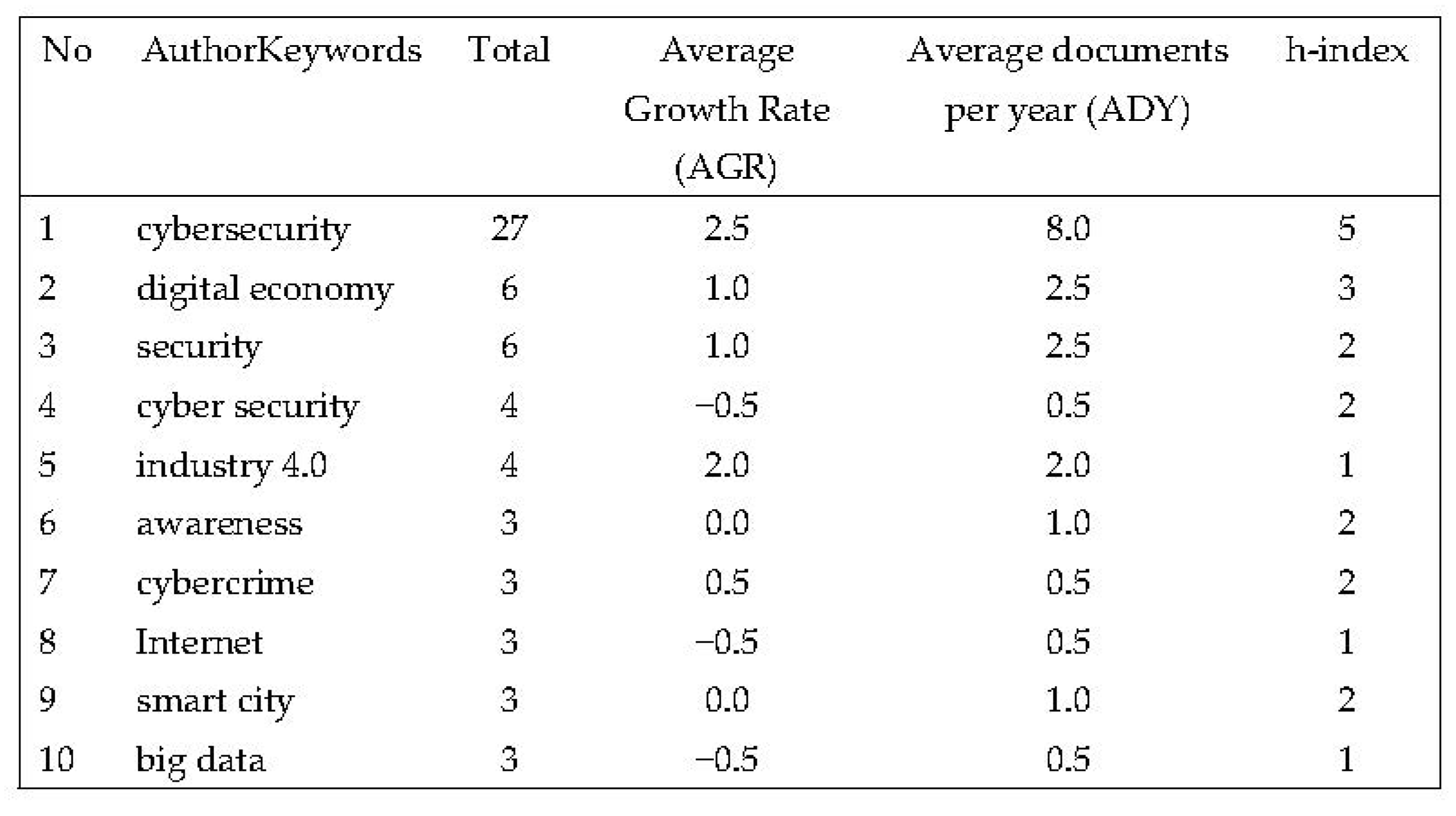

The statistics from Figure 2 for the period from 2020 to 2021 show a list of the 10 most used keywords, their total number in the sample of bibliometric research on the query “digital development and cybersecurity”, the Hirsch index, the average growth rate for keyword use in found publications, and the average number of publications per year. For example, the highest value of the Hirsch index is 5 for the keyword “cybersecurity”, the average number of references (AGR) to this keyword in publications is 2.5, and the average annual number of publications is eight units (ADY), which corresponds to 59.3% compared to other keywords (Figure 2). So, the bibliometric analysis of 89 publications indexed by the Scopus database in 2020 and 2021 confirms that the top keywords (Figure 2) belong to the research topic.
It is necessary to emphasize the work of Ghernaouti-Helie, S. [7], where at the social level, the author studied key issues, barriers, and components that contribute to cybersecurity by reviewing certain fundamental concepts. The works [8,9,10,11] in which the authors examine the relationship between the current, dynamic climate of organizational cyber risk, cybersecurity effectiveness, and changes in cybersecurity investment to identify the epistemic climate for intellectual capital management represented by cybersecurity dynamics and AML efficiency are also of great interest. Of great interest is the work of scientists Batrancea et al. [12], in which the authors examine the transparency of the banking system and indicators of economic growth in the period from 1990 to 2019 using the example of seven countries that are not members of the Basel Committee on Banking Supervision. The authors of [12] proved, based on the developed econometric model, that economic growth proxied by gross domestic product growth rate was mainly driven by bank capital to assets ratio across the three decades.
Data mining methods using machine learning [13] and powerful statistical methods have become very popular research tools [14,15,16]. One such method is quantile regression, which allows a detailed analysis of the studied indicators and their response to risk factors and stress testing. The range of use and mathematical tools implemented in the development of quantile regressions are shown in Figure 3. The analysis was performed using VOSviewer bibliometric tools based on a sample of 1575 publications obtained from the Scopus database for “applications of quantile regressions”. The six clusters are grouped by the number of keywords that match five or more publications. Thus, from the total number of 9262 keywords in the observed publications, 596 links were formed (Figure 3).

2. Materials and Methods

The first stage in this study of the impact of socio-economic transformation digitalization on digital development is to determine the sigma convergence level regarding the number of people in 66 countries who use the Internet in everyday life. The Internet is the environment where digital relationships and interconnections are formed. It enables the implementation of digital operations in various directions (financial [17,18,19,20], social [21,22,23], political [24,25,26,27], technological [28,29]) and serves as a lure for fraudsters and their use of various sophisticated fraudulent schemes in data theft and finance [30,31,32].
The classical definition of σ -convergence is characterized by a decrease in the dispersion of income per capita between countries over time [33]. From the economic point of view, the convergence hypothesis is used to test the effect of catching up with the economic growth of developing countries with low per capita income to the level of developed countries with high per capita income. The source of the study of conditional convergence between countries with different levels of economic development arose with the investigation of the Solow exogenous growth model [34] in the 1960s, based on exogenous savings and neoclassical production function. The model proves that countries far from the steady state (a state in which labor capital is at a constant level [35]) have higher economic growth rates than countries closer to it. Conditional convergence implies that countries with low economic development will develop faster than rich countries and eventually reach their prosperity level, provided that the structural parameters of their economies are the same [36].
For determining the impact of socio-economic transformations and digitalization on digital development, taking into account risk indicators of financial institutions for money laundering and indicators characterizing the national cybersecurity level, the second stage is the application of multidimensional statistical analysis tools to develop a multiple regression model of the influence of indicators National Cyber Security Index, ease of getting electricity, ease of doing business, and Basel AML Index on the digital development level.
In the third stage, nonlinear optimization and multidimensional statistical analysis tools are used to develop quantile regressions to determine how national cybersecurity indicators and ease of doing business for high-digital countries affect digital development and how national cybersecurity indicators and ease of doing business for countries with low levels of digital development affect the overall level of digital development and, consequently, the global level of the country’s digital development.

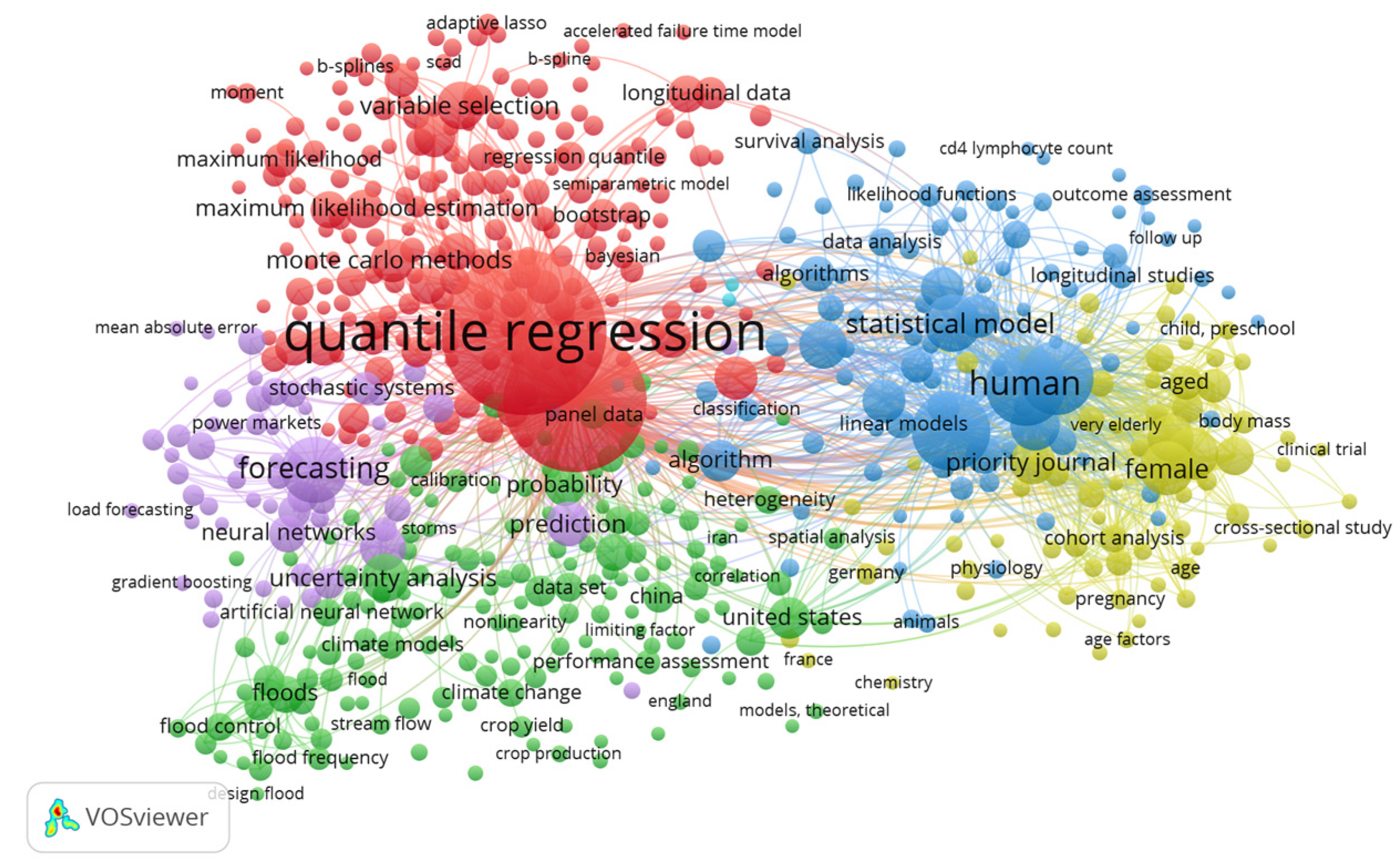

Quantile regression, first described in 1978, is a convenient and flexible tool for risk management [37], stress testing, and financial economics. However, now, approaches to its development are being modified and improved [38].
One should note that linear and quantile regression, which generalize median regression, solve different issues. If the classical regression investigates what factors change the average value of the dependent indicator at fixed regressors, the median regression investigates what the median of the dependent indicator depends on. In this case, the estimates of the coefficients may be different for classical and median regression but capable and statistically significant for both types of models since hypotheses are similarly tested:
t = β ^ j β j s e N 0 , 1 ,   s e = s n   ,
where β ^ j is the regression coefficient estimate, β j is the real value of the coefficient, s e is the standard mean error, s is the standard deviation of a random variable based on an unbiased estimate of its sample variance, and n is the sample size.
One can asymptotically confirm that the random variable t, calculated as the ratio of the difference between the estimated regression coefficient β ^ j and its true value β j to the standard mean error s e , obtains the normal standard random value.
The method of determining confidence intervals is also similar. However, the calculation of regression coefficients of estimates β ^ j and standard errors of estimates β ^ j is significantly different for classical and median regression. There are different formulas for its calculation.
The quantile regression generalizes the median regression. The peculiarity of the proposed methodology for the quantile regression development is that, firstly, it is not based on assumptions about the target variable distribution. Secondly, it is more resistant to emission observations than multiple linear regression. Quantile regression simulates the relationship between a set of variable predictors (independent indicators) and specific percentiles or quantiles of the target variable.
The median is a quantile equal to 50%; i.e., 50% of observations are below the median:
P ( y i M e d y i ) = 0.5   ,
where M e d y i is the median of the dependent variable y i , the probability of observations.
The quantile of the order τ i is calculated by Formula (3) and defines such a number that the probability of falling to the left of it is equal to τ :
P ( y i q τ ) = τ ,
where τ is the probability of falling to the left of the defined number and q is the quantile.
A quantile equal to 0.25 is also called the lower quartile or percentile. It describes such a value of the variation series xp that 25% of the values of the variational series take values less than or equal to the number xp.
So, indicators for 2021 covering 104 countries were used as input indicators for developing a regression model describing the level of digitalization: digital development level [39], National Cyber Security Index [40], ease of getting electricity [41], ease of doing business [41], and Basel AML Index [42].
The descriptive analysis (Table 1) using the Statgraphics 19 software confirmed the statistical quality of the characteristic space of the research indicators.
As we can see from Table 1, the coefficient of variation is greater than 5% for all indicators, so all indicators are statistically significant.

3. Results

3.1. Defining the Sigma Convergence of the Digital Processes

Given that data are a new economic resource of the 21st century and that digital data development is the engine of economic development, it is reasonable to determine the sigma convergence regarding the indicator (the total number of billions of persons) of the number of people around the global Internet services. The information base used the study results of the International Telecommunication Union [43]. The period is 20 years, namely the range from 2000 to 2020.
The countries under study are Albania, Austria, Bahrain, Belarus, Belgium, Bolivia, Bosnia and Herzegovina, Bulgaria, Cambodia, Chad, China, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Egypt, Estonia, Finland, Georgia, Germany, Greece, Hong Kong, China, Hungary, Indonesia, Iran, Ireland, Kazakhstan, Korea, Kuwait, Latvia, Lithuania, Luxembourg, Malaysia, Malta, Mauritius, Mexico, Mongolia, Montenegro, Morocco, Netherlands, Northern Macedonia, Norway, Oman, Paraguay, Peru, Poland, Portugal, Qatar, Romania, Russian Federation, Saudi Arabia, Serbia, Seychelles, Singapore, Slovakia, Slovenia, Spain, Sweden, Taiwan, Thailand, Turkey, Ukraine, United Arab Emirates, Great Britain, and Vietnam. The sample covers both countries with a high level of economy and countries with a low level of economy.
Such inequality indicators as the Herfindahl–Hirschman index, Tayle index, and Gini index are most often used to test the hypothesis regarding the presence or absence of sigma convergence (sigma divergence) in terms of economic growth. However, it is proposed to use the variation indicator to be independent of the input sample size and to transfer the logic of determining the sigma convergence to the digitization indicator—the number of Internet service consumers. Based on the coefficient of variation (Figure 4), we can conclude that there is σ -convergence if this indicator falls over time. Formula (4) is used to calculate the coefficient of variation:
C V = S D s a m p l e M e a n × 100 % = i = 1 n x i μ 2 n 1 μ = i = 1 n x i μ 2 n 1 i = 1 n x i n ,
where S D s a m p l e is the standard deviation of the sample from 66 countries, μ is the mean, n is the number of all data points, and xi is the number of Internet users for the i-country.
Formula (4) uses a sample variance, calculated for a sample of 66 countries.

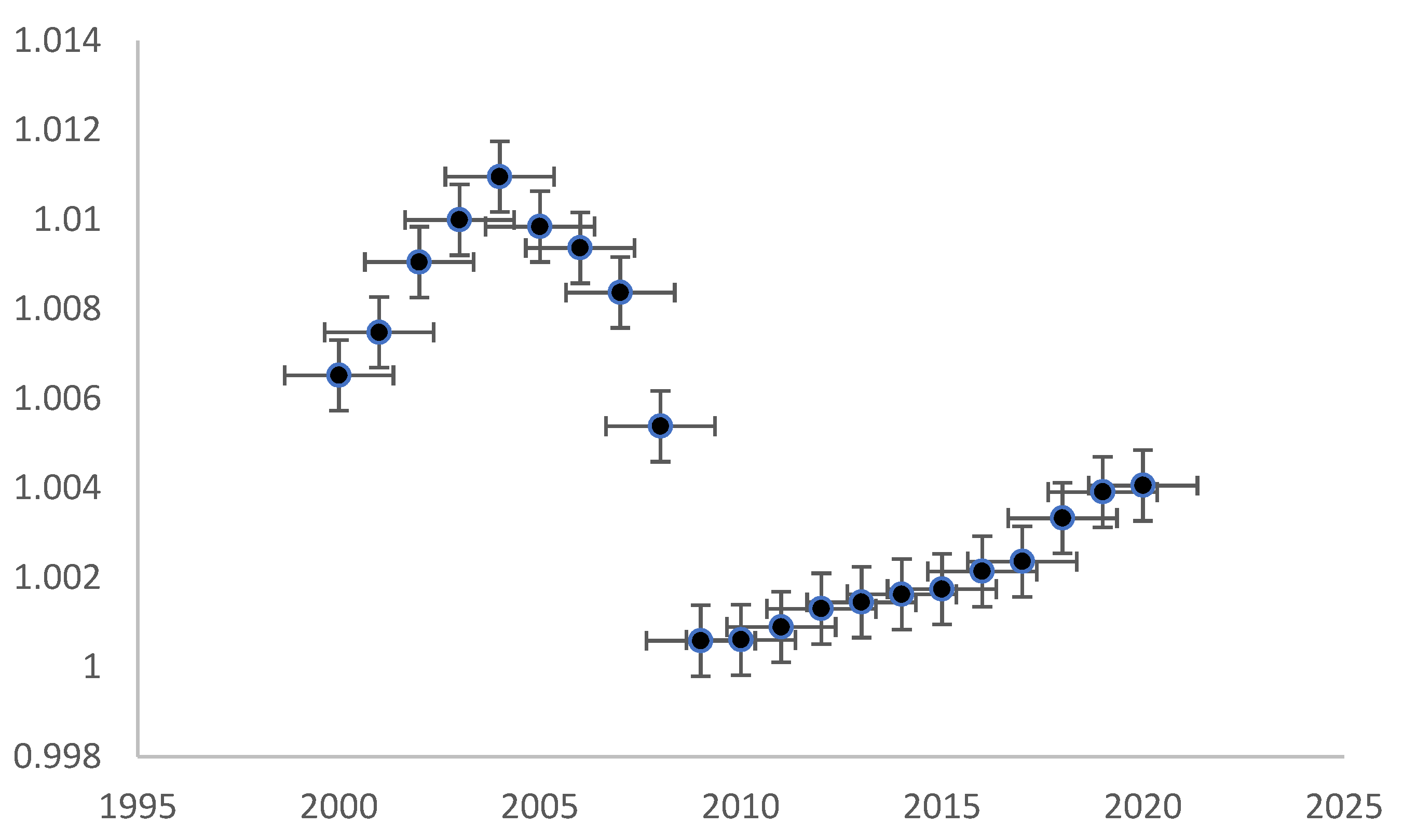

Vertical and horizontal segments for the value of the coefficient of variation (Figure 4) show the allowable limits of error. The decline in the coefficient of variation indicates a high level of convergence in the studied countries in the degree of Internet use by individuals in 2009–2010. According to the study sample, the lowest coefficient of variation is during these years. From 2011 to 2020, CV gradually increased, but the sigma-convergence index remains relatively high for the studied countries regarding the number of people using the Internet. The increased variation rate relates to the peculiarities of organizing Internet communication and the financial capabilities of citizens of the studied countries. Thus, if we compare the digital development infrastructure and the features of access to the network of all countries [39], the dynamics for some of them significantly differ. A comparative description of indicators of infrastructure, access, opportunities, and barriers for Poland, Ukraine, Germany, and Cyprus is given in Table 2.
It is necessary to conduct a further detailed analysis of what factors affect a country’s digital development and to what extent they affect it, provide an opportunity to identify risk factors for using financial institutions for money laundering, and assess how well cybersecurity and anti-fraud are organized in countries.

3.2. Multiple Regression Model Development

As input indicators for the development of a regression model to describe the digitization level, indicators for 2021, covering 104 countries, are used: digital development level (DDL) [40], National Cyber Security Index (NCSI) [40], ease of getting electricity (TINY) [41], ease of doing business (SEES) [41], and Basel AML Index [42]. These indicators are already aggregated according to the appropriate methodology of institutions, which officially determine and publish statistical reports on these indicators. DDL and NCSI are determined according to the methodology of the e-Governance Academy (EGA [40]), which was founded in 2002. It is a non-profit consulting organization that develops a knowledge base of best practices in e-government. DDL values are calculated as the arithmetic mean of the ICT Development Index (IDI), determined by the International Telecommunication Unit and the Networked Readiness Index (NRI) [44] (an indicator that characterizes the development of information technology and network economy in the world):
D D L = I D I % + N R I % 2 .
The generalized value of the NCSI is formed based on the score features of 46 indicators, divided into 12 factors according to three categories (Table 3, Table 4 and Table 5). An example of the distribution by factors for Ukraine is given in Figure 5.
Thus, indicators that determine the factor of cybersecurity policy development are given by Formula (6)
Cyber   sec urity   policy   development = Cyber   sec urity   policy   unit ,   Cyber   sec urity   policy   coordination   format , Cyber   sec urity   strategy ,   Cyber   sec urity   strategy   implementation   plan

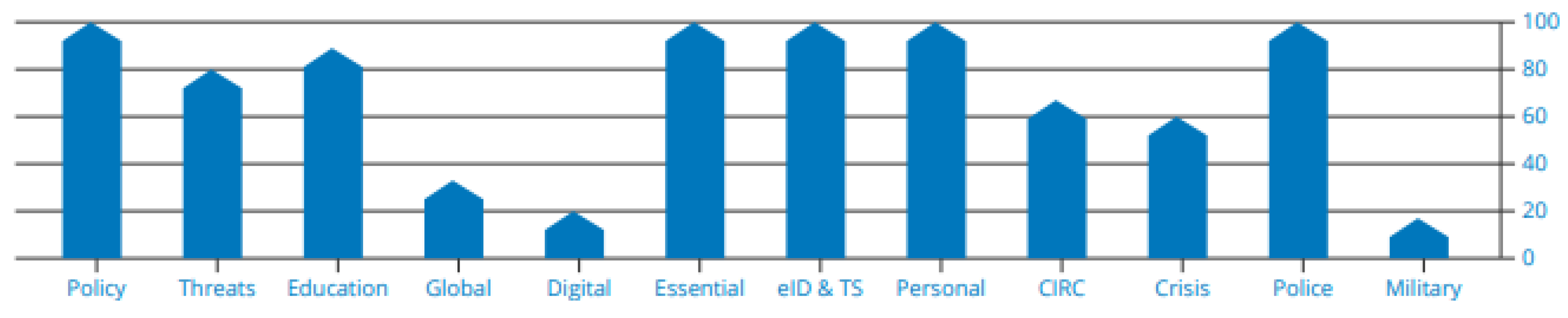

For example, for Ukraine we have the following indicators as of 6 September 2021, according to analytical reports of the e-Governance Academy Foundation [45]: population 42.7 million; area (km2), 603,700; GGP per capita (USD), 8700; National Cyber Security Index, 24th; Global Cybersecurity Index, 78th; ICT Development Index, 79th; Network Readiness Index, 53rd.
The TINY indicator is found based on the values of such indicators as procedures (number), time (days), cost (% of income per capita), and reliability of supply and transparency of tariff index (0–8) [41].
The SEES indicator is also integrated according to the World Bank’s Doing Business methodology and is formed by nine categories measured by values on a 100-point scale (0 is the worst value of the categorical indicator, 100 is the best), namely: ease of starting a business, ease of dealing with construction permits, ease of registering property, ease of getting credit, ease of protecting minority investors, ease of paying taxes, ease of trading across borders, ease of enforcing contracts, ease of resolving insolvency. Category ease of starting a business has such indicators as procedures—men (number), time—men (days), cost—men (% of income per capita), procedures—women (number), time—women (days), cost—women (% of income per capita), and paid-in minimum capital (% of income per capita). The category ease of dealing with construction permits is based on procedures (number), time (days), cost (% of warehouse value), and building quality control index (0–15). The next category, ease of registering property, is defined using procedures (number), time (days), cost (% of property value), and quality of land administration index (0–30). Indicators credit information index, legal rights index, and sum getting credit determine the content of the category ease of getting credit; disclosure index (0–10), director liability index (0–10), shareholder suits index (0–10), shareholder rights index (0–6), ownership and control index (0–7), corporate transparency index (0–7), and strength of minority investors protection index (0–50) are the essence of the category ease of protecting minority investors. The score of the ease of paying taxes category is determined by the values of such indicators as payments (number), time (hours), total tax and contribution rate (% of profit), time to comply with VAT refund (hours), time to obtain VAT refund (weeks), time to comply with corporate income tax audit (hours), time to complete a corporate income tax audit (weeks), and postfiling index (0–100). The category ease of trading across borders is formed by indicators of time to export: border compliance (hours), time to export: documentary compliance (hours), cost to export: border compliance (USD), cost to export: documentary compliance (USD), time to import: border compliance (hours), time to import: documentary compliance (hours), cost to import: border compliance (USD), cost to import: documentary compliance (USD). The category ease of enforcing contracts is defined by the values of indicators time (days), cost (% of claim), and quality of judicial processes index (0–18). The category ease of resolving insolvency is defined by the recovery rate index (cents on the dollar) and strength of insolvency framework index (0–16).
As we can see, many indicators, on the values of which ease of doing business (SEES) indicator is based, are financial inclusion indicators [46], i.e., related to the definition of access to financial services and financial literacy.
The Basel AML Index [42,47] is a comprehensive integrated indicator defined by the Basel Institute for Governance to identify and assess the risks of using countries’ financial institutions for money laundering and finance terrorism. Basel AML Index is measured using a 10-point scale: 0 is the best value, the minimum value of risk, indicating risks of corruption and money laundering are absent; 10 is the worst value, the maximum value of risk, indicating that the country is at risk for money laundering. The rating value of the index is determined based on the share of five domains, which specify 17 indicators, namely [47] the quality of anti-money laundering and terrorist financing (quality of AML/CFT framework) (65%), corruption and bribery (corruption and bribery risk) (10%), financial transparency and standards (10%), public transparency and accountability (5%), and political and legal risk (10%).
Thus, the given list of integrated indicators allows us to carry out the complex analysis of the effect made by the factors of social and economic transformation digitalization on a state’s digital development.
A fragment of the primary indicators is presented in Appendix A, Table A1.
Since the input indicators, firstly, are already complex and different methodologies considering indices, relative and absolute values of indicators, and scores were used for their convolution, and, secondly, reflect level values (DDL, NCSI) and indices (TINY, SEES, Basel AML Index), it is necessary to carry out their normalization for the possibility of further calculations obtaining significant and adequate results. The final values also depend on the normalization quality. Many scientists worldwide [48,49,50] suggest normalization based on weights, stimulant indicators (the increase in which has a positive effect on the studied indicator), and disincentive indicators. Therefore, the smallest value of the stimulant or disincentive indicator does not need to correspond to its best value. It depends directly on the content and essence of the indicator. The following weighting coefficients of normalization functions can be used: (1) weights that determine the measures of the central trend of the indicator (median, mode, mean), measures of variability (variance, minimum, maximum value of the variable, scope, asymmetry, and excess); (2) weighted indicators; and (3) scales, which are formed because of expert opinions.
y i j = 1 1 + e 3 x i j p i q i p i ,
where y i j is the standardized value of the i-country of j-indicator, q i is the value of the indicator x i j at which the transformation function is at least 0.95, and p i is the value of the indicator x i j at which the transformation function is 0.5 [51] (Table 6).
A fragment of the normalized indicators is in Appendix A, Table A2.
When establishing a regression model in which the digital development depends on the NCSI, TINY, SEES, and Basel AML Index, it is reasonable to determine the strength of the relationship between them. We propose to find the correlation coefficients using Spearman rank correlation coefficients, where their ranks (not numerical values of these variables) are used to assess the strength of the linear relationship between variables [52]:
ρ = 1 6 n n 1 n + 1 i = 1 n R i S i 2 ,
where n is the number of observations, R i is the rank of observation x i in a row of the variable x, S i is the rank of observation y i in a row of the variable y, and ρ ϵ 1 ; 1 .
Practical calculations were performed in the applied software Statgraphics 19 using the Describe/Multiple Variable Analysis function. The results are presented in Table 7.
Table 7 shows Spearman rank correlations between each pair of variables. These correlation coefficients range between −1 and +1 and measure the strength of the association between the variables. In contrast to the more common Pearson correlations, the Spearman coefficients are computed from the ranks of the data values rather than from the values themselves. Consequently, they are less sensitive to outliers than the Pearson coefficients. In addition, the number of pairs of data values used to compute each coefficient is shown in parentheses. The third number in each location of the table is a p-value which tests the statistical significance of the estimated correlations. p-values below 0.05 indicate statistically significant non-zero correlations at the 95.0% confidence level. The following pairs of variables have p-values below 0.05: NCSI and DDL; NCSI and TINY; NCSI and SEES, NCSI and Basel AML Index; DDL and TINY; DDL and SEES; DDL and Basel AML Index; TINY and SEES; TINY and Basel AML Index; SEES and Basel AML Index.
The Basel AML Index is inversely related to all other indicators that are logically justified by the essence of this indicator and the measurement scale. The lowest correlation is observed between the Basel AML Index and TINY (−0.3782), indicating a low correlation, but the correlation value of this indicator with DDL, which is dependent on the regression equation, is high and moderate. The correlation between digital development and all other influential indicators is also relatively high, ranging from 0.6 to 0.8. Next, we consider the regression model. We use the modern statistical package Statgraphics 19, namely the options of the Multiple Regression dialog box, specifying the Backward Stepwise Selection, which checks for multicollinearity of relationships between influential variables. If there are any, it proposes rejecting insignificant variables according to Student and Fisher statistical tests. As a result of calculations, the econometric regression model is received:
D D L = 0.249 + 0.3 · N C S I + 0.551 · S E E S 0.32 · B a s e l   A M L   I n d e x
Since the p-value in the ANOVA Table 8 is less than 0.05, there is a statistically significant relationship between the variables at the 95.0% confidence level. In addition, the statistical significance of model (6) is confirmed by the Student’s criterion, the level of significance of the p-value (Table 9), R-squared statistics, and the Durbin–Watson test.
The R-squared statistic, the coefficient of determination, indicates that the model explains 80.084% of the variability of the dependent indicator at the digital development level. The standardized value of the R-squared statistic is 79.4865% and indicates the adequacy and static significance of the econometric multiple linear regression model (9). So, the coefficient of determination, which explains the fraction of the variance of the dependent variable in the regression model and is calculated as the ratio of the regression sum of squares (SSR) to the total sum of squares (SST), allows us to estimate how well the theoretical model agrees with real data if even the dependent variable does not have a normal distribution. Thus, the developed model (6) agrees very well with the initial data. The standard error of the estimate has the standard deviation of the residuals 0.148. The mean absolute error (MAE) is equal to 0.107 and characterizes the average value of the residuals. The Durbin–Watson (DW) test checks the residuals to determine whether there is a significant correlation between the independent variables in the order in which they are entered into the model. The calculated value of the Durbin–Watson test (2.372) is in the range from 0.584 to 2.464, which indicates compliance with the uncertainty zone. Further study of autocorrelation of residues using the John von Neumann test shows its absence; D W 2 —no autocorrelation [54].
The absence of multicollinearity between the independent variables of the econometric model (9) was proven using the variance inflation factor test (VIF test):
V I F = 1 1 R 2
where R2 is the coefficient of determination.
Strict VIF should be below 3.0 and moderate VIF should be below 5.0.
The calculation of the VIF test was performed using Excel software (Table 10), which approved the absence of multicollinearity between the independent variables (9).

3.3. Development of Quantile Regression Models

We conduct a quantile analysis during the third step by developing quantile regressions. In such a way, we describe the NCSI and SEES impact on DDL for countries with high digital development quantiles of the order 0.9 [54,55], and countries with a low digital development quantile of the order 0.1 [56,57], to provide a comprehensive analysis of how digitization affects the inclusive economic growth [58].
The proposed logic for developing quantile regressions for different values of quantiles is based on the following steps.
Step 1. Determining the estimates of the regression coefficients for the quantile of the order of 0.5 using Formula (11) and nonlinear optimization by the gradient descent method:
L τ = i = 1 n ρ τ Y i β X i min ,
where ρ τ is the “check” loss function, a weight coefficient, the value of which is calculated by the Formula (12):
ρ τ a = max τ a , τ 1 a ,
where τ is the value of the quantile and a is the model error value.
Step 2. Assessing the error of the model using the covariance matrix and kernel estimation of error density.
Step 3. Determining the standard error, Student’s criterion, and level of significance of the p-value based on the covariance matrix values, considering the kernel estimation of the model error density.
The loss function of the simple linear regression is quadratic. We minimize the sum of squares of deviations from the actual value of the response variable and estimate the conditional mean that is the center point of linear regression. Koenker R. has shown that if we minimize absolute deviations, we estimate conditional median. If we use the so-called “check” loss function ρ τ where tau is any quantile from zero to one (zero percentile being the lowest realization, one being the highest possible realization, 0.5 or 50 being the median).
The software implementation of determining the quantile regression coefficients at quantile values of 0.5, 0.9, and 0.1 is carried out using MS Excel and the Solver add-on. Before using the Solver tool, we must directly calculate the objective function (11) [57].
A fragment of the implementation is presented in Appendix B, Table A3. The sum of the products of the required quantile regression estimates and the true values is used to determine the Forecast column (Appendix B, Table A3). The error value is calculated as the difference between the true values of the digitization level indicator and the predicted values. The column “Loss” values (Appendix B, Table A3) are calculated by the formula (12).
Having used the Solver add-on and using the gradient descent nonlinear optimization method [59], the conditional median regression equation is obtained:
D D L = 0.013 + 0.344 · NCSI + 0.71 · SEES .
Then, it is necessary to go to step 2 and estimate the error of the model using the covariance matrix (14) and the function of kernel estimation of the distribution density ((15) and (16)) [60].
C τ = τ 1 τ f E 2 F E 1 τ X T X 1 ,
where f E x is the kernel estimation of error density (KDE):
f E x = 1 h n i = 1 n K x x i h ,
where h > 0 and represents the bandwidth, n is the sample size, and K is the weighted core (weight function):
h = 0.9   min σ E , I Q R E 1.34 n 1 / 5 ,
where I Q R E is the interquartile range (robust scatter measure calculated using percentiles).
We should note that the Student’s distribution is used to find K (15). However, depending on the purpose of the study, different kernel functions (homogeneous, triangular, three-weighted, normal, etc.) can be used. The parameter h is a free smoothing parameter. It strongly affects the evaluation result, so other formulas usually calculate it; the smaller the bandwidth value, the better. An alternative formula for determining the value of bandwidth may be the following Formula (17):
M I S E h = E f h ^ x f x 2 d x ,
where M I S E h is the mean integrated squared error and f h ^ x is the assessment of kernel density.
Therefore, the intermediate values calculated using the built-in MS Excel functions to find the covariance matrix and further determine the statistical significance of the conditional median Equation (12) are presented in Table 11.
The kernel distribution function for the studied countries using Formula (16) and the built-in MS Excel functions is T.DIST (B $ 11-H21)/B $ 10; B $ 9–3; 0).
The error quantile indicator, equal to zero or close to it, characterizes the correctness of the calculations that determine the estimates of NCSI and SEES with Solver and gradient descent. Next, it is necessary to calculate the covariance matrix (14). The array formula and built-in MS Excel functions are used. The dimension of the covariance matrix will be 3 × 3, determined by the values of Constant, NCSI, and SEES for 104 studied countries (range D21: F124). The formula to be entered in the MS Excel formula row is as follows:
{=B8 × (1 − B8)/B14^2 × MINVERSE(MMULT(TRANSPOSE (D21:F124);D21:F124))}.
The keyboard shortcut Ctrl + Shift + Enter is used to obtain the resulting covariance matrix. The calculation results of the covariance matrix used to estimate the errors of the KDE model are presented in Table 12.
The third step is to verify the significance of the quantile regression of the order 0.5 (12).
The test results are presented in Table 13.
The covariance matrix (Table 12) enables quickly determining the standard error as the square root of the elements of the main diagonal and the value of the Student’s criterion (t-stat) as the ratio of model coefficients (13) to standard error. The p-value is calculated using the T.DIST.2T function:
p-value = T.DIST.2T(ABS(D4);$B8 − 3).
When analyzing the results, it is obvious that the p-value for a free member exceeds the maximum allowable 5% and does not give objective estimates.
The proposed methodology will be used to develop quantile regressions of orders 0.9 and 0.1. They characterize the numbers of countries with high (quantile 0.9) and low (quantile 0.1) levels of digital development to determine how the NCSI and SEES indicators affect the formation of digital development.
The general results of the study are presented in Table 14.

4. Discussion

Thus, model (9) can be practically implemented by domestic and international institutions that study national cybersecurity and ease of doing business to identify opportunities to increase the NCSI and SEES, which have a directly proportional positive impact on digital development. For example, if the NCSI indicator increases by 1%, while the values of the SEES and Basel AML Index remain at the average level, the overall digital development level will increase by 0.003 (0.3%). If the SEES indicator increases by 1%, provided that the NCSI and Basel AML Index indicators remain at the average level, the digital development will increase by 0.00551 (0.55%). The relationship between digital development and the Basel AML Index is inversely proportional because the lower the Basel AML Index, the less the country is at risk of exposing its socio-economic objects (especially banks, non-banks, financial institutions, enterprises, and businesses) to fraudulent schemes using digital technologies or to the use of innovative financial technologies for money laundering.
All quantile regression coefficients for the 10th percentile and the 90th percentile are statistically significant. However, the constant at the 10th percentile (Table 14 (3)) (quantile 0.1) is negative (–7.13%). So if other things are held equal (if NCSI and SEES are zeros) then the 10% of the countries with low digitalization will have a slightly negative dynamic of reactions on risk factors.
For countries with a high level of digital development, corresponding to the 90th percentile, the model (Table 14 (2)) (quantile 0.9) has positive coefficients. The constant is relatively high and equal to 26.4%. If the value of the national cybersecurity indicator changes by 1 point, the value of digital development will increase by 0.26. With an increase in the indicator of ease of doing business by 1 point, the value of digital development will increase by 0.37. It is a positive factor in raising the global cybersecurity index is usually a positive factor in raising the global cybersecurity index [61].
It should also be noted that the values of the coefficients of quantile regressions (Table 14) depend on the type of function in Formula (15) and the definition of the parameter h (bandwidth), but the quality of the obtained models should be checked using the Student’s test and the p-value [62].
For further research on the national cybersecurity level, it is advisable to apply machine learning methods and data mining algorithms. This is said by Rymarczuk [63], Javed et al. [64], Ahsan et al. [65], and Alshaibi et al. [66], who substantiate the need to develop algorithms to protect against cyber attacks using cyber machines that use various machine learning and deep learning methods, since mathematical models alone are not enough to deal with modern cybersecurity risks. In addition, the authors of [67] separately highlight the academic community, which, of course, is in the sphere of activity in which cybercrimes often occur, the degree of protection against which affects the significance of the level of national cybersecurity in each country. Another field of cyber attacks is the engineering of cyber-physical systems, which are controlled or monitored by machine algorithms and have software that is closely related to physical objects [68]. Therefore, it is advisable to use both a powerful mathematical apparatus and methods of fuzzy logic and machine learning to detect and prevent cyber threats [69]. It is also important to create common security policies [70]; conduct research on IoT cybersecurity [71], applications of the cybersecurity knowledge graph [72], and e-commerce cybersecurity [73,74]; and educate in the use of social media [75].

5. Conclusions

5.1. Implication

Thus, a study of the impact made by socio-economic transformation digitalization based on the developed quantile regressions analyzes how digital development for countries with high levels of digitalization and countries with low levels of digital development depends on national cybersecurity and ease of doing business. It also observes which groups of countries have the least resistance to risk factors for their involvement in fraudulent schemes for money laundering. The values of the variation coefficient confirm the high level of convergence between the studied countries in the degree of Internet use for electronic transactions in various directions. The average trend of the digital development dependence has been revealed using the econometric regression model.

5.2. Limits and Future Research Topic

Further research will be aimed at the development of multivariate adaptive regression spline (MARS) models to strengthen the financial cybersecurity of a country, as well as the creation of a road map for the development of an innovative system for countering the legalization of criminal proceeds and financial cyber protection.
In addition, taking into account the dependence on online technologies; the growth of misinformation caused by the pandemic, politics, and other social factors; the growth of cyber attacks; and the issue of digital trust and the interaction of factors that determine it is an urgent issue for further research. The analysis of canonical correlations between the digital environment and attitudes towards digital trust, between behavior in the digital space and the digital environment, between the behavior in the digital space and the digital experience of users, and between the digital environment and the digital experience of users is planned to be carried out using the tools of multidimensional statistics.

Author Contributions

Conceptualization, A.K. and T.V.; methodology, O.K. and V.K.; software, V.K. and P.B.; validation, A.K., T.V. and O.K.; formal analysis, V.K.; investigation, A.K. and P.B.; resources, T.V. and P.B.; data curation, V.K.; writing—original draft preparation, O.K., V.K. and P.B.; writing—review and editing, T.V. and A.K.; visualization, V.K.; supervision, T.V. and A.K; project administration, A.K. and T.V.; funding acquisition, T.V. and A.K. All authors have read and agreed to the published version of the manuscript.

Funding

The research received funding under the research subsidy of the Department of Applied Social Sciences of the Faculty of Organization and Management of the Silesian University of Technology for the year 2022 (13/990/BK_22/0170). This research was performed within the framework of state budget research: No. 0121U100467 “Data-Mining to combat cyber fraud and legalization of criminal proceeds in the context of financial sector digitalization in the Ukraine’s economy”; No. 0121U109559 “National security through the convergence of financial monitoring and cybersecurity systems: intelligent modeling of financial market regulation mechanisms”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Fragment of initial data.
Table A1. Fragment of initial data.
Country/IndicatorDDLNCSITINYSEESBasel AML Index
1. Afghanistan19.511.6944.244.18.16
2. Albania48.7448.057167.75.72
3. Argentina60.4148.0570596.50
4. Armenia55.0635.0687.774.54.63
5. Australia78.6866.2382.381.23.75
6. Austria77.2968.8387.778.74.42
7. Azerbaijan54.7837.6677.376.75.31
8. Bahrain66.0425.9779.7764.50
9. Bangladesh33.1167.5334.9455.84
10. Belgium75.3493.5170.6753.94
77. Poland66.6187.0182.376.44.34
78. Portugal68.2589.6183.376.53.85
79. Romania60.6771.4353.773.34.76
80. Russian Federation64.2271.4397.578.25.49
81. Saudi Arabia63.4683.1291.871.65.12
82. Senegal33.0415.5865.259.37.25
83. Serbia59.8577.9273.275.75.47
84. Singapore80.2671.4391.886.24.65
96. Ukraine55.9575.3262.570.25.21
97. United Arab Emirates68.0140.2610080.95.91
98. United Kingdom81.5577.9296.983.54.05
99. United States81.4479.2282.2844.60
100. Uruguay63.9948.0582.161.53.98
101. Uzbekistan4931.1786.969.95.71
102. Vietnam47.6936.3688.269.87.04
103. Zambia29.6655.8462.166.96.03
104. Zimbabwe28.9715.5848.654.56.79
Table A2. Standardized values of the observed indicators.
Table A2. Standardized values of the observed indicators.
Country/IndicatorDDLNCSITINYSEESBasel AML Index
1. Afghanistan0.0180.0520.0050.0050.938
2. Albania0.3040.4100.2090.3330.640
3. Argentina0.6070.4100.1860.0850.778
4. Armenia0.4640.2190.7620.6500.406
5. Australia0.9170.7130.5890.8720.240
6. Austria0.9050.7490.7620.8070,362
7. Azerbaijan0.4560.2510.4040.7400.553
8. Bahrain0.7390.1290.4930.7130.379
9. Bangladesh0.0750.7310.0010.0060.663
10. Belgium0.8860.9440.2000.6720.272
77. Poland0.7510.9140.5890.7290.346
78. Portugal0.7820.9270.6240.7320.257
79. Romania0.6130.7810.0200.5960.434
80. Russian Federation0.6990.7810.9330.7920.592
81. Saudi Arabia0.6820.8900.8550.5150.512
82. Senegal0.0740.0670.1000.0890.871
83. Serbia0.5920.8490.2690.7010.588
84. Singapore0.9290.7810.8550.9470.410
96. Ukraine0.8240.4880.0690.4470.532
97. United Arab Emirates0.2870.7780.9530.8650.677
98. United Kingdom0.8490.9380.9270.9140.291
99. United States0.8600.9370.5850.9210.400
100. Uruguay0.4100.6940.5810.1300.279
101. Uzbekistan0.1760.3100.7400.4330.638
102. Vietnam0.2350.2810.7750.4280.849
103. Zambia0.5450.0530.0660.2990.700
104. Zimbabwe0.0670.0490.0090.0370.819

Appendix B

Table A3. Defining the target function to minimize total losses.
Table A3. Defining the target function to minimize total losses.
CountryDDLConstantNCSISEESForecastErrorLoss
Afghanistan0.01810.0520.0050.0080.0100.005
Albania0.30410.4100.3330.364−0.0600.030
Argentina0.60710.4100.0850.1880.4180.209
Armenia0.46410.2190.6500.524−0.0600.030
Australia0.91710.7130.8720.8510.0660.033
Austria0.90510.7490.8070.8180.0870.044
Azerbaijan0.45610.2510.7400.599−0.1420.071
Bahrain0.73910.1290.7130.5380.2020.101
Bangladesh0.07510.7310.0060.243−0.1680.084
Belgium0.88610.9440.6720.7890.0970.048
Poland0.75110.9140.7290.819−0.0680.034
Portugal0.78210.9270.7320.826−0.0440.022
Romania0.61310.7810.5960.679−0,0660.033
Russian Federation0.69910.7810.7920.818−0.1190.059
Saudi Arabia0.68210.8900.5150.6590.0230.012
Senegal0.07410.0670.0890.0730.0010.000
Serbia0.59210.8490.7010.777−0.1850.092
Singapore0.92910.7810.9470.9280.0010.000
Ukraine0.48810.8240.4470.588−0.1000.050
United Arab Emirates0.77810.2870.8650.7000.0780.039
United Kingdom0.93810.8490.9140.9280.0100.005
United States0.93710.8600.9210.9370.0000.000
Uruguay0.69410.4100.1300.2210.4730.237
Uzbekistan0.31010.1760.4330.355−0.0440.022
Vietnam0.28110.2350.4280.372−0.0910.045
Zambia0.05310.5450.2990.387−0.3340.167
Zimbabwe0.04910.0670.0370.0360.0130.006
Source: calculated by the authors.

References

  1. Ojeda, F.A. Cybersecurity, An Axis On Which Management Innovation Must Turn In The 21st Century. SocioEcon. Chall. 2021, 5, 98–113. [Google Scholar] [CrossRef]
  2. Sadigov, R. Impact of Digitalization on Entrepreneurship Development in the Context of Business Innovation. Manag. Mark. Manag. Innov. 2022, 1, 167–175. [Google Scholar] [CrossRef]
  3. Kotenko, N.; Bohnhardt, V. Digital health projects financing: Challenges and opportunities. Health Econ. Manag. Rev. 2021, 2, 100–107. [Google Scholar] [CrossRef]
  4. Tiutiunyk, I.; Humenna, Y.H.; Flaumer, A. COVID-19 impact on business sector activity in the EU countries: Digital issues. Health Econ. Manag. Rev. 2021, 2, 54–66. [Google Scholar] [CrossRef]
  5. Antonyuk, N.; Plikus, I.; Jammal, M. Sustainable business development vision under the COVID-19 pandemic. Health Econ. Manag. Rev. 2021, 2, 37–43. [Google Scholar] [CrossRef]
  6. Kuzior, A.; Mańka-Szulik, M.; Krawczyk, D. Changes in the management of electronic public services in the metropolis during the COVID-19 pandemic. Pol. J. Manag. Stud. 2021, 24, 261–275. [Google Scholar] [CrossRef]
  7. Ghernaouti-Helie, S. Going Digital Rethinking cybersecurity and confidence in a connected world: A challenge for society. In Proceedings of the Third International Conference on Emerging Security Technologies (Est), Washington, DC, USA, 5–7 September 2012; pp. 8–11. [Google Scholar] [CrossRef]
  8. Garcia-Perez, A.; Sallos, M.P.; Tiwasing, P. Dimensions of cybersecurity performance and crisis response in critical infrastructure organisations: An intellectual capital perspective. J. Intellect. Cap. 2021, in press. [Google Scholar] [CrossRef]
  9. Leonov, S.; Yarovenko, H.; Boiko, A.; Dotsenko, T. Information system for monitoring banking transactions related to money laundering. Pap. Presented CEUR Workshop Proc. 2019, 2422, 297–307. [Google Scholar] [CrossRef]
  10. Brychko, M.; Bilan, Y.; Lyeonov, S.; Mentel, G. Trust crisis in the financial sector and macroeconomic stability: A structural equation modelling approach. Econ. Res.-Ekon. Istraz. 2021, 34, 828–855. [Google Scholar] [CrossRef]
  11. Kwilinski, A. Implementation of blockchain technology in accounting sphere. Acad. Account. Financ. Stud. J. 2019, 23, 1–6. [Google Scholar]
  12. Batrancea, L.; Rathnaswamy, M.K.; Batrancea, I. A Panel Data Analysis on Determinants of Economic Growth in Seven Non-BCBS Countries. J. Knowl. Econ. 2021, 13, 1651–1665. [Google Scholar] [CrossRef]
  13. Njegovanović, A. Digital Financial Decision With A View Of Neuroplasticity / Neurofinancy / Neural Networks. Financ. Mark. Inst. Risks 2018, 2, 82–91. [Google Scholar] [CrossRef]
  14. Kuzmenko, O.; Šuleř, P.; Lyeonov, S.; Judrupa, I.; Boiko, A. Data mining and bifurcation analysis of the risk of money laundering with the involvement of financial institutions. J. Int. Stud. 2020, 13, 332–339. [Google Scholar] [CrossRef] [PubMed]
  15. Lopez, B.S.; Alcaide, A.V. Blockchain, AI and IoT to Improve Governance, Financial Management and Control of Crisis: Case Study COVID-19. SocioEcon. Chall. 2020, 4, 78–89. [Google Scholar] [CrossRef]
  16. Obeid, H.; Hillani, F.; Fakih, R.; Mozannar, K. Artificial Intelligence: Serving American Security and Chinese Ambitions. Financ. Mark. Inst. Risks 2020, 4, 42–52. [Google Scholar] [CrossRef]
  17. Tiutiunyk, I.V.; Zolkover, A.O.; Lyeonov, S.V.; Ryabushka, L.B. The impact of economic shadowing on social development: Challenges for macroeconomic stability. Nauk. Visnyk Natsionalnoho Hirnychoho Universytetu 2022, 1, 183–191. [Google Scholar] [CrossRef]
  18. Batrancea, L.; Rus, M.I.; Masca, E.S.; Morar, I.D. Fiscal Pressure as a Trigger of Financial Performance for the Energy Industry: An Empirical Investigation across a 16-Year Period. Energies 2021, 14, 3769. [Google Scholar] [CrossRef]
  19. Leonov, S.; Frolov, S.; Plastun, V. Potential of institutional investors and stock market development as an alternative to households’ savings allocation in banks. Econ. Ann. -XXI 2014, 11–12, 65–68. [Google Scholar]
  20. Hussain, M.; Papastathopoulos, A. Organizational readiness for digital financial innovation and financial resilience. Int. J. Prod. Econ. 2022, 243, 108326. [Google Scholar] [CrossRef]
  21. Skrynnyk, O. Literature Review on Social and Organizational Acceptance of Digital Transformation. Bus. Ethics Leadersh. 2021, 5, 110–117. [Google Scholar] [CrossRef]
  22. Didenko, I.; Paucz-Olszewska, J.; Lyeonov, S.; Ostrowska-Dankiewicz, A.; Ciekanowski, Z. Social safety and behavioral aspects of populations financial inclusion: A multicountry analysis. J. Int. Stud. 2020, 13, 347–359. [Google Scholar] [CrossRef] [PubMed]
  23. Skrynnyk, O. Analysis of Corporate Investment Behaviour in Digital Technologies for Organisational Development Purposes. Financ. Mark. Inst. Risks 2021, 5, 79–86. [Google Scholar] [CrossRef]
  24. Kirichenko, L.; Radivilova, T.; Anders, C. Detecting cyber threats through social network analysis: Short survey. SocioEcon. Chall. 2017, 1, 20–34. [Google Scholar] [CrossRef] [Green Version]
  25. Lyulyov, O.; Lyeonov, S.; Tiutiunyk, I.; Podgórska, J. The impact of tax gap on macroeconomic stability: Assessment using panel VEC approach. J. Int. Stud. 2021, 14, 139–152. [Google Scholar] [CrossRef] [PubMed]
  26. Bilan, Y.; Srovnalã-KovÃi, P.; Streimikis, J.; Lyeonov, S.; Tiutiunyk, I.; Humenna, Y. From shadow economy to lower carbon intensity: Theory and evidence. Int. J. Glob. Environ. Issues 2020, 19, 196–216. [Google Scholar] [CrossRef]
  27. Petroye, O.; Lyulyov, O.; Lytvynchuk, I.; Paida, Y.; Pakhomov, V. Effects of information security and innovations on Country’s image: Governance aspect. Int. J. Saf. Secur. Eng. 2020, 10, 459–466. [Google Scholar] [CrossRef]
  28. Wang, Q.; Chen, Y.; Guan, H.; Lyulyov, O.; Pimonenko, T. Technological innovation efficiency in China: Dynamic evaluation and driving factors. Sustainability 2022, 14, 8321. [Google Scholar] [CrossRef]
  29. Yarovenko, H.; Bilan, Y.; Lyeonov, S.; Mentel, G. Methodology for assessing the risk associated with information and knowledge loss management. J. Bus. Econ. Manag. 2021, 22, 369–387. [Google Scholar] [CrossRef]
  30. Tiutiunyk, I.; Drabek, J.; Antoniuk, N.; Navickas, V.; Rubanov, P. The impact of digital transformation on macroeconomic stability: Evidence from EU countries. J. Int. Stud. 2021, 14, 220–234. [Google Scholar] [CrossRef]
  31. Melnyk, L.; Matsenko, O.; Kubatko, O.; Korneyev, M.; Tulyakov, O. Additive economy and new horizons of innovative business development. Probl. Perspect. Manag. 2022, 20, 175–185. [Google Scholar] [CrossRef]
  32. Rekunenko, I.; Zhuravka, F.; Nebaba, N.; Levkovych, O.; Chorna, S. Assessment and forecasting of Ukraine’s financial security: Choice of alternatives. Probl. Perspect. Manag. 2022, 20, 117–134. [Google Scholar] [CrossRef]
  33. Barro, R.; Sala-i-Martin, X. Convergence Across States and Regions. Brook. Pap. Econ. Act. 1991, 1, 107–182. [Google Scholar] [CrossRef] [Green Version]
  34. Solow, R.M. A Contribution to the Theory of Economic Growth. Q. J. Econ. 1956, 70, 65–94. [Google Scholar] [CrossRef]
  35. Polyakov, M.; Bilozubenko, V.; Korneyev, M.; Shevchenko, G. Selection of parameters for multifactor model in the knowledge economy marketing (country level). Innov. Mark. 2019, 15, 89–99. [Google Scholar] [CrossRef]
  36. Djalilov, K.; Hölscher, J. Dynamics of Risk, Concentration, and Efficiency in Transition Economies. In Development and Financial Reform in Emerging Economies (Sceme Studies in Economic Methodology; Ruziev, K., Perdikis, N., Eds.; Pickering & Chatto: London, UK, 2015; pp. 99–107. [Google Scholar]
  37. Semenova, K.; Tarasova, K. Establishment of the new digital world and issues of cyber-risks management. Mark. Manag. Innov. 2017, 3, 236–244. [Google Scholar] [CrossRef] [Green Version]
  38. Roger Koenker, K.; Hallock, F. Quantile Regression. J. Econ. Perspect. 2001, 15, 143–156. [Google Scholar] [CrossRef]
  39. Digital Development Dashboard. Available online: https://www.itu.int/en/ITU-D/Statistics/Dashboards/Pages/Digital-Development.aspx (accessed on 13 January 2022).
  40. National Cyber Security Index. Available online: https://ncsi.ega.ee/ncsi-index/ (accessed on 15 January 2022).
  41. Doing Business: The World Bank. Available online: https://www.doingbusiness.org/en/data (accessed on 15 January 2022).
  42. Basel AML Index 2021: 10th Public Edition Ranking Money Laundering and Terrorist Financing Risks around the World. Available online: https://baselgovernance.org/sites/default/files/2021-09/Basel_AML_Index_2021_10th%20Edition.pdf (accessed on 19 January 2022).
  43. Percentage the Individuals Using the Internet. Available online: https://www.itu.int/en/ITU-D/Statistics/Pages/stat/default.aspx (accessed on 5 January 2022).
  44. Network Readiness Index 2021. Benchmarking the Future of the Network Economy. Available online: https://networkreadinessindex.org/ (accessed on 13 January 2022).
  45. Ukraine: NCSI. Available online: https://ncsi.ega.ee/country/ua/?pdfReport=1 (accessed on 21 January 2022).
  46. Kobushko, I.; Tiutiunyk, I.; Kobushko, I.; Starinskyi, M.; Zavalna, Z. The triadic approach to cash management: Communication, advocacy, and legal aspects. Estud. De Econ. Apl. 2021, 39, 3940–3943. [Google Scholar] [CrossRef]
  47. Methodology What’s behind the Basel AML Index? Available online: https://index.baselgovernance.org/methodology (accessed on 27 January 2022).
  48. Sun, J.C.; Cao, X.Y.; Liang, H.W.; Huang, W.R.; Chen, Z.; Li, Z.G. New Interpretations of Normalization Methods in Deep Learning. In Proceedings of the Thirty-fourth AAAI conference on artificial intelligence, the thirty-second innovative applications of artificial intelligence conference and the tenth AAAI symposium on educational advances in artificial intelligence, New York, NY, USA, 7–12 February 2020; pp. 5875–5882. [Google Scholar]
  49. Celen, A. Comparative Analysis of Normalization Procedures in TOPSIS Method: With an Application to Turkish Deposit Banking Market. Informatica 2014, 25, 185–208. [Google Scholar] [CrossRef] [Green Version]
  50. Chen, C.; Chen, R.; Sheu, M. A fast additive normalization method for exponential computation. In Proceedings of the Euromicro Symposium on Digital System Design, Belek-Antalya, Turkey, 1–6 September 2003; pp. 286–293. [Google Scholar]
  51. Us, H.; Malyarets, L.; Chudaieva, I.; Martynova, O. Multi-Criteria Optimization of the Balanced Scorecard for the Enterprise’s Activity Evaluation: Management Tool for Business-Innovations. Mark. Manag. Innov. 2018, 3, 48–58. [Google Scholar] [CrossRef] [Green Version]
  52. Xiao, W. Novel Online Algorithms for Nonparametric Correlations with Application to Analyze Sensor Data. In Proceedings of the IEEE International Conference on Big Data (Big Data), Los Angeles, CA, USA, 9–12 December 2019; pp. 404–412. [Google Scholar] [CrossRef]
  53. Statgraphics 19 Centurion. Available online: https://www.statgraphics.com/ (accessed on 27 January 2022).
  54. Bartels, R. The rank von Neumann test as a test for autocorrelation in regression models. Commun. Stat.–Theory Methods 2007, 13, 2495–2502. [Google Scholar] [CrossRef]
  55. Khanin, I.; Shevchenko, G.; Bilozubenko, V.; Korneyev, M. A cognitive model for managing the national innovation system parameters based on international comparisons (the case of the EU countries). Probl. Perspect. Manag. 2019, 17, 153–162. [Google Scholar] [CrossRef] [Green Version]
  56. Rode, D.; Stammen-Hegener, C. Digital Technologies Within the DIY Store: A Systematic Literature Review. Bus. Ethics Leadersh. 2022, 6, 116–126. [Google Scholar] [CrossRef]
  57. Koenker, R. Quantile Regression; Cambridge University Press: Cambridge, UK, 2005; p. 146. [Google Scholar]
  58. Djalilov, K. Business Constraints in Low Income Transition Countries of Central Asia. In Palgrave Dictionary of Emerging Markets and Transition Economics; Hölscher, J., Tomann, H., Eds.; Palgrave Macmillan: London, UK, 2015. [Google Scholar] [CrossRef]
  59. An Easy Guide to Gradient Descent in Machine Learning: Great Learning. Available online: https://www.mygreatlearning.com/blog/gradient-descent/#sh1 (accessed on 5 February 2022).
  60. Rosenblatt, M. Remarks on Some Nonparametric Estimates of a Density Function. Ann. Math. Stat. 1956, 27, 832–837. [Google Scholar] [CrossRef]
  61. Sagu, A.; Gill, N.; Gulia, P.; Jyotir, M.; Chatterjee Priyadarshini, I. A Hybrid Deep Learning Model with Self-Improved Optimization Algorithm for Detection of Security Attacks in IoT Environment. Future Internet 2022, 14, 301. [Google Scholar] [CrossRef]
  62. Lopez, J.; Sanz, M. Improving Kernel Methods for Density Estimation in Random Differential Equations Problems. Math. Comput. Appl. 2020, 25, 33. [Google Scholar] [CrossRef]
  63. Rymarczuk, J. The Change in the Traditional Paradigm of Production under the Influence of Industrial Revolution 4.0. Businesses 2022, 2, 188–200. [Google Scholar] [CrossRef]
  64. Javed, J.; Al Qahtani, E.; Shehab, M. Privacy Policy Analysis of Banks and Mobile Money Services in the Middle East. Future Internet 2021, 13, 10. [Google Scholar] [CrossRef]
  65. Ahsan, M.; Nygard, K.E.; Gomes, R.; Chowdhury, M.M.; Rifat, N.; Connolly, J.F. Cybersecurity Threats and Their Mitigation Approaches Using Machine Learning—A Review. J. Cybersecur. Priv. 2022, 2, 527–555. [Google Scholar] [CrossRef]
  66. Alshaibi, A.; Al-Ani, M.; Al-Azzawi, A.; Konev, A.; Shelupanov, A. The Comparison of Cybersecurity Datasets. Data 2022, 7, 22. [Google Scholar] [CrossRef]
  67. Khader, M.; Karam, M.; Fares, H. Cybersecurity Awareness Framework for Academia. Information 2021, 12, 417. [Google Scholar] [CrossRef]
  68. Northern, B.; Burks, T.; Hatcher, M.; Rogers, M.; Ulybushev, D. VERCASM-CPS: Vulnerability Analysis and Cyber Risk Assessment for Cyber-Physical Systems. Information 2021, 12, 408. [Google Scholar] [CrossRef]
  69. Alzahrani, L.; Kavita Panwar, S. The Impact of Organizational Practices on the Information Security Management Performance. Information 2021, 12, 398. [Google Scholar] [CrossRef]
  70. Mishra, A.; Alzoubi, Y.I.; Gill, A.Q.; Anwar, M.J. Cybersecurity Enterprises Policies: A Comparative Study. Sensors 2022, 22, 538. [Google Scholar] [CrossRef] [PubMed]
  71. Raimundo, R.J.; Rosário, A.T. Cybersecurity in the Internet of Things in Industrial Management. Appl. Sci. 2022, 12, 1598. [Google Scholar] [CrossRef]
  72. Liu, K.; Wang, F.; Ding, Z.; Liang, S.; Yu, Z.; Zhou, Y. Recent Progress of Using Knowledge Graph for Cybersecurity. Electronics 2022, 11, 2287. [Google Scholar] [CrossRef]
  73. D’Adamo, I.; González-Sánchez, R.; Medina-Salgado, M.S.; Settembre-Blundo, D. E-Commerce Calls for Cyber-Security and Sustainability: How European Citizens Look for a Trusted Online Environment. Sustainability 2021, 13, 6752. [Google Scholar] [CrossRef]
  74. D’Adamo, I.; González-Sánchez, R.; Medina-Salgado, M.S.; Settembre-blundo, D. Methodological perspective for assessing european consumers’ awareness of cybersecurity and sustainability in e-commerce. Sustainability 2021, 13, 11343. [Google Scholar] [CrossRef]
  75. Herath, T.B.G.; Khanna, P.; Ahmed, M. Cybersecurity Practices for Social Media Users: A Systematic Literature Review. J. Cybersecur. Priv. 2022, 2, 1–18. [Google Scholar] [CrossRef]
Figure 1. Bibliographic analysis by keywords of publishing activity in terms of research “digital development level and cybersecurity”. Source: built by the authors using ScientoPy software tools based on a sample of Scopus database publications.
Figure 1. Bibliographic analysis by keywords of publishing activity in terms of research “digital development level and cybersecurity”. Source: built by the authors using ScientoPy software tools based on a sample of Scopus database publications.
Joitmc 08 00195 g001
Figure 2. Calculation of paper statistics. Source: developed by the authors using ScientoPy and Python software tools based on a sample of Scopus database publications.
Figure 2. Calculation of paper statistics. Source: developed by the authors using ScientoPy and Python software tools based on a sample of Scopus database publications.
Joitmc 08 00195 g002
Figure 3. Bibliographic analysis of quantile regression use. Source: developed by the authors using VOSviewer tools.
Figure 3. Bibliographic analysis of quantile regression use. Source: developed by the authors using VOSviewer tools.
Joitmc 08 00195 g003
Figure 4. Dynamics of the coefficient of variation. Source: developed by the authors.
Figure 4. Dynamics of the coefficient of variation. Source: developed by the authors.
Joitmc 08 00195 g004
Figure 5. Ukraine: NCSI fulfillment percentages.
Figure 5. Ukraine: NCSI fulfillment percentages.
Joitmc 08 00195 g005
Table 1. Numerical characteristics of digital development level, national cybersecurity, ease of doing business, and AML efficiency.
Table 1. Numerical characteristics of digital development level, national cybersecurity, ease of doing business, and AML efficiency.
Numerical
Characteristic
Values of Numerical Characteristics
DDLNCSITINYSEESBasel AML Index
Count104104104104104
Average54.875652.847175.884669.3265.25731
Median56.453.2579.971.35.065
5% trimmed mean55.466652.902576.59169.79535.22462
5% Winsorized mean55.291952.872276.176969.55585.23865
Variance342.765579.173244.579112.981.51524
Standard deviation18.513924.06615.63910.62921.23095
Coeff. of variation,%33.73845.53920.60915.332223.4141
Gini coefficient0.1928630.2636780.1152130.08665070.132998
Standard error1.815442.359871.533531.042280.120704
5% Winsorized sigma19.225226.171316.209610.89411.24947
Mean absolute deviation15.3610.4639340.18290.1326820.191382
MAD13.4518.198.958.30.815
Sbi18.943225.144715.710210.77241.25407
Minimum010.3933.840.72.68
Maximum84.1796.1100.086.88.49
Range84.1785.7166.246.15.81
Lower quartile42.02534.41564.661.154.47
Upper quartile68.4771.4387.177.356.06
Interquartile range26.44537.01522.516.21.59
1/6 sextile34.5625.9758.659.13.98
5/6 sextile76.2379.2289.279.76.5
Intersextile range41.6753.2530.620.62.52
Skewness−0.391986−0.0484368−0.718956−0.6118120.370877
Stnd. skewness−1.63197−0.201659−2.99325−2.547181.54408
Kurtosis−0.433026−1.05311−0.126493−0.296931−0.244463
Stnd. kurtosis−0.901416−2.19222−0.263317−0.618111−0.50889
Sum5707.065496.17892.07209.9546.76
Sum of squares348,483350,108624,073511,4703030.55
Source: developed by the authors.
Table 2. Indicators of infrastructure, access, enablers, and barriers of digital development.
Table 2. Indicators of infrastructure, access, enablers, and barriers of digital development.
Indicator/CountryPolandUkraineGermanyCyprus
Network Coverage100%100%100%100%
Population covered by at least a 3G mobile network100%89%98%100%
Population covered by at least a 4G mobile network100%87%100%100%
ICT access at home (households with a computer at home)90%66%92%93%
Active mobile-broadband subscriptions per 100 inhabitants1978991118
Fixed broadband subscriptions per 100 inhabitants22194337
Fixed broadband (% of total): 256 kbit/s–<2 Mbit/s0%1%0%0%
Fixed broadband (% of total): 2 to 10 Mbit/s9%4%5%2%
Fixed broadband (% of total): >10 Mbit/s79%94%93%97%
Total fixed broadband subscriptions8,212,6017,769,40136,040,739332,080
Mobile data and voice basket (high consumption) as a % GNI p.c.0.9%1.8%0.9%1.4%
Mobile data and voice basket (low consumption) as a % GNI p.c.0.8%1.6%0.9%0.9%
Fixed broadband basket as a % GNI p.c.1.3%1.6%1.0%0.9%
Mobile fixed broadband basket as a % GNI p.c.0.2%1.5%0.4%0.9%
Individuals with advanced skills5%1%5%4%
Source: developed by the authors based on [43].
Table 3. General cybersecurity indicators (category 1).
Table 3. General cybersecurity indicators (category 1).
FactorCybersecurity Policy DevelopmentCyber Threat Analysis and InformationEducation and Professional DevelopmentContribution to Global Cybersecurity
IndicatorCybersecurity policy unitCyber threat analysis unitCyber safety competencies in primary or secondary educationConvention on cybercrime
IndicatorCybersecurity policy coordination formatPublic cyber threat reports are published annuallyBachelor’s level cybersecurity programRepresentation in international cooperation formats
IndicatorCybersecurity strategyCyber safety and security websiteMaster’s level cybersecurity programInternational cybersecurity organization hosted by the country
IndicatorCybersecurity strategy implementation plan PhD level cybersecurity programCybersecurity capacity building for other countries
Indicator Cybersecurity professional association
Source: developed by the authors based on [40].
Table 4. Baseline cybersecurity indicators (category 2).
Table 4. Baseline cybersecurity indicators (category 2).
FactorProtection of Digital ServicesProtection of Essential ServicesE-Identification and Trust ServicesProtection of Personal Data
IndicatorCybersecurity responsibility for digital service providersOperators of essential services are identifiedUnique persistent identifierPersonal data protection legislation
IndicatorCybersecurity standard for the public sectorCybersecurity requirements for operators of essential servicesRequirements for cryptosystemsPersonal data protection authority
IndicatorCompetent supervisory authorityCompetent supervisory authorityElectronic identification
Indicator Regular monitoring of security measuresElectronic signature
Indicator Timestamping
Indicator Electronic registered delivery service
Indicator Competent supervisory authority
Source: developed by the authors based on [40].
Table 5. Incident and crisis management indicators (category 3).
Table 5. Incident and crisis management indicators (category 3).
FactorCyber Incident ResponseCyber Crisis ManagementFight Against CybercrimeMilitary Cyber Operations
IndicatorCyber incident response unitCyber crisis management planCybercrimes are criminalizedCyber operations unit
IndicatorReporting responsibilityNational-level cyber crisis management exerciseCybercrime unitCyber operations exercise
IndicatorSingle point of contact for international coordinationParticipation in international cyber crisis exercisesDigital forensics unitParticipation in international cyber exercises
Indicator Operational support of volunteers in cyber crises24/7 contact point for international cybercrime
Source: developed by the authors based on [40].
Table 6. The values of parameters qi and pi for standardization of initial indicators.
Table 6. The values of parameters qi and pi for standardization of initial indicators.
ParameterDDLNCSITINYSEESBasel AML Index
q i = max i x i j 84.1796.110086.88.49
p i = m e d x i j 56.453.2579.971.35.065
Source: calculated by the authors.
Table 7. Spearman rank correlations.
Table 7. Spearman rank correlations.
IndicatorNCSIDDLTINYSEESBasel AML Index
NCSI 0.74810.50810.6487−0.5715
p-Value 0.00000.00000.00000.0000
DDL0.7481 0.66450.8313−0.6433
p-Value0.0000 0.00000.00000.0000
TINY0.50810.6645 0.7120−0.3782
p-Value0.00000.0000 0.00000.0001
SEES0.64870.83130.7120 −0.4965
p-Value0.00000.00000.0000 0.0000
Basel AML Index−0.5715−0.6433−0.3782−0.4965
p-Value0.00000.00000.00010.0000
Source: calculated by the authors using Statgraphics 19 software [53].
Table 8. Analysis of variance.
Table 8. Analysis of variance.
SourceSum of SquaresDfMean SquareF-Ratiop-Value
Model8.7765832.92553134.040.0000
Residual2.182641000.0218264
Total (Corr.)10.9592103
Source: calculated by the authors using Statgraphics 19 software [53].
Table 9. Statistic features of model parameters (9).
Table 9. Statistic features of model parameters (9).
ParameterEstimateStandard ErrorT Statisticp-Value
Constant0.2494460.06701853.722050.0003
NCSI0.3000220.06705014.474590.0000
SEES0.5511390.06100399.034490.0000
Basel AML Index−0.3196720.0810828−3.942540.0001
Source: calculated by the authors using Statgraphics 19 software [53].
Table 10. Results of VIF test.
Table 10. Results of VIF test.
Regression Statistics
Multiple R0.4314
R-Squared0.6705
Adjusted R0.3871
Standard Error0.14737253
Observations104
CoefficientsStandard errort-Statp-valueLower 95%Upper 95%Lower 95.0%Upper 95.0%VIFR-squared
Intercept−0.03940.0314−1.25580.2121−0.10160.0228−0.10160.0228
NCSI0.29870.06694.46540.00000.16600.43140.16600.43141.98610.4965
SEES0.54970.06099.02550.00000.42880.67050.42880.67051.81610.4494
Basel AML Index0.25910.06454.01350.00010.13100.38710.13100.38711.50450.3353
Source: calculated by the authors.
Table 11. Intermediate calculations.
Table 11. Intermediate calculations.
IndicatorResultFormula of CalculationLocation in Cell of Excel Sheet
Total loss5.5557Formula (11)
Quantile0.5 B8
n (sample size)104=COUNT(C21:C124)B9
h (bandwidth)4.22%=0.9 × MIN(B12;B13) × B9^(−1/5)B10
Error quantile0.00%=PERCENTILE.XLC(H21:H124;B8)B11
Standard deviation16%=STDEV.S(C21:C124)B12
IQR/1.3412%=(PERCENTILE.XLC(H21:H124;0.75) − PERCENTILE.XLC(H21:H124;0.25))/1.34B13
Kernel density3.65=SUM(J21:J124)/(B9 × B10)B14
Source: calculated by the authors.
Table 12. Covariance matrix.
Table 12. Covariance matrix.
CovarianceConstantNCSISEES
Constant0.0007−0.0007−0.0004
NCSI−0.00070.0034−0.0021
SEES−0.0004−0.00210.0031
Source: calculated by the authors.
Table 13. Verification of the statistical significance of the model (13).
Table 13. Verification of the statistical significance of the model (13).
ConstantNCSISEES
Coefficient−0.013090.344424340.710076991
Standard error0.0267430.0582078570.055426417
t-stat−0.489365.9171451712.81116536
p-value62.57%0.00%0.00%
Source: calculated by the authors.
Table 14. Equation of quantile regressions regarding the impact of national cybersecurity indicators and ease of doing business on a country’s digital development.
Table 14. Equation of quantile regressions regarding the impact of national cybersecurity indicators and ease of doing business on a country’s digital development.
ConstantNCSISEES
(1) Quantile 0.5
DDL−0.01310.34440.7100
p-value62.57%0.00%0.00%
(2) Quantile 0.9
DDL0.264030.37070.4711
p-value0.00%0.01%0.00%
(3) Quantile 0.1
DDL−0.07220.19520.6433
p-value4.95%1.66%0.00%
Source: calculated by the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kuzior, A.; Vasylieva, T.; Kuzmenko, O.; Koibichuk, V.; Brożek, P. Global Digital Convergence: Impact of Cybersecurity, Business Transparency, Economic Transformation, and AML Efficiency. J. Open Innov. Technol. Mark. Complex. 2022, 8, 195. https://doi.org/10.3390/joitmc8040195

AMA Style

Kuzior A, Vasylieva T, Kuzmenko O, Koibichuk V, Brożek P. Global Digital Convergence: Impact of Cybersecurity, Business Transparency, Economic Transformation, and AML Efficiency. Journal of Open Innovation: Technology, Market, and Complexity. 2022; 8(4):195. https://doi.org/10.3390/joitmc8040195

Chicago/Turabian Style

Kuzior, Aleksandra, Tetiana Vasylieva, Olha Kuzmenko, Vitaliia Koibichuk, and Paulina Brożek. 2022. "Global Digital Convergence: Impact of Cybersecurity, Business Transparency, Economic Transformation, and AML Efficiency" Journal of Open Innovation: Technology, Market, and Complexity 8, no. 4: 195. https://doi.org/10.3390/joitmc8040195

APA Style

Kuzior, A., Vasylieva, T., Kuzmenko, O., Koibichuk, V., & Brożek, P. (2022). Global Digital Convergence: Impact of Cybersecurity, Business Transparency, Economic Transformation, and AML Efficiency. Journal of Open Innovation: Technology, Market, and Complexity, 8(4), 195. https://doi.org/10.3390/joitmc8040195

Article Metrics

Back to TopTop
