Review

3D Scanning/Printing: A Technological Stride in Sculpture

by
G.-Fivos Sargentis
1,*,
Evangelia Frangedaki
2,
Michalis Chiotinis
1,
Demetris Koutsoyiannis
1,
Stephanos Camarinopoulos
3,
Alexios Camarinopoulos
3 and
Nikos D. Lagaros
4
1
Laboratory of Hydrology and Water Resources Development, School of Civil Engineering, National Technical University of Athens, Heroon Polytechneiou 9, 157 80 Zographou, Greece
2
Department III, Architectural Language, Communication and Design, School of Architecture, National Technical University of Athens, Heroon Polytechneiou 9, 157 80 Zographou, Greece
3
RISA Sicherheitsanalysen GmbH, Xantener Straße 11, 10707 Berlin, Germany
4
Institute of Structural Analysis and Antiseismic Research, School of Civil Engineering, National Technical University of Athens, Heroon Polytechneiou 9, 157 80 Zographou, Greece
*
Author to whom correspondence should be addressed.
Technologies 2022, 10(1), 9; https://doi.org/10.3390/technologies10010009
Submission received: 21 December 2021 / Revised: 6 January 2022 / Accepted: 10 January 2022 / Published: 14 January 2022
(This article belongs to the Section Manufacturing Technology)
Browse Figures
Versions Notes

Abstract

:
The creation of innovative tools, objects and artifacts that introduce abstract ideas in the real world is a necessary step for the evolution process and characterize the creative capacity of civilization. Sculpture is based on the available technology for its creation process and is strongly related to the level of technological sophistication of each era. This paper analyzes the evolution of basic sculpture techniques (carving, lost-wax casting and 3D scanning/printing), and their importance as a culture footprint. It also presents and evaluates the added creative capacities of each technological step and the different methods of 3D scanning/printing concerning sculpture. It is also an attempt to define the term “material poetics”, which is connected to sculpture artifacts. We conclude that 3D scanning/printing is an important sign of civilization, although artifacts lose a part of material poetics with additive manufacturing. Subsequently, there are various causes of the destruction of sculptures, leaving a hole in the history of art. Finally, this paper showcases the importance of 3D scanning/printing in salvaging cultural heritage, as it has radically altered the way we “backup” objects.

Graphical Abstract

1. Introduction

Strides of civilization are connected to technological issues, which have improved the quality of life [1,2], such as the installation of hydraulic works (hydraulic civilization [3]); architectural creations [4]; great technological inventions, which have changed history (e.g., the evolution of wheels [5]); a combination of technological issues, which has created a remarkable duration of social stability (e.g., Minoan civilization 3000–1100 BC [6,7,8]); and admirable technological creations, such as the Mechanism of Antikythera [9]. However, civilizations are generally characterized by their artistic creations.
The question is why do we have to study art issues? Friedrich Nietzsche (1844–1900) notes that: “The ugly truth is: we have art so that we go not to the underlying truth” [10]. Perhaps what is “true” for an artist is different to the truths of a philosopher or a scientist and represents the spirit of the civilization.
Sculpture is developed by a unique combination of art and technology. Sculpture is a constructive art, and it is dependent on the technological knowledge of each era. In ancient Greece, sculpture was not an “art” but a “technique”. Since sculpture needs heavy manual work and muscular power, sculptors were considered as the slaves of art [11]. It is important to note that learning the art of painting was forbidden to slaves in Classical Greece as painting was allowed to noble spirits, contrary to sculpture [12]. Leonardo da Vinci (1452–1519) had the same perception as he considered that sculpture does not require as much intelligence and causes physical tiredness [13].
However, there is another important characteristic of sculpture. A statue is a prototype. The capacity for the creation of prototypes gives civilization the opportunity to go beyond theory as gives form to abstract ideas in the real world. This creative ability becomes clear if we consider how easy and cheap it is to construct prototypes today [14,15].

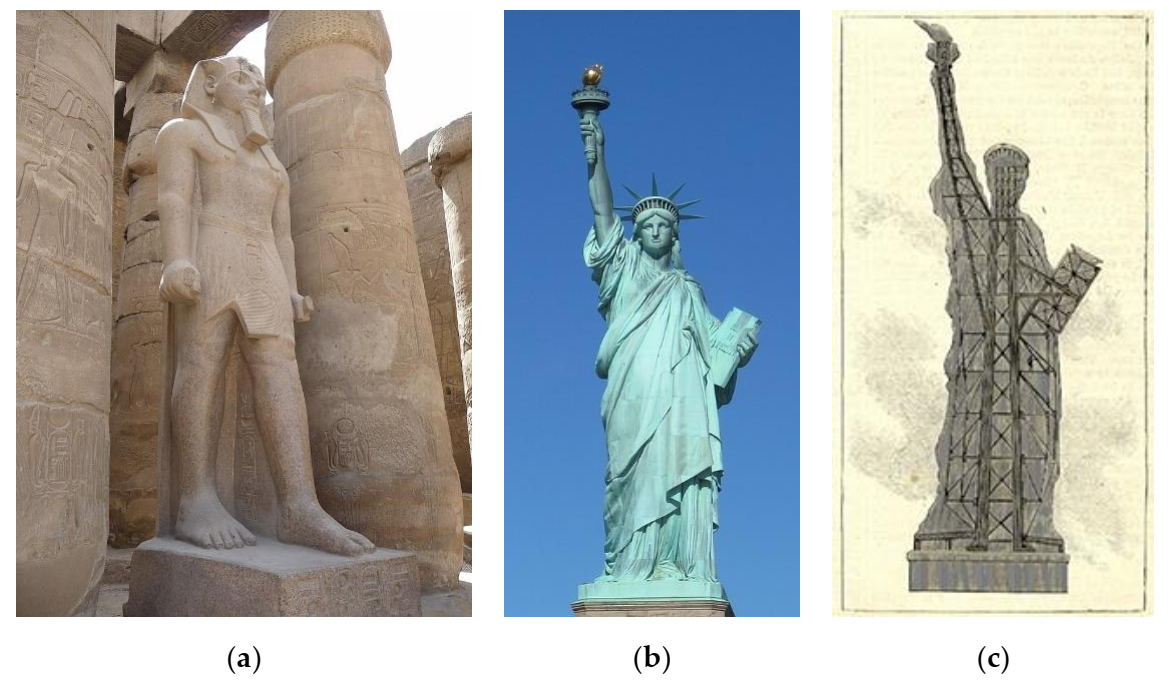

Many technological innovations have been made for the creation of big statues, as monumental statues in public space are unique, and each construction demands a different engineering approach. One admirable creation in antiquity, between other colossal statues, is the statue of Ramses II in the first peristyle court at Luxor (1400 BC) (Figure 1a), and in modern times, the Statue of Liberty, designed by French sculptor Frédéric Auguste Bartholdi (Figure 1b). The metal framework of the Statue of Liberty was designed by Gustave Eiffel (Figure 1c). Other impressive huge statues are Six Grandfathers (Mount Rushmore) [16], The Motherland Calls (Mamayev Kurgan in Volgograd, Russia) [17], the Statue of Unity (Narmada District, Gujarat, India) [18] and many more. These paradigms are remarkable and unique technological achievements.
These creations are high-cost, large-scale projects, using many resources (manual work and materials). Therefore, these objects contain important information concerning cultural heritage, as sculptures in public places must be socially accepted, and technological developments, such as specialized technological innovations, have been used to create them.
This paper analyzes basic sculpturing techniques, e.g., carving and lost-wax casting, and their importance as a mark of civilization. Subsequently, it describes the passage and the importance of 3D scanning/printing and emphasizes 3D scanning/printing as an important technological stride. Furthermore, this paper evaluates the added creative capacity of each technological phase.
Three-dimensional scanning/printing is a completely new technique, leaving behind the last innovation in sculpture (lost-wax casting), which was introduced in Classical Greece. This paper presents the dynamic of research in 3D scanning/printing, and shows the importance of prototype creation. It also presents and evaluates the different 3D scanning/printing methods concerning sculpture. However, as 3D printing puts an additional stage (3D manufacturing) between the artist and the observer, we note a disadvantage in this process for sculpture, as material poetics are lost.
Subsequently, various reasons are presented, which lead to the destruction of sculptures, leaving a hole in the history of art, and the importance of 3D scanning/printing is presented for the preservation of art through replicas, providing important opportunities to conserve cultural heritage.

2. The Three Historical Steps in Sculpture Techniques

Since prehistory, humans have tried to find and represent the shapes of nature. This ability separates humans from other creatures, as art is a method of communication between a creator and an observer. Creators and observers have a three-fold obligation:
  • Knowledge of the prototype;
  • Profound conception of the representation;
  • Evaluation of the representation.
Generally, sculptors do not make the statue directly in the final material. First, they make the model by wax or clay, and then prepare the model in its final material. As artists have often been known disobedient to the rules or processes, there are many exceptions. In this chapter, we distinguish two common methods for the creation of statues, carving and lost-wax casting, and show the shift towards 3D scanning/printing.

2.1. Carving Method

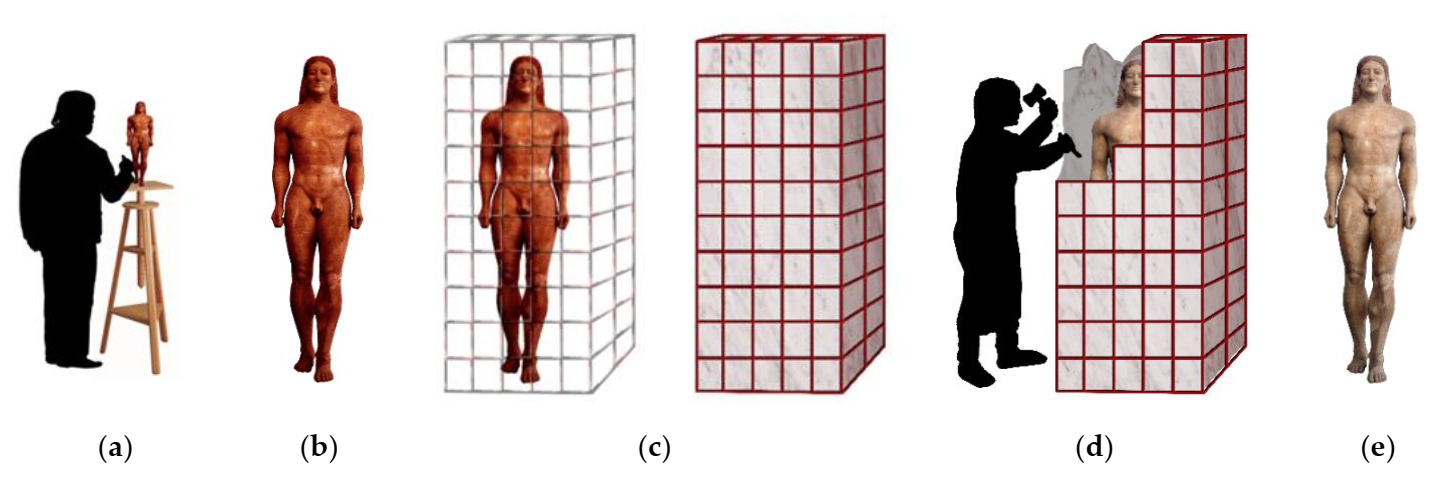

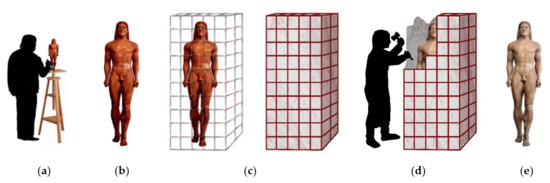

Figure 2 shows the basic steps of the carving method. The artist makes the model from clay or wax, and after its study, it is made it to the scale the artist wants. After this process, a craftsman finds the 3D coordinates of the artifact and carves the material.

2.2. Lost-Wax Casting Method

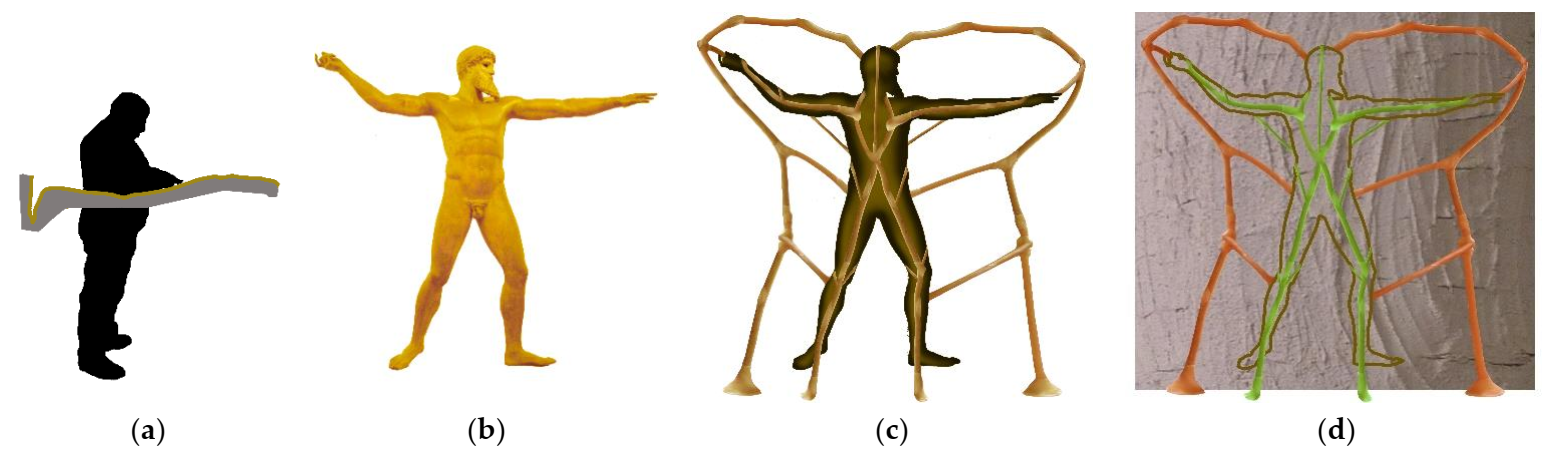

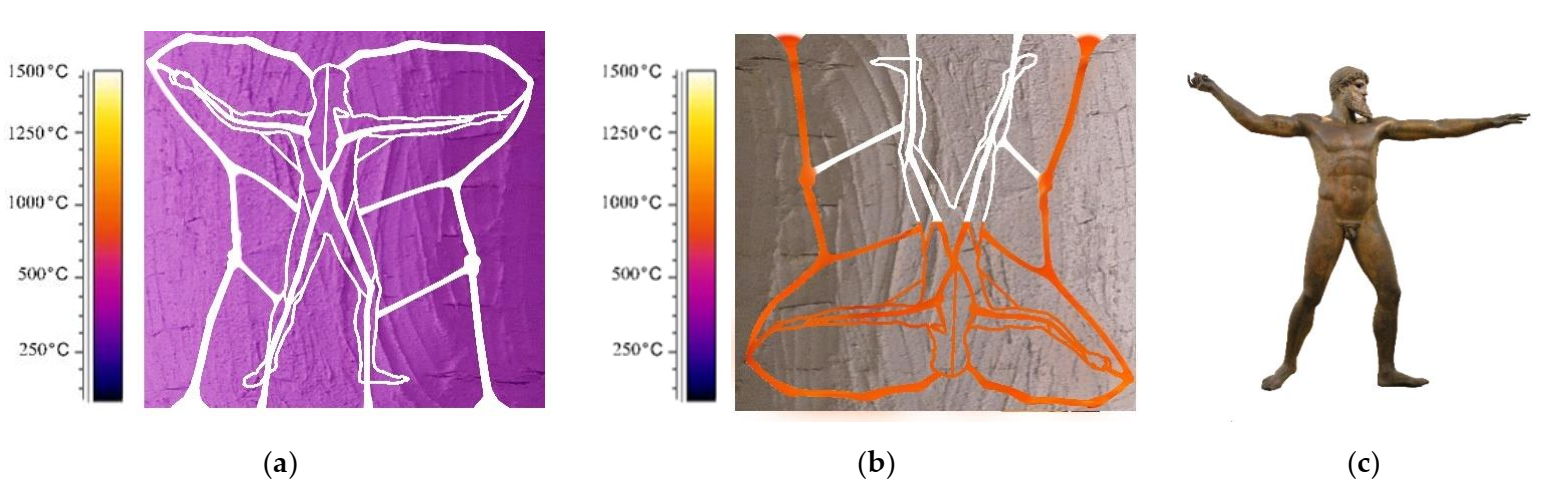

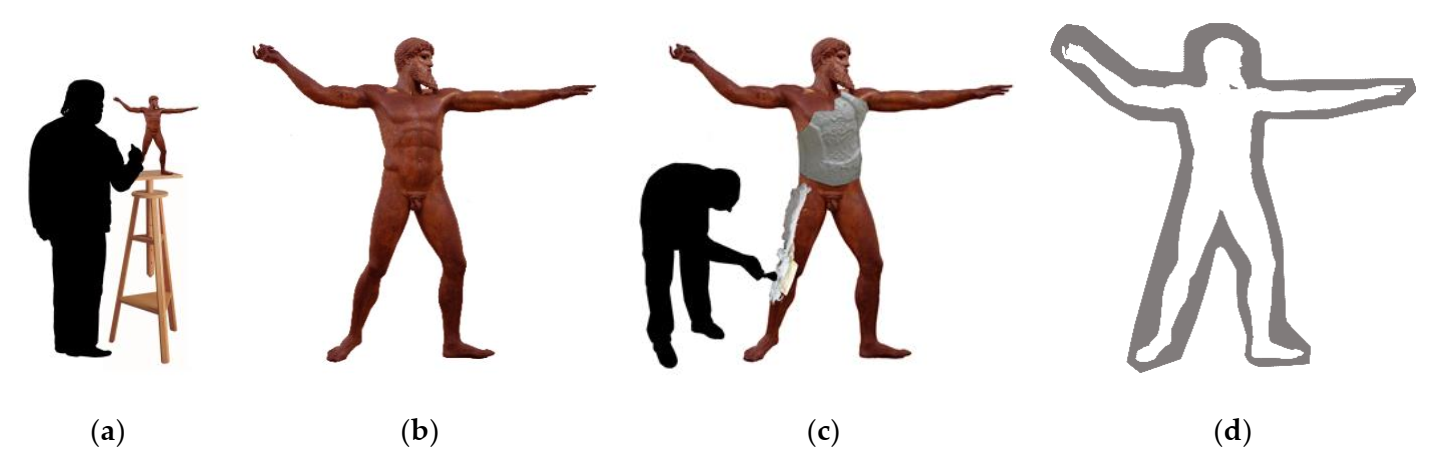

Figure 3, Figure 4 and Figure 5 show the lost-wax casting method. The artist makes the model from clay or wax, and after his study, he creates it to the preferred scale (Figure 3a,b). For the next step in this process, a craftsman creates the mold of the sculpture (Figure 3c,d). Subsequently, the craftsman presses wax (7–10 mm) into the mold to make a shell of the same statue in wax (Figure 4a,b). Then, the craftsman installs a network of wax tubes (Figure 4c) that will be the pathways of the outgoing melted wax and metal to fill the empty space without trapping air inside it. In this example, the wax tubes are placed inside the body to lead the wax out, and wax tubes outside the body to lead the metal in (Figure 4c). Normally, both networks are inside the body for a life-size statue.
After that, the craftsmen enclose the wax model in a fire-resistant ceramic mortar (Figure 4d). The mortar is heated to 250–350 °C for 3–15 days (depending on the size of statue), and the wax is melted out (Figure 5a). Metal is casted into the mortar to fill the empty spaces (Figure 5b). The final artifact is finished after the removal of the metal tubes (Figure 5c).
The sculptures in prehistory were figures carved out of stone or other materials. Humanity passed through the copper age and the iron age, but until Classical Greece, the carving technique was the basic method, especially for large-scale sculptures.
The lost-wax casting method was a great technological step for the creation of large-scale statues [21,22]. Pausanias (8.14.8) noted that: «διέχεαν δὲ χαλκὸν πρῶτοι καὶ ἀγάλματα ἐχωνεύσαντο Ῥοῖκός τε Φιλαίου καὶ Θεόδωρος Τηλεκλέους Σάμιοι.» [23] “The first men who melt bronze and cast bronze sculptures were the Samians Rhoecus the son of Philaeus and Theodorus the son of Telecles” in the second part of 6th century BC in the era of the tyrant Polycrates of Samos. A unique illustration of an ancient Greek foundry is depicted on the Berlin Foundry Cup, a Sixth Century BC vase. It portrays the process of creating two large statues at different states of manufacturing [24].

2.3. The Benefits of Lost-Wax Casting

The goal of the lost-wax casting method was that the design was freed from the given material’s constraints. Bronze statues created by the lost-wax casting method are not solid, but they are shells of bronze of 7–10 mm in width and are significant lighter. If we consider a marble cube with an edge of 1 m3, its weight will be 2.64 tons. If we considered the same cube made with lost-wax casting (i.e., 1 cm shell width), its weight would be about 523 kg. If it was a solid bronze object, its weight would be 8.73 tons.
Although every statue is different, the distribution of volumes is stochastic, and the width of the bronze shell in the lost-wax casting process is dependent on the craftsmen who made it; Figure 6 shows the weight of cubes with different edges if they were made using marble, solid bronze or bronze with the lost-wax casting process and the weight ratio between different techniques (4 cube faces).

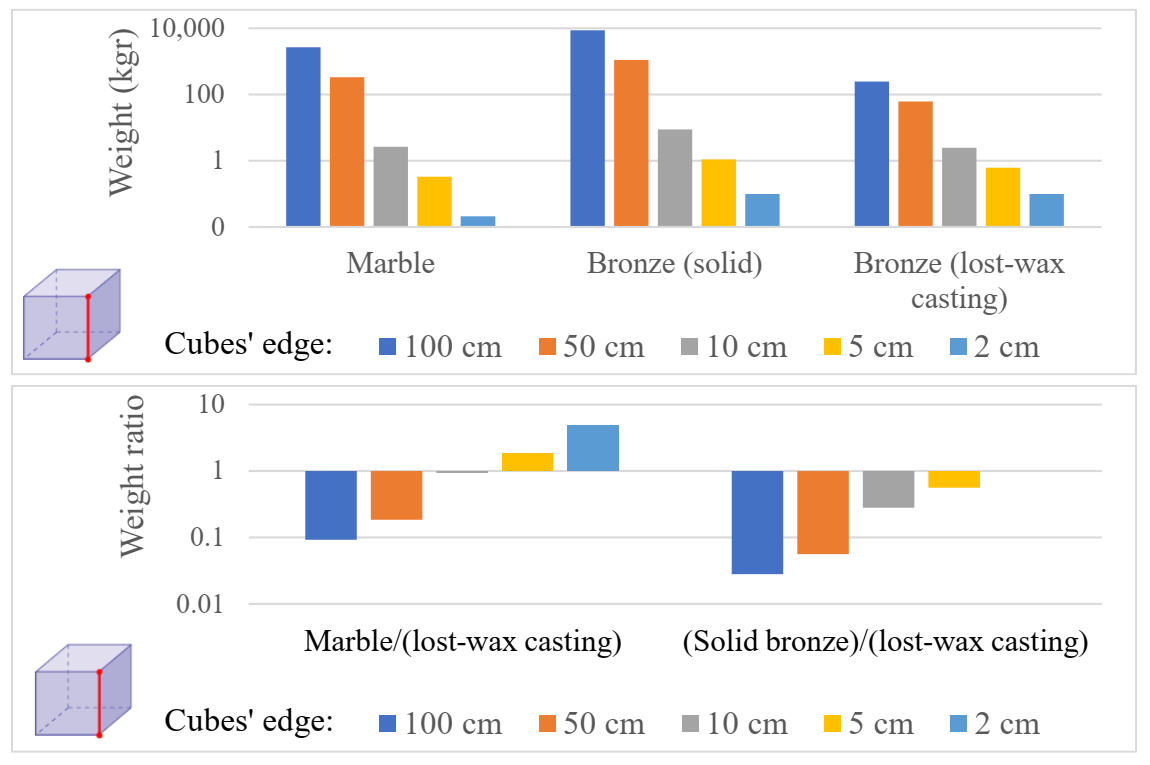

With lost-wax casting, artists could create free forms of large-scale sculptures, with intense movement [25] (Figure 7).
It is important to note that for the use of lost-wax casting, knowledge of foundry (technique, geometry and fluid mechanics of molten metal) and the ability to melt a large amount of metal (about 150 kg of metal for a life-size figure) at 950 °C (melting point of bronze) are necessary [26].
Roman sculptors preferred the carving of marble [29], instead of creating bronze sculptures by the lost-wax casting method as it was simpler and probably cheaper. However, lost-wax casting was used in small-scale artifacts [30].
In the Early Medieval Period, when Christianity prevailed, the creation of large sculptures was not encouraged, as sculptures represented a paganist culture; therefore, until the Late Medieval Period, the lost-wax casting method was forgotten.
Sculpture came back during the Renaissance and the lost-wax casting method was recovered possibly by Leonardo Da Vinci (1452–1519) for small-scale statues [31]. The emblematic artwork, which signaled the return of the lost-wax casting method, was “Perseus with the Head of Medusa” (1545–1554), by Benvenuto Cellini (1500–1571), who studied the writings of Pliny the Elder [32,33,34,35].
It is important to note that the lost-wax casting method uses the same principles as those used to date (with updated materials: synthetic wax, rubbers, etc.). It is a very complicated method, which requires knowledge of materials, metallurgy, geometry and fluid dynamics; it can also be used as a footprint for understanding each society’s technological level. Indicatively, during the Dark Ages in Europe, the lost-wax technique had been forgotten.

2.4. 3D Scanning and 3D Printing

After the lost-wax method, the next step of the evolution of sculpture techniques was the use of synthetic materials in sculpture (e.g., rubbers and resins), which formulated interesting realistic large-scale sculptures [36]. However, the big step was the combination of 3D scanning and 3D printing [37] in the creation process, which provided a new tool for the production of prototypes in multiple scales [38].
Additive manufacturing (AM) is the process of building a physical object using modeling data [39]. An object is digitized (today with 3D scanning) and recomposed by a machine (today with 3D printing). Marquardt and Zheng [40] highlight that the first steps of 3D scanning/printings came from the field of sculpture:
The early roots of 3D printing lie in photo-sculpture and topography [41]. In 1860, French artist François Willème patented a photo-sculpturing method. In this process, the subject is placed in a circular room and photographed simultaneously by 24 cameras equally spaced around the room. Willème then traced the 24 profiles using a cutter attached to a pantograph. Tracing the profile’s shape would simultaneously cut the wood. He assembled these layers of wood to create a photo-sculpture.
The next step in 3D scanning was the integration of digital technology, which began during the 1960s [42], but an increasing trend of “3D scanning” can be found in papers and articles after the 1990s when computers started to become much more powerful (Figure 8 and Figure 9). The first 3D scanning of large statues can be found in the report of “The Digital Michelangelo Project: 3D Scanning of Large Statues” by the University of Stanford, in 2000 [43]. Digital 3D printing started in 1984 [44,45], but the systematic research is more recent and began around 2010 (Figure 8 and Figure 9).

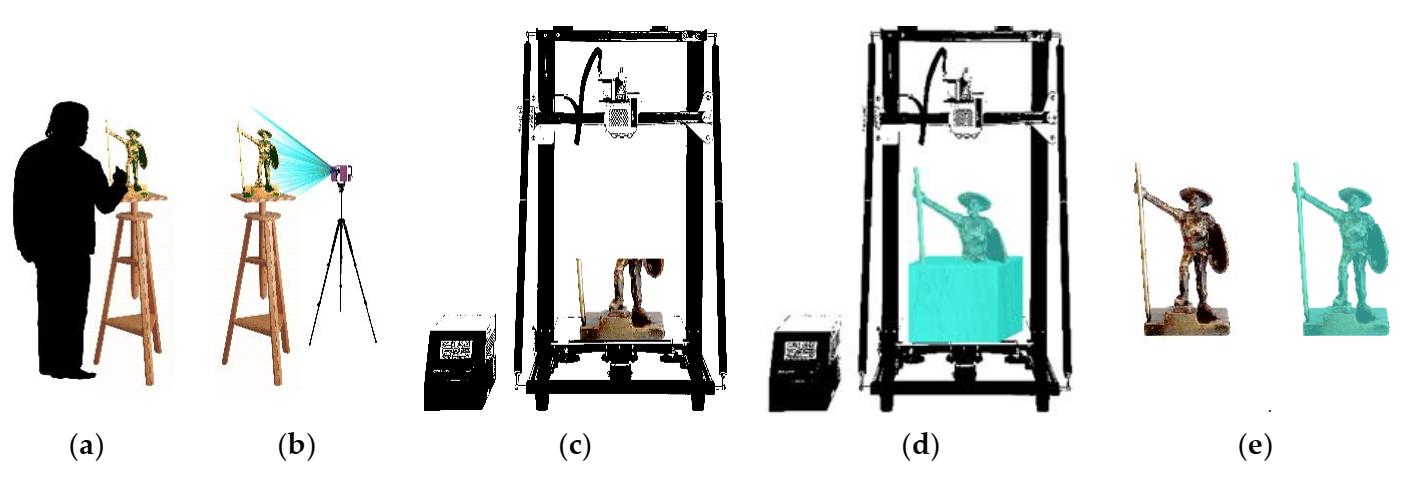

With this process, the artist can create the model digitally or naturally. Digital models are sent directly to the 3D printer. Natural models are scanned (Figure 10a,b). The scanning can be performed with a laser scanner or using the principles of photogrammetry. These methods export 3D digital model files, which are compatible with a 3D printer. There are two main methods of 3D printing: adding the material in layers (Figure 10c) or removing the material from a mass (Figure 10d). The artifact can be created with synthetic materials, metals or even marble stones (Figure 10e).

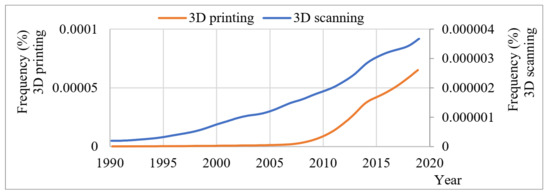

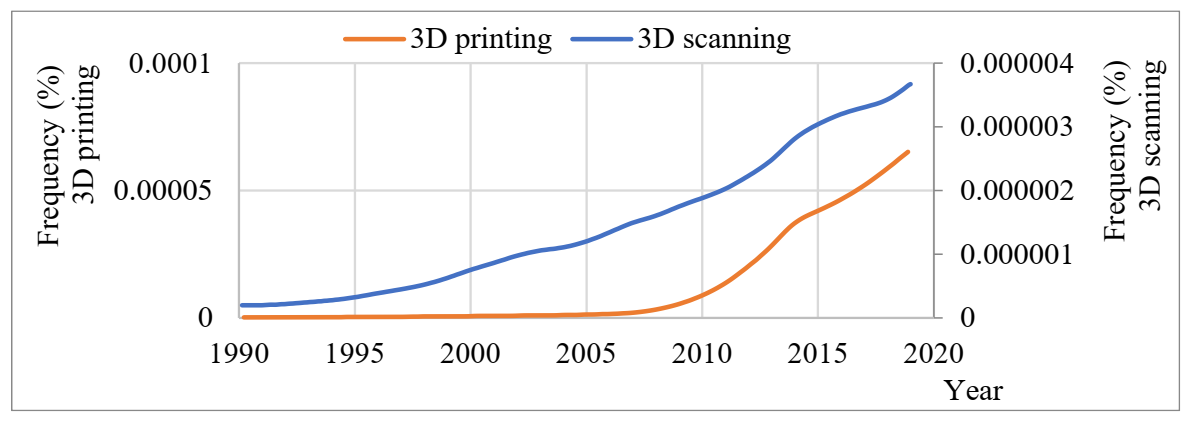

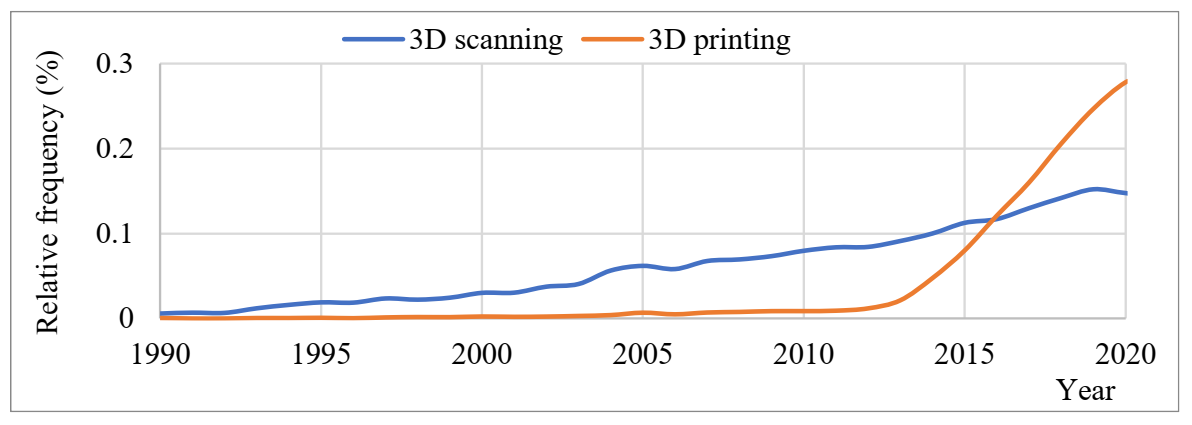

In recent years, we have witnessed an increasing trend in 3D scanning/printing research. Obviously, the majority of this does not concern sculpture. AΜ is very often referred to as the new industrial revolution [49,50,51] and 3D scanning/printing technology is moving into an expanding realm of fields [52], from medical equipment [53,54,55] to car parts, to houses [56,57].
3D printing has an impact on the manufacturing and distribution of goods; artists and designers are adopting this technique in intriguing ways. As sculpture uses all the available technology in the creation of prototypes, it is strongly related to the ability of the construction. Many researchers and inventors have devoted their time to this evolution. Mongeon [58] quotes Bruce Beasley, who discussed the freedom of creating fine art using a computer:
It is like a composer sitting down with notes and chords to get a feel for where the music is going.
In the same book [58], Mongeon analytically describes the basic knowledge needed; the aspects and capacities of the creation process and digital modeling; 3D scanning techniques; CNC milling and rooting; enlargement techniques; and shows how digital technology could infiltrate the lost-wax casting process. With this book, Mongeon builds bridges between technology and traditional sculpture and motivates traditional sculptors to:
Consider the digital process as just another tool that you are trying to master
In 3D scanning technology, we can distinguish the following processes: photogrammetry; structured light scanning; laser scanning and computerized tomography [59].
  • Photogrammetry is a method by which we can create 3D models using many photographs of an object from different angles [60]. The first steps of photogrammetry were made in the field of surveying for the purpose of modeling geographical terrain [61]. The only instruments needed are a camera and appropriate software. The increasing demand for modeling and digitizing the real world in recent years has led to the radical development of the applications of photogrammetry [62,63,64,65].
  • 3D scanning using structured light is a method by which structured patterns of light are projected onto an object, which distorts it. By analyzing the distortion of structured light with appropriate software, we can create a 3D model from a single picture [66,67,68].
  • 3D scanning using lasers detects the coordinates of the object in space measuring the direct time of flight of laser light beams or using triangulation to detect the distance [69,70,71,72,73,74].
  • Computerized tomography (CT) is a method where a series of 2D X-rays photographs is taken in different sections. Even though this method has been used in the 3D modeling of sculptures for high-value artifacts [75,76], it is very expensive and complex. Most applications of CT scanning are in medicine [77].
However, we note that for the optimization of 3D modeling [78,79], recent research combines more than one method to produce the model, most often photogrammetry along with laser scanning [80,81,82,83]. In addition, as many artists are not familiar with new inventions, there are many compact commercial scanners, which apply a multiplicity of processes to extract the optimum results [84,85].
Even though the results are dependent on the quality of the available equipment [86,87], in Table 1, we evaluate the capabilities of each method on the basis of their operating principles.
Describing the application of 3D printing technology in sculpture, Yu notes [88]:
The rise of 3D printing technology makes sculpture completely bid farewell to the manual era and enter the era of digital design and manufacturing. Sculptors design sculpture models by relying on computers, which is conducive to promoting the development and innovation of sculpture art. 3D printing technology can display the pictures depicted in the hearts of artists and sculptors in the form of real objects completely, which can maximize the artistic expression.
Common processes of 3D printers are CNC routers (CNCR); stereolithography (SLA); selective laser sintering (SLS); fused deposition modeling (FDM); digital light process (DLP); multi-jet fusion (MJF); PolyJet (PJ); direct metal laser sintering (DMLS); electron beam melting (EBM); wire arc additive manufacturing (WAAM).
Three-dimensional printers extract 3D models in cross-sections and create objects in layers. Once a layer is complete, the printer proceeds to create a new layer [89]. We can distinguish different methods from the process of layer creation.
  • CNCR is the “old fashioned” 3D printing method with limited printing capabilities. A router guided by the 3D digital model makes cross-sections, subtracting the spare material from a mass [90,91].
  • SLA: A laser ray is guided point to point, hitting a polymeric liquid. When the laser hits the liquid, a chemical process is triggered, which solidifies the liquid [92].
  • SLS: A leveling roller spreads a thin layer of powdered material across a powder bed. A CO2 laser traces the cross-section of the material, and as the laser scans the surface, the material is heated and fused together [93].
  • FDM: Thermoplastic and support materials are used to create the cross-section of each part. Uncoiled material is slowly extruded through dual heated nozzles. The extrusion nozzles precisely lay down both support and thermoplastic material upon the proceeding layers [94,95,96].
  • DLP: A light projector is used to project the image of an entire layer simultaneously on a polymeric liquid. The layer is created when light hits the liquid [97].
  • MJF: An inkjet array is used to selectively apply pixel-like elements of a synthetic material. After its application, material is fused into a solid layer of a specific geometry [98].
  • PJ: A print head is used to deposit small pieces of ultraviolet curable material, eventually forming a single cross-section. An ultraviolet light attached to the print head simultaneously cures the material as it is printed [99].
  • DMLS has the same principles as SLS, using powdered metal across a powder bed and melting it using a laser [100,101].
  • EBM has the same principles as SLS using powdered metal across a powder bed, melting it using a cathode filament [102,103].
  • WAAM: A robotic arm with an electric arc welding process is used to melt a metal wire. Guided by the 3D digital model, the robotic arm accurately deposits the melted metal in layers [104,105]. This method is considered to be very promising with a wide range of printing capabilities (large-scale projects) [106].
However, we have to note that new 3D printing methods and improvements of the existing methods are constantly invented [107,108,109,110,111,112,113].
Three-dimensional printing products are dependent on the available equipment [114]. Technological steps constantly improve their capabilities. In the following evaluation of methods (Table 2), many of the presented disadvantages could be bypassed by increasing the available time and budget [115].
The creative capacity of 3D scanning/printing for sculpture is elucidated in related papers. Employing both 3D printing and photogrammetry, Swearingen et al. helped to maximize the value that both designers and artists can add [116]. Using 3D scanning/printing technology to repair a damaged sculpture, Wang et al. used reverse engineering software with wonderful results [117]. Through a dialectical analysis of technology and art in sculpture creation, Du [118] concluded that the art of sculpture should fully integrate, accept and utilize three-dimensional digital modeling technology, instead of treating it with an opposing attitude. We have to note that artists such as Peter Lang [119], Sebastian Errazuriz [120], Arthur Mamou-Mani [121], Stefan Maier and Giacomo Pala [122], Wilhelm Koch [123], Alan Phelan [124] and Joris Laarman [125] have developed impressive creations using 3D printing.

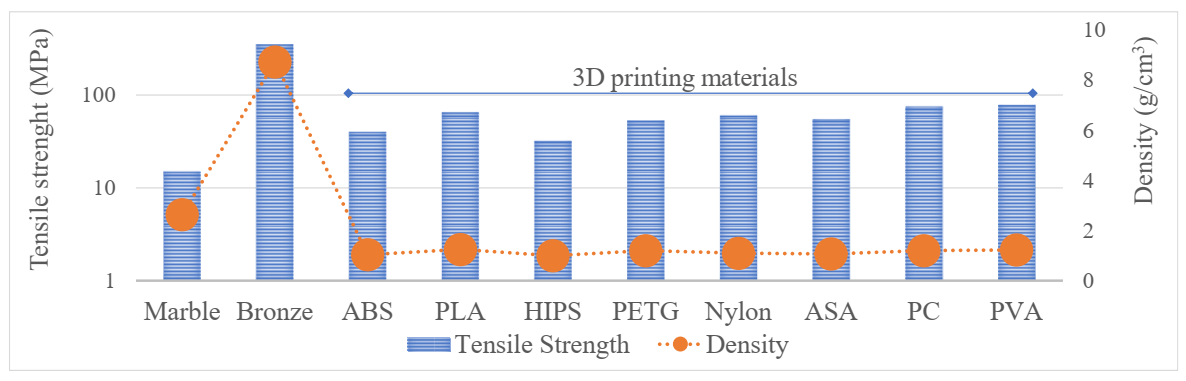

In order to evaluate the effectiveness of 3D printing in traditional materials, we compare the materials used in 3D printing against marble and bronze [126,127,128]. The loads in a statue are defined only by its own weight; this means that density is critical. In addition, we have to consider that the goal in sculpture is the freedom of the forms; therefore, critical loads of the structure are mostly tensile loads. Figure 11 shows that 3D printing materials are significantly lighter and stronger than marble. Considering metal 3D printing [129], we note that 3D printing adopts the strength of bronze and other more durable metals, such as titanium [52,130,131].
It is also interesting that 3D printing can contribute to previous technological techniques (lost-wax casting) making casting molds for metal by 3D printing.

2.5. 3D Scanning/Printing as a Stride for Civilization

On the one hand, the creation of sculptures is a social expression, which uses all the available knowledge and the technology of each era; on the other hand, it offers durable art works, which can be used as a reliable footprint for civilization.

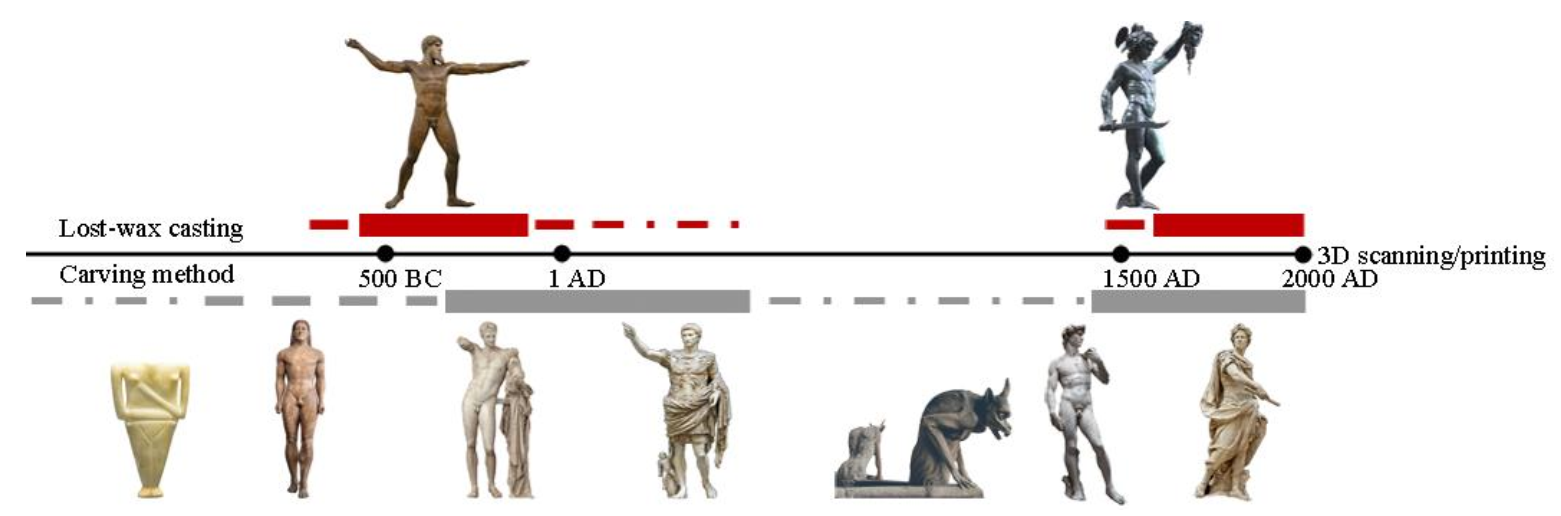

Sculpture techniques began with the carving method in prehistory until the era of Classical Greece, where it changed to the lost-wax casting method, which helped the expression of artists and mainly liberated the depiction of statue movement. During the Dark Ages, the lost-wax casting method was forgotten, and medieval statues were created using the carving method. In Renaissance, Da Vinci and Cellini recovered the lost-wax casting method, which used the same principles until now. Three-dimensional printing is the only new technique for making sculptures since Classical Greece and is a very important innovation of our days (Figure 12).

3. Material Poetics in 3D Scanning/Printing

When we perceive art, we process it logically and emotionally, a process expressed in the phrase “this is beautiful”. This is the claim in the foundation of aesthetics, and there lies the difficulty of the matter. Today, the claim of logic is that “a ≡ a”, and this is rather certain. The criteria, however, for what is beautiful constantly change and are not universal. Above all, every creation belongs to a specific cultural tradition. What is beautiful for somebody is not necessarily the same for someone else. Everyone would agree that Picasso was a genius, but none would have known him if some museums and groups did not choose to elevate Picasso’s artworks [132].
This is why people think of words such as “art”, “aesthetics” and “beauty” as something temporal. However, we try to find general rules to adapt them [133,134,135,136,137,138,139,140,141,142,143] as the depiction of beauty in an era is an important factor that helps us imagine its cultural characteristics.
Studying art objects, forms and materials, we can inspect the processes through sculpture, such as their lifespan, and many other aspects, but a basic question arises: where can we find the material poetics?
In general, we could say that poetics is the creative process where the full potential of the raw material is utilized for the realization of the desired result. In this very wide meaning, the term is used mainly metaphorically to describe the extent to which the material and the technique are used in such perfect harmony that the artifact exceeds its useful purpose and acquires the quality of a kind of “poetry”, an achievement in itself. It is relevant to note that the origin of the world “poetry” is the Greek “ποίησις”, which is etymologized from the verb “ποιέω”, meaning to make, produce or create in Ancient Greek.
The approach of studying material poetics concerns the artist’s soul. This approach is connected to the process of creation and the interaction of the material with the intention of the artist. Thus the observer feels that he has a unique view of artist’s soul. In the art market, a unique artifact made by the hands of an artist is more valuable than an artifact made in multiple copies. Recent studies introduce methods of copyright protection in 3D digitized artistic sculptures by adding unique local inconspicuous errors by sculptors [144].
It is noted that 3D printing introduces an additional stage (3D manufacturing) between the artist and the observer which gives also the ability of unlimited copies. This kind of production is performed using various synthetic materials which create a distance between the artist and the artifact; thus, sculptures lose the concept of material poetics. However, metal printing methods, such as DMLS, EBM and WAAM, circumvent these issues.

4. The Role of 3D Scanning/Printing in the Preservation of Culture

We could say that the main characteristic of sculpture compared to other arts is its ability to endure the effects of time. However, during Medieval Times, many artworks of antiquity were destroyed due to cultural and social changes. Poetry and writing manuscripts were easily lost and were often saved in fragments. Music disappears with each culture even in the era of printing (where many musical scores have been lost or their composers are unknown). Paintings are created in one plane, and the aging of materials will inevitably alter their presence [145]. On the contrary, many sculptures of antiquity have passed through the Dark Ages and came to present with few deteriorations, showing a remarkable ability to endure the effects of time.
Statues in public places symbolize historical moments as they are large-scale projects [146] and vehicles carrying historical memories. They are considered as objects bearing the spirit of the place (Latin: genius loci) [147], and as an important mark of the civilization [148]. In times of social unrest, a typical reaction is the demolition of sculptures. However, even if something is unpopular in a specific historical moment, it is a disaster to lose any piece of a society’s cultural heritage as it deprives the next generations of the ability to study it.
Many times, in history, we have seen the demolition of sculptures due to changes in the social paradigm. For example, statues depicting pagan gods demolished by Christians in antiquity (Figure 13a), but also in modern times: statues of Lenin and Stalin demolished during the perestroika (Figure 13b), Saddam Hussein’s statue after the invasion of Iraq in 2003 (Figure 13c) and statues of American explorers during the “Black Lives Matter” demonstrations of 2020 (Figure 13d).
It is noted that statues can be harmed by collateral damage from violent acts. Biris writes that around c.1850 [153], the King of Two Sicilies gifted three exact copies of Hercules of Farnese, Flora of Farnese and Nike of Samothrace made of plaster to the National Technical University of Athens. Unfortunately, during the 20th century, as Greece went through various troubled times, the National Technical University of Athens, which is protected by academic asylum, became the epicenter of many explosion events, a fact that changed its status to a landmark for sociopolitical conflicts. This caused a large amount of damage to the infrastructures of the university (Figure 14a).
We do not know the exact date of the demolition of these sculptures, but in the late 1990s, these sculptures were broken, and their pieces were kept in storage (Figure 14b). Furthermore, a big research project had to be done in order to restore them (Figure 14c) [154].
Other types of accidental damage during art creation could also be catastrophic for the molds or for the artworks themselves.

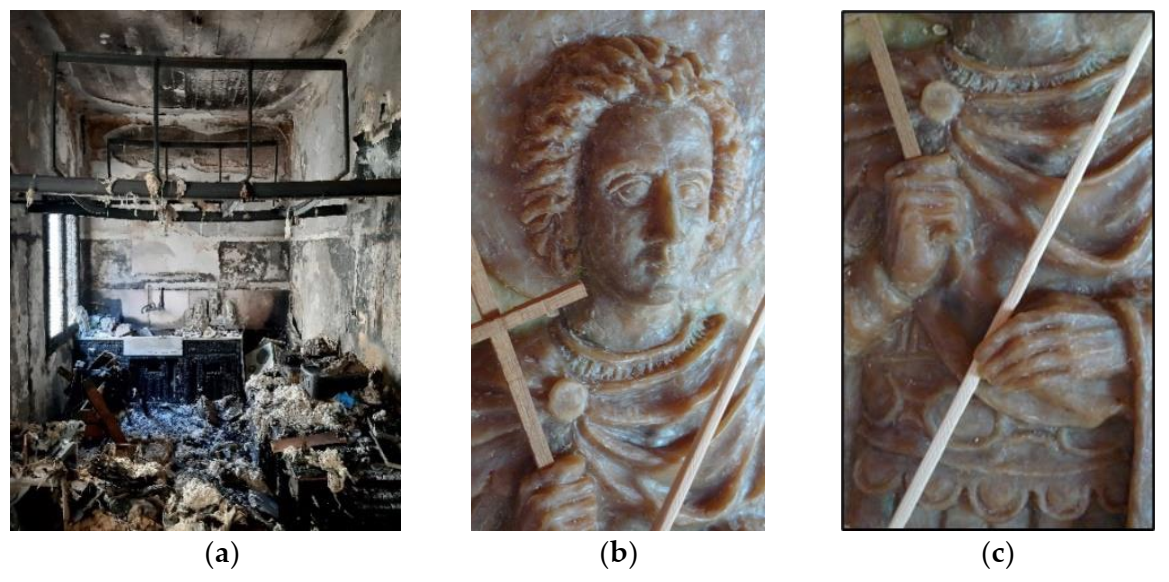

Figure 15a shows the destroyed sculpture studio of G.-Fivos Sargentis [156] after an explosion. A fire destroyed the place and uncountable molds and statues on 15 June 2021. Prototypes made of natural wax were completely destroyed (Figure 15b,c).
Destructive accidents could also occur during the exhibition and transportation of artwork. In addition, attempts at restoration have also damaged artworks, even by experts who used techniques that were unsuitable or harmful, as found later. In addition to laboratory accidents, another important factor for sculpture degradation is the natural aging of the materials in outdoor environments. Important aging factors are corrosion [157,158,159,160,161,162] and temperature fluctuation as contraction–expansion causes fatigue forces in statues (Figure 16) [25].
Three-dimensional scanning and 3D printing provide important opportunities [163,164,165] to conserve cultural heritage as we can keep them in computer files or in a small scale [166]. Hosting small prototype models (small-scale sculptures) of urban statues of Saint Petersburg, in the State Museum of Urban Sculpture (Гoсударственный музей гoрoдскoй скульптуры) [167], one can see prototype models of communist monuments that were demolished in the past.
Lately, portable 3D scanning is easily accessible [168] (even with mobile apps from smartphones [169]). In this way, 3D files of cultural heritage can be backed up and archived for future sharing [170,171,172,173]. Items that are too fragile for display can be stored safely, while a replica takes their place; additionally, items can be touched and their shape can be explored through a printed artifact [174]. This is a way for children or disabled people to have a close connection with heritage objects [175,176].
In addition, considering that technology changes very fast, and sometimes it is difficult to read digital files created only 30 years ago, e.g., stored in floppy disk, 3D printing is a safe method for storing and preserving our cultural heritage [177,178].

5. Conclusions

We have seen that sculpture produces objects of art often associated with the public space, carrying high public significance. Even if the artistic value of many sculptures is questionable, we have to note that sculptures are products of a culture in a given historical period that follow the collective technological progress of the society in question. Figure 6 and Figure 7 show the results of adding creative capacities during the transition from carving to lost-wax casting, which liberated artists to design free forms.
The first steps of AM were carried out in 1860 by the French artist François Willème, who patented a photo-sculpturing method. The digital innovations of recent decades are a stride in the history of sculpture and leave their own footprint on civilization (Figure 8 and Figure 9). Three-dimensional scanning/printing is the first widely spread innovative technique for the creation of sculptures after lost-wax casting, which was introduced in Ancient Greece (Figure 12). Different methods of 3D scanning/printing are evaluated in Table 1 and Table 2. The summary of the results is presented in Figure 11, showing the advantages of 3D scanning/printing.
Three-dimensional printing offers new potential, and its multiple applications enables new possibilities in art and technology; these aspects can be observed by studying the evolution of sculpture techniques. Figure 12 shows the importance of this technological step in sculpture history, which also signifies the capacity for making prototypes. In addition, 3D scanning/printing helps to preserve our cultural heritage, although the material poetics are lost, as additive manufacturing offers the rapid construction of prototypes with different standards.
The issue we have to consider in the field of sculpture for further research is how this 3D scanning/printing could overcome the problem of material poetics being lost in this process. Further research could study the relation between carving/lost-wax casting and 3D scanning/printing in equivalence to the relation between painting and photography.
These first steps for 3D scanning/printing represent merely a small component of its possible uses and future fields of implementation, which seem to be very promising.

Author Contributions

Conceptualization, G.-F.S.; methodology, G.-F.S.; validation, G.-F.S.; formal analysis, G.-F.S. and E.F.; investigation, G.-F.S., E.F. and N.D.L.; data curation, G.-F.S.; writing—original draft preparation, G.-F.S., E.F., A.C. and S.C.; writing—review and editing, D.K., M.C. and N.D.L.; visualization: G.-F.S.; supervision, N.D.L.; project administration, N.D.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by European Union funds, grant number 101007595.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The databases that were used are referred to in detail in the citations given in the text and are publicly available.

Acknowledgments

This research was supported by the ADDOPTML project: “ADDitively Manufactured OPTimized Structures by means of Machine Learning” (No: 101007595) belonging to the Marie Skłodowska-Curie Actions (MSCA) Research and Innovation Staff Exchange (RISE) H2020-MSCA-RISE-2020.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Koutsoyiannis, D.; Sargentis, G.-F. Entropy and Wealth. Entropy 2021, 23, 1356. [Google Scholar] [CrossRef] [PubMed]
  2. Sargentis, G.-F.; Iliopoulou, T.; Dimitriadis, P.; Mamassis, N.; Koutsoyiannis, D. Stratification: An Entropic View of Society’s Structure. World 2021, 2, 153–174. [Google Scholar] [CrossRef]
  3. Wittfogel, K. Oriental Despotism; A Comparative Study of Total Power; Random House: New York, NY, USA, 1957; ISBN 978-0-394-74701-9. [Google Scholar]
  4. Rudofsky, B. Architecture Without Architects: A Short Introduction to Non-Pedigreed Architecture; UNM Press: Albuquerque, NM, USA, 1987; Available online: https://books.google.gr/books?hl=en&lr=&id=F_khGKj2sKwC&oi=fnd&pg=PA24&dq=architecture+as+a+footprint+of+civilization&ots=tFO4jPT21P&sig=mDK0sww91NNQSn0nE-yapktM0Tk&redir_esc=y#v=onepage&q&f=false (accessed on 15 December 2021).
  5. Tunis, E. Wheels. A Pictorial History; The Johns Hopkins University Press: Baltimore, MD, USA; London, UK, 2002; Available online: https://books.google.gr/books?hl=en&lr=&id=oBn92dOgx3AC&oi=fnd&pg=PA45&dq=Wheels:+A+Pictorial+History&ots=wxMIsMi3ue&sig=lb6KoeiIZZkUh9w0I6bqJYgNZ58&redir_esc=y#v=onepage&q=Wheels%3A%20A%20Pictorial%20History&f=false (accessed on 28 August 2021).
  6. Angelakis, A. Evolution of rainwater harvesting and use in Crete, Hellas, through the millennia. Water Sci. Technol. Water Supply 2016, 16, 1624–1638. [Google Scholar] [CrossRef]
  7. Koutsoyiannis, D.; Zarkadoulas, N.; Angelakis, A.N.; Tchobanoglous, G. Urban Water management in Ancient Greece: Legacies and Lessons. ASCE J. Water Resour. Plan. Manag. 2008, 134, 45–54. [Google Scholar] [CrossRef] [Green Version]
  8. Dewan, R. Bronze Age Flower Power: The Minoan Use and Social Significance of Saffron and Crocus Flowers, Institute for European and Mediterranean Archaeology. Chronica 2015, 5, 42–55. Available online: http://www.chronikajournal.com/resources/Dewan%202015.pdf (accessed on 25 August 2021).
  9. Freeth, T.; Bitsakis, Y.; Moussas, X.; Seiradakis, J.H.; Tselikas, A.; Mangou, H.; Zafeiropoulou, M.; Hadland, R.; Bate, D.; Ramsey, A.; et al. Decoding the ancient Greek astronomical calculator known as the Antikythera Mechanism. Nature 2006, 444, 587–591. [Google Scholar] [CrossRef]
  10. Nietzsche’s Last Notebooks 1888, Ferrer, D.F., Translator. Available online: https://philpapers.org/archive/FERNLN.pdf (accessed on 25 August 2021).
  11. Pollitt, J.J. The Art of Ancient Greece: Sources and Documents; Cambridge University Press: Cambridge, UK, 1990. [Google Scholar]
  12. Hasaki, E. Craft Apprenticeship in Ancient Greece: Reaching beyond the Masters. In Archaeology and Apperenticeship, Body Knowledge, Identity and Communities of Practice; Wendrich, W., Ed.; The University of Arizona Press: Tucson, AZ, USA, 2012. [Google Scholar]
  13. Brion, M. Michalangelo (Μιχαήλ-Άγγελος); Ioannidis, P.S., Translator; Phos: Athens, Greece, 1970. [Google Scholar]
  14. Shahrubudin, N.; Lee, T.C.; Ramlan, R. An Overview on 3D Printing Technology: Technological, Materials, and Applications, Procedia Manufacturing; Elsevier: Amsterdam, The Netherlands, 2019; Volume 35, pp. 1286–1296, ISSN 2351-9789. [Google Scholar] [CrossRef]
  15. Petersen, E.E.; Kidd, R.W.; Pearce, J.M. Impact of DIY Home Manufacturing with 3D Printing on the Toy and Game Market. Technologies 2017, 5, 45. [Google Scholar] [CrossRef]
  16. Mount Rushmore. Available online: https://en.wikipedia.org/wiki/Mount_Rushmore (accessed on 28 August 2021).
  17. The Motherland Calls. Available online: https://en.wikipedia.org/wiki/The_Motherland_Calls (accessed on 28 August 2021).
  18. Statue of Unity. Available online: https://en.wikipedia.org/wiki/Statue_of_Unity (accessed on 28 August 2021).
  19. Ramesses, II. Available online: https://en.wikipedia.org/wiki/Ramesses_II (accessed on 28 August 2021).
  20. Statue of Liberty. Available online: https://en.wikipedia.org/wiki/Statue_of_Liberty (accessed on 28 August 2021).
  21. Mattusch, C. The Berlin Foundry Cup: The Casting of Greek Bronze Statuary in the Early Fifth Century B. C. Am. J. Archaeol. 1980, 84, 435–444. [Google Scholar] [CrossRef]
  22. Koroneos, A.; Sargentis, G.-F. Casting of the Bust of Professor A. Prokopiou, Research Report, Laboratory of Building Materials; National Technical University of Athens: Athens, Greece, 2005. [Google Scholar] [CrossRef]
  23. Pausanias, Description of Greece, Arkadika, Book 8 (Παυσανίας -Ελλάδος περιήγησις, Aρκαδικά, Βιβλίο 8). Available online: https://kupdf.net/download/-http-wwwprojethomerecom_5af3ab29e2b6f555101910ae_pdf (accessed on 25 August 2021).
  24. Rodin, A. The Art (H Τέχνη); Syrros, A., Translator; Estia Tou Bibliou: Athens, Greece, 1954. [Google Scholar]
  25. Sargentis, G.-F. Use and Technical Aspects of Materials in Sculpture. Ph.D. Thesis, School of Architecture, National Technical University of Athens, Athens, Greece, 2005. [Google Scholar] [CrossRef]
  26. Mattusch, C. Greek Bronze Statuary: From the Beginnings through the Fifth Century BC; Cornell University Press: Ithaca, Greece; London, UK, 1988. [Google Scholar]
  27. Kouros, Anabyssos. Available online: https://en.wikipedia.org/wiki/Kouros#/media/File:Kouros_anavissos.jpg (accessed on 28 August 2021).
  28. Poseidon or Zeus of Artemision. Available online: https://el.wikipedia.org/wiki/Ποσειδώνας_του_Aρτεμισίου (accessed on 28 August 2021).
  29. Claridge, A. Marble Carving. In The Oxford Handbook of Roman Sculputre; Friedland, E.A., Sobocinski, M.G., Elaine, K.G., Eds.; Oxford University Press: New York, NY, USA, 2015. [Google Scholar]
  30. Mattusch, C. The Casting of Greek Bronzes: Variation and Repetition, In Proceeding of the Symposium of Small Bronze Sculpture from the Ancient World, March 1989 at the Getty Museum; The J. Paul Getty Museum: Los Angeles, CA, USA, 1990; Available online: https://www.getty.edu/publications/resources/virtuallibrary/089236176X.pdf (accessed on 15 December 2021).
  31. Luchs, A.; May, K.; Sturman, S. Conjecture on the origins and findings on the facture of the budapest horse. In Leonardo Da Vinci & the Budapest Horseand Rider; Kárpáti, Z., Ed.; Museum of Fine Arts: Budapest, Hungary, 2018. [Google Scholar]
  32. Hunt, L.B. The long history of lost wax casting. Gold Bull 1980, 13, 63–79. [Google Scholar] [CrossRef] [Green Version]
  33. Motture, P. Introduction. Studies in the History of Art; National Gallery of Art: Washington, DC, USA, 2003; Volume 64, pp. 9–15. Available online: http://www.jstor.org/stable/42622332 (accessed on 15 December 2021).
  34. Davey, C.J. The Early History of Lost-Wax Casting. In Metallurgy and Civilisation: Eurasia and Beyond; Mei, J., Regren, T., Eds.; Archetype Publications: London, UK, 2009; pp. 147–177. Available online: https://www.academia.edu/4614800/ (accessed on 28 August 2021).
  35. Pliny the Elder. The Natural History of Pliny; Henry, G.B., Ed.; Bostock, J.; Riley, H.T., Translators; Oxford University Press: London, UK, 1865; Available online: https://books.google.gr/books?hl=en&lr=&id=sDwZAAAAYAAJ&oi=fnd&pg=PA1&dq=pliny+natural+history (accessed on 11 December 2021).
  36. Ron Mueck. Available online: https://en.wikipedia.org/wiki/Ron_Mueck (accessed on 28 August 2021).
  37. Scopigno, R.; Cignoni, P.; Pietroni, N.; Callieri, M.; Dellepiane, M. Digital Fabrication Techniques for Cultural Heritage: A Survey. Comput. Graph. Forum 2017, 36, 6–21. [Google Scholar] [CrossRef]
  38. Powder Bed and Inkjet Head 3D Printing. Available online: https://en.wikipedia.org/wiki/Powder_bed_and_inkjet_head_3D_printing (accessed on 28 August 2021).
  39. Williams, L.D. Additive Manufacturing or 3d Scanning and Printing. In Manufacturing Engineering Handbook; McGraw-Hill: New York, NY, USA, 2015. [Google Scholar]
  40. Marquardt, T.; Zheng, E. History of 3D Printing. Available online: https://blogs.lawrence.edu/makerspace/history/#2 (accessed on 11 December 2021).
  41. Bourella, D.L.; Beaman, J.J.; Leub, M.C.; Rosenc, D.W. History of Additive Manufacturing and the 2009 Roadmap for Additive Manufacturing: Looking Back and Looking Ahead. In Proceedings of the RapidTech 2009: US-TURKEY Workshop on RapidTechnologies, Istanbul, Turkey, 24 September 2009; pp. 1–8. Available online: http://www.turkcadcam.net/haber/2009/rapidtech-workshop/presentations/Presentation02.pdf (accessed on 11 December 2021).
  42. Edl, M.; Mizerak, M.; Trojan, J. 3D laser scanners: History and applications. Int. Sci. J. About Simul. 2018, 4, 1–5, ISSN 1339-9640. [Google Scholar] [CrossRef]
  43. Levoy, M.; Pulli, K.; Curless, B.; Rusinkiewicz, S.; Koller, D.; Pereira, L.; Ginzton, M.; Anderson, S.; Davis, J.; Ginsberg, J.; et al. The Digital Michelangelo Project: 3D Scanning of Large Statues; University of Stanford: Stanford, CA, USA, 2000; Available online: http://graphics.stanford.edu/papers/dmich-sig00/ (accessed on 11 November 2021).
  44. Horvath, J. A Brief History of 3D Printing. In Mastering 3D Printing; Apress: Berkeley, CA, USA, 2014. [Google Scholar] [CrossRef]
  45. Hughes, B.; Wilson, G. 3D/additive printing manufacturing: A Brief History and Purchasing Guide. Technol. Eng. Teach. 2015, 75, 18. Available online: https://eric.ed.gov/?id=EJ1083038 (accessed on 13 January 2021).
  46. Scopus Database. Available online: https://www.scopus.com/ (accessed on 15 December 2021).
  47. Michel, J.B.; Shen, Y.K.; Aiden, A.P.; Veres, A.; Gray, M.K.; Pickett, J.P.; Hoiberg, D.; Clancy, D.; Norvig, P.; Orwant, J.; et al. Quantitative analysis of culture using millions of digitized books. Science 2011, 331, 176–182. [Google Scholar] [CrossRef] [Green Version]
  48. Google Books Ngram Viewer. Available online: https://books.google.com/ngrams/ (accessed on 15 December 2021).
  49. Araújo, N.; Pacheco, V.; Costa, L. Smart Additive Manufacturing: The Path to the Digital Value Chain. Technologies 2021, 9, 88. [Google Scholar] [CrossRef]
  50. Delda, R.N.M.; Basuel, R.B.; Hacla, R.P.; Martinez, D.W.C.; Cabibihan, J.-J.; Dizon, J.R.C. 3D Printing Polymeric Materials for Robots with Embedded Systems. Technologies 2021, 9, 82. [Google Scholar] [CrossRef]
  51. Dizon, J.R.C.; Gache, C.C.L.; Cascolan, H.M.S.; Cancino, L.T.; Advincula, R.C. Post-Processing of 3D-Printed Polymers. Technologies 2021, 9, 61. [Google Scholar] [CrossRef]
  52. Mielczarek, J.; Gazdowicz, G.; Kramarz, J.; Łątka, P.; Krzykawski, M.; Miroszewski, A.; Pieczarko, P.; Szczelina, R.; Warchoł, P.; Wróbel, S. A Prototype of a 3D Bioprinter. Solid State Phenom. 2015, 237, 221–226. [Google Scholar] [CrossRef]
  53. Ishack, S.; Lipner, S.R. Applications of 3D Printing Technology to Address COVID-19-Related Supply Shortages. Am. J. Med. 2020, 133, 771–773. [Google Scholar] [CrossRef]
  54. Duda, T.L.; Raghavan, V. 3D Metal Printing Technology. IFAC-PapersOnLine 2016, 49, 103–110, ISSN 2405-8963. [Google Scholar] [CrossRef]
  55. Li, J.; Nie, L.; Li, Z.; Lin, L.; Tang, L.; Ouyang, J. Maximizing modern distribution of complex anatomical spatial information: 3D reconstruction and rapid prototype production of anatomical corrosion casts of human specimens. Anat. Sci. Ed. 2012, 5, 330–339. [Google Scholar] [CrossRef]
  56. Xie, Y.; Loh, G.H.; Black, B.; Bernstein, K. Design space exploration for 3D architectures. ACM J. Emerg. Technol. Comput. Syst. 2006, 2, 65–103. [Google Scholar] [CrossRef]
  57. Ozturk, G.B. The Future of 3D Printing Technology in the Construction Industry: A Systematic Literature Review. Eurasian J. Civ. Eng. Archit. 2018, 2, 10–24. Available online: https://dergipark.org.tr/en/pub/ejcar/issue/39134/434066 (accessed on 17 December 2021).
  58. Mongeon, B. 3D Technology in Fine Art and Craft: Exploring 3D Printing, Scanning, Sculpting and Milling; Focal Press, Taylor & Francis Group: New York, NY, USA; London, UK, 2016; Available online: https://books.google.gr/books?hl=en&lr=&id=so5GCgAAQBAJ&oi=fnd&pg=PP1&dq=3d+printing+sculpture&ots=3Cd2igBgjG&sig=iqi67hzvpcVZF-07EN1pWZdGBVI&redir_esc=y#v=onepage&q=3d%20printing%20sculpture&f=false (accessed on 15 December 2021).
  59. Daneshmand, M.; Helmi, A.M.; Avots, E.; Noroozi, F.; Alisinanoglu, F.; Arslan, H.S.; Gorbova, J.; Haamer, R.E.; Ozcinar, C.; Anbarjafari, G. 3D Scanning: A Comprehensive Survey. arXiv 2018, arXiv:1801.08863. [Google Scholar]
  60. Gruen, A. Development and Status of Image Matching in Photogrammetry. Photogramm. Rec. 2012, 27, 36–57. [Google Scholar] [CrossRef]
  61. Luhmann, T. A historical review on panorama photogrammetry. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2008, 34. Available online: https://www.researchgate.net/publication/228766550_A_historical_review_on_panorama_photogrammetry (accessed on 15 December 2021).
  62. Remondino, F. Heritage Recording and 3D Modeling with Photogrammetry and 3D Scanning. Remote Sens. 2011, 3, 1104–1138. [Google Scholar] [CrossRef] [Green Version]
  63. Reljić, I.; Dunđer, I.; Seljan, S. Photogrammetric 3D Scanning of Physical Objects: Tools and Workflow. TEM J. 2019, 8, 383–388, ISSN 2217-8309. [Google Scholar] [CrossRef]
  64. Galantucci, L.M.; Lavecchia, F.; Percoco, G.; Raspatelli, S. New method to calibrate and validate a high-resolution 3D scanner, based on photogrammetry. Precis. Eng. 2014, 38, 279–291. [Google Scholar] [CrossRef]
  65. Tucci, G.; Guidi, G.; Ostuni, D.; Costantino, F. Photogrammetry and 3D Scanning: Assessment of Metric Accuracy for the Digital Model of Danatello’s Maddalena. In Proceedings of the 2001 Workshop of Italy-Canada on 3D Digital Imaging and Modeling Application of: Heritage, Industry, Medicine, and Land, Padova, Italy, 3–4 April 2001; Available online: https://www.researchgate.net/publication/44051820_Photogrammetry_and_3D_Scanning_Assessment_of_Metric_Accuracy_for_the_Digital_Model_of_Danatello’s_Maddalena (accessed on 13 January 2021).
  66. Montusiewicz, J.; Miłosz, M.; Kęsik, J.; Żyła, K. Structured-light 3D scanning of exhibited historical clothing—A first-ever methodical trial and its results. Herit. Sci. 2021, 9, 74. [Google Scholar] [CrossRef]
  67. Sitnik, R.; Karaszewski, M. Automated Processing of Data from 3D Scanning of Cultural Heritage Objects. In Digital Heritage. EuroMed 2010. Lecture Notes in Computer Science; Ioannides, M., Fellner, D., Georgopoulos, A., Hadjimitsis, D.G., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; Volume 6436. [Google Scholar] [CrossRef]
  68. Mohan, S.; Simonsen, K.B.; Balslev, I.; Krüger, V.; Eriksen, R.D. 3D scanning of object surfaces using structured light and a single camera image. In Proceedings of the 2011 IEEE International Conference on Automation Science and Engineering, Trieste, Italy, 24–27 August 2011; pp. 151–156. [Google Scholar] [CrossRef]
  69. White, T.L.; Calloway, B.; Brigmon, R.L.; Kurtis, K.E.; Jayapalan, A.R. Applications in Complex Systems. Laser Scanning, Theory and Applications; Wang, C.-C., Ed.; InTech: Split, Croatia, 2011. [Google Scholar]
  70. Göbel, W.; Kampa, B.; Helmchen, F. Imaging cellular network dynamics in three dimensions using fast 3D laser scanning. Nat. Methods 2007, 4, 73–79. [Google Scholar] [CrossRef] [PubMed]
  71. Heritage, L.G.; Large, A.R.G. Principles of 3D Laser Scanning. In Laser Scanning for the Environmental Sciences; Heritage, L.G., Large, A.R.G., Eds.; Wiley-Blackwell: Oxford, UK, 2009. [Google Scholar]
  72. Lerch, T.; MacGillivray, M.; Domina, T. 3D laser scanning: A model of multidisciplinary research. J. Text. Appar. Technol. Manag. 2007, 5, 1–8. Available online: https://textiles.ncsu.edu/tatm/wp-content/uploads/sites/4/2017/11/Lerch_full_221_07.pdf (accessed on 15 December 2021).
  73. Franca, J.G.D.M.; Gazziro, M.A.; Ide, A.N.; Saito, J.H. A 3D scanning system based on laser triangulation and variable field of view. In Proceedings of the IEEE International Conference on Image Processing 2005, Genova, Italy, 14 September 2005; pp. 1–425. [Google Scholar] [CrossRef]
  74. Vozikis, G.; Haring, A.; Vozikis, E.; Kraus, K. Laser Scanning: A New Method for Recording and Documentation in Archaeology, Workshop–Archaeological Surveys, WSA1 Recording Methods. In Proceedings of the FIG Working Week 2004, Athens, Greece, 22–27 May 2004; Available online: https://www.fig.net/resources/proceedings/fig_proceedings/athens/papers/wsa1/WSA1_4_Vozikis_et_al.pdf (accessed on 15 December 2021).
  75. Badde, A.; Illerhaus, B. Three Dimensional Computerized Microtomography in the Analysis of Sculpture. Scanning 2008, 30, 16–26. [Google Scholar] [CrossRef]
  76. Juanes, D.; Ferrazza, L. Computed Tomography Studies Applied to Polychromed Sculpture: The Making Process in Three Different Times. In Progress in Cultural Heritage Preservation. EuroMed 2012. Lecture Notes in Computer Science; Ioannides, M., Fritsch, D., Leissner, J., Davies, R., Remondino, F., Caffo, R., Eds.; Springer: Berlin/Heidelberg, Germany, 2012; Volume 7616. [Google Scholar] [CrossRef]
  77. Shepp, L.A.; Kruskal, J.B. Computerized Tomography: The New Medical X-Ray Technology. Am. Math. Mon. 1978, 85, 420–439. [Google Scholar] [CrossRef]
  78. Dixit, I.; Kennedy, S.; Piemontesi, J.; Kennedy, B.; Krebs, C. Which Tool Is Best: 3D Scanning or Photogrammetry—It Depends on the Task. In Biomedical Visualisation. Advances in Experimental Medicine and Biology; Rea, P., Ed.; Springer: Cham, Switzerland, 2019; p. 1120. [Google Scholar] [CrossRef]
  79. Yang, C.; Zhang, F.; Huang, X.; Li, D.; Zhu, Y. A target aware texture mapping for sculpture heritage modeling. ISPRS Ann. Photogramm. Remote Sens. Spatial Inf. Sci. 2017, 335–340. [Google Scholar] [CrossRef] [Green Version]
  80. Ioannidis, C.; Tsakiri, M. Laser Scanning and Photogrammetry for the Documentation of a Large Statue-Experiences in the Combined Use. 2003. Available online: https://www.semanticscholar.org/paper/LASER-SCANNING-AND-PHOTOGRAMMETRY-FOR-THE-OF-A-IN-Ioannidis-Tsakiri/0b419acabd94e6325d1094c0ff33a39858234e7c (accessed on 15 December 2021).
  81. Heinz, G.; Pharaoh Pepi, I. Documentation of the oldest known life-size metal sculpture using laser scanning and photogrammetry. In Proceedings of the CIPA WG6 International Workshop on Scanning for Cultural Heritage, The ICOMOS /ISPRS Committee for Documentation of Cultural Heritage, Corfu, Greece, 1–2 September 2002; Available online: https://brown.edu/Departments/Joukowsky_Institute/courses/egyptianartandarch11/files/15311766.pdf (accessed on 15 December 2021).
  82. Tsakiri, M.; Ioannidis, C.; Carty, A. Laser Scanning Issues for the Geometrical Recording of a Complex Statue. 2002. Available online: https://www.semanticscholar.org/paper/LASER-SCANNING-ISSUES-FOR-THE-GEOMETRICAL-RECORDING-Tsakiri-Ioannidis/15dfedfc305f5e610a99713359d820e2146ff340 (accessed on 11 November 2021).
  83. Makris, D.; Skaltsas, I.; Fotiou, S.; Karampinis, L.; Vlachou, M.A. Digitization of Athens School of Fine Arts Artworks Based on Optical 3-D Scanning and Photogrammetry. In Proceedings of the 9th International Conference on Information, Intelligence, Systems and Applications (IISA), Zakynthos, Greece, 23–25 July 2018; pp. 1–7. [Google Scholar] [CrossRef]
  84. Europac 3D. How the Arts Are Benefiting from the Precision of 3D Scanning and Printing. Sculpting the Future in 3D. Available online: https://europac3d.com/3d-scanning-sculptors/ (accessed on 15 December 2021).
  85. Art and Sculpture. 3D Scanning and Measurement Can Open a World of Possibilities for Your 3D art and Sculpture Pieces. Available online: https://pes-scanning.com/art-sculptures-3d-optical-scanning/ (accessed on 15 December 2021).
  86. Marra, A.; Gerbino, S.; Greco, A.; Fabbrocino, G. Combining Integrated Informative System and Historical Digital Twin for Maintenance and Preservation of Artistic Assets. Sensors 2021, 21, 5956. [Google Scholar] [CrossRef]
  87. Rehany, N.; Barsi, A.; Lovas, T. Capturing fine details involving low-cost sensors—A comparative study. In Proceedings of the 5th International Workshop LowCost 3D—Sensors, Algorithms, Applications; The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, Hamburg, Germany, 28–29 November 2017; Volume XLII-2/W8. Available online: https://www.readcube.com/articles/10.5194%2Fisprs-archives-xlii-2-w8-213-2017 (accessed on 15 December 2021).
  88. Yu, J. The Application of 3D Printing Technology in Sculpture. In Advances in Intelligent Systems and Computing, Proceedings of the 2020 International Conference on Machine Learning and Big Data Analytics for IoT Security and Privacy, SPIOT 2020; MacIntyre, J., Zhao, J., Ma, X., Eds.; Springer: Cham, Switzerland, 2021; Volume 1283, p. 1283. [Google Scholar] [CrossRef]
  89. Chua, C.K.; Leong, K.F.; Lim, C.S. Rapid Prototyping: Principles and Applications; World Scientific: Singapore, 2003; p. 124. ISBN 9789812381170. [Google Scholar]
  90. Pabla, B.S.; Adithan, M. CNC MACHINES, New Age International (P) Limited; Publishers: New Delhi, India, 1994. [Google Scholar]
  91. Polley, E.J. CNC Control System Patents. U.S. Patent 545,393, 26 September 1995. Available online: https://patentimages.storage.googleapis.com/7b/14/fd/2a8ec5adc1c4da/US5453933.pdf (accessed on 15 December 2021).
  92. Hull, C.W. Apparatus for Production of Three-Dimensional Objects by Stereolithography. U.S. Patent 4,575,330, 11 March 1986. Available online: https://patentimages.storage.googleapis.com/5c/a0/27/e49642dab99cf6/US4575330.pdf (accessed on 15 December 2021).
  93. Deckard, C. Method and Apparatus for Producing Parts by Selective Sintering. U.S. Patent 4,863,538, 5 September 1989. Available online: https://patentimages.storage.googleapis.com/d2/84/74/eaf2b3d455fe5e/US4863538.pdf (accessed on 15 December 2021).
  94. Crump, S.S. Apparatus and Method for Creating Three-Dimensional Objects. U.S. Patent 5,121,329, 9 June 1992. Available online: https://patentimages.storage.googleapis.com/21/01/d3/69165ba25d15e0/US5121329.pdf (accessed on 15 December 2021).
  95. Rupp, H.; Binder, W.H. 3D Printing of Solvent-Free Supramolecular Polymers. Front. Chem. 2021, 9, 771974. [Google Scholar] [CrossRef]
  96. Quodbach, J.; Bogdahn, M.; Breitkreutz, J.; Chamberlain, R.; Eggenreich, K.; Elia, A.G.; Gottschalk, N.; Gunkel-Grabole, G.; Hoffmann, L.; Kapote, D.; et al. Quality of FDM 3D Printed Medicines for Pediatrics: Considerations for Formulation Development, Filament Extrusion, Printing Process and Printer Design. Innov. Regul. Sci. 2021. [Google Scholar] [CrossRef]
  97. EnvisionTec. Patents. Available online: https://envisiontec.com/patents/ (accessed on 15 December 2021).
  98. Mele, M.; Campana, G.; Monti, G.L. Modelling of the capillarity effect in Multi Jet Fusion technology. Addit. Manuf. 2019, 30, 100879, ISSN 2214-8604. [Google Scholar] [CrossRef]
  99. Karpas, L.O.; Ryan, A.M. Methods for additive manufacturing processes incorporating active deposition. U.S. Patent 9,102,099, 11 August 2015. Available online: https://patentimages.storage.googleapis.com/e0/e4/a0/fd486dc53819ee/US9102099.pdf (accessed on 15 December 2021).
  100. Shellabear, M.; Nyrhilä, O. DMLS—Development history and state of the art. In Proceedings of the LANE 2004 Conference, Erlangen, Germany, 21–24 September 2004; Available online: https://www.i3dmfg.com/wp-content/uploads/2015/07/History-of-DMLS.pdf (accessed on 15 December 2021).
  101. Gambardella, D.E. Direct metal laser sintering machine. U.S. Patent 2016/0288207, 6 October 2016. Available online: https://patentimages.storage.googleapis.com/d1/b4/a2/4ee6329ec8cb95/US20160288207A1.pdf (accessed on 15 December 2021).
  102. Aversa, A.; Saboori, A.; Marchese, G.; Iuliano, L.; Lombardi, M.; Fino, P. Recent Progress in Beam-Based Metal Additive Manufacturing from a Materials Perspective: A Review of Patents. J. Materi. Eng. Perform. 2021, 30, 8689–8699. [Google Scholar] [CrossRef]
  103. EWF, European Federation for Welding. Available online: https://www.ewf.be/ (accessed on 15 December 2021).
  104. Derekar, K.S. A review of wire arc additive manufacturing and advances in wire arc additive manufacturing of aluminium. Mater. Sci. Technol. 2018, 34, 895–916. [Google Scholar] [CrossRef]
  105. MX3D. Available online: https://mx3d.com/ (accessed on 15 December 2021).
  106. Amsterdam’s Robot Printed Footbridge Welds Steelwork with State-of-the-Art Technology. Available online: https://www.arup.com/projects/mx3d-bridge (accessed on 15 December 2021).
  107. Idonial. Available online: https://www.idonial.com/es/ (accessed on 15 December 2021).
  108. Sika Leads the Way in 3D Concrete Printing. Available online: https://www.sika.com/en/knowledge-hub/3d-concrete-printing.html (accessed on 15 December 2021).
  109. Hornick, J.F. 3D Printing and the Future (or Demise) of Intellectual Property. 3D Print. Addit. Manuf. 2014, 1, 34–43. [Google Scholar] [CrossRef]
  110. Rebong, R.E.; Stewart, K.T.; Utreja, A.; Ghoneima, A.A. Accuracy of three-dimensional dental resin models created by fused deposition modeling, stereolithography, and Polyjet prototype technologies: A comparative study. Angle Orthod. 2018, 88, 363–369. [Google Scholar] [CrossRef] [Green Version]
  111. Karayel, E.; Bozkurt, Y. Additive manufacturing method and different welding applications. J. Mater. Res. Technol. 2020, 9, 11424–11438, ISSN 2238-7854. [Google Scholar] [CrossRef]
  112. Buswell, R.A.; Leal de Silva, W.R.; Jones, S.Z.; Dirrenberger, J. 3D printing using concrete extrusion: A roadmap for research. Cem. Concr. Res. 2018, 112, 37–49, ISSN 0008-8846. [Google Scholar] [CrossRef]
  113. Mohan, M.K.; Rahul, A.V.; De Schutter, G.; Van Tittelboom, K. Extrusion-based concrete 3D printing from a material perspective: A state-of-the-art review. Cem. Concr. Compos. 2021, 115, 103855, ISSN 0958-9465. [Google Scholar] [CrossRef]
  114. Msallem, B.; Sharma, N.; Cao, S.; Halbeisen, F.S.; Zeilhofer, H.-F.; Thieringer, F.M. Evaluation of the Dimensional Accuracy of 3D-Printed Anatomical Mandibular Models Using FFF, SLA, SLS, MJ, and BJ Printing Technology. J. Clin. Med. 2020, 9, 817. [Google Scholar] [CrossRef] [Green Version]
  115. Bekker, A.C.M.; Verlinden, J.C.; Galimberti, G. Challenges in assessing the sustainability of wire+arc additive manufacturing for large structures, as an Important and Totally Integrated Approach to Design. In Proceedings of the SFF (Solid Freeform Fabrication) Symposium: 8–10 August 2016, University of Texas at Austin, Austin, TX, USA, 8–10 August 2016; Available online: https://www.researchgate.net/publication/307584119_CHALLENGES_IN_ASSESSING_THE_SUSTAINABILITY_OF_WIRE_ARC_ADDITIVE_MANUFACTURING_FOR_LARGE_STRUCTURES (accessed on 15 December 2021).
  116. Swearingen, S.; Swearingen, K.L. Creating virtual environments with 3D printing and photogrammetry. In Proceedings of the SIGGRAPH ASIA 2016, Venetian Macau, Macau, Macau 5–8 December 2016; pp. 1–4. [Google Scholar] [CrossRef]
  117. Wang, S.G.; Meng, F.S.; Qu, B. Reverse Engineering and 3D Printing Technology’s Application in Sculpture and the Restoration. Appl. Mech. Mater. 2015, 713–715, 2556–2559. [Google Scholar] [CrossRef]
  118. Du, J. Research on Optimization of Portrait Sculpture Data Based on 3D Image and Mobile Edge Computing. IEEE Access 2020, 8, 224452–224460. [Google Scholar] [CrossRef]
  119. 3D-Printed Acoustic Artwork. Available online: https://fit.technology/content.php?newsid=605 (accessed on 15 December 2021).
  120. Sebastian Errazuriz Studio. Available online: https://sebastian.studio/ (accessed on 15 December 2021).
  121. Mamou-Mani. Available online: https://mamou-mani.com/ (accessed on 15 December 2021).
  122. Pala, G. Design as Allegory. In Architecture and Naturing Affairs; An, M., Hovestadt, L., Eds.; Applied Virtuality Book Series; Birkhäuser: Berlin, Germany; Boston, MA, USA, 2020. [Google Scholar] [CrossRef]
  123. Getty Images. Concrete Equestrian Statue with Chancellor Unveiled. Available online: https://www.gettyimages.in/detail/news-photo/october-2021-bavaria-etsdorf-artist-wilhelm-koch-stands-news-photo/1235770198 (accessed on 15 December 2021).
  124. Alan Phelan. Available online: https://alanphelan.com/ (accessed on 15 December 2021).
  125. JorisLaarmanLab. Available online: https://www.jorislaarman.com/ (accessed on 15 December 2021).
  126. Filament Properties Table. Available online: https://www.simplify3d.com/support/materials-guide/properties-table/ (accessed on 11 November 2021).
  127. Fatah, R.; Barzan, B.; Atta, P. Mechanical Property Correlation of Marble; The American University of Iraq-Sulaimani (AUIS): Sulaimani, Iraq, 2019; Available online: https://www.researchgate.net/publication/337604421 (accessed on 11 November 2021).
  128. Jo, B.W.; Song, C.S. Thermoplastics and Photopolymer Desktop 3D Printing System Selection Criteria Based on Technical Specifications and Performances for Instructional Applications. Technologies 2021, 9, 91. [Google Scholar] [CrossRef]
  129. Laureto, J.J.; Pearce, J.M. Open Source Multi-Head 3D Printer for Polymer-Metal Composite Component Manufacturing. Technologies 2017, 5, 36. [Google Scholar] [CrossRef] [Green Version]
  130. Izonin, I.; Tkachenko, R.; Gregus, M.; Ryvak, L.; Kulyk, V.; Chopyak, V. Hybrid Classifier via PNN-based Dimensionality Reduction Approach for Biomedical Engineering Task. Procedia Comput. Sci. 2021, 191, 230–237. [Google Scholar] [CrossRef]
  131. Tkachenko, R.; Duriagina, Z.; Lemishka, I.; Izonin, I.; Trostianchyn, A. Development of machine learning method of titanium alloy properties identification in additive technologies. East.-Eur. J. Enterp. Technol. 2018, 3, 23–31. [Google Scholar] [CrossRef]
  132. Beardsley, M.C. Aesthetics from Classical Greece to the Present: A Short History; University of Alabama Press: Tuscaloosa, AL, USA, 1975. [Google Scholar]
  133. Jboor, N.H.; Belhi, A.; Al-Ali, A.K.; Bouras, A.; Jaoua, A. Towards an Inpainting Framework for Visual Cultural Heritage. In Proceedings of the 2019 IEEE Jordan International Joint Conference on Electrical Engineering and Information Technology (JEEIT), Amman, Jordan, 9–11 April 2019; pp. 602–607. [Google Scholar]
  134. Tan, W.R.; Chan, C.S.; Aguirre, H.E.; Tanaka, K. Ceci n’est pas une pipe: A deep convolutional network for fine-art paintings classification. In Proceedings of the 2016 IEEE International Conference on Image Processing (ICIP), Phoenix, AZ, USA, 25–28 September 2016; pp. 3703–3707. [Google Scholar] [CrossRef]
  135. Cetinic, E.; Lipic, T.; Grgic, S. Learning the Principles of Art History with convolutional neural networks. Pattern Recognit. Lett. 2020, 129, 56–62. [Google Scholar] [CrossRef]
  136. Cetinic, E.; Lipic, T.; Grgic, S. A Deep Learning Perspective on Beauty, Sentiment, and Remembrance of Art. IEEE Access 2019, 7, 73694–73710. [Google Scholar] [CrossRef]
  137. Hayn-Leichsenring, G.U.; Lehmann, T.; Redies, C. Subjective Ratings of Beauty and Aesthetics: Correlations With Statistical Image Properties in Western Oil Paintings. I-Perception 2017. [Google Scholar] [CrossRef] [Green Version]
  138. Higor, Y.D.; Sigaki, M.P.; Haroldo, V.R. History of art paintings through the lens of entropy and complexity. Proc. Natl. Acad. Sci. USA 2018, 115, E8585–E8594. [Google Scholar] [CrossRef] [Green Version]
  139. Carneiro, G.; da Silva, N.P.; Del Bue, A.; Costeira, J.P. Artistic Image Classification: An Analysis on the PRINTART Database. In Computer Vision—ECCV 2012. ECCV 2012. Lecture Notes in Computer Science; Fitzgibbon, A., Lazebnik, S., Perona, P., Sato, Y., Schmid, C., Eds.; Springer: Berlin/Heidelberg, Germany, 2012; Volume 7575. [Google Scholar] [CrossRef]
  140. Li, C.; Chen, T. Aesthetic Visual Quality Assessment of Paintings. IEEE J. Sel. Top. Signal Processing 2009, 3, 236–252. [Google Scholar] [CrossRef]
  141. Galanter, P. Computational Aesthetic Evaluation: Past and Future. In Computers and Creativity; McCormack, J., d’Inverno, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2012. [Google Scholar] [CrossRef]
  142. Sargentis, G.-F.; Dimitriadis, P.; Koutsoyiannis, D. Aesthetical Issues of Leonardo Da Vinci’s and Pablo Picasso’s Paintings with Stochastic Evaluation. Heritage 2020, 3, 283–305. [Google Scholar] [CrossRef]
  143. Sargentis, G.-F.; Ioannidis, R.; Chiotinis, M.; Dimitriadis, P.; Koutsoyiannis, D. Aesthetical Issues with Stochastic Evaluation. In Data Analytics for Cultural Heritage; Belhi, A., Bouras, A., Al-Ali, A.K., Sadka, A.H., Eds.; Springer: Cham, Switzerland, 2021. [Google Scholar] [CrossRef]
  144. Vasiljević, I.; Obradović, R.; Đurić, I.; Popkonstantinović, B.; Budak, I.; Kulić, L.; Milojević, Z. Copyright Protection of 3D Digitized Artistic Sculptures by Adding Unique Local Inconspicuous Errors by Sculptors. Appl. Sci. 2021, 11, 7481. [Google Scholar] [CrossRef]
  145. Sargentis, G.-F.; Dimitriadis, P.; Iliopoulou, T.; Koutsoyiannis, D. A Stochastic View of Varying Styles in Art Paintings. Heritage 2021, 4, 333–348. [Google Scholar] [CrossRef]
  146. Sargentis, G.-F.; Iliopoulou, T.; Sigourou, S.; Dimitriadis, P.; Koutsoyiannis, D. Evolution of Clustering Quantified by a Stochastic Method—Case Studies on Natural and Human Social Structures. Sustainability 2020, 12, 7972. [Google Scholar] [CrossRef]
  147. Pope, A. An Epistle to the Right Honourable Richard Earl of Burlington: Occasion’d by His Publishing Palladio’s Designs of the Baths, Arches, Theatres, &c. of Ancient ROME. By Mr. Pope; Printed for L. Gilliver; London, UK, 1731. Available online: https://www.eighteenthcenturypoetry.org/works/o3689-w0010.shtml (accessed on 5 October 2020).
  148. Zhou, A.; Gao, C. Research on the Involvement of Computer Graphics Algorithms in Systems for the Creation of Public Sculpture. Hindawi Sci. Program. 2021, 2021. [Google Scholar] [CrossRef]
  149. Persecution of Pagans in the Late Roman Empire. Available online: https://en.wikipedia.org/wiki/Persecution_of_pagans_in_the_late_Roman_Empire (accessed on 28 August 2021).
  150. Demolition of Monuments to Vladimir Lenin in Ukraine. Available online: https://en.wikipedia.org/wiki/Demolition_of_monuments_to_Vladimir_Lenin_in_Ukraine (accessed on 28 August 2021).
  151. Firdos Square Statue Destruction. Available online: https://en.wikipedia.org/wiki/Firdos_Square_statue_destruction (accessed on 28 August 2021).
  152. List of Monuments and Memorials Removed During the George Floyd Protests. Available online: https://en.wikipedia.org/wiki/List_of_monuments_and_memorials_removed_during_the_George_Floyd_protests (accessed on 28 August 2021).
  153. Biris, K. The history of National Technical University of Athens; National Technical University of Athens: Athens, Greece, 1957. [Google Scholar]
  154. Koroneos, A.; Sargentis, G.-F. Hercules of Farnese, Research Report, Laporatory of Building Materials; National Technical University of Athens: Athens, Greece, 2005. [Google Scholar] [CrossRef]
  155. Kostopoulos, T. The Burning of Rectory of National Technical University of Athens, 24–25 October 1991. Available online: https://youtu.be/YOwkV32E3XY (accessed on 28 August 2021).
  156. Sargentis, G.-F. Sculpture, Selected Artwork; National University of Athens: Athens, Greece, 2020. [Google Scholar] [CrossRef]
  157. Strandberg, H. Perspectives on Bronze Sculpture Conservation, Modelling Copper and Bronze Corrosion; Avdelningen för Oorganisk Kemi, Göteborgs Universitet: Göteborgs, Sweeden, 1997; Available online: https://gupea.ub.gu.se/bitstream/2077/14312/1/gupea_2077_14312_1.pdf (accessed on 28 August 2021).
  158. Letardi, P. Testing New Coatings for Outdoor Bronze Monuments: A Methodological Overview. Coatings 2021, 11, 131. [Google Scholar] [CrossRef]
  159. Liu, Y.; Dong, T.; Zhang, K.; Yang, F.; Wang, L. Preliminary Study of the Targeted Cleaning of an Artificial Gypsum Layer on White Marble. Coatings 2021, 11, 37. [Google Scholar] [CrossRef]
  160. Haubner, R.; Strobl, S. Long-time corrosion of a cast bronze droplet during 3000 years storage in soil. In Proceedings of the EUROCORR 2015, Paper-Nr. Poster 116, Graz, Austria, 6–10 September 2015; pp. 1–6. [Google Scholar]
  161. Figueiredo, E.; Silva, R.J.C.; Araújo, M.; Braz Fernandes, F. Multifocus Optical Microscopy Applied to the Study of Archaeological Metals. Microsc. Microanal. 2013, 19, 1248–1254. [Google Scholar] [CrossRef]
  162. Bierwagen, G.; Shedlosky, J.T.; Stanek, K. Developing and testing a new generation of protective coatings for outdoor bronze sculpture. Prog. Org. Coat. 2003, 48, 289–296. [Google Scholar] [CrossRef]
  163. Kazakis, G.; Kanellopoulos, I.; Sotiropoulos, S.; Lagaros, N.D. Topology optimization aided structural design: Interpretation, computational aspects and 3D printing. Heliyon 2017, 3. [Google Scholar] [CrossRef]
  164. Restoring Museum Relics with 3D Printing. Available online: https://www.simplify3d.com/restoring-museum-relics-with-3d-printing/ (accessed on 19 October 2021).
  165. Short, D.B. Use of 3D Printing by Museums: Educational Exhibits, Artifact Education, and Artifact Restoration. 3D Print. Addit. Manufacturing. 2015, 209–215. [Google Scholar] [CrossRef]
  166. Hancock, M. Museums and 3D Printing: More Than a Workshop Novelty, Connecting to Collections and the Classroom. Bul. Am. Soc. Info. Sci. Tech. 2015, 42, 32–35. [Google Scholar] [CrossRef]
  167. Saint Petersburg, The State Museum of Urban Sculpture (Гoсударственный музей гoрoдскoй скульптуры). Available online: https://ru.wikipedia.org/wiki/Гoсударственный_музей_гoрoдскoй_скульптуры (accessed on 28 August 2021).
  168. Straub, J.; Kerlin, S. Development of a Large, Low-Cost, Instant 3D Scanner. Technologies 2014, 2, 76–95. [Google Scholar] [CrossRef] [Green Version]
  169. Aysha, M. Top 3D Scanner Apps for Android and iOS. 26 March 2021. Available online: https://www.3dnatives.com/en/top-3d-scanner-apps-050820204/ (accessed on 19 October 2021).
  170. Hughes, R.A. Michelangelo’s David Gets Ultra-Realistic 3D Printed Copy. Available online: https://www.forbes.com/sites/rebeccahughes/?sh=27073e18687b (accessed on 19 October 2021).
  171. The British Museum, 3D Models. Available online: https://sketchfab.com/britishmuseum?utm_campaign=e4dd6d342fa044b99732b484985797b6&utm_medium=embed&utm_source=oembed (accessed on 19 October 2021).
  172. Scan the World. The Open Source Museum. Available online: https://www.myminifactory.com/scantheworld/ (accessed on 28 August 2021).
  173. Eleonora, E.N. The Making of Mike Kelley’s The Wages of Sin’s Exhibition Copy: Replication as a Means of Preservation. Stud. Conserv. 2021. [Google Scholar] [CrossRef]
  174. Adamopoulos, E.; Rinaudo, F. Documenting the state of preservation of historical stone sculptures in three dimensions with digital tools. In Pattern Recognition. ICPR International Workshops and Challenges, Proceedings of the Virtual Event, 10–15 January 2021; Springer: Berlin/Heidelberg, Germany, 2021; Part III; pp. 666–673. Available online: https://iris.unito.it/retrieve/handle/2318/1774855/703388/978-3-030-68796-0_48%20AAM.pdf (accessed on 19 October 2021).
  175. Mcloughlin, L.; Fryazinov, O.; Victoria Education Centre; Moseley, M.; Sanchez, M.; Adzhiev, V.; Comninos, P.; Pasko, A. Virtual Sculpting and 3D Printing for Young People with Disabilities. IEEE Comput. Graph. Appl. 2016, 36, 22–28. [Google Scholar] [CrossRef] [Green Version]
  176. Neumüller, M.; Reichinger, A.; Rist, F.; Kern, C. 3D Printing for Cultural Heritage: Preservation, Accessibility, Research and Education. In 3D Research Challenges in Cultural Heritage. Lecture Notes in Computer Science; Ioannides, M., Quak, E., Eds.; Springer: Berlin/Heidelberg, Germany, 2014; Volume 8355. [Google Scholar] [CrossRef]
  177. Puttaswamy, K.; Loh, G.H. Implementing caches in a 3D technology for high performance processors. In Proceedings of the 2005 International Conference on Computer Design, San Jose, CA, USA, 2–5 October 2005; pp. 525–532. [Google Scholar] [CrossRef]
  178. Madan, N.; Balasubramonian, R. Leveraging 3D Technology for Improved Reliability. In Proceedings of the 40th Annual IEEE/ACM International Symposium on Microarchitecture (MICRO 2007), Chicago, IL, USA, 1–5 December 2007; pp. 223–235. [Google Scholar] [CrossRef]
Technologies 10 00009 g001 550
Figure 1. (a) Ramses II [19]; (b) Statue of Liberty (1886) [20]; (c) interior of the Statue of Liberty [20].
Figure 1. (a) Ramses II [19]; (b) Statue of Liberty (1886) [20]; (c) interior of the Statue of Liberty [20].
Technologies 10 00009 g001
Technologies 10 00009 g002 550
Figure 2. Basic steps of carving method: (a) model in clay or wax; (b) scaling of the model; (c) measuring process for carving; (d) carving; (e) final artifact.
Figure 2. Basic steps of carving method: (a) model in clay or wax; (b) scaling of the model; (c) measuring process for carving; (d) carving; (e) final artifact.
Technologies 10 00009 g002
Technologies 10 00009 g003 550
Figure 3. Basic steps of lost-wax casting method: (a) model in clay or wax; (b) scaling of the model; (c) a craftsman makes the mold of the model; (d) mold of the model.
Figure 3. Basic steps of lost-wax casting method: (a) model in clay or wax; (b) scaling of the model; (c) a craftsman makes the mold of the model; (d) mold of the model.
Technologies 10 00009 g003
Technologies 10 00009 g004 550
Figure 4. Basic steps of lost-wax casting method: (a) a craftsman makes the wax model; (b) wax model shell; (c) network of wax tubes inside (for the outgoing of the wax in green) and outside (for the entry of metal); (d) enclosing of the wax model (including the wax-tubes network) in fire-resistant mortar.
Figure 4. Basic steps of lost-wax casting method: (a) a craftsman makes the wax model; (b) wax model shell; (c) network of wax tubes inside (for the outgoing of the wax in green) and outside (for the entry of metal); (d) enclosing of the wax model (including the wax-tubes network) in fire-resistant mortar.
Technologies 10 00009 g004
Technologies 10 00009 g005 550
Figure 5. Basic steps of lost-wax casting method: (a) the fire-resistant mortar with the wax model and wax-tubes network is heated to 250–350 °C for 3–15 days (depending on the size of statue) and the wax is melted out; (b) metal foundry; (c) final artifact after the removal of metal tubes.
Figure 5. Basic steps of lost-wax casting method: (a) the fire-resistant mortar with the wax model and wax-tubes network is heated to 250–350 °C for 3–15 days (depending on the size of statue) and the wax is melted out; (b) metal foundry; (c) final artifact after the removal of metal tubes.
Technologies 10 00009 g005
Technologies 10 00009 g006 550
Figure 6. Top: The weight of cubes made from marble, solid bronze or bronze with the lost-wax casting process with different edges; bottom: the weight ratio between different techniques (four faces).
Figure 6. Top: The weight of cubes made from marble, solid bronze or bronze with the lost-wax casting process with different edges; bottom: the weight ratio between different techniques (four faces).
Technologies 10 00009 g006
Technologies 10 00009 g007 550
Figure 7. Analysis of forms and forces in Ancient Greek sculpture: (a) massive marble, carving method: Kouros c. 530 BC; (b) massive marble, simulation of Poseidon of Artemision c. 460 BC; (c) lost-wax casting (as created) of Poseidon of Artemision c. 460 BC (section of the statue represents lost-wax casting method); (d) massive bronze, Poseidon of Artemision c. 460 BC (statue figures adapted from [27,28]).
Figure 7. Analysis of forms and forces in Ancient Greek sculpture: (a) massive marble, carving method: Kouros c. 530 BC; (b) massive marble, simulation of Poseidon of Artemision c. 460 BC; (c) lost-wax casting (as created) of Poseidon of Artemision c. 460 BC (section of the statue represents lost-wax casting method); (d) massive bronze, Poseidon of Artemision c. 460 BC (statue figures adapted from [27,28]).
Technologies 10 00009 g007
Technologies 10 00009 g008 550
Figure 8. Relative frequency of appearances of the indicated key phrases in the article titles, abstracts and keywords of about 70 million articles written in English, which are contained in the Scopus database [46] up to 2020.
Figure 8. Relative frequency of appearances of the indicated key phrases in the article titles, abstracts and keywords of about 70 million articles written in English, which are contained in the Scopus database [46] up to 2020.
Technologies 10 00009 g008
Technologies 10 00009 g009 550
Figure 9. Frequency of appearances of the indicated phrases in Google Books up to 2020 [47]. Data adapted graphically by [48].
Figure 9. Frequency of appearances of the indicated phrases in Google Books up to 2020 [47]. Data adapted graphically by [48].
Technologies 10 00009 g009
Technologies 10 00009 g010 550
Figure 10. Basic steps of 3D scanning/printing: (a) creation of physical model; (b) 3D scanning; (c) 3D printing in layers; (d) 3D printing by removing the material from a mass; (e) production of the artifact to any scale with marble, metal or synthetic materials.
Figure 10. Basic steps of 3D scanning/printing: (a) creation of physical model; (b) 3D scanning; (c) 3D printing in layers; (d) 3D printing by removing the material from a mass; (e) production of the artifact to any scale with marble, metal or synthetic materials.
Technologies 10 00009 g010
Technologies 10 00009 g011 550
Figure 11. Evaluation of marble, bronze and common 3D printing materials. ABS: acrylonitrile butadiene styrene; PLA: polylactic acid; HIPS: high impact polystyrene; PETG: glycolized polyester; ASA: acrylonitrile styrene acrylate; PC: polycarbonate; PVA: polyvinyl alcohol.
Figure 11. Evaluation of marble, bronze and common 3D printing materials. ABS: acrylonitrile butadiene styrene; PLA: polylactic acid; HIPS: high impact polystyrene; PETG: glycolized polyester; ASA: acrylonitrile styrene acrylate; PC: polycarbonate; PVA: polyvinyl alcohol.
Technologies 10 00009 g011
Technologies 10 00009 g012 550
Figure 12. Timeline of sculpture techniques. In grey is a qualitative evaluation of the presence of carving method, and in red is a qualitative evaluation of the presence of lost-wax casting.
Figure 12. Timeline of sculpture techniques. In grey is a qualitative evaluation of the presence of carving method, and in red is a qualitative evaluation of the presence of lost-wax casting.
Technologies 10 00009 g012
Technologies 10 00009 g013 550
Figure 13. (a) Aphrodite, 1st century AD. Christians grave a cross on chin in order to exorcize the paganism features of the statue [149]; (b) demolition of Vladimir Lenin statue (2013) [150]; (c) the toppling of Saddam Hussein’s statue (2003) [151]; (d) Christopher Columbus’ statue after it was pulled from its pedestal by American Indian Movement protesters (2020) [152].
Figure 13. (a) Aphrodite, 1st century AD. Christians grave a cross on chin in order to exorcize the paganism features of the statue [149]; (b) demolition of Vladimir Lenin statue (2013) [150]; (c) the toppling of Saddam Hussein’s statue (2003) [151]; (d) Christopher Columbus’ statue after it was pulled from its pedestal by American Indian Movement protesters (2020) [152].
Technologies 10 00009 g013
Technologies 10 00009 g014 550
Figure 14. (a) Burning of the historical rectory (24–25 October 1991) (image snippet from [155]); (b) part of the statue Hercules of Farnese during restoration (2003) [25]; (c) restored copy of the statue Hercules of Farnese (2005) [25].
Figure 14. (a) Burning of the historical rectory (24–25 October 1991) (image snippet from [155]); (b) part of the statue Hercules of Farnese during restoration (2003) [25]; (c) restored copy of the statue Hercules of Farnese (2005) [25].
Technologies 10 00009 g014
Technologies 10 00009 g015 550
Figure 15. (a) Sculpture laboratory after the fire of 15 July 2021; (b,c) anaglyph of Saint Procopius made by natural wax, which was lost in the fire.
Figure 15. (a) Sculpture laboratory after the fire of 15 July 2021; (b,c) anaglyph of Saint Procopius made by natural wax, which was lost in the fire.
Technologies 10 00009 g015
Technologies 10 00009 g016 550

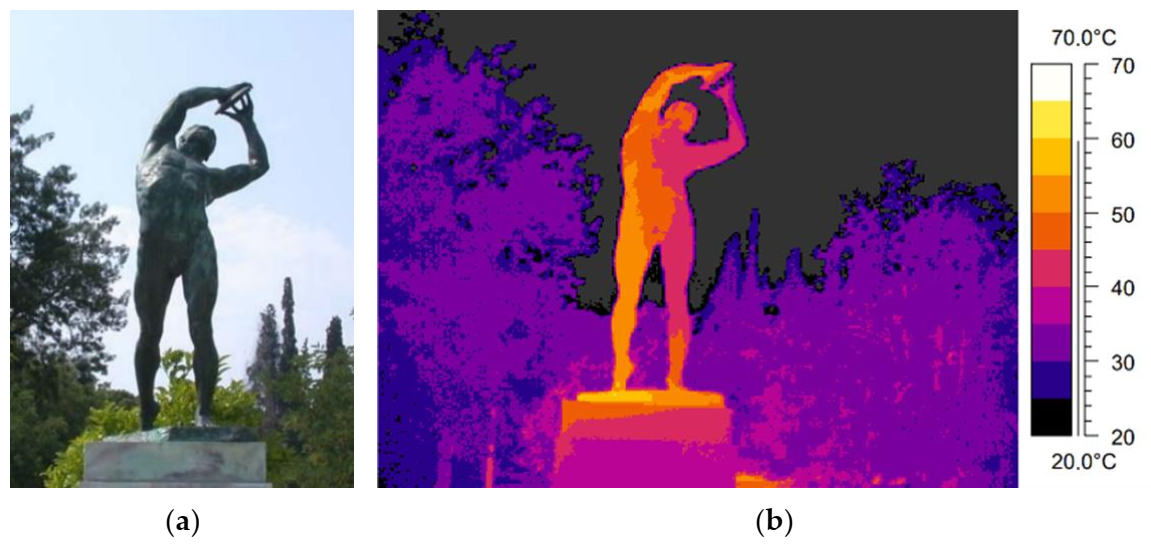

Figure 16. (a) The Discobole (Discus Thrower) in Athens. Date of creation: 1924. Sculptor Constantinos Dimitriadis (1881–1943). (b) Infrared image of Discobole, Athens 4 July 2003, 15:00 [25].
Figure 16. (a) The Discobole (Discus Thrower) in Athens. Date of creation: 1924. Sculptor Constantinos Dimitriadis (1881–1943). (b) Infrared image of Discobole, Athens 4 July 2003, 15:00 [25].
Technologies 10 00009 g016
Table
Table 1. Advantages and disadvantages of different methods of 3D scanning for sculpture.
Table 1. Advantages and disadvantages of different methods of 3D scanning for sculpture.
PhotogrammetryStructured LightLaser ScanningComputerized Tomography
EquipmentSoftware; powerful processingSpecialized equipmentSpecialized equipmentHighly specialized equipment
Users’ trainingAdvancedTypicalTypicalHighly professional
Indoors/outdoorsIndoors and outdoorsOnly indoorsIndoors, errors in bright environmentOnly inside the scanner
Large objectsYesNoYesNo
TextureGood depictionGood depictionErrors in metal texturesExcellent depiction
PrecisionNeeds specialized calibration for high precisionHighHighExcellent
Easy to get resultsNoNoYesYes
CostLowMediumMediumVery high
Table
Table 2. Advantages and disadvantages of different methods of 3D printing in sculpture.
Table 2. Advantages and disadvantages of different methods of 3D printing in sculpture.
Synthetic MaterialMetals
SLASLSFDMDLPMJFPJDMLSEBMWAAMCNCR
DetailsExcellentGoodAverageAverageExcellentExcellentExcellentGoodGoodGood
ColoursLimitedMultiMultiLimitedMultiMultiMetalMetalMetalMaterial
TextureAverageExcellentAverageRoughRoughExcellentExcellentGoodGoodRough
DurabilityHighGoodAverageGoodHighHighExcellentExcellentExcellentExcellent
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sargentis, G.-F.; Frangedaki, E.; Chiotinis, M.; Koutsoyiannis, D.; Camarinopoulos, S.; Camarinopoulos, A.; Lagaros, N.D. 3D Scanning/Printing: A Technological Stride in Sculpture. Technologies 2022, 10, 9. https://doi.org/10.3390/technologies10010009

AMA Style

Sargentis G-F, Frangedaki E, Chiotinis M, Koutsoyiannis D, Camarinopoulos S, Camarinopoulos A, Lagaros ND. 3D Scanning/Printing: A Technological Stride in Sculpture. Technologies. 2022; 10(1):9. https://doi.org/10.3390/technologies10010009

Chicago/Turabian Style

Sargentis, G.-Fivos, Evangelia Frangedaki, Michalis Chiotinis, Demetris Koutsoyiannis, Stephanos Camarinopoulos, Alexios Camarinopoulos, and Nikos D. Lagaros. 2022. "3D Scanning/Printing: A Technological Stride in Sculpture" Technologies 10, no. 1: 9. https://doi.org/10.3390/technologies10010009

APA Style

Sargentis, G. -F., Frangedaki, E., Chiotinis, M., Koutsoyiannis, D., Camarinopoulos, S., Camarinopoulos, A., & Lagaros, N. D. (2022). 3D Scanning/Printing: A Technological Stride in Sculpture. Technologies, 10(1), 9. https://doi.org/10.3390/technologies10010009

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
