Advancing Sustainable Cyber-Physical System Development with a Digital Twins and Language Engineering Approach: Smart Greenhouse Applications
Abstract
:1. Introduction
1.1. Brief History of Digital Twin Technology
1.2. Advances in the Agriculture Sector
1.3. Model-Driven Engineering as a Transformative Approach in Smart Agriculture
- An abstracted software system architecture for a digital twin IoT monitoring system that demonstrates the concepts and components of the whole system.
- A DSL family, or GreenH, for modeling and designing a digital twins-based greenhouse monitoring system. GreenH comprises three DSLs, with each one being responsible for capturing a specific view of the domain: GreenH Design DSL for representing the structural view including IoT smart devices, crop growth, and greenhouse characteristics; GreenH Flow DSL for capturing greenhouse behavior in terms of data flow and control, including data pipelines and data transmitting format and controlling conditions; and GreenH Twin for representing the structural and behavioral views of the smart greenhouses in the virtual environment, thereby forming the corresponding system.
- Formal definitions of the abstract and concrete syntax and semantics of the proposed languages, using a metamodeling approach and the extended Backus–Naur form (EBNF) notation, respectively.
- A model transformation engine to deduce GreenH Twin elements from the GreenH Design and GreenH Flow models.
- An execution engine/model transformation and code generation strategy to support the automation of creating digital twin simulation systems for monitoring smart greenhouses.
- The specificity of DSLs enables quicker iterations and modifications, which are essential in dynamic IoT environments, unlike LLMs, which may require extensive tuning or many user prompts.
- DSLs focus on specific functionalities, use available resources more efficiently, and avoid the generality overhead associated with LLMs and generative approaches.
- DSLs adhere to specific standards within their domain and promote interoperability among systems, which poses challenges for LLMs across different domains.
2. Related Research
2.1. Digital Twins in Smart Agriculture
2.1.1. Digital Twins in Internet of Things
2.1.2. Digital Twins in Controlled Environment Agriculture
2.2. Languages Engineering Approach in Modeling and Simulation Systems
2.3. Domain-Specific Languages and the Agriculture Sector
3. Methodology
3.1. Domain Analysis
3.1.1. Temperate Fruits Development and Growth
3.1.2. Types of Greenhouses
3.1.3. Sensors: Types, Number and Locations
- N is the number of sensors. Each sensor is located in a single zone for microclimate controlling and monitoring tasks.
- A is the measurable floor area of the greenhouse.
- C is a constant to represent the nominal coverage area for a sensor. Then, a coverage function can be defined where:
- Let H be the height of the greenhouse; for some shapes, we consider the height in the middle, where:
- Let K be the shape coefficient constant that adjusts for the complexity of the greenhouse’s shape and internal structures. If is the set of all possible shapes () with the same floor area (), then K can be seen as: , where:
3.1.4. Simulation and Visualization
3.2. Definition of Requirements of Domain Specific Languages

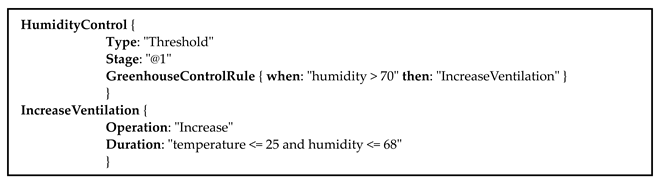

Listing 1. A snapshot of GreenH Flow to show a humidity monitoring and control process. |
4. Design Principles of the GreenH Language Syntax
4.1. Aspect Orientation and Separation of Concerns
- (1)
- The metamodel of GreenH Design DSL, which encapsulates essential greenhouse characteristics: shape, dimensions, and growth development stages (Figure 4a). Moreover, it expresses its key IoT system components: environmental sensors, actuators, and conditions, and their interrelations.
- (2)
- The metamodel of GreenH Flow DSL, which encapsulates critical control processes and constraints in terms of data flow and data filters (Figure 4b), thereby supporting diverse greenhouse monitoring and control cases.
- (3)
- The metamodel of GreenH Twin, which encapsulates the virtual entities and behavior corresponding to both physical and logical concepts that appear in the previous metamodels, thereby forming various digital twin simulation scenarios (Figure 4c).
4.2. Integration Functionality of GreenH Language

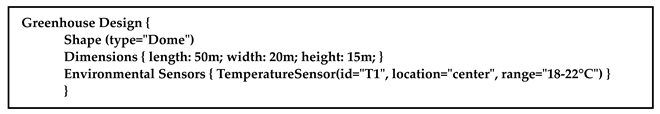

Listing 2. A snapshot of GreenH Design to show an example of specifying a configuration. |
Listing 3. A snapshot of a corresponding GreenH Flow to show the predefined context that creates a smart control rule. |
4.3. Extendibility Features of GreenH

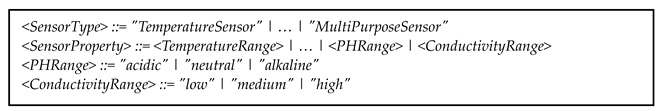

Listing 4. A snapshot of GreenH Design EBNF definition to extend the language with new features. |

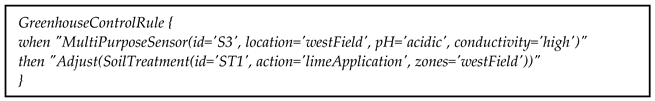

Listing 5. A snapshot of GreenH Flow to show the controlling rule corresponds to the extension. |
4.4. Testability Features of the Language Design
5. Definition of GreenH Language Syntax
5.1. Formalizing GreenH Concrete Syntax
5.1.1. Formalizing the Concrete Syntax of GreenH Design DSL
- Greenhouse Design: a concept of the language that expresses the syntax and constructs of the overall structure of a greenhouse design, and that encompasses its shape, dimensions, sensors, actuators, and growth journey details as enclosed in a specific format. This can be formally defined using EBNF notation as:
- Greenhouse Shape: a concept of the language that specifies the geometric shape of the greenhouse, which is a critical factor in determining the required number of sensors and their positions inside the greenhouse area. The common types of greenhouse shapes, such as square, rectangle, and dome, are captured using ShapeType to provide more flexibility in design options. This can be formally defined using EBNF notation as:
- Dimensions: a concept of the language that describes the syntax and constructs the dimensions of the greenhouse, which are fundamental for planning the size and area along with its shape. This can be formally defined using EBNF notation as:
- Environmental Sensors: a concept of the language for describing the syntax and constructs of special types of sensors, installed in specific locations, and their tasks, which are utilized for monitoring environmental conditions inside the greenhouse, such as humidity, temperature, and soil moisture. Initial readings can be determined to enable monitoring and control of the smart system according to an acceptable range. This can be formally defined using EBNF notation as:
- Actuator: a concept of the language that expresses the syntax and constructs of actuators that can act on various greenhouse components that are placed in specific locations. It can carry out actions in response to rules for actively managing the environment inside the greenhouse. The actuator can be specialized into different types of actuators for specific greenhouse systems, such as heating and lighting systems using the ActuatorType element. This can be formally defined using EBNF notation as:
- Growth Manager: a concept of the language for expressing the growth and development stages of a specific type of crop planted inside the greenhouse. As explained in Section 3.1.1, the temperature required by temperate fruits vary for each stage of growth development. The details of each growth stage, including its purpose, duration, and optimal environmental conditions, are captured in the language using the Stage element. This enables the language that describes the growth journey in detail, which can be defined formally using EBNF notation as:
5.1.2. Formalizing the Concrete Syntax of GreenH Flow DSL
- Greenhouse flow: a concept of the flow language used to express syntax and construct the overall data flow behavior of the greenhouse smart system. It is worth mentioning that the greenhouse components that are defined previously using GreenH Design language can be referenced in this model via design_source element. These can be formally defined using EBNF notation as:
- Data Pipes: a concept of the flow language used to express syntax and construct the data flow within the system, defining how data are taken in from sensors, processed, and output. It contains one or more Pipe elements, each specifying a single data pipeline within the system, including the input source of data, the filter applied, and the directed control system. This can be formally defined using EBNF notation as:
- Data Filters: a concept of the flow language used to express the syntax and constructs of filters used to process data within pipes. It comprises of multiple definitions of two types of elements, namely DataFilter and ControlRule. Each filter has a type (e.g., threshold, range) and an associated growth development stage. On the other hand, the rule element describes the condition(s) that dictate how data are filtered and action triggering based on data conditions. This can be formally defined using EBNF notation as:
- Actions: a concept of the flow language used to describe the syntax and constructs of the collection of actions. Each Action describes a specific operation to be performed by the system in a particular duration based on data conditions and decision-making logic, expressed in a relevant DataFilter element. This can be formally defined using EBNF notation as:
5.1.3. Formalizing the Concrete Syntax of GreenH Twin DSL
- Virtual World: an element of the digital twins language used to bind the virtual representations of all greenhouse structural and behavioral components corresponding to real-world ones expressed in GreenH Design and GreenH Flow DSLs. This can be formally defined using EBNF notation as:
- Sensor Instance: an element of the digital twins language used to represent a virtual entity from a corresponding one that is expressed in GreenH Design language. This can be formally defined using EBNF notation as:
- Simulation: an element of the digital twins language used to create simulations for monitoring/testing scenarios. It provides the capability to monitor the system behavior in various real-world scenarios based on real data. The Simulation element comprises the simulation environment settings and scenarios. This can be formally defined using EBNF notation as:
- Agricultural Scenario: a concept of the language that acts as a contextual container to group a series of processes that relate to the simulation. It can be utilized to define a specific set of circumstances under which the contained processes will operate. Each process includes a name, a condition under which the process should be executed, and an action to be performed if the condition is met. This can be formally defined using EBNF notation as:
- Action: a concept of the language that describes the action to trigger when the condition of a process is met. The details include the name and the command to execute. This can be formally defined using EBNF notation as:
6. Use Case: Digital Twin Internet of Things Temperature Monitoring System
Representing a Simple Monitoring System Using GeenH DSLs

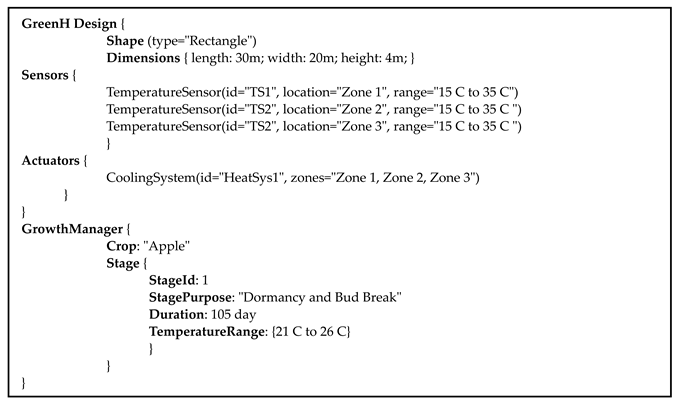

Listing 6. A snapshot of GreenH Design to represent the structure of the greenhouse. |
Listing 7. A snapshot of GreenH Flow to represent the data flow and control in the greenhouse. |
Listing 8. A snapshot of the translated GreenH Twin representing the corresponding digital twin simulation system within the greenhouse. |
7. Language Evaluation Strategy
7.1. Expert Participant Characteristics

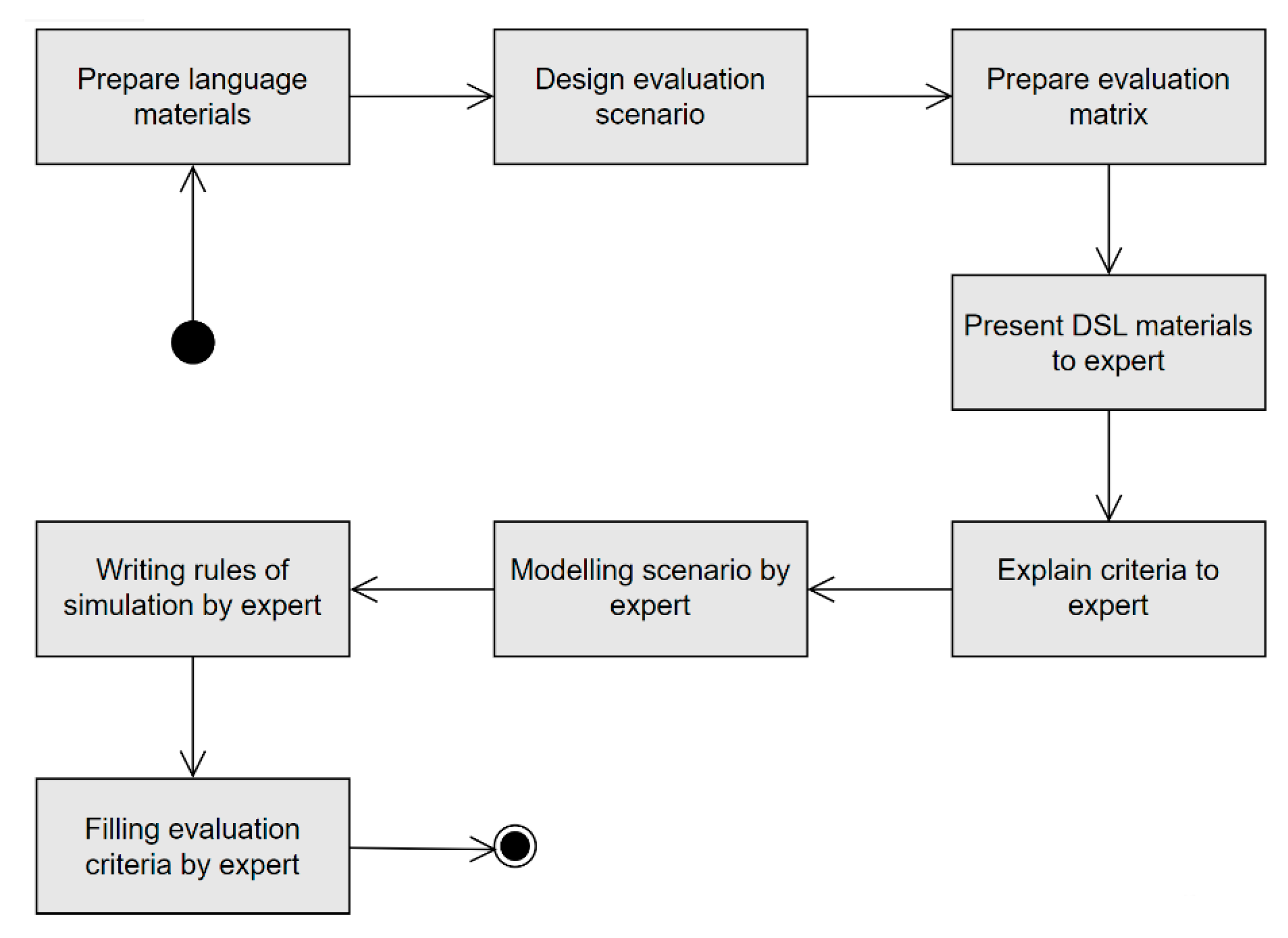

7.2. Evaluation Strategy and Criteria
7.3. Results Discussion and Final Remarks

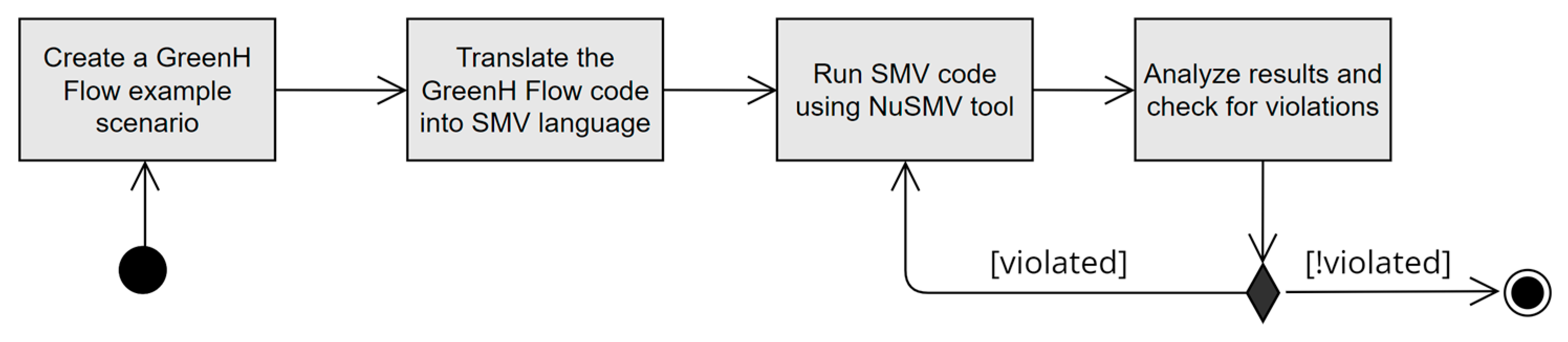

7.4. GreenH Verification Using Model Checking
Listing 9: The GreenH Flow DSL example used for verification. |
- Safety property:
- When the temperature is above 26 degrees and the cooling level is not already high, the system transitions the cooling level to high.
- When the temperature falls to 22 degrees and lower and the cooling level is not already low, the system transitions the cooling level to low.
- Cooling system actions are gradually phased out by decrementing the timer and turning off the system when the timer reaches 1.
- Liveness property:
- When the temperature exceeds 26 degrees, the cooling system will eventually be set to high.
- When the temperature falls to 22 degrees or lower, the cooling system will eventually be set to low.
8. Conclusions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
