Rational Design of Ratiometric Fluorescent Probe for Zn²⁺ Imaging under Oxidative Stress in Cells

Abstract

Zn²⁺ is a vital ion for most of the physiological processes in the human body, and it usually has a mutual effect with oxidative stress that often occurs in pathological tissues. Detecting fluctuation of Zn²⁺ level in cells undergoing oxidative stress could be beneficial to understanding the relationship between them. Herein, a ratiometric fluorescent Zn²⁺ probe was rationally designed. The wavelength corresponding to the maximum fluorescence intensity bathometrically shifted from 620 nm to 650 nm after coordinating with Zn²⁺. The intensity ratio of two fluorescence channels changed significantly in cells treated by oxidative stress inducers. It was shown from the results that the labile zinc level was generally elevated under oxidative stress stimulated by various inducers.

1. Introduction

The divalent zinc (Zn²⁺) is crucial for all creatures. In the cellular level, the spatio-temporal distribution of labile zinc has an effect on the process of signal transduction, gene expression, and cell death by adjusting the extent of zinc–protein and/or zinc–nucleus acid combination [1]. As for human beings, Zn²⁺ features irreplaceably in numerous biochemical processes, including combining with insulin to guarantee the normal function of pancreas islet [2], inhibiting m-aconitase activity to maintain a high level of citrate in prostate epithelial cells [3], and fluxing during mammalian sperm capacitation to contribute to fertilization [4]. Among them, oxidative stress could be one of the major ways for Zn²⁺ to affect cell metabolism [5].

Zn²⁺ acts as an anti-oxidant indirectly at a certain concentration range [6], and it also has pro-oxidant effects at both excessively high and low concentration levels [7]. In turn, however, Zn²⁺ is released from macromolecules (e.g., metallothionein) during oxidative stress so that the concentration of its labile state elevates [8]. More specifically, if some macromolecules containing Zn²⁺ are destroyed to lose their chelating ability by some stimulants, Zn²⁺ will be released, which is common in pathological tissues [9,10,11]. Detecting the Zn²⁺ released during this process could be helpful for studying the mutual affection between Zn²⁺ and oxidative stress. Furthermore, the extent of impact of Zn²⁺-containing macromolecules induced by different chemicals can be learned from Zn²⁺ imaging.

Fluorescence imaging has the merit of good selectivity, sensitivity, and convenience to present the accurate spatio-temporal distribution of analytes, so that it is frequently used to image the metal ion in cells [12]. While there are lots of brilliant materials that can be used as fluorescent sensors to detect metal ions [13,14,15,16], small molecule probes stand out among the genetically coded probes and nanoparticle probes by its properties of low toxicity, ease of preparation, and being relatively stable [17]. Currently, satisfactory small molecule fluorescent probes for detecting Zn²⁺ in oxidative context are still rare [18,19,20,21], mainly because it is challenging to simultaneously consider all of the essential factors such as selectivity, stability, and prolonging the wavelength of the spectrum. The laser used for excitation should try to be in a visible or near infrared region to avoid extra damage to cells and enhance the signal-to-background ratio during imaging. Moreover, ratiometric probes are preferred in ion detecting occasions since it has a self-calibration effect to prevent many kinds of interference [22].

Based on the fact described above, we synthesized and screened a fluorescent probe to ratiometrically detect Zn²⁺ in stressed cells. A BODIPY fluorophore was used since it is known to be much more stable and bright in common cell environments [23]. A mesityl group and two methyl groups were introduced to the meso- and β-position separately to prevent rotating induced relaxation, and a pyrrole ring was directly bound to the α-position of the BODIPY core, so that the wavelengths of both the excitation and emission spectra were prolonged significantly. Among the BODIPY based ratiometric probes, the intramolecular charge transfer (ICT) mechanism was mostly adopted in the designation by locating the recognition group at the 3, 5-position [24], or 8-position [25]. However, this strategy did not always work in the ion-detecting probes because of either the photo-induced electron transfer (PeT) quenching effect or the complexity of the chelating group [26,27]. Therefore, apart from linking a chelating group to the fluorophore, an ester group was added to the ortho-position of the chelating group, which may cause a red shift rather than a blue shift while reacting with a zinc ion [28]. The quantity and position of the ligands were screened to obtain the optimal probe BDP-p-BPEA, while another two probes BDP-p-TMPA and BDP-2BPEA were listed for comparison (Scheme 1).

2. Materials and Methods

2.1. Materials and Instruments

All reagents for probe preparation were of analytic grade and purchased from Energy Chemistry (Shanghai, China) and J&K Chemical (Beijing, China). The ¹H NMR and ¹³C NMR spectra were recorded at 25 °C with a Bruker Avance DRX-400 (German) with TMS as the internal reference. High resolution mass spectrometric data were determined using an Agilent 6540Q-TOF HPLC-MS spectrometer (America). The ultrapure water for spectroscopic and cell culture was obtained from a Millipore system (>18.2 MΩ). Confocal imaging was performed with a Zeiss LSM710 microscope (German).

2.2. Synthesis of Intermediates 1–4 and Probes BDP-2BPEA, BDP-p-BPEA, and BDP-p-TMPA

2.2.1. Synthesis of 1

To a dichloromethane (16 mL) solution of ethyl 4-methyl-1H-pyrrole-3-carboxylate (3.15 g, 20.5 mmol) were added 33 mL of acetic acid and 0.75 mL of concentrated sulfuric acid under nitrogen atmosphere. After stirring at room temperature for 10 min, 2,4,6-trimethylbenzaldehyde (1.50 g, 10.1 mmol) was added dropwise. The mixture was left to react for 7 h. Upon completion, the solvent was removed by rotary evaporation. Dichloromethane was used to dissolve the residue and the solution was neutralized by a saturated NaHCO₃ aqueous solution. The aqueous phase was extracted by the same volume of dichloromethane twice. The combined organic phase was dried with Na₂SO₄. The solution of crude product was concentrated and purified by silica gel column chromatography using dichloromethane to dichloromethane/methanol = 4/1 as the eluent to give compound 1 as a white solid (3.31 g, 75.1% yield). MS (ESI+) m/z: calculated 436.23621; found 437.24182 [M + H]⁺, 459.22357 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 7.83 (s, 2H), 7.23 (d, J = 3.1 Hz, 2H), 6.86 (s, 2H), 5.80 (s, 1H), 4.26 (qd, J = 7.1, 1.4 Hz, 4H), 2.27 (s, 3H), 1.96 (s, 6H), 1.33 (t, J = 7.1 Hz, 6H). ¹³C NMR (101 MHz, CDCl₃) δ 165.64, 136.94, 136.80, 132.34, 130.91, 127.22, 122.06, 117.15, 116.21, 59.52, 36.07, 20.88, 20.76, 14.63, 10.24.

2.2.2. Synthesis of 2

The synthesis of 2 referred to previously reported literature [29]. Compound 1 (2.00 g, 4.58 mmol) was dissolved into dry tetrahydrofuran (THF, 45 mL) under nitrogen atmosphere, and cooled to –78 °C for more than 10 min. Then, N-bromosuccinimide (1.63 g, 9.16 mmol) was added in three portions every 10 min. After stirring at –78 °C for one hour, 2,3-dichloro-5,6-dicyano-p-benzoquinone (1.04 g, 4.58 mmol) was added to the mixture gradually. The mixture reacted for 10 min at −78 °C and was transferred to room temperature and stirred for another 1.5 h. Upon completion, the solvent was evaporated. Forty milliliters of dichloromethane were added, and less soluble components were removed by filtration. The filtrate was concentrated and purified by silica gel column chromatography using petroleum ether/dichloromethane = 2/1 to 0/1 as the eluent to give compound 2 as an orange solid (2.53 g, 93.4% yield). MS (ESI+) m/z: calculated 592.03954; found 593.04224 [M + H]⁺, 615.02521 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 14.13 (s, 1H), 6.96 (s, 2H), 4.28 (q, J = 7.1 Hz, 4H), 2.34 (s, 3H), 2.05 (s, 6H), 1.60 (s, 6H), 1.34 (t, J = 7.1 Hz, 6H). ¹³C NMR (101 MHz, CDCl₃) δ 163.47, 146.10, 143.79, 139.47, 137.37, 135.10, 131.79, 130.56, 129.55, 121.95, 60.58, 21.36, 19.65, 14.33, 12.43.

2.2.3. Synthesis of 3

To a solution of compound 2 (2.75 g, 4.64 mmol) in 50 mL of dichloromethane was added diisopropylethylamine (4.9 mL, 27.8 mmol). The mixture was stirred for 10 min, and BF₃·OEt₂ (4.8 mL, 37.1 mmol) was dripped into it. The mixture was left to react at room temperature for two hours. Fifteen milliliters of water were added to quench the reaction, and was then neutralized by 1 M NaOH. The aqueous phase was extracted by the same volume of dichloromethane twice. The combined organic phase was dried with Na₂SO₄. The solution of crude product was concentrated and purified by silica gel column chromatography using petroleum ether/dichloromethane = 2/1 to 0/1 as the eluent to give compound 3 as a red solid (1.96 g, 66.0% yield). MS (ESI+) m/z: calculated 640.03782; found 641.04327 [M + H]⁺, 663.02448 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 7.02 (s, 2H), 4.32 (q, J = 7.1 Hz, 4H), 2.37 (s, 3H), 2.08 (s, 6H), 1.68 (s, 6H), 1.35 (t, J = 7.1 Hz, 6H). ¹³C NMR (101 MHz, CDCl₃) δ 162.63, 147.60, 147.01, 140.45, 134.44, 134.41, 132.50, 130.02, 129.70, 124.68, 61.15, 21.41, 19.68, 14.32, 12.58.

2.2.4. Synthesis of 4

The synthesis of 4 referred to previously reported literature [30]. Briefly, the mixture of compound 3 (200 mg, 0.31 mmol) and 4 mL of pyrrole was refluxed for 10 h under nitrogen atmosphere. Then, the solvent was removed by rotary evaporation. The crude product was purified by silica gel column chromatography using petroleum ether/dichloromethane = 1/1 to 0/1 as the eluent to give compound 4 as a dark green solid (0.16 g, 82.4% yield). MS (ESI+) m/z: calculated 625.15591; found 626.16199 [M + H]⁺, 648.14520 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 10.59 (br, 1H), 7.20 (m, 1H), 6.99 (s, 2H), 6.86 (m, 1H), 6.36 (dt, J = 4.2, 2.3 Hz, 1H), 4.32 (p, J = 7.1 Hz, 3H), 2.36 (s, 3H), 2.11 (s, 6H), 1.66 (s, 3H), 1.47 (s, 3H), 1.35 (t, J = 7.1 Hz, 3H), 1.30 (t, J = 7.1 Hz, 3H). ¹³C NMR (101 MHz, CDCl₃) δ 166.02, 163.47, 148.29, 145.48, 141.42, 140.70, 139.82, 135.29, 133.55, 130.58, 130.41, 129.61, 128.13, 126.41, 126.33, 122.35, 121.40, 119.68, 111.64, 61.88, 60.70, 21.39, 19.79, 14.38, 14.15, 12.54, 11.86.

2.2.5. Synthesis of BDP-2BPEA

A mixture of compound 3 (100 mg, 0.16 mmol), N,N-bis(pyridin-2-ylmethyl)ethane-1,2-diamine (151 mg, 0.62 mmol) and triethylamine (86 μL, 0.62 mmol) in 8 mL of acetonitrile was stirred at 60 °C overnight under nitrogen atmosphere. Then, the solvent was removed by rotary evaporation. The crude product was purified by neutral aluminium oxide column chromatography using dichloromethane/ethanol = 100/1 to 20/1 as the eluent to give BDP-2BPEA as a blue foam (44 mg, 28.6% yield). MS (ESI+) m/z: calculated 962.49384; found 963.50043 [M + H]⁺, 985.48047 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 8.53 (br, 2H), 8.48 (ddd, J = 5.0, 1.8, 0.9 Hz, 4H), 7.83 (dt, J = 7.8, 1.1 Hz, 4H), 7.60 (td, J = 7.6, 1.8 Hz, 4H), 7.11 (ddd, J = 7.5, 4.9, 1.2 Hz, 4H), 6.91 (s, 2H), 4.29 (q, J = 7.1 Hz, 4H), 3.96 (t, J = 5.9 Hz, 4H), 3.89 (s, 8H), 2.85 (t, J = 5.8 Hz, 4H), 2.33 (s, 3H), 2.06 (s, 6H), 1.59 (s, 6H), 1.32 (t, J = 7.1 Hz, 6H). ¹³C NMR (101 MHz, CDCl₃) δ 166.54, 159.37, 156.13, 148.87, 142.43, 138.57, 136.67, 136.63, 133.38, 132.67, 128.96, 125.84, 123.52, 122.14, 107.57, 60.18, 60.10, 53.41, 41.62, 21.36, 19.68, 14.53, 12.82.

2.2.6. Synthesis of BDP-p-BPEA

A mixture of compound 4 (160 mg, 0.26 mmol), N,N-bis(pyridin-2-ylmethyl)ethane-1,2-diamine (93 mg, 0.38 mmol) and triethylamine (53 μL, 0.38 mmol) in 10 mL of acetonitrile was stirred at 60 °C for 2 h under nitrogen atmosphere. Then, the solvent was removed by rotary evaporation. The crude product was purified by silica gel column chromatography using dichloromethane/methanol = 1/0 to 10/1 as the eluent to give BDP-p-BPEA as a brown solid (130 mg, 63.4% yield). MS (ESI+) m/z: calculated 787.38289; found 788.38849 [M + H]⁺, 810.36523 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 9.98 (br, 1H), 9.06 (br, 1H), 8.52 (d, J = 4.9 Hz, 2H), 7.77 (d, J = 7.9 Hz, 2H), 7.63 (td, J = 7.7, 1.8 Hz, 2H), 7.16 (ddd, J = 7.5, 4.8, 1.2 Hz, 2H), 6.95 (s, 3H), 6.62–6.55 (m, 1H), 6.26 (dt, J = 3.7, 2.6 Hz, 1H), 4.35 (q, J = 7.1 Hz, 2H), 4.20 (q, J = 7.1 Hz, 2H), 4.01 (q, J = 5.6 Hz, 2H), 3.94 (s, 4H), 2.93 (t, J = 5.9 Hz, 2H), 2.34 (s, 3H), 2.09 (s, 6H), 1.71 (s, 3H), 1.44 (s, 3H), 1.35 (t, J = 7.1 Hz, 3H), 1.20 (t, J = 7.1 Hz, 3H). ¹³C NMR (101 MHz, CDCl₃) δ 167.09, 165.87, 158.70, 158.25, 150.21, 148.76, 138.97, 138.75, 136.94, 136.22, 134.83, 133.92, 131.79, 129.75, 129.17, 128.44, 123.72, 122.65, 122.42, 122.37, 119.92, 113.36, 112.53, 109.23, 60.99, 60.77, 59.90, 52.83, 41.69, 21.36, 19.80, 14.40, 14.16, 13.52, 11.26.

2.2.7. Synthesis of BDP-p-TMPA

A mixture of compound 4 (140 mg, 0.22 mmol) and 1-(6-(aminomethyl)pyridin-2-yl)-N,N-bis(pyridin-2-ylmethyl)methanamine (103 mg, 0.32 mmol) in 10 mL of acetonitrile was stirred at 60 °C for 1 h under nitrogen atmosphere. Then, the solvent was removed by rotary evaporation. The crude product was purified by silica gel column chromatography using dichloromethane as the eluent to give BDP-p-TMPA as a purple foam (164 mg, 86.3% yield). MS (ESI+) m/z: calculated 864.40944; found 865.41260 [M + H]⁺, 887.39386 [M + Na]⁺. ¹H NMR (400 MHz, CDCl₃) δ 10.05 (br, 1H), 10.02 (br, 1H), 8.51 (dt, J = 4.9, 1.4 Hz, 2H), 7.67 (t, J = 7.6 Hz, 1H), 7.65–7.61 (m, 2H), 7.63–7.56 (m, 2H), 7.50 (d, J = 7.6 Hz, 1H), 7.20 (d, J = 7.6 Hz, 1H), 7.13 (ddd, J = 6.8, 4.9, 1.6 Hz, 2H), 6.98–6.93 (m, 3H), 6.65–6.58 (m, 1H), 6.28 (dt, J = 3.7, 2.5 Hz, 1H), 5.20 (d, J = 4.5 Hz, 2H), 4.24 (q, J = 7.1 Hz, 2H), 4.19 (q, J = 7.1 Hz, 2H), 3.99 (s, 2H), 3.94 (s, 4H), 2.35 (s, 3H), 2.11 (s, 6H), 1.73 (s, 3H), 1.46 (s, 3H), 1.25 (t, J = 7.3 Hz, 3H), 1.20 (t, J = 7.1 Hz, 3H). ¹³C NMR (101 MHz, CDCl₃) δ 167.11, 165.41, 159.56, 158.65, 158.16, 154.68, 150.67, 149.07, 138.92, 138.45, 137.32, 136.60, 136.26, 134.62, 133.48, 131.83, 130.11, 129.14, 128.36, 123.16, 122.77, 122.27, 122.13, 121.84, 120.36, 119.71, 113.17, 113.09, 109.18, 60.93, 60.70, 60.35, 60.12, 49.03, 42.08, 27.12, 25.10, 21.34, 19.82, 14.32, 14.15, 13.53, 11.22.

2.3. Optical Experimental Method

Stock solutions of metal ions and probes were prepared by dissolving an appropriate amount in ultrapure water and DMSO, respectively. Solvents for spectroscopic study were of spectral grade from Tedia Company Inc. Absorption spectra were recorded using a PerkinElmer E35 spectrophotometer. Fluorescence spectra were determined using a Horiba FluoroMax-4 spectrofluorometer with the 2 nm and 1 nm slit for excitation and emission, respectively. Excitation wavelength was 550 nm.

The detection limit of three probes were determined according to previous literature [31]. Taking BDP-p-BPEA as an example, the fluorescence intensity at 670 nm and 595 nm of the probe was determined 20 times in the identical condition with what was used in the titration experiment. The standard deviation of the twenty F₆₇₀/F₅₉₅ value was calculated to be the background noise σ. Then, the limit of detection (LOD) was determined using the following equation:

$$\mathrm{LOD}=\frac{3\mathsf{\sigma }}{\mathrm{k}},\mathrm{k}\mathrm{was}\mathrm{the}\mathrm{slope}\mathrm{of}\mathrm{the}\mathrm{linear}\mathrm{fitting}\mathrm{curve}.$$

2.4. Cell Culture

For oxidative stress inducing experiment, Hela cells were washed by phosphate-buffered saline (PBS) and incubated with 5 µM of probe (in Dulbecco’s modified eagle medium, DMEM) for 4 h at 37 °C, followed by washing another 3 times with PBS. Then, 100 µM of 4,4′-dithiodipyridine (DTDP), 50 µM of N-ethylmaleimide (NEM), 50 µM of TPEN, 200 µM of N’,N’-diethyl-N-hydroxynitrous hydrazide diethyl ammonium salt (DEA-NONOate) and 20 µM of cisplatin (in DMEM) were added separately to different dishes of cells. Then, the culture dish was put back to incubate for 30 min (for DTDP, NEM and TPEN) or 2 h (for DEA-NONOate and cisplatin), and the cells were washed 3 times with PBS before acquiring the fluorescence image.

The cytotoxicity experiment of BDP-p-BPEA in Hela cells was measured using an MTT assay. Cells were seeded into a 96-well cell culture plate at a rate of 4300/well in 5% CO₂ at 37 °C for 24 h, followed by adding probe BDP-p-BPEA (0–8 µM), and then allowed to incubate for 24 h, respectively. Subsequently, each well was injected with 40 µL MTT (2.5 mg/mL) and cultured for another 4 h under the same conditions. Then, the culture medium was removed, and 150 µL of DMSO were added to each well to dissolve the formazan. Absorption of 490 nm of each well was obtained on a microplate reader to indirectly calculate the amount of live cells.

3. Results

3.1. Design and Synthesis of the Three Probes

The BODIPY core was constructed in a conventional method, that is, aldehyde and two equivalents of pyrrole were condensed and then functionalized by halogenation and nucleophilic substitution. In this way, we successfully obtained three fluorescent probes that were shown in Scheme 1. All of the newly synthesized compounds were characterized by ¹H NMR, ¹³C NMR, and ESI-MS (Figures S1–S21).

3.2. Spectral Response Towards Zn²⁺ and Screening of the Probes

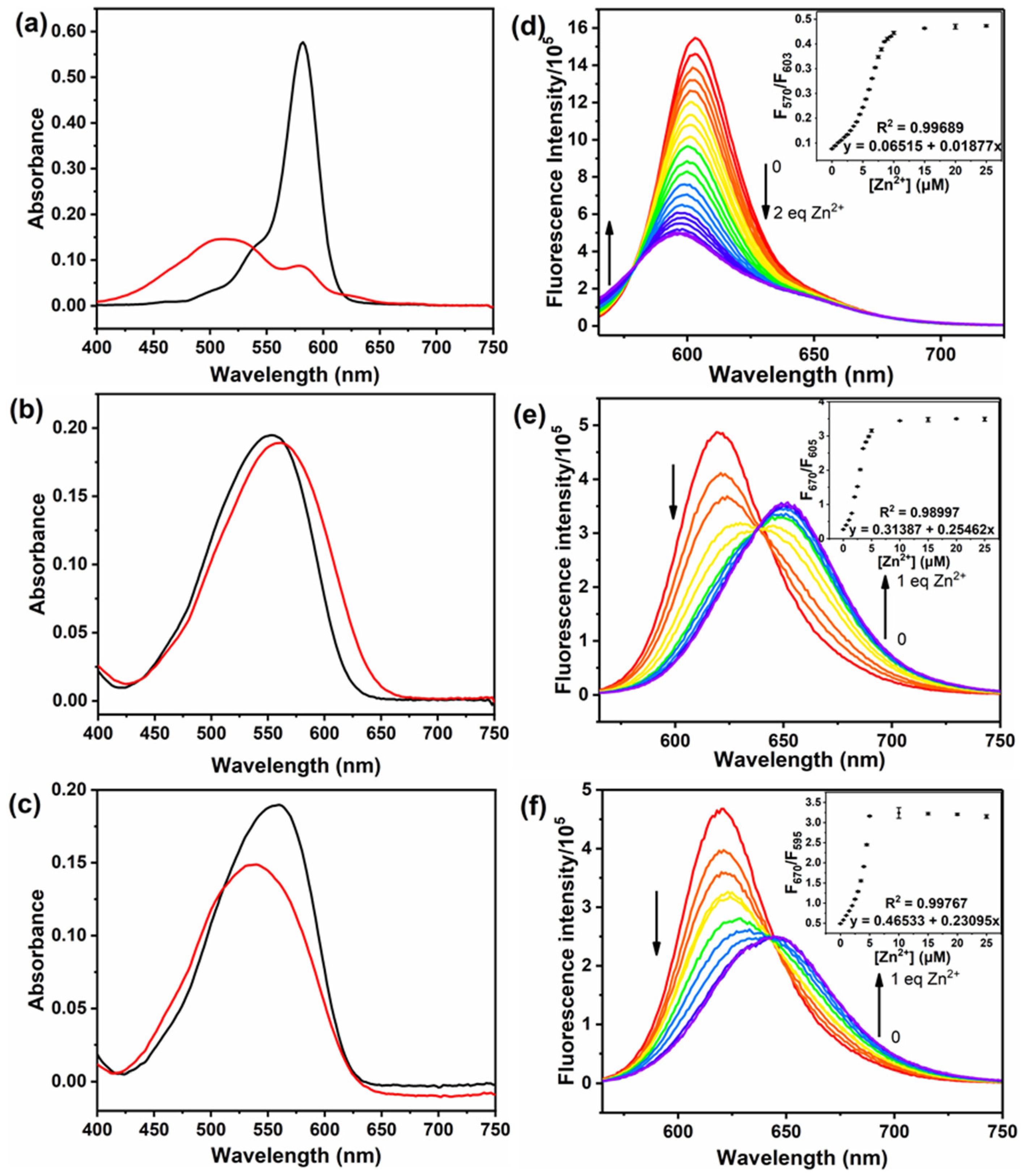

With three probes in hand, we obtained their absorption spectra in the range of 400–750 nm in acetonitrile/aqueous (v/v = 1:1) solution (Figure 1a–c). It can be seen that the absorption bands of BDP-p-BPEA and BDP-p-TMPA were broad (full width at half maximum were about 100 nm), and the wavelength of maximum absorption changed for 5–10 nm after chelating with Zn²⁺. Thus, their ratiometric absorption turned out to be negligible. As for fluorescence spectra, all of them exhibited ratiometric response to Zn²⁺. BDP-2BPEA could chelate with two equivalents of Zn²⁺, and the inflection point at the one equivalent position in the fluorescence titration graph inferred the different electron density distribution on the fluorophore between reacting with one and two equivalents of Zn²⁺ (Figure 1d). The fluorescence spectrum of this compound hypochromatically shifted after chelating, regardless of how much Zn²⁺ was added. It was supposed that this probe adopted a different binding mode from that of the other two counterparts. In addition, the fluorescence peak of BDP-p-BPEA presented the bathochromic shift from 620 nm to 650 nm when reacting with a sufficient amount of Zn²⁺ (Figure 1e). When the chelator of the probe was changed to a hexadentate, the bathochromic shift slightly shortened as the electron density change of the ligands that conjugated to fluorophore in average attenuated (Figure 1f). Thus, BDP-p-BPEA had a lower detection limit (29 nM) than BDP-p-TMPA (41 nM) and BDP-2BPEA (50 nM).

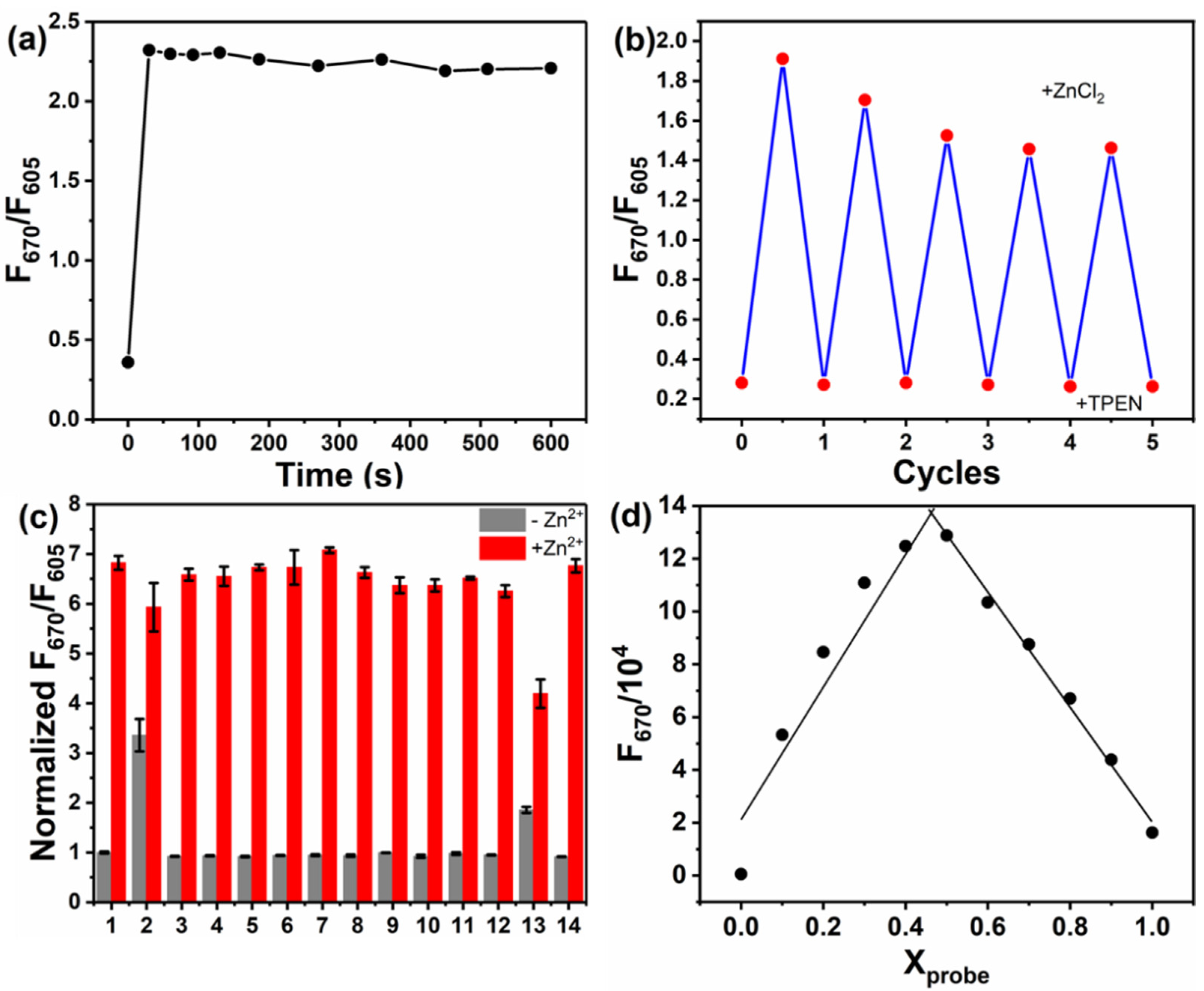

Based on the screening results displayed above, the probe BDP-p-BPEA was selected to study the optical properties in detail. The probe reached coordination equilibrium with Zn²⁺ within 30 s (Figure 2a), and the reversibility, crucial to displaying the dynamic change of Zn²⁺ level, was also checked by adding ZnCl₂ and Zn²⁺ scavenger N,N,N’,N’-tetrakis(2-pyridinylmethyl)-1,2-ethanediamine (TPEN) solution alternatively to the solution of BDP-p-BPEA for five cycles (Figure 2b). The dissociation constant for BDP-p-BPEA + Zn²⁺ was calculated to be 3.2 nM (Figure S22), providing sufficient affinity for BDP-p-BPEA to capture the labile Zn²⁺. Then, the selectivity was tested with common metal ions in the environment (Figure 2c). H₂O₂ and its mixture with Fe²⁺ were used to mimic oxidative environment in cells. Except for Cu²⁺, all of the tested species negligibly affected the fluorescence response of the probe to Zn²⁺. Fortunately, the Cu²⁺ level in cells was too low to compete with the coordination site of the probe with Zn²⁺ [32].

3.3. Exploring the Sensing Mechanism for BDP-p-BPEA

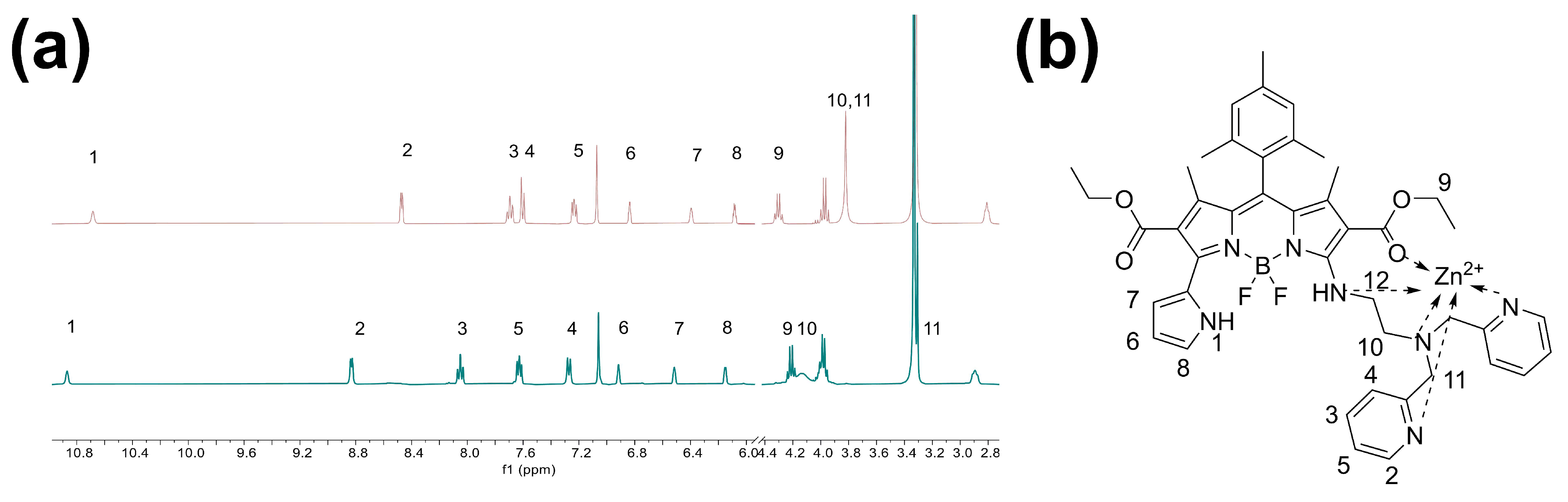

The Zn²⁺ binding stoichiometry of BDP-p-BPEA was studied by Job’s plot and ESI-MS. The fluorescence ratio reached maximum when c(BDP-p-BPEA)/([Zn²⁺] + c(BDP-p-BPEA)) equaled to 0.5 (Figure 2d); meanwhile, a [M − H + Zn]⁺ peak (m/z = 850.30214) and a [M + Cl + Zn]⁺ peak (m/z = 886.27891) were presented in the mass spectrum of BDP-p-BPEA-Zn²⁺ complex (Figure S23), proving that the probe chelated with Zn²⁺ in the manner of 1:1. After that, the ¹H NMR spectrum of BDP-p-BPEA in DMSO-d₆ before and after being added with ZnCl₂ were compared (Scheme 2a). We found that three of the H signals of the pyridine rings moved to the lower field, while the H signal of the 3-position of pyridine upshifted. All of the H on the pyrrole ring downshifted because the chelation lowered the electron density of the whole conjugation system. Chemical shift of methylene hydrogen in the chelating group and ester group also changed in different degrees, indicating that the ester group involved in chelating without hydrolysis. In a word, BDP-p-BPEA chelated with Zn²⁺ in the way showed in Scheme 2b.

3.4. Imaging of Zn²⁺ Levels in Cellular Oxidative Stress

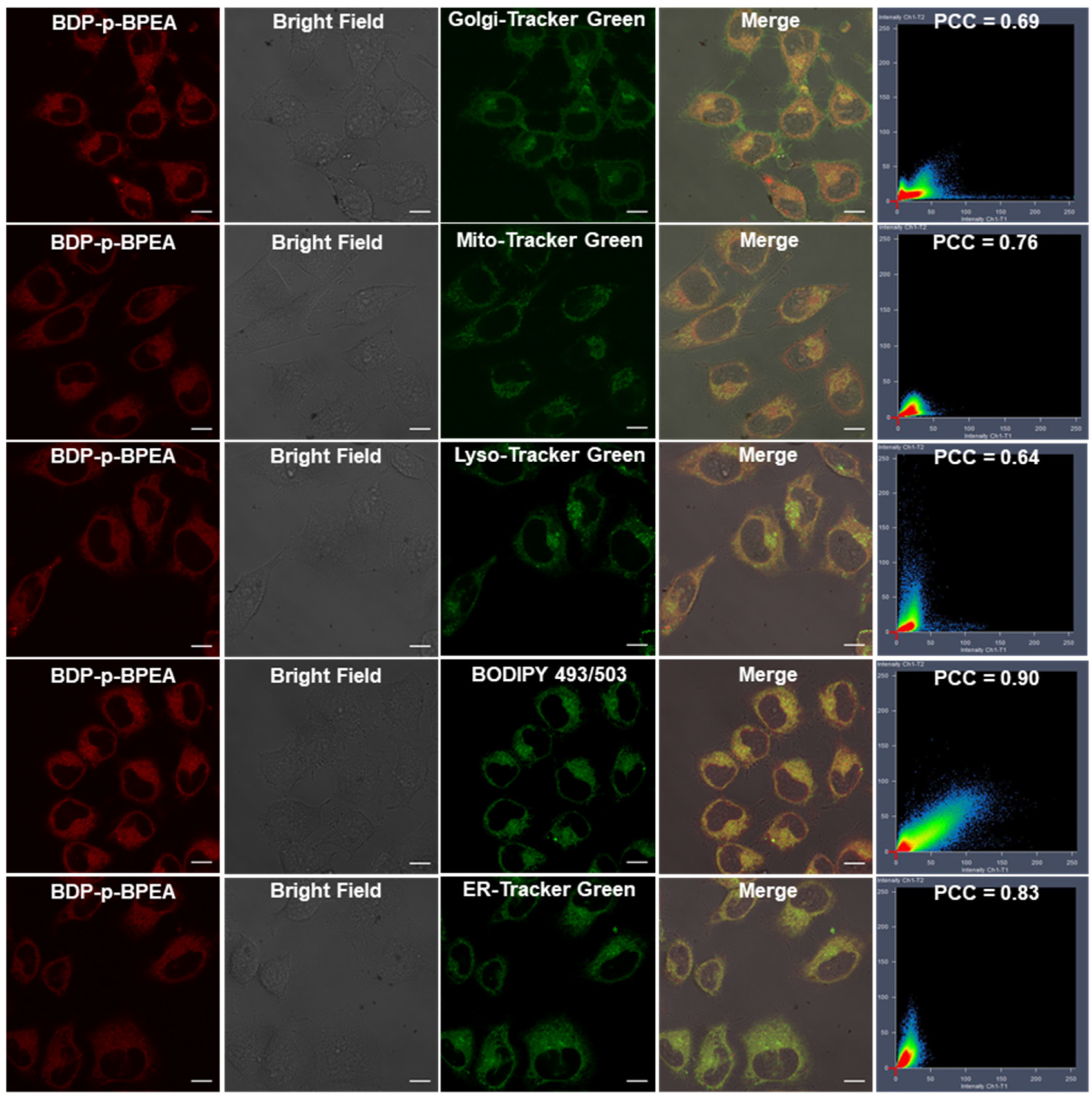

As BDP-p-BPEA showed great fluorescent response to Zn²⁺ in vitro, we next explored its potential to imaging Zn²⁺ in cells. The intake of the probe was firstly investigated. The fluorescence intensity in cells gradually enhanced and stopped at 4 h (Figure S24), that is, it took about 4 h for BDP-p-BPEA to reach the balance of intake and outlet. The MTT assay was carried out for three times to make sure the cell viability would not obviously decline while imaging. As a result, the survival rate of Hela cells kept more than 80% after being treated by 0–8 μM of BDP-p-BPEA for 24 h (Figure S25), so the cytotoxicity was evaluated to be low enough to apply the probe to cell imaging. Interested about the cell distribution of the probe, we co-stained BDP-p-BPEA with mitochondrial, lysosome, endoplasmic reticulum (ER), Golgi apparatus, and lipid droplet targeting commercial dyes separately. As shown in Figure 3, BDP-p-BPEA mainly distributed in lipid droplet and ER, and other organelles were also stained in varied degrees. This property enabled us to observe the overall fluctuation of Zn²⁺ level in cells.

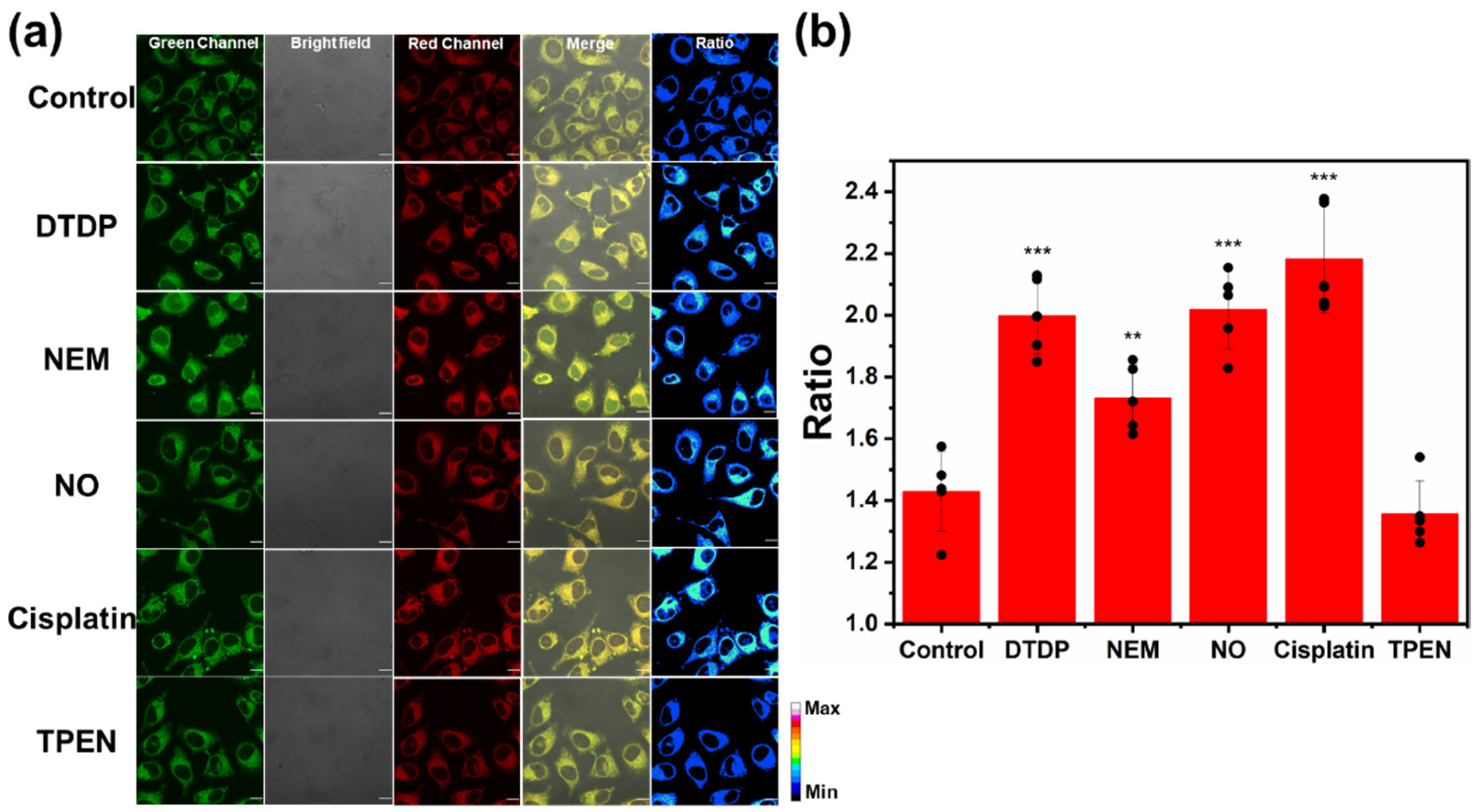

Cells fully stained with BDP-p-BPEA exhibited a bright fluorescence signal, so we tried to determine the variation of Zn²⁺ levels in stress induced by different mechanisms using BDP-p-BPEA. Cisplatin and scavenger of biothiols—DTDP and NEM were used to treat Hela cells. All the reagents listed above were reported to cause oxidative stress at certain concentrations [33,34,35]. Nitric oxide, provided by DEA-NONOate, reacted with metalloproteins, which not only released Zn²⁺ from storage, but also had a close relationship with the formation of oxidative stress [36,37]. Therefore, it was also adopted to treat Hela cells. We used a ratio graph to show the relative intensity change of the two channels more clearly. The results in Figure 4 showed that NO, DTDP and cisplatin significantly raised ratio value, while NEM induced a relatively low increase. The results indicated that oxidative stress easily converted Zn²⁺ from a tightly-binding state to labile state. TPEN made the ratio value slightly lower than that of the control group, and it means the original endogenous labile zinc can be detected by BDP-p-BPEA. As a result, it was disclosed with BDP-p-BPEA that the labile Zn²⁺ level was elevated during oxidative stress.

3.5. Comparison with the Previous Methods

Many fluorescent Zn²⁺ probes have been designed up to now, and some representative ones were listed below (

Table 1. Performance comparison between BDP-p-BPEA and other Zn²⁺ probes.

Detection Mode	λex (nm)/λem (nm)	Fluorophore	Linear Range (µM)	LOD (nM)	Testing Media	Kd(nM)	Ref.
Enhanced	750/779	cyanine	0.1–5.0	11	25 mM HEPES	1.42 × 103	[21]
Enhanced	687/703	hemicyanine	0–1.4	0.45	HEPES buffer solution (10 mM, pH 7.0)	1.05 × 103	[38]
Ratiometric	415/560 to 480	coumarin & benzo[c][1,2,5]oxadiazole	0–5	82	DMSO: aqueous solution (50 mM HEPES 100 mM KNO3, pH = 7.40) v:v = 1:99	0.014	[39]
Enhanced	390/460	coumarin & rhodamine	0–10	3.2×102	0.1 M Tris, pH 7.4	3.94 × 103	[40]
Ratiometric	610 to 575/700 to 660	BODIPY	0–10	31.8	DMSO: aqueous solution (50 mM HEPES 100 mM KNO3, pH = 7.2) v:v = 3:2	3.65	[41]
Ratiometric	430 to 475/660	isophorone	0–8	106	DMSO: aqueous solution (10 mM HEPES, pH = 7.46) v:v = 1:1	7.7×103	[42]
Enhanced	544 to 607/634	dipyrrolyldipyrrin	(No data)	210	DMF	13	[43]
Enhanced	346/414	naphthalimide	0–0.003	0.047	DMSO: aqueous solution (10 mM HEPES, pH 7.4) v:v = 1:9	4.70	[44]
Ratiometric	550/620 to 650	BODIPY	0–3	29	MeCN: aqueous solution (50 mM HEPES 100 mM KNO3, pH 7.4) v:v = 1:1	3.2	This work

). Though cyanine and hemicyanine based probes had excellent hydrophilicity and near infrared absorption, they seldom performed ratiometric responses to Zn²⁺ [21,38]. Meanwhile, the cyanine structure was fragile to destruction from reactive oxygen species. The combination of coumarin and other fluorophores could be made as a ratiometric probe based on a fluorescence resonance energy transfer (FRET) mechanism [39,40], but they had higher LOD value and had to be excited by a near ultraviolet laser, which may cause extra damage to cells while imaging. Currently, most of the BODIPY based Zn²⁺ probes blueshifted after their coordination with Zn²⁺ [41], while BDP-p-BPEA presented a redshift response. It was a pity that a large part of the probes could not simultaneously solve the problems of sensitivity [42], solubility in water [43], and short wavelength [44]. The probe proposed in this work showed great sensitivity, selectivity, and ratiometric response to Zn²⁺, so it has better imaging performance than other Zn²⁺ probes to some extent.

4. Conclusions

To sum up, we synthesized and screened a ratiometric fluorescent Zn²⁺ probe with a stable structure, and it was capable of imaging in the oxidative environment. Its maximum fluorescence signal moved from 620 nm to 650 nm after chelating. Brilliant optical properties were obtained to image the fluctuation of labile zinc in Hela cells undergoing oxidative stress. In addition, cisplatin induced elevation of Zn²⁺ level in cells was also observed. The probe showed its potential to be used in super-resolution imaging in the future by virtue of its spectra of relatively long wavelength and stability, we will consider modifying the structure of BDP-p-BPEA to further prolong its wavelength so that it can be applied to in vivo Zn²⁺ imaging of inflammatory tissues, where oxidative stress frequently occurs.
