Resistive Low-Temperature Sensor Based on the SiO₂ZrO₂ Film for Detection of High Concentrations of NO₂ Gas

Abstract

The SiO₂ZrO₂ composite films were prepared by means of sol-gel technology and characterized by scanning electron microscopy, energy dispersive X-ray (EDX) analysis, and X-ray diffraction. The presence of the stable monoclinic ZrO₂ with an impurity of tetragonal phases is shown. The film surface is characterized by the presence of ZrOCl₂·6H₂O or ZrCl(OH)/ZrCl(OH)₂ grains. The crystallite size negligibly depends on the annealing temperature of the film and amount to 10–12 nm and 9–12 nm for the films thermally treated at 200 °C and 500 °C, respectively. The film’s resistance is rather sensitive to the presence of NO₂ impurities in the air at a low operating temperature (25 °C). Accelerated stability tests of the initial resistance showed high stability and reproducibility of the sensor based on the SiO₂ZrO₂ film thermally treated at 500 °C.

1. Introduction

As a low-cost selective oxidizer for the industry, nitrogen dioxide (or nitrogen tetroxide) is currently gaining recognition with a resultant increase of production in tank car quantities. The toxic level presence of this gas in any working area is an industrial hygiene problem, and its unwanted presence in any area may present an air-pollution problem. In the workplace, exposures to NO₂ have been reported in such occupations as electroplating, acetylene welding, agriculture, space exploration, the detonation of explosives, certain military activities, and burning of nitrogen-containing propellants [1]. In such situations, exposure concentrations can be very high. For example, in armored vehicles during live-fire tests, peak concentrations of NO₂ have been measured at over 2000 ppm. That decreases to about 500 ppm after one minute and decreases to about 20 ppm within five minutes [2]. So, the reliable sensors are in demand. At present, the well-known and popular sensors are the semiconducting sensors. Such advantages as high sensitivity, low cost, and simplicity of fabrication allow for the use of semiconducting oxides for gas sensor production. The significant disadvantages of semiconducting oxides are low selectivity and stability, mainly caused by the recrystallization processes and surface degradation during the exploitation. The way to improve the sensor’s characteristics is the synthesis of mixed oxide systems by doping the high dispersed matrix with different catalysts. Once formed, the mixed oxides display acidic sites due to the excess negative or positive charge or due to defects in the lattice that positively affect the catalytic properties.

Therefore, research activities have turned towards the development of mixed oxide gas sensitive materials that can be stable in harsh environments and can be used for a long time. In this context, silica-supported zirconia oxide can be used because of its thermal and chemical stability and its higher resistance to degradation compared to the isolated oxides [3,4].

Silica is the basic material of microelectronics—it finds an application as a matrix for the future production of nanosized gas sensitive materials or for improving gas sensitivity and stability of sensors [5,6]. Also, silica application in mixed oxide systems minimizes the buildup of thermal stresses during sensor fabrication and, therefore, improves adhesion.

Zirconia (ZrO₂) is a material of great technological interest, having high thermal and chemical stability, low thermal conductivity, excellent corrosion resisting properties, as well as chemical and microbial resistance [7,8]. Also, ZrO₂ is a wide band gap p-type semiconductor that exhibits abundant oxygen vacancies on its surface. So, zirconia-based electrochemical and semiconducting sensors are attracting much attention [9,10,11].

Zirconia-based sensors are mainly used as O₂ and O₃ sensors as they can rapidly respond to changes in the exhaust gas composition. A few works have been devoted to the elaboration of NO_x zirconia-based sensors [12,13,14,15]. Micro-sensors of this type has been tested to monitor ozone (O₃) in ambient air at low concentrations (10 ppb) since the end of the 1980s [12,13,14]. However, due to reliability problems, there is a hesitancy to apply these sensors for air pollution monitoring, especially in harsh environments in the industry. Almost all the zirconia-based sensors work at high operating temperatures (over 300 °C) [16]. A line of research, which has attracted attention in the past few years, is the low-temperature sensitivity of metal–oxide gas sensors. Some researchers have shown that metal–oxides can also work at room temperature and slightly above [17,18,19,20,21].

Our previous studies showed the sensitivity of SiO₂ZrO₂ composite films, fabricated using a Zr(ONO₃)₂ precursor, to small concentrations of NO₂ and O₃ gases (1 ppm and 0.02 ppm, respectively) under low working temperatures, and showed the high stability of the initial resistance [22].

In this work, the studies on SiO₂ZrO₂ thin films, fabricated using a ZrOCl₂·8H₂O precursor, for low-temperature NO₂ sensor applications are presented.

2. Materials and Methods

The SiO₂ZrO₂ composite films were synthesized by the sol-gel technique. ZrOCl₂·8H₂O was preliminarily dissolved in distilled water at room temperature and then poured into an alcoholic solution of tetraethoxysilane (TEOS), prepared 24 h before. TEOS was dissolved in absolute isopropanol at a volume ratio of 1:7. The zirconium concentration in the TEOS-based solution was 1 wt.%. The final mixture was spin-coated onto the silicon substrate. Prior to the spin-coating procedure, a 2 μm-thick silicon dioxide insulating layer was first grown on a Si (111) substrate by wet oxidation. The samples prepared by the technique as a result of this procedure were first dried at 100 °C for 2 h and then thermally treated at 500 °C for 2 h in air.

Film morphology was characterized by SEM (scanning electron microscopy) (microscope LEO 1560, ZEISS, Oberkochen, Germany) with an operating voltage of 5 kV. The chemical analysis of the films was investigated using an energy dispersive X-ray (EDX) method. All measurements were carried out using a complex analytic device based on the both scanning electron microscope VEGA II LMU with an operating voltage of 20 kV and a microanalysis system INCA ENERGY450/XT with a silicon drift detector (X-Act SDD) (Tescan/OXFORD Instruments Analytical, Great Britain, UK). EDX and wavelength-dispersive X-ray (WDX) detectors were used for greater accuracy in the determination of chlorine. The thickness of the film treated at 500 °C estimated from SEM images is ~155 nm. X-ray diffraction (XRD) phase analysis was performed with an ARL X’TRA diffractometer equipped with a solid-state Si(Li) detector that registered selectively Cu Ka radiation (λ = 1.5418 A°). Due to the very small thickness of the layer, the first conventional scan in the Bragg–Brentano mode only revealed the single-crystalline Si substrate in the (001) orientation. Then, all other scans were made in the grazing incidence mode, with incidence angles (ω) of 3°.

The band gap energy was determined from the optical absorption spectra recorded using a commercial spectrophotometer LEKI SS1207 (Leki Instruments, Helsinki, Finland) and analyzed by the empirical relation: αhν ∞(hν-Eg)^m, where hv is the photon energy, Eg is the band gap energy and m is an exponent determined by the nature of the electron transition during the absorption process, i.e., m = 1/2 for direct transition and m = 2 for indirect transition.

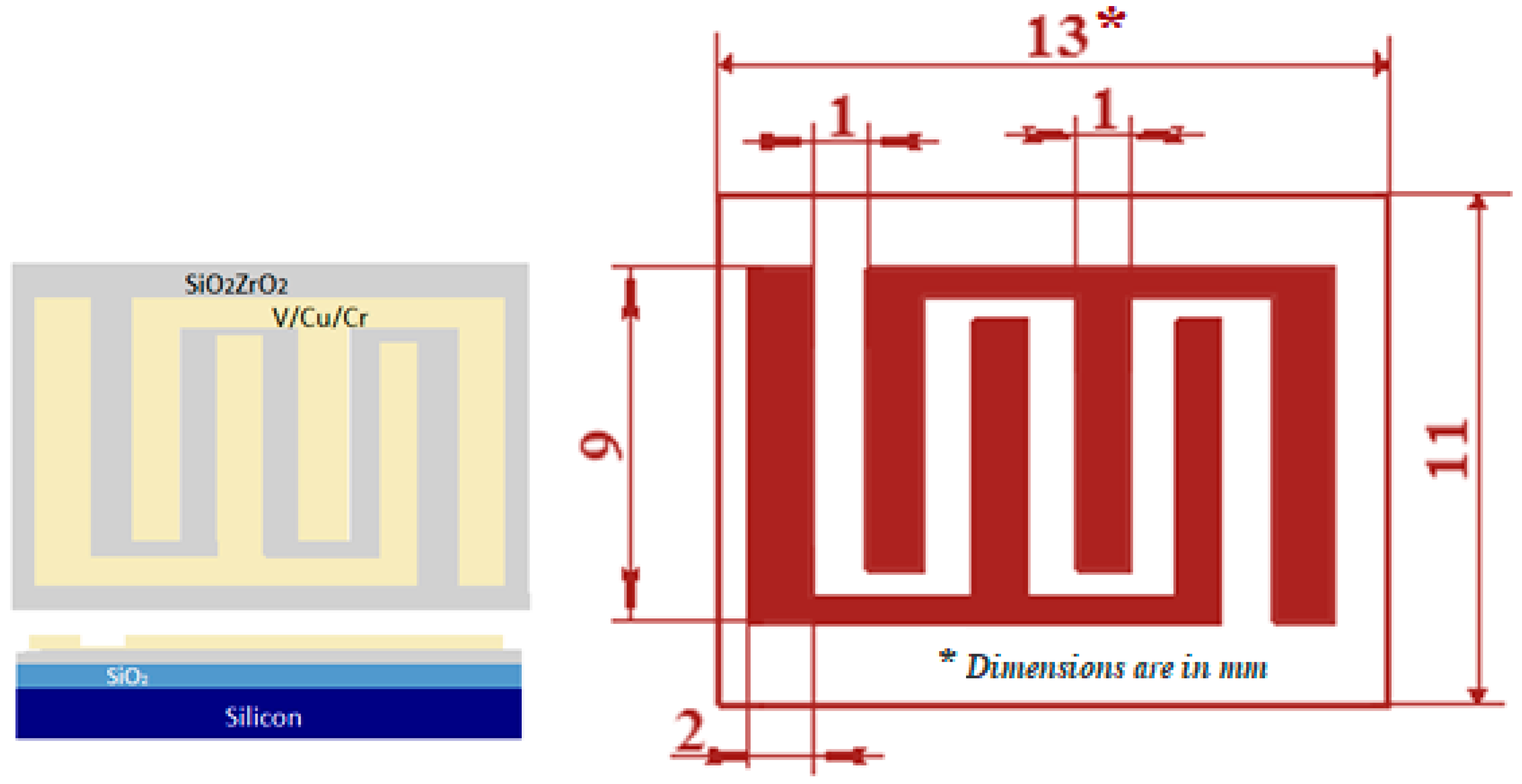

To fabricate the SiO₂ZrO₂ gas sensors, V/Cu/Cr layers were deposited via an interdigitated shadow mask onto the SiO₂ZrO₂/SiO₂/Si templates to serve as the contact electrodes (Figure 1).

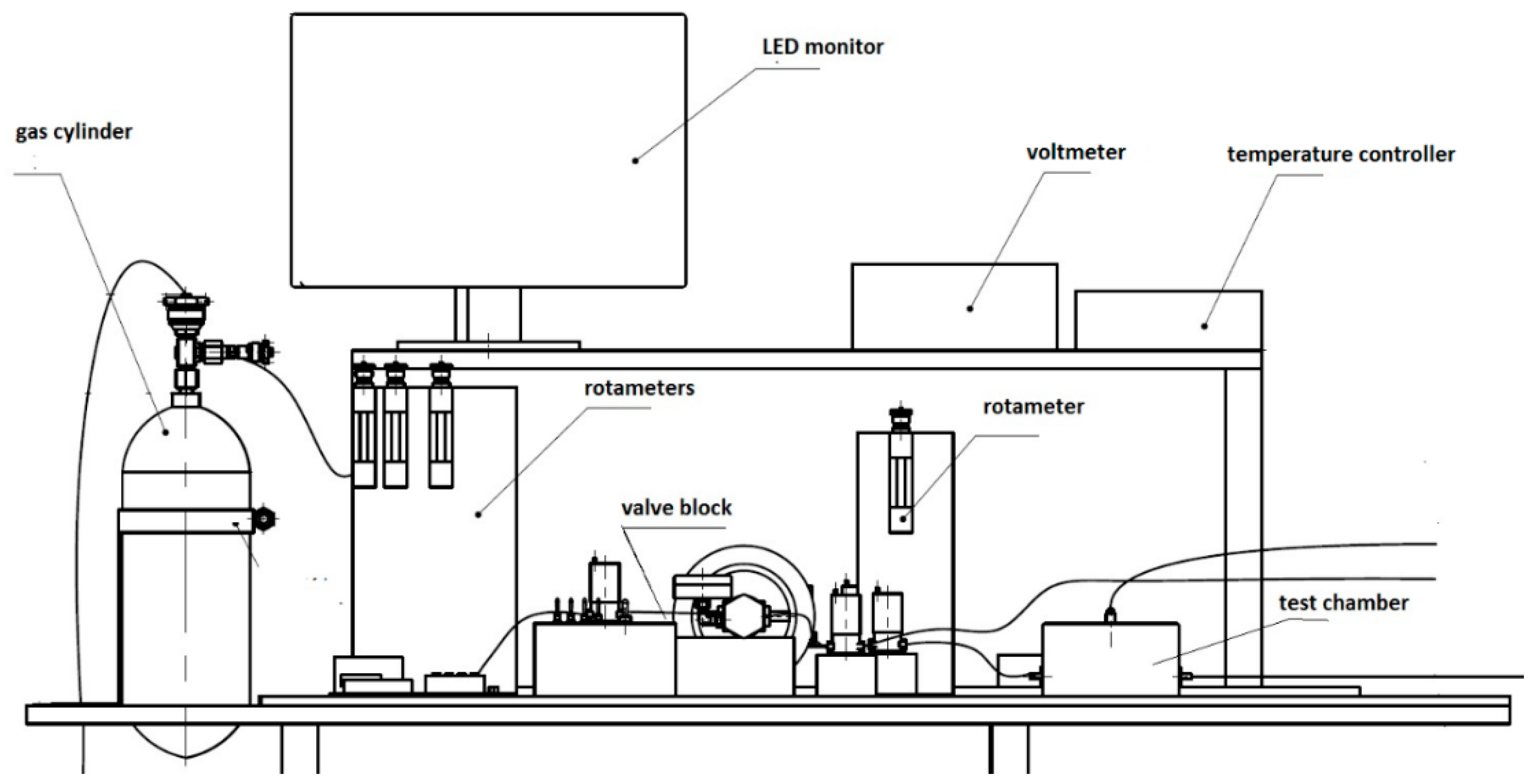

The measurement setup used for the measurement of gas sensor characteristics and electronic parameters in controlled gas environments is shown in Figure 2. The setup consists of: (i) a test chamber with the substrate holder, heating element and Pt-thermocouple, and (ii) control, supply, and measurement electronics (voltmeter and temperature controller). The operating temperature and electronic control of the measurement system are automated by means of a personal computer. The gas inlet is controlled by the valve block and rotameters.

The gas-sensitive properties of the films were tested to NO₂ inputs to be varied in the concentration range of 40–1060 ppm. The sensors were heated from room temperature to 200 °C to get the dependence of resistance on temperature and the sensor operating temperature.

3. Results and Discussion

3.1. Characterization

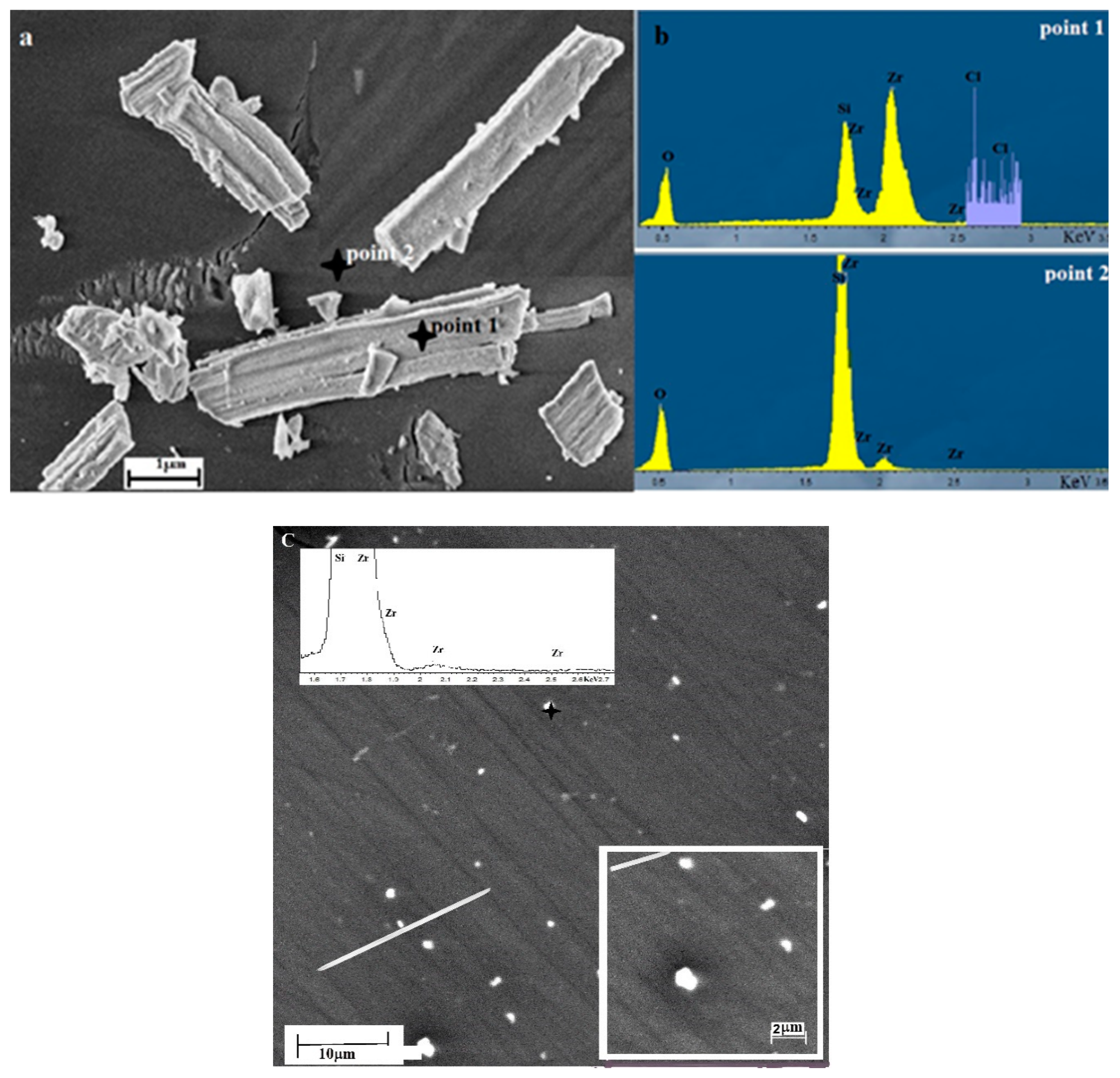

SEM micrographs (Figure 3a) reveal the formation of 1 μm-thick crystallites with a length range of 1–4 μm on the surface of the film. It seems appropriate to consider that the particles which appear in the SEM image have a rectangular shape and crystalline structure. The EDX study was carried out to clarify the chemical composition of different points of SiO₂ZrO₂ films, namely: crystallites (Figure 3b, point 1) and the film surface itself (Figure 3b, point 2). Note that the minimum electron beam spot size achievable for the EDX analysis was approximately 500 nm, which allows for the accurate determination of the elemental composition of the crystallites. As can be seen, crystallites contain zirconium and chlorine (point 1), while on the surface of the films (point 2), there is a significant decrease in the amount of zirconium and the complete absence of chlorine. The relative content of elements in terms of 100% (semi-quantitative analysis) is presented in

Table 1. The relative content of elements in both points of SiO₂ZrO₂ films. Units = wt.%.

	O	Si	Cl	Zr	Total
1	41.67	10.70	0.87	46.76	100.00
2	47.67	47.13		5.19	100.00

. The thickness of the films excludes quantitative analysis—the depth of generation of the analytical signal (~2 μm) is greater than the thickness of the film.

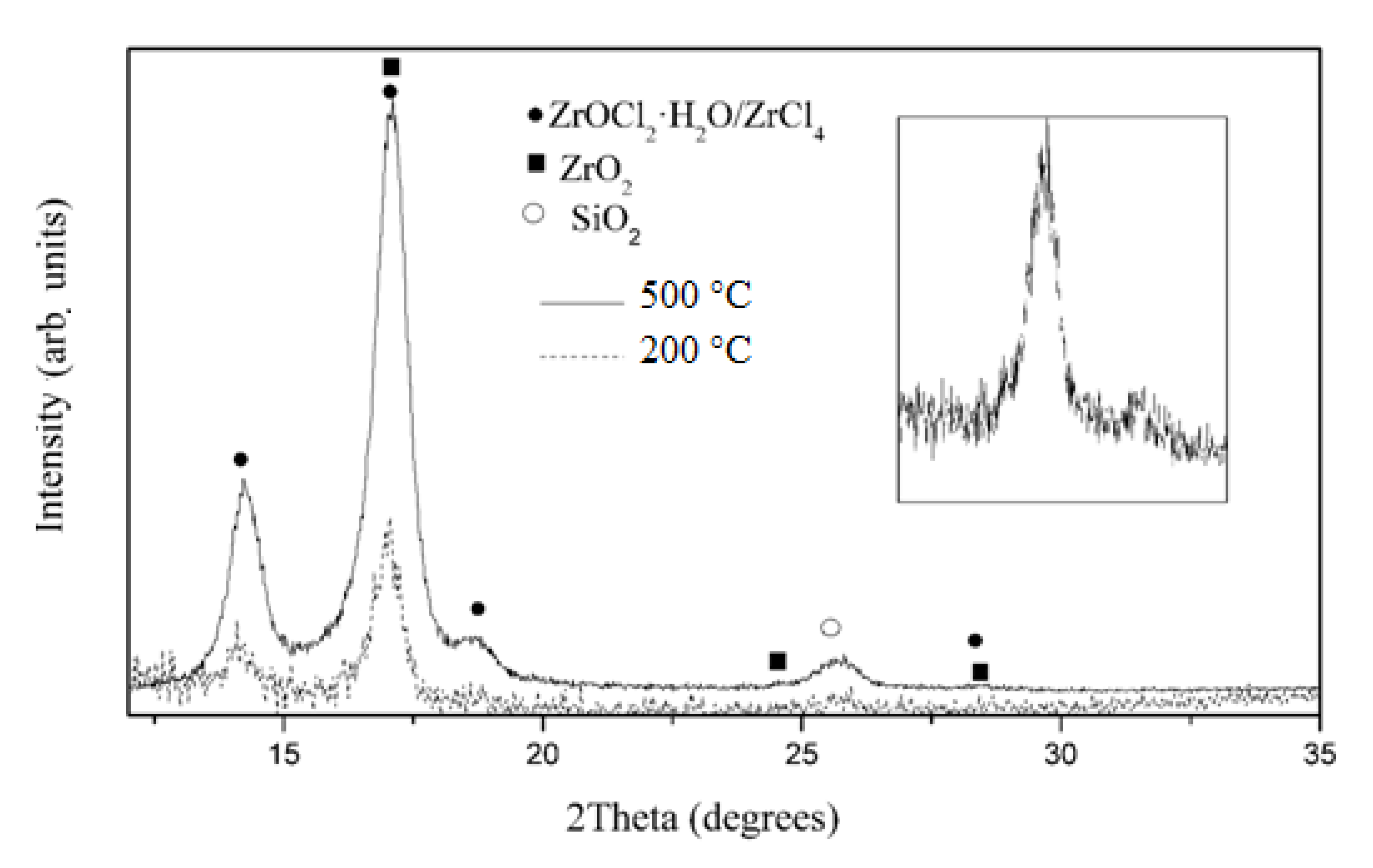

The used synthesis technique leads to the formation of a complex, multiphase system in SiO₂ZrO₂ films, which is clearly illustrated by the diffraction pattern (Figure 4). The X-ray diffraction patterns of the thermally treated samples at 500 °C and 200 °C have the same peaks and contain both low-intensity and high-intensity wide peaks that may indicate the presence of small size crystallites or non-stoichiometric phases in the samples. Lower intensity peaks at 200° can be explained by a smaller number and the size of the crystallites. A sufficiently high background, hindering the identification of weak peaks of the crystalline phase, indicates the presence of amorphous structures. Since the peaks are wide enough, it is reasonable to identify them as groups of reflections from different crystalline phases, since overlapping or similar peaks cannot be separated in this case. As shown in [23,24], the weakest peaks around 17°, 24.26° and 28.3° (Figure 4, insert) are due to the (110), (011), (−111) planes and can be attributed to the most intense reflections of a stable monoclinic ZrO₂ with an impurity of tetragonal phases. The weak intensity of the peaks can be explained by the fact that the temperature of 500 °C is the initial temperature of the formation of the zirconia crystal structure in the films [25]. А wide peak at 25° can include a reflex from the (011) plane of SiO₂. However, these phases do not explain the presence of high-intensity bright peaks around 14.22°, 17.0° and 18.6° on the diffractogram. As the literature analysis showed, a peak of 14.22° is a characteristic of ZrCl₄ [26]_. However, the presence of peaks at 17.0° and 18.6°, which are not characteristic of this compound, does not allow one to unequivocally approve the full decomposition of the precursor ZrOCl₂·8H₂O into ZrO₂ and ZrCl₄. The partial peaks at 14.22°, 17.0° and 18.6° are closest to an underdeveloped ZrOCl₂·8H₂O with less water, for example, ZrOCl₂·6H₂O or ZrCl(OH)/ZrCl(OH)₂ as it was shown for CaCl(OH)/CaCl(OH)₂ [27]. It is possible that the introduction of silicon prevents the complete decomposition of ZrOCl₂·8H₂O and the removal of chlorine.

Thus, based on the combined analysis of EDX and XRD data, we suppose that crystallites on the surface of the films can be formed by ZrO₂ and residual ZrCl₄/ZrOCl₂·6H₂O or ZrCl(OH)/ZrCl(OH)₂ phases in the presence of silicon dioxide. We assume that small zirconium oxide nanoparticles and zirconium ions are embedded in a silicon matrix, as was observed for the SiO₂CuO_x films studied by us earlier [28].

The average size of the crystallites in the film estimated from the Scherrer equation was 10–12 nm and 9–12 nm for the films thermally treated at 200 °C and 500 °C, respectively. So, we can assume that large grains on the film surface (Figure 3) are really the crystallite agglomerates. The authors [29] produced the pure ZrO₂ material by use of the sol-gel technique. The average particle size of ZrO₂ nanoparticles is found to be 25 nm. In the present work, hierarchical pore structures were prepared by the sol-gel method in alkoxy-derived silica systems [30]. The silica particles cover the zirconia crystallites and prevent aggregation during the thermal treatment. Such a structure allows gas adsorption onto zirconia crystallites through the silica pores.

3.2. Gas Sensitivity Measurements

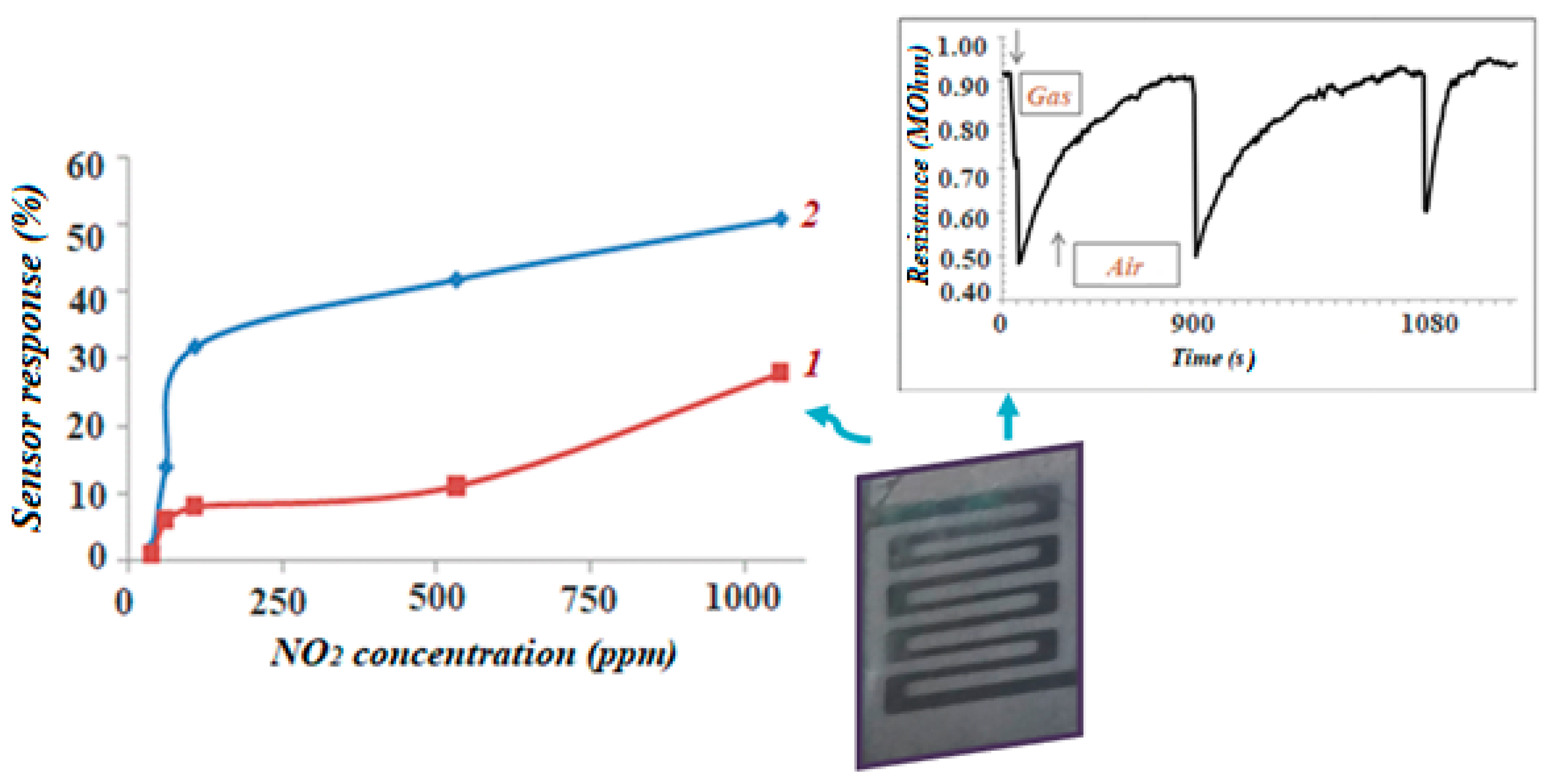

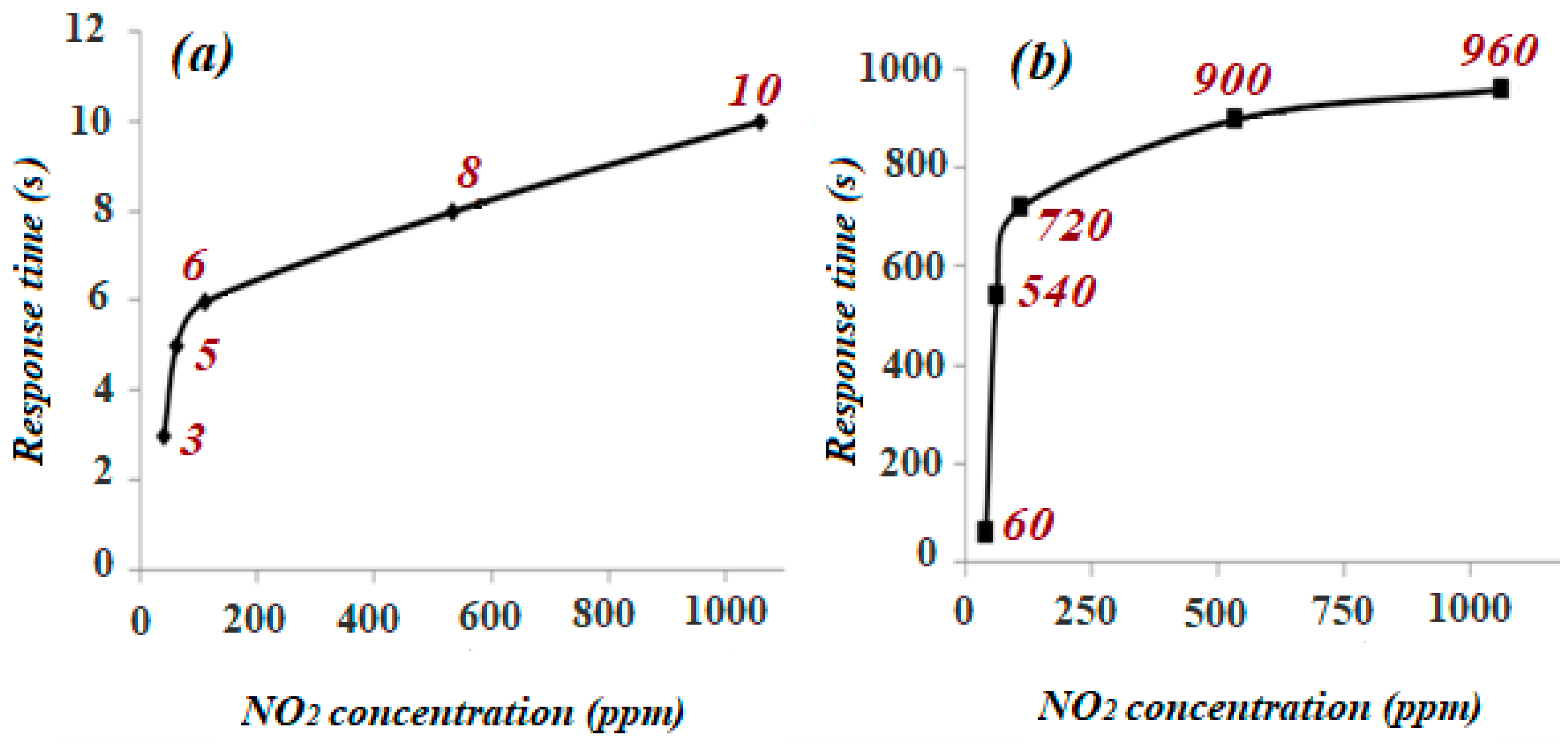

The film resistance was reversibly changed under NO₂ exposure (Figure 5) with the characteristic response time to be found as 3, 5, 6, 8 and 10 s for 40 ppm, 62 ppm, 110 ppm, 534 ppm and 1060 ppm concentrations, respectively (Figure 6). The reaction was observed immediately after the gas flow in the test chamber and characterized by high stability and reproducibility. After purging the test chamber with air, the film resistance returned to the initial value. The quick response may be due to the faster oxidation of gas. The average recovery time depended on the gas concentration and was increased from 60 s to 960 s with gas concentration changing from 40 ppm to 1060 ppm (Figure 6b). So, we observed good recovery characteristics (16 min) even after the sensor was exposed to a large concentration of NO₂ (1060 ppm).

The minimum NO₂ concentration that was detected by the SiO₂ZrO₂-based sensor is 40 ppm, but the maximum is not limited by 1060 ppm as shown in Figure 5. Also, Figure 5 reveals that the response of the sensor based on the SiO₂ZrO₂ film thermally treated at 200 °C is worse than that treated at 500 °C. This is due to the fact that at low temperatures (100–200 °C), Zr(OH)₂ and/or ZrOCl₂·4H₂O are more likely to form and the film structure is not stable. This fact also was proved by XRD analysis. According to [29], the thermolysis process of zirconium oxochloride is:

$${\mathrm{ZrOCl}}_2·8{\mathrm{H}}_{2}0 \stackrel{40-80 °\mathrm{C}}{\Rightarrow } {\mathrm{ZrOCl}}_2·5{\mathrm{H}}_{2}0 \stackrel{80-110 °\mathrm{C}}{\Rightarrow } {\mathrm{ZrOCl}}_2·4{\mathrm{H}}_{2}0 \stackrel{110-130 °\mathrm{C}}{\Rightarrow } \mathrm{Zr}{\left(\mathrm{OH}\right)}_2·0.7{\mathrm{H}}_{2}0 \stackrel{400-480 °\mathrm{C}}{\Rightarrow } \mathrm{Zr}{0}_2$$

(1)

Further investigations were done for the sample thermally treated at 500 °C.

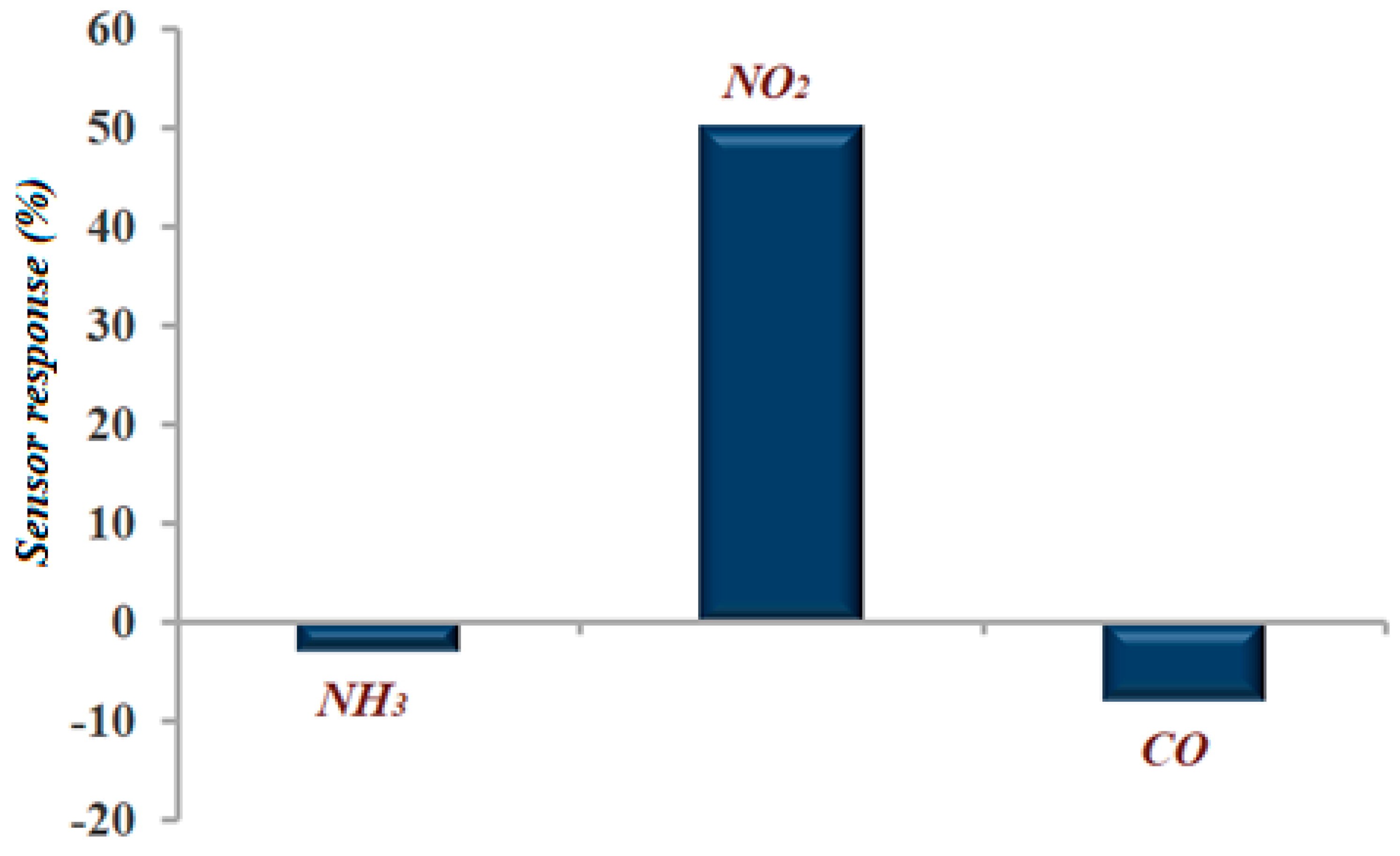

To evaluate the selective nature of the sensor, it was exposed to various gases, namely NO₂, NH₃ and CO, and the observed response is shown in Figure 7. It reveals that the SiO₂ZrO₂-based sensor was highly selective to NO₂ gas.

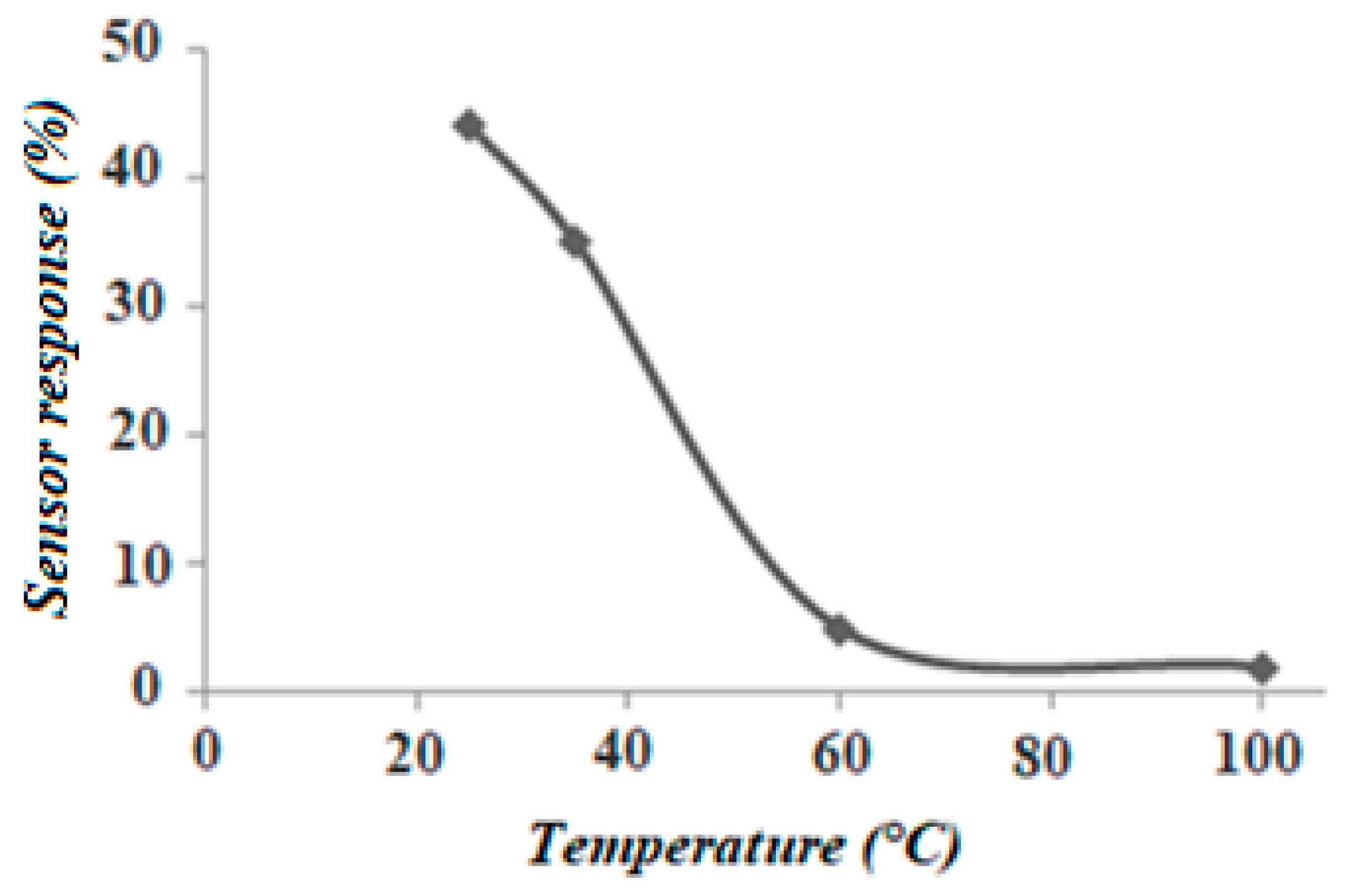

Figure 8 depicts the variation of the gas response with an operating temperature of the SiO₂ZrO₂ sensor for 1060 ppm. It is clear from the figure that the largest response is observed at 25 °C. The material would then adsorb the oxygen species at higher temperatures (${\mathrm{O}}^{2-}\to 2{\mathrm{O}}^{-}\to {\mathrm{O}}^{2-}$) and this process is competitive with NO₂ adsorption.

Sensitivity under low temperatures is due to the gas sensitivity mechanism.

3.3. Gas Sensitivity Mechanism

The gas sensitivity mechanism of semiconductor sensors is based on the interaction of the surface with gas. The interaction occurs on the grain boundaries of metal–oxides and may include such processes as oxidation–reduction, gas adsorption and surface chemical reactions [31].

In our work, NO₂ gas adsorbs to the surface of the p-type semiconductor and takes the electrons to the near-surface layer.

$${\mathrm{NO}}_2\left(\mathrm{g}\right)+\overline{\mathrm{e}}\to {\mathrm{NO}}_2^{-}\left(\mathrm{ads}\right)$$

(2)

So, a layer of L size is formed near the surface of the semiconductor, comparable to the Debye length (LD) with a high content of “holes” (HAL) [32]. In this case, for small grain sizes (D) such that D < 2 L, the entire volume of the nanocrystallite participates in this process [33]. The presence of a negative surface charge causes the zone to bend, which creates a potential barrier on the surface. Its height and depth depend on the surface charge, which in turn depends on the number and type of adsorbed molecules [34]. The smaller the crystallite size, the smaller the potential barrier. However, on crystallites that are too small, the barrier practically does not arise. The response of the sensor becomes unstable, as was observed in films annealed at 200 °C.

An increase in the content of “holes” during adsorption leads to an increase in conductivity, which is observed during the experiment. At operating sensor temperatures below 100 °C, there are a number of features at absorption.

Surface morphology significantly affects gas-sensitive properties [35]. In our case, a thin film of friable amorphous silicon dioxide and unformed zirconia promotes the penetration of gas molecules to the grain boundary of the nanocrystallite. Also, SEM and XRD investigations reveal the presence of ZrOCl₂·6H₂O grains with OH groups and adsorbed H₂O molecules (H₂O (ads)) on the film surface.

The authors [36] showed oxygen ionization as О²⁻ (ads) at temperatures lower than 147 °С. According to [37], adsorbed oxygen occupies about 5% of the surface. With increasing temperature, the occupied area will grow and as stated earlier, this process is competitive with NO₂ adsorption.

According to the above, the following processes occur:

$$4{\mathrm{NO}}_2\left(\mathrm{g}\right)+3\overline{\mathrm{e}}+2{\mathrm{H}}_2\mathrm{O}\left(\mathrm{ads}\right)+{\mathrm{O}}_2^{-}\left(\mathrm{ads}\right)\to 4{\mathrm{NO}}_2-{\mathrm{OH}}^{-}\left(\mathrm{ads}\right)$$

(3)

$${\mathrm{NO}}_2\left(\mathrm{g}\right)+\overline{\mathrm{e}}+\mathrm{OH}\to {\mathrm{NO}}_2-{\mathrm{OH}}^{-}\left(\mathrm{ads}\right)$$

(4)

3.4. Electrophysical Measurements

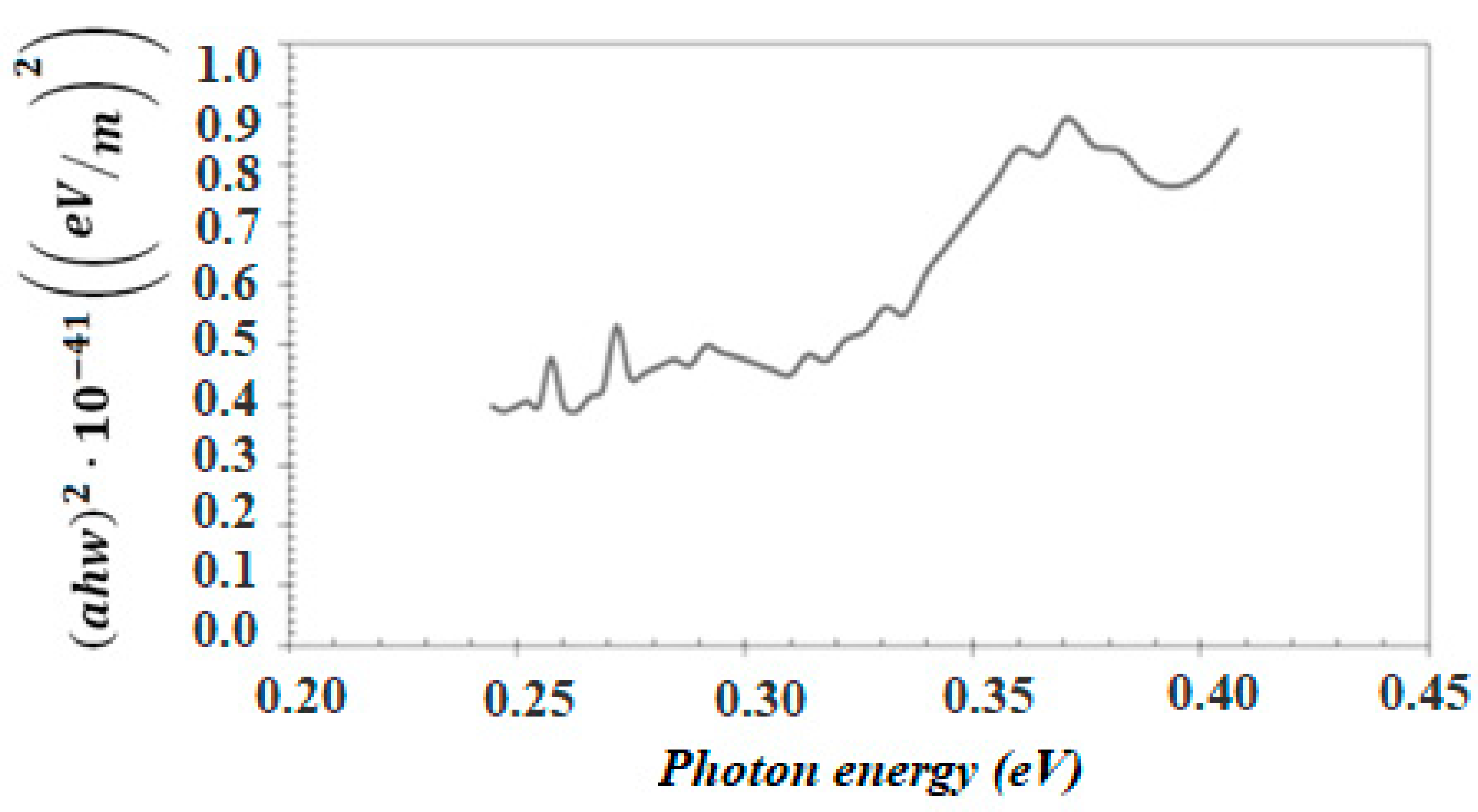

The literature has widely stated that pure ZrO₂ is an indirect band gap semiconductor having refractive index r = 2 [38] and with high indicators of band gap energy width 5.0–5.2 eV [39] or 4.28–4.46 eV [38]. In our case, the estimation of the double-oxide film effective band gap energy from the optical spectra (Figure 9) reveals the value of 0.2–0.3 eV.

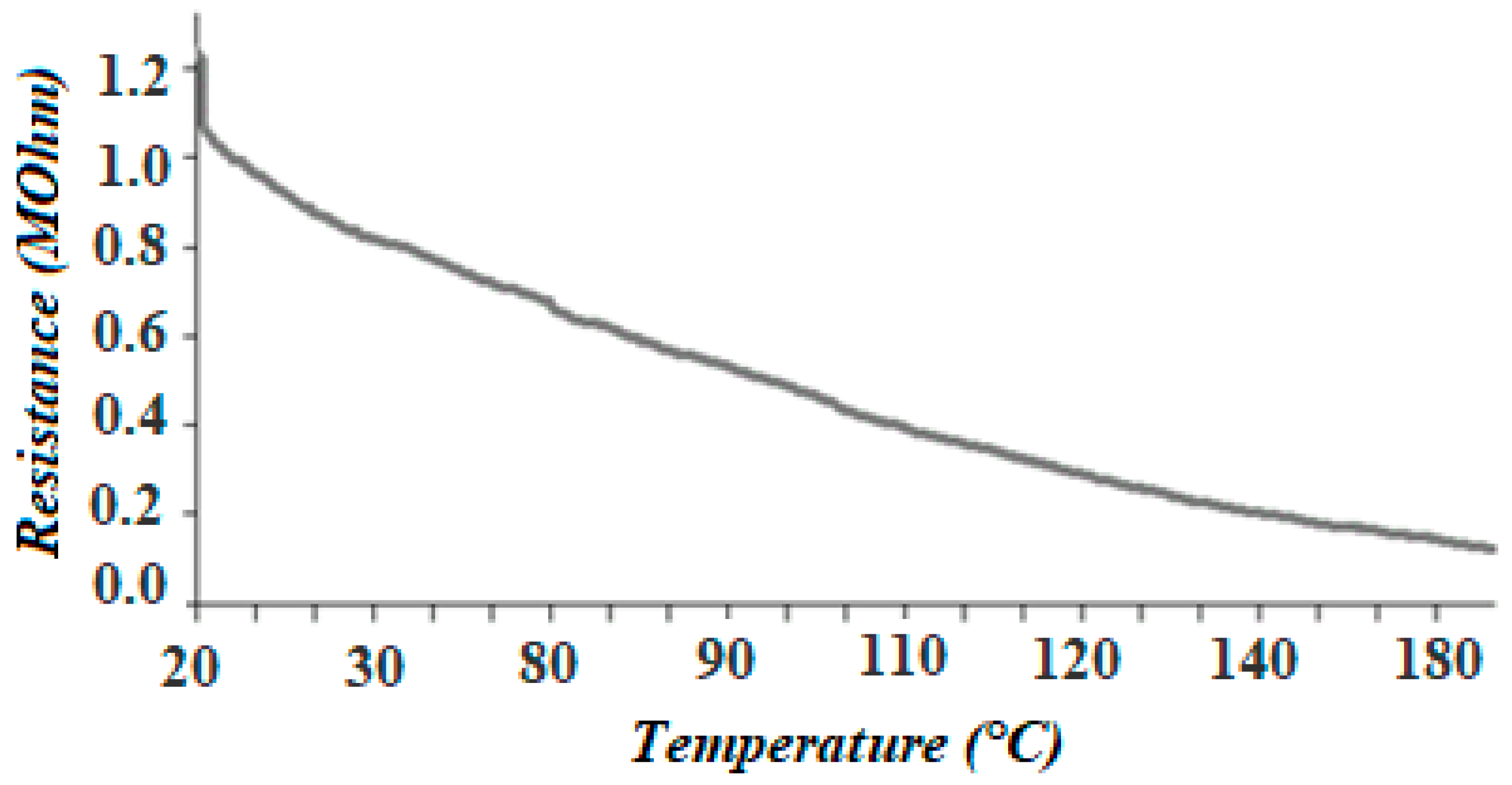

The semiconducting nature of the SiO₂ZrO₂ film is observed from the measurements of resistance with operating temperature (Figure 10). The semiconductivity of the film is due to the presence of ZrO₂ and its large oxygen deficiency.

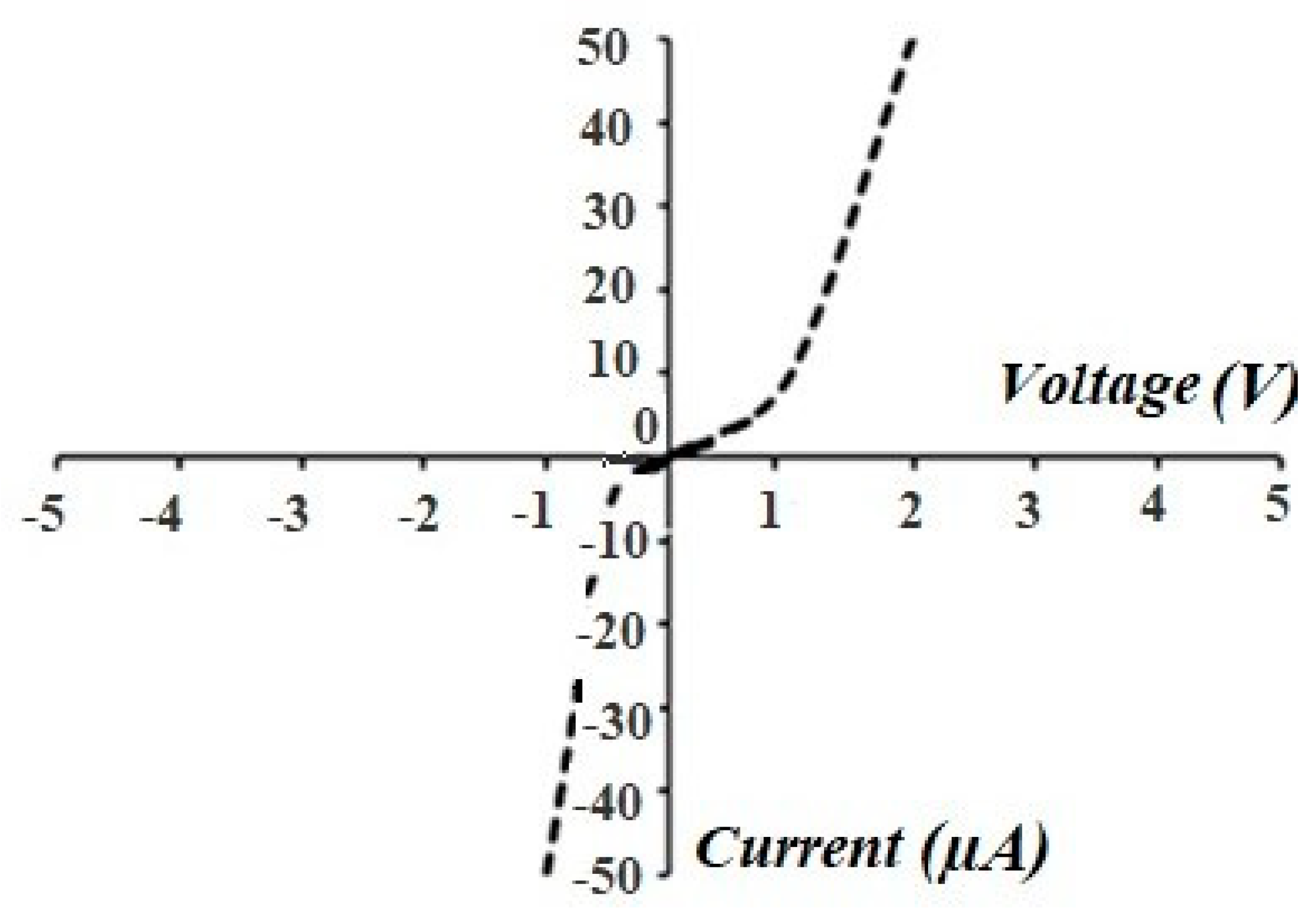

The current voltage characteristics of a sensor tell us much about its operation and can be a very useful tool in determining the operating characteristics by showing its possible combinations of current and voltage. Figure 11 depicts the I-V characteristics of the SiO₂ZrO₂ sensor. The asymmetrical nature of the I-V characteristics shows that the contacts are non-ohmic in nature. It is observed from Figure 11 that the resistivity of the film is high enough because zirconia is an ionic conductor.

3.5. Stability Tests

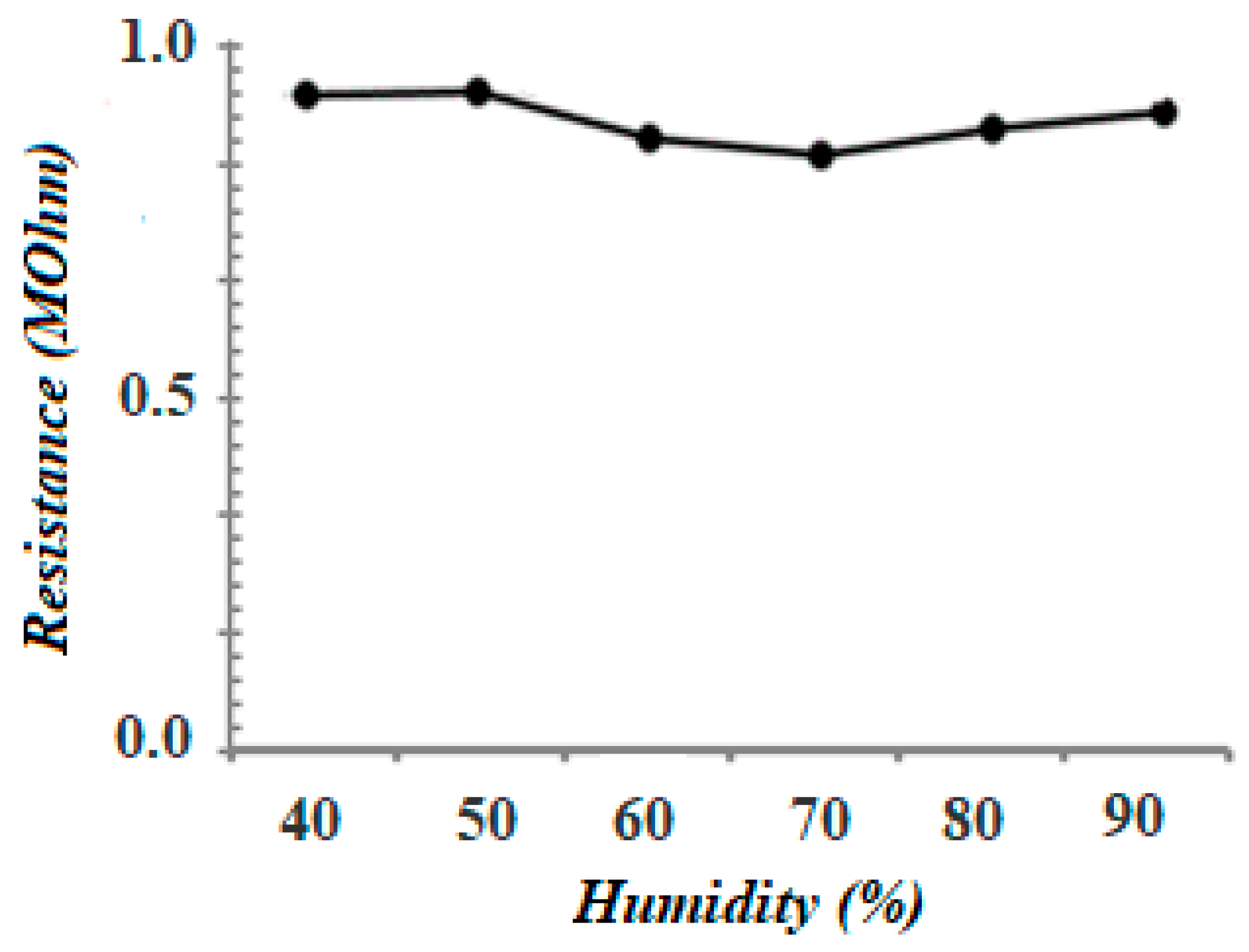

It is known that one of the main reasons for parameter instability of gas sensors based on metal–oxide semiconductors is their high sensitivity to changes in ambient humidity. So, the effect of air humidity in the range of 40–90% on sensor response was investigated (Figure 12). The influence of air humidity on the sensor resistance was negligible with a drift of about 3%. In fact, ionic-type metal–oxides such as pure zirconia are the most common patterns for humidity gas sensors, but the sensor is stable to humidity exposure even at room temperature. This may be due to the presence of the silica matrix in the composite film [40].

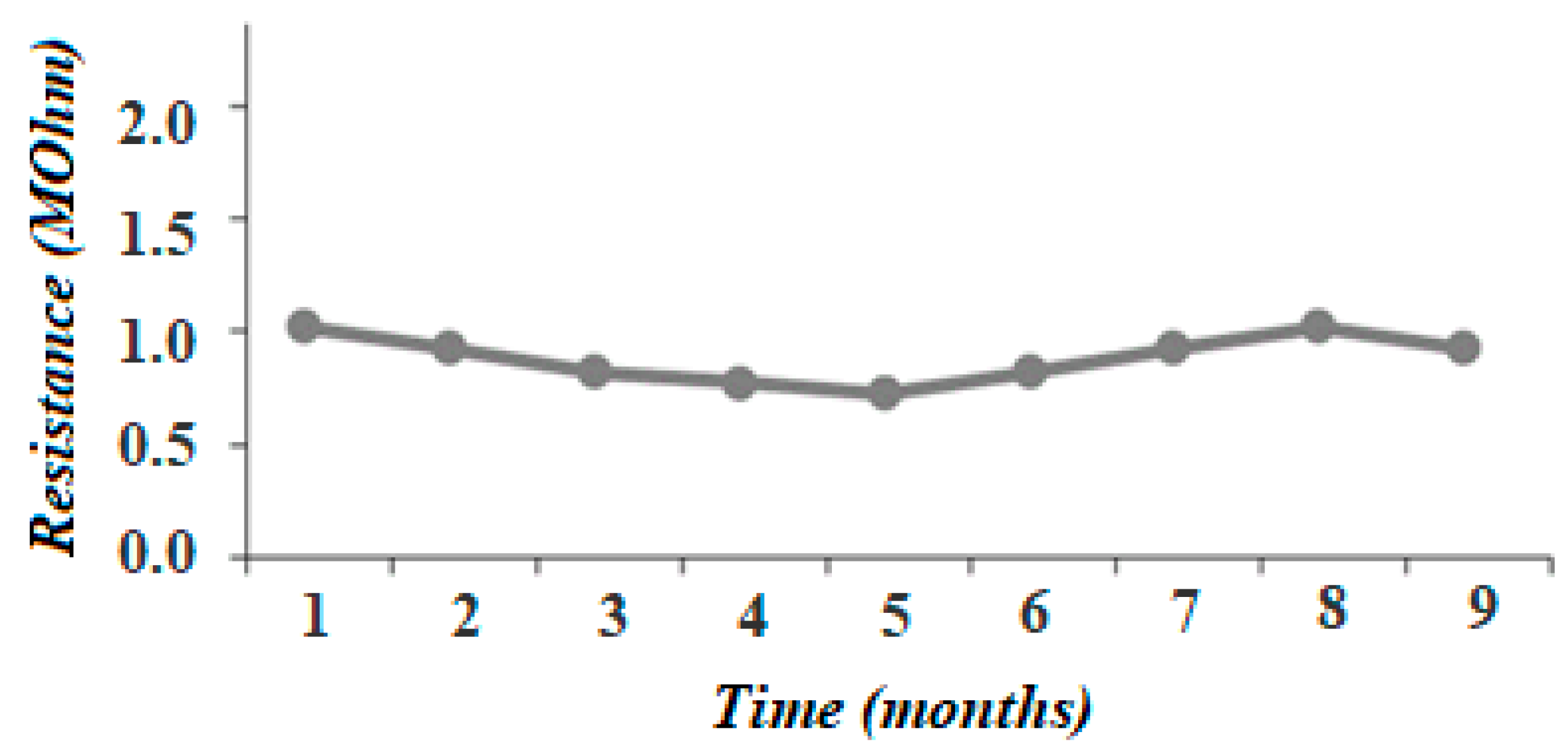

The stability of semiconductor materials for gas sensor fabrication is one of the problem characteristics. Sensor devices are continuously in contact with aggressive substances. The accelerated stability tests of the initial resistance were performed by periodically exposing the fabricated sensors to NO₂ at the operating temperature for nine months (Figure 13). The stability tests showed high stability and reproducibility of the sensors. The initial resistance drift is about 2–5%.

The comparative study of the resistive zirconia-based sensors showed that their working temperature is in the range from room temperature to 400 °C (

Table 2. Comparative characteristics of resistive zirconia-based gas sensors.

Material	Production Technique	Target Gas	Operating Temperature	Concentration Range	Source
ZrO2 5%Y/ZrO2 Ag–5%Y/ZrO2	Hydrothermal synthesis	CO2	300–400 °C	600–1000 ppm	[40]
CeO2-xZrO2	Sol-gel	O2	400 °C	0.4–20%	[9]
ZrO2	Commercial ZrO2 powder with an organic binder (thick film resistor)	NH3	250–350 °C	100 ppm	[41]
Zirconia-doped ceria	Thick film from the ceria–zirconia solid solution powder	O2		10−5–1 atm	[42]
ZrO2	Sol-gel assisted by microwave	H2	Room temperature	50 ppm	[29]
SiO2ZrO2	Sol-gel	NO2 O3	60 °C 30 °C	1 ppm 0.02 ppm	[22]

) and the list of target gases includes CO₂, O₂, NO₂, O₃, and NH₃. The NO₂ sensor operating at 60 °C was produced in our previous work [22] from zirconium sources such as Zr(ONO₃)₂ and was characterized with the mixture of tetragonal, monoclinic, and cubic ZrO₂ phases. The Zr₅Si₃ phase was also observed. The average crystallite size was about 35 nm. We reported the sensitivity to a small concentration of NO₂ gas (1 ppm).

SiO₂ZrO₂ sensors are promising candidates for low-temperature NO₂ gas sensors. Variation in the zirconium source allows for the production of sensors with different structures, morphologies, and crystallite size.

4. Conclusions

The SiO₂ZrO₂ films were fabricated using the sol-gel technique on silicon substrates and characterized by SEM, EDAX and XRD techniques.

The synthesis technique used leads to the formation of a complex, multiphase system in SiO₂ZrO₂ films. So, a stable monoclinic ZrO₂ with an impurity of tetragonal phases was observed. Also, the film surface can be characterized by the presence of ZrOCl₂·6H₂O or ZrCl(OH)/ZrCl(OH)₂ grains due to the introduction of silicon, which prevents the complete decomposition of ZrOCl₂·8H₂O and the removal of chlorine. The described structure determines the gas sensitivity mechanism at low operating temperatures.

The electrophysical studies showed the semiconducting nature of the SiO₂ZrO₂ film. Effective band gap energy evaluated from the optical spectra reveals the value of 0.2–0.3 eV, which is lower than for ZrO₂ and may be responsible for the fast sensor response towards NO₂.

The SiO₂ZrO₂-based sensor showed promising gas-sensitive properties to NO₂ gas with fast response times at a low operating temperature (25 °C) and high stability of the initial resistance during a long-term period. The designed sensor may be used for the detection of high NO₂ concentrations as a result of accidents in industrial enterprises.
