Review

Low-Dimensional Nanostructures Based on Cobalt Oxide (Co3O4) in Chemical-Gas Sensing

by
Gayan W. C. Kumarage
and
Elisabetta Comini
*
SENSOR Laboratory, Department of Information Engineering, University of Brescia, Via Valotti 9, 25133 Brescia, Italy
*
Author to whom correspondence should be addressed.
Chemosensors 2021, 9(8), 197; https://doi.org/10.3390/chemosensors9080197
Submission received: 12 July 2021 / Revised: 24 July 2021 / Accepted: 26 July 2021 / Published: 29 July 2021
(This article belongs to the Special Issue Gas Sensors: Simulation, Modeling, and Characterization)
Browse Figures
Versions Notes

Abstract

:
Highly sensitive, stable, low production costs, together with easy maintenance and portability, sensors are ever most demanded nowadays for monitoring and quantification of hazardous chemicals/gases in the environment. The utilization of one dimensional (1D) metal oxide nano structured chemical/gas sensors for environmental monitoring is vastly investigated because of their superior surface to volume ratio, stability, and low production costs, to provide information on the presence of chemical species. Several outstanding attempts have been pursued investigating 1D nano structures of Co3O4 over the past decades as an active material for chemical analytes detection owing to its superior catalytic effect together with its excellent stability. This article reviews the state-of-the-art of growth and characterization of Co3O4 1D nano structures and their functional characterization as chemical/gas sensors. Moreover, fundamental concepts and characteristic features, that enhance the key performances of chemical/gas sensors, are discussed. Finally, challenges and prospective for growth and fabrication of 1D Co3O4 chemical/gas sensors are discussed.

1. Introduction

A chemical sensor is defined as a device that transforms chemical information into an analytically useful signal [1]. Generally, chemical information originate from the chemical reaction of the analyte with the active part of the sensor that induces a variation of the properties of the sensor. However, not only the chemical reaction, but also physical processes (adsorption–desorption), mechanisms of electrical conductivity of a sensitive material, etc., contribute to the overall sensitivity of the sensor [1]. Chemical/gas sensors are identified as excellent candidates for detection and quantification of chemical/gas compounds due to its direct electronic interface, fast response, high sensitivity, and low cost of production [1,2,3,4,5,6,7,8,9]. In general, chemical/gas sensors are based on oxidation or reduction of the active material by the surrounding atmosphere. Numerus types of chemical/gas-sensing materials including metal oxide semiconductors [2,3,4,5,6], conducting polymers [7], conducting polymer composites [8,9], carbon nanomaterials [10], metal oxide/polymer composites [11,12], and various transduction mechanisms have been reported over the past decades.

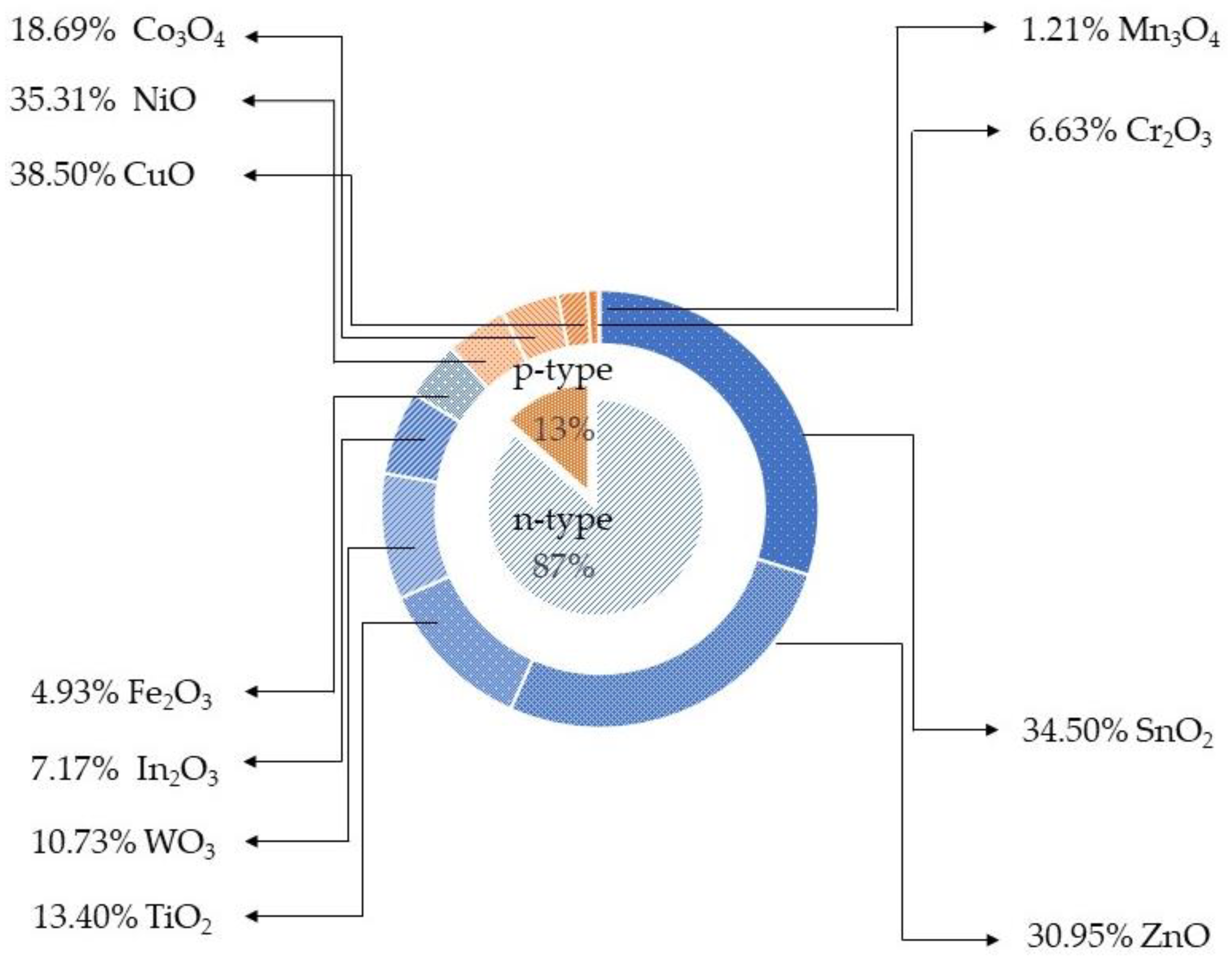

Metal oxide (MOX) semiconductors may be divided in two different groups depending on their majority carriers. For instance, in n-type MOX semiconductors, such as ZnO, In2O3, Fe3O2, TiO2, WO3, SnO2, the majority carriers are electrons, while in p-type, NiO, Co3O4, Cr2O3, Mn3O4, CuO, the majority carriers are holes [13,14,15]. In contrast to n-type MOX gas sensors, p-type MOX ones are less studied, and the reported works are still in a premature stage of development. Figure 1 shows the results of p-type and n-type MOX gas sensors in Web of Knowledge on 30 June 2021 with the key word “metal oxide gas sensor.” Only 13% articles report on the p-type MOX gas sensors out of a total of 24,234 articles concerning MOX gas sensors. Irrespective of the number of reported works, p-type metal oxides have shown excellent performances in chemical/gas sensing owing to the majority of charge carriers, their conduction paths, resistance to humidity influence on sensing performances, superior catalyst properties, long-term stability, and lower open circuit resistance in contrast to n-type MOX gas sensors [16]. Furthermore, oxygen is excellently adsorbed at p-type MOX surface at low temperature compared to n-type. Thereby p-type MOX gas sensors could potentially be used for the sensing of volatile organic compounds (VOCs) since they are highly oxidized by adsorbed oxygen at the surface compared to surface lattice oxygen [17,18,19]. Moreover, the excellent gas-sensing performances at low working temperatures in p-type MOX gas sensors have paved the interest for the detection and quantification of VOCs [16]. Thereby, the number of scientific research works were gradually increased on p-type MOX as shown in Figure 2.

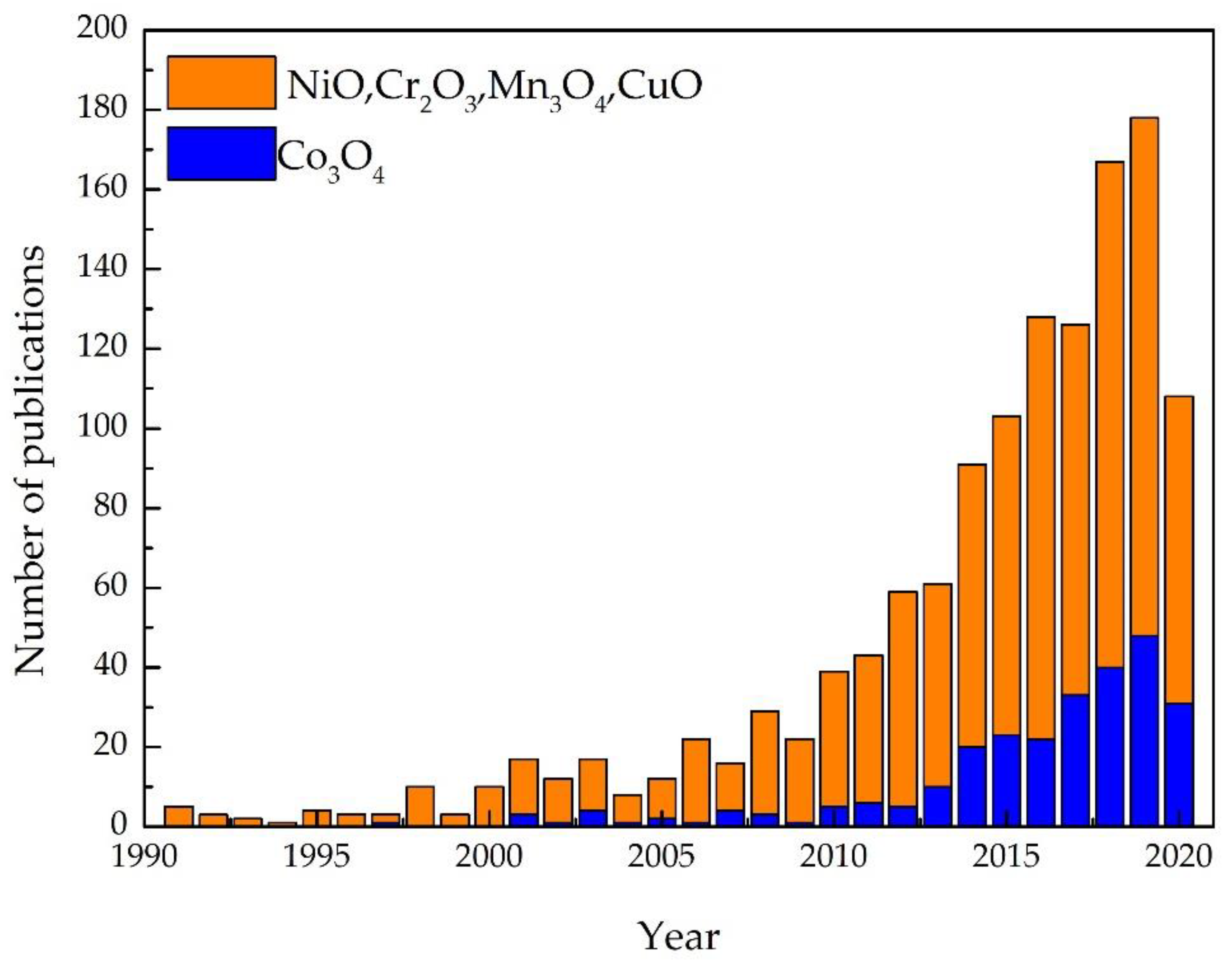

Consequently, scientific works on Co3O4 gas-sensing applications have been gradually increased (Figure 2) due to tremendous sensitivity, response/recovery, and stability even at lower and elevated temperatures, superior electrical and chemical properties together with their abundance [20,21]. Similarly, various nanostructures of Co3O4, nanoparticles [22,23], nanowires [24,25,26,27,28,29], nanorods [30,31], nanosheets [32,33], nanocubes [34], nanoneedles [35], hollow microspheres [36,37,38], urchin-like structures [39,40,41], have been reported in the literature for the detection of CH3OH, C2H5OH, HCHO, CH4, CH3COCH3, C6H6, C6H5CH3, C6H5(CH3)2, CO.
However, the significant improvements in the application of one dimensional (1D) nano structures of Co3O4, on chemical/gas sensing have been attributed to the superior adsorption—desorption of chemical compounds which results in an outstanding response and reliability for chemicals/gases detection [42,43]. Additionally, the higher surface energy, crystalline quality, large intrinsic resistance modulation, number of reactive sites, and large surface to volume ratio of 1D nano structures have significantly improved the gas-sensing performances [14,44]. Though, only two review articles were found on Web of Knowledge database. Review on the 1D nanostructures of Co3O4 (NWs, NTs, NFs and HNFs) for chemical/gas-sensing applications has not been published yet according to the authors’ knowledge. Hence this review is devoted to 1D nanostructures of Co3O4 and their possible application in chemical/gas sensing. The article initiates with the elementary introduction of Co3O4 and its gas-sensing ability. Then it flows through the preparation techniques of 1D nano structures of Co3O4 and its endemic properties significant for chemical/gas sensing. Finally, a comprehensive discussion on the reported 1D Co3O4 chemical/gas sensors is presented.

2. Material and Sensing

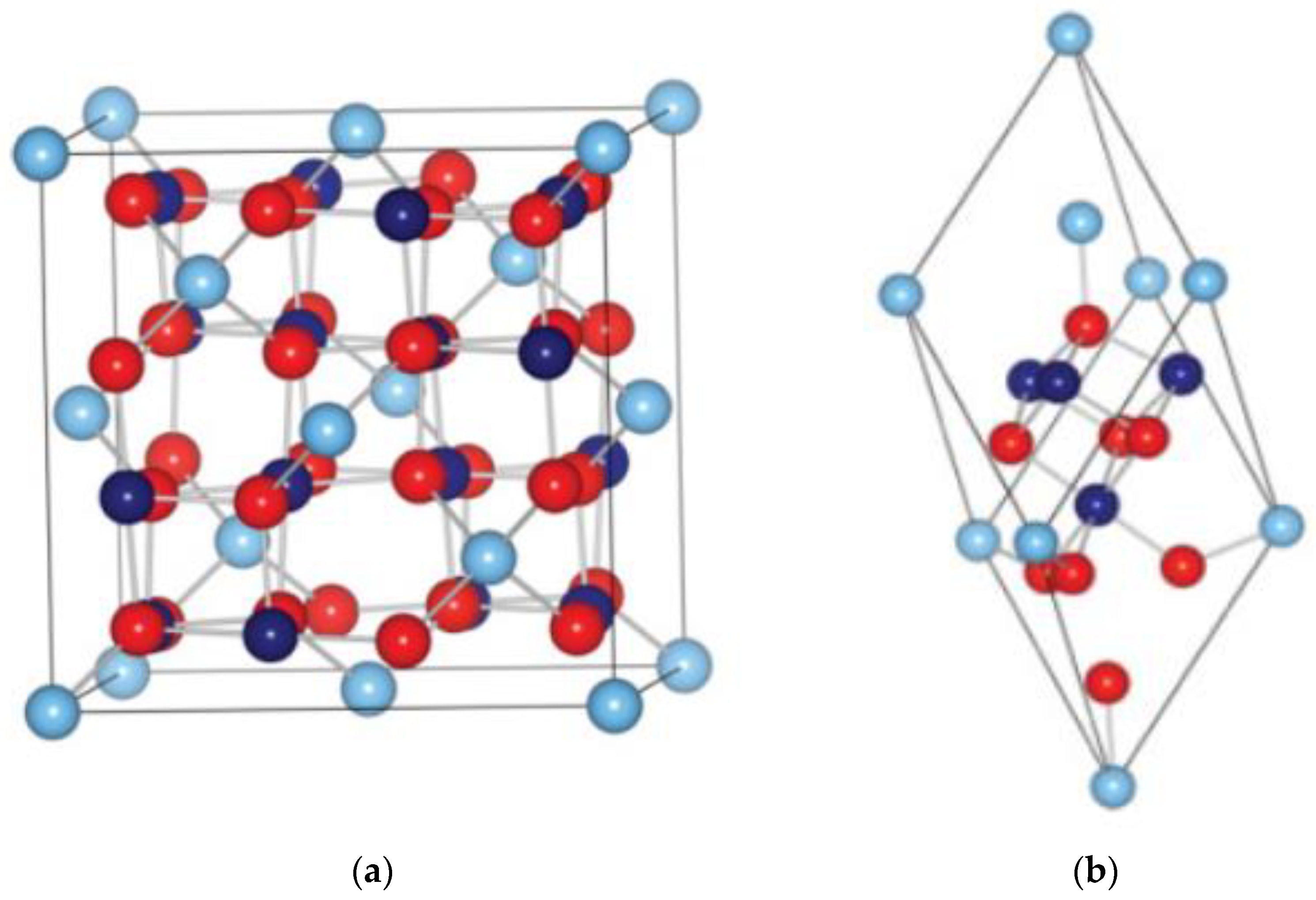

Generally, cobalt oxide comprises the spinel structure with an indirect band gap of ~1.5 eV and direct band gap ~2.2 eV. Usual spinel structure is represented by the formula (A)[B2]C4, in which A and B are cations in tetrahedral and octahedral coordination respectively, whereas C stands for anions. The spinal structure is significantly stable when A is divalent, and B is trivalent for instance (A2+)[B3+]C4. Similarly, the cobalt oxide (Co3O4) is known to follow the spinel structure as (Co2+)[Co23+]O4 [45]. The high spin Co2+ occupies the interstitial sites of tetrahedral (8a) whereas low spin Co3+ are known to occupy the interstitial sites of octahedral (16d) of the close-packed face-centered cubic lattice of CoO.Co2O3 as shown in Figure 3a,b. The p-type conductivity of the material (CoO.Co2O3) is known to originate from the vacancies of Co in the crystal lattices or/and excess oxygen at interstitial sites [45]. However, the charge carriers concentration of the material varies with the operating temperature or doping. Co3O4 is one of the versatile transition magnetic MOX semiconductors.

2.1. Characteristics Properties of a Chemical/Gas Sensor

The key parameters that can be useful when discussing chemical/gas sensors are response, selectivity, response time, recovery time, stability, gas detection limit, and operating temperature. A comprehensive but brief understanding on each parameter is useful prior to the detailed discussion on chemical/gas sensors.

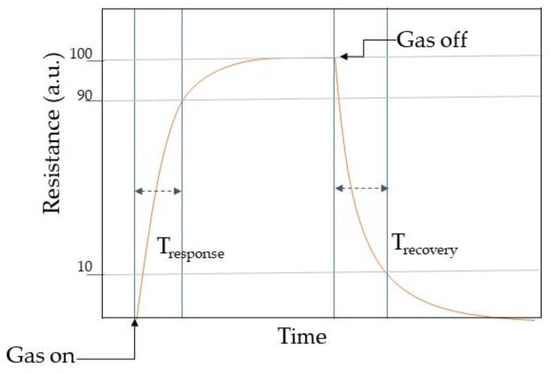

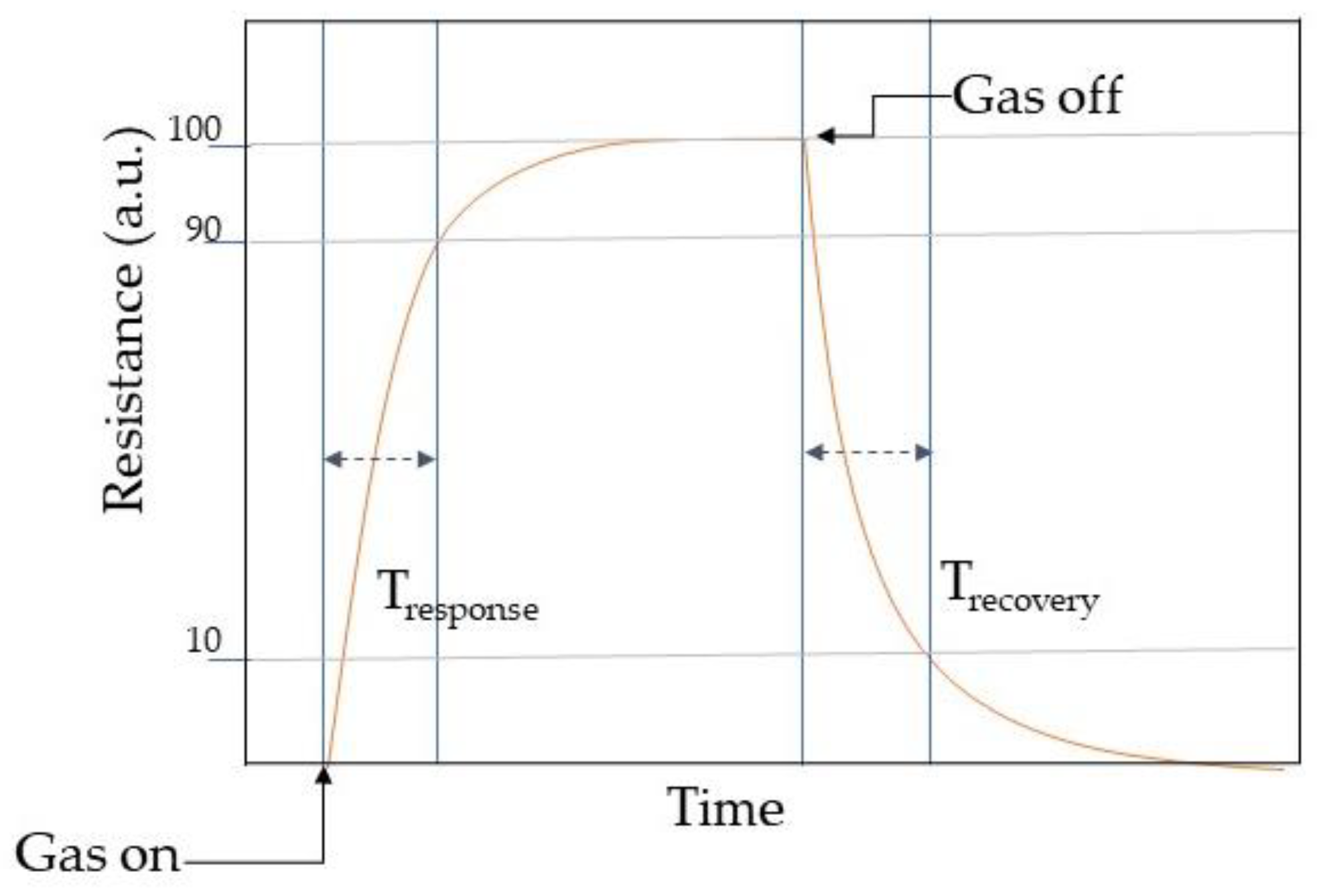

Response may be described as the fraction of the resistance on the sensing material when interacting with the analyte gas (Rg) and the one in air (Ra). However, response vastly relies on the crystallite size, porosity, operating temperature, and film thickness. Selectivity determines the ability of identifying the target gas in a mixture of gases and can be tuned with the operating temperature. However, MOX chemical/gas sensors may respond in similar manners toward different gas molecules [46]. Hence the selectivity is one of the paramount features when describing the sensing performances. Stability is the ability of the active material to keep its properties, such as electrical resistance in case of conductometric sensors, constant over time. Response time is an evaluation of the sensors dynamics to achieve a stable value of the monitored sensor parameter, for example the time to accomplish 90% of the final resistance of the sensor when interacting with the gas. Usually, the electrical resistance of a conductometric chemical/gas sensors changes when interacting with the analytes molecules as shown in Table 1. In general, a dynamic response curve shows the resistance/conductance variation of the sensor with time. While the recovery time may be calculated as the time interval necessary to get back to 90% of the resistance value in air before the gas introduction as the air flow is restored. These parameters can be calculated from the dynamic response plot as shown in Figure 4. Detection limit is the least concentration of analyte gas that may be detected by the sensor. Lastly, working temperature is the temperature where the sensor is operating.

2.2. Conducting Mechanism of Chemical/Gas Sensor

Chemical/gas sensors comprises two major functions: reception function and transducer function. The reception function is the interaction of the analyte compound with the MOX surface while the transducer mechanism converts the chemical signal into an electronic one in conductometric sensors. Generally, transducing platform is built in planar or tubular design as shown in Figure 5a,b. MOX materials are responsible for the receptor function while the entire microstructure comprises the transducer mechanism [47]. However, chemical/gas components absorption at the metal oxide surface relies on imperfections at the surface (valency or coordination of atoms or ions). This absorption is known to be by either weak Van der Waals force (physisorption) or strong chemical bonding by charge exchange process between MOX semiconductor surface and gas analytes (chemisorption). The fundamental working principle of conductimetric chemical/gas sensor is based on this interaction and its effect on the sensor resistance. It is interesting to describe the working principle behind the electrical resistance modification of MOX in spite of the summary reported by the Moseley et al. (Table 1) [48].

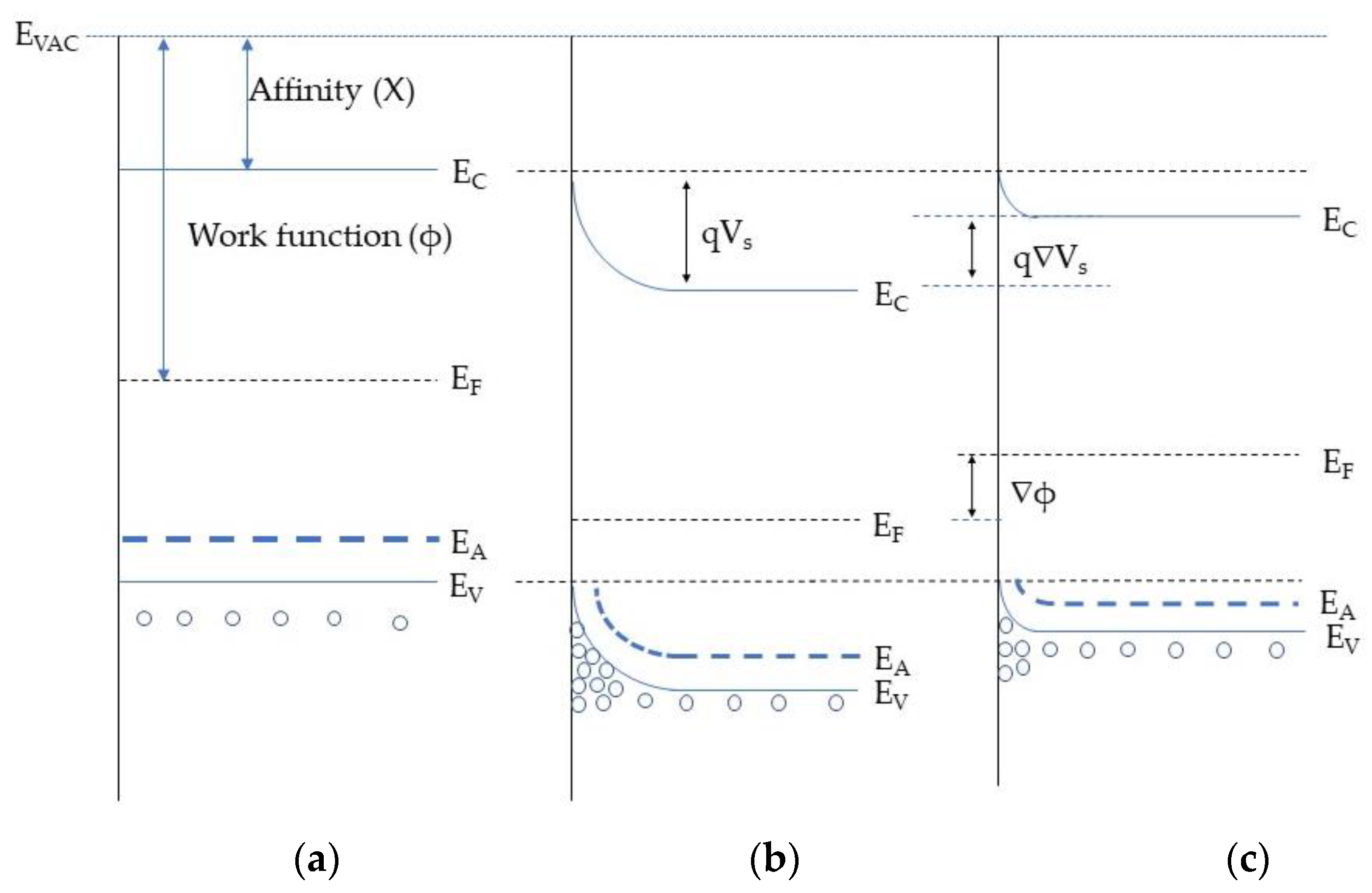

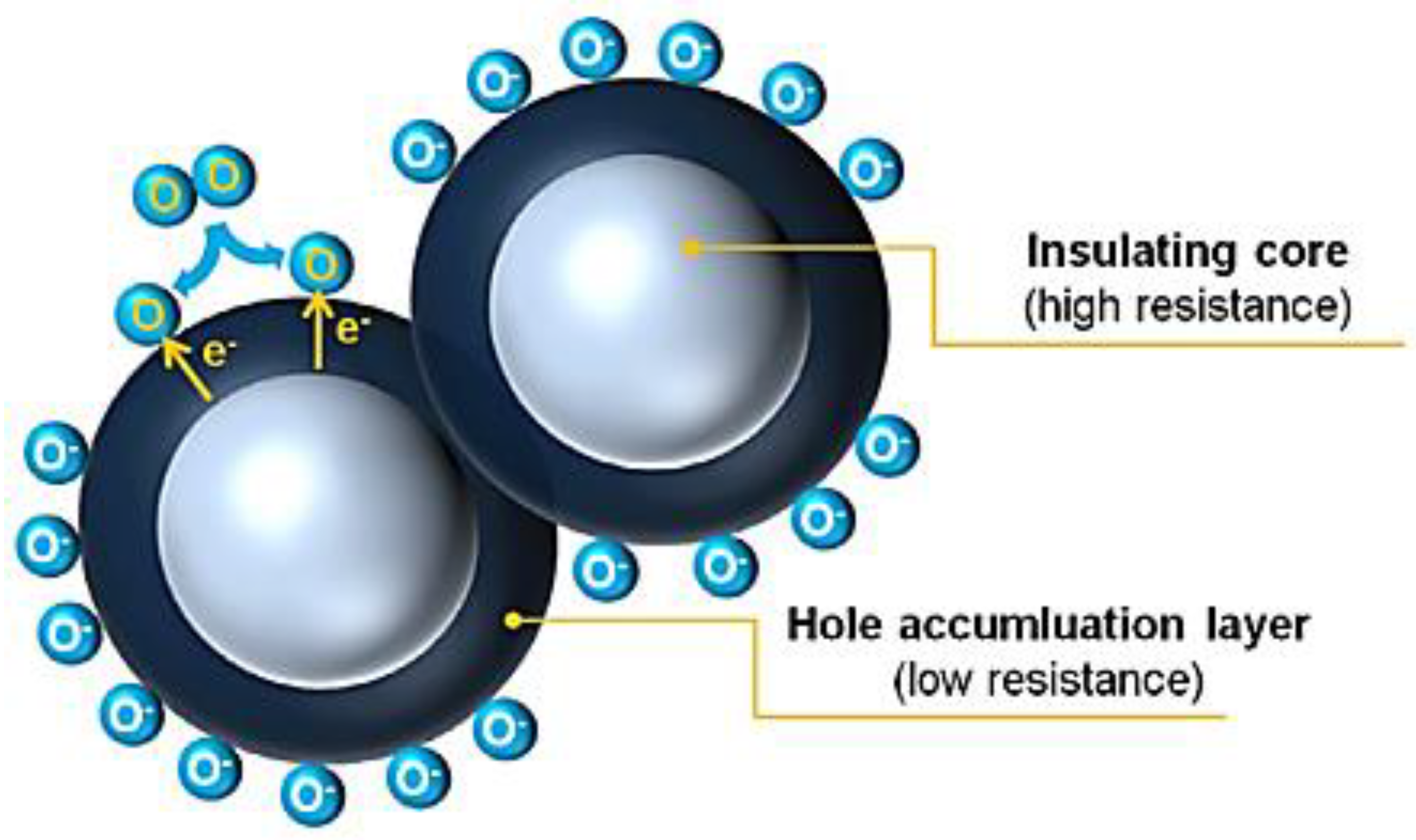

The electrical conduction in a chemical gas sensor is based on charge carriers (electrons for n-type and hole for p-type MOX gas sensors). However, the ionosorbed species on MOX surface play also a key role in the electrical conduction since these sensors are working in ambient environment. In this scenario, oxygen and water vapors are the prominent. Concerning oxygen adsorption, molecular O2−, atomic O−, and O2− species are present at the temperatures < 150 °C, 150–400 °C, and >400 °C respectively and the chemical routing is shown in Equations (1)–(3) [11,14]. When oxygen ions are chemisorbed, free charge carriers (holes) concentration increase in p-type materials such as Co3O4. These chemisorbed oxygen species are responsible for electron trapping from MOX valance band, forming an electronic core shell as depicted in Figure 6 [14]. This may result in a hole-accumulating layer (HAL) near the semiconductor surface [14]. The formed HAL is crucial for the receptor/transduction function. Additionally, in p-type MOX semiconductors electrical conduction is through the semiconducting near surface regions (parallel path conduction) [14,49]. A detailed description on conductive model on p-type metal oxide is found in Barsan et al. and Kim et al. [14,49].
O2(ads) + e− → O2−(ads)
O2−(ads) + e− → 2O−(ads)
2O−(ads) → O2−(ads)
In addition to the conduction model by Barsan et al. an overlook on the MOX band structure modification with the chemisorption of these species could be interesting. Figure 7a depicts the band structure prior to any surface reaction. Once oxygen is ionosorbed on the MOX surface, electron from the valence band are captured on the surface traps. This process alters the hole concertation in the accumulation layer resulting in upward band bending as represented in Figure 7b. Subsequently, the electrical resistance of the hall accumulation layer decreases [49]. The interaction of the reducing gas with sensing material may increase the HAL resistance due to the consumption of ionosorbed species. This results in the decrease of the hole concentration causing a downward band bending as in Figure 7c. Furthermore, direct adsorption of oxidizing species, such as highly electronegative NO2, can also alter the MOX electrical conductance and a detailed explanation has been reported in Comini et al. [5]. Additionally, energy band bending due to the electron transfer between the semiconducting material and the chemical compounds, formation of Schottky barriers, microstructure of the MOX semiconductor also influence the electrical resistance [47,50].
The net electrical resistance of the gas-sensing element is the total resistance of the combination of three regions; (a) metal-semiconductor, (b) semiconductor-semiconductor, and (c) semiconductor metal junctions. There are therefore four types of resistance:
  • Metal to semiconductor;
  • Outer conductive and narrow accumulation layers at the surface of the nanowire;
  • Narrow accumulation layers at the surface of the grains and broad bulk of the nanowire;
  • Nanowire to nanowire.
By assuming constant resistance and capacitance values in these four types of resistance described above irrespective of gases interaction, a detailed explanation on the conductance is provided based on DC equivalent circuit by Barsan et al. in the specific case of granular materials [49].
Considering all these facts, synthesis of 1D nano structures for the chemical/gas sensing has attracted the researchers’ attention for sensitivity and response improvements by reducing the resistance in the large number of contacts regimes mentioned above.

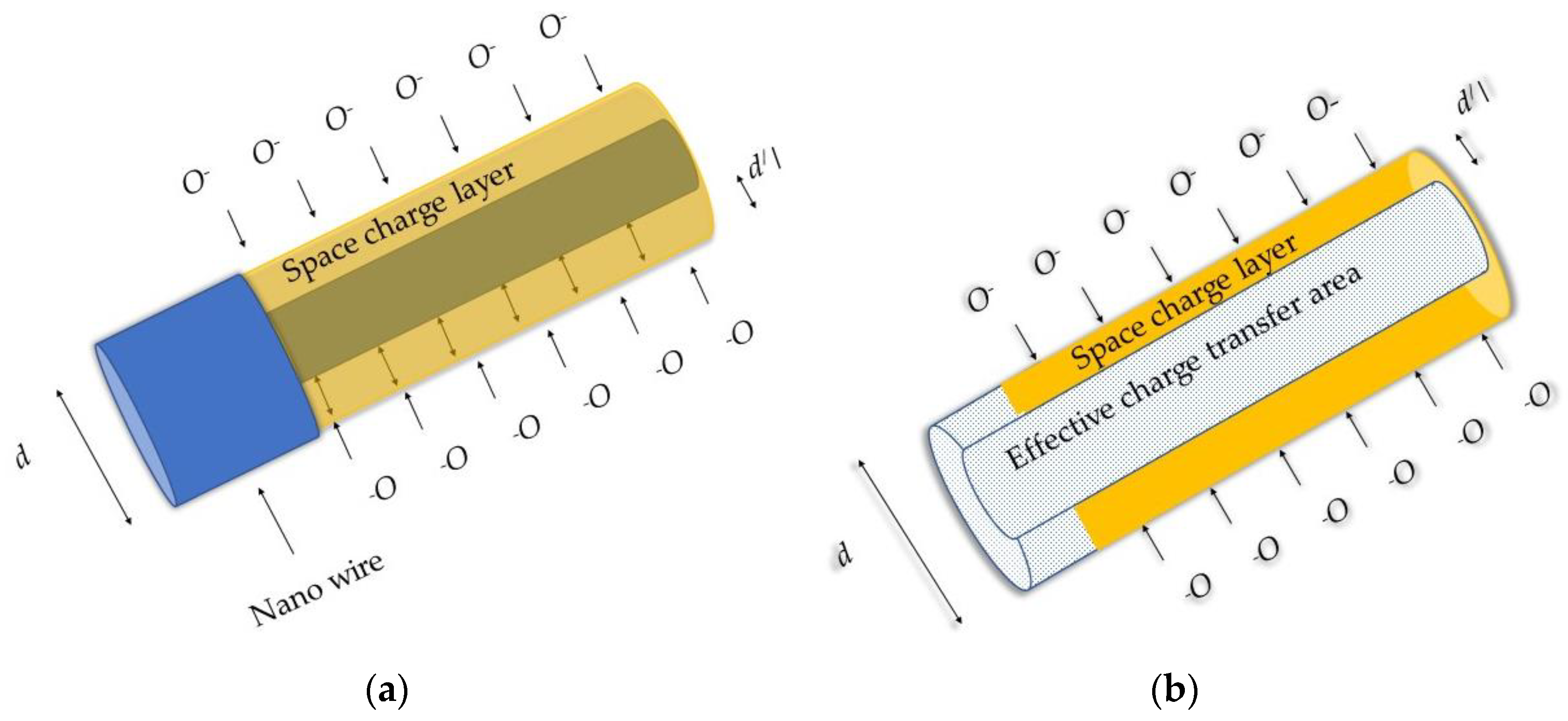

In general, the electron momentum in 1D nanostructures is confined in two directions which in turn force electron motion in one direction. However, the electrical transport phenomena in 1D nano structures may be described using the cylindrical approach of Poisson equation [49,50]. The limitation on the electrical conduction length is varying depending on the formation of the space charge layer (depletion layer or hole accumulation layer in n-type or p-type metal oxide semiconductor respectively) due to the ionosorption species as shown in Figure 8a,b. Nevertheless, the transport mechanism should be revised when the grain size (dm) becomes low compared to the Debye length (λD). In the instance of a large grain, (grain size, dm >> thickness of the space charge layer, 2λD), the conductance is limited by Schottky barrier at grain boundaries. Once, dm = 2λD, conductance is limited by necks between the grain, while the conductance is highly affected by each grain once dm < 2λD [46]. This may account for specific effects along the nano structure which is known to be the main reason for significant alterations in its electrical properties.

3. Growth Techniques of 1D Nano Structures of the Co3O4

In general, bottom-up or top-down approaches are used for the nano structures growth [51]. The experimental setup for bottom-up approaches may be low cost producing high crystallinity and purity nanostructures, but their alignment may be extremely difficult. Top-down approaches suffer from long preparation times, while they easily form structures directly on flat substrates. Concerning the growth of Co3O4 nano structure as chemical/gas sensors, several growth techniques such as hydrothermal [15,16,22,23,24,34,52,53], electrospinning [54], and solvothermal [3,27,55,56] were widely employed. Thereby a brief description of each growth techniques will be made.

3.1. Hydrothermal and Solvothermal Techniques

The hydrothermal and solvothermal techniques are the topmost attracting methods for fabricating nanostructured materials owing to high yield, uniform products, low energy consumption, lower pollution, easy control together with simple manipulation [57]. In general, both the methods are similar. Hydrothermal process is carried out in aqueous medium above the boiling point. Solvothermal occurs in a nonaqueous (mainly organic phase) solution at quite high temperatures. Both the techniques are executed in steel autoclaves with or without Teflon liners under specific growth conditions such as pressure, temperature, reactant concentration, and duration which are known to tune morphology and crystal structure as shown in Figure 9a–h. Additionally, a comprehensive comparison on each method is found in Wang et al. [58].

3.2. Electrospinning Techniques

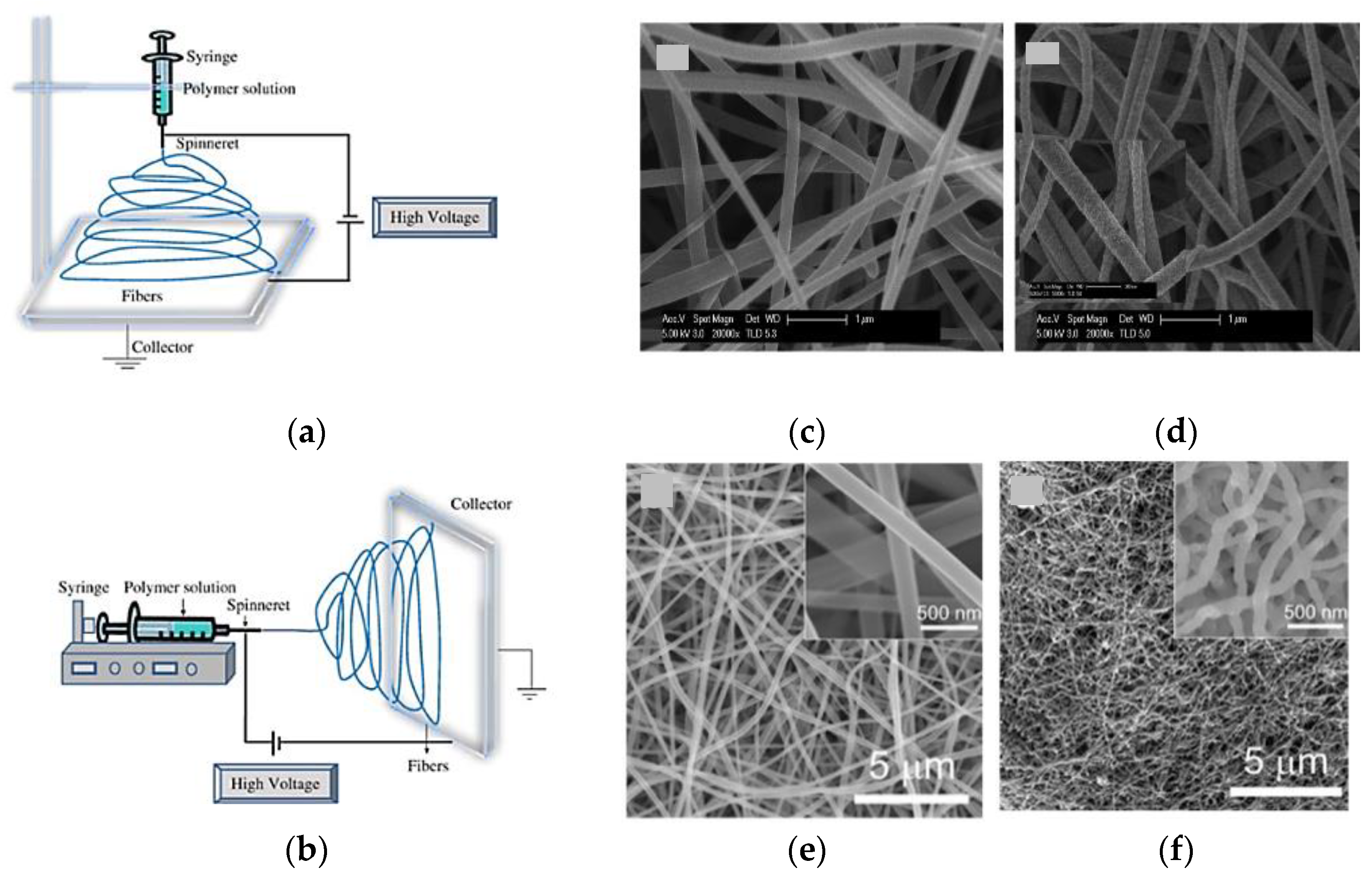

Electrospinning technique is performed injecting a liquid precursor solution via a spinneret. In general, high electrical voltage difference is applied between the liquid precursor and the collector, which leads to an extrude on the solution forming a jet from the nozzle. The jet-formed fibers are deposited on the collector [46]. This method of growing nano structures with higher length is simple and flexible specially for the nano fibers’ growth. However, electrospinning is controlled by several parameters, such as operating voltage, viscosity, pressure, flow rate, and temperature [60]. Presently, two standard electrospinning setups are available; horizontal and vertical and a comprehensive study on electrospinning techniques is found in Bhardwaj et al. [61]. Additionally, a post growing heat treatment is essential in the electrospinning technique to eliminate the solvent and to solidify the nano structures. Figure 10a,b shows the general electrospinning setup and Figure 10c–f the SEM images of different achieved Co3O4 NFs. However, with the advancement of this technology, some research groups have introduced state-of-the-art systems that can grow more graded nano fiber structures at higher efficient and controllable means.

4. Overview of Reported 1 D Nano Structured Co3O4 Gas Sensors

In general, variation of the electrical resistance over the course of the analyte interaction (reducing or oxidizing) on the MOX surface can be used to study the gas-sensing performances of the MOX hence to detect the target gas [64]. However, Co3O4 1D nano structures sensors are still capable of detecting few gases such as CO, H2S, NH3, and some VOCs. Among these, C2H5OH and C3H6O are the frequently reported. Table 2 shows the reported studies of Co3O4 1D nano structures as chemical/gas sensors.

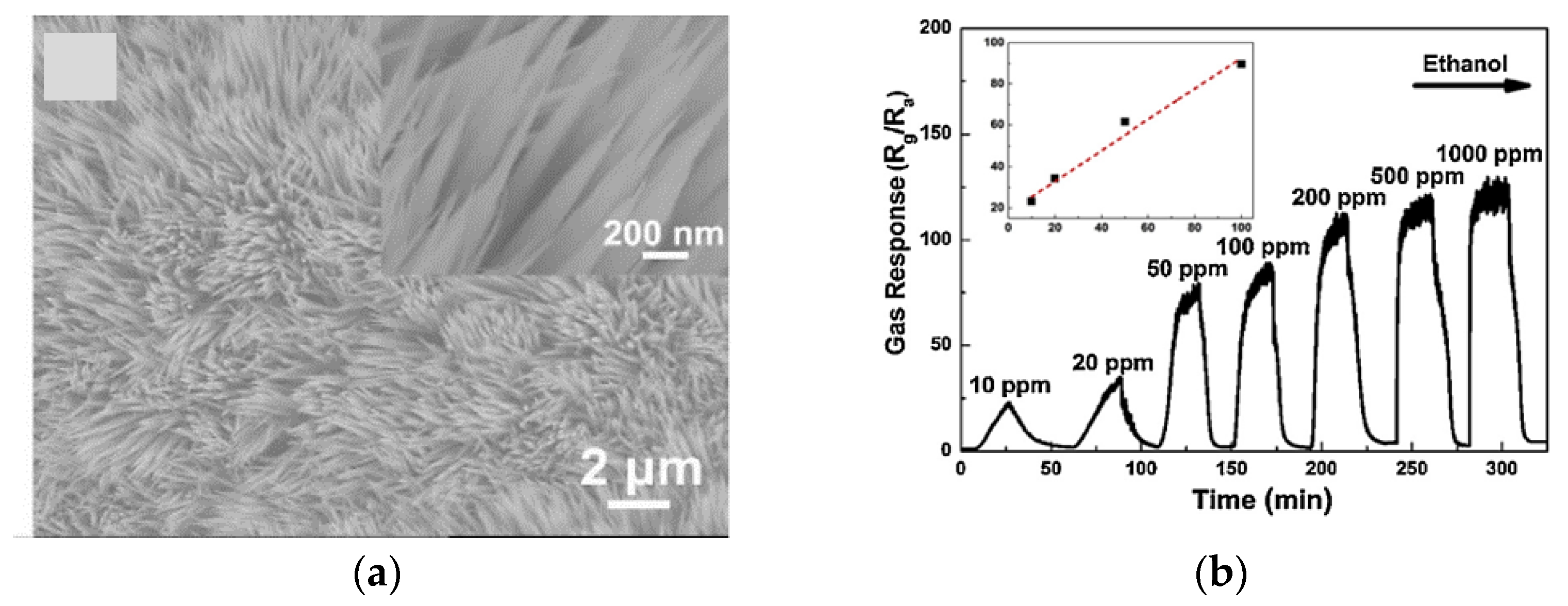

4.1. Sensing toward Ethanol (C2H5OH)

Ethanol is a VOC that is vastly present in the daily life of human beings in means of food, beverages, fuel-processing, pharmaceutical, as well as in many laboratories and industries for diverse research and applications [72]. However, the long-term exposure to C2H5OH has been identified as the main reason for serious health effects such as lethargy, irritation to skin and eye, difficulty breathing, coma, liver damage, and intoxication. Moreover, C2H5OH as alcoholic drink has been identified as one of the root causes for the rising traffic accidents around the world [73]. For this reason, almost all countries have legalized the consumption limitation of C2H5OH. For example, in Italy the highest ethanol level that is allowed in the breath of drivers is 130 ppm (0.05% in blood) while in the USA, 208 ppm (0.08% in blood) [74]. Hence, detection and quantification of C2H5OH in environment as well as in human breath have become a necessity. Before discussing the C2H5OH-sensing applications it would be interesting to understand its sensing mechanism at MOXs surface. When ethanol is interacting with the near surface irrespective of the type of MOXs sensor, these molecules are chemisorbed on the MOXs surfaces. Afterwards, chemisorbed ethanol molecules start to react with the adsorbed oxygen species resulting in the formation of H2O and CO2. Hence the trapped electrons are liberated back to the MOXs altering the sensor resistance. The chemical reaction between C2H5OH and adsorbed oxygen species on the near surface of the MOXs is described as in (4–5) regardless of the type of the MOXs [74].
C2H5OH(ads) + O¯(ads) → CH3CHO(ads) + H2O + e−
CH3CHO(ads) + 5O−(ads) → 2CO2 +2H2O + 5e−

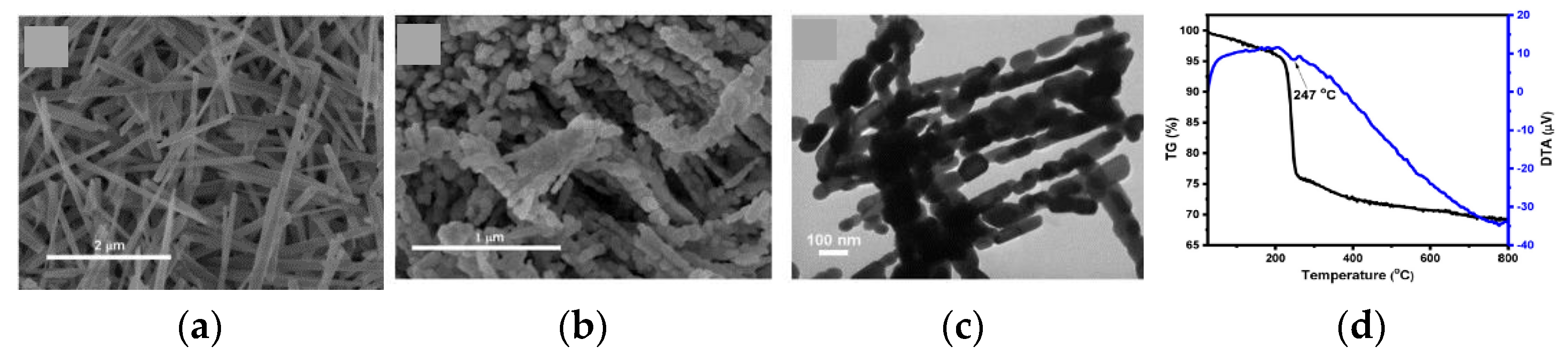

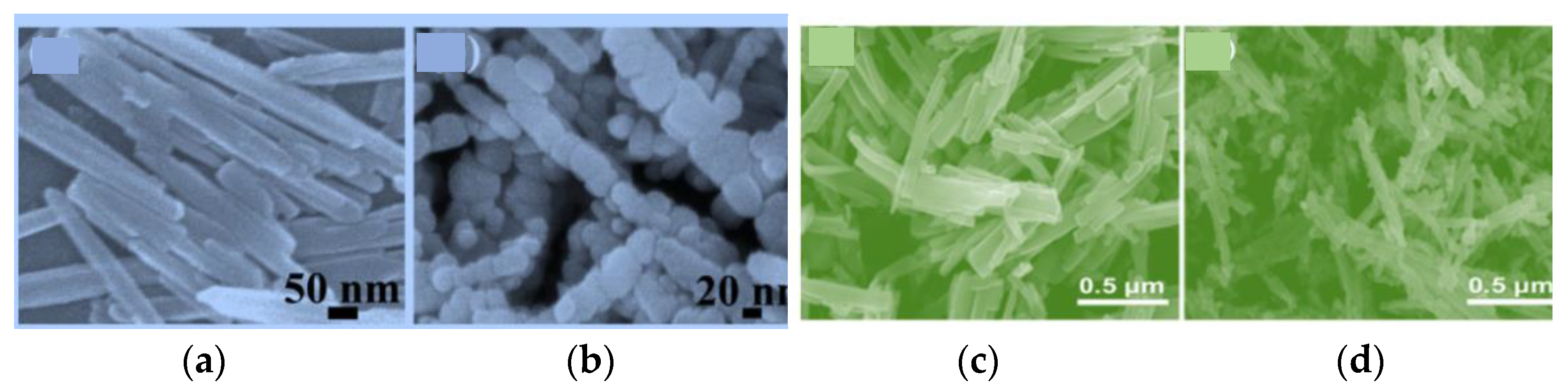

Among the synthesis techniques for Co3O4 NRs preparation, solvothermal technique one has been used to prepare C2H5OH-sensing devices by Choi et al. in 2010 [3]. The integrated sensors by the Choi et al. have demonstrated a superior selectivity and response to 100 ppm of C2H5OH compared to that of H2 and CO at 300 °C. Furthermore, the effective and prompt diffusion of gases onto the whole surface Co3O4 nanorods give rise to a superior response of 25.4 (Ra/Rg) to 100 ppm C2H5OH together with the response time of 29 s and recovery time of 10–13 s compared to the one of nano cubes and particles [3].

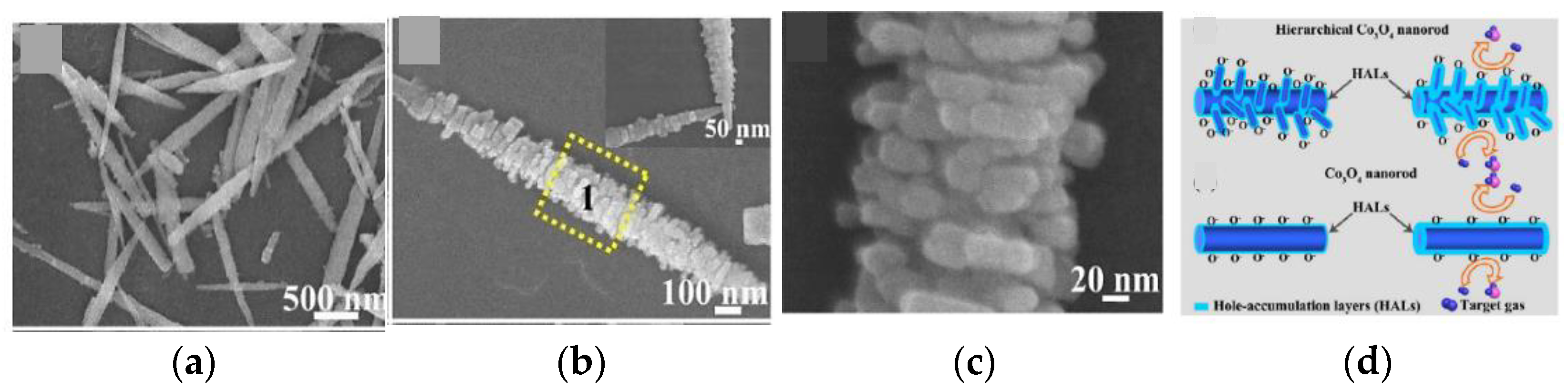

It is known that the morphology of the nano structures can be altered depending on the original material, the growth technique, and its parameters. Wen et al. in 2013 have addressed the growth of Co3O4 rhombus-shaped NRs on polycrystalline alumina ceramics plate, investigating their C2H5OH detection capabilities [25]. They have also demonstrated the necessity of post treatment annealing step for the hydrothermal-assisted growth. This additional step is known to support the removal of adsorbed water molecules upon calcination [25]. Wen et al. have shown the absence of FTIR peaks of O-H (3574 cm−1 and 1635 cm−1), O-H groups interacting with fluoride (3417 cm−1), Co-OH (995 cm−1), and Co-F (734 cm−1) vibrations in the calcinated sample compared to that of the as-grown one (Figure 11a). Additionally, dehydration and lattice contraction may also occur during the thermal treatment, causing a topology modification of more rough surfaces (Figure 11b,c). Furthermore, the rougher topology along with the unique structure of Co3O4 NR arrays, the high surface to volume ratio, the actual participation of each NR for the gas sensing due to the direct growth of Co3O4 NRs on substrates and the space between individual NRs has been identified as the main roots of outstanding sensing performances [25]. Moreover, these unique features have also tuned the sensor toward breath analysis application and extended stability [25].
Nguyen et al. have reported the occurring of rough and porous nature in the topology on the NRs upon the calcination [24]. However, the porous morphology has been attributed to the oxidation of Co(OH)x(CO3)0.5.0.11H2O in the as grown material. Furthermore, Nguyen et al. have observed the necessity of higher amount of oxygen vacancies [Equations (4)–(6)] for an effective ethanol detection. Co3O4 NRs sensors show higher responses toward ethanol at 300 °C in ambient air compared to N2 environment due the reduction of pre-adsorbed oxygen in the Co3O4 in N2 environment.

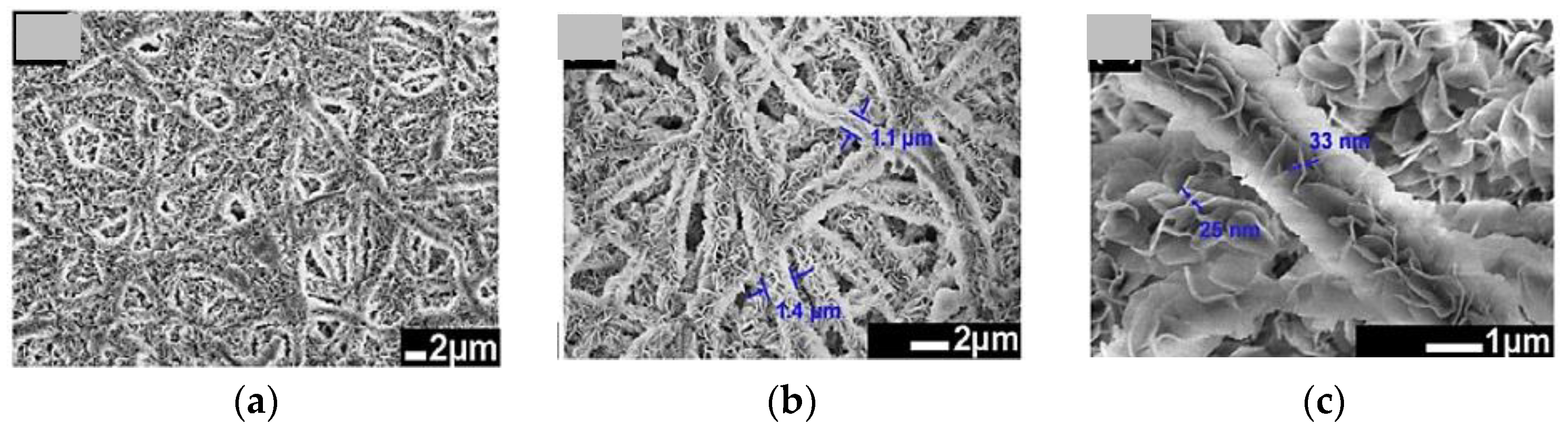

Electrospinning has been employed for the preparation of nano fibers (NFs) for the detection of C2H5OH by Yoon et al. [65]. The sensors have shown superior sensitivity (Rg/Ra = 51.2) toward 100 ppm of C2H5OH compared to CO, C3H8, and H2 at 301 °C before decreasing to 19.2 at 336 °C. While the recovery time was decreasing as the operating temperature increases due to the thermal boosting of oxygen ionization.
Furthermore, Yoon et al. have demonstrated the effect of NFs dimension in the sensing properties in 2014 [63]. In the reported study three sets of NFs were grown by altering the ultrasound sonication time using the electrospinning followed by calcination. The sensor resistance has been found to increase with the sonication time due to the reduction of the effective surface area. This decrement resulted from the breaking of well-connected long nanofibers into less connective nanoparticles or shorter fibers. Additionally, the variation in the contact area among the particles has been identified as a possible reason for the decrease in the response with higher duration of sonication. Hence, the inter-particle connectivity could be a significant parameter for the gas-sensing performances in Co3O4 devices.
The detection of lower concentrations is highly beneficial when considering safety applications. One successful study has reported the detection of 10 ppm C2H5OH exploiting needle shaped Co3O4 nano arrays (Figure 12a) that were grown in facile hydrothermal route by Wen et al. in 2014 [34]. The reported nanoneedles array has demonstrated mesoporosity and quasi-single-crystalline structure which has been identified as the main motivation for the superior response of 89 (Rg/Ra) toward 100 ppm ethanol at a working temperature of 130 °C (Figure 12b). Furthermore, several other key factors, such as the strong adhesion between the sensing materials and the substrates, which in turn improve the good ohmic contact, the random orientation of the nanoneedle arrays and the special exposed crystal planes of Co3O4 have been ascribed for the superior sensing performance and their stability.

4.2. Sensing toward Acetone (C3H6O)

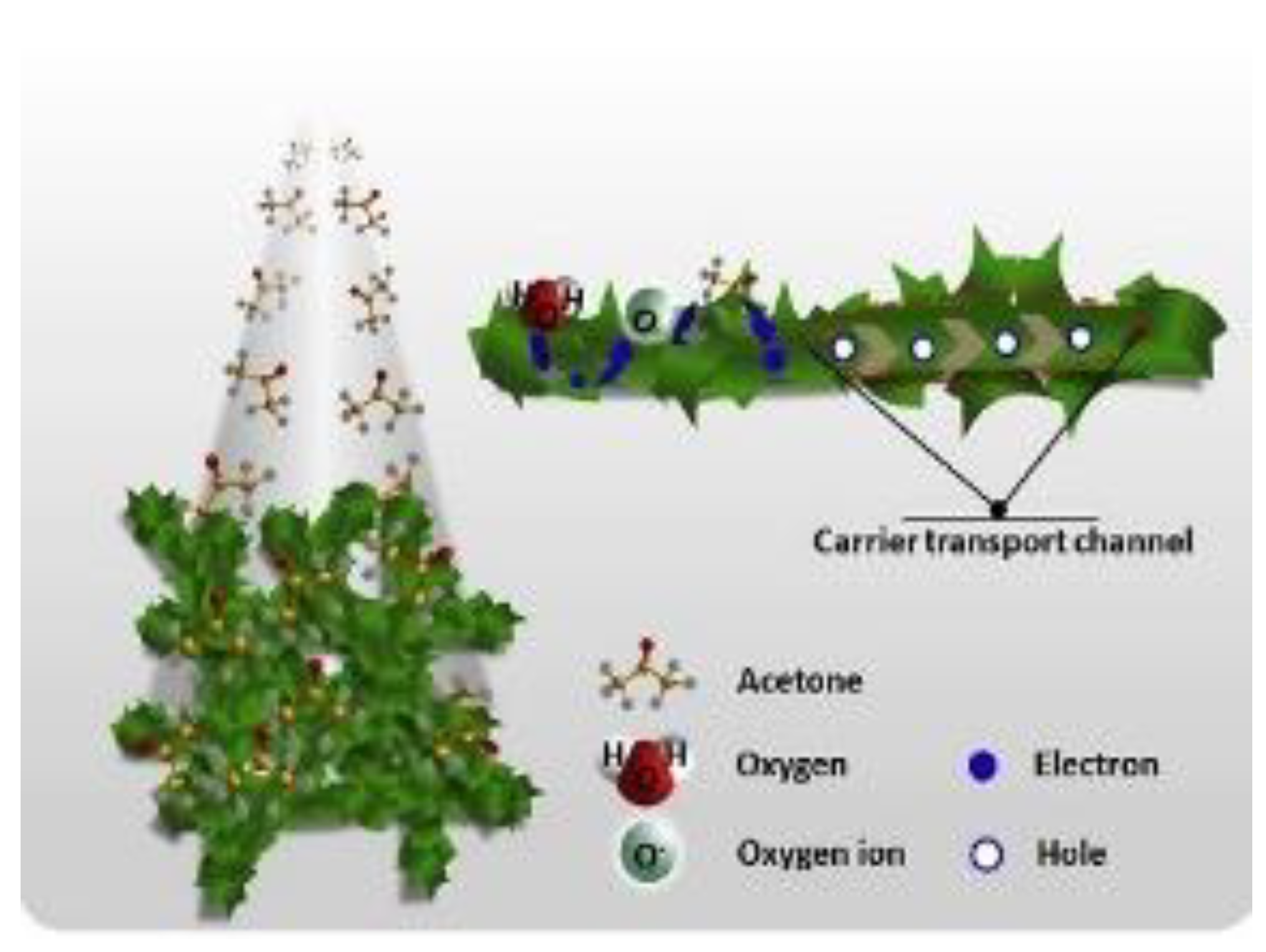

Acetone is a VOCs known to be caused by irritation to nose, eyes, throat, and central nervous system as the concentration is higher than 173 ppm or if the exposure continues for several hours [60,72]. Moreover, it has been identified as a key compound to identify health issues in human body by analyzing the human breath [67,75]. Hence, the detection of acetone is essential for both society safety and health. An illustration of C3H6O detection mechanism on nanofibers is shown in Figure 13 [52]. A superior sensitive and selective performance toward acetone has been reported by Choi et al. on Co3O4 NFs composite with Ir NPs and graphene oxide (GO) sheets in 2014 [66]. Co3O4 NFs, have been grown by electrospinning technique while the GO sheets as well as Ir NPs were grown by the polyol method [68]. The composites NFs (1 wt% Ir-GO-Co3O4) were able to detect acetone even at 120 ppb in highly humid ambient conditions (90% RH) demonstrating great potentialities for acetone analysis in human breath [66]. In addition, the sensors have shown excellent selectivity toward acetone other than the usual breath biomarkers; pentane, NO2, NO, NH3, and CO. One of the reasons for these excellent performances is the combined catalytic effect of GO sheets and Ir NPs. A second one is the hole accumulation layer thinning on the surface of Co3O4 NFs due to Ir NPs together with the effective electronic sensitization by the GO sheets. In addition, the rapid transfer of carrier to the sensing electrodes, due to the highly conductive GO sheets, contributed to improve the performances.
Another interesting morphology for chemical compounds detection is one of the hierarchical nanofibers (HNF). Its effective surface area is outstanding and there is a smooth transfer of carriers through nanofibers without additional barriers, due to the connection of the nanosheet-like structures in the nanofiber [52]. In 2019 Cao et al. have demonstrated C3H6O sensing with HNFs at an operating temperature of 190 °C. The grown HNFs comprised many nanosheets with smooth surface almost perpendicular to the nanofiber’s surfaces (thickness of 20–40 nm) as shown in Figure 14a–c [52]. However, Zhang et al. have reported the possibility of detecting C3H6O at an operating temperature of 75 °C with Co3O4 NWs assembled on hollow carbon spheres (Co3O4 NW-HCS) [23]. The enhanced sensing performances at low operating temperature have been attributed to the interaction between hollow carbon spheres and short Co3O4 nanowires. Moreover, the unique porous cavity structure of hollow carbon spheres is contribute to the excellent sensing performances by paving higher number of available sites for easy adsorption and desorption of C3H6O molecules.

4.3. Sensing toward Carbon Monoxide (CO)

The World Health Organization has announced that 92% of the world’s population live in zones with poor air quality [69]. Consequently, the lack of air quality has been identified as the reason for the increment of the premature death worldwide [69]. CO is one of the major air pollutants. It is a byproduct of the incomplete combustion process of fossil fuels, from power stations (coal), industrial factories, and vehicle exhaust. CO is colorless, tasteless, poisonous, and odorless [70]. CO has a greater affinity with hemoglobin compared to O2. Thereby, CO binds easier than O2 to hemoglobin as it enters into the blood which in turn results in suffocation to death [71]. Hence CO monitoring in living environments is significantly valuable. Co3O4 1D nano structures growth for the detection of CO may be interesting due to its long-term stability, high surface/volume ratio, and low-temperature operation [16]. Figure 15 shows the interaction of CO on the MOX surface. The sensing reactions can be written as in Equations (6)–(9) [64].

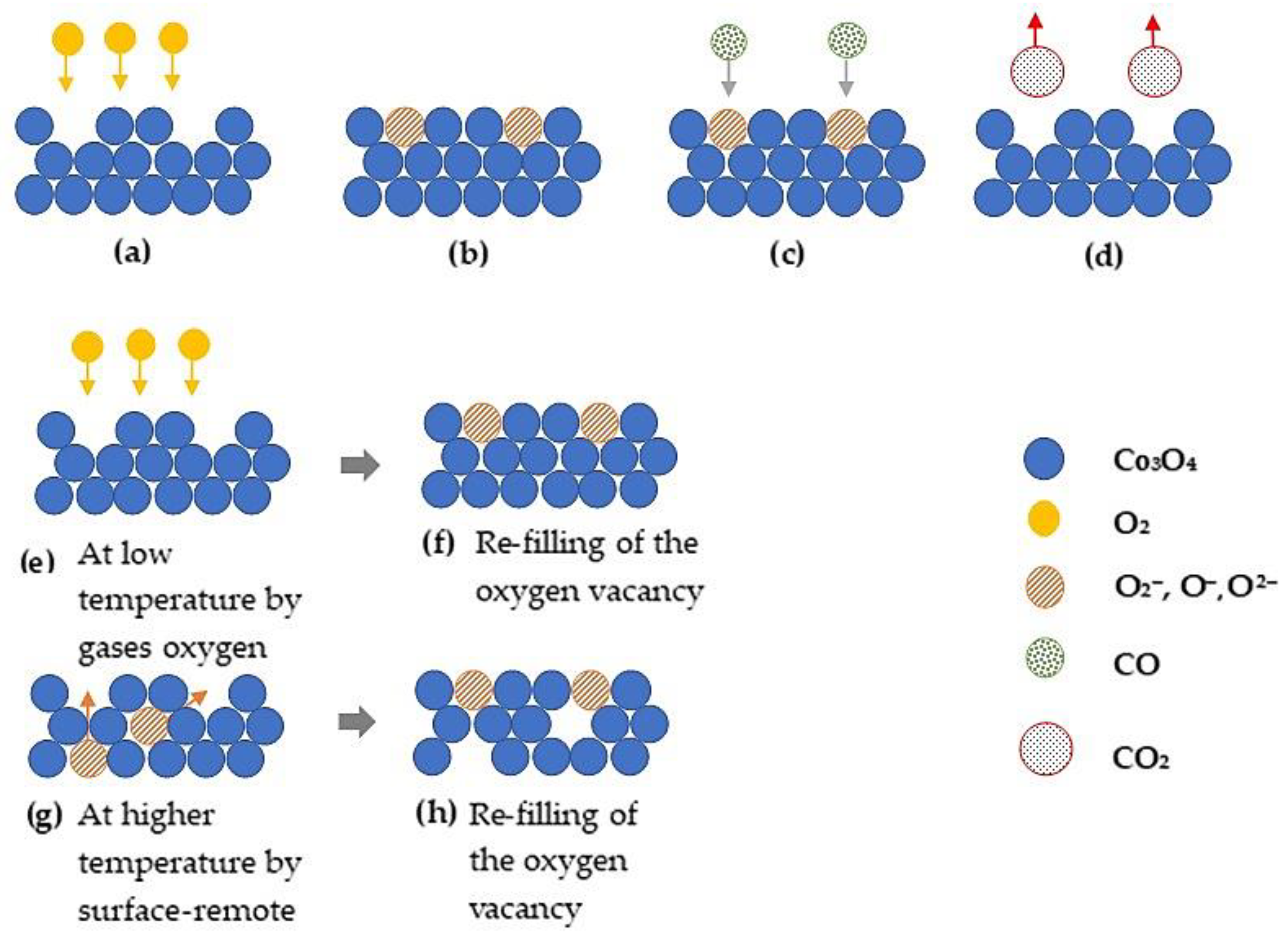

CO(g) → CO(ads)
CO(ads) + O− → CO2 + e−
CO + OH−(ads) ↔ HCO2¯ ↔ H+(ads) + CO2 + 2 e−
CO + H2O → CO2 + H2
In 2010 Patil et al. have demonstrated Co3O4 NRs sensing of CO with a response of 6.5 to 50 ppm CO at 250 °C [15]. The NRs sensors have demonstrated a higher response compared to the commercially available NP sensors due to the stronger bonding between nanoparticles in the NRs beside the higher surface-to-volume ratio. Additionally, the fabricated sensors have shown superior selectivity compared to H2, LPG, CO2, and ethanol.
However, CO sensing at a low working temperature (100 °C) has been reported by Dou et al. in 2014 [16]. The NFs sensors demonstrated a higher response (~13.5 (Rg/Ra) toward 50 ppm CO. Moreover, the detection of 5 ppm at 100 °C has been reported by the Busacca et al. on NFs Co3O4 sensors in the same year [62]. The excellent CO-sensing response of 2.4 (Rg/Ra) together with response time of 14 s and recovery time of 36 s of NFs was attributed to the higher effective surface area as well as the higher number of oxygen vacancies or defects on the NFs surface. Additionally, the lower crystallite size (about 15 nm) has been identified as one of the potential factors that could enhance the sensor performances. However, the sensor response was saturated at a concentration of 20 ppm at 100 °C owing to the formation of carbonates species at a low temperature that deactivates the action of Co3O4 catalysts in CO oxidation.

4.4. Sensing toward Toluene (C7H8) and Xylene (C8H10)

Toluene is another VOC widely used in paints, rubber, adhesives, and printing. Nonetheless, it is toxic, dangerous, and a neurotoxic compound that is damaging to humans even at very low concentrations (88 ppm) [27,76]. Owing to these consequences chemical/gas sensors are required to monitor toluene concentration in the afore mentioned applications.
Wang et al. have reported Co3O4 NRs-assisted gas sensors for toluene detection [27]. The grown rods-like structures were oriented from the assembly of numerous fine nanoparticles. The Figure 16a,b shows NRs with 40–50 nm width and cubic spinel Co3O4 phase. The sensors have shown an excellent response of 6 (Rg/Ra) toward 10 ppm of toluene and 35 (Rg/Ra) for 200 ppm at 200 °C together with response and recovery time of 90 s and 55 s respectively. Furthermore, higher sensing response has been obtained in rod-like structure, compared to nanoparticle, due to the higher amount of adsorbed oxygen molecules and the easiest diffusion of toluene through the well-aligned porous structures. This in turn improves toluene molecules absorption in the rod-like Co3O4 surface as depicted in Figure 16c,d. Once toluene molecules interact with the pre-adsorbed oxygen, the following reaction takes place on the surface of Co3O4:
C7H8 + 2O¯ → C7H6O¯ + H2O + e−
The released electron will interact with the hole in Co3O4 resulting in the decrease of the carrier concentration (hole), thus increasing the sensor resistance which can be used to study the concentration of interacting chemical compounds.
Sensing properties tunability, such as selectivity toward different gases, could be interesting when considering the production costs. The possibility to detect two gases with the same sensor exploiting different operating temperatures has been demonstrated by the Jeong et al. on Cr-incorporated Co3O4 NRs for xylene and toluene [59]. The responses to xylene of pure Co3O4 NRs and Cr-incorporated NRs were found to increase at 250 °C and the sensing properties were tuned toward the toluene as it is working at 300 °C. Additionally, the fabricated Cr incorporated sensor has shown higher selectivity of 5.61 (Stoluene/Sethanol) and 6.01 (Sxylene/Sethanol) in the 1.89% Cr-doped Co3O4 NRs at 275 °C for a concentration of 5 ppm. The selective sensing of toluene in Cr incorporated sensors has been attributed to the synergetic effect of abundant adsorbed oxygen on Co3O4 surface and the catalytic action of Cr for partial oxidation of methyl groups in toluene into a more reactive chemical species for xylene detection. Yet, the fastest detection of xylene was reported for Co3O4 1D nano structures NFs by Qu et al. in [67] with a response and a recovery time of 15 s and 22 s respectively. The reported faster response and recovery times have been attributed to the fast mass transfer of xylene molecules from and to the interaction area, together with the distribution of bimodal pore sizes [67].

4.5. Sensing toward Ammonia (NH3)

Ammonia is one of the extensively employed chemical in many fields for instance food processing, clinical diagnosis, and fertilizer production. However, direct contact or inhalation of ammonia at lower ppm levels can lead to burn of skin, eyes, lungs. Subsequently, inhalation of very high NH3 concentration (10,000 ppm) for 3 h may cause death [77,78]. Hence detection of NH3 is important. Beside the existing ammonia sensors that operate at high working temperature (>300 °C), an outstanding NH3 sensor operating at 160 °C has been reported with the exceptional response and recovery time of 2 s and 10 s, a sensing response of 11.2 for the concentration of 100 ppm [53]. The reported sensor has been prepared with hierarchical structured Co3O4 NRs. The grown NRs were 200 nm in diameter approximately and from 1 to 2 µm in length (Figure 17a–c). The superior response has been ascribed to the enormous number of active sites and space in the hierarchical nanostructures for adsorption and reaction between analyte gases and adsorbed oxygen ions (Figure 17d) [79]. The existence of multiple HALs layers on the surface of hierarchical nano structures may be one of the reasons for this superior sensing performance toward NH3. NH3-sensing reaction on the Co3O4 surface can be understand as follows.
2NH3 + 7O− (ads) ↔ 3H2O + 2NO2 + 7e−
Hence Fung et al. have demonstrated an excellent NH3 sensor based on reduced graphene oxide (rGO) encapsulated Co3O4 composite nanofibers working at room temperature [71]. Fabricating a sensor that demonstrates outstanding gas detection capabilities at room temperature is among the best achievement when considering energy consumption, stability, portability, and low operation cost. There are a lot of research works focusing on low cost and stable sensors. The fabricated sensors have achieved a response of 53.6% (Ra−Rg)/Ra together with 4 s and 5 min as response and recovery time respectively [71]. The exceptional room temperature gas-sensing performances can be ascribed to the remarkable NH3 interaction with the superficial layer of rGO and the polarized C-Co3+ covalent cores within the porous nanofibers. Furthermore, these sensors show a superior selectivity to NH3 among the ethanol, methanol, formaldehyde, methylbenzene, benzene, and acetone owing to the different adsorption properties, higher polarity of NH3, and the coupling effect of Co-C. The schematic illustration of the growth and gas-sensing mechanism is shown in Figure 18a–c.

4.6. Detection toward Hydrogen Sulfide (H2S)

H2S is a colorless, irritating, and highly toxic gas. It may lead to strong effects in both visual and respiratory systems at concentrations close to 50 ppm. Furthermore, even a rapid exposure above 100 ppm may induce coma and even death due to respiratory paralysis [80,81]. Thereby, a reliable sensor for H2S detection is necessary to monitor its presence.
Fabrication of Co3O4 mesoporous nanochains sensor for H2S detection has been demonstrated in 2018 by Quang et al. [82]. The nanochains were obtained by calcinating the hydrothermal grown nanowires at 600 °C for 5 h (Figure 19a–c). The meso-porosity in the nanochains were ascribed to the elimination of adsorbed water molecules (justified by the total weight loss of 30.5% calcinated/as grown nanochains). The weight change was noticed in 30–200 °C and 200–400 °C temperature range in TG-DTA, corresponding to the removal of absorbed water and oxidation of Co(CO3)0.5(OH).11H2O into Co3O4. These nanochains have shown superior selectivity toward H2S among other tested gases (NH3, H2, and CO). Moreover, the response stability was measured over a period of five months and response and recovery time were 46 s and 24 s. Additionally, the principal mechanisms of H2S detection would be interesting to mention [Equation (11)] to conclude the discussion on H2S detection [64,72].
2H2S + 3O2¯→ 2H2O + 2SO2 + 3e−

4.7. Sensing toward Diethyl Ether (C4H10O, DEE)

Diethyl ether is a VOC with a pungent smell. It is extensively used as an organic solvent in diesel engine, laboratory, industry, and medicine owing to its low viscosity, and high chemical stability. However, its high volatility and low flash point induce dizziness, headaches, proteinuria, and even death in humans [30]. Recently, Jiang et al. have demonstrated the potentialities of Co3O4 NRs sensors for DEE detection [30]. They have reported a complete decomposition of CoCO3 precursor at 355–600 °C in addition to the water and hydroxyl compound elimination reported by Quang et al. [82]. The prepared sensing devices have demonstrated a response of 110.34 to 100 ppm DEE at 160 °C. This excellent response was attributed to the high effective surface area and mesoporous structure resulting from the complete CoCO3 decomposition. Furthermore, the mesoporous structure may facilitate both DEE molecules diffusion and adsorption on the Co3O4 surface. This in turn enhances the sensor response. A possible REDOX mechanism on the MOX surface is described in Equations (13) and (14).
C2H5OC2H5(gas) + 12O¯ → 4CO2 + 5H2O + 12e−
e− + h+ → Null
The sensors have shown an interesting selectivity toward DEE compared to acetone, isopropanol, ethanol, acetonitrile, cyclohexane, chloroform, and ammonia at the same concentration.

4.8. Sensing toward Formaldehyde (HCHO)

Formaldehyde (aldehyde) is a carbonyl species, a colorless gas, and soluble in organic solvents. It is carcinogenic for humans [83] and one of the main reasons for “sick building syndrome” (SBS) and “new car smell.” It causes symptoms such as headache, dizziness, fatigue, and irritation of the general sensory systems and central nervous system damage. World Health Organization (WHO) has limited the exposure beyond 0.08 ppm toward HCHO even for a short-term period (30 min) to avoid sensory irritation [84]. Therefore, HCHO concentration monitoring is highly demanded in all environments.

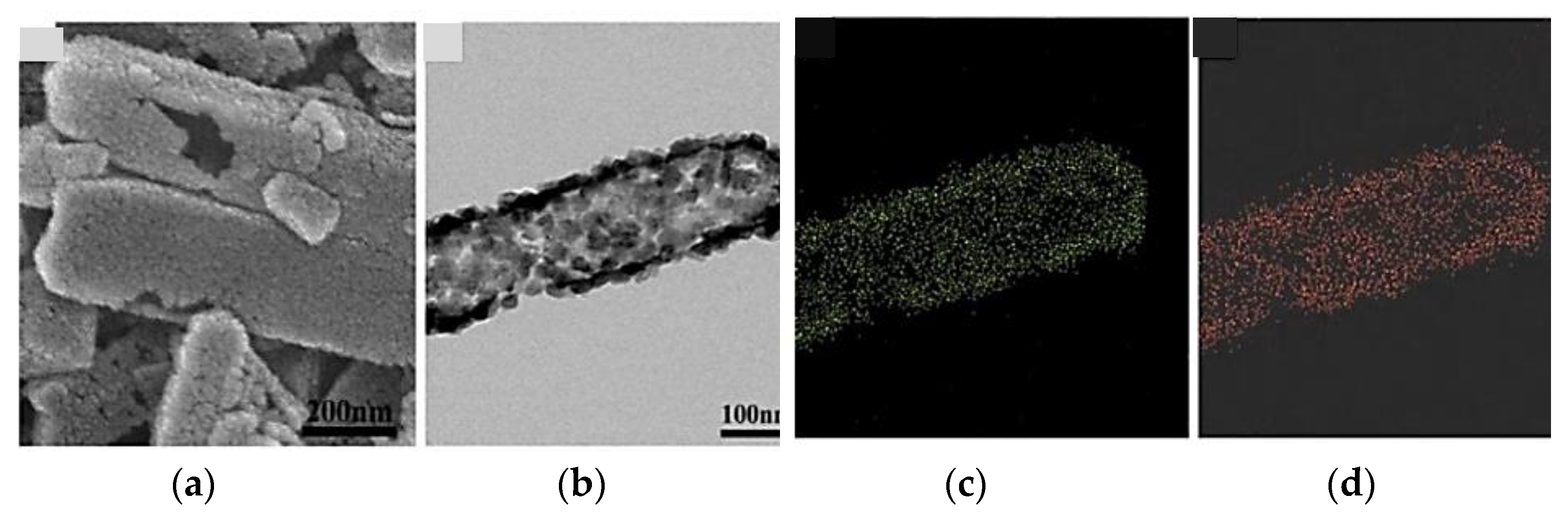

Co3O4 hollow NTs (Figure 20a–d), grown from solution phase, were tested for HCHO sensing at 140–220 °C in 2014 by Wang et al. [85]. A response of (Rg/Ra) 6.3 at 180 °C, together with response and recovery time of 3 s and 1 s respectively, was reported for 50 ppm. The excellent sensing performances were attributed to the distinctive hollow structure and the rough surfaces of Co3O4 NTs. Meanwhile, Bai and coworkers have demonstrated excellent sensing performance toward HCHO in Au@Co3O4 composite nanowires comparted to pristine Co3O4 NWs [86]. In this study the compact NWs were synthesized via a facile hydrothermal method from the precursor Co(CO3)0.5(OH)·0.11H2O followed by annealing treatment. The nano structured annealed at 400 °C have demonstrated the highest response toward 20 ppm HCHO with a response of 17.25 (Rg/Ra) at an operating temperature of 90 °C. The excellent sensing features have been achieved due to the electron transfer between Ag nanoparticles in the composite and Co3O4 as well as the catalytic property of the Ag nanoparticles which accelerate the adsorption and dissociation of gas molecules to enhance the gas-sensing performance. HCHO-sensing mechanism can be described as follows [86,87].
HCHO(g) → HCHO(ads)
HCHO(ads) + 2O2¯ → CO2 + H2O + 2e−
HCHO(ads) + 2O2¯ → CO2 + H2O + 4e−

4.9. Sensing toward Dimethyl Methylphosphonate (C3H9O3P, DMMP)

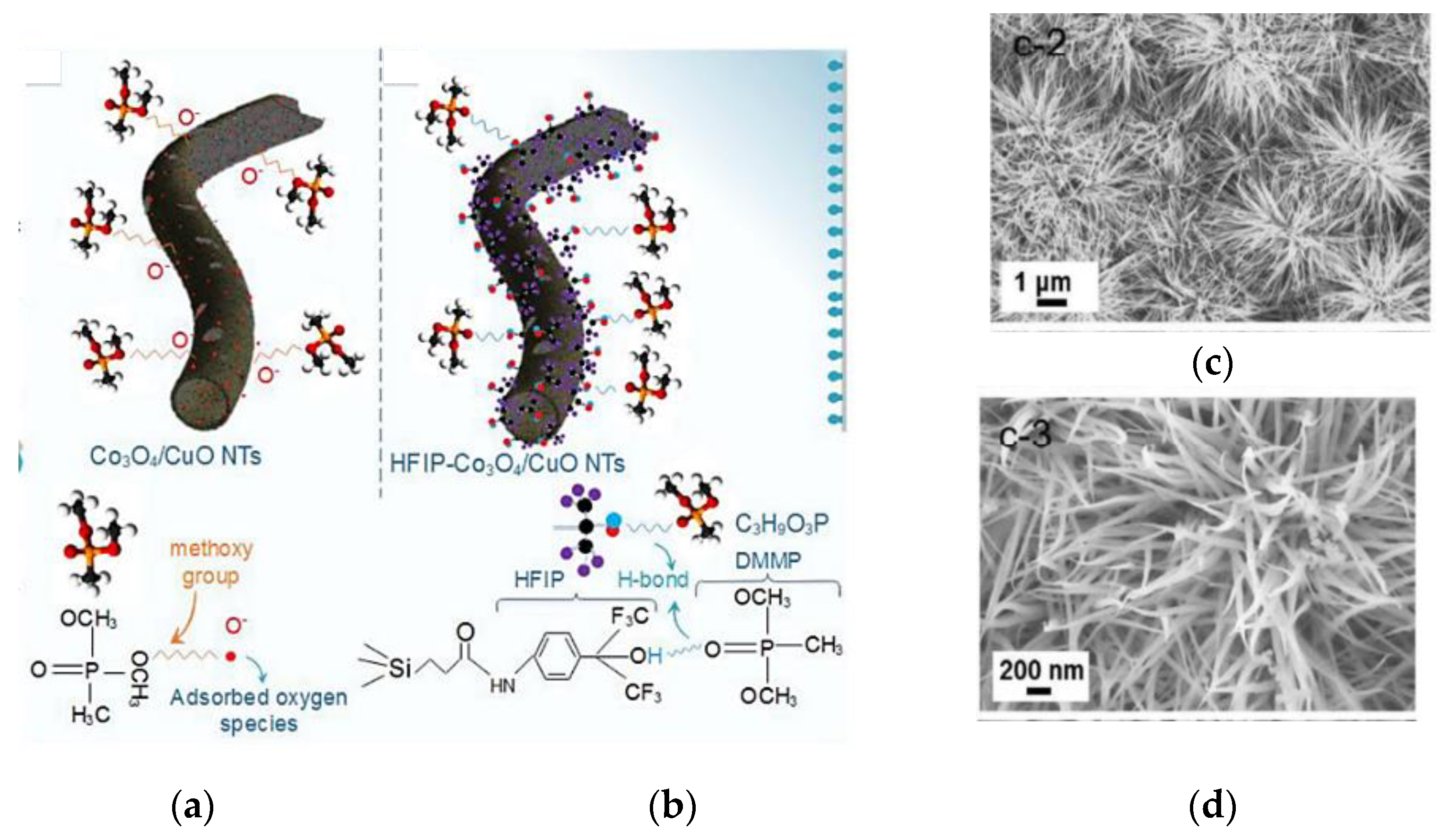

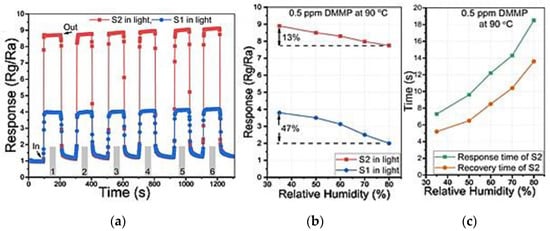

Dimethyl methylphosphonate (DMMP) is a nontoxic and organophosphorus compound which is commonly considered as a simulant for sarin. Sarin is known as a G-type nerve agent that is dangerous even a few ppm [88]. Therefore, there is an increasing demand for a reliable sarin sensor but, due to security reasons, the lab tests are normally made with DMMP. One among the different strategies, proposed to achieve its low operating temperature sensing, is the use of organic functionalized composite metal oxide nanomaterials. Furthermore, MOX surface photoactivation during the chemical interaction has been widely investigated to decrease the sensor energy consumption. In 2020 Alali et al. have proposed hexafluoroisopropanol (HFIP) functionalized Co3O4/CuO composite nanotubes as a hybrid-sensing material for DMMP detection [89]. These hybrid HFIP-Co3O4/CuO NTs have shown an excellent response (Rg/Ra) of 8.8 to 0.5 ppm of DMMP at 90 °C together with rapid response and recovery time under light irradiation (7.3 s and 5.2 s, respectively). These excellent gas-sensing performances were ascribed to both H-bonding between DMMP and HFIP groups and photo-activation (Figure 21a). The fast response and recovery may be justified by the hollow morphology, while the lower operating temperature by the p-p heterojunction formation which may lower the potential energy barrier. Moreover, this hybrid sensor has shown superior repeatability and stability even at 80% RH (Figure 21b,c). DMMP-sensing mechanism is shown in Figure 22a,b.

4.10. Sensing toward Triethylamine (C6H15N, TEA)

Triethylamine is a VOCs used as a catalytic solvent, corrosion inhibitor, hardening agent for polymers, and in many chemical syntheses processes [90]. TEA causes skin and eye burns, headaches, and particularly respiratory awkwardness because of its robust pungency, which can cause pulmonary edema and even death [90]. It is very flammable hence blending of high concentration of TEA in air can potentially end up with intensive explosions. Thereby it is important to monitor TEA in all environments.
The only study on TEA detection using Co3O4 1D-based sensors is reported by Xu et al. [22]. In the reported study a possible alternation in density, length, and shape of Co3O4 NWs arrays has been found depending on the NH4F concentration of the chemical solution of hydrothermal process (Figure 22c,d). The best response toward TEA was 4 (Rg/Ra) at 250 °C with little interference of humidity due to its unique superficial properties and high operating temperature. Moreover, the sensor has demonstrated repeatability and stability of the sensing performances up to one month. Moreover, the sensors response (Rg/Ra) results toward ten gases (100 ppm) including ethanol (1.8), methanol (1.6), acetone (1.6), ethyl acetate (1.6), xylene (1.8), propanol (2.0), benzene (1.2), formaldehyde (1.6), ammonia (3.6), and butanol (2.0) have demonstrated higher selectivity to TEA. The sensing mechanism can be identified as bellow [22].
2N(C2H5)3(g) + 39O¯(ads) → N2 + 15H2O + 12CO2 + 39e¯

5. Conclusions and Outlook

In summary, authors have reviewed the recent progress and achievement of Co3O4 low dimensional nano structures in the rapidly emerging field of chemical/gas sensing. Usually, Co3O4 is a p-type MOX semiconductor with excellent catalytic properties together with higher stability in chemical/gas testing even in humid conditions. Among the different growth techniques of growing the Co3O4 nano structures, hydrothermal, solvothermal, and electrospinning techniques have been vastly employed owing to higher yield, simplicity, and scalability. The excellent catalytic effect of the Co3O4 has been identified as one of the root causes for the achievement of exceptional sensing performance turning to operate at elevated working temperatures as well as the long-term stability. However, Co3O41D nano structures are still capable of detecting few gases such as CO, H2S, NH3, and some VOCs such as C2H5OH, C3H6O, HCHO, C4H10O, and C3H9O3P. Among these gases and VOCs, Co3O41D nano structures are highly selective toward C2H5OH and C3H6O. Besides, the sensing performances are highly dependent on the morphology where rougher topology along with the unique structure of Co3O4 NR arrays to a large extent could be the best choice for the superior gas-sensing performances. Nonetheless, low working temperature regimes can be proposed for the chemical/gas sensors based on Co3O4 ID nano structures owing to its excellent catalytic properties. However, a complete and well-controlled characterization of operating temperature on the key factors such as response time, recovery time of the Co3O4 1D chemical/gas sensors would not be faraway because of rapid development of the new technologies adapted to nanomaterials.
In conclusion, a reliable material growth process and cheaper production cost of the devices must be achieved for large-scale production of both active material and transducer. Unfortunately, most of the reported sensors in this review article do not provide a significant indication for the possibility of large-scale production. However, various fabrication and characterization strategies have been developed over the past decade to demonstrate the possible application of Co3O4 1D nano structures as reliable and cheaper chemical/gas sensors. As long as an appropriate optimization of the growth technologies will allow the controlled and reliable production of Co3O4 1D nanostructures together with improvement in the sensor’s performances, the large-scale production and their integration in commercial gas-sensing devices will certainly follow owing to the day by day improvements and progresses in materials research.

Author Contributions

Conceptualization, G.W.C.K. and E.C.; writing—original draft preparation, G.W.C.K.; writing—review and editing, E.C.; validation, E.C.; visualization, E.C.; supervision, E.C.; project administration, E.C.; funding acquisition, G.W.C.K. and E.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by NATO Science for Peace and Security Programmer (SPS) under grant G5634 AMOXES—“Advanced Electro-Optical Chemical Sensors”, MIUR “Smart Cities and Communities and social innovation” project titled “SWaRM Net/Smart Water Resource Management—Neworks” and MoSoRe project of the University of Brescia financed by the Lombardy Region.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hulanicki, A.; Glab, S.; Ingman, F. Chemical Sensors: Definitions and Classification. Pure Appl. Chem. 1991, 63, 1247–1250. [Google Scholar] [CrossRef]
  2. Qiao, X.; Xu, Y.; Yang, K.; Ma, J.; Li, C.; Wang, H.; Jia, L. Mo Doped BiVO4 Gas Sensor with High Sensitivity and Selectivity Towards H2S. Chem. Eng. Sci. 2020, 395, 125144. [Google Scholar] [CrossRef]
  3. Choi, K.; Kim, H.; Kim, K.; Liu, D.; Cao, G.; Lee, J. C2H5OH Sensing Characteristics of Various Co3O4 Nanostructures Prepared by Solvothermal Reaction. Sens. Actuators B Chem. 2010, 146, 183–189. [Google Scholar] [CrossRef]
  4. Aqeel, T.; Galstyan, V.; Comini, E. Mesoporous Polycrystalline SnO2 Framework Synthesized by Direct Soft Templating Method for Highly Selective Detection of NO2. Nanotechnology 2019, 31, 105502. [Google Scholar] [CrossRef] [PubMed]
  5. Comini, E. Metal Oxide Nano-Crystals for Gas Sensing. Anal. Chim. Acta 2006, 568, 28–40. [Google Scholar] [CrossRef] [PubMed]
  6. Comini, E.; Yubao, L.; Brando, Y.; Sberveglieri, G. Gas Sensing Properties of MoO3 Nanorods to CO and CH3OH. Chem. Phys. Lett. 2005, 407, 368–371. [Google Scholar] [CrossRef]
  7. Wong, Y.; Ang, B.; Haseeb, A.; Baharuddin, A.; Wong, Y. Review—Conducting Polymers as Chemiresistive Gas Sensing Materials: A Review. J. Electrochem. Soc. 2019, 167, 037503. [Google Scholar] [CrossRef]
  8. Husain, A.; Ahmad, S.; Mohammad, F. Synthesis, Characterisation and Ethanol Sensing Application of Polythiophene/Graphene Nanocomposite. Mater. Chem. Phys. 2020, 239, 122324. [Google Scholar] [CrossRef]
  9. Guo, Z.; Liao, N.; Zhang, M.; Feng, A. Enhanced Gas Sensing Performance of Polyaniline Incorporated with Graphene: A First-Principles Study. Phys. Lett. A 2019, 383, 2751–2754. [Google Scholar] [CrossRef]
  10. Reddeppa, M.; Chandrakalavathi, T.; Park, B.; Murali, G.; Siranjeevi, R.; Nagaraju, G.; Su Yu, J.; Jayalakshmi, R.; Kim, S.; Kim, M. UV-Light Enhanced CO Gas Sensors Based on Ingan Nanorods Decorated With P-Phenylenediamine-Graphene Oxide Composite. Sens. Actuators B Chem. 2020, 307, 127649. [Google Scholar] [CrossRef]
  11. Harraz, F.; Faisal, M.; Jalalah, M.; Almadiy, A.; Al-Sayari, S.; Al-Assiri, M. Conducting Polythiophene/A-Fe2O3 Nanocomposite for Efficient Methanol Electrochemical Sensor. Appl. Surf. Sci. 2020, 508, 145226. [Google Scholar] [CrossRef]
  12. Choi, J.; Hwang, I.; Kim, S.; Park, J.; Park, S.; Jeong, U.; Kang, Y.; Lee, J. Design of Selective Gas Sensors Using Electrospun Pd-Doped SnO2 Hollow Nanofibers. Sens. Actuators B Chem. 2010, 150, 191–199. [Google Scholar] [CrossRef]
  13. Wang, C.; Yin, L.; Zhang, L.; Xiang, D.; Gao, R. Metal Oxide Gas Sensors: Sensitivity and Influencing Factors. Sensors 2010, 10, 2088–2106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kim, H.; Lee, J. Highly Sensitive and Selective Gas Sensors Using P-Type Oxide Semiconductors: Overview. Sens. Actuators B Chem. 2014, 192, 607–627. [Google Scholar] [CrossRef]
  15. Patil, D.; Patil, P.; Subramanian, V.; Joy, P.; Potdar, H. Highly Sensitive and Fast Responding CO Sensor Based on Co3O4 Nanorods. Talanta 2010, 81, 37–43. [Google Scholar] [CrossRef] [PubMed]
  16. Dou, Z.; Cao, C.; Chen, Y.; Song, W. Fabrication of Porous Co3O4 nanowires with High CO Sensing Performance at A Low Operating Temperature. Chem. Commun. 2014, 50, 14889–14891. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, X.; Wang, J.; Xuan, L.; Zhu, Z.; Pan, Q.; Shi, K.; Zhang, G. Novel Co3O4 Nanocrystalline Chain Material as A High Performance Gas Sensor at Room Temperature. J. Alloy. Compd. 2018, 768, 190–197. [Google Scholar] [CrossRef]
  18. Tan, J.; Dun, M.; Li, L.; Zhao, J.; Tan, W.; Lin, Z.; Huang, X. Synthesis of Hollow and Hollowed-Out Co3O4 Microspheres Assembled by Porous Ultrathin Nanosheets For Ethanol Gas Sensors: Responding and Recovering in One Second. Sens. Actuators B Chem. 2017, 249, 44–52. [Google Scholar] [CrossRef]
  19. Tan, W.; Tan, J.; Li, L.; Dun, M.; Huang, X. Nanosheets-Assembled Hollowed-Out Hierarchical Co3O4 Microrods For Fast Response/Recovery Gas Sensor. Sens. Actuators B Chem. 2017, 249, 66–75. [Google Scholar] [CrossRef]
  20. Yuan, Y.; Wang, Y.; He, X.; Chen, M.; Liu, J.; Liu, B.; Zhao, H.; Liu, S.; Yang, H. Increasing Gas Sensitivity of Co3O4 Octahedra by Tuning Co-Co3O4 (111) Surface Structure and Sensing Mechanism of 3-Coordinated Co Atom as An Active Center. J. Mater. Sci.: Mater. Electron. 2020, 31, 8852–8864. [Google Scholar] [CrossRef]
  21. Zhou, Q.; Zeng, W. Shape Control of Co3O4 Micro-Structures for High-Performance Gas Sensor. Phys. E Low Dimens. Syst. Nanostruct. 2018, 95, 121–124. [Google Scholar] [CrossRef]
  22. Xu, K.; Yu, X.; Zhao, W.; Zeng, W. Density-Dependent of Gas-Sensing Properties of Co3O4 Nanowire Arrays. Phys. E Low Dimens. Syst. Nanostruct. 2020, 118, 113956. [Google Scholar] [CrossRef]
  23. Kozlovskiy, A.; Zdorovets, M. The Study of The Structural Characteristics and Catalytic Activity of Co/CoCo2O4 Nanowires. Compos. B. Eng. 2020, 191, 107968. [Google Scholar] [CrossRef]
  24. Nguyen, H.; El-Safty, S. Meso and Macroporous Co3O4 Nanorods for Effective VOC Gas Sensors. J. Phys. Chem. C 2011, 115, 8466–8474. [Google Scholar] [CrossRef]
  25. Wen, Z.; Zhu, L.; Mei, W.; Hu, L.; Li, Y.; Sun, L.; Cai, H.; Ye, Z. Rhombus-Shaped Co3O4 Nanorod Arrays for High-Performance Gas Sensor. Sens. Actuators B Chem. 2013, 186, 172–179. [Google Scholar] [CrossRef]
  26. Wang, S.; Cao, J.; Cui, W.; Fan, L.; Li, X.; Li, D.; Zhang, T. One-Dimensional Porous Co3O4 Rectangular Rods for Enhanced Acetone Gas Sensing Properties. Sens. Actuators B Chem. 2019, 297, 126746. [Google Scholar] [CrossRef]
  27. Wang, L.; Deng, J.; Lou, Z.; Zhang, T. Nanoparticles-Assembled Co3O4 Nanorods P-Type Nanomaterials: One-Pot Synthesis and Toluene-Sensing Properties. Sens. Actuators B Chem. 2014, 201, 1–6. [Google Scholar] [CrossRef]
  28. Vetter, S.; Haffer, S.; Wagner, T.; Tiemann, M. Nanostructured Co3O4 as a CO Gas Sensor: Temperature-Dependent Behavior. Sens. Actuators B Chem. 2015, 206, 133–138. [Google Scholar] [CrossRef]
  29. Jiang, R.; Jia, L.; Guo, X.; Zhao, Z.; Du, J.; Wang, X.; Wang, P.; Xing, F. Dimethyl Sulfoxide-Assisted Hydrothermal Synthesis of Co3O4-Based Nanorods For Selective and Sensitive Diethyl Ether Sensing. Sens. Actuators B Chem. 2019, 290, 275–284. [Google Scholar] [CrossRef]
  30. Deng, S.; Liu, X.; Chen, N.; Deng, D.; Xiao, X.; Wang, Y. A Highly Sensitive VOC Gas Sensor Using P-Type Mesoporous Co3O4 Nanosheets Prepared by A Facile Chemical Coprecipitation Method. Sens. Actuators B Chem. 2016, 233, 615–623. [Google Scholar] [CrossRef]
  31. Zhang, Z.; Wen, Z.; Ye, Z.; Zhu, L. Gas Sensors Based on Ultrathin Porous Co3O4 Nanosheets to Detect Acetone at Low Temperature. RSC Adv. 2015, 5, 59976–59982. [Google Scholar] [CrossRef]
  32. Lü, Y.; Zhan, W.; He, Y.; Wang, Y.; Kong, X.; Kuang, Q.; Xie, Z.; Zheng, L. MOF-Templated Synthesis of Porous Co3O4 Concave Nanocubes with High Specific Surface Area and Their Gas Sensing Properties. ACS Appl. Mater. Interfaces 2014, 6, 4186–4195. [Google Scholar] [CrossRef]
  33. Cao, J.; Wang, S.; Zhao, X.; Xing, Y.; Li, J.; Li, D. Facile synthesis and enhanced toluene gas sensing performances of Co3O4 hollow nanosheets. Mater. Lett. 2020, 263, 127215. [Google Scholar] [CrossRef]
  34. Wen, Z.; Zhu, L.; Li, Y.; Zhang, Z.; Ye, Z. Mesoporous Co3O4 Nanoneedle Arrays for High-Performance Gas Sensor. Sens. Actuators B Chem. 2014, 203, 873–879. [Google Scholar] [CrossRef]
  35. Park, J.; Shen, X.; Wang, G. Solvothermal Synthesis and Gas-Sensing Performance of Co3O4 Hollow Nanospheres. Sens. Actuators B Chem. 2009, 136, 494–498. [Google Scholar] [CrossRef]
  36. Shen, S.; Xu, M.; Lin, D.; Pan, H. The Growth of Urchin-Like Co3O4 Directly on Sensor Substrate and Its Gas Sensing Properties. Appl. Surf. Sci. 2017, 396, 327–332. [Google Scholar] [CrossRef]
  37. Li, C.; Yin, X.; Wang, T.; Zeng, H. Morphogenesis of Highly Uniform CoCo3 Submicrometer Crystals and Their Conversion to Mesoporous for Gas-Sensing Applications. Chem. Mater. 2009, 21, 4984–4992. [Google Scholar] [CrossRef]
  38. Deng, S.; Chen, N.; Deng, D.; Li, Y.; Xing, X.; Wang, Y. Meso and Macroporous Coral-Like Co3O4 for VOCs Gas Sensor. Ceram. Int. 2015, 41, 11004–11012. [Google Scholar] [CrossRef]
  39. Lee, J. Gas Sensors Using Hierarchical and Hollow Oxide Nanostructures: Overview. Sens. Actuators B Chem. 2009, 140, 319–336. [Google Scholar] [CrossRef]
  40. Xu, J.; Zhang, Y.; Chen, Y.; Xiang, Q.; Pan, Q.; Shi, L. Uniform ZnO Nanorods Can be Used to Improve the Response of ZnO Gas Sensor. Mater. Sci. Eng. B 2008, 150, 55–60. [Google Scholar] [CrossRef]
  41. Xu, J.; Wang, D.; Qin, L.; Yu, W.; Pan, Q. SnO2 Nanorods and Hollow Spheres: Controlled Synthesis and Gas Sensing Properties. Sens. Actuators B Chem. 2009, 137, 490–495. [Google Scholar] [CrossRef]
  42. Wang, L.; Song, S.Y.; Hong, B.; Xu, J.C.; Han, Y.B.; Jin, H.X.; Jin, D.F.; Li, J.; Yang, Y.T.; Peng, X.L.; et al. Highly improved toluene gas-sensing performance of mesoporous Co3O4 nanowires and physical mechanism. Mater. Res. Bull 2021, 140, 111329. [Google Scholar] [CrossRef]
  43. Qiao, X.; Ma, C.; Chang, X.; Li, X.; Li, K.; Zhu, L.; Xia, F.; Xue, Q. 3D radial Co3O4 nanorod cluster derived from cobalt-based layered hydroxide metal salt for enhanced trace acetone detection. Sens. Actuators B Chem. 2021, 324, 128926. [Google Scholar] [CrossRef]
  44. Xu, J.; Cheng, J. The Advances of Co3O4 as Gas Sensing Materials: A Review. J. Alloy. Compd. 2016, 686, 753–768. [Google Scholar] [CrossRef]
  45. Chen, J.; Wu, X.; Selloni, A. Electronic structure and bonding properties of cobalt oxide in the spinel structure. Phys. Rev. B. 2011, 83, 245204. [Google Scholar] [CrossRef] [Green Version]
  46. Kaur, N.; Singh, M.; Moumen, A.; Duina, G.; Comini, E. 1D Titanium Dioxide: Achievements in Chemical Sensing. Materials 2020, 13, 2974. [Google Scholar] [CrossRef]
  47. Bagga, S.; Akhtar, J.; Mishra, S. Synthesis and Applications of ZnO Nanowire: A Review. AIP Conf. Proc. 2018, 1989, 020004. [Google Scholar] [CrossRef]
  48. Moseley, P. Progress in the Development of Semiconducting Metal Oxide Gas Sensors: A Review. Meas. Sci. Technol. 2017, 28, 082001. [Google Scholar] [CrossRef]
  49. Barsan, N.; Simion, C.; Heine, T.; Pokhrel, S.; Weimar, U. Modeling of Sensing and Transduction for P-Type Semiconducting Metal Oxide Based Gas Sensors. J. Electroceram. 2009, 25, 11–19. [Google Scholar] [CrossRef]
  50. Barsan, N.; Weimar, U. Conduction Model of Metal Oxide Gas Sensors. J. Electroceram. 2001, 7, 143–167. [Google Scholar] [CrossRef]
  51. Mijatovic, D.; Eijkel, J.; van den Berg, A. Technologies for Nanofluidic Systems: Top-Down vs. Bottom-Up—A Review. Lab Chip 2005, 5, 492. [Google Scholar] [CrossRef]
  52. Cao, J.; Wang, S.; Zhang, H.; Zhang, T. Constructing One Dimensional Co3O4 Hierarchical Nanofibers as Efficient Sensing Materials for Rapid Acetone Gas Detection. J. Alloy. Compd. 2019, 799, 513–520. [Google Scholar] [CrossRef]
  53. Deng, J.; Zhang, R.; Wang, L.; Lou, Z.; Zhang, T. Enhanced Sensing Performance of The Co3O4 Hierarchical Nanorods To NH3 Gas. Sens. Actuators B Chem. 2015, 209, 449–455. [Google Scholar] [CrossRef]
  54. George, G.; Anandhan, S. Tuning Characteristics of Co3O4 Nanofiber Mats Developed for Electrochemical Sensing of Glucose and H2O2. Thin Solid Films 2016, 610, 48–57. [Google Scholar] [CrossRef]
  55. Sun, C.; Su, X.; Xiao, F.; Niu, C.; Wang, J. Synthesis of Nearly Monodisperse Co3O4 Properties. Sens. Actuators B Chem. 2011, 157, 681–685. [Google Scholar] [CrossRef]
  56. Xu, K.; Zou, J.; Tian, S.; Yang, Y.; Zeng, F.; Yu, T.; Zhang, Y.; Jie, X.; Yuan, C. Single-Crystalline Porous Nanosheets Assembled Hierarchical Co3O4 Microspheres for Enhanced Gas-Sensing Properties to Trace Xylene. Sens. Actuators B Chem. 2017, 246, 68–77. [Google Scholar] [CrossRef]
  57. Feng, S.; Li, G. Hydrothermal and Solvothermal Syntheses. In Modern Inorganic Synthetic Chemistry, 2nd ed.; Xu, R., Xu, R., Eds.; John Fedor: Cambridge, CA, USA, 2017; pp. 73–104. [Google Scholar] [CrossRef]
  58. Wang, X.; Hu, A.; Meng, C.; Wu, C.; Yang, S.; Hong, X. Recent Advance in Co3O4 and Co3O4-Containing Electrode Materials for High-Performance Supercapacitors. Molecules 2020, 25, 269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Jeong, H.; Kim, H.; Rai, P.; Yoon, J.; Lee, J. Cr-Doped Co3O4 Nanorods as Chemiresistor for Ultraselective Monitoring of Methyl Benzene. Sens. Actuators B Chem. 2014, 201, 482–489. [Google Scholar] [CrossRef]
  60. Koo, A.; Yoo, R.; Woo, S.; Lee, H.; Lee, W. Enhanced Acetone-Sensing Properties of Pt-Decorated Al-Doped Zno Nanoparticles. Sens. Actuators B Chem. 2019, 280, 109–119. [Google Scholar] [CrossRef]
  61. Bhardwaj, N.; Kundu, S. Electrospinning: A Fascinating Fiber Fabrication Technique. Biotechnol. Adv. 2010, 28, 325–347. [Google Scholar] [CrossRef]
  62. Busacca, C.; Donato, A.; Lo Faro, M.; Malara, A.; Neri, G.; Trocino, S. CO Gas Sensing Performance of Electrospun Co3O4 Nanostructures at Low Operating Temperature. Sens. Actuators B Chem. 2020, 303, 127193. [Google Scholar] [CrossRef]
  63. Yoon, J.; Kim, H.; Jeong, H.; Lee, J. Gas Sensing Characteristics of P-Type Cr2O3 and Co3O4 Nanofibers Depending on Inter-Particle Connectivity. Sens. Actuators B Chem. 2014, 202, 263–271. [Google Scholar] [CrossRef]
  64. Shankar, P.; Bosco, J.; Rayappan, B. Gas sensing mechanism of metal oxides: The role of ambient atmosphere, type of semiconductor and gases—A review. Sci. Jet 2015, 4, 126. [Google Scholar]
  65. Yoon, J.; Choi, J.; Lee, J. Design of a Highly Sensitive and Selective C2H5OH Sensor Using P-Type Co3O4 Nanofibers. Sens. Actuators B Chem. 2012, 161, 570–577. [Google Scholar] [CrossRef]
  66. Choi, S.; Ryu, W.; Kim, S.; Cho, H.; Kim, I. Bi-Functional Co-Sensitization of Graphene Oxide Sheets and Ir Nanoparticles on P-Type Co3O4 Nanofibers for Selective Acetone Detection. J. Mater. Chem. B 2014, 2, 7160–7167. [Google Scholar] [CrossRef] [PubMed]
  67. Qu, F.; Feng, C.; Li, C.; Li, W.; Wen, S.; Ruan, S.; Zhang, H. Preparation and Xylene-Sensing Properties of Co3O4 nanofibers. Int. J. Appl. Ceram. Technol. 2013, 11, 619–625. [Google Scholar] [CrossRef]
  68. Shin, J.; Choi, S.; Youn, D.; Kim, I. Exhaled Vocs Sensing Properties of WO3 Nanofibers Functionalized by Pt and IrO2 Nanoparticles for Diagnosis of Diabetes and Halitosis. J. Electroceramics 2012, 29, 106–116. [Google Scholar] [CrossRef]
  69. Brugha, R.; Edmondson, C.; Davies, J. Outdoor Air Pollution and Cystic Fibrosis. Paediatr. Respir. Rev. 2018, 28, 80–86. [Google Scholar] [CrossRef]
  70. Mirzaei, A.; Lee, J.; Majhi, S.; Weber, M.; Bechelany, M.; Kim, H.; Kim, S. Resistive Gas Sensors Based on Metal-Oxide Nanowires. J. Appl. Phys. 2019, 126, 241102. [Google Scholar] [CrossRef] [Green Version]
  71. Feng, Q.; Li, X.; Wang, J.; Gaskov, A. Reduced Graphene Oxide (RGO) Encapsulated Co3O4 Composite Nanofibers for Highly Selective Ammonia Sensors. Sens. Actuators B Chem. 2016, 222, 864–870. [Google Scholar] [CrossRef]
  72. Wang, M.; Zhu, Y.; Meng, D.; Wang, K.; Wang, C. A Novel Room Temperature Ethanol Gas Sensor Based on 3D Hierarchical Flower-Like TiO2 Microstructures. Mater. Lett. 2020, 277, 128372. [Google Scholar] [CrossRef]
  73. Thungon, P.; Kakoti, A.; Ngashangva, L.; Goswami, P. Advances in Developing Rapid, Reliable and Portable Detection Systems for Alcohol. Biosens. Bioelectron. 2017, 97, 83–99. [Google Scholar] [CrossRef] [PubMed]
  74. Mirzaei, A.; Janghorban, K.; Hashemi, B.; Bonyani, M.; Leonardi, S.; Neri, G. Highly Stable and Selective Ethanol Sensor Based on A-Fe2O3 Nanoparticles Prepared by Pechini Sol–Gel Method. Ceram. Int. 2016, 42, 6136–6144. [Google Scholar] [CrossRef]
  75. Deng, C.; Zhang, J.; Yu, X.; Zhang, W.; Zhang, X. Determination of acetone in human breath by gas chromatography–mass spectrometry and solid-phase microextraction with on-fiber derivatization. J. Chromatogr. B 2004, 810, 269–275. [Google Scholar] [CrossRef]
  76. Ma, H.; Xu, Y.; Rong, Z.; Cheng, X.; Gao, S.; Zhang, X.; Zhao, H.; Huo, L. Highly Toluene Sensing Performance Based on Monodispersed Cr2O3 Porous Microspheres. Sens. Actuators B Chem. 2012, 174, 325–331. [Google Scholar] [CrossRef]
  77. Kwak, D.; Lei, Y.; Maric, R. Ammonia gas sensors: A comprehensive review. Talanta 2019, 204, 713–730. [Google Scholar] [CrossRef]
  78. National Research Council. Acute Exposure Guideline Levels for Selected Airborne Chemicals; National Academies Press: Washington, DC, USA, 2008; Volume 6. [Google Scholar] [CrossRef]
  79. Balamurugan, C.; Lee, D. A Selective NH3 Gas Sensor Based on Mesoporous P-Type NiV2O6 Semiconducting Nanorods Synthesized Using Solution Method. Sens. Actuators B Chem. 2014, 192, 414–422. [Google Scholar] [CrossRef]
  80. Sun, M.; Yu, H.; Dong, X.; Xia, L.; Yang, Y. Sedum Lineare Flower-Like Ordered Mesoporous In2O3/Zno Gas Sensing Materials with high Sensitive Response to H2S at Room Temperature Prepared by Self-Assembled of 2D Nanosheets. J. Alloy. Compd. 2020, 844, 156170. [Google Scholar] [CrossRef]
  81. Zhong, K.; Chen, L.; Yan, X.; Tang, Y.; Hou, S.; Li, X.; Tang, L. Dual-Functional Multi-Application Probe: Rapid Detection of H2S And Colorimetric Recognition of HSO3—In Food and Cell. Dyes Pigments 2020, 182, 108656. [Google Scholar] [CrossRef]
  82. Quang, P.; Cuong, N.; Hoa, T.; Long, H.; Hung, C.; Le, D.; Hieu, N. Simple Post-Synthesis of Mesoporous P-Type Co3O4 Nanochains for Enhanced H2S Gas Sensing Performance. Sens. Actuators B Chem. 2018, 270, 158–166. [Google Scholar] [CrossRef]
  83. Song, M.; Choi, J.; Jeong, H.; Song, K.; Jeon, S.; Cha, J.; Baeck, S.; Shim, S.; Qian, Y. A Comprehensive Study of Various Amine-Functionalized Graphene Oxides for Room Temperature Formaldehyde Gas Detection: Experimental and Theoretical Approaches. Appl. Surf. Sci. 2020, 529, 147189. [Google Scholar] [CrossRef]
  84. Zhu, L.; Wang, J.; Liu, J.; Nasir, M.; Zhu, J.; Li, S.; Liang, J.; Yan, W. Smart Formaldehyde Detection Enabled by Metal Organic Framework-Derived Doped Electrospun Hollow Nanofibers. Sens. Actuators B Chem. 2021, 326, 128819. [Google Scholar] [CrossRef]
  85. Wang, S.; Xiao, C.; Wang, P.; Li, Z.; Xiao, B.; Zhao, R.; Yang, T.; Zhang, M. Co3O4 Hollow Nanotubes: Facile Synthesis and Gas Sensing Properties. Mater. Lett. 2014, 137, 289–292. [Google Scholar] [CrossRef]
  86. Bai, S.; Liu, H.; Sun, J.; Tian, Y.; Luo, R.; Li, D.; Chen, A. Mechanism of enhancing the formaldehyde sensing properties of Co3O4via Ag modification. RSC Adv. 2015, 5, 48619–48625. [Google Scholar] [CrossRef]
  87. Hurtado, I.D.; Chávarri, J.G.; Morandi, S.; Samà, J.; Rodríguez, A.R.; Castaño, E.; Mandayo, G.G. Formaldehyde sensing mechanism of SnO2 nanowires grown on-chip by sputtering techniques. RSC Adv. 2016, 6, 18558–18566. [Google Scholar] [CrossRef] [Green Version]
  88. Yang, X.; Yu, Q.; Zhang, S.; Sun, P.; Lu, H.; Yan, X.; Liu, F.; Zhou, X.; Liang, X.; Gao, Y.; et al. Highly sensitive and selective triethylamine gas sensor based on porous SnO2/Zn2SnO4 composites. Sens. Actuators B Chem. 2018, 266, 213–220. [Google Scholar] [CrossRef]
  89. Alali, K.; Liu, J.; Moharram, D.; Liu, Q.; Yu, J.; Chen, R.; Li, R.; Wang, J. Fabrication of Electrospun Co3O4/CuO P-P Heterojunctions Nanotubes Functionalized with HFIP for Detecting Chemical Nerve Agent Under Visible Light Irradiation. Sens. Actuators B Chem. 2020, 314, 128076. [Google Scholar] [CrossRef]
  90. Gui, Y.; Tian, K.; Liu, J.; Yang, L.; Zhang, H.; Wang, Y. Superior Triethylamine Detection at Room Temperature By {-112} Faceted WO3 Gas Sensor. J. Hazard. Mater. 2019, 380, 120876. [Google Scholar] [CrossRef] [PubMed]
Chemosensors 09 00197 g001 550
Figure 1. The reported scientific research on n-type and p-type metal oxide gas sensors in Web of Knowledge on 30 June 2021.
Figure 1. The reported scientific research on n-type and p-type metal oxide gas sensors in Web of Knowledge on 30 June 2021.
Chemosensors 09 00197 g001
Chemosensors 09 00197 g002 550
Figure 2. The advancement of p-type MOX gas sensors by yearly from the search on Web of Knowledge on 30 June 2021.
Figure 2. The advancement of p-type MOX gas sensors by yearly from the search on Web of Knowledge on 30 June 2021.
Chemosensors 09 00197 g002
Chemosensors 09 00197 g003 550
Figure 3. Crystal structure of Co3O4 (a) unit cell; (b) primitive cell (right). • Co2+, • Co3+, • O2−. Reprinted with the permission from [45].
Figure 3. Crystal structure of Co3O4 (a) unit cell; (b) primitive cell (right). • Co2+, • Co3+, • O2−. Reprinted with the permission from [45].
Chemosensors 09 00197 g003
Chemosensors 09 00197 g004 550
Figure 4. Schematic illustration of a dynamic response curve of a conductometric chemical/gas sensor.
Figure 4. Schematic illustration of a dynamic response curve of a conductometric chemical/gas sensor.
Chemosensors 09 00197 g004
Chemosensors 09 00197 g005 550

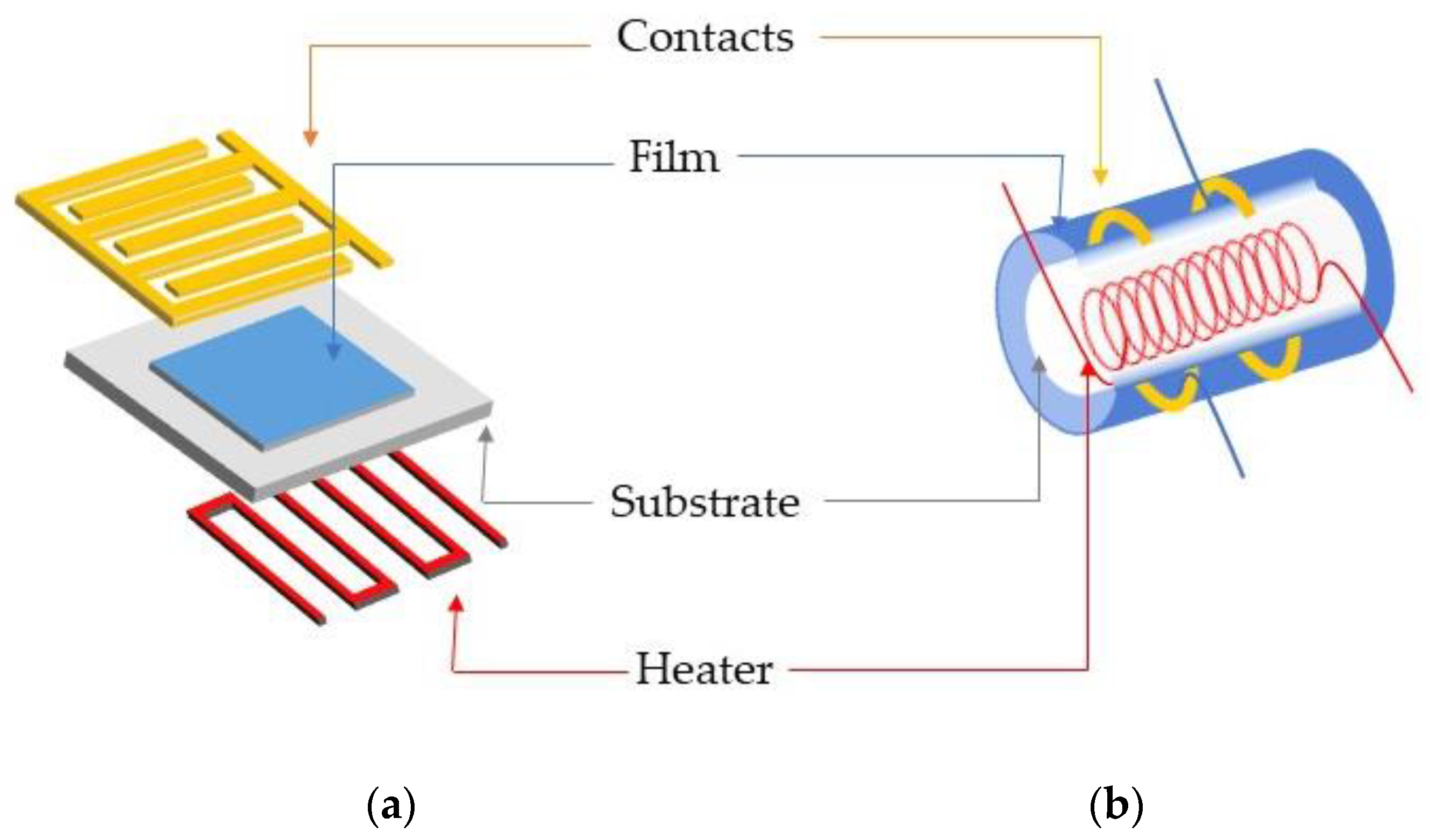

Figure 5. Two types of transducing platforms: (a) planar; (b) tubular configuration.
Figure 5. Two types of transducing platforms: (a) planar; (b) tubular configuration.
Chemosensors 09 00197 g005
Chemosensors 09 00197 g006 550
Figure 6. The electronic core–shell structures in p-type oxide semiconductors suggested by Kim et al. Reprinted with the permission from [14].
Figure 6. The electronic core–shell structures in p-type oxide semiconductors suggested by Kim et al. Reprinted with the permission from [14].
Chemosensors 09 00197 g006
Chemosensors 09 00197 g007 550
Figure 7. Energy bands structure at the near surface when interacting with oxygen and reducing gases: (a) prior to any surface interaction; (b) electrons trapping and formation of the holes accumulation layer due to oxygen adsorption; (c) the decrease of the surface charge due to the interaction with the reducing gas; EC–conduction band position, EF–Fermi level position, EC–valance band position, q- electron charge, qVS- potential barrier.
Figure 7. Energy bands structure at the near surface when interacting with oxygen and reducing gases: (a) prior to any surface interaction; (b) electrons trapping and formation of the holes accumulation layer due to oxygen adsorption; (c) the decrease of the surface charge due to the interaction with the reducing gas; EC–conduction band position, EF–Fermi level position, EC–valance band position, q- electron charge, qVS- potential barrier.
Chemosensors 09 00197 g007
Chemosensors 09 00197 g008 550
Figure 8. Graphical representation: (a) nano wire diameter higher than Debye length and space charged layer; (b) cross section of the nano wire and space charged layer. d is the diameter of the nano wire and the d/ is the width of the space charge layer.
Figure 8. Graphical representation: (a) nano wire diameter higher than Debye length and space charged layer; (b) cross section of the nano wire and space charged layer. d is the diameter of the nano wire and the d/ is the width of the space charge layer.
Chemosensors 09 00197 g008
Chemosensors 09 00197 g009a 550Chemosensors 09 00197 g009b 550
Figure 9. The SEM microgram hydrothermally grown Co3O4 nano structures: (a,b), nanoparticles-assembled Co3O4 nanorods, reprinted with the permission from [27]; (c,d) Cr-doped Co3O4 nanorods, reprinted with the permission from [59]; (e,f) hierarchical nanorods, reprinted with the permission from [53]; (g,h) rhombus-shaped nanorod arrays, reprinted with the permission from [25].
Figure 9. The SEM microgram hydrothermally grown Co3O4 nano structures: (a,b), nanoparticles-assembled Co3O4 nanorods, reprinted with the permission from [27]; (c,d) Cr-doped Co3O4 nanorods, reprinted with the permission from [59]; (e,f) hierarchical nanorods, reprinted with the permission from [53]; (g,h) rhombus-shaped nanorod arrays, reprinted with the permission from [25].
Chemosensors 09 00197 g009aChemosensors 09 00197 g009b
Chemosensors 09 00197 g010 550
Figure 10. Experimental setup of electrospinning technique: (a) vertical; (b) horizontal, reprinted with the permission from [61]; (c,d) nano structure obtained via eletrospun technique, reprinted with the permission from [62]; (e,f) nano structure obtained via eletrospun technique, reprinted with the permission from [63].
Figure 10. Experimental setup of electrospinning technique: (a) vertical; (b) horizontal, reprinted with the permission from [61]; (c,d) nano structure obtained via eletrospun technique, reprinted with the permission from [62]; (e,f) nano structure obtained via eletrospun technique, reprinted with the permission from [63].
Chemosensors 09 00197 g010
Chemosensors 09 00197 g011 550

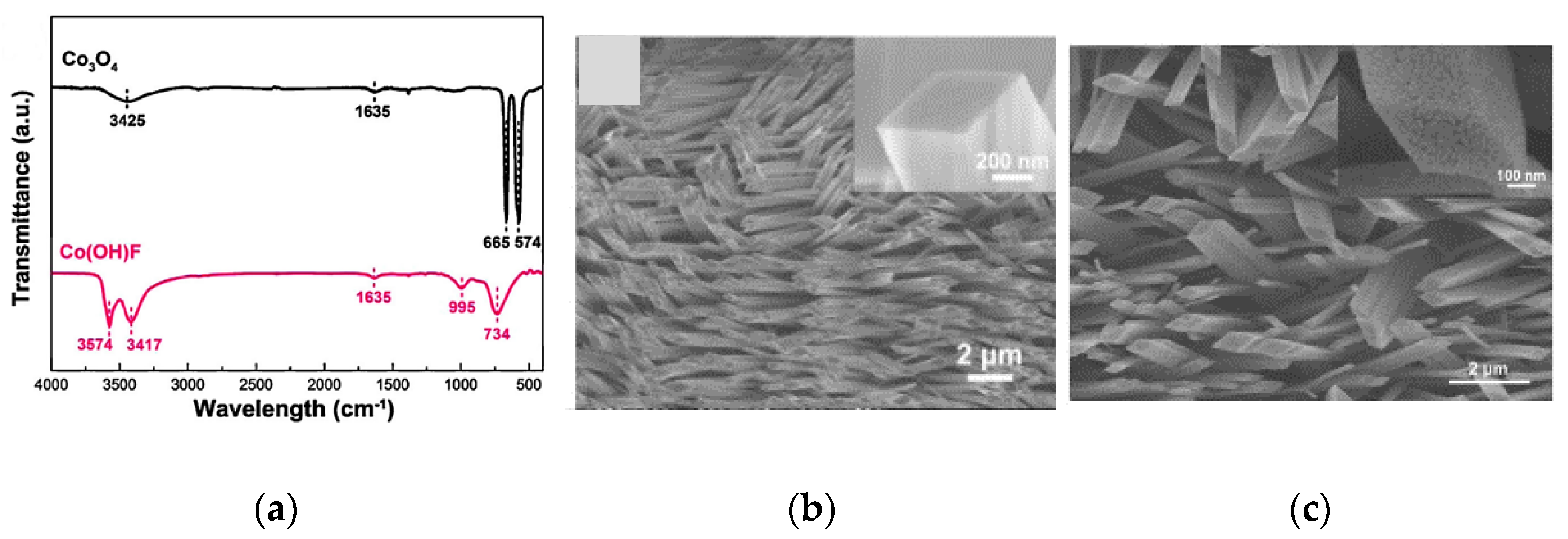

Figure 11. FTIR spectra of the Co3O4 NRs: (a) before and after sintering at 450 °C; (b) SEM images of Co(OH)F NR; (c) SEM image of the rhombus-shaped Co3O4 NR arrays annealed at 450 °C. Reprinted with the permission from [25].
Figure 11. FTIR spectra of the Co3O4 NRs: (a) before and after sintering at 450 °C; (b) SEM images of Co(OH)F NR; (c) SEM image of the rhombus-shaped Co3O4 NR arrays annealed at 450 °C. Reprinted with the permission from [25].
Chemosensors 09 00197 g011
Chemosensors 09 00197 g012 550
Figure 12. The SEM image of Co3O4: (a) nanoneedle arrays; (b) the dynamic response and recovery plot of the Co3O4 toward ethanol. Reprinted with the permission from [34].
Figure 12. The SEM image of Co3O4: (a) nanoneedle arrays; (b) the dynamic response and recovery plot of the Co3O4 toward ethanol. Reprinted with the permission from [34].
Chemosensors 09 00197 g012
Chemosensors 09 00197 g013 550
Figure 13. The illustration of sensing mechanism of C3H6O on Co3O4. Reprinted with the permission from [52].
Figure 13. The illustration of sensing mechanism of C3H6O on Co3O4. Reprinted with the permission from [52].
Chemosensors 09 00197 g013
Chemosensors 09 00197 g014 550
Figure 14. The SEM micrograms: (a–c) HNF of Co3O4. Reprinted with the permission from [52].
Figure 14. The SEM micrograms: (a–c) HNF of Co3O4. Reprinted with the permission from [52].
Chemosensors 09 00197 g014
Chemosensors 09 00197 g015 550
Figure 15. The schematics of proposed CO detection mechanism: (a,b) adsorption of O2 to the Co3O4 surface; (c) adsorption of CO to the Co3O4 surface once it reacts with surface-near lattice oxygen; (d) the desorption of CO as CO2; (e,f) oxygen vacancies are replenished by oxygen from the gas phase; (g,h) replenishment of oxygen vacancies by oxygen from the surface-remote lattice. Redrawn with the permission from [28].
Figure 15. The schematics of proposed CO detection mechanism: (a,b) adsorption of O2 to the Co3O4 surface; (c) adsorption of CO to the Co3O4 surface once it reacts with surface-near lattice oxygen; (d) the desorption of CO as CO2; (e,f) oxygen vacancies are replenished by oxygen from the gas phase; (g,h) replenishment of oxygen vacancies by oxygen from the surface-remote lattice. Redrawn with the permission from [28].
Chemosensors 09 00197 g015
Chemosensors 09 00197 g016 550
Figure 16. The FESEM:(a) as grown; (b) calcinated at 450 °C for 3 h; (c) TEM and; (d) HRTEM of the calcinated Co3O4 nano rods. The illustration of gas-sensing mechanism; (e) Co3O4 nanorods; (f) commercial Co3O4 powder. Reprinted with the permission from [27].
Figure 16. The FESEM:(a) as grown; (b) calcinated at 450 °C for 3 h; (c) TEM and; (d) HRTEM of the calcinated Co3O4 nano rods. The illustration of gas-sensing mechanism; (e) Co3O4 nanorods; (f) commercial Co3O4 powder. Reprinted with the permission from [27].
Chemosensors 09 00197 g016
Chemosensors 09 00197 g017 550
Figure 17. The FESEM images: (a–c) hierarchical Co3O4 nanorods; (d) illustration of the gas detection mechanism. Reprinted with the permission from [53].
Figure 17. The FESEM images: (a–c) hierarchical Co3O4 nanorods; (d) illustration of the gas detection mechanism. Reprinted with the permission from [53].
Chemosensors 09 00197 g017
Chemosensors 09 00197 g018 550
Figure 18. The schematic illustration of growth mechanism: (a) rGO-Co3O4 composite nanofibers; (b) dynamic response toward the NH3; (c) schematic diagram of the sensing mechanism of the rGO–Co3O4 composite nanofibers toward ammonia at room temperature. Reprinted with the permission from [71].
Figure 18. The schematic illustration of growth mechanism: (a) rGO-Co3O4 composite nanofibers; (b) dynamic response toward the NH3; (c) schematic diagram of the sensing mechanism of the rGO–Co3O4 composite nanofibers toward ammonia at room temperature. Reprinted with the permission from [71].
Chemosensors 09 00197 g018
Chemosensors 09 00197 g019 550
Figure 19. Morphological features of the mesoporous Co3O4 nanochains: (a) SEM; (b) TEM; (c) HRTEM images; (d) TG and DTA plots of cobalt carbonate hydroxide nanowire. Reprinted with the permission from [82].
Figure 19. Morphological features of the mesoporous Co3O4 nanochains: (a) SEM; (b) TEM; (c) HRTEM images; (d) TG and DTA plots of cobalt carbonate hydroxide nanowire. Reprinted with the permission from [82].
Chemosensors 09 00197 g019
Chemosensors 09 00197 g020 550
Figure 20. Co3O4 hollow nanotubes: (a) The FESEM image; (b) the TEM image; (c,d) elemental mapping images of Co and O, of Co3O4 hollow nanotubes. Reprinted with the permission from [85].
Figure 20. Co3O4 hollow nanotubes: (a) The FESEM image; (b) the TEM image; (c,d) elemental mapping images of Co and O, of Co3O4 hollow nanotubes. Reprinted with the permission from [85].
Chemosensors 09 00197 g020
Chemosensors 09 00197 g021 550
Figure 21. Dynamic response: (a) Co3O4/CuO NTs (S1) and hybrid HFIP-Co3O4/CuO NTs (S2) sensors toward 0.5 ppm DMMP; (b) responses of the S1 and S2 along with the relative humidity (RH %); (c) response and recovery times of S2 sensors. Reprinted with the permission from [89].
Figure 21. Dynamic response: (a) Co3O4/CuO NTs (S1) and hybrid HFIP-Co3O4/CuO NTs (S2) sensors toward 0.5 ppm DMMP; (b) responses of the S1 and S2 along with the relative humidity (RH %); (c) response and recovery times of S2 sensors. Reprinted with the permission from [89].
Chemosensors 09 00197 g021
Chemosensors 09 00197 g022 550
Figure 22. The schematic of DMMP-sensing mechanism: (a) Co3O4/CuO NTs; (b) hybrid HFIP-Co3O4/CuO NTs. Re-printed with the permission from [89]; (c,d) SEM micrograms of the reported NWs array. Reprinted with the permission from [22].
Figure 22. The schematic of DMMP-sensing mechanism: (a) Co3O4/CuO NTs; (b) hybrid HFIP-Co3O4/CuO NTs. Re-printed with the permission from [89]; (c,d) SEM micrograms of the reported NWs array. Reprinted with the permission from [22].
Chemosensors 09 00197 g022
Table
Table 1. Variation of the resistance in MOX upon the interaction of reducing or oxidizing gases.
Table 1. Variation of the resistance in MOX upon the interaction of reducing or oxidizing gases.
Metal OxideReducing GasesOxidizing Gases
p-typeResistance increaseResistance decrease
n-typeResistance decreaseResistance increase
Table
Table 2. Summary of gas-sensing performance of the reported 1D nano structures of Co3O4 gas sensors.
Table 2. Summary of gas-sensing performance of the reported 1D nano structures of Co3O4 gas sensors.
Co3O4
Morphology		Synthesis ProcedureAnalyte GasConcentration (ppm)Top (°C)ResponseTres (s)Trec (s)Reference
NanorodsSolvothermalC2H5OH10030025.7 a2910–13[3]
NanorodsCoprecipitationCO502506.5 bNANA[15]
Nano wiresHydrothermalCO2010013.5 b62.5100[16]
NanowiresHydrothermalC6H15N1002504 bNANA[22]
NanowiresHydrothermalC3H6O15020023 bNANA[23]
NanorodsHydrothermalC3H6O7457030018.5 c40180[24]
Rhombus shaped nanorodHydrothermalC2H5OH50016071 b9060[25]
NanorodsSolvothermalC7H820020035 b9055[27]
NanorodsHydrothermal(C2H5)2O100160110.34 cNANA[30]
Nano needlesHydrothermalC2H5OH13010089.6 bNANA[34]
Hierarchical NanofiberHydrothermalC3H6O1001909.3 b71[52]
Hierarchical nanorodsHydrothermalNH310016011.2 b210[53]
Cr-doped nanorodsSolvothermalC7H8525017 bNANA[59]
C8H1018 bNANA
NanofiberElectrospinningCO51002.4 b1436[62]
Nano FiberElectrospinningC2H5OH10030022.1 bNANA[63]
Nano FiberElectrospinningC2H5OH10030151.2 b168[65]
Composite nanofiberElectrospinningC3H6O53002.29 bNANA[66]
Nano FiberElectrospinningC8H1010025510.6 a1522[67]
Nano chainsHydrothermalH2S1003004.3 b4624[68]
Nano tubesFacile solution routeHCHO501806.3 b31[69]
Co3O4/CuO nanotubesElectrospinningC3H2F6O0.5908.8 b7.35.2[70]
Composite nanofiberElectrospinningNH350RT53.6 c4300[71]
Note: Top = operating temperature; Tres = response time; Trec = recovery time; NA = not available; a = Ra/Rg; b= Rg/Ra; c = (Rg−Ra/Ra).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kumarage, G.W.C.; Comini, E. Low-Dimensional Nanostructures Based on Cobalt Oxide (Co3O4) in Chemical-Gas Sensing. Chemosensors 2021, 9, 197. https://doi.org/10.3390/chemosensors9080197

AMA Style

Kumarage GWC, Comini E. Low-Dimensional Nanostructures Based on Cobalt Oxide (Co3O4) in Chemical-Gas Sensing. Chemosensors. 2021; 9(8):197. https://doi.org/10.3390/chemosensors9080197

Chicago/Turabian Style

Kumarage, Gayan W. C., and Elisabetta Comini. 2021. "Low-Dimensional Nanostructures Based on Cobalt Oxide (Co3O4) in Chemical-Gas Sensing" Chemosensors 9, no. 8: 197. https://doi.org/10.3390/chemosensors9080197

APA Style

Kumarage, G. W. C., & Comini, E. (2021). Low-Dimensional Nanostructures Based on Cobalt Oxide (Co3O4) in Chemical-Gas Sensing. Chemosensors, 9(8), 197. https://doi.org/10.3390/chemosensors9080197

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
