Nitrogen Dioxide Gas Sensor Based on Ag-Doped Graphene: A First-Principle Study

by
Qichao Li
1,2,
Yamin Liu
3,
Di Chen
1,2,*,
Jianmin Miao
1,2,
Xiao Zhi
4,
Shengwei Deng
5,
Shujing Lin
1,2,
Han Jin
1,2 and
Daxiang Cui
1,2
1
Key Laboratory for Thin Film and Microfabrication Technology of Ministry of Education, School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University, 800 Dongchuan Road, Shanghai 200240, China
2
Shanghai Engineering Research Center for Intelligent Diagnosis and Treatment Instrument, 800 Dongchuan Road, Shanghai 200240, China
3
Shanghai Key Laboratory of Molecular Catalysis and Innovative Materials, Department of Chemistry, Fudan University, 2005 Songhu Road, Shanghai 200438, China
4
Institute for Personalized Medicine, School of Biomedical Engineering, Shanghai Jiao Tong University, Shanghai 200030, China
5
College of Chemical Engineering, Zhejiang University of Technology, Hangzhou 310014, China
*
Author to whom correspondence should be addressed.
Chemosensors 2021, 9(8), 227; https://doi.org/10.3390/chemosensors9080227
Submission received: 8 July 2021 / Revised: 8 August 2021 / Accepted: 12 August 2021 / Published: 14 August 2021
(This article belongs to the Special Issue 2D Materials for Gas Sensing)
Browse Figures
Versions Notes

Abstract

:
High-performance tracking trace amounts of NO2 with gas sensors could be helpful in protecting human health since high levels of NO2 may increase the risk of developing acute exacerbation of chronic obstructive pulmonary disease. Among various gas sensors, Graphene-based sensors have attracted broad attention due to their sensitivity, particularly with the addition of noble metals (e.g., Ag). Nevertheless, the internal mechanism of improving the gas sensing behavior through doping Ag is still unclear. Herein, the impact of Ag doping on the sensing properties of Graphene-based sensors is systematically analyzed via first principles. Based on the density-functional theory (DFT), the adsorption behavior of specific gases (NO2, NH3, H2O, CO2, CH4, and C2H6) on Ag-doped Graphene (Ag–Gr) is calculated and compared. It is found that NO2 shows the strongest interaction and largest Mulliken charge transfer to Ag–Gr among these studied gases, which may directly result in the highest sensitivity toward NO2 for the Ag–Gr-based gas sensor.

1. Introduction

High-performance detecting of toxic gas molecules, such as NO2 and NH3, is crucial for industry application and real-time monitoring of environmental pollutants [1,2], as it is widely agreed that NO2 can produce acid rain and have adverse effects on plant growth [3,4]. Moreover, long-term exposure to NO2 can result in human respiratory diseases, such as bronchitis, emphysema, and asthma [5,6]. Consequently, extensive attention and research have been focusing on the development of NO2 sensors that are based on diverse sensing materials. Over the past decade, various kinds of relevant sensitive materials were announced, which were mainly focused on metal oxide semiconductors [7], transition-metal dichalcogenides [8,9,10], carbon-based materials [11], and ionic liquids [12,13,14]. For instance, Jang et al. reported 2D NbS2 nanosheets for selective sensing NO2, and studied the sensing mechanisms through (density-functional theory) DFT calculations [8]. In addition, Myung et al. prepared SnO2/ZnO heterostructure films for detecting NO2, which presented high response performance and quick response/recovery speed [7]. Note that among the aforementioned sensing materials, graphene exhibits many attractive properties such as facile structural control, diversified synthetic methods, and exceptionally large surface areas; graphene in particular, with its physically/chemically stable behavior is competent to endure harsh environments (for example, strong alkali/acidic conditions) [15,16]. Thus, it is believed that graphene would be a good candidate for developing high-performance NO2 sensors.
To date, pristine and derivatives of graphene have been intensively studied, while the pristine graphene-based sensors suffered the problem of low response signals, long recovery time and poor selectivity toward NO2, which restricted its sensing application [11,17,18,19]. For example, Leenaerts et al. investigated the adsorption properties of NO2 on pristine graphene via DFT calculation, the adsorption energy is only 0.067 eV and charge transfer is −0.099 e, indicating that the interaction between NO2 and pristine graphene was weak [20,21]. On the contrary, noble metal nanoparticles (NMPs) doping has proven to be a facile and effective method of improving the response performance of graphene for gas sensing [22]. Typical examples are demonstrated by Zhang et al. who used Au to modify graphene, which showed more sensitivity to H2S and SOF2 than pristine graphene [23]. They also carried out DFT calculations to confirm that graphene modified with Au could enhance the electrochemical reactivity of pristine graphene and activate the adsorbed gas molecules [24]. In 2019, Guha et al. reported that the response of Pt decorated and reduced graphene oxide (rGO) toward 400 ppm HCHO is 4.5 times that of bare rGO [25]. The DFT-based first-principle calculation also illustrated that Pt promoted the chemisorption of HCHO on Pt-rGO, which contributed to improving the sensing performance. In contrast to Pt-rGO, HCHO is only physically adsorbed on bare rGO. In 2020, Zeng et al. reported the simulation based on the first-principle study and demonstrated that Pd-doped graphene showed a more outstanding SO2 adsorption performance than intrinsic graphene [26]. Compared with these frequently reported NMPs dopants (e.g., Au, Pt, Pd) [23,26,27], Ag has more potential due to its nontoxicity, antibacterial properties, high electrical/thermal conductivity, and cost-effectiveness. In our previous work [28], we have experimentally demonstrated that Ag nanoparticles modified reduced graphene oxide materials display outstanding sensing performance toward NO2, including excellent sensitivity, fast response/recovery speed, low limit of detection (LOD), and good selectivity. Table 1 summarizes the comparison of the NO2 sensing performance of different types of graphene-based materials in recent experimental works. Nevertheless, the internal mechanism of the improved gas sensing behavior through doping Ag is still unclear. In view of the fact that DFT has a wide range of applications in physics and chemistry, we especially studied the properties of molecules and condensed matter, such as determined the interactions of molecules in Deep Eutectic Solvents (DES) [29,30,31,32]. Herein, we theoretically illuminate the adsorption properties of NO2 gas on Ag–Gr via the DFT. In order to reduce the simulation complexity, the graphene is doped by a single Ag atom. There are many DFT studies recently reported on metal-doped graphene, but the selectivity studies are limited [20]. Considering this circumstance, the adsorption performances for NH3, H2O, CO2, and some volatile organic compounds (CH4, C2H6) are also calculated to evaluate and clarify the selectivity of Ag–Gr. We anticipate that the initiatory theoretical study can provide helpful information and instructive direction on developing high-performance NO2 sensors using noble metal-doped graphene.

2. Materials and Methods

First principle calculation is implemented in the DMol3 package [43,44,45,46]. Generalized gradient approximation (GGA) with Perdew–Burke-Ernzerhof (PBE) is used. Grimme custom method for DFT-D is chosen for better describing Van der Waals functionalization [47]. DFT Semi-core Pseudopots is used for core treatment, and basis sets DNP with 4.4 files. Monkhorst-pack grid parameters are set as 9 × 9 × 1 for calculating electronic properties. The model contains a 4 × 4 graphene supercell doped with an Ag atom in the middle by replacing a carbon atom. The vacuum with 2 nm spacing in the z-axis direction is adopted for minimizing the interaction of adjacent layers of graphene. Gas molecules are added more than the distance of 0.36 nm above the Ag atom. All configurations are optimized until the energy tolerance is less than 2 × 10−5 Ha. Besides, NO2 is a paramagnetic molecule [48,49], spin polarization is carried out in the adsorption calculation of NO2 on Ag–Gr.
The adsorption energy (Ead) of gas molecules on Ag–Gr is defined as:
Ead = EAg/G + gas − EAg/G − Egas
where EAg/G + gas is the total energy after gas adsorbed on the Ag–Gr, EAg/G is the isolated optimized energy of Ag–Gr, and Egas is the isolated optimized energy of the gas molecule.

3. Results

For the purpose of investigating the adsorption effect of gas molecules on single Ag-doped graphene, some typical gas molecules are tested. The adsorption distance (d), adsorption energy (Ead), and Mulliken charge (Q) are calculated and the values are presented in Table 2. Finally, the interaction between gas molecules and Ag-doped graphene will be analyzed in detail.
After finishing the Geometry Optimization task, the optimal stable adsorption configurations of all molecules are shown in Figure 1. For NO2, the N atom in NO2 is far from Ag–Gr. The adsorption distance is defined as the nearest distance of atoms between gas molecules and Ag–Gr. Thus, the adsorption distance in NO2/Ag–Gr configuration is 0.2224 nm, which is less than the Van der Waals radii (O = 0.155 nm, Ag = 0.177 nm). The adsorption energy is −2.209 eV, which is the largest value among all gas molecules, indicating strong adsorption properties. Meanwhile, the Mulliken transfer charge is −0.45 e, suggesting that the charges transfer from Ag–Gr to NO2, where NO2 acts as an electron acceptor. The Mulliken charge value is also the largest compared with other gases, meaning the super electron capture capability of NO2. Ag–Gr is one of the p-type semiconductor materials. When NO2 molecules as the electron acceptor are adsorbed on Ag–Gr, the resistance of Ag–Gr will dramatically decrease. The total density of states (DOS) is calculated to further study the interaction between NO2 and Ag–Gr. As presented in Figure 2a, the DOS changes obviously after NO2 adsorbed on Ag–Gr, especially, near both sides of the Fermi level. Thus, both the largest adsorption energy and Mulliken transfer charge with the addition of dramatic DOS change illuminate stronger interaction between NO2 and Ag–Gr than others, which is beneficial for gas sensitivity.
Many recent studies on NO2 sensors based on graphene or graphene derivatives have reported that the sensors have a response to NH3 [50]. Thus, the adsorption performance of NH3 on Ag–Gr should be investigated. After calculation, the adsorption distance of NH3 on Ag–Gr is 0.2297 nm (Figure 1b), also less than Van der Waals radii (N = 0.16 nm, Ag = 0.177 nm). The adsorption energy is −1.115 eV and the Mulliken charge is 0.136 e, which indicates that obvious interaction takes place in the adsorption process, and the charge transfers from NH3 to Ag–Gr. Contrary to NO2, NH3 plays the donor role. When exposed to the NH3 atmosphere, the resistance of p-type Ag–Gr-based gas sensors will increase. The different change direction of resistance caused by NH3 and NO2 can be used for discriminating the two gas molecules. Besides, the DOS near the Fermi level has a small change (Figure 2b). Hence, NH3 on Ag–Gr can slightly change the conductivity of Ag–Gr-based sensor.
Humidity interference in the sensing process often influences the accuracy of the gas sensors. The cross-response of humidity should be suppressed. Therefore, the adsorption properties of water on Ag–Gr are studied. The adsorption distance of H2O on Ag–Gr is 0.2296 nm, less than Van der Waals radii (O = 0.155 nm, Ag = 0.177 nm). The adsorption energy (−0.930 eV) and Mulliken charge (0.122 e) show that the charge transfers from H2O (donor role) to Ag–Gr. In Figure 2c, after adsorption, the contribution from H2O electronic states to the total DOS of Ag–Gr is localized from −9.0 eV to −3.7 eV in valence bands and from 0.4 eV to 5 eV in conduction bands. Although H2O can interact with Ag–Gr, the interaction could be weakened by some suitable methods, such as heating through a microheater, which is demonstrated as an effective method in our previous work [28].
In the case of CO2, the adsorption distance on Ag–Gr is 0.2626 nm. Figure 2d shows that the contribution of CO2 electronic states to total DOS is far away from the Fermi level. The adsorption energy is −0.360 eV, and the Mulliken transfer charge is only 0.018 e. The weak charge transfer indicates that the sensor based on Ag–Gr is not sensitive to CO2.
For organic volatile compounds (VOCs), such as CH4 and C2H6, the adsorption distances on Ag–Gr are 0.2218 nm and 0.2395 nm, respectively. From Figure 2e–f, the contributions of CH4 and C2H6 electronic levels are both far away from the Fermi level. The adsorption energy of the two gas is −0.335 eV (CH4) and −0.514 eV (C2H6). The Mulliken transfer charge of C2H6 is only 0.050 eV, indicating the weak sensitivity of Ag–Gr toward C2H6. For CH4, both adsorption energy and Mulliken transfer charge (0.031 e) are very small, corresponding to the poor response toward CH4 for Ag–Gr. Actually, the gas sensor based on Ag nanoparticles modified reduced graphene oxide has been experimentally demonstrated to have a poor response toward VOCs in our previous work. This characteristic allows Ag–Gr-based NO2 sensors to have good selectivity.
The total charge densities are calculated for further investigating the interaction of gas molecules and Ag–Gr. As shown in Figure 3a, a distinct electron orbital overlap between Ag–Gr and NO2 molecules is observed. The strong overlap is consistent with the intense interaction once the Ag–Gr-based gas sensor is exposed to the NO2 polluted air. Additionally, the difference charge densities are also performed. Figure 4 shows the difference charge densities of gas molecules’ adsorption on Ag–Gr. The colors blue and red are represented as losing electrons and obtaining electrons, respectively. As seen from Figure 4a, the conspicuous red regions surround O atoms of NO2, and at the same moment, the obvious blue region surrounds the Ag atom. The electrons enrichment areas around O atoms nearly contact with the core electrons area around the Ag atom. In this case, strong interaction occurs between Ag and O atoms. Consequently, adsorbed NO2 will significantly change the electrical conductivity of Ag–Gr, resulting in outstanding sensitivity. Compared with NO2, the electron orbital overlap between both NH3 and H2O with Ag–Gr are smaller (Figure 3b–c), indicating a low sensitivity for Ag–Gr-based gas sensors. From difference charge densities plots in Figure 4b–c, we can see that the blue regions are obvious, and small red regions appear around both NH3 and H2O molecules. This is due to the donor properties of these two types of molecules. As for CO2 and VOCs, shown in Figure 3d–f, it is noted that no electron orbital overlap exists between the other three gases (CO2, CH4, and C2H6) with Ag–Gr, demonstrating that the adsorption of CO2, CH4, and C2H6 on Ag–Gr layers are physisorption, resulting in the facts of very few charges transferring between gas molecules and Ag–Gr. This could be one of the main reasons that an Ag–Gr-based gas sensor is not sensitive to VOCs. From the six inserts of deformation electron density isosurfaces in Figure 3, we can also obtain consistent results, because the electron accumulation (pink) and depletion (yellow) regions between NO2 and Ag are more obvious than those between other gas molecules and Ag.

4. Conclusions and Discussions

First-principle calculations are implemented to theoretically study the gas adsorption properties on an Ag–Gr surface. The results show that the adsorption energy and Mulliken transfer charge of NO2 adsorbed on Ag–Gr are both the largest among all tested gases. After NO2 adsorption, the DOS changes obviously, and the total/difference charge densities illustrate a strong interaction of NO2 and Ag–Gr. Therefore, Ag–Gr-based sensors exhibit desirable sensitivity toward NO2. As for NH3 and humidity, the theoretical analysis demonstrates that the interaction of these two gases with Ag–Gr is relatively weaker than that of NO2. In addition to responding to NO2, some experimental reports also show that graphene and its derivatives have a weak response to ammonia and water [37,51,52,53,54]. The potential interference of NH3 and humidity can be suppressed by heating or UV illuminating the sensor. As for CO2 and VOCs (CH4 and C2H6), the small Mulliken transfer charge and no electron orbital overlap between Ag–Gr and gas molecules indicate the physisorption properties and poor sensitivity, corresponding to the good selectivity to NO2 of Ag–Gr-based sensors. Conclusively, although there will be a minor deviation in our theoretical analysis, we still anticipate that these results will be helpful in providing instructive direction on designing future high-performance sensing materials.

Author Contributions

Conceptualization, Q.L. and Y.L.; methodology, Q.L. and Y.L.; software, Q.L. and S.D.; validation, Q.L., Y.L., D.C. (Di Chen), J.M., H.J. and D.C. (Daxiang Cui); formal analysis, Q.L.; investigation, Q.L.; resources, D.C. (Di Chen), J.M., H.J. and D.C. (Daxiang Cui); data curation, Q.L.; writing—original draft preparation, Q.L.; writing—review and editing, Q.L., Y.L., D.C. (Di Chen), J.M., X.Z., S.L., H.J. and D.C. (Daxiang Cui); supervision, D.C. (Di Chen), J.M., H.J. and D.C. (Daxiang Cui); project administration, D.C. (Di Chen), J.M., H.J. and D.C. (Daxiang Cui); funding acquisition, D.C. (Di Chen), J.M., H.J. and D.C. (Daxiang Cui) All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (No. 61774106, 21706229 and 81971736), Science and Technology Commission of Shanghai Municipality (No. 20JC1415000, 21S31906400), and National Key Research and Development Program of China (No. 2017YFA0205301).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are very grateful to Xiaoming Yang and Zhejiang Fulai New Materials Co., Ltd. for their great help. We acknowledge analysis support from the Instrumental Analysis Center of Shanghai Jiao Tong University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, H.; Zhou, L.; Liu, Y.; Liu, F.; Liang, X.; Liu, F.; Gao, Y.; Yan, X.; Lu, G. UV-activated ultrasensitive and fast reversible ppb NO2 sensing based on ZnO nanorod modified by constructing interfacial electric field with In2O3 nanoparticles. Sens. Actuators B Chem. 2020, 305, 127498. [Google Scholar] [CrossRef]
  2. Zhang, D.; Yang, Z.; Li, P.; Pang, M.; Xue, Q. Flexible self-powered high-performance ammonia sensor based on Au-decorated MoSe2 nanoflowers driven by single layer MoS2-flake piezoelectric nanogenerator. Nano Energy 2019, 65. [Google Scholar] [CrossRef]
  3. Hu, F.-F.; Tang, H.-Y.; Tan, C.-J.; Ye, H.-Y.; Chen, X.-P.; Zhang, G.-Q. Nitrogen Dioxide Gas Sensor Based on Monolayer SnS: A First-Principle Study. IEEE Electron Device Lett. 2017, 38, 983–986. [Google Scholar] [CrossRef] [Green Version]
  4. Wang, S.-G.; Tan, C.-J.; Yang, Q.; Xu, Y.-X.; Li, S.-L.; Chen, X.-P. A Novel Ultra-Sensitive Nitrogen Dioxide Sensor Based on Germanium Monosulfide Monolayer. IEEE Electron Device Lett. 2017, 38, 1590–1593. [Google Scholar] [CrossRef]
  5. Wu, J.; Wu, Z.; Ding, H.; Wei, Y.; Huang, W.; Yang, X.; Li, Z.; Qiu, L.; Wang, X. Flexible, 3D SnS2/Reduced graphene oxide heterostructured NO2 sensor. Sens. Actuators B Chem. 2020, 305, 127445. [Google Scholar] [CrossRef]
  6. Liao, N.; Zhou, H.; Zheng, B.; Xue, W. Silicon Oxycarbide-Derived Carbon as Potential NO2 Gas Sensor: A First Principles’ Study. IEEE Electron Device Lett. 2018, 39, 1760–1763. [Google Scholar] [CrossRef]
  7. Sharma, B.; Sharma, A.; Joshi, M.; Myung, J.-h. Sputtered SnO2/ZnO Heterostructures for Improved NO2 Gas Sensing Properties. Chemosensors 2020, 8, 67. [Google Scholar] [CrossRef]
  8. Kim, Y.; Kwon, K.C.; Kang, S.; Kim, C.; Kim, T.H.; Hong, S.-P.; Park, S.Y.; Suh, J.M.; Choi, M.-J.; Han, S.; et al. Two-Dimensional NbS2 Gas Sensors for Selective and Reversible NO2 Detection at Room Temperature. ACS Sens. 2019, 4, 2395–2402. [Google Scholar] [CrossRef] [PubMed]
  9. Camargo Moreira, Ó.L.; Cheng, W.-Y.; Fuh, H.-R.; Chien, W.-C.; Yan, W.; Fei, H.; Xu, H.; Zhang, D.; Chen, Y.; Zhao, Y.; et al. High Selectivity Gas Sensing and Charge Transfer of SnSe2. ACS Sens. 2019, 4, 2546–2552. [Google Scholar] [CrossRef]
  10. Panigrahi, P.; Hussain, T.; Karton, A.; Ahuja, R. Elemental Substitution of Two-Dimensional Transition Metal Dichalcogenides (MoSe2 and MoTe2): Implications for Enhanced Gas Sensing. ACS Sens. 2019, 4, 2646–2653. [Google Scholar] [CrossRef]
  11. Meng, Z.; Stolz, R.M.; Mendecki, L.; Mirica, K.A. Electrically-Transduced Chemical Sensors Based on Two-Dimensional Nanomaterials. Chem. Rev. 2019, 119, 478–598. [Google Scholar] [CrossRef]
  12. Nádherná, M.; Opekar, F.; Reiter, J. Ionic liquid–polymer electrolyte for amperometric solid-state NO2 sensor. Electrochim. Acta 2011, 56, 5650–5655. [Google Scholar] [CrossRef]
  13. Gebicki, J.; Kloskowski, A.; Chrzanowski, W.; Stepnowski, P.; Namiesnik, J. Application of Ionic Liquids in Amperometric Gas Sensors. Crit. Rev. Anal. Chem. 2016, 46, 122–138. [Google Scholar] [CrossRef] [PubMed]
  14. Nádherná, M.; Opekar, F.; Reiter, J.; Štulík, K. A planar, solid-state amperometric sensor for nitrogen dioxide, employing an ionic liquid electrolyte contained in a polymeric matrix. Sens. Actuators B Chem. 2012, 161, 811–817. [Google Scholar] [CrossRef]
  15. Lee, S.W.; Lee, W.; Hong, Y.; Lee, G.; Yoon, D.S. Recent advances in carbon material-based NO2 gas sensors. Sens. Actuators B Chem. 2018, 255, 1788–1804. [Google Scholar] [CrossRef]
  16. Li, Q.; Liu, Y.; Chen, D.; Miao, J.; Lin, S.; Cui, D. Highly Sensitive and Flexible Piezoresistive Pressure Sensors Based on 3D Reduced Graphene Oxide Aerogel. IEEE Electron Device Lett. 2021, 42, 589–592. [Google Scholar] [CrossRef]
  17. Wu, J.; Wu, Z.; Ding, H.; Wei, Y.; Huang, W.; Yang, X.; Li, Z.; Qiu, L.; Wang, X. Three-Dimensional Graphene Hydrogel Decorated with SnO2 for High-Performance NO2 Sensing with Enhanced Immunity to Humidity. ACS Appl. Mater. Interfaces 2020, 12, 2634–2643. [Google Scholar] [CrossRef]
  18. Niu, F.; Shao, Z.-W.; Gao, H.; Tao, L.-M.; Ding, Y. Si-doped graphene nanosheets for NOx gas sensing. Sens. Actuators B Chem. 2021, 328. [Google Scholar] [CrossRef]
  19. Huang, J.; Chen, H.; Niu, W.; Fam, D.W.H.; Palaniappan, A.; Larisika, M.; Faulkner, S.H.; Nowak, C.; Nimmo, M.A.; Liedberg, B.; et al. Highly manufacturable graphene oxide biosensor for sensitive Interleukin-6 detection. RSC Adv. 2015, 5, 39245–39251. [Google Scholar] [CrossRef]
  20. Cruz-Martinez, H.; Rojas-Chavez, H.; Montejo-Alvaro, F.; Pena-Castaneda, Y.A.; Matadamas-Ortiz, P.T.; Medina, D.I. Recent Developments in Graphene-Based Toxic Gas Sensors: A Theoretical Overview. Sensors 2021, 21, 1992. [Google Scholar] [CrossRef]
  21. Leenaerts, O.; Partoens, B.; Peeters, F.M. Adsorption of H2O, NH3, CO, NO2, and NO on graphene: A first-principles study. Phys. Rev. B 2008, 77. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, D.; Sun, Y.e.; Jiang, C.; Yao, Y.; Wang, D.; Zhang, Y. Room-temperature highly sensitive CO gas sensor based on Ag-loaded zinc oxide/molybdenum disulfide ternary nanocomposite and its sensing properties. Sens. Actuators B Chem. 2017, 253, 1120–1128. [Google Scholar] [CrossRef]
  23. Zhang, X.; Yu, L.; Wu, X.; Hu, W. Experimental Sensing and Density Functional Theory Study of H2S and SOF2 Adsorption on Au-Modified Graphene. Adv. Sci. 2015, 2, 1500101. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, X.; Yu, L.; Gui, Y.; Hu, W. First-principles study of SF6 decomposed gas adsorbed on Au-decorated graphene. Appl. Surf. Sci. 2016, 367, 259–269. [Google Scholar] [CrossRef]
  25. Manna, B.; Chakrabarti, I.; Guha, P.K. Platinum Nanoparticles Decorated Graphene Oxide Based Resistive Device for Enhanced Formaldehyde Sensing: First-Principle Study and its Experimental Correlation. IEEE Trans. Electron Devices 2019, 66, 1942–1949. [Google Scholar] [CrossRef]
  26. Gao, X.; Zhou, Q.; Wang, J.; Xu, L.; Zeng, W. Adsorption of SO2 molecule on Ni-doped and Pd-doped graphene based on first-principle study. Appl. Surf. Sci. 2020, 517, 146180. [Google Scholar] [CrossRef]
  27. Zhao, C.; Wu, H. A first-principles study on the interaction of biogas with noble metal (Rh, Pt, Pd) decorated nitrogen doped graphene as a gas sensor: A DFT study. Appl. Surf. Sci. 2018, 435, 1199–1212. [Google Scholar] [CrossRef]
  28. Li, Q.; Chen, D.; Miao, J.; Lin, S.; Yu, Z.; Han, Y.; Yang, Z.; Zhi, X.; Cui, D.; An, Z. Ag-Modified 3D Reduced Graphene Oxide Aerogel-Based Sensor with an Embedded Microheater for a Fast Response and High-Sensitive Detection of NO2. ACS Appl. Mater. Interfaces 2020, 12, 25243–25252. [Google Scholar] [CrossRef] [PubMed]
  29. Makoś-Chełstowska, P.; Słupek, E.; Gębicki, J. Deep eutectic solvent-based green absorbents for the effective removal of volatile organochlorine compounds from biogas. Green Chem. 2021, 23, 4814–4827. [Google Scholar] [CrossRef]
  30. Makoś, P.; Słupek, E.; Gębicki, J. Extractive detoxification of feedstocks for the production of biofuels using new hydrophobic deep eutectic solvents—Experimental and theoretical studies. J. Mol. Liq. 2020, 308. [Google Scholar] [CrossRef]
  31. Gutierrez, A.; Atilhan, M.; Aparicio, S. A theoretical study on lidocaine solubility in deep eutectic solvents. Phys. Chem. Chem. Phys. 2018, 20, 27464–27473. [Google Scholar] [CrossRef]
  32. Atilhan, M.; Altamash, T.; Aparicio, S. Quantum Chemistry Insight into the Interactions Between Deep Eutectic Solvents and SO2. Molecules 2019, 24, 2963. [Google Scholar] [CrossRef] [Green Version]
  33. Choi, S.-J.; Lee, D.-M.; Yu, H.; Jang, J.-S.; Kim, M.-H.; Kang, J.-Y.; Jeong, H.S.; Kim, I.-D. All-carbon fiber-based chemical sensor: Improved reversible NO2 reaction kinetics. Sens. Actuators B Chem. 2019, 290, 293–301. [Google Scholar] [CrossRef]
  34. Paul, R.K.; Badhulika, S.; Saucedo, N.M.; Mulchandani, A. Graphene nanomesh as highly sensitive chemiresistor gas sensor. Anal. Chem. 2012, 84, 8171–8178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Wu, J.; Tao, K.; Miao, J.; Norford, L.K. Improved Selectivity and Sensitivity of Gas Sensing Using a 3D Reduced Graphene Oxide Hydrogel with an Integrated Microheater. ACS Appl. Mater. Interfaces 2015, 7, 27502–27510. [Google Scholar] [CrossRef] [PubMed]
  36. Piloto, C.; Notarianni, M.; Shafiei, M.; Taran, E.; Galpaya, D.; Yan, C.; Motta, N. Highly NO2 sensitive caesium doped graphene oxide conductometric sensors. Beilstein J. Nanotechnol. 2014, 5, 1073–1081. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Cho, B.; Yoon, J.; Hahm, M.G.; Kim, D.-H.; Kim, A.R.; Kahng, Y.H.; Park, S.-W.; Lee, Y.-J.; Park, S.-G.; Kwon, J.-D.; et al. Graphene-based gas sensor: Metal decoration effect and application to a flexible device. J. Mater. Chem. C 2014, 2, 5280–5285. [Google Scholar] [CrossRef]
  38. Zhang, H.; Li, Q.; Huang, J.; Du, Y.; Ruan, S.C. Reduced Graphene Oxide/Au Nanocomposite for NO(2) Sensing at Low Operating Temperature. Sensors 2016, 16, 1152. [Google Scholar] [CrossRef] [Green Version]
  39. Wu, J.; Wu, Z.; Ding, H.; Yang, X.; Wei, Y.; Xiao, M.; Yang, Z.; Yang, B.R.; Liu, C.; Lu, X.; et al. Three-Dimensional-Structured Boron- and Nitrogen-Doped Graphene Hydrogel Enabling High-Sensitivity NO2 Detection at Room Temperature. ACS Sens. 2019, 4, 1889–1898. [Google Scholar] [CrossRef]
  40. Li, L.; He, S.; Liu, M.; Zhang, C.; Chen, W. Three-dimensional mesoporous graphene aerogel-supported SnO2 nanocrystals for high-performance NO2 gas sensing at low temperature. Anal. Chem. 2015, 87, 1638–1645. [Google Scholar] [CrossRef]
  41. Zhang, B.; Cheng, M.; Liu, G.; Gao, Y.; Zhao, L.; Li, S.; Wang, Y.; Liu, F.; Liang, X.; Zhang, T.; et al. Room temperature NO2 gas sensor based on porous Co3O4 slices/reduced graphene oxide hybrid. Sens. Actuators B Chem. 2018, 263, 387–399. [Google Scholar] [CrossRef]
  42. Cho, B.; Yoon, J.; Lim, S.K.; Kim, A.R.; Kim, D.H.; Park, S.G.; Kwon, J.D.; Lee, Y.J.; Lee, K.H.; Lee, B.H.; et al. Chemical Sensing of 2D Graphene/MoS2 Heterostructure device. ACS Appl. Mater. Interfaces 2015, 7, 16775–16780. [Google Scholar] [CrossRef] [PubMed]
  43. Kumar, J.; Nemade, H.B.; Giri, P.K. Adsorption of Small Molecules on Niobium Doped Graphene: A Study Based on Density Functional Theory. IEEE Electron Device Lett. 2018, 39, 296–299. [Google Scholar] [CrossRef]
  44. Cui, H.; Zheng, K.; Zhang, Y.; Ye, H.; Chen, X. Superior Selectivity and Sensitivity of C3N Sensor in Probing Toxic Gases NO2 and SO2. IEEE Electron Device Lett. 2018, 39, 284–287. [Google Scholar] [CrossRef]
  45. Zhang, D.; Cao, Y.; Yang, Z.; Wu, J. Nanoheterostructure Construction and DFT Study of Ni-Doped In2O3 Nanocubes/WS2 Hexagon Nanosheets for Formaldehyde Sensing at Room Temperature. ACS Appl. Mater. Interfaces 2020, 12, 11979–11989. [Google Scholar] [CrossRef] [PubMed]
  46. Li, Q.; Chen, D.; Miao, J.; Lin, S.; Yu, Z.; Cui, D.; Yang, Z.; Chen, X. Highly sensitive sensor based on ordered porous ZnO nanosheets for ethanol detecting application. Sens. Actuators B Chem. 2021, 326. [Google Scholar] [CrossRef]
  47. Luo, H.-C.; Meng, R.-S.; Gao, H.L.; Sun, X.; Xiao, J.; Ye, H.-Y.; Zhang, G.-Q.; Chen, X.-P. First-Principles Study of Nitric Oxide Sensor Based on Blue Phosphorus Monolayer. IEEE Electron Device Lett. 2017, 38, 1139–1142. [Google Scholar] [CrossRef]
  48. Jin, C.; Tang, X.; Tan, X.; Smith, S.C.; Dai, Y.; Kou, L. A Janus MoSSe monolayer: A superior and strain-sensitive gas sensing material. J. Mater. Chem. A 2019, 7, 1099–1106. [Google Scholar] [CrossRef]
  49. Tang, X.; Shang, J.; Gu, Y.; Du, A.; Kou, L. Reversible gas capture using a ferroelectric switch and 2D molecule multiferroics on the In2Se3 monolayer. J. Mater. Chem. A 2020, 8, 7331–7338. [Google Scholar] [CrossRef] [Green Version]
  50. Wu, J.; Wei, Y.; Ding, H.; Wu, Z.; Yang, X.; Li, Z.; Huang, W.; Xie, X.; Tao, K.; Wang, X. Green Synthesis of 3D Chemically Functionalized Graphene Hydrogel for High-Performance NH3 and NO2 Detection at Room Temperature. ACS Appl. Mater. Interfaces 2020, 12, 20623–20632. [Google Scholar] [CrossRef]
  51. Tian, W.; Liu, X.; Yu, W. Research Progress of Gas Sensor Based on Graphene and Its Derivatives: A Review. Appl. Sci. 2018, 8, 1118. [Google Scholar] [CrossRef] [Green Version]
  52. Donarelli, M.; Ottaviano, L. 2D Materials for Gas Sensing Applications: A Review on Graphene Oxide, MoS(2), WS(2) and Phosphorene. Sensors 2018, 18, 3638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Li, H.; Wu, J.; Qi, X.; He, Q.; Liusman, C.; Lu, G.; Zhou, X.; Zhang, H. Graphene oxide scrolls on hydrophobic substrates fabricated by molecular combing and their application in gas sensing. Small 2013, 9, 382–386. [Google Scholar] [CrossRef] [PubMed]
  54. Borini, S.; White, R.; Wei, D.; Astley, M.; Haque, S.; Spigone, E.; Harris, N.; Kivioja, J.; Ryhanen, T. Ultrafast Graphene Oxide Humidity Sensors. ACS Nano 2013, 7, 11166–11173. [Google Scholar] [CrossRef] [PubMed]
Chemosensors 09 00227 g001 550

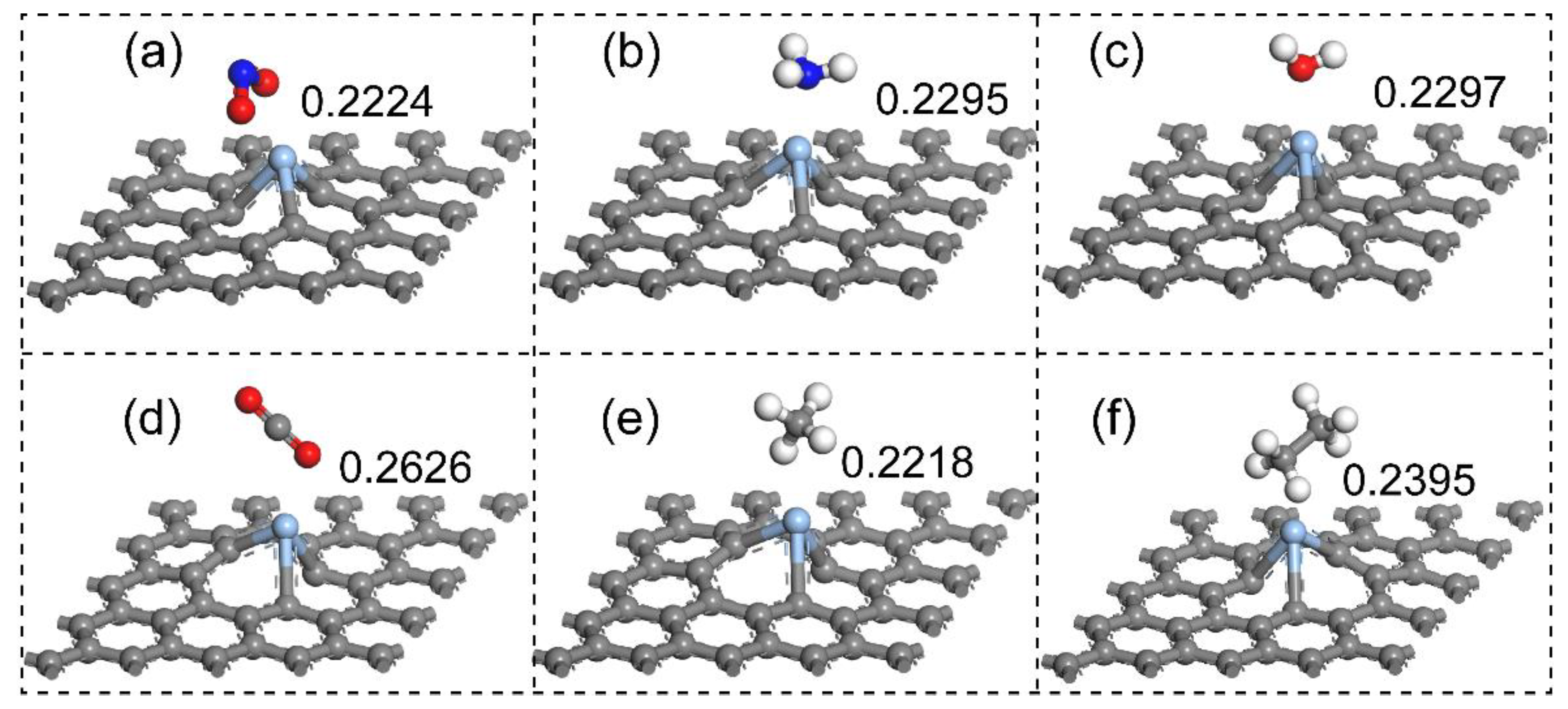

Figure 1. The optimal stable adsorption configurations of Ag–Gr with (a) NO2, (b) NH3, (c) H2O, (d) CO2, (e) CH4, and (f) C2H6.
Figure 1. The optimal stable adsorption configurations of Ag–Gr with (a) NO2, (b) NH3, (c) H2O, (d) CO2, (e) CH4, and (f) C2H6.
Chemosensors 09 00227 g001
Chemosensors 09 00227 g002 550

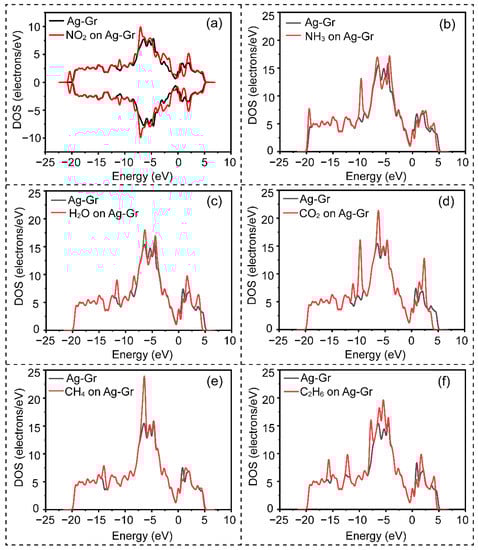

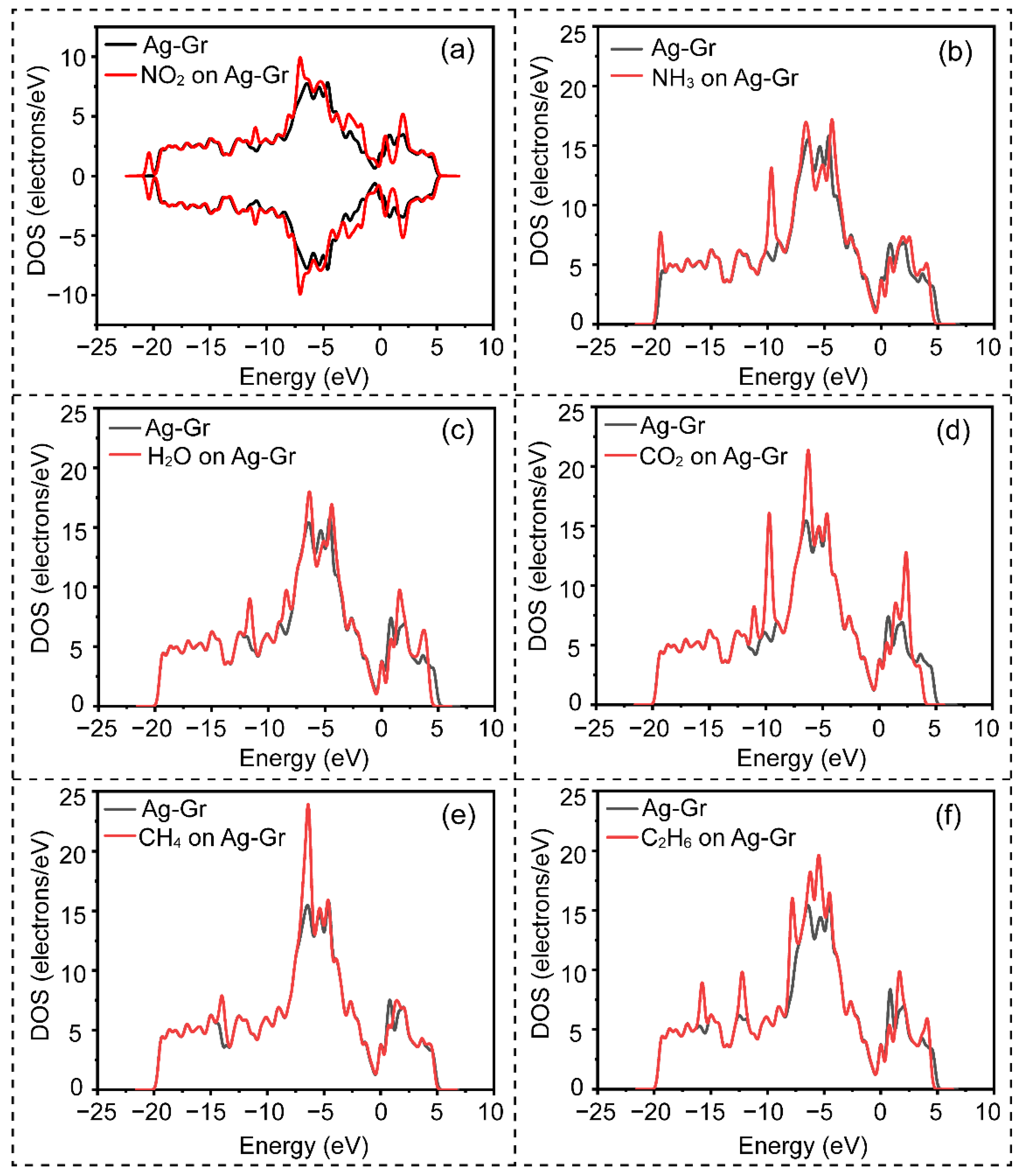

Figure 2. The DOS comparison of Ag–Gr and Ag–Gr adsorption with (a) NO2, (b) NH3, (c) H2O, (d) CO2, (e) CH4, and (f) C2H6.
Figure 2. The DOS comparison of Ag–Gr and Ag–Gr adsorption with (a) NO2, (b) NH3, (c) H2O, (d) CO2, (e) CH4, and (f) C2H6.
Chemosensors 09 00227 g002
Chemosensors 09 00227 g003 550

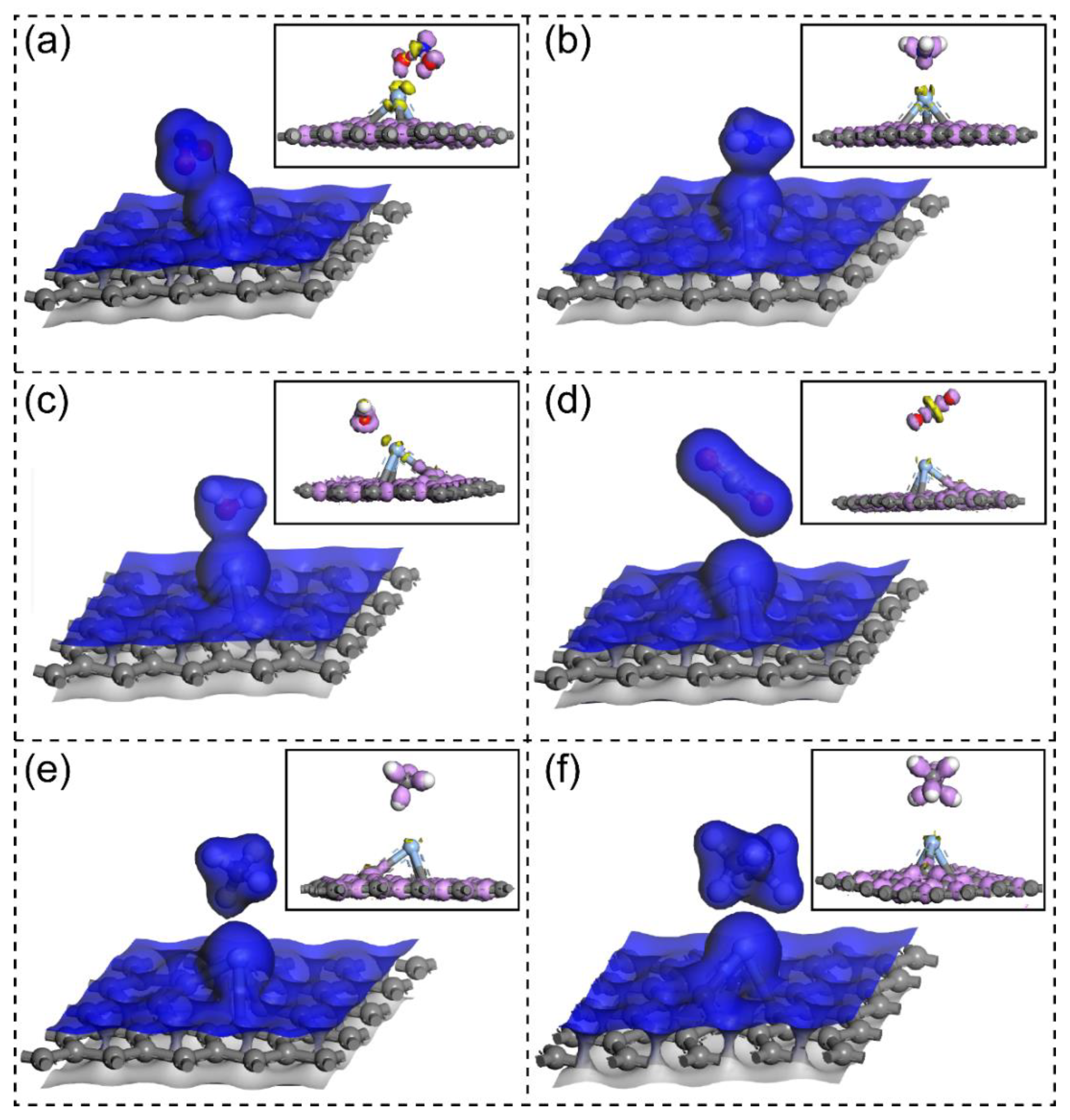

Figure 3. Total charge densities of Ag–Gr adsorption with (a) NO2, (b) NH3, (c) H2O, (d) CO2, (e) CH4, and (f) C2H6; the inserts are the isosurfaces of deformation electron density with isovalues of ±0.12, where the yellow and pink regions represent electrons loss and accumulation, respectively.
Figure 3. Total charge densities of Ag–Gr adsorption with (a) NO2, (b) NH3, (c) H2O, (d) CO2, (e) CH4, and (f) C2H6; the inserts are the isosurfaces of deformation electron density with isovalues of ±0.12, where the yellow and pink regions represent electrons loss and accumulation, respectively.
Chemosensors 09 00227 g003
Chemosensors 09 00227 g004 550

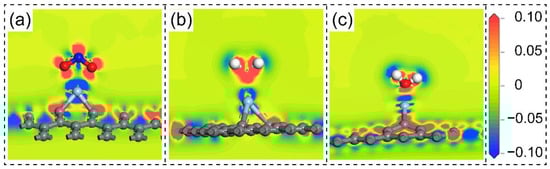

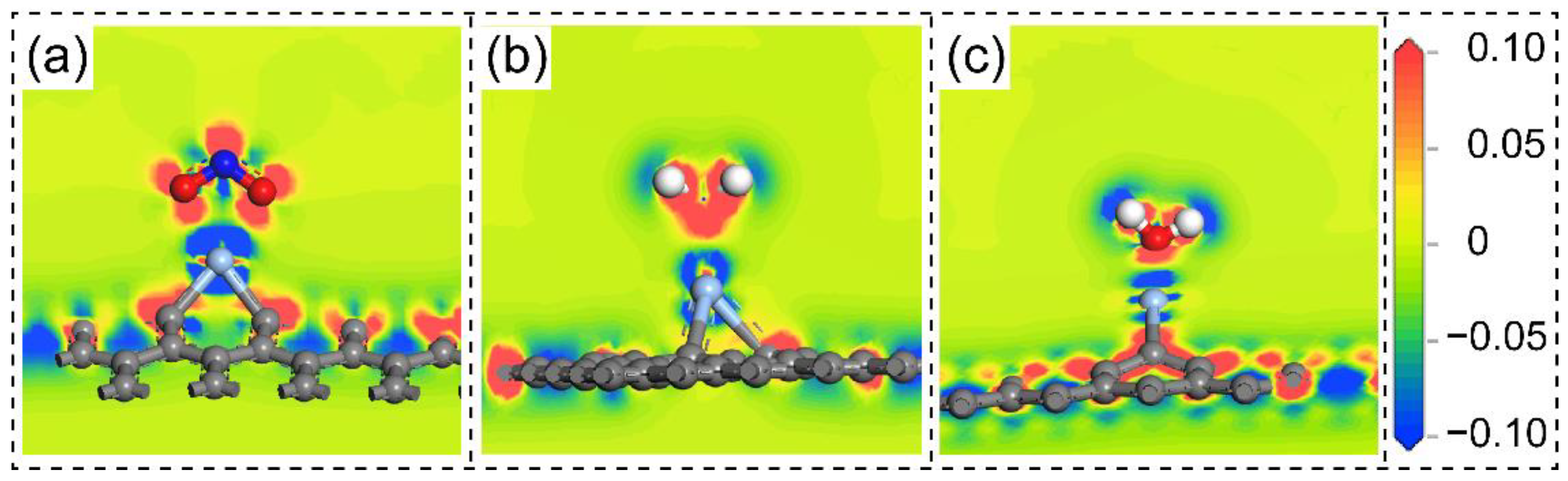

Figure 4. Difference charge densities of Ag–Gr adsorption with (a) NO2, (b) NH3, and (c) H2O.
Figure 4. Difference charge densities of Ag–Gr adsorption with (a) NO2, (b) NH3, and (c) H2O.
Chemosensors 09 00227 g004
Table
Table 1. NO2 sensing performance comparison of graphene-based materials in recent experimental works.
Table 1. NO2 sensing performance comparison of graphene-based materials in recent experimental works.
Sensing MaterialsDetection Range (ppm)|Response| (%) aResponse/Recovery Time (s)LOD (ppb)References
Ag-rGO aerogel0.05–58.6 (0.08 ppm)75/89.56.9Our previous work [28]
1D rGO fiber1–200.39 (20 ppm)180/180813[33]
graphene nanomesh1–106 (1 ppm)900/120015[34]
rGO hydrogel1–103.24 (10 ppm)600/6180187[35]
Cs-GO0.18–12.21.5 (0.732 ppm)240/54090[36]
Al-graphene1.2–58 (1.2 ppm)360/1200-[37]
Au-rGO0.5–533 (5 ppm)132/386-[38]
Si-graphene0.018–30021.5 (50 ppm)126/37818[18]
N-rGO0.02–0.811.7 (0.8 ppm)151/1014[39]
SnO2-rGO14–11011.5 (110 ppm)480/4802000[40]
Co3O4-rGO0.05–1026.8 (5 ppm)90/240050[41]
MoS2-Graphene1.2–1006.83 (5 ppm)300/18001200[42]
a Response = (Rg − Ra)/Ra × 100%, where Rg is the resistance in NO2; Ra is the resistance in background gas.
Table
Table 2. Adsorption distance, adsorption energy, and Mulliken charge of different gas molecules on Ag-doped graphene.
Table 2. Adsorption distance, adsorption energy, and Mulliken charge of different gas molecules on Ag-doped graphene.
Gasd (nm)Ead (eV)Q (e)
NO20.2224 (Ag-O)−2.209−0.450
NH30.2295 (Ag-N)−1.1150.136
H2O0.2297 (Ag-O)−0.9300.122
CO20.2626 (Ag-O)−0.3600.018
CH40.2218 (Ag-H)−0.3350.031
C2H60.2395 (Ag-H)−0.5140.050
