Article

Analysis of Kazakhstan Crude Oil Biomarkers by Gas Chromatography in Combination with Mass Spectrometry

by
Mereke Alimzhanova
1,2 and
Bauyrzhan Abdykarimov
2,*
1
Center of Physico-Chemical Methods of Research and Analysis, Al-Farabi Kazakh National University, 96a, Tole bi Str., Almaty 050012, Kazakhstan
2
Faculty of Physics and Technology, Al-Farabi Kazakh National University, 71, Al-Farabi Ave., Almaty 050040, Kazakhstan
*
Author to whom correspondence should be addressed.
Separations 2023, 10(11), 561; https://doi.org/10.3390/separations10110561
Submission received: 26 September 2023 / Revised: 30 October 2023 / Accepted: 6 November 2023 / Published: 9 November 2023
(This article belongs to the Topic Oil, Gas and Water Separation Research)
Browse Figures
Versions Notes

Abstract

:
Kazakhstan ranks as the 12th largest oil producer globally and boasts a diverse range of crude oils. This research introduces a method for distinguishing between the different types of crude oils based on biomarker analysis of 28 crude oils from Western and Southern Kazakhstan using gas chromatography-mass spectrometry. Biomarkers serve as valuable tools, especially in forensic investigations of oil spills. These biomarkers effectively retain a significant portion of the original natural product’s carbon structure, providing crucial evidence regarding the origin and identity of the oils under examination. This study identifies a set of biomarkers, including pristine, phytane, n-C17 and n-C18 alkanes, hopanes, bisnorhopanes, iso-copalanes, pregnane, androstane, allopregnane, homopregnane, cholestane, and stigmastane. By examining ratios such as pristane/phytane, pristane/n-C17 alkane, tricyclic/pentacyclic terpanes, and hopane, as well as the distribution of steranes, it was deduced that crude oils from West Kazakhstan exhibited resilience to biodegradation. These findings showed that gas chromatography-mass spectrometry is an effective method for oil biomarkers determination, especially because it provides efficient separation and identification. Additionally, this study delved into the origin conditions and maturity of these oils, contributing to a deeper understanding of their characteristics and analysis that is simple to use and available worldwide.

1. Introduction

Kazakhstan is a major oil producer with the second-largest oil reserves and oil production among the former Soviet republics, after Russia, and is 12th on a global scale among oil-producing countries based on production volume [1]. Kazakhstan has produced crude oil since 1911. Throughout the country, 169 hydrocarbon deposits have been discovered comprising 87 oil fields, 17 gas fields, 30 gas and oil, 25 oil-and-gas condensate, and 10 oil condensate fields [2]. The production of crude oil reached a total of 1.77 million barrels/day in 2017. The three main oil fields passing through the Caspian Sea are the Tengiz, Karachaganak, and Kashagan fields, respectively [3].
It is proved that crude oil reserves in Kazakhstan have 30 billion barrels, the 2nd largest endowment in Eurasia after Russia, and the 12th largest in the world after the United States [3].
The Caspian Sea, in addition to Western and Southern Kazakhstan borders, in the Southeast to Turkmenistan, in the South to Iran, in the Southwest to Azerbaijan, and in the Northwest to Russia, constitutes the main transport route for crude oil to other countries. To prove the quality of crude oil knowledge of the origin of the product, as well as information on its chemical composition and physical properties, is crucial [4].
The objective of the present study is to identify crude oil origin partly by studying inherent biomarkers. The decline in the physical properties of crude oil observed in numerous basins is commonly associated with biodegradation, and the extent of this degradation is often identifiable through the features exhibited by the crude oil biomarkers [5]. Further, the results of the present study gain relevance since the transport of crude oils obviously leads to unwanted situations of an oil spill, which calls for analytical methods to identify the origin of the spilled oil and, thus, not least, to make the polluter accountable.
Biomarkers stand as crucial hydrocarbon components within crude oil for chemical fingerprinting. These molecules possess intricate molecular structures inherited from previously living organisms, which seemingly endured without alteration until the present time. Leveraging biomarkers for identifying spilled oils enables the determination of a specific crude oil’s origin. Crude oil fingerprinting technology is the main forensic method for oil spill identification. In comparison with other hydrocarbons, biomarkers have shown to be highly resistant to degradation and may thus disclose the specific origin of the oil due to its unique biomarker fingerprint [6] and then possibly pinpoint the actual polluter.
From an environmental point of view, there is a great complexity in establishing polluters of oil spill accidents [7].
Identifying crude oils through biomarker analysis has significance in the characterization of crude oils. Biomarkers are organic compounds found in crude oil that provide information about its origin, thermal history, and the type of organic matter from which it was formed. These molecular fossils are useful in determining the source rock, maturity, and age of the oil and simple in-use.
Gas chromatography-mass spectrometry in the determination of biomarkers was carried out in the following steps:
  • Sampling: Crude oil samples are collected from different wells or sources for analysis.
  • Extraction and Separation: The crude oil is processed to isolate the organic compounds from the sample with the gas chromatography technique.
  • Identification of Biomarkers: Various biomarkers are identified and analyzed including pristane (Pr), phytane (Ph), n-C17 alkane, n-C18 alkane, terpanes, pregnane, androstane, allopregnane, homopregnane, cholestane, and stigmastane.
  • Analysis and Interpretation: Examining the ratios and distributions of the biomarkers determines the type of source rock (marine, terrestrial), the thermal maturity, and the age of the oil [8,9].
  • Comparative Analysis: The obtained biomarker data are compared to a database of known biomarker profiles of different crude oils to infer the possible origin and characteristics of the analyzed oil sample [10].
This analysis helps in understanding the oil’s characteristics, which is valuable for oil exploration, reservoir management, and production strategies. By determining the source and maturity of crude oil, companies can make informed decisions regarding drilling locations and extraction methods.
So over time, biomarker analyses have developed as the main techniques used in petroleum exploration to study crude oils, their origin, and maturity. In this context, gas chromatography-mass spectrometry (GC–MS) has been widely used as the method of choice for disclosing biomarkers [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26].
Mass spectrometry has been long recognized as the most powerful detecting method for gas chromatography [27]. Thus, GC-MS is one of the most valuable tools for the identification of unknown compounds. In recent years two-dimensional gas chromatography (GC × GC) has proved its importance for the analyses of complex samples [28,29,30,31]. Hence, GC × GC has also found its application for oil fingerprinting purposes [32]. However, the limitation of this approach, i.e., the excessive dependence on a relatively small number of biomarkers for the characterization of complex fluids such as crude oil, should be emphasized [32,33].
In the literature review, available information on biomarkers in various crude oils determined by gas chromatography-mass spectrometry is summarized. Thus, initial information on the parameters of the GC-MS analyses may be found here [33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64].
Despite the long history of oil production in Kazakhstan, petroleum biomarkers with modern methods of analysis have not yet been conducted. Hence, the main objective of the present study is to disclose the biomarker fingerprints for a series of Kazakhstan crude oils applying a GC-MS-based method.

2. Materials and Methods

2.1. Selected Samples

The present study included 28 Kazakh crude oils, each originating from one of the four oil-producing areas in West and South Kazakhstan (Table 1). It should be noted that two samples, Nuraly and Kosshagyl, were chosen to optimize GC-MS parameters.

2.2. Sample Separation

According to the literature review (Appendix A), accurate sample preparation is a crucial component for successful chromatography to ensure the integrity of the sample and removal of impurities that otherwise may be detrimental to the analyses. The sample preparation in the present study included dissolution of the petroleum samples in n-hexane (SupraSolv®, ≥95%; Sigma-Aldrich, Burlington, MA, USA) to remove asphaltenes followed by a column chromatographic fractionation to separate the sample into subsamples of aliphatic and aromatic hydrocarbons, respectively. Based on the literature review (Appendix A), observations used a chromatographic column (length 200 mm × 10.5 mm i.d.) applying silica gel (Sigma-Aldrich, USA), aluminum oxide, and anhydrous granular sodium sulfate oxide (purchased from LLP (Laborpharma), Almaty, Kazakhstan) in a proportion of 2:1:1 was used for the fractionation. Before fractionation aluminum oxide was activated with distilled water (1:1) and dried at 360 °C for 5 h or overnight. The silica gel was washed with acetone (≥96%; LLP (Laborpharma), Almaty, Kazakhstan) and n-hexane and dichloromethane for GC (≥99.9%; Sigma-Aldrich, USA), and was subsequently completely dried in a fume hood at 160–180 °C for 20 h. Glass wool was used as stopper, washed with acetone, hexane, and dichloromethane and dried. Sodium sulfate was calcined and subsequently cooled in a desiccator. A total of 0.1 g of crude oil was weighed and diluted with 10 mL of hexane. Samples (10 mL) of petroleum in n-hexane were applied to the column. The eluents were collected as follows: 12 mL of n-hexane expected to contain the aliphatic hydrocarbons (Fraction 1), followed by 15 mL of n-hexane, and dichloromethane (1:1) to elute aromatic hydrocarbons (Fraction 2).
However, GC MS has limitations in analyzing high molecular weight compounds. It also has highly sensitive capability and is effective in identifying and quantifying the number of compounds. Moreover, the method is simple in use and relatively faster in comparison with other separation techniques.

2.3. GC-MS Parameters for Biomarker Analysis

Determination of biomarkers was carried out by using GC with an MS detector (6890N/5973N; Agilent, Santa Clara, CA, USA) applying a DB-35ms coated capillary column (30 m × 0.25 mm i.d., 0.25 μm film thickness; Agilent, USA). Three oven programs were initially used for the optimization of GC-MS parameters:
  • 60 °C (held for 4 min) to 300 °C by a rate of 10 °C/min and held for 15 min.
  • 50 °C (held for 5 min) to 250 °C by a rate of 10 °C/min, from 250 °C to 300 °C by a rate of 5 °C/min.
  • 50 °C (held for 5 min) to 300 °C by a rate of 20 °C/min and held for 20 min.
Three injector temperatures at 200, 240, and 280 °C, respectively, were used for further optimization of the GC analyses. With an injection volume of 1 µL, the GC was operated in splitless mode. Helium was used as carrier gas with a flow rate of 1 mL/min. The obtained chromatograms were processed using both single ion monitoring (SIM) and scan mode, respectively. The analyses were performed in duplicate, each comprising five replicates. A comparison of the diagnostic ratios was applied to show the most specific biomarker distribution differences between samples.
Eventually, the optimization process pointed at the 3rd oven program and injection temperature 280 °C as being optimal.

3. Results and Discussion

3.1. Optimal GC Parameters

Scrutinizing the literature review (Appendix A) indicated optimal GC parameters for injection, column, and oven temperature programming. Thus, according to the data (Appendix A), splitless injections (1 μL) at 240 °C, 280 °C, and 290 °C, are commonly used by several scientists [32,33,42,48,50]. Further, it not surprisingly appeared that the choice of column apparently is a crucial parameter (for details vide supra).

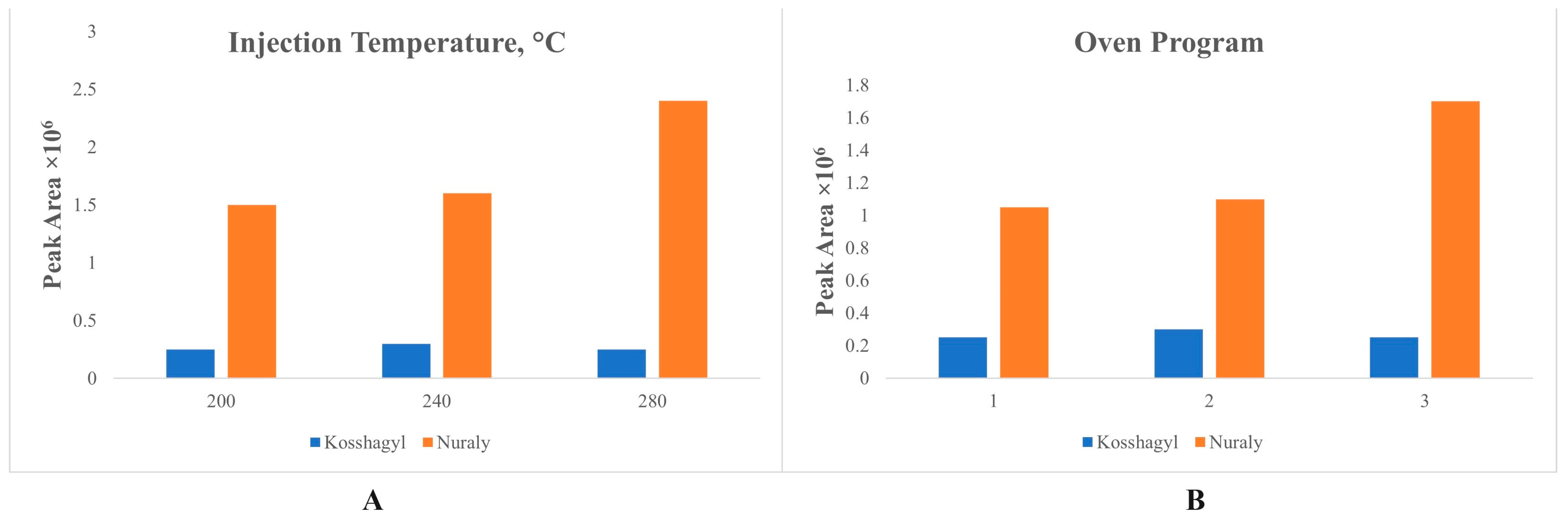

Figure 1A shows that for Kosshagyl crude oil (Atyrau region) the total peak area of Terpanes (m/z 191) was virtually unaffected by variation in injection temperatures, whereas for Nuraly crude oil (Kyzylorda region) a clear preference for an injection temperature at 280 °C was seen. A further increase in injection temperature may lead to the decomposition of organic substances and as such should be avoided.
Further, the oven temperature program is also an important parameter. According to the literature review (Appendix A), a wide variety of oven programs have been applied in the analyses of biomarkers. Typically, oven programs like (1) 50 °C (2 min)-300 °C, υ = 6 °C/min (15 min); (2) 50 °C (2 min)-310 °C, υ = 6 °C/min (18 min); and (3) 50 °C (1 min)-320 °C, υ = 10 °C/min (8 min), are commonly used for analysis [31,38,53] and appear as illustrative examples.
In the case of the present paper, three different oven programs (cf. Section 2.3.) were used to optimize GC-MS parameters. In Figure 1B, the results of three different oven temperature programs are shown. Again, only minor variations in the terpanes in the Kosshagyl oil were seen as a function of the oven program, while program No. 3 obviously appeared as optimal for the Nuraly oil.
In summary, oven program No. 3 can be considered optimal as all biomarkers were visible at 40 min, whereas programs 1 and 2 apparently do not allow the biomarkers to elude.

3.2. Diagnostic Ratios of Biomarkers

Absolute peak heights of individual biomarkers are typically of limited use as diagnostic tools. Hence, advantageously, the ratios between selected biomarkers are preferred in this respect. The primary advantage of comparing biomarker ratios from different spilled oils and possible suspected source oils is the minimization of concentration effects. Further, this procedure tends to exhibit a self-normalizing effect, thus, minimizing day-to-day, operator, and matrix effects.
Diagnostic ratios can be obtained either from quantitative, i.e., compound concentrations, or semi-quantitative data, i.e., peak areas or heights. It should be emphasized that such diagnostic biomarker ratios constitute defensible indices, e.g., used by environmental chemists for source identification of oil spills [6,65,66].
Based on the literature review (Appendix A), the 28 Kazakhstan crude oil-specific biomarkers, determined by GC-MS, comprised pristane (Pr), phytane (Ph), n-C17 alkane, n-C18 alkane, terpanes, pregnane, androstane, allopregnane, homopregnane, cholestane, and stigmastane. In Table 2 and Figure 2, the MS parameters and molecular structure of selected biomarkers are given.

3.2.1. Pristane/Phytane (Pr/Ph)

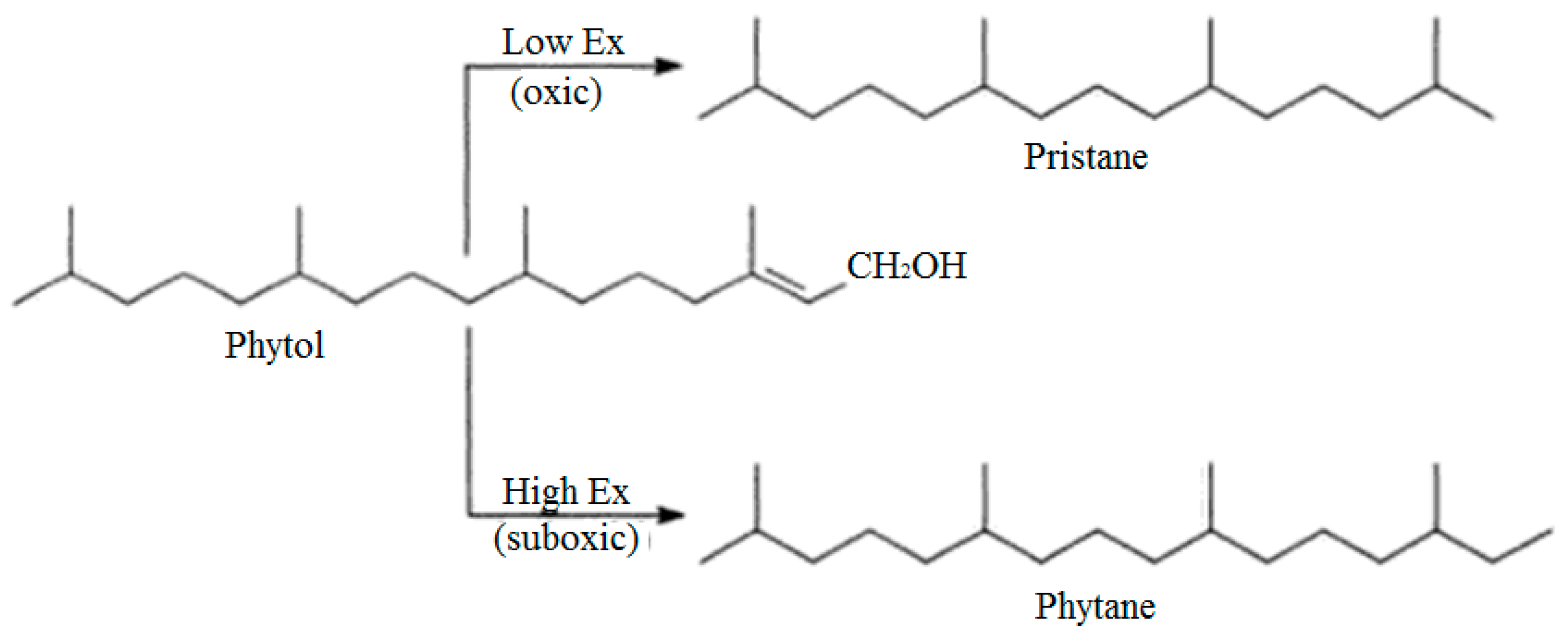

The most abundant source of Pr and Ph is the pythyl side chain of chlorophyll. A redox reaction of phytol leads to the formation of Pr and Ph. Thus, cleavage of a phytol side chain to yield phytol is promoted by reducing conditions, which leads to dihydrophytol and then Ph. Oxidic conditions, on the other hand promote the competing conversion of phytol to Pr by the oxidation of phytol to phytenic acid and the decarboxylation to pristine, followed by the reduction to Pr (Figure 3). Hence, by identifying the Pr and Ph, it is possible to indicate the conditions of the deposition environment of where crude oil forms.
Under conditions with low oxygen (reducing or anoxic) in sediments, the phytol side chain tends to break down, resulting in the formation of phytol, which then undergoes a reduction to dehydrophytal and Ph. Conversely, in oxidic conditions, phytol can transform into pristine through a competing process, involving the oxidation of phytol to phytenic acid, the decarboxylation to pristene, and a subsequent reduction to Pr. [67].

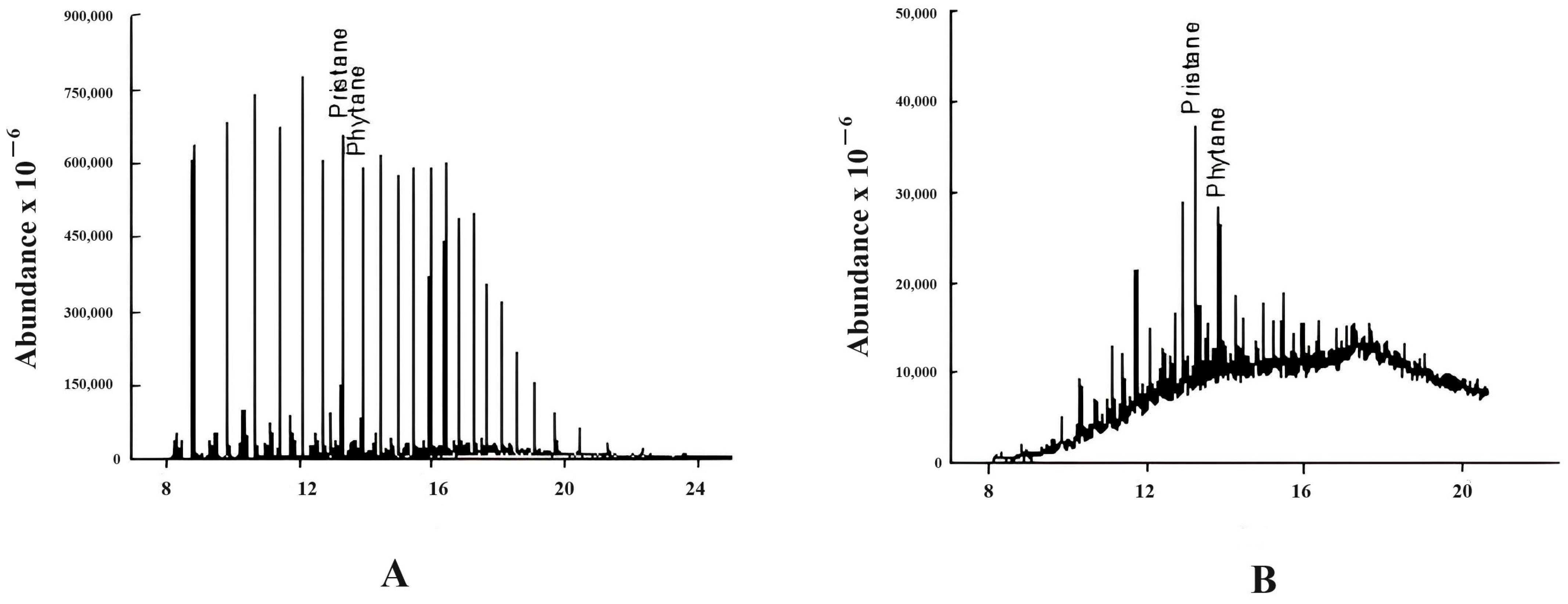

In Figure 4, chromatograms of Nuraly and Kosshagyl crude oils are shown, with Pr and Ph being identified using retention time. The detection was conducted in SIM mode at m/z 57.
The Pr/Ph ratio was obtained from the chromatograms (cf. Figure 4A,B) and is for the present study summarized in Table 3. This ratio is one of the most used correlation parameters, which has been used as an indicator for the degree of maturity and deposition environment. Further, Ph is often one of the most abundant isoprenoids in oils and has thus been widely used for estimation of the degree of oil biodegradation in the environment [68].
Pr/Ph ratio is an indicator of the deposition environment. Thus, low Pr/Ph values (<2) indicate aquatic deposition environments including marine, fresh, and brackish water (reducing conditions), whereas intermediate values (2–4) indicate fluviomarine and coastal swamp environments, and high values (up to 10) are related to peat swamp deposition environments (oxidizing conditions) [69]. According to some research [67,70], a Pr/Ph ratio lower than 0.8 in crude oil suggests deposition from anoxic source rocks. Conversely, a Pr/Ph ratio higher than 0.8 implies deposition in oxidic environments. When the Pr/Ph ratio exceeds 3.0, it signifies the presence of terrigenous plant material deposited under oxygen-rich to moderately oxidic conditions. From Table 3 it can be noted that the diagnostic ratios for virtually all Kazakh crude oils were less than 2, strongly indicative of aquatic depositional environments. Crude oils with a somewhat higher Pr/Ph ratio than 2, such as Sarybulak with 3.3, Kyzylkiya with 2.6, and Kumkol, Akshabulak, Aryskum with 2.0, indicated fluviomarine and coastal swamp environments. The ratios of the Pr/Ph for most petroleum samples discussed before in this study were typically high and varied within the range of 0.9 to 2.6 (higher than 0.8) (Table 3) indicating oxidic deposition. Only one sample from the Sorbulak field had a value of 3.3, which indicated that this petroleum was due to terrigenous plant input deposited under oxidic to suboxidic conditions.

3.2.2. Isoprenoides/n-Alkanes Ratios (Pr/n-C17 and Ph/n-C18)

Isopreniodes/n-alkanes (Pr/n-C17 and Ph/n-C18) ratios provide valuable information about the biodegradation properties and maturation of crude oils [70]. Isoprenoid hydrocarbons are generally more resistant to biodegradation than normal alkanes. Thus, the higher the ratio of the Pr to n-alkane C17, or the ratio of Ph to n-alkane C18 is a rough indicator of the relative state of biodegradation.
The Pr/n-C17 ratio serves as a method to distinguish organic matter originating from swamp environments (with values higher than 0.1) and those formed within marine settings (typically less than 0.5). However, it is important to note that this ratio can be influenced by both the maturity level of the material and the extent of biodegradation [71]. The ratio of Pr/n-C17 (Table 3) for the samples ranged from 0.2 to 0.5 for South Kazakhstan region samples (more than 0.1 and less than 0.5), indicating organic matter from a swamp and marine environment of deposition also (unless Konys—0.6).
According to the analysis (Table 3) of oils selected from West Kazakhstan, the origin of the oil is significantly different, with a ratio of Pr/n-C17 from 0.2 to 4.1. The high Pr/n-C17 ratio (>1.0) in crude oil is evidence that terrigenous plant contribution played a major role in its origin [72]. The ratio of Pr/n-C17 (Table 3, Figure 5) for the crude oils from Akkudyk, Prorva, Tengiz, Dossori, and Kashagan (less than 1) indicated a marine environment of deposition, but other oils from Atyrau region (Samples—№ 4, 5) originated from a typical type III (terrigenous).
Ph/n-C18 values less than 1.0 are indicative of non-biodegraded oils [67]. From the results (Table 3), Ph/n-C18 ratios found in the range from 0.10 to 6.3 were seen. Most crude oils (20 samples) were recorded with a Ph/n-C18 less than one (<1.0), suggesting that these samples were non-biodegraded.

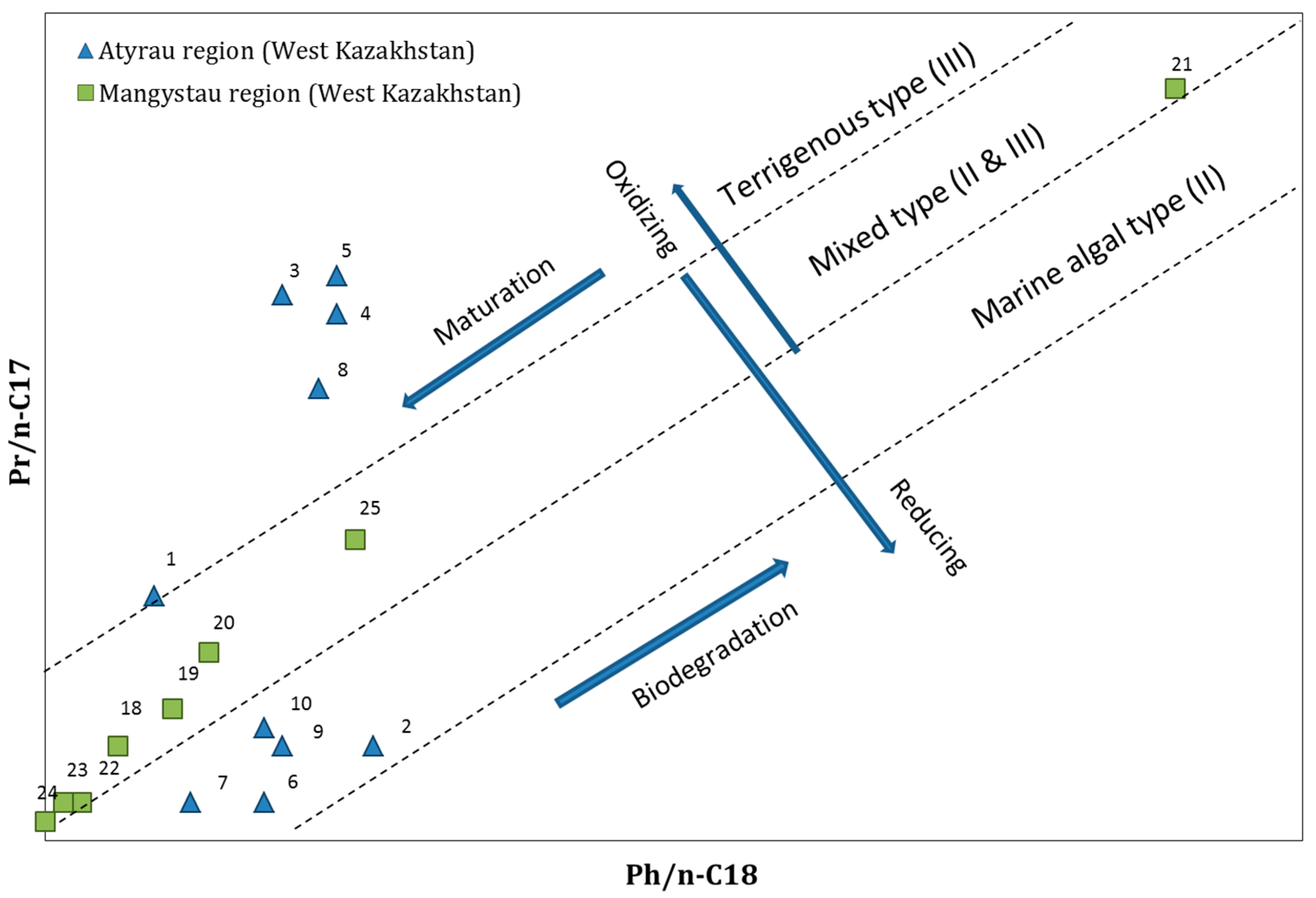

The diagram (Figure 5) shows that West Kazakhstan region crude oils have different maturation and biodegradation. The cross-plot of Pr/n-C17 against Ph/n-C18 for the Atyrau region oils samples showed that part of the samples (1, 3–5, 8) consisted of terrestrial organic matter inputs and other parts of samples showed clear marine source organic matters deposited. The cross-plot of Pr/n-C17 against Ph/n-C18 for the crude oils from the Mangystau (Figure 5) and South Kazakhstan (Figure 6) regions showed mixed organic matter (source or transitional environment).

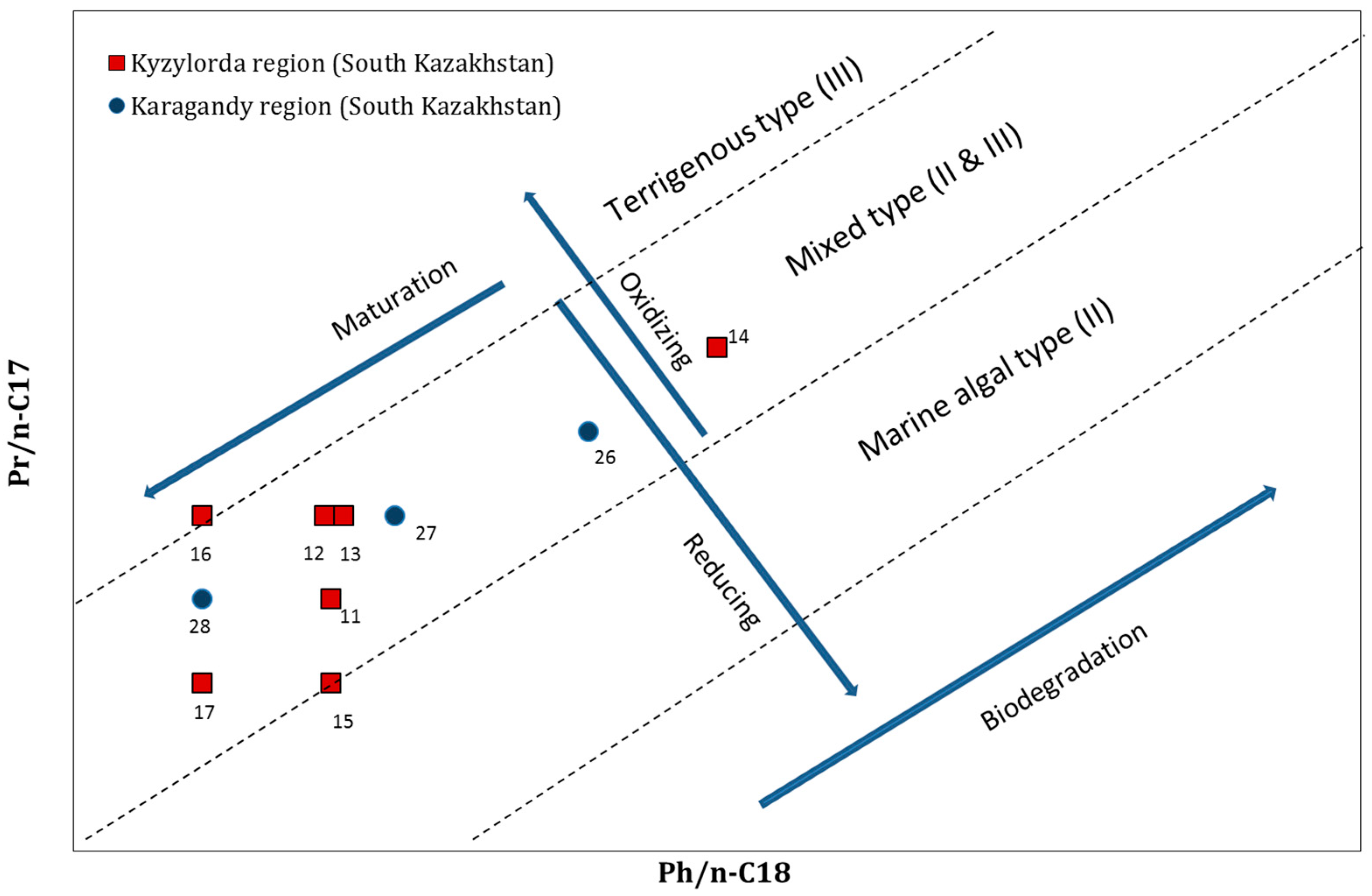

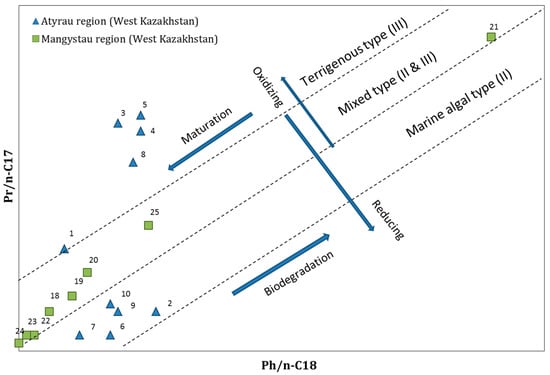

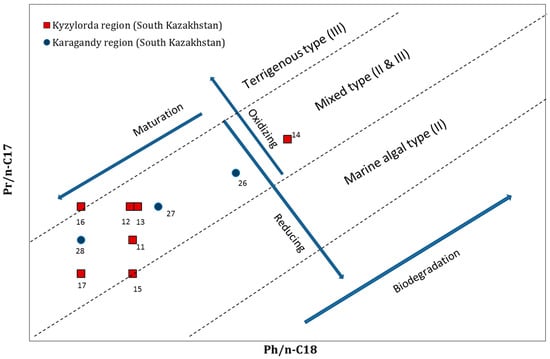

Figure 5 and Figure 6 display plots of Pr/n-C17 vs. Ph/n-C18, disclosing the depositional environment of the oils. Thus, comparing to the data in Table 3, it can be concluded that 8 samples of crude oils from West Kazakhstan, i.e., Akingen, Baichunas, Balgimbaev, Buzachi, Karamandybas, Karazhambas, Kosshagyl, and Zhanatalap, were less resistant to biodegradation in contrast to crude oils from South Kazakhstan that apparently were the most resistant.

3.2.3. Sterane Distribution (m/z 217 and 218)

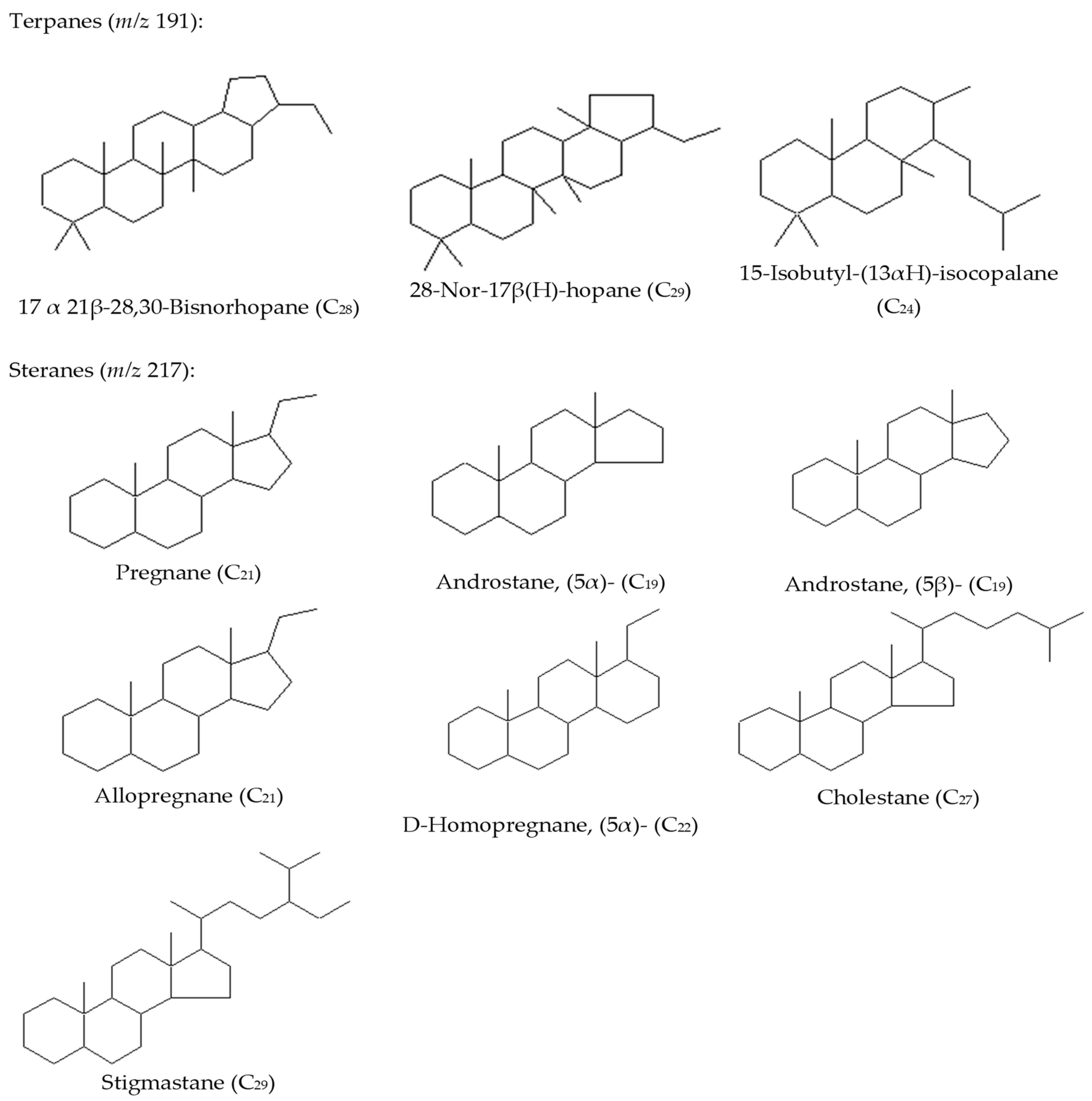

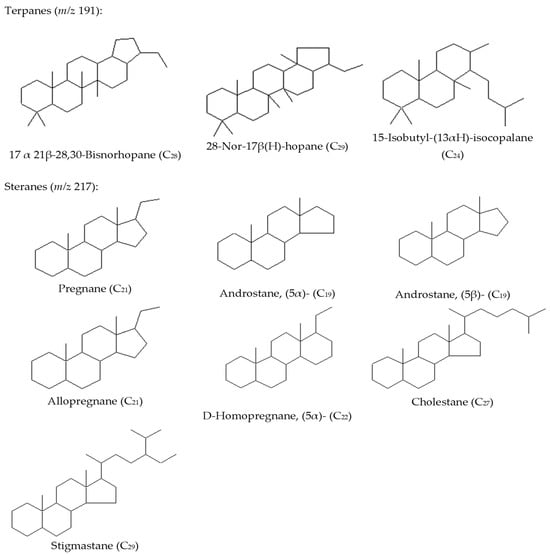

The mass chromatograms of m/z 217 and 218 ions display the distribution of steranes in crude oil samples, with steranes being the preferred biomarkers for assessing maturity. [71]. Ratios based on varying carbon numbers within the C27–C29 steranes range were employed to identify distinctions in sources. It is widely accepted that the proportions of C27–C29 steranes serve as indicators of source disparities. Elevated levels of C29 steranes are associated with organic matter primarily influenced by higher plant inputs, whereas greater proportions of C27 steranes are characteristic of marine-derived organic matter [71,73].

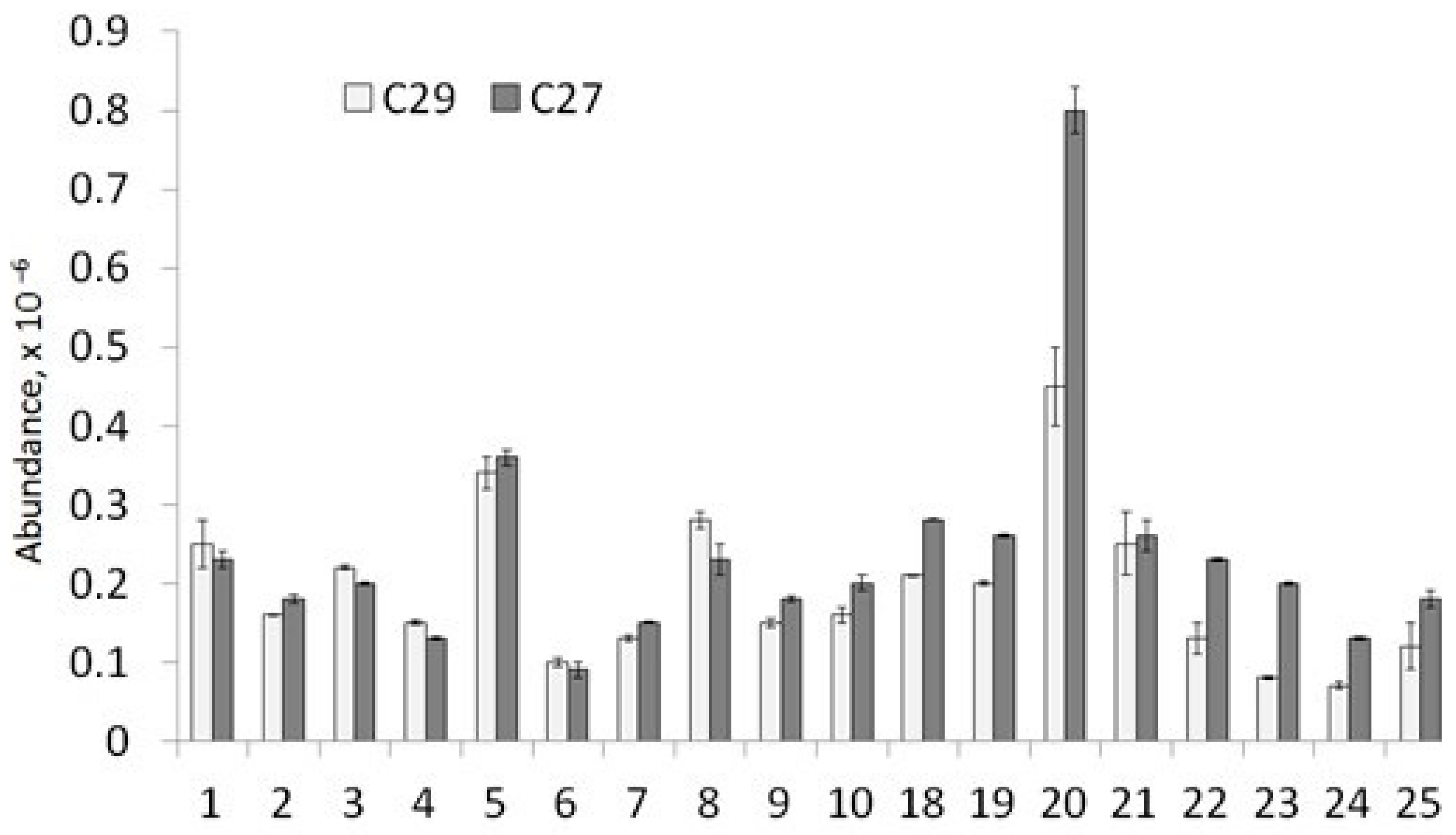

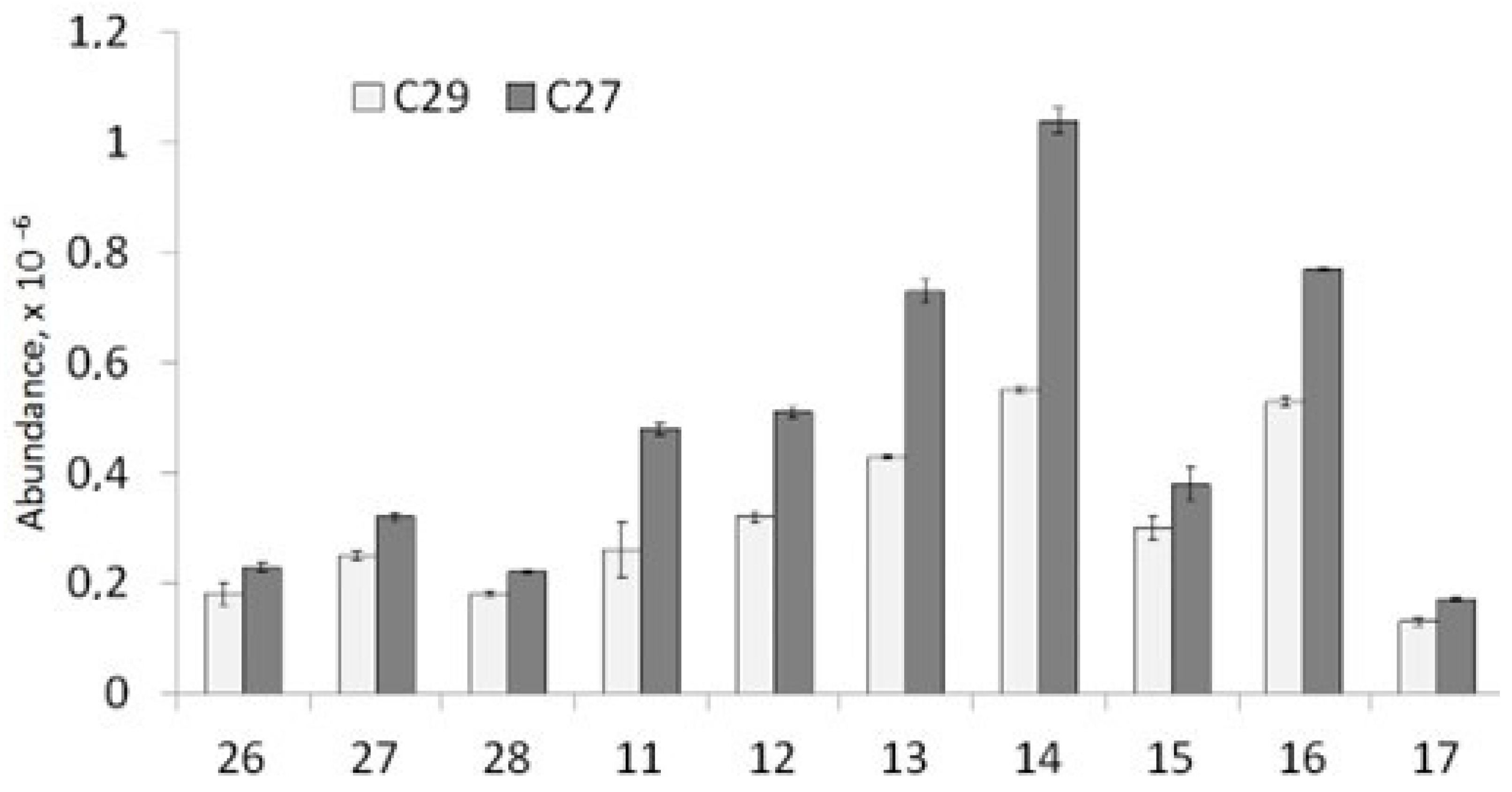

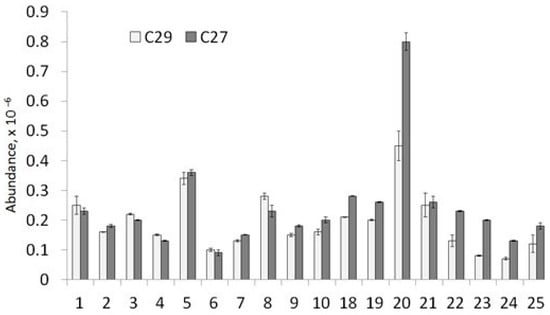

As it is shown in Figure 7, the Akingen, Baichunas, Prorva, and Zhanatalap crude oils displayed insignificant dominance of C27, only indicative of the source of these crude oils being terrestrial plants mixed with marine microorganisms. Several West crude oils showed a prominence of C29, which indicated more input of organic matter with higher plant inputs. Figure 5 indicates that the crude oils from Karazhanbas and Zhanatalap originated between mixed terrestrial and marine organic sources, while Figure 6 has a higher terrestrial plant sources input. In the case of crude oils from South Kazakhstan, all crude oils showed dominance of C29 indicative of organic matter with higher plant inputs (Figure 8). These results of sterane analysis were similar with the data gained from the ratios of Pr/n-C17 and Ph/n-C18 (Figure 6).

3.2.4. Tricyclic/Pentacyclic Terpanes (m/z 191)

Tricyclic terpanes are commonly found in marine sources and are used as a maturity indicator. The origin of tricyclic terpanes is from algae and bacteria or higher plants. They are present in oils in different concentrations relative to pentacyclic terpanes [67,68]. Their presence in oils varies in terms of concentration compared to pentacyclic terpanes. Various types of deposition environments have shown that C23 tricyclic terpanes are often dominant in marine-sourced oils while C19 and C20 members are more abundant in oils of terrestrial origin. In highly matured oils, the distribution of tricyclic terpanes is dominated more than in oils of low maturation [67,68,74]. Figure 9 contains information about the maturity of Kazakhstan crude oils. The higher the signal of the ratio of tricyclic/pentacyclic terpanes, the more mature a crude oil will be considered.

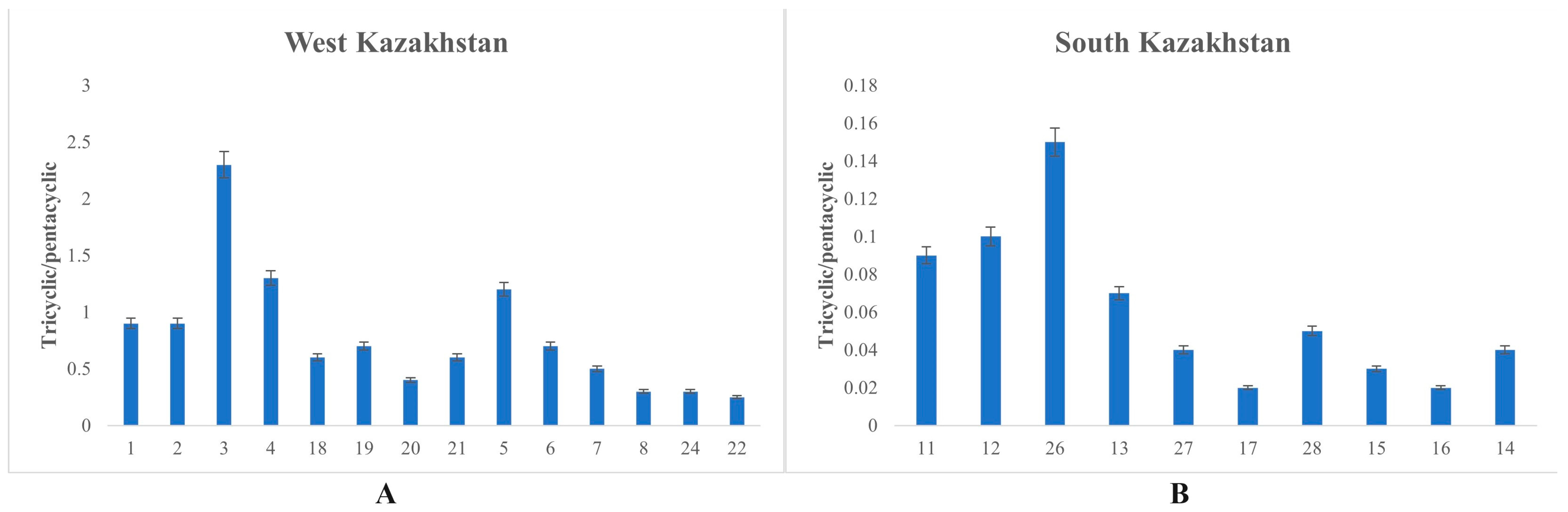

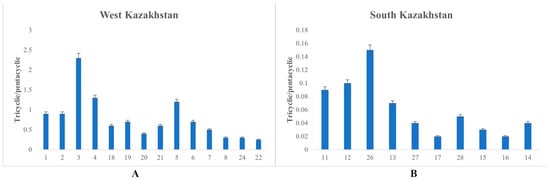

The studied crude oils sampled from Western Kazakhstan showed the highest tricyclic/pentacyclic terpanes ratios from 0.2 to 2.3. Thus, Western Kazakh oils are more mature than South Kazakh oils where ratios in the range from 0.02 to 0.15 were found.

4. Conclusions

For the first time, the petroleum biomarkers in Kazakhstan crude oils have been determined by applying optimized chromatographic parameters for sample injection and oven temperature programming. In addition, the sample preparation method was optimized.
Based on biomarker ratios it was concluded that virtually all Kazakh crude oils were formed under reducing conditions; only two oils, Kyzylkiya and Sarybulak, apparently were formed in an oxidizing environment. Crude oils from South Kazakhstan deposits are more resistant to biodegradation and weathering conditions than oils from West Kazakhstan deposits.
An indicator of source difference is shown in the Akingen, Baichunas, Balgimbaev, and Prorva crude oils where the C29 steranes dominate, strongly indicating that the source of these crude oils is terrestrial plants mixing with marine microorganisms. Far West crude oils showed a prominence of C29, indicating an increased input of plant organic origin, while crude oils from South Kazakhstan showed a prominence of C29 steranes.
Crude oils from West Kazakhstan are more mature and, thus, older than oils from South Kazakhstan.
