Analysis of Polycyclic Aromatic Hydrocarbons Using Magnetic Three-Dimensional Graphene Solid-Phase Extraction Coupled with Gas Chromatography–Mass Spectrometry

Abstract

In this study, a composite material consisting of three-dimensional graphene aerogel and iron oxide nanoparticles (3DG/Fe₃O₄) was created and utilized for the purpose of magnetic solid-phase extraction (MSPE) of thirteen polycyclic aromatic hydrocarbon (PAH) compounds via gas chromatography–mass spectrometry/selected ion monitoring (GC-MS/SIM) analysis. The synthesized adsorbent underwent a range of characterization techniques, including scanning electron microscopy, vibrating sample magnetometry, Raman spectroscopy, X-ray diffraction, Brunauer–Emmett–Teller, Fourier transform-infrared spectroscopy, and Barrett–Joyner–Halenda techniques, to examine its properties and morphology. The synthesized adsorbent integrates the benefits of superior adsorption capacity from modified graphene oxide (GO) with the magnetic separability of magnetite microparticles, resulting in a high adsorption capacity with easy separation from sample solutions. The efficiency of the proposed method was optimized and modeled using a central composite design (CCD), which considered the primary factors influencing it. The optimal conditions were obtained as the adsorbent dosage of 10 mg, the extraction time of 4 min, and the salt concentration of 3% w/v. The limit of detection for the target PAHs was established to range from 0.016 to 0.2 ng mL⁻¹ in optimal conditions, exhibiting a signal-to-noise ratio of 3. The linear dynamic range spanned from 5 to 100 ng mL⁻¹, with determination coefficients (R²) ranging from 0.9913 to 0.9997. The intra- and inter-day precisions were calculated as relative standard deviations (RSDs) equal to 3.9% and 4.7%, respectively. The proposed method was successfully applied to the determination of PAHs in water samples (tap, river, and rainwater), and recoveries in the range of 71–110% (RSDs < 5.2%, n = 3) were obtained.

1. Introduction

Polycyclic aromatic hydrocarbon (PAH) is a complex class of condensed multi-ring benzenoid compounds in linear, angular, or cluster arrangements. Due to their highly carcinogenic and mutagenic properties, PAHs have garnered growing interest in contemporary pollution research [1,2]. Based on their frequency of occurrence in the environment, the United States Environmental Protection Agency (US-EPA) has identified 16 unsubstituted PAHs as priority pollutants [3]. These PAHs include acenaphthene, anthracite, fluoranthene, fluorene, naphthalene, phenanthrene, pyrene, benz[a]anthracene, benzo[b]fluoranthene, benzo[k]fluoranthene, benzo[ghi]perylene, benzo[a]pyrene, chrysene, dibenz[a,h]anthracene, and indeno [1,2,3-cd]pyrene. These sixteen EPA PAHs were identified in the 1970s [4]. However, identifying and measuring PAHs in environmental samples is challenging due to the complex matrix. Employing sample preparation techniques is a way to overcome this obstacle. The primary aims of sample preparation encompass the elimination of possible interferences, the analyte’s preconcentration, and the analyte’s conversion into a more appropriate state for detection or separation [5,6,7]. Solid-phase extraction (SPE) has become a widely utilized method for pre-treatment environmental samples that include small contaminants. The remarkable advantages can be related to factors such as a high enrichment factor, high recovery rates, cost-effectiveness, and minimum utilization of organic solvents [8,9]. In recent times, there has been a significant exploration of several solid-phase adsorbents, including molecularly imprinted polymers (MIPs) [10], magnetic nanomaterials [11], and carbon nanomaterials. Magnetic solid-phase extraction (MPSE) is a highly promising variant of solid-phase extraction (SPE) that utilizes magnetic adsorbents. These adsorbents can be effortlessly separated from the sample matrix utilizing an external magnet.

Consequently, MPSE offers the benefits of simplified operation and reduced extraction time during sample pre-treatment. Furthermore, within the framework of MSPE, the adsorbents can achieve uniform dispersion within the sample solution by applying vortexing or shaking. This process enhances the contact surface area between the adsorbents and analytes, facilitating a rapid mass transfer. This phenomenon significantly increases extraction efficiency within a short timeframe, a highly sought-after characteristic in sample preparations conducted at a high throughput rate [12,13].

Compared with traditional materials, nanoparticles (NPs) have been attracting the attention of many researchers. This is because reducing the particle size to nano-scale leads to a much higher specific surface area and adsorption capacity [14,15]. The emergence of carbon nanomaterials, particularly with the discovery of fullerene (C60), has become a prominent and significant phenomenon in the field of solid-phase extraction (SPE). This is primarily attributed to their exceptional ability to adsorb substances, substantial surface area, simplicity of surface modification, and distinctive mechanical and electrochemical properties [16]. Graphene (G) is a two-dimensional lattice of carbon atoms arranged in a honeycomb structure [17], which was discovered by Geim et al. in 2004 [18]. Graphene is expected to be a superior adsorbent for benzenoid-form compounds due to its extensive delocalized π-electron system and strong π-stacking interaction with the benzene-ring-containing compounds. Three-dimensional graphene (3DG) architectures, formed through the assembly of 2DG flake sheets, present distinct advantages beyond the intrinsic plain graphene/oxide. These advantages encompass a notably porous structure, commendable thermal and mechanical robustness, and a high tensile and considerable adsorption capacity, enabling them to withstand considerable strain of different adsorbates. To date, multiple methodologies have been devised for the creation of 3DG structures from graphene/oxide, including template-assisted production, chemical vapor deposition (CVD), self-assembly, 3D printing, thermal/electrochemical expansion, electrochemical reduction, and centrifugal evaporation-induced methods.

Considering this, self-assembly synthesized magnetic three-dimensional graphene nanocomposites (3DG/Fe₃O₄) were used as an effective adsorbent for the enrichment of thirteen PAHs, as priority pollutants before GC-MS/SIM determination. This study employed a central composite design (CCD) to optimize and establish a model for identifying PAHs in diverse aqueous environmental samples. Under optimal conditions, the approach was successfully employed to determine the selected PAHs at trace levels in water samples collected from tap, river, and precipitation sources.

2. Materials and Methods

2.1. Reagents and Materials

The certified mixture used in this study is EPA 525 PAH Mix A, which consists of 13 polycyclic aromatic hydrocarbons (PAHs) with concentration of 500 ng mL⁻¹. The mixture contains benz[a]anthracene, benzo [b]fluoranthene, benzo[k]fluoranthene, anthracene, ben-zo[ghi]perylene, benzo [a]pyrene, chrysene, dibenz[a,h]anthracene, fluorene, acenaphthylene, and indeno [1,2,3-cd]. The chemical compounds pyrene, phenanthrene, and pyrene dissolved in methylene chloride were acquired from Supelco Analytical, a company based in Bellefonte, PA, USA. A standard solution of the target PAHs at a concentration of 50 ng mL⁻¹ was generated by diluting the first standard in methanol. Standard solutions for experiments were created daily by diluting the stock standard solution in methanol. These solutions were then stored in opaque containers at a temperature of 4 °C until chemical analysis. The chemicals used in this study were obtained from Merck Chemicals, a supplier based in Darmstadt, Germany. The specific chemicals included acetonitrile (ACN) with a purity of more than 99%, tetrachloroethylene, biphenyl, iron sulfate heptahydrate (FeSO₄·7H₂O), ammonia solution (NH₃) with a concentration of 25%, and sodium chloride (NaCl) with a minimum purity of 99.5%. The methanol (99.8%) was acquired from Sigma Aldrich Ltd. in St. Louis, MO, USA.

2.2. Apparatus

The surface morphology of the adsorbent 3DG/Fe₃SO₄ was analyzed using scanning electron microscopy (SEM) with the KYKY-EM3200 instrument (Beijing, China). The transmittance spectra employing KBr discs were recorded on an Equinox 55 FT-IR spectrometer (Bruker, Bremen, Germany). The magnetic properties of the adsorbent were assessed by using a vibrating sample magnetometer (VSM/AGFM, Kashan, Iran) at ambient temperature. The magnetic field was cycled within the range of −10 to 10 kilo-Oersted (kOe). The X-ray diffraction (XRD) patterns were obtained using an X’Pert Pro MPD X-ray diffractometer produced in Almelo, Netherlands. The X-ray source utilized Cu Kα radiation, which had a wavelength of 1.54178 Å. The Raman spectroscopy was conducted using a Senterra Dispersive Raman microscope manufactured by Bruker in Germany. The microscope was coupled with a laser light source that emitted light at a wavelength of 785 nm. The surface area, pore volume, and pore size analysis were performed utilizing the Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) techniques. The investigations were conducted utilizing an ASAP 2000 Surface Area Analyzer produced by Micromeritics Instrument Corporation. The desorption process involved using a ZX-Classic vortex mixer type (Velp Scientifica, Milan, Italy). The pH values were measured using a WTW Inolab 720 pH meter (Weilheim, Germany). A Eurosonic 4D (Euronda, Montecchio Precalcino (Vincenza) Italy) ultrasonic water bath and a vortex mixer model ZX–Classic (Velp Scientifica, Milan, Italy) were used in the extraction procedure.

2.3. Gas Chromatography–Mass Spectrometry

The gas chromatography–mass spectrometry (GC-MS) analyses were conducted using an Agilent Technologies 7890A gas chromatograph system combined with a 5975C network mass-selective detector. The eluent gas used in this experiment was helium, with a purity of 99.999%. It was introduced at a flow rate of 1 mL min^–1. The temperature of the injector was set to 280 °C. The samples (1 µL) were injected in a splitless mode for 1 min with a flow rate of 30 mL min^–1. The extracted PAHs were subjected to chromatographic separations using an HP5-MS capillary fused silica column (length of 30 m, inner diameter of 0.25 mm, and film thickness of 0.25 μm). The temperature of the column was initially set to 90 °C and held for 5 min. It was then increased to 270 °C at a rate of 20 °C per min and sustained at this temperature for a period of 23 min. Initially, electron ionization data were obtained using a full scan method at an energy level of 70 electron volts (eV) to identify suitable masses. The range of masses scanned during the experiment was set to be between 40 and 500 atomic mass units (AMU). Finally, for quantitative analysis of PAH, the selective ion monitoring (SIM) mode was used to improve instrument sensitivity for low concentrations. For identification, the quantifier ion for each PAH was chosen as the basis peak. In contrast, the two ions with the highest intensity in the mass fragmentation of each individual PAH were picked as qualifier ions.

2.4. Synthesis of the Adsorbent

Initially, the synthesis of graphene oxide (GO) was conducted using the methodology described in the literature [19]. Subsequently, the 3DG/Fe₃O₄ composite was manufactured using the vacuum freeze-dried method [20]. In this experiment, a quantity of 0.5 g of GO was introduced into a solution containing 200 mL of distilled water. The resulting mixture was subjected to sonication for a duration of 15 min. Subsequently, a quantity of 3.5 g of FeSO₄·7H₂O was dissolved in 30 mL of distilled water. This resulting solution was then introduced into the solution containing GO, followed by subjecting the mixture to ultrasonic treatment for a duration of 5 min. Subsequently, the pH of the combination was modified to a value of 11 by employing an aqueous solution of NH₃ (25%). The resulting suspension was then subjected to heating at a temperature of 90 °C for a duration of 6 h within an oil bath, with no agitation used. The nanoparticles were used to bind the reduced graphene oxide sheets, resulting in their self-assembly into a three-dimensional hydrogel. This self-assembly was facilitated by hydrophobic and π-π stacking interactions, which were enhanced by the reduction in oxygen-containing groups on the sheets. Subsequently, the 3DG/Fe₃O₄ particles were isolated through the utilization of paper filtering and subsequently rinsed with distilled water. Subsequently, the black precipitate underwent freeze-drying for a duration of 24 h, resulting in the production of a black magnetic 3DG/Fe₃O₄ aerogel [21].

2.5. The MSPE Procedure

The procedure is described in Figure 1. First, 1.52 g of NaCl was dissolved into 50 mL of the sample solution to obtain a 3.04% w/v of NaCl, and then 10 mg of the adsorbent was added to the solution and shaken for 4 min. Subsequently, the dispersed magnetic 3DG/Fe₃O₄ nanoparticles were isolated from the sample solution using an external magnet, and the supernatant was poured away. Subsequently, the adsorbent underwent two washes using 1 mL of distilled water each to prevent any additional precipitation of NaCl during the enrichment process. Subsequently, a volume of 1 mL of a combination consisting of acetonitrile (ACN) and carbon tetrachloride (C₂Cl₄) in a ratio of 4:1 was introduced as the desorption solvent to the separated 3DG/Fe₃O₄. The resulting mixture was then subjected to vertexing for a duration of 30 s. The procedure was replicated two times, and afterward, the resultant desorption solutions were combined. Next, the solvent was evaporated under a nitrogen stream at 60 °C. Finally, the residue was dissolved in 0.1 mL of tetrachloroethylene, and 1 μL of it was analyzed using gas chromatography.

3. Results and Discussion

3.1. Characterization

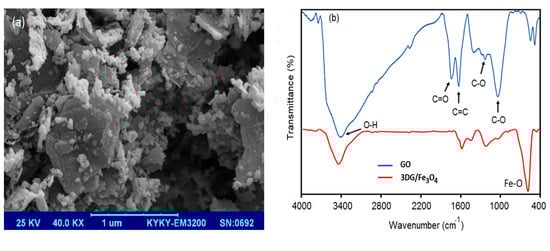

The morphology, chemical composition and structure, and magnetic characteristics of the adsorbent were characterized using various techniques, including SEM, FTIR, VSM, XRD, Raman spectroscopy, BET, and BJH. Figure 2a shows the SEM imaging of 3DG/Fe₃SO₄, in which the reduced GO nanosheets are arbitrarily assembled into an interconnected porous 3D network structure, and the iron oxide nanoparticles are well spread in all parts of the 3DG assembly, attached to the graphene sheets. Figure 2b illustrates the FT-IR transmittance spectra of GO and 3DG/Fe₃SO₄. The main characteristic peaks in the GO spectrum that are observed at 3440, 1734, 1622, 1220, and 1034 cm⁻¹ could be ascribed to the stretching vibrations of carbonyl C=O, aromatic C=C, epoxy C–O, and hydroxyl C–O functional groups, respectively. In the 3DG/Fe₃O₄ infrared spectrum, the intensity of oxygen-containing functional groups mentioned above has considerably decreased. This indicates an effective reduction in GO sheets during the synthesis of 3DG hydrogel. Furthermore, the peak at 574 cm^–1 is assigned to the Fe–O stretching vibrations. Therefore, it can be inferred that the 3DG/Fe₃O₄ hydrogel has been effectively produced through the co-assembly process of graphene sheets and Fe₃O₄ nanoparticles.

The magnetic characteristics of the 3DG/Fe₃O₄ nanocomposite were examined through the utilization of the vibrating sample magnetometer (VSM) technique at ambient temperature. The resulting VSM graph is depicted in Figure 2c. In the case of superparamagnetic particles, the magnetization tends toward zero as the external field approaches zero. The saturation magnetization (Ms) can also be determined by analyzing the plateau region of the VSM curve [22,23]. The magnetic hysteresis curve exhibits an S-shaped characteristic and intersects the magnetization zero point, indicating the absence of both remanence and coercivity. This observation indicates the presence of the superparamagnetic characteristic in the 3DG/Fe₃O₄ material.

Furthermore, the observed saturation magnetization value of 54.8 emu g⁻¹ indicates the exceptional magnetic characteristics of the material. Nevertheless, the recorded value is comparatively lower than the magnetization of the uncoated Fe particles (81.9 emu g⁻¹), as documented in prior investigations [24]. The observed disparity can be ascribed to the impact of the non-magnetic layers of GO on the overall magnetization. According to a study conducted by Ma et al. [25], it was observed that a saturation magnetization of 16.3 emu g⁻¹ was enough for the separation of magnetic particles from a solution through the utilization of a magnet. Therefore, the magnetic composite of three-dimensional graphene/Fe₃O₄, which has PAHs adsorbed onto its surface, can be easily isolated from a solution sample in less than 30 s using an external magnet. This is possible because of the composite’s superparamagnetic properties and high saturation magnetization.

Figure 2d presents the X-ray diffraction (XRD) patterns of GO, Fe₃O₄, and 3DG/Fe₃O₄. The X-ray diffraction (XRD) pattern of graphene oxide exhibits a distinct and well-defined peak at an angle of 2θ = 12.26°, which can be attributed to the (0 0 2) reflection of GO. The observed diffraction peaks at certain angles of 18° (111), 30° (220), 36° (311), 43° (400), 54° (422), and 64° (440) align with the expected diffraction pattern of Fe₃O₄ nanoparticles, as indicated by the standard X-ray diffraction (XRD) data for Fe₃O₄ (JCPDS, No. 65-3107). The XRD pattern seen in Figure 2d illustrates the ultimate state of the adsorbent, wherein the distinct peak corresponding to GO has been eliminated, revealing the presence of Fe₃O₄ nanoparticles. The observed patterns suggest the successful synthesis of 3DG/Fe₃O₄ in its entirety.

Further investigation was conducted on the structural modifications that occurred after the self-assembly and reduction process, encompassing disorganized and defective structures. This analysis involved the utilization of Raman spectroscopy to investigate the properties of GO and 3DG/Fe₃O₄, as depicted in Figure 2e. The dominant peaks identified in the GO spectra are located at around 1340 and 1590 cm⁻¹, corresponding to the D and G bands, respectively. The D band arises because of the mode produced by structural defects and imperfections, resulting in a state of disorder. Conversely, the G band is indicative of sp2-hybridized carbon–carbon bonds. The intensity ratio, commonly denoted as ID/IG, is commonly utilized as a quantitative measure of disorder. In graphene oxide, the ratio of intensities between the D and G bands (ID/IG) is 0.95 but shows an increase to 1.28 in the context of three-dimensional graphene/iron(III) oxide (3DG/Fe₃O₄). The observed rise in the ID/IG ratio indicates that the reduction and magnetization processes have modified the GO structure.

The measurement of the specific surface area and pore size distribution of 3DG/Fe₃O₄ was carried out using the two methods of Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH), respectively (see Figure 2f). The characterization of the porous structure involves the observation of a hysteresis loop in the relative pressure (p/p⁰) range of 0.45–0.95 in the nitrogen adsorption–desorption isotherm. The adsorption–desorption behavior exhibited in a uniform pore system featuring a parallel wall slit-like pore structure is marked by a notable augmentation in adsorption at the relative saturation pressure, as well as a substantial reduction in desorption at specific relative saturation pressures. The BET analysis yielded a specific surface area of 218 m² g^–1 for the pure 3DG/Fe₃O₄ sample. The pore size of 3DG/Fe₃O₄ was determined using the BJH approach, revealing a narrow pore size distribution of around 5.9 nm (Figure 2f).

3.2. Response Surface Modeling and Optimization

In this study, a central composite design (CCD) method was utilized to optimize the magnetic solid-phase extraction of PAHs.

The CCD offers an efficient approach for rapid and systematic optimization of a method with multiple interacting parameters. A central composite design consists of a factorial design at two levels (N_f = 2^k), a star design (N_s = 2k), and a set of replicated center points (N₀), where k indicator is the number of parameters that are examined in five levels [26]. The star points are positioned at positive α and negative α distances from the center of the experimental domain. The value of α, necessary for ensuring rotatability, was determined to be ±1.682 through the utilization of the following equation.

α = ∜(N_f)

(1)

The main parameters, their levels, and symbols are given in Table S1. The efficiency of the MSPE process is influenced by several key characteristics, as determined through our initial analyses and experimental investigations. These parameters include the dose of adsorbent, the duration of extraction, and the concentration of salt. The extraction efficiency (response) was determined by measuring the peak area of thirteen PAHs through chromatographic analysis. The number of required experiments (N) for the CCD was determined to equal 23 using Equation (2):

N = N_f + N_s + N₀

(2)

The order of experimental runs in optimization was randomized in order to decrease the effects of nuisance factors. Table S2 displays the matrix of the design, which encompasses the number and sequence of the experiments, the levels of the components within each experiment, and the corresponding responses (the Supplementary Data File). After performing all 23 experiments and analysis of obtained responses, a quadratic polynomial regression model was obtained through the stepwise selection method. The regression model with actual factors is given in Equation (3).

Y = 3585 + 252A + 18S − 44T − 13AS + 16ST − 5A² − 3T²

(3)

where Y, A, S, and T represent the variables denoting the total chromatographic peak area, adsorbent dosage, salt concentration, and extraction time, respectively. The statistical significance of the model terms was assessed using the analysis of variance (ANOVA) approach, as presented in Table S3.

To determine how well the generated model fits the data, the statistical parameters of R² (determination coefficient), adjusted-R² (adj-R²), and predicted-R² (pred-R²) were used. The coefficient of determination, denoted as R², is a statistical metric that quantifies the degree of fit between the observed data and the regression line. Its value ranges from 0 to 1. The closer the value to unity, the better the fit achieved for the data. The adj-R² is a modified version of R² that has been adjusted for the number of terms in the model. It increases only if the optimized term improves the model more than would be expected by chance. The adj-R² usually has a positive value lower than the R². The predictive R-squared (pred-R2) is a metric that quantifies the ability of a regression model to accurately anticipate the responses of incoming observations. This statistical measure aids in assessing the adequacy of the model in accurately representing the original dataset while also highlighting its limitations in generating reliable predictions for novel observations. Both the adjusted R-squared (adj-R²) and anticipated R-squared (pred-R²) provide useful insights for assessing the adequacy of the number of terms in a model. The adjusted R-squared value has the potential to be positive or negative, and it consistently remains lower than the R-squared number. The predicted R-squared, like the adjusted R-squared, has the potential to assume negative values and consistently remains lower than the R-squared. Typically, a desirable outcome is to observe a difference of around 0.2 between the values of pred-R² and adj-R². The values of R², adj-R², and pred-R² are 0.95, 0.93, and 0.81, respectively. The metrics serve to validate and demonstrate the appropriateness of the suggested model. Furthermore, the leverage and Cook’s distance test for the identification of outliers did not identify any outliers in the datasets.

The response surface plot in Figure 3a depicts the interaction between adsorbent dose and salt concentration in a three-dimensional (3D) representation. As can be seen, at low adsorbent dosages (5–14 mg), adding salt to the aqueous sample solution enhances the extraction efficiency of PAHs due to the salting-out effect. In this condition, the solubility of PAHs decreases with increasing molecular weight or the number of aromatic rings. Therefore, higher recoveries are obtained for PAHs with four or more aromatic rings, such as pyrene, benzo[a]anthracene, and chrysene [27]. When the adsorbent dose exceeds 14 mg, the addition of salt has a diminishing effect on the extraction efficiency. The loss of adsorption capacity can be caused by two main parameters: firstly, the deposition of salt in the pores of the 3DG/Fe₃O₄ hydrogel, and secondly, the rise in viscosity of the aqueous solution, which hinders the diffusion of analytes from the bulk solution to the adsorbent [28,29]. The effect of the interaction of salt and extraction time on the extraction efficiency was also studied, and the related 3D response surface plot is depicted in Figure 3b. The plot shows that if salt is added in the first time period of extraction (<7.2 min), the efficiency decreases due to the deposition of salt in the pores of 3DG/Fe₃O₄ hydrogel and reduces the adsorption capacity. However, at extraction times longer than 7.2 min, adding salt enhances extraction efficiency. This could be ascribed to the salting out effect. Finally, to obtain the optimum condition, the Nelder–Mead simplex optimization method was used, and the obtained optimal condition is as follows: 10 mg for adsorbent, 4 min for extraction time, and 3.0% w/v for salt concentration.

To assess the precision of the outcomes derived from the response surface model, an approach was implemented utilizing the optimal circumstances. The experimental response with three replicates was 5116 (RSD% = 2.1). Hence, a notable concurrence was seen between the computed optimal response and the experimental response.

3.3. Method Validation

The current investigation evaluated the linear dynamic range (LDR), limit of detection (LOD), limit of quantitation (LOQ), and precision of the suggested methodology under optimal conditions. The results of these assessments are displayed in

Table 1. Analytical merit of the developed MSPE-GC-FID method.

Compound	LDR a	R2 b	Calibration Equation	LOD c	LOQ d	RSD e (%), n = 3
Acenaphthylene	5–100	0.9984	Y = 3.6x + 13.0	0.02	0.05	2.1
Fluorene	5–100	0.9990	Y = 8.4x − 20.6	0.11	0.36	2.6
Phenanthrene	5–100	0.9997	Y = 11.3x − 7.2	0.20	0.73	1.9
Anthracene	5–100	0.9973	Y = 11.8x − 7.8	0.20	0.73	3.0
Pyrene	5–100	0.9989	Y = 15.8x − 11.3	0.02	0.06	3.1
Benz[a]anthracene	5–100	0.9945	Y = 6.9x − 5.1	0.14	0.46	3.6
Chrysene	5–100	0.9948	Y = 7.5x − 0.04	0.04	0.13	3.0
Benzo[b]fluoranthene	5–100	0.9925	Y = 2.5x + 7.5	0.20	0.66	2.9
Benzo[k]fluoranthene	5–100	0.9913	Y = 2.5x + 3.6	0.17	0.56	3.9
Benzo[a]pyrene	5–100	0.9913	Y = 1.6x − 8.4	0.10	0.33	3.3
Indeno [123-CD]pyrene	5–100	0.9925	Y = 0.2x − 1.3	0.12	0.40	3.5
Dibenz[ah]anthracene	5–100	0.9987	Y = 0.2x − 1.0	0.12	0.40	3.8
benzo[ghi]perylene	5–100	0.9965	Y = 0.2x − 1.8	0.12	0.40	2.8

^a Dynamic range (ng mL⁻¹). ^b Determination coefficient. ^c Limit of detection (ng mL⁻¹). ^d Limit of quantification (ng mL⁻¹). ^e Coefficient of variation.

. The linearity of the method being investigated was assessed by analyzing standard solutions of PAHs at different concentrations of 5, 10, 25, 50, and 100 ng mL⁻¹. The solutions contained biphenyl at a concentration of 50 ng mL⁻¹, which functioned as the internal standard. The calibration curves were generated using the graphical representation of the overall peak area against the amounts of PAHs. The approach exhibited linearity within the concentration range of 5 to 100 ng mL⁻¹, with determination coefficients (R2) ranging from 0.9913 to 0.9997. The LODs and LOQs were determined using the following formulas: CLOD = 3 × Sd/m (where Sd is the standard deviation of the blank and m is the slope of the calibration graph), and CLOQ = 10 × Sd/m. The LODs were found to range from 0.016 to 0.20 ng mL⁻¹, while the LOQs ranged from 0.053 to 0.66 ng mL⁻¹. The assessment of the method’s precision was conducted by calculating the relative standard deviation (RSD%) through the repetition of the proposed procedure on three consecutive days. The RSDs for intra-day and inter-day measurements were found to be 3.9% and 4.7%, respectively.

3.4. Reusability of the Adsorbent

The investigation focused on examining the reusability of 3DG/Fe₃O₄ over a series of successive adsorption/elution cycles. Following the desorption of the analyte, the adsorbent underwent two subsequent washes, each consisting of 2 mL of ethanol and 2 mL of distilled water, respectively. Subsequently, the material was subjected to a drying process and then repurposed for subsequent iterations. The experimental findings indicate that the 3DG/Fe₃O₄ composite material exhibits a high degree of reusability, as it may be employed for extraction purposes for a minimum of 30 cycles without experiencing a notable decline in extraction recovery efficiency.

3.5. Analysis of Real Samples

The suitability of the suggested methodology for the analysis of PAHs in real samples was also assessed. For this, a variety of water samples, such as rainwater, river water, and tap water, were chosen and subjected to analysis using the prescribed methodology under the optimal parameters. The rainwater samples were collected at six different locations in Tehran (northern Iran) during periods of heavy rain and other periods of mixed rainfall. A water sample from the Darband River, located north of Tehran, Iran, was obtained for analysis. Numerous hookah-serving establishments can be found near riverbanks, where their effluent is discharged directly into the river without undergoing any form of treatment. The tap water sample was obtained from the laboratory located on the university campus. The water samples that were gathered underwent filtration using a membrane filter with a pore size of 0.45 mm. Subsequently, the filtered samples were stored in glass bottles designed to block out light and kept at a temperature of 4 °C until they were ready to be analyzed. To assess the matrix’s influence on the recovery method’s effectiveness, the samples were spiked with a standard solution, including a blend of PAHs at a concentration of 25 ng mL⁻¹. Following that, the specimens underwent examination utilizing the suggested methodology. Determining relative recoveries (RRs) involved the application of Equation (4) to the results from the process, which are summarized in

Table 2. Determination of PAHs in real water samples.

Compound	Added (ng mL−1)			Found (ng mL−1)			Recovery (%)
	Tap Water	River	Rainwater	Tap Water	River	Rainwater	Tap Water	River	Rainwater
Acenaphthylene	0	0	0	n.d.	2.84	0.6	106.29	106.62	81.82
	25	25	25	43.45	29.49	21.06
Fluorene	0	0	0	n.d.	n.d.	4.6	97.03	73.44	45.94
	25	25	25	24.25	18.36	16.08
Phenanthrene	0	0	0	n.d.	n.d.	n.d.	79.88	62.24	71.06
	25	25	25	19.97	15.56	17.76
Anthracene	0	0	0	n.d.	n.d.	n.d.	86.17	66.15	74.97
	25	25	25	21.54	16.53	18.74
Pyrene	0	0	0	n.d.	n.d.	2.3	64.85	46.42	61.85
	25	25	25	16.21	11.6	17.79
Benz[a]anthracene	0	0	0	n.d.	n.d.	2.46	59.1	17.41	53.33
	25	25	25	14.77	4.35	13.33
Chrysene	0	0	0	n.d.	n.d.	1.1	50.94	10.93	41.34
	25	25	25	12.73	2.73	10.35
Benzo[b]fluoranthene	0	0	0	n.d.	5.36	7.63	102.63	82.58	85.08
	25	25	25	25.65	26.01	21.27
Benzo[k]fluoranthene	0	0	0	n.d.	n.d.	n.d.	103.97	94.12	79.58
	25	25	25	25.99	23.53	19.89
Benzo[a]pyrene	0	0	0	n.d.	n.d.	n.d.	98.83	83.91	68.73
	25	25	25	24.71	20.97	17.18
Indeno [123-CD]pyrene	0	0	0	n.d.	n.d.	n.d.	109.08	97.53	82.68
	25	25	25	27.27	24.38	20.68
Dibenz[ah]anthracene	0	0	0	n.d.	n.d.	n.d.	109.13	101.54	84.47
	25	25	25	27.28	25.38	21.11
benzo[ghi]perylene	0	0	0	n.d.	n.d.	n.d.	109.97	101.36	87.59
	25	25	25	27.49	25.38	21.89

. The findings suggest that the approach developed has the potential to be effectively utilized for the measurement of PAHs at low concentrations in real water samples from the environment. The PAHs were not detected in tap water, and the high recoveries in tap water were due to a clean matrix. The low recoveries in river and rainwater could be due to the complex matrix samples. However, the PAHs were detected in river and rainwater, which probably contain discharge from industries and vehicle activities. Figure 4 illustrates the gas chromatography–flame ionization detection (GC-FID) chromatograms obtained for the standard mixture of PAHs, as well as the non-spiked and spiked tap water samples, all of which were analyzed using the optimized experimental parameters. Figure 5 shows the GC-Fid chromatogram of the non-spiked and spiked tap water samples.

$$RR\left(\%\right)=\frac{C_{found}-C_{real}}{C_{added}}\times 100$$

(4)

The concentration of the analyte in the spiked sample solution (C_found), ascertained through the utilization of the calibration curve, can be compared with the concentration of the analyte in the non-spiked sample solution (C_real) and the concentration of the standard solution that was introduced to the real sample (C_added).

3.6. Comparison with Other Methods

A comprehensive review of the literature was conducted to identify previously documented methodologies for the quantification of PAHs and to compare them with the suggested approach. As can be seen in

Table 3. A comparison of the MSPE-GC/FID/MS approach that was proposed with existing procedures for the determination of PAHs that have been described in the past.

Adsorbent	Method	PAHs	LOD a	LDR b	RSD c (%)	Time (min)	Dosage (mg)	Ref.
G/Fe3O4@PT d	MSPE-GC/FID	5	0.01–0.02	0.03–80	4.3–6.3	10	20	[30]
CNFs-Fe3O4 e	MSPE-GC/FID	3	0.01–0.03	0.08–100	3.2–11.2	15	10	[31]
M-C18 f	MSPE-GC/MS	16	0.8–36	10–800	2–10	6	50	[32]
Fe3O4-ppy g	MSPE-GC/MS	10	(0.38 − 5.01) × 103	0.01–2	13.3	3	20	[33]
MNPs-N6 h	MSPE-UPLC i	4	0.05–0.58	1–50	6.9	32	40	[34]
OPA/MMNPs j	MSPE-GC/MS	16	0.01–0.07	0.2–100	17.6	2	50	[13]
3DG/Fe3O4	MSPE-GC/FID/MS	13	0.01–0.07	0.03–100	2–7	4	10	This work

^a Limit of detection (ng mL⁻¹). ^b Linear dynamic range (ng mL⁻¹). ^c Relative standard deviation. ^d Graphene/Fe₃O₄/polythiophene. ^e Magnetic carbon nanofibers. ^f Magnetic C₁₈ microspheres. ^g Fe₃O₄/polypyrrole nanoparticles. ^h Magnetic nanoparticles-nylon 6. ⁱ Ultra-performance liquid chromatography. ^j n-Octadecylphosphonic-acid-modified mesoporous magnetic nanoparticles.

[13,30,31,32,33,34], the linearity of the proposed method (3 × 10³) is broader than that of the other MSPE methods such as Fe₃O₄-ppy MSPE-GC/MS (0.01–2). The precision is better than the methods mentioned in Table 3. Furthermore, the LODs exhibit similarities, but the dosage of adsorbent employed is lower in comparison to alternative methodologies. The shorter extraction time (4 min) and low adsorbent dosage (10 mg) in the present method can be attributed to the large surface area of the adsorbent that it provides. This property facilitates a fast mass transfer and rapid establishment of the extraction equilibrium.

4. Conclusions

This study highlights the potential of graphene nanomaterials as effective adsorbents for environmental pollutants, exploiting graphene’s unique attributes such as super high surface area and strong π−π interaction on the surface. Preconcentration, extraction, and analysis of thirteen PAHs in environmental water samples were carried out utilizing a response-surface-optimized MSPE approach coupled with GC-FID/MS. The extraction procedure was based on the magnetic three-dimensional graphene nanocomposite (3DG/Fe₃O₄). The favorable extraction performance of the adsorbent (3DG/Fe₃O₄) can be attributed to its structural properties. The accessibility of the phenyl rings of PEA grafted on the GO nanosheets allows for effective interaction with PAHs due to the presence of a delocalized electron system. The approach incorporates environmentally friendly chemistry (due to the minimal consumption of organic solvents), a reasonably inexpensive procedure, a quick extraction time, low adsorbent use, and much simplified adsorbent separation, all while avoiding time-consuming operations such as centrifugation. In addition, the extensive delocalized π-electron system and strong π-stacking interactions of 3DG/Fe₃O₄ with the aromatic-ring-containing compounds increase the selectivity of the adsorbent toward PAHs.
