Review

A Review on the Nanofiltration Process for Treating Wastewaters from the Petroleum Industry

by
Shahryar Jafarinejad
1,* and
Milad Rabbani Esfahani
2
1
Chemical Engineering Department, College of Engineering, Tuskegee University, Tuskegee, AL 36088, USA
2
Department of Chemical and Biological Engineering, College of Engineering, The University of Alabama, Tuscaloosa, AL 35487, USA
*
Author to whom correspondence should be addressed.
Separations 2021, 8(11), 206; https://doi.org/10.3390/separations8110206
Submission received: 19 October 2021 / Revised: 2 November 2021 / Accepted: 2 November 2021 / Published: 4 November 2021
(This article belongs to the Section Environmental Separations)
Browse Figure
Versions Notes

Abstract

:
Activities and/or processes in different segments of the petroleum industry, including upstream and downstream, generate aqueous waste streams containing oil and various contaminants that require treatment/purification before release/reuse. Nanofiltration (NF) technology has been approved as an efficient technology for treating wastewater streams from the petroleum industry. The primary critical issues in an NF treatment process can be listed as mitigation of membrane fouling; selection of appropriate pre-treatment process; and selection of a suitable, cost-effective, non-hazardous cleaning strategy. In this study, NF separation mechanisms, membrane fabrication/modification, effective factors on NF performance, and fouling are briefly reviewed. Then, a summary of recent NF treatment studies on various petroleum wastewaters and performance evaluation is presented. Finally, based on the gaps identified in the field, the conclusions and future perspectives are discussed.

1. Introduction

Petroleum (crude oil and natural gas) is one of the world’s main energy sources; and it is an essential provider for many other industries [1,2]. Water is used in different segments of the petroleum industry including upstream and downstream for different applications such as production, cooling, washing, processing, etc. [3]. The exploration and production of petroleum, processing of hydrocarbons in refineries and petrochemical plants, and even other activities like storage, transportation, and distribution of petroleum products [2,4,5], can generate aqueous waste streams containing oil and various contaminants that require treatment/purification before release/reuse. If not suitably treated, the oily wastewater streams not only contaminates the environment and endangers water resources and human health but also decreases the reuse capability of oil and water [2,6,7,8,9,10,11,12,13,14,15].
Produced water, water produced as a byproduct during the extraction of oil and natural gas, from both oil and gas fields is the petroleum industry’s most massive waste stream by volume [16,17]. It has a complex composition consisting of various organic and inorganic compounds [18,19]. There are different approaches regarding the waste management of produced water including (i) avoiding the production of water onto the surface by polymer gels or downhole water separators; (ii) injecting into formations after probable treatment to decrease fouling and bacterial growth; (iii) possible discharging to the environment according to the discharge regulations; (iv) reusing within the petroleum industry operations with minimal treatment; and (v) remarkable treatment for beneficial uses [16,18,20].
In the petroleum industry, a range of wastewater treatment technologies, including primary treatment processes such as physical and physicochemical processes; secondary treatment processes such as suspended and/or attach growth biological processes; and tertiary treatment processes such as sand filtration, membrane processes, ion exchange, chemical oxidation, advanced oxidation processes (AOPs), etc., have been utilized to treat wastewater streams [2,11,12,13,14,21,22,23,24]. There is an increasing interest in designing the new energy-efficient, cost-effective, reliable, resilient, and sustainable wastewater treatment systems [25].
Pressure-driven membrane processes are the most commercial membrane filtration technology [26]. Based on the membrane pore sizes, these processes have typically been classified into microfiltration (MF), ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO) [27]. These membranes have usually been utilized to treat wastewater streams from the petroleum industry by applying high pressure (high energy) across the membranes [28,29,30,31,32]. In comparison with the conventional treatment techniques, the membrane technology offer advantages such as effective removal of oil, compact design, less-necessity for chemical additives [33,34,35,36,37] and stable effluent quality [36]. The feed streams with high oil concentration cannot be treated by MF and UF due to their relatively larger membrane pores, whereas NF and RO, with higher rejection in comparison with MF and UF, suffer from high energy consumption [2,32,38,39,40,41]. In the tradeoff between the acceptable rejection and energy-consumption, NF has potential to replace RO membranes because of lower operating pressure and/or energy consumption [27,42,43,44,45], relatively lower investment, operation, and maintenance costs [44]. There is a need to comprehensively review treating wastewater streams from the petroleum industry using the NF process. Thus, this study intends to review the treatment of petroleum wastewater streams by NF technology and then, based on the gaps identified in the area, discuss the conclusions and future perspectives.
The remaining sections of this paper are organized as follows. In Section 2, NF separation mechanisms, membrane fabrication/modification, effective factors on NF performance, and fouling are briefly reviewed. Section 3 includes a discussion of recent NF treatment studies on various petroleum wastewaters and performance evaluation. Finally, Section 4 discusses conclusions and future perspectives of this study.

2. Nanofiltration

2.1. Nanofiltration Fundamentals

In the mid-1980s, Eriksson [46] used the term NF for the new class of membranes that their characteristics fall between UF and RO [2,26,46,47,48,49]. The pore size and molecular weight cut-off (MWCO) of NF membranes are 1–10 nm [50,51,52] and 100–2000 Da [26], respectively. The operating pressure is usually 5–35 bar [49]. These membranes are relatively impermeable to divalent ions, dissolved organic matter, pesticides, and other macromolecules, but tend to pass monovalent ions [2,27,51,53,54].
Wetted surface, preferential sorption-capillary, solution-diffusion, charged capillary, and finely porous rejection mechanisms have been presented by Macoun [55] as the major rejection mechanisms. Further information can be found in Macoun [55] and Shon et al. [27]. A combination of charge effect repulsion, solution diffusion, and sieving through micro/nano-pores have been reported as separation mechanisms [2,26,56]. Among the mentioned mechanisms, the sieving and charge effects are two dominant separation mechanisms of NF membranes. Uncharged or high molecular weight solutes are separated by sieving or size exclusion mechanism. Whereas the charged solutes are separated by both sieving and the electrostatic interaction between the solute species and the membrane surface (Donnan phenomenon) [26,37,47,49,52,57,58].

2.2. Nanofiltration Process Applications

NF membranes can relatively reject divalent ions, multivalent ions, organics, starch, sugar, pesticides, herbicides, and other macromolecules [16,54,56]. In comparison with MF and UF processes, this process has higher efficiencies in the reduction of chemical oxygen demand (COD) and total dissolved solids (TDS) and also operates under low pressure (i.e., low energy usage) conditions compared to RO process [59]. Thus, there has been an increasing interest to use NF technology as an effective process in a variety of applications:
  • Food industries including dairy [60,61], beverage [62,63,64], sugar [65,66], vegetable oil [67,68] and plant extracts [49,69];
  • Textile industry and dye concentration [49,70,71,72,73];
  • Biotechnological/pharmaceutical industry [49,50,74,75,76];
  • Water purification: Water softening, removal of natural organic matter, heavy metals, viruses and bacteria from water [37,49,50,77,78,79,80,81]; and
  • Wastewater treatment: Olive mill wastewater [82,83], coke wastewater [84], municipal wastewater [85,86], leachate [87,88], car wash wastewater [89], pulp and paper wastewater [90], oily wastewater from the petroleum industry [59], etc.

2.3. Factors Affecting the Nanofiltration Process Performance

NF process performance is significantly influenced by membrane characteristics, feed characteristics, and operational conditions [26]. Membrane characteristics including MWCO, porosity, morphology, charge, and hydrophilicity can dramatically affect the NF process performance. Additionally, membrane performance is strongly influenced by feed characteristics such as the molecular weight, molecular size, geometry, charge, hydrophilicity of the solute and the feed water chemistry (e.g., pH) [26,42,91,92]. Furthermore, operational conditions such as temperature, pressure, and flow rate can impact the separation process [26]. Bellona et al. [42] and Mulyanti and Susanto [26] completely reviewed the effective factors on NF process.
Rahimpour et al. [47] investigated the effect of operating variables including temperature and trans-membrane pressure (TMP) on the permeate flux, COD, and electric conductivity (EC) in NF treating the oily wastewater generated by the washing of gasoline reserving tanks. The permeate flux, COD, and EC removal were enhanced with increasing TMP. COD and EC removal were reduced with an increase in temperature, whereas the permeate flux was increased. Pressures of 15–20 bar and temperatures of 20–30 °C were reported as the optimum conditions for the permeate flux and COD removal [47]. Additionally, Salahi et al. [36] reported the optimum permeate flux of 180.1 L/m2.h at feed temperature of 45 °C, TMP of 4 bar, the cross flow velocity of 1.3 m/s, pH of 10 and salt concentration of 11.2 g/L in NF treating the desalter effluent wastewater from Tehran refinery using nano-porous membrane [36]. Furthermore, Hedayatipour et al. [93] investigated the effect of temperature, pH and TMP on removal efficiency of Ba, Ni, Cr, NaCl, and TDS from the effluent of the dewatering process in an oil and gas well drilling industry by NF process. The temperature of 25 °C, the pressure of 170 psi and pH of 4 were reported as optimum conditions which 85.3%, 77.4%, 58.5%, 79.6%, and 56.3% removal efficiencies were obtained for Ba, Ni, Cr, NaCl, and TDS, respectively [93].

2.4. Fabrication and Modification of Nanofiltration Membranes

Surface chemistry, porosity, pore size distribution, physicochemical compatibility with process feeds, lifetime, and cost are key factors to fabricate the NF membranes [49]. In recent years, researchers have focused on fabricating and developing various polymeric, ceramic, and hybrid ceramic-based NF membranes [94]. Each NF membrane type has advantages, disadvantages, and specific applications; however, polymeric NF membranes have been extensively studied due to their availability, easy modification [94], and good film-forming property [95]. Recent advances and research trends in NF membranes fabrication and modification have been reviewed (e.g., Mohammad et al. [50]; Paul and Jons [96]; Oatley-Radcliffe et al. [97]; Ji et al. [95]; Rabbani Esfahani et al. [92]; and Merlet et al. [94]).
Material selection, additive concentrations, and modification techniques can play important roles in obtaining optimal NF membranes [52]. Different materials and techniques have been used to fabricate NF membranes. Materials such as polymer, ceramic, or a hybrid consisting of both may be used in the structure of a membrane from the active (selective) layer to the porous support layer(s). The porous ceramics for NF are composed of oxide materials [94]. Polysulfone (PSF) [98], polydimethylsiloxane (PDMS) [99], polyethersulfone (PES) [100,101], poly(ether ether ketones) (PEEK) [102], poly(vinylidene fluoride) (PVDF), cellulose acetate (CA) [103], aromatic and semi aromatic polyamides [104,105], polybenzimidazole (PBI) [106], polyaniline (PANI) [107], and polyacrylonitrile (PAN) [52,108] have been reported as applied polymers to prepare polymeric NF membranes. Note that both polymeric and ceramic NF membranes used for treating wastewaters from the petroleum industry are discussed in detail in Section 3.
Interfacial polymerization (IP), phase inversion, UV/photo-grafting, electron beam irradiation, plasma treatment, layer-by-layer, etc. are several approaches to fabricate the polymeric NF membranes [50,96]. IP is the common technique to prepare thin film composite (TFC) NF membranes [44,109]. TFC membranes are made of one support layer and one thin active layer on the top of the support layer [110,111]. They are the main type of RO, NF, and forward osmosis (FO) membranes [112,113]. The incorporation of nanoparticles into the TFC membranes results in thin-film nanocomposite (TFN) membranes. Different techniques such as in-situ/interfacial polymerization [114,115,116] and dip coating methods [117,118,119] have been reported for the fabrication of TFN membranes. In order to prepare novel TFN membranes with specific characteristic, nanoparticles in the range of 20–200 nm have been incorporated within the ultrathin active layer or support layer during the fabrication process [120].
Plate and frame module, tubular membrane module, spiral wound module, and hollow fiber membrane module are four configurations of NF membrane elements [49].

2.5. Fouling and Control

Membrane fouling is one of the important inevitable challenges in NF process that can be because of blockage of the membrane surface and pores by colloidal, microbiological, and chemical (organic and inorganic) components [26,27,45,47,49,50,121]. It may be reversible or irreversible [56]. Generally, solutes adsorption on the membrane surface or in pores, blockage of pores by solutes, cake layer formation and gel layer formation are forms of fouling [50,122]. Fouling leads to reduction in NF process performance (e.g., flux decline) and cost efficiency [26,50].
Physical, chemical, and hydrodynamical techniques may be used to control membrane fouling [26]. Using pre-treatment processes (e.g., coagulation, flocculation, ozonation, adsorption, MF, UF) upstream of NF, operating the system with high cross-flow velocity, using a cleaning cycle, backwashing or backflushing, and changing the operating temperature are some strategies that may be considered to prevent and mitigate the fouling [27,50,56,123,124]. Note that chemical cleaning may damage the membrane structure [26,125] and suitable cleaning agent and conditions of the cleaning process should be selected to maintain membrane performance [49,126].
Kim et al. [127] studied coagulation-flocculation-sedimentation with and without coagulant and coagulant aids as pre-treatment methods of NF process to treat oil sands process-affected water (OSPW), and concluded that the strategy improves the desalination of OSPW using NF membrane [127]. Additionally, Moser et al. [23] used direct UV and hydrogen peroxide-assisted (UV/H2O2) photolysis as pre-treatment methods for NF treating membrane bioreactor (MBR) permeate of a petroleum refinery to mitigate fouling. High quality water was produced using a MBR-H2O2/UV-NF system that could be reused in the refinery process (e.g., in cooling systems) [23].

3. Literature Review of Petroleum Industry Wastewater Treatment by Nanofiltration

The required discharge standards from the petroleum industry cannot be reached by common treatment methods. In addition, the need for water reuse in the petroleum industry drive attention to use effective technologies like membrane separation processes (e.g., NF) for better performance and optimized cost [128,129]. However, membrane fouling by oil, sulfides, or bacteria and generation of hazardous reject streams can be drawbacks of these processes [17,129]. In general, several studies have revealed that enhanced flux, minimized membrane fouling, simple cleaning strategy, and chemical and thermal stability of membranes are major issues/barriers for utilization of membrane separation technologies in the petroleum industry wastewater treatment [1,17,130].
Over the last 30 years, NF technology has been used to treat various wastewater streams from the petroleum industry [1,16,23,36,37,44,47,52,53,59,93,127,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145]. A summary of recent NF treatment studies on various petroleum wastewaters and performance evaluation is listed in Table 1. Various wastewater streams including produced water, OSPW, desalter effluent wastewater from a refinery, MBR permeate from refinery plant, refinery’s clarifier effluent, oily wastewater from washing of gasoline reserving tanks, etc. have been successfully treated by NF. Both polymeric and ceramic NF membranes have been applied. In other words, polymeric membranes, such as polyamide (PA) TFC NF membrane (NF-90), piperazine-based semi-aromatic PA TFC NF membrane (NF-270) [136], unmodified and poly(N-isopropylacrylamide) (PNIPAAm) and PNIPAAm-block-poly(ethylene glycol methacrylate) (PPEGMA) modified PA TFC NF (NF-270) membranes [137], nano-porous membrane (polyacrylonitrile) [36], PA-SiO2 nanocomposite NF membrane [44], PSF-penta-block copolymer (PBC) composite NF membrane [37], PAN NF membrane [52], NF membrane with graphene oxide (GO)/aminated GO (NGO)-incorporated substrate [140], PES-poly acrylic acid (PAA)-ZrO2 NF membrane [142], etc., and ceramic NF membranes [130,141,143] have been used to treat wastewater streams from the petroleum industry. As presented in Table 1, for instance, almost 100% removal of total suspended solids (TSS), 44.4% removal of TDS, 99.9% removal of oil and grease content, 80.3% removal of COD, 76.9% removal of biological oxygen demand (BOD5) [36], 72–89% rejection of soluble organics [53], 6–43.7% retention of benzene, 19–89.2% retention of toluene, 48.5–98.5% retention of p-xylene, 48.5–98.5% retention of m-xylene, 30.7–98.7% retention of o-xylene, 21 ≥ 99.9% retention of 2-isopropyl phenol, 19.6–99.5% retention of 4- or 3-isopropyl phenol [132], higher than 95% rejection of total organic carbon (TOC), higher than 95% rejection of naphthenic acids (NAs), 62–66% rejection of sodium, higher than 92% rejection of calcium, higher than 90% rejection of magnesium, 95–98% rejection of sulfate, 20–39% rejection of chloride, 58–81% rejection of bicarbonate, and permeate flux of greater than 15 L/m2/h [133] have been reported in different research studies using various NF membranes.
Peng et al. [133] investigated the performance of three commercially available TFC NF membranes (Deasl-5 from Osmonics/Desal; NF-45 and NF-90 from Dow Chemical) for removal of TOC, NAs, and different ions from OSPW to improve water management in oil sands operation. Among these membranes, Desal-5 was reported to be a suitable membrane for this purpose. Incomplete rejection of monovalent ions of sodium, chloride and bicarbonate (20–80%), higher than 95% rejection of divalent ions (calcium, magnesium, and sulfate), TOC, and NAs were reported for Desal-5. Permeate flux decline of Desal-5 due to fouling was tested in experiments for about 18 h and flux maintaining at 15 L/m2/h or higher at a pressure of 10.3 bar was reported [133]. In other work, the average efficiency of salt removal from raw OSPW using PA TFC NF membrane (GE Osmonics) was reported to be about 68.9%. The study revealed that OSPW components could bound to the NF membrane surface; and chemical cleaning using both HCL (1 mM) and NaOH (1 mM) showed similar flux recovery ratio (HCl had slightly higher recovery ratio) [127]. These studies [127,133] did not investigate the fouling mechanisms of OSPW desalination by NF; however, they addressed fouling.

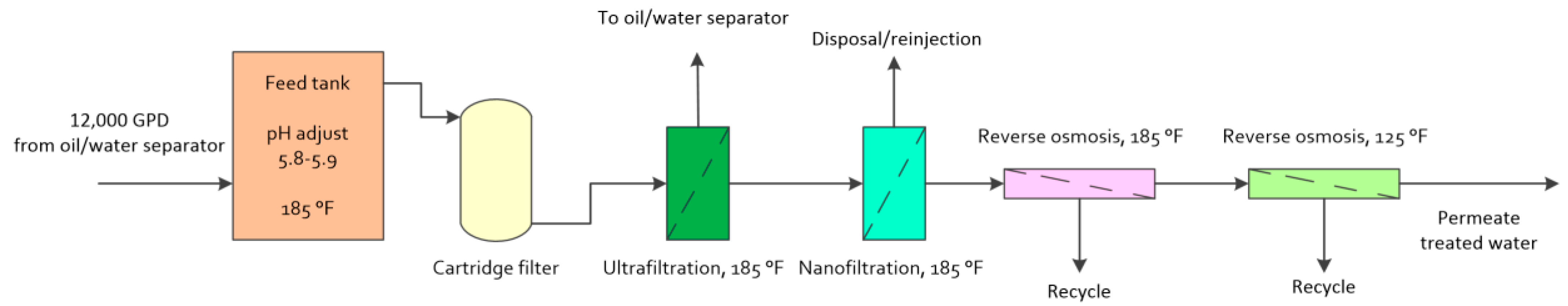

Several studies have been reported for produced water treatment using polymeric [1,16,53,93,129,131,134,135,136,139,140,145] and ceramic [130,143] NF membranes. In general, application under extreme operating conditions beyond the operating range of typical polymeric membranes, cleaning with aggressive reagents such as organic solvents or hot water steam and long lifespan can be advantages of ceramic membranes [143]. Xu et al. [135] used PA TFC NF membrane (NF-90) to treat produced water from a natural gas production site in Eastern Montana for beneficial use of it by meeting potable and irrigation water quality standards. Salt rejection was 85.3–94.9%. TDS, TOC, barium, boron, bromide, chloride, and iodide concentrations in the NF-90 final product water were 566, 0.08, 0.02, 2.6, 14.0, 372, 22.9 mg/L, respectively. Effluent water from the NF-90 could not meet US Environmental Protection Agency secondary drinking water standards with regard to chloride and TDS [135]. Mondal and Wickramasinghe [136] reported that effluent conductivity, TDS, and TOC of piperazine-based semi-aromatic PA TFC NF membrane (NF-270) were higher than those of the PA TFC NF membrane (NF-90) in treating produced water [136]. In a study [130], oilfield produced water was treated using a ceramic NF membrane and oil and TOC removals were reported to be 80% and 13%, respectively [130]. In other work [143], produced water from different steam assisted gravity drainage (SAGD) operations in Alberta, Canada was treated using ceramic NF membranes with γ-Al2O3 support and ZrO2, Al2O3 and TiO2 selective layers (Rauschert Inopor, Veilsdorf, Germany); and complete removal of non-polar oil components including saturated and aromatic hydrocarbons, approximately 80% removal of polar components, and 95.0–98.3% removal of total solvent extracted material were reported [143].
NF has been used as an effective process for sulfate removal in the petroleum industry especially in offshore oilfields [3,144]. In sulfate removal using NF process, cartridge filters are utilized upstream of the system to reduce pre-treatment upsets [3]. A pilot study (Figure 1) including membrane separation processes (cartridge filter, UF, NF, and two RO units) was conducted by Osmonics Inc. (MN, USA) in 2001 to treat produced water in northern California. Oil, sodium, calcium, magnesium, potassium, ammonium, chloride, and sulfate concentration in influent feed were 10–50, 9610, 715, 412, 174, 110, 8010, and 1090 ppm, respectively. Whereas, oil, sodium, calcium, magnesium, potassium, ammonium, chloride, sulfate concentrations in NF permeate and recovery percent were non-detectable, 5250, 163, 115, 77, 68, 4710 ppm, non-detectable, 90–95%, respectively. More than 80% was reported as the overall system recovery [16,131,145].
Kim et al. [127] used PA TFC NF membrane (GE Osmonics) for desalination of OSPW and reported that coagulation-flocculation-sedimentation pretreatment of OSPW before filtration with NF is an efficient technology to manage water in oil sands operation [127]. Moser et al. [23] studied the effect of AOP (UV/H2O2) pretreatment on NF (NF-90, Dow Filmtec) process performance treating MBR permeate of REGAP-Gabriel Passos Refinery Plant, Brazil. The pretreatment mitigated the flux decline because of membrane fouling and improved membrane cleanability. Ammonia, chloride, calcium, COD, TOC, and TDS removal efficiencies were reported to be 99.07%, 98.74%, 100%, 100%, 98.95%, and 98.22%, respectively. They concluded that water produced using the MBR-H2O2/UV-NF system could be reused in the refinery process [23]. Khedr [129] proposed the “intermittent chlorination/coagulation/NF” process using PA TFC NF membranes (HL4040F, GE/Osmonics) to filter oilfield-produced water for reinjection; and reported that the process could effectively reject sulfate, uranium, and other metal cations and polish the removal of suspended solids, bacteria, and organics. In addition, the process could prevent the formation of scales and biofilm as well as the related unwanted phenomena [129]. Thus, it seems that NF process should be used in combination with the other separation processes to manage petroleum industry wastewaters [2,129]. Depending on the pretreated oily wastewater quality, this process may provide effluent water for reuse in the petroleum industry applications [19,23,144]. Although the separation efficiency of RO process is better than NF process [19,127,145], the NF process can be cost-effective to reuse water in the petroleum industry [19,144].
Commercially available NF membranes have widely been used for treating wastewater streams from the petroleum industry. However, some studies have been carried out to prepare self-made NF membrane for treatment of petroleum industry wastewaters: PA-SiO2 nanocomposite NF membrane for desalination of oily wastewater from Daqing oilfield [45]; PSF-PBC composite NF membrane for separation of oil-water emulsion [37]; PAN NF membrane for synthetic produced water treatment [52]; NF membrane with GO/NGO-incorporated substrate for desalination of petrochemical wastewater and shale gas produced water [140]; and PES-PAA-ZrO2 NF membrane for removal of polycyclic aromatic hydrocarbon (PAH) from synthetic wastewater [142]. Limited information can be found in the literature for modification of commercially available NF membranes for petroleum industry wastewater treatment. In a study carried out by Tomer et al. [137], PNIPAAm and PPEGMA nanolayers were grafted from NF-270 (Filmtec) via surface-initiated atom transfer radical polymerization in order to mitigate fouling in treatment of coal bed methane produced water. Improved permeate water quality and constant flux for modified NF-270 were reported as compared to those of unmodified NF-270 during filtration of produced water [137].

4. Conclusions and Future Perspectives

In this study, recent NF treatment studies on various petroleum wastewaters were reviewed. Key findings of this review are:
  • Approximately 100% removal of TSS, 44.4% removal of TDS, 99.9% removal of oil and grease content, 80.3% removal of COD, 76.9% removal of BOD5 [36], higher than 95% rejection of TOC, higher than 95% rejection of NAs, 62–66% rejection of sodium, higher than 92% rejection of calcium, higher than 90% rejection of magnesium, 95–98% rejection of sulfate, 20–39% rejection of chloride, 58–81% rejection of bicarbonate [133], etc. have been reported in different research studies for treating petroleum wastewaters using various NF membranes.
  • NF has the potential to replace RO membranes because of lower operating pressure and/or energy consumption, relatively lower investment, and more economical operation and maintenance costs.
  • NF process should be used in combination with other separation processes (e.g., pretreatment processes) to manage petroleum industry wastewaters [2,129]. Depending on the pretreated oily wastewater quality, this process may provide effluent water for reuse in the petroleum industry applications [19,23,144]
  • The mitigation of membrane fouling; selection of appropriate pre-treatment technique; and selection of a suitable, cost-effective, non-hazardous cleaning strategy are the vital items in designing of NF process [17].
Further investigations on the enhanced flux, minimized membrane fouling, simple cleaning strategy, and chemical and thermal stability of membranes for long-term operations are still desirable to extensively/efficiently apply NF process for petroleum industry wastewater treatment at full-scale. In particular, further studies on fouling mechanisms of petroleum industry wastewaters (e.g., OSPW) desalination by NF [127] can be beneficial. In addition, studies on the effect of membrane properties such as membrane molecular weight cut-off and surface properties [142,143] on its performance (e.g., NF separation efficiency) in treating oily wastewater are of interest. For instance, incorporating stable and inexpensive nanoparticles in NF membrane manufacturing technology [142] can result in developing/fabricating high performance (e.g., enhanced surface hydrophilicity and fouling resistance) membranes.

Author Contributions

Conceptualization, S.J. and M.R.E.; methodology, S.J. and M.R.E.; software, S.J. and M.R.E.; validation, S.J. and M.R.E.; formal analysis, S.J. and M.R.E.; investigation, S.J. and M.R.E.; resources, S.J. and M.R.E.; data curation, S.J. and M.R.E.; writing—original draft preparation, S.J. and M.R.E.; writing—review and editing, S.J. and M.R.E.; visualization, S.J. and M.R.E.; supervision, S.J. and M.R.E.; project administration, S.J.; funding acquisition, S.J. All authors have read and agreed to the published version of the manuscript.

Funding

S. Jafarinejad acknowledges support from the DoD under grant number W911NF2110222.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

M. Rabbani Esfahani gratefully acknowledges the use of the resources of the Alabama Water Institute and the Department of Chemical and Biological Engineering at The University of Alabama. The comments from the anonymous reviewers are appreciated.

Conflicts of Interest

The authors declare no conflict of interest. The funder had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
