Design and Simulation of a High-Responsivity Dielectric Metasurface Si-Based InGaAs Photodetector

International Joint Laboratory for Integrated Circuits Design and Application, Ministry of Education, School of Physics, Zhengzhou University, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Photonics 2024, 11(10), 906; https://doi.org/10.3390/photonics11100906
Submission received: 15 August 2024 / Revised: 17 September 2024 / Accepted: 23 September 2024 / Published: 26 September 2024
(This article belongs to the Special Issue Group IV Photonics: Advances and Applications)

Abstract

:
A Si-based photodetector is the core device of Si-based optical interconnection; its material and performance are the key factors restricting its development. This paper conducts theoretical research on the issues of lattice mismatch between heterogeneous materials and low device responsivity in Si-based InGaAs photodetectors for the 1550 nm optical communication band. The material mismatch issue is addressed through the use of the high-aspect ratio trapping (ART) epitaxial technique, enabling the realization of high-performance Si-based III-V materials. By introducing a dielectric metasurface into the top layer of the structure, the light absorption efficiency is enhanced, realizing broadband optical absorption enhancement for Si-based photodetectors. This paper mainly focuses on designing the optimal parameters of the dielectric metasurface structure based on the finite-difference time-domain (FDTD) Solutions to achieve the performance analysis of a high-responsivity 1550 nm Si-based InGaAs photodetector. The results show that the quantum efficiency of the dielectric metasurface structure is theoretically estimated to be 88.8% and the response rate is 1.11 A/W, which is 2%~16% higher than that of the unetched structure in the whole band. The research results of this paper will provide new ideas for the development of novel, high-performance, and miniaturized Si-based photodetectors and lay a theoretical foundation for Si-based optical interconnection.

1. Introduction

With the development of science and technology, Si-based optical interconnection with low cost, high integration, and compatibility with Complementary Metal Oxide Semiconductor (CMOS) technology has gradually replaced traditional electrical interconnection and has become a research hotspot in the optical communication industry [1,2,3]. In this field, the performance of Si-based photodetectors plays an important role in the development of high-capacity optical communication technology. Traditional Si-based photodetectors are realized by bonding or the direct epitaxial growth of III-V materials [4,5], but there are bottlenecks such as low yield and high dislocation density. Therefore, researchers propose the use of the aspect ratio trapping (ART) technique, which grows high-quality III-V multi-quantum well materials in high-aspect-ratio trenches along the [110] direction. When the aspect ratio (AR = h/w) is above 1.4, all threading dislocation (TD) originating from the III-V/Si heterogeneous interface would terminate at oxide sidewalls and be trapped, consequently resulting in a TD-free epitaxial layer right above the Si substrate. Planar defects parallel to the trench would also be trapped by the oxide sidewalls, while those perpendicular to the trench direction would extend across the entire crystal. In addition, the use of a V-groove composed of two etched [111] Si facets avoids the generation of antiphase boundaries (APBs) [6]. On this basis, various types of high-performance III-V photodetectors on Si have also been developed. Xue et al. [7] demonstrated III-V photodetectors using the high ART technique to directly grow materials on a V-shaped SOI substrate. The active region of this detector consists of PIN-structured InP/InGaAs multiple quantum wells (MQWs) and also exhibits internal responsivity of 1.06 A/W at the 1550 nm laser wavelength. In a study by Xue et al. [8], by combining ART and Template-Assisted Selective Epitaxy (TASE) technology, the tapered structure of a Si waveguide-coupled III-V photodetector was designed on a standard (001) SOI Si platform, which improved the optical coupling efficiency to over 70% and had a low dark current density of 0.002 A/cm2. Cenk et al. [9] constructed a GaAs/InGaAs nano-ridge structure using Nano-Ridge Engineering (NRE) based on the ART technique, and the fabricated devices exhibited high responsivity of 0.65 A/W and a low dark current density of 1.98 × 10−8 A/cm2 at 1020 nm. In these works, various types of III–V photodetectors on Si using the high ART approach with different device structures and absorption materials have also been developed.
In Si-based optical interconnection systems, traditional flat incidence photodetectors excite simple cavity resonance modes due to their weak ability to capture light, which limits improvements in the performance of photodetectors. Resonant metasurfaces support absorption enhancement. Metasurfaces can enhance the light–matter interaction at the pixel level and also enable detector pixels to resolve more electro-magnetic parameters. The regulation of optical metasurfaces is based on the resonance and scattering of nanostructures. Sub-wavelength structural units can bind light fields through resonance and scatter them out in specific phases, polarization states, and spectral lines, thereby precisely regulating light waves [10], with good performance in the field of photodetection. Optical metasurfaces are mainly composed of initial metal nanostructure units which have transitioned to dielectric metasurface structures. A dielectric metasurface has lower loss and significant local field enhancement on a device surface, which can improve the responsivity performance of photodetectors. Several high-performance dielectric metasurface III-V photodetectors have recently been demonstrated. For example, Nikola Đikolam et al. [11] realized a cross-shaped metasurface-enhanced photodetector with PbS quantum dots. As a result, 10-times-improved responsivity was achieved compared with quantum dot films of the same thickness. Chuan Seng Tan et al. [12] designed a GeSn/Ge MQW photodetector with a dielectric nanohole array metasurface. It utilized a Ge nanohole array metasurface to enhance the light absorption of the absorption layer. Benefiting from the introduction of the dielectric metasurface structure, responsivity as high as 0.232 A/W was achieved for this photodetector. Zhong-Xing Zhou et al. [13] improved the absorption rate by 6 times compared to unpatterned Ge films through a two-dimensional periodic Ge metasurface with optically induced electromagnetic dipole lattice resonance. Jinwen Song et al. [14] achieved coupling of dual resonance modes through hole arrays, resulting in a high absorption rate of 64% in high-speed avalanche photodetectors. Based on the above research findings, it is indicated that the use of the ART epitaxial technique and the introduction of dielectric metasurfaces have important research significance in the achievement of high-performance Si-based InGaAs photodetectors.
Therefore, in this article, we present a Si-based InGaAs photodetector with a dielectric metasurface based on ART epitaxial structures. By growing high-quality InGaAs/InP multiple quantum well (MQW) structures on a Si substrate and introducing a dielectric metasurface structure in the top layer of the device, it can effectively improve the light confinement ability and locally enhance the light absorption ability. Since the enhancement of light absorption within a wide spectral range achieved by the dielectric metasurface is closely related to its structural design parameters, it is necessary to ensure the rationality of the structure and the performance improvement of the metasurface structure. The finite-difference time-domain (FDTD) method is used to solve parameters such as the width, depth, and period of the dielectric metasurface structure, as well as characteristic parameters such as quantum efficiency, responsivity, and dark current under optimal parameters. Compared to existing photodetectors, our designed structure demonstrates exceptional performance with quantum efficiency of up to 88.8% and responsivity of 1.11 A/W in the C-band. Furthermore, it exhibits a low dark current of 10−4 mA at 1550 nm, contributing to its overall superiority.

2. Device Design and Analysis

This epitaxial structure is a follow-up research effort based on our previous work on ART technology and high-quality epitaxial growth [15,16,17], where the optimized design of the initial epitaxial structure is also presented. Our work focuses on the design of a device structure based on this epitaxial structure. A schematic diagram of the three-dimensional structure of the designed dielectric metasurface Si-based photodetector is shown in Figure 1. From bottom to top, it consists of an N-type SOI substrate, on which high-aspect ratio trapping is obtained through ART epitaxial technology. An InP buffer layer with a thickness of 500 nm and four periods of InGaAs/InP MQW structures are epitaxially grown on the trenches, with each well having a thickness of 3 nm and each barrier having a thickness of 6 nm. A 200 nm thick InP capping layer is deposited on the top. Then, the dielectric metasurface structure of a corresponding shape is etched on the surface of the epitaxial structure through semiconductor processing technology. Finally, electrodes are deposited on the N-type substrate and P-type capping layer to achieve a complete device structure. The specific layered structure diagram is shown in Figure 2a.
To determine the influence of the epitaxial structure on the optoelectronic performance of the device, its energy band distribution was analyzed, as shown in Figure 2b. Since MQW layers are undoped, and their ends are highly doped P-type and N-type materials, this led to the formation of a depletion layer with high electric field intensity in the MQW layers, which was more conducive to separating electron–hole pairs and improving the response frequency of the photodetector. After irradiating the surface of the structure, the generated carriers were reduced in recombination under the action of the built-in barrier, enabling effective separation. The lifetime of the separated carriers was increased, resulting in a higher photocurrent and a lower dark current. This indicates that the quantum efficiency of Si-based InGaAs MQW photodetectors can be improved to a certain extent.
In consideration of convenient fabrication, the dielectric metasurface structures were L-shaped, well-shaped, triangular, circular, and square, as shown in Figure 1. The mechanisms for enhancing the light absorption efficiency of these five dielectric metasurface patterns mainly involved the interaction between light and dielectric materials, especially resonance effects and light-scattering processes. A dielectric metasurface can excite Mie resonances, which can significantly enhance the electromagnetic field intensity inside the dielectric holes, thereby improving the light absorption efficiency. When the frequency of the incident light matches the natural frequency of the dielectric metasurface, resonance occurs, leading to the efficient absorption of light energy. At the same time, the light is incident on the dielectric surface; some of it enters the interior of the dielectric holes and undergoes multiple reflections and scatterings, extending the residence time of light in the material, enhancing the interaction between light and the material, and thereby improving light absorption efficiency. Through these two processes, a dielectric metasurface can significantly improve the light absorption efficiency and enhance the performance of photodetectors. However, although different-shaped dielectric metasurfaces all rely on resonance effects and light-scattering processes, they also differ in some ways. For example, a well-shaped dielectric metasurface enhances the light absorption efficiency through the confinement of the optical field and multiple scattering; the periodic arrangement of a triangular dielectric metasurface contributes to the formation of Bragg scattering and diffraction effects, further enhancing the localization and absorption efficiency of the optical field; a square-shaped dielectric metasurface is generally insensitive to the polarization direction of the incident light, which means that, regardless of the polarization state of the incident light, the dielectric metasurface can maintain relatively stable light absorption efficiency.
An L-shaped dielectric metasurface regulates the optical field by introducing a phase gradient, redistributing and concentrating the optical field. In addition, another reason why we chose the L shape is that it differs from other shapes in terms of symmetry, which correspondingly leads to different effects in the dielectric metasurface, making it suitable as a reference. In summary, we selected these typical dielectric metasurface structures and used simulation analysis to identify the optimal structure and parameters as the theoretical basis for subsequent experiments.

3. Results and Discussion

After determining the structure of the dielectric metasurface Si-based InGaAs photodetector, it was necessary to identify the optimal parameters for this structure, which mainly included the shape, period or number, etching depth, side length, and radius. A dielectric metasurface is an array structure composed of multiple identical units arranged according to a certain pattern. This array structure can simultaneously excite electric and magnetic responses, resulting in collective resonance and an array effect, ultimately significantly affecting the resonant peak position and resonance intensity. Therefore, designing these parameters can not only achieve specific electromagnetic properties but also improve the light absorption efficiency of the device structure. This is particularly important for achieving high-performance Si-based InGaAs photodetectors at 1550 nm. In this article, the FDTD Solutions software is used to simulate a photodetector structure to achieve the optimal values of the dielectric metasurface structure at 1550 nm, as well as to determine the optimal shape.
In the simulation of FDTD Solutions, the model structure was mainly divided into a basic structure, network settings, boundary conditions, light source settings, an analysis group (including a power monitor for the measurement of reflectance and transmittance), and a frequency monitor for querying the electric field distribution. Based on the structure, since we epitaxially grew the corresponding structure on Si through ART technology, the Si substrate had low light absorption efficiency within the wavelength range of 1440–1600 nm, and SiO2 was transparent within this wavelength range. Therefore, the emulation model we chose consisted of a 500 nm InP buffer layer, four cycles of 3 nm/6 nm InGaAs/InP multiple quantum well layers, a 200 nm InP cap layer, and a metasurface structure with a unit cell. The refractive indices of two materials can be queried from [18]. Mesh settings: Mesh refinement was mainly applied to our emulation area in order to better analyze the field distribution, support more complex simulation scenarios, and improve the reliability of the emulation results. Boundary conditions: Since a dielectric metasurface is composed of periodically arranged unit structures, we chose periodic boundary conditions in the X and Y directions. However, the selected structure satisfied both symmetric and asymmetric conditions, which could be utilized to replace these boundary conditions, thereby reducing the memory required for simulation and accelerating the simulation efficiency. In the Z direction, a Perfectly Matched Layer (PML) was chosen to prevent electromagnetic waves from reflecting back into the computational domain, thereby affecting the accuracy of the results. Light source settings: We chose a plane wave that was vertically incident along the negative half-axis of the Z-axis, with a wavelength range of 1440–1600 nm. The analysis group mainly consisted of two power monitors. In order to detect the reflectance and transmittance, the reflectance monitor was placed above the structure, and the transmittance monitor was placed below the structure. By parameterizing the structure group and coding, it was used to solve the absorption efficiency and subsequent parameter scanning. Frequency Monitor: A frequency monitor was primarily utilized to observe the electric field distribution across different planes and positions. The XY plane was positioned at the location where the electric field was strongest, and the XZ plane was overlaid and aligned with the Z-axis symmetry axis of the circular dielectric metasurface.

3.1. Circular Dielectric Metasurface Structure

As a classic shape for dielectric metasurfaces, a circular structure enhances the optical absorption efficiency of the device structure through Mie resonances and light-scattering processes. Resonance is generated by matching dielectric holes with the incident light frequency. Circular dielectric holes create photon-localized states that confine the optical energy to a specific region, further enhancing light absorption.
Using the above simulation conditions, the initial simulation values for the circular dielectric metasurface were set with a radius of 0.5 μm, a depth of 0.2 μm, and an array period of 1.2 μm. The resulting scan is shown in Figure 3. As the radius changed, the absorption peaks mainly converged towards the wavelength range of 1530–1540 nm, as shown in Figure 3a. Under the conditions of a fixed radius and period, the absorption peaks gradually shifted upwards and concentrated near 1530 nm, as shown in Figure 3b. Under the conditions of a fixed radius and depth, as the period increased, the absorption peaks gradually shifted to the right and their intensities decreased to varying degrees, mainly concentrating within the range of 1530–1540 nm, as shown in Figure 3c. Finally, through optimized scanning, the optimal radius, depth, and period of the circular dielectric metasurface were determined to be 0.21 μm, 0.207 μm, and 1.2 μm, respectively. The absorption spectra of the metasurface Si-based InGaAs MQW photodetectors and control MQW photodetectors without a metasurface were simulated, as shown in Figure 3d. The absorption enhancement was wavelength-sensitive, which is a characteristic of metasurface structures. Compared with the control Si-based InGaAs MQW photodetector, the absorption of the metasurface photodetector at 1550 nm was enhanced to 85.9%. Such a high enhancement ratio is promising for efficient photodetection in the 1550 nm band.

3.2. Well-Shaped Dielectric Metasurface Structure

A well-shaped dielectric metasurface primarily relies on resonance effects and optical field localization. Each unit of a well-shaped dielectric structure can be regarded as a tiny resonator, which leads to a significant enhancement of the electromagnetic field in the dielectric structure upon resonance, thereby improving the optical absorption efficiency. Additionally, a well-shaped structure is formed by overlapping four identical rectangular prisms. When light is incident on the dielectric holes, it is confined within the structure to multiple scatterings and reflections, which enhances the interaction between light and matter. At the same time, the partial overlap and the presence of many edges and corners strengthen the resonance intensity during electromagnetic resonance to improve the optical absorption efficiency of the device.
Here, the well-shaped dielectric metasurface was composed of four identical rectangular prisms, and the length-to-width ratio of the rectangles was designed to be 5:1. The initial values of side length, depth, and period were set to 0.2 μm, 0.2 μm, and 1.5 μm, respectively, as shown in Figure 4. Firstly, while keeping the depth and period constant, as the side length increased, the absorption peaks exhibited a rippled trend and gradually shifted to the left, as shown in Figure 4a. Under the conditions of fixed side length and period, the absorption peaks shifted upwards as the depth increased, as shown in Figure 4b. Under the conditions of fixed side length and depth, the absorption peaks gradually shifted upwards as the period increased, as shown in Figure 4c. Subsequently, through optimized scanning, the optimal parameters of the well-shaped metasurface structure were found to be a side length of 0.216 μm, a depth of 0.224 μm, and an array period of 1.41 μm. When compared with the absorption rate of the structure without the dielectric metasurface, the absorption rate reached as high as 67.8% at 1550 nm, as shown in Figure 4d.

3.3. Triangular Dielectric Metasurface Structure

The periodic arrangement of triangular dielectric metasurfaces can generate collective resonance and absorb specific frequencies of light, similar to a large optical trap. Due to the sharp corners of triangular dielectric holes, the optical field can be effectively captured and concentrated, forming so-called hotspots. In these hotspot regions, there is a strong interaction between light and the medium, which improves the optical absorption efficiency.
In the simulation process, the dielectric metasurface structure was a symmetrical equilateral triangle. The initial side length, depth, and period were set to 1 μm, 0.2 μm, and 1.5 μm, respectively. While keeping the depth and period constant, as the side length increased, the absorption peaks gradually shifted to the left, as shown in Figure 5a. Under the condition of keeping the side length and period constant, it can be observed that as the depth increased, the absorption peaks gradually shifted upwards, with slight changes in intensity, as shown in Figure 5b. After determining the side length and depth, the absorption peaks were mainly concentrated near 1560 nm, as shown in Figure 5c. Through optimized scanning, it was found that the optimized metasurface structure in the simulation had a side length of 1.22 μm, an array period of 1.35 μm, and depth of 0.226 μm. Compared with the absorption rate of the structure without the dielectric metasurface, there was an absorption peak near 1557 nm with the level of intensity reaching 72.9%, as shown in Figure 5d.

3.4. Square Dielectric Metasurface Structure

In a square dielectric metasurface, light undergoes multiple reflections and scatterings at the interface between the dielectric metasurface and air, as well as inside the dielectric metasurface, increasing the number and paths of interaction between light and the dielectric metasurface, thereby improving the light absorption efficiency. In addition, due to its symmetry, a square dielectric metasurface structure exhibits similar light propagation characteristics in different directions, reducing losses during propagation and making it more conducive to light absorption.
The initial side length, depth, and array period of the square structure were set to 1 μm, 0.2 μm, and 1.5 μm, respectively. As the side length increased, the absorption peak gradually shifted from 1510 nm to 1590 nm, as shown in Figure 6a. When the depth varied, the absorption peak of the square structure remained relatively stable, as shown in Figure 6b. As the period increased, the peak gradually shifted downwards, as shown in Figure 6c. Finally, through optimized scanning, the optimal parameters of side length, depth, and period were determined to be 0.972 μm, 0.2 μm, and 1.374 μm, respectively. As shown in Figure 6d, when compared with the absorption rate of the structure without the dielectric metasurface, there was a relatively pronounced absorption peak near 1540 nm with an intensity of 67.8%, which was higher than that of the ordinary structure.

3.5. L-Shaped Dielectric Metasurface Structure

By breaking the symmetry of the structure, an L-shaped metasurface excites corresponding electromagnetic responses. Here, electric dipoles and magnetic dipoles with opposite phases interfere with each other, thereby preventing energy leakage, reducing coupling to free space, and minimizing radiation losses. This is the unique bound mode of an asymmetric dielectric metasurface. Furthermore, asymmetric dielectric metasurfaces exhibit different response characteristics to electromagnetic waves with different polarization states and propagation directions. This triggers multiple resonance modes and enables complex electromagnetic field manipulation.
In this simulation, we created an L-shaped metasurface structure with an initial side length, depth, and period of 0.1 μm, 0.2 μm, and 2 μm, respectively. As seen in Figure 7a, as the side length increased, the absorption peaks gradually converged towards the range of 1530–1550 nm. Under a constant side length and period, as the depth increased, the absorption peak behaved similarly to the case of varying side length, as shown in Figure 7b. After determining the side length and depth, as the period increased, the absorption peak shifted significantly towards the blue, and its intensity became lower when approaching 1550 nm, as shown in Figure 7c. Through optimized scanning, the optimal side length, depth, and period of the L-shaped structure were determined to be 0.85 μm, 0.224 μm, and 2 μm, respectively. Compared with the absorption rate of structures without dielectric metasurfaces, the strength of the L-shaped structure was slightly lower than that of the aforementioned metasurface structures, but still higher than that of structures without dielectric metasurfaces, as shown in Figure 7d. This indicates that it is still feasible to utilize dielectric metasurfaces to enhance their absorption rates.
Through scanning the parameters of five shapes, it could be observed that the simulation results for each shape parameter varied significantly. The main reason for this is that a multi-layer structure is more realistic compared to the simulation of only a single layer of a dielectric metasurface, making the simulation more convincing. However, this also led to a more complex simulation process, resulting in the aforementioned graphs of the five different shapes. For instance, the three parameters only had a significant effect on the structural absorption rate when their values reached a certain range. This situation can be addressed by improving the simulation grid precision. Additionally, this may also be related to the thickness of the InP cap layer, as its thickness can affect the absorption of light by the absorption layer, resulting in a relatively small influence of the dielectric hole size on the absorption rate to a certain extent. However, beyond a certain threshold, a dielectric metasurface can still significantly improve the light absorption efficiency, as could be observed in all five shapes.

3.6. Optimal Shape Performance Analysis

After the simulation of five different shapes, we found that the circular structure exhibited a relatively high optical absorption rate, as shown in Figure 8. The analysis can be conducted from the following aspects: Firstly, the circular dielectric metasurface, influenced by its diameter size, is more prone to exhibiting uniform scattering characteristics at specific frequencies. Secondly, due to the smoothness and symmetry of the circular dielectric metasurface, it is easier to achieve efficient focusing and resonance. Lastly, the shape and symmetry of the circular dielectric metasurface minimize light losses during diffraction and scattering processes. Therefore, among the five shapes, the circular dielectric metasurface stood out and was chosen as the optimal shape. Further investigation was conducted to explore the reasons for the high absorption peak near 1550 nm and the physical mechanism behind the improvement in device performance by the dielectric metasurface. To support the idea that the absorption enhancement was due to the resonant metasurface, the distribution of the electric field intensity of the mode at 1550 nm is shown in Figure 9. When the dielectric metasurface was not added, the electric field distribution of the device was scattered and had a low intensity, resulting in poor light absorption, as shown in Figure 9a. After introducing the dielectric metasurface, the electric field was mainly confined to between the arrayed dielectric holes. The enhanced mode was attributed to the guided-mode resonance introduced by the dielectric metasurface. When the device was illuminated with broadband light, the metasurface geometry enabled narrow-bandwidth guided-mode resonances, which enhanced the absorption, as shown in Figure 9c. Subsequently, we introduced the electric field distribution diagrams of the XZ plane, as shown in Figure 9b,d. When our structure had not yet incorporated the dielectric metasurface, the electric field distribution in Figure 9b was primarily the result of plane waves undergoing reflection, transmission, and scattering as they passed through various materials. It can be observed that a portion of the light intensity was located within the multi-quantum well layer and the buffer layer, while the remainder existed outside the structure, resulting in a low utilization rate of light, and consequently, low absorption efficiency. After introducing the dielectric metasurface, the light field distribution changed significantly. Although it was still concentrated in the multi-quantum well layer and buffer layer, the light intensity outside the device was significantly reduced, and the light intensity inside the device was enhanced, thereby improving the light absorption efficiency, as shown in Figure 9d. Therefore, the introduction of the dielectric metasurface not only reduced energy loss but also significantly improved the performance of the device.
To gain insight into the mechanism of the light absorption enhancement within the photodetector, the distributions of the quantum efficiency per unit volume in the metasurface photodetector and the responsivity at the resonance wavelength were simulated. Quantum efficiency is the ratio of the average number of photoelectrons generated by the photoelectric effect to the number of incident photons with a specific wavelength per unit of time, which is used to measure the photoelectric conversion capability of photoelectric devices.
We used the built-in quantum efficiency model in FDTD Solutions to simulate the radiation and scattering of electromagnetic waves through dipoles, in response to electromagnetic waves. In the simulation, we simplified the photoelectric conversion process into the behavior of multiple dipoles and theoretically calculated the specific value of quantum efficiency through the dipole method. This simplification may have ignored the trap effect and carrier recombination, which would have had a certain impact on the numerical results. However, we mainly focused on the impact of ART technology and whether the introduction of dielectric metasurfaces affected the device performance.
Responsivity is also an important parameter used to measure the photoelectric conversion capability. It has a certain relationship with quantum efficiency, which can be expressed as follows:
R A W = λ μ m 1.24 eV η
where λ is the wavelength of the incident light and η is the quantum efficiency.
Through the simulation of the above quantum efficiency model, Figure 10a,b was obtained, showing that the trends of the two parameters were similar and that the performance of both was improved after introducing the dielectric metasurface. However, there was a trough near 1520 nm, which was because the absorption efficiency and quantum efficiency were negatively correlated to a certain extent, so the quantum efficiency exhibited a trough at the point where the absorption efficiency was highest. Additionally, the relatively high quantum efficiency of the structure without a dielectric metasurface was due to the influence of the quantum well structure on parameters such as quantum efficiency. However, across the entire wavelength range, the dielectric metasurface structure outperformed the structure without a dielectric metasurface.
In order to further study the device performance, we combined the photoelectric simulation through FDTD Solutions and Lumerical CHARGE solver. We calculated the light-generation rate of the absorption layer in this model through optical simulation and imported it into CHARGE to perform electrical stimulation. In steady-state and small-signal AC modes, the photocurrent and dark current parameters were obtained. Please note that to solve for the dark current, the import of the source needed to be disabled first, and then re-enabled to complete the simulation of photocurrent, resulting in Figure 10c.
From the figure, we can observe that within the main operating range of −3 V to 0 V, the dark current remained stable at 10−4 mA, while the photocurrent was approximately 1 mA. This indicates that the device possesses a low dark current and good detection capability for optical signals. At 0 V, the device exhibited the lowest dark current, but as the bias voltage increased, the dark current rose sharply and became comparable to the photocurrent. This is because photocurrent is primarily determined by the light intensity and quantum efficiency, and continuously increasing the bias voltage does not necessarily increase the photocurrent indefinitely. Instead, as the bias voltage increased, the electric field inside the detector was enhanced, making it easier for thermally excited carriers to be collected at the electrodes, resulting in an increase in dark current. For subsequent device fabrication, to reduce the impact of dark current, we can passivate the device with a layer of SiO2 to mitigate the dark current.
To demonstrate the superior performance of the device we studied, several III-V photodetectors prepared by heteroepitaxy and selective heteroepitaxy methods are listed in Table 1. As can be seen from the literature comparison, in the C-band, the theoretical responsivity of the device structure we proposed was as high as 1.11 A/W, with a dark current as low as 10−4 mA, which was superior to other device structures. Therefore, our proposed dielectric metasurface-enhanced Si-based InGaAs photodetector is theoretically feasible and possesses certain advantages.
We have also formulated a technological process for the preparation of Si-based InGaAs photodetectors utilizing ART technology, as shown in Figure 11. The first step is to deposit SiO2 along the (110) direction on a Si (001) substrate by MOCVD, and then form a high-aspect ratio trapping structure with Si material at the bottom by the ICP dry etching of SiO2. The second step involves growing the corresponding epitaxial structure layer using MOCVD epitaxial equipment, as shown in Step 2 of Figure 11. The third step involves etching away the SiO2 on the sidewalls using HF solution to prepare for the subsequent deposition of electrodes and the fabrication of the dielectric metasurface structure. The fourth step involves using electron beam lithography to pattern a specific structure on the top layer, followed by ICP etching to form the dielectric metasurface structure. The fifth step involves depositing a layer of Au on both the substrate surface and the top layer using magnetron sputtering technology as electrodes, preparing for subsequent experimental testing. In addition, the advantages of the heterogeneous epitaxy of III-V materials on silicon substrates through ART technology mainly include the following: the convenient integration of various high-mobility III-V materials and device structures; the easy realization of Si-based monolithic integration; patterned substrates can be prepared using STI templates, facilitating large-scale integration; excellent optoelectronic properties. Therefore, we intend to utilize ART epitaxy technology to grow high-quality InGaAs/InP multiple quantum well materials, with the goal of minimizing the influence of defects and lattice mismatch on device performance. Subsequently, leveraging the design parameters of dielectric metasurfaces obtained through simulation, we will design a high-performance Si-based InGaAs photodetector. This is precisely the reason why we have chosen to simulate the entire epitaxial layer produced by ART epitaxy technology, aiming to make the simulation more closely align with actual conditions and thereby thoroughly preparing for the subsequent device fabrication process.

4. Conclusions

Based on the above simulation results, the structural parameters of the dielectric metasurface required for subsequent experiments were obtained. Due to the unique properties of dielectric metasurface structures, all five shapes of dielectric metasurfaces exhibited different levels of improvement compared to the structure without a dielectric metasurface. In particular, at wavelengths close to 1550 nm, the selected circular dielectric metasurface boasted a theoretical absorption rate of up to 85.9%, quantum efficiency of 88.8%, and a response rate of 1.11 A/W, while also maintaining a low dark current of 10−4 mA. This significantly enhanced performance parameters such as light absorption efficiency, quantum efficiency, and response rate, and also contributed to its low dark current level. Furthermore, the electric field distribution of the structure confirmed that the dielectric metasurface can enhance the localized field through the dielectric holes, thereby improving light absorption efficiency. We have also preliminarily formulated the technological process and prepared and analyzed the feasibility of device preparation. This proves the rationality of our device design and provides valuable experience for the development of Si-based photodetectors.

Author Contributions

M.L. conceived the research project and discussed it with H.D.; H.D. performed simulation calculation and analysis and wrote the first draft; Y.W., H.Z., P.C. and W.D. discussed with H.D.; L.M., X.D., Z.D. and M.L. refined the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge the financial support from the National Natural Science Foundation of China under Grant 62404205, the National Key Laboratory of Infrared Detection Technologies under Grant IRDT-2307, and the National Key Laboratory of Engineering Dielectrics and Its Application (Harbin University of Science and Technology) under Grant KFM202408.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy concerns.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, J.; Wang, J.; Li, X.; Chen, J.; Yu, F.; He, J.; Wang, J.; Zhao, Z.; Li, G.; Chen, X.; et al. Recent Progress in Improving the Performance of Infrared Photodetectors via Optical Field Manipulations. Sensors 2022, 22, 677. [Google Scholar] [CrossRef] [PubMed]
  2. Hsu, C.Y.; Yiu, G.Z.; Chang, Y.C. Free-Space Applications of Silicon Photonics: A Review. Micromachines 2022, 13, 990. [Google Scholar] [CrossRef] [PubMed]
  3. Yamada, K.; Tsuchizawa, T.; Nishi, H.; Kou, R.; Hiraki, T.; Takeda, K.; Fukuda, H.; Ishikawa, Y.; Wada, K.; Yamamoto, T. High-performance silicon photonics technology for telecommunications applications. Sci. Technol. Adv. Mater. 2014, 15, 024603. [Google Scholar] [CrossRef] [PubMed]
  4. Bao, S.Y.; Wang, Y.; Lina, K.; Zhang, L.; Wang, B.; Sasangka, W.A.; Lee, K.E.K.; Chua, S.J.; Michel, J. A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers. J. Semicond. 2021, 42, 023106. [Google Scholar] [CrossRef]
  5. Shang, C.; Wang, Y.T.; Norman, J.C.; Collins, N.; MacFarlane, I.; Dumont, M.; Liu, S.; Li, Q.; Lau, K.; Gossard, A. Low-Threshold Epitaxially Grown 1.3-μm InAs Quantum Dot Lasers on Patterned (001) Si. IEEE J. Sel. Top. Quant. Electron. 2019, 25, 1–7. [Google Scholar] [CrossRef]
  6. Zeng, C.; Fu, D.; Jin, Y.; Han, Y. Recent Progress in III–V Photodetectors Grown on Silicon. Photonics 2023, 10, 573. [Google Scholar] [CrossRef]
  7. Xue, Y.; Han, Y.; Wang, Y.; Zhang, Z.; Ki Tsang, H.; May Lau, K. Bufferless III-V photodetectors directly grown on (001) silicon-on-insulators. Opt. Lett. 2020, 45, 1754–1757. [Google Scholar] [CrossRef]
  8. Xue, Y.; Han, Y.; Wang, Y.; Li, J.; Wang, J.Y.; Zhang, Z.Y.; Cai, X.L.; Tsang, H.K.; Lau, K.M. High-speed and low dark current silicon-waveguide-coupled III-V photodetectors selectively grown on SOI. Optica 2022, 9, 1219–1226. [Google Scholar] [CrossRef]
  9. Ozdemir, C.I.; De Koninck, Y.; Yudistira, D.; Kuznetsova, N.; Baryshnikova, M.; Van Thourhout, D.; Kunert, B.; Pantouvaki, M.; Van Campenhout, J. Low Dark Current and High Responsivity 1020nm InGaAs/GaAs Nano-Ridge Waveguide Photodetector Monolithically Integrated on a 300-mm Si Wafer. J. Light. Technol. 2021, 39, 5263. [Google Scholar] [CrossRef]
  10. Li, J.Z.; Li, J.Y.; Zhou, S.D.; Yi, F. Metasurface Photodetectors. Micromachines 2021, 12, 1584. [Google Scholar] [CrossRef]
  11. Đorđević, N.; Schwanninger, R.; Yarema, M.; Koepfli, S.; Yarema, O.; Salamin, Y.; Lassaline, N.; Cheng, B.; Yazdani, N.; Dorodnyy, A.; et al. Metasurface Colloidal Quantum Dot Photodetectors. ACS Photonics 2022, 9, 482–492. [Google Scholar] [CrossRef]
  12. Chen, Q.; Zhou, H.; Xu, S.; Huang, Y.C.; Wu, S.; Lee, K.H.; Gong, X.; Tan, C.S. A Route toward High-Detectivity and Low-Cost Short-Wave Infrared Photodetection: GeSn/Ge Multiple-Quantum-Well Photodetectors with a Dielectric Nanohole Array Metasurface. ACS Nano 2023, 17, 12151–12159. [Google Scholar] [CrossRef]
  13. Zhou, Z.X.; Ye, M.J.; Yu, M.W.; Yang, J.H.; Su, K.L.; Yang, C.C.; Lin, C.Y.; Babicheva, V.E.; Timofeev, I.V.; Chen, K.P. Germanium Metasurfaces with Lattice Kerker Effect in Near-Infrared Photodetectors. ACS Nano 2022, 16, 5994. [Google Scholar] [CrossRef] [PubMed]
  14. Song, J.; Bin, S.; Zhou, C.; Qin, B. High-Performance Normal-Incidence Ge/Si Meta-Structure Avalanche Photodetector. Photonics 2023, 10, 780. [Google Scholar] [CrossRef]
  15. Küng, A.; Meli, F.; Nicolet, A.; Thalmann, R. Application of a virtual coordinate measuring machine for measurement uncertainty estimation of aspherical lens parameters. Meas. Sci. Technol. 2014, 25, 094011. [Google Scholar] [CrossRef]
  16. Li, S.; Zhou, X.; Kong, X.; Li, M.; Mi, J.; Bian, J.; Wang, W.; Pan, J. Evaluation of growth mode and optimization of growth parameters for GaAs epitaxy in V-shaped trenches on Si. J. Cryst. Growth 2015, 426, 147–152. [Google Scholar] [CrossRef]
  17. Li, S.; Zhou, X.; Li, M.; Kong, X.; Mi, J.; Wang, M.; Wang, W.; Pan, J. Ridge InGaAs/InP multi-quantum-well selective growth in nanoscale trenches on Si (001) substrate. Appl. Phys. Lett. 2016, 108, 021902. [Google Scholar] [CrossRef]
  18. Adachi, S. Optical dispersion relations for GaP, GaAs, GaSb, InP, InAs, InSb, AlxGa1−xAs, and In1−xGaxAsyP1−y. J. Appl. Phys. 1989, 66, 6030–6040. [Google Scholar] [CrossRef]
  19. Sun, K.Y.; Jung, D.; Shang, C.; Liu, A.; Bowers, J.; Beling, A. Low-Dark Current III-V Photodiodes Grown on Silicon Substrate. In Proceedings of the 30th Annual Conference of the IEEE-Photonics-Society (IPC) Conference, Orlando, FL, USA, 1–5 October 2017. [Google Scholar]
  20. Xue, Y.; Wang, Y.; Luo, W.; Huang, J.; Lin, L.; Tsang, H.K.; Lau, K.M. Telecom InP-based quantum dash photodetectors grown on Si. Appl. Phys. Lett. 2021, 118, 141101. [Google Scholar] [CrossRef]
  21. Song, B.W.; Shi, B.; Suran-Brunelli, S.T.; Zhu, S.; Klamkin, J. Low Dark Current and High Speed InGaAs Photodiode on CMOS-Compatible Silicon by Heteroepitaxy. IEEE J. Sel. Top. Quant. Electron. 2022, 28, 1–8. [Google Scholar] [CrossRef]
  22. Mauthe, S.; Baumgartner, Y.; Sousa, M.; Ding, Q.; Rossell, M.D.; Schenk, A.; Czornomaz, L.; Moselund, K.E. High-speed III-V nanowire photodetector monolithically integrated on Si. Nat. Commun. 2020, 11, 1–7. [Google Scholar] [CrossRef] [PubMed]
  23. Xue, Y.; Han, Y.; Tong, Y.; Yan, Z.; Wang, Y.; Zhang, Z.; Tsang, H.K.; Lau, K.M. High-performance III-V photodetectors on a monolithic InP/SOI platform. Optica 2021, 8, 1204–1209. [Google Scholar] [CrossRef]

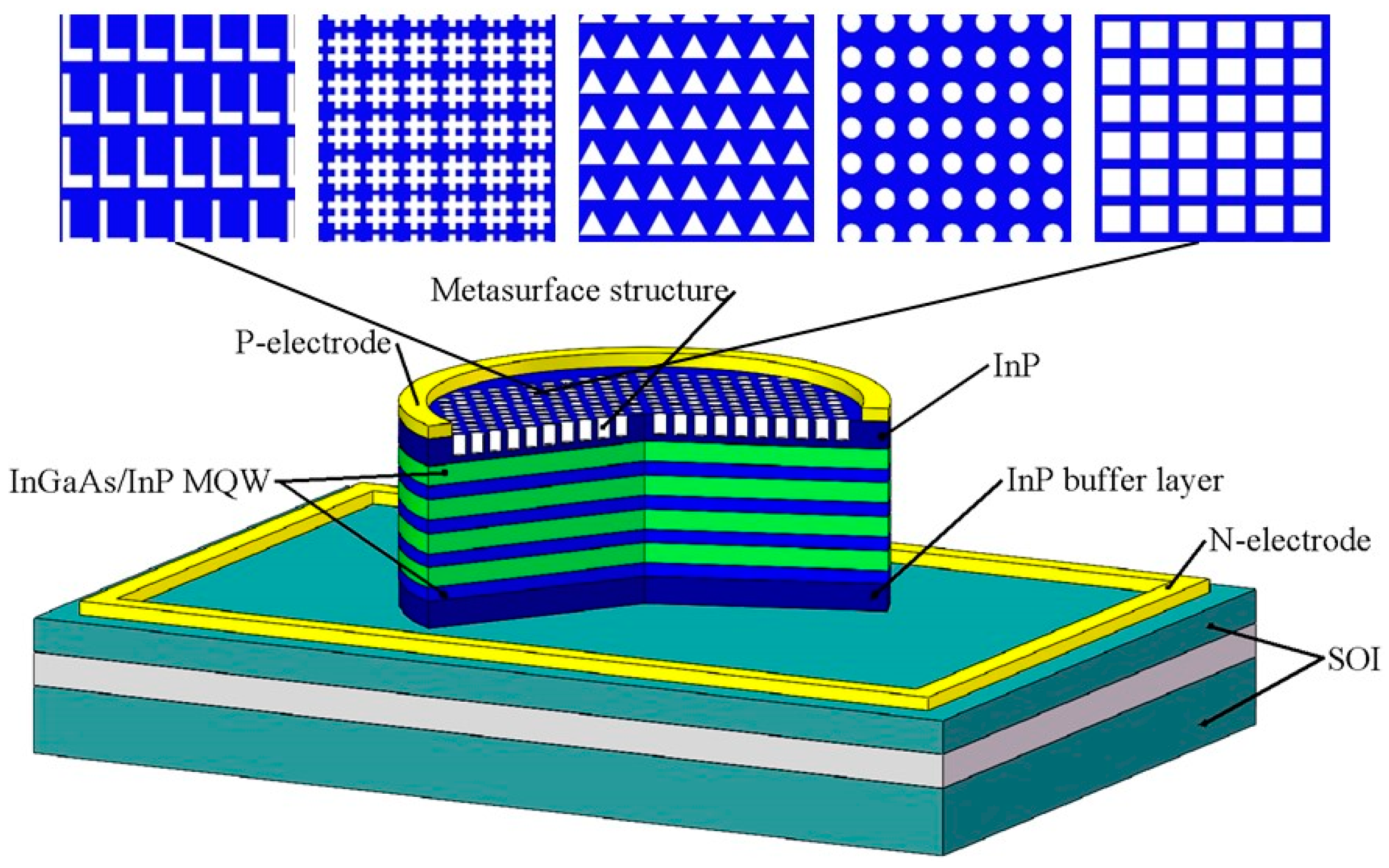

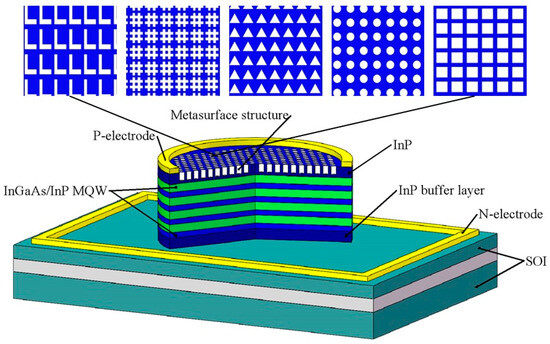

Figure 1. Schematic diagram of the three-dimensional structure.
Figure 1. Schematic diagram of the three-dimensional structure.
Photonics 11 00906 g001

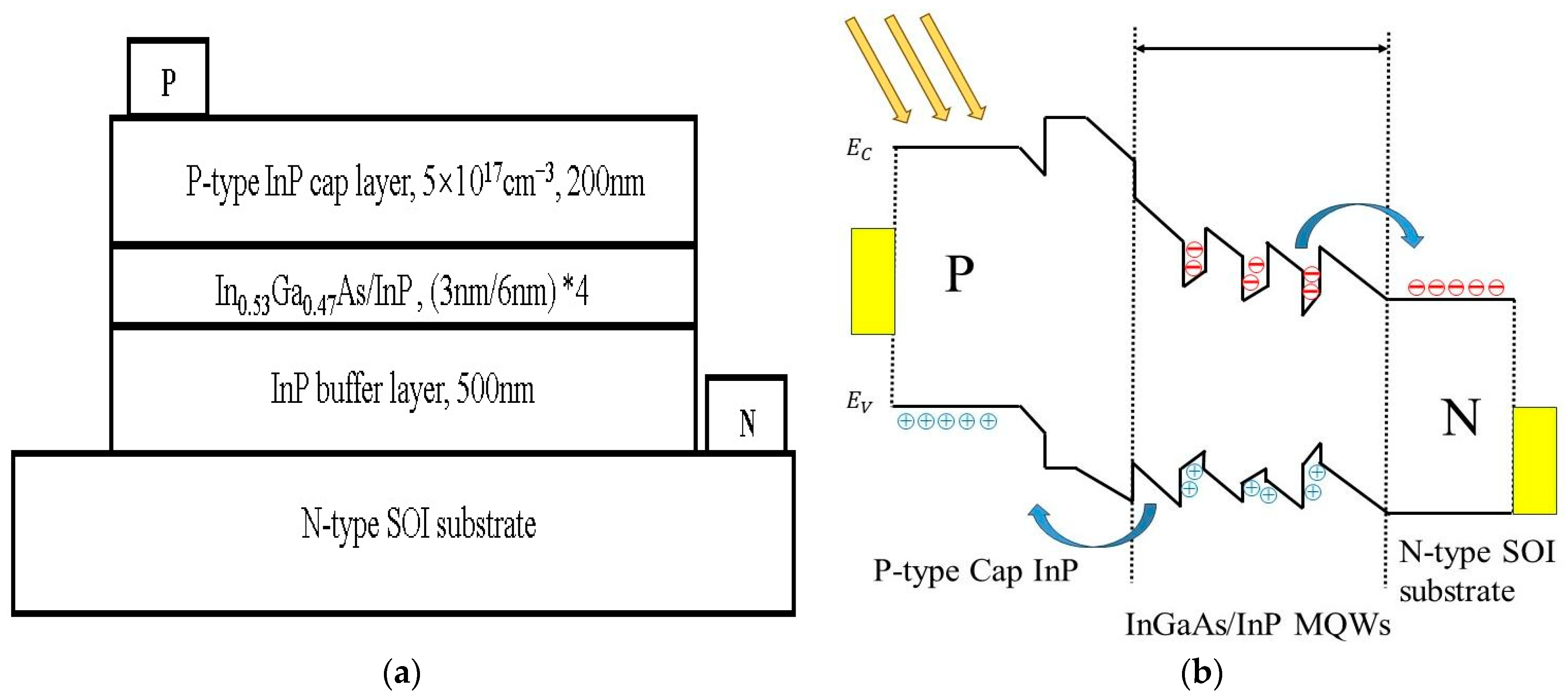

Figure 2. Si-based InGaAs MQW photodetector. (a) Schematic diagram of the layered structure. (b) Energy band diagram.
Figure 2. Si-based InGaAs MQW photodetector. (a) Schematic diagram of the layered structure. (b) Energy band diagram.
Photonics 11 00906 g002

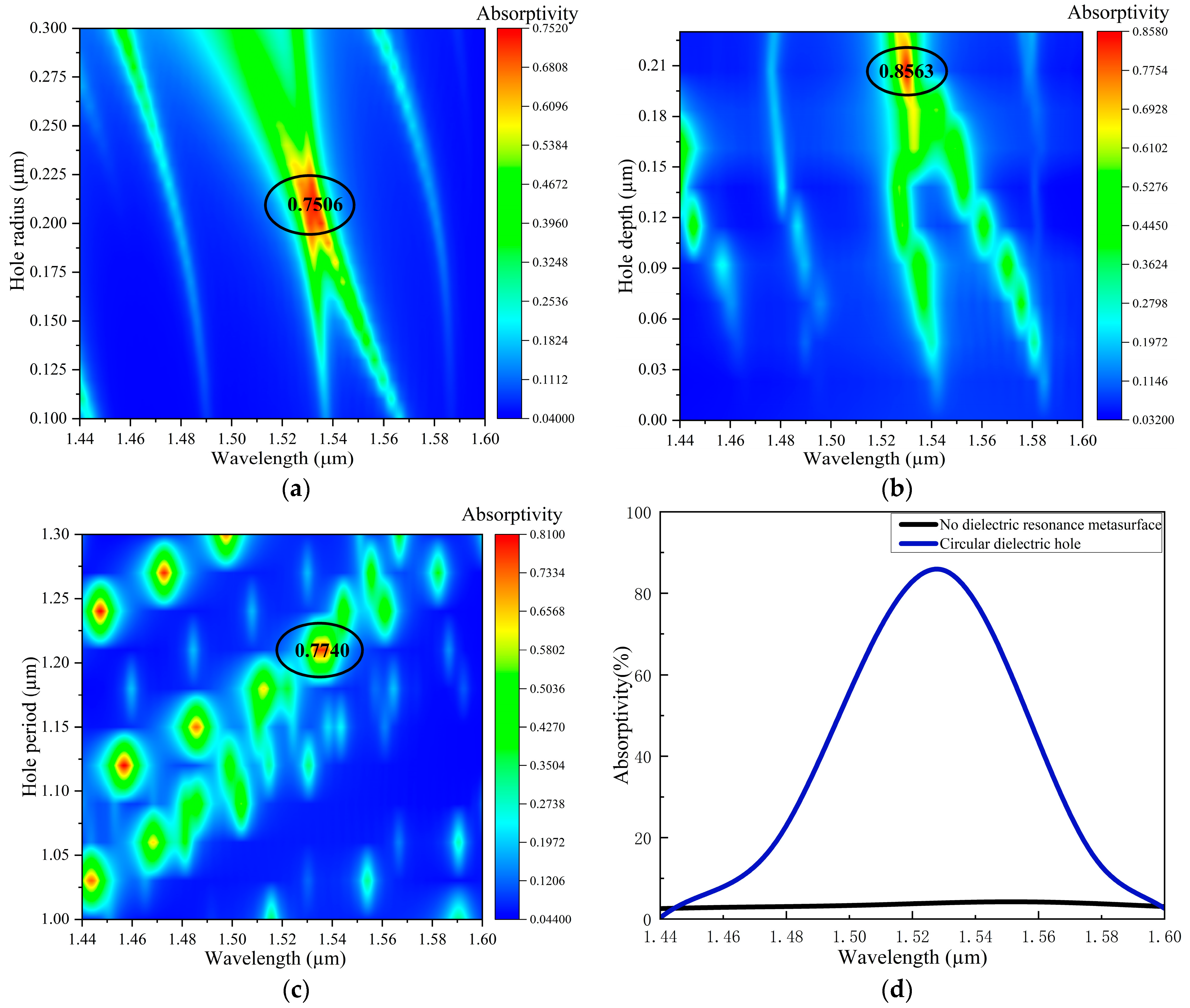

Figure 3. Scanning plots of circular dielectric holes and the comparison of absorption rates with and without the dielectric metasurface structure. (a) Relationship between the radius and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between circular dielectric holes and those without the dielectric metasurface structure.
Figure 3. Scanning plots of circular dielectric holes and the comparison of absorption rates with and without the dielectric metasurface structure. (a) Relationship between the radius and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between circular dielectric holes and those without the dielectric metasurface structure.
Photonics 11 00906 g003

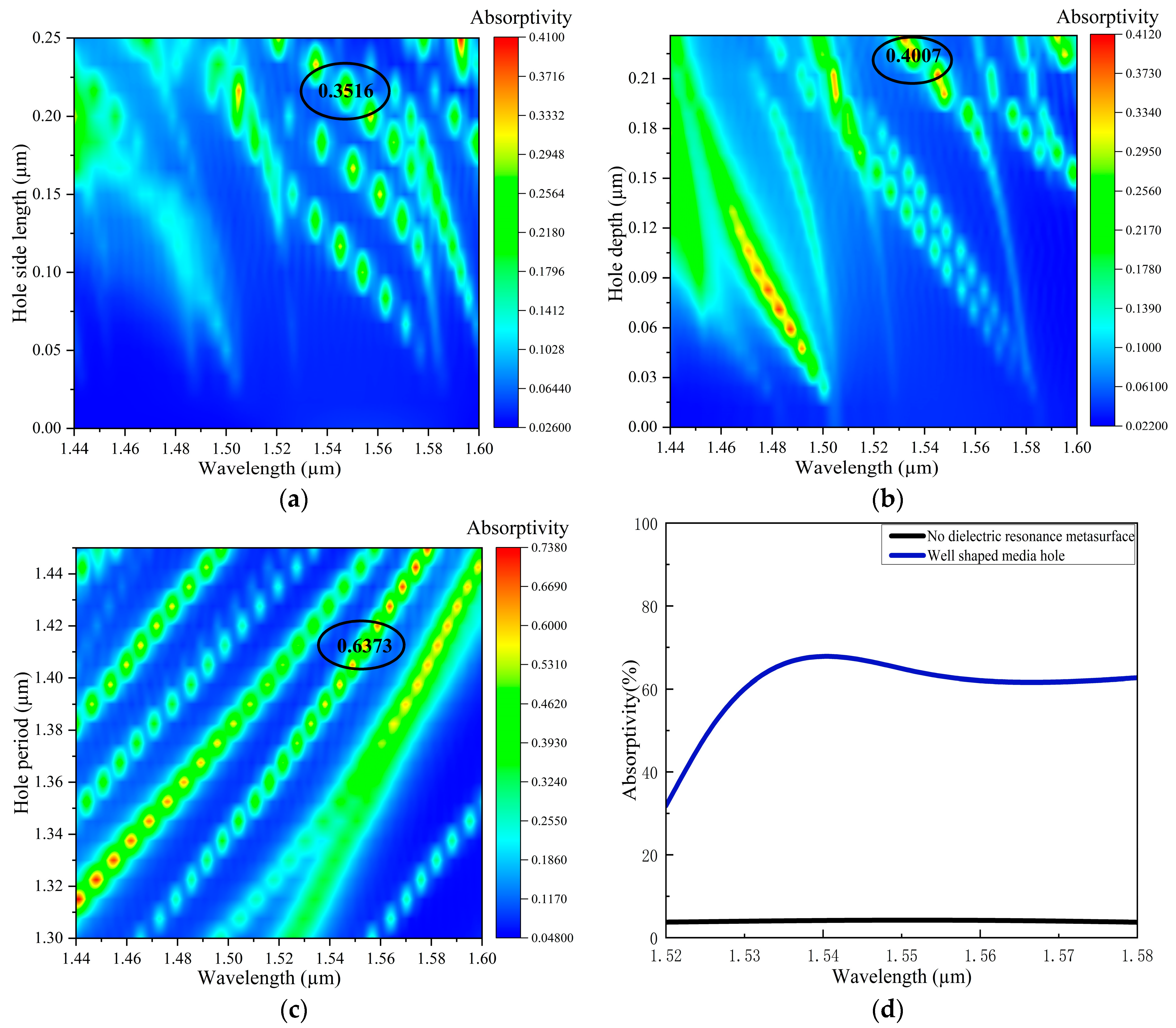

Figure 4. Scanning plots of well-shaped dielectric holes and comparison of absorption rates with and without the dielectric resonant structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between cross-shaped dielectric holes and those without the dielectric metasurface structure.
Figure 4. Scanning plots of well-shaped dielectric holes and comparison of absorption rates with and without the dielectric resonant structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between cross-shaped dielectric holes and those without the dielectric metasurface structure.
Photonics 11 00906 g004

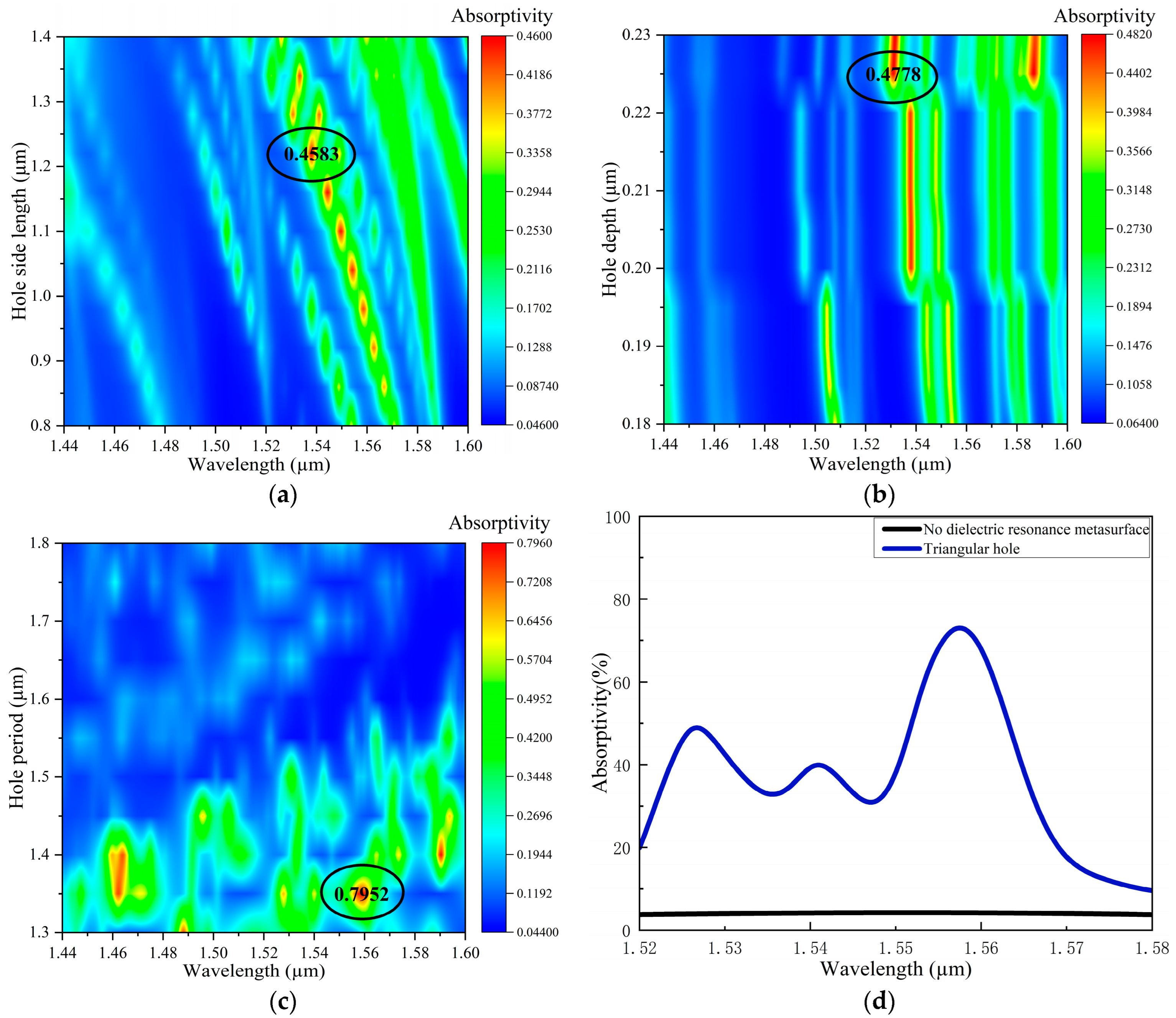

Figure 5. Scanning plots of triangular dielectric holes and the comparison of absorption rates with and without the dielectric resonant structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between triangular dielectric holes and those without the dielectric metasurface structure.
Figure 5. Scanning plots of triangular dielectric holes and the comparison of absorption rates with and without the dielectric resonant structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between triangular dielectric holes and those without the dielectric metasurface structure.
Photonics 11 00906 g005

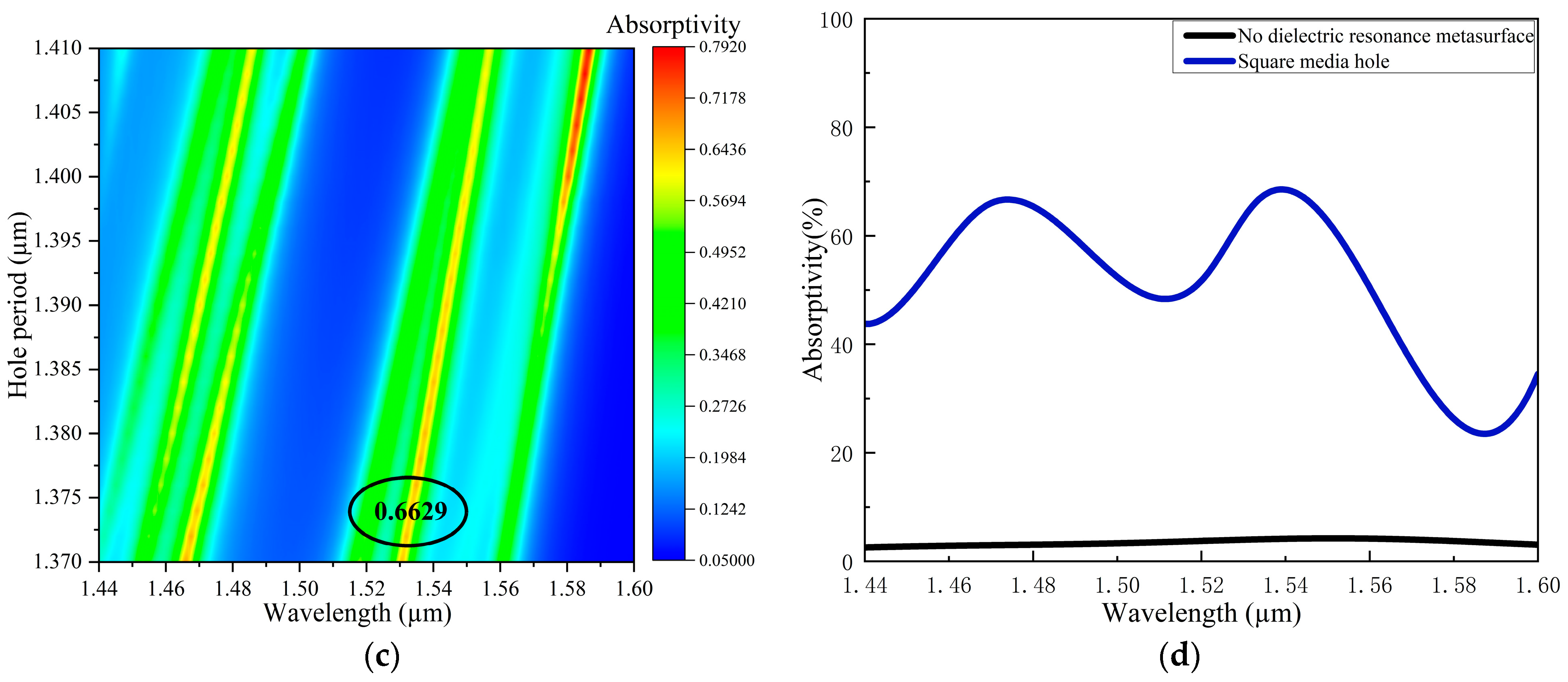

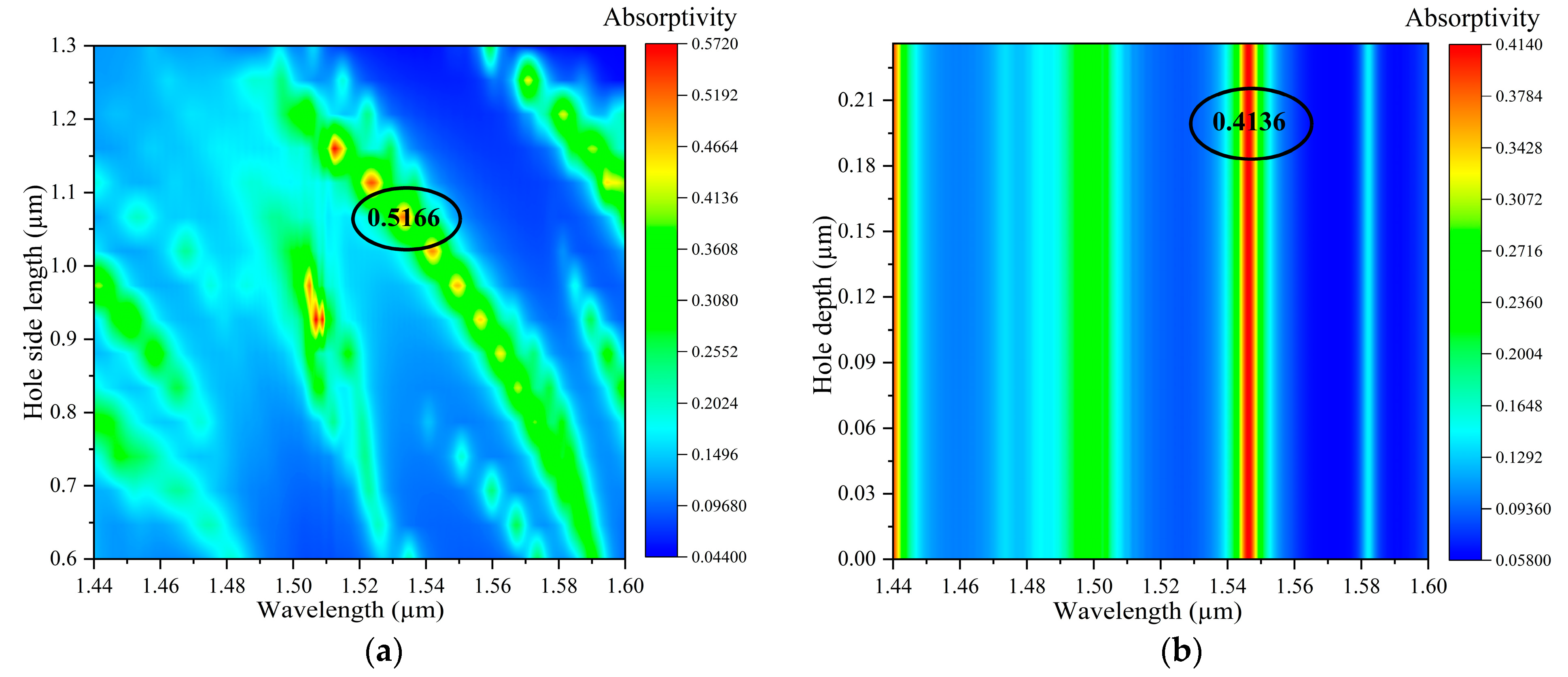

Figure 6. Scanning plots of the square dielectric metasurface and the comparison of absorption rates with and without the dielectric metasurface structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between square dielectric holes and those without the dielectric metasurface structure.
Figure 6. Scanning plots of the square dielectric metasurface and the comparison of absorption rates with and without the dielectric metasurface structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between square dielectric holes and those without the dielectric metasurface structure.
Photonics 11 00906 g006aPhotonics 11 00906 g006b

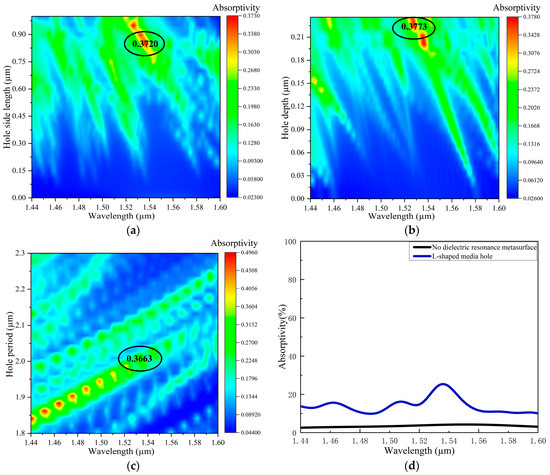

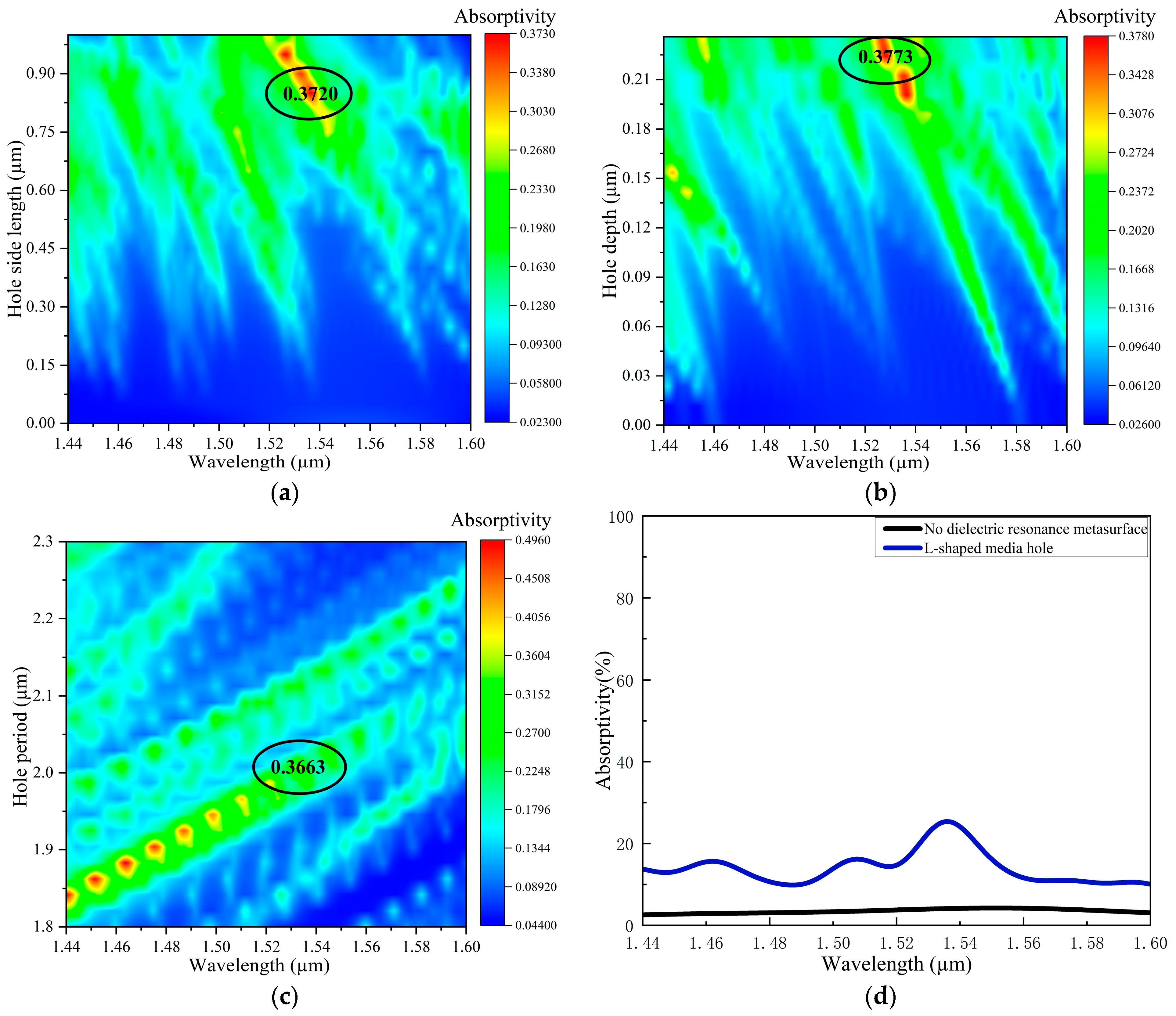

Figure 7. Scanning plots of L-shaped dielectric holes and the comparison of absorption rates with and without the dielectric metasurface structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between L-shaped dielectric holes and those without the dielectric metasurface structure.
Figure 7. Scanning plots of L-shaped dielectric holes and the comparison of absorption rates with and without the dielectric metasurface structure. (a) Relationship between the side length and absorption rate. (b) Relationship between the depth and absorption rate. (c) Relationship between the period and absorption rate. (d) Comparison of absorption rates between L-shaped dielectric holes and those without the dielectric metasurface structure.
Photonics 11 00906 g007

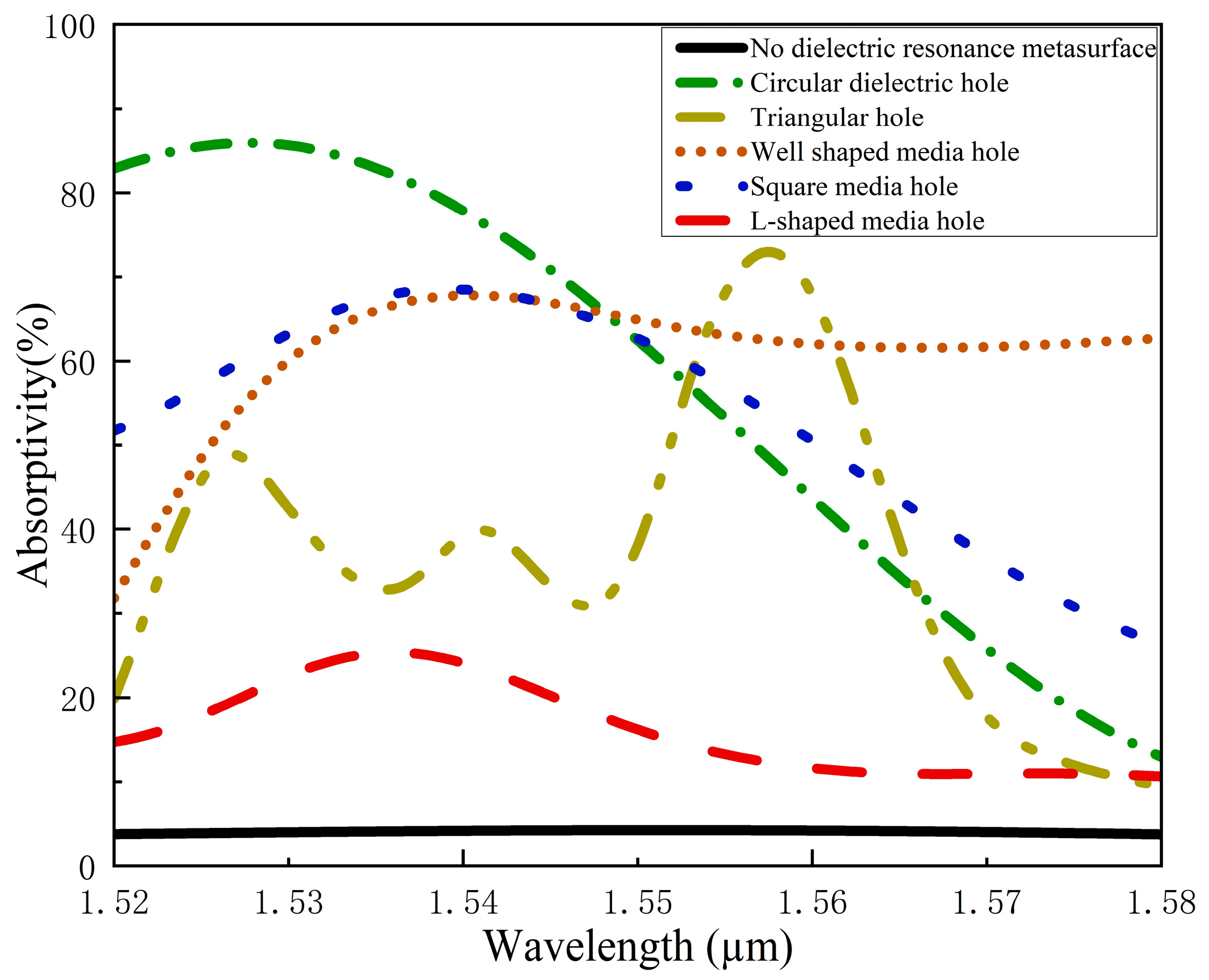

Figure 8. Comparison of different shapes of dielectric metasurfaces with a structure without a dielectric metasurface.
Figure 8. Comparison of different shapes of dielectric metasurfaces with a structure without a dielectric metasurface.
Photonics 11 00906 g008

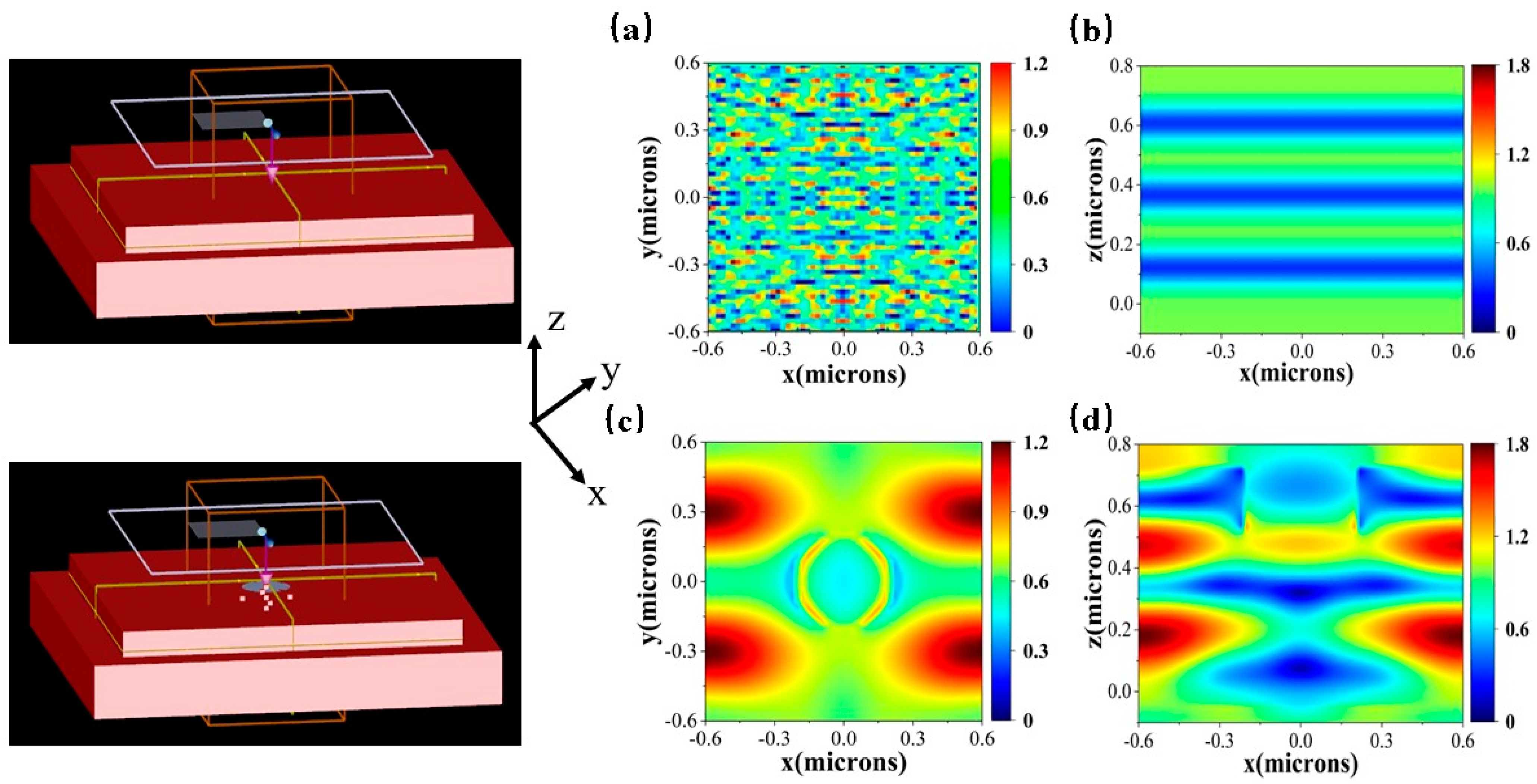

Figure 9. Comparison of electric field distribution in the XY plane and XZ plane with and without a dielectric metasurface. (a,b) are the electric field distribution diagrams of the XY plane and XZ plane of the dielectric-less metasurface, respectively. (c,d) are the electric field distribution diagrams of the XY plane and XZ plane, respectively, after introducing a dielectric metasurface.
Figure 9. Comparison of electric field distribution in the XY plane and XZ plane with and without a dielectric metasurface. (a,b) are the electric field distribution diagrams of the XY plane and XZ plane of the dielectric-less metasurface, respectively. (c,d) are the electric field distribution diagrams of the XY plane and XZ plane, respectively, after introducing a dielectric metasurface.
Photonics 11 00906 g009

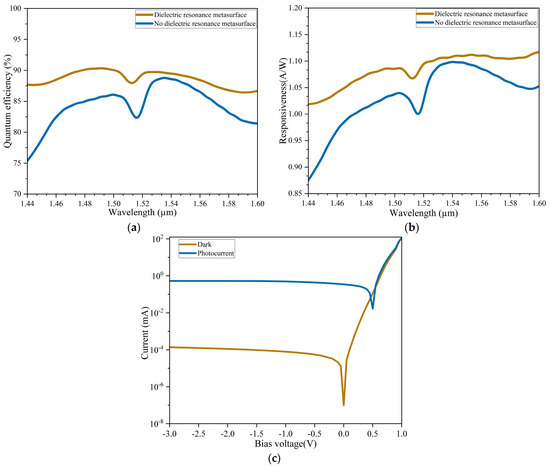

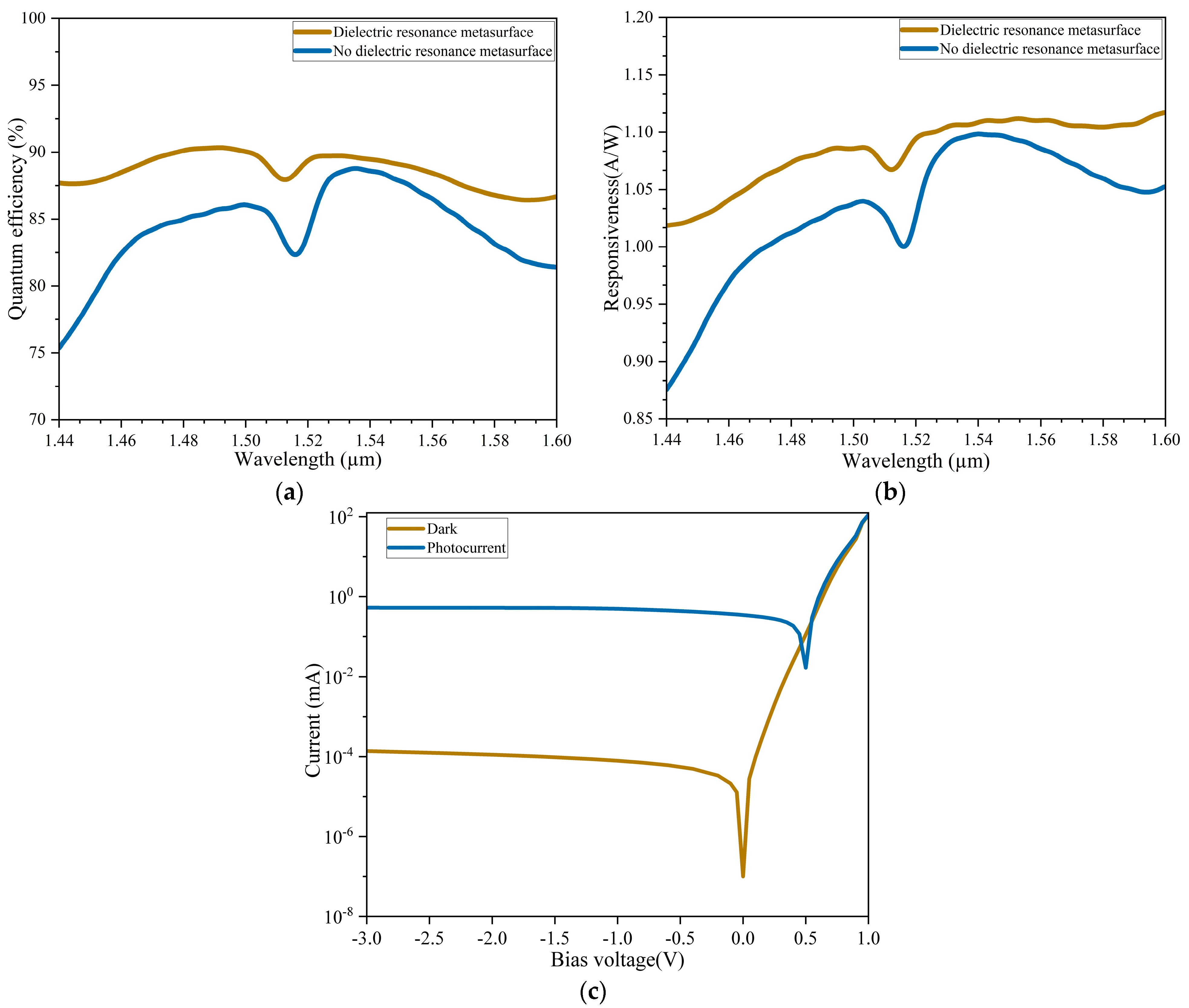

Figure 10. (a) Relationship between quantum efficiency and wavelength. (b) Relationship between responsivity and wavelength. (c) Comparison of photocurrent and dark current under different bias voltages.
Figure 10. (a) Relationship between quantum efficiency and wavelength. (b) Relationship between responsivity and wavelength. (c) Comparison of photocurrent and dark current under different bias voltages.
Photonics 11 00906 g010

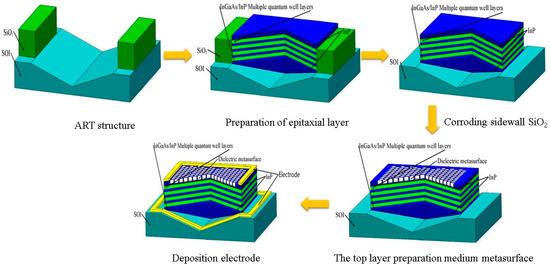

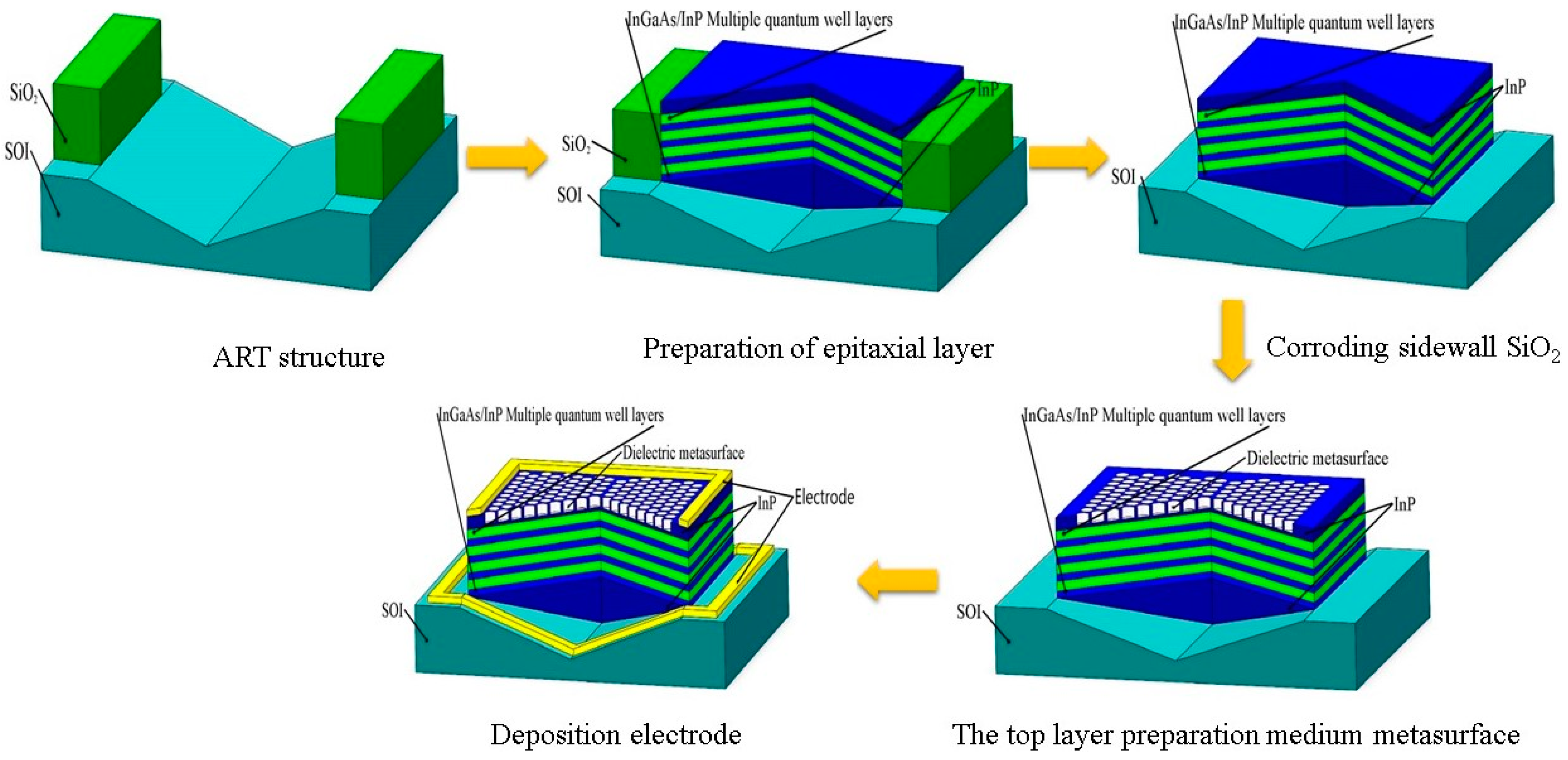

Figure 11. Process flow diagram for fabricating Si-based InGaAs photodetectors using ART technology.
Figure 11. Process flow diagram for fabricating Si-based InGaAs photodetectors using ART technology.
Photonics 11 00906 g011
Table 1. Comparison of photodetector performance under different growth techniques.
Table 1. Comparison of photodetector performance under different growth techniques.
Growth TechniqueYearMaterial BasedBufferAbsorption MaterialWavelengthDark Current
Density
ResponsivityReference
Blanket Heteroepitaxy2017InPGe/GaAs/InAlAsInGaAs1550 nm1.3 mA/cm2
(−3 V)
0.76 A/W[19]
2021InPGaAs/InPInAs/InGaAs/InAlGaAs
QDash in well
1550 nm
1310 nm
2.1 µA/cm2
(−1 V)
0.35 A/W
0.94 A/W
[20]
2022InPGoVS/InPInGaAs1550 nm0.45 mA/cm2
(−1 V)
0.72 A/W[21]
Selective Heteroepitaxy2020SOI-InGaAs/InP QWS1450–1650 nm33 mA/cm21.06 A/W (1550 nm)[7]
2020SOI-InGaAs1200–1700 nm-0.68 A/W
(1346 nm)
[22]
2022SOI-InGaAs/InP QWS1240–1650 nm-0.3 A/W
(1550 nm)
0.8 A/W
(1310 nm)
[23]
Our work InPInPInGaAs/InP QWS1440–1600 nm 1.11 A/W (1550 nm)
