High-Peak Power Frequency Modulation Pulse Generation in Cascaded Fiber Configurations with Inscribed Fiber Bragg Grating Arrays

Abstract

We explored the dynamics of frequency-modulated (FM) pulses in a cascaded fiber configuration comprising one active and one passive optical fiber with multiple fiber Bragg gratings (FBGs) of different periods inscribed over the fiber configuration length. We present a theoretical formalism to describe the mechanisms of the FM pulse amplification and pulse compression in such fiber cascades resulting in peak powers up to ~0.7 MW. In combination with the decreasing dispersion fibers, the considered cascade configuration enables pico- and sub-picosecond pulse trains with a sub-terahertz repetition rate and sub-kW peak power generated directly from the continuous optical signal.

1. Introduction

Fiber laser technology has recently been improved with the emerging ultrashort pulse (USP) sources emitting pulses of high peak power. Such laser sources are in great demand for a variety of applications, e.g., material processing, cut edging, precise surface structuring, and surgical procedures. In science and metrology, USP lasers are used with ultrafast spectroscopy, multiphoton microscopy, or optical coherence tomography [1,2,3,4]. The achievement of higher pulse peak power in fiber lasers is associated with the use of optical fibers possessing a low nonlinearity [5,6]. Among such fiber materials are single-mode fibers with large mode areas (>100 μm²) [5,6,7,8,9,10] and step- or grade-index tapered fibers [8,9,10,11,12,13,14]. Additionally, the optical fibers with the dispersion varying along the fiber length are commonly used for the generation of high peak power USPs [1,2,3,4,5,6]. Such fibers also enable pulse compression, supercontinuum generation, and optical processing [15,16].

Therefore, the design of nonuniform fibers possessing low nonlinearity is of great practical interest for high-power USP fiber lasers. However, the precise control of the fiber dispersion parameters is a technically challenging task. In particular, in grade-index (parabolic) and step-index tapered fibers, the group velocity dispersion (GVD) is determined by the fiber material dispersion and cannot be tailored. A simple way to overcome this limitation is to inscribe the array of refractive index fiber Bragg gratings with different periods distributed along the fiber length in a proper way. This concept has been demonstrated to control the frequency-modulated (FM) pulse dynamics in [17,18,19,20,21].

Currently, FBG fabrication is a well-established technique [22,23]; in particular, it is widely used with grade-index multimode fibers and is promising for applications in high-energy and high-peak power laser pulsed sources [24,25,26,27,28,29,30]. At present, FBGs are widely used both as elements of various types of fiber lasers and as sensitive elements of various fiber sensors [31,32,33,34,35,36,37,38]. Now, there are many papers in which the spectral characteristics of FBGs, their manufacturing methods, and their application possibilities are considered.

In this paper, we describe the method enabling amplification and temporal compression of FM pulses in a fiber configuration comprising both passive and active (amplifying) fibers with inscribed refractive index fiber Bragg gratings (FBGs) of different periods. We demonstrate that, in combination with the tapered fiber, such a fiber configuration could be used for the generation of an ultrashort pulse train with a high repetition rate (terahertz) directly from the weakly modulated CW input light.

2. Fibers with Inscribed FBG Arrays

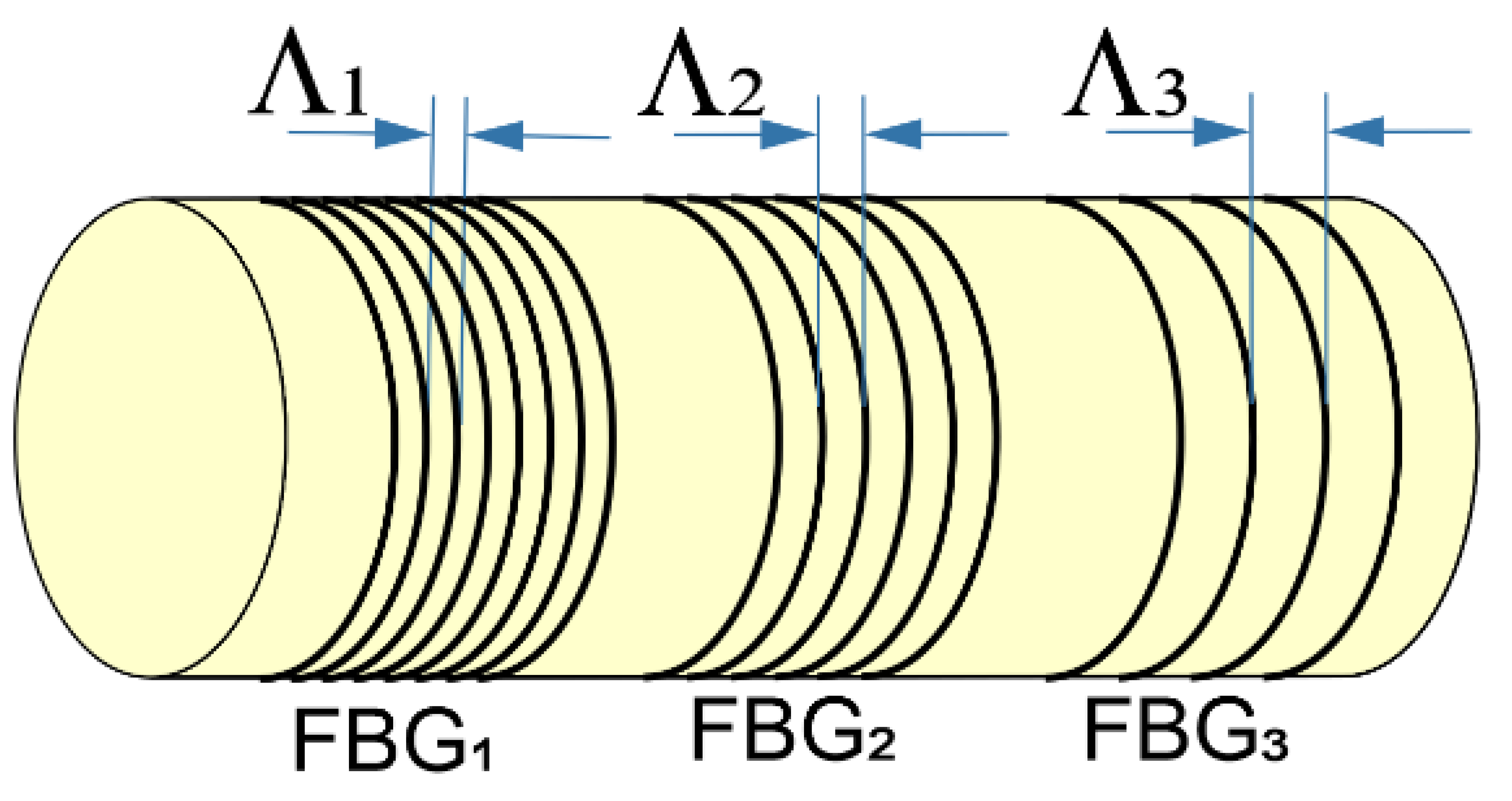

Let us consider the dynamics of an optical signal propagating in a fiber with inscribed FBG arrays (Figure 1). The refractive index variation along the FBG is defined by the function [15,16,17,18,19,39,40]:

$$n_i(z)=n_0\left[1-m\cos \left(2\pi z/{\Lambda }_i(z)\right)\right],$$

(1)

where $n_0$ is the fiber average refractive index, $m$ is the modulation depth of the inscribed grating, and ${\Lambda }_i$ is the period of the $i$-th FBG, $i=1,2\dots$

The contribution of the refractive index changes in the FBG to the GVD is known to dominate the fiber material dispersion. The second-order GVD is expressed as [15,16,28,31]:

$${\beta }_2(z)=d_2-\frac{\mathrm{sign}(\delta )\cdot {\kappa }^2}{V_g^2{({\delta }^2-{\kappa }^2)}^{3/2}}=\frac{1}{c}{\left(\frac{{\partial }^2\left(\omega n_0\left(\omega \right)\right)}{\partial {\omega }^2}\right)}_{\omega ={\omega }_0}-\hspace{0.17em}\hspace{0.17em}\frac{\mathrm{sign}(\delta )\cdot {\kappa }^2}{V_g^2{({\delta }^2-{\kappa }^2)}^{3/2}},$$

(2)

where $d_2$ is the fiber material second-order dispersion, $V_g^{}$ is the group velocity of the pulse propagating in the fiber without FBGs, $\kappa =2\pi m/{\lambda }_0$ is the coefficient describing the coupling between the forward and backward waves, ${\lambda }_0$ is the central optical signal wavelength, and ${\delta }_i$ is the normalized detuning of the optical signal carrier frequency from the peak FBG reflectivity frequency ${\omega }_B$.

For a uniform FBG, this detuning can be written as [15,16,28,31]:

$${\delta }_i(z)=\frac{{\omega }_0-{\omega }_B{}_i(z)}{V_g}=\frac{2\pi c}{V_g}\left(\frac{1}{{\lambda }_0}-\frac{1}{{\lambda }_B{}_i(z)}\right)=\frac{2\pi c}{V_g{\lambda }_0}-\frac{\pi }{{\Lambda }_i(z)}.$$

(3)

Depending on ${\Lambda }_i(z)$ the detuning ${\delta }_i(z)$ can be either negative or positive. Correspondingly, the second-order GVD of the fiber is normal or anomalous at $\delta <0$ or $\delta >0$, respectively.

Hereinafter, the pulse wavelength is assumed to be less than and far from the FBG peak reflectivity wavelength, i.e., $\delta \gg \kappa$. In this case, Equation (2) is reduced to:

$${\beta }_2(z)=d_2-\frac{{\kappa }^2}{V_g^2{\delta }^3},$$

(4)

The FBG reflectivity spectrum bandwidth is $\Delta {\lambda }_{gapp}=m{\lambda }_0/2n_0\ll 1\hspace{0.17em}\mathrm{nm}$.

At a large frequency detuning $\delta \gg \kappa$, the inscribed FBG has no effect on the effective cubic nonlinear coefficient in the fiber since it is determined by the fiber material only. However, the contributions of higher-order dispersion coefficients still have to be taken into account. In particular, the third-order GVD contribution is expressed as [15,16,28,31]:

$${\beta }_3(z)=d_3+\frac{3\delta {\kappa }^2}{V_g^3{({\delta }^2-{\kappa }^2)}^{5/2}}=\frac{1}{c}{\left(\frac{{\partial }^3\left(\omega n_0\left(\omega \right)\right)}{\partial {\omega }^3}\right)}_{\omega ={\omega }_0}+\hspace{0.17em}\frac{3{\kappa }^2}{V_g^3{\delta }^4},$$

(5)

In accordance with Equation (5), the parameter ${\beta }_3(z)$ in a single-mode fiber is several orders of magnitude higher than the material third-order dispersion $d_3$ [15,16], so it can deteriorate the FM pulse compression quality, resulting in pulse shape distortion and even decay.

Let the period ${\Lambda }_i(z)$ of FBGs inscribed in the optical fiber increase along the fiber length $z$. In this case, $\delta$ also increases with $z$, leading to a decrease in the anomalous GVD absolute value. As follows from Equations (2) and (5), the second- and third-order dispersion parameters decrease as ${\delta }^{-3}$ and ${\delta }^{-4}$, respectively. The contributions of higher-order dispersion (${\beta }_n\sim {\delta }^{-n}$) reduce even faster, thereby preventing shape deformation for the generation of high-peak power subpicosecond pulses considered below.

3. Soliton-Like FM Pulse Temporal Compression in Fibers with Inscribed FBGs

The dynamics of pulse propagation in an optical fiber with inscribed FBG arrays (Figure 1) can be described by the nonlinear Schrödinger equation commonly used with nonuniform fibers [29,33,34,35] and taking into account the fiber nonlinearity, gain factor, and second- and third-order dispersion coefficients:

$$\frac{\partial A}{\partial z}-i\frac{{\beta }_2(z)}{2}\frac{{\partial }^{2}A}{\partial {\tau }^2}-\frac{{\beta }_3(z)}{6}\frac{{\partial }^{3}A}{\partial {\tau }^3}+iR(z)\left({\left|A\right|}^2-{\tau }_R\frac{\partial {\left|A\right|}^2}{\partial \tau }\right)A=g(z)A,$$

(6)

where $\tau =t-{\displaystyle {\int }_0^{z}d\xi /u(\xi )}$ is the time in the running reference frame, $u(z)$ is the pulse group velocity, ${\beta }_{2,3}(z)$ are the second- and third-order dispersion parameters, $R(z)$ is the cubic (Kerr) nonlinearity coefficient, $g(z)$ is the gain factor, and ${\tau }_R$ is the nonlinear (Raman) response time in the fiber medium.

At ${\beta }_3(z)\to 0$ and ${\tau }_R\to 0$, the pulse evolution described by Equation (6) could exhibit unlimited temporal compression, resulting in an unlimited increase in the peak amplitude [29,33,34]. To obtain this solution, the dispersion and nonlinear coefficient should be kept unchangeable along the fiber with anomalous GVD (${\beta }_{2}R<0$), and the gain factor distribution determined by the function $g(z)=g_0/(1-2g_{0}z)$ should be provided. In this case, for the fiber length $2g_{0}z<1$, the pulse evolution described by Equation (6) is expressed as:

$$A(\tau ,z)=\frac{A_0}{1-2g_{0}z}\mathrm{sech}\left(\frac{\tau }{{\tau }_s}\right)\exp \left(i\frac{{\alpha }_0{\tau }^2-\Gamma z}{1-2g_{0}z}\right).$$

(7)

Here, $A_0,\hspace{0.17em}{\tau }_s,\hspace{0.17em}{\alpha }_0$ are the input pulse amplitude, duration, and FM rate, respectively, $\Gamma =g_0/2{\alpha }_0{\tau }_0^2$.

A similar scenario of the FM soliton pulse evolution is also achievable in the optical fiber with a constant gain but with the GVD varying along the fiber length. To obtain this operation in the active fiber with a constant gain factor, the GVD profile has to be described as [41,42,43,44]:

$${\beta }_2(z)\to -\left|{\beta }_{20}\right|\exp \left[-\frac{{\alpha }_0\left|{\beta }_{20}\right|}{g_0}\left(\exp (2g_{0}z)-1\right)+2g_{0}z\right].$$

(8)

This results in the evolution of the pulse duration:

$$\tau (z)\to {\tau }_0\exp \left[-\frac{{\alpha }_0\left|{\beta }_{20}\right|}{g_0}\left(\exp (2g_{0}z)-1\right)\right].$$

(9)

For passive fibers with $g_0=0$, Equations (8) and (9) are reduced to:

$${\beta }_2(z)\approx -\left|{\beta }_{20}\right|\exp (-2{\alpha }_0\left|{\beta }_{20}\right|z),$$

(10)

$${\tau }_s(z)\approx {\tau }_0\exp (-2{\alpha }_0\left|{\beta }_{20}\right|z),$$

(11)

Therefore, under the condition that the proper GVD profile is provided by a proper distribution of the inscribed FBG period along the fiber length, fibers with inscribed FBG arrays could be employed for the generation of high-peak power USPs.

Let us consider the dynamics of an FM pulse propagating in a passive or active optical fiber with an inscribed FBG array (Figure 1). All inscribed FBGs differ only in the period ${\Lambda }_i$, where i is the FBG order number. The average refractive index $n_0=1.5$ and modulation depth $m$ are assumed to be the same for all FBGs.

In the numerical calculations, we used the parameters typical for standard optical fibers and inscribed gratings: the cubic nonlinearity coefficient $R={10}^{-3}\hspace{0.17em}{(\mathrm{W}\times \mathrm{m})}^{-1}$ at the wavelength ${\lambda }_0=1550\hspace{0.17em}\mathrm{nm}$, the mode effective area $S_{eff}=50\hspace{0.17em}{\mathsf{\mu }\mathrm{m}}^2$, and the nonlinear response time of the medium of ${\tau }_R\approx 5\times {10}^{-15}\hspace{0.17em}\mathrm{s}$, $d_2=-2\times {10}^{-27}\hspace{0.17em}{\mathrm{s}}^2/\mathrm{m}$, $d_3={10}^{-40}\hspace{0.17em}{\mathrm{s}}^3/\mathrm{m}$ [15,16]. It is worth noting that the parameter $d_2$ can play a crucial role at the final stage of pulse compression when the light bandwidth is maximal and the effect of the inscribed FBG on the dispersion is minimal. The parameters used for the inscribed FBGs were the Bragg wavelength ${\lambda }_{B1}(z=0)\equiv 2n_0{\Lambda }_1=1556.5\hspace{0.17em}\mathrm{nm}$, detuning $\delta \approx 2.5\times {10}^4\hspace{0.17em}{\mathrm{m}}^{-1}$, and refractive index modulation depth $m=5\times {10}^{-4}$. The coupling coefficient $\kappa \approx 2.5\times {10}^3\hspace{0.17em}{\mathrm{m}}^{-1}$ corresponds to these parameters. The proper distribution of the FBG period along the fiber length was used to provide the exponential GVD profile ${\beta }_2(z)=-\left|{\beta }_{20}\right|\exp (-qz)$.

The optimal fiber parameters are those that enable the FM soliton pulse generation determined by relations (7) and (8) [43,44]. The generation of high-peak power FM pulses is provided by tailoring the GVD profile ${\beta }_2(z)$ and the proper selection of the initial frequency modulation rate ${\alpha }_0$. In turn, the ${\beta }_2(z)$ parameter is governed mainly by the variation of the FBG parameters according to (2) and (4), whereas higher-order dispersion has to be relatively low:

$$\left|{\beta }_2\right|>>\left|\frac{{\beta }_n\Delta {\omega }^{n-2}}{n!}\right|,\hspace{0.17em}\hspace{0.17em}n\ge 3,$$

where $\Delta \omega$ is the FM pulse spectrum width.

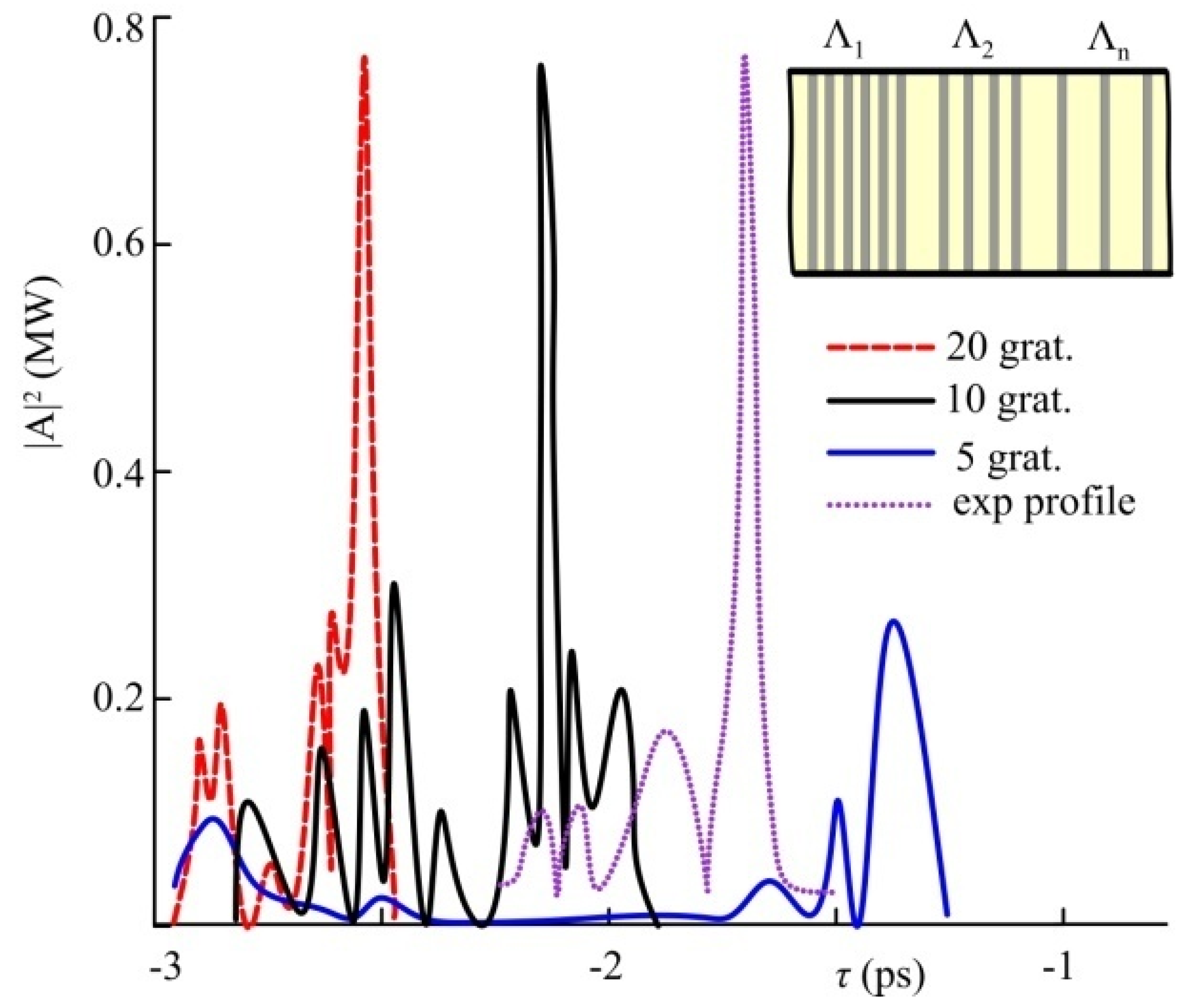

Figure 2 compares the results of the FM pulse (6) temporal compression in a 20 cm passive optical fiber comprising 5, 10, or 20 inscribed FBGs separated by 4, 2, or 1 cm, respectively. The pulse duration at the fiber input is ${\tau }_0=10\hspace{0.17em}\hspace{0.17em}\mathrm{ps}$, the FM rate is ${\alpha }_0\simeq {10}^{23}{\mathrm{s}}^{-2}$, and the peak power is $P_0={\left|A_0\right|}^2=7.7\hspace{0.17em}\mathrm{kW}$. The output pulses obtained in three cases are shown in comparison with the similar pulse obtained in the fiber with the perfect exponential GVD profile. Along the fiber length, the GVD decreases from ${\beta }_2(0)\approx -5\times {10}^{-23}\hspace{0.17em}{\mathrm{s}}^2/\mathrm{m}$ to ${\beta }_2\approx -2.5\times {10}^{-26}\hspace{0.17em}{\mathrm{s}}^2/\mathrm{m}$, with the period increasing from 516 to 534 nm. One can see that the discretization of the GVD profile into individual gratings leads to worse compression and causes an increase in the noise pedestal level. Nevertheless, the use of the fiber with at most 5 FBGs enables an effective compression of the initial pulse. A larger number of FBGs inscribed within the same fiber length provides a higher peak power and a smoother pedestal. We observed that the use of a fiber length larger than 20 cm causes rapid distortion of the FM pulse independently of the number of FBGs used. In this case, the less smooth the GVD profile is, the sooner the destruction occurs.

In our opinion, to implement the proposed scheme, the long chirped FBGs with a smooth change in the period seem to be the most suitable. However, as mentioned in our work, the inscription of the chirped FBGs is technically difficult. Therefore, the use of multiple uniform FBGs of different periods inscribed over the fiber length is a simpler way to provide a smooth decrease in the anomalous GVD induced by the FBG. Therefore, in the revised manuscript, Figure 2 shows the FM pulse peak power achieved in the fiber with a different number of FBGs. One can see that a chirped grating with a smooth change of the period ensures the most compression efficiency. On the other hand, discrete uniform gratings can also provide a good result. Moreover, the shorter the grating with a fixed period we used, the smoother dispersion profile that can be achieved. The analysis shows that an increase in the FBG number (within the same fiber length) leads to better compression, a reduced number of sidebands, and a higher power concentration in the pulse.

The use of passive fibers with inscribed FBG arrays as a means of pulse compression is possible if the input FM pulse contains enough energy. Therefore, we propose to use it as the second segment of the cascaded fiber configuration employing the active amplifying fiber as the first segment. The active fiber has to amplify the input pulse up to the required level. In the next section, we consider the cascaded fiber configuration comprising active and passive optical fibers with inscribed FBGs.

On the other hand, the type I-IR gratings allow a smooth variation of the grating period. For example, chirped gratings can be manufactured as the type I gratings. Thus, the choice of the optimal grating type for the proposed configuration is a subject to be studied separately elsewhere. However, we believe that both types can ensure significant results.

In our configuration, the modulation depth $m$ of the FBGs plays a crucial role. The greater the modulation depth, the shorter the FBG that can be used, and the higher GVD ${\beta }_2$ that can be achieved within a single FBG. As follows from relation (4), ${\beta }_2(z)$ increases as the square of the FBG modulation depth. According to [25,45], type II gratings inscribed with the pulsed laser are preferable for obtaining deeply modulated FBGs providing $m\gg {10}^{-5}$.

On the other hand, the type I gratings allow a smooth variation of the grating period. For example, chirped gratings can be manufactured as type II gratings. Thus, the choice of the optimal grating type for the proposed configuration is a subject to be studied and published elsewhere. However, we believe that both FBG types are applicable for our purposes.

We consider the proposed configuration to be quite universal. Such FBGs can be effectively used in ytterbium-doped active fibers able to provide the generated pulses with high energy (consequently, high peak power over 100 kW), and our configuration is primarily proposed to generate high power pulses. The simplest implementation of such technique can be considered using Ge-doped fibers [31,36], as the inscription technique is well developed for them [31]. Additionally, Er-doped active fibers are suitable for this purpose.

4. Amplification and Temporal Compression of FM Pulses in a Cascade of Active and Passive Fibers

This section may be divided into subsections. It provides a concise and precise description of the experimental results, their interpretation, and the experimental conclusions that can be drawn.

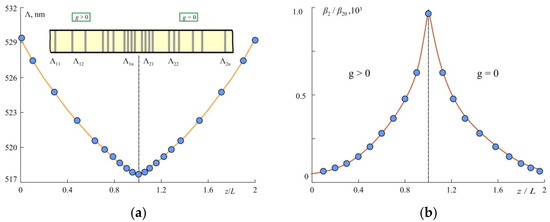

The cascaded configuration comprising active and passive fibers of the same length $L$ with inscribed FBGs is presented in Figure 3a. Figure 3b shows the distribution of the FBG period ${\Lambda }_i$ along the fiber length. A gradual decrease of the FBG period to a certain minimal value corresponds to the GVD increase.

In the cascaded fiber configuration, the first fiber has a constant uniform gain $g_1>0$ along the whole fiber length, whereas in the second passive fiber, $g_2=0$. In the first fiber, the inscribed FBG period smoothly decreases, whereas in the second segment, it smoothly increases, achieving the initial level. The period of each FBG is set so that the GVD profile shall be approximated by the exponential functions ${\beta }_2={\beta }_{20}\exp (\pm qz)$ (Figure 3). In the first fiber, the FBG period decreases from 517.5 to 529.2 nm, and the GVD increases by the factor ${\beta }_2/{\beta }_{20}\approx {10}^3$. In the second fiber, the GVD decreases exponentially to its original value ${\beta }_{20}$.

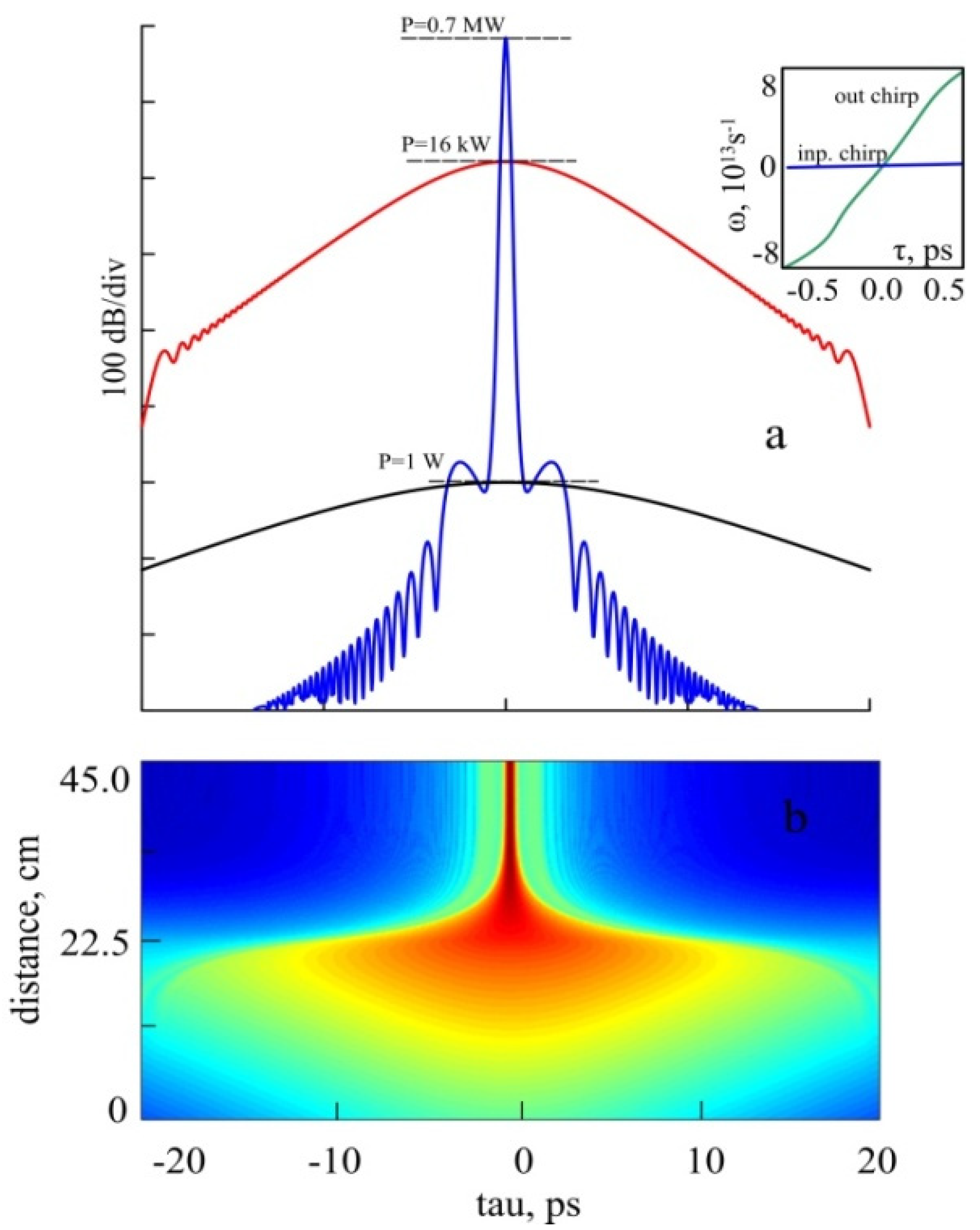

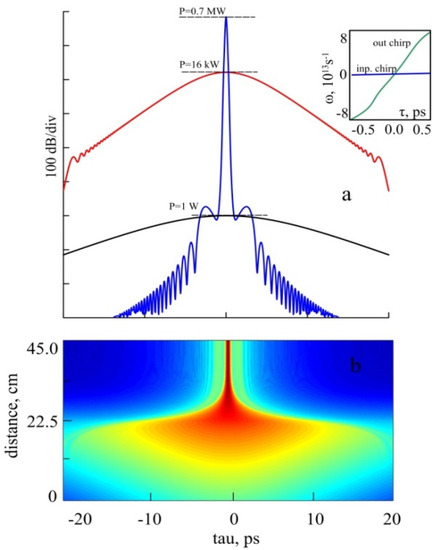

Figure 4 shows the shape (a) and evolution (b) of the pulse as it propagates in the fiber cascade. In the active fiber, the input pulse experiences rather weak pulse temporal compression, and its power (black curve) increases up to $P\approx 16\hspace{0.17em}\mathrm{kW}$ (Figure 4, red curve). In the passive fiber, a strong temporal compression with a drastic increase of the peak power up to a megawatt level occurs (Figure 4, blue curve).

Importantly, the pulse FM at the cascade output is nearly linear (Figure 4, inset). Therefore, the pulse is suitable for further temporal compression by standard tools, such as a pair of diffraction gratings.

5. Generation of High Repetition Rate Trains of Soliton-Like Pulses

In the previous section, we showed that the fiber cascaded configuration comprising one active and one passive optical fiber with inscribed FBGs enables a strong temporal compression and amplification of the chirped pulse. These mechanisms could be implemented at laser pulse parameters close to the parameters of FM solitons.

In fact, the proposed fiber configuration is also applicable for the generation of high-repetition rate soliton-like pulse (SLP) trains of high peak power from weakly modulated CW radiation. To achieve the effect, the cascaded fiber configuration under consideration should be spliced with the dispersion decreasing fiber (DDF) enabling the conversion of weakly modulated CW light into a train of low-power ultrashort pulses with a linear chirp.

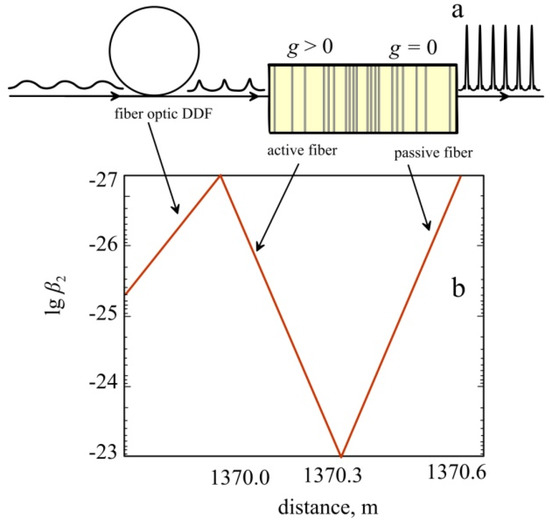

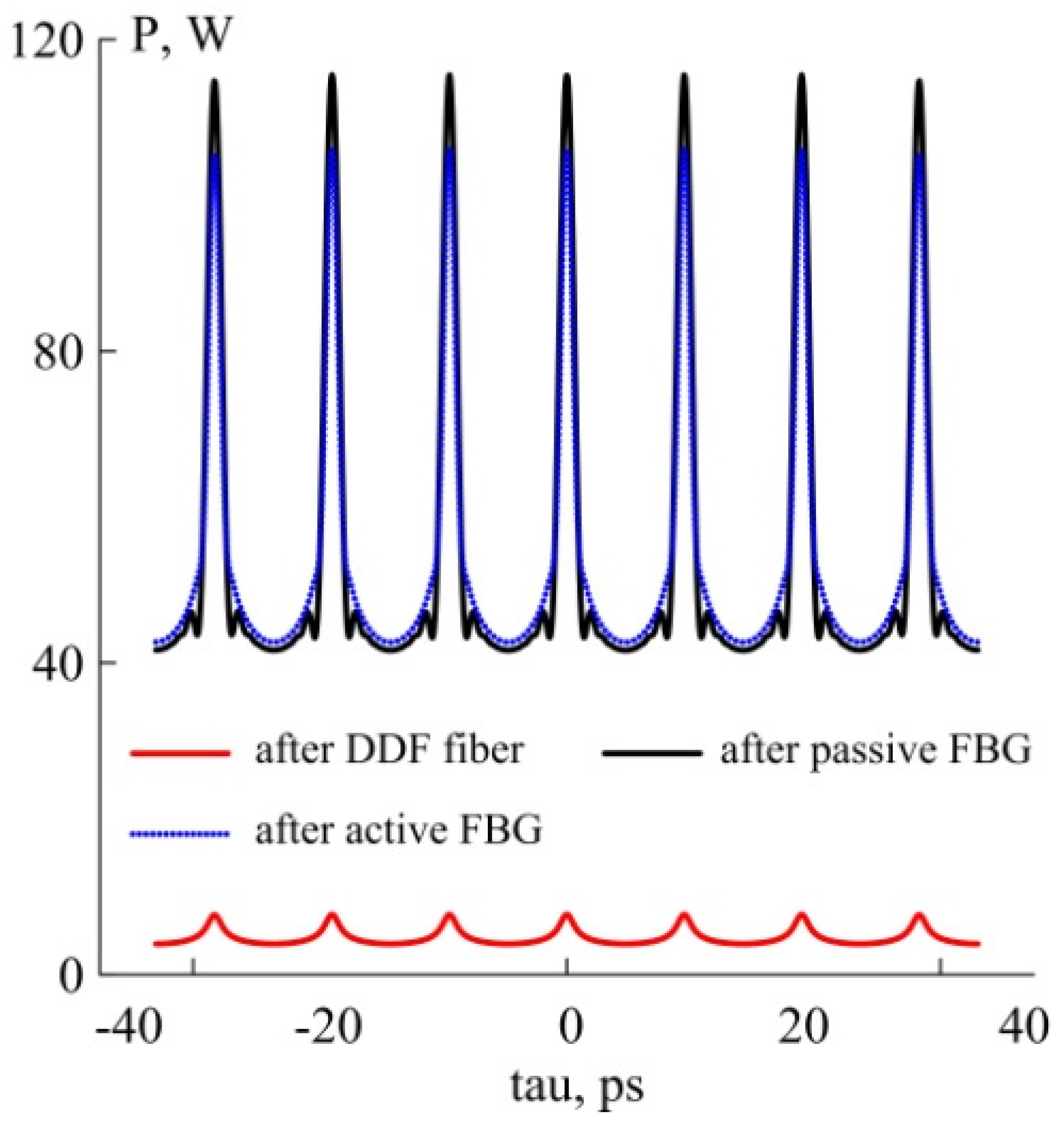

The proposed fiber system is shown in Figure 5. Figure 6 presents the results of numerical simulation based on Equation (6) by the split-step Fourier method (SSFM) [15,16].

A weakly modulated low-power optical signal introduced into the fiber configuration is expressed as:

$$A(0,\tau )=\sqrt{P_0}\left[1+\chi \hspace{0.17em}\cos ({\Omega }_{\mathrm{mod}}\tau )\right],$$

(12)

where $\chi \ll 1$ is the signal modulation depth, ${\Omega }_{\mathrm{mod}}={\omega }_0-{\omega }_v$ is the modulation frequency, ${\omega }_0$ is the carrier frequency of the quasi-continuous optical signal, and ${\omega }_v$ is the frequency of the perturbation signal. The input signal power is P₀ =1W, and the modulation depth and frequency are $\chi ={10}^{-4}$ and ${\Omega }_{\mathrm{mod}}={10}^{12}\hspace{0.17em}{\mathrm{s}}^{-1}$, respectively.

The parameters of the fibers used in the numerical simulation are listed in

Table 1. Parameters of the fiber cascade elements.

Cascade Element	Length $\mathit{l},\hspace{0.17em}\mathbf{m}$	Nonlinearity $\mathit{R},\hspace{0.17em}\hspace{0.17em}{(\mathbf{W}\times \mathbf{m})}^{-1}$	Dispersion ${\mathit{\beta }}_{20},\hspace{0.17em}{\mathbf{s}}^2/\mathbf{m}$	Dispersion ${\mathit{\beta }}_2,\hspace{0.17em}{\mathbf{s}}^2/\mathbf{m}$	Gain ${\mathit{g}}_0,\hspace{0.17em}{\mathbf{m}}^{-1}$
DDF fiber	1370	0.001	$-5\times 10^{-26}$	$-1\times 10^{-27}$	0
FBG fiber 1	0.3	0.001	$-1\times 10^{-27}$	$-1\times 10^{-23}$	6
FBG fiber 2	0.3	0.001	$-1\times 10^{-23}$	$-1\times 10^{-27}$	0

.

The evolution of the weakly modulated signal propagating in the cascade is as follows. In the DDF, because of modulation instability, the weakly modulated signal is converted into a train of low-power FM pulses (Figure 6, red curve) [15,16,43,44]. Then, in the amplifying optical fiber with the inscribed FBG array, the average power of the generated pulse train increases (adiabatic amplification), and the pulses are slightly compressed (blue curve). In the last stage, in the decreasing GVD passive optical fiber, the pulse receives its final temporal compression, resulting in the maximal output pulse peak power (black curve). In this way, the train of short picosecond pulses with a peak power of more than two orders of magnitude higher than the power of initial weakly modulated light is generated. It is worth noting that further optimization of the considered system is still possible. In particular, we observed that the use of 0.3 m longer passive fiber segments and better matching of the DDF fiber parameters enabled the peak power increases of up to $\sim 1\mathrm{kW}$.

6. Conclusions

We explored the evolution of FM pulses in fiber cascaded configurations comprising one active and one passive optical fiber with inscribed FBG arrays. It was shown that the use of chirped gratings with a “smooth” change in the period was most effective. In addition, we considered a technologically simpler version, which offers the use of a set of “uniform” gratings of finite length with different periods. This sequence of refractive index gratings is also capable of providing effective amplification, modulation, and compression of laser pulses up to sub-megawatt peak powers.

Both amplification and temporal compression in such a fiber cascade resulting in peak powers up to $\sim 700\mathrm{kW}$ were theoretically described. The quality of the generated pulse increases with the number of FBGs inscribed in the fiber of a given length. We showed that the amplified pulses could possess a linear frequency chirp, making them available for further compression. We also demonstrated the ability of the considered fiber cascades in conjugation with DDF optical fibers to generate terahertz picosecond pulse trains from a weakly modulated CW light. The peak power of the pulses in the train achieved a ~sub-kW level. Higher peak power pulses are probably available with systems comprising several cascades similar to those considered in the work.
