Berry Phase of Two Impurity Qubits as a Signature of Dicke Quantum Phase Transition

Abstract

In this paper, we investigate the effect of the Dicke quantum phase transition on the Berry phase of the two impurity qubits. The two impurity qubits only have dispersive interactions with the optical field of the Dicke quantum system. Therefore, the two impurity qubits do not affect the ground state energy of the Dicke Hamiltonian. We find that the Berry phase of the two impurity qubits has a sudden change at the Dicke quantum phase transition point. Therefore, the Berry phase of the two impurity qubits can be used as a phase transition signal for the Dicke quantum phase transition. In addition, the two impurity qubits change differently near the phase transition point at different times. We explain the reason for the different variations by studying the variation of the Berry phase of the two impurity qubits with the phase transition parameters and time. Finally, we investigated the variation of the Berry phases of the two impurity qubits with their initial conditions, and we found that their Berry phases also have abrupt changes with the initial conditions. Since the Dicke quantum phase transition is already experimentally executable, the research in this paper helps to provide a means for manipulating the Berry phase of the two impurity qubits.

1. Introduction

In quantum mechanics, the wave function of a system is determined by the probability amplitude and phase. In 1984, Berry discovered that a quantum system with a time-dependent Hamiltonian has a dynamical phase and an additional phase after adiabatic, unitary, and cyclic evolution [1]. This extra phase is only related to the closed path of the system on the parameter space and is called the Berry phase. Simon then gives a geometric interpretation of the Berry phase [2]. Simon points out that the Berry phase can be regarded as the holonomy of a line bundle L over the space of parameters M of the system if L is endowed with a natural connection [2]. Thus, the Berry phase is also known as the geometric phase. Aharonov and Anandan then showed that for non-adiabatic cyclic evolution, there is also a canonically invariant phase related only to the evolution path [3]. This phase is called the A-A phase. In fact, Pancharatnam discovered this phenomenon in classical optics [4], so the Berry phase is sometimes called the Pancharatnam–Berry phase [5]. Inspired by Pancharatnam’s work, Samuel and Bhandari found that the geometric phase can also be defined for acyclic evolution [6]. These phases are experimentally confirmed in systems such as optical and quantum qubits [7,8,9,10,11]. For systems where the initial state is the density matrix, Sjöqvist et al. introduced the geometric phase of the density matrix under the unitary evolution through a hypothetical Mach–Zehnder interferometer experiment [12]. This phase was subsequently confirmed experimentally [13]. Tong et al. further generalized the geometric phase to systems under non-unitary evolution [14]. Since the geometric phase is only path-dependent in parameter space, it can render robust protocols for quantum computation [15,16,17,18], in which quantum computing has a strong advantage over classical computing [19,20,21,22].

Furthermore, many experimental and theoretical studies have used Berry phases to detect quantum phase transitions [23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43]. The idea of using the properties of the Berry phase to explore the quantum phase transition was first proposed and applied in the XY spin-1/2 chain model [27,31,33,34]. Carollo and Pachos proposed a method that is theoretically and experimentally capable of detecting critical regions by the geometric phase without requiring the system to undergo a phase transition [27]. They then presented a general form of the relationship between the geometric phase generated by a cyclically evolving interacting spin system and its critical behavior [31]. Zhu established the connection between the ground state geometric phase and the quantum phase transition in general many-body systems [33]. In the Dicke model, Plastina et al. showed that, in the thermodynamic limit, a nonzero Berry phase can be obtained only along a path around a critical point in parameter space [32]. Chen et al. showed that the quantum phase transition characterized by the nonanalytic nature of the geometric phase is a first-order phase transition [36]. In addition, other models that use Berry phases to explore quantum phase transitions include the Lipkin–Meshkov–Glick model [37,38,40], the extended Dicke model [39], and the interacting Fermi model [41,42].

There is a ground state quantum phase transition in the standard Dicke model [44,45,46,47,48,49,50,51,52]. In addition, the dynamical behavior of impurity atoms in multiple identical atoms has been extensively studied [51,53,54,55,56,57,58,59,60,61,62,63,64,65]. Inspired by the abrupt changes in the dynamical behavior of some systems at the quantum phase transition point [66,67,68,69,70,71,72,73,74,75,76], in this paper, we focus on the effect of the Dicke quantum phase transition on the Berry phase of the two impurity qubits (TIQs). We find that the Berry phase of the TIQs has a sudden change at the phase transition point, so the Berry phase of the TIQs can be used as a signal to detect the Dicke quantum phase transition.

This paper is organized as follows. In Section 2, we study the dynamics of the TIQs in a cavity-Bose–Einstein condensate (cavity-BEC) system. Then, we obtain the quantum state and Berry phase of the TIQs at time t. In Section 3, we study the effect of the Dicke quantum phase transition on the TIQs in the cavity-BEC system and find a sudden change in the Berry phase of the TIQs at the phase transition point. We also consider the effect of the initial state of the two qubits on their Berry phase. Finally, we discuss that our scheme is experimentally executable. In Section 4, we conclude the whole paper and point out our future works.

2. Dicke Model with Two Impurity Qubits and Berry Phase of Two Impurity Qubits

In this section, we discuss the effect of the Dicke quantum phase transition on the Berry phase of two two-level atoms. As shown in Figure 1, we consider a cavity-Bose–Einstein condensate system (cavity-BEC) containing two impurity qubits (TIQs), where the BEC consists of N identical two-level atoms. In this case, the TIQs only have dipole interactions with the optical field and do not interact with the atoms. The interaction of two two-level atoms with a single-mode optical field is described by a Tavis–Cummings (TC) model Hamiltonian as follows ($\hslash =1$):

$${\widehat{H}}_{TC}={\omega }_a{\widehat{a}}^{†}\widehat{a}+\sum _{i=A,B}\frac{{\omega }_i}{2}{\widehat{\sigma }}_z^i+\mathrm{\Omega }\sum _{i=A,B}({\widehat{a}}^{†}{\widehat{\sigma }}_{-}^i+{\widehat{\sigma }}_{+}^i\widehat{a}),$$

(1)

where $\widehat{a}$ (${\widehat{a}}^{†}$) is the annihilation (creation) operator of the single-mode cavity field with resonance frequency ${\omega }_a$ and ${\omega }_{A\left(B\right)}$ is the transition frequency between the two levels of the ith atom. ${\widehat{\sigma }}_{x,y,z}^i$ are the usual Pauli operators of the ith atom, and ${\widehat{\sigma }}_{\pm }^i=\frac{1}{2}({\widehat{\sigma }}_x^i\pm i{\widehat{\sigma }}_y^i)$. $\mathrm{\Omega }$ is the dipole interaction strength between the cavity field and the single atom. We define a frequency detuning ${\delta }_{A\left(B\right)}={\omega }_{A\left(B\right)}-{\omega }_a$. When the frequency detuning ${\delta }_{A\left(B\right)}$ between the two-level atom and cavity field is sufficiently large, i.e., $|{\delta }_{A\left(B\right)}|/\mathrm{\Omega }\gg \sqrt{n+1}$ for any “relevant” photon number n [77]. Under this condition, we can obtain the effective dispersive Hamiltonian of the two-atom TC model as follows [77,78,79,80,81]:

$${\widehat{H}}_{TC}^{eff}={\omega }_a{\widehat{a}}^{†}\widehat{a}+\sum _{i=A,B}\frac{{\omega }_i+{\chi }_i}{2}{\widehat{\sigma }}_z^i+\sum _{i=A,B}{\chi }_i{\widehat{a}}^{†}\widehat{a}{\widehat{\sigma }}_z^i,$$

(2)

where ${\chi }_{A\left(B\right)}={\mathrm{\Omega }}^2/{\delta }_{A\left(B\right)}$. The above equation can also be obtained by the Fröhlich–Nakajima transformation [82,83]. The standard Dicke Hamiltonian describing the interaction of N identical two-level atoms with a single-mode optical field reads

$${\widehat{H}}_D={\omega }_a{\widehat{a}}^{†}\widehat{a}+\omega {\widehat{J}}_z+\frac{\lambda }{\sqrt{N}}({\widehat{a}}^{†}+\widehat{a})({\widehat{J}}_{+}+{\widehat{J}}_{-}),$$

(3)

where $\omega$ is the transition frequency of these N identical two-level atoms. ${\widehat{J}}_{\alpha }$ ($\alpha =x,y,z$) is the collective angular momentum operator for the spin ensemble consisting of N identical two-level atoms; these operators ${\widehat{J}}_x,{\widehat{J}}_y,{\widehat{J}}_z$ satisfy the commutation relation of $SU\left(2\right)$ algebra and ${\widehat{J}}_{\pm }={\widehat{J}}_x\pm i{\widehat{J}}_y$. When the coupling strength $\lambda$ exceeds $\sqrt{{\omega }_a\omega }/2$, the standard Dicke model exhibits a ground state quantum phase transition from the normal phase to the superradiant phase in the thermodynamic limit $N\to \infty$ [44,45,46,47,48,49,50,51,52].

Under the above large detuning condition, the Hamiltonian of the total system as shown in Figure 1 is

$$\widehat{H}={\widehat{H}}_D+\sum _{i=A,B}\frac{{\omega }_i+{\chi }_i}{2}{\widehat{\sigma }}_z^i+\sum _{i=A,B}{\chi }_i{\widehat{a}}^{†}\widehat{a}{\widehat{\sigma }}_z^i.$$

(4)

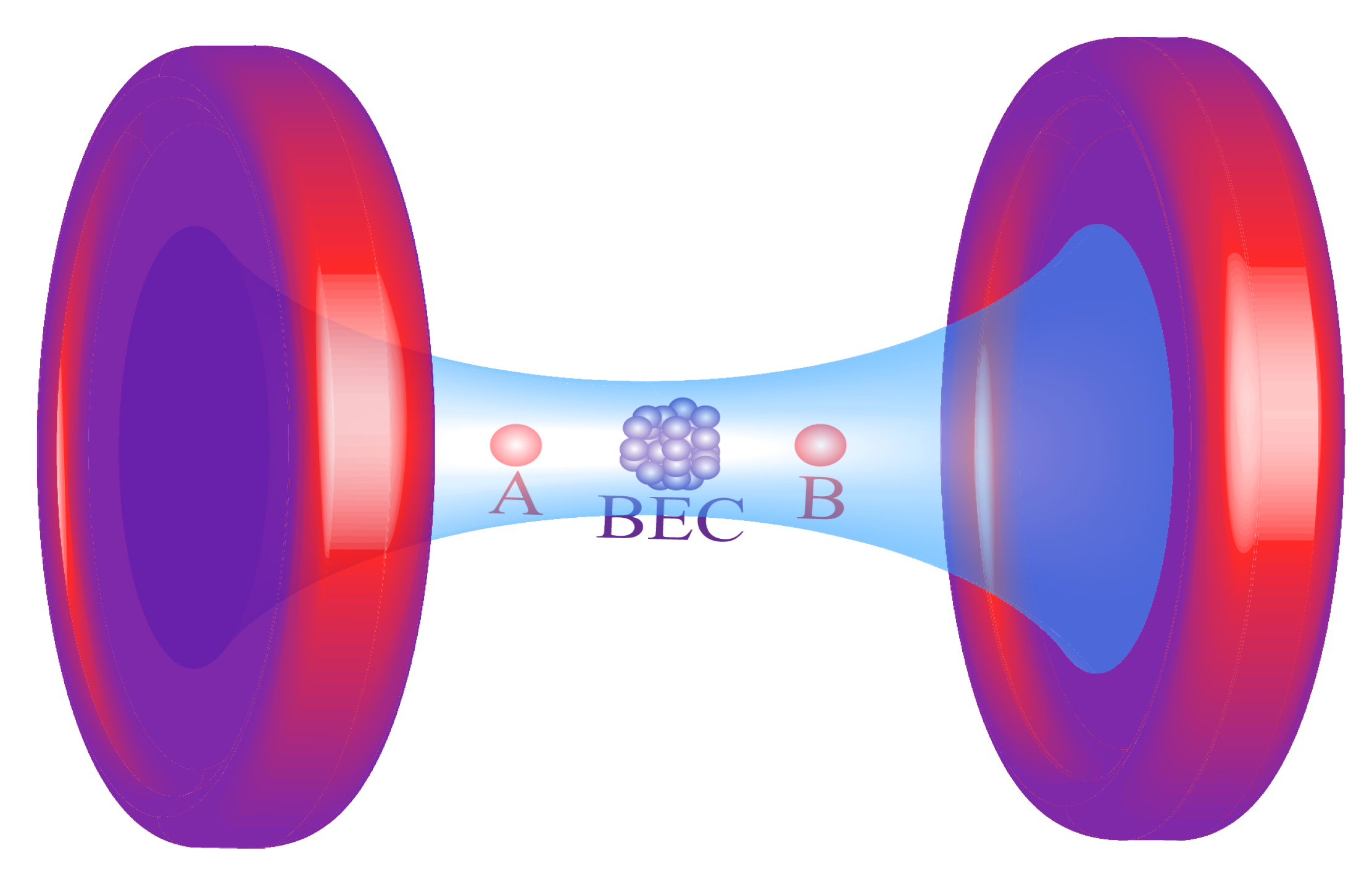

Figure 1. Schematic diagram of the model we used. The N identical two-level atoms marked in purple with a single-mode optical field form the standard Dicke model. A and B denote two impurity qubits, and the two qubits interact only with the optical field. Experimentally, N identical two-level atoms can be realized by Bose–Einstein condensates.

Figure 1. Schematic diagram of the model we used. The N identical two-level atoms marked in purple with a single-mode optical field form the standard Dicke model. A and B denote two impurity qubits, and the two qubits interact only with the optical field. Experimentally, N identical two-level atoms can be realized by Bose–Einstein condensates.

From the above equation, we can see that, since $[{\widehat{\sigma }}_z^A+{\widehat{\sigma }}_z^B,\widehat{H}]=[{\widehat{\sigma }}_z^A+{\widehat{\sigma }}_z^B,{\widehat{H}}_D]=0$, there is no energy exchange between the TIQs and the optical field, and the cavity-BEC system only has an effect on the phase of the two qubits. Therefore, the cavity-BEC system is equivalent to a controlled dephasing environment for the TIQs. In the following, we start to investigate the effect of the Dicke quantum phase transition of the cavity-BEC system on the Berry phase of the TIQs.

We assume that the initial state of the TIQs is a general X-type state with three parameters ${\widehat{\rho }}_{AB}\left(0\right)=({\widehat{I}}^{AB}+{\sum }_{i=1}^3{c}_i{\widehat{\sigma }}_i^A\otimes {\widehat{\sigma }}_i^B)$, where ${\widehat{I}}^{AB}$ is the four-dimensional identity operator; $i=1,2,3$ denotes x, y, and z, respectively. $c_i$ ($0\le |c_i|\le 1$) are real numbers, and they make the trace of the density matrix ${\widehat{\rho }}_{AB}\left(0\right)$ equal to 1 and satisfy the positivity conditions [60]. In the basis $|ee\rangle ,|eg\rangle ,|ge\rangle ,|gg\rangle$, the X-type state is given by

$${\widehat{\rho }}_{AB}\left(0\right)=\frac{1}{4}\left(\begin{array}{cccc}1+c_3& 0& 0& c_1-c_2\\ 0& 1-c_3& c_1+c_2& 0\\ 0& c_1+c_2& 1-c_3& 0\\ c_1-c_2& 0& 0& 1+c_3\end{array}\right).$$

(5)

The initial state of the cavity-BEC atomic system is the ground state $|G\rangle$ of the standard Dicke Hamiltonian. Then, the density matrix of the total system at time t is

$$\widehat{\rho }\left(t\right)=\widehat{U}({\widehat{\rho }}_{AB}\left(0\right)\otimes |G\rangle \langle G\left|\right){\widehat{U}}^{†},$$

(6)

where $\widehat{U}=exp(-i\widehat{H}t)$.

The density matrix of the TIQs at time t is [60]

$$\begin{array}{ccc}\hfill {\widehat{\rho }}_{AB}\left(t\right)& =& T{r}_{cavity-BEC}\left[\widehat{\rho }\left(t\right)\right]\hfill \\ & =& \frac{1}{4}\left(\begin{array}{cccc}1+c_3& 0& 0& u\left(t\right)D_1\left(t\right)\\ 0& 1-c_3& v\left(t\right)D_2\left(t\right)& 0\\ 0& v^{*}\left(t\right)D_2^{*}\left(t\right)& 1-c_3& 0\\ u^{*}\left(t\right)D_1^{*}\left(t\right)& 0& 0& 1+c_3\end{array}\right),\hfill \end{array}$$

(7)

where

$$\begin{array}{ccc}\hfill u\left(t\right)& =& (c_1-c_2)exp[-i({\omega }_A^{\prime }+{\omega }_B^{\prime })t],\hfill \end{array}$$

(8)

$$\begin{array}{ccc}\hfill v\left(t\right)& =& (c_1+c_2)exp[-i({\omega }_A^{\prime }-{\omega }_B^{\prime })t],\hfill \end{array}$$

(9)

$$\begin{array}{ccc}\hfill D_1\left(t\right)& =& exp\left(2i{\delta }_{1}t\left.〈G\right|{\widehat{a}}^{†}\widehat{a}\left|G\right.〉\right)exp(-2r{\delta }_1^2{t}^2),\hfill \end{array}$$

(10)

$$\begin{array}{ccc}\hfill D_2\left(t\right)& =& exp\left(2i{\delta }_{2}t\left.〈G\right|{\widehat{a}}^{†}\widehat{a}\left|G\right.〉\right)exp(-2r{\delta }_2^2{t}^2),\hfill \end{array}$$

(11)

and ${\omega }_{A\left(B\right)}^{\prime }={\omega }_{A\left(B\right)}+{\chi }_{A\left(B\right)}$, ${\delta }_1={\chi }_A+{\chi }_B$, ${\delta }_2={\chi }_A-{\chi }_B$. $\left.〈G\right|{\widehat{a}}^{†}\widehat{a}\left|G\right.〉$ and r denote the mean and variance of the light field number operator ${\widehat{a}}^{†}\widehat{a}$ over the ground state of the standard Dicke Hamiltonian, respectively. In the above equation, we use both the ${\delta }_{1}t\ll 1$ and ${\delta }_{2}t\ll 1$ conditions. In the later discussion, we will take these two values as ${\delta }_1=0.0001\omega$ and ${\delta }_2=0$.

After obtaining the density matrix of the TIQs at time t, we study the effect of the Dicke quantum phase transition on the Berry phase of the TIQs in the following. In 2004, Tong et al. gave a definition of the Berry phase of the target system described by the density matrix in open systems [14]. Since this definition is canonically invariant and can be measured by interferometric experiments, it is widely used in the calculation of the Berry phase of mixed state systems. We rewrite the density matrix ${\widehat{\rho }}_{AB}\left(t\right)$ in its eigenspace in the following diagonal form

$${\widehat{\rho }}_{AB}\left(t\right)=\sum _{k=1}^{N=4}{ϵ}_k\left(t\right)|{\varphi }_k\left(t\right)\rangle \langle {\varphi }_k\left(t\right)|,$$

(12)

where N denotes the Hilbert space dimension of the target system and ${ϵ}_k\left(t\right)$ and $\left|{\varphi }_k\left(t\right)\right.〉$ are the eigenvalues and eigenstates of the density matrix ${\widehat{\rho }}_{AB}\left(t\right)$, respectively.

Then, the expression for the Berry phase of the mixed state under this non-unitary evolution is defined as follows [14]:

$${\gamma }_g\left(t\right)=arg\left[\sum _{k=1}^{N=4}{G}_k\left(t\right)\right]\in (-\pi ,\pi ],$$

(13)

where $G_k\left(t\right)=\sqrt{{ϵ}_k\left(0\right){ϵ}_k\left(t\right)}〈{\varphi }_k\left(0\right)|{\varphi }_k\left(t\right)〉exp\left[-{\int }_0^t\langle {\varphi }_k\left(\tau \right)|\frac{d}{d\tau }{\varphi }_k\left(\tau \right)\rangle d\tau \right]$.

To calculate the Berry phase of the above equation, we need to obtain the eigenvalues and eigenstates of the density matrix ${\widehat{\rho }}_{AB}\left(t\right)$. We can obtain all the eigenvalues and the corresponding eigenstates of ${\widehat{\rho }}_{AB}\left(t\right)$ from Equation (7) as

$$\begin{array}{ccc}\hfill {ϵ}_1\left(t\right)& =& \frac{1}{4}\left(1-c_3-\left|c_1+c_2\right|exp(-2r{\delta }_2^2{t}^2)\right),\hfill \end{array}$$

(14)

$$\begin{array}{ccc}\hfill \left|{\varphi }_1\left(t\right)\right.〉& =& {\left[\begin{array}{cccc}0,& \frac{-(c_1+c_2)exp\left[i\left[2{\delta }_2\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }-{\omega }_B^{\prime })\right]t\right]}{\left|c_1+c_2\right|},& 1,& 0\end{array}\right]}^T,\hfill \end{array}$$

(15)

$$\begin{array}{ccc}\hfill {ϵ}_2\left(t\right)& =& \frac{1}{4}\left(1-c_3+\left|c_1+c_2\right|exp(-2r{\delta }_2^2{t}^2)\right),\hfill \end{array}$$

(16)

$$\begin{array}{ccc}\hfill \left|{\varphi }_2\left(t\right)\right.〉& =& {\left[\begin{array}{cccc}0,& \frac{(c_1+c_2)exp\left[i\left[2{\delta }_2\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }-{\omega }_B^{\prime })\right]t\right]}{\left|c_1+c_2\right|},& 1,& 0\end{array}\right]}^T,\hfill \end{array}$$

(17)

$$\begin{array}{ccc}\hfill {ϵ}_3\left(t\right)& =& \frac{1}{4}\left(1+c_3-\left|c_1-c_2\right|exp(-2r{\delta }_1^2{t}^2)\right),\hfill \end{array}$$

(18)

$$\begin{array}{ccc}\hfill \left|{\varphi }_3\left(t\right)\right.〉& =& {\left[\begin{array}{cccc}\frac{-(c_1-c_2)exp\left[i\left[2{\delta }_1\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }+{\omega }_B^{\prime })\right]t\right]}{\left|c_1-c_2\right|},& 0,& 0,& 1\end{array}\right]}^T,\hfill \end{array}$$

(19)

$$\begin{array}{ccc}\hfill {ϵ}_4\left(t\right)& =& \frac{1}{4}\left(1+c_3+\left|c_1-c_2\right|exp(-2r{\delta }_1^2{t}^2)\right),\hfill \end{array}$$

(20)

$$\begin{array}{ccc}\hfill \left|{\varphi }_4\left(t\right)\right.〉& =& {\left[\begin{array}{cccc}\frac{(c_1-c_2)exp\left[i\left[2{\delta }_1\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }+{\omega }_B^{\prime })\right]t\right]}{\left|c_1-c_2\right|},& 0,& 0,& 1\end{array}\right]}^T.\hfill \end{array}$$

(21)

where the “T” in the upper right corner of the matrix indicates a transpose operation on the matrix.

Substituting Equations (14)–(21) into Equation (13), we can obtain the following four expressions:

$$\begin{array}{ccc}\hfill G_1\left(t\right)& =& \sqrt{{ϵ}_1\left(0\right){ϵ}_1\left(t\right)}\left.〈{\varphi }_1\left(0\right)\right|{\varphi }_1\left(t\right)〉exp\left[-{\int }_0^t\left.〈{\varphi }_1\left(\tau \right)\right|\frac{d}{d\tau }{\varphi }_1\left(\tau \right)〉d\tau \right]\hfill \\ & =& \frac{1}{4}\sqrt{\left(1-c_3-\left|c_1+c_2\right|\right)\left(1-c_3-\left|c_1+c_2\right|exp\left(-2r{\delta }_2^2{t}^2\right)\right)}\hfill \\ & & \times \left[1+exp\left[-i\left(2{\delta }_2\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }-{\omega }_B^{\prime })\right)t\right]\right],\hfill \end{array}$$

(22)

$$\begin{array}{ccc}\hfill G_2\left(t\right)& =& \sqrt{{ϵ}_2\left(0\right){ϵ}_2\left(t\right)}\left.〈{\varphi }_2\left(0\right)\right|{\varphi }_2\left(t\right)〉exp\left[-{\int }_0^t\left.〈{\varphi }_2\left(\tau \right)\right|\frac{d}{d\tau }{\varphi }_2\left(\tau \right)〉d\tau \right]\hfill \\ & =& \frac{1}{4}\sqrt{\left(1-c_3+\left|c_1+c_2\right|\right)\left(1-c_3+\left|c_1+c_2\right|exp\left(-2r{\delta }_2^2{t}^2\right)\right)}\hfill \\ & & \times \left[1+exp\left[-i\left(2{\delta }_2\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }-{\omega }_B^{\prime })\right)t\right]\right],\hfill \end{array}$$

(23)

$$\begin{array}{ccc}\hfill G_3\left(t\right)& =& \sqrt{{ϵ}_3\left(0\right){ϵ}_3\left(t\right)}\left.〈{\varphi }_3\left(0\right)\right|{\varphi }_3\left(t\right)〉exp\left[-{\int }_0^t\left.〈{\varphi }_3\left(\tau \right)\right|\frac{d}{d\tau }{\varphi }_3\left(\tau \right)〉d\tau \right]\hfill \\ & =& \frac{1}{4}\sqrt{\left(1+c_3-\left|c_1-c_2\right|\right)\left(1+c_3-\left|c_1-c_2\right|exp\left(-2r{\delta }_1^2{t}^2\right)\right)}\hfill \\ & & \times \left[1+exp\left[-i\left(2{\delta }_1\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }+{\omega }_B^{\prime })\right)t\right]\right],\hfill \end{array}$$

(24)

$$\begin{array}{ccc}\hfill G_4\left(t\right)& =& \sqrt{{ϵ}_4\left(0\right){ϵ}_4\left(t\right)}\left.〈{\varphi }_4\left(0\right)\right|{\varphi }_4\left(t\right)〉exp\left[-{\int }_0^t\left.〈{\varphi }_4\left(\tau \right)\right|\frac{d}{d\tau }{\varphi }_4\left(\tau \right)〉d\tau \right]\hfill \\ & =& \frac{1}{4}\sqrt{\left(1+c_3+\left|c_1-c_2\right|\right)\left(1+c_3+\left|c_1-c_2\right|exp\left(-2r{\delta }_1^2{t}^2\right)\right)}\hfill \\ & & \times \left[1+exp\left[-i\left(2{\delta }_1\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }+{\omega }_B^{\prime })\right)t\right]\right].\hfill \end{array}$$

(25)

Finally, we obtain the Berry phase of the TIQs at time t:

$$\begin{array}{ccc}\hfill {\gamma }_g\left(t\right)& =& arg\left[p+q+pcos\left(mt\right)+qcos\left(nt\right)-i(psin(mt)+qsin(nt\left)\right)\right]\hfill \\ & =& arctan\left(\frac{psin\left(mt\right)+qsin\left(nt\right)}{p+q+pcos\left(mt\right)+qcos\left(nt\right)}\right)\in (-\pi ,\pi ],\hfill \end{array}$$

(26)

where

$$\begin{array}{ccc}\hfill p& =& \frac{1}{4}[\sqrt{\left(1-c_3-\left|c_1+c_2\right|\right)\left(1-c_3-\left|c_1+c_2\right|exp\left(-2r{\delta }_2^2{t}^2\right)\right)}\hfill \\ & & +\sqrt{\left(1-c_3+\left|c_1+c_2\right|\right)\left(1-c_3+\left|c_1+c_2\right|exp\left(-2r{\delta }_2^2{t}^2\right)\right)}],\hfill \end{array}$$

(27)

$$\begin{array}{ccc}\hfill q& =& \frac{1}{4}[\sqrt{\left(1+c_3-\left|c_1-c_2\right|\right)\left(1+c_3-\left|c_1-c_2\right|exp\left(-2r{\delta }_1^2{t}^2\right)\right)}\hfill \\ & & +\sqrt{\left(1+c_3+\left|c_1-c_2\right|\right)\left(1+c_3+\left|c_1-c_2\right|exp\left(-2r{\delta }_1^2{t}^2\right)\right)}],\hfill \end{array}$$

(28)

$$\begin{array}{ccc}\hfill m& =& 2{\delta }_2\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }-{\omega }_B^{\prime }),\hfill \end{array}$$

(29)

$$\begin{array}{ccc}\hfill n& =& 2{\delta }_1\left.〈G\right|a^{†}a\left|G\right.〉-({\omega }_A^{\prime }+{\omega }_B^{\prime }).\hfill \end{array}$$

(30)

It is worth emphasizing here that the Berry phases of the TIQs are related to the mean and variance of the optical field number operator over the ground state $|G\rangle$ of the Hamiltonian ${\widehat{H}}_D$. Meanwhile, we can change the ground state of ${\widehat{H}}_D$ by adjusting the coupling strength $\lambda$ between the cavity field and the BEC atoms, so we can finally control the Berry phase of the TIQs by adjusting this coupling strength. In the following, we discuss the mean and variance of the optical field number operator ${\widehat{a}}^{†}\widehat{a}$ over the ground state $|G\rangle$ of Hamiltonian ${\widehat{H}}_D$ in each parameter region of $\lambda$, respectively.

3. Effect of Dicke Quantum Phase Transition on the Berry Phase of Two Impurity Qubits

In the thermodynamic limit $N\to \infty$, a quantum phase transition exists in the standard Dicke model. When $\lambda <{\lambda }_c$ (${\lambda }_c=\sqrt{{\omega }_a\omega }/2$), the number of excitations on the ground state of ${\widehat{H}}_D$ for both the atoms and the light field is small compared to the total atomic number N, and the system is in the normal phase. When $\lambda >{\lambda }_c$, both the atoms and the light field have macroscopic excitations on the ground state of ${\widehat{H}}_D$, and the system is in the superradiant phase. In the standard Dicke model, since the first derivative of the ground state energy of the system is continuous with respect to $\lambda$, but its second derivative is discontinuous, this quantum phase transition is a ground state second-order phase transition. In order to obtain the mean and variance of the optical field number operator ${\widehat{a}}^{†}\widehat{a}$ in different parameter regions of $\lambda$, in the following, we briefly introduce the ground state in the normal phase region and the superradiant region of the Dicke Hamiltonian, respectively.

Using the Holstein–Primakoff transformation, we can represent the angular momentum operator by the single-mode boson operator as follows [84,85,86]:

$${\widehat{J}}_z={\widehat{b}}^{†}\widehat{b}-\frac{N}{2},{\widehat{J}}_{+}={\widehat{b}}^{†}\sqrt{N-{\widehat{b}}^{†}\widehat{b}},{\widehat{J}}_{-}=\sqrt{N-{\widehat{b}}^{†}\widehat{b}}\widehat{b},$$

(31)

where ${\widehat{b}}^{†}$ and $\widehat{b}$ are the boson creation and annihilation operators, respectively. After substituting Equation (31) into Equation (3) and dropping the constant term, we obtain

$$\widehat{H}={\omega }_a{\widehat{a}}^{†}\widehat{a}+\omega {\widehat{b}}^{†}\widehat{b}+\lambda ({\widehat{a}}^{†}+\widehat{a})\left({\widehat{b}}^{†}\sqrt{1-\frac{{\widehat{b}}^{†}\widehat{b}}{N}}+\sqrt{1-\frac{{\widehat{b}}^{†}\widehat{b}}{N}}\widehat{b}\right).$$

(32)

In the normal phase, since $\langle G|{\widehat{b}}^{†}\widehat{b}|G\rangle \ll N$, we can obtain the effective Hamiltonian after dropping the constant term:

$${\widehat{H}}_{np}={\omega }_a{\widehat{a}}^{†}\widehat{a}+\omega {\widehat{b}}^{†}\widehat{b}+\lambda ({\widehat{a}}^{†}+\widehat{a})({\widehat{b}}^{†}+\widehat{b}).$$

(33)

Using the following Bogoliubov transform:

$$\begin{array}{ccc}\hfill {\widehat{a}}^{†}& =& f_1{\widehat{c}}_1^{†}+f_2{\widehat{c}}_1+f_3{\widehat{c}}_2^{†}+f_4{\widehat{c}}_2,\hfill \end{array}$$

(34)

$$\begin{array}{ccc}\hfill {\widehat{b}}^{†}& =& h_1{\widehat{c}}_1^{†}+h_2{\widehat{c}}_1+h_3{\widehat{c}}_2^{†}+h_4{\widehat{c}}_2,\hfill \end{array}$$

(35)

we can obtain the final diagonal form of ${\widehat{H}}_{np}$ after dropping the constant term:

$${\widehat{H}}_{np}^d={ϵ}_{-}{\widehat{c}}_1^{†}{\widehat{c}}_1+{ϵ}_{+}{\widehat{c}}_2^{†}{\widehat{c}}_2,$$

(36)

where

$$\begin{array}{l}{ϵ}_{\pm }^2=\frac{1}{2}\left[{\omega }_a^2+{\omega }^2\pm \sqrt{{(w^2-{\omega }_a^2)}^2+16{\lambda }^2{\omega }_a\omega }\right],\hfill \end{array}$$

(37)

$$\begin{array}{ll}{f}_{1,2}=\hfill & \frac{cos\theta }{2\sqrt{{ϵ}_{-}{\omega }_a}}({\omega }_a\pm {ϵ}_{-}),f_{3,4}=\frac{sin\theta }{2\sqrt{{ϵ}_{+}{\omega }_a}}({\omega }_a\pm {ϵ}_{+}),\hfill \end{array}$$

(38)

$$\begin{array}{ll}{h}_{1,2}=\hfill & -\frac{sin\theta }{2\sqrt{{ϵ}_{-}\omega }}(\omega \pm {ϵ}_{-}),h_{3,4}=\frac{cos\theta }{2\sqrt{{ϵ}_{+}\omega }}(\omega \pm {ϵ}_{+}),\hfill \end{array}$$

(39)

and $\theta$ is determined by $tan\left(2\theta \right)=\frac{4\lambda \sqrt{{\omega }_a\omega }}{{\omega }^2-{\omega }_a^2}$.

From Equation (36), we easily obtain that the ground state of the Hamiltonian ${\widehat{H}}_{np}^d$ is $|G\rangle ={|0\rangle }_{{\widehat{c}}_1}\otimes {|0\rangle }_{{\widehat{c}}_2}={|0,0\rangle }_{{\widehat{c}}_1,{\widehat{c}}_2}$. Here, ${|0\rangle }_{{\widehat{c}}_1}$ and ${|0\rangle }_{{\widehat{c}}_2}$ are the ground states of the number operators ${\widehat{c}}_1^{†}{\widehat{c}}_1$ and ${\widehat{c}}_2^{†}{\widehat{c}}_2$, respectively.

With Equation (34) and Equation (35), we can easily obtain the mean value and variance of the light field number operator on the ground state of the normal phase:

$$\langle G\left|{\widehat{a}}^{†}\widehat{a}\right|G\rangle = f_2^2 + f_4^2,$$

(40)

$$\begin{array}{ccc}\hfill r& =& \langle G|{\left({\widehat{a}}^{†}\widehat{a}\right)}^2|G\rangle -{\left(\langle G\left|{\widehat{a}}^{†}\widehat{a}\right|G\rangle \right)}^2\hfill \\ & =& 2f_1^2{f}_2^2+2f_3^2{f}_4^2+{\left(f_1{f}_4+f_2{f}_3\right)}^2.\hfill \end{array}$$

(41)

When $\lambda >{\lambda }_c$, the cavity-BEC system is in the superradiant phase. At this point, there is macroscopic excitation of both the atoms and the optical field. We use the displace transformation ${\widehat{a}}^{†}\to {\widehat{a^{\prime }}}^{†}+\sqrt{\alpha }$ and ${\widehat{b}}^{†}\to {\widehat{b^{\prime }}}^{†}-\sqrt{\beta }$ such that $\langle G\left|{\widehat{b^{\prime }}}^{†}\widehat{b^{\prime }}\right|G\rangle \ll N$. Two displacements can be obtained through the equilibrium condition as $\sqrt{\alpha }=\frac{2\lambda }{{\omega }_a}\sqrt{N(1-{\xi }^2)/4}$ and $\sqrt{\beta }=\sqrt{N(1-\xi )/2}$, where $\xi =\frac{{\omega }_a\omega }{4{\lambda }^2}$. Substituting the operators after the displace transformation into Equation (32), dropping the constant term, and in the thermodynamic limit, we can obtain the effective Hamiltonian for the superradiant phase region

$${\widehat{H}}_{sp}={\omega }_a{\widehat{a^{\prime }}}^{†}\widehat{a^{\prime }}+{\omega }^{\prime }{\widehat{b^{\prime }}}^{†}\widehat{b^{\prime }}+{\lambda }^{\prime }({\widehat{a^{\prime }}}^{†}+\widehat{a^{\prime }})({\widehat{b^{\prime }}}^{†}+\widehat{b^{\prime }})+\eta {({\widehat{b^{\prime }}}^{†}+\widehat{b^{\prime }})}^2,$$

(42)

where

$${\omega }^{\prime }=\frac{\omega }{2\xi }(1+\xi ),{\lambda }^{\prime }=\lambda \xi \sqrt{\frac{2}{1+\xi }},\eta =\frac{\omega (1-\xi )(3+\xi )}{8\xi (1+\xi )}.$$

(43)

As with the normal phase, using the following Bogoliubov transformation:

$$\begin{array}{ccc}\hfill {\widehat{a^{\prime }}}^{†}& =& f_1^{\prime }{\widehat{c^{\prime }}}_1^{†}+f_2^{\prime }{\widehat{c^{\prime }}}_1+f_3^{\prime }{\widehat{c^{\prime }}}_2^{†}+f_4^{\prime }{\widehat{c^{\prime }}}_2,\hfill \end{array}$$

(44)

$$\begin{array}{ccc}\hfill {\widehat{b^{\prime }}}^{†}& =& h_1^{\prime }{\widehat{c^{\prime }}}_1^{†}+h_2^{\prime }{\widehat{c^{\prime }}}_1+h_3^{\prime }{\widehat{c^{\prime }}}_2^{†}+h_4^{\prime }{\widehat{c^{\prime }}}_2.\hfill \end{array}$$

(45)

Equation (42) can be written in the following diagonal form after dropping the constant term

$${\widehat{H}}_{sp}^d={ϵ}_{-}^{\prime }{\widehat{c^{\prime }}}_1^{†}{\widehat{c^{\prime }}}_1+{ϵ}_{+}^{\prime }{\widehat{c^{\prime }}}_2^{†}{\widehat{c^{\prime }}}_2,$$

(46)

where

$$\begin{array}{ccc}\hfill {ϵ}_{\pm }^{\prime 2}& =& \frac{1}{2}\left[{\omega }_a^2+\frac{{\omega }^2}{{\xi }^2}\pm \sqrt{{(\frac{{\omega }^2}{{\xi }^2}-{\omega }_a^2)}^2+4{\omega }_a^2{\omega }^2}\right],\hfill \end{array}$$

(47)

$$\begin{array}{ccc}\hfill f_{1,2}^{\prime }& =& \frac{cos{\theta }^{\prime }}{2\sqrt{{ϵ}_{-}^{\prime }{\omega }_a}}({\omega }_a\pm {ϵ}_{-}^{\prime }),f_{3,4}^{\prime }=\frac{sin{\theta }^{\prime }}{2\sqrt{{ϵ}_{+}^{\prime }{\omega }_a}}({\omega }_a\pm {ϵ}_{+}^{\prime }),\hfill \end{array}$$

(48)

$$\begin{array}{ccc}\hfill h_{1,2}^{\prime }& =& -\frac{sin{\theta }^{\prime }}{2\sqrt{{ϵ}_{-}^{\prime }{\omega }^{\prime }}}({\omega }^{\prime }\pm {ϵ}_{-}^{\prime }),h_{3,4}^{\prime }=\frac{cos{\theta }^{\prime }}{2\sqrt{{ϵ}_{+}^{\prime }{\omega }^{\prime }}}({\omega }^{\prime }\pm {ϵ}_{+}^{\prime }),\hfill \end{array}$$

(49)

and ${\theta }^{\prime }$ is determined by $tan\left(2{\theta }^{\prime }\right)=\frac{2{\omega }_a\omega {\xi }^2}{{\omega }^2-{\xi }^2{\omega }_a^2}$.

Similarly, from Equation (46), we easily obtain that the ground state of Hamiltonian ${\widehat{H}}_{sp}^d$ is $|G\rangle ={|0\rangle }_{{\widehat{c^{\prime }}}_1}\otimes {|0\rangle }_{{\widehat{c^{\prime }}}_2}={|0,0\rangle }_{{\widehat{c^{\prime }}}_1,{\widehat{c^{\prime }}}_2}$, where ${|0\rangle }_{{\widehat{c^{\prime }}}_1}$ and ${|0\rangle }_{{\widehat{c^{\prime }}}_2}$ are the ground states of the number operators ${\widehat{c^{\prime }}}_1^{†}{\widehat{c^{\prime }}}_1$ and ${\widehat{c^{\prime }}}_2^{†}{\widehat{c^{\prime }}}_2$, respectively. Thus, we immediately obtain the average and variance of the light field number operators ${\widehat{a}}^{†}\widehat{a}$ in the superradiant phase:

$$\begin{array}{ccc}\hfill \langle G\left|{\widehat{a}}^{†}\widehat{a}\right|G\rangle & =& f_2^{\prime 2}+f_4^{\prime 2}+\alpha ,\hfill \end{array}$$

(50)

$$\begin{array}{ccc}\hfill r& =& \langle G|{\left({\widehat{a}}^{†}\widehat{a}\right)}^2|G\rangle -{\left(\langle G\left|{\widehat{a}}^{†}\widehat{a}\right|G\rangle \right)}^2\hfill \\ & =& 2f_1^{\prime 2}{f}_2^{\prime 2}+2f_3^{\prime 2}{f}_4^{\prime 2}+{\left(f_1^{\prime }{f}_4^{\prime }+f_2^{\prime }{f}_3^{\prime }\right)}^2+\alpha \left[{\left(f_1^{\prime }+f_2^{\prime }\right)}^2+{\left(f_3^{\prime }+f_4^{\prime }\right)}^2\right].\hfill \end{array}$$

(51)

In summary, when the coupling intensity $\lambda$ takes different values, the mean and variance of the number operator ${\widehat{a}}^{†}\widehat{a}$ of the optical field are

$$\begin{array}{ccc}& & \langle G|{\widehat{a}}^{†}\widehat{a}|G\rangle =\left\{\begin{array}{c}\begin{array}{c}{f}_2^2+f_4^3,\lambda <{\lambda }_c,\\ f_2^{\prime 2}+f_4^{\prime 2}+\alpha ,\lambda >{\lambda }_c,\end{array}\hfill \end{array}\right.\hfill \end{array}$$

(52)

$$\begin{array}{ccc}& & r=\left\{\begin{array}{c}\begin{array}{c}2f_1^2{f}_2^2+2f_3^4{f}_4^3+{(f_1{f}_4+f_2{f}_3)}^2,\lambda <{\lambda }_c,\\ 2f_1^{\prime 2}{f}_2^{\prime 2}+2f_3^{\prime 2}{f}_4^{\prime 2}+{\left(f_1^{\prime }{f}_4^{\prime }+f_2^{\prime }{f}_3^{\prime }\right)}^2+\alpha \left[{\left(f_1^{\prime }+f_2^{\prime }\right)}^2+{\left(f_3^{\prime }+f_4^{\prime }\right)}^2\right],\lambda >{\lambda }_c.\end{array}\hfill \end{array}\right.\hfill \end{array}$$

(53)

The variation of the Berry phase of the TIQs with the phase transition parameter $\lambda$ is obtained by substituting Equations (52) and (53) into Equation (26). In the following, we discuss the effect of the Dicke quantum phase transition on the Berry phase of the TIQs.

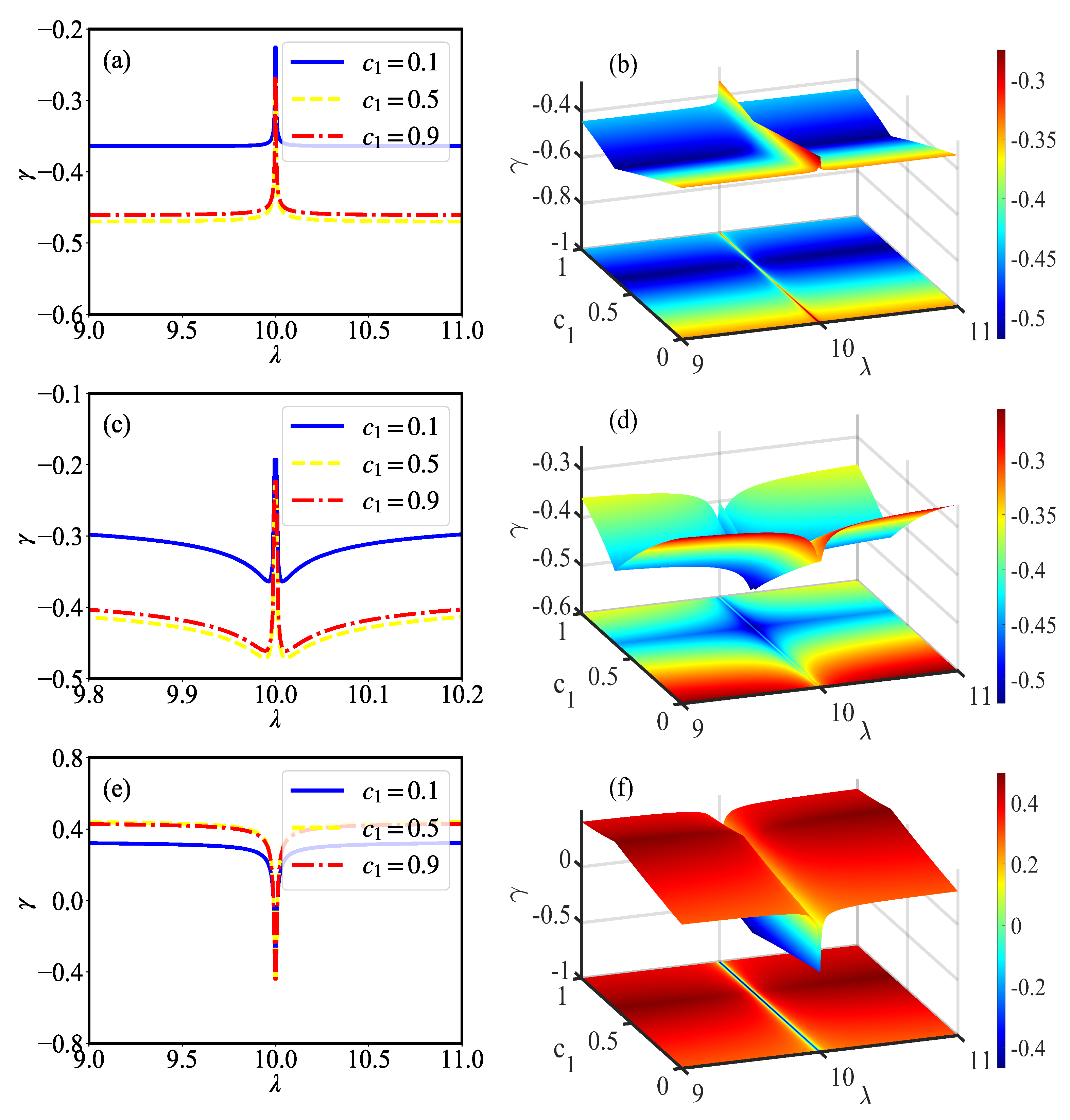

In Figure 2a,c,e, we plot the variation of the Berry phase with the phase transition parameter $\lambda$ for the TIQs, respectively. We find that at these three different times, the Berry phase of the TIQs shows a sudden change at the critical point of the phase transition parameter $\lambda$ when the TIQs take different initial values. In Figure 2b,d,f, we plot the variation of the Berry phase of the TIQs with the phase transition parameter $\lambda$ and the initial condition $c_1$, respectively. At the three different times, we find that the Berry phase of the TIQs undergoes a sudden change at the critical phase transition point ${\lambda }_c$, and the Berry phase of the TIQs changes differently near the critical phase transition point ${\lambda }_c$ at different times. For example, when $t=1/\omega$, the Berry phase of the TIQs gradually decreases when the phase transition parameter $\lambda$ leaves the phase transition critical value ${\lambda }_c$. When $t=1.3/\omega$, the Berry phase of the TIQs first gradually decreases and then gradually increases when the phase transition parameter $\lambda$ leaves the phase transition point. When $t=2/\omega$, the Berry phase of the TIQs keeps increasing when the phase transition parameter $\lambda$ leaves the critical value ${\lambda }_c$. To explain the different behaviors of the Berry phases of the TIQs above near the critical coupling strength ${\lambda }_c$, we plot the changes of the Berry phases of the TIQs with the phase transition parameter $\lambda$ and time t in Figure 3. We find that, at any time, the Berry phase of the two qubits undergoes a sudden change in the phase transition point. Therefore, we can take the abrupt change of the Berry phase of the TIQs as a phase transition signal of the Dicke quantum phase transition. In addition, at the phase transition point, we find that the Berry phase of the TIQs decreases with increasing time t. However, when $\lambda \ne {\lambda }_c$, the Berry phase of the TIQs decreases first and then increases with time t. These two phenomena then lead to different changes in the Berry phase of the TIQs near the phase transition point at different times in Figure 2b,d,f.

Meanwhile, we found another interesting phenomenon in Figure 2b,d,f. In Figure 2b,d, by observing the variation of the Berry phase with the initial condition $c_1$, we find that the Berry phase always takes the minimum value when $c_1$ is equal to a certain value. Furthermore, in Figure 2f, we find that the Berry phase always takes the maximum value when $c_1$ equals this value. To investigate this interesting phenomenon, in Figure 4, we plot the variation of the Berry phase of the two qubits with the initial state parameter $c_1$ for different values of the phase transition parameter when the time takes different values. We find that the Berry phase of the two qubits always changes abruptly at the point $c_1=2/3$ for different phase transition parameters and times. Therefore, in the cavity-BEC system with TIQs, both the phase transition parameter $\lambda$ and the initial state value $c_1$ of the two qubits cause abrupt changes in the Berry phase of the TIQs.

Figure 3. Berry phase of the TIQs varies with the phase transition parameter $\lambda$ and time t when $c_1=0.5$. The other parameters are the same as in Figure 2, and all parameters are in units of $\omega$.

Figure 3. Berry phase of the TIQs varies with the phase transition parameter $\lambda$ and time t when $c_1=0.5$. The other parameters are the same as in Figure 2, and all parameters are in units of $\omega$.

Experimentally, the Dicke quantum phase transition has been realized in a system consisting of a BEC coupled to an optical cavity [49]. Meanwhile, manipulating atoms by optical fields based on a cavity-quantum-electrodynamics system is already a well-established technique [87,88,89,90,91]. Moreover, the Berry phase of the qubit can be measured experimentally [10,92,93]. Therefore, the characterization of Dicke quantum phase transitions by the Berry phase of the TIQs is experimentally feasible.

4. Conclusions

We mainly studied the effect of the Dicke quantum phase transition on the Berry phase of the two impurity qubits. When the two impurity qubits only have a dispersive interaction with the optical field of the Dicke model, the two impurity qubits do not affect the ground state quantum phase transition of the Dicke model. We find that the Berry phase of the two impurity qubits is closely related to the mean and variance of the optical field number operator in the Dicke model over the ground state. By studying the mean and variance of the optical field number operator in the normal and superradiant phases, we find that the two impurity qubits Berry phase has a sudden change at the phase transition point at any time. Therefore, the Berry phase of the two impurity qubits can be used as a phase transition signal for the Dicke quantum phase transition. In addition, we found that the two impurity qubits behave differently near the phase transition point at different times. We explained the reason for the appearance of this different behavior by studying the variation of the Berry phase with the phase transition parameters and time. Finally, we found that the Berry phase of the two impurity qubits also has a sudden change at some initial value. In this article, we focused on the effect of the Dicke quantum phase transition on the Berry phase of the two qubits. The initial entanglement of the two qubits, the entanglement of the optical field and the BEC, and the frequency detuning between the optical field and the condensed atoms also affect the Berry phase of the two qubits, and we will study these in our next work.
