Design of a Hybrid Split-Delay Line for Hard X-ray Free-Electron Lasers

Abstract

High repetition-rate X-ray free-electron lasers (XFELs) enable the study of fast dynamics on microsecond time scales. Split-delay lines (SDLs) further bring the time scale down to femtoseconds by splitting and delaying the XFEL pulses. Crystals and multilayers are two common types of optical elements in SDLs, offering either long delay ranges or high temporal accuracy. In this work, we introduce the design of a hybrid SDL for the coherent diffraction endstation of Shanghai High Repetition Rate XFEL and Extreme Light Facility (SHINE). It uses crystals for the first branch and multilayers for the second one, thus simultaneously offering a relatively long delay range and high temporal accuracy. Moreover, a third branch can be installed to switch the SDL to the all-crystal configuration for longer delay ranges.

1. Introduction

Hard X-ray free-electron lasers (XFELs) provide ultra-short, ultra-bright, and highly coherent X-ray pulses in the hard X-ray regime [1]. Among them, high repetition-rate facilities such as the European XFEL enable the study of fast dynamics on microsecond time scales [2]. Split-delay lines (SDLs) can further bring the time scale down to femtoseconds by splitting and delaying the XFEL pulses [3]. Moreover, SDLs can be used as autocorrelators to characterize the coherence properties [4,5]. There are two common types of optical elements for SDLs, namely crystals and multilayers [6,7]. Crystal-based SDLs offer up-to-nanosecond delay ranges [8,9], but relatively low accuracy. In contrast, multilayer-based SDLs offer sub-femtosecond temporal accuracy but limited delay ranges [10].

Shanghai High Repetition Rate XFEL and Extreme Light Facility (SHINE) is the first hard X-ray XFEL project in China. It will employ a superconducting LINAC to produce ultrashort XFEL pulses at 1 MHz continuously [11]. The coherent diffraction endstation (CDE) at SHINE aims at ultrafast dynamics using scattering and imaging methods such as X-ray photon correlation spectroscopy (XPCS) and coherent diffractive imaging (CDI). An SDL system is required to probe sub-microsecond dynamics using methods such as split-delay XPCS [3] and sequential imaging [12]. Here we report the design of a hybrid SDL, which uses crystals for the first branch and multilayers for the second, featuring a relatively long delay range and high accuracy simultaneously. Thanks to the vertical polarization of the beamline, the hybrid SDL will adopt a horizontal layout. Therefore, it is possible to install a third branch and switch to the all-crystal configuration when longer delays are desired.

2. Conceptual Design

2.1. Beamline and SDL Design

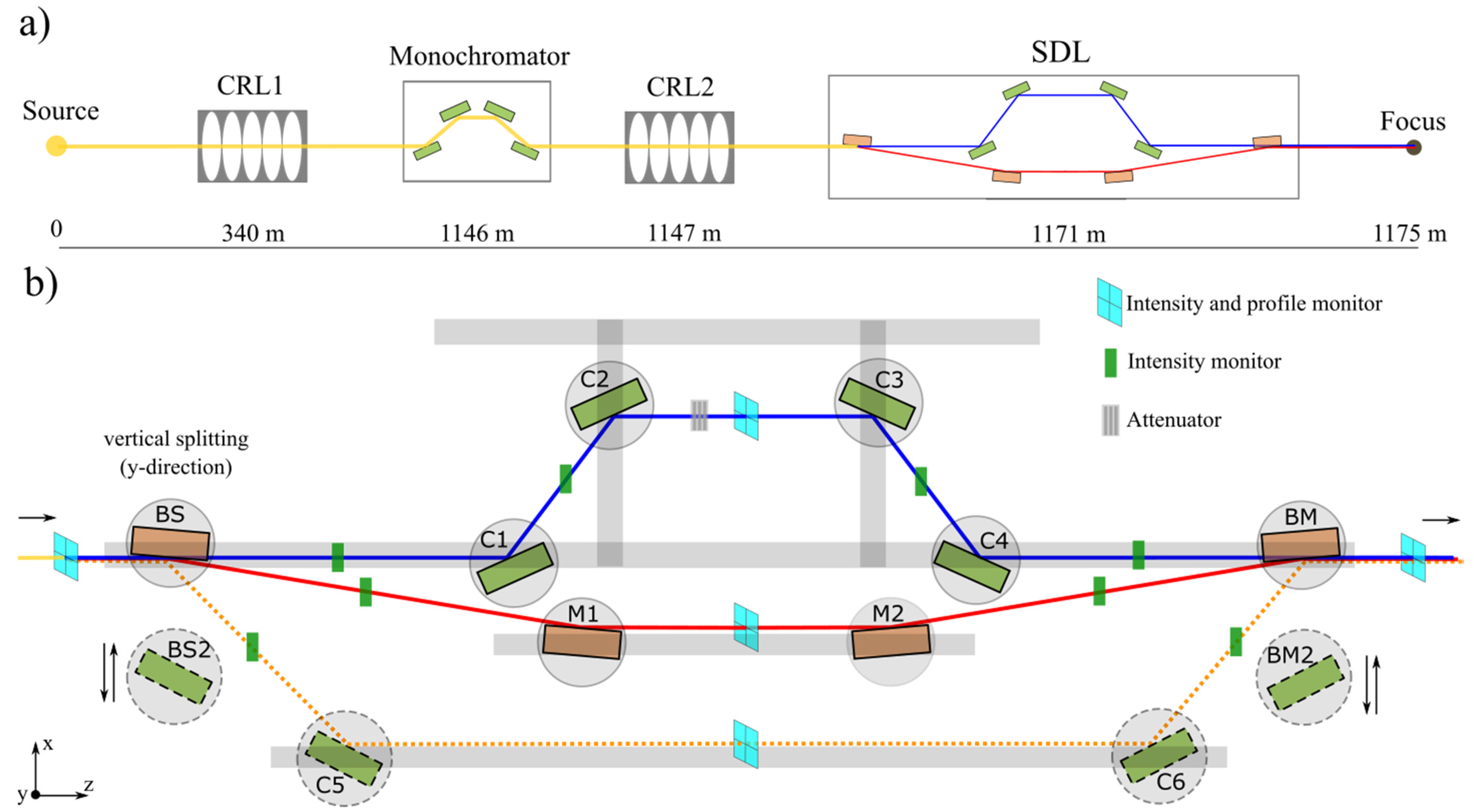

As shown in Figure 1a, focusing is achieved by two sets of compound refractive lenses (CRLs). Between the CRLs, a retractable monochromator composed of 4 Si111 crystals is installed. The SDL locates 23.5 m downstream CRL2 and 4 m upstream the focus. In the early phase of operation, the beamline will deliver 10–15 keV pulses, which is also the main operating range of the SDL.

Due to the difficulty in the fabrication of high-quality thin crystals, and the thermal deformation at high heat load [8], the hybrid SDL uses the wavefront splitting scheme to split the beam. As shown in Figure 1b, the entire system lies horizontally on an optical table (the x–z plane). The multilayer beam splitter (BS) splits the XFEL pulses vertically into two sub-pulses (in the y-direction). For this purpose, the effective part of the BS and BM are half as tall as that of the others. After BM, the sub-pulses travel either via the first branch composed of 4 silicon crystals (C1–C4) or the second branch composed of two multilayers (M1–M2). Their path length can be varied by sliding the stages (circular region) along the guide rails (shadowed paths), or by moving the stages via their x- and z-freedom. Eventually, the sub-pulses are merged by the multilayer beam merger (BM).

The hybrid SDL employs a horizontal layout due to the vertical polarization of the beamline, which is the same as that of the HXU at LCLS-II [8]. This enables additional branches alongside the existing ones. Specifically, a third branch (the dashed path in Figure 1b) composed of 4 crystals will be installed. When longer delays are desired, the SDL can operate in the all-crystal configuration using the first and the third branch. To this end, the multilayer-based BS and BM will be replaced by the crystal-based BS2 and BM2.

2.2. Crystals and Multilayers

Si111 crystals and W/B₄C multilayers with a periodicity of 1.96 nm are selected for the hybrid SDL [10]. This combination ensures an acceptable minimum delay, as shown in the next section. Another reason for Si111 is its relatively large bandwidth, allowing for shorter pulses compared with higher-index Si such as Si220 and Si311. Due to the Fourier-transform limit, at 10 keV the XFEL pulses are longer than 1.40 fs for Si111, 3.18 fs for Si220, and 6.75 fs for Si311. To obtain sub-femtosecond resolution, one can either retract C1 and C4 to allow the upper sub-pulses to pass directly or implement an all-multilayer configuration. The latter is one of our future tasks. In both cases, the monochromator shall be retracted.

The effective surface area of the crystals is 25 mm × 5 mm (H × V), whereas that of the multilayers is 50 mm × 5 mm. Both of them largely exceed the footprint size of the beam on them at 10–15 keV.

The expected roughness of the crystals is about 2 Å, whereas that of the multilayers is about 3 Å. The resulting overall transmission at 10 keV is about 47% for crystals and 11% for multilayers. Therefore, a solid attenuator is implemented in the first branch to obtain sub-pulses of comparable flux.

2.3. The Delay Range

Below we calculate the delay range using the geometry in the literature assuming an infinitely-narrow beam [13]. The path length difference is obtained by subtracting the longitudinal length from the beam path length for each branch. The maximum delay is calculated by

$${\tau }_{max}=\frac{\left(1.6 \mathrm{m}-0.2 \mathrm{m}\right)\times \left(\frac{1}{\cos 2{\mathsf{\theta }}_C}-1\right)-1.7 \mathrm{m}\times \left(\frac{1}{\cos 2{\mathsf{\theta }}_M}-1\right)}{c}$$

(1)

where $1.6\mathrm{m}$ is the maximum distance between C1 and C4, $0.2\mathrm{m}$ the minimum distance between C2 and C3, $1.7\mathrm{m}$ the minimum distance between BS and BM, ${\mathsf{\theta }}_C$ the Bragg angle of crystals, ${\mathsf{\theta }}_M$ the Bragg angle of multilayers, c the speed of light. The minimum delay is calculated by

$${\tau }_{min}=\frac{\frac{2 \mathrm{mm}}{\sin {\mathsf{\theta }}_C}\times \left(1-\cos 2{\mathsf{\theta }}_C\right)\times 2-2 \mathrm{m}\times \left(\frac{1}{\cos 2{\mathsf{\theta }}_M}-1\right)}{c}$$

(2)

where $2\mathrm{mm}$ is the minimum surface distance between C1 and C2 (also C3 and C4), and $2\mathrm{m}$ the maximum distance between BS and BM.

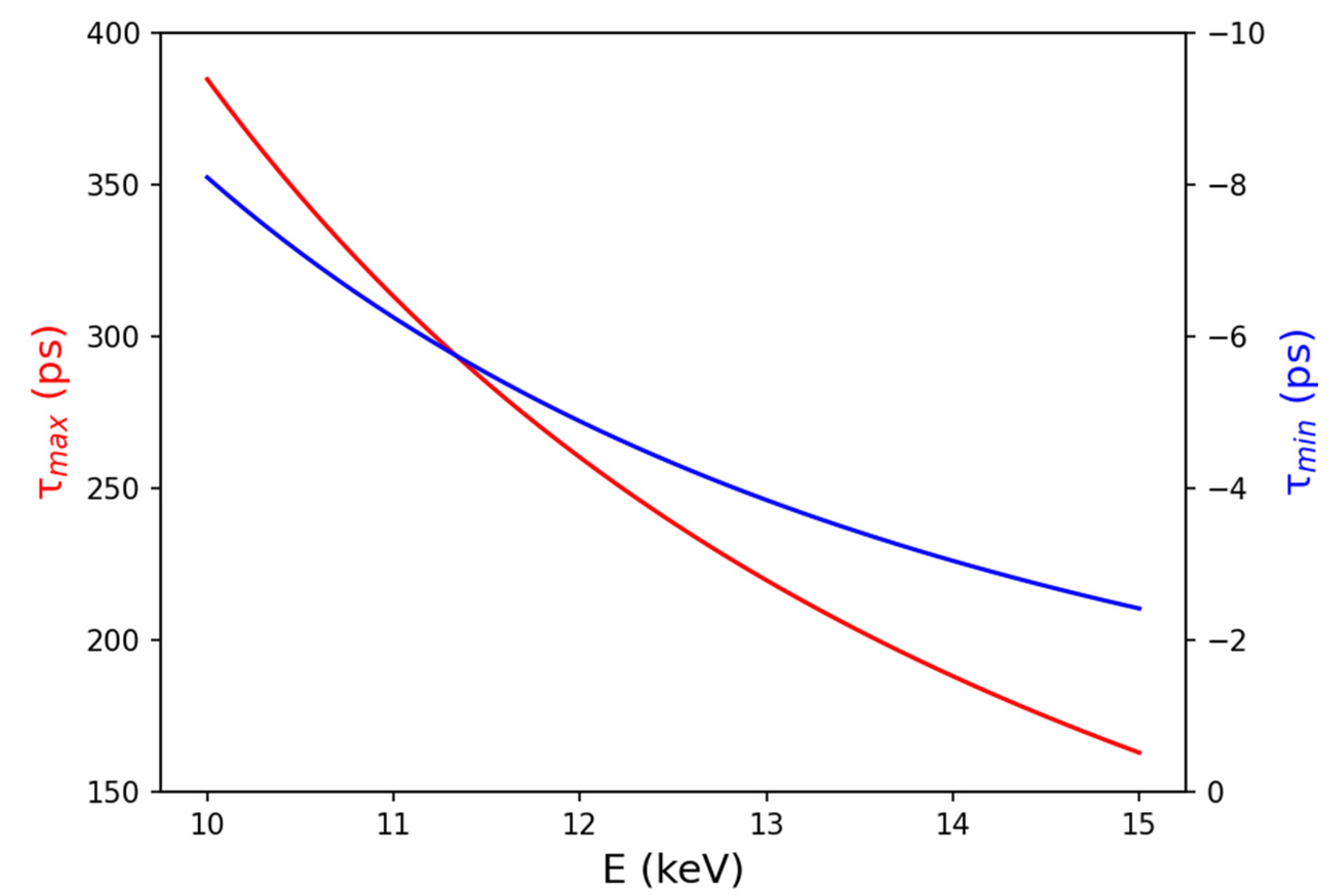

Figure 2 shows the calculated maximum and minimum delays of the SDL in the photon energy range of 10–15 keV. As expected, both ${\tau }_{max}$ and ${\tau }_{min}$ decrease with the photon energy. At 10 keV we obtain ${\tau }_{max}\approx 384\mathrm{ps}$ and at 15 keV we obtain ${\tau }_{max}\approx 163\mathrm{ps}$, which shall be sufficient for most split-delay experiments [14,15,16]. In contrast, ${\tau }_{min}$ is rather limited but still workable. Both ${\tau }_{max}$ and ${\tau }_{min}$ can be increased by switching to the all-crystal configuration.

2.4. The Temporal Accuracy

One of the advantages of this hybrid design is the high temporal accuracy. Under good surface alignment and high stability [13,17], it is determined by the translational motion accuracy along the beam [6,10]. It equals $\mathsf{\Delta }\mathrm{L}/\sin 2{\mathsf{\theta }}_C$ for crystals and $\mathsf{\Delta }\mathrm{L}/\sin 2{\mathsf{\theta }}_M$ for multilayers, where $\mathsf{\Delta }\mathrm{L}\le \pm 1\mathsf{\mu }\mathrm{m}$ is the translational accuracy in the x- and z-directions [9]. For an infinitely narrow beam, the temporal accuracy can be calculated by

$$\mathsf{\Delta }{\mathsf{\tau }}_C=\frac{2\times \frac{\mathsf{\Delta }\mathrm{L}}{\sin 2{\mathsf{\theta }}_C}\times \left(1-\cos 2{\mathsf{\theta }}_C\right)}{c}$$

(3)

for crystals, and

$$\mathsf{\Delta }{\tau }_M=\frac{2\times \frac{\mathsf{\Delta }\mathrm{L}}{\sin 2{\mathsf{\theta }}_M}\times \left(1-\cos 2{\mathsf{\theta }}_M\right)}{c}$$

(4)

for multilayers. At 10 keV, $\mathsf{\Delta }{\mathsf{\tau }}_C\le 1.34\mathrm{fs}$ and $\mathsf{\Delta }{\tau }_M\le 0.21\mathrm{fs}$. At higher photon energies, higher temporal accuracy is expected. The temporal accuracy of crystals shall be sufficient for experiments requiring long pulses or long delays. When performing split-delay in the low-charge (short-pulse) mode [14,18], the temporal accuracy of multilayers is highly advantageous.

2.5. Beam Overlapping

In the wavefront splitting scheme, there is a small gap between the sub-pulses due to knife-edge diffraction from the edges of the BM and BS [19]. Full overlap can be achieved either by focusing or by slightly tuning the crystals/multilayers [10,19]. At CDE, the focusing elements ensure the overlap at the focus but not at other positions.

Tuning the multilayers can be performed in a large angular range due to its large Darwin width (488.69 μrad at 10 keV). This helps to fully overlap the beam at multiple positions rather than only at the focus. Likewise, non-collinear merging can be achieved without additional mirrors [9].

3. Technical Design

3.1. System Layout

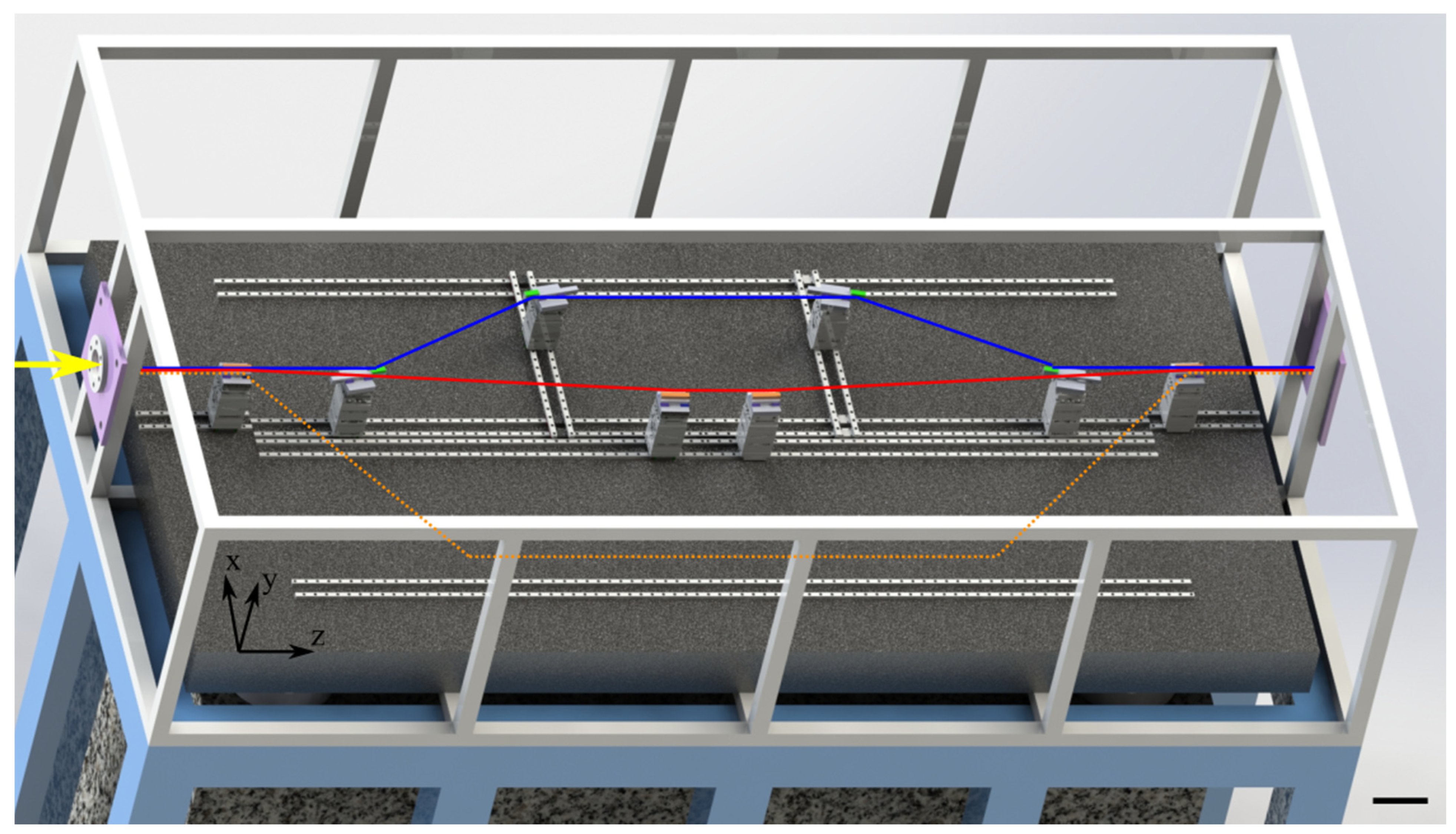

As illustrated in Figure 3, the multilayers and crystals are mounted on 5-axis motor stages, which provide x, y, z, pitch, and roll freedom. All stages can slide along the guide rails. In addition, the C2 and C3 stages can slide in the x-direction via cross guide rails. The linear motion of the multilayers in the x-direction is provided by the x-axis freedom of the stages with an expected travel range of 30 mm, corresponding to a path length of about 0.5 m. All components will be hosted in a vacuum enclosure, which is supported separately from the optical table.

3.2. The Si Crystals

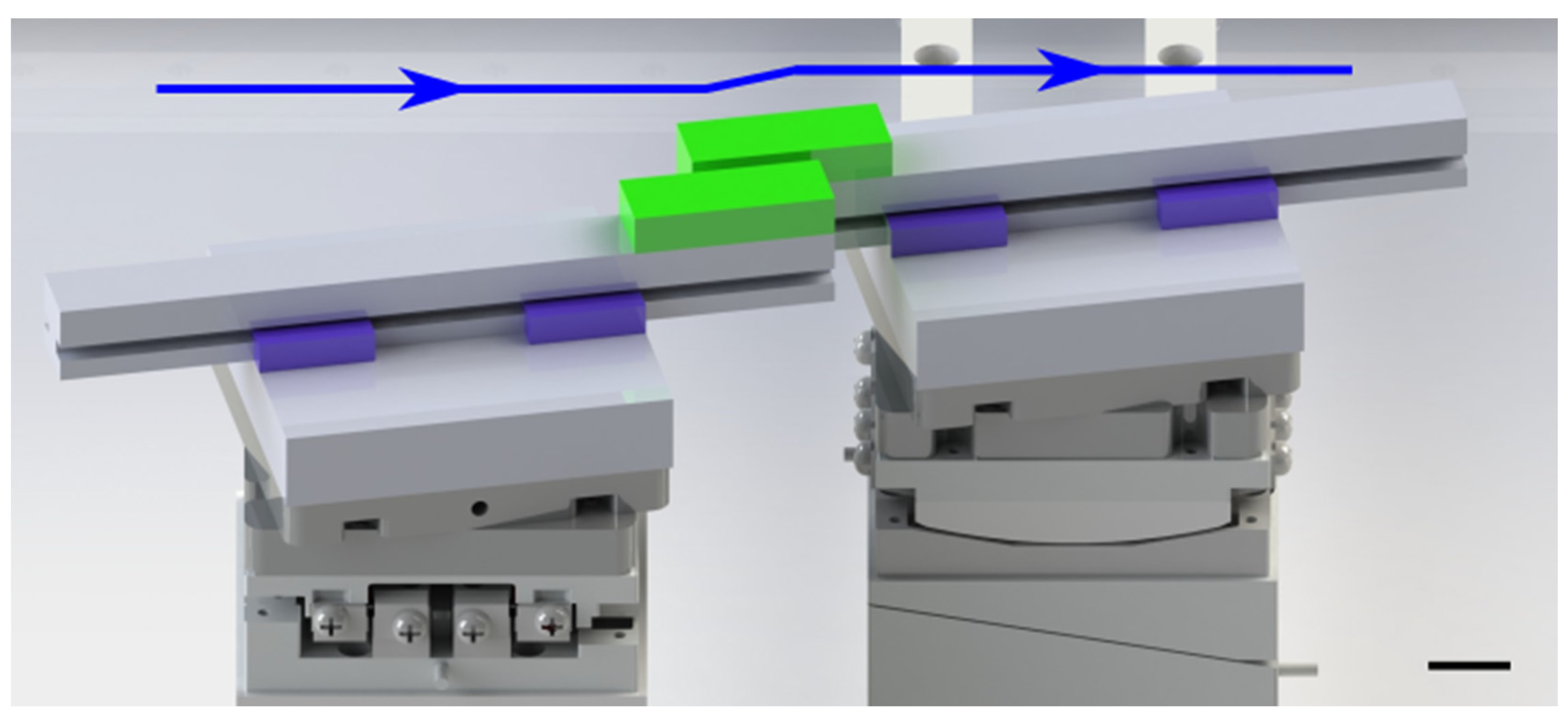

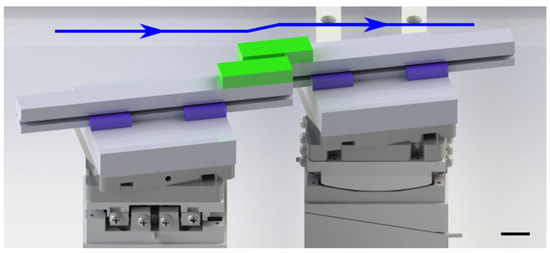

For acceptable negative delays, the minimum surface distance of C1–C2 and C3–C4 shall be less than 2 mm. To this end, a special design is applied to C1, C2, C3, and C4, similar to the channel-cut crystals of the SDL at LCLS [20]. In both designs, the base crystals stick out and the effective parts (shown in green in Figure 4) extrude from the base crystals. In this way, the collision of the motor stages no longer hinders the approaching of crystals.

3.3. The Heat Load

At 10 keV and 1 MHz in the high-charge mode with the monochromator employed, the expected maximum heat load at the BS is about 12 W, and that at C1 is about 6 W. The heat load will be about 5 times higher when the monochromator is retracted (pink beam). Therefore, the SDL cannot run at full power without cooling. In the early phase of operation, the effective pulse number and/or the effective repetition rate shall be constrained [21], such that significant thermal effects can be avoided. In the long run, a cooling system shall be implemented, for which the mechanical stability of the optics must be carefully assessed.

4. Wavefront Propagation Simulation

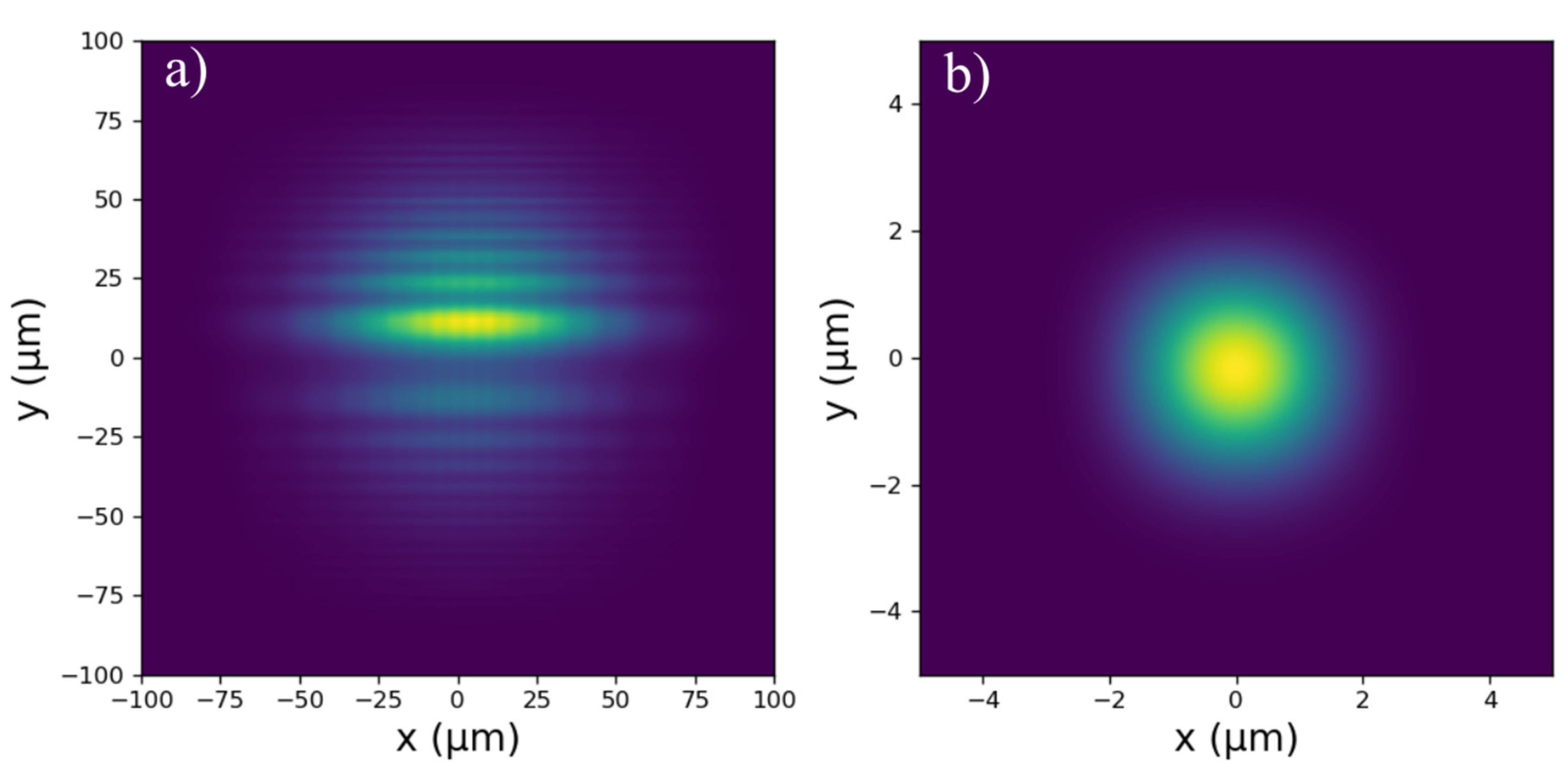

Performance of the hybrid SDL was evaluated by the front-to-end simulation. For this purpose, wavefront propagation was performed using the SRW software package [22]. A self-coded python script merged the intensity and phase maps of both sub-pulses exported from SRW. Figure 5a shows the simulated beam profile on the plane 0.1 m downstream the SDL and 1.9 m upstream the focus. The edge diffraction fringes from the edges of BM and BS appear in both sub-pulses, leading to a gap between them [19]. The fringes in the upper part are stronger due to the higher transmission of crystals. The attenuator shall be inserted when equal sub-pulse energies are desired.

Figure 5b shows the simulated beam profile on the focus plane when the attenuator is employed. The Gaussian profile indicates a good overlap of the sub-pulses. No interference between sub-pulses is visible due to the large interference spacing (about 5 μm) [17].

5. Discussion

SDLs are powerful tools to explore ultrafast dynamics on sub-microsecond scales at XFELs. Therefore, an SDL is designed for the CDE endstation of SHINE, which mainly operates in the photon energy range of 10–15 keV. It will use Si111 crystals for the first branch and W/B₄C multilayers for the second. The motivation of this hybrid design is to simultaneously provide a relatively long delay range and high temporal accuracy. Calculations show that the current design offers a delay range from −8 to 384 ps and the temporal accuracy better than 0.21 fs at 10 keV. Such a delay range is sufficient for most split-delay experiments [14,15,16], and the temporal accuracy is highly advantageous to those working in the low-charge mode [14,18]. Other essential technical aspects such as beam overlapping and the heat load are carefully considered. Wavefront propagation simulation further demonstrates the performance of the hybrid SDL [10,22]. Off the focus plane, the sub-pulses are separated by a small gap due to edge diffraction. On the focus plane, the sub-pulses largely overlap, resulting in a Gaussian profile.

Currently, most SDLs for hard X-ray XFELs are based on crystals [6,8,9,13], which offer delay ranges up to several nanoseconds. However, the temporal accuracy of crystal-based SDLs is limited to several femtoseconds due to the large diffraction angles. Moreover, crystals do not allow for attosecond pulses due to the Fourier-transform limit. Therefore, it is preferred to use multilayers for (sub-)femtosecond split-delay experiments. Multilayers provide small diffraction angles and larger bandwidth, thus enabling (sub-)femtosecond split and delay. This design has been successfully implemented at FLASH and is under development for the HED endstation at the European XFEL [10,17]. Our hybrid design is expected to integrate their advantages. Moreover, the hybrid SDL adopts a horizontal layout due to the vertical polarization. It is thus possible to install a third branch and switch to an all-crystal configuration for longer delays.

6. Conclusions

In this work, the design of a hybrid SDL designed for the CDE endstation of SHINE is introduced. By combing Si111 crystals and W/B₄C multilayers, both a relatively long delay range and high temporal accuracy are available. Moreover, longer ranges can be achieved by switching to the all-crystal design using the first and the third branch. Its performance is demonstrated by wavefront propagation simulation.

In terms of future work, other critical components such as the cooling system, the laser interferometer system, and an optional all-multilayer configuration shall be carefully considered. The cooling system would enable higher-power operation, the laser interferometer would enable higher accuracy, and the all-multilayer configuration would enable sub-femtosecond split-delay.
