Article

From Traditional Product Lifecycle Management Systems to Blockchain-Based Platforms

Chair of Production and Operations Management, Brandenburg University of Technology, 03046 Cottbus, Germany
*
Authors to whom correspondence should be addressed.
Logistics 2022, 6(3), 40; https://doi.org/10.3390/logistics6030040
Submission received: 5 May 2022 / Revised: 16 June 2022 / Accepted: 18 June 2022 / Published: 23 June 2022

Abstract

:
Background: Several product lifecycle management systems (PLMs) have been implemented in the industrial sector for managing the data of the product from the design up to the disposal or recycling stage. However, these PLMs face certain challenges in managing the complex and decentralized product lifecycles. Methods: To this aim, this work investigates the currently implemented PLMs used in industries through the exploration of various software reviews and selection websites. Accordingly, these existing PLMs are quantitatively compared and analyzed. Results: The analysis shows that most of the existing PLMs do not contain all the required features; therefore, industries integrate different software to create a full-fledged PLM system. However, this practice results in reducing the overall system efficiency. In this context, this paper assesses and recommends a blockchain-based innovative solution that overcomes the challenges of existing PLMs, hence increasing the overall system efficiency. Furthermore, this work argues, in a logical way, that the recommended blockchain-based platform provides a secure and connected infrastructure for data handling, processing, and storage at different stages of the product lifecycle. Conclusions: This work can be considered among the first to compare the currently implemented PLMs with a novel blockchain-based method. Thus, the stakeholders can utilize the outputs of this research in their analysis and decision-making processes for implementing the blockchain in their organizations.

1. Introduction

Product lifecycle management (PLM) is the process of data management that directs the entire lifecycle of a product, from inception to its ultimate disposal or retirement. The core requirement for the PLM in the production industry is data storage and ensuring its fast, easy, and trouble-free processing for intelligent decision making in product development. PLM involves different stages of the product lifecycle, including design, production, distribution, operations, and maintenance, as well as disposal or recycling. In today’s market, PLM has become a tactical solution for improving product competitiveness in the industry [1]. To compete successfully, the industries are constantly trying to implement a system that can efficiently collect and store the product data in real-time at a series of stages of the product lifecycle. The more data are collected from each phase of the product lifecycle, the greater the potential for product development. However, managing this large amount of data generated at various stages is not an easy task, and hence requires a proper management system.
To this aim, several PLM systems have been implemented and used in different industries. These systems are developed using a centralized and standalone framework and are usually responsible for data collection and management locally in their domain. However, in today’s cyber-physical age, the aim in the industries is not just the data collection, but the ability to connect the collected data in a sophisticated way that can easily be used for training the intelligent learning models. Simultaneously, the objective is to convert the data managed by the concerned personnel into the industry’s capital in an easily manageable and shareable form [2]. In other words, work that has once been performed on the product at any time and phase shall remain exploitable. However, the existing systems are unable to allocate the data to the individually customized product. Therefore, there is a need to holistically gather the data generated at different stages so that it can be allocated to each product and concerned customer.
Furthermore, currently, product lifecycles are usually complex and decentralized in nature. Hence, the data need to be transparent and auditable so that every stakeholder has access and can exchange the data with all the associated parties. A new data management system needs to be implemented that can address and solve the data transparency and auditability challenges. For this purpose, blockchain, a shared and immutable ledger, can be used to facilitate the process of recording transactions and tracking assets in a business network [3]. In a blockchain, the transactions are recorded, protected, proofed, stored, and shared with all the participants of the chain. Hence, all the stakeholders can permanently exchange the data that are important from their perspectives. In comparison to the traditional PLM approaches, a blockchain has distinct characteristics, i.e., it is a secure, decentralized, and distributed ledger. Each member of the chain can access it from anywhere in the world using an internet connection, which leads to greater transparency and auditability. A blockchain allows the data to be tracked in an inviolable way, making it possible to go back through the entire history of the product lifecycle [4].
In this work, we aim to explore the currently implemented PLMs. These existing PLMs are quantitatively compared and analyzed regarding certain basic features and characteristics that are the core requirements of any system. Then, problems associated with those PLMs are highlighted and an alternative solution is presented that can solve these problems. In other words, this work is a systematic review that highlights and emphasizes the specific issues with data management and recommends a novel solution for those issues. For this purpose, the research questions that this paper aims to answer are:
  • What are the currently implemented PLMs, and what features do those PLMs contain?
  • Do blockchains address the same purpose and functionalities as those of existing PLMs?
  • Why are blockchain-based platforms better and hence, recommended over the traditional PLMs?
  • How does the proposed solution enhance the efficiency of the production system?
The rest of the paper is organized as follows: The currently implemented PLMs are explored and evaluated in Section 2. Section 3 provides the conceptual background and basics of the blockchain technology. The recommended blockchain-based platform is presented in Section 4. Section 5 consists of the discussion and benefits of the recommended platform. Finally, this work is summarized in Section 6.

2. Exploration of Traditional PLMs

During the exploration of various software reviews and selection websites, a total of 135 PLM systems currently implemented in industries have been determined. All of these 135 systems are deployed on-cloud; however, 23 of them provide on-premises services as well. The features of the software using both systems are the same; however, the difference is in the data storage policy. The on-cloud database is hosted on the vendor’s server and can only be accessed through the web browser. While in the on-premises scenario, the software is installed on the industry’s databases and servers so that the generated data are managed locally by the industry itself. A detailed quantitative comparison of existing PLMs in the industries is carried out and is provided in Appendix A. Some considerations that have been implemented during the process of exploration can be pointed out as:
  • Depending upon the vendor, features, and size, the PLM systems are available in different price ranges. However, this survey considered PLMs of all price ranges.
  • Different systems are suitable for use in different sized industries. However, we considered all PLMs, irrespective of their implementation in the respective industry.
  • The supported language in most of the PLMs is English; however, some systems support other languages as well. This study considered PLM in all languages.
  • Only those PLMs that contains at least three basic features are considered in the comparison.
  • The type of production system in which these PLM are implemented, i.e., mass, batch, or job shop production is also ignored in this comparison.
It is observed from the data presented in Appendix A that most of the PLMs do not include all the required features; therefore, the software vendors usually offer a list of applications that may be integrated with each other to form a complete PLM system. However, in this case, data exchange would be slow and time-consuming. The time required for data conversion from one system to another becomes high, reducing overall system efficiency. Table 1 summarize the number of currently implemented PLMs that are capable of supporting specific basic features. In the literature, the existing research publications consider only a limited number of existing PLMs in their analysis and are unable to take all the available PLMs into account. Therefore, searching using internet search engines could be considered a more sophisticated method, and hence is used in our exploration process. Therefore, the data of Appendix A and Table 1 are based on our search using various search engines, i.e., SelectHub [5], G2 Business software and services [6], Software TestingHelp [7], Capterra [8], PAT Research [9], and Adam Enfroy [10]. Furthermore, as these search engines are usually amended and updated on a regular basis, exploration via these websites leads to the latest list of existing PLMs.
It is quite clear from Table 1 that document management is the feature that most of the existing PLMs carry (a total of 111 PLMs), while change management is the most challenging feature and is carried by the least number of PLMs (a total of 78 PLMs). In addition to the basic features of PLMs, as described earlier, some software also carries additional capabilities. Enriquez et al. considered some of the top PLM systems and evaluated extra features in those systems at different stages, i.e., from “design” up to “after-sales management,” as illustrated in Table 2 [11]. Furthermore, they also presented some of the applications that can be integrated into the respective PLM to achieve specific tasks.
In addition to the extra features mentioned in Table 2, these PLMs are also highly scalable. Hence, these systems have the ability to grow and manage the increasing needs and demands of the consumers. Furthermore, these top PLMs also focus on the appropriate use and governance of data that is being generated, collected, and shared by different stages.

3. Fundamentals of a Blockchain

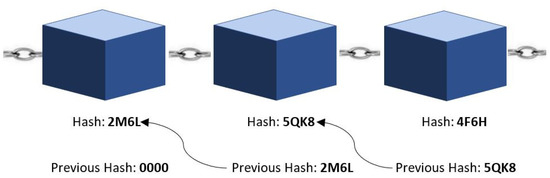

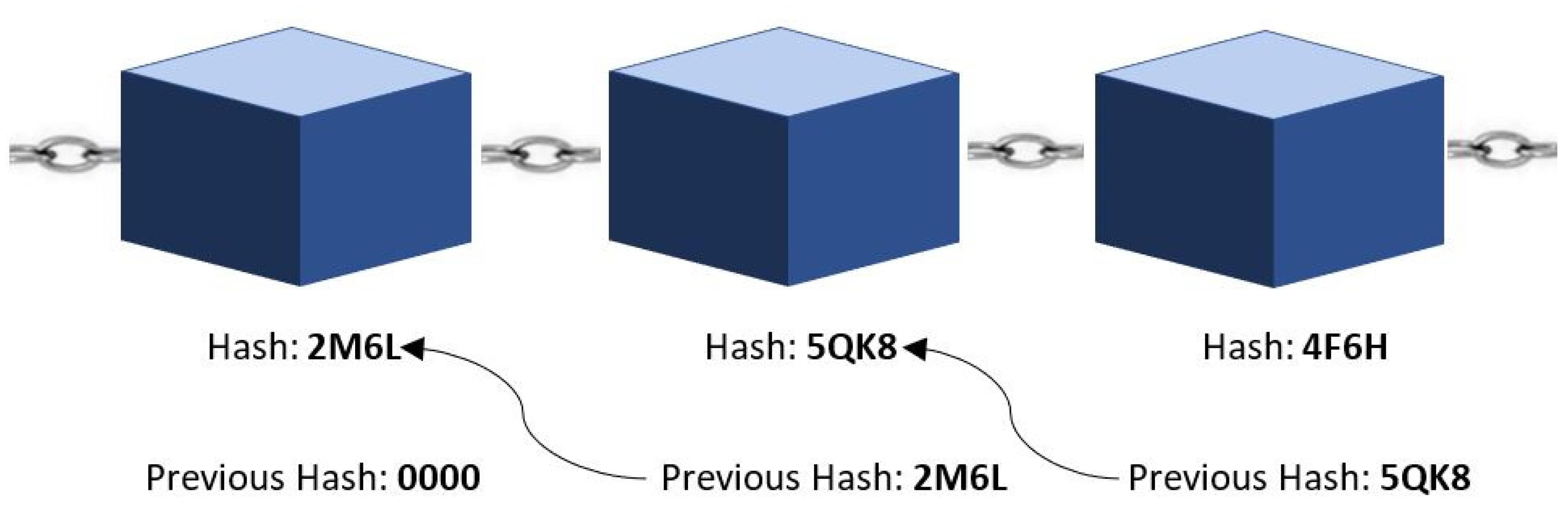

A blockchain is a digital, decentralized, and immutable ledger maintained by different computer nodes that facilitate the process of recording transactions and tracking assets in a business network [3]. The transactions are recorded in a data format called “block” and added to a shared database in chronological order to form a chain [12,13]. The transaction data in the block is validated by all the nodes in the network before its addition and storage on the chain [14,15,16]. A simple structure of a blockchain consisting of linked blocks is illustrated in Figure 1. The first block is usually referred to as a genesis block, followed by other blocks [17]. Each block mainly consists of three metadata, i.e., the pointer or hash that connects it to the previous block, the timestamp that certifies the time at which the transaction takes place, and the transaction data. Hashing of each block makes the complete chain an immutable ledger, so that the blocks can only be added and not removed from the chain [18]. In this way, the data is recorded, protected, proofed, stored, and shared with all the participants of the chain, which is the basic concept of a blockchain.
In general, there are three types of blockchain networks: public, private, and consortium blockchains. Public blockchains are permissionless in nature, and are therefore open for anyone in the world to access, perform transactions, and participate in the consensus process [19]. The blockchain concept presented by Satoshi Nakamoto in 2008 is an example of a public chain [20]. Private blockchains are permissioned blockchains controlled by a single central authority. The central authority permits the nodes who can join and perform the transaction. Hyperledger fabric, hosted by the Linux Foundation, is an example of a private blockchain [21]. Consortium blockchains are also permissioned blockchains, but instead of a single authority, they are controlled by a group of preselected nodes [22]. Consortium blockchains are more decentralized compared to fully private blockchains, and hence provide higher security. The global shipping business network (GSBN), developed by CargoSmart, is an example of a blockchain consortium that aims to digitalize the shipping industry, allowing maritime industry operators to work more collaboratively.
A blockchain is a digital platform that changes the way traditional databases store and record data and transactions [23]. In comparison to traditional ledgers, blockchains have distinct characteristics, i.e., they are secure, distributed, and decentralized in nature. Using an internet connection, each participant in the chain can access it from anywhere in the world, leading to greater transparency and auditability. A blockchain allows the data to be tracked in an inviolable way, making it possible to go back through the entire history of the product lifecycle. Hence, all the participants of the chain can permanently exchange information that is important from each perspective. Moreover, since all the permitted members of the network control each other, unlike in traditional ledgers, no intermediary or central point of account is needed [24]. A blockchain is more suitable to use in cases where the data requires clear identification and verifications. Furthermore, the use of blockchain technology is especially beneficial in the case of high value products with low trading volume [25].
Currently, an increasing number of initiatives in the blockchain are altering the traditional approaches in each sector. However, most of the research work available on blockchains focuses on cryptocurrency, i.e., over 80% of the research articles on blockchains are based on crypto, while less than 20% target other blockchain applications [26]. Moreover, most of the current work on the blockchain in the real business environment is still in an early stage, i.e., at the concept or idea phase [27]. However, it is strongly expected by the experts that the blockchain will target every industry and significantly change the existing approaches [12,15,28]. According to the report by the Statista research department, published on March 18, 2022, investment in blockchain-based solutions is expected to reach almost $19 billion by 2024 (https://www.statista.com/statistics/800426; accessed on 20 April 2022). Blockchains would be able to track $2 trillion worth of tangible and intangible goods in their supply across the globe by 2023, and accordingly, it will be an over $3 trillion business by 2030 [29].

4. Conceptualization of a Blockchain-Based Architecture

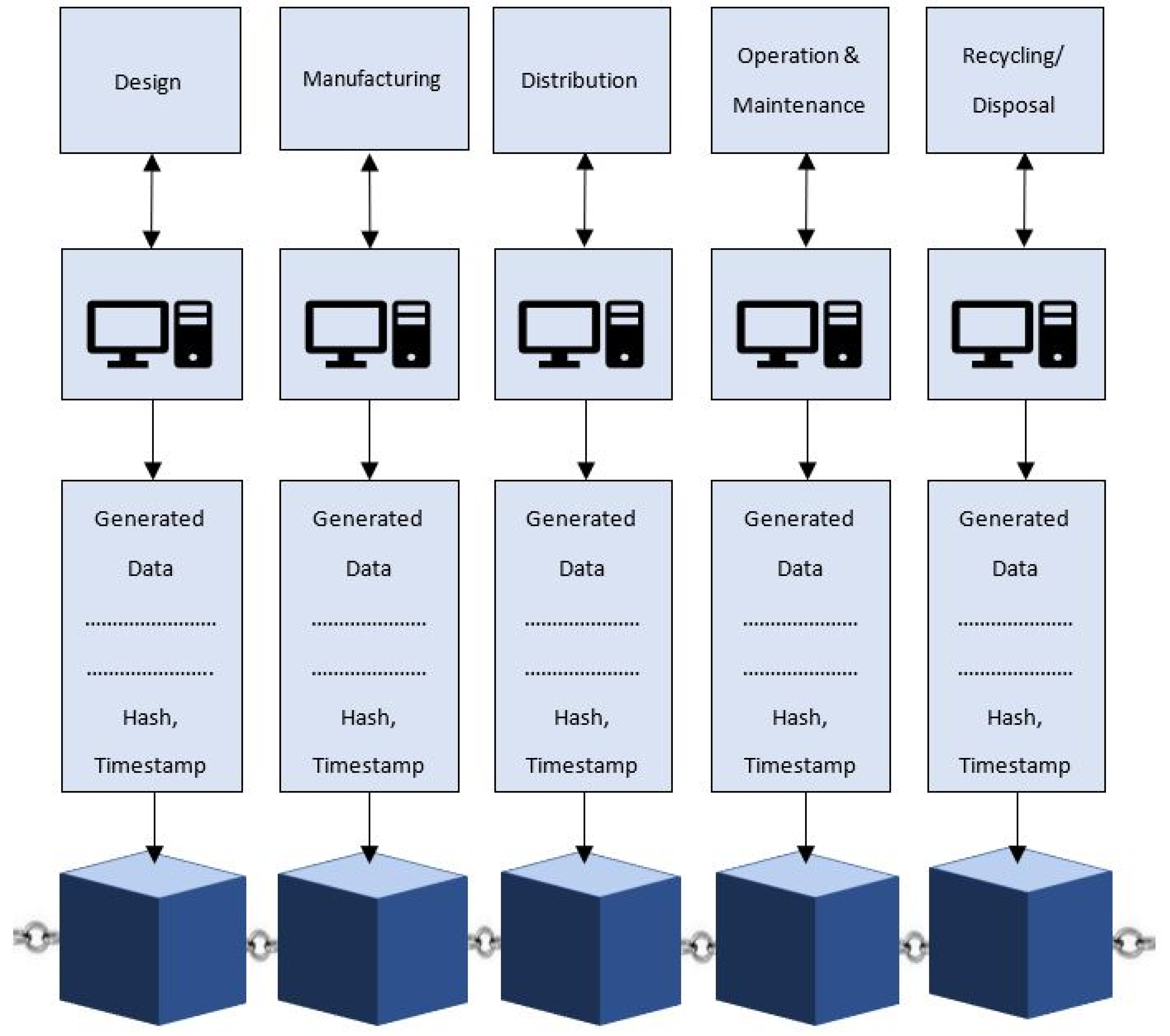

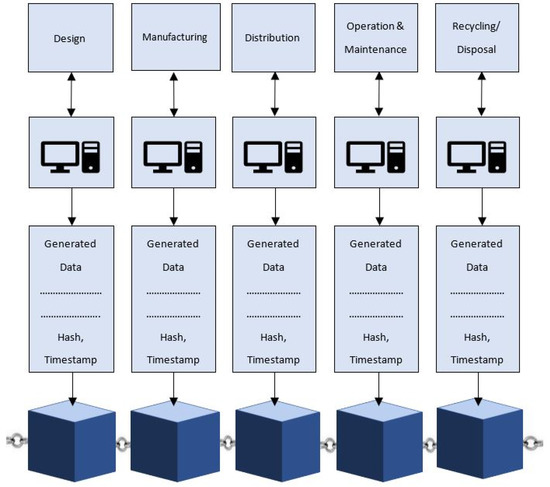

In this section, we present the concept of a blockchain-based platform that can be considered as a novel solution to the challenges faced by the existing PLMs. This platform contains all the basic and extra features of traditional PLMs. The conceptual framework for the proposed platform is shown in Figure 2. This platform connects all the phases of the product lifecycle from the design up to the disposal or recycling of any product; hence, the data can be visible and accessible to every stakeholder associated with the product throughout its lifecycle. Moreover, as the blockchain is an immutable ledger, the data in this presented platform would be secured and impossible to manipulate or forge. Hence, this can be considered a robust solution for safeguarding the data generated and shared among the stakeholders throughout the product lifecycle.
The fundamental layers in this solution are similar to those of traditional PLMs, i.e., the physical and digital environment, digital data, and storage database. The physical environment consists of different stages of the product lifecycle where actual tasks are performed. The data generated through these tasks is converted to a digital form and stored in the database, which is blockchain-based, in this case. The data is validated by concerned nodes according to the defined protocols, and then it is stored and becomes part of the chain. This platform provides data access, along with advanced data analytics, to all stakeholders involved at different stages of the product lifecycle. Hence, all the stakeholders can permanently exchange the data from their perspectives.
Although the fundamental concepts in implementing blockchain technology in any industry are the same, as different industries may have different policies and working environments, every setup would require setting the basic strategies according to their own conditions. These strategies may be:
  • Defining or choosing the suitable consensus protocols: A blockchain consensus protocol enables all the parties of the blockchain network to come to a common agreement on the present data state of the ledger. The business can define its own, or can choose from well-known available protocols. In case of the production industry, Byzantine fault tolerance, or crash fault tolerance, are the most commonly used consensus protocols.
  • Selecting the suitable blockchain platform: Depending upon the chosen consensus protocols, industries can then select the most suitable blockchain platform. Many free and open-source blockchain platforms are available. In case of the production industry, the commonly used private blockchains are Hyperledger Fabric, Corda, and so on.
  • Configurations of the blockchain instance: Blockchain platforms usually require very carefully planned configurations for different parameters. Some of these key parameters, i.e., permissions, hashes, block signatures, etc., can be configured and finalized by the individual businesses according to their own policies.

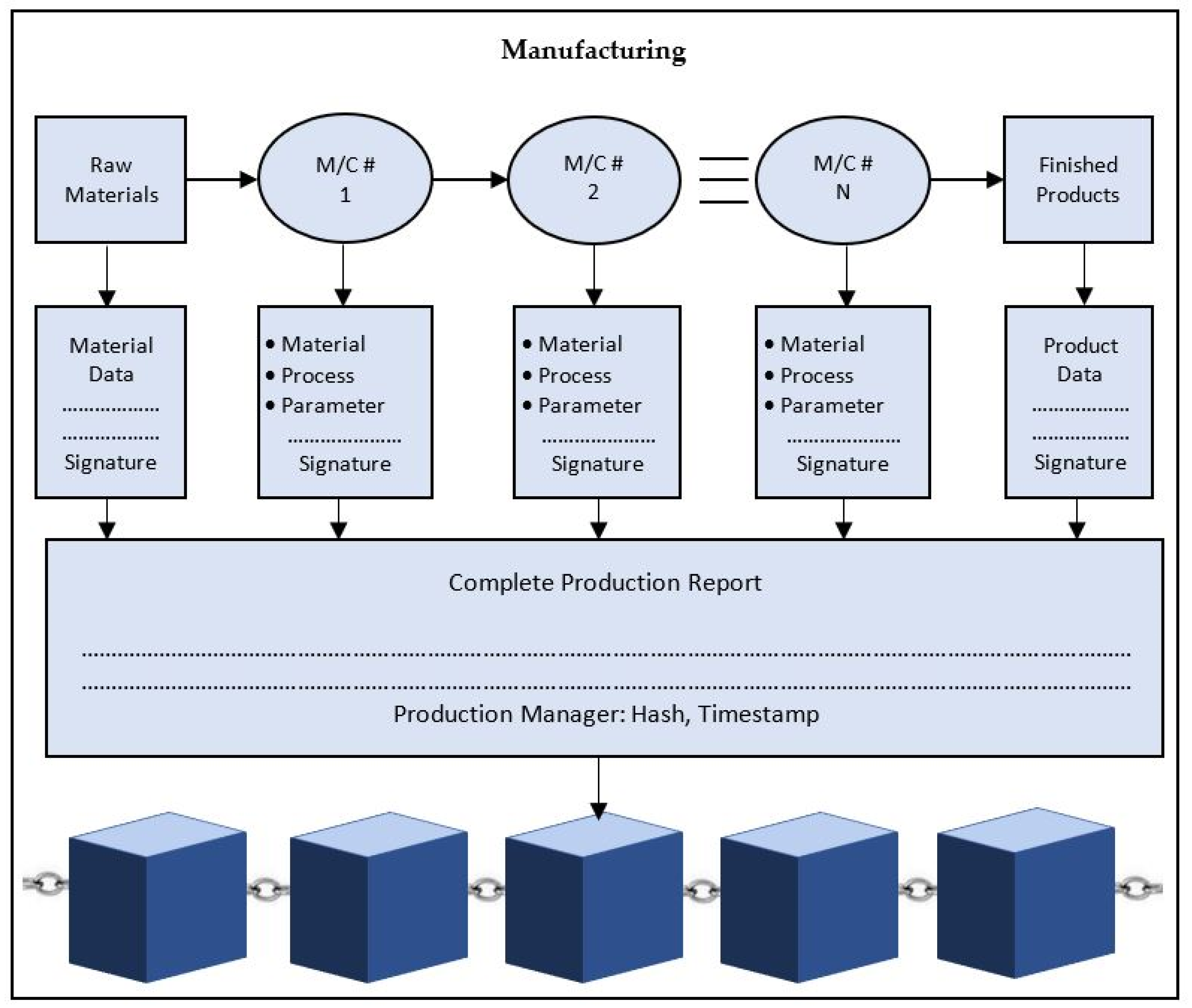

To clarify how the data generated at each stage is stored on the selected blockchain platform, we consider the manufacturing phase of the product lifecycle, as shown in Figure 3. In this stage, the raw material is processed through certain machines to create a finished product. The machines and processes in this stage depend on the type of manufacturing (conventional or additive), as well as on the type of product.
Initially, the data of raw material, i.e., its type, properties, suppliers, etc., are uploaded to the production database. During the manufacturing process at machine 1, all the information of the machine, materials, and process parameters are drawn up in a local database, digitally signed, and uploaded to the main production database by concerned personnel, such as the machine operator. The processed material is forwarded to the next machine as a work-in-process inventory for onward processing, and the same procedure of data generation, digital signature, and uploading is followed at machine 2, and so on. Once all the operations are performed and the production is completed, a complete production report is ready. The production manager checks to verify the data stored in the database and then hashes, timestamps, and shares them. Once the data are validated as per the consensus protocols, they then become part of the chain. The data of specific products and production processes in this specific phase of the product lifecycle are stored and become visible to all the stakeholders.
In this way, the block in this phase is created each time the production of a product is completed. In any blockchain platform, each block consists of two parts, i.e., the block header and the block body. In this phase, the block header has three elements, i.e., block version, timestamp, and a hash of the corresponding previous block. The block body in this phase caries the complete information of raw material, machines, processes parameters, as well as finished product data. The proposed blockchain-based platform is compared with the traditional PLMs, and the final results are given in Table 3.
The comparison in Table 3 summarizes that the blockchain-based platform contains all the features of the traditional PLMs. Moreover, the proposed platform also exhibits other unique characteristics that, in contrast, are challenges faced by traditional PLMs. Hence, we can use this blockchain-based platform to more securely and easily manage the data of products and create a bridge to link the data throughout its lifecycle.

5. Discussion and Benefits of the Proposed Solution

Traditional PLMs, whether on-cloud or on-premises, offered by different vendors are centralized in nature and hence, face certain challenges in real-life production systems. Moreover, the quantitative comparison shows that most of these systems do not contain all the required features that a standard PLM tool should carry. Therefore, industries usually implement different PLMs and integrate them to create a complete PLM system. However, the data exchange between these different PLM tools is usually slow and time-consuming, reducing overall system efficiency. Additionally, due to the complex and decentralized nature of product lifecycles, the data needs to be transparent and auditable so that every stakeholder has access to and can exchange authentic data with all the other parties.
To meet all these requirements and features in a single system, we proposed a digital blockchain-based platform. This solution illustrates how various phases of the product lifecycle, from the design up to the disposal or recycling of any product, can be connected for data sharing. Through detailed elaboration, this paper determined that the proposed platform contains all the features of the traditional PLMs. Moreover, as illustrated in Table 3, this platform also has other distinct characteristics that the traditional PLMs lack. This study takes system-to-system shuffling into account and does not consider a specific blockchain-based platform. Therefore, in the near future, we can use any analytic technique, i.e., combined VIKOR-fuzzy AHP [30], to select among the available blockchain-based platforms. Once the specific blockchain-based platform is selected and implemented for PLM, we would then be able to compare the actual results with the previous studies, based on certain key performance indicators (KPIs). In addition to the features discussed in this paper, the KPIs could also be set for certain other dimensions, i.e., coercive and non-coercive drivers of sustainability [31], cleaner production [32], and so on.
Through the implementation of this platform, several benefits can be achieved in a real production environment. As the blockchain is an immutable ledger, the data in this presented platform would be secured and impossible to manipulate or forge. Hence, this model is considered to be a robust solution for safeguarding the data generated and shared among the stakeholders throughout the product lifecycle. This platform allows the data to be tracked in an inviolable way, making it possible to go back through the entire history of the product lifecycle. As the data is visible and accessible to every stakeholder associated with the product, it therefore provides an opportunity for a collaborative decision-making environment in product development. Hence, all the stakeholders can work continually on collaborative tasks throughout the product lifecycle. This collaborative environment results in:
  • Better data management;
  • Production agility and resiliency;
  • Drive innovation;
  • Improved production and performance;
  • Continuity and traceability of information.
Real-time communication throughout different stages of the product lifecycle and data representation is of prime importance for planning and better decision making during product development. Therefore, this solution tends to reduce obstacles, creating an easy-to-communicate environment that is not possible through the use of centralized PLMs. All the blockchain platforms provide ubiquitous access, so they can be accessed from any device and any location with just an internet connection. This platform has specific attributes, i.e., availability, effectiveness, reliability, security, real-time, maintainability, and survivability, and hence it can be considered a highly credible system. Furthermore, large and intermittent data are usually generated in a complex and distributed product lifecycle, so the traditional PLMs sometimes face issues in handling such data. As the proposed solution is based on a distributed ledger, intermittent and large data can be easily handled and stored chronologically.

6. Conclusions and Future Directions

This work aims to explore and evaluate the currently implemented PLMs and accordingly recommends a novel platform to overcome the challenges faced by these PLMs. A total of 135 currently implemented PLMs and their associated features were identified through the exploration of various search engines, as given in Appendix A. Through the evaluation, it was observed that most of the existing systems do not contain all the required features; therefore, industries usually integrate different tools to create a full-fledged PLM system. However, this results in reducing overall system efficiency. Furthermore, we highlighted various challenges associated with these centralized PLMs in Table 3. Among these challenges, data security, transparency, and interoperability are the most important, since today’s data management is not limited to a specific phase, but requires collaborative tasks. To succeed in these challenges, this paper emphasizes the need to adopt a novel technology for production industries.
Consequently, we present and recommend a blockchain-based platform that can solve all the challenges faced by the existing PLMs. The proposed blockchain-based platform addresses the same purpose as those of the existing PLMs. In addition to the basic features of traditional PLMs, this platform also contains other distinct characteristics, as illustrated in Table 3. Therefore, we strongly recommend it over traditional PLMs for more securely and easily managing product data. Industries can use this platform to more accurately assess their product use, performance, and product maintenance cycles, enabling more intelligent decisions. This may lead to improving the system efficiency in terms of flexibility, optimizing product design, and improving product functions. Moreover, with the ever-increasing need for connectedness and security, the proposed blockchain-based platform provides a framework for organizing and securing the data generated at different phases of the product lifecycle. This work also helps in clarifying how industries exploiting the blockchain method can build a secure and connected production infrastructure.
To conclude, this work highlights and emphasizes the specific challenges with the existing data management systems and recommends a novel blockchain-based solution to overcome those challenges. The recommended solution improves product lifecycle management, and hence plays a vital role in the collaboration process. Finally, the blockchain solution offers versatile capabilities and can be applied in any production industry.
Future work could explore of the existing blockchain-based platform that can be used for product lifecycle management. Moreover, defining the proper criterion and then selecting among the available alternative platforms, using any analytic technique, may be of interest for future contributions.

Author Contributions

Conceptualization, M.H. and H.W.; methodology, M.H.; validation, M.H. and H.W.; formal analysis, M.H.; investigation, M.H. and H.W.; writing—original draft preparation, M.H.; writing—review and editing, M.H. and H.W.; supervision, H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Quantitative Comparison of Existing PLMs

S. NoPLM SoftwareChange
Mgmt
Design MgmtDocument
Mgmt
Project MgmtProduct
Data Mgmt
Requireme-nts MgmtQ and C MgmtSupplier Mgmt
1* Coats DigitalNoYesYesNoYesNoNoYes
2* Jama ConnectYesNoYesYesYesYesYesNo
3* SpiraTeamYesNoYesYesNoYesYesNo
4* OdooYesYesYesYesYesYesYesYes
5* JiraYesNoYesYesNoYesYesNo
6* AirtableNoNoYesYesNoYesNoYes
7* Sage 100 CloudNoNoYesYesNoNoYesYes
8* Delteck CostpointNoNoYesYesNoNoYesYes
9* QuipYesNoYesYesNoYesNoYes
10* KineticNoNoYesYesYesNoYesYes
11* CATIANoYesNoYesNoYesNoNo
12* MasterControl QEYesYesYesYesNoNoYesYes
13* AssemblaNoNoYesYesNoNoYesNo
14* Genius ERPNoNoYesYesNoNoYesYes
15* CreoNoYesYesYesYesYesYesYes
16* SyteLineYesNoYesYesNoNoYesYes
17* Infor M3YesNoYesYesNoNoYesYes
18* BlueCherryYesYesYesYesYesYesYesYes
19* Momentis Fashion SysYesYesYesNoYesYesNoYes
20* ProdPadNoYesYesYesNoYesNoNo
21* BlackBelt FusionNoYesNoNoYesNoYesYes
22* CodeSceneNoNoNoYesYesYesNoNo
23* ExentaYesYesYesYesYesYesYesYes
24Arena PLMYesYesYesYesNoYesYesYes
25EnoviaYesYesYesYesNoYesYesYes
26monday.comYesYesYesYesYesYesYesYes
27Aha!YesYesYesYesYesYesNoNo
28WrikeYesNoYesYesNoYesNoYes
29LogilityNoYesYesYesNoYesYesYes
30ArbortextNoYesYesYesYesYesNoYes
31TrelloNoNoYesYesNoYesNoNo
32beCPG PLMYesYesYesYesYesYesYesYes
33SpaceYesNoYesYesYesYesNoNo
34PDXpert PLMYesYesYesYesYesNoYesYes
35CannyNoNoNoNoNoNoNoNo
36ClickUpYesYesYesYesYesYesYesYes
37FusePLMYesNoYesNoYesYesNoYes
38TARANoNoYesYesNoYesNoNo
39QM SoftwareYesYesYesYesYesYesYesYes
40Trace One PLMYesYesYesYesYesYesYesYes
41LaunchDarklyYesNoNoNoYesYesNoNo
42Infor VisualYesNoYesYesYesNoYesYes
43NetSuite WMSYesNoYesYesYesNoYesYes
44ProductboardNoNoYesYesNoYesNoNo
45TeamcenterYesYesNoYesNoYesYesYes
46UserVoiceNoNoNoYesYesYesNoNo
47aPrioriNoYesNoNoYesNoNoYes
48BackboneNoYesYesNoYesYesNoYes
49Style ArcadeNoYesYesYesYesNoNoYes
50Craft.ioNoYesNoYesYesYesNoNo
51AnvylYesNoYesYesYesNoYesYes
52ACE PLMYesYesYesYesYesYesYesYes
53One Click LCANoYesNoYesYesNoYesNo
54ApparelMagicNoYesNoYesYesYesNoYes
55Dot ComplianceNoYesYesYesYesYesYesYes
56SAP PLMNoNoYesYesYesYesYesYes
57Planview EnterpriseNoNoYesNoNoNoYesNo
58ChronosNoNoYesYesYesYesYesYes
59BQUADRONoNoYesYesYesNoYesYes
60PrimaryNoYesNoNoYesYesNoNo
61Indigo8NoYesYesNoYesYesNoYes
62SurefrontYesYesYesYesYesYesYesYes
63Autodesk Fusion
Lifecycle
YesYesYesYesYesYesYesYes
64ArasYesYesYesYesYesYesYesYes
65AligniYesYesYesNoYesNoNoYes
66CiivaYesYesYesYesYesYesYesYes
673 Clicks CloudYesYesYesYesYesYesYesYes
68DevSuiteYesYesYesYesNoYesNoNo
69CMPRONoYesYesYesYesYesYesYes
70SyncForceYesYesYesYesYesYesNoYes
71ZdesignYesYesYesYesYesYesYesYes
72WFX PLMNoYesYesNoYesYesNoYes
73EasyKostNoYesNoYesYesNoNoYes
74PDM Dashboard for JIRAYesNoYesYesYesYesNoNo
75STEPNoNoYesNoNoNoNoNo
76ProductCenterYesYesYesNoYesYesYesYes
77Centric PLMYesYesNoNoYesNoYesYes
78Gatherspace.comYesNoYesNoYesNoNoNo
79TD/OMSYesYesYesYesYesYesYesYes
80WindchillNoYesNoYesYesNoNoNo
81DevEXYesYesYesYesYesYesYesYes
82OptivaNoNoNoYesYesNoYesNo
834G: PLMYesYesYesNoYesNoNoYes
84Collaborate CloudYesYesYesYesYesYesYesYes
85DesignWinYesNoYesYesYesNoYesYes
86PowerSteeringYesNoYesYesNoYesNoNo
87ProdigyYesYesYesYesYesYesYesYes
88Propel PLMYesNoYesYesYesYesYesYes
89QuadRiteYesYesYesYesYesYesYesYes
90SourceHUBYesNoYesYesYesYesNoYes
91WoisesNoYesYesYesYesYesNoNo
92ChainReactionYesYesYesYesYesYesYesYes
93Lectra Fashion PLMNoYesYesNoYesYesNoYes
94Upchain PLMYesYesYesYesYesYesYesYes
95YuniquePLMNoYesNoYesYesNoYesYes
96DeSLYesYesYesYesYesYesYesYes
97VisualNextYesYesYesYesYesNoYesYes
984PACKYesYesYesYesYesYesYesYes
99Sopheon AccoladeNoYesNoYesYesNoNoNo
100Actify CentroYesYesYesYesYesYesYesNo
101ARG SourcingNoYesYesNoYesNoYesYes
102Aptean PLMYesYesYesYesYesYesYesYes
103ARC FacilitiesYesNoYesYesYesYesYesNo
104Bamboo RoseNoNoNoNoYesYesNoYes
105Channel PlusNoNoYesYesYesYesYesYes
106CIM Database PLMNoYesYesYesYesYesYesNo
107Collaboration DesktopYesYesYesYesYesYesYesYes
108Copy5NoNoYesYesYesYesNoNo
109DuroYesYesYesNoYesNoNoYes
110EdgeAXYesYesNoNoNoNoNoYes
111Emissions CalculatorNoNoYesNoNoNoYesYes
112FactorNoYesYesYesNoYesYesYes
113iasset.comNoNoYesNoNoNoNoNo
114IFS EAMNoNoYesYesYesNoYesYes
115Ignimission PlatformNoNoYesNoNoNoYesNo
116OpenPDMYesYesYesYesYesYesYesYes
117Pattern Design YesYesNoYesYesYesNoNo
118PDMPlusYesYesYesNoYesYesYesYes
119PLATO SCIO FMEAYesNoYesYesNoYesYesNo
120PDM DashboardNoNoYesYesNoYesNoNo
121ProEvolveYesYesYesYesYesYesYesYes
122ProjectOneNoNoNoYesYesYesNoNo
123QADEX VisionYesYesYesYesYesYesYesYes
124QATraxYesNoYesYesYesNoYesNo
125RegulatoryOneYesYesYesYesYesYesYesYes
126reINVENTNoYesYesYesYesNoNoYes
127SeereneYesNoNoYesNoYesYesYes
128SG BenchmarkerYesYesNoNoYesNoNoNo
129Sharp PLMYesNoYesYesYesNoNoNo
130SkyjedNoNoYesNoYesNoYesYes
131SoftExpert PLM SuiteYesYesYesYesYesYesYesYes
132SpecrightYesYesYesYesYesYesYesYes
133Wave PLMYesYesYesYesYesYesYesYes
134JileNoNoYesYesYesYesYesNo
135keytech PLMYesNoYesYesYesYesYesYes
* These PLMs provide both on-cloud and on-premises services.

References

  1. d’avolio, E.; Bandinelli, R.; Rinaldi, R. Improving new product development in the fashion industry through product lifecycle management: A descriptive analysis. Int. J. Fash. Des. Technol. Educ. 2015, 8, 108–121. [Google Scholar] [CrossRef]
  2. Saaksvuori, A.; Immonen, A. Product Lifecycle Management Systems; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  3. Laurence, T. Blockchain for Dummies; John Wiley & Sons: Hoboken, NJ, USA, 2019. [Google Scholar]
  4. Mandolla, C.; Petruzzelli, A.M.; Percoco, G.; Urbinati, A. Building a digital twin for additive manufacturing through the exploitation of blockchain: A case analysis of the aircraft industry. Comput. Ind. 2019, 109, 134–152. [Google Scholar] [CrossRef]
  5. Available online: https://www.selecthub.com/plm-software/ (accessed on 18 March 2022).
  6. Available online: https://www.g2.com/categories/plm (accessed on 18 March 2022).
  7. Available online: https://www.softwaretestinghelp.com/plm-software/ (accessed on 18 March 2022).
  8. Available online: https://www.capterra.com/semcompare/product-lifecycle-management-software/ (accessed on 18 March 2022).
  9. Available online: https://www.predictiveanalyticstoday.com/top-product-lifecycle-management-plm-software/ (accessed on 18 March 2022).
  10. Available online: https://www.adamenfroy.com/best-plm-software (accessed on 18 March 2022).
  11. Enríquez, J.G.; Sánchez-Begínes, J.M.; Domínguez-Mayo, F.J.; García-García, J.A.; Escalona, M.J. An approach to characterize and evaluate the quality of Product Lifecycle Management Software Systems. Comput. Stand. Interfaces 2019, 61, 77–88. [Google Scholar] [CrossRef]
  12. Chuen, D.L.K. Handbook of Digital Currency: Bitcoin, Innovation, Financial Instruments, and Big Data; Academic Press: Cambridge, MA, USA, 2015. [Google Scholar]
  13. Rejeb, A.; Keogh, J.G.; Treiblmaier, H. Leveraging the internet of things and blockchain technology in supply chain management. Future Internet 2019, 11, 161. [Google Scholar] [CrossRef] [Green Version]
  14. Greenspan, G. Multichain Private Blockchain-White Paper. 2015. Available online: http://www.multichain.com/download/MultiChain-White-Paper.pdf (accessed on 15 April 2022).
  15. Del Monte, G.; Pennino, D.; Pizzonia, M. Scaling blockchains without giving up decentralization and security. arXiv 2020, arXiv:2005.06665. [Google Scholar]
  16. Das, M.; Tao, X.; Cheng, J.C. BIM security: A critical review and recommendations using encryption strategy and blockchain. Autom. Constr. 2021, 126, 103682. [Google Scholar] [CrossRef]
  17. Liu, W.; Shao, X.-F.; Wu, C.-H.; Qiao, P. A systematic literature review on applications of information and communication technologies and blockchain technologies for precision agriculture development. J. Clean. Prod. 2021, 298, 126763. [Google Scholar] [CrossRef]
  18. Androulaki, E.; Barger, A.; Bortnikov, V.; Cachin, C.; Christidis, K.; De Caro, A.; Enyeart, D.; Ferris, C.; Laventman, G.; Manevich, Y. Hyperledger fabric: A distributed operating system for permissioned blockchains. In Proceedings of the Thirteenth EuroSys Conference, Porto, Portugal, 23–26 April 2018; pp. 1–15. [Google Scholar]
  19. Khan, D.; Jung, L.T.; Hashmani, M.A. Systematic Literature Review of Challenges in Blockchain Scalability. Appl. Sci. 2021, 11, 9372. [Google Scholar] [CrossRef]
  20. Nakamoto, S. Bitcoin: A peer-to-peer electronic cash system. Decentralized Bus. Rev. 2008, 21260, 1–9. [Google Scholar]
  21. Hyperledger Whitepapers. Available online: https://www.hyperledger.org/learn/white-papers (accessed on 15 April 2022).
  22. Li, Z.; Barenji, A.V.; Huang, G.Q. Toward a blockchain cloud manufacturing system as a peer to peer distributed network platform. Robot. Comput. Integr. Manuf. 2018, 54, 133–144. [Google Scholar] [CrossRef]
  23. Nasir, Q.; Qasse, I.A.; Abu Talib, M.; Nassif, A.B. Performance analysis of hyperledger fabric platforms. Secur. Commun. Netw. 2018, 2018, 3976093. [Google Scholar] [CrossRef] [Green Version]
  24. Berneis, M.; Bartsch, D.; Winkler, H. Applications of Blockchain Technology in Logistics and Supply Chain Management—Insights from a Systematic Literature Review. Logistics 2021, 5, 43. [Google Scholar] [CrossRef]
  25. Berneis, M.; Winkler, H. Value Proposition Assessment of Blockchain Technology for Luxury, Food, and Healthcare Supply Chains. Logistics 2021, 5, 85. [Google Scholar] [CrossRef]
  26. Yli-Huumo, J.; Ko, D.; Choi, S.; Park, S.; Smolander, K. Where is current research on blockchain technology?—A systematic review. PLoS ONE 2016, 11, e0163477. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Bartsch, D.; Winkler, H. Blockchain Technology in Germany: An excerpt of real use cases in logistics industry. In Proceedings of the Hamburg International Conference of Logistics (HICL), Virtual, 23 September 2020; epubli GmbH: Berlin, Germany, 2020; Volume 29, pp. 699–735. [Google Scholar]
  28. Wood, G. Ethereum: A secure decentralised generalised transaction ledger. Ethereum Proj. Yellow Pap. 2014, 151, 1–32. [Google Scholar]
  29. Chang, Y.; Iakovou, E.; Shi, W. Blockchain in global supply chains and cross border trade: A critical synthesis of the state-of-the-art, challenges and opportunities. Int. J. Prod. Res. 2020, 58, 2082–2099. [Google Scholar] [CrossRef] [Green Version]
  30. Mohaghar, A.; Mohammad, R.F.; Mohammad, K.Z.; Asie, O. A combined VIKOR-fuzzy AHP approach to marketing strategy selection. Bus. Manag. Strategy 2012, 3, 13–27. [Google Scholar] [CrossRef] [Green Version]
  31. Nasrollahi, M.; Mohammad, R.F.; Hamid, R.S.; Seyed, M.S.; Amirhossein, B. Impact of coercive and non-coercive environmental supply chain sustainability drivers on supply chain performance: Mediation role of monitoring and collaboration. Int. J. Sustain. Eng. 2021, 14, 98–106. [Google Scholar] [CrossRef]
  32. Nasrollahi, M.; Mohammad, R.F.; Naghmeh, S.H. Eco-innovation and cleaner production as sustainable competitive advantage antecedents: The mediating role of green performance. Int. J. Bus. Innov. Res. 2020, 22, 388–407. [Google Scholar] [CrossRef]
Figure 1. A structure of a blockchain consisting of linked blocks.
Figure 1. A structure of a blockchain consisting of linked blocks.
Logistics 06 00040 g001
Figure 2. Conceptual Framework for a Blockchain-Based Platform.
Figure 2. Conceptual Framework for a Blockchain-Based Platform.
Logistics 06 00040 g002
Figure 3. Data storage on the blockchain.
Figure 3. Data storage on the blockchain.
Logistics 06 00040 g003
Table 1. Number of PLMs targeting specific features.
Table 1. Number of PLMs targeting specific features.
FeaturesNumber of Capable PLMsNumber of Incapable PLMs
Change Management5734
Design Management5444
Document Management2451
Project Management2942
Product Data Management78101
Requirements Management8191
Quality and Compliance Management11184
Supplier Management10693
Table 2. Extra features included in top PLMs [11] “Adopted with permission from Enriquez et al. (2018). Copyright © 2018 Elsevier”.
Table 2. Extra features included in top PLMs [11] “Adopted with permission from Enriquez et al. (2018). Copyright © 2018 Elsevier”.
Extra FeaturesEnoviaTeamcenterWindchillCATIAARASOracle
Design
Compliance, environment, health
and safety management
YesYesYesYesYesYes
Product analysis, validation,
and simulation
SimuliaTecnoMatrixPTC CreoYesYesYes
Authoring Tools: CAD, CAE,
CAM, ECAD, CASE…
CATIA/SWNX/SedgePTC CreoYesYesYes
Multi-CAD managementYesYesYesYesYesYes
Software developmentPartiallyPartiallyNoYesYesYes
Technical documentationYesYesYesYesYesYes
Technology planningPartiallyPartiallyNoNoNoNo
Production
Digital manufacturingSimuliaTecnoMatrixNoYesYesNo
PLC programmingDelmiaTecnoMatrixNoYesNoNo
Support/Use
After-sales managementPartiallyPartiallyPartiallyNoYesNo
Marketing3D Excite MarNoNoNoNoNo
General
Intellectual property managementYesYesYesYesYesYes
Quality lifecycle managementYesYesYesYesYesYes
Communities of practiceYesYesYesYesYesYes
Infrastructure managementYesYesYesYesYesYes
DistributionPartiallyPartiallyNoNoYesYes
Table 3. Comparison between Traditional and Blockchain-Based PLMs.
Table 3. Comparison between Traditional and Blockchain-Based PLMs.
CharacteristicsOn-Premises PLMsOn-Cloud PLMsBlockchain-Based PLM
Basic Features (Table 1)YesYesYes
Extra Features (Table 2)YesYesYes
InteroperabilityNoNoYes
Data Transparency and OpennessNoNoYes
FlexibilityNoYesYes
ScalabilityYesYesYes
DecentralizationNoNoYes
Software as a ServiceNoYesYes
CredibilityNoNoYes
Big-Data AnalyticsNoYesYes
Ubiquitous AccessNoYesYes
Collaborative Data ProvisionNoNoYes
Data SecurityNoNoYes
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hayat, M.; Winkler, H. From Traditional Product Lifecycle Management Systems to Blockchain-Based Platforms. Logistics 2022, 6, 40. https://doi.org/10.3390/logistics6030040

AMA Style

Hayat M, Winkler H. From Traditional Product Lifecycle Management Systems to Blockchain-Based Platforms. Logistics. 2022; 6(3):40. https://doi.org/10.3390/logistics6030040

Chicago/Turabian Style

Hayat, Mubashir, and Herwig Winkler. 2022. "From Traditional Product Lifecycle Management Systems to Blockchain-Based Platforms" Logistics 6, no. 3: 40. https://doi.org/10.3390/logistics6030040

Article Metrics

Back to TopTop
