Impact of Systematic Use of Intracardiac Ultrasound during Transseptal Catheterization in the Electrophysiology Laboratory
by
, , , ,
Nicola Bottoni
1,
Paolo Donateo
2,
Luca Rossi
3,
Michele Malagù
4
,
Luca Tomasi
5,
Fabio Quartieri
1,
Andrea Biagi
3,
Matteo Iori
1,
Giacomo Mugnai
5,
Antonella Battista
1,
Stefano Cló
4,
Michele Brignole
2 and
Matteo Bertini
4,*
1
Cardiology Unit, S. Maria Nuova Hospital, 42100 Reggio Emilia, Italy
2
Arrhythmologic Center, Lavagna Hospital, 16033 Lavagn, Italy
3
Guglielmo da Saliceto Hospital, 29121 Piacenza, Italy
4
Cardiogy Unit, University Hospital of Ferrara, 8-44124 Cona, Italy
5
Electrophysiology and Cardiac Pacing, Division of Cardiology, Cardio-Thoracic Department, University Hospital of Verona, 1-37126 Verona, Italy
*
Author to whom correspondence should be addressed.
J. Cardiovasc. Dev. Dis. 2023, 10(2), 62; https://doi.org/10.3390/jcdd10020062
Submission received: 4 January 2023
/
Revised: 22 January 2023
/
Accepted: 26 January 2023
/
Published: 2 February 2023
(This article belongs to the Special Issue Modern Approach to Complex Arrhythmias)
Abstract
:Aims: To explore the impact of the use of intracardiac echocardiography (ICE) in the ablation of supraventricular arrhythmias requiring transseptal catheterization (TSC), whilst analyzing the reduction in periprocedural complications and complications specifically related to TSC. Methods: A retrospective multicenter study collecting data from consecutive atrial fibrillation (AF) and supraventricular ablation procedures that required TSC was performed in five Italian centers. Based on physician discretion, TSC was performed with or without ICE. Periprocedural complications, separating all complications from complications directly related to TSC, were collected. Independent predictors of periprocedural complications and TSC-related complications were investigated. Results: A total of 2181 TSCs were performed on 1862 patients at five Italian centers from 2006 to 2021, in 76% of cases by AF ablation and in 24% by ablation of other arrhythmias with a circuit in the left atrium. Overall, 1134 (52%) procedures were performed with ICE support and 1047 (48%) without ICE. A total of 67 (3.1%) complications were detected, 19 (1.7%) in the ICE group and 48 (4.6%) in the no ICE group, p < 0.001. A total of 42 (1.5%) complications directly related to TSC: 0.9% in the ICE group and 3.1% in the no ICE group (p < 0.001). The independent predictors of all complications were age (OR 1,02 95% C.I 1.00–1.05; p = 0.036), TSC with the use of ICE (OR 0.27 95% C.I 0.15–0.46; p < 0.001) and AF ablation (OR 2,25 95%C.I 1.05–4.83; p = 0.037). The independent predictors for TSC complications were age (OR 1.03 95% C.I 1.01–1.06; p = 0.013) and TSC with the use of ICE (OR 0.24 95% C.I 0.11–0.49; p < 0.001). Conclusions: ICE reduced periprocedural and TSC-related complications during electrophysiological procedures for ablation of left atrial arrhythmias.
1. Introduction
During the last ten years, the use of transseptal catheterization (TSC) in the electrophysiology laboratory has increased, especially in its use in the ablation of the substrate of atrial fibrillation (AF). This technique, although highly effective, is still burdened by complications of around 1–6% [1,2,3,4,5]. To increase the safety and efficacy of TSC, tools such as transesophageal or intracardiac (ICE) echocardiography can be used [6]. Transesophageal echocardiography is generally poorly tolerated, and requires high levels of sedation and a dedicated cardiologist specializing in echo. ICE causes an increase in procedural costs and requires additional echocardiographic skills but is well tolerated by patients without the need for specialist echo cardiologist support. From the data in the literature, ICE during TSC is more used in the US than in other countries [4]; percentages of use do not exceed 15% of cases in the largest register published to date [7]. Previous studies reported that the use of ICE during AF ablation was associated with a lower risk of complication [5]. The aim of the present study was to explore the impact of the use of ICE in the ablation of supraventricular arrhythmias in the left atrium requiring TSC, whilst analyzing the reduction in periprocedural complications and complications specifically related to TSC.
2. Methods
In this retrospective multicenter study, we collected data from consecutive AF and supraventricular ablation procedures that required TSC, performed at the various participating centers (full list in Appendix A) for the purpose of ablation in the left atrium. All procedures were performed between 1 January 2006 and 31 December 2021. The study protocol was approved by the local ethics committees.
Based on physician discretion, TSC was performed with or without ICE. The patient population was divided into two groups: patients who underwent the TSC without ICE (no ICE group) and patients who underwent the TSC with ICE (ICE group).
Baseline characteristics of patients, such as age, gender, presence of cardiac disease, left ventricular ejection fraction, left atrial diameter and periprocedural anticoagulation regimen, were collected. We considered as “uninterrupted anticoagulant” the patients in whom no dose (in case of direct oral anticoagulant taken once daily) or only morning dose (in case of direct oral anticoagulant taken twice daily) was withdrawn before the procedure. Regarding patients taking vitamin K antagonist, uninterrupted therapy meant patients therapeutically anticoagulated at the time of the procedure without needing heparin bridge the days before. All acute periprocedural complications during in-hospital follow-ups were recorded. All acute complications related to TSC were recorded. Independent predictors of periprocedural complications and TSC-related complications were investigated.
2.1. Transseptal Catheterization with ICE and without ICE
We used the simplified technique described by De Ponti et al. [8]: two catheters are used as reference points respectively in ‘his’ and coronary sinus, without a pigtail catheter in the aorta, atrial pressure curve was used at physician discretion. Transseptal sheath and dilator were placed over the wire in the superior vena cava, 3 to 4 cm above the cavoatrial junction. At this point, the guidewire was removed and the transseptal needle with the stylet was gently inserted, avoiding pushing the needle over the tip of the sheath. At this point, the needle and the sheath are held in the fingers between 4 and 6 o’clock. The needle and the sheath are then pulled back gradually until the tip engages the fossa ovalis. At this point, the tip of the needle is protruded from the distal part of the dilator and puncture of the atrial septum is performed.
With ICE, the TSC technique is the same as above with the addition of ICE to confirm engagement of tip of the needle and sheath of fossa ovalis.
The 5 participating centers shared a similar experience, up to 2015 ICE (SOUNDSTAR® Catheter, Biosense Webster or ViewFlexTM Catheter, St. Jude Medical-Abbott) was used only in selected difficult cases at physician discretion. Subsequently, from 2016 onwards, systematic use of the ICE was made in most of the TSC procedures. The effectiveness of TSC was also considered as the ability to complete it with adequate positioning of the catheters in the left atrium. All TSCs were performed directly or under the supervision of an experienced operator, defined by the previous performance of >50 procedures. In the case of double TSC during ablation of atrial fibrillation, a single puncture was considered. TSC through patent foramen ovalis was excluded. The majority of procedures were performed under sedation with midazolam plus morphine/fentanyl while general anesthesia was used in a small minority of selected cases. In terms of learning curve, procedures were divided in the whole cohort in chronological order between 1–100, 101–200 and >200.
2.2. Study Endpoints
We collected periprocedural complications, separating all complications from complications directly related to TSC. Periprocedural complications included: vascular access complications (groin and retroperitoneal hematoma, arterio-venous fistula), acute aortic root puncture (with or without requiring pericardiocentesis or cardiac surgery), atrial wall injury (contrast in pericardium, perforation requiring pericardiocentesis), pericarditis and/or pericardial effusion, thromboembolism (transient ischemic attack/stroke, pulmonary embolism), acute coronary syndrome, hemidiaphragm paresis and death.
Periprocedural TSC complications included: acute aortic root puncture (with or without requiring pericardiocentesis or cardiac surgery), atrial wall injury (contrast in pericardium, perforation requiring pericardiocentesis), pericardial effusion, thromboembolism (transient ischemic attack/stroke), acute coronary syndrome and death.
The primary endpoint was the occurrence of periprocedural complications. The secondary endpoint was the occurrence of TSC complications.
2.3. Statistical Analysis
Statistical analysis was performed per procedure. The data analysis was descriptive. Continuous variables with normal distribution were expressed as mean ± standard deviation. Categorical variables were expressed as an absolute number and percentage (%). The comparison between continuous variables was performed by t-test. Comparison of proportions was performed by Fisher’s test or chi-square as appropriate. In stepwise logistic regression, the dependent variable was represented by the periprocedural complications and complications related to TSC and the independent variables correspond to the significant clinical characteristics (p < 0.05). Statistical analyses were performed with SPSS Statistics version 25.0 (IBM Corporation).
3. Results
The characteristics of the study population are listed in Table 1. In particular, 2181 procedures were performed on 1862 patients at five Italian centers from 2006 to 2021, in 76% of cases by AF ablation and in 24% by ablation of other arrhythmias with a circuit in the left atrium (accessory pathway, atrial tachycardias, atypical atrial flutter). Overall, 1134 (52%) procedures were performed with ICE support and 1047 (48%) without ICE. From 2006 to 2015, a total of 993 procedures were performed and ICE was used in only 95 (8.3%) procedures, whereas from 2016 to 2021 a total of 1188 procedures were performed, and ICE was used in 1039 (91.6%) procedures.
A total of 67 (3.1%) complications were detected, 19 (1.7%) in the ICE group and 48 (4.6%) in the no ICE group, p < 0.001. No procedure-related deaths were observed. A total of 42 (1.5%) complications directly related to TSC: 0.9% in the ICE group and 3.1% in the no ICE group (p < 0.001) (Figure 1). In particular, an accidental puncture of the aortic root occurred in a total of 8 patients (0.3%), in 0 (0%) in the ICE group and 8 (0.8%) in the no ICE group, p = 0.003; 4 of 8 patients experiencing aortic puncture received emergency cardiac surgery; accidental puncture of the atrial wall was seen in a total of 14 (0.6%) patients, 0 (0%) in the ICE group and 14 (1.3%) in the no ICE group, p < 0.001; none of these patients received cardiac surgery but 4 (29%) required pericardiocentesis. The other periprocedural complications were not significantly different between the two groups (Table 2).
Dividing the procedures into chronological order of 1–100, 101–200 and >200, there were no statistically significant differences between the groups in periprocedural complications (6.0% vs. 5.0% vs. 2.8%, respectively, p = 0.10) and TSC complications (5.0% vs. 2.0% vs. 1.8%, respectively, p = 0.072). However, a trend toward lower complications was observed when the number of procedures was increasing (Figure 2).
The procedural effectiveness was 98%. An inability to perform the transseptal puncture and introduce the scaler catheter into the left atrium was observed in 41 procedures: 19 procedures in the ICE group and 22 procedures in the no ICE group (p = 0.57). Considering these 41 procedures, a total of 18 procedures produced complications, 1 in the ICE group and 17 in the no ICE group (p < 0.001), and 23 were forced to stop the procedure without further complications, 18 in the ICE group and 5 in the no ICE group (p = 0.02).
Predictors of Complications
On univariate and multivariate analysis, age (OR 1,02 95% C.I 1.00–1.05; p = 0.036), TSC with the use of ICE (OR 0,27 95% C.I 0.15–0.46; p < 0.001) and AF ablation (OR 2.25 95% C.I 1.05–4.83; p = 0.037) were independent predictors of complications (Table 3). The independent predictors for TSC complications were, again, age (OR 1.03 95% C.I 1.01–1.06; p = 0.013) and TSC with the use of ICE (OR 0.24 95% C.I 0.11–0.49; p < 0.001) (Table 4). Furthermore, limiting the analysis to AF ablation, only the use of ICE was independently associated with a lower incidence of periprocedural complications (OR 0.34 95% C.I 0.19–0.60; p < 0.001) and TSC complications (OR 0.30 95% C.I 0.14–0.65; p < 0.001 (Table 5 and Table 6)).
4. Discussion
The main finding of this study was that the use of ICE significantly reduced periprocedural complications and TSC-related complications, with a relative risk reduction of 70%. Furthermore, the present findings show that the beneficial effect of ICE-guided procedures was independent of the learning curve. The other independent predictors of complications were advanced age and AF ablation. Age is a well-known factor in increasing procedural risk in most cardiac and non-cardiac interventions [9]. Ablation of the arrhythmic substrate of the AF (in comparison to the ablation of other left arrhythmias) was significantly associated with a higher incidence of complications. Greater tissue fragility in older patients and the greater procedural complexity of AF ablation can probably explain these observations [10].
Interestingly, in the last 5 years, supraventricular arrhythmias ablations increased, especially because of an increase in AF ablation procedures. This can be explained by the new recommended guidelines [11,12] that state AF ablation as one of the most effective procedures for a rhythm control strategy. Hand in hand, the use of ICE during left atrium procedures has increased from 8% to 92%.
The rate of periprocedural complications in the study population was 3.1%, in line with previous studies, and, in particular, was 1.7% in the ICE group and 4.7% in the no ICE group. Recently, Pimentel et al. reported in a series of more than 2000 patients a rate of complications that was 2.9% in the ICE group and 5.8% in the no ICE group, which is in line with our results [13].
In our cohort, the complications rate directly related to TSC (accidental puncture of aortic and atrial walls, pericardial effusion) fell to a value of 0.8%, equal to or less than previously published rates [1,2,3,4,5]. However, in our population, two common complications (aortic root puncture and atrial wall puncture) were not seen when using ICE.
All these results were confirmed by only analyzing AF ablation procedures. Of interest, age in this subgroup of patients was not independently related to complications. This may be due to the range of age being narrow, which may have homogenized the risk. An uninterrupted anticoagulation strategy, currently in class I in the ESC guidelines on AF management, was also associated with a significant reduction in global complications at univariate analysis but not independent in multivariate analysis where the only use of ICE was associated with lower complications. Considering the potential hemorrhagic risk of this strategy, the use of ICE could be of benefit by preventing accidental punctures of fragile structures. Even an infusion of heparin boluses before TSC, which in some studies has been associated with a lower incidence of intra-atrial thrombosis, could also be made safer by the use of ICE.
The impact of ICE on the incidence of TSC complications was not significant in a study by Swedish authors on 4690 procedures; however, it was used only in 0.5% of cases [14]. Our results, moreover, are in agreement with the data of previous series [9,13,15] and a large recently published US registry [7] on patients undergoing AF ablation that showed a significant reduction in periprocedural complications, in-hospital mortality and hospital stay in the ICE group, at the expense of a significant increase in costs. The shorter hospitalization times, according to the authors, were, however, able to make the procedure with ICE cost-effective.
Regarding the learning curve, we observed that there was a trend toward a higher number of periprocedural and TSC complications in the group of the first 100 procedures (1–100) and procedures 101–200 without, however, reaching statistical significance. This showed that experience alone is not enough to prevent complications, because cardiac anatomy is unpredictable. Therefore, the use of ICE is of paramount importance. The procedural efficiency, understood as the ability to complete TSC, was high (around 98%) in both groups of this study, although the complications arose significantly more often in the non-ICE group.
A recent meta-analysis [16] has shown that ICE is able to significantly reduce procedural times and fluoroscopy time and dose during the ablation of arrhythmias in the left atrium, without affecting the incidence of periprocedural complications. However, the latter finding has been derived from a very limited incidence (close to 0) of complications even in the group without the use of ICE, which differs from that reported by the larger registers mentioned above.
In conclusion, the additional cost of the ICE seems justified by the possibility of significantly reducing the incidence of complications and improving the procedural efficiency of TSC. Added to this is the possibility of highlighting and then treating the formation of any pericardial effusion, to visualize the esophagus during ablation and intra-atrial thrombus. In addition, the formation of microbubbles, visible with ICE, may be a frequent indication of excessive heating of the tissues during radiofrequency delivery and, finally, to select in certain cases the site of puncture of the oval fossa in relation to the type of procedure, with the possible benefit of the maneuverability of catheters [17]. Finally, the integration of the ICE with electroanatomical mapping systems has also proved very promising in the drastic reduction in scan times during TSC [18,19,20].
5. Limitations
The present study is retrospective, thus discounting the intrinsic limitations of this type of analysis. The time span covered is very long, with relative difficulty in completing the data collection. It was not possible, in fact, to evaluate the impact of the ICE on procedural times and on the times of fluoroscopy since such data were not available for all patients in the study. The data collection involved a limited number of centers with medium to high procedural volume, which, however, showed homogeneity in the execution of the TSC method. The use of ICE was not random but at the physician’s discretion and has become systematic from 2016 onwards. Complications not related to hospitalizations such as atrio-esophageal fistula and pulmonary vein stenosis were not reported. However, the present study focused on the role of ICE in reducing acute and TSC complications.
6. Conclusions
In this retrospective multicenter study, ICE significantly reduced periprocedural and TSC-related complications during electrophysiological procedures for the ablation of left atrial arrhythmias.
Author Contributions
Conceptualization, N.B., P.D. and M.B. (Matteo Bertini); methodology, N.B., and M.B. (Matteo Bertini); software, N.B., M.B. (Michele Brignole) and M.B. (Matteo Bertini); validation, N.B., M.B. (Michele Brignole) and M.B. (Matteo Bertini); formal analysis, M.B. (Michele Brignole) and M.B. (Matteo Bertini); investigation, N.B., F.Q., M.I., L.T., G.M., L.R., A.B. (Andrea Biagi), A.B. (Antonella Battista), M.M., S.C.; resources, M.B. (Matteo Bertini); data curation, N.B., P.D., M.B. (Michele Brignole) and M.B. (Matteo Bertini); writing—original draft preparation, N.B. and M.B. (Matteo Bertini); writing—review and editing, M.B. (Matteo Bertini), M.M., S.C.; visualization, S.C.; supervision, M.B. (Matteo Bertini); project administration, N.B. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
The study was conducted in accordance with the Declaration of Helsinki, and approved by Ethics Committee of Comitato Etico di Area Vasta Emilia Centro (protocol code 540/2022/Oss/AOUFe, approved 21 July 2022).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study whenever possible because the study was retrospective.
Data Availability Statement
The data underlying this article will be shared on reasonable request to the corresponding author.
Conflicts of Interest
The authors declare no conflict of interest.
Appendix A
- Cardiology Unit, S. Maria Nuova Hospital, 42100 Reggio Emilia, Italy
- Arrhythmologic Center, Lavagna Hospital, 16033 Lavagn, Italy
- Guglielmo da Saliceto Hospital, 29121 Piacenza, Italy
- Cardiogy Unit, University Hospital of Ferrara, 8-44124 Cona, Italy
- Electrophysiology and Cardiac Pacing, Division of Cardiology, Cardio-Thoracic Department, University Hospital of Verona, 1-37126 Verona, Italy
References
- De Ponti, R.; Cappato, R.; Curnis, A.; Della Bella, P.; Padeletti, L.; Raviele, A.; Santini, M.; Salerno-Uriarte, J.A. Transseptal catheterization in the electrophysiology laboratory: Data from a multicenter survey spanning 12 years. J. Am. Coll. Cardiol. 2006, 47, 1037–1042. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.; Xue, Y.M.; Mohanty, P.; Natale, A.; Li, L.; Wu, W.F.; Zhu, C.M.; Liu, H.; Zhong, G.Q.; Zeng, Z.H.; et al. Dilator method and needle method for atrial transseptal puncture: A retrospective study from a cohort of 4443 patients. Europace 2012, 14, 1450–1456. [Google Scholar] [CrossRef] [PubMed]
- Chen, H.; Fink, T.; Zhan, X.; Chen, M.; Eckardt, L.; Long, D.; Ma, J.; Rosso, R.; Mathew, S.; Xue, Y.; et al. Inadvertent transseptal puncture into the aortic root: The narrow edge between luck and catastrophe in interventional cardiology. Europace 2019, 21, 1106–1115. [Google Scholar] [CrossRef] [PubMed]
- Calkins, H.; Hindricks, G.; Cappato, R.; Kim, Y.H.; Saad, E.B.; Aguinaga, L.; Akar, J.G.; Badhwar, V.; Brugada, J.; Camm, J.; et al. 2017 HRS/EHRA/ECAS/APHRS/SOLAECE expert consensus statement on catheter and surgical ablation of atrial fibrillation. Europace 2018, 20, e1–e160. [Google Scholar] [CrossRef] [PubMed]
- Sharma, S.P.; Nalamasu, R.; Gopinathannair, R.; Vasamreddy, C.; Lakkireddy, D. Transseptal Puncture: Devices, Techniques, and Considerations for Specific Intervention. Curr. Cardiol. Rep. 2019, 21, 52. [Google Scholar] [CrossRef] [PubMed]
- Hahn, K.; Gal, R.; Sarnoski, J.; Kubota, J.; Schmidt, D.H.; Bajwa, T.K. Transesophageal echocardiographically guided atrial transseptal catheterization in patients with normal-sized atria: Incidence of complications. Clin. Cardiol. 1995, 18, 217–220. [Google Scholar] [CrossRef] [PubMed]
- Isath, A.; Padmanabhan, D.; Haider, S.W.; Siroky, G.; Perimbeti, S.; Correa, A.; Chahal, C.A.A.; Shenthar, J.; Asirvatham, S.; Mehta, D. Does the use of intracardiac echocardiography during atrial fibrillation catheter ablation improve outcomes and cost? A nationwide 14-year analysis from 2001 to 2014. J. Interv. Card. Electrophysiol. 2021, 61, 461–468. [Google Scholar] [CrossRef] [PubMed]
- De Ponti, R.; Zardini, M.; Storti, C.; Longobardi, M.; Salerno-Uriarte, J.A. Trans-septal catheterization for radiofrequency catheter ablation of cardiac arrhythmias: Results and safety of a simplified method. Eur. Heart J. 1998, 19, 943–950. [Google Scholar] [CrossRef] [PubMed]
- Aldhoon, B.; Wichterle, D.; Peichl, P.; Cihak, R.; Kautzner, J. Complications of catheter ablation for atrial fibrillation in a high-volume centre with the use of intracardiac echocardiography. Europace 2013, 15, 24–32. [Google Scholar] [CrossRef] [PubMed]
- Bohnen, M.; Stevenson, W.G.; Tedrow, U.B.; Michaud, G.F.; John, R.M.; Epstein, L.M.; Albert, C.M.; Koplan, B.A. Incidence and predictors of major complications from contemporary catheter ablation to treat cardiac arrhythmias. Heart Rhythm. 2011, 8, 1661–1666. [Google Scholar] [CrossRef] [PubMed]
- Kirchhof, P.; Benussi, S.; Kotecha, D.; Ahlsson, A.; Atar, D.; Casadei, B.; Castella, M.; Diener, H.-C.; Heidbuchel, H.; Hendriks, J.; et al. 2016 ESC Guidelines for the management of atrial fibrillation developed in collaboration with EACTS. Eur. Heart J. 2016, 37, 2893–2962. [Google Scholar]
- Hindricks, G.; Potpara, T.; Dagres, N.; Arbelo, E.; Bax, J.J.; Blomström-Lundqvist, C.; Boriani, G.; Castella, M.; Dan, G.-A.; Dilaveris, P.E.; et al. 2020 ESC Guidelines for the diagnosis and management of atrial fibrillation developed in collaboration with the European Association for Cardio-Thoracic Surgery (EACTS): The Task Force for the diagnosis and management of atrial fibrillation of the European Society of Cardiology (ESC) Developed with the special contribution of the European Heart Rhythm Association (EHRA) of the ESC. Eur. Heart J. 2021, 42, 373–498. [Google Scholar] [PubMed]
- Pimentel, R.C.; Rahai, N.; Maccioni, S.; Khanna, R. Differences in outcomes among patients with atrial fibrillation undergoing catheter ablation with versus without intracardiac echocardiography. J. Cardiovasc. Electrophysiol. 2022, 33, 2015–2047. [Google Scholar] [CrossRef] [PubMed]
- Matoshvili, Z.; Bastani, H.; Bourke, T.; Braunschweig, F.; Drca, N.; Gudmundsson, K.; Insulander, P.; Jemtrén, A.; Kennebäck, G.; Saluveer, O.; et al. Safety of fluoroscopy-guided transseptal approach for ablation of left-sided arrhythmias. Europace 2017, 19, 2023–2026. [Google Scholar] [CrossRef] [PubMed]
- Filgueiras-Rama, D.; de Torres-Alba, F.; Castrejon-Castrejon, S.; Estrada, A.; Figueroa, J.; Salvador-Montañés, O.; López, T.; Moreno-Yanguela, M.; López Sendón, J.L.; Merino, J.L. Utility of Intracardiac Echocardiography for Catheter Ablation of Complex Cardiac Arrhythmias in a Medium-Volume Training Center. Echocardiography 2015, 32, 660–670. [Google Scholar] [CrossRef] [PubMed]
- Goya, M.; Frame, D.; Gache, L.; Ichishima, Y.; Oliveira Tayar, D.; Goldstein, L.; Lee, S.H.Y. The use of intracardiac echocardiography catheters in endocardial ablation of cardiac arrhythmia: Meta-analysis of efficiency, effectiveness, and safety outcomes. J. Cardiovasc. Electrophysiol. 2020, 31, 664–673. [Google Scholar] [CrossRef] [PubMed]
- Dello Russo, A.; Russo, E.; Fassini, G.; Casella, M.; Innocenti, E.; Zucchetti, M.; Cefalu, C.; Solimene, F.; Mottola, G.; Colombo, D.; et al. Role of intracardiac echocardiography in atrial fibrillation ablation. J. Atr. Fibrillation. 2013, 5, 786. [Google Scholar] [PubMed]
- Baykaner, T.; Quadros, K.; Thosani, A.; Yasmeh, B.; Mitra, R.; Liu, E.; Belden, W.; Liu, Z.; Costea, A.; Brodt, C.R.; et al. Safety and efficacy of zero fluoroscopy transseptal puncture with different approaches. Pacing Clin. Electrophysiol. 2020, 43, 12–18. [Google Scholar] [CrossRef] [PubMed]
- Hang, F.; Cheng, L.; Liang, Z.; Dong, R.; Wang, X.; Wang, Z.; Wang, Z.; Wu, Y. Study on the Curative Effect and Safety of Radiofrequency Catheter Ablation of Paroxysmal Atrial Fibrillation via Zero Fluoroscopy Transseptal Puncture under the Dual Guidance of Electroanatomical Mapping and Intracardiac Echocardiography. Cardiol. Res. Pract. 2021, 2021, 5561574. [Google Scholar] [CrossRef] [PubMed]
- Bertini, M.; Pompei, G.; Tolomeo, P.; Malagù, M.; Fiorio, A.; Balla, C.; Vitali, F.; Rapezzi, C. Zero-Fluoroscopy Cardiac Ablation: Technology Is Moving Forward in Complex Procedures—A Novel Workflow for Atrial Fibrillation. Biology 2021, 10, 1333. [Google Scholar] [CrossRef] [PubMed]
Figure 1.
Total and transseptal catheterization-related procedural complications with and without ICE guide.
Figure 1.
Total and transseptal catheterization-related procedural complications with and without ICE guide.

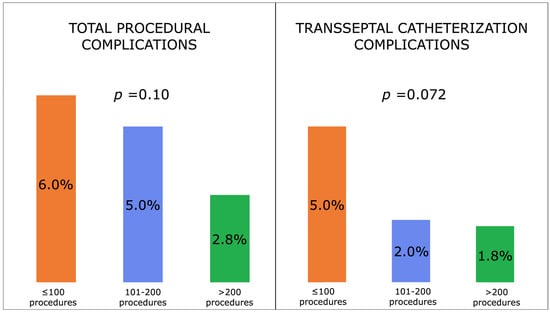

Figure 2.
Total and transseptal catheterization-related procedural complications divided between the first 100, 101–200 and >200 procedures.
Figure 2.
Total and transseptal catheterization-related procedural complications divided between the first 100, 101–200 and >200 procedures.
Table 1.
Characteristics of the population—1862 patients corresponding to 2181 procedures. ICE: intracardiac ecocardiography; AF: atrial fibrillation.
Table 1.
Characteristics of the population—1862 patients corresponding to 2181 procedures. ICE: intracardiac ecocardiography; AF: atrial fibrillation.
| Total Procedures n = 2181 | ICE n = 1134 | No ICE n = 1047 | p Value | |
|---|---|---|---|---|
| Age (years) | 55 ± 14 | 59 ± 12 | 52 ± 16 | <0.001 |
| Male sex | 1630 (75%) | 834 (74%) | 796 (76%) | 0.19 |
| Structural heart disease | 395 (18%) | 228 (20%) | 167 (16%) | 0.014 |
| Left atrial diameter (mm) | 43 ± 6 | 43 ± 6 | 43 ± 5 | 1.0 |
| Left ventricular diameter (mm) | 51 ± 4 | 51 ± 6 | 51 ± 3 | 1.0 |
| Ejection fraction (%) | 58 ± 7 | 58 ± 8 | 58 ± 5 | 1.0 |
| AF ablation | 1652 (76%) | 1003 (88%) | 649 (62%) | <0.001 |
| Other ablation in left atrium | 529 (24%) | 131 (12%) | 398 (38%) | <0.001 |
| Redo | 269 (12%) | 152 (13%) | 117 (11%) | 0.13 |
Table 2.
Procedural complications. ICE: intracardiac ecocardiography.
| Total Procedures n = 2181 | ICE Group n = 1134 | No ICE Group n = 1047 | p Value | |
|---|---|---|---|---|
| Periprocedural complications: | 67 (3.1%) | 19 (1.7%) | 48 (4.6%) | <0.001 |
| Transseptal cathetherization complications | 42 (1.5%) | 10 (0.9%) | 32 (3.1%) | <0.001 |
| 20 (0.9%) | 5 (0.4%) | 15 (1.4%) | 0.028 |
| 4 | 14 | ||
| 1 | 3 | ||
| 1 | 1 | ||
| 0 | 1 | ||
| 8 (0.4%) | 0 (0%) | 8 (0.8%) | 0.003 |
| 0 | 2 | ||
| 0 | 2 | ||
| 0 | 4 | ||
| 14 (0.6%) | 0 (0%) | 14 (1.3%) | <0.001 |
| 0 | 10 | ||
| 0 | 4 | ||
| 0 | 0 | ||
| 12 (0.6%) | 6 (0.5%) | 6 (0.6%) | 0.89 |
| 7 (0.3%) | 5 (0.4%) | 3 (0.3%) | 0.51 |
| 2 | 1 | 1 | |
| 4 | 3 | 1 | |
| 1 | 0 | 1 | |
| 6 (0.3%) | 2 (0.2%) | 4 (0.4%) | 0.69 |
| 1 | 1 (0.1%) | 0 (0%) | 0.34 |
| 0 | 0 | 0 | 1.00 |
Table 3.
Predictors of total procedural complication. ICE: intracardiac ecocardiography; AF: atrial fibrillation.
Table 3.
Predictors of total procedural complication. ICE: intracardiac ecocardiography; AF: atrial fibrillation.
| Variable | Univariate Analysis | Multivariate Analysis | ||
|---|---|---|---|---|
| Odds Ratio (95% CI) | p Value | Odds Ratio (95% CI) | p Value | |
| ICE group | 0.35 (0.21-0.62) | <0.001 | 0.27 (0.15-0.46) | <0.001 |
| Age (for one year increase) | 1.02 (1.00-1.04) | 0.020 | 1.02 (1.00–1.05) | 0.036 |
| AF ablation | 2.10 (1.03-4.27) | 0.040 | 2.25 (1.05–4.83) | 0.037 |
| Structural heart disease | 0.99 (0.52-1.86 | 0.97 | ||
| Reference >200 procedures | 0.11 | |||
| Procedures 1–100 | 2.19 (0.92–5.22) | |||
| Procedures 101–200 | 1.81 (0.71–4.62) | |||
Table 4.
Predictors of TSC complication. ICE: intracardiac ecocardiography; AF: atrial fibrillation; TSC: transseptal catheterization.
Table 4.
Predictors of TSC complication. ICE: intracardiac ecocardiography; AF: atrial fibrillation; TSC: transseptal catheterization.
| Variable | Univariate Analysis | Multivariate Analysis | ||
|---|---|---|---|---|
| Odds Ratio (95% CI) | p Value | Odds Ratio (95% CI) | p Value | |
| ICE group | 0.28 (0.14–0.58) | 0.001 | 0.24 (0.11–0.49) | <0.001 |
| Age (for one year increase) | 1.02 (1.00–1.05) | 0.088 | 1.03 (1.01–1.06) | 0.013 |
| AF ablation | 1.18 (0.56–2.48) | 0.67 | ||
| Structural heart disease | 0.99 (0.52–1.86 | 0.97 | ||
| Reference >200 procedures | 0.090 | |||
| Procedures 1–100 | 2.93 (1.12–7.64) | |||
| Procedures 101–200 | 1.13 (0.27–4.79) | |||
Table 5.
Predictors of total procedural complications for AF ablation procedure. ICE: intracardiac ecocardiography; AF: atrial fibrillation.
Table 5.
Predictors of total procedural complications for AF ablation procedure. ICE: intracardiac ecocardiography; AF: atrial fibrillation.
| Variable | Univariate Analysis | Multivariate Analysis | ||
|---|---|---|---|---|
| Odds Ratio (95% CI) | p Value | Odds Ratio (95% CI) | p Value | |
| ICE group | 0.30 (0.17–0.53) | <0.001 | 0.34 (0.19–0.60) | <0.001 |
| Age (for one year increase) | 1.01 (0.98–1.04) | 0.45 | ||
| Uninterrupted anticoagulant | 0.24 (0.08–0.79) | 0.018 | 0.33 (0.10–1.08) | 0.067 |
| Structural heart disease | 0.77 (0.39–1.49) | 0.43 | ||
| Reference >200 procedures | 0.36 | |||
| Procedures 1–100 | 1.64 (0.64–4.22) | |||
| Procedures 101–200 | 1.70 (0.66–4.37) | |||
Table 6.
Predictors of TSC complications for AF ablation procedure. ICE: intracardiac ecocardiography; AF: atrial fibrillation; TSC: transseptal catheterization.
Table 6.
Predictors of TSC complications for AF ablation procedure. ICE: intracardiac ecocardiography; AF: atrial fibrillation; TSC: transseptal catheterization.
| Variable | Univariate Analysis | Multivariate Analysis | ||
|---|---|---|---|---|
| Odds Ratio (95% CI) | p Value | Odds Ratio (95% CI) | p Value | |
| ICE group | 0.27 (0.13–0.58) | 0.001 | 0.30 (0.14–0.65) | 0.002 |
| Age (for one year increase) | 1.01 (0.98–1.05) | 0.45 | ||
| Uninterrupted anticoagulant | 0.29 (0.07–1.24) | 0.095 | 0.41 (0.10–1.77) | 0.41 |
| Structural heart disease | 0.58 (0.22–1.52) | 0.27 | ||
| Reference >200 procedures | 0.30 | |||
| Procedures 1–100 | 2.34 (0.80–6.83) | |||
| Procedures 101–200 | 1.18 (0.28–5.06) | |||
